1. EMBEDDED SYSTEMS TUTORIAL 9- INTERFACING 16X2
LCD WITH AVR PART-2
Hi…. friends this time I am here with another article ,we are going to discuss some interesting functions
and projects of LCD. In this tutorial we will learn about rotating a text , displaying integer and integers
operations, displaying floating point numbers and their operations .

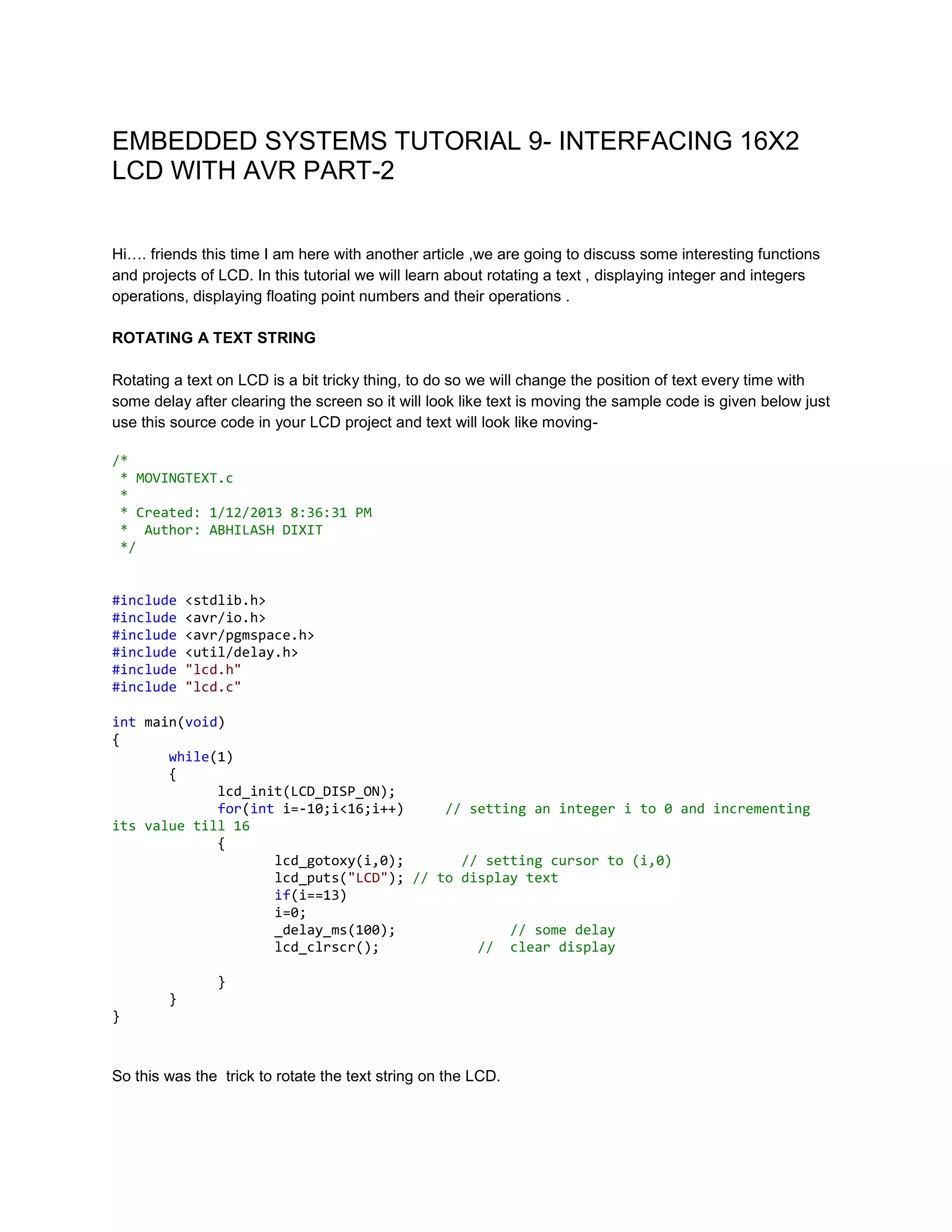

ROTATING A TEXT STRING
Rotating a text on LCD is a bit tricky thing, to do so we will change the position of text every time with
some delay after clearing the screen so it will look like text is moving the sample code is given below just
use this source code in your LCD project and text will look like moving/*
* MOVINGTEXT.c
*
* Created: 1/12/2013 8:36:31 PM
* Author: ABHILASH DIXIT
*/
#include
#include
#include
#include
#include
#include
<stdlib.h>
<avr/io.h>
<avr/pgmspace.h>
<util/delay.h>
"lcd.h"
"lcd.c"
int main(void)
{
while(1)
{
lcd_init(LCD_DISP_ON);
for(int i=-10;i<16;i++)
// setting an integer i to 0 and incrementing
its value till 16
{
lcd_gotoxy(i,0);
// setting cursor to (i,0)
lcd_puts("LCD"); // to display text
if(i==13)
i=0;
_delay_ms(100);
// some delay
lcd_clrscr();
// clear display
}
}
}
So this was the trick to rotate the text string on the LCD.

2. USING INTEGERS ON LCD

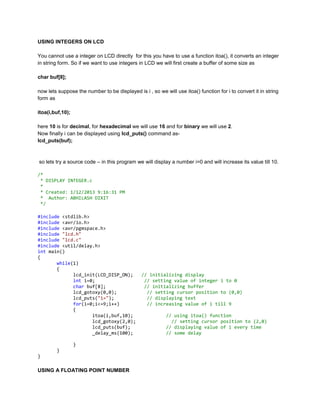

You cannot use a integer on LCD directly for this you have to use a function itoa(), it converts an integer
in string form. So if we want to use integers in LCD we will first create a buffer of some size as
char buf[8];
now lets suppose the number to be displayed is i , so we will use itoa() function for i to convert it in string
form as
itoa(i,buf,10);
here 10 is for decimal, for hexadecimal we will use 16 and for binary we will use 2.
Now finally i can be displayed using lcd_puts() command aslcd_puts(buf);
so lets try a source code – in this program we will display a number i=0 and will increase its value till 10.
/*
* DISPLAY INTEGER.c
*
* Created: 1/12/2013 9:16:31 PM
* Author: ABHILASH DIXIT
*/
#include <stdlib.h>
#include <avr/io.h>
#include <avr/pgmspace.h>
#include "lcd.h"
#include "lcd.c"
#include <util/delay.h>
int main()
{
while(1)
{
lcd_init(LCD_DISP_ON);
int i=0;
char buf[8];
lcd_gotoxy(0,0);
lcd_puts("i=");
for(i=0;i<=9;i++)
{
itoa(i,buf,10);
lcd_gotoxy(2,0);
lcd_puts(buf);
_delay_ms(100);
}
}
}
USING A FLOATING POINT NUMBER
// initializing display
// setting value of integer i to 0
// initializing buffer
// setting cursor position to (0,0)
// displaying text
// increasing value of i till 9
// using itoa() function
// setting cursor position to (2,0)
// displaying value of i every time
// some delay

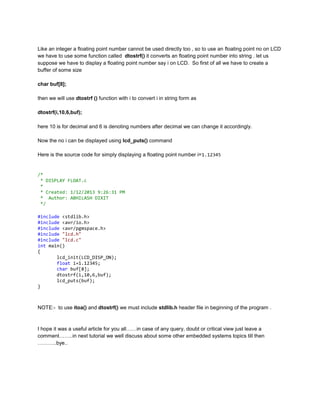

3. Like an integer a floating point number cannot be used directly too , so to use an floating point no on LCD
we have to use some function called dtostrf() it converts an floating point number into string . let us
suppose we have to display a floating point number say i on LCD. So first of all we have to create a
buffer of some size
char buf[8];
then we will use dtostrf () function with i to convert i in string form as
dtostrf(i,10,6,buf);
here 10 is for decimal and 6 is denoting numbers after decimal we can change it accordingly.
Now the no i can be displayed using lcd_puts() command
Here is the source code for simply displaying a floating point number i=1.12345
/*
* DISPLAY FLOAT.c
*
* Created: 1/12/2013 9:26:31 PM
* Author: ABHILASH DIXIT
*/
#include <stdlib.h>
#include <avr/io.h>
#include <avr/pgmspace.h>
#include "lcd.h"
#include "lcd.c"
int main()
{
lcd_init(LCD_DISP_ON);
float i=1.12345;
char buf[8];
dtostrf(i,10,6,buf);
lcd_puts(buf);
}
NOTE:- to use itoa() and dtostrf() we must include stdlib.h header file in beginning of the program .
I hope it was a useful article for you all……in case of any query, doubt or critical view just leave a
comment……..in next tutorial we well discuss about some other embedded systems topics till then
………..bye..
