Basic definition of entropy its basic principles rulea and regulations for entropy ita conditions. Hsjsksnsnusjsnsnsbuajamanahajkananajajajajnsnanajananannanananananansnshhsyshdbsbsnsnsjshshsjsnshsusjanankaoalalajauanananbabs
1) The document discusses the concept of entropy including its definition as a measure of molecular disorder or randomness.
2) It explains the principal of increasing entropy, which states that the entropy of an isolated system never decreases, and increases for irreversible processes.
3) Expressions are provided for calculating the entropy change of ideal gases, taking into account both constant and variable specific heats.
Here are the steps to solve this problem:
a) Given: Refrigerant enters condenser at 1.2 MPa and 50°C, leaves at same pressure subcooled by 5°C = 45°C
Use energy balance in condenser: m_r * (h_in - h_out) = m_w * Cp_w * (T_out - T_in)
Solve for m_r
b) Refrigeration load = Heat rejected in condenser = m_r * (h_in - h_out)
c) COP = Refrigeration load / Power input = [m_r * (h_in - h_out)]
This document discusses the first law of thermodynamics. It provides:
1) An overview of the first law for closed and open systems, including Joule's experiment that established the law.
2) Key concepts such as the steady flow energy equation, throttling devices, nozzles, and diffusers.
3) Applications of the first law to engineering problems involving fluid flow and energy transfers as work and heat.
its the ppt about giving basic information about thermodynamic which is part of the chemical engineering. it includes all the laws and other features related thermodynamics like entropy-temperature and pressure and other things
This document provides an overview of key topics covered in part two of thermodynamics, including various types of thermodynamic systems and equilibrium, as well as thermodynamic processes. It discusses homogeneous and heterogeneous systems, and describes chemical, mechanical, thermal, and phase equilibrium. The document outlines important thermodynamic processes such as isothermal, adiabatic, isobaric, isochoric, reversible, irreversible, and cyclic processes.
this is my presentation about 2nd law of thermodynamic. this is part of engineering thermodynamic in mechanical engineering. here discussed about heat transfer, heat engines, thermal efficiency of heat pumps and refrigerator and its equation for perfect work done with best figure and table wise discription, entropy and change in entropy, isentropic process for turbines and compressor and many more.
Here are the key steps to solve this problem:
1) Given: Initial diameter (D1) = 0.5 m
Initial pressure (P1) = 500 kPa
Final diameter (D2) = 0.55 m
2) The pressure is proportional to diameter. So we can write:
P/P1 = (D/D1)n
Where n is the proportionality constant.
3) Since the process is reversible, n = 1 (based on the property of reversible process where PV must be proportional to T).
4) Putting n = 1 in the above equation, we get:
P2/P1 = (D2/D1
This document provides information about a thermodynamics course including:
- Recommended textbooks for the course
- Policies such as prohibiting cell phone disturbances and not accepting late assignments
- How to access the course outline and materials online
- An introduction to concepts in thermodynamics including systems, properties, processes, and the first law of thermodynamics.
1) The document discusses the concept of entropy including its definition as a measure of molecular disorder or randomness.
2) It explains the principal of increasing entropy, which states that the entropy of an isolated system never decreases, and increases for irreversible processes.
3) Expressions are provided for calculating the entropy change of ideal gases, taking into account both constant and variable specific heats.
Here are the steps to solve this problem:
a) Given: Refrigerant enters condenser at 1.2 MPa and 50°C, leaves at same pressure subcooled by 5°C = 45°C
Use energy balance in condenser: m_r * (h_in - h_out) = m_w * Cp_w * (T_out - T_in)
Solve for m_r
b) Refrigeration load = Heat rejected in condenser = m_r * (h_in - h_out)
c) COP = Refrigeration load / Power input = [m_r * (h_in - h_out)]
This document discusses the first law of thermodynamics. It provides:
1) An overview of the first law for closed and open systems, including Joule's experiment that established the law.
2) Key concepts such as the steady flow energy equation, throttling devices, nozzles, and diffusers.
3) Applications of the first law to engineering problems involving fluid flow and energy transfers as work and heat.
its the ppt about giving basic information about thermodynamic which is part of the chemical engineering. it includes all the laws and other features related thermodynamics like entropy-temperature and pressure and other things
This document provides an overview of key topics covered in part two of thermodynamics, including various types of thermodynamic systems and equilibrium, as well as thermodynamic processes. It discusses homogeneous and heterogeneous systems, and describes chemical, mechanical, thermal, and phase equilibrium. The document outlines important thermodynamic processes such as isothermal, adiabatic, isobaric, isochoric, reversible, irreversible, and cyclic processes.
this is my presentation about 2nd law of thermodynamic. this is part of engineering thermodynamic in mechanical engineering. here discussed about heat transfer, heat engines, thermal efficiency of heat pumps and refrigerator and its equation for perfect work done with best figure and table wise discription, entropy and change in entropy, isentropic process for turbines and compressor and many more.
Here are the key steps to solve this problem:
1) Given: Initial diameter (D1) = 0.5 m
Initial pressure (P1) = 500 kPa
Final diameter (D2) = 0.55 m
2) The pressure is proportional to diameter. So we can write:
P/P1 = (D/D1)n
Where n is the proportionality constant.
3) Since the process is reversible, n = 1 (based on the property of reversible process where PV must be proportional to T).
4) Putting n = 1 in the above equation, we get:
P2/P1 = (D2/D1
This document provides information about a thermodynamics course including:
- Recommended textbooks for the course
- Policies such as prohibiting cell phone disturbances and not accepting late assignments
- How to access the course outline and materials online
- An introduction to concepts in thermodynamics including systems, properties, processes, and the first law of thermodynamics.
This document defines and explains various types of thermodynamic processes including: isochoric, isobaric, isothermal, adiabatic, and polytropic processes. It provides the key equations for work, internal energy change, heat transfer, enthalpy change, and PVT relationships for each process type. The document also defines gas constant in terms of universal gas constant and molecular weight.
The document discusses the limitations of the first law of thermodynamics and introduces the second law of thermodynamics. It explains that the first law does not account for the direction of energy transfer, while the second law states that heat will only flow spontaneously from hotter to colder bodies and not vice versa. The second law also establishes that it is impossible to convert all heat into work in a thermodynamic cycle. Various applications of the first and second laws are described, including heat engines, refrigerators, heat pumps, and the impossibility of building a perpetual motion machine of the second kind.
This document provides definitions and concepts related to thermodynamics. It discusses microscopic and macroscopic approaches, defines key terms like system, surroundings, boundary, and state. It classifies thermodynamic systems and properties, and describes concepts like equilibrium, path, process, and cycle. It defines different forms of energy specifically work and heat. It also gives the first law of thermodynamics and discusses other thermodynamic processes.
This document discusses steam power plant cycles, including ideal cycles and actual cycles. It covers the Carnot cycle, limitations of the Carnot cycle, the Rankine cycle, analysis of the ideal Rankine cycle, deviations of the actual cycle from the ideal cycle, ways to increase the efficiency of the Rankine cycle such as lowering condenser pressure, superheating steam, and increasing boiler pressure. It also discusses reheat cycles, methods of reheating such as gas reheating and live steam reheating, and regenerative cycles using open and closed feedwater heaters.
Excess property introduction
▪ Excess volume
▪ Excess gibbs free energy
▪ Entropy of mixing
▪ what is use of Residual property and Excess property
in thermodynamics
▪ Case study
▪ Thermo-calc demo
▪ conclusion
chapter 4 first law of thermodynamics thermodynamics 1abfisho
This document discusses the first law of thermodynamics for closed systems. It begins by defining the first law as the law of conservation of energy, where energy cannot be created or destroyed, only transformed between states. The energy balance is then analyzed for closed systems, where the internal energy, kinetic energy, potential energy, work and heat transfer across boundaries are considered. Several examples are provided to demonstrate applying the first law to calculate changes in internal energy, work, heat transfer and other properties for closed thermodynamic systems undergoing various processes like constant volume, constant pressure and others.
Basic concepts and laws of thermodynamicsAstutiRani2
The document provides an overview of basic thermodynamics concepts including:
- Thermodynamics deals with heat, work, temperature and their relation to energy and matter.
- Key terms like system, surroundings, state functions, extensive/intensive properties, and processes are defined.
- The three laws of thermodynamics are summarized: 1) energy is conserved, 2) entropy always increases, and 3) entropy approaches zero as temperature approaches absolute zero.
- Equations for several thermodynamic properties and processes like enthalpy, entropy, and adiabatic, isochoric and isothermal processes are also presented.
available energy ,irreversibility,exchargypaneliya sagar
The document discusses available energy, exergy, and irreversibility. It explains that:
1) According to the second law of thermodynamics, not all heat absorbed by a system can be converted to work. The maximum work that can be obtained from a heat source at temperature T is from a reversible Carnot engine.
2) The difference between the maximum reversible work and the actual work of an irreversible process is called irreversibility. Irreversibility is always positive and represents the increase in entropy in the system and surroundings.
3) Exergy represents the maximum useful work possible during a process that brings a system into equilibrium with its surroundings. It provides an upper limit on the amount of
The document discusses entropy and the second law of thermodynamics. It defines the objectives as applying the second law to processes, defining entropy to quantify second law effects, and establishing the increase of entropy principle. It then defines entropy as an abstract property, discusses Clausius inequality and how Clausius realized he discovered entropy. The key points are that entropy is a state function, its change depends on initial and final states only, and the change between two states is the same for reversible and irreversible processes. It also provides an equation for determining entropy change during isothermal heat transfer.
Thermodynamics deals with the conversion of energy from one form to another, mainly heat into work or vice versa. Some applications of thermodynamics include power generation, automobiles, processing industries, and gas compressors. The four main laws of thermodynamics are: (1) the zeroth law defines thermal equilibrium, (2) the first law concerns the conservation of energy and states that heat and work are different forms of energy transfer, (3) the second law concerns the entropy of the universe increasing, and (4) the third law relates entropy to the absolute zero of temperature. Thermodynamic properties can be either intensive, which do not depend on system size, or extensive, which do depend on system size.
This document provides an outline for an ME-412 Heat and Mass Transfer course. The course will cover topics including conduction, convection, radiation, heat exchangers, and mass transfer. Recommended textbooks are listed. Prerequisites for the course are ME 212: Thermodynamics-II and ME 213: Fluid Mechanics-II. The instructor is Dr. Adnan Qamar Tareen from the Mechanical Engineering Department.
- Any reversible process can be approximated by a series of reversible, isothermal and reversible, adiabatic processes connected by intermediate states.
- The heat interaction along the reversible path is equal to the heat interaction along the reversible isothermal path between the same initial and final states.
- Therefore, a reversible process can be replaced by a zig-zag path consisting of reversible adiabatic and isothermal processes, satisfying the first law of thermodynamics.
- According to the Clausius theorem, the integral of heat transfer divided by temperature around any cyclic process is equal to zero for a reversible process. This leads to the definition of entropy as a state function.
The document summarizes an adiabatic process and the adiabatic law of compression and expansion. It then discusses:
1. An adiabatic process is one where no heat is transferred to or from the system. It can occur when a system is well insulated or a process is very fast.
2. According to the adiabatic law, a gas will cool during free expansion and heat during compression without external energy transfer.
3. The Carnot cycle consists of two reversible adiabatic processes and two reversible isothermal processes, resulting in no net transfer of heat or work.
In this PPT have have covered
1. Basic thermodynamics definition
2. Thermodynamics law
3. Properties , cycle, Process
4. Derivation of the Process
5.Formula for the numericals.
This topic is use full for those students who want to study basic thermodynamics as a part of their University syllabus.
Most of the university having basic Mechanical engineering as a subject and in this subject Thermodynamics is a topic so by this PPT our aim is to give presentable knowledge of the subject
This document discusses pure substances and the phases of pure substances. Some key points include:
- A pure substance has a fixed chemical composition throughout and can exist in different phases like solid, liquid, and gas.
- Pure substances can undergo phase changes through processes like melting, vaporization, and condensation.
- The properties of a pure substance depend on its phase and conditions like temperature and pressure.
- Mixtures of substances qualify as pure substances as long as they are homogeneous. Examples include liquid water and water vapor mixtures.
The document then discusses concepts like saturation, latent heat, quality, and moisture content which are important for understanding phase equilibria of pure substances.
Bab 2 Thermodynamic of Engineering ApproachIbnu Hasan
This chapter introduces concepts of energy, including internal energy, heat, and work. It defines heat as energy transferred due to a temperature difference and work as energy transferred by a force acting through a distance. The first law of thermodynamics states that energy is conserved and can be transferred between a system and its surroundings as heat or work. Several types of work are also defined, including shaft work, spring work, and electrical work.
Thermodynamics is the study of energy, heat, work, and their transformation between states. It originated with studies of steam engines in the 17th-18th centuries. Key developments included the formulation of the first and second laws of thermodynamics in the 19th century. Thermodynamics considers macroscopic properties of systems and describes what is possible and impossible during energy conversions based on empirical observations and the laws of thermodynamics.
thermodynamics. in physical world outside and inside the living body. important factor for heat and energy for the living.
different forms of energy, kinetic energy and pottential energy.
different forms of system, open and closed. laws of thermodynamics and gibbs free energy. entrophy and enthalphy
1. Entropy is defined as a quantitative measure of microscopic disorder for a system. It is a measure of energy that is no longer available to perform useful work.
2. The Clausius inequality, derived from the first law of thermodynamics, states that the net heat transfer of a system divided by the temperature can never be negative for a cyclic process. It is equal to zero only for reversible processes.
3. The definition of entropy is developed by recognizing that the quantity (net heat transfer/temperature) has a cyclic integral of zero, making it a property of the system. This property is called entropy. Entropy increases for irreversible processes and remains constant for reversible processes.
1. A reversible process is an idealized process that can be reversed without leaving any trace on the system or surroundings.
2. Reversible processes do not occur in nature, but serve as theoretical limits that actual irreversible processes can approach.
3. The Carnot cycle, composed of reversible processes, achieves the maximum possible efficiency between two temperature reservoirs. No heat engine can have a higher efficiency than a Carnot engine operating between the same reservoirs.
This document defines and explains various types of thermodynamic processes including: isochoric, isobaric, isothermal, adiabatic, and polytropic processes. It provides the key equations for work, internal energy change, heat transfer, enthalpy change, and PVT relationships for each process type. The document also defines gas constant in terms of universal gas constant and molecular weight.
The document discusses the limitations of the first law of thermodynamics and introduces the second law of thermodynamics. It explains that the first law does not account for the direction of energy transfer, while the second law states that heat will only flow spontaneously from hotter to colder bodies and not vice versa. The second law also establishes that it is impossible to convert all heat into work in a thermodynamic cycle. Various applications of the first and second laws are described, including heat engines, refrigerators, heat pumps, and the impossibility of building a perpetual motion machine of the second kind.
This document provides definitions and concepts related to thermodynamics. It discusses microscopic and macroscopic approaches, defines key terms like system, surroundings, boundary, and state. It classifies thermodynamic systems and properties, and describes concepts like equilibrium, path, process, and cycle. It defines different forms of energy specifically work and heat. It also gives the first law of thermodynamics and discusses other thermodynamic processes.
This document discusses steam power plant cycles, including ideal cycles and actual cycles. It covers the Carnot cycle, limitations of the Carnot cycle, the Rankine cycle, analysis of the ideal Rankine cycle, deviations of the actual cycle from the ideal cycle, ways to increase the efficiency of the Rankine cycle such as lowering condenser pressure, superheating steam, and increasing boiler pressure. It also discusses reheat cycles, methods of reheating such as gas reheating and live steam reheating, and regenerative cycles using open and closed feedwater heaters.
Excess property introduction
▪ Excess volume
▪ Excess gibbs free energy
▪ Entropy of mixing
▪ what is use of Residual property and Excess property
in thermodynamics
▪ Case study
▪ Thermo-calc demo
▪ conclusion
chapter 4 first law of thermodynamics thermodynamics 1abfisho
This document discusses the first law of thermodynamics for closed systems. It begins by defining the first law as the law of conservation of energy, where energy cannot be created or destroyed, only transformed between states. The energy balance is then analyzed for closed systems, where the internal energy, kinetic energy, potential energy, work and heat transfer across boundaries are considered. Several examples are provided to demonstrate applying the first law to calculate changes in internal energy, work, heat transfer and other properties for closed thermodynamic systems undergoing various processes like constant volume, constant pressure and others.
Basic concepts and laws of thermodynamicsAstutiRani2
The document provides an overview of basic thermodynamics concepts including:
- Thermodynamics deals with heat, work, temperature and their relation to energy and matter.
- Key terms like system, surroundings, state functions, extensive/intensive properties, and processes are defined.
- The three laws of thermodynamics are summarized: 1) energy is conserved, 2) entropy always increases, and 3) entropy approaches zero as temperature approaches absolute zero.
- Equations for several thermodynamic properties and processes like enthalpy, entropy, and adiabatic, isochoric and isothermal processes are also presented.
available energy ,irreversibility,exchargypaneliya sagar
The document discusses available energy, exergy, and irreversibility. It explains that:
1) According to the second law of thermodynamics, not all heat absorbed by a system can be converted to work. The maximum work that can be obtained from a heat source at temperature T is from a reversible Carnot engine.
2) The difference between the maximum reversible work and the actual work of an irreversible process is called irreversibility. Irreversibility is always positive and represents the increase in entropy in the system and surroundings.
3) Exergy represents the maximum useful work possible during a process that brings a system into equilibrium with its surroundings. It provides an upper limit on the amount of
The document discusses entropy and the second law of thermodynamics. It defines the objectives as applying the second law to processes, defining entropy to quantify second law effects, and establishing the increase of entropy principle. It then defines entropy as an abstract property, discusses Clausius inequality and how Clausius realized he discovered entropy. The key points are that entropy is a state function, its change depends on initial and final states only, and the change between two states is the same for reversible and irreversible processes. It also provides an equation for determining entropy change during isothermal heat transfer.
Thermodynamics deals with the conversion of energy from one form to another, mainly heat into work or vice versa. Some applications of thermodynamics include power generation, automobiles, processing industries, and gas compressors. The four main laws of thermodynamics are: (1) the zeroth law defines thermal equilibrium, (2) the first law concerns the conservation of energy and states that heat and work are different forms of energy transfer, (3) the second law concerns the entropy of the universe increasing, and (4) the third law relates entropy to the absolute zero of temperature. Thermodynamic properties can be either intensive, which do not depend on system size, or extensive, which do depend on system size.
This document provides an outline for an ME-412 Heat and Mass Transfer course. The course will cover topics including conduction, convection, radiation, heat exchangers, and mass transfer. Recommended textbooks are listed. Prerequisites for the course are ME 212: Thermodynamics-II and ME 213: Fluid Mechanics-II. The instructor is Dr. Adnan Qamar Tareen from the Mechanical Engineering Department.
- Any reversible process can be approximated by a series of reversible, isothermal and reversible, adiabatic processes connected by intermediate states.
- The heat interaction along the reversible path is equal to the heat interaction along the reversible isothermal path between the same initial and final states.
- Therefore, a reversible process can be replaced by a zig-zag path consisting of reversible adiabatic and isothermal processes, satisfying the first law of thermodynamics.
- According to the Clausius theorem, the integral of heat transfer divided by temperature around any cyclic process is equal to zero for a reversible process. This leads to the definition of entropy as a state function.
The document summarizes an adiabatic process and the adiabatic law of compression and expansion. It then discusses:
1. An adiabatic process is one where no heat is transferred to or from the system. It can occur when a system is well insulated or a process is very fast.
2. According to the adiabatic law, a gas will cool during free expansion and heat during compression without external energy transfer.
3. The Carnot cycle consists of two reversible adiabatic processes and two reversible isothermal processes, resulting in no net transfer of heat or work.
In this PPT have have covered
1. Basic thermodynamics definition
2. Thermodynamics law
3. Properties , cycle, Process
4. Derivation of the Process
5.Formula for the numericals.
This topic is use full for those students who want to study basic thermodynamics as a part of their University syllabus.
Most of the university having basic Mechanical engineering as a subject and in this subject Thermodynamics is a topic so by this PPT our aim is to give presentable knowledge of the subject
This document discusses pure substances and the phases of pure substances. Some key points include:
- A pure substance has a fixed chemical composition throughout and can exist in different phases like solid, liquid, and gas.
- Pure substances can undergo phase changes through processes like melting, vaporization, and condensation.
- The properties of a pure substance depend on its phase and conditions like temperature and pressure.
- Mixtures of substances qualify as pure substances as long as they are homogeneous. Examples include liquid water and water vapor mixtures.
The document then discusses concepts like saturation, latent heat, quality, and moisture content which are important for understanding phase equilibria of pure substances.
Bab 2 Thermodynamic of Engineering ApproachIbnu Hasan
This chapter introduces concepts of energy, including internal energy, heat, and work. It defines heat as energy transferred due to a temperature difference and work as energy transferred by a force acting through a distance. The first law of thermodynamics states that energy is conserved and can be transferred between a system and its surroundings as heat or work. Several types of work are also defined, including shaft work, spring work, and electrical work.
Thermodynamics is the study of energy, heat, work, and their transformation between states. It originated with studies of steam engines in the 17th-18th centuries. Key developments included the formulation of the first and second laws of thermodynamics in the 19th century. Thermodynamics considers macroscopic properties of systems and describes what is possible and impossible during energy conversions based on empirical observations and the laws of thermodynamics.
thermodynamics. in physical world outside and inside the living body. important factor for heat and energy for the living.
different forms of energy, kinetic energy and pottential energy.
different forms of system, open and closed. laws of thermodynamics and gibbs free energy. entrophy and enthalphy
1. Entropy is defined as a quantitative measure of microscopic disorder for a system. It is a measure of energy that is no longer available to perform useful work.
2. The Clausius inequality, derived from the first law of thermodynamics, states that the net heat transfer of a system divided by the temperature can never be negative for a cyclic process. It is equal to zero only for reversible processes.
3. The definition of entropy is developed by recognizing that the quantity (net heat transfer/temperature) has a cyclic integral of zero, making it a property of the system. This property is called entropy. Entropy increases for irreversible processes and remains constant for reversible processes.
1. A reversible process is an idealized process that can be reversed without leaving any trace on the system or surroundings.
2. Reversible processes do not occur in nature, but serve as theoretical limits that actual irreversible processes can approach.
3. The Carnot cycle, composed of reversible processes, achieves the maximum possible efficiency between two temperature reservoirs. No heat engine can have a higher efficiency than a Carnot engine operating between the same reservoirs.
This presentation gives you information om Clausius Statement, its proof, Entropy change for Open System and reversible and irreversible processes with simple explanation and day to day examples.
This document discusses the second law of thermodynamics and related concepts. It states that the Kelvin-Planck and Clausius statements of the second law are equivalent. Any process that violates one statement will also violate the other. It defines a perpetual motion machine of the second kind as a device that violates the second law by allowing heat engines to achieve 100% efficiency. Reversible processes can in theory restore a system and its surroundings to their original states, while irreversible processes cannot due to factors like finite temperature differences or friction.
The document discusses several key concepts in thermodynamics:
1. The first law of thermodynamics states that energy can be neither created nor destroyed, only transformed. For a cycle, the net heat transfer equals the net work transfer.
2. The second law of thermodynamics describes irreversible processes and states that it is impossible to convert all heat transfer into work. Some heat must be rejected to a cold reservoir.
3. Perpetual motion machines that could provide work without heat transfer or produce more work than consumed would violate the first and second laws of thermodynamics.
Midlands state university ; thermodynamics presentationBLESSING GODAMA
The document discusses several key concepts in thermodynamics:
1. The first law of thermodynamics states that the change in internal energy of a closed system is equal to the heat supplied minus the work done.
2. The second law of thermodynamics states that the total entropy of an isolated system can never decrease over time and always increases for irreversible processes.
3. The Carnot cycle involves four steps - two isothermal and two adiabatic processes - and establishes the maximum possible efficiency of a heat engine.
1. The document discusses entropy, including its formal definition, increase principle, and applications to thermodynamic processes and systems.
2. Key concepts covered include entropy as a measure of molecular disorder, the Clausius inequality, entropy generation in irreversible processes, and entropy transfer by heat, work, and mass flow.
3. Diagrams like temperature-entropy and enthalpy-entropy are used to analyze entropy changes in various thermodynamic cycles and processes.
The document discusses entropy, which is a quantitative measure of microscopic disorder in a system. It provides definitions and equations related to entropy, including:
- Entropy is a measure of unavailable energy and increases with disorder and irreversibility.
- The Clausius inequality defines the change in entropy for reversible and irreversible processes.
- Entropy changes can be calculated for pure substances and ideal gases using appropriate equations.
- Isentropic processes involve no change in entropy.
- The Carnot cycle and T-S diagram are discussed in the context of entropy.
Thermodynamics note chapter:5 second law of thermodynamics Ashok giri
1. The document discusses the second law of thermodynamics, which states that heat cannot spontaneously flow from a cooler to a hotter body. The second law is needed because the first law alone does not restrict the direction of heat and work flows.
2. It introduces key concepts like entropy, reversible and irreversible processes, heat engines, refrigerators, and the Carnot cycle. The Carnot cycle involves four reversible processes between a high-temperature and low-temperature reservoir.
3. The second law is quantitatively described by several classical statements, including the Kelvin-Planck statement that it is impossible to extract heat from a reservoir and completely convert it to work in a cycle, and the Claus
The document discusses reversible and irreversible processes. It defines a reversible process as one that can reverse itself without leaving any trace on the system or surroundings. Reversible processes are idealizations that do not actually occur in nature but can approximate real processes. The Carnot cycle, composed of reversible processes, represents the most efficient heat engine possible between two temperature limits. The Carnot cycle consists of four steps: two isothermal expansion/compression processes and two adiabatic expansion/compression processes. The efficiency of a Carnot engine depends only on the temperatures of the hot and cold reservoirs. Reversible processes set the theoretical maximum efficiency and minimum work consumption that real irreversible engines can approach but not meet.
This document discusses reversible and irreversible processes in thermodynamics. It begins by defining reversible processes as processes that can reverse themselves without leaving a trace on the system or surroundings. Reversible processes are idealized and can never be achieved exactly in reality. The Carnot cycle is then introduced as an ideal reversible thermodynamic cycle composed of four processes: two reversible isothermal processes and two reversible adiabatic processes. The Carnot cycle establishes the maximum possible efficiency between two temperature reservoirs. Real engines are always less efficient than the Carnot reversible engine due to irreversible losses. The document provides examples comparing real and reversible processes.
The basic concepts in thermodynamics like thermodynamic system, thermodynamic variables, heat, cyclic process, zeroth law of thermodynamics, Carnot's heat engine, etc. are explained in this ppt.
This document discusses entropy and the second law of thermodynamics. It can be summarized as follows:
1. Entropy is a quantitative measure of disorder or randomness in a system. The second law states that entropy always increases or remains constant in isolated systems, meaning disorder cannot decrease over time.
2. The entropy change of a system is defined for reversible processes, where it is equal to the integral of heat transfer over temperature. For irreversible processes, the entropy change is greater than this integral.
3. The increase of entropy principle states that the entropy of an isolated system always increases during a process, or remains constant for reversible processes. This means the entropy of the universe is continuously increasing over time as no
This document provides an overview of key concepts in thermodynamics. It begins with contact information for the instructor, Dr. Sabar D. Hutagalung, and lists the main topics to be covered, including the four laws of thermodynamics. It then provides more detailed explanations of these topics, such as definitions of the zeroth, first, and second laws. It also explains concepts like heat, work, internal energy, and processes involving gases like isobaric, isothermal, and adiabatic. In addition, it discusses mechanisms of heat transfer including conduction, convection, and radiation, and defines important related terms.
1. The document discusses the second law of thermodynamics and concepts related to entropy, including spontaneous and non-spontaneous processes, the Carnot cycle, entropy changes in reversible and irreversible processes, statements of the second law, and free energy functions.
2. It introduces the Carnot cycle as a model for converting heat into work using an ideal gas as a working substance through four steps of isothermal and adiabatic changes.
3. Entropy is defined in relation to reversible processes as the ratio of heat absorbed to temperature (q/T). The second law is explained through entropy changes and the principle that the total entropy change is zero for reversible processes but increases for irreversible processes.
The First Law of Thermodynamics states that energy can neither be created nor destroyed, only changed in form. It is an expression of the principle of conservation of energy. For a closed system undergoing a process, the total energy entering equals the total energy leaving plus any change in the system's internal energy. For open systems, energy transfers due to heat, work, and mass flows must be considered. The energy of a flowing fluid includes its internal energy, kinetic energy, potential energy, and flow energy.
The document discusses key concepts in thermodynamics including properties of systems, states and equilibrium, processes and cycles, steady-flow processes, types of processes (isobaric, isochoric, isothermal, adiabatic), reversible and irreversible processes, internally and externally reversible processes, work, energy, enthalpy, heat, specific heat, the first law of thermodynamics, and the second law of thermodynamics. It provides definitions and examples of these important thermodynamic terms.
1. The document discusses the second law of thermodynamics, which states that heat cannot spontaneously flow from a colder body to a hotter body without an external work being done.
2. It describes two common statements of the second law: the Kelvin-Plank statement related to heat engines and the Clausius statement related to heat pumps. Both statements are negative and based on experimental observations.
3. A key implication is that a perpetual motion machine (PMM2) that converts all heat absorbed into work, achieving 100% efficiency, would violate the second law and is impossible to construct. The Carnot cycle and Carnot heat engine operating reversibly between two reservoirs achieve the maximum possible efficiency.
The document discusses the Second Law of Thermodynamics in three main points:
1) The Second Law provides criteria to determine the probability and feasibility of processes, unlike the First Law. Spontaneous processes only occur in one direction, from high to low temperature, pressure, etc.
2) The Kelvin-Planck and Clausius statements of the Second Law establish that it is impossible for a heat engine to operate in a cycle using a single temperature reservoir or for heat to spontaneously flow from cold to hot.
3) An absolute temperature scale can be defined based on the Second Law and properties of Carnot engines, with the efficiency of reversible engines depending only on the temperature difference between reservoirs.
These slides cover detailed information about laws of thermodynamics.It include 1st law definition and then its limitation and then entropy etc.Once you read this you will get know about detailed concept of thermodynamics and its laws with examples.
Levelised Cost of Hydrogen (LCOH) Calculator ManualMassimo Talia
The aim of this manual is to explain the
methodology behind the Levelized Cost of
Hydrogen (LCOH) calculator. Moreover, this
manual also demonstrates how the calculator
can be used for estimating the expenses associated with hydrogen production in Europe
using low-temperature electrolysis considering different sources of electricity
Impartiality as per ISO /IEC 17025:2017 StandardMuhammadJazib15
This document provides basic guidelines for imparitallity requirement of ISO 17025. It defines in detial how it is met and wiudhwdih jdhsjdhwudjwkdbjwkdddddddddddkkkkkkkkkkkkkkkkkkkkkkkwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwioiiiiiiiiiiiii uwwwwwwwwwwwwwwwwhe wiqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqq gbbbbbbbbbbbbb owdjjjjjjjjjjjjjjjjjjjj widhi owqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqq uwdhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhwqiiiiiiiiiiiiiiiiiiiiiiiiiiiiw0pooooojjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjj whhhhhhhhhhh wheeeeeeee wihieiiiiii wihe
e qqqqqqqqqqeuwiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiqw dddddddddd cccccccccccccccv s w c r
cdf cb bicbsad ishd d qwkbdwiur e wetwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwww w
dddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddfffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffw
uuuuhhhhhhhhhhhhhhhhhhhhhhhhe qiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii iqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqq eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee qqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqccccccccccccccccccccccccccccccccccccccccccccccccccccccccccccc ccccccccccccccccccccccccccccccccccc bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbu uuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuum
m
m mmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmm m i
g i dijsd sjdnsjd ndjajsdnnsa adjdnawddddddddddddd uw
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODELijaia
As digital technology becomes more deeply embedded in power systems, protecting the communication
networks of Smart Grids (SG) has emerged as a critical concern. Distributed Network Protocol 3 (DNP3)
represents a multi-tiered application layer protocol extensively utilized in Supervisory Control and Data
Acquisition (SCADA)-based smart grids to facilitate real-time data gathering and control functionalities.
Robust Intrusion Detection Systems (IDS) are necessary for early threat detection and mitigation because
of the interconnection of these networks, which makes them vulnerable to a variety of cyberattacks. To
solve this issue, this paper develops a hybrid Deep Learning (DL) model specifically designed for intrusion
detection in smart grids. The proposed approach is a combination of the Convolutional Neural Network
(CNN) and the Long-Short-Term Memory algorithms (LSTM). We employed a recent intrusion detection
dataset (DNP3), which focuses on unauthorized commands and Denial of Service (DoS) cyberattacks, to
train and test our model. The results of our experiments show that our CNN-LSTM method is much better
at finding smart grid intrusions than other deep learning algorithms used for classification. In addition,
our proposed approach improves accuracy, precision, recall, and F1 score, achieving a high detection
accuracy rate of 99.50%.
Build the Next Generation of Apps with the Einstein 1 Platform.
Rejoignez Philippe Ozil pour une session de workshops qui vous guidera à travers les détails de la plateforme Einstein 1, l'importance des données pour la création d'applications d'intelligence artificielle et les différents outils et technologies que Salesforce propose pour vous apporter tous les bénéfices de l'IA.
AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...
entropy.pptx

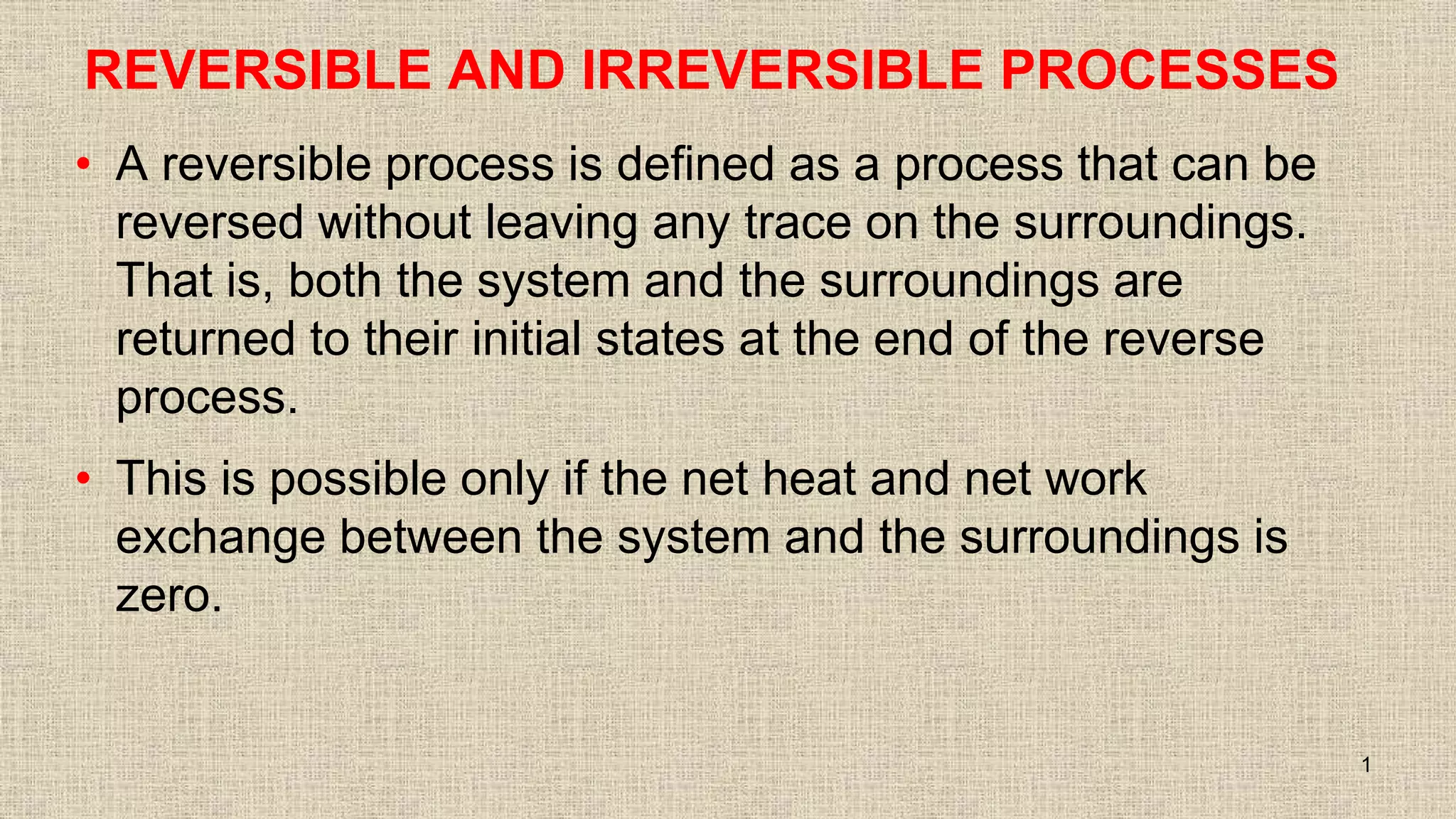

1. REVERSIBLE AND IRREVERSIBLE PROCESSES
• A reversible process is defined as a process that can be
reversed without leaving any trace on the surroundings.
That is, both the system and the surroundings are
returned to their initial states at the end of the reverse
process.
• This is possible only if the net heat and net work
exchange between the system and the surroundings is
zero.
1

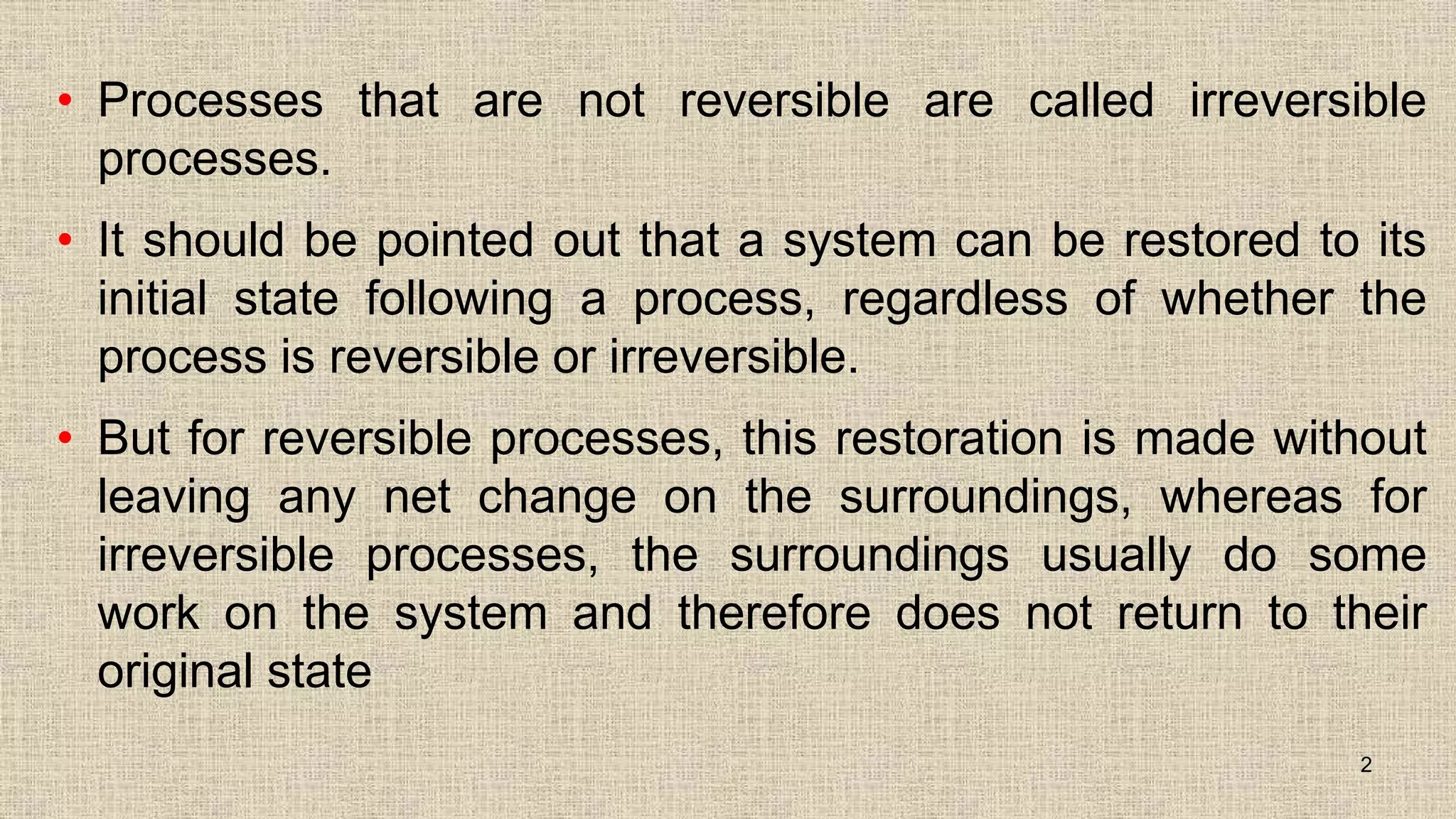

2. • Processes that are not reversible are called irreversible
processes.
• It should be pointed out that a system can be restored to its
initial state following a process, regardless of whether the
process is reversible or irreversible.
• But for reversible processes, this restoration is made without
leaving any net change on the surroundings, whereas for
irreversible processes, the surroundings usually do some
work on the system and therefore does not return to their
original state
2

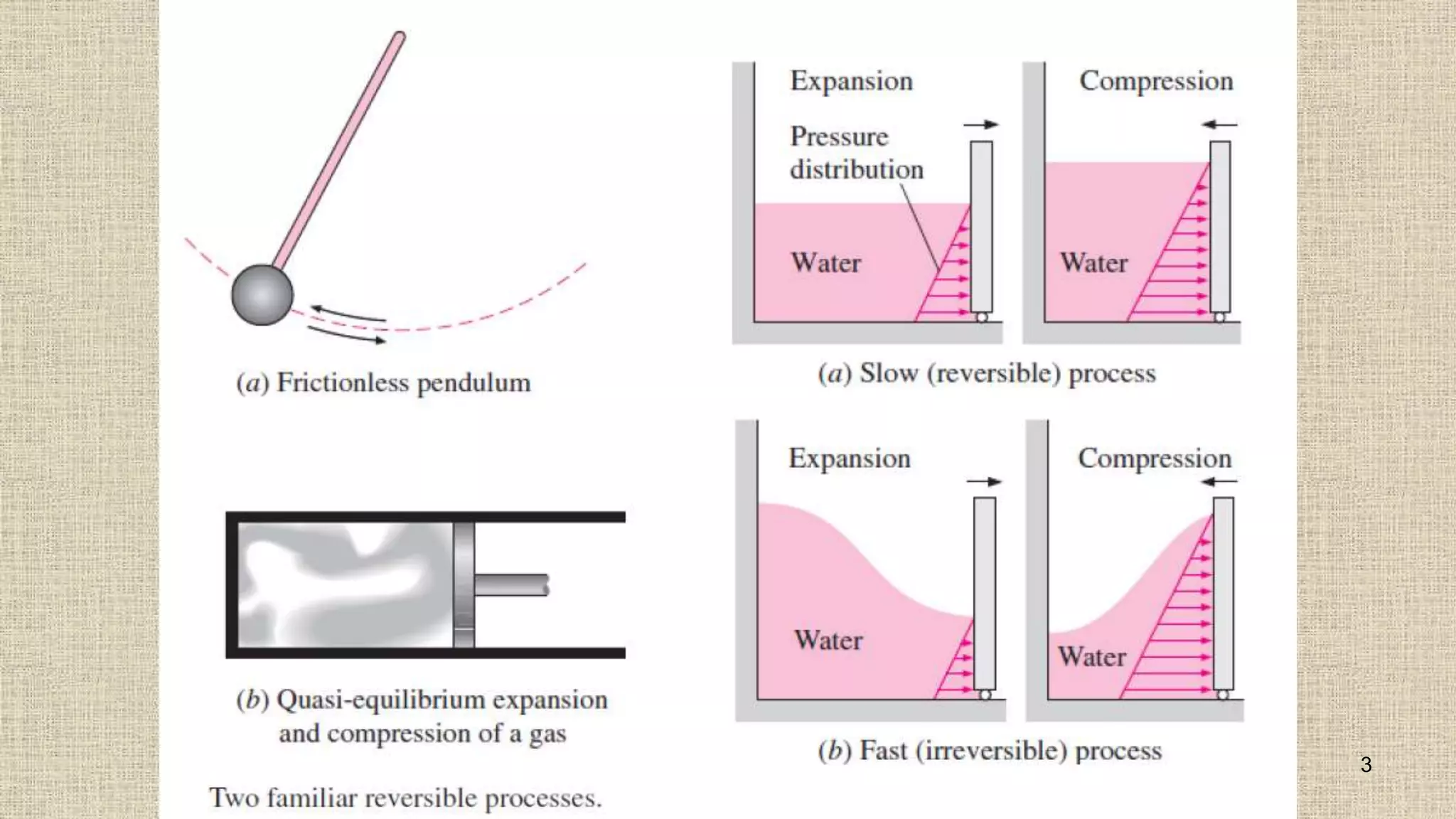

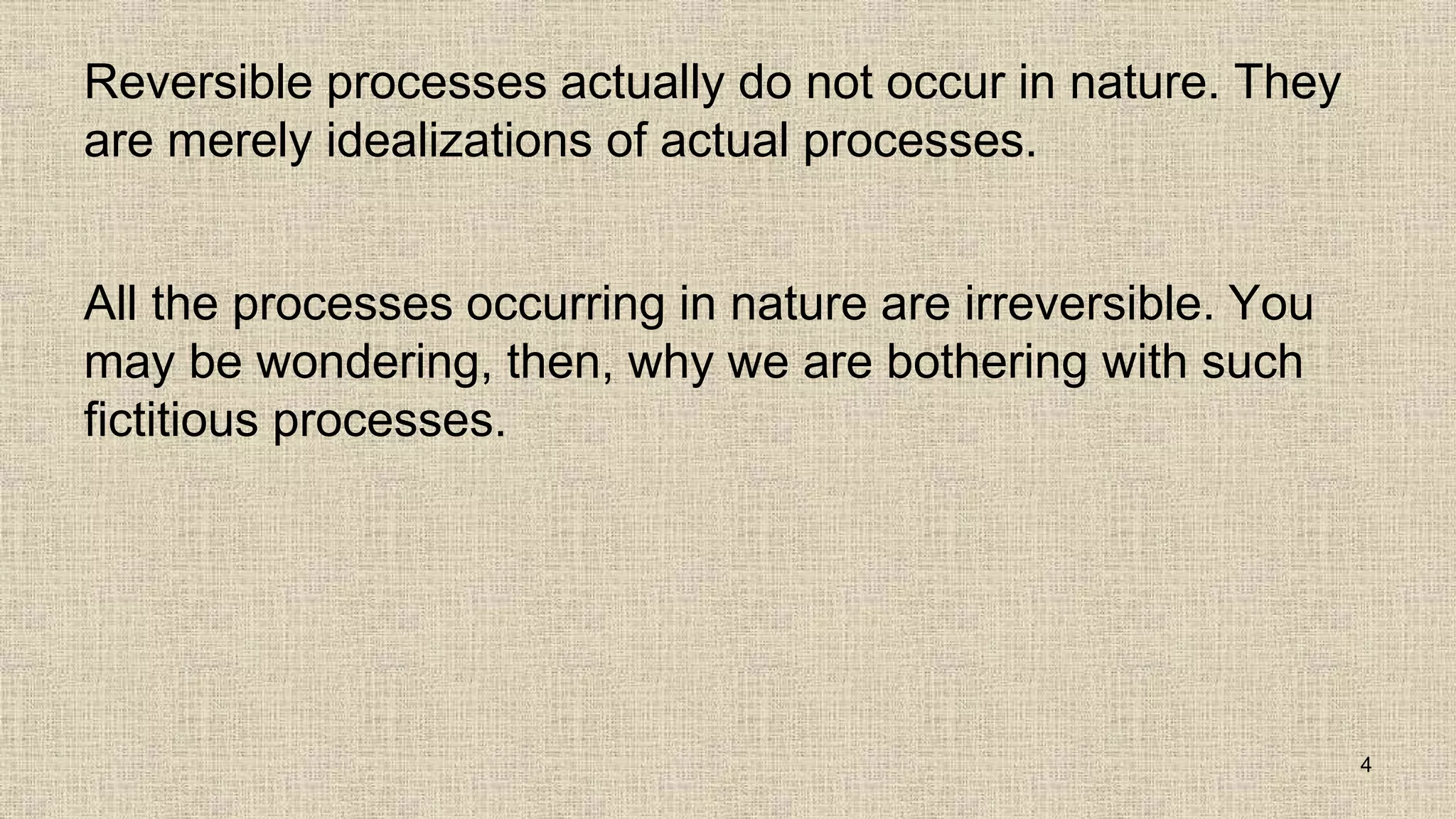

4. Reversible processes actually do not occur in nature. They
are merely idealizations of actual processes.
All the processes occurring in nature are irreversible. You
may be wondering, then, why we are bothering with such
fictitious processes.
4

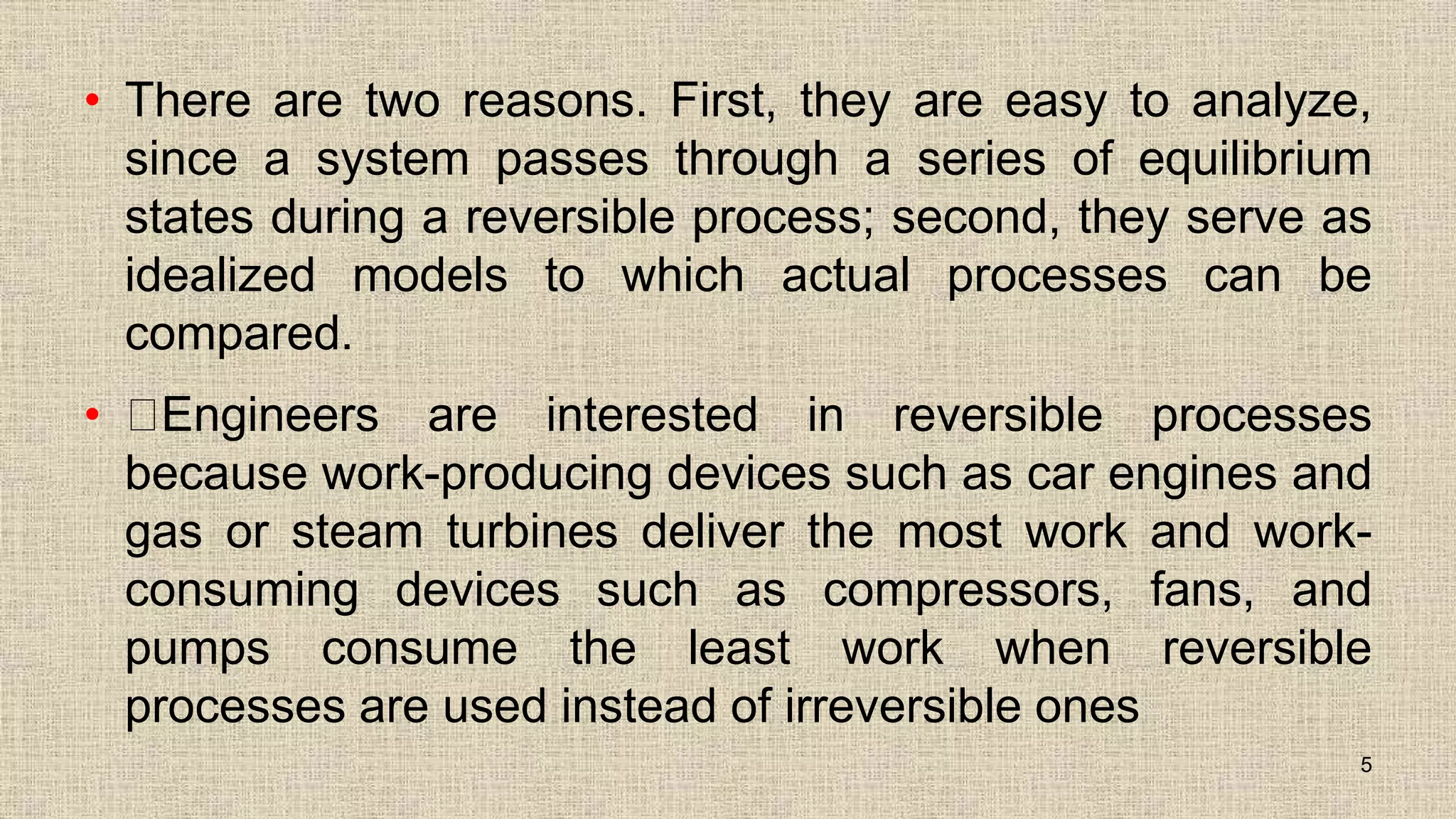

5. • There are two reasons. First, they are easy to analyze,
since a system passes through a series of equilibrium
states during a reversible process; second, they serve as
idealized models to which actual processes can be
compared.
• Engineers are interested in reversible processes
because work-producing devices such as car engines and
gas or steam turbines deliver the most work and work-
consuming devices such as compressors, fans, and
pumps consume the least work when reversible
processes are used instead of irreversible ones
5

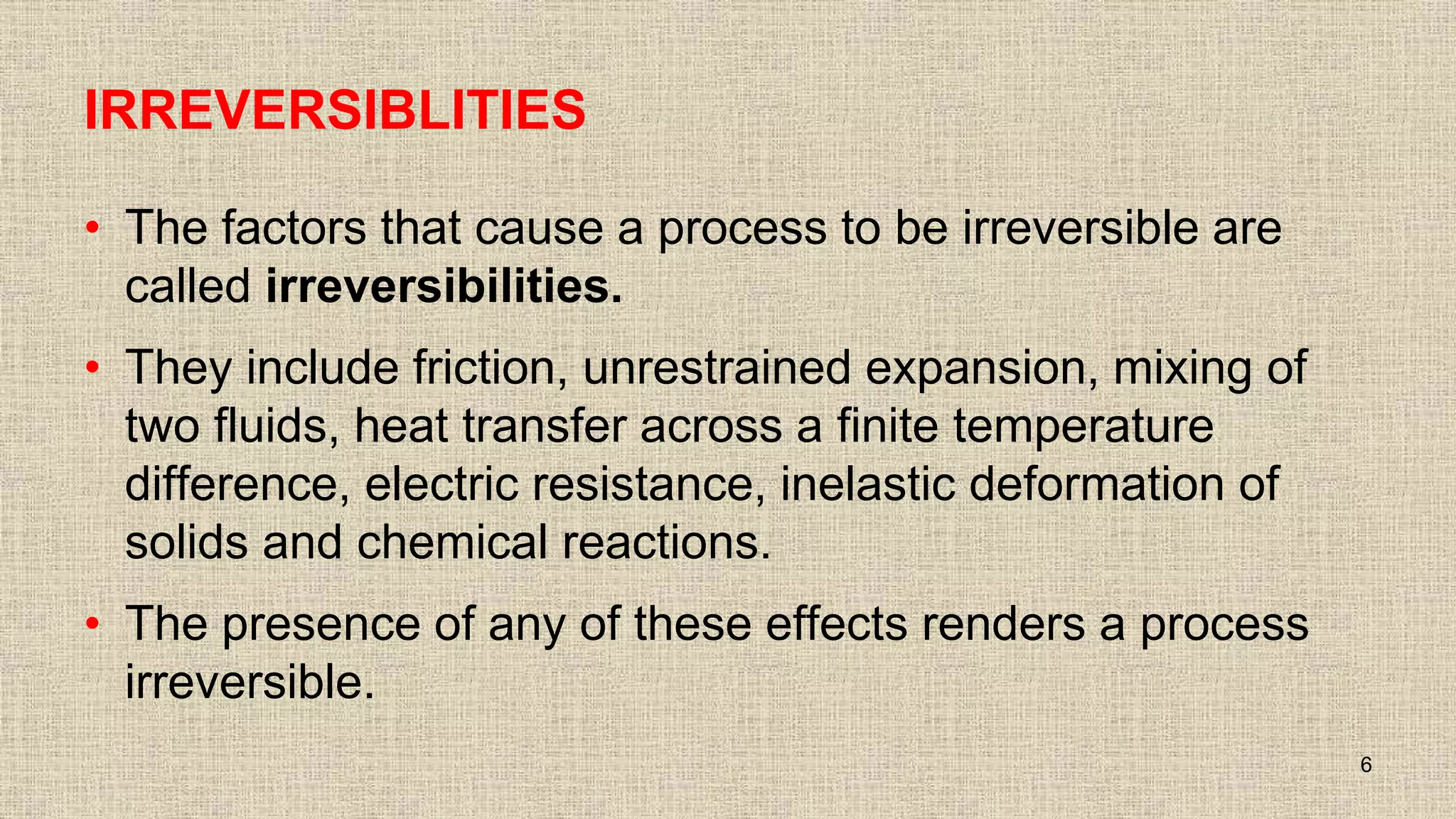

6. IRREVERSIBLITIES
• The factors that cause a process to be irreversible are
called irreversibilities.
• They include friction, unrestrained expansion, mixing of
two fluids, heat transfer across a finite temperature
difference, electric resistance, inelastic deformation of
solids and chemical reactions.
• The presence of any of these effects renders a process
irreversible.
6

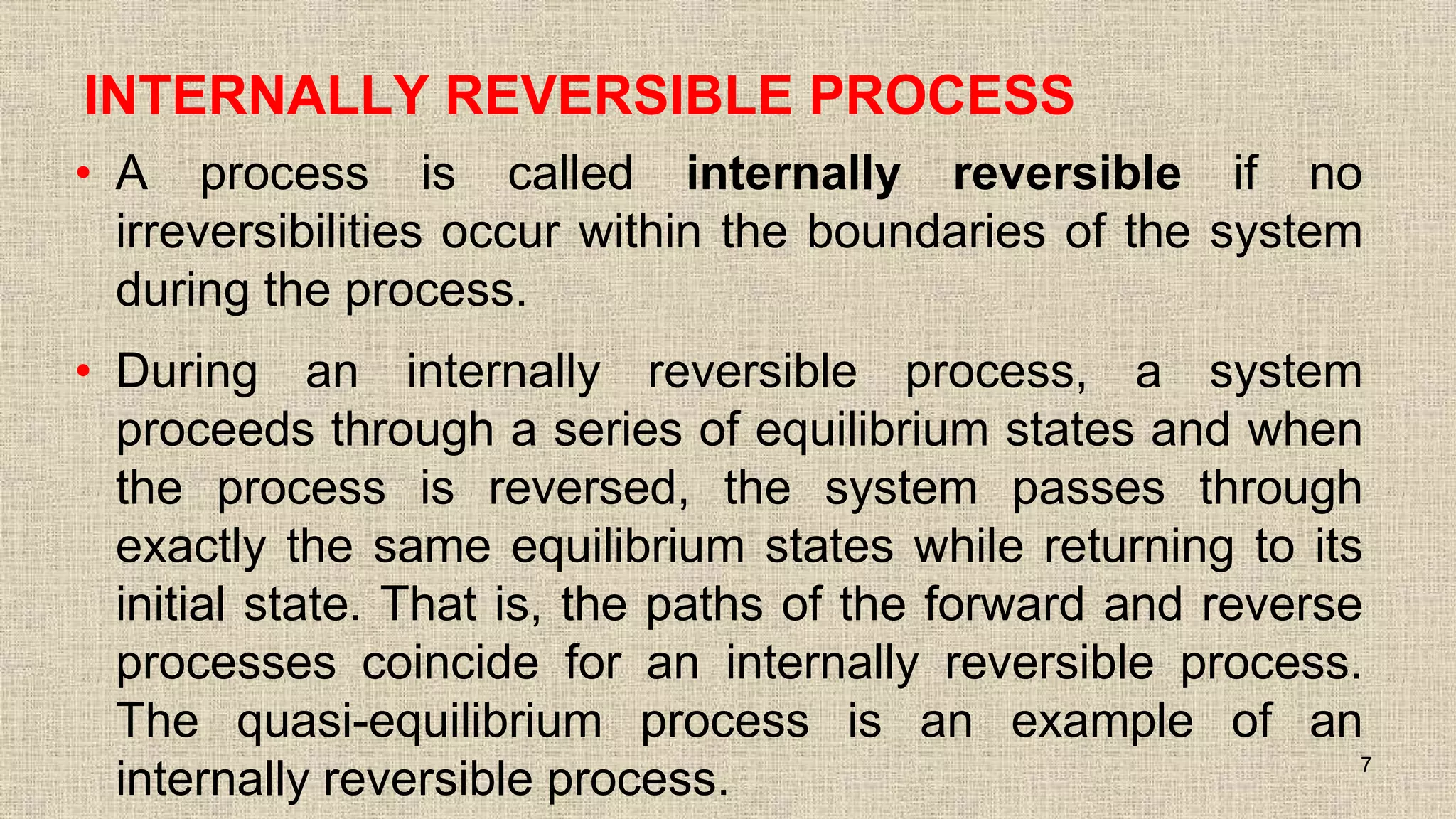

7. INTERNALLY REVERSIBLE PROCESS
• A process is called internally reversible if no
irreversibilities occur within the boundaries of the system
during the process.
• During an internally reversible process, a system
proceeds through a series of equilibrium states and when
the process is reversed, the system passes through
exactly the same equilibrium states while returning to its
initial state. That is, the paths of the forward and reverse
processes coincide for an internally reversible process.
The quasi-equilibrium process is an example of an
internally reversible process. 7

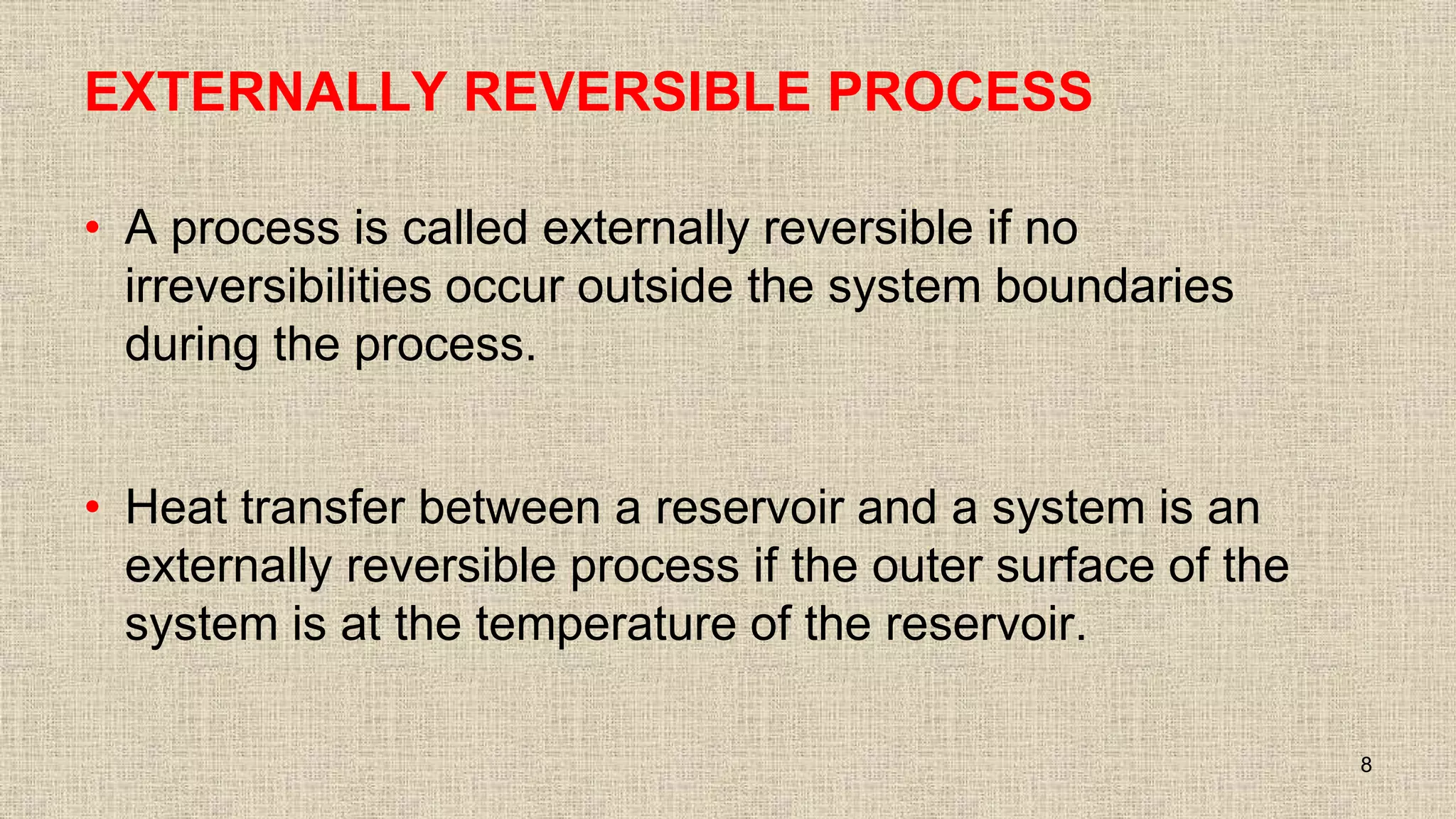

8. EXTERNALLY REVERSIBLE PROCESS
• A process is called externally reversible if no
irreversibilities occur outside the system boundaries
during the process.
• Heat transfer between a reservoir and a system is an
externally reversible process if the outer surface of the
system is at the temperature of the reservoir.
8

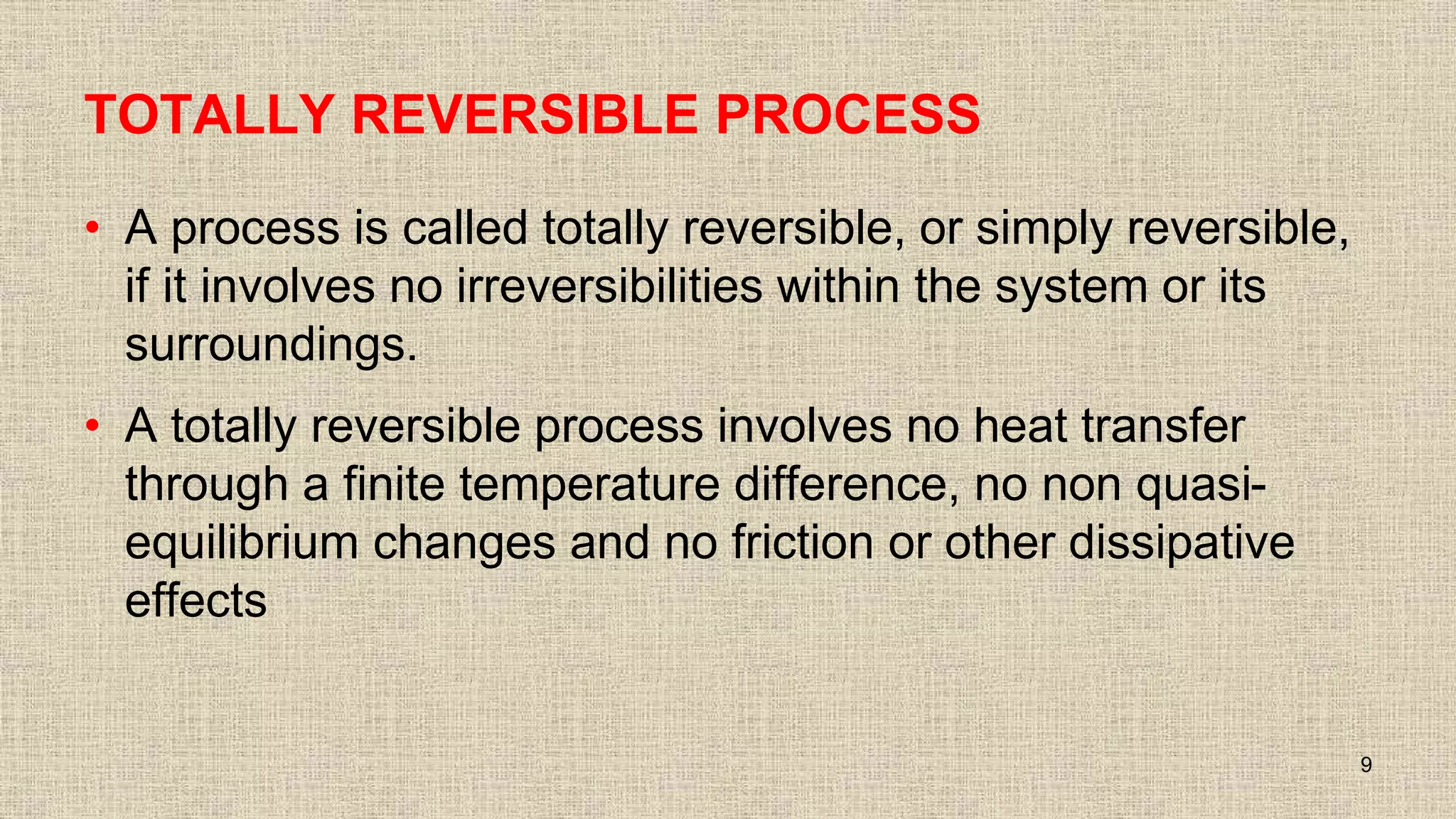

9. TOTALLY REVERSIBLE PROCESS
• A process is called totally reversible, or simply reversible,
if it involves no irreversibilities within the system or its
surroundings.
• A totally reversible process involves no heat transfer
through a finite temperature difference, no non quasi-
equilibrium changes and no friction or other dissipative
effects
9

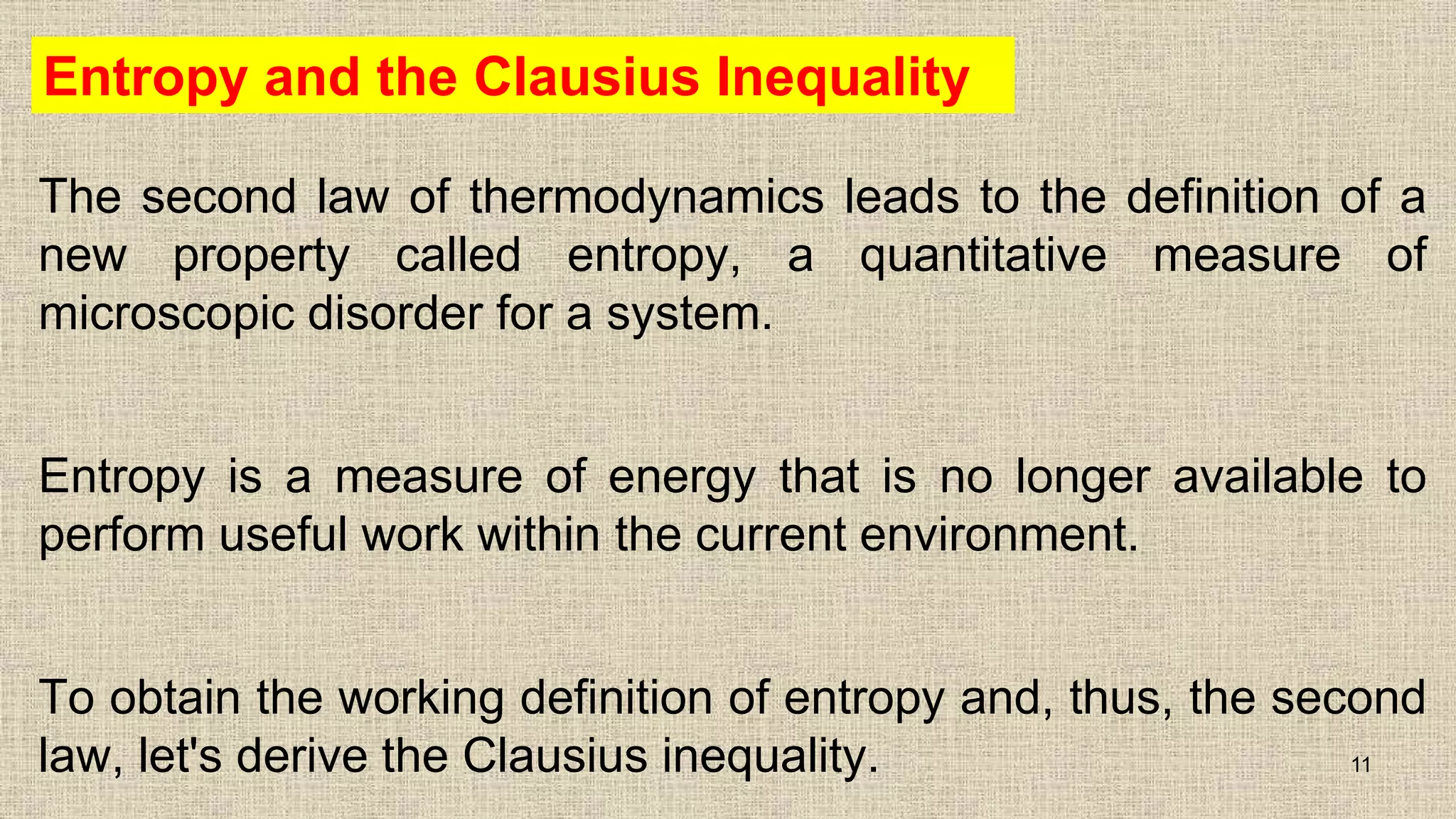

11. Entropy and the Clausius Inequality
The second law of thermodynamics leads to the definition of a
new property called entropy, a quantitative measure of
microscopic disorder for a system.
Entropy is a measure of energy that is no longer available to
perform useful work within the current environment.
To obtain the working definition of entropy and, thus, the second
law, let's derive the Clausius inequality. 11

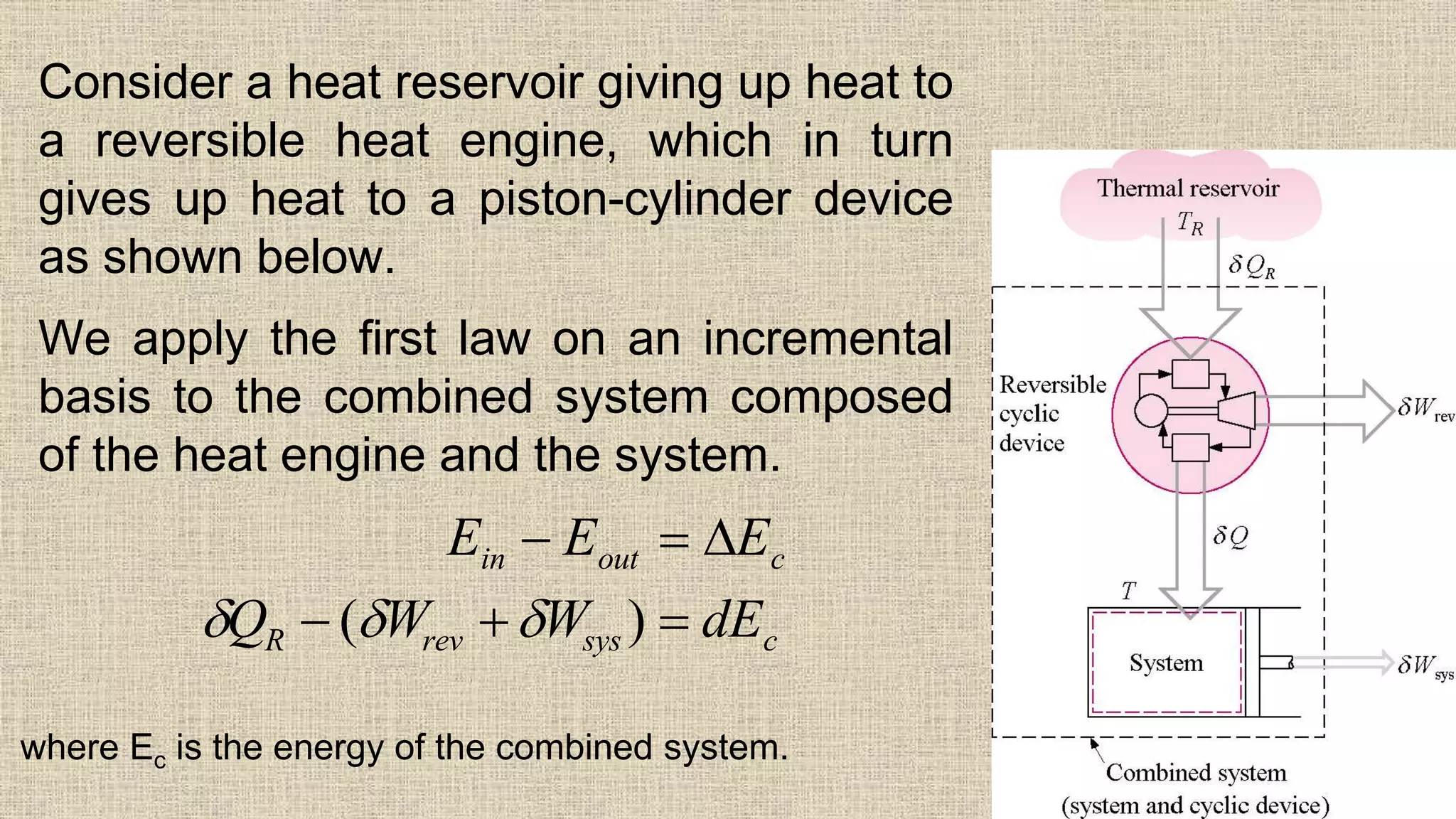

12. Consider a heat reservoir giving up heat to
a reversible heat engine, which in turn
gives up heat to a piston-cylinder device
as shown below.
We apply the first law on an incremental
basis to the combined system composed
of the heat engine and the system.
12
E E E
Q W W dE
in out c
R rev sys c
( )
where Ec is the energy of the combined system.

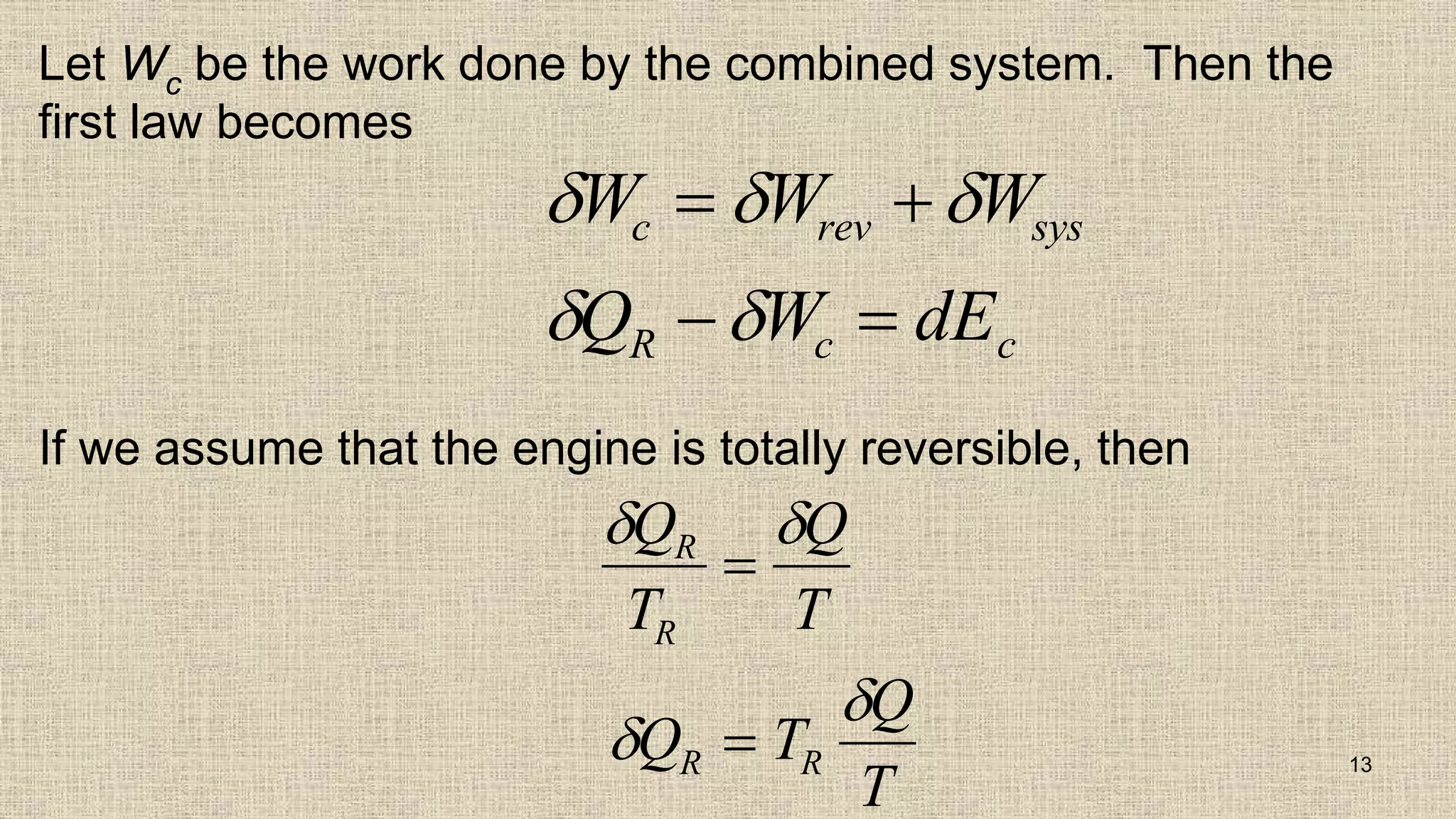

13. Let Wc be the work done by the combined system. Then the
first law becomes
If we assume that the engine is totally reversible, then
13
W W W
Q W dE
c rev sys
R c c
Q
T
Q
T
Q T
Q
T
R
R
R R

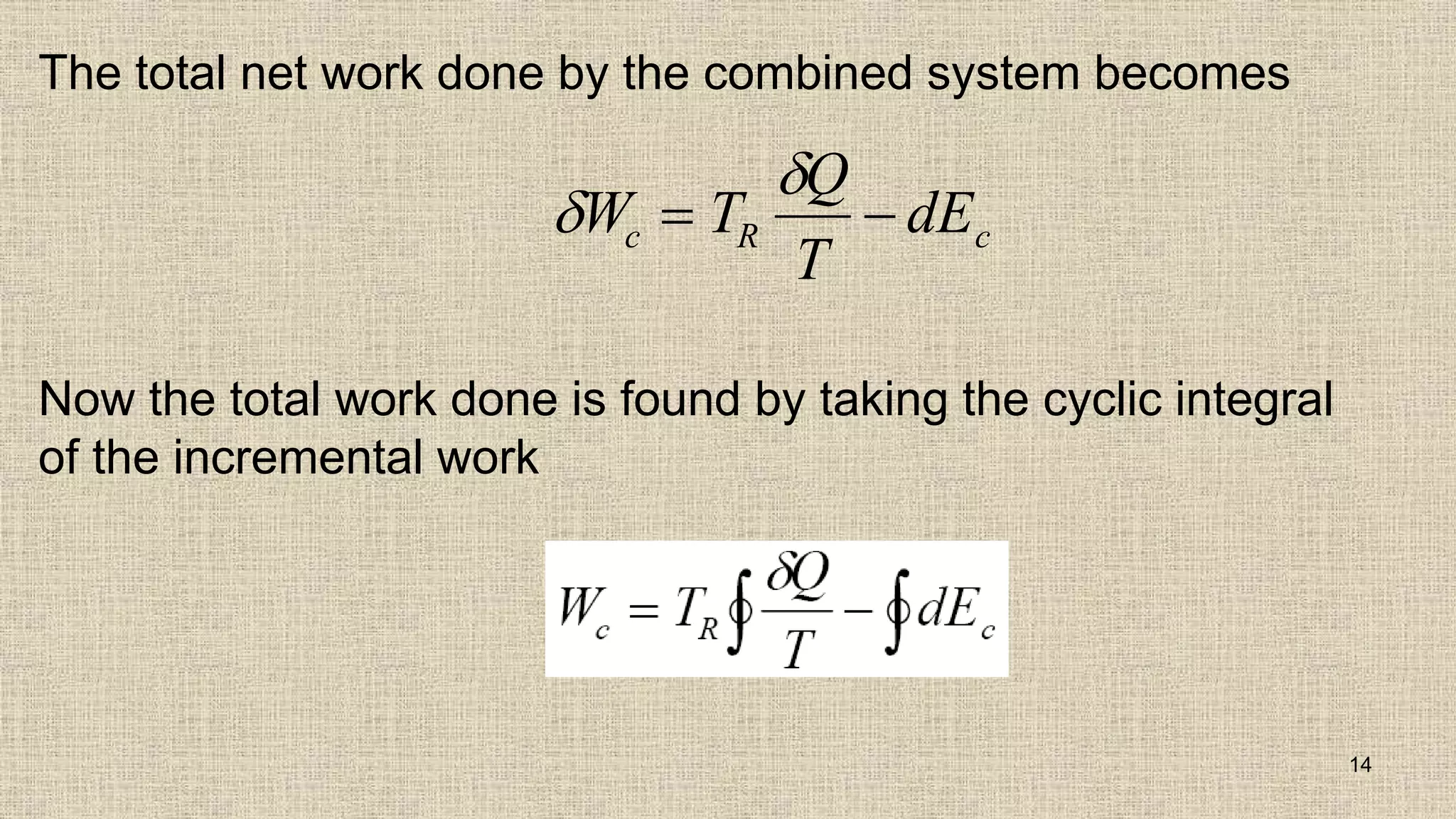

14. The total net work done by the combined system becomes
Now the total work done is found by taking the cyclic integral
of the incremental work
14
W T
Q
T
dE
c R c

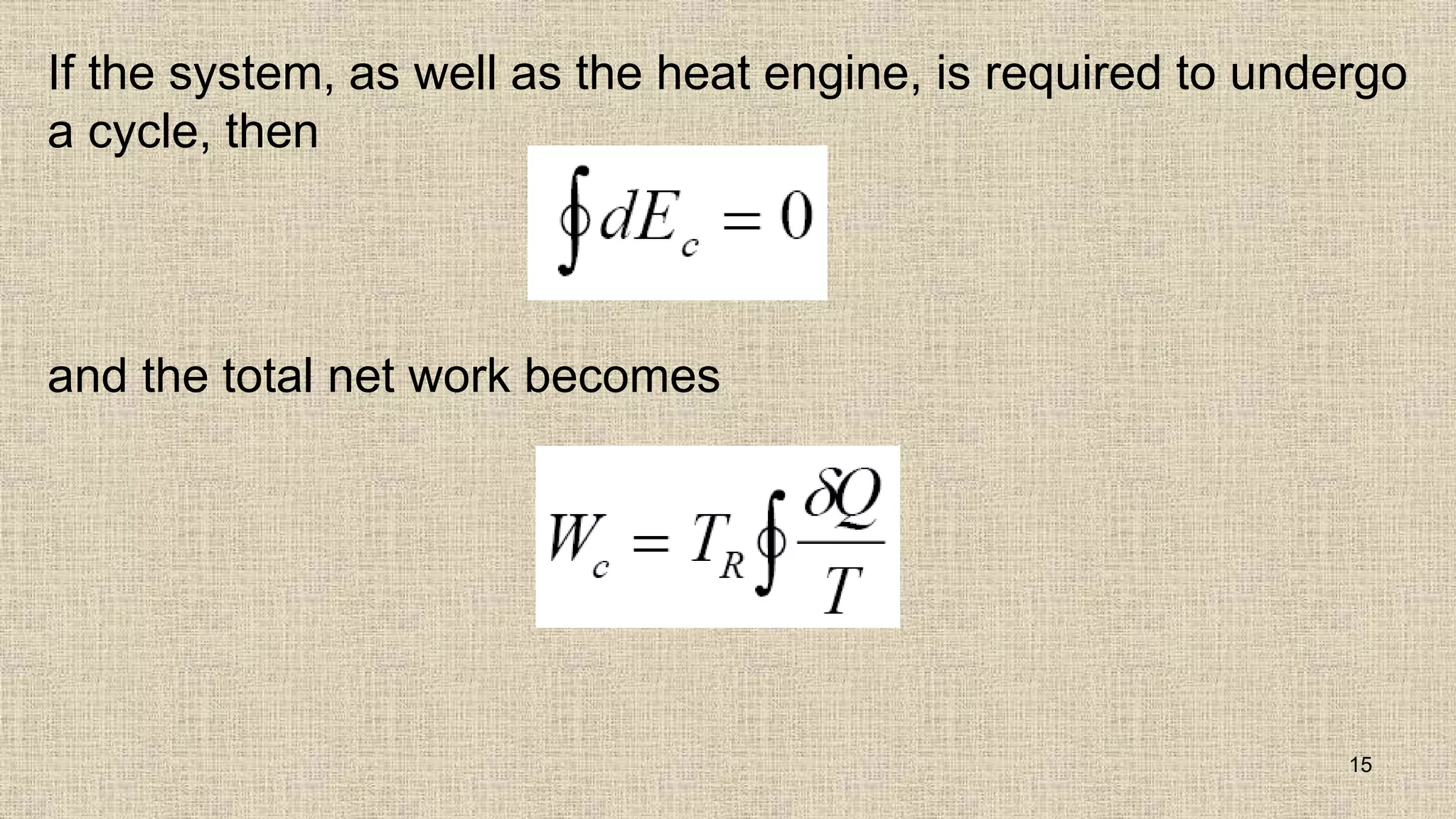

15. If the system, as well as the heat engine, is required to undergo
a cycle, then
and the total net work becomes
15

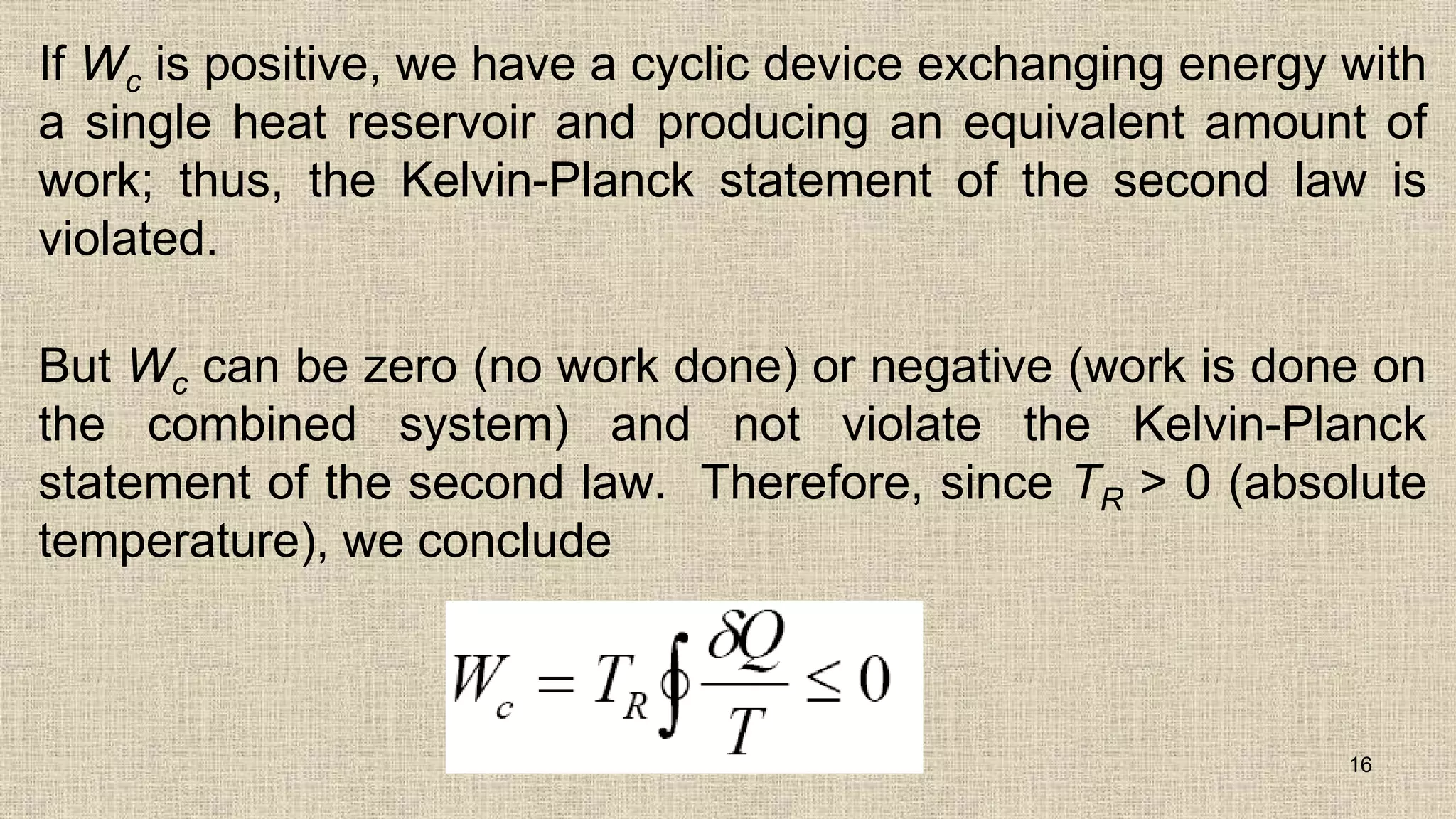

16. If Wc is positive, we have a cyclic device exchanging energy with
a single heat reservoir and producing an equivalent amount of
work; thus, the Kelvin-Planck statement of the second law is
violated.
But Wc can be zero (no work done) or negative (work is done on
the combined system) and not violate the Kelvin-Planck
statement of the second law. Therefore, since TR > 0 (absolute
temperature), we conclude
16
17. or
Here Q is the net heat added to the system, Qnet.

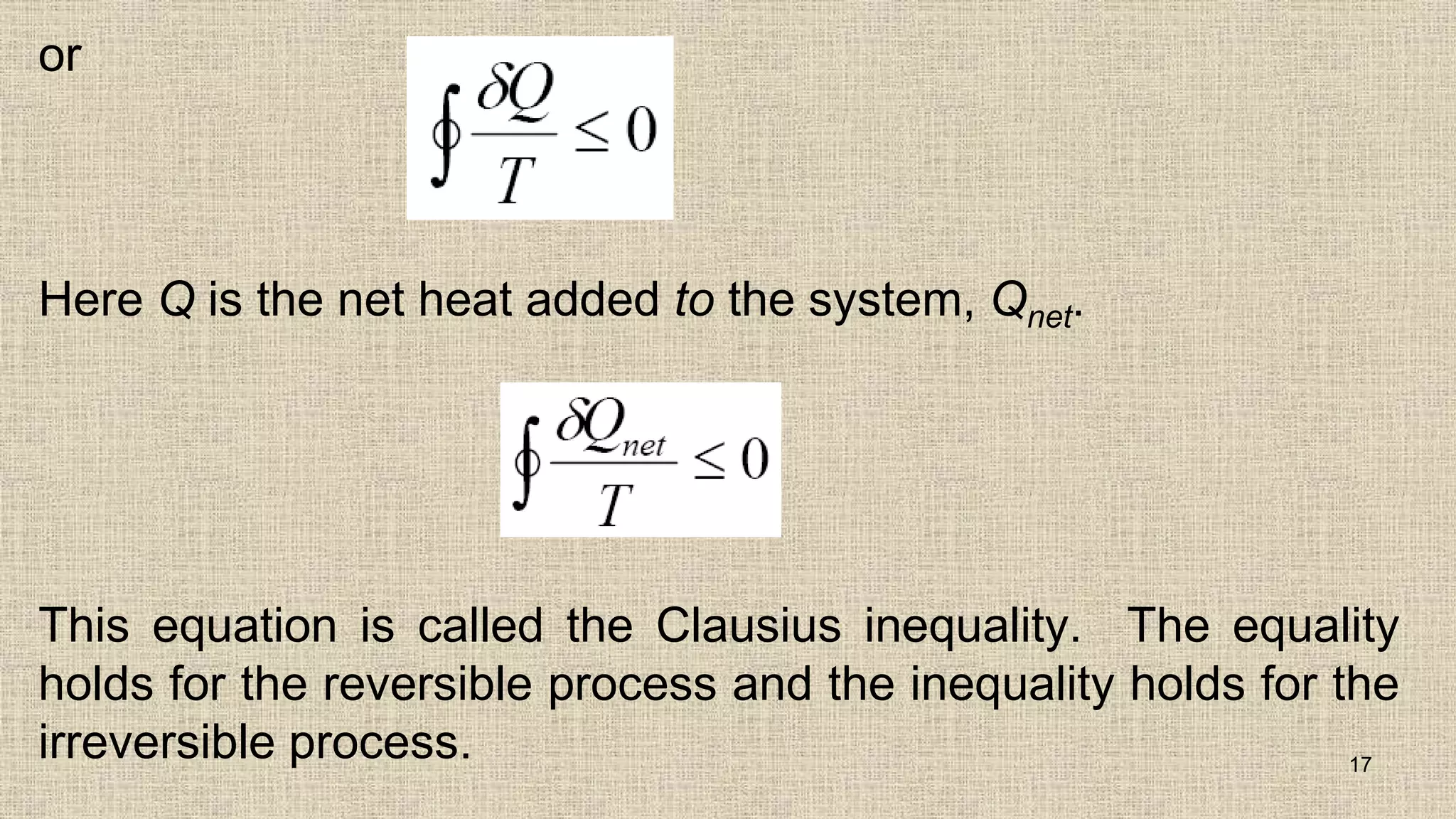

This equation is called the Clausius inequality. The equality
holds for the reversible process and the inequality holds for the
irreversible process. 17

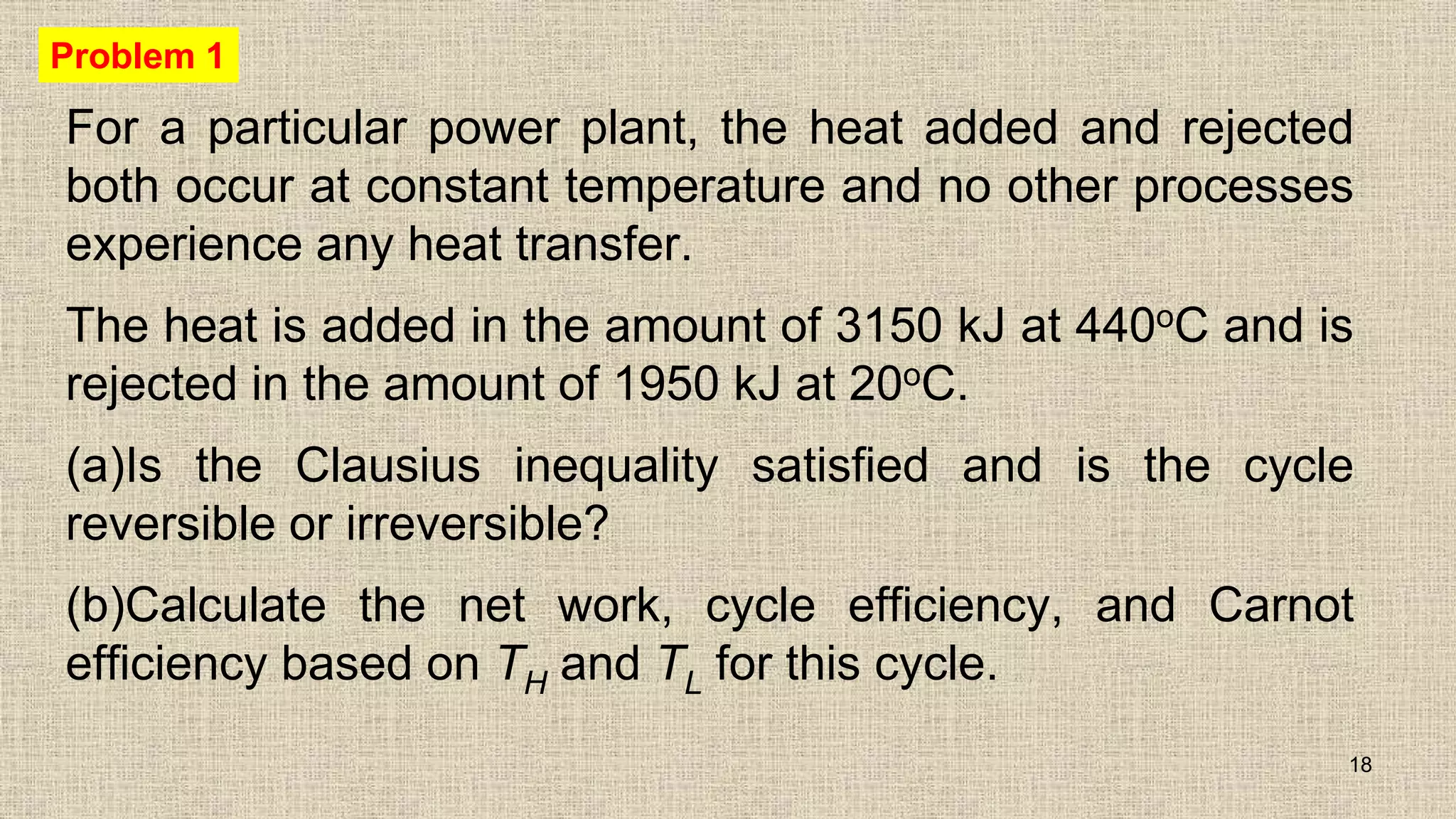

18. For a particular power plant, the heat added and rejected
both occur at constant temperature and no other processes
experience any heat transfer.
The heat is added in the amount of 3150 kJ at 440oC and is
rejected in the amount of 1950 kJ at 20oC.
(a)Is the Clausius inequality satisfied and is the cycle
reversible or irreversible?
(b)Calculate the net work, cycle efficiency, and Carnot
efficiency based on TH and TL for this cycle.
18
Problem 1

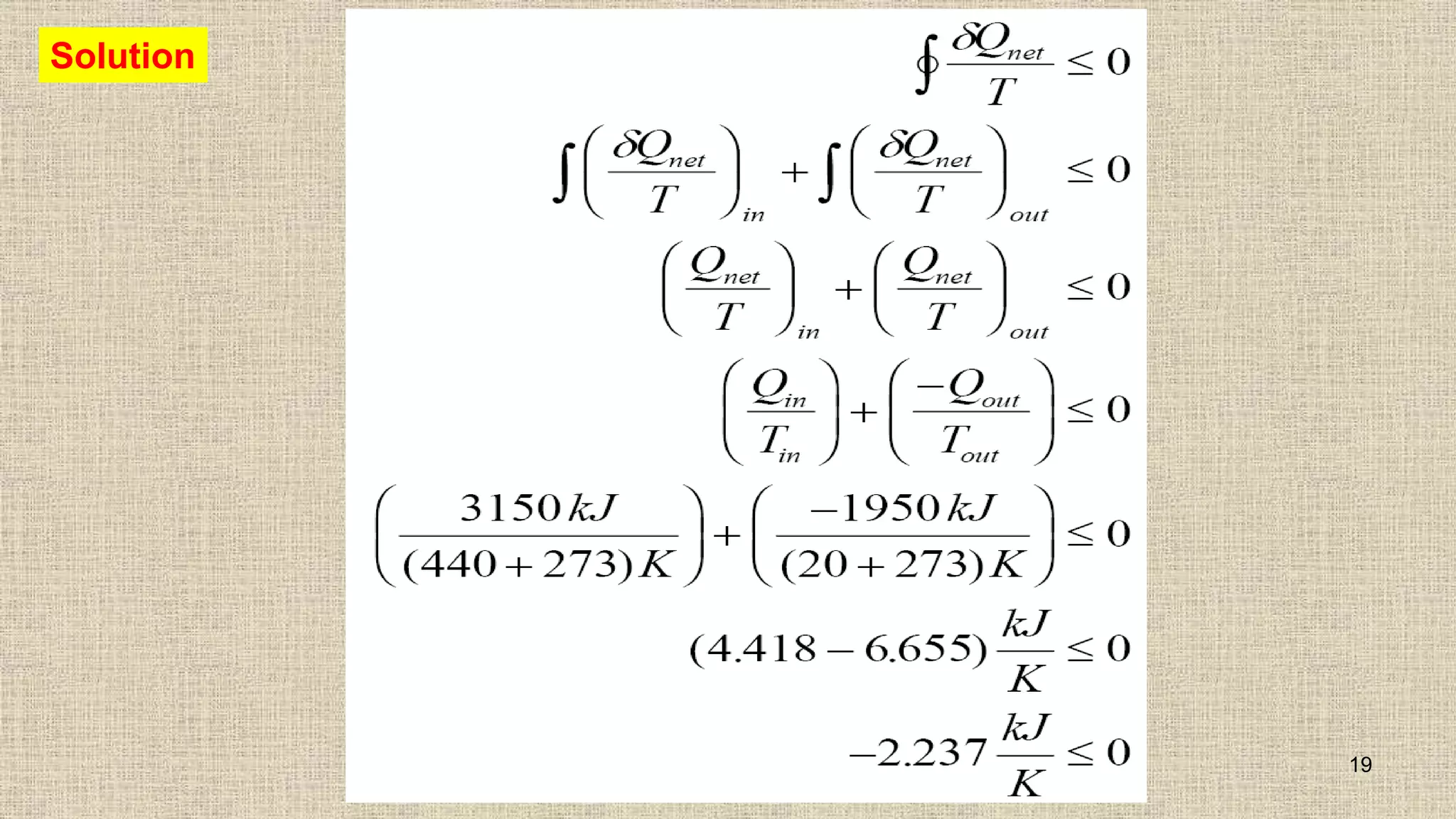

20. 20
(3150 1950) 1200
net in out
W Q Q kJ kJ
,
1200
0.381 38.1%
3150
(20 273)
1 1 0.589 58.9%
(440 273)
net
th
in
L
th Carnot
H
W kJ
or
Q kJ
T K
or
T K

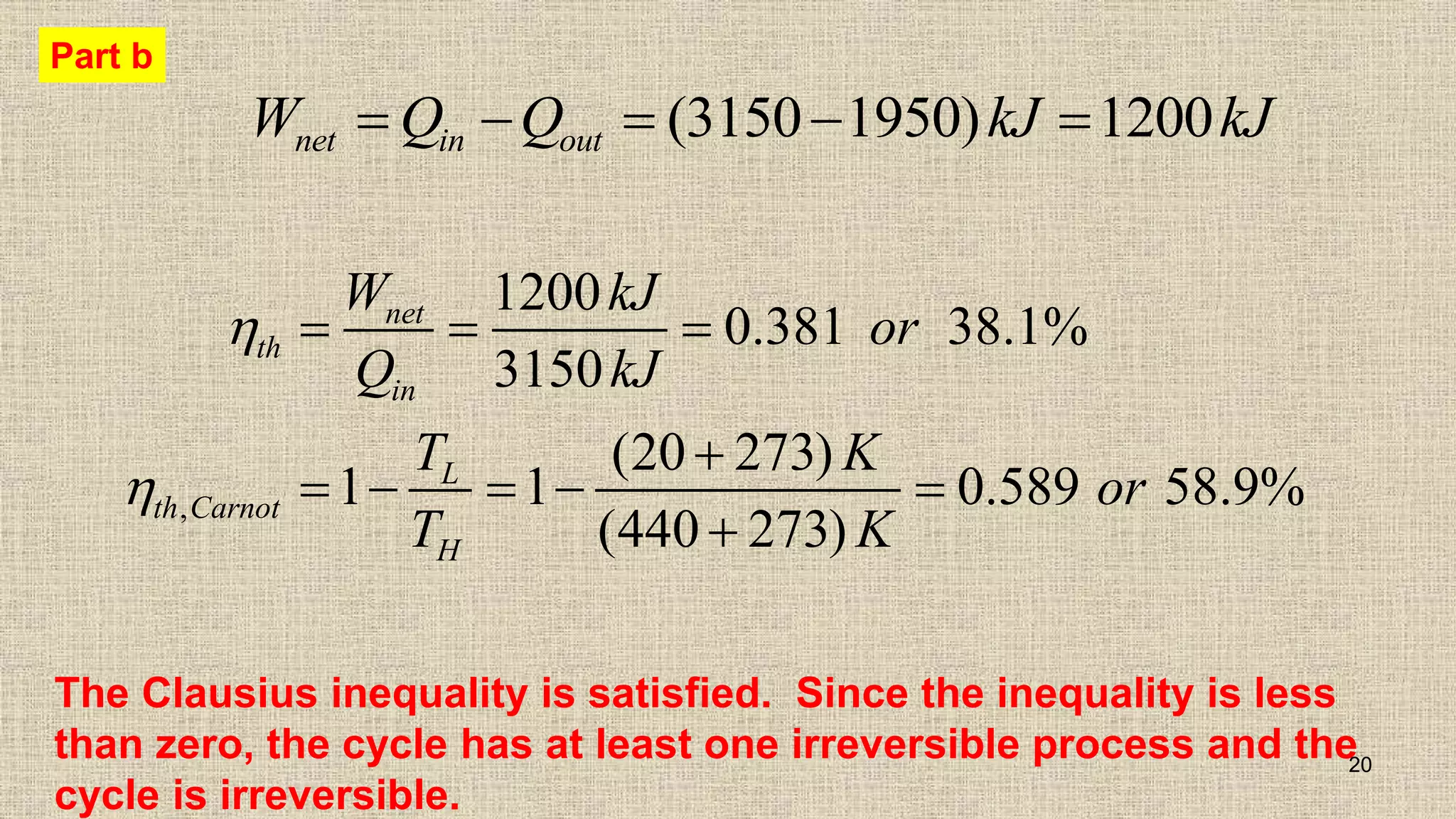

Part b
The Clausius inequality is satisfied. Since the inequality is less
than zero, the cycle has at least one irreversible process and the
cycle is irreversible.

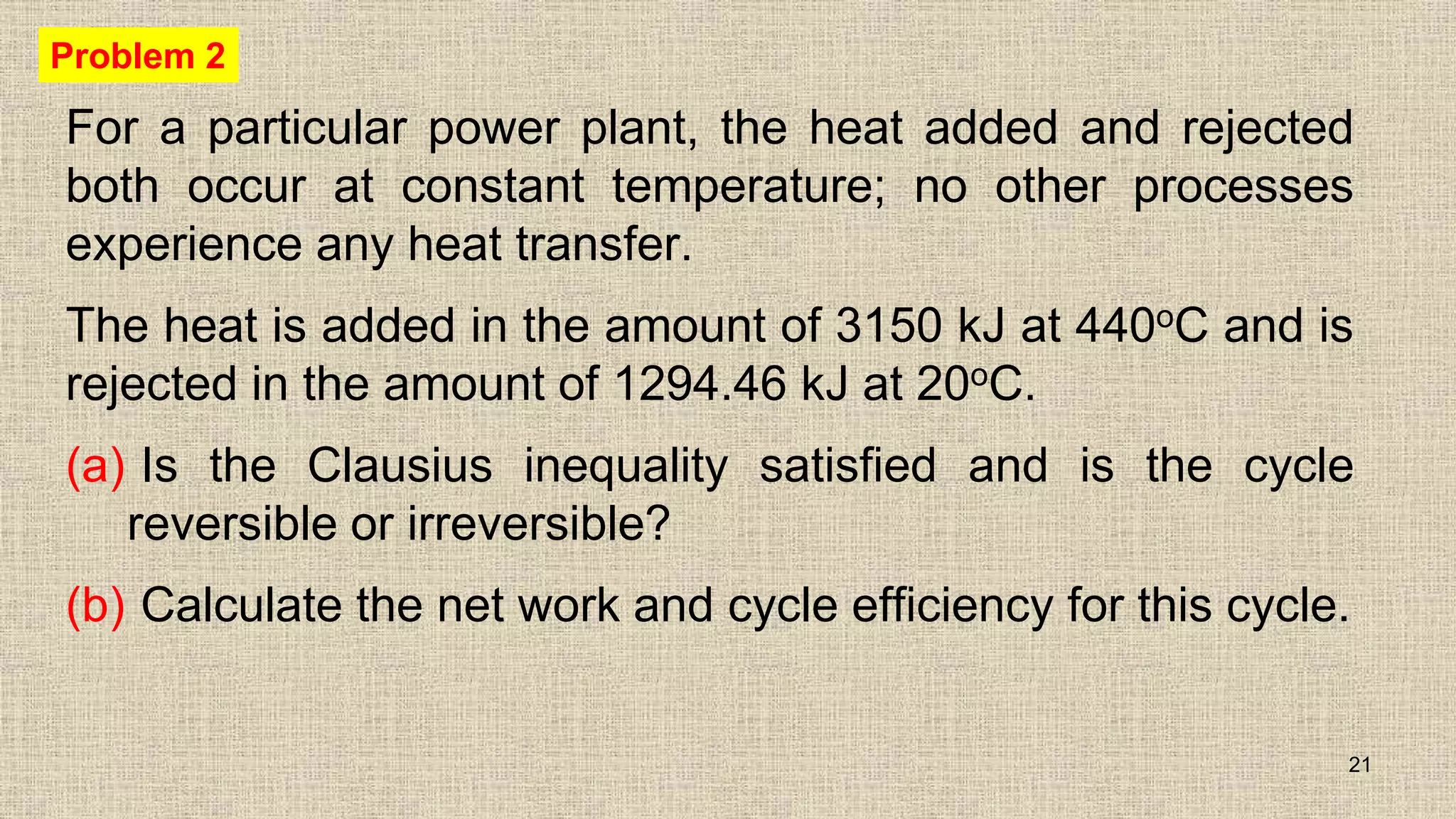

21. For a particular power plant, the heat added and rejected
both occur at constant temperature; no other processes
experience any heat transfer.
The heat is added in the amount of 3150 kJ at 440oC and is
rejected in the amount of 1294.46 kJ at 20oC.
(a) Is the Clausius inequality satisfied and is the cycle
reversible or irreversible?
(b) Calculate the net work and cycle efficiency for this cycle.
21
Problem 2

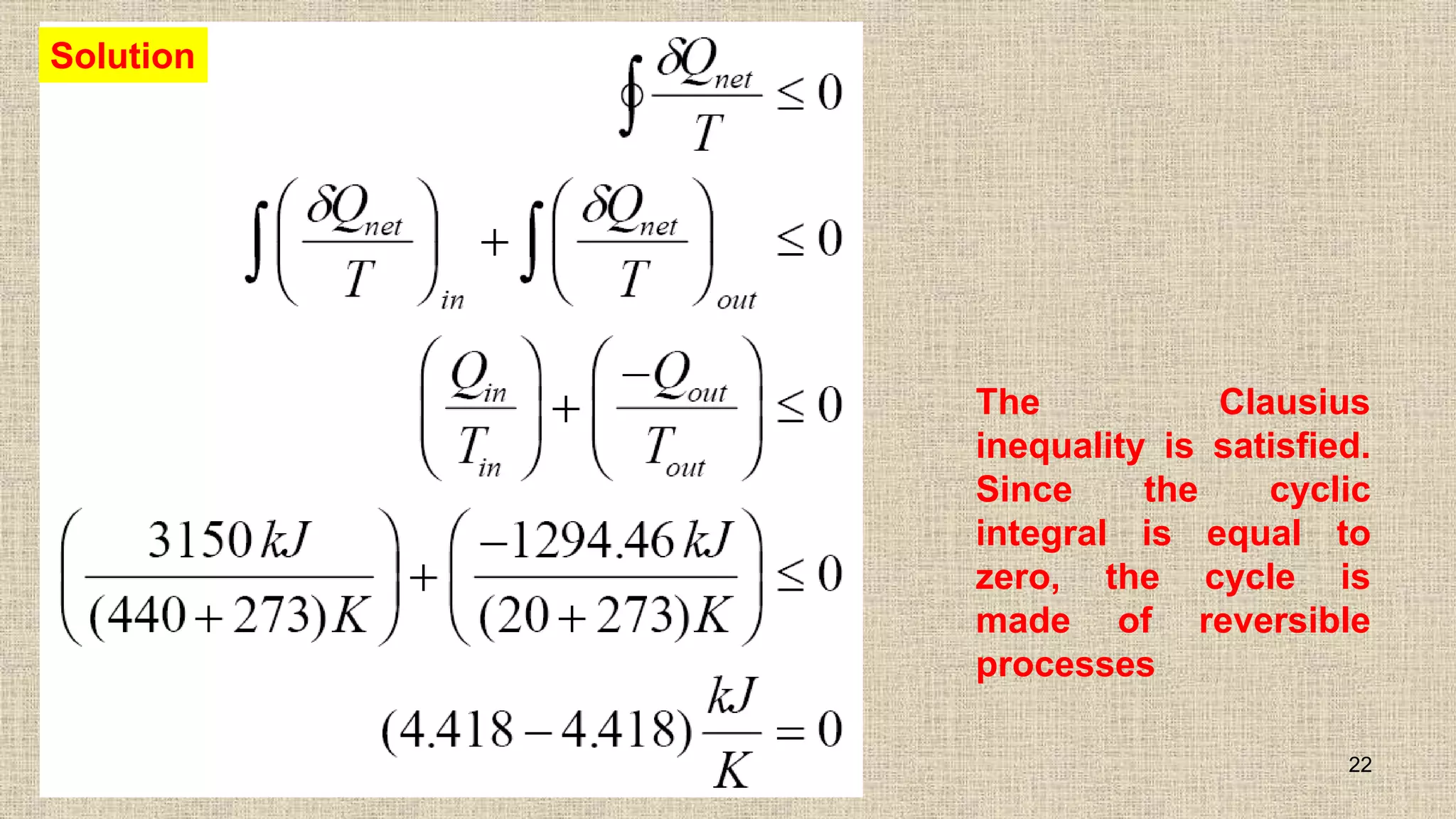

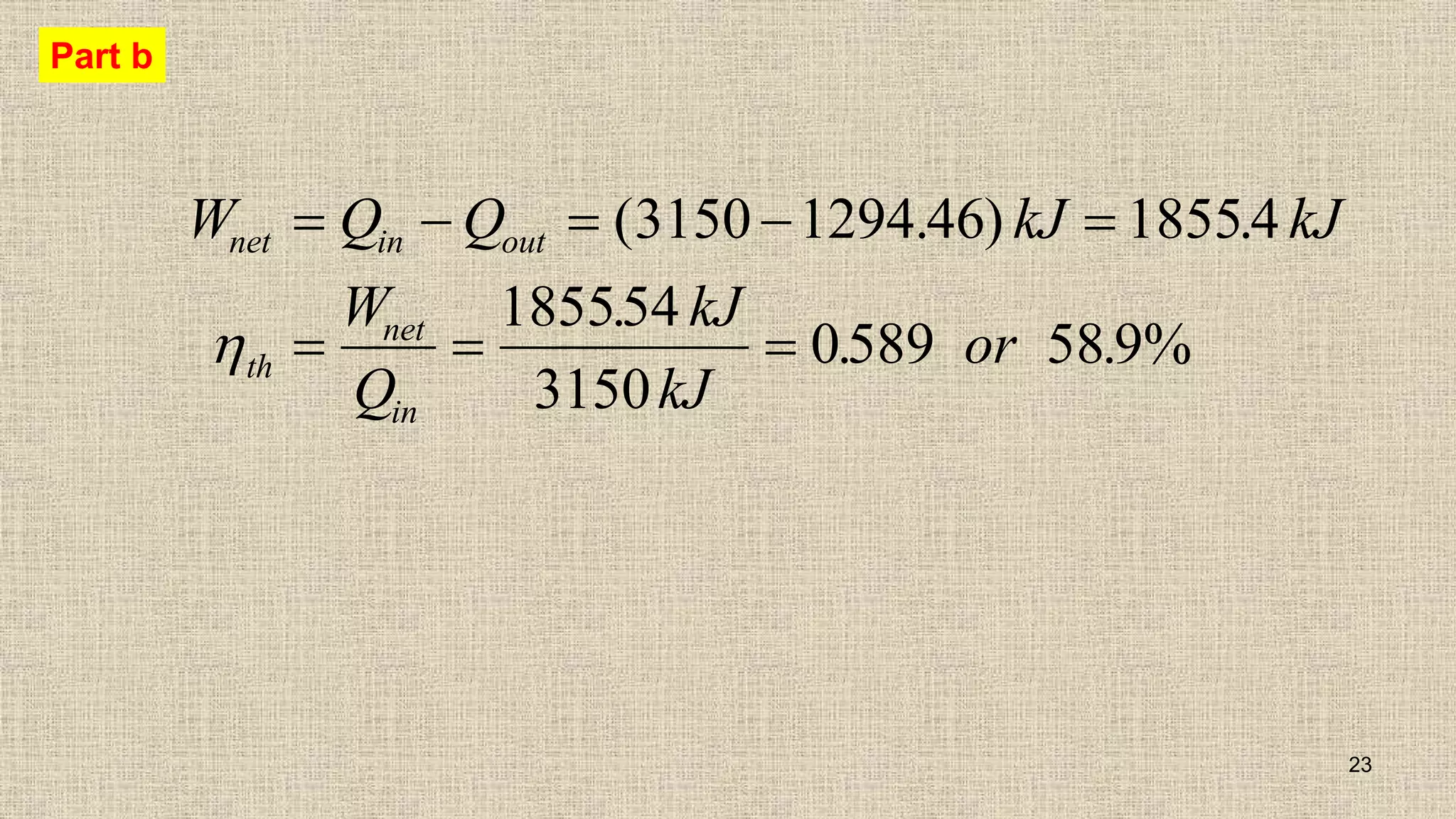

23. 23
Part b
W Q Q kJ kJ
W
Q
kJ
kJ
or
net in out
th
net
in
( . ) .
.
. .
3150 1294 46 18554
185554
3150
0589 58 9%
24. Definition of Entropy

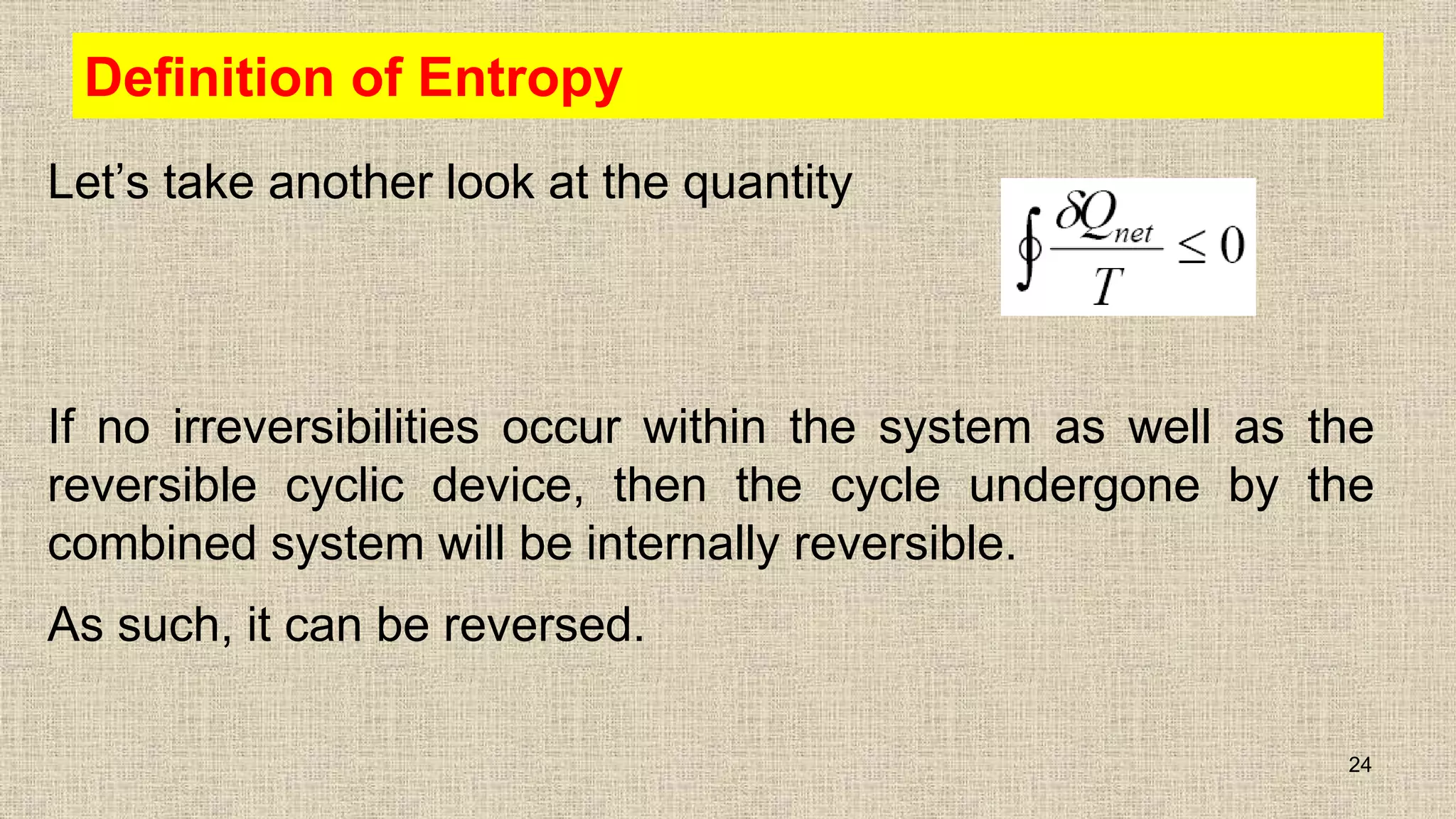

Let’s take another look at the quantity
If no irreversibilities occur within the system as well as the
reversible cyclic device, then the cycle undergone by the
combined system will be internally reversible.
As such, it can be reversed.
24
25. In the reversed cycle case, all the quantities will have the same
magnitude but the opposite sign.
Therefore, the work WC, which could not be a positive quantity
in the regular case, cannot be a negative quantity in the
reversed case.
Then it follows that WC,int rev = 0 since it cannot be a positive or
negative quantity, and therefore
for internally reversible cycles
25

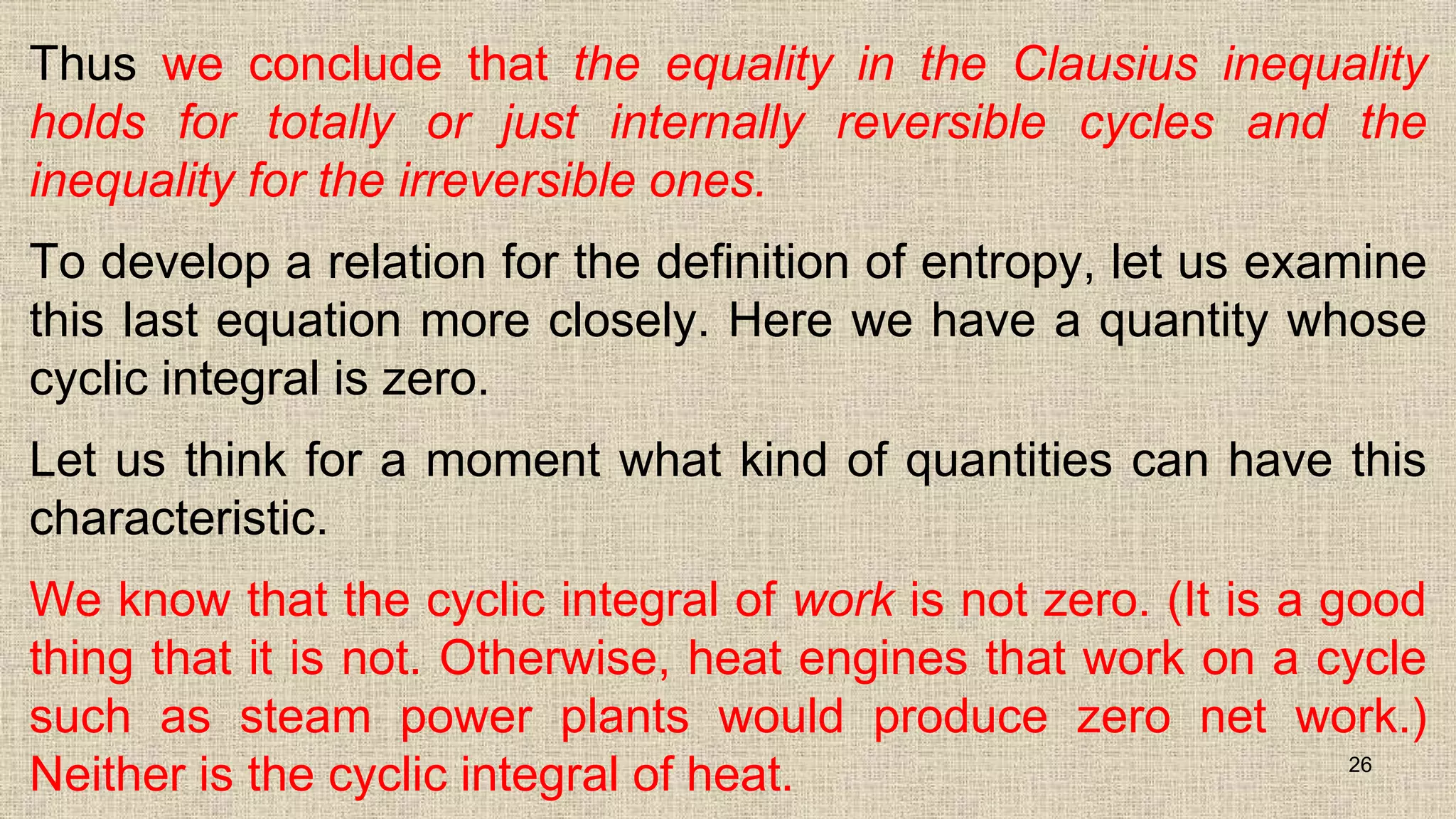

26. Thus we conclude that the equality in the Clausius inequality
holds for totally or just internally reversible cycles and the
inequality for the irreversible ones.
To develop a relation for the definition of entropy, let us examine
this last equation more closely. Here we have a quantity whose
cyclic integral is zero.
Let us think for a moment what kind of quantities can have this
characteristic.
We know that the cyclic integral of work is not zero. (It is a good
thing that it is not. Otherwise, heat engines that work on a cycle
such as steam power plants would produce zero net work.)
Neither is the cyclic integral of heat. 26

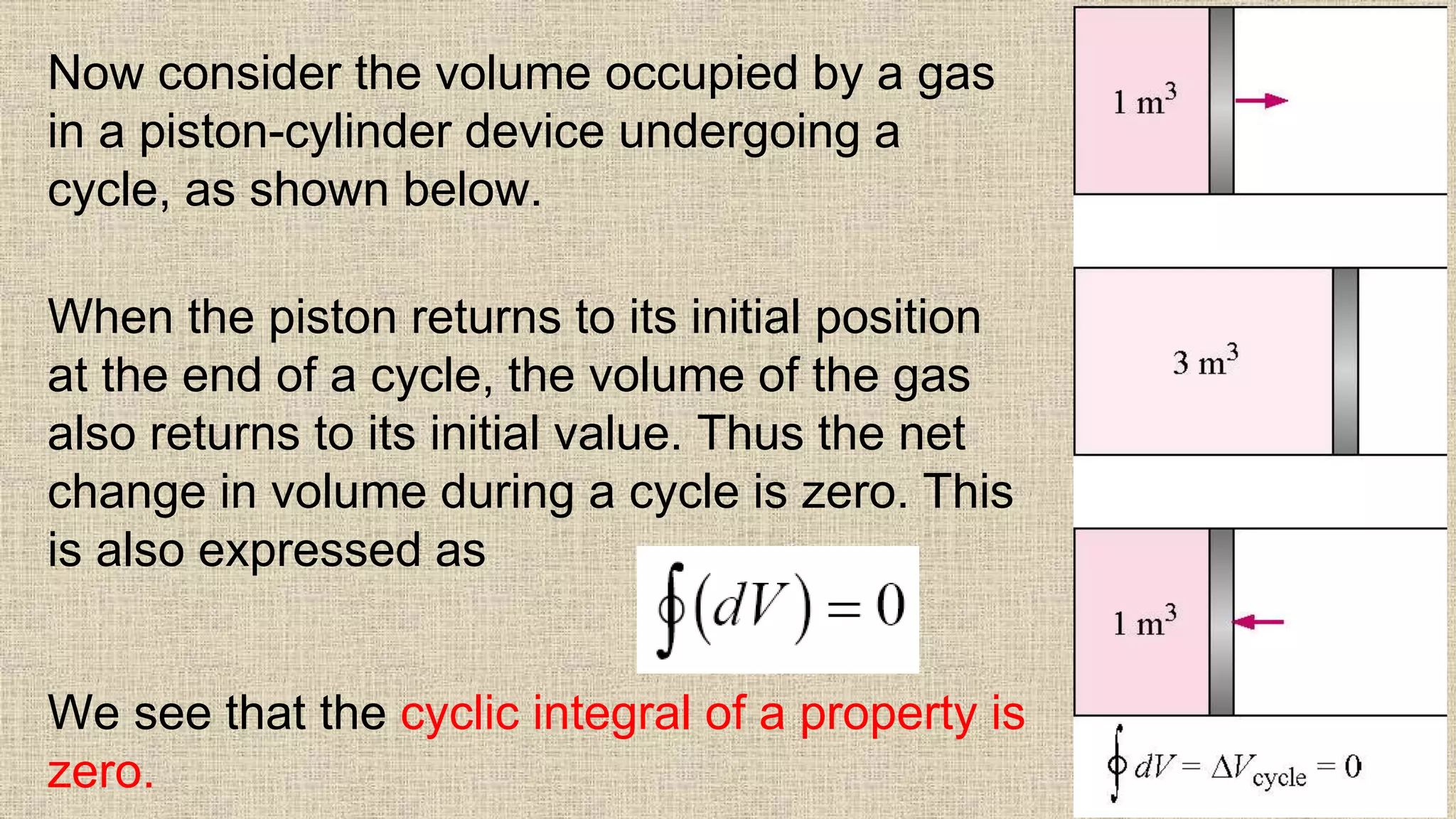

27. Now consider the volume occupied by a gas
in a piston-cylinder device undergoing a
cycle, as shown below.
When the piston returns to its initial position
at the end of a cycle, the volume of the gas
also returns to its initial value. Thus the net
change in volume during a cycle is zero. This
is also expressed as
We see that the cyclic integral of a property is
zero. 27

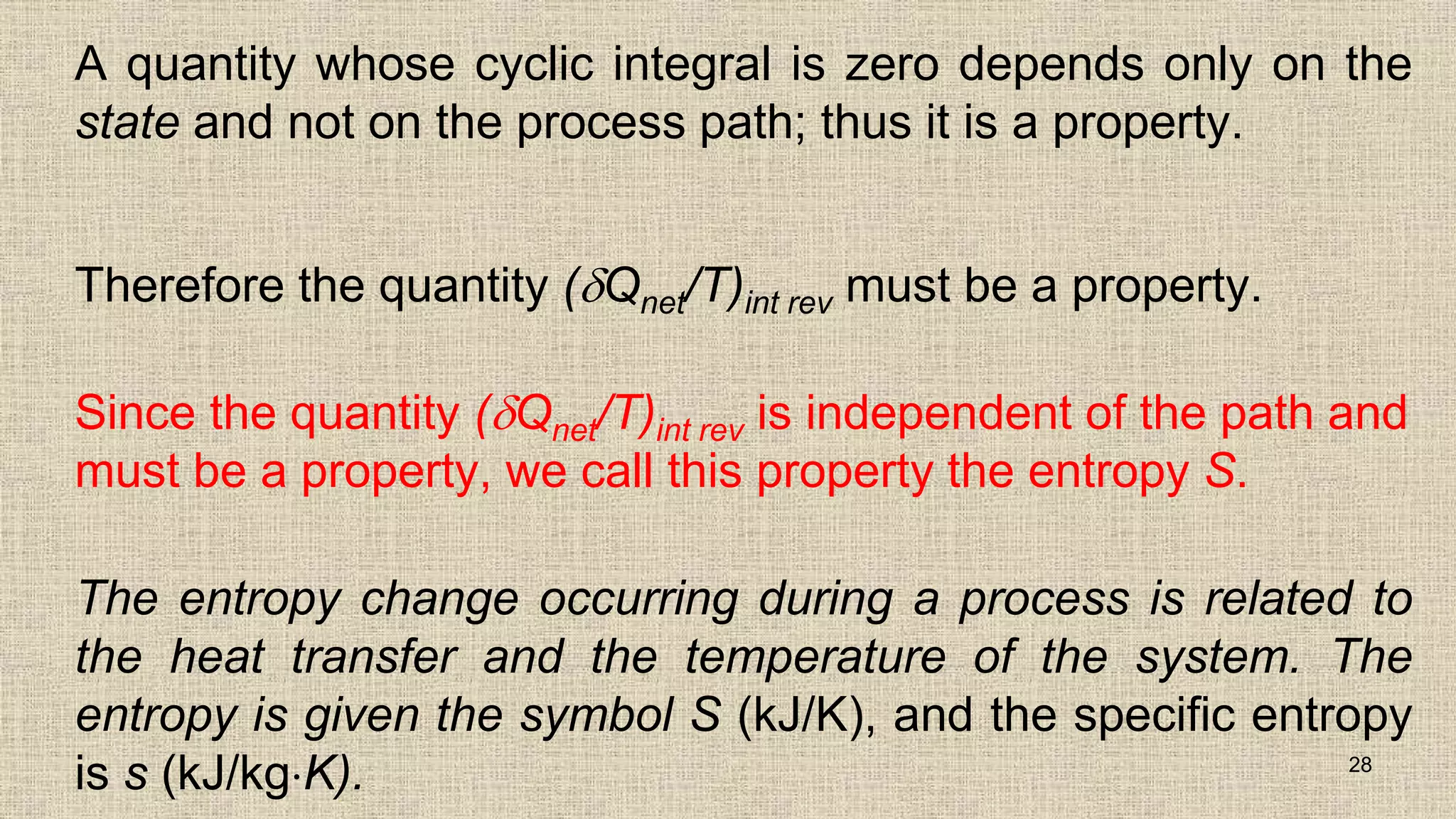

28. A quantity whose cyclic integral is zero depends only on the
state and not on the process path; thus it is a property.
Therefore the quantity (Qnet/T)int rev must be a property.
Since the quantity (Qnet/T)int rev is independent of the path and
must be a property, we call this property the entropy S.
The entropy change occurring during a process is related to
the heat transfer and the temperature of the system. The
entropy is given the symbol S (kJ/K), and the specific entropy
is s (kJ/kgK). 28

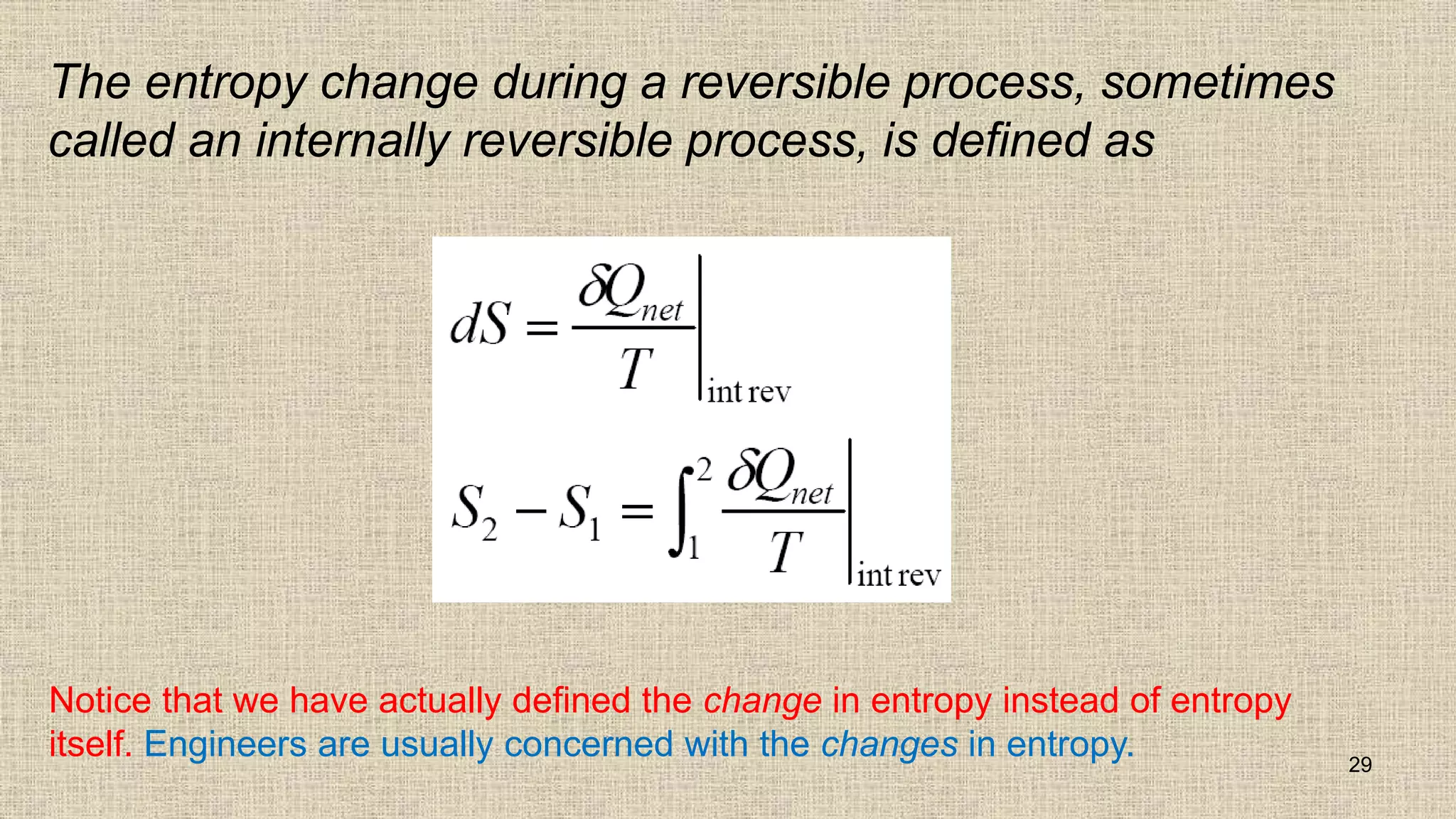

29. The entropy change during a reversible process, sometimes
called an internally reversible process, is defined as
29
Notice that we have actually defined the change in entropy instead of entropy
itself. Engineers are usually concerned with the changes in entropy.

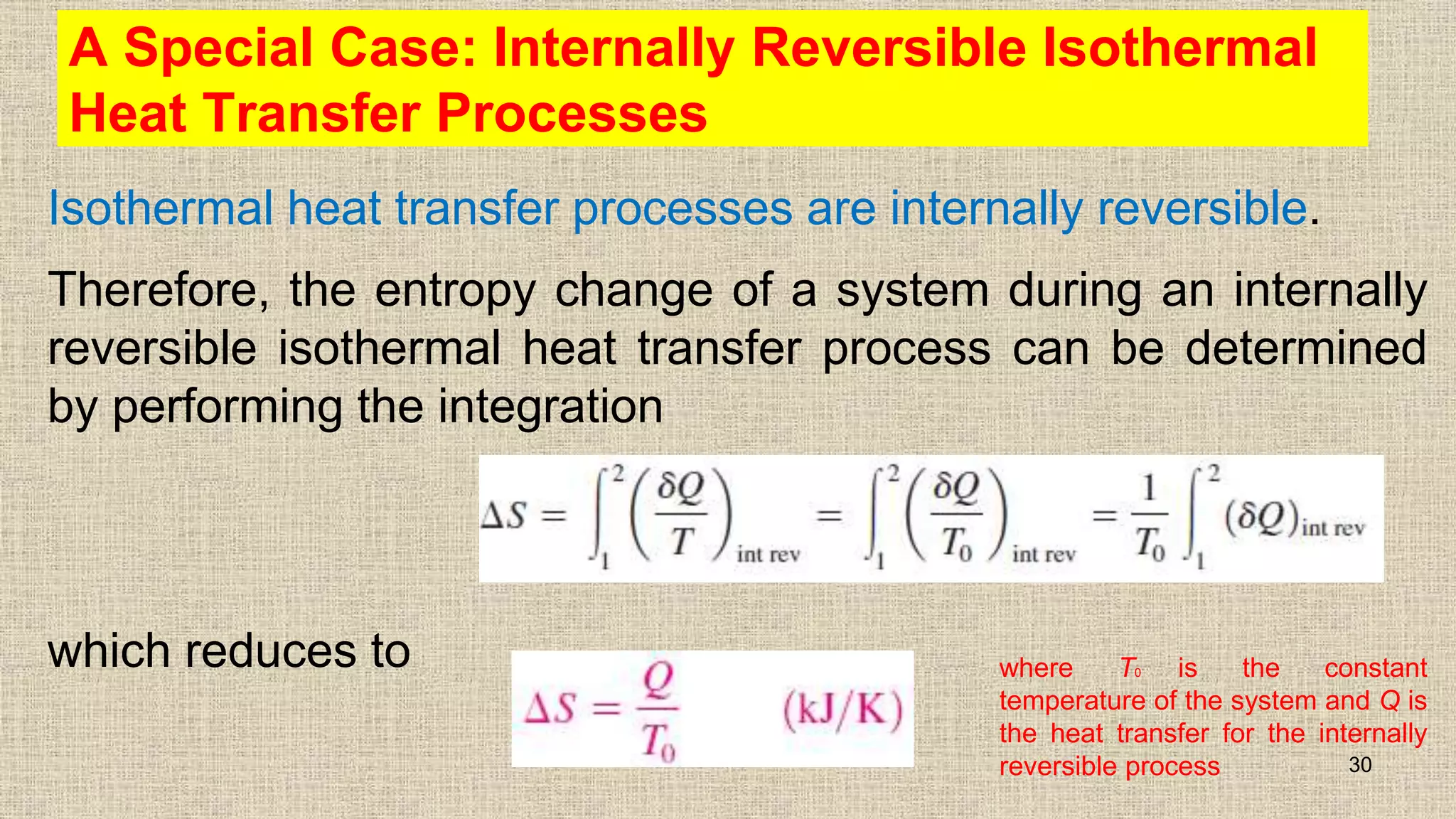

30. A Special Case: Internally Reversible Isothermal
Heat Transfer Processes
Isothermal heat transfer processes are internally reversible.
Therefore, the entropy change of a system during an internally
reversible isothermal heat transfer process can be determined
by performing the integration
which reduces to
30
where T0 is the constant
temperature of the system and Q is
the heat transfer for the internally
reversible process
31. A piston–cylinder device contains a liquid–vapor mixture of
water at 300 K. During a constant-pressure process, 750 kJ of
heat is transferred to the water. As a result, part of the liquid in
the cylinder vaporizes. Determine the entropy change of the
water during this process.
31
Problem 3
Solution
The system undergoes an internally reversible, isothermal
process, and thus its entropy change can be determined directly
from

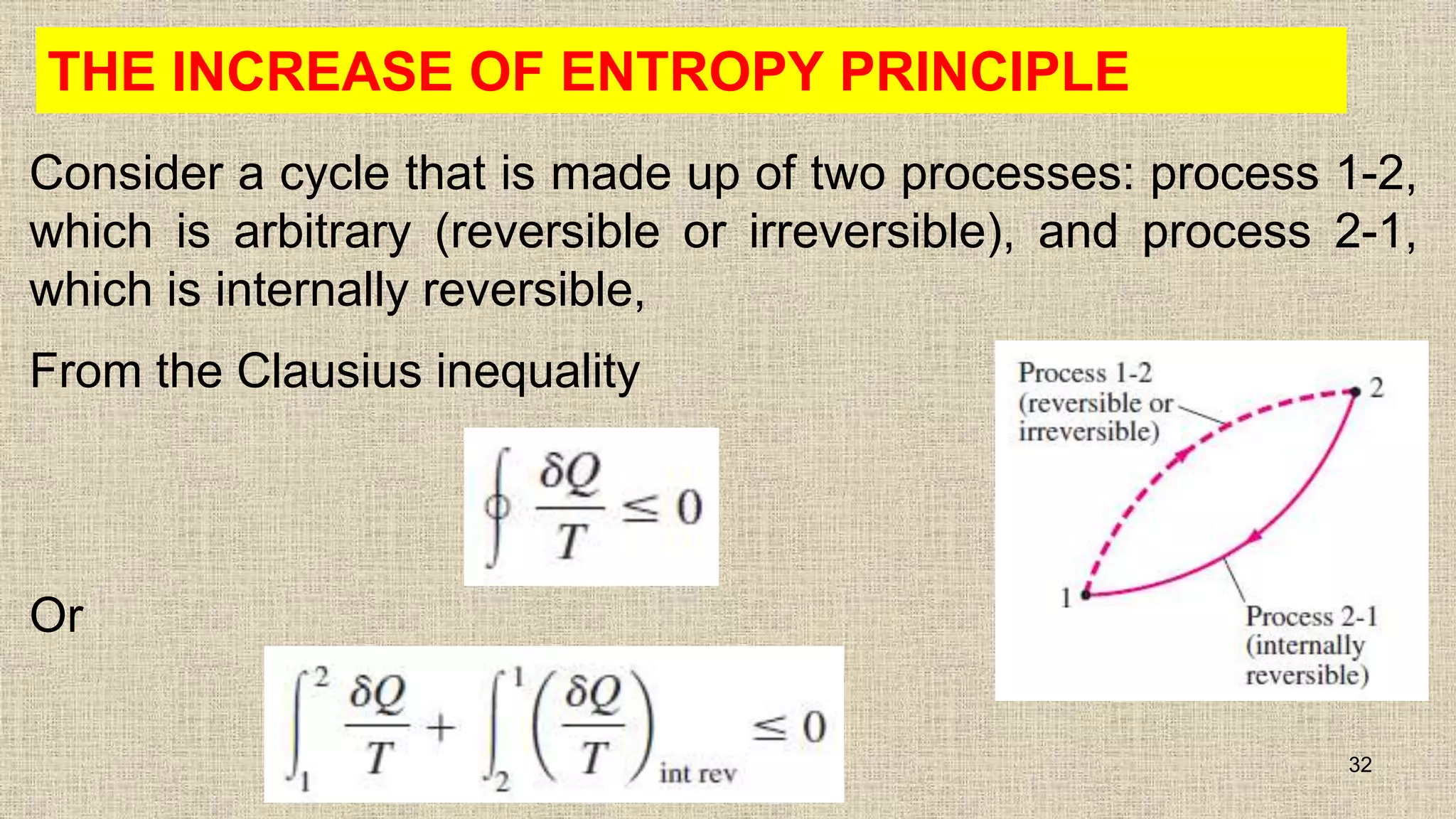

32. THE INCREASE OF ENTROPY PRINCIPLE
Consider a cycle that is made up of two processes: process 1-2,
which is arbitrary (reversible or irreversible), and process 2-1,
which is internally reversible,
From the Clausius inequality
Or
32

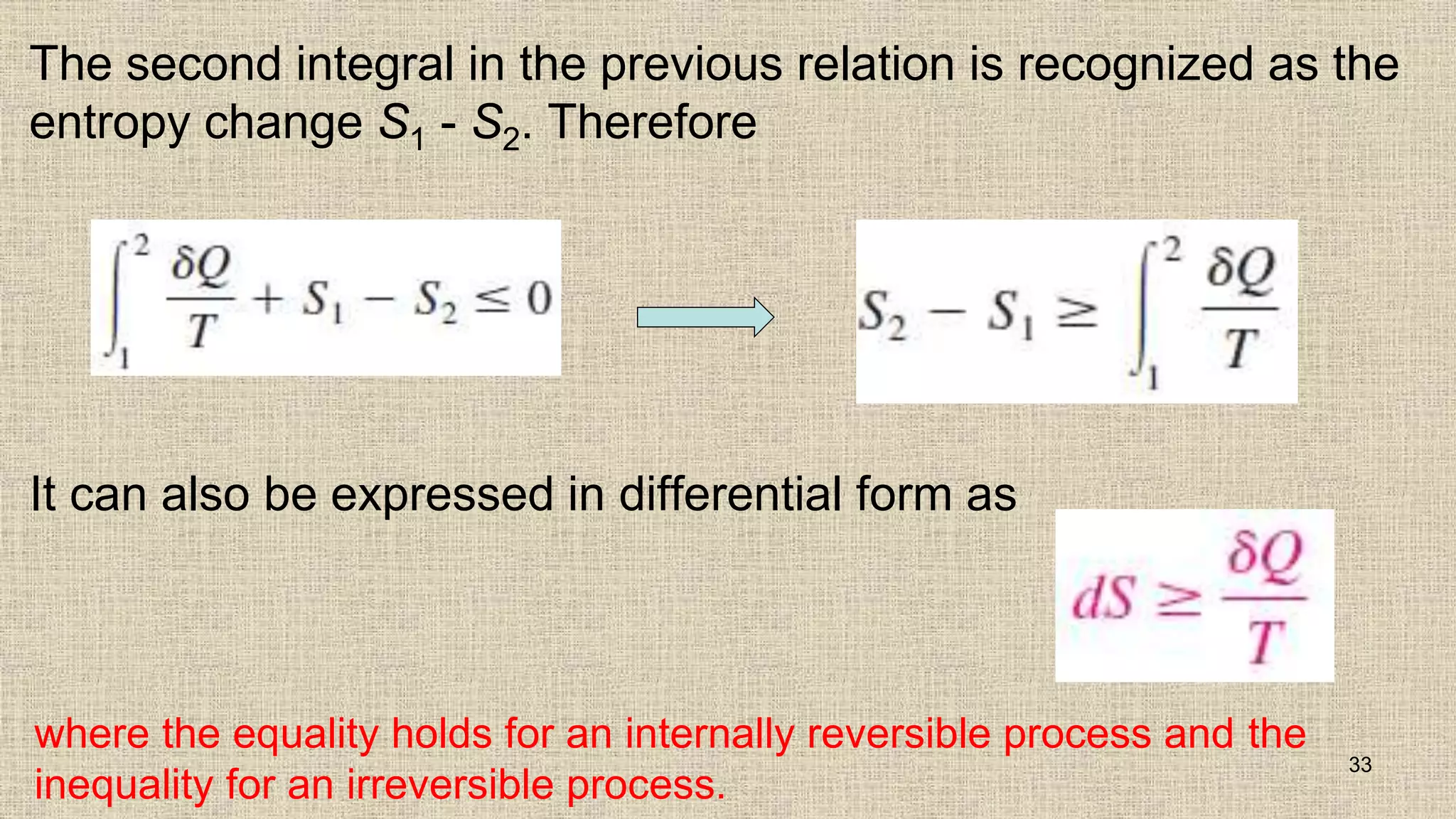

33. The second integral in the previous relation is recognized as the
entropy change S1 - S2. Therefore
It can also be expressed in differential form as
33
where the equality holds for an internally reversible process and the
inequality for an irreversible process.

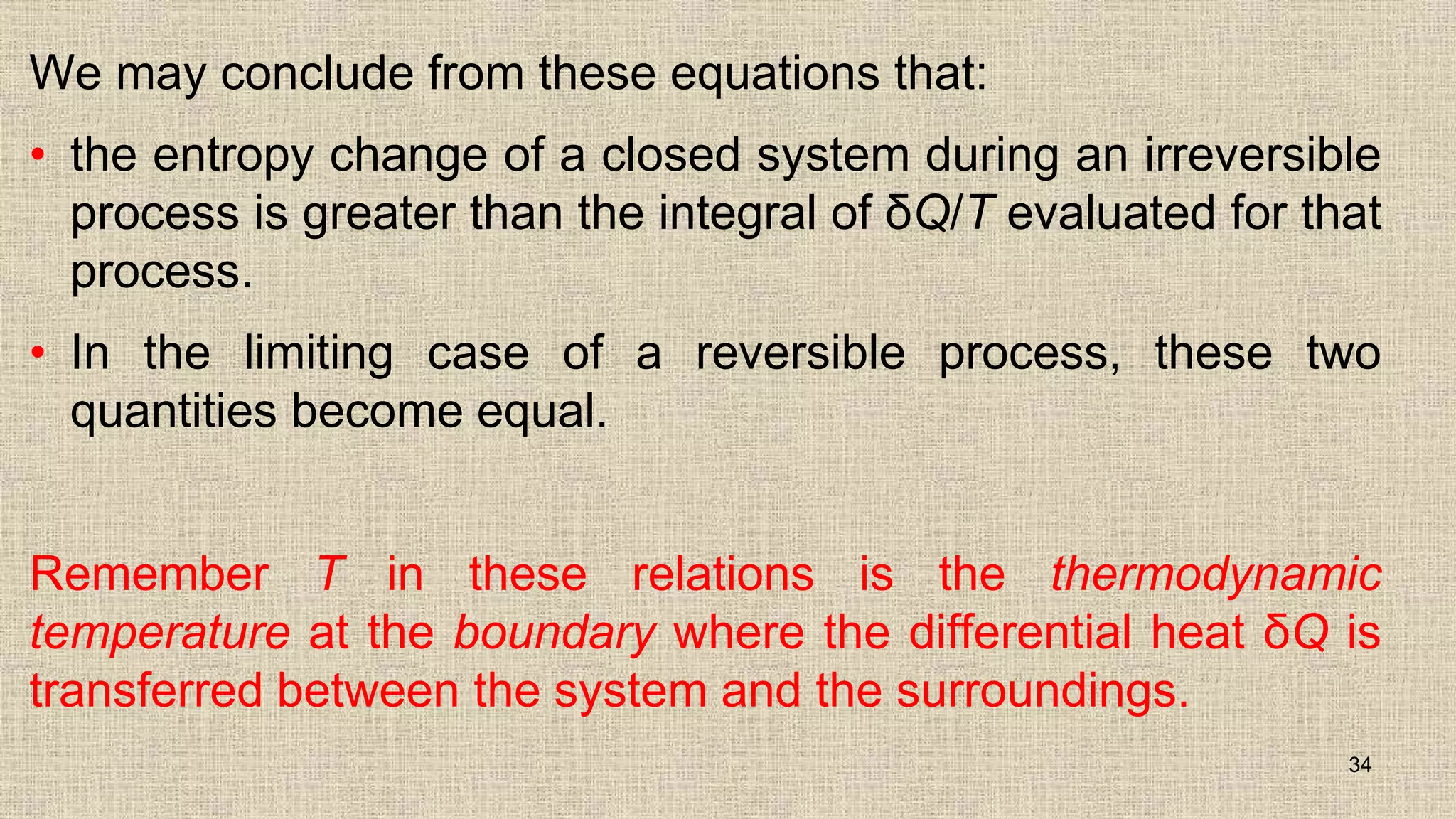

34. We may conclude from these equations that:
• the entropy change of a closed system during an irreversible
process is greater than the integral of δQ/T evaluated for that
process.
• In the limiting case of a reversible process, these two
quantities become equal.
Remember T in these relations is the thermodynamic
temperature at the boundary where the differential heat δQ is
transferred between the system and the surroundings.
34

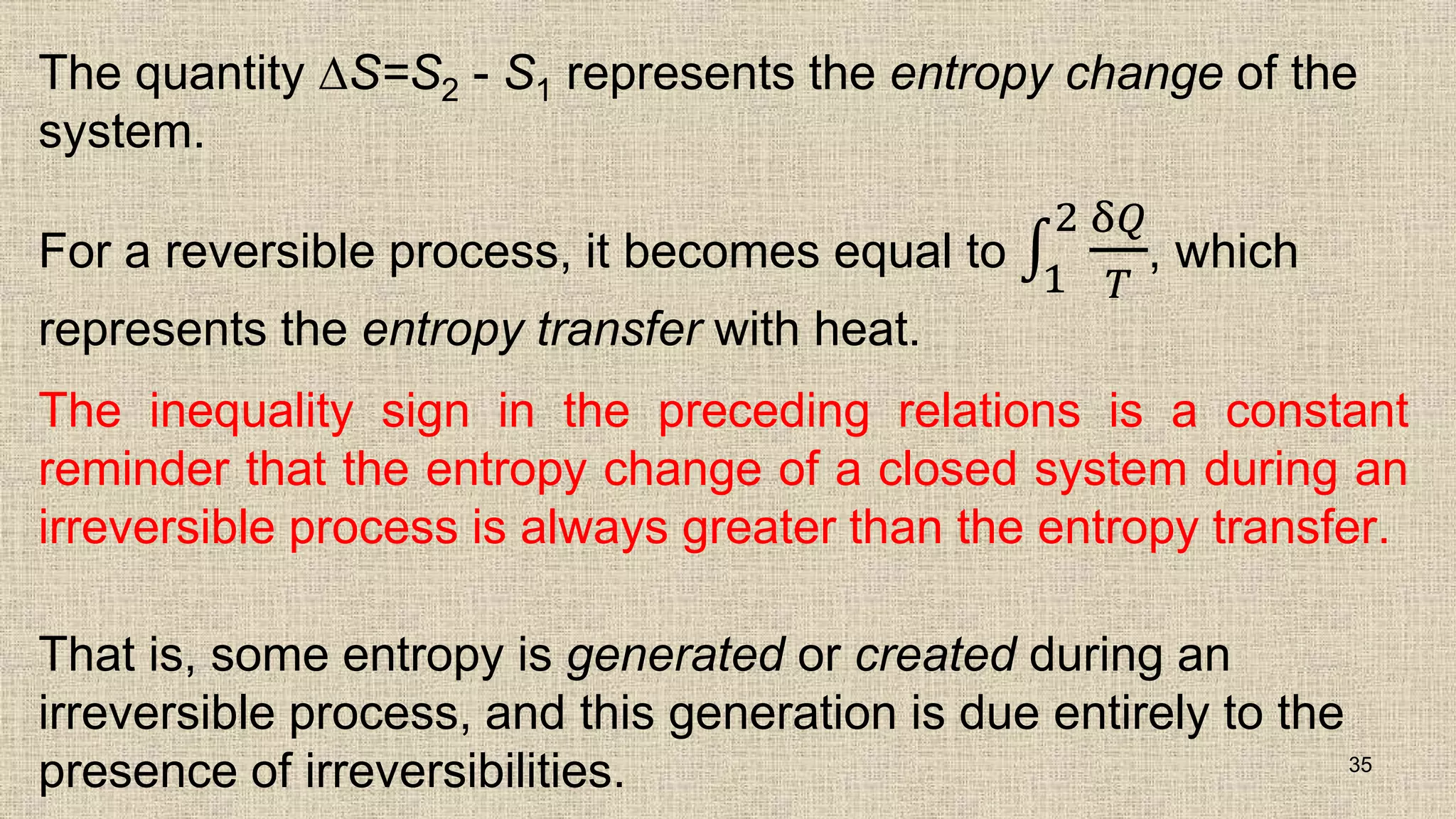

35. The quantity ∆S=S2 - S1 represents the entropy change of the
system.
For a reversible process, it becomes equal to
1
2 δ𝑄
𝑇
, which
represents the entropy transfer with heat.
The inequality sign in the preceding relations is a constant
reminder that the entropy change of a closed system during an
irreversible process is always greater than the entropy transfer.
That is, some entropy is generated or created during an
irreversible process, and this generation is due entirely to the
presence of irreversibilities. 35

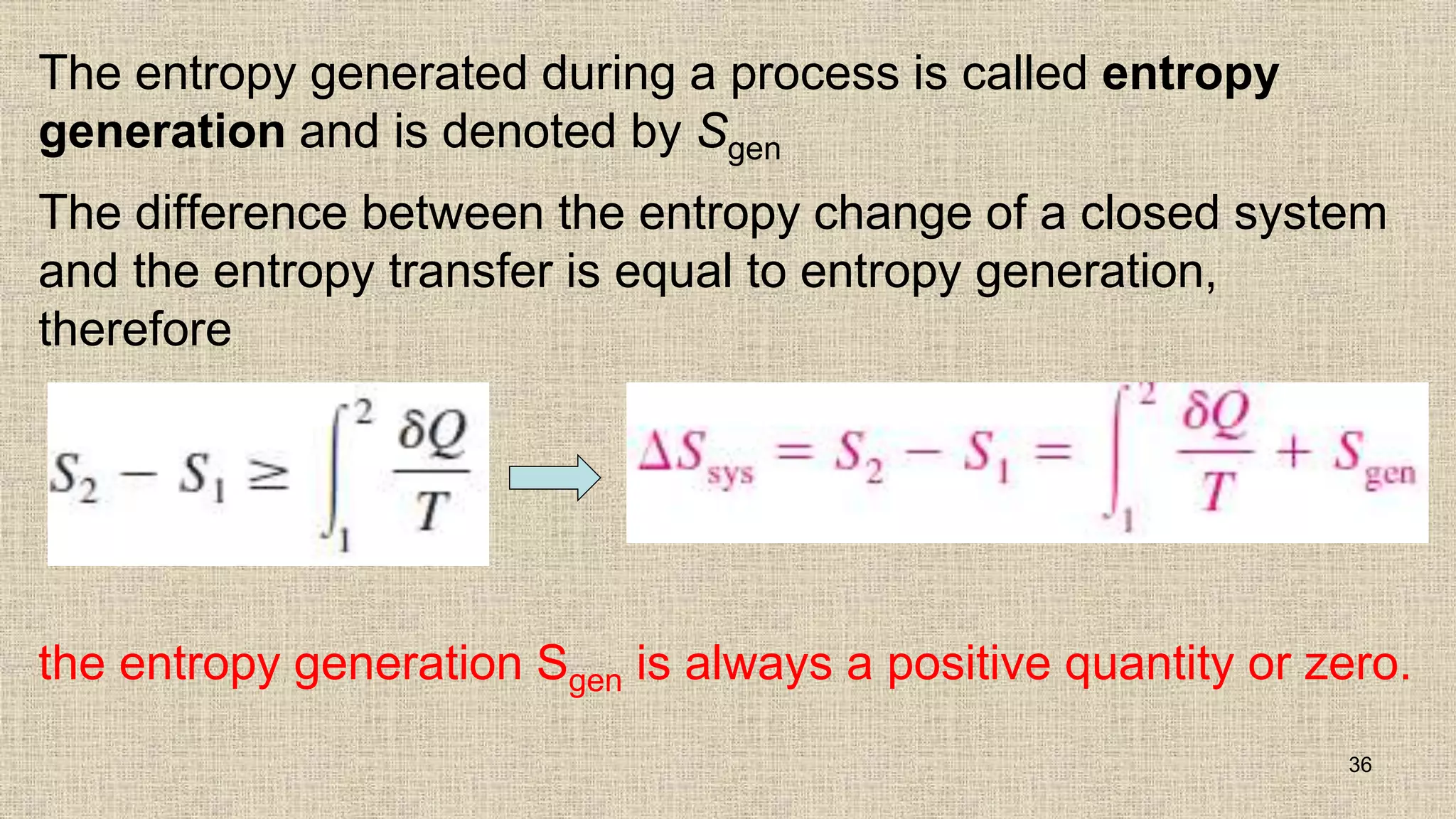

36. The entropy generated during a process is called entropy
generation and is denoted by Sgen
The difference between the entropy change of a closed system
and the entropy transfer is equal to entropy generation,
therefore
36
the entropy generation Sgen is always a positive quantity or zero.

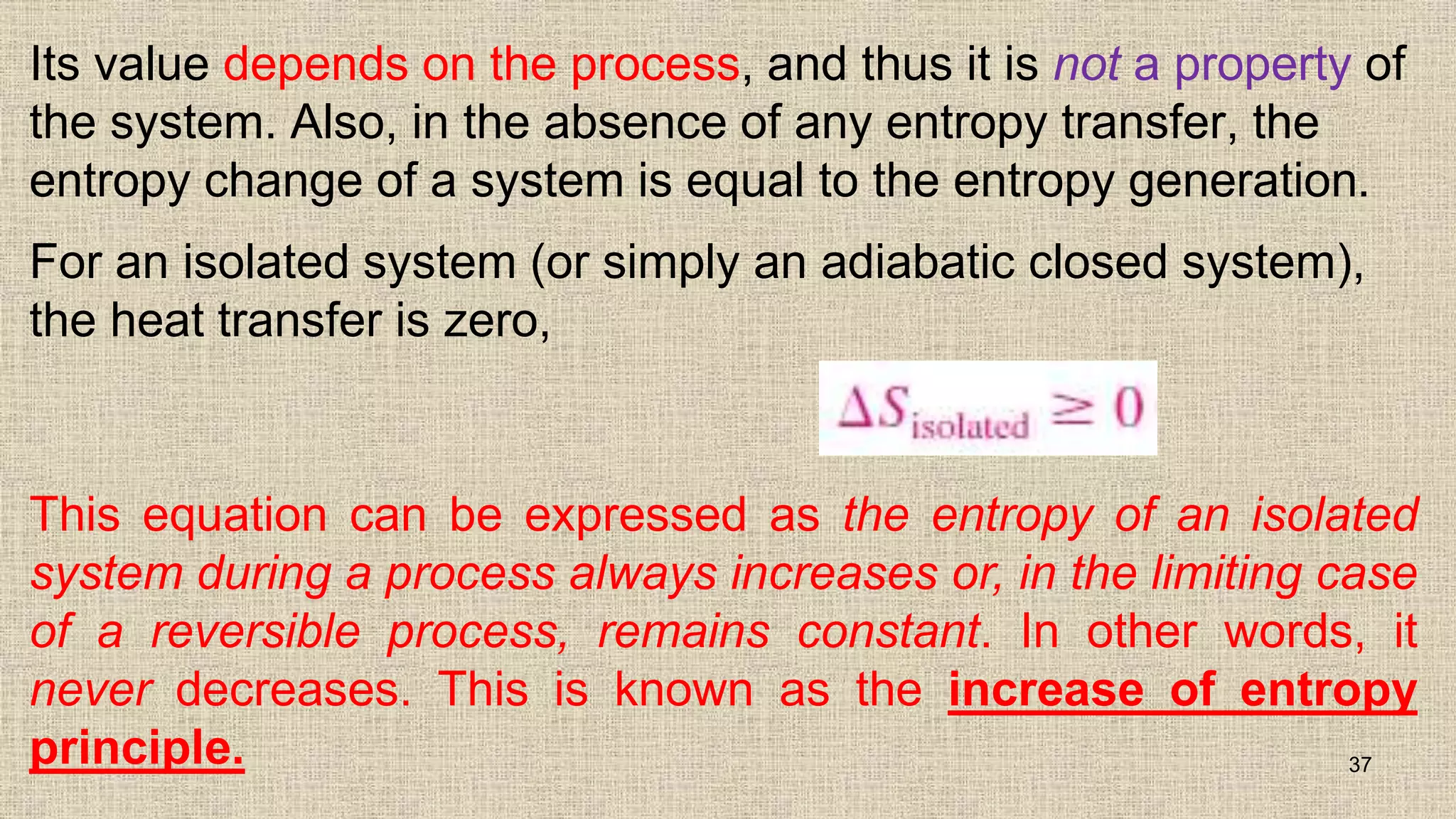

37. Its value depends on the process, and thus it is not a property of
the system. Also, in the absence of any entropy transfer, the
entropy change of a system is equal to the entropy generation.
For an isolated system (or simply an adiabatic closed system),
the heat transfer is zero,
37
This equation can be expressed as the entropy of an isolated
system during a process always increases or, in the limiting case
of a reversible process, remains constant. In other words, it
never decreases. This is known as the increase of entropy
principle.

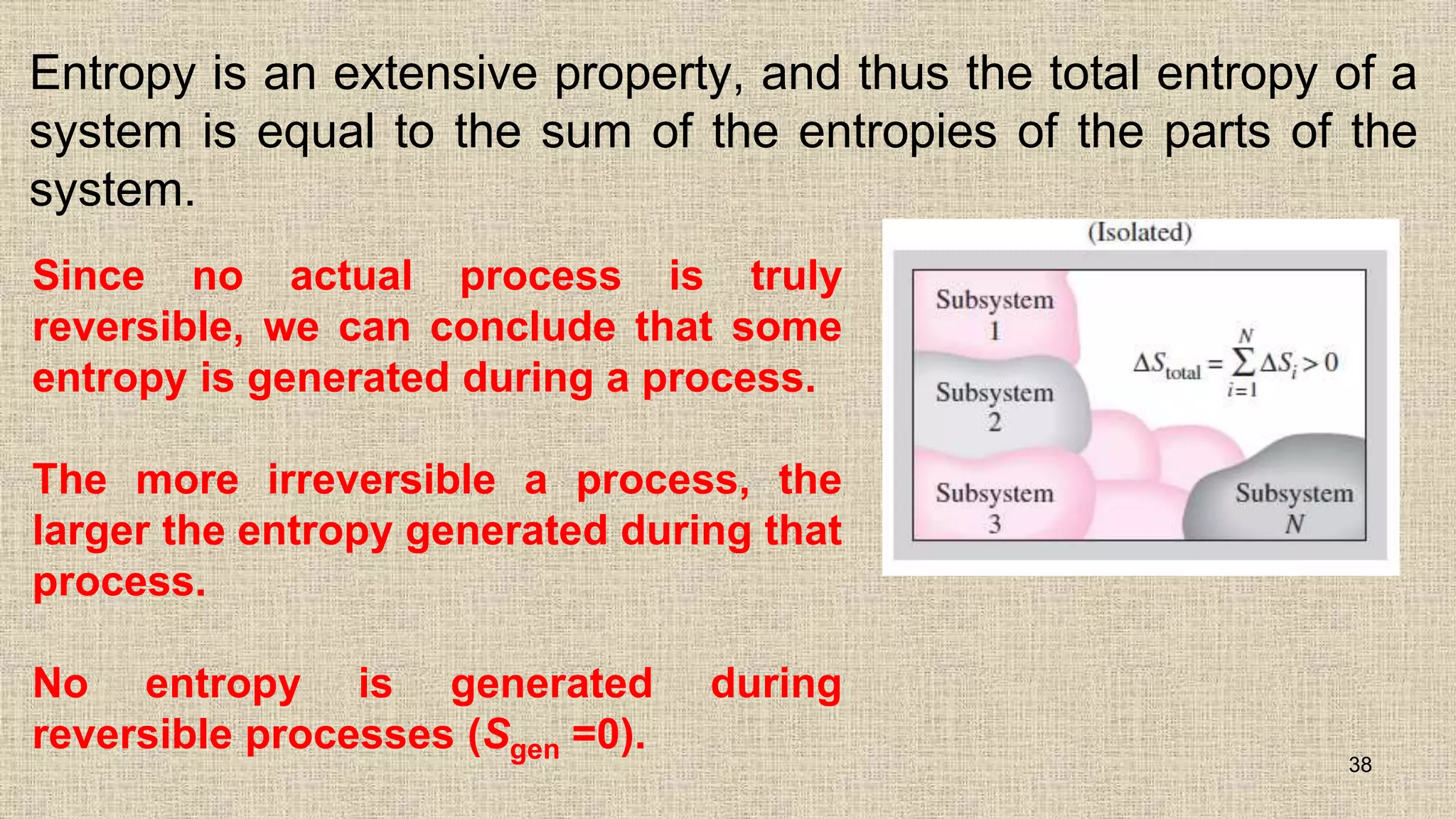

38. Entropy is an extensive property, and thus the total entropy of a
system is equal to the sum of the entropies of the parts of the
system.
38
Since no actual process is truly
reversible, we can conclude that some
entropy is generated during a process.
The more irreversible a process, the
larger the entropy generated during that
process.
No entropy is generated during
reversible processes (Sgen =0).

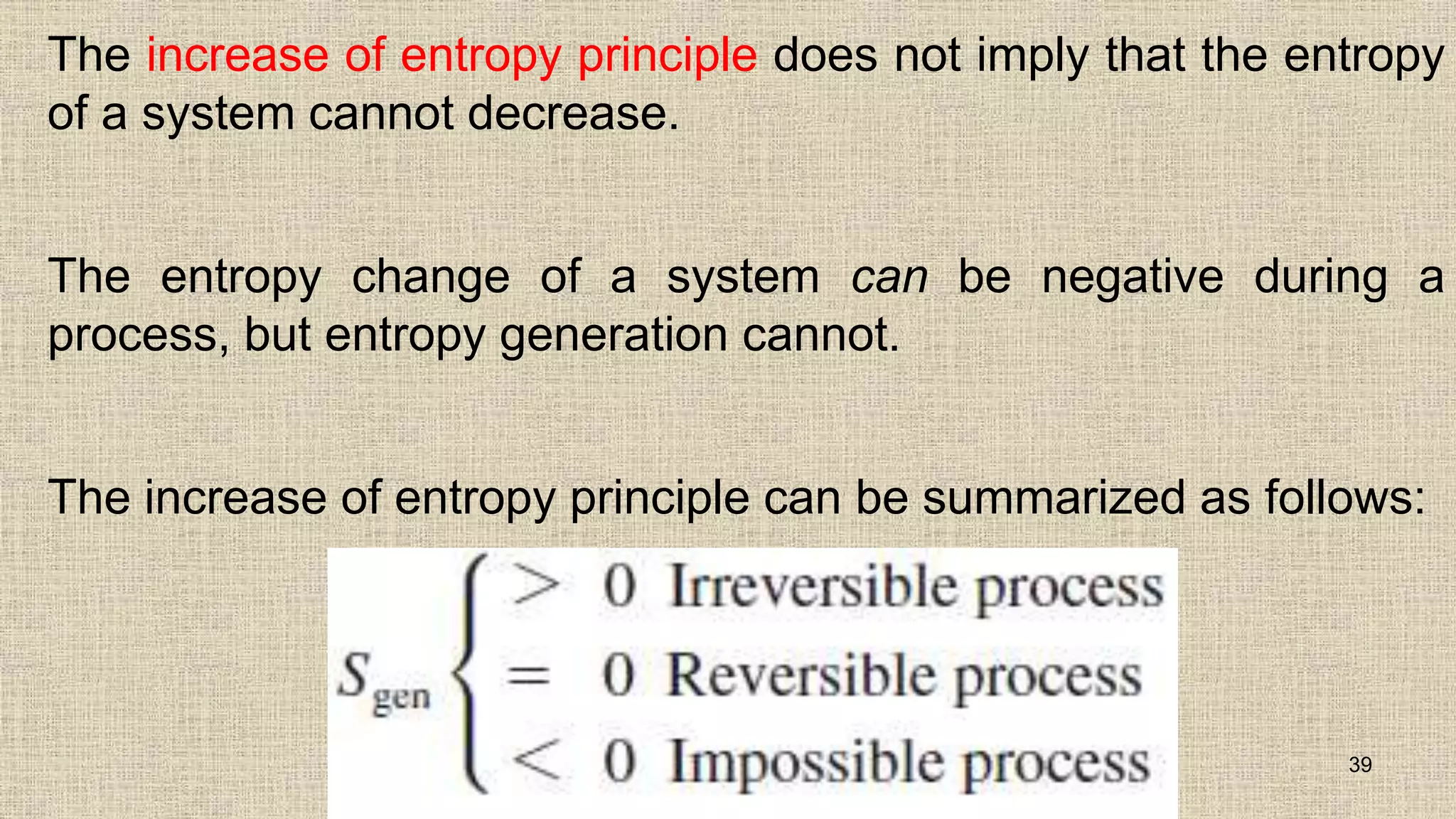

39. The increase of entropy principle does not imply that the entropy
of a system cannot decrease.
The entropy change of a system can be negative during a
process, but entropy generation cannot.
The increase of entropy principle can be summarized as follows:
39

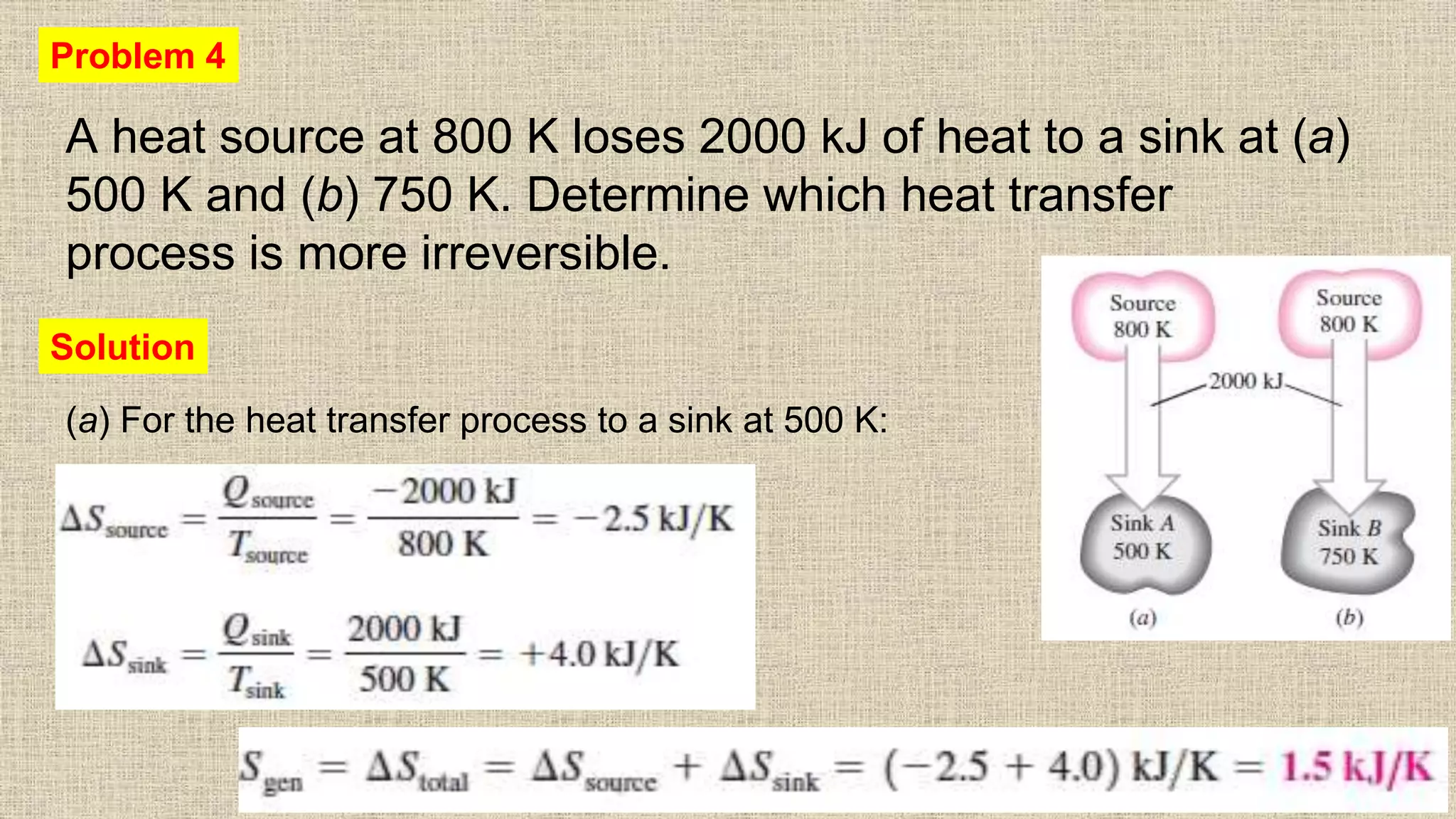

40. A heat source at 800 K loses 2000 kJ of heat to a sink at (a)
500 K and (b) 750 K. Determine which heat transfer
process is more irreversible.
40
Problem 4
Solution
(a) For the heat transfer process to a sink at 500 K:

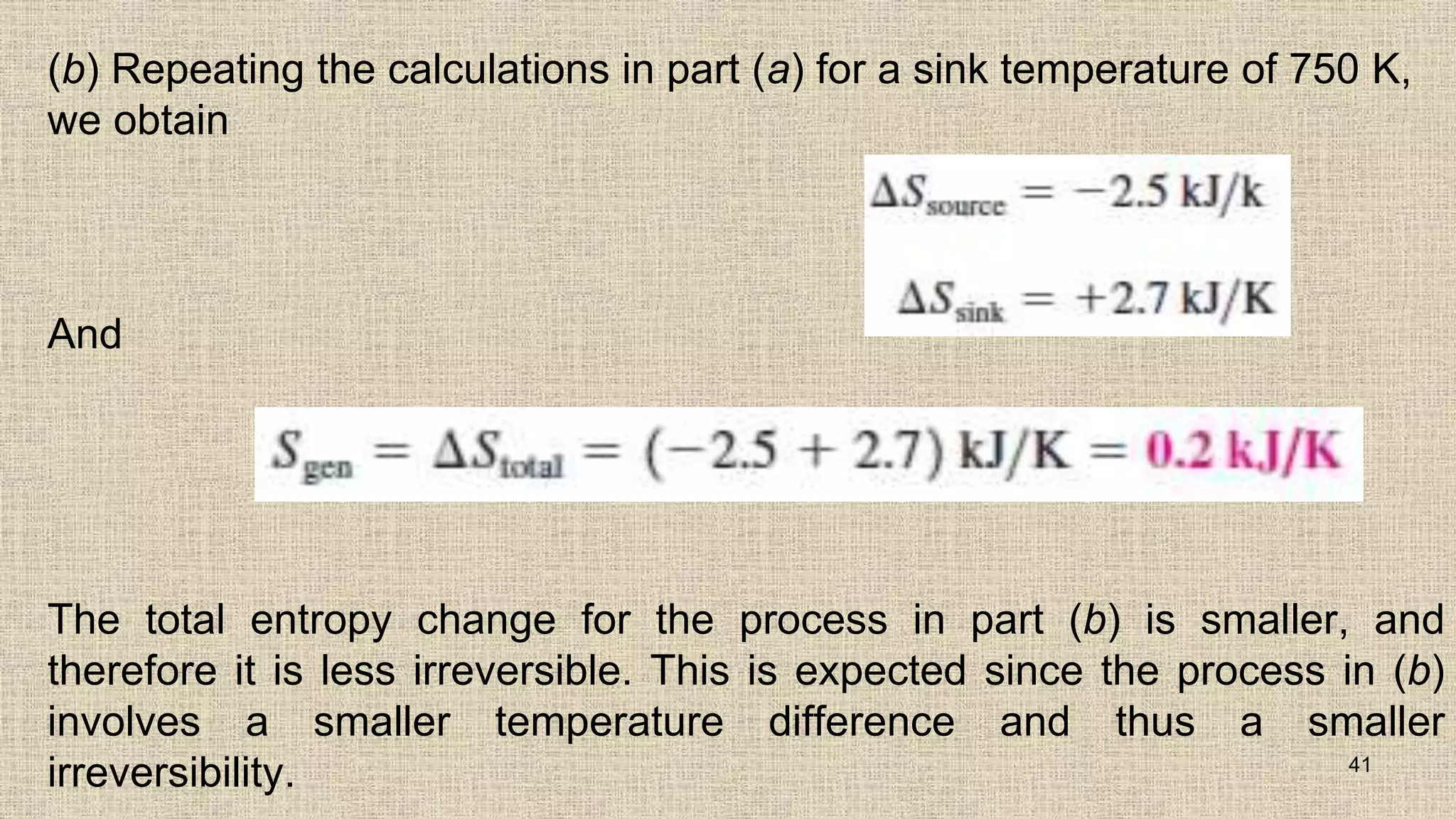

41. (b) Repeating the calculations in part (a) for a sink temperature of 750 K,
we obtain
And
The total entropy change for the process in part (b) is smaller, and
therefore it is less irreversible. This is expected since the process in (b)
involves a smaller temperature difference and thus a smaller
irreversibility. 41

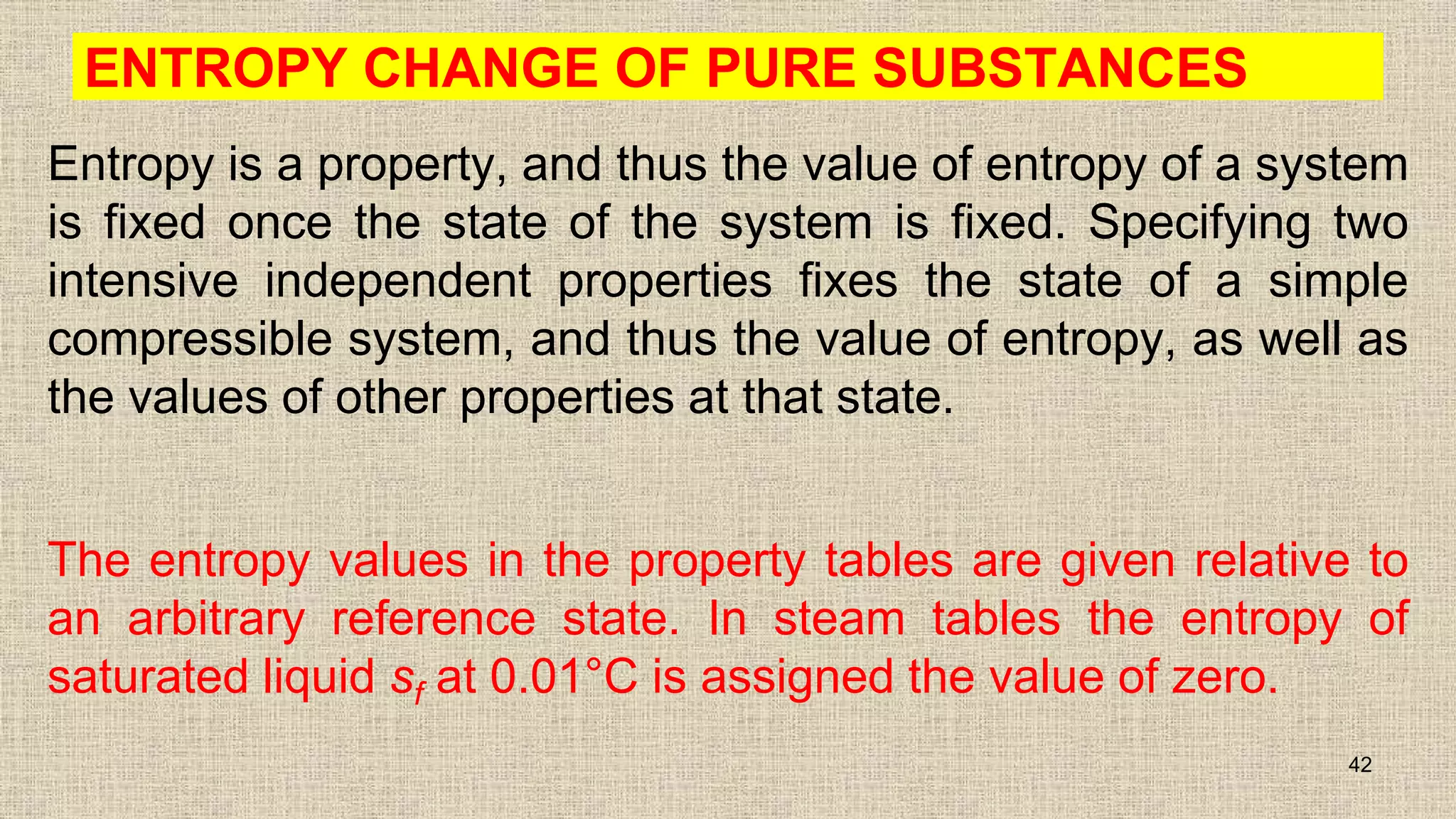

42. ENTROPY CHANGE OF PURE SUBSTANCES
Entropy is a property, and thus the value of entropy of a system
is fixed once the state of the system is fixed. Specifying two
intensive independent properties fixes the state of a simple
compressible system, and thus the value of entropy, as well as
the values of other properties at that state.
The entropy values in the property tables are given relative to
an arbitrary reference state. In steam tables the entropy of
saturated liquid sf at 0.01°C is assigned the value of zero.
42

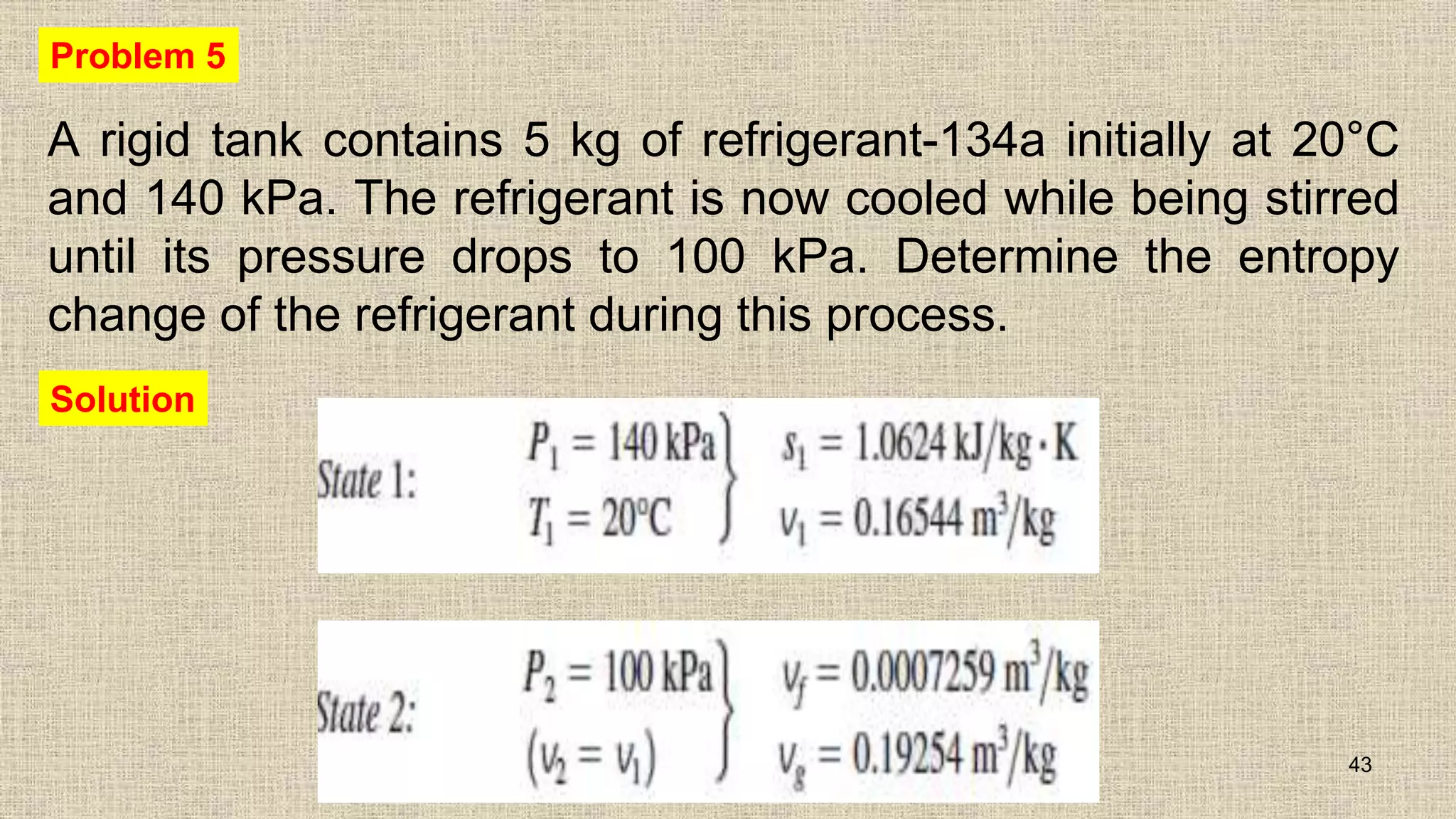

43. A rigid tank contains 5 kg of refrigerant-134a initially at 20°C
and 140 kPa. The refrigerant is now cooled while being stirred
until its pressure drops to 100 kPa. Determine the entropy
change of the refrigerant during this process.
43
Problem 5
Solution

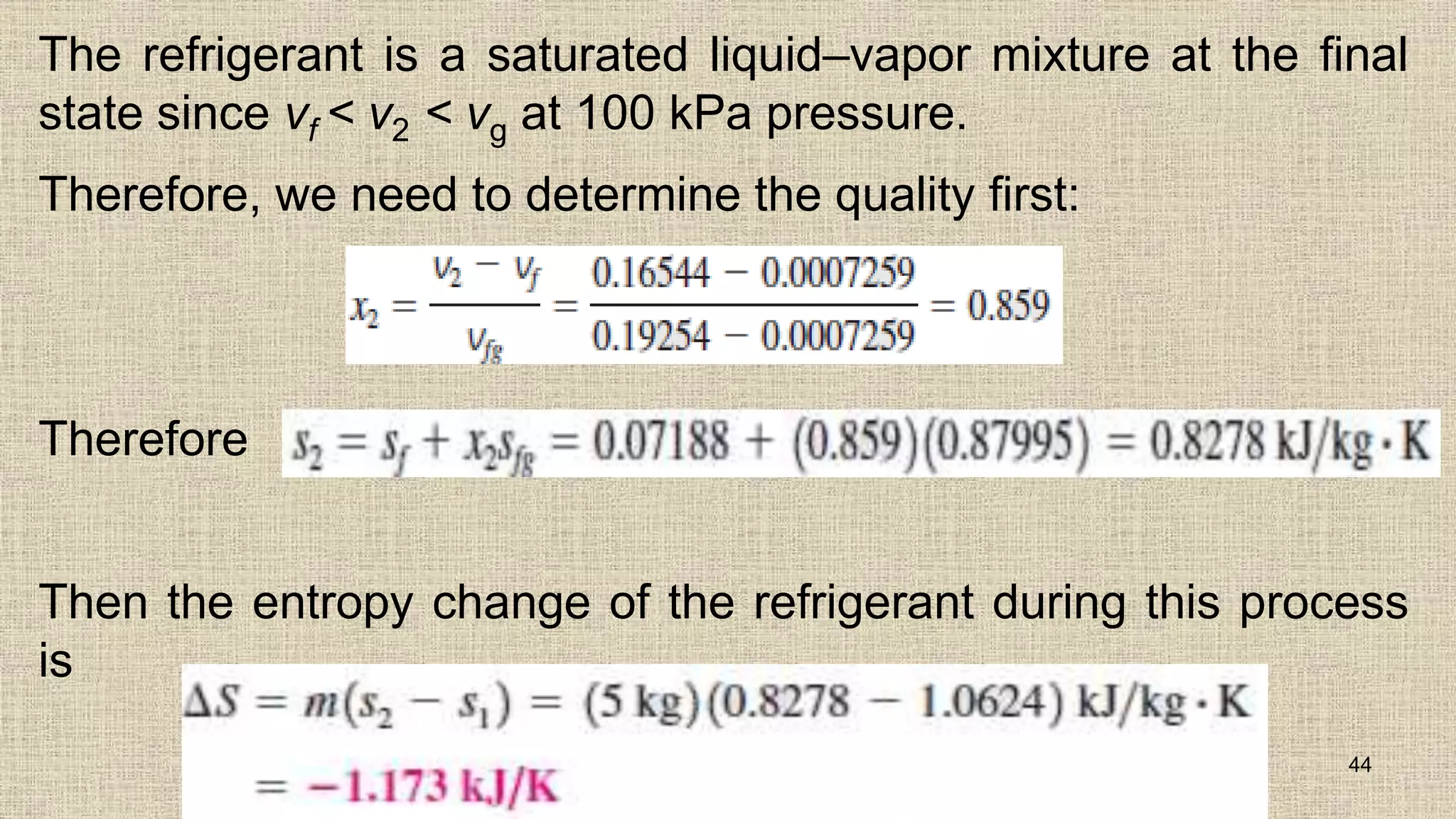

44. The refrigerant is a saturated liquid–vapor mixture at the final
state since vf < v2 < vg at 100 kPa pressure.
Therefore, we need to determine the quality first:
Therefore
Then the entropy change of the refrigerant during this process
is
44
45. ISENTROPIC PROCESSES
The entropy of a fixed mass can be changed by
(1) heat transfer and (2) irreversibilities
The entropy of a fixed mass does not change during a process
that is internally reversible and adiabatic.
A process during which the entropy remains constant is called an
isentropic process.
45

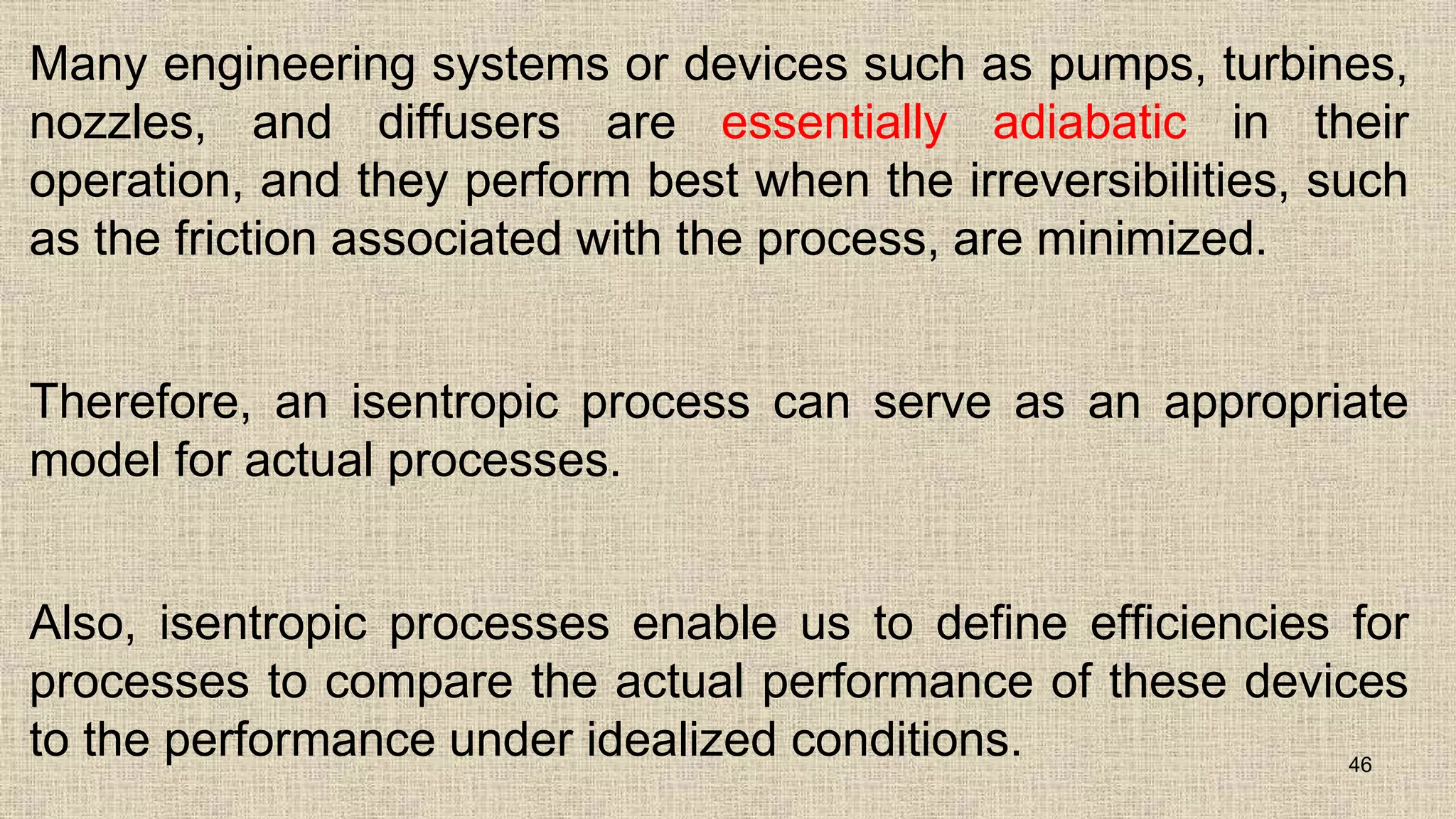

46. Many engineering systems or devices such as pumps, turbines,
nozzles, and diffusers are essentially adiabatic in their
operation, and they perform best when the irreversibilities, such
as the friction associated with the process, are minimized.
Therefore, an isentropic process can serve as an appropriate
model for actual processes.
Also, isentropic processes enable us to define efficiencies for
processes to compare the actual performance of these devices
to the performance under idealized conditions. 46

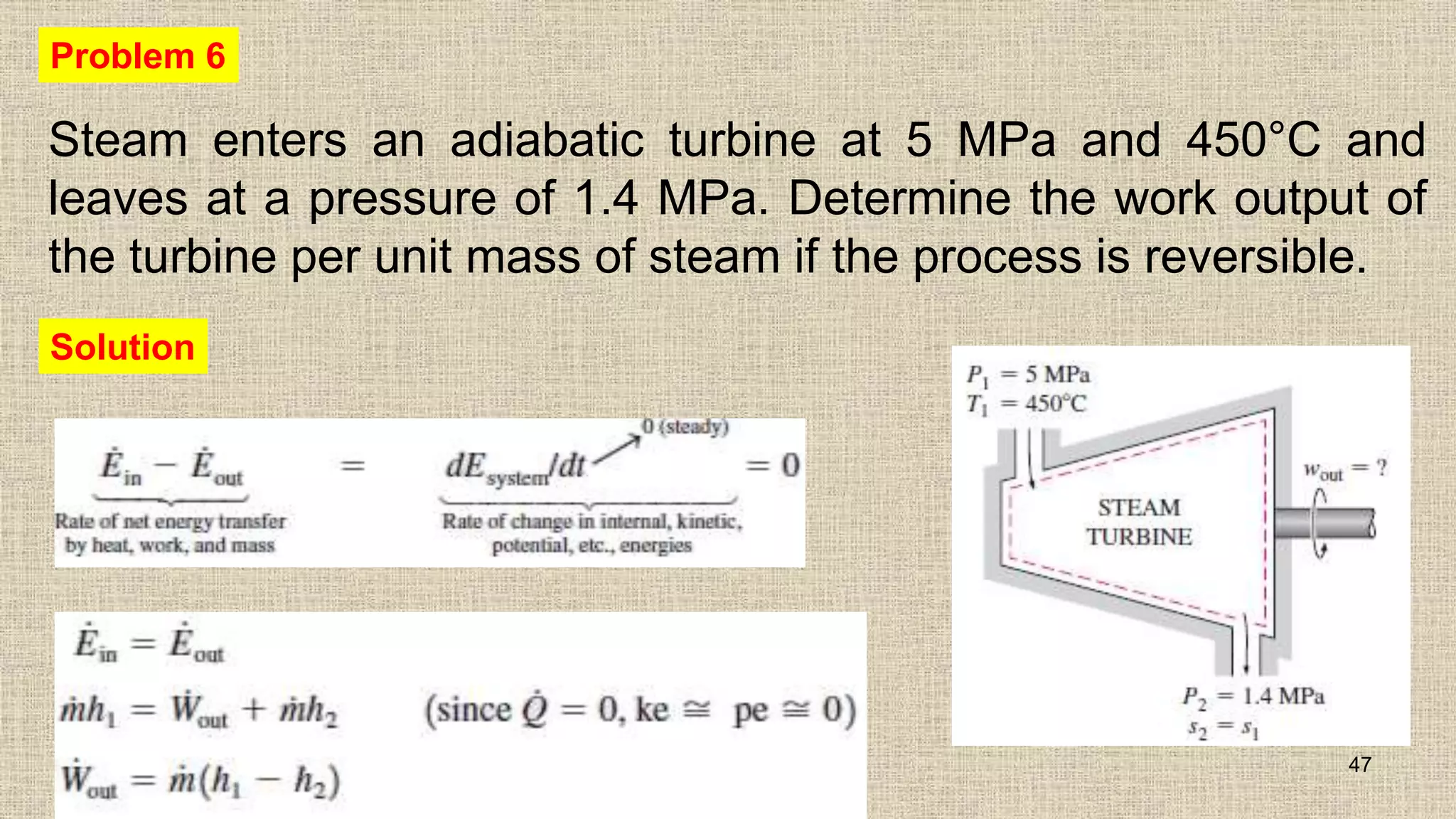

47. Steam enters an adiabatic turbine at 5 MPa and 450°C and
leaves at a pressure of 1.4 MPa. Determine the work output of
the turbine per unit mass of steam if the process is reversible.
47
Problem 6
Solution

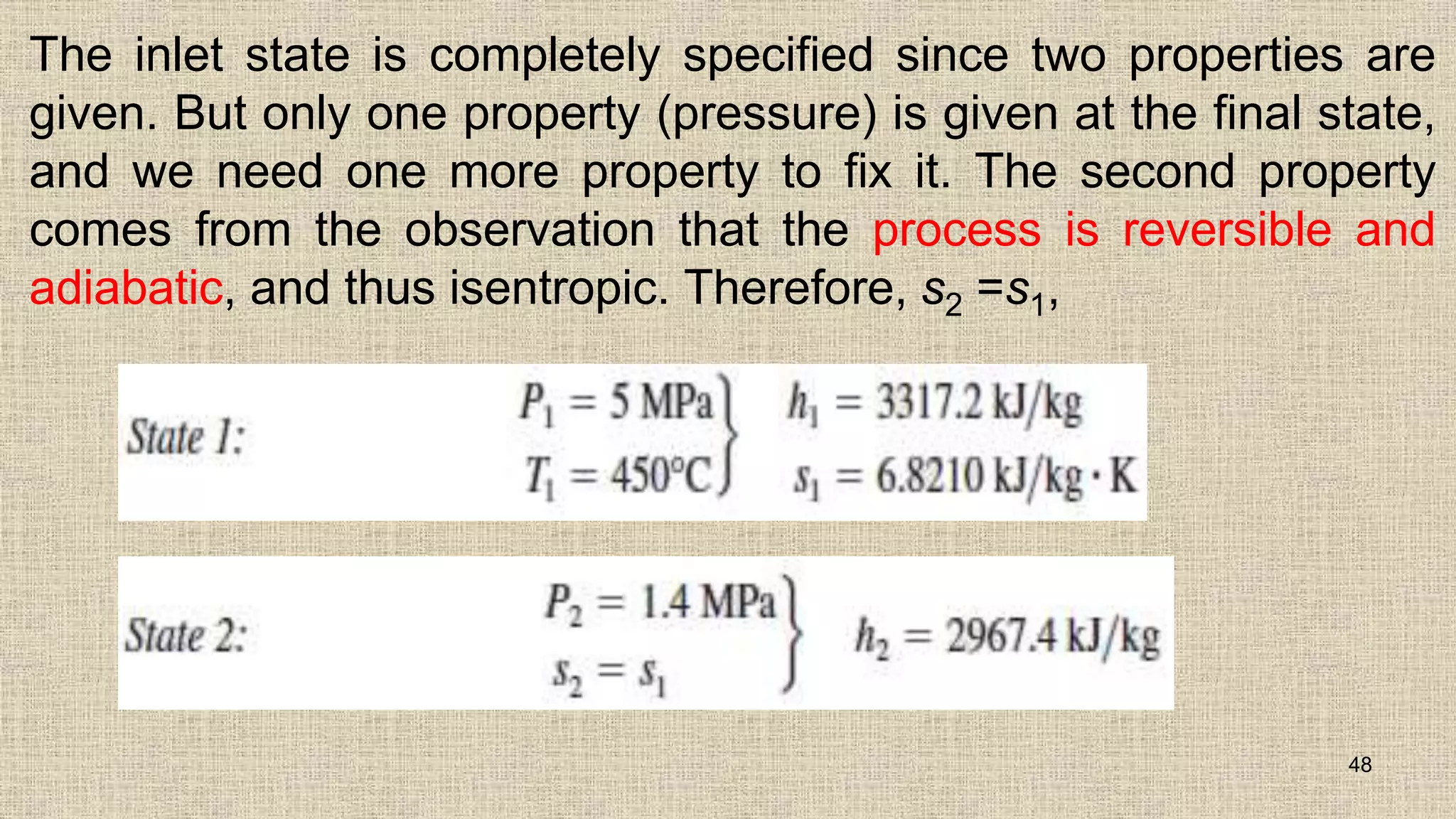

48. The inlet state is completely specified since two properties are
given. But only one property (pressure) is given at the final state,
and we need one more property to fix it. The second property
comes from the observation that the process is reversible and
adiabatic, and thus isentropic. Therefore, s2 =s1,
48

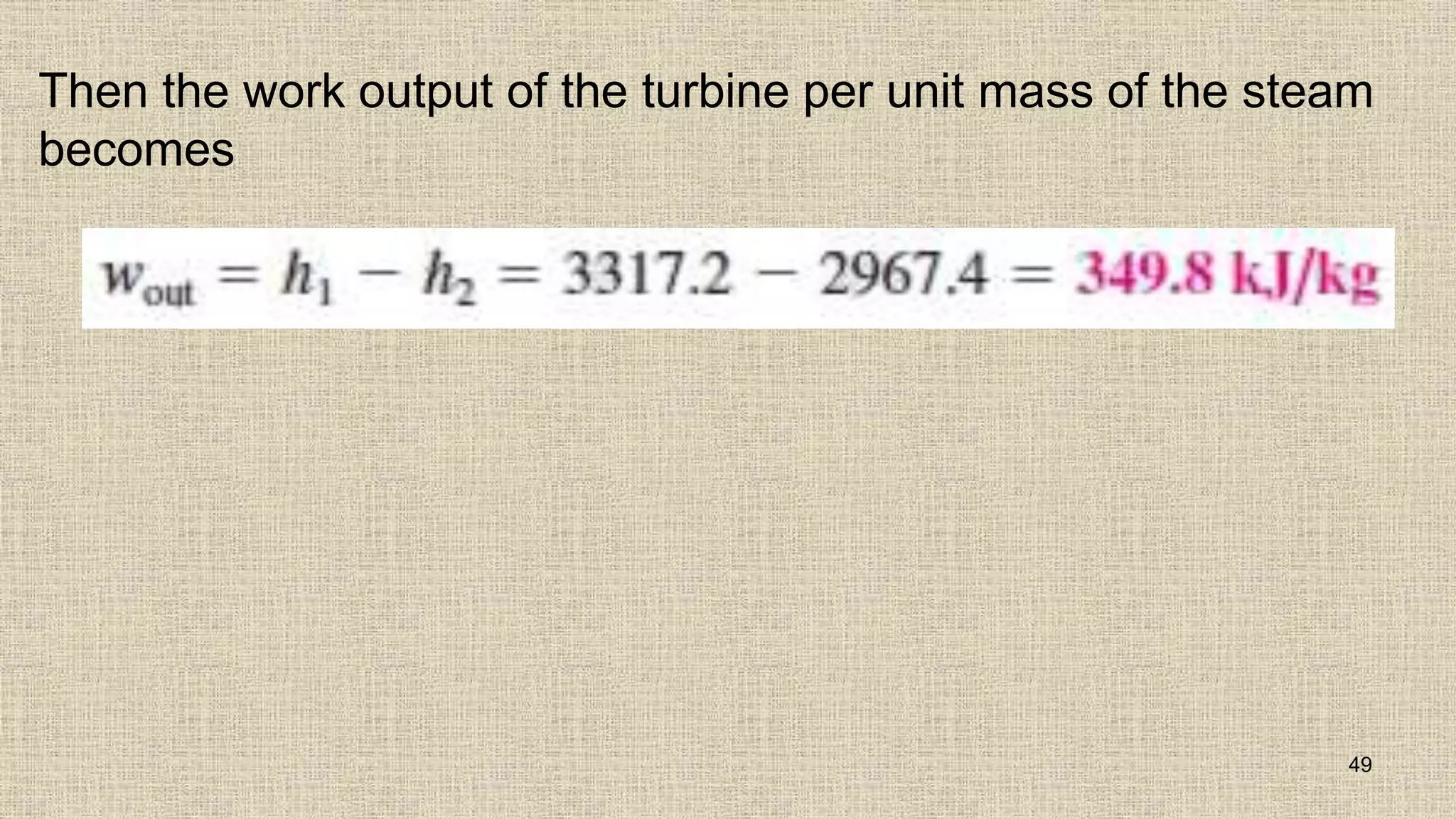

49. Then the work output of the turbine per unit mass of the steam
becomes
49

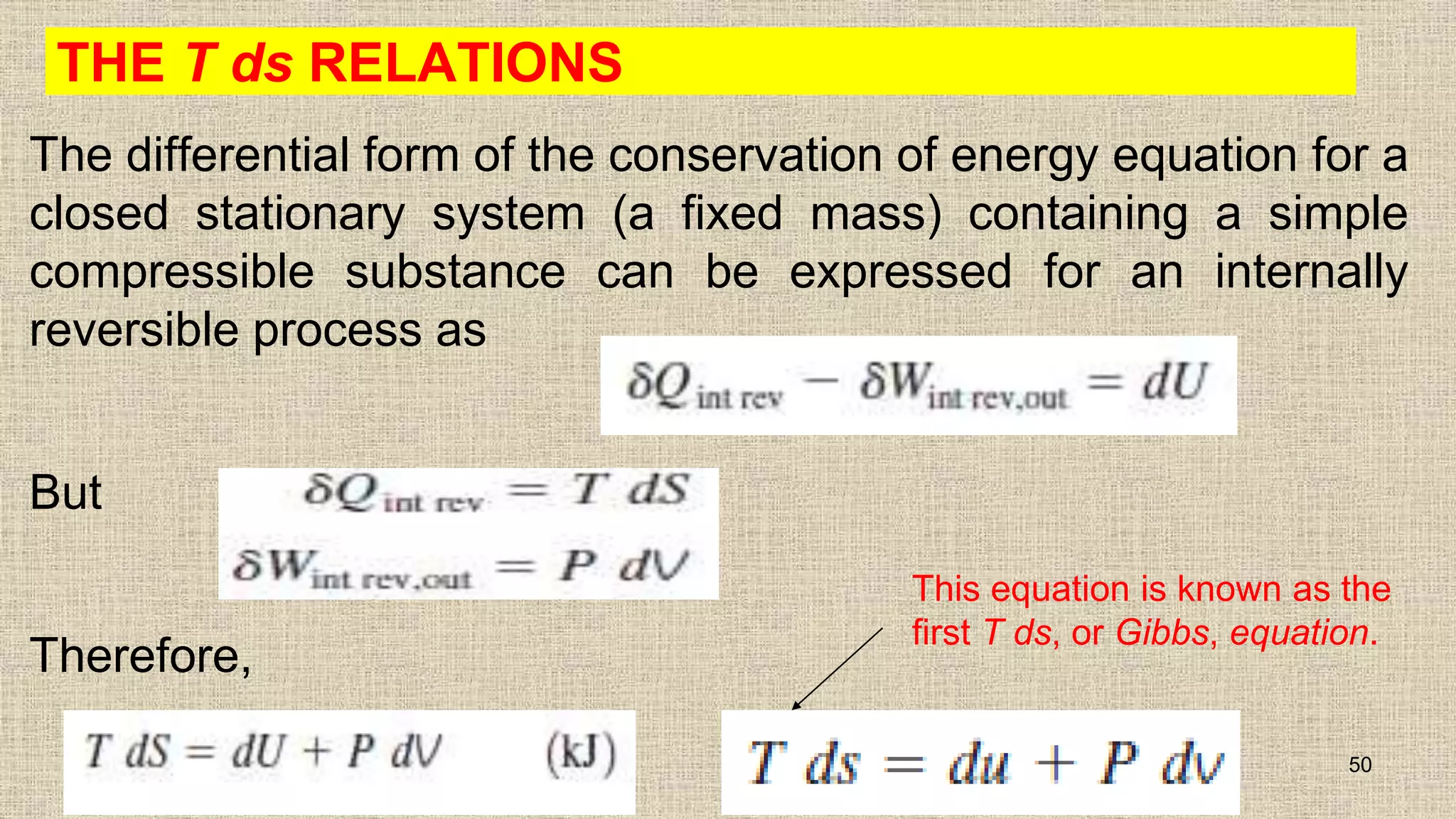

50. THE T ds RELATIONS
The differential form of the conservation of energy equation for a
closed stationary system (a fixed mass) containing a simple
compressible substance can be expressed for an internally
reversible process as
But
Therefore,
50
This equation is known as the
first T ds, or Gibbs, equation.

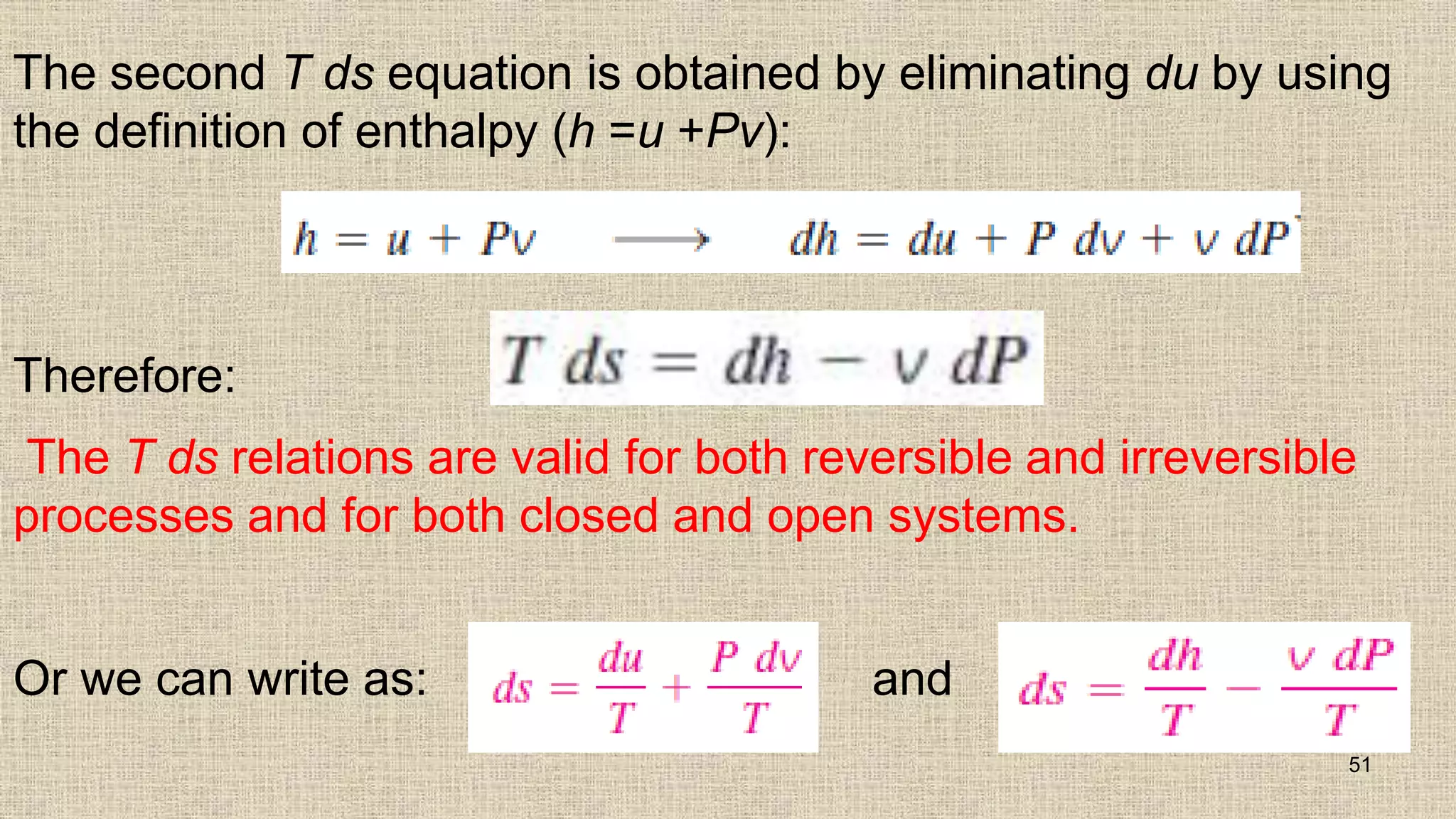

51. The second T ds equation is obtained by eliminating du by using
the definition of enthalpy (h =u +Pv):
Therefore:
The T ds relations are valid for both reversible and irreversible
processes and for both closed and open systems.
Or we can write as: and
51

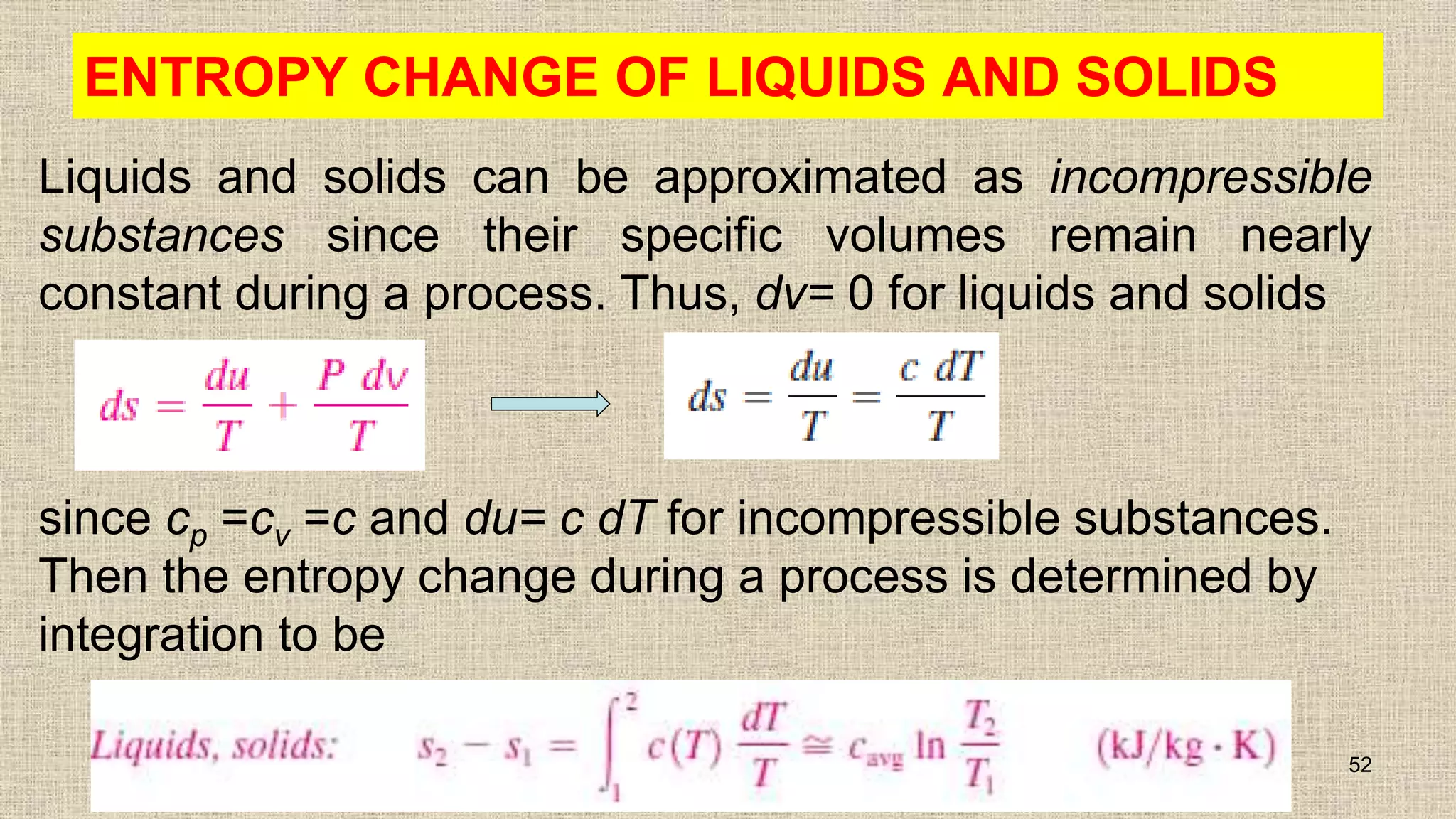

52. ENTROPY CHANGE OF LIQUIDS AND SOLIDS
Liquids and solids can be approximated as incompressible
substances since their specific volumes remain nearly
constant during a process. Thus, dv= 0 for liquids and solids
52
since cp =cv =c and du= c dT for incompressible substances.
Then the entropy change during a process is determined by
integration to be

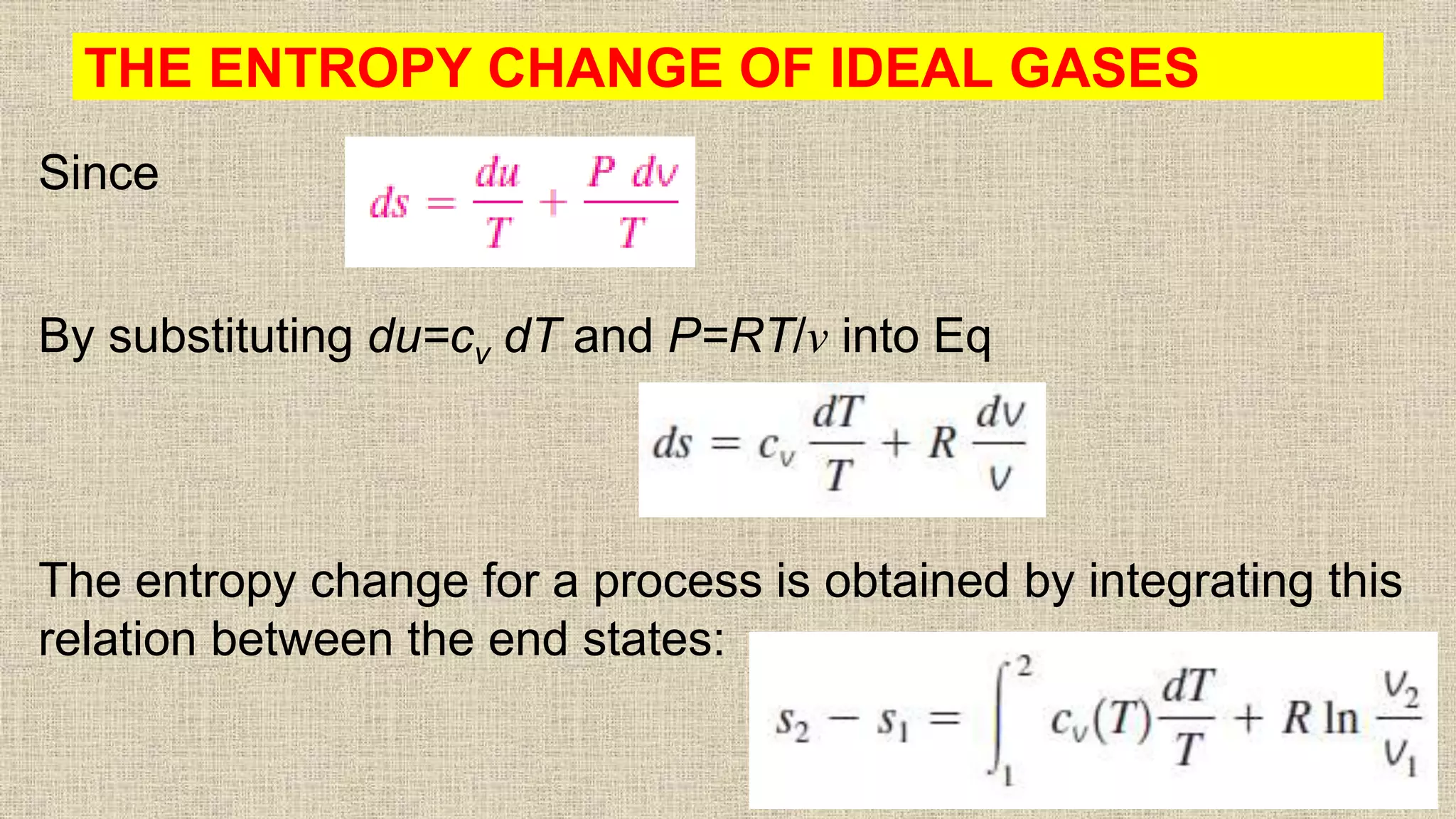

53. THE ENTROPY CHANGE OF IDEAL GASES
Since
By substituting du=cv dT and P=RT/v into Eq
The entropy change for a process is obtained by integrating this
relation between the end states:
53
54. A second relation for the entropy change of an ideal gas is
obtained in a similar manner by substituting dh=cp dT and
v=RT/P into Eq.
The specific heats of ideal gases depend on temperature.
The integrals in Eqs. cannot be performed unless the dependence of cv and cp on
temperature is known. Even when the cv(T) and cp(T) functions are available,
performing long integrations every time entropy change is calculated is not practical
54

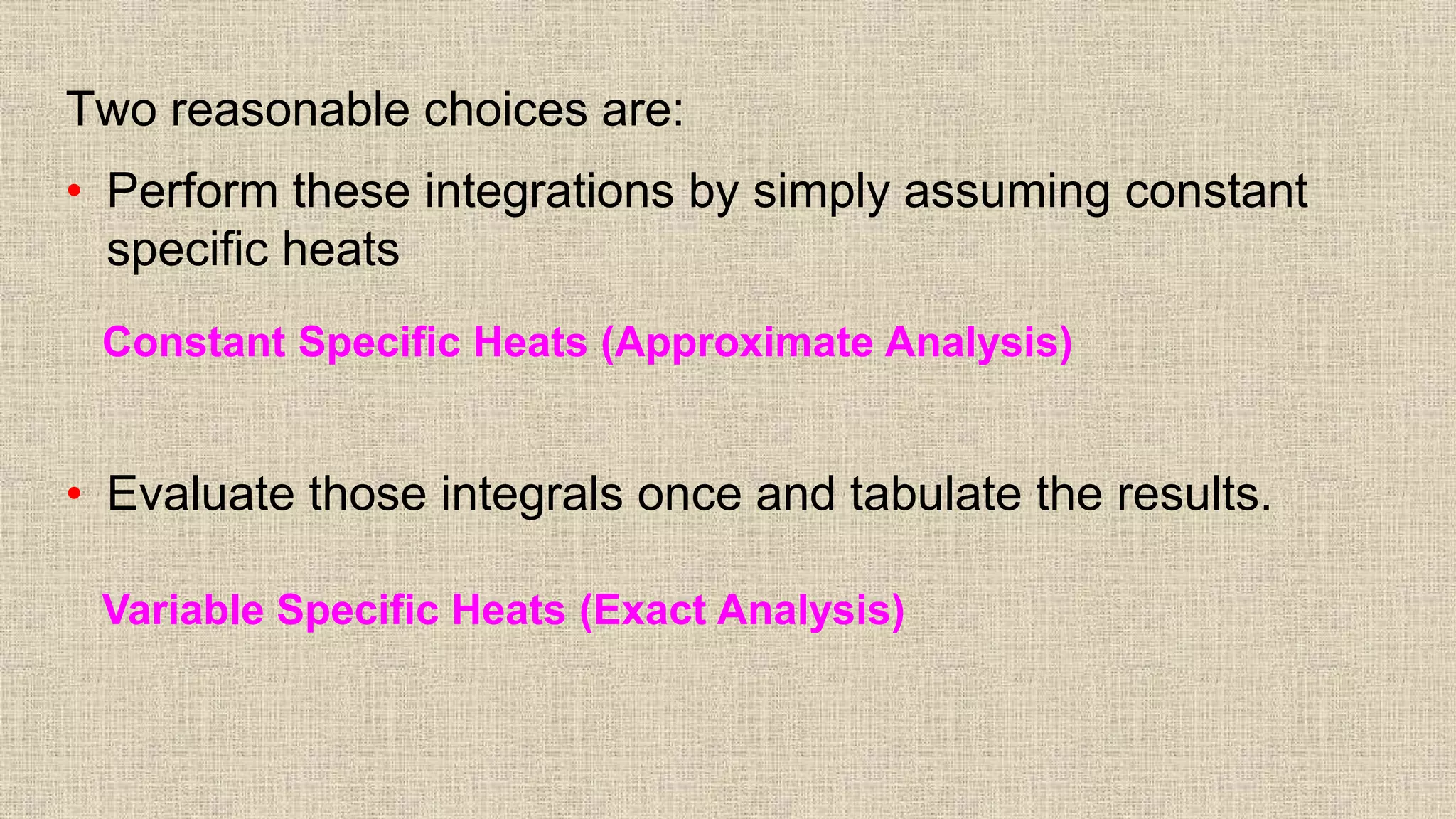

55. Two reasonable choices are:
• Perform these integrations by simply assuming constant
specific heats
• Evaluate those integrals once and tabulate the results.
Constant Specific Heats (Approximate Analysis)
Variable Specific Heats (Exact Analysis)

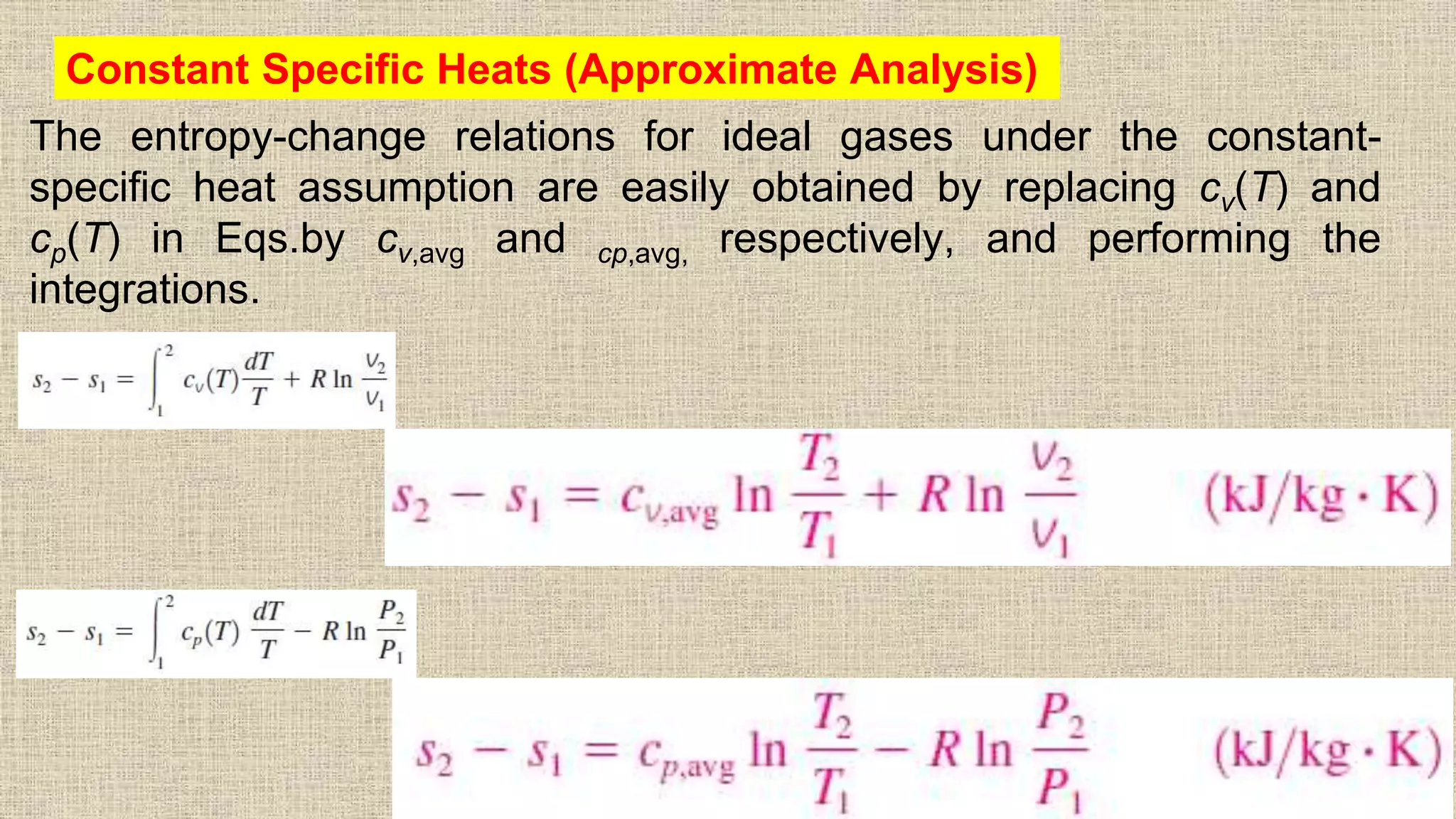

56. The entropy-change relations for ideal gases under the constant-
specific heat assumption are easily obtained by replacing cv(T) and
cp(T) in Eqs.by cv,avg and cp,avg, respectively, and performing the
integrations.
56
Constant Specific Heats (Approximate Analysis)
57. Variable Specific Heats (Exact Analysis)

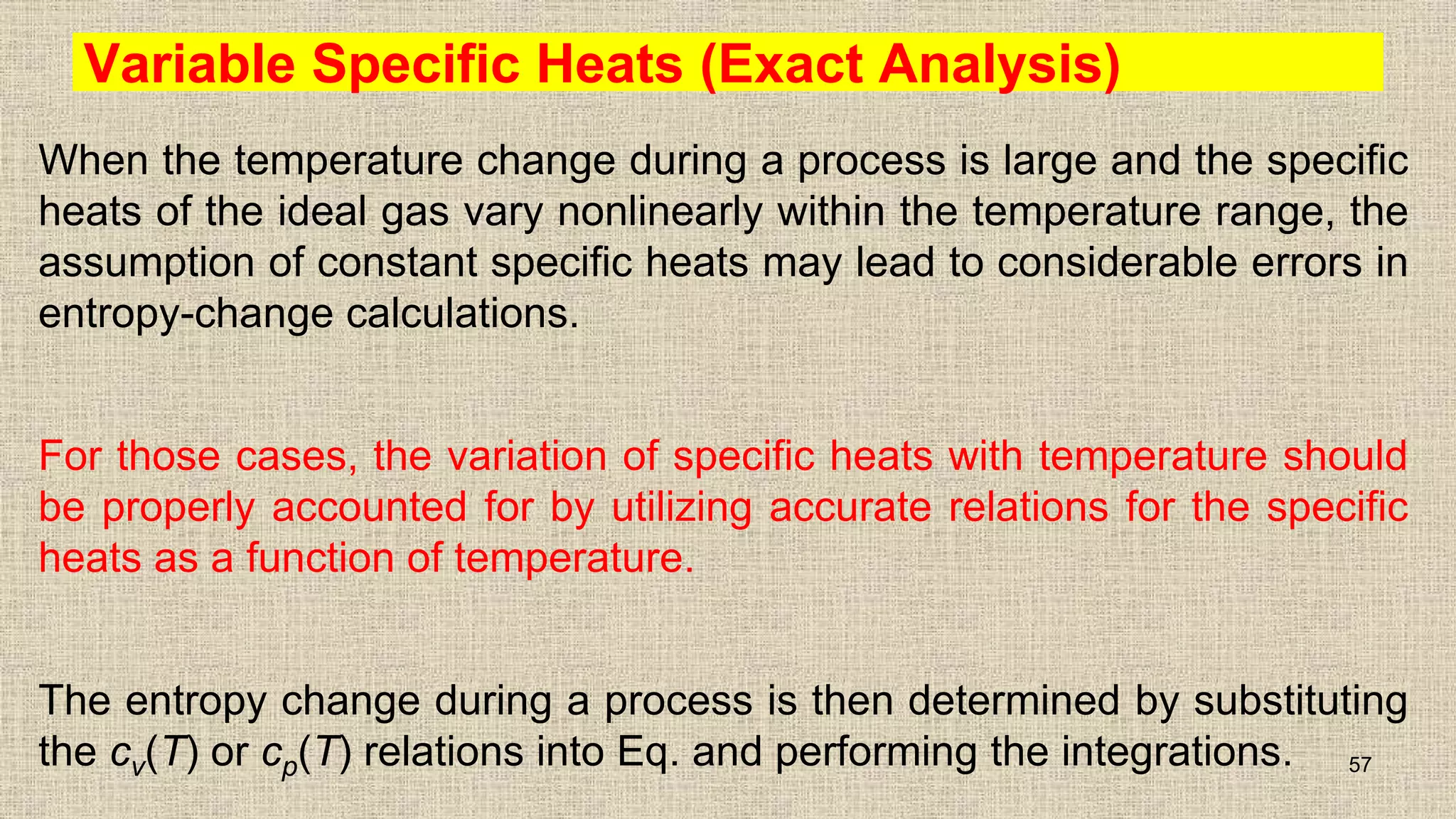

When the temperature change during a process is large and the specific
heats of the ideal gas vary nonlinearly within the temperature range, the
assumption of constant specific heats may lead to considerable errors in
entropy-change calculations.
For those cases, the variation of specific heats with temperature should
be properly accounted for by utilizing accurate relations for the specific
heats as a function of temperature.
The entropy change during a process is then determined by substituting
the cv(T) or cp(T) relations into Eq. and performing the integrations. 57

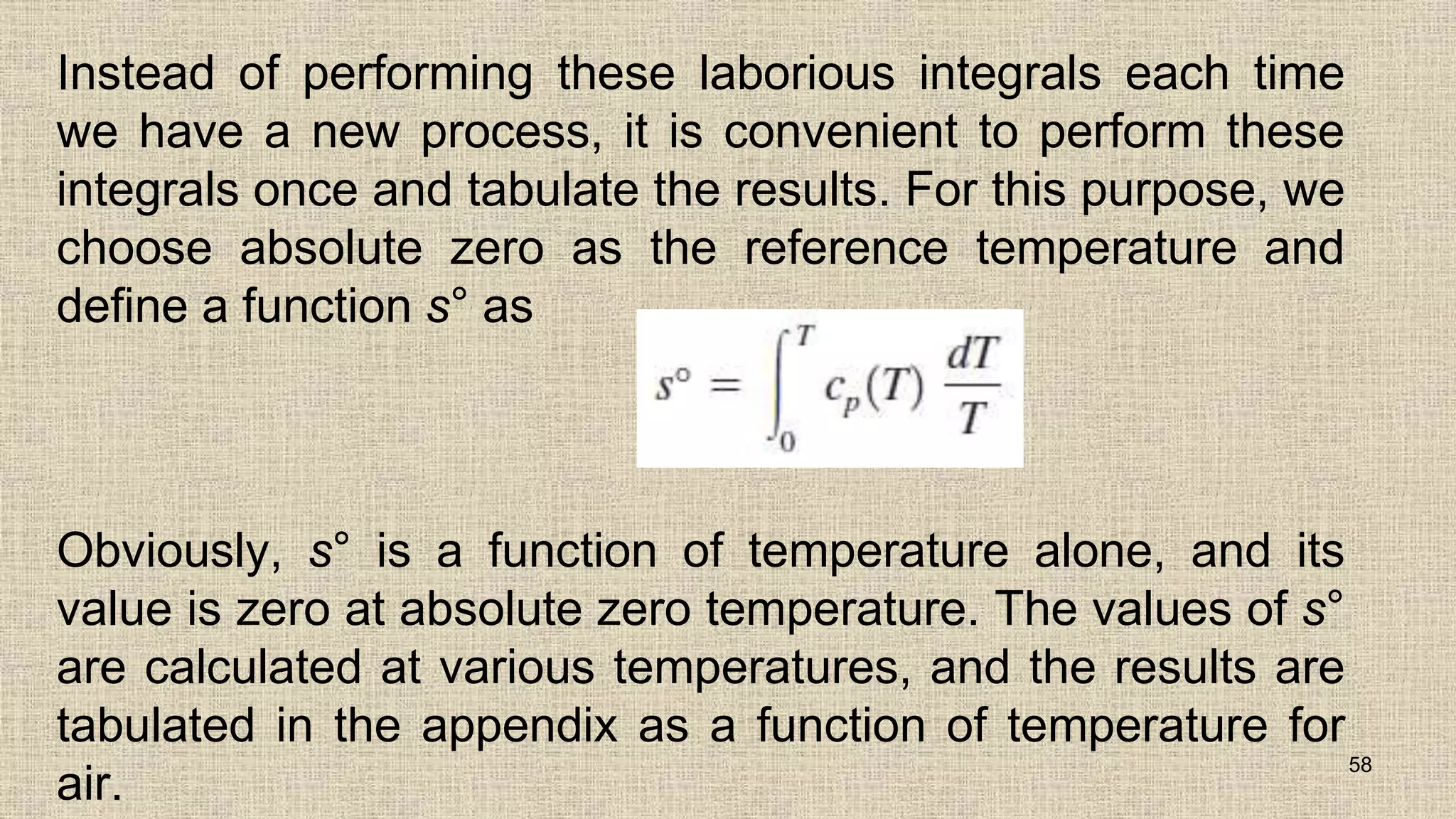

58. Instead of performing these laborious integrals each time
we have a new process, it is convenient to perform these
integrals once and tabulate the results. For this purpose, we
choose absolute zero as the reference temperature and
define a function s° as
Obviously, s° is a function of temperature alone, and its
value is zero at absolute zero temperature. The values of s°
are calculated at various temperatures, and the results are
tabulated in the appendix as a function of temperature for
air.
58

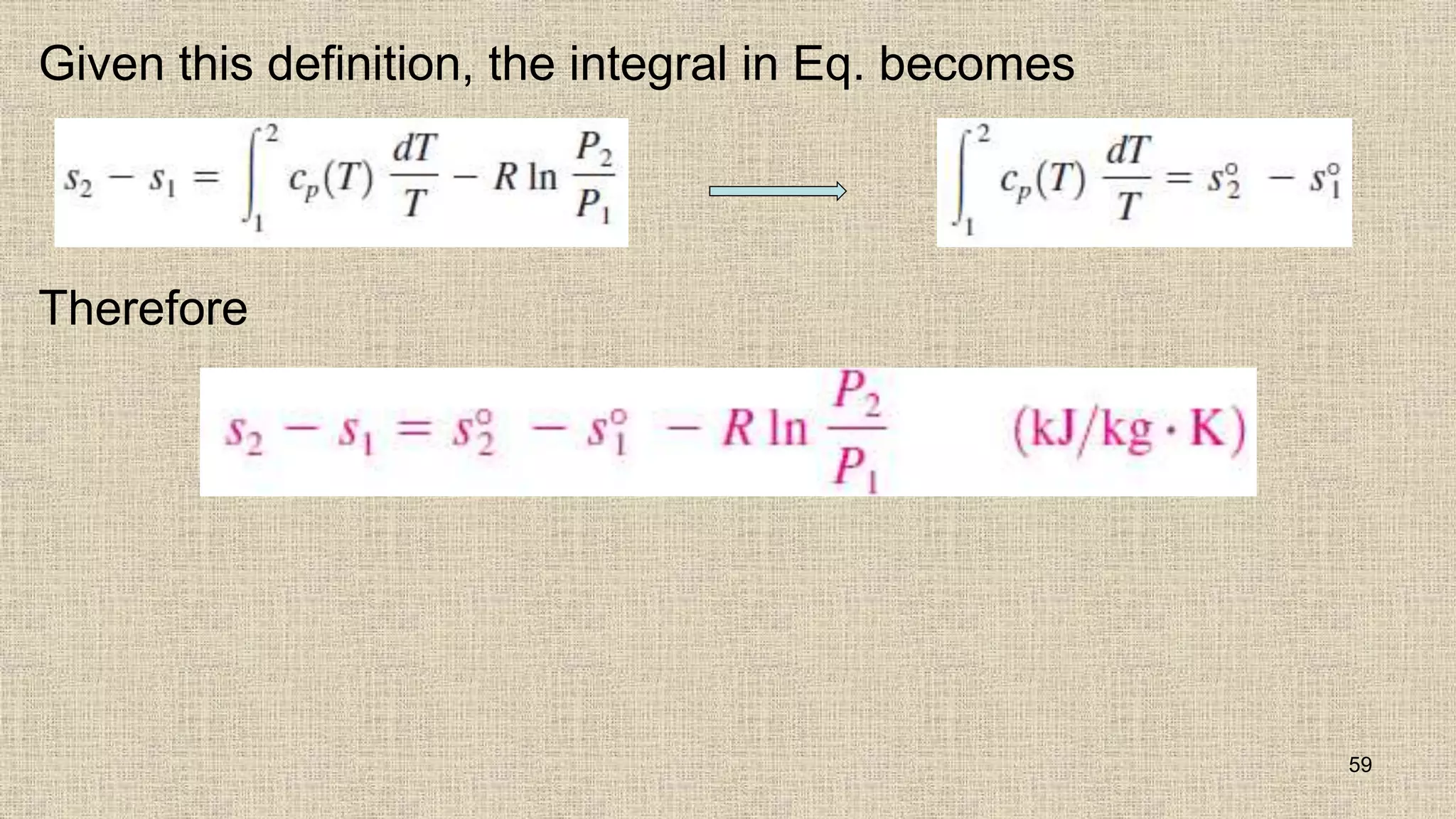

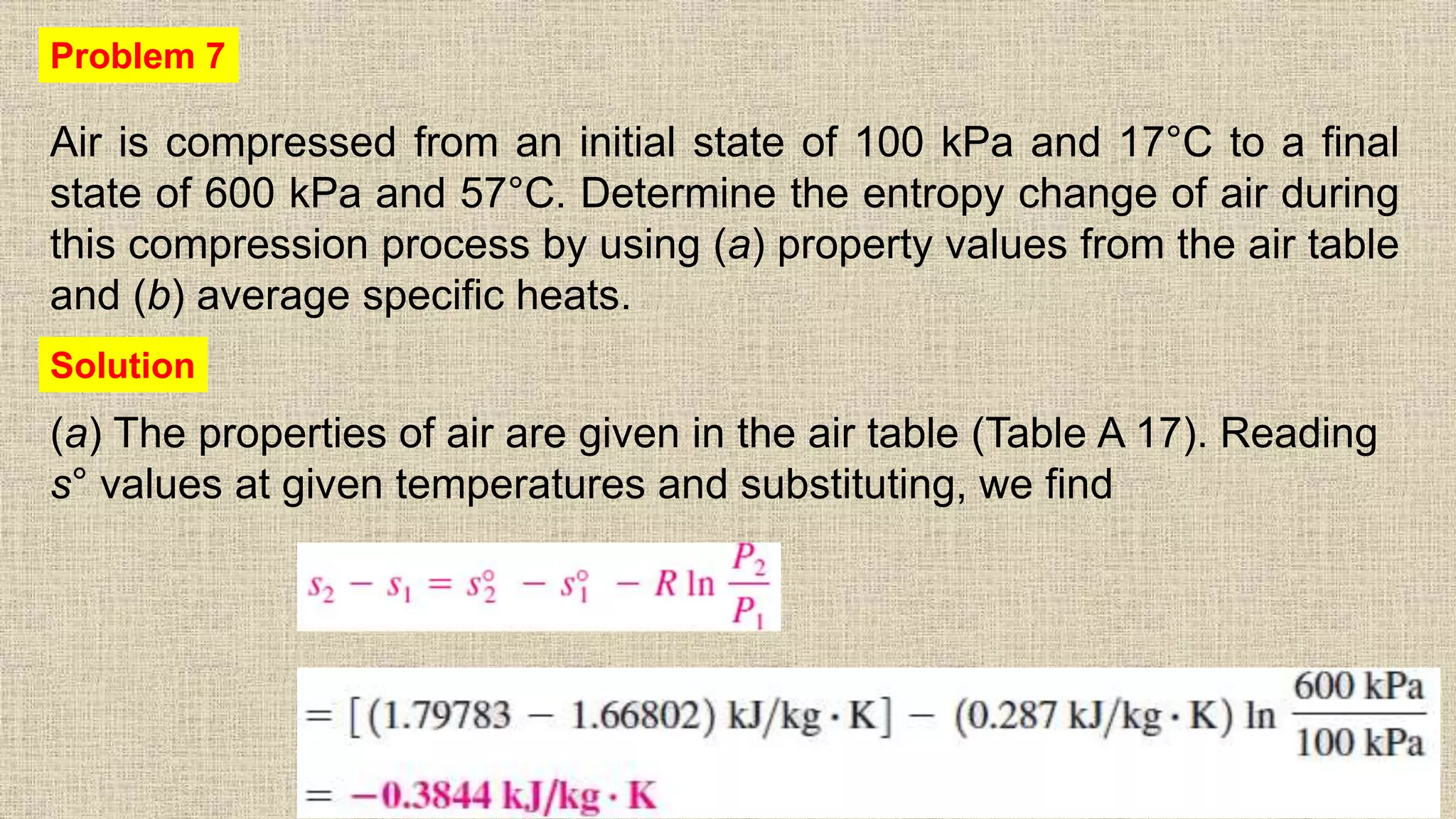

60. Air is compressed from an initial state of 100 kPa and 17°C to a final
state of 600 kPa and 57°C. Determine the entropy change of air during
this compression process by using (a) property values from the air table
and (b) average specific heats.
60
Problem 7
(a) The properties of air are given in the air table (Table A 17). Reading
s° values at given temperatures and substituting, we find
Solution

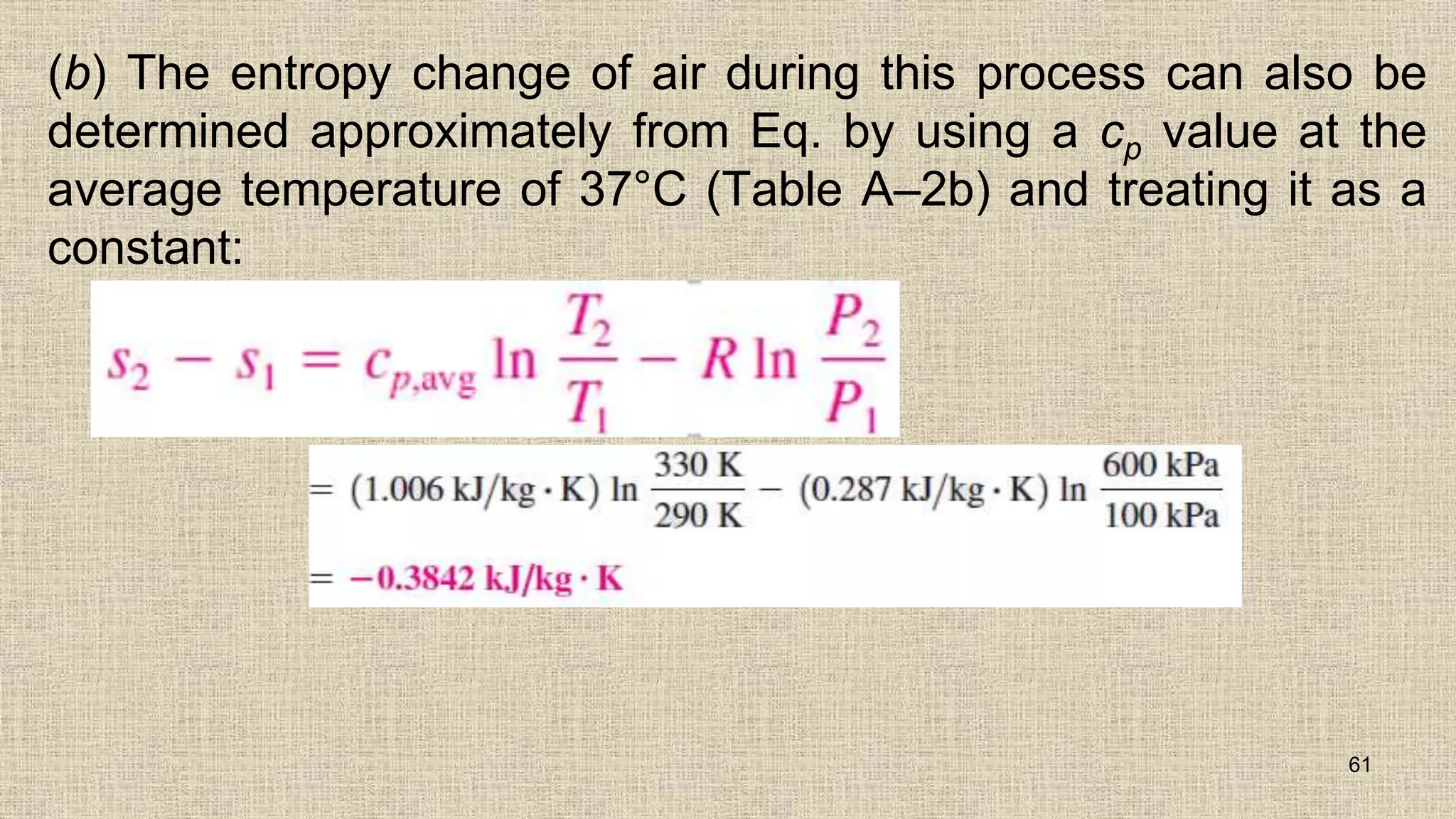

61. (b) The entropy change of air during this process can also be
determined approximately from Eq. by using a cp value at the
average temperature of 37°C (Table A–2b) and treating it as a
constant:
61

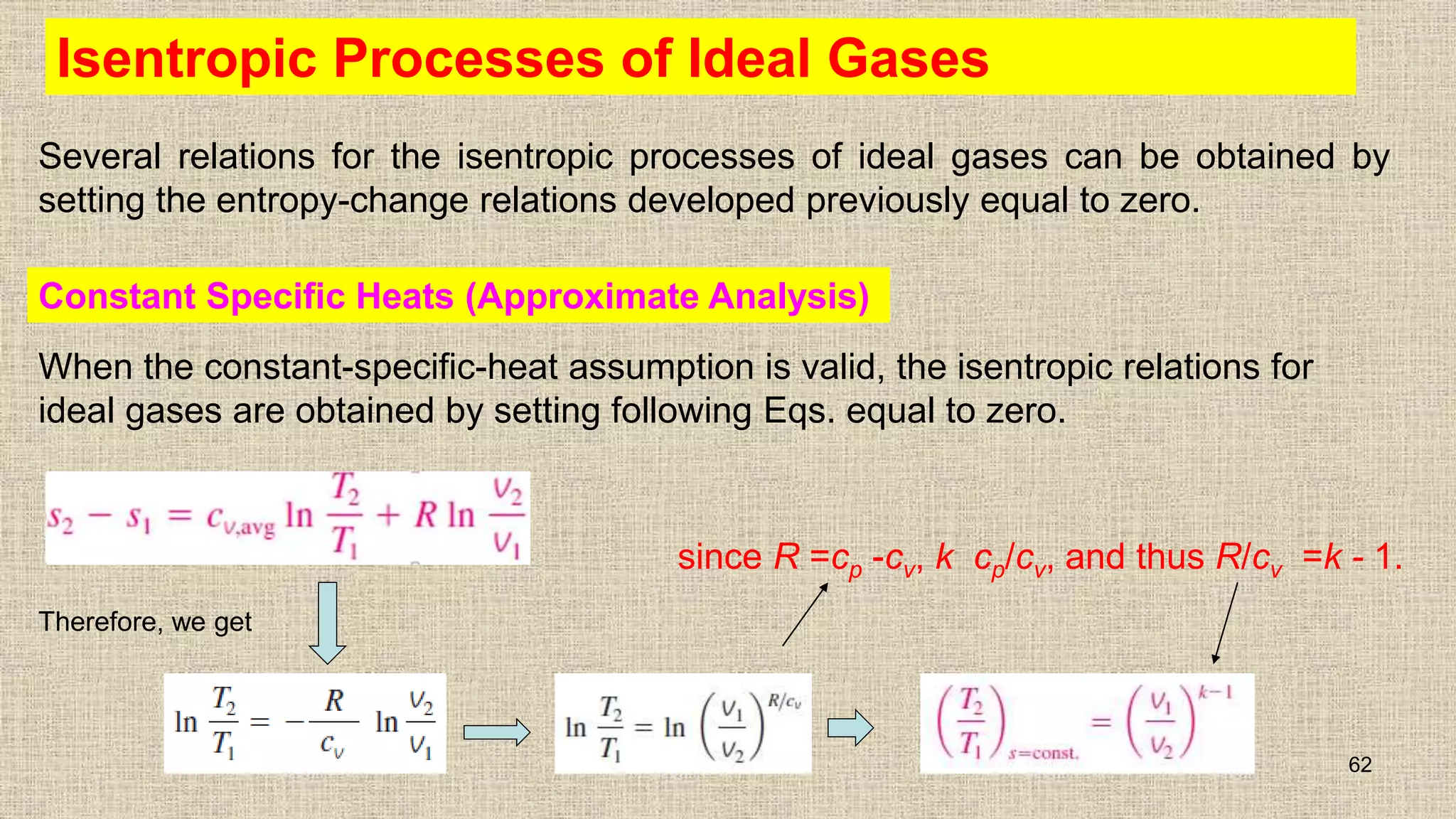

62. Isentropic Processes of Ideal Gases
Several relations for the isentropic processes of ideal gases can be obtained by
setting the entropy-change relations developed previously equal to zero.
62
Constant Specific Heats (Approximate Analysis)
When the constant-specific-heat assumption is valid, the isentropic relations for
ideal gases are obtained by setting following Eqs. equal to zero.
Therefore, we get
since R =cp -cv, k cp/cv, and thus R/cv =k - 1.

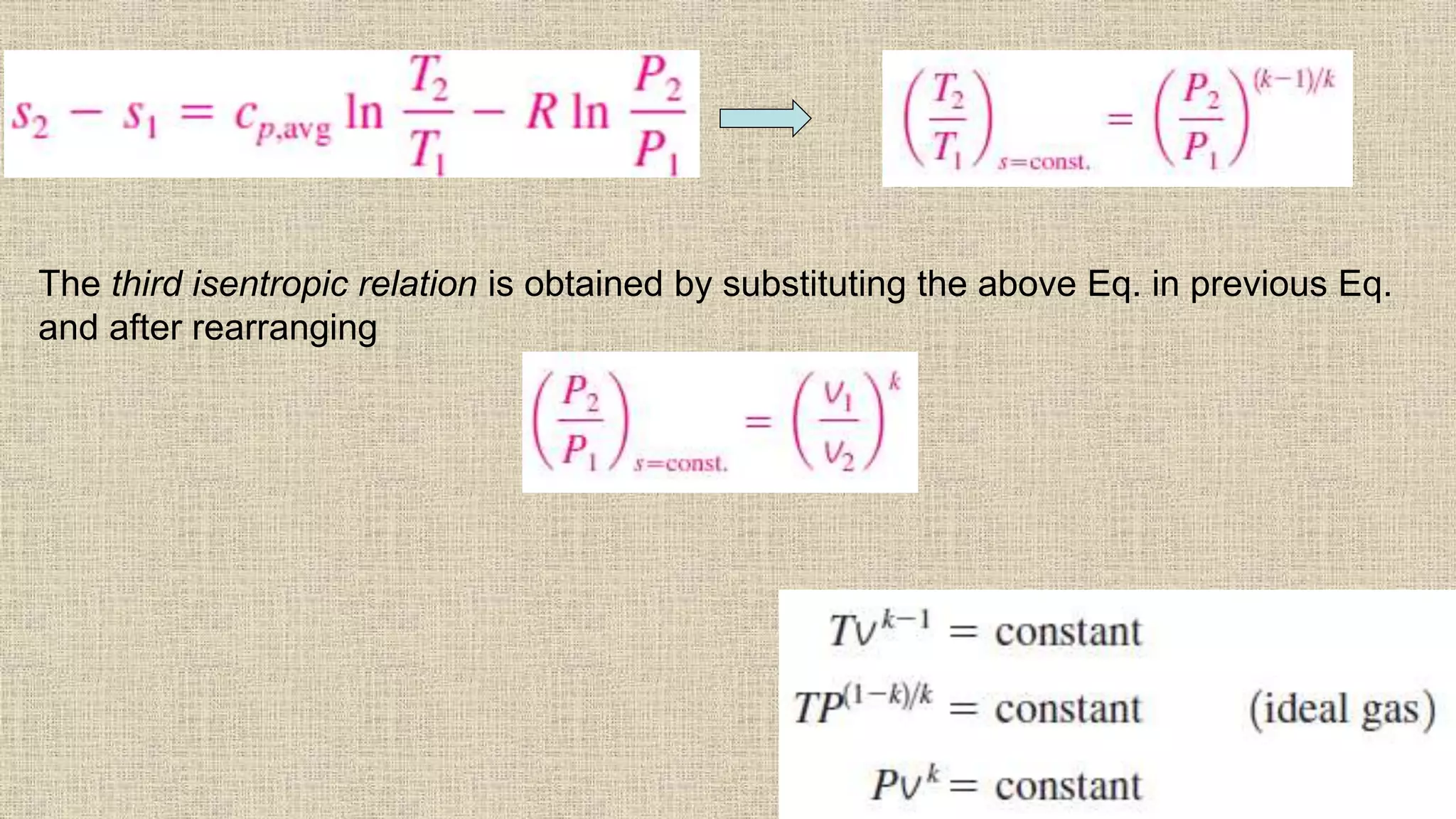

63. 63
The third isentropic relation is obtained by substituting the above Eq. in previous Eq.
and after rearranging

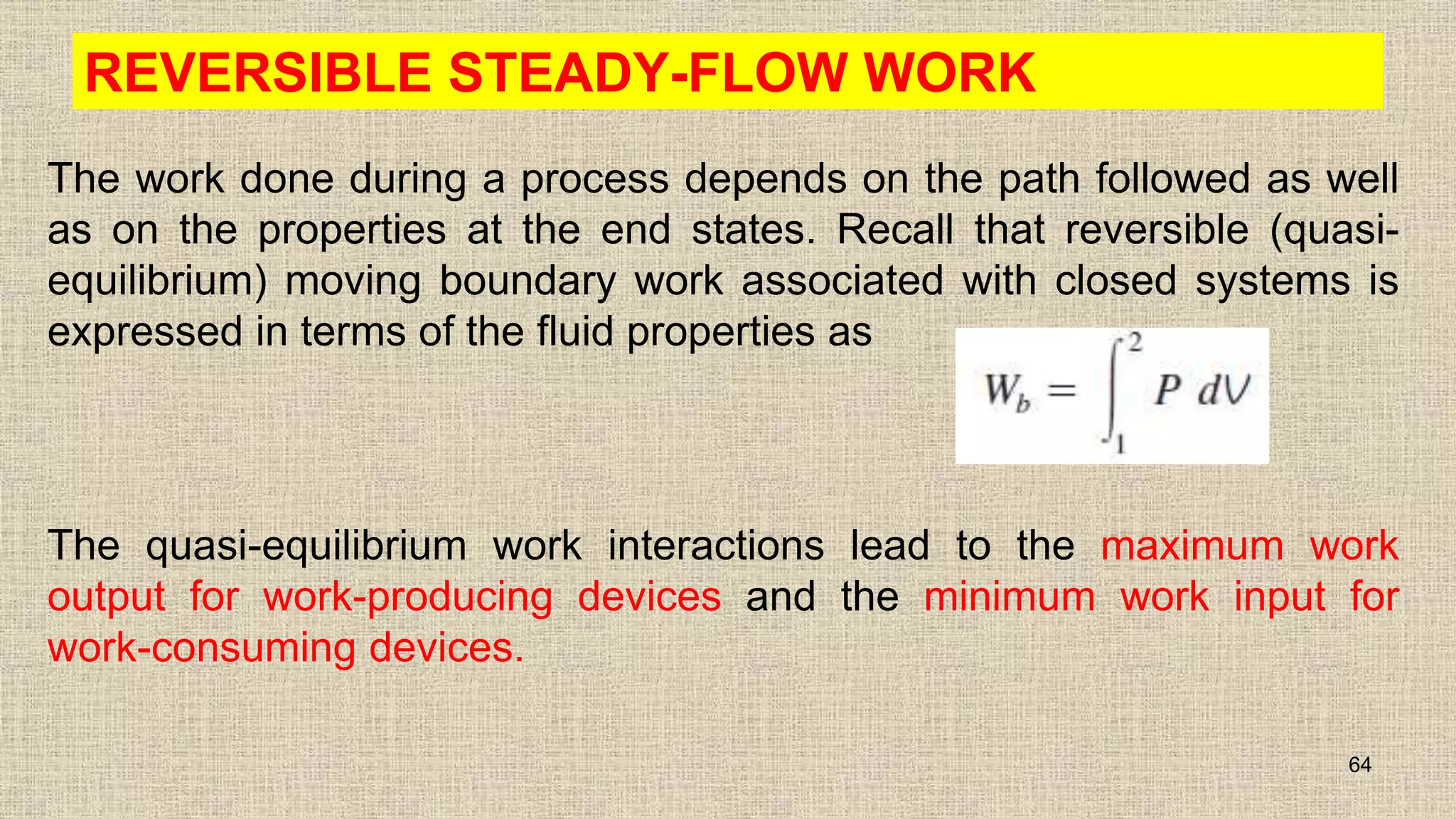

64. REVERSIBLE STEADY-FLOW WORK
The work done during a process depends on the path followed as well
as on the properties at the end states. Recall that reversible (quasi-
equilibrium) moving boundary work associated with closed systems is
expressed in terms of the fluid properties as
The quasi-equilibrium work interactions lead to the maximum work
output for work-producing devices and the minimum work input for
work-consuming devices.
64
65. 65

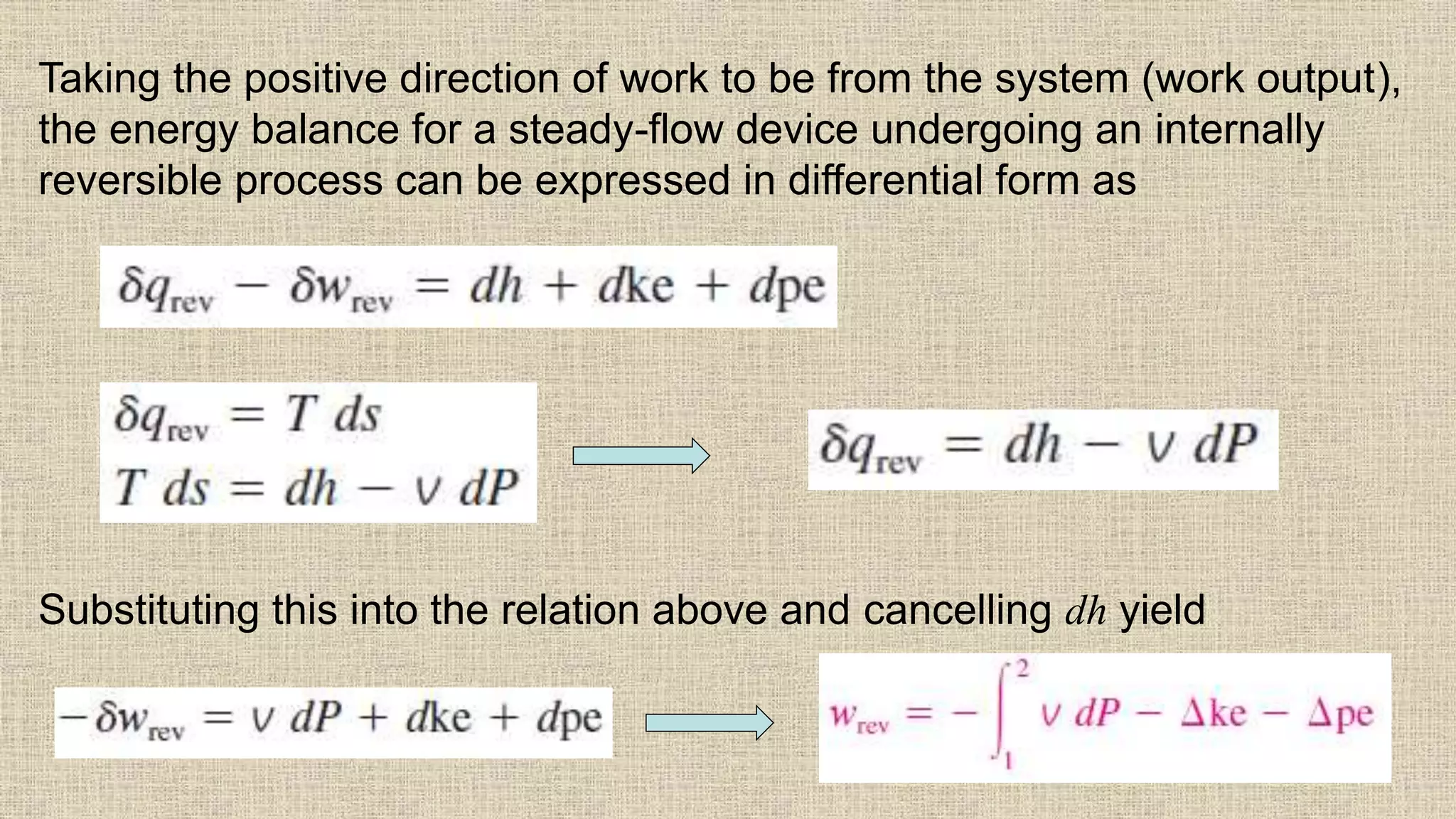

Taking the positive direction of work to be from the system (work output),
the energy balance for a steady-flow device undergoing an internally
reversible process can be expressed in differential form as
Substituting this into the relation above and cancelling dh yield
66. When the changes in kinetic and potential energies are negligible, this
equation reduces to
66
When the working fluid is incompressible, the specific volume v remains
constant during the process and can be taken out of the integration.

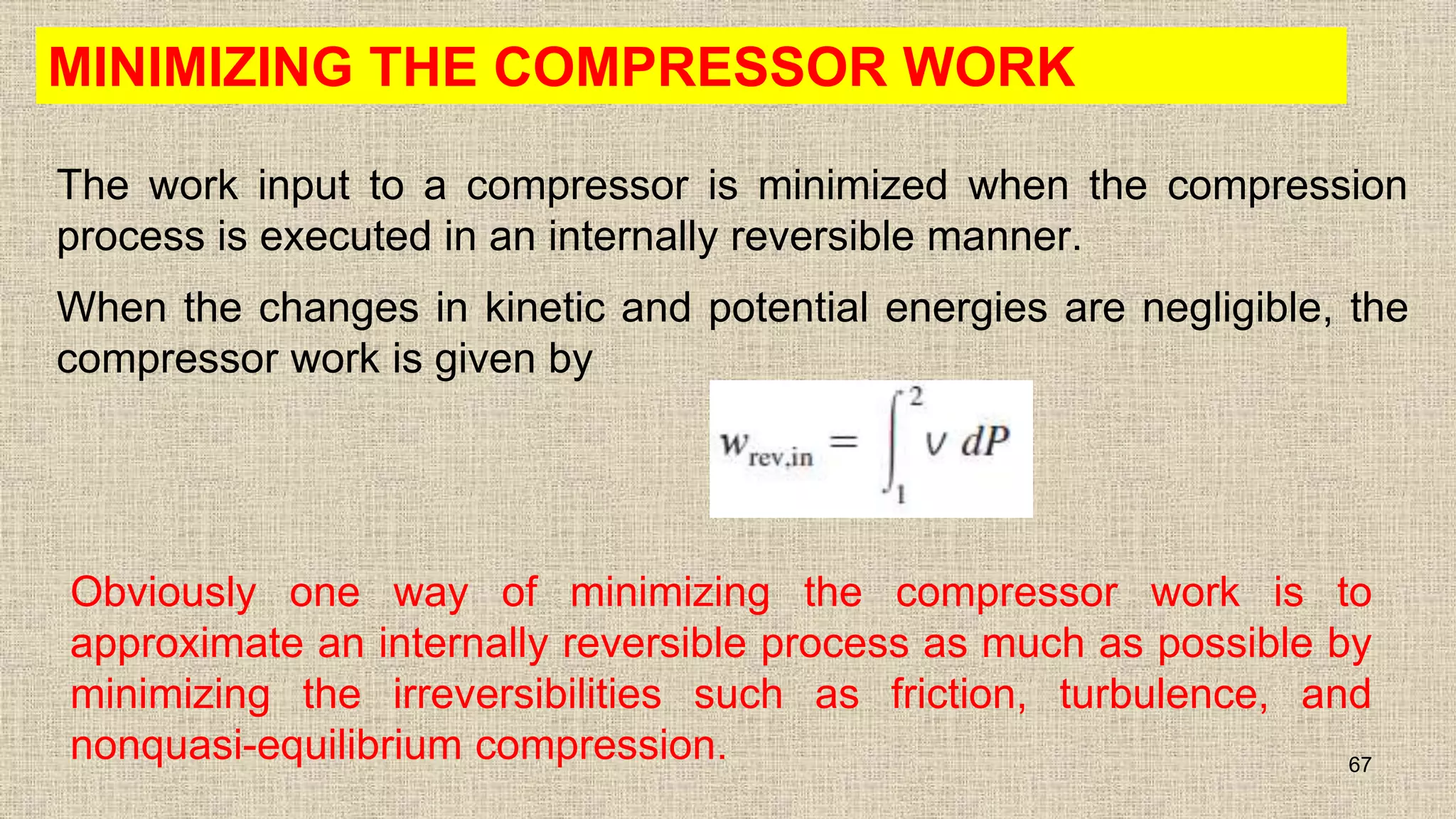

67. MINIMIZING THE COMPRESSOR WORK
The work input to a compressor is minimized when the compression
process is executed in an internally reversible manner.
When the changes in kinetic and potential energies are negligible, the
compressor work is given by
67
Obviously one way of minimizing the compressor work is to
approximate an internally reversible process as much as possible by
minimizing the irreversibilities such as friction, turbulence, and
nonquasi-equilibrium compression.

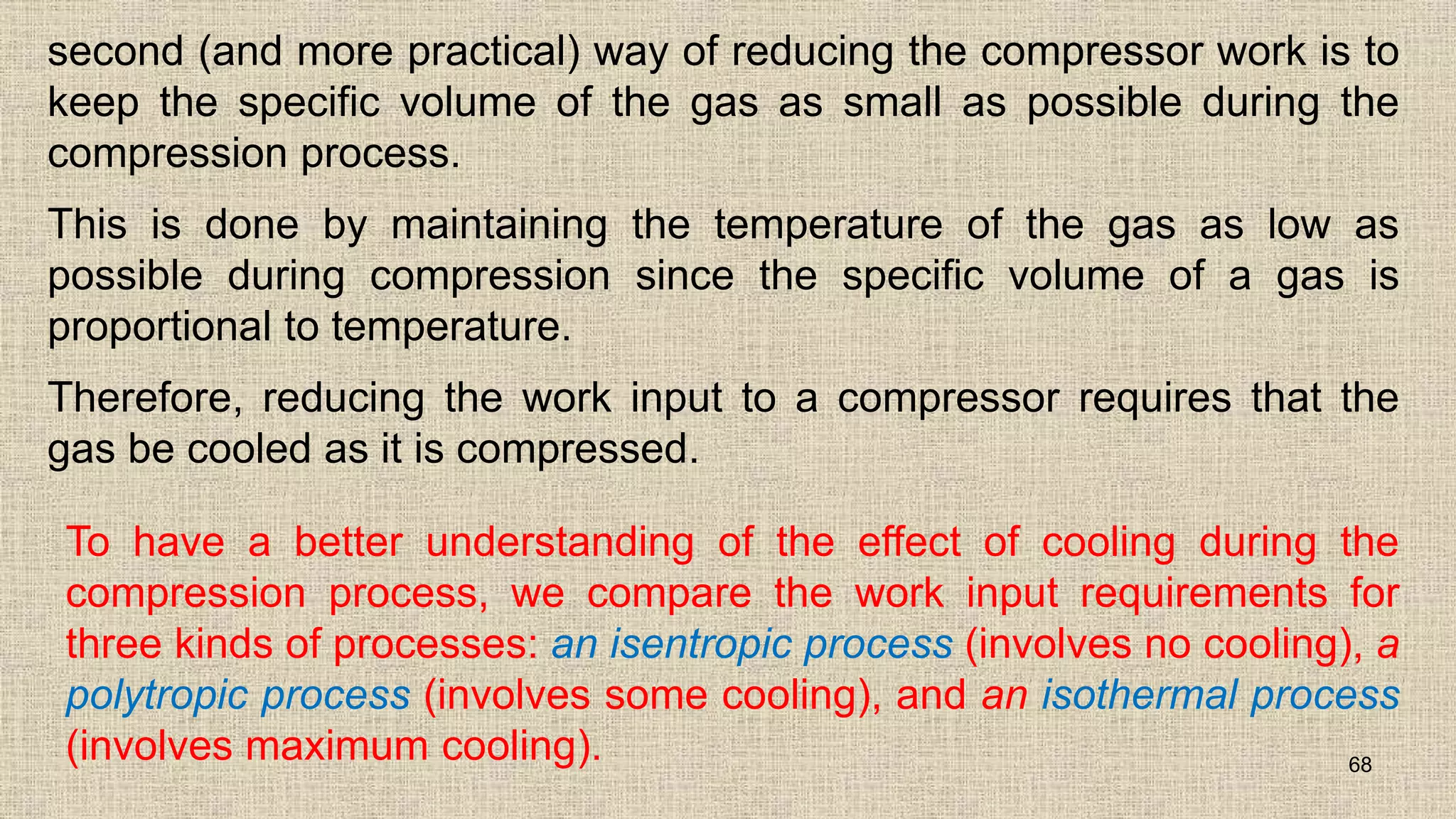

68. second (and more practical) way of reducing the compressor work is to
keep the specific volume of the gas as small as possible during the
compression process.
This is done by maintaining the temperature of the gas as low as
possible during compression since the specific volume of a gas is
proportional to temperature.
Therefore, reducing the work input to a compressor requires that the
gas be cooled as it is compressed.
68
To have a better understanding of the effect of cooling during the
compression process, we compare the work input requirements for
three kinds of processes: an isentropic process (involves no cooling), a
polytropic process (involves some cooling), and an isothermal process
(involves maximum cooling).

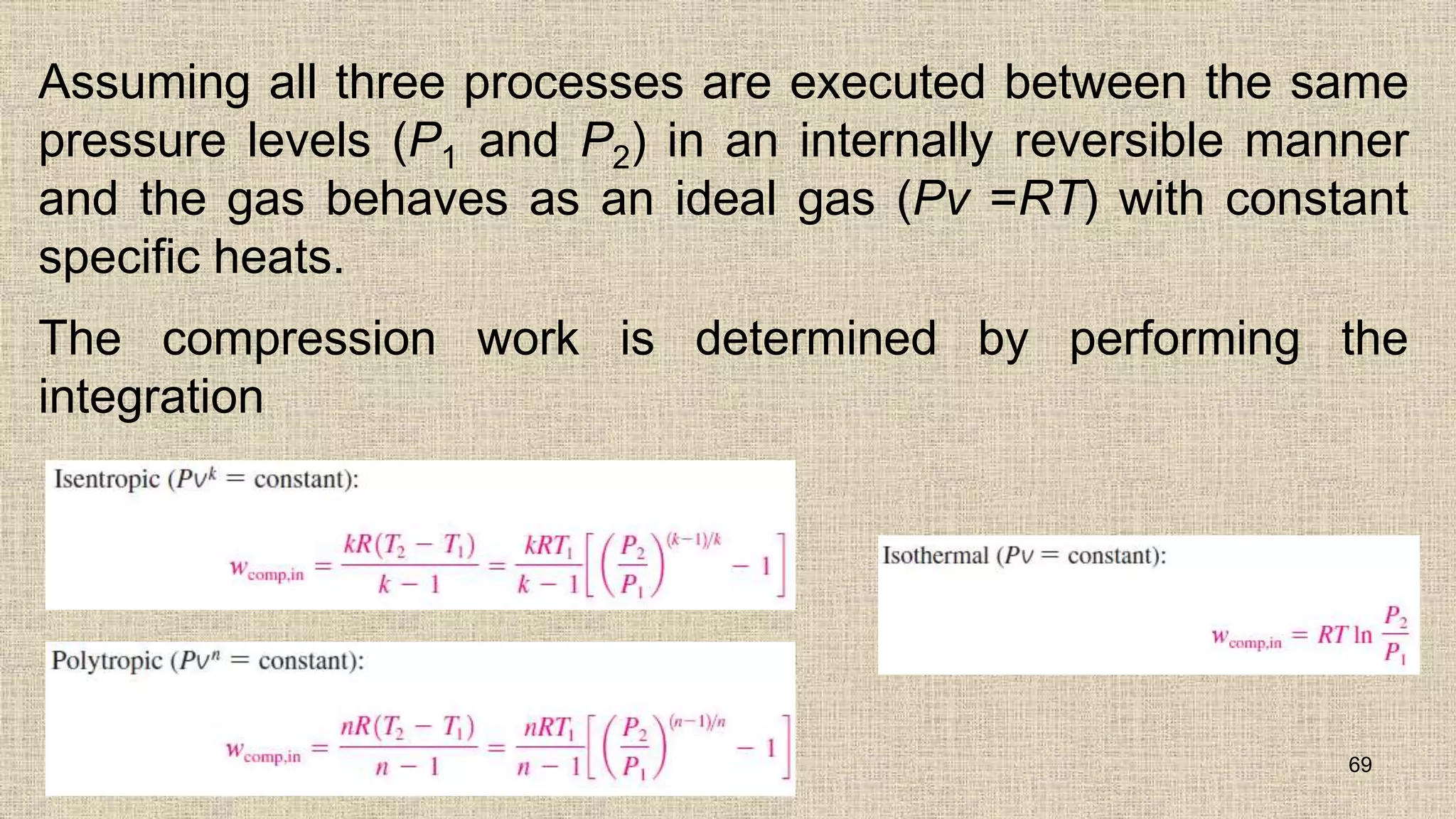

69. Assuming all three processes are executed between the same
pressure levels (P1 and P2) in an internally reversible manner
and the gas behaves as an ideal gas (Pv =RT) with constant
specific heats.
The compression work is determined by performing the
integration
69
70. 70

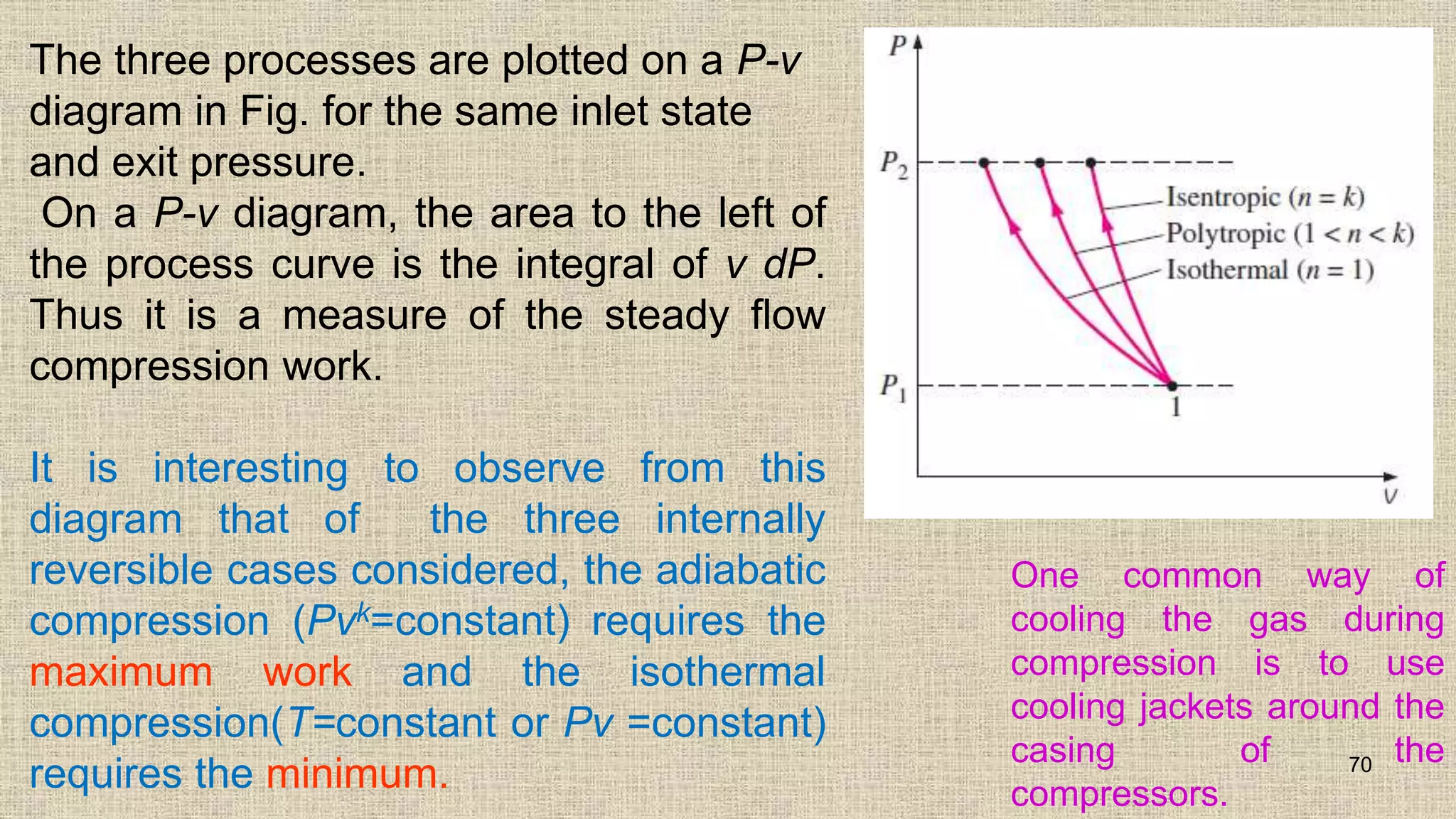

The three processes are plotted on a P-v
diagram in Fig. for the same inlet state
and exit pressure.
On a P-v diagram, the area to the left of
the process curve is the integral of v dP.
Thus it is a measure of the steady flow
compression work.
It is interesting to observe from this
diagram that of the three internally
reversible cases considered, the adiabatic
compression (Pvk=constant) requires the
maximum work and the isothermal
compression(T=constant or Pv =constant)
requires the minimum.
One common way of
cooling the gas during
compression is to use
cooling jackets around the
casing of the
compressors.

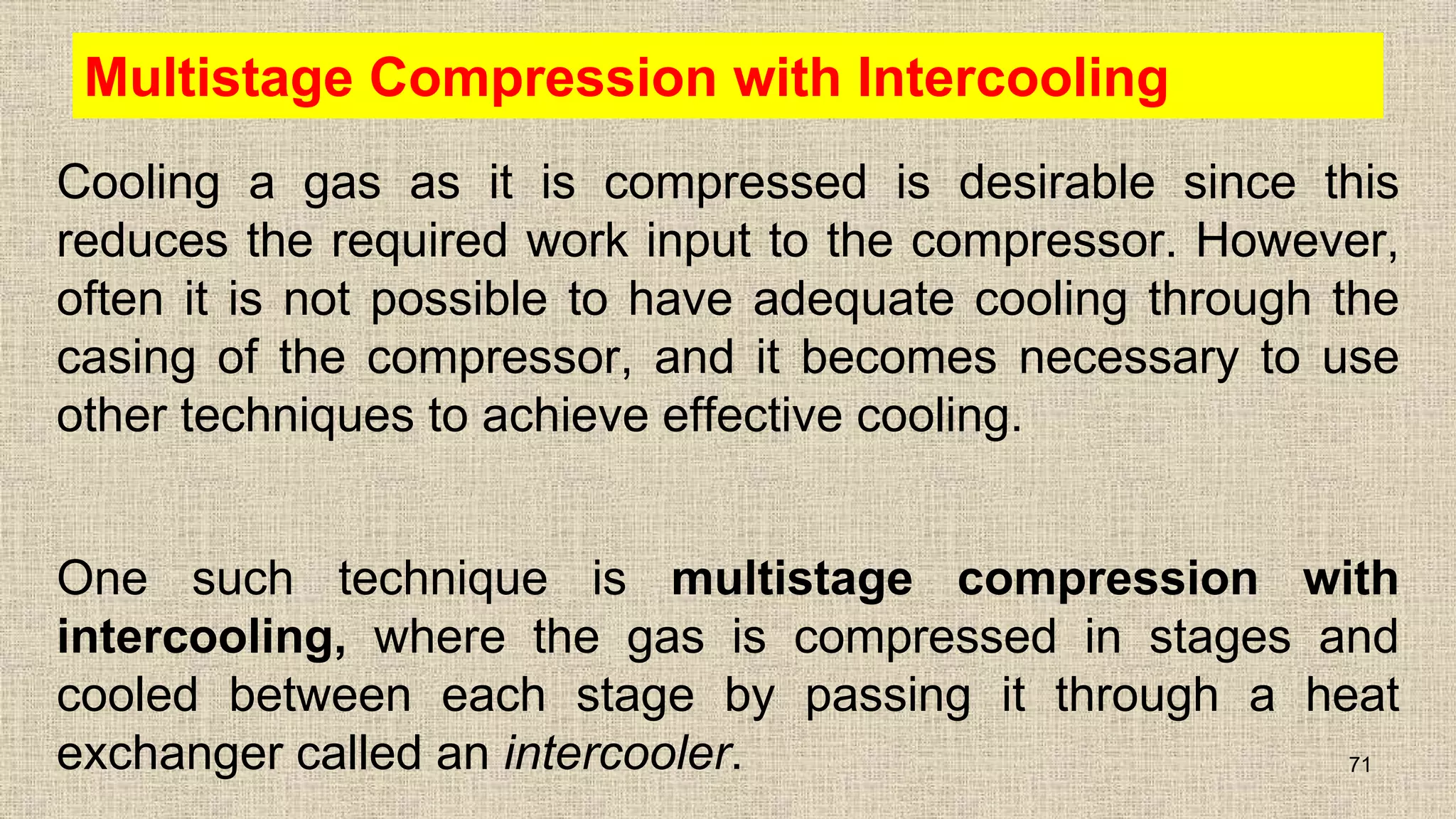

71. Multistage Compression with Intercooling
Cooling a gas as it is compressed is desirable since this
reduces the required work input to the compressor. However,
often it is not possible to have adequate cooling through the
casing of the compressor, and it becomes necessary to use
other techniques to achieve effective cooling.
One such technique is multistage compression with
intercooling, where the gas is compressed in stages and
cooled between each stage by passing it through a heat
exchanger called an intercooler. 71

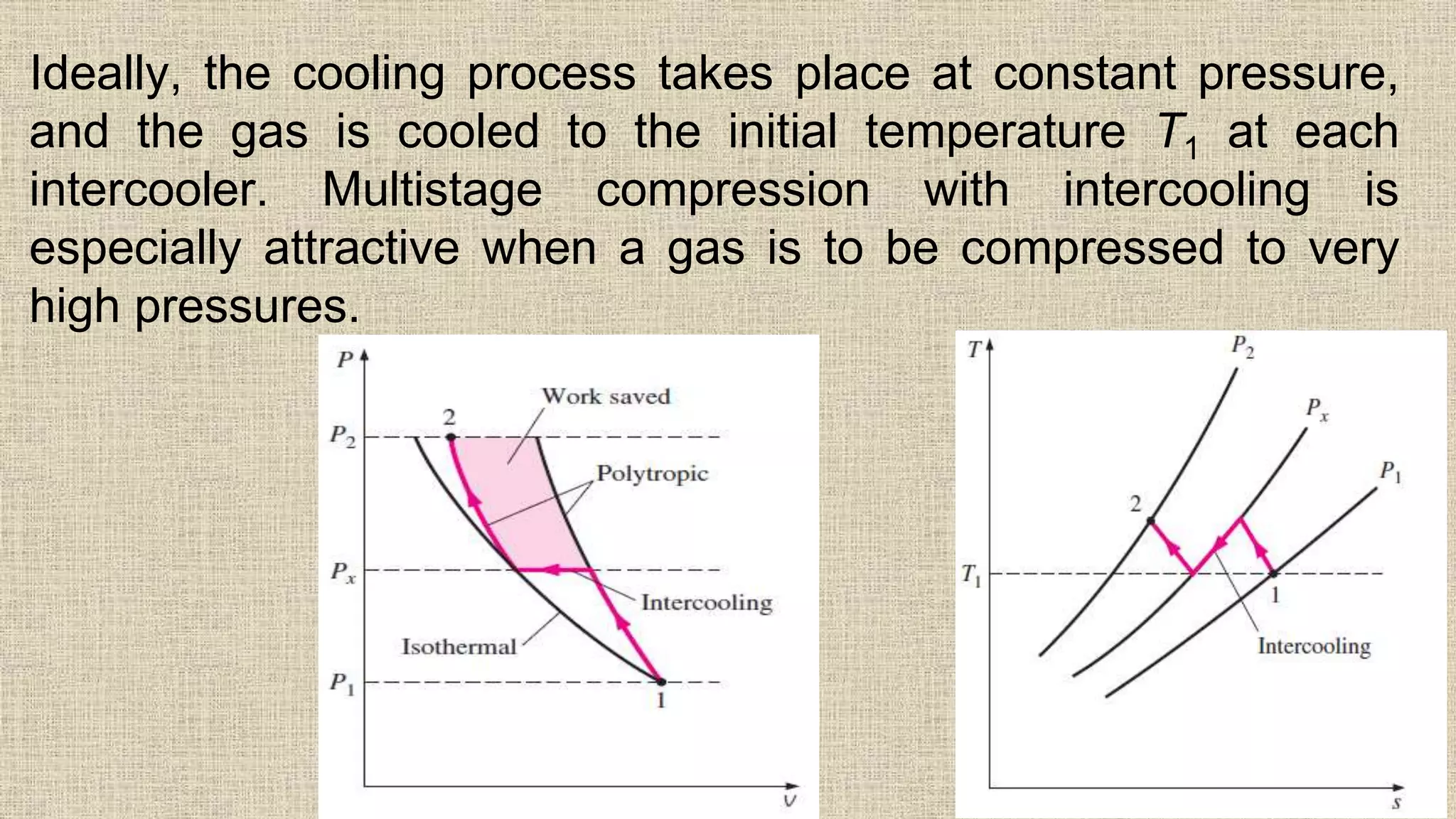

72. Ideally, the cooling process takes place at constant pressure,
and the gas is cooled to the initial temperature T1 at each
intercooler. Multistage compression with intercooling is
especially attractive when a gas is to be compressed to very
high pressures.
72

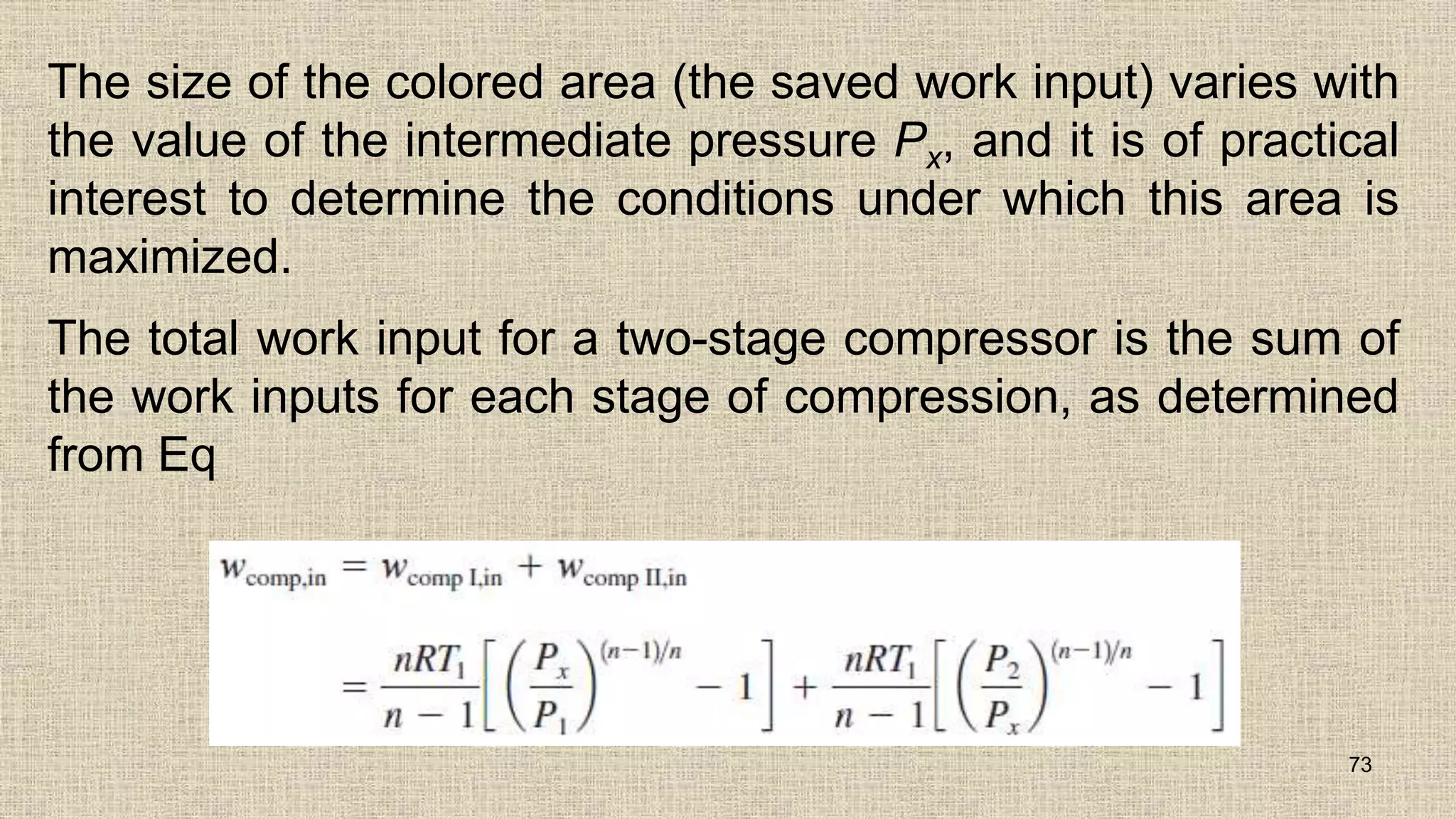

73. The size of the colored area (the saved work input) varies with
the value of the intermediate pressure Px, and it is of practical
interest to determine the conditions under which this area is
maximized.
The total work input for a two-stage compressor is the sum of
the work inputs for each stage of compression, as determined
from Eq
73

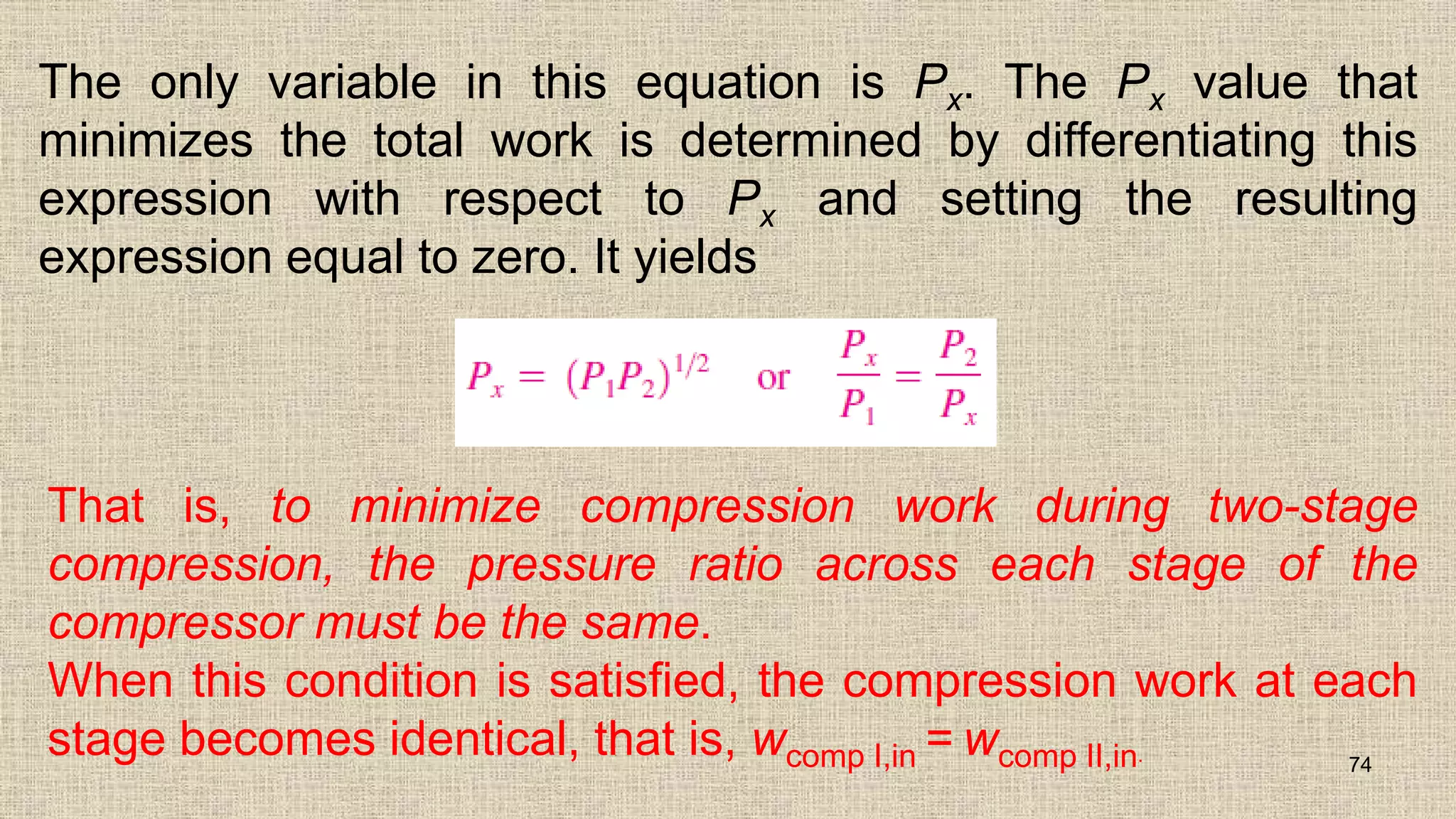

74. The only variable in this equation is Px. The Px value that
minimizes the total work is determined by differentiating this
expression with respect to Px and setting the resulting
expression equal to zero. It yields
74
That is, to minimize compression work during two-stage
compression, the pressure ratio across each stage of the
compressor must be the same.
When this condition is satisfied, the compression work at each
stage becomes identical, that is, wcomp I,in = wcomp II,in.

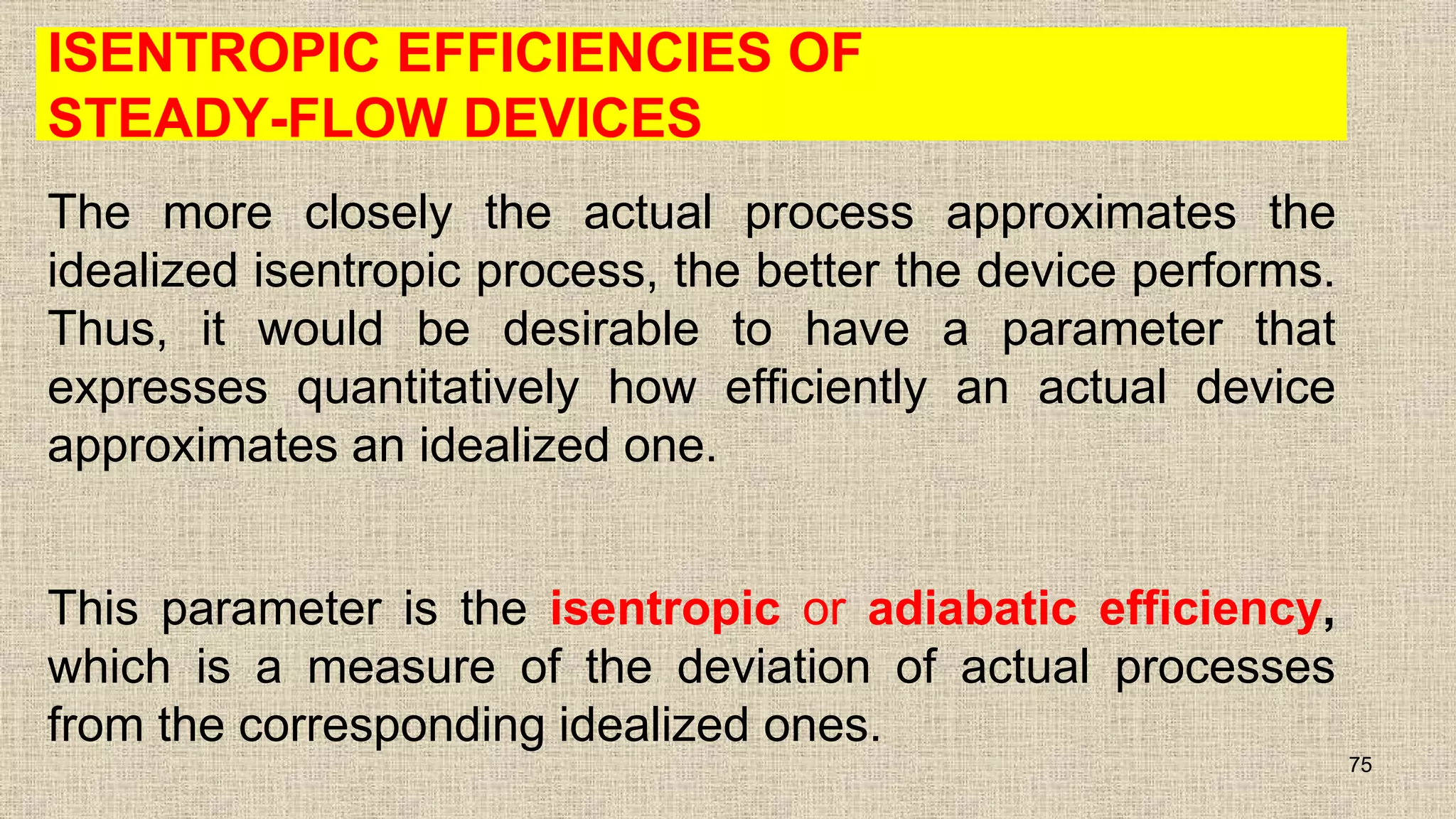

75. ISENTROPIC EFFICIENCIES OF
STEADY-FLOW DEVICES
The more closely the actual process approximates the
idealized isentropic process, the better the device performs.
Thus, it would be desirable to have a parameter that
expresses quantitatively how efficiently an actual device
approximates an idealized one.
This parameter is the isentropic or adiabatic efficiency,
which is a measure of the deviation of actual processes
from the corresponding idealized ones.
75
76. 76

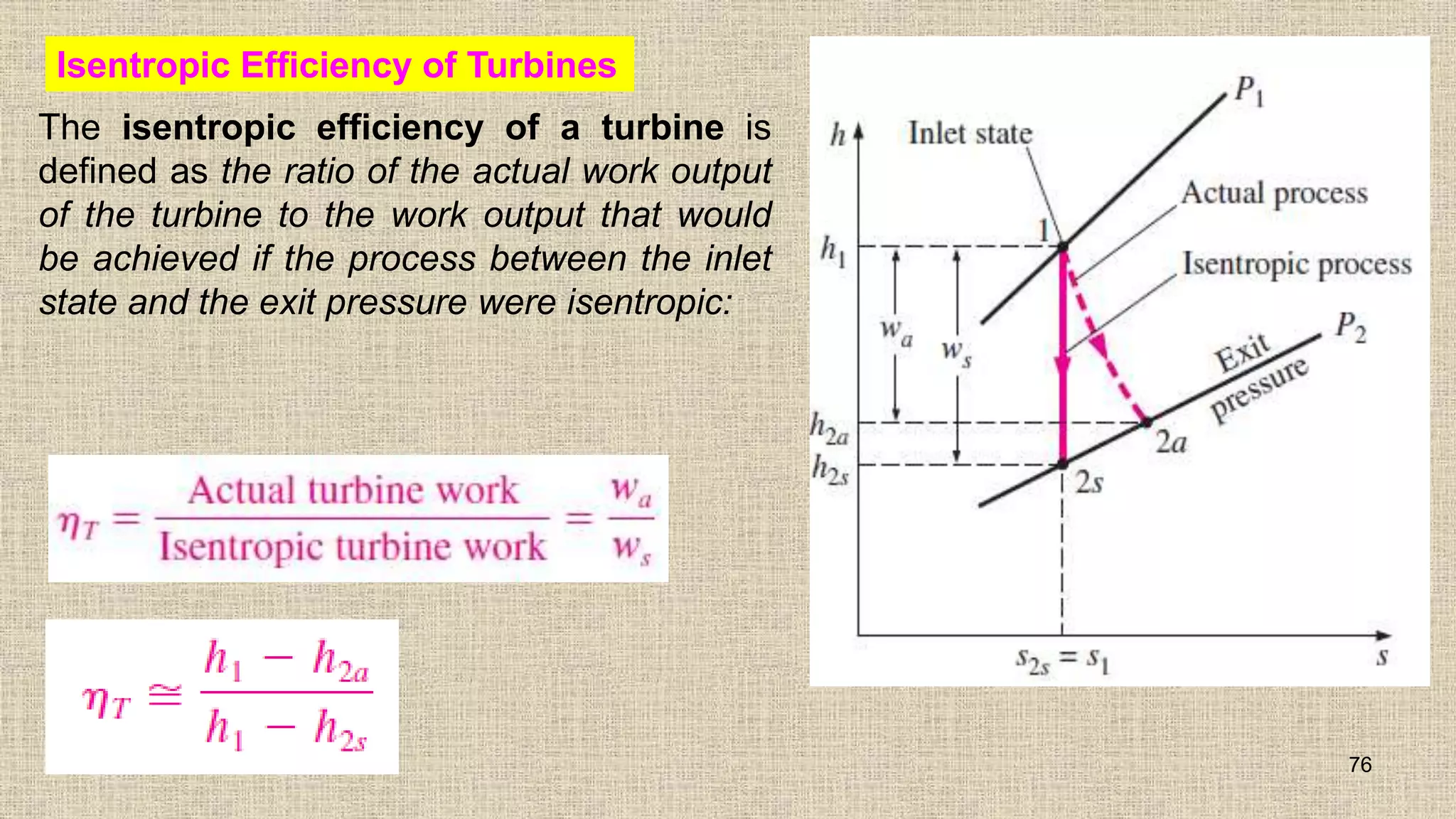

Isentropic Efficiency of Turbines
The isentropic efficiency of a turbine is
defined as the ratio of the actual work output
of the turbine to the work output that would
be achieved if the process between the inlet
state and the exit pressure were isentropic:
77. 77

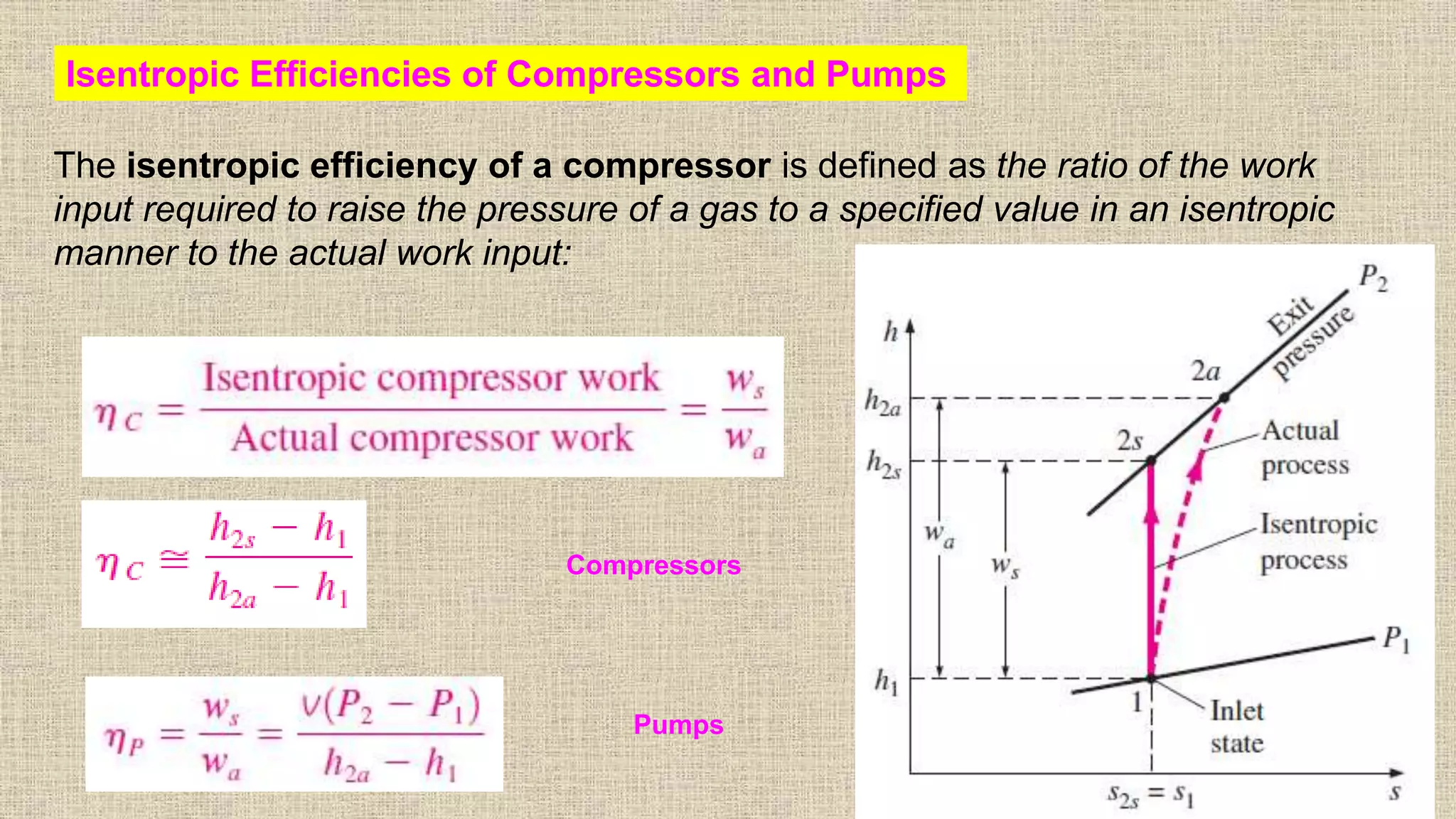

Isentropic Efficiencies of Compressors and Pumps
The isentropic efficiency of a compressor is defined as the ratio of the work
input required to raise the pressure of a gas to a specified value in an isentropic
manner to the actual work input:
Compressors
Pumps
78. Important points to remember

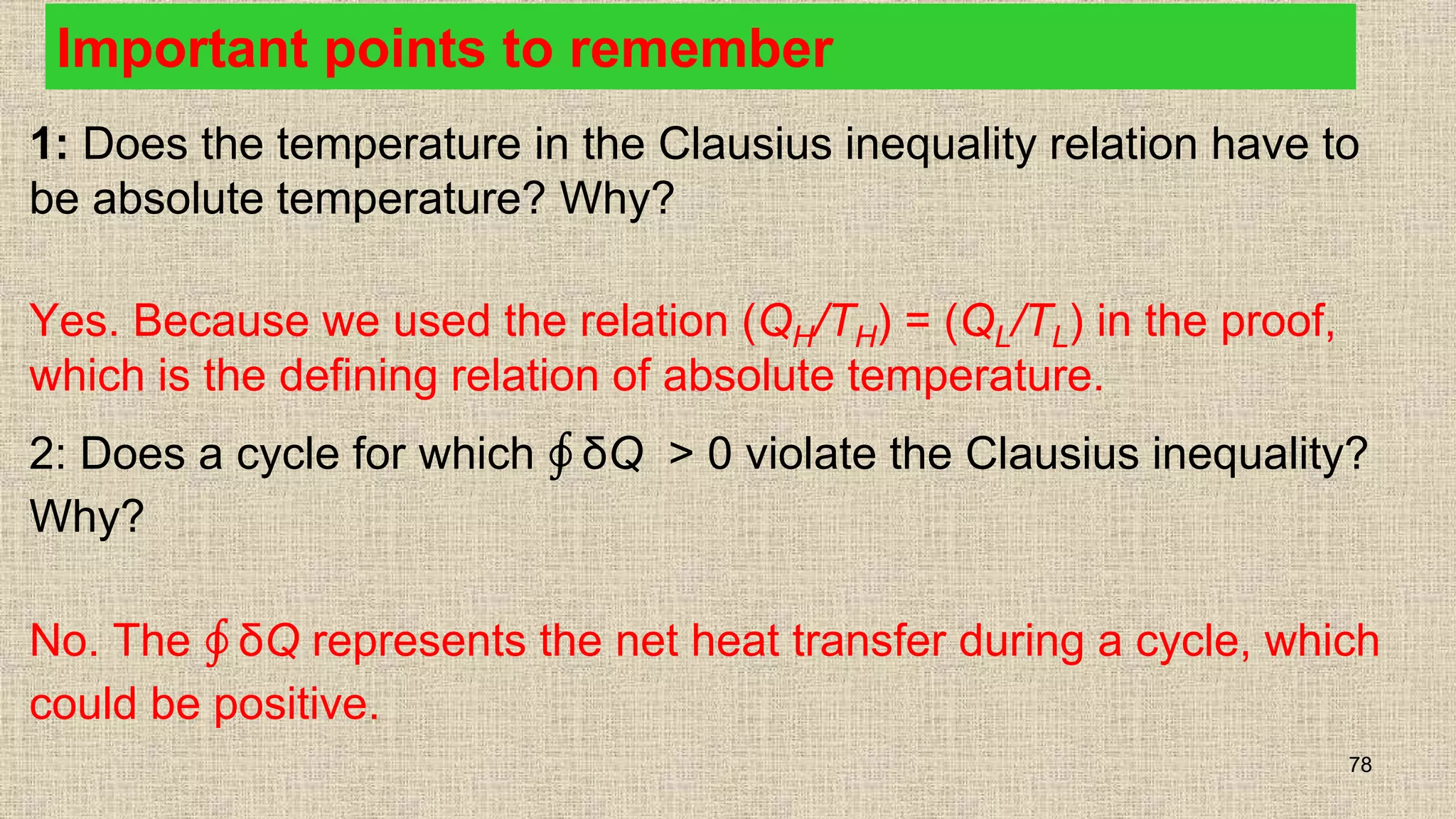

1: Does the temperature in the Clausius inequality relation have to
be absolute temperature? Why?
Yes. Because we used the relation (QH/TH) = (QL/TL) in the proof,
which is the defining relation of absolute temperature.
2: Does a cycle for which δQ > 0 violate the Clausius inequality?
Why?
No. The δQ represents the net heat transfer during a cycle, which
could be positive.
78

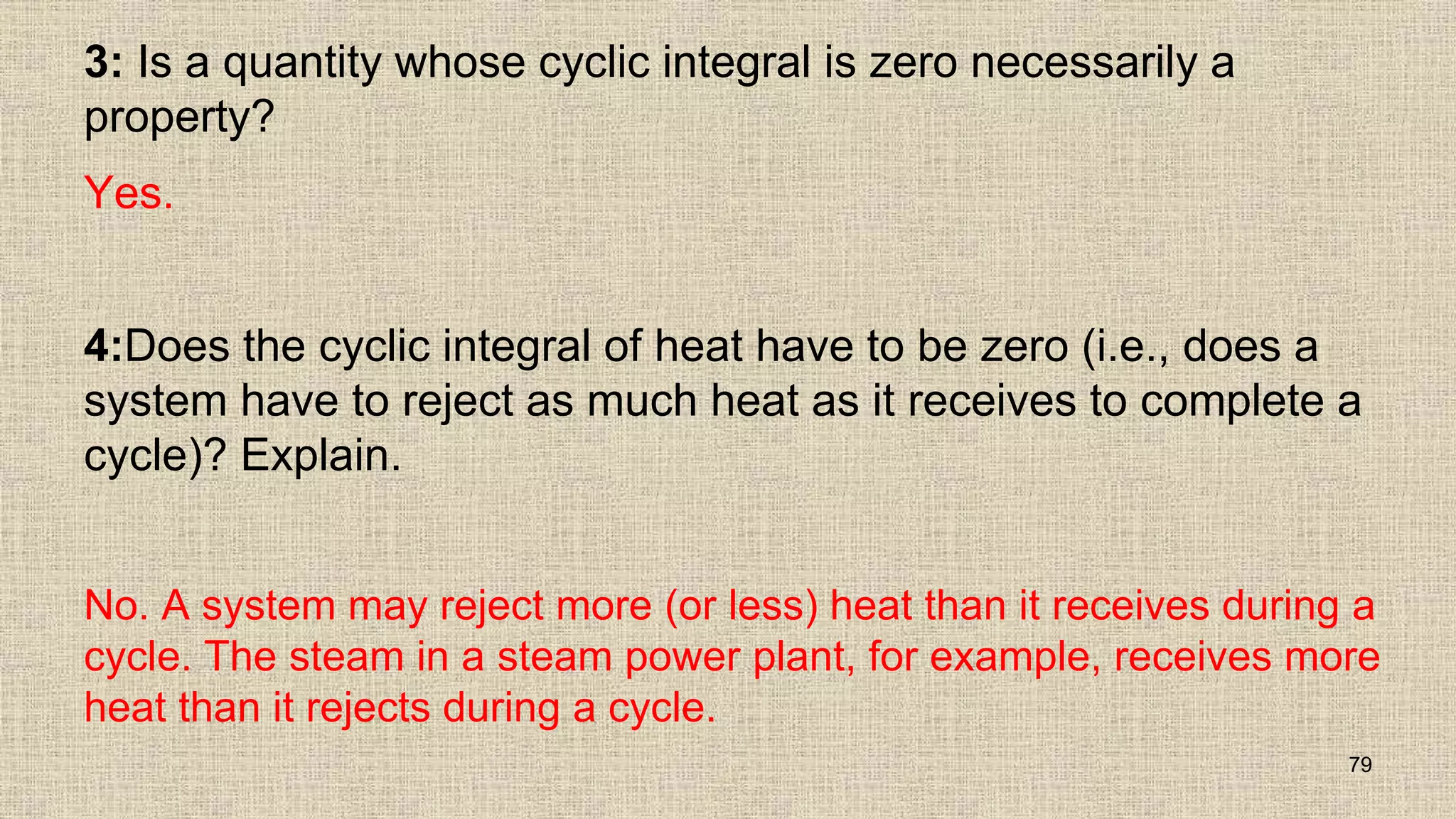

79. 3: Is a quantity whose cyclic integral is zero necessarily a
property?
Yes.
4:Does the cyclic integral of heat have to be zero (i.e., does a
system have to reject as much heat as it receives to complete a
cycle)? Explain.
No. A system may reject more (or less) heat than it receives during a
cycle. The steam in a steam power plant, for example, receives more
heat than it rejects during a cycle.
79
80. 5: Does the cyclic integral of work have to be zero (i.e.,does a
system have to produce as much work as it consumes to complete
a cycle)? Explain.
No. A system may produce more (or less) work than it receives
during a cycle. A steam power plant, for example, produces more
work than it receives during a cycle, the difference being the net
work output.
6: A system undergoes a process between two fixed states first in
a reversible manner and then in an irreversible manner. For which
case is the entropy change greater? Why?
The entropy change will be the same for both cases since entropy
is a property and it has a fixedvalue at a fixed state.
80

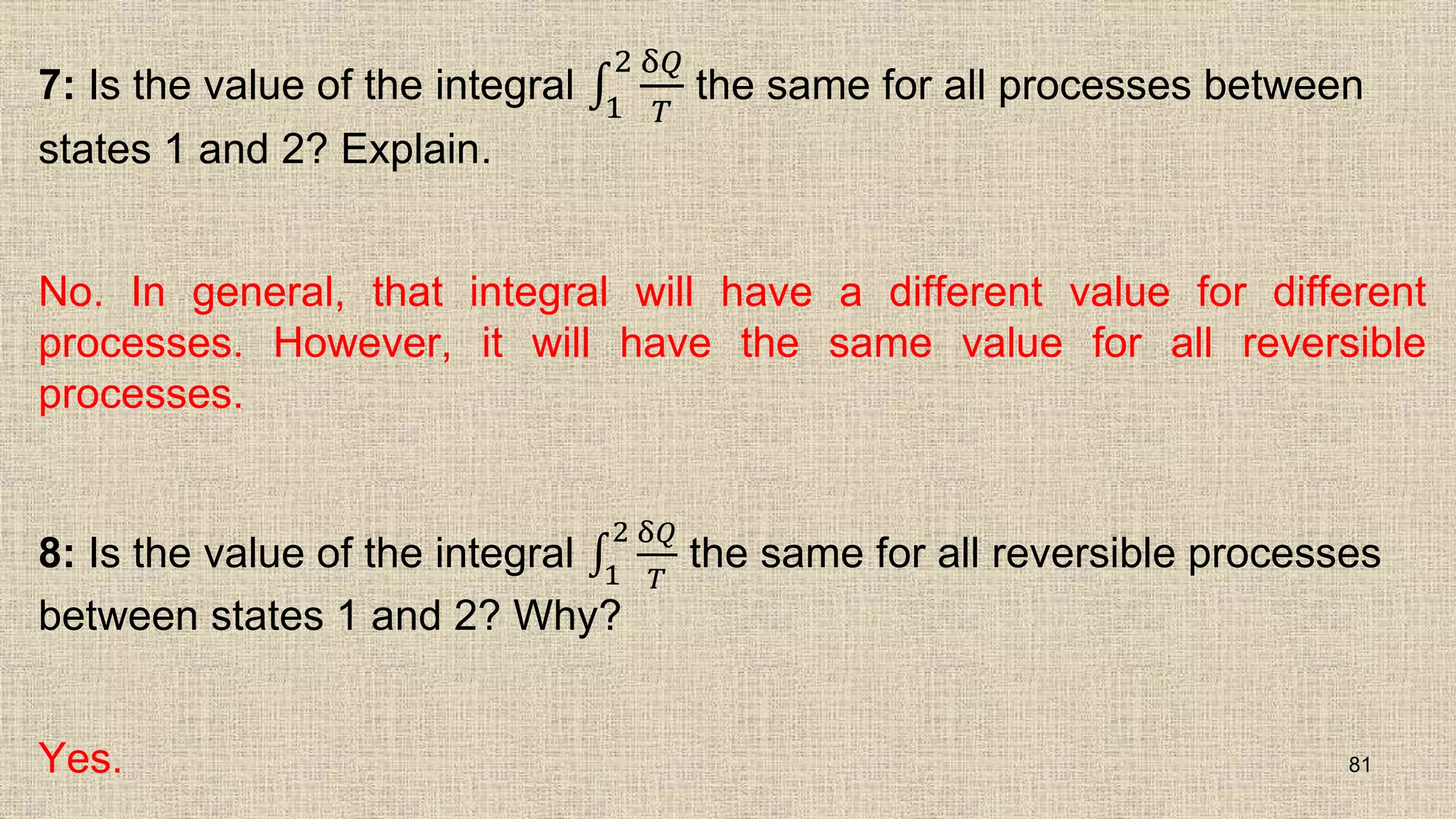

81. 7: Is the value of the integral 1
2 δ𝑄
𝑇
the same for all processes between
states 1 and 2? Explain.
No. In general, that integral will have a different value for different
processes. However, it will have the same value for all reversible
processes.
8: Is the value of the integral 1
2 δ𝑄
𝑇
the same for all reversible processes
between states 1 and 2? Why?
Yes. 81
82. 9: To determine the entropy change for an irreversible process
between states 1 and 2, should the integral 1
2 δ𝑄
𝑇
be performed along
the actual process path or an imaginary reversible path? Explain.
That integral should be performed along a reversible path to determine
the entropy change.
10: Is an isothermal process necessarily internally reversible? Explain
your answer with an example.
No. An isothermal process can be irreversible. Example: A system that
involves paddle-wheel work while losing an equivalent amount of heat.
82

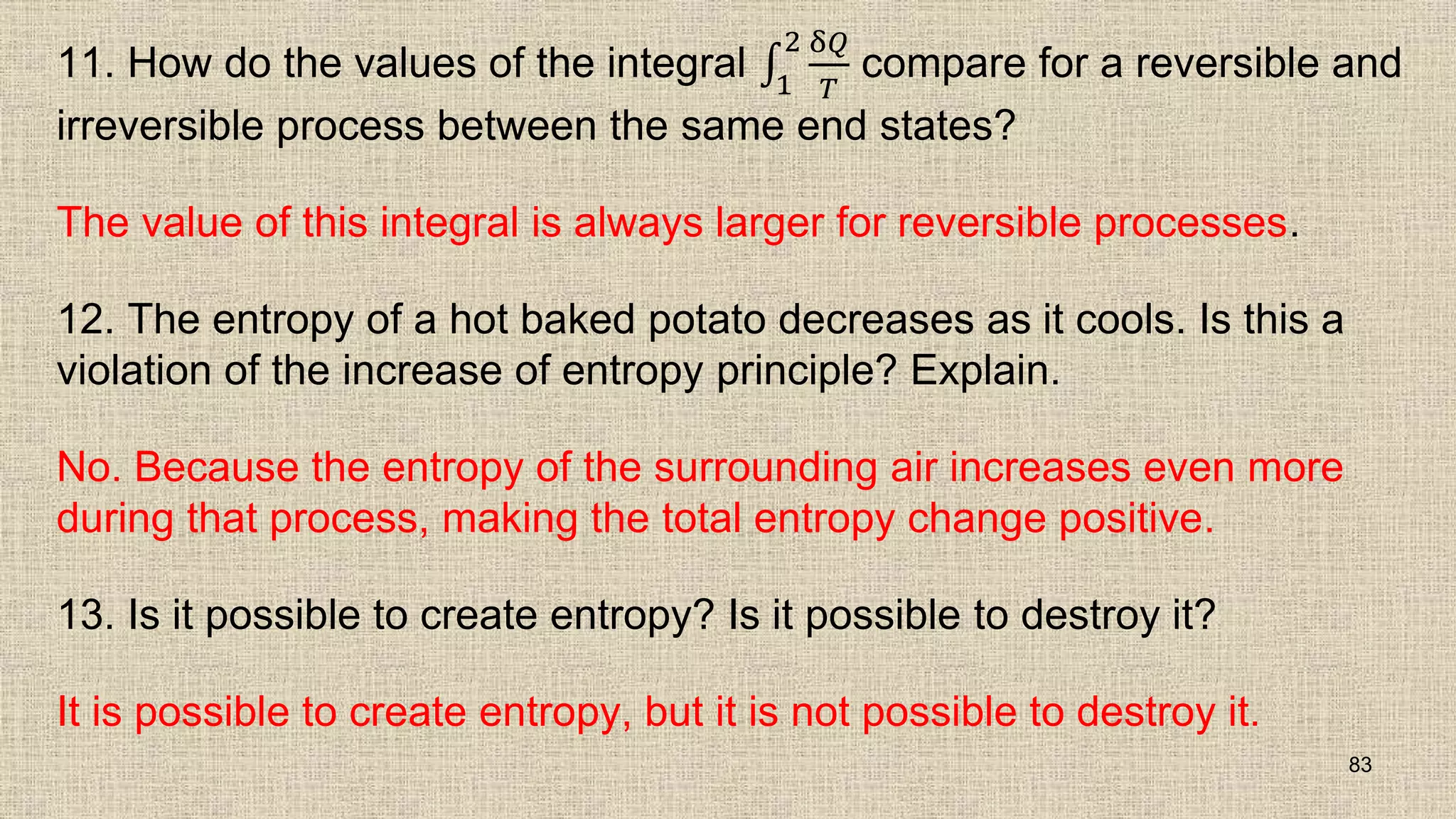

83. 11. How do the values of the integral 1
2 δ𝑄
𝑇
compare for a reversible and
irreversible process between the same end states?
The value of this integral is always larger for reversible processes.
12. The entropy of a hot baked potato decreases as it cools. Is this a
violation of the increase of entropy principle? Explain.
No. Because the entropy of the surrounding air increases even more
during that process, making the total entropy change positive.
13. Is it possible to create entropy? Is it possible to destroy it?
It is possible to create entropy, but it is not possible to destroy it.
83

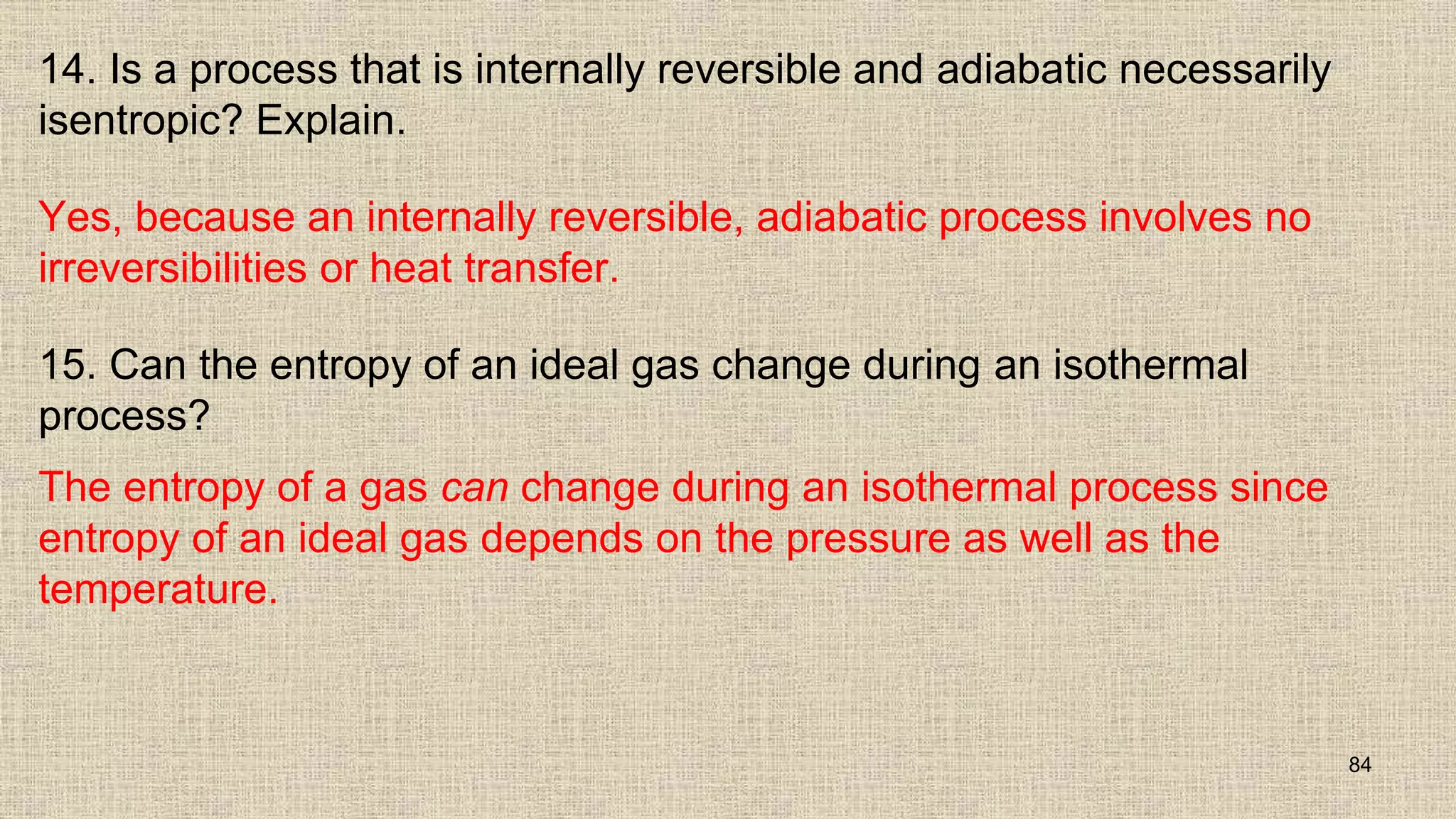

84. 14. Is a process that is internally reversible and adiabatic necessarily
isentropic? Explain.
Yes, because an internally reversible, adiabatic process involves no
irreversibilities or heat transfer.
15. Can the entropy of an ideal gas change during an isothermal
process?
The entropy of a gas can change during an isothermal process since
entropy of an ideal gas depends on the pressure as well as the
temperature.
84

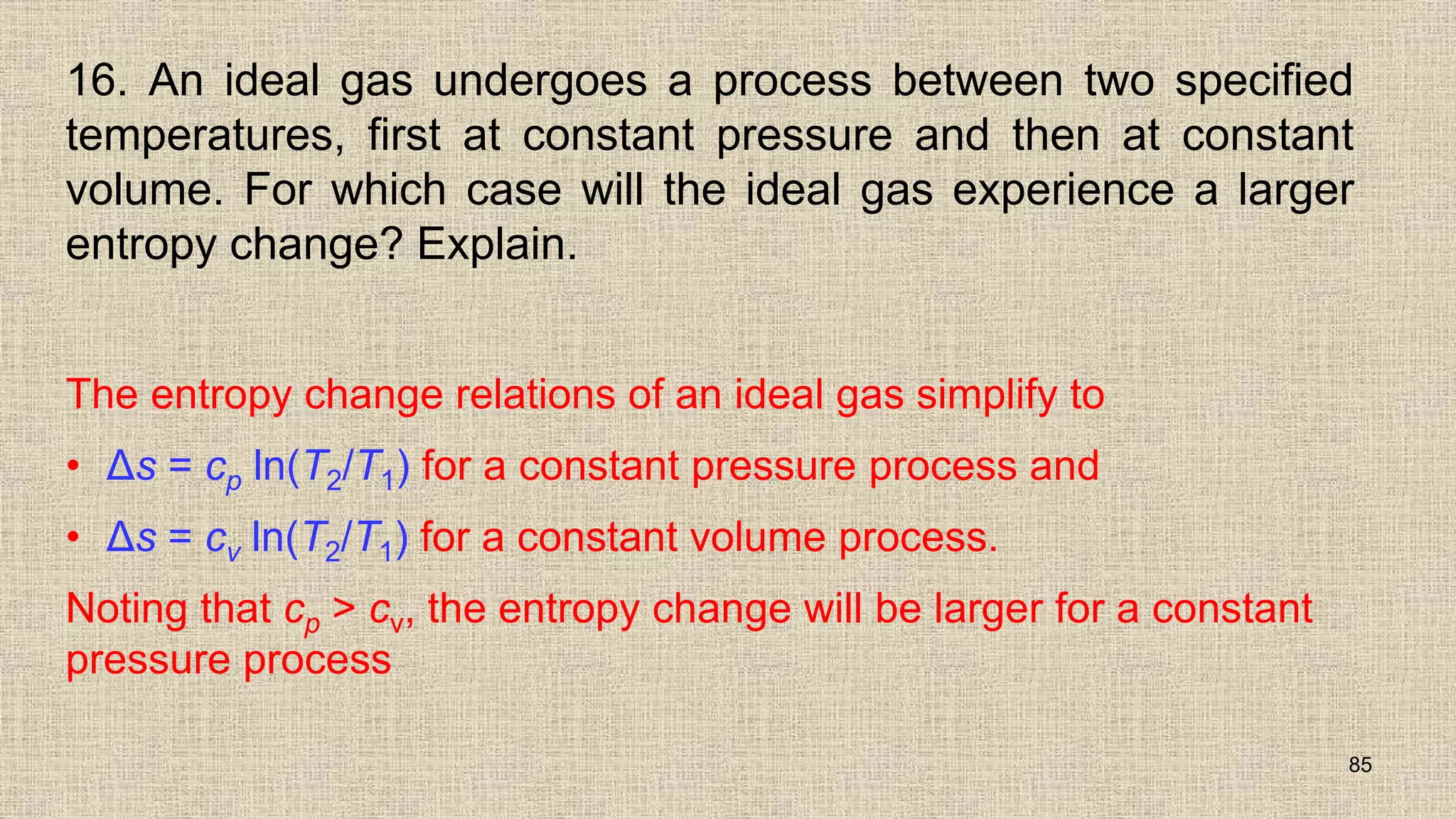

85. 16. An ideal gas undergoes a process between two specified
temperatures, first at constant pressure and then at constant
volume. For which case will the ideal gas experience a larger
entropy change? Explain.
The entropy change relations of an ideal gas simplify to
• Δs = cp ln(T2/T1) for a constant pressure process and
• Δs = cv ln(T2/T1) for a constant volume process.
Noting that cp > cv, the entropy change will be larger for a constant
pressure process
85

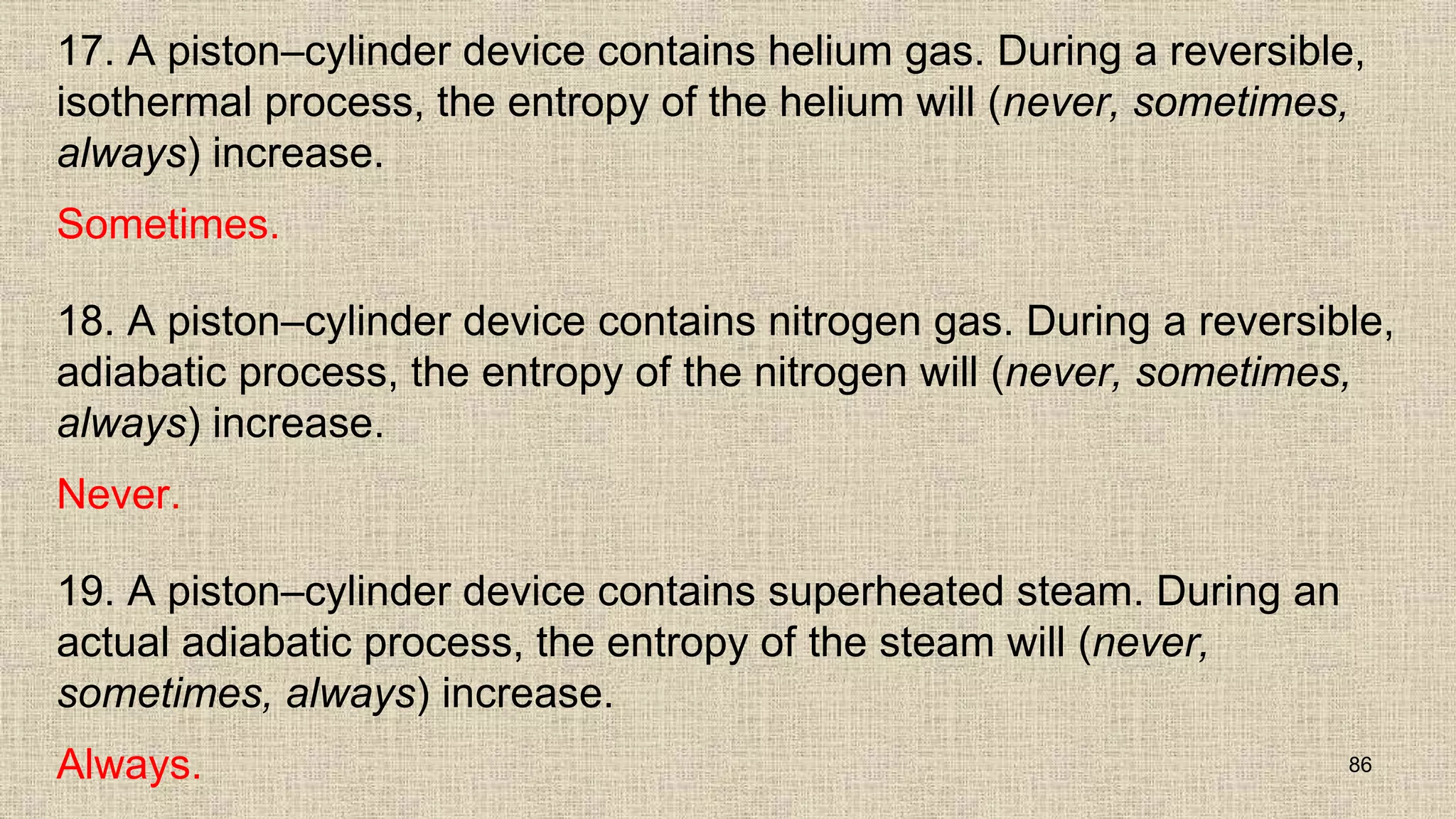

86. 17. A piston–cylinder device contains helium gas. During a reversible,
isothermal process, the entropy of the helium will (never, sometimes,
always) increase.
Sometimes.
18. A piston–cylinder device contains nitrogen gas. During a reversible,
adiabatic process, the entropy of the nitrogen will (never, sometimes,
always) increase.
Never.
19. A piston–cylinder device contains superheated steam. During an
actual adiabatic process, the entropy of the steam will (never,
sometimes, always) increase.
Always. 86

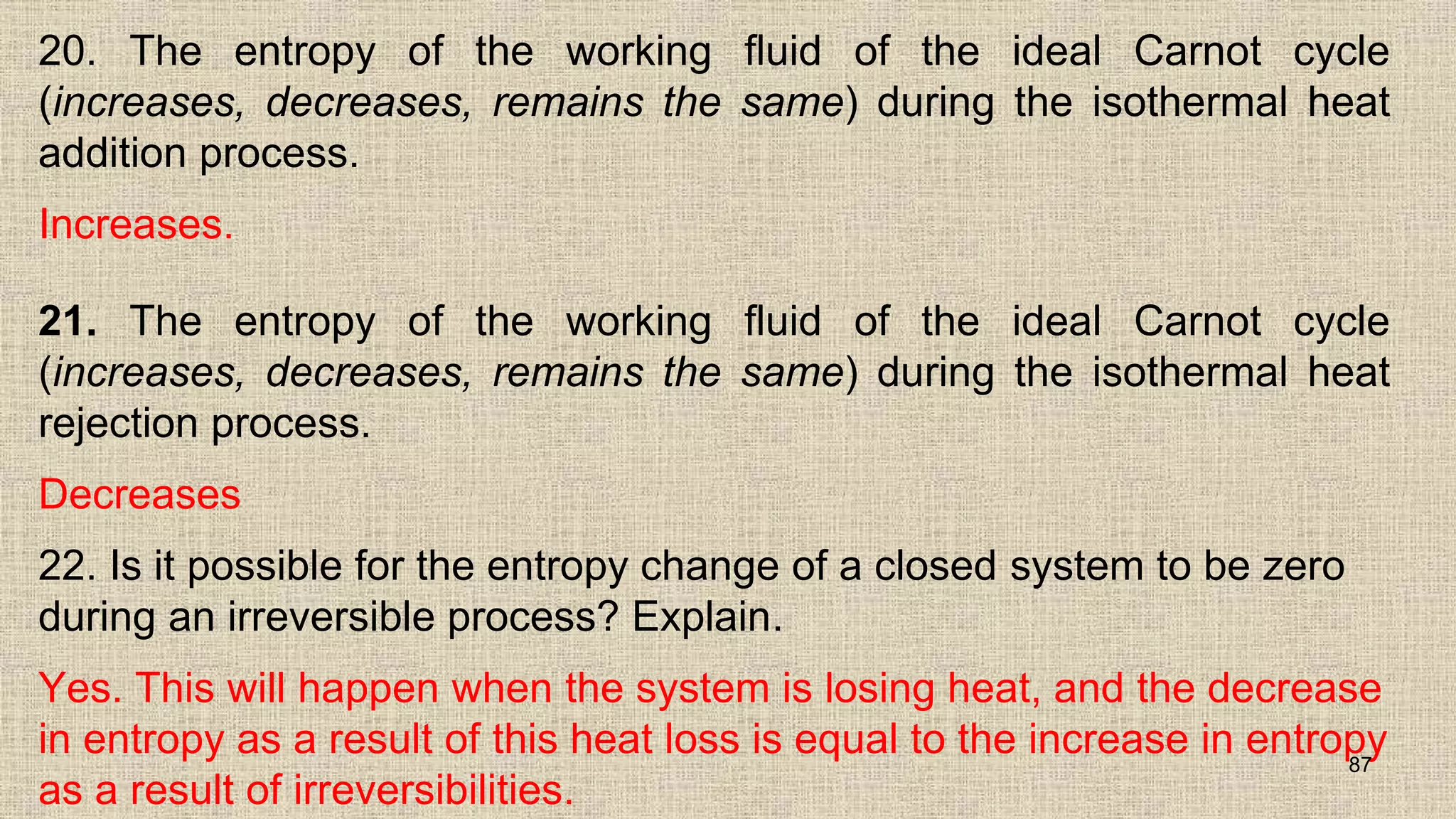

87. 20. The entropy of the working fluid of the ideal Carnot cycle
(increases, decreases, remains the same) during the isothermal heat
addition process.
Increases.
21. The entropy of the working fluid of the ideal Carnot cycle
(increases, decreases, remains the same) during the isothermal heat
rejection process.
Decreases
22. Is it possible for the entropy change of a closed system to be zero
during an irreversible process? Explain.
Yes. This will happen when the system is losing heat, and the decrease
in entropy as a result of this heat loss is equal to the increase in entropy
as a result of irreversibilities.
87

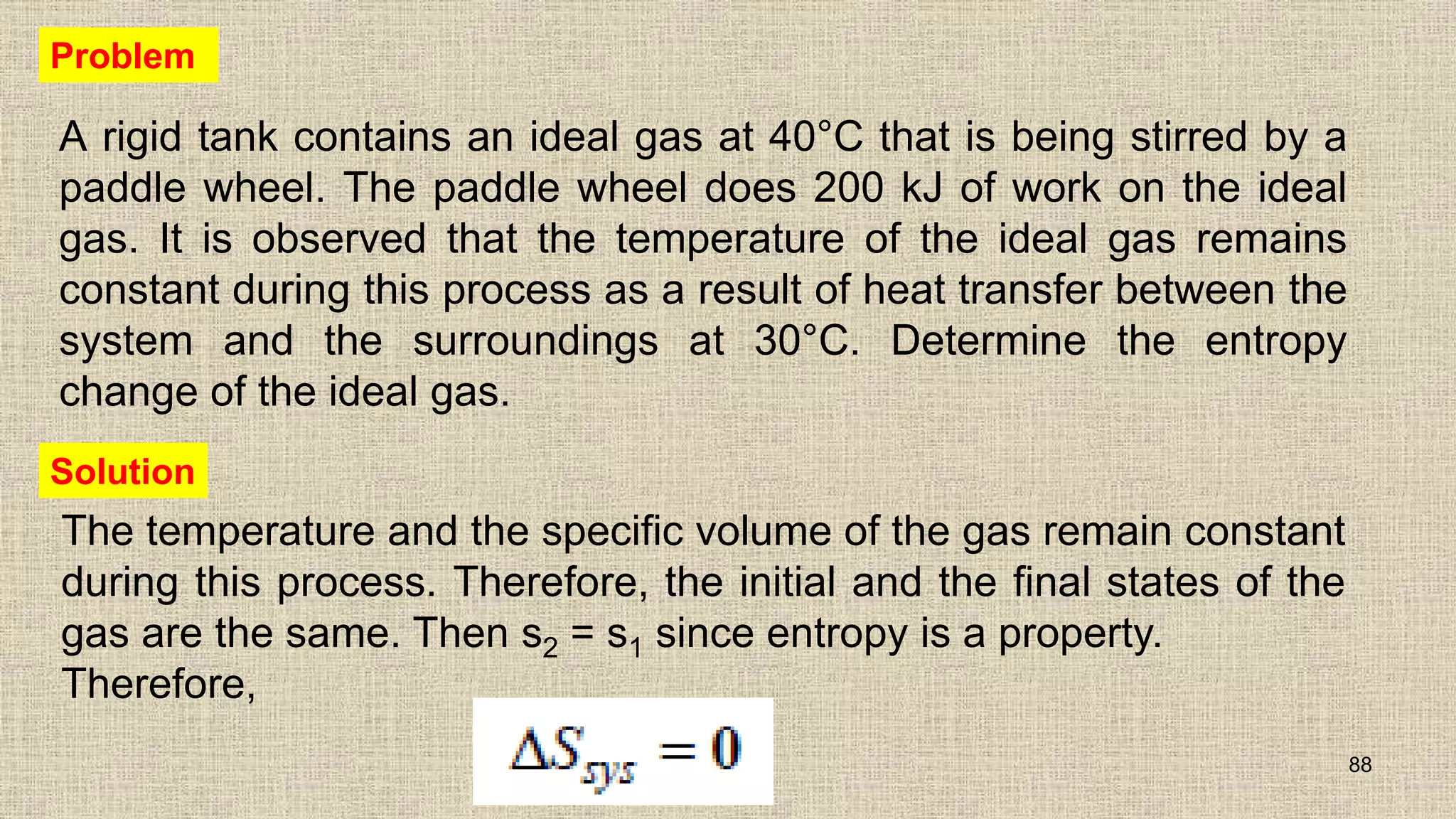

88. A rigid tank contains an ideal gas at 40°C that is being stirred by a
paddle wheel. The paddle wheel does 200 kJ of work on the ideal
gas. It is observed that the temperature of the ideal gas remains
constant during this process as a result of heat transfer between the
system and the surroundings at 30°C. Determine the entropy
change of the ideal gas.
88
Problem
The temperature and the specific volume of the gas remain constant
during this process. Therefore, the initial and the final states of the
gas are the same. Then s2 = s1 since entropy is a property.
Therefore,
Solution

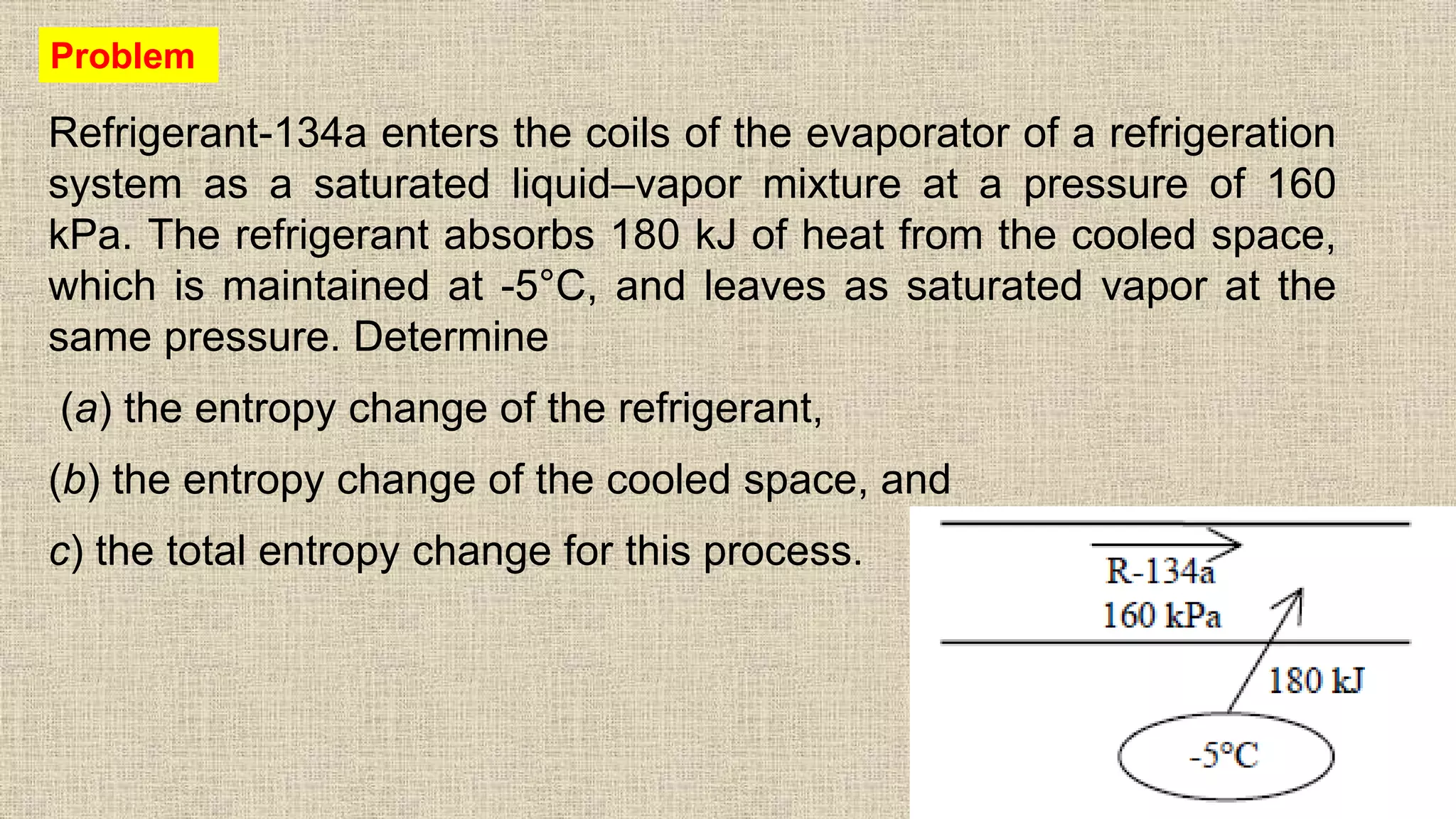

89. Refrigerant-134a enters the coils of the evaporator of a refrigeration
system as a saturated liquid–vapor mixture at a pressure of 160
kPa. The refrigerant absorbs 180 kJ of heat from the cooled space,
which is maintained at -5°C, and leaves as saturated vapor at the
same pressure. Determine
(a) the entropy change of the refrigerant,
(b) the entropy change of the cooled space, and
c) the total entropy change for this process.
89
Problem
90. Assumptions
Both the refrigerant and the cooled space involve no internal
irreversibilities such as friction.
Any temperature change occurs within the wall of the tube, and thus
both the refrigerant and the cooled space remain isothermal during this
process. Thus it is an isothermal, internally reversible process.
90
Solution
a) The pressure of the refrigerant is maintained constant. Therefore, the
temperature of the refrigerant also remains constant at the saturation
value,
