Maxeye Technologies specializes in providing automotive infotainment test solutions and is recognized for its expertise in test and measurement services since its founding in 2011 in Bangalore, India. The company offers complete in-vehicle infotainment testing systems using National Instruments hardware and software, addressing challenges posed by diverse broadcast and navigation standards. Maxeye's products are trusted by leading automotive companies globally for R&D and manufacturing tests, ensuring scalability and adaptability for future wireless standards.

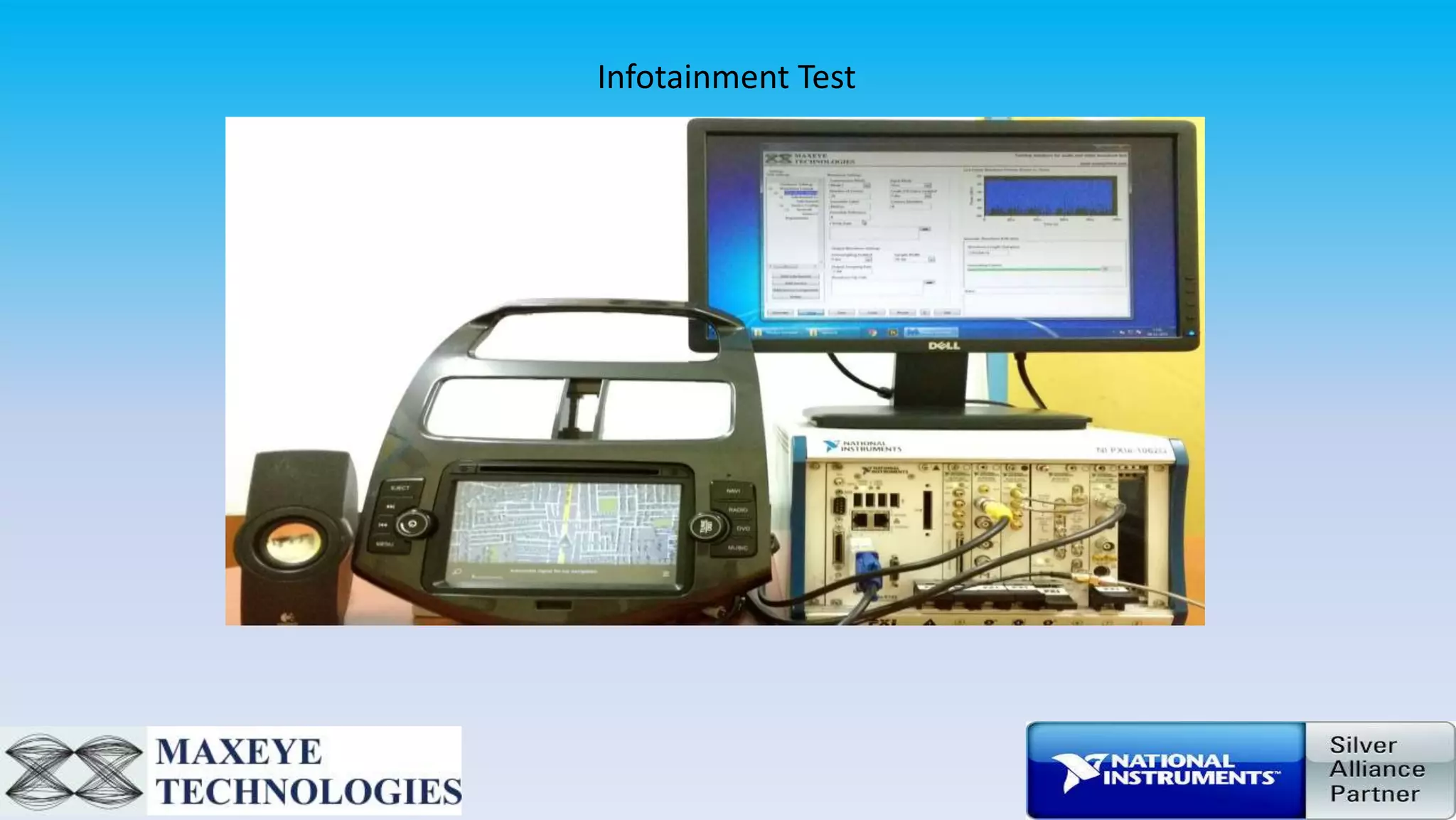

1. Infotainment Test

2. Agenda
• Company Profile
• Automotive Infotainment System - Overview
• Infotainment Test Solution
• Awards and Recognitions
• Our Product Users

3.  MaxEye Technologies – We are a Test and Measurement company, specialized in providing turnkey solutions, products and
consulting services.
 Founded 2011, Headquarters in Bangalore, India
 Branch office in Chennai, India
 Team Size : 23 Engineers
 More than 100 test systems worldwide using our products and test solutions
 15 Test and Measurement products
 Focused on Automotive Test and RF/Wireless T&M products
 LabVIEW/TestStand, Wireless, Signal Processing and Communication Consulting Services and Training
 National Instruments Silver Alliance Partner and Value Added Reseller
Company Overview

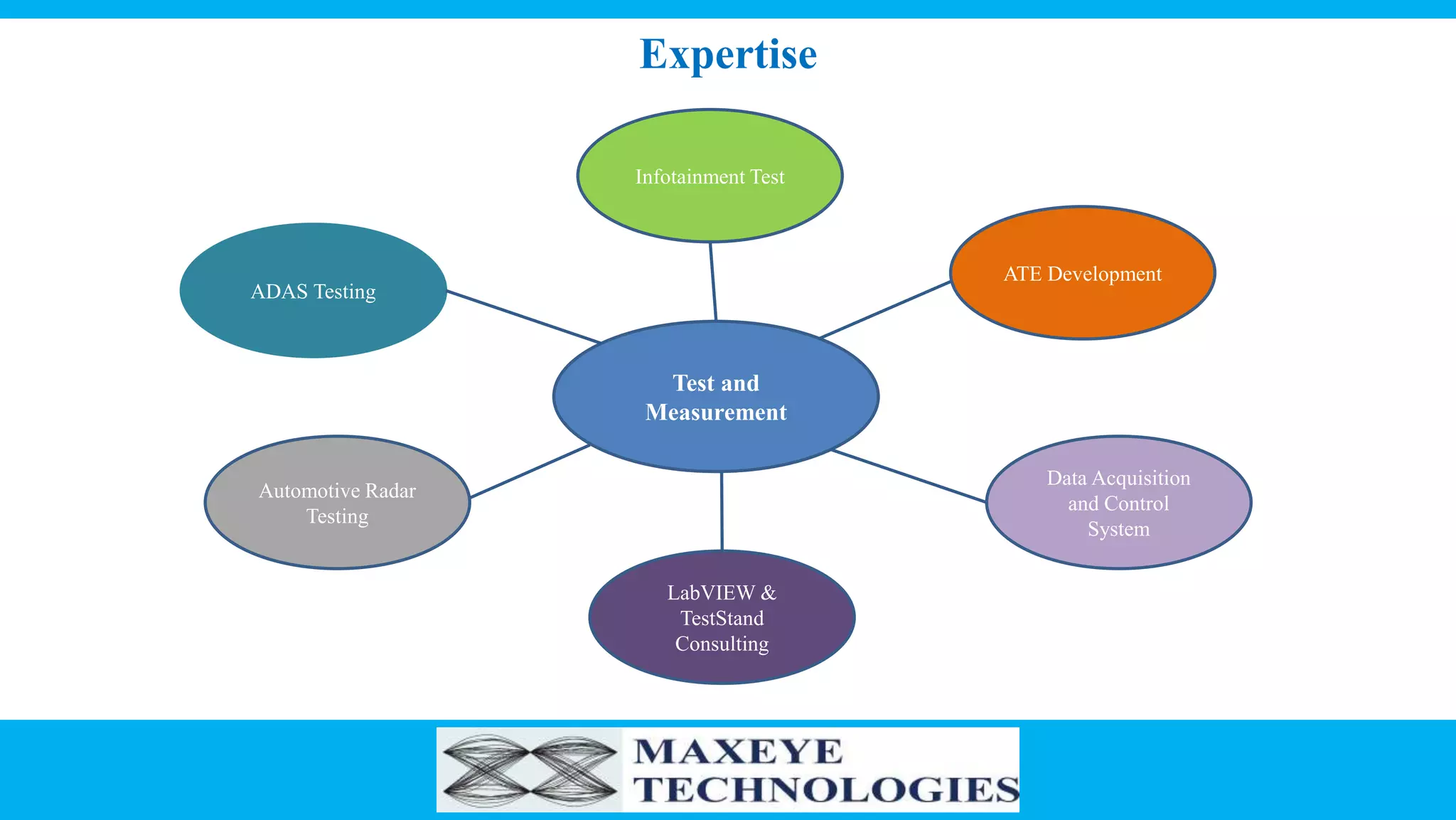

4. Expertise
Test and
Measurement
Infotainment Test
ATE Development
Automotive Radar
Testing
LabVIEW &
TestStand
Consulting
ADAS Testing
Data Acquisition
and Control
System

5. Automotive Infotainment System

6. Automotive Infotainment System

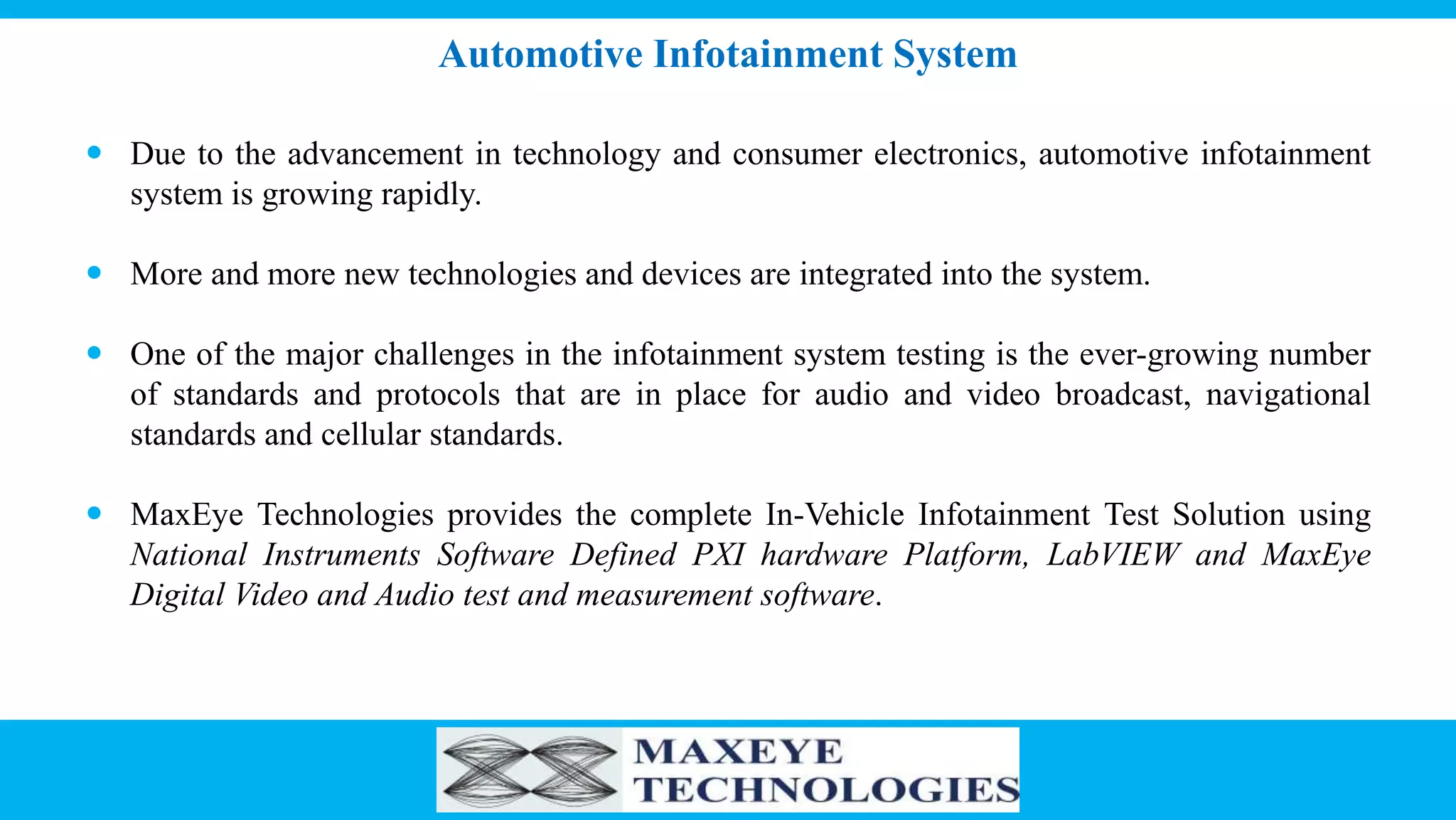

 Due to the advancement in technology and consumer electronics, automotive infotainment
system is growing rapidly.
 More and more new technologies and devices are integrated into the system.
 One of the major challenges in the infotainment system testing is the ever-growing number
of standards and protocols that are in place for audio and video broadcast, navigational
standards and cellular standards.
 MaxEye Technologies provides the complete In-Vehicle Infotainment Test Solution using
National Instruments Software Defined PXI hardware Platform, LabVIEW and MaxEye
Digital Video and Audio test and measurement software.

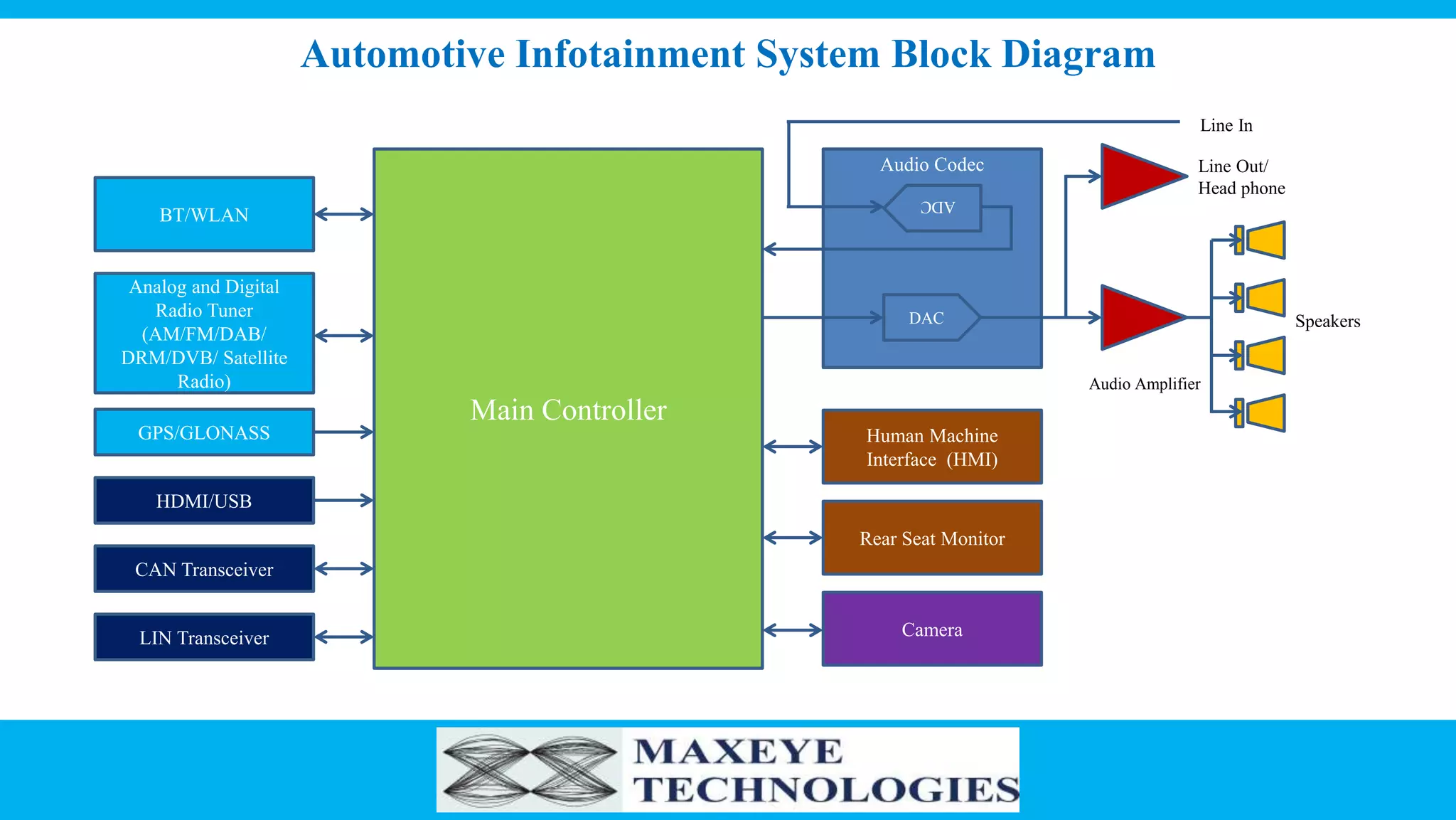

7. Automotive Infotainment System Block Diagram
Audio Codec
Main Controller
BT/WLAN
Analog and Digital
Radio Tuner
(AM/FM/DAB/
DRM/DVB/ Satellite
Radio)
GPS/GLONASS
HDMI/USB
DAC
ADC
CAN Transceiver
LIN Transceiver
Line Out/
Head phone
Audio Amplifier
Speakers
Line In
Human Machine
Interface (HMI)
Rear Seat Monitor
Camera

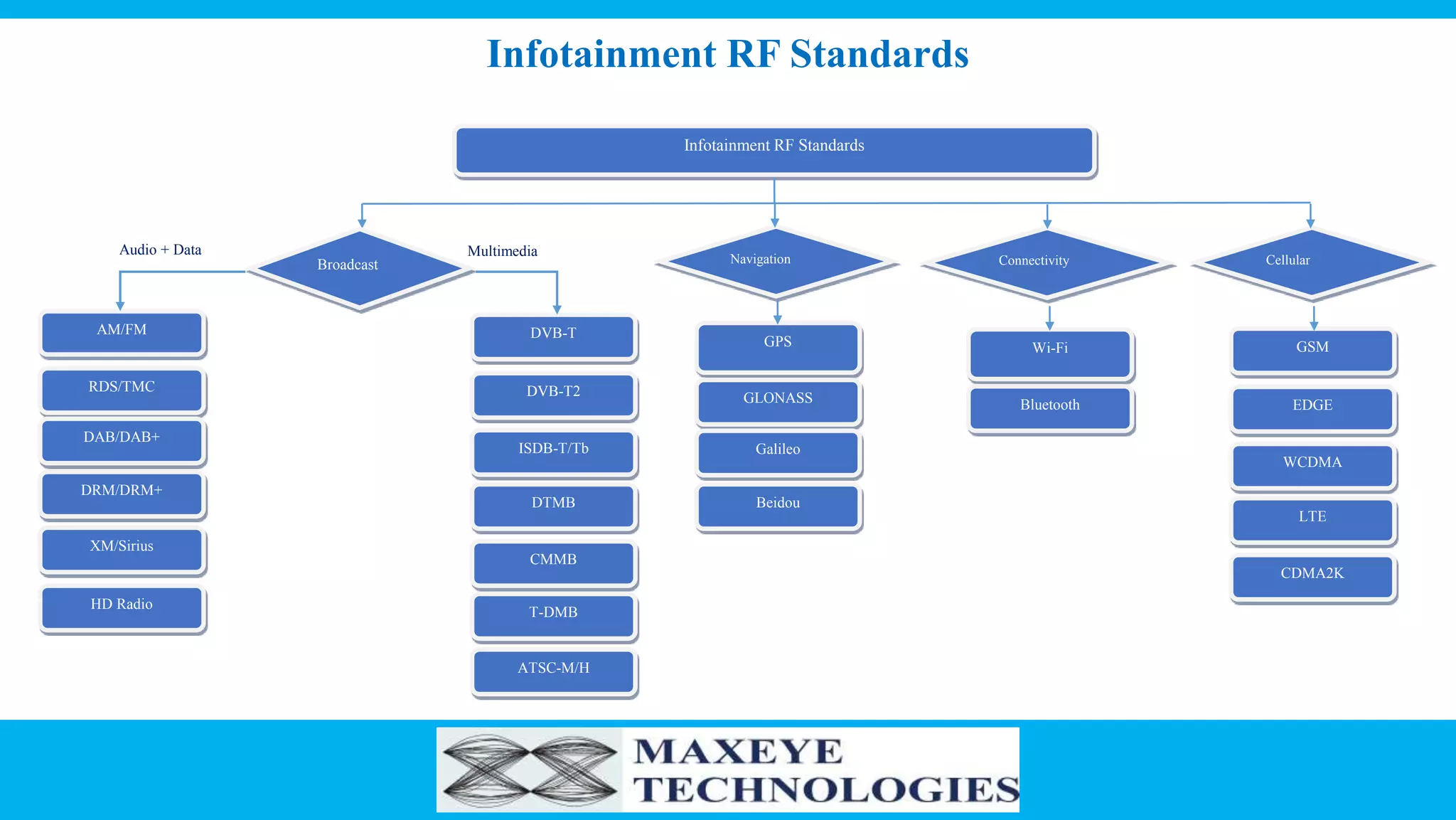

8. Infotainment RF Standards
Navigation
MultimediaAudio + Data
Infotainment RF Standards
AM/FM
RDS/TMC
XM/Sirius
DAB/DAB+
DRM/DRM+
DVB-T
DVB-T2
ISDB-T/Tb
DTMB
CMMB
T-DMB
ATSC-M/H
Broadcast
GPS
GLONASS
Connectivity Cellular
Wi-Fi
Bluetooth
GSM
EDGE
WCDMA
LTE
CDMA2K
Galileo
Beidou
HD Radio

9. Infotainment Test Solution

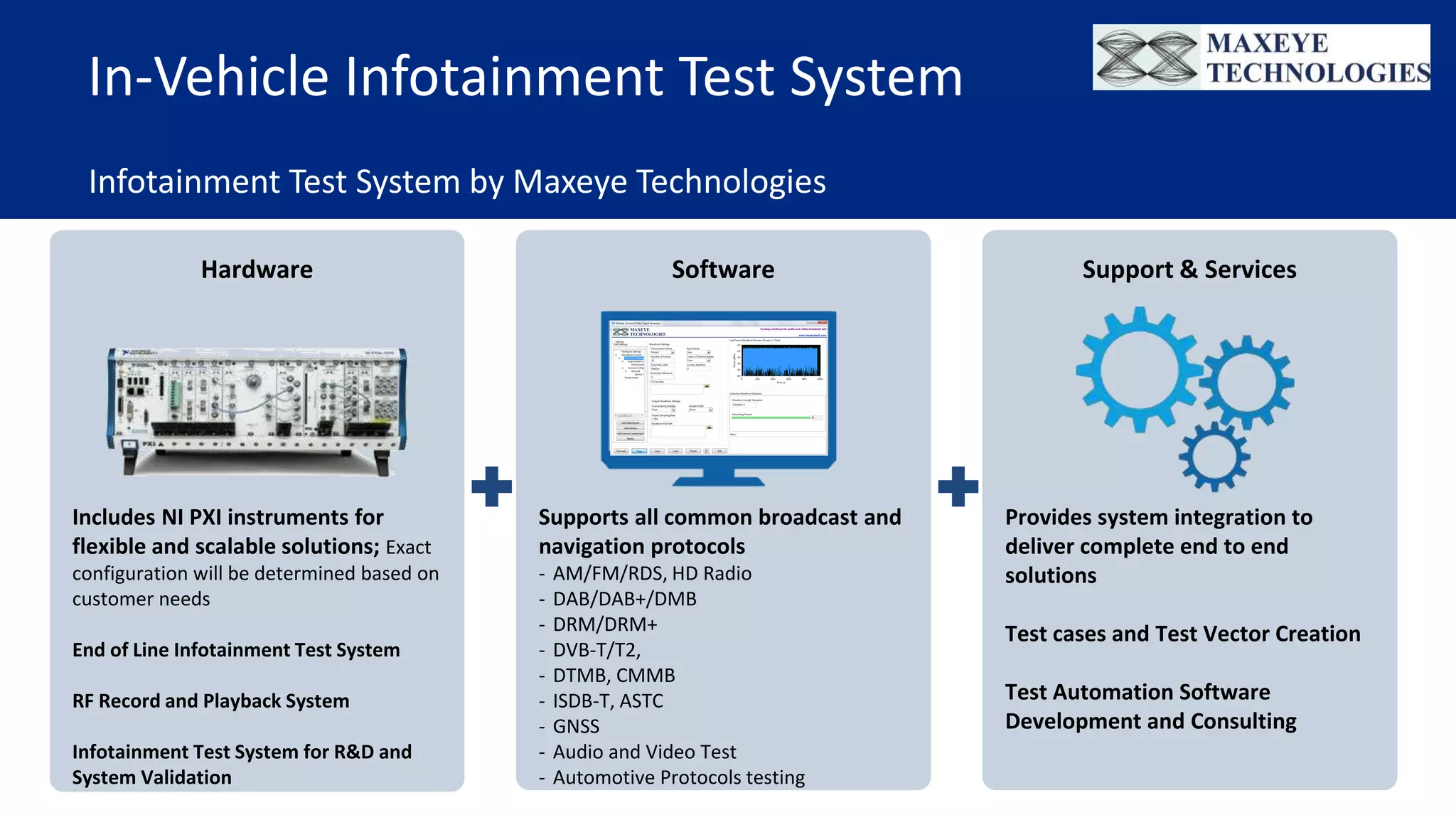

10. Infotainment Test System by Maxeye Technologies
Hardware Software Support & Services
Supports all common broadcast and
navigation protocols
- AM/FM/RDS, HD Radio
- DAB/DAB+/DMB
- DRM/DRM+
- DVB-T/T2,
- DTMB, CMMB
- ISDB-T, ASTC
- GNSS
- Audio and Video Test
- Automotive Protocols testing
Includes NI PXI instruments for
flexible and scalable solutions; Exact
configuration will be determined based on
customer needs
End of Line Infotainment Test System
RF Record and Playback System
Infotainment Test System for R&D and
System Validation
Provides system integration to
deliver complete end to end
solutions
Test cases and Test Vector Creation
Test Automation Software
Development and Consulting
In-Vehicle Infotainment Test System

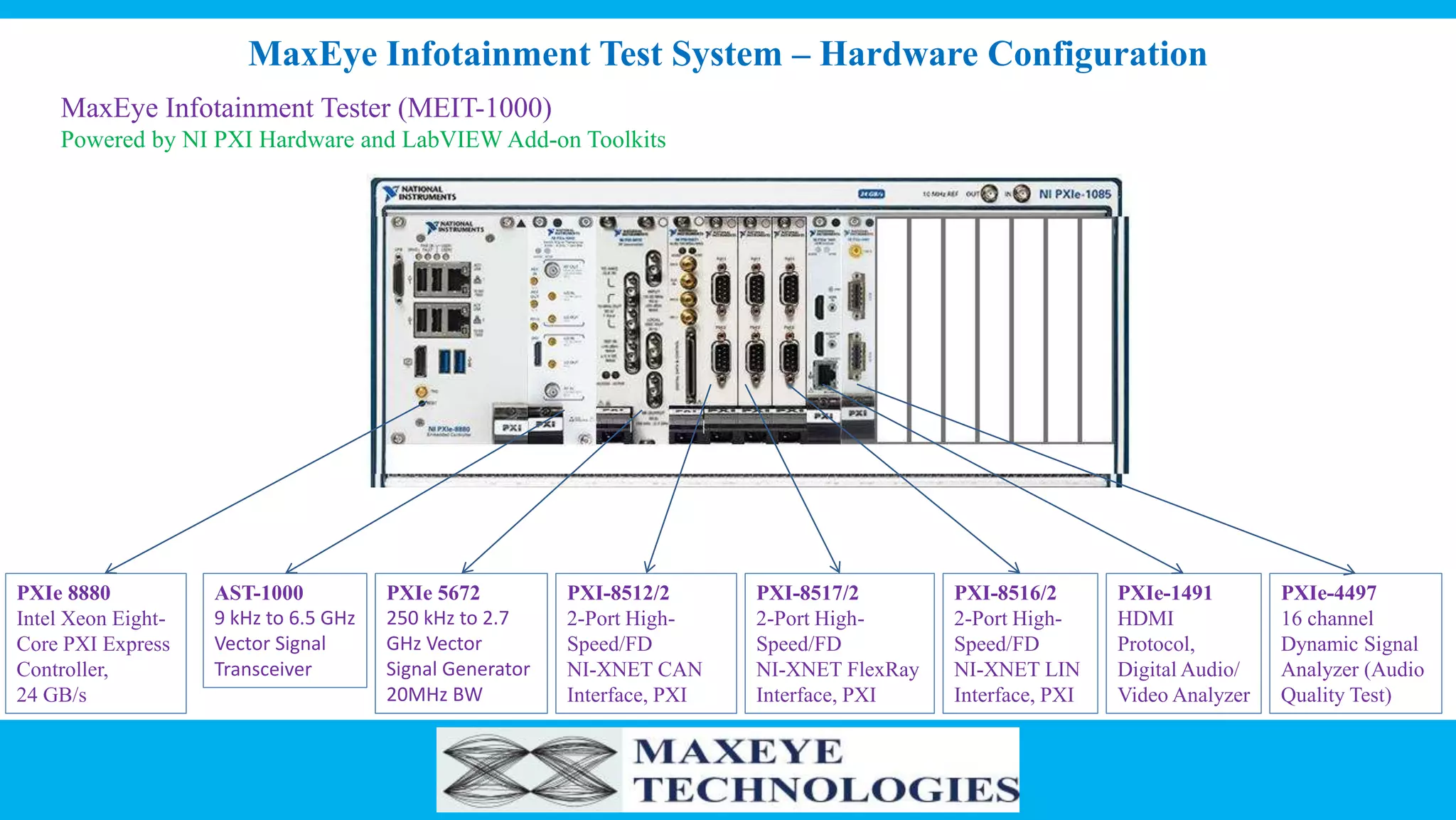

11. MaxEye Infotainment Test System – Hardware Configuration
MaxEye Infotainment Tester (MEIT-1000)
Powered by NI PXI Hardware and LabVIEW Add-on Toolkits
PXIe 8880
Intel Xeon Eight-
Core PXI Express
Controller,
24 GB/s
AST-1000
9 kHz to 6.5 GHz
Vector Signal
Transceiver
PXIe 5672
250 kHz to 2.7
GHz Vector
Signal Generator
20MHz BW
PXI-8512/2
2-Port High-
Speed/FD
NI-XNET CAN
Interface, PXI
PXI-8517/2
2-Port High-
Speed/FD
NI-XNET FlexRay
Interface, PXI
PXI-8516/2
2-Port High-
Speed/FD
NI-XNET LIN
Interface, PXI
PXIe-1491
HDMI
Protocol,
Digital Audio/
Video Analyzer
PXIe-4497
16 channel
Dynamic Signal
Analyzer (Audio
Quality Test)

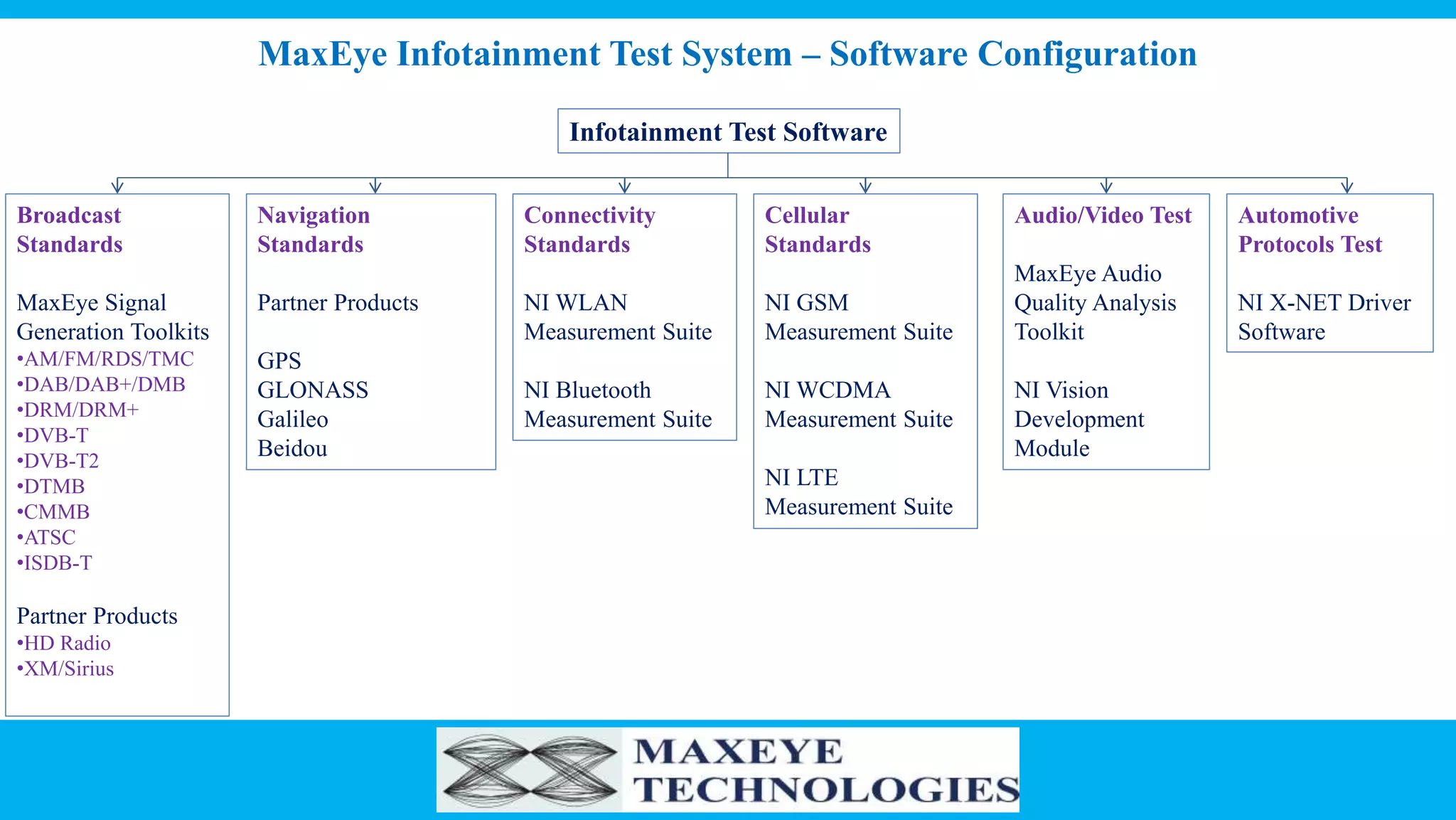

12. MaxEye Infotainment Test System – Software Configuration
Infotainment Test Software
Broadcast
Standards
MaxEye Signal
Generation Toolkits
•AM/FM/RDS/TMC
•DAB/DAB+/DMB
•DRM/DRM+
•DVB-T
•DVB-T2
•DTMB
•CMMB
•ATSC
•ISDB-T
Partner Products
•HD Radio
•XM/Sirius
Navigation
Standards
Partner Products
GPS
GLONASS
Galileo
Beidou
Connectivity
Standards
NI WLAN
Measurement Suite
NI Bluetooth
Measurement Suite
Cellular
Standards
NI GSM
Measurement Suite
NI WCDMA
Measurement Suite
NI LTE
Measurement Suite
Audio/Video Test
MaxEye Audio
Quality Analysis
Toolkit
NI Vision
Development
Module
Automotive
Protocols Test
NI X-NET Driver
Software

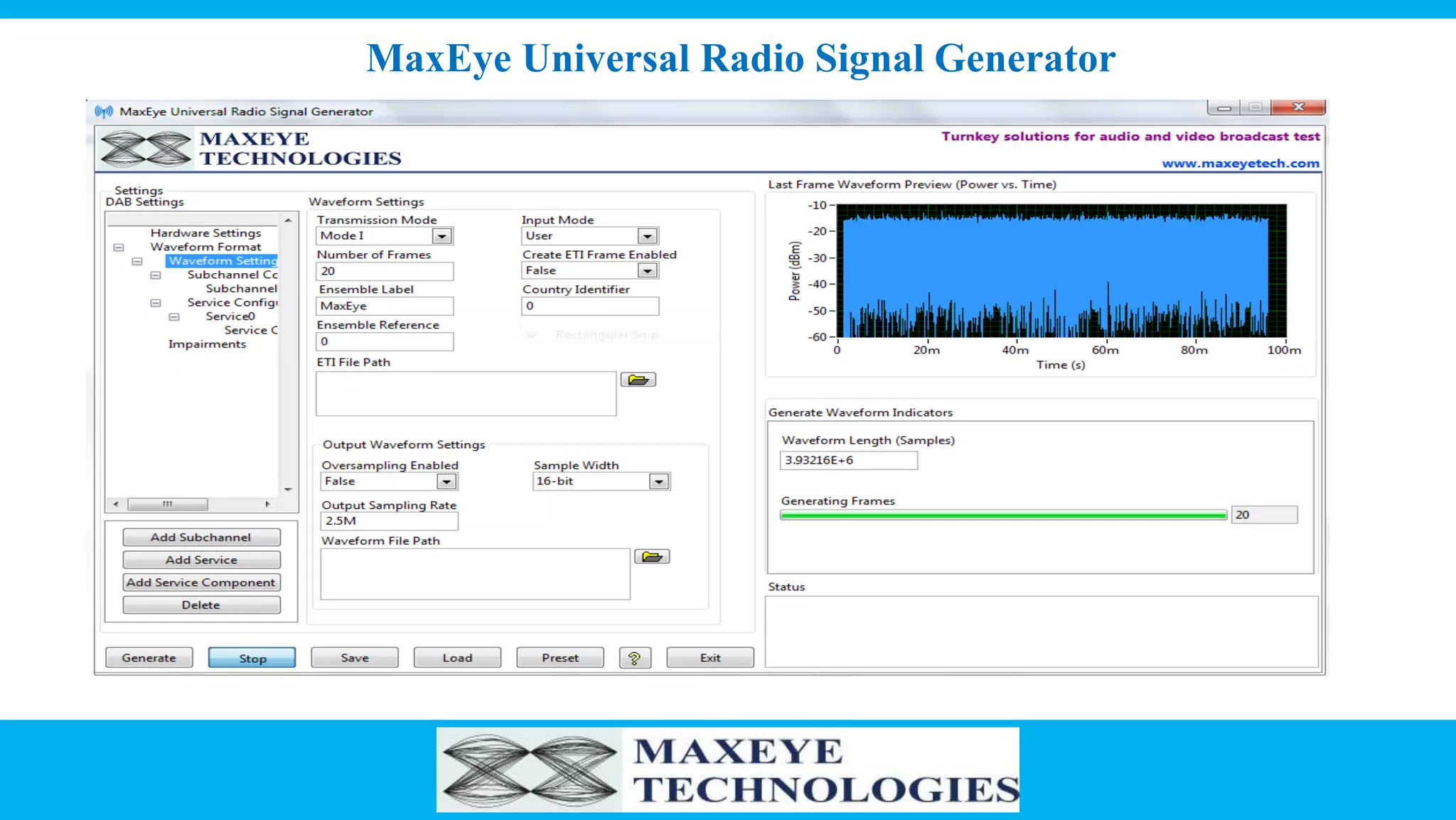

13. MaxEye Universal Radio Signal Generator

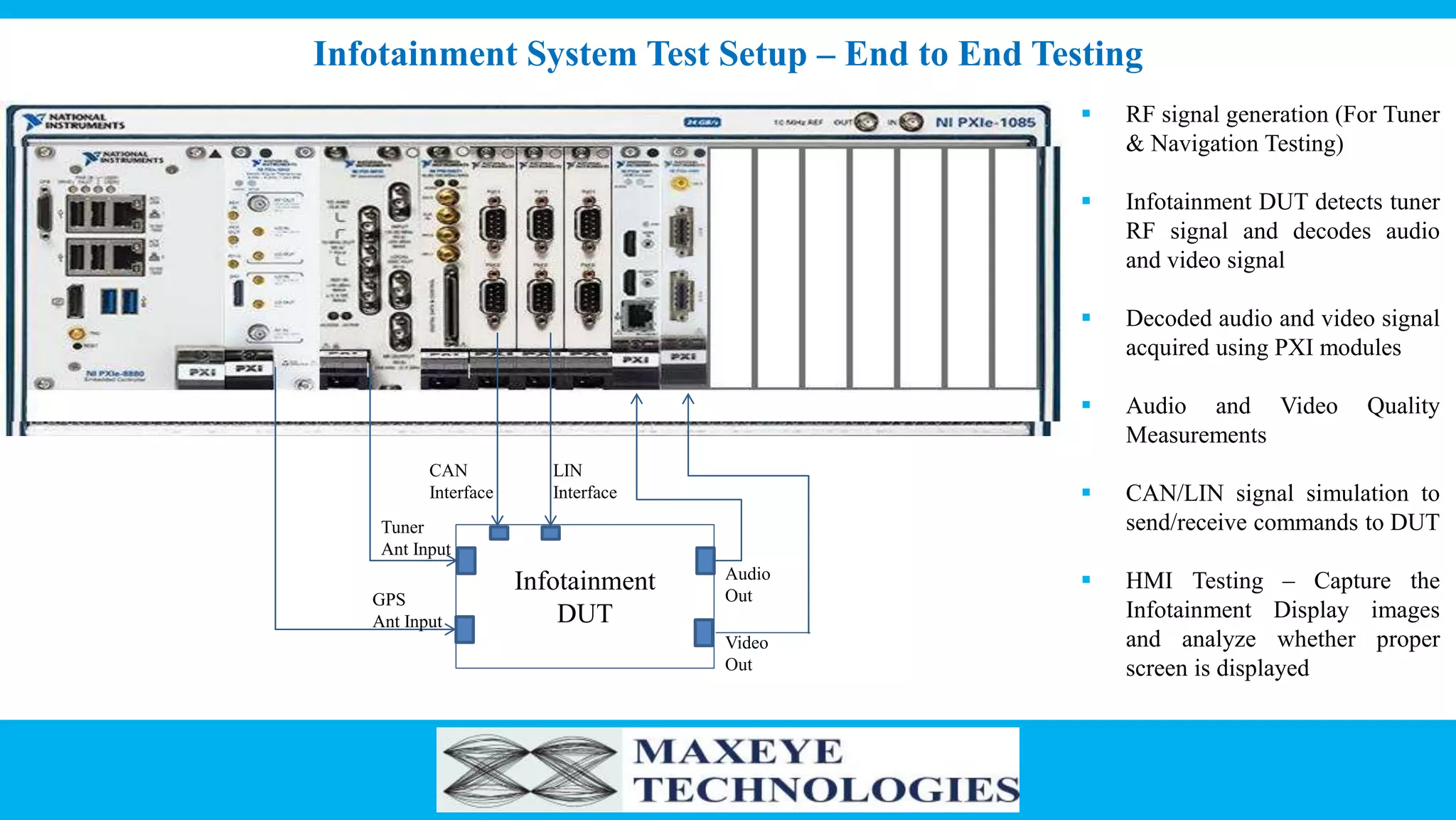

14. Infotainment System Test Setup – End to End Testing
Tuner
Ant Input
GPS
Ant Input
CAN
Interface
LIN
Interface
Infotainment
DUT
Audio
Out
Video
Out
 RF signal generation (For Tuner
& Navigation Testing)
 Infotainment DUT detects tuner
RF signal and decodes audio
and video signal
 Decoded audio and video signal
acquired using PXI modules
 Audio and Video Quality
Measurements
 CAN/LIN signal simulation to
send/receive commands to DUT
 HMI Testing – Capture the
Infotainment Display images
and analyze whether proper
screen is displayed

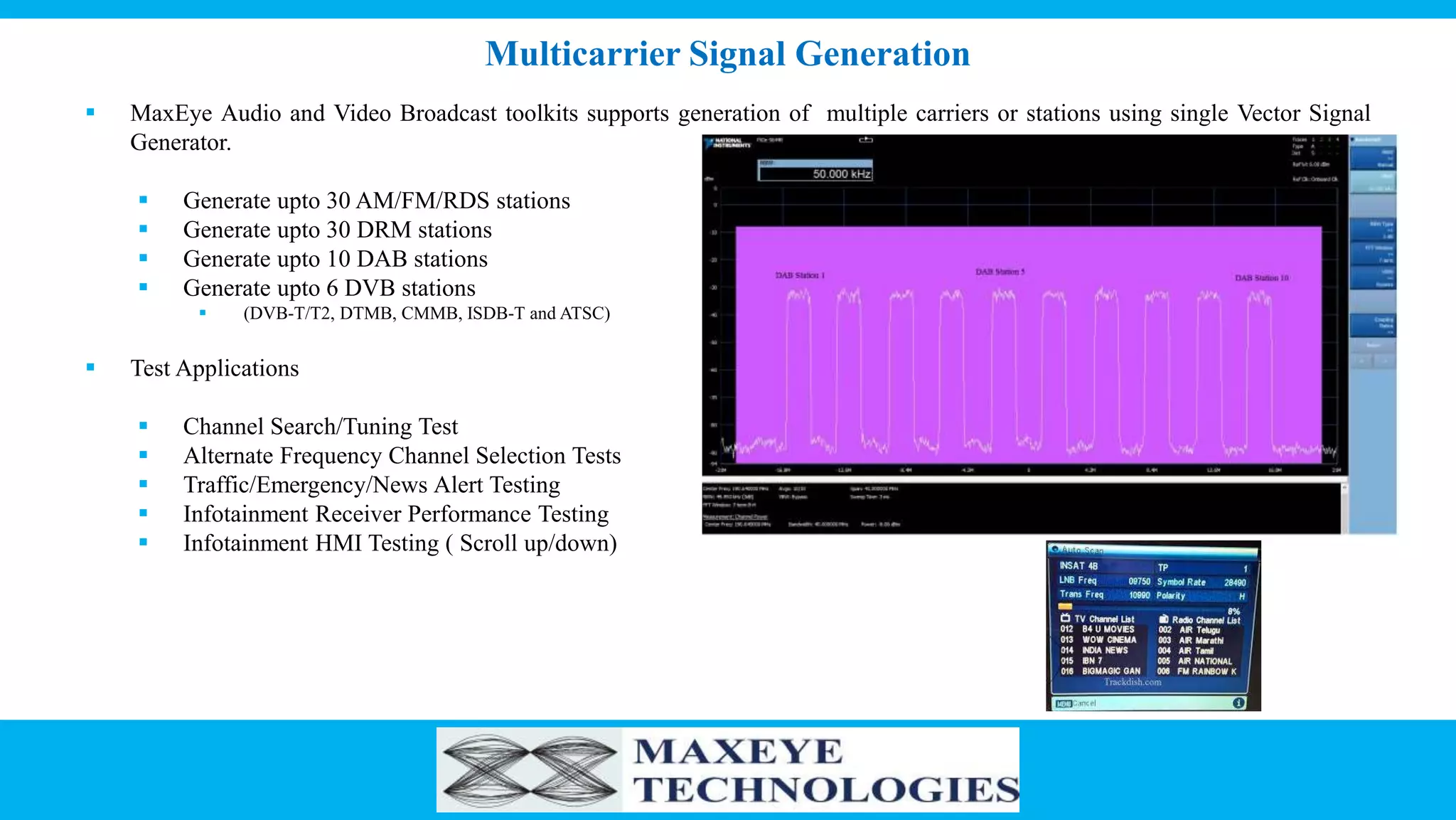

15. Multicarrier Signal Generation
 MaxEye Audio and Video Broadcast toolkits supports generation of multiple carriers or stations using single Vector Signal
Generator.
 Generate upto 30 AM/FM/RDS stations
 Generate upto 30 DRM stations
 Generate upto 10 DAB stations
 Generate upto 6 DVB stations
 (DVB-T/T2, DTMB, CMMB, ISDB-T and ATSC)
 Test Applications
 Channel Search/Tuning Test
 Alternate Frequency Channel Selection Tests
 Traffic/Emergency/News Alert Testing
 Infotainment Receiver Performance Testing
 Infotainment HMI Testing ( Scroll up/down)

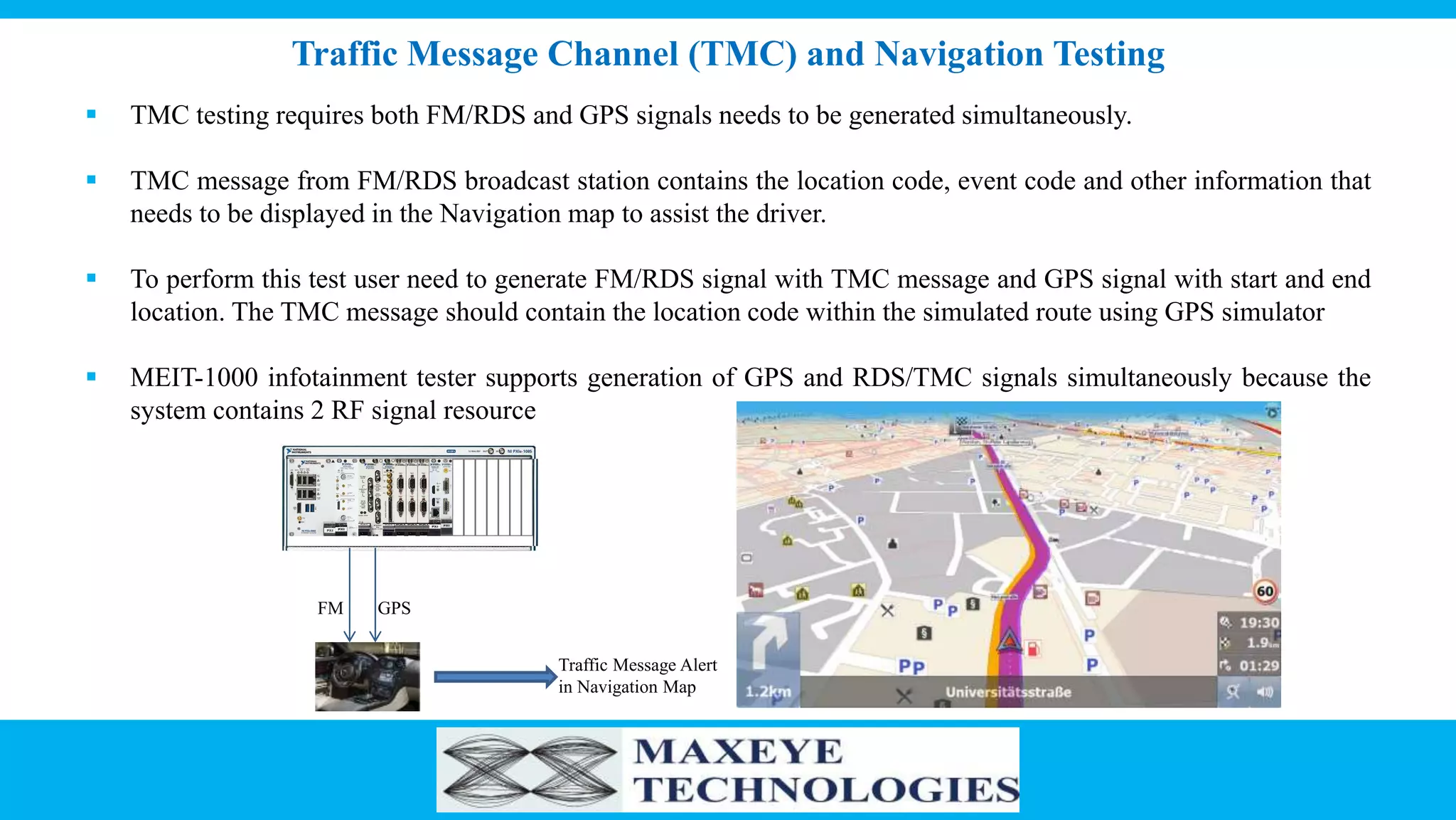

16. Traffic Message Channel (TMC) and Navigation Testing
 TMC testing requires both FM/RDS and GPS signals needs to be generated simultaneously.
 TMC message from FM/RDS broadcast station contains the location code, event code and other information that
needs to be displayed in the Navigation map to assist the driver.
 To perform this test user need to generate FM/RDS signal with TMC message and GPS signal with start and end
location. The TMC message should contain the location code within the simulated route using GPS simulator
 MEIT-1000 infotainment tester supports generation of GPS and RDS/TMC signals simultaneously because the
system contains 2 RF signal resource
FM GPS
Traffic Message Alert
in Navigation Map

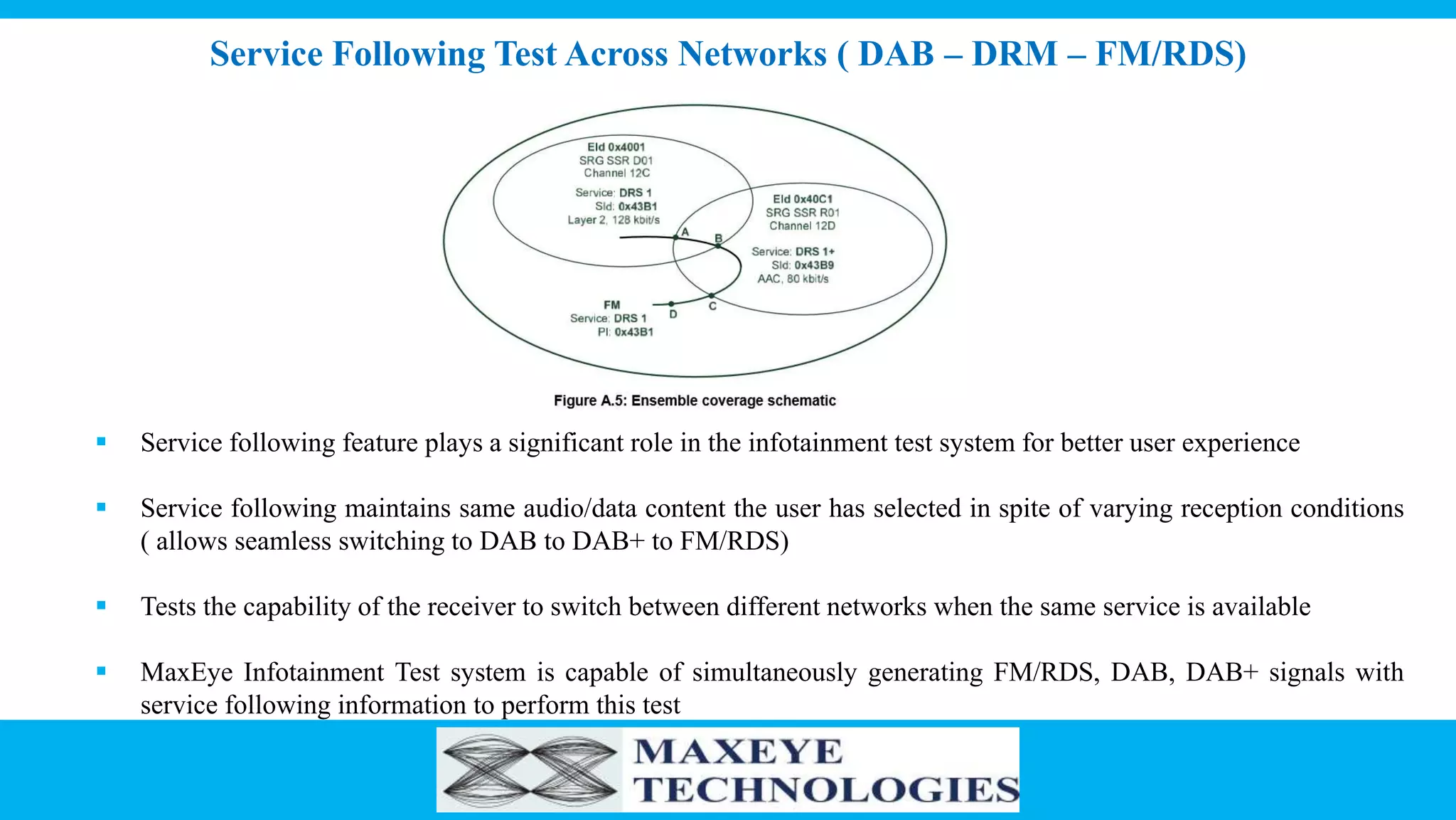

17. Service Following Test Across Networks ( DAB – DRM – FM/RDS)
 Service following feature plays a significant role in the infotainment test system for better user experience
 Service following maintains same audio/data content the user has selected in spite of varying reception conditions
( allows seamless switching to DAB to DAB+ to FM/RDS)
 Tests the capability of the receiver to switch between different networks when the same service is available
 MaxEye Infotainment Test system is capable of simultaneously generating FM/RDS, DAB, DAB+ signals with
service following information to perform this test

18. MaxEye Technologies
Awards & Recognitions

19. Awards and Recognitions
• First Alliance Partner from India to receive LabVIEW Tools Network Product of the
year Award (NI Week 2013 and NI Week 2016 – LabVIEW Tools Network Awards)
– MaxEye Technologies Multi-Carrier Multi Standard DVB RF Test and Measurement product
received 2013 LabVIEW Tools Network - Runner up for the test product of the year award at
the NI Week 2013 Graphical System Design Conference held at Austin, Texas.
• MaxEye DVB/DAB and ZigBee Products received compatible with LabVIEW Certification
and available online in NI Website.
http://search.ni.com/nisearch/app/main/p/bot/no/ap/global/lang/en/pg/1/q/maxeye/
• Our products are used globally by leading automotive companies for validating their
products in manufacturing, R&D labs and system level functional and performance tests
• Only Alliance partner in India with proven expertise in product development, system
integration and test automation

20. Our Customers

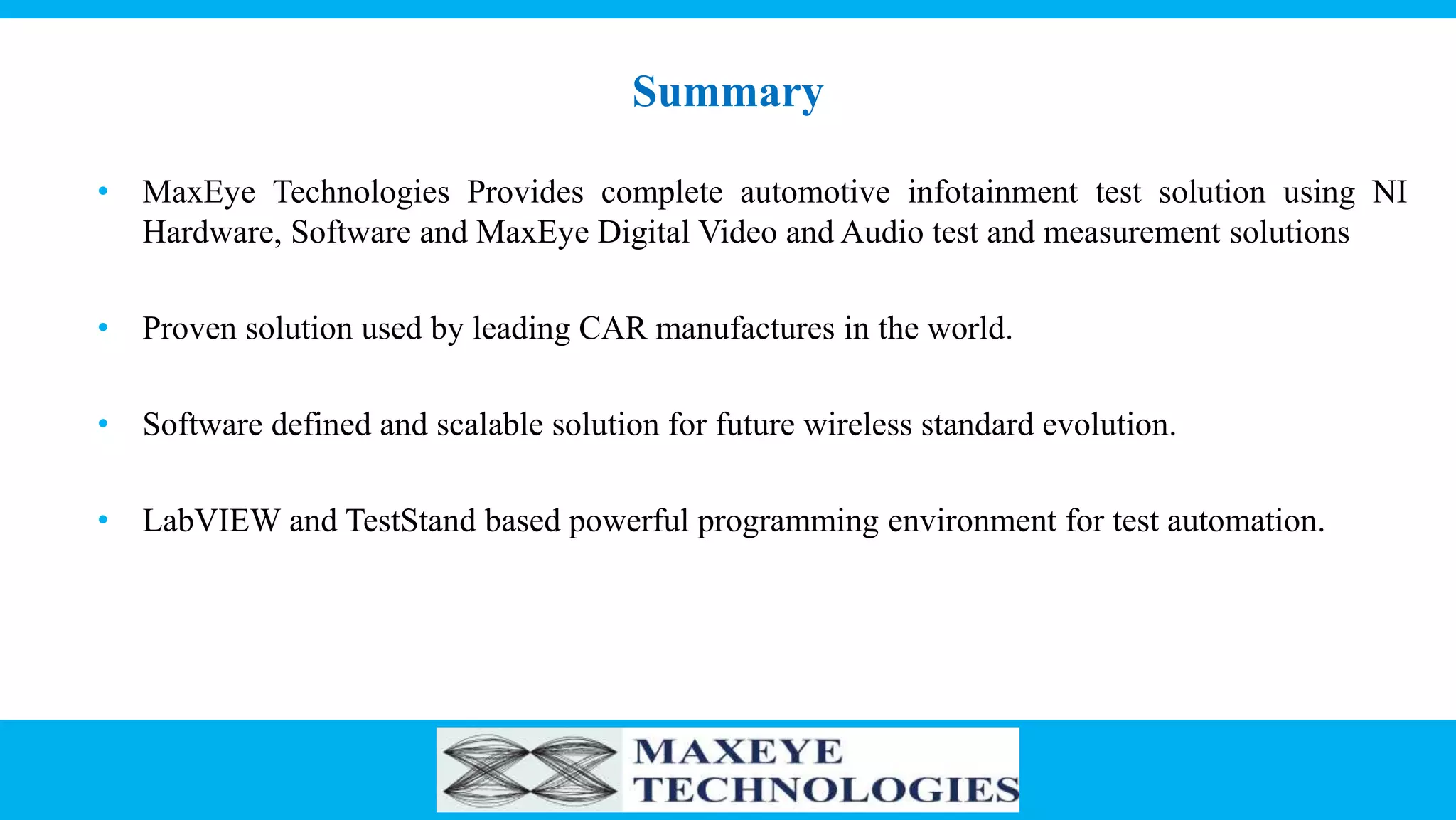

21. Summary
• MaxEye Technologies Provides complete automotive infotainment test solution using NI
Hardware, Software and MaxEye Digital Video and Audio test and measurement solutions
• Proven solution used by leading CAR manufactures in the world.
• Software defined and scalable solution for future wireless standard evolution.
• LabVIEW and TestStand based powerful programming environment for test automation.
