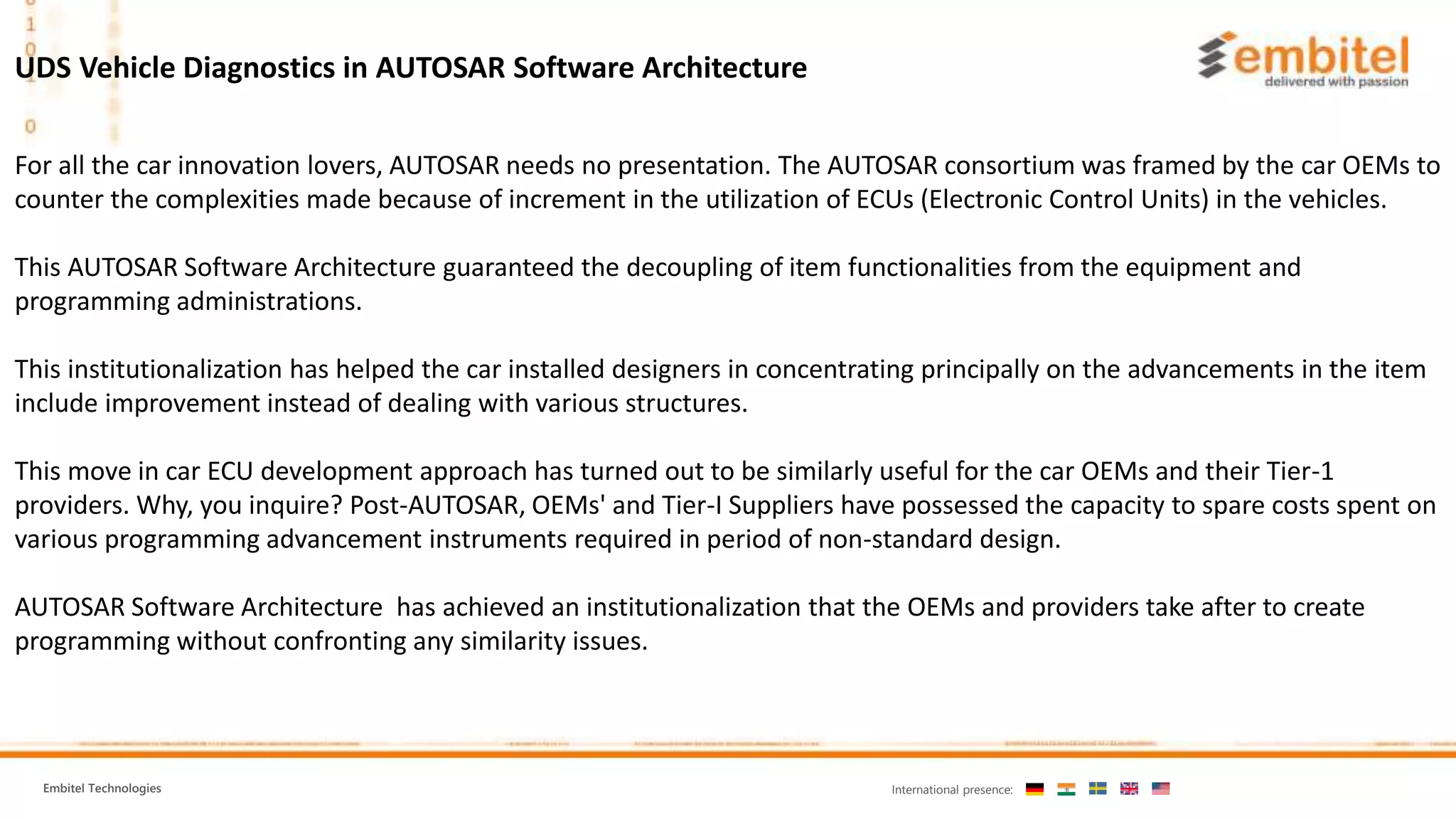

UDS Software: Vehicle Diagnostics in AUTOSAR Architecture

2. Embitel Technologies International presence:
For all the car innovation lovers, AUTOSAR needs no presentation. The AUTOSAR consortium was framed by the car OEMs to
counter the complexities made because of increment in the utilization of ECUs (Electronic Control Units) in the vehicles.
This AUTOSAR Software Architecture guaranteed the decoupling of item functionalities from the equipment and
programming administrations.
This institutionalization has helped the car installed designers in concentrating principally on the advancements in the item
include improvement instead of dealing with various structures.
This move in car ECU development approach has turned out to be similarly useful for the car OEMs and their Tier-1
providers. Why, you inquire? Post-AUTOSAR, OEMs' and Tier-I Suppliers have possessed the capacity to spare costs spent on
various programming advancement instruments required in period of non-standard design.
AUTOSAR Software Architecture has achieved an institutionalization that the OEMs and providers take after to create
programming without confronting any similarity issues.
UDS Vehicle Diagnostics in AUTOSAR Software Architecture

3. Embitel Technologies International presence:

4. Embitel Technologies International presence:
In car, diagnostics is required to be performed on all ECUs to guarantee there is no issue with any electronically controlled
segment of the vehicle. Any issue experienced by the car ECU is put away as Diagnostics Trouble Code (DTC) in the
Electrically Erasable Programmable Read-Only Memory (EEPROM). These codes can be recovered later utilizing a car
indicative device.
Presently the vehicle diagnostics framework should be executed in the AUTOSAR Architecture and this is the thing that
this blog means to investigate.
To see how the diagnostics is executed in AUTOSAR Architecture, let us rapidly return to the design.
In the base programming layer, there are several product modules including those ordered under the Microcontroller
Abstraction Layer (MCAL), ECU Abstraction Layers and Service layer.
The blog will center around the administration layer of the AUTOSAR Base Software Module as the vehicle diagnostics
administrations are put away here.

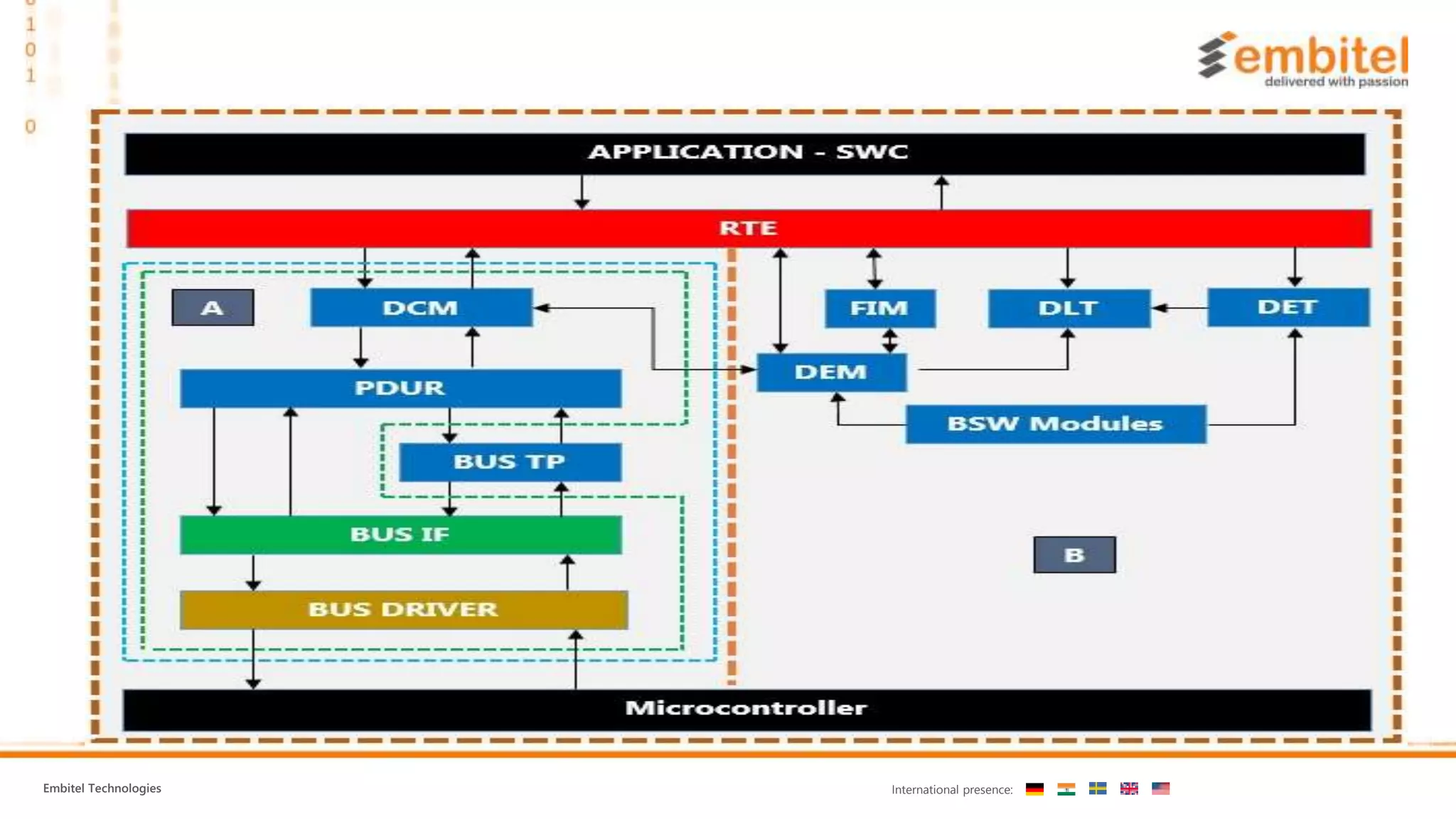

Vehicle Diagnostics Met AUTOSAR Software Architecture

5. Embitel Technologies International presence:
Vehicle Diagnostics Met AUTOSAR Software Architecture
There are three modules inside this layer with
different responsibility with respect to vehicle
diagnostics.
1. Diagnostics Communication Manager (DCM)
2. Diagnostics Event Manager (DEM)
3. Function Inhibition Module (FIM)

6. Embitel Technologies International presence:
Diagnostics Communication Manager (DCM):
The symptomatic correspondence director (DCM) has the obligation of perusing and composing the blame codes or analytic
inconvenience code in the blame memory of the car ECU. It underpins the execution of the indicative conventions, for
example, UDS (ISO 14229) and OBD II.
At the point when a car ECU gets a diagnostics ask for from the analyzer instrument, the DCM preprocesses it. While it
handles larger part of the solicitations, some other demand is directed to the useful programming. Each new form of DCM
has an improved utilitarian range which builds its capacity to deal with differing kinds of analytic solicitations
DCM includes the administration identifiers (SID), information identifiers (DID) sub-capacities and routine identifiers to deal
with the vehicle diagnostics demands.
While dealing with the diagnostics demands from outer testing devices amid ECU programming improvement, vehicle
program creation or carport adjusting, the DCM additionally deals with the session and security states.

7. Embitel Technologies International presence:
Diagnostics Communication Manager (DCM):
We will dig minimal more profound into the diverse parts of DCM and how they connect with each other.
Demonstrative Session Layer: This sub-module is entrusted with guaranteeing the stream of information identified
with the symptomatic solicitations and the reactions. Symptomatic session and security states are overseen by this layer
alongside the supervision of timing parameters of the demonstrative convention.
Indicative Service Dispatcher: The legitimacy of the approaching indicative demands should be checked and this is the
place this sub-module comes into the photo. Notwithstanding guaranteeing the legitimacy of the demand, it likewise
monitors the advance of the demand.
After the approval is done, this sub-module forms a surge of analytic information and furthermore transmits the reaction
post information preparing.
Demonstrative Service Processing (DSP) Module: This is where the genuine preparing happens. DSP investigates the
configuration of the administration ask for and interfaces with different segments of the AUTOSAR BSW to get the
information required for the handling. The administration reaction is likewise gathered by it.

8. Embitel Technologies International presence:

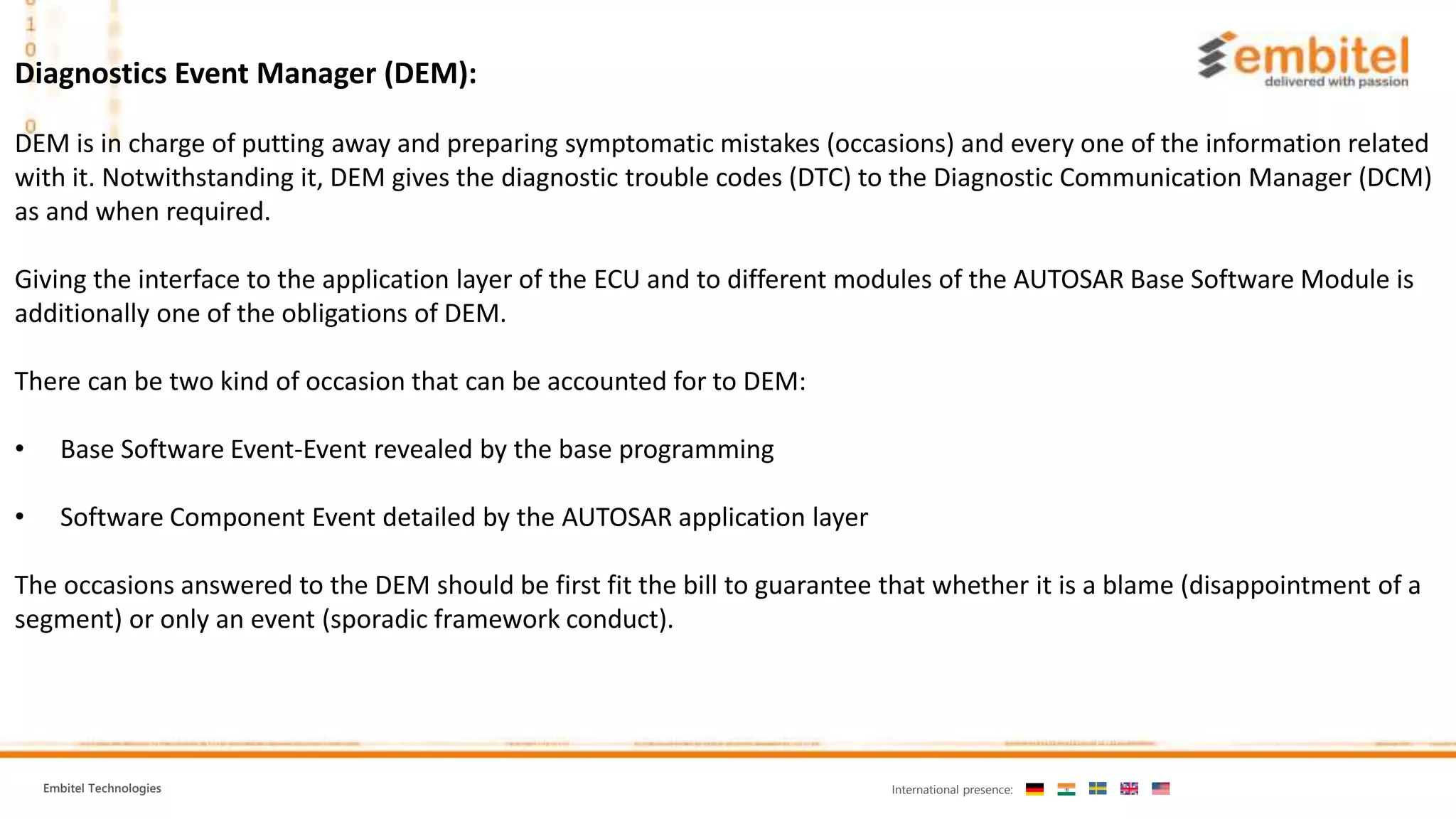

Diagnostics Event Manager (DEM):
DEM is in charge of putting away and preparing symptomatic mistakes (occasions) and every one of the information related
with it. Notwithstanding it, DEM gives the diagnostic trouble codes (DTC) to the Diagnostic Communication Manager (DCM)
as and when required.
Giving the interface to the application layer of the ECU and to different modules of the AUTOSAR Base Software Module is
additionally one of the obligations of DEM.
There can be two kind of occasion that can be accounted for to DEM:
• Base Software Event-Event revealed by the base programming
• Software Component Event detailed by the AUTOSAR application layer
The occasions answered to the DEM should be first fit the bill to guarantee that whether it is a blame (disappointment of a
segment) or only an event (sporadic framework conduct).

9. Embitel Technologies International presence:

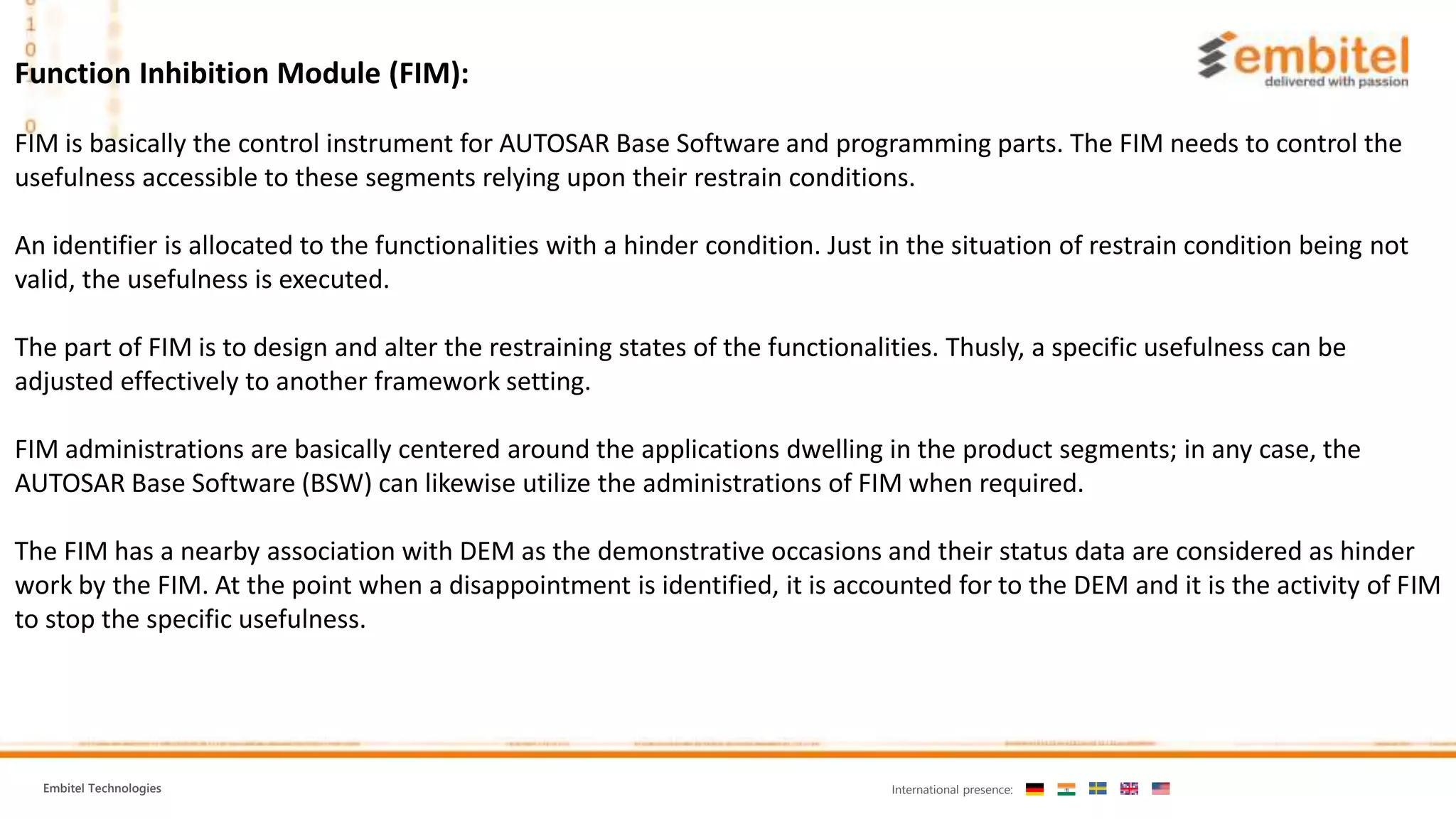

Function Inhibition Module (FIM):
FIM is basically the control instrument for AUTOSAR Base Software and programming parts. The FIM needs to control the
usefulness accessible to these segments relying upon their restrain conditions.
An identifier is allocated to the functionalities with a hinder condition. Just in the situation of restrain condition being not
valid, the usefulness is executed.
The part of FIM is to design and alter the restraining states of the functionalities. Thusly, a specific usefulness can be
adjusted effectively to another framework setting.
FIM administrations are basically centered around the applications dwelling in the product segments; in any case, the
AUTOSAR Base Software (BSW) can likewise utilize the administrations of FIM when required.
The FIM has a nearby association with DEM as the demonstrative occasions and their status data are considered as hinder
work by the FIM. At the point when a disappointment is identified, it is accounted for to the DEM and it is the activity of FIM
to stop the specific usefulness.

10. Embitel Technologies International presence:

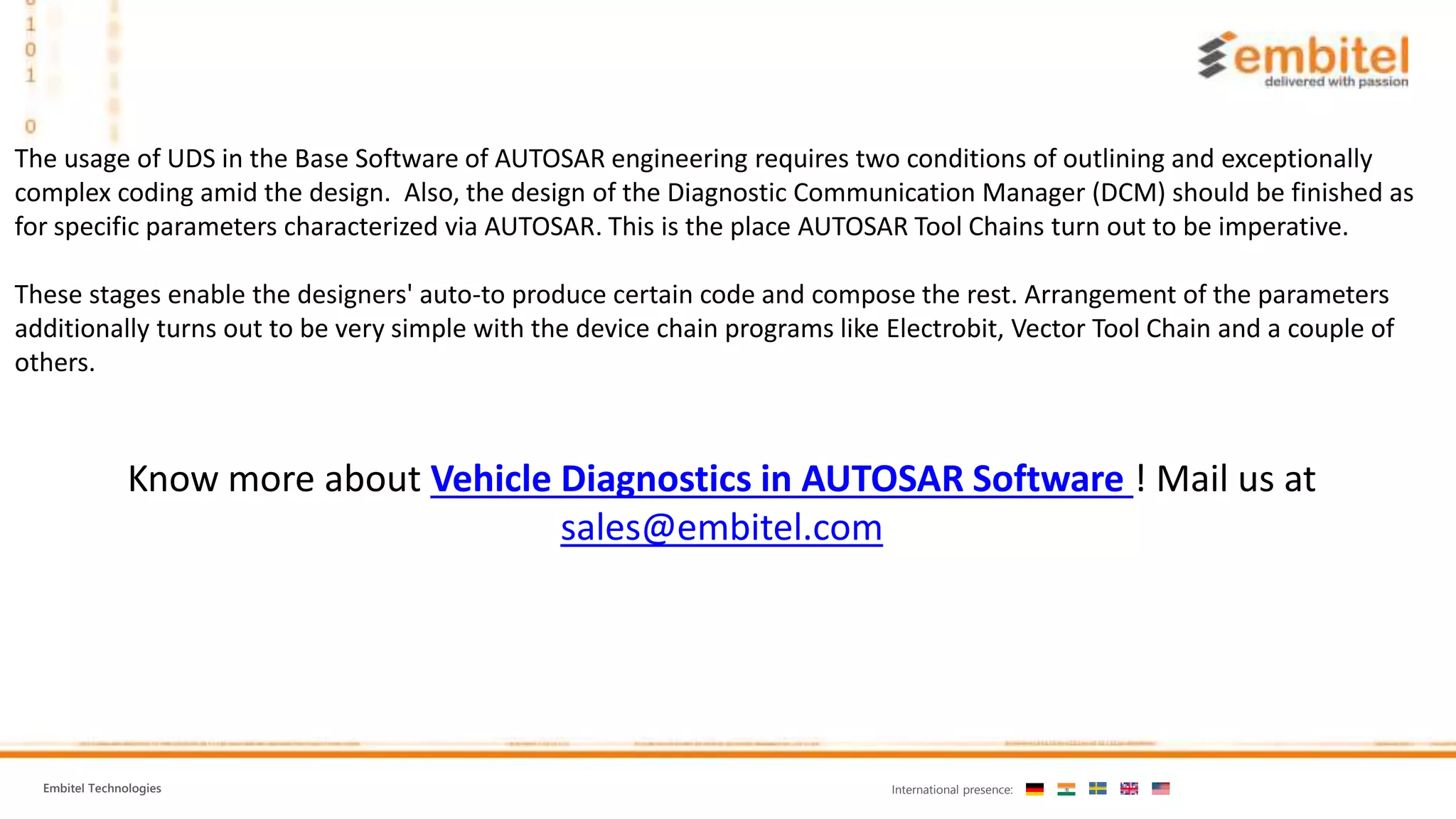

Know more about Vehicle Diagnostics in AUTOSAR Software ! Mail us at
sales@embitel.com
The usage of UDS in the Base Software of AUTOSAR engineering requires two conditions of outlining and exceptionally
complex coding amid the design. Also, the design of the Diagnostic Communication Manager (DCM) should be finished as
for specific parameters characterized via AUTOSAR. This is the place AUTOSAR Tool Chains turn out to be imperative.
These stages enable the designers' auto-to produce certain code and compose the rest. Arrangement of the parameters
additionally turns out to be very simple with the device chain programs like Electrobit, Vector Tool Chain and a couple of
others.
