Docker based Hadoop provisioning - anywhere
This document discusses Docker-based Hadoop provisioning tools from Hortonworks. It introduces Cloudbreak and Periscope, which allow automatic provisioning and management of Hadoop clusters on various cloud platforms using Docker containers. Cloudbreak uses Docker, Swarm, and Consul to deploy and orchestrate Hadoop clusters defined in Ambari blueprints. Periscope monitors clusters and auto-scales them using Cloudbreak based on user-defined SLA policies and metrics-based alarms.
More Related Content
Similar to Docker based Hadoop provisioning - anywhere
Docker based Hadoop provisioning - anywhere

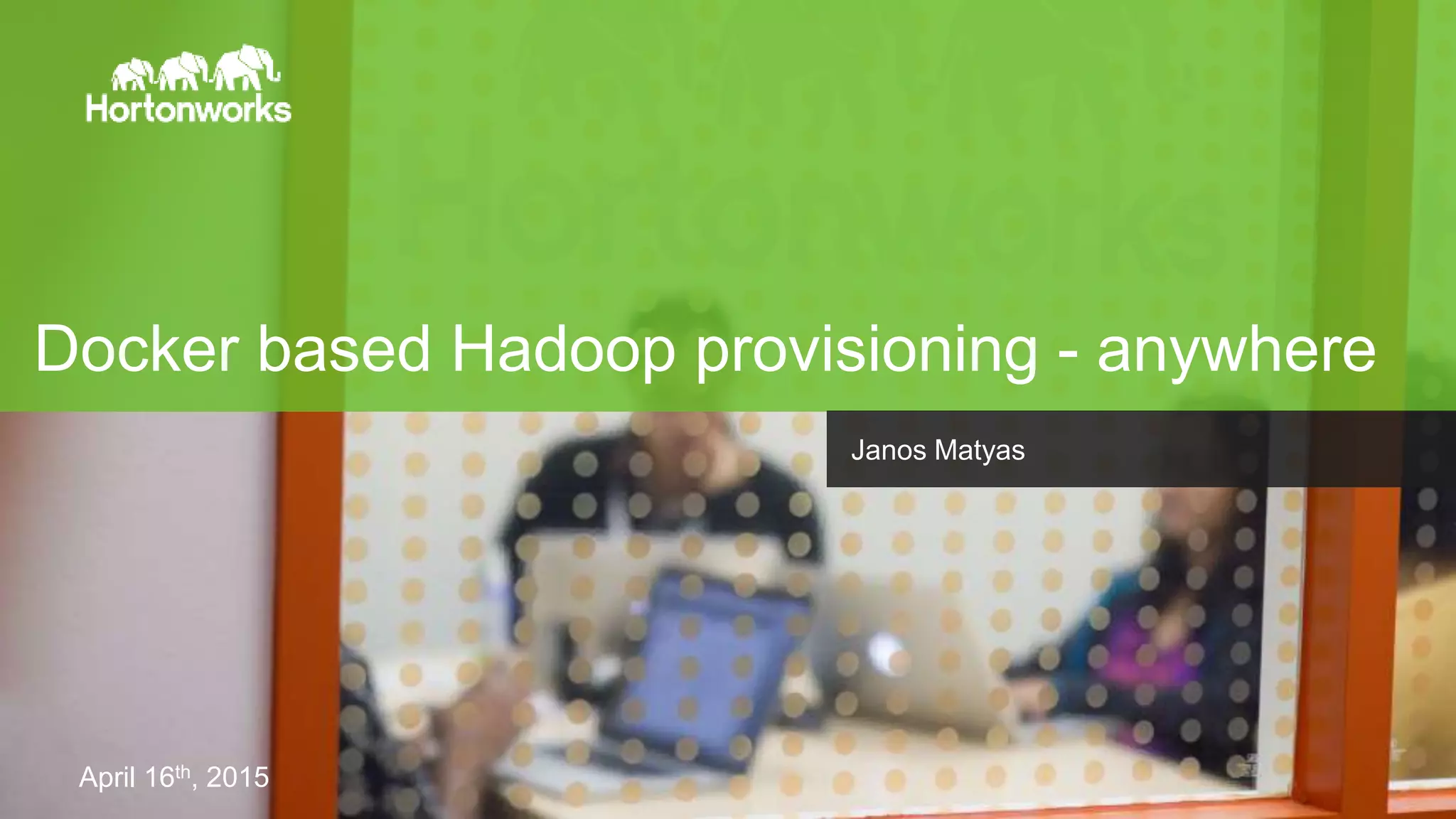

- 1. Page1 © HortonworksInc. 2011 – 2015. All Rights Reserved Docker based Hadoop provisioning - anywhere April 16th, 2015 Janos Matyas

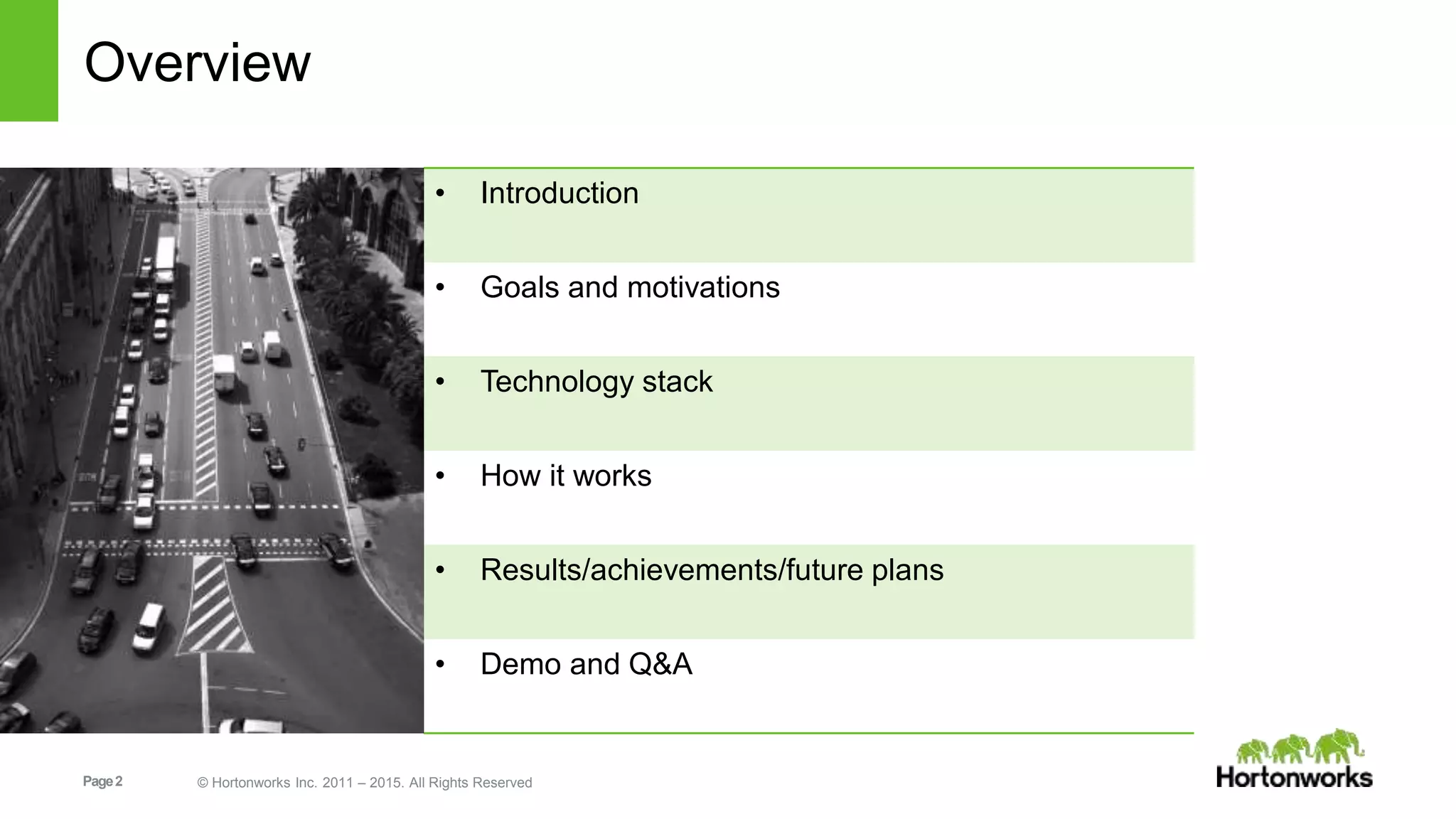

- 2. Page2 © HortonworksInc. 2011 – 2015. All Rights Reserved Overview • Introduction • Goals and motivations • Technology stack • How it works • Results/achievements/future plans • Demo and Q&A
- 3. Page3 © HortonworksInc. 2011 – 2015. All Rights Reserved Goals and motivations • Full Hadoop stack provisioning – everywhere • Automate and unify the process • Zero-configuration approach • Same process through a cluster lifecycle (Dev, QA, UAT, Prod) • Provide tooling - UI, REST API and CLI/shell • Secure and multi-tenant • SLA policy based autoscaling

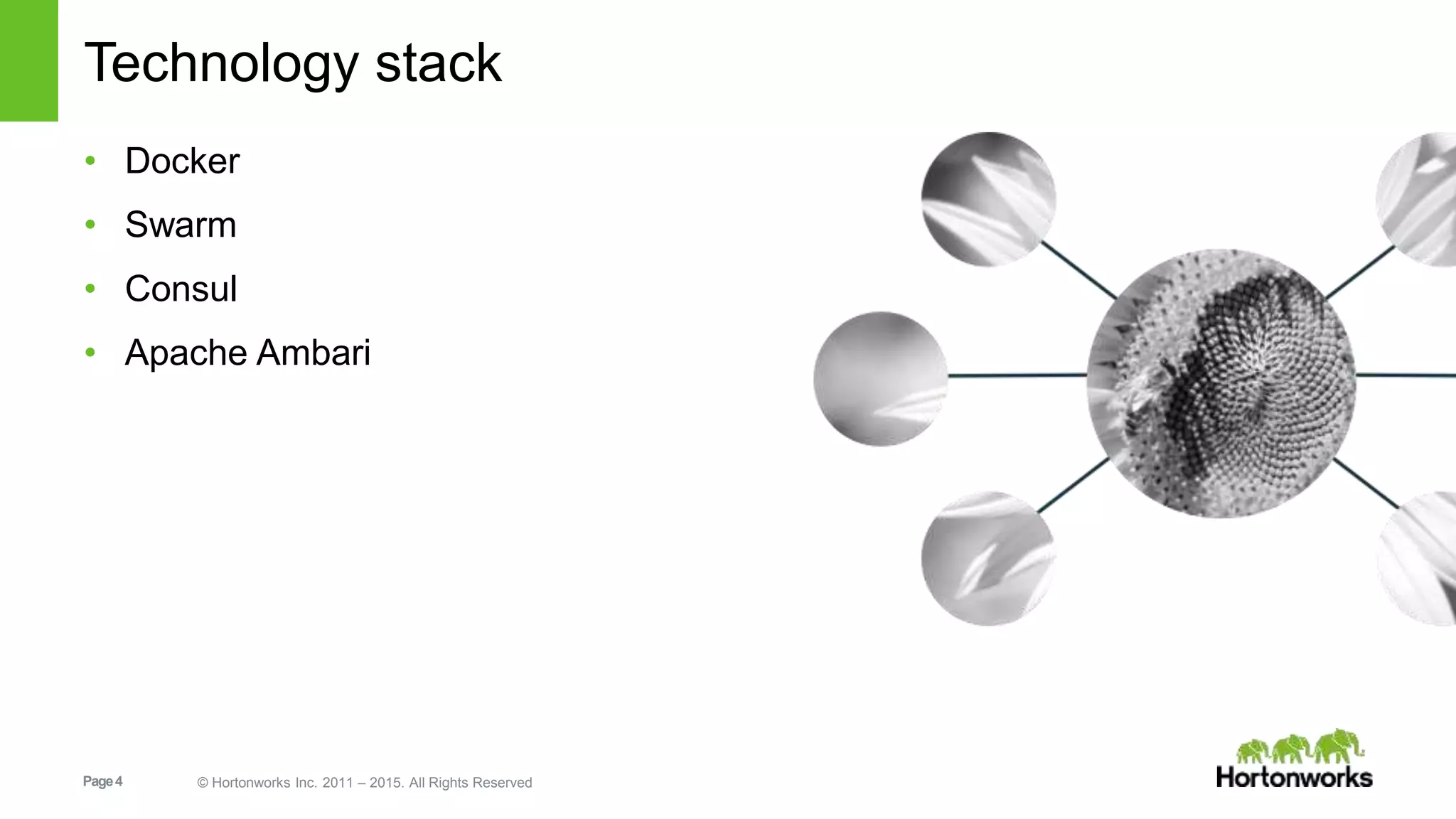

- 4. Page4 © HortonworksInc. 2011 – 2015. All Rights Reserved Technology stack • Docker • Swarm • Consul • Apache Ambari
- 5. Page5 © HortonworksInc. 2011 – 2015. All Rights Reserved Docker • Container based virtualization • Lightweight and portable • Build once, run anywhere • Ease of packaging applications • Automated and scripted • Isolated

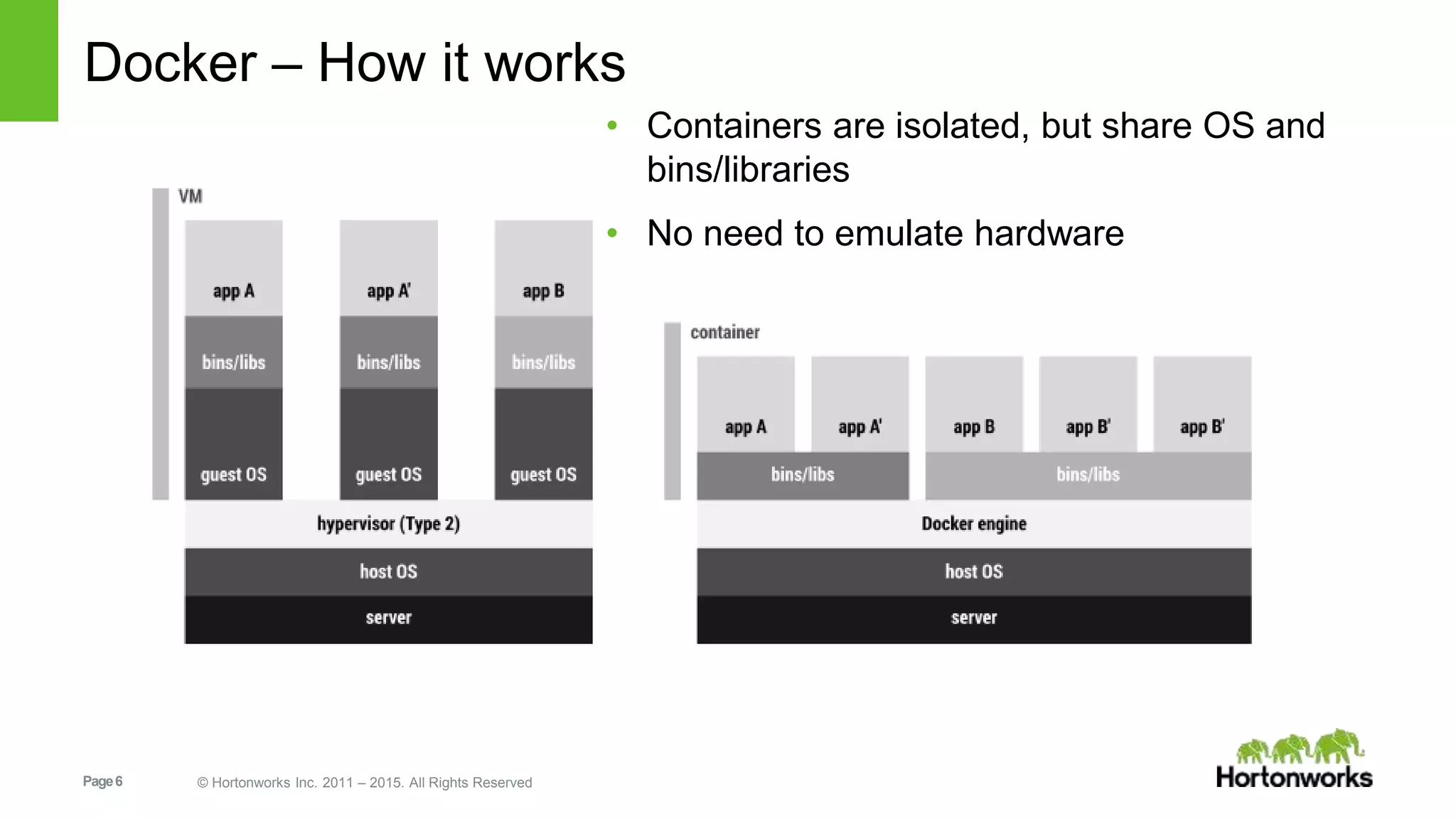

- 6. Page6 © HortonworksInc. 2011 – 2015. All Rights Reserved Docker – How it works • Containers are isolated, but share OS and bins/libraries • No need to emulate hardware

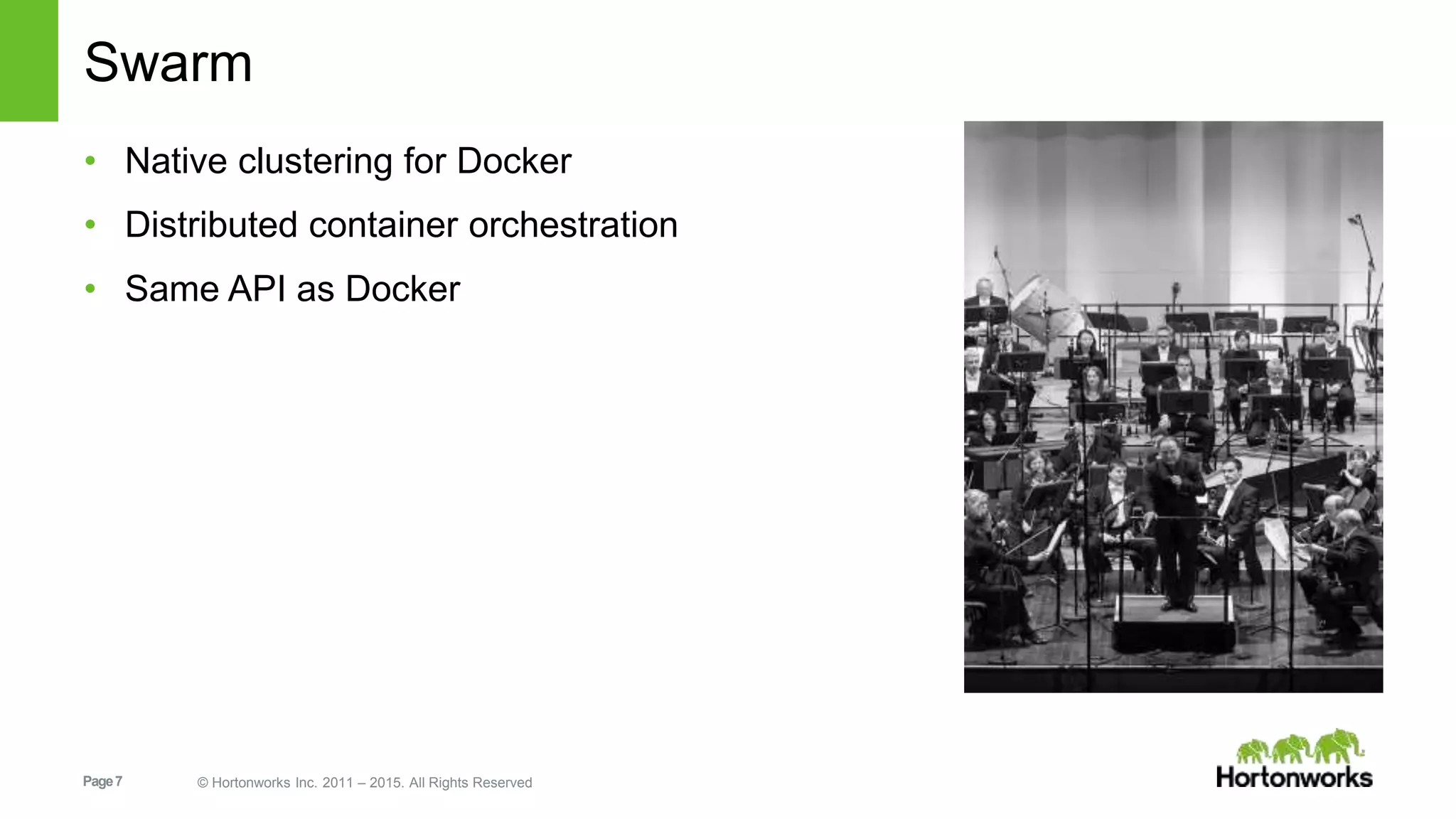

- 7. Page7 © HortonworksInc. 2011 – 2015. All Rights Reserved Swarm • Native clustering for Docker • Distributed container orchestration • Same API as Docker

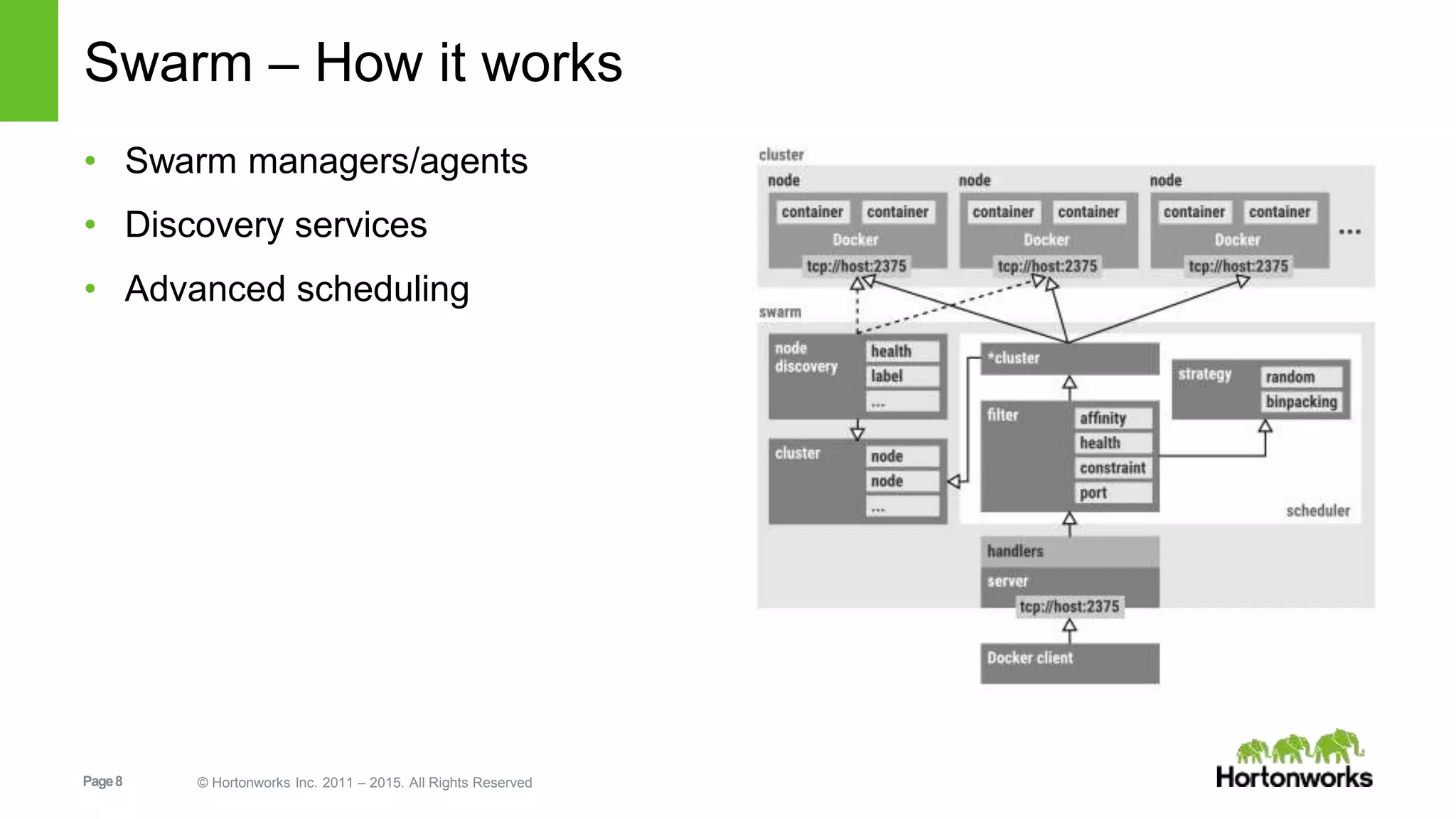

- 8. Page8 © HortonworksInc. 2011 – 2015. All Rights Reserved Swarm – How it works • Swarm managers/agents • Discovery services • Advanced scheduling

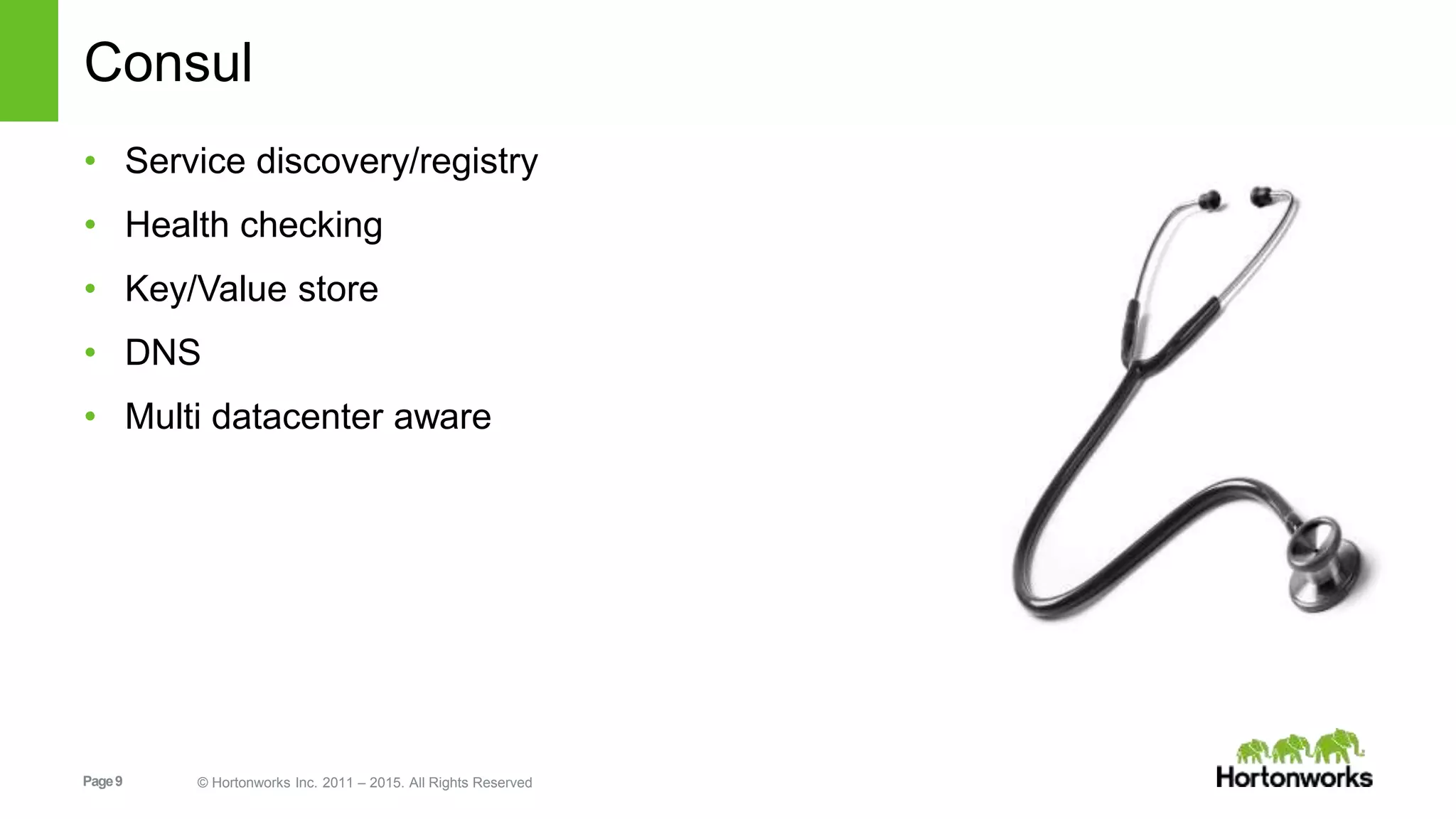

- 9. Page9 © HortonworksInc. 2011 – 2015. All Rights Reserved Consul • Service discovery/registry • Health checking • Key/Value store • DNS • Multi datacenter aware
- 10. Page10 © HortonworksInc. 2011 – 2015. All Rights Reserved Consul – How it works • Consul servers/agents • Consistency through a quorum (RAFT) • Scalability due to gossip based protocol (SWIM) • Decentralized and fault tolerant • Highly available • Consistency over availability (CP) • Multiple interfaces - HTTP and DNS • Support for watches

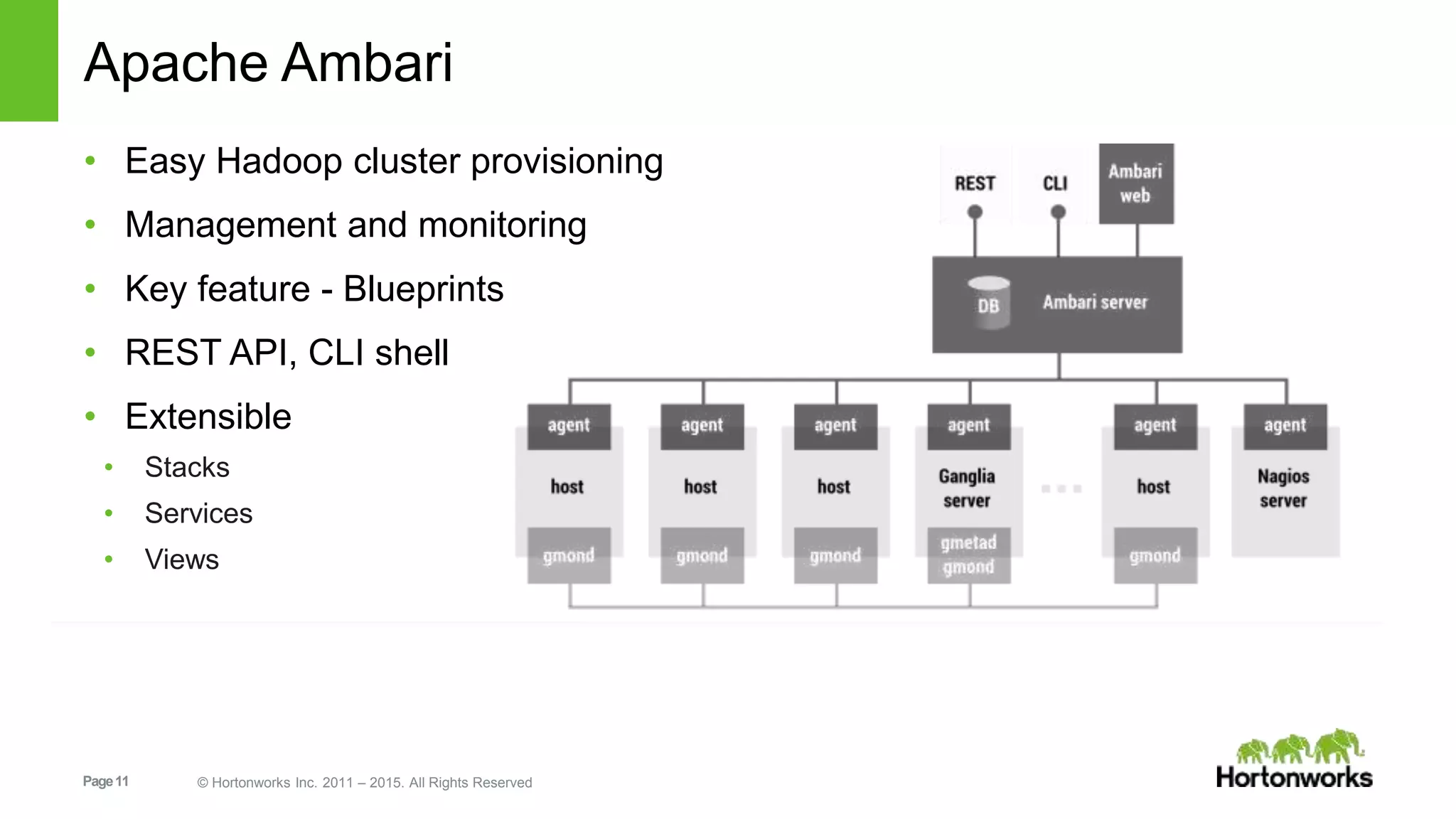

- 11. Page11 © HortonworksInc. 2011 – 2015. All Rights Reserved Apache Ambari • Easy Hadoop cluster provisioning • Management and monitoring • Key feature - Blueprints • REST API, CLI shell • Extensible • Stacks • Services • Views

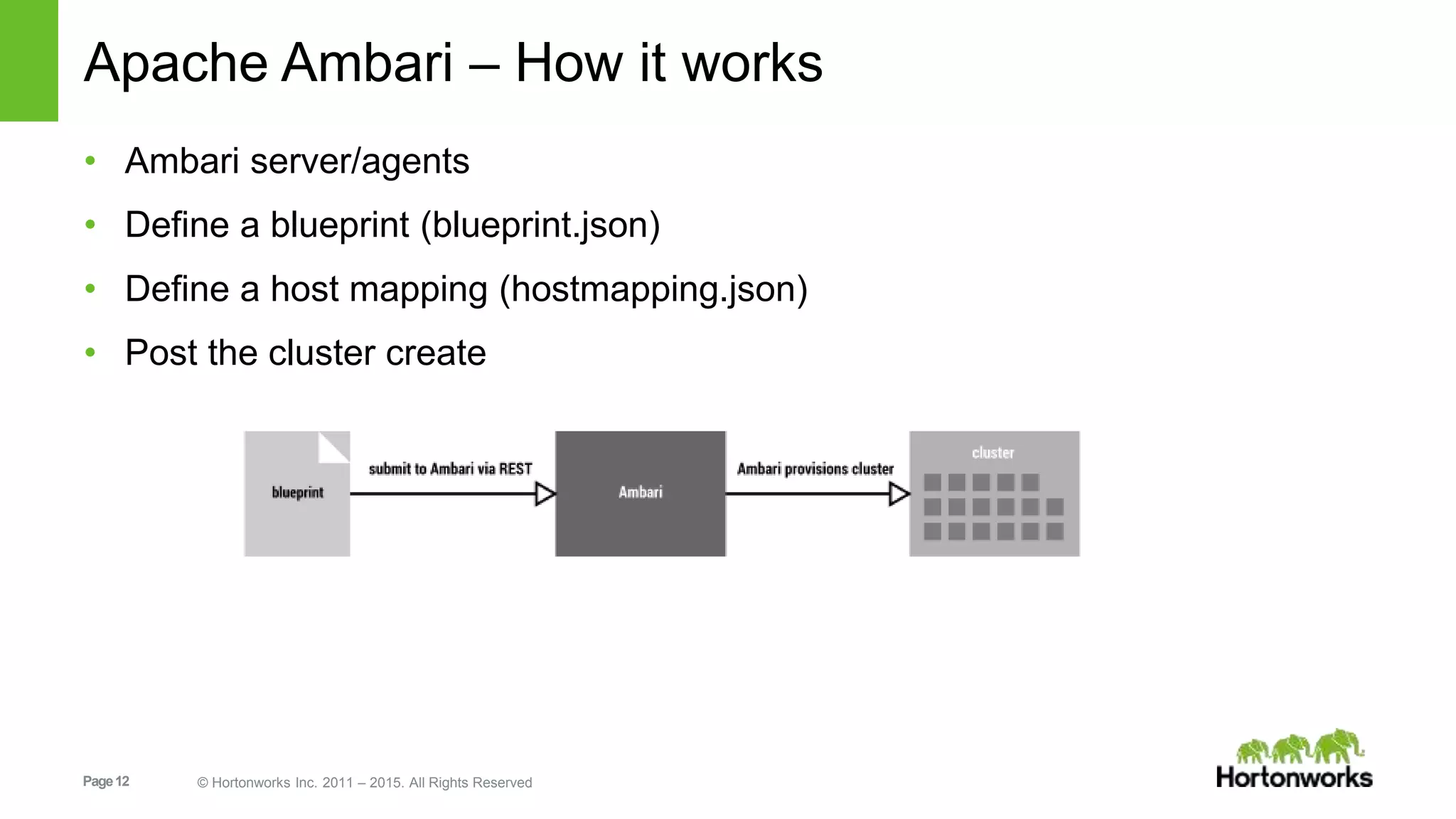

- 12. Page12 © HortonworksInc. 2011 – 2015. All Rights Reserved Apache Ambari – How it works • Ambari server/agents • Define a blueprint (blueprint.json) • Define a host mapping (hostmapping.json) • Post the cluster create
- 13. Page13 © HortonworksInc. 2011 – 2015. All Rights Reserved Cloudbreak Cloudbreak is a cloud-agnostic Hadoop as a Service API. Abstracts the provisioning and ease management and monitoring of on-demand clusters. Cloudbreak is a powerful left surf that breaks over a coral reef, a mile off southwest the island of Tavarua, Fiji.

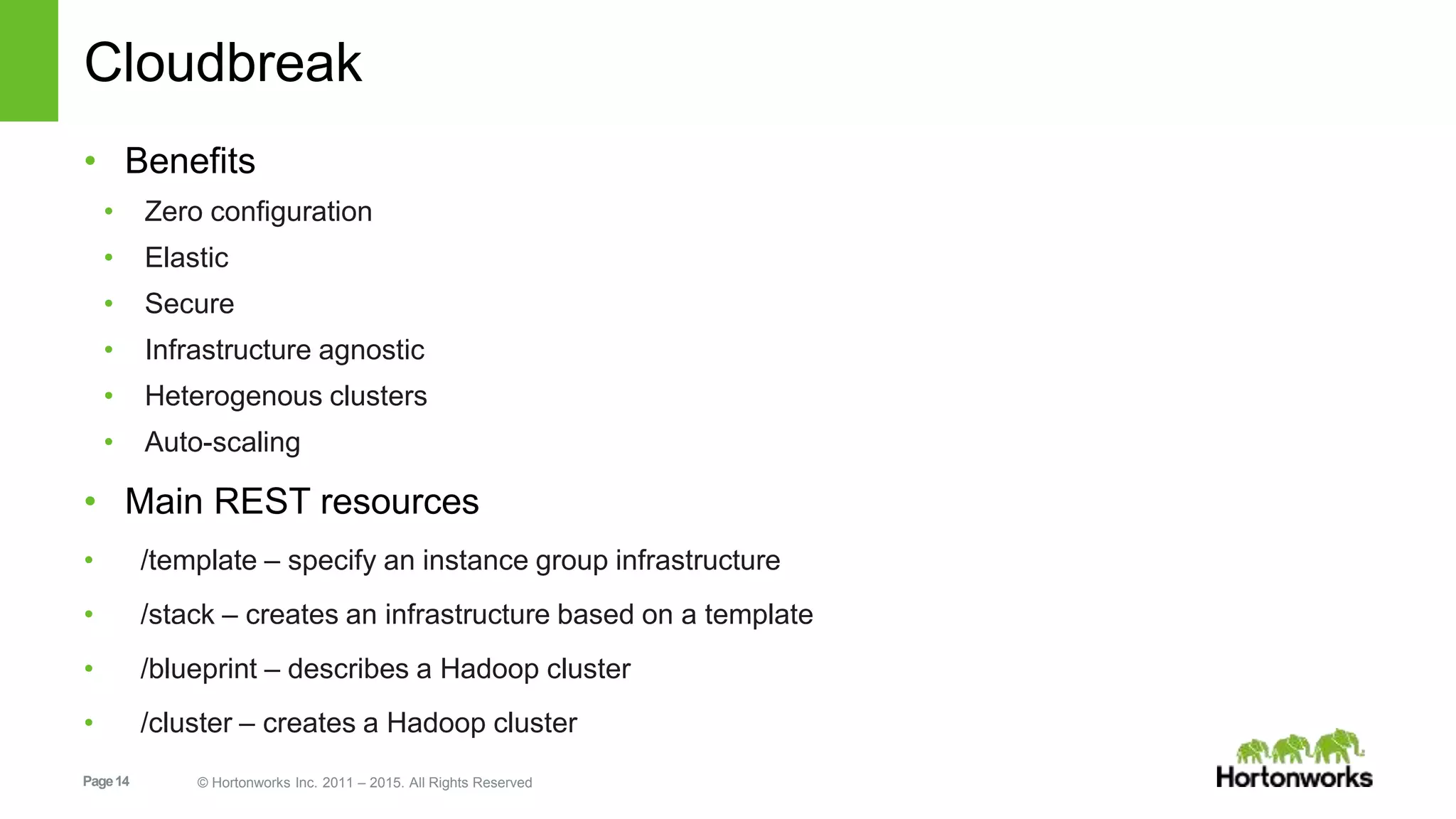

- 14. Page14 © HortonworksInc. 2011 – 2015. All Rights Reserved Cloudbreak • Benefits • Zero configuration • Elastic • Secure • Infrastructure agnostic • Heterogenous clusters • Auto-scaling • Main REST resources • /template – specify an instance group infrastructure • /stack – creates an infrastructure based on a template • /blueprint – describes a Hadoop cluster • /cluster – creates a Hadoop cluster

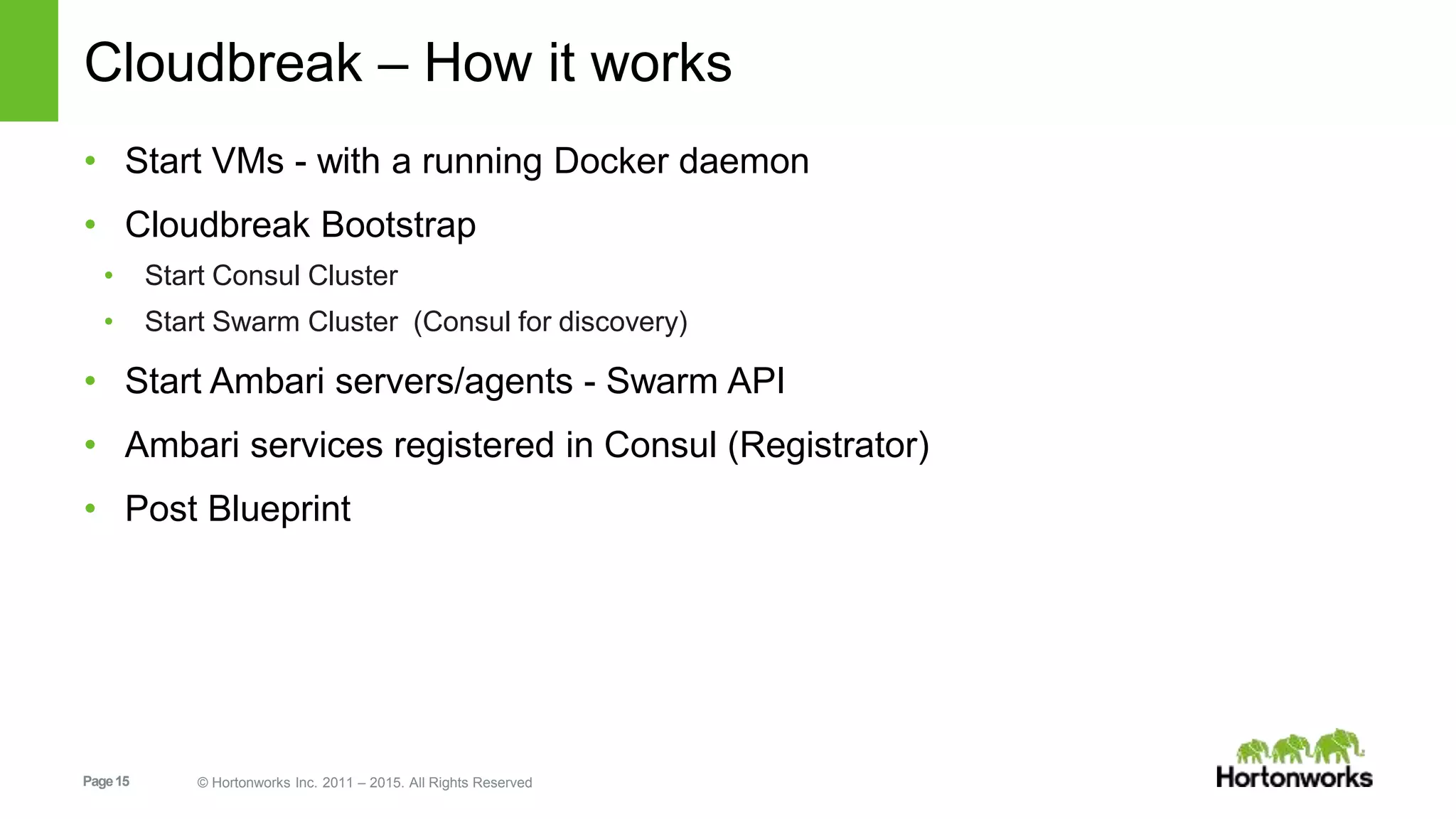

- 15. Page15 © HortonworksInc. 2011 – 2015. All Rights Reserved Cloudbreak – How it works • Start VMs - with a running Docker daemon • Cloudbreak Bootstrap • Start Consul Cluster • Start Swarm Cluster (Consul for discovery) • Start Ambari servers/agents - Swarm API • Ambari services registered in Consul (Registrator) • Post Blueprint

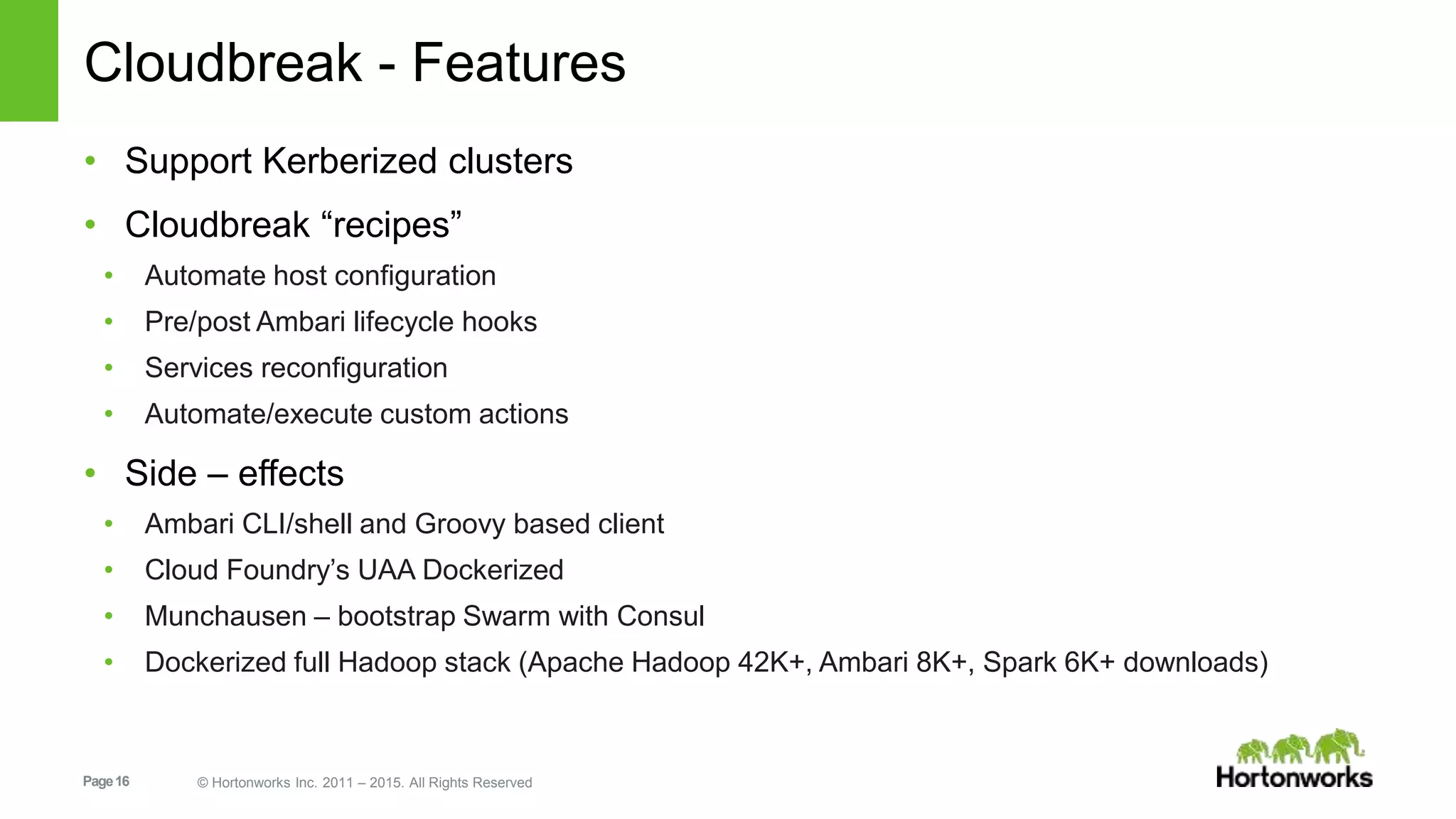

- 16. Page16 © HortonworksInc. 2011 – 2015. All Rights Reserved Cloudbreak - Features • Support Kerberized clusters • Cloudbreak “recipes” • Automate host configuration • Pre/post Ambari lifecycle hooks • Services reconfiguration • Automate/execute custom actions • Side – effects • Ambari CLI/shell and Groovy based client • Cloud Foundry’s UAA Dockerized • Munchausen – bootstrap Swarm with Consul • Dockerized full Hadoop stack (Apache Hadoop 42K+, Ambari 8K+, Spark 6K+ downloads)

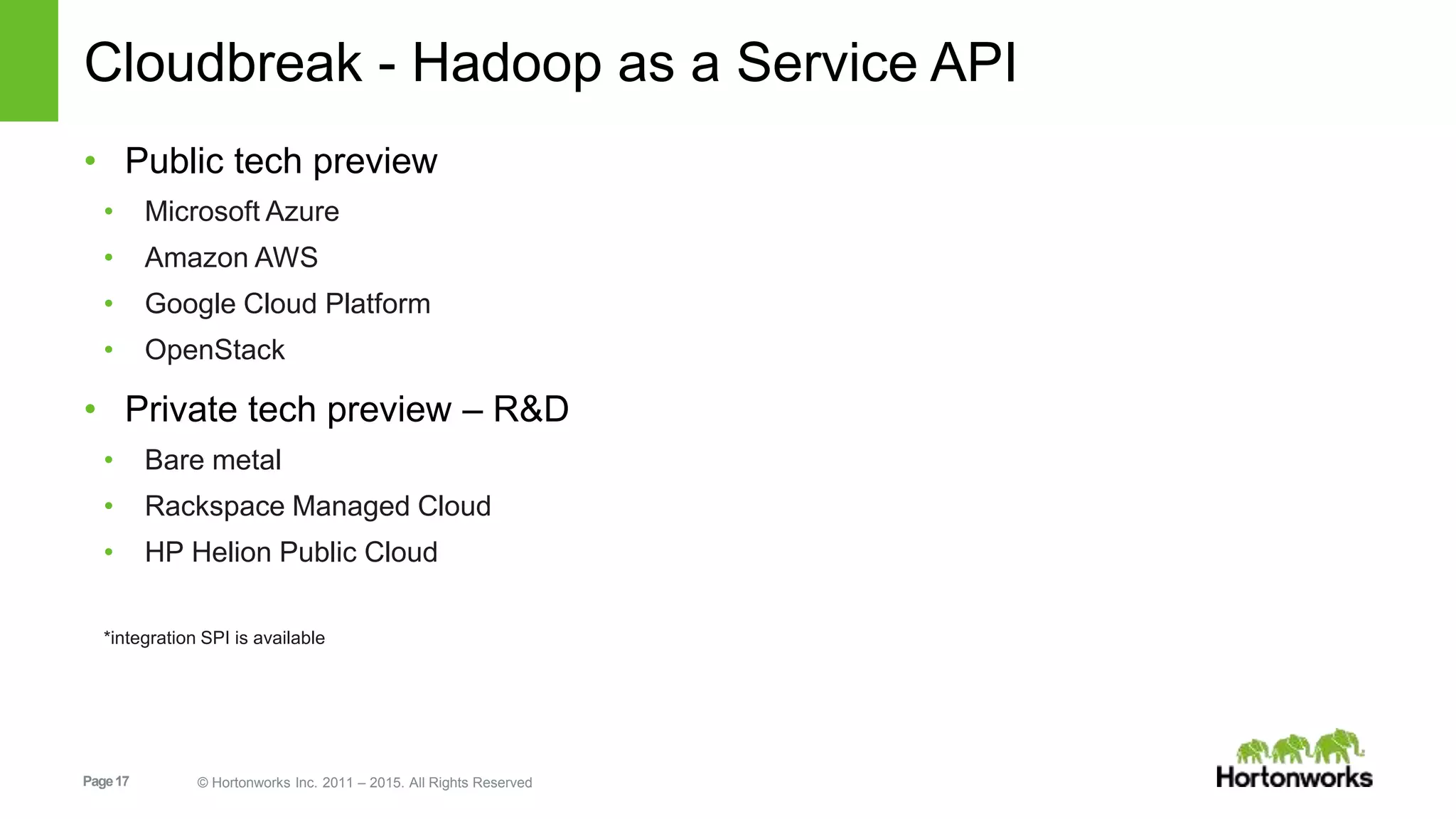

- 17. Page17 © HortonworksInc. 2011 – 2015. All Rights Reserved Cloudbreak - Hadoop as a Service API • Public tech preview • Microsoft Azure • Amazon AWS • Google Cloud Platform • OpenStack • Private tech preview – R&D • Bare metal • Rackspace Managed Cloud • HP Helion Public Cloud *integration SPI is available

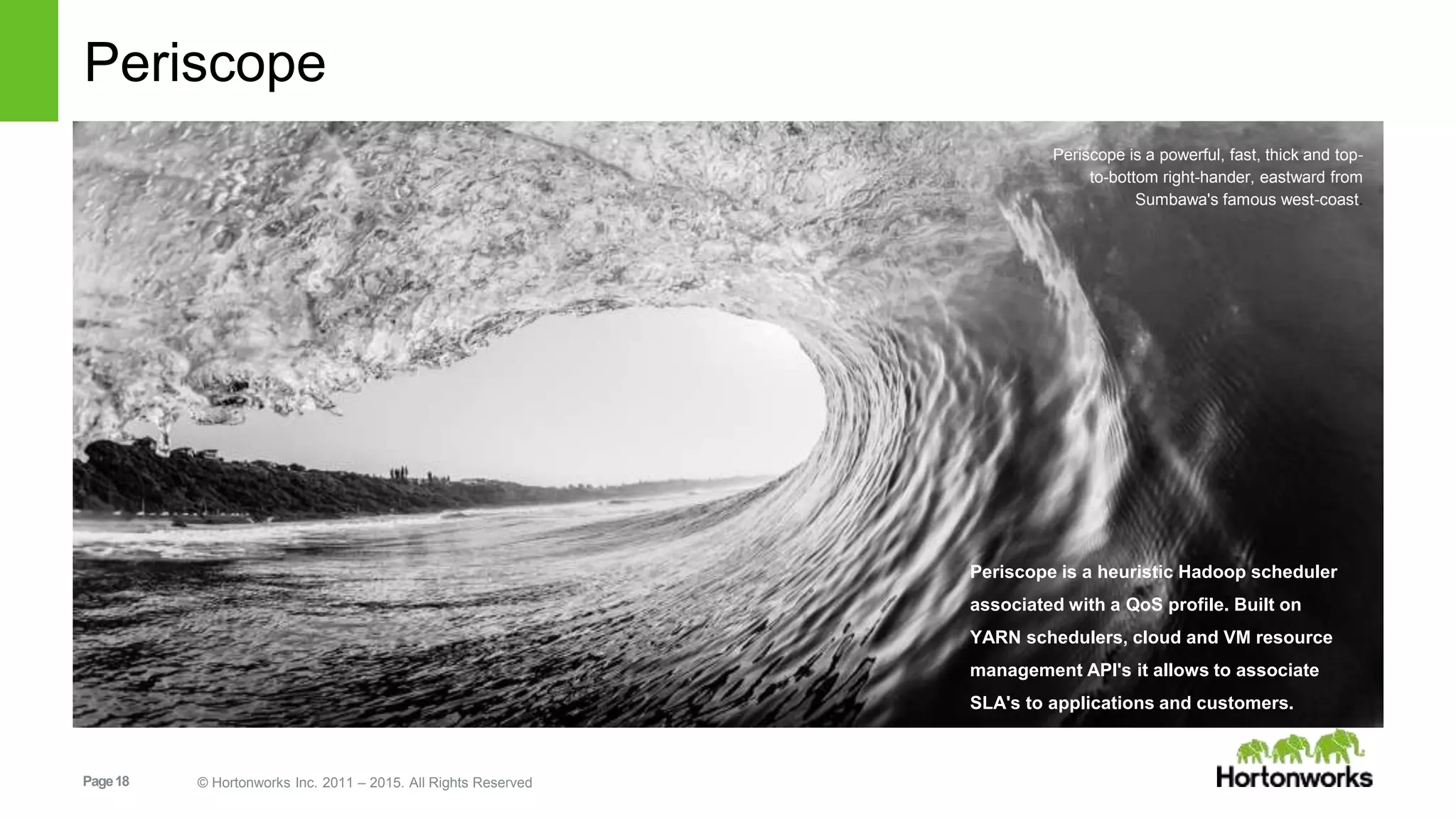

- 18. Page18 © HortonworksInc. 2011 – 2015. All Rights Reserved Periscope Periscope is a heuristic Hadoop scheduler associated with a QoS profile. Built on YARN schedulers, cloud and VM resource management API's it allows to associate SLA's to applications and customers. Periscope is a powerful, fast, thick and top- to-bottom right-hander, eastward from Sumbawa's famous west-coast.

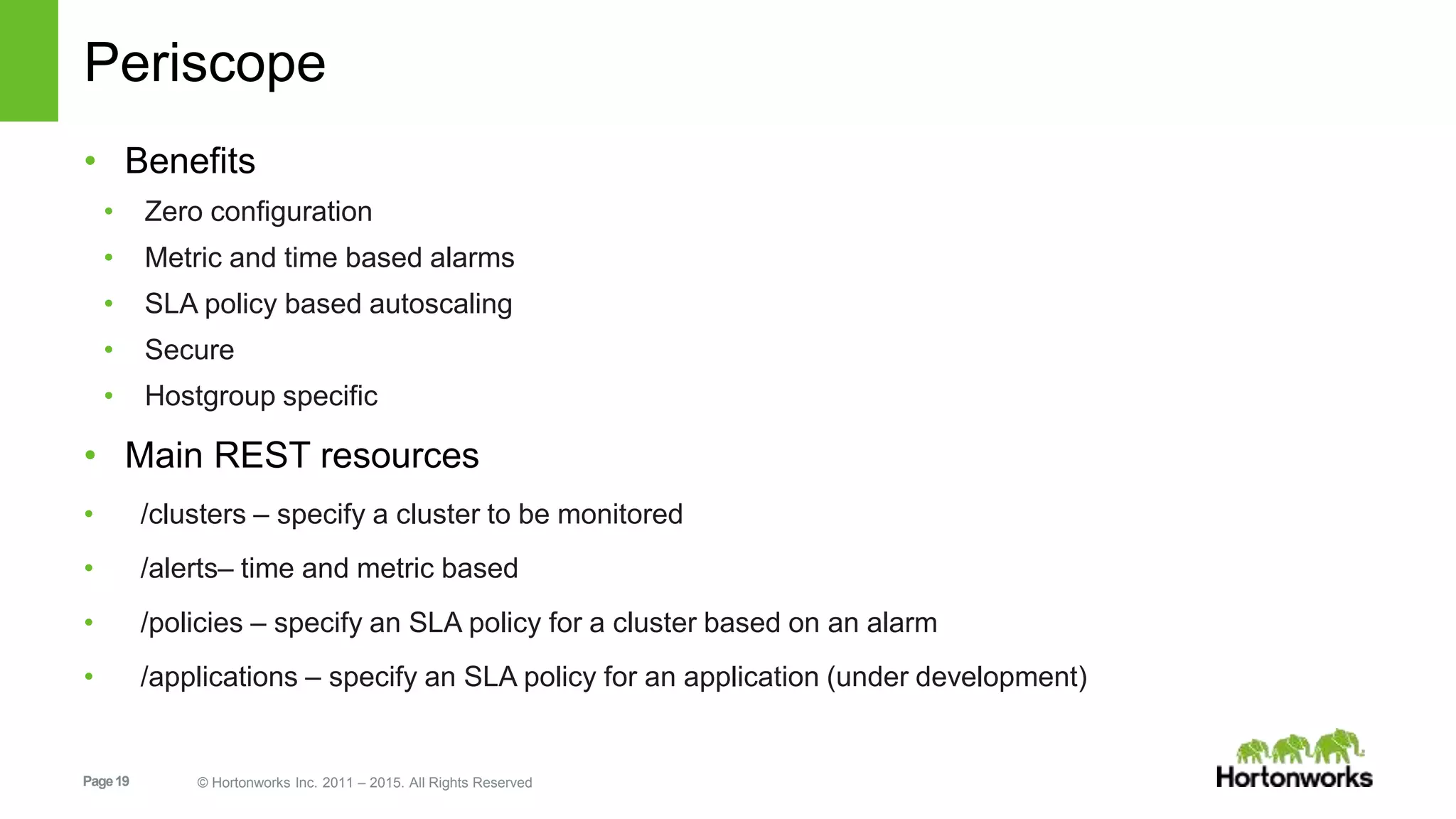

- 19. Page19 © HortonworksInc. 2011 – 2015. All Rights Reserved Periscope • Benefits • Zero configuration • Metric and time based alarms • SLA policy based autoscaling • Secure • Hostgroup specific • Main REST resources • /clusters – specify a cluster to be monitored • /alerts– time and metric based • /policies – specify an SLA policy for a cluster based on an alarm • /applications – specify an SLA policy for an application (under development)

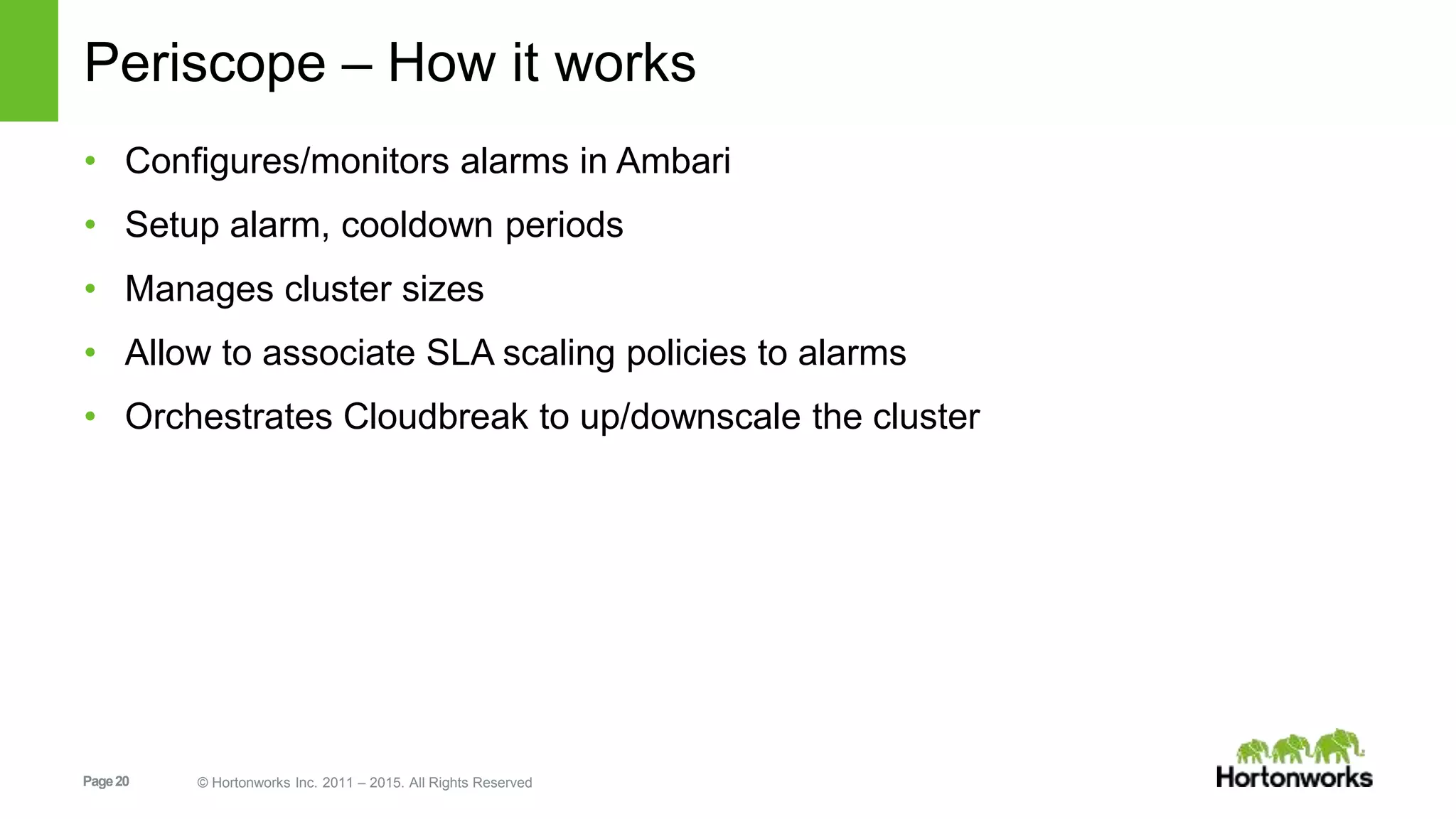

- 20. Page20 © HortonworksInc. 2011 – 2015. All Rights Reserved Periscope – How it works • Configures/monitors alarms in Ambari • Setup alarm, cooldown periods • Manages cluster sizes • Allow to associate SLA scaling policies to alarms • Orchestrates Cloudbreak to up/downscale the cluster
- 21. Page21 © HortonworksInc. 2011 – 2015. All Rights Reserved Demo and Q&A
Editor's Notes
- #2 Two days ago I was working for SequenceIQ, as the CTO.
- #3 ----- Meeting Notes (10/04/15 20:35) ----- SequenceIQ been acquired. Started February, quickly gain trackion around June.
- #4 ----- Meeting Notes (10/04/15 20:38) ----- We were doing this over and over again. Scripted, Ansible, tried everything and all existing tools.
- #5 ----- Meeting Notes (10/04/15 20:38) ----- Architecturally most important components
- #7 ----- Meeting Notes (10/04/15 20:56) ----- Under the hood is built on: 1. cgroup and namespacing capabilities of the Linux kernel 2. Docker image specification - filesystem composed of layers, presented as one cohesive filesystem Recommended 3.8, works from 2.6.2 3. Libcontainer specification - namespacing, filesystem, resources (cgroups)
- #8 ----- Meeting Notes (10/04/15 20:56) ----- Docker simplifies things - on one host. We span up containers remotely on many hosts- how? Swarm pulls together many Docker engines - presents as one virtual Docker Engine.
- #9 ----- Meeting Notes (10/04/15 20:56) ----- Steps: Can span us Docker containers remotely on hosts considering: 1. Resource management - aware of the cluster resources (e.g. can schedule it with bin packing - anywhere where 1GB memory is available) or randomly 2. Constraints using labels (label one node and stsrt the container based on labels) 3. Affinity - containers can be co-scheduled (link, vollumes-from, net=container on the same host)
- #10 ----- Meeting Notes (10/04/15 21:05) ----- We have a dynamic scaling cluster where nodes are coming/leaving but also failing. Register services in consul, like Ambari services Zookeeper, doozerd, etcd – same as Consul, requires a quorom, offer strong consistency, but not datacenter aware Zookeeper: no service discovery, offers primitive K/V, no DNS, does not go through DC Zookeeper provides ephemeral nodes – but stil clients need to habe keep-alive connections
- #11 Agent – long running daemon, serves DNS and HTTP interface, every node Client – an agent that forwards all RPC to server. Takes part in LAN gossip Server - participates in RAFT quorum, responds to RPC, WAN gossip Datacenter – low latency, high bandwith private network Gossip – TCP and UDP UNICAST. Usually Broadcast/Multicast does not work in cloud Strong consistency: Service catalog stores all the nodes, service instances, health check data, ACLs, and Key/Value information. It is strongly consistent, and replicated using the consensus protocol. Gossip – eventual consistency, updates to catalog comes through gossip, thus state can lag behind until is reconciled.
- #12 Most likely you’ve seen an Ambari session Its extensible : Stacks – set of services, multiple versions (e.g. HDP 2.1, HDP 2.2, Bigtop) Services – e.g HDFS, Kafka, Zeppelin Views – capability to add visualization, management and monitoring capabilities of a new “application”
- #13 Pre-install the server and agents.
- #14 Combining all these – welcome Cloudbreak. Zero configuration way to provision HDP cluters – anywhere by the push of a button, CLI or API. One consistent infrastructure agnostic API.
- #15 ----- Meeting Notes (10/04/15 21:47) ----- Expand on points No configuration, need to have a running infrastructure. Any size - 200 nodes in 8 min. OAuth2, gateway (Knox will come), TLS Since YARN - Different services - different instance types: e.g. Spark - high memory, Kafka - high disk thorughput but memory as well to buffer active read/writes Scale based on load
- #16 View from 10000 meter high Only thing we need is a Docker daemon. All cloud providers are going towards Docker
- #17 Kerberos – we take the pain (Dockerized a Kerberos server) Recipes – built on Consul events, read results from the K/V store Anybody can push his own plugin: we use plugn – instal lyour plugin, and use it from Cloudbreak We did different projects, fixed quite a few interesting problems.
- #20 Zero config, does not require pre-installation Can set alarms – based on alarms SLA policies. ----- Meeting Notes (10/04/15 22:04) ----- New features in hadoop 2.6 Our contribution, plus lots of others (move applications between queues), admission control - reserve capacity over time Most likely Vinod explained all these.
- #21 Mention Baywatch ELK ElasticSearch, Logstash, Kibana – aggregate logs and metrics.
- #22 Will be a Webex
