1. Email Storage with Ceph
@ SUSE Enterprise Storage
Danny Al-Gaaf
Senior Cloud Technologist
Deutsche Telekom AG
danny.al-gaaf@telekom.de

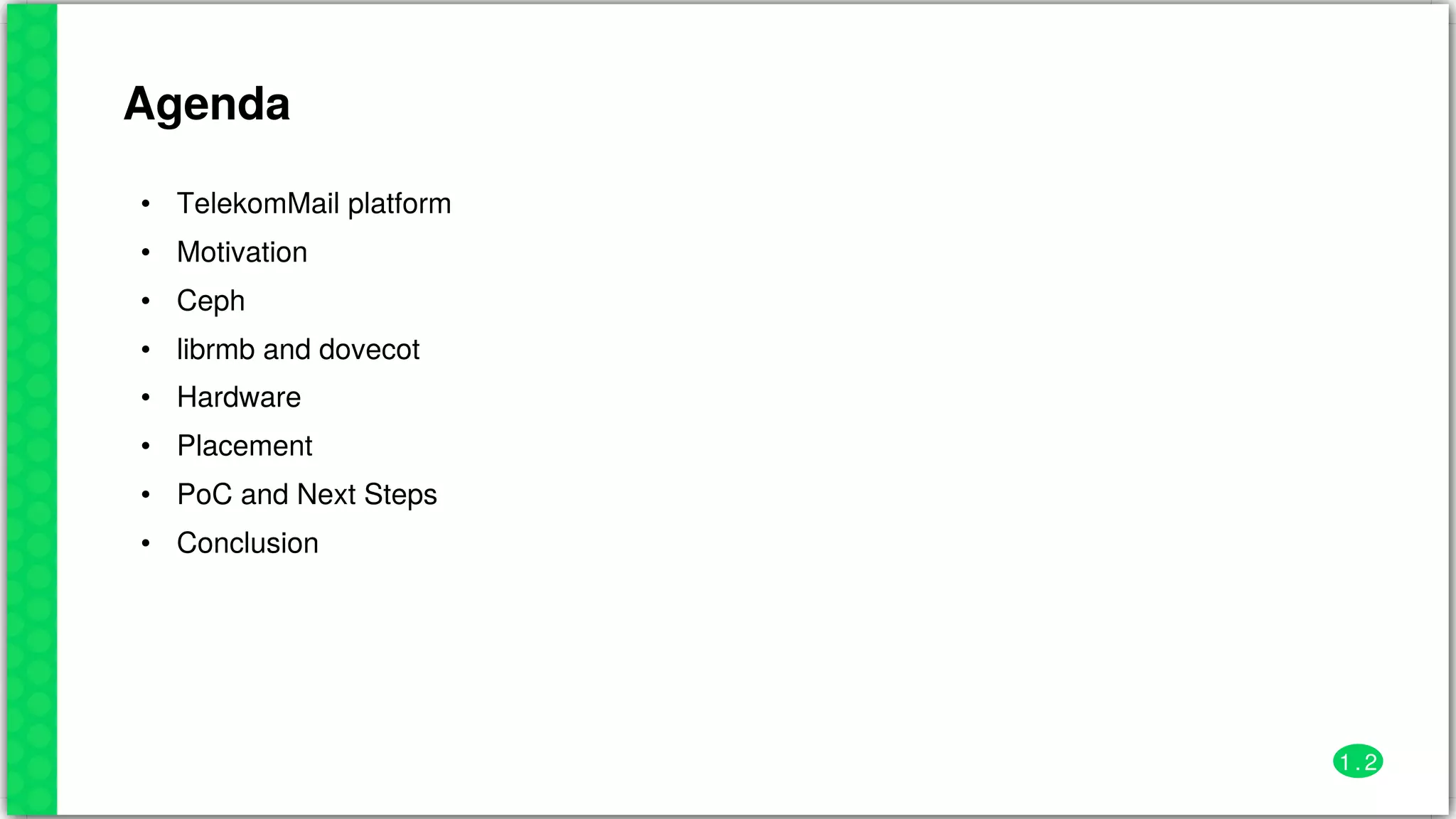

2. Agenda
•
•
•
•
•
•
•
•
TelekomMail platform
Motivation
Ceph
librmb and dovecot
Hardware
Placement
PoC and Next Steps
Conclusion
1 . 2

3. TelekomMail platform
2 . 1

4. TelekomMail
•
•
•
•
•
•
DT's mail platform for customers
dovecot
Network-Attached Storage (NAS)
NFS (sharded)
~1.3 petabyte net storage
~39 million accounts
2 . 2

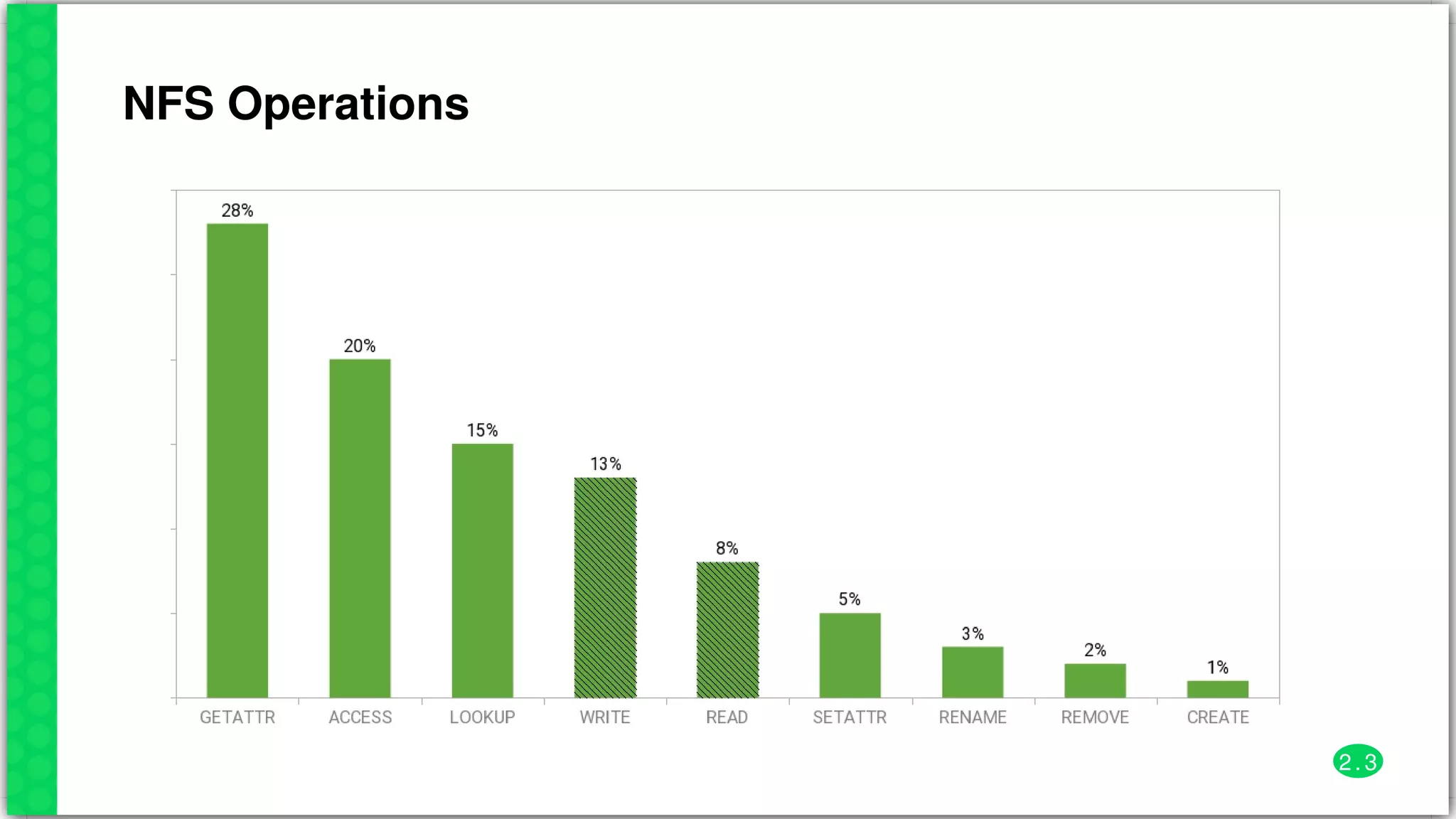

5. NFS Operations
2 . 3

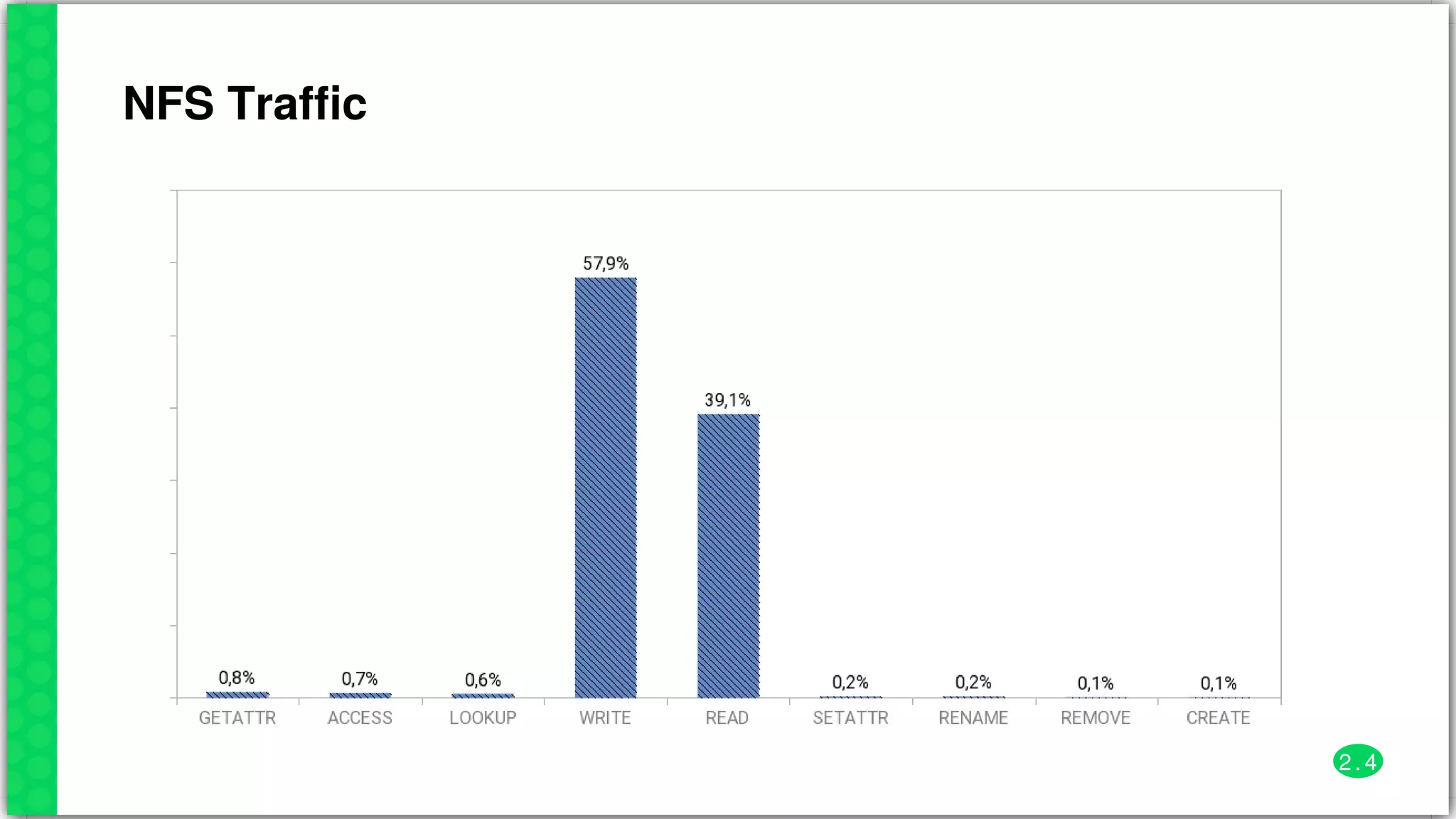

6. NFS Traffic
2 . 4

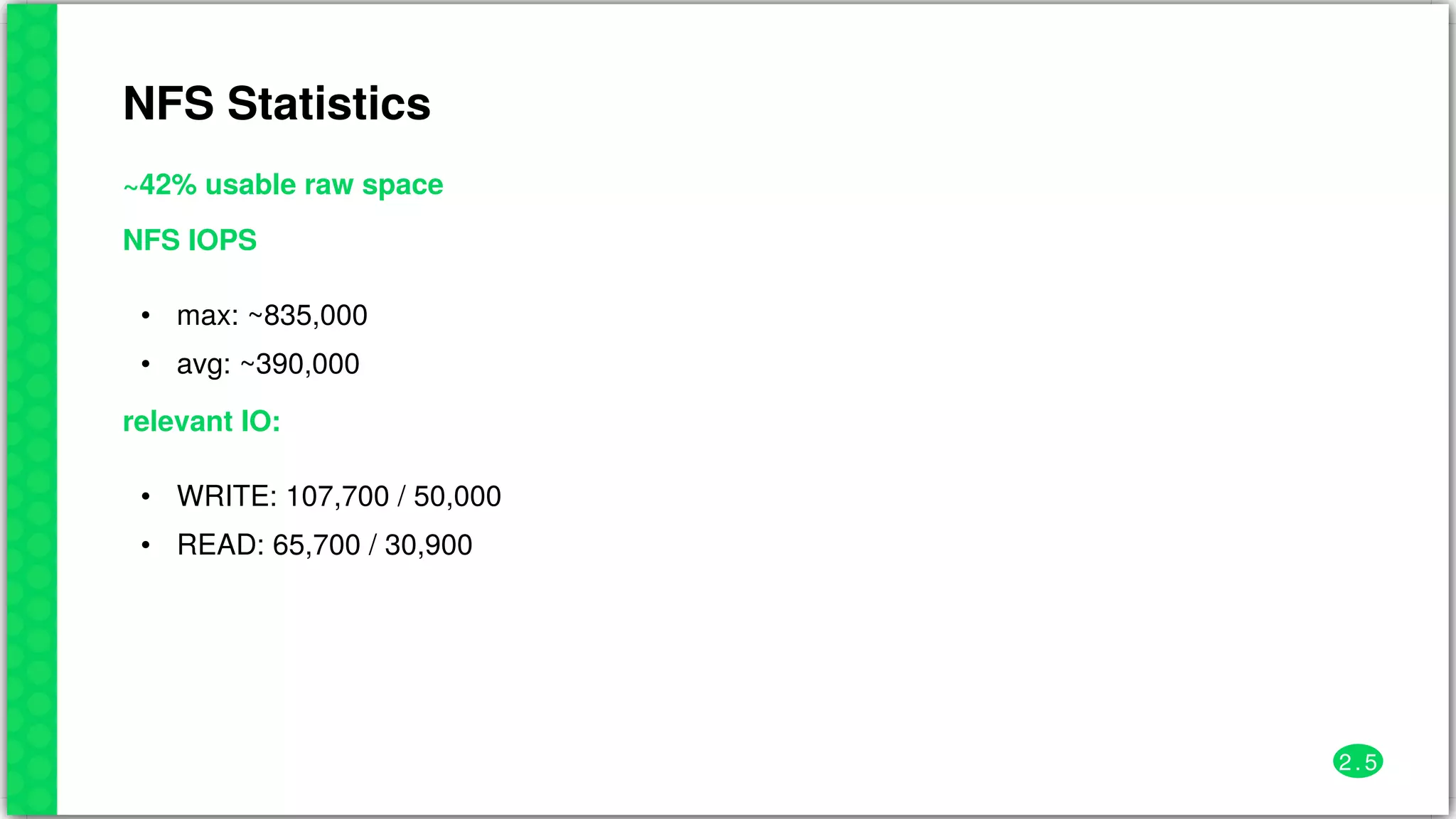

7. NFS Statistics
~42% usable raw space
NFS IOPS
•
•
max: ~835,000
avg: ~390,000
relevant IO:
•
•
WRITE: 107,700 / 50,000
READ: 65,700 / 30,900
2 . 5

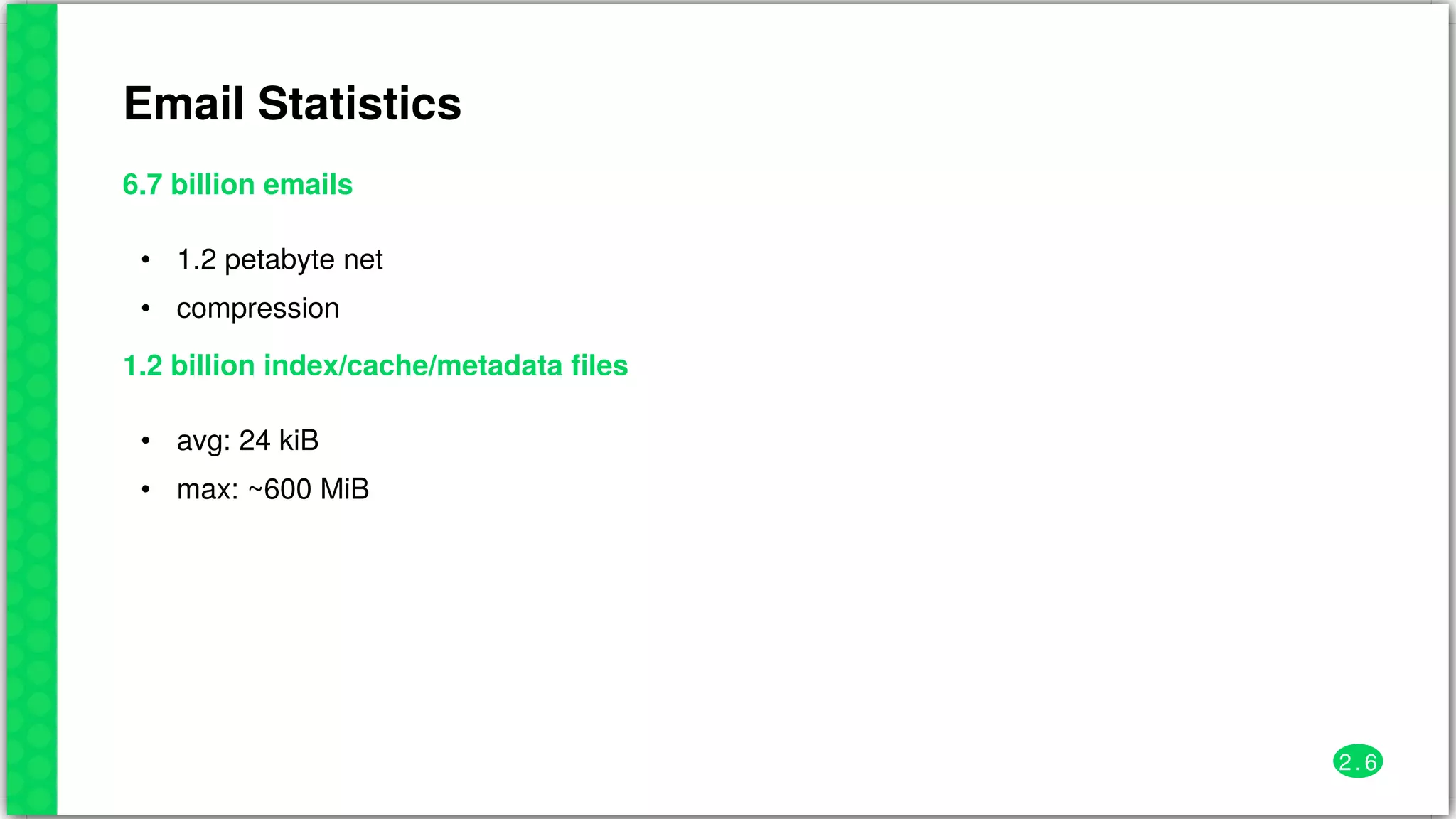

8. Email Statistics
6.7 billion emails
•
•
1.2 petabyte net
compression
1.2 billion index/cache/metadata files
•
•
avg: 24 kiB
max: ~600 MiB
2 . 6

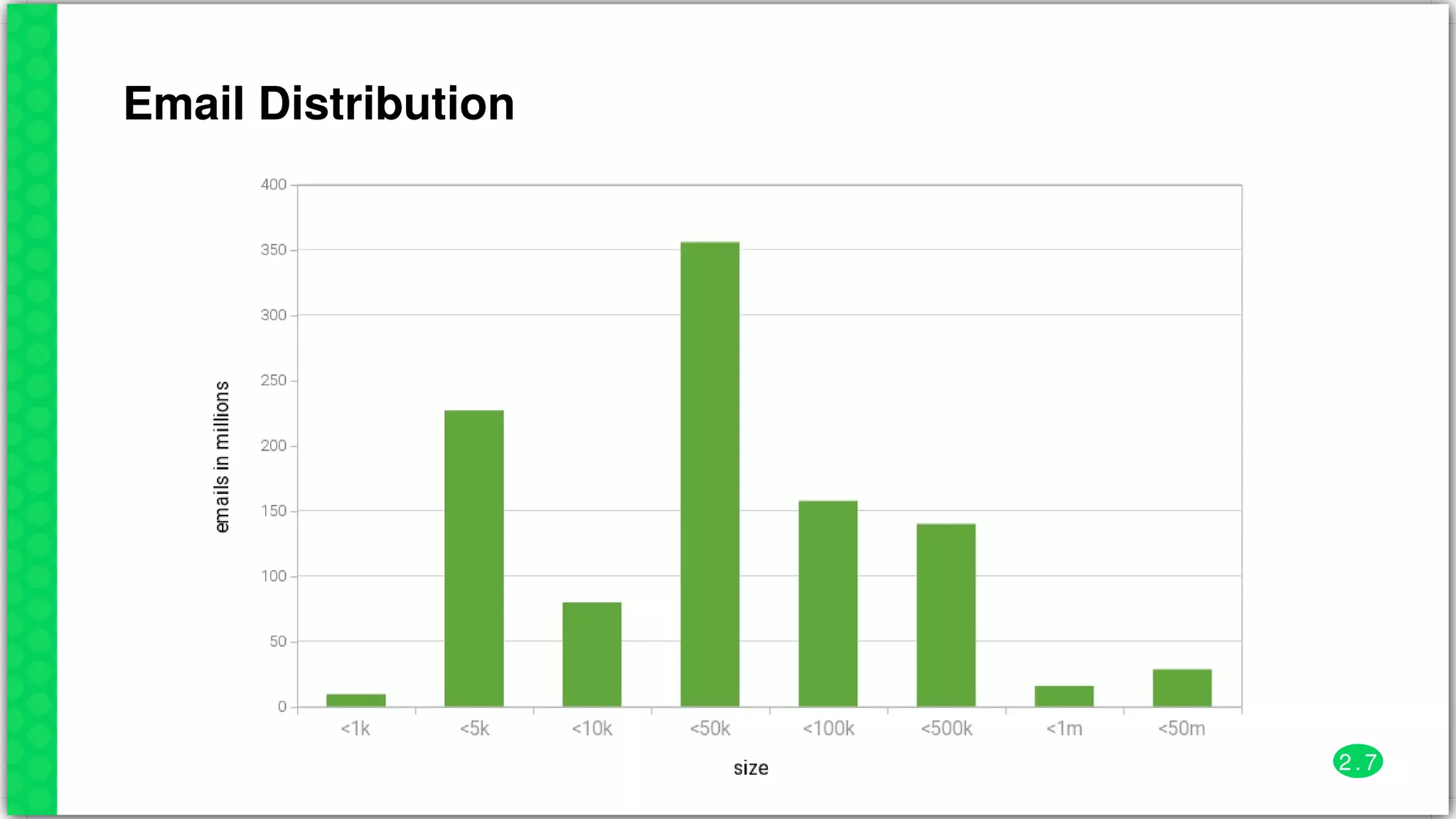

9. Email Distribution
2 . 7

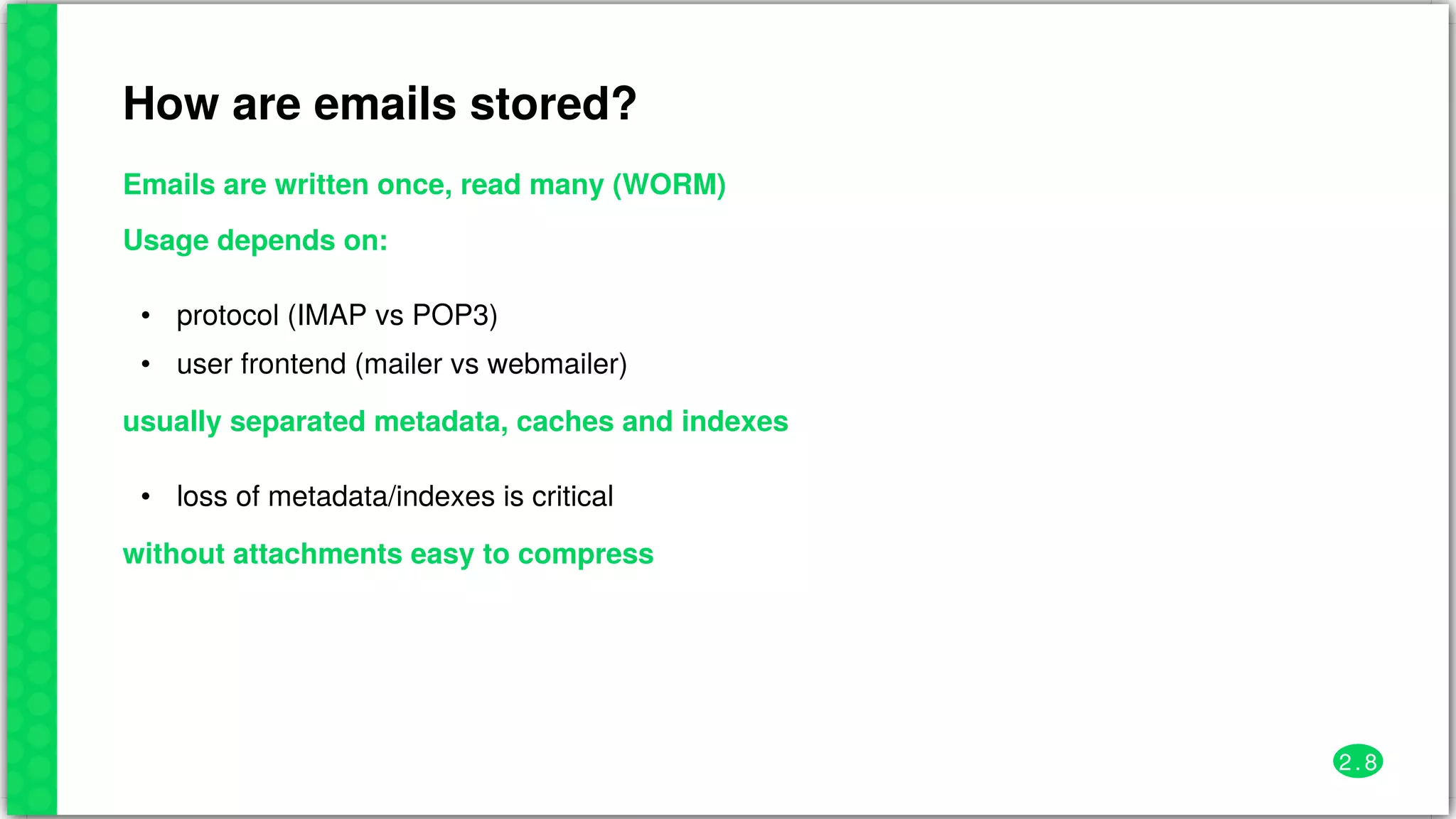

10. How are emails stored?
Emails are written once, read many (WORM)
Usage depends on:
•
•
protocol (IMAP vs POP3)
user frontend (mailer vs webmailer)
usually separated metadata, caches and indexes
• loss of metadata/indexes is critical
without attachments easy to compress
2 . 8

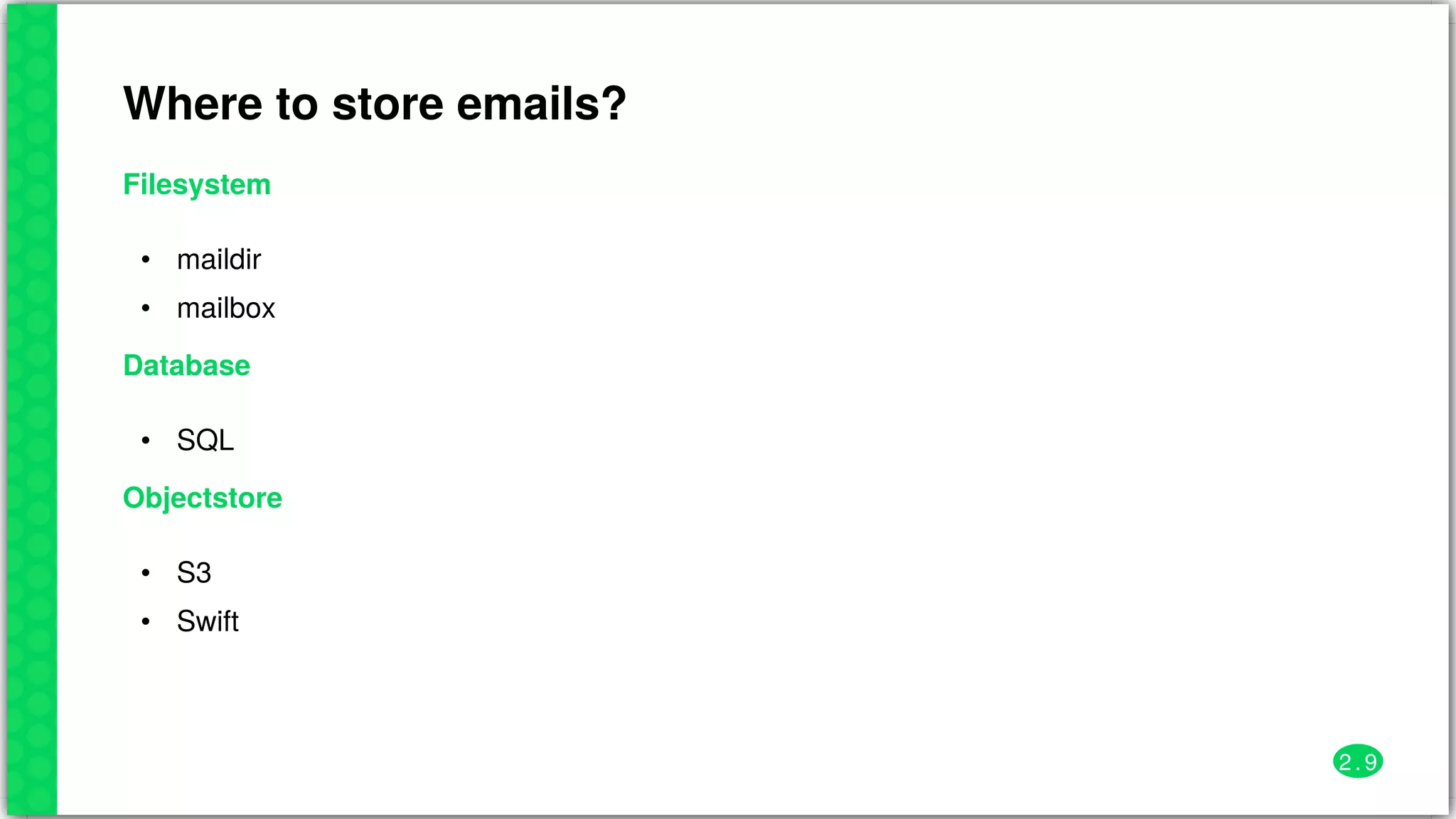

11. Where to store emails?
Filesystem
•
•
maildir
mailbox
Database
• SQL
Objectstore
•
•
S3
Swift
2 . 9

12. Ceph
3 . 1

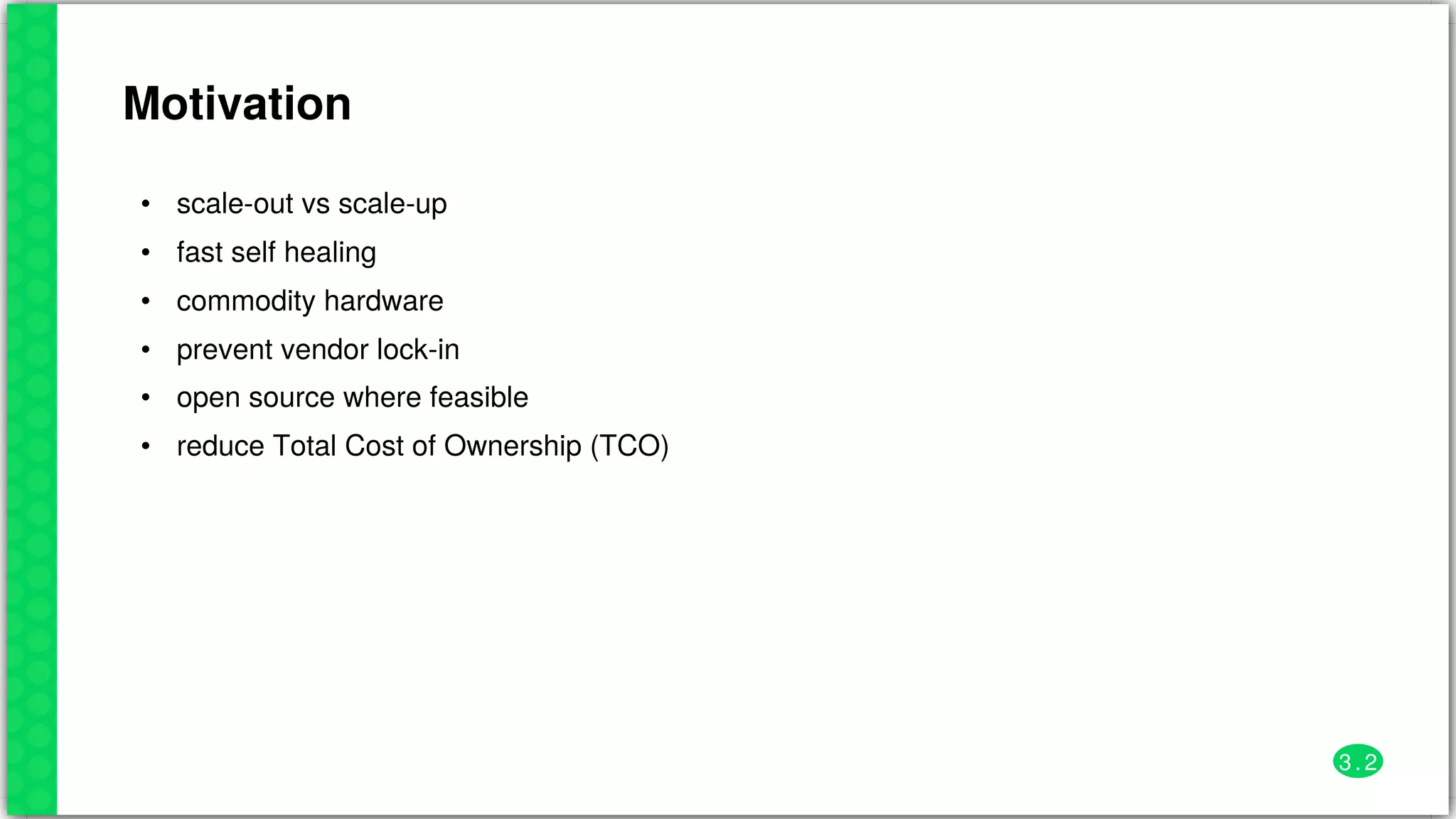

13. Motivation
•
•
•
•
•
•
scale-out vs scale-up
fast self healing
commodity hardware
prevent vendor lock-in
open source where feasible
reduce Total Cost of Ownership (TCO)
3 . 2

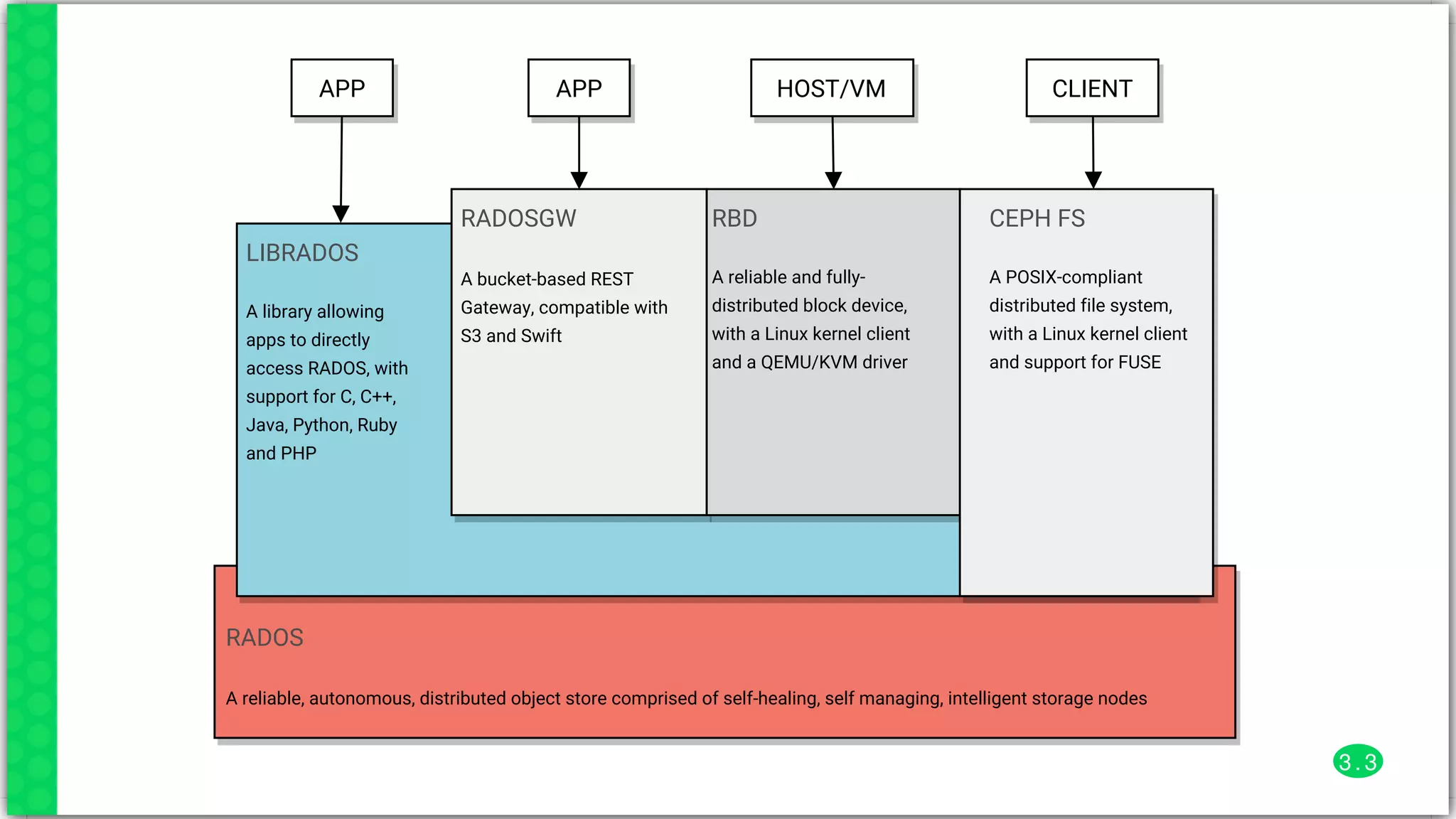

14. RADOS
A reliable, autonomous, distributed object store comprised of self-healing, self managing, intelligent storage nodes
LIBRADOS
A library allowing
apps to directly
access RADOS, with
support for C, C++,
Java, Python, Ruby
and PHP
RADOSGW
A bucket-based REST
Gateway, compatible with
S3 and Swift
RBD
A reliable and fully-
distributed block device,
with a Linux kernel client
and a QEMU/KVM driver
CEPH FS
A POSIX-compliant
distributed file system,
with a Linux kernel client
and support for FUSE
CLIENTHOST/VMAPPAPP
3 . 3

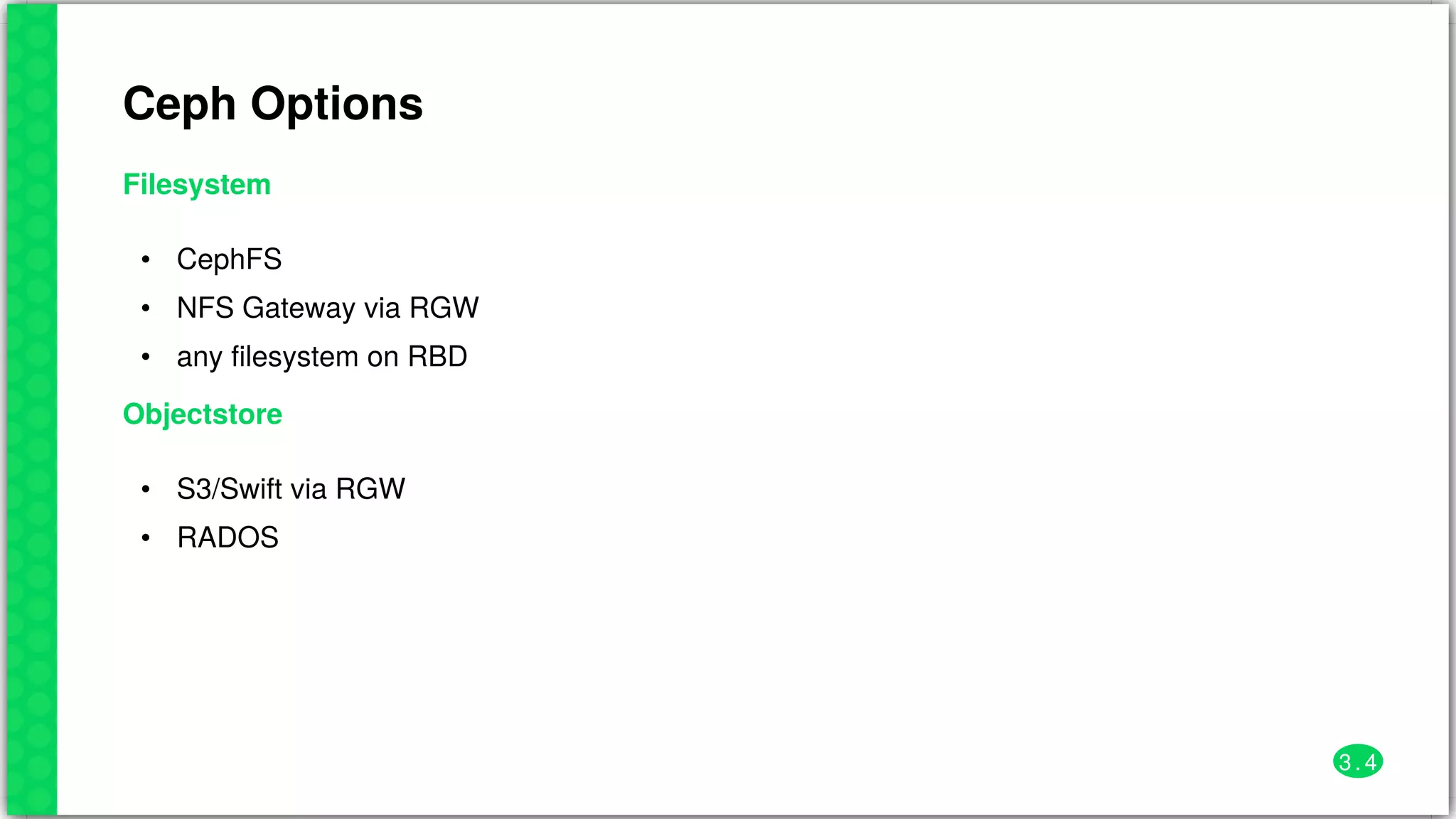

15. Ceph Options
Filesystem
•
•
•
CephFS
NFS Gateway via RGW
any filesystem on RBD
Objectstore
•
•
S3/Swift via RGW
RADOS
3 . 4

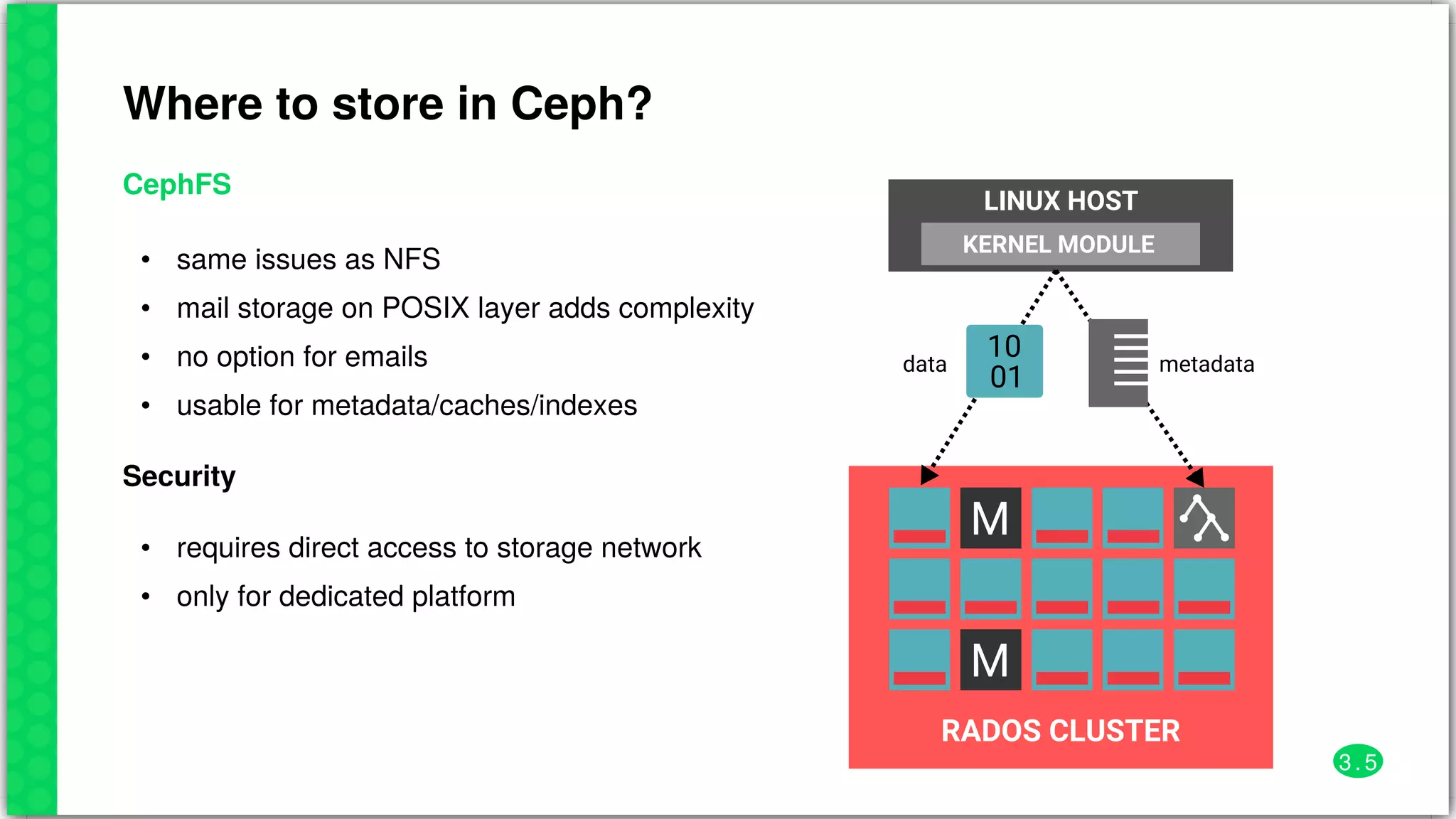

16. Where to store in Ceph?
CephFS
•
•
•
•
same issues as NFS
mail storage on POSIX layer adds complexity
no option for emails
usable for metadata/caches/indexes
Security
•
•
requires direct access to storage network
only for dedicated platform
M
M
RADOS CLUSTER
LINUX HOST
KERNEL MODULE
01
10 metadatadata
3 . 5

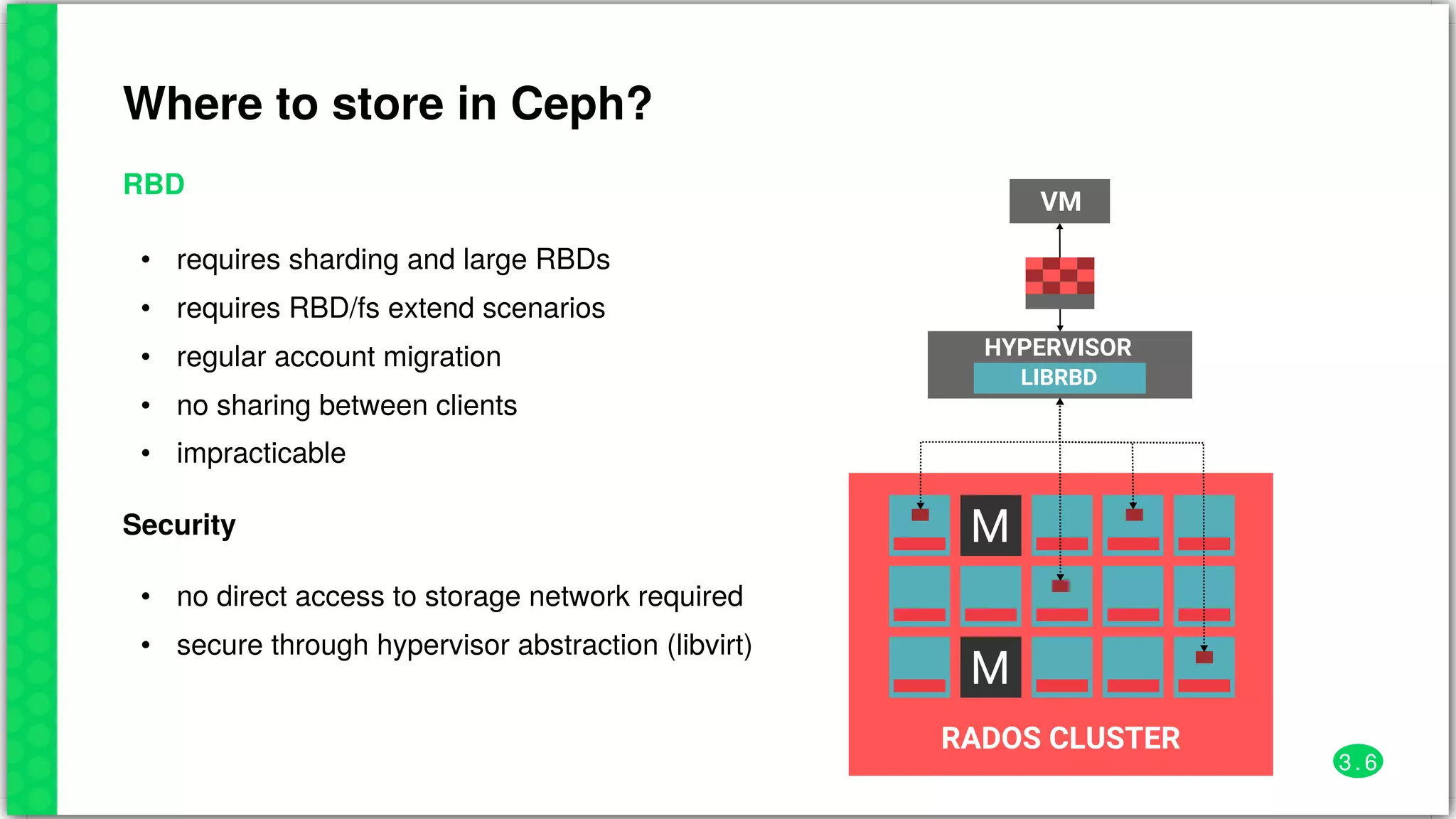

17. Where to store in Ceph?
RBD
•
•
•
•
•
requires sharding and large RBDs
requires RBD/fs extend scenarios
regular account migration
no sharing between clients
impracticable
Security
•
•
no direct access to storage network required
secure through hypervisor abstraction (libvirt)
M
M
RADOS CLUSTER
HYPERVISOR
LIBRBD
VM
3 . 6

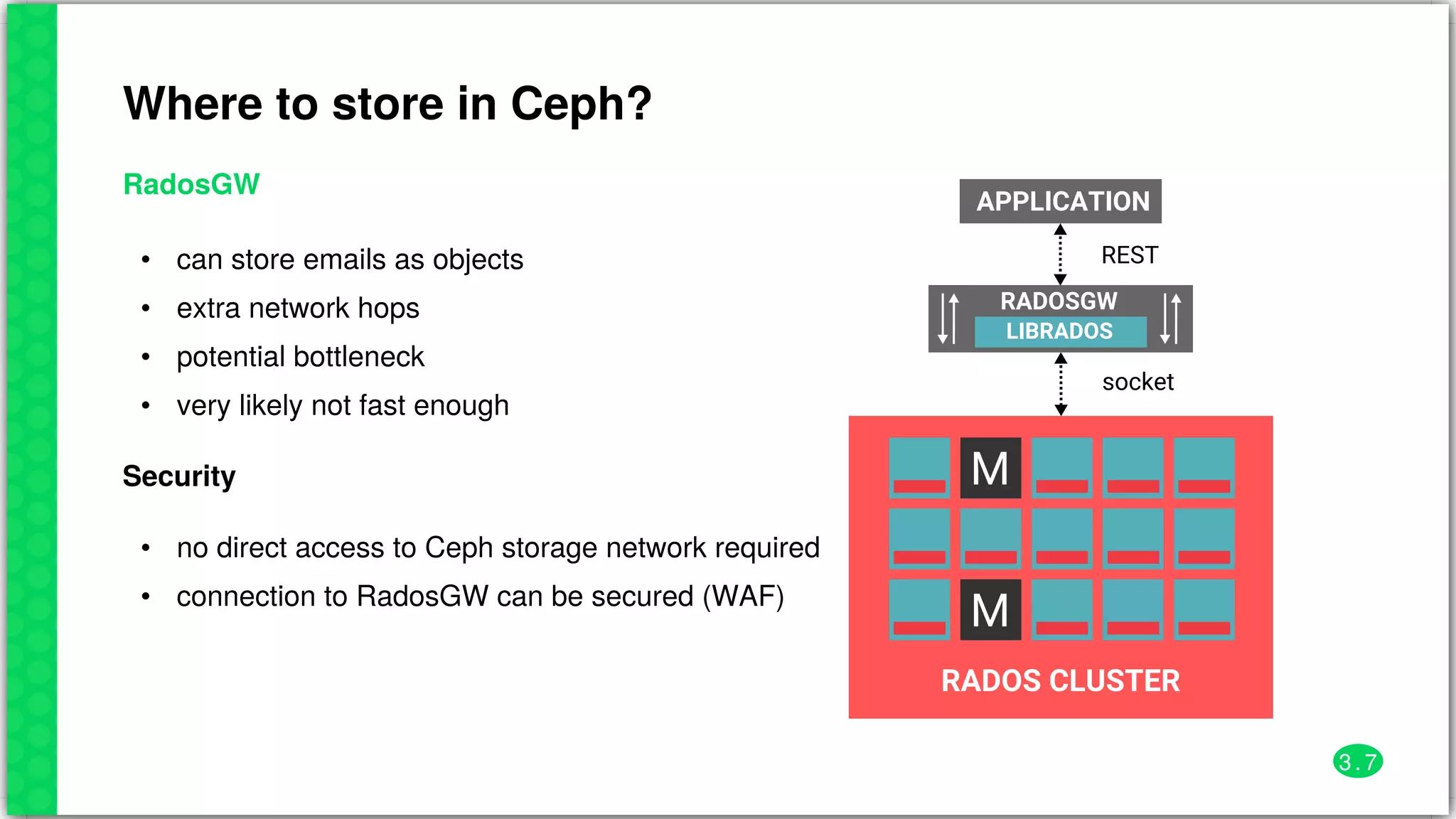

18. Where to store in Ceph?
RadosGW
•
•
•
•
can store emails as objects
extra network hops
potential bottleneck
very likely not fast enough
Security
•
•
no direct access to Ceph storage network required
connection to RadosGW can be secured (WAF)
M
M
RADOS CLUSTER
APPLICATION
RADOSGW
LIBRADOS
REST
socket
3 . 7

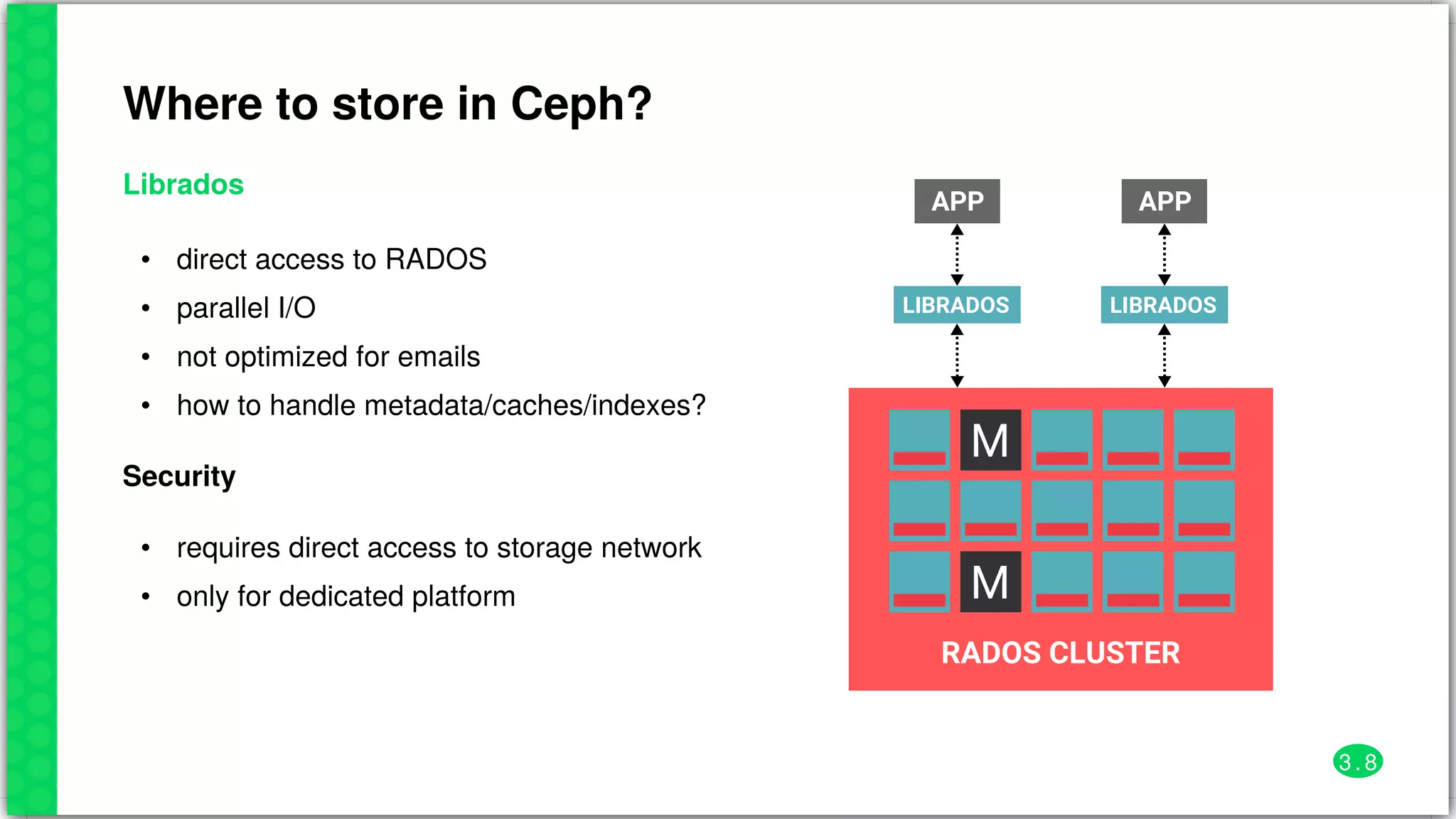

19. Where to store in Ceph?
Librados
•
•
•
•
direct access to RADOS
parallel I/O
not optimized for emails
how to handle metadata/caches/indexes?
Security
•
•
requires direct access to storage network
only for dedicated platform
M
M
RADOS CLUSTER
APP
LIBRADOS
APP
LIBRADOS
3 . 8

20. Dovecot and Ceph
4 . 1

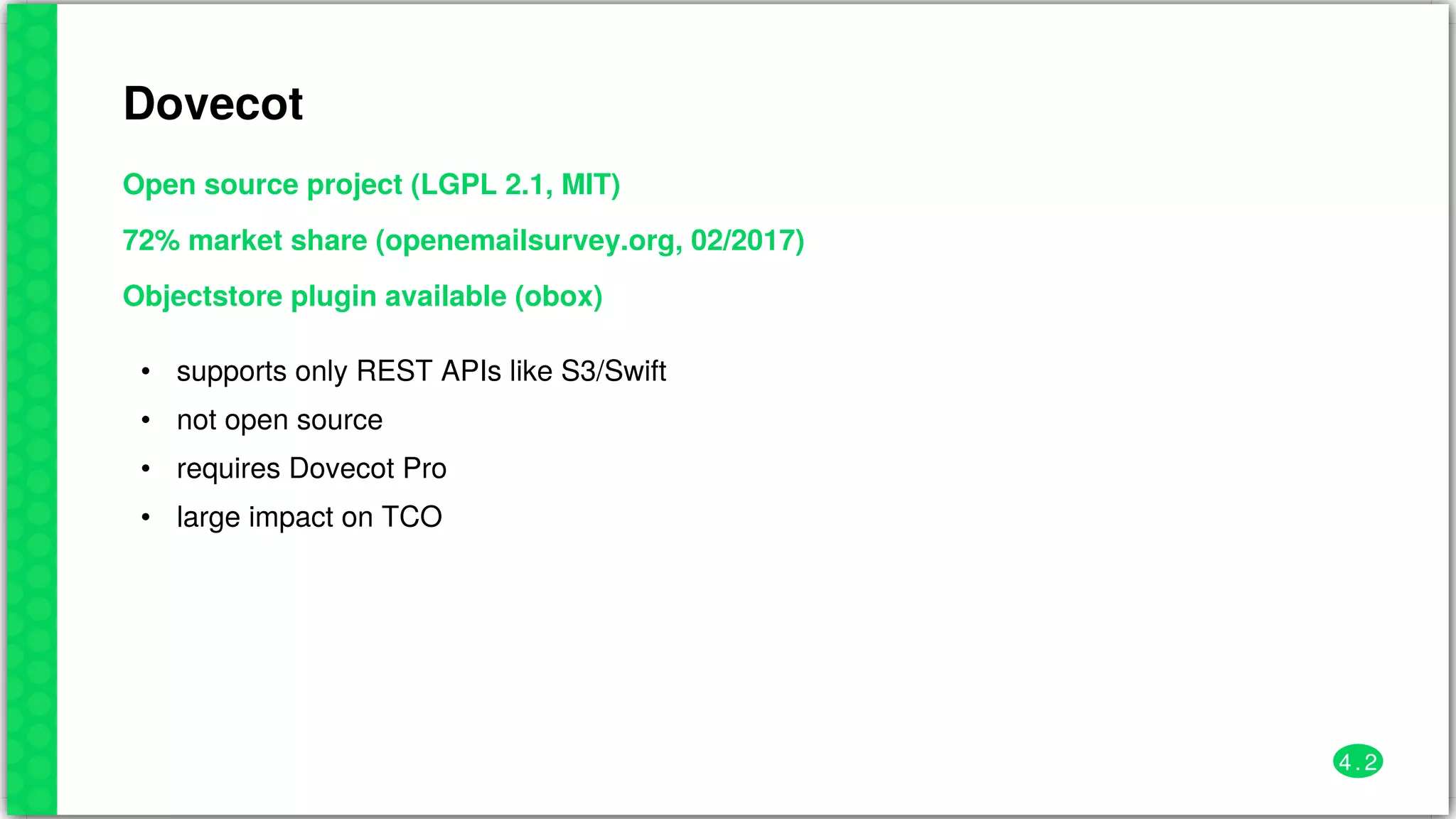

21. Dovecot
Open source project (LGPL 2.1, MIT)
72% market share (openemailsurvey.org, 02/2017)
Objectstore plugin available (obox)
•
•
•
•
supports only REST APIs like S3/Swift
not open source
requires Dovecot Pro
large impact on TCO
4 . 2

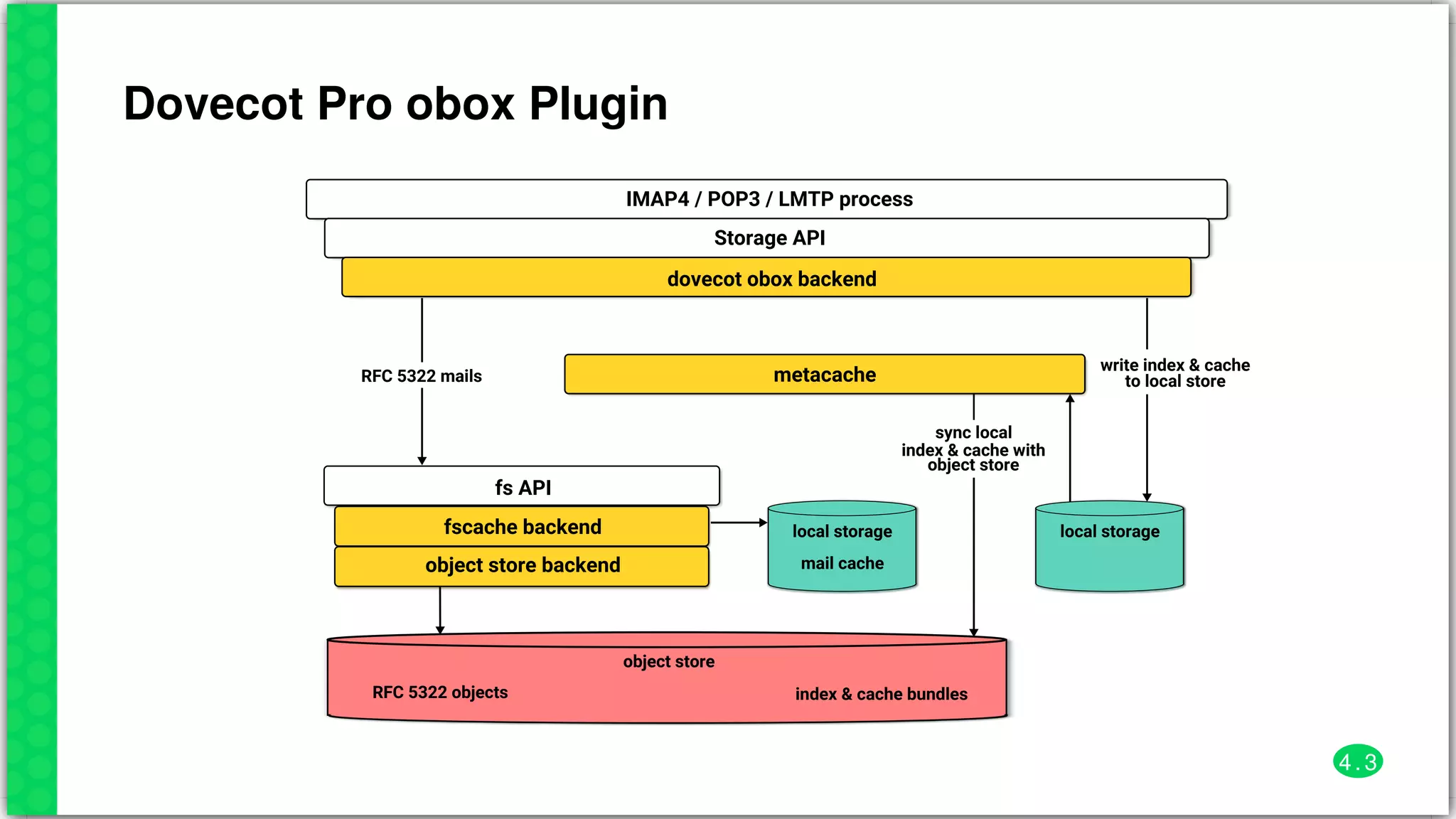

22. Dovecot Pro obox Plugin
IMAP4 / POP3 / LMTP process
Storage API
dovecot obox backend
metacacheRFC 5322 mails
fs API
fscache backend
object store backend
RFC 5322 objects
object store
index & cache bundles
sync local
index & cache with
object store
write index & cache
to local store
local storage
mail cache
local storage
4 . 3

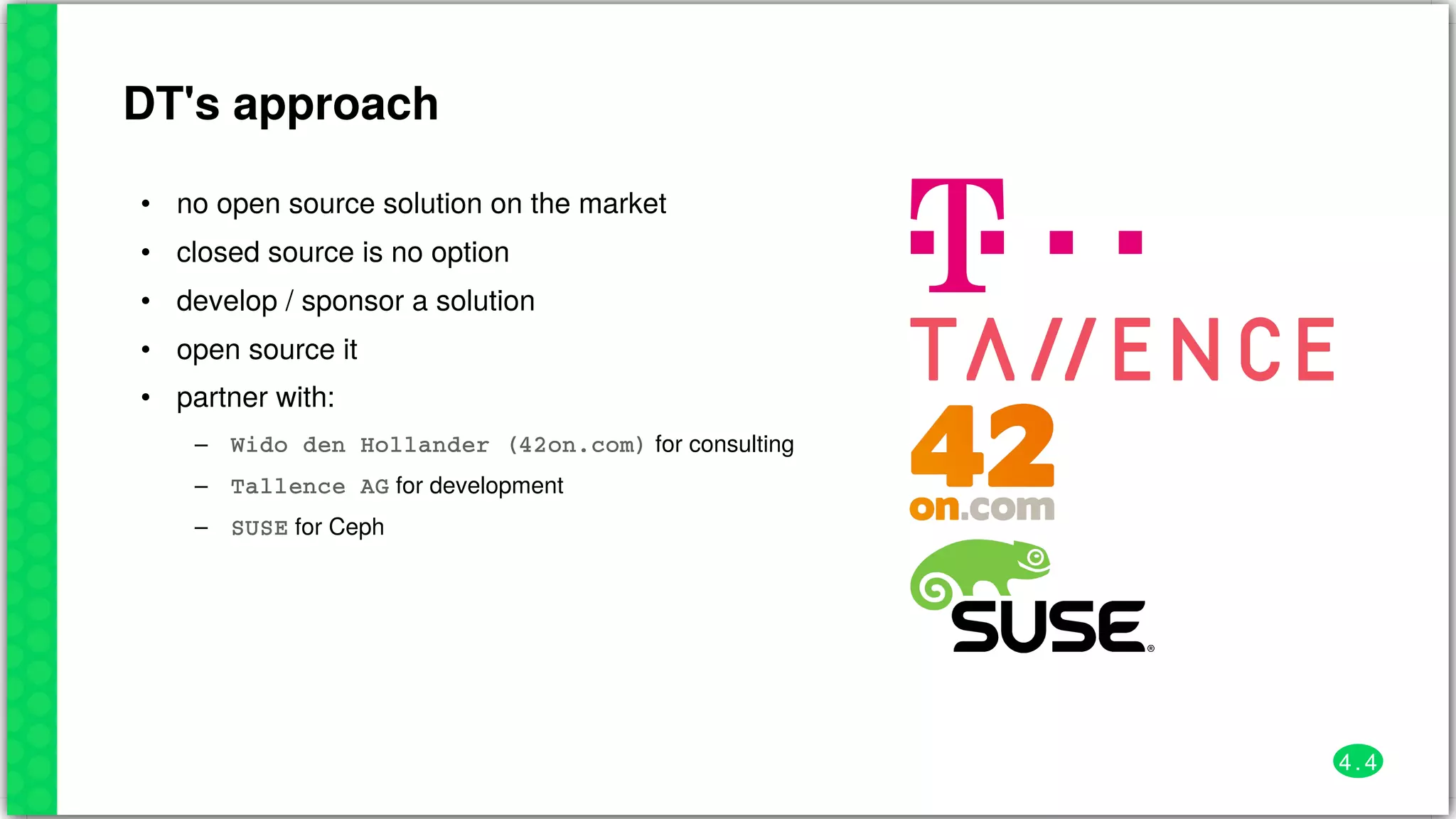

23. DT's approach
•
•
•
•
•
–
–
–
no open source solution on the market
closed source is no option
develop / sponsor a solution
open source it
partner with:
Wido den Hollander (42on.com) for consulting
Tallence AG for development
SUSE for Ceph
4 . 4

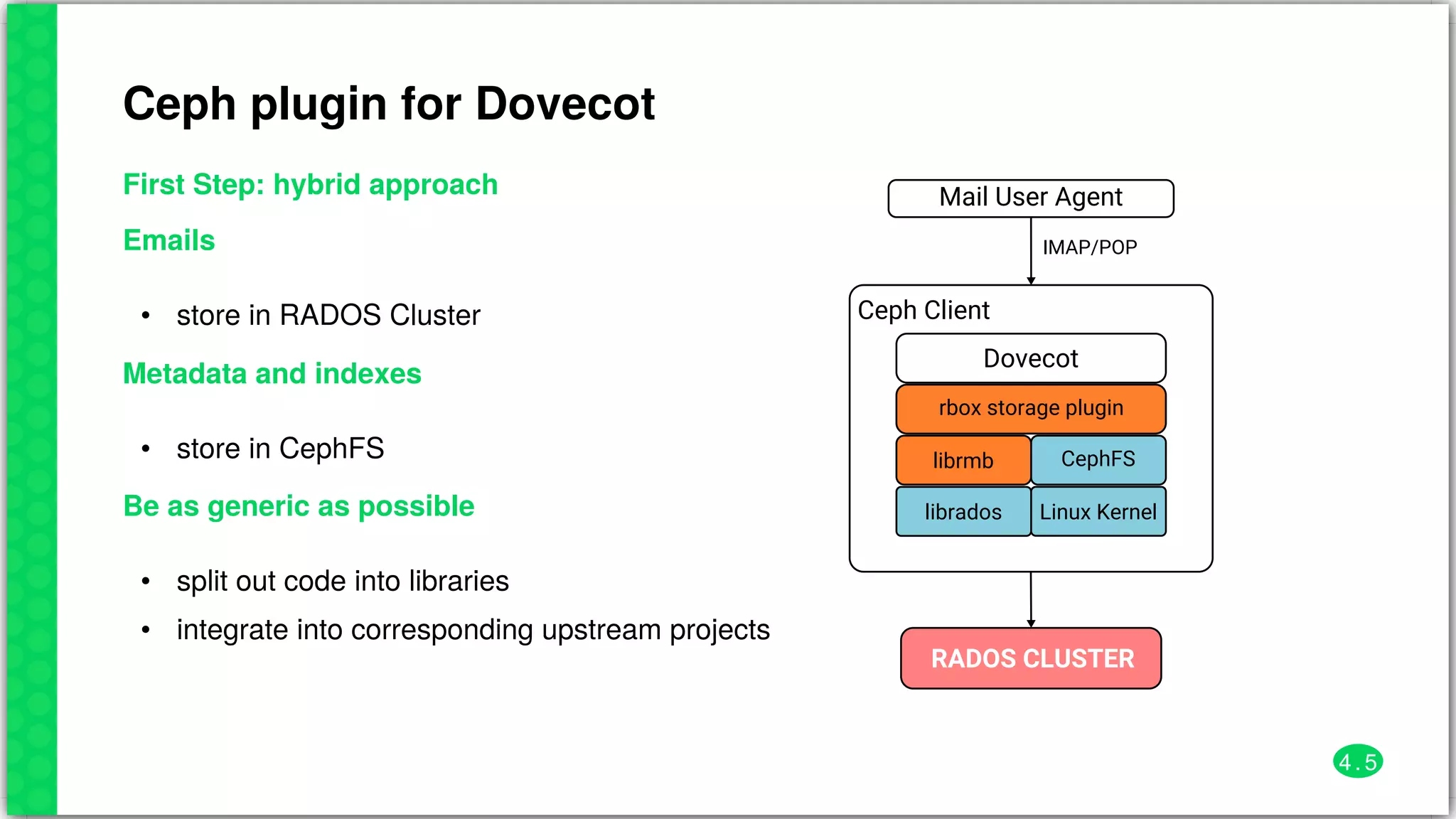

24. Ceph plugin for Dovecot
First Step: hybrid approach
Emails
• store in RADOS Cluster
Metadata and indexes
• store in CephFS
Be as generic as possible
•
•
split out code into libraries
integrate into corresponding upstream projects
Mail User Agent
RADOS CLUSTER
Ceph Client
Dovecot
rbox storage plugin
librmb CephFS
librados Linux Kernel
IMAP/POP
4 . 5

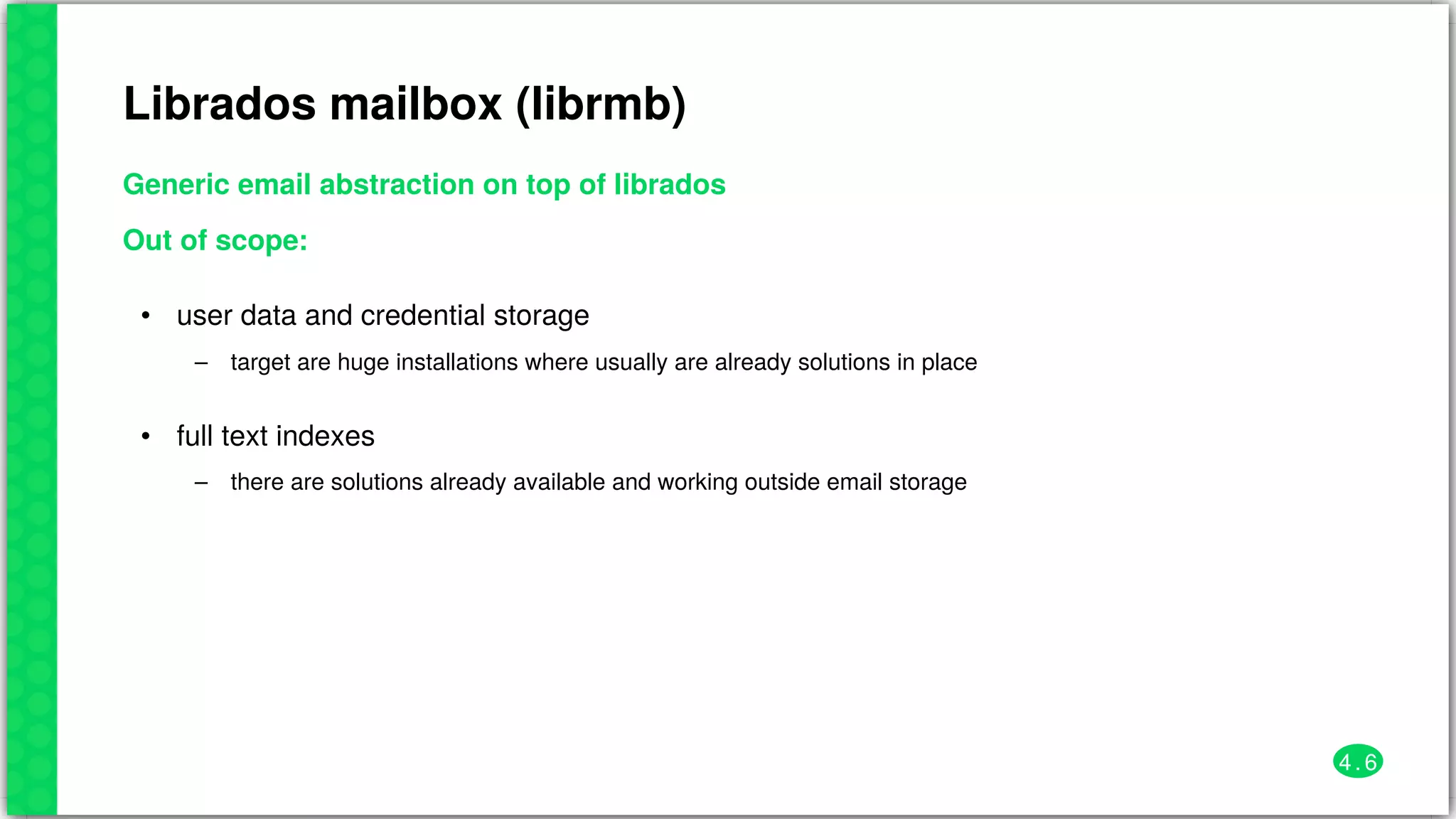

25. Librados mailbox (librmb)
Generic email abstraction on top of librados
Out of scope:
•
–
user data and credential storage
target are huge installations where usually are already solutions in place
•
–
full text indexes
there are solutions already available and working outside email storage
4 . 6

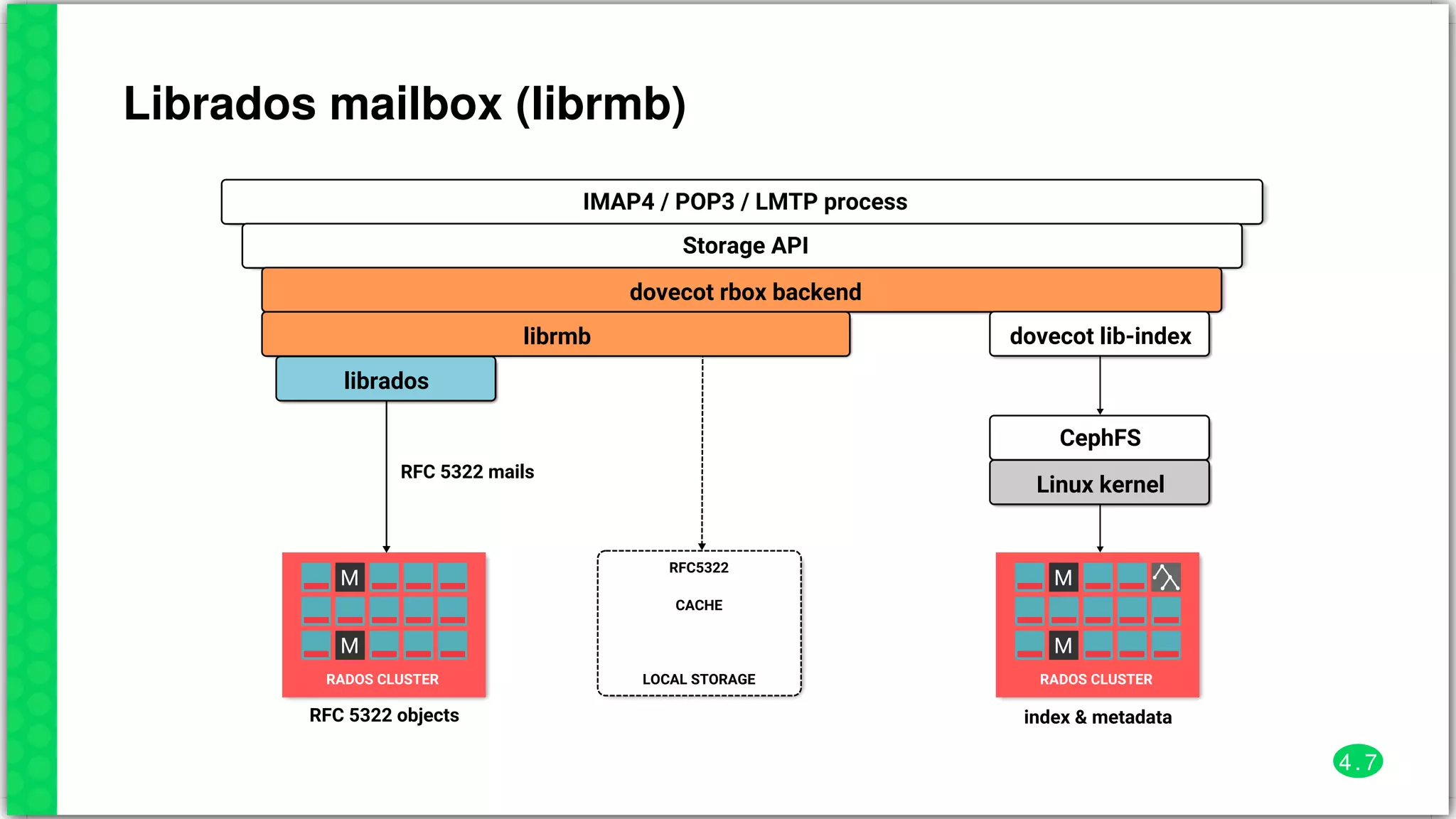

26. Librados mailbox (librmb)
M
M
RADOS CLUSTER
M
M
RADOS CLUSTER
RFC5322
CACHE
LOCAL STORAGE
IMAP4 / POP3 / LMTP process
Storage API
dovecot rbox backend
librmb
librados
dovecot lib-index
CephFS
Linux kernel
RFC 5322 mails
RFC 5322 objects index & metadata
4 . 7

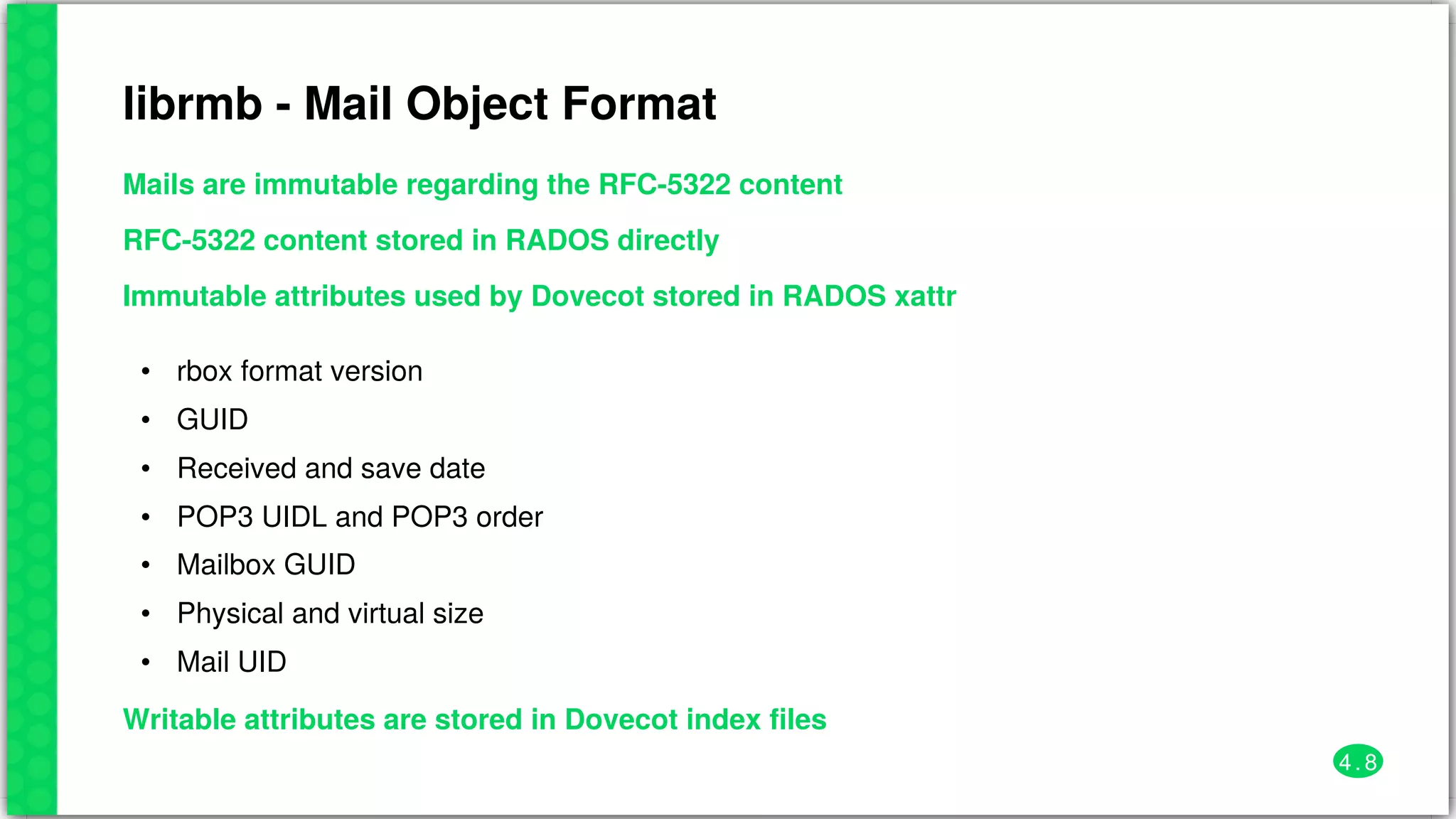

27. librmb - Mail Object Format
Mails are immutable regarding the RFC-5322 content
RFC-5322 content stored in RADOS directly
Immutable attributes used by Dovecot stored in RADOS xattr
•
•
•
•
•
•
•
rbox format version
GUID
Received and save date
POP3 UIDL and POP3 order
Mailbox GUID
Physical and virtual size
Mail UID
Writable attributes are stored in Dovecot index files
4 . 8

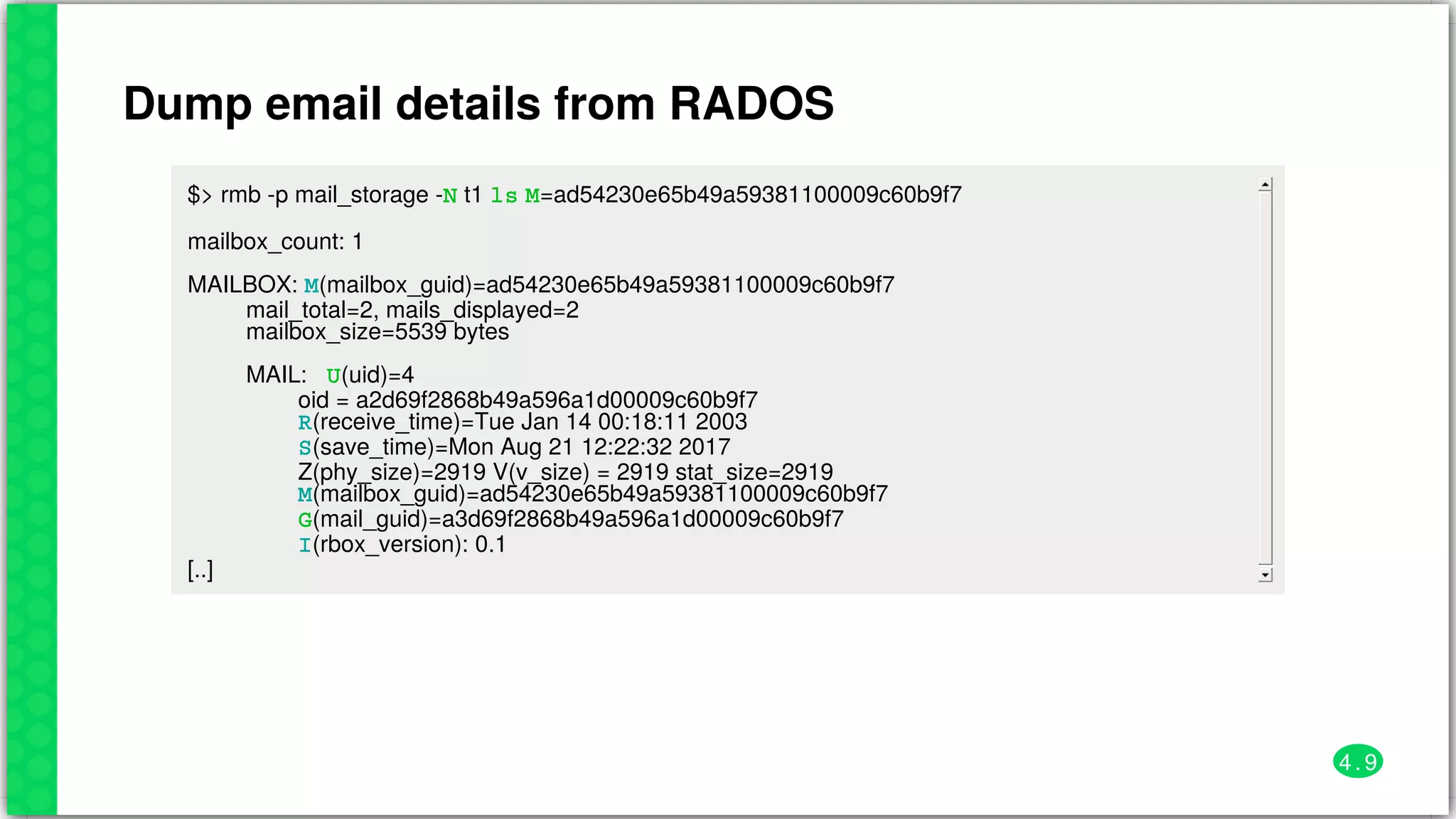

28. Dump email details from RADOS
$> rmb -p mail_storage -N t1 ls M=ad54230e65b49a59381100009c60b9f7
mailbox_count: 1
MAILBOX: M(mailbox_guid)=ad54230e65b49a59381100009c60b9f7
mail_total=2, mails_displayed=2
mailbox_size=5539 bytes
MAIL: U(uid)=4
oid = a2d69f2868b49a596a1d00009c60b9f7
R(receive_time)=Tue Jan 14 00:18:11 2003
S(save_time)=Mon Aug 21 12:22:32 2017
Z(phy_size)=2919 V(v_size) = 2919 stat_size=2919
M(mailbox_guid)=ad54230e65b49a59381100009c60b9f7
G(mail_guid)=a3d69f2868b49a596a1d00009c60b9f7
I(rbox_version): 0.1
[..]
4 . 9

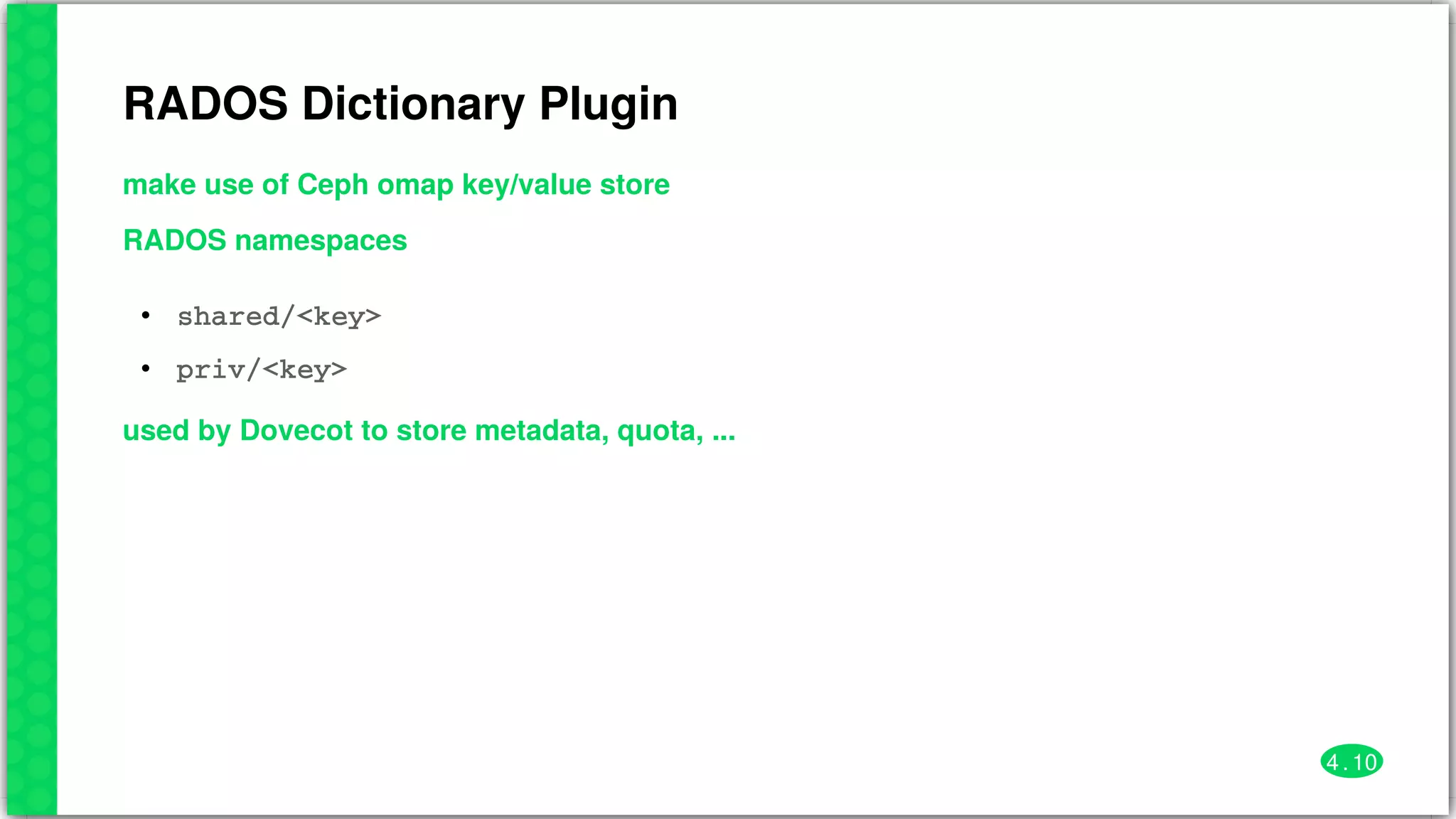

29. RADOS Dictionary Plugin
make use of Ceph omap key/value store
RADOS namespaces
•
•
shared/<key>
priv/<key>
used by Dovecot to store metadata, quota, ...
4 . 10

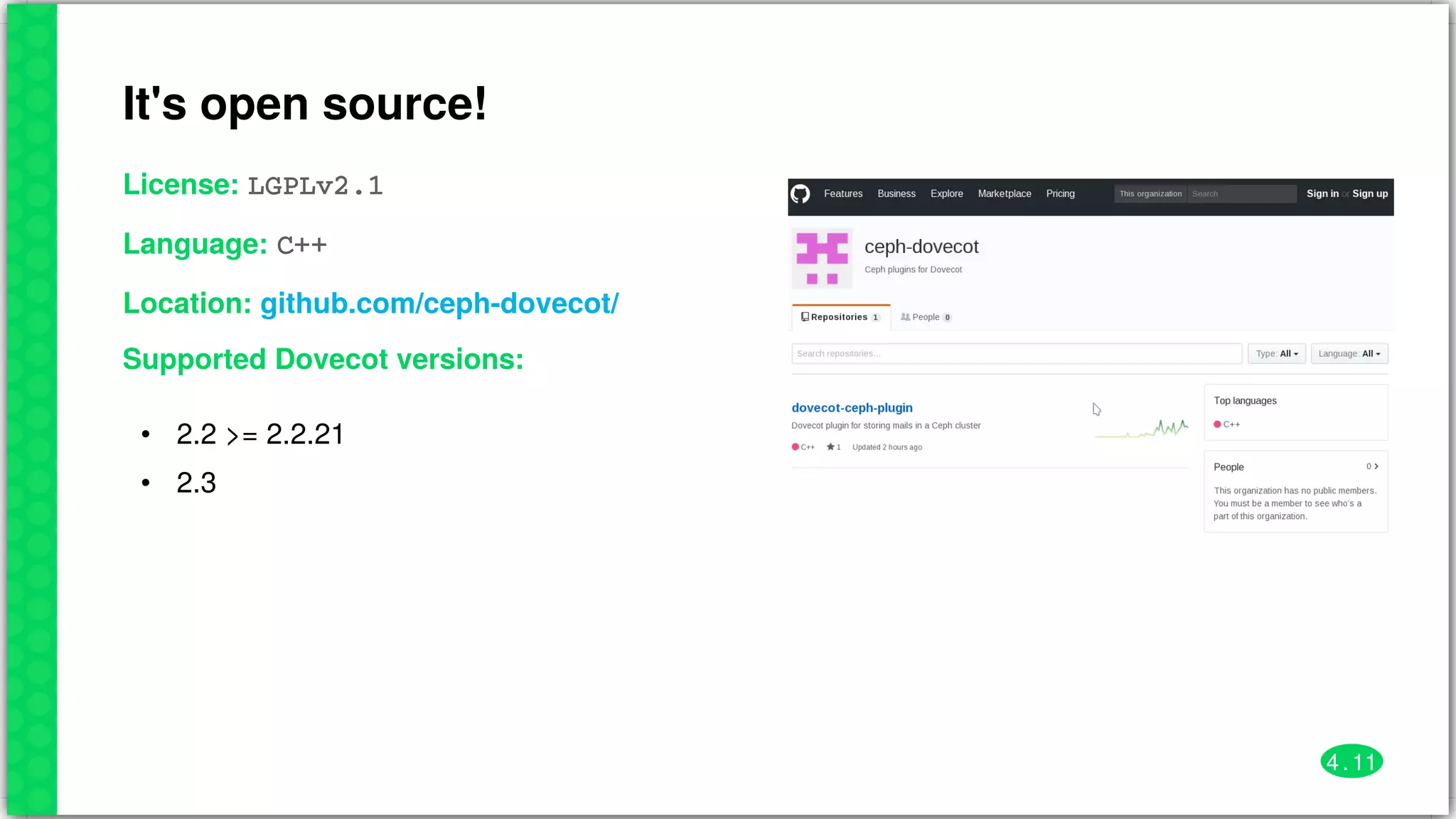

30. It's open source!
License: LGPLv2.1
Language: C++
Location:
Supported Dovecot versions:
•
•
2.2 >= 2.2.21
2.3
github.com/ceph-dovecot/
4 . 11

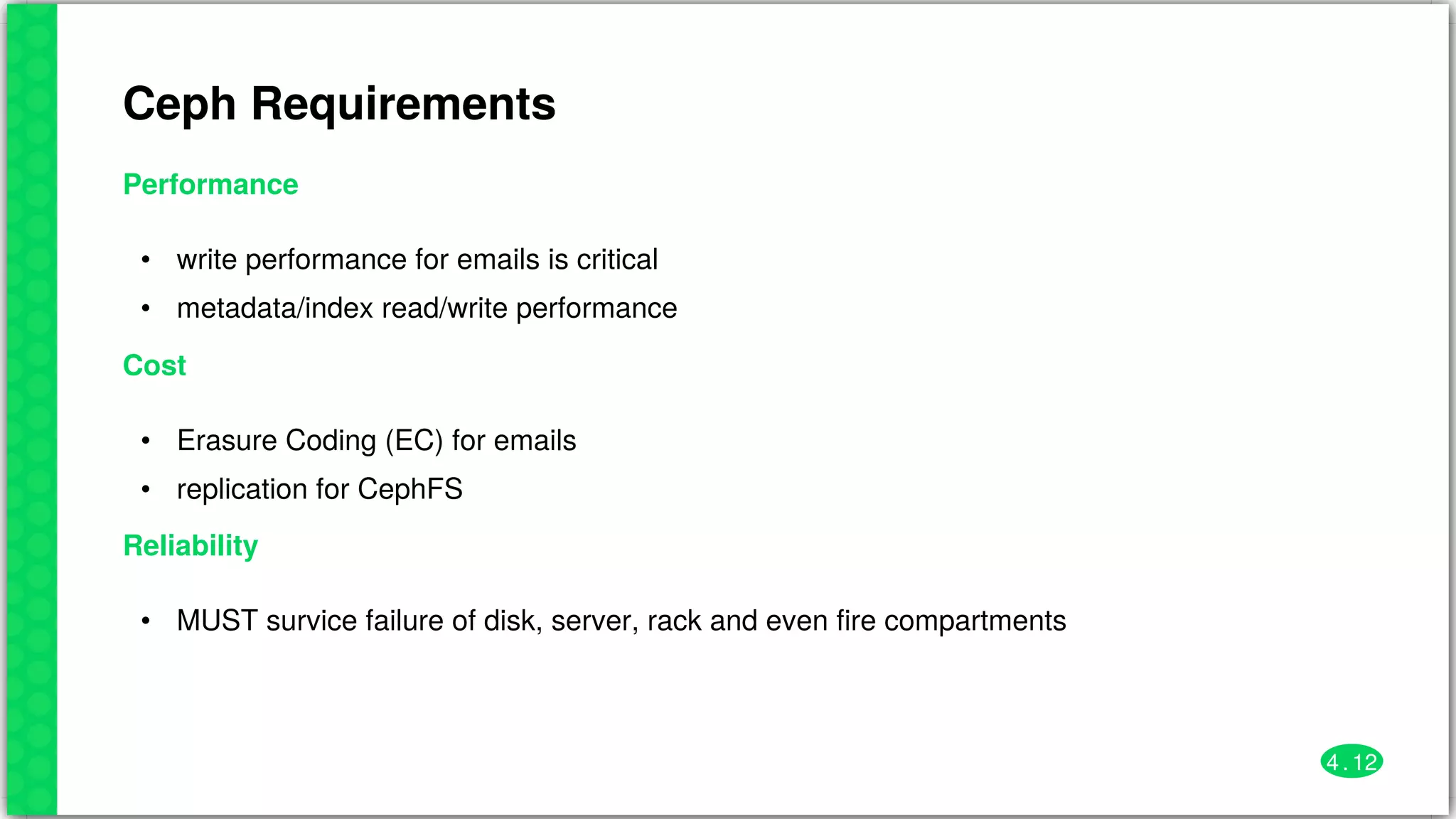

31. Ceph Requirements
Performance
•
•
write performance for emails is critical
metadata/index read/write performance
Cost
•
•
Erasure Coding (EC) for emails
replication for CephFS
Reliability
• MUST survice failure of disk, server, rack and even fire compartments
4 . 12

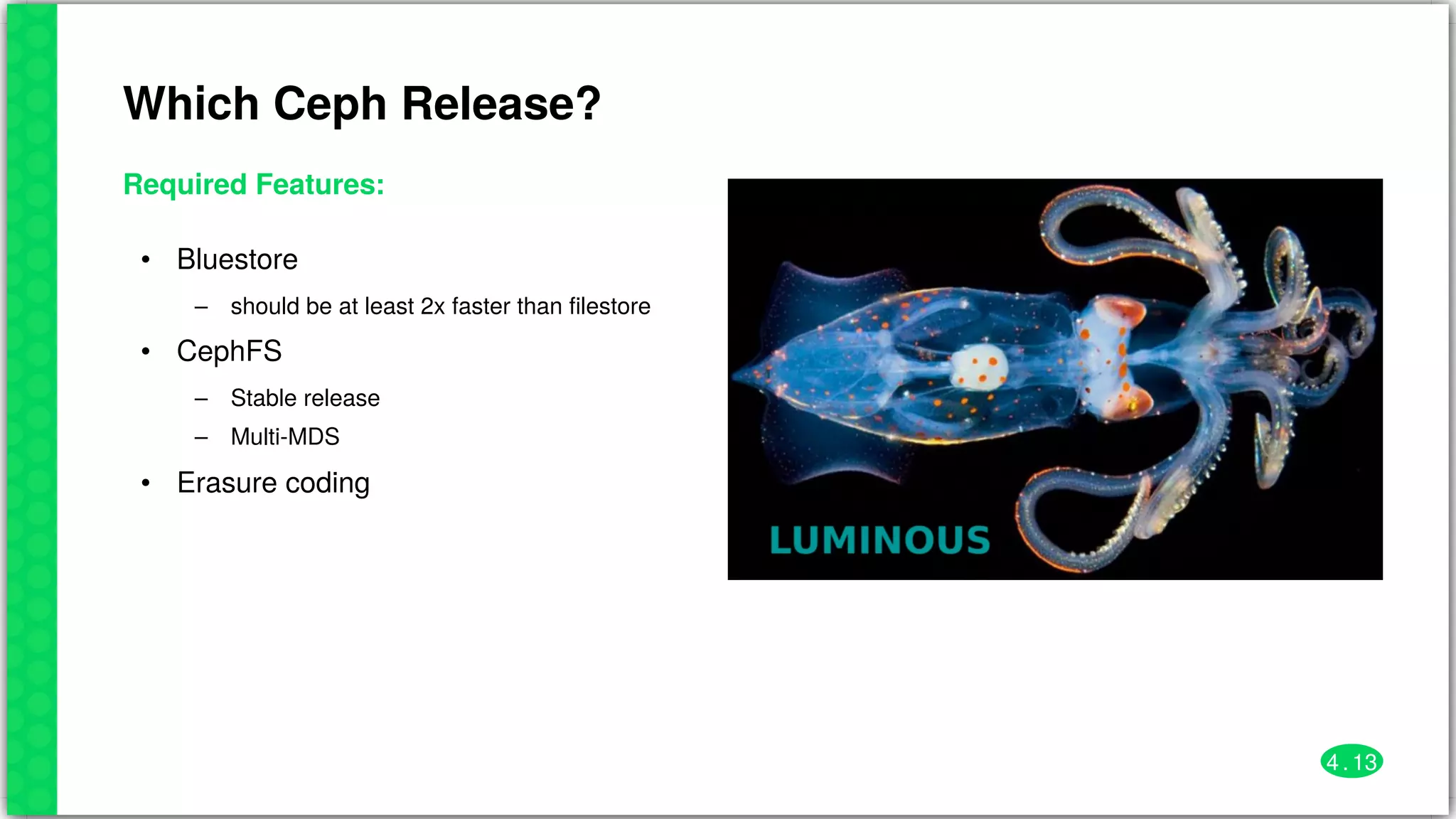

32. Which Ceph Release?
Required Features:
•
–
•
–
–
•
Bluestore
should be at least 2x faster than filestore
CephFS
Stable release
Multi-MDS
Erasure coding
4 . 13

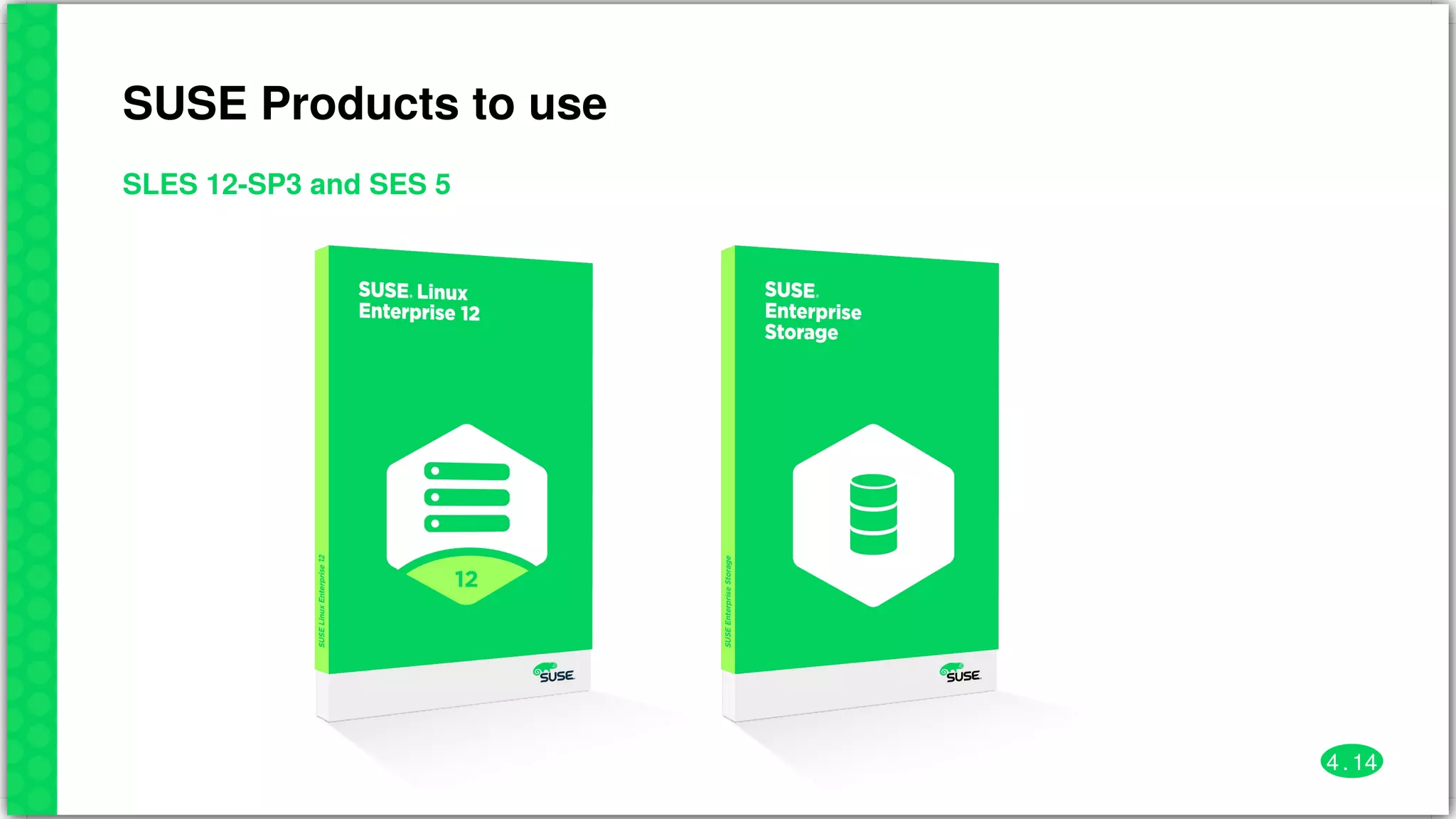

33. SUSE Products to use
SLES 12-SP3 and SES 5
4 . 14

34. Hardware
5 . 1

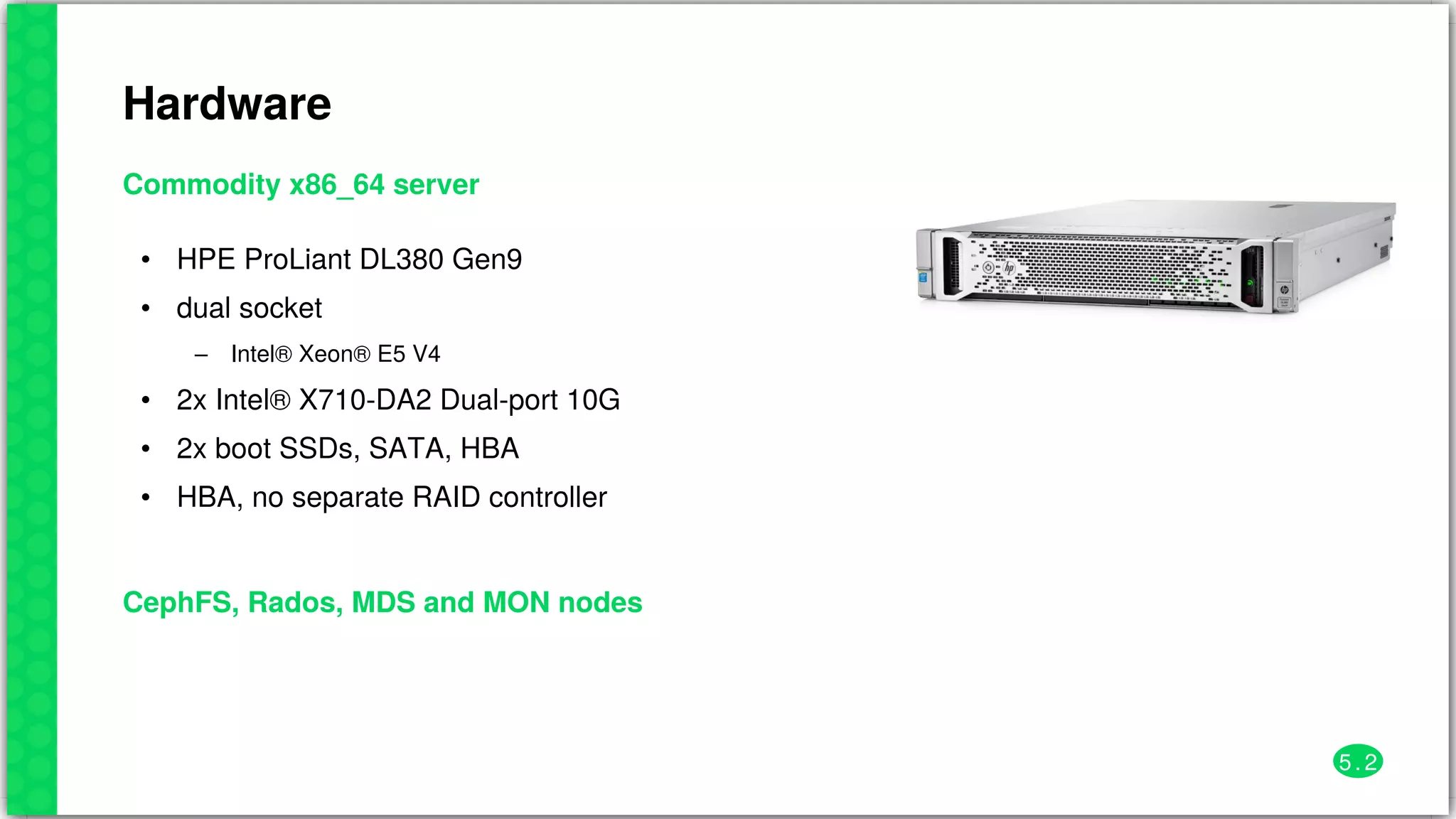

35. Hardware
Commodity x86_64 server
•
•
–
•
•
•
HPE ProLiant DL380 Gen9
dual socket
Intel® Xeon® E5 V4
2x Intel® X710-DA2 Dual-port 10G
2x boot SSDs, SATA, HBA
HBA, no separate RAID controller
CephFS, Rados, MDS and MON nodes
5 . 2

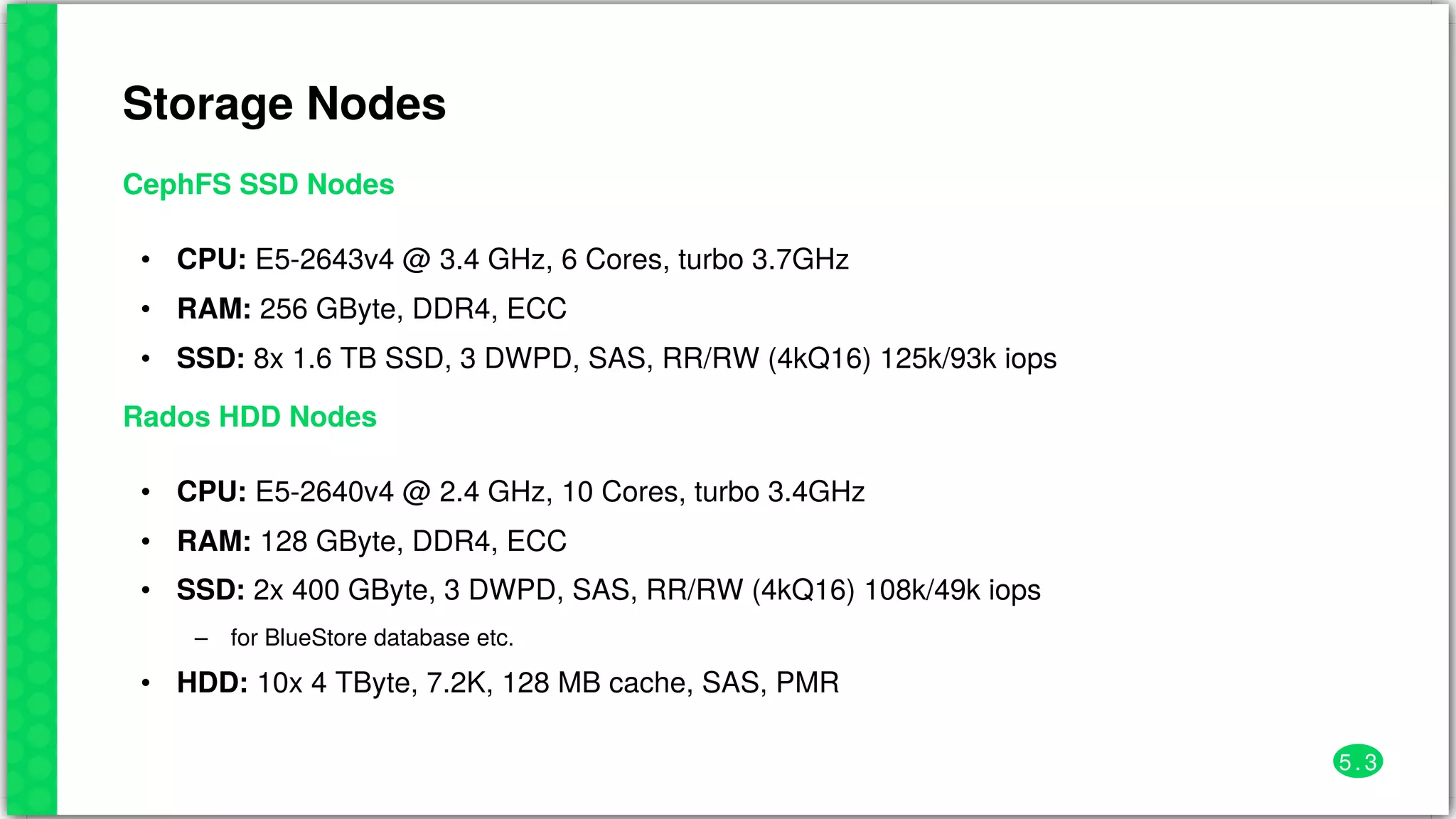

36. Storage Nodes
CephFS SSD Nodes
•
•
•
CPU: E5-2643v4 @ 3.4 GHz, 6 Cores, turbo 3.7GHz
RAM: 256 GByte, DDR4, ECC
SSD: 8x 1.6 TB SSD, 3 DWPD, SAS, RR/RW (4kQ16) 125k/93k iops
Rados HDD Nodes
•
•
•
–
•
CPU: E5-2640v4 @ 2.4 GHz, 10 Cores, turbo 3.4GHz
RAM: 128 GByte, DDR4, ECC
SSD: 2x 400 GByte, 3 DWPD, SAS, RR/RW (4kQ16) 108k/49k iops
for BlueStore database etc.
HDD: 10x 4 TByte, 7.2K, 128 MB cache, SAS, PMR
5 . 3

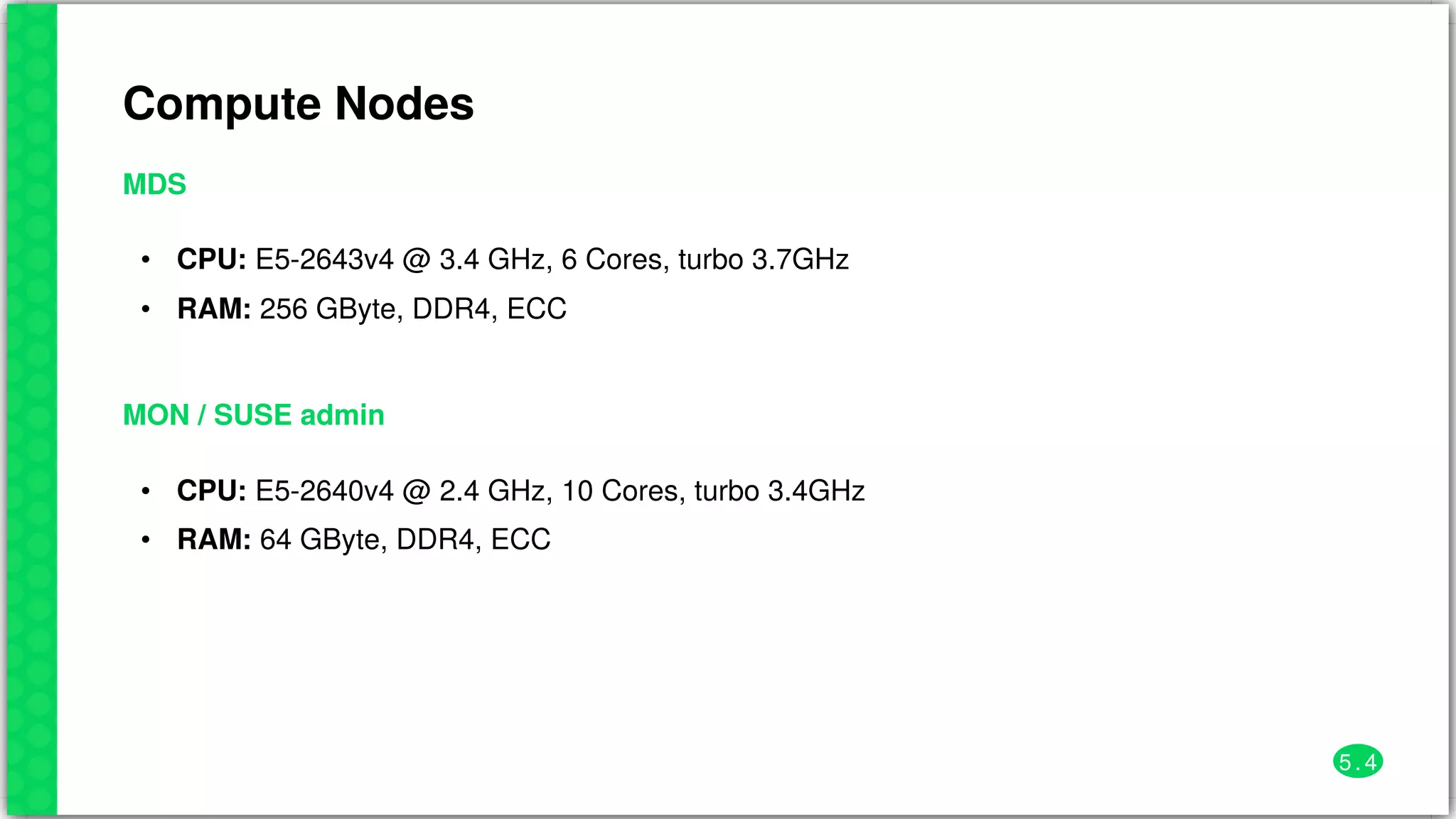

37. Compute Nodes
MDS
•
•
CPU: E5-2643v4 @ 3.4 GHz, 6 Cores, turbo 3.7GHz
RAM: 256 GByte, DDR4, ECC
MON / SUSE admin
•
•
CPU: E5-2640v4 @ 2.4 GHz, 10 Cores, turbo 3.4GHz
RAM: 64 GByte, DDR4, ECC
5 . 4

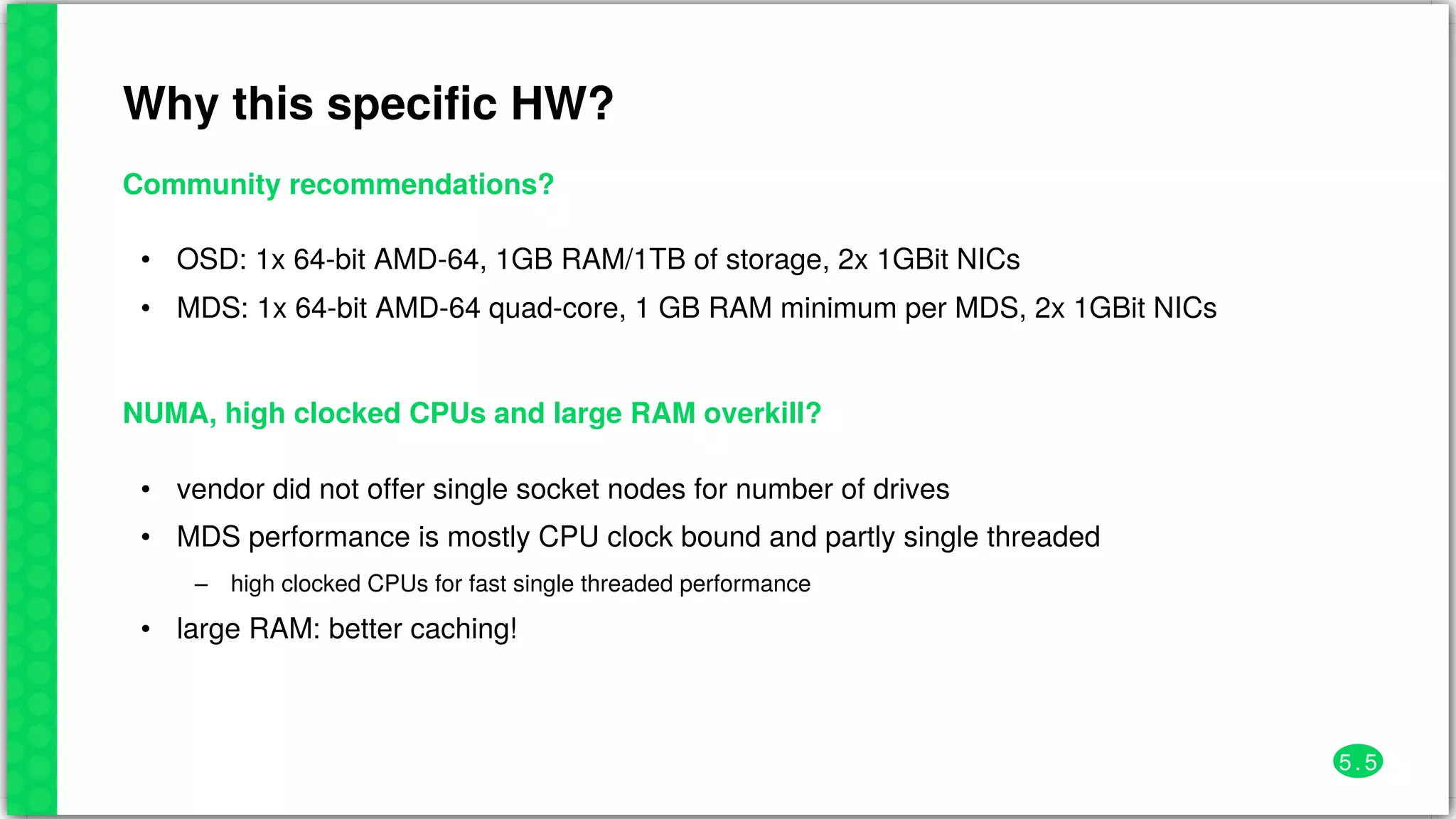

38. Why this specific HW?
Community recommendations?
•
•
OSD: 1x 64-bit AMD-64, 1GB RAM/1TB of storage, 2x 1GBit NICs
MDS: 1x 64-bit AMD-64 quad-core, 1 GB RAM minimum per MDS, 2x 1GBit NICs
NUMA, high clocked CPUs and large RAM overkill?
•
•
–
•
vendor did not offer single socket nodes for number of drives
MDS performance is mostly CPU clock bound and partly single threaded
high clocked CPUs for fast single threaded performance
large RAM: better caching!
5 . 5

39. Placement
6 . 1

40. Issues
Datacenter
•
•
usually two independent fire compartments (FCs)
may additional virtual FCs
Requirements
•
•
•
•
loss of customer data MUST be prevented
any server, switch or rack can fail
one FC can fail
data replication at least 3 times (or equivalent)
6 . 2

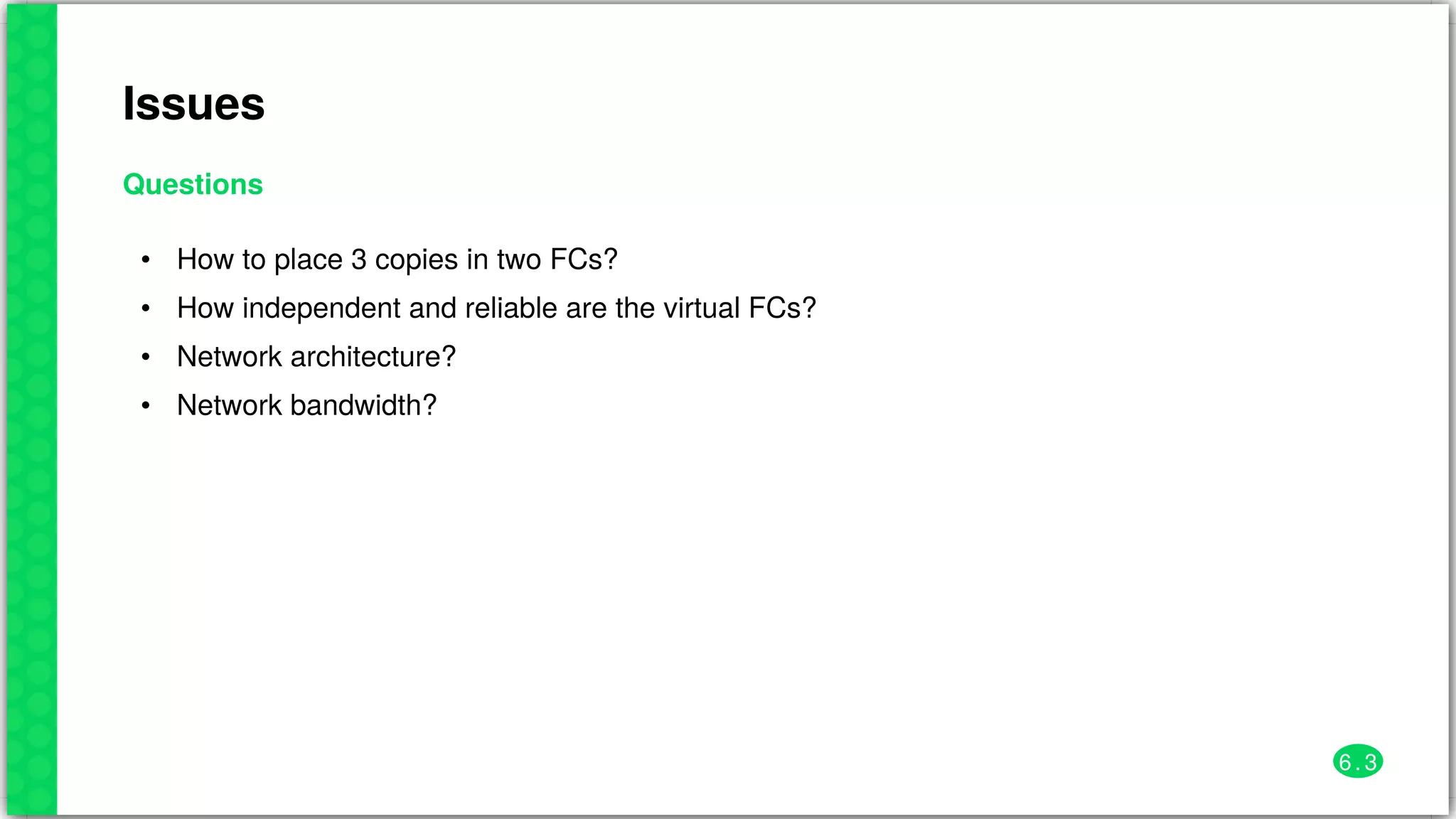

41. Issues
Questions
•
•
•
•
How to place 3 copies in two FCs?
How independent and reliable are the virtual FCs?
Network architecture?
Network bandwidth?
6 . 3

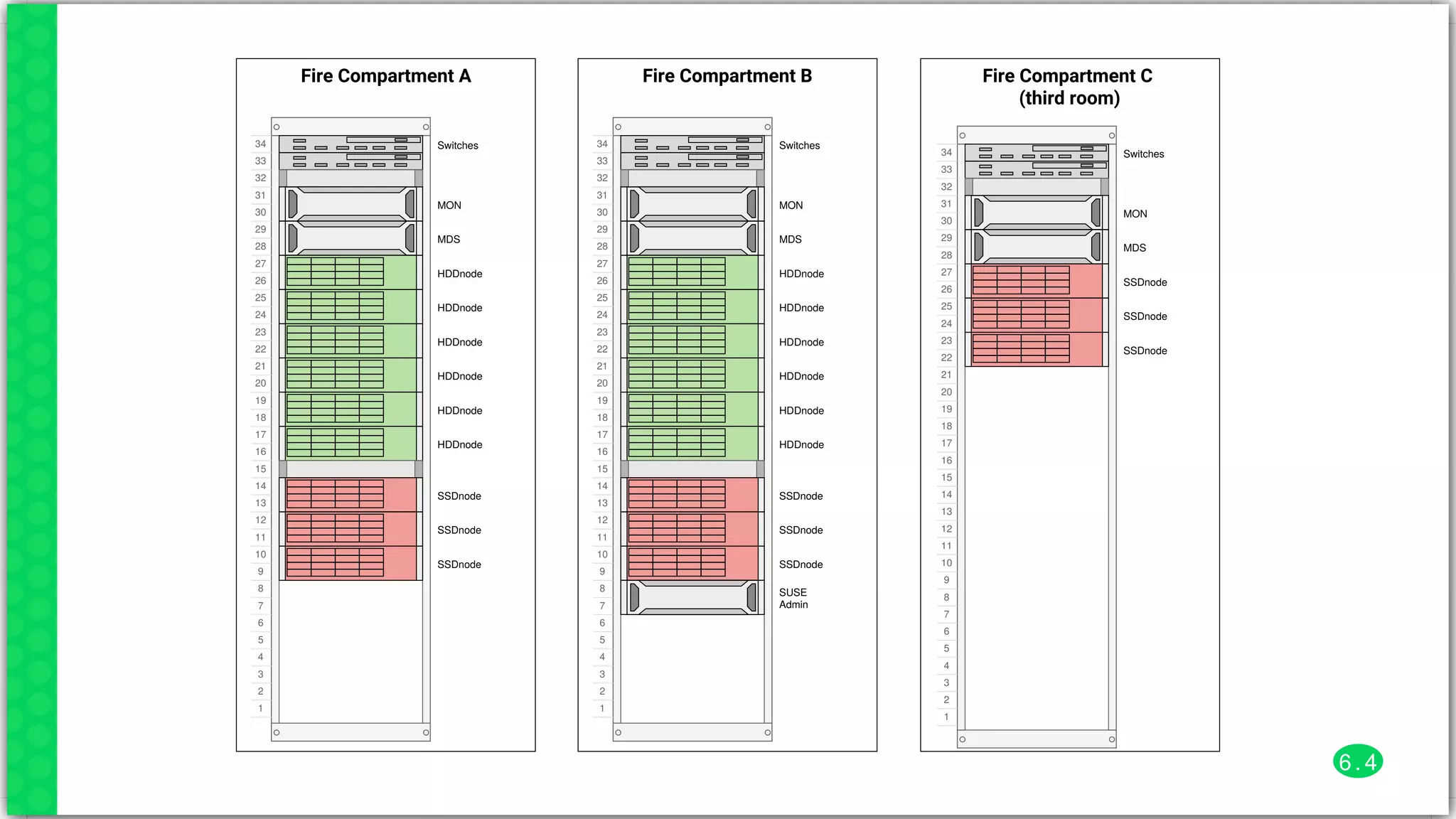

42. Fire Compartment A
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Switches
MON
MDS
HDDnode
HDDnode
HDDnode
HDDnode
HDDnode
HDDnode
SSDnode
SSDnode
SSDnode
Fire Compartment B
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Switches
MON
MDS
HDDnode
HDDnode
HDDnode
HDDnode
HDDnode
HDDnode
SSDnode
SSDnode
SSDnode
SUSE
Admin
Fire Compartment C
(third room)
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Switches
MON
MDS
SSDnode
SSDnode
SSDnode
6 . 4

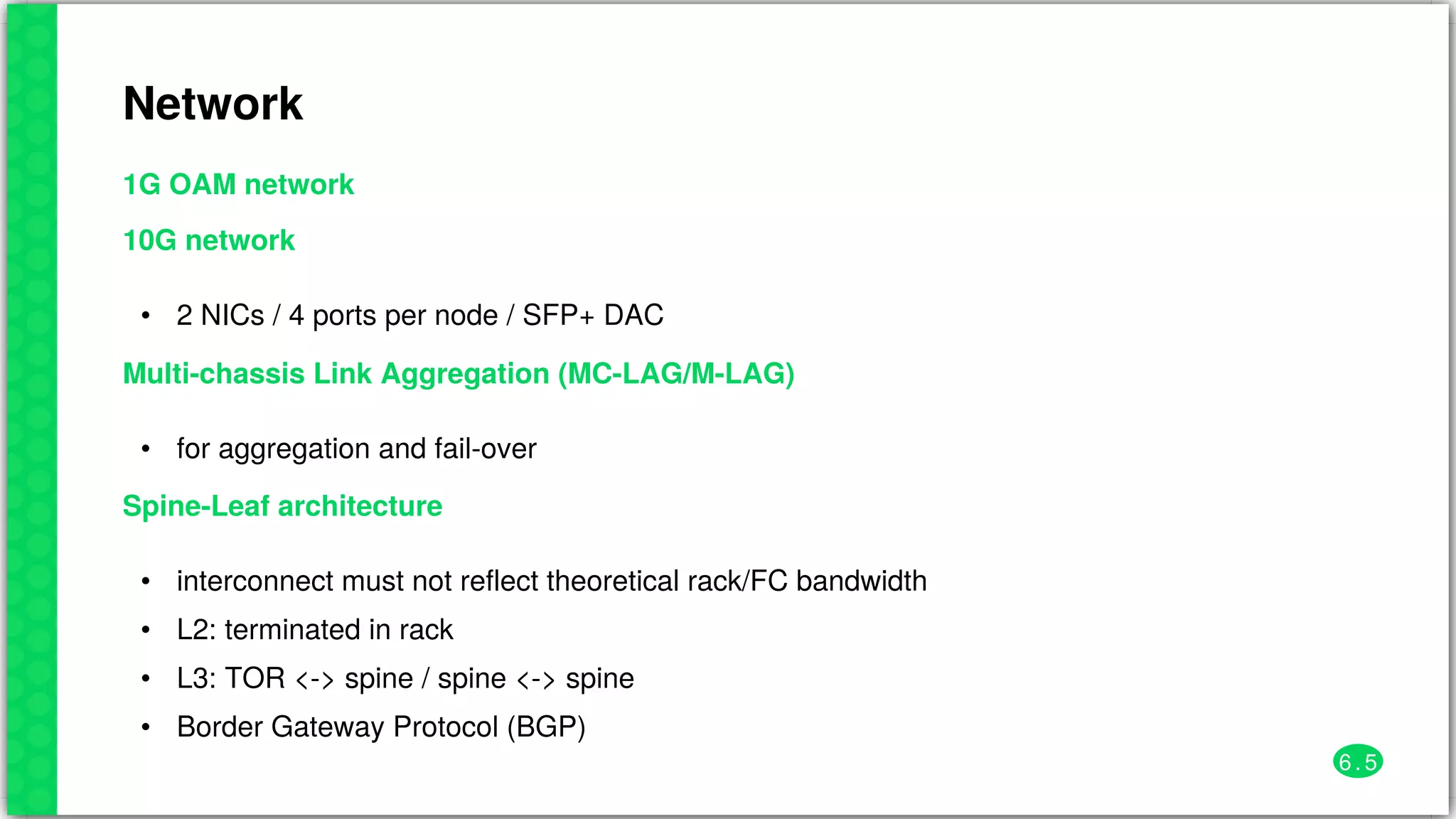

43. Network
1G OAM network
10G network
• 2 NICs / 4 ports per node / SFP+ DAC
Multi-chassis Link Aggregation (MC-LAG/M-LAG)
• for aggregation and fail-over
Spine-Leaf architecture
•
•
•
•
interconnect must not reflect theoretical rack/FC bandwidth
L2: terminated in rack
L3: TOR <-> spine / spine <-> spine
Border Gateway Protocol (BGP)
6 . 5

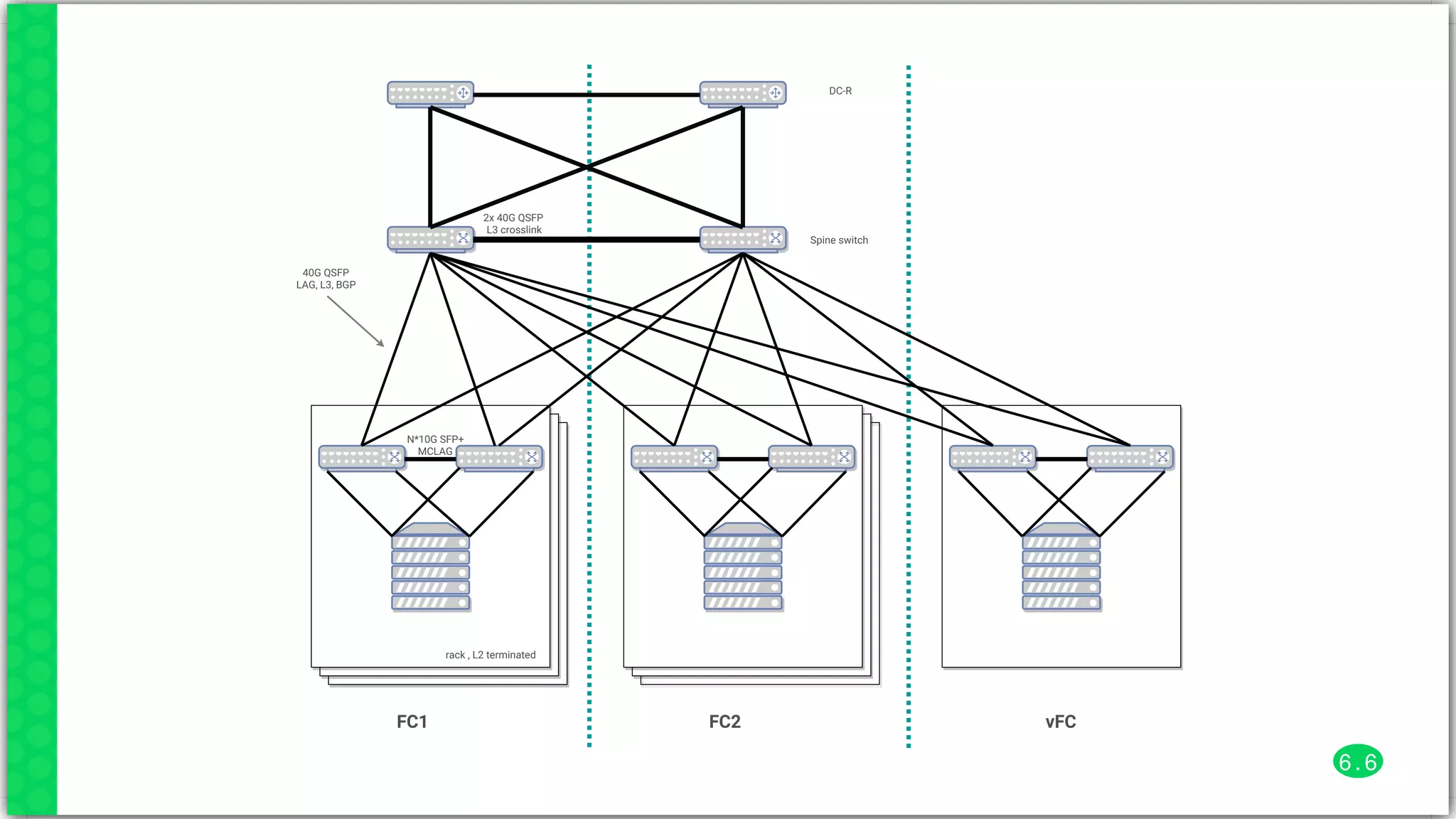

44. 2x 40G QSFP
L3 crosslink
40G QSFP
LAG, L3, BGP
N*10G SFP+
MCLAG
rack , L2 terminated
Spine switch
DC-R
FC1 FC2 vFC
6 . 6

45. Status and Next Steps
7 . 1

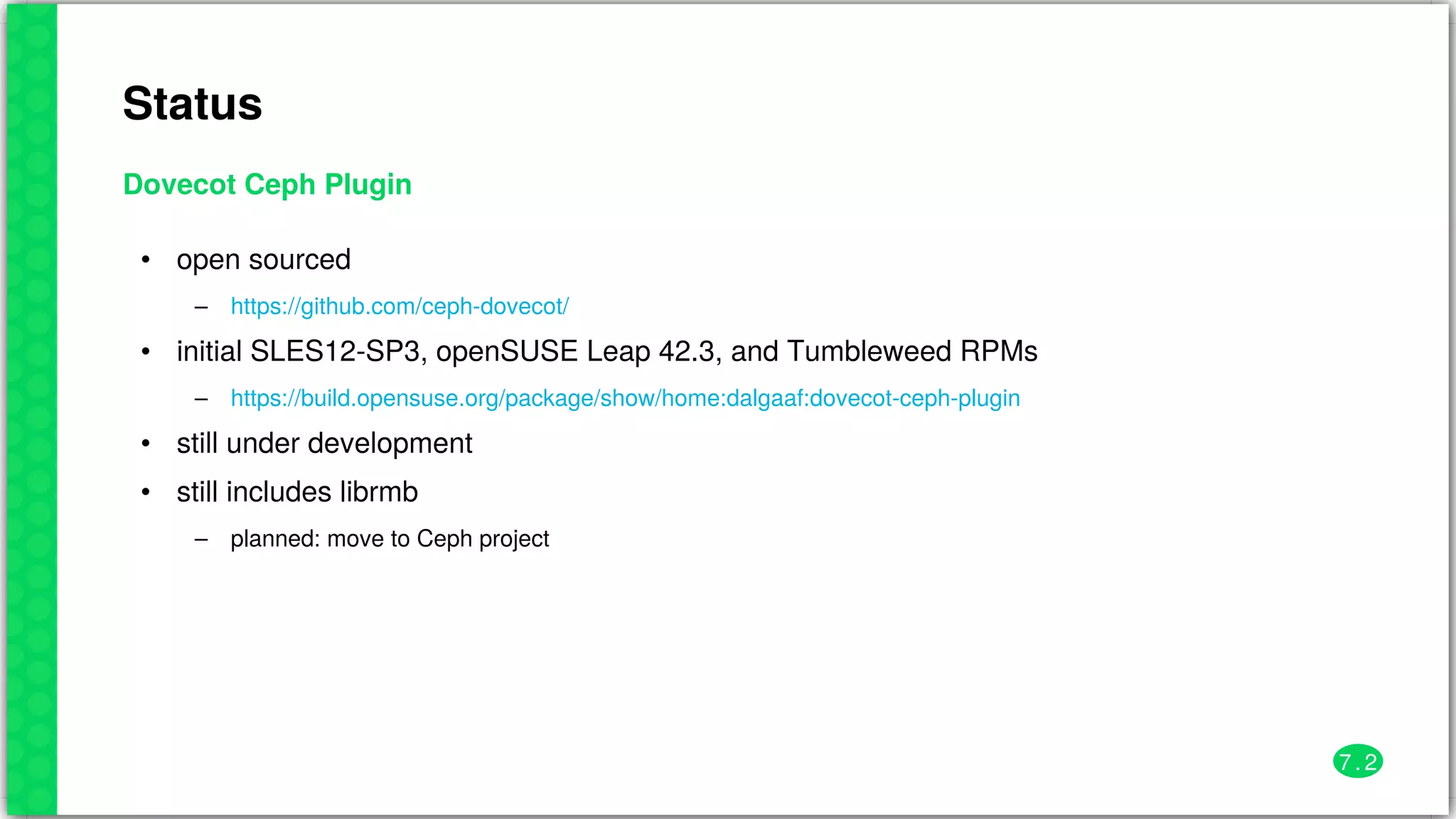

46. Status
Dovecot Ceph Plugin
•
–
•
–
•
•
–
open sourced
initial SLES12-SP3, openSUSE Leap 42.3, and Tumbleweed RPMs
still under development
still includes librmb
planned: move to Ceph project
https://github.com/ceph-dovecot/
https://build.opensuse.org/package/show/home:dalgaaf:dovecot-ceph-plugin
7 . 2

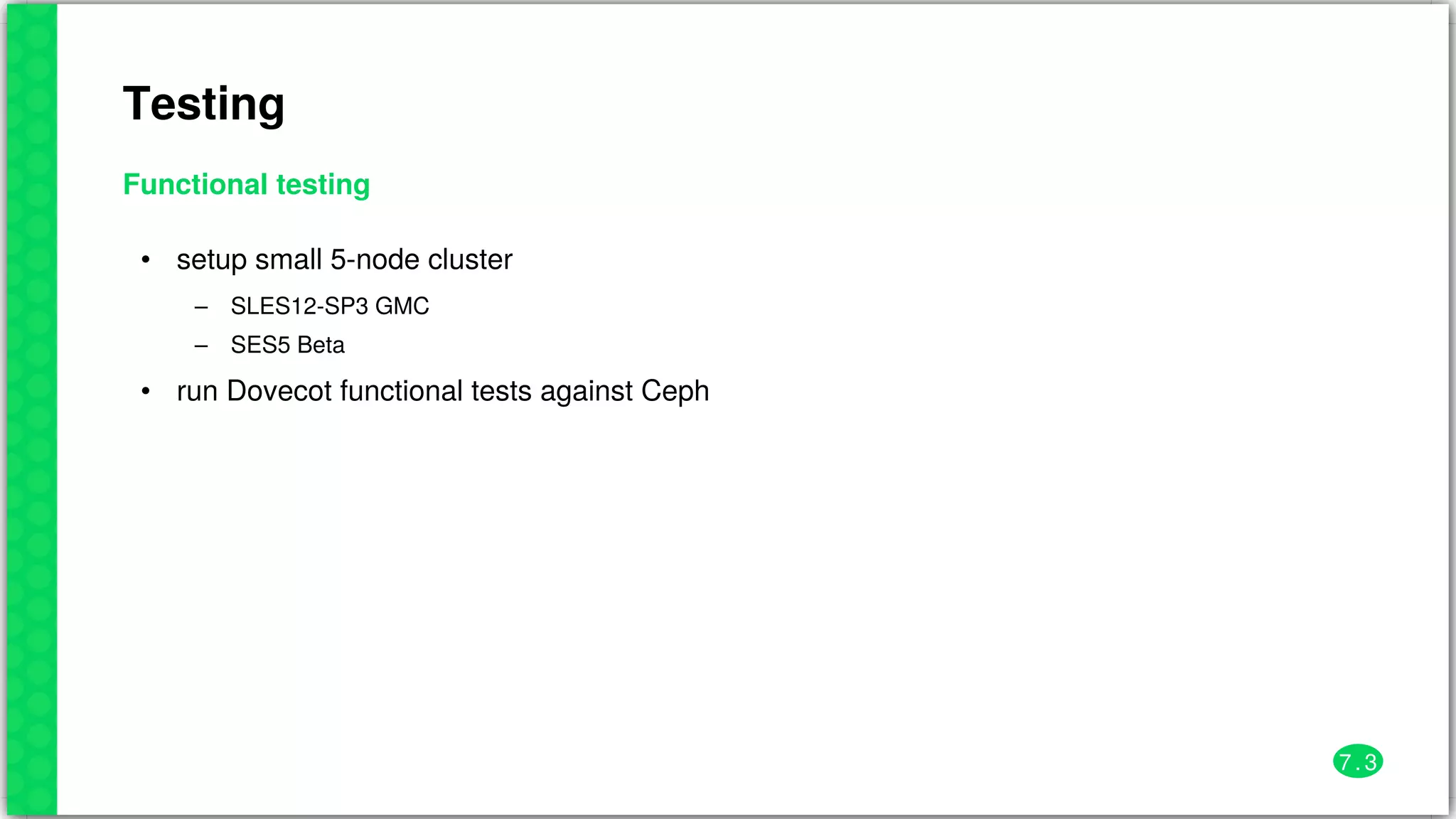

47. Testing
Functional testing
•
–
–
•
setup small 5-node cluster
SLES12-SP3 GMC
SES5 Beta
run Dovecot functional tests against Ceph
7 . 3

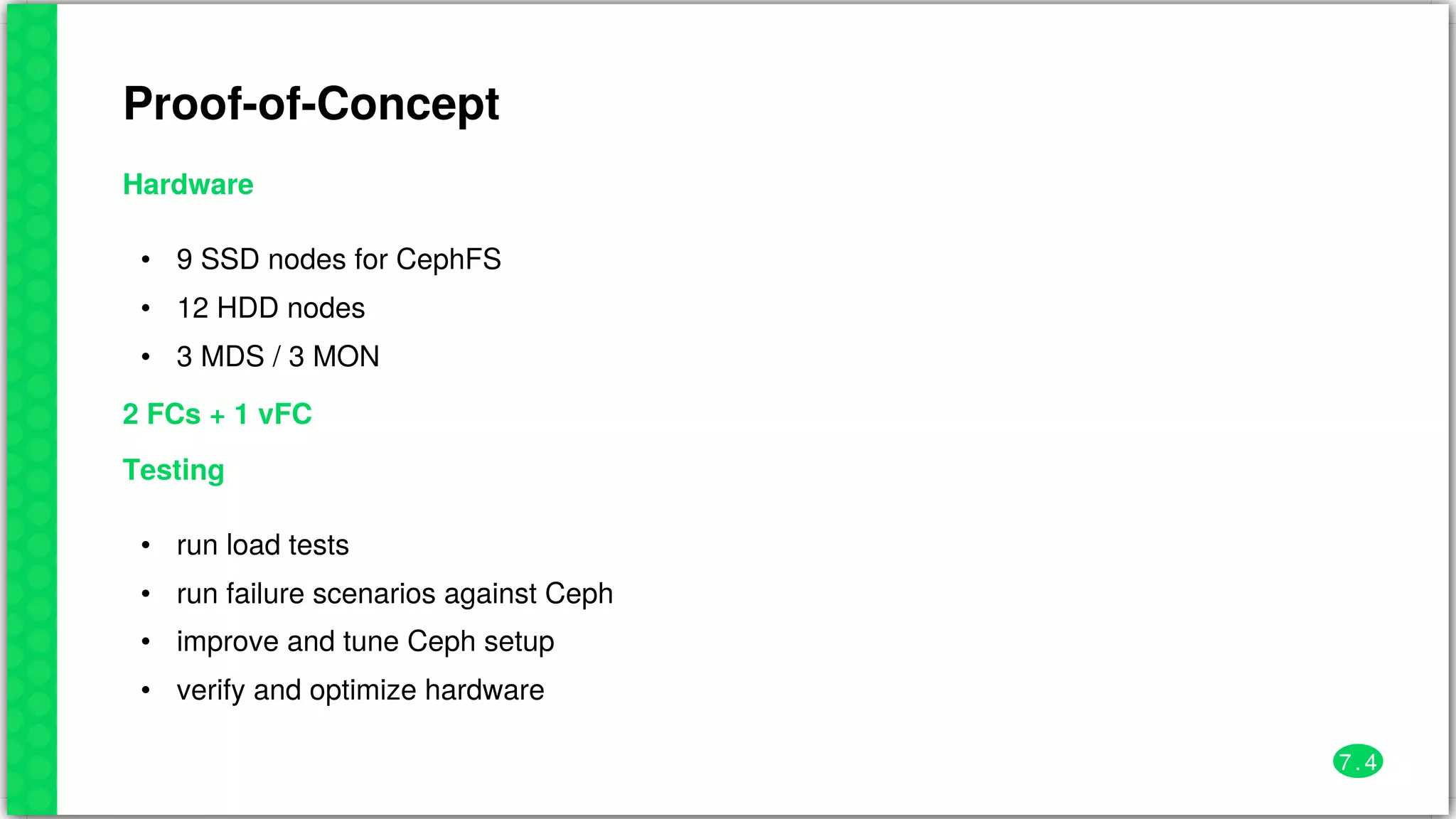

48. Proof-of-Concept
Hardware
•
•
•
9 SSD nodes for CephFS
12 HDD nodes
3 MDS / 3 MON
2 FCs + 1 vFC
Testing
•
•
•
•
run load tests
run failure scenarios against Ceph
improve and tune Ceph setup
verify and optimize hardware
7 . 4

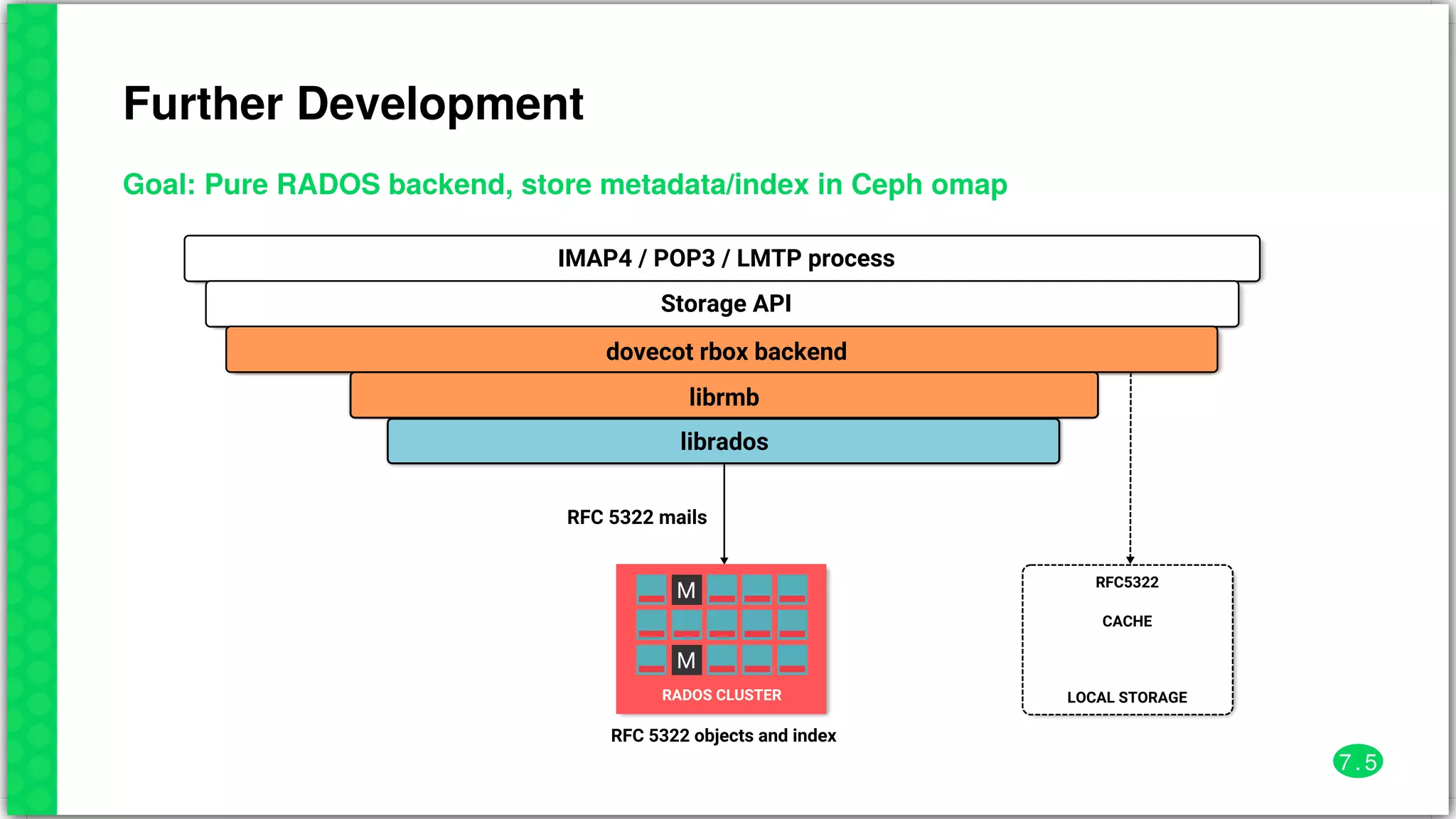

49. Further Development
Goal: Pure RADOS backend, store metadata/index in Ceph omap
M
M
RADOS CLUSTER
RFC5322
CACHE
LOCAL STORAGE
IMAP4 / POP3 / LMTP process
Storage API
dovecot rbox backend
librmb
librados
RFC 5322 mails
RFC 5322 objects and index
7 . 5

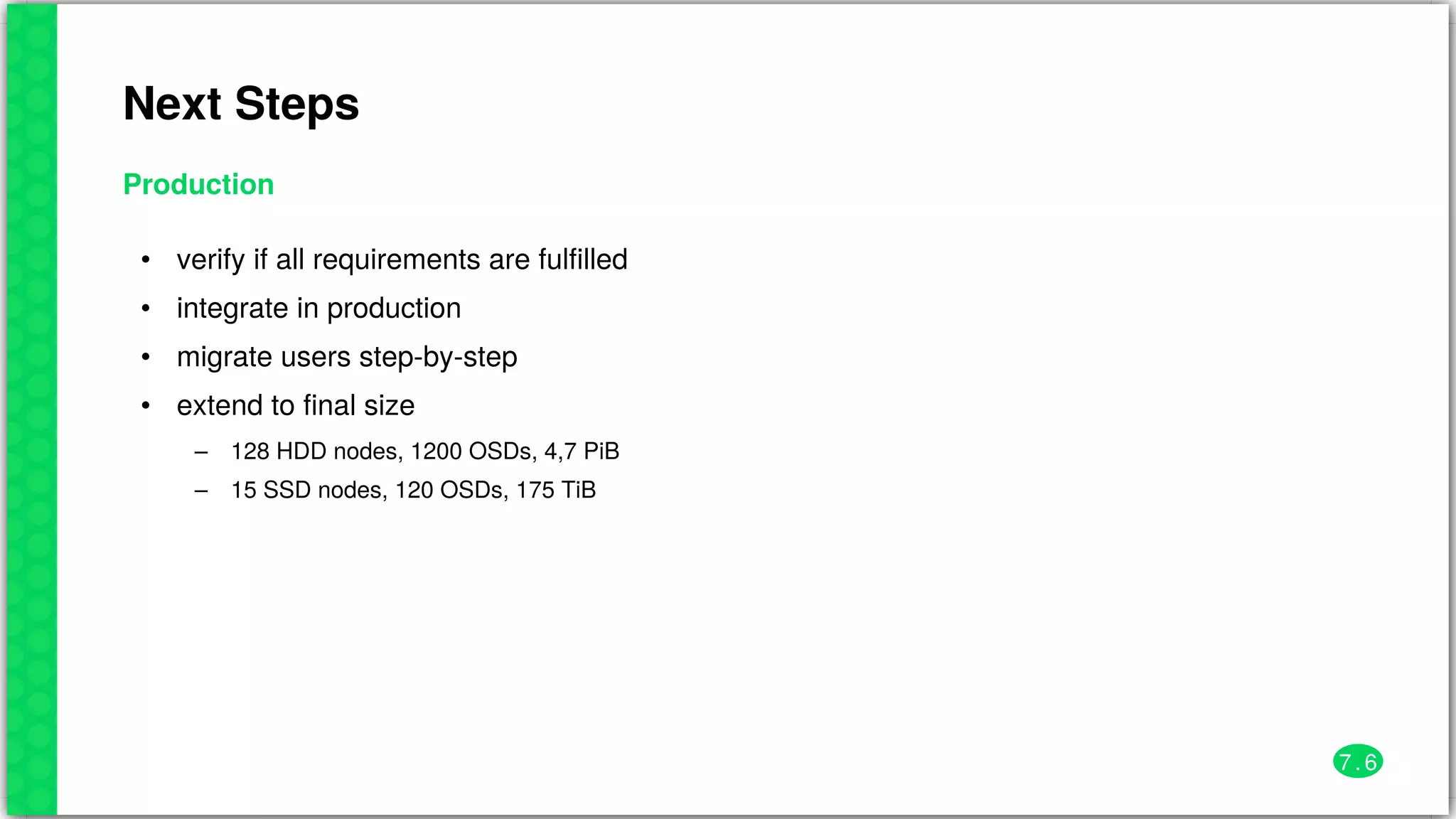

50. Next Steps
Production
•
•
•
•
–
–
verify if all requirements are fulfilled
integrate in production
migrate users step-by-step
extend to final size
128 HDD nodes, 1200 OSDs, 4,7 PiB
15 SSD nodes, 120 OSDs, 175 TiB
7 . 6

51. Conclusion
8 . 1

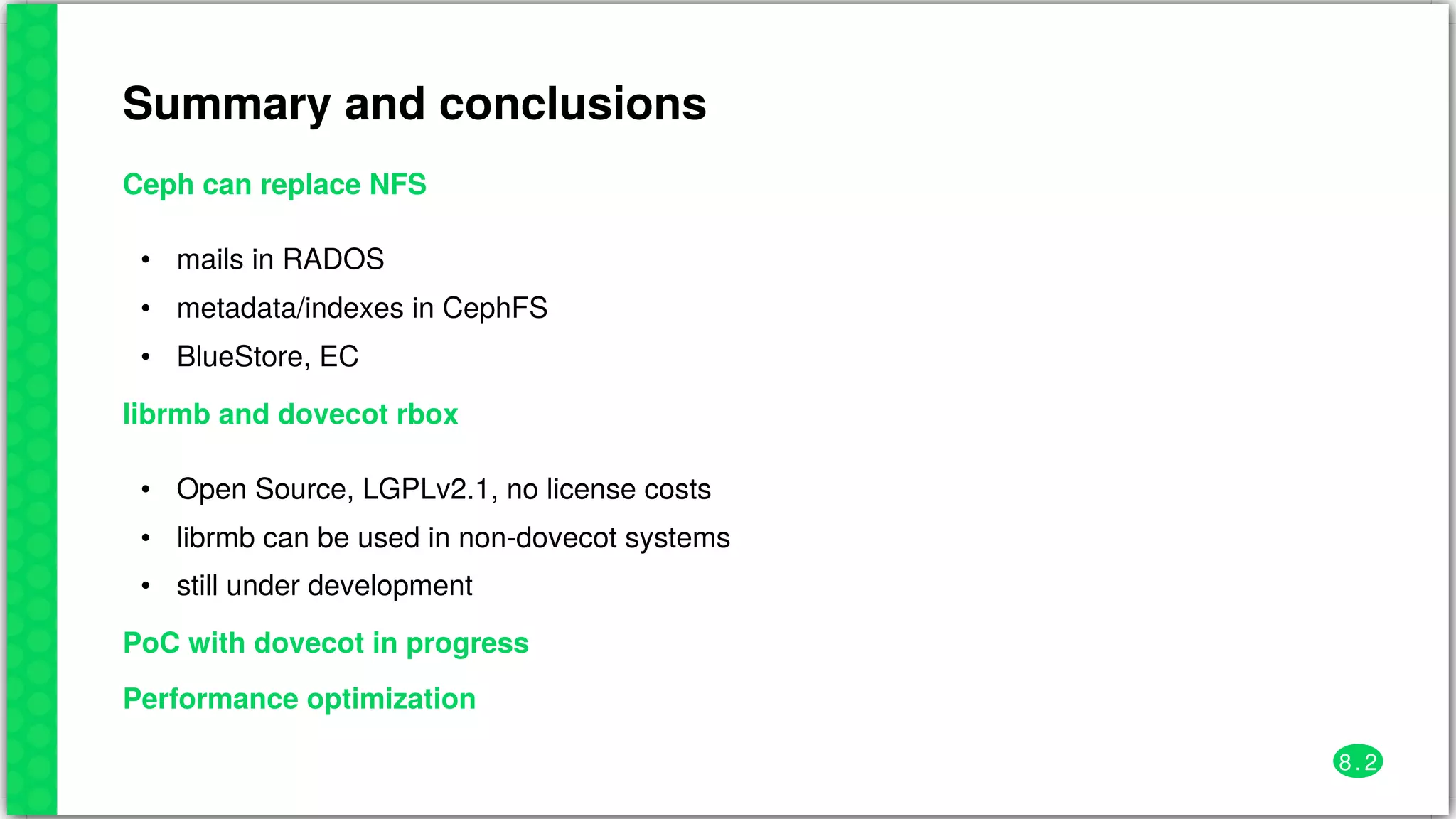

52. Summary and conclusions
Ceph can replace NFS
•
•
•
mails in RADOS
metadata/indexes in CephFS
BlueStore, EC
librmb and dovecot rbox
•
•
•
Open Source, LGPLv2.1, no license costs
librmb can be used in non-dovecot systems
still under development
PoC with dovecot in progress
Performance optimization
8 . 2

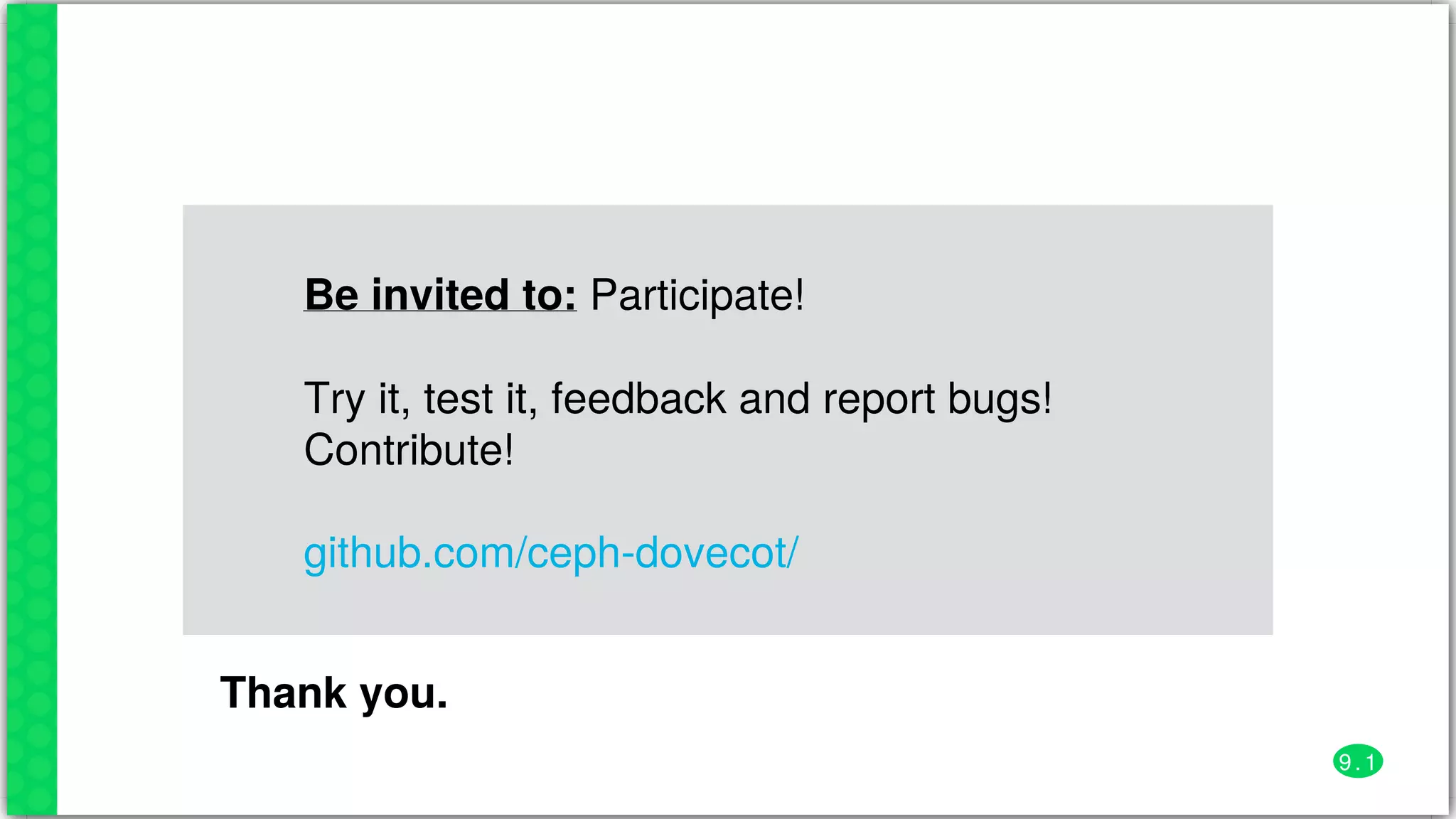

53. Be invited to: Participate!
Try it, test it, feedback and report bugs!
Contribute!
github.com/ceph-dovecot/
Thank you.
9 . 1

54. Questions?
9 . 2

55. 9 . 3

56. General Disclaimer
This document is not to be construed as a promise by any participating company to develop, deliver, or market a product. It is not a commitment to deliver any
material, code, or functionality, and should be relied upon in making purchasing decisions. SUSE makes no representations or warranties with respect to the
contents of this document, and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The
development, release, and timing of features or functionality described for SUSE products remains at the sole discretion of SUSE. Further, SUSE reserves the
right to revise this document and to make changes to its content, at any time, without obligation to notify any person or entity of such revisions or changes. All
SUSE marks referenced in this presentation are trademarks or registered trademarks of Novell, Inc. in the United States and other countries. All third-party
trademarks are the property of their respective owners.
9 . 4

58. https://dalgaaf.github.io/SUSECon-2017
10
