- 1. Electrical Safety Compilation by: Abbas taheri

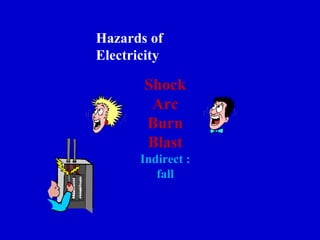

- 2.

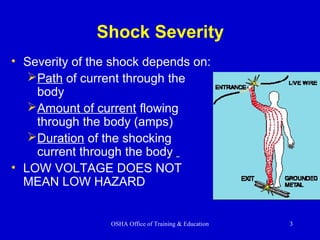

- 3. OSHA Office ofTraining & Education 3 Shock Severity • Severity of the shock depends on: Path of current through the body Amount of current flowing through the body (amps) Duration of the shocking current through the body, • LOW VOLTAGE DOES NOT MEAN LOW HAZARD

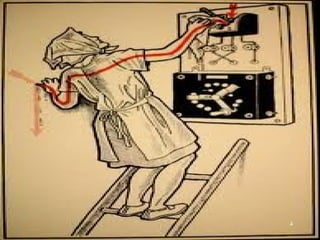

- 4.

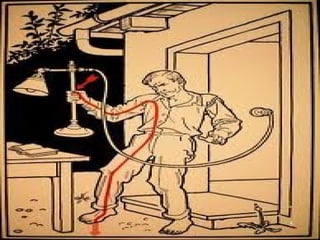

- 5.

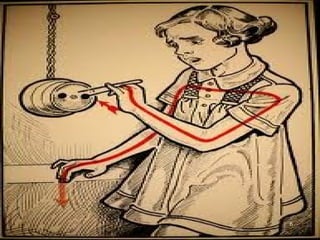

- 6.

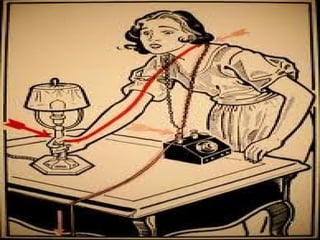

- 7.
- 9.
- 10. OSHA Office ofTraining & Education 10
- 11.
- 13. Average tolerance 1 mA Canjust be felt 5 to 9 mA Cannot let go 20 to 50 mA Increasing pain Above 50 mA May be fatal Amount of current Effect on a human Can just feel it Can’t let go Increasing pain Probably fatal ElectricCurrentinmilliamperes

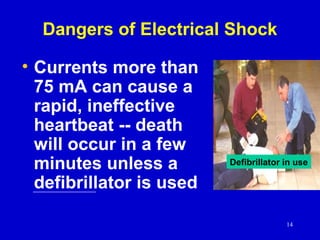

- 14. 14 Dangers of ElectricalShock • Currents more than 75 mA can cause a rapid, ineffective heartbeat -- death will occur in a few minutes unless a defibrillator is used Defibrillator in use

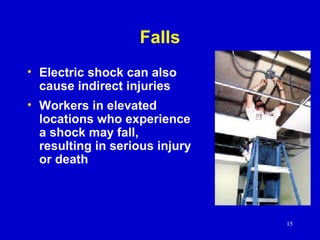

- 15. 15 Falls • Electric shockcan also cause indirect injuries • Workers in elevated locations who experience a shock may fall, resulting in serious injury or death

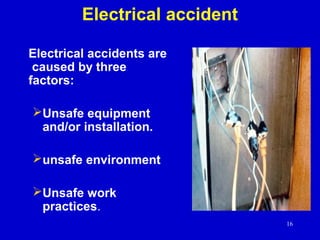

- 16. 16 Electrical accident Electrical accidentsare caused by three factors: Unsafe equipment and/or installation. unsafe environment Unsafe work practices.

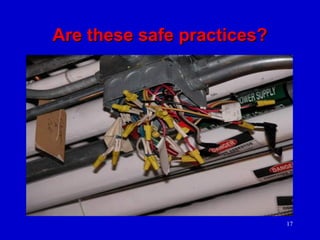

- 17. 17 Are these safepractices?Are these safe practices?

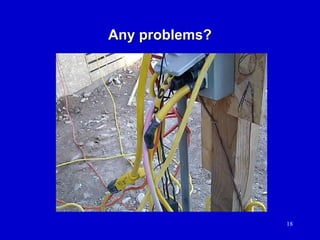

- 18.

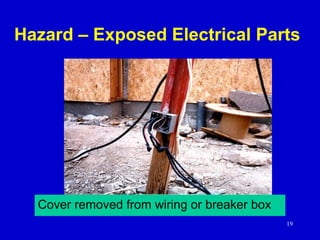

- 19. 19 Hazard – ExposedElectrical Parts Cover removed from wiring or breaker box
- 20.

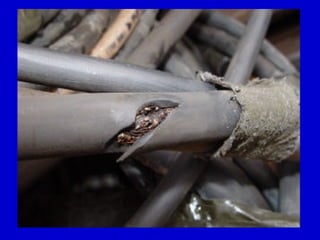

- 21. OSHA Office ofTraining & Education 21
- 22.
- 23. Question : • Wherea damage power cord can cause to electrocution in overhaul maintenance? 23

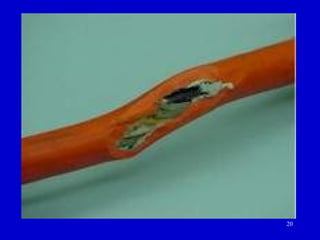

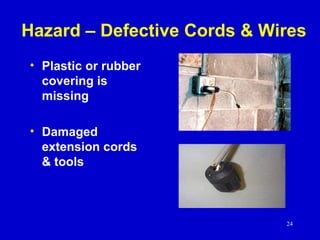

- 24. 24 Hazard – DefectiveCords & Wires • Plastic or rubber covering is missing • Damaged extension cords & tools

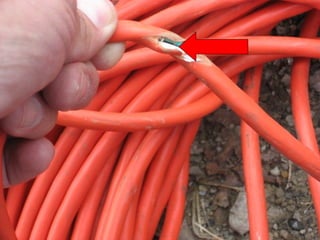

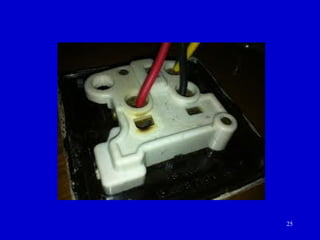

- 25.

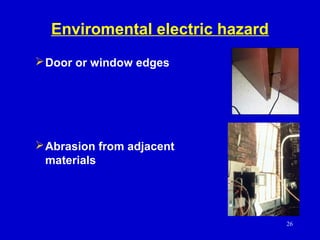

- 26. 26 Enviromental electric hazard Dooror window edges Abrasion from adjacent materials

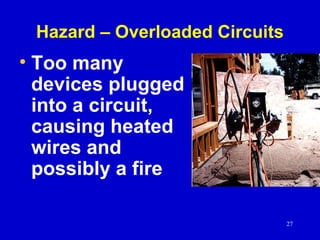

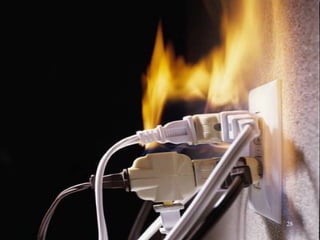

- 27. 27 Hazard – OverloadedCircuits • Too many devices plugged into a circuit, causing heated wires and possibly a fire
- 28.

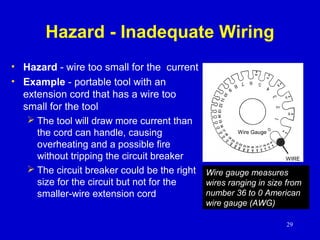

- 29. 29 Hazard - InadequateWiring • Hazard - wire too small for the current • Example - portable tool with an extension cord that has a wire too small for the tool The tool will draw more current than the cord can handle, causing overheating and a possible fire without tripping the circuit breaker The circuit breaker could be the right size for the circuit but not for the smaller-wire extension cord Wire Gauge WIRE Wire gauge measures wires ranging in size from number 36 to 0 American wire gauge (AWG)

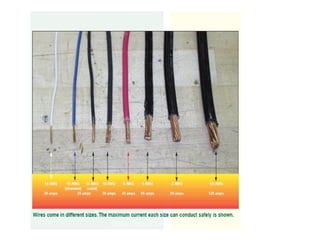

- 30. OSHA Office ofTraining & Education 30

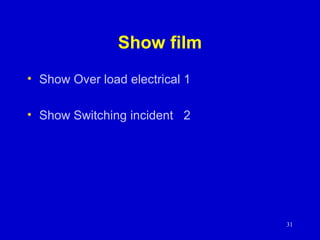

- 31. Show film • ShowOver load electrical 1 • Show Switching incident 2 31

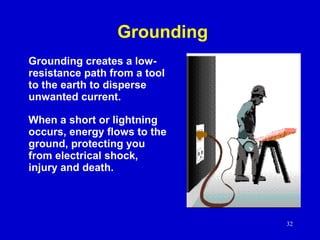

- 32. 32 Grounding Grounding creates alow- resistance path from a tool to the earth to disperse unwanted current. When a short or lightning occurs, energy flows to the ground, protecting you from electrical shock, injury and death.

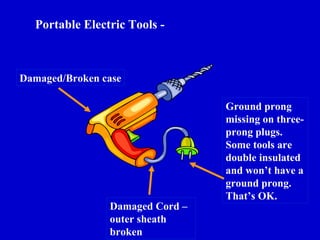

- 33. Portable Electric Tools- Damaged/Broken case Ground prong missing on three- prong plugs. Some tools are double insulated and won’t have a ground prong. That’s OK. Damaged Cord – outer sheath broken

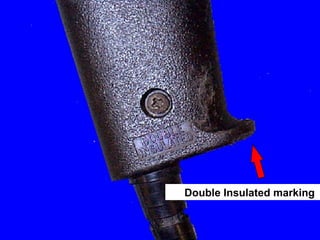

- 34. OSHA Office ofTraining & Education 34 Double Insulated marking

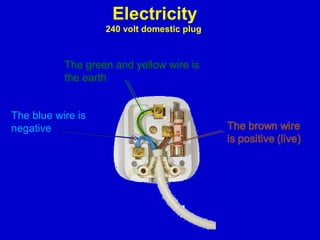

- 35. Electricity 240 volt domesticplug The blue wire is negative The green and yellow wire is the earth

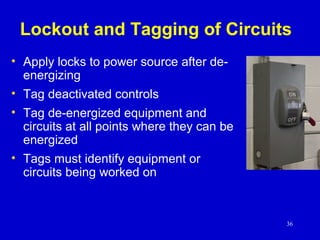

- 36. 36 Lockout and Taggingof Circuits • Apply locks to power source after de- energizing • Tag deactivated controls • Tag de-energized equipment and circuits at all points where they can be energized • Tags must identify equipment or circuits being worked on

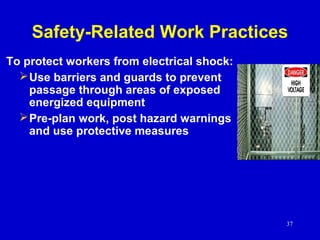

- 37. 37 Safety-Related Work Practices Toprotect workers from electrical shock: Use barriers and guards to prevent passage through areas of exposed energized equipment Pre-plan work, post hazard warnings and use protective measures
- 38.

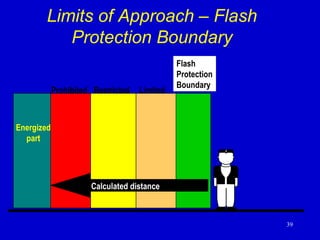

- 39. 39 Limits of Approach– Flash Protection Boundary Energized part Prohibited Restricted Limited Calculated distance Flash Protection Boundary
- 40. 40 Examples of PPE Hazard Risk Category1 Hazard Risk Category 2 Hazard Risk Category 3 Hazard Risk Category 4 Hazard Risk Category 0
- 41.
- 42. OSHA Office ofTraining & Education 42
- 43. OSHA Office ofTraining & Education 43 Hazard - Overhead Power Lines • Usually not insulated • Examples of equipment that can contact power lines: Crane Ladder Scaffold Backhoe Scissors lift Raised dump truck bed

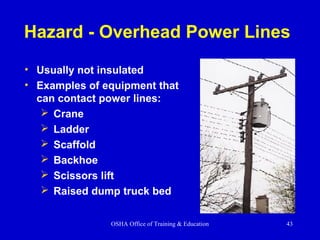

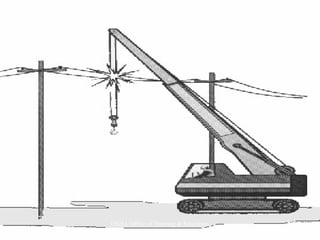

- 44. OSHA Office ofTraining & Education 44
- 45.
- 46. OSHA Office ofTraining & Education 46

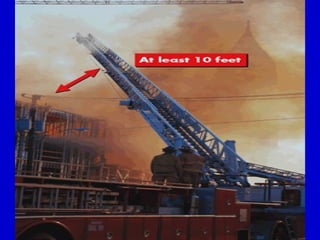

- 47. 47 Electrical HazardsElectrical Hazards Typesof EmergenciesTypes of Emergencies Downed WiresDowned Wires
- 48. OSHA Office ofTraining & Education 48
- 49. OSHA Office ofTraining & Education 49

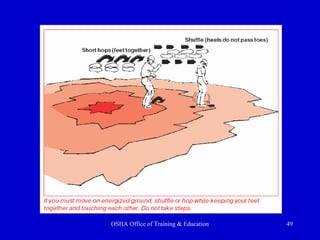

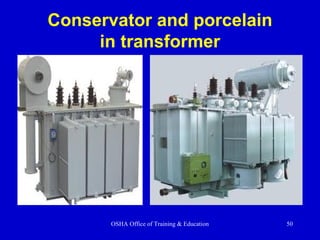

- 50. Conservator and porcelain intransformer OSHA Office of Training & Education 50

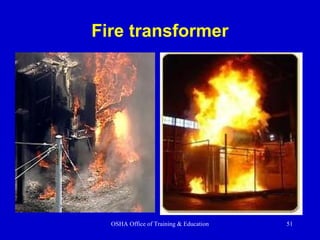

- 51. Fire transformer OSHA Officeof Training & Education 51
