This document discusses the different types of ECG lead configurations used to record electrical activity of the heart. It describes the four main types as bipolar limb leads, augmented unipolar limb leads, chest or precordial leads, and Frank leads. Bipolar limb leads involve electrodes placed on the arms and legs in an Einthoven's triangle configuration. Augmented unipolar leads add a central terminal, while chest leads place electrodes on the chest. Color codings are also provided for the electrode placements.

1. ECG LEAD CONFIGURATION

3. Four types of electrodes
• Bipolar limb leads or standard leads
• Augmented unipolar limb leads
• Chest leads or precordial leads
• Frank lead system or corrected orthogonal
leads

4. Bipolar limb leads

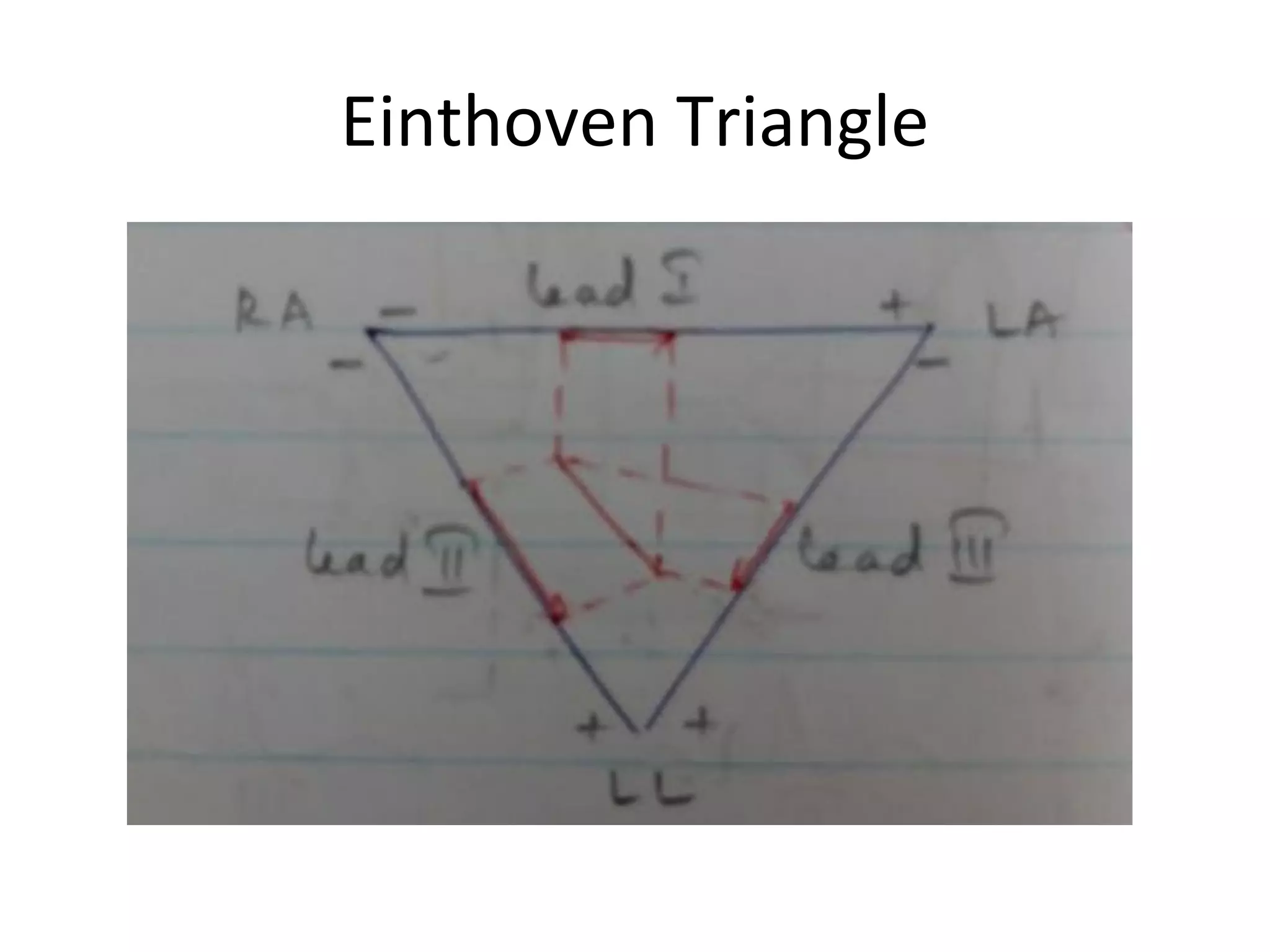

6. Einthoven Triangle

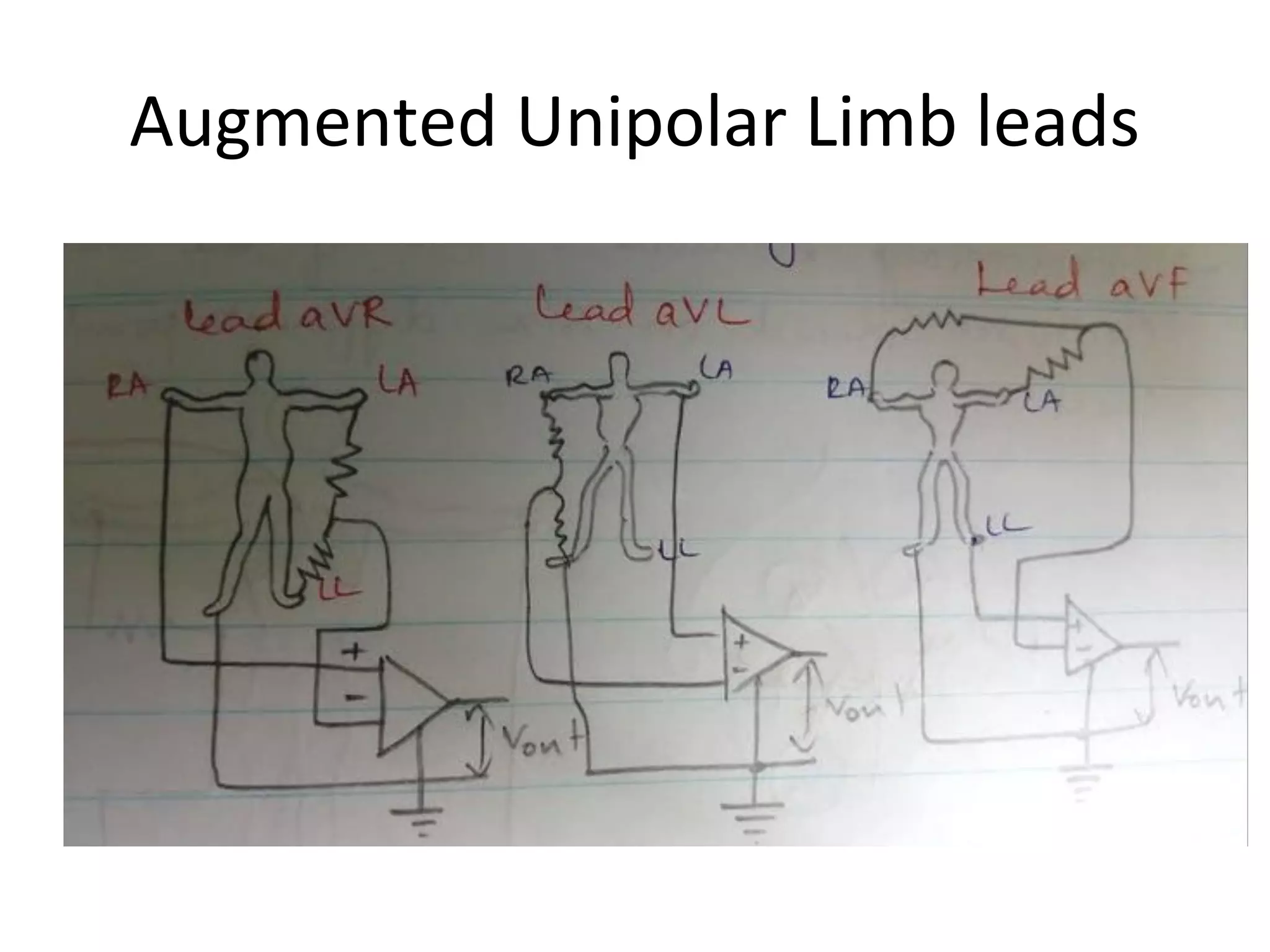

7. Augmented Unipolar Limb leads

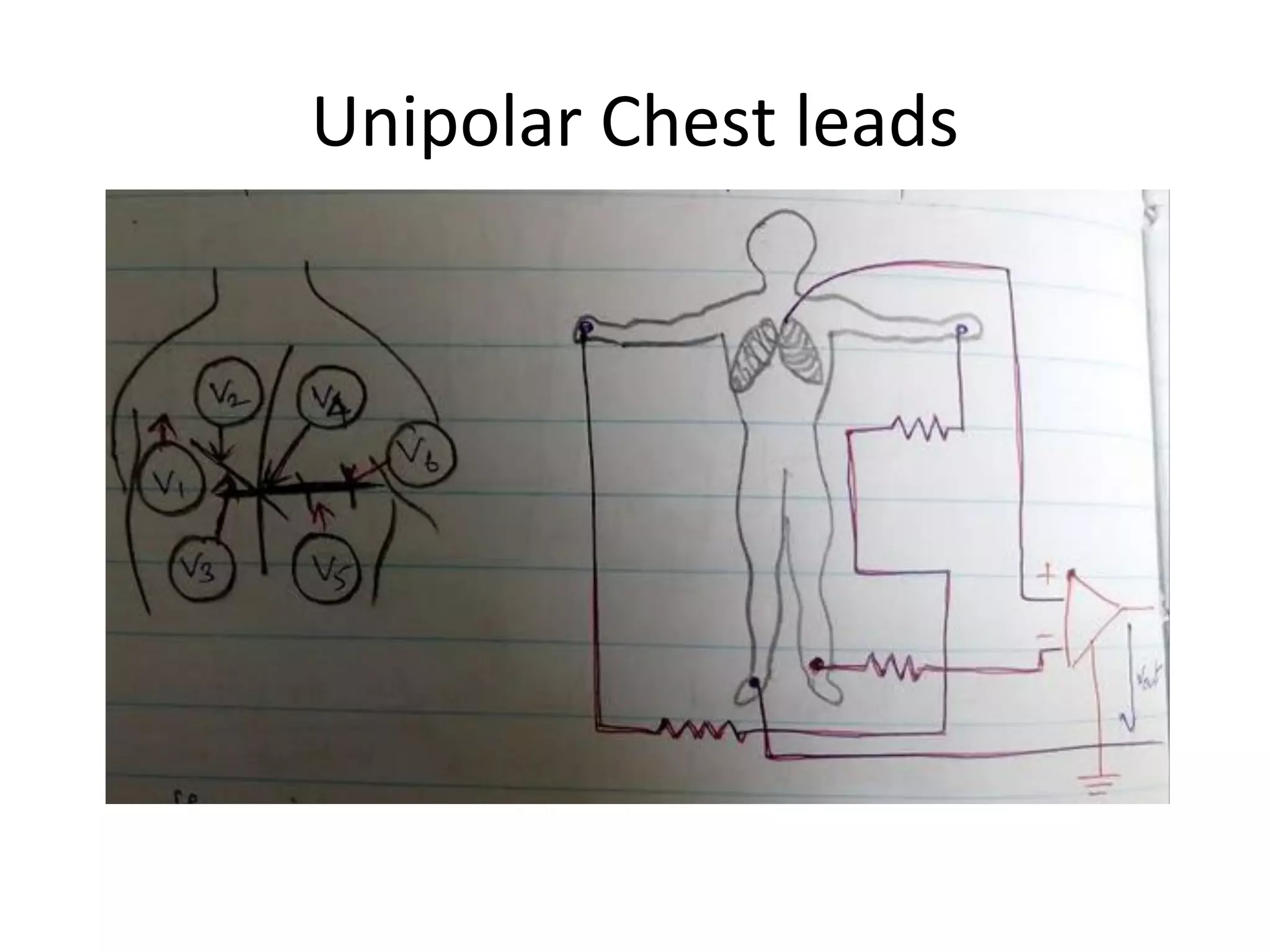

10. Unipolar Chest leads

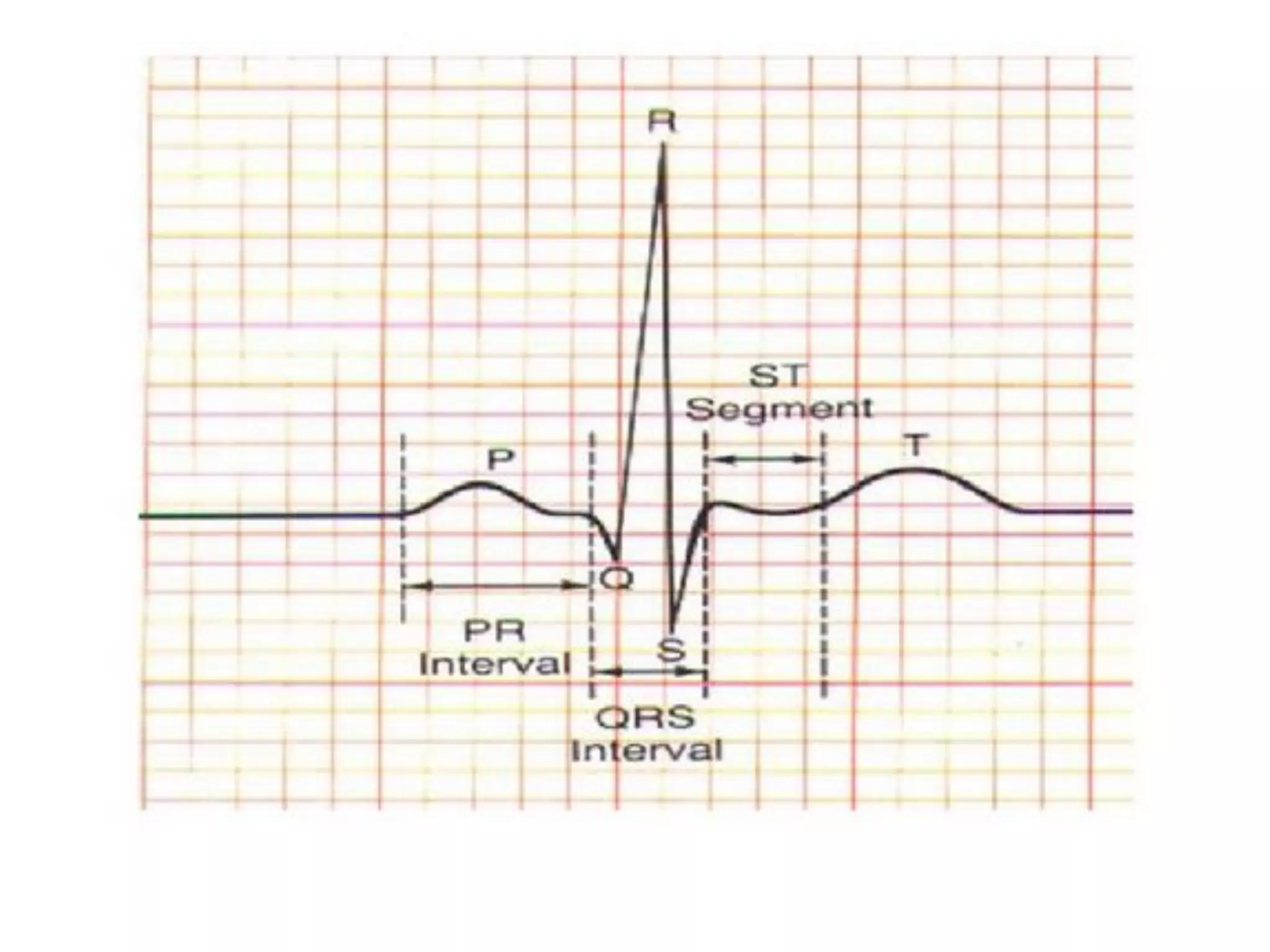

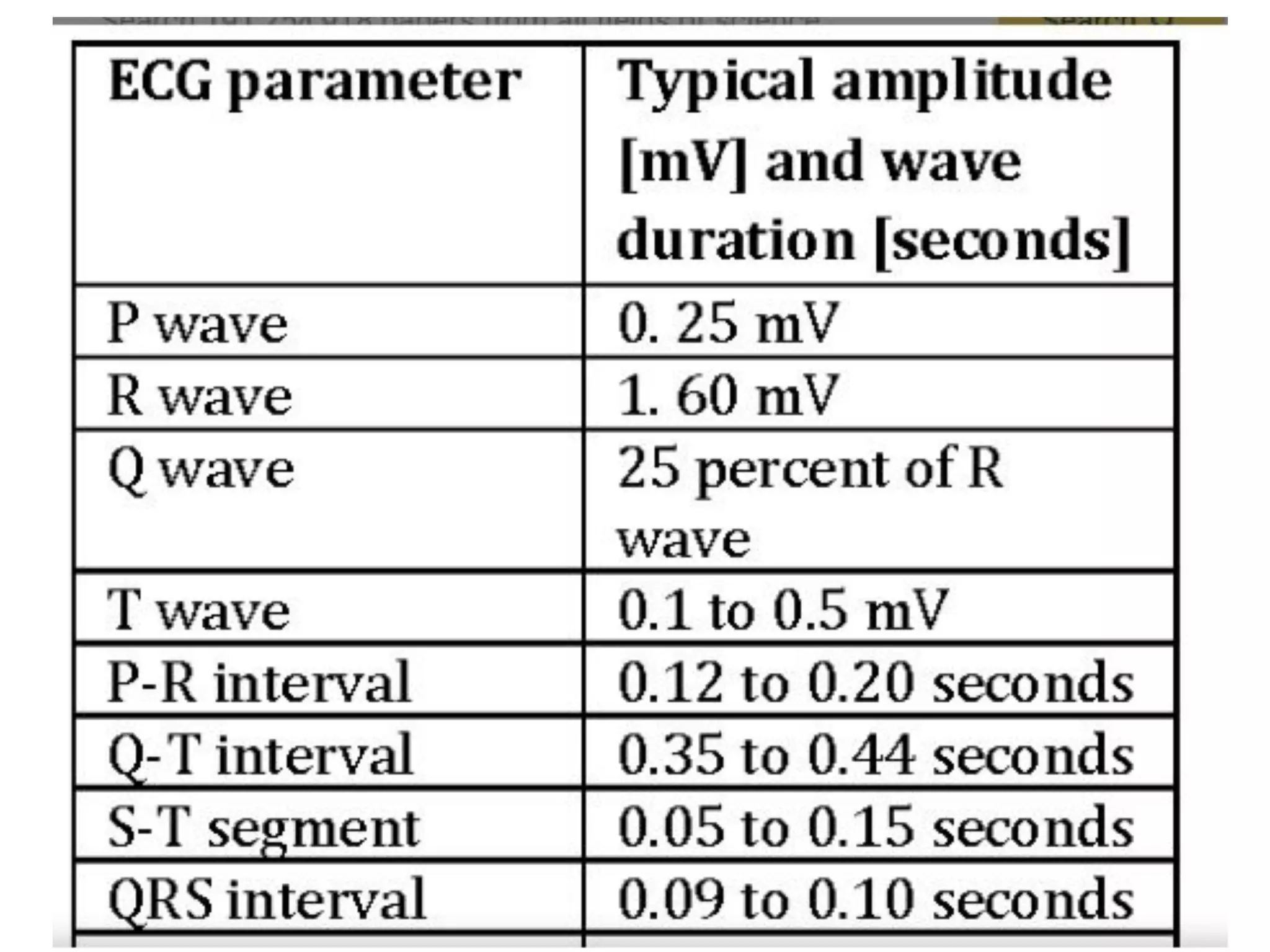

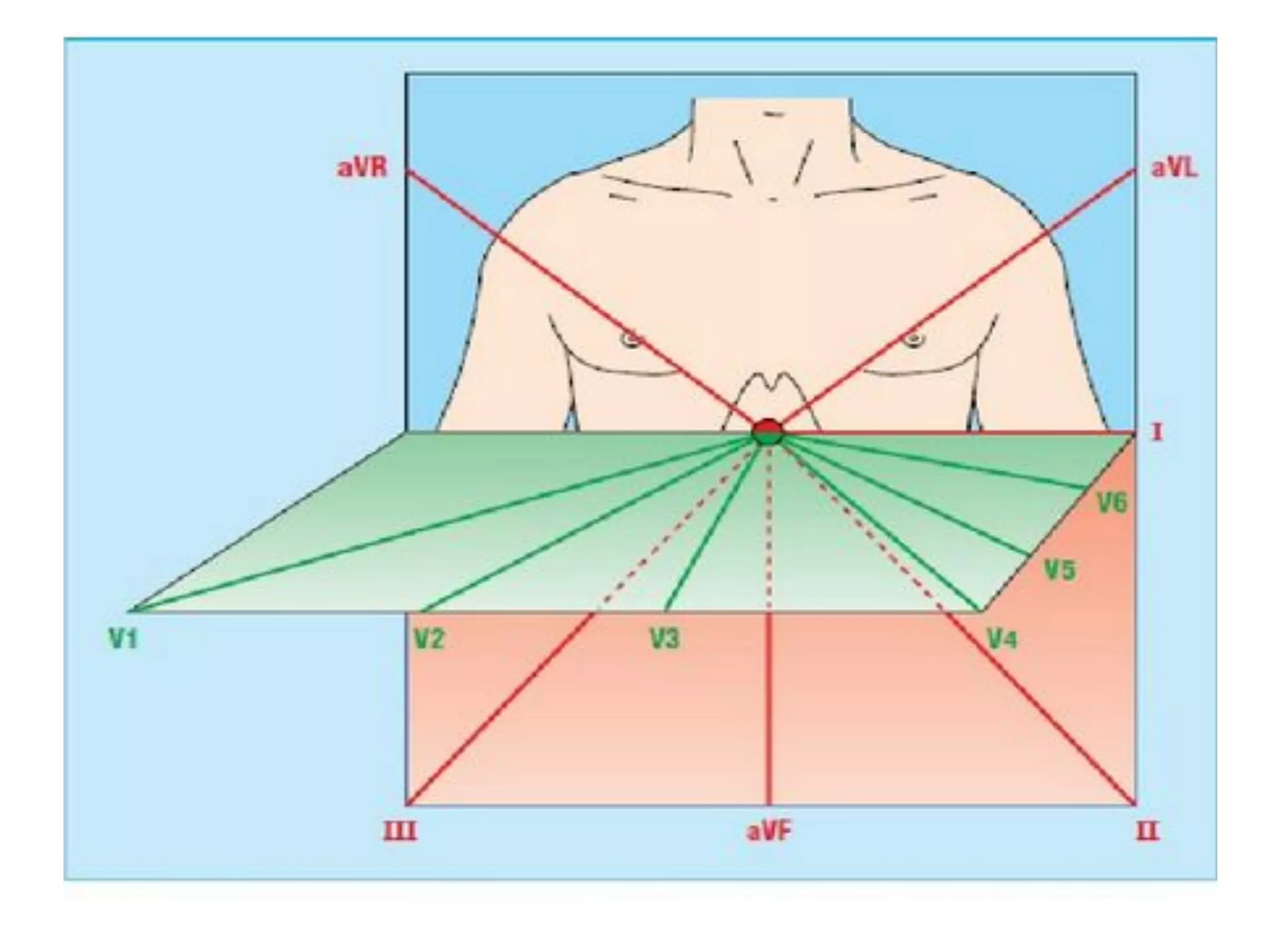

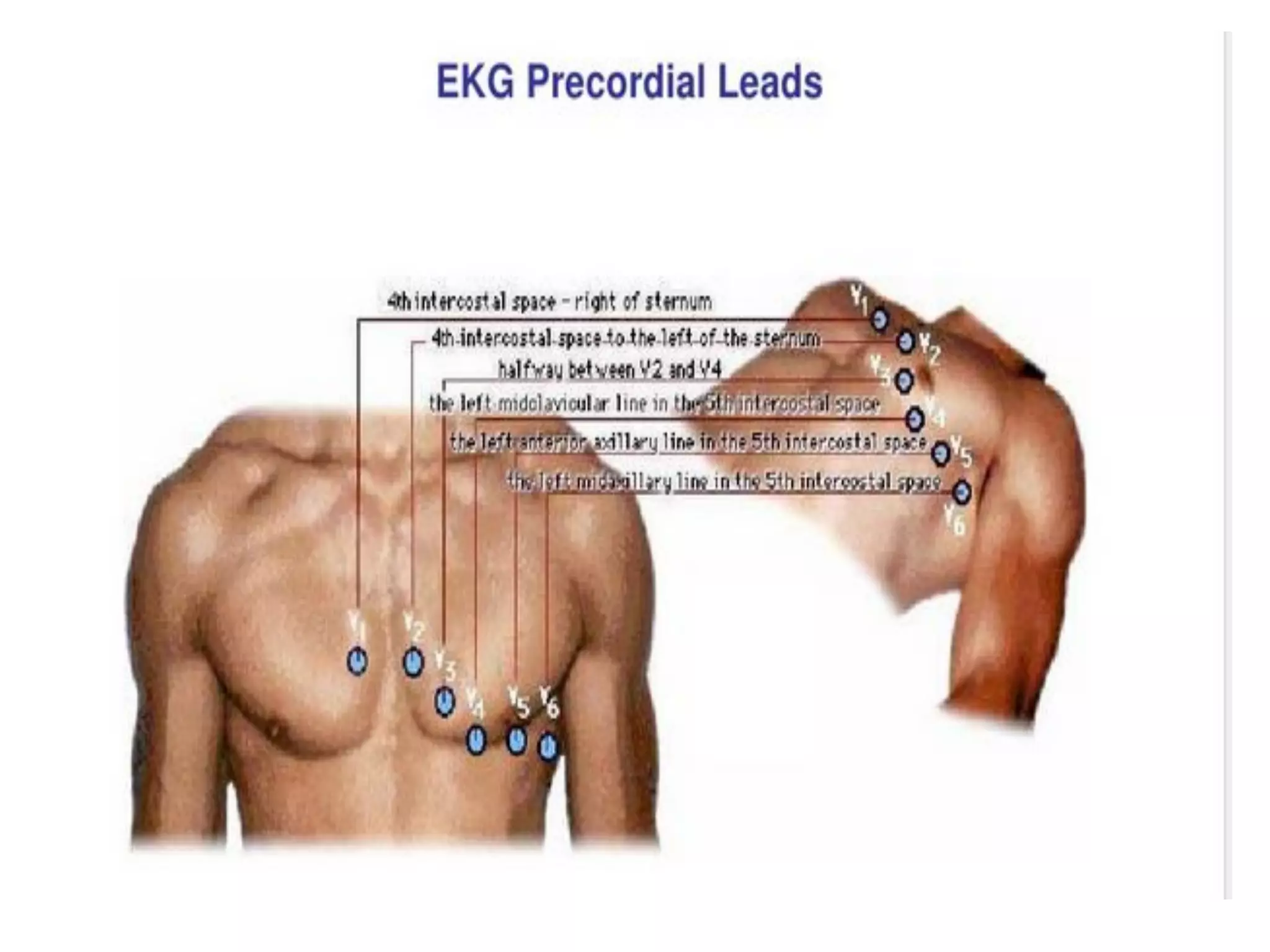

21. Colour codings of leads
• White-RA
• Black-LA
• Green –RL
• Red-LL
• Brown- Chest
