1. ECG
Introduction
Procedure
Components
Normal vs Abnormal ECG

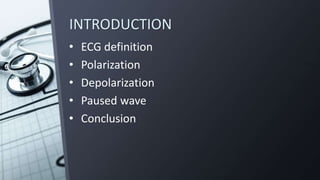

2. INTRODUCTION
• ECG definition
• Polarization
• Depolarization
• Paused wave
• Conclusion

3. DEFINITION
• ECG is a physical test for recording of electrical
activity of heart conducted through ions on body
surface.

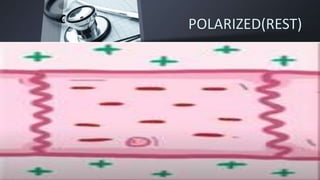

4. POLARIZED(REST)

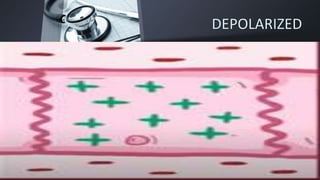

5. DEPOLARIZED

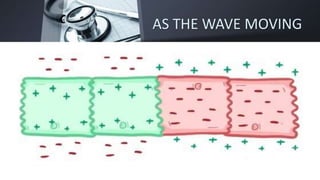

6. AS THE WAVE MOVING

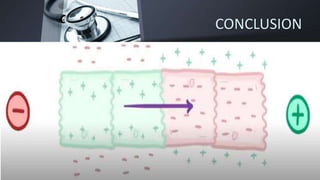

7. CONCLUSION

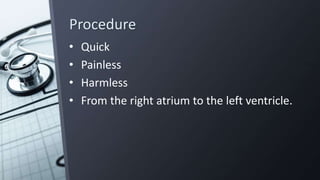

8. Procedure
• Quick
• Painless
• Harmless
• From the right atrium to the left ventricle.

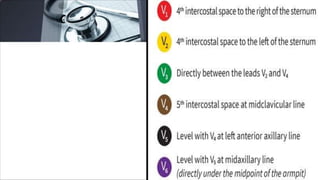

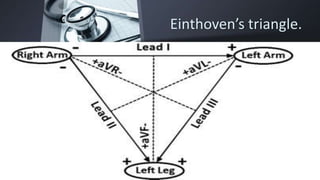

10. Einthoven’s triangle.

11. COMPONENTS
• P wave
• PR interval
• QRS complex
• ST interval
• T wave

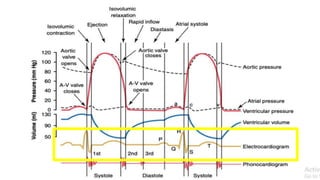

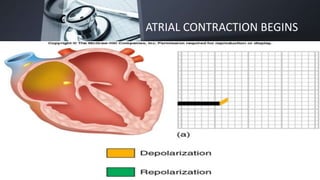

13. ATRIAL CONTRACTION BEGINS
Sunday, July 19, 2020 Lecture 08- CVS_Dr Salman Khan 13

14. DAISTOLE COMPLETED
Sunday, July 19, 2020 Lecture 08- CVS_Dr Salman Khan 14

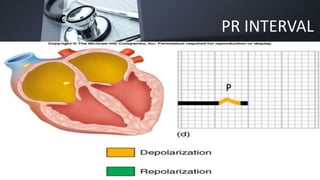

15. PR INTERVAL
Sunday, July 19, 2020 Lecture 08- CVS_Dr Salman Khan 15
P

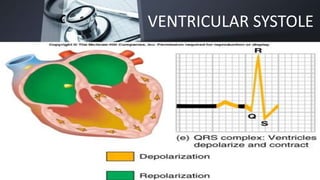

16. VENTRICULAR SYSTOLE
Sunday, July 19, 2020 Lecture 08- CVS_Dr Salman Khan 16

17. ST INTERVAL
Sunday, July 19, 2020 Lecture 08- CVS_Dr Salman Khan 17

18. Sunday, July 19, 2020 Lecture 08- CVS_Dr Salman Khan 18
DIASTOLE BEGINS

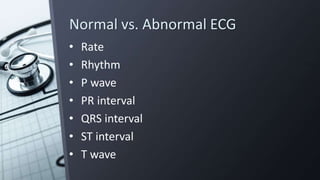

19. Normal vs. Abnormal ECG
• Rate
• Rhythm
• P wave
• PR interval
• QRS interval
• ST interval
• T wave

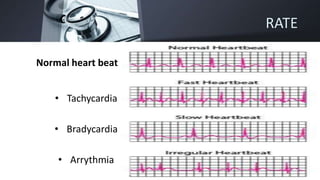

20. RATE
Normal heart beat
• Tachycardia
• Bradycardia
• Arrythmia
Product B
• Feature 1
• Feature 2
• Feature 3

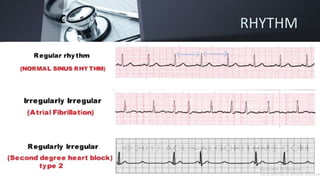

21. RHYTHM

22. P WAVE
P-pulmonale
P-mitrale
Right Atrial Enlargement
Left Atrial Enlargement

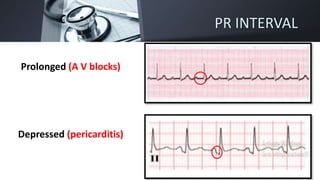

23. PR INTERVAL
Prolonged (A V blocks)
Depressed (pericarditis)

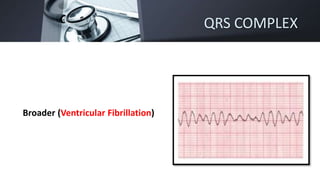

24. QRS COMPLEX
Broader (Ventricular Fibrillation)

25. ST Interval
Acute Myocardial Infarction
Myocardial Ischemia

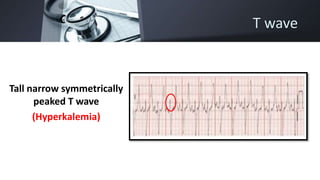

26. T wave
Tall narrow symmetrically
peaked T wave
(Hyperkalemia)

27. THE END
We tried to give you the
best of what we knew and
we wish you may have
understood it well.
