The e-MAR Navigator Port and Survey Status pilots

2. DNV GL © 2013 27 May 2014
Introduction and background
 A survey of potential eMar services related to safety, security and environmental
protection of shipping has been carried out
 A number of such services have been identified that could benefit from being
offered within the eMar ecosystem
 Pilot implementations of two such services have been initiated within eMar
– Port Navigator for ship reporting messages
– Exchange ship survey status
 Both are utilizing the maritime common reporting schema (CRS)
2

3. DNV GL © 2013 27 May 2014
Pilot implementation I
Navigator Port as an eMar web-service
3

4. DNV GL © 2013 27 May 2014
The Navigator Port Service
 A service (software) for simplifying port clearance procedures and alleviate the
administrative burden on the captain
– Amount of paperwork may be reduced by 90%
 > 2500 ships world-wide use Navigator Port on a daily basis
 Core module: port manager
 Several additional modules:
– Passage planner module, work and rest hours module, Voyage planning and
optimization module, fleet manager module, vessel admin module
 Software updated by CD three times a year and by weekly e-mails
4

5. DNV GL © 2013 27 May 2014
Navigator Port
 Providing correct information and forms according to Port State Authorities’
requirements
– More than 1600 port clearance forms, covering more than 11 000 ports in more
than 180 countries are available
– Specific arrival and departure checklists for all major ports
– Forms programmatically linked to vessel logs and databases
– Automatic pre-filled forms with ship and crew data
– Electronic reporting directly to Authorities are included
– E.g. to USA (eNOAD), Australia, Singapore, Germany, Sweden, New Zealand,
Ecuador, CARICOM and the Panama canal.
– New reporting requirements will be met when entering into force
 May include other forms than port state reports
– Company specific forms, environmental reporting, daily reports to charterers
5

6. DNV GL © 2013 27 May 2014
Navigator Port report generator user interface
6

7. DNV GL © 2013 27 May 2014
Examples of generated forms
7

8. DNV GL © 2013 27 May 2014
Navigator Port – main advantages
 Reduce paperwork on the bridge
 Simplifies and speeds up ship to shore reporting
 Smoother port clearance procedures
 Reduce delays and possible penalties during port calls
 Ensure safer navigation
– Allowing the master to focus on his navigational tasks
 Currently, forms are typically submitted as attachments to e-mail
 With increasing broadband connections between ship and shore added value can
be obtained by offering Navigator as a web service
8

9. DNV GL © 2013 27 May 2014
Navigator Port eMar pilot
 Implement Navigator ship reporting as an eMar web service using the CRS
 Successful communication with eBOS test-bed
– Successful submission of pre-arrival information
– Immediate confirmation if submission is OK
– Useful error messages received in case of incorrect forms/missing information
– Currently, we only submit Vessel ID (IMO number), Vessel name, departure
port, arrival port, ETA
 Plans for further work:
– Extend service with other information related to Crew, Cargo..
– Extend service with other functionality, e.g. daily reports, environmental
reporting, ...
– Possibly integrate with NCA system
9

10. DNV GL © 2013 27 May 2014

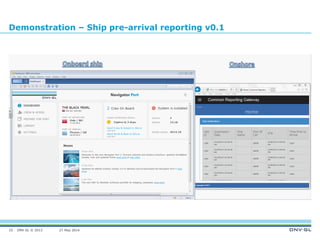

Demonstration – Ship pre-arrival reporting v0.1
10

11. DNV GL © 2013 27 May 2014
Demonstration – Ship pre-arrival reporting v0.1
11

12. DNV GL © 2013 27 May 2014
Pilot implementation II
Ship survey status as an eMar web-service
12

13. DNV GL © 2013 27 May 2014
DNV Exchange
 Web-based interface for clients and other parties to obtain information regarding
relationship to class
 Basic service gives secure, web-based access to class survey and certificate
status and general reference information
– Access to reports of certificates, periodic surveys, conditions of class, memos to
owner, retroactive requirements etc.
– Online survey request; survey scheduling tools
 Additional information depending on subscription levels
– Electronic scanned vessel certificates, additional vessel documentation, port
state control checklists and guidance material
 Amount of information is different for owners and managers, flag and port state
authorities, etc.
– Some of the information is publically available in the register of vessels
13

14. DNV GL © 2013 27 May 2014
DNV Exchange web tool: Vessel info
 Contains the following information:
– Summary, Dimensions, Classification, Registry, Hull Summary, Machinery
Summary, Yard Owner
– Searchable by vessel name, DNV ID, IMO No, Builder’s No and Flag
14

15. DNV GL © 2013 27 May 2014

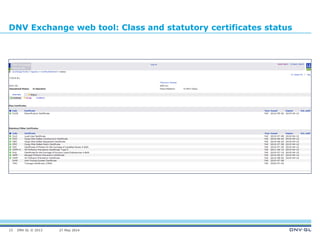

DNV Exchange web tool: Class and statutory certificates status
15

16. DNV GL © 2013 27 May 2014
DNV Exchange web tool: Class and statutory survey status
16

17. DNV GL © 2013 27 May 2014
Ship survey status as eMar web service
 Implement vessel info and ship certificate and survey status as an eMar web
service using the CRS
– Initially, only public information
 Currently, a first version of the eMar web service is available
– Containing overview of vessel info, certificate status and survey status for class
and statutory certificates and surveys
– Available at https://exchange.dnv.com/exchange/VesselInfoWS.asmx?WSDL
17

18. DNV GL © 2013 27 May 2014
Demonstration – Ship survey status v0.1
18

19. DNV GL © 2013 27 May 2014
Summary and conclusions
 Work has been initiated to implement two eMar pilots using the CRS
– Navigator Port pre-arrival reporting
– Ship survey status
 Preliminary pilots with limited functionality are working fine
 Future work will focus on extending the services with more functionality
 The CRS is sufficient for the information exchange needed in these two pilots
 DNV-GL wants to be ready to offer these types of services as soon as the eMar
ecosystem and necessary infrastructure are in place
