DK Group
    One ship pollutes as much
    as 50 million cars
    by Jørn P. Winkler, founder




1                                 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

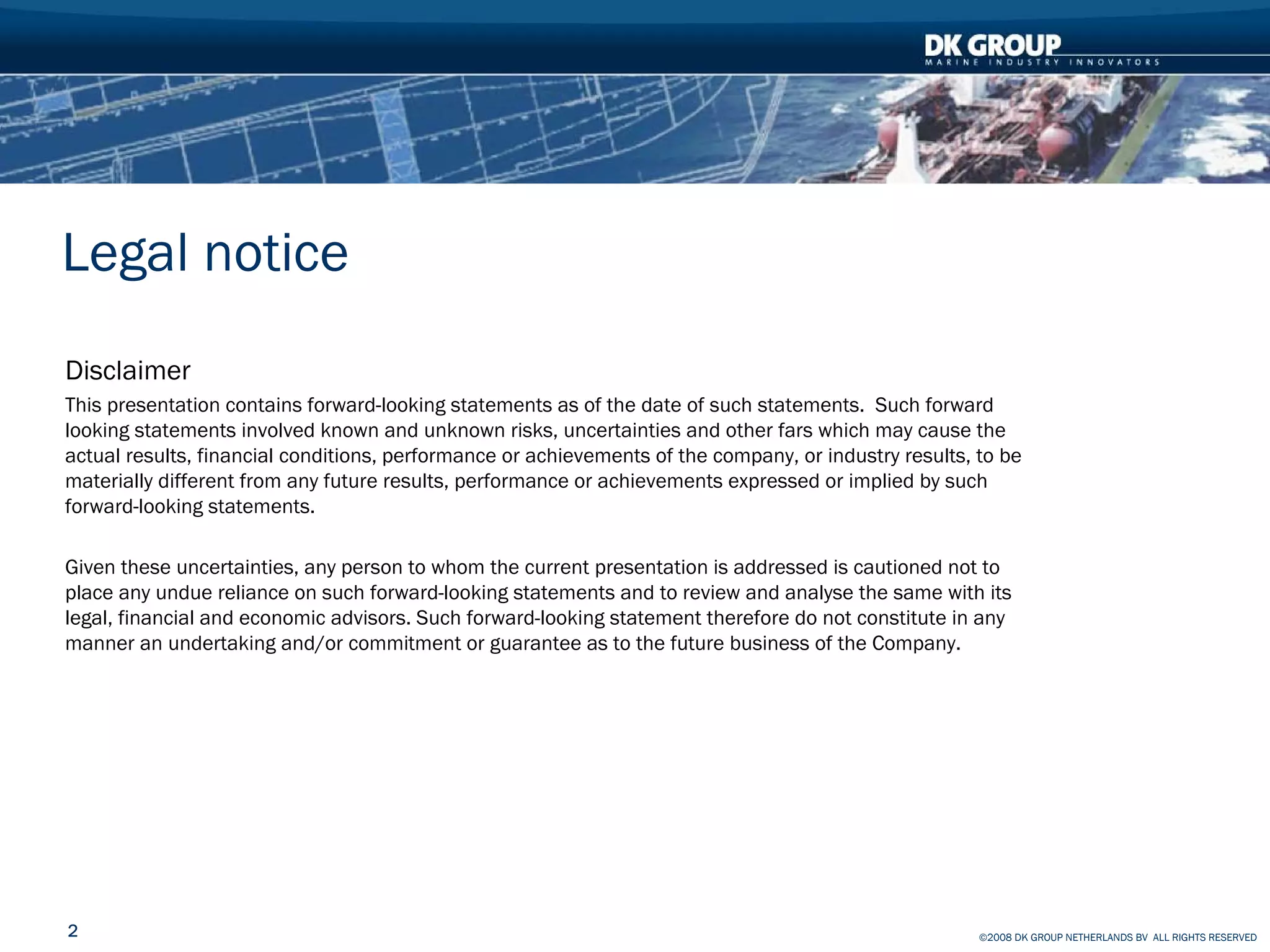

Legal notice
Disclaimer
This presentation contains forward-looking statements as of the date of such statements. Such forward
looking statements involved known and unknown risks, uncertainties and other fars which may cause the
actual results, financial conditions, performance or achievements of the company, or industry results, to be
materially different from any future results, performance or achievements expressed or implied by such
forward-looking statements.

Given these uncertainties, any person to whom the current presentation is addressed is cautioned not to
place any undue reliance on such forward-looking statements and to review and analyse the same with its
legal, financial and economic advisors. Such forward-looking statement therefore do not constitute in any
manner an undertaking and/or commitment or guarantee as to the future business of the Company.




2                                                                                                      ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
DK Group and Danish Green Ship of the Future




3                                   ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
“The time of half-measure
           has passed. We are
           entering a period of
               consequences”

           - Winston Churchill




4                ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

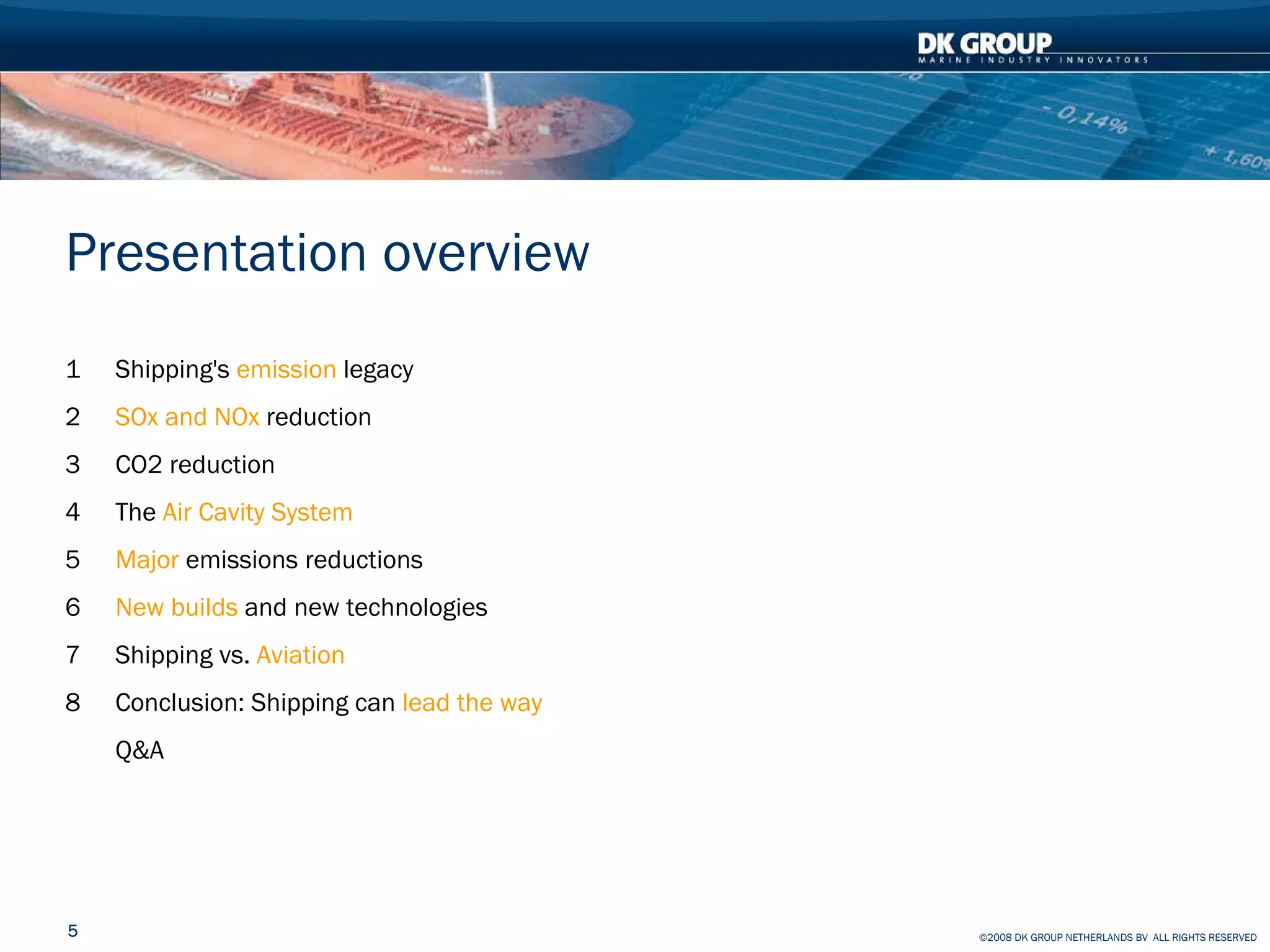

Presentation overview
1   Shipping's emission legacy
2   SOx and NOx reduction
3   CO2 reduction

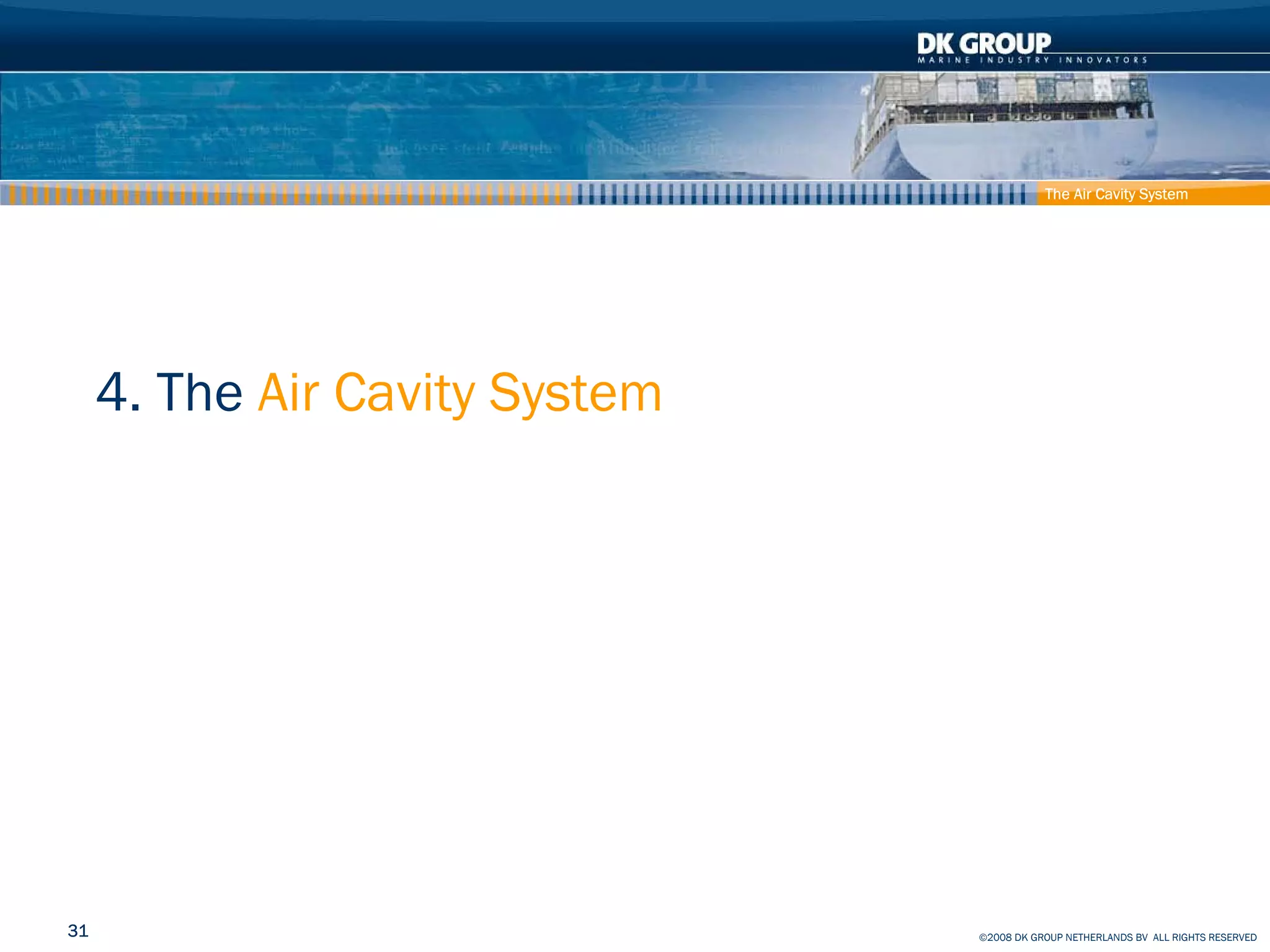

4   The Air Cavity System
5   Major emissions reductions

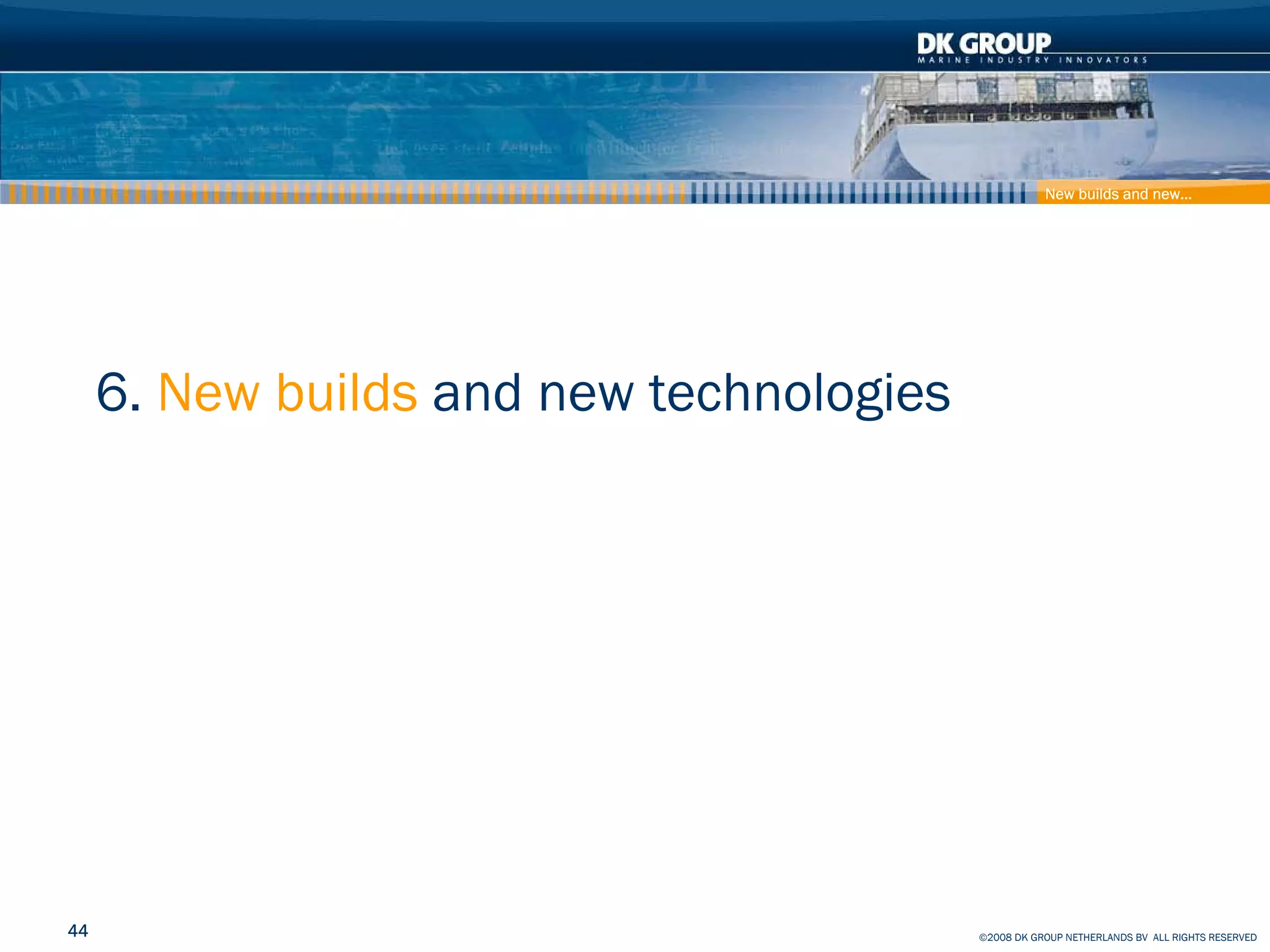

6   New builds and new technologies

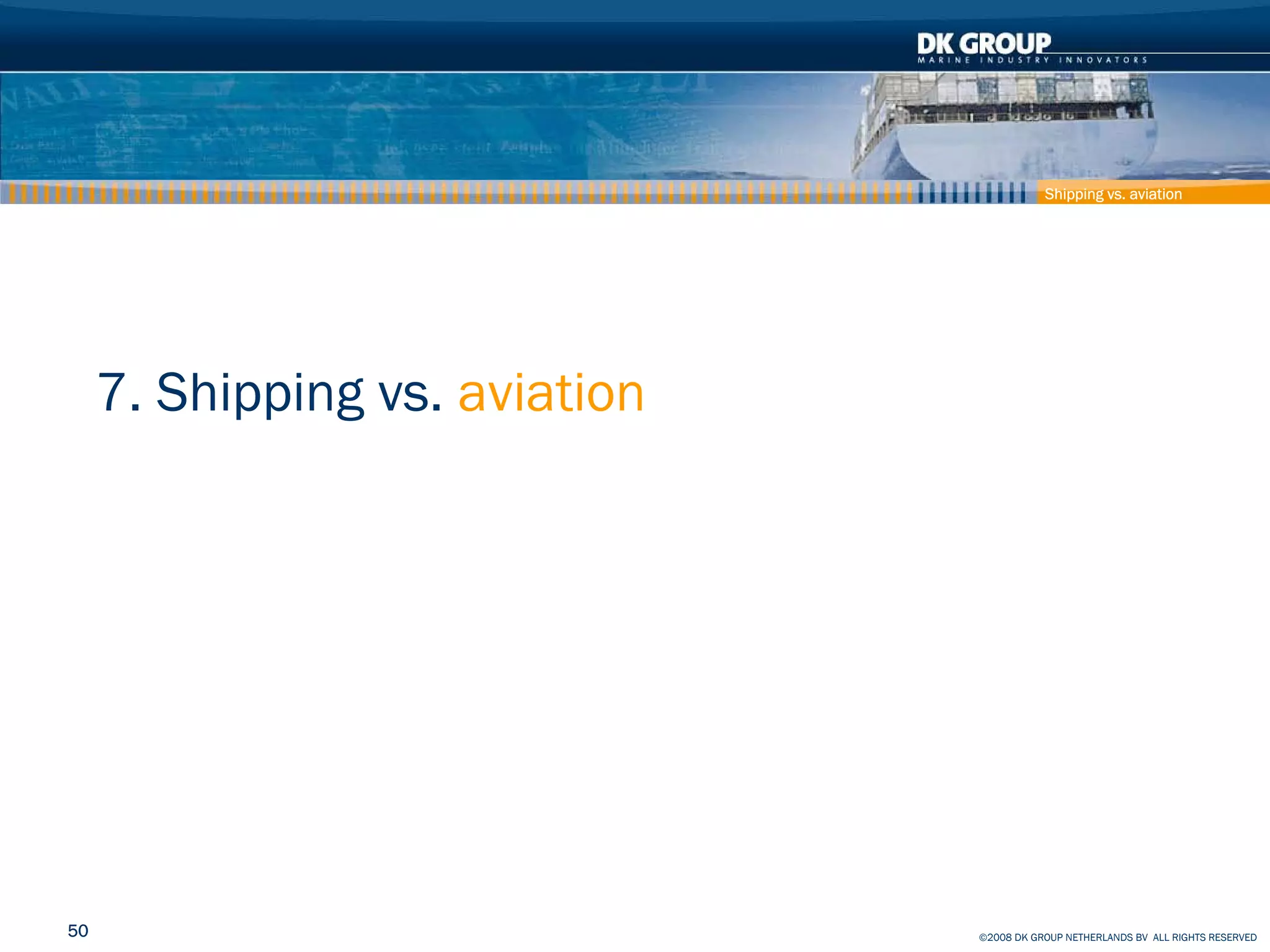

7   Shipping vs. Aviation

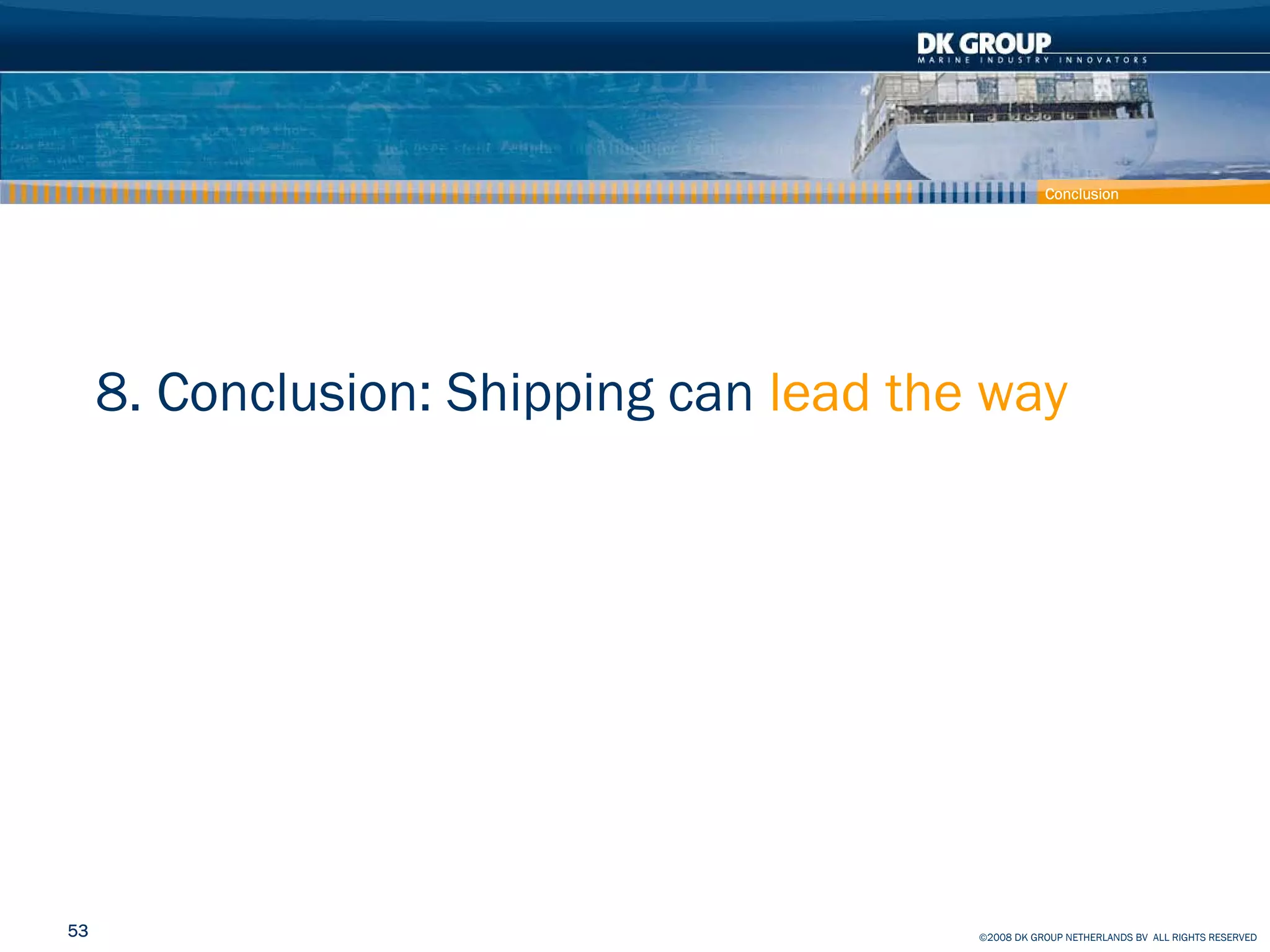

8   Conclusion: Shipping can lead the way
    Q&A




5                                           ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
Shipping’s emission legacy




    1. Shipping's emission legacy




6                                   ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
Shipping’s emission legacy



A reality check for shipping
•   In 2007 it was established that the maritime industry
    accounted for emission of approx. 1,2 billion metric tons
    of CO2 annually. This is based on the present world wide
    fleet (1st quarter 2007). This is almost 100% higher than
    earlier estimates.
•   Latest figures indicates that the shipping industry will be
    responsible for emitting at least 1.5 billion metric tons of
    CO2 annually by 2010 and in 2015 the annual emissions
    will be substantially over 2 billion ton. This is 67% more
    than today’s emission.
•   On top of these figures the maritime industry will emit 20
    million tons of SOx and 37 million tons of NOx annually.
    These emissions will increase just as drastically as CO2-
    emissions.
•   There is a massive new building program underway, and
    in the next 20-25 years we will have these ships on the
    oceans. Should they be build without using well known           The Guardian,
                                                                                    13 February 20
    technology?                                                                                      08


7                                                                  ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
Shipping’s emission legacy

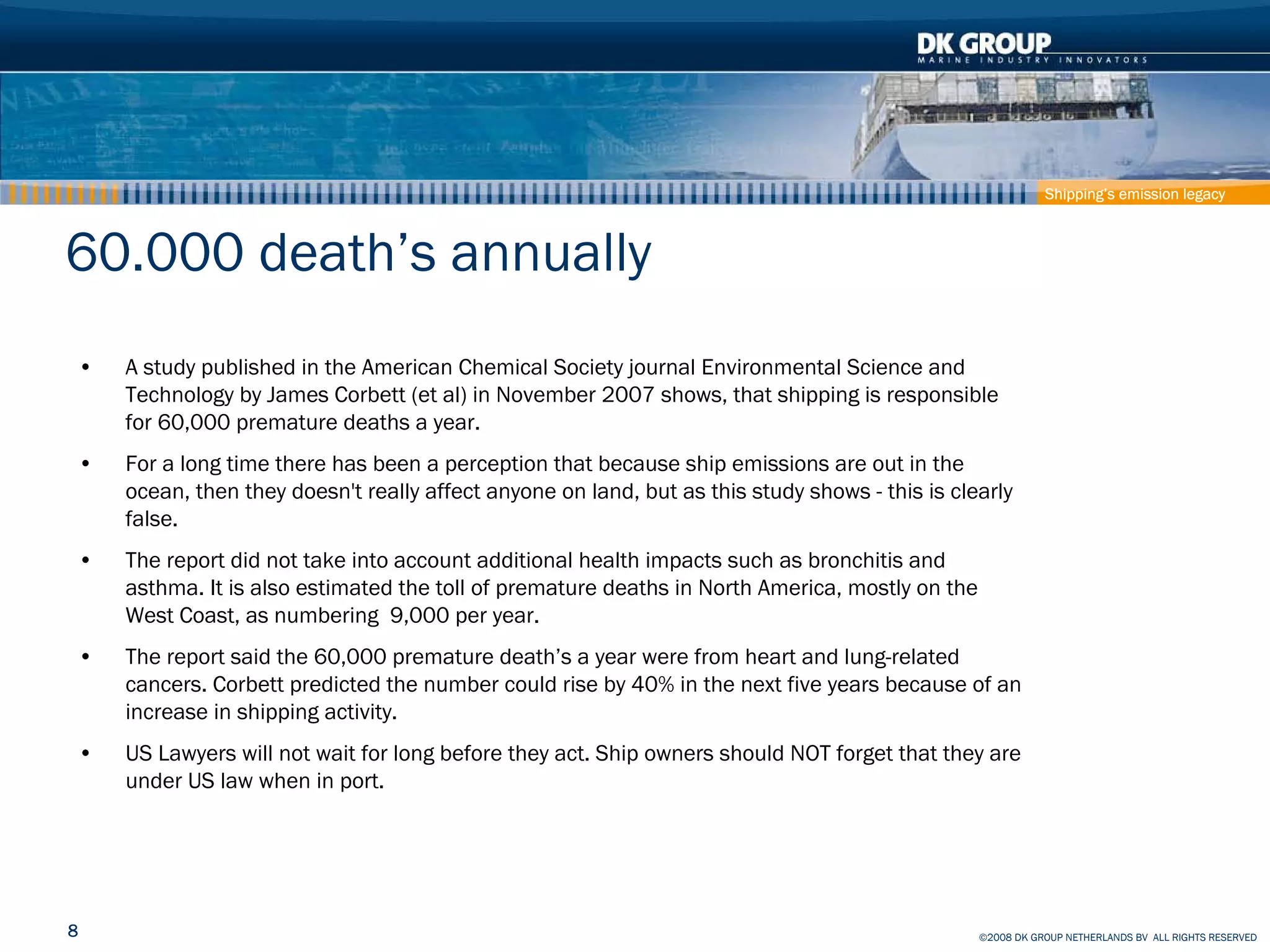

60.000 death’s annually
•   A study published in the American Chemical Society journal Environmental Science and
    Technology by James Corbett (et al) in November 2007 shows, that shipping is responsible
    for 60,000 premature deaths a year.
•   For a long time there has been a perception that because ship emissions are out in the
    ocean, then they doesn't really affect anyone on land, but as this study shows - this is clearly
    false.
•   The report did not take into account additional health impacts such as bronchitis and
    asthma. It is also estimated the toll of premature deaths in North America, mostly on the
    West Coast, as numbering 9,000 per year.
•   The report said the 60,000 premature death’s a year were from heart and lung-related
    cancers. Corbett predicted the number could rise by 40% in the next five years because of an
    increase in shipping activity.
•   US Lawyers will not wait for long before they act. Ship owners should NOT forget that they are
    under US law when in port.




8                                                                                               ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

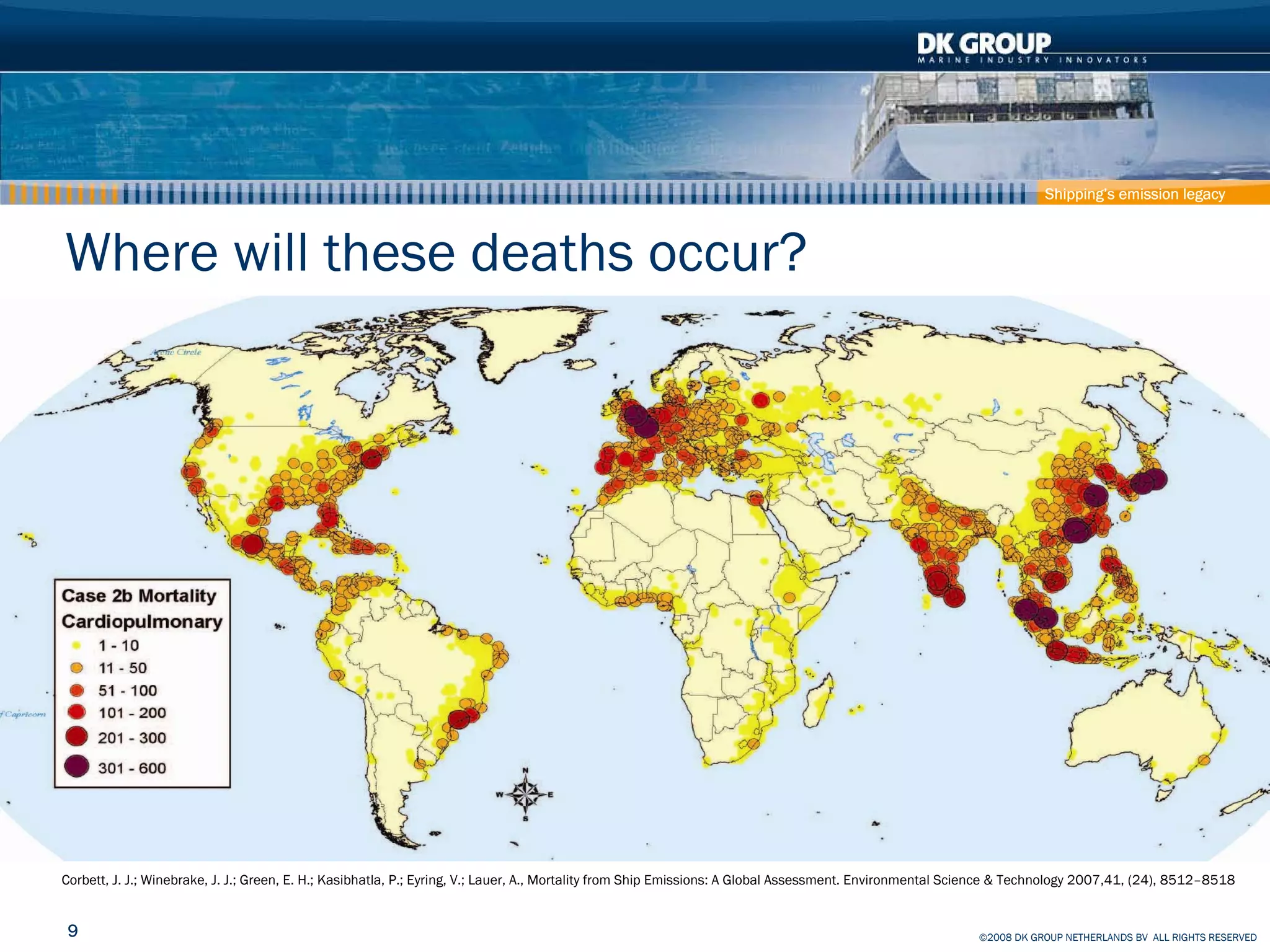

Shipping’s emission legacy



Where will these deaths occur?




Corbett, J. J.; Winebrake, J. J.; Green, E. H.; Kasibhatla, P.; Eyring, V.; Lauer, A., Mortality from Ship Emissions: A Global Assessment. Environmental Science & Technology 2007,41, (24), 8512–8518


 9                                                                                                                                                        ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
Shipping’s emission legacy

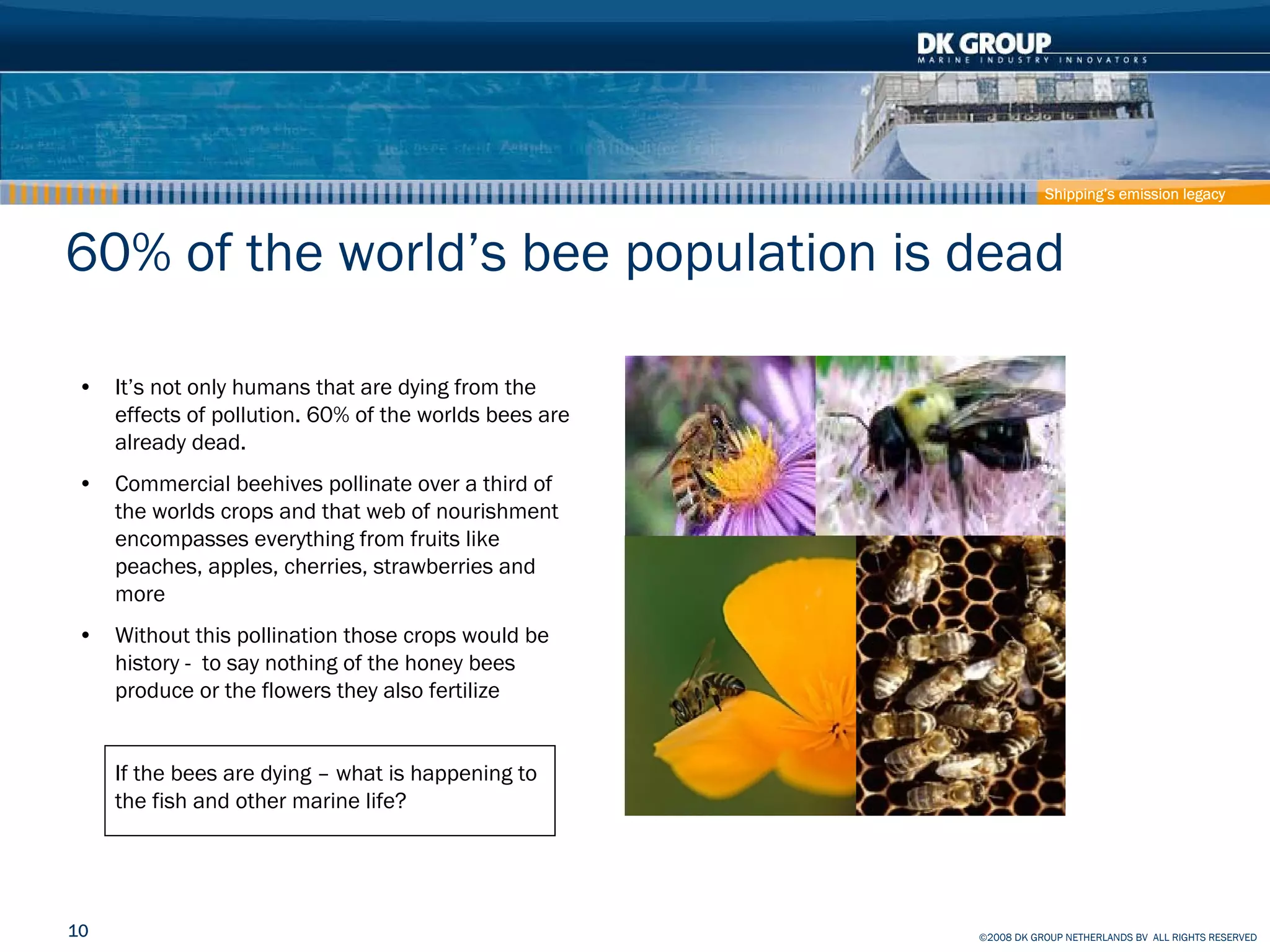

60% of the world’s bee population is dead

• It’s not only humans that are dying from the
  effects of pollution. 60% of the worlds bees are
  already dead.
• Commercial beehives pollinate over a third of
  the worlds crops and that web of nourishment
  encompasses everything from fruits like
  peaches, apples, cherries, strawberries and
  more
• Without this pollination those crops would be
  history - to say nothing of the honey bees
  produce or the flowers they also fertilize


     If the bees are dying – what is happening to
     the fish and other marine life?




10                                                   ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

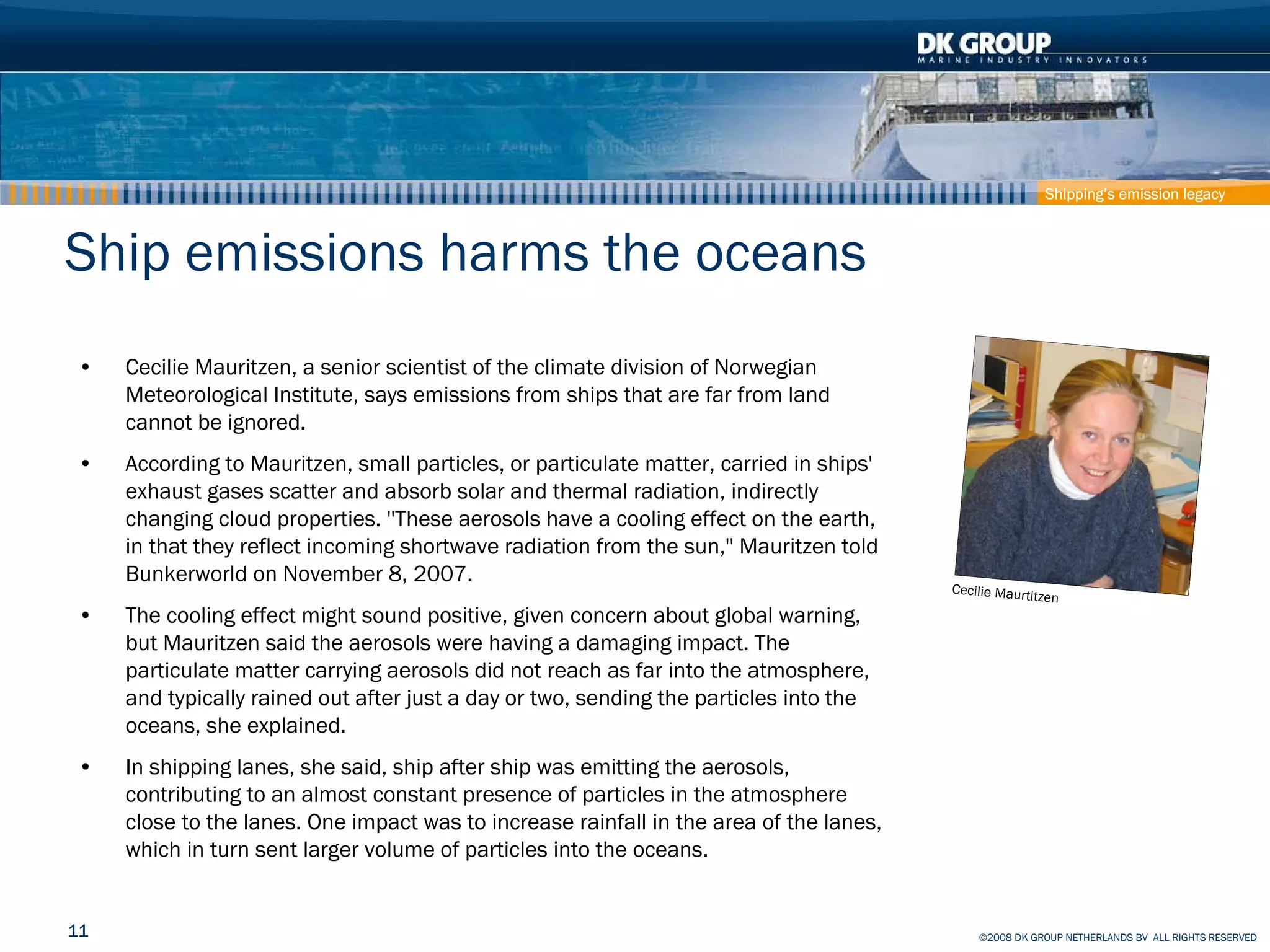

Shipping’s emission legacy



Ship emissions harms the oceans
•    Cecilie Mauritzen, a senior scientist of the climate division of Norwegian
     Meteorological Institute, says emissions from ships that are far from land
     cannot be ignored.
•    According to Mauritzen, small particles, or particulate matter, carried in ships'
     exhaust gases scatter and absorb solar and thermal radiation, indirectly
     changing cloud properties. ''These aerosols have a cooling effect on the earth,
     in that they reflect incoming shortwave radiation from the sun,'' Mauritzen told
     Bunkerworld on November 8, 2007.
                                                                                         Cecilie Maurti
                                                                                                        tzen
•    The cooling effect might sound positive, given concern about global warning,
     but Mauritzen said the aerosols were having a damaging impact. The
     particulate matter carrying aerosols did not reach as far into the atmosphere,
     and typically rained out after just a day or two, sending the particles into the
     oceans, she explained.
•    In shipping lanes, she said, ship after ship was emitting the aerosols,
     contributing to an almost constant presence of particles in the atmosphere
     close to the lanes. One impact was to increase rainfall in the area of the lanes,
     which in turn sent larger volume of particles into the oceans.


11                                                                                           ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
Shipping’s emission legacy

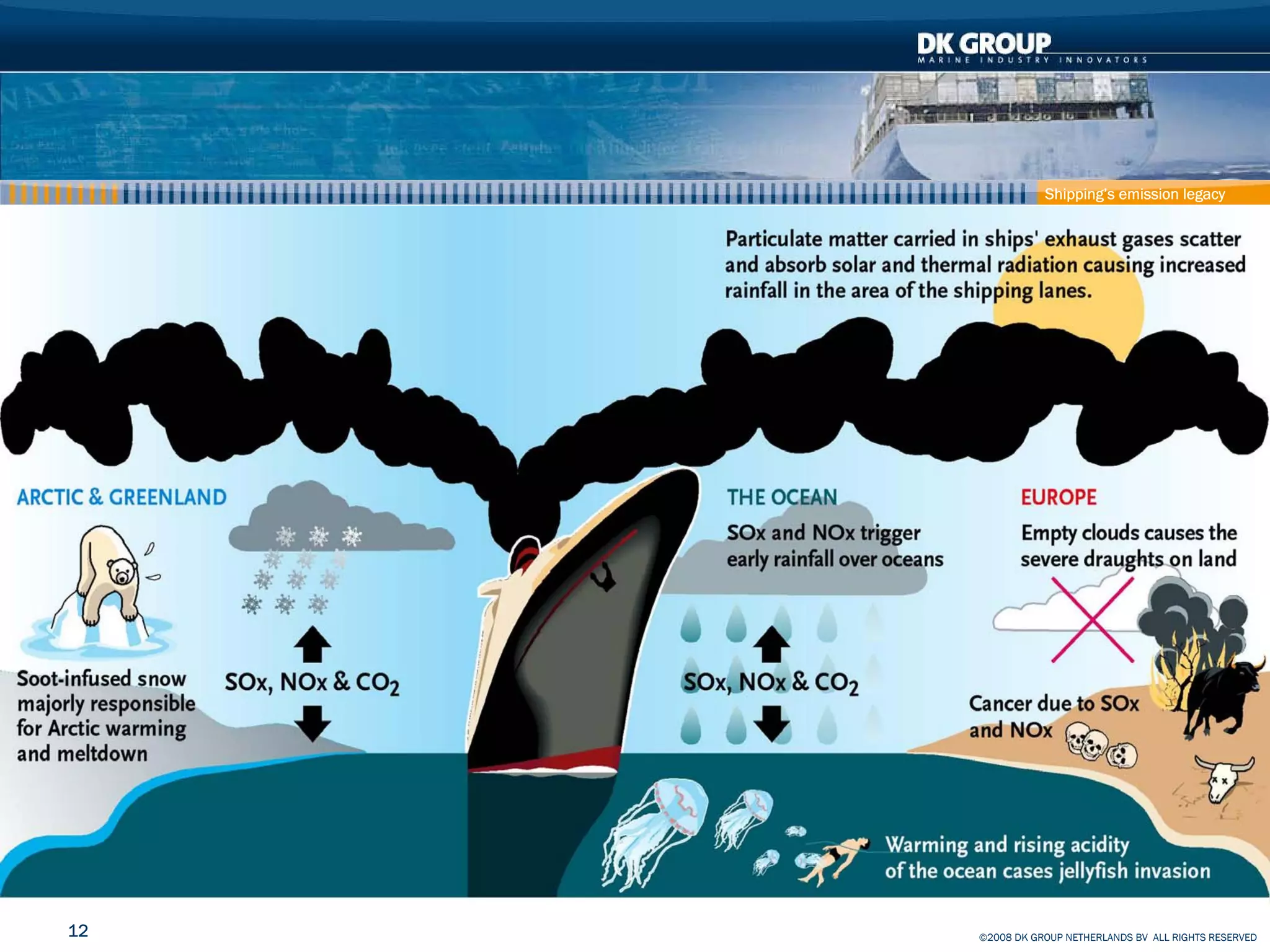

12   ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

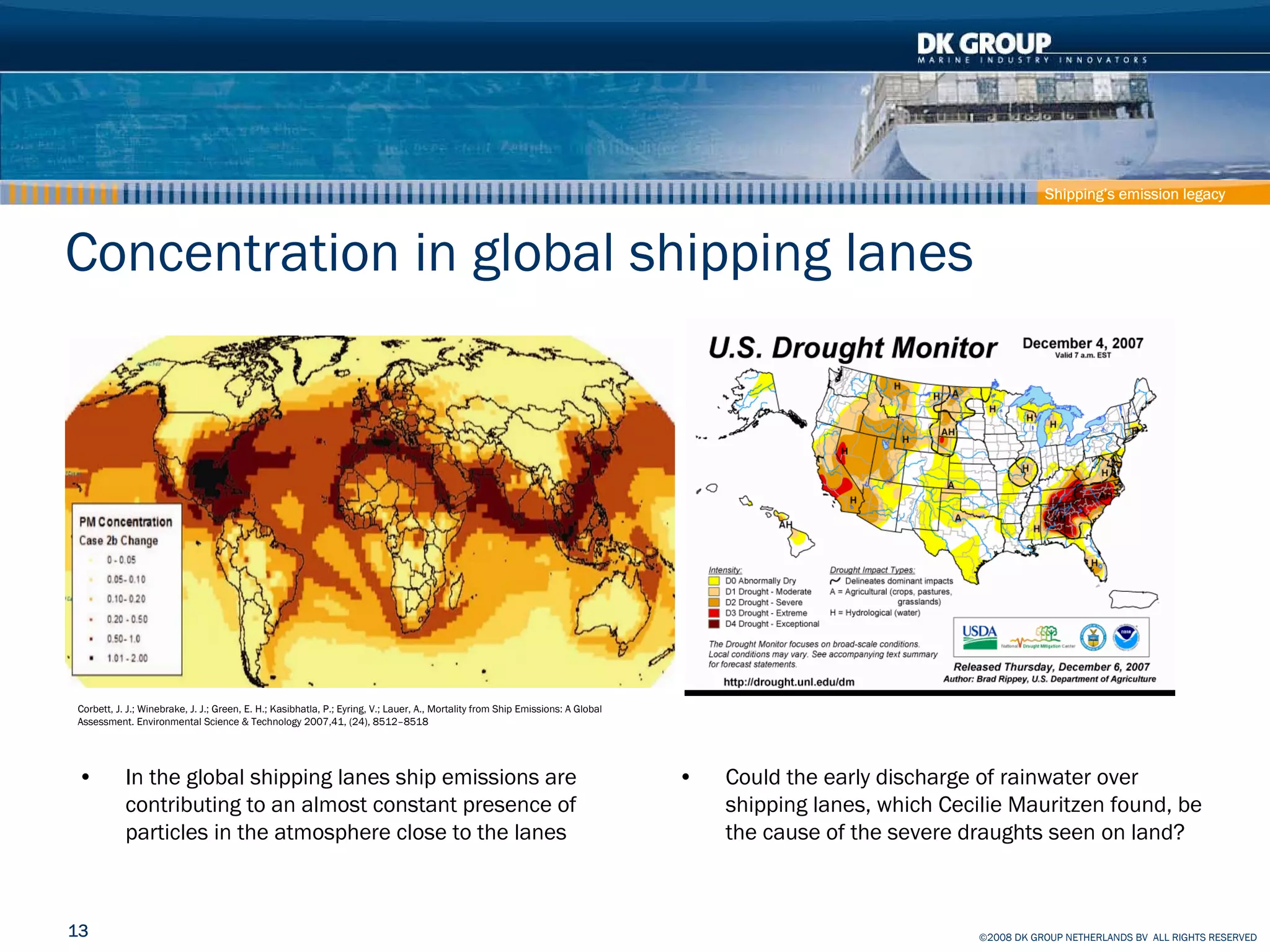

Shipping’s emission legacy



Concentration in global shipping lanes




Corbett, J. J.; Winebrake, J. J.; Green, E. H.; Kasibhatla, P.; Eyring, V.; Lauer, A., Mortality from Ship Emissions: A Global
Assessment. Environmental Science & Technology 2007,41, (24), 8512–8518




•          In the global shipping lanes ship emissions are                                                                       •   Could the early discharge of rainwater over
           contributing to an almost constant presence of                                                                            shipping lanes, which Cecilie Mauritzen found, be
           particles in the atmosphere close to the lanes                                                                            the cause of the severe draughts seen on land?



13                                                                                                                                                             ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
Shipping’s emission legacy



Jellyfish population explosion warning

• Off the Northern Ireland coast a 10 mile wide, 13 meter
  deep swarm of jellyfish attacked a salmon farm wiping out
  over £1million worth of stock.
• Billions of small jellyfish, known as Mauve Stingers, flooded
  into the cages about a mile into the Irish Sea, off Glenarm
  Bay and Cushendun.
• Swimming bans were imposed at beaches across the
  Mediterranean because of an influx of stinging jellyfish
  along coastlines from Spain to Sicily.
• The Red Cross organizations across the Mediterranean
  region treated 50,000 people for stings in the summer of
  2008, almost triple the figure for the previous year.




14                                                                ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

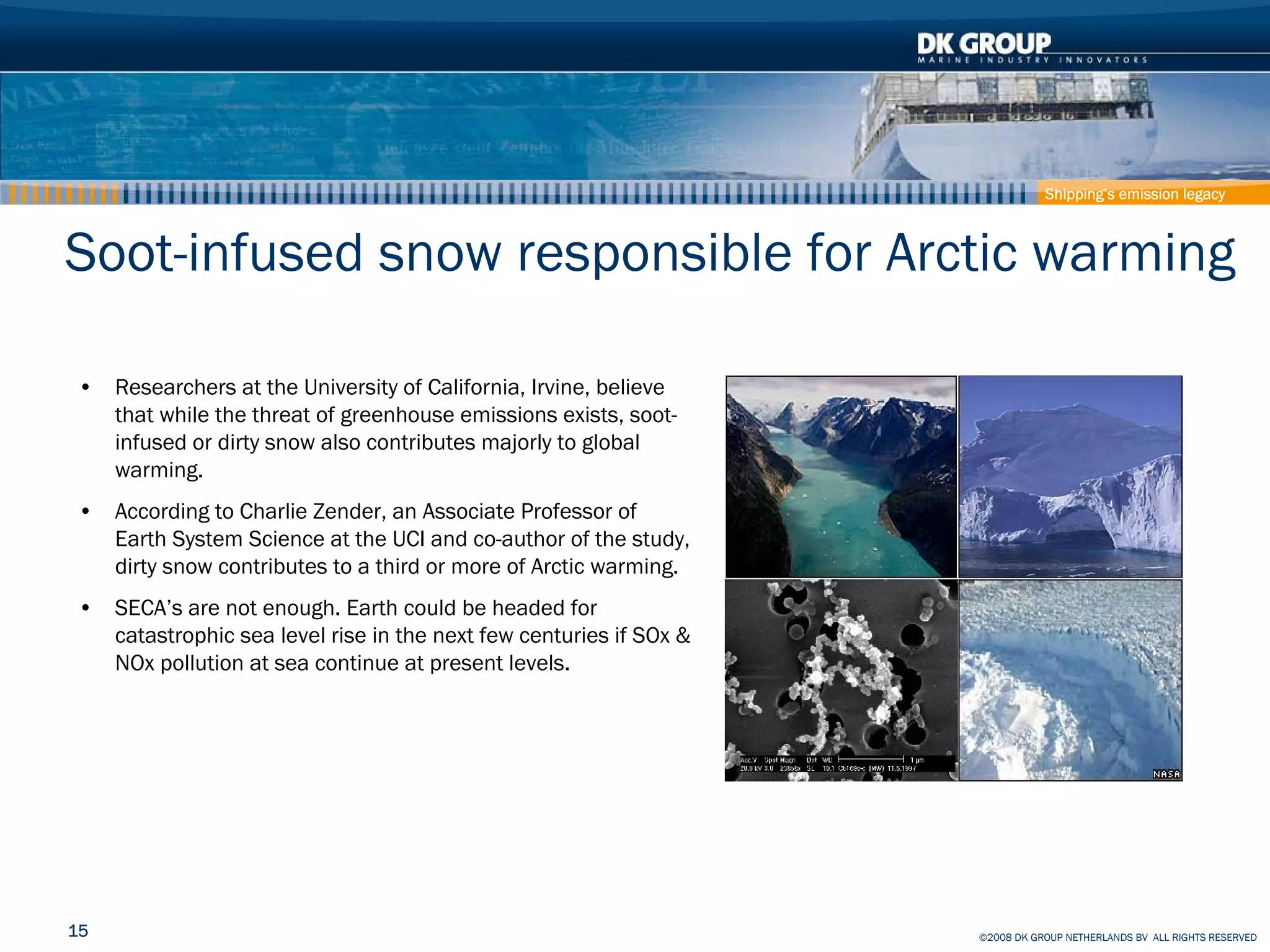

Shipping’s emission legacy



Soot-infused snow responsible for Arctic warming

• Researchers at the University of California, Irvine, believe
  that while the threat of greenhouse emissions exists, soot-
  infused or dirty snow also contributes majorly to global
  warming.
• According to Charlie Zender, an Associate Professor of
  Earth System Science at the UCI and co-author of the study,
  dirty snow contributes to a third or more of Arctic warming.
• SECA’s are not enough. Earth could be headed for
  catastrophic sea level rise in the next few centuries if SOx &
  NOx pollution at sea continue at present levels.




15                                                                 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
Shipping’s emission legacy

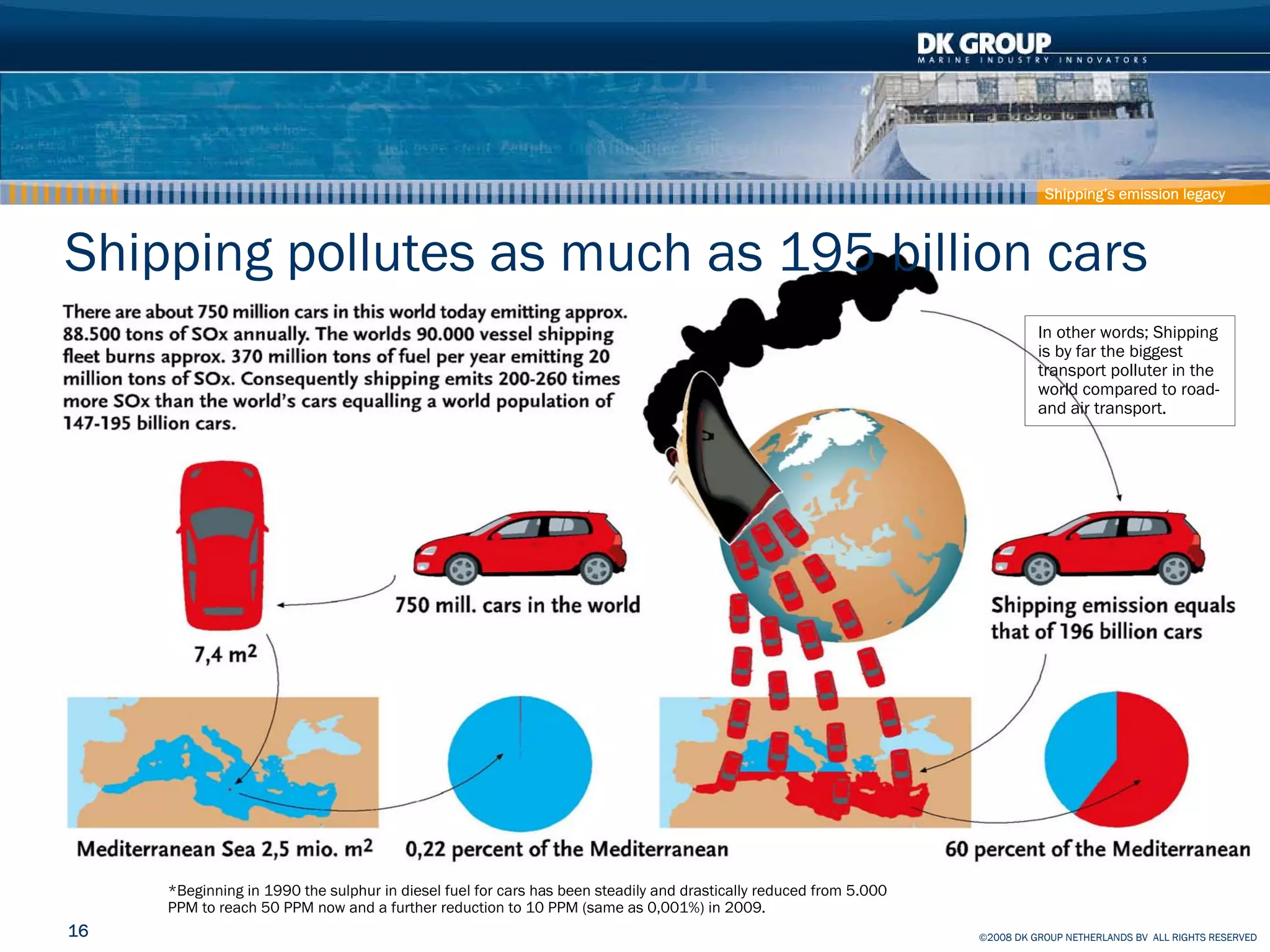

Shipping pollutes as much as 195 billion cars
                                                                                                                             In other words; Shipping
                                                                                                                             is by far the biggest
                                                                                                                             transport polluter in the
                                                                                                                             world compared to road-
                                                                                                                             and air transport.




     *Beginning in 1990 the sulphur in diesel fuel for cars has been steadily and drastically reduced from 5.000
     PPM to reach 50 PPM now and a further reduction to 10 PPM (same as 0,001%) in 2009.
16                                                                                                                 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

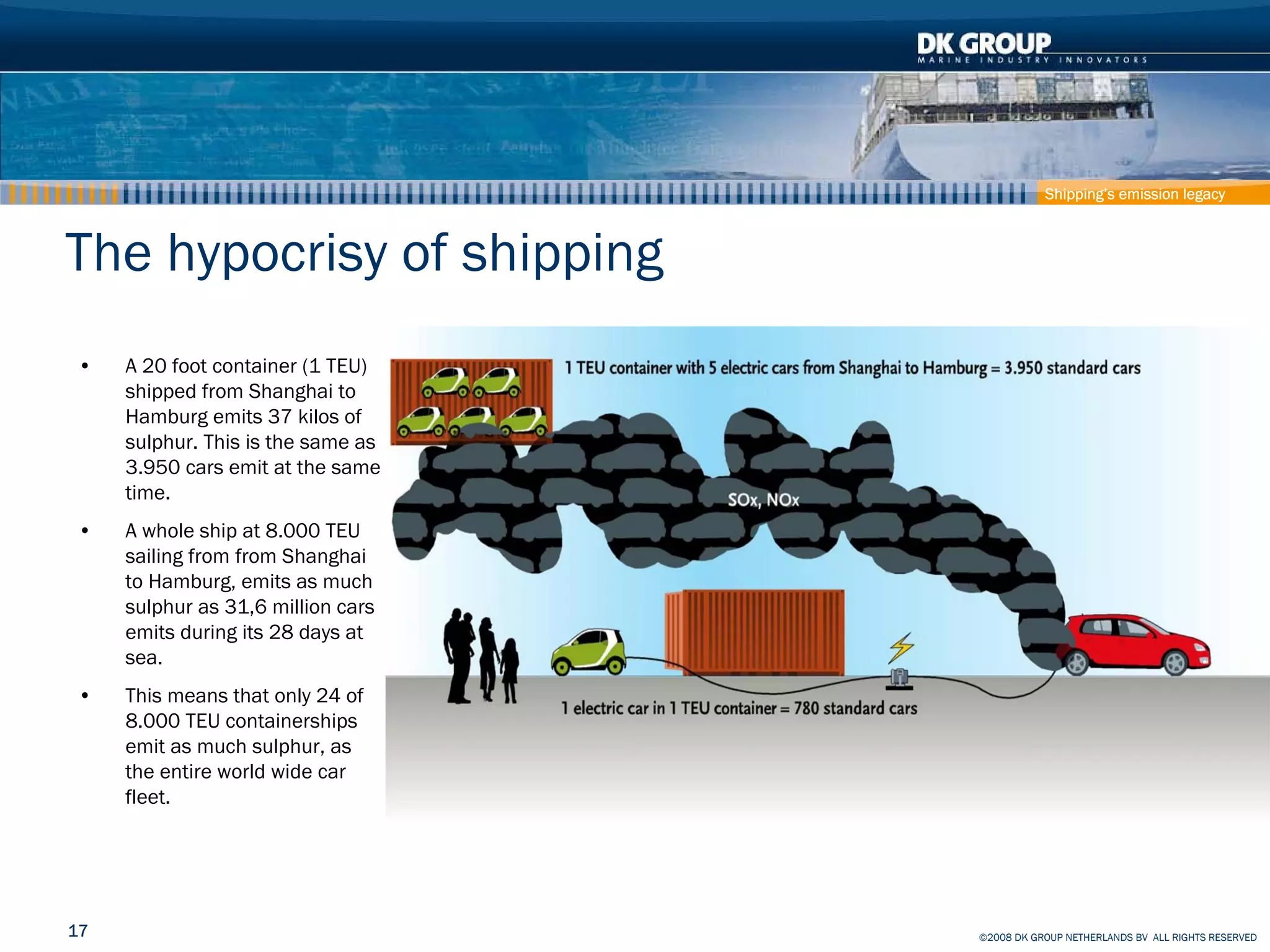

Shipping’s emission legacy



The hypocrisy of shipping
•    A 20 foot container (1 TEU)
     shipped from Shanghai to
     Hamburg emits 37 kilos of
     sulphur. This is the same as
     3.950 cars emit at the same
     time.
•    A whole ship at 8.000 TEU
     sailing from from Shanghai
     to Hamburg, emits as much
     sulphur as 31,6 million cars
     emits during its 28 days at
     sea.
•    This means that only 24 of
     8.000 TEU containerships
     emit as much sulphur, as
     the entire world wide car
     fleet.




17                                  ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

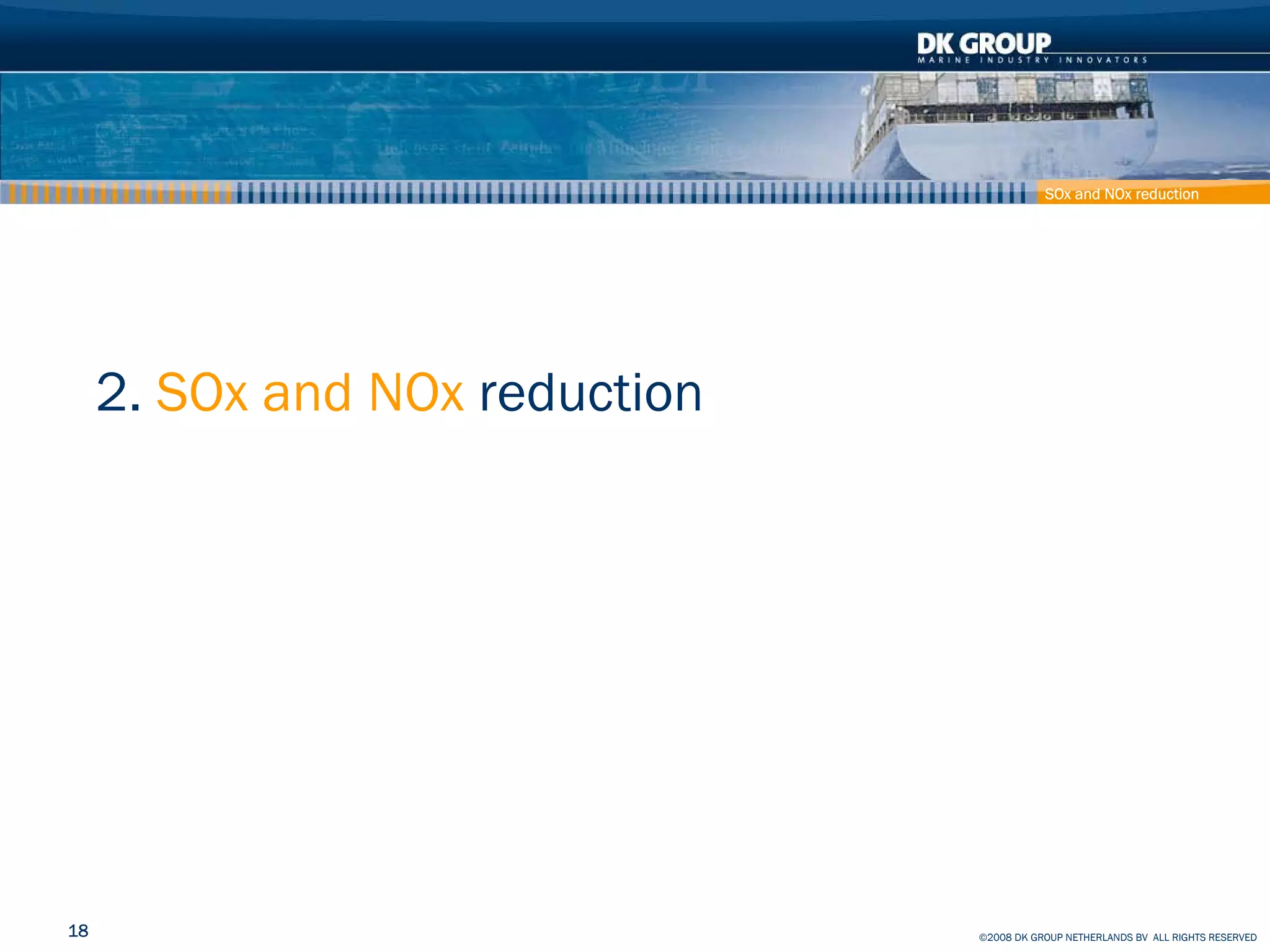

SOx and NOx reduction




     2. SOx and NOx reduction




18                              ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
SOx and NOx reduction

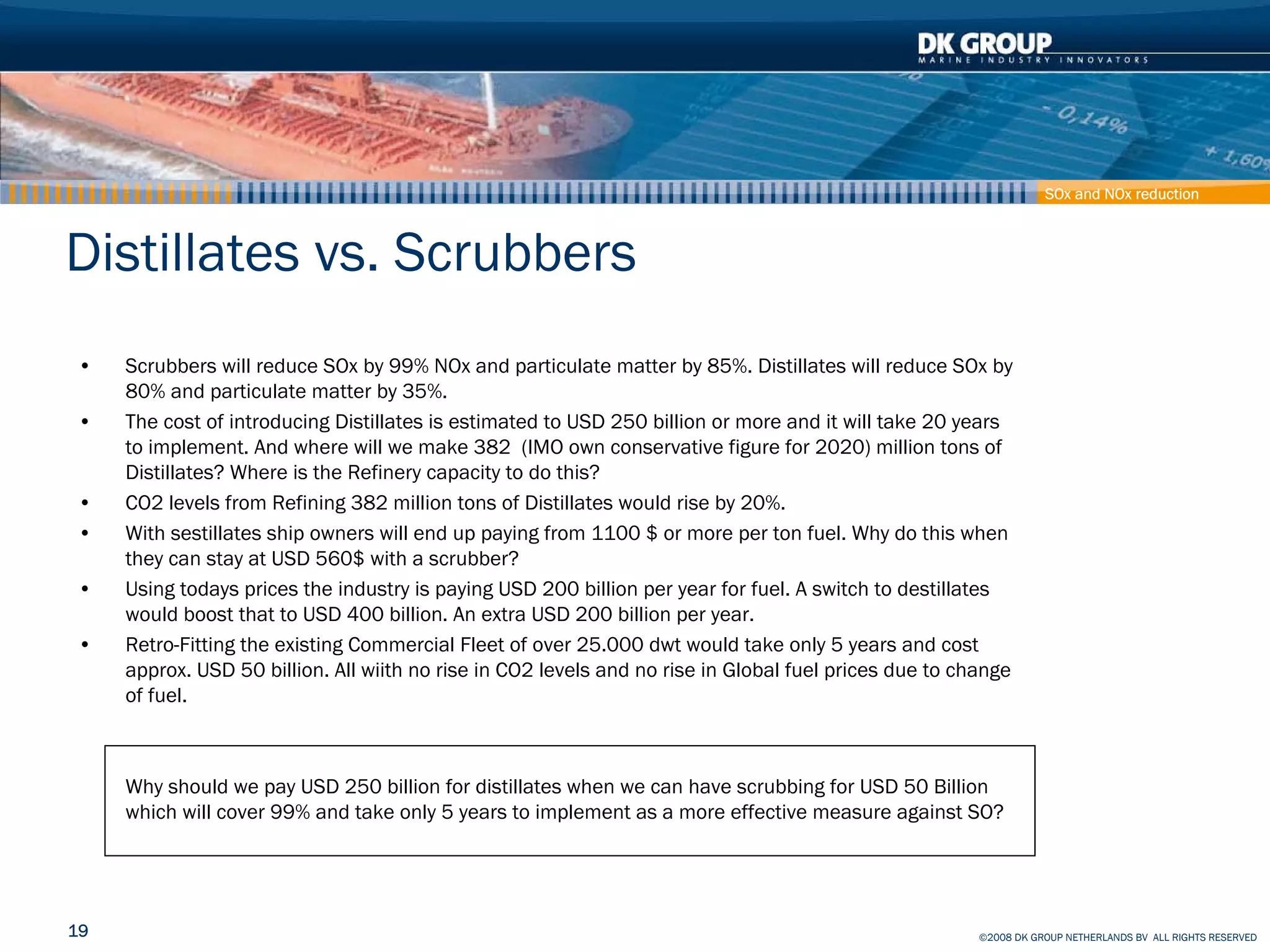

Distillates vs. Scrubbers
•    Scrubbers will reduce SOx by 99% NOx and particulate matter by 85%. Distillates will reduce SOx by
     80% and particulate matter by 35%.
•    The cost of introducing Distillates is estimated to USD 250 billion or more and it will take 20 years
     to implement. And where will we make 382 (IMO own conservative figure for 2020) million tons of
     Distillates? Where is the Refinery capacity to do this?
•    CO2 levels from Refining 382 million tons of Distillates would rise by 20%.
•    With sestillates ship owners will end up paying from 1100 $ or more per ton fuel. Why do this when
     they can stay at USD 560$ with a scrubber?
•    Using todays prices the industry is paying USD 200 billion per year for fuel. A switch to destillates
     would boost that to USD 400 billion. An extra USD 200 billion per year.
•    Retro-Fitting the existing Commercial Fleet of over 25.000 dwt would take only 5 years and cost
     approx. USD 50 billion. All wiith no rise in CO2 levels and no rise in Global fuel prices due to change
     of fuel.



     Why should we pay USD 250 billion for distillates when we can have scrubbing for USD 50 Billion
     which will cover 99% and take only 5 years to implement as a more effective measure against SO?




19                                                                                                      ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
SOx and NOx reduction

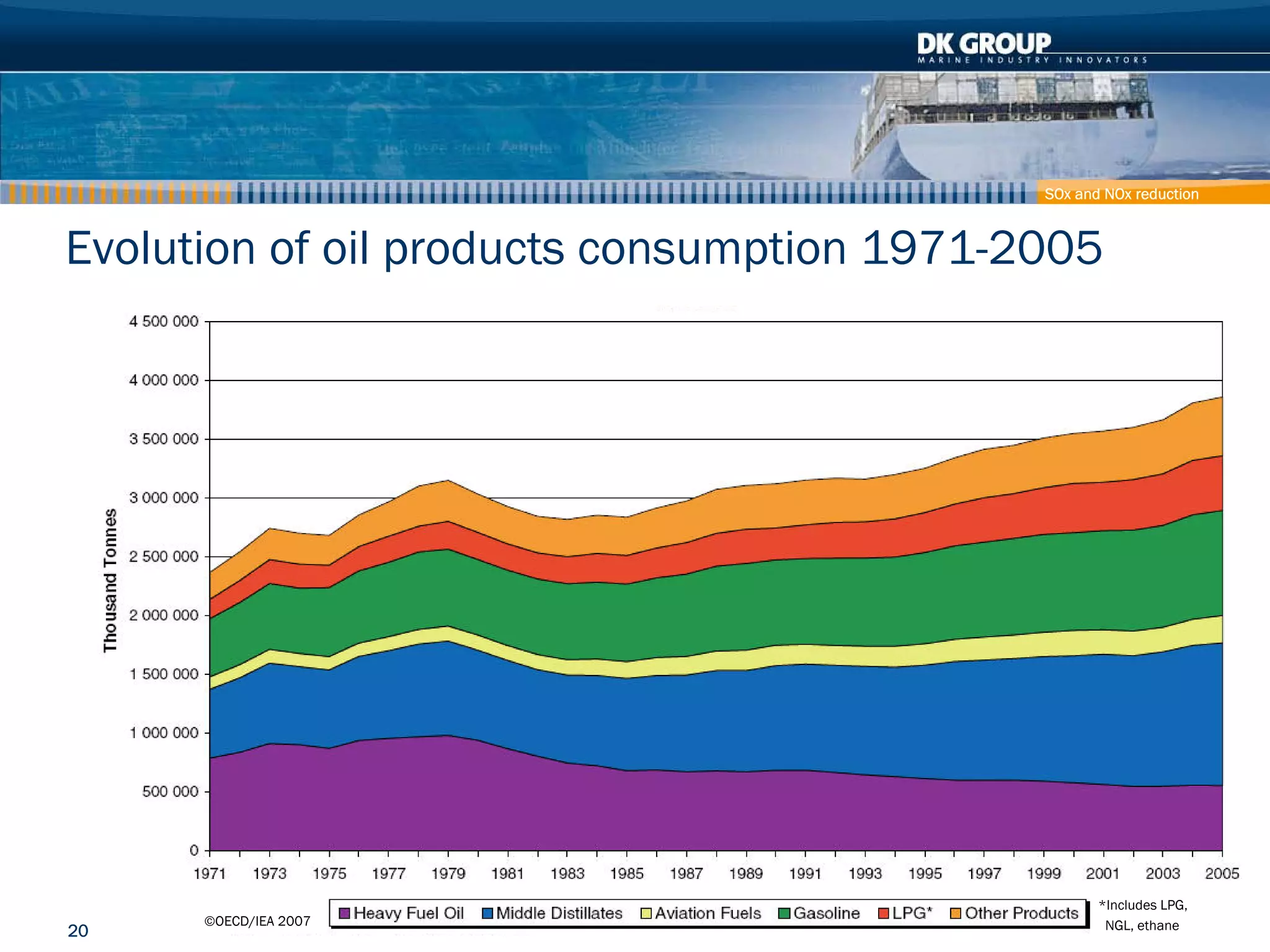

Evolution of oil products consumption 1971-2005




                                                              *Includes LPG,
      ©OECD/IEA 2007                                           NGL, ethane
20                                       ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
SOx and NOx reduction

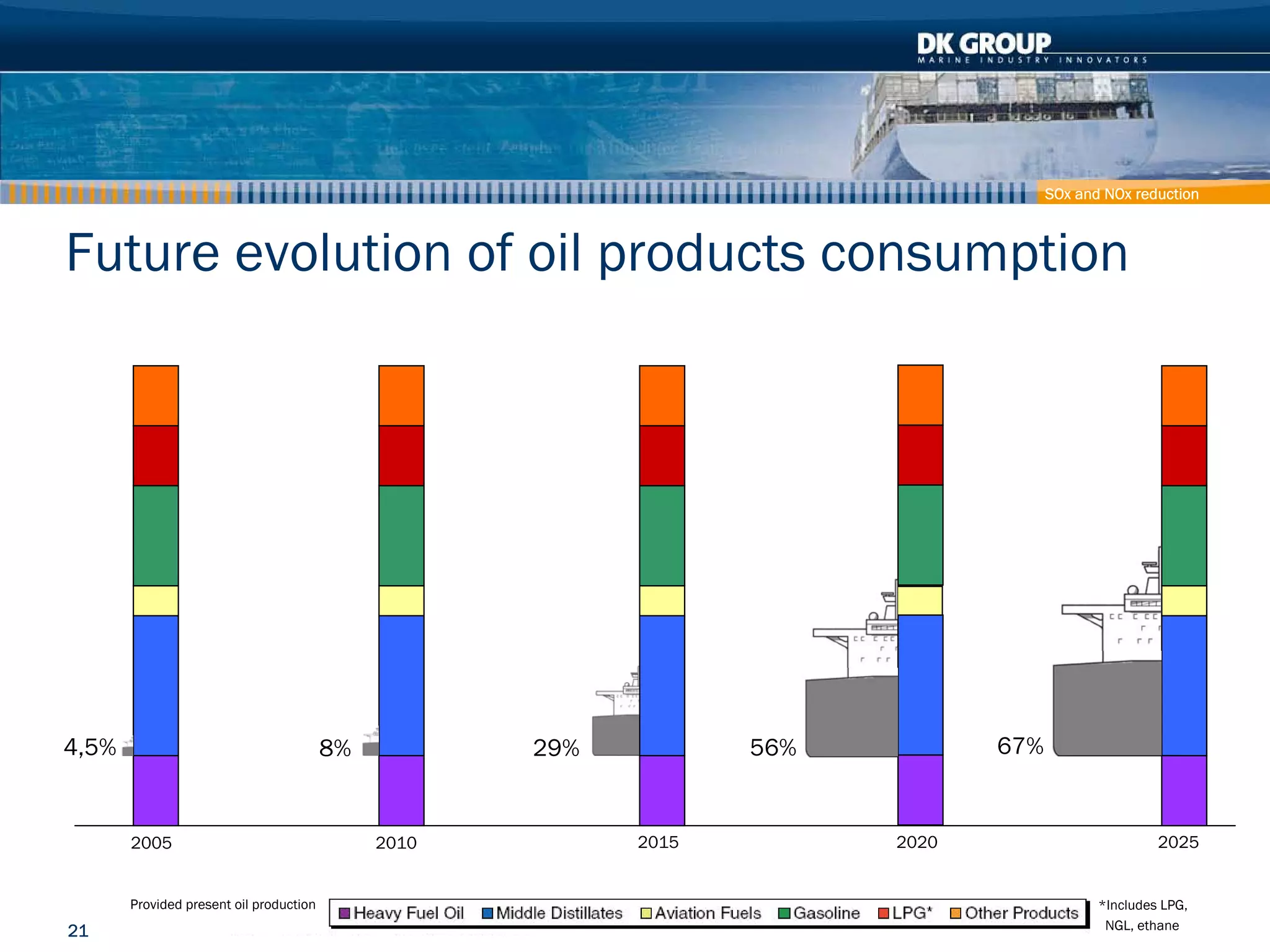

Future evolution of oil products consumption




                                                                                  67%
4,5%                                                              56%
                                                     29%
                                         8%


                                                           2015         2020                                  2025
       2005                                   2010


       Provided present oil production                                                              *Includes LPG,
                                                                                                     NGL, ethane
21                                                                             ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
SOx and NOx reduction

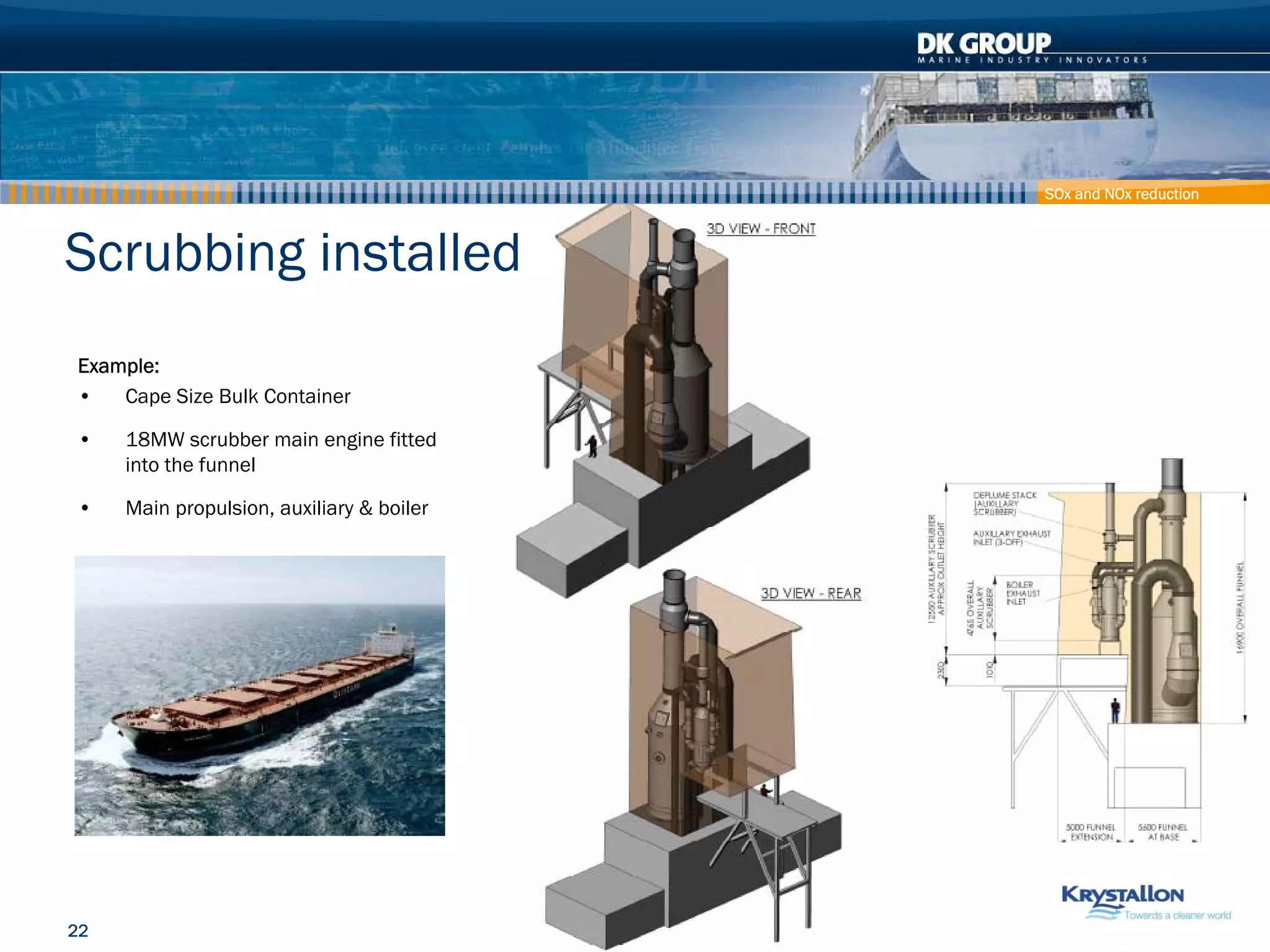

Scrubbing installed
Example:
•   Cape Size Bulk Container

•    18MW scrubber main engine fitted
     into the funnel

•    Main propulsion, auxiliary & boiler




22                                         ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

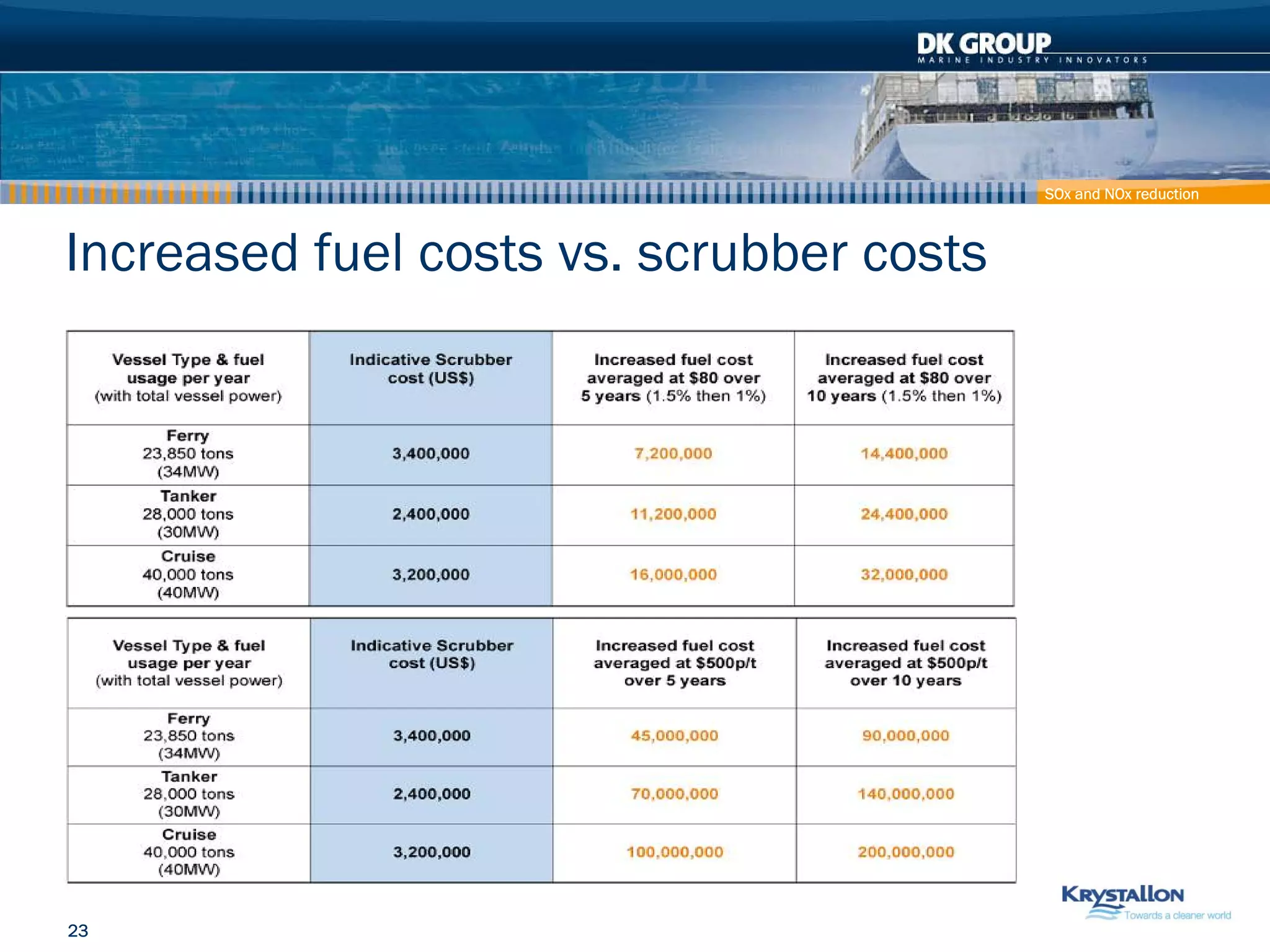

SOx and NOx reduction



Increased fuel costs vs. scrubber costs




23                                    ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
SOx and NOx reduction

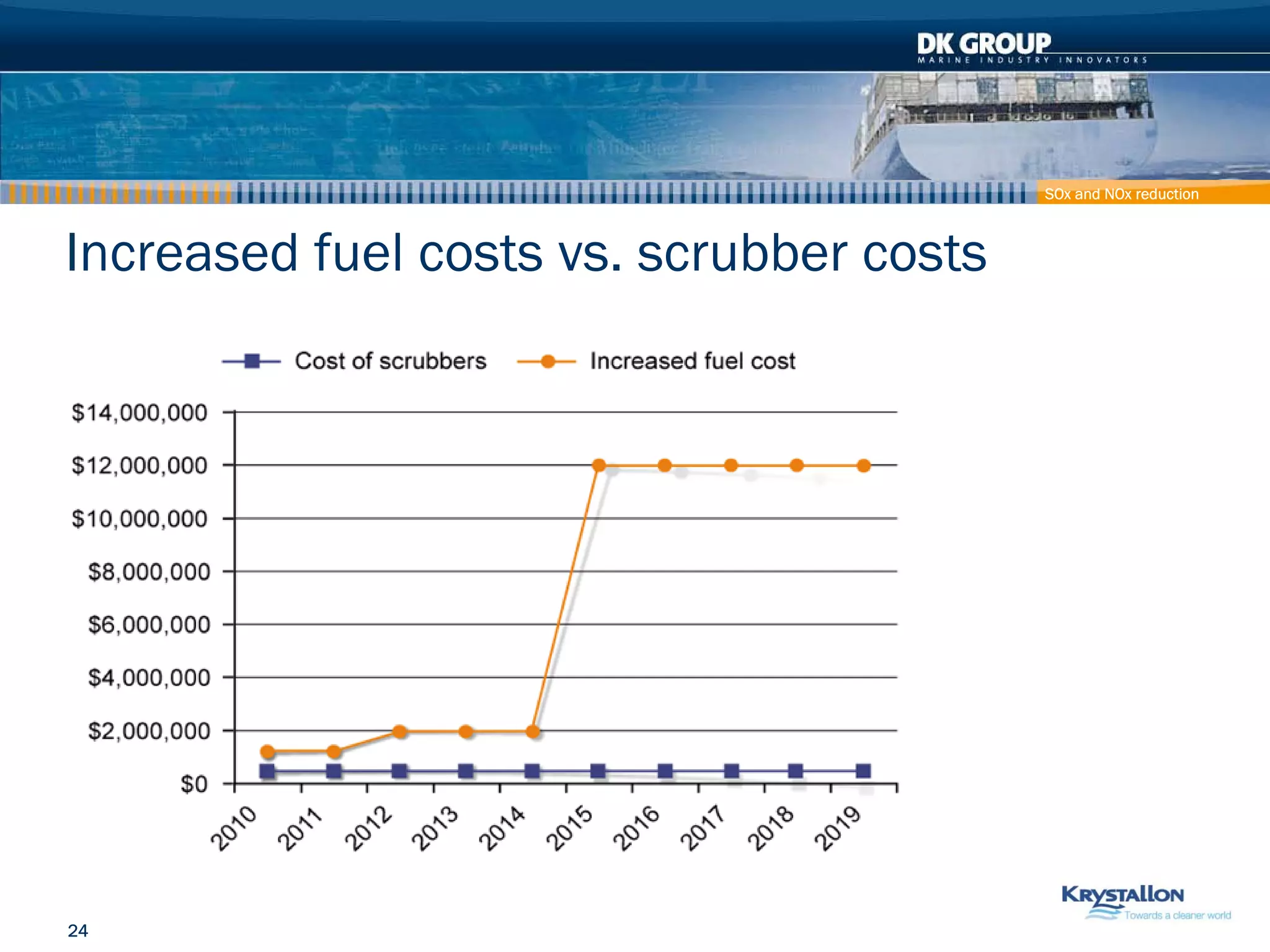

Increased fuel costs vs. scrubber costs




24                                    ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

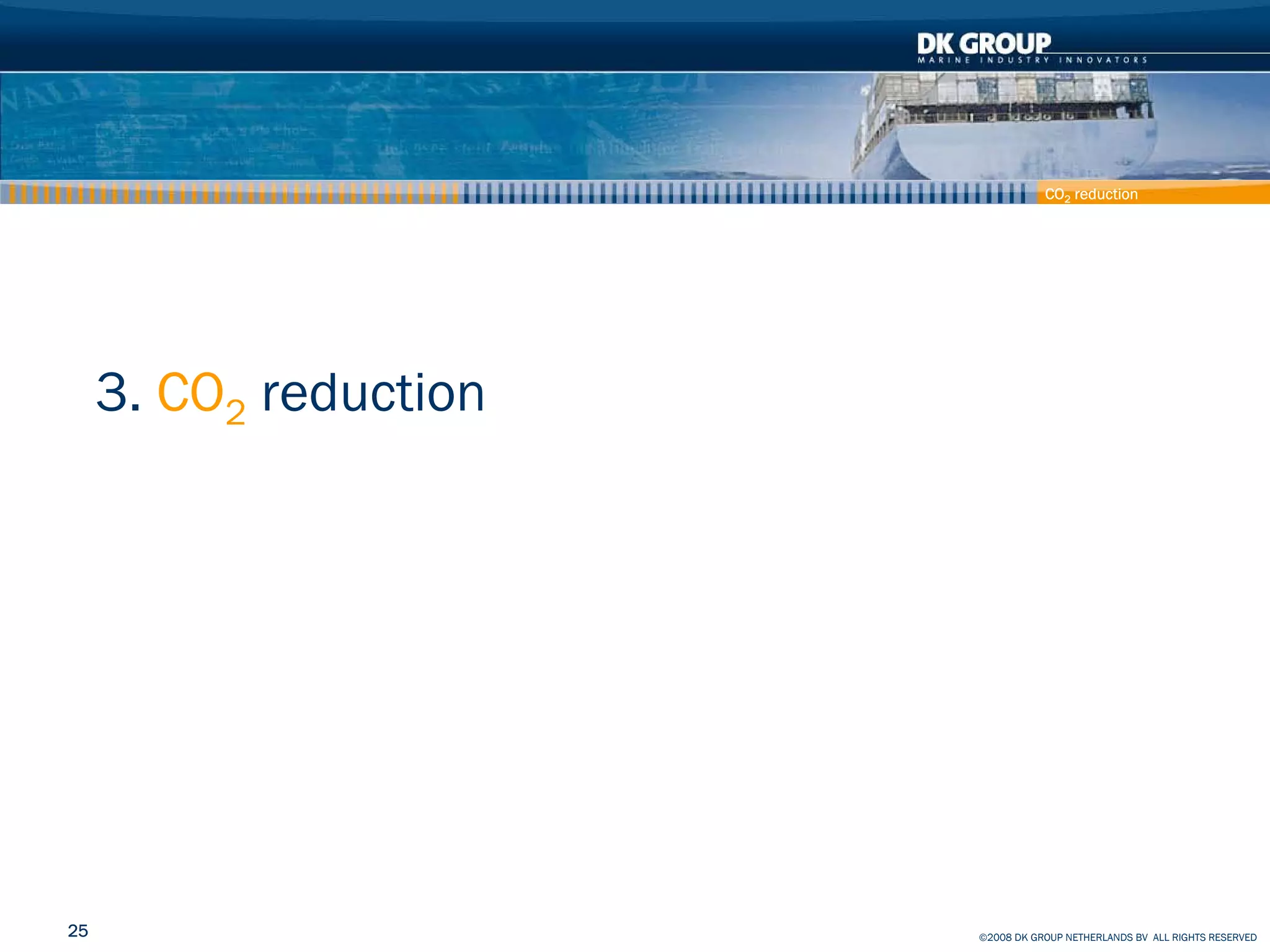

CO2 reduction




     3. CO2 reduction




25                      ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

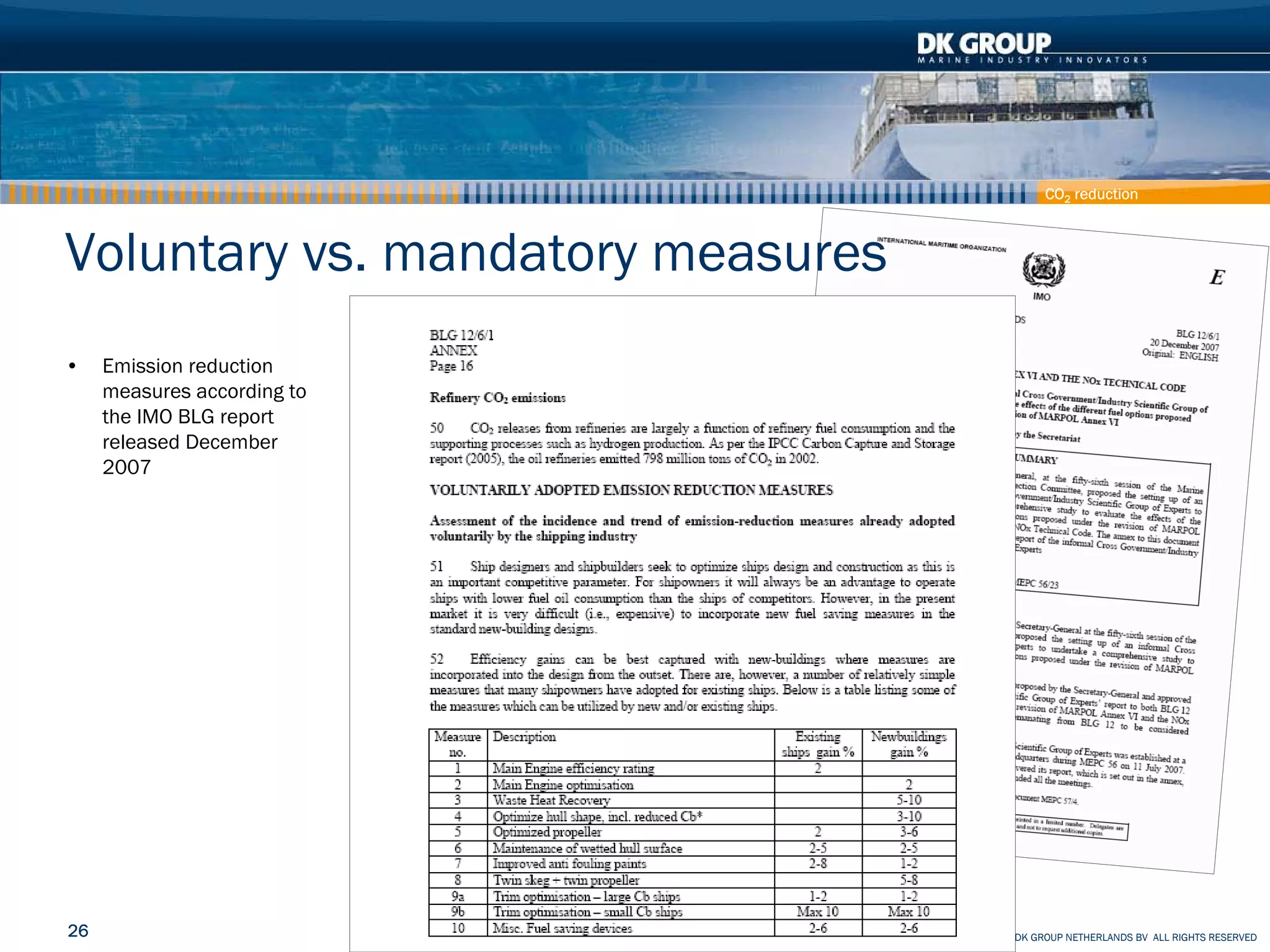

CO2 reduction



Voluntary vs. mandatory measures
•    Emission reduction
     measures according to
     the IMO BLG report
     released December
     2007




26                                 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
CO2 reduction

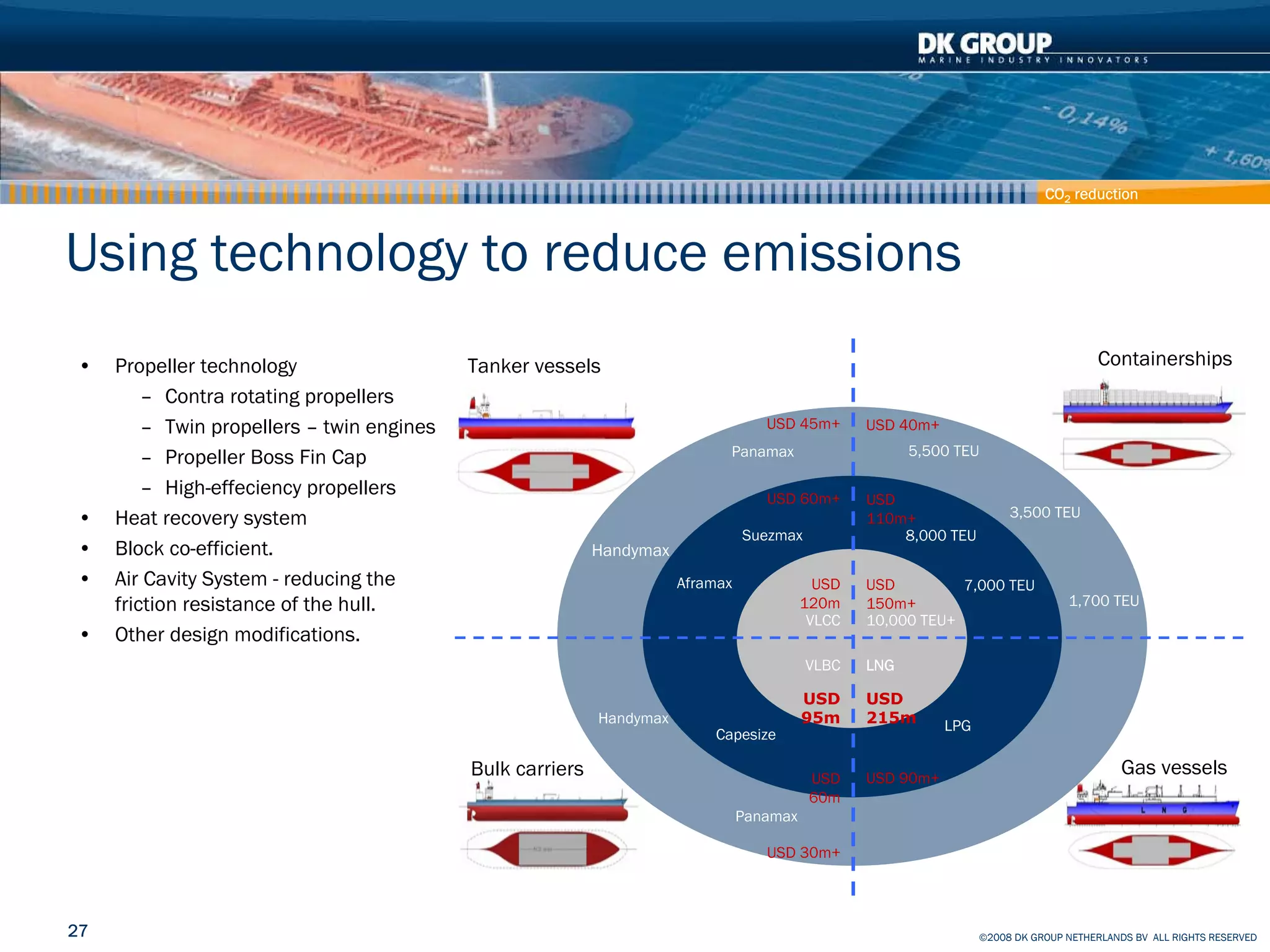

Using technology to reduce emissions
                                                                                                                                        Containerships
•    Propeller technology                   Tanker vessels
         – Contra rotating propellers
         – Twin propellers – twin engines                                           USD 45m+       USD 40m+
                                                                                                         5,500 TEU
                                                                             Panamax
         – Propeller Boss Fin Cap
         – High-effeciency propellers                                               USD 60m+       USD
                                                                                                                         3,500 TEU
•    Heat recovery system                                                                          110m+
                                                                                 Suezmax               8,000 TEU
•    Block co-efficient.                                    Handymax
•    Air Cavity System - reducing the                                  Aframax               USD   USD         7,000 TEU
                                                                                                                                   1,700 TEU
     friction resistance of the hull.                                                      120m    150m+
                                                                                            VLCC   10,000 TEU+
•    Other design modifications.
                                                                                           VLBC    LNG

                                                                                           USD     USD
                                                                                           95m     215m
                                                            Handymax                                          LPG
                                                                           Capesize

                                                                                                                                             Gas vessels
                                            Bulk carriers                                          USD 90m+
                                                                                            USD
                                                                                            60m
                                                                                 Panamax

                                                                                    USD 30m+



27                                                                                                                  ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

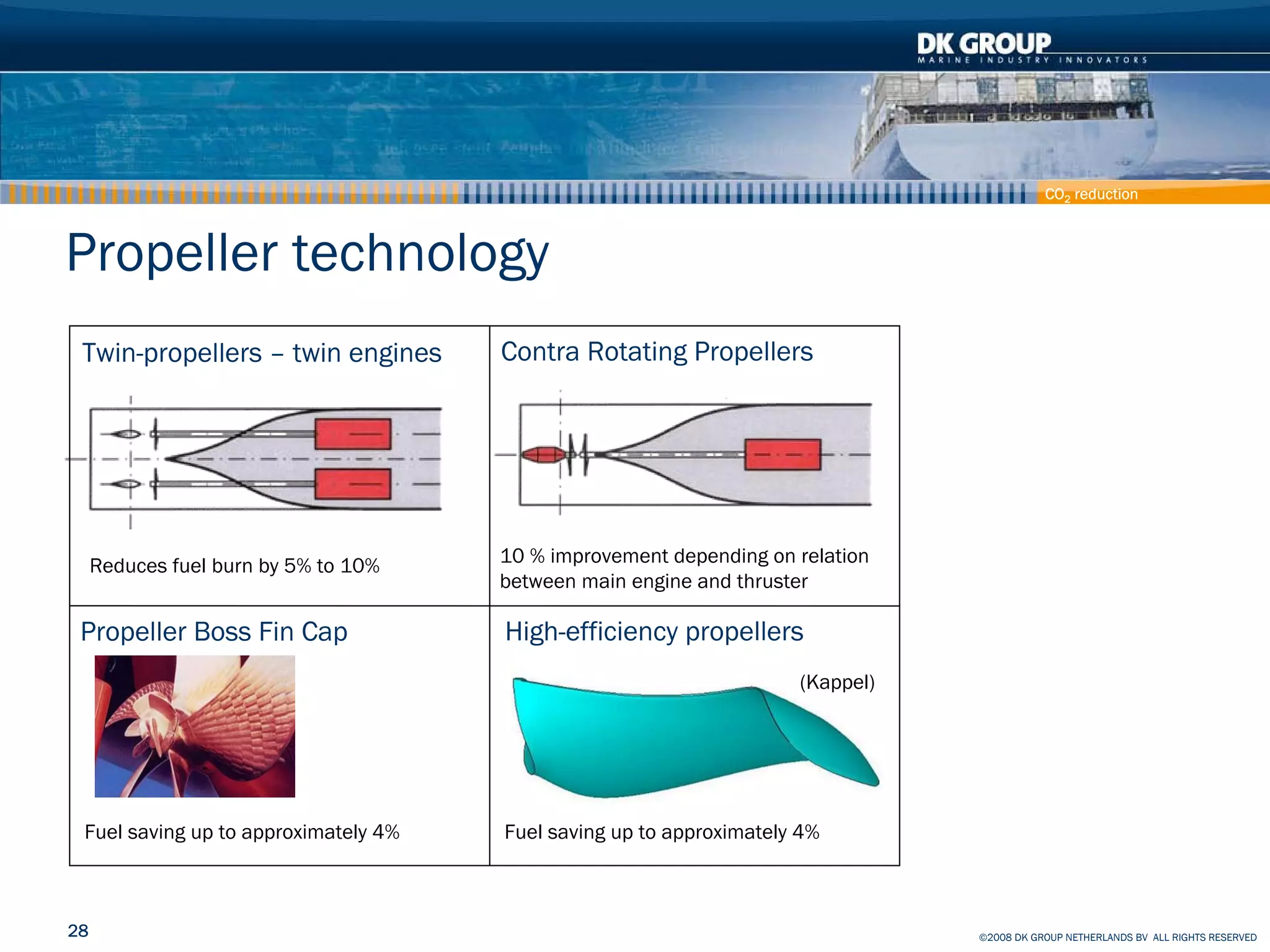

CO2 reduction



Propeller technology
                                      Contra Rotating Propellers
 Twin-propellers – twin engines




                                      10 % improvement depending on relation
     Reduces fuel burn by 5% to 10%
                                      between main engine and thruster

                                      High-efficiency propellers
 Propeller Boss Fin Cap
                                                                     (Kappel)




 Fuel saving up to approximately 4%   Fuel saving up to approximately 4%



28                                                                              ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

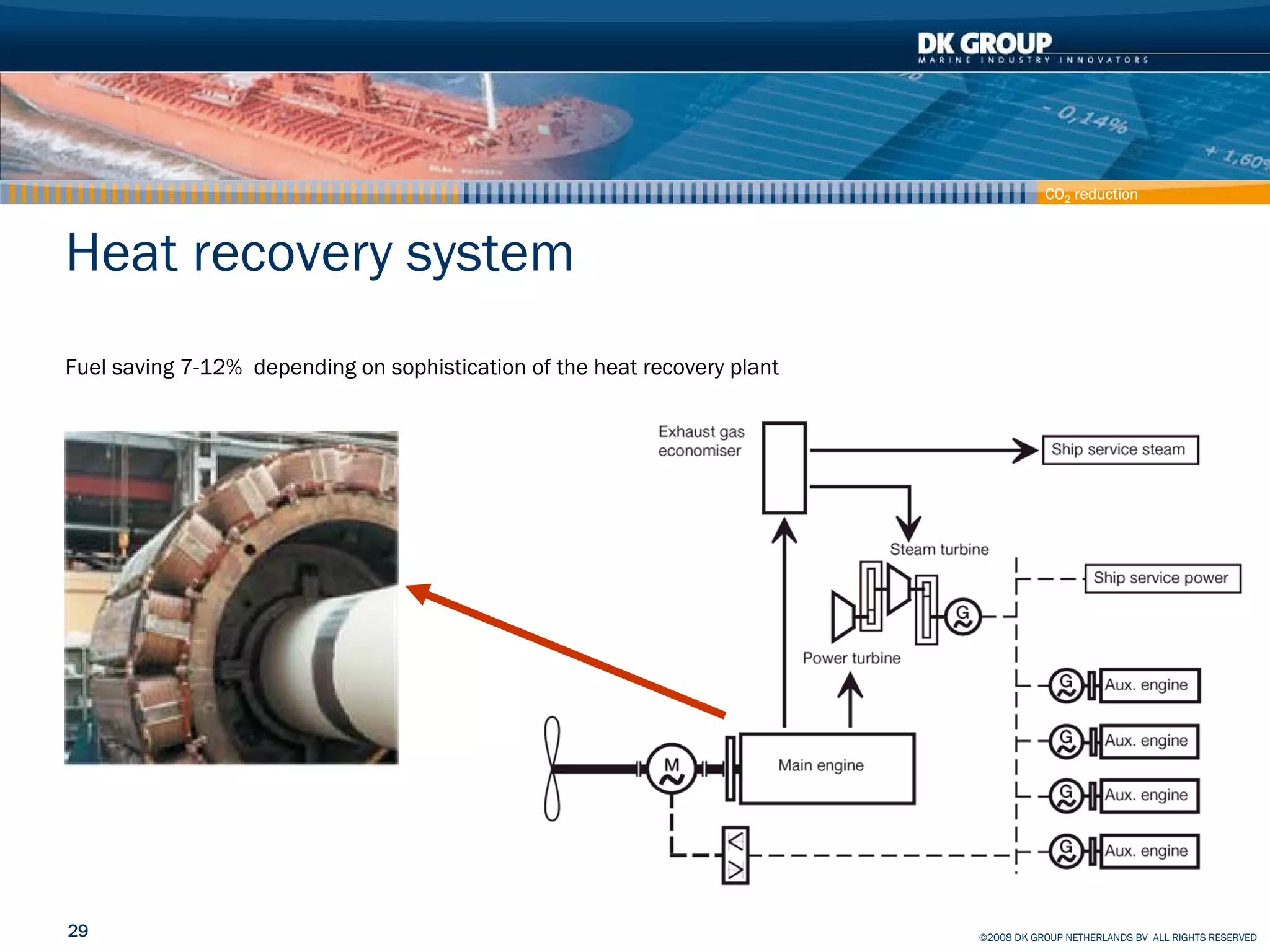

CO2 reduction



Heat recovery system
Fuel saving 7-12% depending on sophistication of the heat recovery plant




29                                                                         ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
CO2 reduction

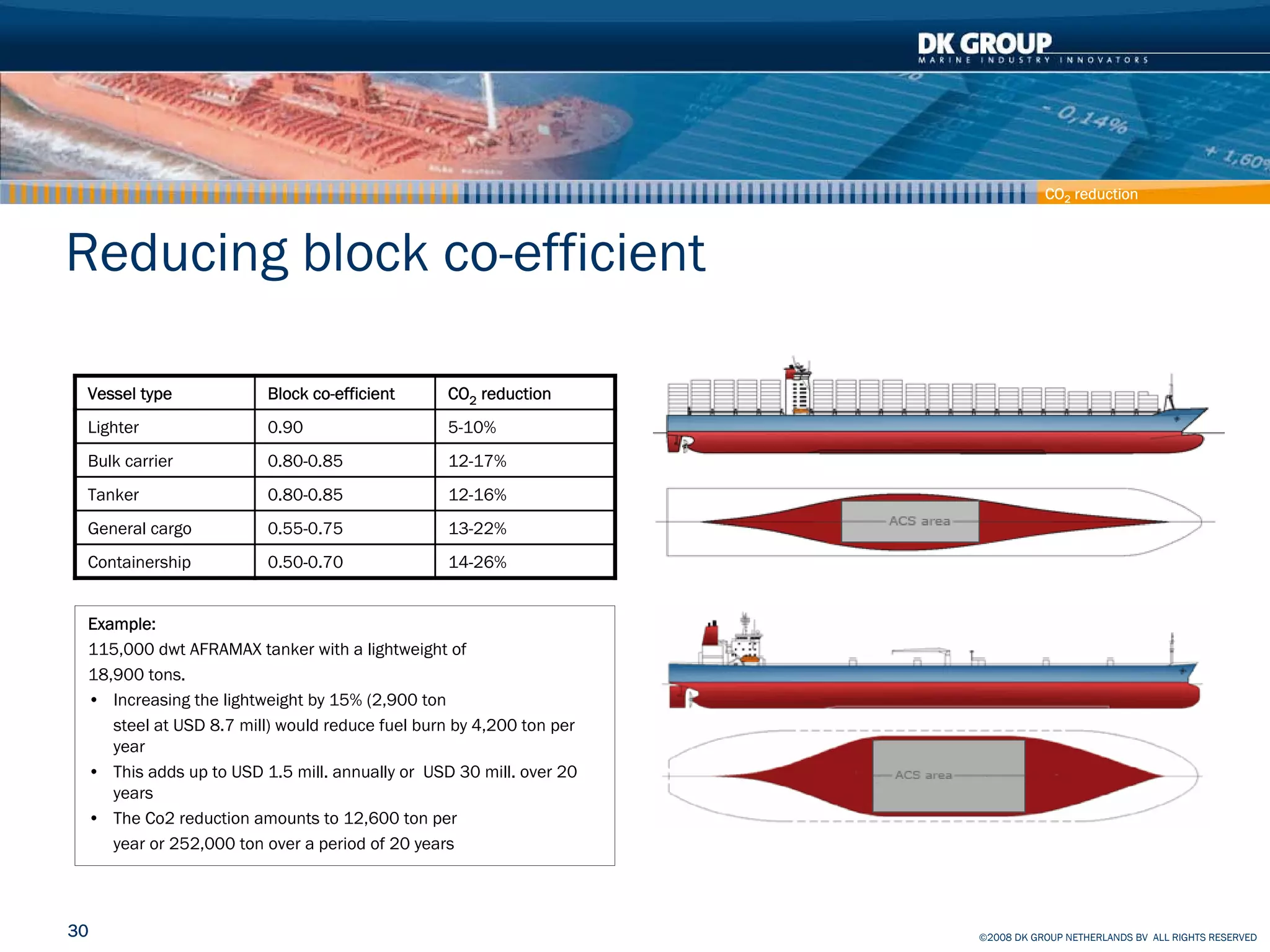

Reducing block co-efficient

 Vessel type            Block co-efficient      CO2 reduction
 Lighter                0.90                    5-10%
 Bulk carrier           0.80-0.85               12-17%
 Tanker                 0.80-0.85               12-16%
 General cargo          0.55-0.75               13-22%
 Containership          0.50-0.70               14-26%


 Example:
 115,000 dwt AFRAMAX tanker with a lightweight of
 18,900 tons.
 • Increasing the lightweight by 15% (2,900 ton
    steel at USD 8.7 mill) would reduce fuel burn by 4,200 ton per
    year
 • This adds up to USD 1.5 mill. annually or USD 30 mill. over 20
    years
 • The Co2 reduction amounts to 12,600 ton per
    year or 252,000 ton over a period of 20 years



30                                                                   ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
The Air Cavity System




     4. The Air Cavity System




31                              ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

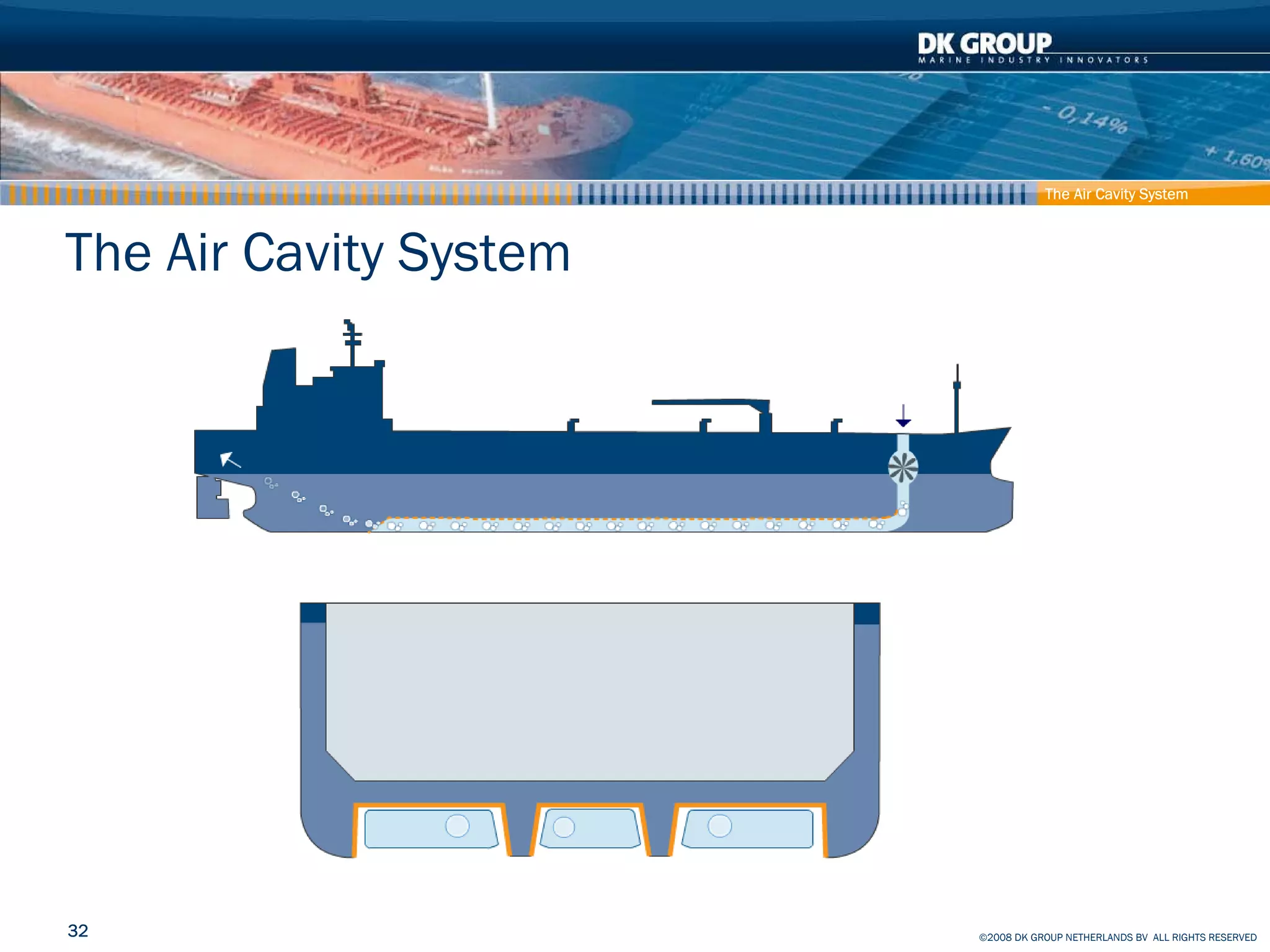

The Air Cavity System



The Air Cavity System




32                      ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

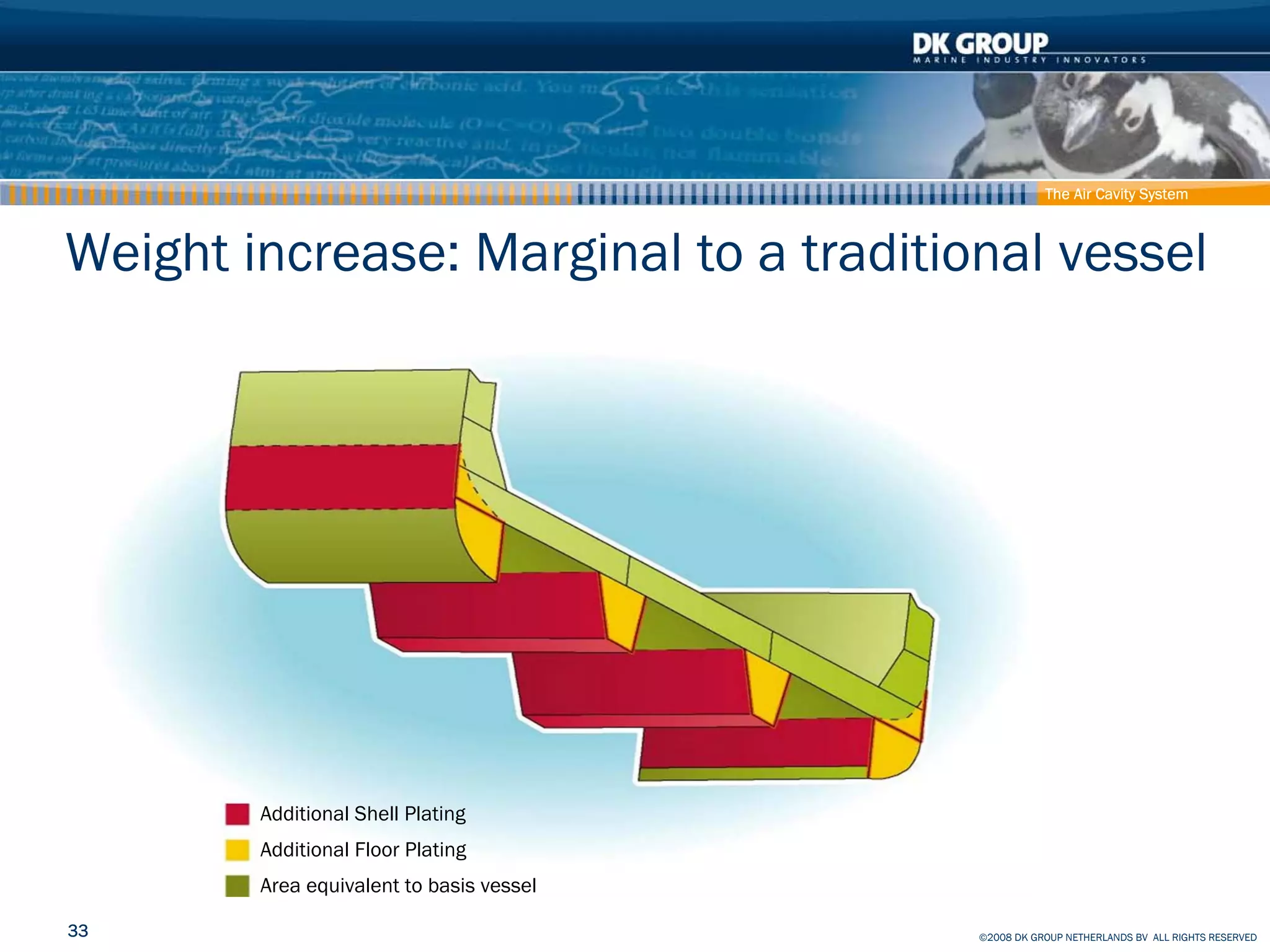

The Air Cavity System



Weight increase: Marginal to a traditional vessel




        Additional Shell Plating
        Additional Floor Plating
        Area equivalent to basis vessel

33                                        ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

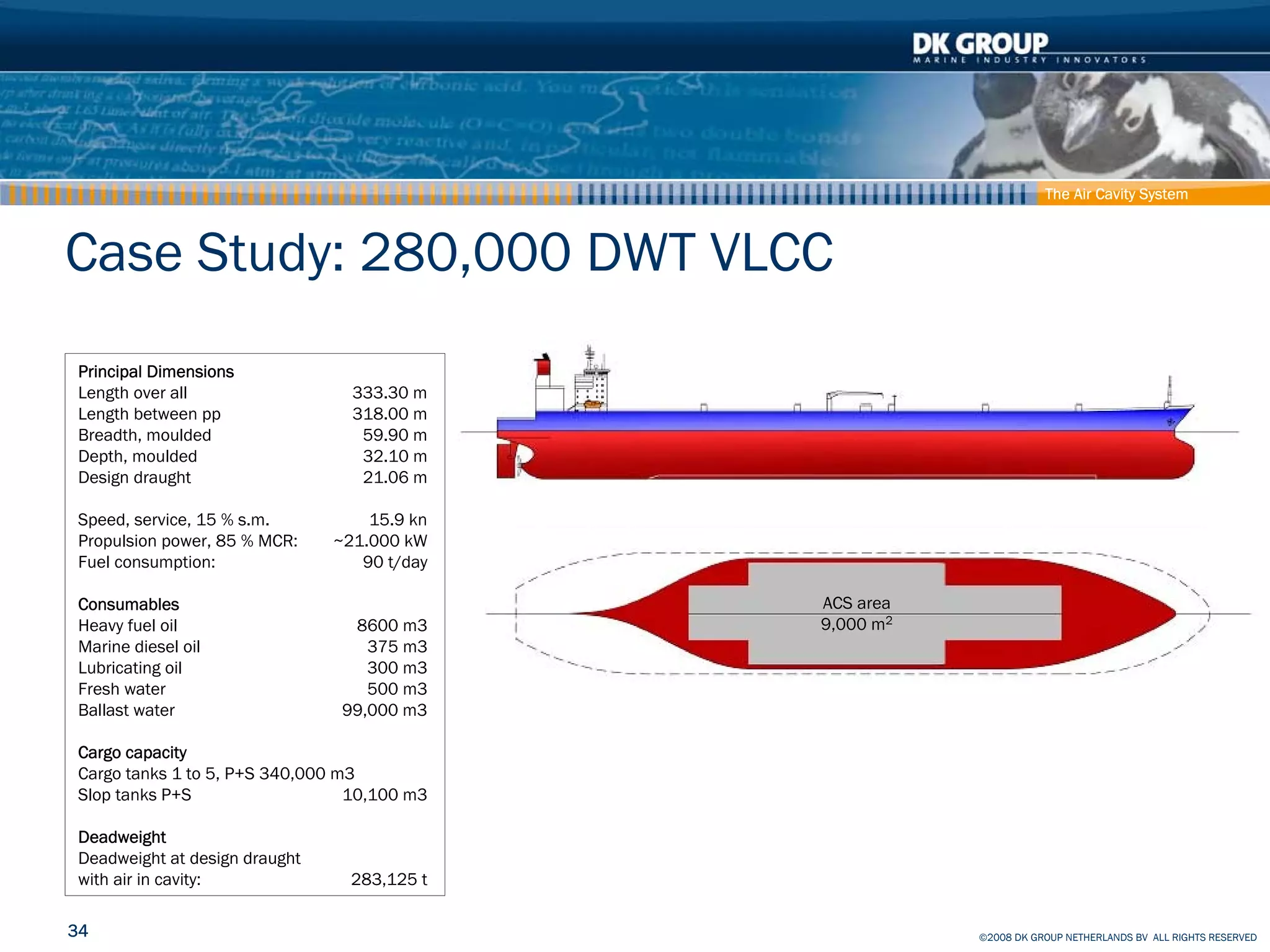

The Air Cavity System



Case Study: 280,000 DWT VLCC
Principal Dimensions
Length over all                   333.30 m
Length between pp                 318.00 m
Breadth, moulded                   59.90 m
Depth, moulded                     32.10 m
Design draught                     21.06 m

Speed, service, 15 % s.m.           15.9 kn
Propulsion power, 85 % MCR:     ~21.000 kW
Fuel consumption:                  90 t/day

                                              ACS area
 Consumables
                                              9,000 m2
 Heavy fuel oil                   8600 m3
 Marine diesel oil                  375 m3
 Lubricating oil                    300 m3
 Fresh water                        500 m3
 Ballast water                   99,000 m3

 Cargo capacity
 Cargo tanks 1 to 5, P+S 340,000 m3
 Slop tanks P+S                   10,100 m3

 Deadweight
 Deadweight at design draught
 with air in cavity:              283,125 t

34                                                       ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

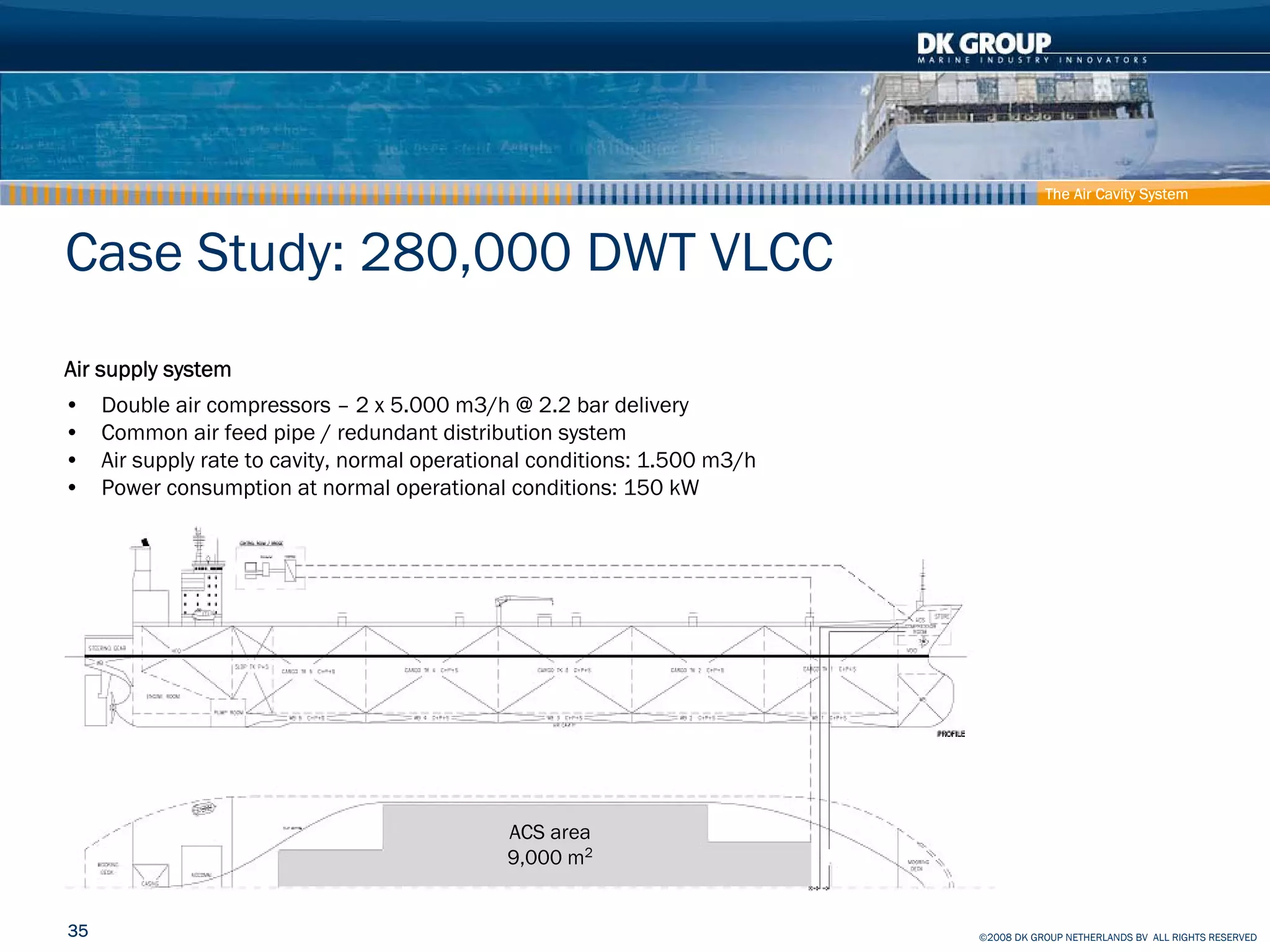

The Air Cavity System



Case Study: 280,000 DWT VLCC
Air supply system
•    Double air compressors – 2 x 5.000 m3/h @ 2.2 bar delivery
•    Common air feed pipe / redundant distribution system
•    Air supply rate to cavity, normal operational conditions: 1.500 m3/h
•    Power consumption at normal operational conditions: 150 kW




                                               ACS area
                                               9,000 m2


35                                                                          ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

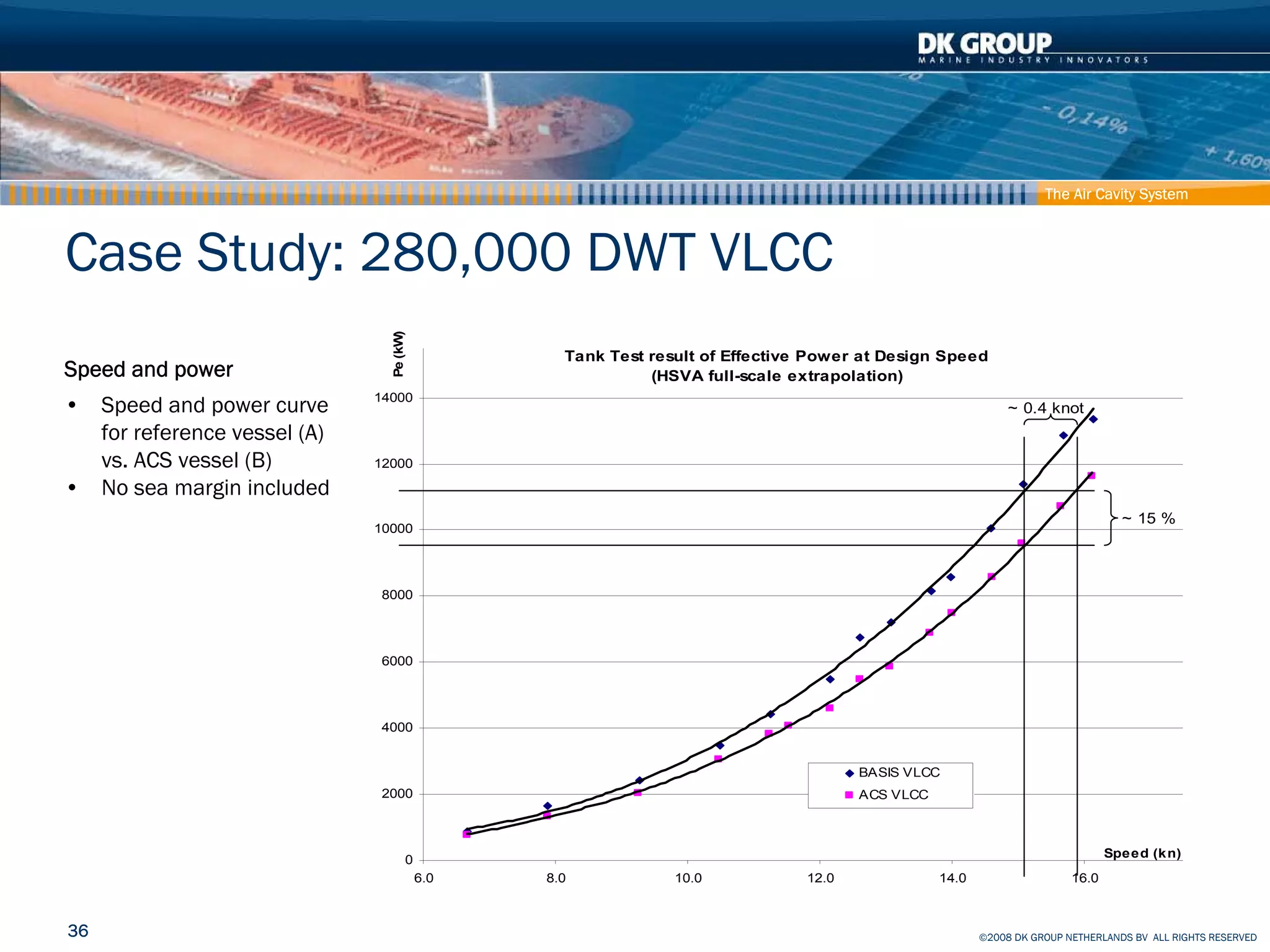

The Air Cavity System



Case Study: 280,000 DWT VLCC

                               Pe (kW)
                                                 Tank Test result of Effective Power at Design Speed
Speed and power                                            (HSVA full-scale extrapolation)

• Speed and power curve      14000
                                                                                                            ~ 0.4 knot
  for reference vessel (A)
  vs. ACS vessel (B)         12000

• No sea margin included
                                                                                                                                ~ 15 %
                             10000




                             8000




                             6000




                             4000


                                                                                     BASIS VLCC
                             2000                                                    ACS VLCC



                                                                                                                              Speed (kn)
                                     0
                                         6.0   8.0            10.0            12.0              14.0                   16.0



36                                                                                                     ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

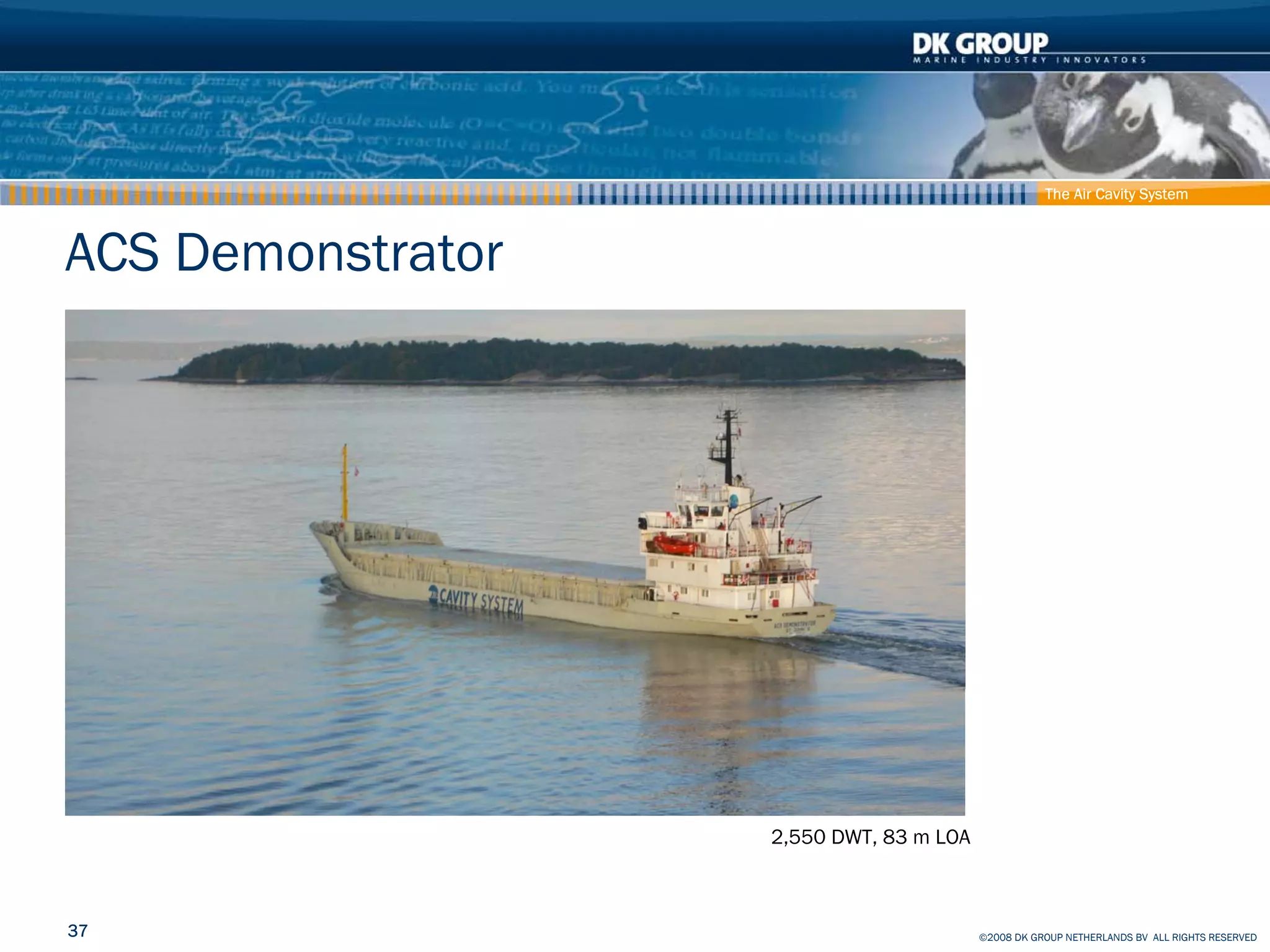

ACS Demonstrator
                                                    The Air Cavity System



ACS Demonstrator




                   2,550 DWT, 83 m LOA



 37                                      ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

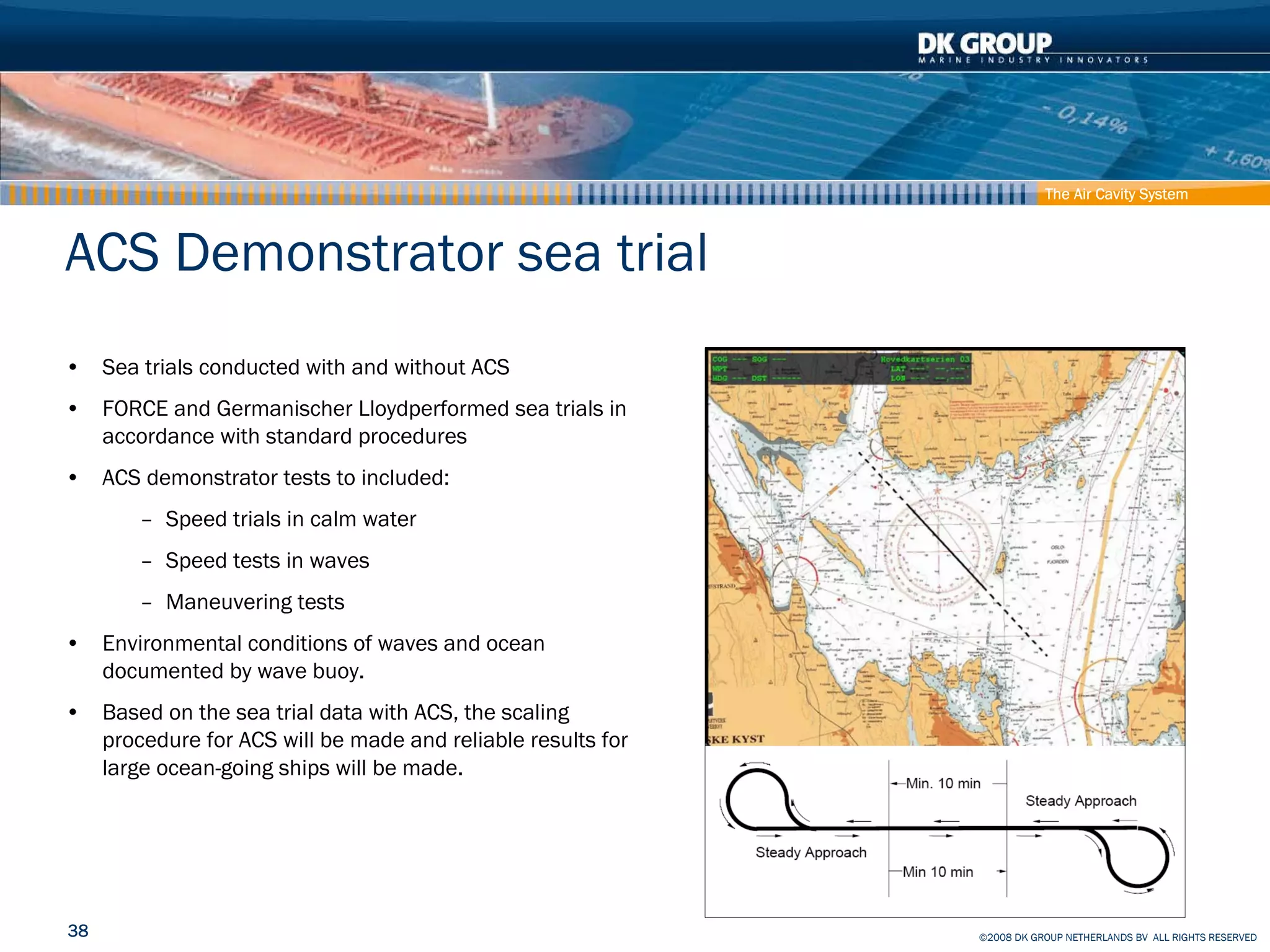

The Air Cavity System



ACS Demonstrator sea trial
• Sea trials conducted with and without ACS
• FORCE and Germanischer Lloydperformed sea trials in
  accordance with standard procedures
• ACS demonstrator tests to included:
       – Speed trials in calm water
       – Speed tests in waves
       – Maneuvering tests
• Environmental conditions of waves and ocean
  documented by wave buoy.
• Based on the sea trial data with ACS, the scaling
  procedure for ACS will be made and reliable results for
  large ocean-going ships will be made.




38                                                          ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

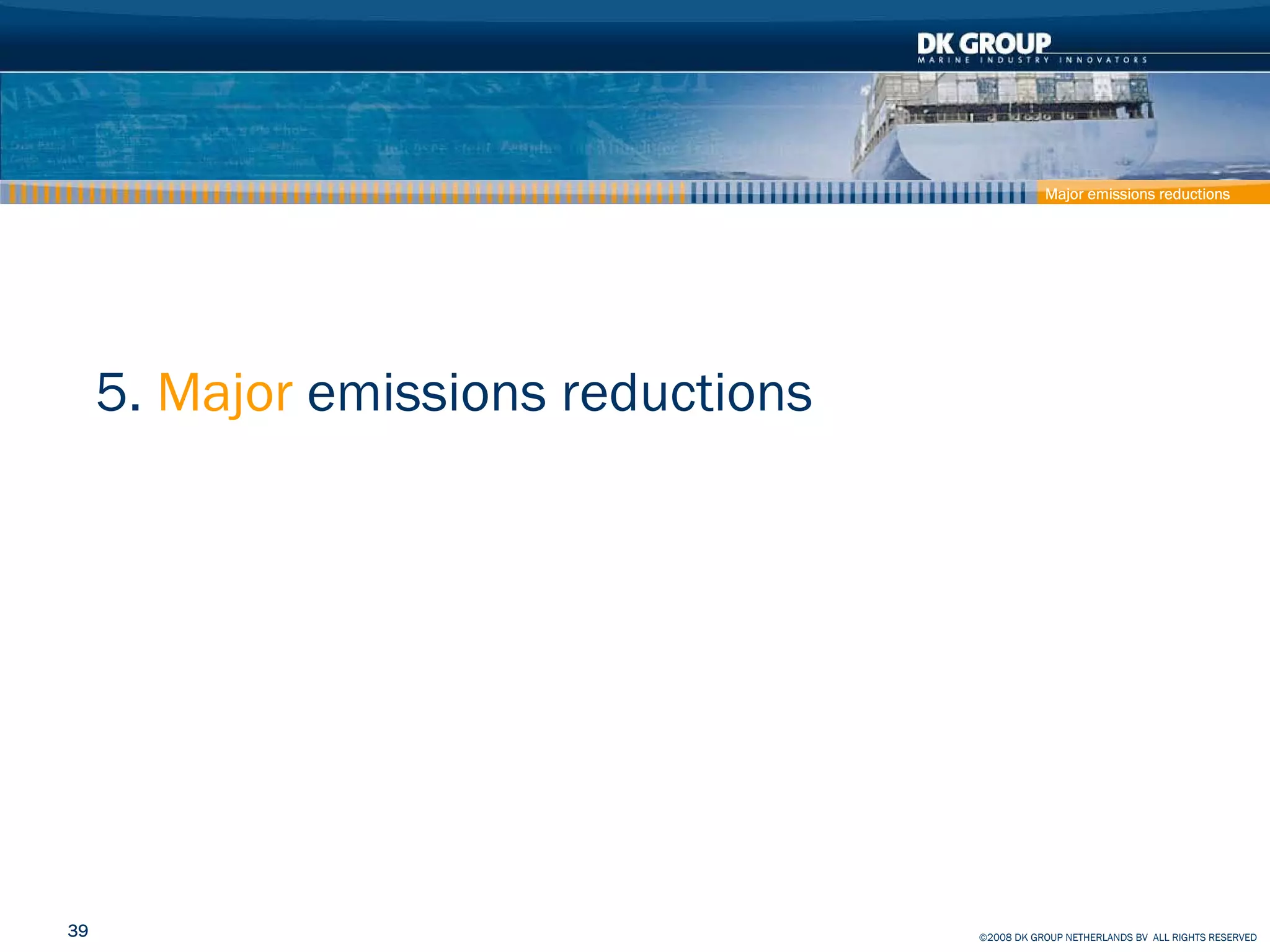

Major emissions reductions




     5. Major emissions reductions




39                                   ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
Major emissions reductions



Major emissions reductions
•    According to a report from IMO’s          Technology                                       Maximum fuel savings
     subcommittee on bulk liquids and gases
                                               Propeller technology:
     (BLG) published in December 2007, a
                                                   Contra rotating propellers                               10%
     10% reduction in fuel burn for existing
                                                   Twin propellers – twin engines                          5-10%
     ships and 30-40% or more for new
                                                   Propeller Boss Fin Cap                                    4%
     buildings are achievable
                                                   High-efficiency propellers                                4%
•    ACS combined with other technologies      Heat recovery system                                           8%
     can reduce shipping's CO2 emissions
     TODAY by a minimum of 10% to a            Block co-efficient.                                        15-25%
     maximum of 50% depending on vessel
                                               Air Cavity System - reducing the friction                     15%
     type.                                     resistance of the hull.
                                               Speed reduction                                               30%

                                               Other design modifications.                                   10%

                                               Total for bulker and tankers                                  50%
                                               Total for containerships                                      36%



40                                                                                         ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
Major emissions reductions

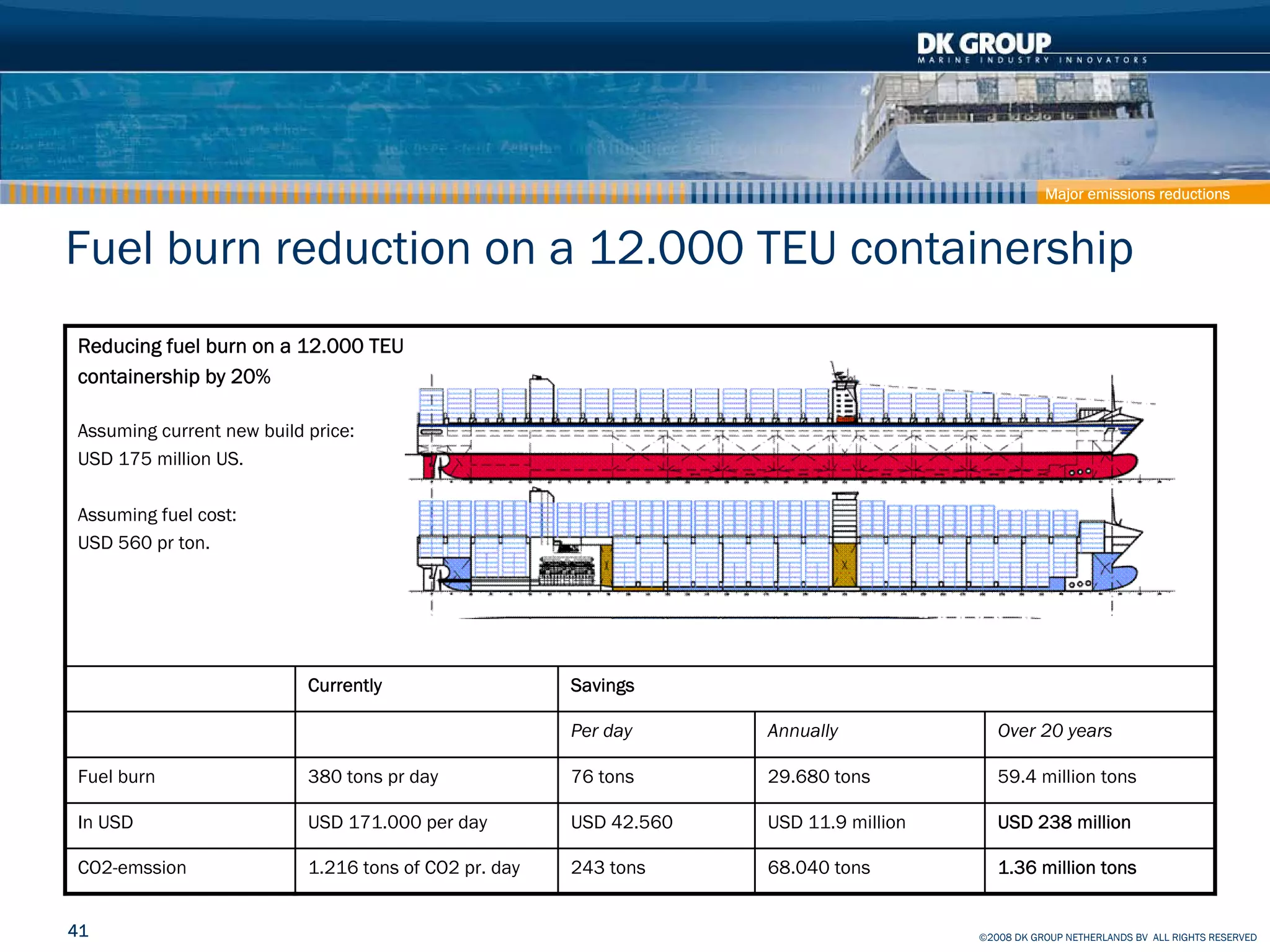

Fuel burn reduction on a 12.000 TEU containership
Reducing fuel burn on a 12.000 TEU
containership by 20%

Assuming current new build price:
USD 175 million US.

Assuming fuel cost:
USD 560 pr ton.




                           Currently                   Savings

                                                       Per day      Annually              Over 20 years

Fuel burn                  380 tons pr day             76 tons      29.680 tons           59.4 million tons

In USD                     USD 171.000 per day         USD 42.560   USD 11.9 million      USD 238 million

CO2-emssion                1.216 tons of CO2 pr. day   243 tons     68.040 tons           1.36 million tons


41                                                                                     ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
Major emissions reductions

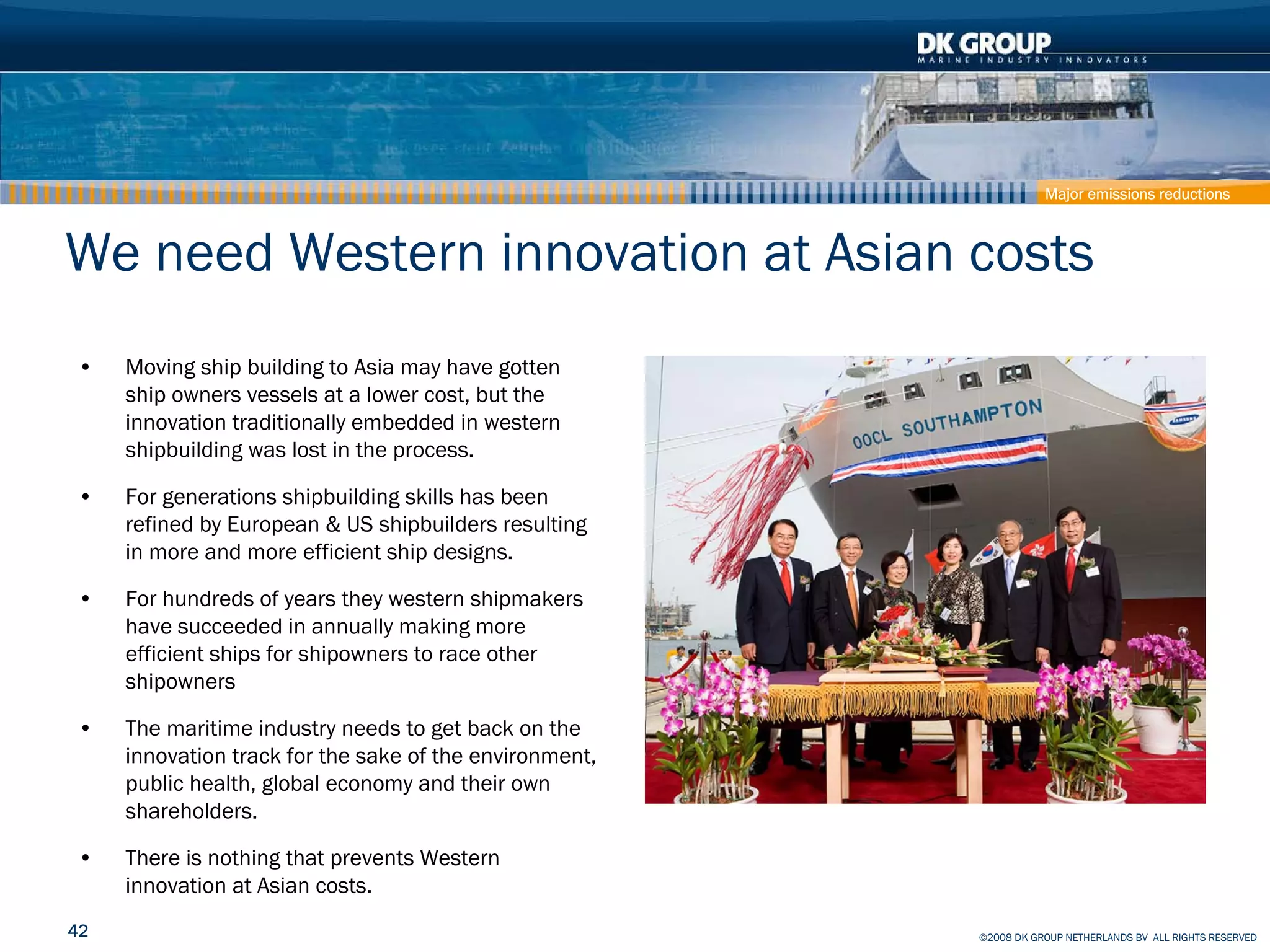

We need Western innovation at Asian costs
•    Moving ship building to Asia may have gotten
     ship owners vessels at a lower cost, but the
     innovation traditionally embedded in western
     shipbuilding was lost in the process.

•    For generations shipbuilding skills has been
     refined by European & US shipbuilders resulting
     in more and more efficient ship designs.

•    For hundreds of years they western shipmakers
     have succeeded in annually making more
     efficient ships for shipowners to race other
     shipowners

•    The maritime industry needs to get back on the
     innovation track for the sake of the environment,
     public health, global economy and their own
     shareholders.

•    There is nothing that prevents Western
     innovation at Asian costs.
42                                                       ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
Major emissions reductions

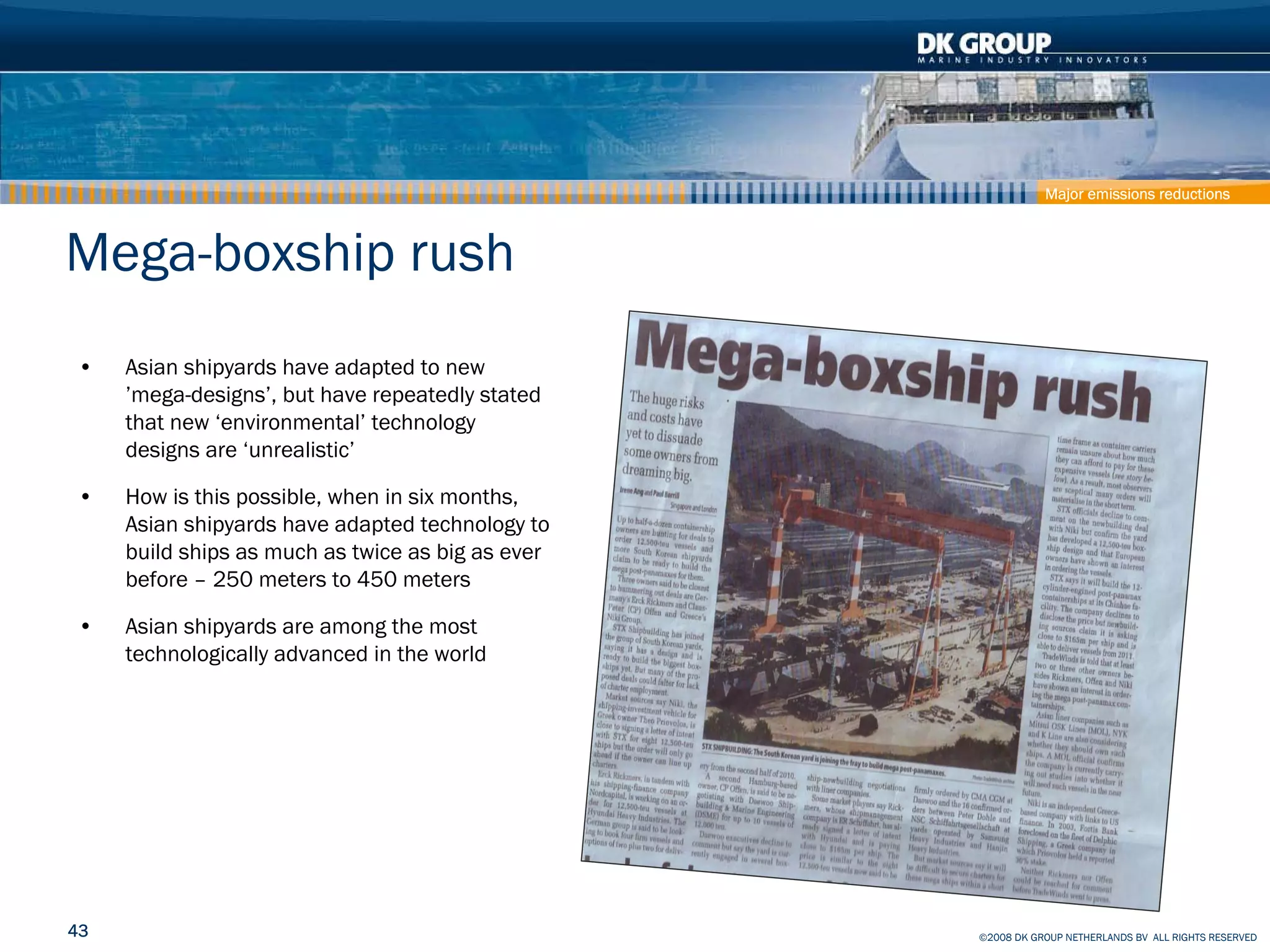

Mega-boxship rush
•    Asian shipyards have adapted to new
     ’mega-designs’, but have repeatedly stated
     that new ‘environmental’ technology
     designs are ‘unrealistic’

•    How is this possible, when in six months,
     Asian shipyards have adapted technology to
     build ships as much as twice as big as ever
     before – 250 meters to 450 meters

•    Asian shipyards are among the most
     technologically advanced in the world




43                                                 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
New builds and new…




     6. New builds and new technologies




44                                        ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
New builds and new…

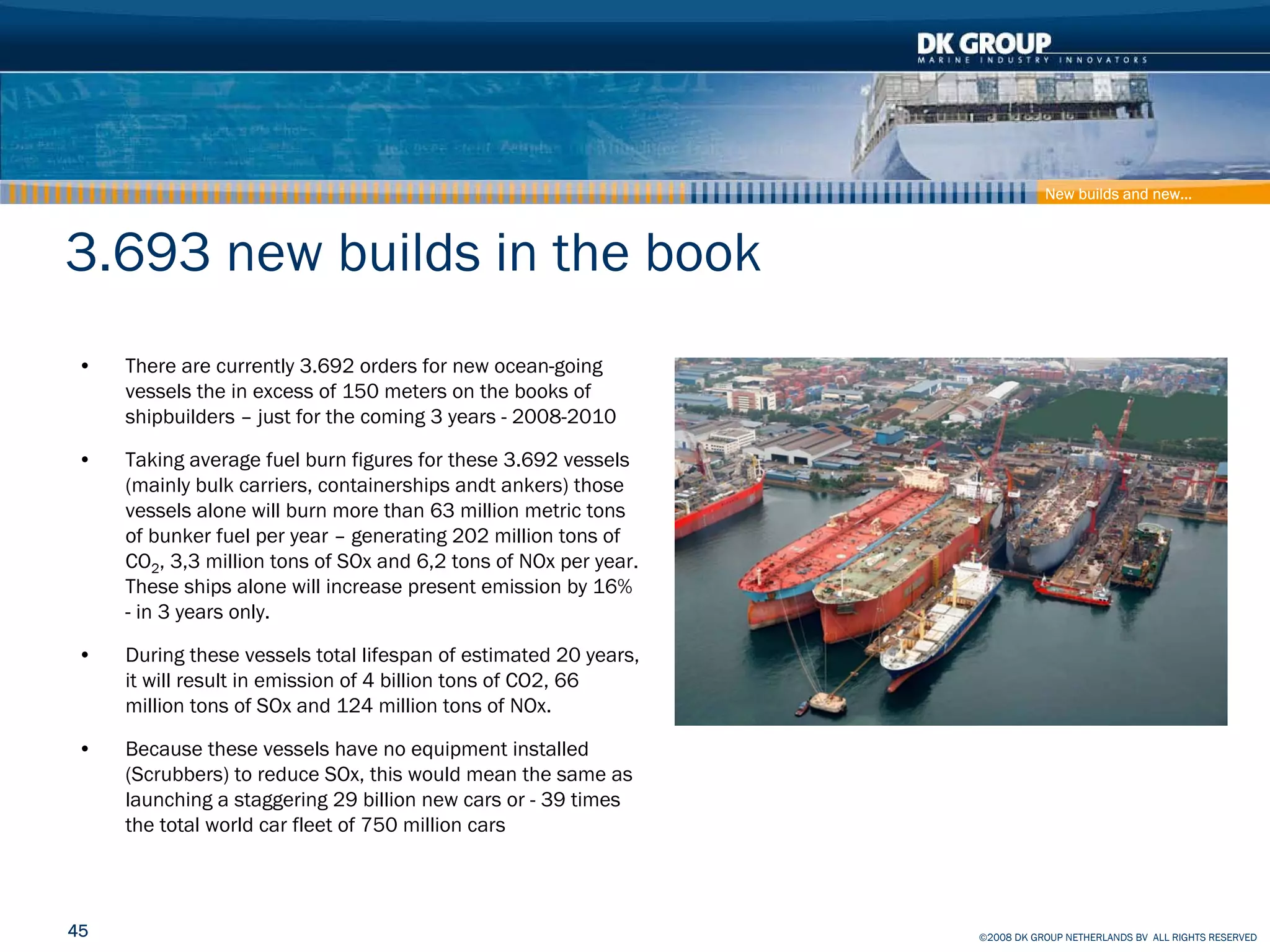

3.693 new builds in the book
•    There are currently 3.692 orders for new ocean-going
     vessels the in excess of 150 meters on the books of
     shipbuilders – just for the coming 3 years - 2008-2010

•    Taking average fuel burn figures for these 3.692 vessels
     (mainly bulk carriers, containerships andt ankers) those
     vessels alone will burn more than 63 million metric tons
     of bunker fuel per year – generating 202 million tons of
     CO2, 3,3 million tons of SOx and 6,2 tons of NOx per year.
     These ships alone will increase present emission by 16%
     - in 3 years only.

•    During these vessels total lifespan of estimated 20 years,
     it will result in emission of 4 billion tons of CO2, 66
     million tons of SOx and 124 million tons of NOx.

•    Because these vessels have no equipment installed
     (Scrubbers) to reduce SOx, this would mean the same as
     launching a staggering 29 billion new cars or - 39 times
     the total world car fleet of 750 million cars



45                                                                ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
New builds and new…

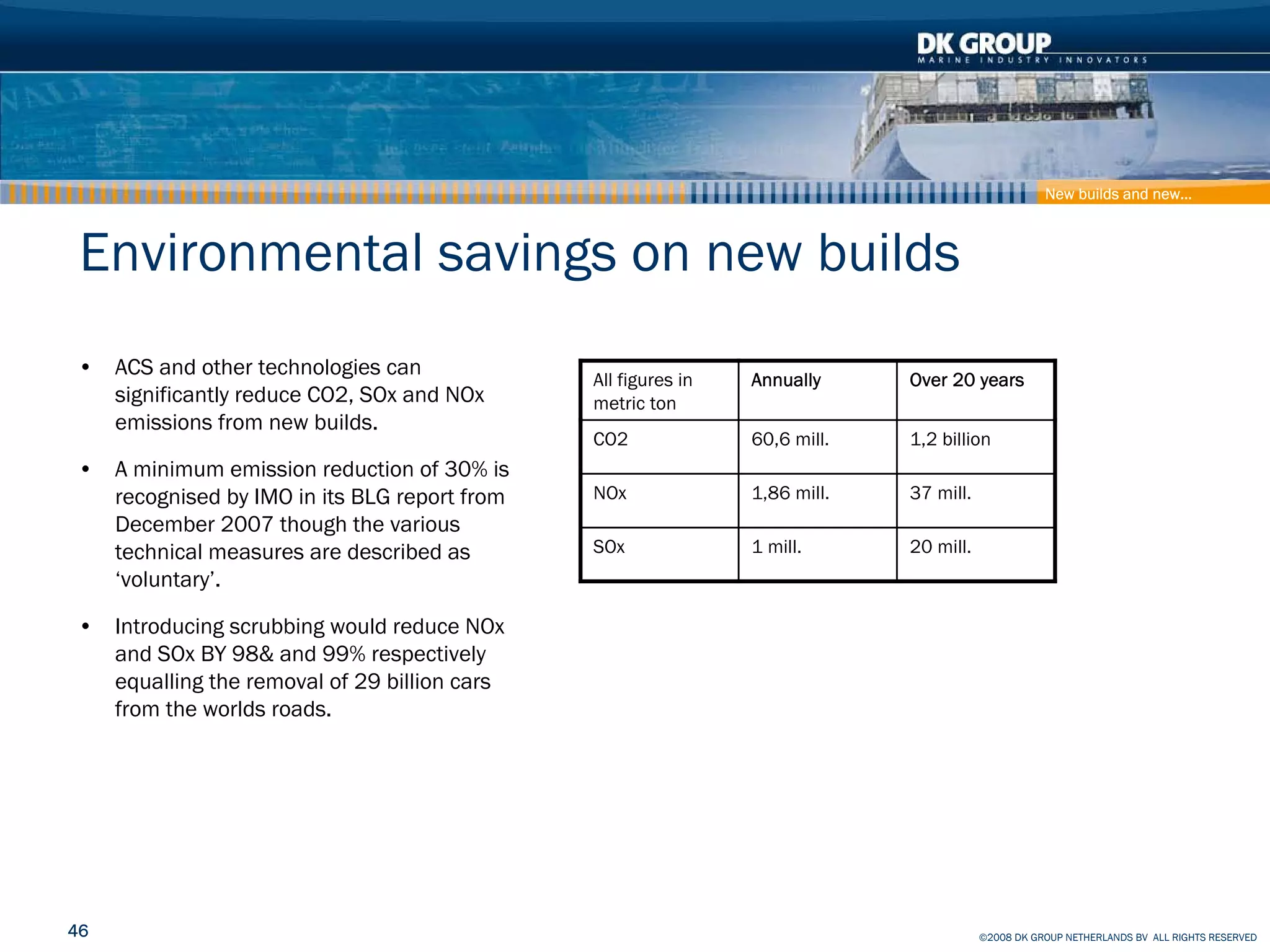

 Environmental savings on new builds
• ACS and other technologies can
                                             All figures in   Annually     Over 20 years
  significantly reduce CO2, SOx and NOx      metric ton
  emissions from new builds.
                                             CO2              60,6 mill.   1,2 billion
• A minimum emission reduction of 30% is
                                             NOx              1,86 mill.   37 mill.
  recognised by IMO in its BLG report from
  December 2007 though the various
                                             SOx              1 mill.      20 mill.
  technical measures are described as
  ‘voluntary’.

• Introducing scrubbing would reduce NOx
  and SOx BY 98& and 99% respectively
  equalling the removal of 29 billion cars
  from the worlds roads.




46                                                                                    ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
New builds and new…

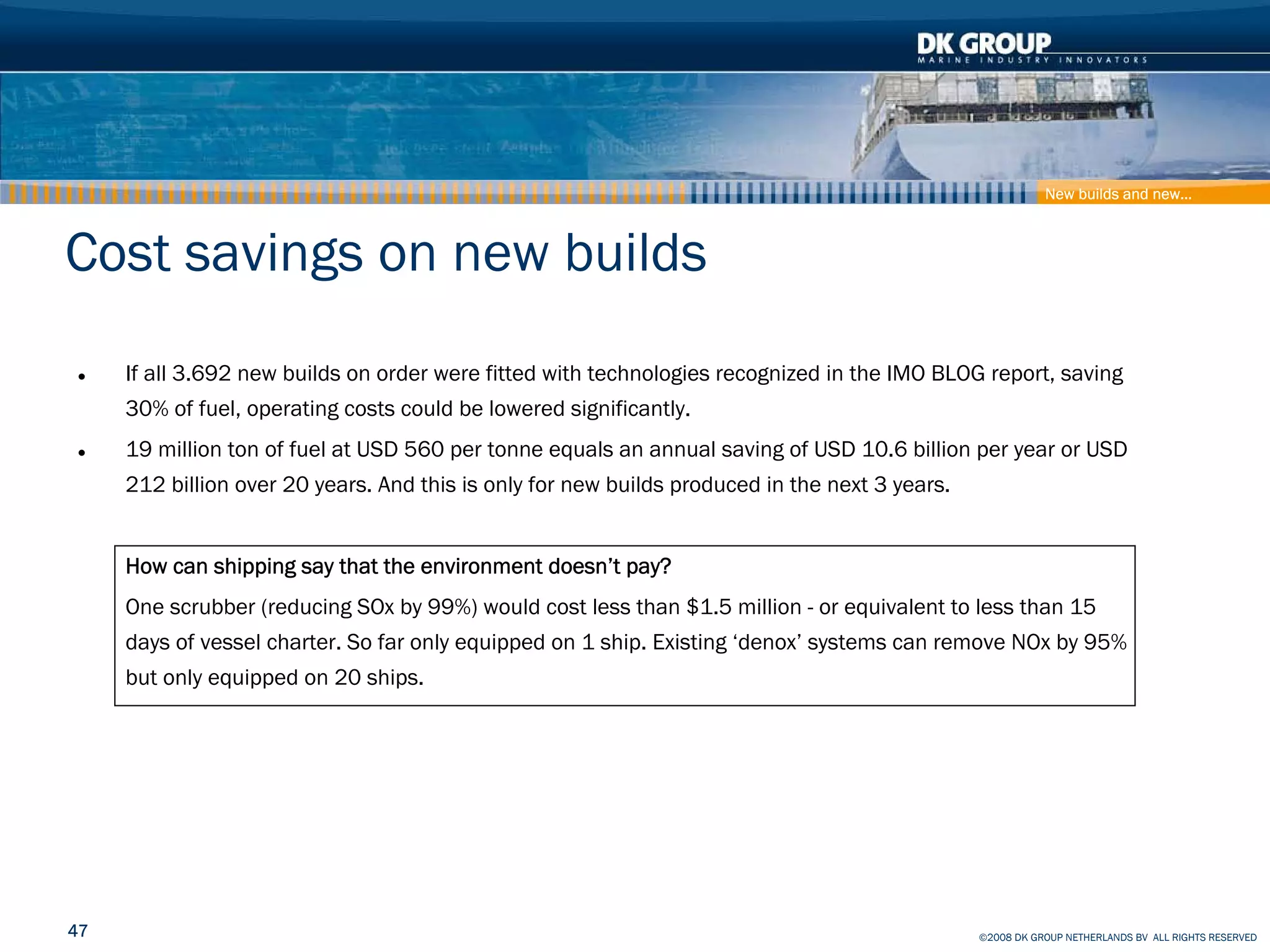

Cost savings on new builds
     If all 3.692 new builds on order were fitted with technologies recognized in the IMO BLOG report, saving
     30% of fuel, operating costs could be lowered significantly.
     19 million ton of fuel at USD 560 per tonne equals an annual saving of USD 10.6 billion per year or USD
     212 billion over 20 years. And this is only for new builds produced in the next 3 years.


     How can shipping say that the environment doesn’t pay?
     One scrubber (reducing SOx by 99%) would cost less than $1.5 million - or equivalent to less than 15
     days of vessel charter. So far only equipped on 1 ship. Existing ‘denox’ systems can remove NOx by 95%
     but only equipped on 20 ships.




47                                                                                              ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
Major emissions reductions




48   ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
New builds and new…



Will they say no to $200 billion in cost savings?




If all 3.692 new builds on order, would follow the IMO Voluntary reduction of 30-40%, 10 billion USD could be saved
annually in the current new building program.



     How can shipping say that charters and banks don’t care about losses of over 200 billion over 20 years?

49                                                                                             ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
Shipping vs. aviation




     7. Shipping vs. aviation




50                              ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

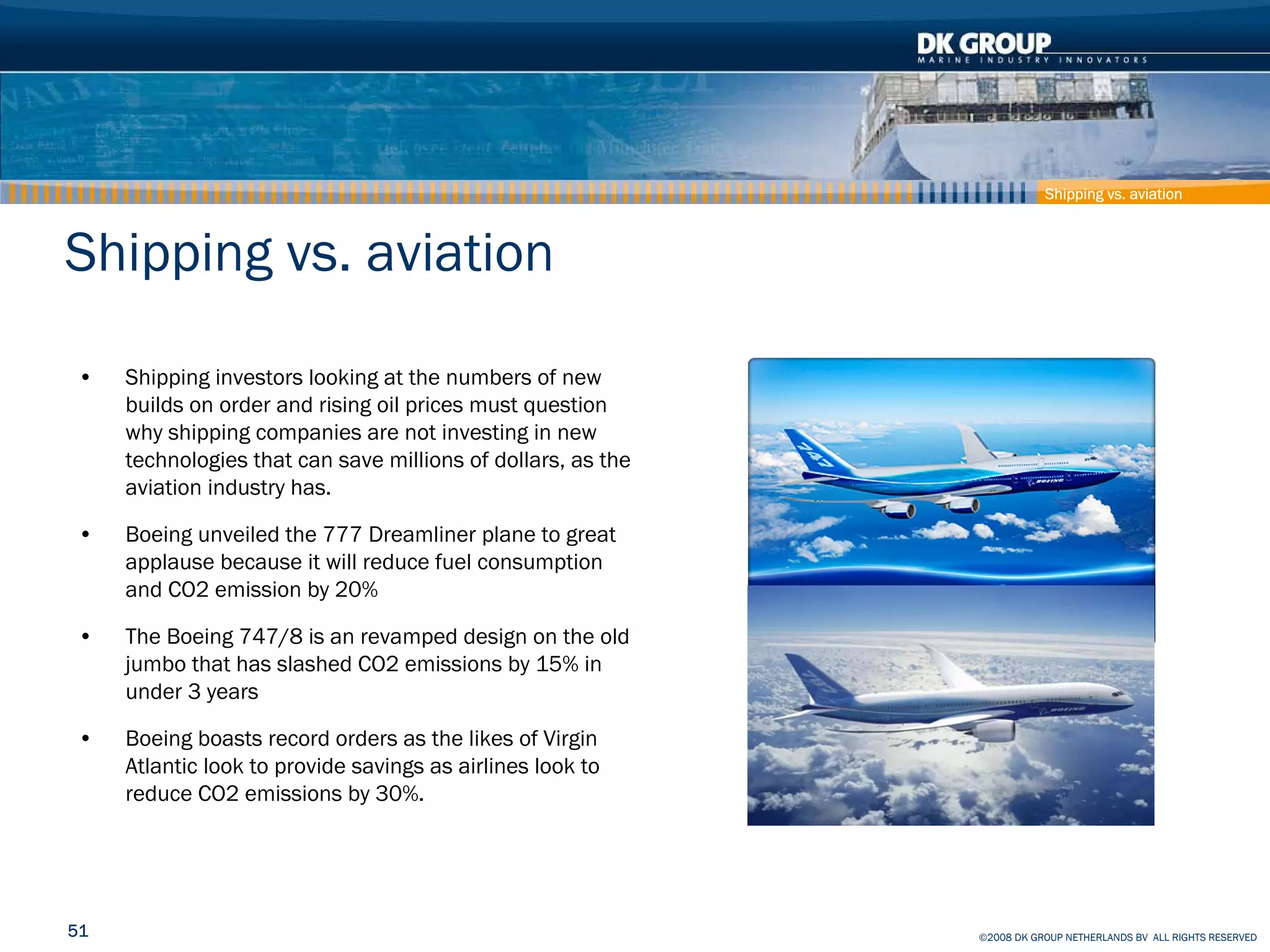

Shipping vs. aviation



Shipping vs. aviation

•    Shipping investors looking at the numbers of new
     builds on order and rising oil prices must question
     why shipping companies are not investing in new
     technologies that can save millions of dollars, as the
     aviation industry has.

•    Boeing unveiled the 777 Dreamliner plane to great
     applause because it will reduce fuel consumption
     and CO2 emission by 20%

•    The Boeing 747/8 is an revamped design on the old
     jumbo that has slashed CO2 emissions by 15% in
     under 3 years

•    Boeing boasts record orders as the likes of Virgin
     Atlantic look to provide savings as airlines look to
     reduce CO2 emissions by 30%.




51                                                            ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

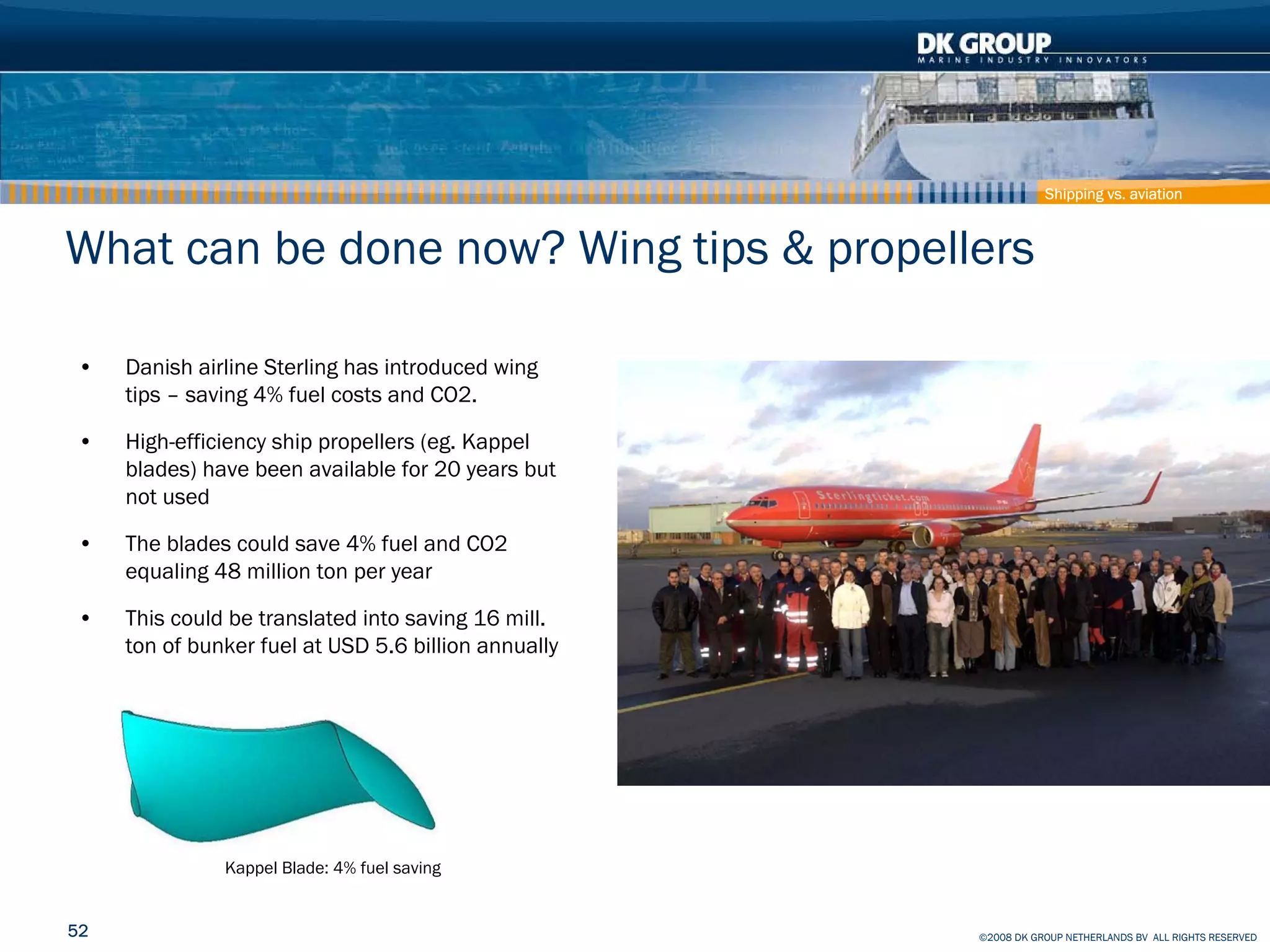

Shipping vs. aviation



What can be done now? Wing tips & propellers

•    Danish airline Sterling has introduced wing
     tips – saving 4% fuel costs and CO2.

•    High-efficiency ship propellers (eg. Kappel
     blades) have been available for 20 years but
     not used

•    The blades could save 4% fuel and CO2
     equaling 48 million ton per year

•    This could be translated into saving 16 mill.
     ton of bunker fuel at USD 5.6 billion annually




               Kappel Blade: 4% fuel saving


52                                                    ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
Conclusion




     8. Conclusion: Shipping can lead the way




53                                       ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
Conclusion



Conclusion
•    Voluntary recommendations from IMO BLG reducing CO2 emissions by 30-40% report should
     be made mandatory

•    There is little time available to address the issue of climate change and air pollution

•    Shipping is by far the biggest transport polluter in the world emitting as much as 260 time
     more SOx than all the worlds cares put together

•    Mandatory SCRUBBER Retro FIT program for ships with more than 10 years of life.

•    Technologies are widely available NOW..!

•    Shipping needs to look at the aviation industry where fuel costs and Co2, NOx and
     SOxsavings through ingenuity are encouraged and heavily financed

•    “SEABUS” Large scale Ship building has to be moved back to the EU & US over the next 20
     year, making environmental & efficient ships based on and protected by IP.

•    We ask you to incorporate ACS and other fuel efficiency and scrubbing technologies into
     state, federal and international regulations.



54                                                                                             ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
Q&A



Thank you for your attention
                               “We are using the knowledge
                               we already have to make a
                               difference. That is our duty.
                               What is yours?”

                               - DK Group Founder
                               Jørn P. Winkler




55                                          ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED

More Related Content

Viewers also liked

Viewers also liked (20)

Container ship
Container ship Container ship
Container ship

Different types of vessels in world merchant fleet
Different types of vessels in world merchant fleetDifferent types of vessels in world merchant fleet
Different types of vessels in world merchant fleet

Marine pollution ppt
Marine pollution pptMarine pollution ppt
Marine pollution ppt

Global Warming_3eso
Global Warming_3esoGlobal Warming_3eso
Global Warming_3eso

Giant Container Ship
Giant Container ShipGiant Container Ship
Giant Container Ship

Estonian startup scene
Estonian startup sceneEstonian startup scene
Estonian startup scene

Preliminary Design of Containership
Preliminary Design of ContainershipPreliminary Design of Containership
Preliminary Design of Containership

Climate Change and Health Presentation 1 Oct 2013
Climate Change and Health Presentation 1 Oct 2013Climate Change and Health Presentation 1 Oct 2013
Climate Change and Health Presentation 1 Oct 2013

Going by the Rules - Reading the Signals
Going by the Rules - Reading the SignalsGoing by the Rules - Reading the Signals
Going by the Rules - Reading the Signals

Morse code
Morse codeMorse code
Morse code

Giant Container Ship
Giant Container ShipGiant Container Ship
Giant Container Ship

Basic signal and communication
Basic signal and communicationBasic signal and communication
Basic signal and communication

Maritime Flags: What Do They Mean?
Maritime Flags: What Do They Mean?Maritime Flags: What Do They Mean?
Maritime Flags: What Do They Mean?

Cargo ship componenet
Cargo ship componenetCargo ship componenet
Cargo ship componenet

Research files, flag id & etc. (ragti)
Research files, flag id & etc. (ragti)Research files, flag id & etc. (ragti)
Research files, flag id & etc. (ragti)

maritime safety and emergency
maritime safety and emergencymaritime safety and emergency
maritime safety and emergency

Flag of conveniences
Flag of conveniencesFlag of conveniences
Flag of conveniences

AIR POLLUTION CONTROL L 8
AIR POLLUTION CONTROL L 8AIR POLLUTION CONTROL L 8
AIR POLLUTION CONTROL L 8

Mega Ship Maersk Triple E
Mega Ship  Maersk Triple EMega Ship  Maersk Triple E
Mega Ship Maersk Triple E

Morse Code Presentation_Final
Morse Code Presentation_FinalMorse Code Presentation_Final
Morse Code Presentation_Final


Similar to Container Ship - How to reduce effect on Climate and Pollution

Welsh bacc teacher training day
Welsh bacc teacher training dayWelsh bacc teacher training day
Welsh bacc teacher training dayc3w

Preparing New Zealand for rising seas: Certainty and Uncertainty
Preparing New Zealand for rising seas: Certainty and UncertaintyPreparing New Zealand for rising seas: Certainty and Uncertainty
Preparing New Zealand for rising seas: Certainty and UncertaintyBlair Mayston

Yorke Peninsula Community Group
Yorke Peninsula Community GroupYorke Peninsula Community Group
Yorke Peninsula Community Groupheartlandfarmers

Climate Change Geoscience
Climate Change GeoscienceClimate Change Geoscience
Climate Change Geoscienceguest9175cf

Managing Ecosystem Services in Catalonia: Jellyfish, Windfarms and Tourism
Managing Ecosystem Services in Catalonia: Jellyfish, Windfarms and TourismManaging Ecosystem Services in Catalonia: Jellyfish, Windfarms and Tourism
Managing Ecosystem Services in Catalonia: Jellyfish, Windfarms and TourismSergio Sastre

Rising Seas and Solutions, Sigma Xi Lecture
Rising Seas and Solutions, Sigma Xi LectureRising Seas and Solutions, Sigma Xi Lecture
Rising Seas and Solutions, Sigma Xi LecturePaul H. Carr

DHI UK & Ireland Symposium 2017 Programme
DHI UK & Ireland Symposium 2017 ProgrammeDHI UK & Ireland Symposium 2017 Programme
DHI UK & Ireland Symposium 2017 ProgrammeStephen Flood

Presentation_Budapest_EAGE_Sep_2008
Presentation_Budapest_EAGE_Sep_2008Presentation_Budapest_EAGE_Sep_2008
Presentation_Budapest_EAGE_Sep_2008Todd Flach

Shipping in the Arctic My Arctic your ArcticM.K Afenyo, PhD.docx
Shipping in the Arctic My Arctic your ArcticM.K Afenyo, PhD.docxShipping in the Arctic My Arctic your ArcticM.K Afenyo, PhD.docx
Shipping in the Arctic My Arctic your ArcticM.K Afenyo, PhD.docxbjohn46

Shipping in the Arctic My Arctic your ArcticM.K Afenyo, PhD.docx
Shipping in the Arctic My Arctic your ArcticM.K Afenyo, PhD.docxShipping in the Arctic My Arctic your ArcticM.K Afenyo, PhD.docx
Shipping in the Arctic My Arctic your ArcticM.K Afenyo, PhD.docxedgar6wallace88877

2010 - Offshore wind environmental impacts
2010 - Offshore wind environmental impacts2010 - Offshore wind environmental impacts
2010 - Offshore wind environmental impactsDavid Owain Clubb

Shipping Across The Arctic Ocean Position Paper
Shipping Across The Arctic Ocean Position PaperShipping Across The Arctic Ocean Position Paper
Shipping Across The Arctic Ocean Position PaperGeorge Teriakidis

004 Future Coastal Flood and Erosion Risk Management Schemes at Southsea and ...
004 Future Coastal Flood and Erosion Risk Management Schemes at Southsea and ...004 Future Coastal Flood and Erosion Risk Management Schemes at Southsea and ...
004 Future Coastal Flood and Erosion Risk Management Schemes at Southsea and ...djhutch


Similar to Container Ship - How to reduce effect on Climate and Pollution (20)

Singapore 2008 winkler
Singapore 2008 winklerSingapore 2008 winkler
Singapore 2008 winkler

Welsh bacc teacher training day
Welsh bacc teacher training dayWelsh bacc teacher training day
Welsh bacc teacher training day

Preparing New Zealand for rising seas: Certainty and Uncertainty
Preparing New Zealand for rising seas: Certainty and UncertaintyPreparing New Zealand for rising seas: Certainty and Uncertainty
Preparing New Zealand for rising seas: Certainty and Uncertainty

Yorke Peninsula Community Group
Yorke Peninsula Community GroupYorke Peninsula Community Group
Yorke Peninsula Community Group

K thompson may 2014
K thompson may 2014K thompson may 2014
K thompson may 2014

Climate Change Geoscience
Climate Change GeoscienceClimate Change Geoscience
Climate Change Geoscience

Climate Change Geoscience
Climate Change GeoscienceClimate Change Geoscience
Climate Change Geoscience

Magnus von Schenck, Project manager
Magnus von Schenck, Project managerMagnus von Schenck, Project manager
Magnus von Schenck, Project manager

Managing Ecosystem Services in Catalonia: Jellyfish, Windfarms and Tourism
Managing Ecosystem Services in Catalonia: Jellyfish, Windfarms and TourismManaging Ecosystem Services in Catalonia: Jellyfish, Windfarms and Tourism
Managing Ecosystem Services in Catalonia: Jellyfish, Windfarms and Tourism

Rising Seas and Solutions, Sigma Xi Lecture
Rising Seas and Solutions, Sigma Xi LectureRising Seas and Solutions, Sigma Xi Lecture
Rising Seas and Solutions, Sigma Xi Lecture

DHI UK & Ireland Symposium 2017 Programme
DHI UK & Ireland Symposium 2017 ProgrammeDHI UK & Ireland Symposium 2017 Programme
DHI UK & Ireland Symposium 2017 Programme

Presentation_Budapest_EAGE_Sep_2008
Presentation_Budapest_EAGE_Sep_2008Presentation_Budapest_EAGE_Sep_2008
Presentation_Budapest_EAGE_Sep_2008

Shipping in the Arctic My Arctic your ArcticM.K Afenyo, PhD.docx
Shipping in the Arctic My Arctic your ArcticM.K Afenyo, PhD.docxShipping in the Arctic My Arctic your ArcticM.K Afenyo, PhD.docx
Shipping in the Arctic My Arctic your ArcticM.K Afenyo, PhD.docx

Shipping in the Arctic My Arctic your ArcticM.K Afenyo, PhD.docx
Shipping in the Arctic My Arctic your ArcticM.K Afenyo, PhD.docxShipping in the Arctic My Arctic your ArcticM.K Afenyo, PhD.docx
Shipping in the Arctic My Arctic your ArcticM.K Afenyo, PhD.docx

Climate Change Presentation
Climate Change PresentationClimate Change Presentation
Climate Change Presentation

2010 - Offshore wind environmental impacts
2010 - Offshore wind environmental impacts2010 - Offshore wind environmental impacts
2010 - Offshore wind environmental impacts

Shipping Across The Arctic Ocean Position Paper
Shipping Across The Arctic Ocean Position PaperShipping Across The Arctic Ocean Position Paper
Shipping Across The Arctic Ocean Position Paper

Shipping In The North Pole
Shipping In The North PoleShipping In The North Pole
Shipping In The North Pole

Global Warming Ppt
Global Warming PptGlobal Warming Ppt
Global Warming Ppt

004 Future Coastal Flood and Erosion Risk Management Schemes at Southsea and ...
004 Future Coastal Flood and Erosion Risk Management Schemes at Southsea and ...004 Future Coastal Flood and Erosion Risk Management Schemes at Southsea and ...
004 Future Coastal Flood and Erosion Risk Management Schemes at Southsea and ...


More from Glenn Klith Andersen

Klimaborgertingets anbefalinger april 2021
Klimaborgertingets anbefalinger april 2021Klimaborgertingets anbefalinger april 2021
Klimaborgertingets anbefalinger april 2021Glenn Klith Andersen

Plantekatalog, planter der understøtter biodiversitet
Plantekatalog, planter der understøtter biodiversitetPlantekatalog, planter der understøtter biodiversitet
Plantekatalog, planter der understøtter biodiversitetGlenn Klith Andersen

Barcelona digital city plan - Putting technology at the service of people.
Barcelona digital city plan - Putting technology at the service of people.Barcelona digital city plan - Putting technology at the service of people.
Barcelona digital city plan - Putting technology at the service of people.Glenn Klith Andersen

Introduction to the Compassionate Systems Framework in Schools
Introduction to the Compassionate Systems Framework in SchoolsIntroduction to the Compassionate Systems Framework in Schools
Introduction to the Compassionate Systems Framework in SchoolsGlenn Klith Andersen

Verdensmål 11: Bæredygtige byer og lokalsamfund, jan. 2019
Verdensmål 11: Bæredygtige byer og lokalsamfund, jan. 2019Verdensmål 11: Bæredygtige byer og lokalsamfund, jan. 2019
Verdensmål 11: Bæredygtige byer og lokalsamfund, jan. 2019Glenn Klith Andersen

FN's 17 verdensmaal af Steen Hildebrandt
FN's 17 verdensmaal af Steen HildebrandtFN's 17 verdensmaal af Steen Hildebrandt
FN's 17 verdensmaal af Steen HildebrandtGlenn Klith Andersen

17. Sustainable Development Goals UN
17. Sustainable Development Goals UN17. Sustainable Development Goals UN
17. Sustainable Development Goals UNGlenn Klith Andersen

Gudenåens Passage ved Tangeværket
Gudenåens Passage ved TangeværketGudenåens Passage ved Tangeværket
Gudenåens Passage ved TangeværketGlenn Klith Andersen

Rebalancing Society by Henry Mintzberg
Rebalancing Society by Henry MintzbergRebalancing Society by Henry Mintzberg
Rebalancing Society by Henry MintzbergGlenn Klith Andersen

Innovators ecosystem by Vinod Khosla
Innovators ecosystem by Vinod KhoslaInnovators ecosystem by Vinod Khosla
Innovators ecosystem by Vinod KhoslaGlenn Klith Andersen

Black Swans thesis of energy transformation
Black Swans thesis of energy transformationBlack Swans thesis of energy transformation
Black Swans thesis of energy transformationGlenn Klith Andersen

Ellen mac arthur foundation towards the circular economy vol.2
Ellen mac arthur foundation towards the circular economy vol.2Ellen mac arthur foundation towards the circular economy vol.2
Ellen mac arthur foundation towards the circular economy vol.2Glenn Klith Andersen

Ellen mac arthur foundation towards the circular economy vol.1
Ellen mac arthur foundation towards the circular economy vol.1Ellen mac arthur foundation towards the circular economy vol.1
Ellen mac arthur foundation towards the circular economy vol.1Glenn Klith Andersen

Rethinking sustainable consumption consumer study 2012
Rethinking sustainable consumption consumer study 2012Rethinking sustainable consumption consumer study 2012
Rethinking sustainable consumption consumer study 2012Glenn Klith Andersen

The Future Quotient: 50 Stars in Seriously Long Term Innovation
The Future Quotient: 50 Stars in Seriously Long Term InnovationThe Future Quotient: 50 Stars in Seriously Long Term Innovation
The Future Quotient: 50 Stars in Seriously Long Term InnovationGlenn Klith Andersen

The impact of a corporate culture of sustainability on corporate behavior and...
The impact of a corporate culture of sustainability on corporate behavior and...The impact of a corporate culture of sustainability on corporate behavior and...
The impact of a corporate culture of sustainability on corporate behavior and...Glenn Klith Andersen

Regeneration Project: Unfinished Business - White Paper
Regeneration Project: Unfinished Business - White PaperRegeneration Project: Unfinished Business - White Paper
Regeneration Project: Unfinished Business - White PaperGlenn Klith Andersen


More from Glenn Klith Andersen (20)

Klimaborgertingets anbefalinger april 2021
Klimaborgertingets anbefalinger april 2021Klimaborgertingets anbefalinger april 2021
Klimaborgertingets anbefalinger april 2021

Plantekatalog, planter der understøtter biodiversitet
Plantekatalog, planter der understøtter biodiversitetPlantekatalog, planter der understøtter biodiversitet
Plantekatalog, planter der understøtter biodiversitet

Klimarådet 70% Reduktion 2030
Klimarådet 70% Reduktion 2030Klimarådet 70% Reduktion 2030
Klimarådet 70% Reduktion 2030

Barcelona digital city plan - Putting technology at the service of people.
Barcelona digital city plan - Putting technology at the service of people.Barcelona digital city plan - Putting technology at the service of people.
Barcelona digital city plan - Putting technology at the service of people.

Introduction to the Compassionate Systems Framework in Schools
Introduction to the Compassionate Systems Framework in SchoolsIntroduction to the Compassionate Systems Framework in Schools
Introduction to the Compassionate Systems Framework in Schools

Verdensmål 11: Bæredygtige byer og lokalsamfund, jan. 2019
Verdensmål 11: Bæredygtige byer og lokalsamfund, jan. 2019Verdensmål 11: Bæredygtige byer og lokalsamfund, jan. 2019
Verdensmål 11: Bæredygtige byer og lokalsamfund, jan. 2019

FN's 17 verdensmaal af Steen Hildebrandt
FN's 17 verdensmaal af Steen HildebrandtFN's 17 verdensmaal af Steen Hildebrandt
FN's 17 verdensmaal af Steen Hildebrandt

Omstilling frem mod 2030
Omstilling frem mod 2030Omstilling frem mod 2030
Omstilling frem mod 2030

17. Sustainable Development Goals UN
17. Sustainable Development Goals UN17. Sustainable Development Goals UN
17. Sustainable Development Goals UN

Omstilling med Omtanke - nov 2015
Omstilling med Omtanke - nov 2015Omstilling med Omtanke - nov 2015
Omstilling med Omtanke - nov 2015

Gudenåens Passage ved Tangeværket
Gudenåens Passage ved TangeværketGudenåens Passage ved Tangeværket
Gudenåens Passage ved Tangeværket

Rebalancing Society by Henry Mintzberg
Rebalancing Society by Henry MintzbergRebalancing Society by Henry Mintzberg
Rebalancing Society by Henry Mintzberg

Innovators ecosystem by Vinod Khosla
Innovators ecosystem by Vinod KhoslaInnovators ecosystem by Vinod Khosla
Innovators ecosystem by Vinod Khosla

Black Swans thesis of energy transformation
Black Swans thesis of energy transformationBlack Swans thesis of energy transformation
Black Swans thesis of energy transformation

Ellen mac arthur foundation towards the circular economy vol.2
Ellen mac arthur foundation towards the circular economy vol.2Ellen mac arthur foundation towards the circular economy vol.2
Ellen mac arthur foundation towards the circular economy vol.2

Ellen mac arthur foundation towards the circular economy vol.1
Ellen mac arthur foundation towards the circular economy vol.1Ellen mac arthur foundation towards the circular economy vol.1
Ellen mac arthur foundation towards the circular economy vol.1

Rethinking sustainable consumption consumer study 2012
Rethinking sustainable consumption consumer study 2012Rethinking sustainable consumption consumer study 2012
Rethinking sustainable consumption consumer study 2012

The Future Quotient: 50 Stars in Seriously Long Term Innovation
The Future Quotient: 50 Stars in Seriously Long Term InnovationThe Future Quotient: 50 Stars in Seriously Long Term Innovation
The Future Quotient: 50 Stars in Seriously Long Term Innovation

The impact of a corporate culture of sustainability on corporate behavior and...
The impact of a corporate culture of sustainability on corporate behavior and...The impact of a corporate culture of sustainability on corporate behavior and...
The impact of a corporate culture of sustainability on corporate behavior and...

Regeneration Project: Unfinished Business - White Paper
Regeneration Project: Unfinished Business - White PaperRegeneration Project: Unfinished Business - White Paper
Regeneration Project: Unfinished Business - White Paper


Recently uploaded

The Truth About Dinesh Bafna's Situation.pdf
The Truth About Dinesh Bafna's Situation.pdfThe Truth About Dinesh Bafna's Situation.pdf
The Truth About Dinesh Bafna's Situation.pdfMont Surfaces

Raising Seed Capital by Steve Schlafman at RRE Ventures
Raising Seed Capital by Steve Schlafman at RRE VenturesRaising Seed Capital by Steve Schlafman at RRE Ventures
Raising Seed Capital by Steve Schlafman at RRE VenturesAlejandro Cremades

IPTV Subscription UK: Your Guide to Choosing the Best Service
IPTV Subscription UK: Your Guide to Choosing the Best ServiceIPTV Subscription UK: Your Guide to Choosing the Best Service
IPTV Subscription UK: Your Guide to Choosing the Best ServiceDragon Dream Bar

Unveiling the Dynamic Gemini_ Personality Traits and Sign Dates.pptx
Unveiling the Dynamic Gemini_ Personality Traits and Sign Dates.pptxUnveiling the Dynamic Gemini_ Personality Traits and Sign Dates.pptx
Unveiling the Dynamic Gemini_ Personality Traits and Sign Dates.pptxmy Pandit

Stages of Startup Funding - An Explainer
Stages of Startup Funding - An ExplainerStages of Startup Funding - An Explainer
Stages of Startup Funding - An ExplainerAlejandro Cremades

Constitution of Company Article of Association
Constitution of Company Article of AssociationConstitution of Company Article of Association
Constitution of Company Article of Associationseri bangash

India’s Recommended Women Surgeons to Watch in 2024.pdf
India’s Recommended Women Surgeons to Watch in 2024.pdfIndia’s Recommended Women Surgeons to Watch in 2024.pdf
India’s Recommended Women Surgeons to Watch in 2024.pdfCIOLOOKIndia

Byrd & Chen’s Canadian Tax Principles 2023-2024 Edition 1st edition Volumes I...
Byrd & Chen’s Canadian Tax Principles 2023-2024 Edition 1st edition Volumes I...Byrd & Chen’s Canadian Tax Principles 2023-2024 Edition 1st edition Volumes I...
Byrd & Chen’s Canadian Tax Principles 2023-2024 Edition 1st edition Volumes I...ssuserf63bd7

12 Conversion Rate Optimization Strategies for Ecommerce Websites.pdf
12 Conversion Rate Optimization Strategies for Ecommerce Websites.pdf12 Conversion Rate Optimization Strategies for Ecommerce Websites.pdf
12 Conversion Rate Optimization Strategies for Ecommerce Websites.pdfSOFTTECHHUB

Special Purpose Vehicle (Purpose, Formation & examples)
Special Purpose Vehicle (Purpose, Formation & examples)Special Purpose Vehicle (Purpose, Formation & examples)
Special Purpose Vehicle (Purpose, Formation & examples)linciy03

Potato Flakes Manufacturing Plant Project Report.pdf
Potato Flakes Manufacturing Plant Project Report.pdfPotato Flakes Manufacturing Plant Project Report.pdf
Potato Flakes Manufacturing Plant Project Report.pdfhostl9518

Pitch Deck Teardown: Terra One's $7.5m Seed deck
Pitch Deck Teardown: Terra One's $7.5m Seed deckPitch Deck Teardown: Terra One's $7.5m Seed deck
Pitch Deck Teardown: Terra One's $7.5m Seed deckHajeJanKamps

HR and Employment law update: May 2024.
HR and Employment law update:  May 2024.HR and Employment law update:  May 2024.
HR and Employment law update: May 2024.FelixPerez547899

8 Questions B2B Commercial Teams Can Ask To Help Product Discovery
8 Questions B2B Commercial Teams Can Ask To Help Product Discovery8 Questions B2B Commercial Teams Can Ask To Help Product Discovery
8 Questions B2B Commercial Teams Can Ask To Help Product DiscoveryDesmond Leo

TriStar Gold Corporate Presentation May 2024
TriStar Gold Corporate Presentation May 2024TriStar Gold Corporate Presentation May 2024
TriStar Gold Corporate Presentation May 2024Adnet Communications

Revolutionizing Industries: The Power of Carbon Components
Revolutionizing Industries: The Power of Carbon ComponentsRevolutionizing Industries: The Power of Carbon Components
Revolutionizing Industries: The Power of Carbon ComponentsConnova AG

Meaningful Technology for Humans: How Strategy Helps to Deliver Real Value fo...
Meaningful Technology for Humans: How Strategy Helps to Deliver Real Value fo...Meaningful Technology for Humans: How Strategy Helps to Deliver Real Value fo...
Meaningful Technology for Humans: How Strategy Helps to Deliver Real Value fo...Björn Rohles

Innomantra Viewpoint - Building Moonshots : May-Jun 2024.pdf
Innomantra Viewpoint - Building Moonshots : May-Jun 2024.pdfInnomantra Viewpoint - Building Moonshots : May-Jun 2024.pdf
Innomantra Viewpoint - Building Moonshots : May-Jun 2024.pdfInnomantra

zidauu _business communication.pptx /pdf
zidauu _business  communication.pptx /pdfzidauu _business  communication.pptx /pdf
zidauu _business communication.pptx /pdfzukhrafshabbir

How Do Venture Capitalists Make Decisions?
How Do Venture Capitalists Make Decisions?How Do Venture Capitalists Make Decisions?
How Do Venture Capitalists Make Decisions?Alejandro Cremades


Recently uploaded (20)

The Truth About Dinesh Bafna's Situation.pdf
The Truth About Dinesh Bafna's Situation.pdfThe Truth About Dinesh Bafna's Situation.pdf
The Truth About Dinesh Bafna's Situation.pdf

Raising Seed Capital by Steve Schlafman at RRE Ventures
Raising Seed Capital by Steve Schlafman at RRE VenturesRaising Seed Capital by Steve Schlafman at RRE Ventures
Raising Seed Capital by Steve Schlafman at RRE Ventures

IPTV Subscription UK: Your Guide to Choosing the Best Service
IPTV Subscription UK: Your Guide to Choosing the Best ServiceIPTV Subscription UK: Your Guide to Choosing the Best Service
IPTV Subscription UK: Your Guide to Choosing the Best Service

Unveiling the Dynamic Gemini_ Personality Traits and Sign Dates.pptx
Unveiling the Dynamic Gemini_ Personality Traits and Sign Dates.pptxUnveiling the Dynamic Gemini_ Personality Traits and Sign Dates.pptx
Unveiling the Dynamic Gemini_ Personality Traits and Sign Dates.pptx

Stages of Startup Funding - An Explainer
Stages of Startup Funding - An ExplainerStages of Startup Funding - An Explainer
Stages of Startup Funding - An Explainer

Constitution of Company Article of Association
Constitution of Company Article of AssociationConstitution of Company Article of Association
Constitution of Company Article of Association

India’s Recommended Women Surgeons to Watch in 2024.pdf
India’s Recommended Women Surgeons to Watch in 2024.pdfIndia’s Recommended Women Surgeons to Watch in 2024.pdf
India’s Recommended Women Surgeons to Watch in 2024.pdf

Byrd & Chen’s Canadian Tax Principles 2023-2024 Edition 1st edition Volumes I...
Byrd & Chen’s Canadian Tax Principles 2023-2024 Edition 1st edition Volumes I...Byrd & Chen’s Canadian Tax Principles 2023-2024 Edition 1st edition Volumes I...
Byrd & Chen’s Canadian Tax Principles 2023-2024 Edition 1st edition Volumes I...

12 Conversion Rate Optimization Strategies for Ecommerce Websites.pdf
12 Conversion Rate Optimization Strategies for Ecommerce Websites.pdf12 Conversion Rate Optimization Strategies for Ecommerce Websites.pdf
12 Conversion Rate Optimization Strategies for Ecommerce Websites.pdf

Special Purpose Vehicle (Purpose, Formation & examples)
Special Purpose Vehicle (Purpose, Formation & examples)Special Purpose Vehicle (Purpose, Formation & examples)
Special Purpose Vehicle (Purpose, Formation & examples)

Potato Flakes Manufacturing Plant Project Report.pdf
Potato Flakes Manufacturing Plant Project Report.pdfPotato Flakes Manufacturing Plant Project Report.pdf
Potato Flakes Manufacturing Plant Project Report.pdf

Pitch Deck Teardown: Terra One's $7.5m Seed deck
Pitch Deck Teardown: Terra One's $7.5m Seed deckPitch Deck Teardown: Terra One's $7.5m Seed deck
Pitch Deck Teardown: Terra One's $7.5m Seed deck

HR and Employment law update: May 2024.
HR and Employment law update:  May 2024.HR and Employment law update:  May 2024.
HR and Employment law update: May 2024.

8 Questions B2B Commercial Teams Can Ask To Help Product Discovery
8 Questions B2B Commercial Teams Can Ask To Help Product Discovery8 Questions B2B Commercial Teams Can Ask To Help Product Discovery
8 Questions B2B Commercial Teams Can Ask To Help Product Discovery

TriStar Gold Corporate Presentation May 2024
TriStar Gold Corporate Presentation May 2024TriStar Gold Corporate Presentation May 2024
TriStar Gold Corporate Presentation May 2024

Revolutionizing Industries: The Power of Carbon Components
Revolutionizing Industries: The Power of Carbon ComponentsRevolutionizing Industries: The Power of Carbon Components
Revolutionizing Industries: The Power of Carbon Components

Meaningful Technology for Humans: How Strategy Helps to Deliver Real Value fo...
Meaningful Technology for Humans: How Strategy Helps to Deliver Real Value fo...Meaningful Technology for Humans: How Strategy Helps to Deliver Real Value fo...
Meaningful Technology for Humans: How Strategy Helps to Deliver Real Value fo...

Innomantra Viewpoint - Building Moonshots : May-Jun 2024.pdf
Innomantra Viewpoint - Building Moonshots : May-Jun 2024.pdfInnomantra Viewpoint - Building Moonshots : May-Jun 2024.pdf
Innomantra Viewpoint - Building Moonshots : May-Jun 2024.pdf

zidauu _business communication.pptx /pdf
zidauu _business  communication.pptx /pdfzidauu _business  communication.pptx /pdf
zidauu _business communication.pptx /pdf

How Do Venture Capitalists Make Decisions?
How Do Venture Capitalists Make Decisions?How Do Venture Capitalists Make Decisions?
How Do Venture Capitalists Make Decisions?


Container Ship - How to reduce effect on Climate and Pollution

  • 1. DK Group One ship pollutes as much as 50 million cars by Jørn P. Winkler, founder 1 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 2. Legal notice Disclaimer This presentation contains forward-looking statements as of the date of such statements. Such forward looking statements involved known and unknown risks, uncertainties and other fars which may cause the actual results, financial conditions, performance or achievements of the company, or industry results, to be materially different from any future results, performance or achievements expressed or implied by such forward-looking statements. Given these uncertainties, any person to whom the current presentation is addressed is cautioned not to place any undue reliance on such forward-looking statements and to review and analyse the same with its legal, financial and economic advisors. Such forward-looking statement therefore do not constitute in any manner an undertaking and/or commitment or guarantee as to the future business of the Company. 2 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 3. DK Group and Danish Green Ship of the Future 3 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 4. “The time of half-measure has passed. We are entering a period of consequences” - Winston Churchill 4 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 5. Presentation overview 1 Shipping's emission legacy 2 SOx and NOx reduction 3 CO2 reduction 4 The Air Cavity System 5 Major emissions reductions 6 New builds and new technologies 7 Shipping vs. Aviation 8 Conclusion: Shipping can lead the way Q&A 5 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 6. Shipping’s emission legacy 1. Shipping's emission legacy 6 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 7. Shipping’s emission legacy A reality check for shipping • In 2007 it was established that the maritime industry accounted for emission of approx. 1,2 billion metric tons of CO2 annually. This is based on the present world wide fleet (1st quarter 2007). This is almost 100% higher than earlier estimates. • Latest figures indicates that the shipping industry will be responsible for emitting at least 1.5 billion metric tons of CO2 annually by 2010 and in 2015 the annual emissions will be substantially over 2 billion ton. This is 67% more than today’s emission. • On top of these figures the maritime industry will emit 20 million tons of SOx and 37 million tons of NOx annually. These emissions will increase just as drastically as CO2- emissions. • There is a massive new building program underway, and in the next 20-25 years we will have these ships on the oceans. Should they be build without using well known The Guardian, 13 February 20 technology? 08 7 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 8. Shipping’s emission legacy 60.000 death’s annually • A study published in the American Chemical Society journal Environmental Science and Technology by James Corbett (et al) in November 2007 shows, that shipping is responsible for 60,000 premature deaths a year. • For a long time there has been a perception that because ship emissions are out in the ocean, then they doesn't really affect anyone on land, but as this study shows - this is clearly false. • The report did not take into account additional health impacts such as bronchitis and asthma. It is also estimated the toll of premature deaths in North America, mostly on the West Coast, as numbering 9,000 per year. • The report said the 60,000 premature death’s a year were from heart and lung-related cancers. Corbett predicted the number could rise by 40% in the next five years because of an increase in shipping activity. • US Lawyers will not wait for long before they act. Ship owners should NOT forget that they are under US law when in port. 8 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 9. Shipping’s emission legacy Where will these deaths occur? Corbett, J. J.; Winebrake, J. J.; Green, E. H.; Kasibhatla, P.; Eyring, V.; Lauer, A., Mortality from Ship Emissions: A Global Assessment. Environmental Science & Technology 2007,41, (24), 8512–8518 9 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 10. Shipping’s emission legacy 60% of the world’s bee population is dead • It’s not only humans that are dying from the effects of pollution. 60% of the worlds bees are already dead. • Commercial beehives pollinate over a third of the worlds crops and that web of nourishment encompasses everything from fruits like peaches, apples, cherries, strawberries and more • Without this pollination those crops would be history - to say nothing of the honey bees produce or the flowers they also fertilize If the bees are dying – what is happening to the fish and other marine life? 10 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 11. Shipping’s emission legacy Ship emissions harms the oceans • Cecilie Mauritzen, a senior scientist of the climate division of Norwegian Meteorological Institute, says emissions from ships that are far from land cannot be ignored. • According to Mauritzen, small particles, or particulate matter, carried in ships' exhaust gases scatter and absorb solar and thermal radiation, indirectly changing cloud properties. ''These aerosols have a cooling effect on the earth, in that they reflect incoming shortwave radiation from the sun,'' Mauritzen told Bunkerworld on November 8, 2007. Cecilie Maurti tzen • The cooling effect might sound positive, given concern about global warning, but Mauritzen said the aerosols were having a damaging impact. The particulate matter carrying aerosols did not reach as far into the atmosphere, and typically rained out after just a day or two, sending the particles into the oceans, she explained. • In shipping lanes, she said, ship after ship was emitting the aerosols, contributing to an almost constant presence of particles in the atmosphere close to the lanes. One impact was to increase rainfall in the area of the lanes, which in turn sent larger volume of particles into the oceans. 11 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 12. Shipping’s emission legacy 12 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 13. Shipping’s emission legacy Concentration in global shipping lanes Corbett, J. J.; Winebrake, J. J.; Green, E. H.; Kasibhatla, P.; Eyring, V.; Lauer, A., Mortality from Ship Emissions: A Global Assessment. Environmental Science & Technology 2007,41, (24), 8512–8518 • In the global shipping lanes ship emissions are • Could the early discharge of rainwater over contributing to an almost constant presence of shipping lanes, which Cecilie Mauritzen found, be particles in the atmosphere close to the lanes the cause of the severe draughts seen on land? 13 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 14. Shipping’s emission legacy Jellyfish population explosion warning • Off the Northern Ireland coast a 10 mile wide, 13 meter deep swarm of jellyfish attacked a salmon farm wiping out over £1million worth of stock. • Billions of small jellyfish, known as Mauve Stingers, flooded into the cages about a mile into the Irish Sea, off Glenarm Bay and Cushendun. • Swimming bans were imposed at beaches across the Mediterranean because of an influx of stinging jellyfish along coastlines from Spain to Sicily. • The Red Cross organizations across the Mediterranean region treated 50,000 people for stings in the summer of 2008, almost triple the figure for the previous year. 14 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 15. Shipping’s emission legacy Soot-infused snow responsible for Arctic warming • Researchers at the University of California, Irvine, believe that while the threat of greenhouse emissions exists, soot- infused or dirty snow also contributes majorly to global warming. • According to Charlie Zender, an Associate Professor of Earth System Science at the UCI and co-author of the study, dirty snow contributes to a third or more of Arctic warming. • SECA’s are not enough. Earth could be headed for catastrophic sea level rise in the next few centuries if SOx & NOx pollution at sea continue at present levels. 15 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 16. Shipping’s emission legacy Shipping pollutes as much as 195 billion cars In other words; Shipping is by far the biggest transport polluter in the world compared to road- and air transport. *Beginning in 1990 the sulphur in diesel fuel for cars has been steadily and drastically reduced from 5.000 PPM to reach 50 PPM now and a further reduction to 10 PPM (same as 0,001%) in 2009. 16 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 17. Shipping’s emission legacy The hypocrisy of shipping • A 20 foot container (1 TEU) shipped from Shanghai to Hamburg emits 37 kilos of sulphur. This is the same as 3.950 cars emit at the same time. • A whole ship at 8.000 TEU sailing from from Shanghai to Hamburg, emits as much sulphur as 31,6 million cars emits during its 28 days at sea. • This means that only 24 of 8.000 TEU containerships emit as much sulphur, as the entire world wide car fleet. 17 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 18. SOx and NOx reduction 2. SOx and NOx reduction 18 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 19. SOx and NOx reduction Distillates vs. Scrubbers • Scrubbers will reduce SOx by 99% NOx and particulate matter by 85%. Distillates will reduce SOx by 80% and particulate matter by 35%. • The cost of introducing Distillates is estimated to USD 250 billion or more and it will take 20 years to implement. And where will we make 382 (IMO own conservative figure for 2020) million tons of Distillates? Where is the Refinery capacity to do this? • CO2 levels from Refining 382 million tons of Distillates would rise by 20%. • With sestillates ship owners will end up paying from 1100 $ or more per ton fuel. Why do this when they can stay at USD 560$ with a scrubber? • Using todays prices the industry is paying USD 200 billion per year for fuel. A switch to destillates would boost that to USD 400 billion. An extra USD 200 billion per year. • Retro-Fitting the existing Commercial Fleet of over 25.000 dwt would take only 5 years and cost approx. USD 50 billion. All wiith no rise in CO2 levels and no rise in Global fuel prices due to change of fuel. Why should we pay USD 250 billion for distillates when we can have scrubbing for USD 50 Billion which will cover 99% and take only 5 years to implement as a more effective measure against SO? 19 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 20. SOx and NOx reduction Evolution of oil products consumption 1971-2005 *Includes LPG, ©OECD/IEA 2007 NGL, ethane 20 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 21. SOx and NOx reduction Future evolution of oil products consumption 67% 4,5% 56% 29% 8% 2015 2020 2025 2005 2010 Provided present oil production *Includes LPG, NGL, ethane 21 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 22. SOx and NOx reduction Scrubbing installed Example: • Cape Size Bulk Container • 18MW scrubber main engine fitted into the funnel • Main propulsion, auxiliary & boiler 22 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 23. SOx and NOx reduction Increased fuel costs vs. scrubber costs 23 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 24. SOx and NOx reduction Increased fuel costs vs. scrubber costs 24 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 25. CO2 reduction 3. CO2 reduction 25 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 26. CO2 reduction Voluntary vs. mandatory measures • Emission reduction measures according to the IMO BLG report released December 2007 26 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 27. CO2 reduction Using technology to reduce emissions Containerships • Propeller technology Tanker vessels – Contra rotating propellers – Twin propellers – twin engines USD 45m+ USD 40m+ 5,500 TEU Panamax – Propeller Boss Fin Cap – High-effeciency propellers USD 60m+ USD 3,500 TEU • Heat recovery system 110m+ Suezmax 8,000 TEU • Block co-efficient. Handymax • Air Cavity System - reducing the Aframax USD USD 7,000 TEU 1,700 TEU friction resistance of the hull. 120m 150m+ VLCC 10,000 TEU+ • Other design modifications. VLBC LNG USD USD 95m 215m Handymax LPG Capesize Gas vessels Bulk carriers USD 90m+ USD 60m Panamax USD 30m+ 27 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 28. CO2 reduction Propeller technology Contra Rotating Propellers Twin-propellers – twin engines 10 % improvement depending on relation Reduces fuel burn by 5% to 10% between main engine and thruster High-efficiency propellers Propeller Boss Fin Cap (Kappel) Fuel saving up to approximately 4% Fuel saving up to approximately 4% 28 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 29. CO2 reduction Heat recovery system Fuel saving 7-12% depending on sophistication of the heat recovery plant 29 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 30. CO2 reduction Reducing block co-efficient Vessel type Block co-efficient CO2 reduction Lighter 0.90 5-10% Bulk carrier 0.80-0.85 12-17% Tanker 0.80-0.85 12-16% General cargo 0.55-0.75 13-22% Containership 0.50-0.70 14-26% Example: 115,000 dwt AFRAMAX tanker with a lightweight of 18,900 tons. • Increasing the lightweight by 15% (2,900 ton steel at USD 8.7 mill) would reduce fuel burn by 4,200 ton per year • This adds up to USD 1.5 mill. annually or USD 30 mill. over 20 years • The Co2 reduction amounts to 12,600 ton per year or 252,000 ton over a period of 20 years 30 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 31. The Air Cavity System 4. The Air Cavity System 31 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 32. The Air Cavity System The Air Cavity System 32 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 33. The Air Cavity System Weight increase: Marginal to a traditional vessel Additional Shell Plating Additional Floor Plating Area equivalent to basis vessel 33 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 34. The Air Cavity System Case Study: 280,000 DWT VLCC Principal Dimensions Length over all 333.30 m Length between pp 318.00 m Breadth, moulded 59.90 m Depth, moulded 32.10 m Design draught 21.06 m Speed, service, 15 % s.m. 15.9 kn Propulsion power, 85 % MCR: ~21.000 kW Fuel consumption: 90 t/day ACS area Consumables 9,000 m2 Heavy fuel oil 8600 m3 Marine diesel oil 375 m3 Lubricating oil 300 m3 Fresh water 500 m3 Ballast water 99,000 m3 Cargo capacity Cargo tanks 1 to 5, P+S 340,000 m3 Slop tanks P+S 10,100 m3 Deadweight Deadweight at design draught with air in cavity: 283,125 t 34 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 35. The Air Cavity System Case Study: 280,000 DWT VLCC Air supply system • Double air compressors – 2 x 5.000 m3/h @ 2.2 bar delivery • Common air feed pipe / redundant distribution system • Air supply rate to cavity, normal operational conditions: 1.500 m3/h • Power consumption at normal operational conditions: 150 kW ACS area 9,000 m2 35 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 36. The Air Cavity System Case Study: 280,000 DWT VLCC Pe (kW) Tank Test result of Effective Power at Design Speed Speed and power (HSVA full-scale extrapolation) • Speed and power curve 14000 ~ 0.4 knot for reference vessel (A) vs. ACS vessel (B) 12000 • No sea margin included ~ 15 % 10000 8000 6000 4000 BASIS VLCC 2000 ACS VLCC Speed (kn) 0 6.0 8.0 10.0 12.0 14.0 16.0 36 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 37. ACS Demonstrator The Air Cavity System ACS Demonstrator 2,550 DWT, 83 m LOA 37 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 38. The Air Cavity System ACS Demonstrator sea trial • Sea trials conducted with and without ACS • FORCE and Germanischer Lloydperformed sea trials in accordance with standard procedures • ACS demonstrator tests to included: – Speed trials in calm water – Speed tests in waves – Maneuvering tests • Environmental conditions of waves and ocean documented by wave buoy. • Based on the sea trial data with ACS, the scaling procedure for ACS will be made and reliable results for large ocean-going ships will be made. 38 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 39. Major emissions reductions 5. Major emissions reductions 39 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 40. Major emissions reductions Major emissions reductions • According to a report from IMO’s Technology Maximum fuel savings subcommittee on bulk liquids and gases Propeller technology: (BLG) published in December 2007, a Contra rotating propellers 10% 10% reduction in fuel burn for existing Twin propellers – twin engines 5-10% ships and 30-40% or more for new Propeller Boss Fin Cap 4% buildings are achievable High-efficiency propellers 4% • ACS combined with other technologies Heat recovery system 8% can reduce shipping's CO2 emissions TODAY by a minimum of 10% to a Block co-efficient. 15-25% maximum of 50% depending on vessel Air Cavity System - reducing the friction 15% type. resistance of the hull. Speed reduction 30% Other design modifications. 10% Total for bulker and tankers 50% Total for containerships 36% 40 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 41. Major emissions reductions Fuel burn reduction on a 12.000 TEU containership Reducing fuel burn on a 12.000 TEU containership by 20% Assuming current new build price: USD 175 million US. Assuming fuel cost: USD 560 pr ton. Currently Savings Per day Annually Over 20 years Fuel burn 380 tons pr day 76 tons 29.680 tons 59.4 million tons In USD USD 171.000 per day USD 42.560 USD 11.9 million USD 238 million CO2-emssion 1.216 tons of CO2 pr. day 243 tons 68.040 tons 1.36 million tons 41 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 42. Major emissions reductions We need Western innovation at Asian costs • Moving ship building to Asia may have gotten ship owners vessels at a lower cost, but the innovation traditionally embedded in western shipbuilding was lost in the process. • For generations shipbuilding skills has been refined by European & US shipbuilders resulting in more and more efficient ship designs. • For hundreds of years they western shipmakers have succeeded in annually making more efficient ships for shipowners to race other shipowners • The maritime industry needs to get back on the innovation track for the sake of the environment, public health, global economy and their own shareholders. • There is nothing that prevents Western innovation at Asian costs. 42 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 43. Major emissions reductions Mega-boxship rush • Asian shipyards have adapted to new ’mega-designs’, but have repeatedly stated that new ‘environmental’ technology designs are ‘unrealistic’ • How is this possible, when in six months, Asian shipyards have adapted technology to build ships as much as twice as big as ever before – 250 meters to 450 meters • Asian shipyards are among the most technologically advanced in the world 43 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 44. New builds and new… 6. New builds and new technologies 44 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 45. New builds and new… 3.693 new builds in the book • There are currently 3.692 orders for new ocean-going vessels the in excess of 150 meters on the books of shipbuilders – just for the coming 3 years - 2008-2010 • Taking average fuel burn figures for these 3.692 vessels (mainly bulk carriers, containerships andt ankers) those vessels alone will burn more than 63 million metric tons of bunker fuel per year – generating 202 million tons of CO2, 3,3 million tons of SOx and 6,2 tons of NOx per year. These ships alone will increase present emission by 16% - in 3 years only. • During these vessels total lifespan of estimated 20 years, it will result in emission of 4 billion tons of CO2, 66 million tons of SOx and 124 million tons of NOx. • Because these vessels have no equipment installed (Scrubbers) to reduce SOx, this would mean the same as launching a staggering 29 billion new cars or - 39 times the total world car fleet of 750 million cars 45 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 46. New builds and new… Environmental savings on new builds • ACS and other technologies can All figures in Annually Over 20 years significantly reduce CO2, SOx and NOx metric ton emissions from new builds. CO2 60,6 mill. 1,2 billion • A minimum emission reduction of 30% is NOx 1,86 mill. 37 mill. recognised by IMO in its BLG report from December 2007 though the various SOx 1 mill. 20 mill. technical measures are described as ‘voluntary’. • Introducing scrubbing would reduce NOx and SOx BY 98& and 99% respectively equalling the removal of 29 billion cars from the worlds roads. 46 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 47. New builds and new… Cost savings on new builds If all 3.692 new builds on order were fitted with technologies recognized in the IMO BLOG report, saving 30% of fuel, operating costs could be lowered significantly. 19 million ton of fuel at USD 560 per tonne equals an annual saving of USD 10.6 billion per year or USD 212 billion over 20 years. And this is only for new builds produced in the next 3 years. How can shipping say that the environment doesn’t pay? One scrubber (reducing SOx by 99%) would cost less than $1.5 million - or equivalent to less than 15 days of vessel charter. So far only equipped on 1 ship. Existing ‘denox’ systems can remove NOx by 95% but only equipped on 20 ships. 47 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 48. Major emissions reductions 48 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 49. New builds and new… Will they say no to $200 billion in cost savings? If all 3.692 new builds on order, would follow the IMO Voluntary reduction of 30-40%, 10 billion USD could be saved annually in the current new building program. How can shipping say that charters and banks don’t care about losses of over 200 billion over 20 years? 49 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 50. Shipping vs. aviation 7. Shipping vs. aviation 50 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 51. Shipping vs. aviation Shipping vs. aviation • Shipping investors looking at the numbers of new builds on order and rising oil prices must question why shipping companies are not investing in new technologies that can save millions of dollars, as the aviation industry has. • Boeing unveiled the 777 Dreamliner plane to great applause because it will reduce fuel consumption and CO2 emission by 20% • The Boeing 747/8 is an revamped design on the old jumbo that has slashed CO2 emissions by 15% in under 3 years • Boeing boasts record orders as the likes of Virgin Atlantic look to provide savings as airlines look to reduce CO2 emissions by 30%. 51 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 52. Shipping vs. aviation What can be done now? Wing tips & propellers • Danish airline Sterling has introduced wing tips – saving 4% fuel costs and CO2. • High-efficiency ship propellers (eg. Kappel blades) have been available for 20 years but not used • The blades could save 4% fuel and CO2 equaling 48 million ton per year • This could be translated into saving 16 mill. ton of bunker fuel at USD 5.6 billion annually Kappel Blade: 4% fuel saving 52 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 53. Conclusion 8. Conclusion: Shipping can lead the way 53 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 54. Conclusion Conclusion • Voluntary recommendations from IMO BLG reducing CO2 emissions by 30-40% report should be made mandatory • There is little time available to address the issue of climate change and air pollution • Shipping is by far the biggest transport polluter in the world emitting as much as 260 time more SOx than all the worlds cares put together • Mandatory SCRUBBER Retro FIT program for ships with more than 10 years of life. • Technologies are widely available NOW..! • Shipping needs to look at the aviation industry where fuel costs and Co2, NOx and SOxsavings through ingenuity are encouraged and heavily financed • “SEABUS” Large scale Ship building has to be moved back to the EU & US over the next 20 year, making environmental & efficient ships based on and protected by IP. • We ask you to incorporate ACS and other fuel efficiency and scrubbing technologies into state, federal and international regulations. 54 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
  • 55. Q&A Thank you for your attention “We are using the knowledge we already have to make a difference. That is our duty. What is yours?” - DK Group Founder Jørn P. Winkler 55 ©2008 DK GROUP NETHERLANDS BV ALL RIGHTS RESERVED
