This document provides a summary of a 4-hour technical training on JavaScript customization in Dynamics 365. The training covers topics like using JavaScript in different areas like form scripts, command bars, and event handlers. It also discusses using jQuery with JavaScript, accessing data using REST and SOAP, best practices, debugging, the XRM object model, and available code snippets and libraries. The document includes code examples for common customization tasks like showing/hiding fields and tabs, setting field values, and accessing related record data using OData.

1. CUSTOMIZATION
JAVASCRIPT ADVANCED
TECHNICAL TRAINING
Sanjaya Prakash Pradhan
MCP & Founder of Softchief.com
COURSE ID D365 - 002 Duration - 4Hr

2. Topics in Review
❖ Areas where we can use Javascript - Day1
❖ Using JQuery with Javascript - Day1
❖ Data Access using Javascript - Day2
❖ Javascript Programming Best Practices - Day2
❖ Debugging Javascript Code - Day2
❖ XRM Object Model and Reference Code - Day2
(https://msdn.microsoft.com/en-us/library/jj602964(v=crm.7).aspx)http
s://softchief.com/2015/11/29/client-scipts-in-dynamics-crm-xrm-javasri
pt-jquery/
❖ Frequently Used Code Snippets with XRM Objects - Day2
❖ Tools related to Javascript Customization OData etc - Day2
❖ CRM SDK JS Codes & Deployment - Day2
❖ Available JS Libraries - Day2

3. DAY 1

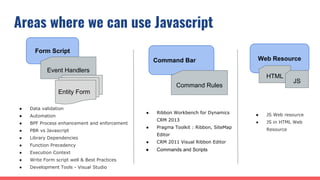

4. Areas where we can use Javascript
Form Script
Command Bar Web Resource
Event Handlers
Entity Form
Command Rules
● Data validation
● Automation
● BPF Process enhancement and enforcement
● PBR vs Javascript
● Library Dependencies
● Function Precedency
● Execution Context
● Write Form script well & Best Practices
● Development Tools - Visual Studio
● Ribbon Workbench for Dynamics
CRM 2013
● Pragma Toolkit : Ribbon, SiteMap
Editor
● CRM 2011 Visual Ribbon Editor
● Commands and Scripts
HTML
JS
● JS Web resource
● JS in HTML Web
Resource

5. Using JQuery in Javascript
❖ Use JQuery with HTML Web resource
❖ JQuery is Cross browser library
❖ No Restriction for DOM manipulation using JQuery & HTML Web resource
❖ Avoid using JQuery with Form scripts or Ribbon Command as unsupported
❖ Restrict your scripts to use the Xrm.Page and Xrm.Utility libraries available in
form scripts and ribbon commands.
❖ Do not load JQuery on Form load if not needed.
❖ Using $.ajax to perform requests against the OData and Modern Apps SOAP
endpoint is supported
❖ Download JQuery from Official site and JSON Library

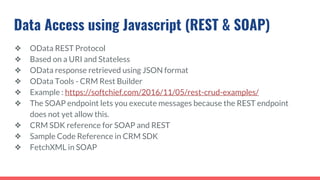

6. Data Access using Javascript (REST & SOAP)
❖ OData REST Protocol
❖ Based on a URI and Stateless
❖ OData response retrieved using JSON format
❖ OData Tools - CRM Rest Builder
❖ Example : https://softchief.com/2016/11/05/rest-crud-examples/
❖ The SOAP endpoint lets you execute messages because the REST endpoint
does not yet allow this.
❖ CRM SDK reference for SOAP and REST
❖ Sample Code Reference in CRM SDK
❖ FetchXML in SOAP

7. DAY 2

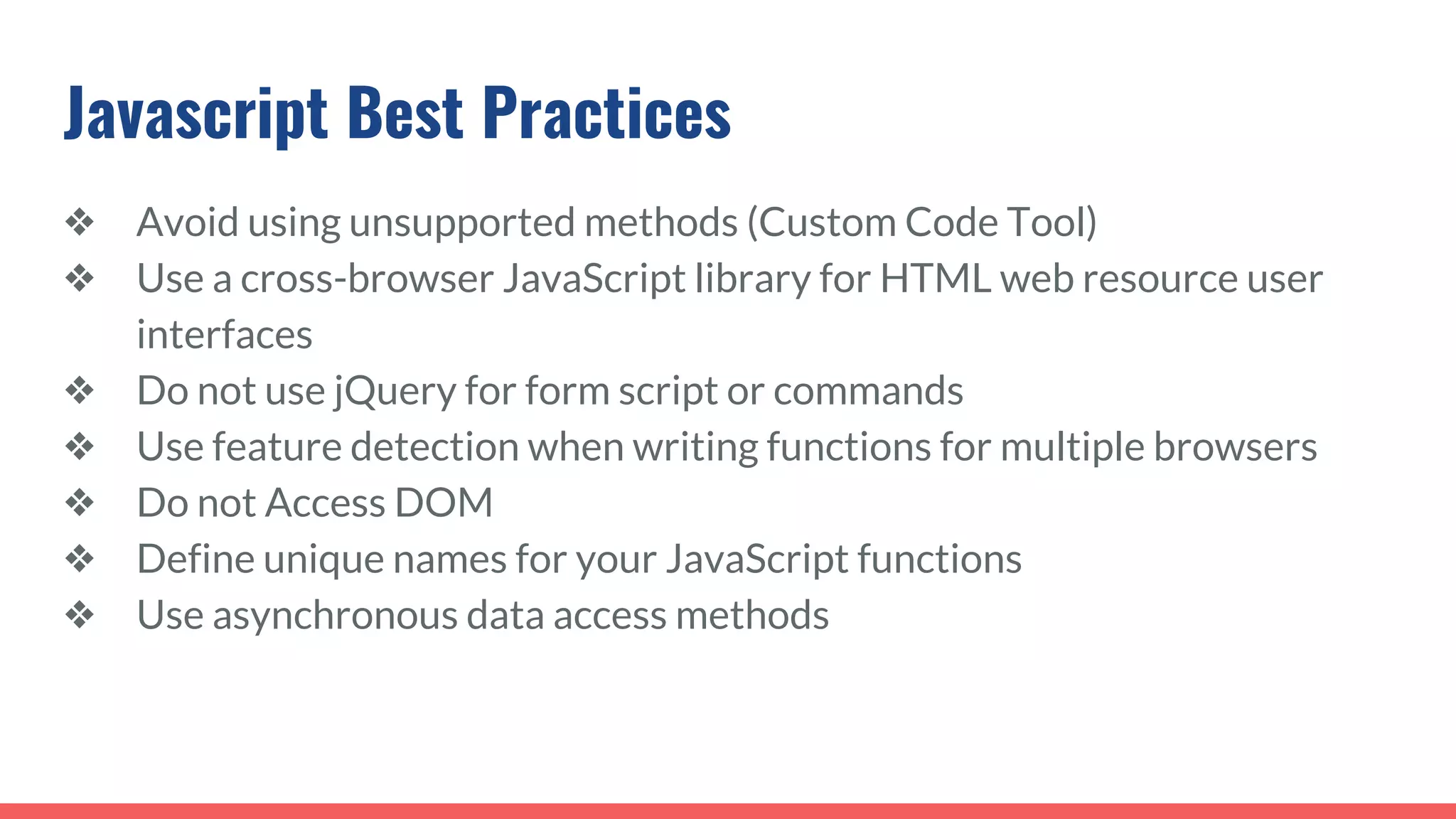

8. Javascript Best Practices
❖ Avoid using unsupported methods (Custom Code Tool)
❖ Use a cross-browser JavaScript library for HTML web resource user
interfaces
❖ Do not use jQuery for form script or commands
❖ Use feature detection when writing functions for multiple browsers
❖ Do not Access DOM
❖ Define unique names for your JavaScript functions
❖ Use asynchronous data access methods

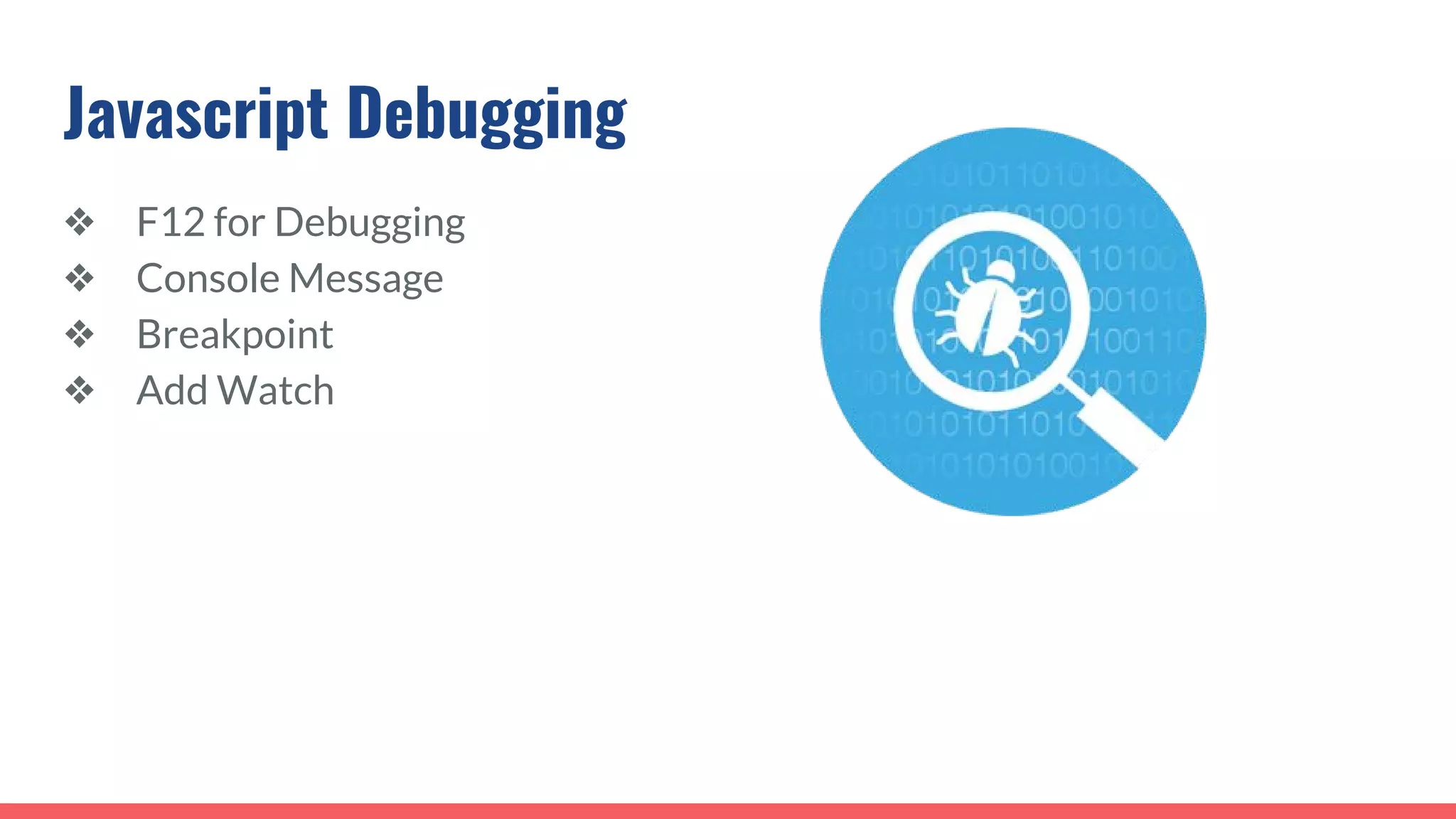

9. Javascript Debugging
❖ F12 for Debugging
❖ Console Message
❖ Breakpoint
❖ Add Watch

10. XRM Object

11. DEMO

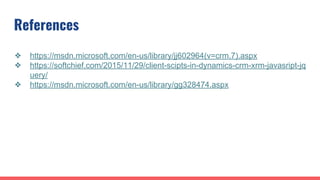

12. References
❖ https://msdn.microsoft.com/en-us/library/jj602964(v=crm.7).aspx
❖ https://softchief.com/2015/11/29/client-scipts-in-dynamics-crm-xrm-javasript-jq
uery/
❖ https://msdn.microsoft.com/en-us/library/gg328474.aspx

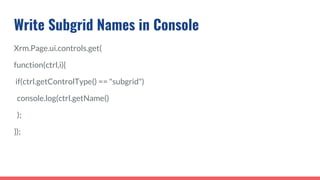

13. Write Subgrid Names in Console
Xrm.Page.ui.controls.get(
function(ctrl,i){
if(ctrl.getControlType() == "subgrid")
console.log(ctrl.getName()
);
});

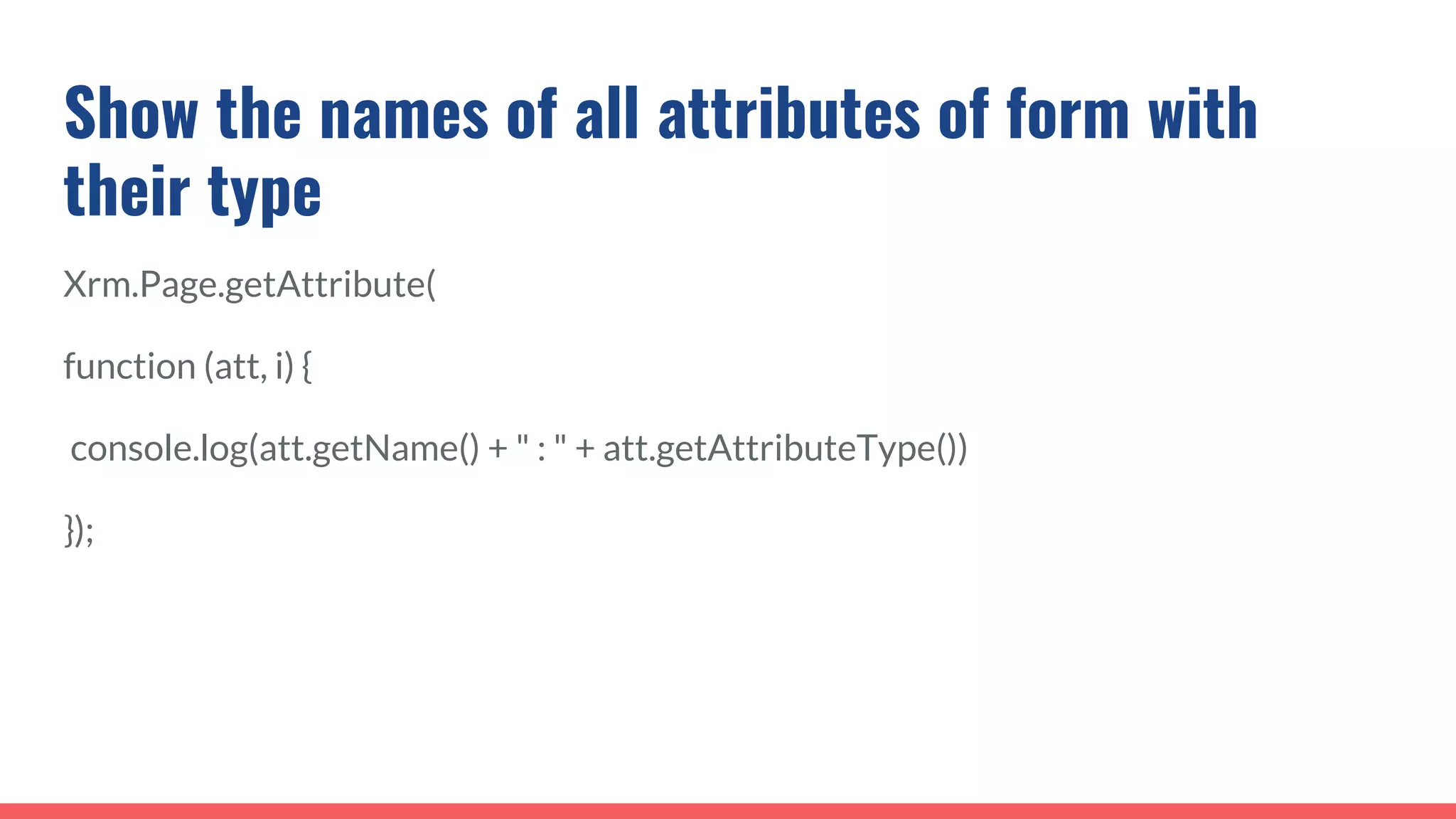

14. Show the names of all attributes of form with
their type
Xrm.Page.getAttribute(
function (att, i) {
console.log(att.getName() + " : " + att.getAttributeType())
});

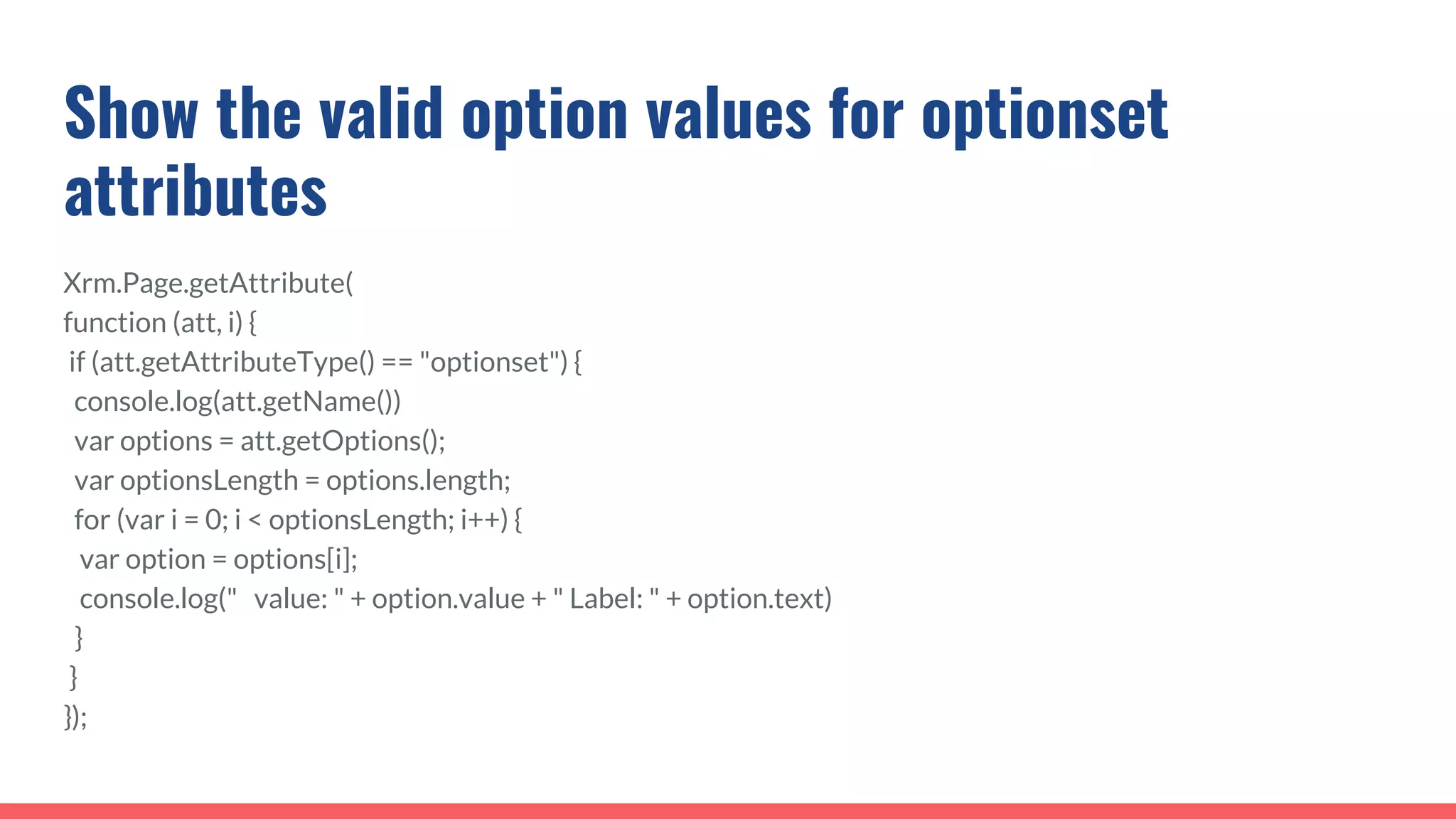

15. Show the valid option values for optionset
attributes
Xrm.Page.getAttribute(
function (att, i) {
if (att.getAttributeType() == "optionset") {
console.log(att.getName())
var options = att.getOptions();
var optionsLength = options.length;
for (var i = 0; i < optionsLength; i++) {
var option = options[i];
console.log(" value: " + option.value + " Label: " + option.text)
}
}
});

16. function to Show/Hide a TAB
function HideShowTab(isVisible, tabName) {
for (var count = 0; count < tabName.length; count++) {
if (Xrm.Page.ui.tabs.get(tabName[count]) != null) {
Xrm.Page.ui.tabs.get(tabName[count]).setVisible(isVisible);
}
}
}

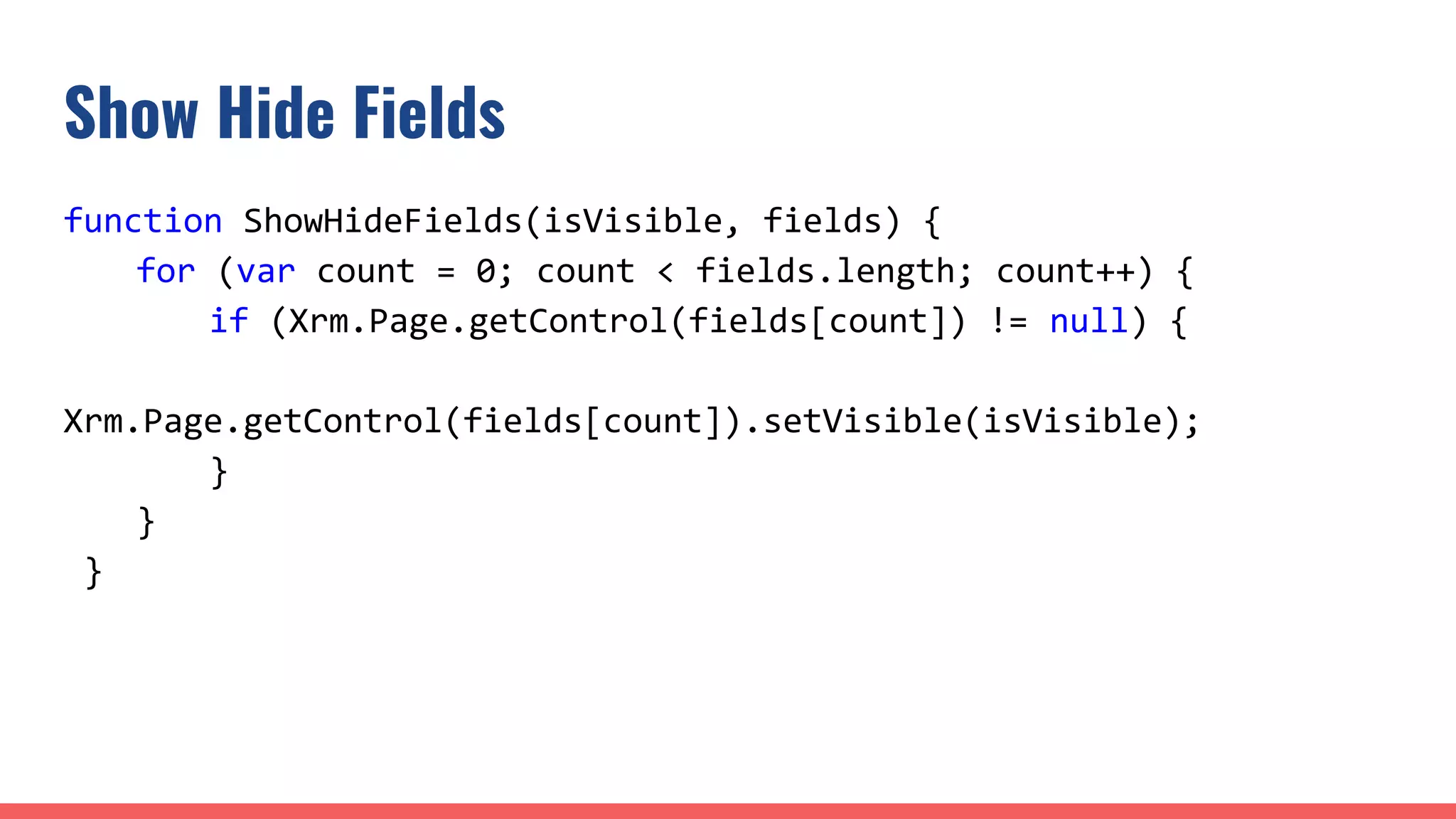

17. Show Hide Fields
function ShowHideFields(isVisible, fields) {
for (var count = 0; count < fields.length; count++) {
if (Xrm.Page.getControl(fields[count]) != null) {
Xrm.Page.getControl(fields[count]).setVisible(isVisible);
}
}
}

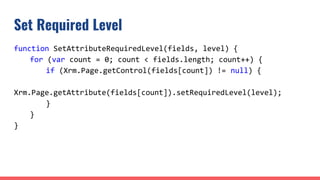

18. Set Required Level
function SetAttributeRequiredLevel(fields, level) {
for (var count = 0; count < fields.length; count++) {
if (Xrm.Page.getControl(fields[count]) != null) {
Xrm.Page.getAttribute(fields[count]).setRequiredLevel(level);
}
}
}

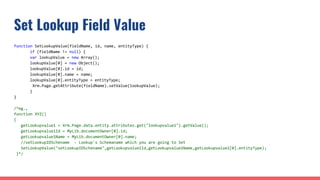

19. Set Lookup Field Value
function SetLookupValue(fieldName, id, name, entityType) {
if (fieldName != null) {
var lookupValue = new Array();
lookupValue[0] = new Object();
lookupValue[0].id = id;
lookupValue[0].name = name;
lookupValue[0].entityType = entityType;
Xrm.Page.getAttribute(fieldName).setValue(lookupValue);
}
}
/*eg.,
function XYZ()
{
getLookupvalue1 = Xrm.Page.data.entity.attributes.get("lookupvalue1").getValue();
getLookupvalue1Id = MyLib.documentOwner[0].id;
getLookupvalue1Name = MyLib.documentOwner[0].name;
//setLookupIDSchename - Lookup's Schemaname which you are going to Set
SetLookupValue("setLookupIDSchename",getLookupvalue1Id,getLookupvalue1Name,getLookupvalue1[0].entityType);
}*/

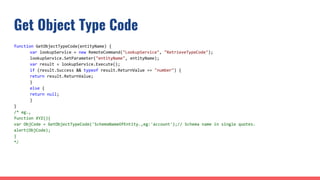

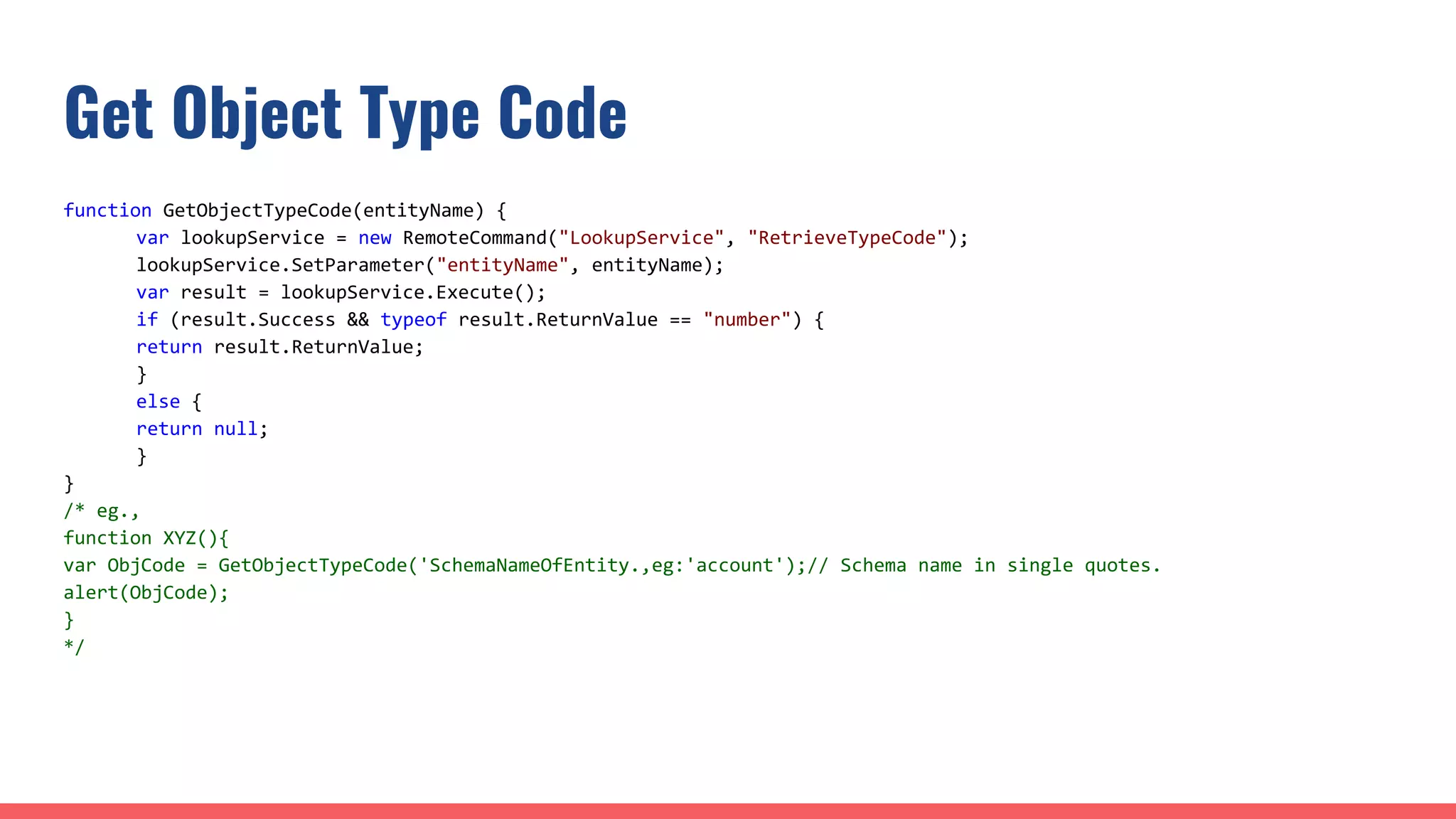

20. Get Object Type Code
function GetObjectTypeCode(entityName) {
var lookupService = new RemoteCommand("LookupService", "RetrieveTypeCode");
lookupService.SetParameter("entityName", entityName);
var result = lookupService.Execute();
if (result.Success && typeof result.ReturnValue == "number") {
return result.ReturnValue;
}
else {
return null;
}
}
/* eg.,
function XYZ(){
var ObjCode = GetObjectTypeCode('SchemaNameOfEntity.,eg:'account');// Schema name in single quotes.
alert(ObjCode);
}
*/

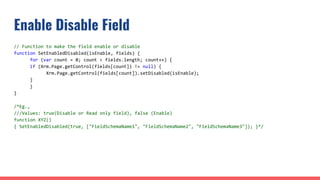

21. Enable Disable Field
// Function to make the field enable or disable
function SetEnabledDisabled(isEnable, fields) {
for (var count = 0; count < fields.length; count++) {
if (Xrm.Page.getControl(fields[count]) != null) {
Xrm.Page.getControl(fields[count]).setDisabled(isEnable);
}
}
}
/*Eg.,
///Values: true(Disable or Read only field), false (Enable)
function XYZ()
{ SetEnabledDisabled(true, ["FieldSchemaName1", "FieldSchemaName2", "FieldSchemaName3"]); }*/

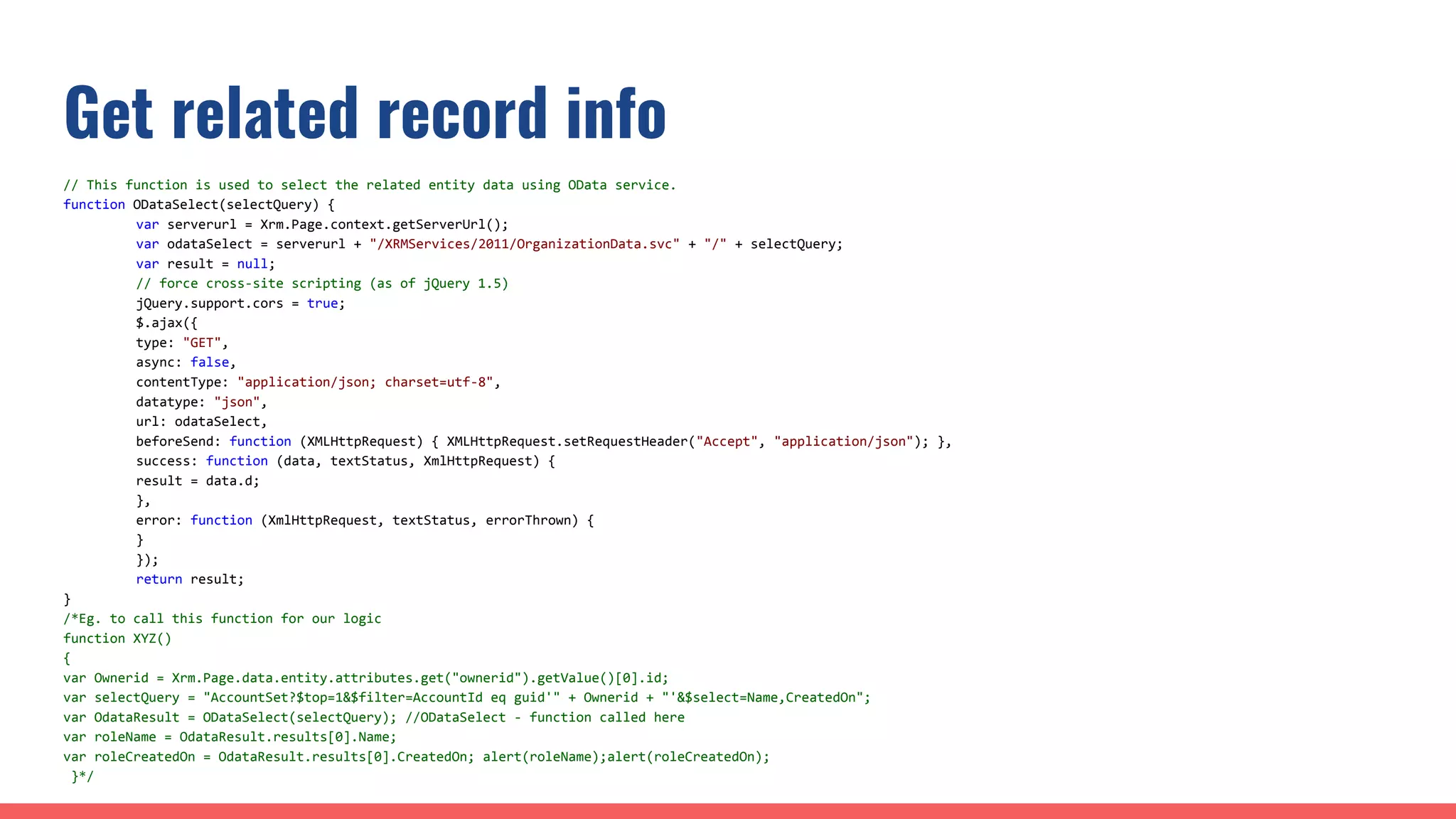

22. Get related record info
// This function is used to select the related entity data using OData service.
function ODataSelect(selectQuery) {
var serverurl = Xrm.Page.context.getServerUrl();
var odataSelect = serverurl + "/XRMServices/2011/OrganizationData.svc" + "/" + selectQuery;
var result = null;
// force cross-site scripting (as of jQuery 1.5)
jQuery.support.cors = true;
$.ajax({
type: "GET",
async: false,
contentType: "application/json; charset=utf-8",
datatype: "json",
url: odataSelect,
beforeSend: function (XMLHttpRequest) { XMLHttpRequest.setRequestHeader("Accept", "application/json"); },
success: function (data, textStatus, XmlHttpRequest) {
result = data.d;
},
error: function (XmlHttpRequest, textStatus, errorThrown) {
}
});
return result;
}
/*Eg. to call this function for our logic
function XYZ()
{
var Ownerid = Xrm.Page.data.entity.attributes.get("ownerid").getValue()[0].id;
var selectQuery = "AccountSet?$top=1&$filter=AccountId eq guid'" + Ownerid + "'&$select=Name,CreatedOn";
var OdataResult = ODataSelect(selectQuery); //ODataSelect - function called here
var roleName = OdataResult.results[0].Name;
var roleCreatedOn = OdataResult.results[0].CreatedOn; alert(roleName);alert(roleCreatedOn);
}*/

23. Thanks You
Any Questions?
