The document discusses key concepts related to data warehousing and ETL (extraction, transformation, loading) processes. It begins by defining a data warehouse as a database maintained separately from operational databases that contains integrated, time-variant data from various sources for analysis and decision making. It then covers differences between data warehouses and OLTP systems, properties of data warehouses, and common ETL terminology like extract, transform, load, staging, and publishing data. The document also discusses data warehouse modeling, components, access tools, and Oracle's data warehousing products and services.

1. PRESENTEDPRESENTEDPRESENTEDPRESENTED
BYBYBYBY VASANTHKUMAR C
1DA12CS118
VEERABHADRAPPA KS
1DA12CS120
DWH
Dr. AMBEDKAR INSTITUTE OF TECHNOLOGY

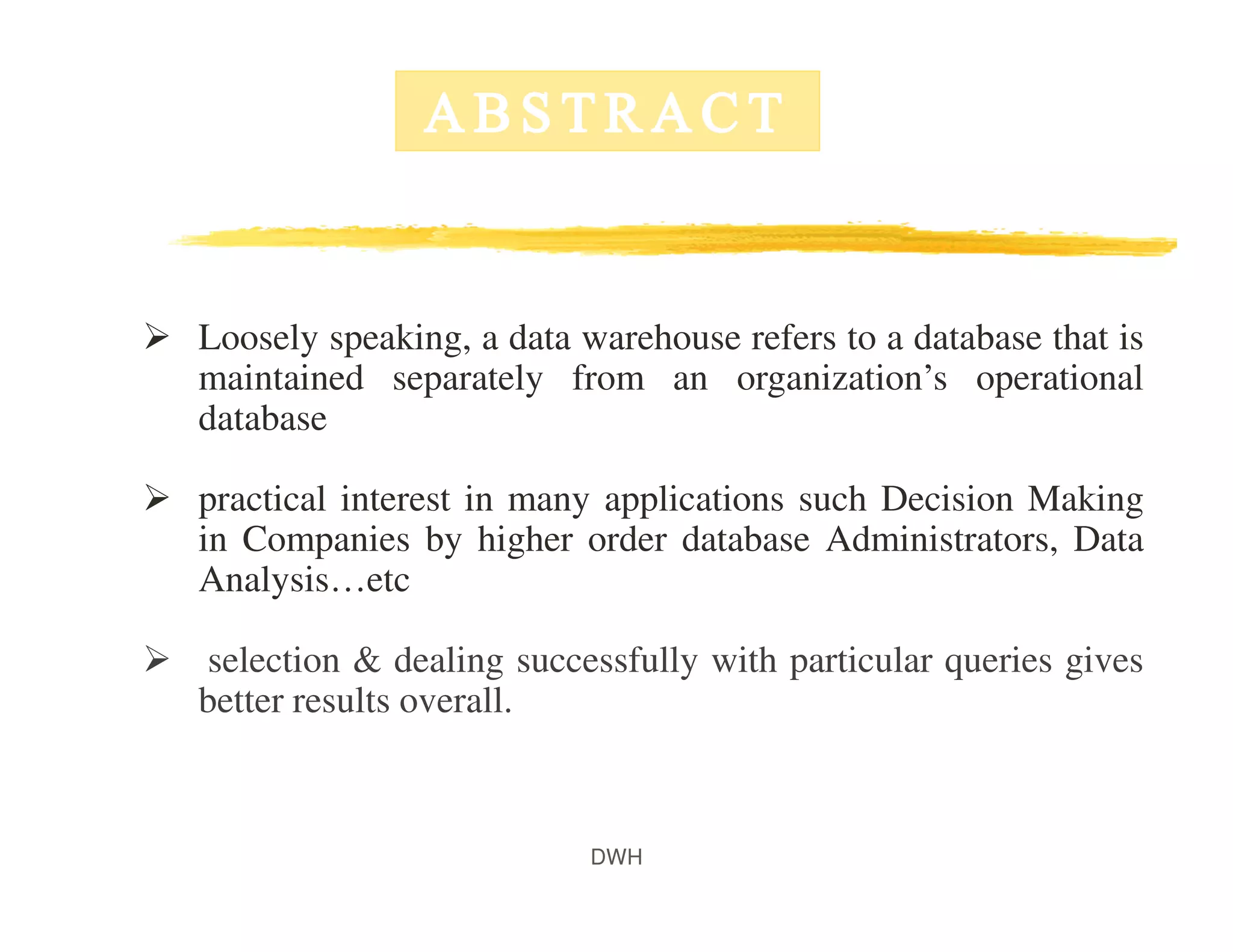

2. Loosely speaking, a data warehouse refers to a database that is
maintained separately from an organization’s operational
database
practical interest in many applications such Decision Making
in Companies by higher order database Administrators, Data
Analysis…etc
selection & dealing successfully with particular queries gives
better results overall.
DWH

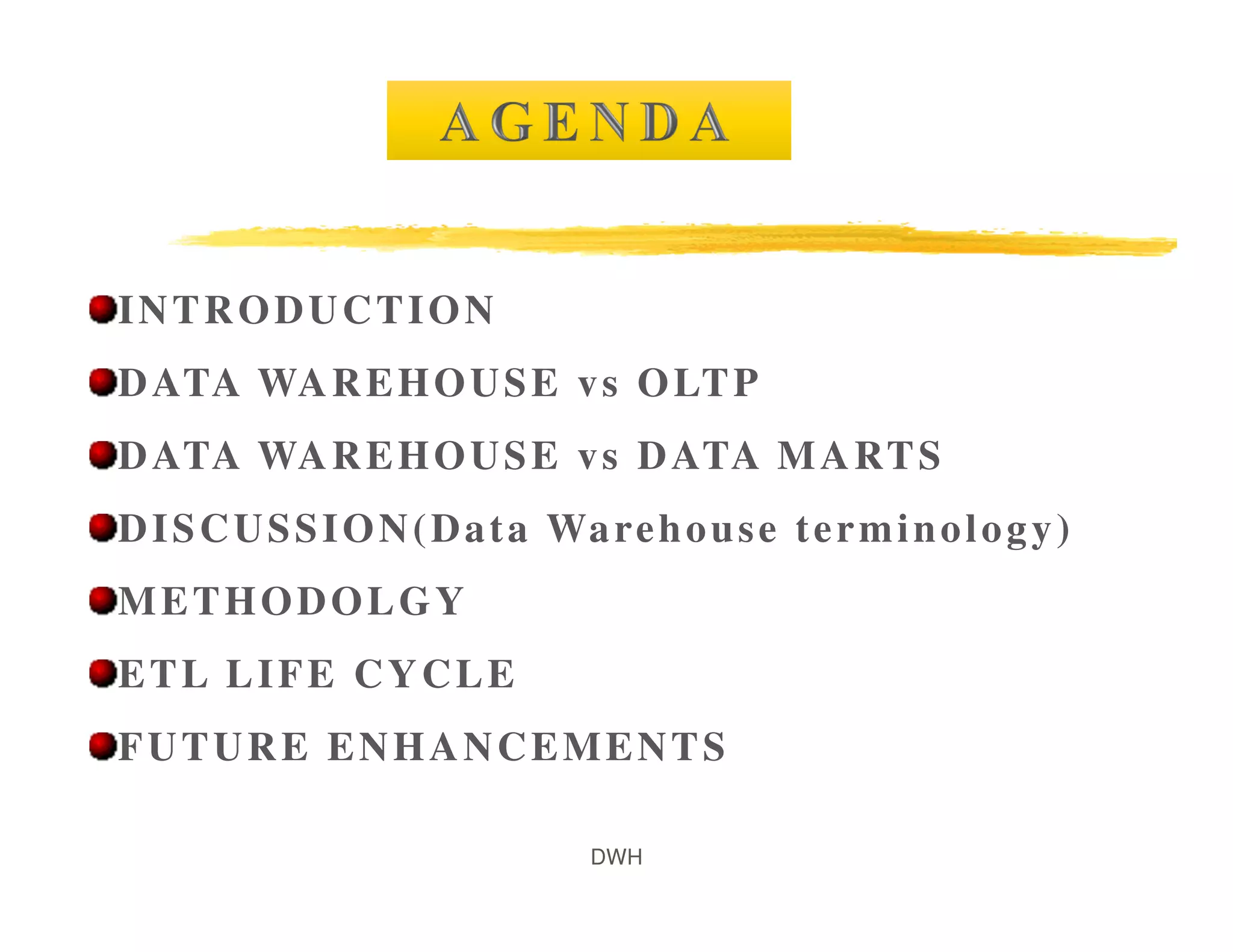

3. DWH
INTRODUCTION
DATA WAREHOUSE vs OLTP
DATA WAREHOUSE vs DATA MARTS
DISCUSSION(Data Warehouse terminology)
METHODOLGY
ETL LIFE CYCLE
FUTURE ENHANCEMENTS

4. DWH
Data Warehouse
Concepts
And
ETL Tool
INTRODUCTION

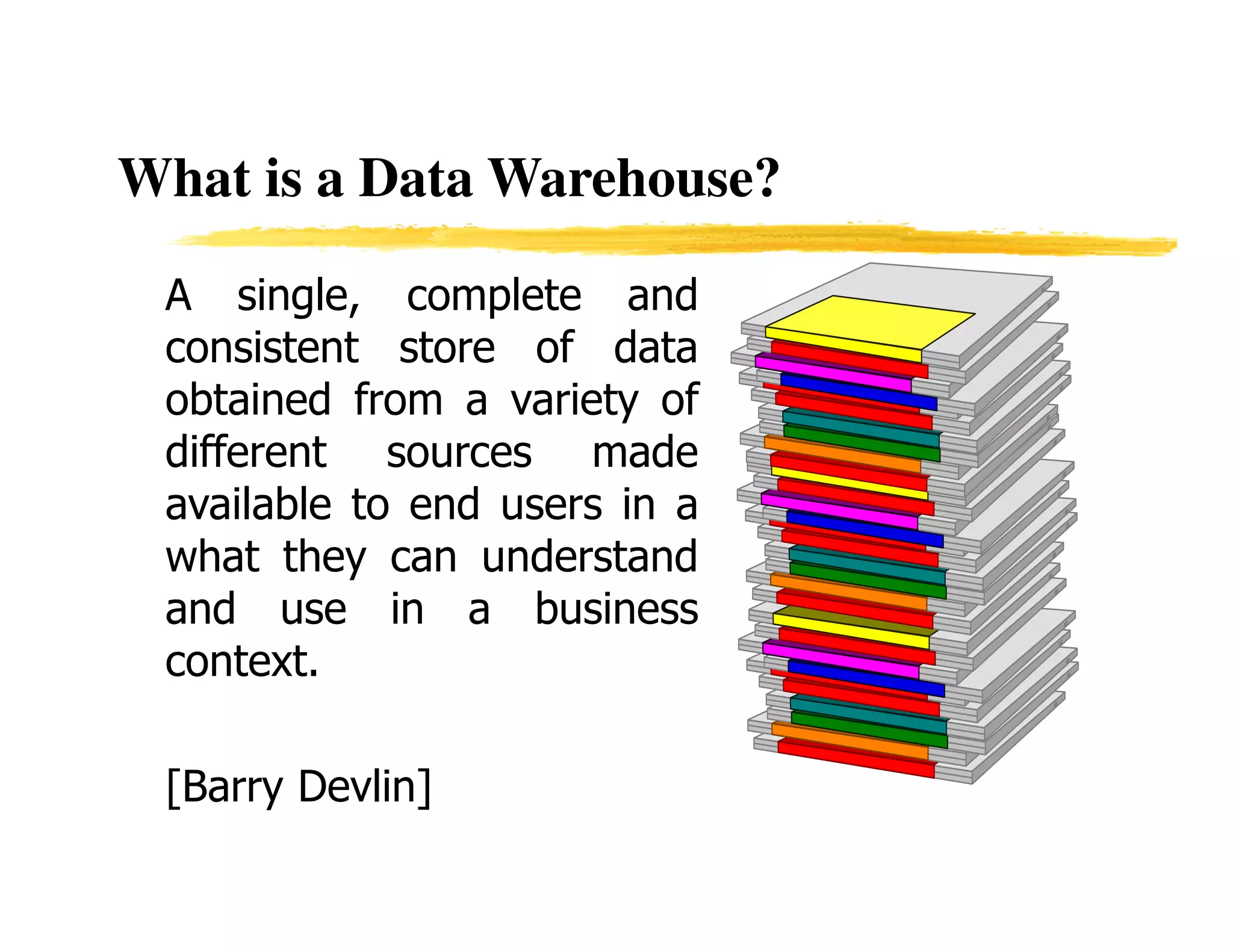

5. What is a Data Warehouse?
A single, complete and
consistent store of data
obtained from a variety of
different sources made
available to end users in a
what they can understand
and use in a business
context.
[Barry Devlin]

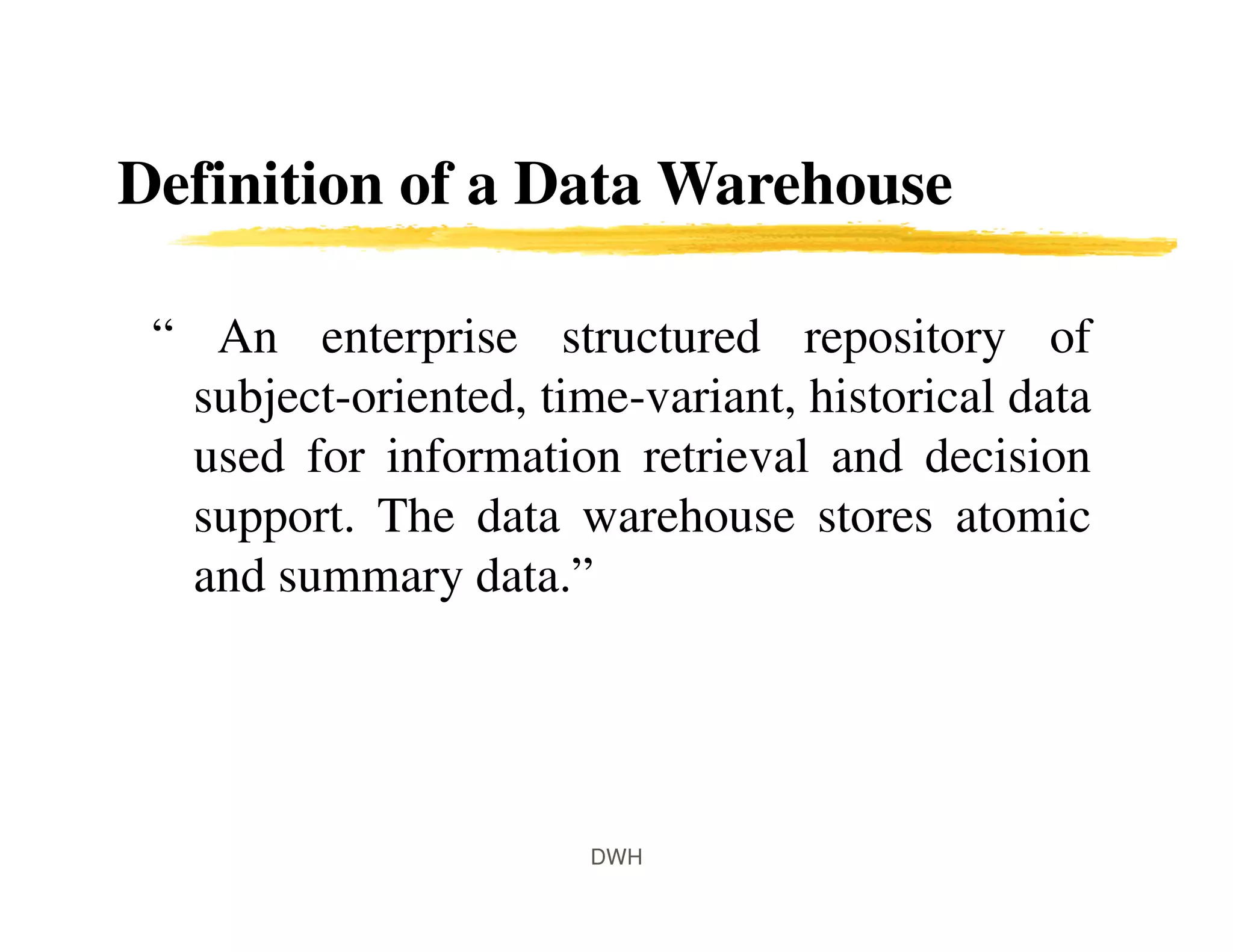

6. Definition of a Data Warehouse
“ An enterprise structured repository of
subject-oriented, time-variant, historical data
used for information retrieval and decision
support. The data warehouse stores atomic
and summary data.”
DWH

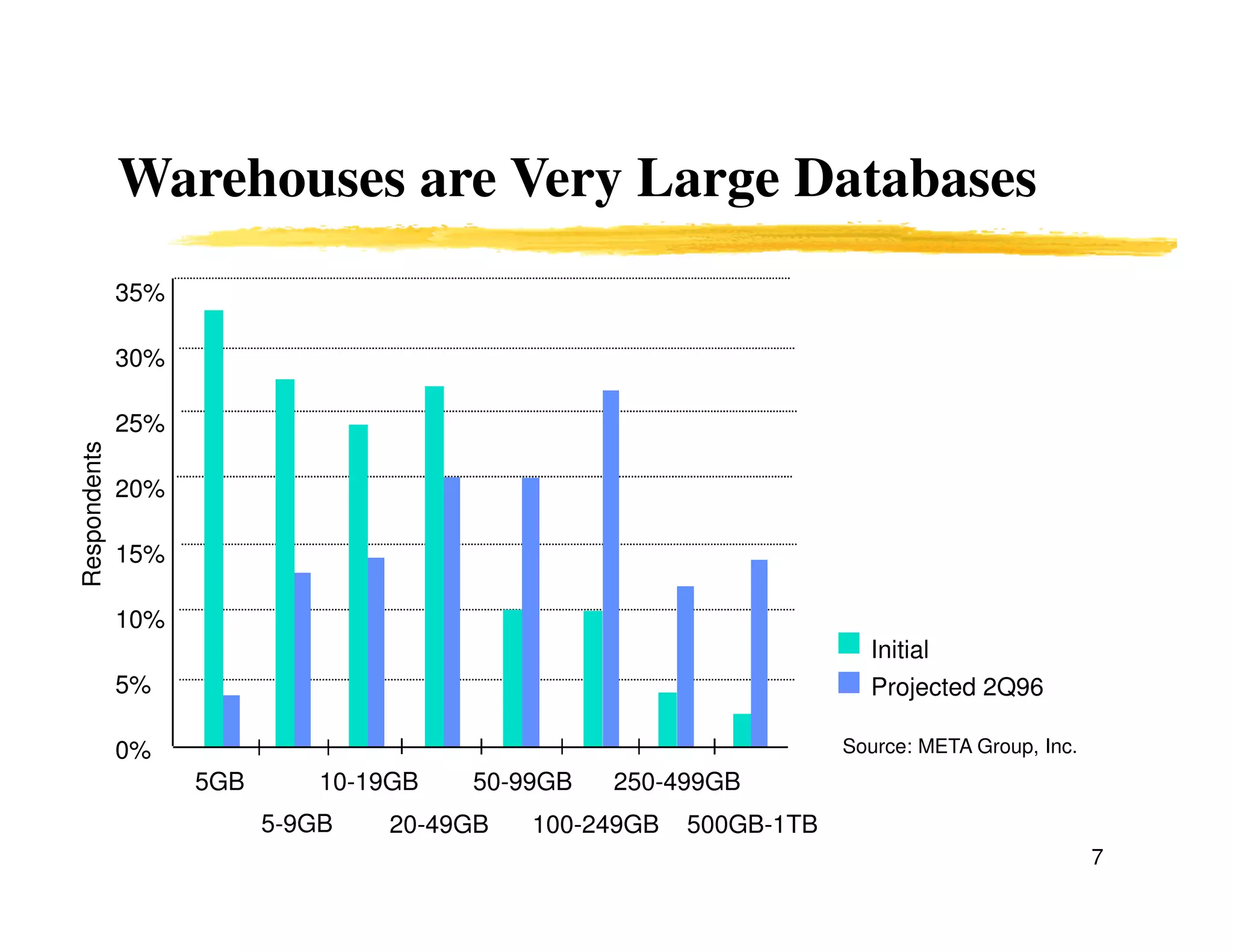

7. 7
Warehouses are Very Large Databases
35%
30%
25%
20%
15%
10%
5%
0%
5GB
5-9GB
10-19GB 50-99GB 250-499GB
20-49GB 100-249GB 500GB-1TB
Initial
Projected 2Q96
Source: META Group, Inc.
Respondents

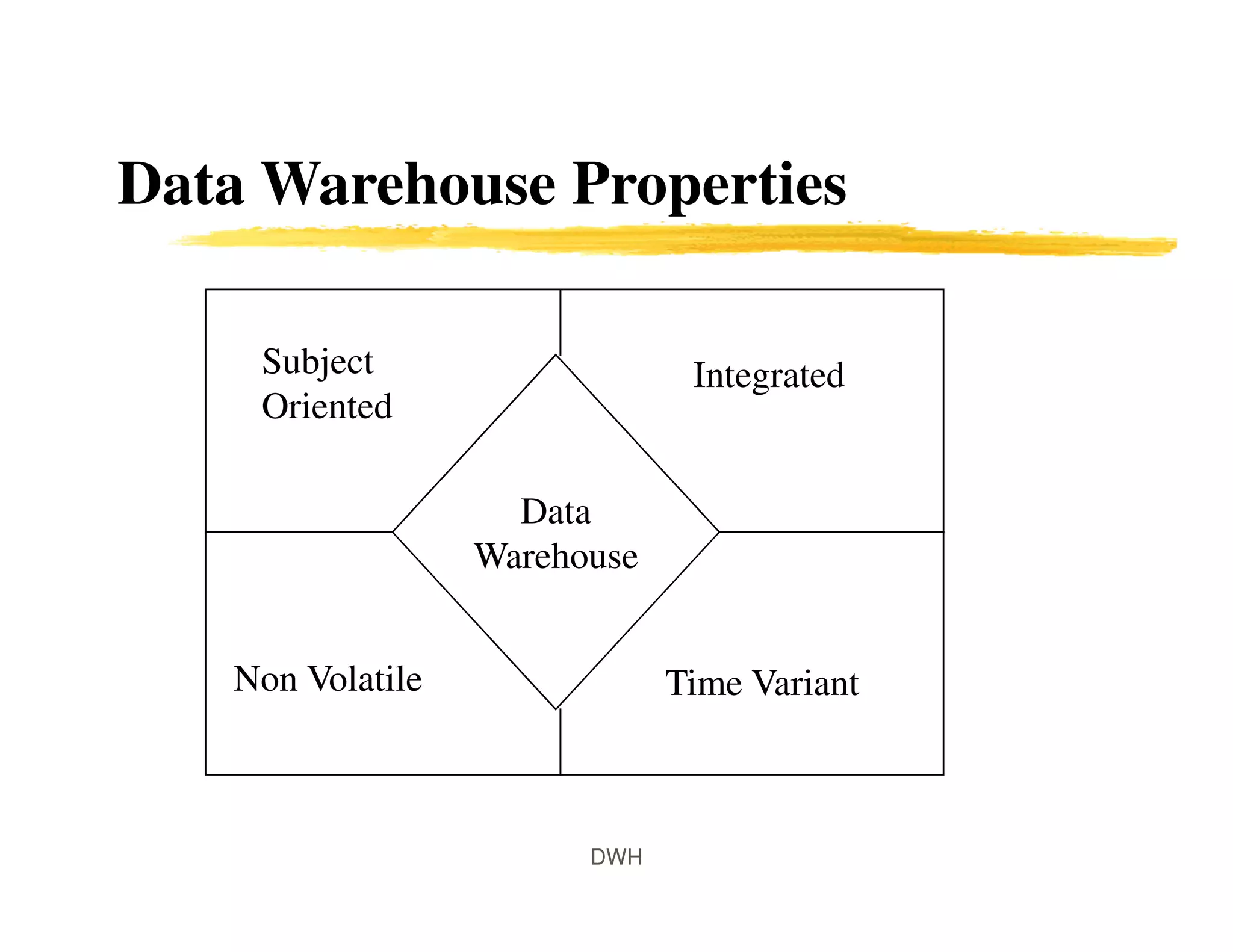

8. Data Warehouse Properties
Data
Warehouse
Integrated
Time VariantNon Volatile
Subject
Oriented
DWH

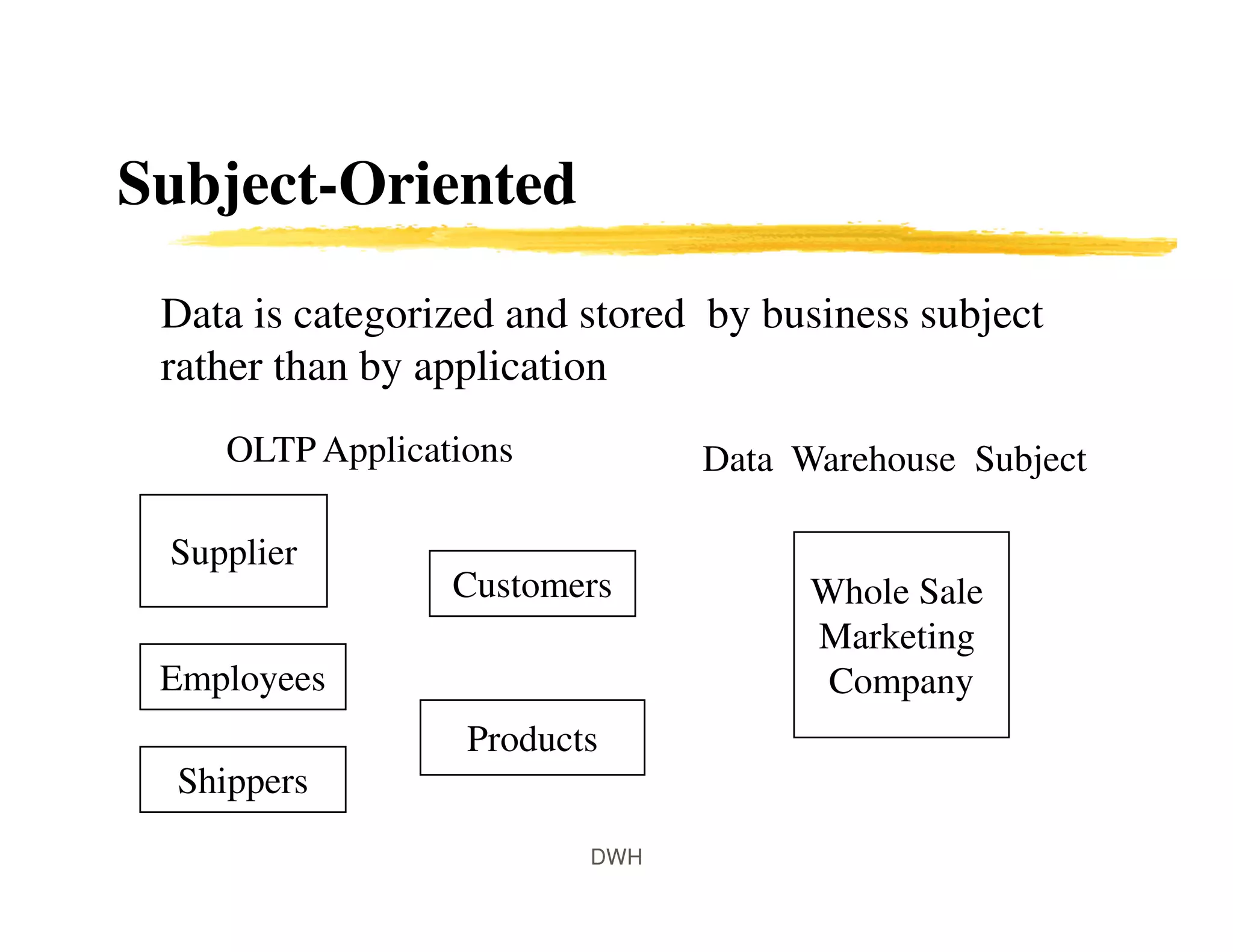

9. Subject-Oriented
Data is categorized and stored by business subject
rather than by application
Supplier
Customers Whole Sale
Marketing
Company
Products
Employees
Shippers
OLTP Applications Data Warehouse Subject
DWH

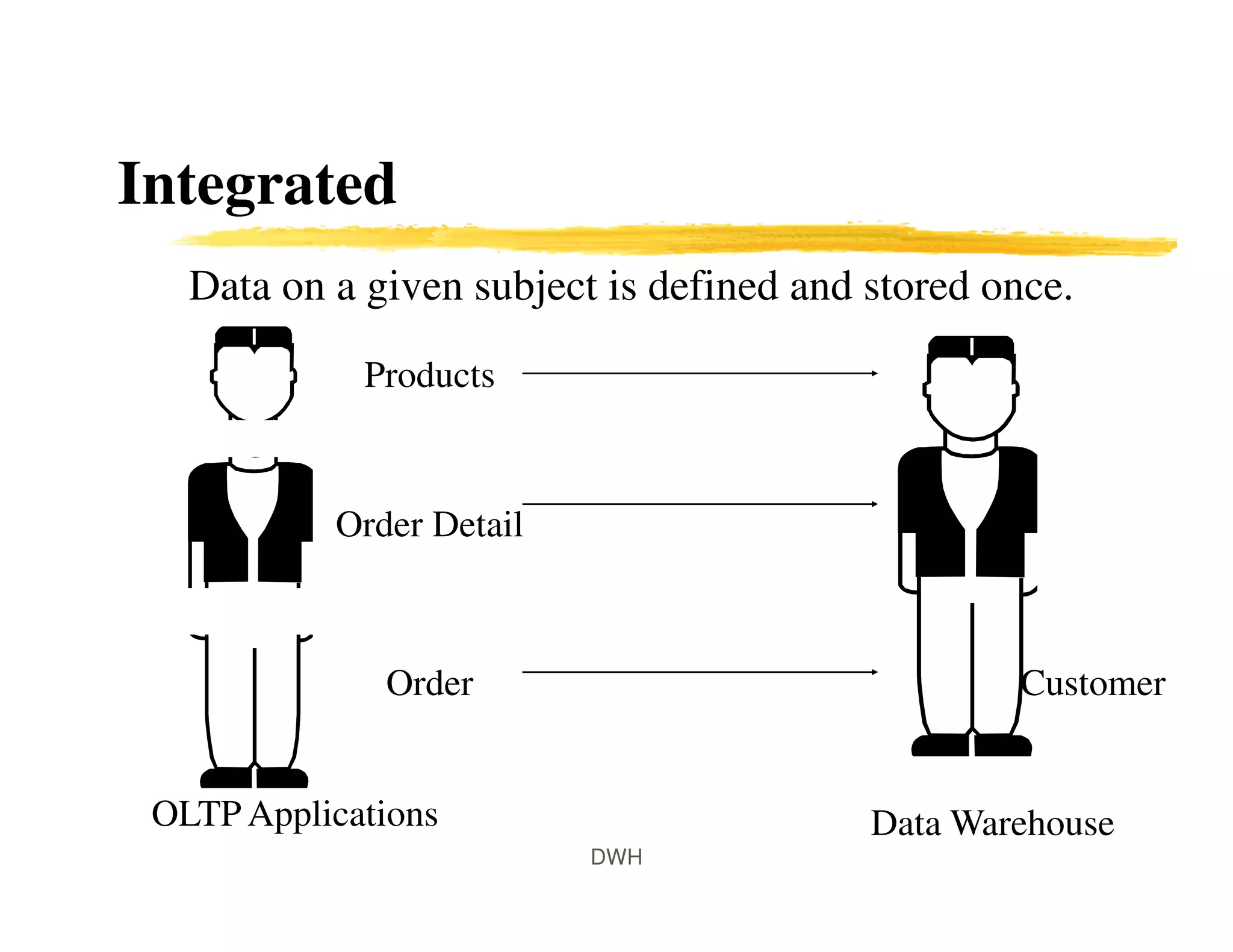

10. Integrated
OLTP Applications
Products
Order Detail
Order
Data Warehouse
Data on a given subject is defined and stored once.
Customer
DWH

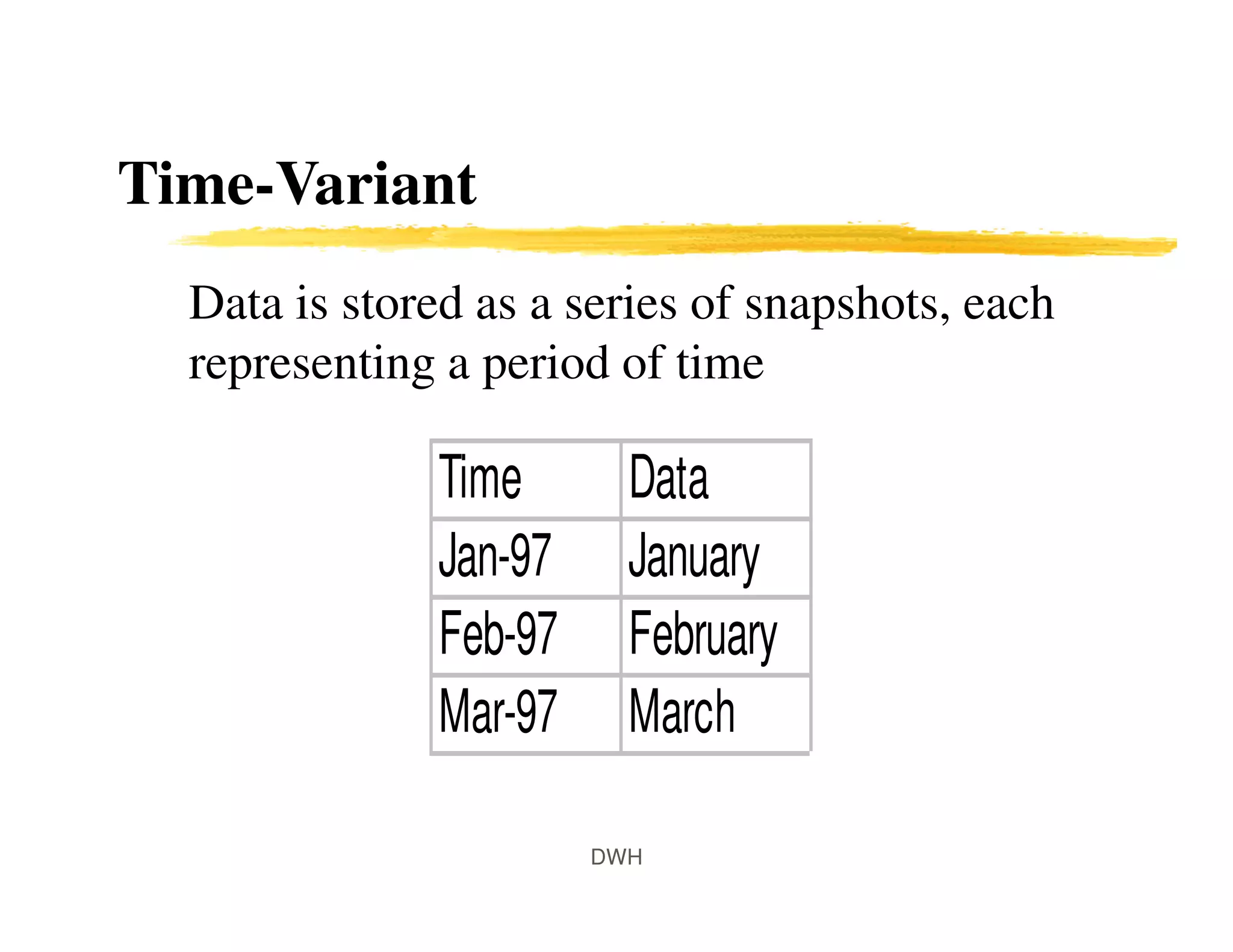

11. Time-Variant
Data is stored as a series of snapshots, each
representing a period of time
Time Data
Jan-97 January
Feb-97 February
Mar-97 March
DWH

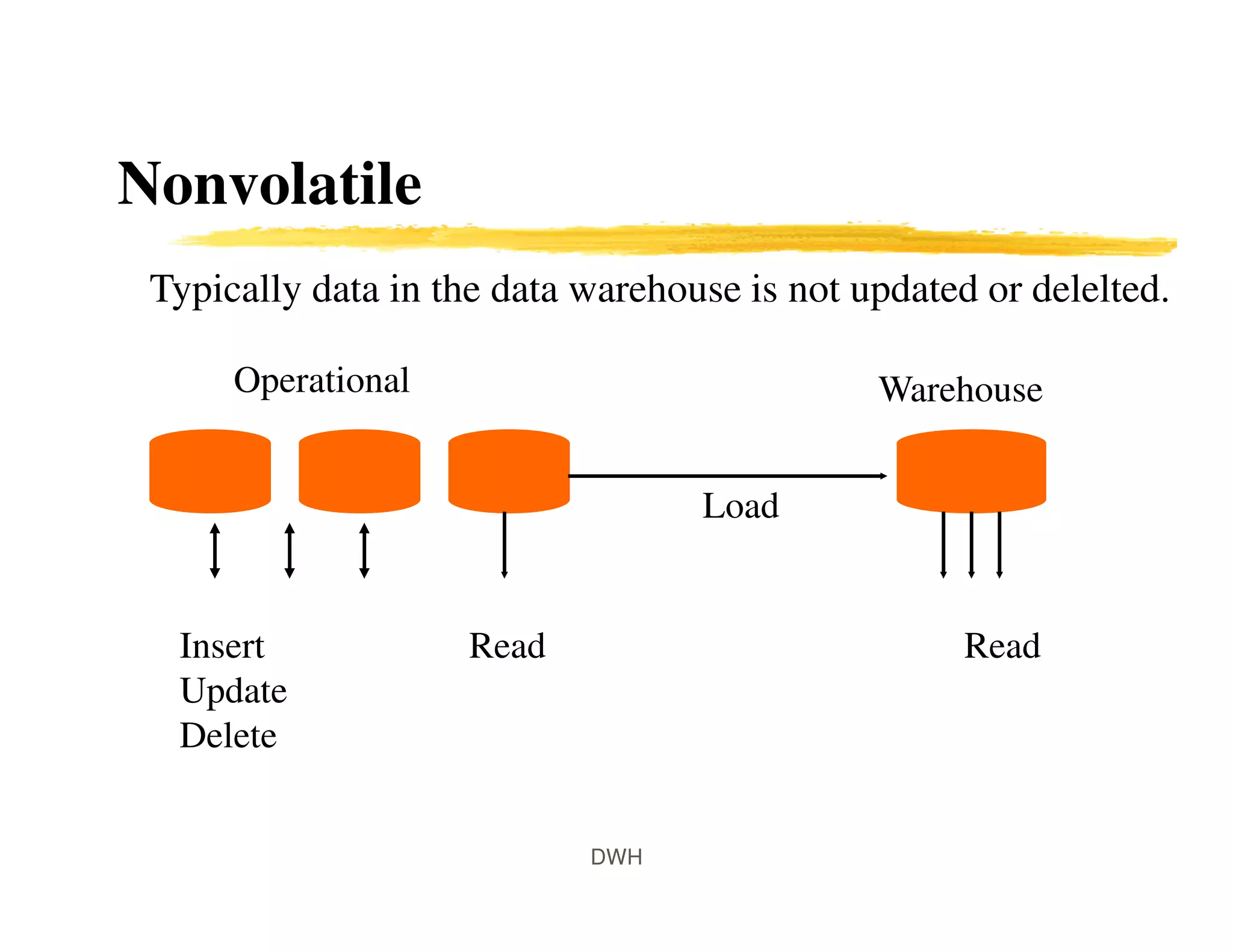

12. Nonvolatile
Typically data in the data warehouse is not updated or delelted.
Insert
Update
Delete
Read Read
Operational Warehouse
Load
DWH

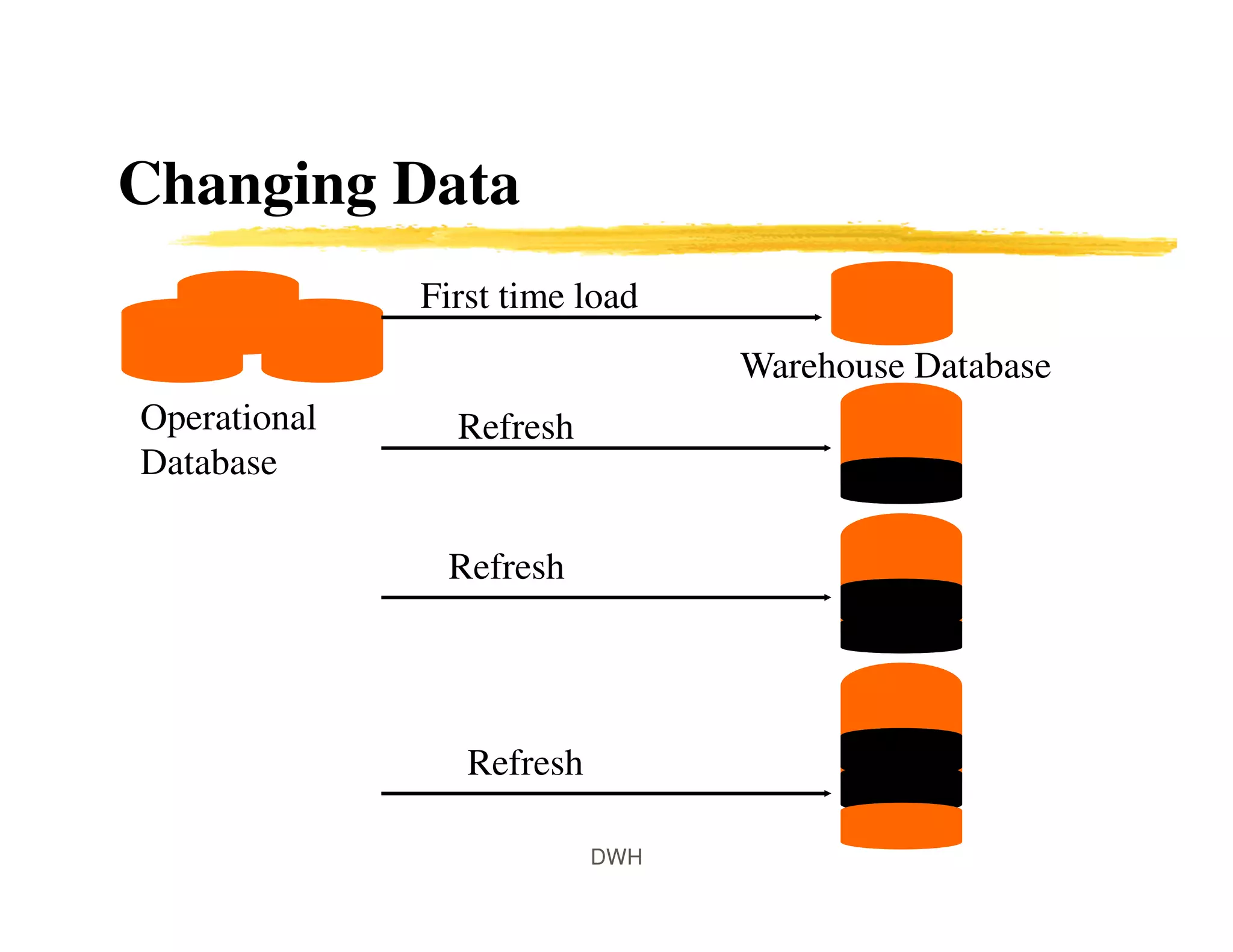

13. Changing Data
Warehouse Database
First time load
Refresh
Refresh
Refresh
Operational
Database
DWH

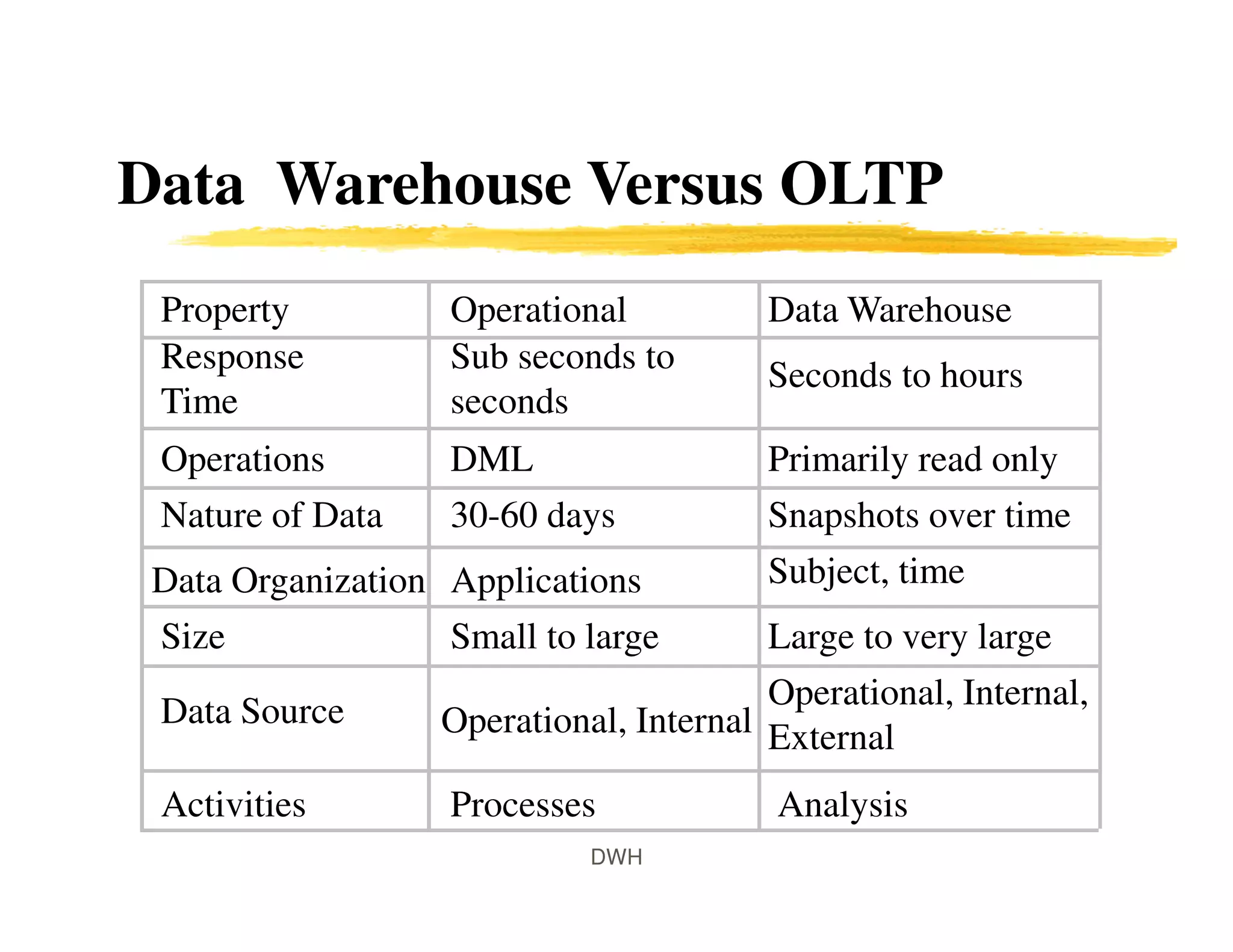

14. Data Warehouse Versus OLTP
Property
Response
Time
Operations
Nature of Data
Data Organization
Size
Data Source
Activities
Operational
Sub seconds to
seconds
DML
30-60 days
Applications
Small to large
Operational, Internal
Processes
Data Warehouse
Seconds to hours
Snapshots over time
Subject, time
Large to very large
Operational, Internal,
External
Analysis
Primarily read only
DWH

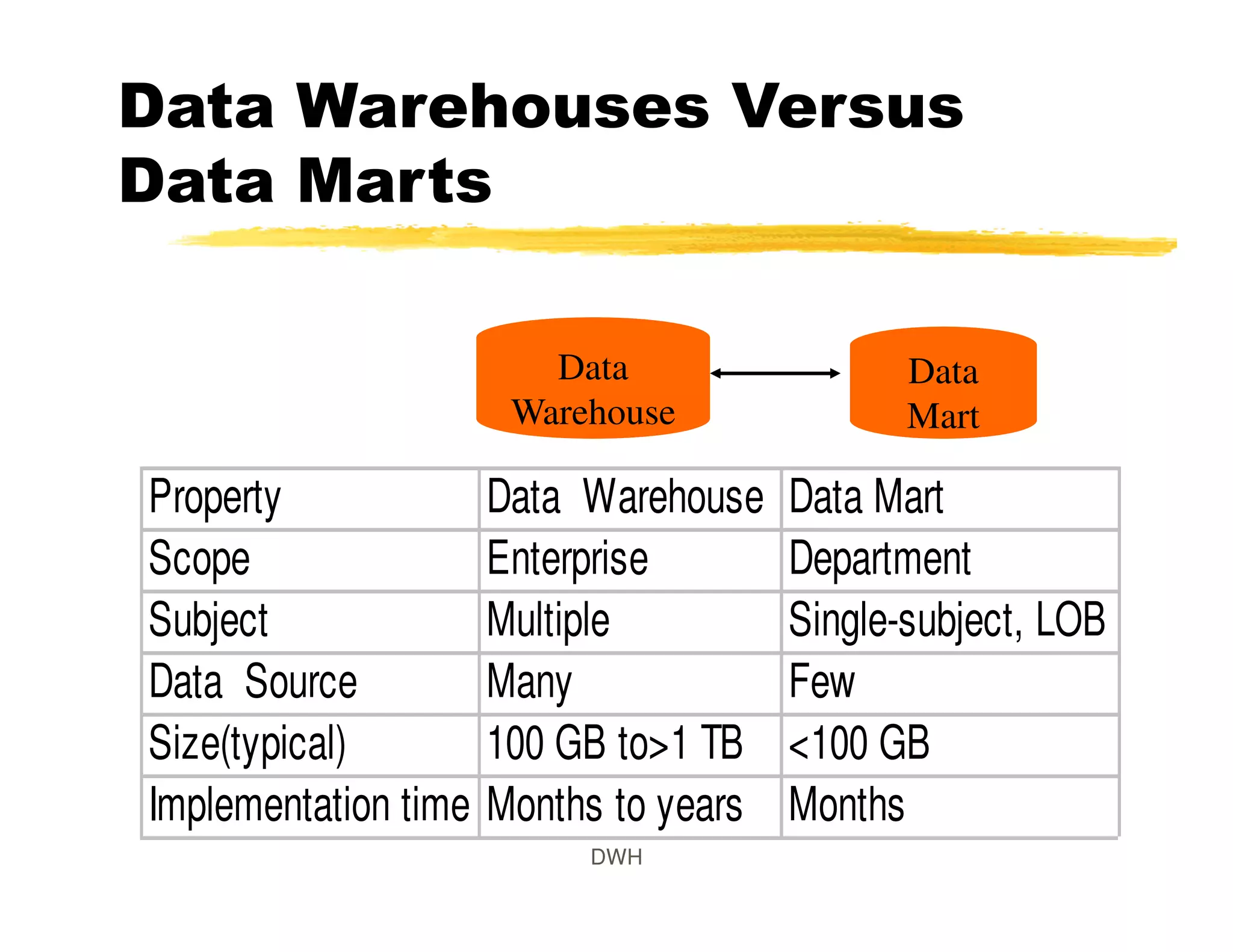

15. Data Warehouses Versus
Data Marts
Property Data Warehouse Data Mart
Scope Enterprise Department
Subject Multiple Single-subject, LOB
Data Source Many Few
Size(typical) 100 GB to>1 TB <100 GB
Implementation time Months to years Months
Data
Warehouse
Data
Mart
DWH

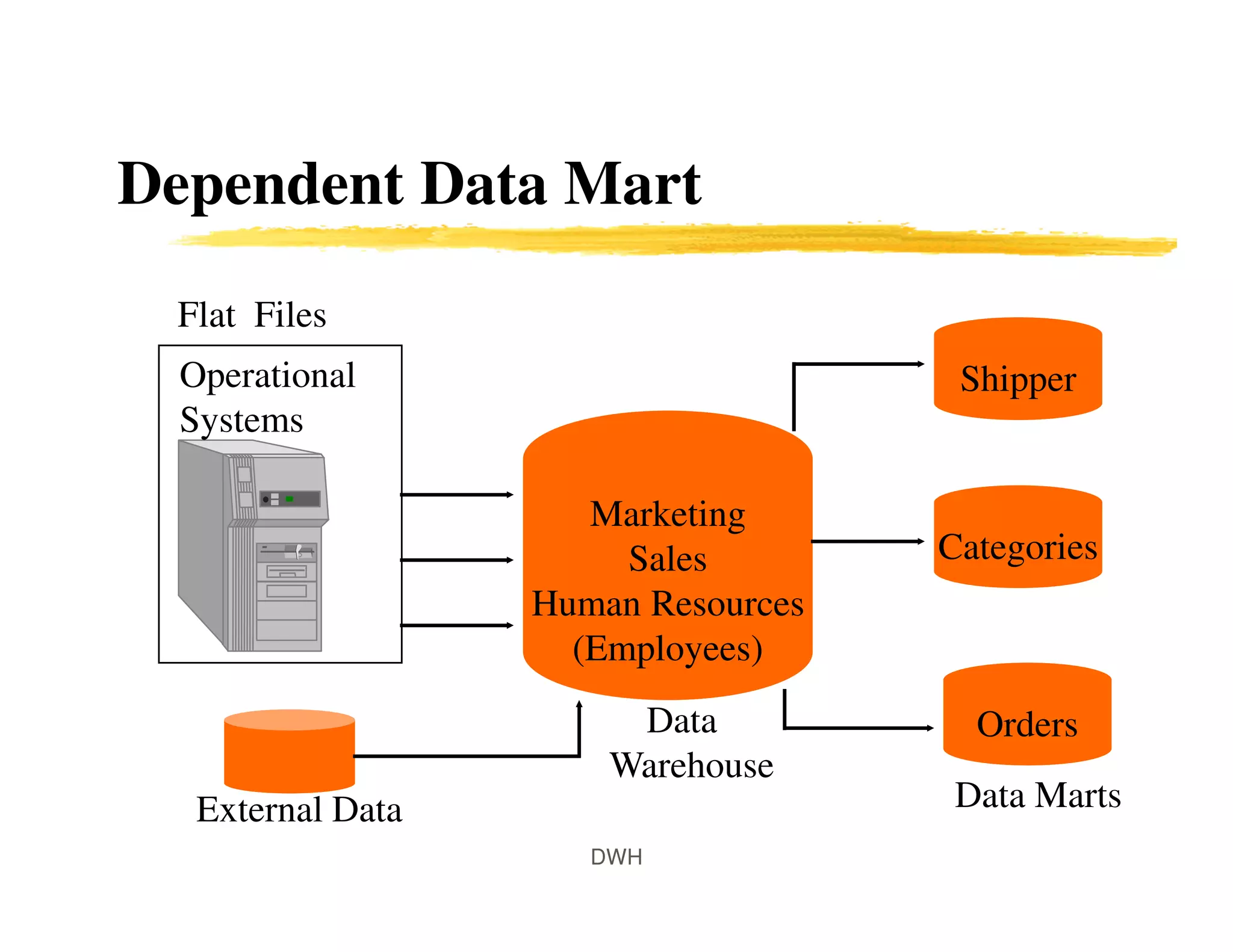

16. Dependent Data Mart
Marketing
Sales
Human Resources
(Employees)
Shipper
Categories
Orders
External Data
Data
Warehouse
Operational
Systems
Flat Files
Data Marts
DWH

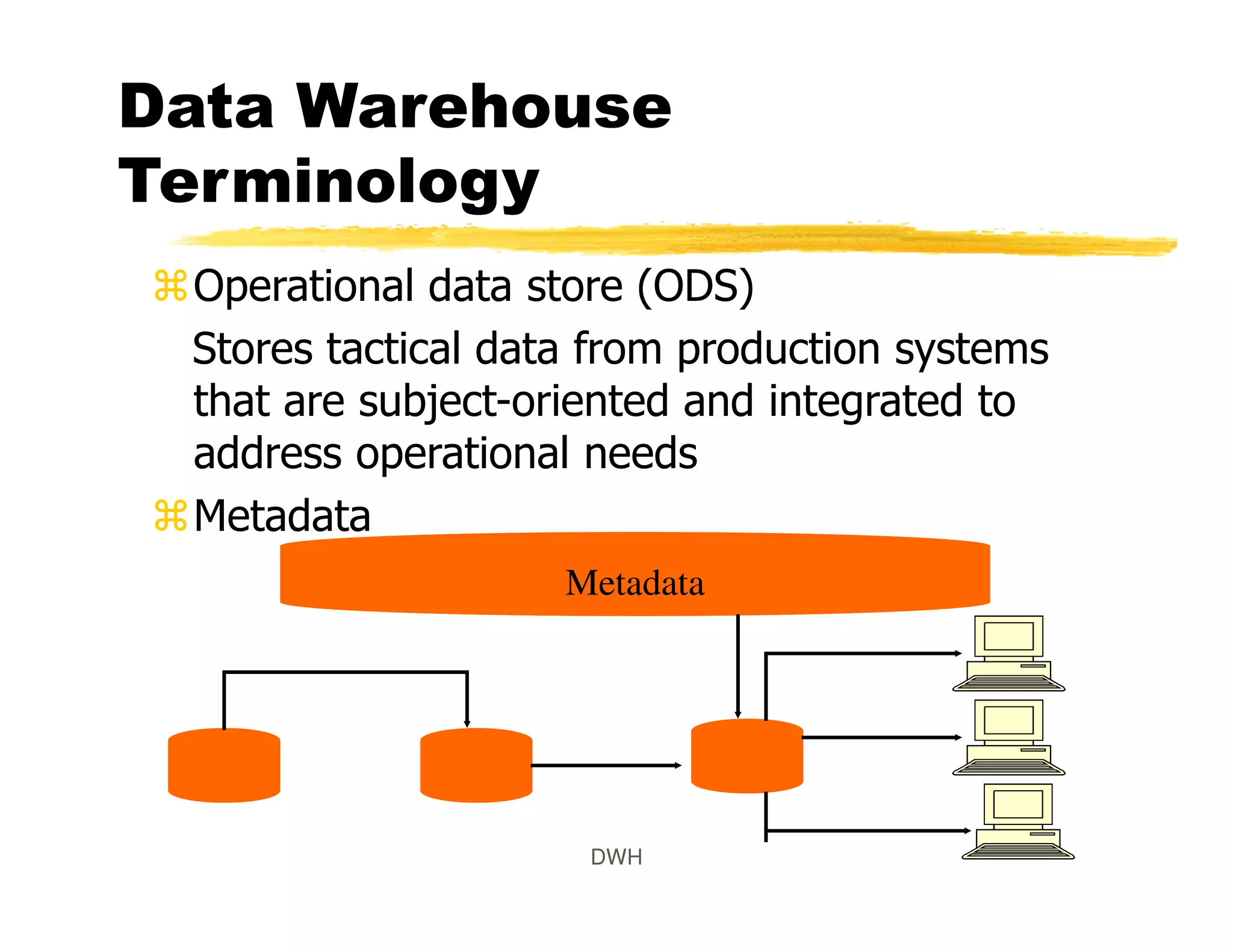

17. Data Warehouse
Terminology
Operational data store (ODS)
Stores tactical data from production systems
that are subject-oriented and integrated to
address operational needs
Metadata
Metadata
DWH

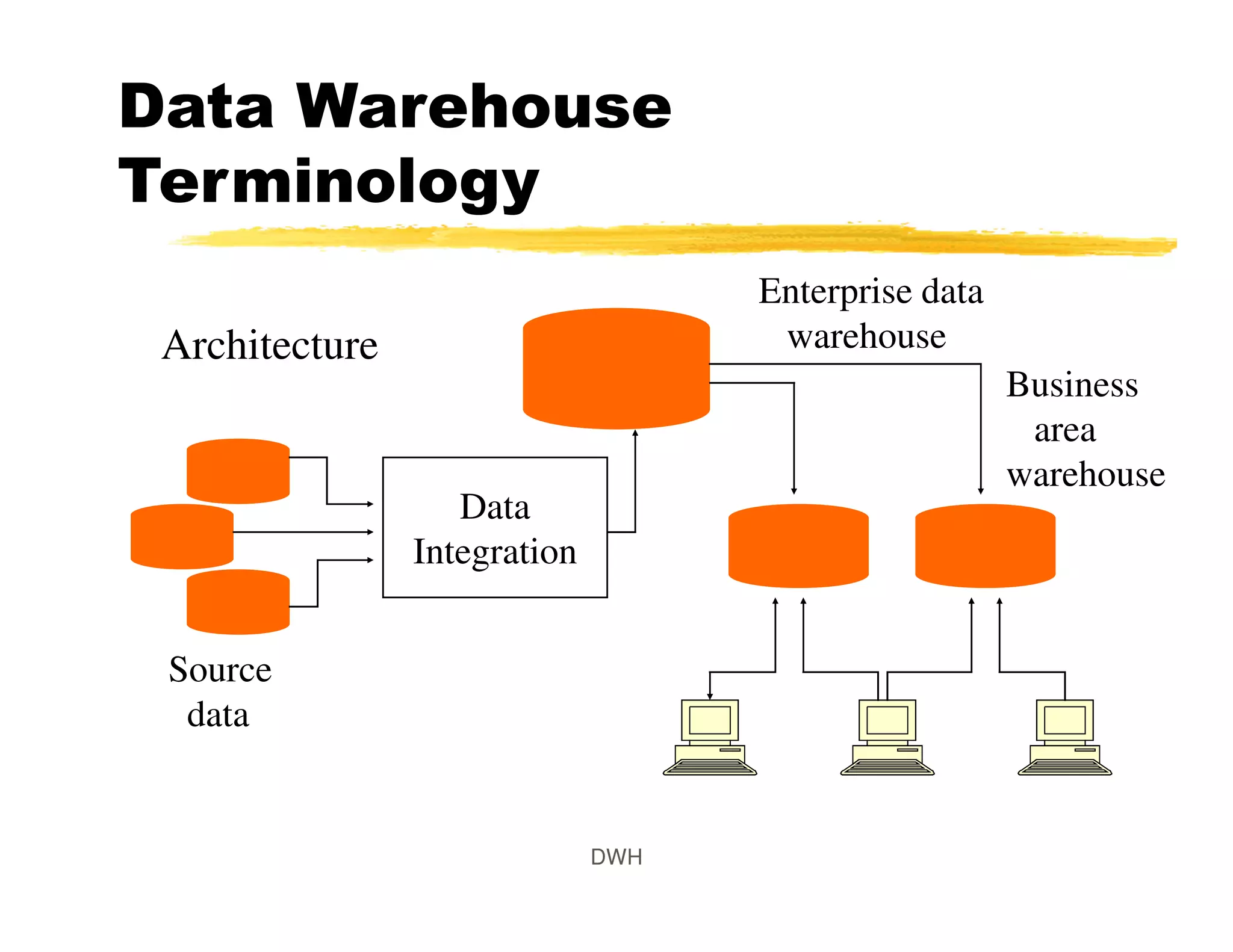

18. Data Warehouse
Terminology
Data
Integration
Enterprise data
warehouse
Business
area
warehouse
Source
data
Architecture
DWH

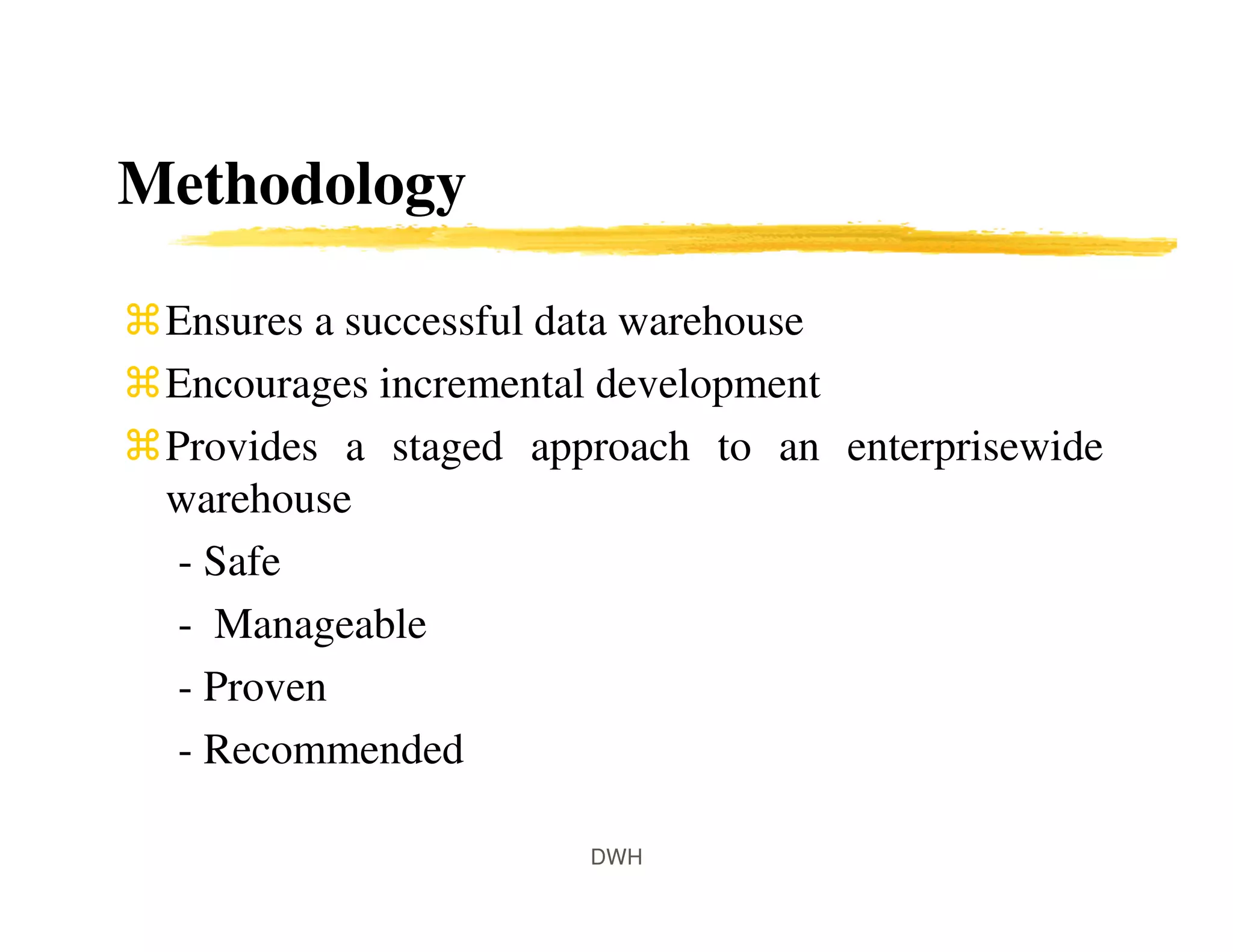

19. Methodology
Ensures a successful data warehouse
Encourages incremental development
Provides a staged approach to an enterprisewide
warehouse
- Safe
- Manageable
- Proven
- Recommended
DWH

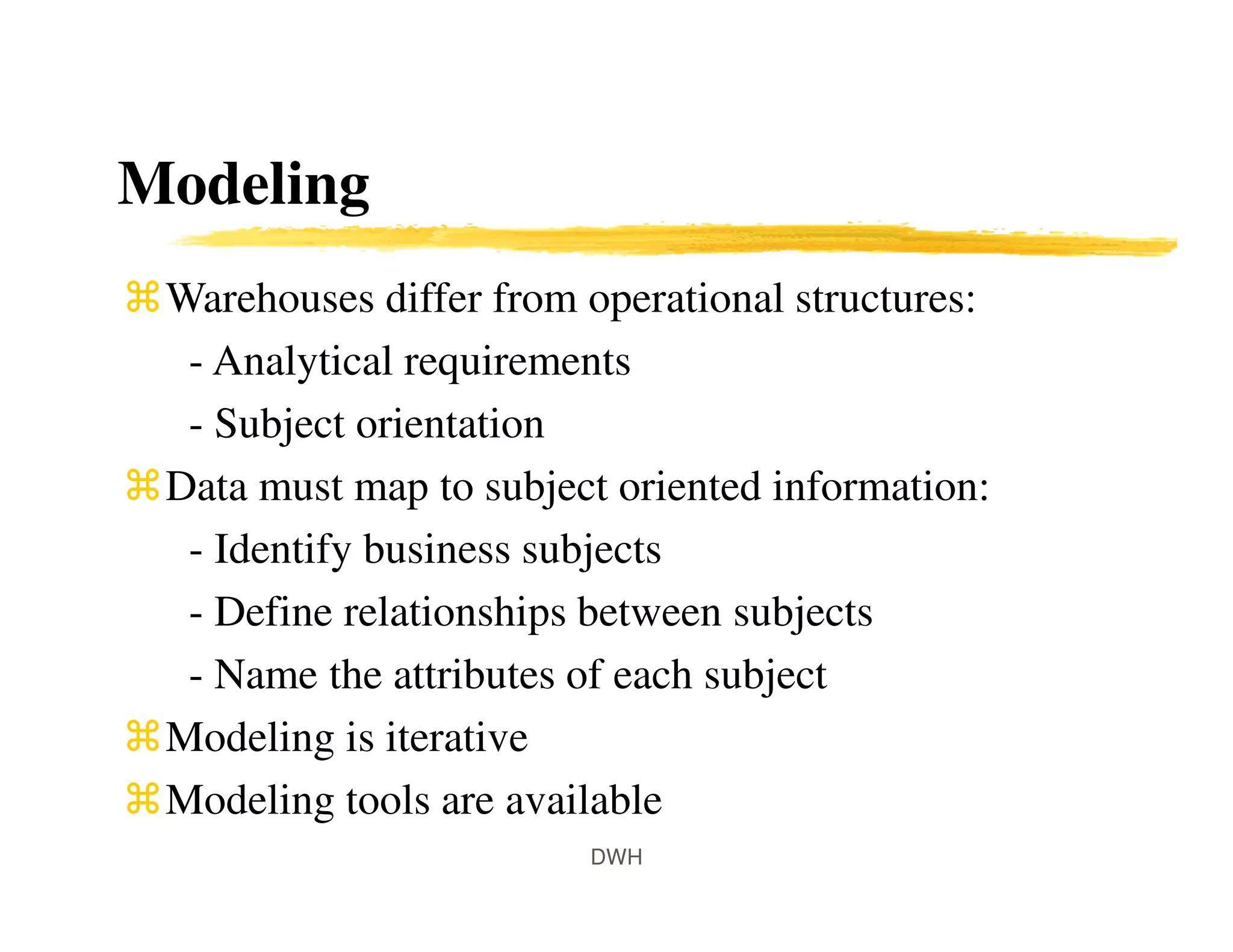

20. Modeling
Warehouses differ from operational structures:
- Analytical requirements
- Subject orientation
Data must map to subject oriented information:
- Identify business subjects
- Define relationships between subjects
- Name the attributes of each subject
Modeling is iterative
Modeling tools are available
DWH

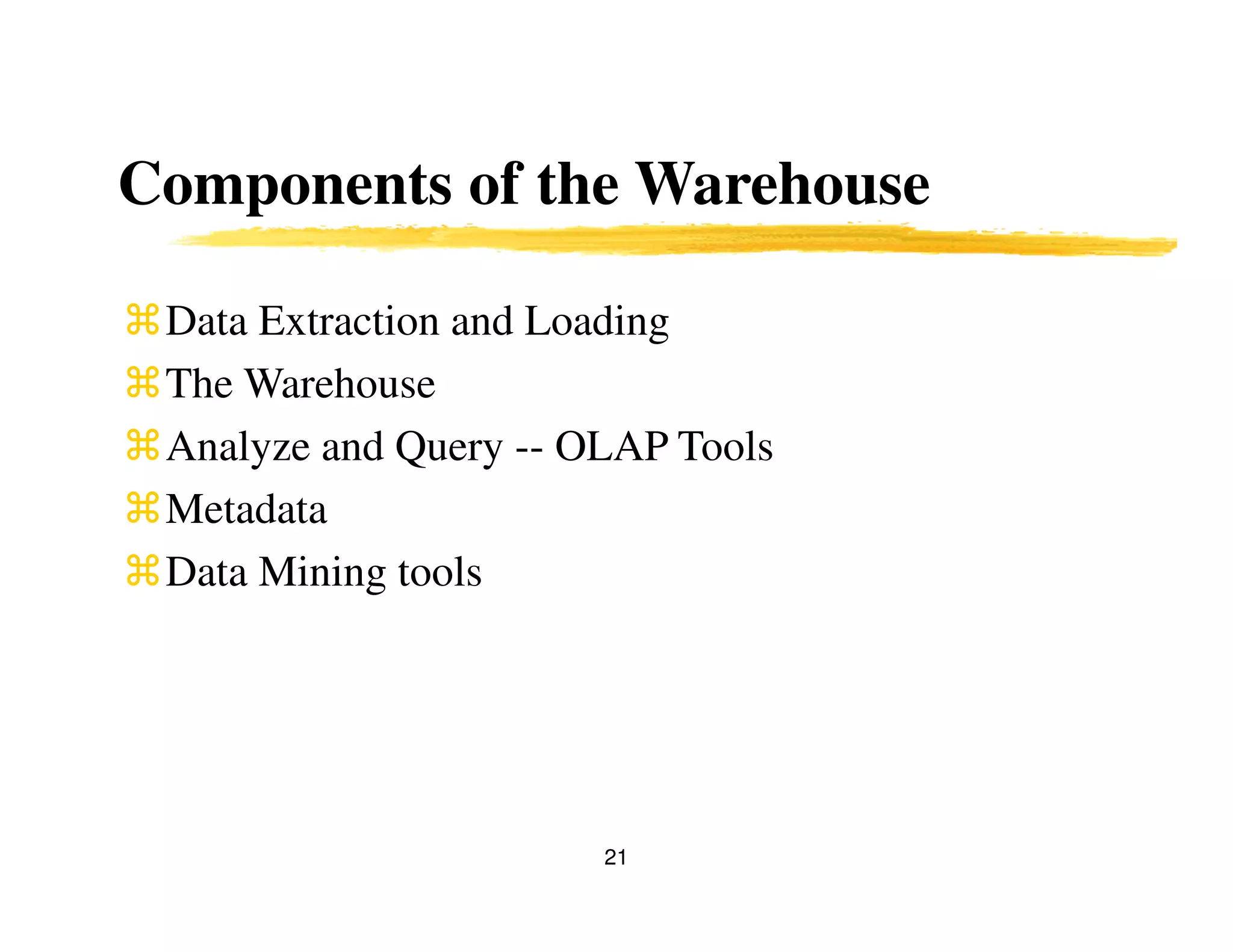

21. 21
Components of the Warehouse
Data Extraction and Loading
The Warehouse
Analyze and Query -- OLAP Tools
Metadata
Data Mining tools

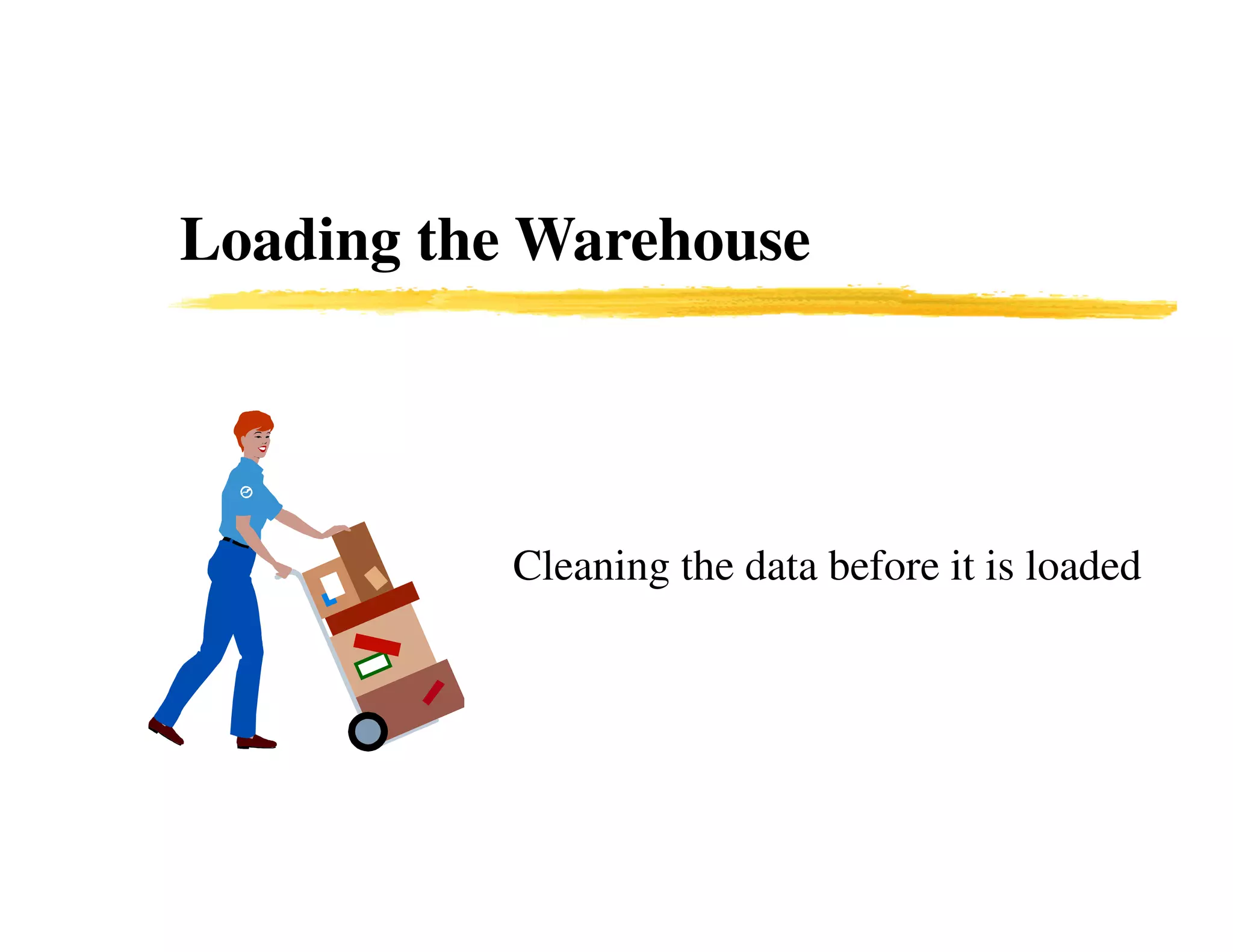

22. Loading the Warehouse
Cleaning the data before it is loaded

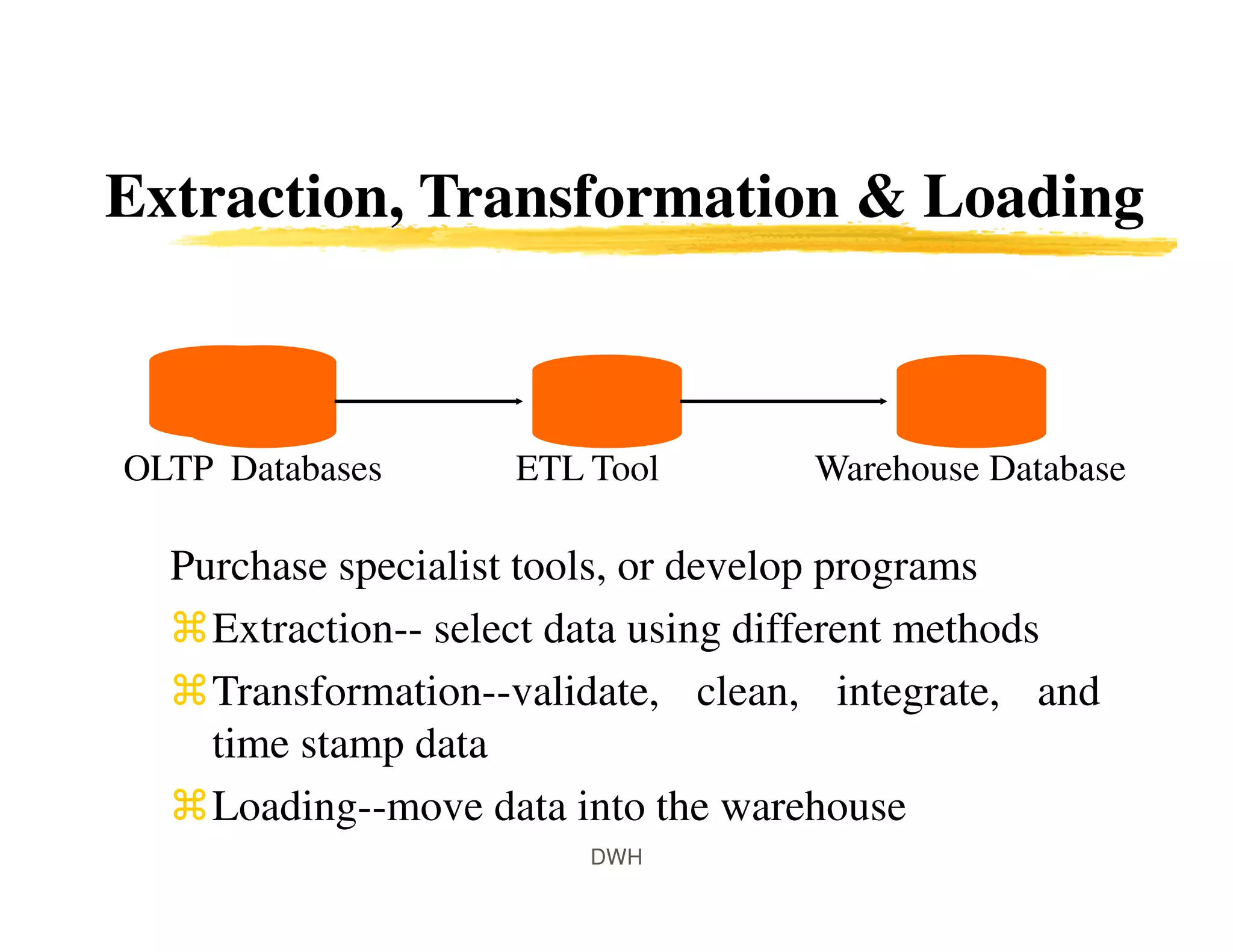

23. Extraction, Transformation & Loading
Purchase specialist tools, or develop programs
Extraction-- select data using different methods
Transformation--validate, clean, integrate, and
time stamp data
Loading--move data into the warehouse
OLTP Databases ETL Tool Warehouse Database
DWH

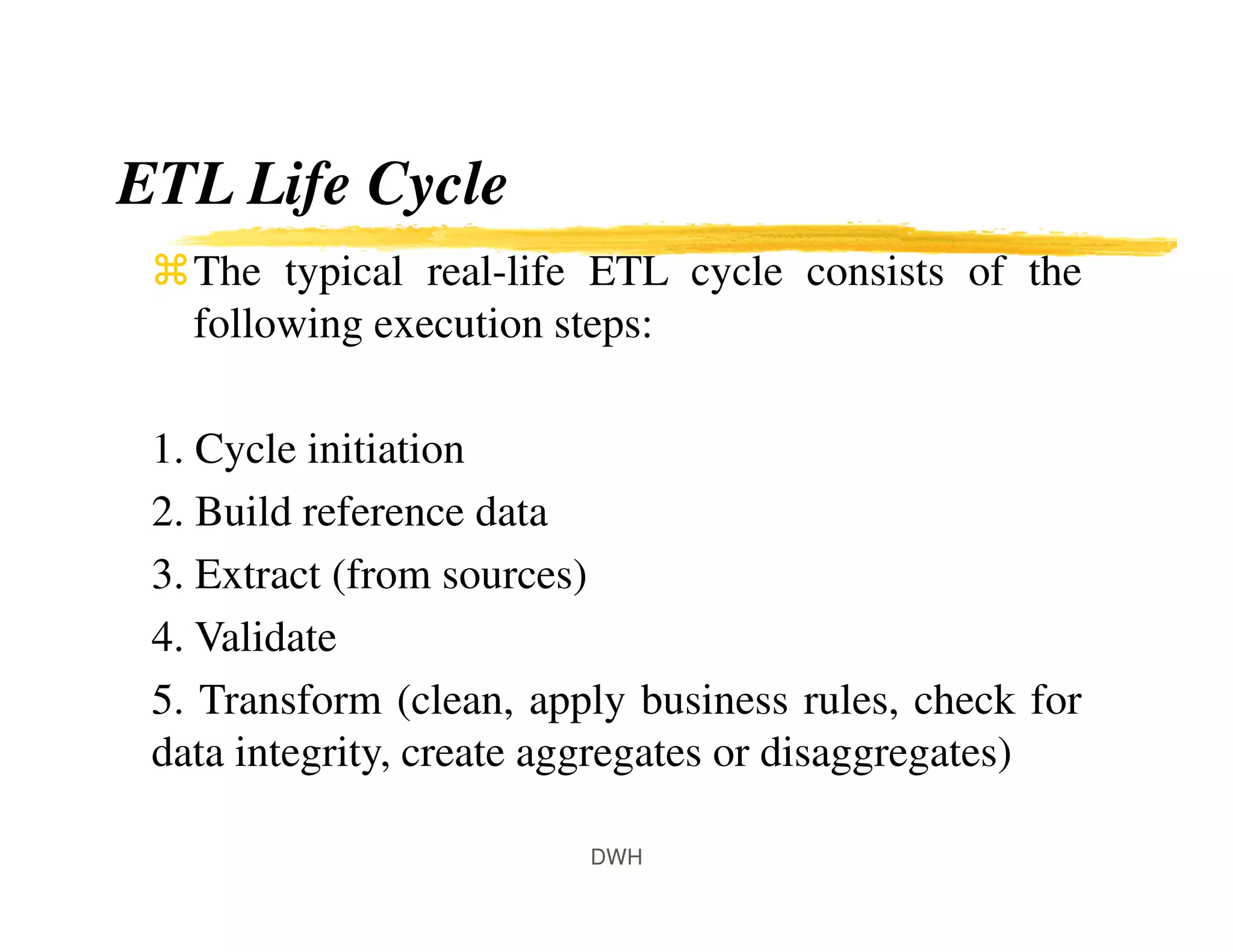

24. ETL Life Cycle
The typical real-life ETL cycle consists of the
following execution steps:
1. Cycle initiation
2. Build reference data
3. Extract (from sources)
4. Validate
5. Transform (clean, apply business rules, check for
data integrity, create aggregates or disaggregates)
DWH

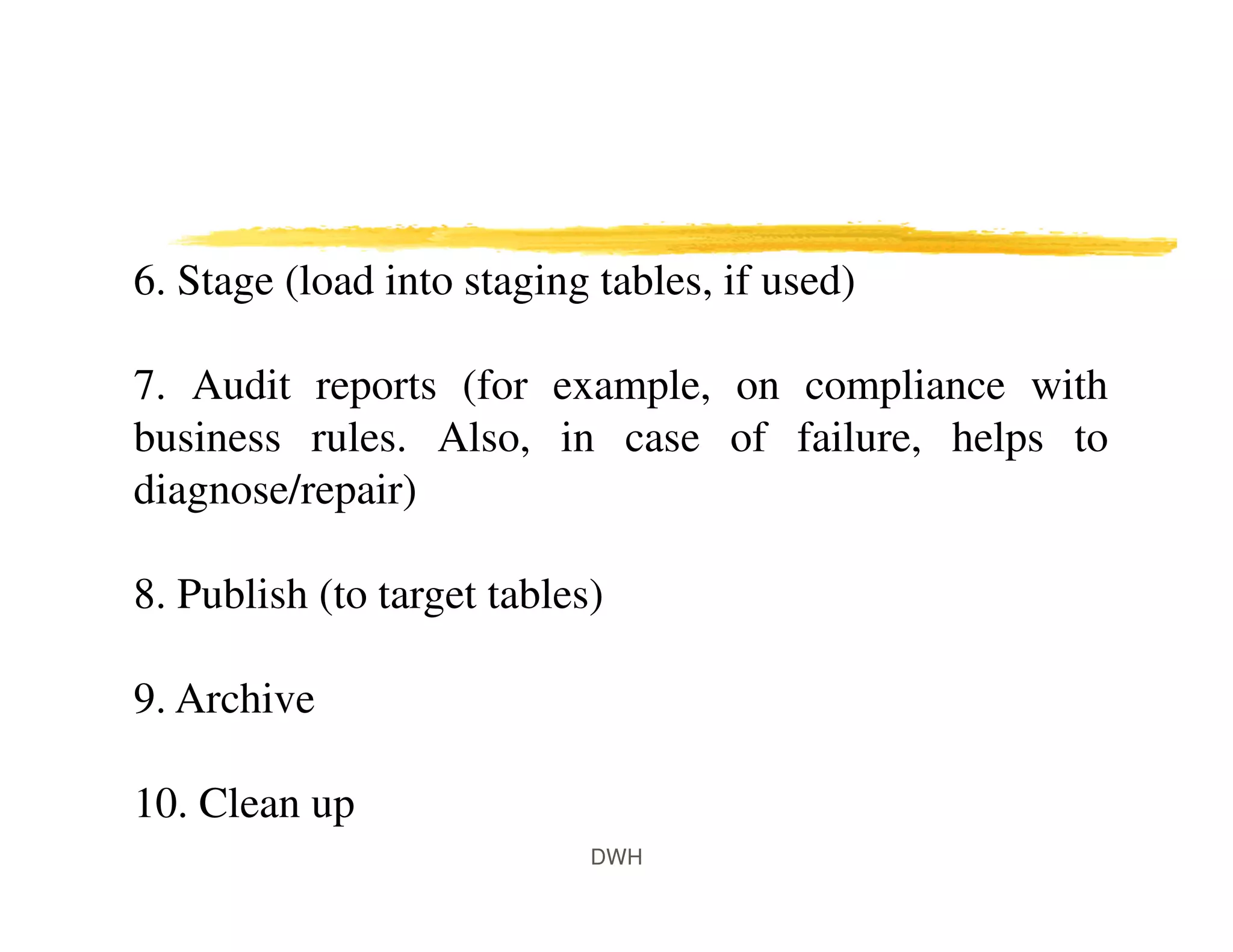

25. DWH
6. Stage (load into staging tables, if used)
7. Audit reports (for example, on compliance with
business rules. Also, in case of failure, helps to
diagnose/repair)
8. Publish (to target tables)
9. Archive
10. Clean up

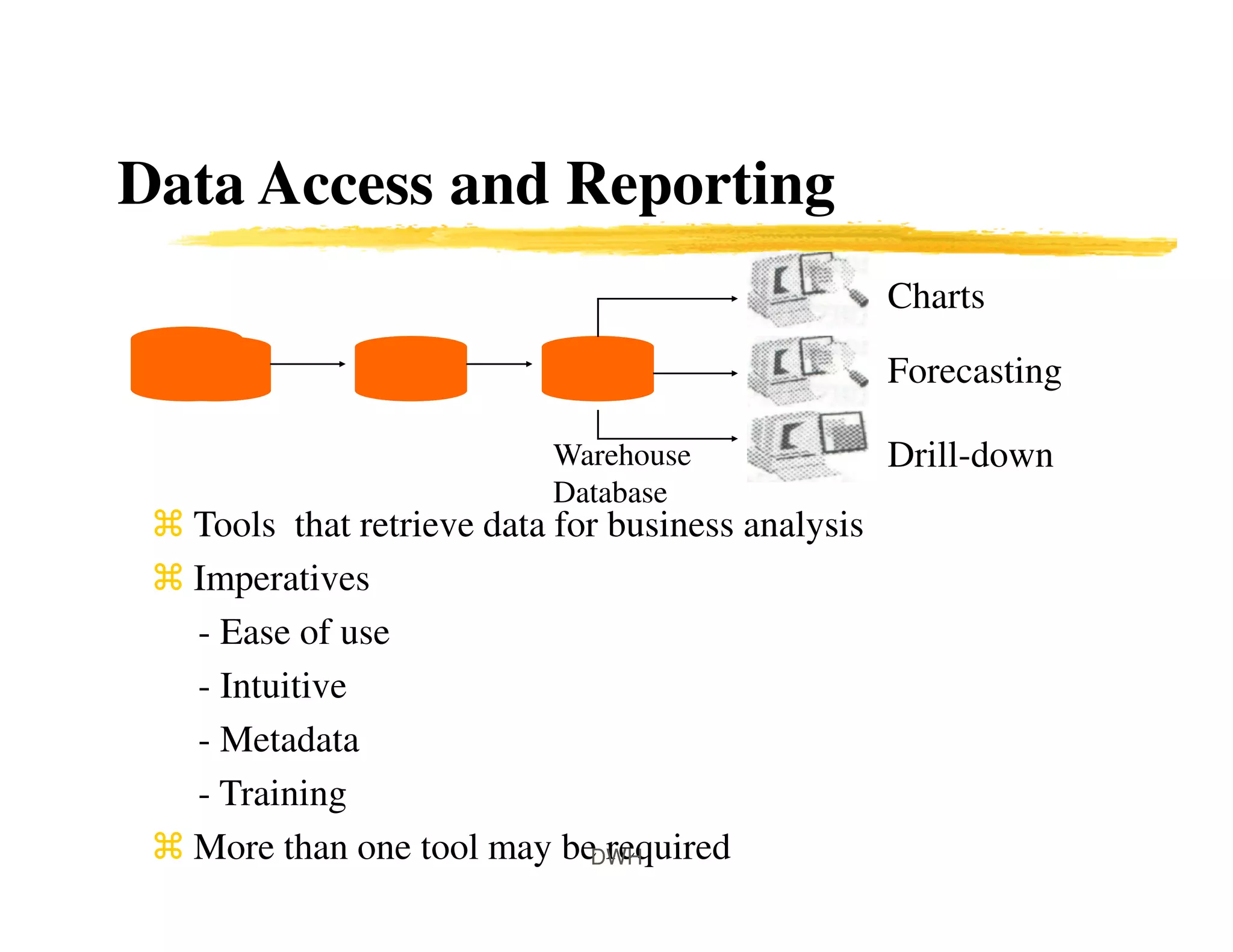

26. Data Access and Reporting
Tools that retrieve data for business analysis
Imperatives
- Ease of use
- Intuitive
- Metadata
- Training
More than one tool may be required
Warehouse
Database
Charts
Forecasting
Drill-down
DWH

27. 27

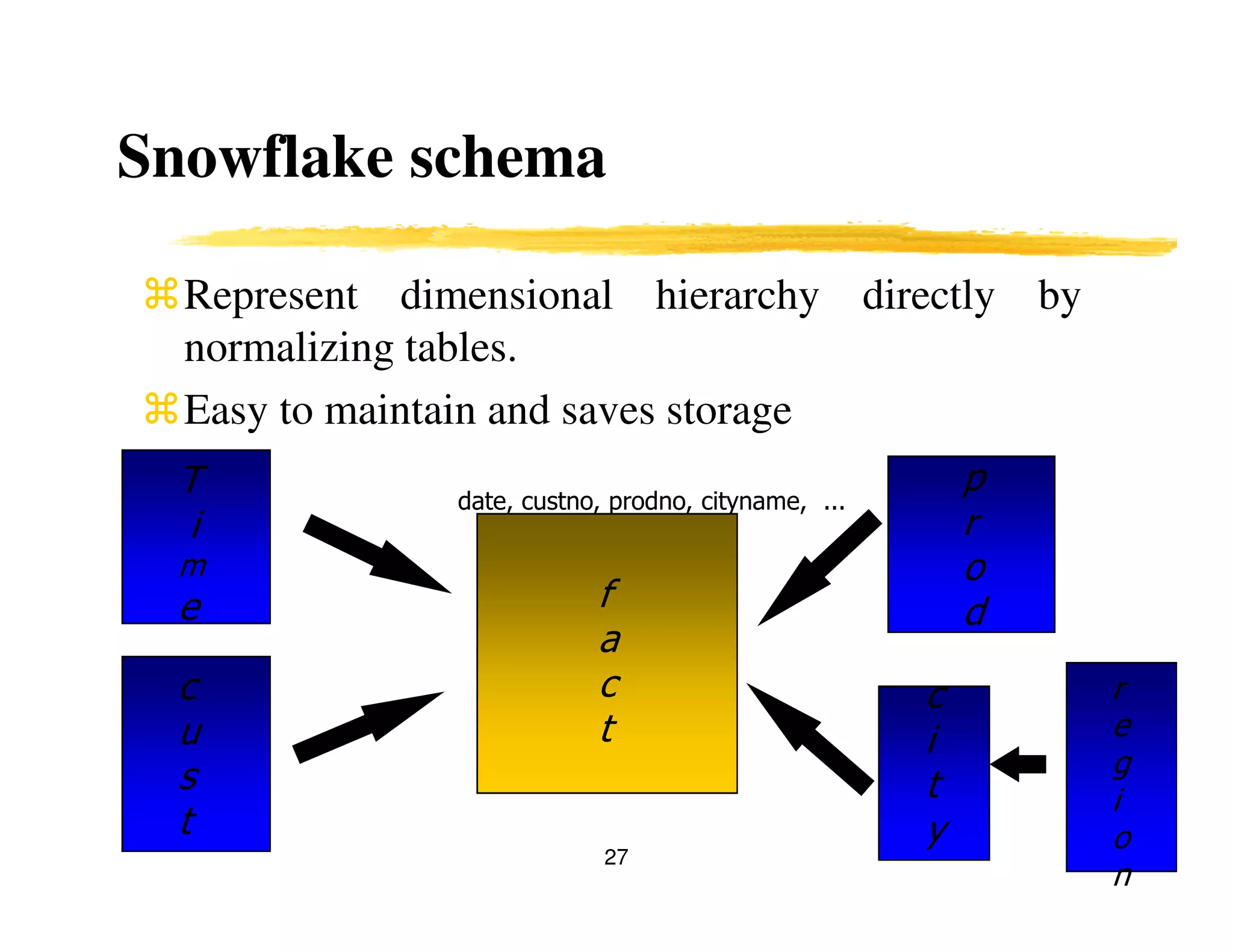

Snowflake schema
Represent dimensional hierarchy directly by
normalizing tables.
Easy to maintain and saves storage
T
i
m
e
p
r
o
d
c
u
s
t
c
i
t
y
f
a
c
t
date, custno, prodno, cityname, ...
r
e
g
i
o
n

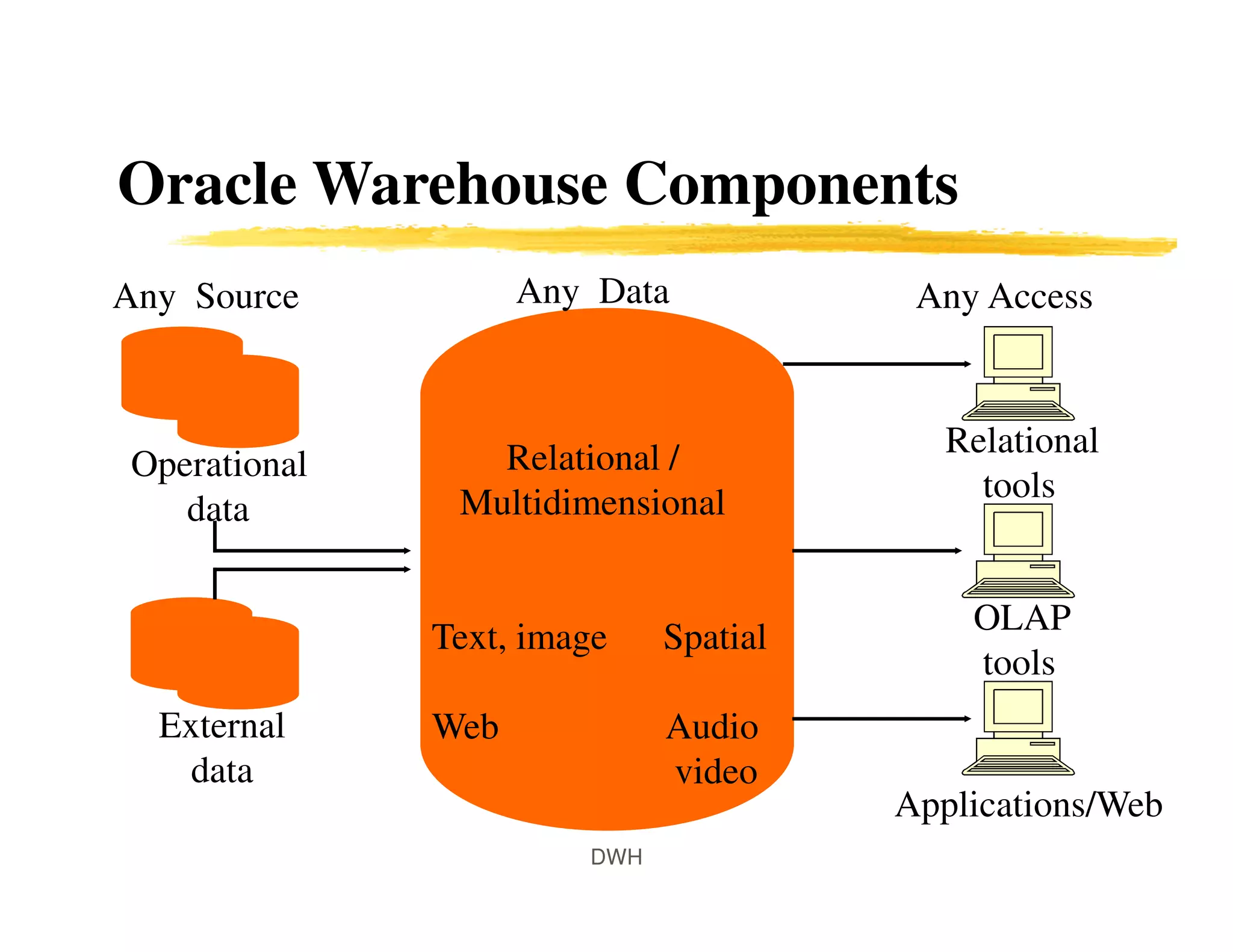

28. Oracle Warehouse Components
Relational /
Multidimensional
Text, image Spatial
Web Audio
video
External
data
Operational
data
Relational
tools
OLAP
tools
Applications/Web
Any DataAny Source Any Access
DWH

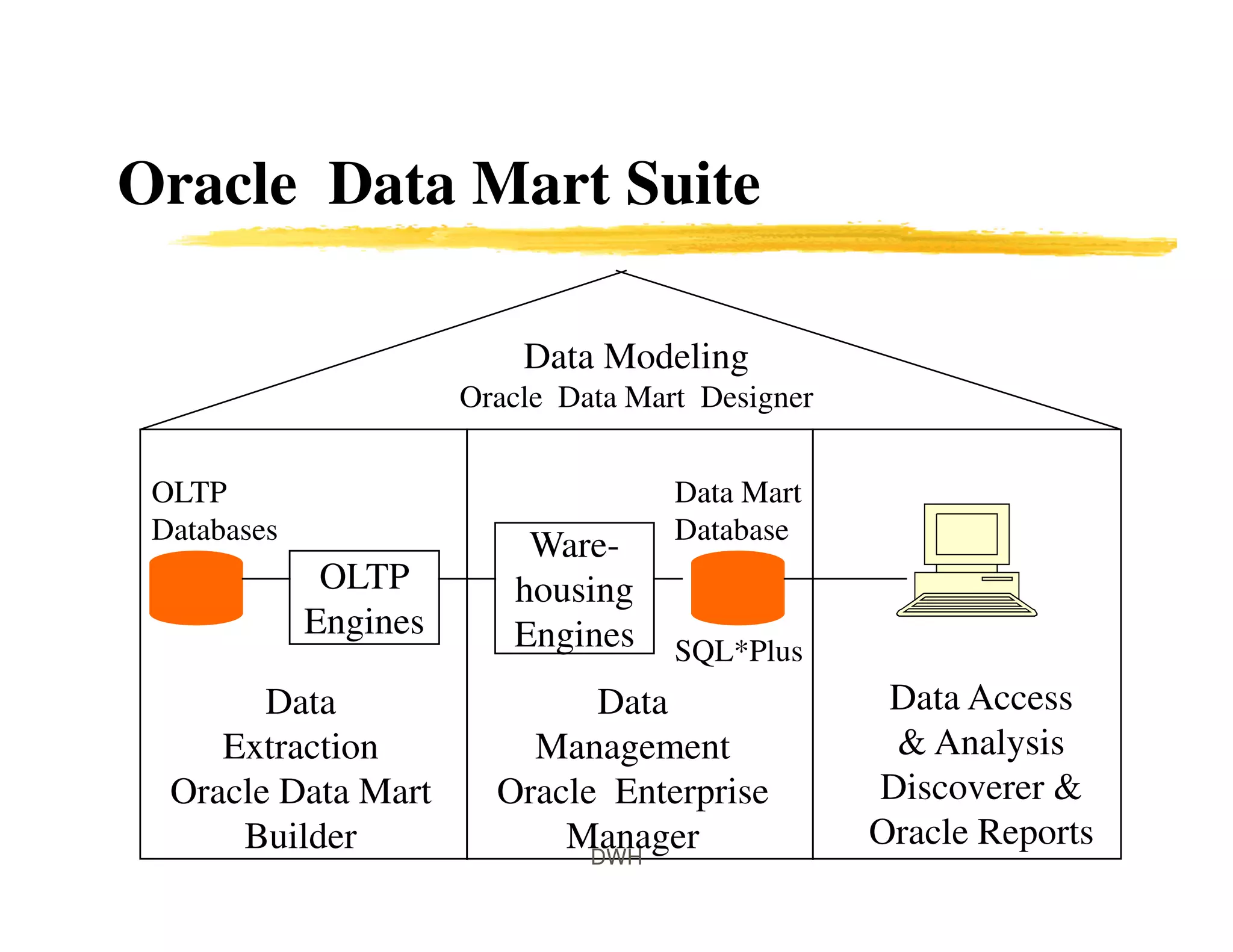

29. Oracle Data Mart Suite
Data Modeling
Oracle Data Mart Designer
OLTP
Engines
OLTP
Databases
Data
Extraction
Oracle Data Mart
Builder
Ware-
housing
Engines
Data Mart
Database
SQL*Plus
Data
Management
Oracle Enterprise
Manager
Data Access
& Analysis
Discoverer &
Oracle Reports
DWH

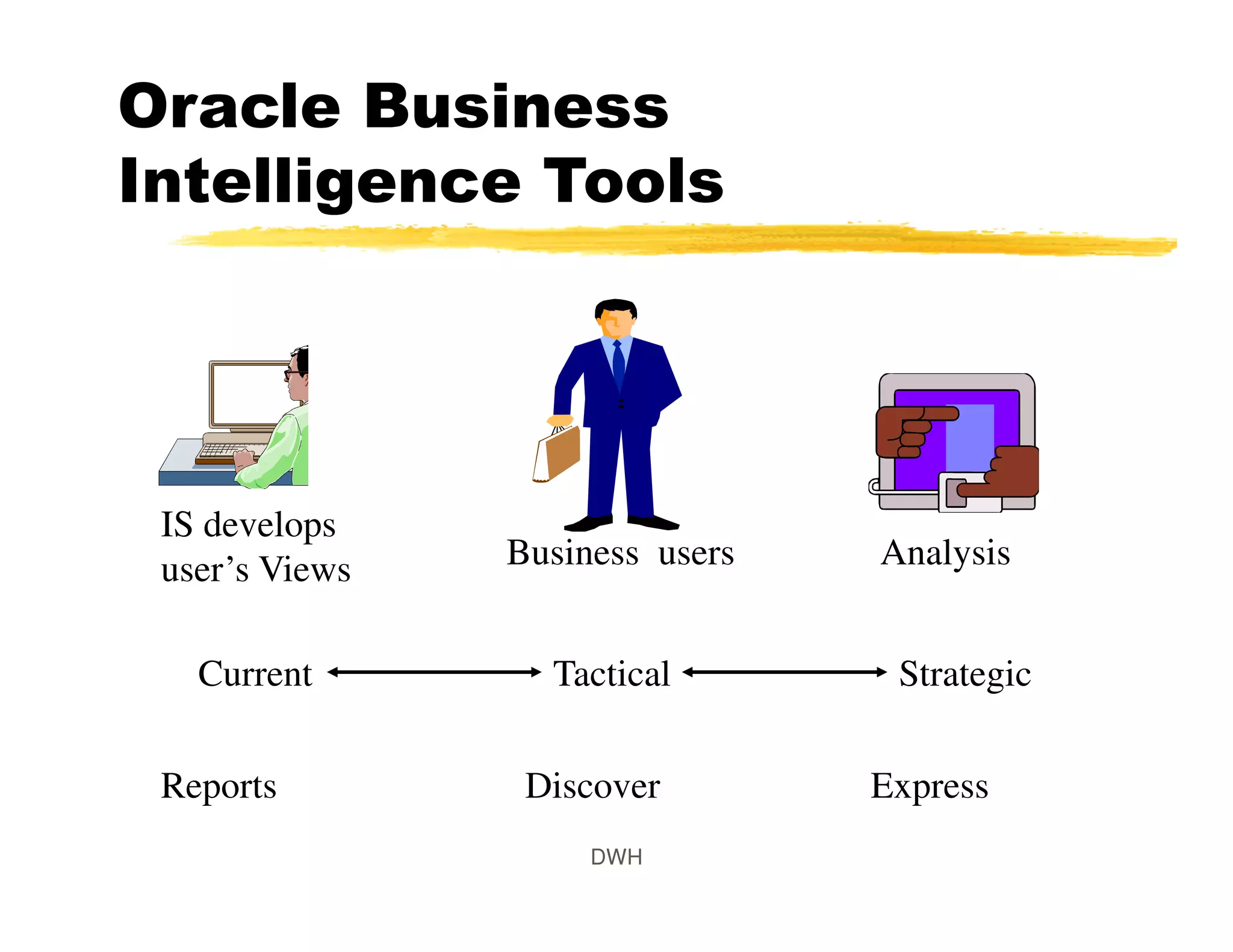

30. Oracle Business
Intelligence Tools
Current Tactical Strategic
IS develops
user’s Views Business users Analysis
Reports Discover Express
DWH

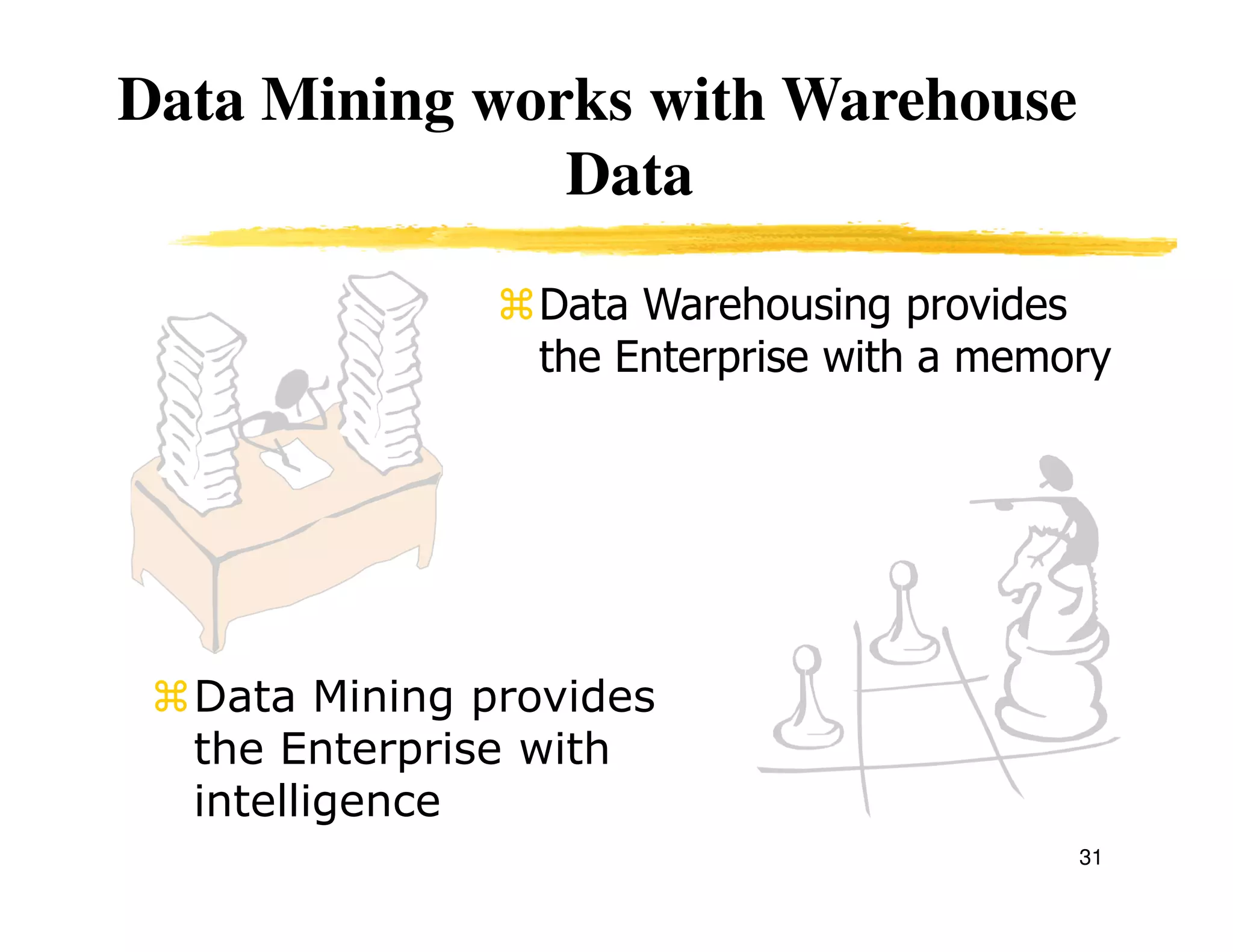

31. 31
Data Mining works with Warehouse
Data
Data Warehousing provides
the Enterprise with a memory
Data Mining provides
the Enterprise with
intelligence

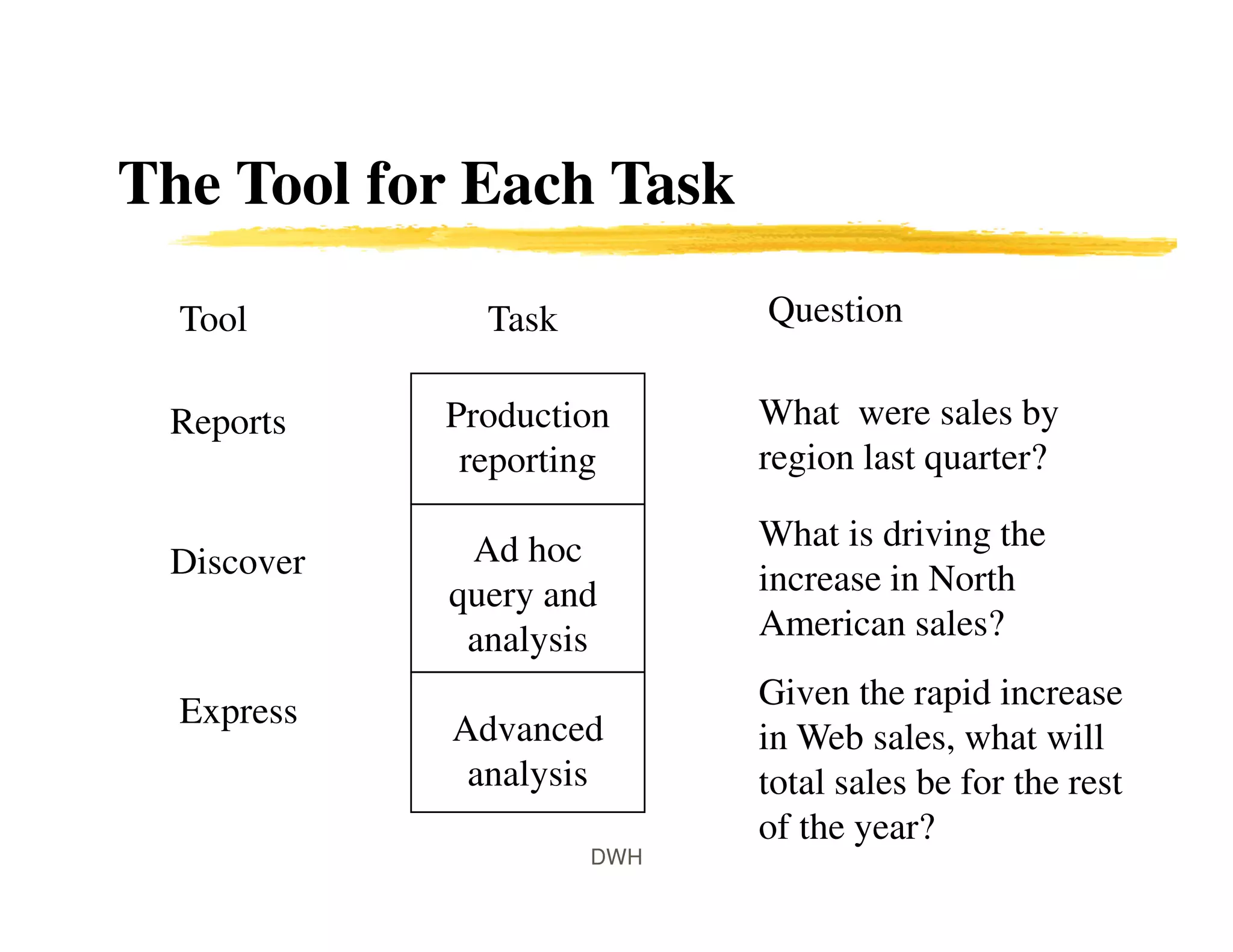

32. The Tool for Each Task
Tool
Reports
Discover
Express
Production
reporting
Ad hoc
query and
analysis
Advanced
analysis
Question
What were sales by
region last quarter?
What is driving the
increase in North
American sales?
Given the rapid increase
in Web sales, what will
total sales be for the rest
of the year?
Task
DWH

33. 33

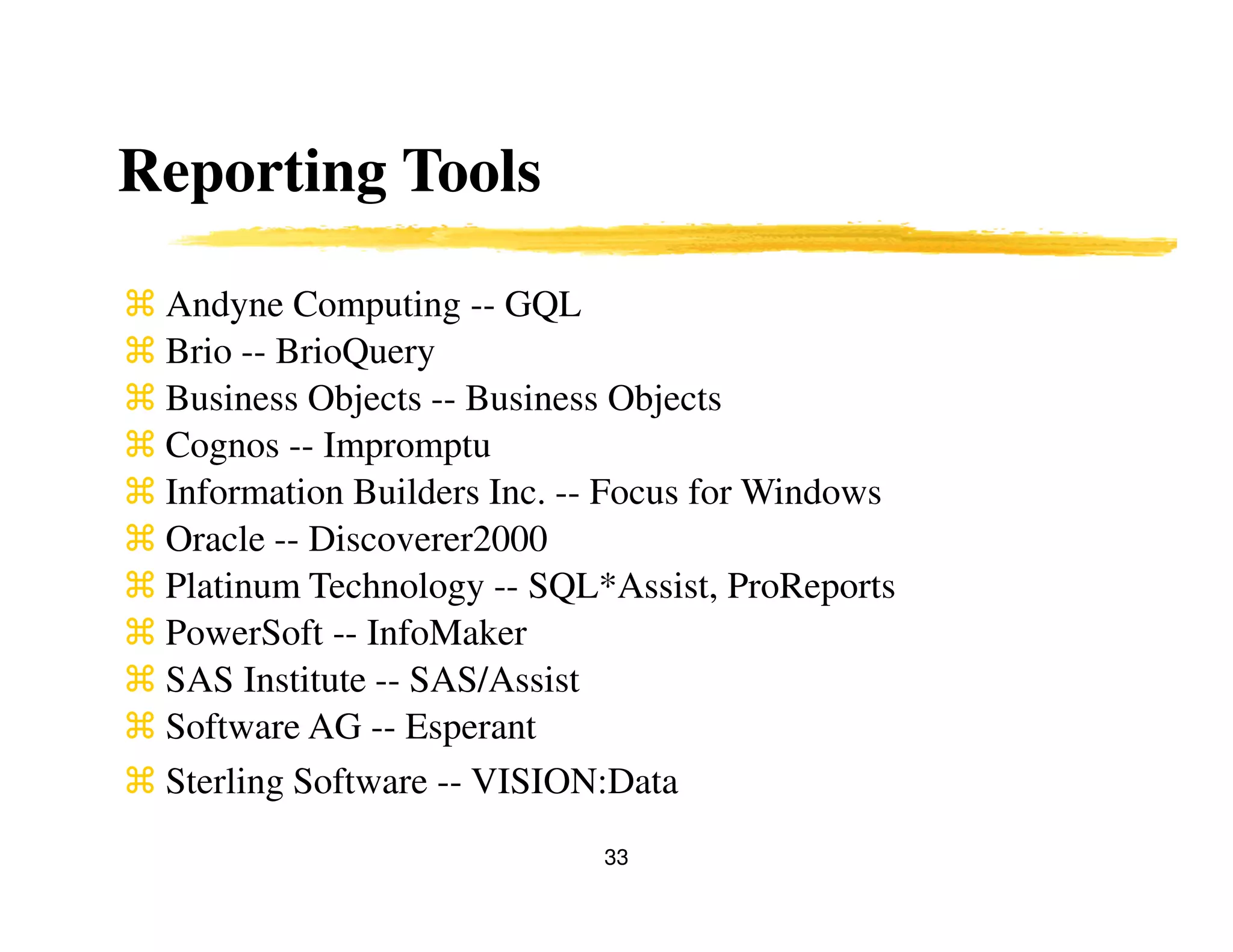

Reporting Tools
Andyne Computing -- GQL
Brio -- BrioQuery
Business Objects -- Business Objects
Cognos -- Impromptu
Information Builders Inc. -- Focus for Windows
Oracle -- Discoverer2000
Platinum Technology -- SQL*Assist, ProReports
PowerSoft -- InfoMaker
SAS Institute -- SAS/Assist
Software AG -- Esperant
Sterling Software -- VISION:Data

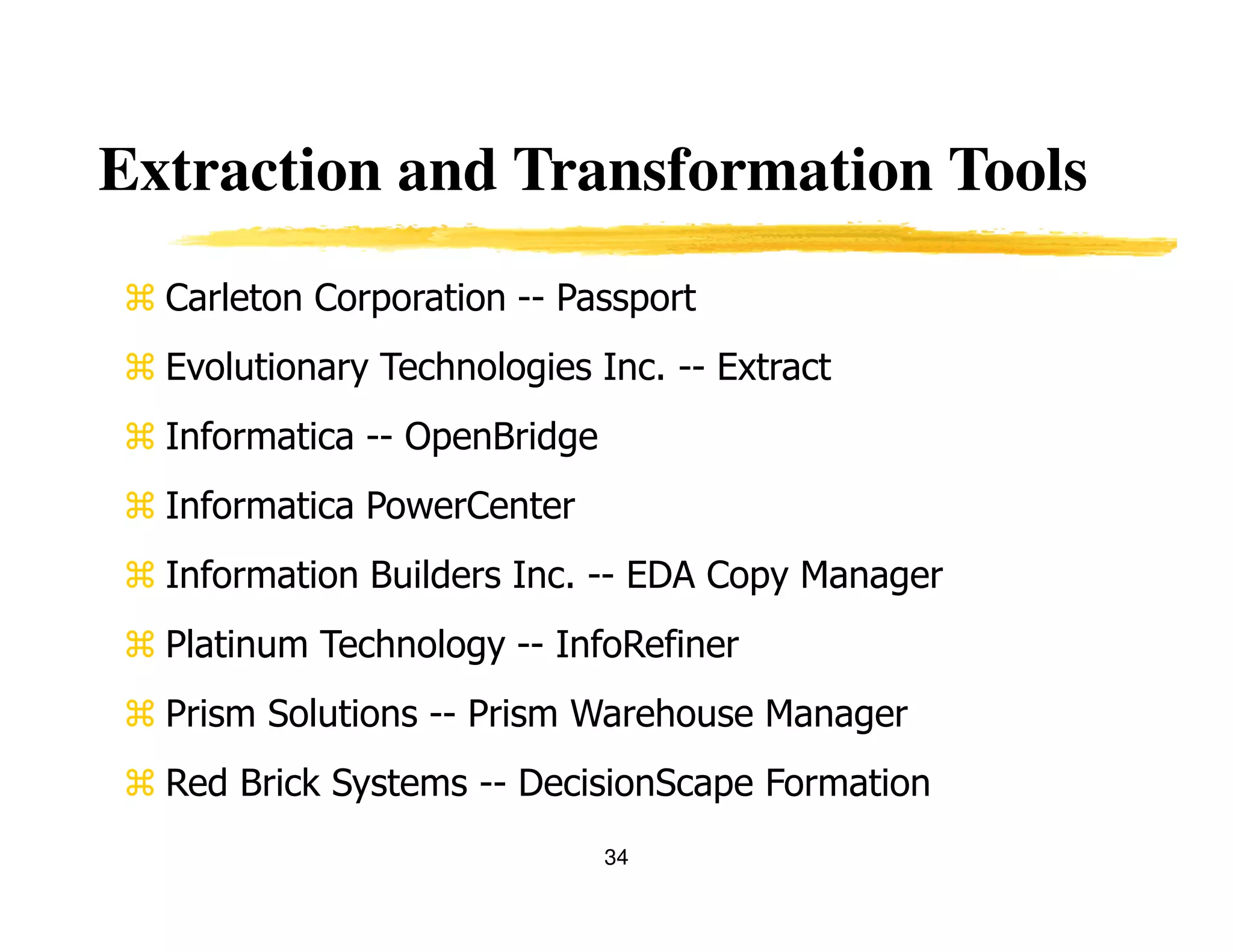

34. 34
Extraction and Transformation Tools
Carleton Corporation -- Passport
Evolutionary Technologies Inc. -- Extract
Informatica -- OpenBridge
Informatica PowerCenter
Information Builders Inc. -- EDA Copy Manager
Platinum Technology -- InfoRefiner
Prism Solutions -- Prism Warehouse Manager
Red Brick Systems -- DecisionScape Formation

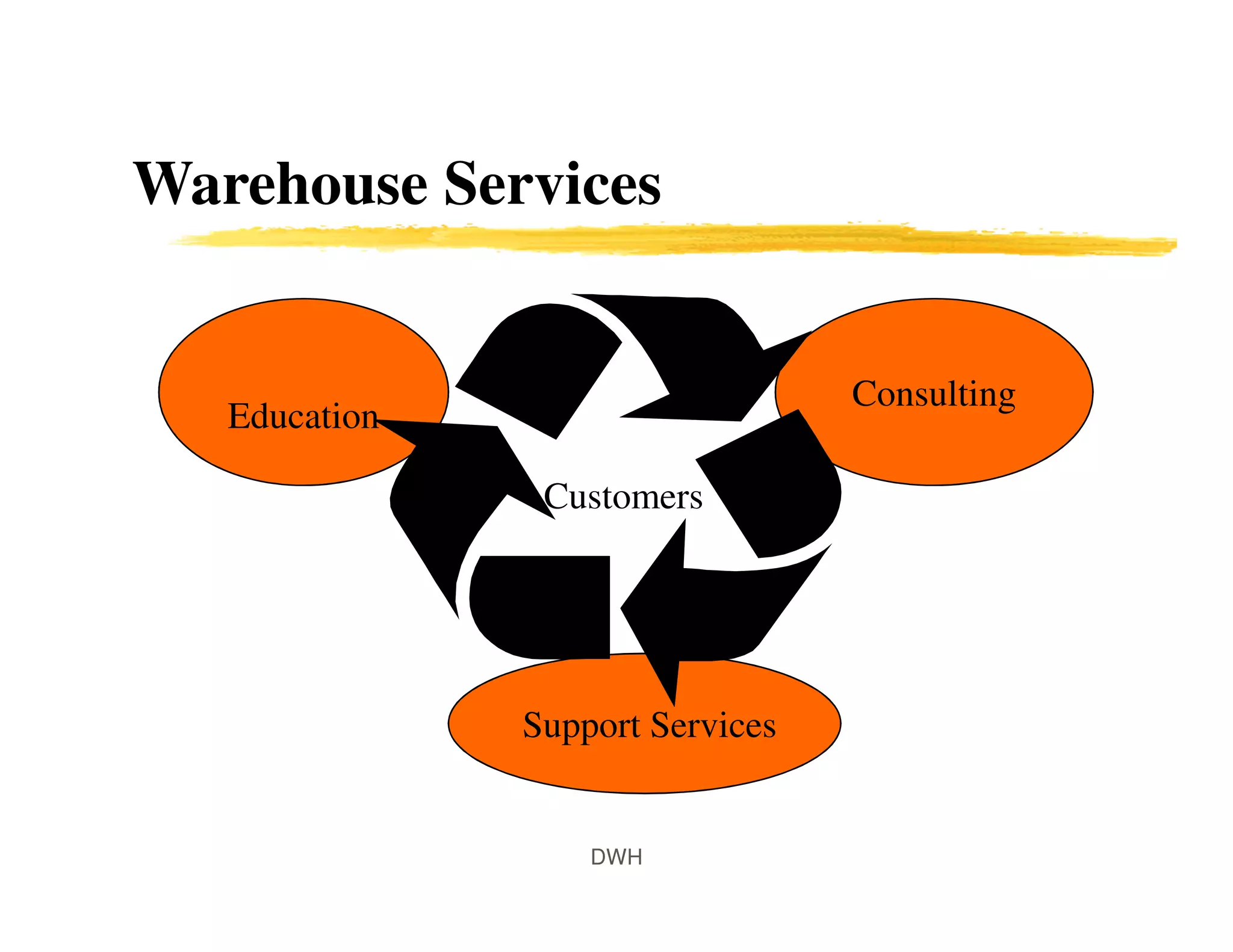

35. Warehouse Services
Education
Consulting
Support Services
Customers
DWH

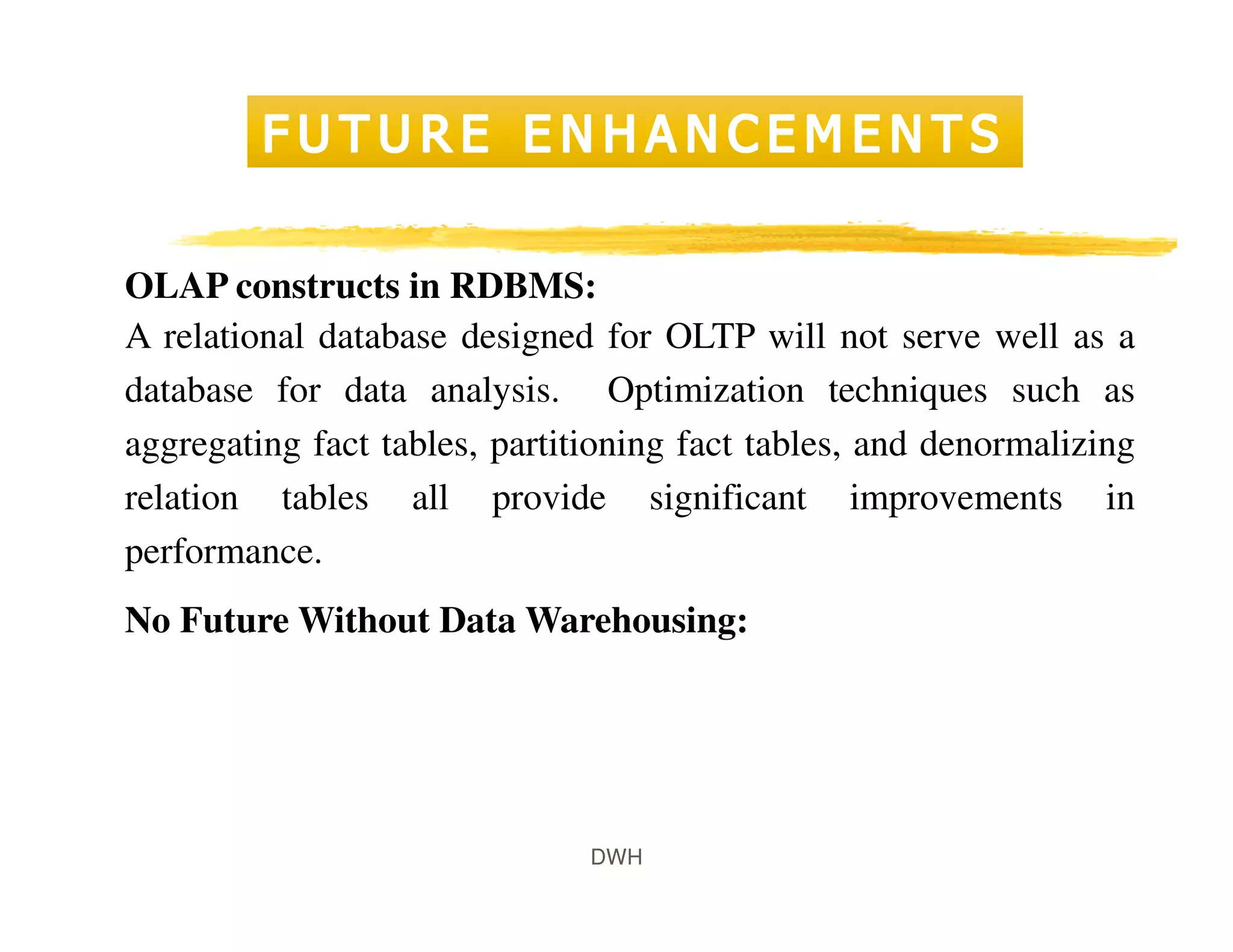

36. DWH
OLAP constructs in RDBMS:
A relational database designed for OLTP will not serve well as a
database for data analysis. Optimization techniques such as
aggregating fact tables, partitioning fact tables, and denormalizing
relation tables all provide significant improvements in
performance.
No Future Without Data Warehousing:

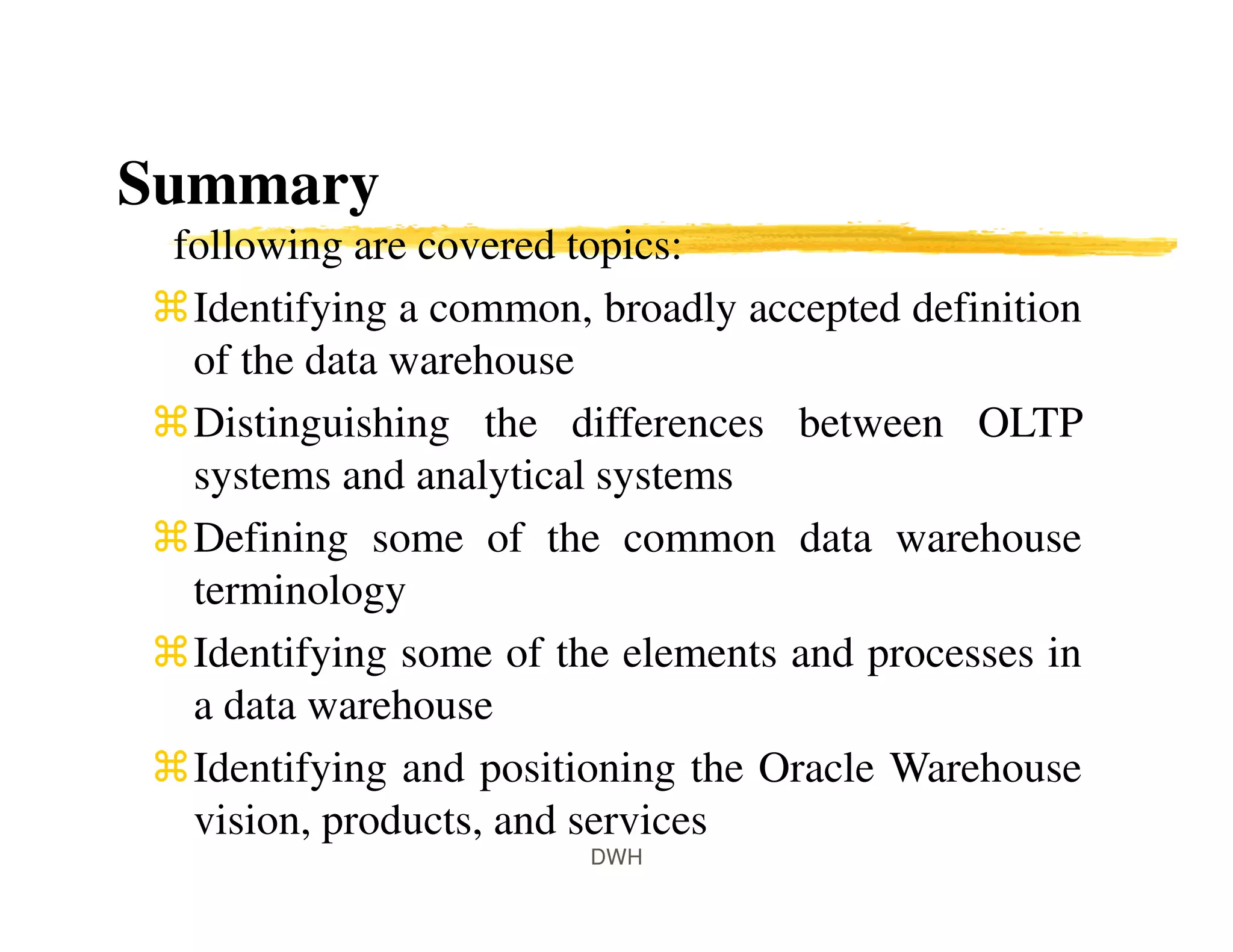

37. Summary
following are covered topics:
Identifying a common, broadly accepted definition
of the data warehouse
Distinguishing the differences between OLTP
systems and analytical systems
Defining some of the common data warehouse
terminology
Identifying some of the elements and processes in
a data warehouse
Identifying and positioning the Oracle Warehouse
vision, products, and services
DWH
