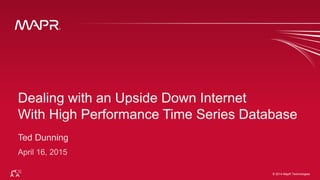

- 1. © 2014 MapRTechnologies 1© 2014 MapR Technologies
- 2. © 2014 MapRTechnologies 2 Agenda • The Internet is turning upside down • A story • The last (mile) shall be first • Time series on NO-SQL • Faster time series on NO-SQL • Summary
- 3. © 2014 MapRTechnologies 3 How the Internet Works • Big content servers feed data across the backbone to • Regional caches and servers feed data across neighborhood transport to • The “last mile” • Bits are nearly conserved, $ are concentrated centrally – But total $ mass at the edge is much higher
- 4. © 2014 MapRTechnologies 4 How The Internet Works Server Cache Cache Gateway Switch Firewall c1 c2 Gateway Switch Firewall c1 c2 Switch Firewall c1 c2
- 5. © 2014 MapRTechnologies 5 Conservation of Bits Decreases Bandwidth Server Cache Cache Gateway Switch Firewall c1 c2 Gateway Switch Firewall c1 c2 Switch Firewall c1 c2
- 6. © 2014 MapRTechnologies 6 Total Investment Dominated by Last Mile Server Cache Cache Gateway Switch Firewall c1 c2 Gateway Switch Firewall c1 c2 Switch Firewall c1 c2
- 7. © 2014 MapRTechnologies 7 The Rub • What's the problem? – Speed (end-to-end latency, backbone bw) – Feasibility (cost for consumer links) – Caching • What do we need? – Cheap last-mile hardware – Good caches
- 8. © 2014 MapRTechnologies 8 First: An apology for going off-script
- 9. © 2014 MapRTechnologies 9 Now, the story
- 10. © 2014 MapRTechnologies 10
- 11. © 2014 MapRTechnologies 11 By the 1840’s, the NY-SF sailing time was down to 130-180 days
- 12. © 2014 MapRTechnologies 12
- 13. © 2014 MapRTechnologies 13 In 1851, the record was set at 89 days by the Flying Cloud
- 14. © 2014 MapRTechnologies 14 The difference was due (in part) to big data and a primitive kind of time-series database
- 15. © 2014 MapRTechnologies 15
- 16. © 2014 MapRTechnologies 16
- 17. © 2014 MapRTechnologies 17
- 18. © 2014 MapRTechnologies 18 These charts were free … If you donated your data
- 19. © 2014 MapRTechnologies 19 But how does this apply today?
- 20. © 2014 MapRTechnologies 20 What has changed? Where will it lead?
- 21. © 2014 MapRTechnologies 21

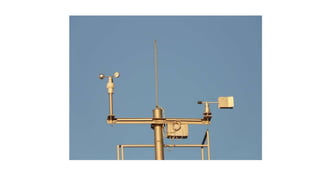

- 22. © 2014 MapRTechnologies 22
- 23. © 2014 MapRTechnologies 23
- 24. © 2014 MapRTechnologies 24
- 25. © 2014 MapRTechnologies 25
- 26. © 2014 MapRTechnologies 26
- 27. © 2014 MapRTechnologies 27
- 28. © 2014 MapRTechnologies 28
- 29. © 2014 MapRTechnologies 29
- 30. © 2014 MapRTechnologies 30
- 31. © 2014 MapRTechnologies 31 Things
- 32. © 2014 MapRTechnologies 32 Emitting data
- 33. © 2014 MapRTechnologies 33 How The Internet Works Server Cache Cache Gateway Switch Firewall c1 c2 Gateway Switch Firewall c1 c2 Switch Firewall c1 c2
- 34. © 2014 MapRTechnologies 34 How the Internet is Going to Work Server Cache Cache GatewaySwitchController m4 m3 Gateway Switch Controller m6 m5 Switch Controllerm2 m1
- 35. © 2014 MapRTechnologies 35 Where Will The $ Go? Server Cache Cache GatewaySwitchController m4 m3 Gateway Switch Controller m6 m5 Switch Controllerm2 m1
- 36. © 2014 MapRTechnologies 36 Sensors
- 37. © 2014 MapRTechnologies 37 Controllers
- 38. © 2014 MapRTechnologies 38 The Problems • Sensors and controllers have little processing or space – SIM cards = 20Mhz processor, 128kb space = 16kB – Arduino mini = 15kB RAM (more EPROM) – BeagleBone/Raspberry Pi = 500 kB RAM • Sensors and controllers have little power – Very common to power down 99% of the time • Sensors and controls often have very low bandwidth – Mesh networks with base rates << 1Mb/s – Power line networking – Intermittent 3G/4G/LTE connectivity
- 39. © 2014 MapRTechnologies 39 What Do We Need to Do With a Time Series • Acquire – Measurement, transmission, reception – Mostly not our problem • Store – We own this • Retrieve – We have to allow this • Analyze and visualize – We facilitate this via retrieval
- 40. © 2014 MapRTechnologies 40 Retrieval Requirements • Retrieve by time-series, time range, tags – Possibly pull millions of data points at a time – Possibly do on-the-fly windowed aggregations • Search by unstructured data – Typically require time windowed facetting after search – Also need to dive in with first kind of retrieval
- 41. © 2014 MapRTechnologies 41 Storage choices and trade-offs • Flat files – Great for rapid ingest with massive data – Handles essentially any data type – Less good for data requiring frequent updates – Harder to find specific ranges • Traditional relational db – Ingests up to 10,000’s/ sec; prefers well structured (numerical) data; expensive • Non-relational db: Tables (such as MapR tables in M7 or HBase) – Ingests up to 100,000 rows/sec – Handles wide variety of data – Good for frequent updates – Easily scanned in a range
- 42. © 2014 MapRTechnologies 42 Specific Example • Consider a server farm • Lots of system metrics • Typically 100-300 stats / 30 s • Loads, RPC’s, packets, requests/s • Common to have 100 – 10,000 machines
- 43. © 2014 MapRTechnologies 43 The General Outline • 10 samples / second / machine x 1,000 machines = 10,000 samples / second • This is what Open TSDB was designed to handle • Install and go, but don’t test at scale
- 44. © 2014 MapRTechnologies 44 Specific Example • Consider oil drilling rigs • When drilling wells, there are *lots* of moving parts • Typically a drilling rig makes about 10K samples/s • Temperatures, pressures, magnetics, machine vibration levels, salinity, voltage, currents, many others • Typical project has 100 rigs
- 45. © 2014 MapRTechnologies 45 The General Outline • 10K samples / second / rig x 100 rigs = 1M samples / second
- 46. © 2014 MapRTechnologies 46 The General Outline • 10K samples / second / rig x 100 rigs = 1M samples / second • But wait, there’s more – Suppose you want to test your system – Perhaps with a year of data – And you want to load that data in << 1 year • 100x real-time = 100M samples / second
- 47. © 2014 MapRTechnologies 47 How Should That Work? Message queue Collector MapR table Samples Web service Users
- 48. © 2014 MapRTechnologies 48 A First Attempt OpenTSDB is a distributed Time Series Database build on top of HBase, enabling you … – to store & index, as well as – to query & plot … metrics at scale.

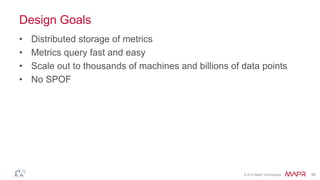

- 49. © 2014 MapRTechnologies 49 Design Goals • Distributed storage of metrics • Metrics query fast and easy • Scale out to thousands of machines and billions of data points • No SPOF
- 50. © 2014 MapRTechnologies 50 Key concepts

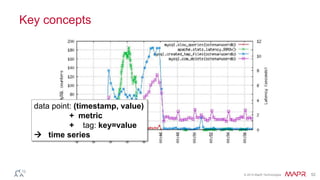

- 51. © 2014 MapRTechnologies 51 Key concepts (00:38, 56) mysql.com_delete schema=userdb
- 52. © 2014 MapRTechnologies 52 Key concepts data point: (timestamp, value) + metric + tag: key=value time series
- 53. © 2014 MapRTechnologies 53 Example TS ... 1409497082 327810227706 mysql.bytes_received schema=foo host=db1 1409497099 6604859181710 mysql.bytes_sent schema=foo host=db1 1409497106 327812421706 mysql.bytes_received schema=foo host=db1 1409497113 6604901075387 mysql.bytes_sent schema=foo host=db ... UNIX epoch timestamp: $(date +%s) a metric (often hierarchical) two tags
- 54. © 2014 MapRTechnologies 54 Declare metric $ tsdb mkmetric mysql.bytes_sent mysql.bytes_received metrics mysql.bytes_sent: [0, 0, 1] metrics mysql.bytes_received: [0, 0, 2] … or use –auto-metric
- 55. © 2014 MapRTechnologies 55 Collect metric • tcollector: gathers data from local collectors, pushes to TSDs and providing deduplication • lots bundled – General: iostat, netstat, etc. – Others: MySQL, HBase, etc. • … or roll your own
- 56. © 2014 MapRTechnologies 56 The Whole Picture HBase or MapR-DB
- 57. © 2014 MapRTechnologies 57 Wide Table Design: Point-by-Point
- 58. © 2014 MapRTechnologies 58 Wide Table Design: Hybrid Point-by-Point + Blob Insertion of data as blob makes original columns redundant Non-relational, but you can query these tables with Drill

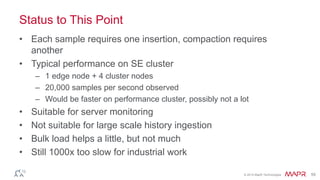

- 59. © 2014 MapRTechnologies 59 Status to This Point • Each sample requires one insertion, compaction requires another • Typical performance on SE cluster – 1 edge node + 4 cluster nodes – 20,000 samples per second observed – Would be faster on performance cluster, possibly not a lot • Suitable for server monitoring • Not suitable for large scale history ingestion • Bulk load helps a little, but not much • Still 1000x too slow for industrial work
- 60. © 2014 MapRTechnologies 60 Speeding up OpenTSDB 20,000 data points per second per node in the test cluster Why can’t it be faster ?
- 61. © 2014 MapRTechnologies 61 Speeding up OpenTSDB: open source MapR extensions Available on Github: https://github.com/mapr-demos/opentsdb
- 62. © 2014 MapRTechnologies 62 Status to This Point • 3600 samples require one insertion • Typical results on SE cluster – 1 edge node + 4 cluster nodes – 14 million samples per second observed – ~700x faster ingestion • Typical results on performance cluster – 2-4 edge nodes + 4-9 cluster nodes – 110 million samples/s (4 nodes) to >200 million samples/s (8 nodes) • Suitable for large scale history ingestion • 30 million data points retrieved in 20s • Ready for industrial work

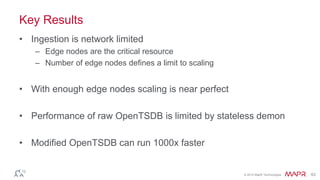

- 63. © 2014 MapRTechnologies 63 Key Results • Ingestion is network limited – Edge nodes are the critical resource – Number of edge nodes defines a limit to scaling • With enough edge nodes scaling is near perfect • Performance of raw OpenTSDB is limited by stateless demon • Modified OpenTSDB can run 1000x faster
- 64. © 2014 MapRTechnologies 64 Overall Ingestion Rate Nodes TotalIngestionRate(millionsofpoints/second) 4 5 8 9 050150250 Two ingestors One ingestor
- 65. © 2014 MapRTechnologies 65 Normalized Ingestion Rate Nodes Ingestionpernode(millionsofpoints/second) 4 5 8 9 010203040 Two ingestors One ingestor
- 66. © 2014 MapRTechnologies 66 Why MapR? • MapR tables are inherently faster, safer – Sustained > 1GB/s ingest rate in tests • Mirror to M5 or M7 cluster to isolate analytics load • Transaction logs involves frequent appends, many files
- 67. © 2014 MapRTechnologies 67 When is this All Wrong? • In some cases, retrieval by series-id + time range not sufficient • May need very flexible retrieval of events based on text-like criteria • Search may be better than class time-series database • Can scale Lucene based search to > 1 million events / second
- 68. © 2014 MapRTechnologies 68 When is it Even More Right • In many industrial settings, data rates from individual sensors are relatively high – Latency to view is still measured in seconds, not sample points • This allows batching at source • Common requirement for highly variable sample rates – 1 sample/s, baseline, switch to 10 k sample/s – Small batches during slow times are just fine since number of sensors is constant – Requires variable window sizes
- 69. © 2014 MapRTechnologies 69 Summary • The internet is turning upside down • This will make time series ubiquitous • Current open source systems are much too slow • We can fix that with modern NoSQL systems – (I wear a red hat for a reason)
- 70. © 2014 MapRTechnologies 70 Questions
- 71. © 2014 MapRTechnologies 71 Thank You @mapr maprtech tdunning@mapr.com tdunning@apache.org Ted Dunning, ChiefApplicationArchitect MapRTechnologies maprtech mapr-technologies
