Time Series Data in a Time Series World
The document outlines the concept of time series, including its sources and how it can be processed theoretically and practically. It discusses acquisition, storage, retrieval, and analysis of time series data, highlighting different storage options like flat files, traditional RDBMS, and NoSQL databases. It also presents examples from server farms and oil drilling rigs to illustrate the challenges of data scale and performance in time series processing.
More Related Content
Similar to Time Series Data in a Time Series World
More from MapR Technologies
Time Series Data in a Time Series World
- 1. © 2014 MapRTechno©lo 2g0ie1s4 MapR Technologies 1

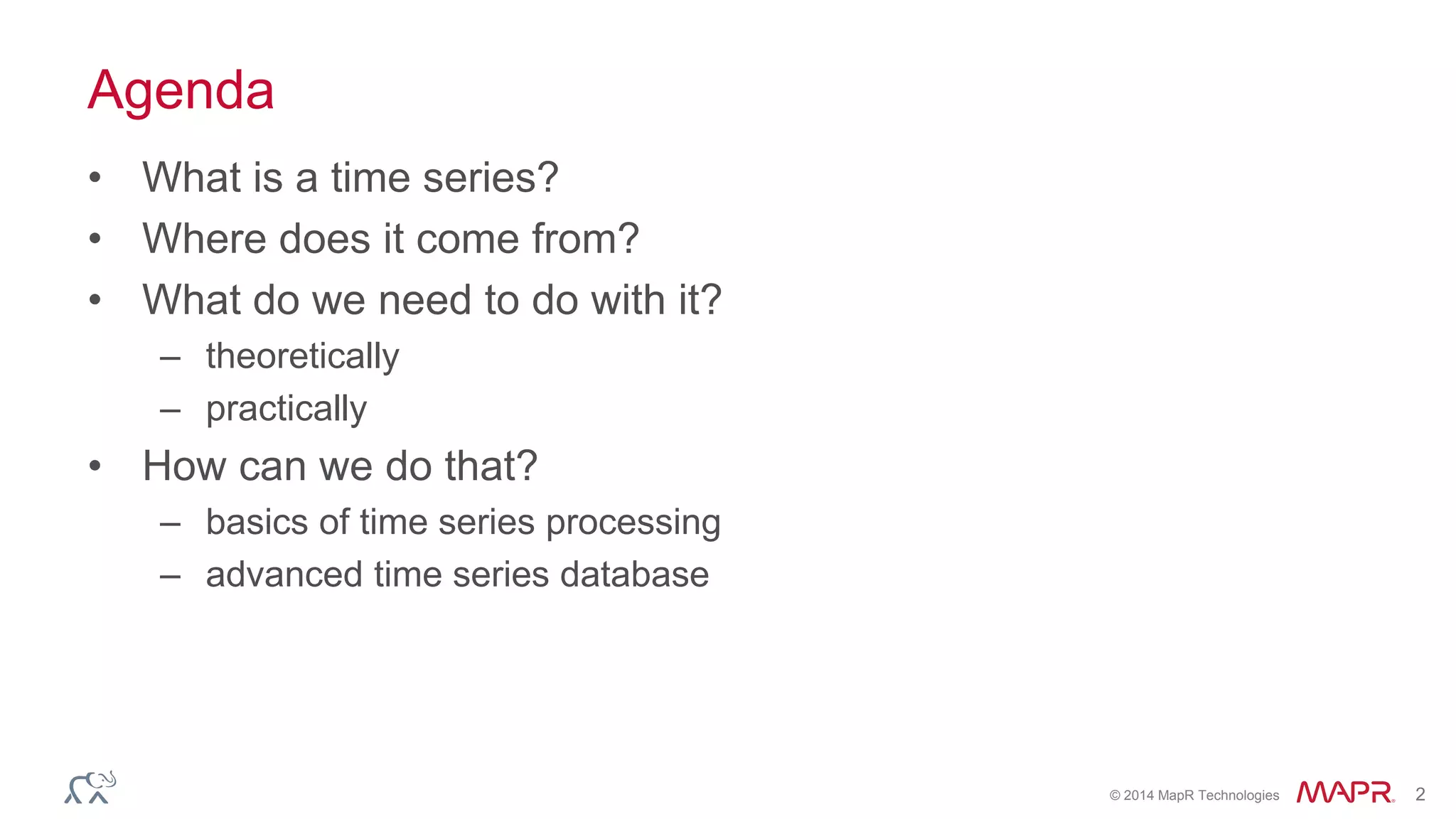

- 2. © 2014 MapRTechnologies 2 Agenda • What is a time series? • Where does it come from? • What do we need to do with it? – theoretically – practically • How can we do that? – basics of time series processing – advanced time series database

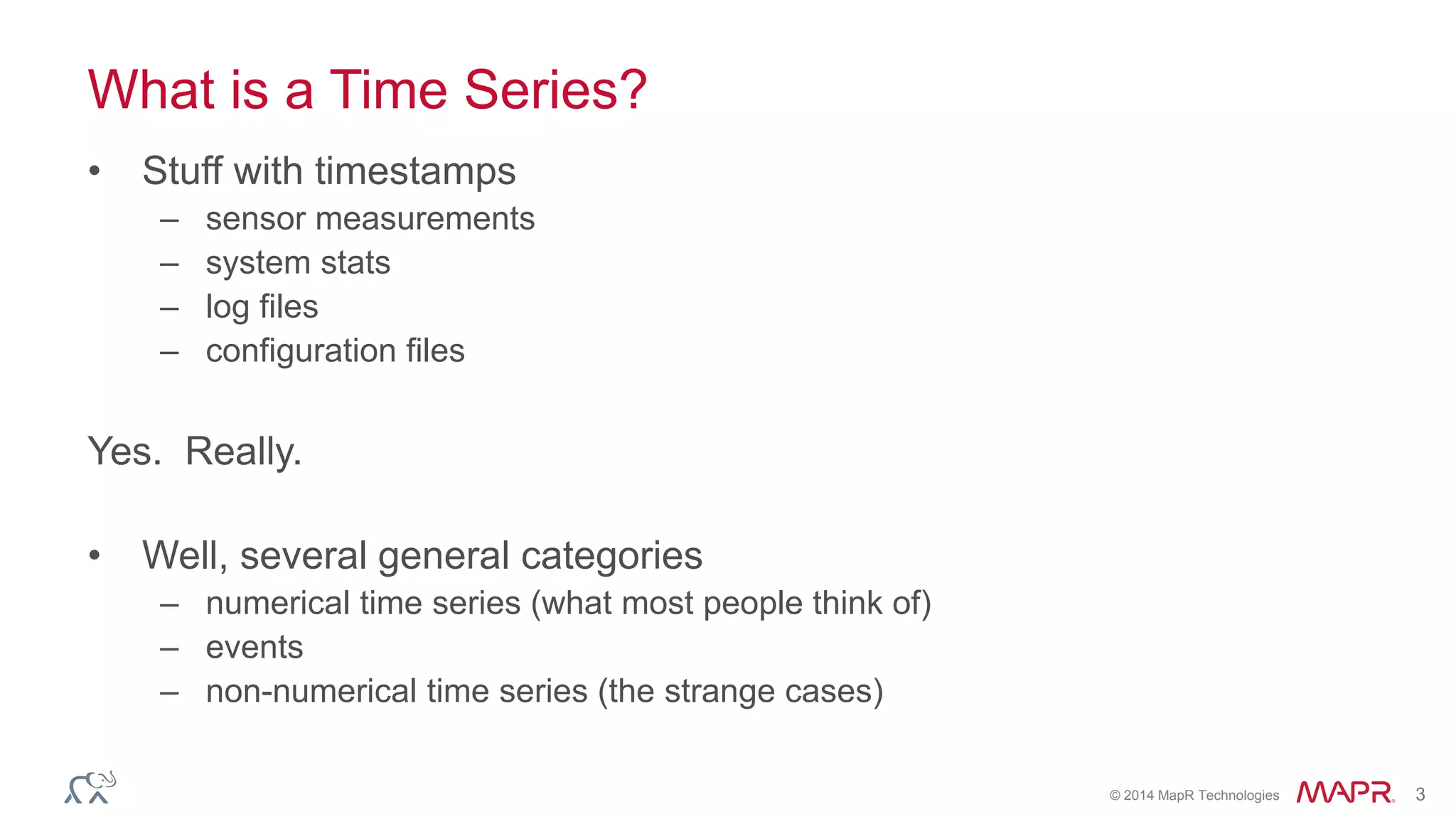

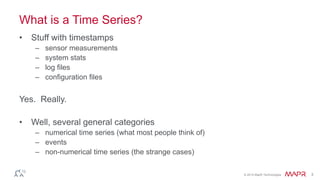

- 3. © 2014 MapRTechnologies 3 What is a Time Series? • Stuff with timestamps – sensor measurements – system stats – log files – configuration files Yes. Really. • Well, several general categories – numerical time series (what most people think of) – events – non-numerical time series (the strange cases)

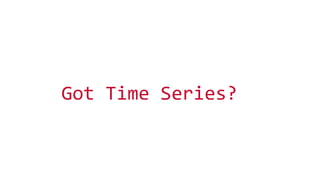

- 4. © 2014 MapRTechnologies 4 Got Time Series?
- 5. © 2014 MapRTechnologies 5
- 6. © 2014 MapRTechnologies 6
- 7. © 2014 MapRTechnologies 7
- 8. © 2014 MapRTechnologies 8
- 9. © 2014 MapRTechnologies 9

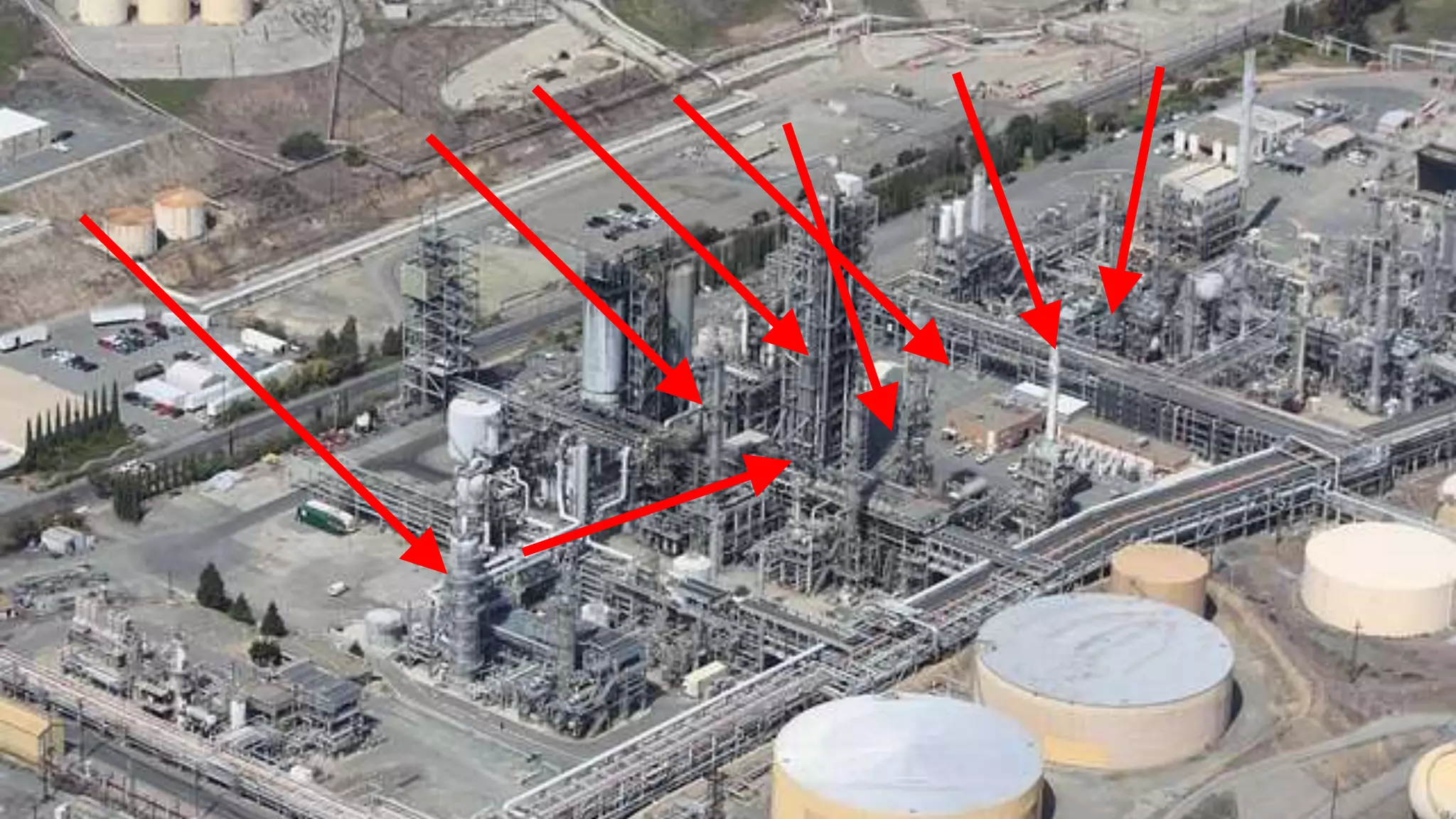

- 10. © 2014 MapRTechnologies 10
- 11. © 2014 MapRTechnologies 11
- 12. © 2014 MapRTechnologies 12
- 13. © 2014 MapRTechnologies 13

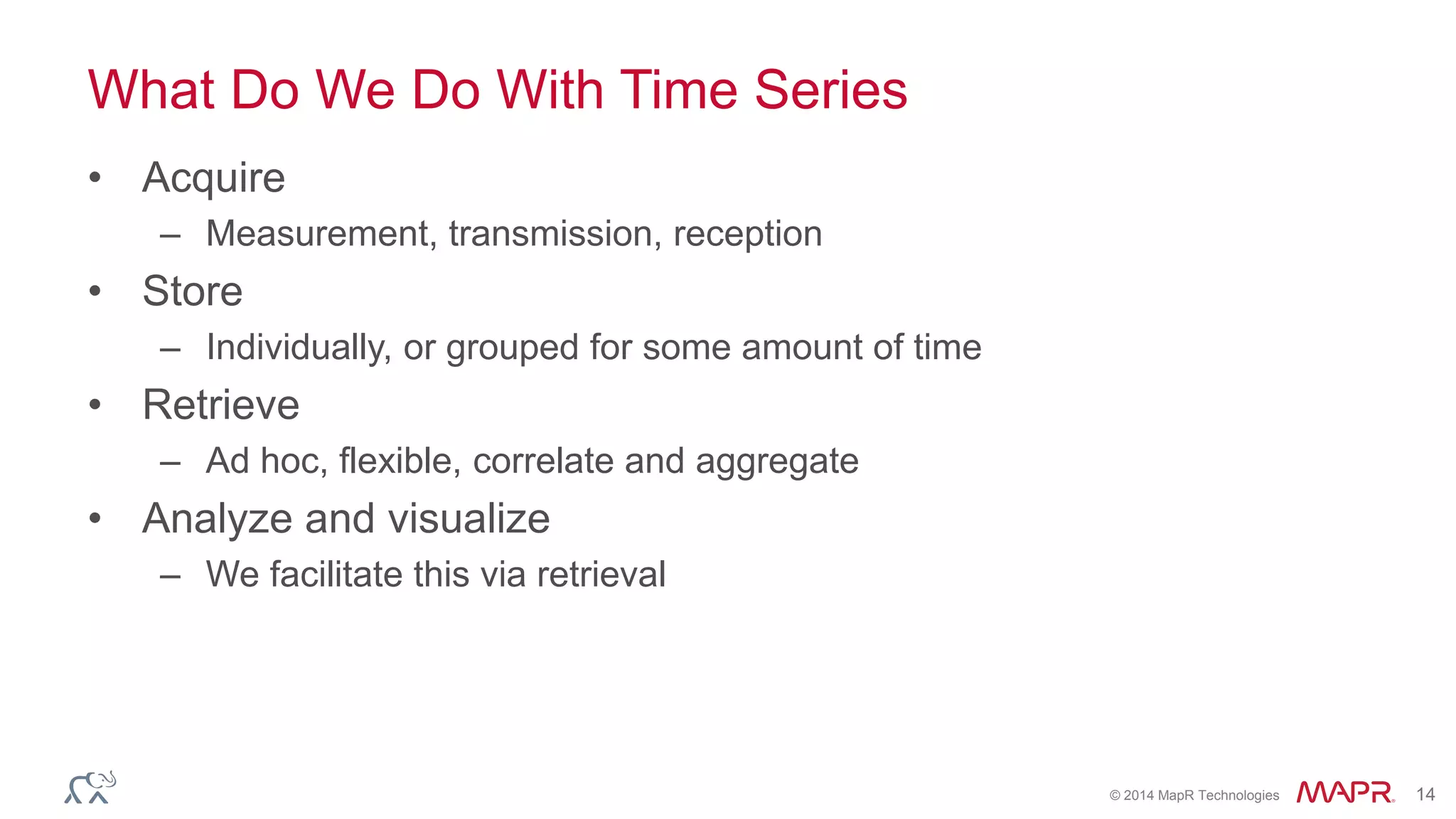

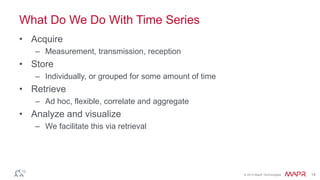

- 14. © 2014 MapRTechnologies 14 What Do We Do With Time Series • Acquire – Measurement, transmission, reception • Store – Individually, or grouped for some amount of time • Retrieve – Ad hoc, flexible, correlate and aggregate • Analyze and visualize – We facilitate this via retrieval

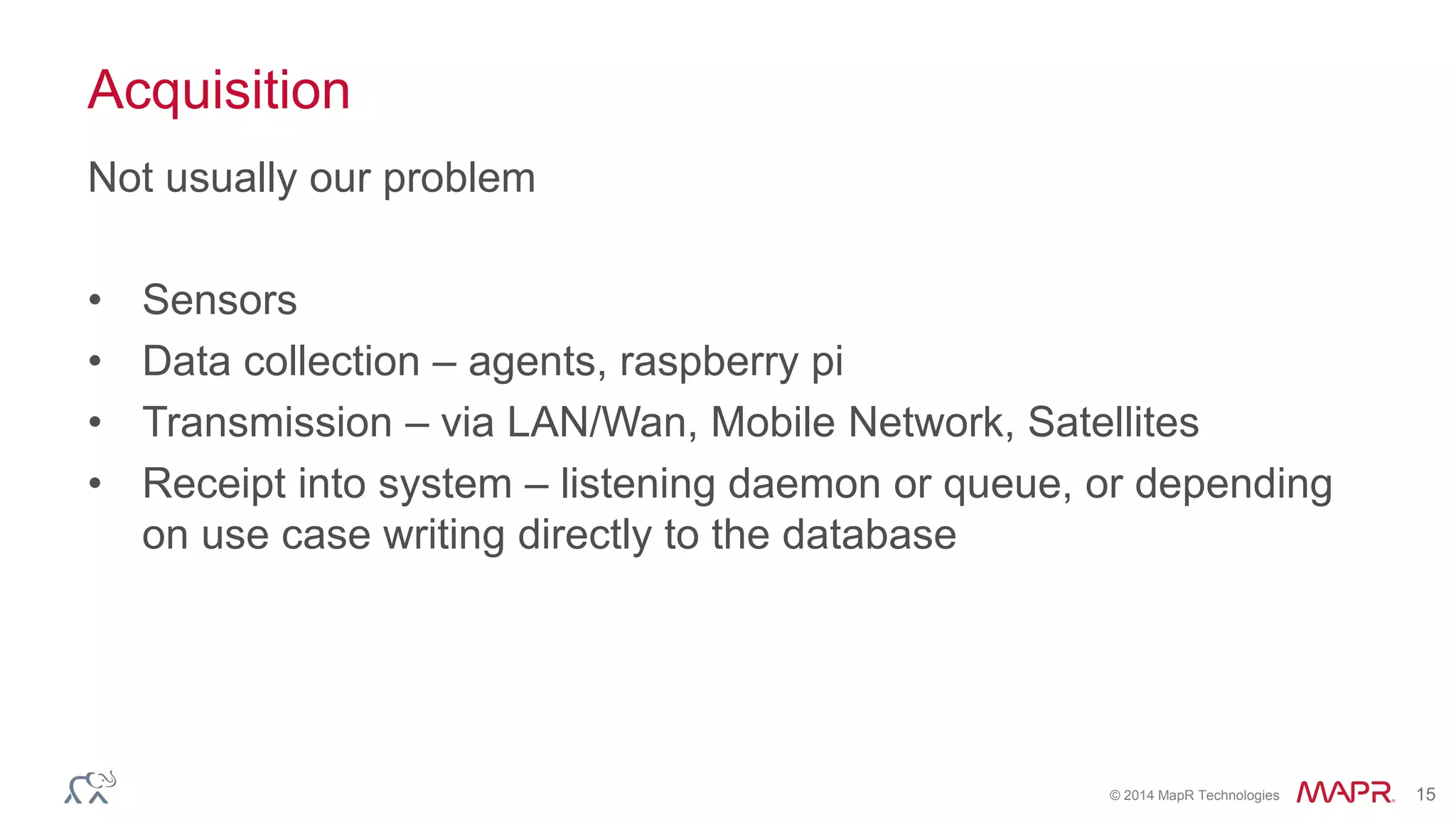

- 15. © 2014 MapRTechnologies 15 Acquisition Not usually our problem • Sensors • Data collection – agents, raspberry pi • Transmission – via LAN/Wan, Mobile Network, Satellites • Receipt into system – listening daemon or queue, or depending on use case writing directly to the database

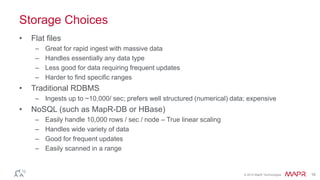

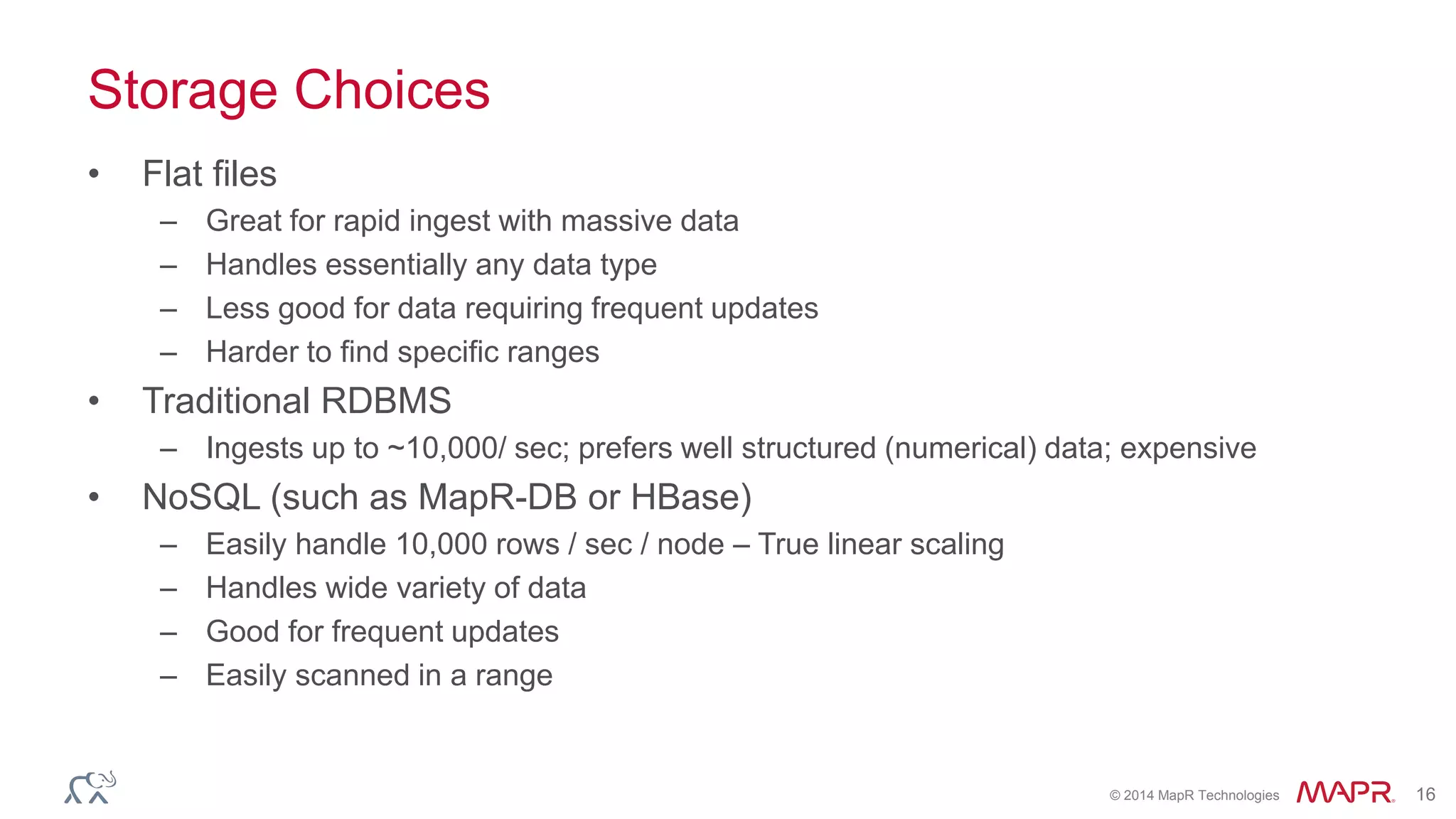

- 16. © 2014 MapRTechnologies 16 Storage Choices • Flat files – Great for rapid ingest with massive data – Handles essentially any data type – Less good for data requiring frequent updates – Harder to find specific ranges • Traditional RDBMS – Ingests up to ~10,000/ sec; prefers well structured (numerical) data; expensive • NoSQL (such as MapR-DB or HBase) – Easily handle 10,000 rows / sec / node – True linear scaling – Handles wide variety of data – Good for frequent updates – Easily scanned in a range

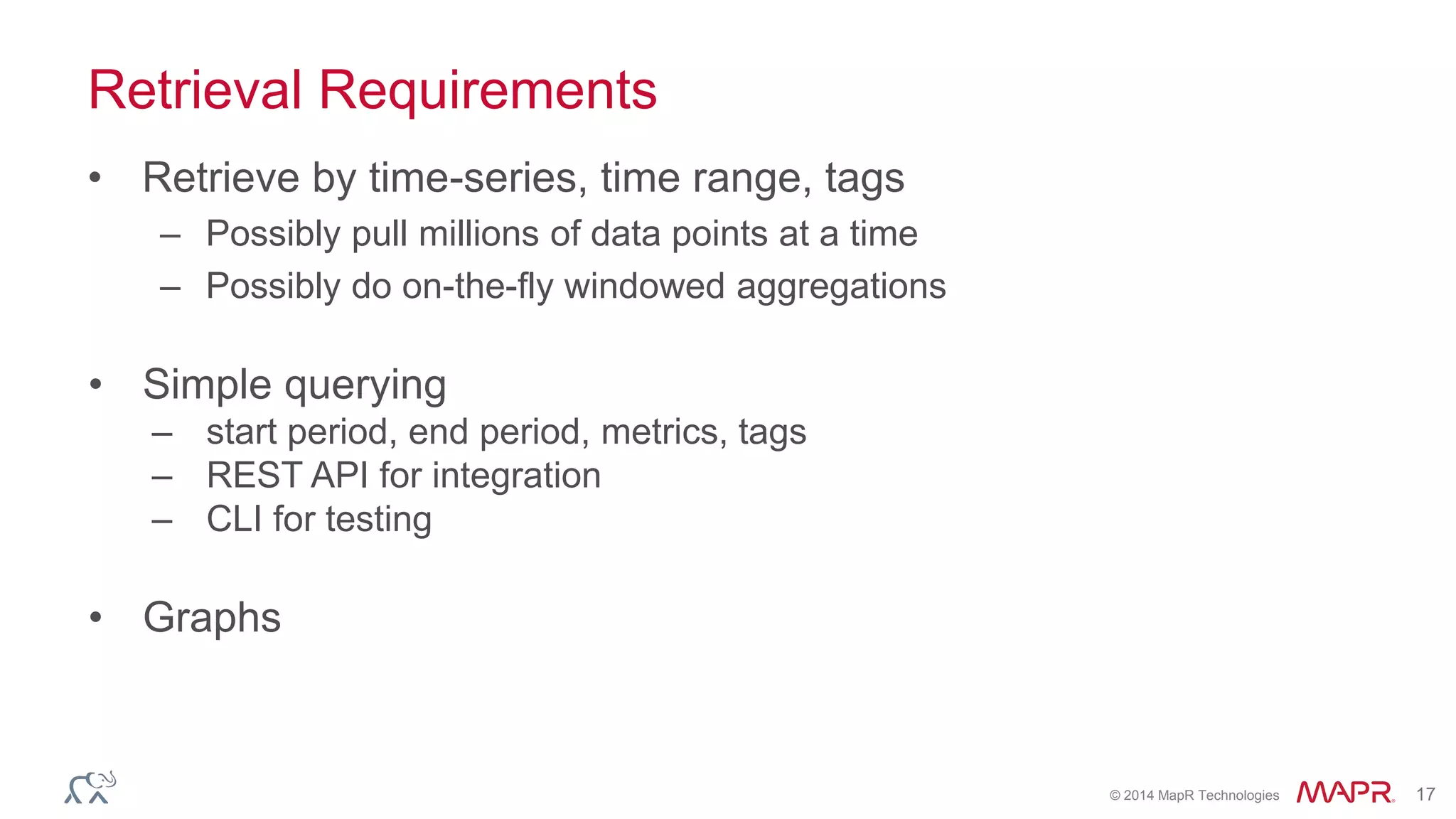

- 17. © 2014 MapRTechnologies 17 Retrieval Requirements • Retrieve by time-series, time range, tags – Possibly pull millions of data points at a time – Possibly do on-the-fly windowed aggregations • Simple querying – start period, end period, metrics, tags – REST API for integration – CLI for testing • Graphs

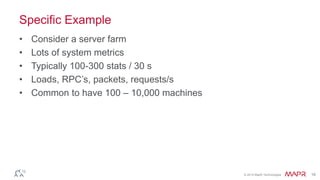

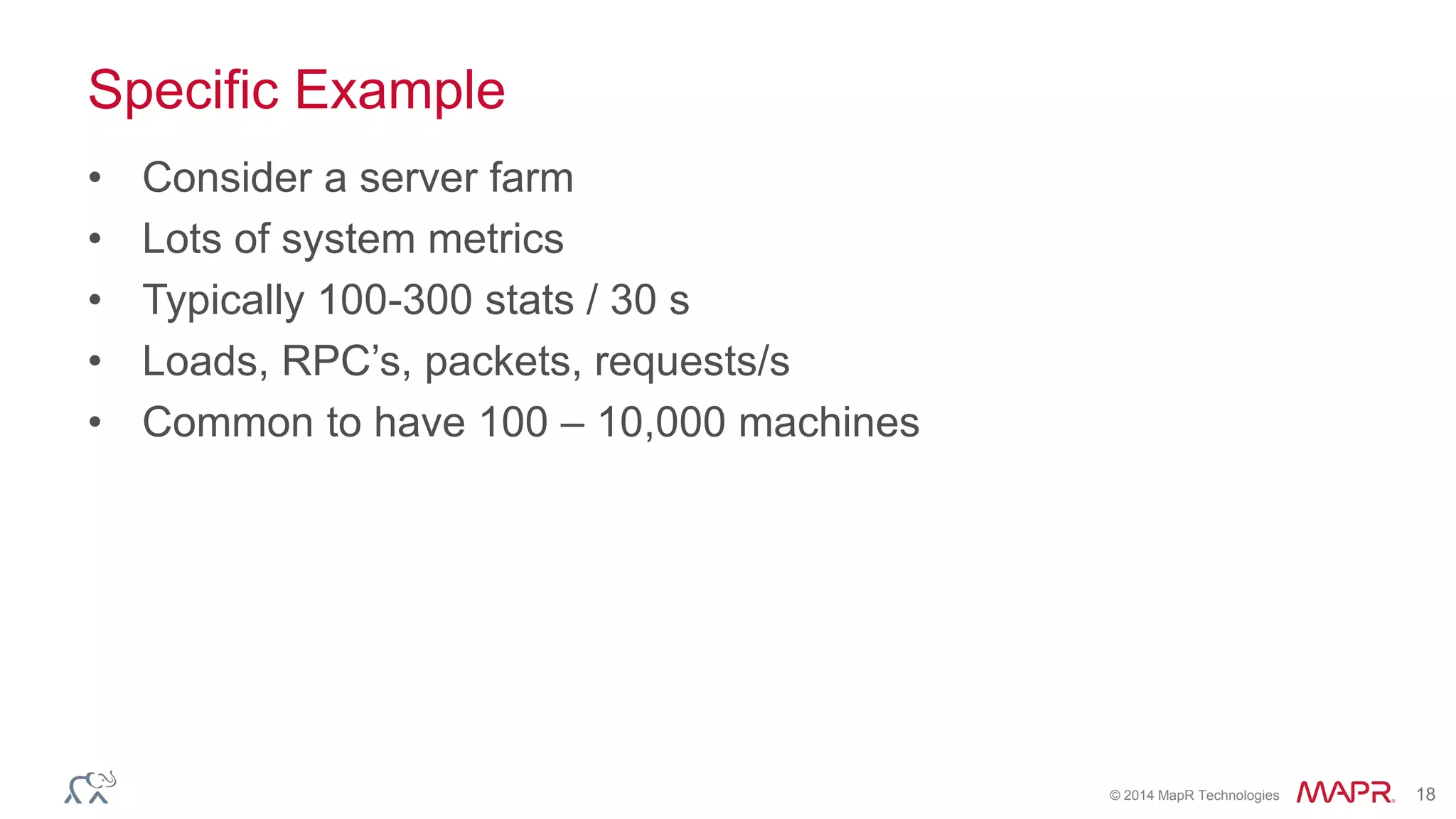

- 18. © 2014 MapRTechnologies 18 Specific Example • Consider a server farm • Lots of system metrics • Typically 100-300 stats / 30 s • Loads, RPC’s, packets, requests/s • Common to have 100 – 10,000 machines

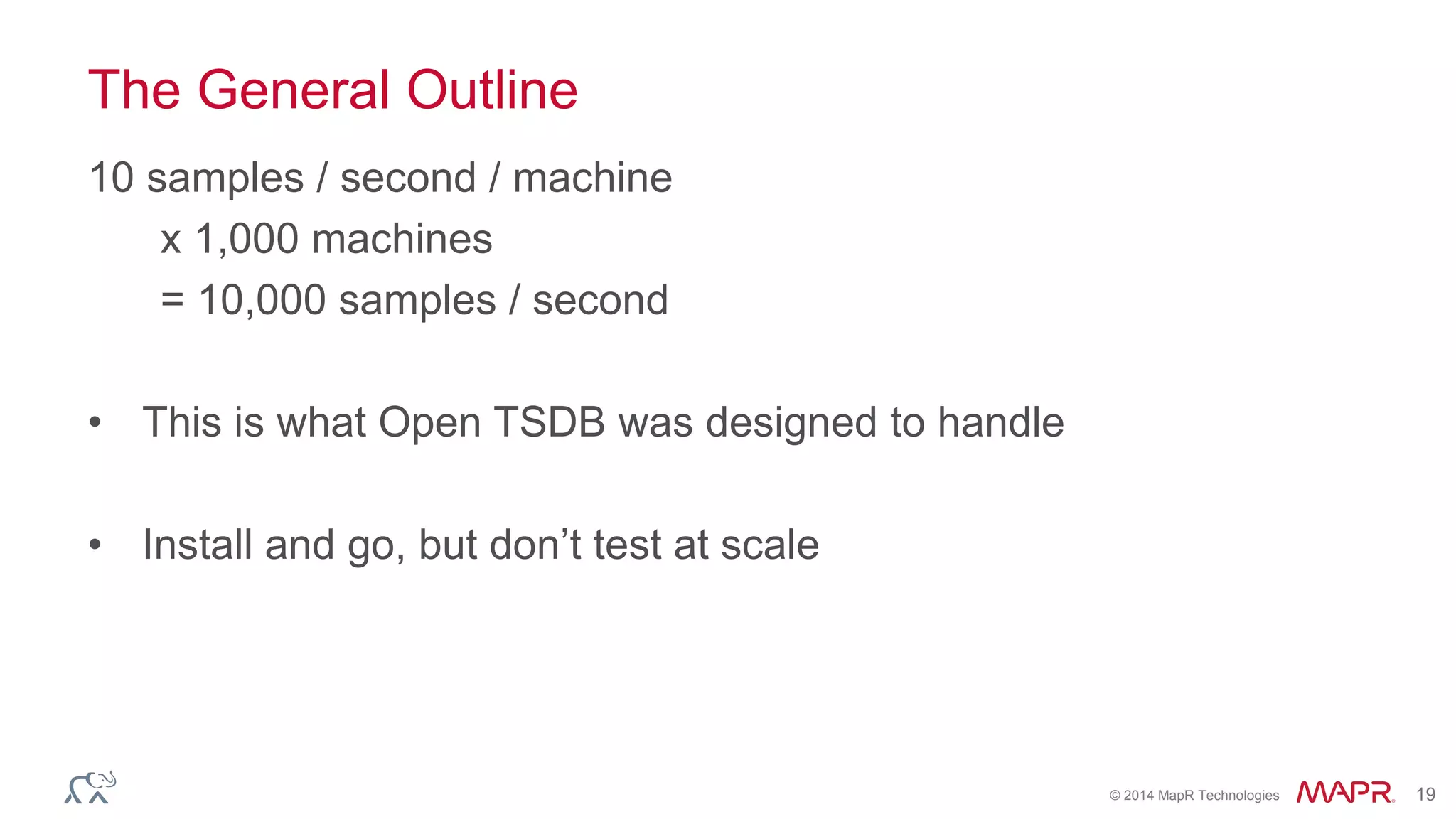

- 19. © 2014 MapRTechnologies 19 The General Outline 10 samples / second / machine x 1,000 machines = 10,000 samples / second • This is what Open TSDB was designed to handle • Install and go, but don’t test at scale
- 20. © 2014 MapRTechnologies 20 Will it Scale?
- 21. © 2014 MapRTechnologies 21 Will it Scale?

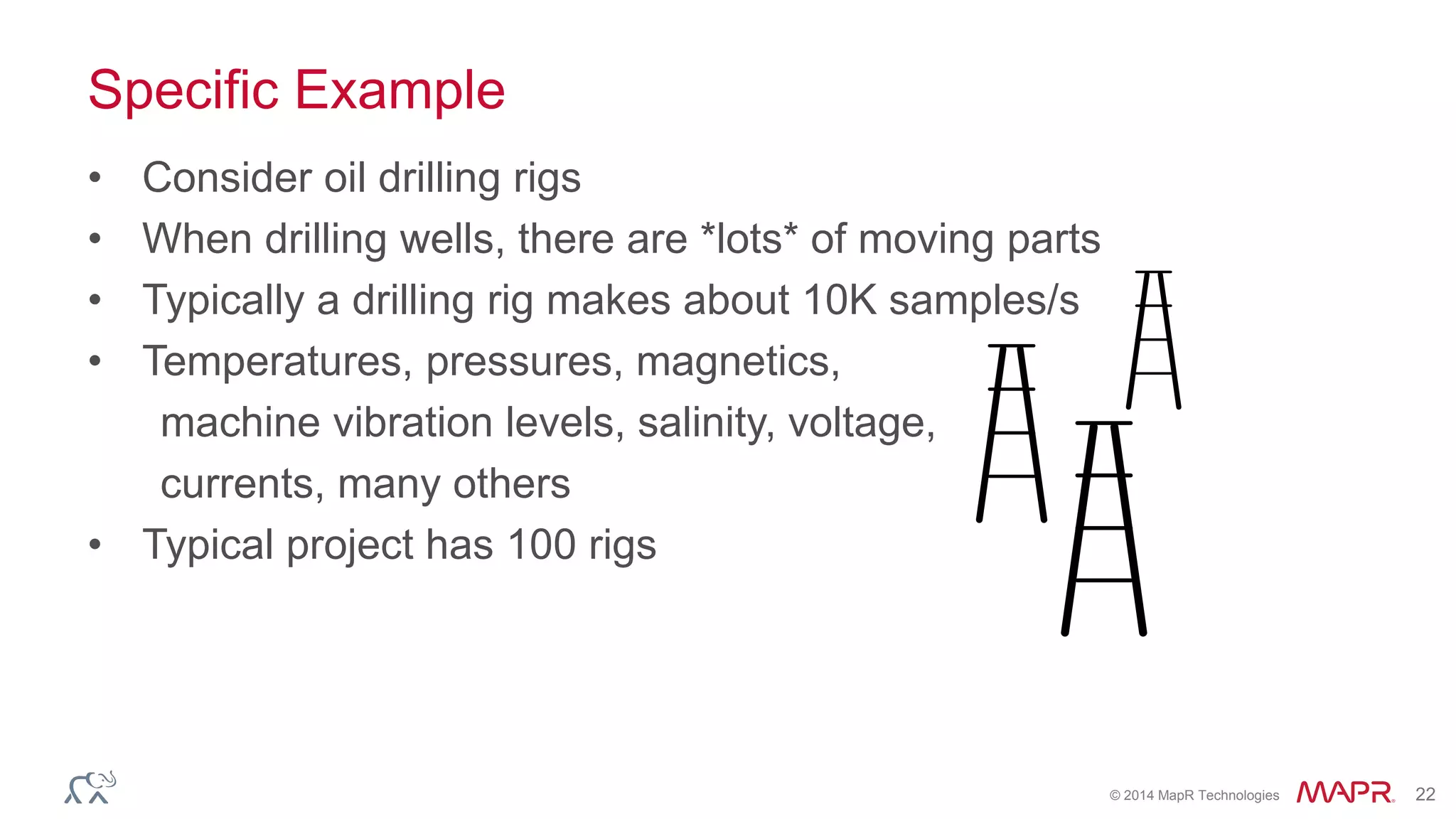

- 22. © 2014 MapRTechnologies 22 Specific Example • Consider oil drilling rigs • When drilling wells, there are *lots* of moving parts • Typically a drilling rig makes about 10K samples/s • Temperatures, pressures, magnetics, machine vibration levels, salinity, voltage, currents, many others • Typical project has 100 rigs

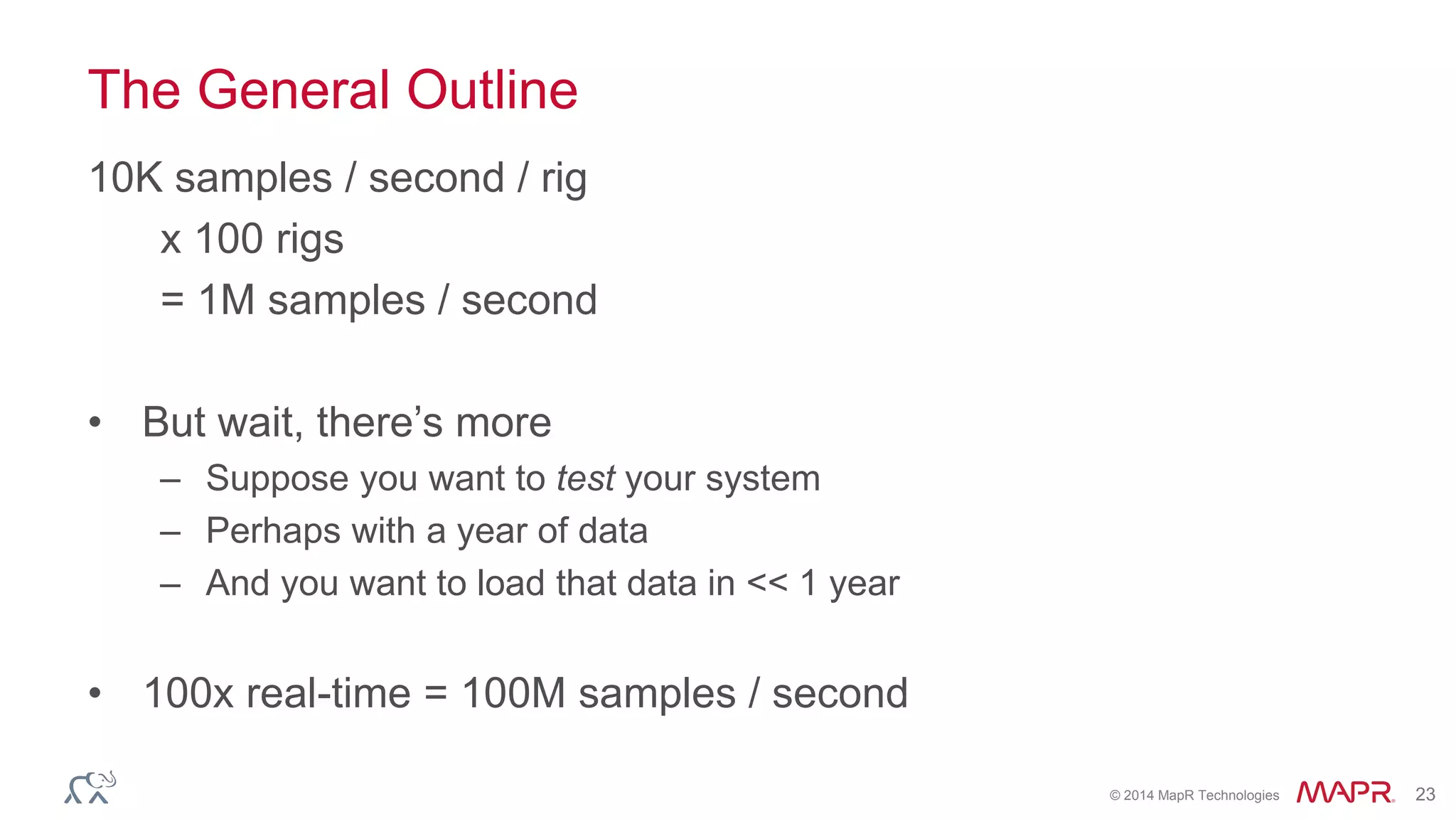

- 23. © 2014 MapRTechnologies 23 The General Outline 10K samples / second / rig x 100 rigs = 1M samples / second • But wait, there’s more – Suppose you want to test your system – Perhaps with a year of data – And you want to load that data in << 1 year • 100x real-time = 100M samples / second

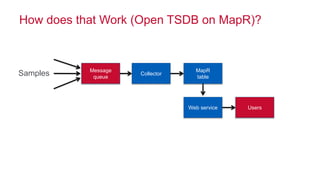

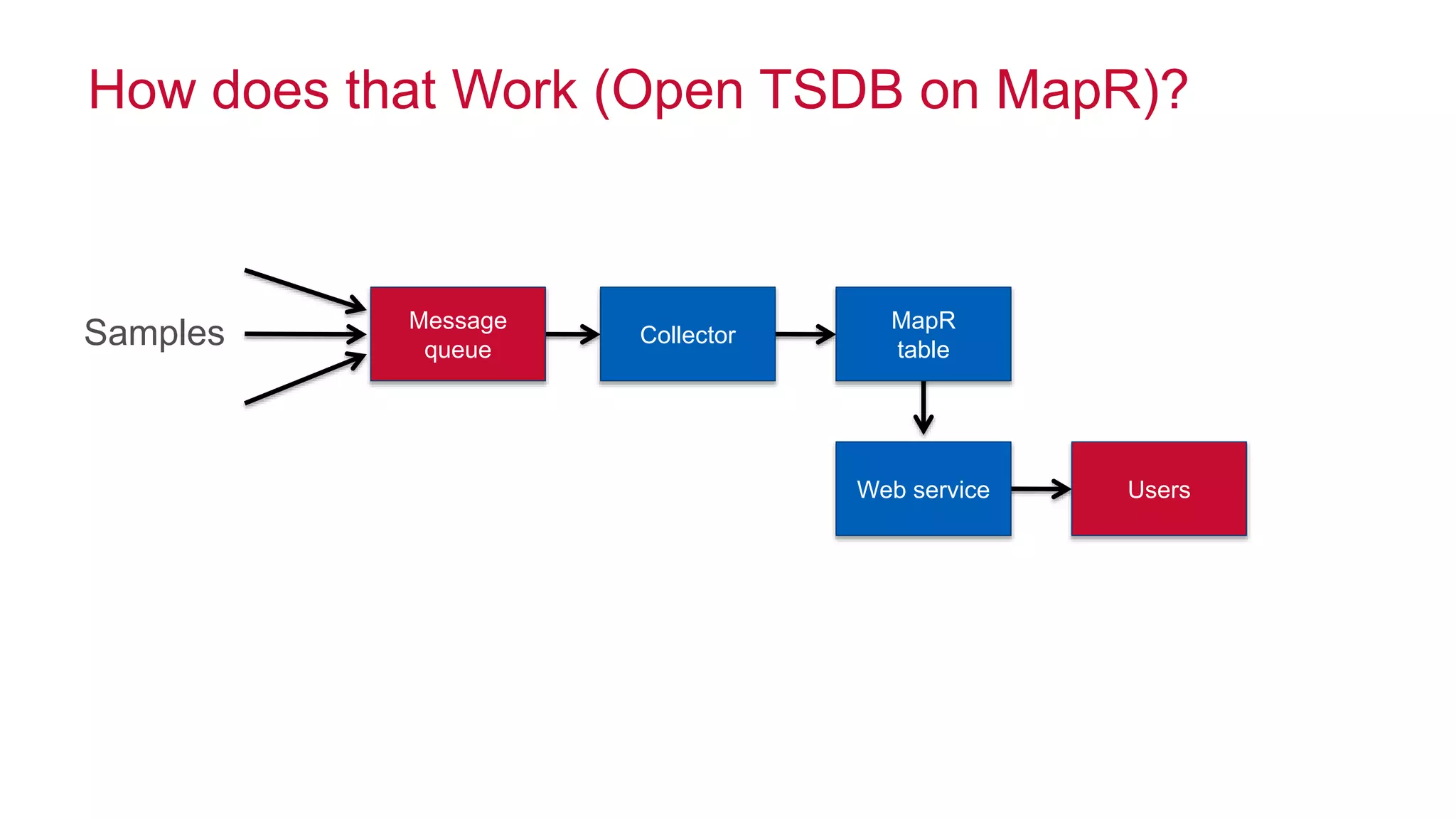

- 24. How does thatWork (Open TSDB on MapR)? © 2014 MapR Technologies 24 Samples Message MapR Collector queue table Web service Users

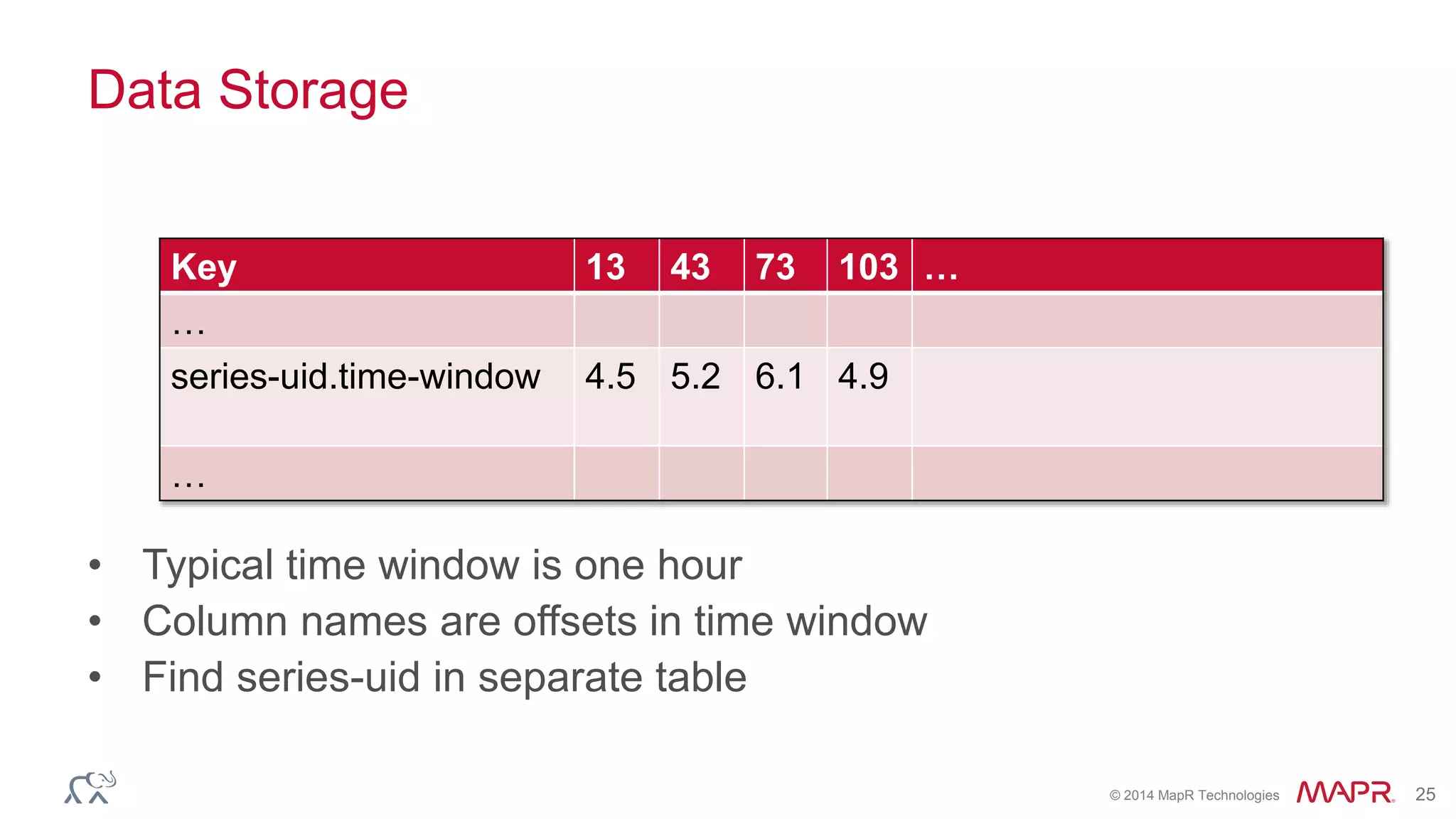

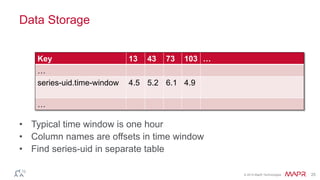

- 25. © 2014 MapRTechnologies 25 Data Storage Key 13 43 73 103 … … series-uid.time-window 4.5 5.2 6.1 4.9 … • Typical time window is one hour • Column names are offsets in time window • Find series-uid in separate table

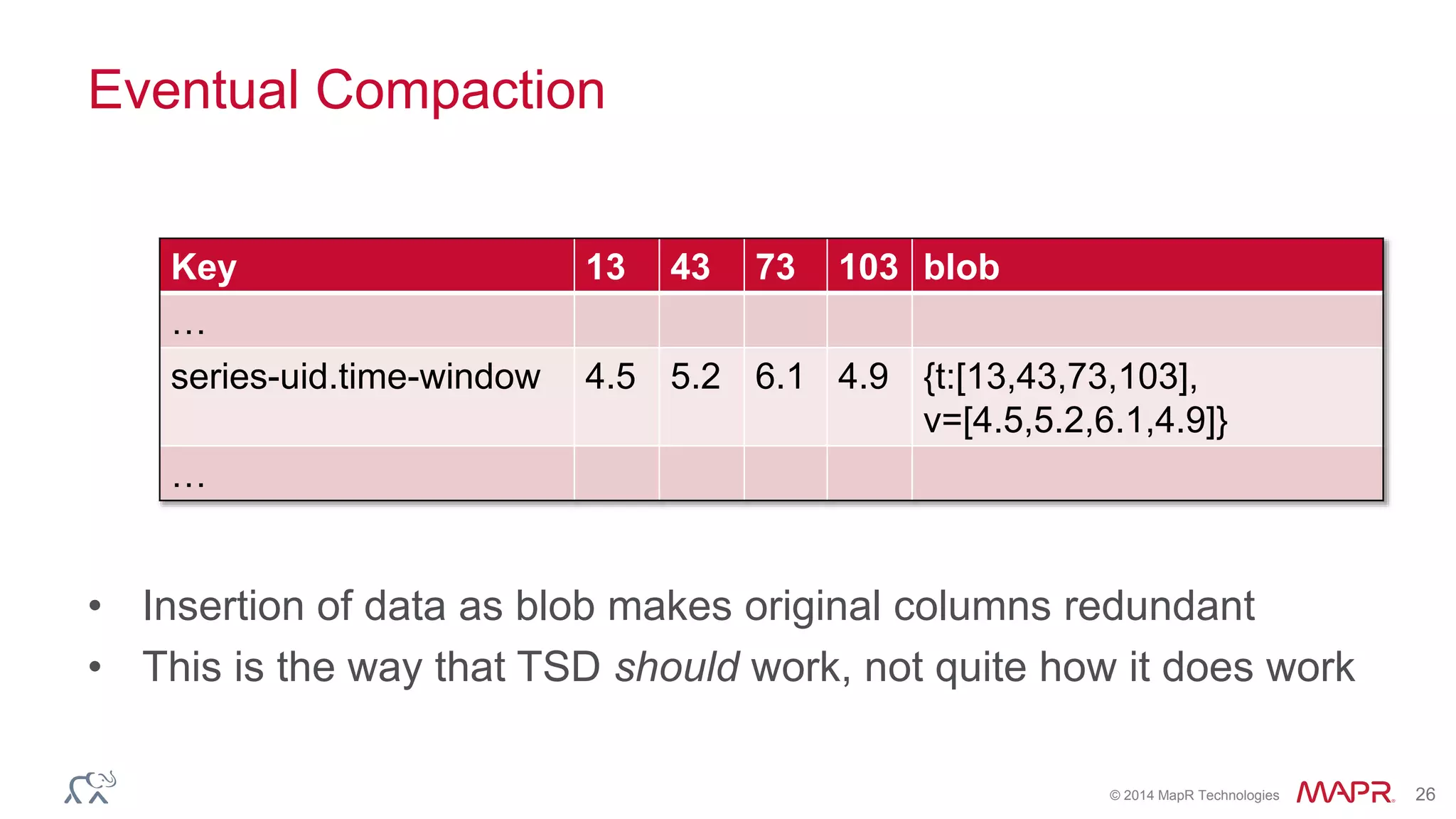

- 26. Key 13 4373 103 blob … series-uid.time-window 4.5 5.2 6.1 4.9 {t:[13,43,73,103], v=[4.5,5.2,6.1,4.9]} © 2014 MapR Technologies 26 Eventual Compaction … • Insertion of data as blob makes original columns redundant • This is the way that TSD should work, not quite how it does work

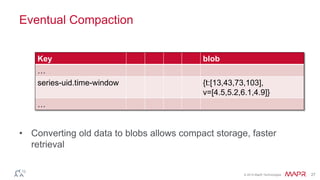

- 27. Key blob … series-uid.time-window {t:[13,43,73,103], © 2014 MapR Technologies 27 Eventual Compaction • Converting old data to blobs allows compact storage, faster retrieval v=[4.5,5.2,6.1,4.9]} …

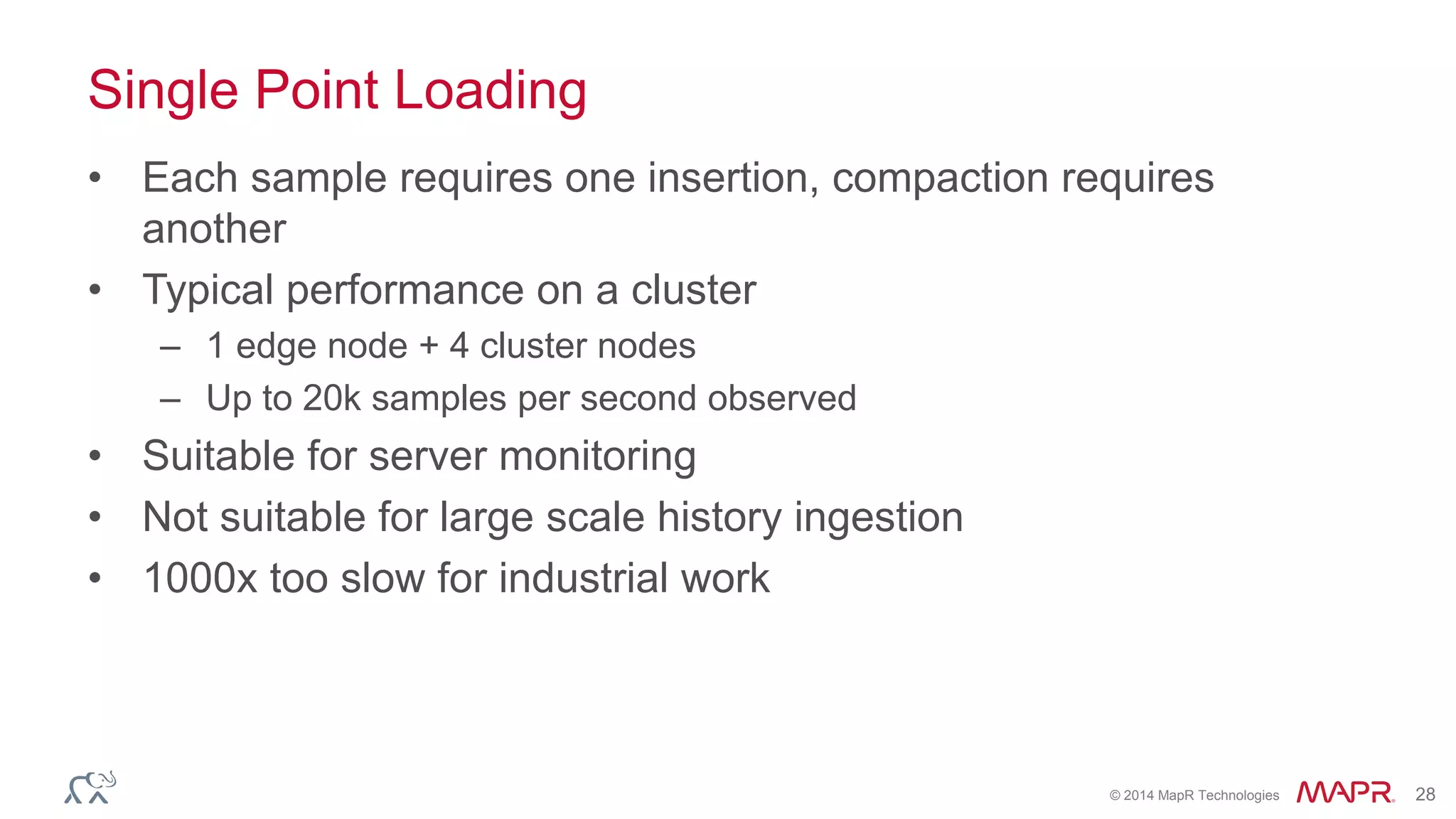

- 28. © 2014 MapRTechnologies 28 Single Point Loading • Each sample requires one insertion, compaction requires another • Typical performance on a cluster – 1 edge node + 4 cluster nodes – Up to 20k samples per second observed • Suitable for server monitoring • Not suitable for large scale history ingestion • 1000x too slow for industrial work

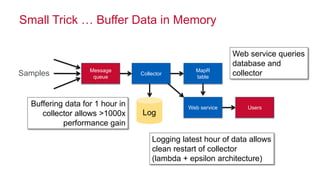

- 29. Web service queries database and collector © 2014 MapR Technologies 29 Small Trick … Buffer Data in Memory Message queue Samples Users Collector MapR table Web service Log Buffering data for 1 hour in collector allows >1000x performance gain Logging latest hour of data allows clean restart of collector (lambda + epsilon architecture)
- 30. © 2014 MapRTechnologies 30 Batch Loading • 3600 samples require one insertion – No compactions necessary • Typical performance on SE cluster – 1 edge node + 4 cluster nodes – Up to 30 million samples per second per node observed – ~700x faster ingestion • Suitable for large scale history ingestion • 30 million data points retrieved in 20s (in JSON format) • Ready for industrial work

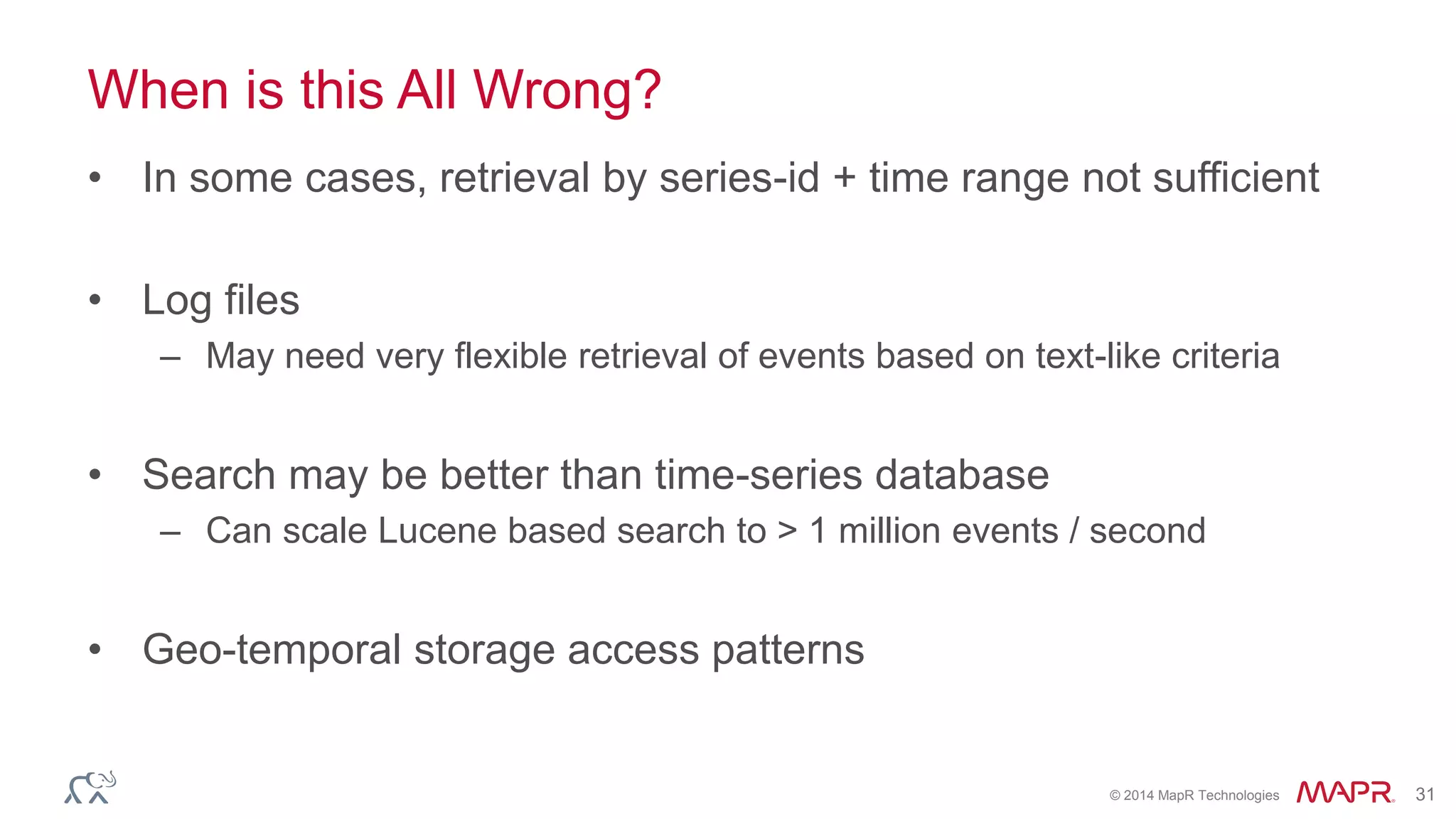

- 31. © 2014 MapRTechnologies 31 When is this All Wrong? • In some cases, retrieval by series-id + time range not sufficient • Log files – May need very flexible retrieval of events based on text-like criteria • Search may be better than time-series database – Can scale Lucene based search to > 1 million events / second • Geo-temporal storage access patterns
- 32. © 2014 MapRTechnologies 32 Q & A Engage with us! @kingmesal maprtech jsccot@mapr.com MapR maprtech mapr-technologies
