Dr. Strangelove, or how I learned to love plugin development

How I Learned To Stop Worrying And Love Plugin Development
Ulrich Krause, London, UK, September 12, 2014

ICON UK 2014 – Plugin Development
About: Ulrich Krause Administrator /Developer since 1993 Senior Software Architect at BCC Blog http://www.eknori.de IBM Champion 2011/2012/2013/2014

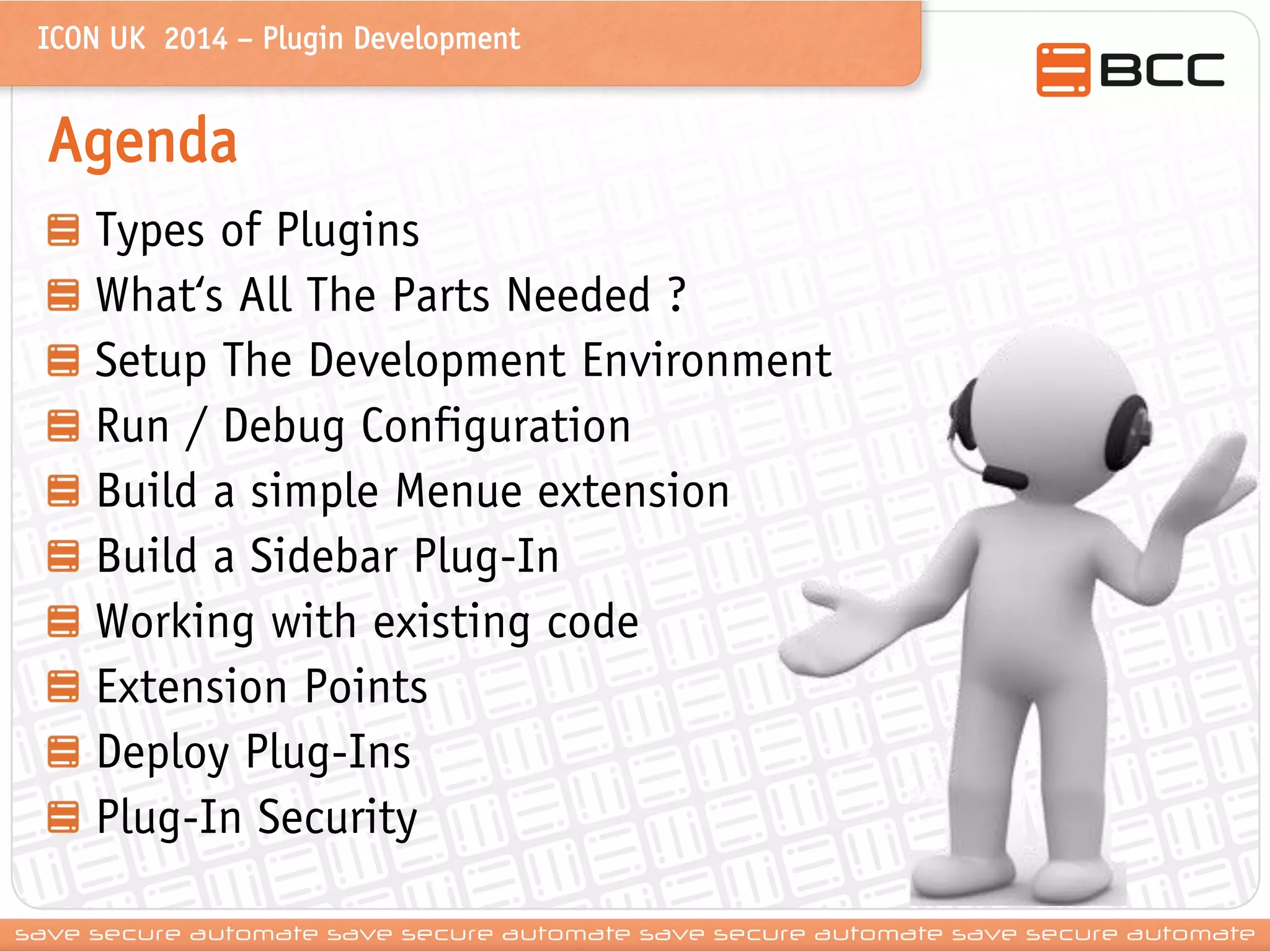

Agenda Types of Plugins What‘s All The Parts Needed ? Setup The Development Environment Run / Debug Configuration Build a simple Menue extension Build a Sidebar Plug-In Working with existing code Extension Points Deploy Plug-Ins Plug-In Security

It‘s only one way of doing it …
And I know there's a few to demonstrate the theory

No animals were harmed * during the making of this presentation !
* That part comes, when you download the slides from http://slideshare.net

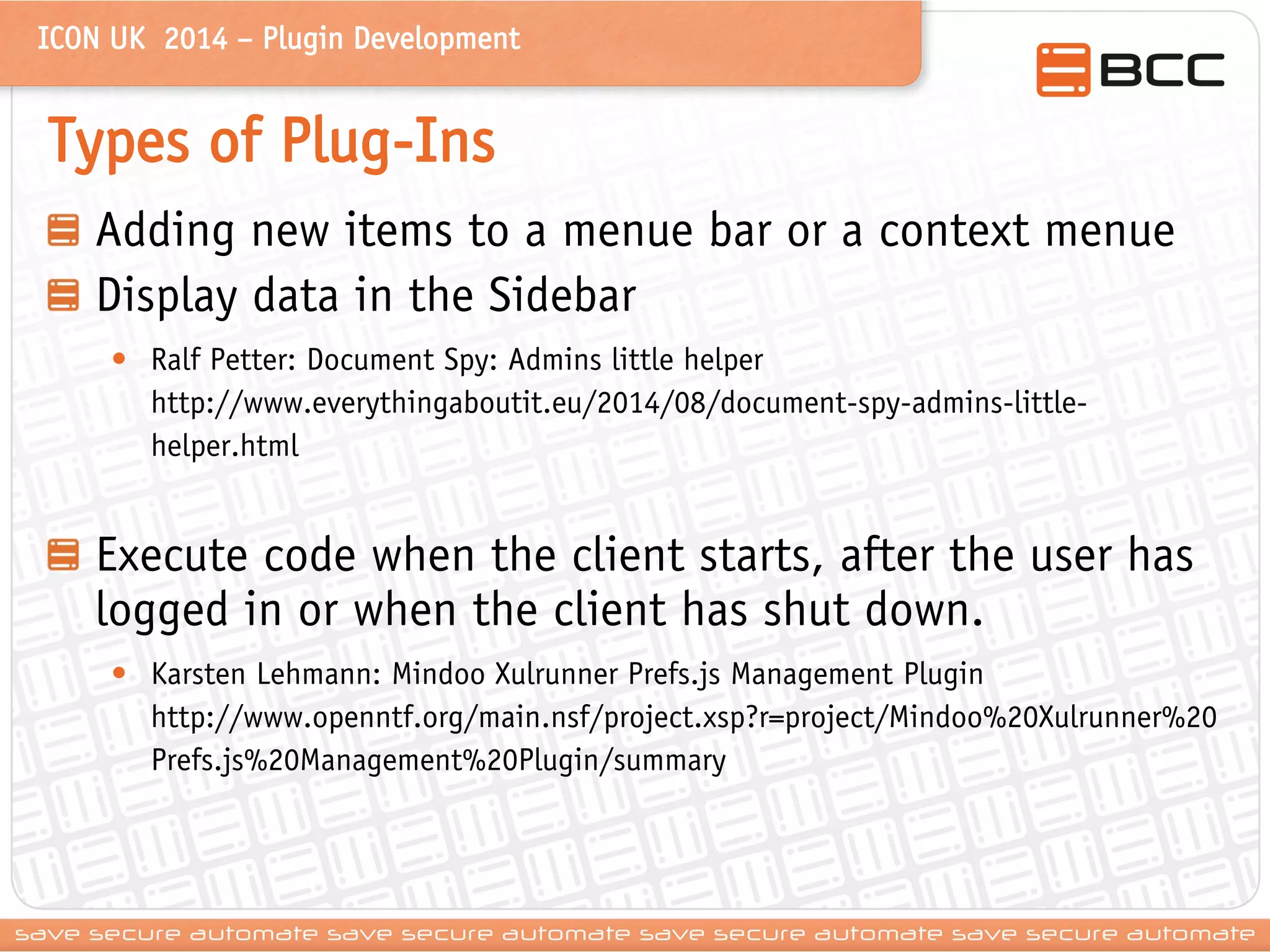

Types of Plug-Ins Adding new items to a menue bar or a context menue Display data in the Sidebar
•Ralf Petter: Document Spy: Admins little helper http://www.everythingaboutit.eu/2014/08/document-spy-admins-little- helper.html Execute code when the client starts, after the user has logged in or when the client has shut down.
•Karsten Lehmann: Mindoo Xulrunner Prefs.js Management Plugin http://www.openntf.org/main.nsf/project.xsp?r=project/Mindoo%20Xulrunner%20Prefs.js%20Management%20Plugin/summary

Download, Install, Configure

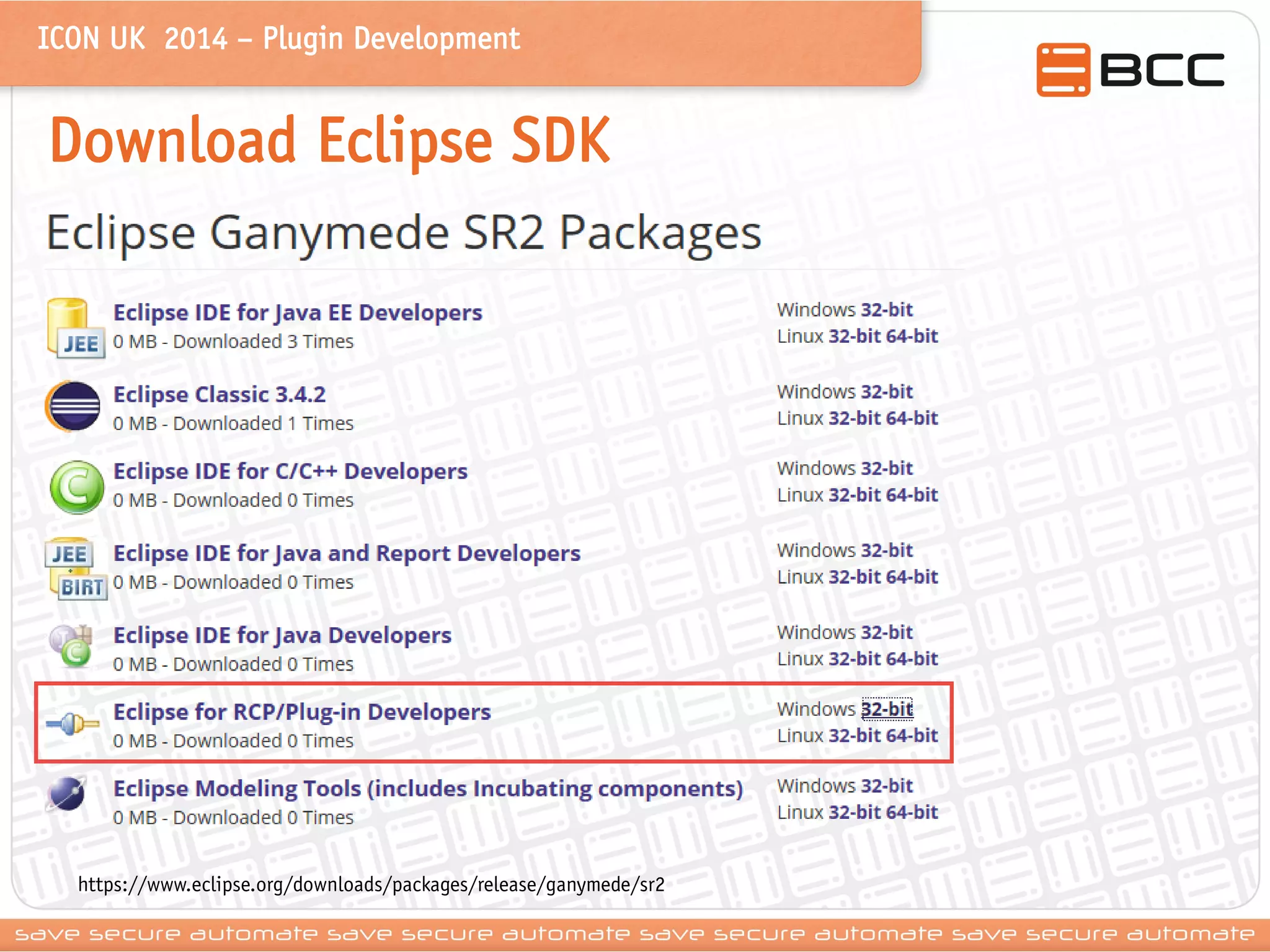

Download Eclipse SDK
https://www.eclipse.org/downloads/packages/release/ganymede/sr2

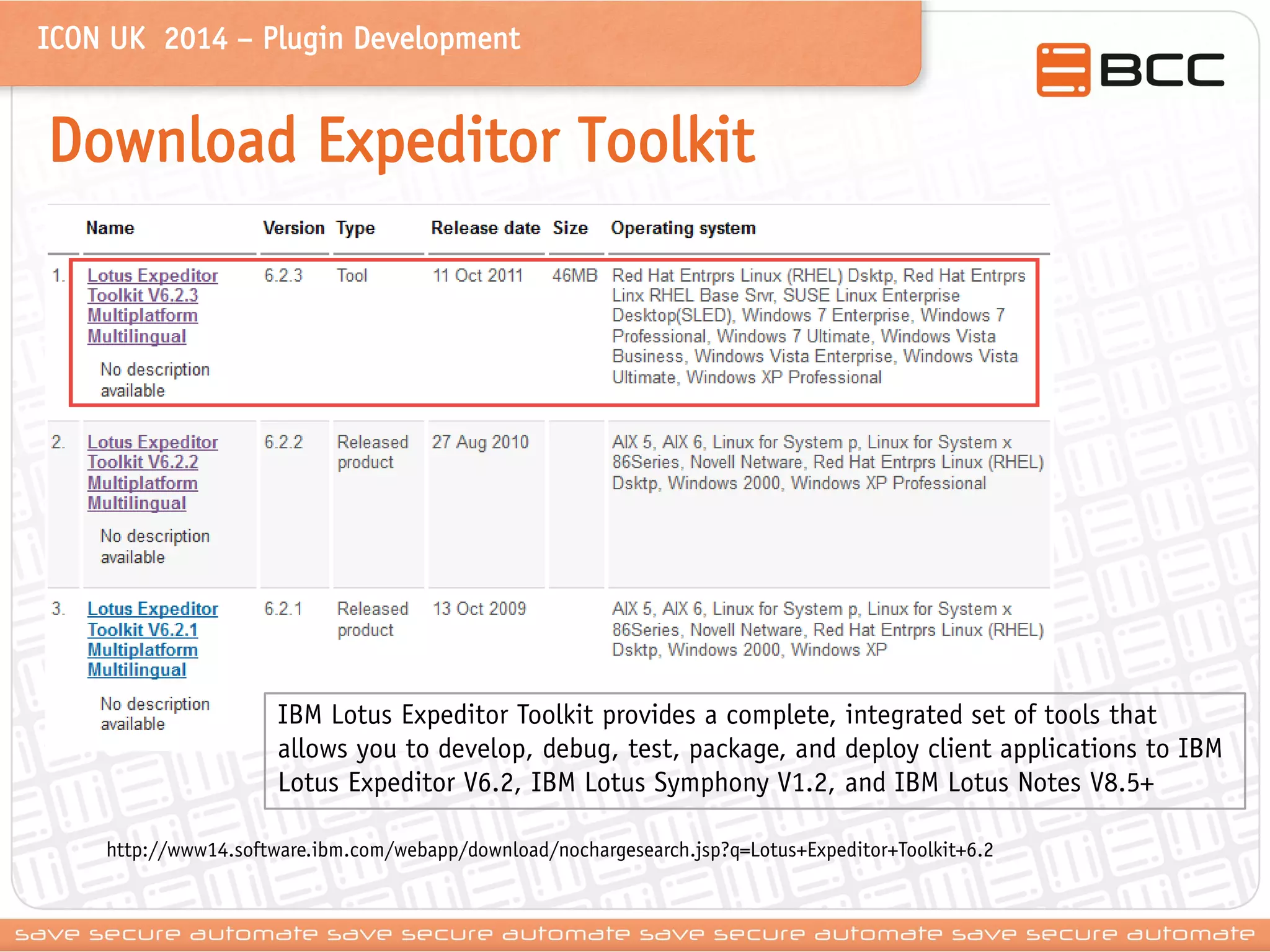

Download Expeditor Toolkit
IBM Lotus Expeditor Toolkit provides a complete, integrated set of tools that allows you to develop, debug, test, package, and deploy client applications to IBM Lotus Expeditor V6.2, IBM Lotus Symphony V1.2, and IBM Lotus Notes V8.5+
http://www14.software.ibm.com/webapp/download/nochargesearch.jsp?q=Lotus+Expeditor+Toolkit+6.2

Unpack Eclipse and Expeditor

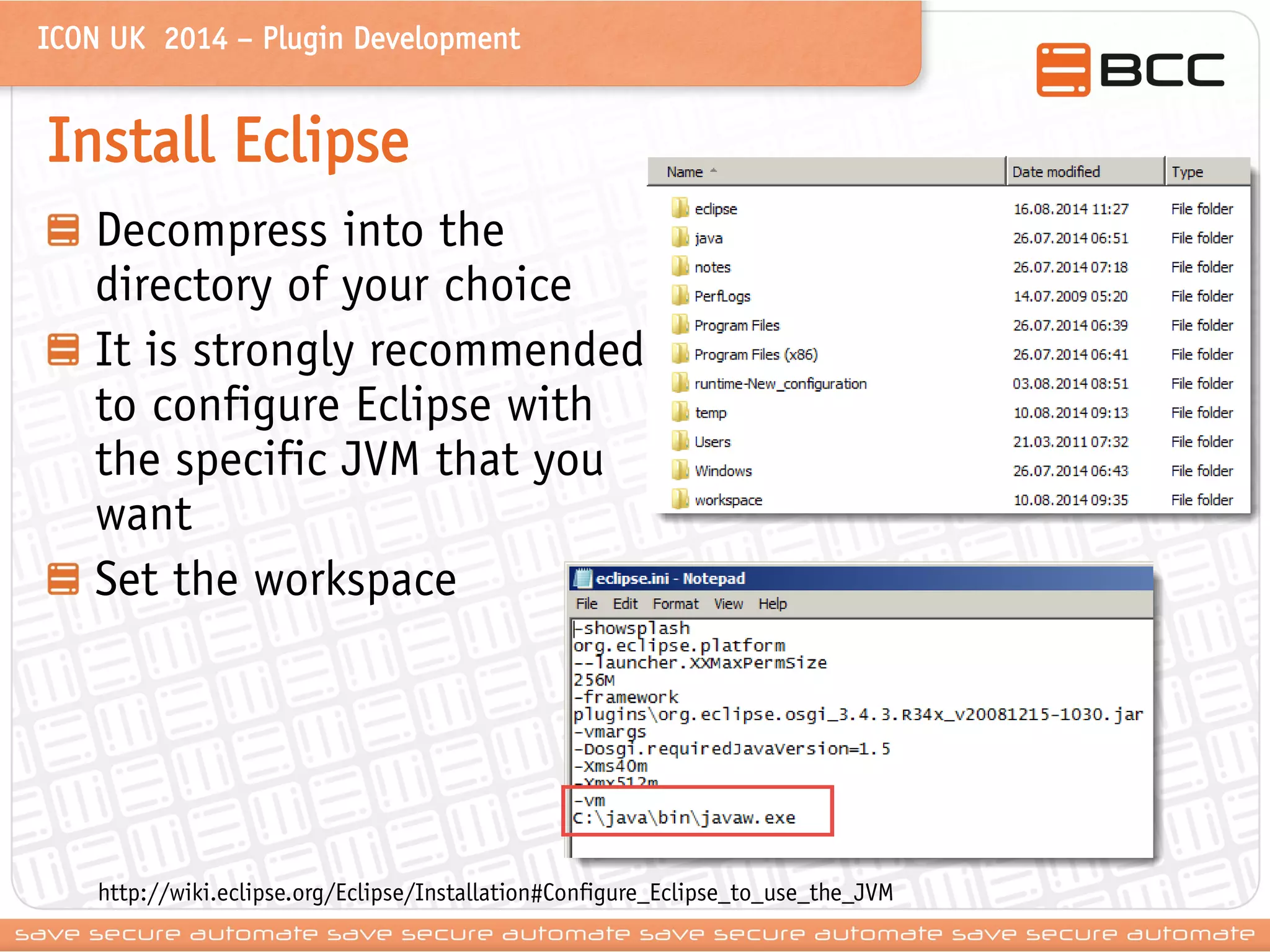

Install Eclipse Decompress into the directory of your choice It is strongly recommended to configure Eclipse with the specific JVM that you want Set the workspace
http://wiki.eclipse.org/Eclipse/Installation#Configure_Eclipse_to_use_the_JVM

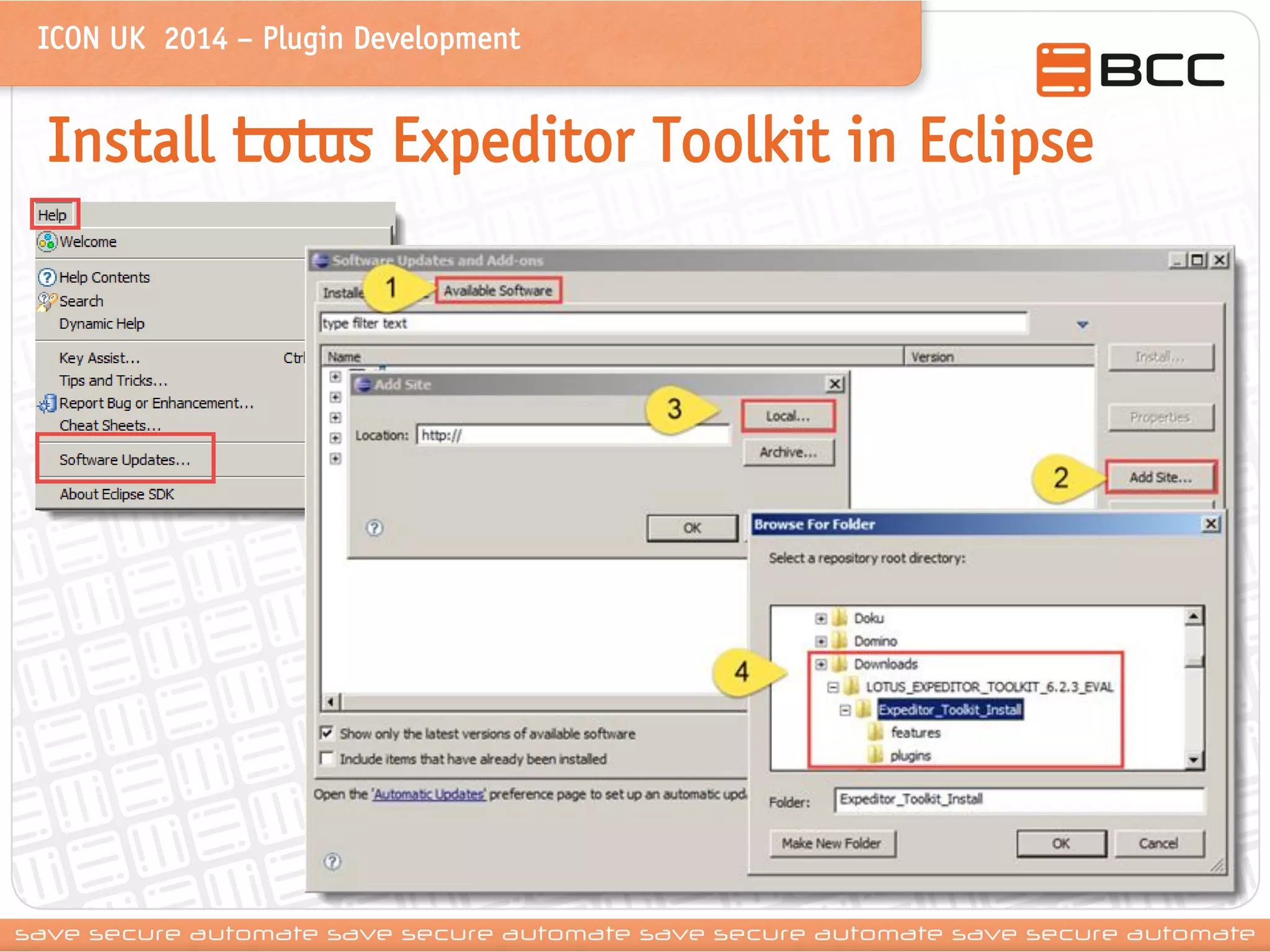

Install Lotus Expeditor Toolkit in Eclipse

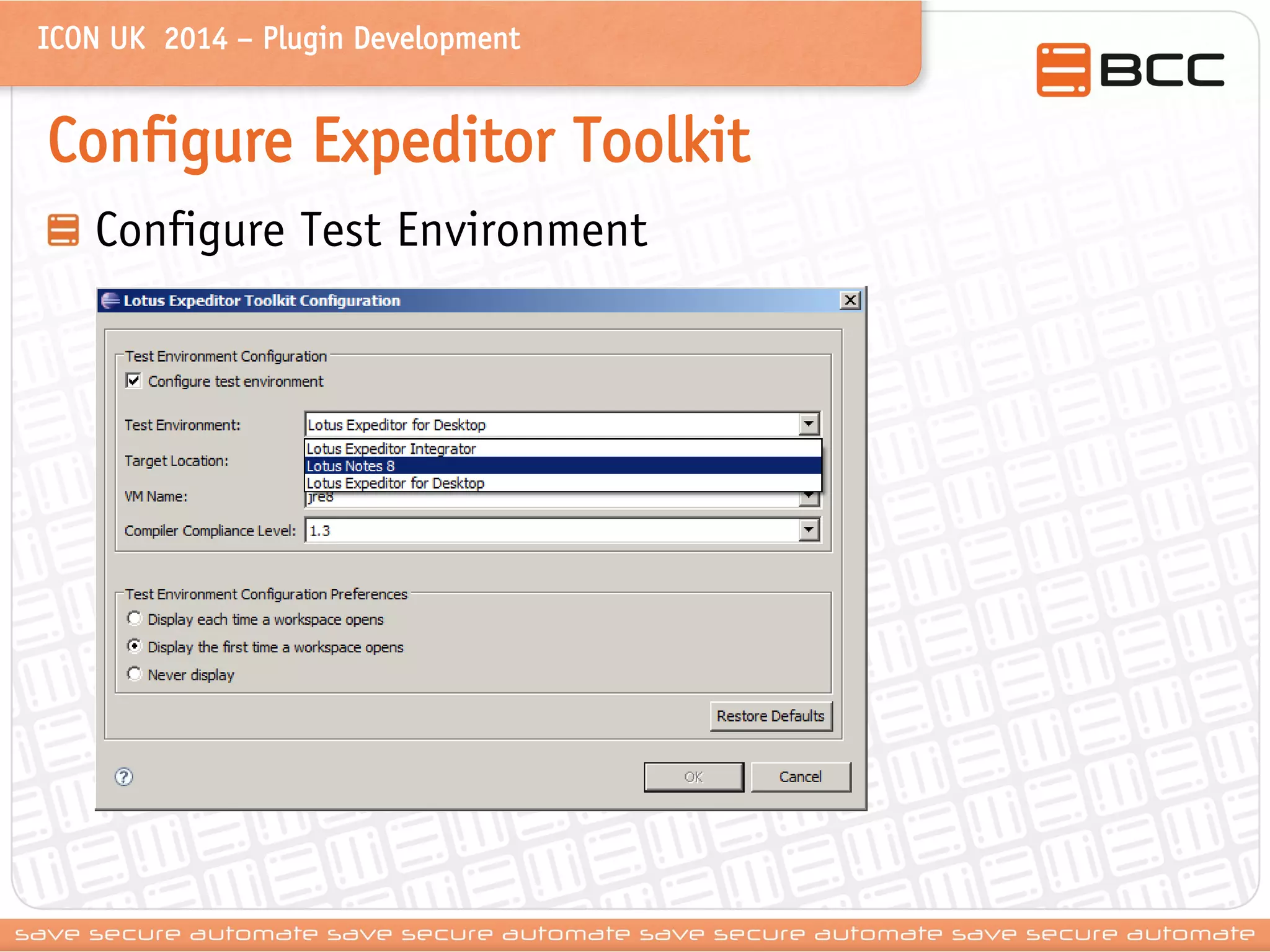

Configure Expeditor Toolkit Configure Test Environment

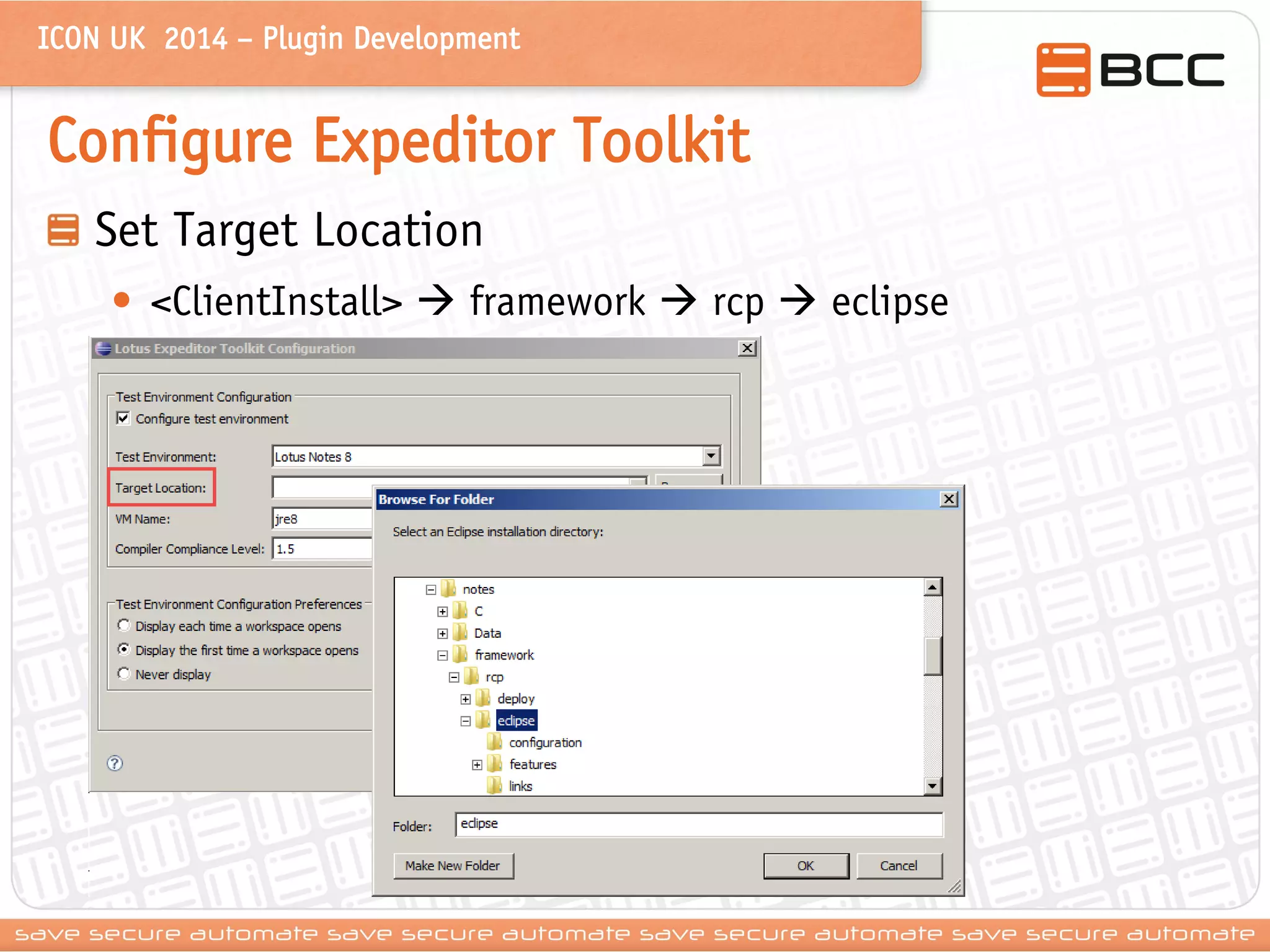

Configure Expeditor Toolkit Set Target Location
•<ClientInstall>  framework  rcp  eclipse

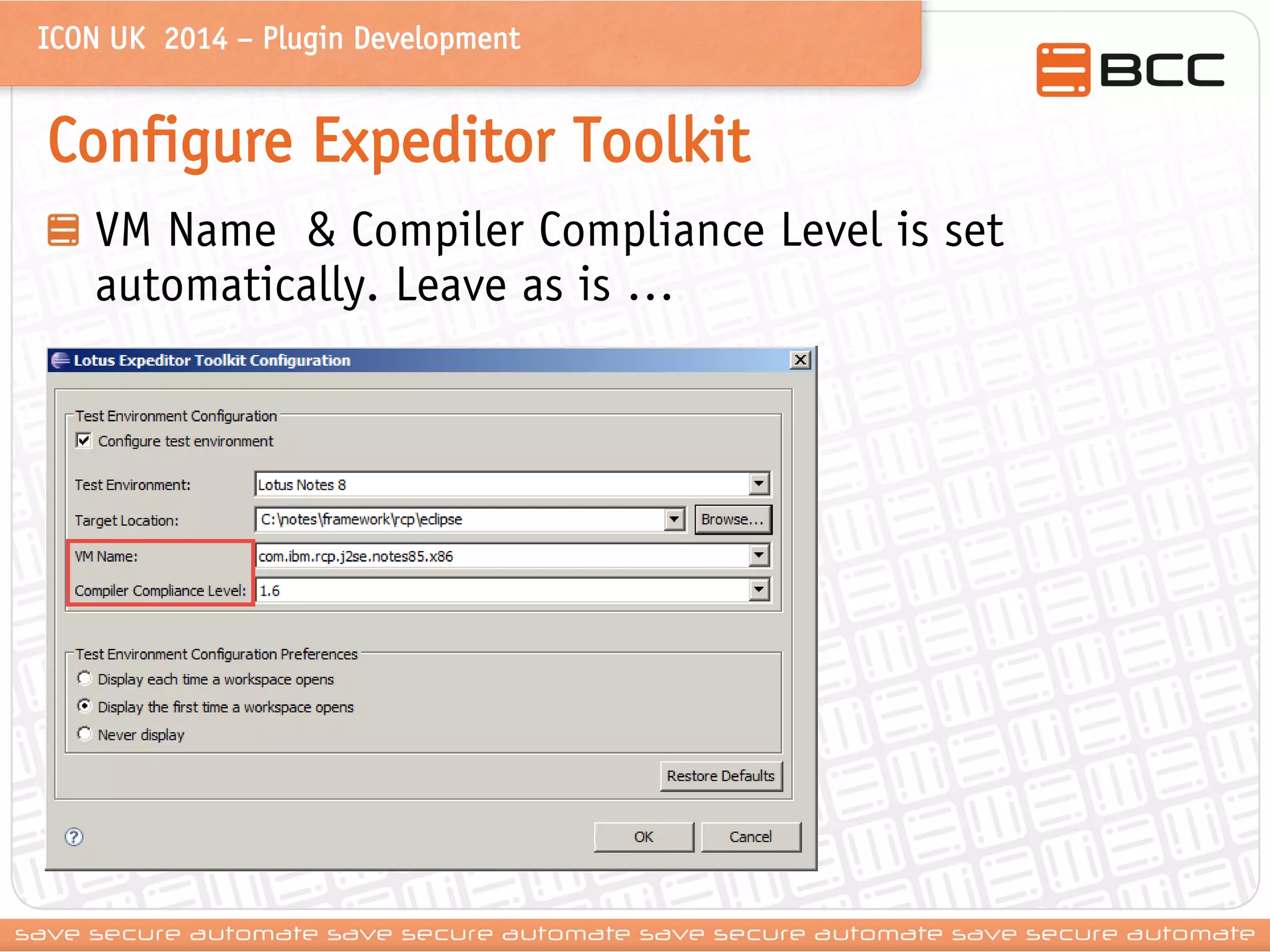

Configure Expeditor Toolkit VM Name & Compiler Compliance Level is set automatically. Leave as is …

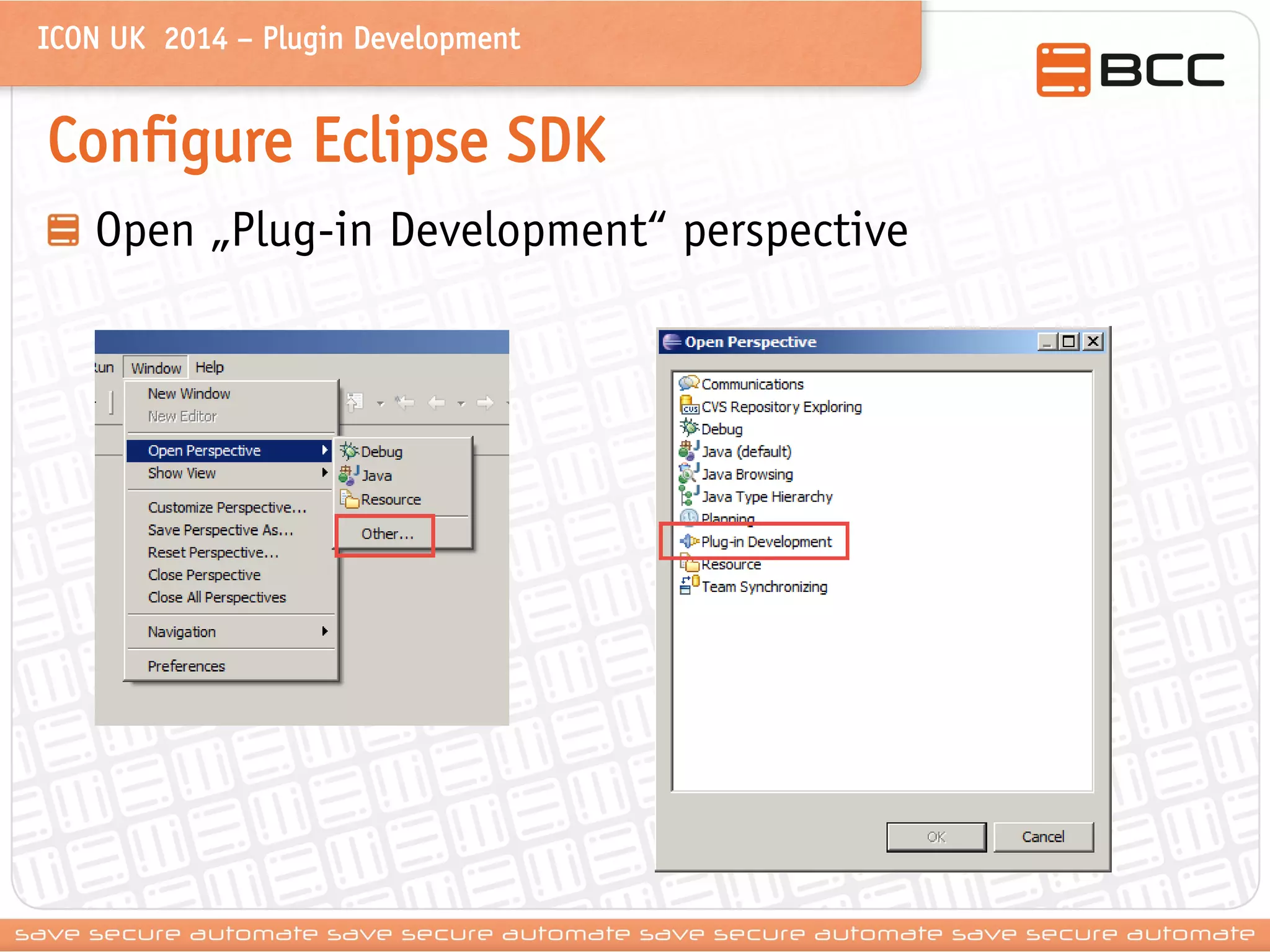

Configure Eclipse SDK Open „Plug-in Development“ perspective

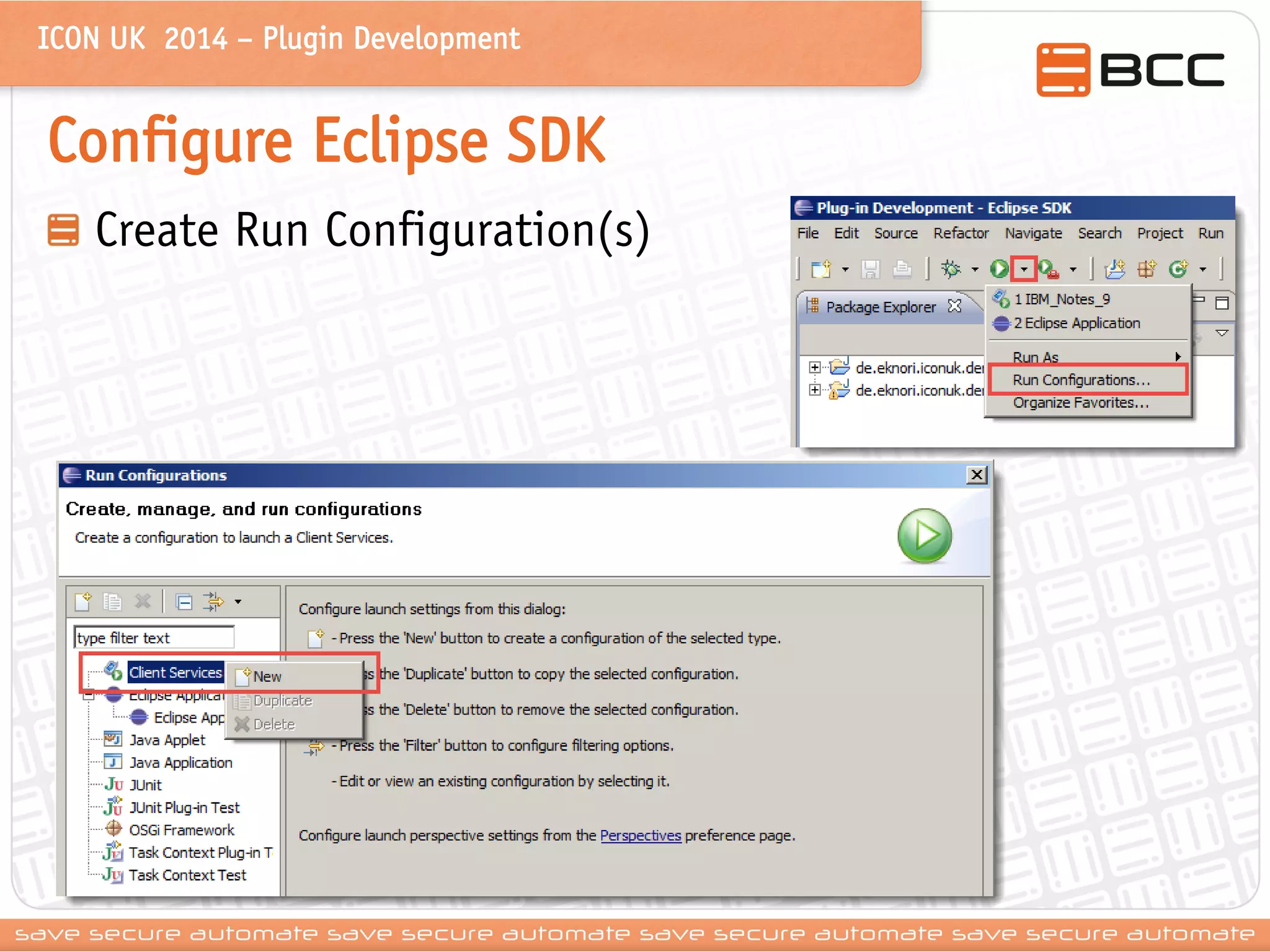

Configure Eclipse SDK Create Run Configuration(s)

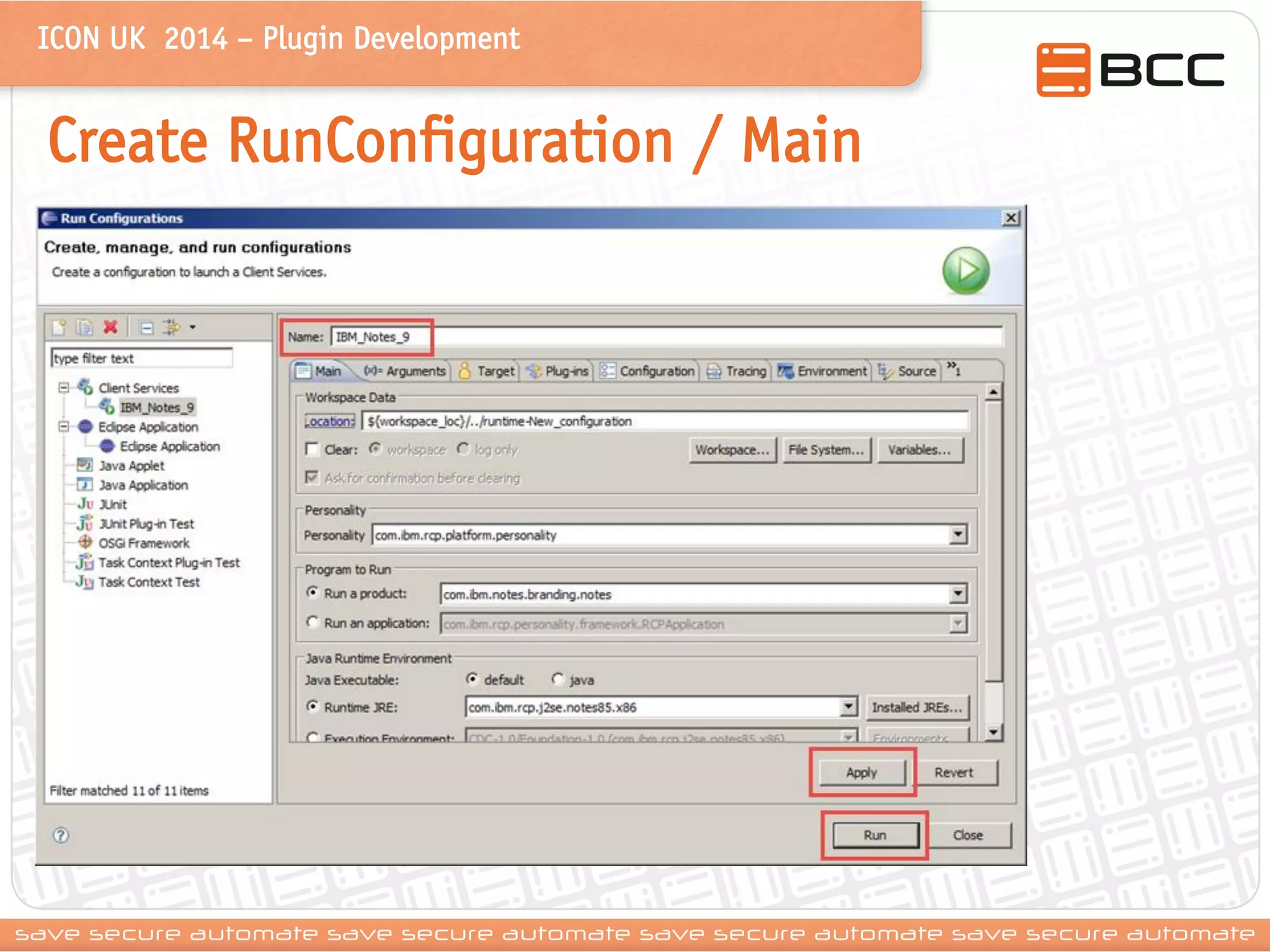

Create RunConfiguration / Main

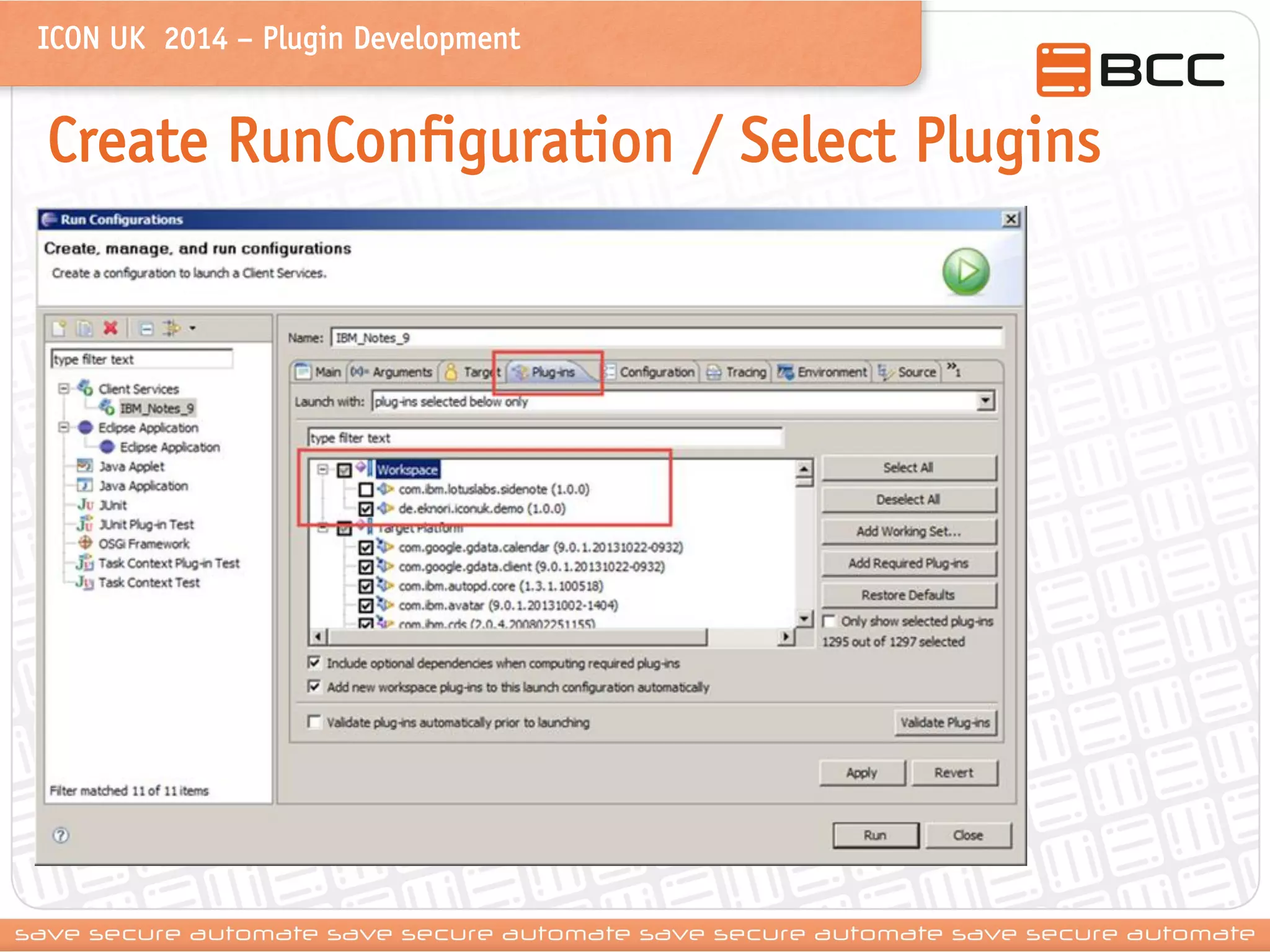

Create RunConfiguration / Select Plugins

Build Your First Plugin

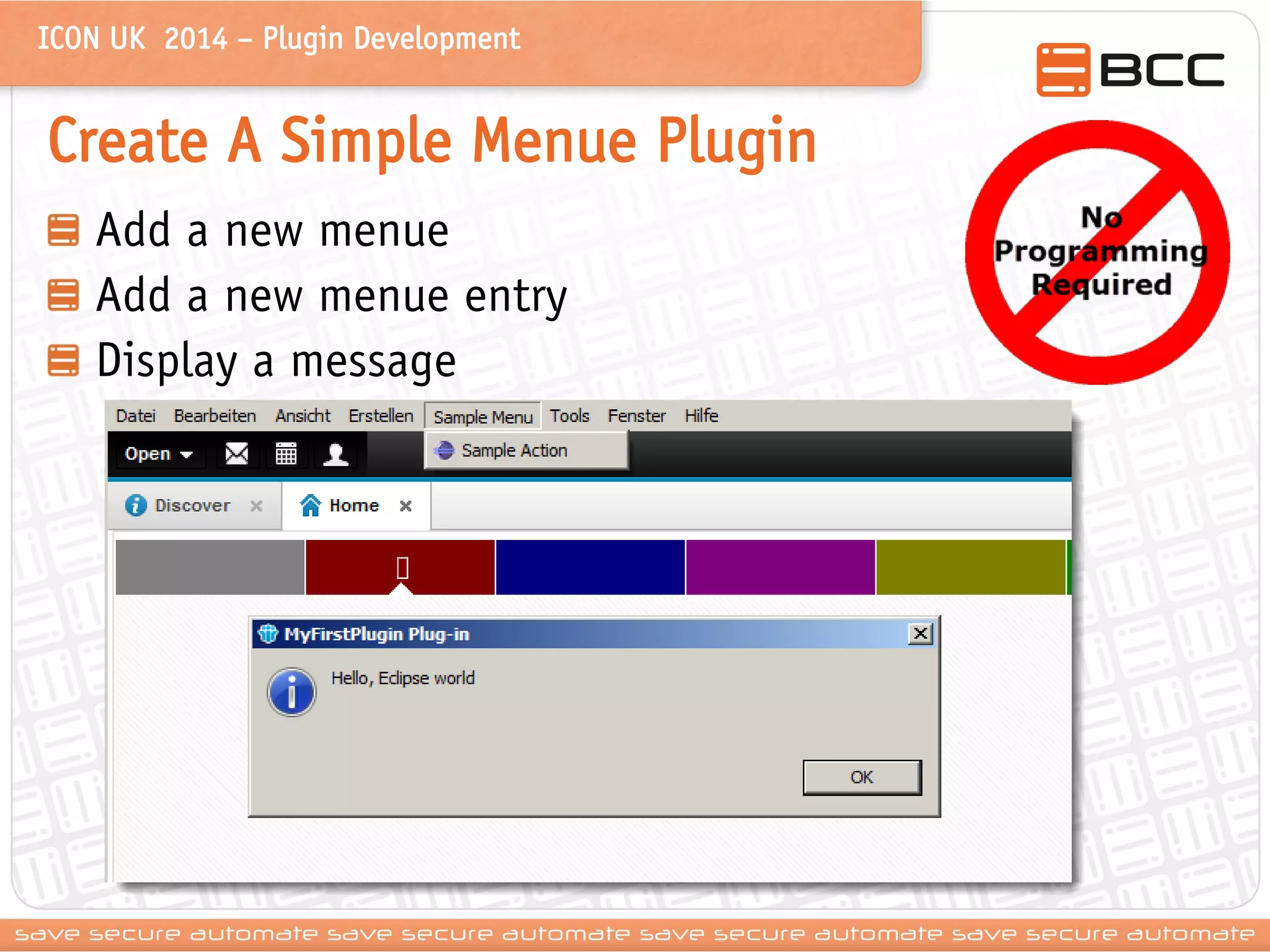

Create A Simple Menue Plugin Add a new menue Add a new menue entry Display a message

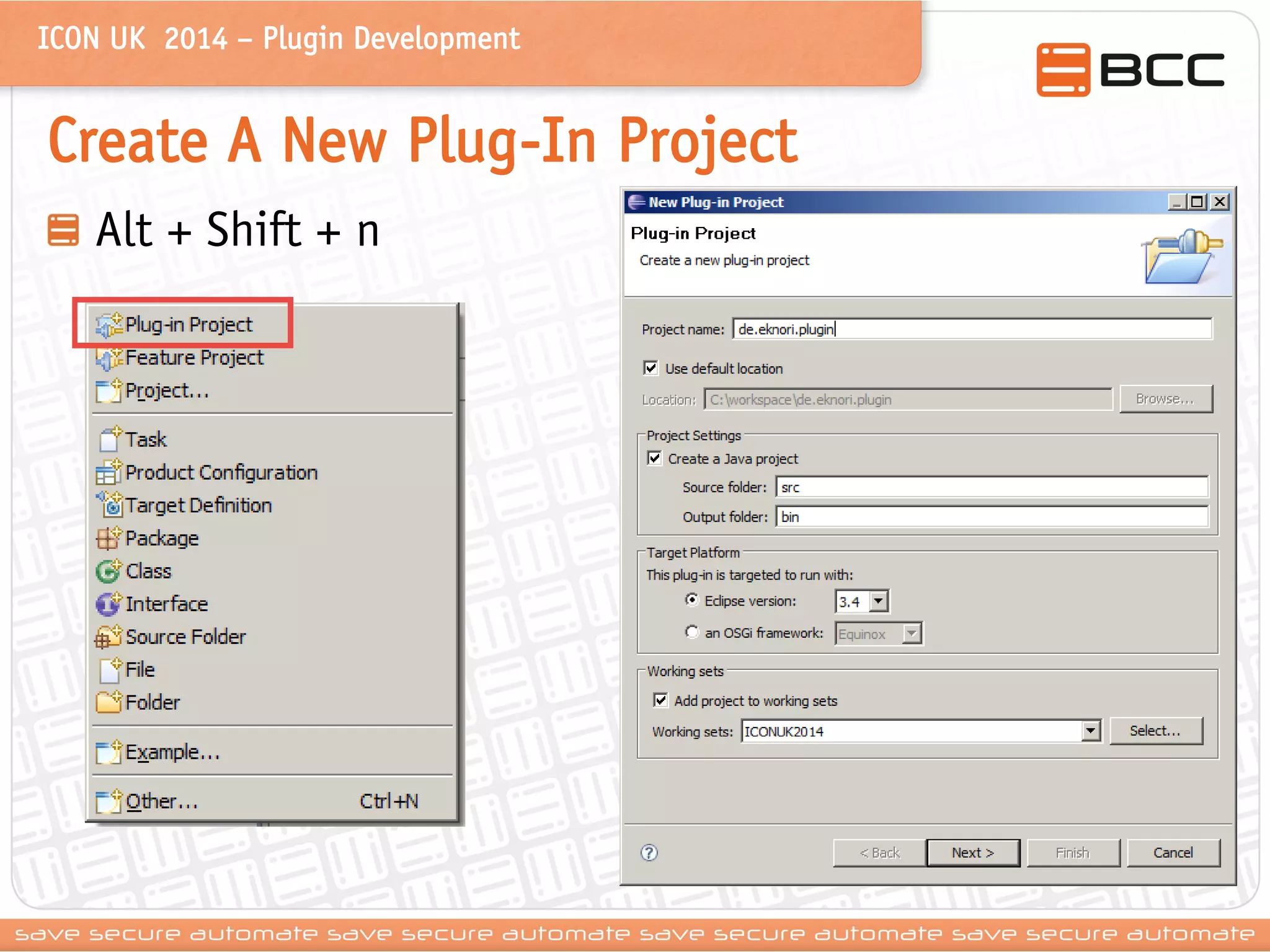

Create A New Plug-In Project Alt + Shift + n

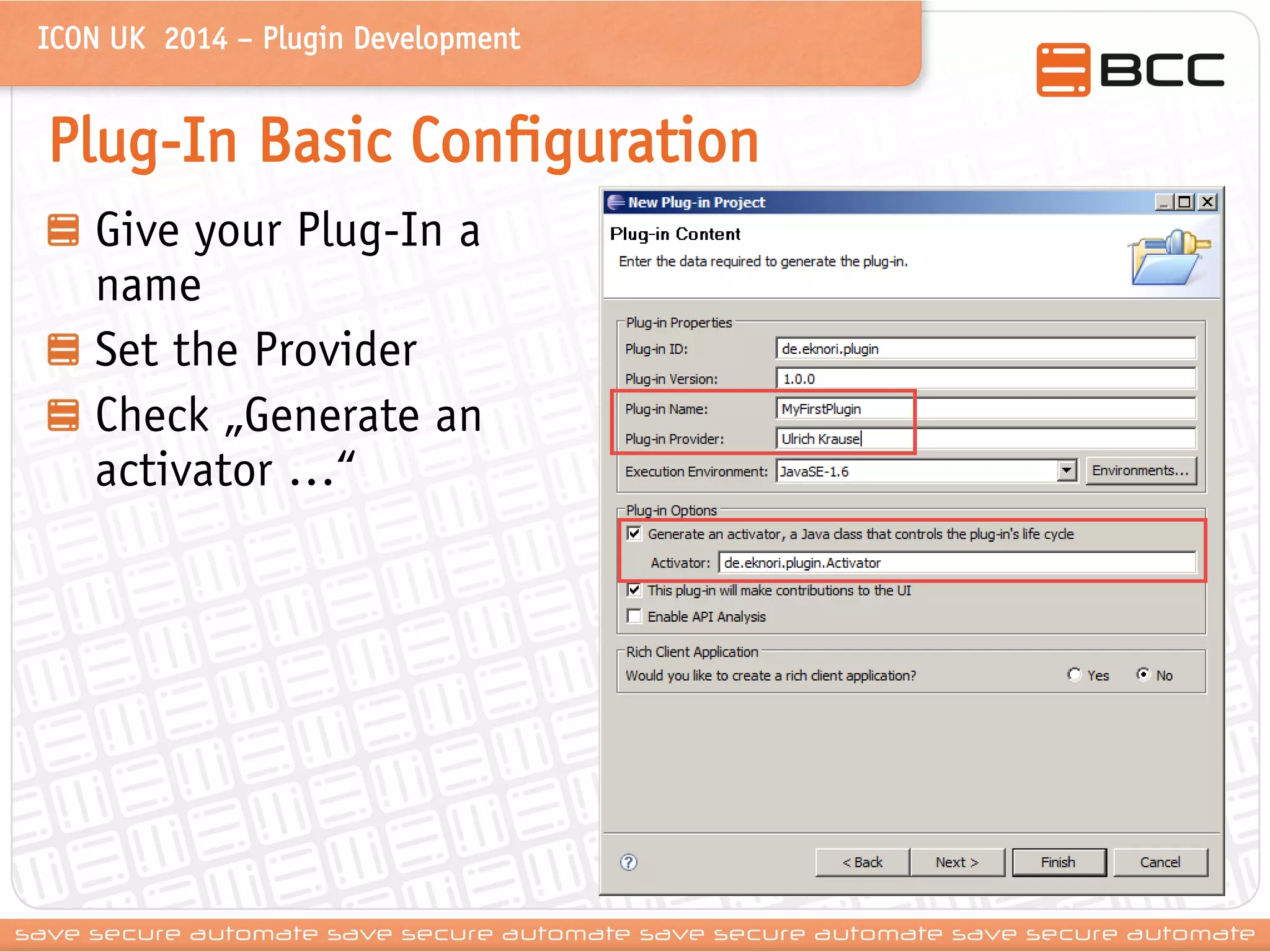

Plug-In Basic Configuration Give your Plug-In a name Set the Provider Check „Generate an activator …“

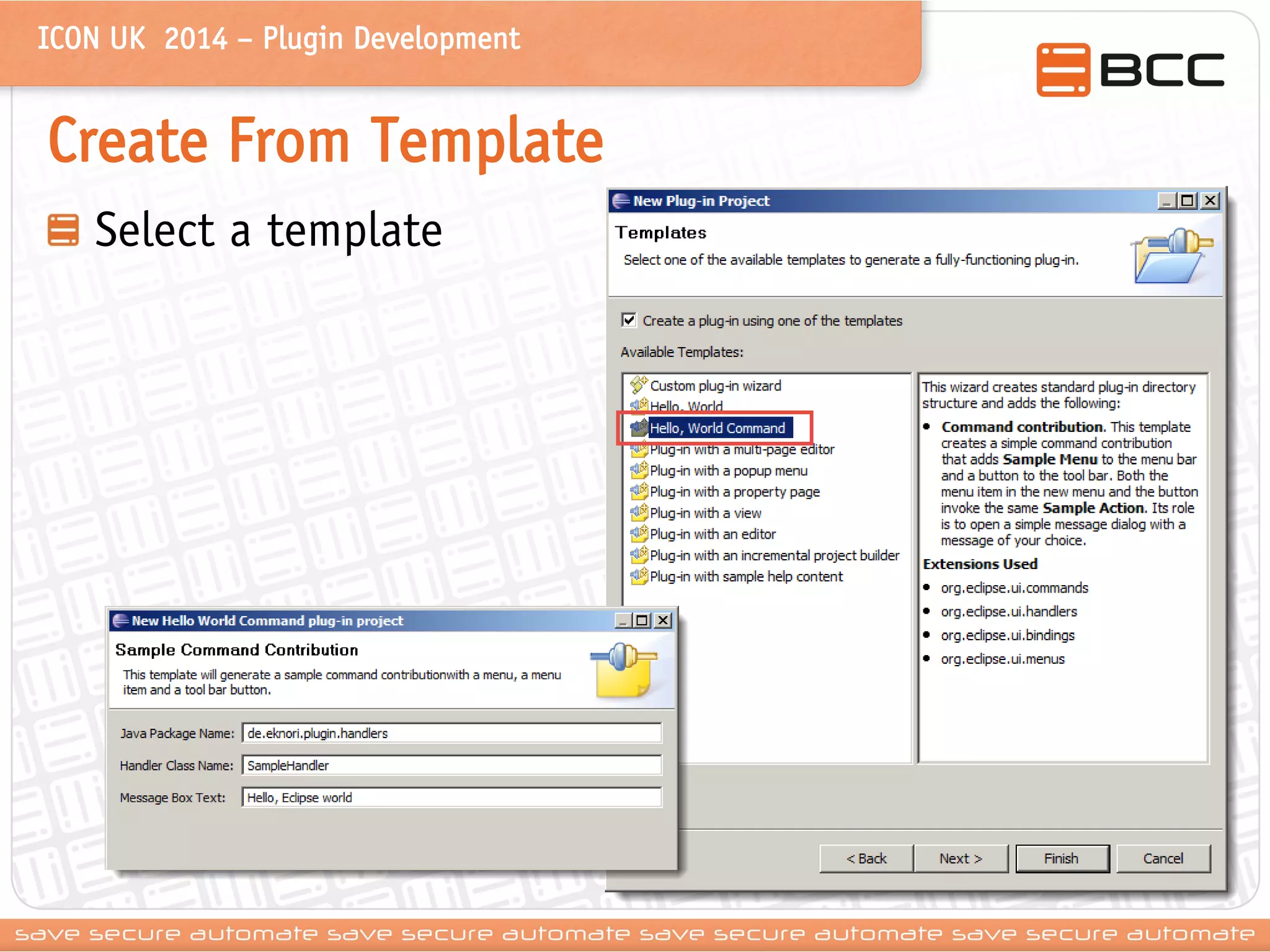

Create From Template Select a template

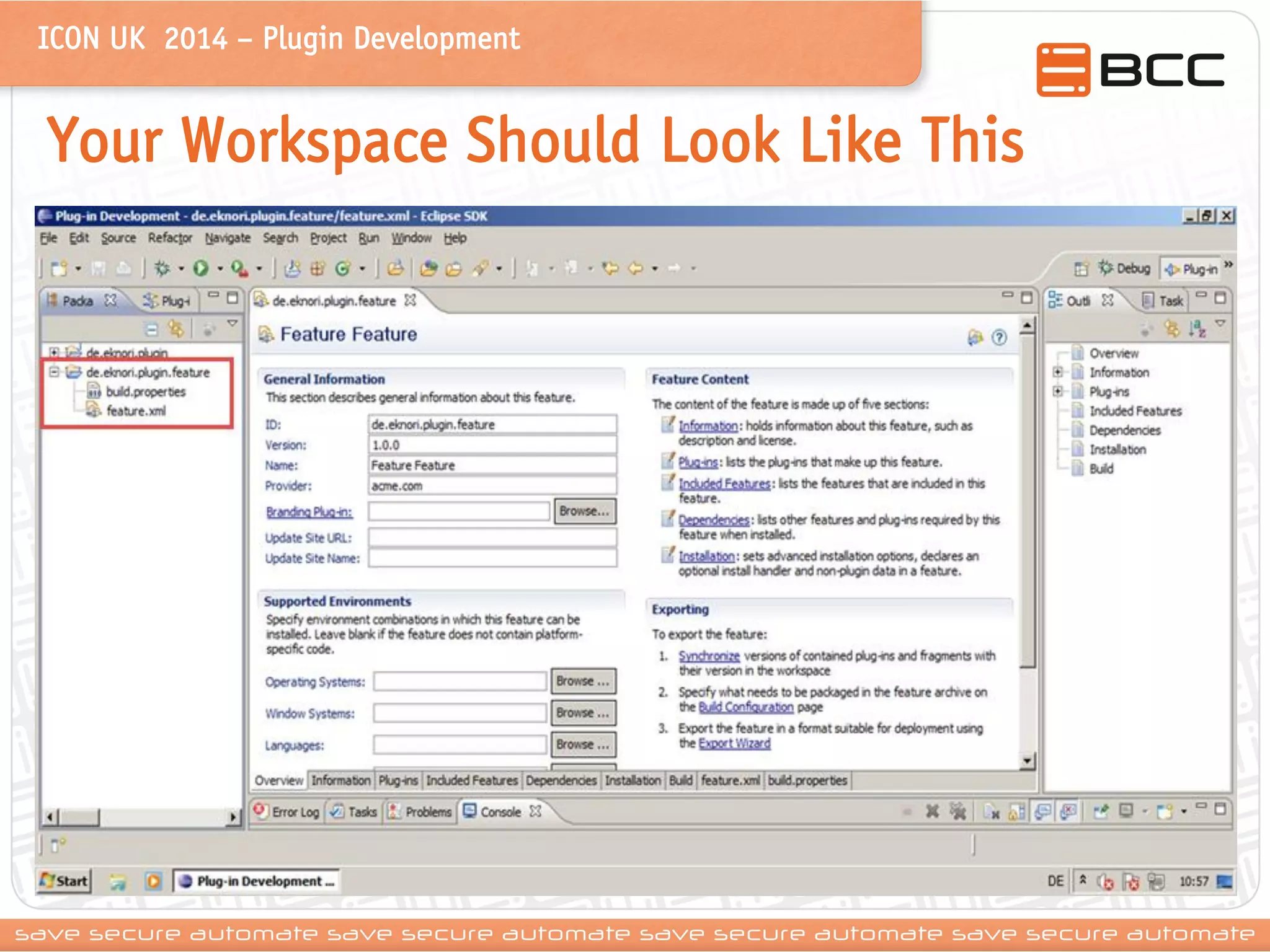

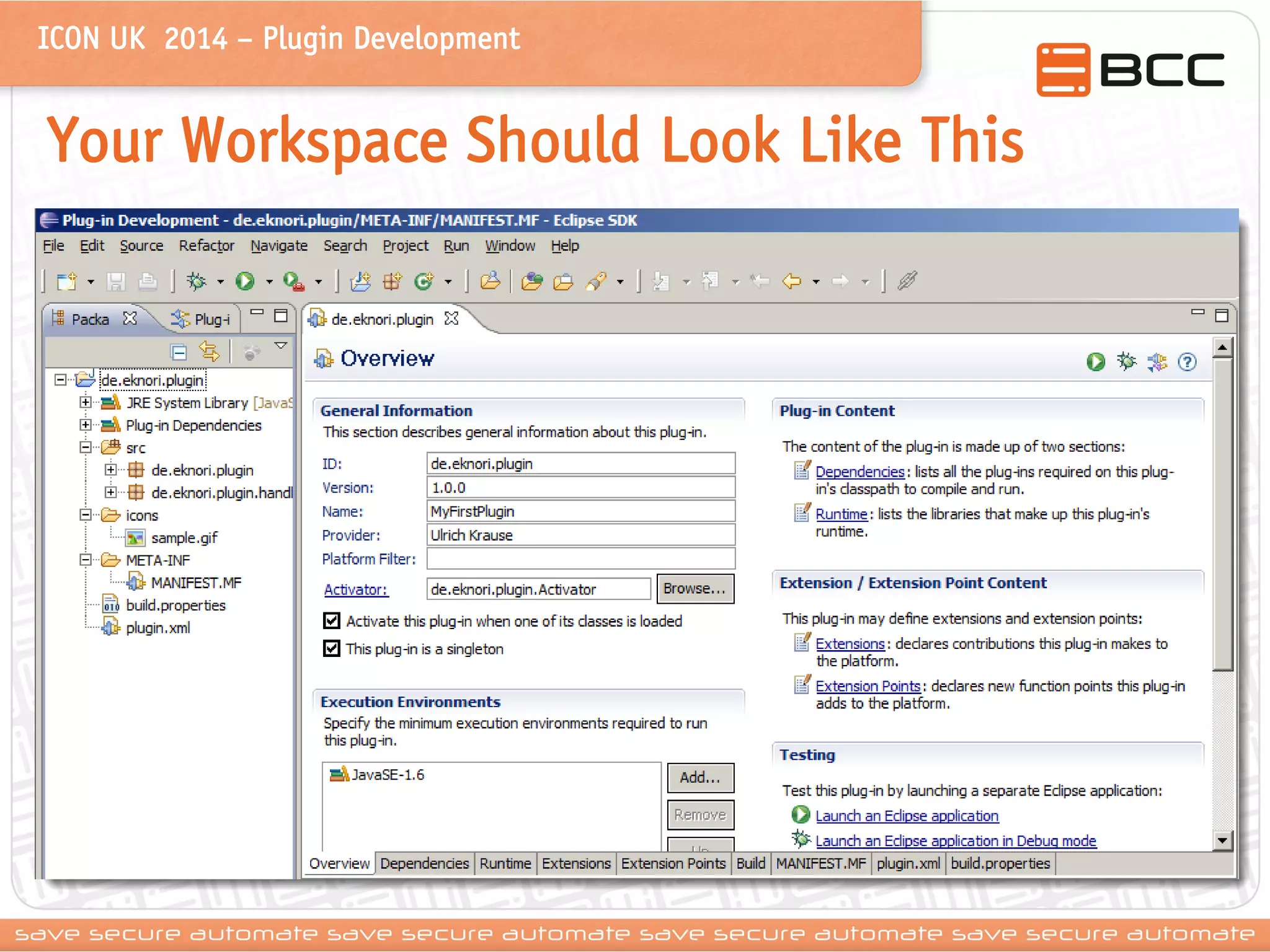

Your Workspace Should Look Like This

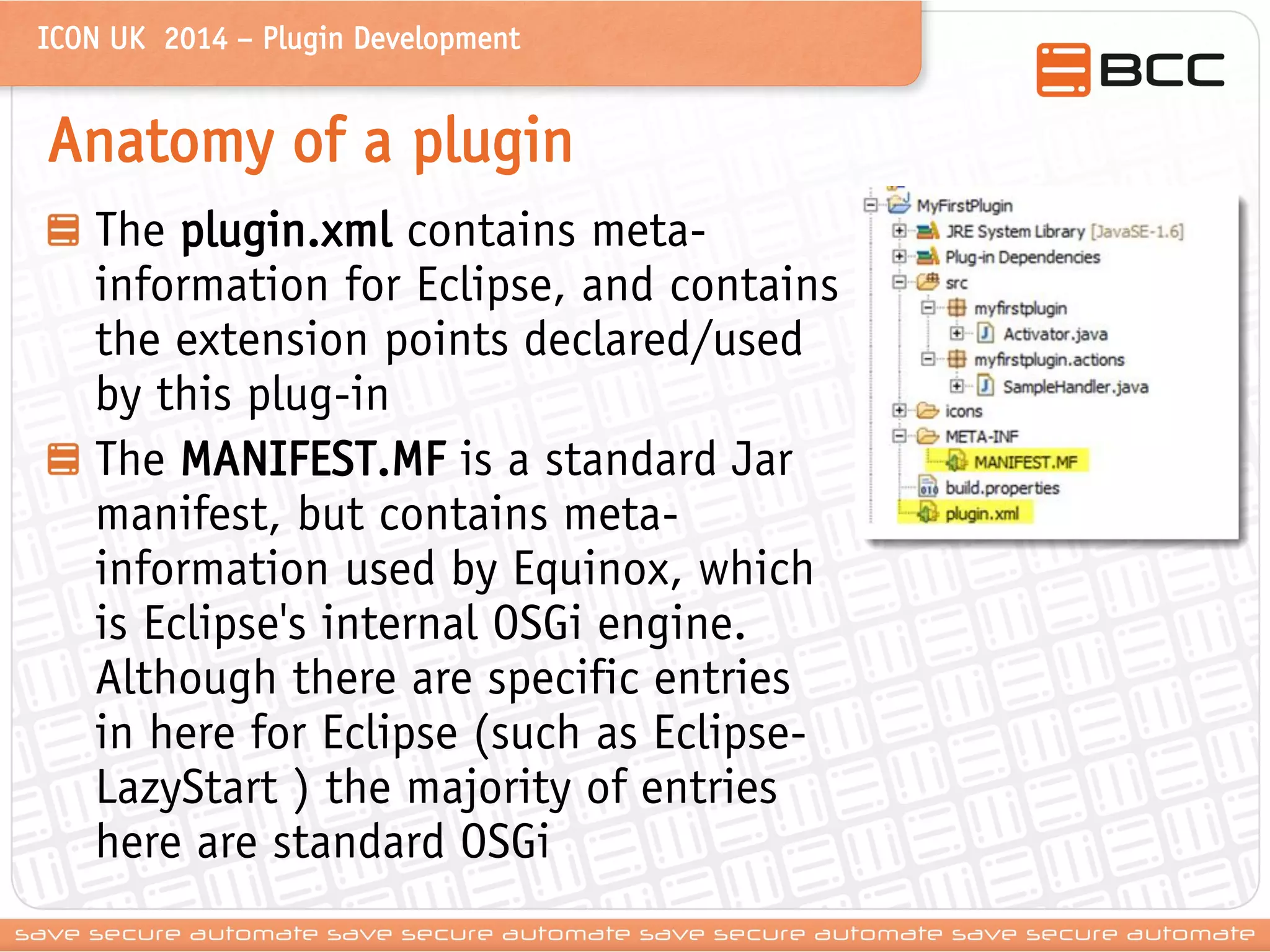

Anatomy of a plugin The plugin.xml contains meta- information for Eclipse, and contains the extension points declared/used by this plug-in The MANIFEST.MF is a standard Jar manifest, but contains meta- information used by Equinox, which is Eclipse's internal OSGi engine. Although there are specific entries in here for Eclipse (such as Eclipse- LazyStart ) the majority of entries here are standard OSGi

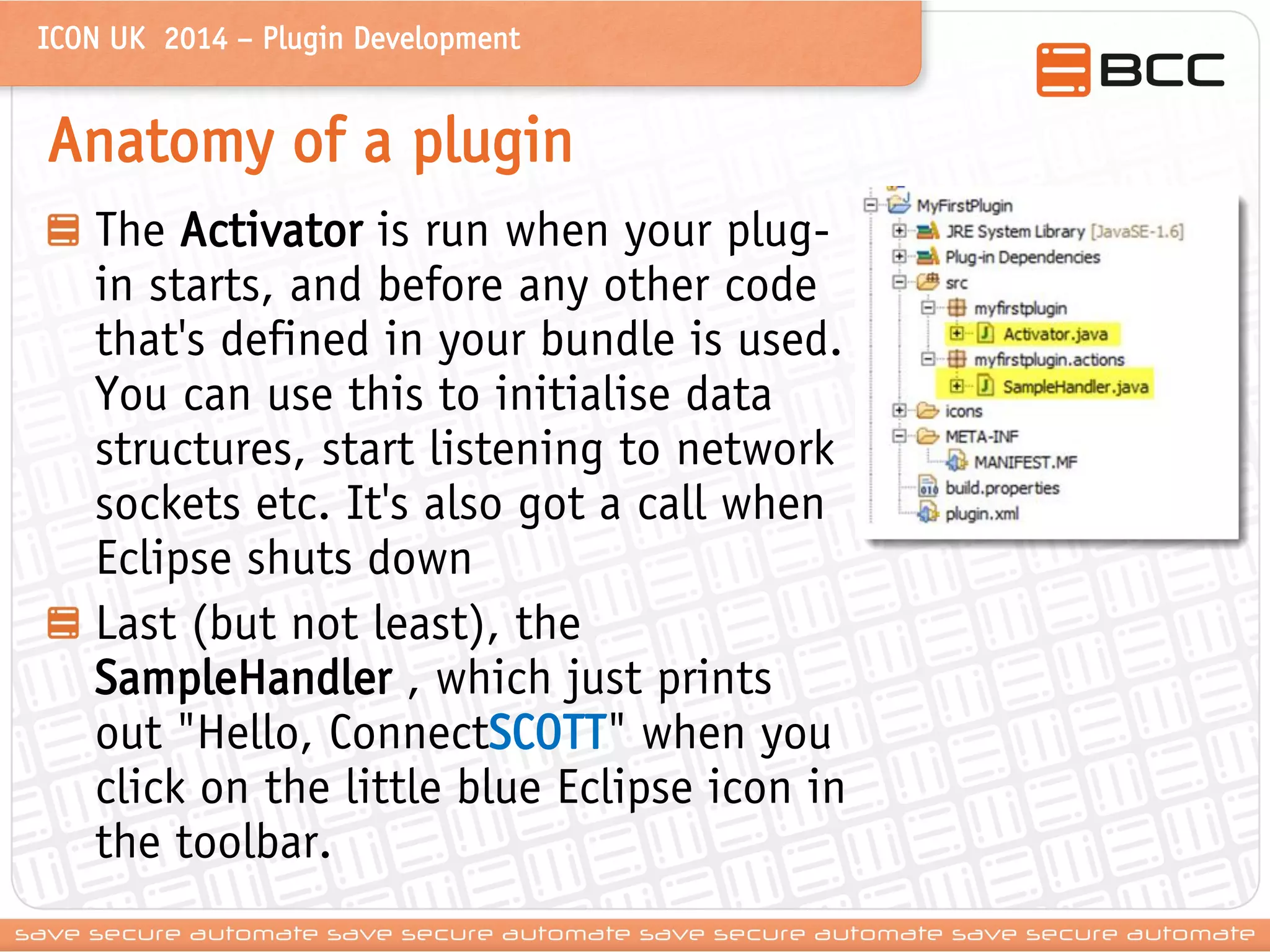

Anatomy of a plugin The Activator is run when your plugin starts, and before any other code that's defined in your bundle is used. You can use this to initialise data structures, start listening to network sockets etc. It's also got a call when Eclipse shuts down Last (but not least), the SampleHandler , which just prints out "Hello, ConnectSCOTT" when you click on the little blue Eclipse icon in the toolbar.

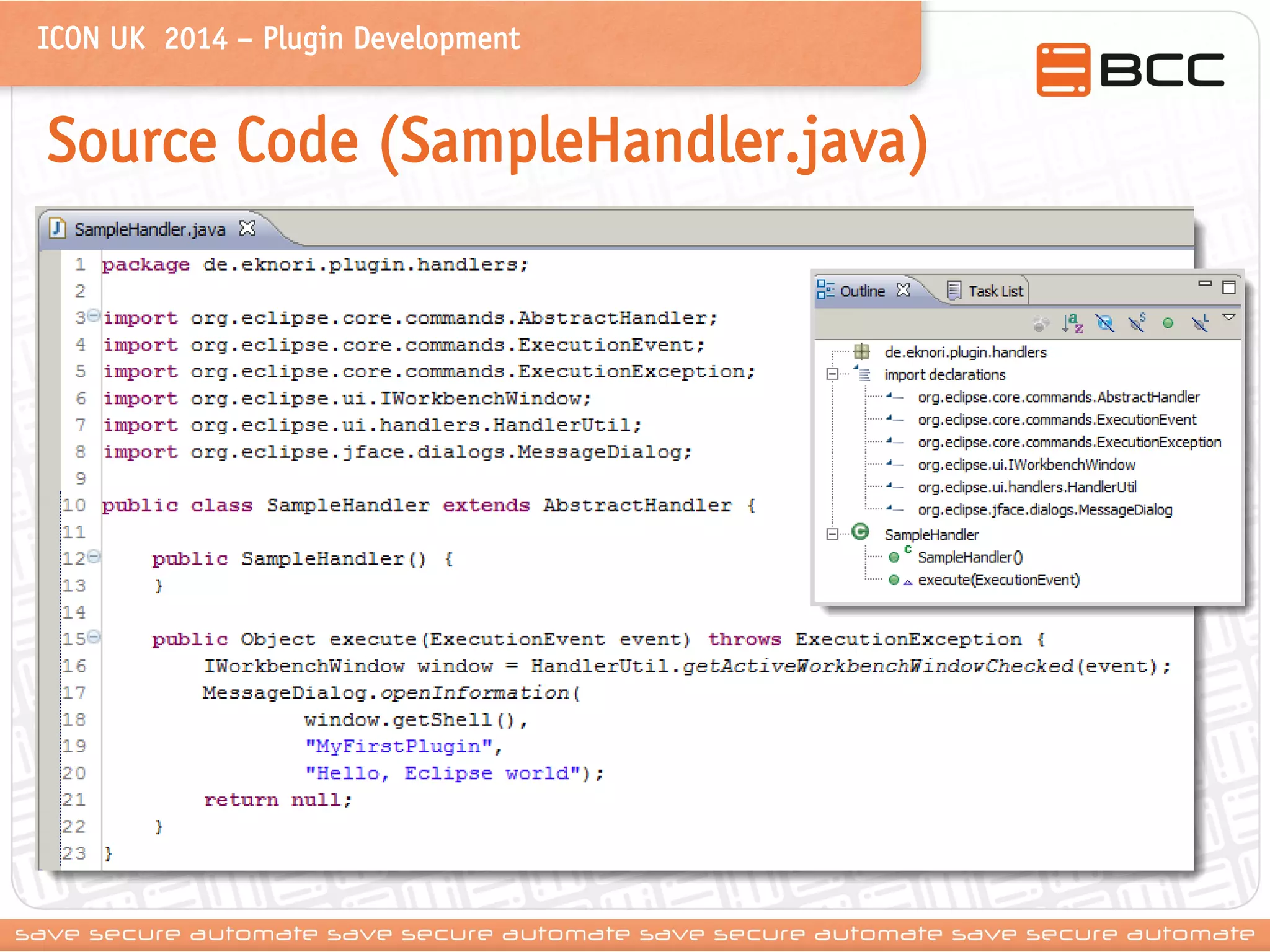

Source Code (SampleHandler.java)

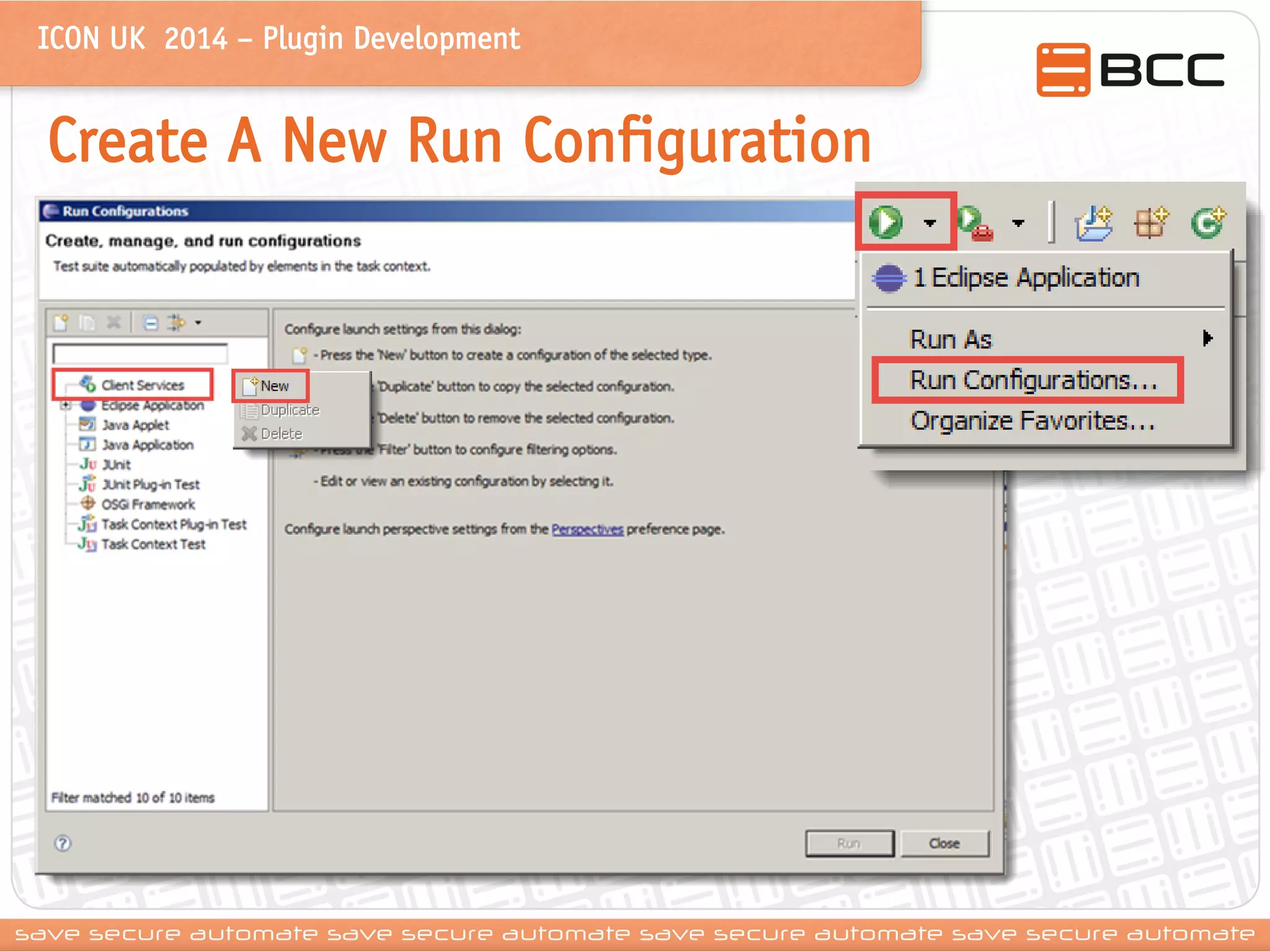

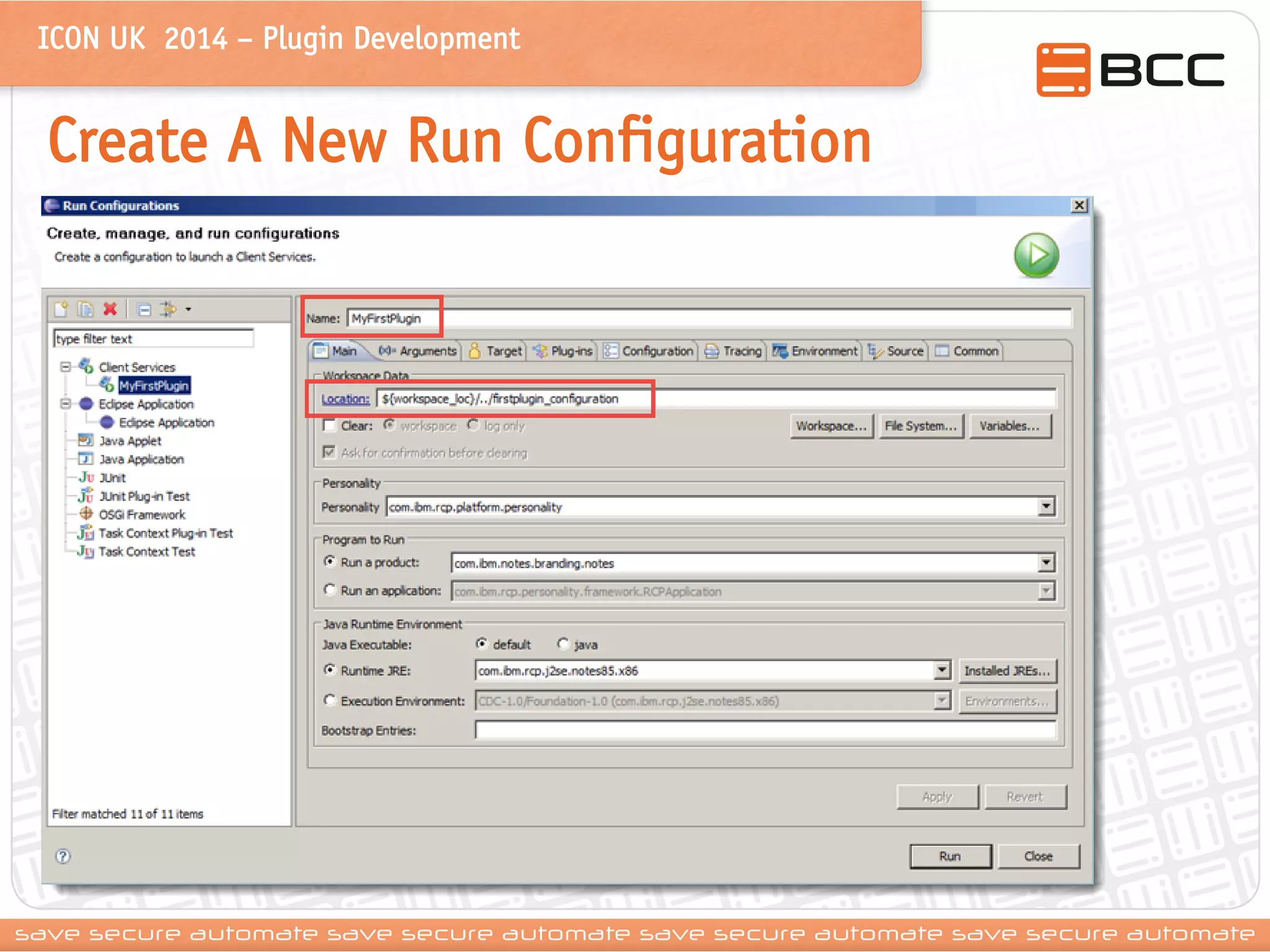

Create A New Run Configuration

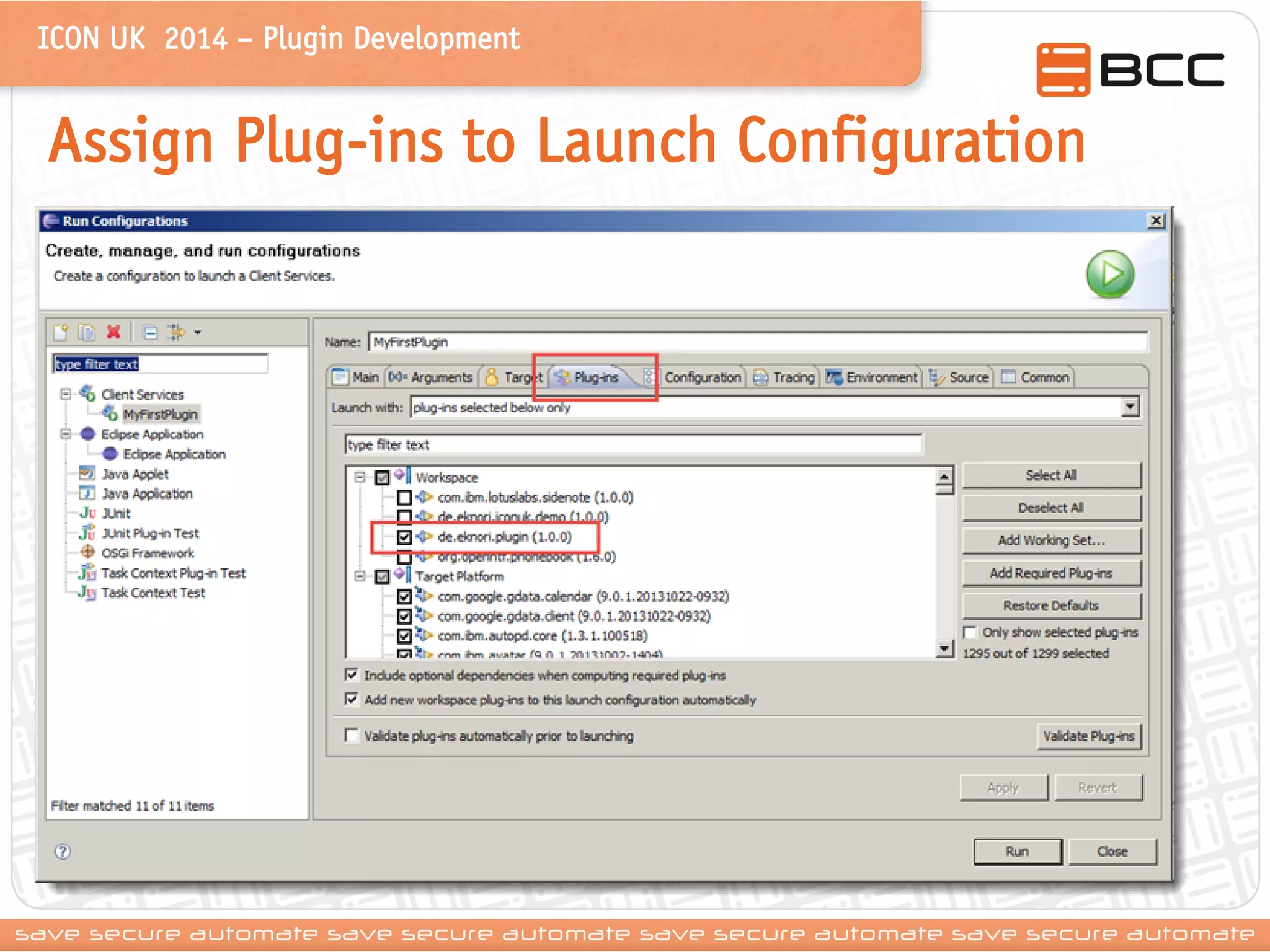

Assign Plug-ins to Launch Configuration

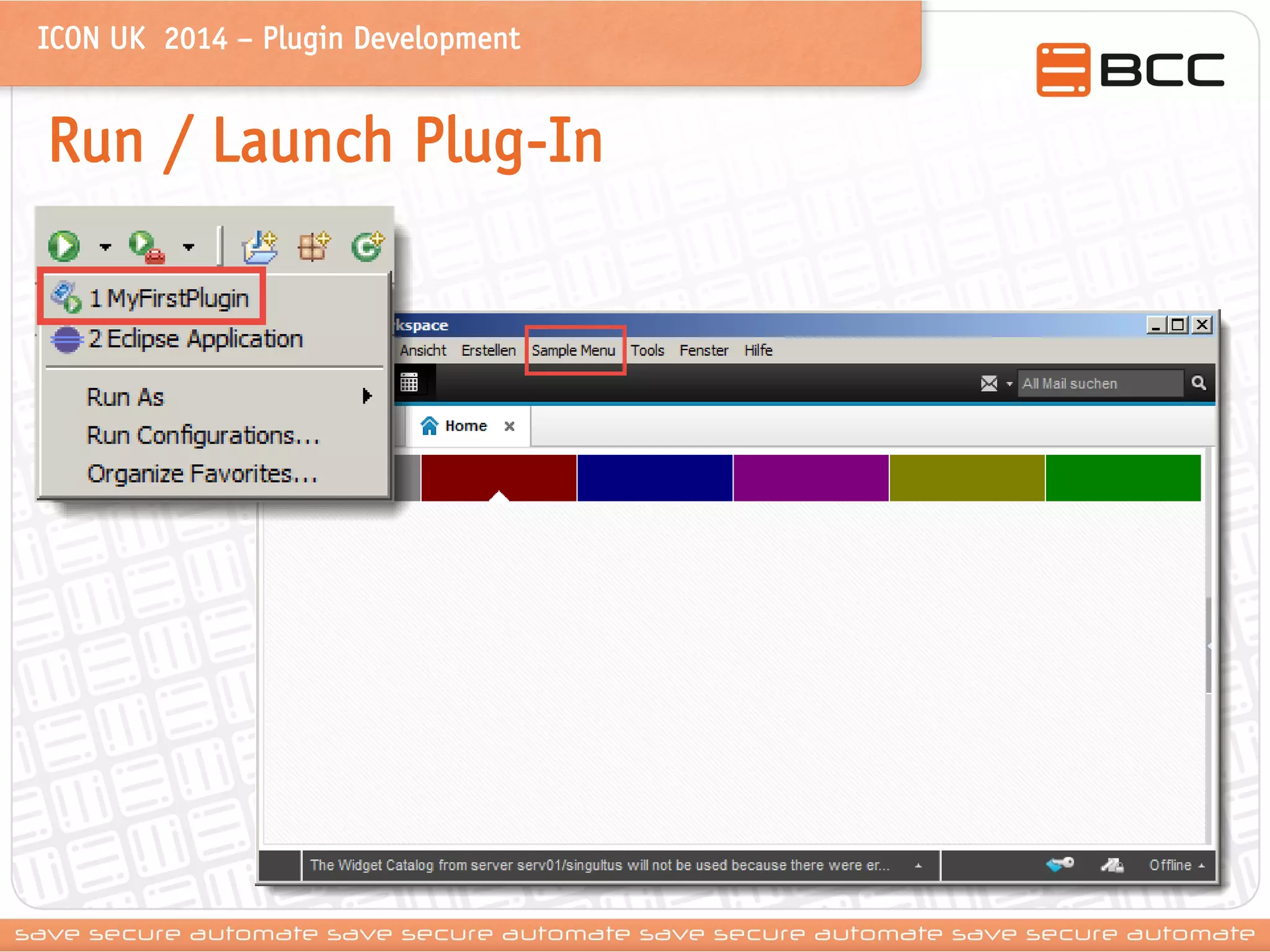

Run / Launch Plug-In

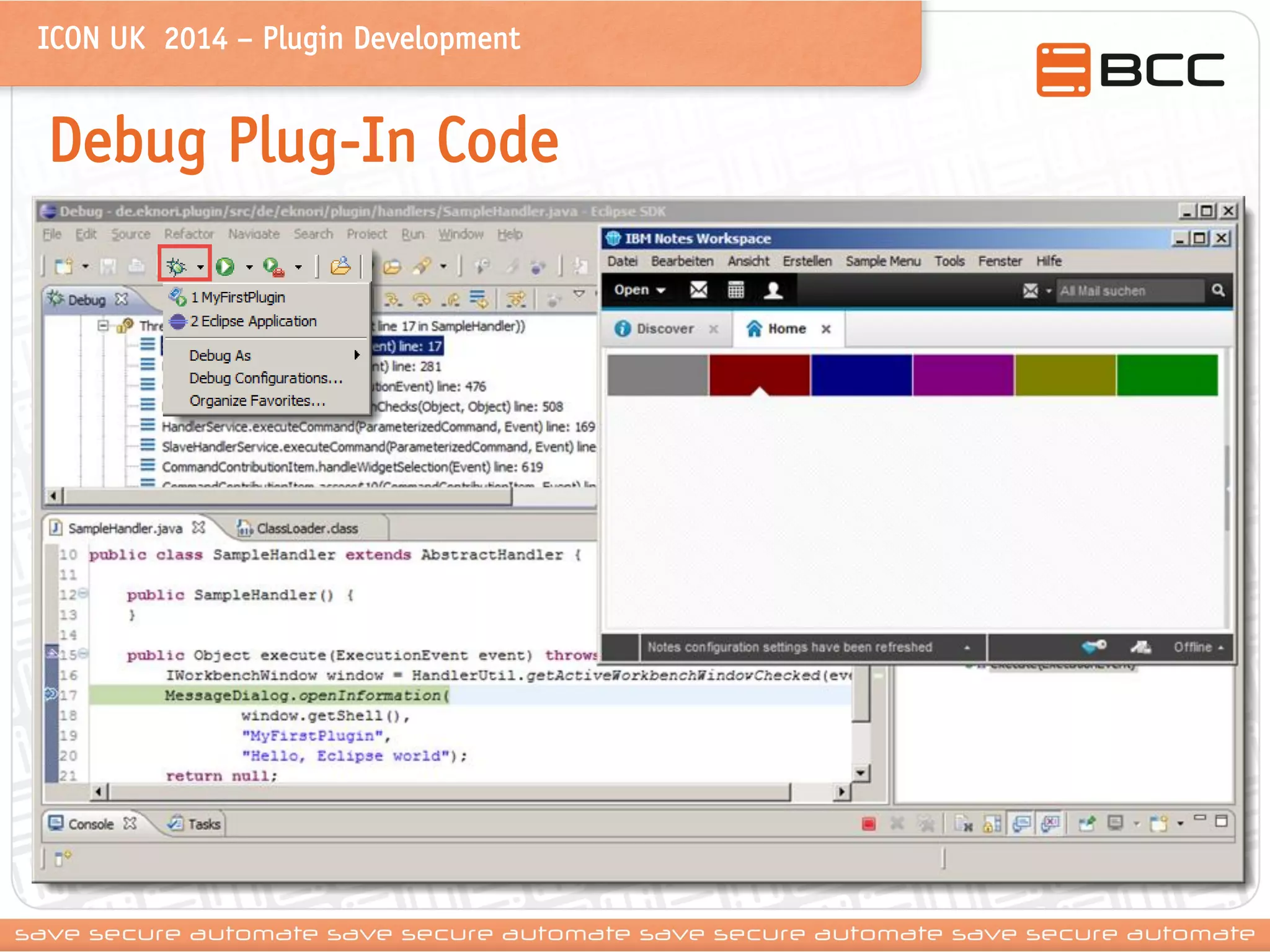

Debug Plug-In Code

Create A Sidebar Plug-In

Create a SideBar Plugin Simple Sidebar Plug-In for text snippets Content can be
•loaded from file
•saved to file Content is persistent between sessions

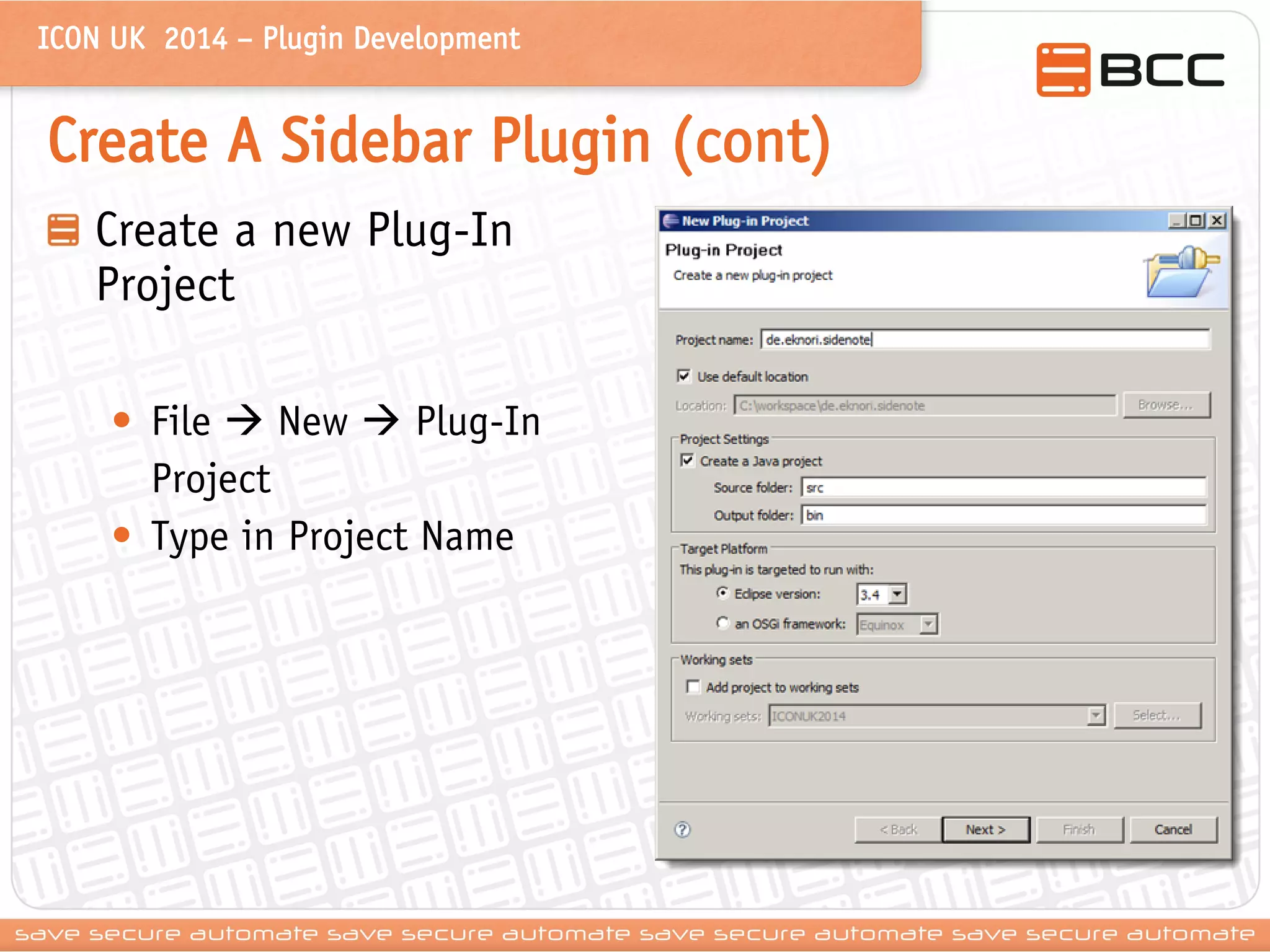

Create A Sidebar Plugin (cont) Create a new Plug-In Project
•File  New  Plug-In Project
•Type in Project Name

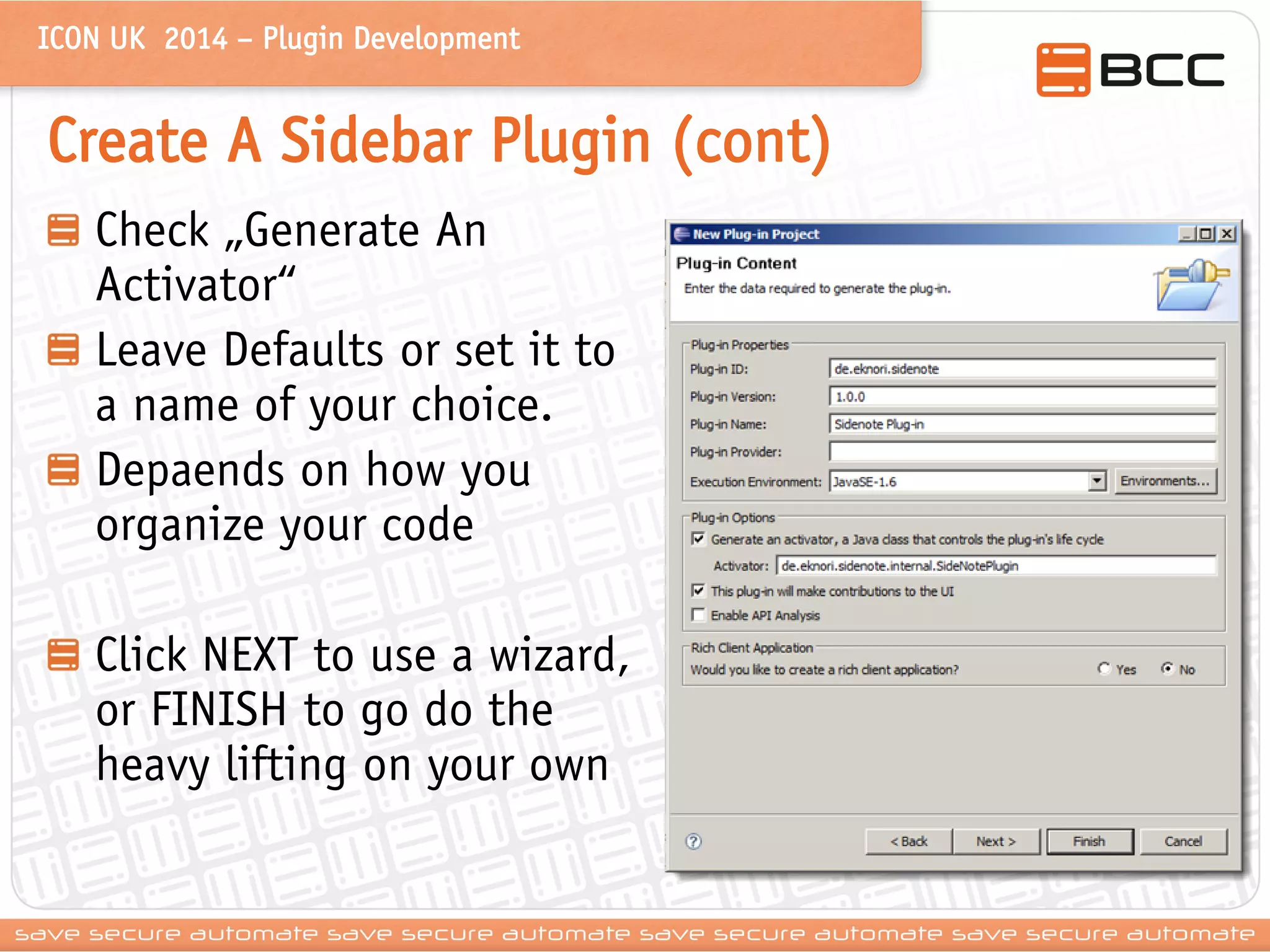

Create A Sidebar Plugin (cont) Check „Generate An Activator“ Leave Defaults or set it to a name of your choice. Depaends on how you organize your code Click NEXT to use a wizard, or FINISH to go do the heavy lifting on your own

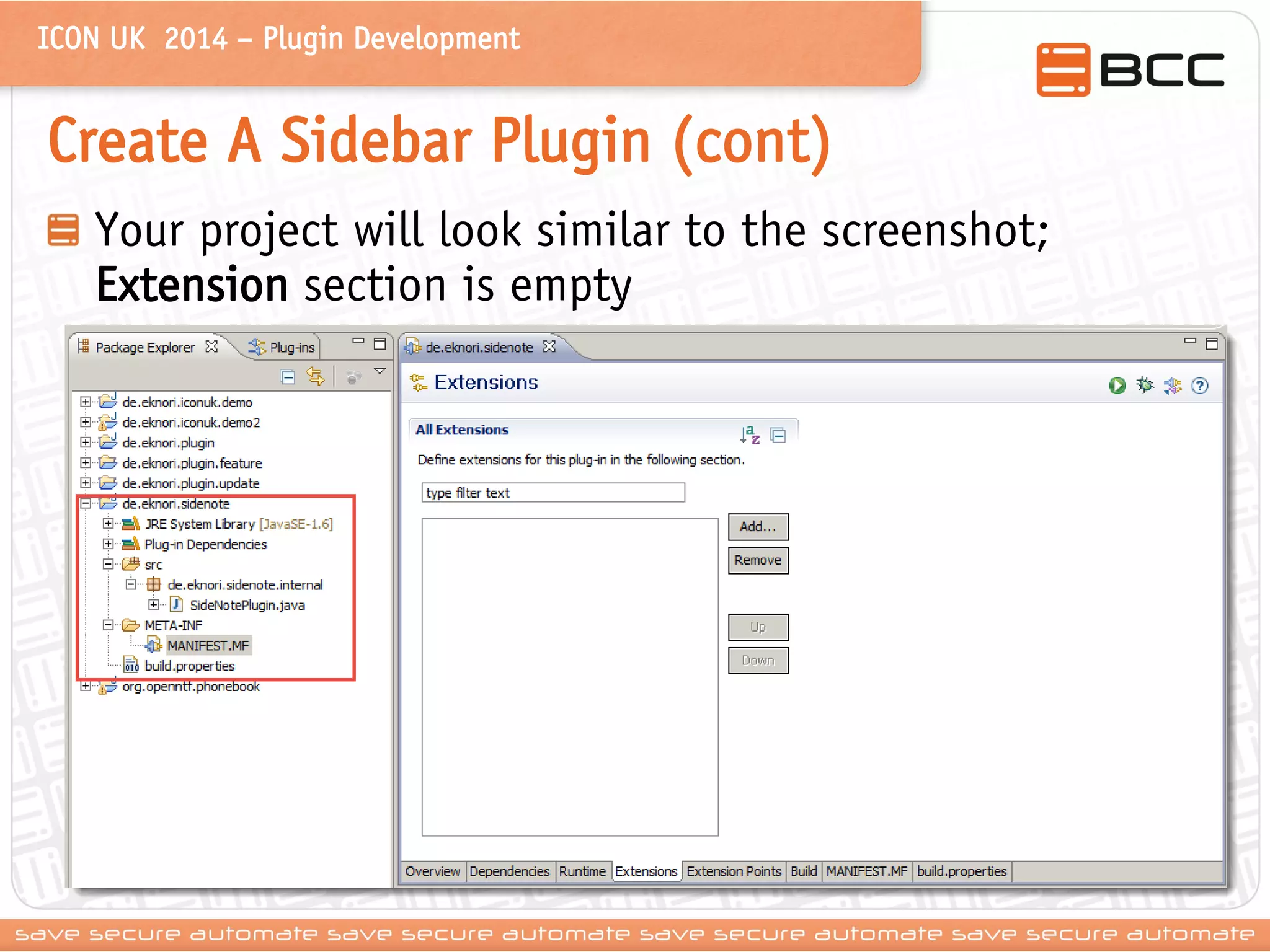

Create A Sidebar Plugin (cont) Your project will look similar to the screenshot; Extension section is empty

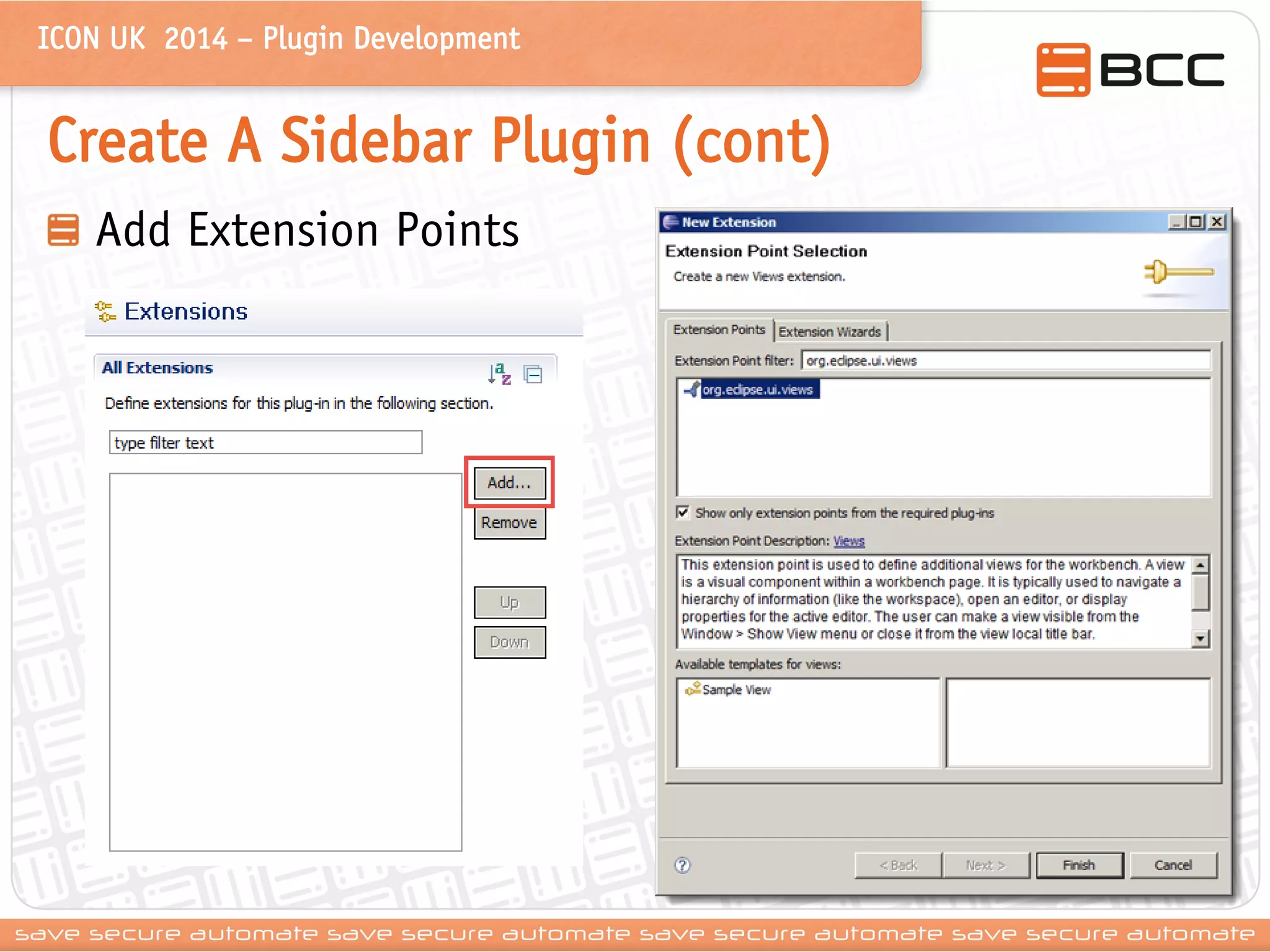

Create A Sidebar Plugin (cont) Add Extension Points

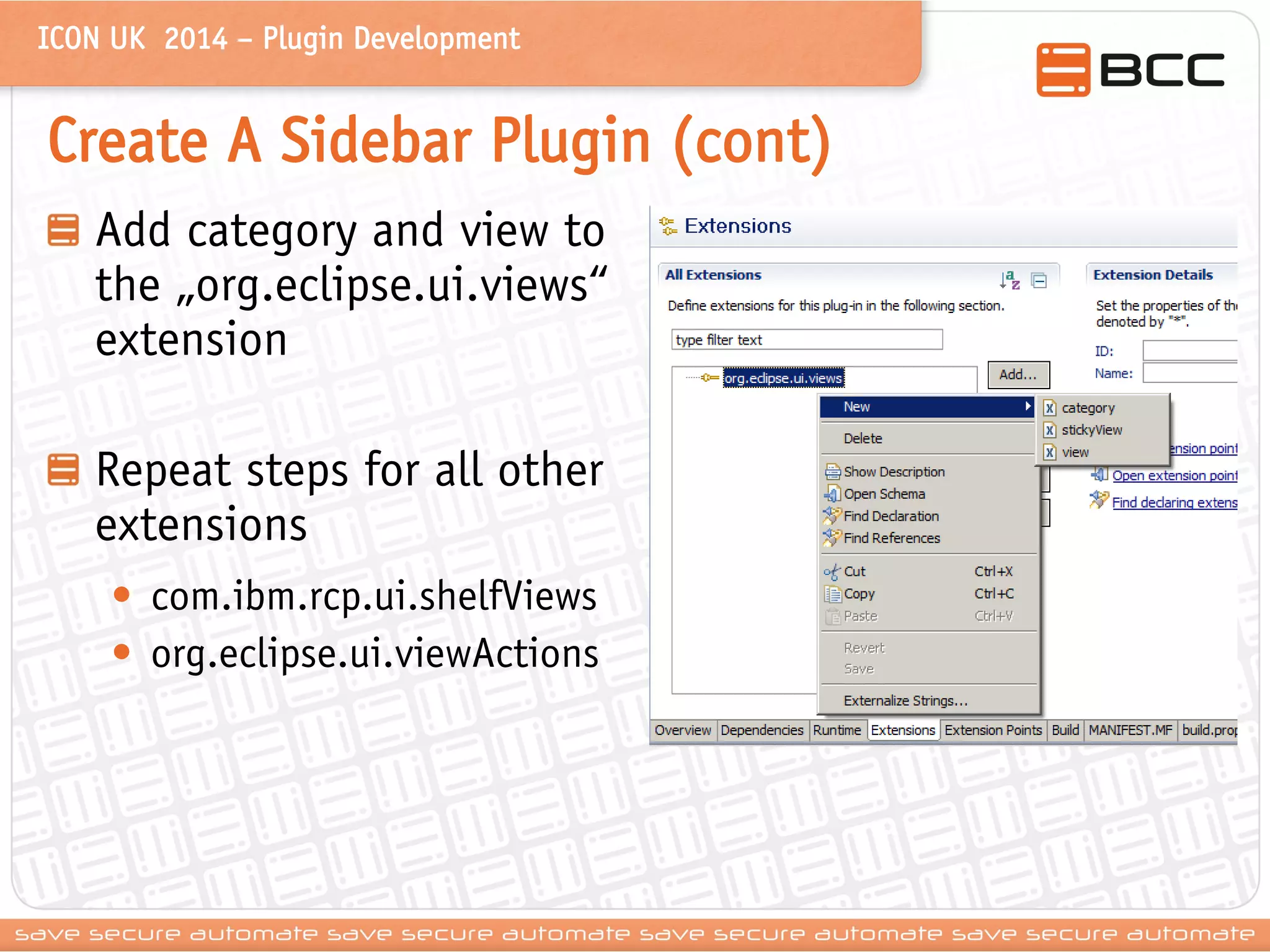

Create A Sidebar Plugin (cont) Add category and view to the „org.eclipse.ui.views“ extension Repeat steps for all other extensions
•com.ibm.rcp.ui.shelfViews
•org.eclipse.ui.viewActions

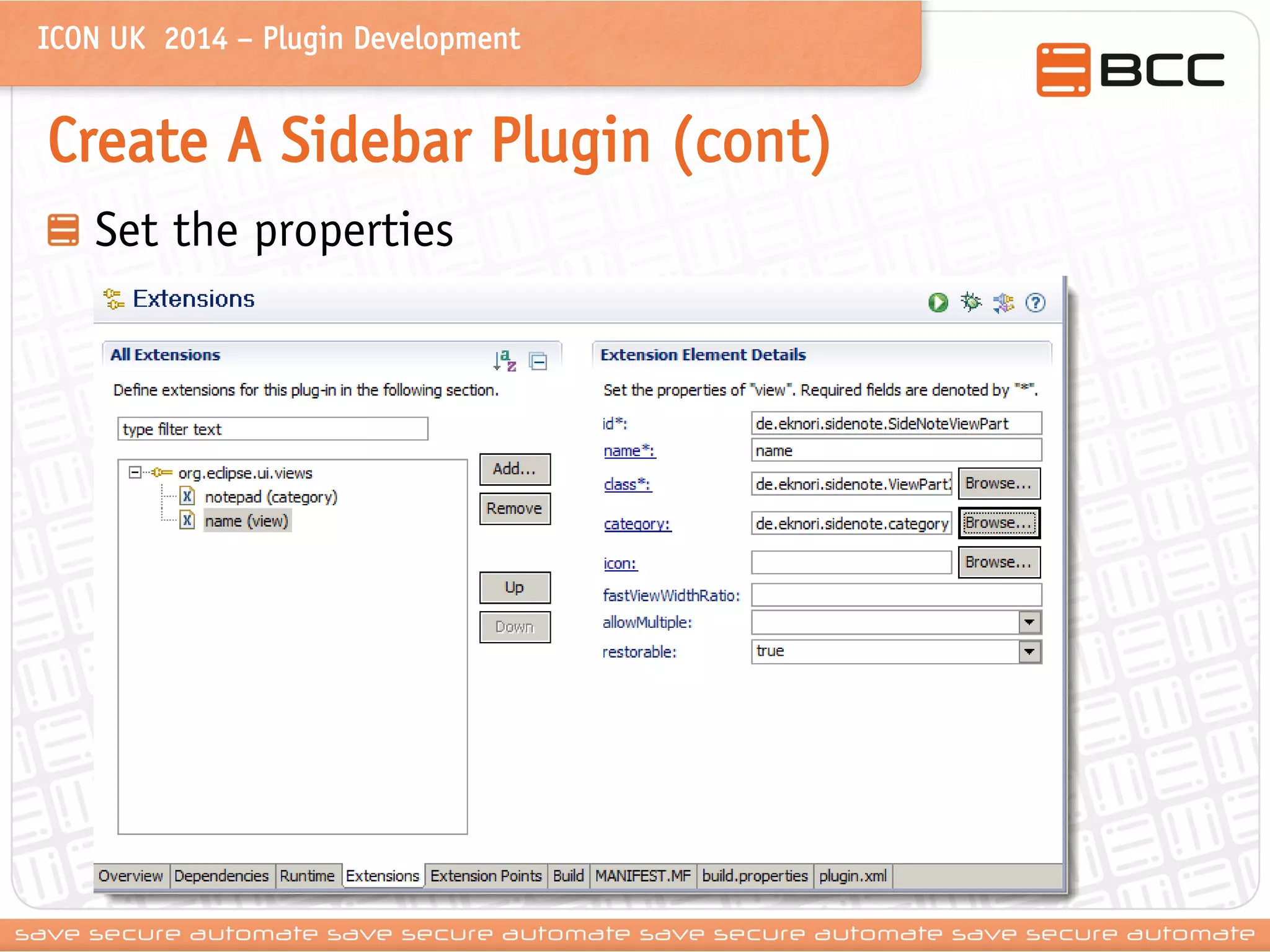

Create A Sidebar Plugin (cont) Set the properties

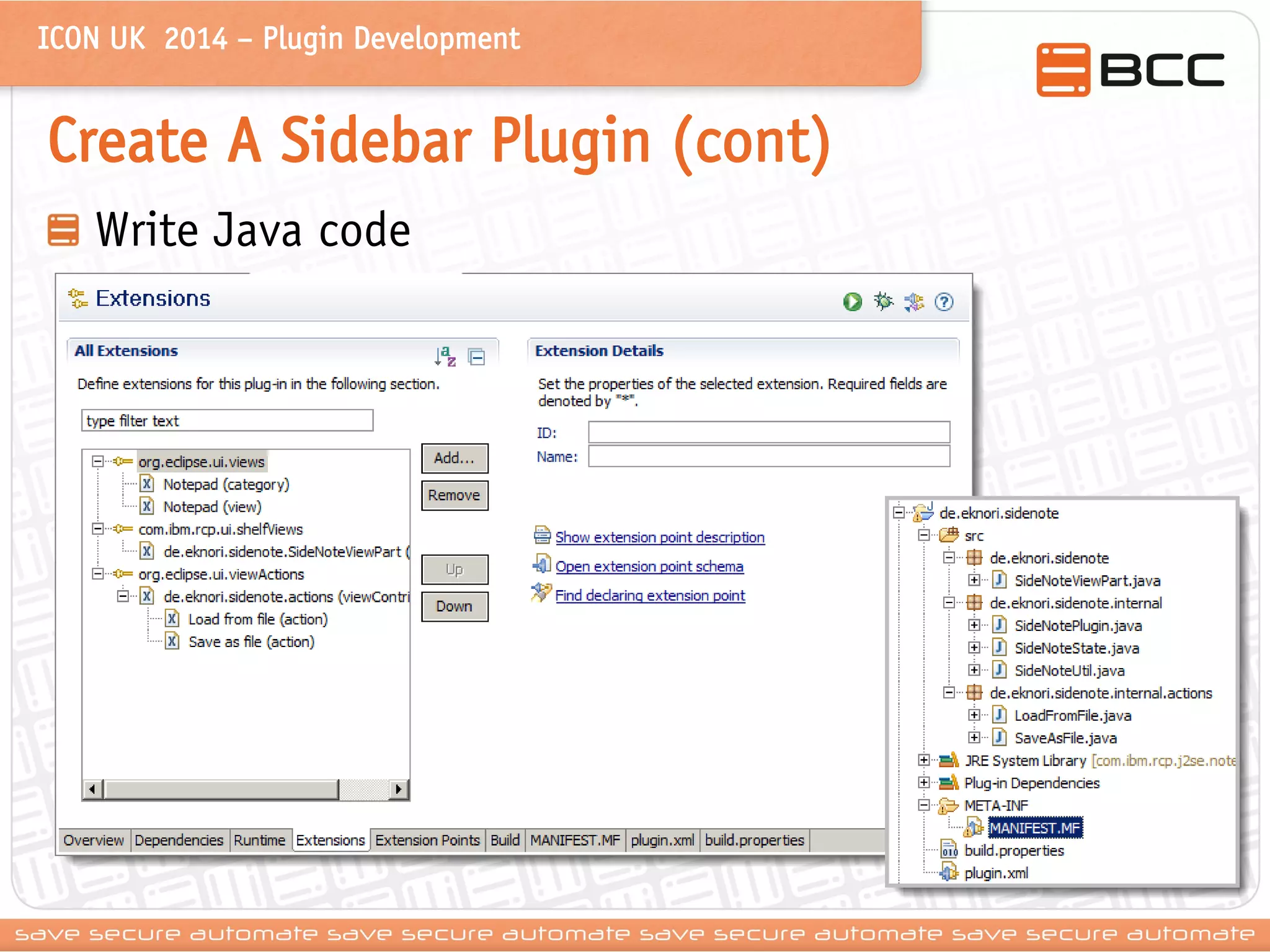

Create A Sidebar Plugin (cont) Write Java code

Working With Existing Projects

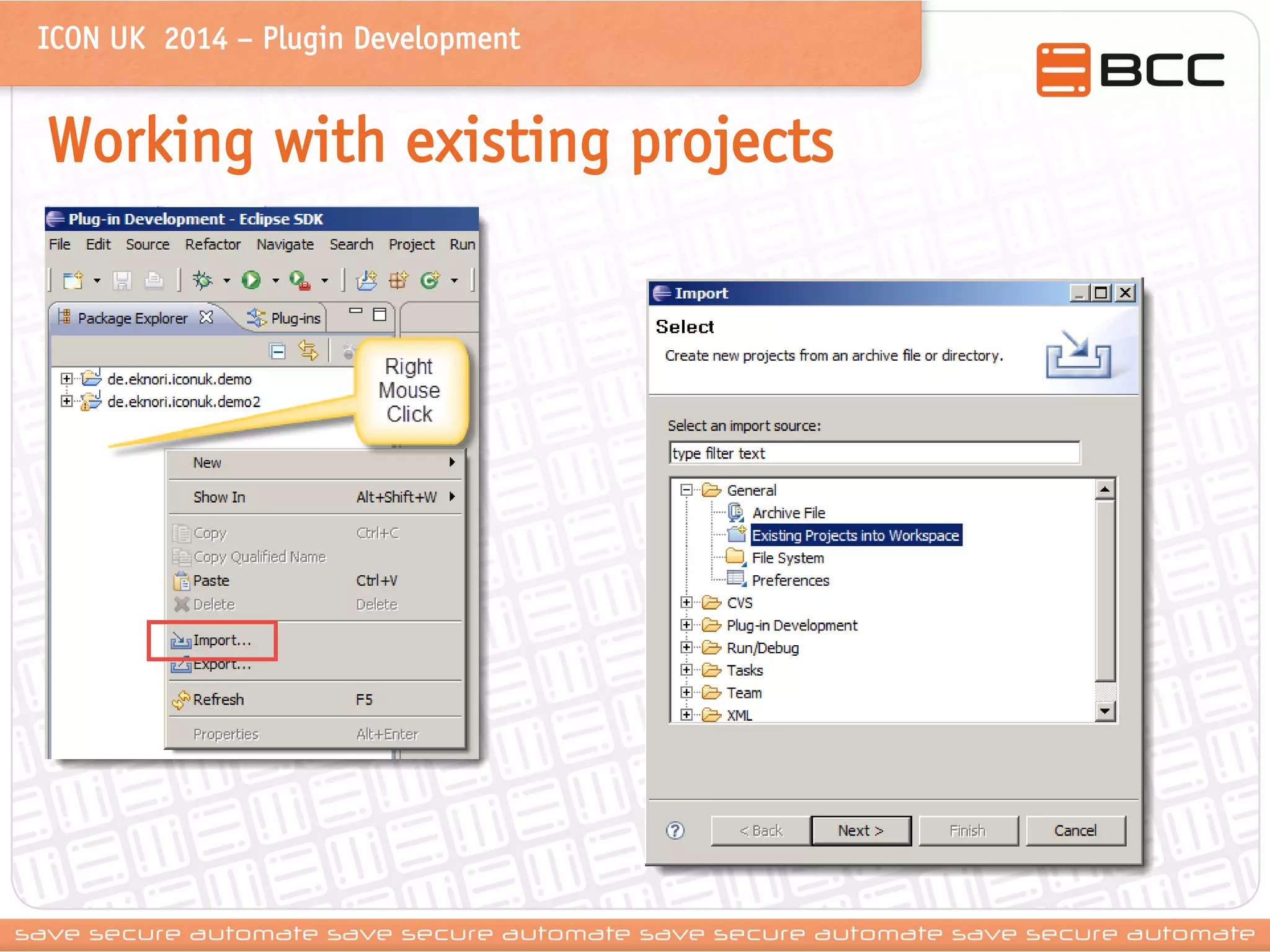

Working with existing projects

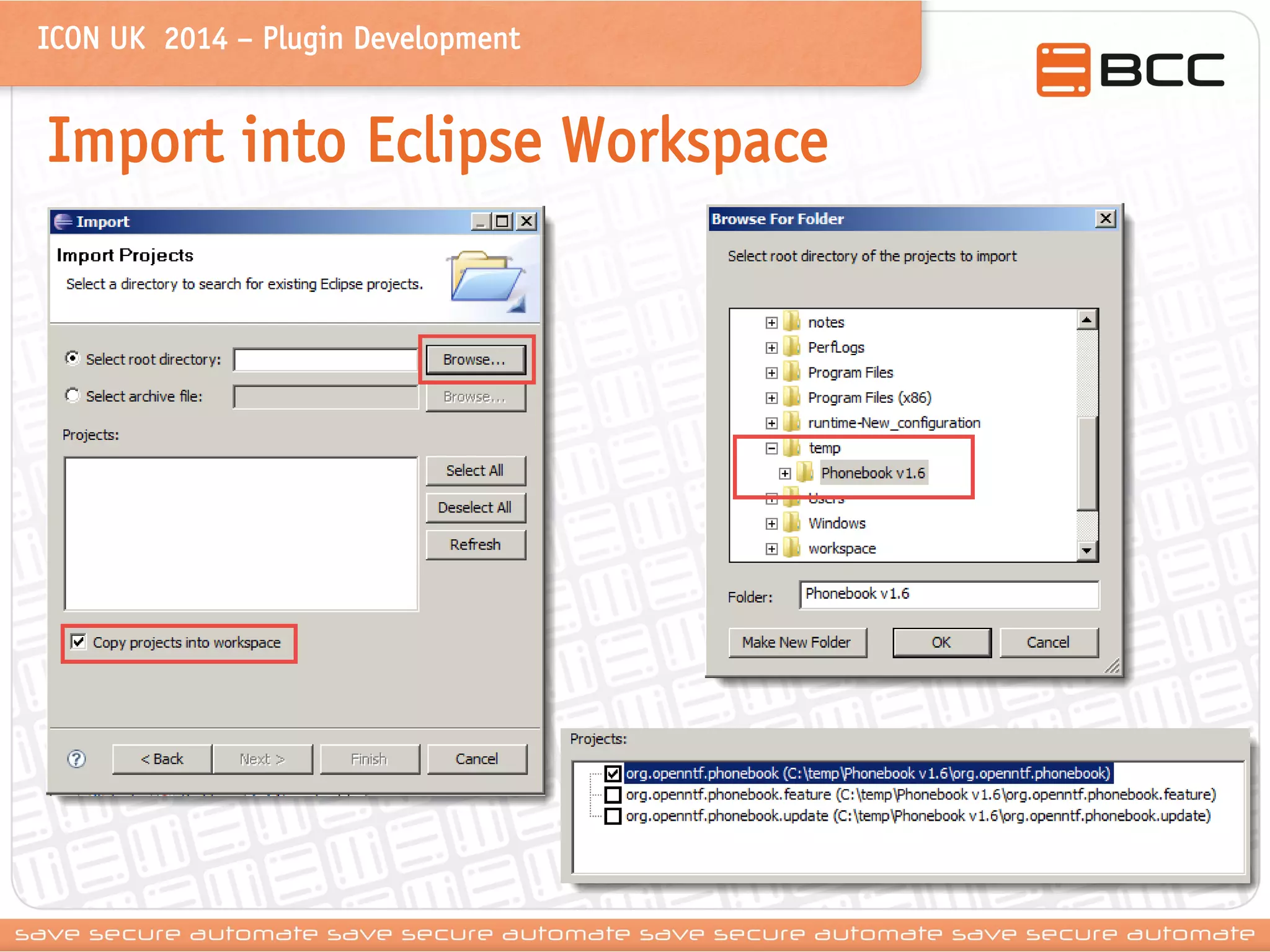

Import into Eclipse Workspace

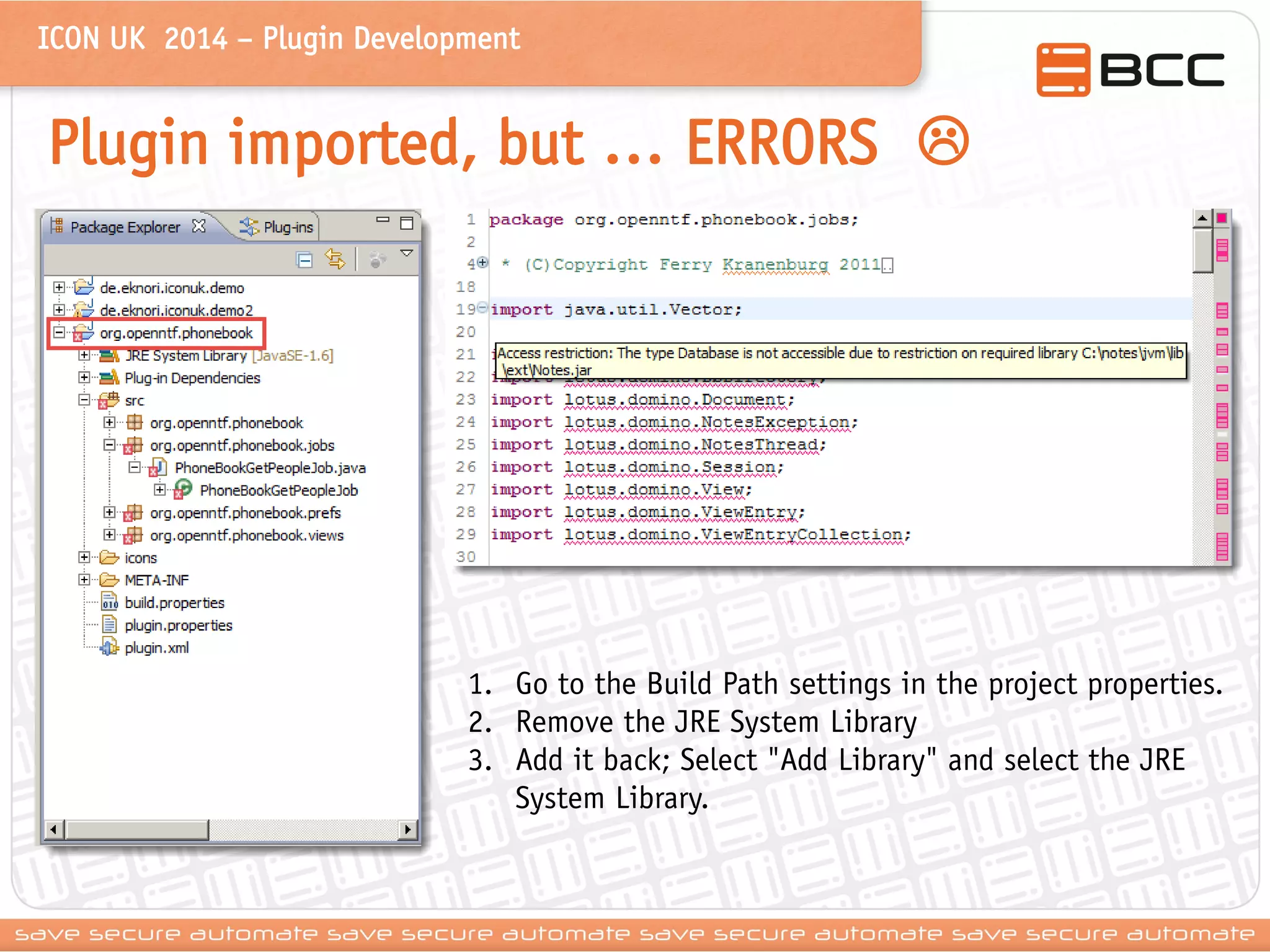

Plugin imported, but … ERRORS 
1.Go to the Build Path settings in the project properties.
2.Remove the JRE System Library
3.Add it back; Select "Add Library" and select the JRE System Library.

Extension Points

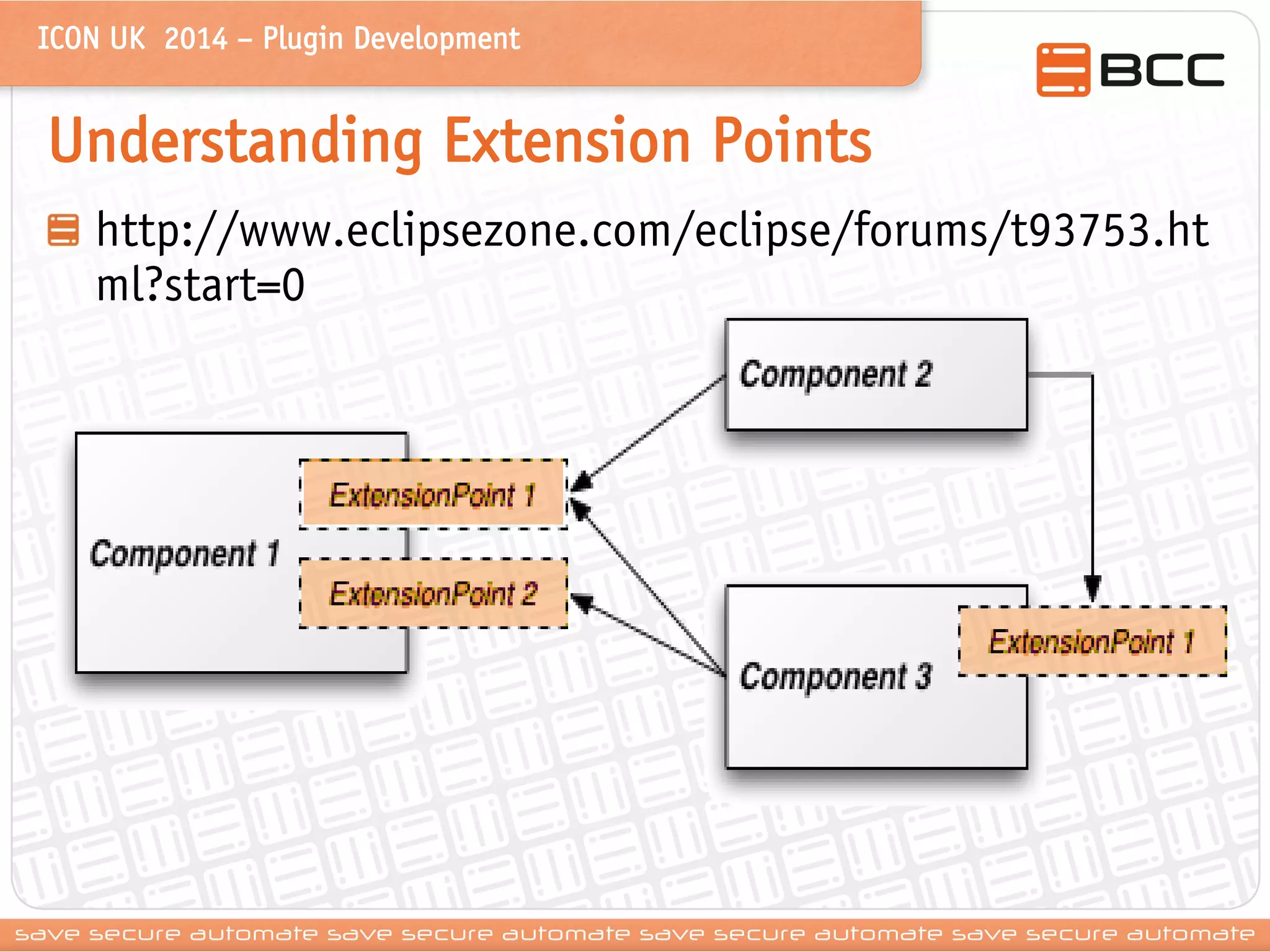

Understanding Extension Points http://www.eclipsezone.com/eclipse/forums/t93753.html?start=0

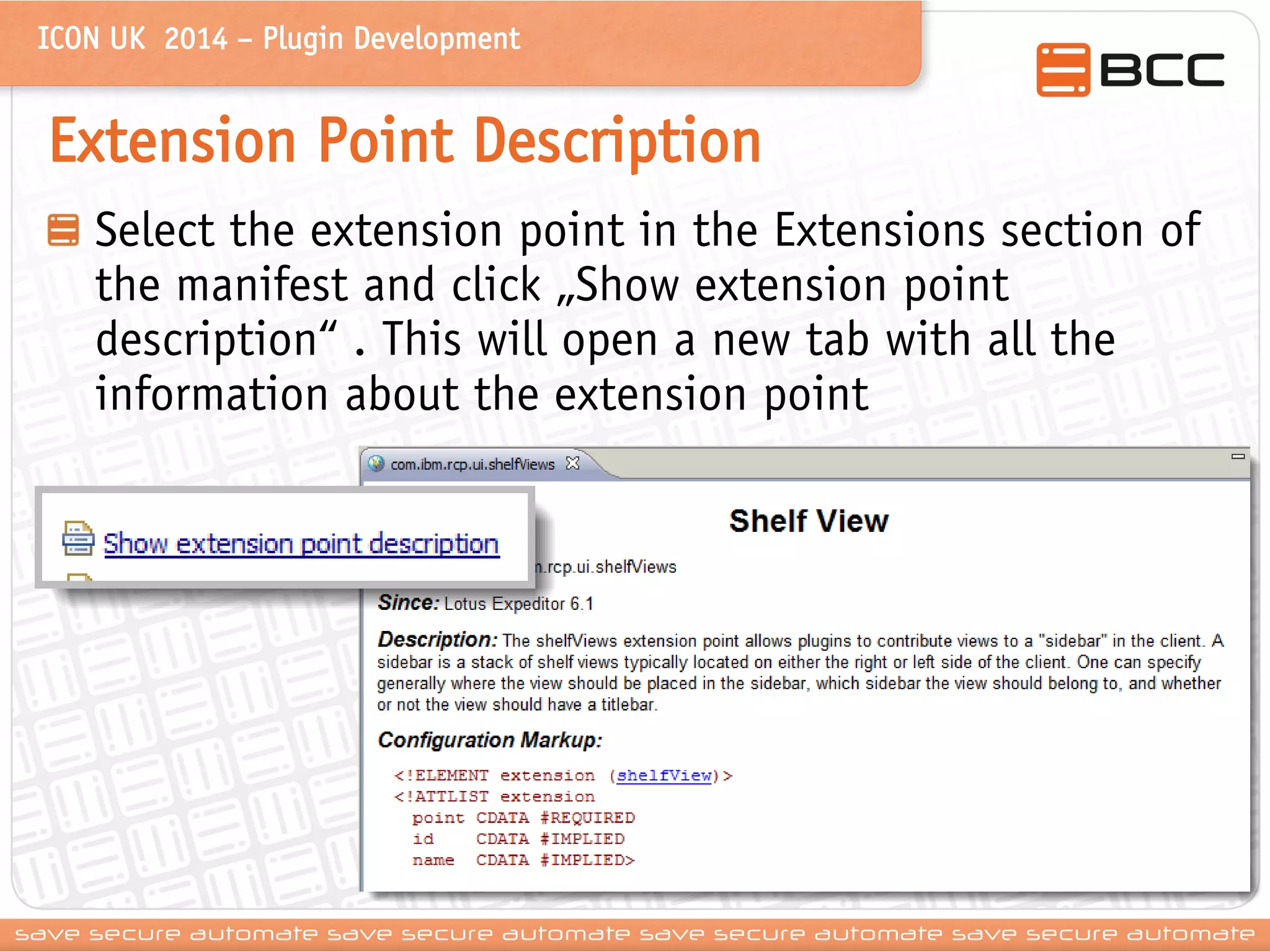

Extension Point Description Select the extension point in the Extensions section of the manifest and click „Show extension point description“ . This will open a new tab with all the information about the extension point

Plug-In Provisioning

Plug-In Provisioning Prerequisites Before we can install / deploy our plugin, we have to do some additional work
•Create Feature Project
•Create Update Site Project
•Build Update Site content

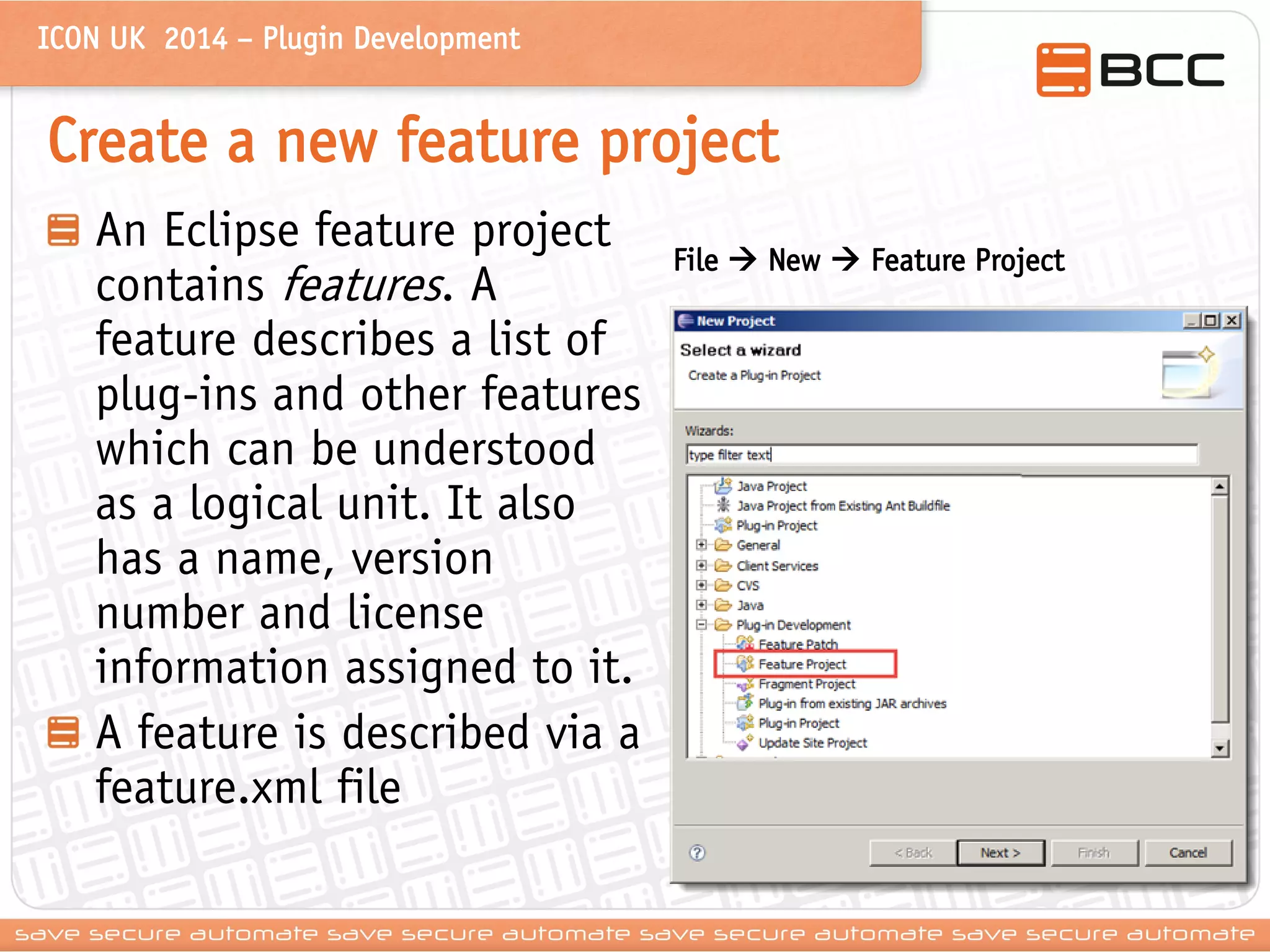

Create a new feature project An Eclipse feature project contains features. A feature describes a list of plug-ins and other features which can be understood as a logical unit. It also has a name, version number and license information assigned to it. A feature is described via a feature.xml file
File  New  Feature Project

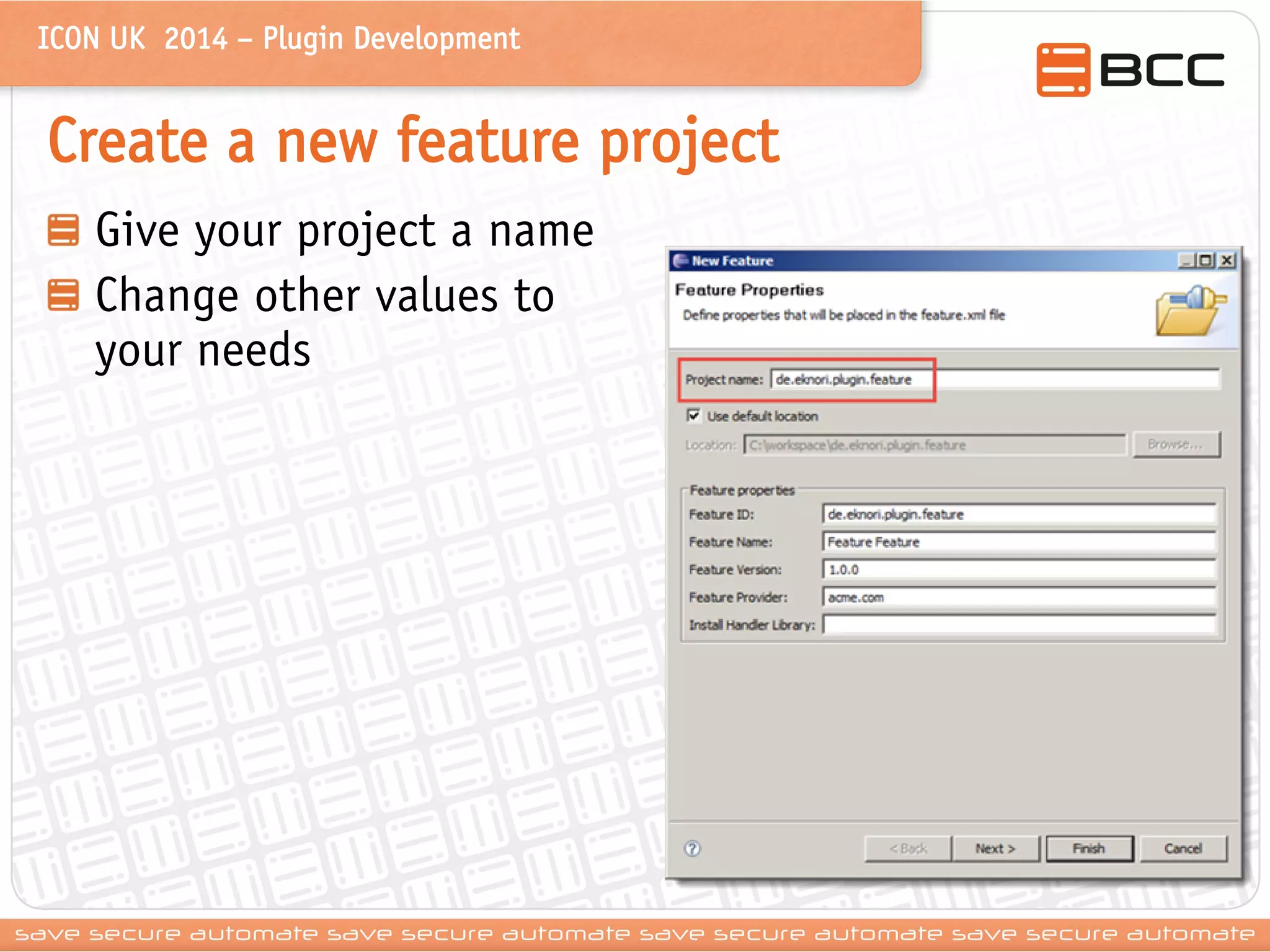

Create a new feature project Give your project a name Change other values to your needs

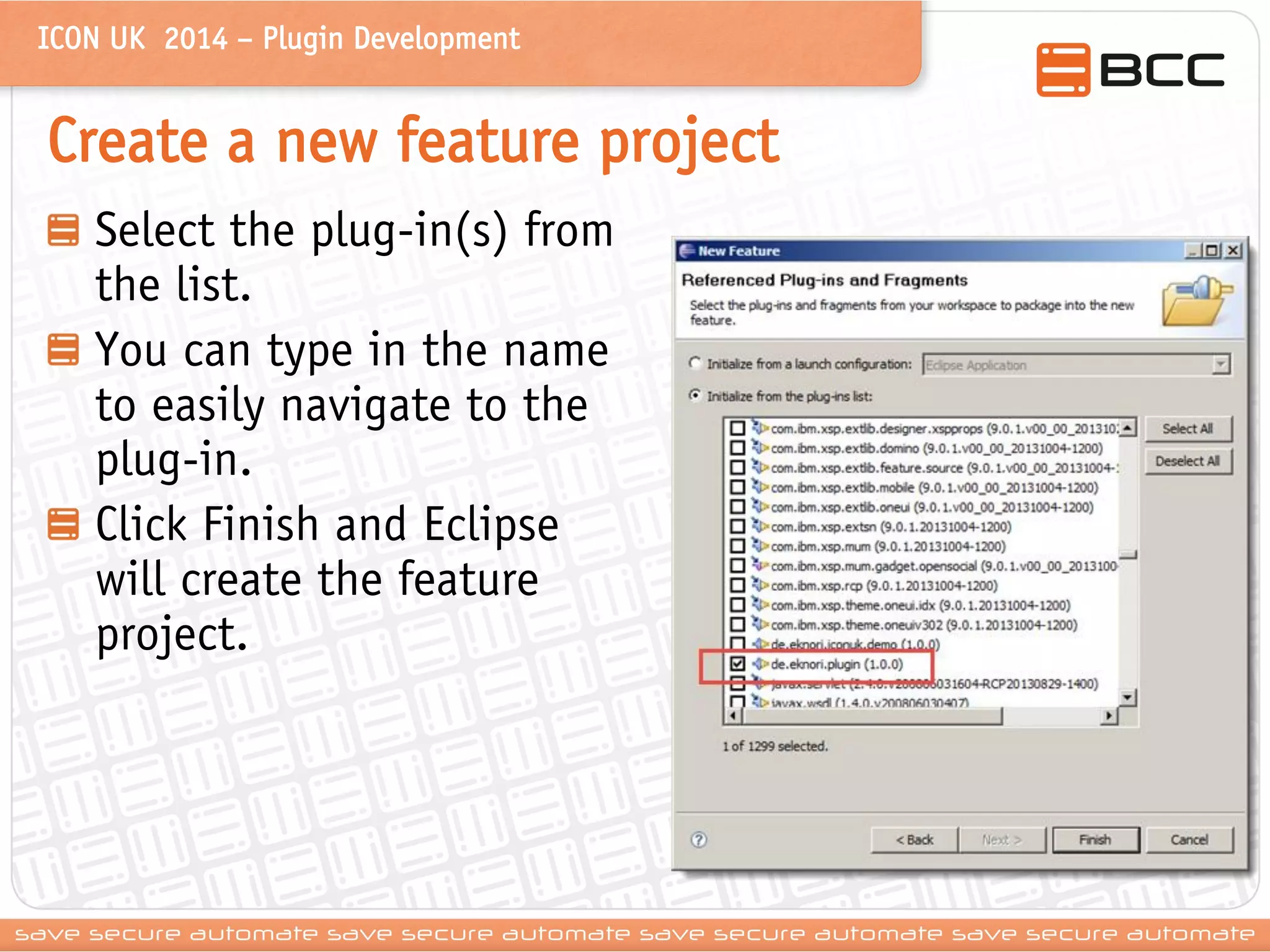

Create a new feature project Select the plug-in(s) from the list. You can type in the name to easily navigate to the plug-in. Click Finish and Eclipse will create the feature project.

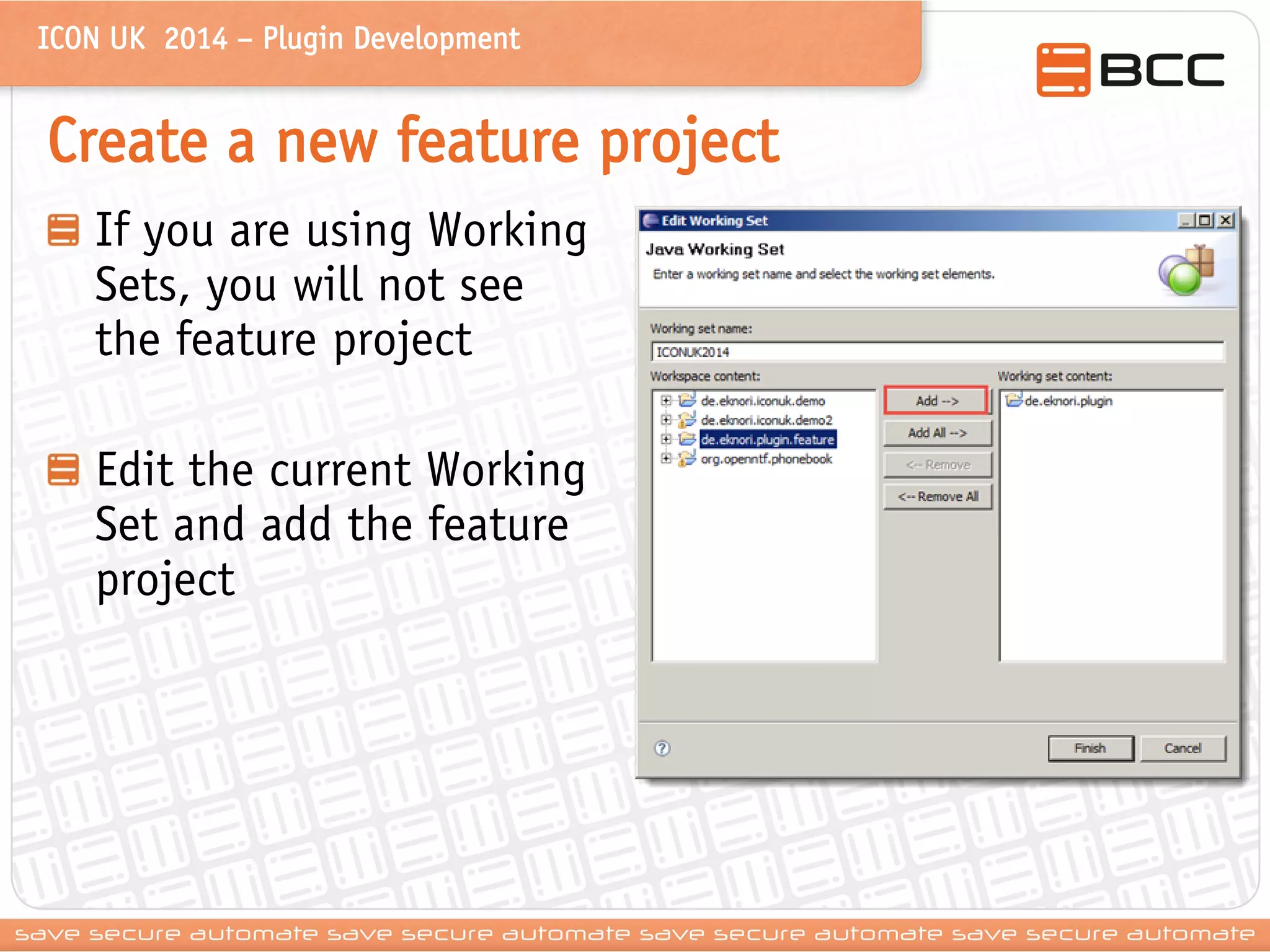

Create a new feature project If you are using Working Sets, you will not see the feature project Edit the current Working Set and add the feature project

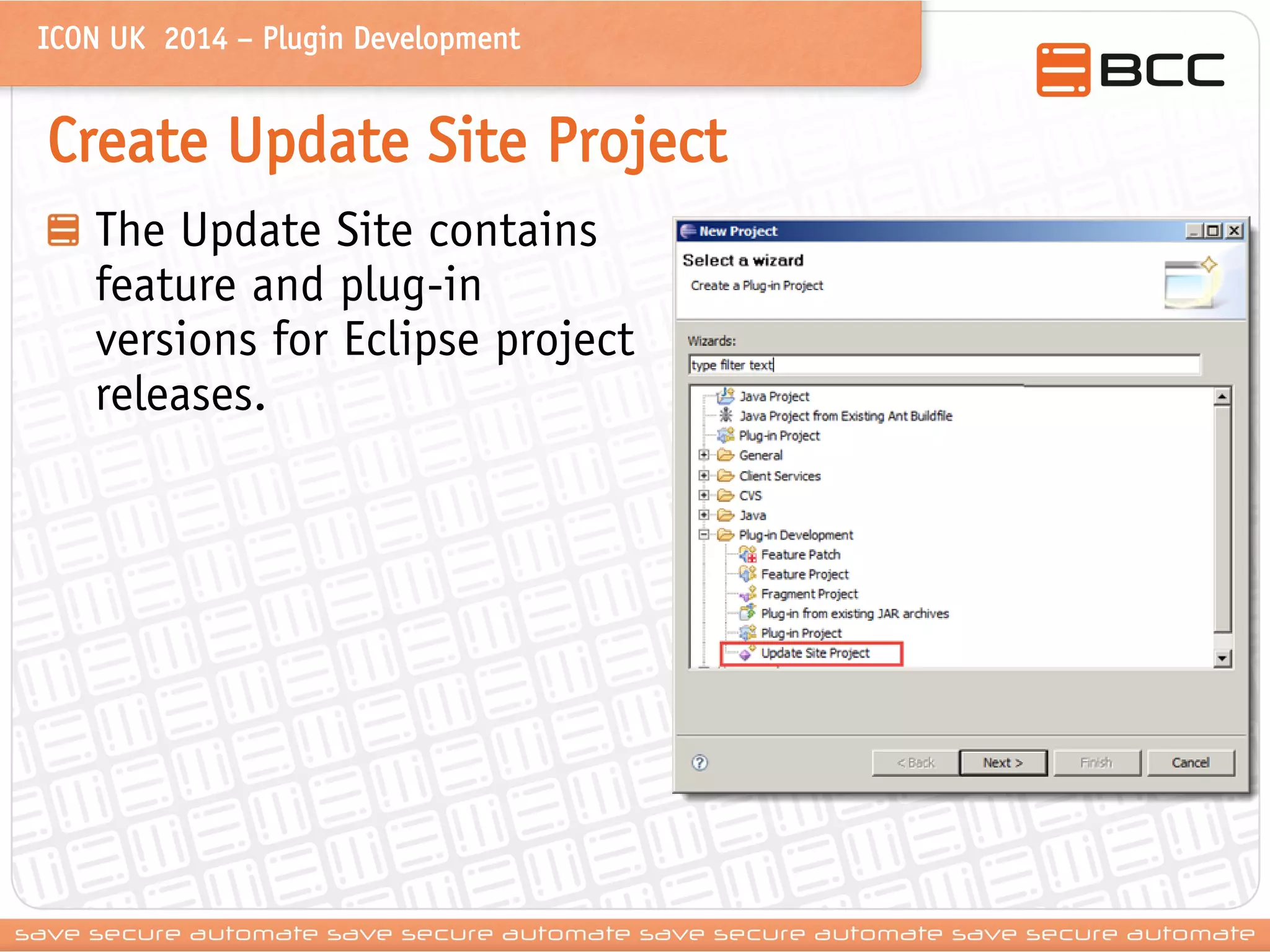

Create Update Site Project The Update Site contains feature and plug-in versions for Eclipse project releases.

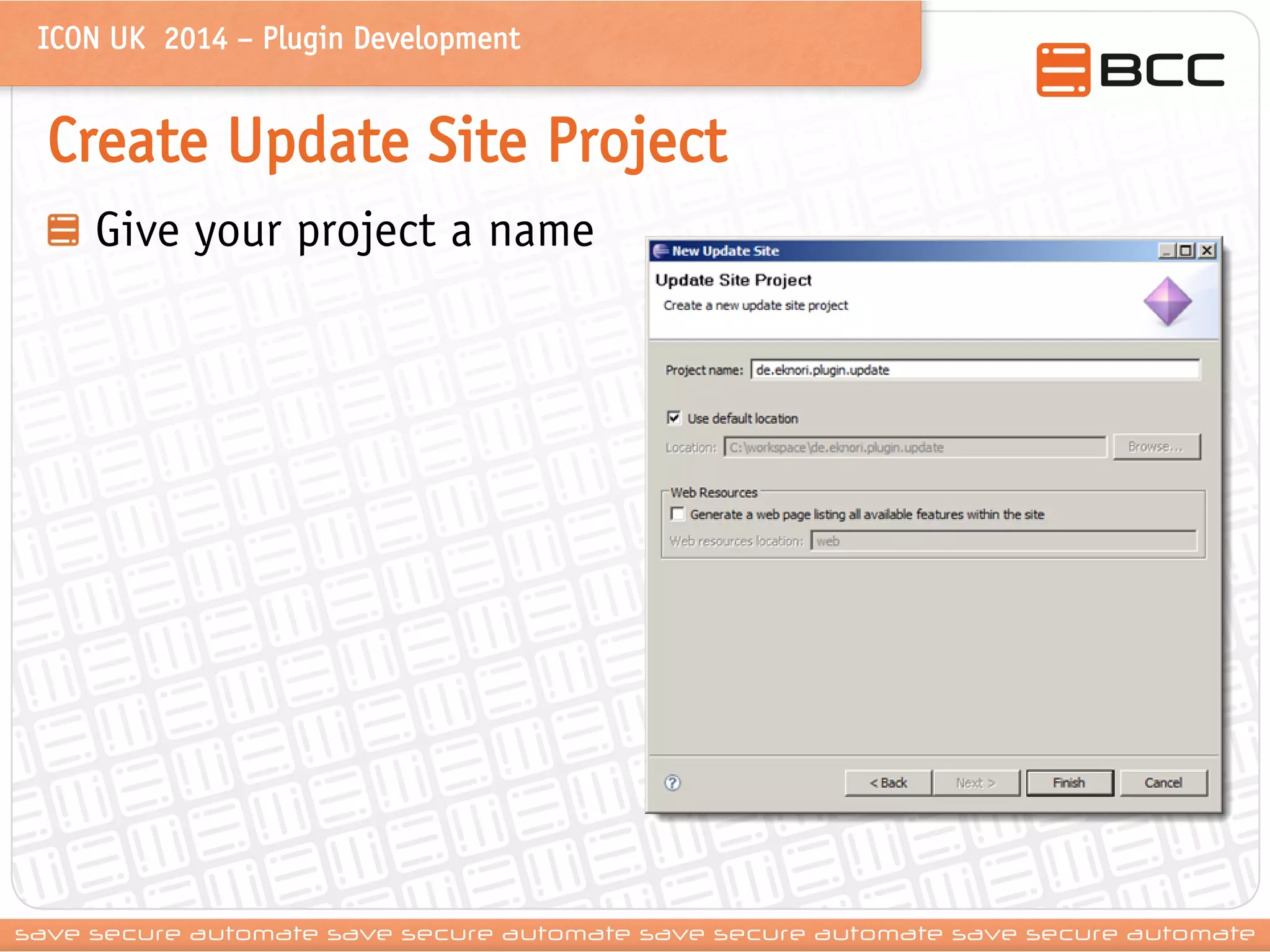

Create Update Site Project Give your project a name

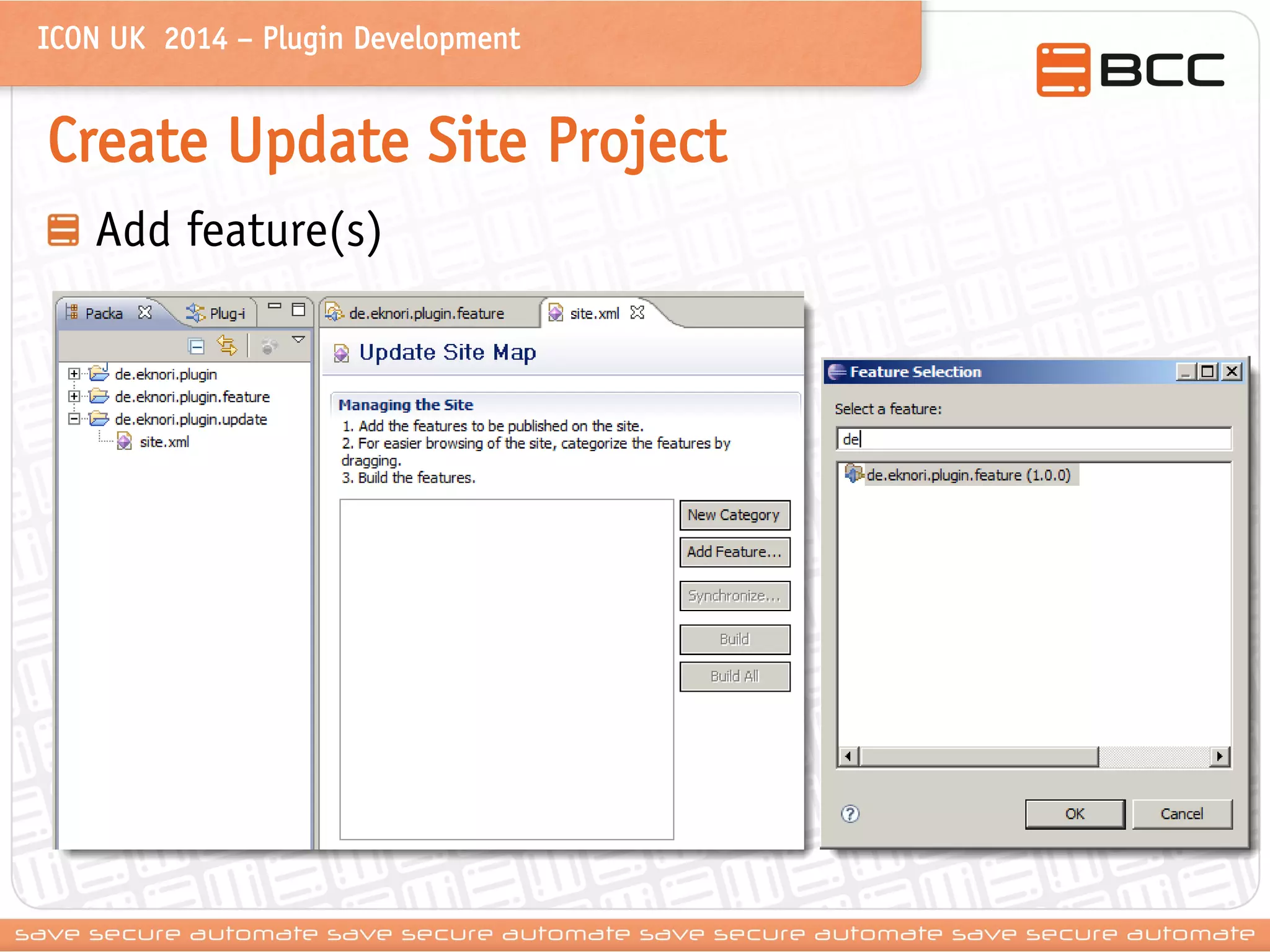

Create Update Site Project Add feature(s)

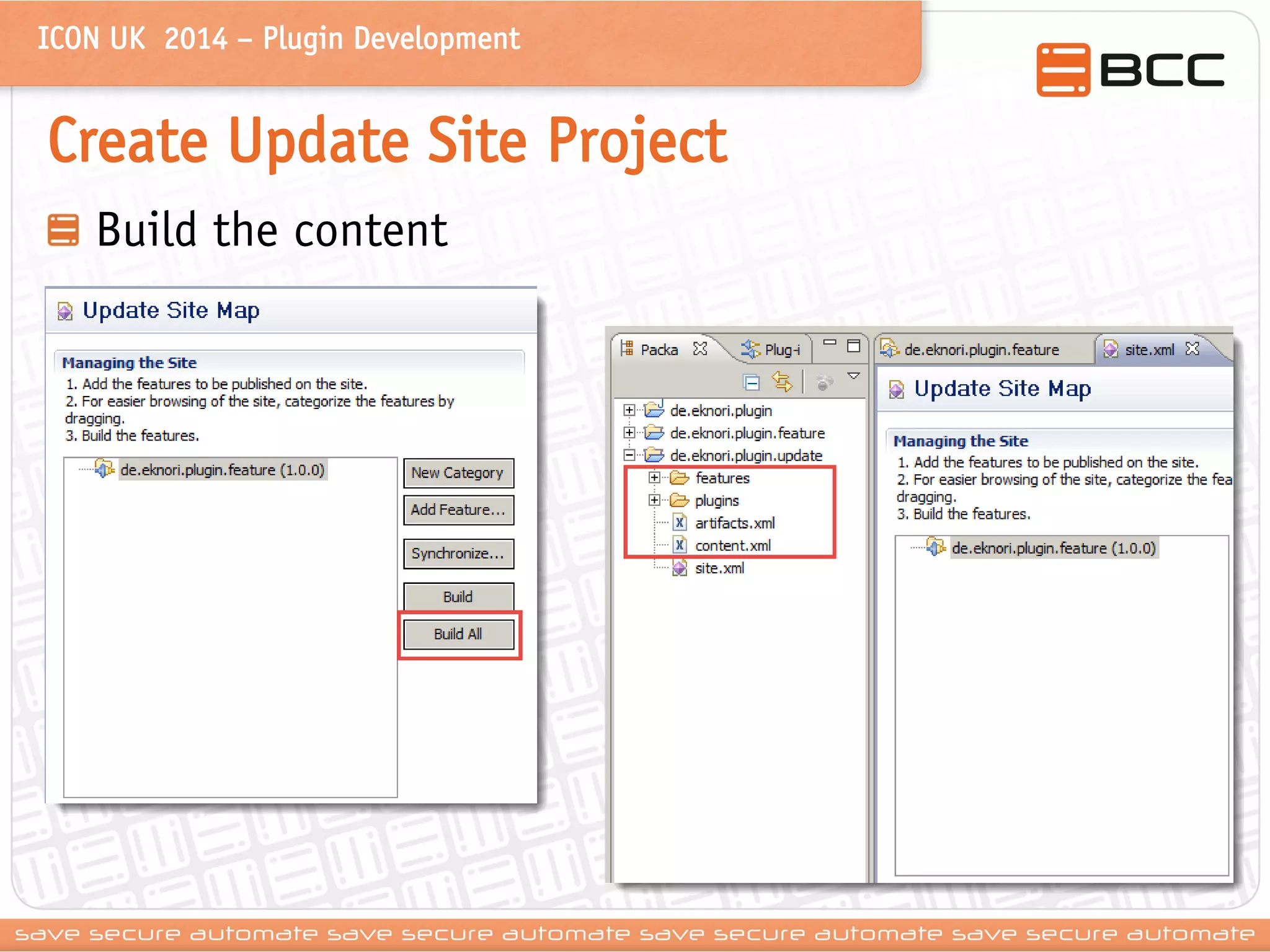

Create Update Site Project Build the content

Deploying Plugins Let the user deploy the plugin Deploy during client installation Deploy plugin via Widget Catalog and Desktop Policy

Option 1: Let the user install the plugin

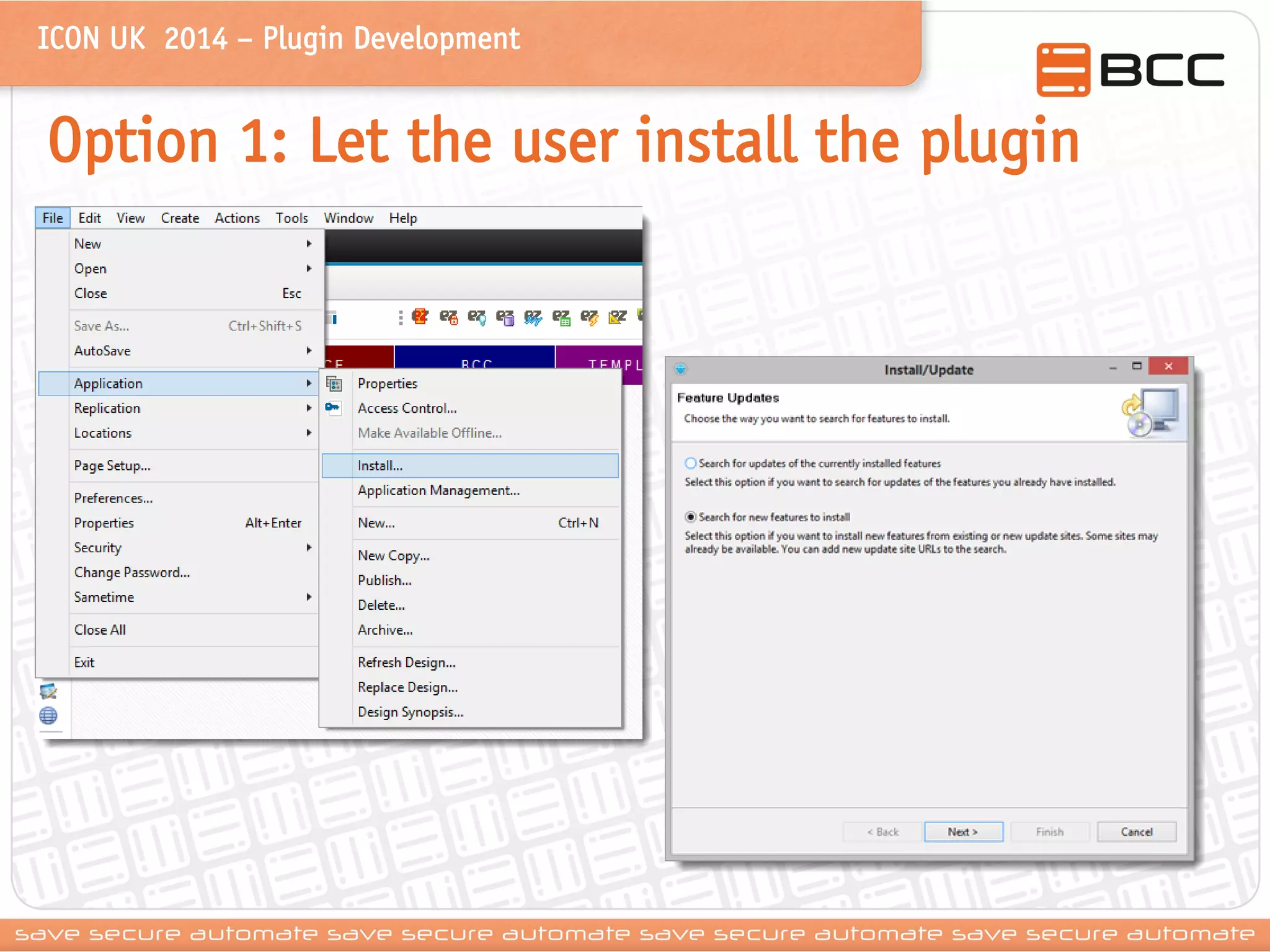

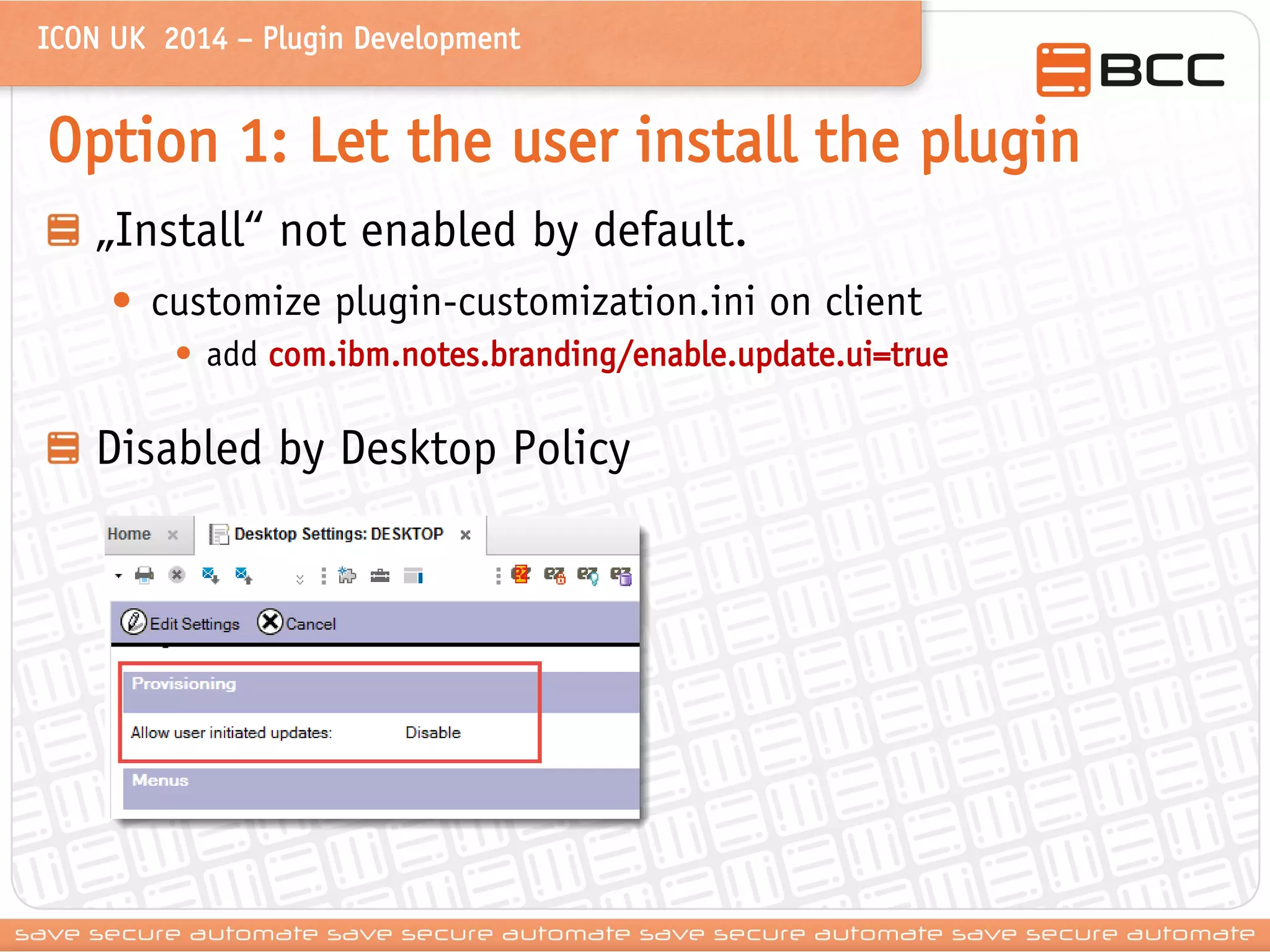

Option 1: Let the user install the plugin „Install“ not enabled by default.
•customize plugin-customization.ini on client
•add com.ibm.notes.branding/enable.update.ui=true Disabled by Desktop Policy

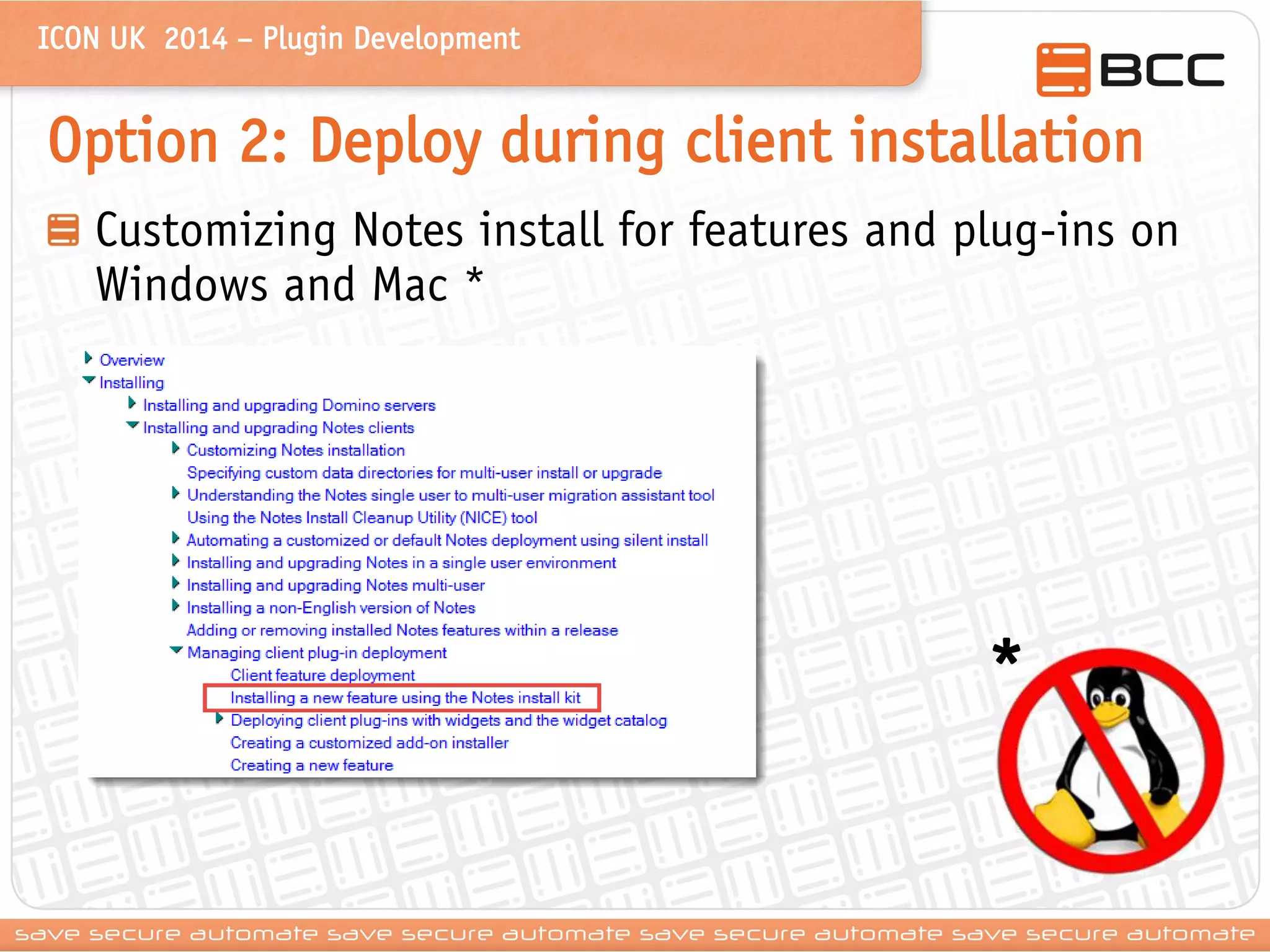

Option 2: Deploy during client installation Customizing Notes install for features and plug-ins on Windows and Mac *
*

Option 2: Deploy during client installation

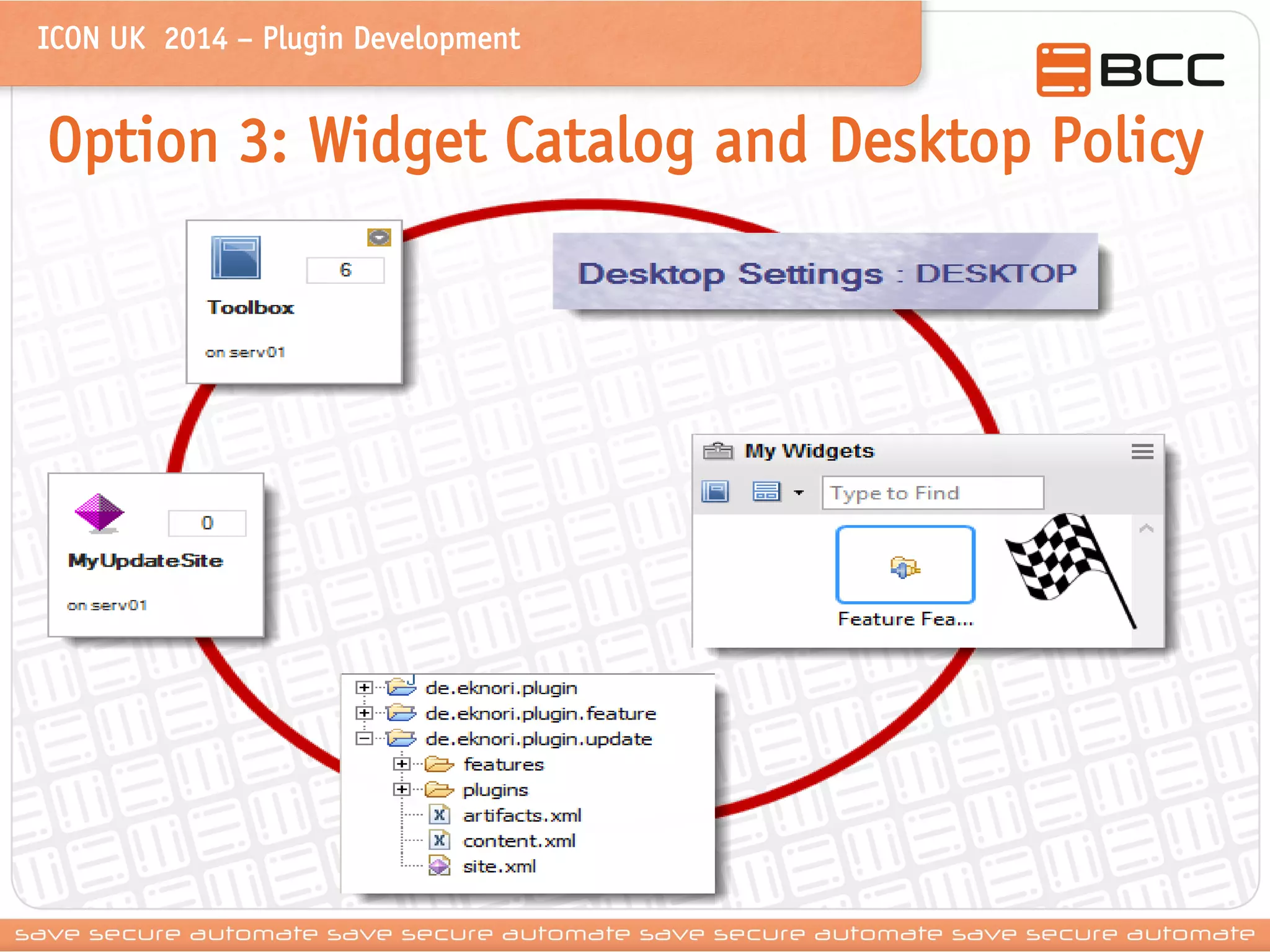

Option 3: Widget Catalog and Desktop Policy

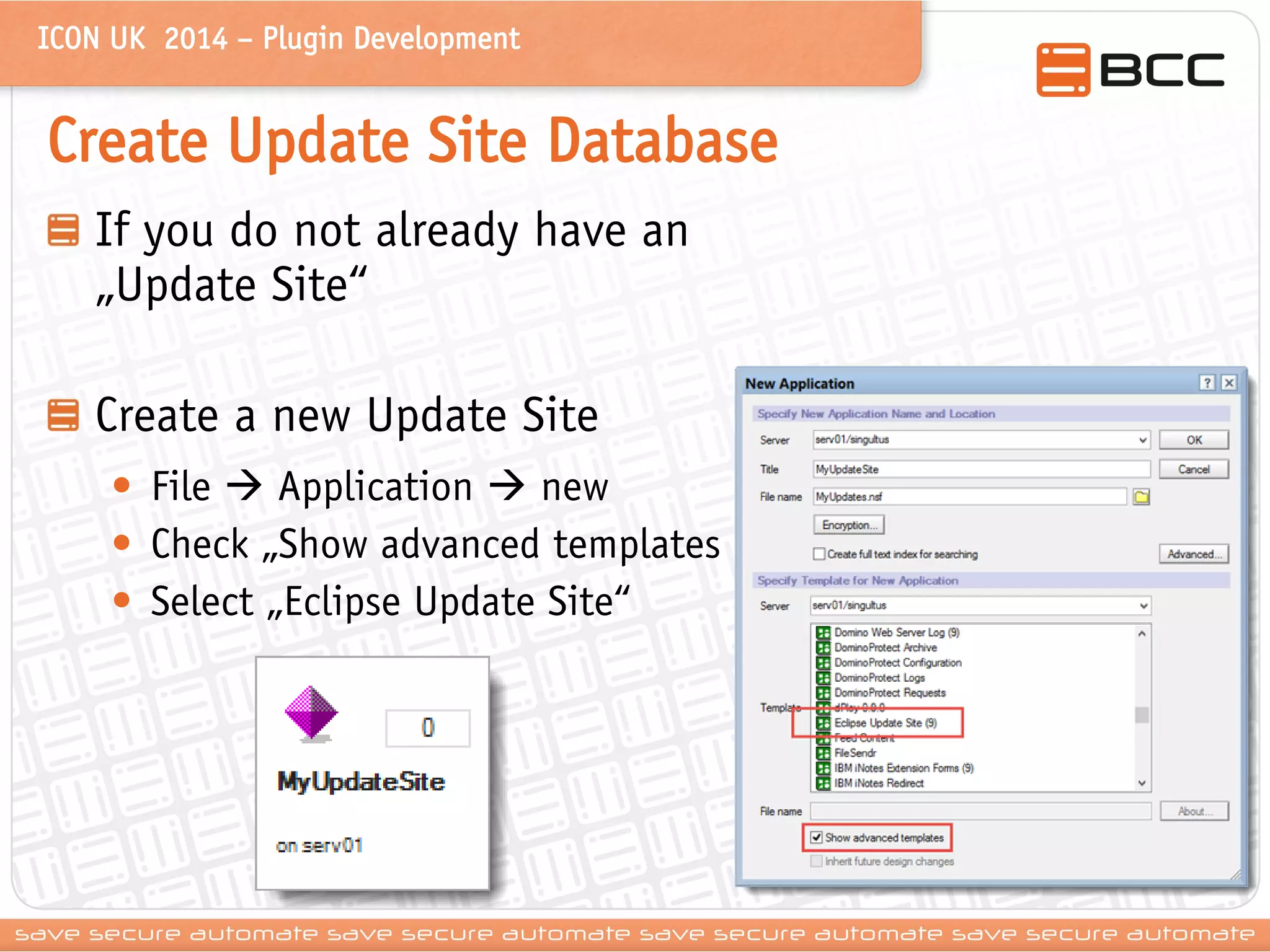

Create Update Site Database If you do not already have an „Update Site“ Create a new Update Site
•File  Application  new
•Check „Show advanced templates
•Select „Eclipse Update Site“

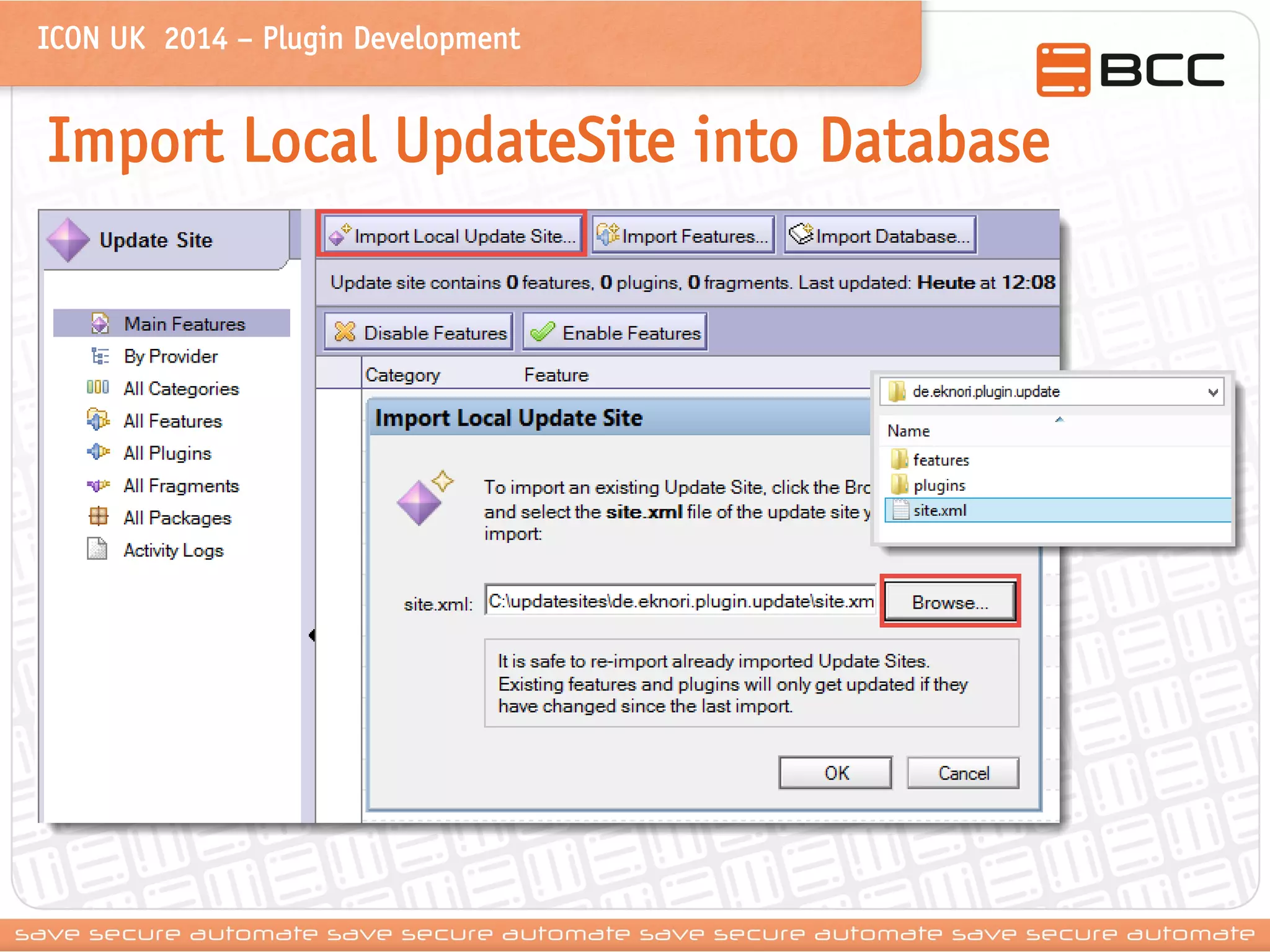

Import Local UpdateSite into Database

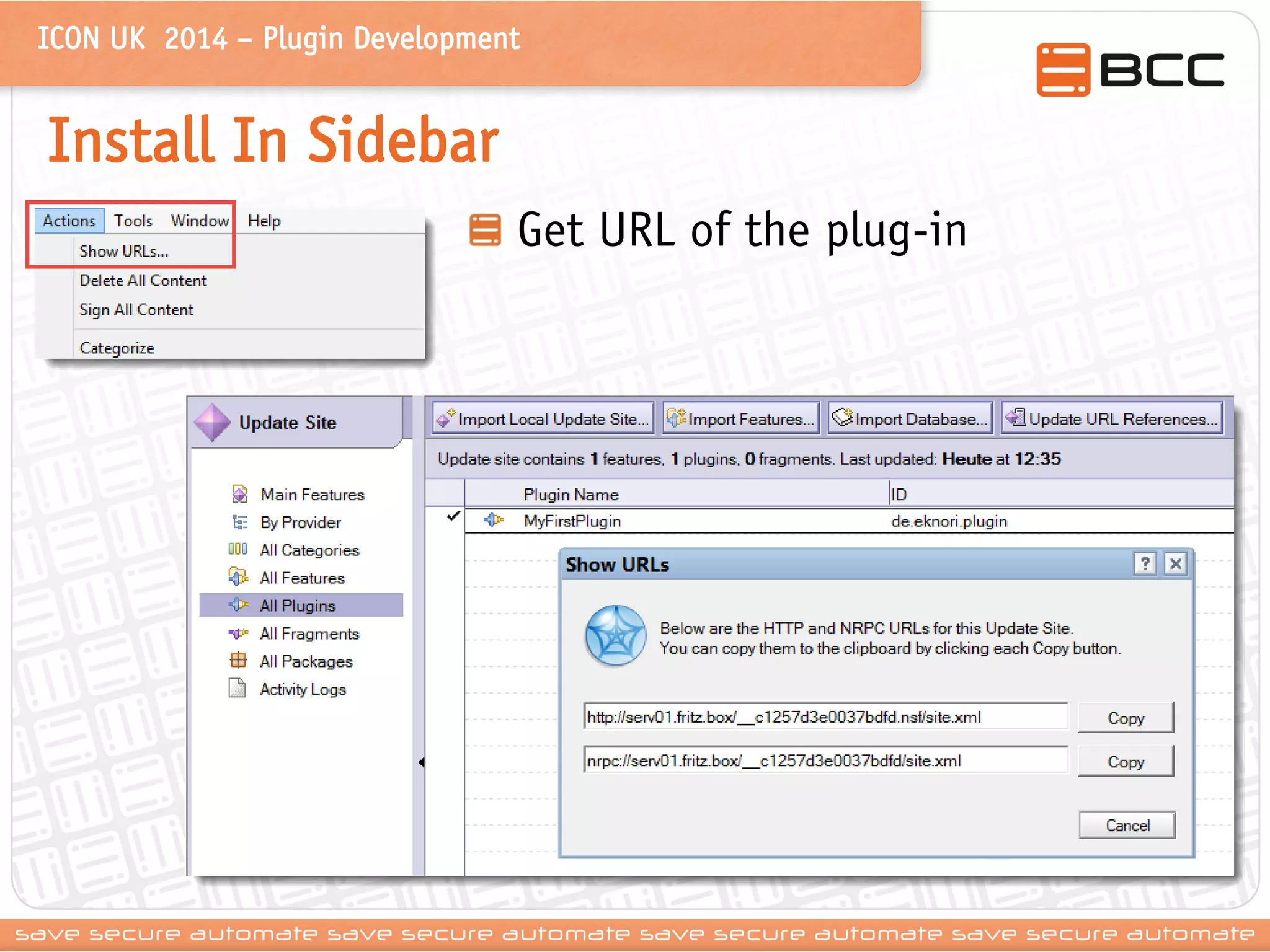

Install In Sidebar Get URL of the plug-in

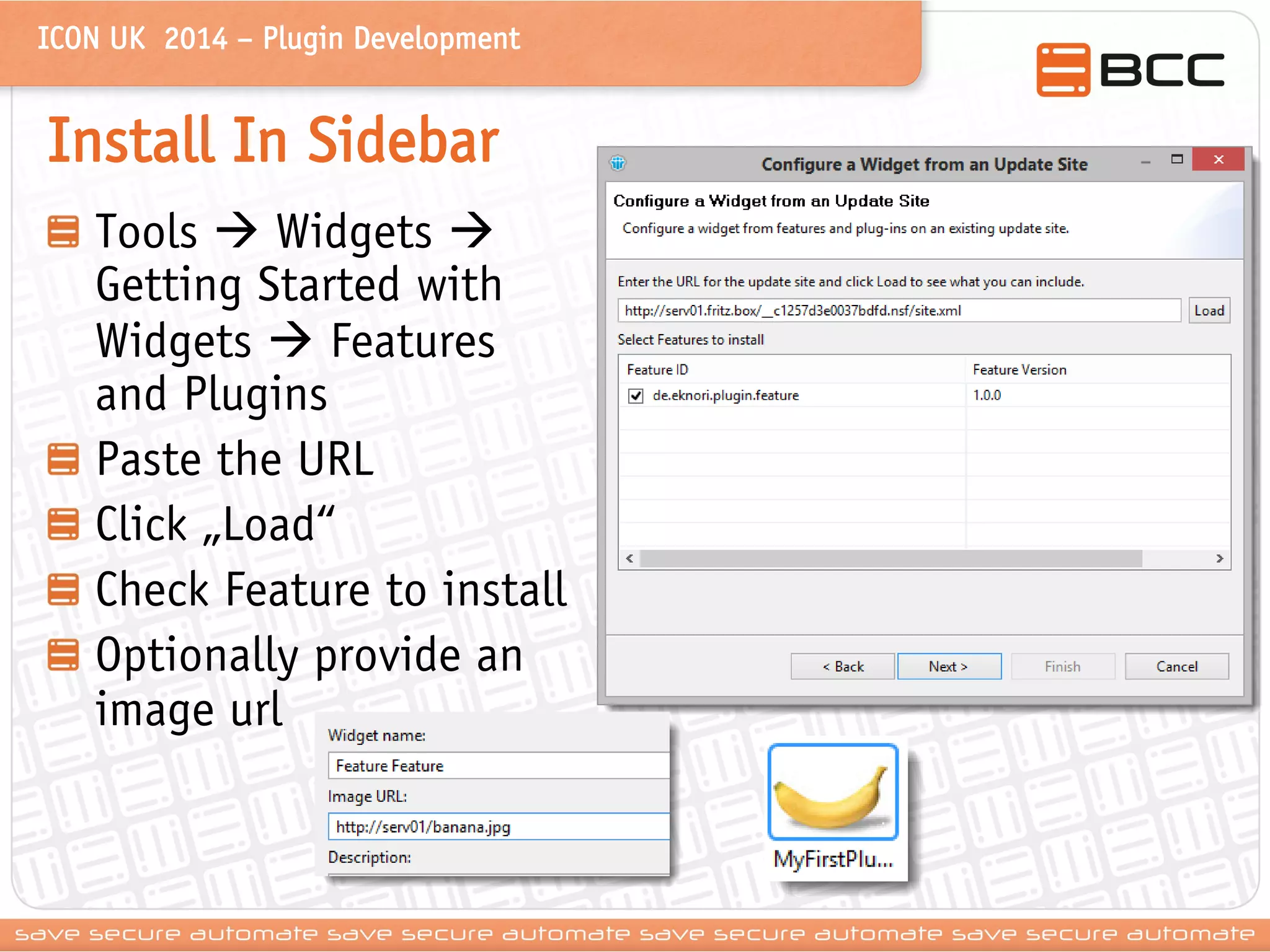

Install In Sidebar Tools  Widgets  Getting Started with Widgets  Features and Plugins Paste the URL Click „Load“ Check Feature to install Optionally provide an image url

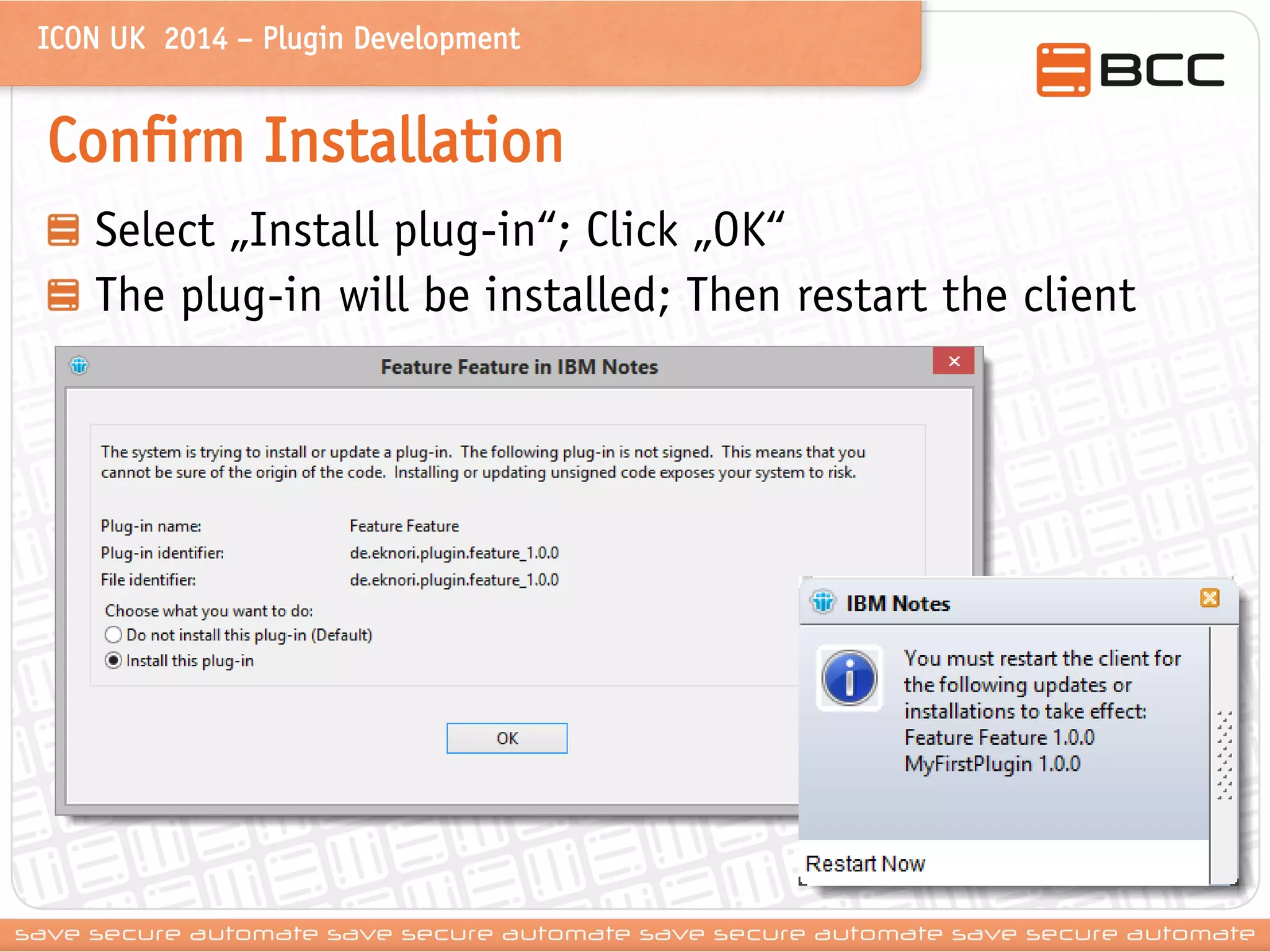

Confirm Installation Select „Install plug-in“; Click „OK“ The plug-in will be installed; Then restart the client

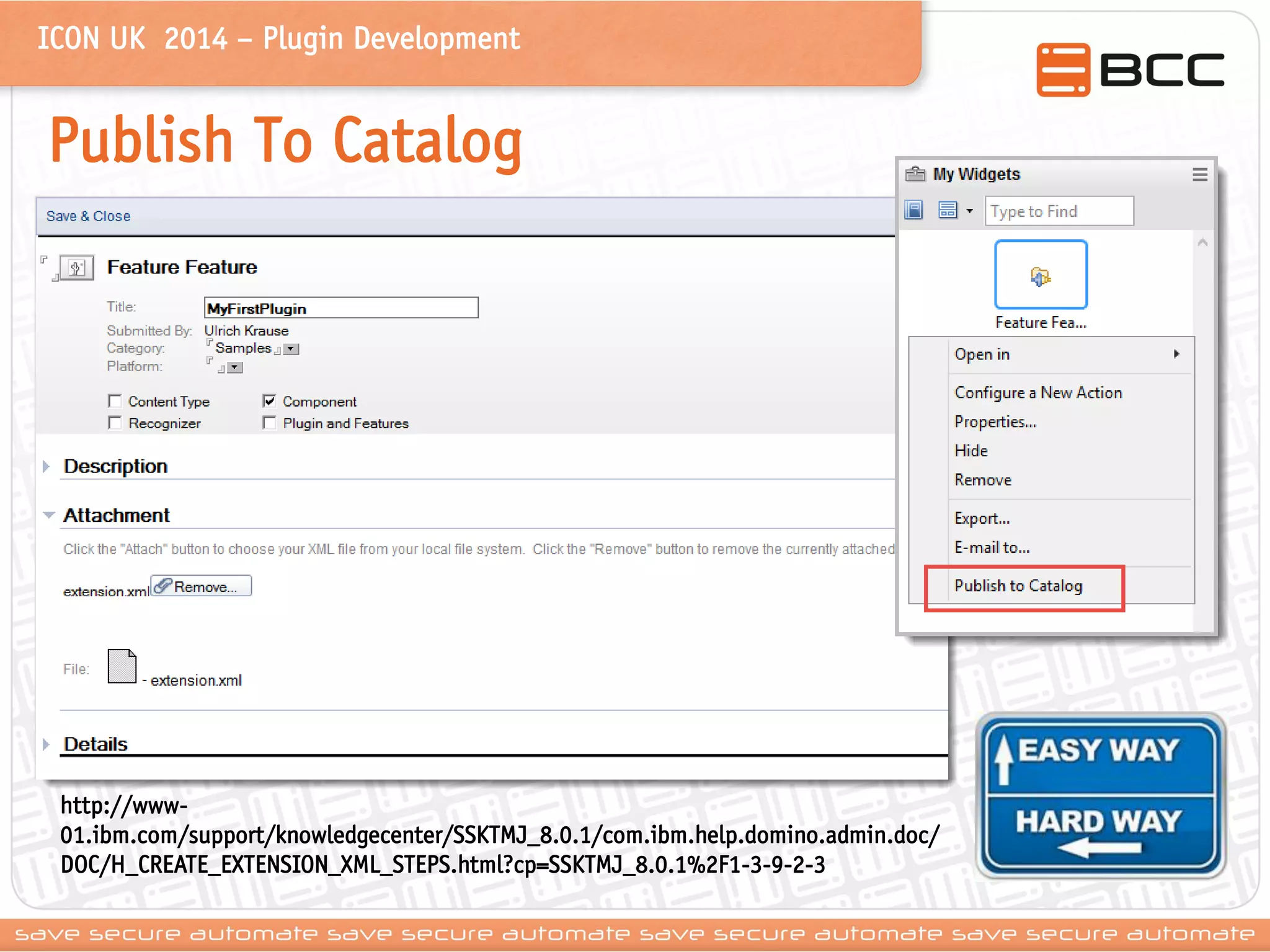

Publish To Catalog
http://www- 01.ibm.com/support/knowledgecenter/SSKTMJ_8.0.1/com.ibm.help.domino.admin.doc/ DOC/H_CREATE_EXTENSION_XML_STEPS.html?cp=SSKTMJ_8.0.1%2F1-3-9-2-3

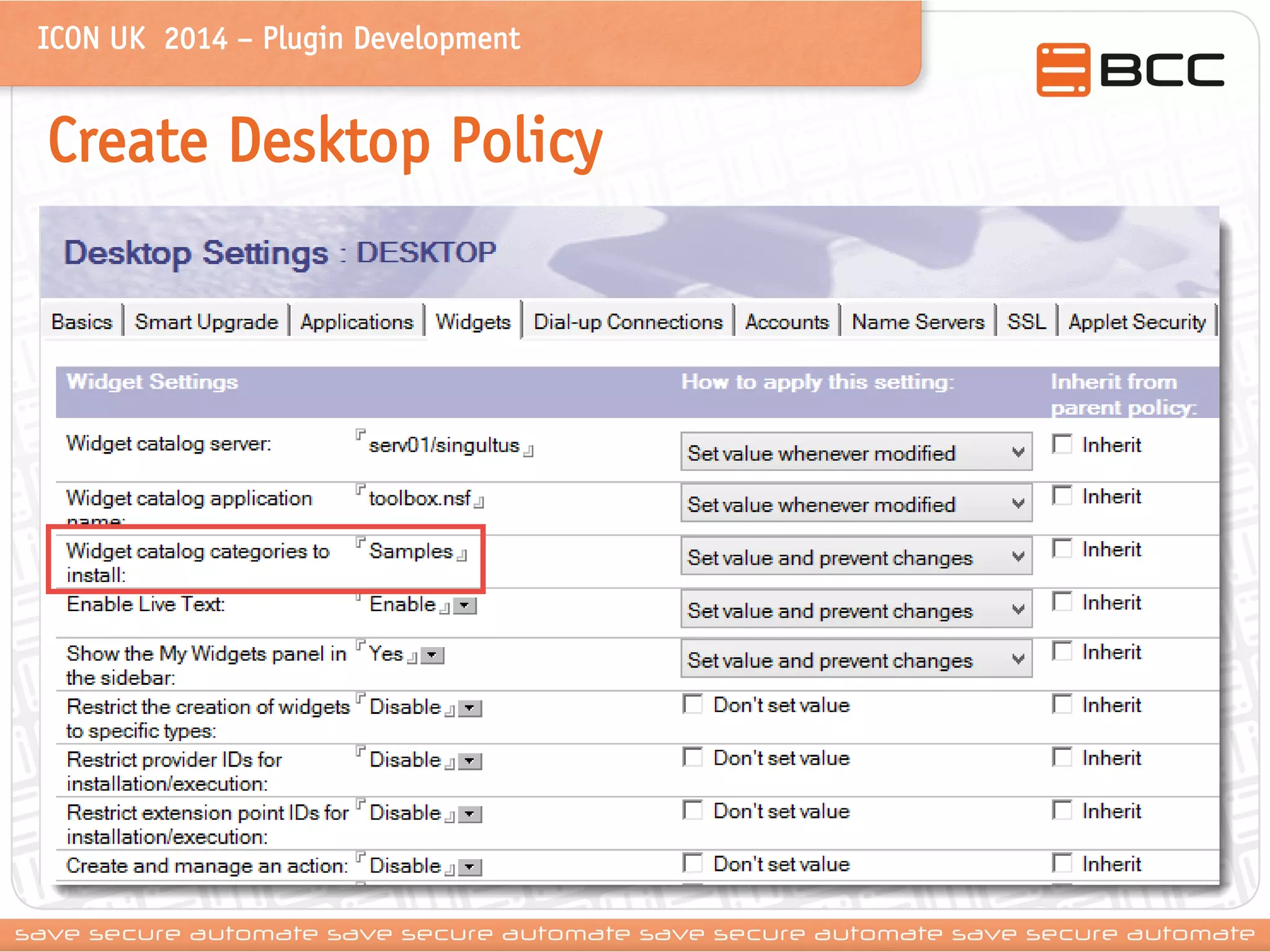

Create Desktop Policy

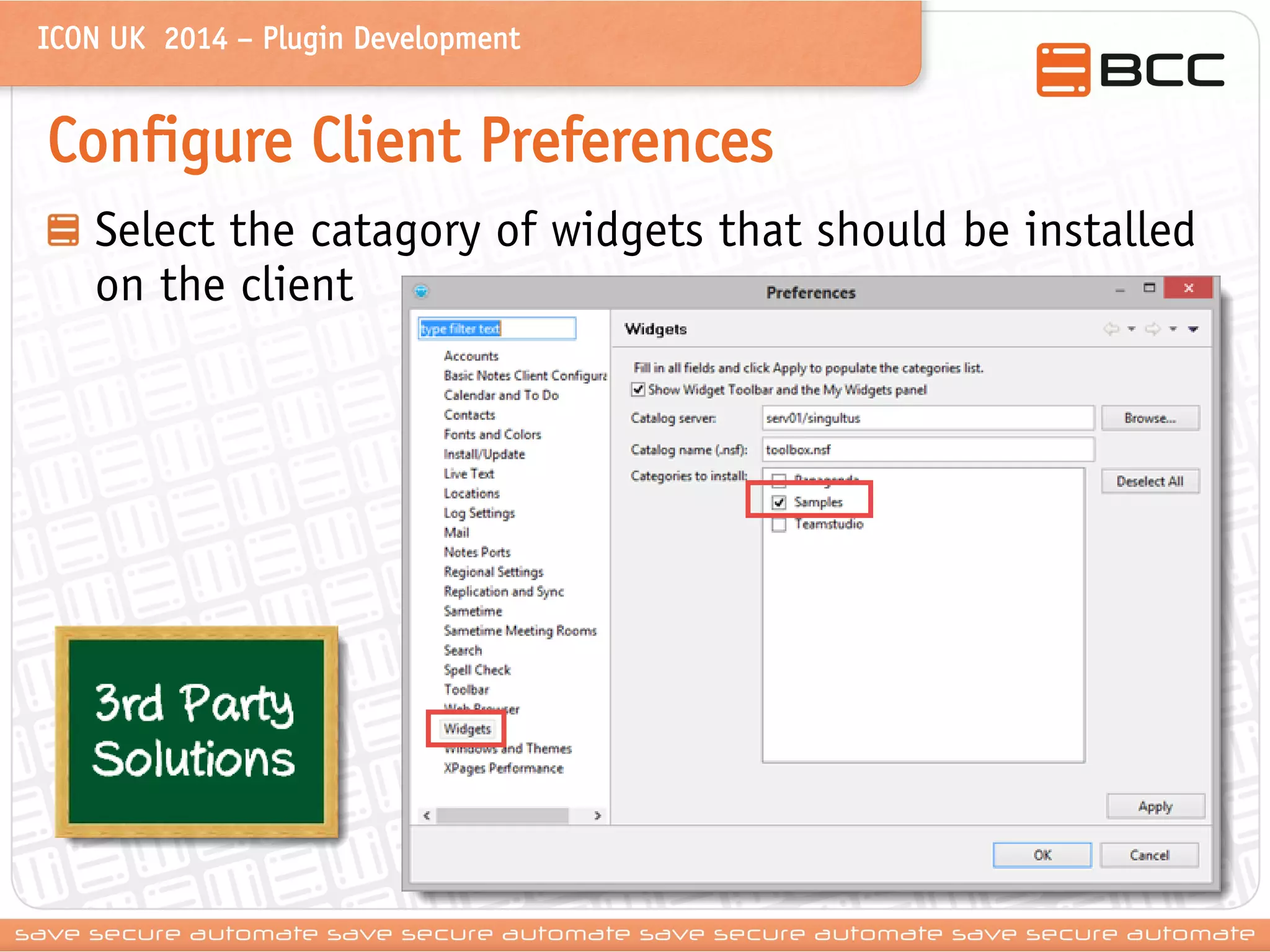

Configure Client Preferences Select the catagory of widgets that should be installed on the client

Sign Plugins End-to-End HOWTO guide for silently and transparently provisioning and installing Java extensions to Notes 8.5.1+ clients using policies (Mikkel Heisterberg)
•http://lekkimworld.com/files/nllug/2009/demoscript_english_031120091142.pdf EntwicklerCamp 2011 - Signierung & Verteilung von Plugins für den Notes Client (René Winkelmeyer)
•Link

Feedback ulrich_krause@bcc.biz
Questions ?

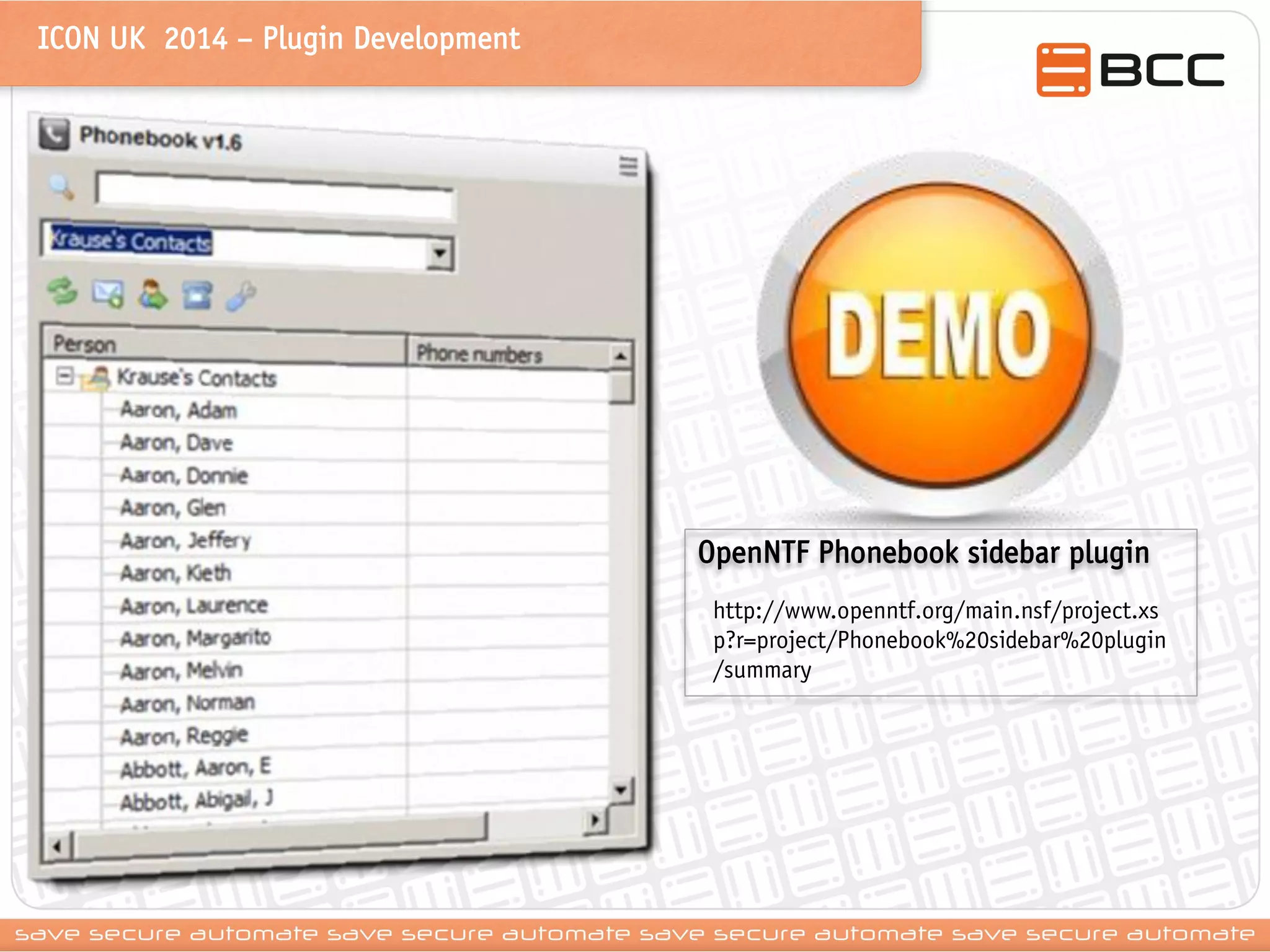

OpenNTF Phonebook sidebar plugin
http://www.openntf.org/main.nsf/project.xsp?r=project/Phonebook%20sidebar%20plugin/summary
