1. Automating the consumption of
Eclipse for internal use
Pascal Rapicault
Emilio Palmiero

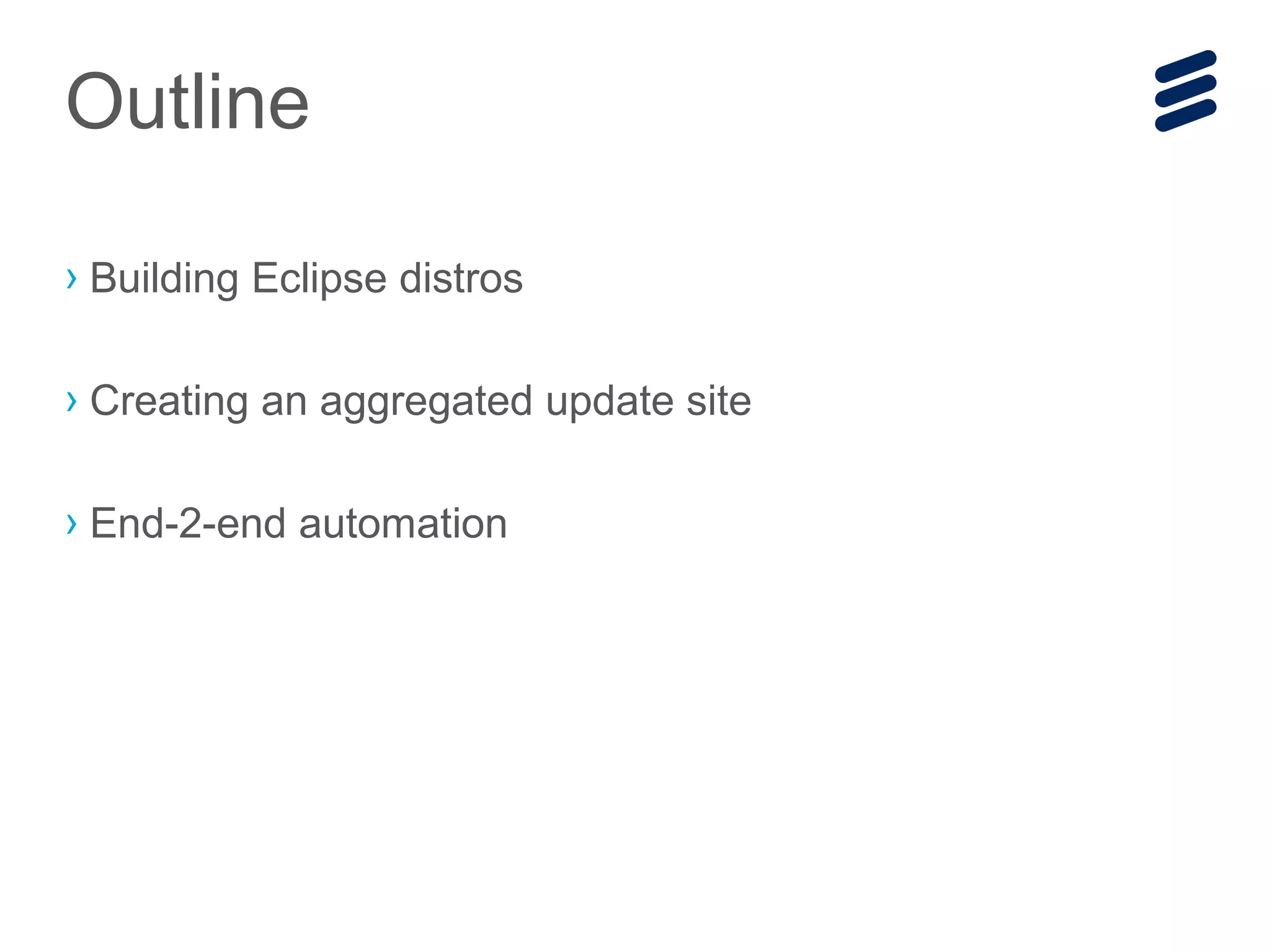

3. › Building Eclipse distros
› Creating an aggregated update site
› End-2-end automation
Outline

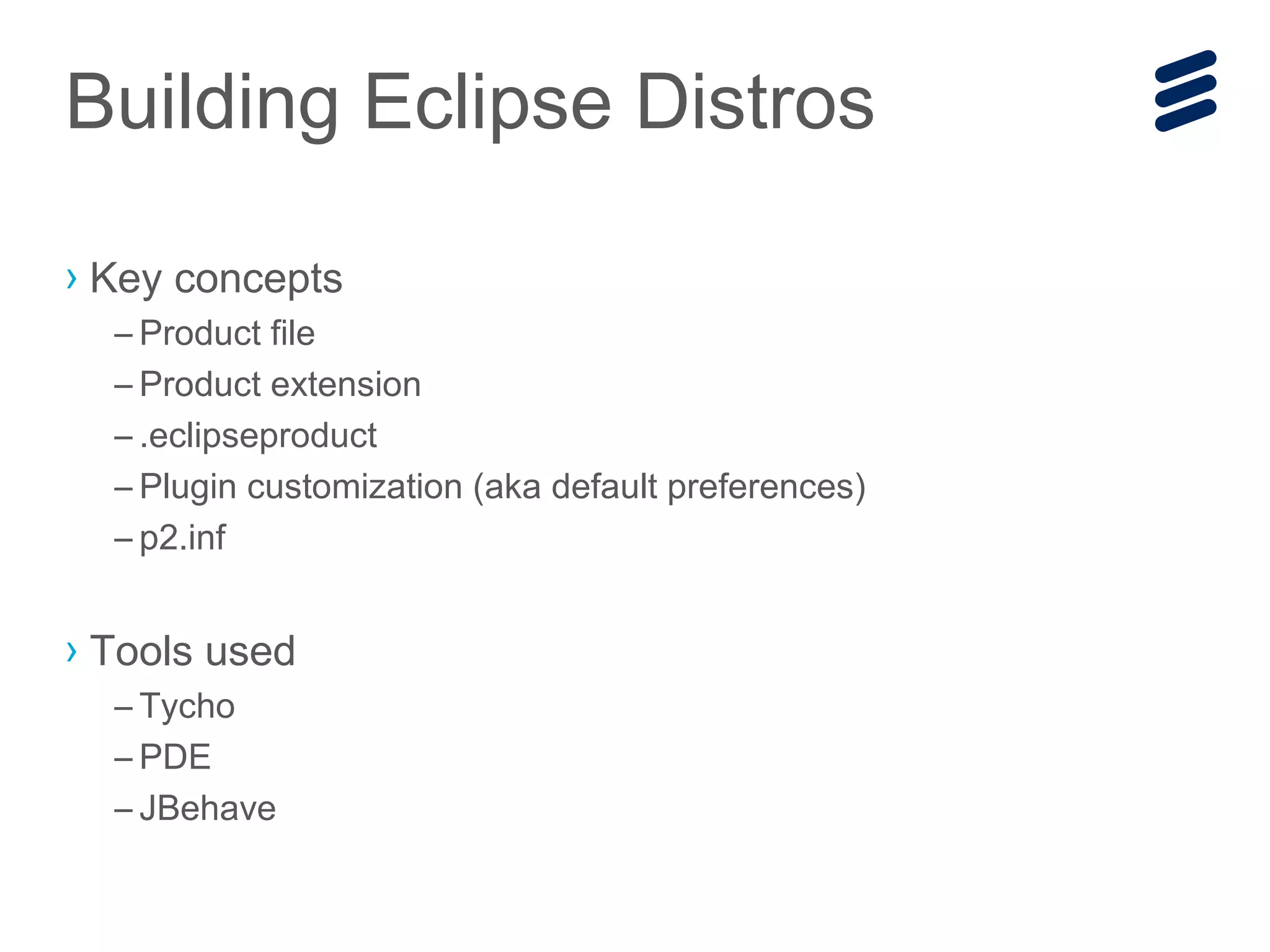

4. Building Eclipse Distros
› Key concepts
– Product file
– Product extension
– .eclipseproduct
– Plugin customization (aka default preferences)
– p2.inf
› Tools used
– Tycho
– PDE
– JBehave

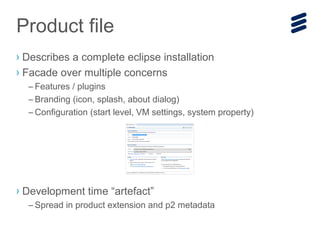

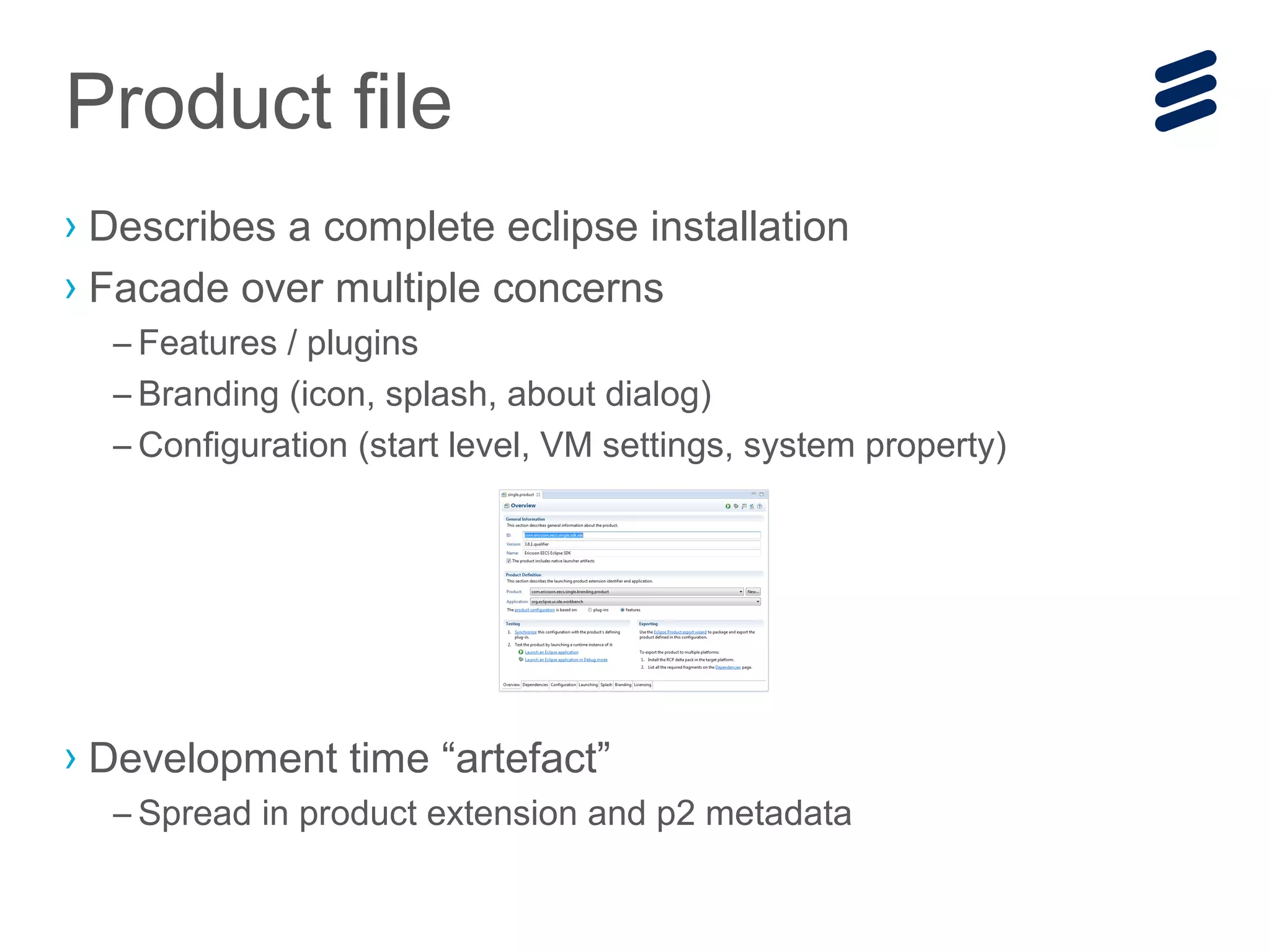

5. › Describes a complete eclipse installation
› Facade over multiple concerns
– Features / plugins
– Branding (icon, splash, about dialog)
– Configuration (start level, VM settings, system property)
› Development time “artefact”
– Spread in product extension and p2 metadata
Product file

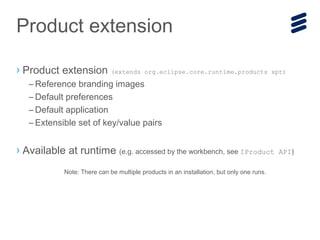

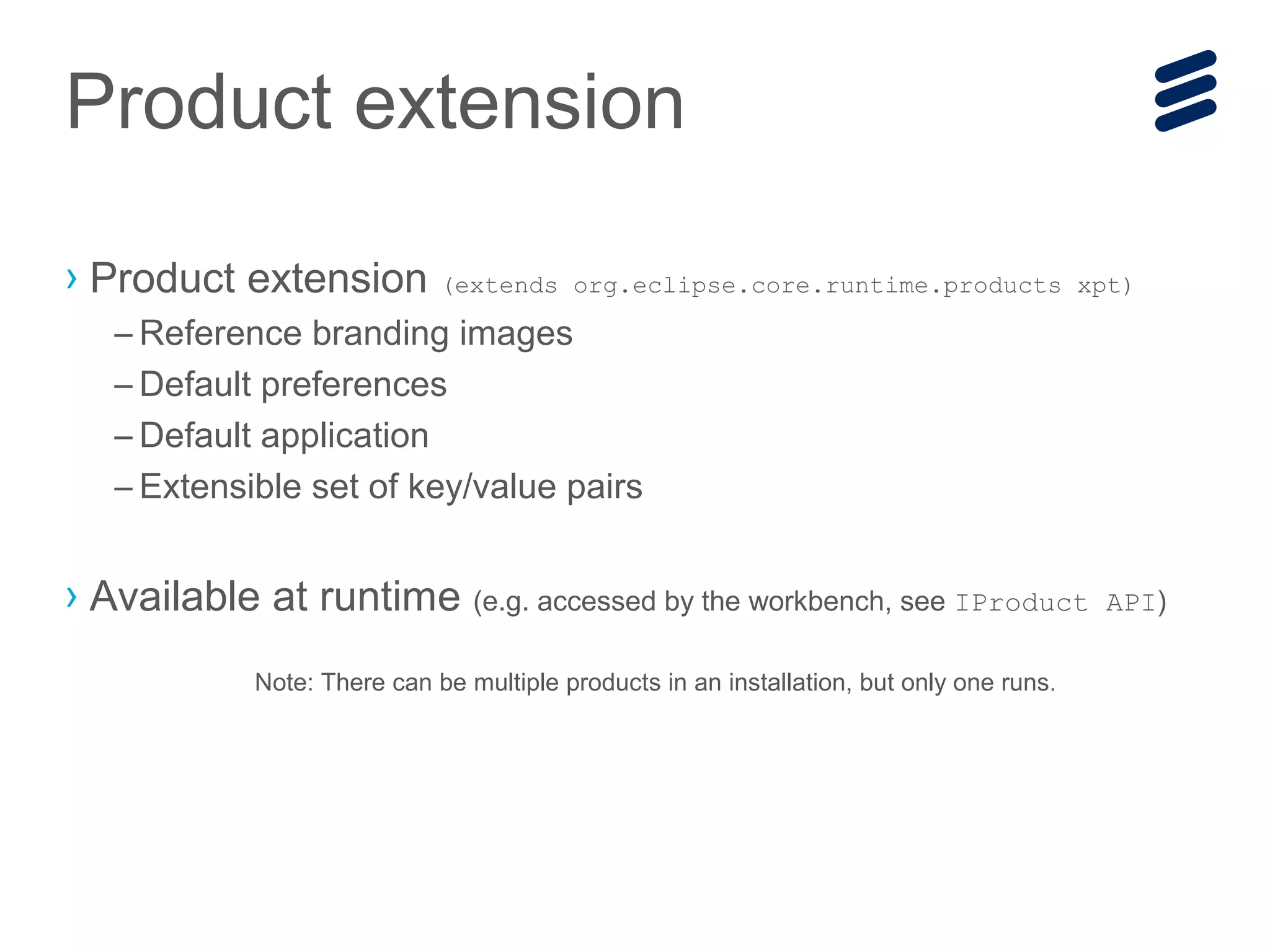

6. › Product extension (extends org.eclipse.core.runtime.products xpt)
– Reference branding images
– Default preferences
– Default application
– Extensible set of key/value pairs
› Available at runtime (e.g. accessed by the workbench, see IProduct API)
Note: There can be multiple products in an installation, but only one runs.
Product extension

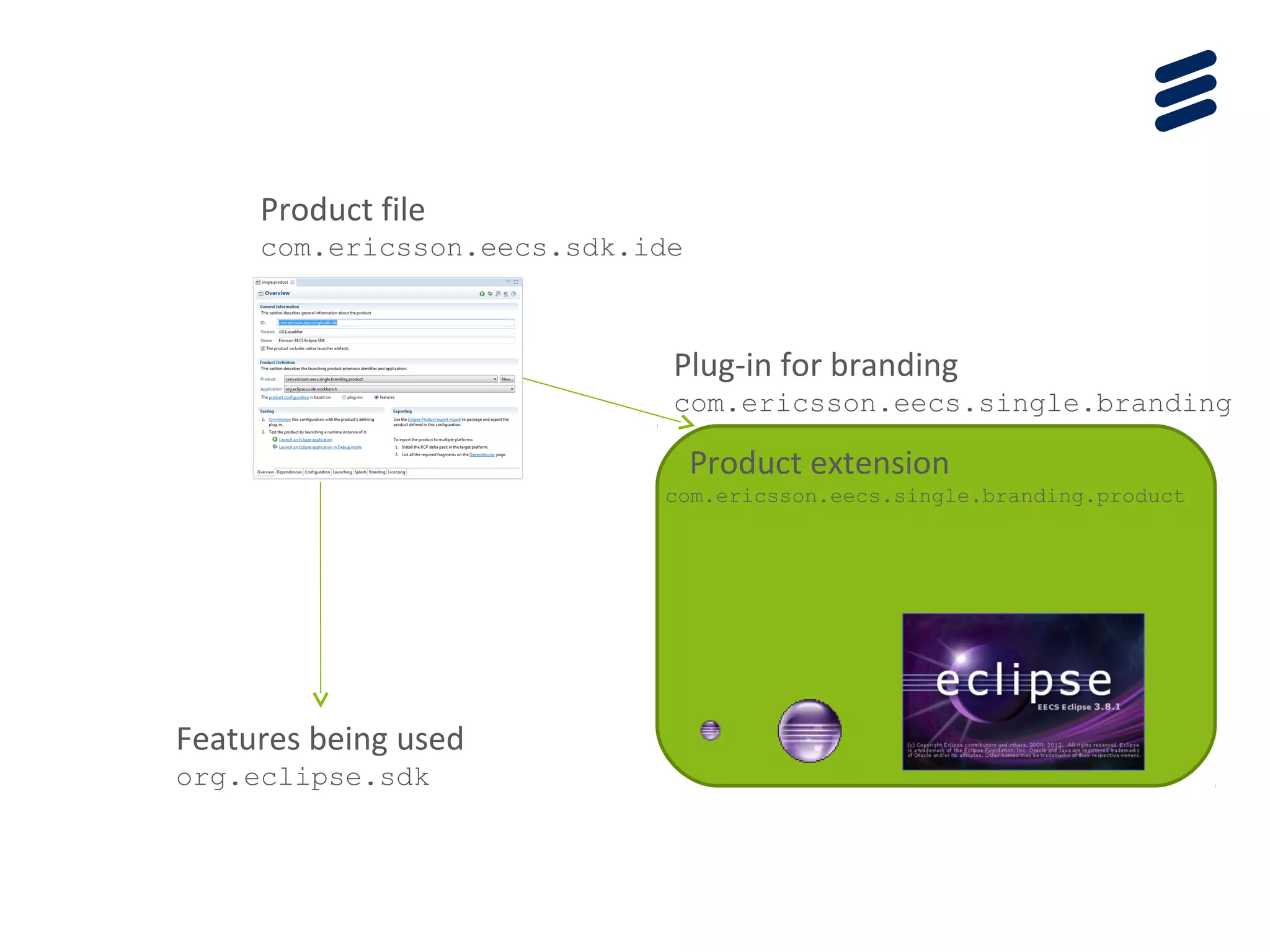

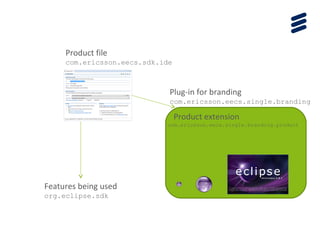

7. Plug-in for branding
com.ericsson.eecs.single.branding
Product extension
com.ericsson.eecs.single.branding.product
Features being used
org.eclipse.sdk
Product file
com.ericsson.eecs.sdk.ide

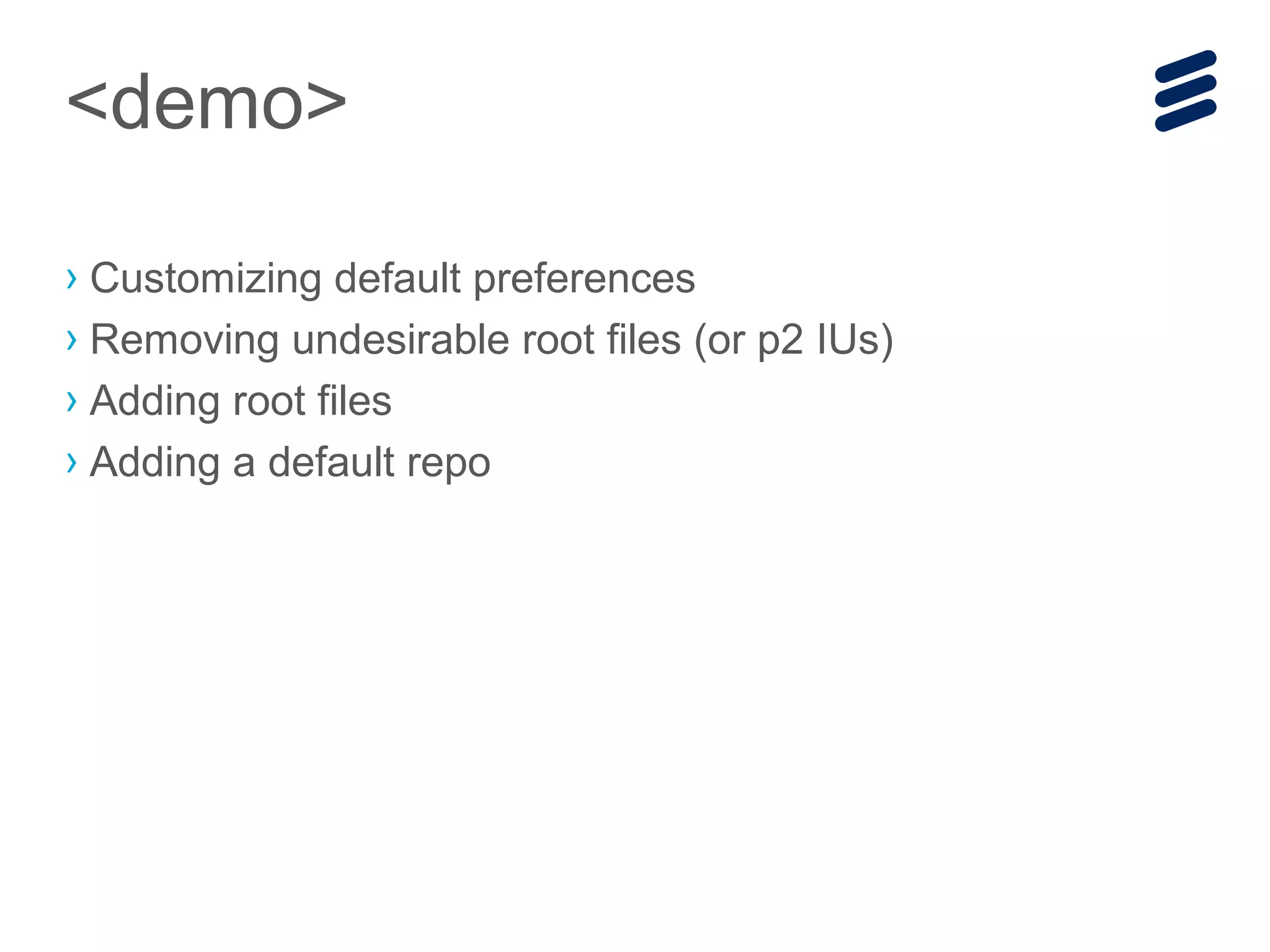

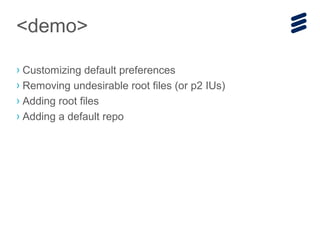

8. › Customizing default preferences
› Removing undesirable root files (or p2 IUs)
› Adding root files
› Adding a default repo
<demo>

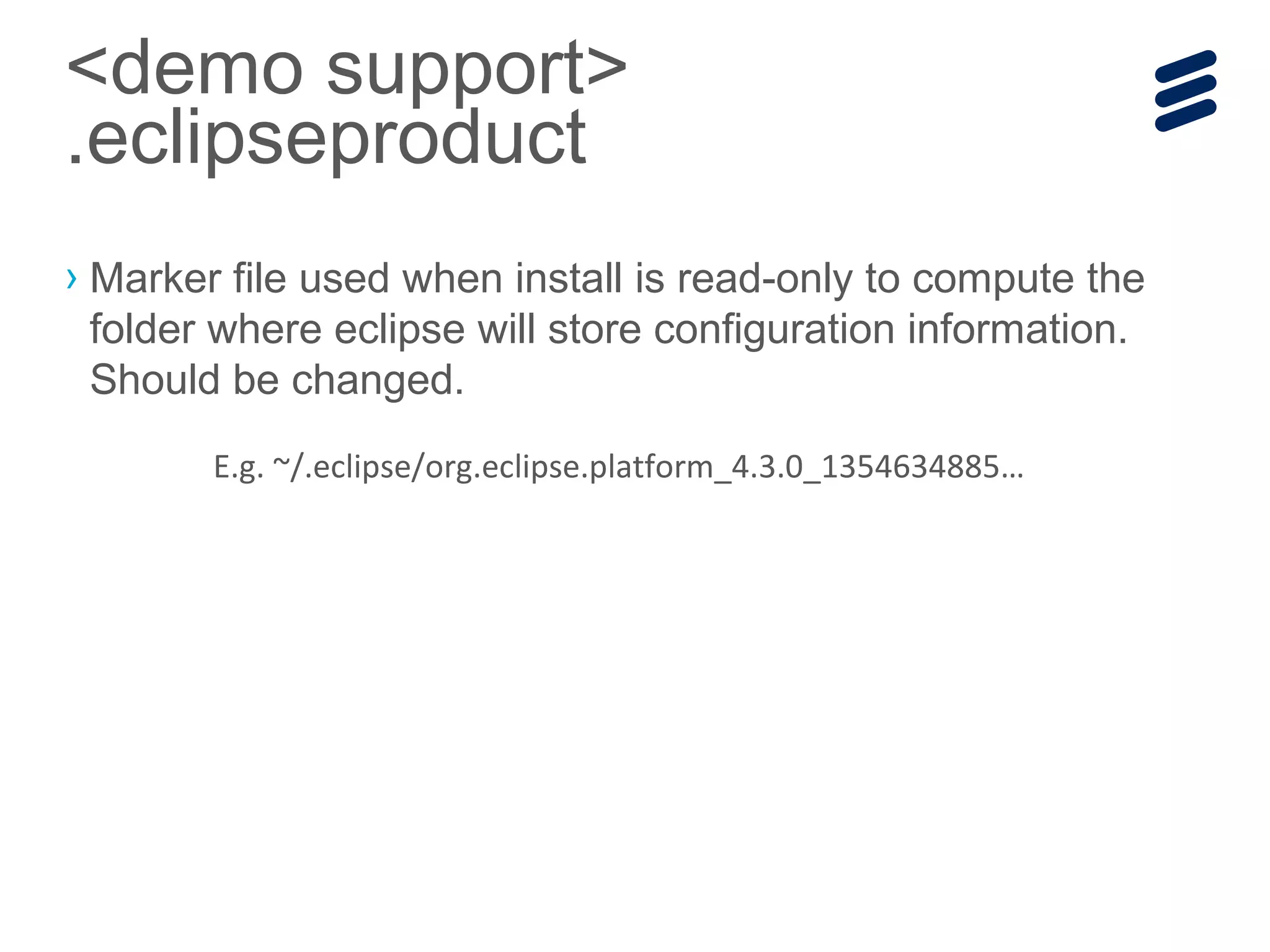

9. › Marker file used when install is read-only to compute the
folder where eclipse will store configuration information.
Should be changed.
<demo support>
.eclipseproduct
E.g. ~/.eclipse/org.eclipse.platform_4.3.0_1354634885…

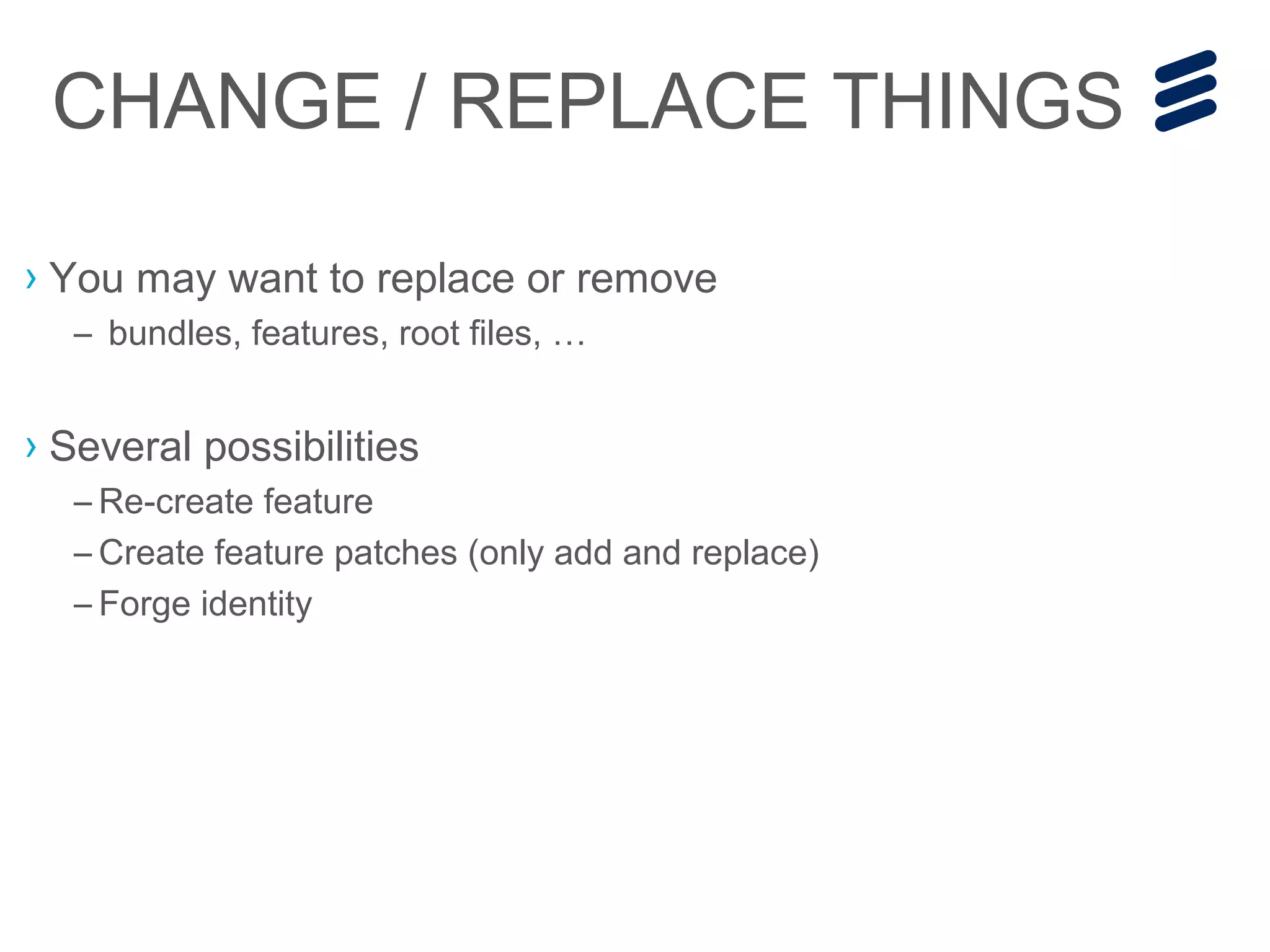

10. › You may want to replace or remove
– bundles, features, root files, …
› Several possibilities
– Re-create feature
– Create feature patches (only add and replace)
– Forge identity
CHANGE / REPLACE THINGS

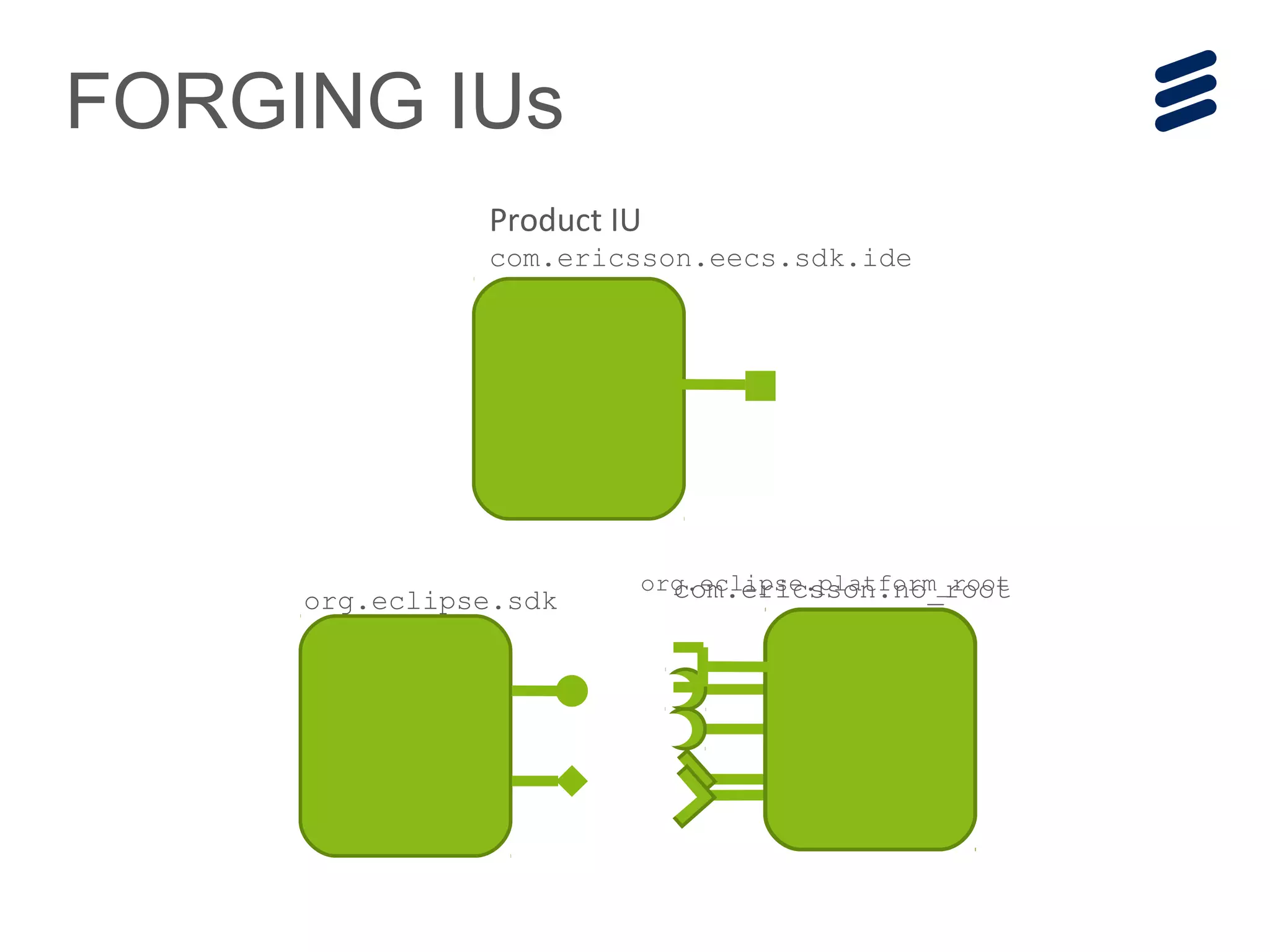

11. FORGING IUs
org.eclipse.sdk
org.eclipse.platform_root
Product IU
com.ericsson.eecs.sdk.ide
com.ericsson.no_root

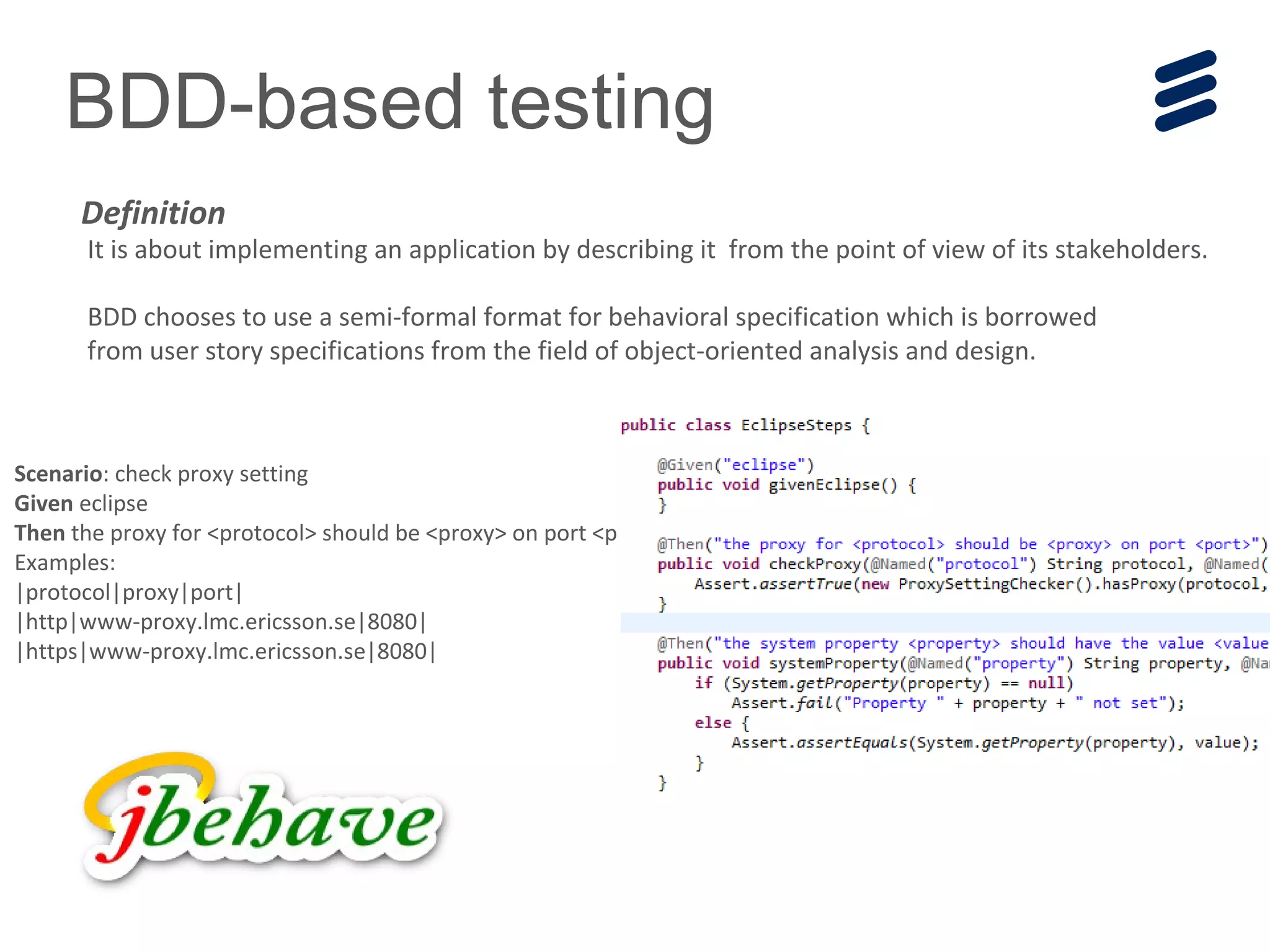

12. BDD-based testing
It is about implementing an application by describing it from the point of view of its stakeholders.
BDD chooses to use a semi-formal format for behavioral specification which is borrowed
from user story specifications from the field of object-oriented analysis and design.
Definition
Scenario: check proxy setting
Given eclipse
Then the proxy for <protocol> should be <proxy> on port <port>
Examples:
|protocol|proxy|port|
|http|www-proxy.lmc.ericsson.se|8080|
|https|www-proxy.lmc.ericsson.se|8080|

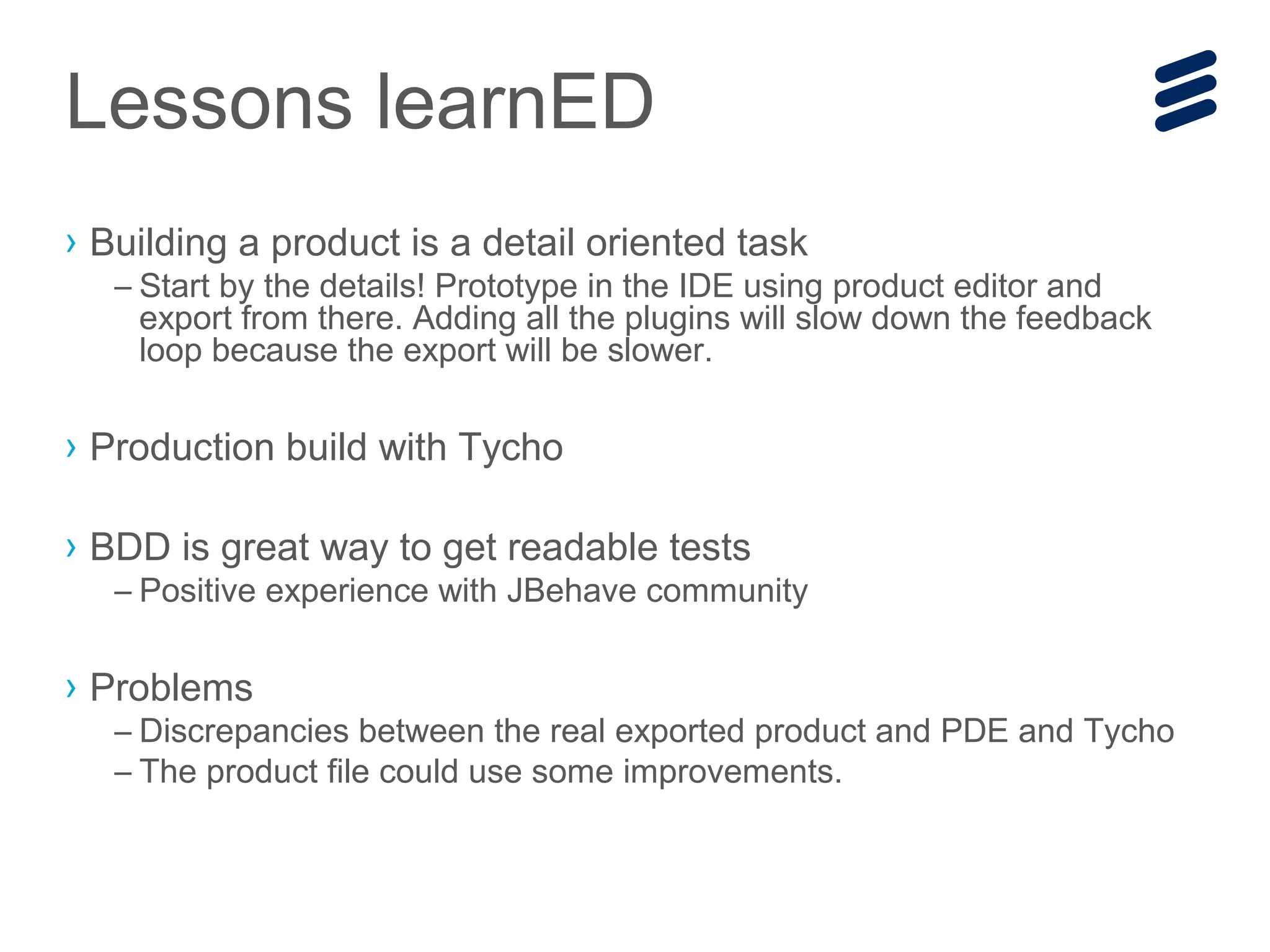

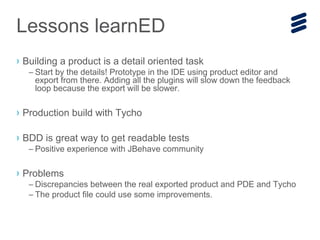

13. Lessons learnED
› Building a product is a detail oriented task
– Start by the details! Prototype in the IDE using product editor and
export from there. Adding all the plugins will slow down the feedback
loop because the export will be slower.
› Production build with Tycho
› BDD is great way to get readable tests
– Positive experience with JBehave community
› Problems
– Discrepancies between the real exported product and PDE and Tycho
– The product file could use some improvements.

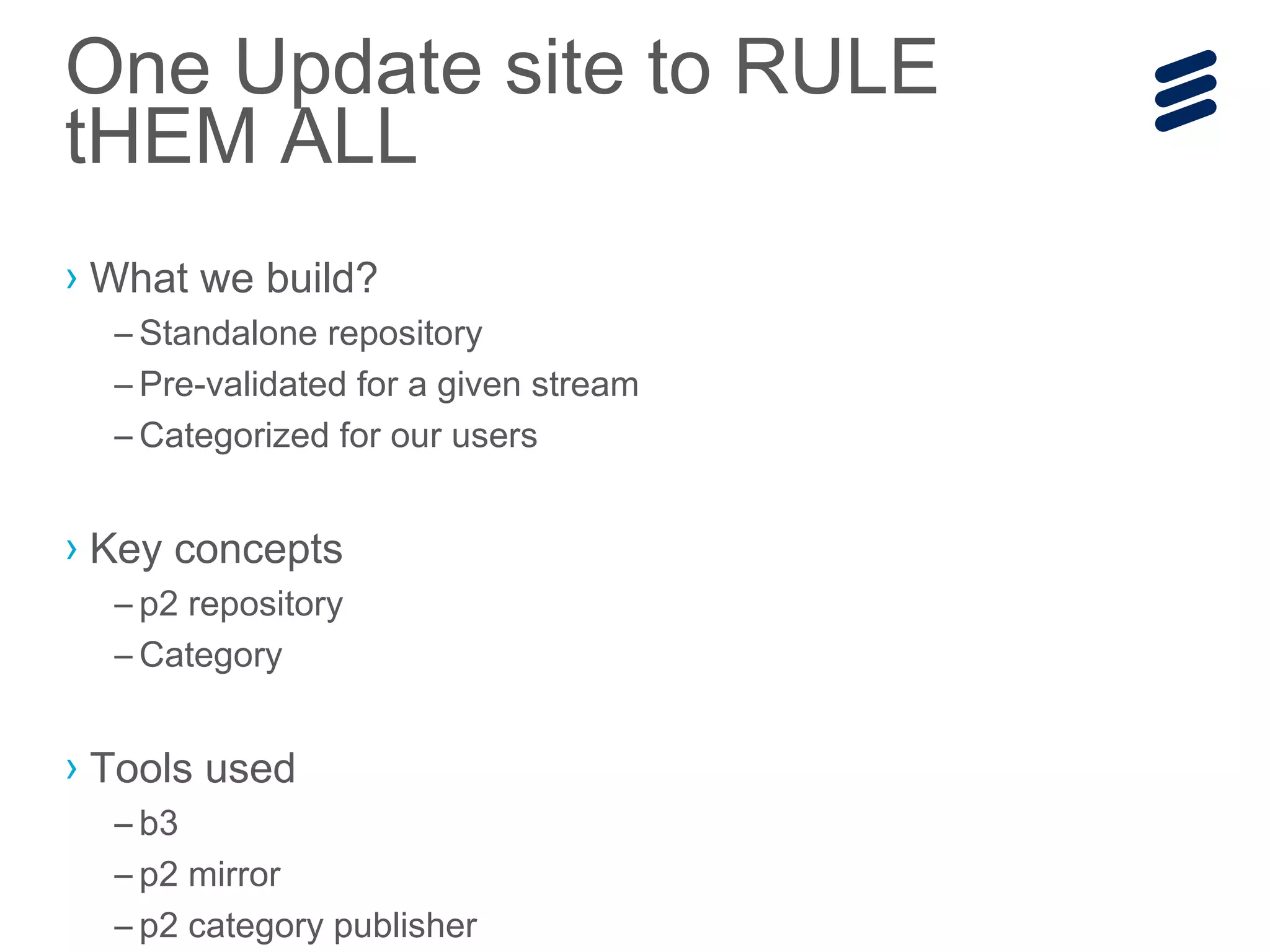

14. › What we build?
– Standalone repository
– Pre-validated for a given stream
– Categorized for our users
› Key concepts
– p2 repository
– Category
› Tools used
– b3
– p2 mirror
– p2 category publisher
One Update site to RULE
tHEM ALL

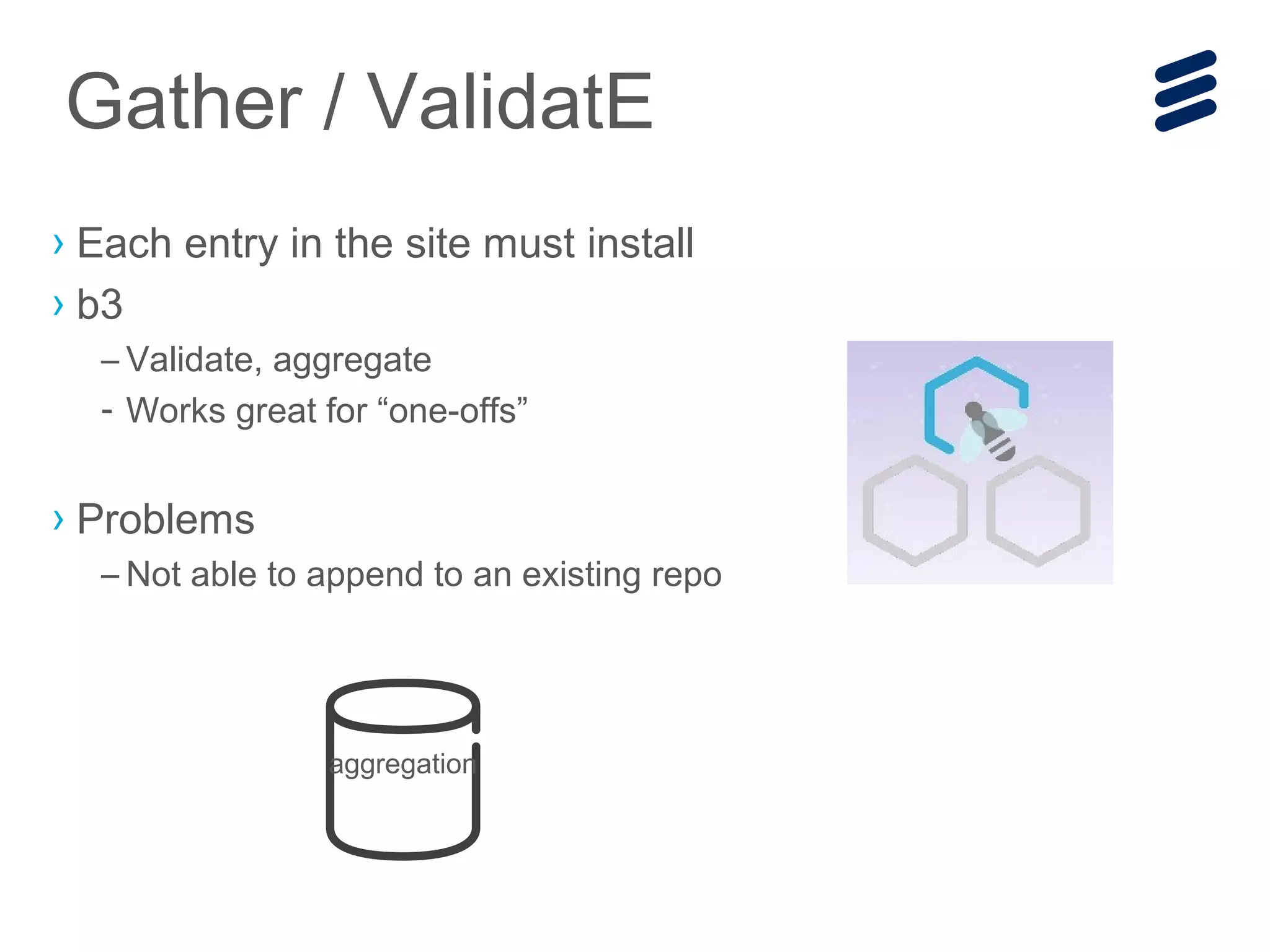

15. › Each entry in the site must install
› b3
– Validate, aggregate
- Works great for “one-offs”
› Problems
– Not able to append to an existing repo
Gather / ValidatE
aggregation

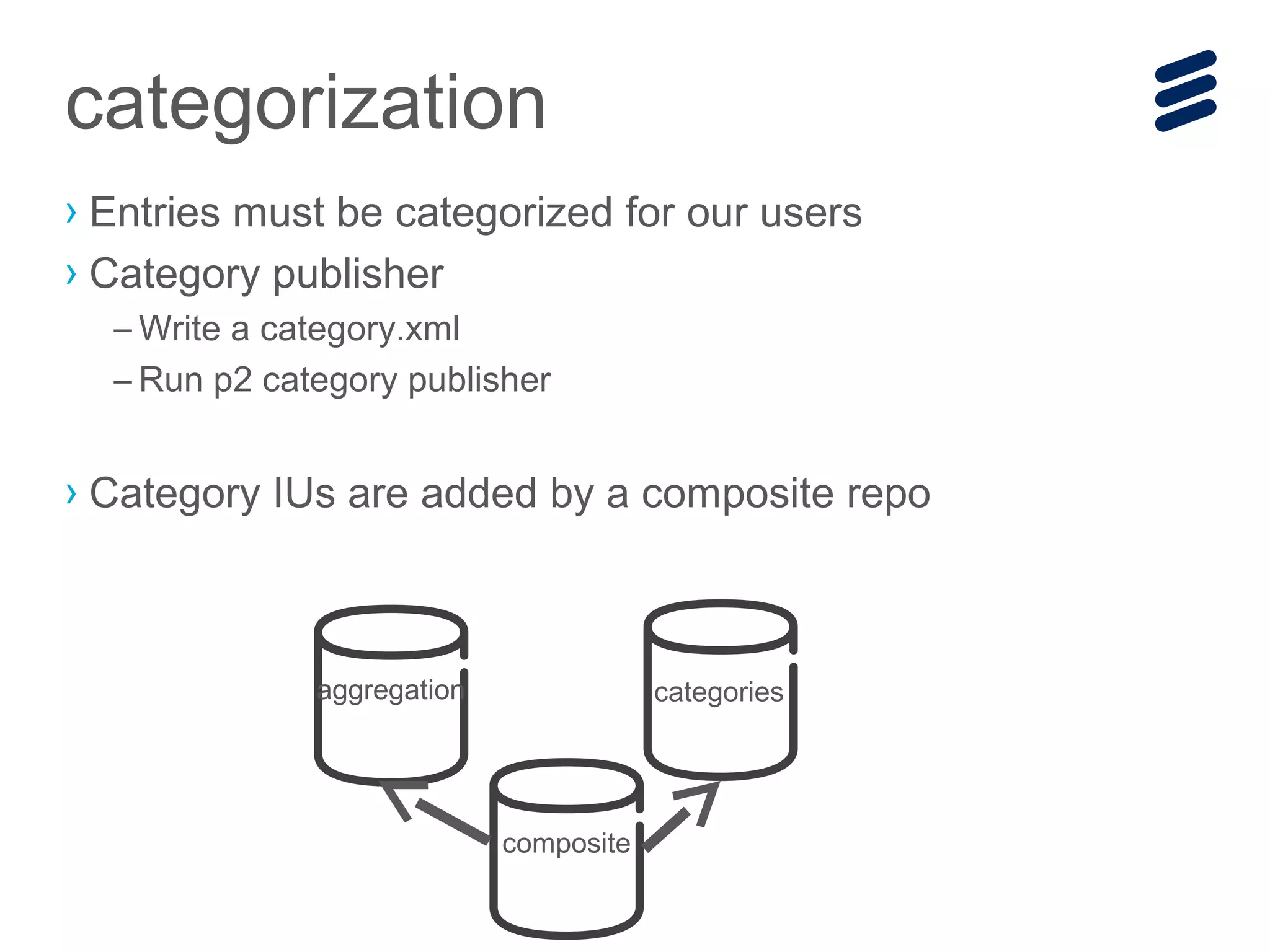

16. › Entries must be categorized for our users
› Category publisher
– Write a category.xml
– Run p2 category publisher
› Category IUs are added by a composite repo
categorization
categories
composite
aggregation

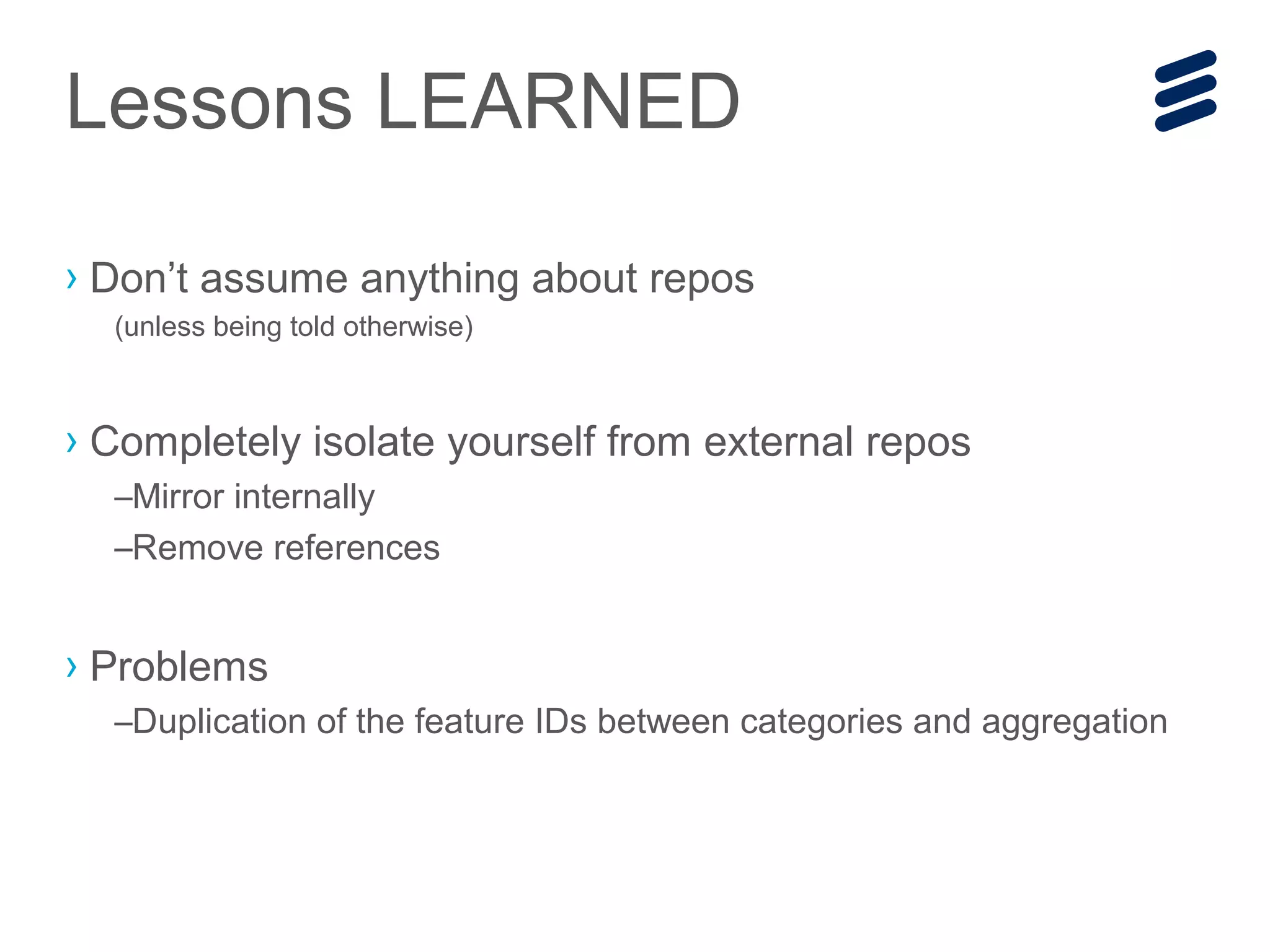

17. › Don’t assume anything about repos
(unless being told otherwise)
› Completely isolate yourself from external repos
–Mirror internally
–Remove references
› Problems
–Duplication of the feature IDs between categories and aggregation
Lessons LEARNED

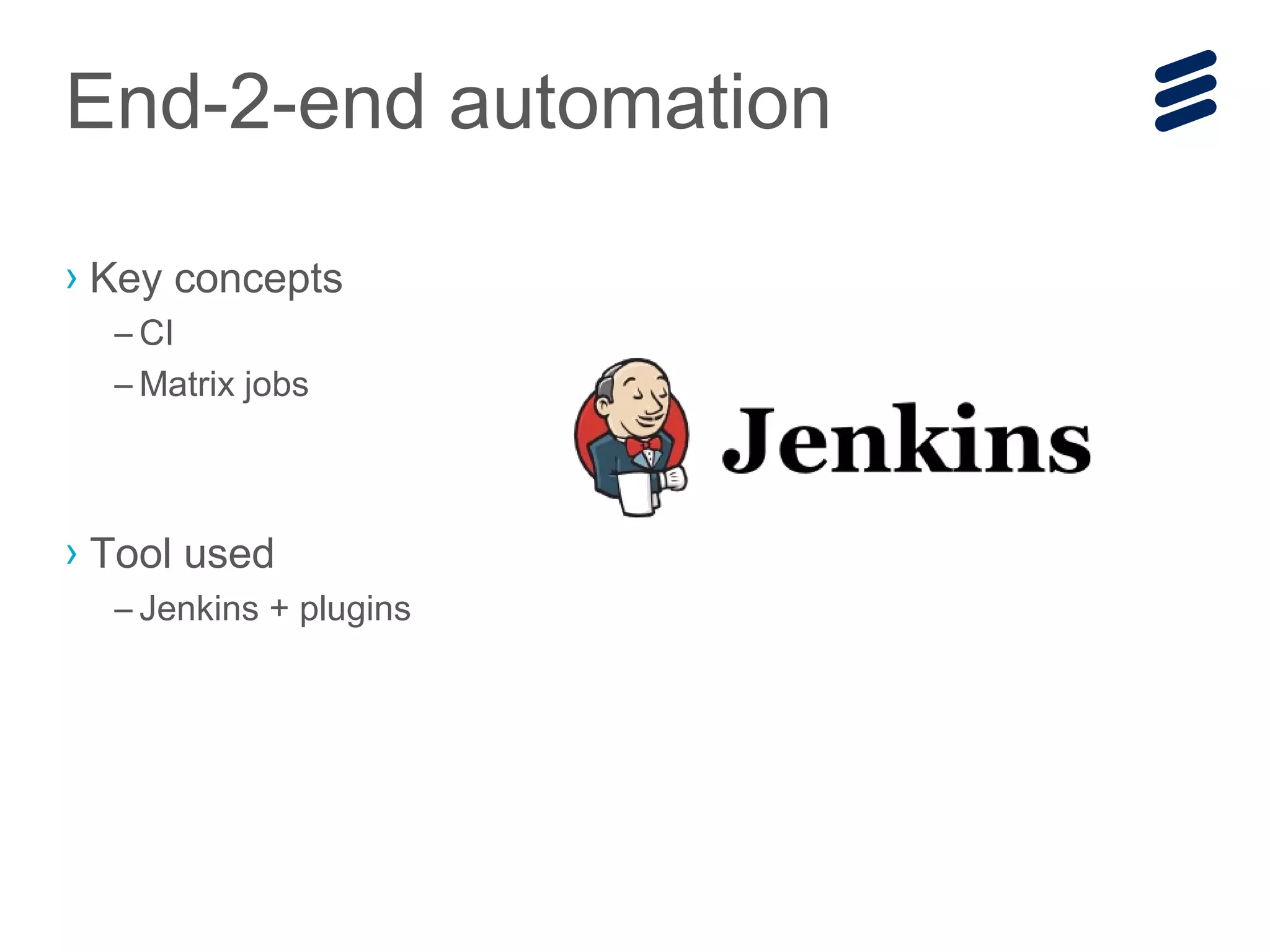

18. › Key concepts
– CI
– Matrix jobs
› Tool used
– Jenkins + plugins
End-2-end automation

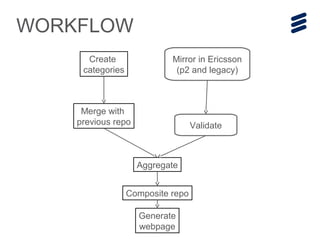

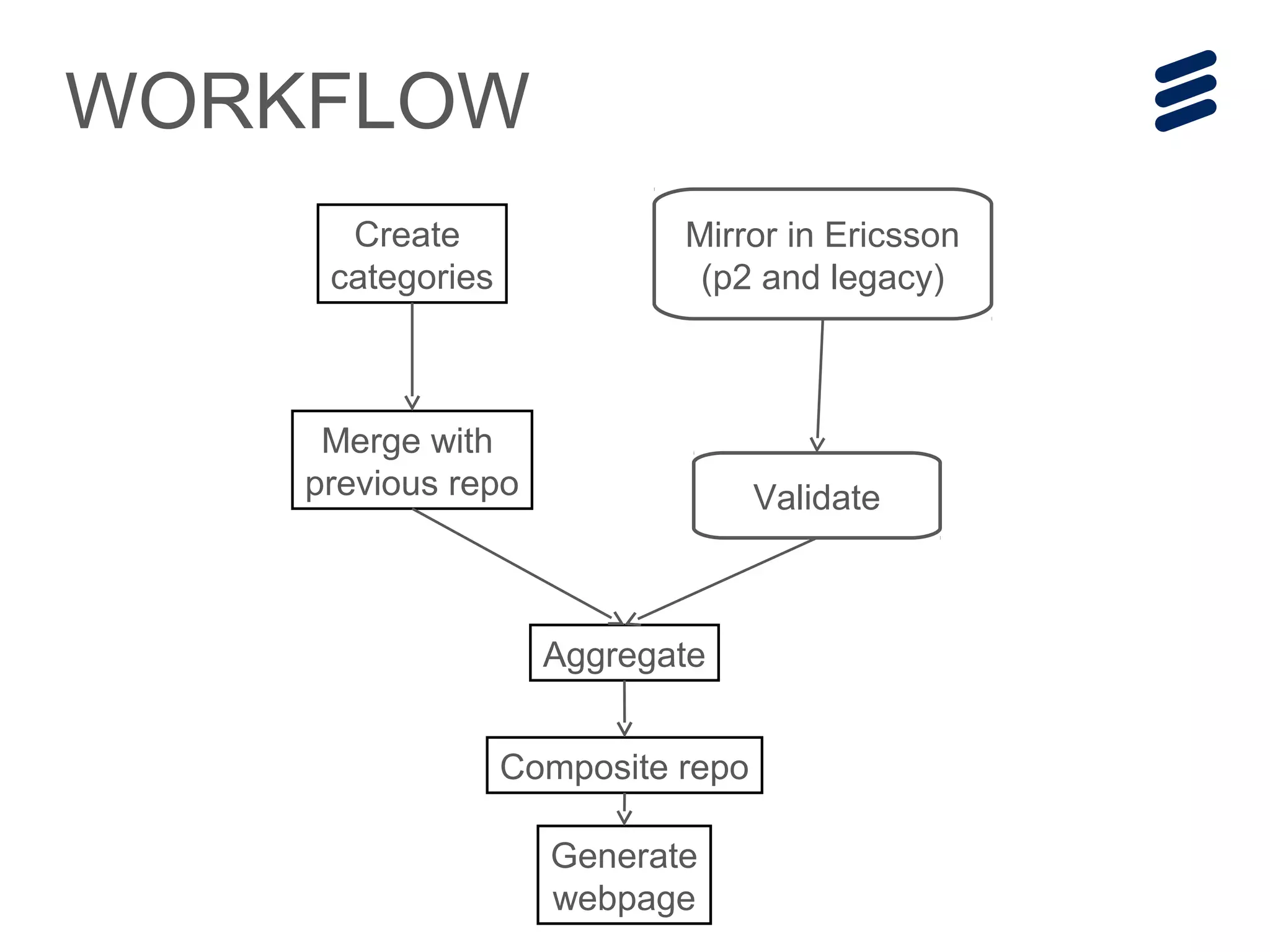

19. WORKFLOW
Merge with
previous repo
Create
categories
Mirror in Ericsson
(p2 and legacy)
Validate
Aggregate
Generate
webpage
Composite repo

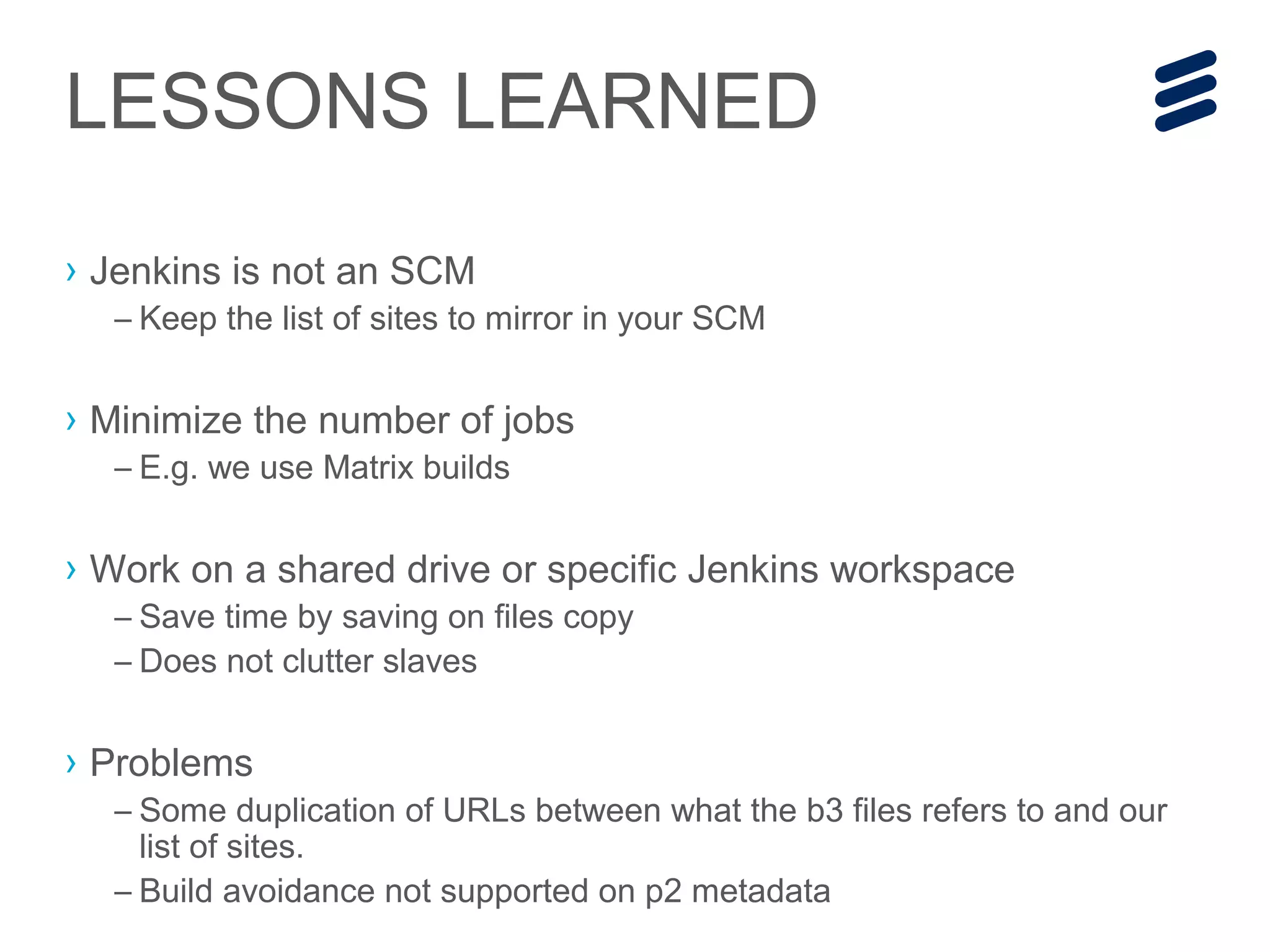

20. › Jenkins is not an SCM
– Keep the list of sites to mirror in your SCM
› Minimize the number of jobs
– E.g. we use Matrix builds
› Work on a shared drive or specific Jenkins workspace
– Save time by saving on files copy
– Does not clutter slaves
› Problems
– Some duplication of URLs between what the b3 files refers to and our
list of sites.
– Build avoidance not supported on p2 metadata
LESSONS LEARNED

21. Future WORK

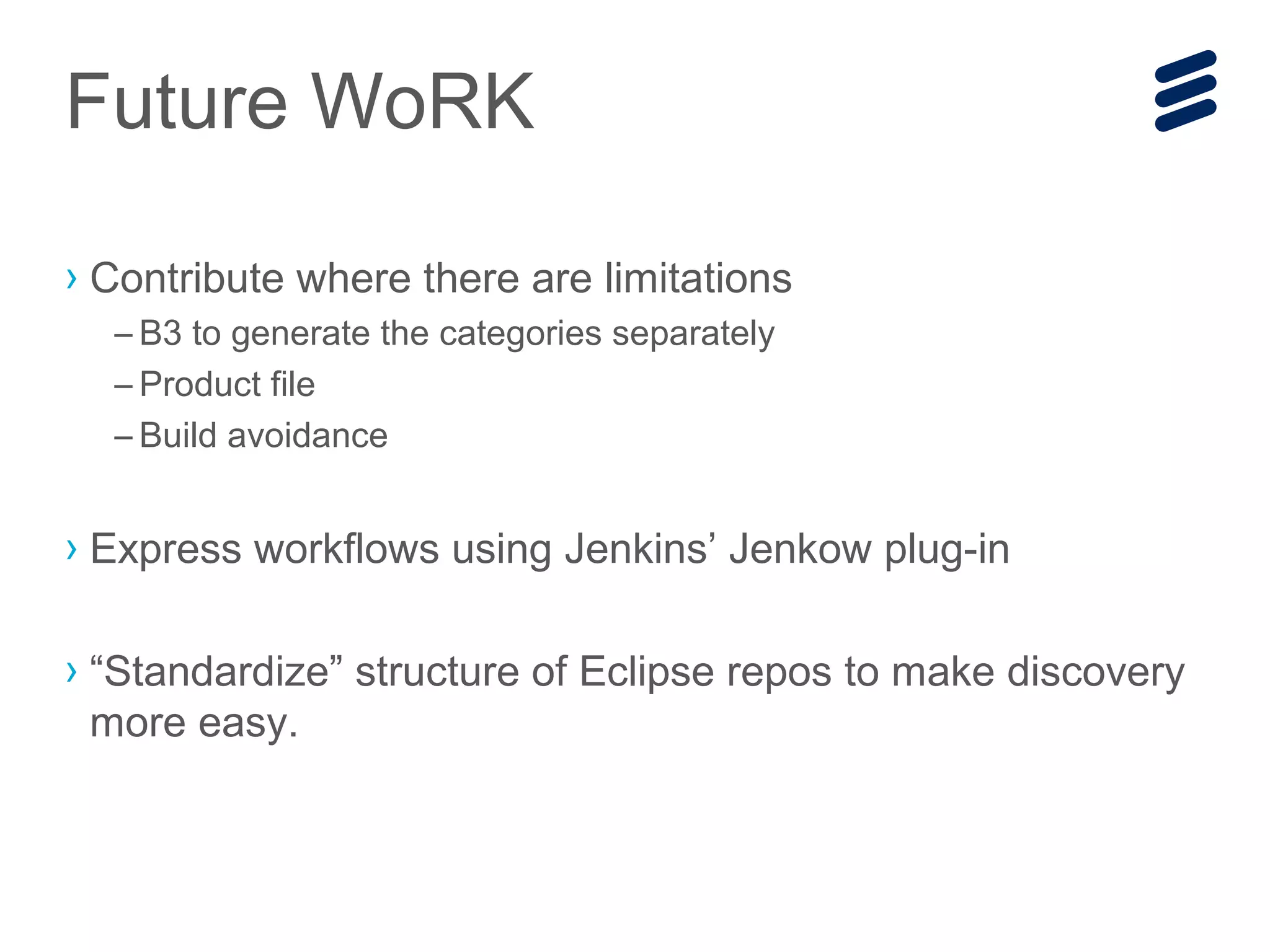

22. Future WoRK
› Contribute where there are limitations
– B3 to generate the categories separately
– Product file
– Build avoidance
› Express workflows using Jenkins’ Jenkow plug-in
› “Standardize” structure of Eclipse repos to make discovery
more easy.

23. › Many tools with their strengths and weaknesses but we
love them for what they are
ConcLUSION
p2
