1. 1283: My love-hate relationship with
IBM Domino Plug-ins
Teresa Deane Date – January 31, 2016

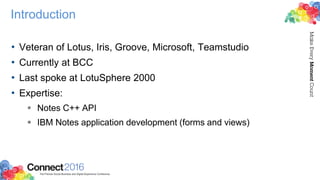

2. Introduction
• Veteran of Lotus, Iris, Groove, Microsoft, Teamstudio
• Currently at BCC
• Last spoke at LotuSphere 2000
• Expertise:
 Notes C++ API
 IBM Notes application development (forms and views)

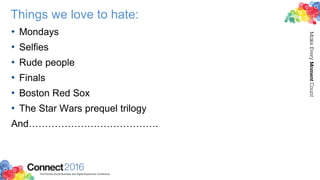

3. Things we love to hate:
• Mondays
• Selfies
• Rude people
• Finals
• Boston Red Sox
• The Star Wars prequel trilogy
And………………………………….

4. Big Hair from the 80s

5. Introduction to Plug-ins
• Terminology: Plug-ins, Features, Widgets
• Functionality: What can you do with Plug-ins?
• Developer Topics
 Development Tools: Eclipse
 Source Code: MANIFEST.MF, plugin.xml, Activator.java,
feature.xml, internationalization
• Administration Topics
 Deployment: Security (Policies), Widget Catalog, Site Database,
Third Party

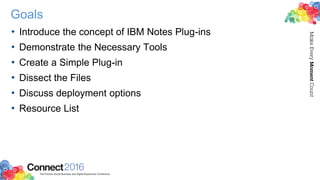

6. Goals
• Introduce the concept of IBM Notes Plug-ins
• Demonstrate the Necessary Tools
• Create a Simple Plug-in
• Dissect the Files
• Discuss deployment options
• Resource List

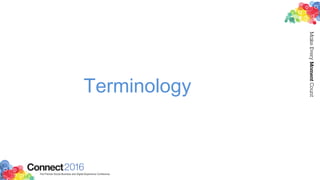

7. Terminology

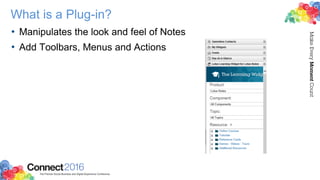

8. What is a Plug-in?
• Manipulates the look and feel of Notes
• Add Toolbars, Menus and Actions

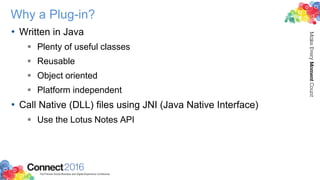

9. Why a Plug-in?
• Written in Java
 Plenty of useful classes
 Reusable
 Object oriented
 Platform independent
• Call Native (DLL) files using JNI (Java Native Interface)
 Use the Lotus Notes API

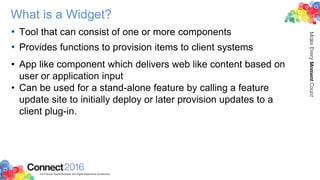

10. What is a Widget?
• Tool that can consist of one or more components
• Provides functions to provision items to client systems
• App like component which delivers web like content based on
user or application input
• Can be used for a stand-alone feature by calling a feature
update site to initially deploy or later provision updates to a
client plug-in.

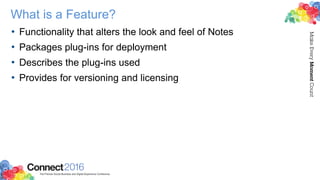

11. What is a Feature?
• Functionality that alters the look and feel of Notes
• Packages plug-ins for deployment
• Describes the plug-ins used
• Provides for versioning and licensing

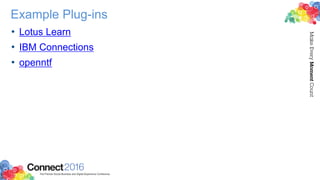

12. Example Plug-ins
• Lotus Learn
• IBM Connections
• openntf

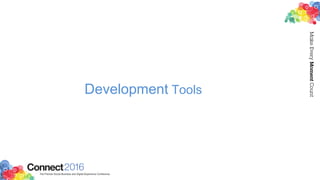

13. Development Tools

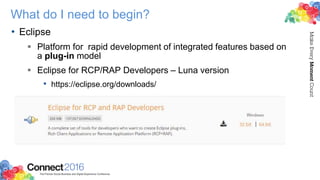

14. What do I need to begin?
• Eclipse
 Platform for rapid development of integrated features based on
a plug-in model
 Eclipse for RCP/RAP Developers – Luna version
• https://eclipse.org/downloads/

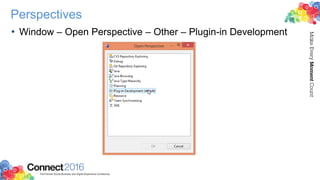

15. Perspectives
• Window – Open Perspective – Other – Plugin-in Development

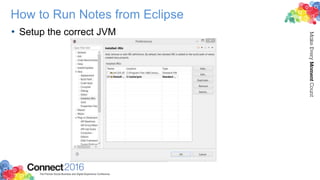

16. How to Run Notes from Eclipse
• Setup the correct JVM

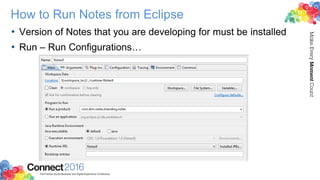

17. How to Run Notes from Eclipse
• Version of Notes that you are developing for must be installed
• Run – Run Configurations…

18. Eclipse Setup – Arguments tab

19. Arguments – Variables – Edit variables

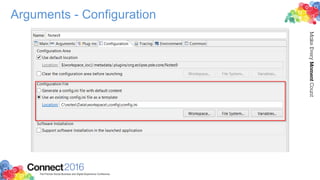

20. Arguments - Configuration

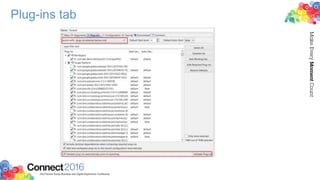

21. Plug-ins tab

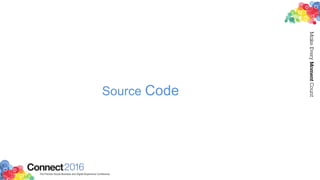

22. Source Code

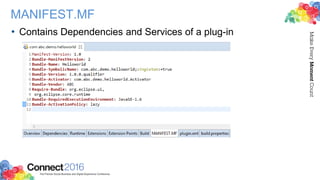

23. MANIFEST.MF
• Contains Dependencies and Services of a plug-in

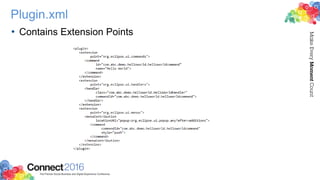

24. Plugin.xml
• Contains Extension Points

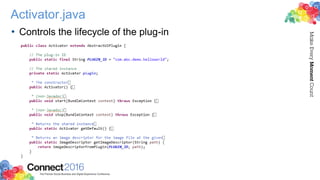

25. Activator.java
• Controls the lifecycle of the plug-in

26. Feature.xml
• Eclipse: File – New – Feature Project

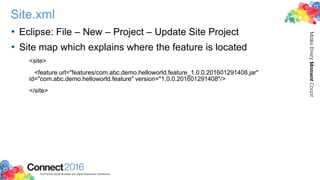

27. Site.xml
• Eclipse: File – New – Project – Update Site Project
• Site map which explains where the feature is located
<site>
<feature url="features/com.abc.demo.helloworld.feature_1.0.0.201601291408.jar"
id="com.abc.demo.helloworld.feature" version="1.0.0.201601291408"/>
</site>

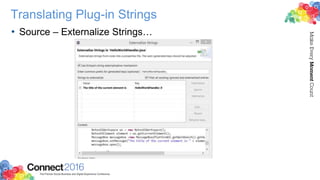

28. Translating Plug-in Strings
• Source – Externalize Strings…

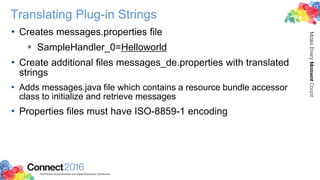

29. Translating Plug-in Strings
• Creates messages.properties file
 SampleHandler_0=Helloworld
• Create additional files messages_de.properties with translated
strings
• Adds messages.java file which contains a resource bundle accessor
class to initialize and retrieve messages
• Properties files must have ISO-8859-1 encoding

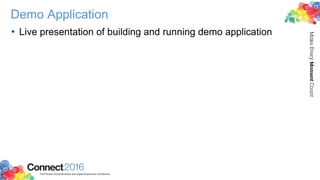

30. Demo Application
• Live presentation of building and running demo application

31. Deployment

32. Plug-in Security (cont’d)
• Desktop Setting Policy – Widgets

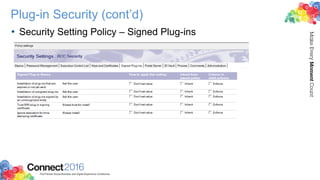

33. Plug-in Security (cont’d)
• Security Setting Policy – Signed Plug-ins

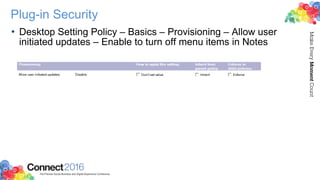

34. Plug-in Security
• Desktop Setting Policy – Basics – Provisioning – Allow user
initiated updates – Enable to turn off menu items in Notes

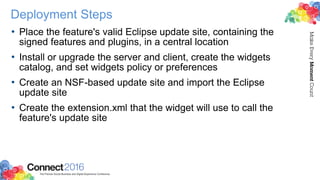

35. Deployment Steps
• Place the feature's valid Eclipse update site, containing the
signed features and plugins, in a central location
• Install or upgrade the server and client, create the widgets
catalog, and set widgets policy or preferences
• Create an NSF-based update site and import the Eclipse
update site
• Create the extension.xml that the widget will use to call the
feature's update site

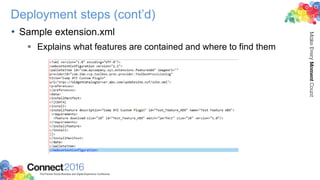

36. Deployment steps (cont’d)
• Sample extension.xml
 Explains what features are contained and where to find them

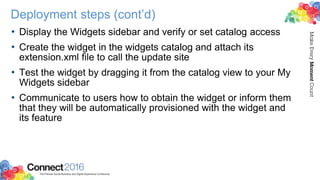

37. Deployment steps (cont’d)
• Display the Widgets sidebar and verify or set catalog access
• Create the widget in the widgets catalog and attach its
extension.xml file to call the update site
• Test the widget by dragging it from the catalog view to your My
Widgets sidebar
• Communicate to users how to obtain the widget or inform them
that they will be automatically provisioned with the widget and
its feature

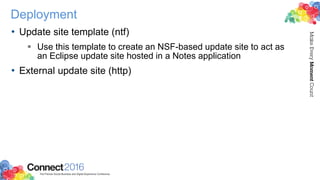

38. Deployment
• Update site template (ntf)
 Use this template to create an NSF-based update site to act as
an Eclipse update site hosted in a Notes application
• External update site (http)

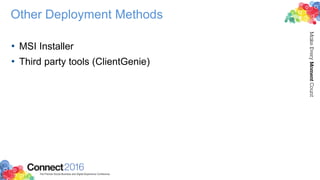

39. Other Deployment Methods
• MSI Installer
• Third party tools (ClientGenie)

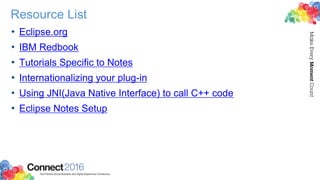

40. Resource List
• Eclipse.org
• IBM Redbook
• Tutorials Specific to Notes
• Internationalizing your plug-in
• Using JNI(Java Native Interface) to call C++ code
• Eclipse Notes Setup

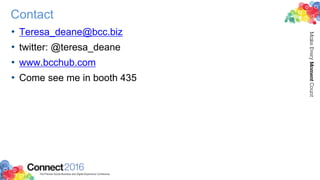

41. Contact
• Teresa_deane@bcc.biz
• twitter: @teresa_deane
• www.bcchub.com
• Come see me in booth 435

42. Thank you

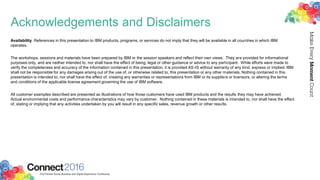

43. Acknowledgements and Disclaimers
Availability. References in this presentation to IBM products, programs, or services do not imply that they will be available in all countries in which IBM
operates.
The workshops, sessions and materials have been prepared by IBM or the session speakers and reflect their own views. They are provided for informational
purposes only, and are neither intended to, nor shall have the effect of being, legal or other guidance or advice to any participant. While efforts were made to
verify the completeness and accuracy of the information contained in this presentation, it is provided AS-IS without warranty of any kind, express or implied. IBM
shall not be responsible for any damages arising out of the use of, or otherwise related to, this presentation or any other materials. Nothing contained in this
presentation is intended to, nor shall have the effect of, creating any warranties or representations from IBM or its suppliers or licensors, or altering the terms
and conditions of the applicable license agreement governing the use of IBM software.
All customer examples described are presented as illustrations of how those customers have used IBM products and the results they may have achieved.
Actual environmental costs and performance characteristics may vary by customer. Nothing contained in these materials is intended to, nor shall have the effect
of, stating or implying that any activities undertaken by you will result in any specific sales, revenue growth or other results.

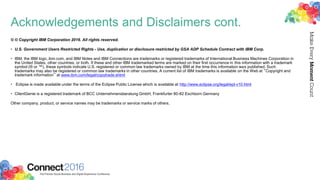

44. Acknowledgements and Disclaimers cont.
