1. BP204 It’s Not Infernal:
Dante’s Nine Circles of
XPages Heaven
Paul Withers, Intec Systems Ltd
Mike McGarel, Czarnowski Display Services Inc.
© 2014 IBM Corporation

2. Paul Withers
 ICS Consultant at Intec Systems Ltd
 IBM Champion 2011-2014
 Co-Author XPages Extension Library
 OpenNTF Director
 Contributor to OpenNTF
 Blogger on XPages, IBM Domino®
Designer and beyond
– http://www.intec.co.uk/blog

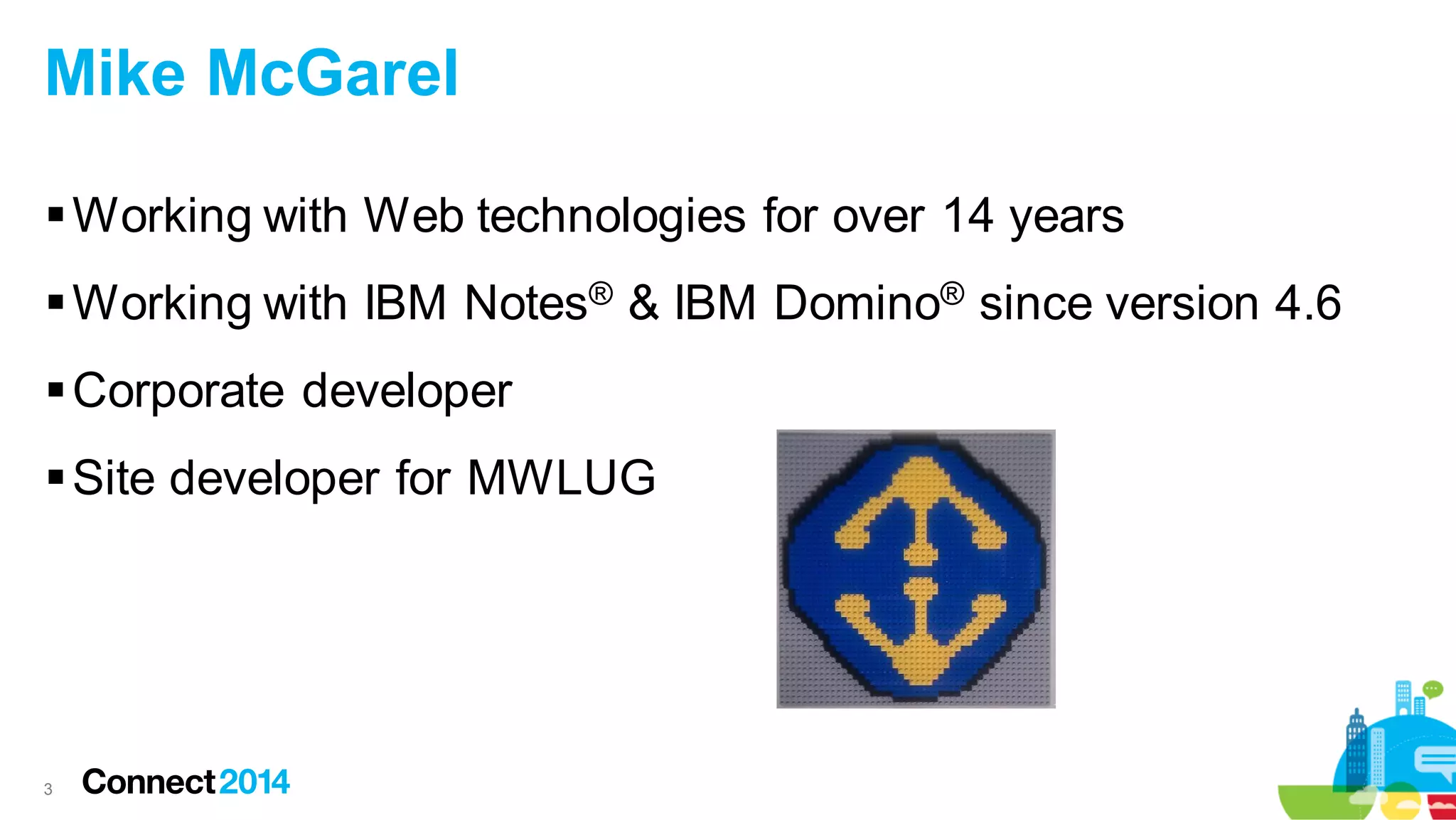

3. Mike McGarel
 Working with Web technologies for over 14 years
 Working with IBM Notes® & IBM Domino® since version 4.6
 Corporate developer
 Site developer for MWLUG
3

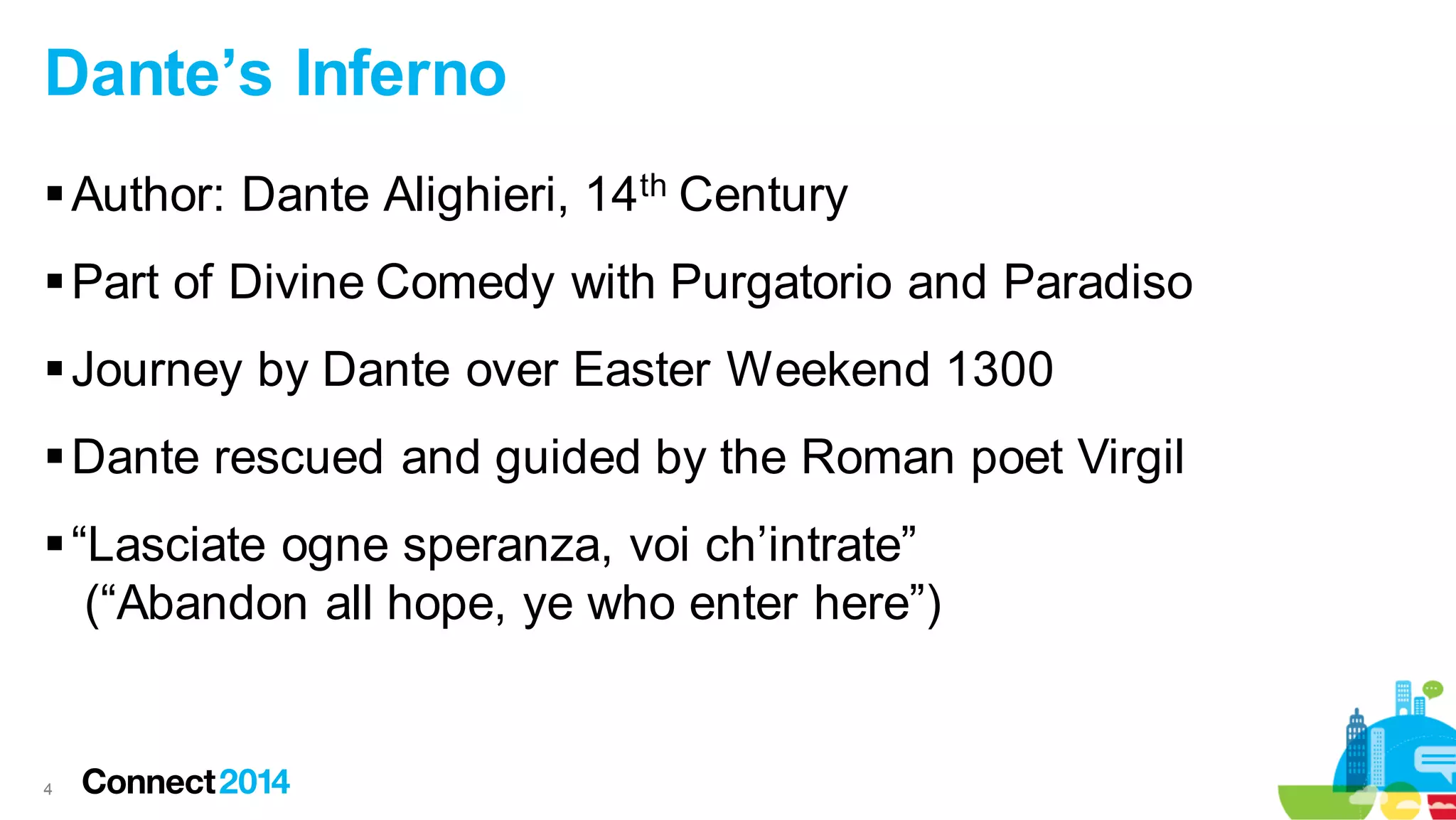

4. Dante’s Inferno
 Author: Dante Alighieri, 14th Century
 Part of Divine Comedy with Purgatorio and Paradiso
 Journey by Dante over Easter Weekend 1300
 Dante rescued and guided by the Roman poet Virgil
 “Lasciate ogne speranza, voi ch’intrate”
(“Abandon all hope, ye who enter here”)
4

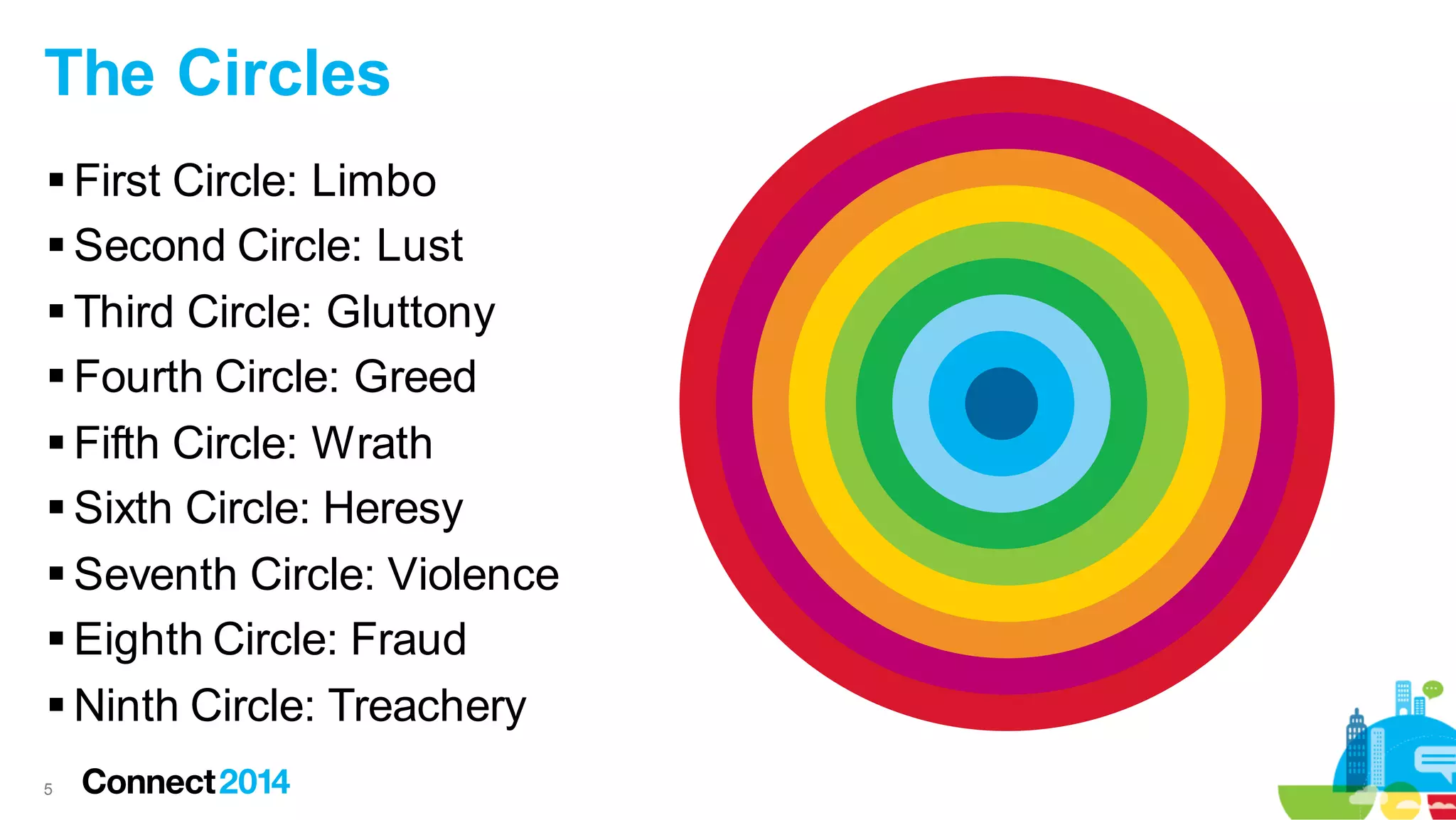

5. The Circles
 First Circle: Limbo
 Second Circle: Lust
 Third Circle: Gluttony
 Fourth Circle: Greed
 Fifth Circle: Wrath
 Sixth Circle: Heresy
 Seventh Circle: Violence
 Eighth Circle: Fraud
 Ninth Circle: Treachery
5

6. First Circle: Limbo
Mihai Marius Mihu, http://www.flickr.com/photos/mihaimariusmihu/
6

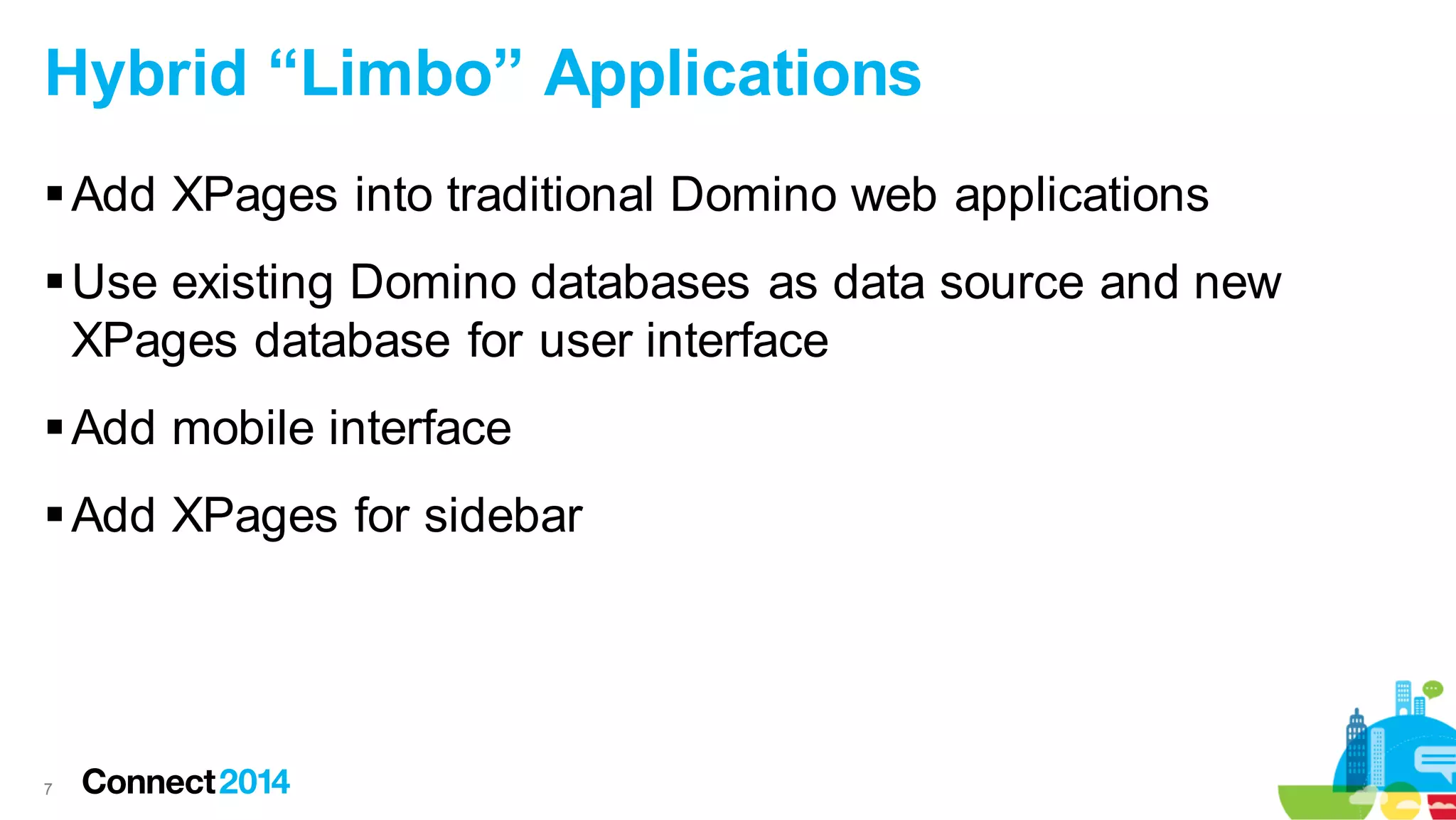

7. Hybrid “Limbo” Applications
 Add XPages into traditional Domino web applications
 Use existing Domino databases as data source and new
XPages database for user interface
 Add mobile interface
 Add XPages for sidebar
7

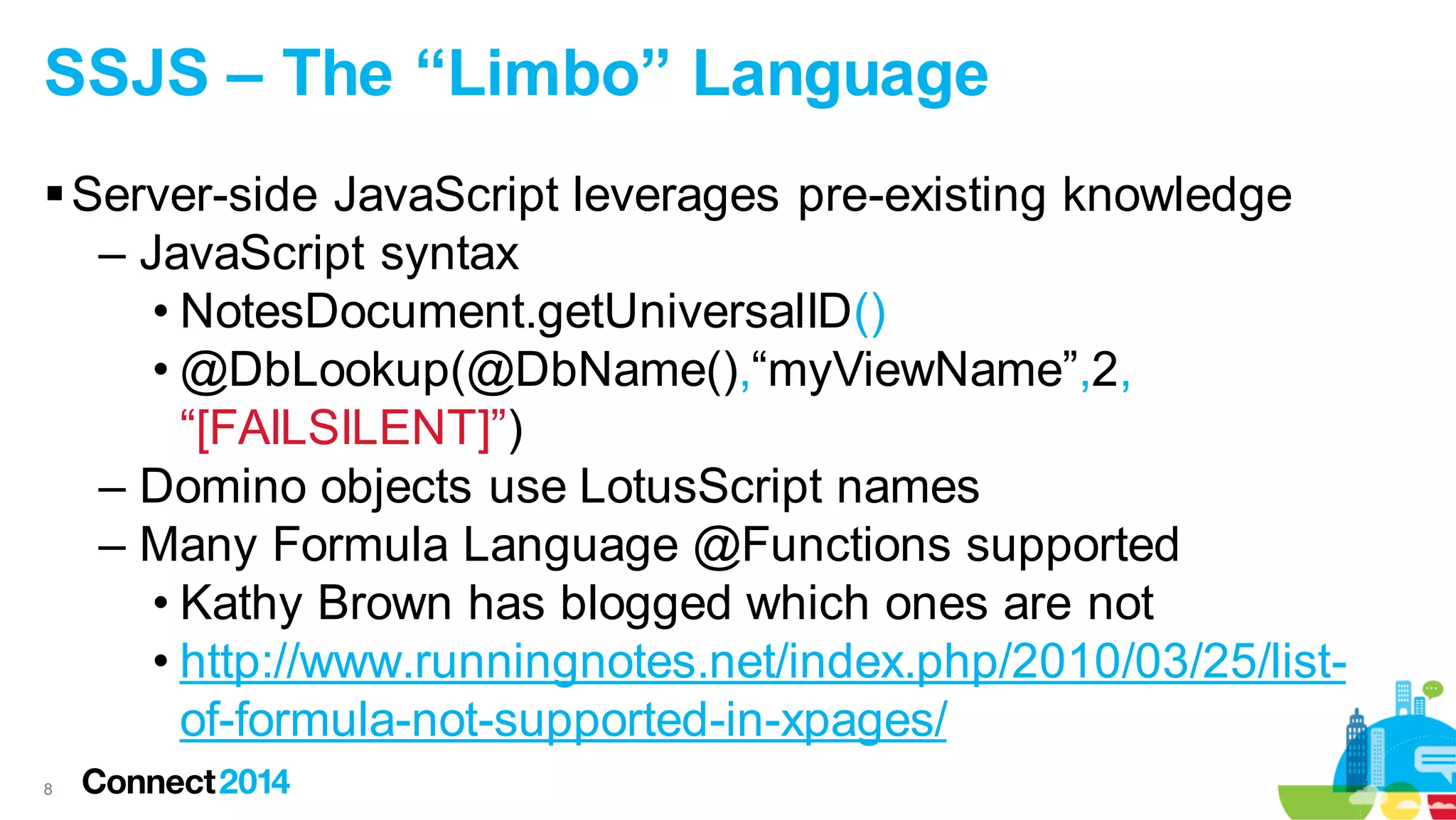

8. SSJS – The “Limbo” Language
 Server-side JavaScript leverages pre-existing knowledge
– JavaScript syntax
• NotesDocument.getUniversalID()
• @DbLookup(@DbName(),“myViewName”,2,
“[FAILSILENT]”)
– Domino objects use LotusScript names
– Many Formula Language @Functions supported
• Kathy Brown has blogged which ones are not
• http://www.runningnotes.net/index.php/2010/03/25/listof-formula-not-supported-in-xpages/
8

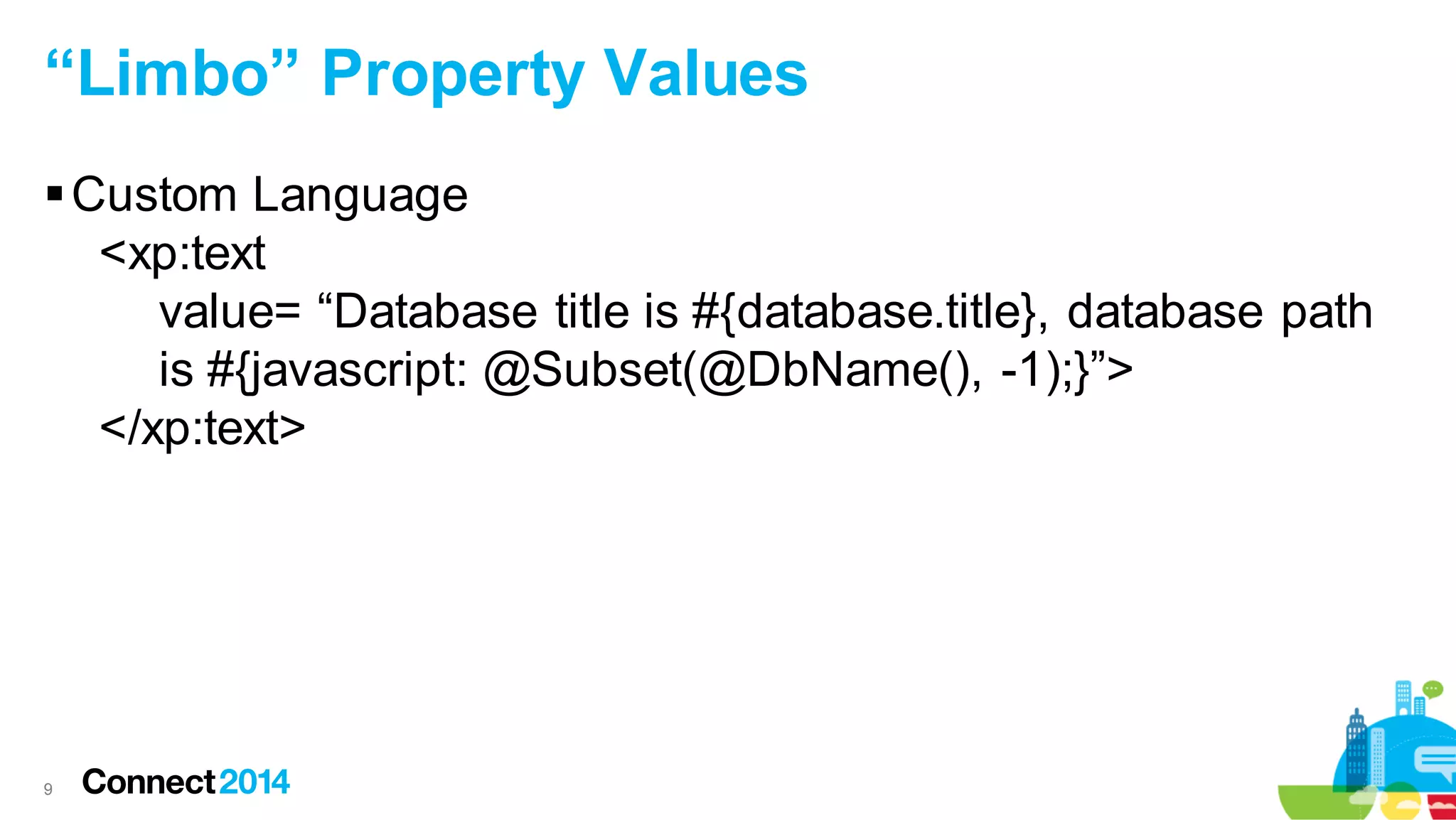

9. “Limbo” Property Values
 Custom Language
<xp:text
value= “Database title is #{database.title}, database path
is #{javascript: @Subset(@DbName(), -1);}”>
</xp:text>
9

10. Demo
10

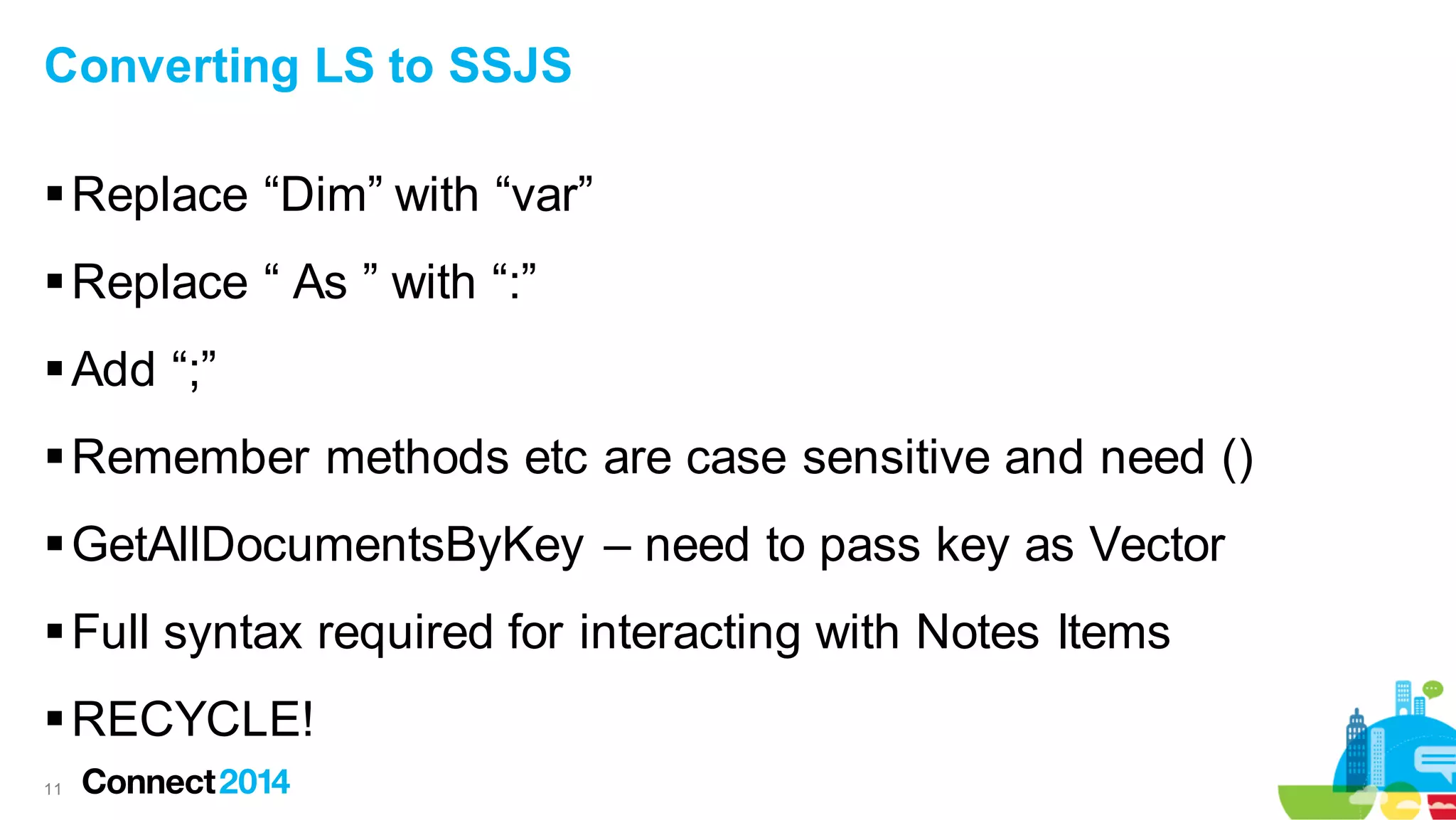

11. Converting LS to SSJS
 Replace “Dim” with “var”
 Replace “ As ” with “:”
 Add “;”
 Remember methods etc are case sensitive and need ()
 GetAllDocumentsByKey – need to pass key as Vector
 Full syntax required for interacting with Notes Items
 RECYCLE!
11

12. Second Circle: Lust
Mihai Marius Mihu, http://www.flickr.com/photos/mihaimariusmihu/
12

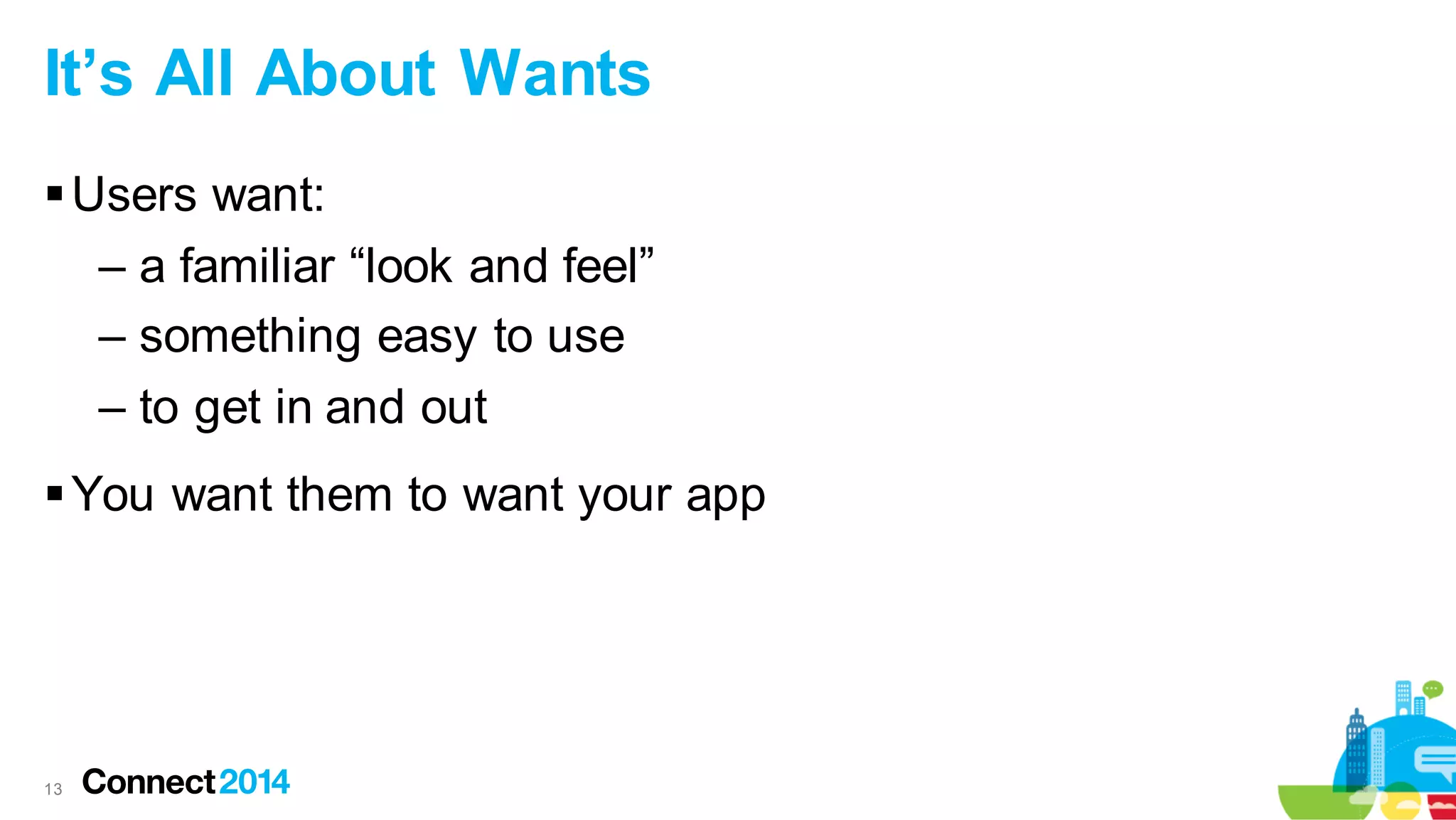

13. It’s All About Wants
 Users want:
– a familiar “look and feel”
– something easy to use
– to get in and out
 You want them to want your app
13

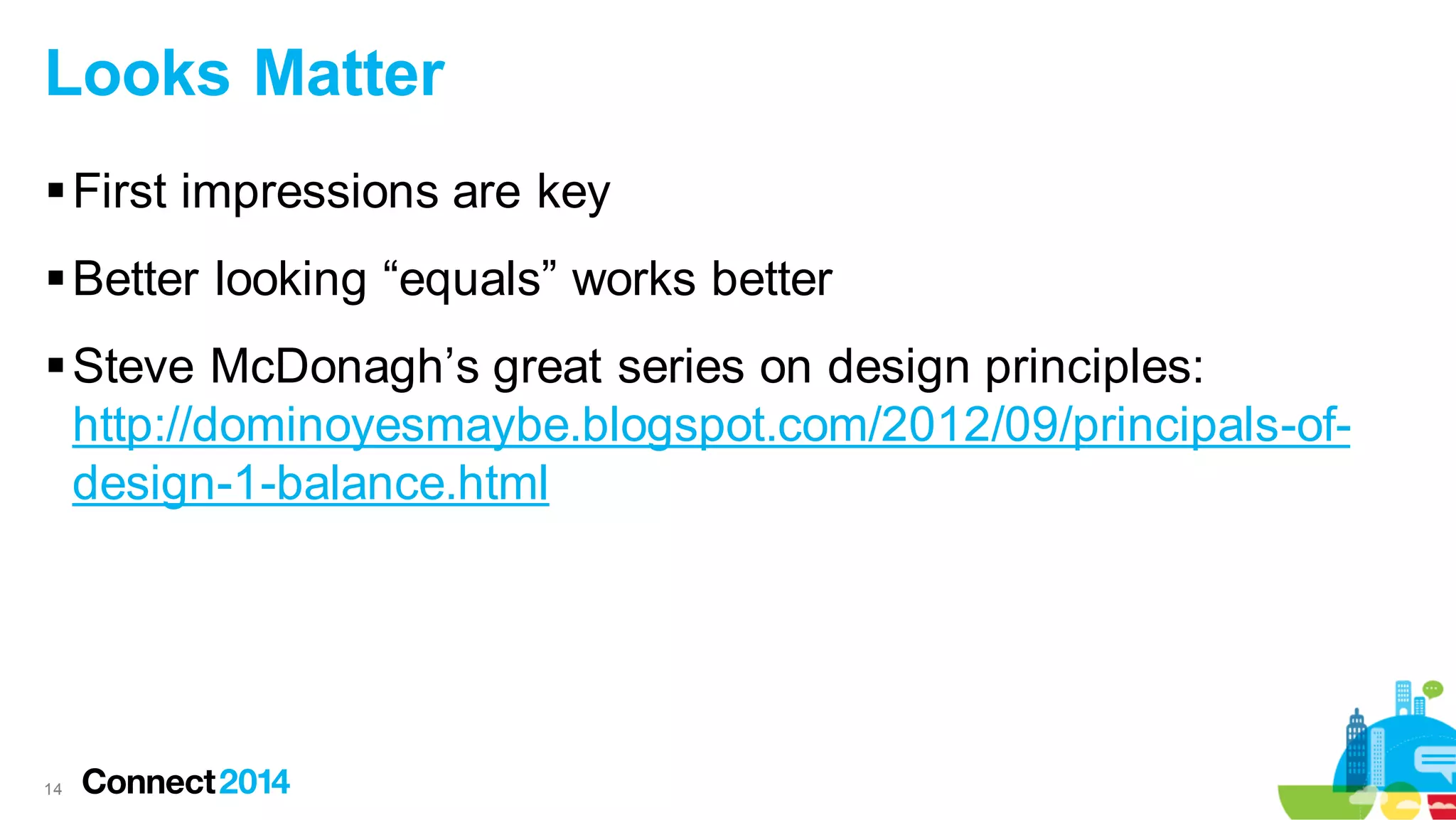

14. Looks Matter
 First impressions are key
 Better looking “equals” works better
 Steve McDonagh’s great series on design principles:
http://dominoyesmaybe.blogspot.com/2012/09/principals-ofdesign-1-balance.html
14

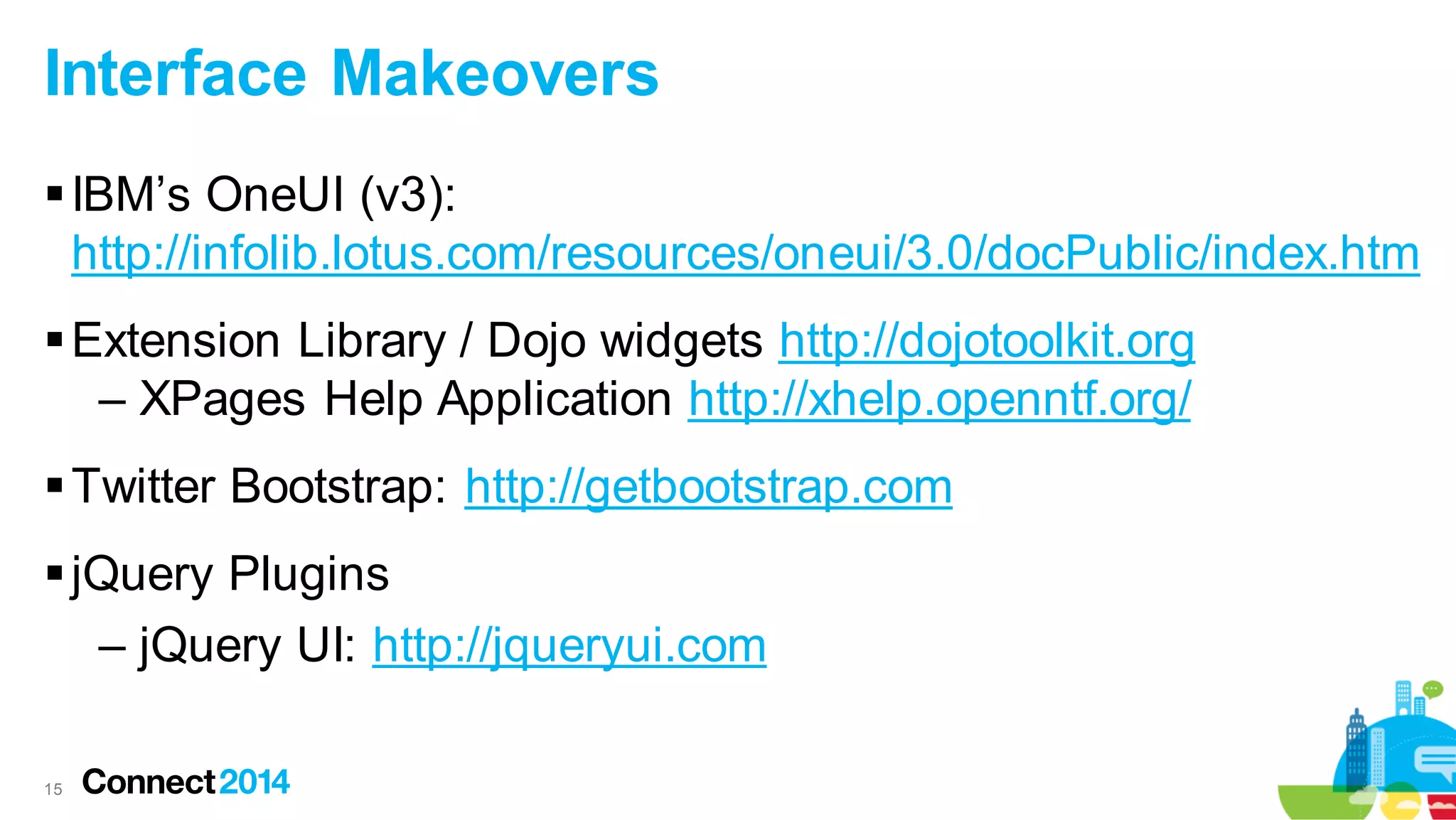

15. Interface Makeovers
 IBM’s OneUI (v3):
http://infolib.lotus.com/resources/oneui/3.0/docPublic/index.htm
 Extension Library / Dojo widgets http://dojotoolkit.org
– XPages Help Application http://xhelp.openntf.org/
 Twitter Bootstrap: http://getbootstrap.com
 jQuery Plugins
– jQuery UI: http://jqueryui.com
15

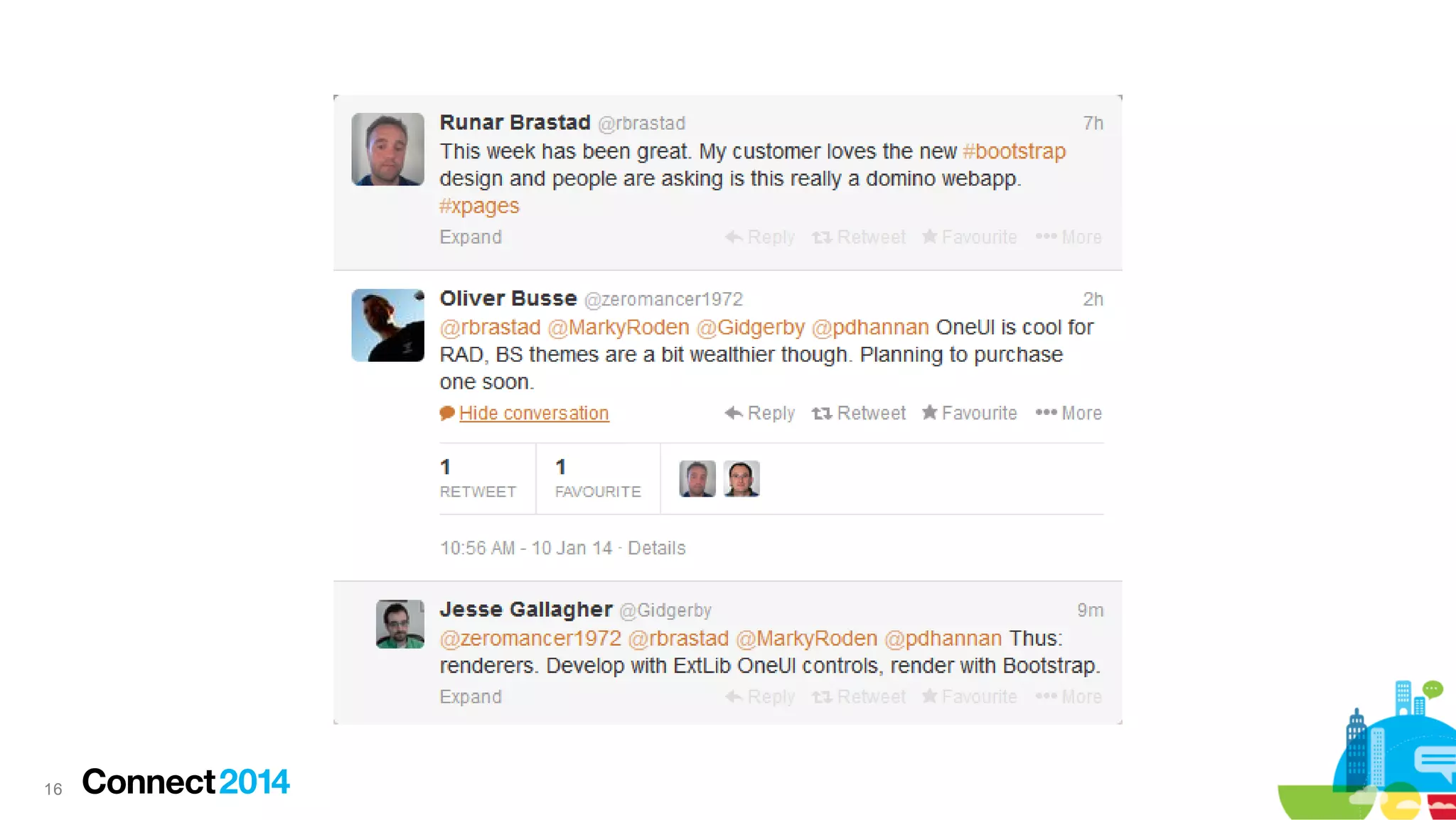

16. 16

17. Demo
17

18. Third Circle: Gluttony
Mihai Marius Mihu, http://www.flickr.com/photos/mihaimariusmihu/
18

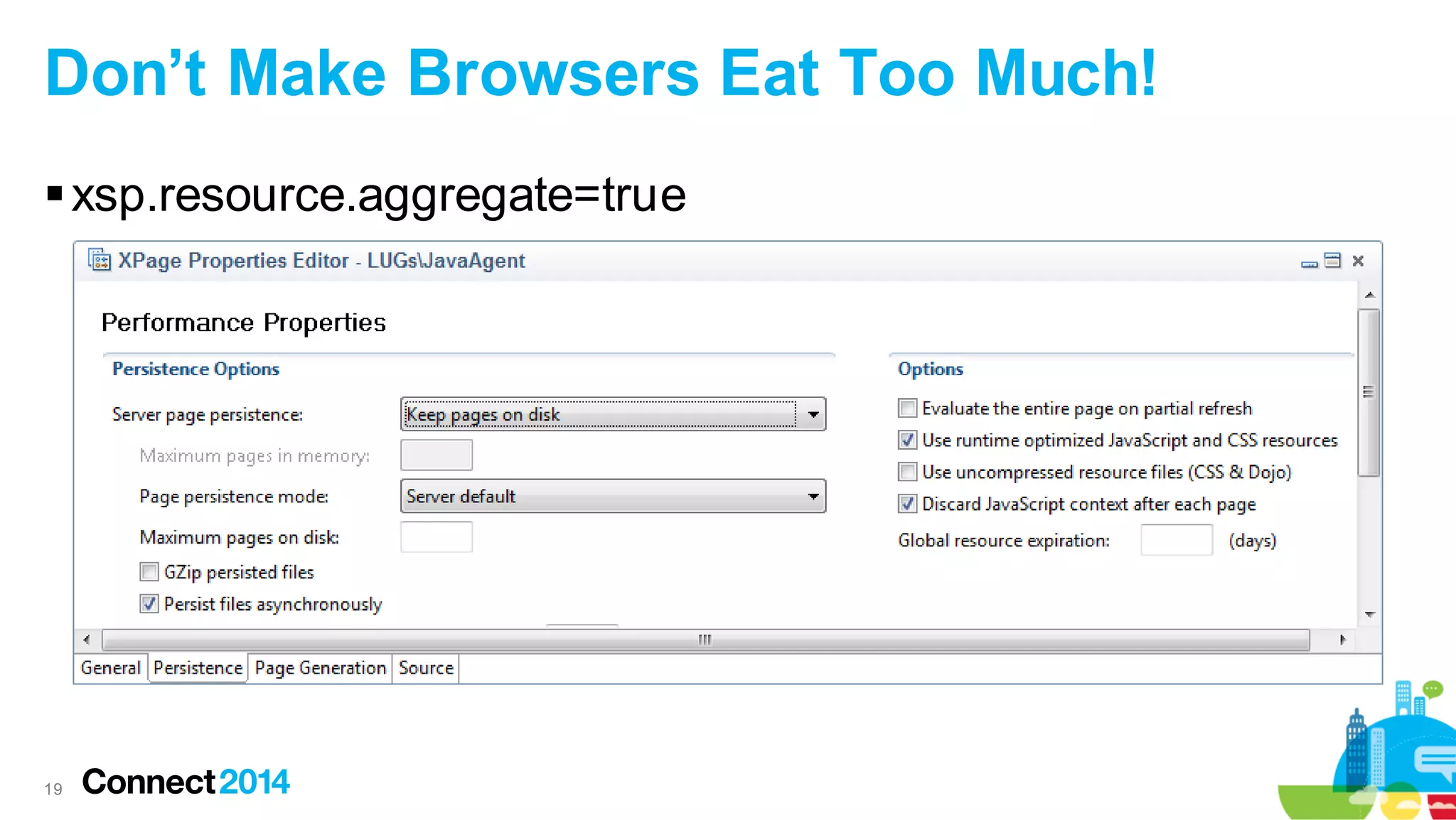

19. Don’t Make Browsers Eat Too Much!
 xsp.resource.aggregate=true
19

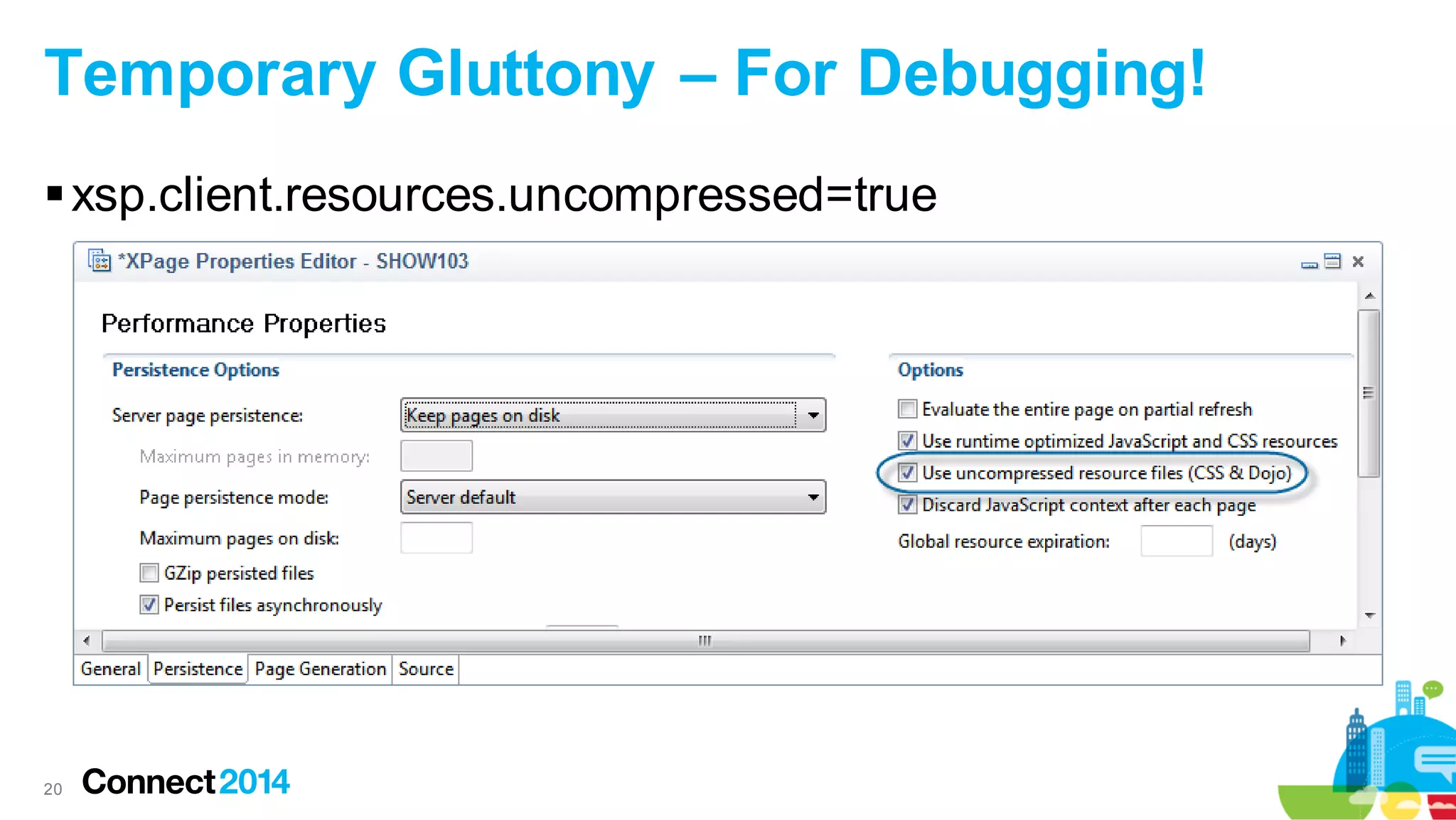

20. Temporary Gluttony – For Debugging!
 xsp.client.resources.uncompressed=true
20

21. Fourth Circle: Greed
21
Mihai Marius Mihu, http://www.flickr.com/photos/mihaimariusmihu/

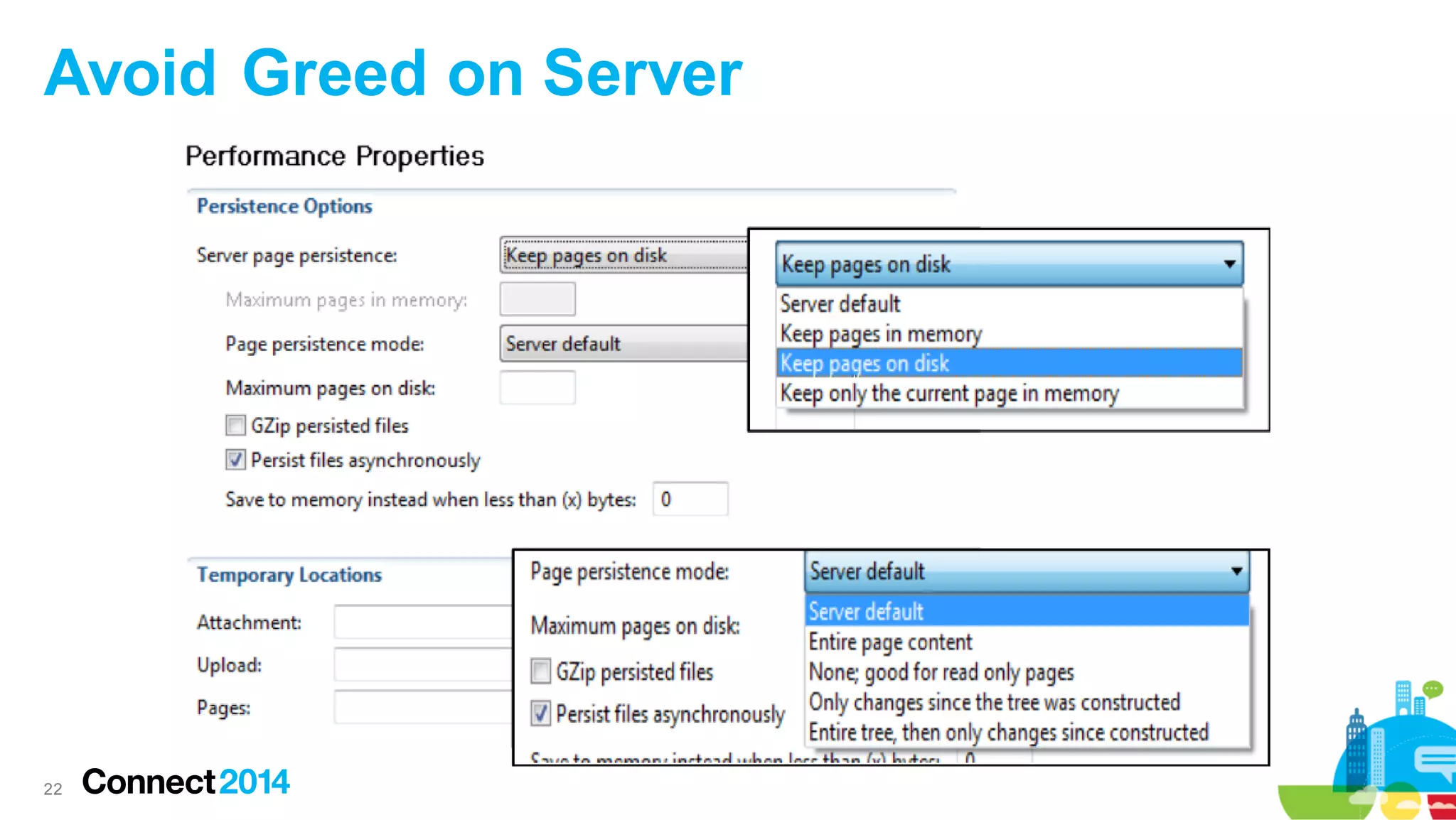

22. Avoid Greed on Server
22

23. Demo
23

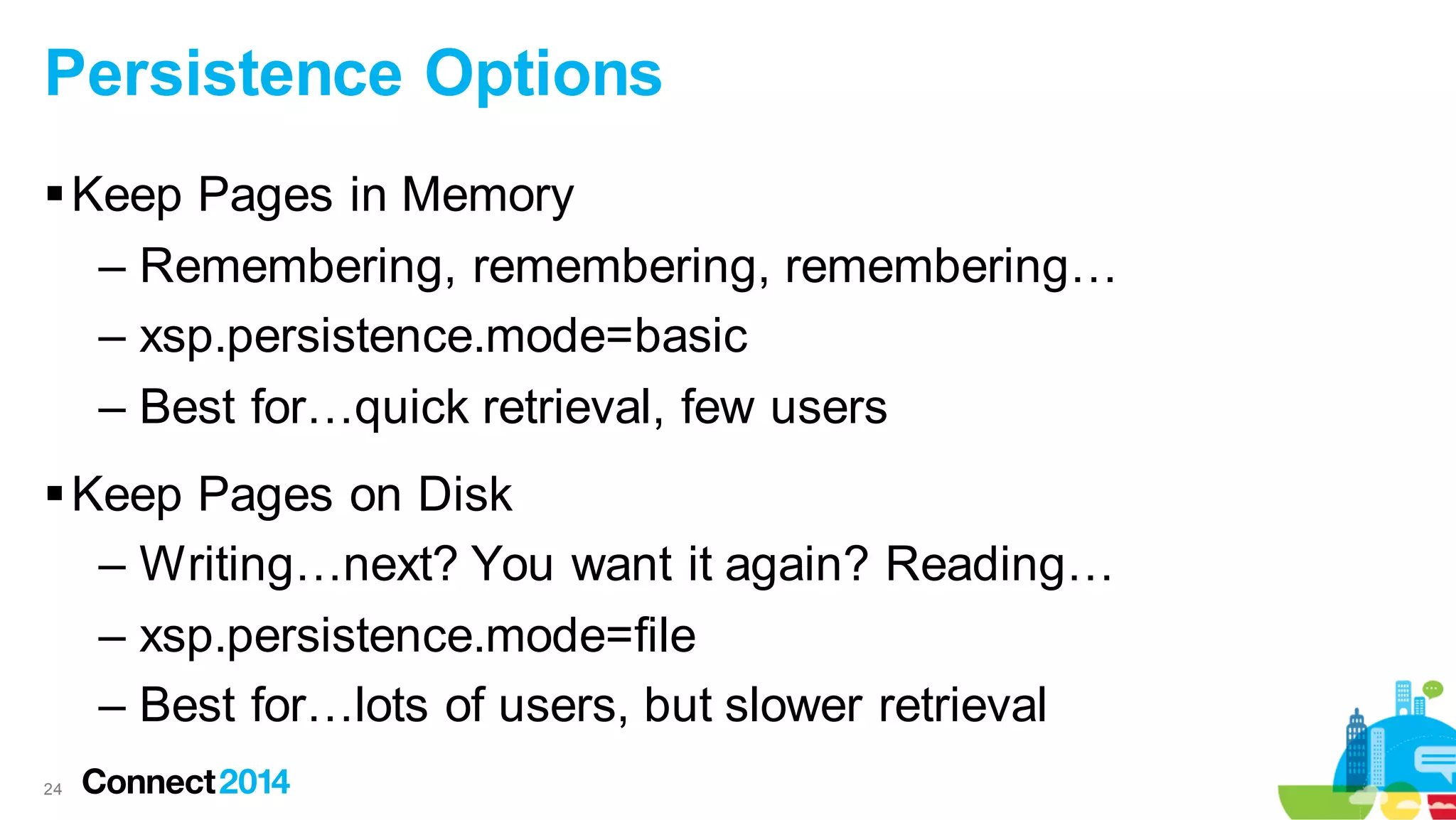

24. Persistence Options
 Keep Pages in Memory
– Remembering, remembering, remembering…
– xsp.persistence.mode=basic
– Best for…quick retrieval, few users
 Keep Pages on Disk
– Writing…next? You want it again? Reading…
– xsp.persistence.mode=file
– Best for…lots of users, but slower retrieval
24

25. Persistence Options
 Keep Only The Current Page in Memory
– Remembering, remembering, remembering…
– Oh, new page? Writing….and now…
– Remembering, remembering, remembering…
– xsp.persistence.mode=fileex
– Best for…lots of users, quick retrieval of current page
25

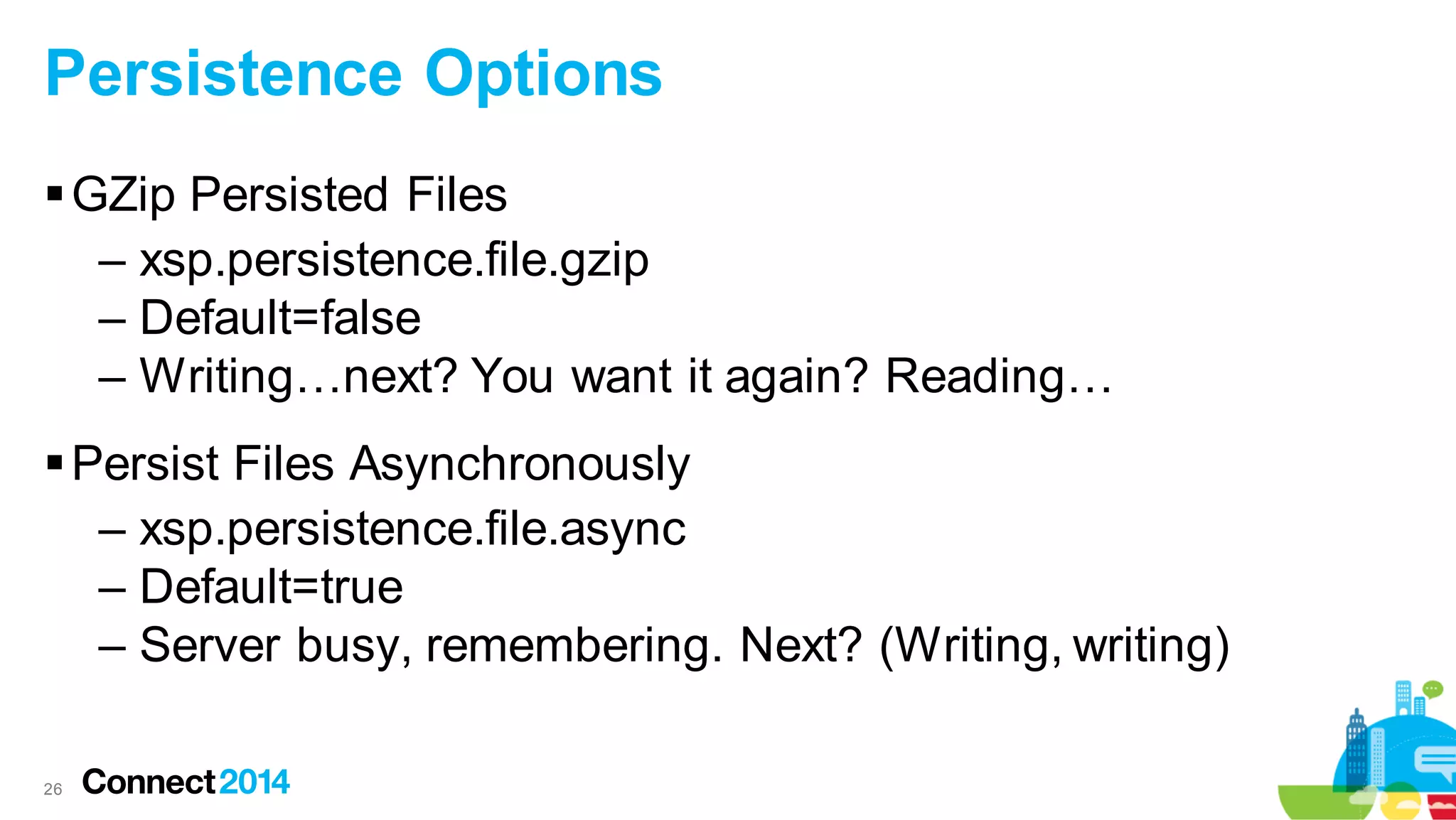

26. Persistence Options
 GZip Persisted Files
– xsp.persistence.file.gzip
– Default=false
– Writing…next? You want it again? Reading…
 Persist Files Asynchronously
– xsp.persistence.file.async
– Default=true
– Server busy, remembering. Next? (Writing, writing)
26

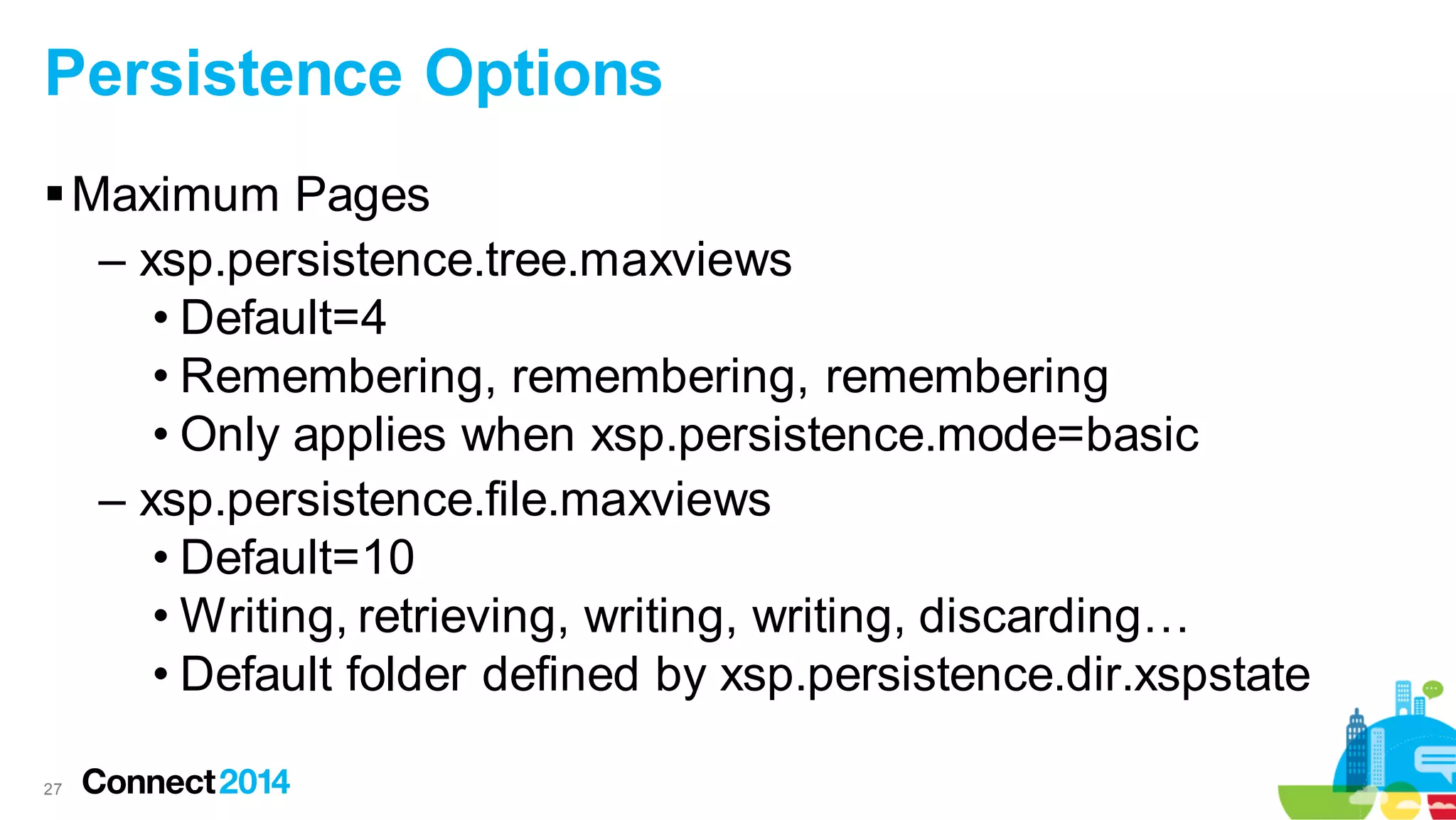

27. Persistence Options
 Maximum Pages
– xsp.persistence.tree.maxviews
• Default=4
• Remembering, remembering, remembering
• Only applies when xsp.persistence.mode=basic
– xsp.persistence.file.maxviews
• Default=10
• Writing, retrieving, writing, writing, discarding…
• Default folder defined by xsp.persistence.dir.xspstate
27

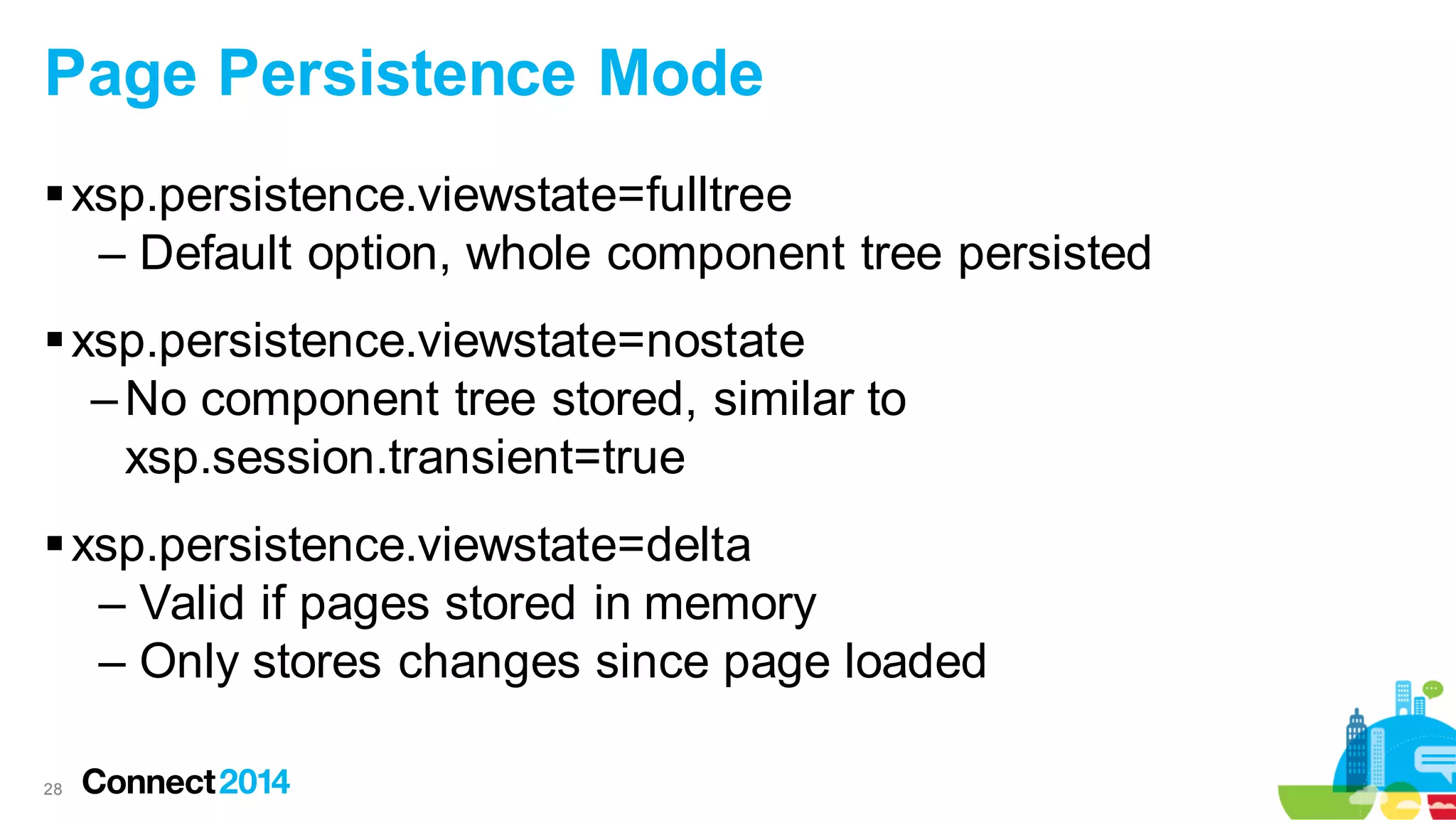

28. Page Persistence Mode
 xsp.persistence.viewstate=fulltree
– Default option, whole component tree persisted
 xsp.persistence.viewstate=nostate
– No component tree stored, similar to
xsp.session.transient=true
 xsp.persistence.viewstate=delta
– Valid if pages stored in memory
– Only stores changes since page loaded
28

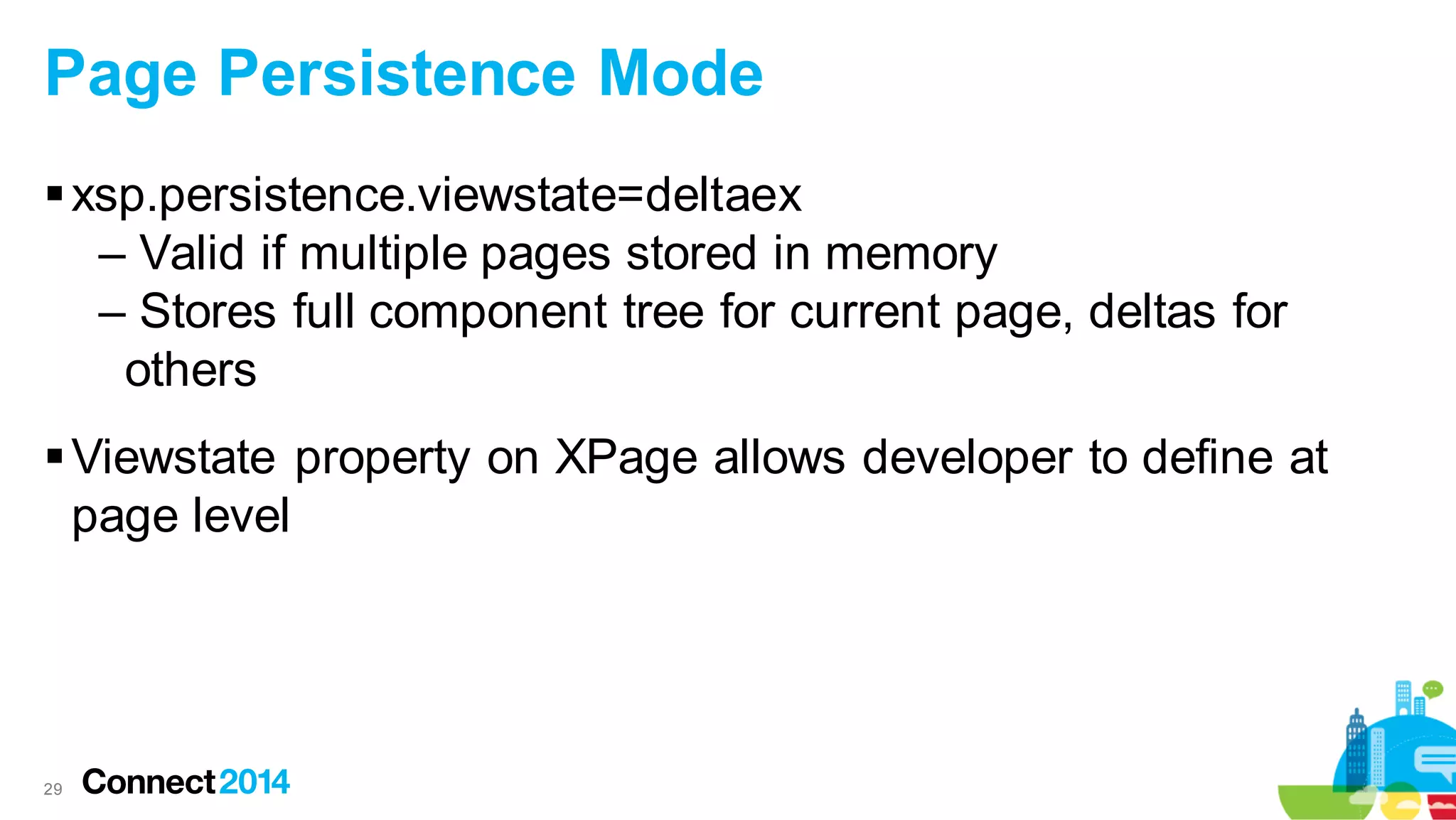

29. Page Persistence Mode
 xsp.persistence.viewstate=deltaex
– Valid if multiple pages stored in memory
– Stores full component tree for current page, deltas for
others
 Viewstate property on XPage allows developer to define at
page level
29

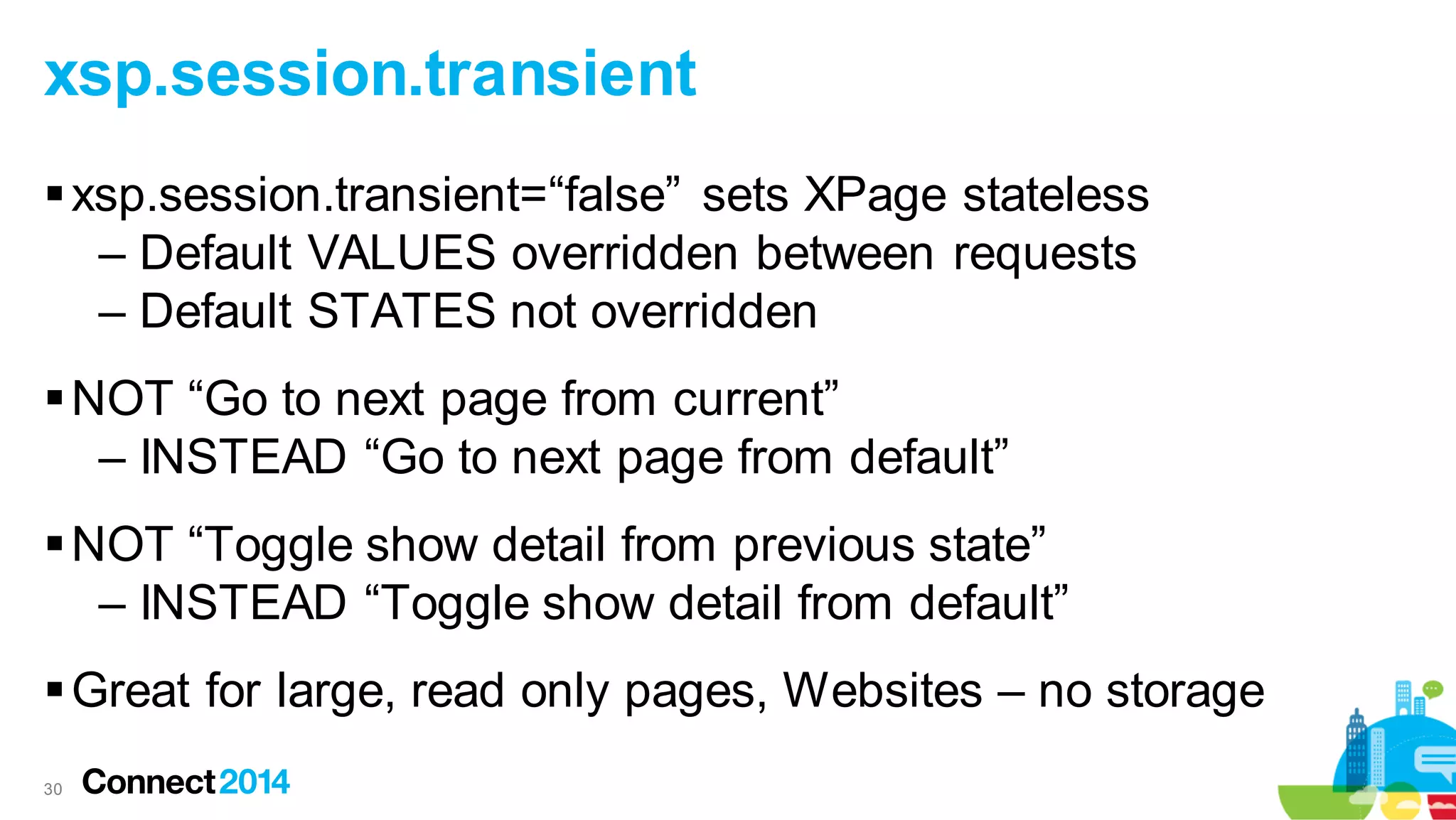

30. xsp.session.transient
 xsp.session.transient=“false” sets XPage stateless
– Default VALUES overridden between requests
– Default STATES not overridden
 NOT “Go to next page from current”
– INSTEAD “Go to next page from default”
 NOT “Toggle show detail from previous state”
– INSTEAD “Toggle show detail from default”
 Great for large, read only pages, Websites – no storage
30

31. Fifth Circle: Wrath
31
Mihai Marius Mihu, http://www.flickr.com/photos/mihaimariusmihu/

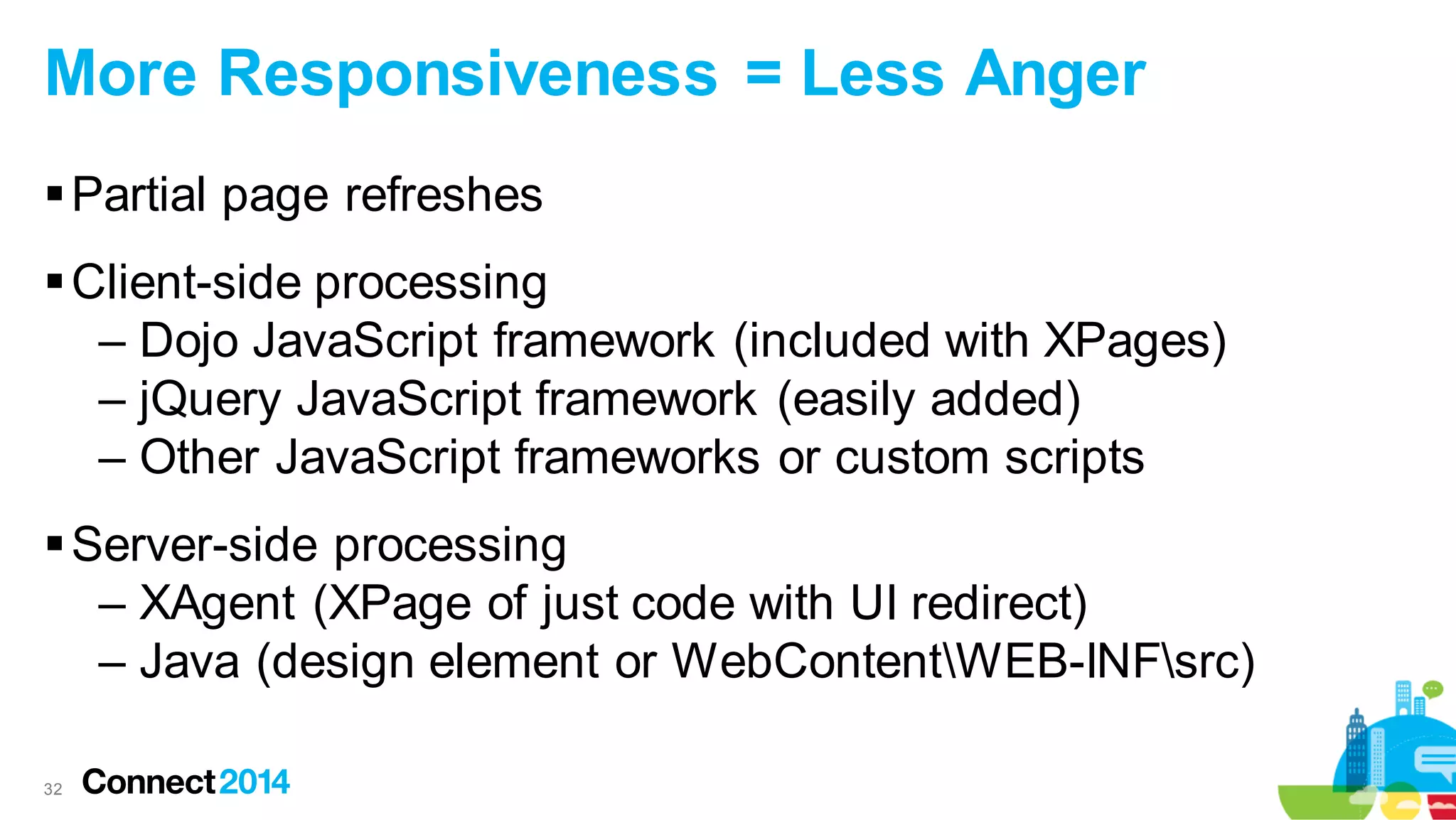

32. More Responsiveness = Less Anger
 Partial page refreshes
 Client-side processing
– Dojo JavaScript framework (included with XPages)
– jQuery JavaScript framework (easily added)
– Other JavaScript frameworks or custom scripts
 Server-side processing
– XAgent (XPage of just code with UI redirect)
– Java (design element or WebContentWEB-INFsrc)
32

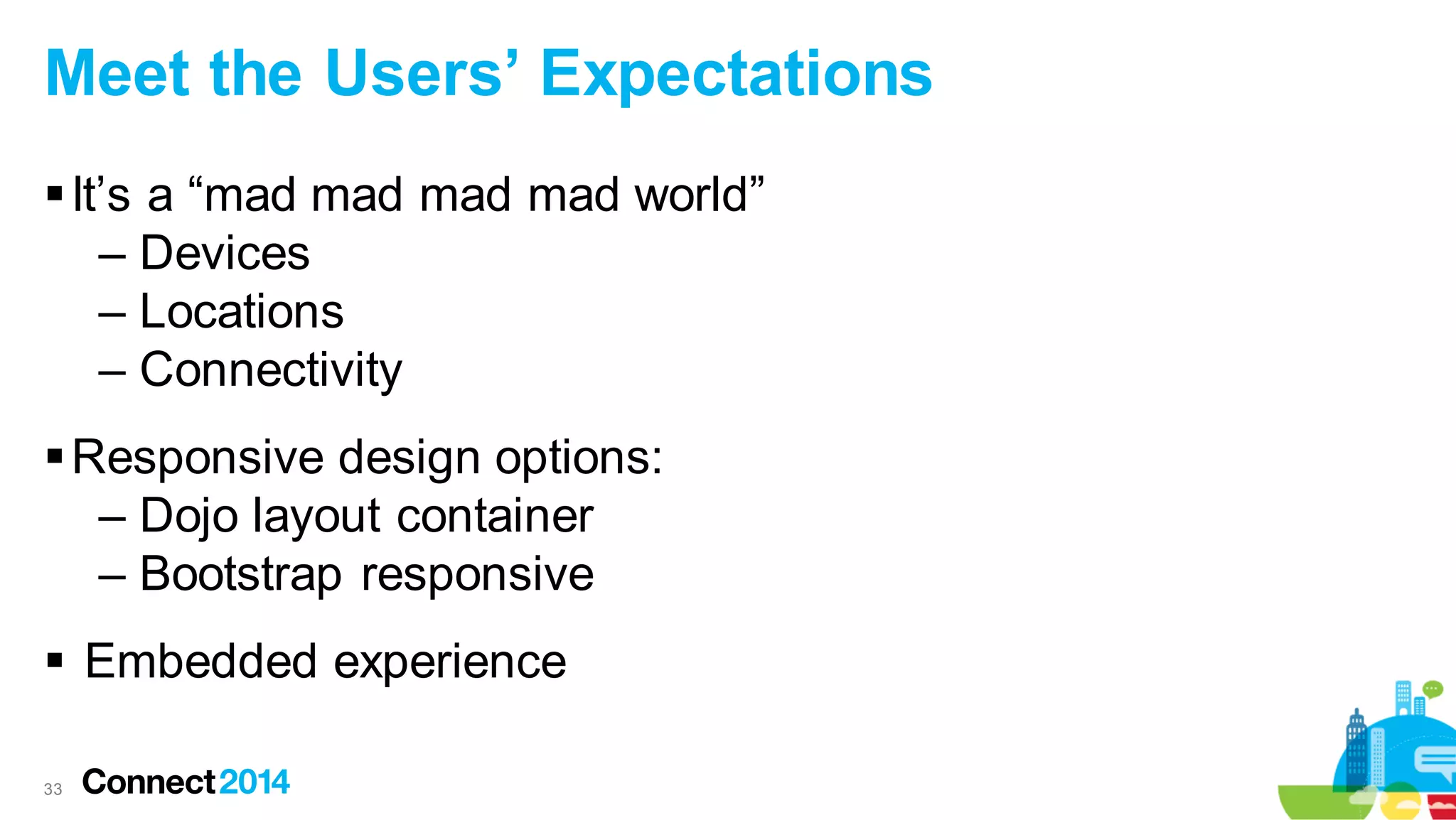

33. Meet the Users’ Expectations
 It’s a “mad mad mad mad world”
– Devices
– Locations
– Connectivity
 Responsive design options:
– Dojo layout container
– Bootstrap responsive
 Embedded experience
33

34. Demo
34

35. Sixth Circle: Heresy
35
Mihai Marius Mihu, http://www.flickr.com/photos/mihaimariusmihu/

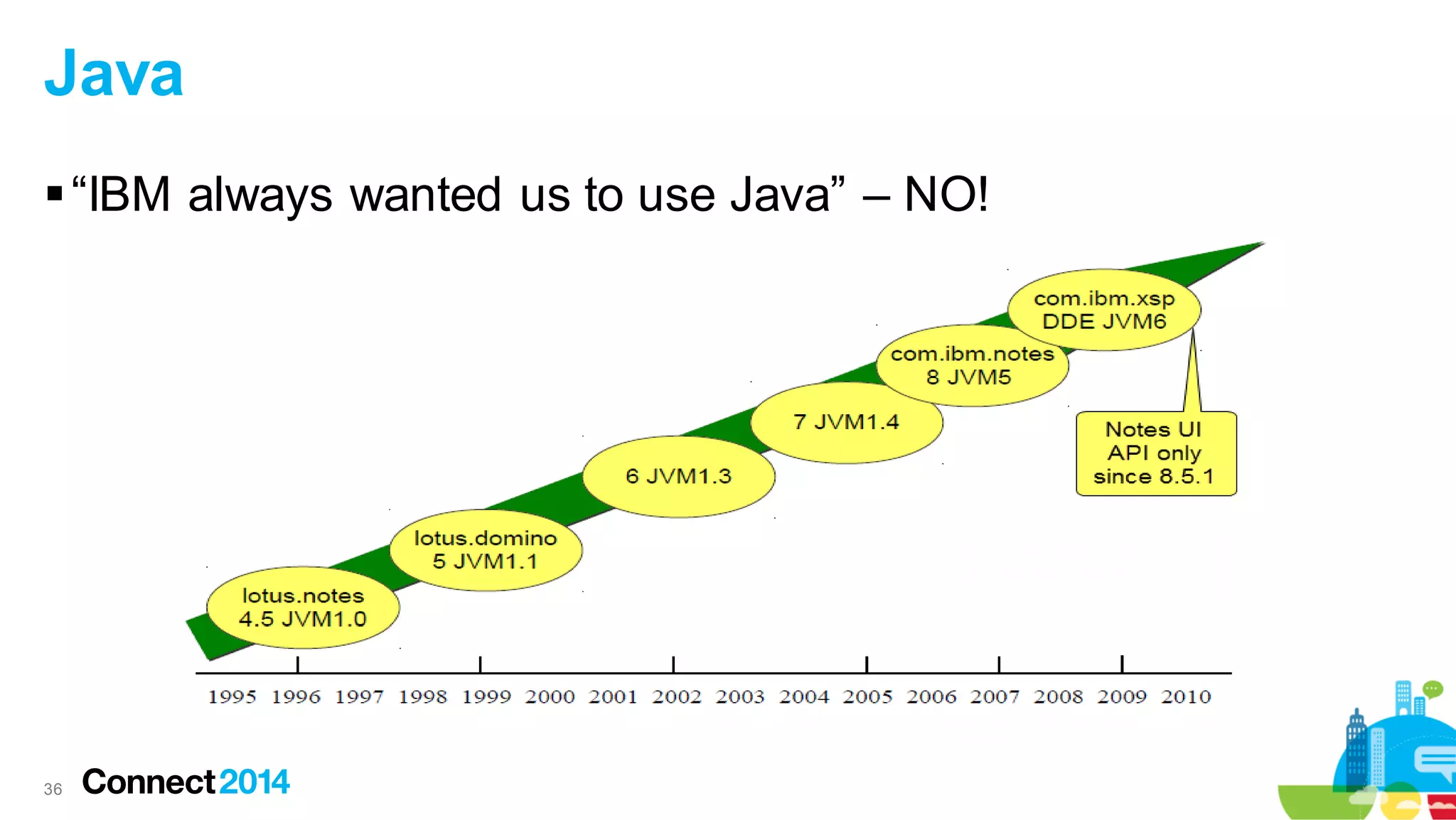

36. Java
 “IBM always wanted us to use Java” – NO!
36

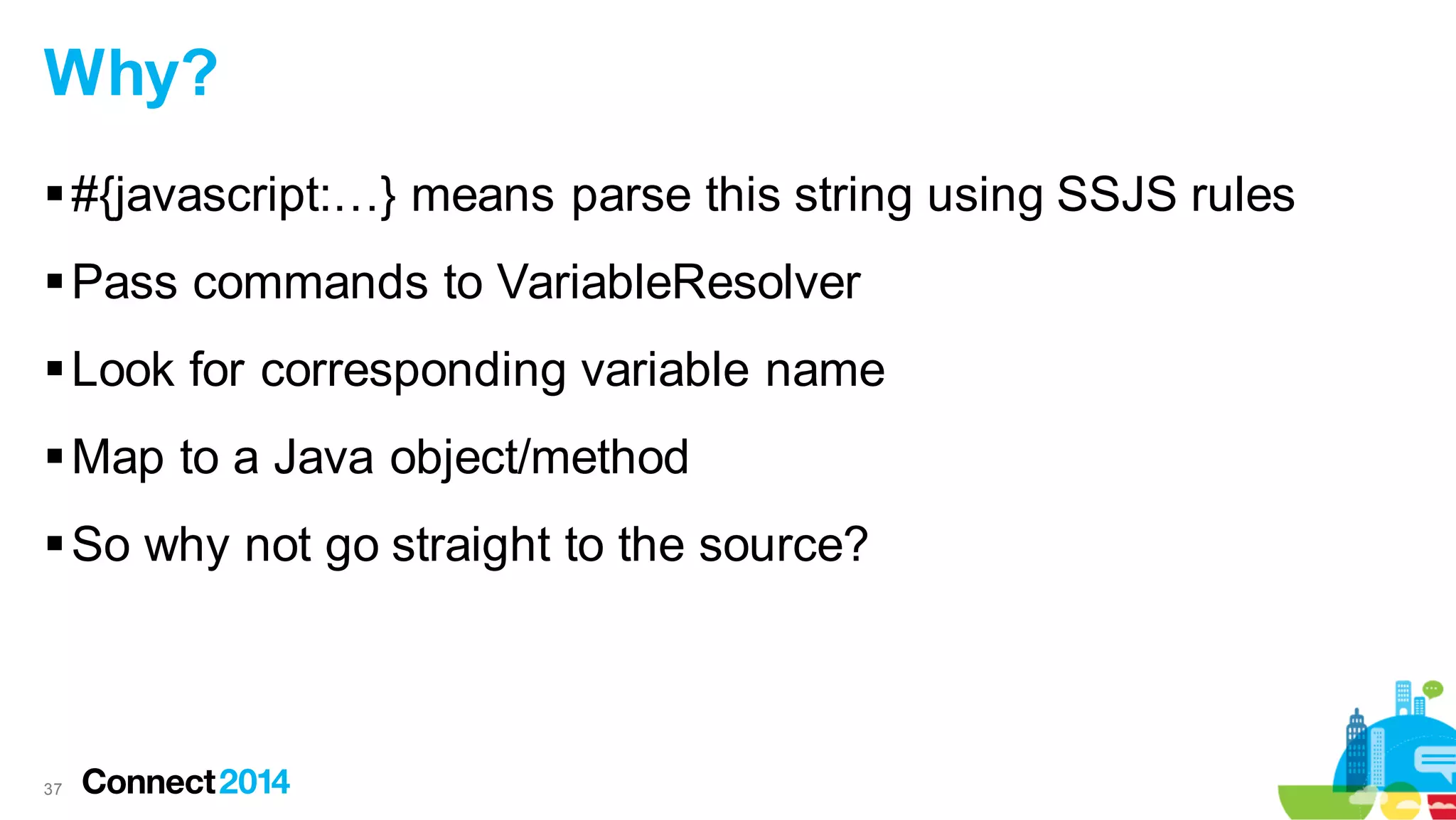

37. Why?
 #{javascript:…} means parse this string using SSJS rules
 Pass commands to VariableResolver
 Look for corresponding variable name
 Map to a Java object/method
 So why not go straight to the source?
37

38. Demo
38

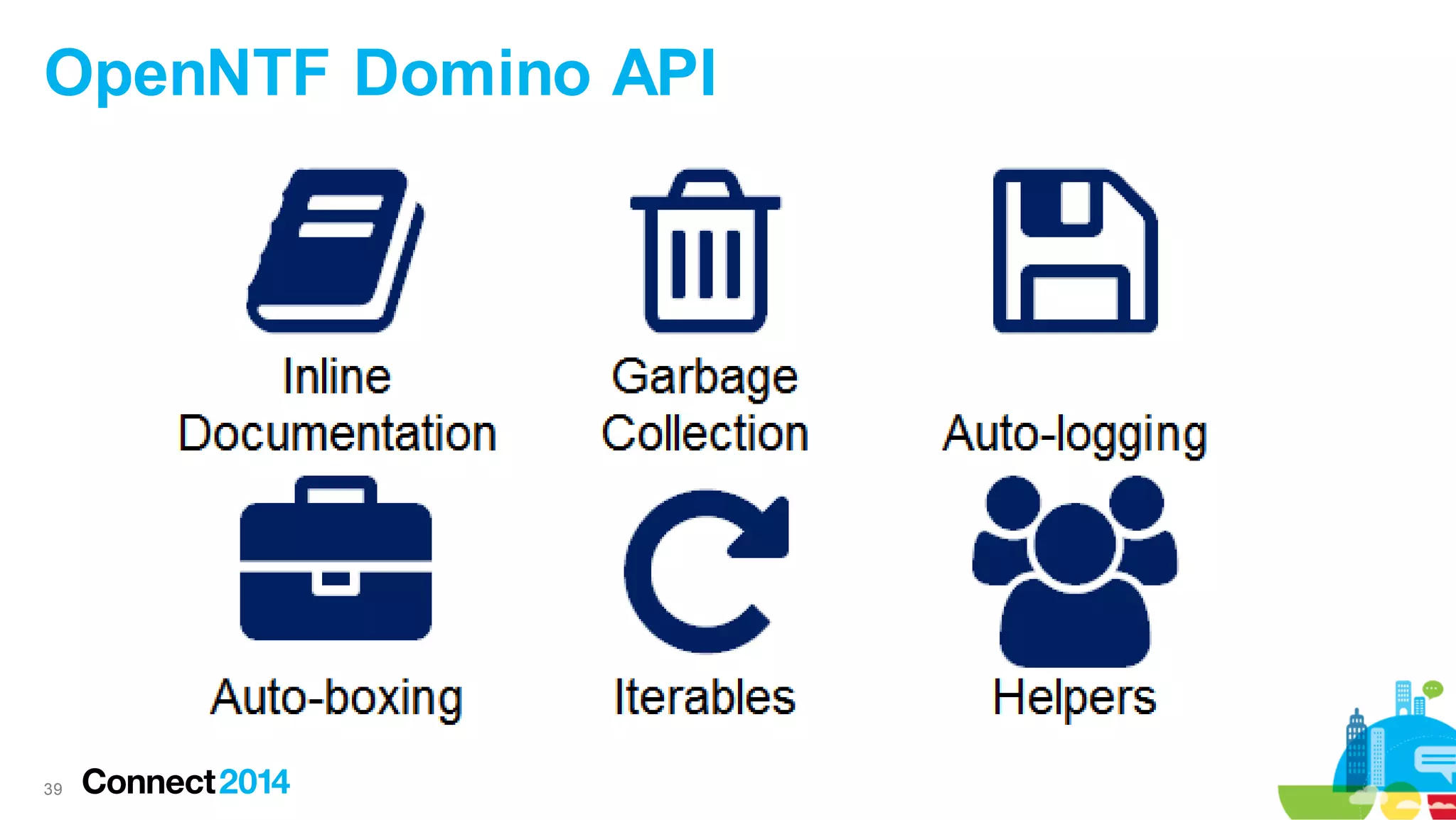

39. OpenNTF Domino API
39

40. OpenNTF Domino API
 Document.replaceItemValue(“myDateField”, new Date());
– Or Document.put(“myDateField”, new Date());
 for (Document doc : dc) {…}
 Transactional Processing
 SyncHelper
 Email Helpers
 OpenLog
 Document Scanner
 Database Listeners
40

41. Seventh Circle: Violence
41
Mihai Marius Mihu, http://www.flickr.com/photos/mihaimariusmihu/

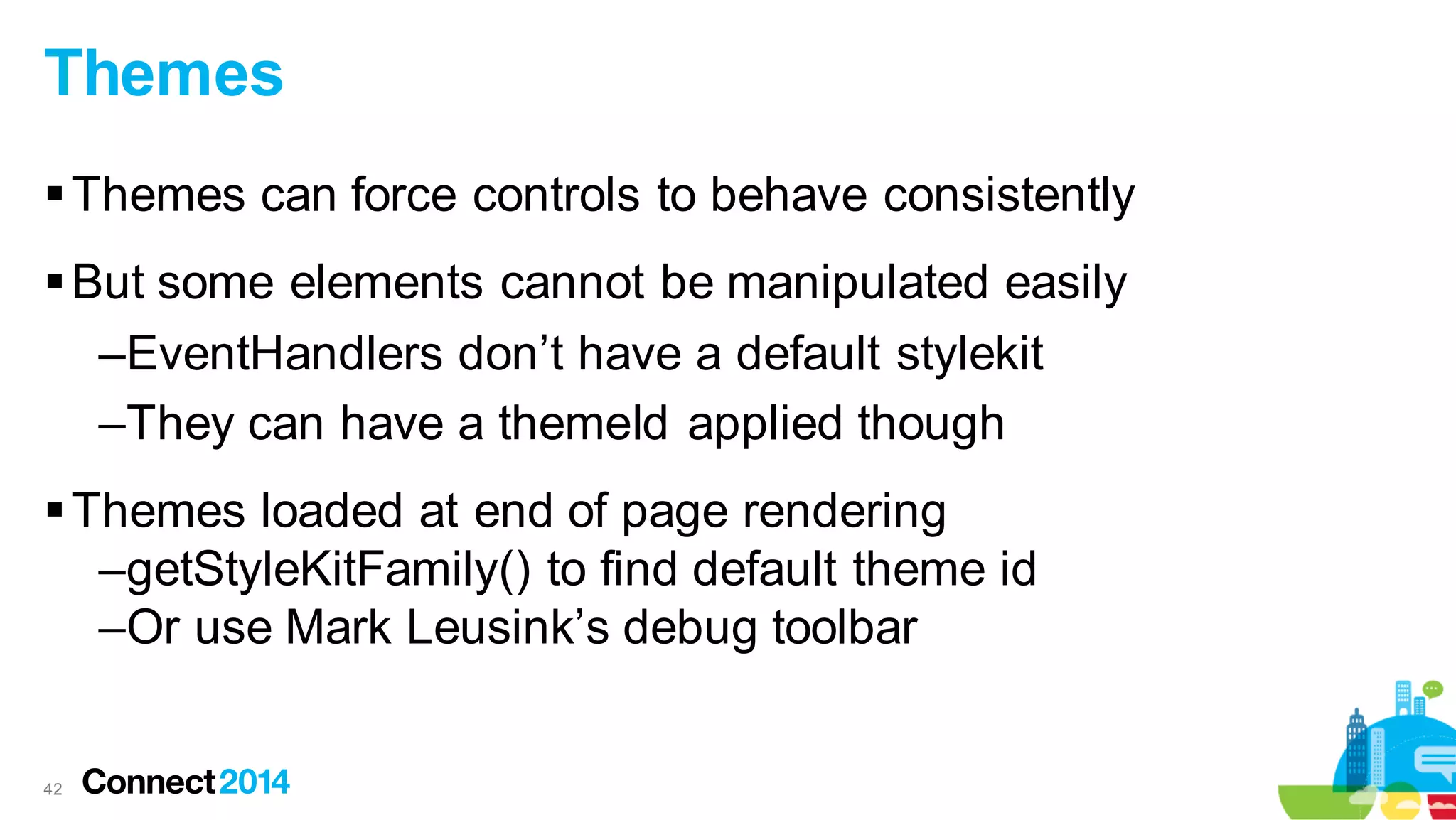

42. Themes
 Themes can force controls to behave consistently
 But some elements cannot be manipulated easily
–EventHandlers don’t have a default stylekit
–They can have a themeId applied though
 Themes loaded at end of page rendering
–getStyleKitFamily() to find default theme id
–Or use Mark Leusink’s debug toolbar
42

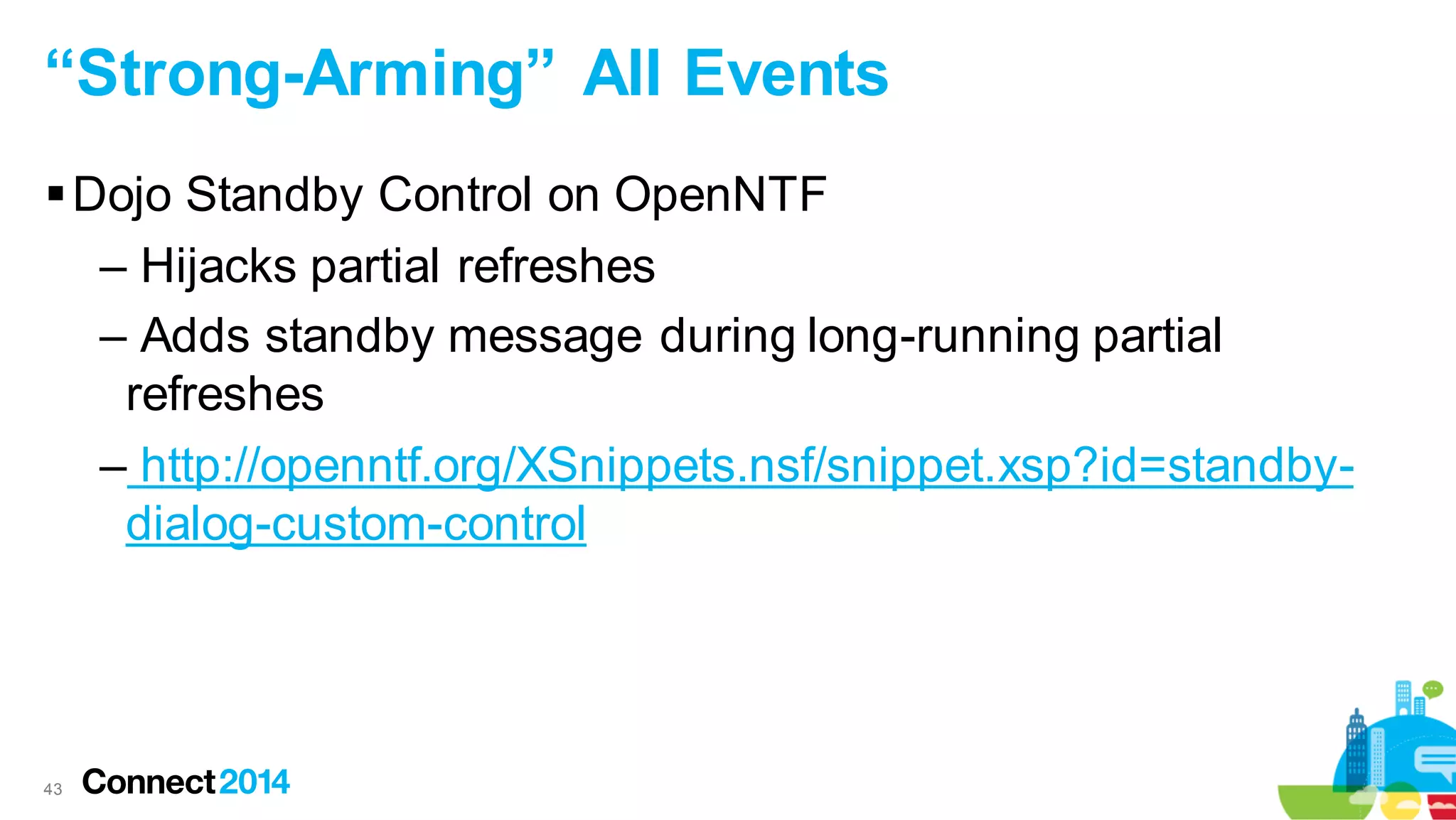

43. “Strong-Arming” All Events
 Dojo Standby Control on OpenNTF
– Hijacks partial refreshes
– Adds standby message during long-running partial
refreshes
– http://openntf.org/XSnippets.nsf/snippet.xsp?id=standbydialog-custom-control
43

44. Eighth Circle: Fraud
Mihai Marius Mihu, http://www.flickr.com/photos/mihaimariusmihu/
44

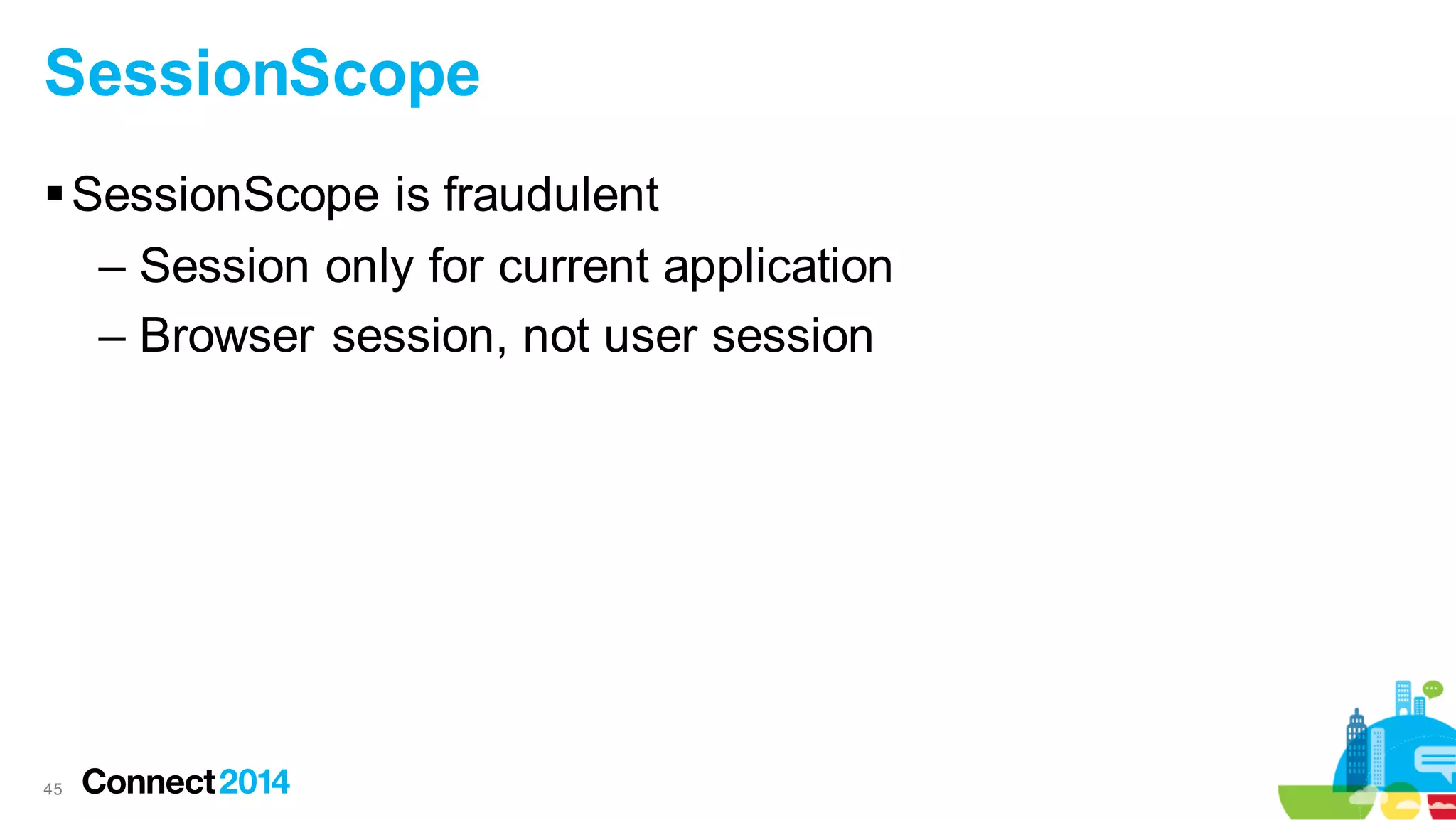

45. SessionScope
 SessionScope is fraudulent
– Session only for current application
– Browser session, not user session
45

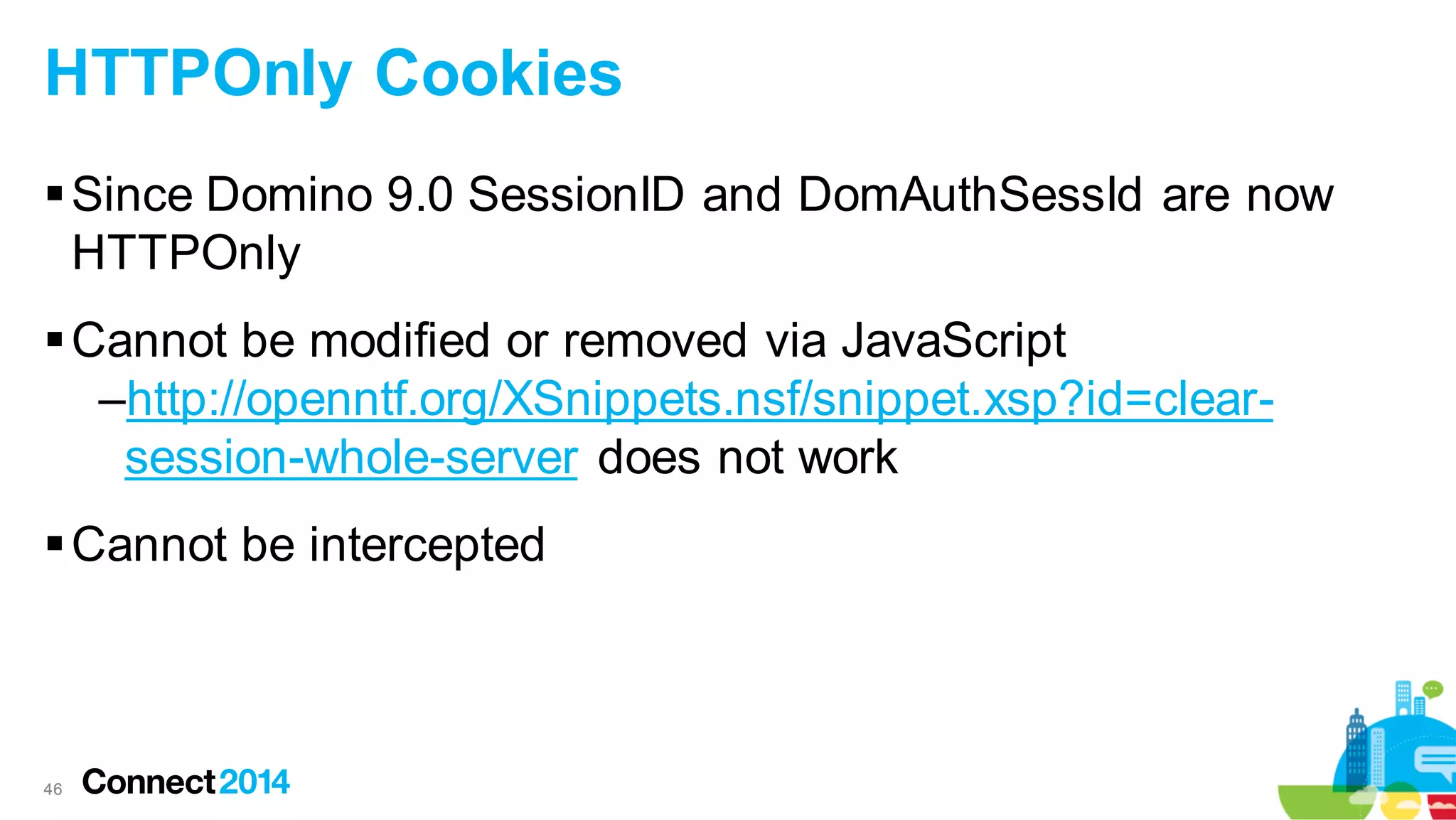

46. HTTPOnly Cookies
 Since Domino 9.0 SessionID and DomAuthSessId are now
HTTPOnly
 Cannot be modified or removed via JavaScript
–http://openntf.org/XSnippets.nsf/snippet.xsp?id=clearsession-whole-server does not work
 Cannot be intercepted
46

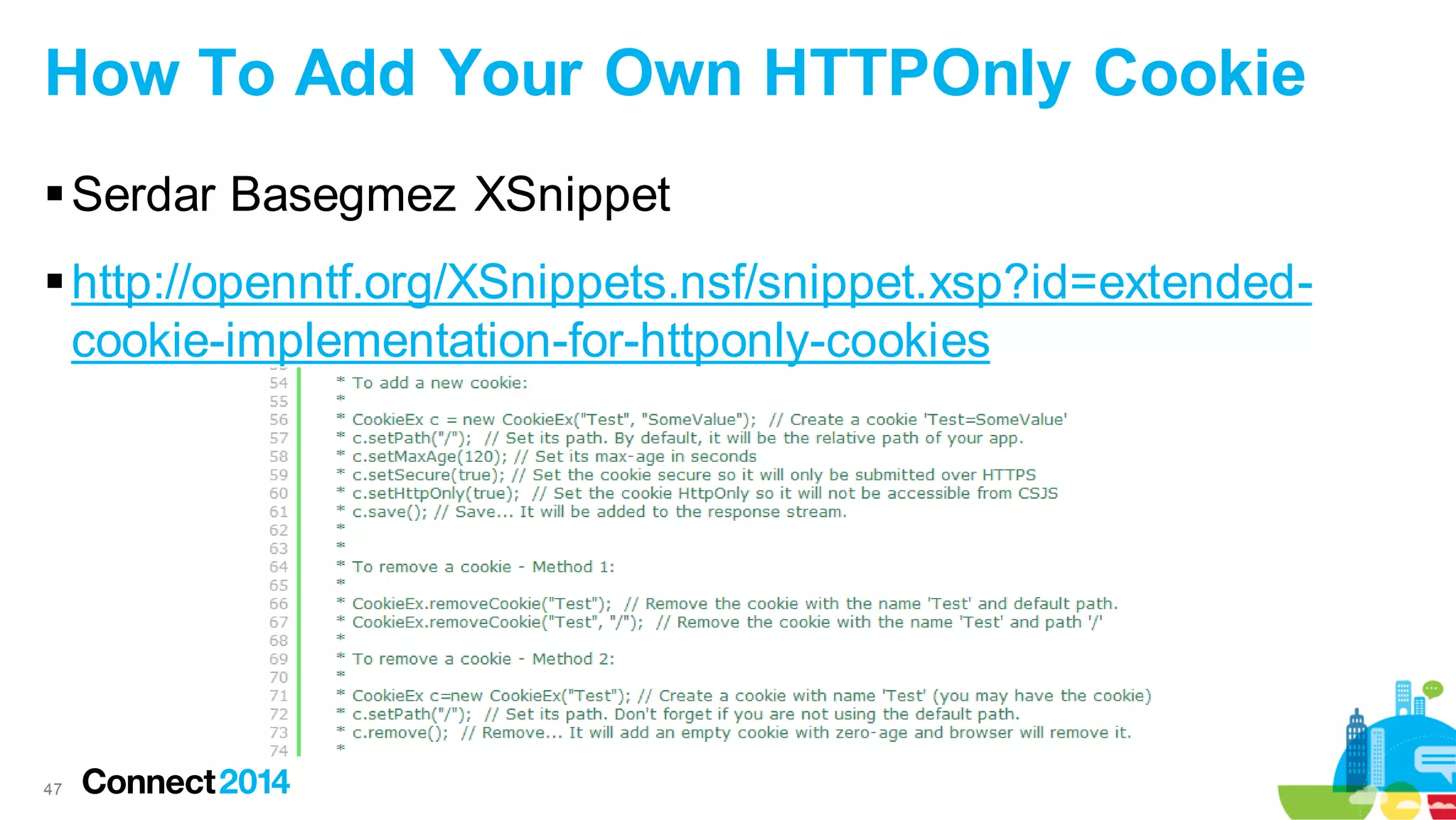

47. How To Add Your Own HTTPOnly Cookie
 Serdar Basegmez XSnippet
 http://openntf.org/XSnippets.nsf/snippet.xsp?id=extendedcookie-implementation-for-httponly-cookies
47

48. Ninth Circle: Treachery
Mihai Marius Mihu, http://www.flickr.com/photos/mihaimariusmihu/
48

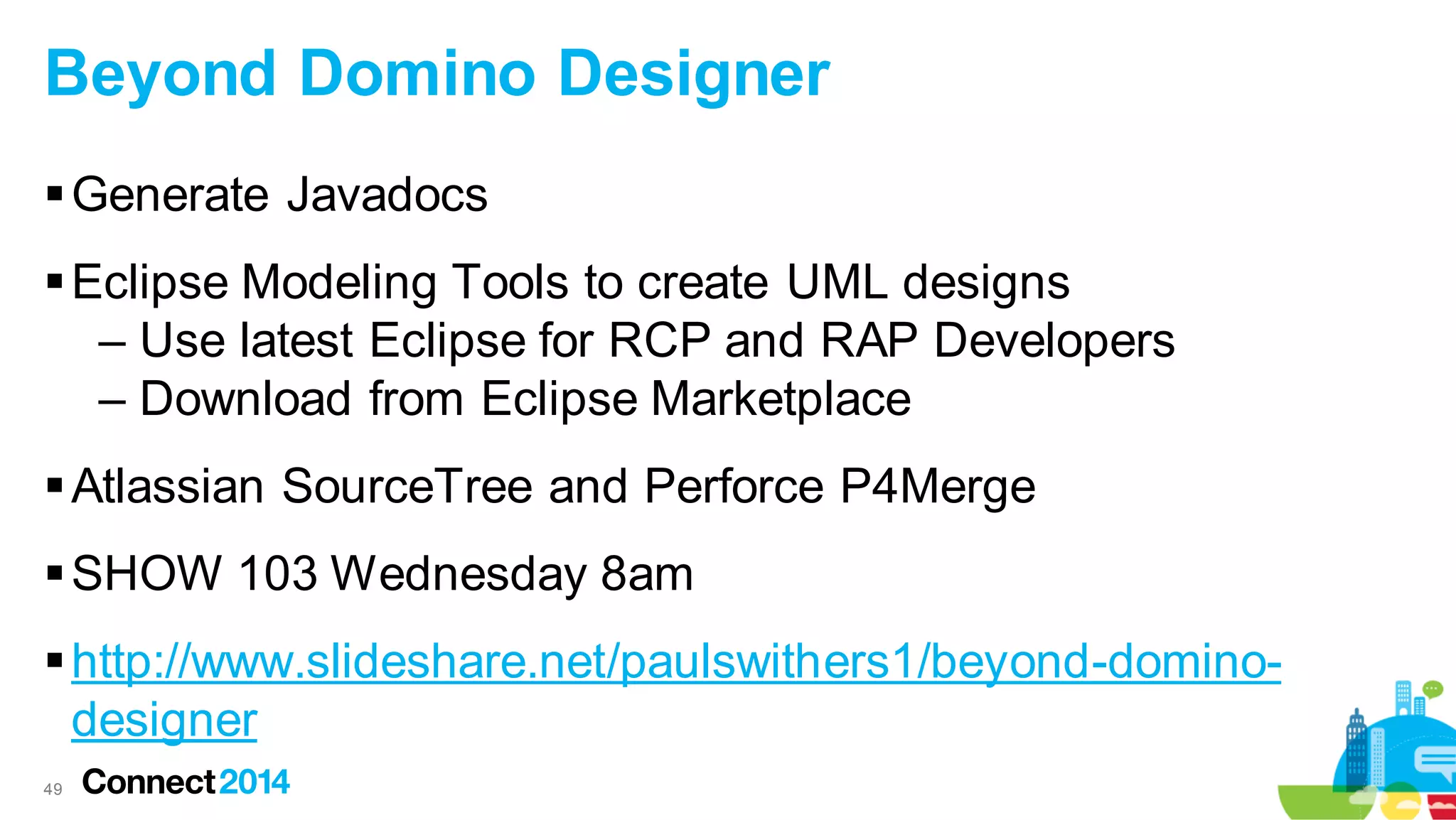

49. Beyond Domino Designer
 Generate Javadocs
 Eclipse Modeling Tools to create UML designs
– Use latest Eclipse for RCP and RAP Developers
– Download from Eclipse Marketplace
 Atlassian SourceTree and Perforce P4Merge
 SHOW 103 Wednesday 8am
 http://www.slideshare.net/paulswithers1/beyond-dominodesigner
49

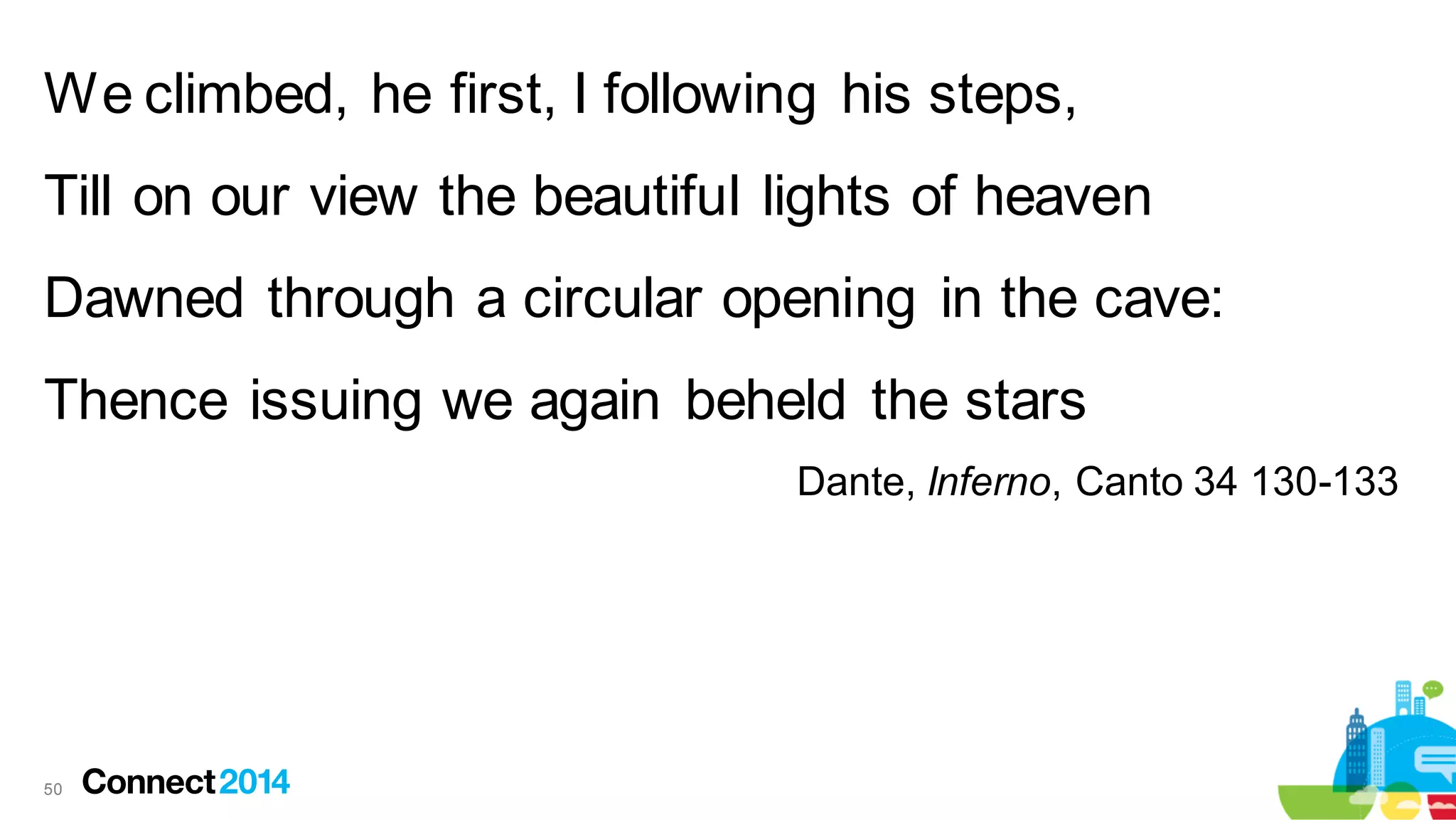

50. We climbed, he first, I following his steps,
Till on our view the beautiful lights of heaven
Dawned through a circular opening in the cave:
Thence issuing we again beheld the stars
Dante, Inferno, Canto 34 130-133
50

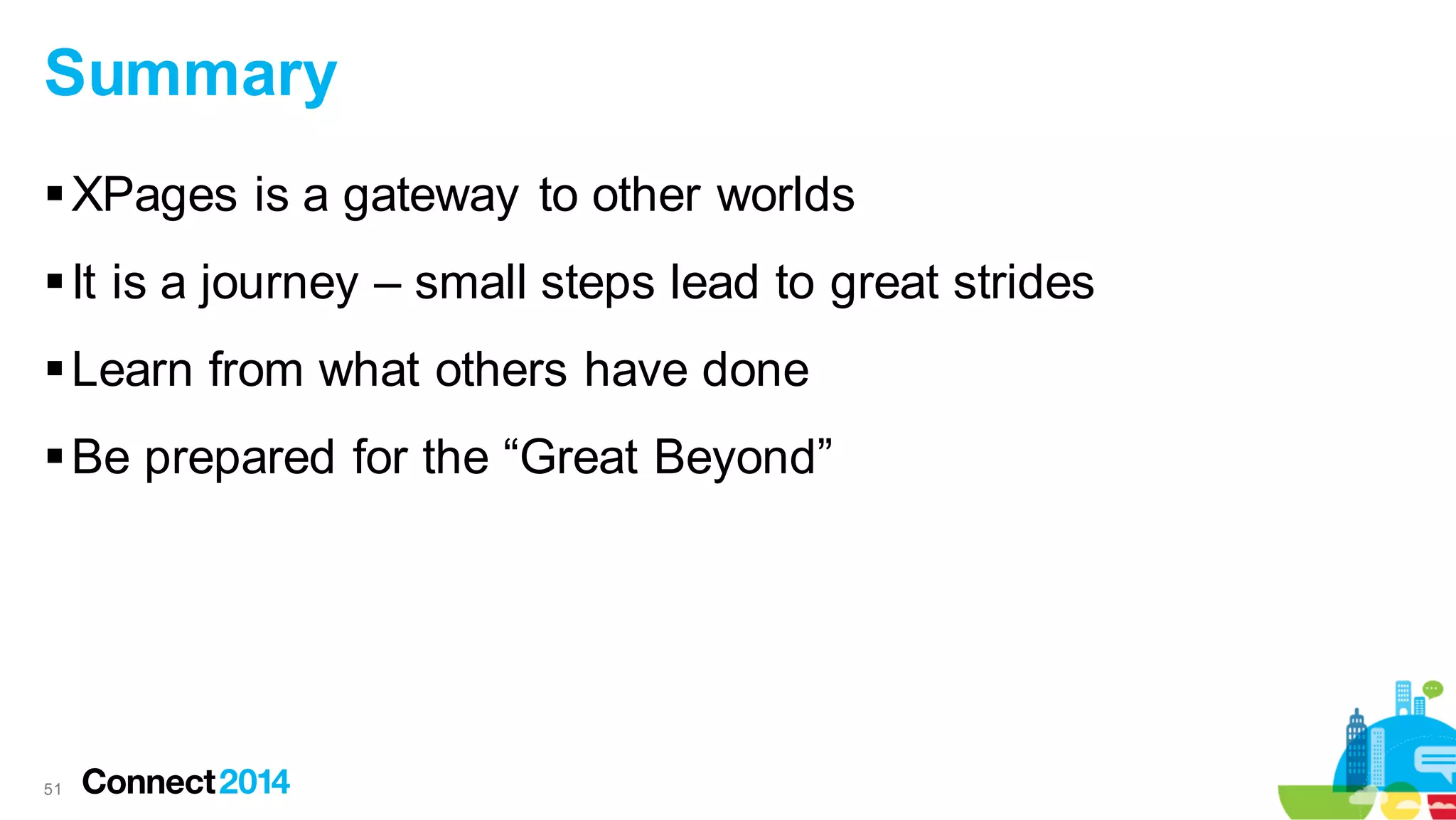

51. Summary
 XPages is a gateway to other worlds
 It is a journey – small steps lead to great strides
 Learn from what others have done
 Be prepared for the “Great Beyond”
51

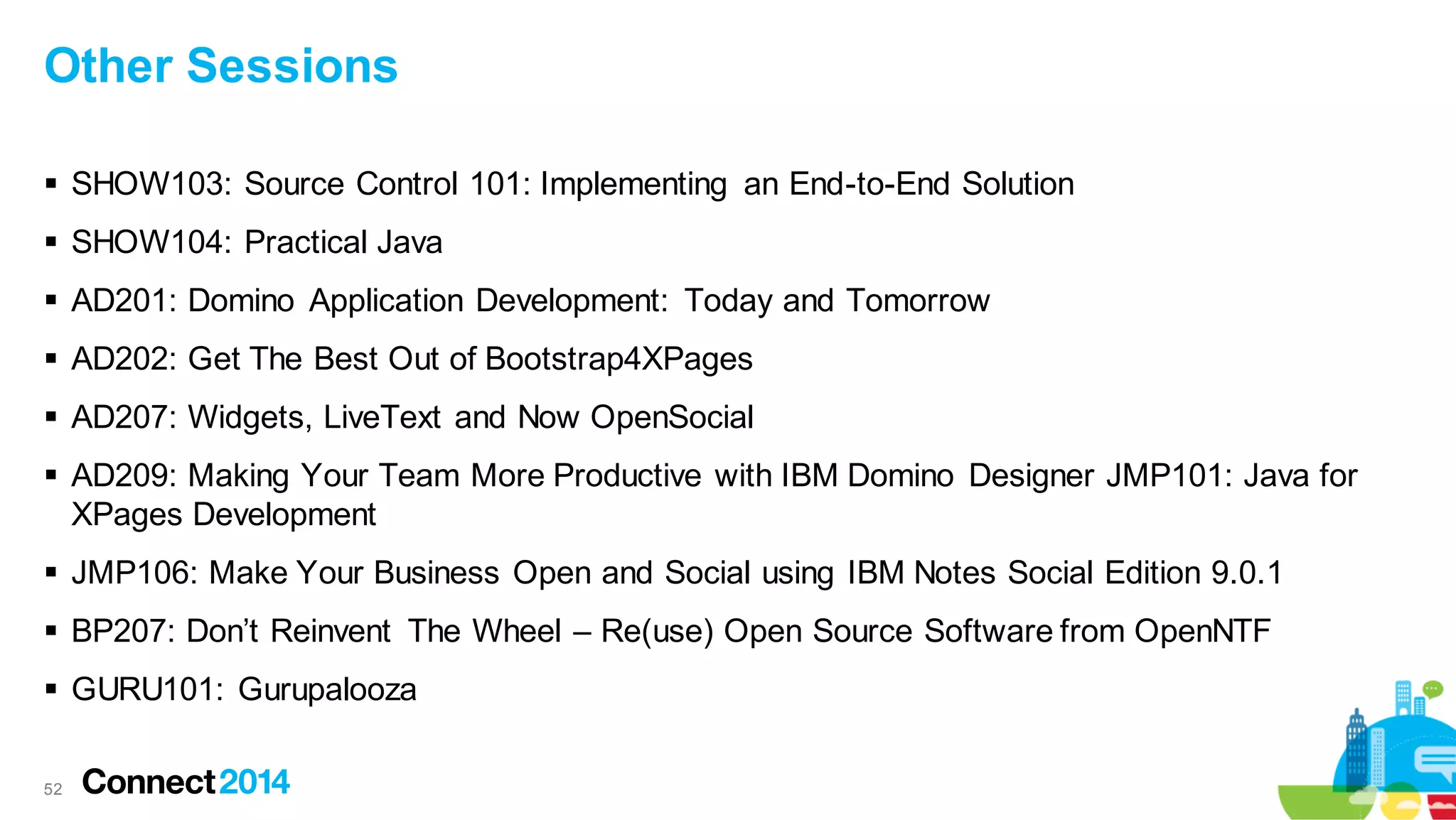

52. Other Sessions
 SHOW103: Source Control 101: Implementing an End-to-End Solution
 SHOW104: Practical Java
 AD201: Domino Application Development: Today and Tomorrow
 AD202: Get The Best Out of Bootstrap4XPages
 AD207: Widgets, LiveText and Now OpenSocial
 AD209: Making Your Team More Productive with IBM Domino Designer JMP101: Java for
XPages Development
 JMP106: Make Your Business Open and Social using IBM Notes Social Edition 9.0.1
 BP207: Don’t Reinvent The Wheel – Re(use) Open Source Software from OpenNTF
 GURU101: Gurupalooza
52

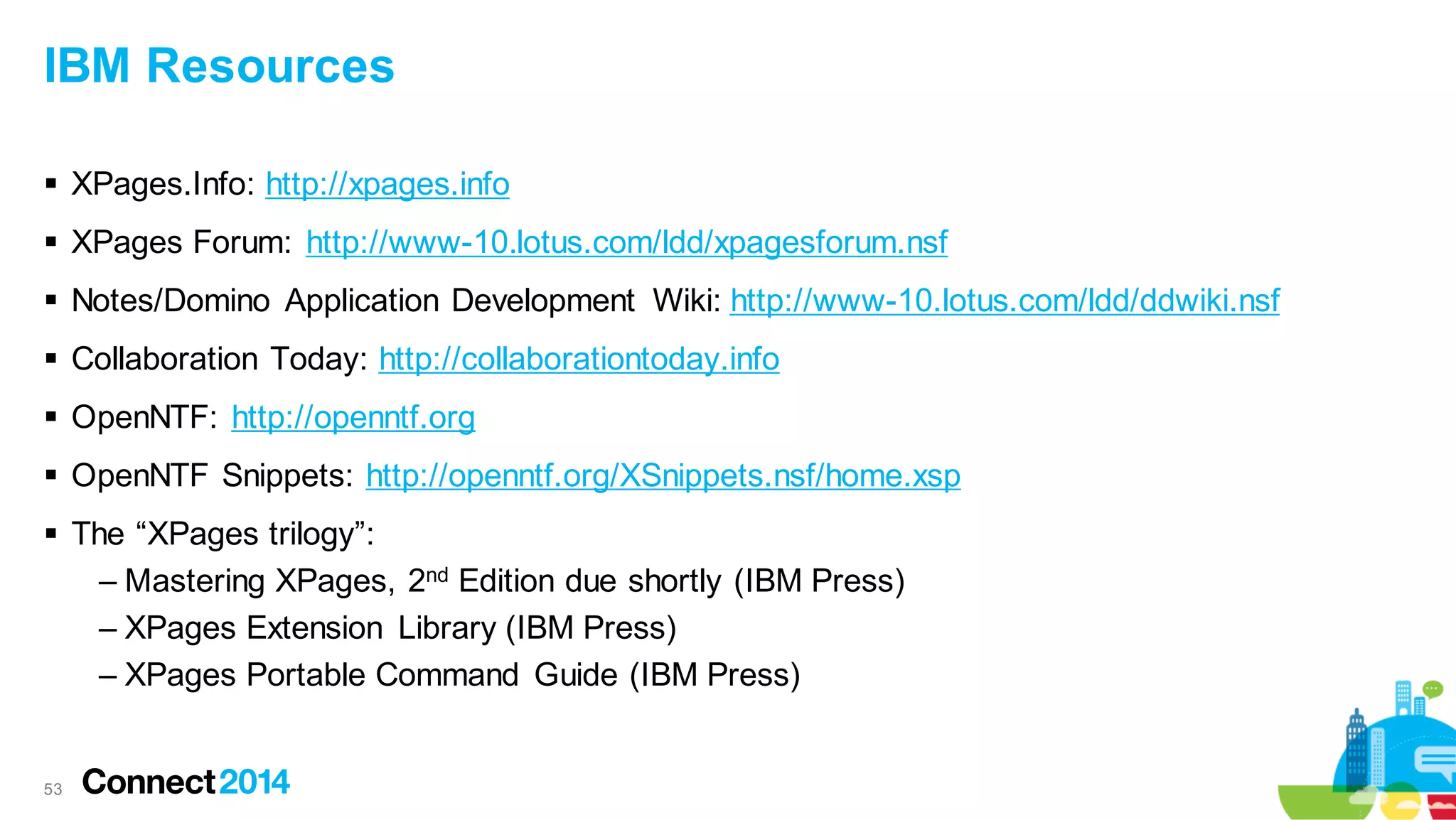

53. IBM Resources
 XPages.Info: http://xpages.info
 XPages Forum: http://www-10.lotus.com/ldd/xpagesforum.nsf
 Notes/Domino Application Development Wiki: http://www-10.lotus.com/ldd/ddwiki.nsf
 Collaboration Today: http://collaborationtoday.info
 OpenNTF: http://openntf.org
 OpenNTF Snippets: http://openntf.org/XSnippets.nsf/home.xsp
 The “XPages trilogy”:
– Mastering XPages, 2nd Edition due shortly (IBM Press)
– XPages Extension Library (IBM Press)
– XPages Portable Command Guide (IBM Press)
53

54. Community Resources
 Planet Lotus: http://planetlotus.org
 Notes in 9 (videos): http://www.notesin9.com
 XPages cheat sheets: http://www.xpagescheatsheets.com
 YouAtNotes XPages wiki: http://www.xpageswiki.com
 Stack Overflow: http://stackoverflow.com/questions/tagged/xpages
54

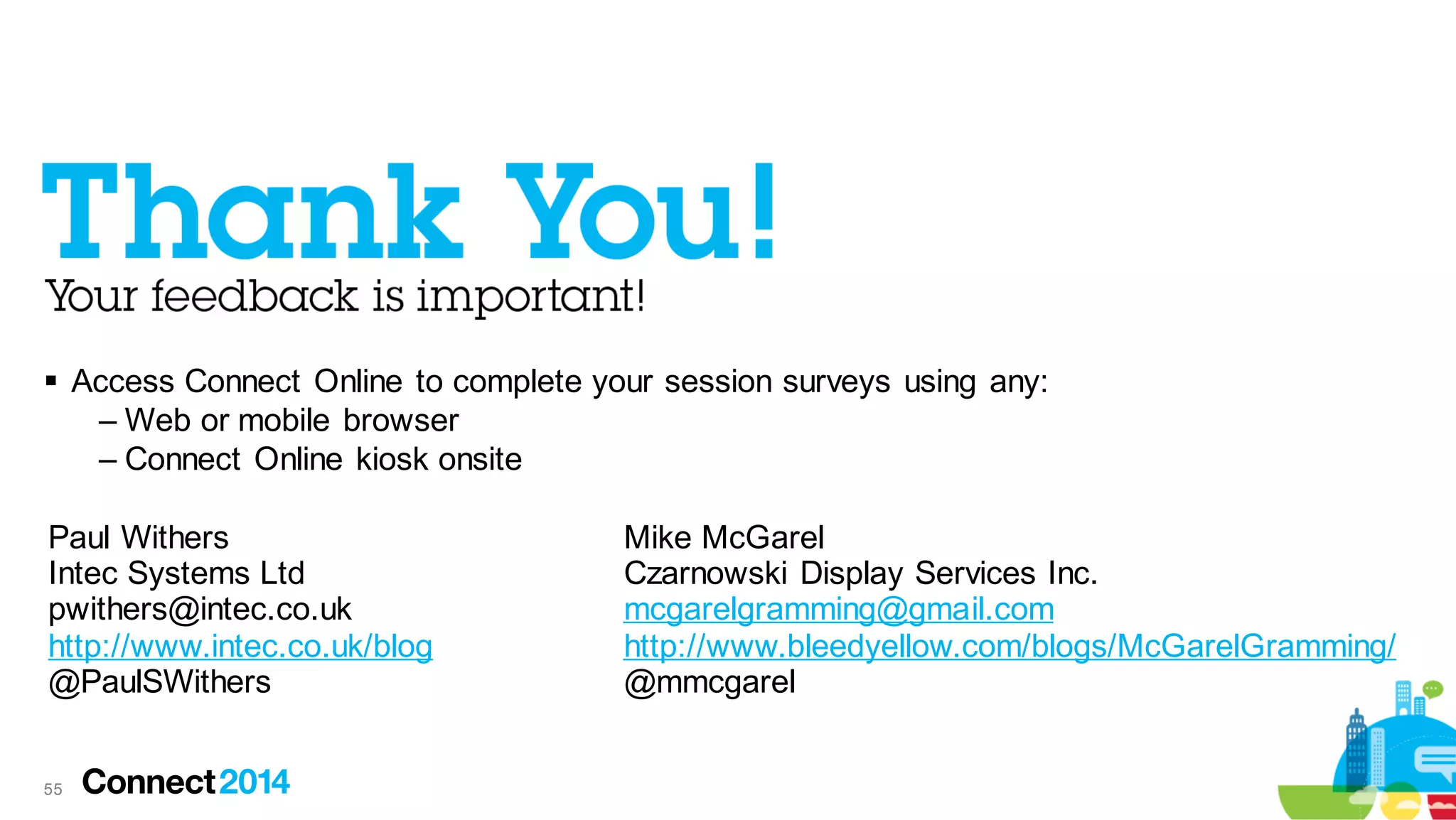

55.  Access Connect Online to complete your session surveys using any:
– Web or mobile browser
– Connect Online kiosk onsite
Paul Withers
Intec Systems Ltd
pwithers@intec.co.uk
http://www.intec.co.uk/blog
@PaulSWithers
55
Mike McGarel
Czarnowski Display Services Inc.
mcgarelgramming@gmail.com
http://www.bleedyellow.com/blogs/McGarelGramming/
@mmcgarel

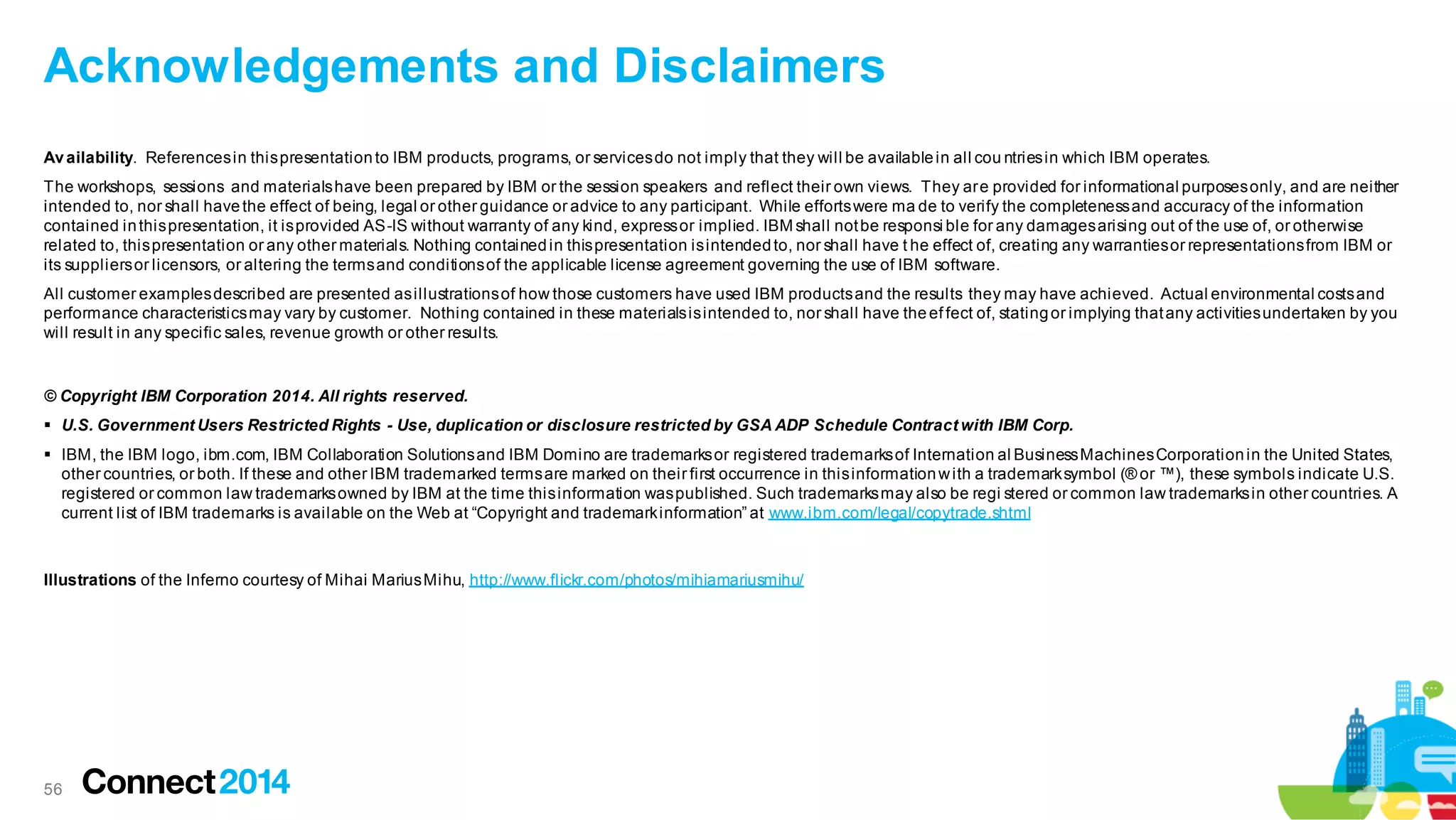

56. Acknowledgements and Disclaimers
Av ailability. References in this presentation to IBM products, programs, or services do not imply that they will be available in all cou ntries in which IBM operates.
The workshops, sessions and materials have been prepared by IBM or the session speakers and reflect their own views. They ar e provided for informational purposes only, and are neither
intended to, nor shall have the effect of being, legal or other guidance or advice to any participant. While efforts were ma de to verify the completeness and accuracy of the information
contained in this presentation, it is provided AS-IS without warranty of any kind, express or implied. IBM shall not be responsi ble for any damages arising out of the use of, or otherwise
related to, this presentation or any other materials. Nothing contained in this presentation is intended to, nor shall have t he effect of, creating any warranties or representations from IBM or
its suppliers or licensors, or altering the terms and conditions of the applicable license agreement governing the use of IBM software.
All customer examples described are presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual environmental costs and
performance characteristics may vary by customer. Nothing contained in these materials is intended to, nor shall have the ef fect of, stating or implying that any activities undertaken by you
will result in any specific sales, revenue growth or other results.
© Copyright IBM Corporation 2014. All rights reserved.
 U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.
 IBM, the IBM logo, ibm.com, IBM Collaboration Solutions and IBM Domino are trademarks or registered trademarks of Internation al Business Machines Corporation in the United States,
other countries, or both. If these and other IBM trademarked terms are marked on their first occurrence in this information w ith a trademark symbol (® or ™), these symbols indicate U.S.
registered or common law trademarks owned by IBM at the time this information was published. Such trademarks may also be regi stered or common law trademarks in other countries. A
current list of IBM trademarks is available on the Web at “Copyright and trademark information” at www.ibm.com/legal/copytrade.shtml
Illustrations of the Inferno courtesy of Mihai Marius Mihu, http://www.flickr.com/photos/mihiamariusmihu/
56
