The document provides an overview of plugin development for Lotus Notes, Domino and Sametime applications using the Lotus Expeditor Toolkit. It discusses what plugins can do, how to install the Expeditor Toolkit plugin in Eclipse, the basic anatomy of a plugin, key extension points, and how to build user interfaces with SWT and jobs. The presentation also demonstrates how to create a sample plugin that reads data from a web service and displays it in a sidebar panel.

1. Belux Lotus User Group 2011 Antwerp, Belgium Plug yourself in and your applications will never be the same! (An introduction to plugin development for Lotus Notes, Domino and Sametime)

2. About me Developer: Notes / Domino / Sametime / Java / DB2 / WebSphere / web / plug-ins

3. Design Partner for Domino NEXT and Lotus Connections 3.0

4. Active blogger: lekkimworld.com

5. Speaker at Lotusphere

6. Articles for THE VIEW

7. E-mail: mh@intravision.dk

8. .com/lekkim

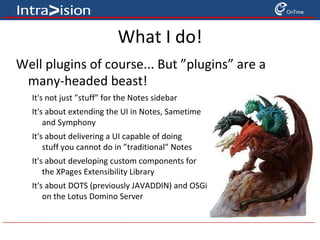

9. What I do! Well plugins of course... But ”plugins” are a many-headed beast! It's not just ”stuff” for the Notes sidebar

10. It's about extending the UI in Notes, Sametime and Symphony

11. It's about delivering a UI capable of doing stuff you cannot do in ”traditional” Notes

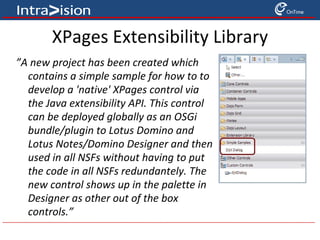

12. It's about developing custom components for the XPages Extensibility Library

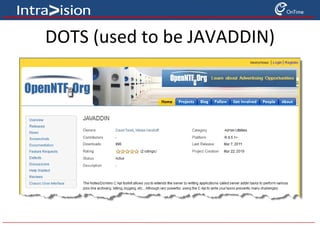

13. It's about DOTS (previously JAVADDIN) and OSGi on the Lotus Domino Server

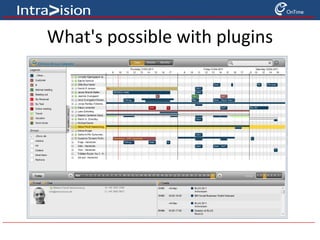

14. What's possible with plugins

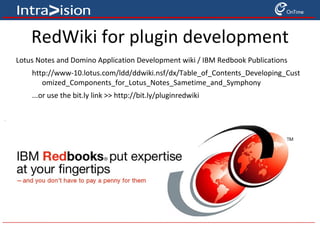

15. RedWiki for plugin development Lotus Notes and Domino Application Development wiki / IBM Redbook Publications http://www-10.lotus.com/ldd/ddwiki.nsf/dx/Table_of_Contents_Developing_Customized_Components_for_Lotus_Notes_Sametime_and_Symphony

16. ...or use the bit.ly link >> http://bit.ly/pluginredwiki

17. What I'm going to build (if time permits) Sidebar panel containing A list box

18. Three buttons at the bottom One button reads from a web service

19. One button reads contacts from names.nsf

20. One button creates a new email Reads recipient from list

21. Create document

22. Set subject

23. Add data from web service call to body Create a feature for the plugin

24. Create an update site with the feature

25. Create a widget for the feature from the update site

26. Agenda About Eclipse and Lotus Expeditor Toolkit

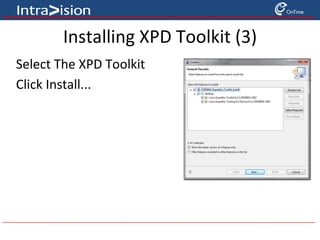

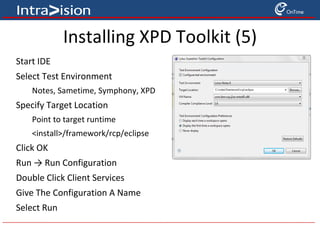

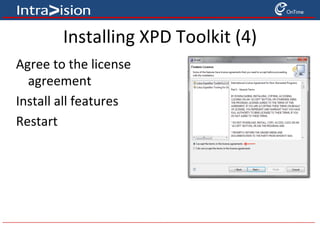

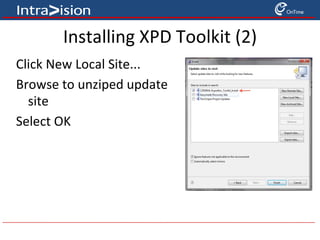

27. Installing Lotus Expeditor Toolkit

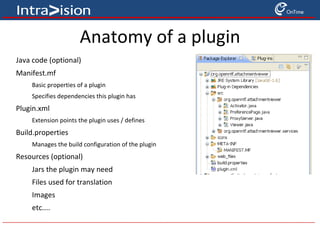

28. Plugin Development Basics

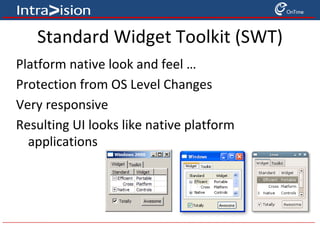

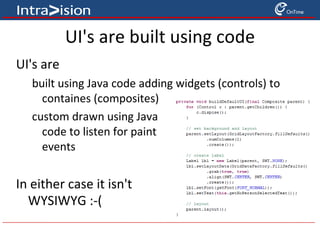

29. Building UI's with SWT and JFace

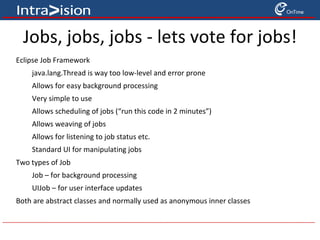

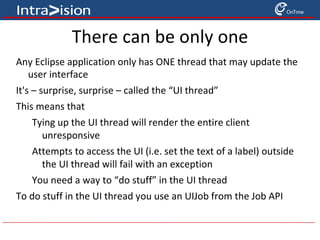

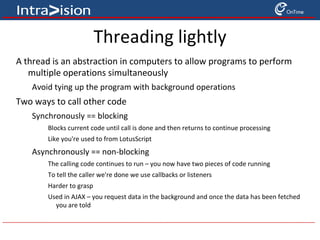

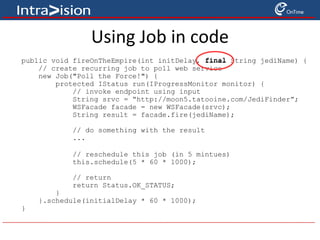

30. Jobs, Jobs, Jobs

31. Time to build some stuff...

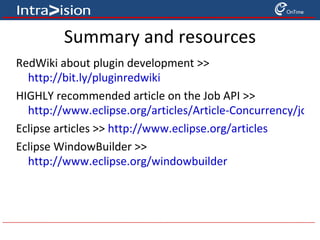

32. Resources / Q&A

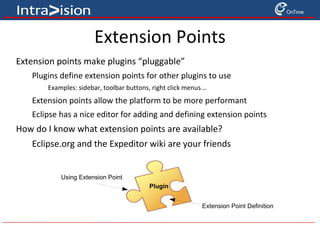

33. Eclipse architecture Workbench JFace SWT Core Extension Point Framework Service Framework Rich Client Platform Plug-in Plug-in Extension Pt. Plug-in Extension Point Extension Point Extension Point A software component in Eclipse Extension Point declares contract to extend plug-in functionality Extension code extends this functionality RCP allows you to build GUI apps on multiple OS SWT provides uniform UI API across multiple OS that calls OS UI API for native look and feel JFace provides components to make it easier to write a GUI e.g. wizards, preference pages, actions, dialogs Workbench is desktop UI and customizable Service Framework supports registration and lifecycle management of plug-ins

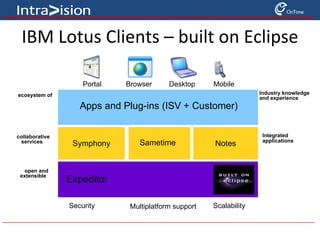

34. IBM Lotus Clients – built on Eclipse Sametime Expeditor Apps and Plug-ins (ISV + Customer) Notes Symphony Industry knowledge and experience ecosystem of partners open and extensible collaborative services Integrated applications Portal Browser Desktop Mobile Multiplatform support Scalability Security

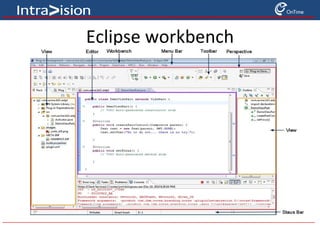

35. Eclipse workbench
