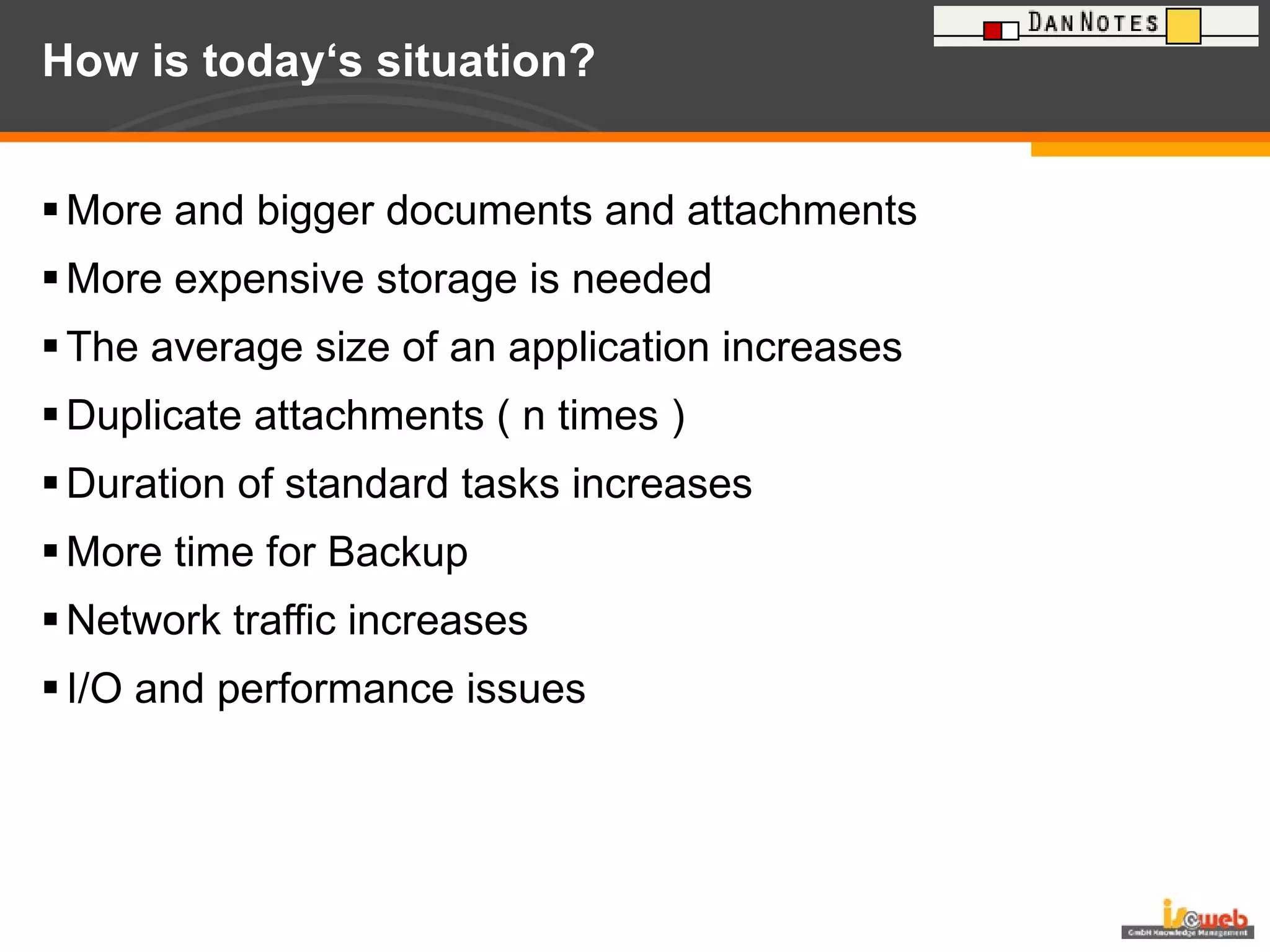

6. How is today‘s situation? More and bigger documents and attachments More expensive storage is needed The average size of an application increases Duplicate attachments ( n times ) Duration of standard tasks increases More time for Backup Network traffic increases I/O and performance issues

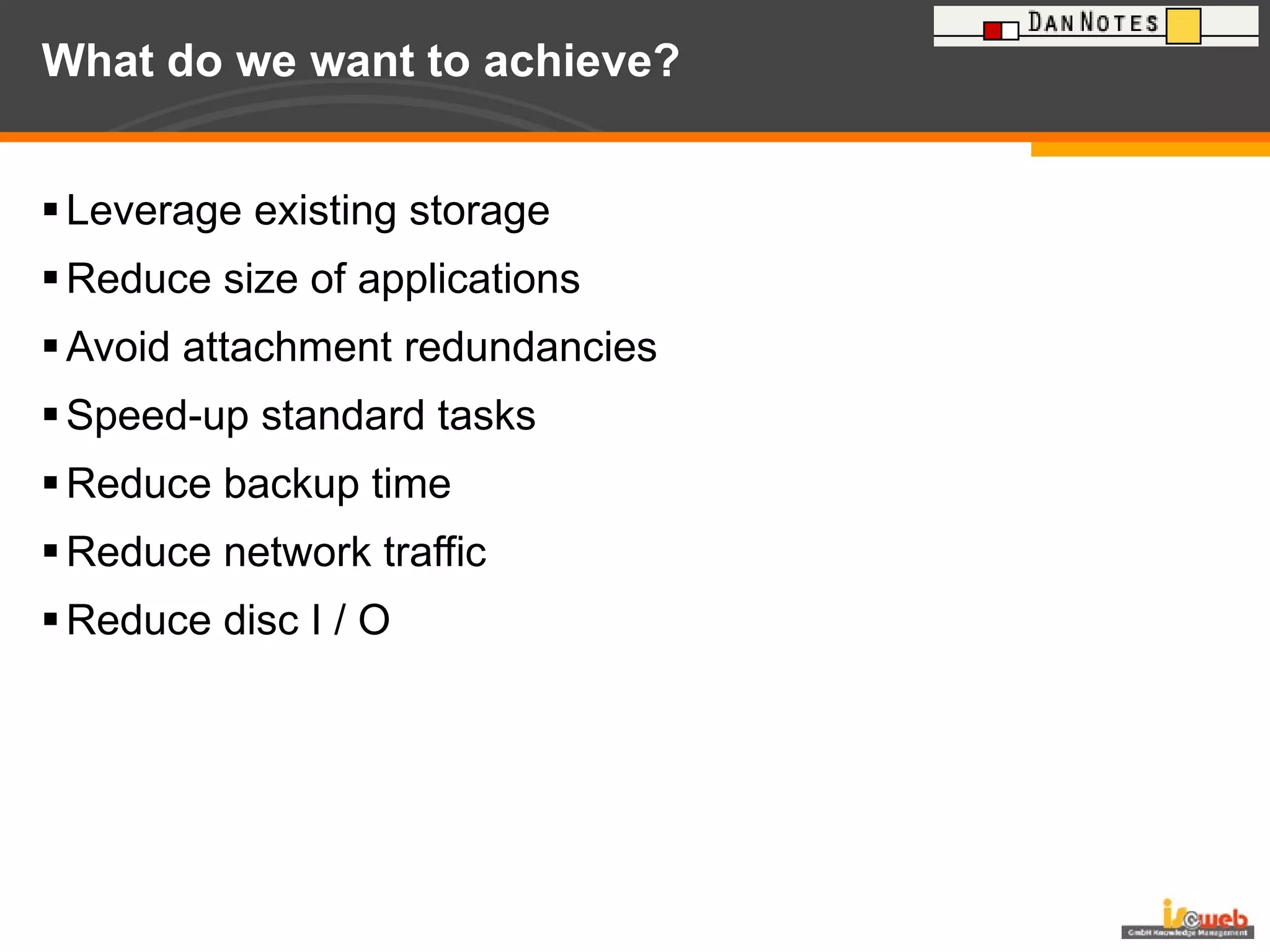

7. What do we want to achieve? Leverage existing storage Reduce size of applications Avoid attachment redundancies Speed-up standard tasks Reduce backup time Reduce network traffic Reduce disc I / O

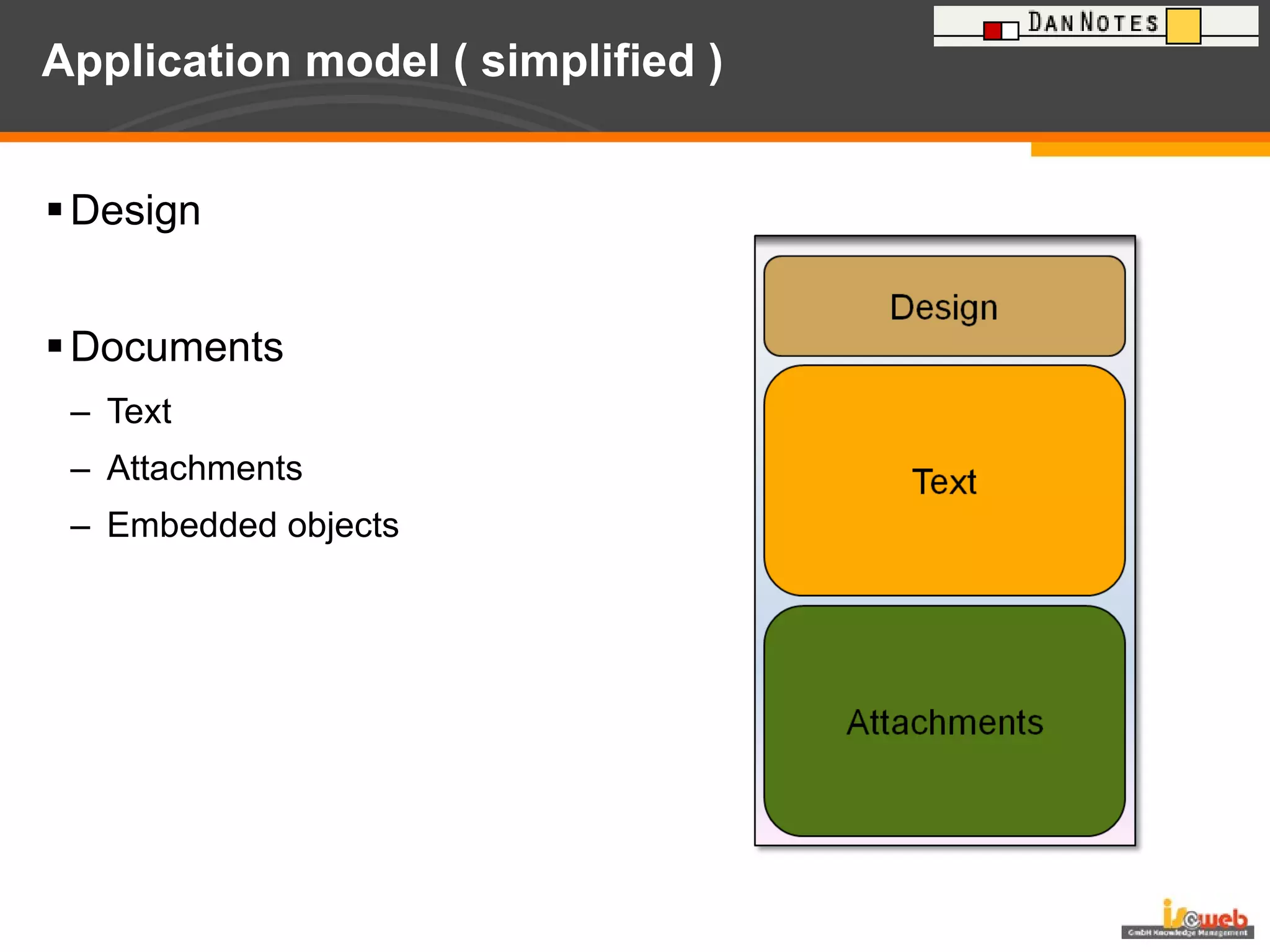

8. Application model ( simplified ) Design Documents Text Attachments Embedded objects

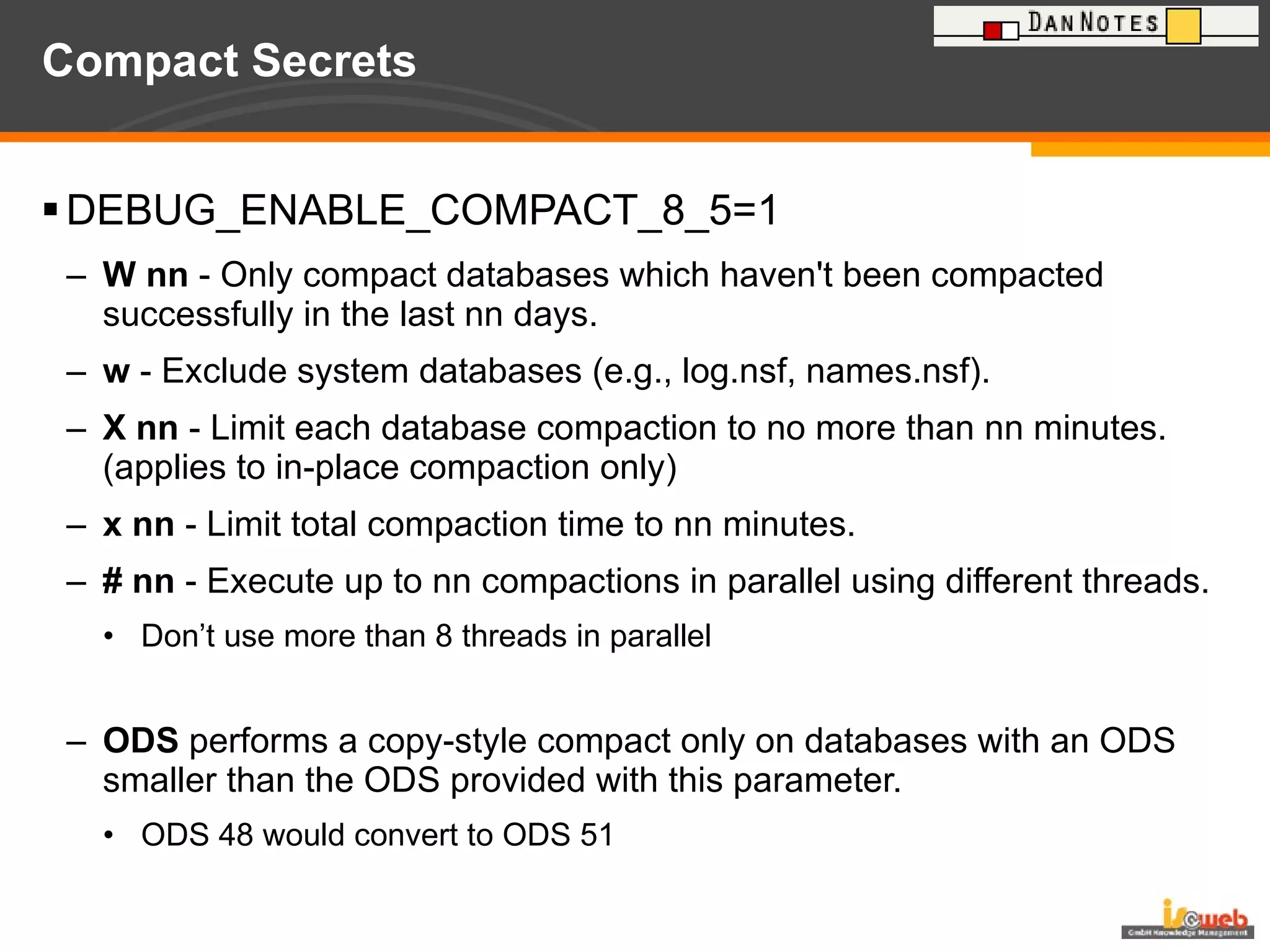

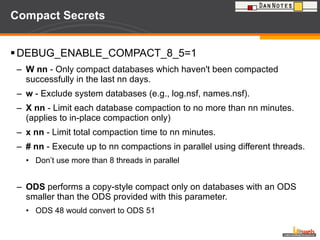

9. Compact Secrets DEBUG_ENABLE_COMPACT_8_5=1 W nn - Only compact databases which haven't been compacted successfully in the last nn days. w - Exclude system databases (e.g., log.nsf, names.nsf). X nn - Limit each database compaction to no more than nn minutes. (applies to in-place compaction only) x nn - Limit total compaction time to nn minutes. # nn - Execute up to nn compactions in parallel using different threads. Don’t use more than 8 threads in parallel ODS performs a copy-style compact only on databases with an ODS smaller than the ODS provided with this parameter. ODS 48 would convert to ODS 51

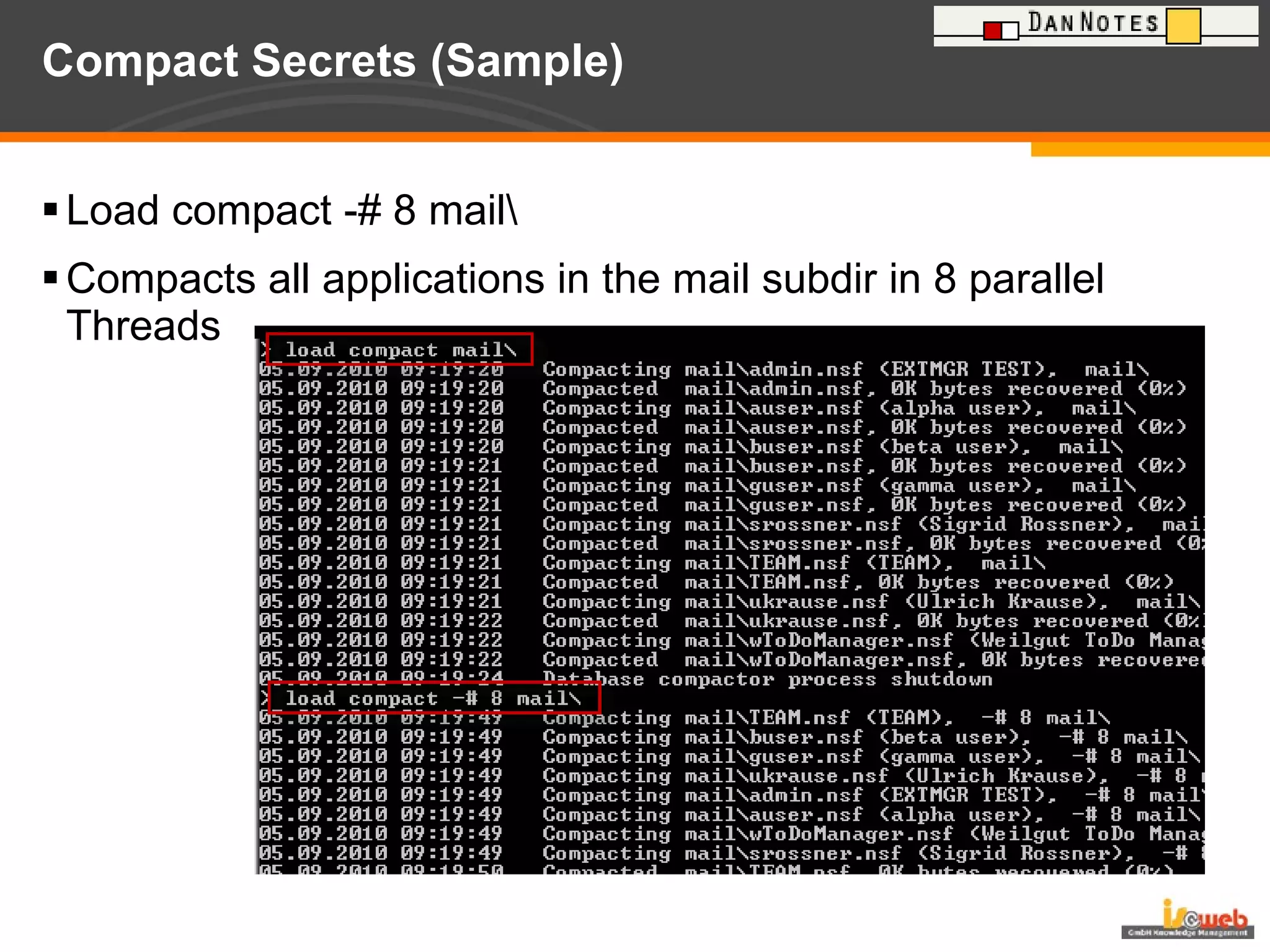

10. Compact Secrets (Sample) Load compact -# 8 mail\ Compacts all applications in the mail subdir in 8 parallel Threads

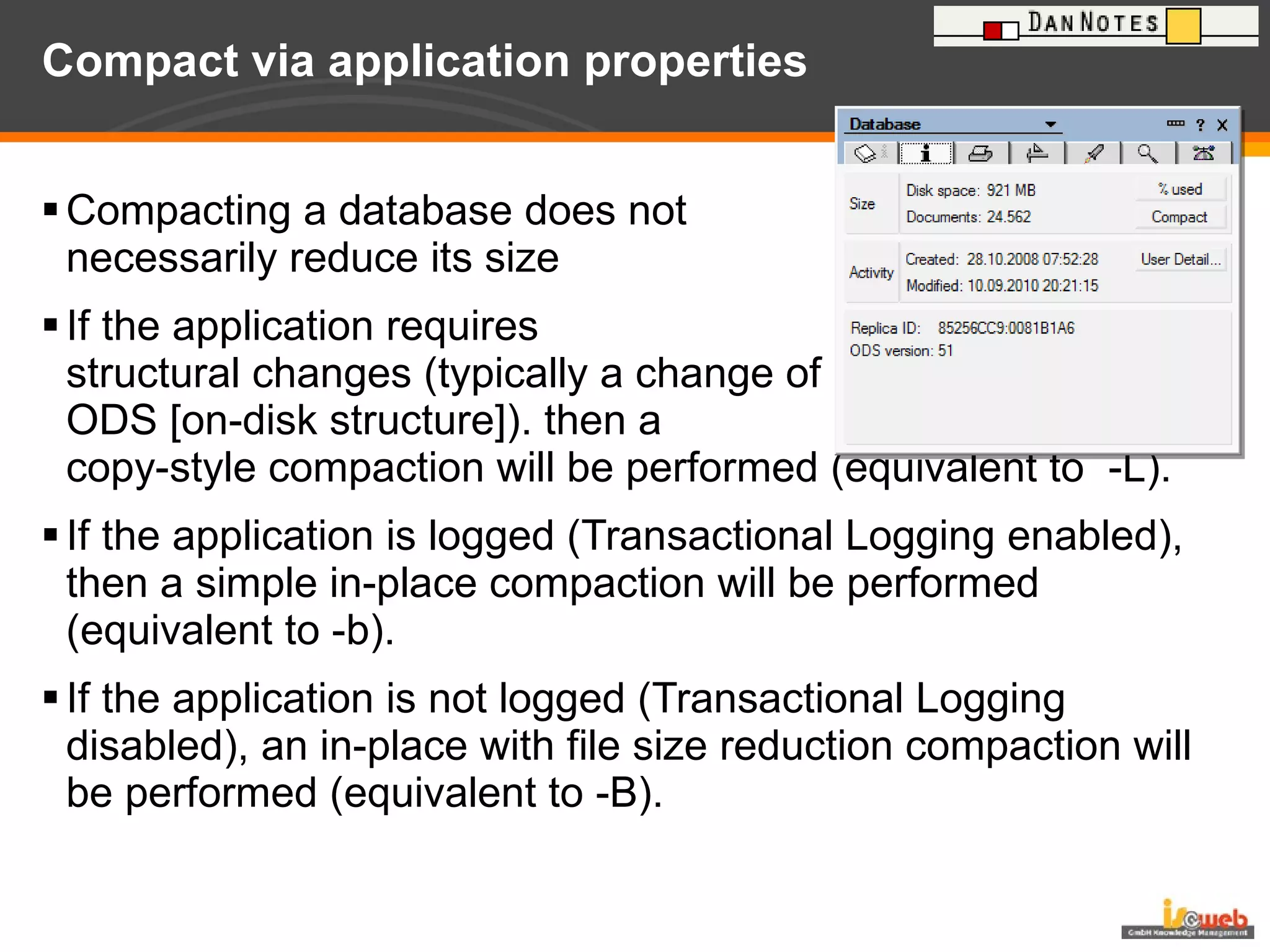

11. Compact via application properties Compacting a database does not necessarily reduce its size If the application requires structural changes (typically a change of ODS [on-disk structure]). then a copy-style compaction will be performed (equivalent to -L). If the application is logged (Transactional Logging enabled), then a simple in-place compaction will be performed (equivalent to -b). If the application is not logged (Transactional Logging disabled), an in-place with file size reduction compaction will be performed (equivalent to -B).

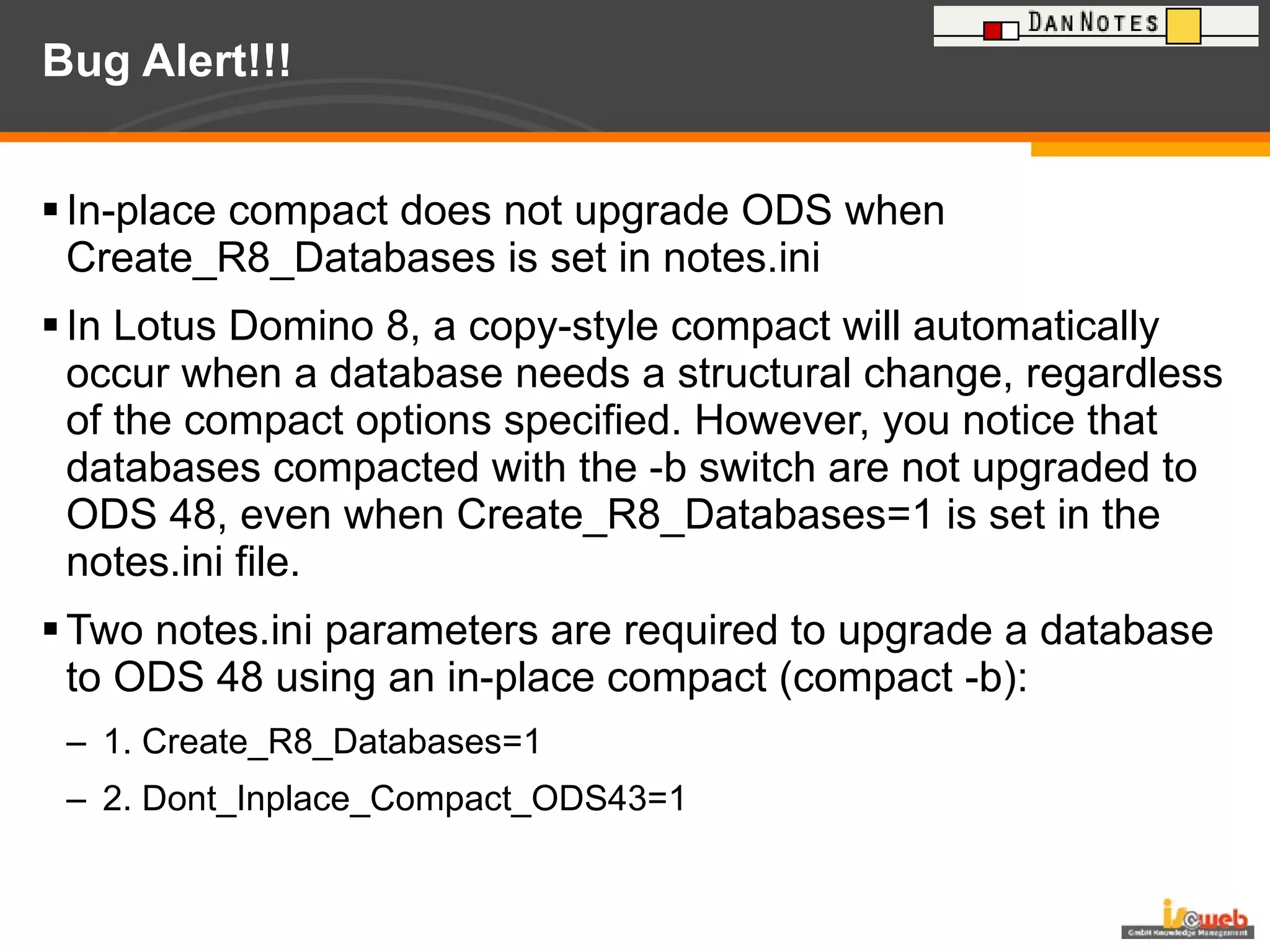

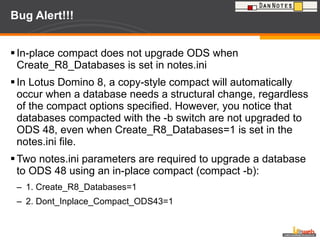

12. Bug Alert!!! In-place compact does not upgrade ODS when Create_R8_Databases is set in notes.ini In Lotus Domino 8, a copy-style compact will automatically occur when a database needs a structural change, regardless of the compact options specified. However, you notice that databases compacted with the -b switch are not upgraded to ODS 48, even when Create_R8_Databases=1 is set in the notes.ini file. Two notes.ini parameters are required to upgrade a database to ODS 48 using an in-place compact (compact -b): 1. Create_R8_Databases=1 2. Dont_Inplace_Compact_ODS43=1

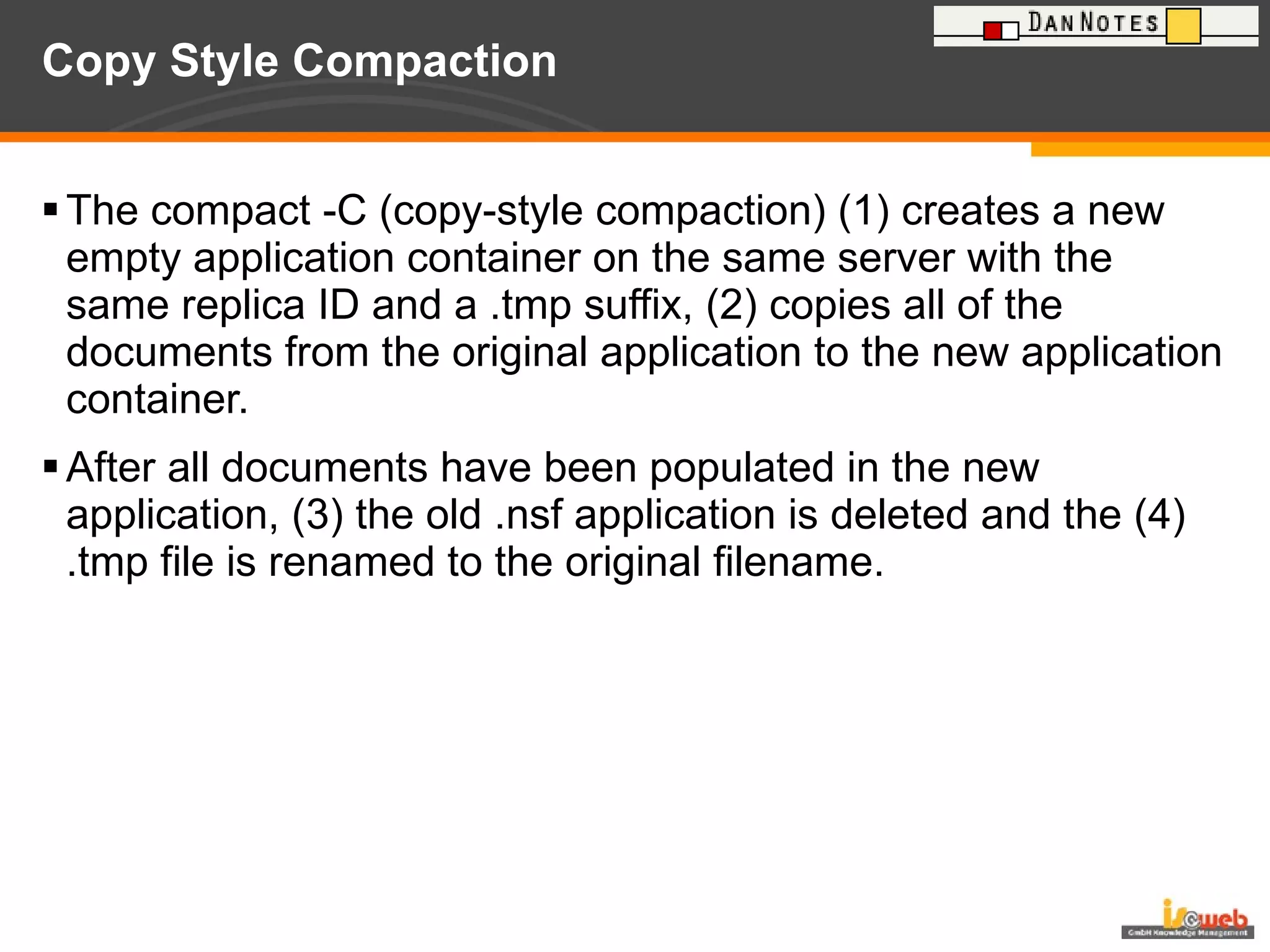

13. Copy Style Compaction The compact -C (copy-style compaction) (1) creates a new empty application container on the same server with the same replica ID and a .tmp suffix, (2) copies all of the documents from the original application to the new application container. After all documents have been populated in the new application, (3) the old .nsf application is deleted and the (4) .tmp file is renamed to the original filename.

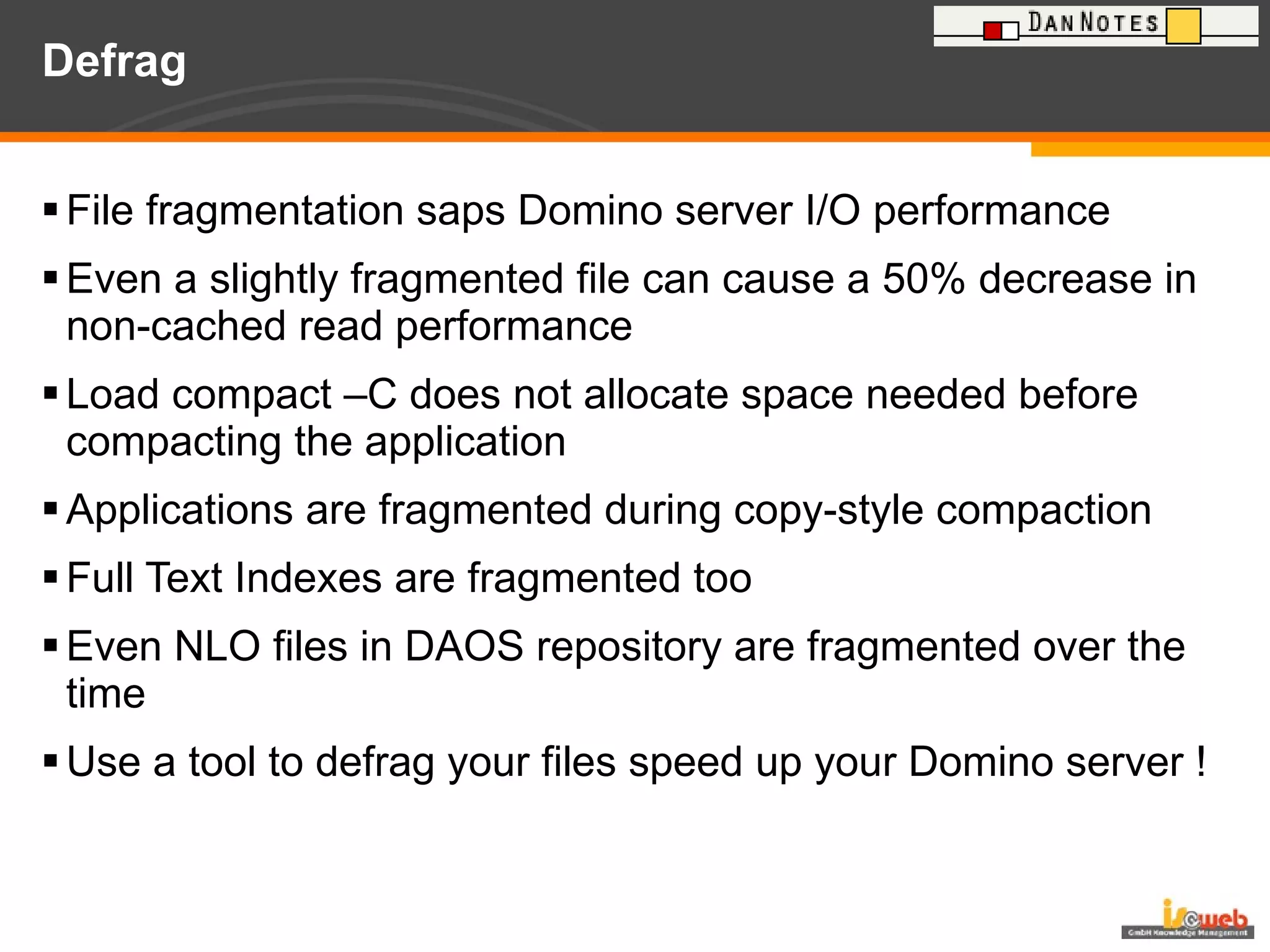

14. Defrag File fragmentation saps Domino server I/O performance Even a slightly fragmented file can cause a 50% decrease in non-cached read performance Load compact –C does not allocate space needed before compacting the application Applications are fragmented during copy-style compaction Full Text Indexes are fragmented too Even NLO files in DAOS repository are fragmented over the time Use a tool to defrag your files speed up your Domino server !

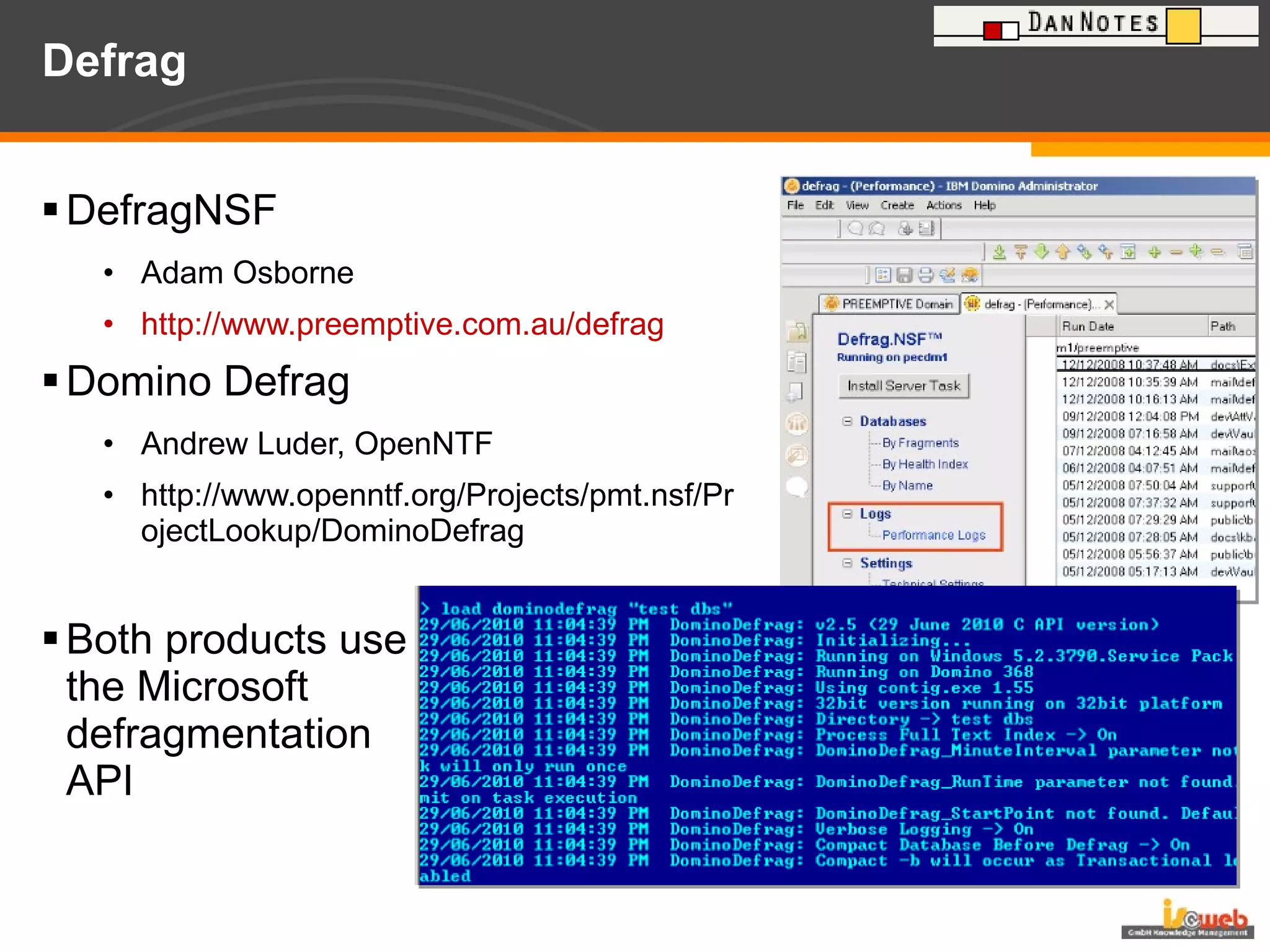

15. Defrag DefragNSF Adam Osborne http://www.preemptive.com.au/defrag Domino Defrag Andrew Luder, OpenNTF http://www.openntf.org/Projects/pmt.nsf/ProjectLookup/DominoDefrag Both products use the Microsoft defragmentation API

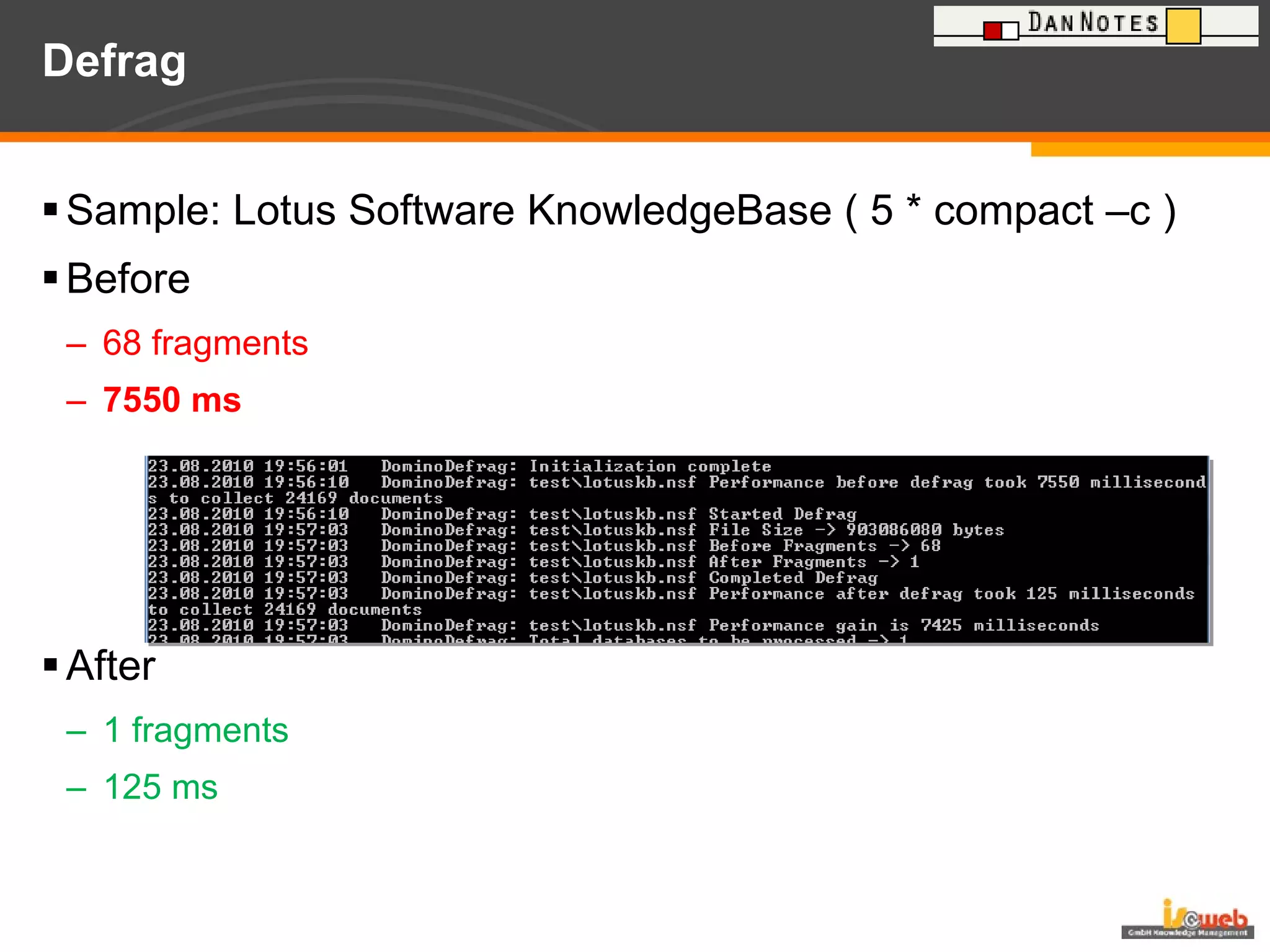

16. Defrag Sample: Lotus Software KnowledgeBase ( 5 * compact –c ) Before 68 fragments 7550 ms After 1 fragments 125 ms

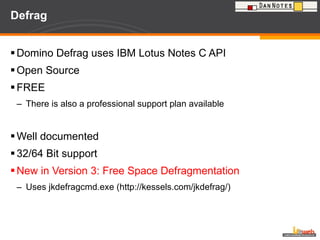

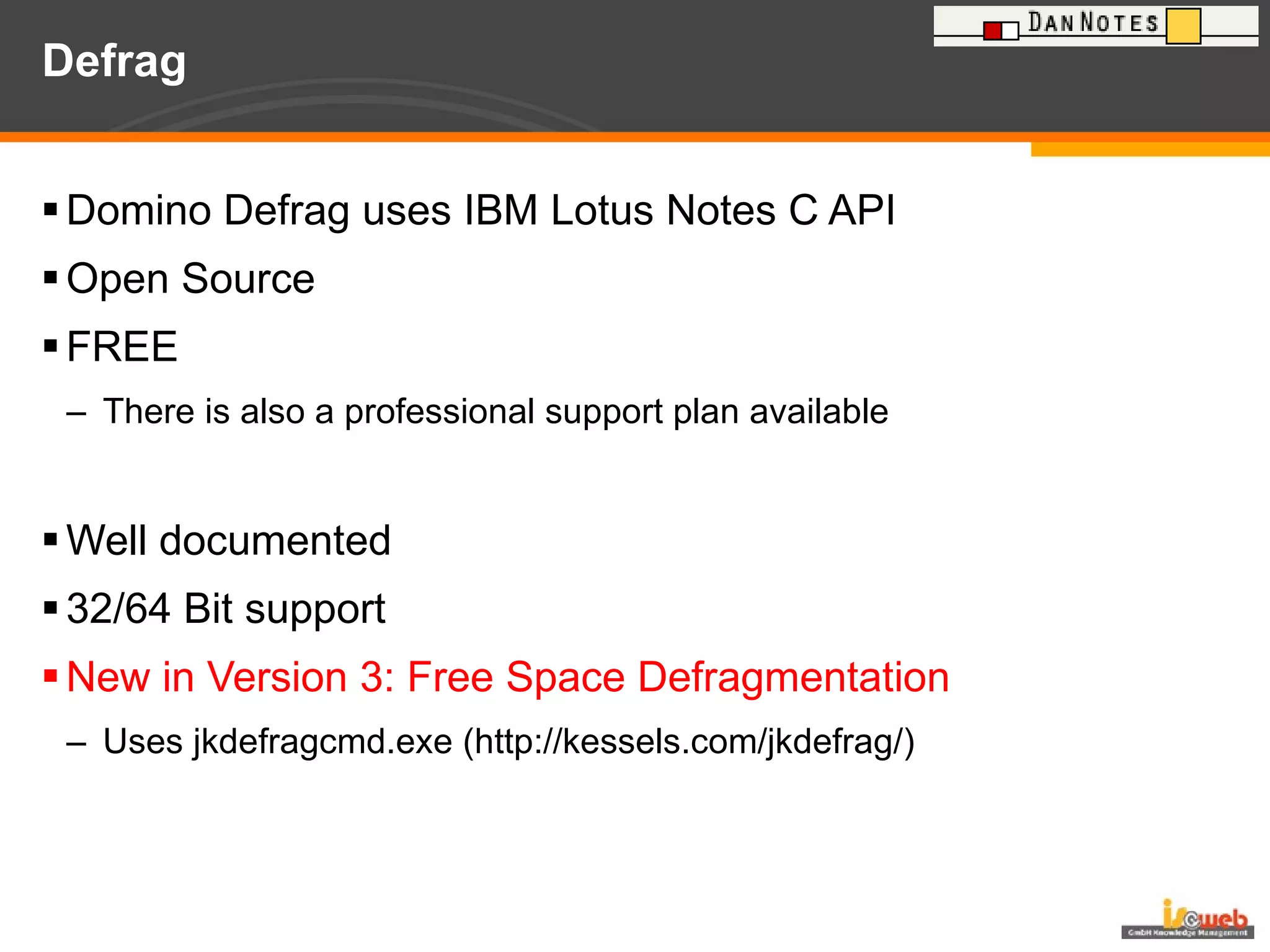

17. Defrag Domino Defrag uses IBM Lotus Notes C API Open Source FREE There is also a professional support plan available Well documented 32/64 Bit support New in Version 3: Free Space Defragmentation Uses jkdefragcmd.exe (http://kessels.com/jkdefrag/)

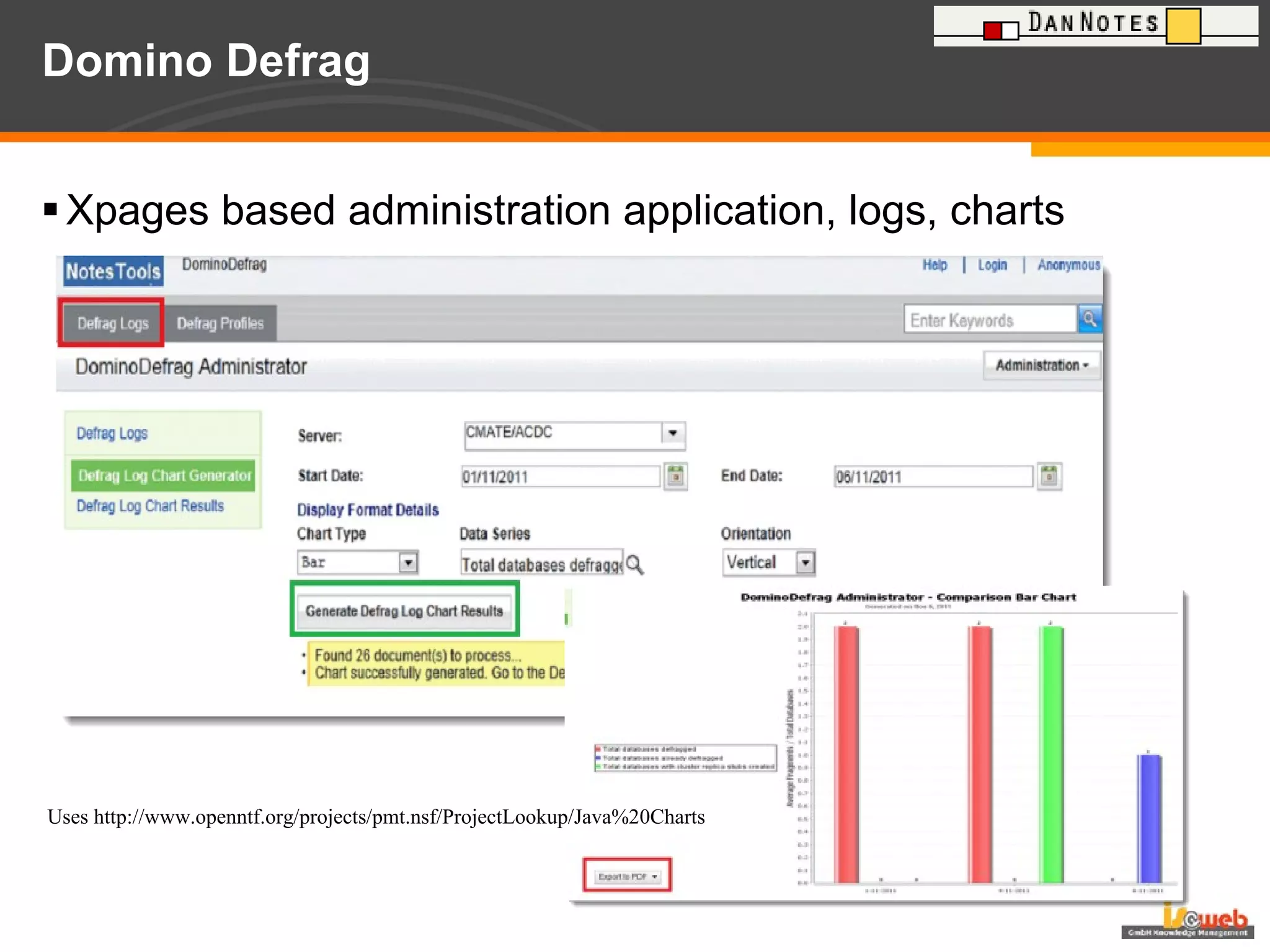

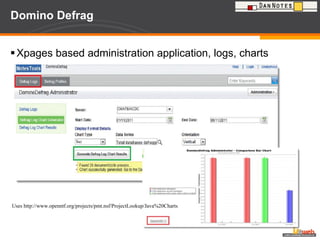

18. Domino Defrag Xpages based administration application, logs, charts Uses http://www.openntf.org/projects/pmt.nsf/ProjectLookup/Java%20Charts

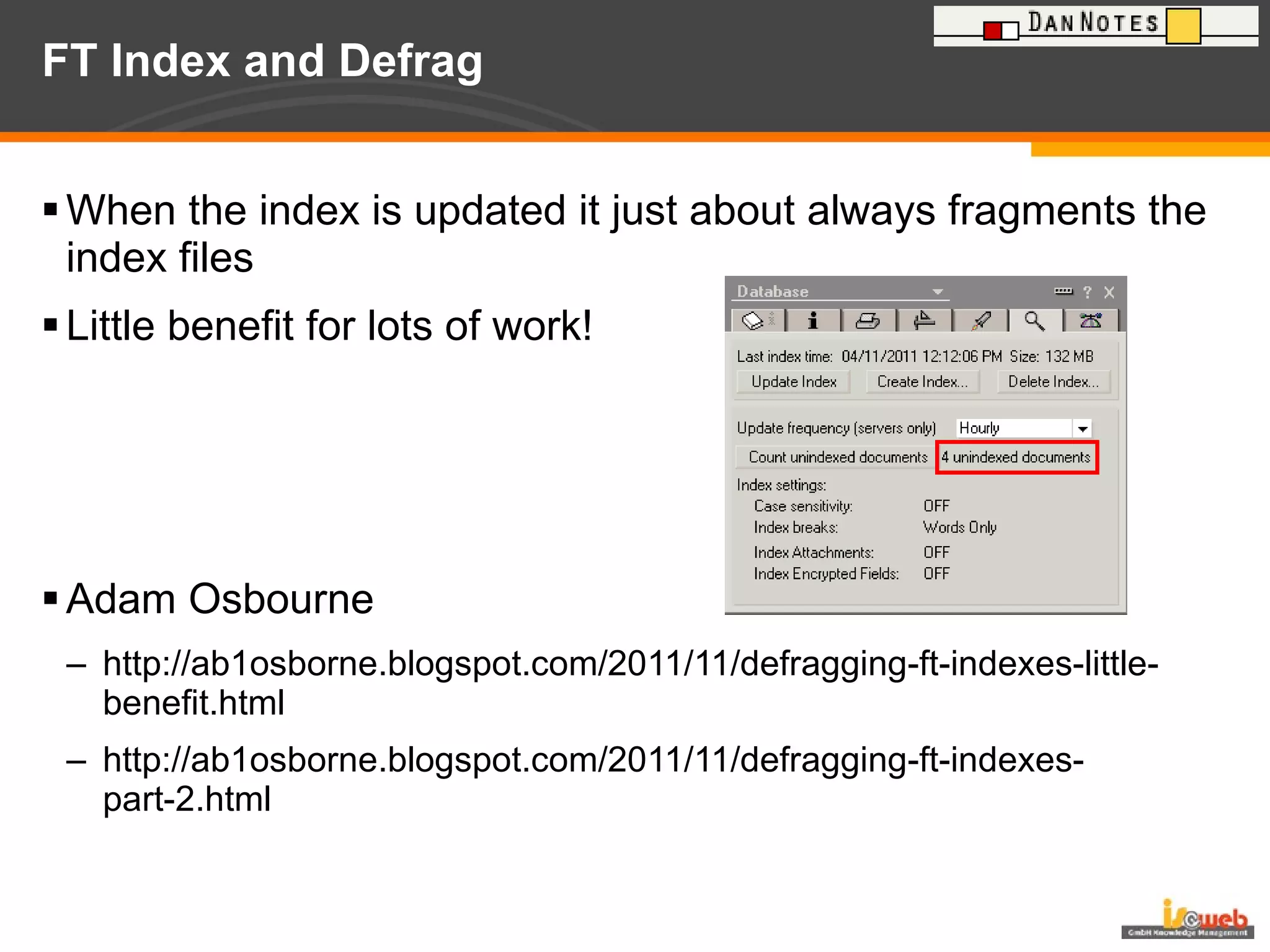

19. FT Index and Defrag When the index is updated it just about always fragments the index files Little benefit for lots of work! Adam Osbourne http://ab1osborne.blogspot.com/2011/11/defragging-ft-indexes-little-benefit.html http://ab1osborne.blogspot.com/2011/11/defragging-ft-indexes-part-2.html

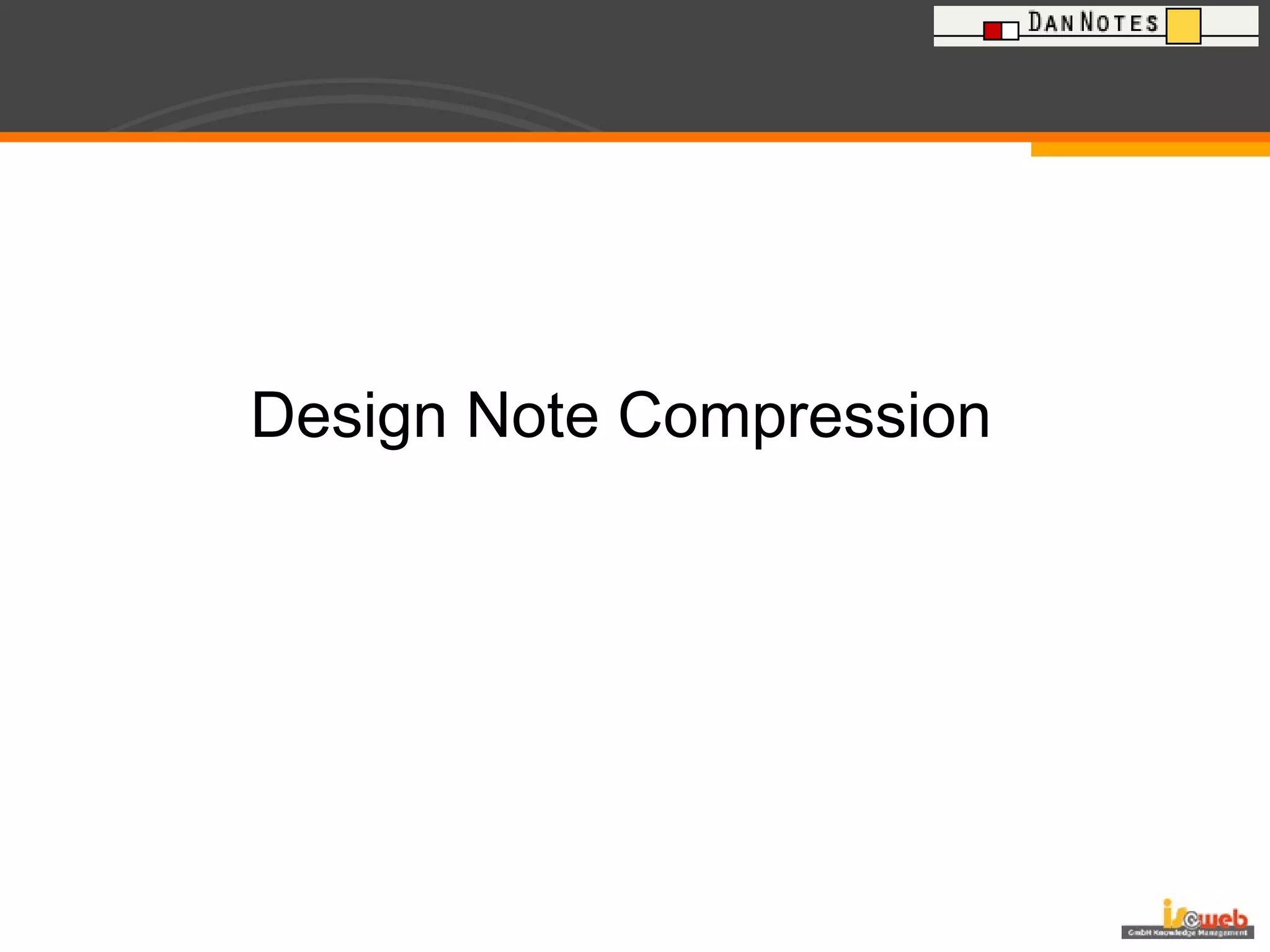

20. Design Note Compression

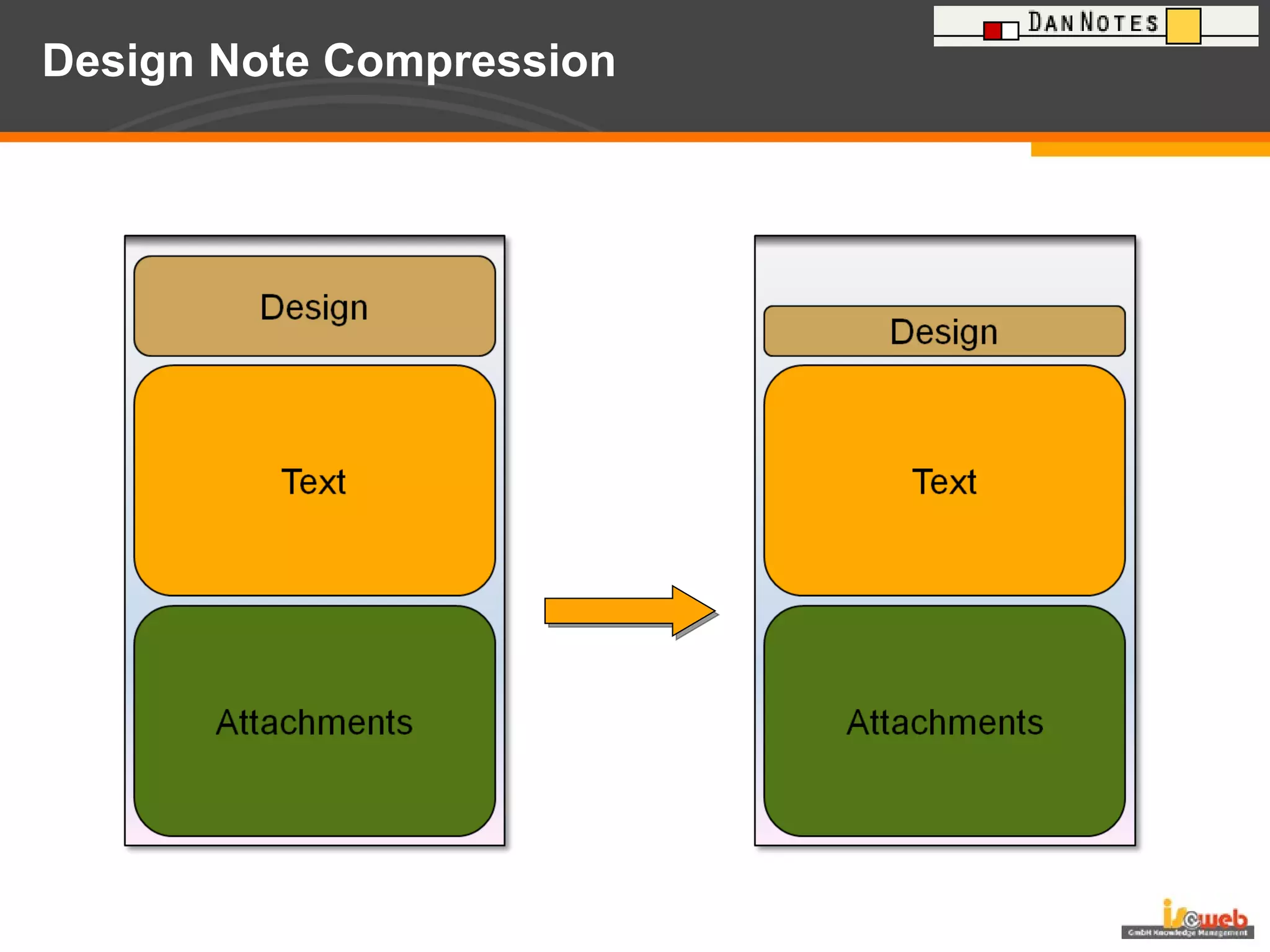

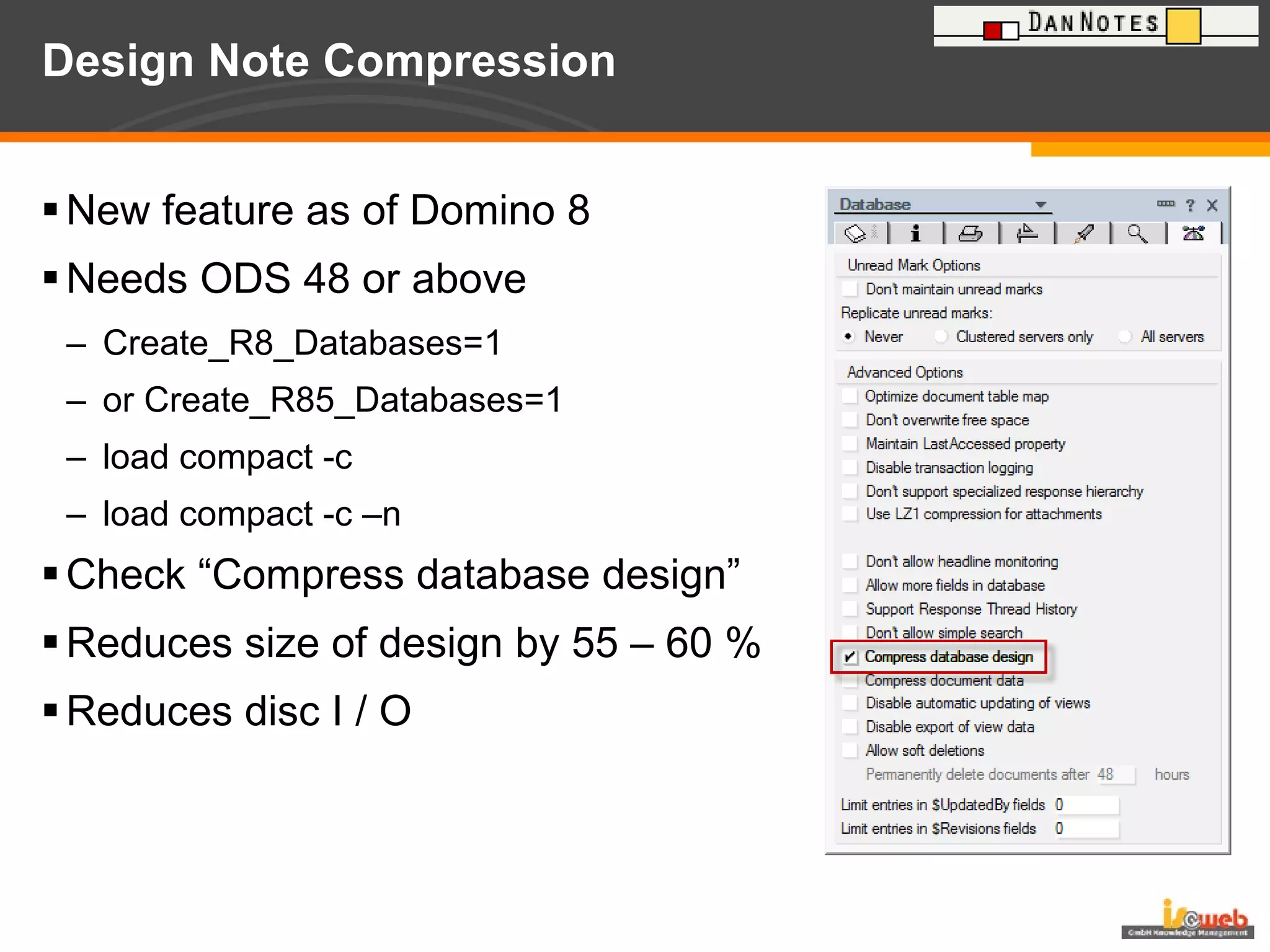

21. Design Note Compression New feature as of Domino 8 Needs ODS 48 or above Create_R8_Databases=1 or Create_R85_Databases=1 load compact -c load compact -c –n Check “Compress database design” Reduces size of design by 55 – 60 % Reduces disc I / O

22. Design Note Compression

23. Document Body Compression

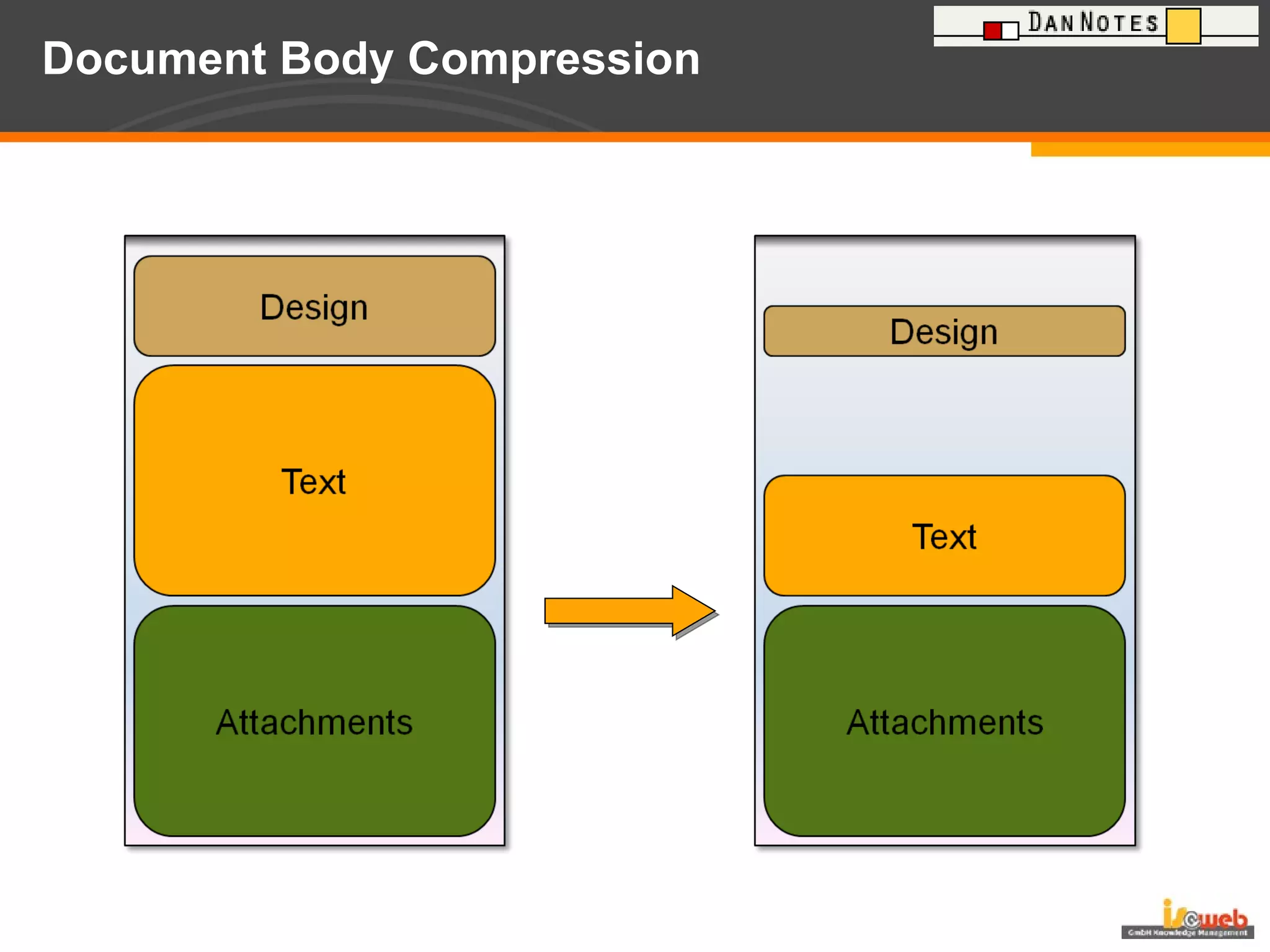

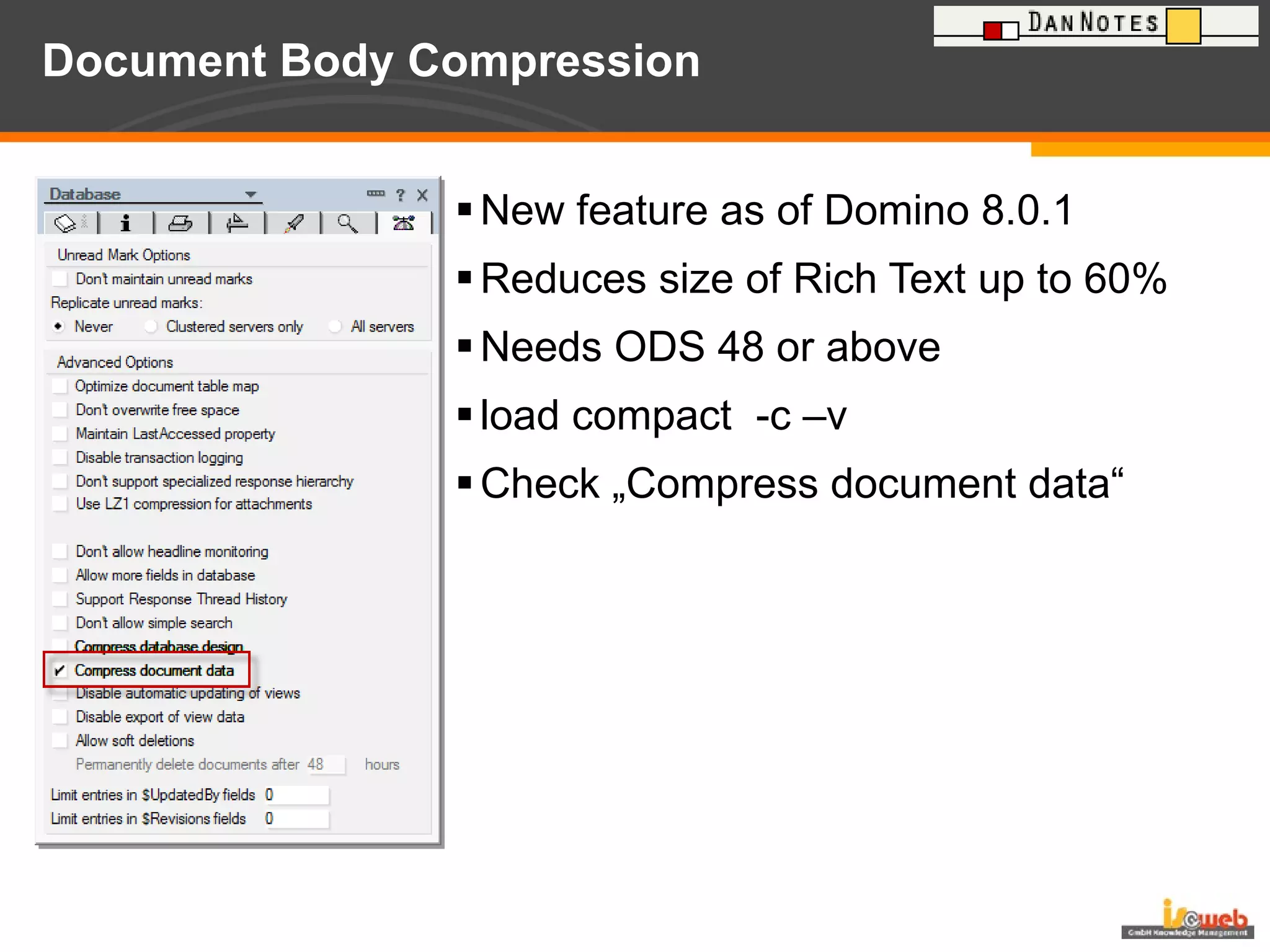

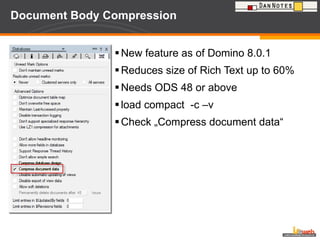

24. Document Body Compression New feature as of Domino 8.0.1 Reduces size of Rich Text up to 60% Needs ODS 48 or above load compact -c –v Check „Compress document data“

25. Document Body Compression

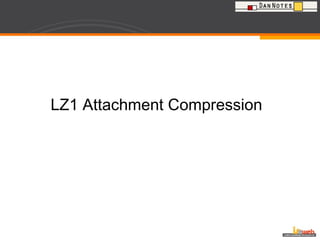

26. LZ1 Attachment Compression

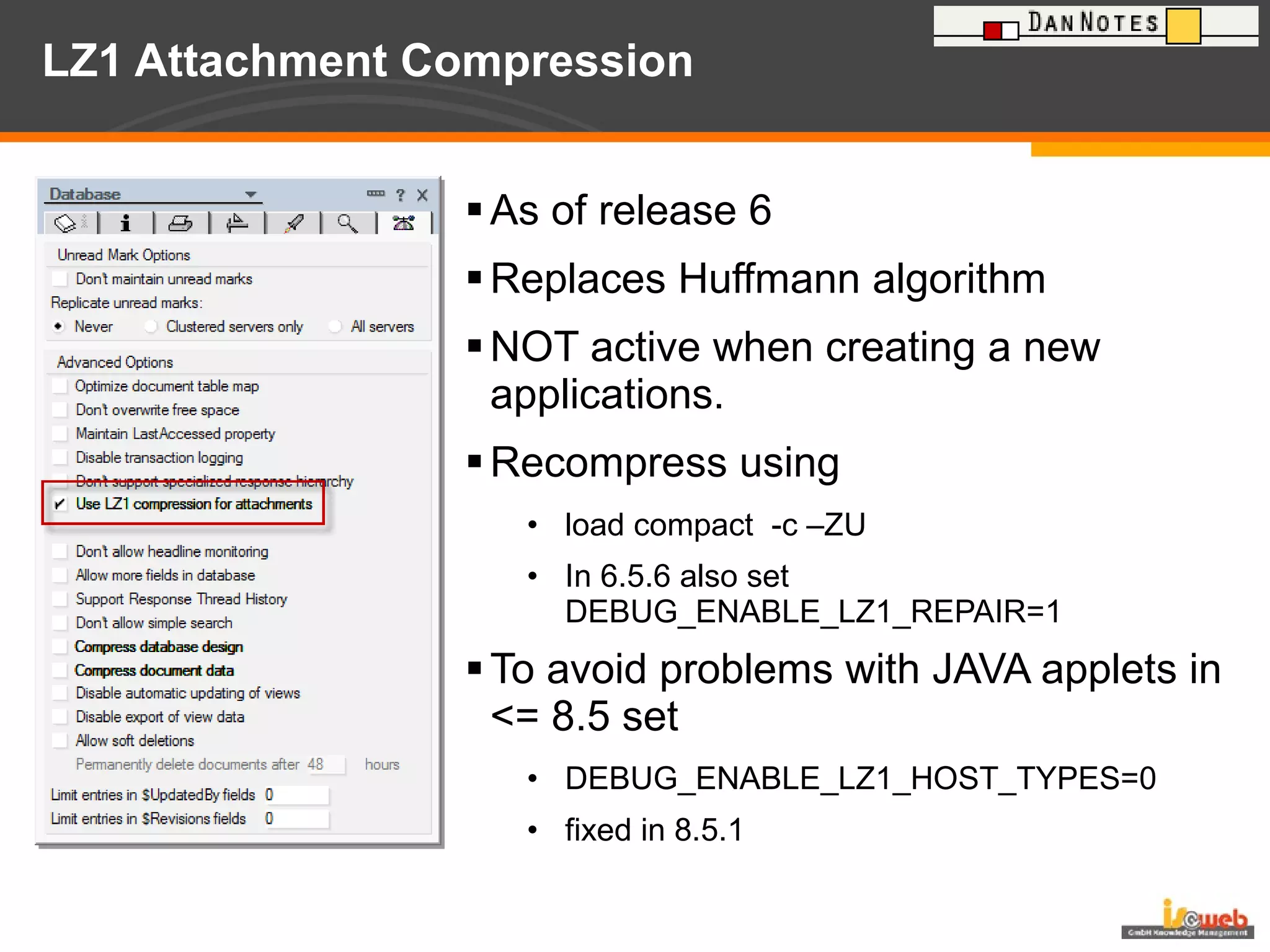

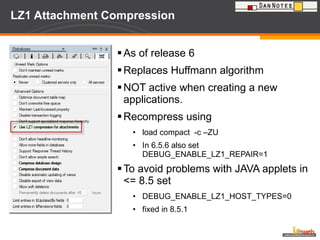

27. LZ1 Attachment Compression As of release 6 Replaces Huffmann algorithm NOT active when creating a new applications. Recompress using load compact -c –ZU In 6.5.6 also set DEBUG_ENABLE_LZ1_REPAIR=1 To avoid problems with JAVA applets in <= 8.5 set DEBUG_ENABLE_LZ1_HOST_TYPES=0 fixed in 8.5.1

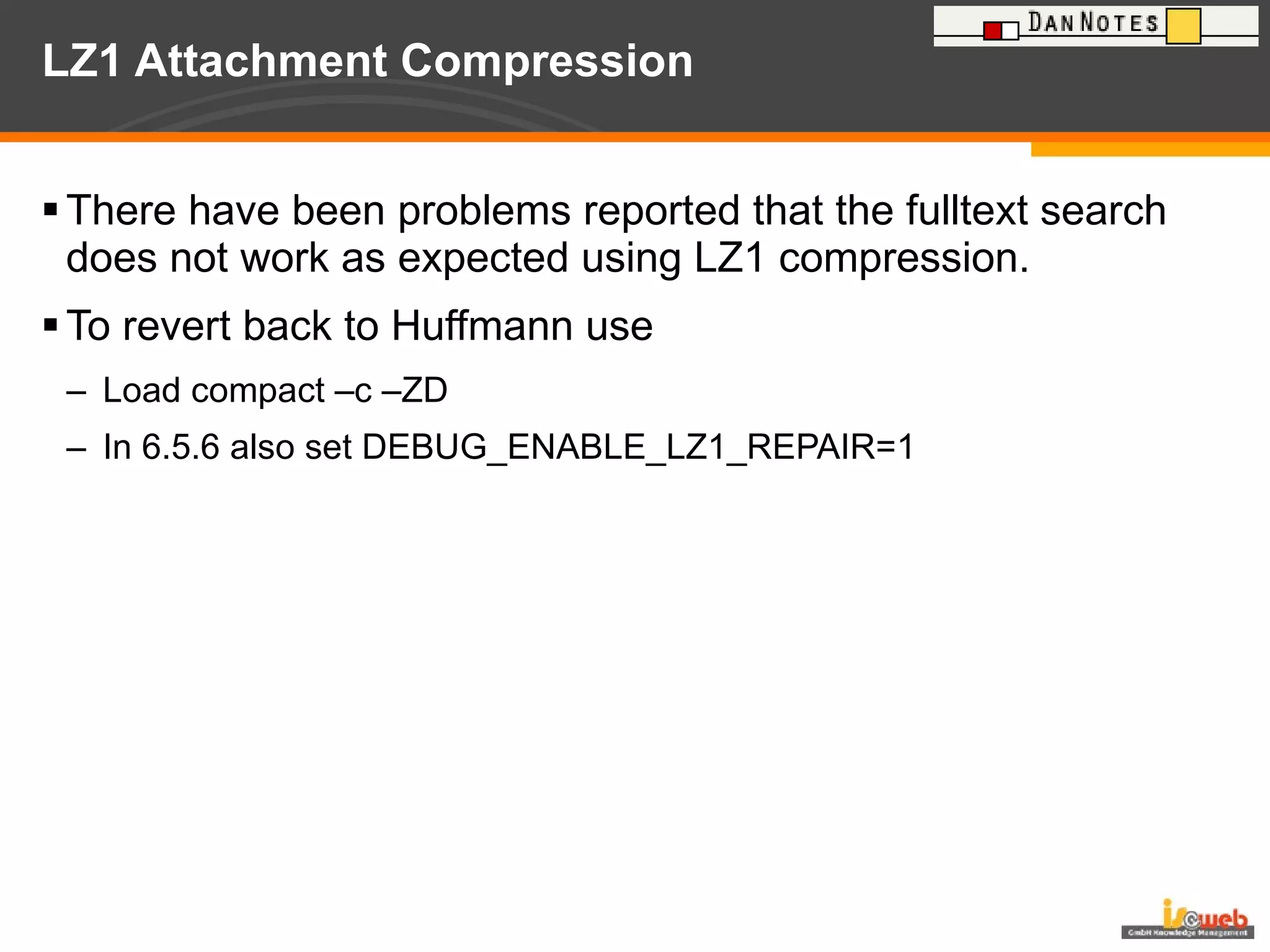

28. LZ1 Attachment Compression There have been problems reported that the fulltext search does not work as expected using LZ1 compression. To revert back to Huffmann use Load compact –c –ZD In 6.5.6 also set DEBUG_ENABLE_LZ1_REPAIR=1

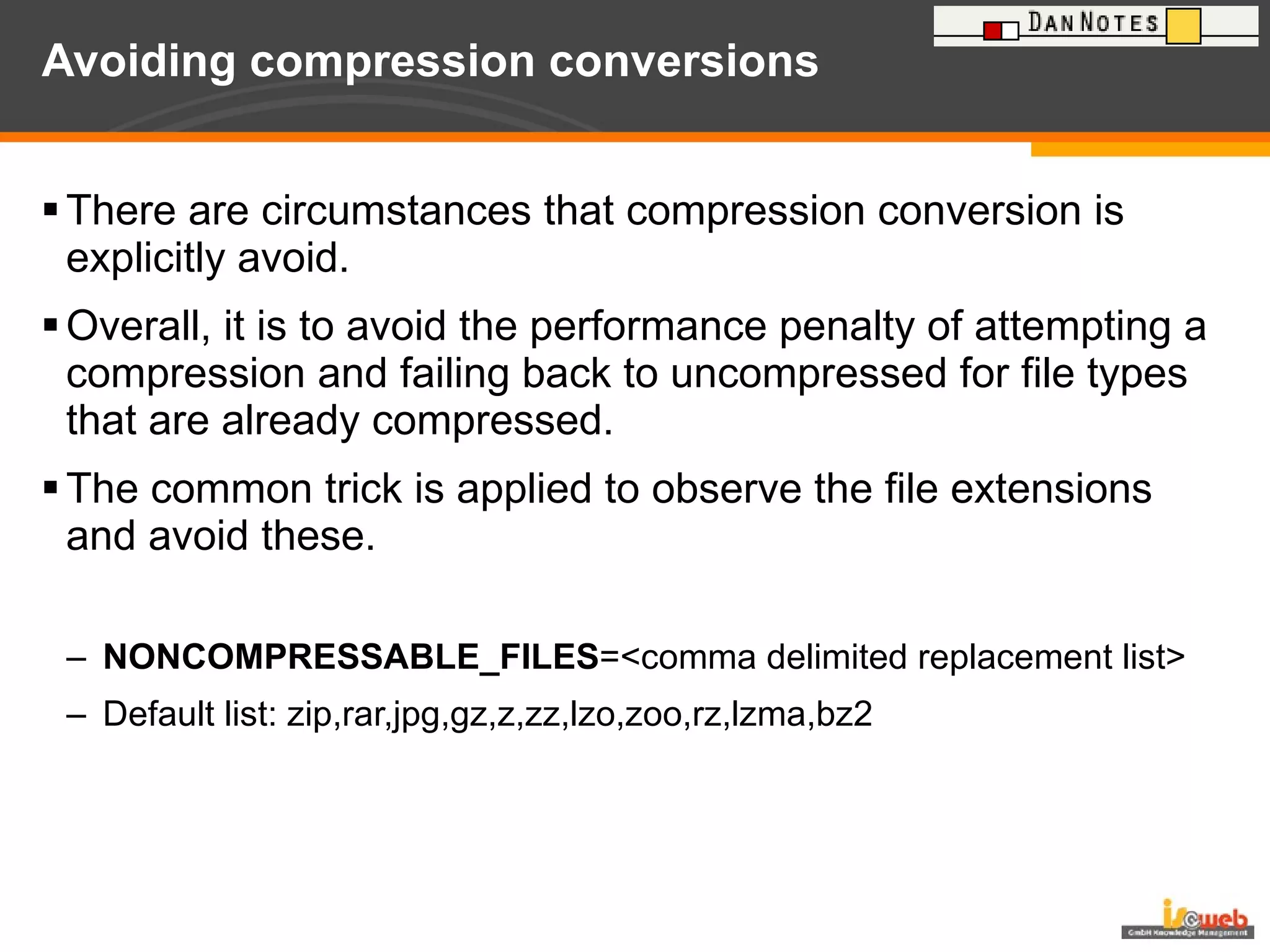

29. Avoiding compression conversions There are circumstances that compression conversion is explicitly avoid. Overall, it is to avoid the performance penalty of attempting a compression and failing back to uncompressed for file types that are already compressed. The common trick is applied to observe the file extensions and avoid these. NONCOMPRESSABLE_FILES =<comma delimited replacement list> Default list: zip,rar,jpg,gz,z,zz,lzo,zoo,rz,lzma,bz2

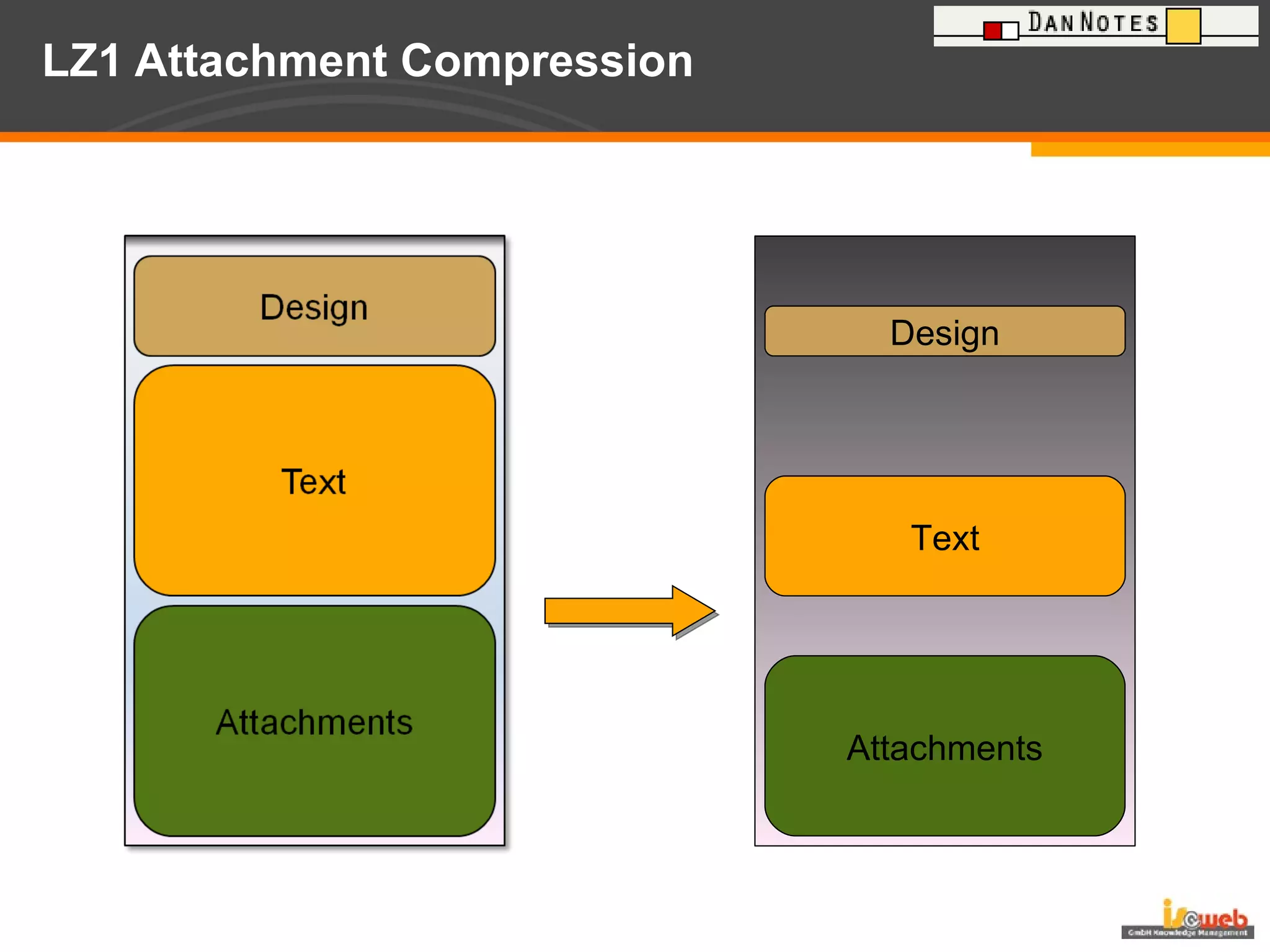

30. LZ1 Attachment Compression Design Text Attachments

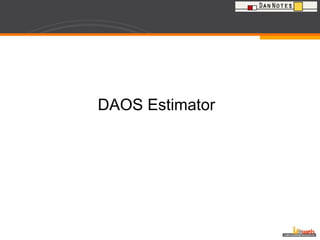

31. DAOS Estimator

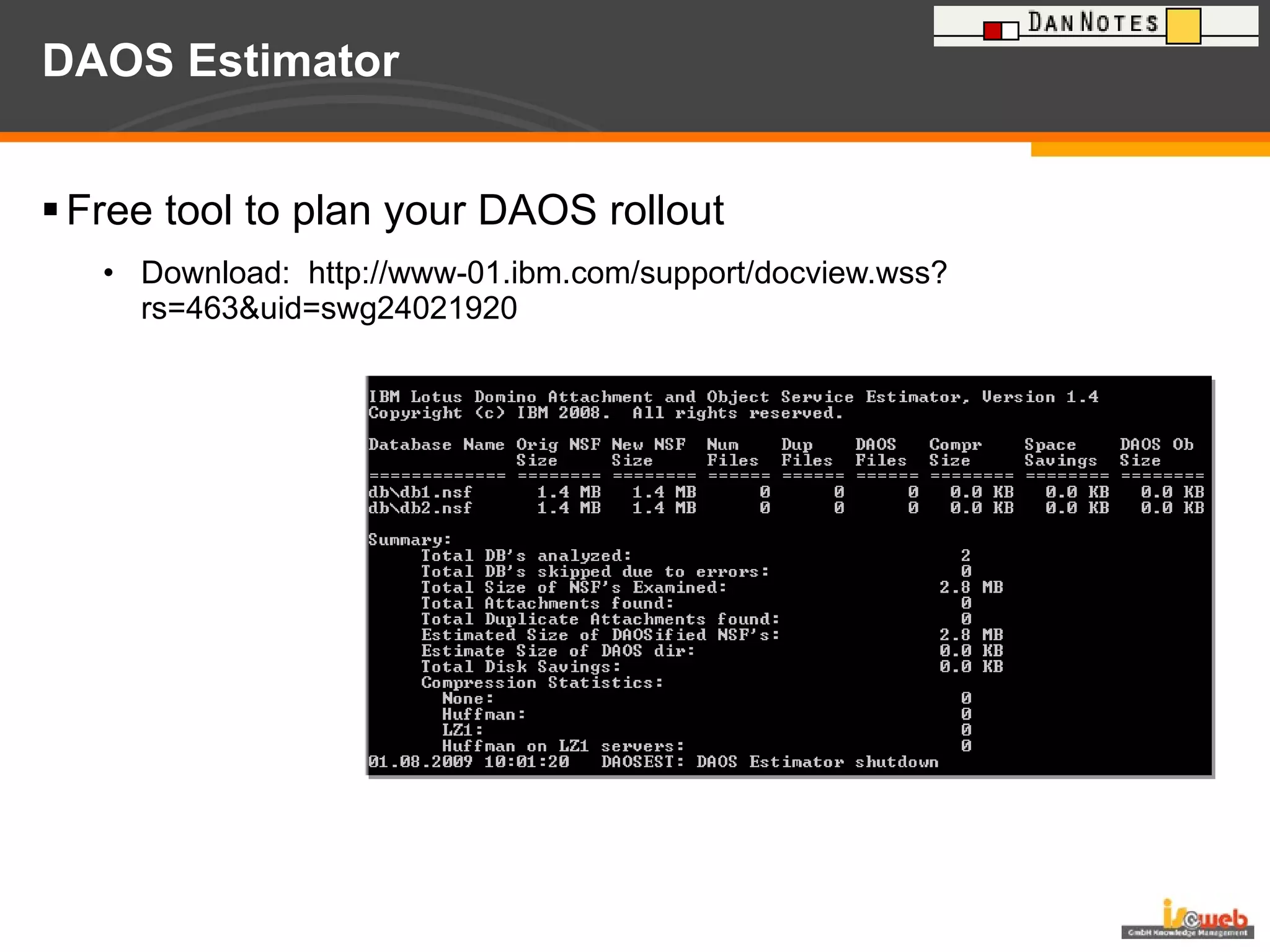

32. DAOS Estimator Free tool to plan your DAOS rollout Download: http://www-01.ibm.com/support/docview.wss?rs=463&uid=swg24021920

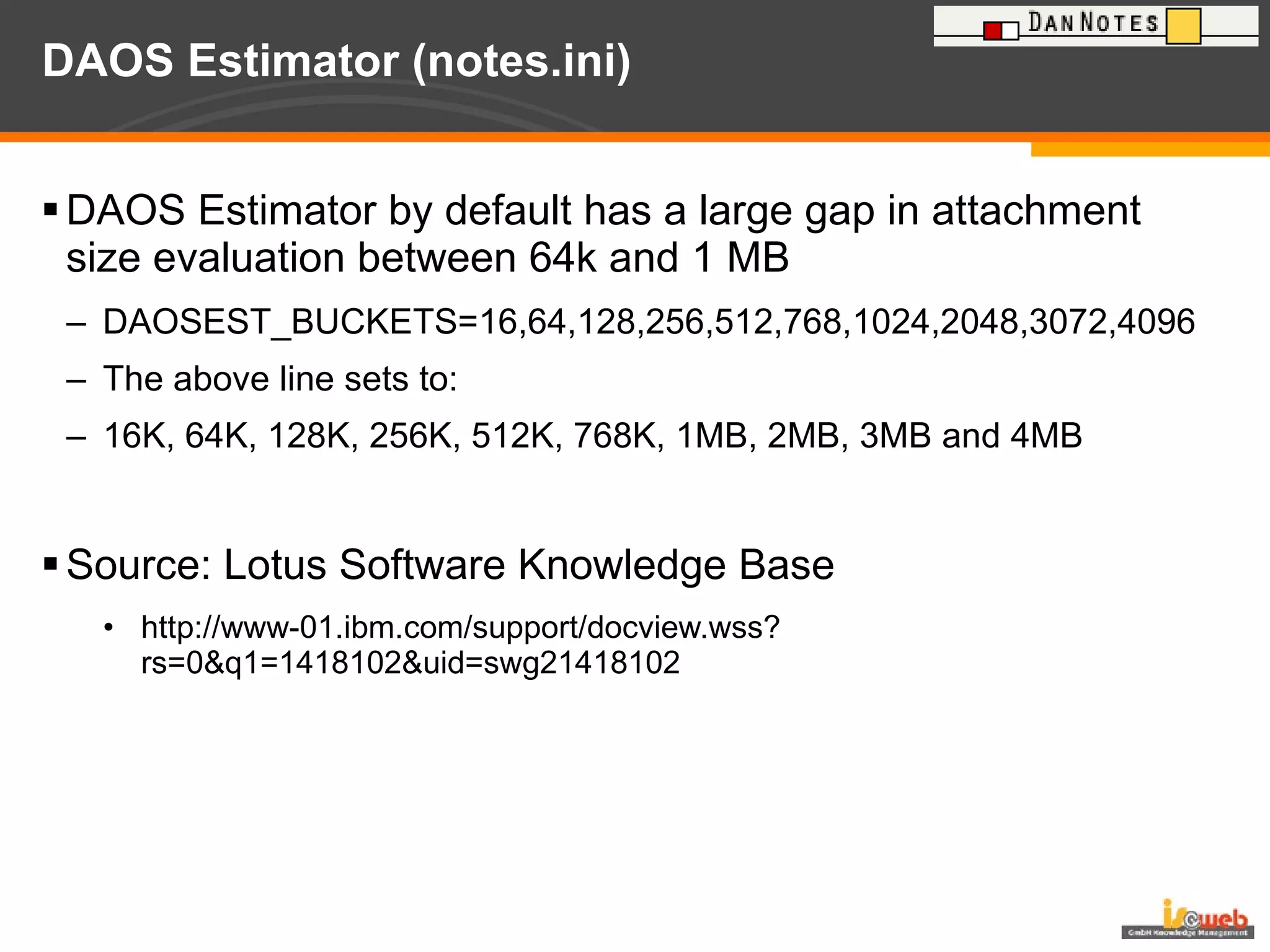

33. DAOS Estimator (notes.ini) DAOS Estimator by default has a large gap in attachment size evaluation between 64k and 1 MB DAOSEST_BUCKETS=16,64,128,256,512,768,1024,2048,3072,4096 The above line sets to: 16K, 64K, 128K, 256K, 512K, 768K, 1MB, 2MB, 3MB and 4MB Source: Lotus Software Knowledge Base http://www-01.ibm.com/support/docview.wss?rs=0&q1=1418102&uid=swg21418102

34. LZ1 != HUFFMAN Db1 – LZ1 enabled Db2 – LZ1 disabled Result is 2 .NLO Files !!

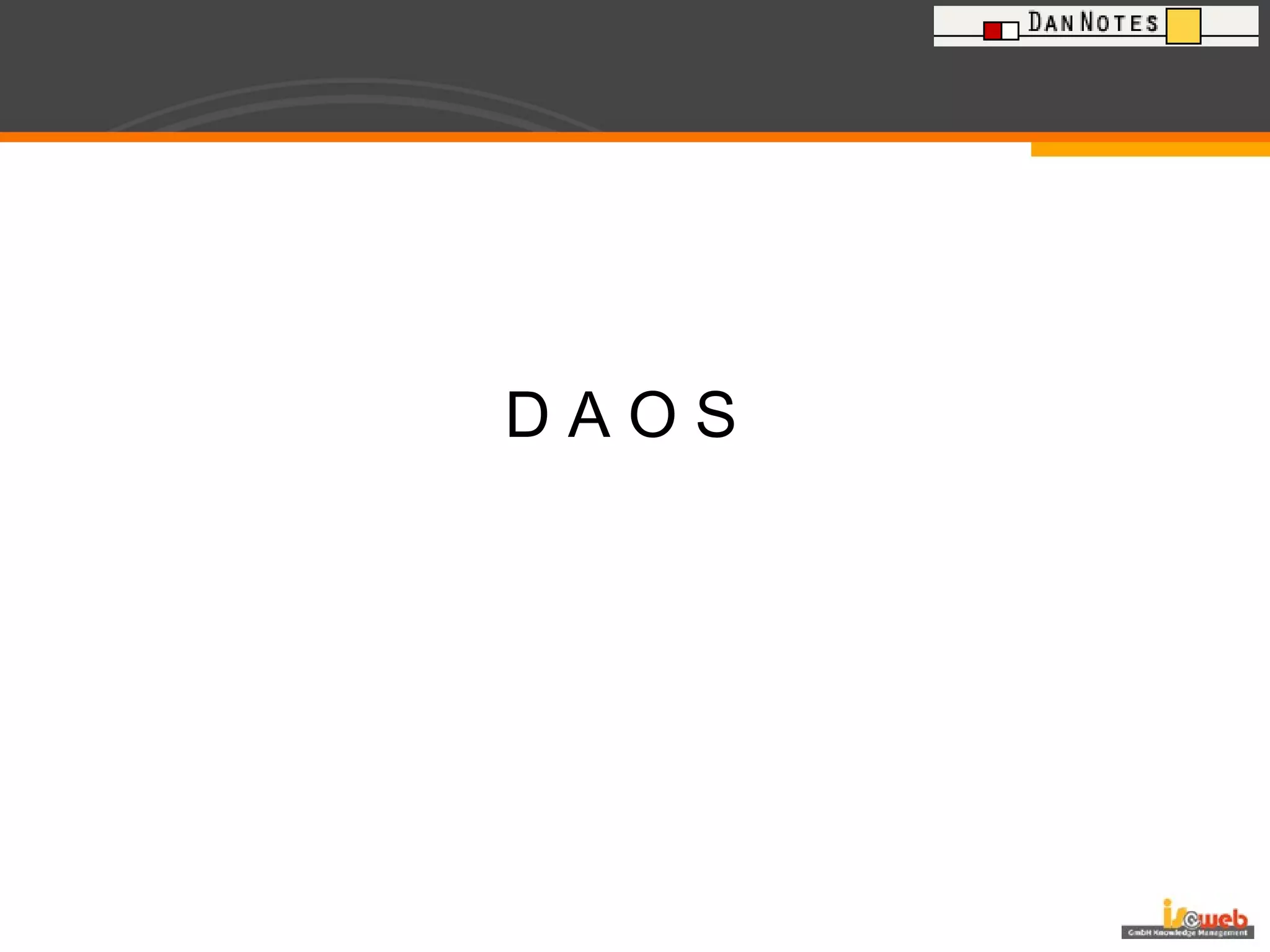

35. D A O S

36. Detailled scientific study

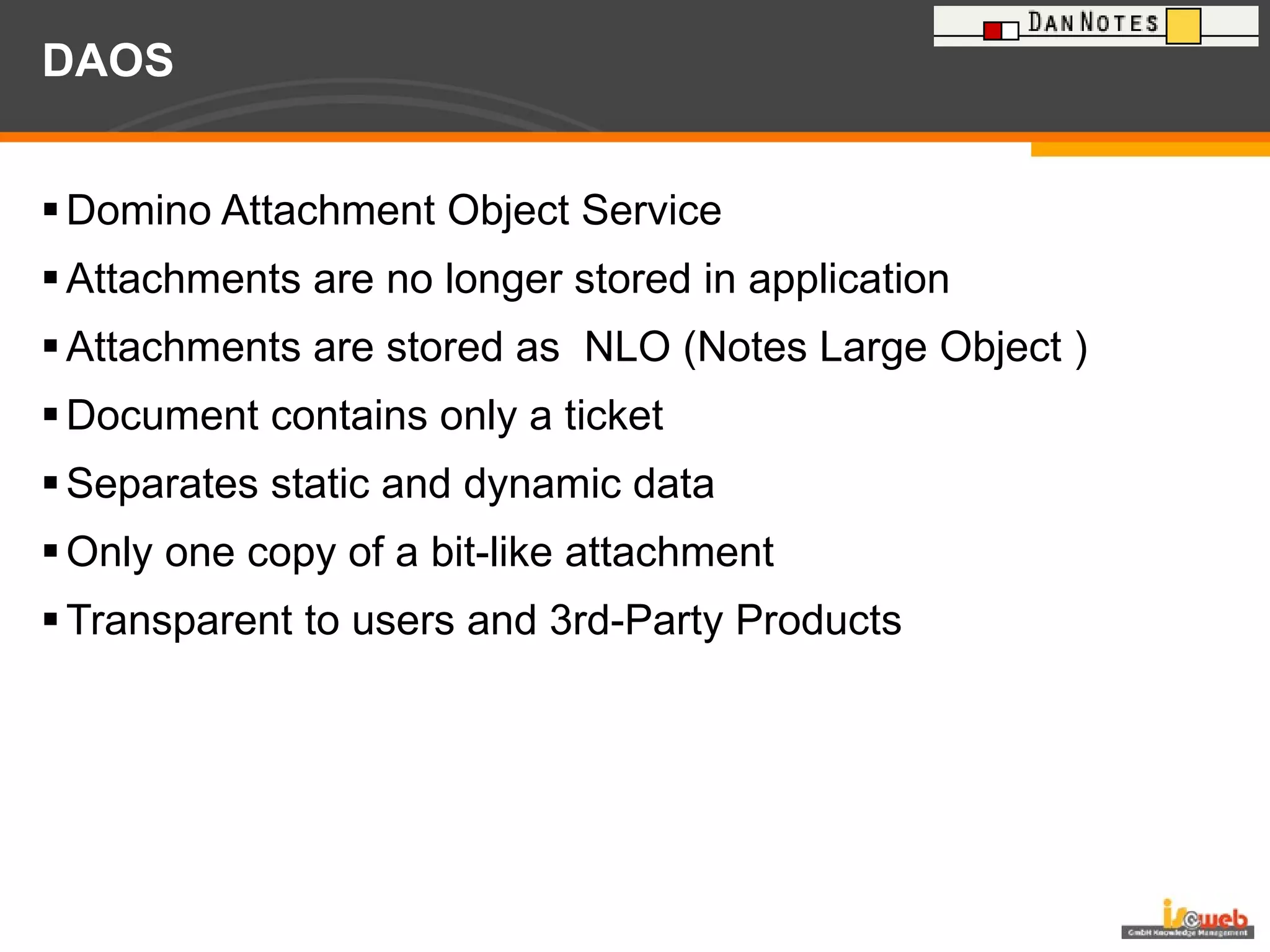

37. DAOS Domino Attachment Object Service Attachments are no longer stored in application Attachments are stored as NLO (Notes Large Object ) Document contains only a ticket Separates static and dynamic data Only one copy of a bit-like attachment Transparent to users and 3rd-Party Products

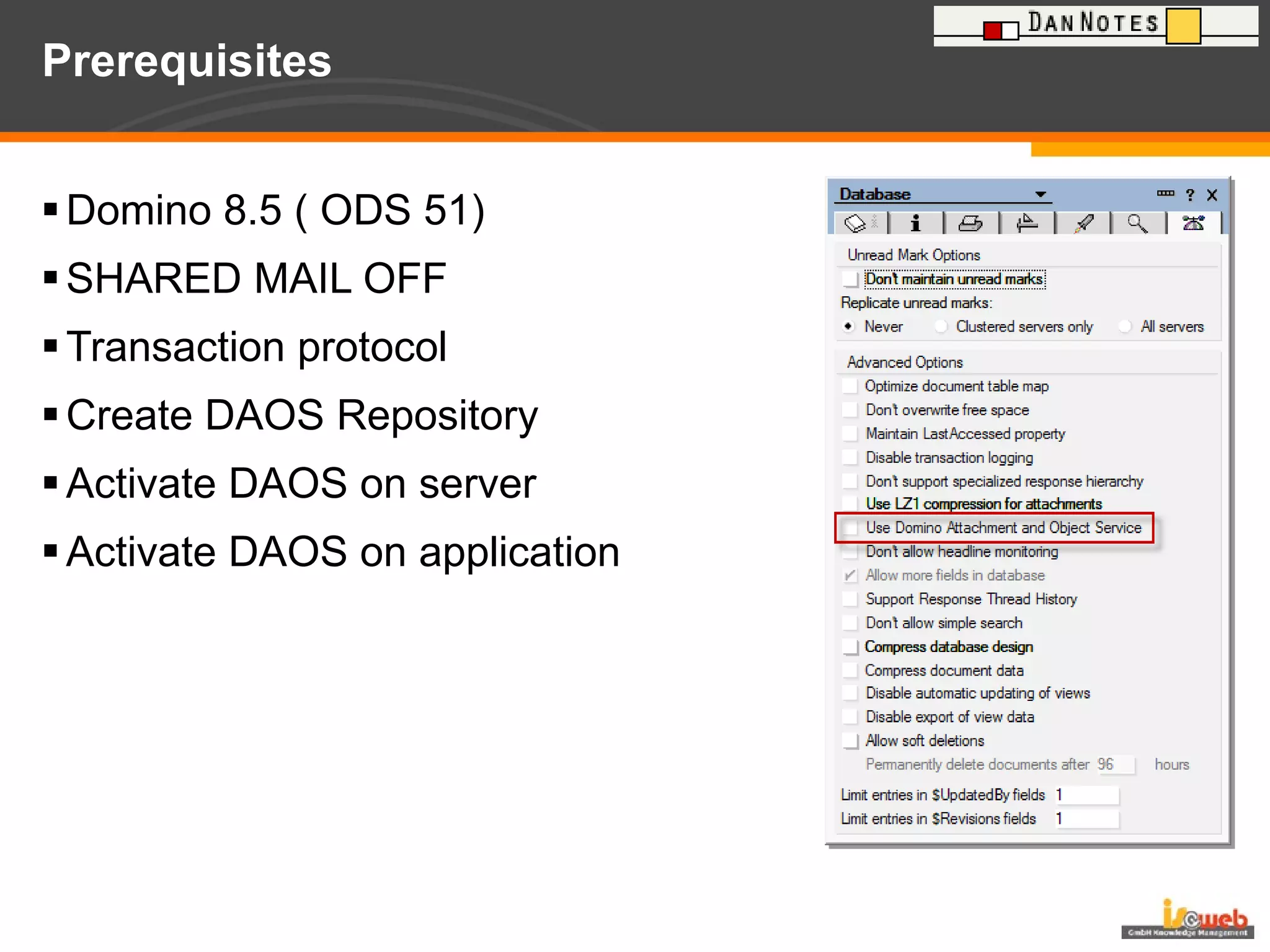

38. Prerequisites Domino 8.5 ( ODS 51) SHARED MAIL OFF Transaction protocol Create DAOS Repository Activate DAOS on server Activate DAOS on application

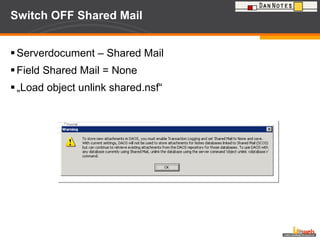

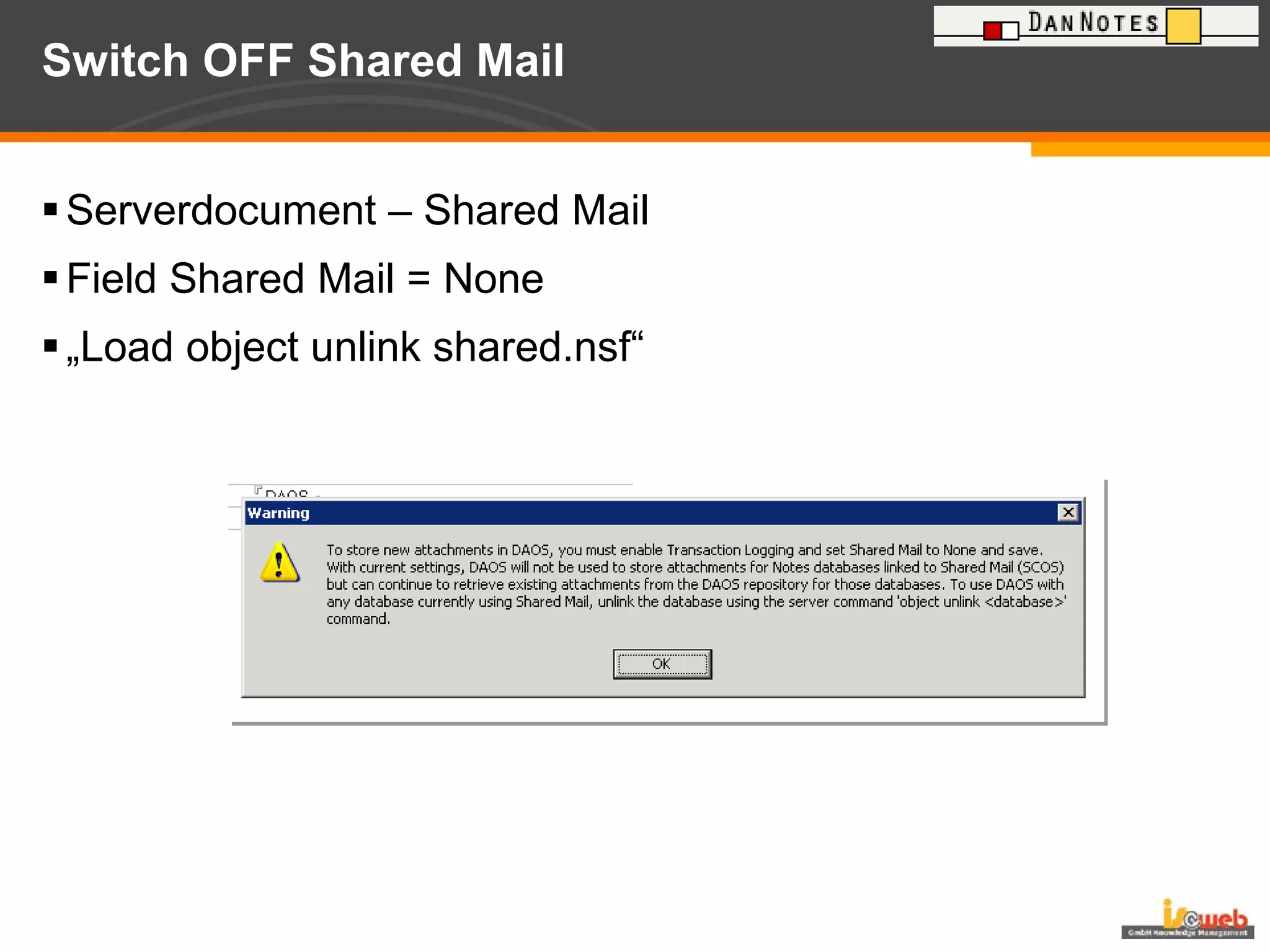

39. Switch OFF Shared Mail Serverdocument – Shared Mail Field Shared Mail = None „ Load object unlink shared.nsf“

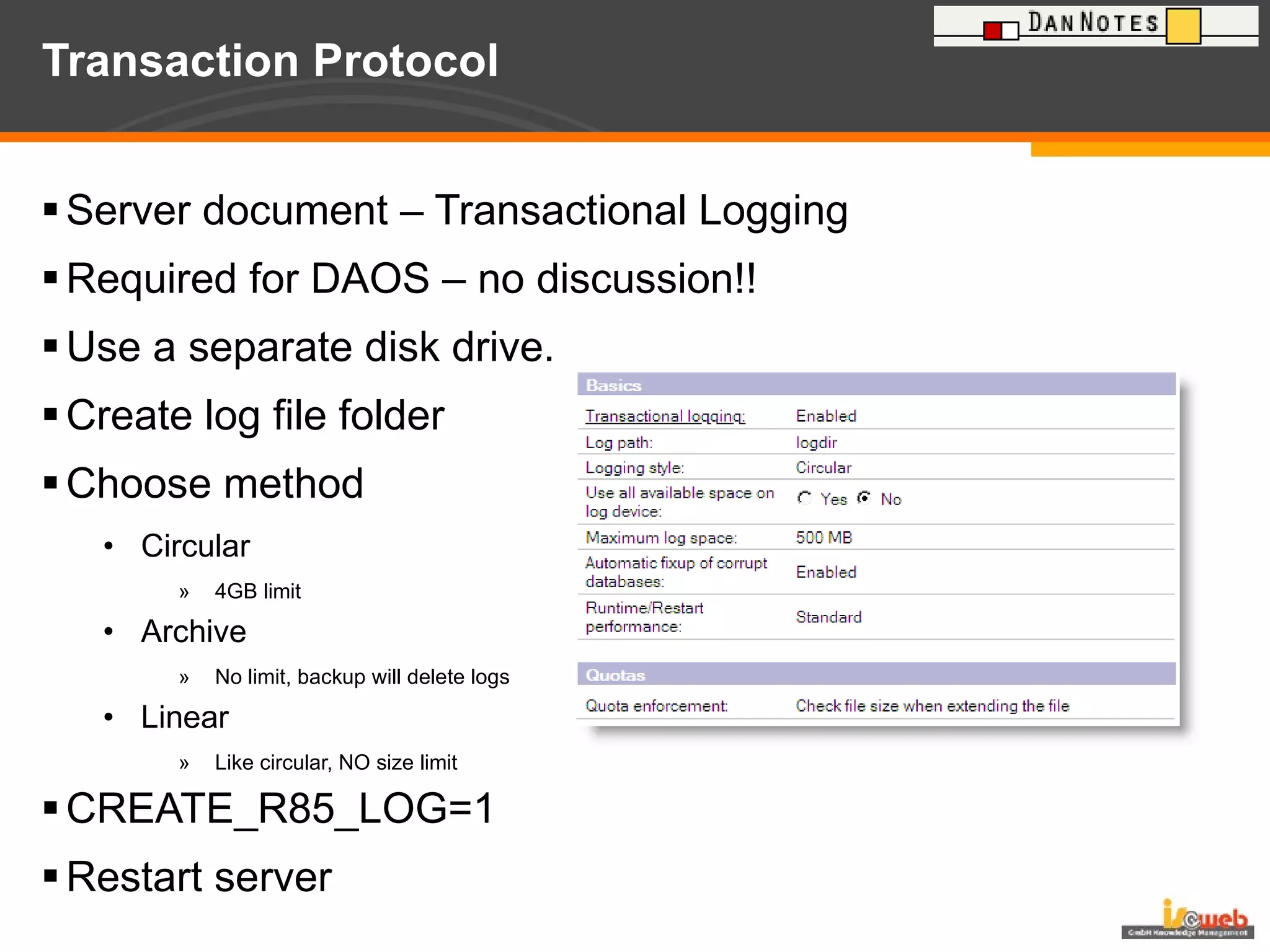

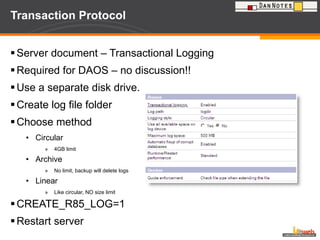

40. Transaction Protocol Server document – Transactional Logging Required for DAOS – no discussion!! Use a separate disk drive. Create log file folder Choose method Circular 4GB limit Archive No limit, backup will delete logs Linear Like circular, NO size limit CREATE_R85_LOG=1 Restart server

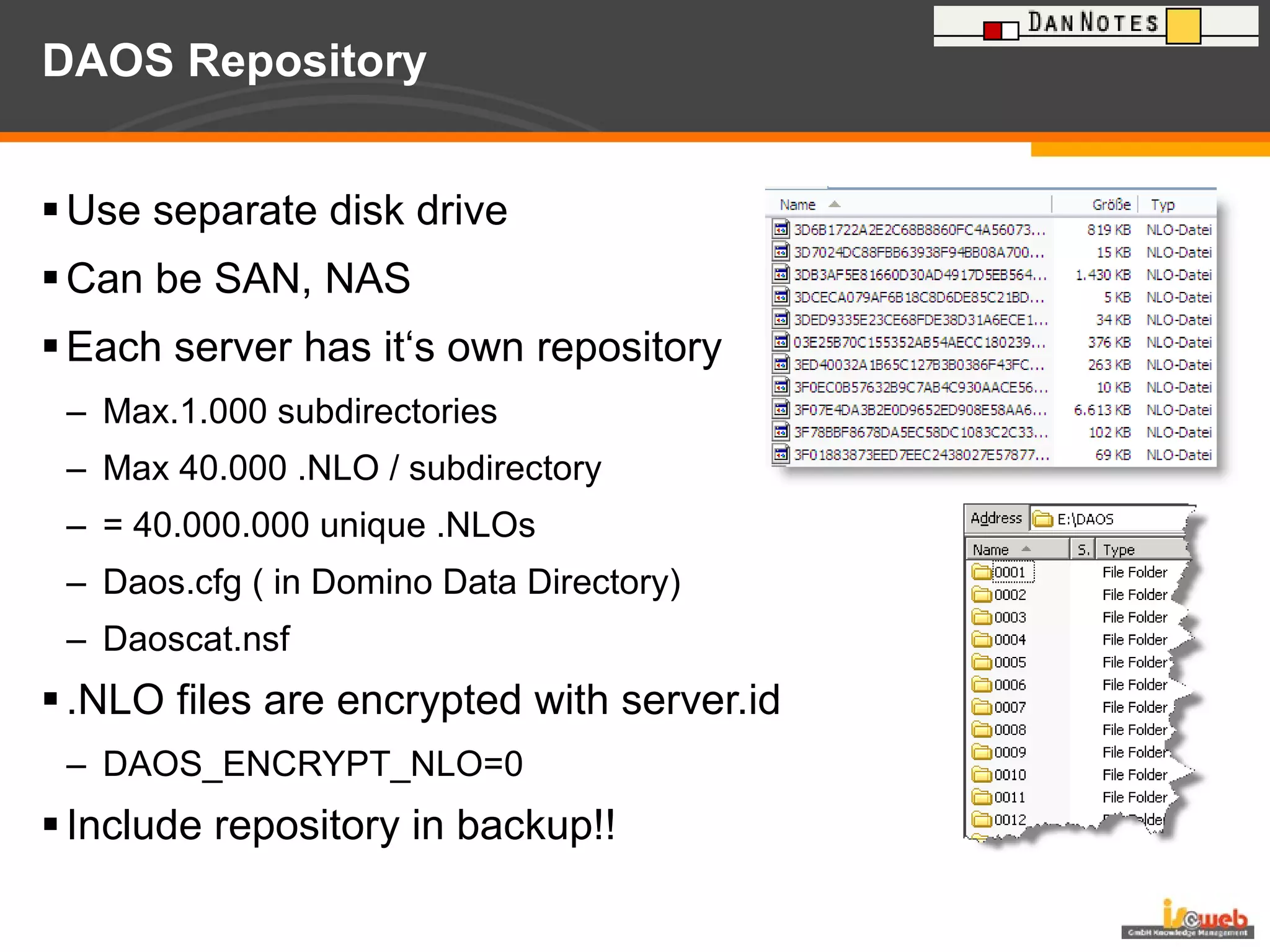

41. DAOS Repository Use separate disk drive Can be SAN, NAS Each server has it‘s own repository Max.1.000 subdirectories Max 40.000 .NLO / subdirectory = 40.000.000 unique .NLOs Daos.cfg ( in Domino Data Directory) Daoscat.nsf .NLO files are encrypted with server.id DAOS_ENCRYPT_NLO=0 Include repository in backup!!

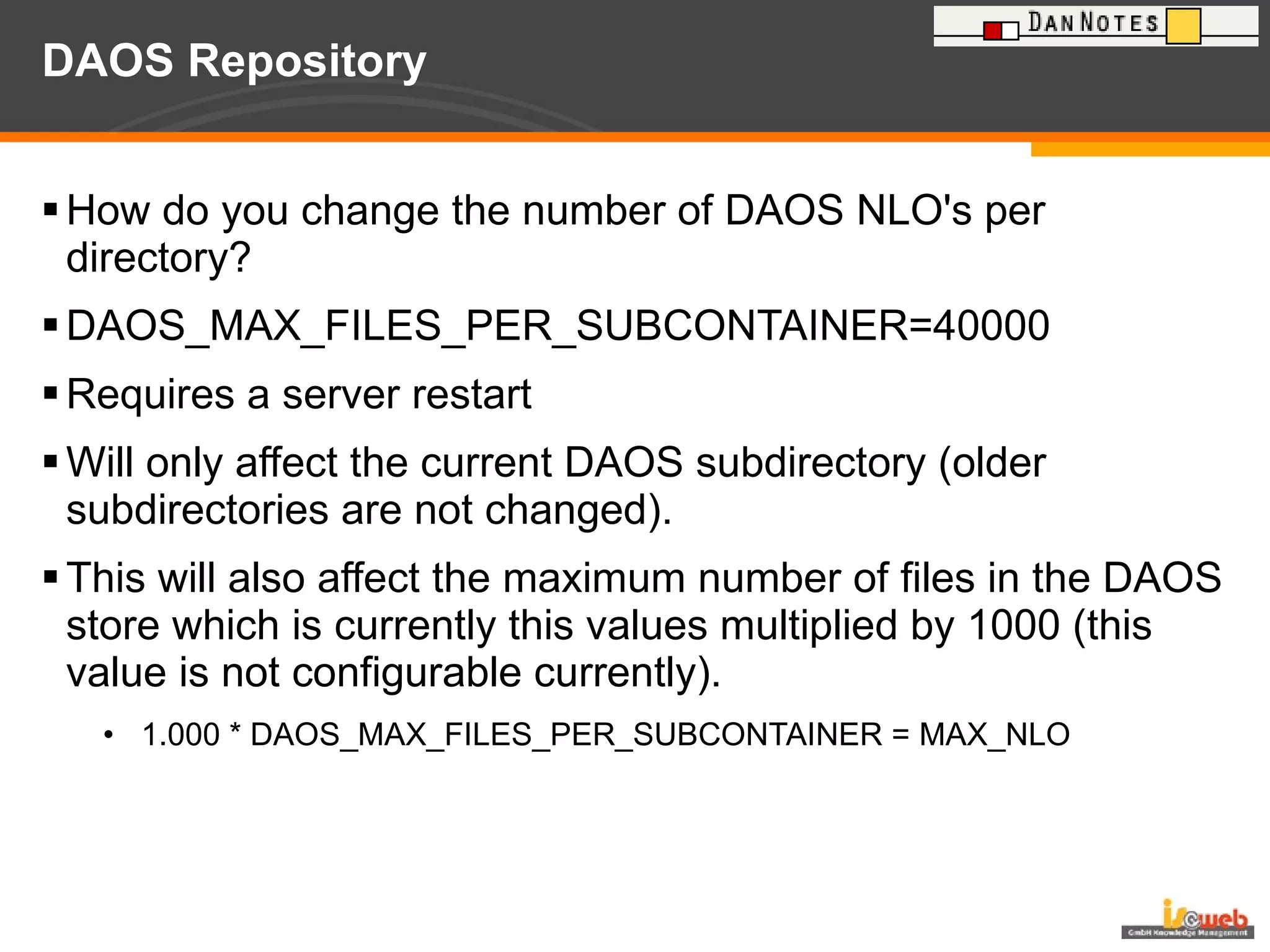

42. DAOS Repository How do you change the number of DAOS NLO's per directory? DAOS_MAX_FILES_PER_SUBCONTAINER=40000 Requires a server restart Will only affect the current DAOS subdirectory (older subdirectories are not changed). This will also affect the maximum number of files in the DAOS store which is currently this values multiplied by 1000 (this value is not configurable currently). 1.000 * DAOS_MAX_FILES_PER_SUBCONTAINER = MAX_NLO

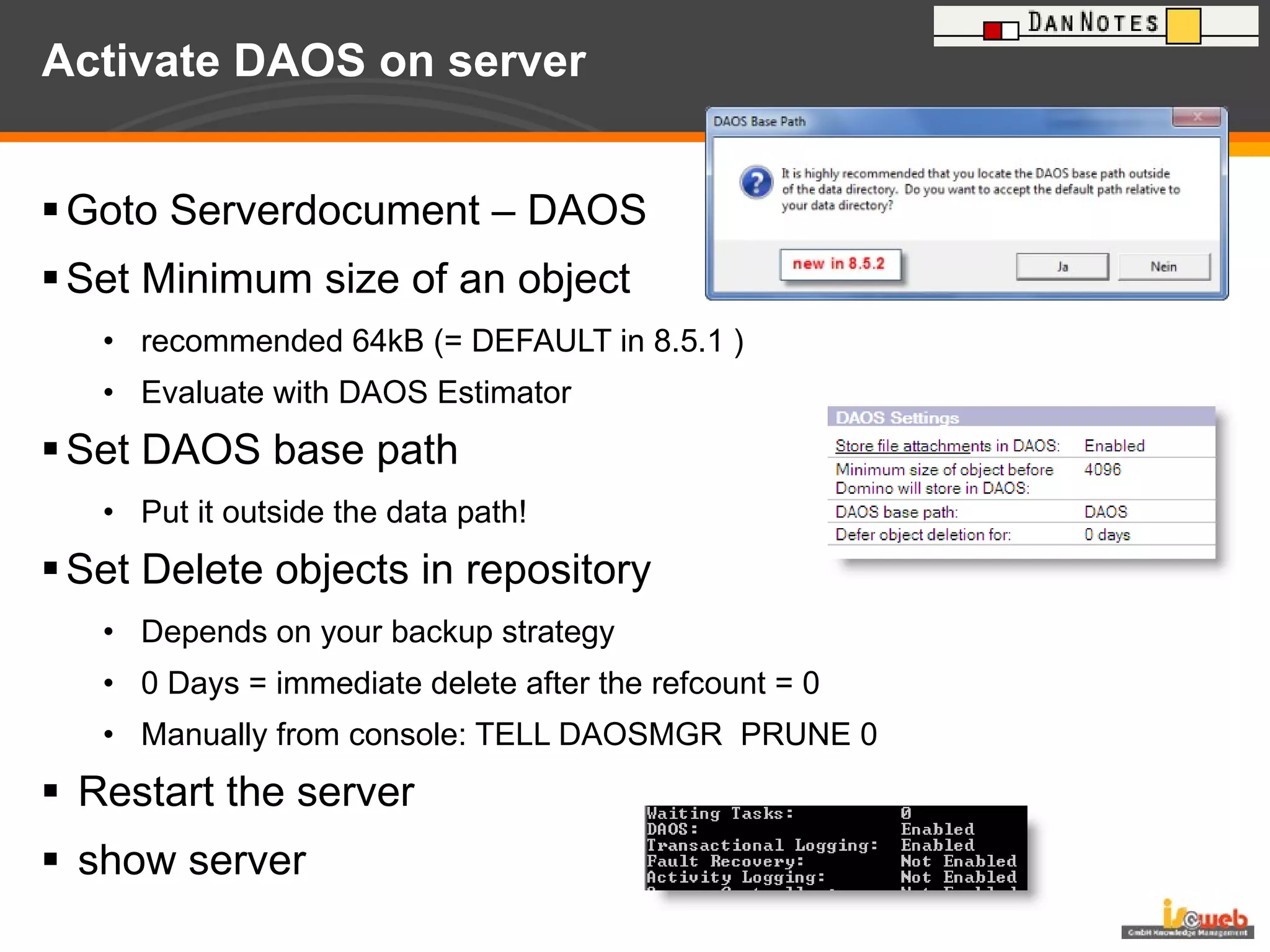

43. Activate DAOS on server Goto Serverdocument – DAOS Set Minimum size of an object recommended 64kB (= DEFAULT in 8.5.1 ) Evaluate with DAOS Estimator Set DAOS base path Put it outside the data path! Set Delete objects in repository Depends on your backup strategy 0 Days = immediate delete after the refcount = 0 Manually from console: TELL DAOSMGR PRUNE 0 Restart the server show server

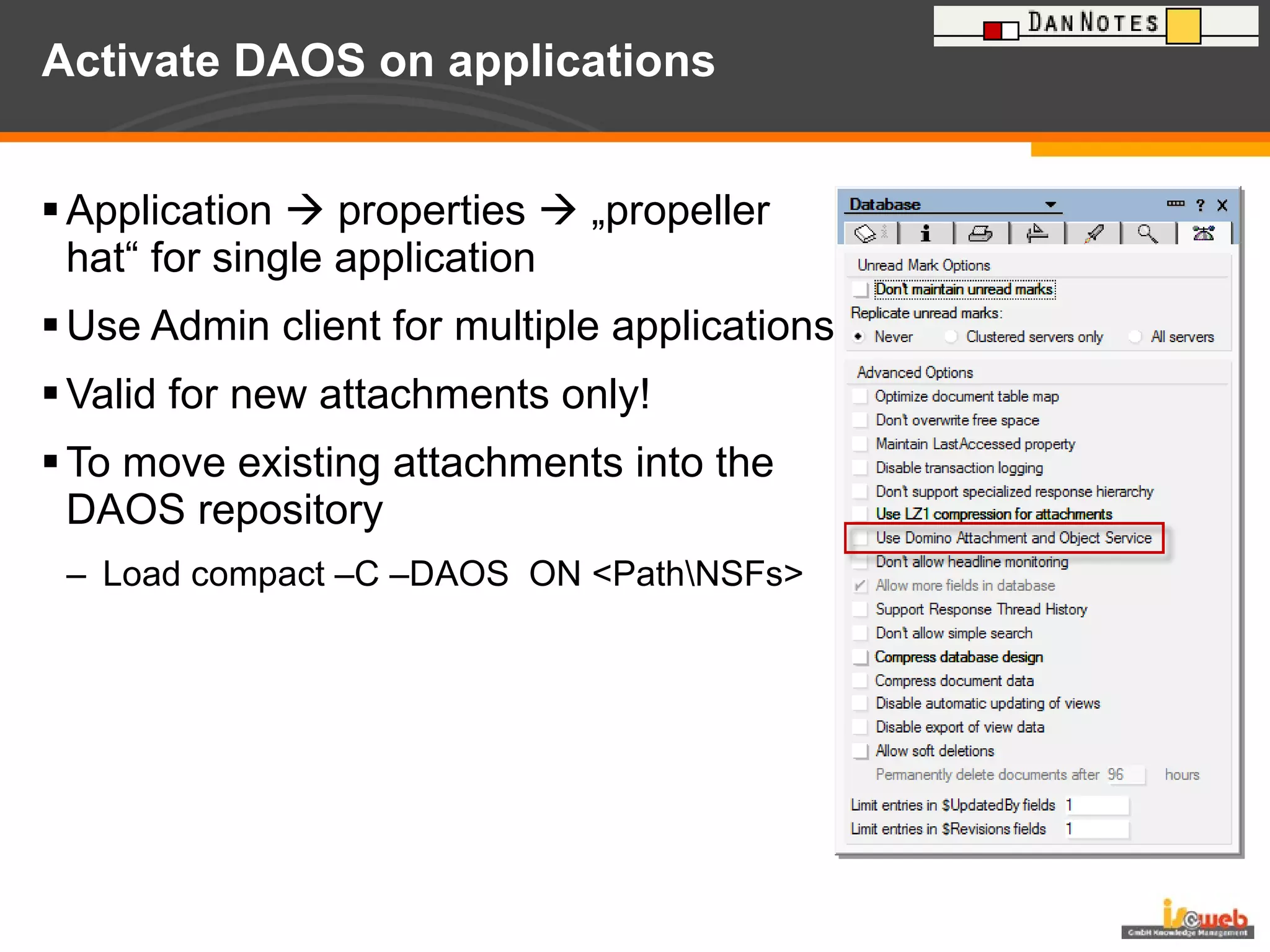

44. Activate DAOS on applications Application  properties  „propeller hat“ for single application Use Admin client for multiple applications Valid for new attachments only! To move existing attachments into the DAOS repository Load compact –C –DAOS ON <Path\NSFs>

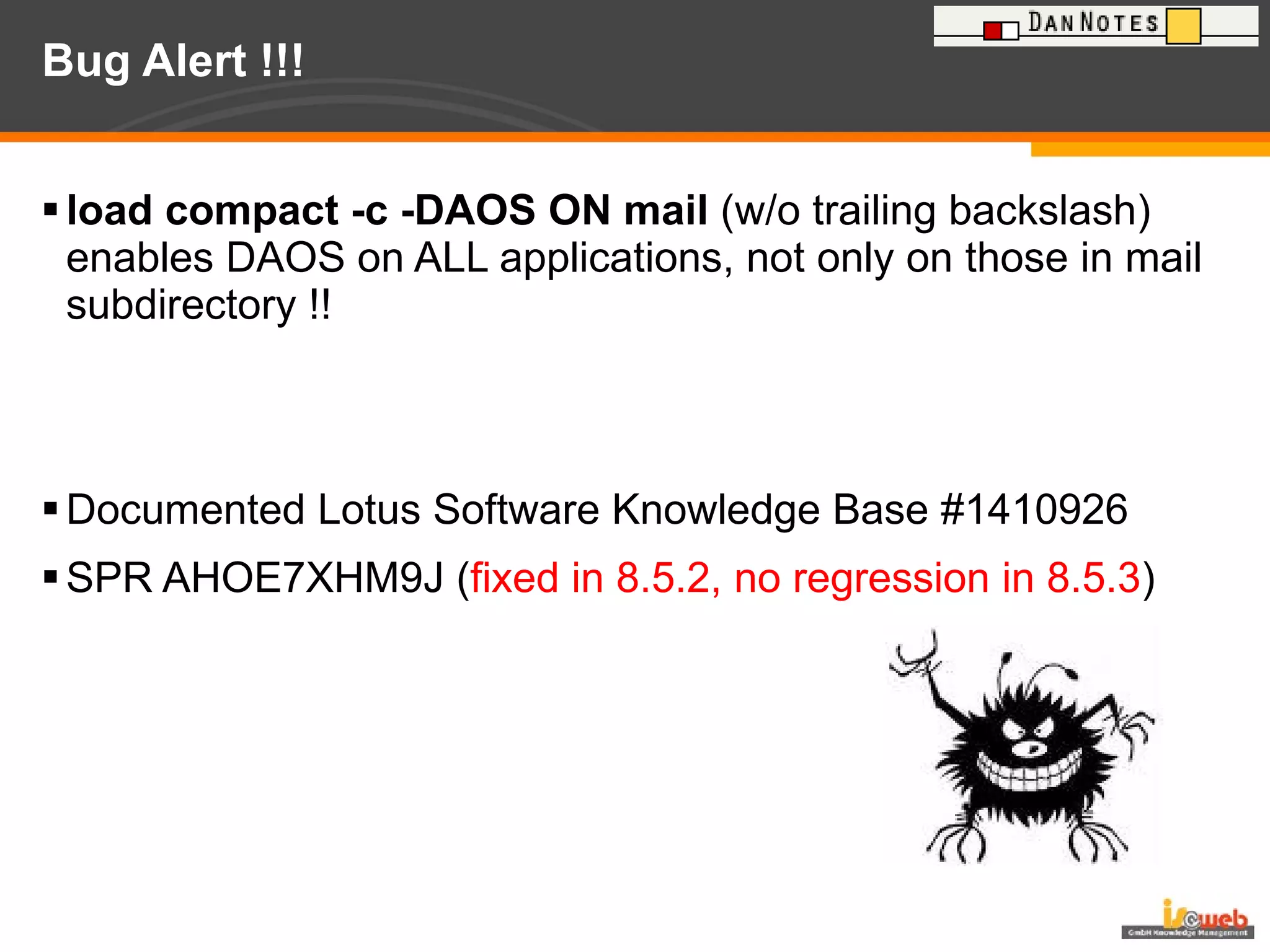

45. Bug Alert !!! load compact -c -DAOS ON mail (w/o trailing backslash) enables DAOS on ALL applications, not only on those in mail subdirectory !! Documented Lotus Software Knowledge Base #1410926 SPR AHOE7XHM9J ( fixed in 8.5.2, no regression in 8.5.3 )

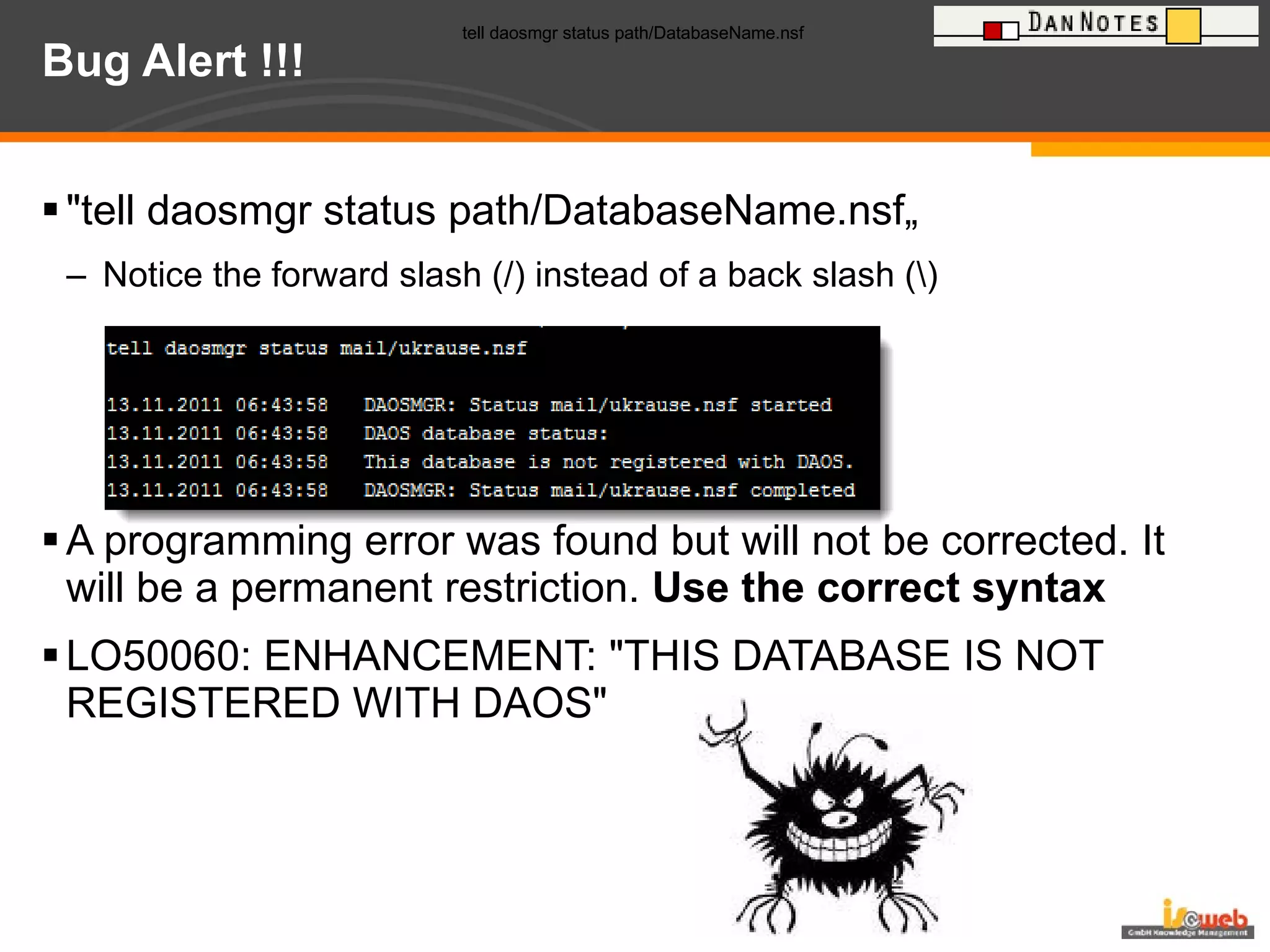

46. Bug Alert !!! &quot;tell daosmgr status path/DatabaseName.nsf„ Notice the forward slash (/) instead of a back slash (\) A programming error was found but will not be corrected. It will be a permanent restriction. Use the correct syntax LO50060: ENHANCEMENT: &quot;THIS DATABASE IS NOT REGISTERED WITH DAOS&quot; tell daosmgr status path/DatabaseName.nsf tell daosmgr status path/DatabaseName.nsf

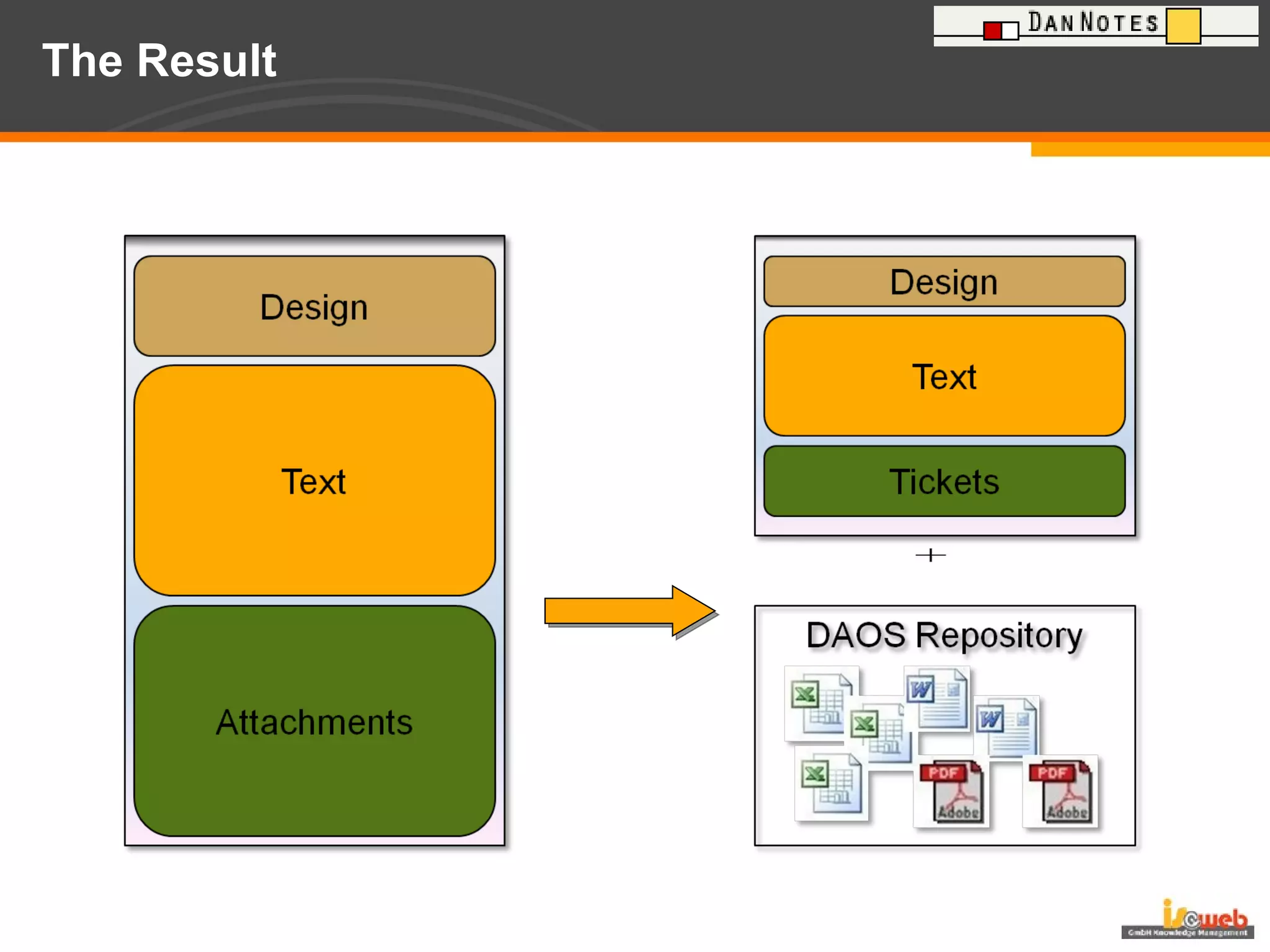

47. The Result

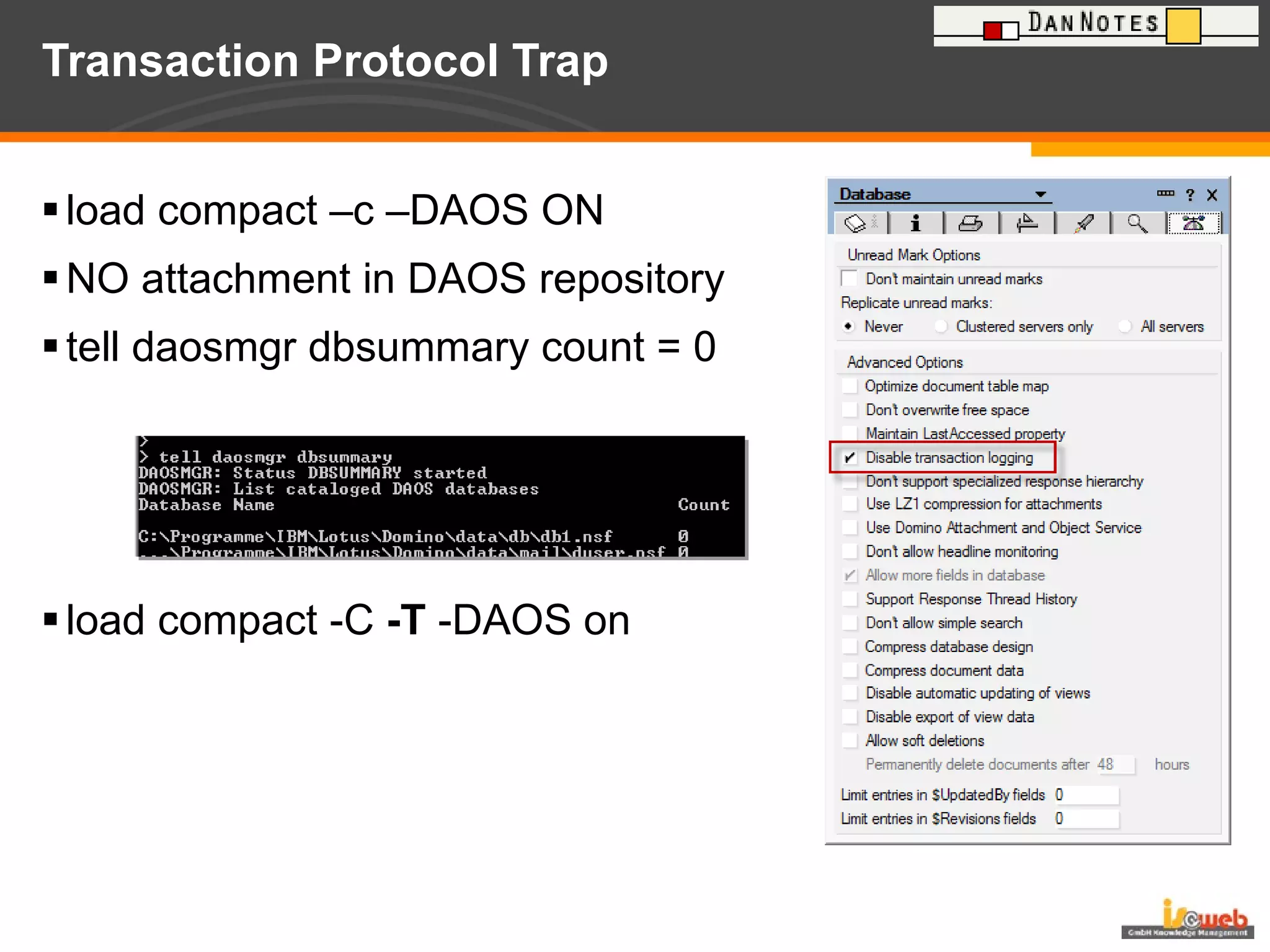

48. Transaction Protocol Trap load compact –c –DAOS ON NO attachment in DAOS repository tell daosmgr dbsummary count = 0 load compact -C -T -DAOS on

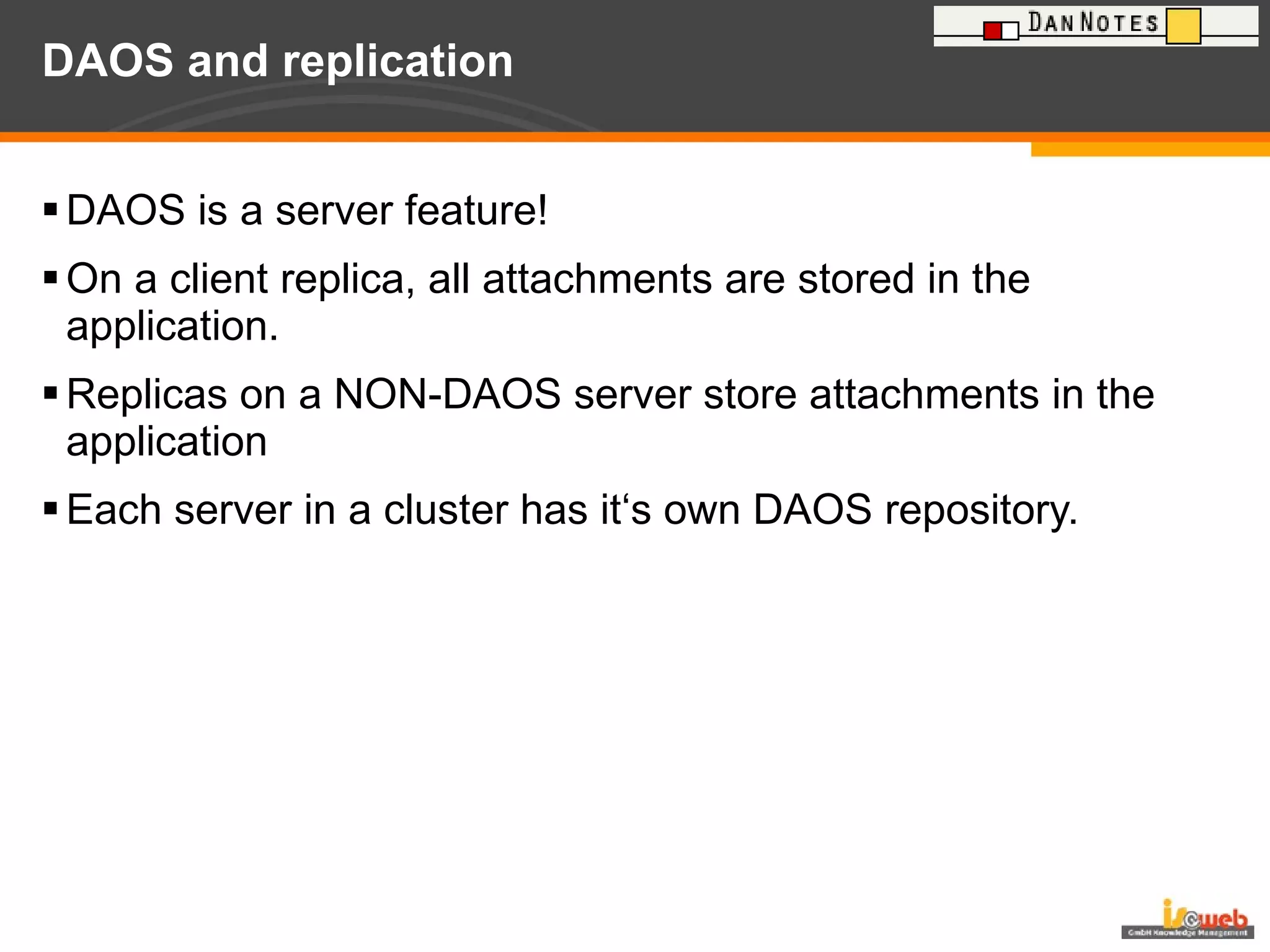

49. DAOS and replication DAOS is a server feature! On a client replica, all attachments are stored in the application. Replicas on a NON-DAOS server store attachments in the application Each server in a cluster has it‘s own DAOS repository.

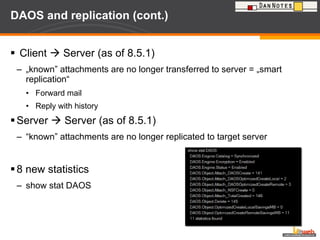

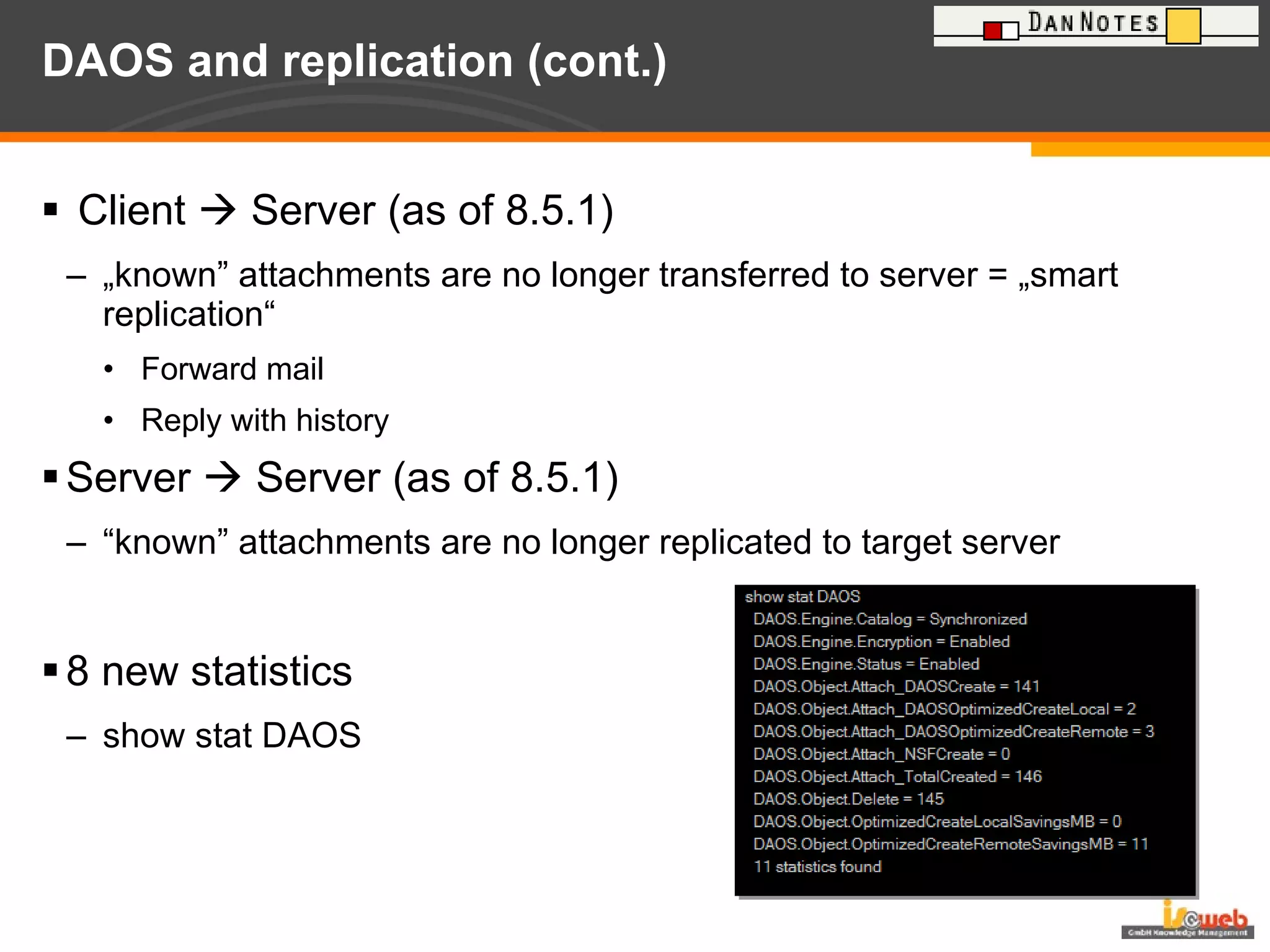

50. DAOS and replication (cont.) Client  Server (as of 8.5.1) „ known” attachments are no longer transferred to server = „smart replication“ Forward mail Reply with history Server  Server (as of 8.5.1) “ known” attachments are no longer replicated to target server 8 new statistics show stat DAOS

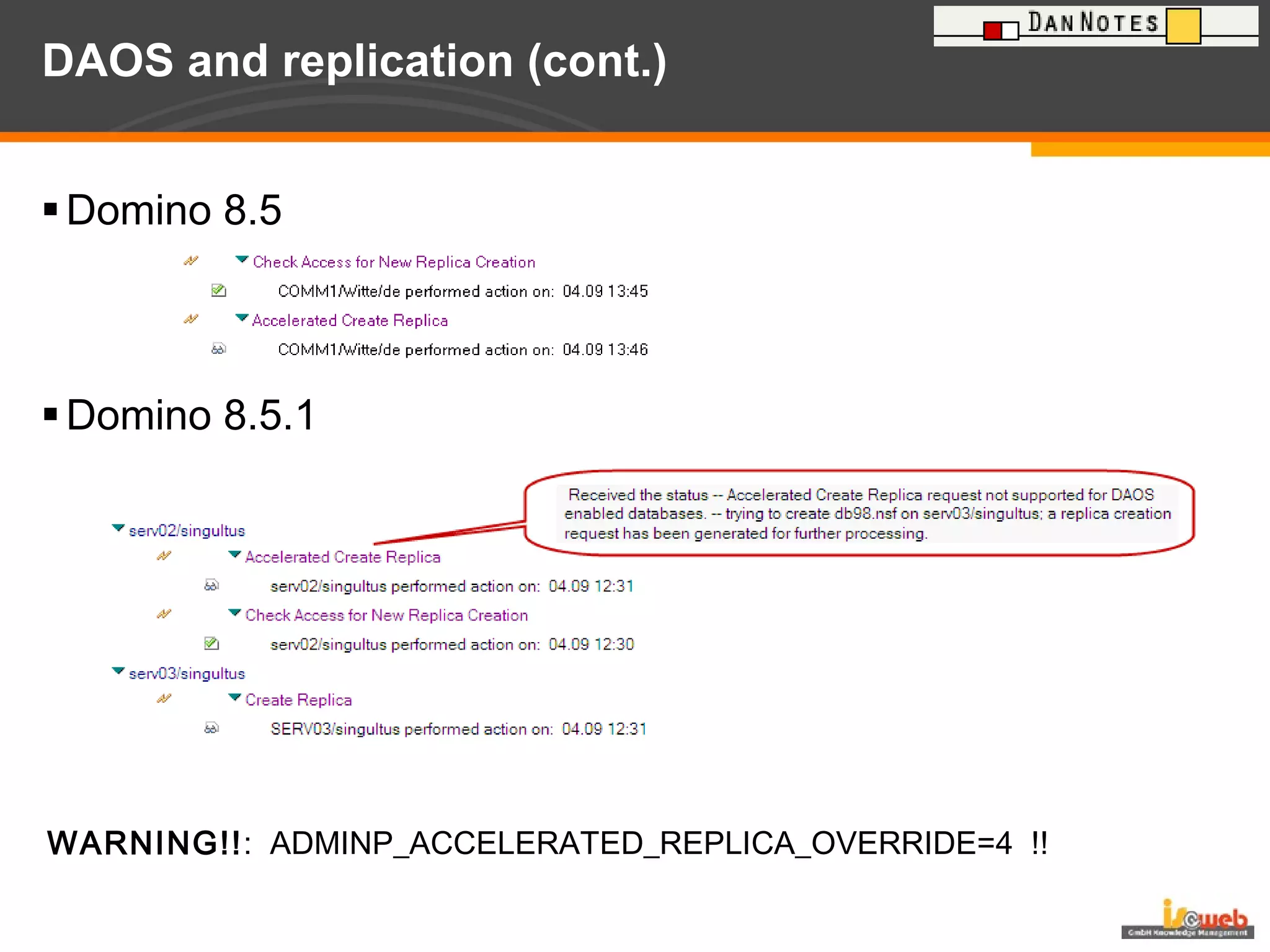

51. DAOS and replication (cont.) Domino 8.5 Domino 8.5.1 WARNING!! : ADMINP_ACCELERATED_REPLICA_OVERRIDE=4 !!

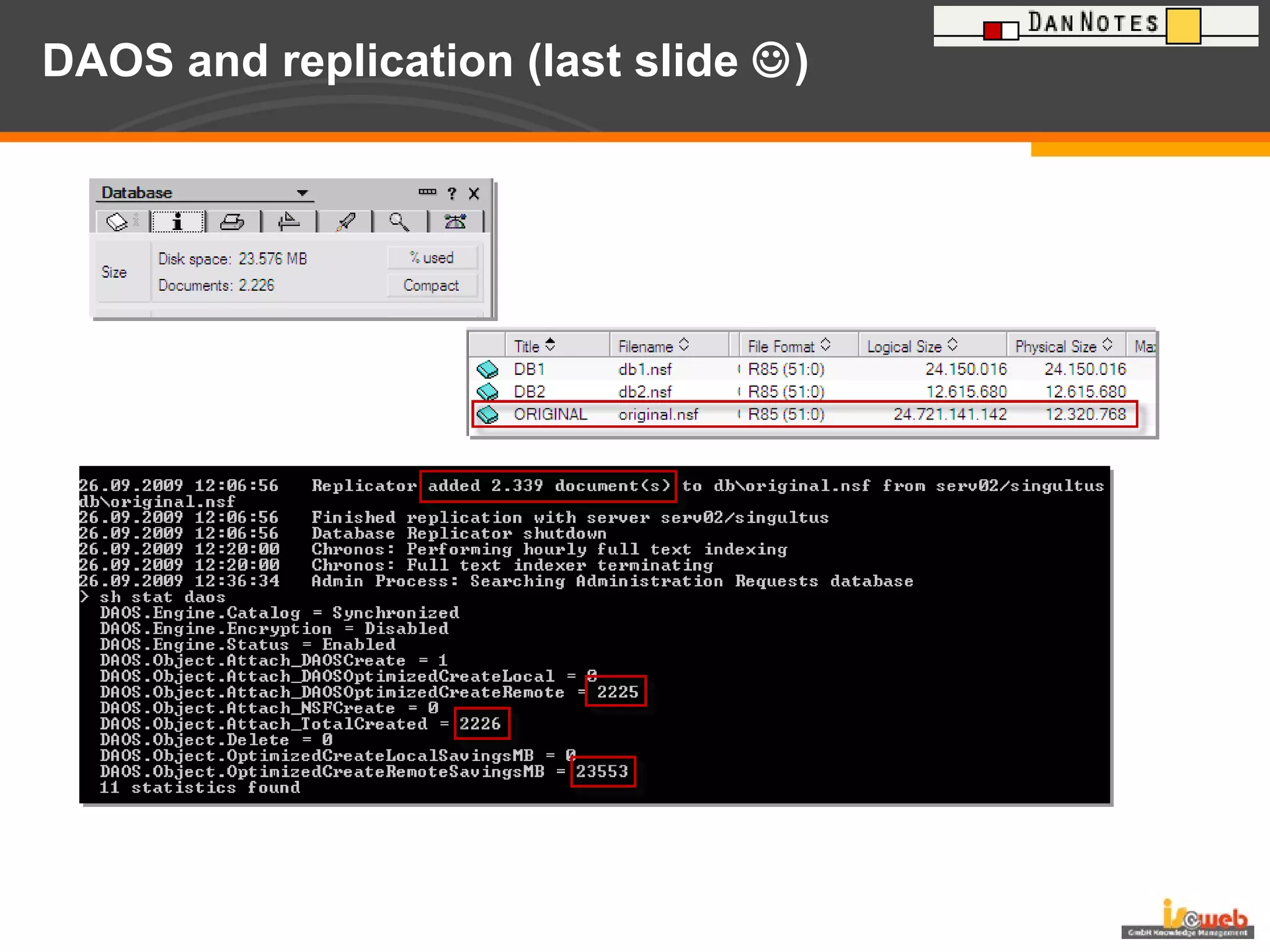

52. DAOS and replication (last slide  )

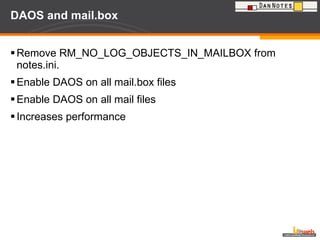

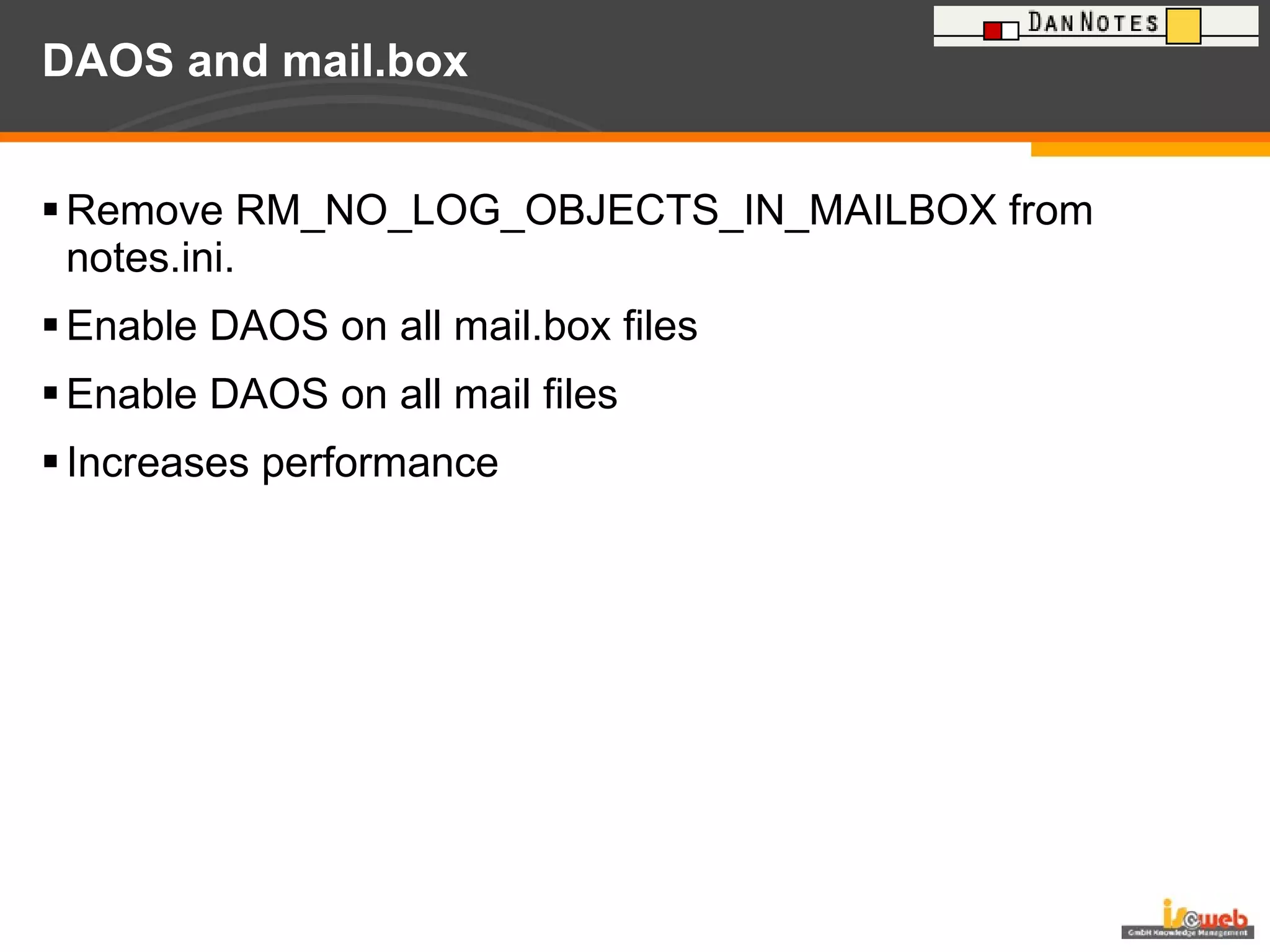

53. DAOS and mail.box Remove RM_NO_LOG_OBJECTS_IN_MAILBOX from notes.ini. Enable DAOS on all mail.box files Enable DAOS on all mail files Increases performance

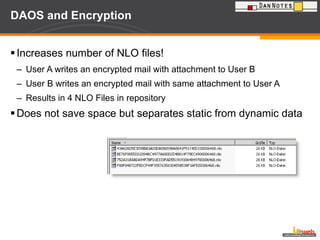

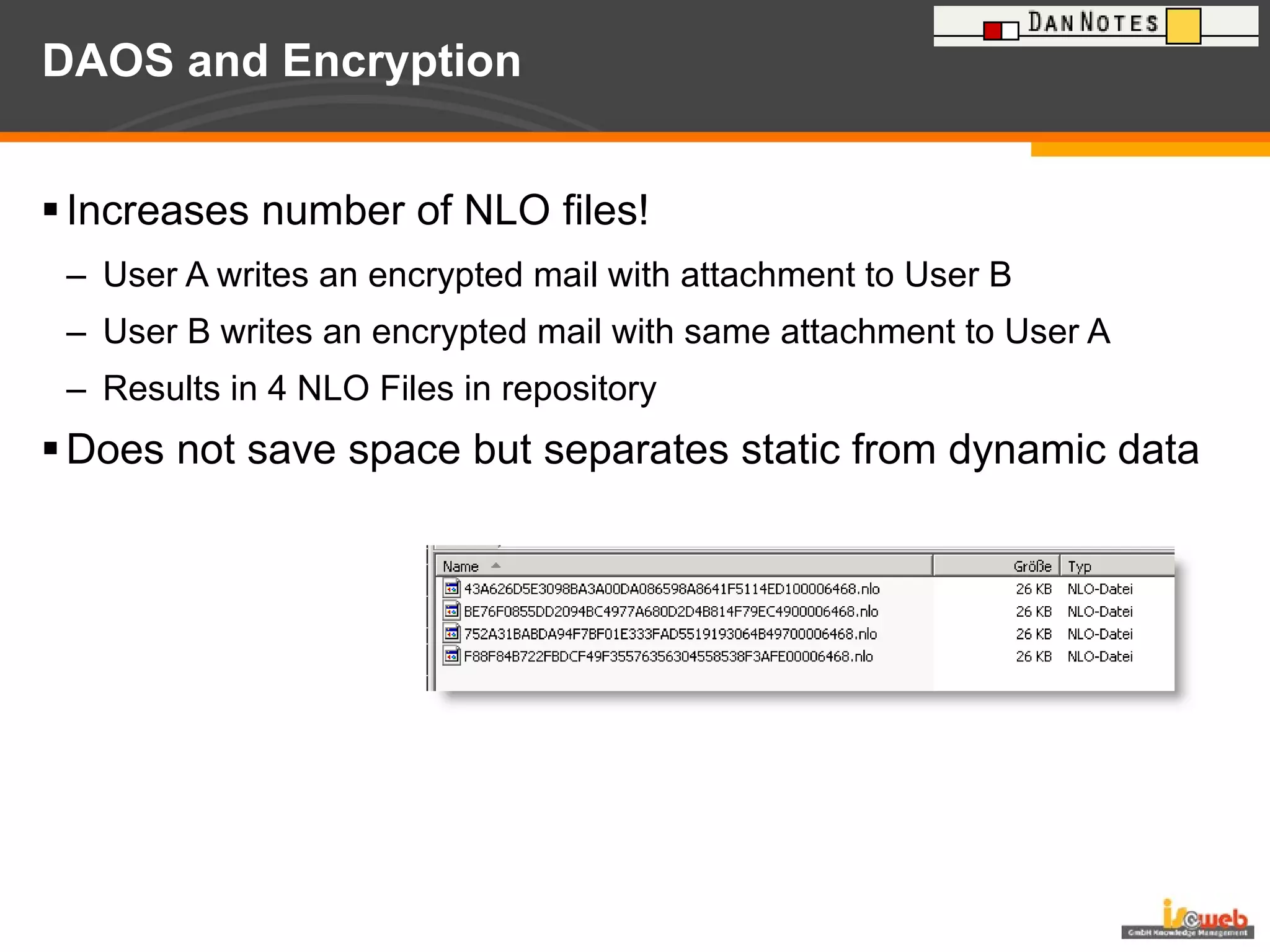

54. DAOS and Encryption Increases number of NLO files! User A writes an encrypted mail with attachment to User B User B writes an encrypted mail with same attachment to User A Results in 4 NLO Files in repository Does not save space but separates static from dynamic data

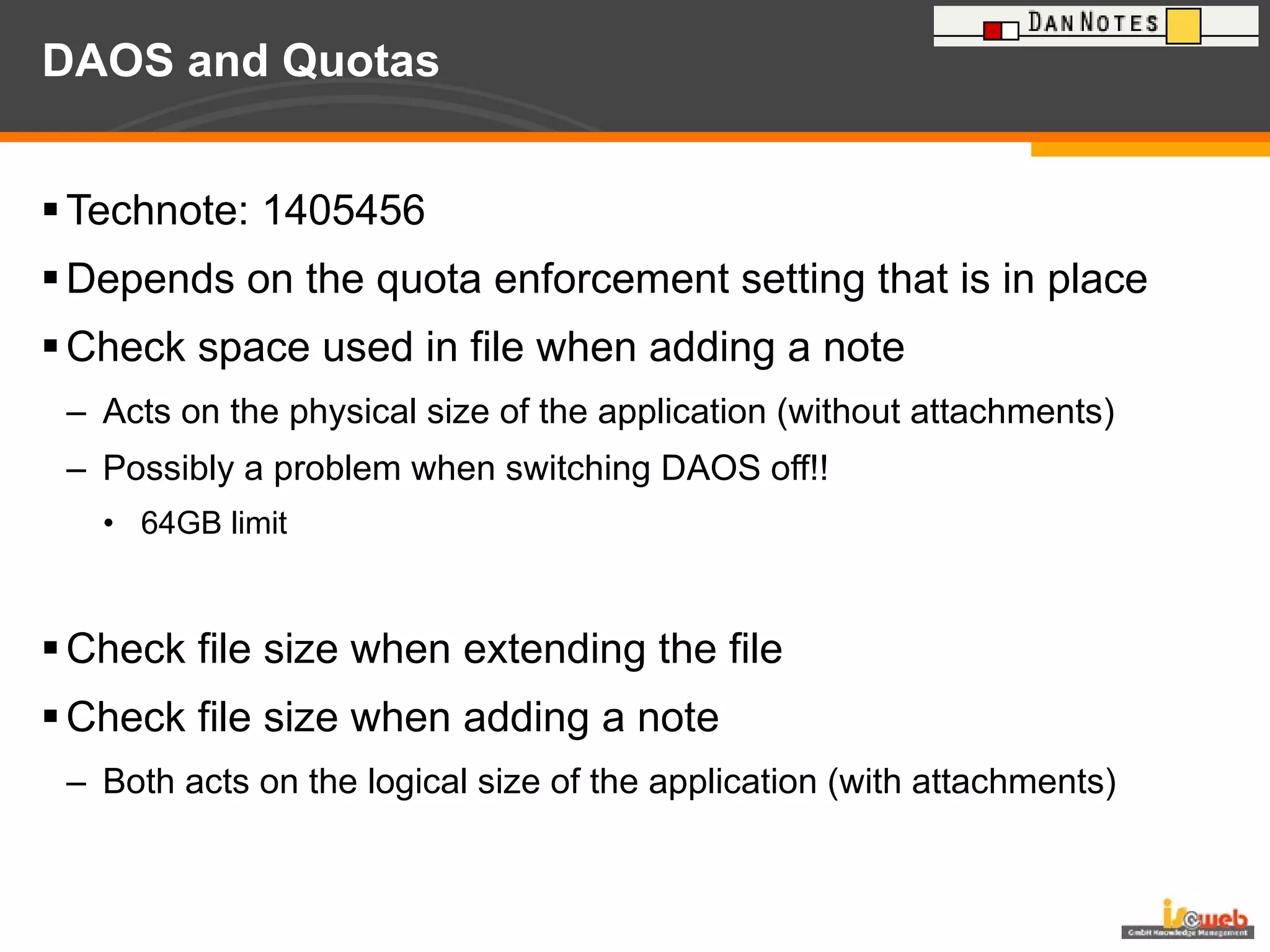

55. DAOS and Quotas Technote: 1405456 Depends on the quota enforcement setting that is in place Check space used in file when adding a note Acts on the physical size of the application (without attachments) Possibly a problem when switching DAOS off!! 64GB limit Check file size when extending the file Check file size when adding a note Both acts on the logical size of the application (with attachments)

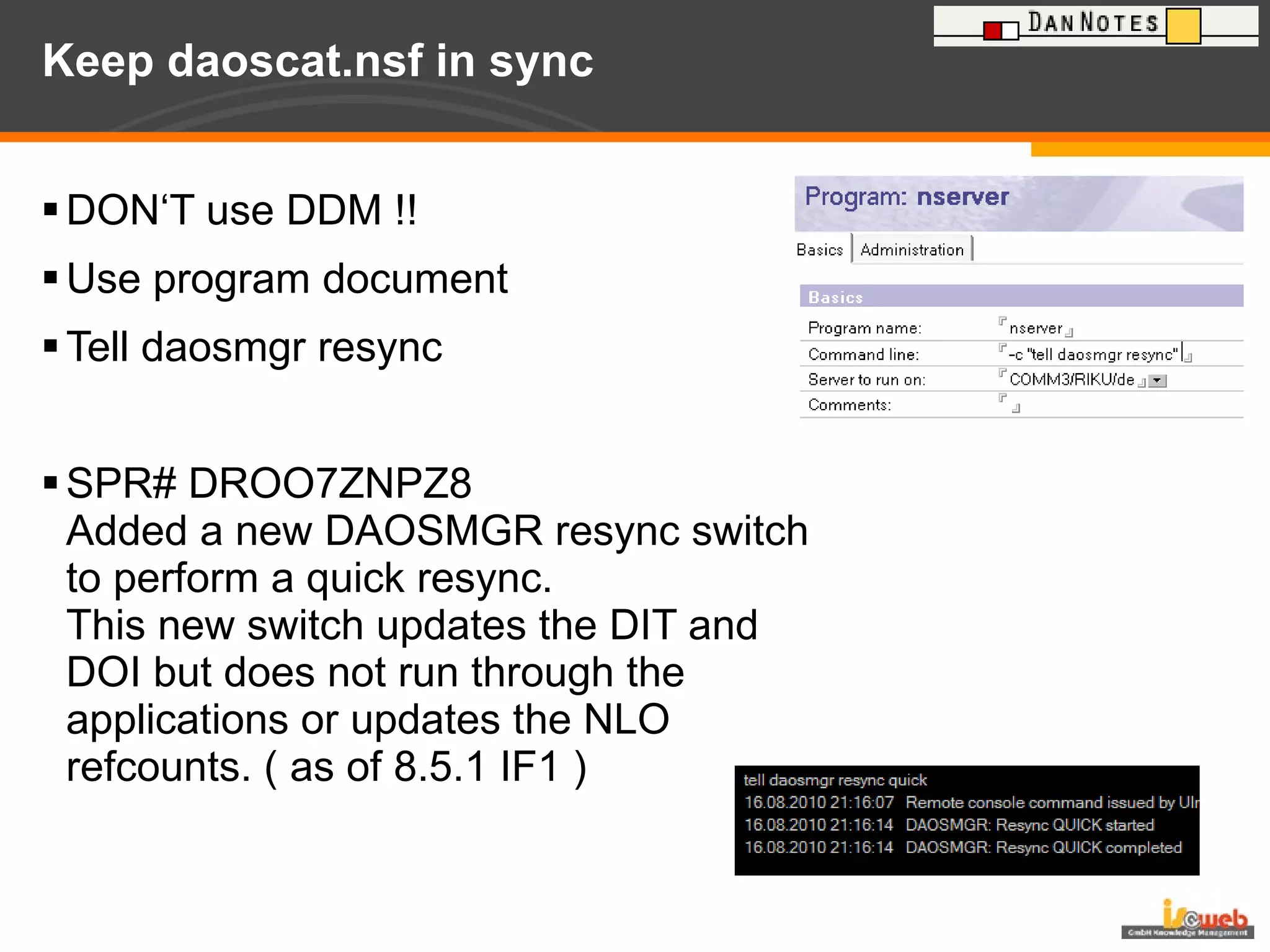

56. Keep daoscat.nsf in sync DON‘T use DDM !! Use program document Tell daosmgr resync SPR# DROO7ZNPZ8 Added a new DAOSMGR resync switch to perform a quick resync. This new switch updates the DIT and DOI but does not run through the applications or updates the NLO refcounts. ( as of 8.5.1 IF1 )

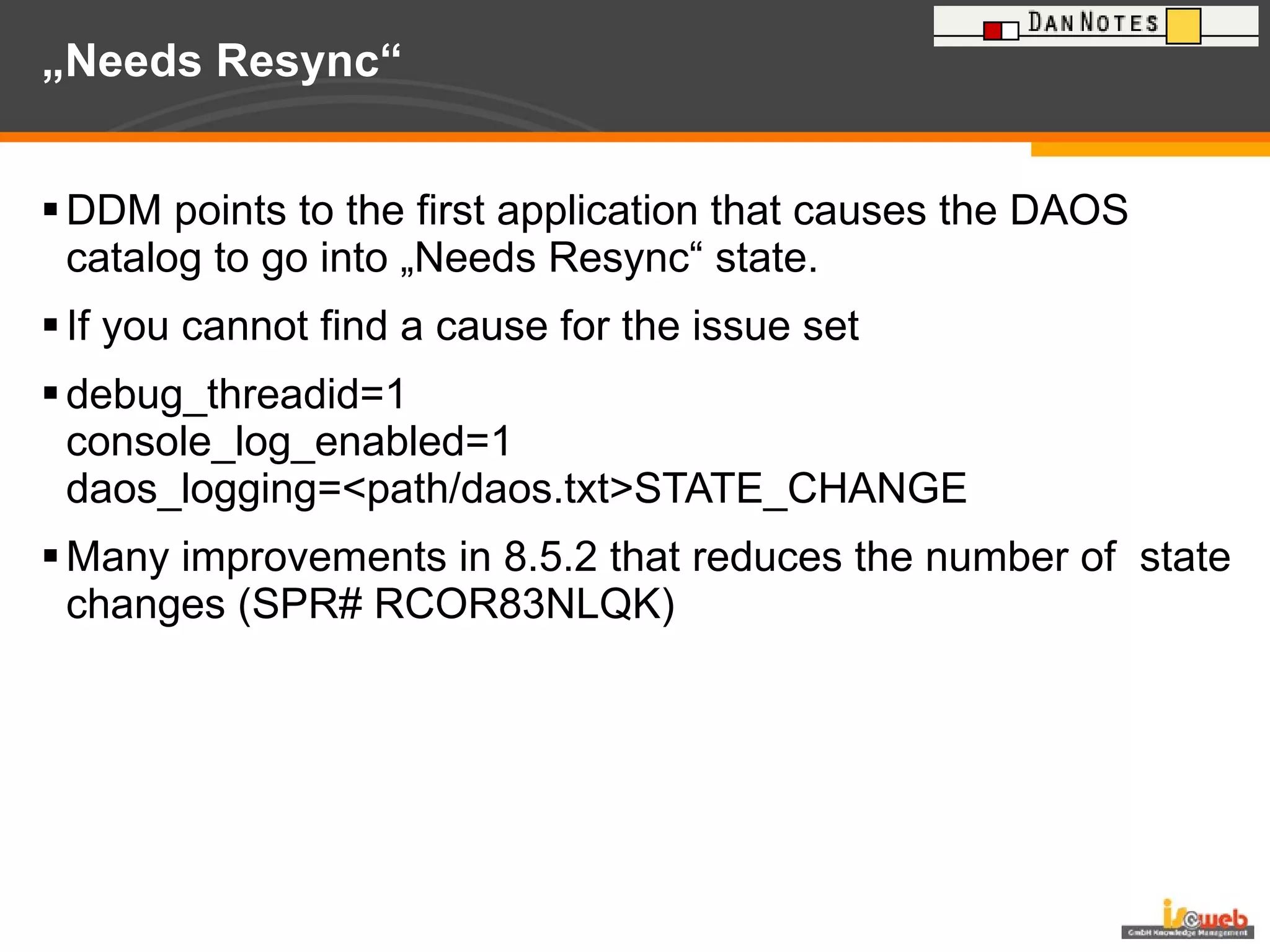

57. „ Needs Resync“ DDM points to the first application that causes the DAOS catalog to go into „Needs Resync“ state. If you cannot find a cause for the issue set debug_threadid=1 console_log_enabled=1 daos_logging=<path/daos.txt>STATE_CHANGE Many improvements in 8.5.2 that reduces the number of state changes (SPR# RCOR83NLQK)

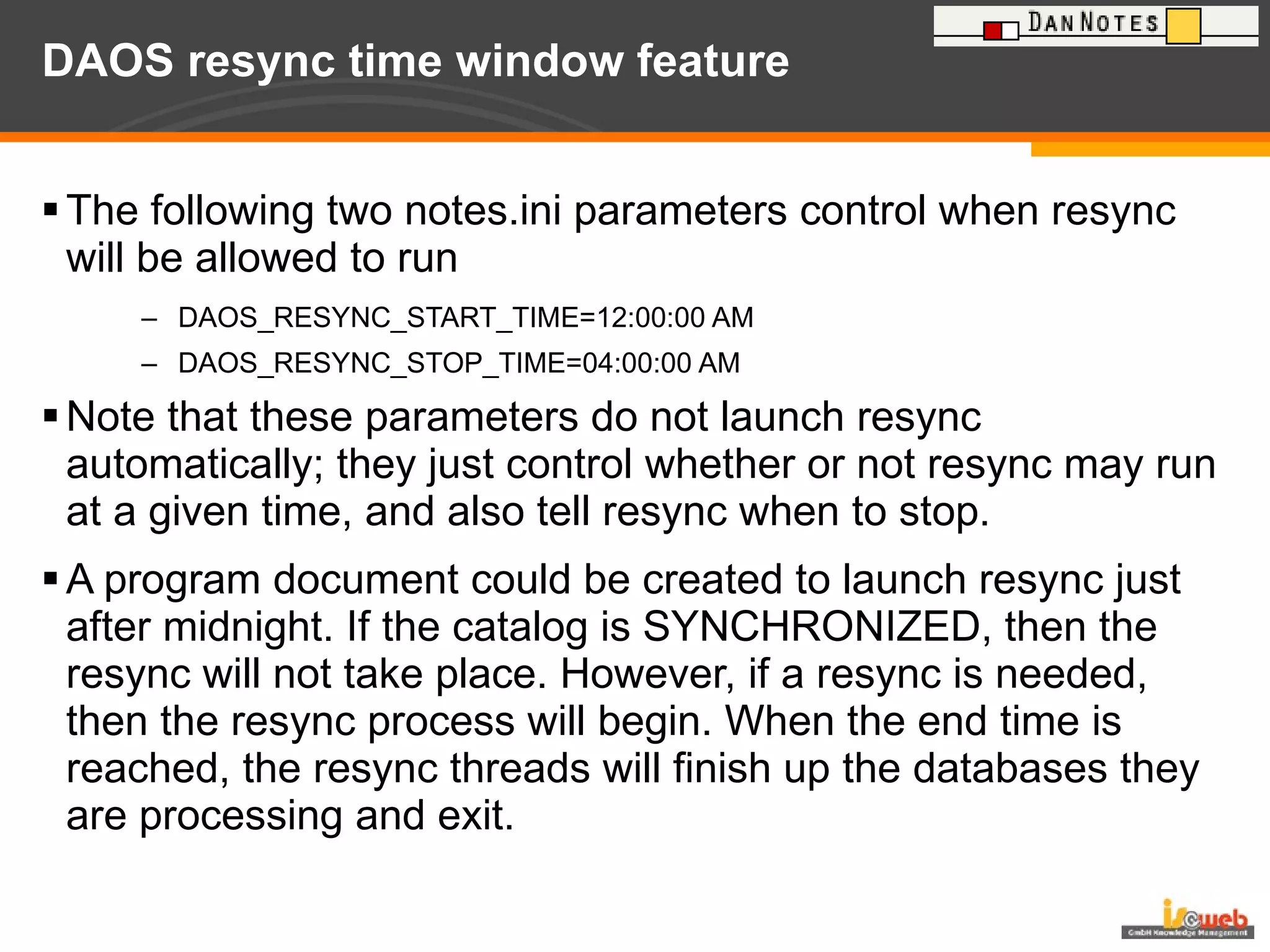

58. DAOS resync time window feature The following two notes.ini parameters control when resync will be allowed to run DAOS_RESYNC_START_TIME=12:00:00 AM DAOS_RESYNC_STOP_TIME=04:00:00 AM Note that these parameters do not launch resync automatically; they just control whether or not resync may run at a given time, and also tell resync when to stop. A program document could be created to launch resync just after midnight. If the catalog is SYNCHRONIZED, then the resync will not take place. However, if a resync is needed, then the resync process will begin. When the end time is reached, the resync threads will finish up the databases they are processing and exit.

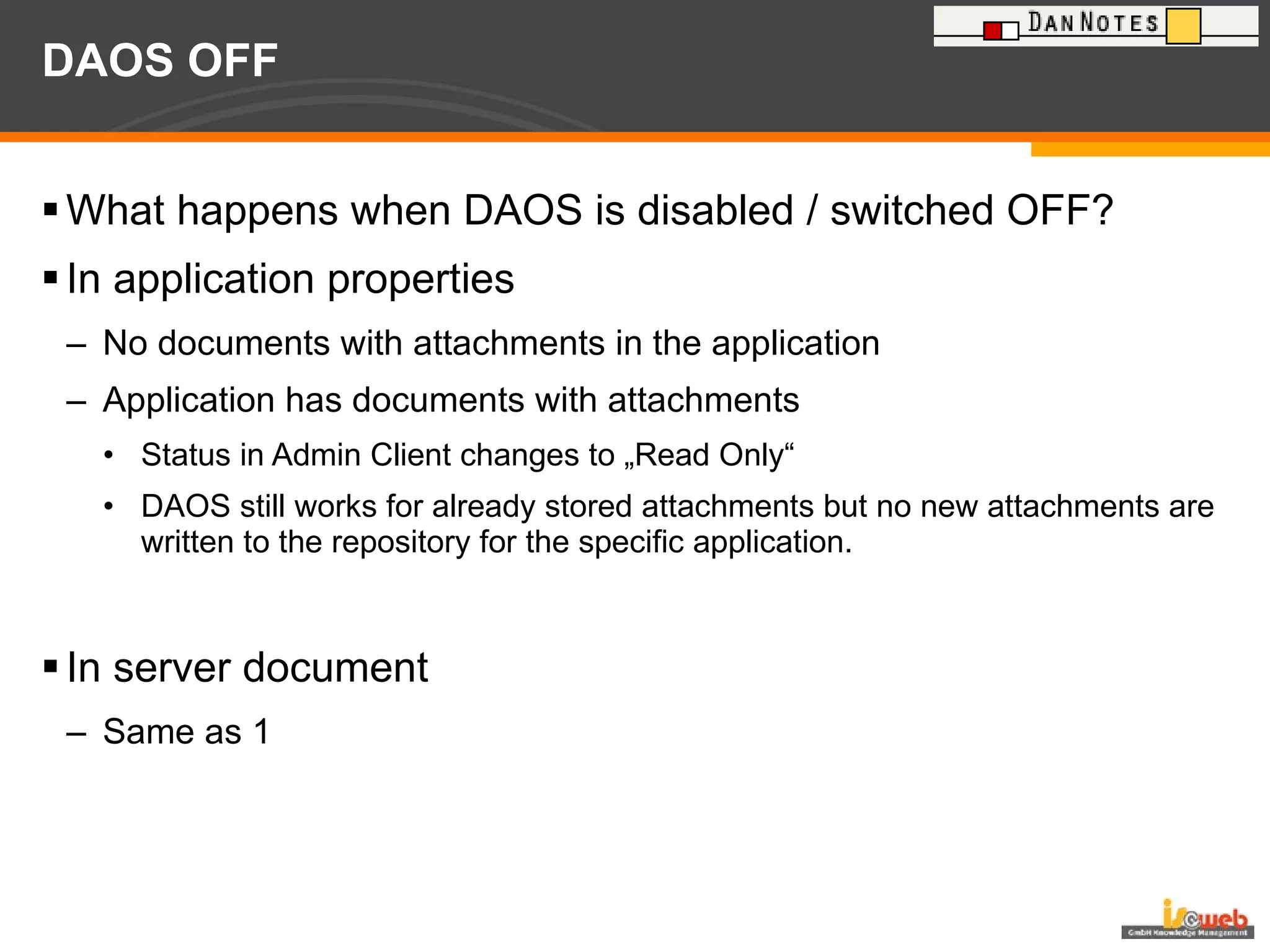

59. DAOS OFF What happens when DAOS is disabled / switched OFF? In application properties No documents with attachments in the application Application has documents with attachments Status in Admin Client changes to „Read Only“ DAOS still works for already stored attachments but no new attachments are written to the repository for the specific application. In server document Same as 1

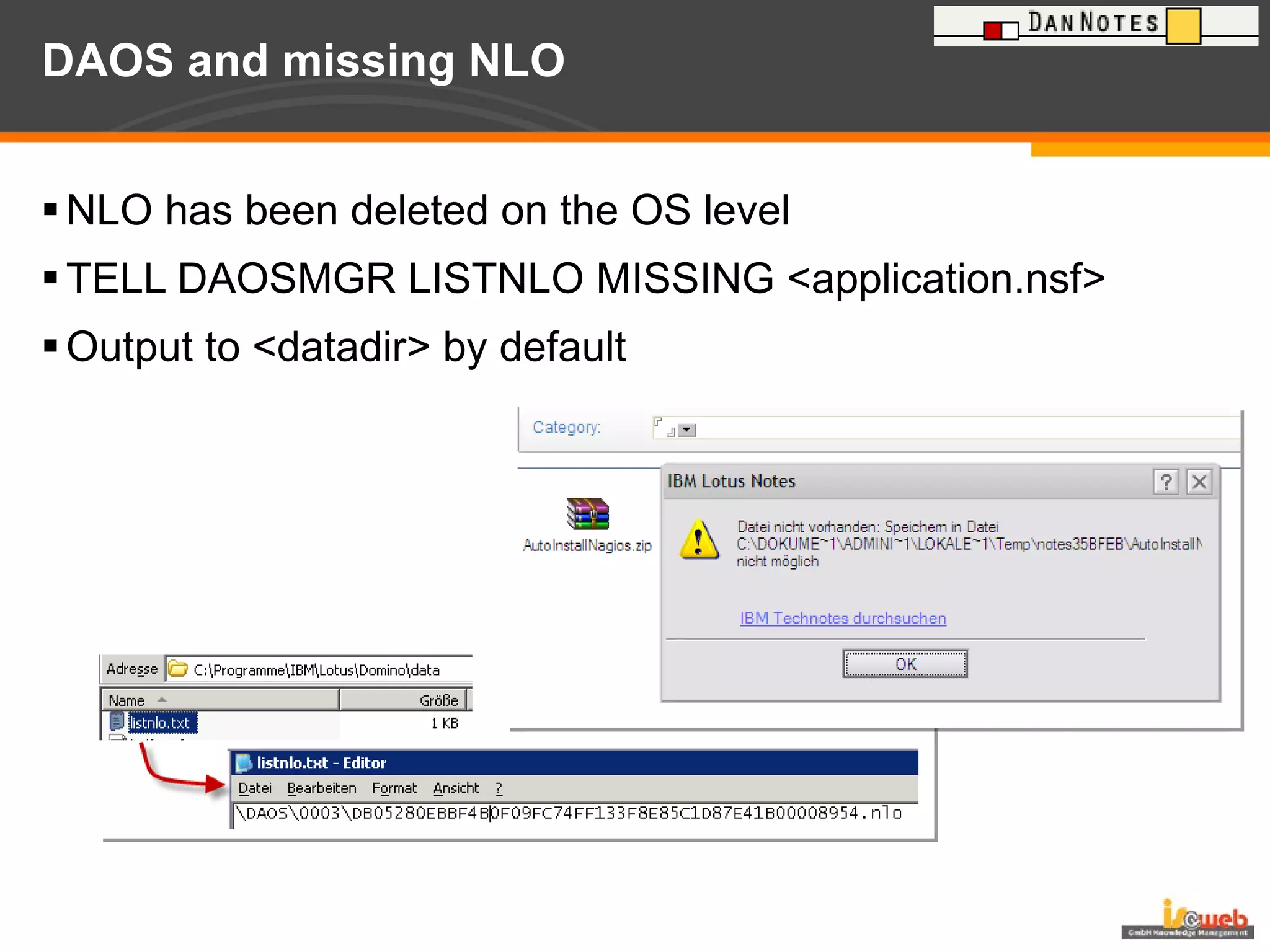

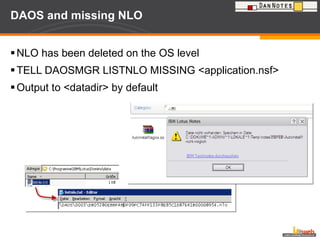

60. DAOS and missing NLO NLO has been deleted on the OS level TELL DAOSMGR LISTNLO MISSING <application.nsf> Output to <datadir> by default

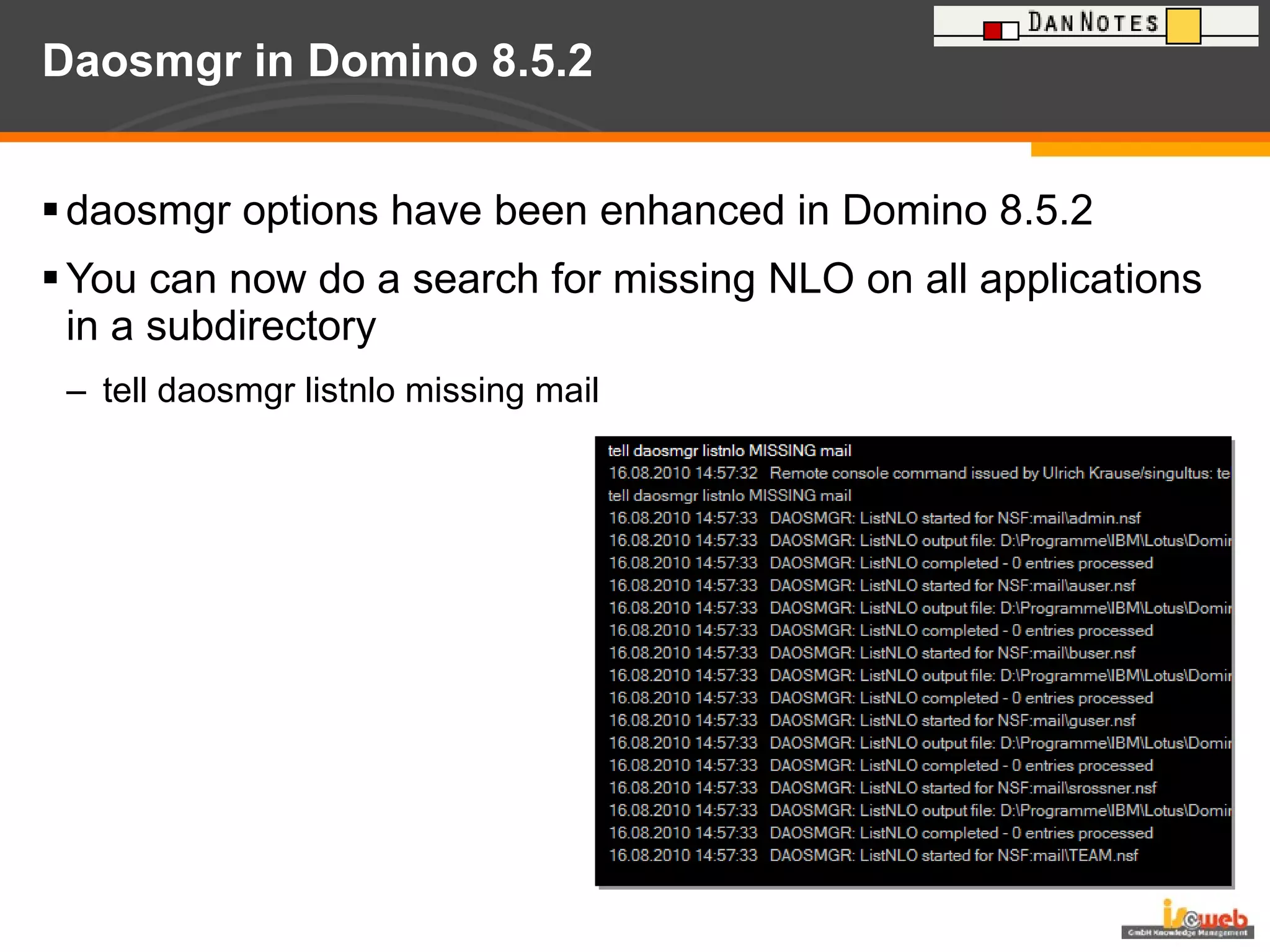

61. Daosmgr in Domino 8.5.2 daosmgr options have been enhanced in Domino 8.5.2 You can now do a search for missing NLO on all applications in a subdirectory tell daosmgr listnlo missing mail

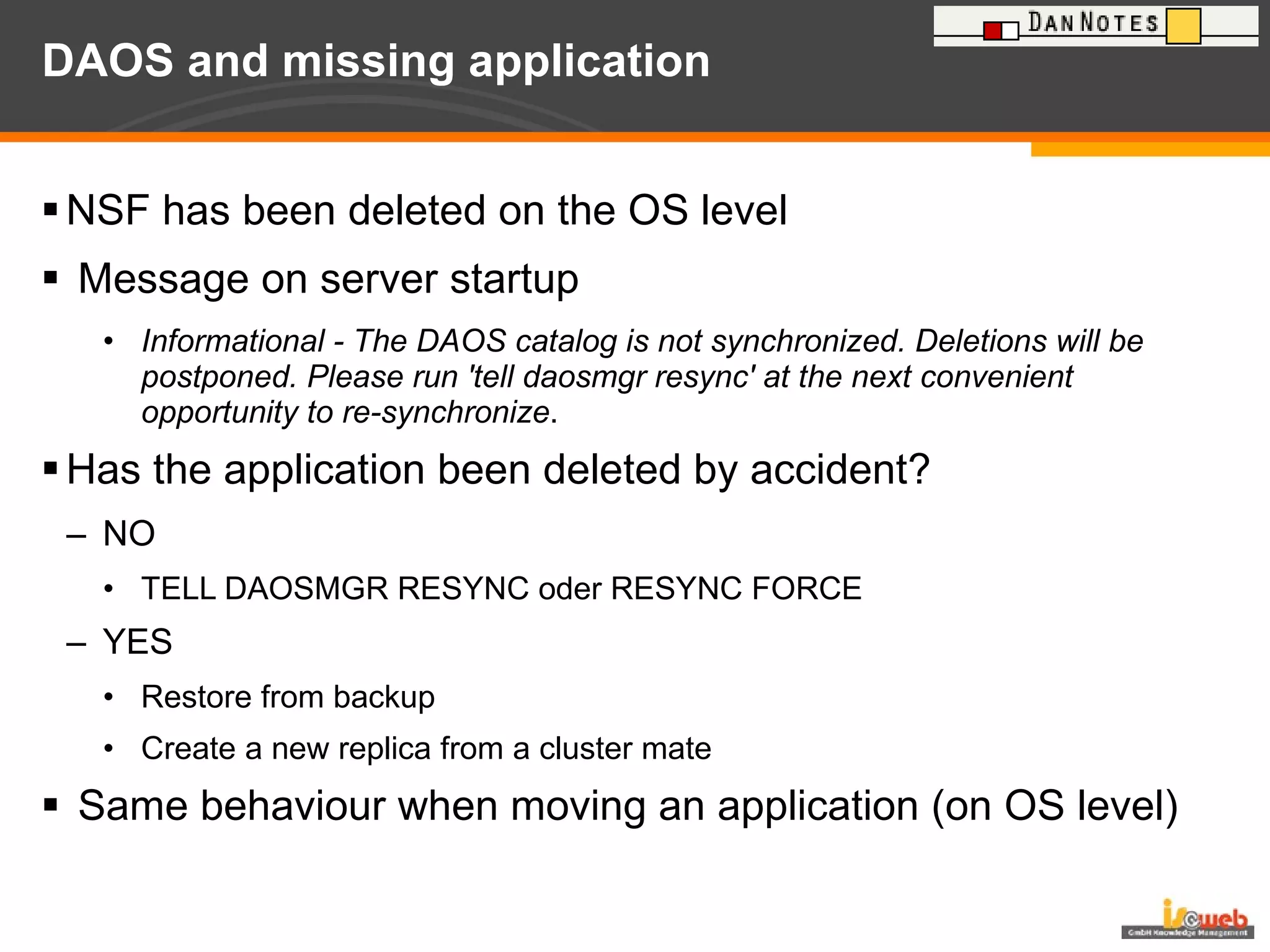

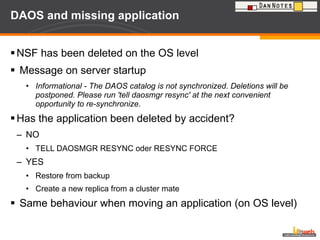

62. DAOS and missing application NSF has been deleted on the OS level Message on server startup Informational - The DAOS catalog is not synchronized. Deletions will be postponed. Please run 'tell daosmgr resync' at the next convenient opportunity to re-synchronize . Has the application been deleted by accident? NO TELL DAOSMGR RESYNC oder RESYNC FORCE YES Restore from backup Create a new replica from a cluster mate Same behaviour when moving an application (on OS level)

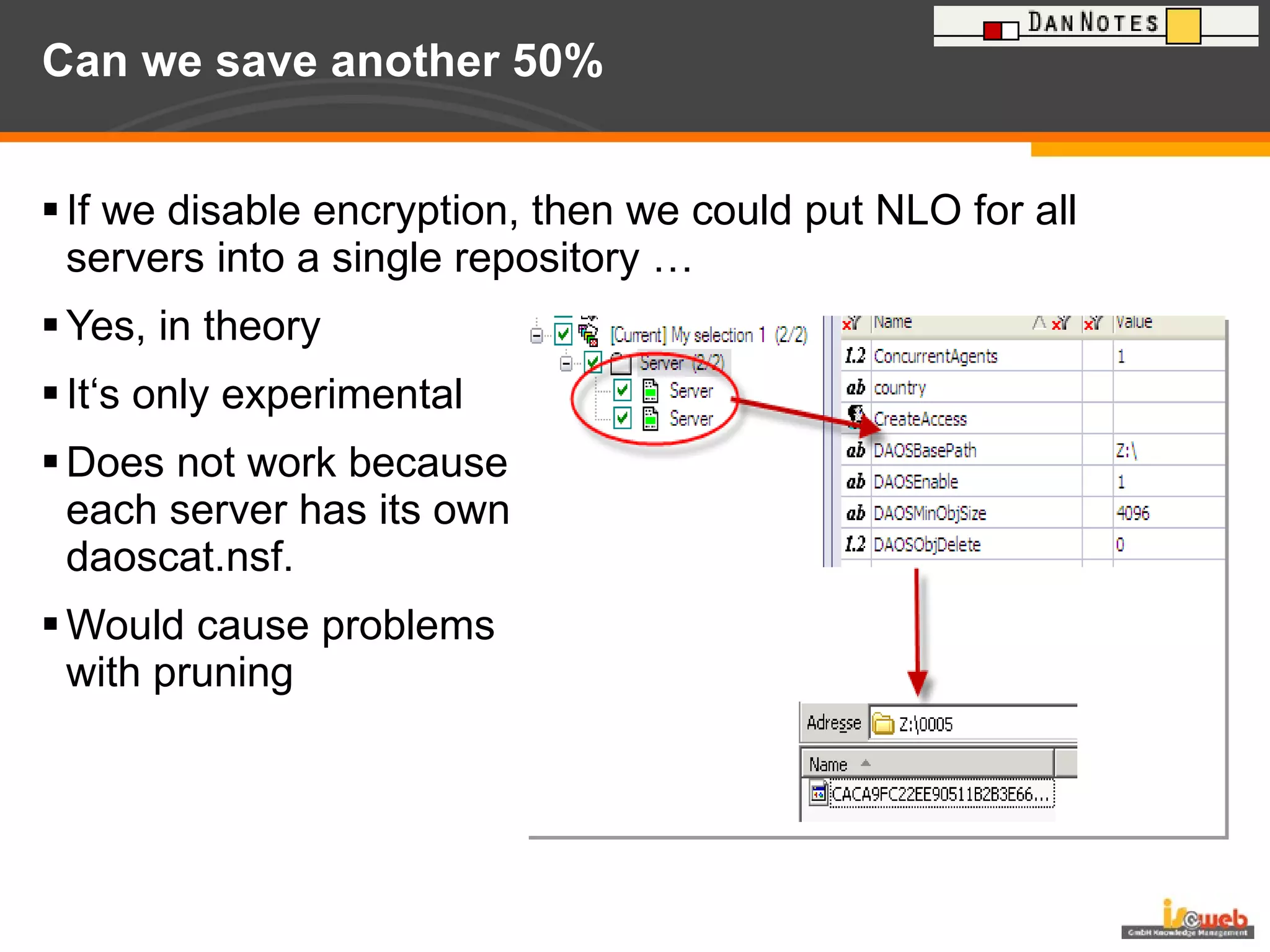

63. Can we save another 50% If we disable encryption, then we could put NLO for all servers into a single repository … Yes, in theory It‘s only experimental Does not work because each server has its own daoscat.nsf. Would cause problems with pruning

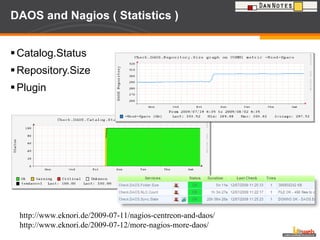

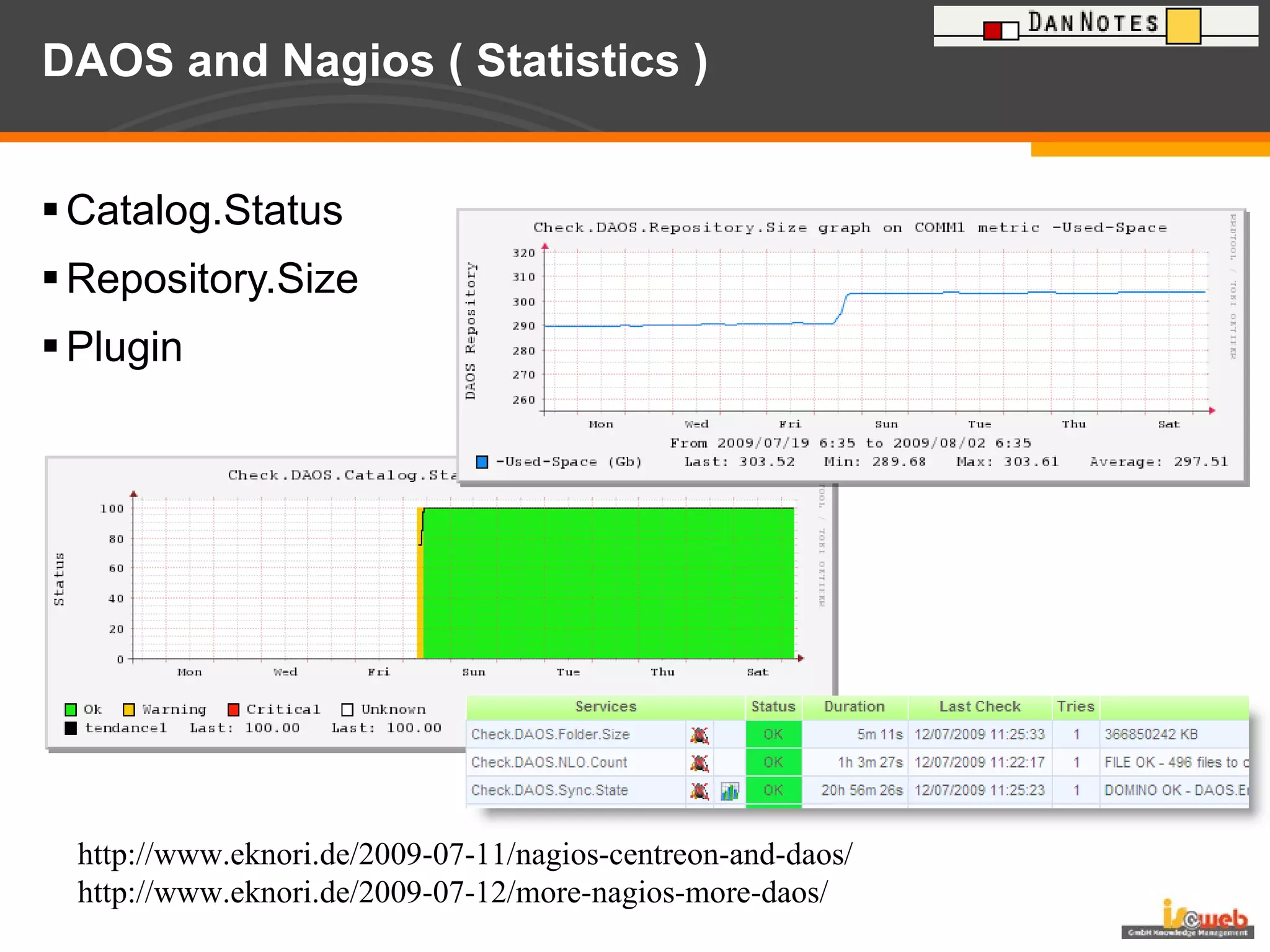

64. DAOS and Nagios ( Statistics ) Catalog.Status Repository.Size Plugin http://www.eknori.de/2009-07-11/nagios-centreon-and-daos/ http://www.eknori.de/2009-07-12/more-nagios-more-daos/

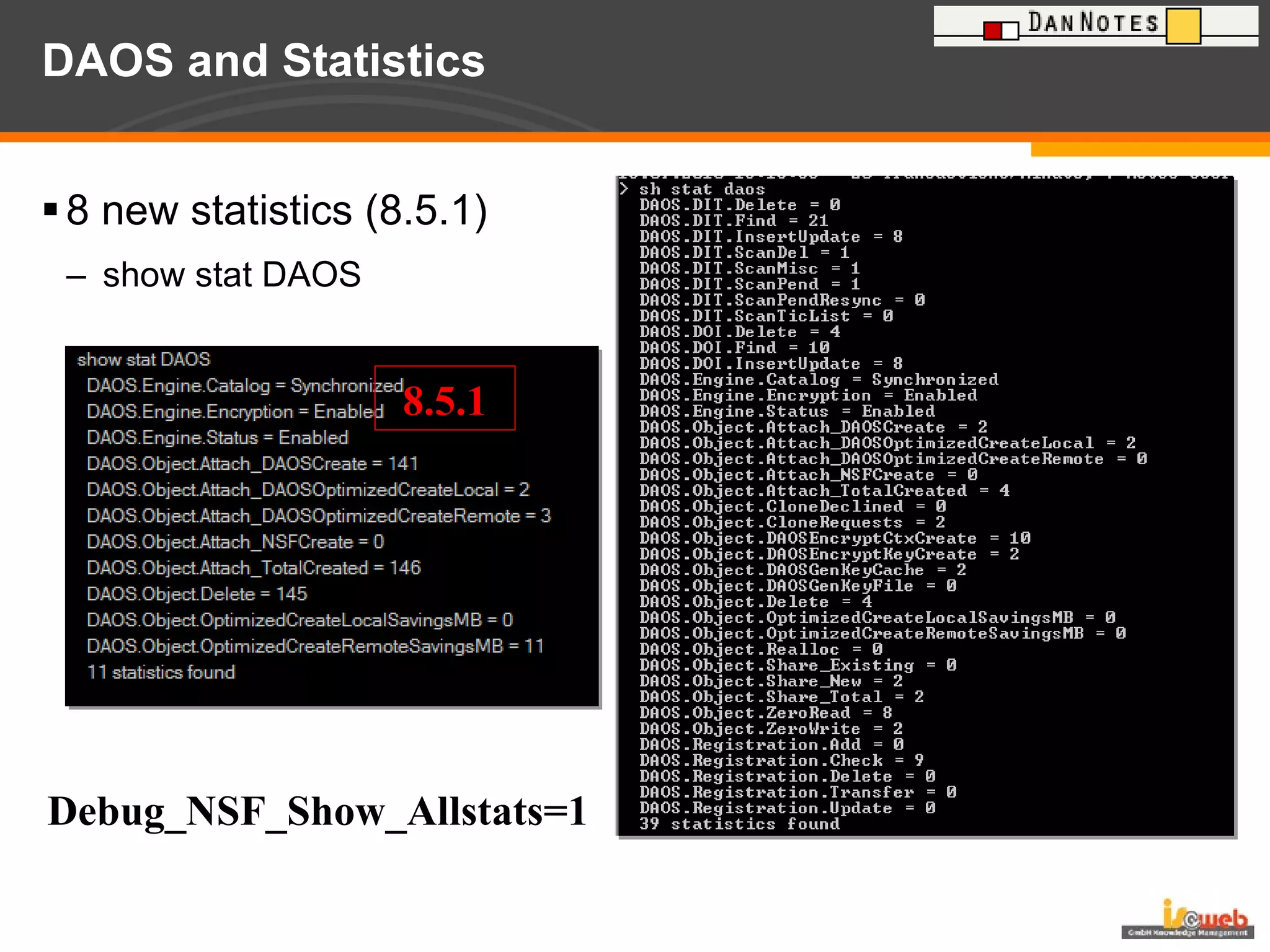

65. DAOS and Statistics 8 new statistics (8.5.1) show stat DAOS 8.5.1 Debug_NSF_Show_Allstats=1

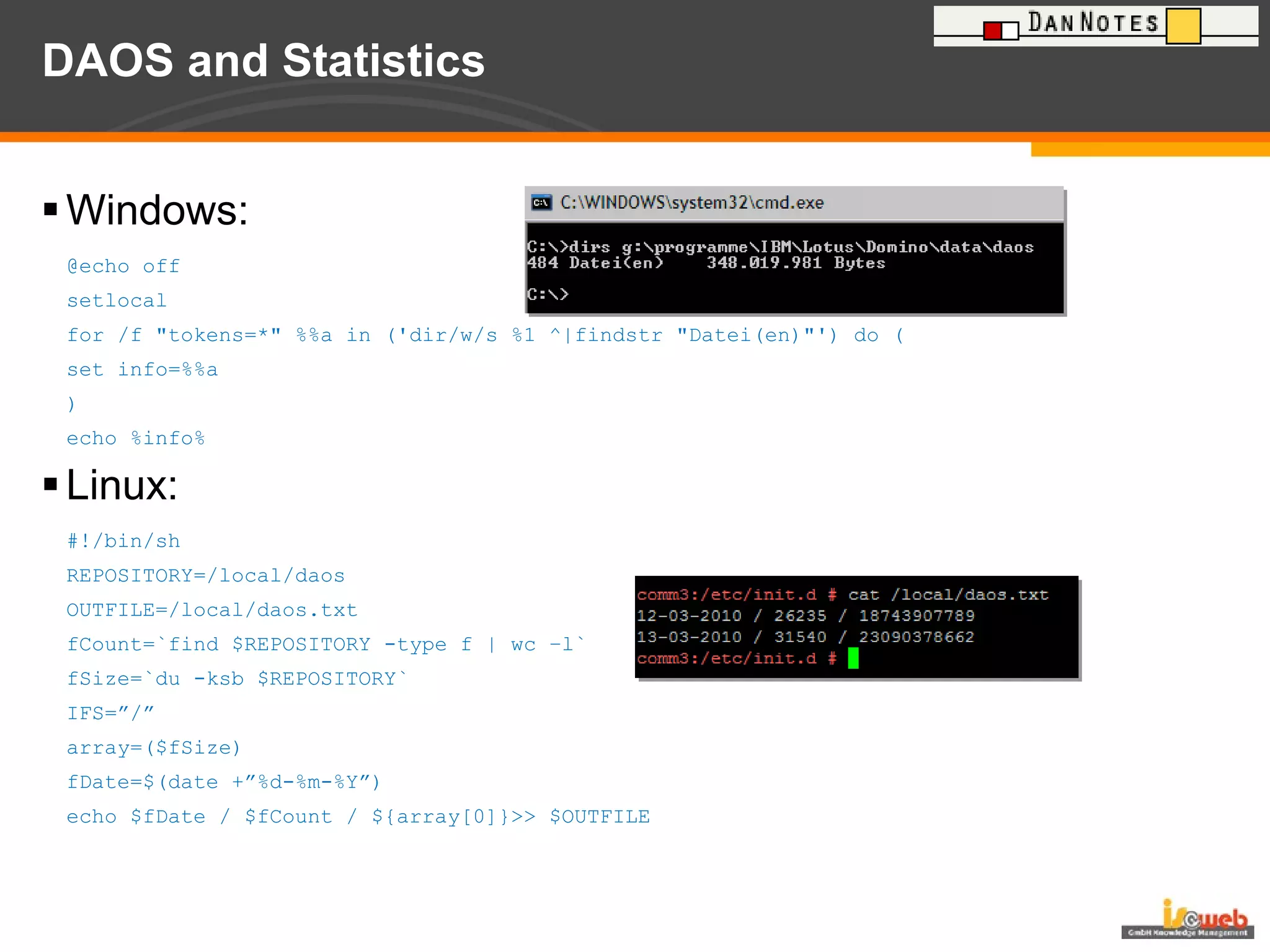

66. DAOS and Statistics Windows: @echo off setlocal for /f &quot;tokens=*&quot; %%a in ('dir/w/s %1 ^|findstr &quot;Datei(en)&quot;') do ( set info=%%a ) echo %info% Linux: #!/bin/sh REPOSITORY=/local/daos OUTFILE=/local/daos.txt fCount=`find $REPOSITORY -type f | wc –l` fSize=`du -ksb $REPOSITORY` IFS=”/” array=($fSize) fDate=$(date +”%d-%m-%Y”) echo $fDate / $fCount / ${array[0]}>> $OUTFILE

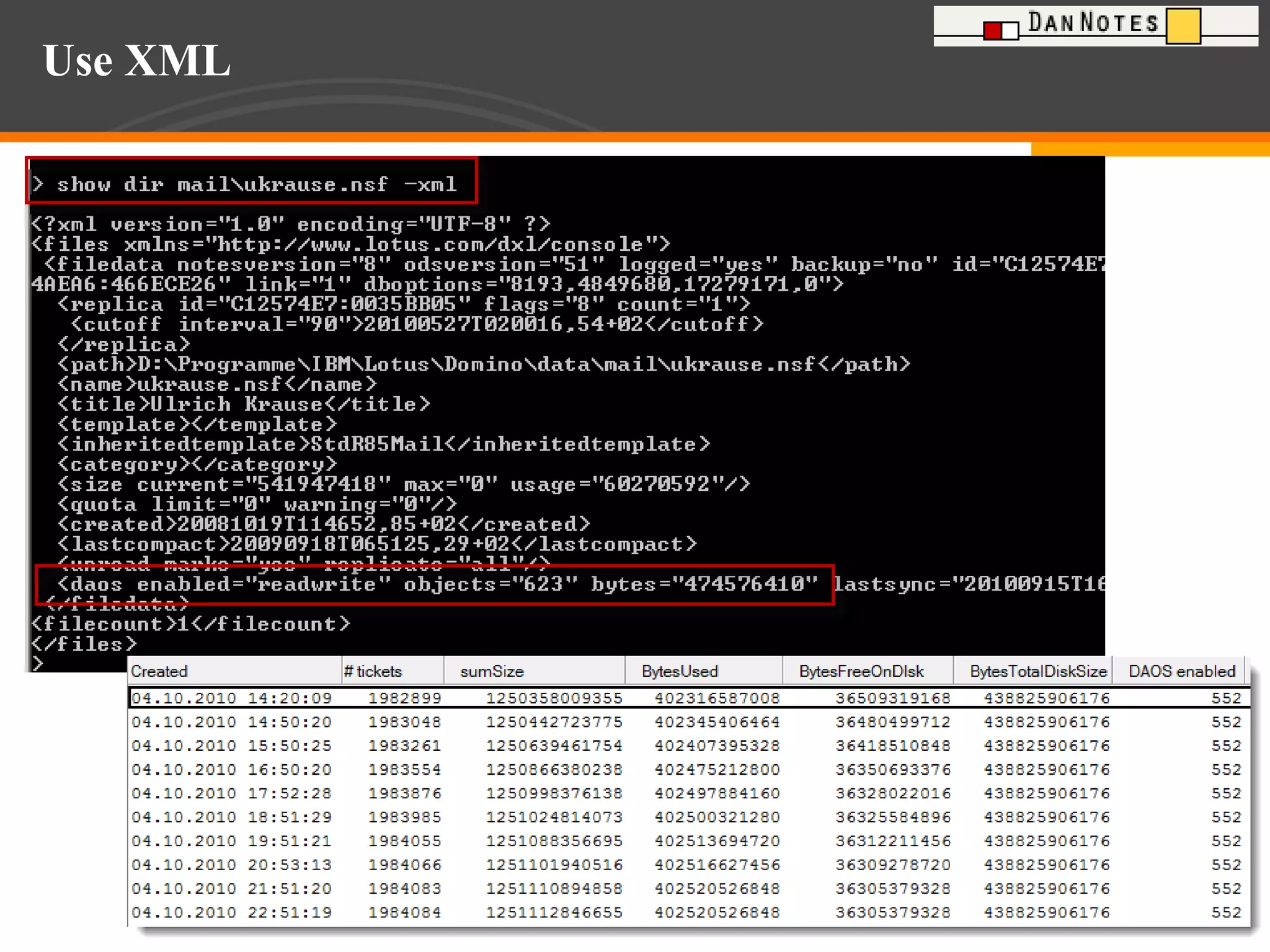

67. Use XML

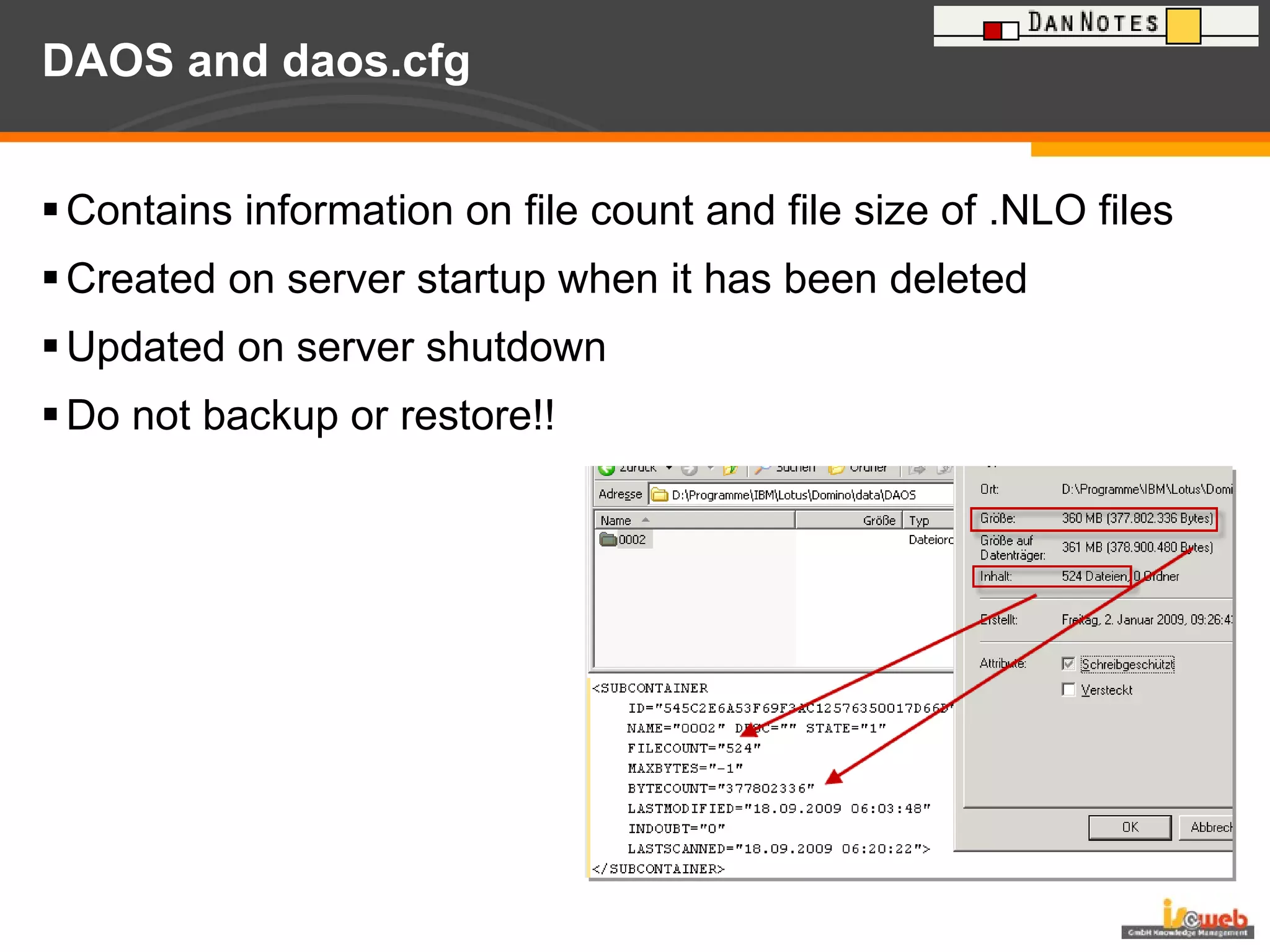

68. DAOS and daos.cfg Contains information on file count and file size of .NLO files Created on server startup when it has been deleted Updated on server shutdown Do not backup or restore!!

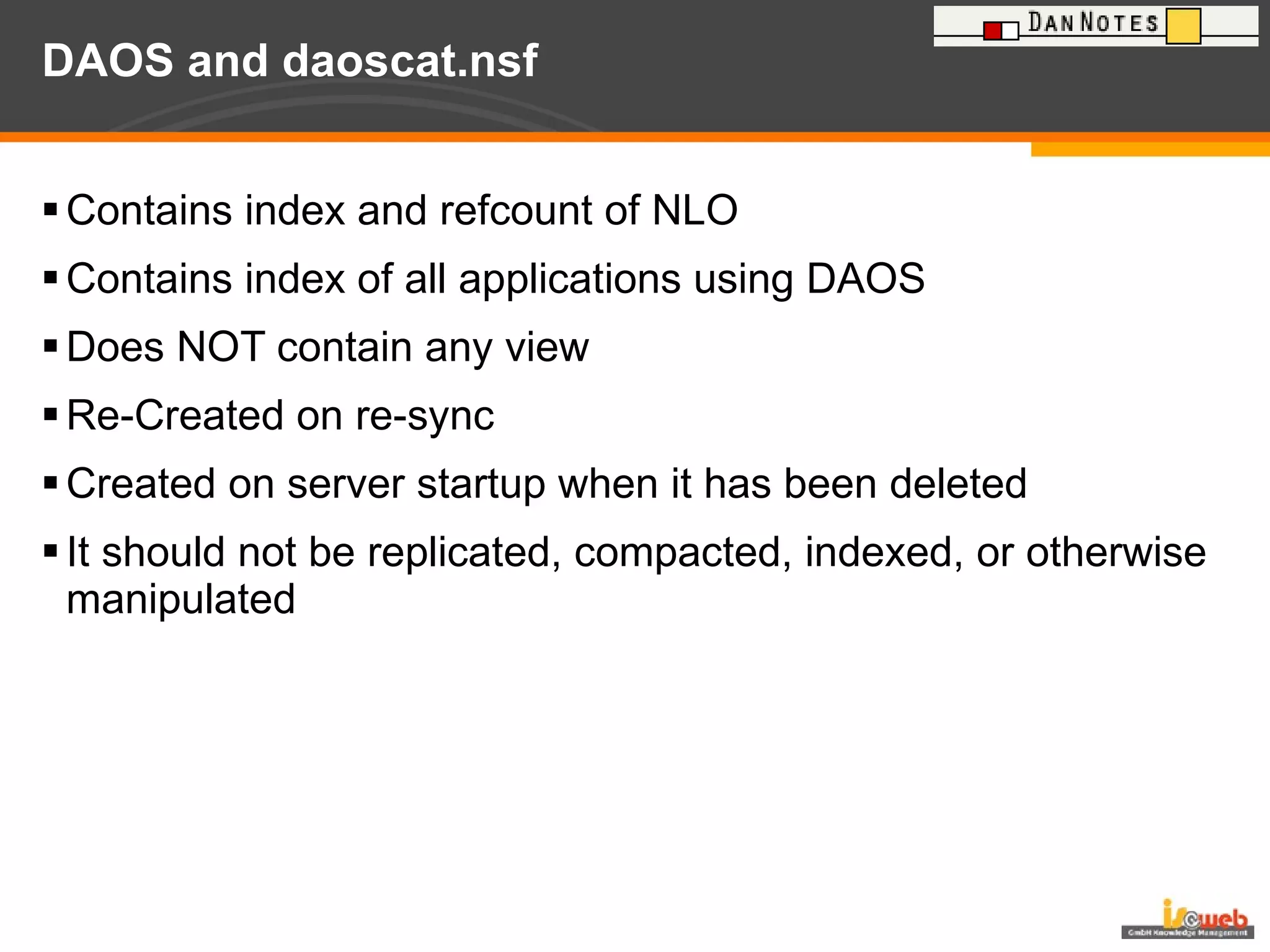

69. DAOS and daoscat.nsf Contains index and refcount of NLO Contains index of all applications using DAOS Does NOT contain any view Re-Created on re-sync Created on server startup when it has been deleted It should not be replicated, compacted, indexed, or otherwise manipulated

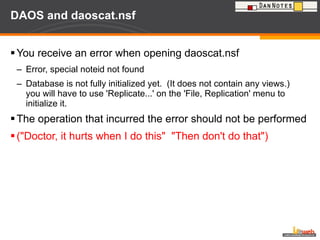

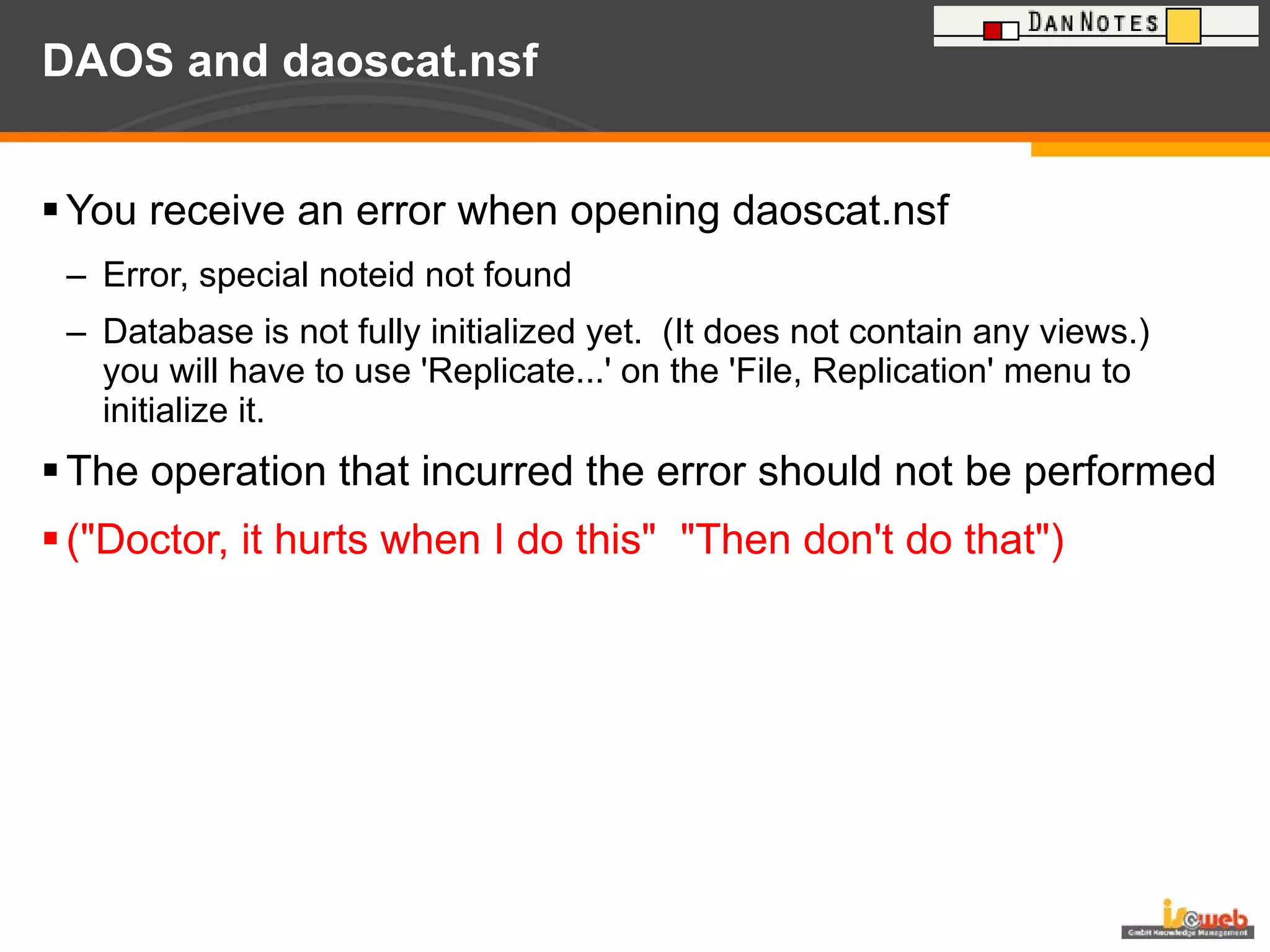

70. DAOS and daoscat.nsf You receive an error when opening daoscat.nsf Error, special noteid not found Database is not fully initialized yet. (It does not contain any views.) you will have to use 'Replicate...' on the 'File, Replication' menu to initialize it. The operation that incurred the error should not be performed (&quot;Doctor, it hurts when I do this&quot; &quot;Then don't do that&quot;)

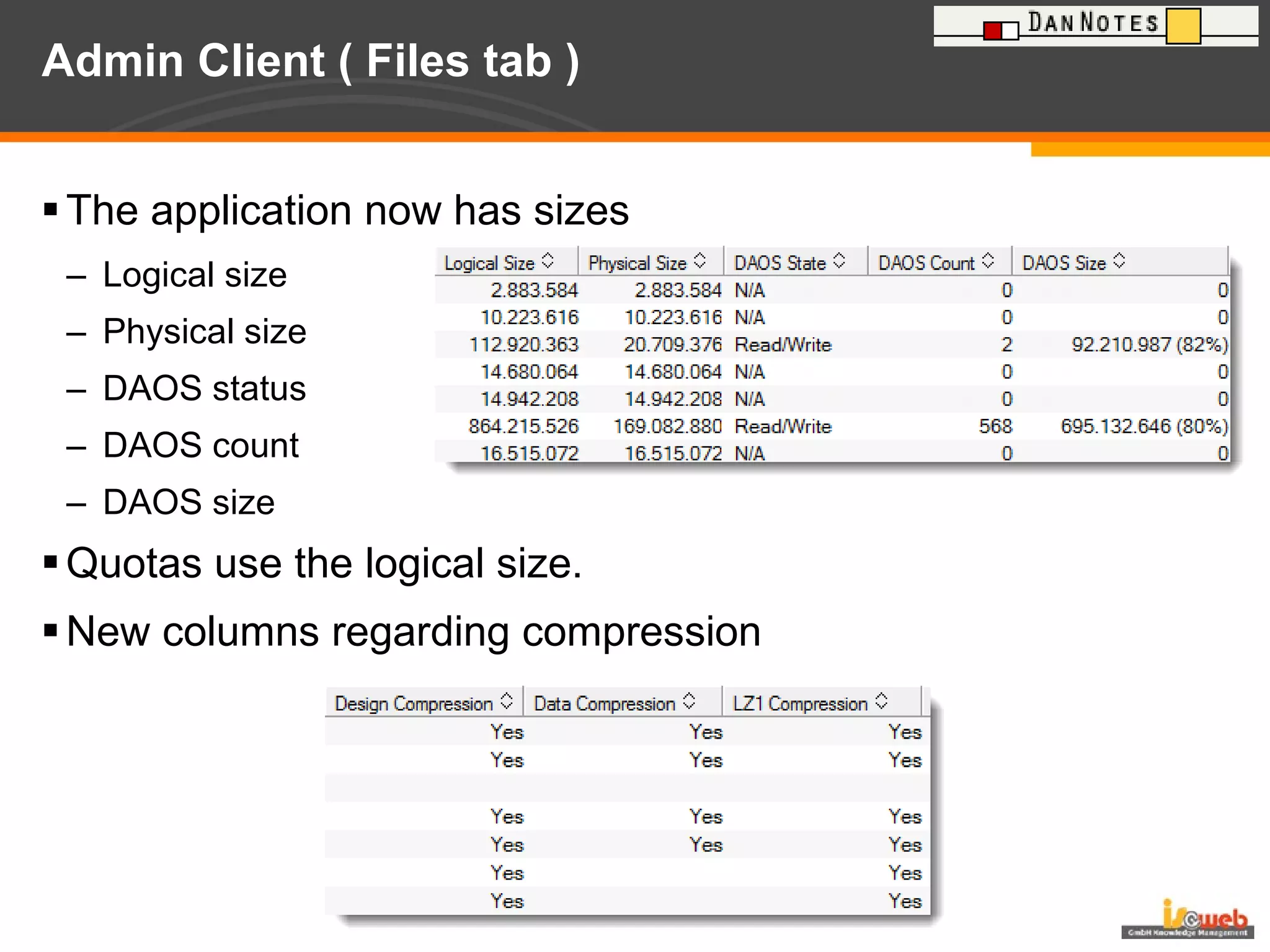

71. Admin Client ( Files tab ) The application now has sizes Logical size Physical size DAOS status DAOS count DAOS size Quotas use the logical size. New columns regarding compression

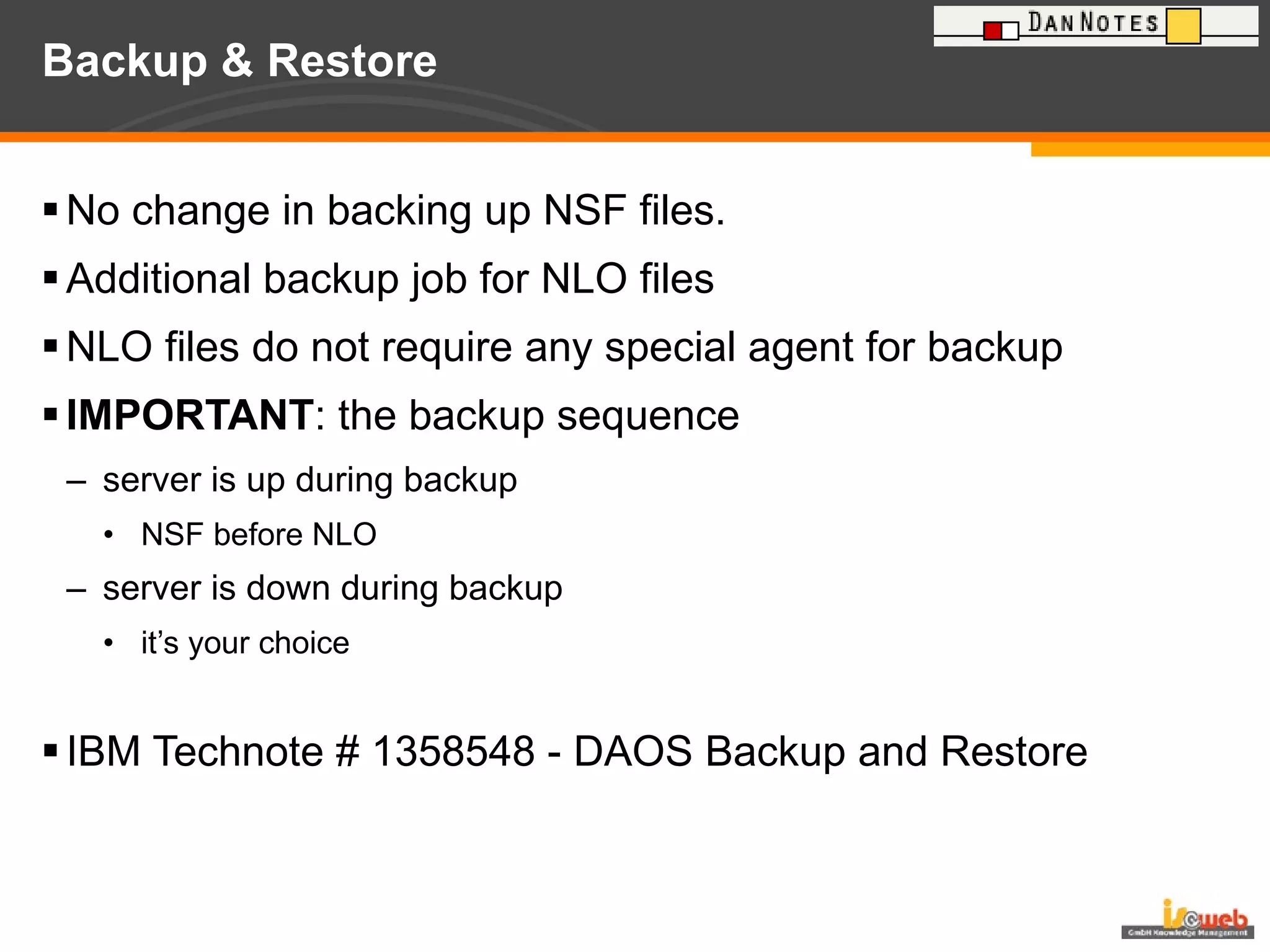

72. Backup & Restore No change in backing up NSF files. Additional backup job for NLO files NLO files do not require any special agent for backup IMPORTANT : the backup sequence server is up during backup NSF before NLO server is down during backup it’s your choice IBM Technote # 1358548 - DAOS Backup and Restore

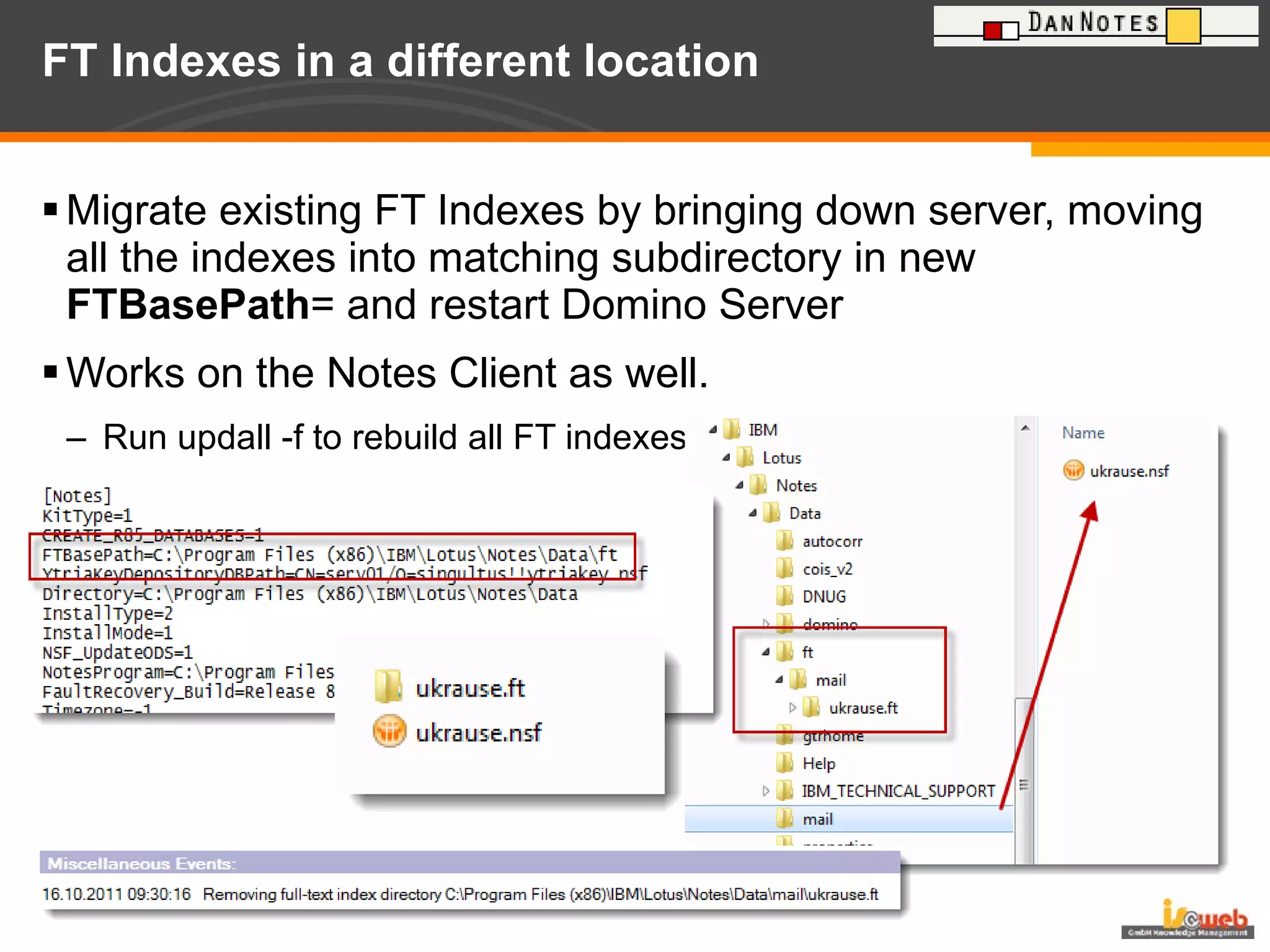

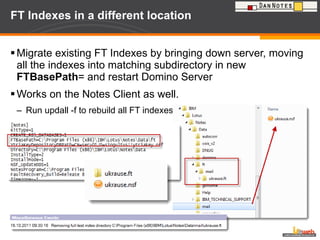

73. FT Indexes in a different location Migrate existing FT Indexes by bringing down server, moving all the indexes into matching subdirectory in new FTBasePath = and restart Domino Server Works on the Notes Client as well. Run updall -f to rebuild all FT indexes

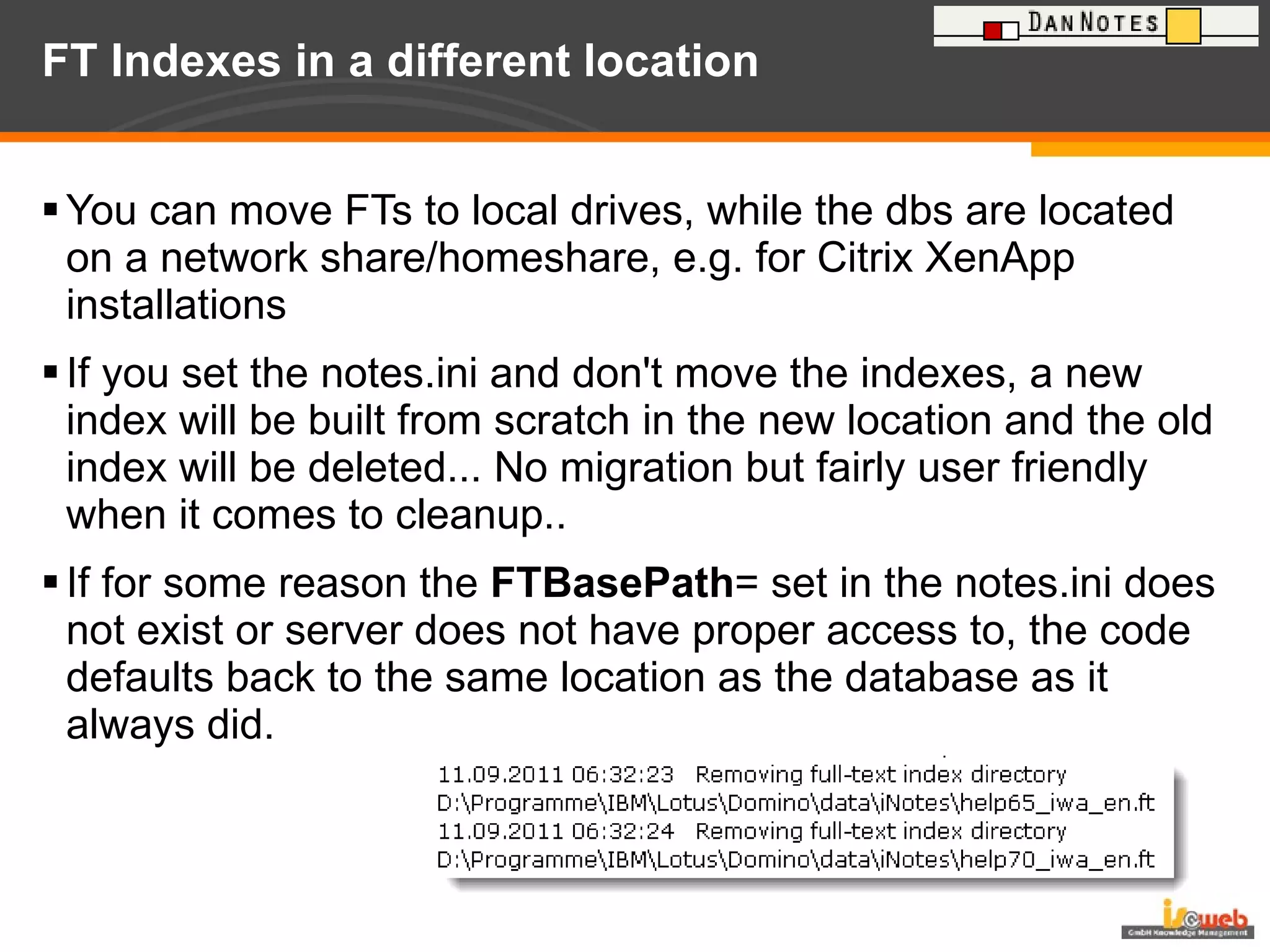

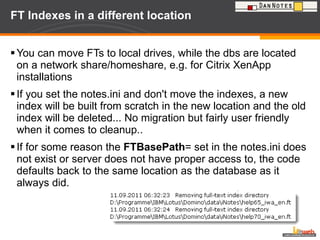

74. FT Indexes in a different location You can move FTs to local drives, while the dbs are located on a network share/homeshare, e.g. for Citrix XenApp installations If you set the notes.ini and don't move the indexes, a new index will be built from scratch in the new location and the old index will be deleted... No migration but fairly user friendly when it comes to cleanup.. If for some reason the FTBasePath = set in the notes.ini does not exist or server does not have proper access to, the code defaults back to the same location as the database as it always did.

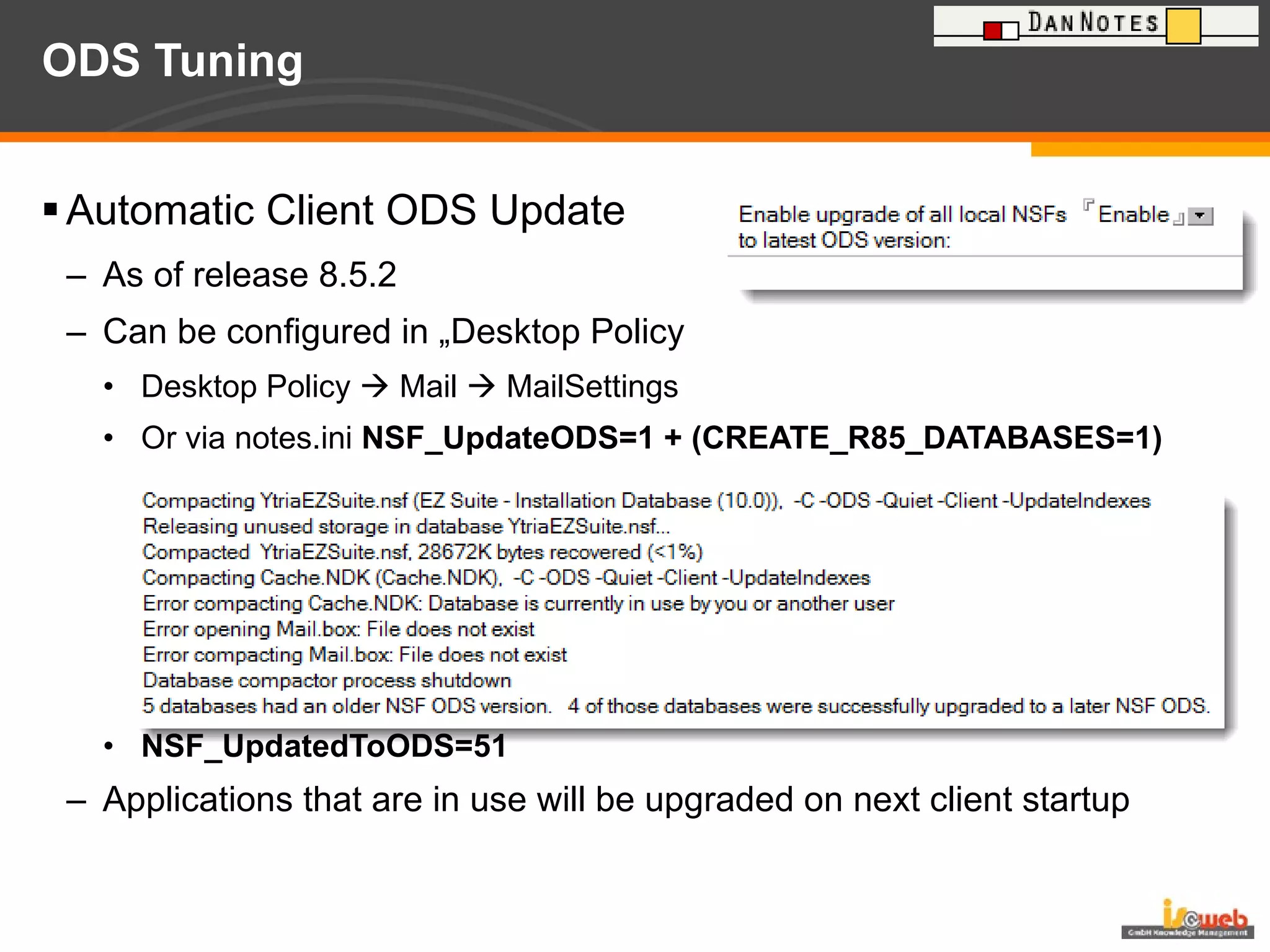

75. ODS Tuning Automatic Client ODS Update As of release 8.5.2 Can be configured in „Desktop Policy Desktop Policy  Mail  MailSettings Or via notes.ini NSF_UpdateODS=1 + (CREATE_R85_DATABASES=1) NSF_UpdatedToODS=51 Applications that are in use will be upgraded on next client startup

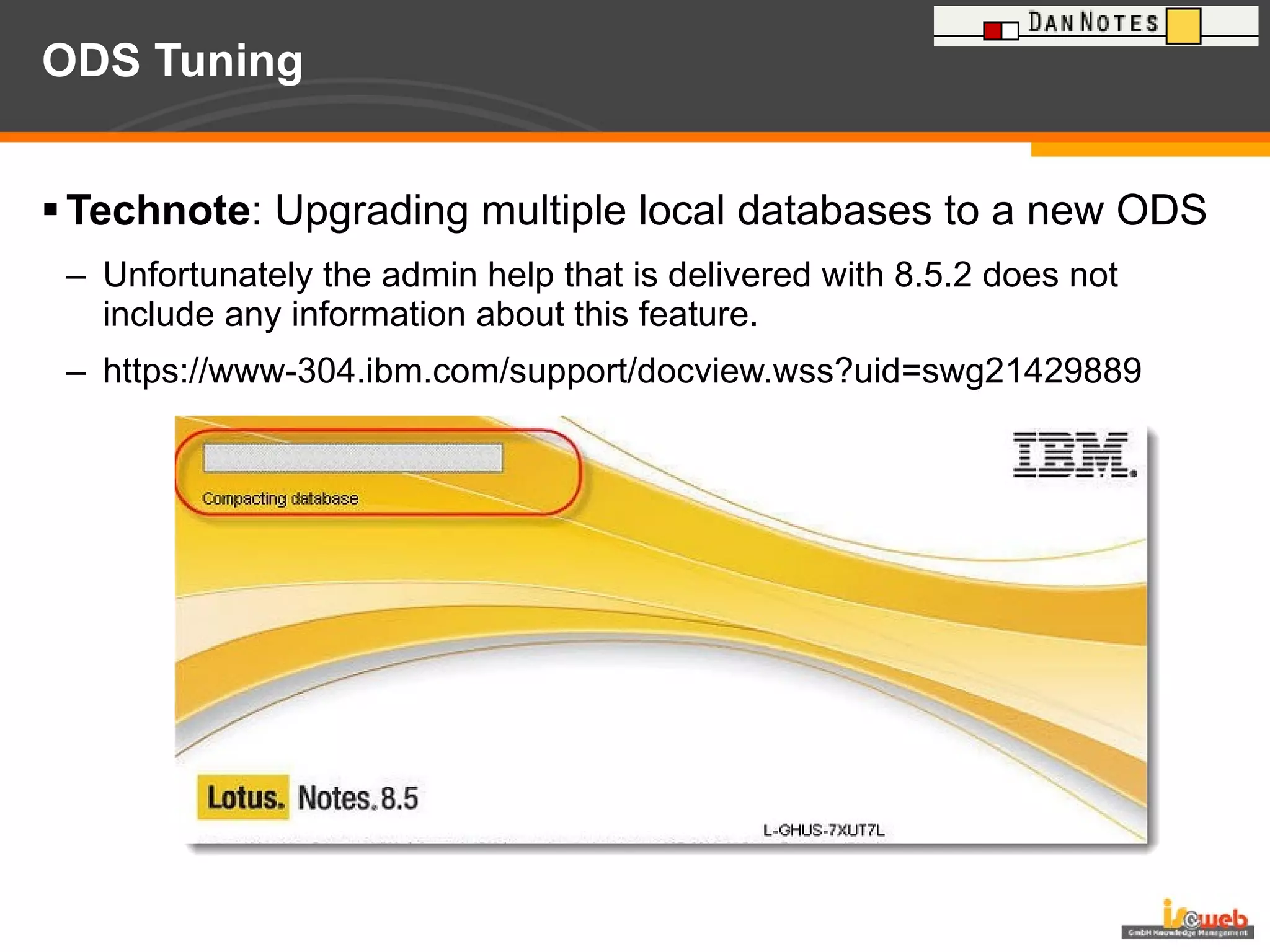

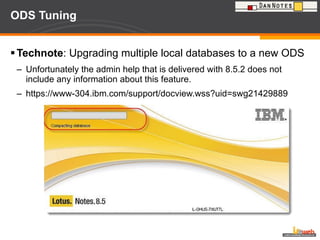

76. ODS Tuning Technote : Upgrading multiple local databases to a new ODS Unfortunately the admin help that is delivered with 8.5.2 does not include any information about this feature. https://www-304.ibm.com/support/docview.wss?uid=swg21429889

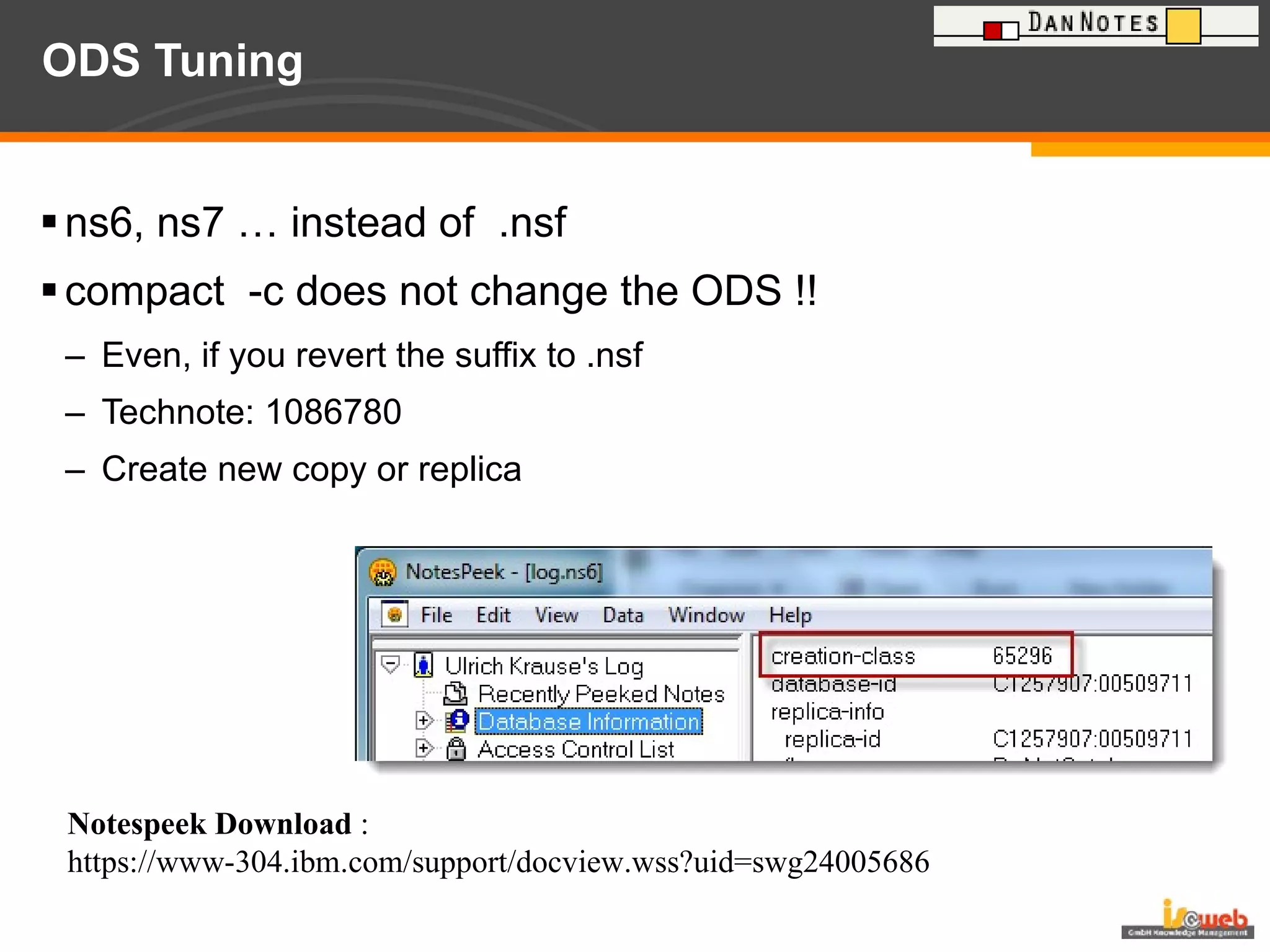

77. ODS Tuning ns6, ns7 … instead of .nsf compact -c does not change the ODS !! Even, if you revert the suffix to .nsf Technote: 1086780 Create new copy or replica Notespeek Download : https://www-304.ibm.com/support/docview.wss?uid=swg24005686

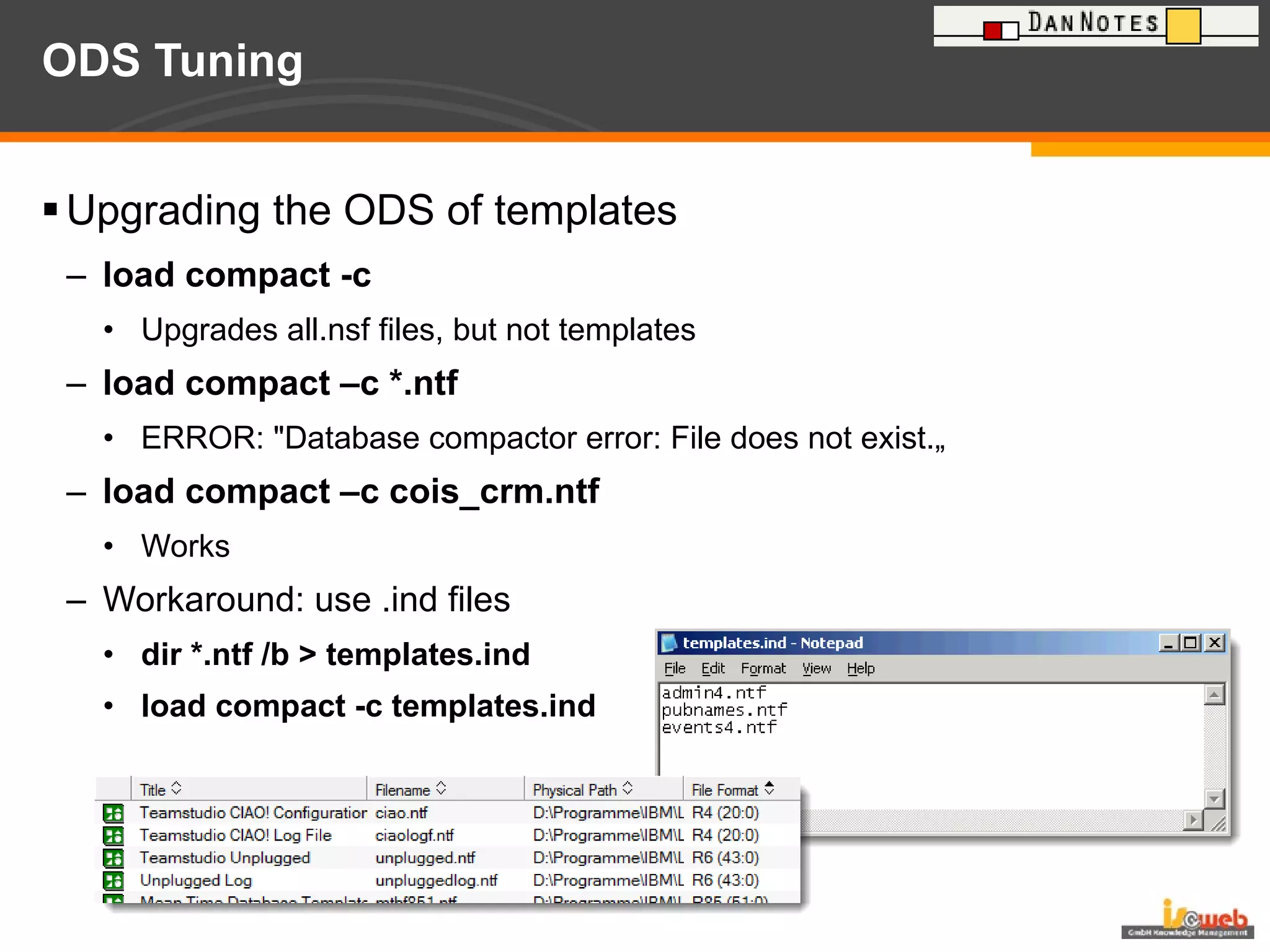

78. ODS Tuning Upgrading the ODS of templates load compact -c Upgrades all.nsf files, but not templates load compact –c *.ntf ERROR: &quot;Database compactor error: File does not exist.„ load compact –c cois_crm.ntf Works Workaround: use .ind files dir *.ntf /b > templates.ind load compact -c templates.ind

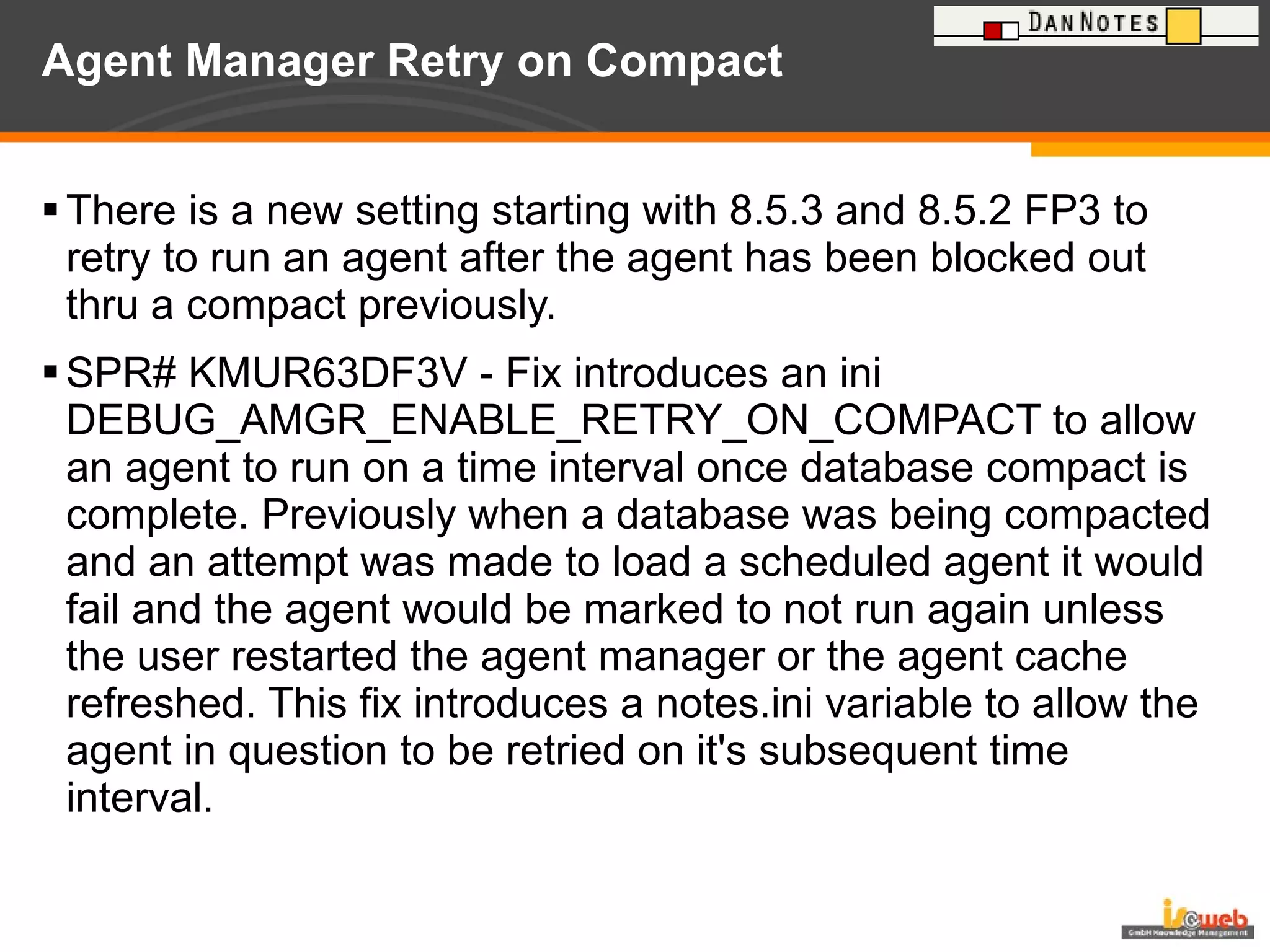

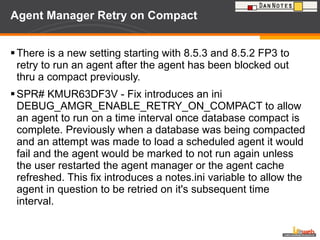

79. Agent Manager Retry on Compact There is a new setting starting with 8.5.3 and 8.5.2 FP3 to retry to run an agent after the agent has been blocked out thru a compact previously. SPR# KMUR63DF3V - Fix introduces an ini DEBUG_AMGR_ENABLE_RETRY_ON_COMPACT to allow an agent to run on a time interval once database compact is complete. Previously when a database was being compacted and an attempt was made to load a scheduled agent it would fail and the agent would be marked to not run again unless the user restarted the agent manager or the agent cache refreshed. This fix introduces a notes.ini variable to allow the agent in question to be retried on it's subsequent time interval.

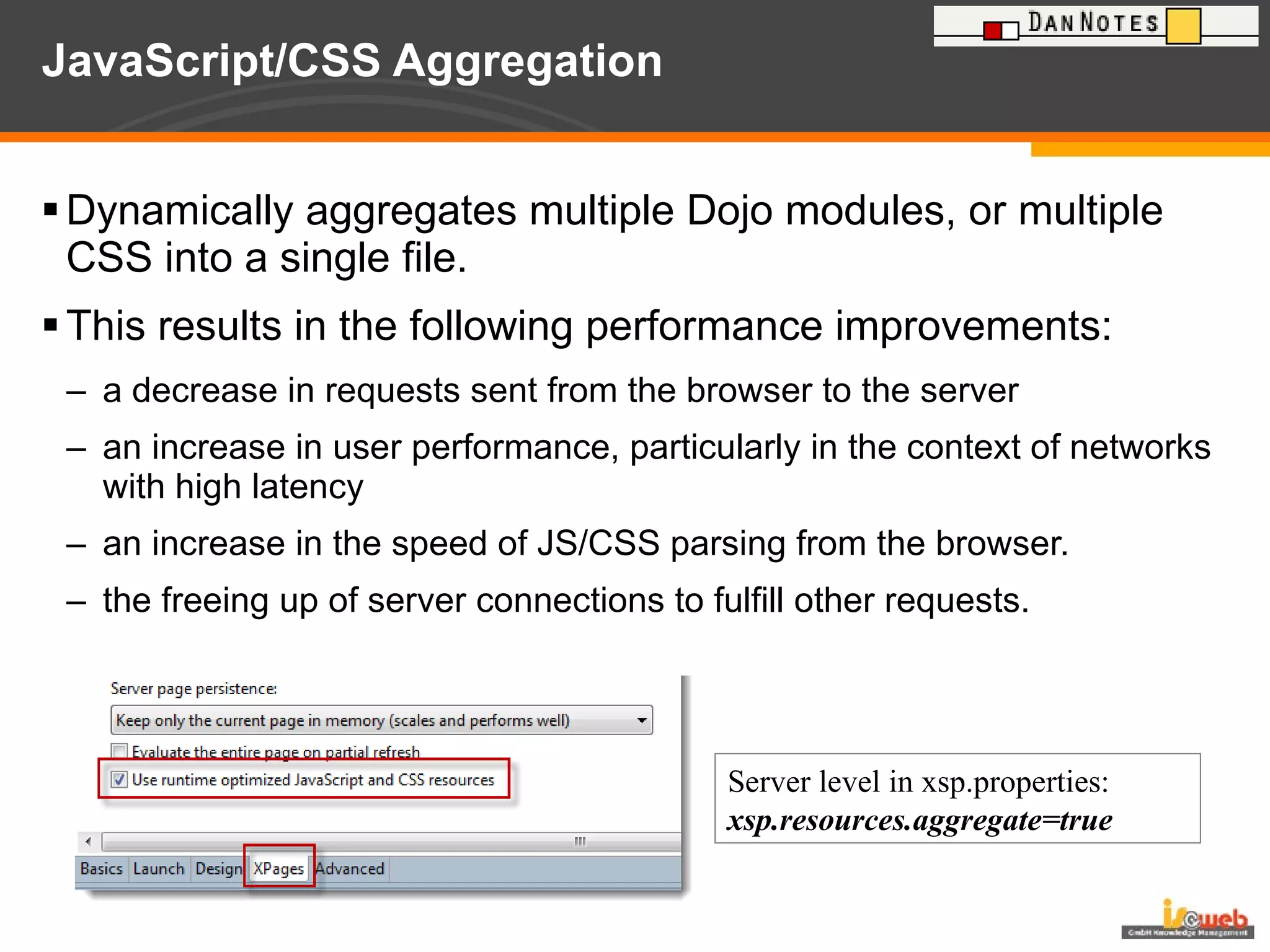

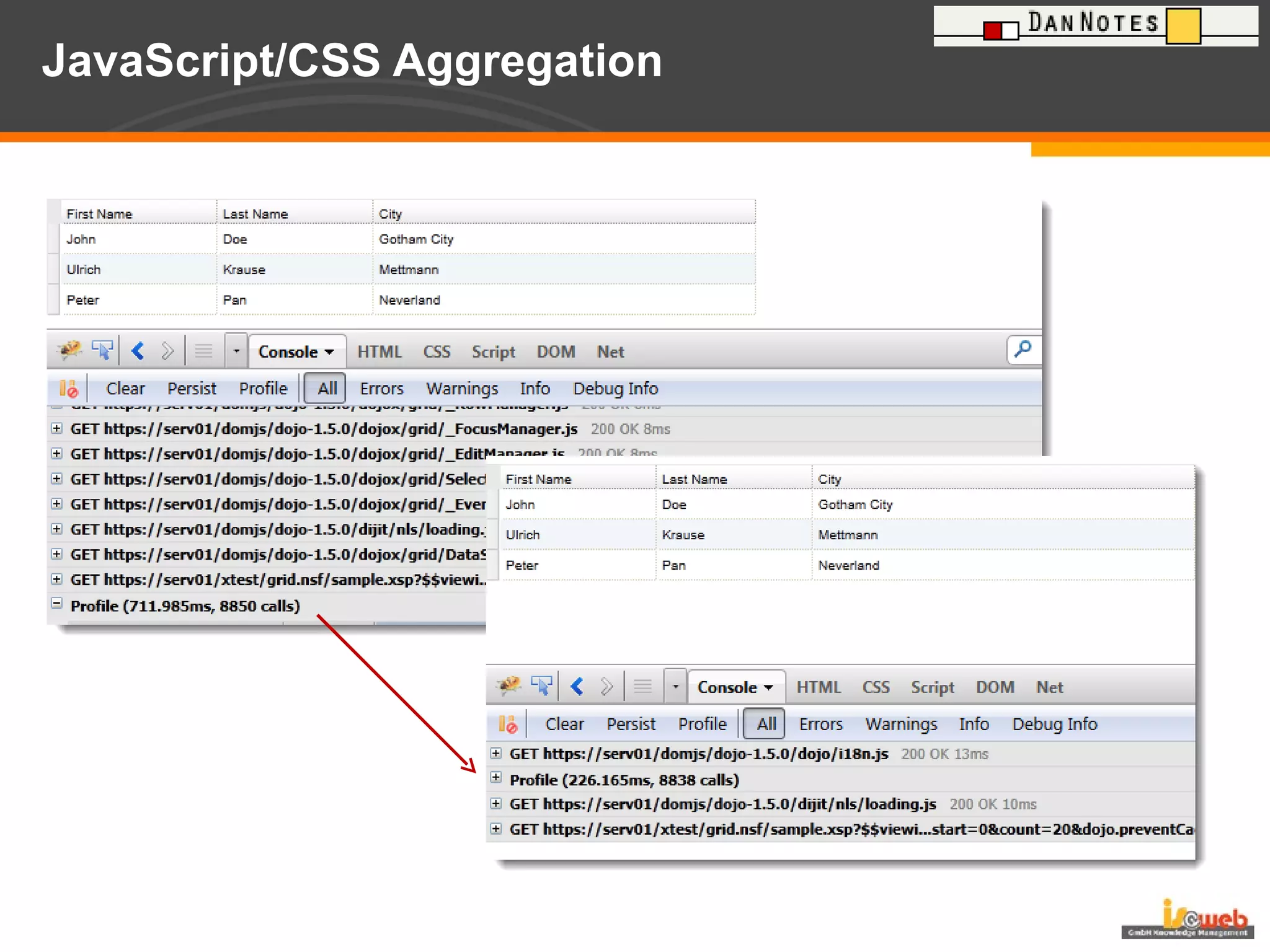

80. JavaScript/CSS Aggregation Dynamically aggregates multiple Dojo modules, or multiple CSS into a single file. This results in the following performance improvements: a decrease in requests sent from the browser to the server an increase in user performance, particularly in the context of networks with high latency an increase in the speed of JS/CSS parsing from the browser. the freeing up of server connections to fulfill other requests. Server level in xsp.properties: xsp.resources.aggregate=true

81. JavaScript/CSS Aggregation

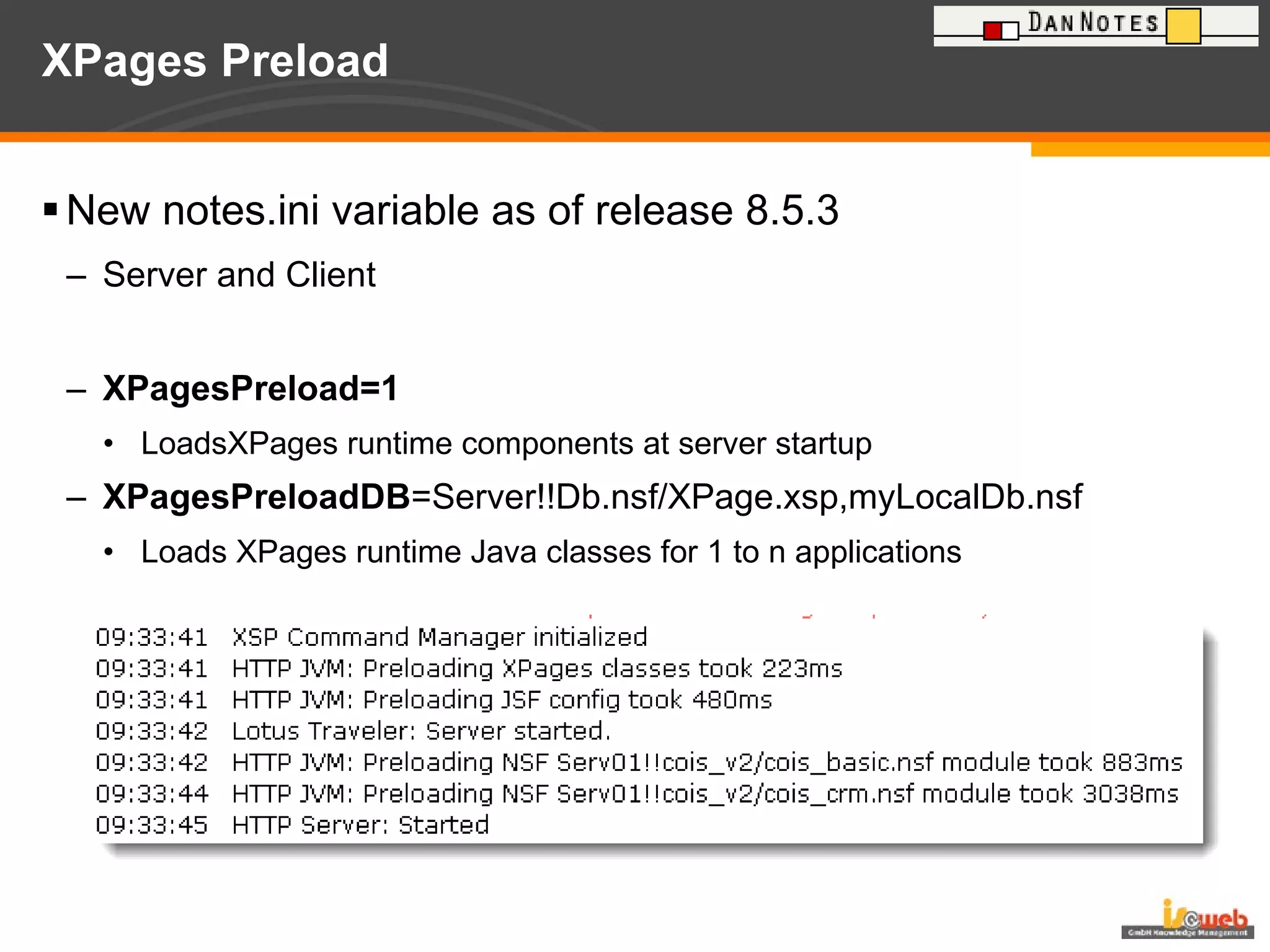

82. XPages Preload New notes.ini variable as of release 8.5.3 Server and Client XPagesPreload=1 LoadsXPages runtime components at server startup XPagesPreloadDB =Server!!Db.nsf/XPage.xsp,myLocalDb.nsf Loads XPages runtime Java classes for 1 to n applications

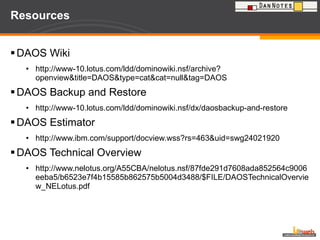

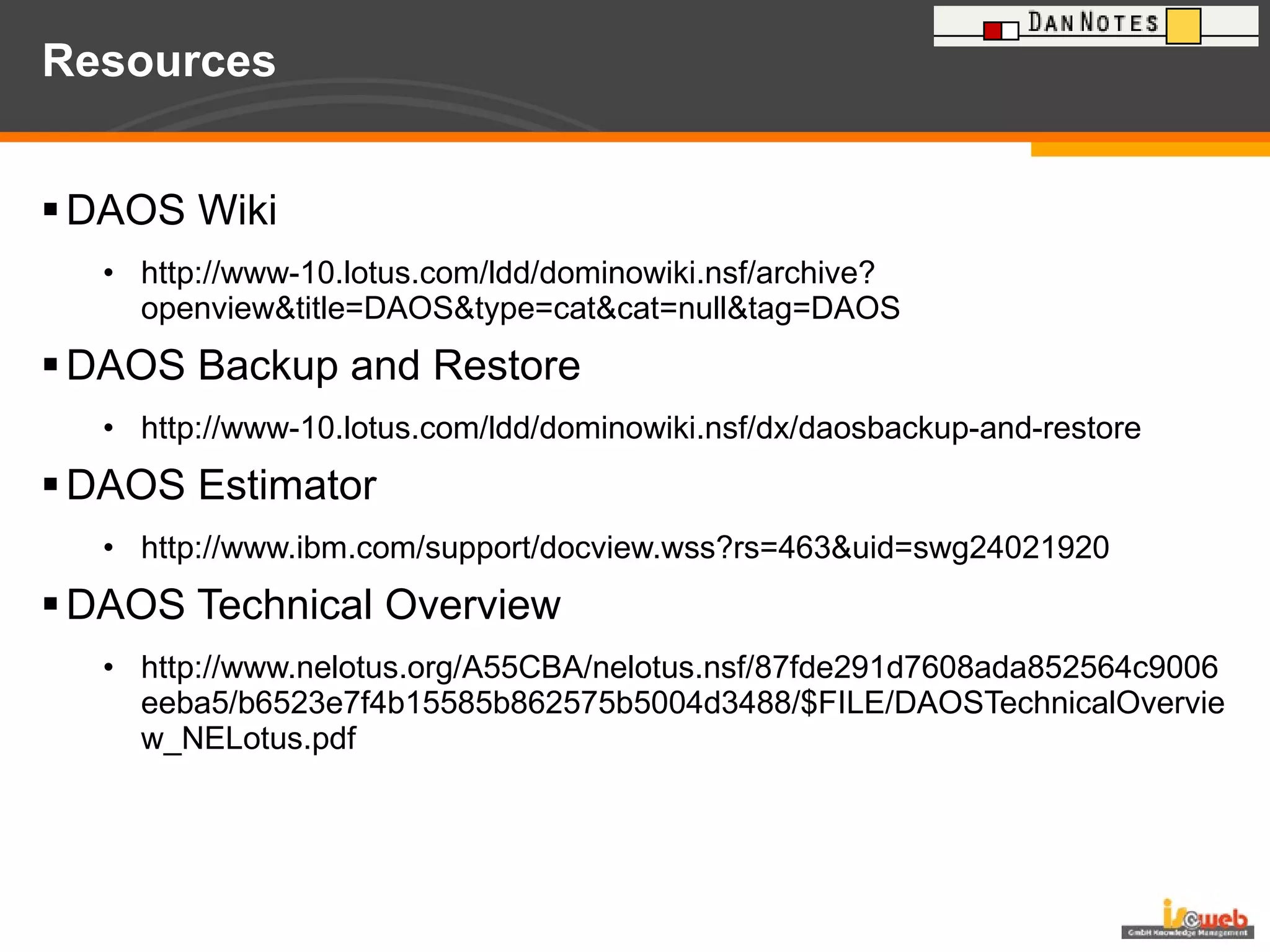

83. Resources DAOS Wiki http://www-10.lotus.com/ldd/dominowiki.nsf/archive?openview&title=DAOS&type=cat&cat=null&tag=DAOS DAOS Backup and Restore http://www-10.lotus.com/ldd/dominowiki.nsf/dx/daosbackup-and-restore DAOS Estimator http://www.ibm.com/support/docview.wss?rs=463&uid=swg24021920 DAOS Technical Overview http://www.nelotus.org/A55CBA/nelotus.nsf/87fde291d7608ada852564c9006eeba5/b6523e7f4b15585b862575b5004d3488/$FILE/DAOSTechnicalOverview_NELotus.pdf
