Door metal detectors are security screening devices used to detect concealed metal objects on a person's body. They consist of coils that generate magnetic fields to induce eddy currents in nearby metal. Single-zone detectors detect metal but cannot locate it precisely, while multi-zone detectors can determine if metal is on the left or right side. Factors to consider when choosing a detector include uniform detection capabilities, resistance to interference, continuous operation, ability to detect different metal types, and tolerance for varying transit speeds and orientations of metal objects. Door metal detectors are commonly used for security screening in prisons, courthouses, and airports.

1. Door Metal Detector
A detector is an associate instrument that detects the presence of metal. Metal
detectors area unit helpful for locating metal hidden among objects, or metal objects
buried underground. A Door Frame findor |detector |sensor |sensing element
(DFMD) because the name suggests may be a detector fitted in a very door to detect
metal that will be hidden on the body of the person passing through this door. This is
additionally called a “walk through” detector. These area unit used for security
screening at access points in prisons, courthouses, and at airports to detect
concealed metal weapons on a person’s body.
The simplest type of detector consists of associate generator manufacturing
associate AC that passes through a coil manufacturing associate alternating
magnetic flux. If a touch of electrically semiconducting metal is about to the coil,
eddy currents will be induced in the metal, and this produces a magnetic field of its
own.
The biggest technical amendment in detectors was the event of the induction-
balance system. This system involves two coils that are electrically balanced. When
metal is introduced to their vicinity, they would become unbalanced. What allowed
detectors to discriminate between metals was the very fact that each metal
encompasses a totally different part response once exposed to AC.

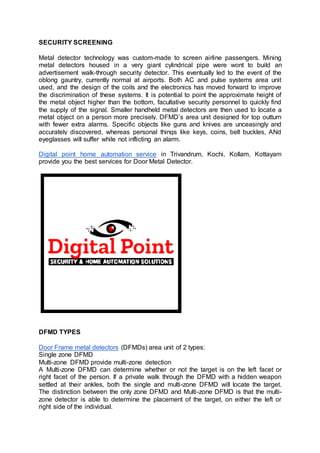

2. SECURITY SCREENING
Metal detector technology was custom-made to screen airline passengers. Mining
metal detectors housed in a very giant cylindrical pipe were wont to build an
advertisement walk-through security detector. This eventually led to the event of the
oblong gauntry, currently normal at airports. Both AC and pulse systems area unit
used, and the design of the coils and the electronics has moved forward to improve
the discrimination of these systems. It is potential to point the approximate height of
the metal object higher than the bottom, facultative security personnel to quickly find
the supply of the signal. Smaller handheld metal detectors are then used to locate a
metal object on a person more precisely. DFMD’s area unit designed for top outturn
with fewer extra alarms. Specific objects like guns and knives are unceasingly and
accurately discovered, whereas personal things like keys, coins, belt buckles, ANd
eyeglasses will suffer while not inflicting an alarm.
Digital point home automation service in Trivandrum, Kochi, Kollam, Kottayam
provide you the best services for Door Metal Detector.
DFMD TYPES
Door Frame metal detectors (DFMDs) area unit of 2 types:
Single zone DFMD
Multi-zone DFMD provide multi-zone detection
A Multi-zone DFMD can determine whether or not the target is on the left facet or
right facet of the person. If a private walk through the DFMD with a hidden weapon
settled at their ankles, both the single and multi-zone DFMD will locate the target.
The distinction between the only zone DFMD and Multi-zone DFMD is that the multi-
zone detector is able to determine the placement of the target, on either the left or
right side of the individual.

3. Multi-zone technology recognize between miniature handguns and harmless
objects like keys and coins
Multi-zone Door Metal Detector deploy ‘Continuous Wave Multiple device activity
Technique’ over the ordinarily used ‘Pulse Induction method’. This increases
screening efficiency and cuts operating costs. Multiple zones of detection permit the
precise location of hid weapons to be pinpointed. A show shows if a weapon is found
on the left, right or center of the person being screened and if it is at ankle, knee,
waist, chest or head height. If more than one weapon is being carried each is
detected and its location is shown. During the associate succeeding manual search,
security personnel will straightaway target the thing, or objects, that created the
alarm(s.).
An important feature of horizontal multiple zone technology is its ability to
expeditiously discriminate between miniature handguns and harmless objects.
People being screened will have the detector while not the inconvenience of getting
to empty their pockets of traditional amounts of keys and coins. Weapons factory-
made from steel, various grades of stainless steel, aluminum, zinc alloys, and mixed
alloys are detected using a single operating mode.
The technology offers glorious electrical interference rejection, thus eradicating false
alarms that halt traffic flows. The instrumentality is additionally endlessly active,
which implies that weapons or contraband can't be passed, fell or tossed through the
detector undetected.
ENHANCED FEATURES.
Traffic Counters: DFMD’s area unit currently designed with intelligent and just
about invisible traffic counters that area unit integrated within the coil panels.
Counters are bi-directional with a decrease mode. Alarms, folks and alarm rates will
all be counted. Remote security management: DFMD information will currently be

4. viewed at the desktop. It allows observance of traveller data, traveller information
assortment and process with versatile news tools, further as observance and
management of all parameters of the DFMD.
Collect Statistics: Statistics can be summarized, shared by email and printed in
easy-to-read reports.
Monitors traveller Flow: licensed personnel will read the traffic and alarm levels of
the DFMD’s that area unit connected to the network. The read provides you a fast
overall look of lines with high traffic, serving to one to raised deploy resources.
Monitors Security: once there's a deviation from the first settings hold on within the
computer, the operator receives associate degree alert. This feature quickly
indicates any misuse or malfunctions of the DFMD and increases the overall security
level.
Other Applications:
Most DFMD’s have part sensitive detection circuits, that permit the user to reinforce
the sensitivity sure cluster of metals and cut back it for others. DFMD’s area unit
designed to notice each metal & Non metal Metals. With higher sensitivity they'll be
utilized in the jewellery producing units to safeguard against thievery. High Sensitivity
DFMD’s area unit designed specifically for police work tiny metal and non-ferrous
things, like disposable jail razors, a piece of razor blade, metal shanks, handcuff
keys, detonator caps, jewellery, coins, microprocessor and memory chips. Use of
such DFMD’s will increase safety in prisons and jails by efficiently police work tiny
metal objects which will be used as weapons, even when they are hidden in body
cavities. They are additionally deployed in producing and distribution facilities to
safeguard tiny, valuable assets.Digital point home automation service in Trivandrum,
Kochi, Kollam, Kottayam provide you the best services for Door Metal Detector.
FACTORS TO CONSIDER WHEN EVALUATING A DFMD.
Uniform Detection: it's necessary to pick a detector that offers uniform detection
throughout the whole interrogation region. The detection response from a poorly
designed standard detector won't be linear. High sensitivity hot spots and low
sensitivity regions known as dead spots may be present within different regions of
the detection field. The detection response from a specific metal object can vary
because it is carried through completely different sectors of the gate.
Electrical and magnetism interference: they'll play mayhem with their performance
and infrequently render them unusable. Quality detectors utilize extremely
economical noise inhibition package algorithms. Noise originates from a range of
sources; unsteady fluorescent lightweight tubes, computer monitors, photocopiers,
two-way radios, etc. The level of close noise can vary from location to location. It is
suggested to check the DFMD within the location wherever it'll eventually be put in.
Continuously active detection: continuously choose a detector that's incessantly
active. At no time ought to the detection electronic equipment be deactivated. Under

5. no circumstances should a non-continuously active DFMD be put in in associate
degree unmanned automatic entry door system.
Metal Types: For each weapons screening and thievery interference the detector
should be capable of efficiently police work a range of metals in a very single in
operation program.
Object transit speed & Orientation: no matter whether or not the target object is
carried terribly slowly, quickly or tossed through the detector it should always be
detected. It should also be possible to detect the target irrespective of its orientation.
DFMDs that area unit utilized in business and industrial functions. Widely applicable
in hotels, airports, malls, multiplexes and varied public visiting areas.
