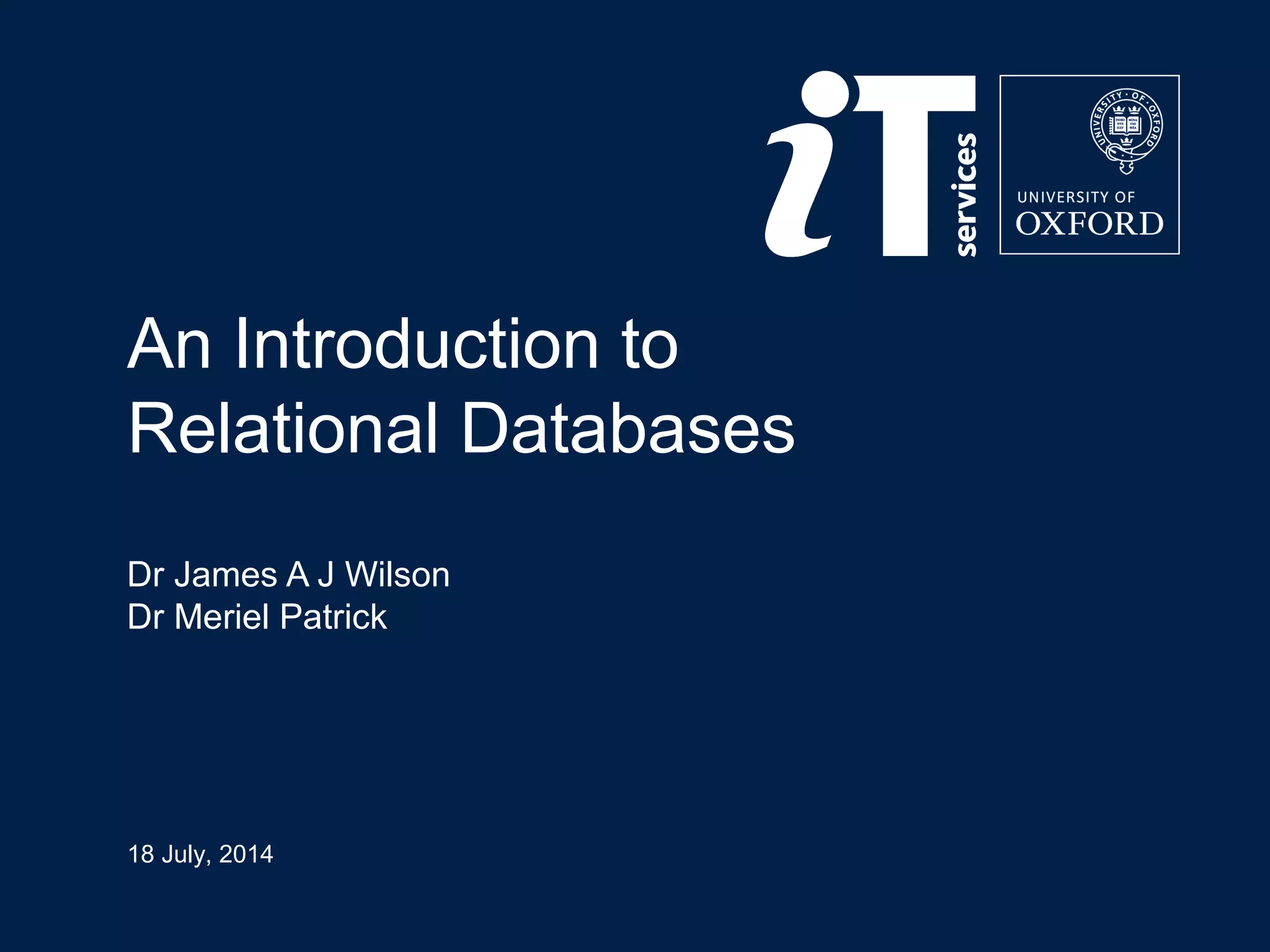

DHOxSS 2014 - Introduction to Relational Databases

An Introduction to
Relational Databases
Dr James A J Wilson
Dr Meriel Patrick
18 July, 2014

18 July, 2014
Page 2

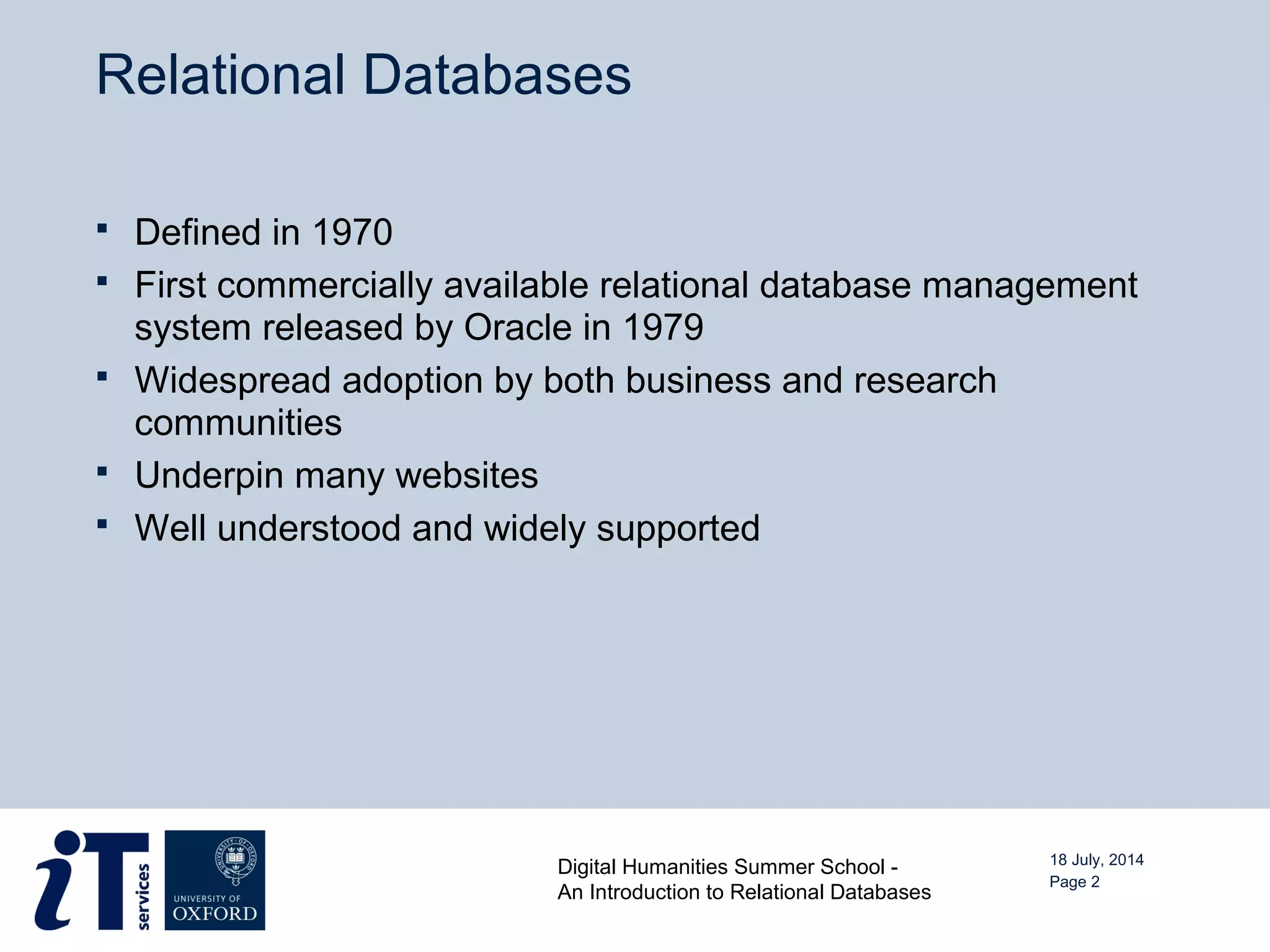

Relational Databases
 Defined in 1970
 First commercially available relational database management
system released by Oracle in 1979
 Widespread adoption by both business and research
communities
 Underpin many websites
 Well understood and widely supported
Digital Humanities Summer School -
An Introduction to Relational Databases

Options when structuring data
 Spreadsheets
 Recording the common properties of a single thing
 Numerical analysis
 Generating charts and graphs
 Relational databases
 Recording the common properties of multiple related things
 Flexible querying
 Document-orientated databases / ‘semi-structured’ databases
 Recording items which share some common properties
 Avoids need to define rigid structure in advance
 XML / XML databases
 Categorizing elements of text
 RDF (Resource Description Framework) triplestores
 Records relationships between things (basis of Semantic Web)
Digital Humanities Summer School - 18 July, 2014
An Introduction to Relational Databases Page 3

When to use a relational database
 You are collecting information about things which share
common properties
 You want to be able to list particular records that meet certain
conditions
 You wish to encourage consistency
 You want to be efficient, and avoid duplication of information
 You value flexibility when querying
 Good for collaborative working – one person sets up the
database, many can edit the data, many more can view or
query the data

Structure of a relational database - tables
 Example scenario: study of 18th century book trade
 What things are we interested in?
 Publications
 Publishers
 People
 Our sources for the information we’re collecting
 And what information might we want to know about each of
these things?
 Names
 Dates
 Places
 References

Person
Surname
First name
Middle initial(s)
Date of birth
Notes
Publication
Title
Author(s)
Publisher
Date of publication
Place of publication
Edition
Format
Type of publication
Price
Sales
Notes
Publisher
Name
Staff
Founded
Ceased
Address
Notes
Reference
Author(s)
Title
Date of publication
Edition
Volume
Page(s)
URL
Notes

Structure of a relational database – data
types
 Most relational database management systems require that
each field has a defined data type
 Text (e.g. varchar, memo)
 Numeric (e.g. integer, decimal)
 Date
 Boolean (true / false; on / off)
 Blob (for otherwise undefined data, such as image files)
 Each table needs at least one field that only contains unique
values, which can be used as a ‘primary key’
 Commonly an auto-incrementing whole (integer) number

Person
ID Int
Surname Text
First name Text
Middle
Text
initial(s)
Date of birth Date
Notes Text
Publication
ID Int
Title Text
Author(s) Text
Publisher Text
Date of
Int?
publication
Place of
publication
Text
Edition Int
Format Text
Type of
Text
publication
Price Dec?
Sales Int?
Notes Text
Publisher
ID Int
Name Text
Staff Text
Founded Int?
Ceased Int?
Address Text
Notes Text
Reference
ID Int
Author(s) Text
Title Text
Date of
Int?
publication
Edition Int?
Volume Int?
Page(s) Text
?
URL Text
Notes Text

Structure of a relational database -
relationships
 Our different things are related to one another
 A person may be the author of a publication, or a reference work, or
they may be a publisher
 Each edition of a publication has a publisher, or maybe more than
one?
 The information you record about a particular publication, or
publisher, may come from one or more sources
 Relationships between things can be of various sorts:
 One-to-many (e.g. a publisher may have many publications)
 Many-to-many (e.g. a publication may have many authors, and an
author may have many publications)
 One-to-one (rarely used – can improve performance, overcome
system limitations, or enable more granular access permissions)

Person
ID Int
Surname Text
First name Text
Middle
Text
initial(s)
Date of birth Date
Reference Int
Page Text
Notes Text
Publication
ID Int
Title Text
Author(s) INT
Publisher INT
Date of
Int?
publication
Place of
publication
Text
Edition Int
Format Text
Type of
Text
publication
Price Dec?
Sales Int?
Reference Int
Page Text
Notes Text
Publisher
ID Int
Name Text
Staff Text
Founded Int?
Ceased Int?
Address Text
Reference Int
Page Text
Notes Text
Reference
ID Int
Author(s) Text
Title Text
Date of
Int?
publication
Edition Int?
Volume Int?
URL Text
Notes Text
1
∞
?
1
∞
∞
∞

Person
ID Int
Surname Text
First name Text
Middle
Text
initial(s)
Date of birth Date
Reference Int
Page Text
Notes Text
Publication
ID Int
Title Text
Author(s) INT
Publisher INT
Date of
Int?
publication
Place of
publication
Text
Edition Int
Format Text
Type of
Text
publication
Price Dec?
Sales Int?
Reference Int
Page Text
Notes Text
Publisher
ID Int
Name Text
Staff Text
Founded Int?
Ceased Int?
Address Text
Reference Int
Page Text
Notes Text
Reference
ID Int
Author(s) Text
Title Text
Date of
Int?
publication
Edition Int?
Volume Int?
URL Text
Notes Text
1
∞
many
to ?
Many 1
∞
∞
∞

Authorship
ID Int
Author Int
Publication Int
Person
ID Int
Surname Text
First name Text
Middle
Text
initial(s)
Date of birth Date
Reference Int
Page Text
Notes Text
Publication
ID Int
Title Text
Publisher INT
Date of
Int?
publication
Place of
publication
Text
Edition Int
Format Text
Type of
Text
publication
Price Dec?
Sales Int?
Reference Int
Page Text
Notes Text
Publisher
ID Int
Name Text
Staff Text
Founded Int?
Ceased Int?
Address Text
Reference Int
Page Text
Notes Text
Reference
ID Int
Author(s) Text
Title Text
Date of
Int?
publication
Edition Int?
Volume Int?
URL Text
Notes Text
1
∞
many
to ?
Many 1
∞
∞
∞

Alternative structures
 If you are certain that no publication is going to have more than
three authors, your might want to have fields in the ‘publication’
table for author1, author2, author3 – each with a one-to-many
relationship with the ‘person’ table
 You could create another table just consisting of IDs and
different types of publication. This could then be linked to the
‘publication’ table and act as a controlled vocabulary
 Have a separate table for edition information. In most cases
authors will not change, format might, sales and price almost
certainly will. This will avoid data duplication
 But maybe authors will be credited differently (anon revealed?), or
titles vary between editions?

Database design – good practice
 Database normalization:
 Shouldn’t have to enter the same data twice
 Separate tables for separate things
 Don’t define duplicate fields in the same table (e.g. author1, author2, etc.)
 Fields should be ‘atomic’ – containing information at the most granular level
(usually)
 Enforce data integrity
 Keep ‘blobs’ of data (images, audio, etc.) outside of your database or at the very
least in separate tables; include links to the files within the database
 Table / field naming conventions:
 Be consistent
 Avoid spaces, punctuation marks, and other non-alphanumeric characters
(although it’s fine to use underscores instead of spaces)
 Document your database! You will thank yourself later
18 July, 2014
Page 14

Database design workflow

Querying a relational database
 Queries usually constructed using SQL statements
 SQL stands for ‘Structure Query Language’
 Some Relational Database Management Systems hide the raw SQL
from the user by providing query-builder tools
 SELECT statements indicate which fields should be returned
 FROM statements indicate the table(s) in which those fields are
to be found
 JOIN statements are used when you wish to query multiple
tables
 WHERE statement provide the conditions that a record must
meet in order to be listed in results
 ORDER BY statements control the order in which results are
returned

Querying a relational database - examples
 Imagine we have a single table in a database, called ‘countries’
18 July, 2014
Page 17
Countries
ID Int.
name Text
area Int.
population Int.
continent Text
If_visited Bool.
observations Text
SELECT * FROM Countries
would return all information about all countries
SELECT name, area, population FROM Countries
would return only the information in the named fields
SELECT * FROM Countries WHERE visited = TRUE
would return all information about countries that have been visited
SELECT * FROM Countries WHERE visited = TRUE AND
population > 1000000
would return all information about countries that have been visited
and have a population of greater than a million

Querying a relational database - examples
 JOINS are used to search across multiple tables
WHERE c.visited = TRUE AND d.name = ‘Europe’
would return selected information
about each European country visited
18 July, 2014
Page 18
 SELECT c.name, c.area, c.population, d.name
FROM Countries c INNER JOIN Continents d
ON c.continent = d.ID
Countries
ID Int.
name Text
area Int.
population Int.
continent Int.
If_visited Bool.
observations Text
Continents
ID Int.
name Text
area Int.

What query results look like
 A single table / spreadsheet
 Although software / websites may format results into a report.
18 July, 2014
Page 19

What can you do with your results?
 Count, sort, and sometimes filter further
 Export and analyse
 .csv file format is standard, and compatible with almost all statistical
analysis / data visualisation software
 Save and make available to others
18 July, 2014
Page 20

Common database challenges in the
humanities
 Patchy or incomplete data
 Beware of the difference between 0 and null
 Varying degrees of accuracy
 Often an issue with historical dates
 Splitting the separate elements of a date into separate fields may help
 Interpreted and uncertain information
 Include a field indicating the degree of certainty of a particular ‘fact’ –
e.g. ‘Definite, Probable, Possible’
 Inconsistent or changing terminology
 Alternative spellings, different forms of address, name changes
 Can be an idea to have a table of controlled vocabulary
 ‘Fuzziness’ vs. ‘queryableness’
 e.g. if you store a data as ‘c. 310 BCE’, you can’t use it in a conditional
query such as ‘list all the inscriptions from the fourth century BCE

Your exercise today…
 Draft a structure for a relational database recording information
about membership of gentlemen’s clubs in Victorian London
 Think about the tables, fields, and relationships you’d need
 Your evidence collection (membership records, letters, diaries,
etc.) tells you which clubs people belonged to, and when
 However, the information is patchy
 Names may not be given in full – identity is sometimes uncertain
 Dates may be uncertain or missing
 All clubs have multiple members; some people were members
of multiple clubs at varying periods
 Over the years, some clubs changed locations

Our example solution

Possible enhancements
 If dates are uncertain, integer may not be the best data type.
 Make the relationship between club_memberships and
evidence many-to-many rather than one-to-many
 Done by adding a link table
 Split author entries into a separate table
 Allows multiple authors for each piece of evidence
 Impose a controlled vocabulary on the occupation field by
adding a look-up table
 Add longitude and latitude to the addresses table.

Relational Database Management
Systems
 Databases can seem rather complicated, but there is software
that can help
 MS Access
 Filemaker Pro
 Coming soon to Oxford – the Online Research Database Service
(ORDS)
 For web-hosted relational database manipulation:
 MySQL
 PostgreSQL

Questions?
18 July, 2014
Page 26

DHOxSS 2014 - Introduction to Relational Databases

Recommended

Recommended

More Related Content

What's hot

What's hot (12)

Viewers also liked

Viewers also liked (20)

Similar to DHOxSS 2014 - Introduction to Relational Databases

Similar to DHOxSS 2014 - Introduction to Relational Databases (20)

More from Research Support Team, IT Services, University of Oxford

More from Research Support Team, IT Services, University of Oxford (20)

Recently uploaded

Recently uploaded (20)

DHOxSS 2014 - Introduction to Relational Databases

Editor's Notes
