The document provides instructions for applying an epoxy-based compressed screed flooring. Surface preparation is the most important step and involves methods like manual preparation, machine grinding or shot blasting to remove contaminants and laitance. New concrete must be cured and cracks repaired while old concrete must be structurally sound. Priming helps the epoxy bond to the concrete and screeding levels the surface. The screed is then compressed using a power trowel for strength before intermediate priming and self-leveling coats followed by a top coat are applied. The epoxy compressed screed flooring provides advantages over self-leveling flooring like heavy load bearing capacity and reduced risk of delamination or bub

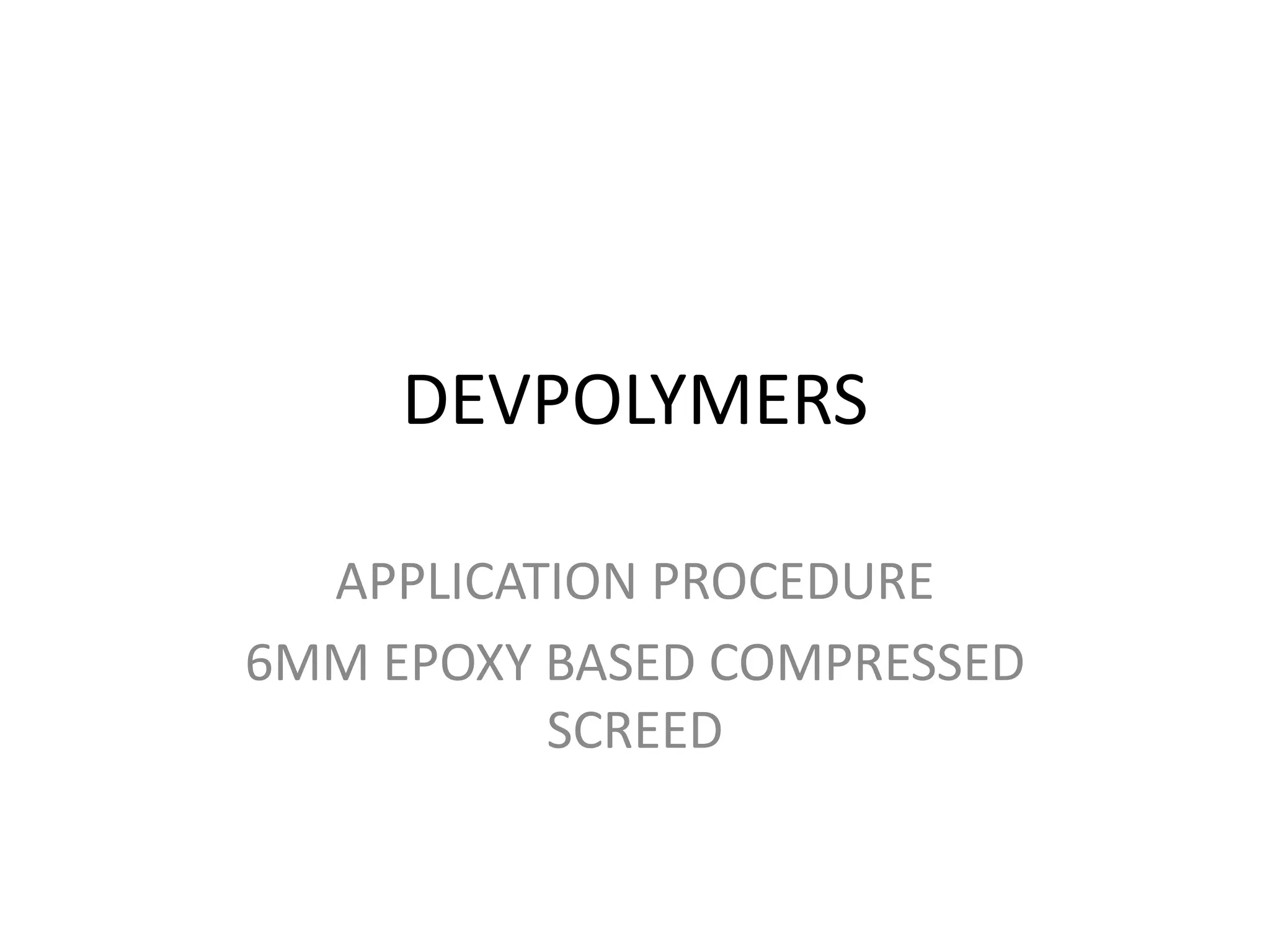

1. DEVPOLYMERS
APPLICATION PROCEDURE
6MM EPOXY BASED COMPRESSED
SCREED

2. SURFACE PREPARATION
• METHOD OF PREPARATION:
1.MANUAL PREPARATION
2.MACHINE GRINDING
3.SHOT BLASTING
ETC.,

3. SURFACE PREPARATION
• BRIEF DESCRIPTION:
Surface preparation is considered to be the most important step of any
resinous(epoxy)flooring application. A clean surface is necessary to establish a
strong bond between the resinous (epoxy)flooring and concrete.
A)NEW CONCRETE:
a)New concrete should be well cured and dry prior to application.
b)Laitance is always present on new concrete which has to be removed by
machine grinding to over come the poor adhesion
c)Repair cracks prior to resinous (epoxy)flooring application
B) OLD CONCRETE:
a)Old concrete should be structurally sound ,any unsound area must be
repaired.
b)Old surface are often contaminated ,worn or degraded.So oil or grease or
debris contamination should be properly removed

4. MANUAL PREPARATION
CHIPPING OF DEBRIS V-GROOVES ALONG JOINTS

5. MACHINE GRINDING
GRINDING MACHINE –DIAMOND
CUTTER
GRINDING DUST SHOULD BE
PROPERLY REMOVED

6. PRIMING & SCREED LEVELLING
• BRIEF DESCRIPTION:
• PRIMING :
Priming plays a major role in resinous (epoxy) flooring .It produces a thin coat that
the next coat can chemically fuse with it .Epoxy primers are thin and provide for
better adhesion because they penetrate into the concrete substrate for a better
bond.
SCREED LEVELLING :
As priming is going on SCREED MIXTURE is layed and leveled with the tackiness of
primer .This makes the bonding of concrete to screed layer is increased .
And screed layer is levelled with aluminium slides.
COMPRESSION OF EPOXY SCREED :
This process makes more advantages to epoxy flooring .By compression the filler
and binder forms a uniform structure to have more compression strength and
impact resistance from base.

7. PRIMING & SCREED LEVELLING
PRIMING BEFORE SCREEDING

8. SCREED LEVELLING
SCREED LEVELLING BEFORE
COMPRESSING
SCREED LEVELLING BEFORE
COMPRESSION

9. COMPRESSION OF EPOXY SCREED
COMPRESSION WITH POWER
TROWEL
COMPRESSION WITH POWER
TROWEL

10. FINISHED SCREED

11. INTERMEDIATE PRIMING
&SELFLEVELLING
• After compression of screed ,a primer is give to close
the porosity of screed .This process makes the screed
more compaction with binder.
• Intermediate selflevelling is given of levelling of
flooring with desired colour.

12. INTERMEDIATE SELFLEVELLING ON
SCREED
INT SELFLEVELLING INT SELFLEVELLING

13. TOP SELFLEVELFLOORING
TOP COAT APPLICATION TOP COAT APPLICATION

14. FINISHED FLOORING
CATTERPILLER MADRAS ENGINEERING

15. FINISHED FLOORING
M.M.FORGING CRAFTSMAN AUTOMATION

16. CONCLUSSION
EPOXY BASED COMPRESSED
SCREED FLOORING
• ADVANTAGES:
• 1)HEAVY LOAD BEARING
• 2)PERMANENT UNDER LAY
• 3)ADVANTAGES OVER
SELFLEVELLING FLOORING
• 4)DELAMINATION AND
BUBBLE FORMATION IS
RESTRICTED
• COST EFFECTIVE IN LONG
TERM SERVICE
PREPARED BY :
• V.SUGADEV B.E(CHEM)
DIRECTOR – TECHNICAL
DEVPOLYMERS
21 E/1 SIDCO IND ESTATE
CHENNAI -600098
09840267457
