The document outlines the development of a windows-based graphical user interface version of the 3D-Move software for pavement response analysis. Key features of the new software include the ability to model complex loading conditions from databases, generate asphalt mixture master curves from lab data, and output results in graphical and tabular formats. The new version aims to improve usability and running time compared to the original DOS-based version. Recommendations for future work include optimization of material models, inclusion of additional vehicle types, and modeling of pavement stresses under non-uniform loading conditions.

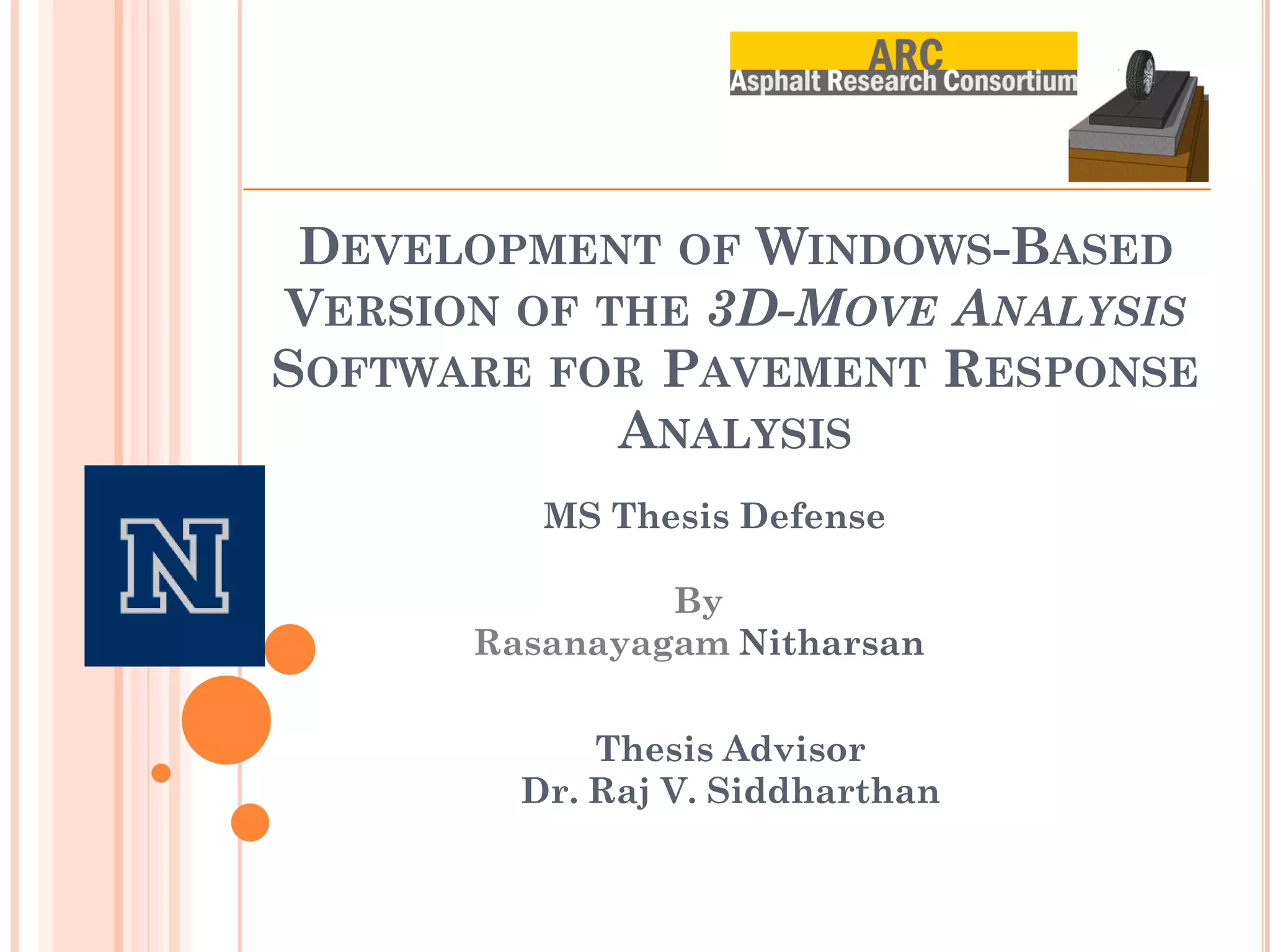

1. DEVELOPMENT OF WINDOWS-BASED
VERSION OF THE 3D-MOVE ANALYSIS
SOFTWARE FOR PAVEMENT RESPONSE
ANALYSIS
MS Thesis Defense
By
Rasanayagam Nitharsan
Thesis Advisor
Dr. Raj V. Siddharthan

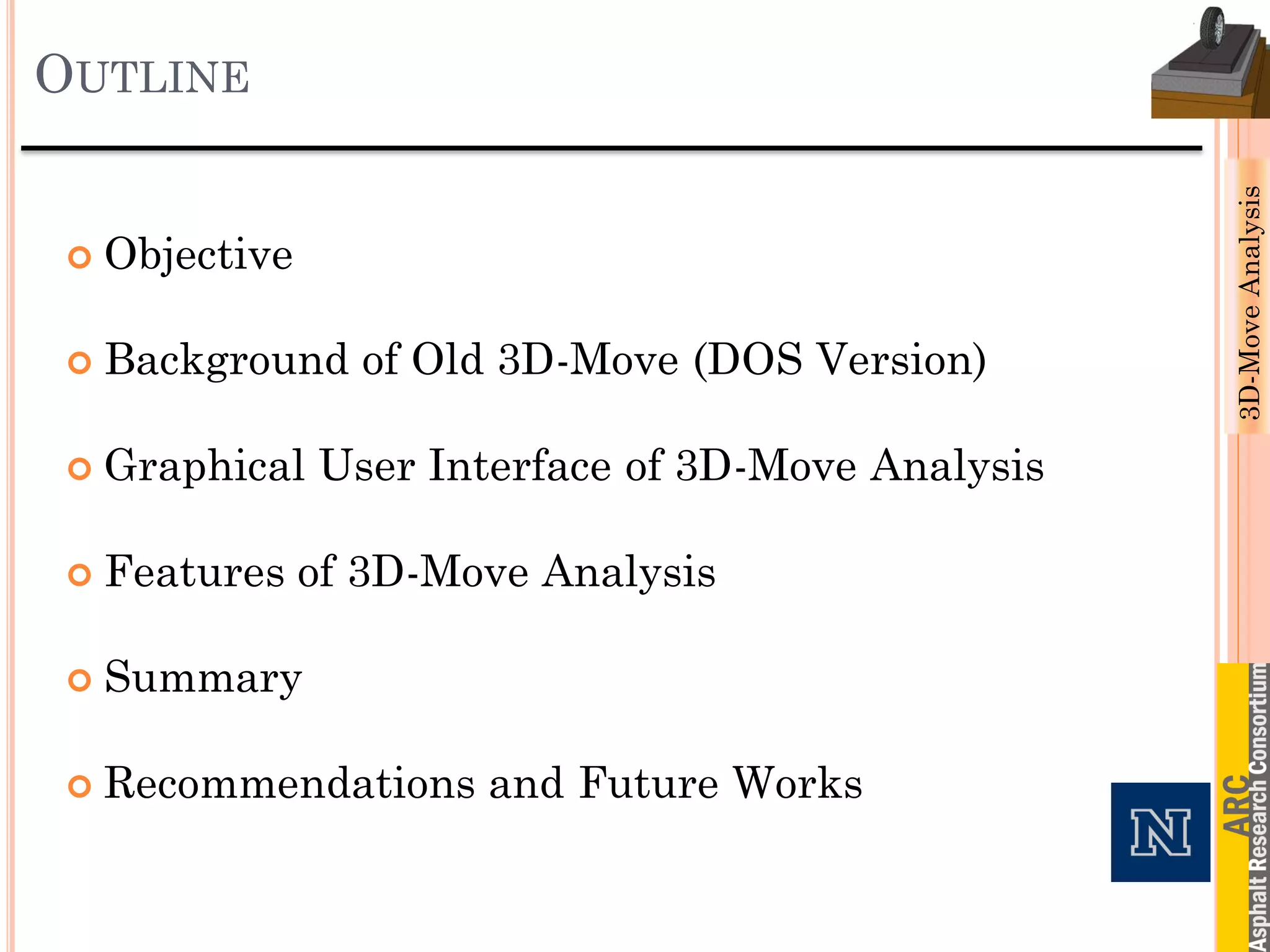

2. OUTLINE
3D-Move Analysis
 Objective
 Background of Old 3D-Move (DOS Version)
 Graphical User Interface of 3D-Move Analysis
 Features of 3D-Move Analysis
 Summary
 Recommendations and Future Works

3. OBJECTIVE
3D-Move Analysis
 Development of 3D-Move in windows based
environment using graphical user interface.
 Improvement in the running time for 3D-
Move dynamic analysis.
 Generation of asphalt mixture master curve.
 Generation of contact stress distribution
data for generic loaded areas.
 Generation of non-uniform contact stress
distribution from NATC and VRSPTA data.

4. OBJECTIVE
 Inclusion of Non-highway vehicle loading.
3D-Move Analysis
 Load distribution in 18-wheel semi-trailer
truck under braking condition.
 Inclusion of the role of dynamic variation of
tire load (Dynamic Loading Coefficient,
DLC).
 Generation of output in graphical and
tabular format.
 Help and user manual for users.
 Development of user’s forum to discuss the
error and difficulties encountered.

5. BACKGROUND OF OLD 3D-MOVE (DOS VERSION)
3D-Move Analysis
 3D-Move core developed by Dr. R. Siddharthan
et al. 1993, 1998 using FORTRAN.
 Continuum based finite layer approach.
 Uses Fourier Transform Technique (FTT).
 Ability to handle complex surface loadings.
 Ability to handle frequency- sweep data
(Viscoelastic Characterization)

6. BACKGROUND OF OLD 3D-MOVE
3D-Move Analysis
Example No. 1
 Input to 3D-Move using data file !- SYSTEM DATA LINE
3,3,1,7,0
!- UNITS DATA LINE
 Issues in Old 3D-Move 1,1,7,1
!- LOAD CASES INFORMATION
 Preparing data files is time 1,0.0
!- MATERIAL TYPES
consuming 0,300000,0.4,0
0,120000,0.4,0
 Difficult to correct the error in 0,60000, 0.4,0
!- LAYER INFORMATION
data file 1,0.15,22.0
2,0.20,18.0
3,6.00,17.3
 Difficult to prepare data file for !- INDIVIDUAL RESPONSE DATA
loading and materials POINTS
0.09,0.09,0.0
0.09,0.09,0.15
 No complex loading databases 0.09,0.09,0.25
0.09,0.09,0.35001
 No built-in master curve functions 0.00,0.09,0.05
for mixture characterization 0.09,0.00,0.05
0.00,0.00,0.05

7. BACKGROUND OF OLD 3D-MOVE
3D-Move Analysis
 Modification to Old 3D-Move
 “Wave reduction” to reduce the time
 Log – Log Interpolation for discrete materials
properties
 Master curve models

8. GRAPHICAL USER INTERFACE OF 3D-MOVE
Written in Visual Basic.NET 2008
3D-Move Analysis

 Used Excel development tools, optimizations tools and
chart tools

9. GRAPHICAL USER INTERFACE OF 3D-MOVE
MAIN WINDOW OF 3D-MOVE
3D-Move Analysis
Menus
General Information
Project
Information
Input
Input/output
Summary

10. GRAPHICAL USER INTERFACE OF 3D-MOVE
3D-Move Analysis
Inputs
Outputs

11. FEATURES OF 3D-MOVE ANALYSIS
AXLE CONFIGURATIONS AND CONTACT PRESSURE DISTRIBUTION
3D-Move Analysis

12. AXLE CONFIGURATIONS AND CONTACT PRESSURE DISTRIBUTION
OPTION B : USER-SELECTED PRE-DEFINED AXLE/TIRE CONFIGURATION (UNIFORM
PRESSURE)
3D-Move Analysis

13. AXLE CONFIGURATIONS AND CONTACT PRESSURE DISTRIBUTION
OPTION C : USER-SELECTED TIRE CONFIGURATION AND CONTACT
PRESSURE DISTRIBUTION
3D-Move Analysis
Two sets of loading databases
 Vehicle-Road Surface Pressure Transducer Array
(VRSPTA)
 Different loads and pressures
 Vertical stress distribution
 transverse stress distributions
 Kistler Modulas Quartz Sensor Array device
 Different loads and pressures
 Various speeds
 Vertical stress distribution only
 All together 416 loadings combination

14. AXLE CONFIGURATIONS AND CONTACT PRESSURE DISTRIBUTION
OPTION C : USER-SELECTED TIRE CONFIGURATION AND CONTACT
PRESSURE DISTRIBUTION
3D-Move Analysis

15. AXLE CONFIGURATIONS AND CONTACT PRESSURE DISTRIBUTION
OPTION C : USER-SELECTED TIRE CONFIGURATION AND CONTACT
PRESSURE DISTRIBUTION
3D-Move Analysis

16. AXLE CONFIGURATIONS AND CONTACT PRESSURE DISTRIBUTION
OPTION D: SEMI-TRAILER TRUCK INCLUDING VEHICLE DYNAMICS
ANALYSIS
Static Loads
3D-Move Analysis
 Dynamic Load Transfer from
trailer axle to driving axle
 Axle load higher or lower
than static load Dynamic Loads
 Load transfer between axle to
axle and wheel to wheel
 Inducing Braking forces

17. AXLE CONFIGURATIONS AND CONTACT PRESSURE DISTRIBUTION
OPTION D: SEMI-TRAILER TRUCK INCLUDING VEHICLE DYNAMICS
ANALYSIS
3D-Move Analysis

18. AXLE CONFIGURATIONS AND CONTACT PRESSURE DISTRIBUTION
OPTION D: SEMI-TRAILER TRUCK INCLUDING VEHICLE DYNAMICS
ANALYSIS
3D-Move Analysis

19. AXLE CONFIGURATIONS AND CONTACT PRESSURE DISTRIBUTION
OPTION E : SPECIAL NON-HIGHWAY VEHICLES
3D-Move Analysis
 Heavy loaded vehicle
 Unusual tire size and low
inflation pressure compared
with conventional tires
 Standard Vehicle database
 Ability to calculate the tire
load

20. AXLE CONFIGURATIONS AND CONTACT PRESSURE DISTRIBUTION
OPTION E : SPECIAL NON-HIGHWAY VEHICLES
3D-Move Analysis

21. FEATURES OF 3D-MOVE ANALYSIS
VEHICLE SUSPENSION AND ROAD ROUGHNESS
3D-Move Analysis
 Perturbation load in
P(x)
terms of dynamic load x0 P(x0)
coefficient (DLC)
o X
 DLC is function of
P(x0)
Pavement Surface
axle type, vehicle V
speed, roughness and o
suspension type
Time

22. FEATURES OF 3D-MOVE ANALYSIS
VEHICLE SUSPENSION AND ROAD ROUGHNESS
3D-Move Analysis

23. FEATURES OF 3D-MOVE ANALYSIS
PAVEMENT LAYER STRUCTURE
3D-Move Analysis

24. FEATURES OF 3D-MOVE ANALYSIS
ASPHALT LAYER PROPERTIES
3D-Move Analysis
 Linear elastic Materials (E,v, damping ratio)
 Viscoelastic Materials
 Laboratory Data
 Symmetrical Sigmoidal Function (MEPDG)
 Non-Symmetrical Sigmoidal Function
 Symmetrical Sigmoidal Function (AMPT)
 Huet-Sayegh
 Model Function
 Witczak Model
 Huet-Sayegh

25. ASPHALT LAYER PROPERTIES
VISCOELASTIC MATERIALS
SYMMETRICAL SIGMOIDAL FUNCTION (MEPDG)
3D-Move Analysis
10,000
Dynamic Modulus |E*|at 70F, ksi
1,000
 Binder properties are
required to find
100
regression coefficient 10
 Optimized using 1
Principal axis
1.E-08 1.E-05 1.E-02 1.E+01 1.E+04 1.E+07
Frequency, Hz
theorem 40°F
100°F
70°F
130°F
E* at Reference Temperature E* at Analysis Temp

26. ASPHALT LAYER PROPERTIES
VISCOELASTIC MATERIALS
NON-SYMMETRICAL SIGMOIDAL FUNCTION (MEPDG)
3D-Move Analysis
10,000
Dynamic Modulus |E*|at 70F, ksi
1,000
 Binder properties are 100
required to find
regression coefficient 10
 Optimized using 1
1.E-08 1.E-05 1.E-02 1.E+01 1.E+04 1.E+07
Principal axis Frequency, Hz
40°F 70°F
theorem 100°F 130°F
E* at Reference Temperature E* at Analysis Temp

27. ASPHALT LAYER PROPERTIES
VISCOELASTIC MATERIALS
SYMMETRICAL SIGMOIDAL FUNCTION (AMPT)
3D-Move Analysis
 No binder properties
required 10,000
 Regression Dynamic Modulus |E*| at 70F,
1,000
Coefficients are
required 100
ksi
 Optimized using 10
Levenberg – 1
Marquardt theroem 1.E-08 1.E-05 1.E-02 1.E+01
Frequency, Hz
1.E+04 1.E+07
40°F 70°F
100°F 130°F

28. ASPHALT LAYER PROPERTIES
VISCOELASTIC MATERIALS
HUET-SAYEGH MODEL
3D-Move Analysis
 Regression Coefficients are
required
 Optimized using Levenberg –
Marquardt theroem???

29. ASPHALT LAYER PROPERTIES
VISCOELASTIC MATERIALS
3D-Move Analysis

30. ASPHALT LAYER PROPERTIES
VISCOELASTIC MATERIALS
3D-Move Analysis

31. ASPHALT LAYER PROPERTIES
VISCOELASTIC MATERIALS
3D-Move Analysis

32. ASPHALT LAYER PROPERTIES
VISCOELASTIC MATERIALS
3D-Move Analysis

33. FEATURES OF 3D-MOVE ANALYSIS
RESPONSE POINTS
3D-Move Analysis
Plane of
observation
Offset to Plane of
observation
determined by
program

34. FEATURES OF 3D-MOVE ANALYSIS
RESPONSE POINTS
3D-Move Analysis

35. RESPONSE POINTS
GRAPHICAL DISPLAY
3D-Move Analysis
Width = Yc +Ye

36. RESPONSE POINTS
GRAPHICAL DISPLAY
3D-Move Analysis

37. FEATURES OF 3D-MOVE ANALYSIS
INPUT SUMMARY
3D-Move Analysis

38. FEATURES OF 3D-MOVE ANALYSIS
OUTPUT SUMMARY – TEXT AND TABULAR FORMAT
3D-Move Analysis

39. FEATURES OF 3D-MOVE ANALYSIS
OUTPUT SUMMARY – TEXT AND TABULAR FORMAT
3D-Move Analysis

40. FEATURES OF 3D-MOVE ANALYSIS
OUTPUT SUMMARY – GRAPHICAL FORMAT
3D-Move Analysis

41. SUMMARY
3D-Move Analysis
 Working in windows environment
 Static/Dynamic Analysis
 Performance Analysis
 Ability to generate the uniform loading
 Supports the complex loading database
 Non-Highway and semi-trailer truck
Loading

42. SUMMARY
3D-Move Analysis
 Dynamic variation of tire load
 Ability to produce master curves from lab
data
 Output in tabular and graphical format

43. RECOMMENDATIONS
3D-Move Analysis
 Optimization of Huet-Sayegh model
 3D Stress Plot for intermediate loads
 Stable GUI for all display
 Separate tools for generating master
curves

44. FUTURE WORKS
3D-Move Analysis
 Non-Highway Vehicles (Buses and
agriculture off-rod vehicles)
 Cornering and turning moments
 Artificial Neural Network for Non-
uniform stress distributions
 Wheel wander
 Airplanes
 Seasonal Effect

45. Questions?
3D-Move Analysis
