Developing for Leap Motion DotnetConf session here: http://www.youtube.com/watch?v=YixzSUxyGKU ( 1 hour) Video tutorial can be found here: Developing for Leap Motion in C# Part 1: http://www.youtube.com/watch?v=1Rn3q75mdns Developing for Leap Motion in C# Part 2: http://www.youtube.com/watch?v=-r_cAtHQzy8 GitHub repository for the Leap Motion demo app: https://github.com/IrisClasson/Leap-Motion/ Slides: http://www.slideshare.net/irisdanielaclasson/developing-for-leap-motion/

1. Taking the Leap with
Leap Motion
Iris Classon

2. About me
• Technical Evangelist at Telerik (WinRT)
• Software Developer at Dotnet Mentor
• Microsoft MVP C# and member of MEET
• MCSD, MCPD, MCTS
• Organizer Sweden Pluralsight Study Group (Gothenburg)
• Started learning programming from 0 summer 2011
• Licensed clinical Dietitian and Int.Lic. Personal Trainer

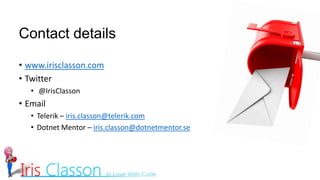

3. Contact details
• www.irisclasson.com
• Twitter
• @IrisClasson
• Email
• Telerik – iris.classon@telerik.com
• Dotnet Mentor – iris.classon@dotnetmentor.se

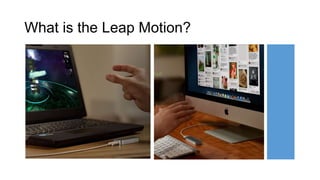

4. What is the Leap Motion?

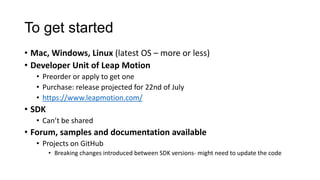

5. To get started
• Mac, Windows, Linux (latest OS – more or less)
• Developer Unit of Leap Motion
• Preorder or apply to get one
• Purchase: release projected for 22nd of July
• https://www.leapmotion.com/
• SDK
• Can’t be shared
• Forum, samples and documentation available
• Projects on GitHub
• Breaking changes introduced between SDK versions- might need to update the code

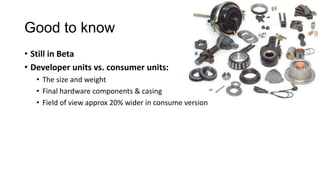

6. Good to know
• Still in Beta
• Developer units vs. consumer units:
• The size and weight
• Final hardware components & casing
• Field of view approx 20% wider in consume version

7. Do not forget
• Dispose Frame object when done with it
• RemoveListener from Controller when app closes
• Dispose Controller afterwards
• Add Leap.DLL, LeapCSHarp.DLL &
LeapCSHarp.NET4.0.DLL
• Set copy output to Copy Always
• Reference the LeapCSHarp.NET4.0.DLL

8. When in trouble w. the device
• USB-cable has been known to cause trouble
• Change USB port and/or cable
• Connect the Leap before running the executable
• Make sure there is light and the device is clean
• Calibrate screen
• Use the Leap Vizualiser to check if it works

9. The Leap story
• Small startup based in San Fransisco
• Venture capital
• Has grown from just a few people to 80 employees and still hiring
• Asus and HP on board
• 40 000 Devs signed up
• 12 000 dev units shipped so far
• Still shipping

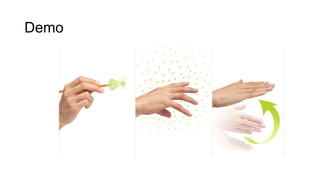

10. Demo

11. The Airspace Store
• Storefront to gather all the apps
• Dev decides on pricing, distribution & platform supported
• Non-exclusive distribution
• Min price starts at jus below 1 USD
• Industry standard at 70% to the developer
• Apps manually tested before publishing

12. Available languages
• C++
• C#
• Objective C
• Java
• Python
• JavaScript
• (Ruby => hack)

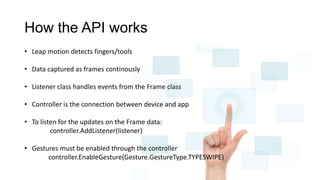

13. How the API works
• Leap motion detects fingers/tools
• Data captured as frames continously
• Listener class handles events from the Frame class
• Controller is the connection between device and app
• To listen for the updates on the Frame data:
controller.AddListener(listener)
• Gestures must be enabled through the controller
controller.EnableGesture(Gesture.GestureType.TYPESWIPE)

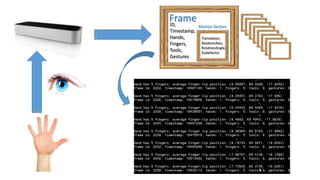

14. ID,
Timestamp,
Hands,
Fingers,
Tools,
Gestures
Frame
Translation,
RotationAxis,
RotationAngle,
Scalefactor
Motion factors

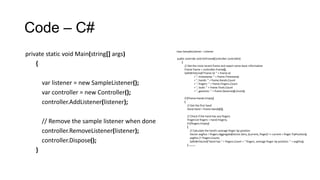

15. Code – C#
class SampleListener : Listener
public override void OnFrame(Controller controller)
{
// Get the most recent frame and report some basic information
Frame frame = controller.Frame();
SafeWriteLine("Frame id: " + frame.Id
+ ", timestamp: " + frame.Timestamp
+ ", hands: " + frame.Hands.Count
+ ", fingers: " + frame.Fingers.Count
+ ", tools: " + frame.Tools.Count
+ ", gestures: " + frame.Gestures().Count);
if (!frame.Hands.Empty)
{
// Get the first hand
Hand hand = frame.Hands[0];
// Check if the hand has any fingers
FingerList fingers = hand.Fingers;
if (!fingers.Empty)
{
// Calculate the hand's average finger tip position
Vector avgPos = fingers.Aggregate(Vector.Zero, (current, finger) => current + finger.TipPosition);
avgPos /= fingers.Count;
SafeWriteLine("Hand has " + fingers.Count + " fingers, average finger tip position: " + avgPos);
} ………
private static void Main(string[] args)
{
var listener = new SampleListener();
var controller = new Controller();
controller.AddListener(listener);
// Remove the sample listener when done
controller.RemoveListener(listener);
controller.Dispose();
}

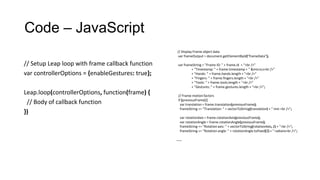

16. Code – JavaScript
// Display Frame object data
var frameOutput = document.getElementById("frameData");
var frameString = "Frame ID: " + frame.id + "<br />"
+ "Timestamp: " + frame.timestamp + " &micro;s<br />"
+ "Hands: " + frame.hands.length + "<br />"
+ "Fingers: " + frame.fingers.length + "<br />"
+ "Tools: " + frame.tools.length + "<br />"
+ "Gestures: " + frame.gestures.length + "<br />";
// Frame motion factors
if (previousFrame) {
var translation = frame.translation(previousFrame);
frameString += "Translation: " + vectorToString(translation) + " mm <br />";
var rotationAxis = frame.rotationAxis(previousFrame);
var rotationAngle = frame.rotationAngle(previousFrame);
frameString += "Rotation axis: " + vectorToString(rotationAxis, 2) + "<br />";
frameString += "Rotation angle: " + rotationAngle.toFixed(2) + " radians<br />";
……
// Setup Leap loop with frame callback function
var controllerOptions = {enableGestures: true};
Leap.loop(controllerOptions, function(frame) {
// Body of callback function
})

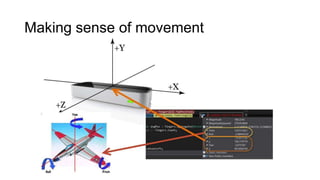

17. Making sense of movement

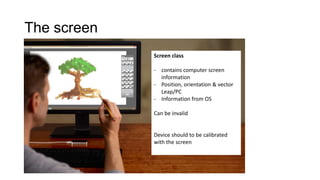

18. The screen
Screen class
- contains computer screen
information
- Position, orientation & vector
Leap/PC
- Information from OS
Can be invalid
Device should to be calibrated
with the screen

19. The tool
• Based on:
• Length
• Shape
• Width

20. The gestures
• Predifined gestures:
• Circle
• Swipe
• Key Tap (downward movement)
• Screen Tap (forward movement)
Turn, twist and tilt – and fist
• Use Motion factors from frame class
• Translation,
• RotationAxis,
• RotationAngle,
• Scalefactor

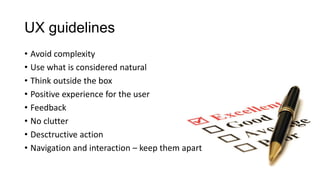

21. UX guidelines
• Avoid complexity
• Use what is considered natural
• Think outside the box
• Positive experience for the user
• Feedback
• No clutter
• Desctructive action
• Navigation and interaction – keep them apart

22. Q and A
Infra red light safety concerns
• IR occours naturally in the physical world
• Widely used in a variety of devices
• No health risk found with general exposure of IR
Using Leap as a mouse out of the box
• Developer unit no, consumer unit yes
• CPU usage
• Will be lower when released
• New updates ’inactivates’ the device when not used, activated when it registers
motion

23. Thank you
Iris Classon
