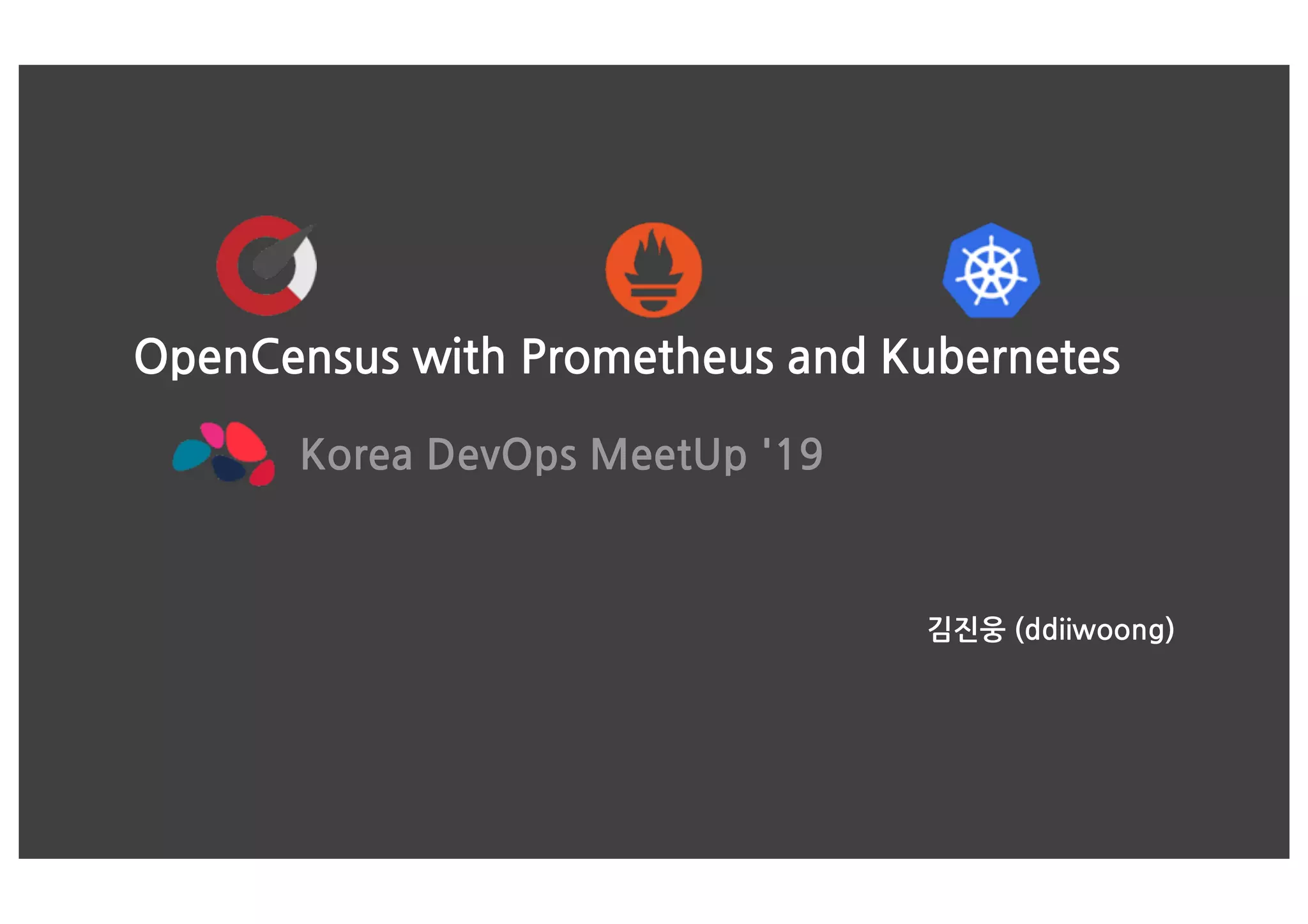

Korea DevOps MeetUP '19 일자 : 2019년 6월 8일(토) 장소 : 광화문 마이크로소프트 제목 : Opencensus with Prometheus and Kubernetes 발표자 : SK C&C 김진웅(ddiiwoong)

1. OpenCensus with Prometheus and Kubernetes
Korea DevOps MeetUp '19
김진웅 (ddiiwoong)

2. About Me
김진웅 @ddiiwoong
Cloud Native Platform Architect @SK C&C
Interested in Kubernetes and Serverless(FaaS), Dev(Data)Ops, SRE, ML/DL

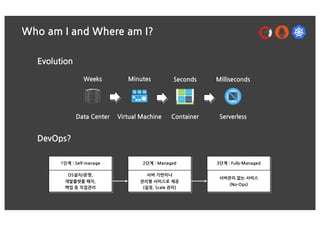

3. Who am I and Where am I?
DevOps?
Data Center Virtual Machine Container Serverless
Weeks Minutes Seconds Milliseconds
Evolution
1단계 : Self-manage 2단계 : Managed 3단계 : Fully-Managed
OS설치/운영,
개발플랫폼 패치,
백업 등 직접관리
서버 기반이나
관리형 서비스로 제공
(설정, Scale 관리)
서버관리 없는 서비스
(No-Ops)

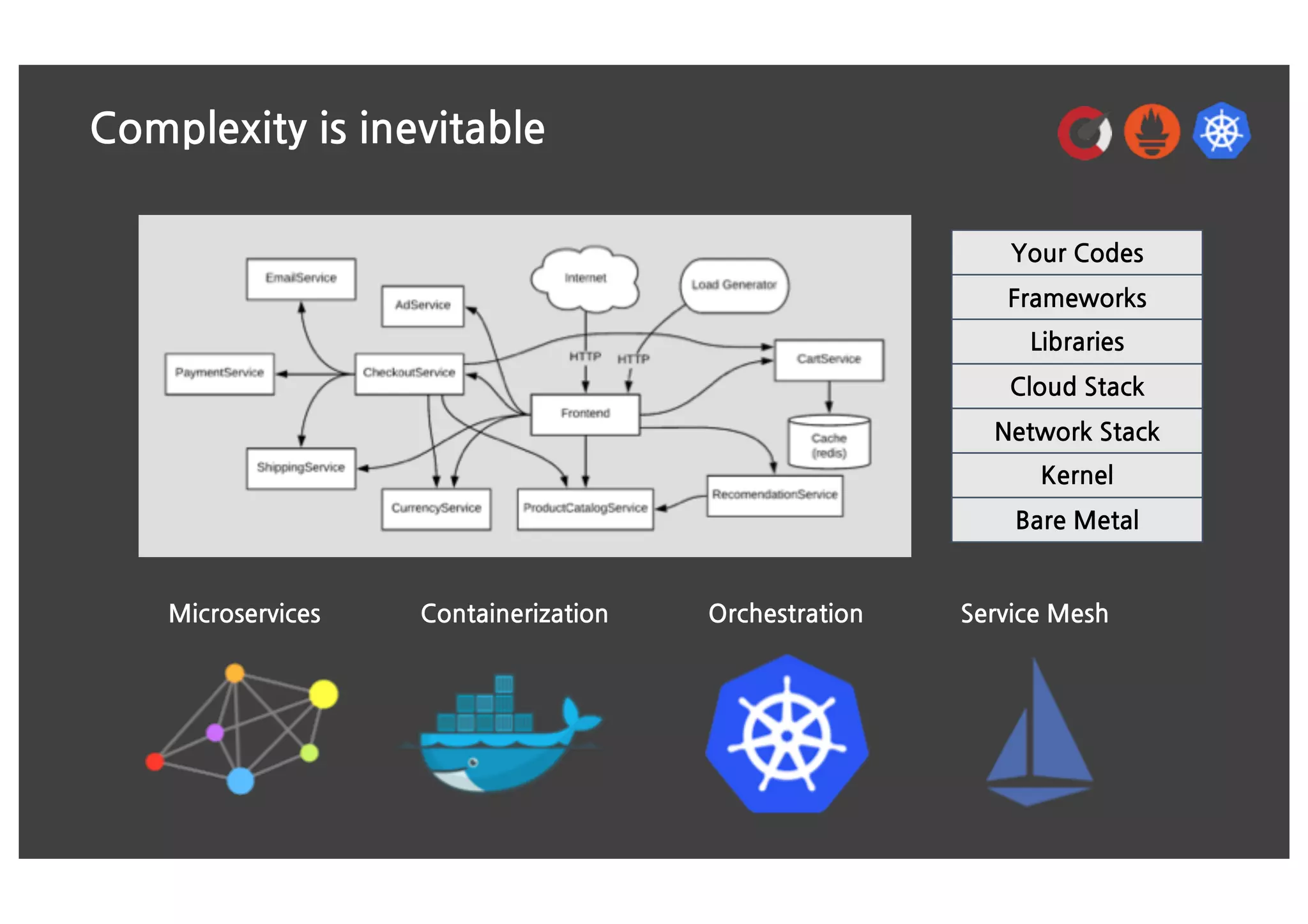

4. Complexity is inevitable
Microservices Containerization Orchestration Service Mesh
Bare Metal
Kernel
Network Stack
Cloud Stack
Libraries
Frameworks
Your Codes

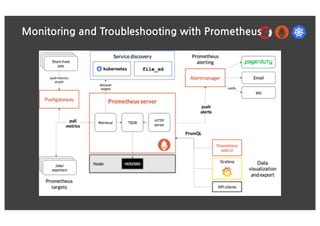

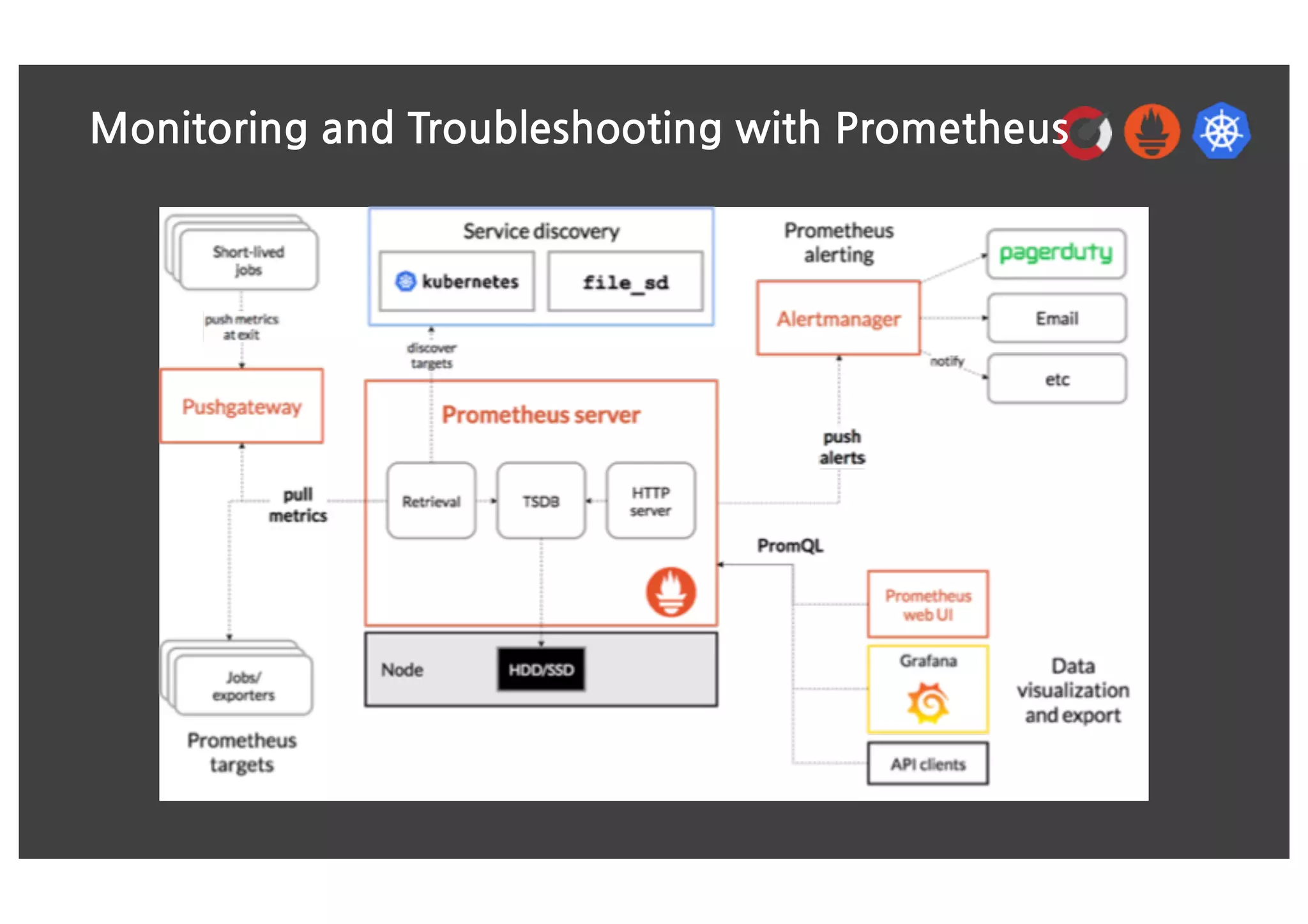

5. Monitoring and Troubleshooting with Prometheus

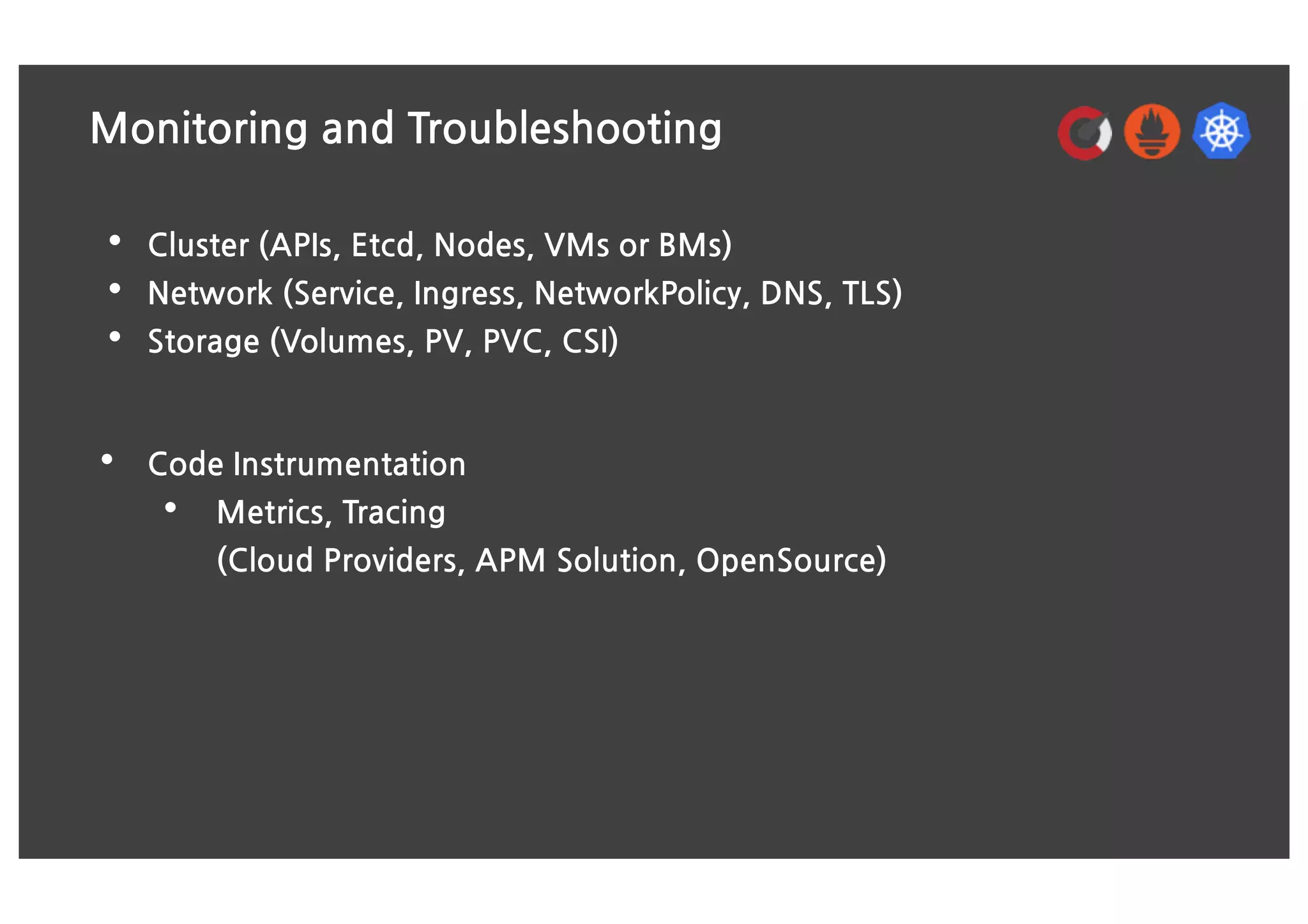

6. Monitoring and Troubleshooting
• Cluster (APIs, Etcd, Nodes, VMs or BMs)
• Network (Service, Ingress, NetworkPolicy, DNS, TLS)
• Storage (Volumes, PV, PVC, CSI)
• Code Instrumentation
• Metrics, Tracing
(Cloud Providers, APM Solution, OpenSource)

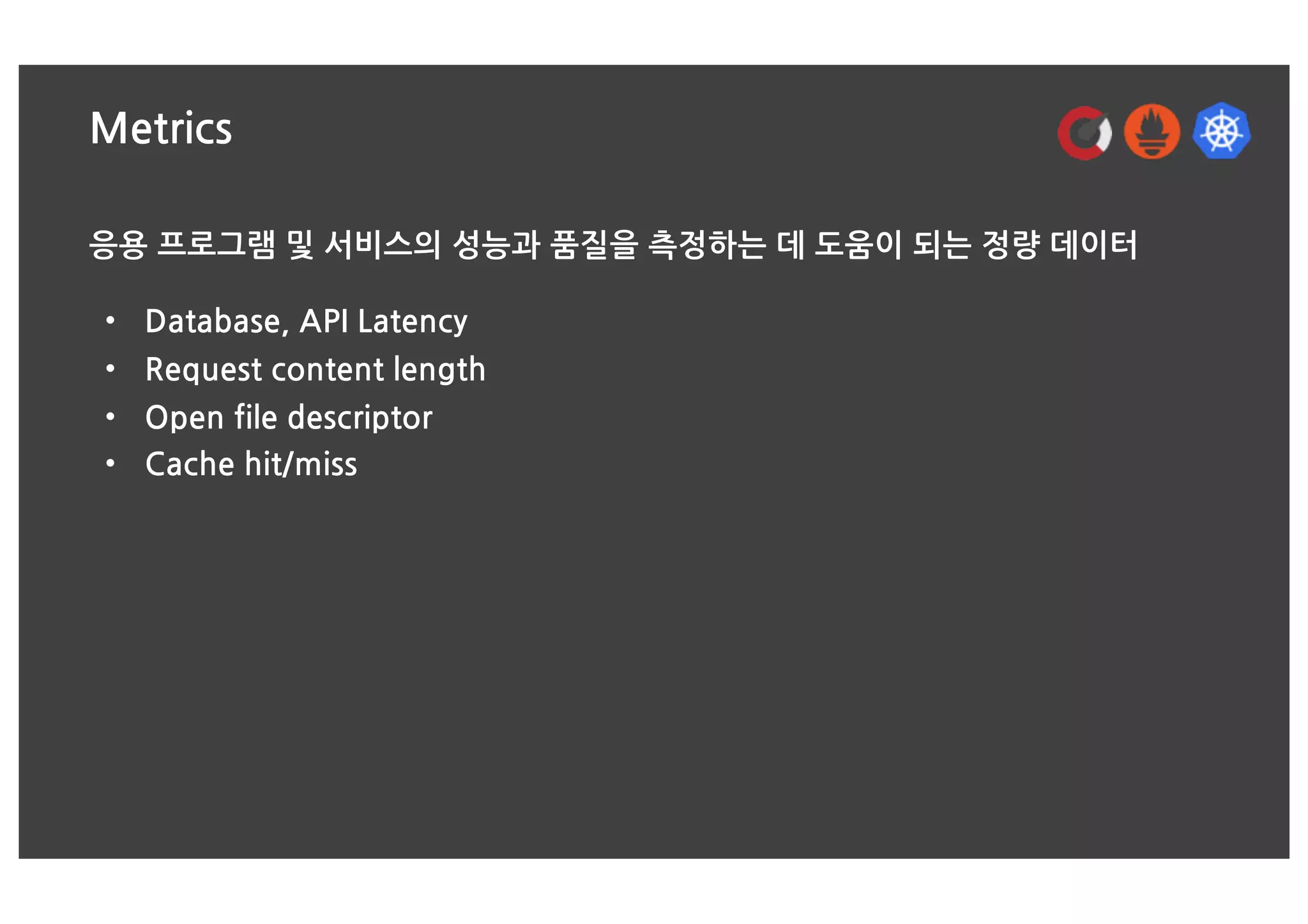

7. Metrics
응용 프로그램 및 서비스의 성능과 품질을 측정하는 데 도움이 되는 정량 데이터
• Database, API Latency
• Request content length
• Open file descriptor
• Cache hit/miss

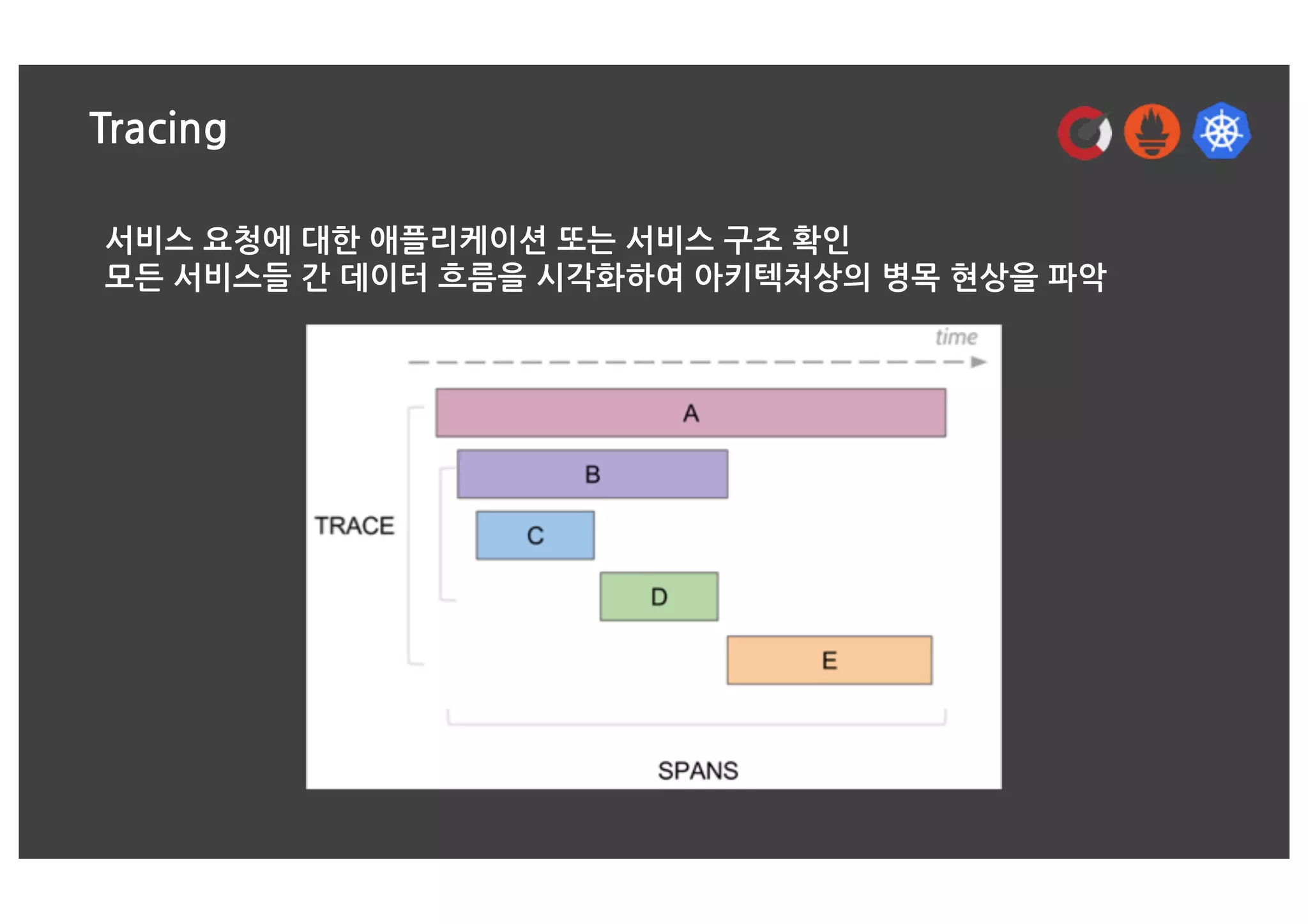

8. Tracing
서비스 요청에 대한 애플리케이션 또는 서비스 구조 확인
모든 서비스들 간 데이터 흐름을 시각화하여 아키텍처상의 병목 현상을 파악

9. OpenCensus
A Stats Collection and Distributed Tracing Framework
backed by Google and Microsoft since Jan. 2018
A single distribution of libraries that
automatically collect traces and metrics
from your app, Display them locally, and
send them to any backend.
(Prometheus, Stackdriver, Zipkin, Jaeger...)

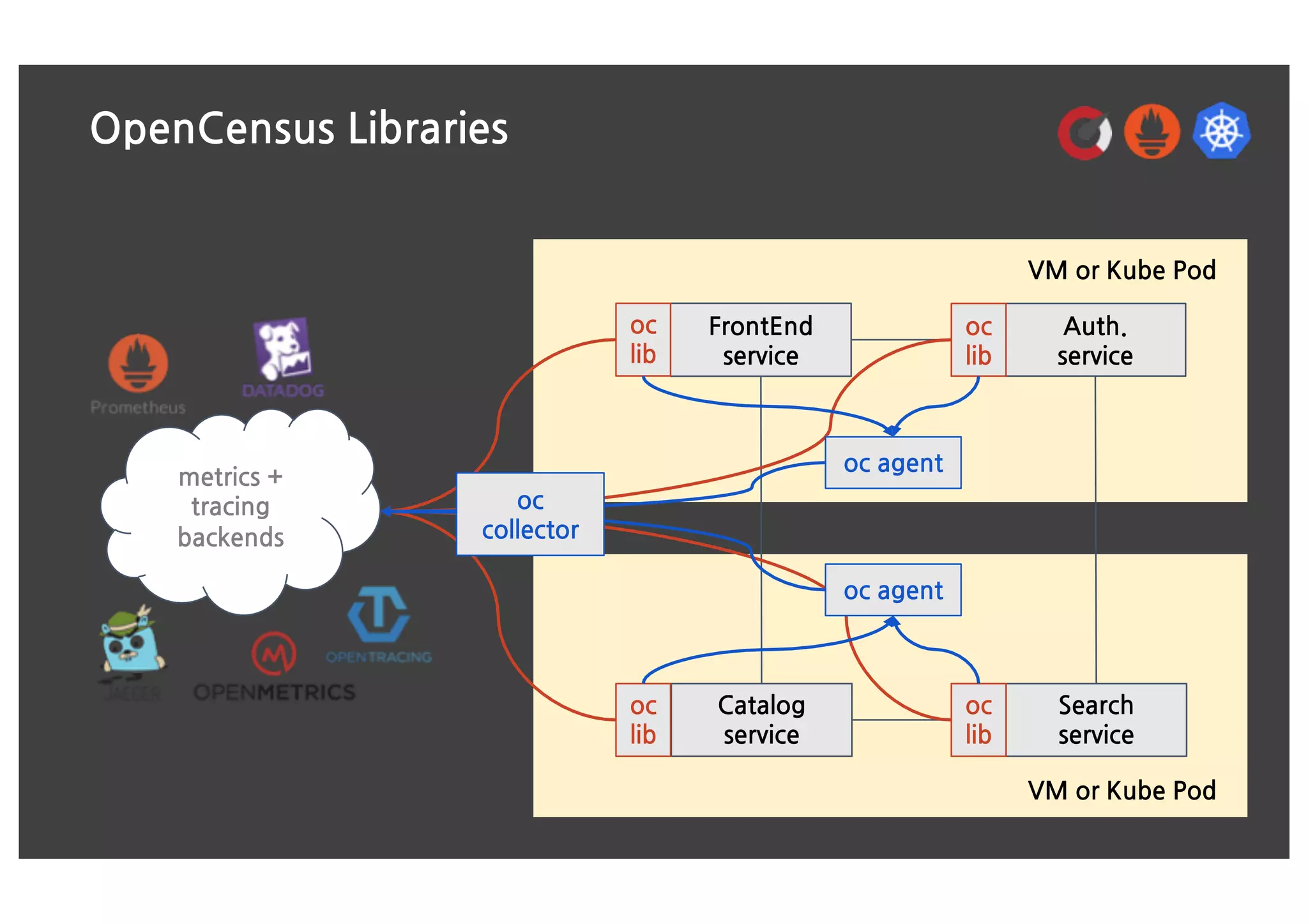

10. VM or Kube Pod
VM or Kube Pod
OpenCensus Libraries
Auth.
service
Catalog
service
Search
service
FrontEnd
service
oc
lib
oc
lib
oc
lib
oc
lib
oc agent
oc agent
metrics +
tracing
backends
oc
collector

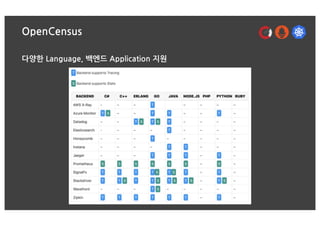

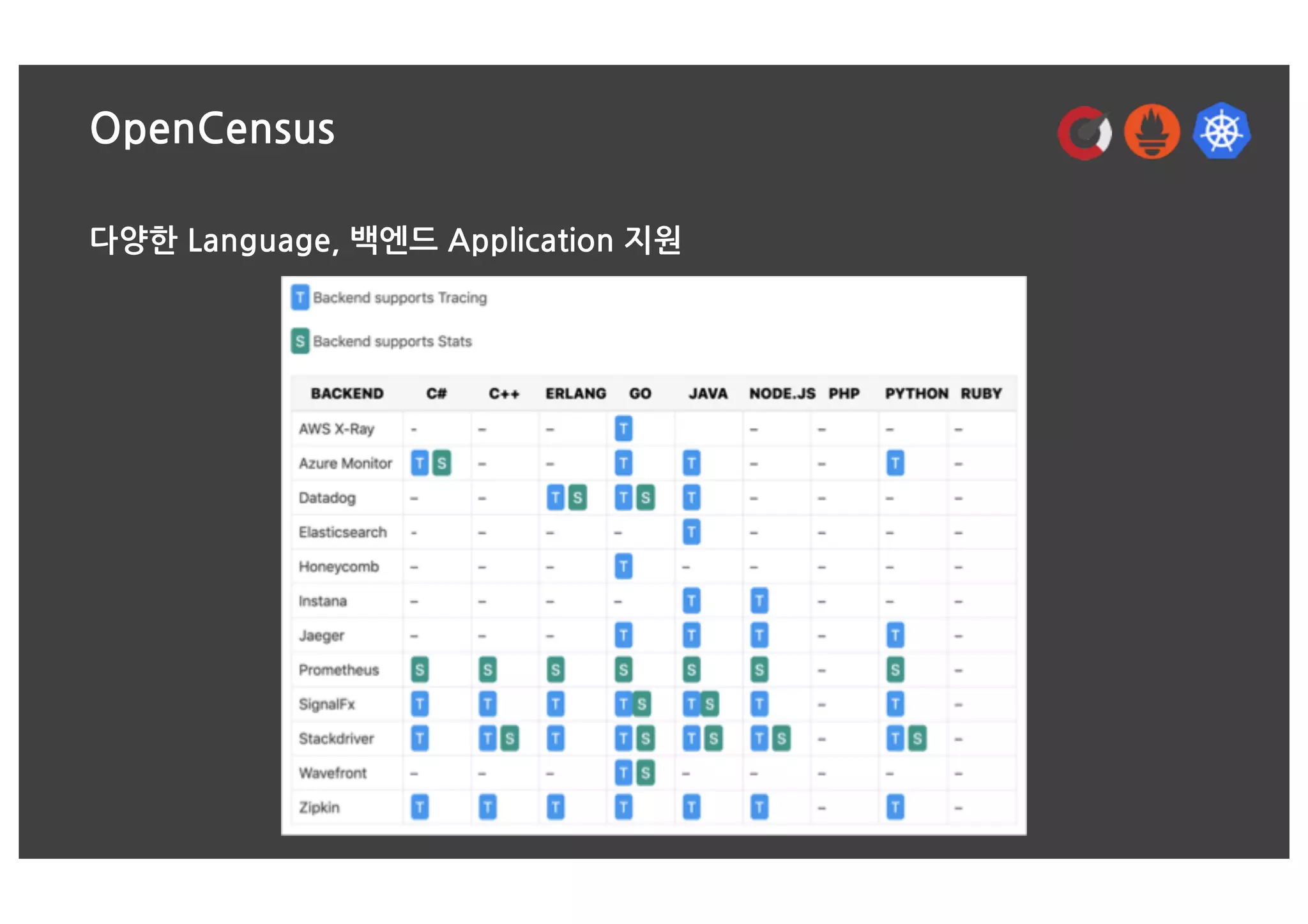

11. OpenCensus
다양한 Language, 백엔드 Application 지원

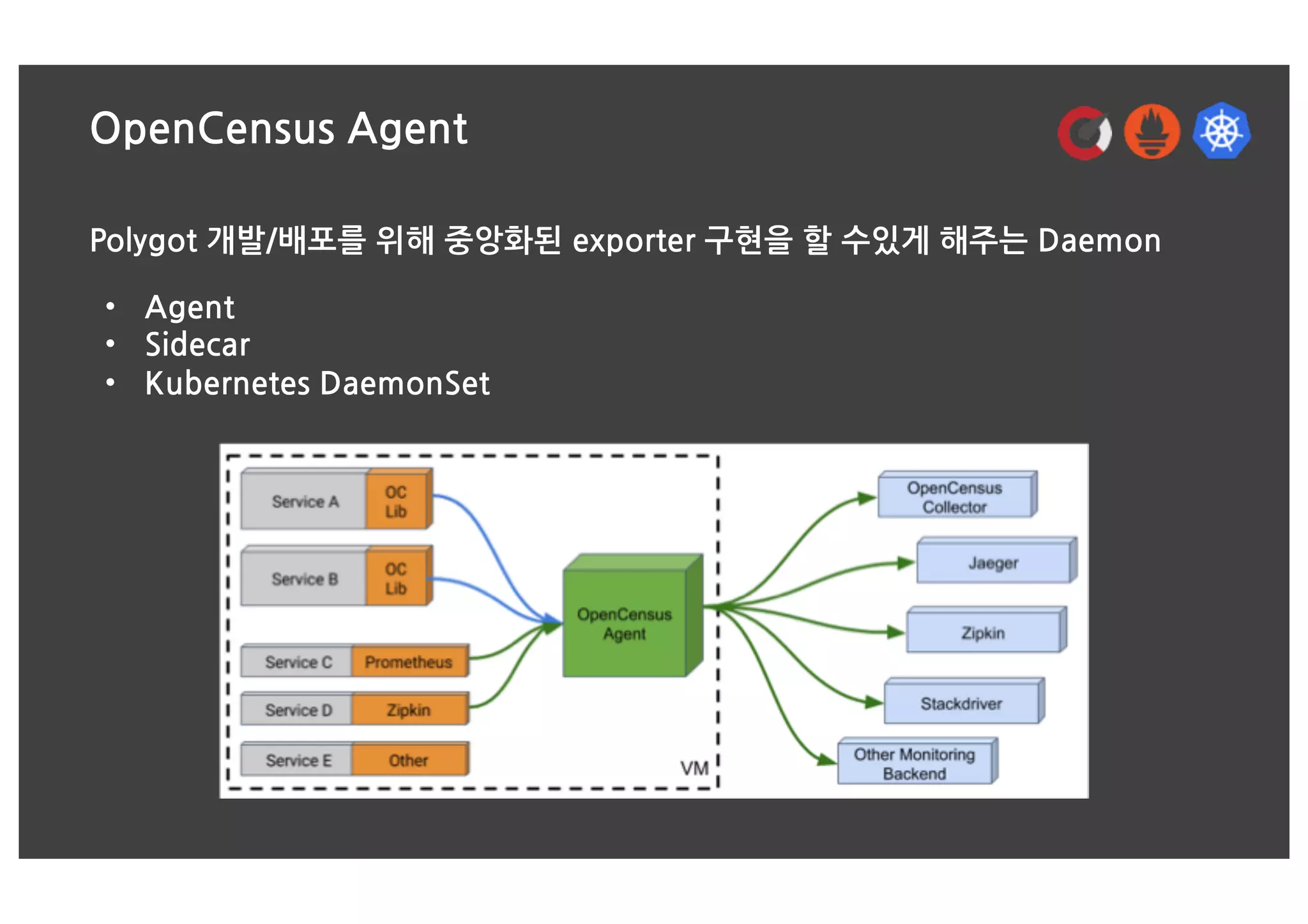

12. OpenCensus Agent
Polygot 개발/배포를 위해 중앙화된 exporter 구현을 할 수있게 해주는 Daemon
• Agent
• Sidecar
• Kubernetes DaemonSet

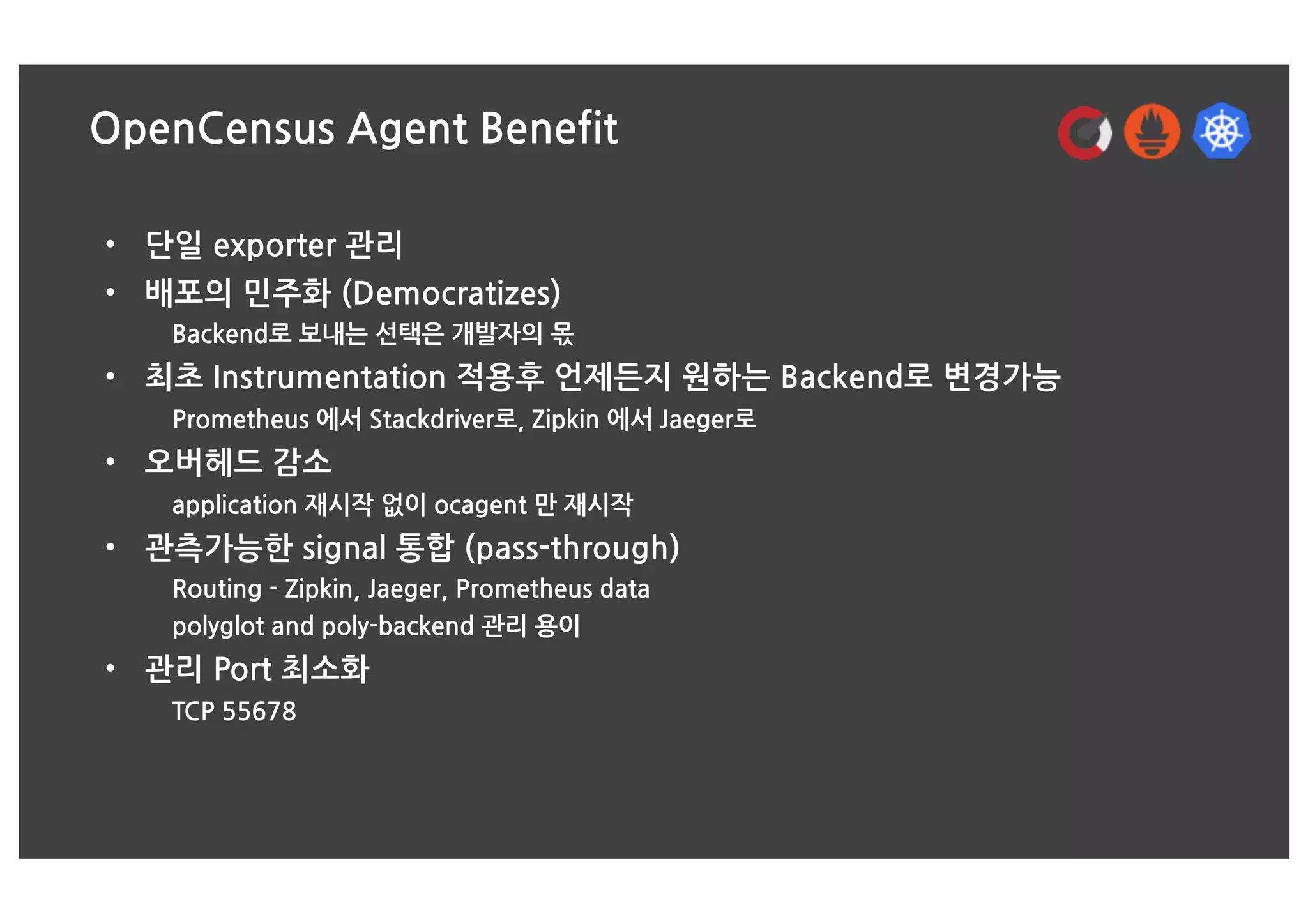

13. OpenCensus Agent Benefit
• 단일 exporter 관리
• 배포의 민주화 (Democratizes)
Backend로 보내는 선택은 개발자의 몫
• 최초 Instrumentation 적용후 언제든지 원하는 Backend로 변경가능
Prometheus 에서 Stackdriver로, Zipkin 에서 Jaeger로
• 오버헤드 감소
application 재시작 없이 ocagent 만 재시작
• 관측가능한 signal 통합 (pass-through)
Routing - Zipkin, Jaeger, Prometheus data
polyglot and poly-backend 관리 용이
• 관리 Port 최소화
TCP 55678

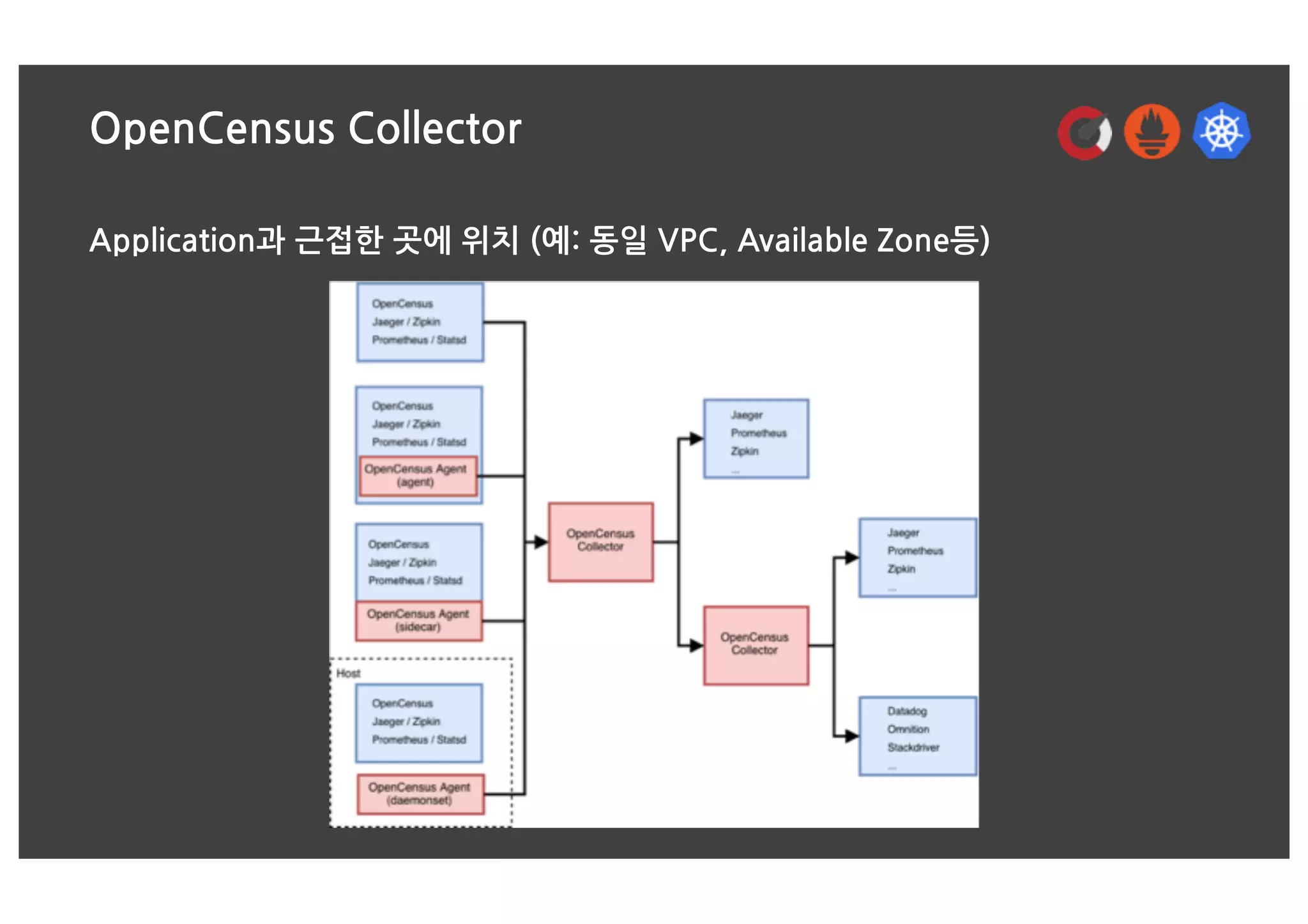

14. OpenCensus Collector
Application과 근접한 곳에 위치 (예: 동일 VPC, Available Zone등)

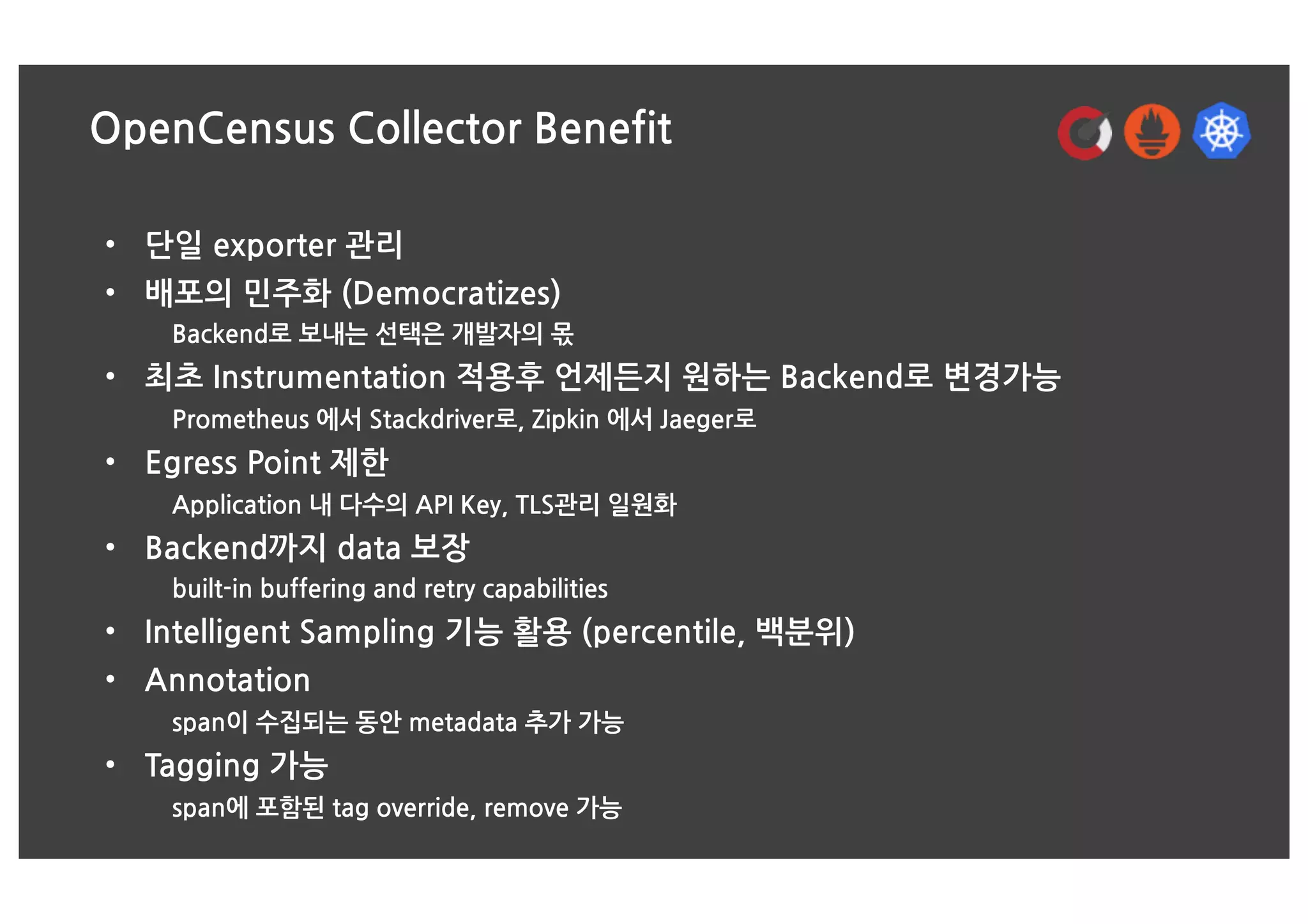

15. OpenCensus Collector Benefit
• 단일 exporter 관리
• 배포의 민주화 (Democratizes)
Backend로 보내는 선택은 개발자의 몫
• 최초 Instrumentation 적용후 언제든지 원하는 Backend로 변경가능
Prometheus 에서 Stackdriver로, Zipkin 에서 Jaeger로
• Egress Point 제한
Application 내 다수의 API Key, TLS관리 일원화
• Backend까지 data 보장
built-in buffering and retry capabilities
• Intelligent Sampling 기능 활용 (percentile, 백분위)
• Annotation
span이 수집되는 동안 metadata 추가 가능
• Tagging 가능
span에 포함된 tag override, remove 가능

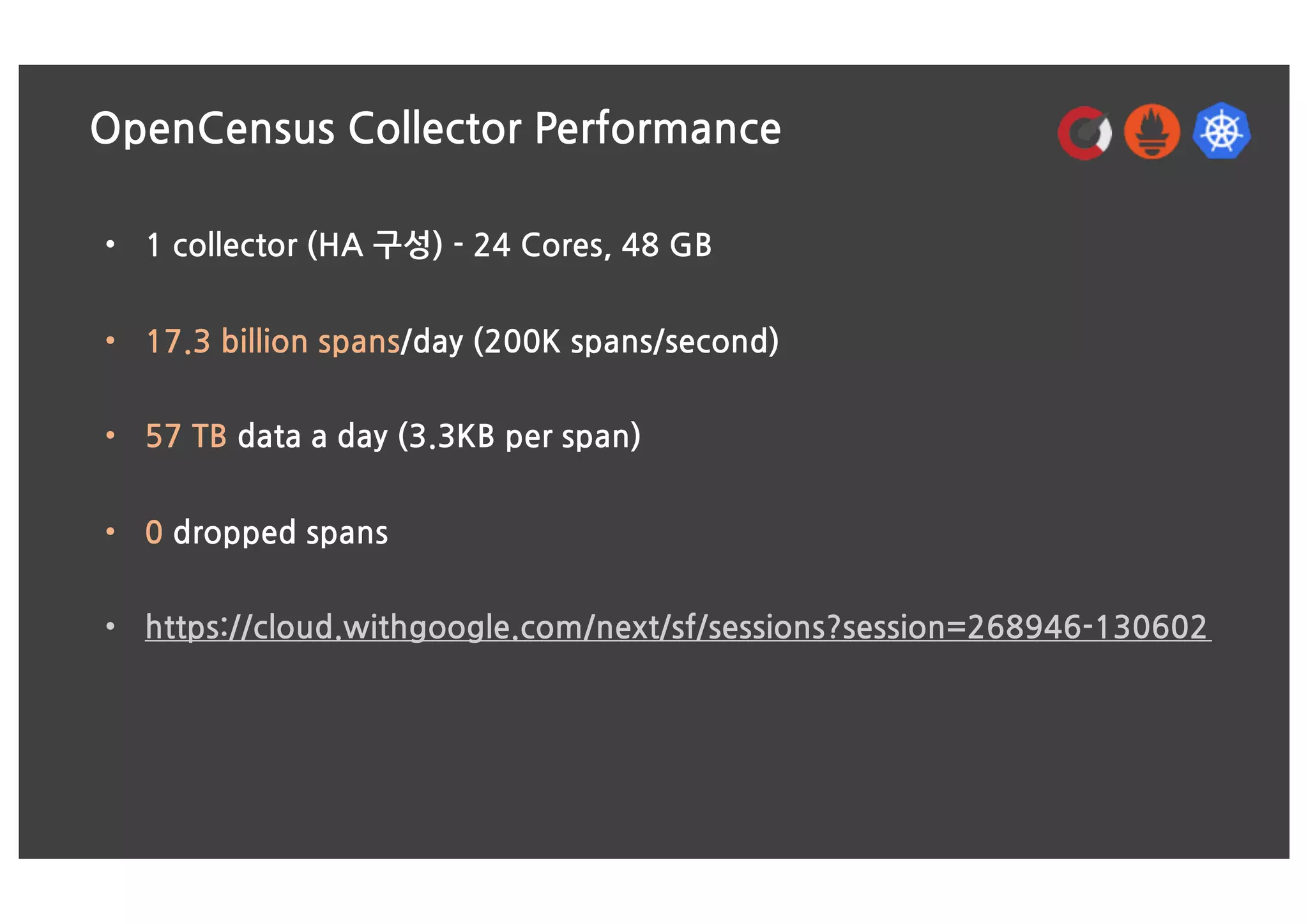

16. OpenCensus Collector Performance
• 1 collector (HA 구성) - 24 Cores, 48 GB
• 17.3 billion spans/day (200K spans/second)
• 57 TB data a day (3.3KB per span)
• 0 dropped spans
• https://cloud.withgoogle.com/next/sf/sessions?session=268946-130602

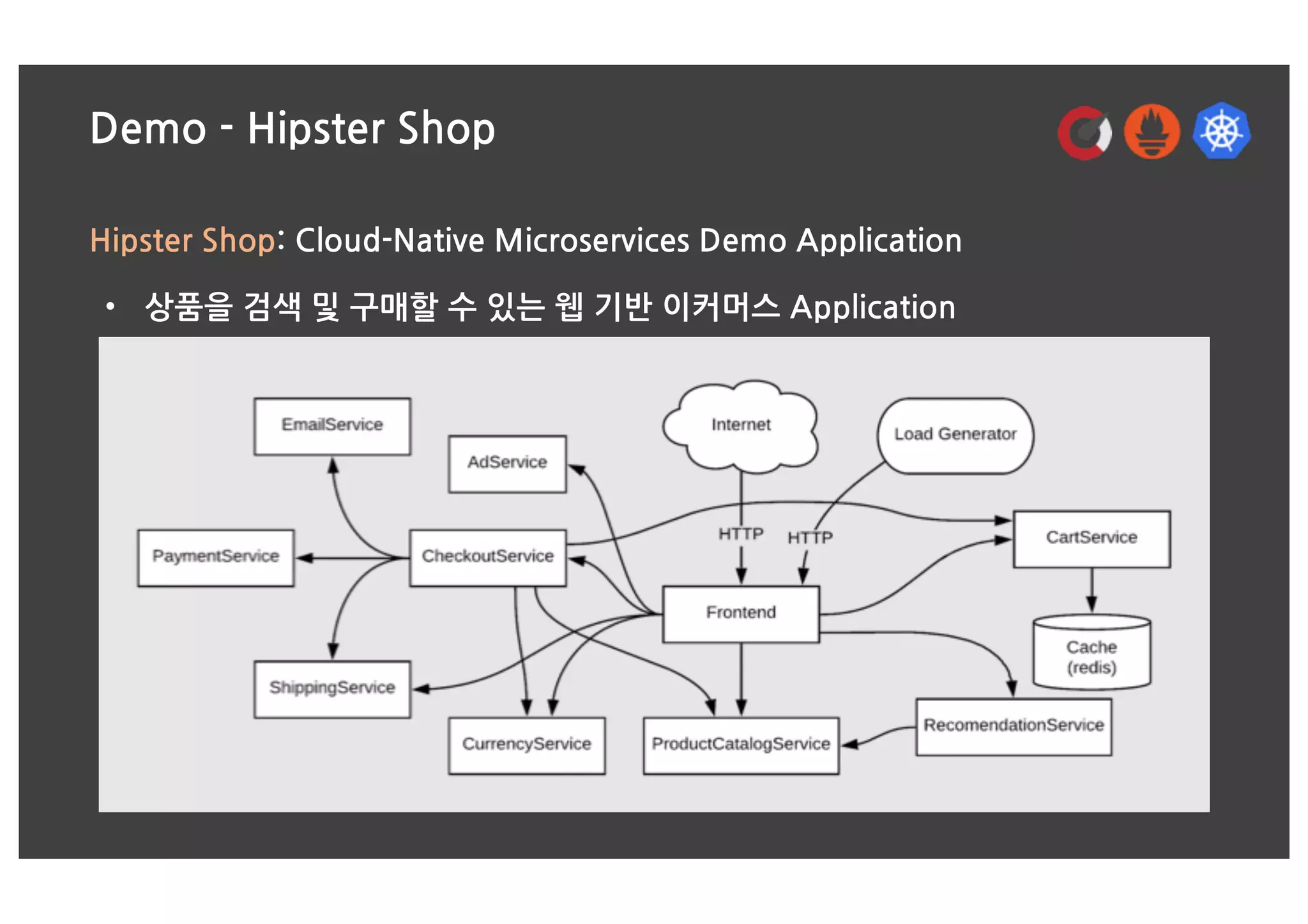

17. Demo - Hipster Shop
Hipster Shop: Cloud-Native Microservices Demo Application
• 상품을 검색 및 구매할 수 있는 웹 기반 이커머스 Application

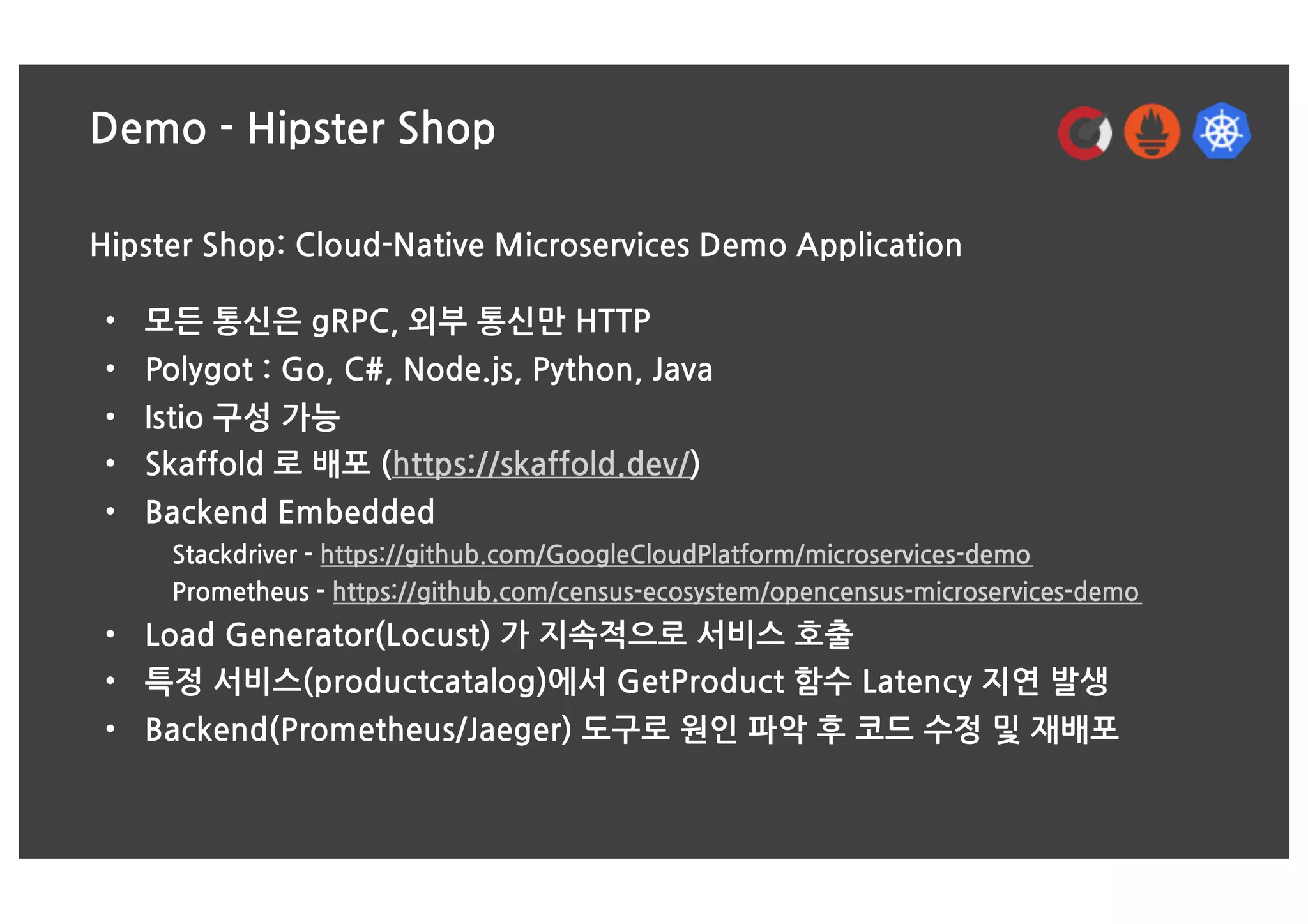

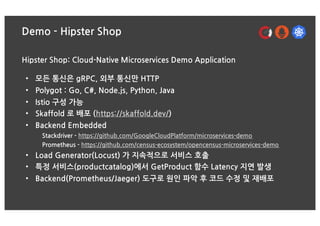

18. Demo - Hipster Shop
Hipster Shop: Cloud-Native Microservices Demo Application
• 모든 통신은 gRPC, 외부 통신만 HTTP
• Polygot : Go, C#, Node.js, Python, Java
• Istio 구성 가능
• Skaffold 로 배포 (https://skaffold.dev/)
• Backend Embedded
Stackdriver - https://github.com/GoogleCloudPlatform/microservices-demo
Prometheus - https://github.com/census-ecosystem/opencensus-microservices-demo
• Load Generator(Locust) 가 지속적으로 서비스 호출
• 특정 서비스(productcatalog)에서 GetProduct 함수 Latency 지연 발생
• Backend(Prometheus/Jaeger) 도구로 원인 파악 후 코드 수정 및 재배포

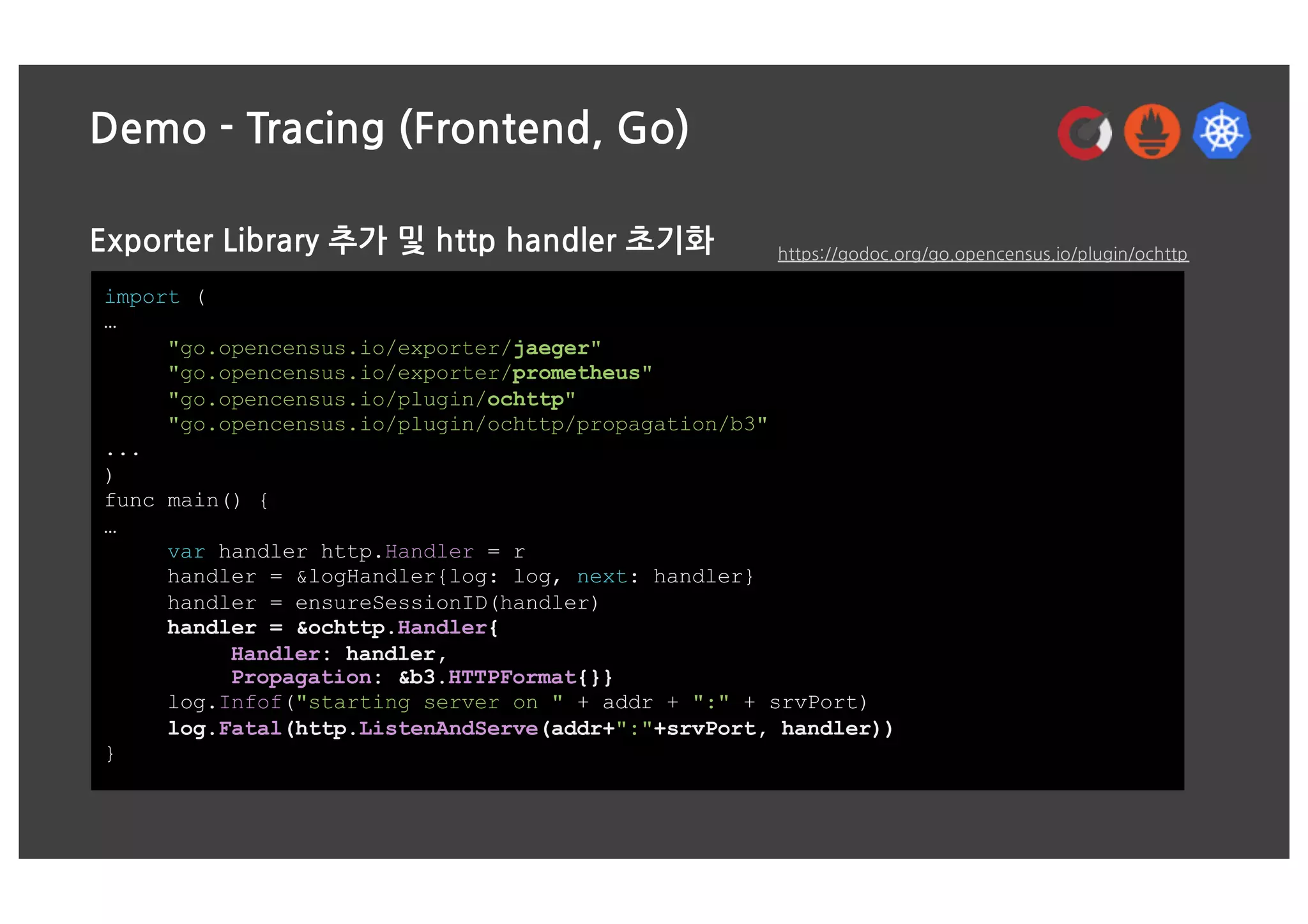

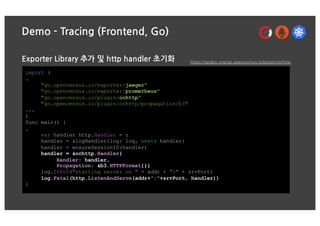

19. Demo - Tracing (Frontend, Go)
Exporter Library 추가 및 http handler 초기화
import (
…
"go.opencensus.io/exporter/jaeger"
"go.opencensus.io/exporter/prometheus"
"go.opencensus.io/plugin/ochttp"
"go.opencensus.io/plugin/ochttp/propagation/b3"
...
)
func main() {
…
var handler http.Handler = r
handler = &logHandler{log: log, next: handler}
handler = ensureSessionID(handler)
handler = &ochttp.Handler{
Handler: handler,
Propagation: &b3.HTTPFormat{}}
log.Infof("starting server on " + addr + ":" + srvPort)
log.Fatal(http.ListenAndServe(addr+":"+srvPort, handler))
}
https://godoc.org/go.opencensus.io/plugin/ochttp

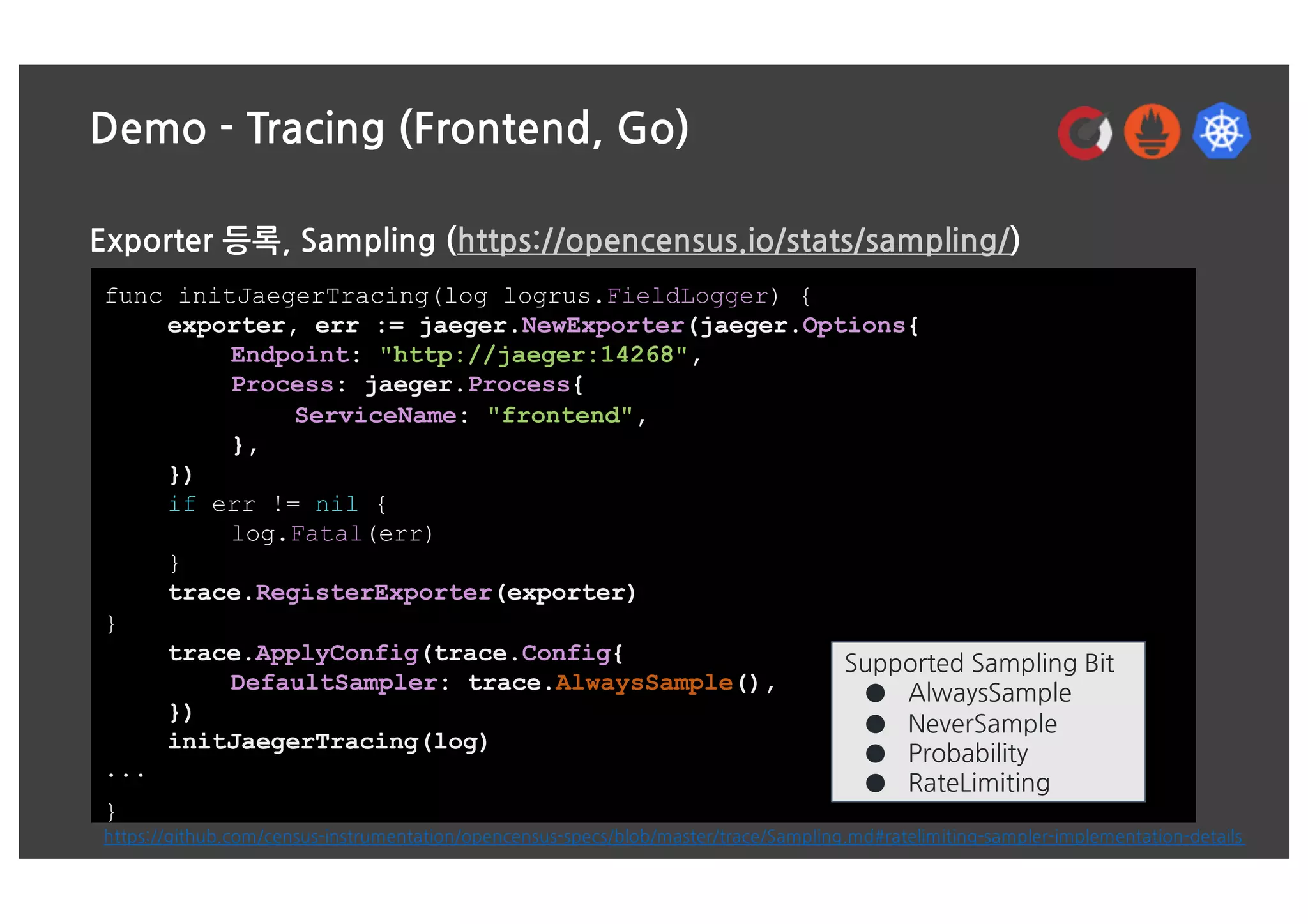

20. Demo - Tracing (Frontend, Go)
Exporter 등록, Sampling (https://opencensus.io/stats/sampling/)
func initJaegerTracing(log logrus.FieldLogger) {
exporter, err := jaeger.NewExporter(jaeger.Options{
Endpoint: "http://jaeger:14268",
Process: jaeger.Process{
ServiceName: "frontend",
},
})
if err != nil {
log.Fatal(err)
}
trace.RegisterExporter(exporter)
}
trace.ApplyConfig(trace.Config{
DefaultSampler: trace.AlwaysSample(),
})
initJaegerTracing(log)
...
}
Supported Sampling Bit
● AlwaysSample
● NeverSample
● Probability
● RateLimiting
https://github.com/census-instrumentation/opencensus-specs/blob/master/trace/Sampling.md#ratelimiting-sampler-implementation-details

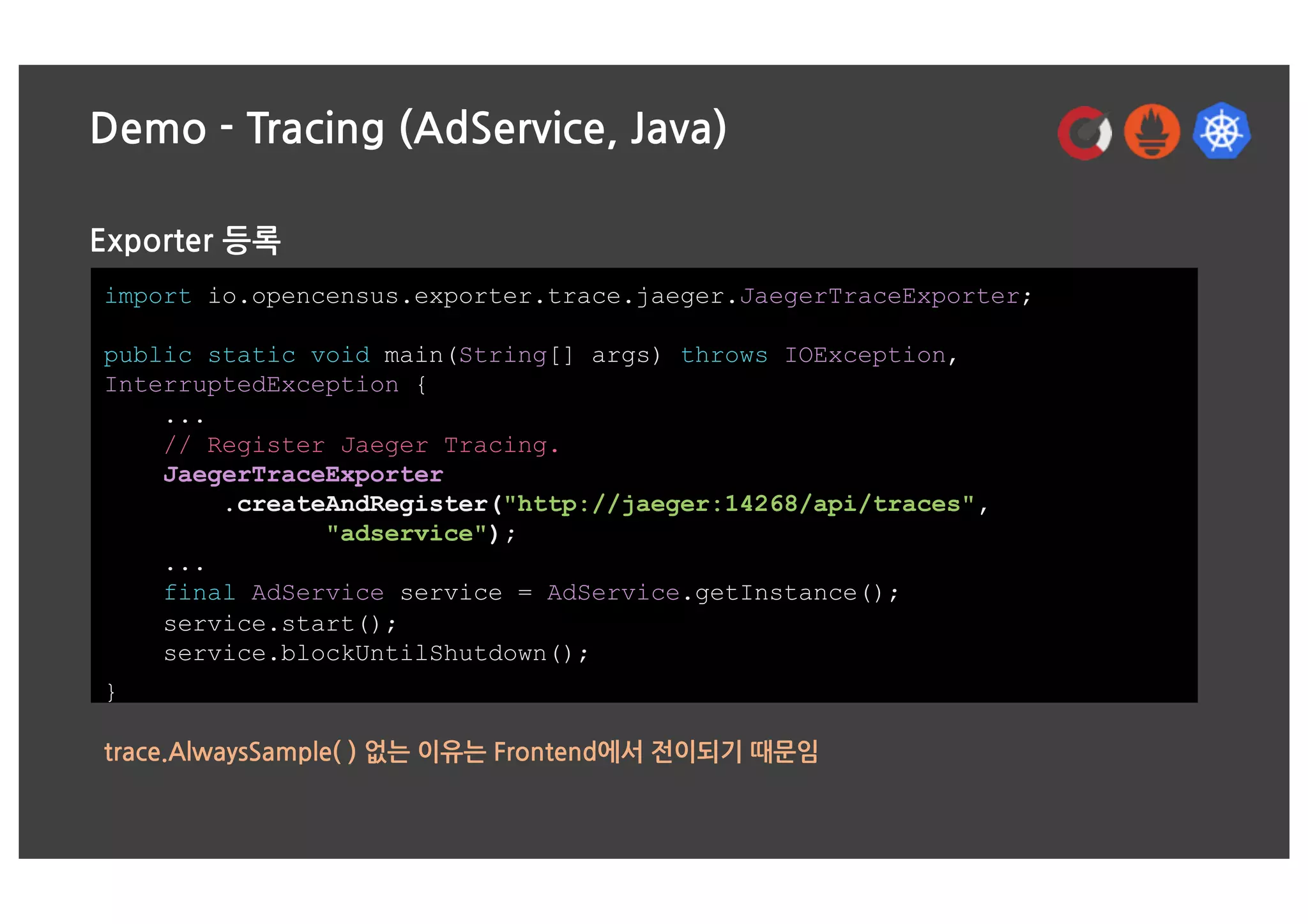

21. Demo - Tracing (AdService, Java)
Exporter 등록
import io.opencensus.exporter.trace.jaeger.JaegerTraceExporter;
public static void main(String[] args) throws IOException,
InterruptedException {
...
// Register Jaeger Tracing.
JaegerTraceExporter
.createAndRegister("http://jaeger:14268/api/traces",
"adservice");
...
final AdService service = AdService.getInstance();
service.start();
service.blockUntilShutdown();
}
trace.AlwaysSample( ) 없는 이유는 Frontend에서 전이되기 때문임

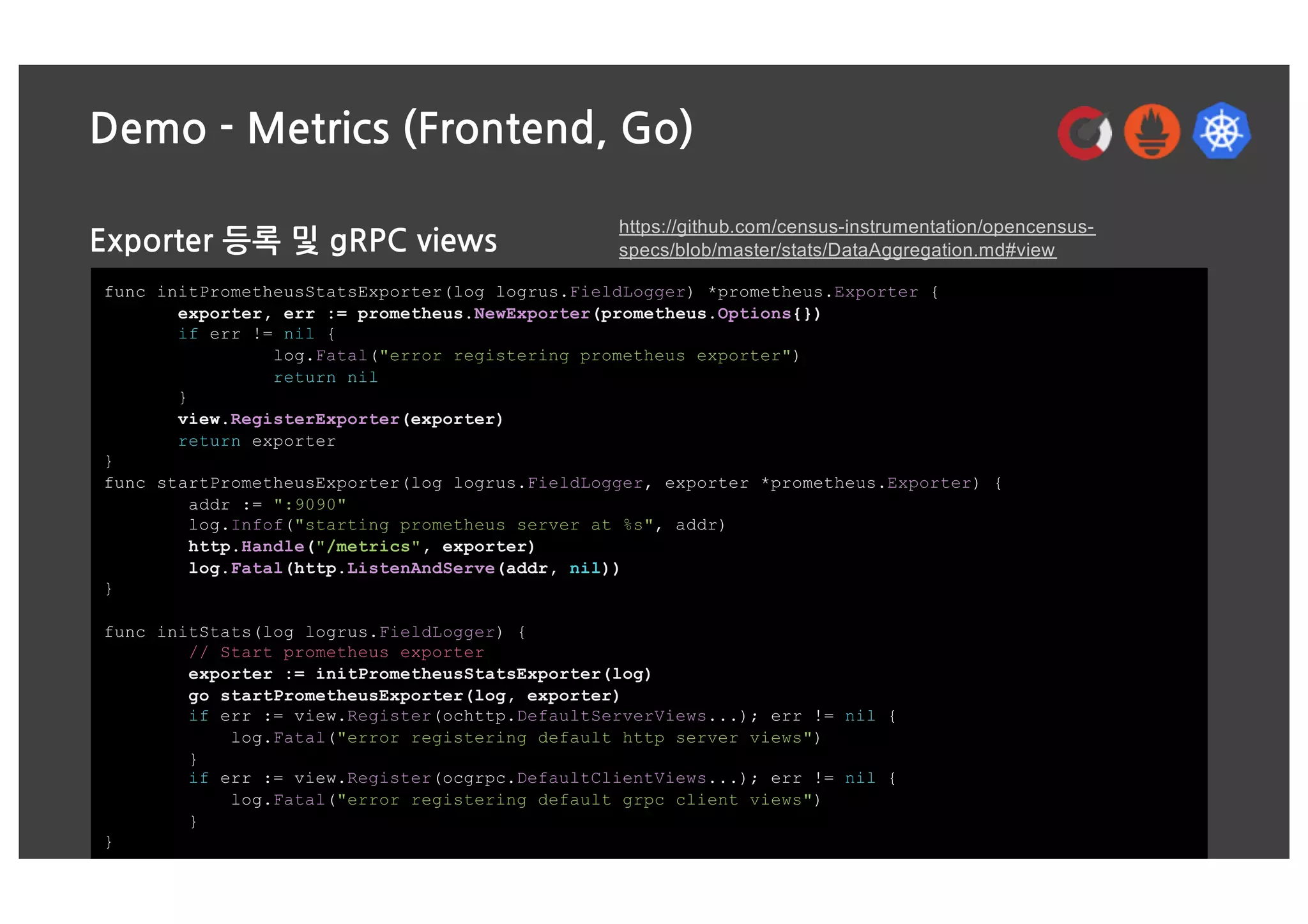

22. Demo - Metrics (Frontend, Go)
Exporter 등록 및 gRPC views
func initPrometheusStatsExporter(log logrus.FieldLogger) *prometheus.Exporter {
exporter, err := prometheus.NewExporter(prometheus.Options{})
if err != nil {
log.Fatal("error registering prometheus exporter")
return nil
}
view.RegisterExporter(exporter)
return exporter
}
func startPrometheusExporter(log logrus.FieldLogger, exporter *prometheus.Exporter) {
addr := ":9090"
log.Infof("starting prometheus server at %s", addr)
http.Handle("/metrics", exporter)
log.Fatal(http.ListenAndServe(addr, nil))
}
func initStats(log logrus.FieldLogger) {
// Start prometheus exporter
exporter := initPrometheusStatsExporter(log)
go startPrometheusExporter(log, exporter)
if err := view.Register(ochttp.DefaultServerViews...); err != nil {
log.Fatal("error registering default http server views")
}
if err := view.Register(ocgrpc.DefaultClientViews...); err != nil {
log.Fatal("error registering default grpc client views")
}
}
https://github.com/census-instrumentation/opencensus-
specs/blob/master/stats/DataAggregation.md#view

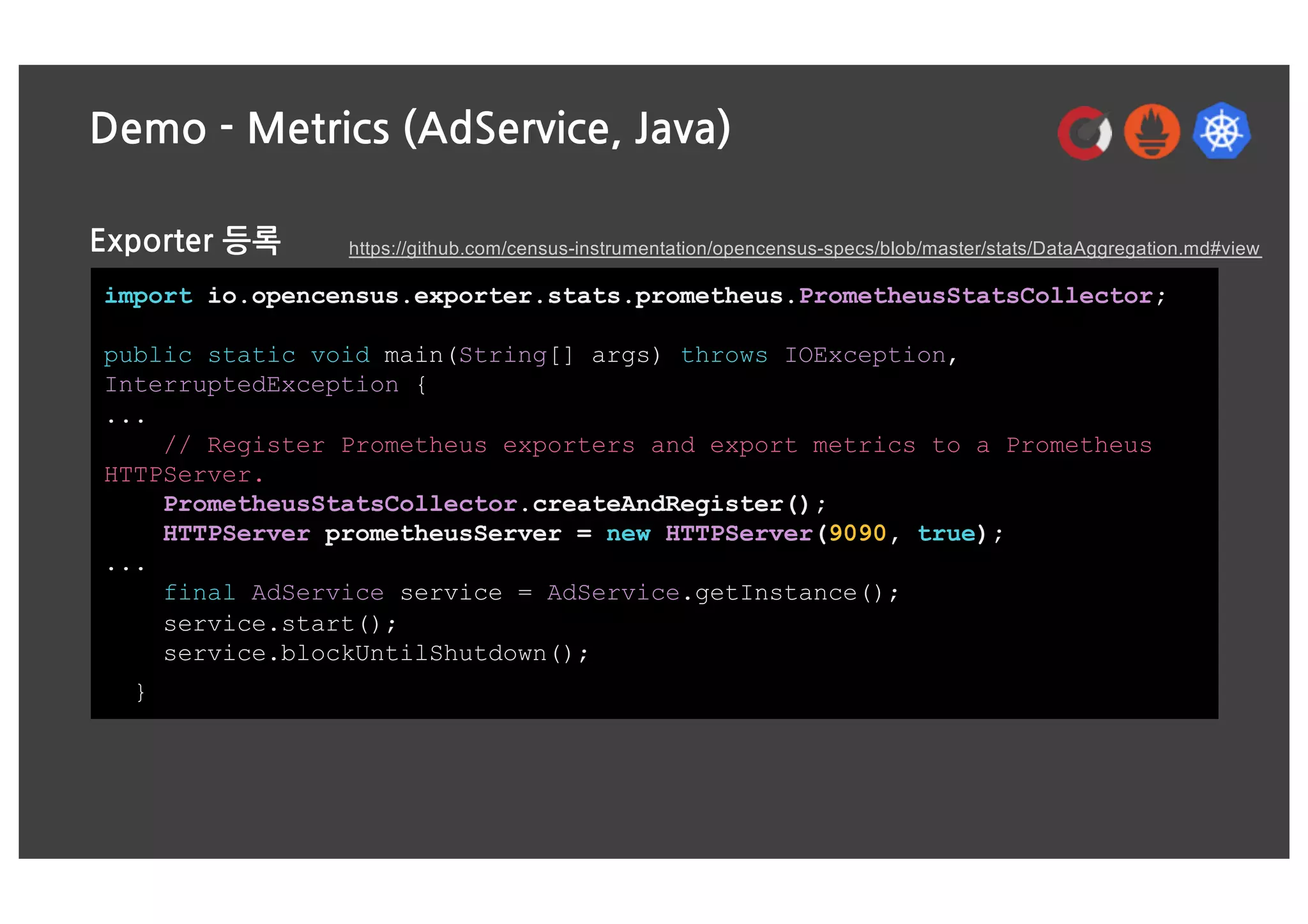

23. Demo - Metrics (AdService, Java)
Exporter 등록
import io.opencensus.exporter.stats.prometheus.PrometheusStatsCollector;
public static void main(String[] args) throws IOException,
InterruptedException {
...
// Register Prometheus exporters and export metrics to a Prometheus
HTTPServer.
PrometheusStatsCollector.createAndRegister();
HTTPServer prometheusServer = new HTTPServer(9090, true);
...
final AdService service = AdService.getInstance();
service.start();
service.blockUntilShutdown();
}
https://github.com/census-instrumentation/opencensus-specs/blob/master/stats/DataAggregation.md#view

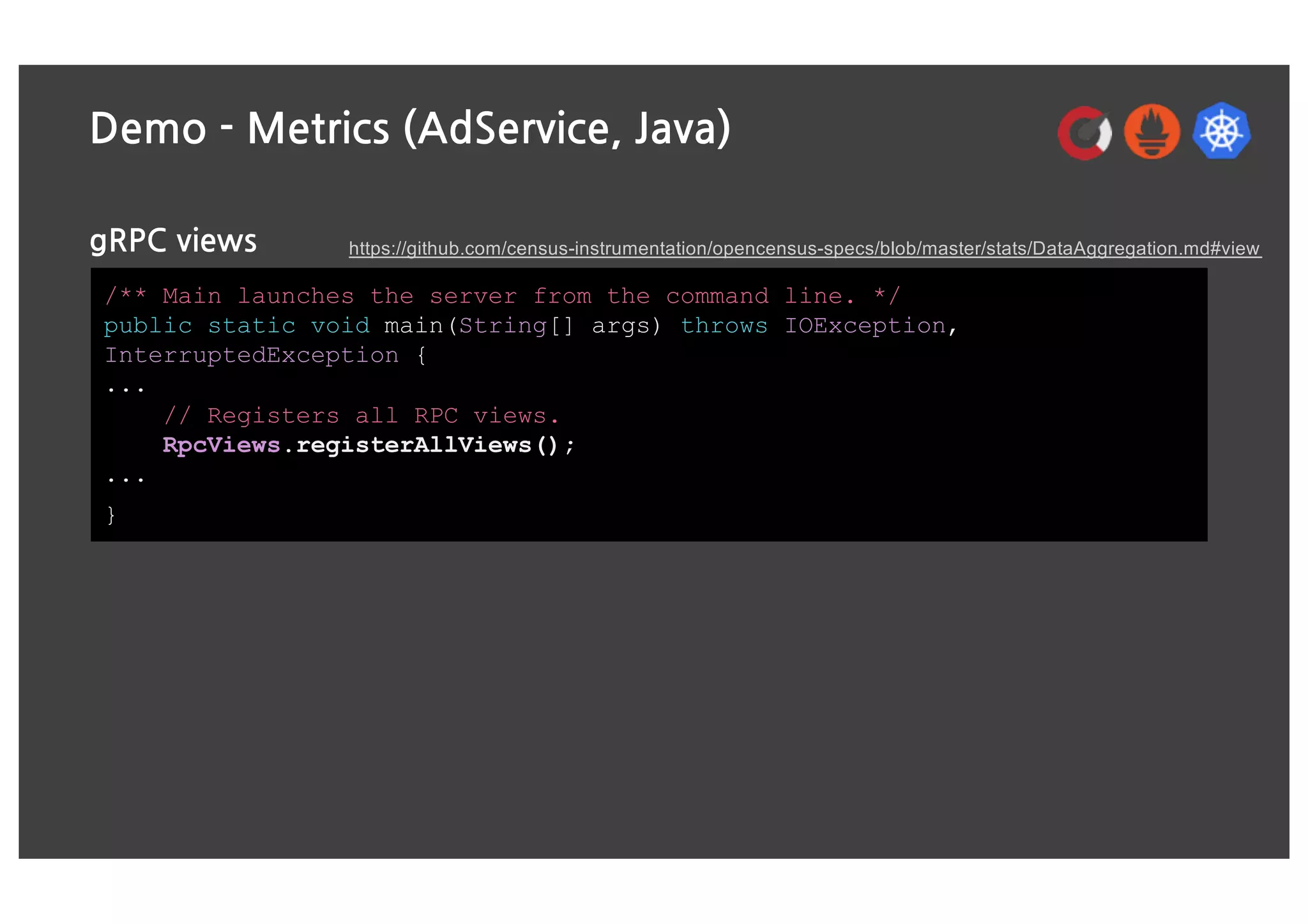

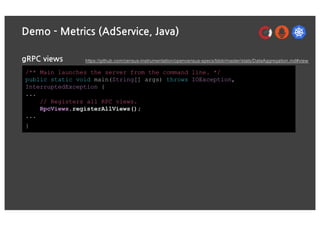

24. Demo - Metrics (AdService, Java)
gRPC views
/** Main launches the server from the command line. */
public static void main(String[] args) throws IOException,
InterruptedException {
...
// Registers all RPC views.
RpcViews.registerAllViews();
...
}
https://github.com/census-instrumentation/opencensus-specs/blob/master/stats/DataAggregation.md#view

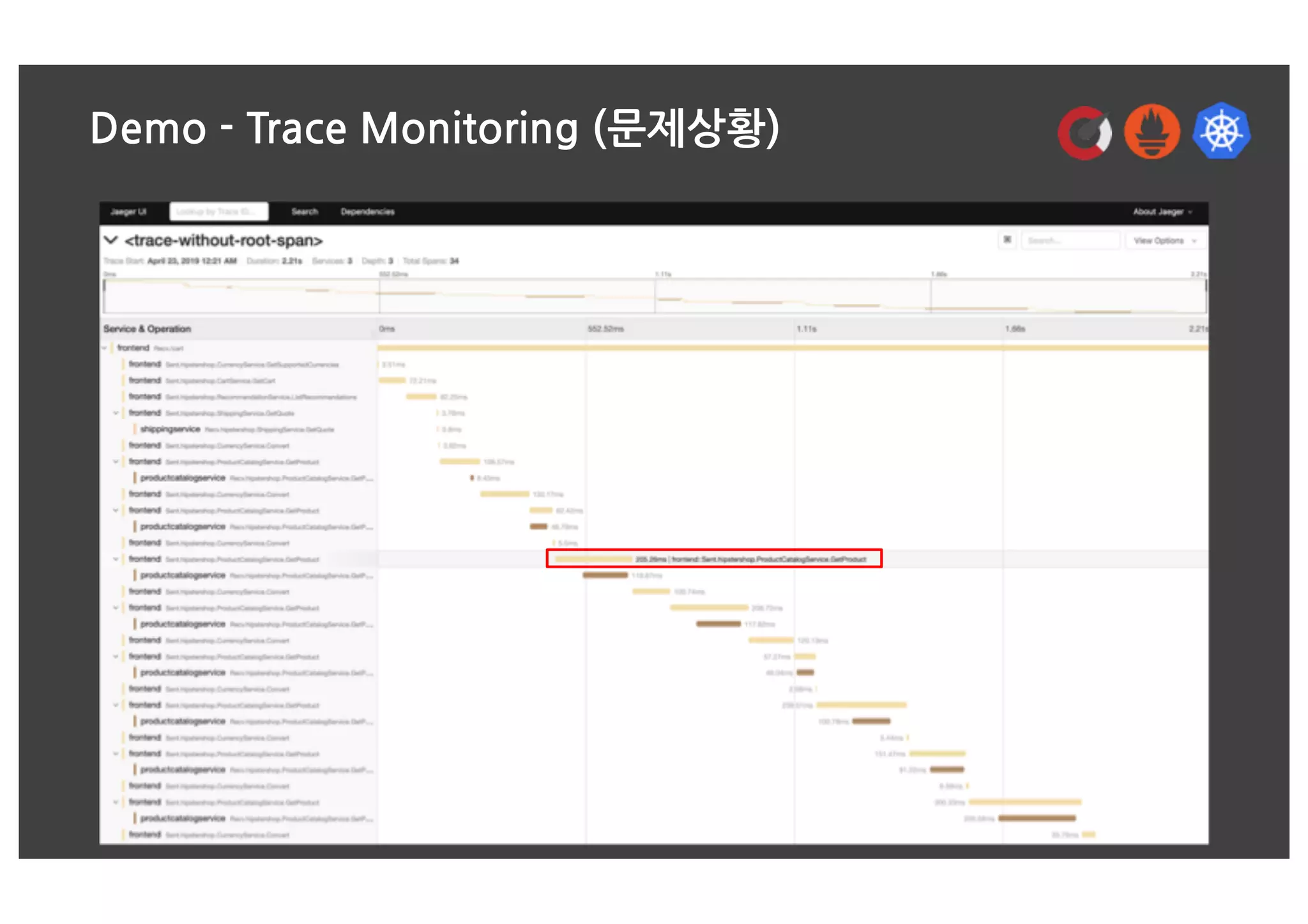

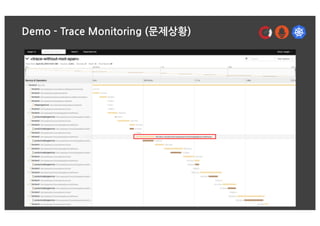

25. Demo - Trace Monitoring (문제상황)

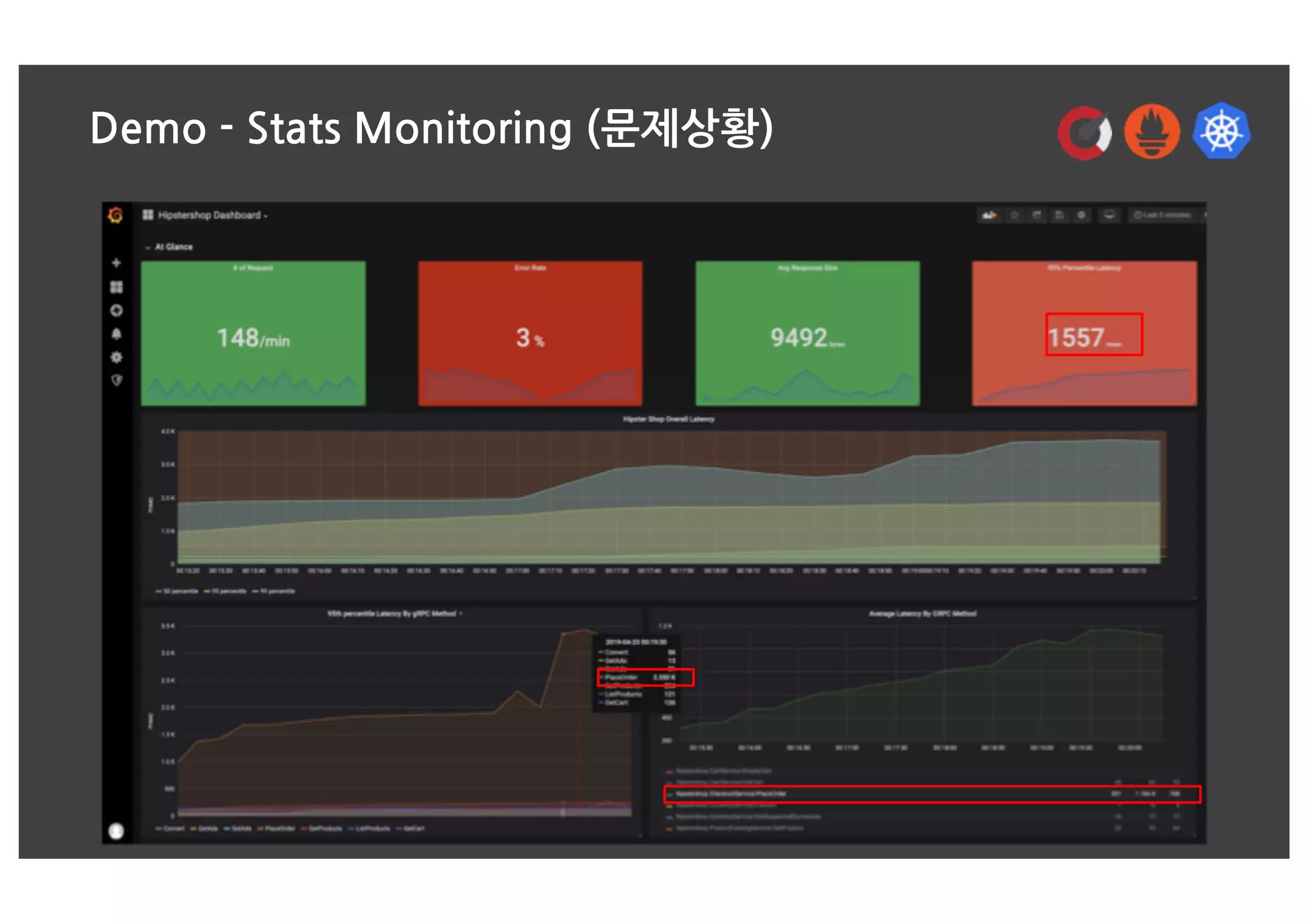

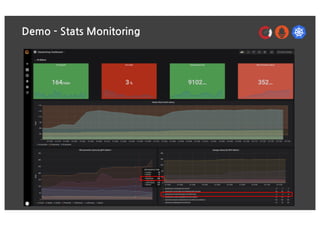

26. Demo - Stats Monitoring (문제상황)

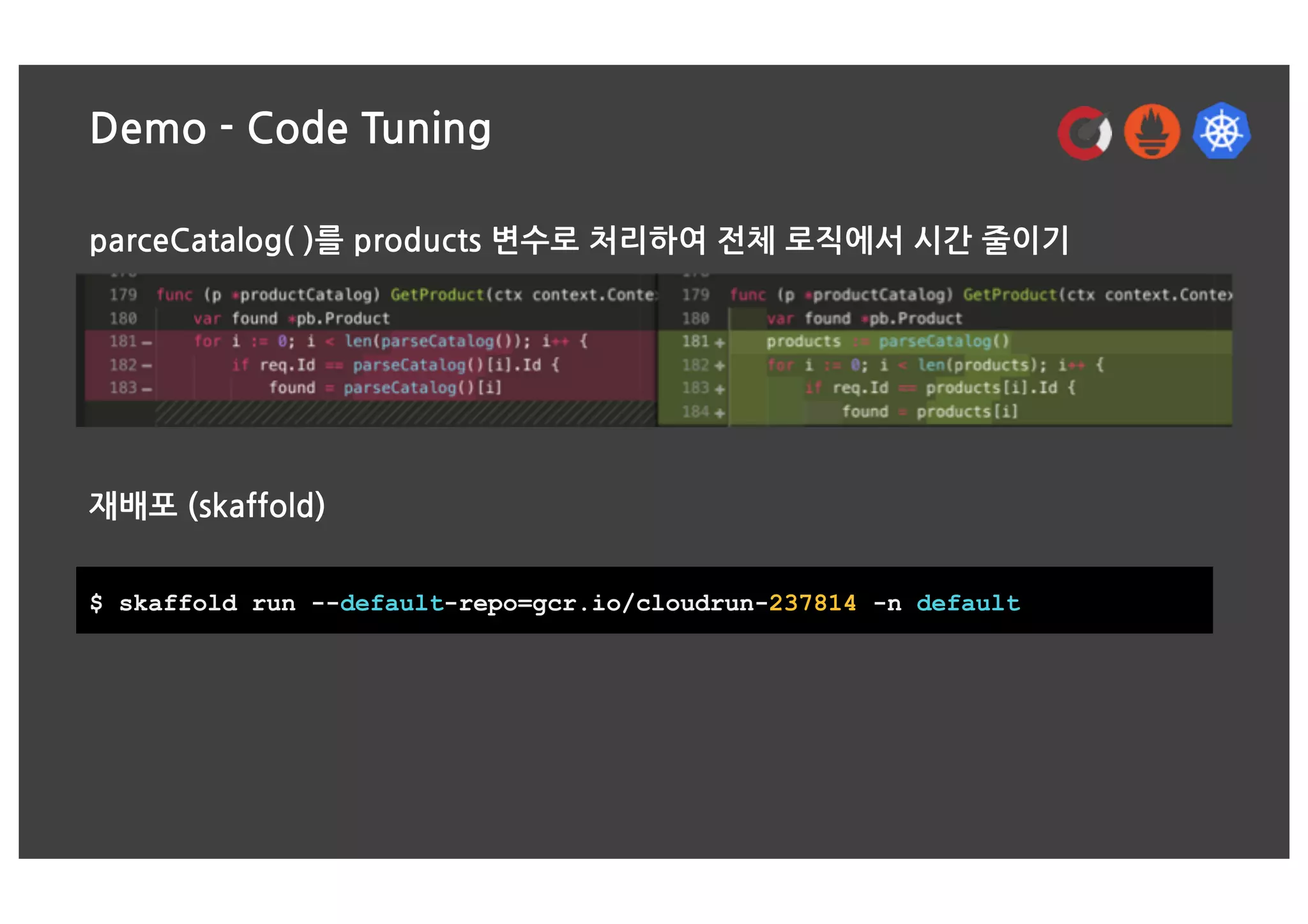

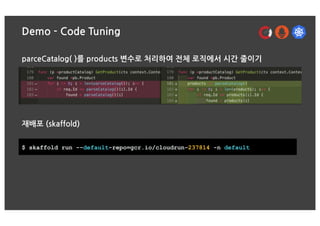

27. Demo - Code Tuning
parceCatalog( )를 products 변수로 처리하여 전체 로직에서 시간 줄이기
재배포 (skaffold)
$ skaffold run --default-repo=gcr.io/cloudrun-237814 -n default

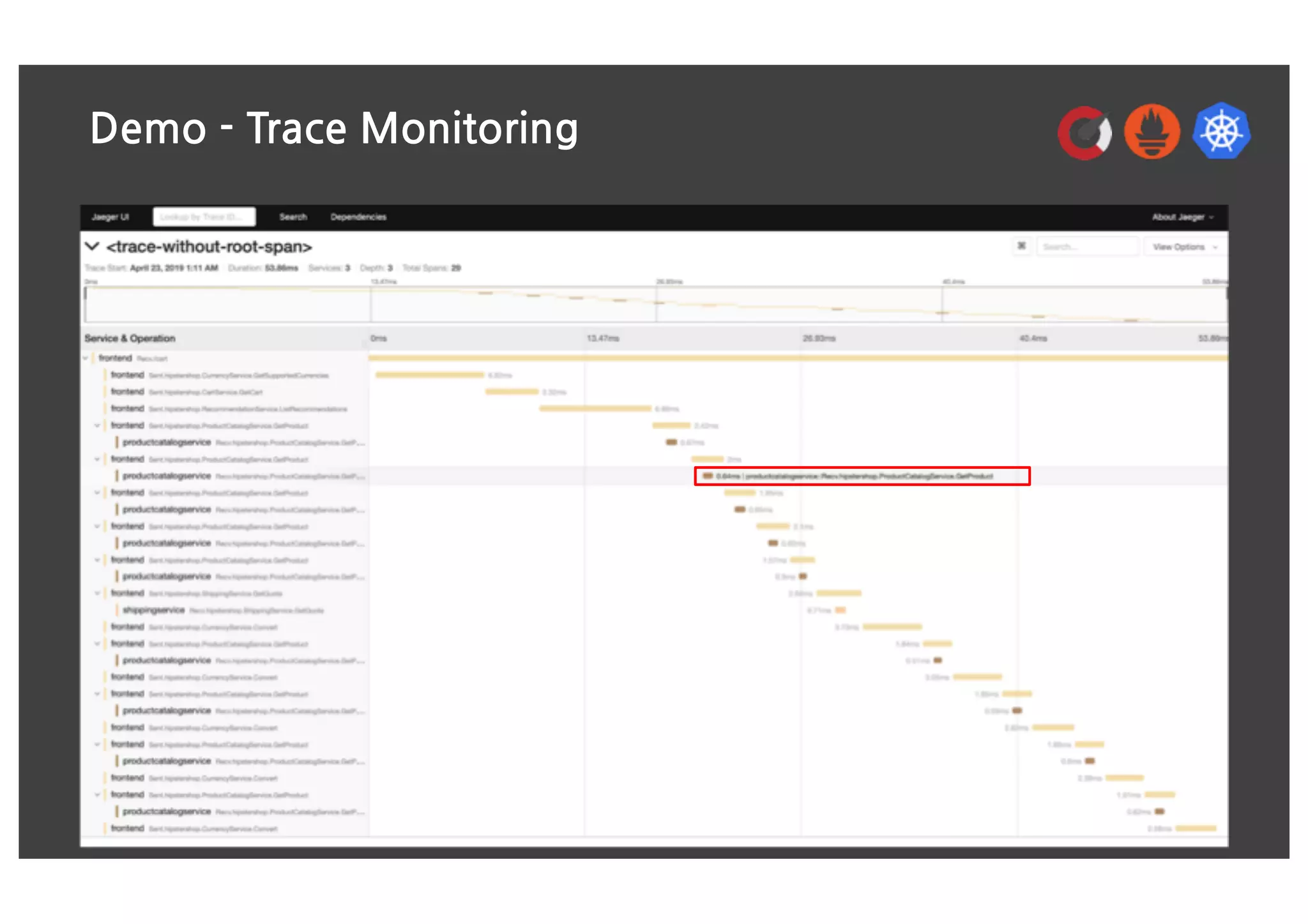

28. Demo - Trace Monitoring

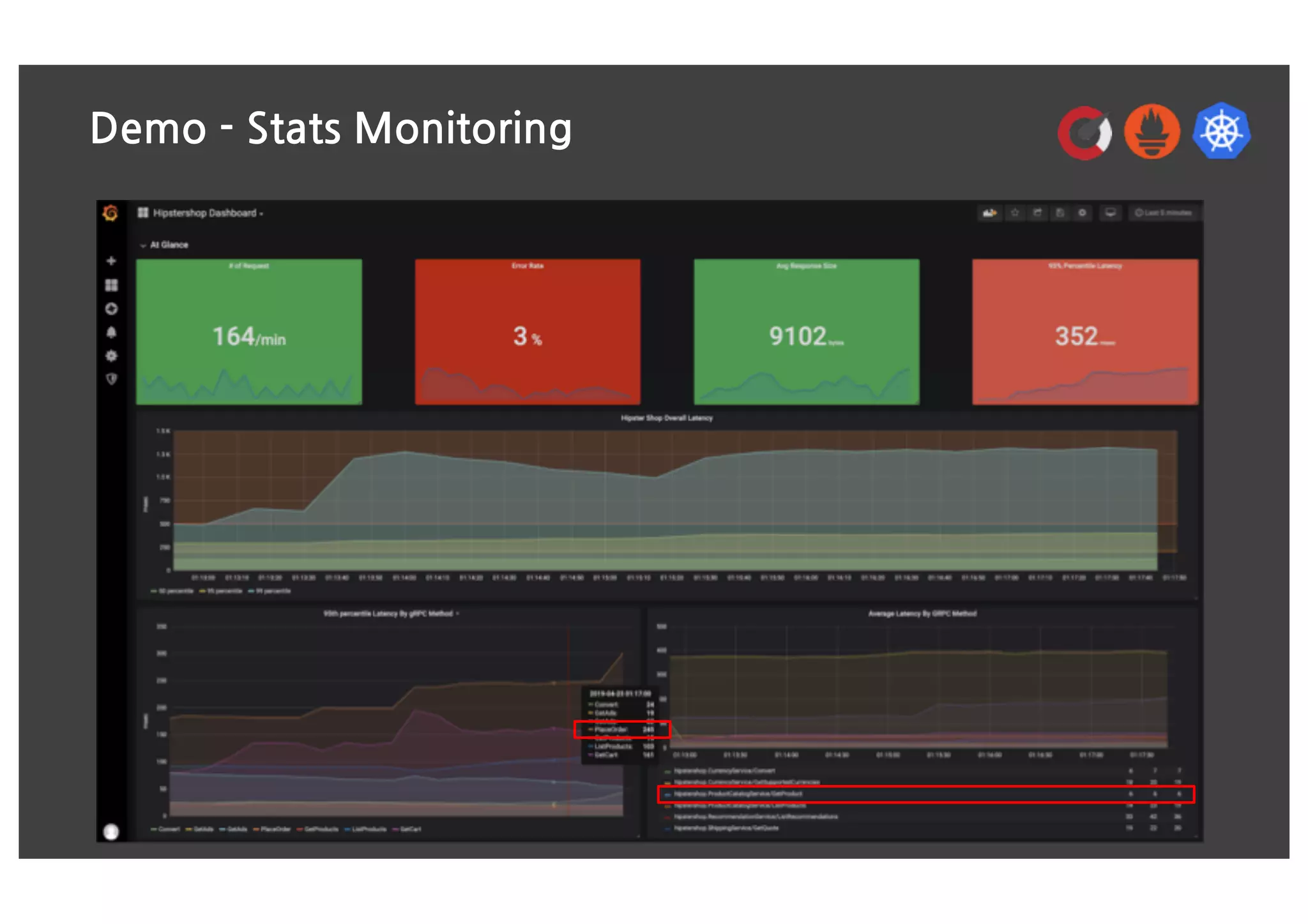

29. Demo - Stats Monitoring

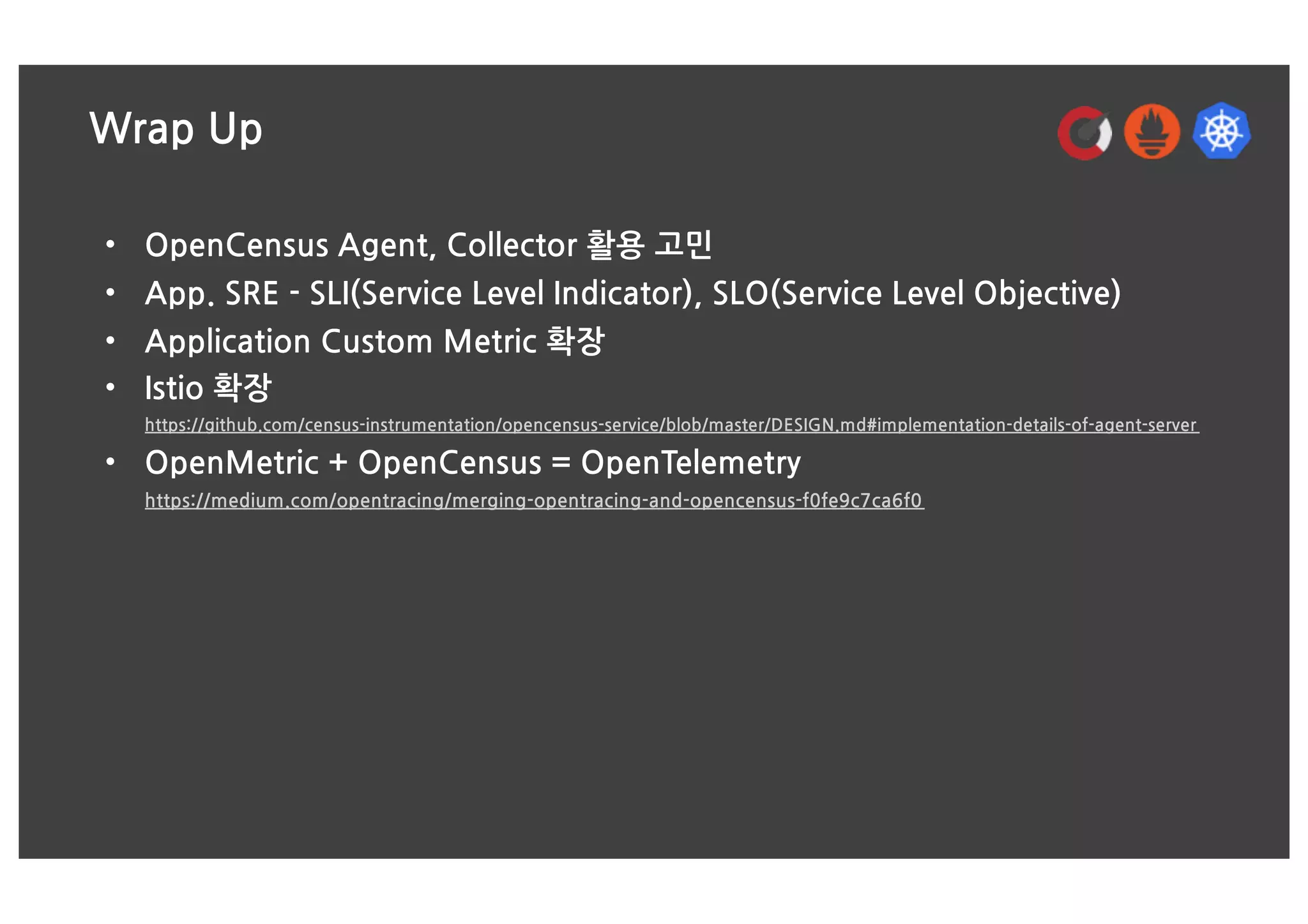

30. Wrap Up
• OpenCensus Agent, Collector 활용 고민
• App. SRE - SLI(Service Level Indicator), SLO(Service Level Objective)
• Application Custom Metric 확장
• Istio 확장
https://github.com/census-instrumentation/opencensus-service/blob/master/DESIGN.md#implementation-details-of-agent-server
• OpenMetric + OpenCensus = OpenTelemetry
https://medium.com/opentracing/merging-opentracing-and-opencensus-f0fe9c7ca6f0

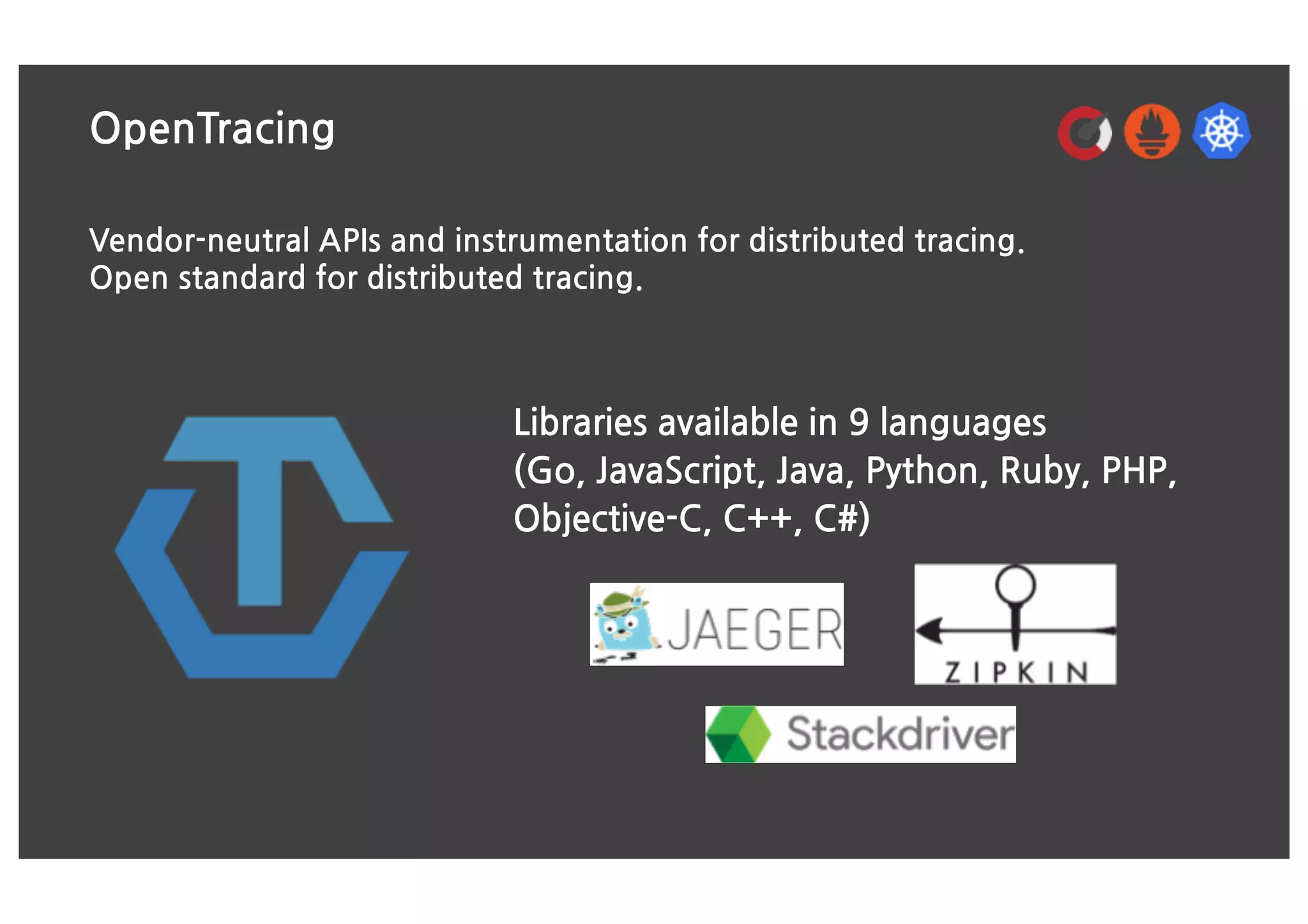

31. OpenTracing
Vendor-neutral APIs and instrumentation for distributed tracing.
Open standard for distributed tracing.
Libraries available in 9 languages
(Go, JavaScript, Java, Python, Ruby, PHP,
Objective-C, C++, C#)

32. OpenTelemetry
OpenTelemetry : The next major version
of the OpenTracing and OpenCensus
+ =

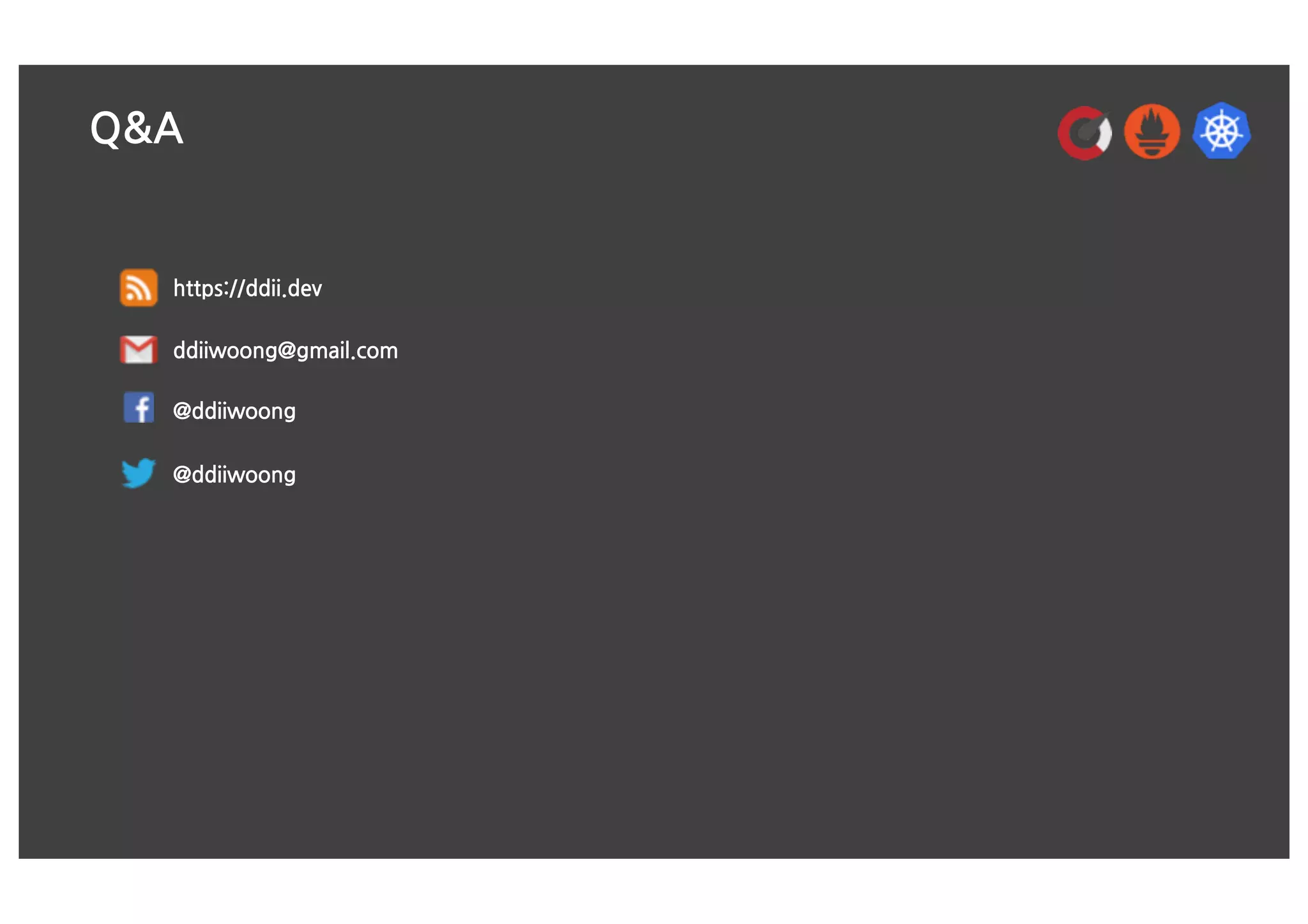

33. Q&A
@ddiiwoong
@ddiiwoong
ddiiwoong@gmail.com
https://ddii.dev
