Bulk Export Tool for Alfresco

Bulk Export Utility
Richard McKnight
Solution Architect
Alfresco Professional Services
https://github.com/rmknightstar

Learn. Connect. Collaborate.
What is the Bulk
Exporter?
The Bulk Exporter
dumps all of the
information associated
with each node in a tree
as line delimited JSON.

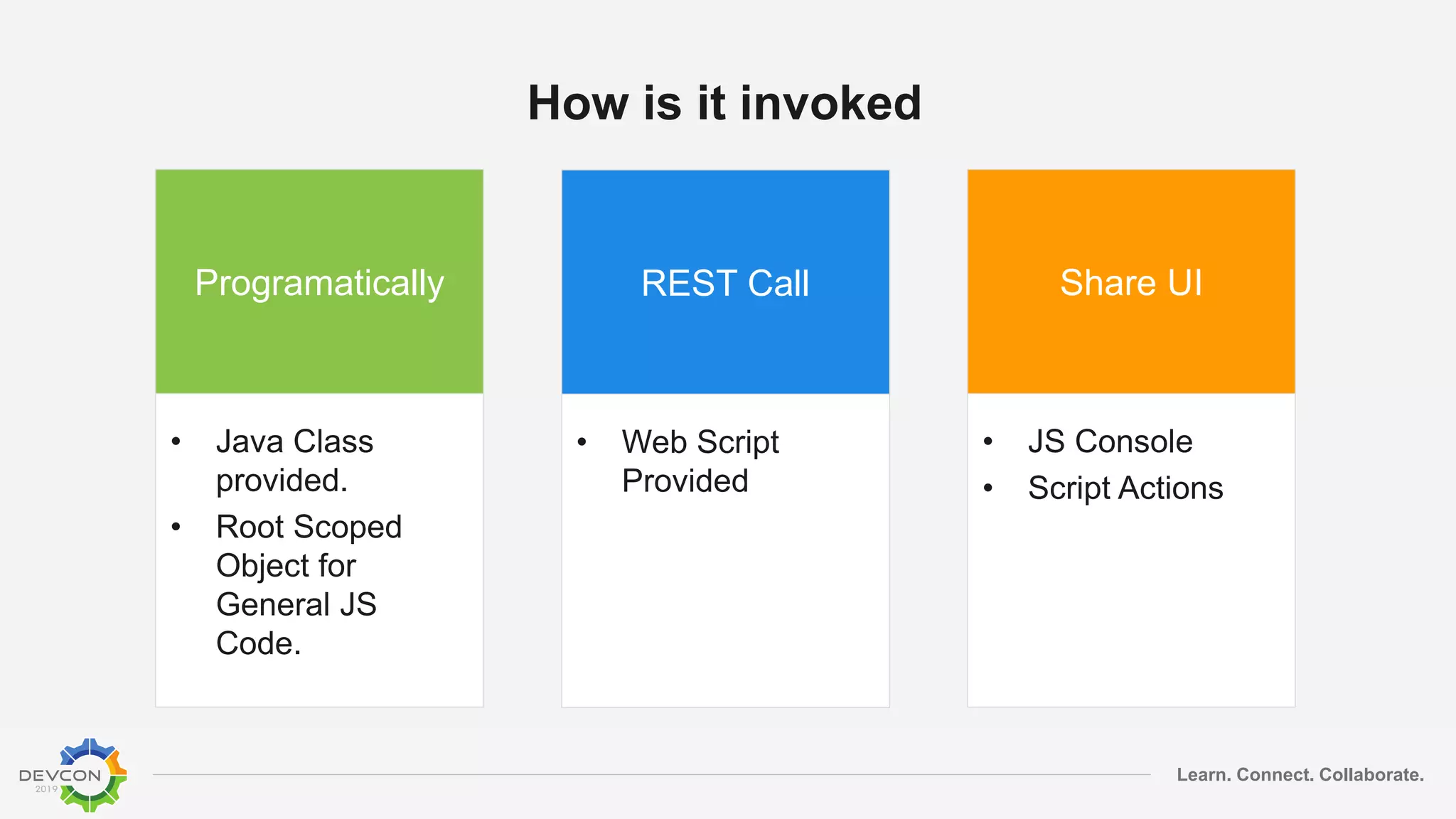

How is it invoked
Programatically
• Java Class
provided.
• Root Scoped
Object for
General JS
Code.
REST Call
• Web Script
Provided
Share UI
• JS Console
• Script Actions

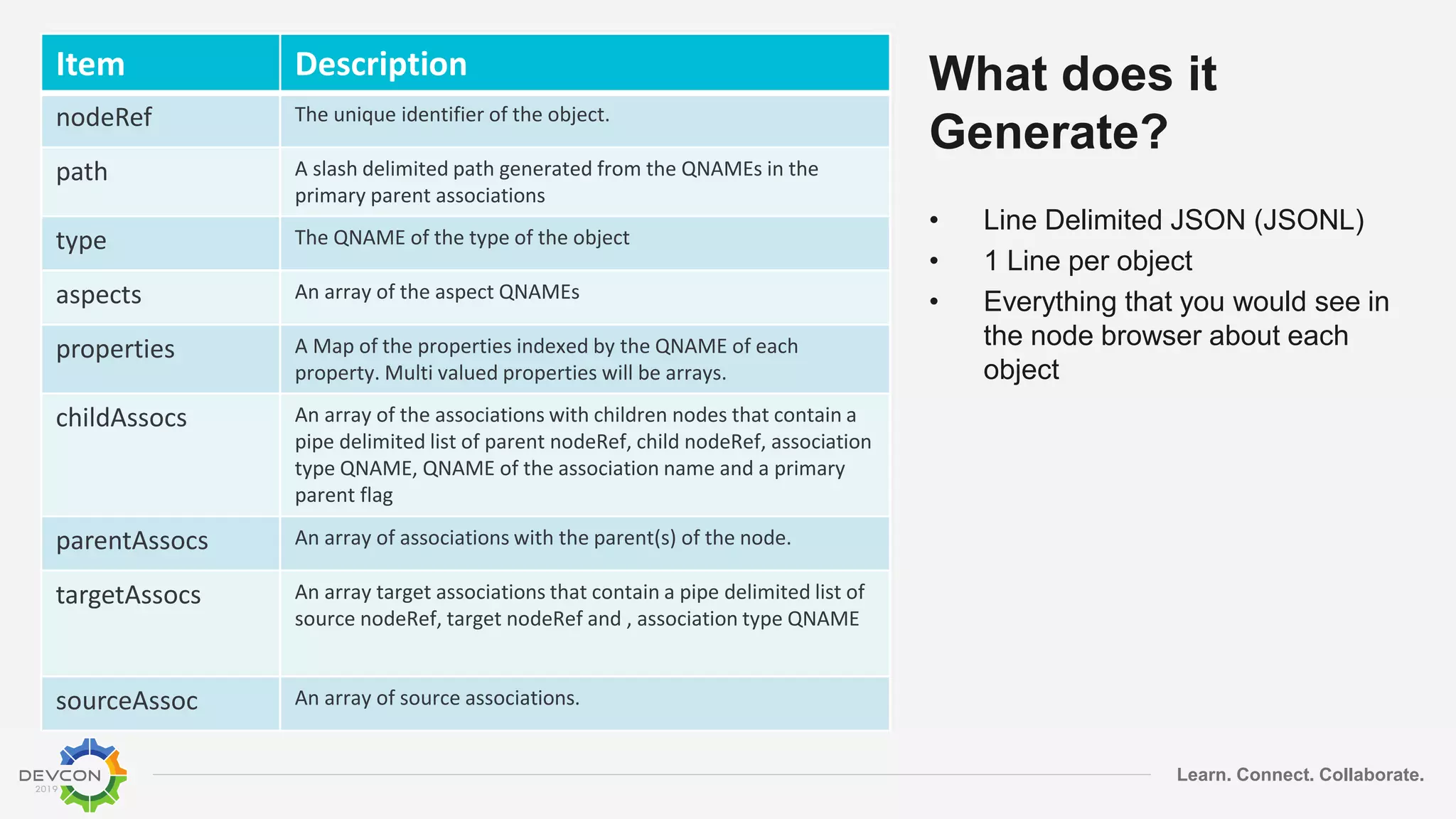

What does it
Generate?
• Line Delimited JSON (JSONL)
• 1 Line per object
• Everything that you would see in
the node browser about each
object
Item Description
nodeRef The unique identifier of the object.
path A slash delimited path generated from the QNAMEs in the
primary parent associations
type The QNAME of the type of the object
aspects An array of the aspect QNAMEs
properties A Map of the properties indexed by the QNAME of each
property. Multi valued properties will be arrays.
childAssocs An array of the associations with children nodes that contain a
pipe delimited list of parent nodeRef, child nodeRef, association
type QNAME, QNAME of the association name and a primary
parent flag
parentAssocs An array of associations with the parent(s) of the node.
targetAssocs An array target associations that contain a pipe delimited list of
source nodeRef, target nodeRef and , association type QNAME
sourceAssoc An array of source associations.

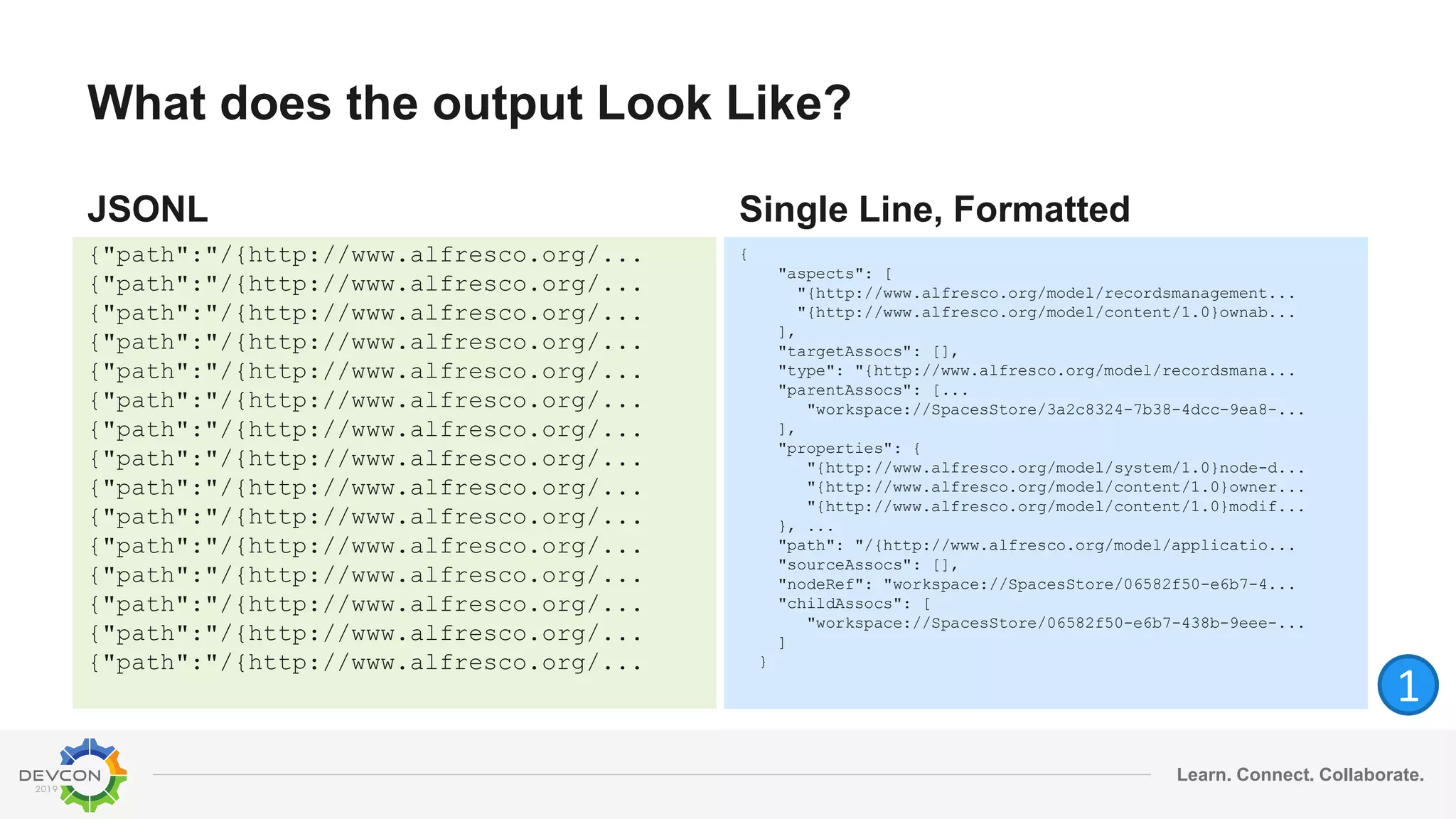

What does the output Look Like?
JSONL
{"path":"/{http://www.alfresco.org/...
Single Line, Formatted
{
"aspects": [
"{http://www.alfresco.org/model/recordsmanagement...
"{http://www.alfresco.org/model/content/1.0}ownab...
],
"targetAssocs": [],
"type": "{http://www.alfresco.org/model/recordsmana...
"parentAssocs": [...
"workspace://SpacesStore/3a2c8324-7b38-4dcc-9ea8-...
],
"properties": {
"{http://www.alfresco.org/model/system/1.0}node-d...
"{http://www.alfresco.org/model/content/1.0}owner...
"{http://www.alfresco.org/model/content/1.0}modif...
}, ...
"path": "/{http://www.alfresco.org/model/applicatio...
"sourceAssocs": [],
"nodeRef": "workspace://SpacesStore/06582f50-e6b7-4...
"childAssocs": [
"workspace://SpacesStore/06582f50-e6b7-438b-9eee-...
]
}
1

Why was it
developed
Large customer wanted to do an
Alfresco to Alfresco Migration
1. Export full node information to
export file
2. Copy Content to the new Content
Store
3. Generate the Bulk File System
Importer Property Files
4. Run the Bulk File System
Importer

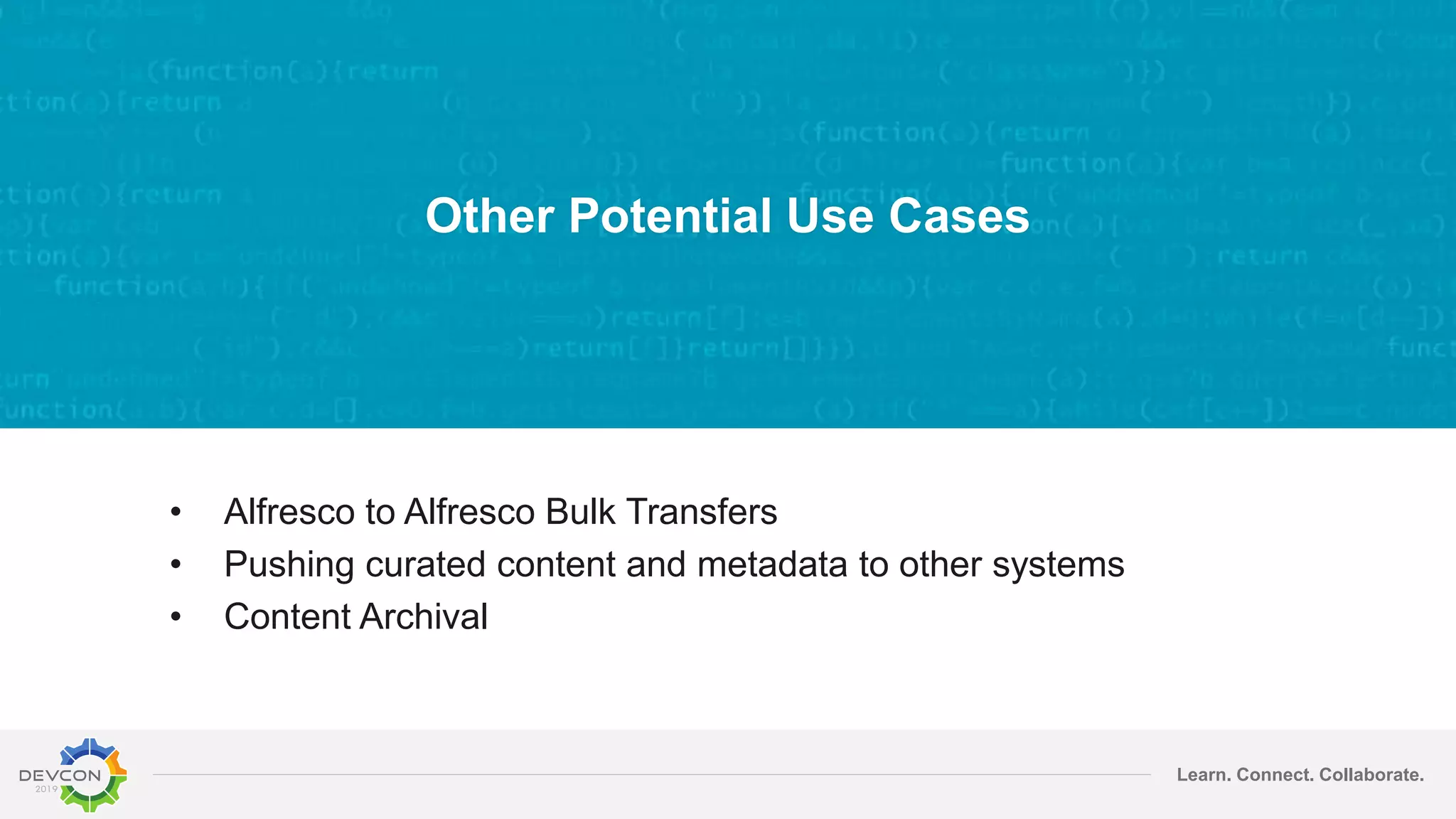

Other Potential Use Cases
• Alfresco to Alfresco Bulk Transfers
• Pushing curated content and metadata to other systems
• Content Archival

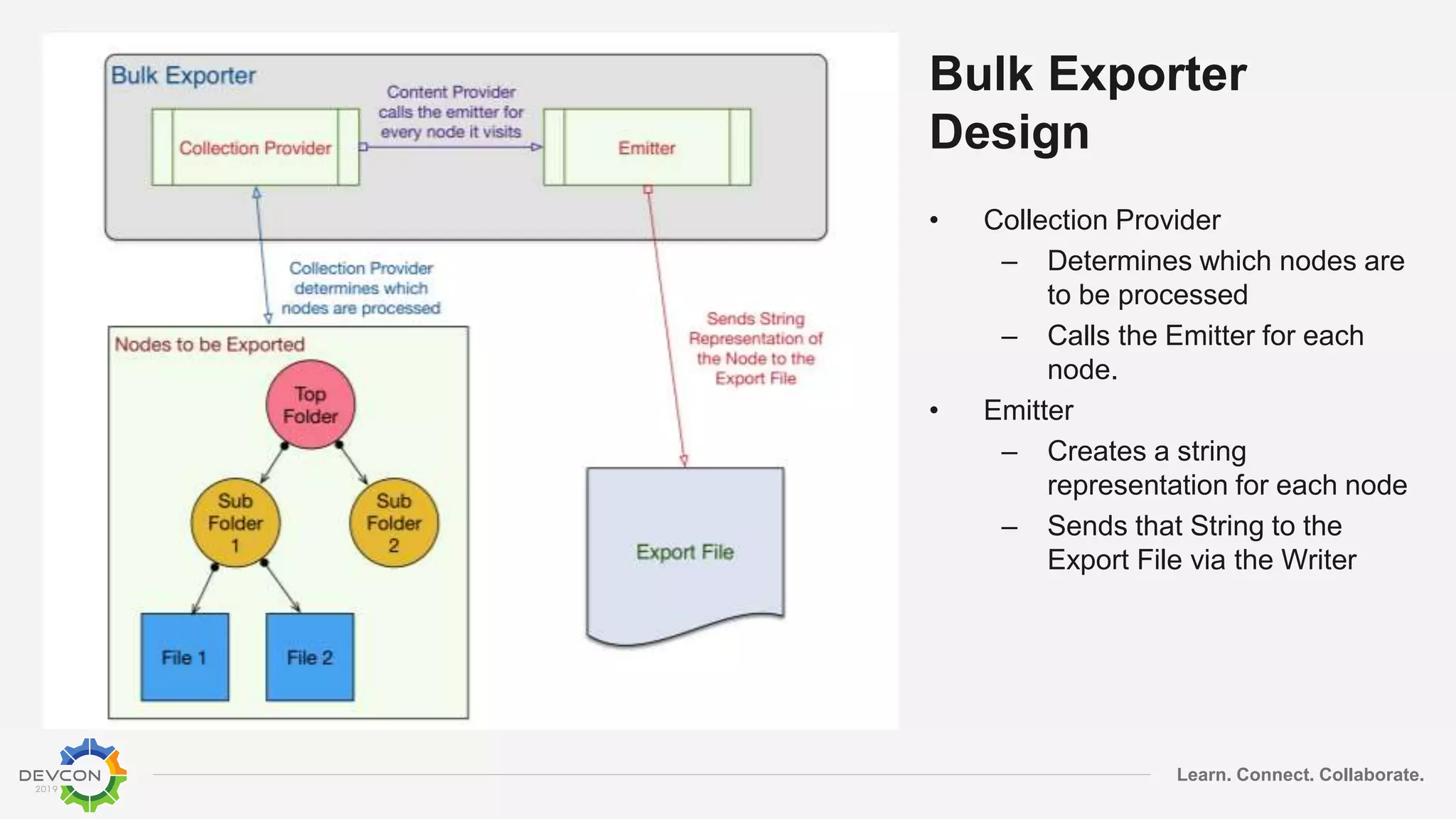

Bulk Exporter
Design
• Collection Provider
– Determines which nodes are
to be processed
– Calls the Emitter for each
node.
• Emitter
– Creates a string
representation for each node
– Sends that String to the
Export File via the Writer

Bulk
Exporter
Design:
Collection
Provider
• Provides a collection of objects to be exported
• Current implementation uses a Tree Walker to:
– Visit every file and folder in a top level directory
– Send the node to the Emitter for processing
2

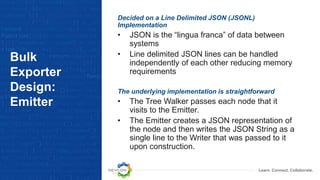

Bulk
Exporter
Design:
Emitter
Decided on a Line Delimited JSON (JSONL)
Implementation
• JSON is the “lingua franca” of data between
systems
• Line delimited JSON lines can be handled
independently of each other reducing memory
requirements
The underlying implementation is straightforward
• The Tree Walker passes each node that it
visits to the Emitter.
• The Emitter creates a JSON representation of
the node and then writes the JSON String as a
single line to the Writer that was passed to it
upon construction.

Different Formats
• Two Formats in the Sample Code
– Full Export (Line Delimited JSON)
– Manifest for Bulk Export (work in progress)
• Implements the BulkEmitter Interface shown below:
public interface BulkExportEmitter {
void setServiceRegistry(ServiceRegistry serviceRegistry);
void setTopNode(NodeRef nodeRef);
String separatorString();
String nodeToString(NodeRef nodeRef);
boolean includeTopNode();
String startString();
String endString();
}

Java API
public interface BulkExporter {
void export(
NodeRef topDir,
Writer manifest,
BulkExportEmitter emitter
);
}

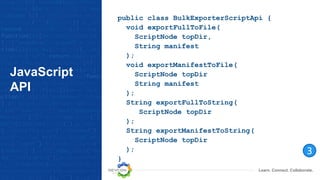

JavaScript
API
public class BulkExporterScriptApi {
void exportFullToFile(
ScriptNode topDir,
String manifest
);
void exportManifestToFile(
ScriptNode topDir
String manifest
);
String exportFullToString(
ScriptNode topDir
);
String exportManifestToString(
ScriptNode topDir
);
}
3

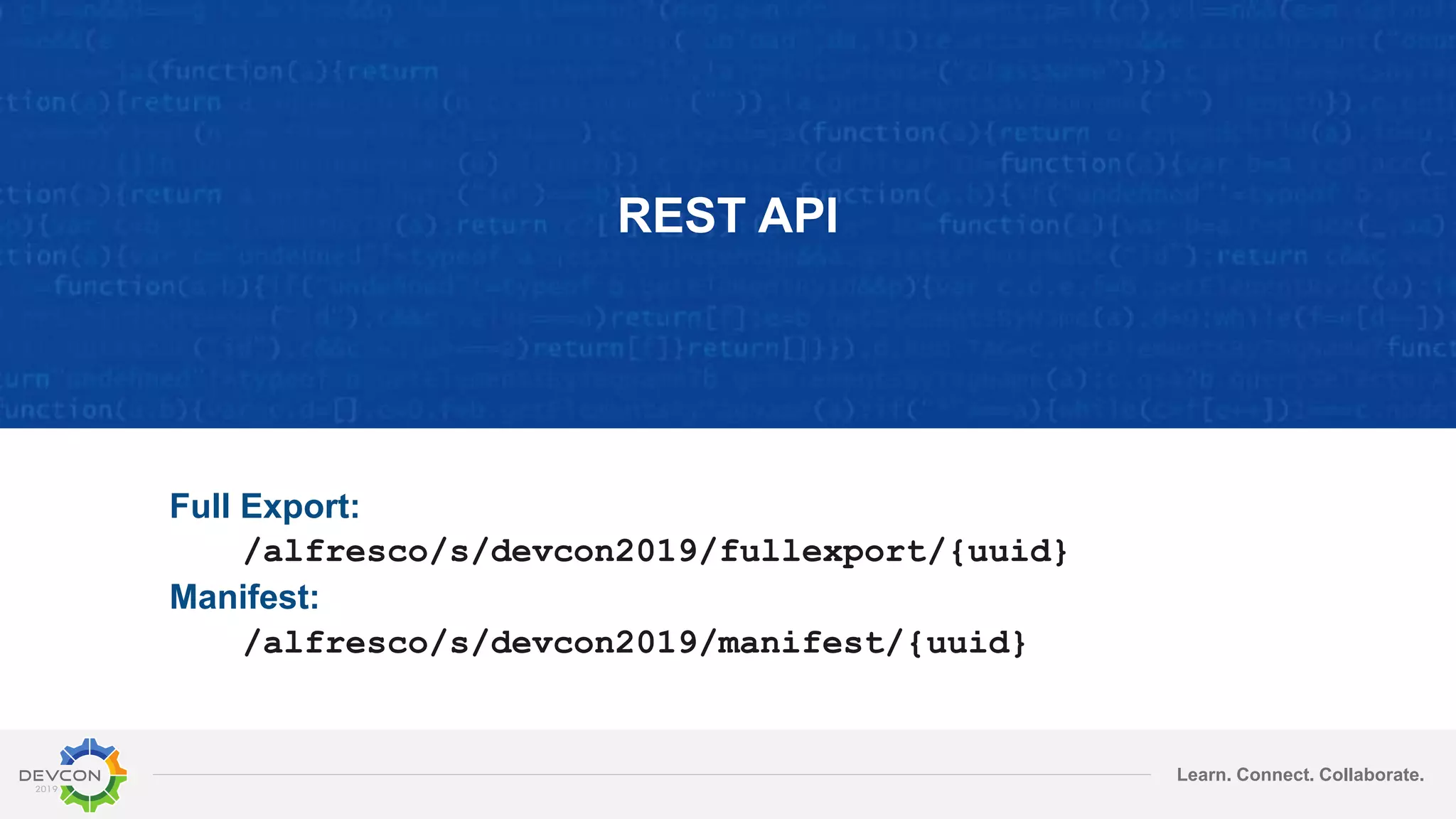

REST API
Full Export:
/alfresco/s/devcon2019/fullexport/{uuid}
Manifest:
/alfresco/s/devcon2019/manifest/{uuid}

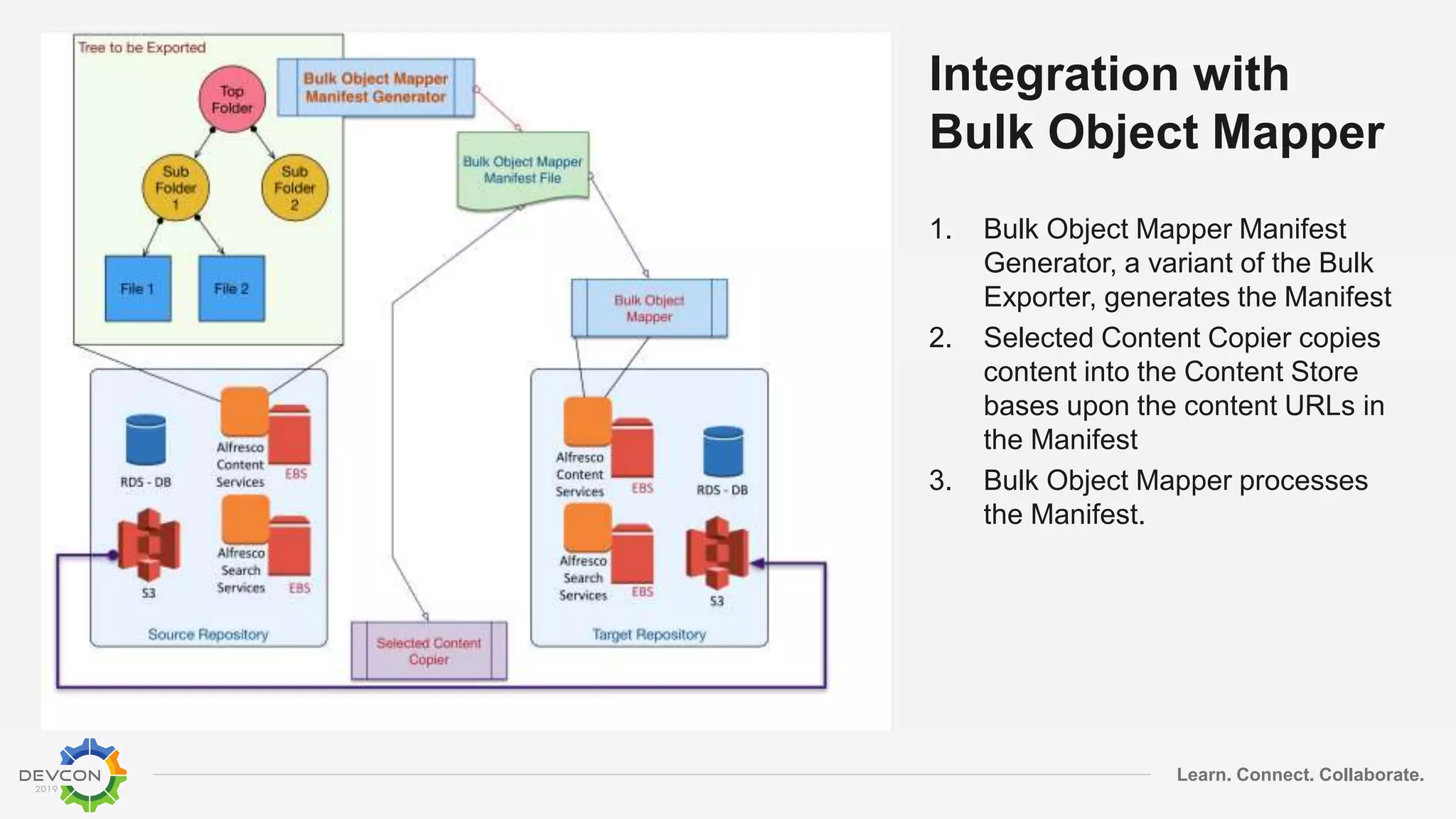

Integration with
Bulk Object Mapper
1. Bulk Object Mapper Manifest
Generator, a variant of the Bulk
Exporter, generates the Manifest
2. Selected Content Copier copies
content into the Content Store
bases upon the content URLs in
the Manifest
3. Bulk Object Mapper processes
the Manifest.

Bulk Transfer Use Case
• Bulk Transmitter is a variant of the
Bulk Exporter.
• Bulk Receiver is a variant of the
Bulk Object Mapper.
• The Bulk Receiver and Transmitter
will understand the same manifest
format
• The Bulk Receiver will create the
objects with missing content.
• The Bulk Receiver will launch a
process to copy the content in the
background.
• The Bulk Receiver will update the
objects as their content is copied.
• The Bulk Receiver would need to
handle updates to existing objects.

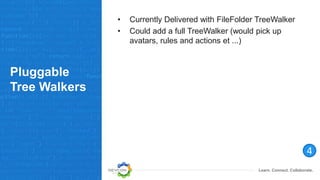

Pluggable
Tree Walkers
• Currently Delivered with FileFolder TreeWalker
• Could add a full TreeWalker (would pick up
avatars, rules and actions et ...)
4

Alternate
Collection
Providers
• Alternatives
– Search
– Tracker
– Filtering/Combo (Search, Tracker or Tree)
• Would need a different structure passed in
• Warning when trying to replicate the structure
(parents might be missing)
• Good for publishing of content

Running in
the
Background
• Good for potentially long running exports
• Would need to provide a status method to see
the progress of the export
• Need a place for temporary storage of the
output

Key Takeaways
• Any administrator can take an existing tree of
objects and export the metadata (including
Content Data)
• Built on the Alfresco Public API so it should be
stable across upgrades
• There are a number of easy to build
enhancements that could be added to the
current implementation

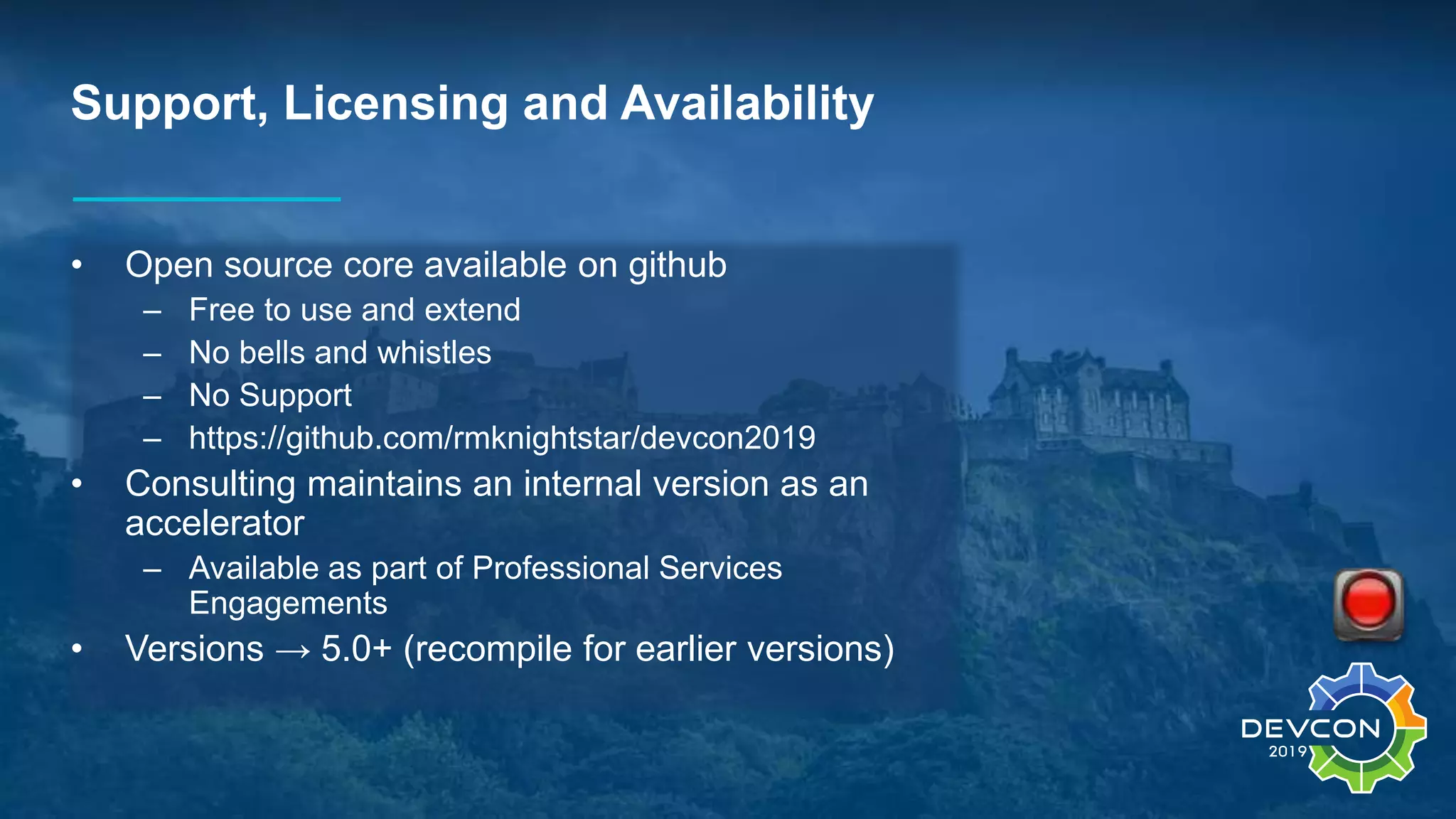

Support, Licensing and Availability
• Open source core available on github
– Free to use and extend
– No bells and whistles
– No Support
– https://github.com/rmknightstar/devcon2019
• Consulting maintains an internal version as an
accelerator
– Available as part of Professional Services
Engagements
• Versions → 5.0+ (recompile for earlier versions)

Bulk Export Utility
Thank you!
