1. Design Space of Geometry-based Image Abstraction
Techniques with Vectorization Applications
Lisa Ihde1, Amir Semmo2, Jürgen Döllner1, and Matthias Trapp1
1Hasso Plattner Institute, Faculty of Digital Engineering, University of Potsdam, Germany
2Digital Masterpieces GmbH, Potsdam, Germany
30th International Conference on Computer Graphics, Visualization and Computer Vision 2022 (WSCG 2022)
This work was partially funded by the German Federal Ministry of Education and
Research (BMBF) through grants 01IS18092 ("mdViPro") and 01IS19006 ("KI-LAB-ITSE")

2. Reproduce results of image-stylization techniques with fabrication devices
such as plotter or laser cutters.
Motivation
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 2

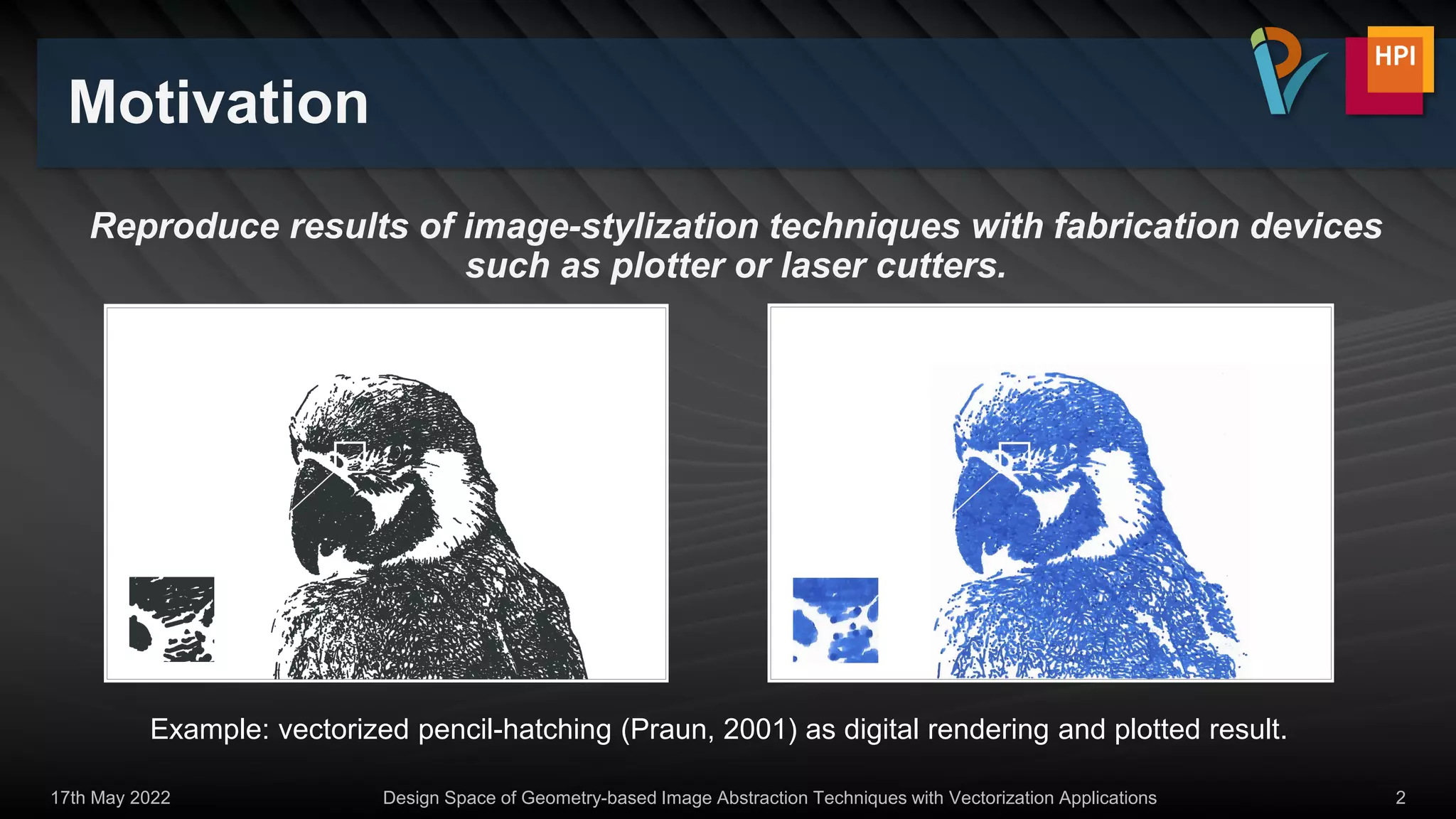

Example: vectorized pencil-hatching (Praun, 2001) as digital rendering and plotted result.

3. Geometry-based Stylization Techniques (GST)
➔ Image stylization using a number of geometric primitives
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 3
[Geometric
Abstraction
III
Toned
Poster
by
David
Gordon]
[http://linify.me]
[https://www.evilmadscientist.com/201
2/stipplegen2/]
[http://paperjs.org/examples]
[https://tylerxhobbs.com/essays/2016/a-randomized-approach-to-circle-packing]

4. Design Space Overview
for Geometry-based Stylization Techniques

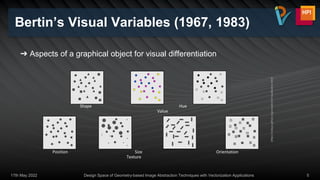

5. Bertin’s Visual Variables (1967, 1983)
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 5
[https://volaya.github.io/gis-book/en/Visualization.html]
➔ Aspects of a graphical object for visual differentiation
Shape Hue
Value
Position Size Orientation
Texture

6. 1. Shape Types
Polygon

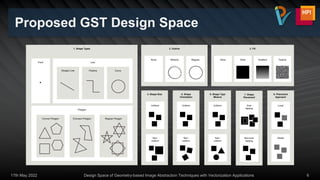

Proposed GST Design Space
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 6
2. Outline 3. Fill
4. Shape Size 5. Shape
Orientation
6. Shape Type
Mixture
7. Shape
Placement
8. Placement
Approach
None Sketchy Regular None Solid Gradient Texture
Uniform
Non-
uniform
Uniform
Non-
uniform
Uniform
Non-
uniform
Local
Global
Point Line
Straight Line Polyline Curve
Convex Polygon Regular Polygon
Concave Polygon
Over
lapping
Non-over
lapping

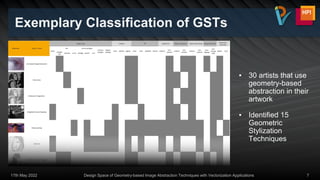

7. Exemplary Classification of GSTs
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 7
▪ 30 artists that use
geometry-based
abstraction in their
artwork
▪ Identified 15
Geometric
Stylization
Techniques

8. Classification of Processing
Techniques for GSTs

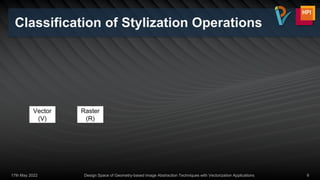

9. Classification of Stylization Operations
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 9
Vector
(V)
Raster
(R)

10. Classification of Stylization Operations
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 10
Geometric Primitives with Appearance information
Number of Raster Data Layers
Texturing / Rasterization
Raytracing
INPUT
OUTPUT
EXAMPLES

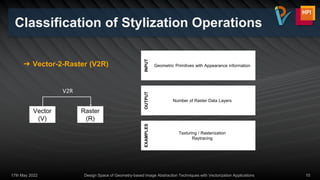

➔ Vector-2-Raster (V2R)
Vector
(V)
Raster
(R)
V2R

11. Raster-data Layers
Geometric Primitives with Appearance information
Tracing / Vectorization
Diffusion Curves
Classification of Stylization Operations
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 11
INPUT
OUTPUT
EXAMPLES
➔ Raster-2-Vector (R2V)
Vector
(V)
Raster
(R)
V2R
R2V

12. Geometric Primitives with Appearance information
Geometric Primitives with Appearance information
Primitive Filtering
Geometry Amplification
Tessellation | Subdivision
Geometric Mapping Stages
Classification of Stylization Operations
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 12
INPUT
OUTPUT
EXAMPLES
➔ Vector-2-Vector (V2V)
Vector
(V)
Raster
(R)
V2V V2R
R2V

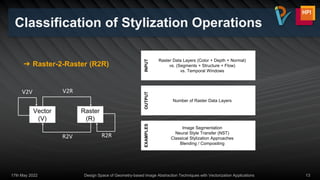

13. Raster Data Layers (Color + Depth + Normal)
vs. (Segments + Structure + Flow)
vs. Temporal Windows
Number of Raster Data Layers
Image Segmentation
Neural Style Transfer (NST)
Classical Stylization Approaches
Blending / Compositing
Classification of Stylization Operations
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 13
INPUT
OUTPUT
EXAMPLES
➔ Raster-2-Raster (R2R)
Vector
(V)
Raster
(R)
R2R
V2V V2R
R2V

14. Applications & Discussion

15. Vectorized Pencil Hatching
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 15

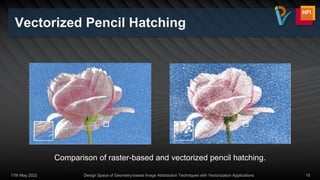

Comparison of raster-based and vectorized pencil hatching.

16. Vectorized Pencil Hatching
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 16
Praun,
2001

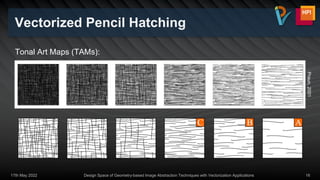

Tonal Art Maps (TAMs):

17. Segment-based Shape Packing
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 17

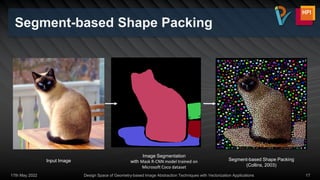

Image Segmentation
with Mask R-CNN model trained on
Microsoft Coco dataset
Input Image Segment-based Shape Packing
(Collins, 2003)

18. Segment-based Shape Packing
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 18
Working Principle: Place shapes of various dimensions in a
confined space inside a segment without overlapping
FOR segment IN segments:
shapes[] = generateShapes(numShapes,minSize,maxSize)
FOR shape IN shapes:
trials = TRIALS
WHILE trials-- > 0:
position = generatePosition()
IF isInsideSegment(shape,position,segment)
&& !collisionPlacedShapes(shape,position):
placeShape(shape,position)

19. Segment-based Shape Packing
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 19

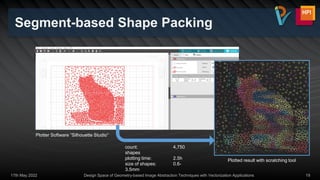

Plotter Software “Silhouette Studio”
Plotted result with scratching tool
count: 4,750
shapes
plotting time: 2.5h
size of shapes: 0.6-
3.5mm

20. Scribbled Line Art
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 20

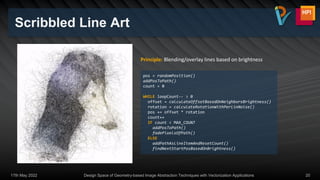

Principle: Blending/overlay lines based on brightness
pos = randomPosition()
addPosToPath()
count = 0
WHILE loopCount-- > 0
offset = calculateOffsetBasedOnNeighborsBrightness()
rotation = calculateRotationWithPerlinNoise()
pos += offset * rotation
count++
IF count < MAX_COUNT
addPosToPath()
fadePixelsOfPath()
ELSE
addPathAsLineItemAndResetCount()
findNextStartPosBasedOnBrightness()

21. Fused Stylization Techniques

22. Fused Stylization Techniques
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 22
“Abstract Landscapes” by Jason Anderson
“Golden” (2019/2020) “Plaid” (2020)
“Matrix” (2019)

23. Fused Stylization Techniques
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 23
Placed shapes: 29.417
Shape Packing Oil Painting
(Semmo, 2016)

24. Fused Stylization Techniques
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 24
Placed shapes: 3.869
Scribbled Line Art Oil Painting
(Semmo, 2016)

25. Wrap Up
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications 25
1. Concept, classification, and semiotic for geometry-based stylization techniques
2. Framework for geometry-based stylization techniques that demonstrate
different applications
3. Development of operations for fused stylization techniques:
combining geometry and pixel-based stylization techniques

26. Questions?
26
17th May 2022 Design Space of Geometry-based Image Abstraction Techniques with Vectorization Applications
