The strategy pattern defines a family of algorithms, encapsulates each one, and makes them interchangeable. It allows an algorithm's behavior to be selected at runtime. As an example, a navigation app could use different strategies for routing by car, bus, or walking. Benefits include swapping algorithms at runtime and isolating implementation from client code. Drawbacks include increased complexity if there are few algorithms, and clients needing awareness of strategy differences. The template method pattern defines an algorithm's structure in a superclass but lets subclasses override specific steps without changing the overall structure. It is used when different classes perform similar algorithms with minor differences.

1. Strategy
Design Pattern
Alia Hamwi

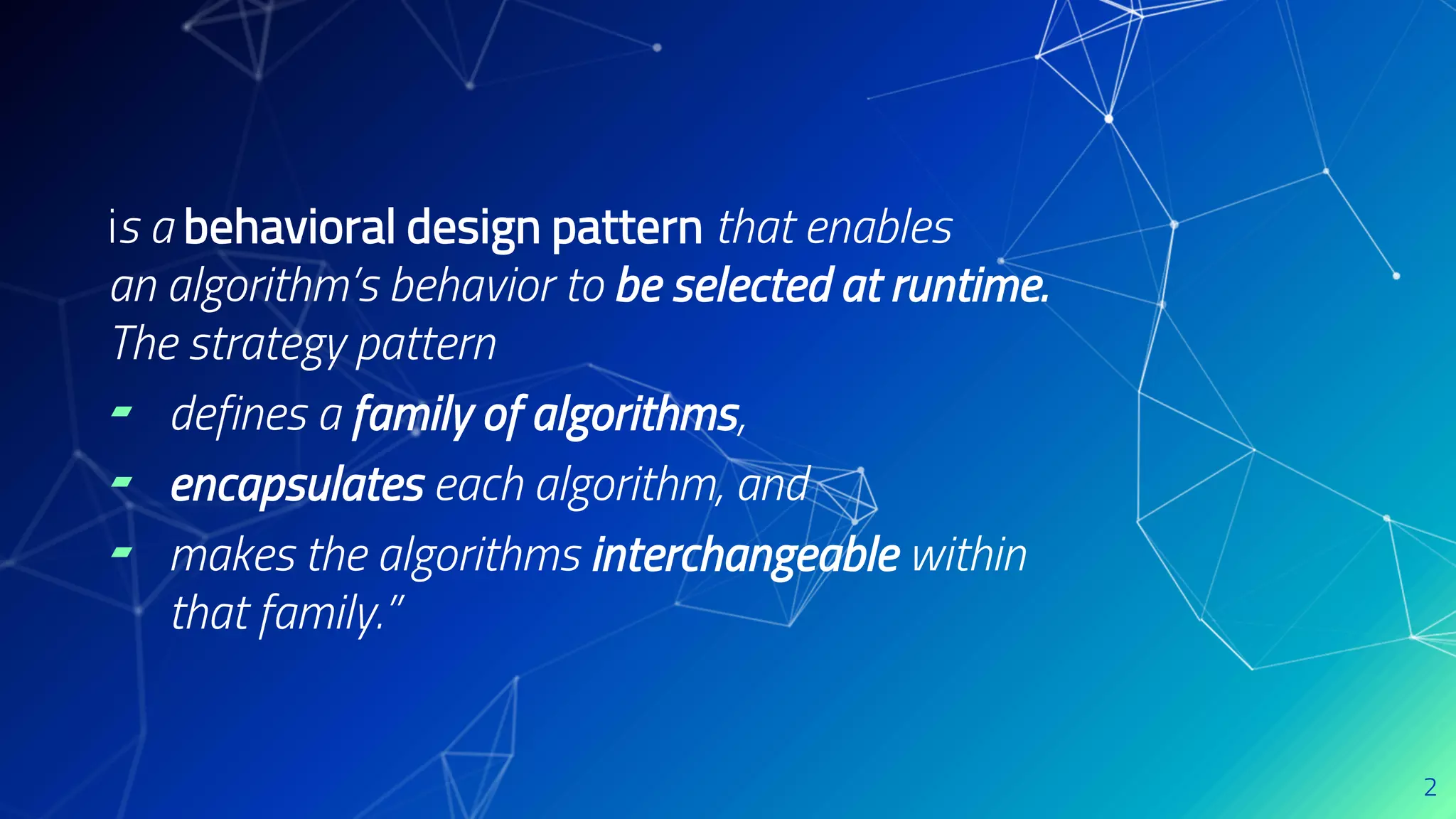

2. is a behavioral design pattern that enables
an algorithm’s behavior to be selected at runtime.
The strategy pattern
▰ defines a family of algorithms,
▰ encapsulates each algorithm, and
▰ makes the algorithms interchangeable within
that family.”
2

3. 3

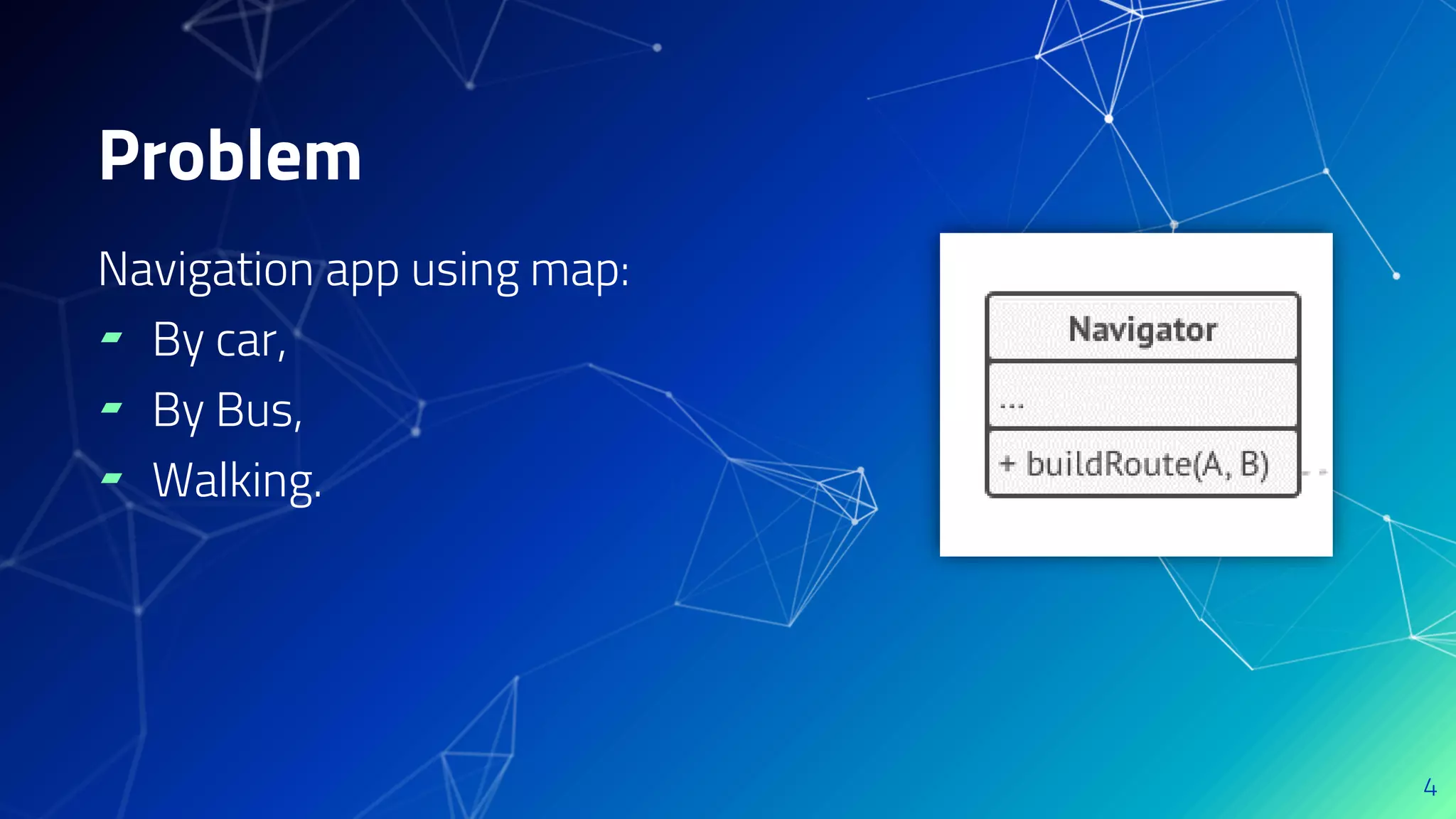

4. Navigation app using map:
▰ By car,
▰ By Bus,
▰ Walking.
4
Problem

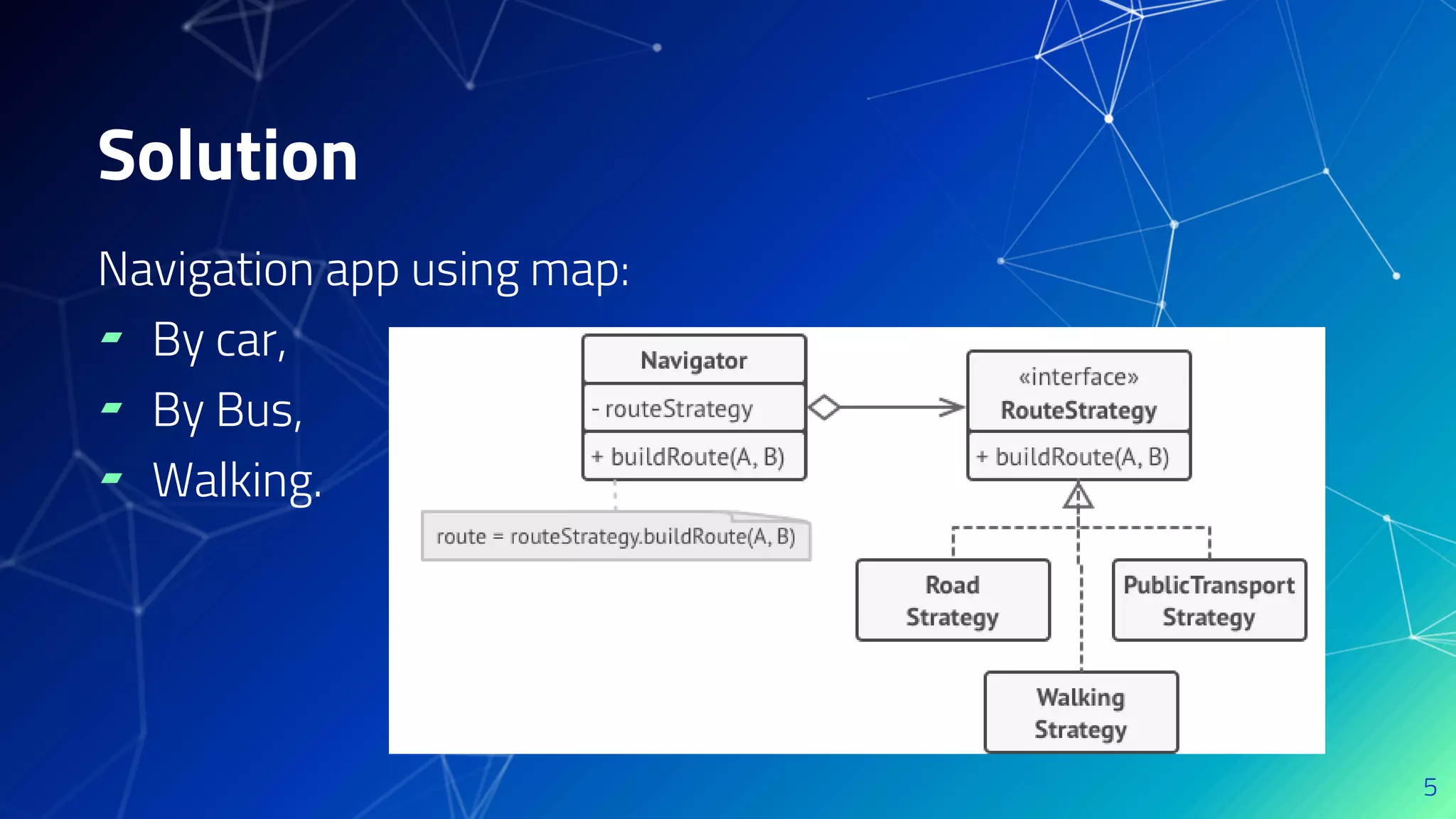

5. Navigation app using map:
▰ By car,
▰ By Bus,
▰ Walking.
5
Solution

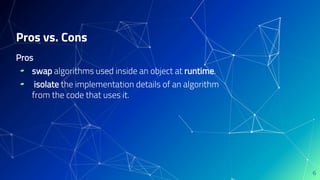

6. Pros
▰ swap algorithms used inside an object at runtime.
▰ isolate the implementation details of an algorithm
from the code that uses it.
Pros vs. Cons
6

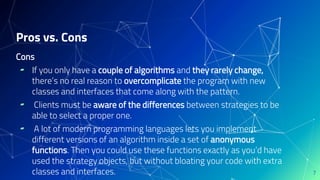

7. Cons
▰ If you only have a couple of algorithms and they rarely change,
there’s no real reason to overcomplicate the program with new
classes and interfaces that come along with the pattern.
▰ Clients must be aware of the differences between strategies to be
able to select a proper one.
▰ A lot of modern programming languages lets you implement
different versions of an algorithm inside a set of anonymous
functions. Then you could use these functions exactly as you’d have
used the strategy objects, but without bloating your code with extra
classes and interfaces.
Pros vs. Cons
7

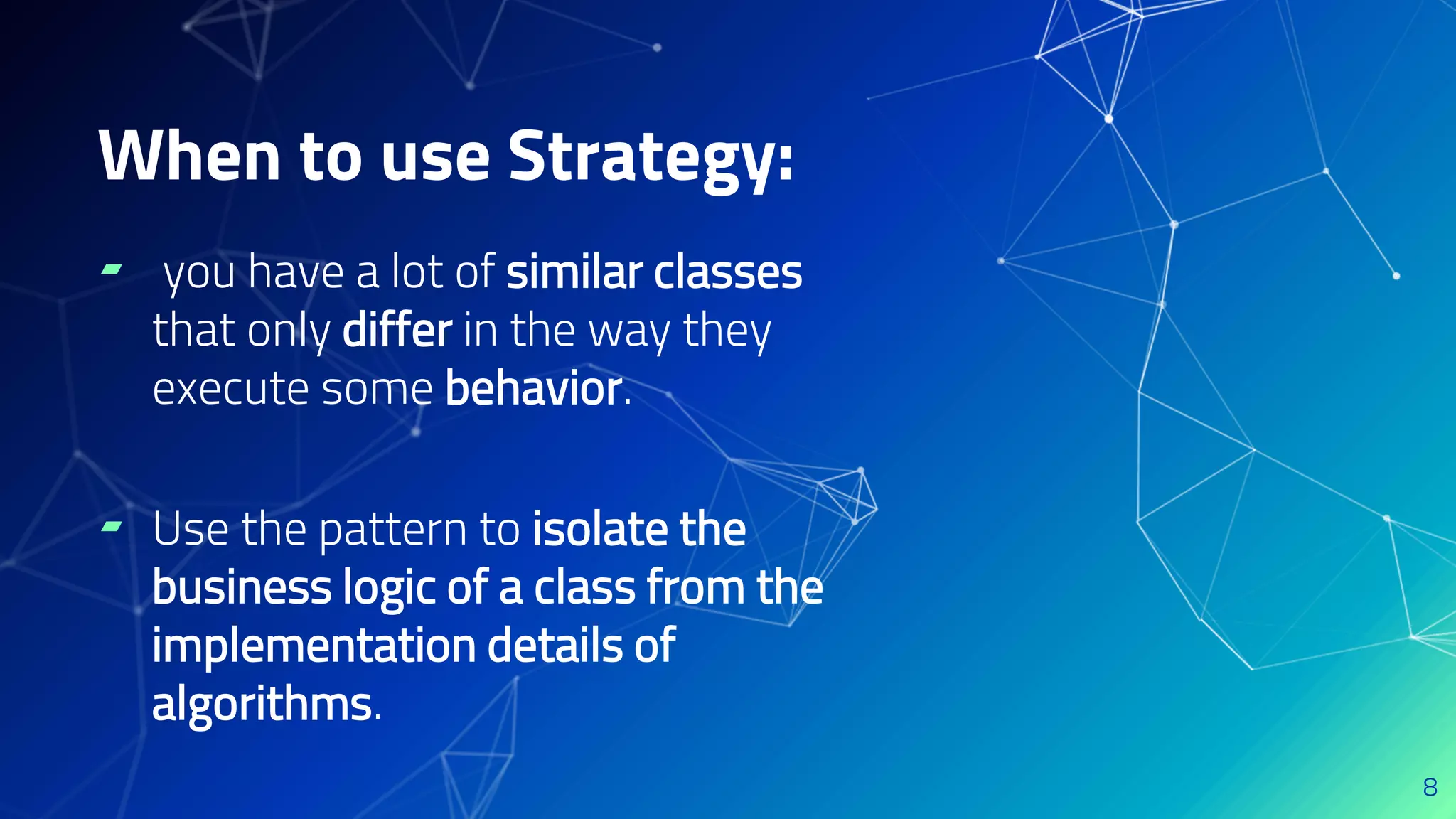

8. ▰ you have a lot of similar classes
that only differ in the way they
execute some behavior.
▰ Use the pattern to isolate the
business logic of a class from the
implementation details of
algorithms.
8
When to use Strategy:

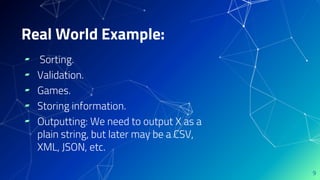

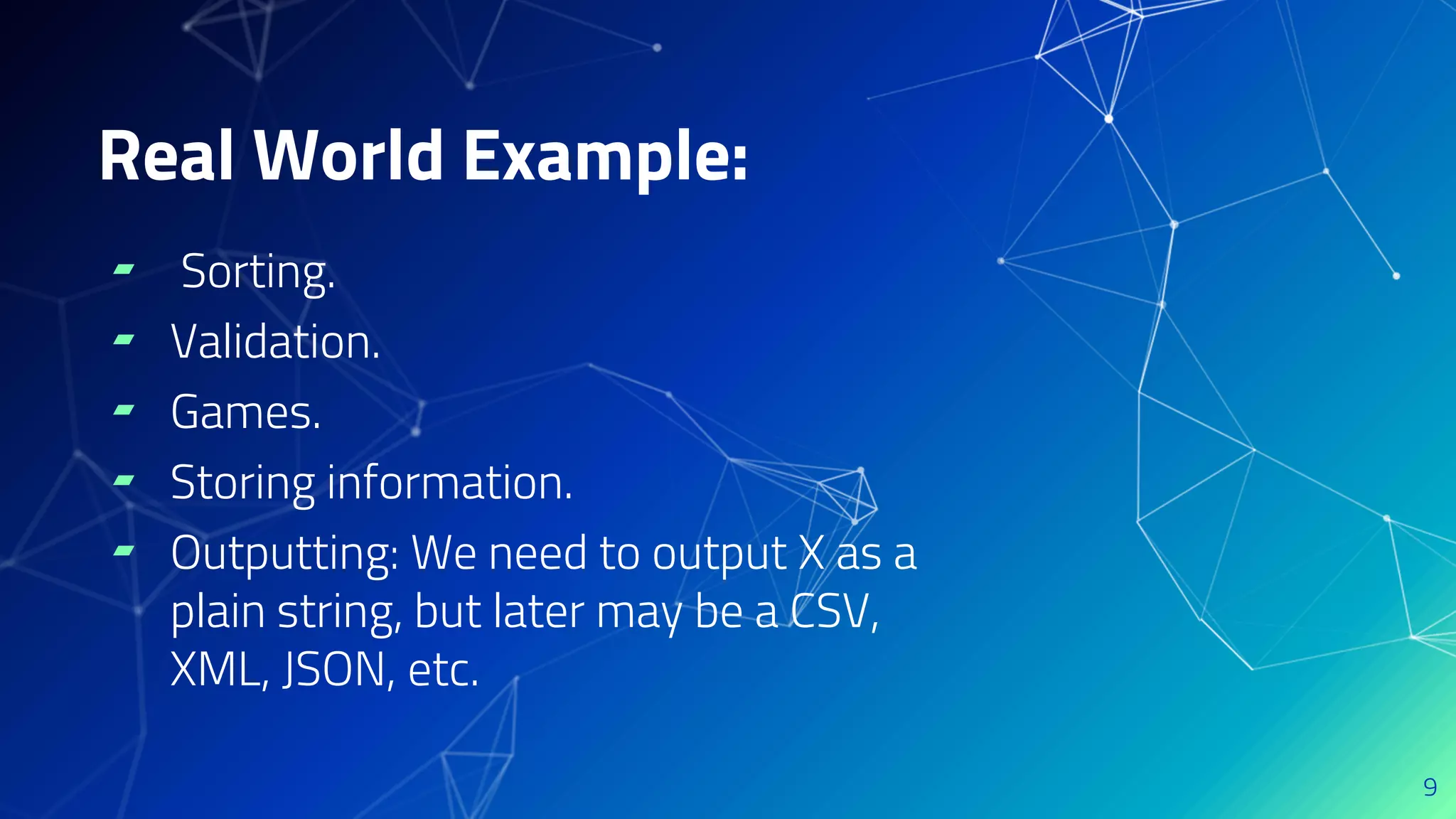

9. ▰ Sorting.
▰ Validation.
▰ Games.
▰ Storing information.
▰ Outputting: We need to output X as a
plain string, but later may be a CSV,
XML, JSON, etc.
9
Real World Example:

10. ▰ Command and Strategy may look similar because you can use both to
parameterize an object with some action. However, they have very
different intents.
▰ State can be considered as an extension of Strategy.. Strategy makes
these objects completely independent and unaware of each other.
However, State doesn’t restrict dependencies between concrete states,
letting them alter the state of the context at will.
10
Strategy with other Design Pattern

11. 11
Code Example:

12. Template
Design Pattern

13. is a behavioral design pattern that
▰ defines the skeleton of an algorithm in the
superclass.
▰ lets subclasses override specific steps of
the algorithm without changing its
structure.
13

14. 14

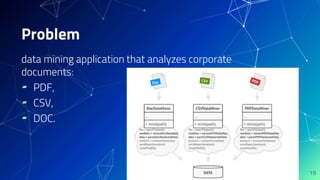

15. data mining application that analyzes corporate
documents:
▰ PDF,
▰ CSV,
▰ DOC.
15
Problem

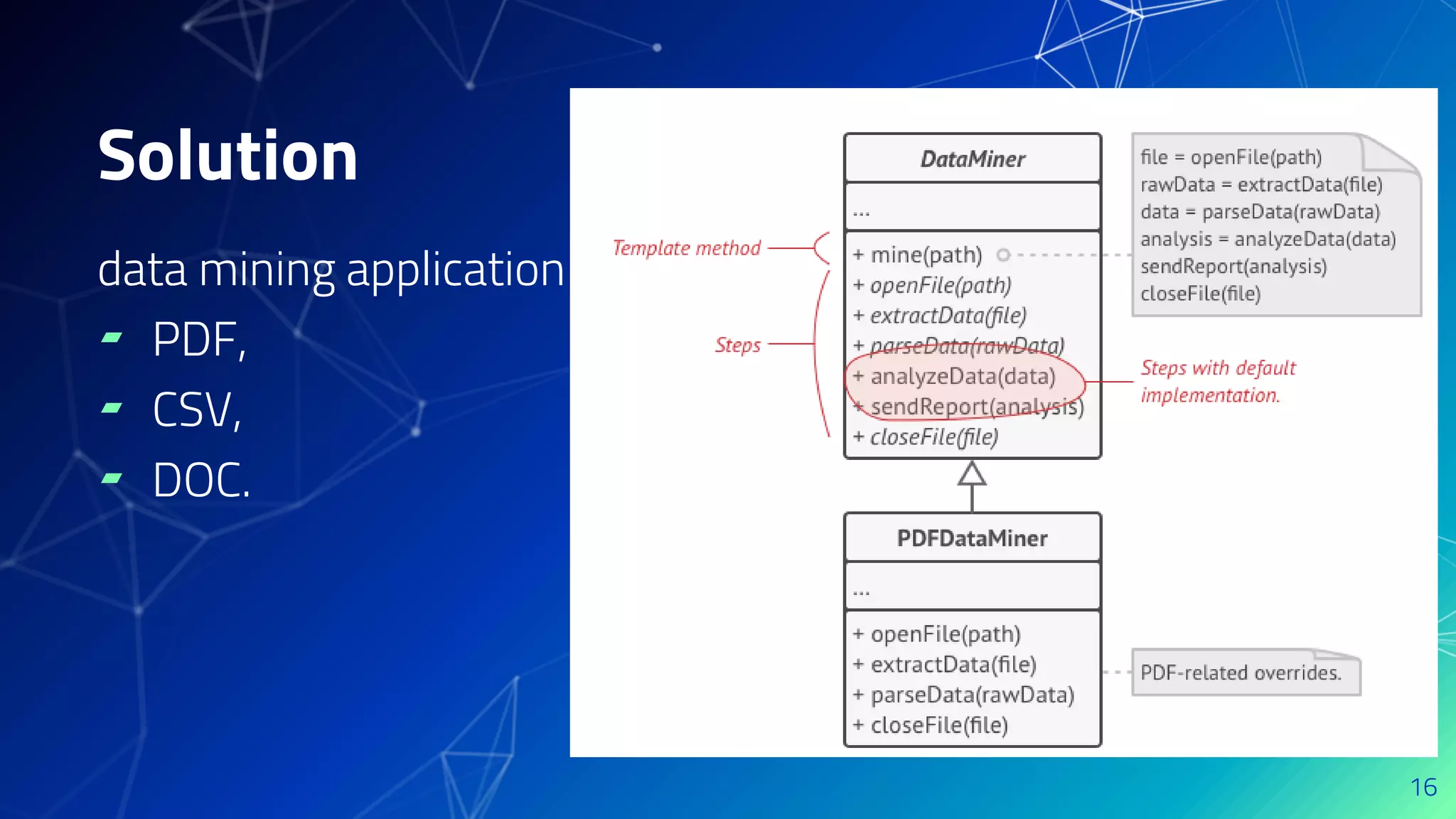

16. data mining application
▰ PDF,
▰ CSV,
▰ DOC.
16
Solution

17. Pros
▰ let clients override only certain parts of a large
algorithm, making them less affected by changes
that happen to other parts of the algorithm.
▰ You can reduce the duplicate code into a
superclass.
Pros vs. Cons
17

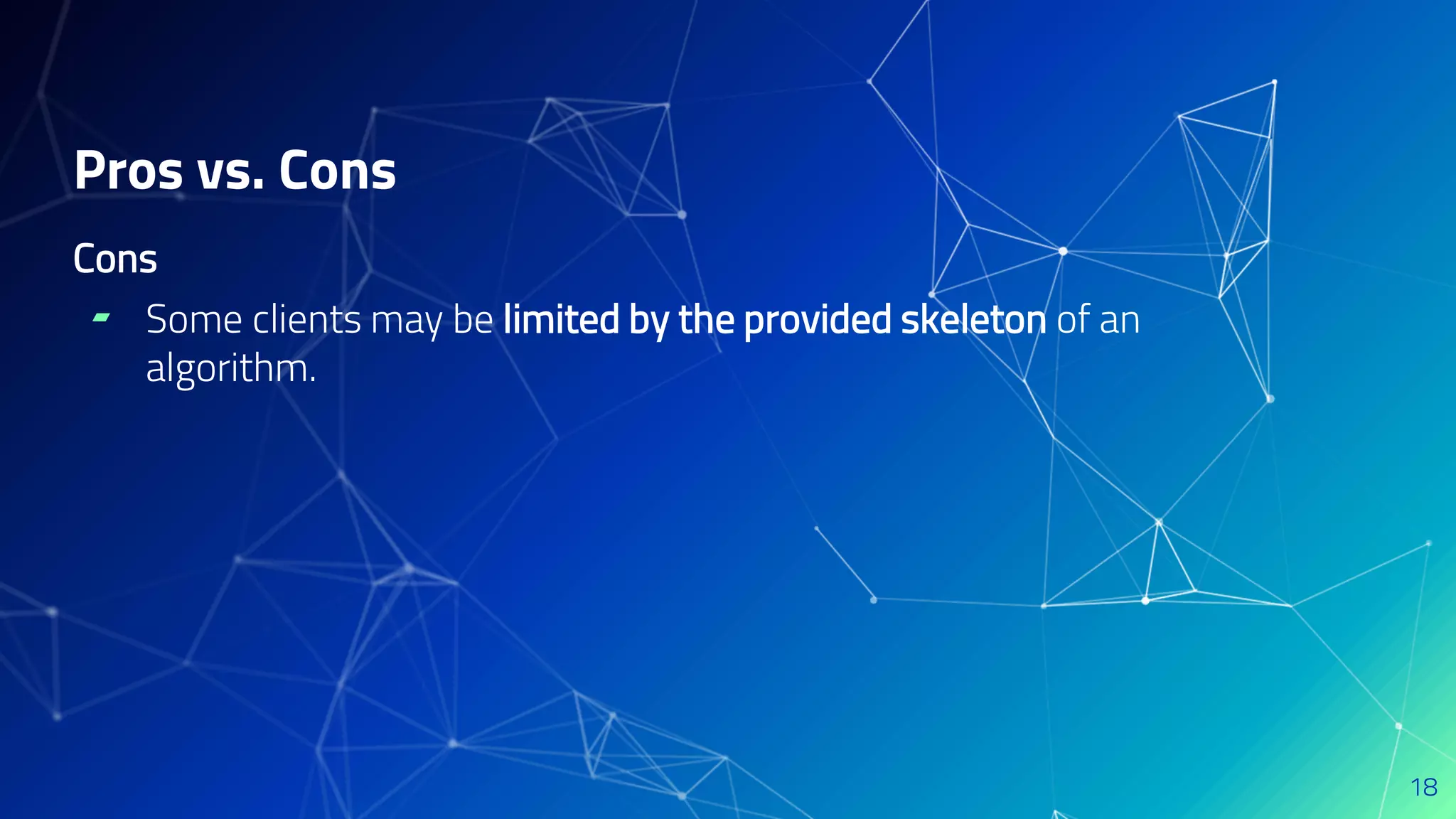

18. Cons
▰ Some clients may be limited by the provided skeleton of an
algorithm.
Pros vs. Cons
18

19. ▰ you have several classes that
contain almost identical
algorithms with some minor
differences.
▰ let clients extend only particular
steps of an algorithm, but not the
whole algorithm or its structure.
19
When to use Template:

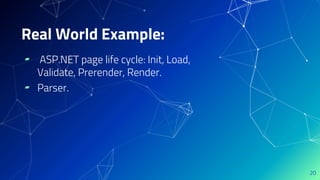

20. ▰ ASP.NET page life cycle: Init, Load,
Validate, Prerender, Render.
▰ Parser.
20
Real World Example:

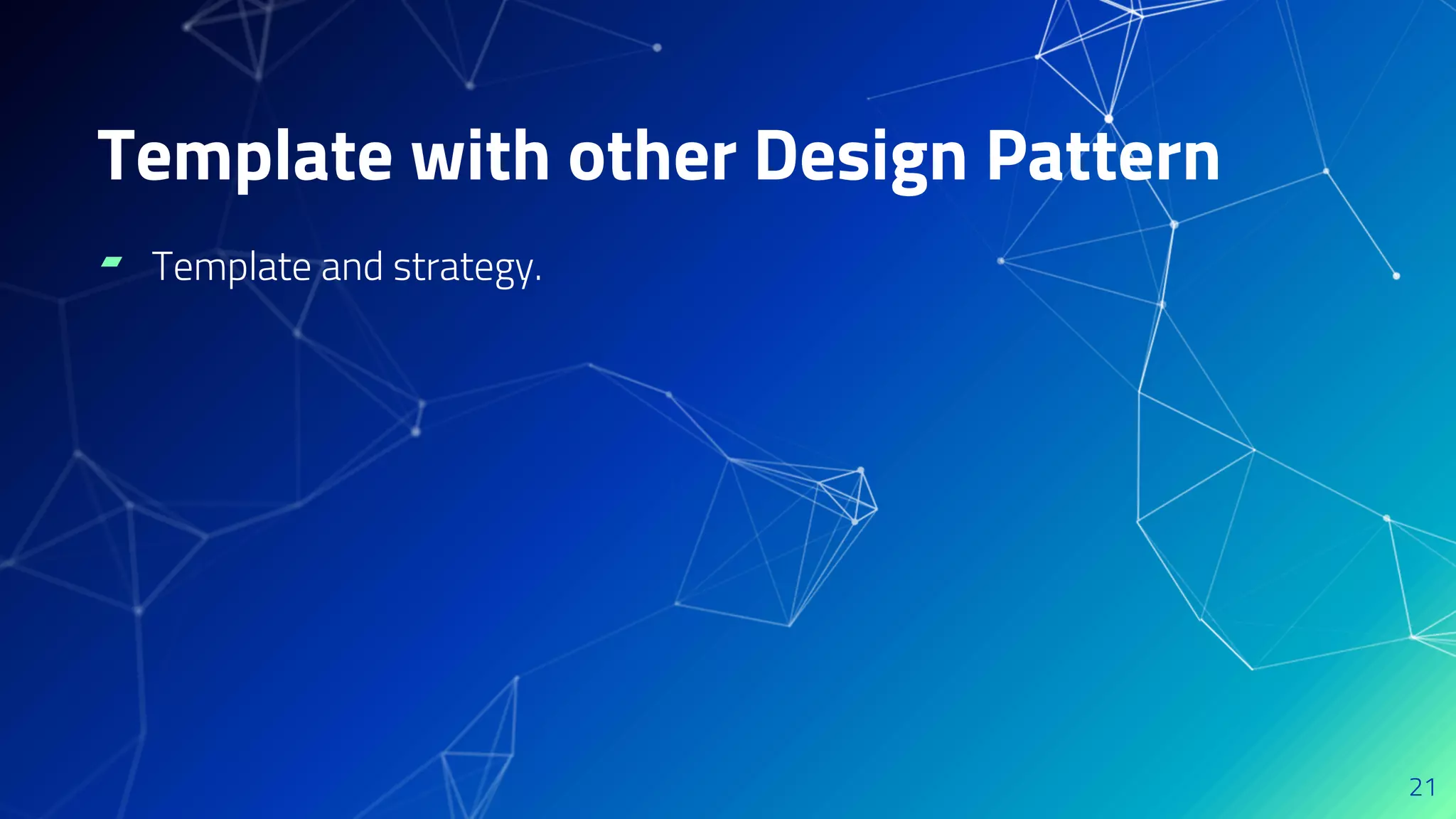

21. ▰ Template and strategy.
21
Template with other Design Pattern

22. .
22
Code Example:
