1) ARGUS and Voyanta are now part of Altus Analytics. Voyanta provides data quality filtering and validation tools to help customers access and analyze data from multiple sources. 2) Voyanta's original solution involved large in-memory cube models for reporting and visualization, which had scaling and performance issues. The new architecture takes a modular approach with separate databases, data transformation, and visualization layers for improved reusability, consistency, and performance. 3) The "fast data" approach uses data virtualization to provide rapid access to transformed data and dashboards directly from raw sources. However, this can be slower for complex queries. Caching strategies like partial or full pre-building aim to balance fast access and up

1. ARGUS and Voyanta are now a part of Altus Analytics
BUSINESS NEEDS FOR A
FAST DATA STRATEGY
Gordon Griffin, Chief Architect,
October 2017

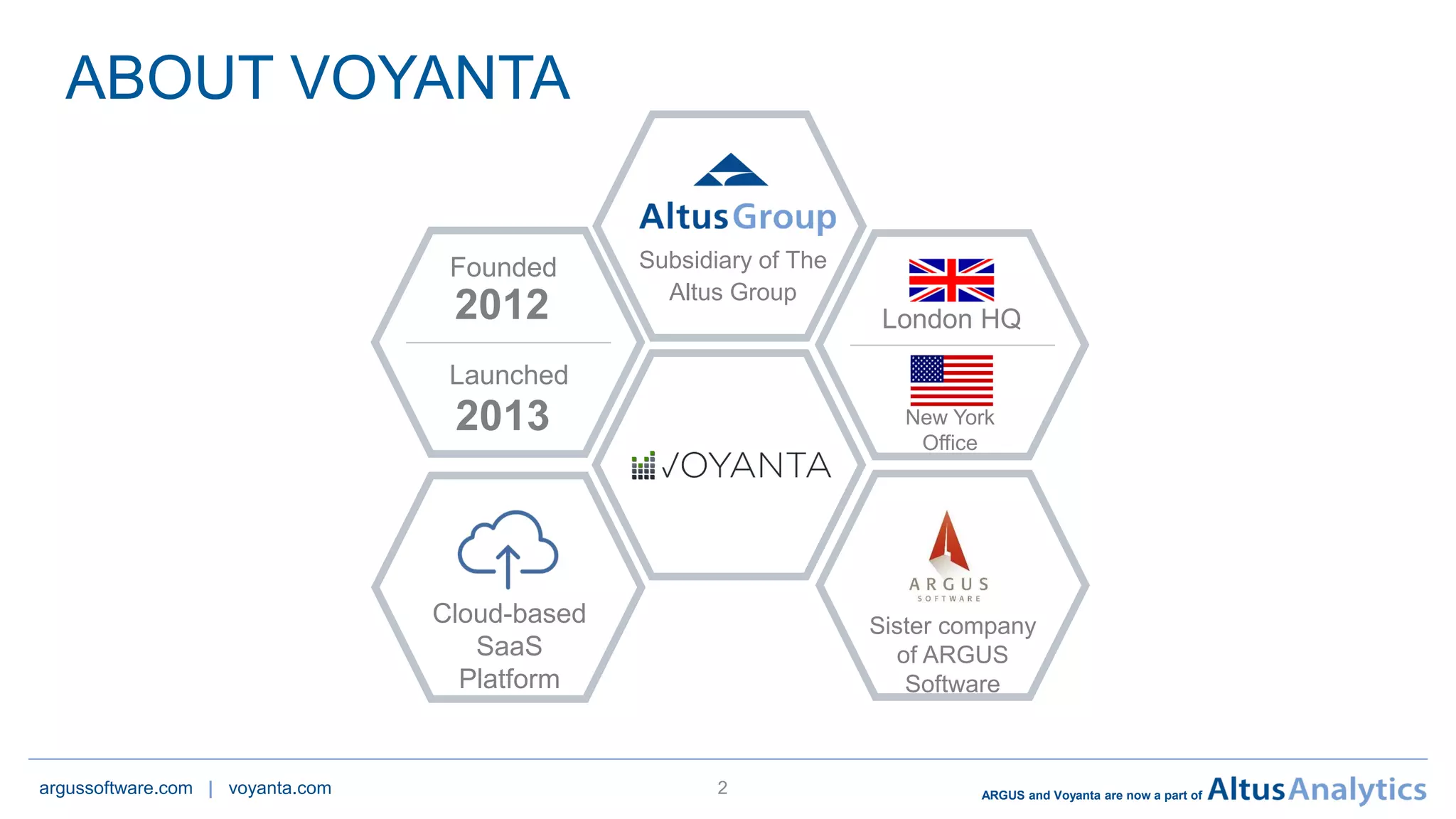

2. ARGUS and Voyanta are now a part of
ABOUT VOYANTA
argussoftware.com | voyanta.com 2
Founded
2012
Launched
2013
Cloud-based
SaaS
Platform
London HQ
New York
Office
Subsidiary of The
Altus Group
Sister company
of ARGUS
Software

3. ARGUS and Voyanta are now a part of
WHO WE SERVE
3
The World’s Leading Real Estate Companies Use Voyanta

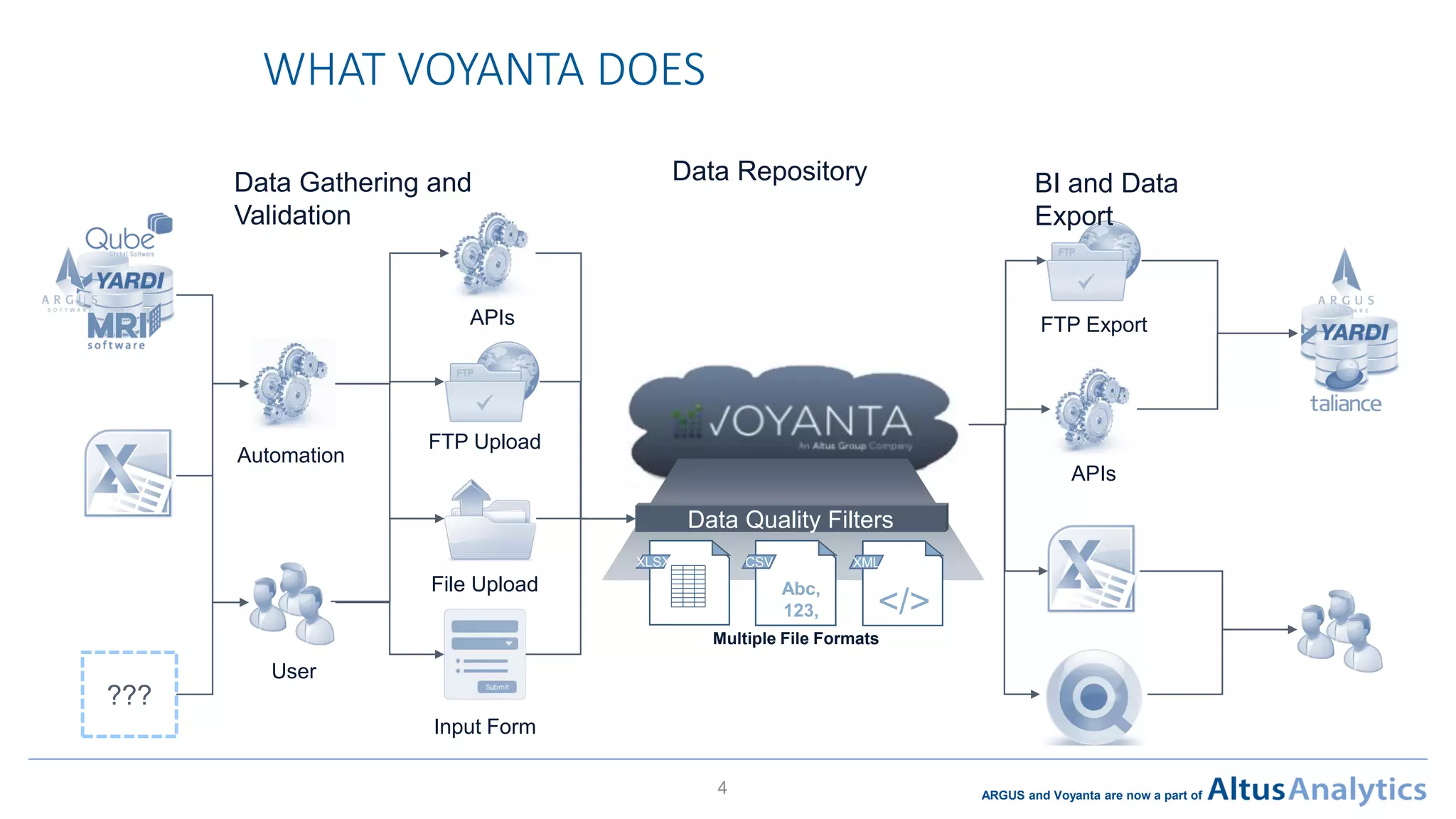

4. ARGUS and Voyanta are now a part of
WHAT VOYANTA DOES
4
XML
</>
CSV
Abc,
123,
XLSX
Data Quality Filters
Multiple File Formats
???
User
Automation
FTP Upload
File Upload
Input Form
APIs
FTP Export
Data Gathering and
Validation
Data Repository BI and Data
Export
APIs

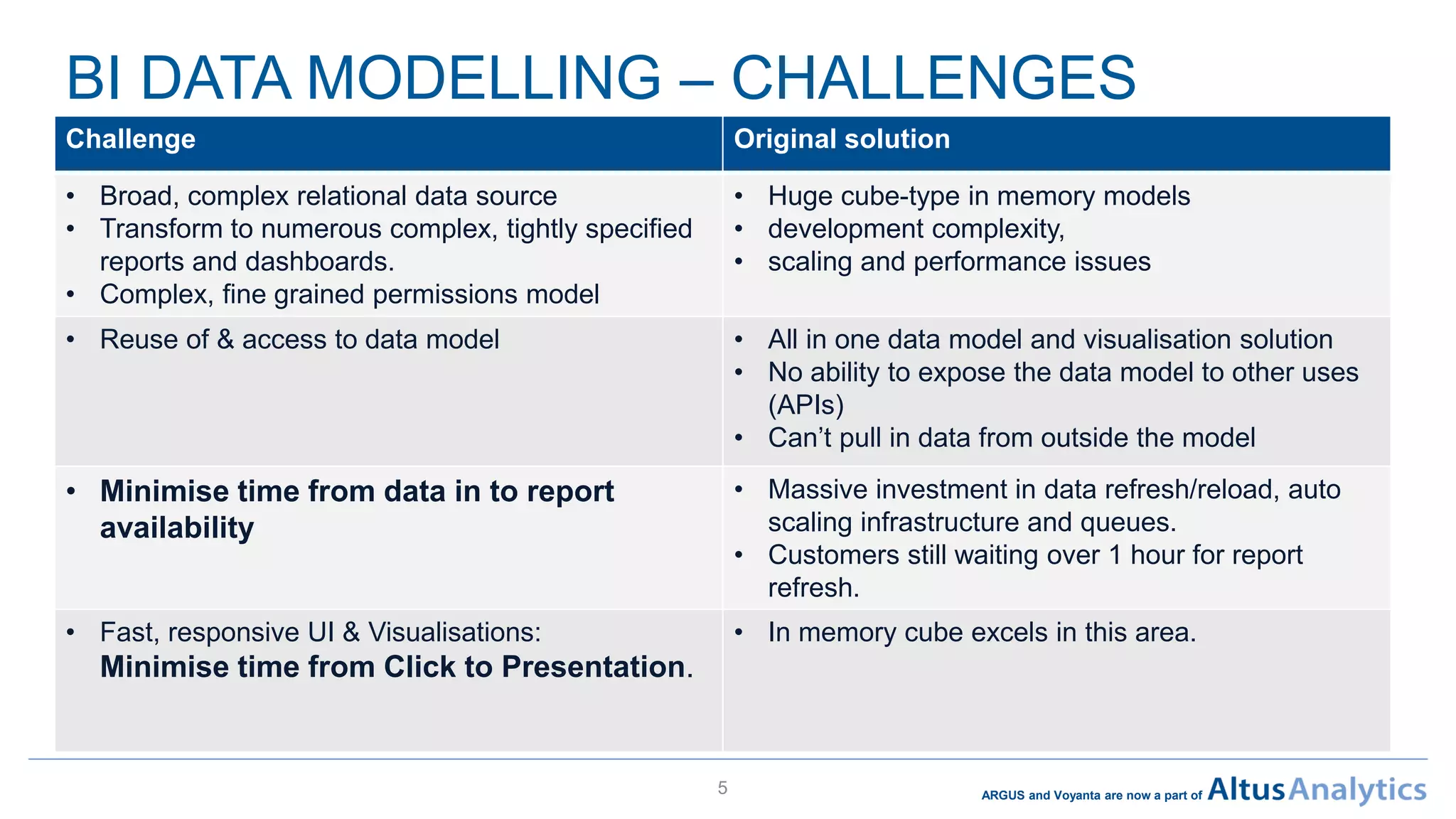

5. ARGUS and Voyanta are now a part of
BI DATA MODELLING – CHALLENGES
5
Challenge Original solution
• Broad, complex relational data source
• Transform to numerous complex, tightly specified
reports and dashboards.
• Complex, fine grained permissions model
• Huge cube-type in memory models
• development complexity,
• scaling and performance issues
• Reuse of & access to data model • All in one data model and visualisation solution
• No ability to expose the data model to other uses
(APIs)
• Can’t pull in data from outside the model
• Minimise time from data in to report
availability
• Massive investment in data refresh/reload, auto
scaling infrastructure and queues.
• Customers still waiting over 1 hour for report
refresh.
• Fast, responsive UI & Visualisations:
Minimise time from Click to Presentation.
• In memory cube excels in this area.

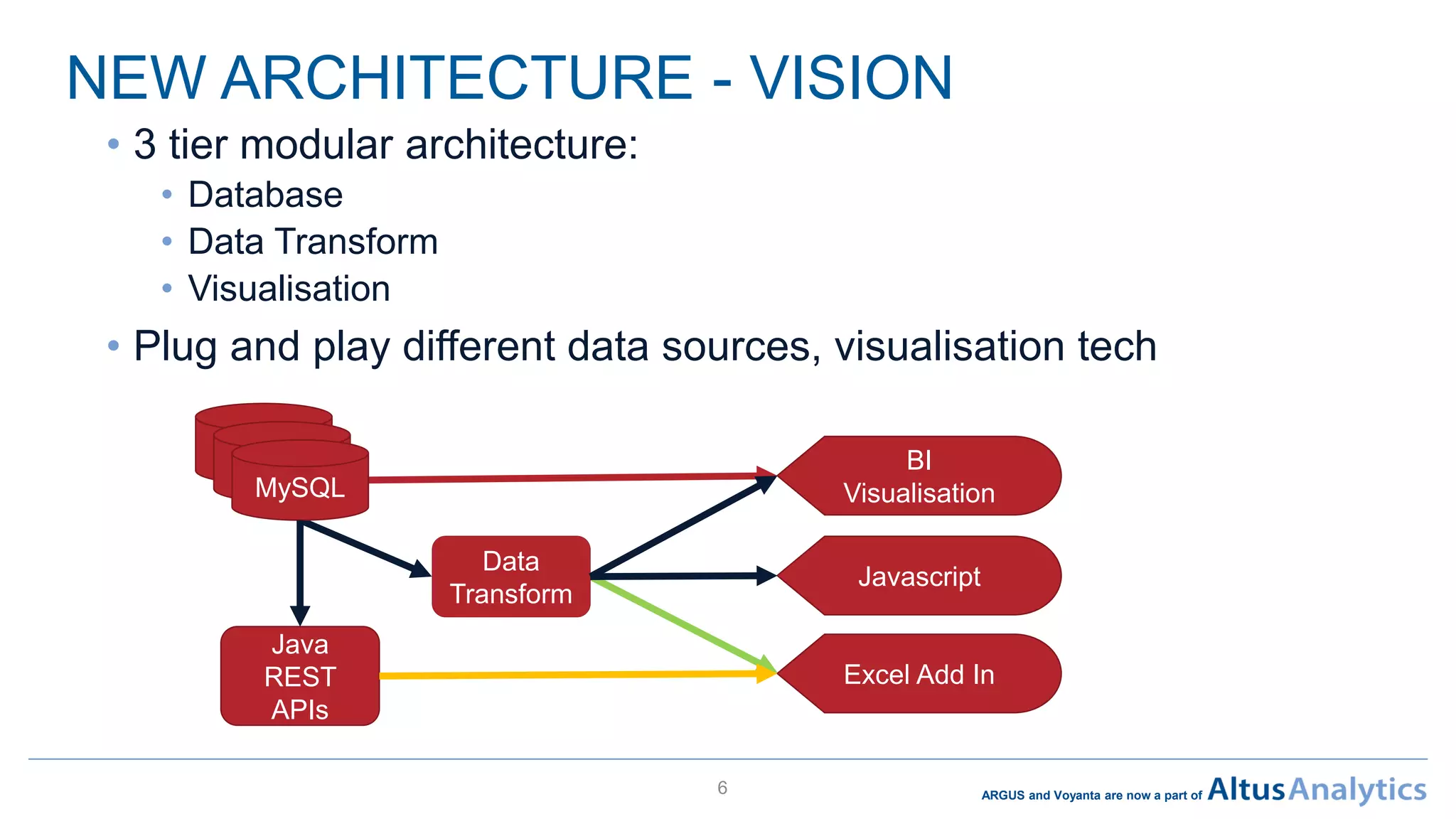

6. ARGUS and Voyanta are now a part of
NEW ARCHITECTURE - VISION
• 3 tier modular architecture:
• Database
• Data Transform
• Visualisation
• Plug and play different data sources, visualisation tech
6
MySQL
MySQL
MySQL
Java
REST
APIs
Data
Transform
BI
Visualisation
Javascript
Excel Add In

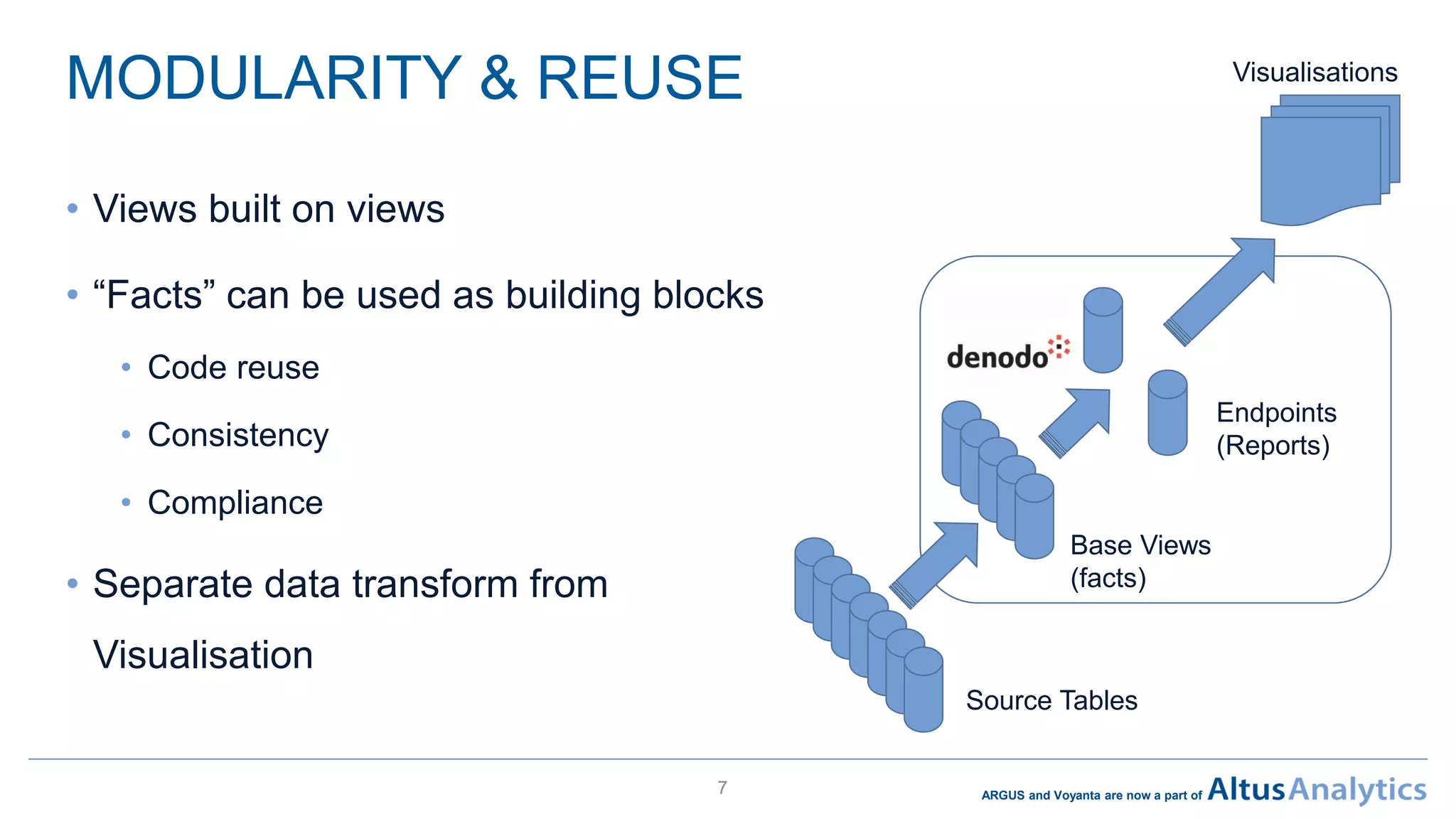

7. ARGUS and Voyanta are now a part of
MODULARITY & REUSE
• Views built on views
• “Facts” can be used as building blocks
• Code reuse
• Consistency
• Compliance
• Separate data transform from
Visualisation
7
Source Tables
Endpoints
(Reports)
Base Views
(facts)
Visualisations

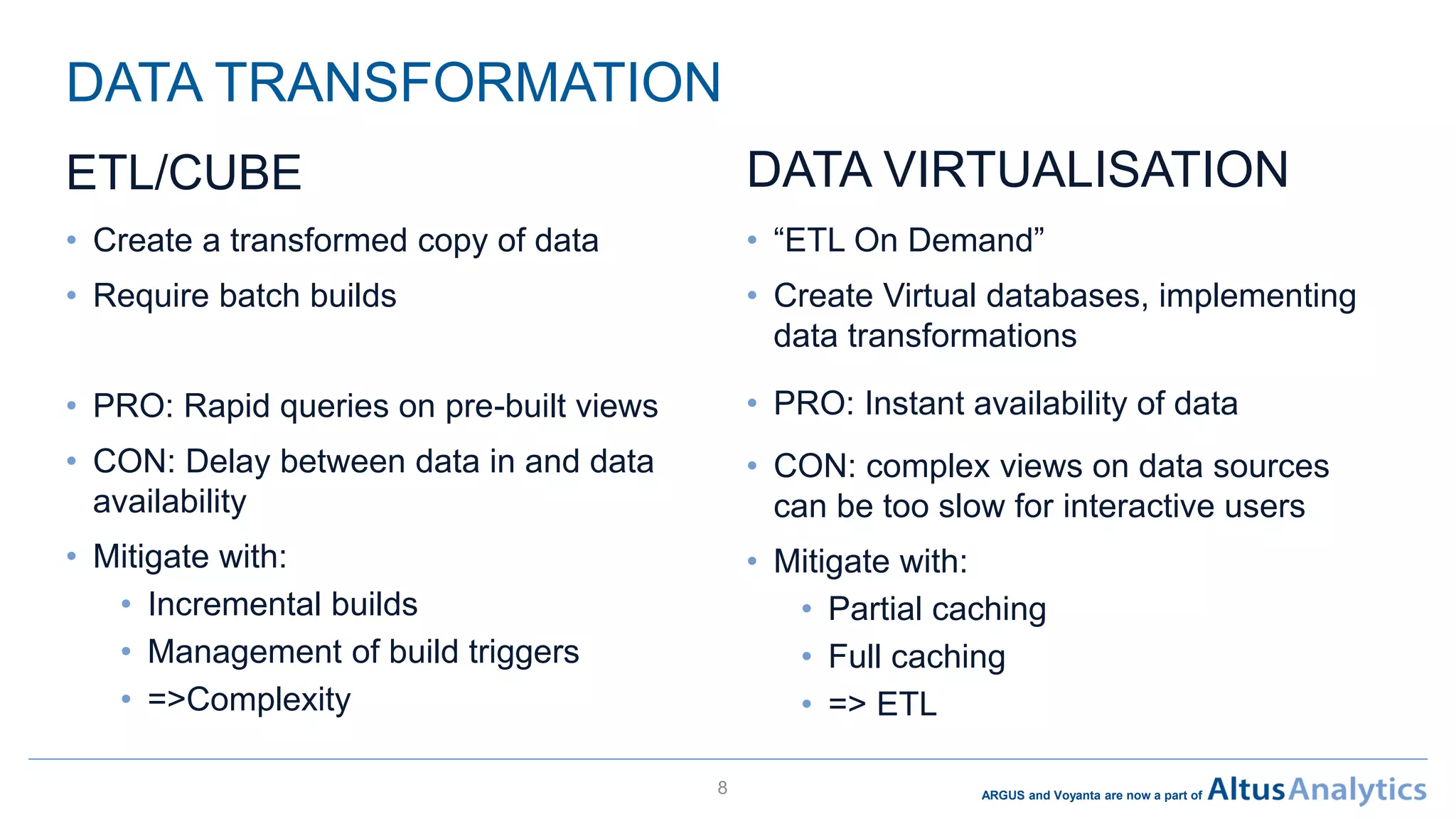

8. ARGUS and Voyanta are now a part of
DATA TRANSFORMATION
• Create a transformed copy of data
• Require batch builds
• PRO: Rapid queries on pre-built views
• CON: Delay between data in and data
availability
• Mitigate with:
• Incremental builds
• Management of build triggers
• =>Complexity
8
• “ETL On Demand”
• Create Virtual databases, implementing
data transformations
• PRO: Instant availability of data
• CON: complex views on data sources
can be too slow for interactive users
• Mitigate with:
• Partial caching
• Full caching
• => ETL
DATA VIRTUALISATIONETL/CUBE

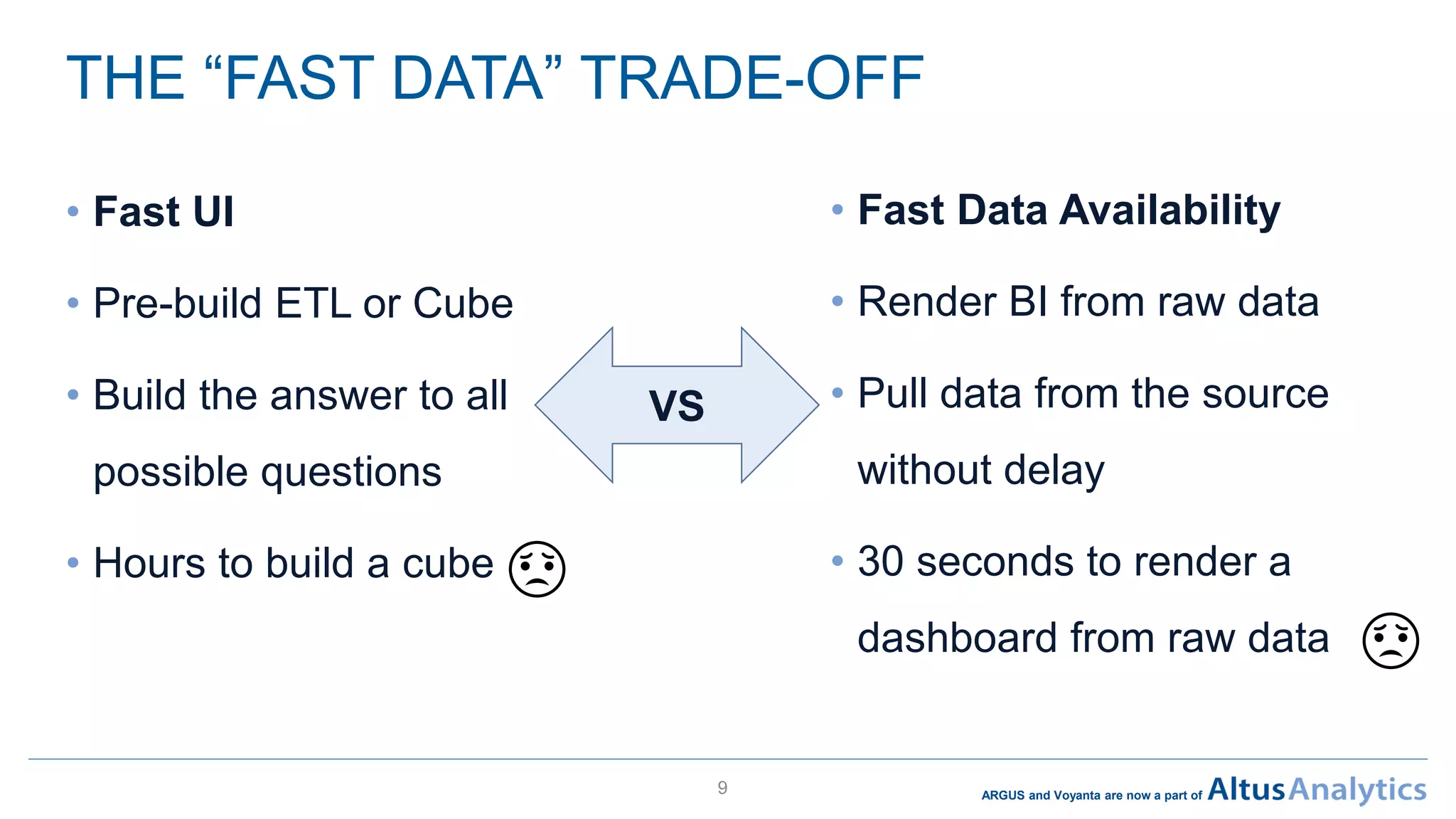

9. ARGUS and Voyanta are now a part of
THE “FAST DATA” TRADE-OFF
• Fast UI
• Pre-build ETL or Cube
• Build the answer to all
possible questions
• Hours to build a cube
9
• Fast Data Availability
• Render BI from raw data
• Pull data from the source
without delay
• 30 seconds to render a
dashboard from raw data
VS

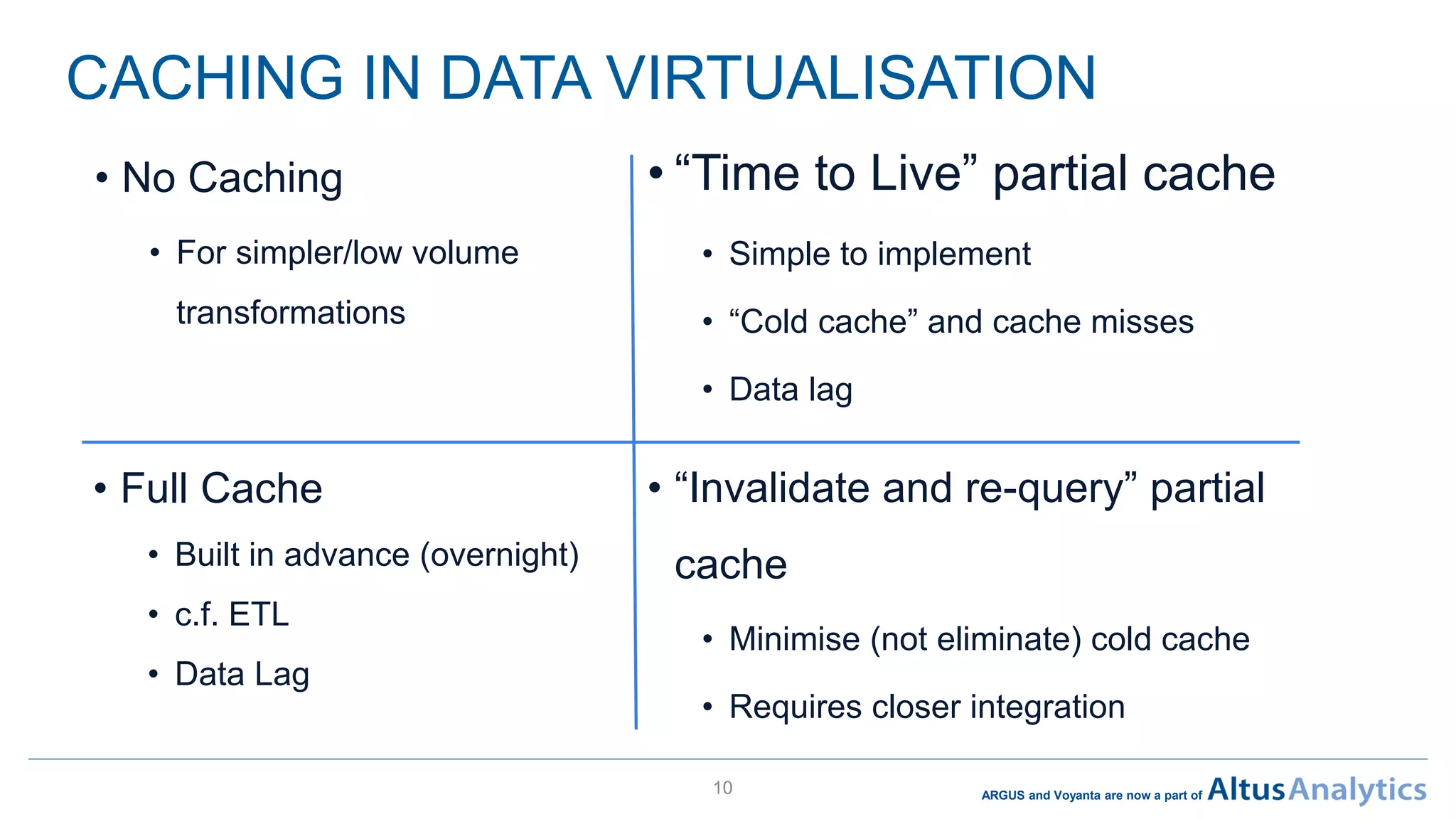

10. ARGUS and Voyanta are now a part of
CACHING IN DATA VIRTUALISATION
• Full Cache
• Built in advance (overnight)
• c.f. ETL
• Data Lag
10
• No Caching
• For simpler/low volume
transformations
• “Time to Live” partial cache
• Simple to implement
• “Cold cache” and cache misses
• Data lag
• “Invalidate and re-query” partial
cache
• Minimise (not eliminate) cold cache
• Requires closer integration

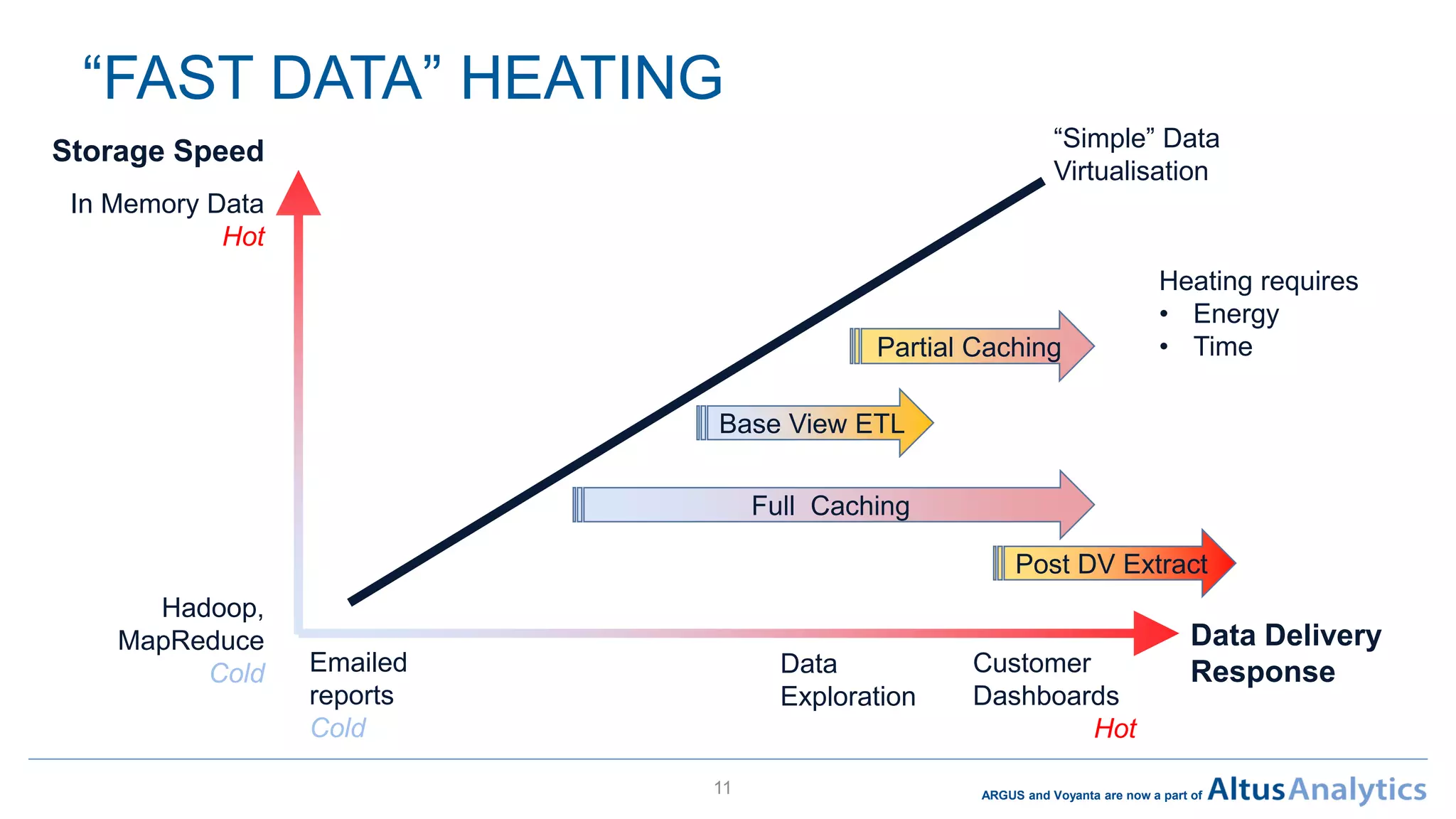

11. ARGUS and Voyanta are now a part of
“FAST DATA” HEATING
11
Storage Speed
Hadoop,
MapReduce
Cold
In Memory Data
Hot
“Simple” Data
Virtualisation
Partial Caching
Full Caching
Base View ETL
Post DV Extract
Data Delivery
ResponseEmailed
reports
Cold
Customer
Dashboards
Hot
Data
Exploration
Heating requires
• Energy
• Time

12. ARGUS and Voyanta are now a part of Altus Analytics
BUSINESS NEEDS FOR A
FAST DATA STRATEGYGordon Griffin, Chief Architect,
October 2017
