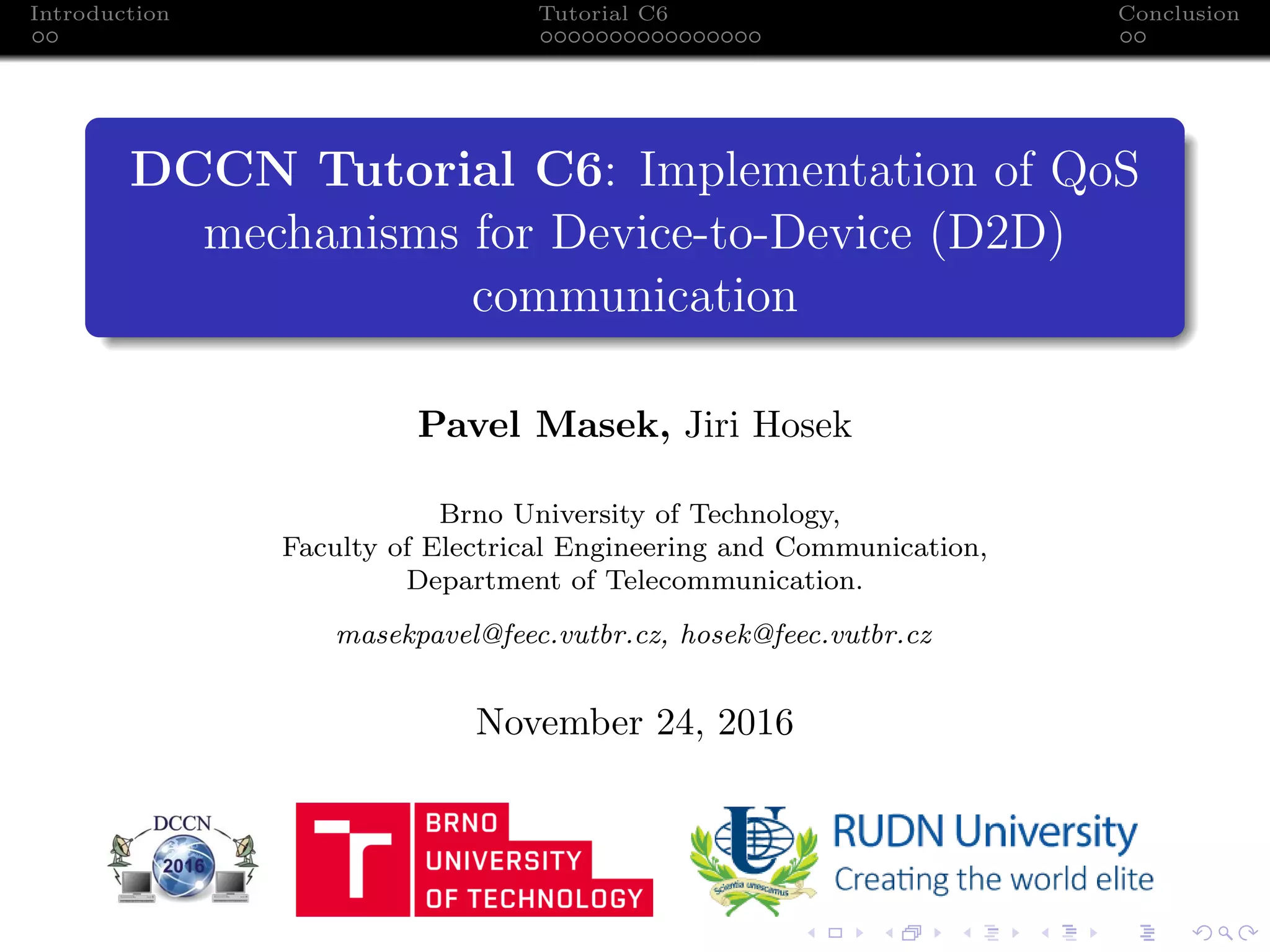

1. Introduction Tutorial C6 Conclusion
DCCN Tutorial C6: Implementation of QoS
mechanisms for Device-to-Device (D2D)
communication
Pavel Masek, Jiri Hosek
Brno University of Technology,
Faculty of Electrical Engineering and Communication,
Department of Telecommunication.
masekpavel@feec.vutbr.cz, hosek@feec.vutbr.cz
November 24, 2016

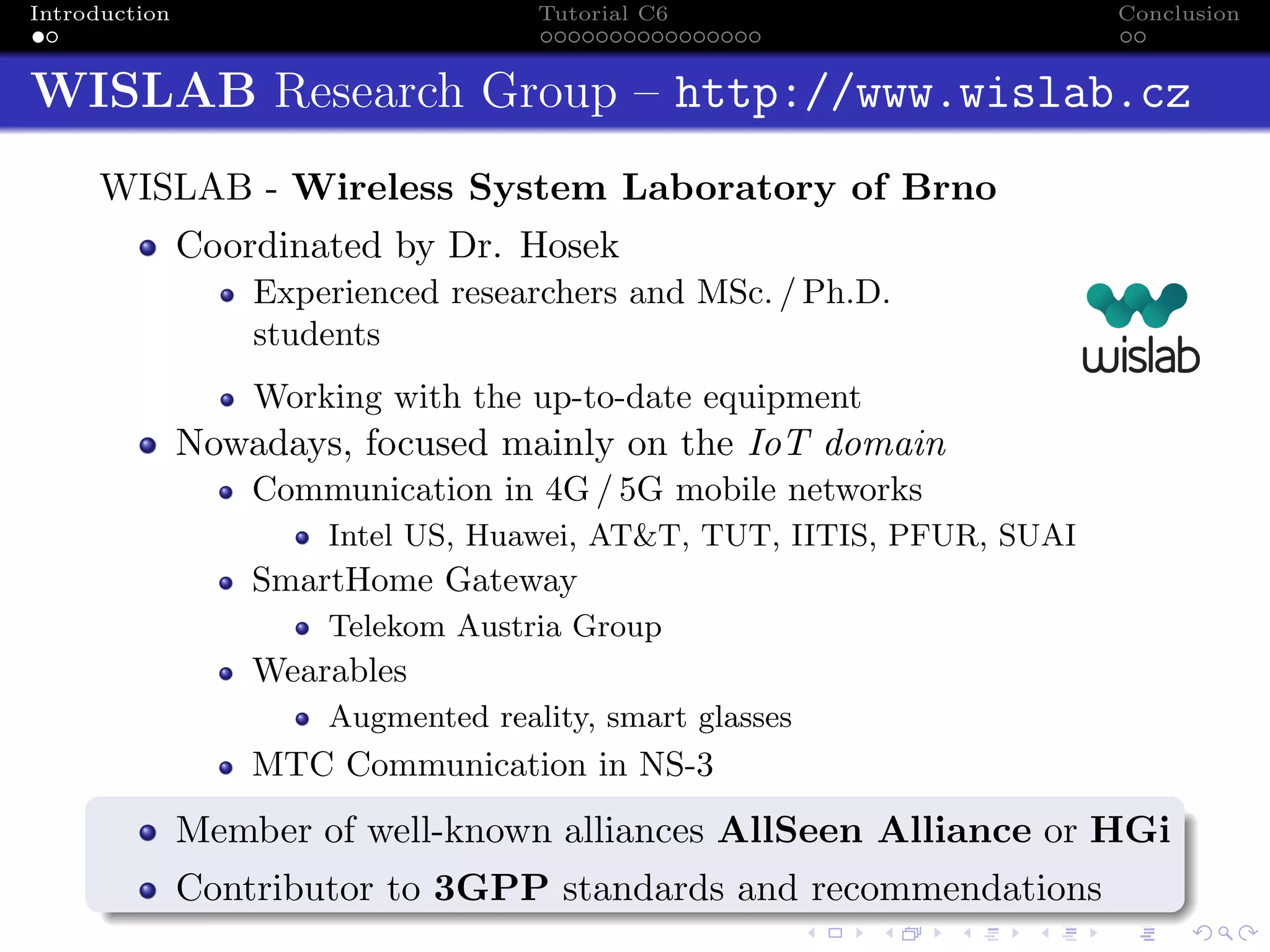

2. Introduction Tutorial C6 Conclusion
WISLAB Research Group – http://www.wislab.cz
WISLAB - Wireless System Laboratory of Brno
Coordinated by Dr. Hosek
Experienced researchers and MSc. / Ph.D.
students
Working with the up-to-date equipment
Nowadays, focused mainly on the IoT domain
Communication in 4G / 5G mobile networks
Intel US, Huawei, AT&T, TUT, IITIS, PFUR, SUAI
SmartHome Gateway
Telekom Austria Group
Wearables
Augmented reality, smart glasses
MTC Communication in NS-3
Member of well-known alliances AllSeen Alliance or HGi
Contributor to 3GPP standards and recommendations

3. Introduction Tutorial C6 Conclusion
DCCN Tutorials: Agenda
Tutorial #1 [Wed 23.11.16] - Communication between
devices within LAN/WLAN networks
Tutorial #2 [Thu 24.11.16] - Implementation of 4G cellular
communication within the SmartGrid ecosystem
Tutorial #3 [Thu 24.11.16] - Implementation of
QoS mechanisms for Device-to-Device (D2D)
communication between mobile devices
Main goal
From basic network topology to advanced communication
mechanisms used in today’s IoT/M2M scenarios – utilizing
Network Simulator 3 (NS-3) tool for timely use-cases

4. Introduction Tutorial C6 Conclusion
Network Scenario
Mobile nodes located in grid (initial position)
Communication without the AP → D2D communication
RandomWalk2d mobility model
QoS implementation – made from scratch, not
implemented in NS-3 by default

5. Introduction Tutorial C6 Conclusion
Tasks
1 Check structure of given code, understand to QoS
implementation
2 Run the prepared simulation scenario
3 View *.xml output files via netAnim, explore tracing
*.pcap files using Wireshark, generate GnuPlot file for
flow delay
4 Modify the QoS configuration for data flows and check
new results
0 = AC BE (Best Effort)
1, 2 = AC BK (Background)
3 = AC BE NQOS (Best Effort no QoS)
4, 5 = AC VI (Video first)
6, 7 = AC VO (Voice first)

6. Introduction Tutorial C6 Conclusion
T0: Eclipse Configuration 1/5
Copy the third tutorial (tutorial 3 qos.cc) into the scratch
folder: /home/student/ns-allinone-3.23/ns-3.23/scratch

7. Introduction Tutorial C6 Conclusion
T0: Eclipse Configuration 2/5
Open the copied file in Eclipse environment

8. Introduction Tutorial C6 Conclusion
T0: Eclipse Configuration 3/5
Run → Run configuration

9. Introduction Tutorial C6 Conclusion
T0: Eclipse Configuration 4/5
Search project → tutorial 3 qos → Run

10. Introduction Tutorial C6 Conclusion
T0: Eclipse Configuration 5/5

11. Introduction Tutorial C6 Conclusion
T1: QoS Implementation 1/2
void ReceivePacket (Ptr <const Packet > packet , const
Address &)
{
NS_LOG_UNCOND ("Received one packet!");
QosTag q_tag;
if (packet ->PeekPacketTag(q_tag))
{
NS_LOG_UNCOND ("Packet Tag value " << (int)q_tag.
GetTid ());
}
}
void TagMarker (uint8_t tid , Ptr <const Packet > packet)
{
QosTag qosTag;
qosTag.SetTid(tid);
packet ->AddPacketTag (qosTag);
}

12. Introduction Tutorial C6 Conclusion
T1: QoS Implementation 2/2
Ptr <OnOffApplication > onoffapp;
onoffapp = DynamicCast <OnOffApplication >( serverApps.
Get (0));
onoffapp -> TraceConnectWithoutContext ("Tx",
MakeBoundCallback (& TagMarker ,3));
// -----------------------------
Ptr <OnOffApplication > onoffapp2;
onoffapp2 = DynamicCast <OnOffApplication >(
serverApps2.Get (0));
onoffapp2 -> TraceConnectWithoutContext ("Tx",
MakeBoundCallback (& TagMarker ,5));
// -----------------------------
Config :: ConnectWithoutContext ("/NodeList /0/
ApplicationList /5/ $ns3 :: PacketSink/Rx",
MakeCallback (& ReceivePacket));

13. Introduction Tutorial C6 Conclusion
T3: Simulation 1/3
Populating routing tables

14. Introduction Tutorial C6 Conclusion
T3: Simulation 2/3
UDP communication - VoIP (voice/video)

15. Introduction Tutorial C6 Conclusion
T3: Simulation 3/3
TCP communication - FTP (data transfer)

16. Introduction Tutorial C6 Conclusion
T3: FlowMonitor - QoS = 6 (voice/video)
Flow ID: 2 Src Addr 10.1.3.1 Dst Addr 10.1.3.6
Tx Packets = 508
Rx Packets = 508
Delay Sum = +287402154072.0 ns
Delay = +565752271.0 nsns
Delay = +565.0 nsms
Jitter Sum = +5085947027.0 ns
Jitter = +10031453.0 nsns
Throughput: 590.069 Kbps
Lost Packets = 0

17. Introduction Tutorial C6 Conclusion
T3: QoS Config – Wireshark
FTP (data traffic; TCP)
VoIP (video; UDP)

18. Introduction Tutorial C6 Conclusion
T3: GnuPlot - Flows Delay
Open terminal (go to
/home/student/ns-allinone-3.23/ns-3.23) → gnuplot
delay.plt
Open delay.png

19. Introduction Tutorial C6 Conclusion
Final Conclusion
D2D communication utilizing WiFi Direct
Static routing
Routing protocols (AODV, DSDV, etc.)
QoS tag added for any data flow → tested in Wireshark
Visualization using netAnim tool
Results automatically generated by GnuPlot and
FlowMonitor

20. Introduction Tutorial C6 Conclusion
Thank you for your attention.
Pavel Masek, Jiri Hosek
masekpavel@feec.vutbr.cz, hosek@feec.vutbr.cz
Brno University of Technology,
Faculty of Electrical Engineering and Communication,
Department of Telecommunication.
