Simulation using OMNet++
•
Download as PPT, PDF
•
17 likes
•
17,210 views
J
jeromy fu
Follow
Introduction of OMNet++
Read less
Read more
Technology
Report
Share
Report
Share
1 of 53
Download now
Recommended
An Introduction to OMNeT++ 5.1
An Introduction to OMNeT++ 5.1
Alpen-Adria-Universität
Introduction to OMNeT++
Introduction to OMNeT++
Md. Mahedee Hasan
An Introduction to OMNeT++ 5.4
An Introduction to OMNeT++ 5.4
Alpen-Adria-Universität
INET for Starters
INET for Starters
Fayruz Rahma
Etude et mise en place d’un VPN
Etude et mise en place d’un VPN
Charif Khrichfa
OSI Security Architecture
OSI Security Architecture
university of education,Lahore
Network simulator
Network simulator
Madhumithah Ilango
Computer Communication Networks-Network Layer
Computer Communication Networks-Network Layer
Krishna Nanda
Recommended
An Introduction to OMNeT++ 5.1
An Introduction to OMNeT++ 5.1
Alpen-Adria-Universität
Introduction to OMNeT++
Introduction to OMNeT++
Md. Mahedee Hasan
An Introduction to OMNeT++ 5.4
An Introduction to OMNeT++ 5.4
Alpen-Adria-Universität
INET for Starters
INET for Starters
Fayruz Rahma
Etude et mise en place d’un VPN
Etude et mise en place d’un VPN
Charif Khrichfa
OSI Security Architecture
OSI Security Architecture
university of education,Lahore
Network simulator
Network simulator
Madhumithah Ilango
Computer Communication Networks-Network Layer
Computer Communication Networks-Network Layer
Krishna Nanda
Tp snmp-packet-tracer
Tp snmp-packet-tracer
Chris Dogny
Commutation
Commutation
Ines Kechiche
Computer Networks - Unit 1 PPT
Computer Networks - Unit 1 PPT
KalpanaC14
Session Initiation Protocol
Session Initiation Protocol
Matt Bynum
process management
process management
Ashish Kumar
Chapter 21 - The Linux System
Chapter 21 - The Linux System
Wayne Jones Jnr
Netacad
Netacad
aparrilli
Diaporamas-Réseaux Informatiques.pdf
Diaporamas-Réseaux Informatiques.pdf
EST-UMI de Meknès
UDP - User Datagram Protocol
UDP - User Datagram Protocol
Peter R. Egli
Tutorial 5 adding more nodes
Tutorial 5 adding more nodes
Mohd Batati
Ports and protocols
Ports and protocols
siva rama
Subnetting
Subnetting
Gichelle Amon
CCNA 2 Routing and Switching v5.0 Chapter 7
CCNA 2 Routing and Switching v5.0 Chapter 7
Nil Menon
(équipements réseau)
(équipements réseau)
Anouar Abtoy
Doc portail-captif-pfsense
Doc portail-captif-pfsense
servinfo
18CS2005 Cryptography and Network Security
18CS2005 Cryptography and Network Security
Kathirvel Ayyaswamy
Computer Security Lecture 1: Overview
Computer Security Lecture 1: Overview
Mohamed Loey
Fonctionnalités et protocoles des couches applicatives
Fonctionnalités et protocoles des couches applicatives
fadelaBritel
Chapitre 2: Modèle de référence OSI
Chapitre 2: Modèle de référence OSI
Mohamed Lahby
Network Essentials
Network Essentials
Iffu Slides
Sca n instructorppt_chapter1_final
Sca n instructorppt_chapter1_final
CamTESOL2015
CCNAv5 - S3: Chapter1 Introduction to Scaling Networks
CCNAv5 - S3: Chapter1 Introduction to Scaling Networks
Vuz Dở Hơi
More Related Content
What's hot
Tp snmp-packet-tracer
Tp snmp-packet-tracer
Chris Dogny
Commutation
Commutation
Ines Kechiche
Computer Networks - Unit 1 PPT
Computer Networks - Unit 1 PPT
KalpanaC14
Session Initiation Protocol
Session Initiation Protocol
Matt Bynum
process management
process management
Ashish Kumar
Chapter 21 - The Linux System
Chapter 21 - The Linux System
Wayne Jones Jnr
Netacad
Netacad
aparrilli
Diaporamas-Réseaux Informatiques.pdf
Diaporamas-Réseaux Informatiques.pdf
EST-UMI de Meknès
UDP - User Datagram Protocol
UDP - User Datagram Protocol
Peter R. Egli
Tutorial 5 adding more nodes
Tutorial 5 adding more nodes
Mohd Batati
Ports and protocols
Ports and protocols
siva rama
Subnetting
Subnetting
Gichelle Amon
CCNA 2 Routing and Switching v5.0 Chapter 7
CCNA 2 Routing and Switching v5.0 Chapter 7
Nil Menon
(équipements réseau)
(équipements réseau)
Anouar Abtoy
Doc portail-captif-pfsense
Doc portail-captif-pfsense
servinfo
18CS2005 Cryptography and Network Security
18CS2005 Cryptography and Network Security
Kathirvel Ayyaswamy
Computer Security Lecture 1: Overview
Computer Security Lecture 1: Overview
Mohamed Loey
Fonctionnalités et protocoles des couches applicatives
Fonctionnalités et protocoles des couches applicatives
fadelaBritel
Chapitre 2: Modèle de référence OSI
Chapitre 2: Modèle de référence OSI
Mohamed Lahby
Network Essentials
Network Essentials
Iffu Slides
What's hot
(20)
Tp snmp-packet-tracer
Tp snmp-packet-tracer
Commutation
Commutation
Computer Networks - Unit 1 PPT
Computer Networks - Unit 1 PPT
Session Initiation Protocol
Session Initiation Protocol
process management
process management
Chapter 21 - The Linux System
Chapter 21 - The Linux System
Netacad
Netacad
Diaporamas-Réseaux Informatiques.pdf
Diaporamas-Réseaux Informatiques.pdf
UDP - User Datagram Protocol
UDP - User Datagram Protocol
Tutorial 5 adding more nodes
Tutorial 5 adding more nodes
Ports and protocols
Ports and protocols
Subnetting
Subnetting
CCNA 2 Routing and Switching v5.0 Chapter 7
CCNA 2 Routing and Switching v5.0 Chapter 7
(équipements réseau)
(équipements réseau)
Doc portail-captif-pfsense
Doc portail-captif-pfsense
18CS2005 Cryptography and Network Security
18CS2005 Cryptography and Network Security
Computer Security Lecture 1: Overview
Computer Security Lecture 1: Overview
Fonctionnalités et protocoles des couches applicatives
Fonctionnalités et protocoles des couches applicatives
Chapitre 2: Modèle de référence OSI
Chapitre 2: Modèle de référence OSI
Network Essentials
Network Essentials
Similar to Simulation using OMNet++
Sca n instructorppt_chapter1_final
Sca n instructorppt_chapter1_final
CamTESOL2015
CCNAv5 - S3: Chapter1 Introduction to Scaling Networks
CCNAv5 - S3: Chapter1 Introduction to Scaling Networks
Vuz Dở Hơi
CCNAv5 - S4: Chapter 7: Securing Site-to-site Connectivity
CCNAv5 - S4: Chapter 7: Securing Site-to-site Connectivity
Vuz Dở Hơi
CCNAv5 - S4: Chapter 1 Hierarchical Network Design
CCNAv5 - S4: Chapter 1 Hierarchical Network Design
Vuz Dở Hơi
Ccna routing and_switching_chapter-1-2-3_mme
Ccna routing and_switching_chapter-1-2-3_mme
United International University
CCNA RS_ITN - Chapter 2
CCNA RS_ITN - Chapter 2
Irsandi Hasan
Chapter 2 : Configuring a network operating system
Chapter 2 : Configuring a network operating system
teknetir
CCNAv5 - S1: Chapter 2 - Configuring a network operating system
CCNAv5 - S1: Chapter 2 - Configuring a network operating system
Vuz Dở Hơi
Chapter 02 - Configuring a Network Operating System
Chapter 02 - Configuring a Network Operating System
Yaser Rahmati
CCNAv5 - S4: Chapter3 Point to-point Connections
CCNAv5 - S4: Chapter3 Point to-point Connections
Vuz Dở Hơi
CCNA RS_NB - Chapter 2
CCNA RS_NB - Chapter 2
Irsandi Hasan
CCNA 2 Routing and Switching v5.0 Chapter 1
CCNA 2 Routing and Switching v5.0 Chapter 1
Nil Menon
CCNA 1 Routing and Switching v5.0 Chapter 2
CCNA 1 Routing and Switching v5.0 Chapter 2
Nil Menon
Cisco packettracer overview_20jul09
Cisco packettracer overview_20jul09
rahmanitayulia
CCNA RS_ITN - Chapter 3
CCNA RS_ITN - Chapter 3
Irsandi Hasan
Om net++
Om net++
prisonbreak4950
Chapter 12 : Introduction to switched networks
Chapter 12 : Introduction to switched networks
teknetir
Mina2
Mina2
ducquoc_vn
CCNA 1 Routing and Switching v5.0 Chapter 3
CCNA 1 Routing and Switching v5.0 Chapter 3
Nil Menon
Ccna v5-S1-Chapter 3
Ccna v5-S1-Chapter 3
Hamza Malik
Similar to Simulation using OMNet++
(20)
Sca n instructorppt_chapter1_final
Sca n instructorppt_chapter1_final
CCNAv5 - S3: Chapter1 Introduction to Scaling Networks
CCNAv5 - S3: Chapter1 Introduction to Scaling Networks
CCNAv5 - S4: Chapter 7: Securing Site-to-site Connectivity
CCNAv5 - S4: Chapter 7: Securing Site-to-site Connectivity
CCNAv5 - S4: Chapter 1 Hierarchical Network Design
CCNAv5 - S4: Chapter 1 Hierarchical Network Design
Ccna routing and_switching_chapter-1-2-3_mme
Ccna routing and_switching_chapter-1-2-3_mme
CCNA RS_ITN - Chapter 2
CCNA RS_ITN - Chapter 2
Chapter 2 : Configuring a network operating system
Chapter 2 : Configuring a network operating system
CCNAv5 - S1: Chapter 2 - Configuring a network operating system
CCNAv5 - S1: Chapter 2 - Configuring a network operating system
Chapter 02 - Configuring a Network Operating System
Chapter 02 - Configuring a Network Operating System
CCNAv5 - S4: Chapter3 Point to-point Connections
CCNAv5 - S4: Chapter3 Point to-point Connections
CCNA RS_NB - Chapter 2
CCNA RS_NB - Chapter 2
CCNA 2 Routing and Switching v5.0 Chapter 1
CCNA 2 Routing and Switching v5.0 Chapter 1
CCNA 1 Routing and Switching v5.0 Chapter 2
CCNA 1 Routing and Switching v5.0 Chapter 2
Cisco packettracer overview_20jul09
Cisco packettracer overview_20jul09
CCNA RS_ITN - Chapter 3
CCNA RS_ITN - Chapter 3
Om net++
Om net++
Chapter 12 : Introduction to switched networks
Chapter 12 : Introduction to switched networks
Mina2
Mina2
CCNA 1 Routing and Switching v5.0 Chapter 3
CCNA 1 Routing and Switching v5.0 Chapter 3
Ccna v5-S1-Chapter 3
Ccna v5-S1-Chapter 3
Recently uploaded
Azure Monitor & Application Insight to monitor Infrastructure & Application
Azure Monitor & Application Insight to monitor Infrastructure & Application
AndikSusilo4
SIEMENS: RAPUNZEL – A Tale About Knowledge Graph
SIEMENS: RAPUNZEL – A Tale About Knowledge Graph
Neo4j
Scaling API-first – The story of a global engineering organization
Scaling API-first – The story of a global engineering organization
Radu Cotescu
Benefits Of Flutter Compared To Other Frameworks
Benefits Of Flutter Compared To Other Frameworks
Softradix Technologies
Pigging Solutions in Pet Food Manufacturing
Pigging Solutions in Pet Food Manufacturing
Pigging Solutions
GenCyber Cyber Security Day Presentation
GenCyber Cyber Security Day Presentation
Michael W. Hawkins
How to convert PDF to text with Nanonets
How to convert PDF to text with Nanonets
naman860154
08448380779 Call Girls In Greater Kailash - I Women Seeking Men
08448380779 Call Girls In Greater Kailash - I Women Seeking Men
Delhi Call girls
Maximizing Board Effectiveness 2024 Webinar.pptx
Maximizing Board Effectiveness 2024 Webinar.pptx
OnBoard
A Domino Admins Adventures (Engage 2024)
A Domino Admins Adventures (Engage 2024)
Gabriella Davis
Handwritten Text Recognition for manuscripts and early printed texts
Handwritten Text Recognition for manuscripts and early printed texts
Maria Levchenko
Transforming Data Streams with Kafka Connect: An Introduction to Single Messa...
Transforming Data Streams with Kafka Connect: An Introduction to Single Messa...
HostedbyConfluent
The 7 Things I Know About Cyber Security After 25 Years | April 2024
The 7 Things I Know About Cyber Security After 25 Years | April 2024
Rafal Los
08448380779 Call Girls In Diplomatic Enclave Women Seeking Men
08448380779 Call Girls In Diplomatic Enclave Women Seeking Men
Delhi Call girls
Transcript: #StandardsGoals for 2024: What’s new for BISAC - Tech Forum 2024
Transcript: #StandardsGoals for 2024: What’s new for BISAC - Tech Forum 2024
BookNet Canada
FULL ENJOY 🔝 8264348440 🔝 Call Girls in Diplomatic Enclave | Delhi
FULL ENJOY 🔝 8264348440 🔝 Call Girls in Diplomatic Enclave | Delhi
soniya singh
Unblocking The Main Thread Solving ANRs and Frozen Frames
Unblocking The Main Thread Solving ANRs and Frozen Frames
Sinan KOZAK
Breaking the Kubernetes Kill Chain: Host Path Mount
Breaking the Kubernetes Kill Chain: Host Path Mount
Puma Security, LLC
Human Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR Systems
Mark Billinghurst
Salesforce Community Group Quito, Salesforce 101
Salesforce Community Group Quito, Salesforce 101
Paola De la Torre
Recently uploaded
(20)
Azure Monitor & Application Insight to monitor Infrastructure & Application
Azure Monitor & Application Insight to monitor Infrastructure & Application
SIEMENS: RAPUNZEL – A Tale About Knowledge Graph
SIEMENS: RAPUNZEL – A Tale About Knowledge Graph
Scaling API-first – The story of a global engineering organization
Scaling API-first – The story of a global engineering organization
Benefits Of Flutter Compared To Other Frameworks
Benefits Of Flutter Compared To Other Frameworks
Pigging Solutions in Pet Food Manufacturing
Pigging Solutions in Pet Food Manufacturing
GenCyber Cyber Security Day Presentation
GenCyber Cyber Security Day Presentation
How to convert PDF to text with Nanonets
How to convert PDF to text with Nanonets
08448380779 Call Girls In Greater Kailash - I Women Seeking Men
08448380779 Call Girls In Greater Kailash - I Women Seeking Men
Maximizing Board Effectiveness 2024 Webinar.pptx
Maximizing Board Effectiveness 2024 Webinar.pptx
A Domino Admins Adventures (Engage 2024)
A Domino Admins Adventures (Engage 2024)
Handwritten Text Recognition for manuscripts and early printed texts
Handwritten Text Recognition for manuscripts and early printed texts
Transforming Data Streams with Kafka Connect: An Introduction to Single Messa...
Transforming Data Streams with Kafka Connect: An Introduction to Single Messa...
The 7 Things I Know About Cyber Security After 25 Years | April 2024
The 7 Things I Know About Cyber Security After 25 Years | April 2024
08448380779 Call Girls In Diplomatic Enclave Women Seeking Men
08448380779 Call Girls In Diplomatic Enclave Women Seeking Men
Transcript: #StandardsGoals for 2024: What’s new for BISAC - Tech Forum 2024
Transcript: #StandardsGoals for 2024: What’s new for BISAC - Tech Forum 2024
FULL ENJOY 🔝 8264348440 🔝 Call Girls in Diplomatic Enclave | Delhi
FULL ENJOY 🔝 8264348440 🔝 Call Girls in Diplomatic Enclave | Delhi
Unblocking The Main Thread Solving ANRs and Frozen Frames
Unblocking The Main Thread Solving ANRs and Frozen Frames
Breaking the Kubernetes Kill Chain: Host Path Mount
Breaking the Kubernetes Kill Chain: Host Path Mount
Human Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR Systems
Salesforce Community Group Quito, Salesforce 101
Salesforce Community Group Quito, Salesforce 101
Simulation using OMNet++
1.
Simulation using
OMNeT++ Jeromy Fu Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 1

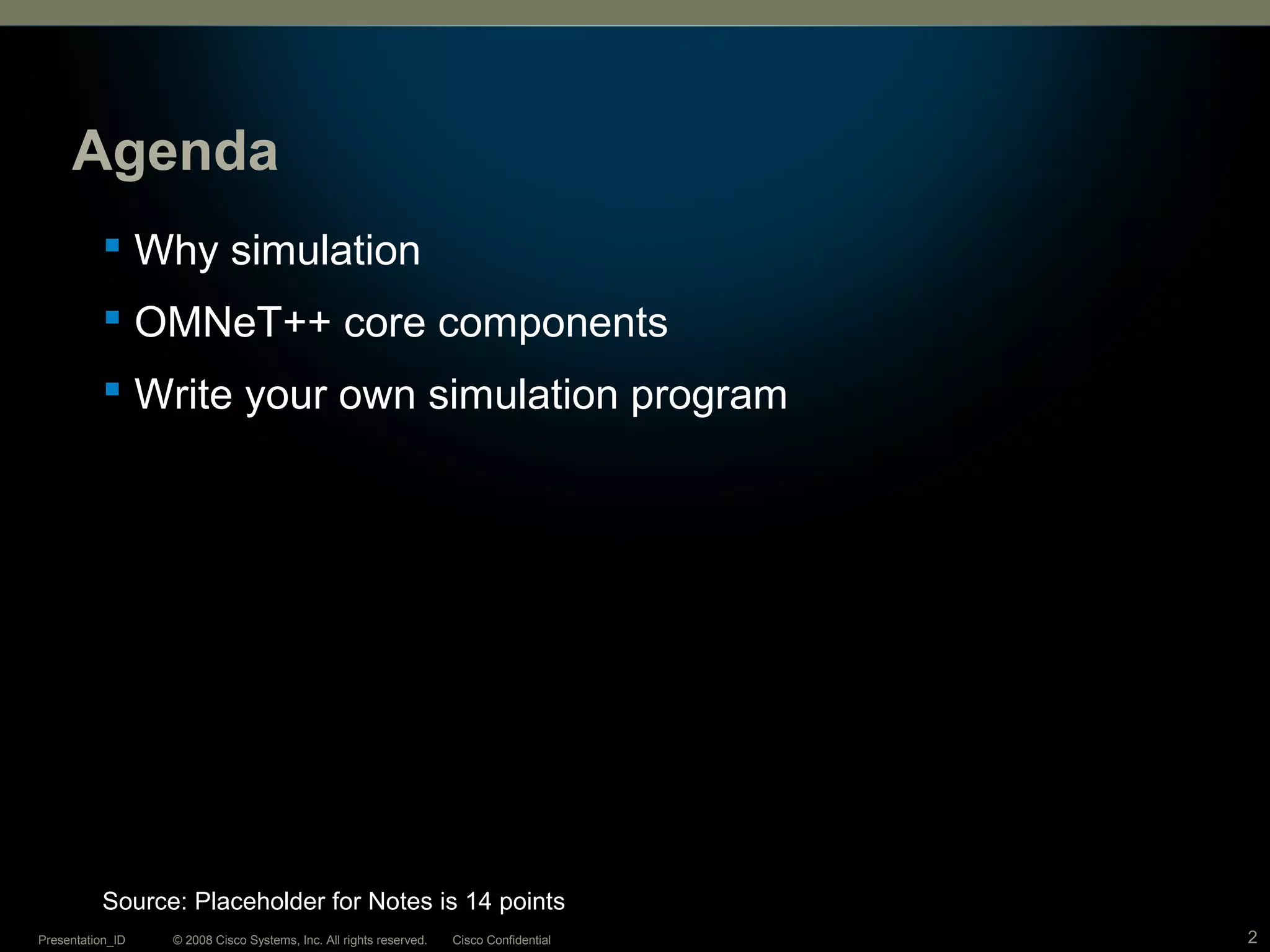

2.
Agenda
Why simulation OMNeT++ core components Write your own simulation program Source: Placeholder for Notes is 14 points Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 2
3.
Why simulation?
Mathematical model, sometime difficult Impractical experiment , PlanetLab helps Provide reproducible results Complementary methods, mathematical model validated by simulation, simulation validate by experiments. Source: Placeholder for Notes is 14 points Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 3
4.
Simulator
Usability clean API, script language support, documentation Scalability multi-thread ,distributed simulation Statistics underlying network simulation network protocol, cross-traffic, link latency, topology Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 4
5.
What is OMNeT++
It’s not a simulator of anything concrete, but an object- oriented modular discrete event network simulation framework. Provides infrastructure and tools for writing simulators. Has a component architecture, can be used in various problem domains. Support TK/TCL GUI and Cmd GUI. Support parallel distributed simulation. Portable(Linux, Mac OS, Windows etc). Well documented. Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 5
6.
Omnest – commercial
product http://www.omnest.com/references.php http://www.omnest.com/webdemo/ide/demo.html Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 6
7.
OMNet++ vs Omnest Presentation_ID
© 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 7
8.
DES(Discrete Event Simulation)
initialize -- this includes building the model and inserting initial events to FES(Future Event Set) while ( FES not empty and simulation not yet complete) { retrieve first event from FES t := timestamp of this event process event (processing may insert new events in FES or delete existing ones) } Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 8
9.
OMNeT++ core components
Simple module Compound module Gate Channel Source: Placeholder for Notes is 14 points Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 9
10.
Module
Modules that contain sub-modules are termed compound modules, as opposed to simple modules at the lowest level of the module hierarchy. Simple modules contain the algorithms of the model. The user implements the simple modules in C++, using the OMNeT++ simulation class library. Model structure is described in OMNeT++’s NED language. Source: Placeholder for Notes is 14 points Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 10
11.
Messages, Gates, Links
and Channels Modules communicate by exchanging messages. Simple modules can send messages either directly to their destination or along a pre defined path, through gates and connections. Gates are the input and output interfaces of modules; Messages are sent out through output gates and arrive through input gates. Typically travel through a series of connections, starting and arriving in simple modules. Connections support the following parameters: data rate, propagation delay, bit error rate and packet error rate, and may be disabled. Source: Placeholder for Notes is 14 points Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 11
12.
Simulation class library
Module, gate, parameter, channel Message, packet Container classes(e.g. queue, array) Data collection classes Statistic and distribution estimation class Transient detection and result accuracy detection classes Reflection support for C++ User Interface( GUI can even change the variable on- the-fly, cmd UI support batch execution) Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 12
13.
Simulator relating files
NED language topology description(s)(.ned files) that describe the module structure with parameters, gates, etc. Message definitions(.msg files). You can define various message types and add data fields to them. OMNeT++ will translate message definitions into full-fledged C++ classes. Simple module sources. They are C++ files, with .h/.cc suffix. Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 13
14.
Simulation process
Read all NED files, dynamically building up the network. Read configuration file which contains values for model parameters. Simulation runs until a pre-defined condition or user stop it through GUI. Logs, vector file and scalar files can be recorded. A variety of tools are provided for post-analyze and post-process. Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 14
15.
Distribution directory Presentation_ID
© 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 15
16.
NED(Network Description)
Hierarchical Component-based(support component libraries) Interfaces(concrete module or channel type can be specified by parameters)(single, multiple inheritance?) Inheritance Packages Inner types Metadata annotations Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 16
17.
Simple module
Defined with ‘simple’ keyword Have optional parameters and gates sections Operation of the module is expressed in C++ Class, which default have the same name with the module name. @class, @namespace Can be extended Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 17
18.
Simple module
simple Queue { parameters: int capacity; @class (mylib:Queue); @display("i=block/queue"); gates: input in; outpu out; } Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 18
19.
Simple module
Simple BoundedQueue extends Queue { capacity = 10; } Simple PriorityQueue extends Queue //correct solution { @class(PriorityQueue); } Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 19
20.
Compound module
Defined with ‘module’ keyword Group other modules into a large unit May have gates and params, but no behavior associated Have ‘submodules’ section, ‘connections’ section is optional Can defined inner module or channel types in ‘types’ section. Can be extended Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 20
21.
Compound module
module WirelessHostBase { gates: input radioIn; submodules: tcp: TCP; ip: IP; wlan: Ieee80211; Connections: tcp.ipOut --> ip.tcpIn; tcp.ipIn <-- ip.tcpOut; ip.nicOut++ --> wlan.ipIn; ip.nicIn++ <-- wlan.ipOut; wlan.radioIn <-- radioIn; } Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 21
22.
Compound module
module WirelessUser extends WirelessHostBase { submodules: webAgent: WebAgent; Connections: webAgent.tcpOut --> tcp.appIn++; webAgent.tcpIn <-- tcp.appOut++; } Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 22
23.
Compound module
module DesktopUser extends WirelessUser { gates: inout ethg; submodules: eth: EthernetNic; connections: ip.nicOut++ --> eth.ipIn; ip.nicIn++ <-- eth.ipOut; eth.phy <--> ethg; } Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 23
24.
Channels
Channels encapsulate parameters and behavior associated with connections Have C++ classes behind them, so @class and @namespace etc works the same with simple module Can define channel Class, however, the defaults are enough(IdealChannel, DelayChannel, DatarateChannel) Can also be extended Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 24
25.
Channels
channel C extends ned.DatarateChannel { datarate = 100Mbps; delay = 100us; ber = 1e-10; } channel DatarateChannel2 extends ned.DatarateChannel { double distance @unit(m); delay = this.distance / 200000km * 1s; } Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 25
26.
Parameters
Parameters are variables that belong to a module Parameters can be used in building the topology (number of nodes, etc), and to supply input to C++ code that implements simple modules and channels Can be specified in NED files or in configuration(‘ini’), which one choose? support string, numeric or boolean values, or can contain XML data trees Can use expression, can set default, sizeof operator, ‘index’ of the current module, refer to already defined parameters, ‘volatile’ @unit property Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 26
27.
Gates
Connection points of module Input, output, inout A module can have multiple gates(gate vector), size need not specified @loose, @directIn, ‘allowunconnected’ keyword Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 27
28.
Gates
simple Classifier{ parameters: int numCategories; gates: input in[]; output out[numCategories]; } simple GridNode { gates: inout neighbour[4]@loose; } Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 28
29.
Submodules
A compound module can have multiple submodules (module vector), size SHOULD be specified. In submodule body, we can assign parameters, set the size of gate vector, add/modify properties. Add new parameters and gates is not permitted. Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 29
30.
Submodules
module Node { gates: inout port[]; submodules: routing: Routing { parameters: // this keyword is optional routingTable = "routingtable.txt"; gates: in[sizeof(port)]; // set gate vector size out[sizeof(port)]; } queue[sizeof(port)]: Queue { @display("t=queue id $id"); //modify display string id = 1000 + index; //different "id" parameter for each element } connetions: ... } Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 30
31.
Connections
Used for connecting gates Can not span across hierarchy levels ‘-->’,’<--’,’<-->’ ‘gatename++’ notation Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 31
32.
Connections
... <--> {delay=10ms;} <--> ... ... <--> {delay=10ms; ber=1e-8;} <--> ... ... <--> C <--> ... ... <--> BBone{cost=100; length=52km; ber=1e-8;} <--> ... ... <--> {@display("ls=red");} <--> ... ... <--> BBone{@display("ls=green,2");} <--> ... Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 32
33.
Chain
module Chain{ parameters: int count; submodules: node[count]: Node{ gates: inout port[2]; } connections allowunconneted: for i = 0..count-2{ node[i].port[1] <--> node[i+1].port[0]; } } Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 33
34.
BinaryTree
simple BinaryTreeNode { gates: inout left; inout right; inout parent; } module BinaryTree { parameters: int height; submodules: node[2^height-1]: BinaryTreeNode; connections allowunconnected: for i=0..2^(height-1)-2 { node[i].left <--> node[2*i+1].parent; node[i].right <--> node[2*i+2].parent; } } Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 34
35.
RandomGraph
module RandomGraph{ parameters: int count; double connectedness; //0.0<x<1.0 submodules: node[count]: Node { gates: in[count]; out[count]; } connections allowunconneted: for i=0..count-1, for j=0..count-1{ node[i].out[j] --> node[j].in[i] if i!=j && uniform(0,1)<connectedness; } } Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 35
36.
Submodules type as
a parameter A submodule type may be specified with a module parameter of the type string, or in general, with any string-typed expression. The syntax uses the ‘like’ keyword. network Net6 { parameters: string nodeType; submodules: node[6]: <nodeType> like INode{ address = index; } connections: ... } Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 36
37.
Submodules type as
a parameter moduleinterface INode { parameters: int address; gates: inout port[]; } module SensorNode like INode { parameters: int address; ... gates: inout port[]; ... } Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 37
38.
Class Hierarchy Presentation_ID
© 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 38
39.
Simulation in pseudo
code perform simulation run; build network (i.e. the system module and its submodules recursively) insert starter messages for all submodules using activity() do callInitialize() on system module enter event loop // (described earlier) if (event loop terminated normally) // i.e. no errors do callFinish() on system module clean up Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 39
40.
Simulation in pseudo
code callInitialize() { call to user-defined initialize() function if( module is compound ) for (each submodule) do callInitialize() on submodule } callFinish() { if( module is compound ) for (each submodule) do callFinish() on submodule call to user-defined finish() function } Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 40
41.
Event loop in
more detail while ( FES not empty and simulation not yet complete ) { retreive first event from FES t := timestamp of this event m := module containing this event if ( m works with handleMessage() ) m->handleMessage(event) else // m works with activity() transferTo(m) } Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 41
42.
activity() vs handleMessage()
activity(), implemented using fiber in win32, coding more or less like multi-thread, simple, but consume more memory usage(stack), bad coding style. Not recommendate. handleMessage(), messaged-based, event-driver. Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 42
43.
Message processing in
handleMessage() Send() ScheduleAt() CancelEvent() DO NOT use receive() and wait(), they’re used in activity() Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 43
44.
Simple Module example
class Generator : public cSimpleModule { public: Generator(): cSimpleModule() {} protected: virtual void initialize(); virtual void handleMessage(cMessage *msg); } Define_Module(Generator); Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 44
45.
Simple Module example
void Generator::initialize() { // schedule first sending scheduleAt(simTime(), new cMessage); } void Generator::handleMessage(cMessage* msg) { // generate & send packet cMessage * pkt = new cMessage; send(pkt, "out"); // schedule next call scheduleAt(simTime() + exponential(1.0), msg); } Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 45
46.
Message definition
setter and getter reflection provided for messages(just like java) Compiled into .h and .cc files Can be used to define message and packets Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 46
47.
Steps for application
1. Create a working directory called tictoc. 2. Describe your example network by creating a topology file(*.ned). 3. We now need to implement the functionality of the simple module(*.cc). 4. We now create the Makefile which will help us to compile and link our program to create the executable tictoc: $ opp_makemake 5. Compile and link our very first simulation by making command: $ make 6.you have to create one. omnetpp.ini tells the simulation program which network you want to simulate 7. Once you complete the above steps, you launch the simulation. Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 47
48.
Building and running
simulation Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 48
49.
Tic-toc example: tictoc1.ned Presentation_ID
© 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 49
50.
Tic-toc example: txc1.cc Presentation_ID
© 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 50
51.
Tic-toc example: txc1.cc Presentation_ID
© 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 51
52.
One-hop simulation Presentation_ID
© 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 52
53.
Q and A Presentation_ID
© 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 53
