1. Data-driven modeling
APAM E4990
Jake Hofman
Columbia University
January 30, 2012
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 1 / 23

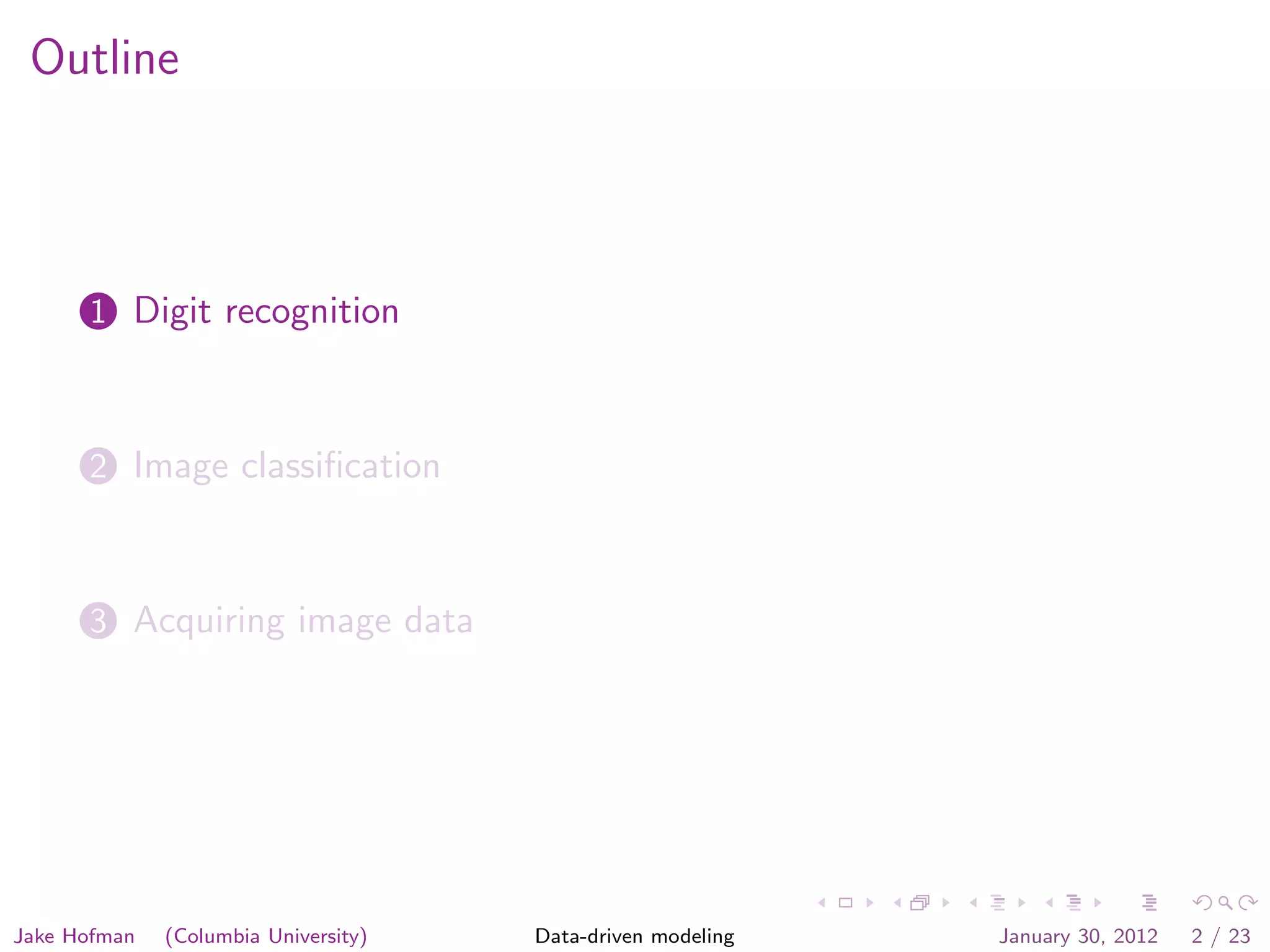

2. Outline
1 Digit recognition
2 Image classification
3 Acquiring image data
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 2 / 23

3. Digit recognition
Classification is an supervised learning task by which we aim to
predict the correct label for an example given its features
↓
0 5 4 1 4 9
e.g. determine which digit {0, 1, . . . , 9} is in depicted in each
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 3 / 23

4. Digit recognition
Determine which digit {0, 1, . . . , 9} is in depicted in each image
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 4 / 23

5. Images as arrays
Grayscale images ↔ 2-d arrays of M × N pixel intensities
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 5 / 23

6. Images as arrays
Grayscale images ↔ 2-d arrays of M × N pixel intensities
Represent each image as a “vector of pixels”, flattening the 2-d
array of pixels to a 1-d vector
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 5 / 23

7. k-nearest neighbors classification
k-nearest neighbors: memorize training examples, predict labels
using labels of the k closest training points
Intuition: nearby points have similar labels
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 6 / 23

8. k-nearest neighbors classification
Small k gives a complex boundary, large k results in coarse
averaging
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 7 / 23

9. k-nearest neighbors classification
Evaluate performance on a held-out test set to assess
generalization error
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 7 / 23

10. Digit recognition
Simple digit classifer with k=1 nearest neighbors
./ classify_digits . py
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 8 / 23

11. Outline
1 Digit recognition
2 Image classification
3 Acquiring image data
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 9 / 23

12. Image classification
Determine if an image is a landscape or headshot
↓ ↓
’landscape’ ’headshot’
Represent each image with a binned RGB intensity histogram
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 10 / 23

13. Images as arrays
Color images ↔ 3-d arrays of M × N × 3 RGB pixel intensities
import matplotlib . image as mpimg
I = mpimg . imread ( ' chairs . jpg ')
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 11 / 23

14. Images as arrays
Color images ↔ 3-d arrays of M × N × 3 RGB pixel intensities
import matplotlib . image as mpimg
I = mpimg . imread ( ' chairs . jpg ')
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 11 / 23

15. Intensity histograms
Disregard all spatial information, simply count pixels by intensities
(e.g. lots of pixels with bright green and dark blue)
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 12 / 23

16. Intensity histograms
How many bins for pixel intensities?
Too many bins gives a noisy, overly complex representation of
the data,
while using too few bins results in an overly simple one
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 13 / 23

17. Image classification
Classify
./ classify_flickr . py 16 9
flickr_headshot flickr_landscape
Change in performance on test set with number of neighbors
k = 1, accuracy = 0.7125
k = 3, accuracy = 0.7425
k = 5, accuracy = 0.7725
k = 7, accuracy = 0.7650
k = 9, accuracy = 0.7500
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 14 / 23

18. Outline
1 Digit recognition
2 Image classification
3 Acquiring image data
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 15 / 23

19. Simple screen scraping
One-liner to download ESL digit data
wget - Nr -- level =1 --no - parent http :// www -
stat . stanford . edu /~ tibs / ElemStatLearn /
datasets / zip . digits
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 16 / 23

20. Simple screen scraping
One-liner to scrape images from a webpage
wget -O - http :// bit . ly / zxy0jN |
tr ' ' ' ' " = ' 'n ' |
egrep '^ http .*( png | jpg | gif ) ' |
xargs wget
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 17 / 23

21. Simple screen scraping
One-liner to scrape images from a webpage
wget -O - http :// bit . ly / zxy0jN |
tr ' ' ' ' " = ' 'n ' |
egrep '^ http .*( png | jpg | gif ) ' |
xargs wget
• get page source
• translate quotes and = to newlines
• match urls with image extensions
• download qualifying images
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 17 / 23

22. “cat flickr xargs wget”?
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 18 / 23

23. Flickr API
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 19 / 23

24. YQL: SELECT * FROM Internet1
http://developer.yahoo.com/yql
1
http://oreillynet.com/pub/e/1369
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 20 / 23

25. YQL: Console
http://developer.yahoo.com/yql/console
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 21 / 23

26. YQL + Python
Python function for public YQL queries
def yql_public ( query , env = False ):
# build dictionary of GET parameters
params = { 'q ': query , ' format ': ' json '}
if env :
params [ ' env '] = env
# escape query
query_str = urlencode ( params )
# fetch results
url = '% s ?% s ' % ( YQL_PUBLIC , query_str )
result = urlopen ( url )
# parse json and return
return json . load ( result )[ ' query ' ][ ' results ']
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 22 / 23

27. YQL + Python + Flickr
Fetch info for “interestingness” photos
./ simpleyql . py ' select * from flickr . photos
. interestingness (20) where api_key = " ... " '
Download thumbnails for photos tagged with “vivid”
./ download_flickr . py vivid 500 < api_key >
Jake Hofman (Columbia University) Data-driven modeling January 30, 2012 23 / 23
