Data Science with Hadoop
Fall, 2014
Ajay Singh
Director, Technical Alliance

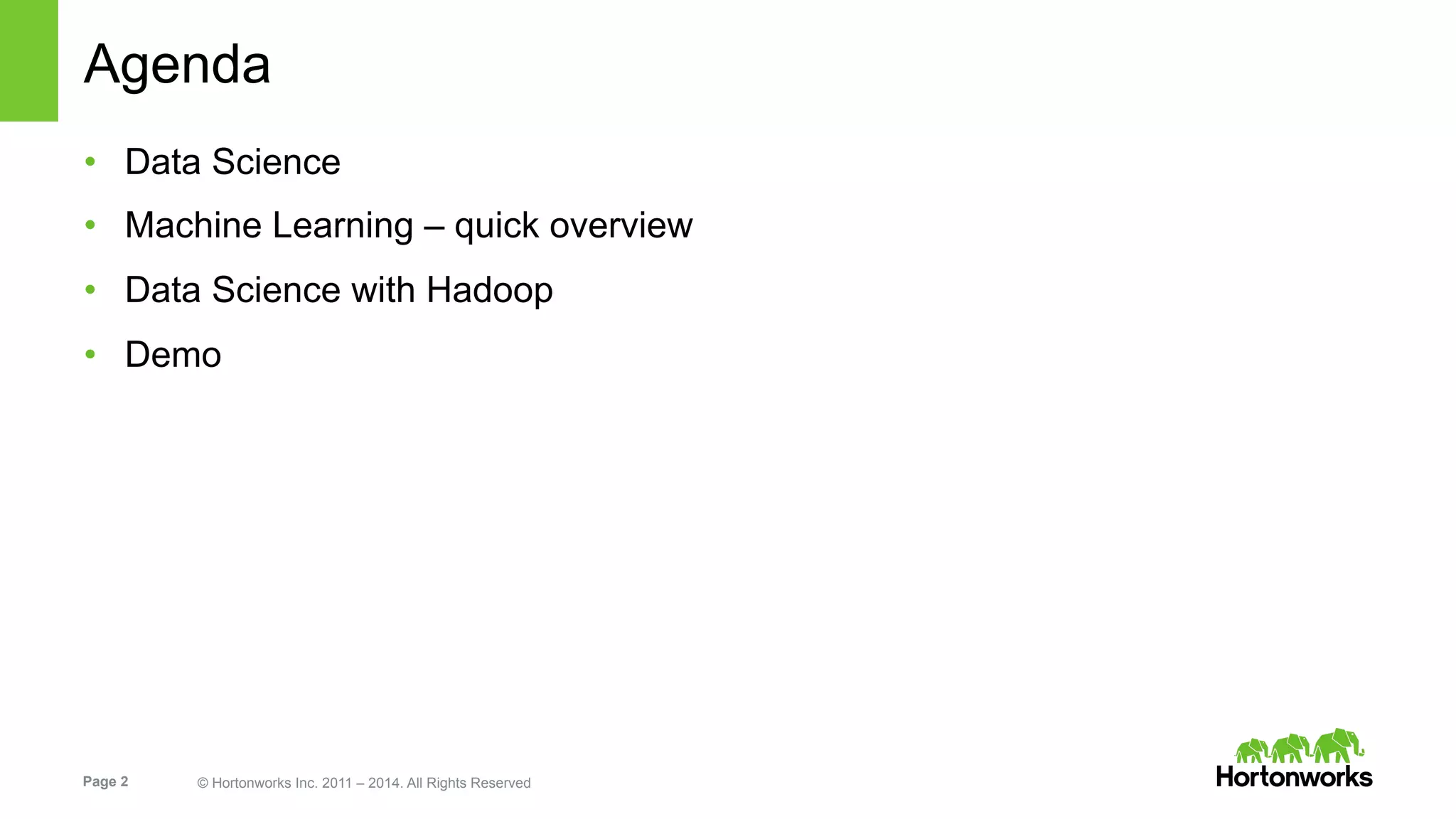

Agenda
•  Data Science
•  Machine Learning – quick overview
•  Data Science with Hadoop
•  Demo

Data Science

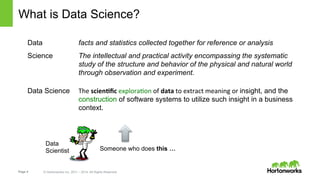

What is Data Science?
Data facts and statistics collected together for reference or analysis
Science The intellectual and practical activity encompassing the systematic
study of the structure and behavior of the physical and natural world
through observation and experiment.
Data Science The
scien&ﬁc
explora+on
of
data
to
extract
meaning
or
insight, and the
construction of software systems to utilize such insight in a business
context.
Someone who does this …
Data
Scientist

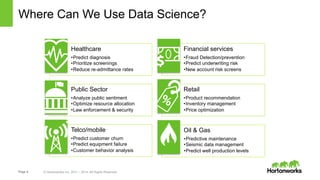

Where Can We Use Data Science?
Healthcare
• Predict diagnosis
• Prioritize screenings
• Reduce re-admittance rates
Financial services
• Fraud Detection/prevention
• Predict underwriting risk
• New account risk screens
Public Sector
• Analyze public sentiment
• Optimize resource allocation
• Law enforcement & security
Retail
• Product recommendation
• Inventory management
• Price optimization
Telco/mobile
• Predict customer churn
• Predict equipment failure
• Customer behavior analysis
Oil & Gas
• Predictive maintenance
• Seismic data management
• Predict well production levels

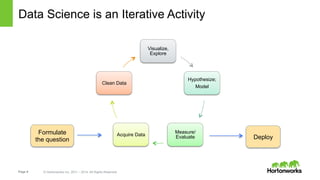

Data Science is an Iterative Activity
Visualize,
Explore
Hypothesize;
Model
Measure/
EvaluateAcquire Data
Clean Data
Formulate
the question Deploy

Data Science combines proficiencies…
Data
Exploration
Feature
Engineering
Raw
Transforms
The data science process is comprised
of three main tasks, requiring different
skill types, including technical, analytical
and programming. Signal
Processing
OCR
Geo-spatial
Normalize
Transform/
aggregate
Sample
Dimensionality
reduction
Feature
Selection
NLP
Mutual
Information
Data
Modeling
Frequent
Itemset
Anomaly
Detection
Clustering
Collaborative Filter
Regression
Classification
Supervised
Learning
Unsupervised
Learning
ReportingVisualizationData Quality
technical analytical
A data scientist needs to be proficient in
all these tasks.
Pre-processing

Data Science with Big Data…
Very large raw datasets are
now available:
-  Log files
-  Sensor data
-  Sentiment information
With more raw data, we can
build better models with
improved predictive
performance.
To handle the larger datasets
we need a scalable processing
platform like Hadoop and YARN

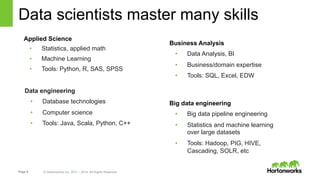

Data scientists master many skills
Applied Science
•  Statistics, applied math
•  Machine Learning
•  Tools: Python, R, SAS, SPSS
Big data engineering
•  Big data pipeline engineering
•  Statistics and machine learning
over large datasets
•  Tools: Hadoop, PIG, HIVE,
Cascading, SOLR, etc
Business Analysis
•  Data Analysis, BI
•  Business/domain expertise
•  Tools: SQL, Excel, EDW
Data engineering
•  Database technologies
•  Computer science
•  Tools: Java, Scala, Python, C++

Which makes them hard to find…
Applied Science
•  Statistics, applied math
•  Machine Learning
•  Tools: Python, R, SAS, SPSS
Business Analysis
•  Data Analysis, BI
•  Business/domain expertise
•  Tools: SQL, Excel, EDW
Data engineering
•  Database technologies
•  Computer science
•  Tools: Java, Scala, Python, C++
Big data engineering
•  Big data pipeline engineering
•  Statistics and machine learning
over large datasets
•  Tools: Hadoop, PIG, HIVE,
Cascading, SOLR, etc

The Data Science Team
Business
Analyst
Data
engineer
Applied
Scientist

Machine Learning Overview

What is Machine Learning?
WALL-E was a machine that learned how to feel emotions after
700 years of experiences on Earth collecting human artifacts.
Machine learning is the science of getting
computers to learn from data and act without being
explicitly programmed.
•  Machine learning is about the construction and
study of systems that can learn from data.
•  The core of machine learning deals with
representation and generalization so that the
system will perform well on unseen data
instances and predict unknown events.
•  There is a wide variety of machine learning
tasks and successful applications.

Supervised vs. Unsupervised learning
Data
Modeling
Frequent
Itemset
Anomaly
Detection
Clustering
Regression
Classification
Supervised
Learning
Unsupervised
Learning
Supervised learning:
Applications in which the training data is a set of “labeled”
examples of the input vectors along with their corresponding
target variable (labels)
Unsupervised learning:
Applications in which the training data comprises examples of
input vectors WITHOUT any corresponding target variables.
The goal is to unearth “naturally occurring patterns” in the data,
such as in clustering
Collaborative filtering:
(recommendations engine) uses techniques from both
supervised and unsupervised world.

Supervised Learning: learn from examples
Labeled
dataset

Test
data

Patient
Age
Tumor
Size
Clump
Thickness
… Malignant?
55 5 3 TRUE
70 4 7 TRUE
85 4 6 FALSE
35 2 1 FALSE
… … … … FALSE
TRUE
Patient age Tumor size Clump …
72 3 3
66 4 4
Cancer
model

F(k1,
k2,
k3,
k4)

Malignant
?
?
f(V1, V2, V3, …) = ?
Feature
Matrix
Target function
Feature Vector

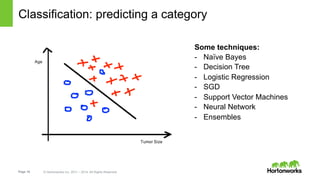

Classification: predicting a category
Some techniques:
-  Naïve Bayes
-  Decision Tree
-  Logistic Regression
-  SGD
-  Support Vector Machines
-  Neural Network
-  Ensembles

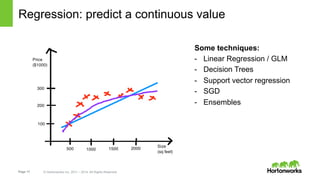

Regression: predict a continuous value
Some techniques:
-  Linear Regression / GLM
-  Decision Trees
-  Support vector regression
-  SGD
-  Ensembles

Example: Ad Click-Through Rates in Ad Search
Rank = bid * CTR
Predict CTR for each ad
to determine placement,
based on:
-  Historical CTR
-  Keyword match
-  Etc…

Unsupervised Learning: detect natural patterns
Age State Annual Income Marital
status
25 CA $80,000 M
45 NY $150,000 D
55 WA $100,500 M
18 TX $85,000 S
… … … …
No
labels

Model

Naturally
occurring

(hidden)
structure

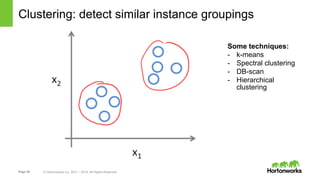

Clustering: detect similar instance groupings
Some techniques:
-  k-means
-  Spectral clustering
-  DB-scan
-  Hierarchical
clustering

Example: market segmentation

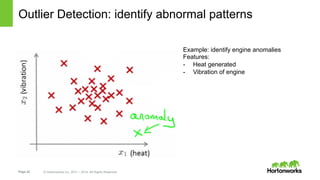

Outlier Detection: identify abnormal patterns
Example: identify engine anomalies
Features:
-  Heat generated
-  Vibration of engine

Outlier Detection Target Function: outlier factor
Outlier factor (0…1)
ID Total$ Age City OF
101 $200 25 SF 0.1
102 $350 35 LA 0.05
103 $25 15 LA 0.2
… … … … 0.1
0.9
0.2
0.15
0.1
Some techniques:
-  Statistical techniques
-  Local outlier factor
-  One-class SVM

Example: Credit Card Fraud Detection

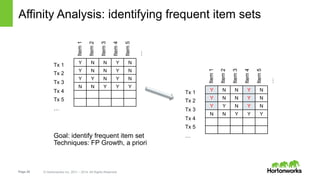

Affinity Analysis: identifying frequent item sets
Y N N Y N
Y N N Y N
Y Y N Y N
N N Y Y Y
Tx 1
Tx 2
Tx 3
Tx 4
Tx 5
…
Item1
Item2
Item3
Item4
Item5
…
Y N N Y N
Y N N Y N
Y Y N Y N
N N Y Y Y
Tx 1
Tx 2
Tx 3
Tx 4
Tx 5
…
Item1
Item2
Item3
Item4
Item5
…
Goal: identify frequent item set
Techniques: FP Growth, a priori

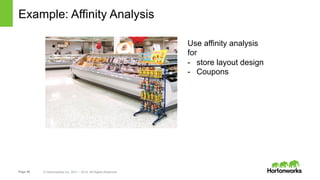

Example: Affinity Analysis
Use affinity analysis
for
-  store layout design
-  Coupons

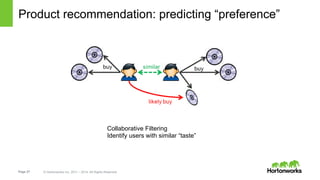

Product recommendation: predicting “preference”
Collaborative Filtering
Identify users with similar “taste”

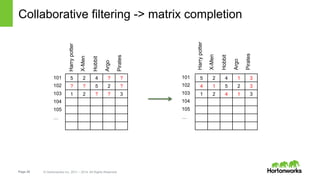

Collaborative filtering -> matrix completion
5 2 4 ? ?
? ? 5 2 ?
1 2 ? ? 3
Harrypotter
X-Men
Hobbit
Argo
Pirates
5 2 4 1 3
4 1 5 2 3
1 2 4 1 3
101
102
103
104
105
…
101
102
103
104
105
…
Harrypotter
X-Men
Hobbit
Argo
Pirates

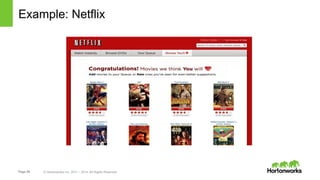

Example: Netflix

Hadoop and Data Science

• Data Lake: all the data in one place
– Ability to store ALL the data in raw format
– Data silo convergence
• Data/compute capabilities available as shared asset
– Data scientists can quickly prototype a new idea without
an up-front request for funding
– YARN enables multiple processing applications
Hadoop Improves Data Scientist Productivity

I
need
new

data

Finally,
we

start

collec+ng

Let
me
see…

is
it
any
good?

Start 6 months 9 months
“Schema change” project
Let’s
just
put
it
in
a

folder
on
HDFS

Let
me
see…

is
it
any
good?

3 months
My
model
is

awesome!

“Schema on read” Accelerates Data Innovation

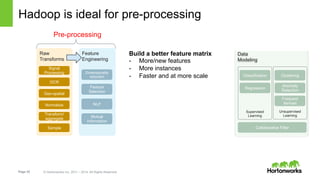

Hadoop is ideal for pre-processing
Feature
Engineering
Raw
Transforms
Signal
Processing
OCR
Geo-spatial
Normalize
Transform/
aggregate
Sample
Dimensionality
reduction
Feature
Selection
NLP
Mutual
Information
Data
Modeling
Frequent
Itemset
Anomaly
Detection
Clustering
Regression
Classification
Supervised
Learning
Unsupervised
Learning
Pre-processing
Build a better feature matrix
-  More/new features
-  More instances
-  Faster and at more scale

Training a Supervised Learning model with Hadoop
•  Typically “training set” is not that large
–  In this case, it’s very common to train on a high-memory node
–  Using existing tools: R, Python Scikit-learn or SAS
•  For really large training sets that don’t fit in memory
–  SAS
–  Spark ML-Lib is a promising (albeit new) solution
–  Mahout is workable in some cases (but future is unclear)
•  Hadoop is also useful in parameter tuning:
–  Grid-search: optimizing the model’s parameters

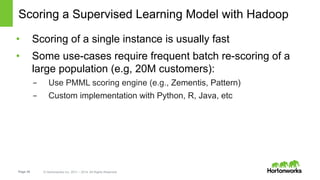

Scoring a Supervised Learning Model with Hadoop
•  Scoring of a single instance is usually fast
•  Some use-cases require frequent batch re-scoring of a
large population (e.g, 20M customers):
-  Use PMML scoring engine (e.g., Zementis, Pattern)
-  Custom implementation with Python, R, Java, etc

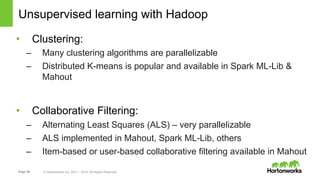

Unsupervised learning with Hadoop
•  Clustering:
–  Many clustering algorithms are parallelizable
–  Distributed K-means is popular and available in Spark ML-Lib &
Mahout
•  Collaborative Filtering:
–  Alternating Least Squares (ALS) – very parallelizable
–  ALS implemented in Mahout, Spark ML-Lib, others
–  Item-based or user-based collaborative filtering available in Mahout

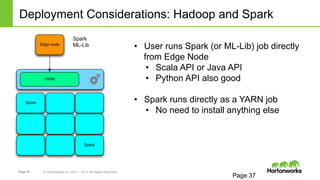

Deployment Considerations: Hadoop and Spark
Page 37
•  User runs Spark (or ML-Lib) job directly
from Edge Node
•  Scala API or Java API
•  Python API also good
•  Spark runs directly as a YARN job
•  No need to install anything else
Spark
ML-LibEdge node
Spark . .
. . .
. . Spark
YARN

Deployment Considerations: Hadoop and R
Page 38
•  R and relevant packages installed on each
node
•  User runs R on high-memory node
•  Rstudio or Rstudio server
•  RCloud
•  Interfaces to Hadoop
•  RMR: run map-reduce with R
•  RHDFS: access HDFS files from R
•  RHIVE: run hive queries from R
•  RHBase: Hbase from R
•  RODBC
Rstudio, Rcloud
Rhadoop
RHive
R . .
. . .
. . R
YARN
R high-
memory node

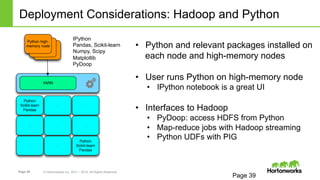

Deployment Considerations: Hadoop and Python
Page 39
•  Python and relevant packages installed on
each node and high-memory nodes
•  User runs Python on high-memory node
•  IPython notebook is a great UI
•  Interfaces to Hadoop
•  PyDoop: access HDFS from Python
•  Map-reduce jobs with Hadoop streaming
•  Python UDFs with PIG
IPython
Pandas, Scikit-learn
Numpy, Scipy
Matplotlib
PyDoop
Python
Scikit-learn
Pandas
. .
. . .
. .
Python
Scikit-learn
Pandas
YARN
Python high-
memory node

Supervised Learning with Hadoop
More details + demo

Model
Predict

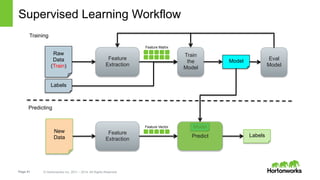

Supervised Learning Workflow
Feature
Extraction
Train
the
Model
Model
Raw
Data
(Train)
Labels
New
Data
Feature
Extraction
Labels
Training
Predicting
Eval
Model
Feature Matrix
Feature Vector

Close up: Feature Extraction
Raw
Data

ID Total$ Age City Target
101 200 25 SF
102 350 35 LA
103 25 15 LA
… … … …
Feature MatrixFeature
Engineering
Raw
Transforms
Signal
Processing
OCR
Geo-spatial
Normalize
Transform/
aggregate
Sample
Dimensionality
reduction
Feature
Selection
NLP
Mutual
Information
TB, PB
Feature
Extraction
MB, GB

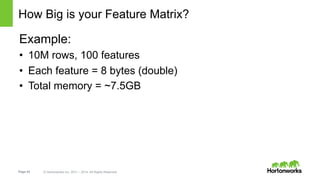

How Big is your Feature Matrix?
Example:
•  10M rows, 100 features
•  Each feature = 8 bytes (double)
•  Total memory = ~7.5GB

Close-Up: Training the Model
Train
the
Model
Training
Set
Model
Eval
Model
Metric
-  Feature matrix randomly split into “training” (70%) and “validation” set (30%)
-  Model is built using training set and error measure is computed over validation set
-  Iterative process or grid-search to determine the best algorithm and choice of
parameters so that:
-  We get optimal model accuracy
-  We prevent over-fitting
Validation
Set

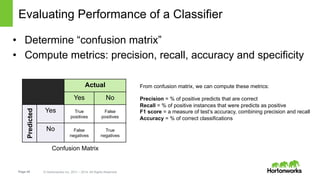

Evaluating Performance of a Classifier
•  Determine “confusion matrix”
•  Compute metrics: precision, recall, accuracy and specificity
Actual
Yes No
Predicted
Yes True
positives
False
positives
No False
negatives
True
negatives
Confusion Matrix
From confusion matrix, we can compute these metrics:
Precision = % of positive predicts that are correct
Recall = % of positive instances that were predicts as positive
F1 score = a measure of test’s accuracy, combining precision and recall
Accuracy = % of correct classifications

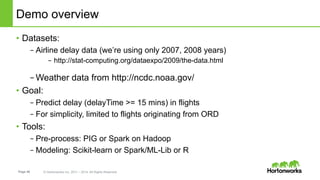

Demo overview
•  Datasets:
– Airline delay data (we’re using only 2007, 2008 years)
–  http://stat-computing.org/dataexpo/2009/the-data.html
– Weather data from http://ncdc.noaa.gov/
•  Goal:
– Predict delay (delayTime >= 15 mins) in flights
– For simplicity, limited to flights originating from ORD
•  Tools:
– Pre-process: PIG or Spark on Hadoop
– Modeling: Scikit-learn or Spark/ML-Lib or R

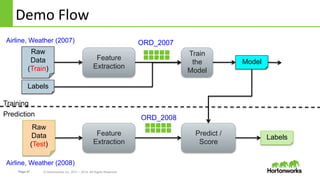

Demo
Flow

Feature
Extraction
Train
the
Model
Predict /
Score
Model
Raw
Data
(Train)
Labels
Raw
Data
(Test)
Feature
Extraction
Labels
Training
Prediction
Airline, Weather (2007) ORD_2007
ORD_2008
Airline, Weather (2008)

DEMO now!

Data science workshop

More Related Content

What's hot

Viewers also liked

Similar to Data science workshop

More from Hortonworks

Data science workshop
