Data Protection Manager (DPM) 2007 provides continuous data protection for Windows servers and desktops. It uses disk-based snapshots to backup data up to every 15 minutes and provides rapid recovery from disk. DPM 2007 integrates disk and tape backup in a single platform and can backup applications like Exchange, SQL Server, and SharePoint. It aims to eliminate backup windows and reduce potential data loss to 15-30 minutes for protected systems.

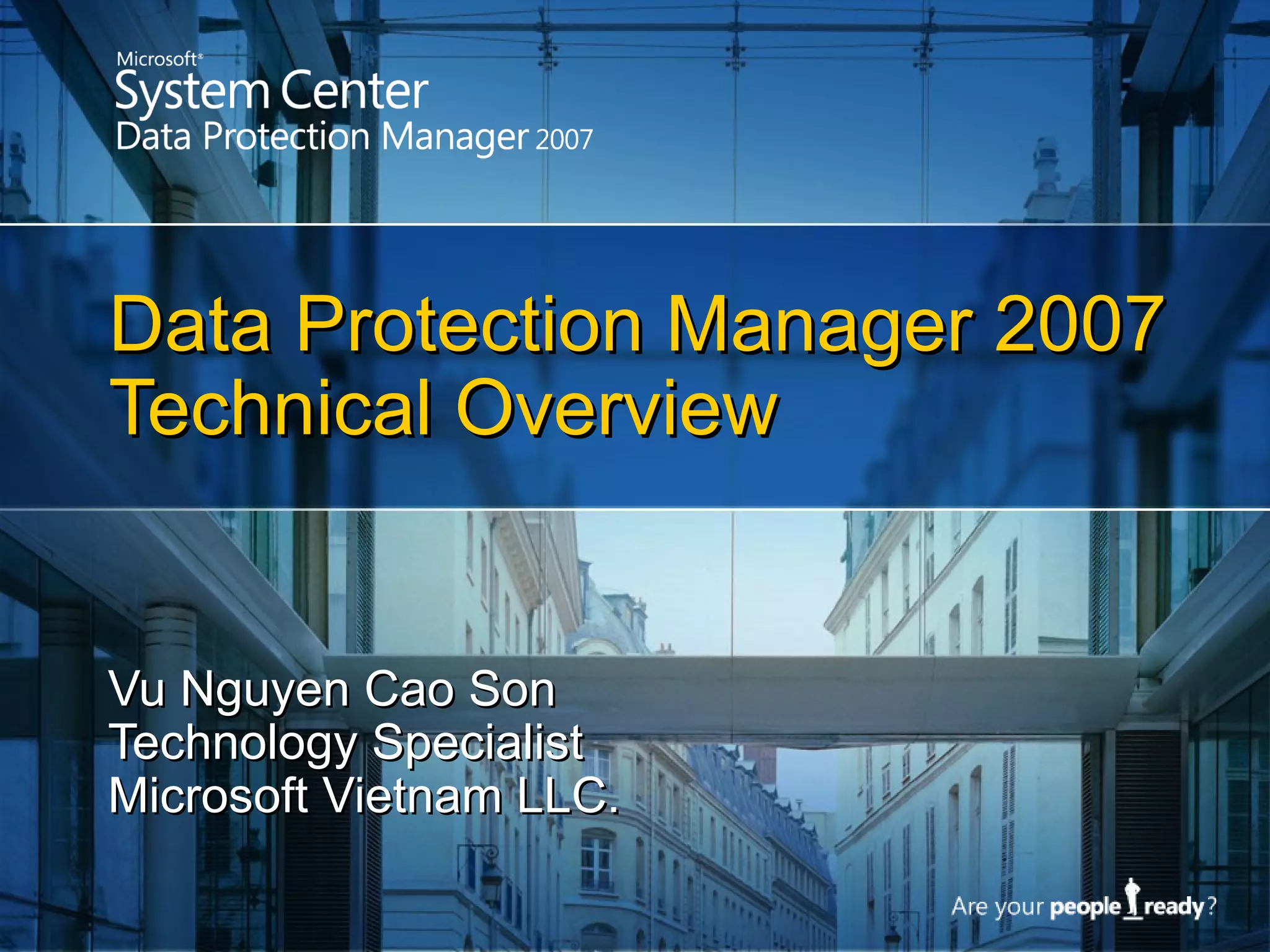

1. Data Protection Manager 2007 Technical Overview Vu Nguyen Cao Son Technology Specialist Microsoft Vietnam LLC.

3. Core IO – Data Protection & Recovery Desktop, Server and Device Management Security and Networking Identity and Access Management Data Protection and Recovery

6. DPM Server Also available as a DPM OEM Appliance running on Windows Storage Server with integrated Disk & Tape Up to Every 15 minutes DPM 2007 Active Directory® System State Windows Server 2003 Windows Server 2008 file shares and directories Data Protection Manager 2007 Windows XP Windows Vista

7. Standard DPML = “File agent” per protected server No additional “Open File” or add-on modules Active Directory® System State Windows Server 2003 Windows Server 2008 file shares and directories DPM Server Also available as a DPM OEM Appliance running on Windows Storage Server with integrated Disk & Tape DPM 2007 Windows XP Windows Vista

8. DPM Server Also available as a DPM OEM Appliance running on Windows Storage Server with integrated Disk & Tape DPM 2007 Active Directory® System State Windows Server 2003 Windows Server 2008 file shares and directories Enterprise DPML – “ Application Agent ” – per protected server Unified support of Microsoft applications SQL, Exchange, SharePoint, & Virtual Server – and files Protect DPM 2 DPM 4 DR – disaster recovery Bare Metal Recovery Pricing guidance posted on microsoft.com/DPM Standard DPML = “ File agent ” per protected server No additional “Open File” or add-on modules Windows XP Windows Vista

20. DPM Efficient Disk Storage without duplication Day 0 Production Data DPM Replica Original Data A B C D E F G H A B C D E F G H

21. DPM Efficient Disk Storage without duplication Day 1 – data changes Production Data DPM Replica Original Data 1 st data change A B I D E J G H A B C D E F G H

22. DPM Efficient Disk Storage without duplication Day 1 – data is protected Production Data DPM Replica Original Data 1 st data change A B I D E J G H A B C D E F G H I J

23. DPM Efficient Disk Storage without duplication Day 1 – data is protected Production Data DPM Replica Original Data 1 st data change DPM Recovery Point Area A B I D E J G H A B C D E F G H I J

24. DPM Efficient Disk Storage without duplication Day 1 Production Data DPM Replica Original Data 1 st data change DPM Recovery Point Area A B I D E J G H A B C D E F G H I J

25. DPM Efficient Disk Storage without duplication Day 2 – data changes Production Data DPM Replica Original Data 1 st data change 2 nd data change DPM Recovery Point Area K B I D E J L H A B C D E F G H I J

26. DPM Efficient Disk Storage without duplication Day 2 – data is protected Production Data DPM Replica Original Data 1 st data change 2 nd data change DPM Recovery Point Area K B I D E J L H A B C D E F G H I J K L

27. DPM Efficient Disk Storage without duplication Day 2 – data is protected Production Data DPM Replica Original Data 1 st data change 2 nd data change DPM Recovery Point Area K B I D E J L H A B C D E F G H I J K L

28. DPM Efficient Disk Storage without duplication Day 2 Production Data DPM Replica Original Data 1 st data change 2 nd data change DPM Recovery Point Area K B I D E J L H A B C D E F G H I J K L

29. DPM Efficient Disk Storage without duplication Day 3 – data changes Production Data DPM Replica Original Data 1 st data change 2 nd data change 3 rd data change DPM Recovery Point Area K B I D M N O P A B C D E F G H I J K L Q

30. DPM Efficient Disk Storage without duplication Day 3 – data is protected Production Data DPM Replica Original Data 1 st data change 2 nd data change 3 rd data change DPM Recovery Point Area K B I D M N O P A B C D E F G H I J K L Q M N O P Q

31. DPM Efficient Disk Storage without duplication Day 3 – data is protected Production Data DPM Replica DPM Recovery Point Area Original Data 1 st data change 2 nd data change 3 rd data change K B I D M N O P A B C D E F G H I J K L Q M N O P Q

32. DPM Efficient Disk Storage without duplication Day 3 Production Data DPM Replica DPM Recovery Point Area Original Data 1 st data change 2 nd data change 3 rd data change K B I D M N O P A B C D E F G H I J K L Q M N O P Q

33. DPM Efficient Disk Storage without duplication To Recovery Day 2 Production Data DPM Replica DPM Recovery Point Area Original Data 1 st data change 2 nd data change 3 rd data change 8 blocks restored A B C D E F G H I J K L M N O P Q K B I D E J L H

34. DPM Efficient Disk Storage without duplication To Recovery Day 0 Production Data DPM Replica DPM Recovery Point Area Original Data 1 st data change 2 nd data change 3 rd data change 8 blocks restored A B C D E F G H I J K L M N O P Q A B C D E F G H
