1. NVMFS: A New File System Designed
Specifically to Take Advantage of
Nonvolatile Memory
Dhananjoy
Das,
Sr.
Systems
Architect
SanDisk
Corp.
Flash Memory Summit 2015
Santa Clara, CA 1

2. Forward-Looking Statements
During our meeting today we will make forward-looking statements.
Any statement that refers to expectations, projections or other characterizations of future events or circumstances
is a forward-looking statement, including those relating to market growth, products and their capabilities,
performance and compatibility, cost savings and other benefits to customers. Information in this presentation may
also include or be based upon information from third parties, which reflects their expectations and projections as of
the date of issuance.
We undertake no obligation to update these forward-looking statements, which speak only as of the date hereof.

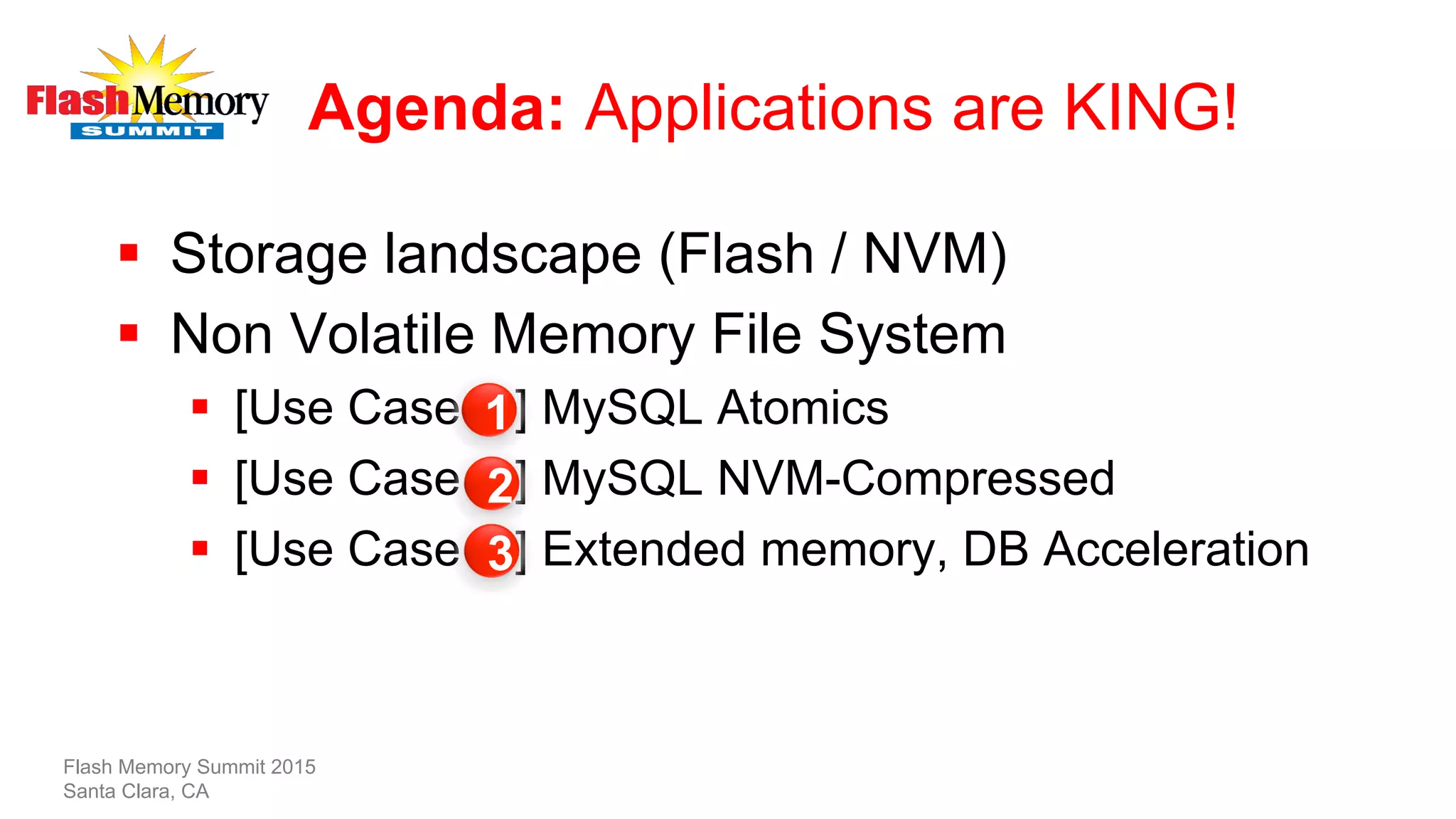

3. Agenda: Applications are KING!
§ Storage landscape (Flash / NVM)
§ Non Volatile Memory File System
§ [Use Case ] MySQL Atomics
§ [Use Case ] MySQL NVM-Compressed
§ [Use Case ] Extended memory, DB Acceleration
Flash Memory Summit 2015
Santa Clara, CA
1
2
3

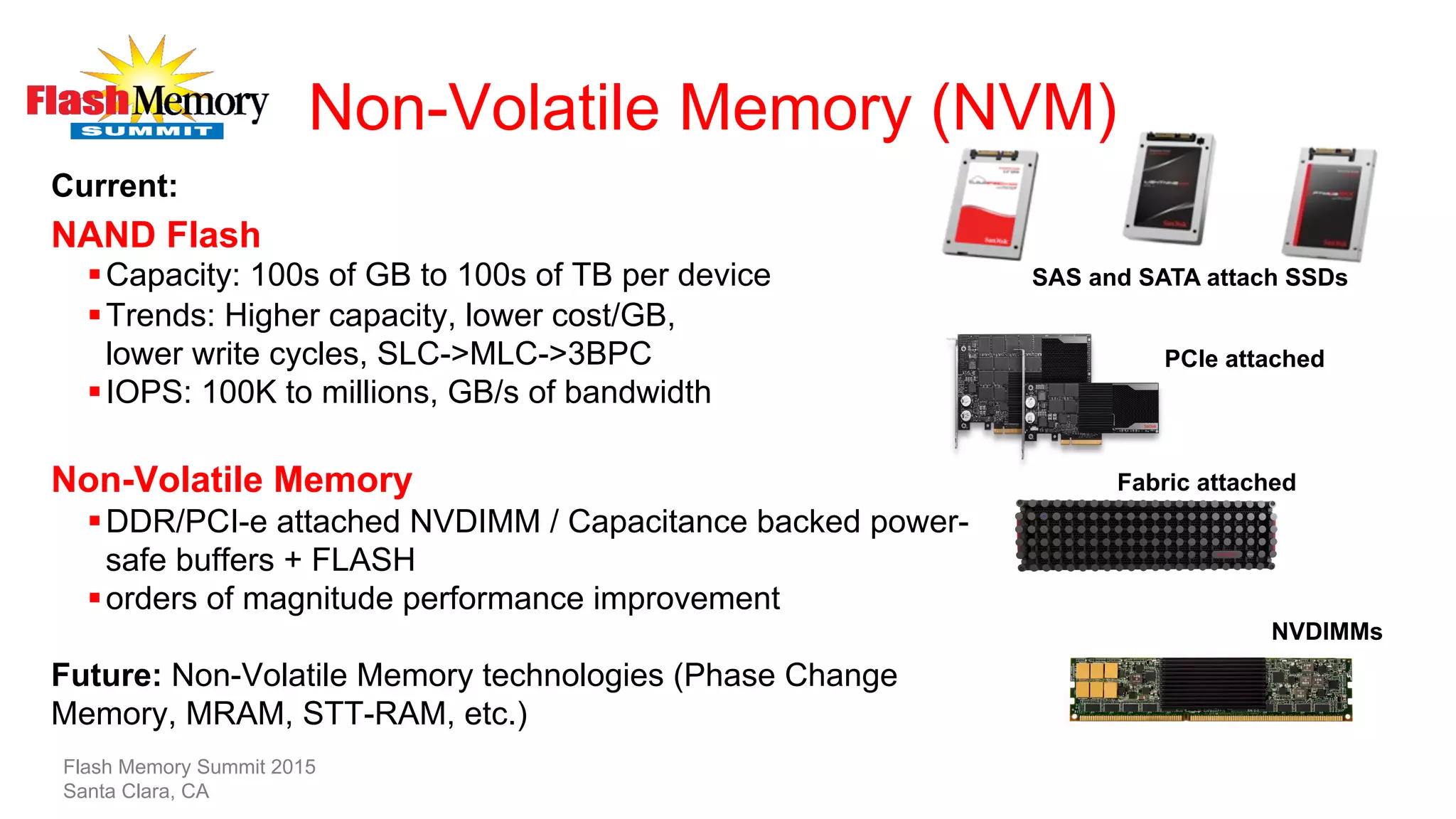

4. Non-Volatile Memory (NVM)
Current:
NAND Flash
§ Capacity: 100s of GB to 100s of TB per device
§ Trends: Higher capacity, lower cost/GB,
lower write cycles, SLC->MLC->3BPC
§ IOPS: 100K to millions, GB/s of bandwidth
Non-Volatile Memory
§ DDR/PCI-e attached NVDIMM / Capacitance backed power-
safe buffers + FLASH
§ orders of magnitude performance improvement
Future: Non-Volatile Memory technologies (Phase Change
Memory, MRAM, STT-RAM, etc.)
PCIe attached
SAS and SATA attach SSDs
Fabric attached
NVDIMMs
Flash Memory Summit 2015
Santa Clara, CA

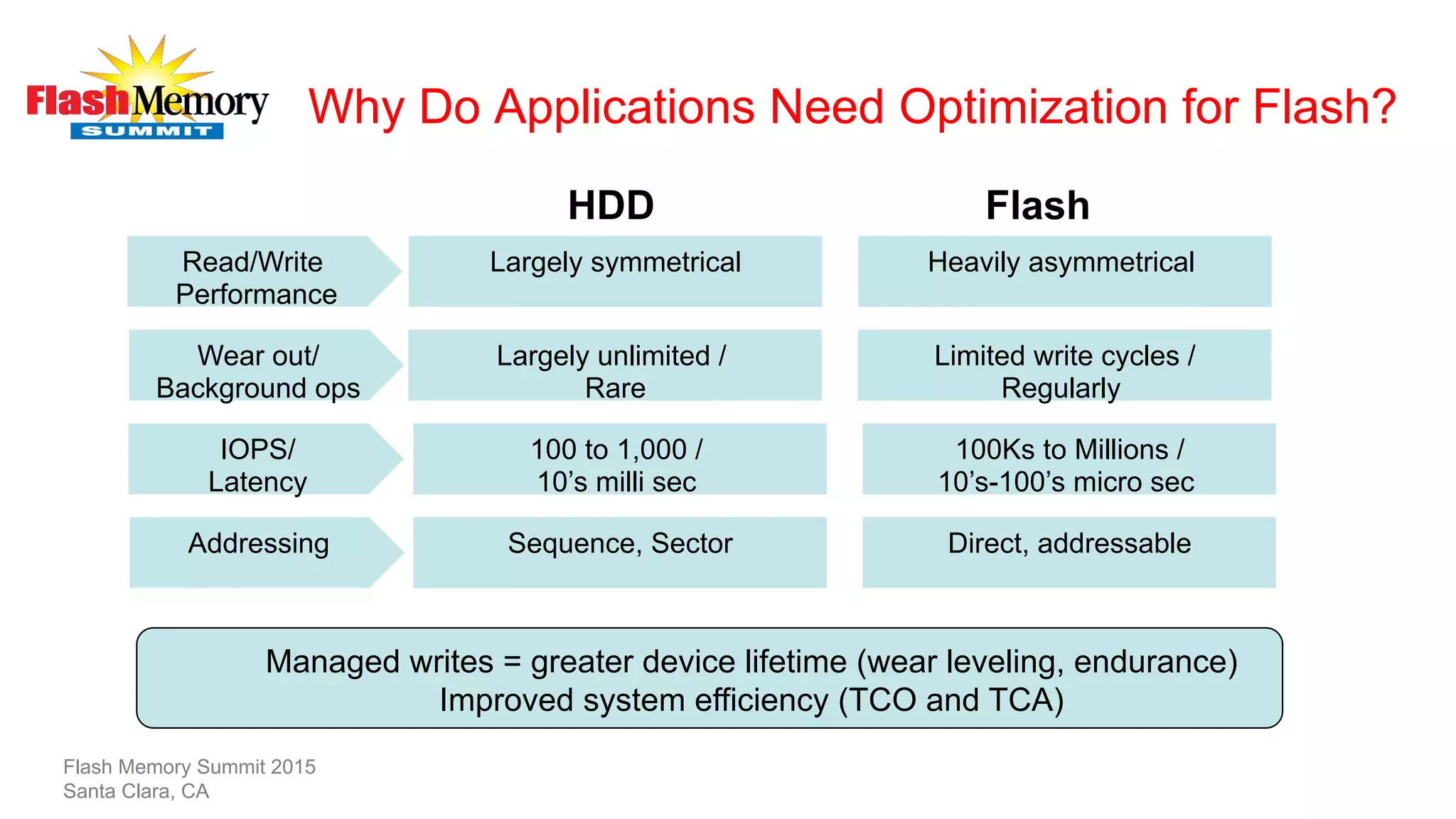

5. Why Do Applications Need Optimization for Flash?
Flash Memory Summit 2015
Santa Clara, CA
Read/Write
Performance
Largely symmetrical Heavily asymmetrical
Wear out/
Background ops
Largely unlimited /
Rare
Limited write cycles /
Regularly
IOPS/
Latency
100 to 1,000 /
10’s milli sec
100Ks to Millions /
10’s-100’s micro sec
Addressing Sequence, Sector Direct, addressable
HDD Flash
Managed writes = greater device lifetime (wear leveling, endurance)
Improved system efficiency (TCO and TCA)

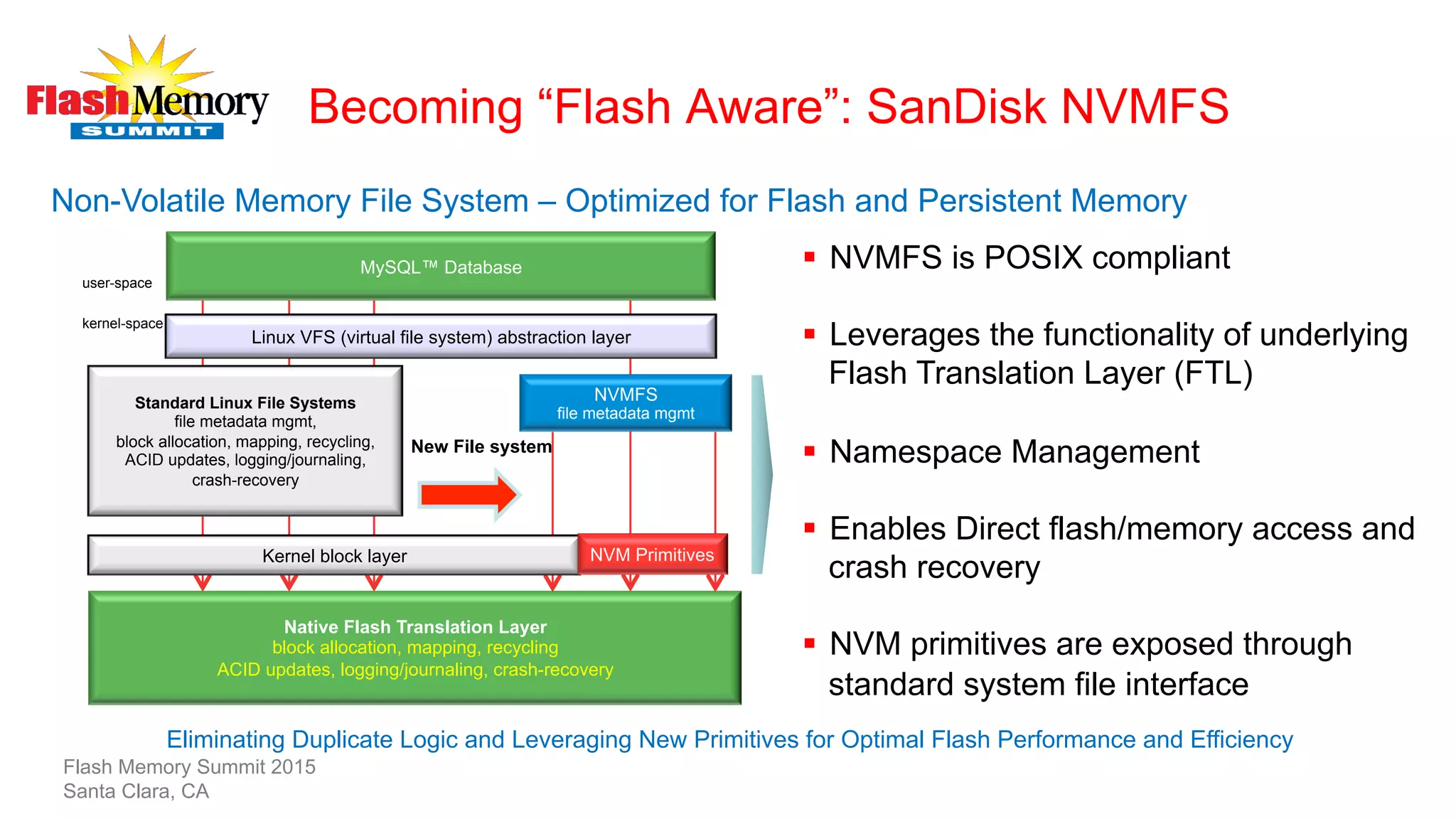

6. Becoming “Flash Aware”: SanDisk NVMFS
Non-Volatile Memory File System – Optimized for Flash and Persistent Memory
Native Flash Translation Layer
block allocation, mapping, recycling
ACID updates, logging/journaling, crash-recovery
NVMFS
file metadata mgmt
Kernel block layer
kernel-space
user-space
Standard Linux File Systems
file metadata mgmt,
block allocation, mapping, recycling,
ACID updates, logging/journaling,
crash-recovery
NVM Primitives
MySQL™ Database
Linux VFS (virtual file system) abstraction layer
New File system
Eliminating Duplicate Logic and Leveraging New Primitives for Optimal Flash Performance and Efficiency
Flash Memory Summit 2015
Santa Clara, CA
§ NVMFS is POSIX compliant
§ Leverages the functionality of underlying
Flash Translation Layer (FTL)
§ Namespace Management
§ Enables Direct flash/memory access and
crash recovery
§ NVM primitives are exposed through
standard system file interface

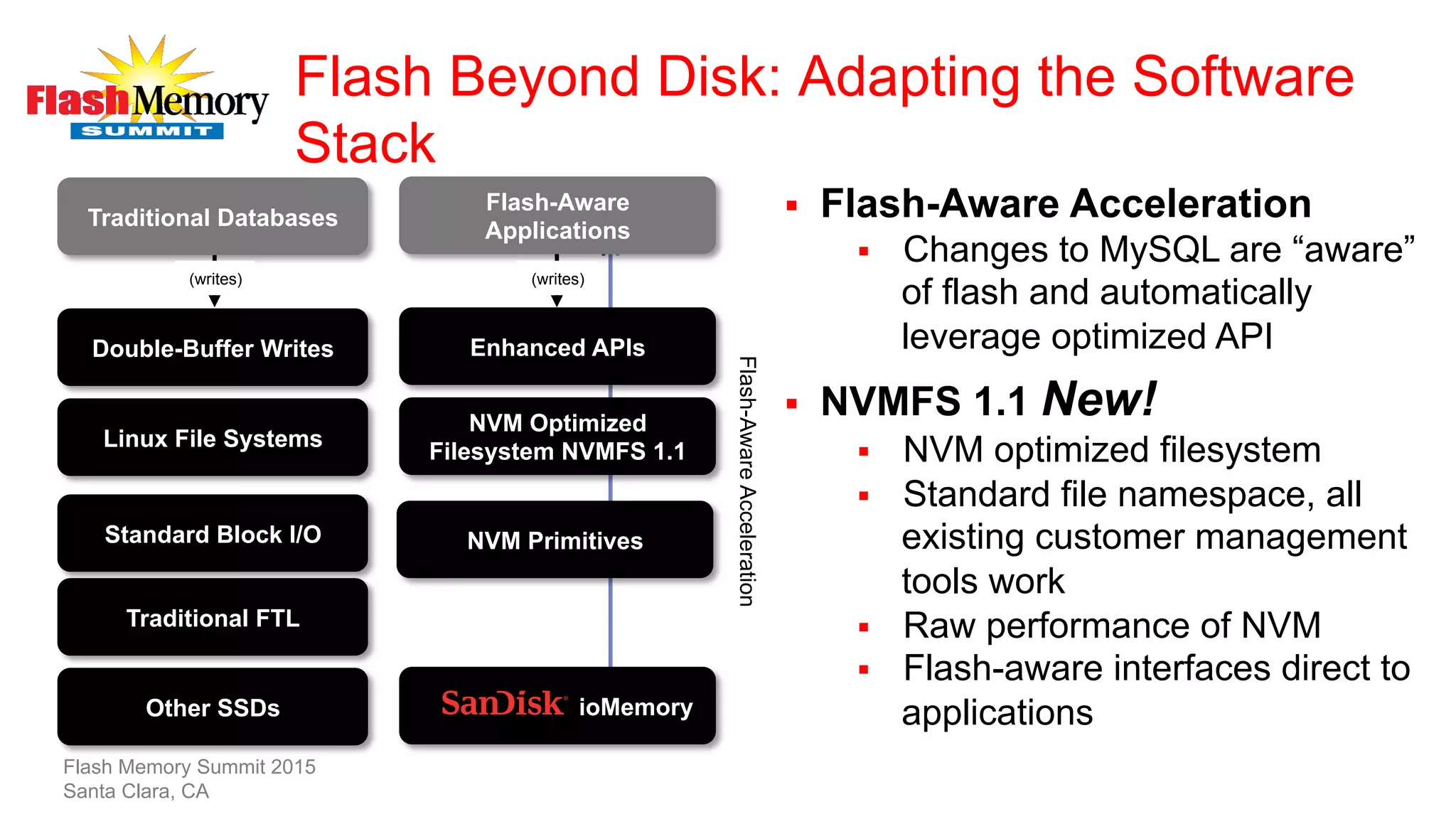

7. Flash Beyond Disk: Adapting the Software
Stack
§ Flash-Aware Acceleration
§ Changes to MySQL are “aware”
of flash and automatically
leverage optimized API
§ NVMFS 1.1 New!
§ NVM optimized filesystem
§ Standard file namespace, all
existing customer management
tools work
§ Raw performance of NVM
§ Flash-aware interfaces direct to
applicationsFlash-AwareAcceleration
NVM PrimitivesStandard Block I/O
Flash-Aware
Applications
Traditional Databases
Enhanced APIsDouble-Buffer Writes
(writes) (writes)
NVM Optimized
Filesystem NVMFS 1.1
Linux File Systems
Traditional FTL
SanDisk ioMemoryOther SSDs
Flash Memory Summit 2015
Santa Clara, CA

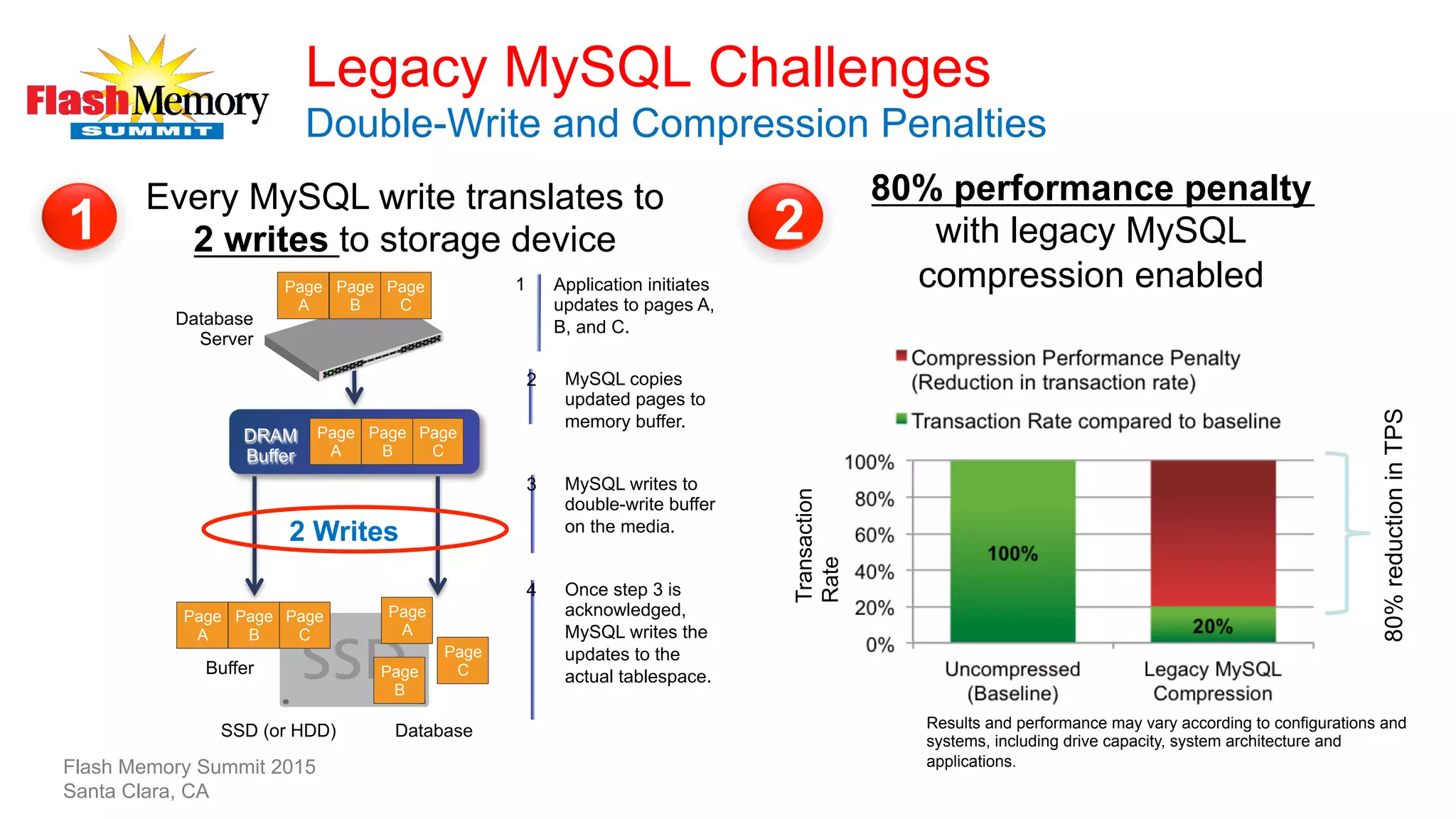

8. Legacy MySQL Challenges
Double-Write and Compression Penalties
Every MySQL write translates to
2 writes to storage device
80% performance penalty
with legacy MySQL
compression enabled
Page
CPage
B
Page
A
Buffer
DRAM
Buffer
SSD (or HDD) Database
Database
Server
Page
C
Page
B
Page
A
Page
C
Page
B
Page
A
Page
C
Page
B
Page
A
Application initiates
updates to pages A,
B, and C.
1
MySQL copies
updated pages to
memory buffer.
2
MySQL writes to
double-write buffer
on the media.
3
Once step 3 is
acknowledged,
MySQL writes the
updates to the
actual tablespace.
4
2 Writes
80%reductioninTPS
21
Transaction
Rate
Results and performance may vary according to configurations and
systems, including drive capacity, system architecture and
applications.Flash Memory Summit 2015
Santa Clara, CA

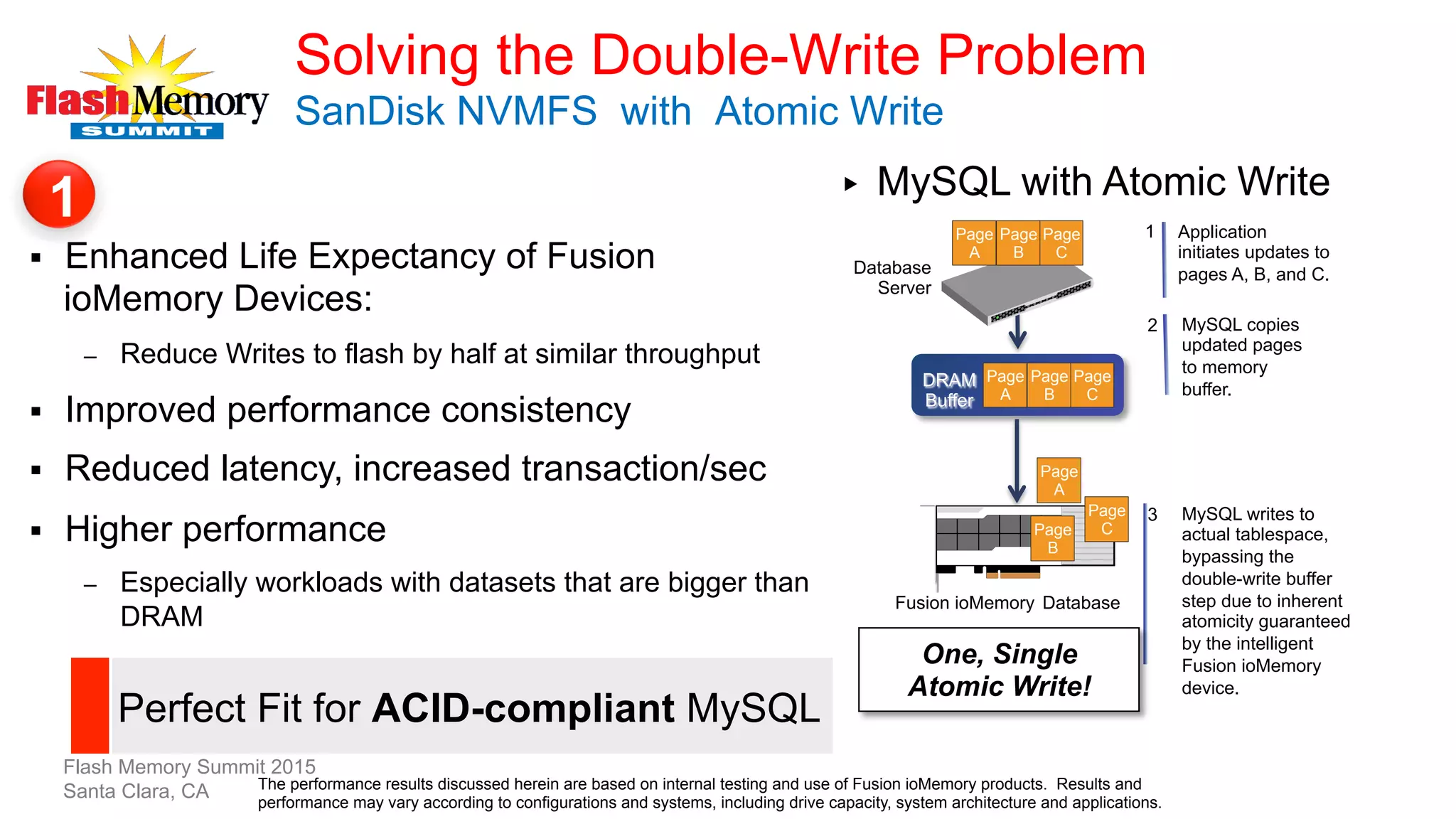

9. Solving the Double-Write Problem
SanDisk NVMFS with Atomic Write
▸ MySQL with Atomic Write
Fusion ioMemory Database
Page
C
Page
B
Page
A
DRAM
Buffer
Page
C
Page
B
Page
A
Application
initiates updates to
pages A, B, and C.
1
MySQL copies
updated pages
to memory
buffer.
2
MySQL writes to
actual tablespace,
bypassing the
double-write buffer
step due to inherent
atomicity guaranteed
by the intelligent
Fusion ioMemory
device.
3
Database
Server
Page
CPage
B
Page
A
§ Enhanced Life Expectancy of Fusion
ioMemory Devices:
– Reduce Writes to flash by half at similar throughput
§ Improved performance consistency
§ Reduced latency, increased transaction/sec
§ Higher performance
– Especially workloads with datasets that are bigger than
DRAM
Perfect Fit for ACID-compliant MySQL
1
One, Single
Atomic Write!
The performance results discussed herein are based on internal testing and use of Fusion ioMemory products. Results and
performance may vary according to configurations and systems, including drive capacity, system architecture and applications.
Flash Memory Summit 2015
Santa Clara, CA

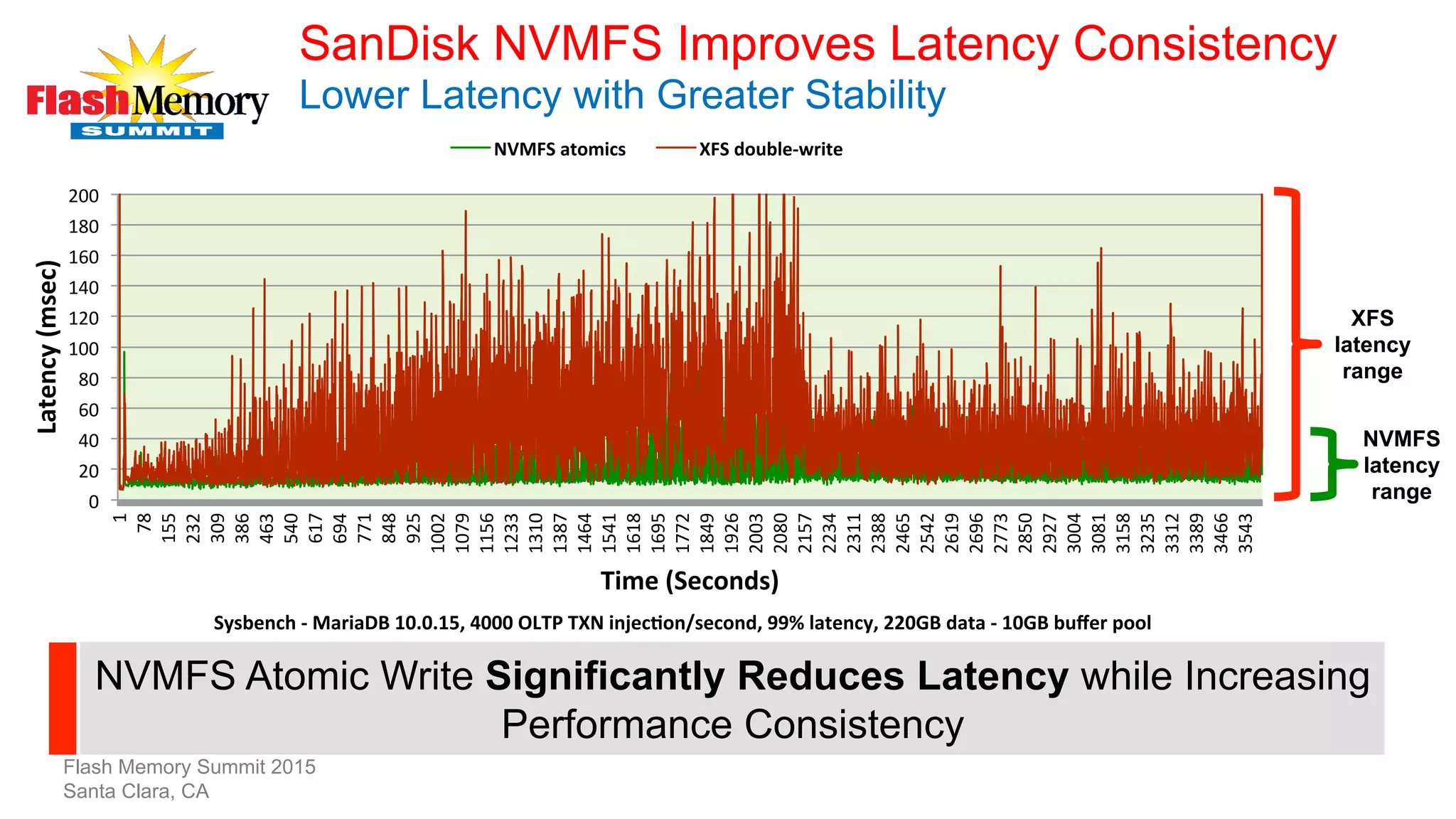

10. SanDisk NVMFS Improves Latency Consistency
Lower Latency with Greater Stability
0
20
40
60
80
100
120
140
160
180
200
1
78
155
232
309
386
463
540
617
694
771
848
925
1002
1079
1156
1233
1310
1387
1464
1541
1618
1695
1772
1849
1926
2003
2080
2157
2234
2311
2388
2465
2542
2619
2696
2773
2850
2927
3004
3081
3158
3235
3312
3389
3466
3543
Latency
(msec)
Time
(Seconds)
NVMFS
atomics
XFS
double-­‐write
NVMFS Atomic Write Significantly Reduces Latency while Increasing
Performance Consistency
Sysbench
-­‐
MariaDB
10.0.15,
4000
OLTP
TXN
injecLon/second,
99%
latency,
220GB
data
-­‐
10GB
buffer
pool
NVMFS
latency
range
XFS
latency
range
Flash Memory Summit 2015
Santa Clara, CA

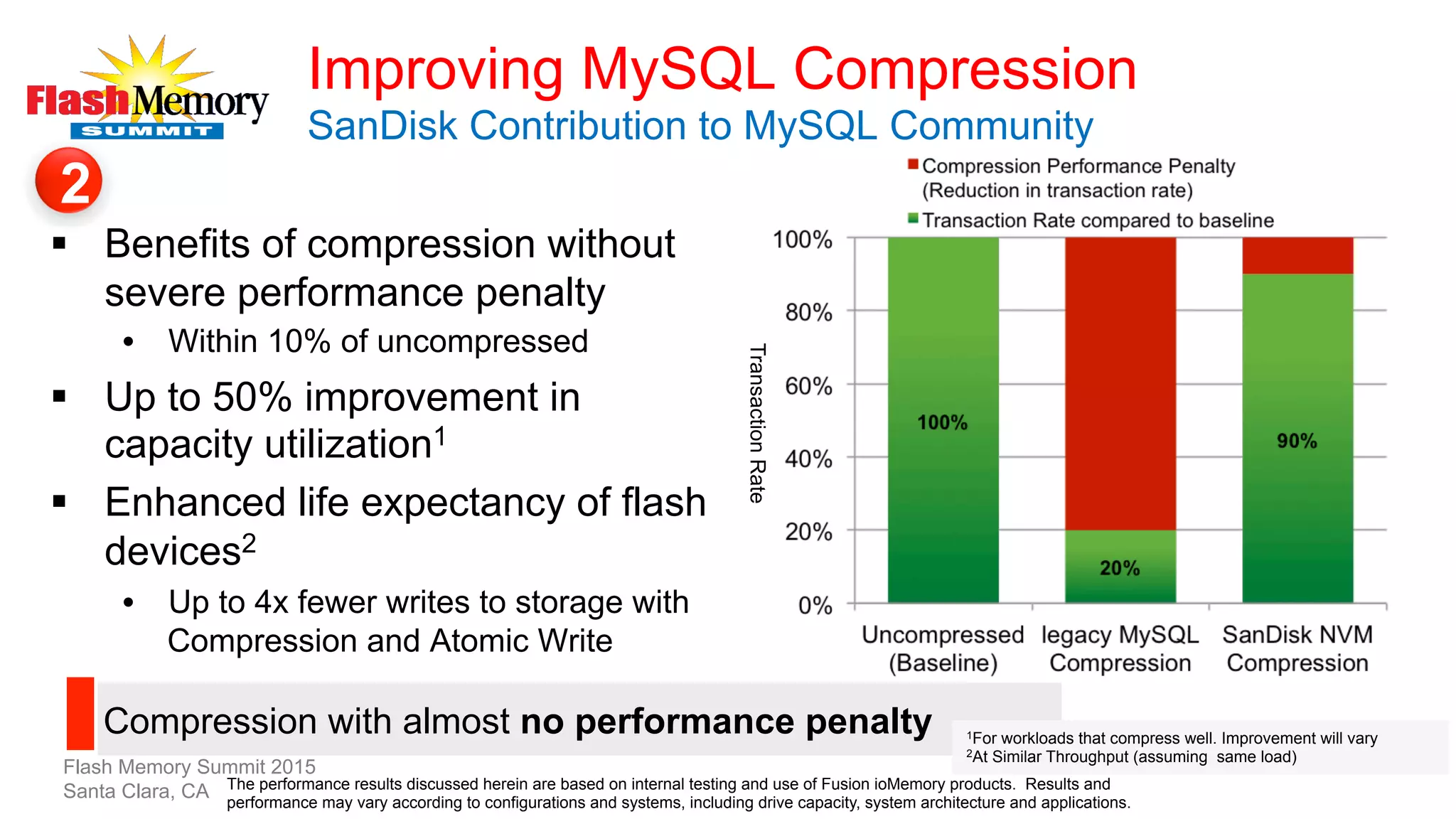

11. Improving MySQL Compression
SanDisk Contribution to MySQL Community
§ Benefits of compression without
severe performance penalty
• Within 10% of uncompressed
§ Up to 50% improvement in
capacity utilization1
§ Enhanced life expectancy of flash
devices2
• Up to 4x fewer writes to storage with
Compression and Atomic Write
Compression with almost no performance penalty 1For workloads that compress well. Improvement will vary
2At Similar Throughput (assuming same load)
TransactionRate
2
The performance results discussed herein are based on internal testing and use of Fusion ioMemory products. Results and
performance may vary according to configurations and systems, including drive capacity, system architecture and applications.
Flash Memory Summit 2015
Santa Clara, CA

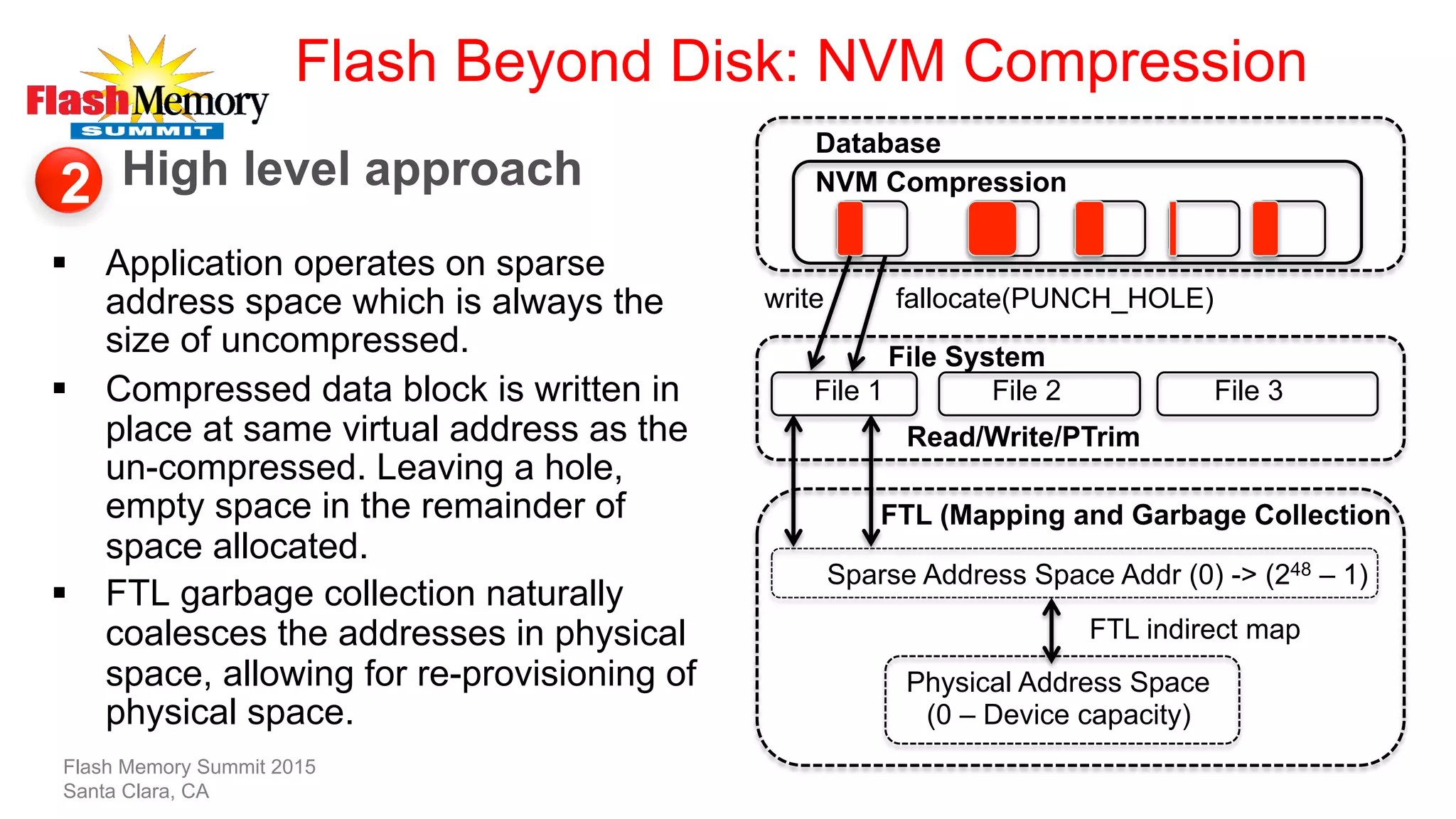

12. Flash Beyond Disk: NVM Compression
High level approach
§ Application operates on sparse
address space which is always the
size of uncompressed.
§ Compressed data block is written in
place at same virtual address as the
un-compressed. Leaving a hole,
empty space in the remainder of
space allocated.
§ FTL garbage collection naturally
coalesces the addresses in physical
space, allowing for re-provisioning of
physical space.
Database
File System
File 1 File 2 File 3
NVM Compression
write fallocate(PUNCH_HOLE)
FTL (Mapping and Garbage Collection
Sparse Address Space Addr (0) -> (248 – 1)
Physical Address Space
(0 – Device capacity)
Read/Write/PTrim
FTL indirect map
Flash Memory Summit 2015
Santa Clara, CA
2

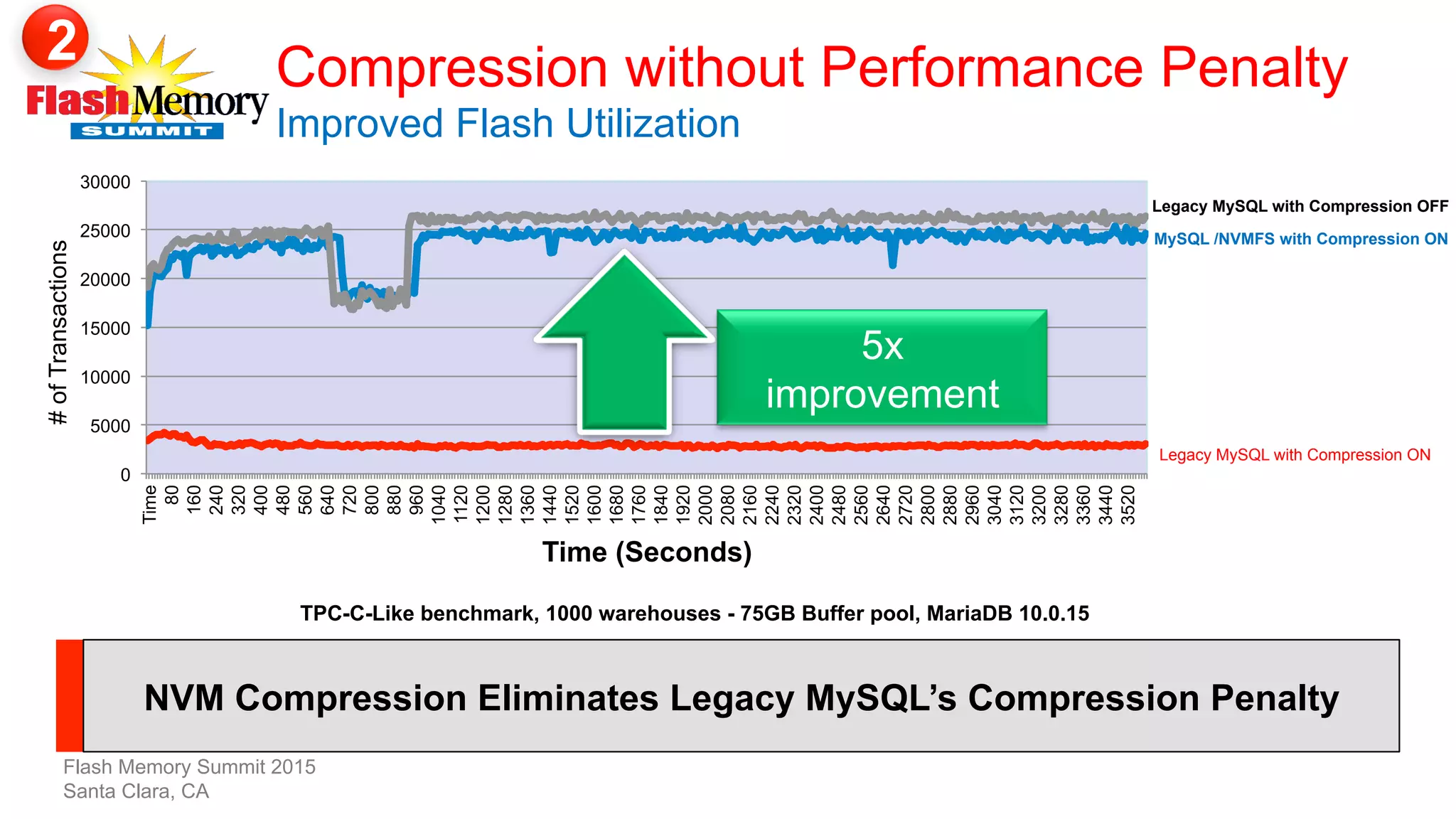

13. Compression without Performance Penalty
Improved Flash Utilization
0
5000
10000
15000
20000
25000
30000
Time
80
160
240
320
400
480
560
640
720
800
880
960
1040
1120
1200
1280
1360
1440
1520
1600
1680
1760
1840
1920
2000
2080
2160
2240
2320
2400
2480
2560
2640
2720
2800
2880
2960
3040
3120
3200
3280
3360
3440
3520
#ofTransactions
Time (Seconds)
TPC-C-Like benchmark, 1000 warehouses - 75GB Buffer pool, MariaDB 10.0.15
5x
improvement
Legacy MySQL with Compression ON
MySQL /NVMFS with Compression ON
Legacy MySQL with Compression OFF
Flash Memory Summit 2015
Santa Clara, CA
2
NVM Compression Eliminates Legacy MySQL’s Compression Penalty

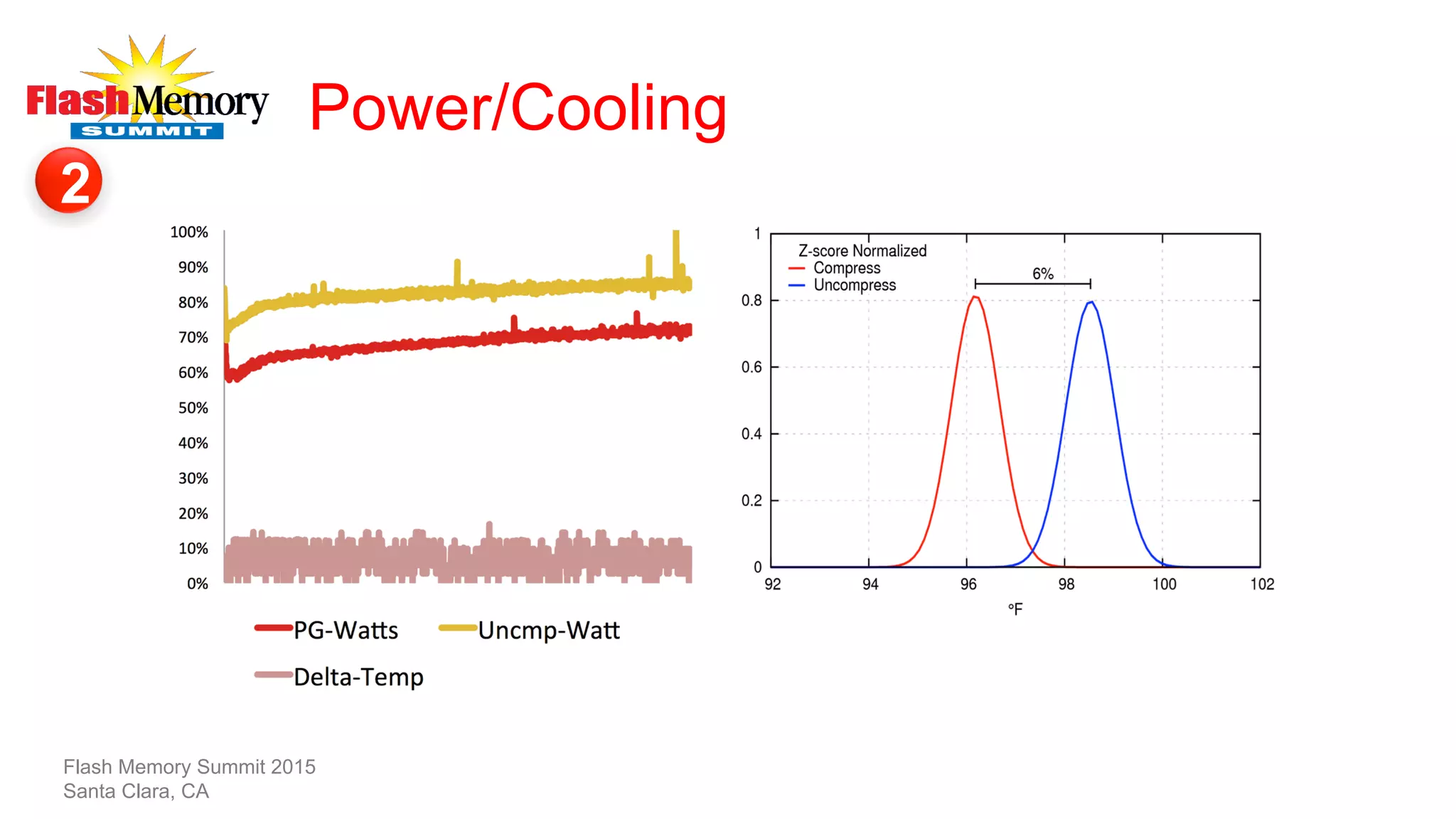

14. Power/Cooling
Flash Memory Summit 2015
Santa Clara, CA
2

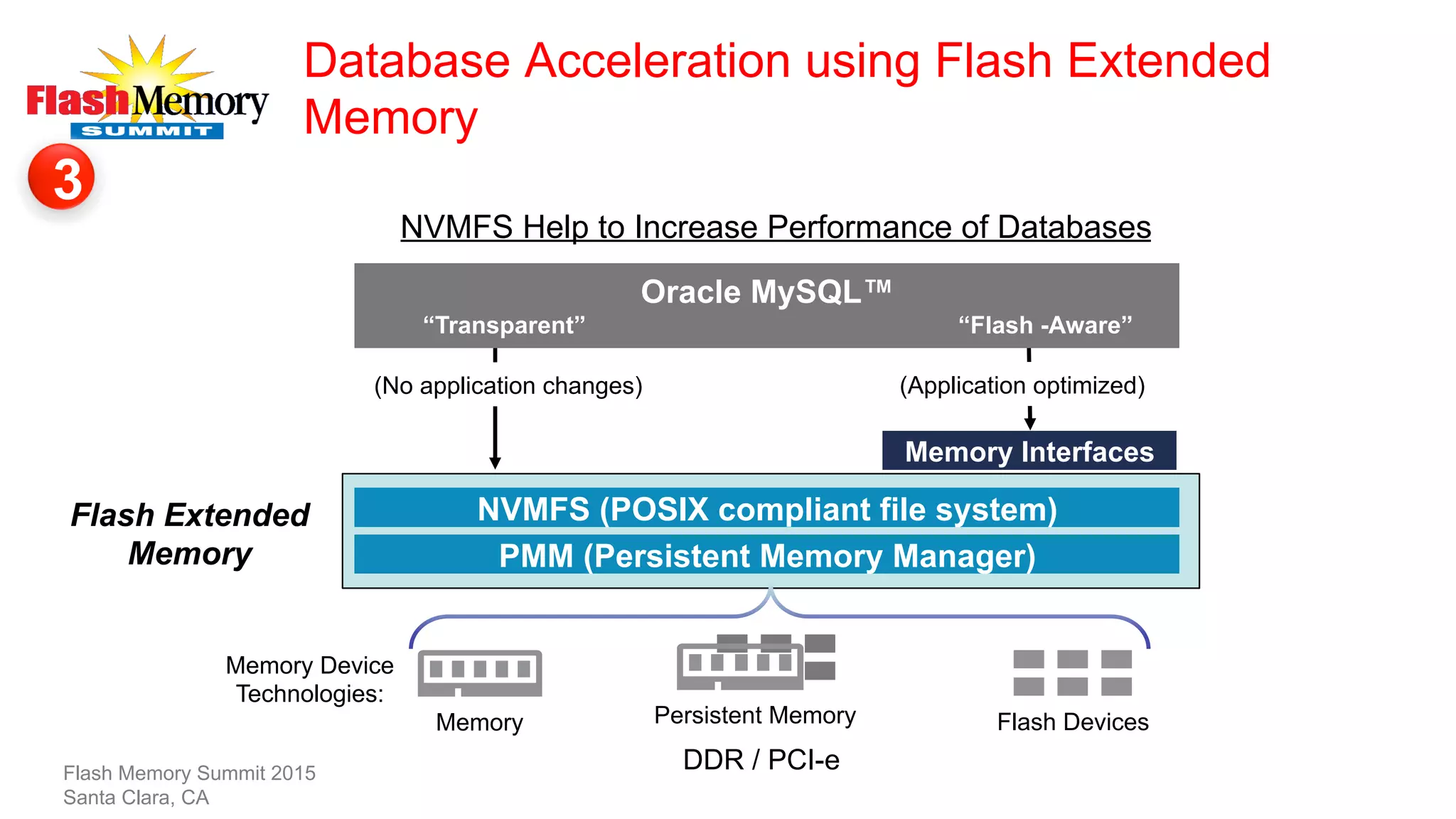

15. Database Acceleration using Flash Extended
Memory
NVMFS (POSIX compliant file system)
PMM (Persistent Memory Manager)
NVMFS Help to Increase Performance of Databases
Flash DevicesMemory Persistent Memory
Memory Device
Technologies:
Memory Interfaces
Oracle MySQL™
(No application changes) (Application optimized)
“Flash -Aware”“Transparent”
Flash Extended
Memory
Flash Memory Summit 2015
Santa Clara, CA
3
DDR / PCI-e

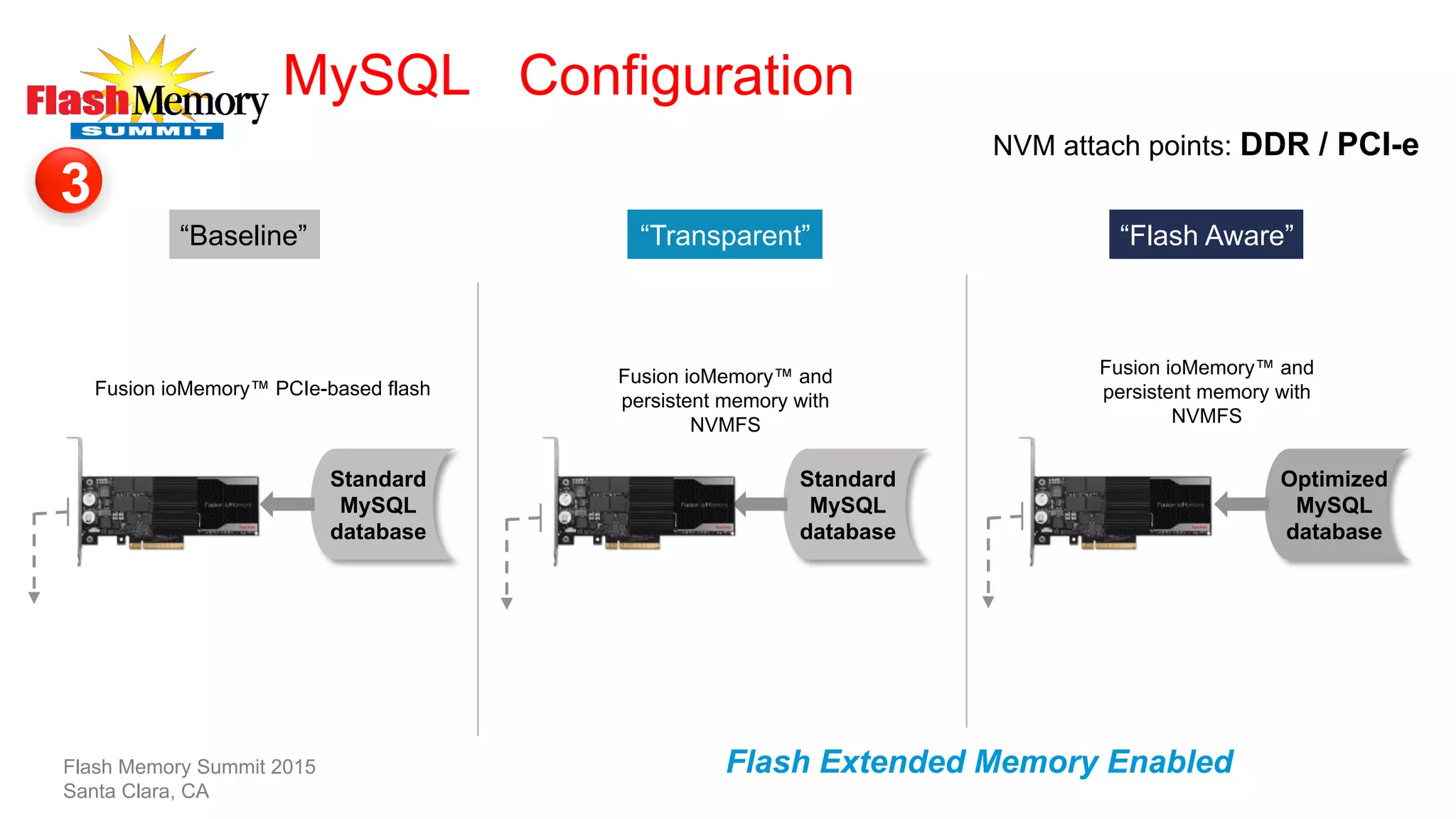

16. MySQL Configuration
16
Fusion ioMemory™ PCIe-based flash
Standard
MySQL
database
“Baseline”
Flash Extended Memory Enabled
Fusion ioMemory™ and
persistent memory with
NVMFS
Standard
MySQL
database
“Transparent”
Optimized
MySQL
database
“Flash Aware”
Fusion ioMemory™ and
persistent memory with
NVMFS
Flash Memory Summit 2015
Santa Clara, CA
3
NVM attach points: DDR / PCI-e

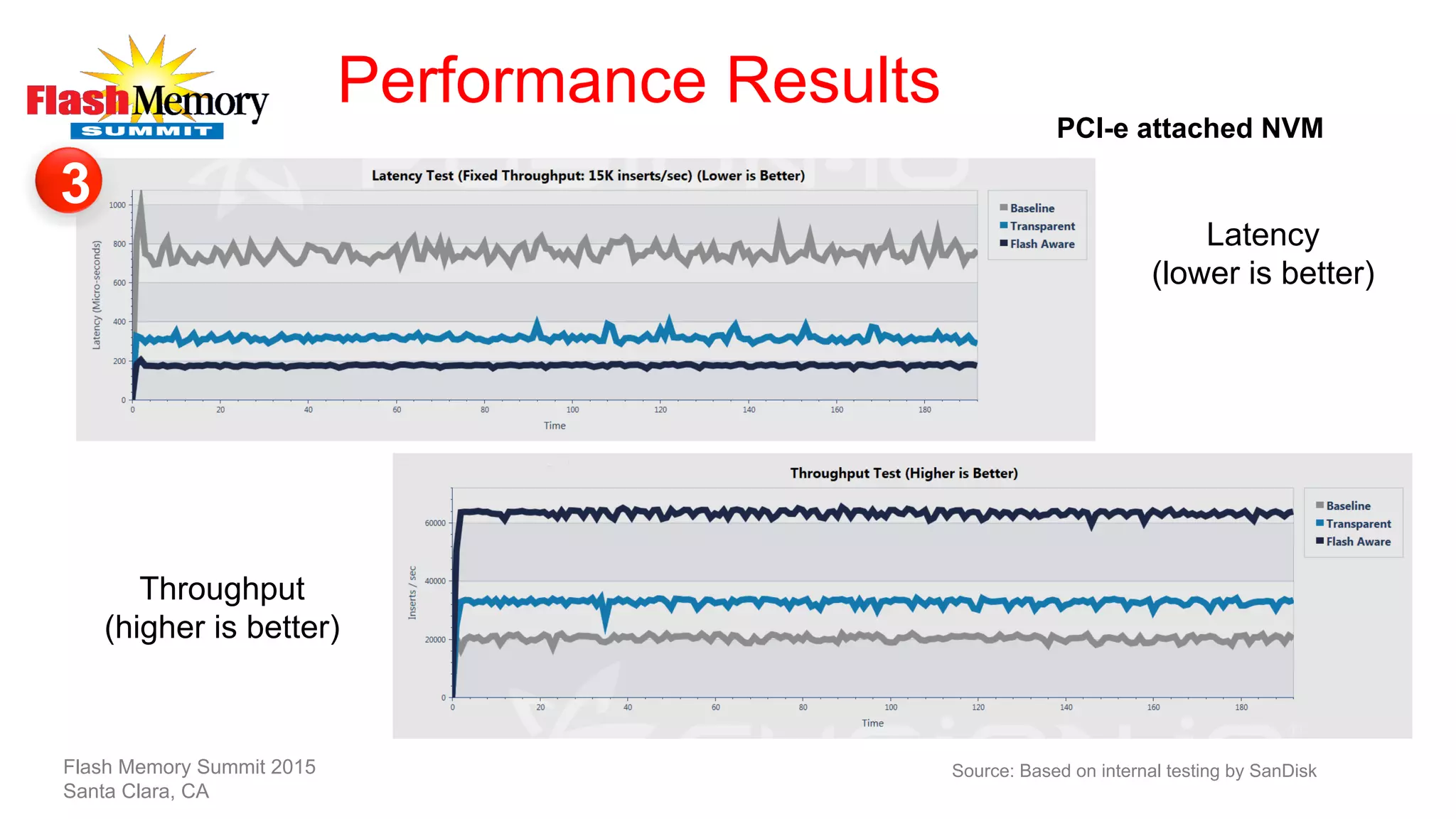

17. Performance Results
Latency
(lower is better)
Throughput
(higher is better)
Source: Based on internal testing by SanDiskFlash Memory Summit 2015
Santa Clara, CA
3
PCI-e attached NVM

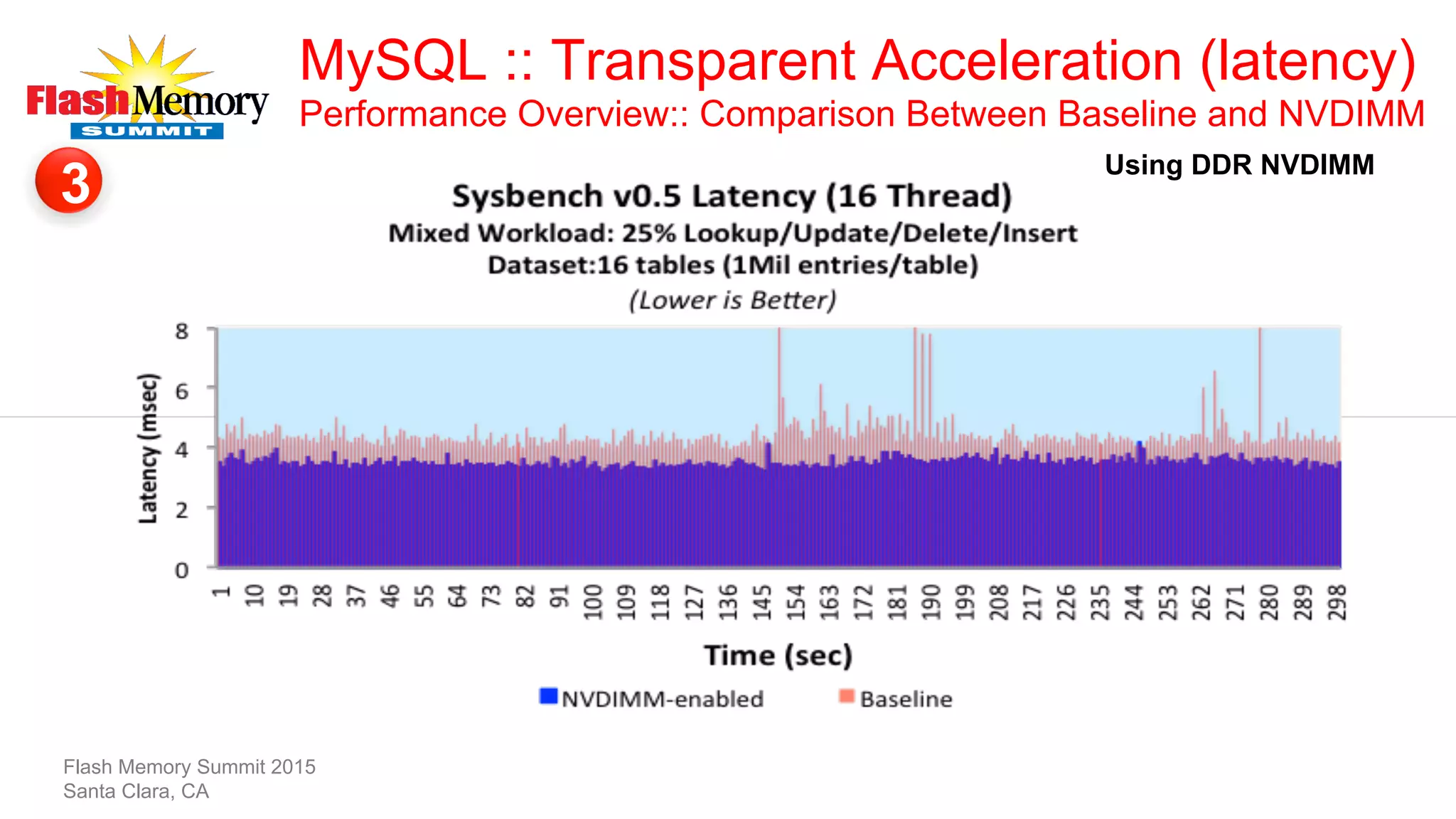

18. MySQL :: Transparent Acceleration (latency)
Performance Overview:: Comparison Between Baseline and NVDIMM
Flash Memory Summit 2015
Santa Clara, CA
3
Using DDR NVDIMM

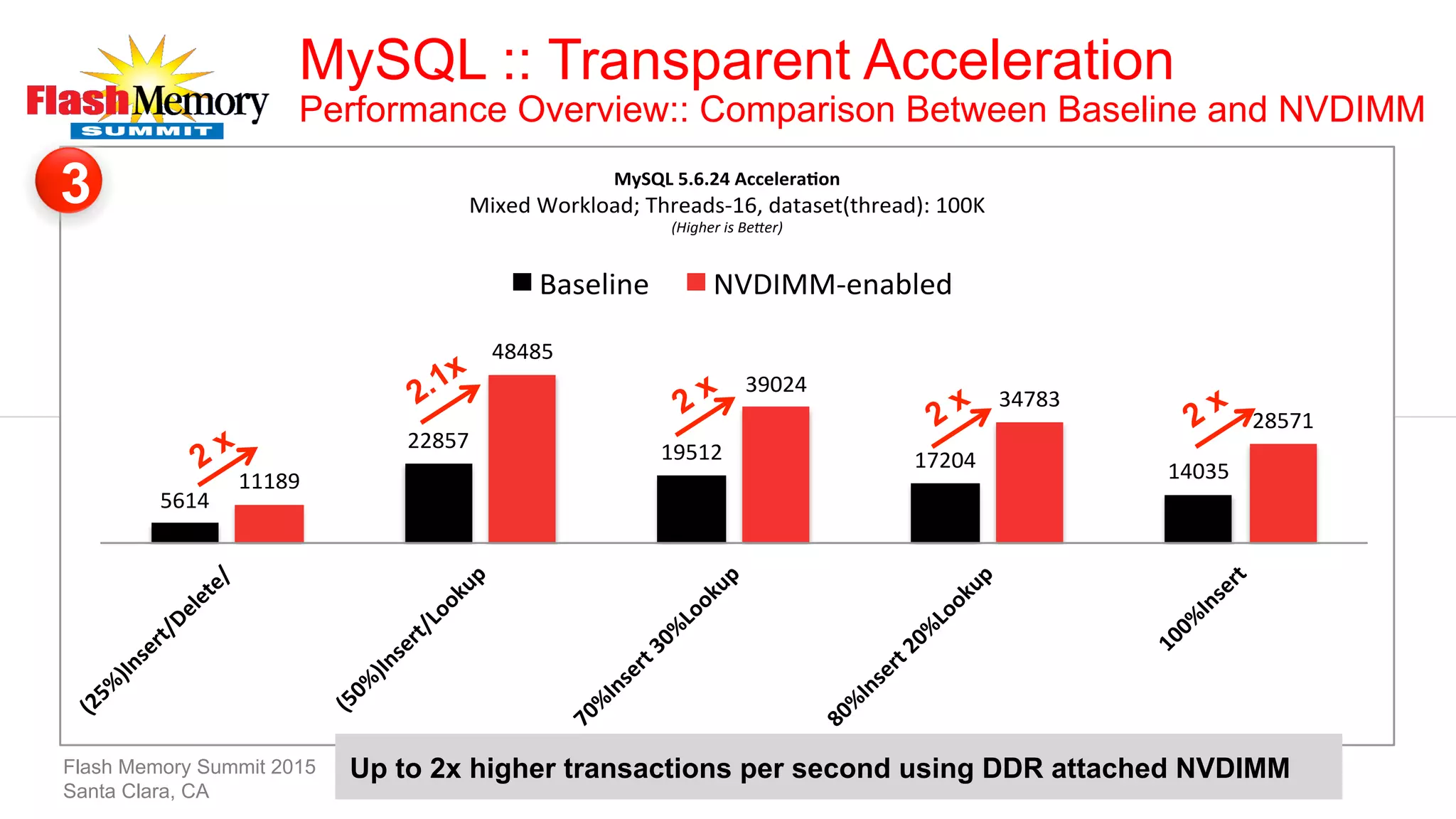

19. 5614%
22857% 19512% 17204% 14035%11189%
48485%
39024%
34783%
28571%
(25%
)Insert/Delete/
(50%
)Insert/Lookup5
70%
Insert530%
Lookup5
80%
Insert520%
Lookup5
100%
Insert5
MySQL55.6.245AcceleraDon5
Mixed%Workload;%Threads;16,%dataset(thread):%100K%%
(Higher(is(Be+er)(
Baseline% NVDIMM;enabled%
Flash Memory Summit 2015
Santa Clara, CA
3
Up to 2x higher transactions per second using DDR attached NVDIMM
MySQL :: Transparent Acceleration
Performance Overview:: Comparison Between Baseline and NVDIMM

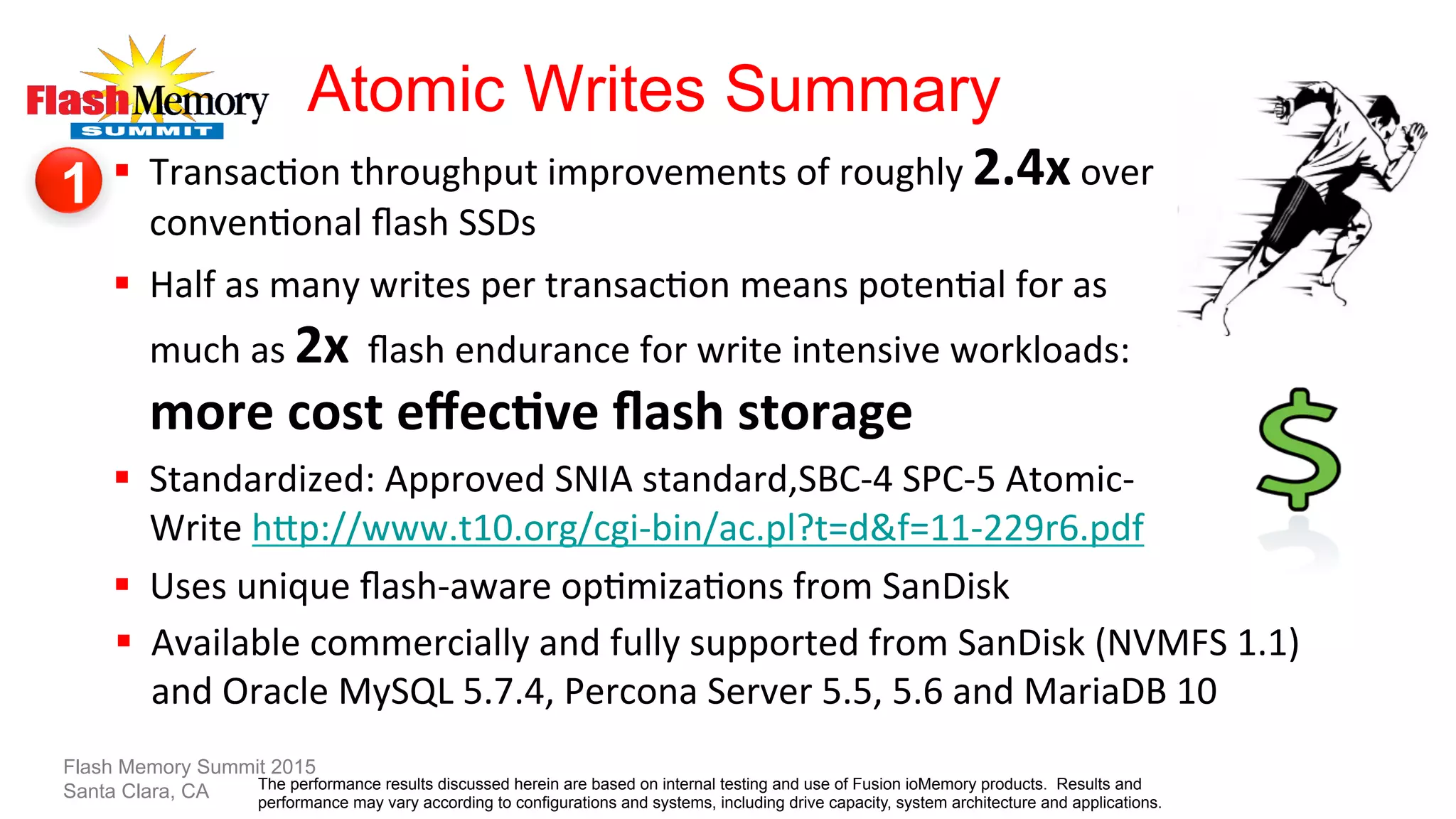

20. Atomic Writes Summary
§ Transac?on
throughput
improvements
of
roughly
2.4x
over
conven?onal
flash
SSDs
§ Half
as
many
writes
per
transac?on
means
poten?al
for
as
much
as
2x
flash
endurance
for
write
intensive
workloads:
more
cost
effecLve
flash
storage
§ Standardized:
Approved
SNIA
standard,SBC-­‐4
SPC-­‐5
Atomic-­‐
Write
hTp://www.t10.org/cgi-­‐bin/ac.pl?t=d&f=11-­‐229r6.pdf
§ Uses
unique
flash-­‐aware
op?miza?ons
from
SanDisk
Flash Memory Summit 2015
Santa Clara, CA
§ Available
commercially
and
fully
supported
from
SanDisk
(NVMFS
1.1)
and
Oracle
MySQL
5.7.4,
Percona
Server
5.5,
5.6
and
MariaDB
10
1
The performance results discussed herein are based on internal testing and use of Fusion ioMemory products. Results and
performance may vary according to configurations and systems, including drive capacity, system architecture and applications.

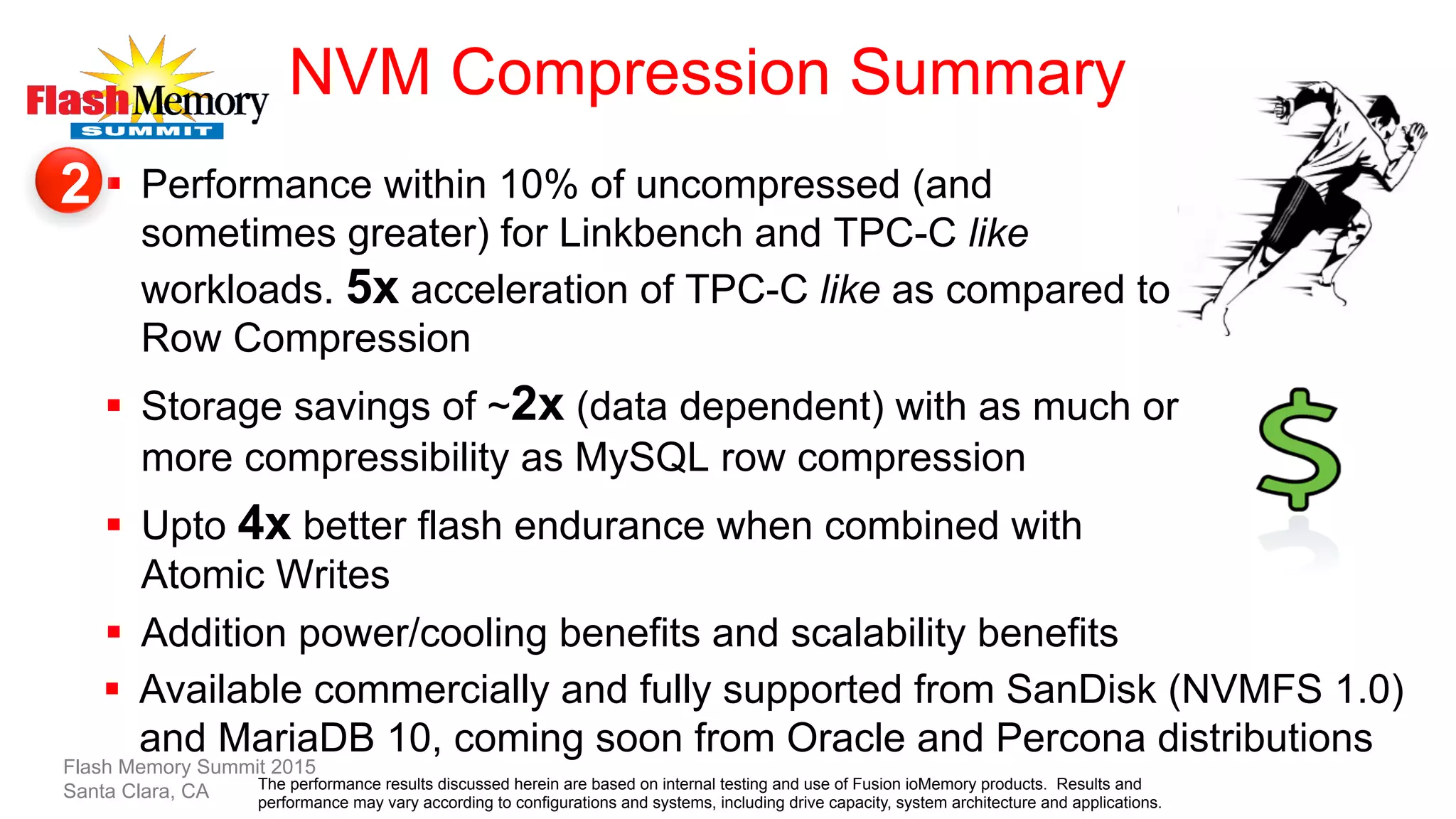

21. NVM Compression Summary
§ Performance within 10% of uncompressed (and
sometimes greater) for Linkbench and TPC-C like
workloads. 5x acceleration of TPC-C like as compared to
Row Compression
§ Storage savings of ~2x (data dependent) with as much or
more compressibility as MySQL row compression
§ Upto 4x better flash endurance when combined with
Atomic Writes
§ Addition power/cooling benefits and scalability benefits
§ Available commercially and fully supported from SanDisk (NVMFS 1.0)
and MariaDB 10, coming soon from Oracle and Percona distributions
Flash Memory Summit 2015
Santa Clara, CA
2
The performance results discussed herein are based on internal testing and use of Fusion ioMemory products. Results and
performance may vary according to configurations and systems, including drive capacity, system architecture and applications.

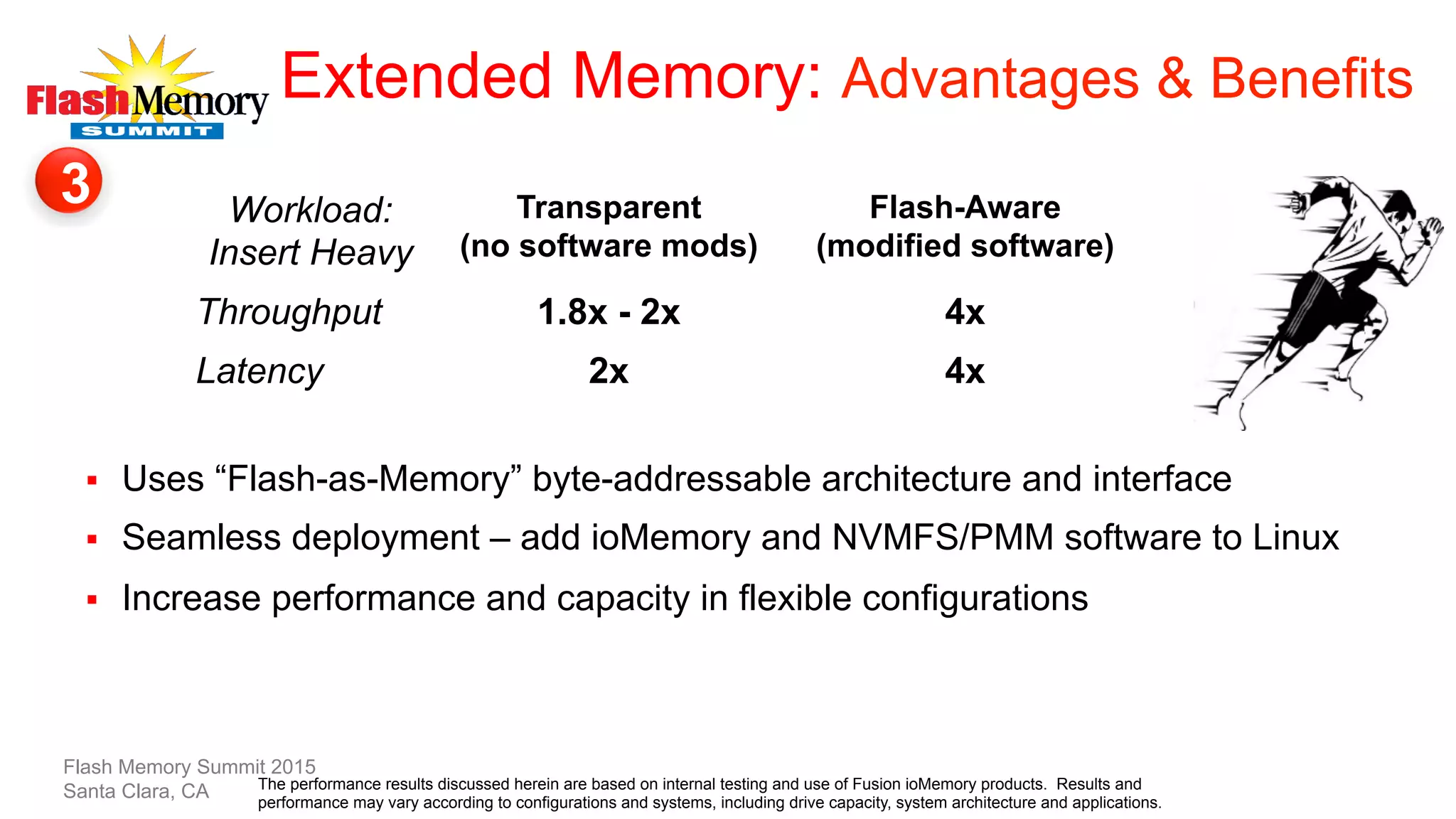

22. Extended Memory: Advantages & Benefits
§ Uses “Flash-as-Memory” byte-addressable architecture and interface
§ Seamless deployment – add ioMemory and NVMFS/PMM software to Linux
§ Increase performance and capacity in flexible configurations
Flash Memory Summit 2015
Santa Clara, CA
3 Workload:
Insert Heavy
Transparent
(no software mods)
Flash-Aware
(modified software)
Throughput 1.8x - 2x 4x
Latency 2x 4x
The performance results discussed herein are based on internal testing and use of Fusion ioMemory products. Results and
performance may vary according to configurations and systems, including drive capacity, system architecture and applications.

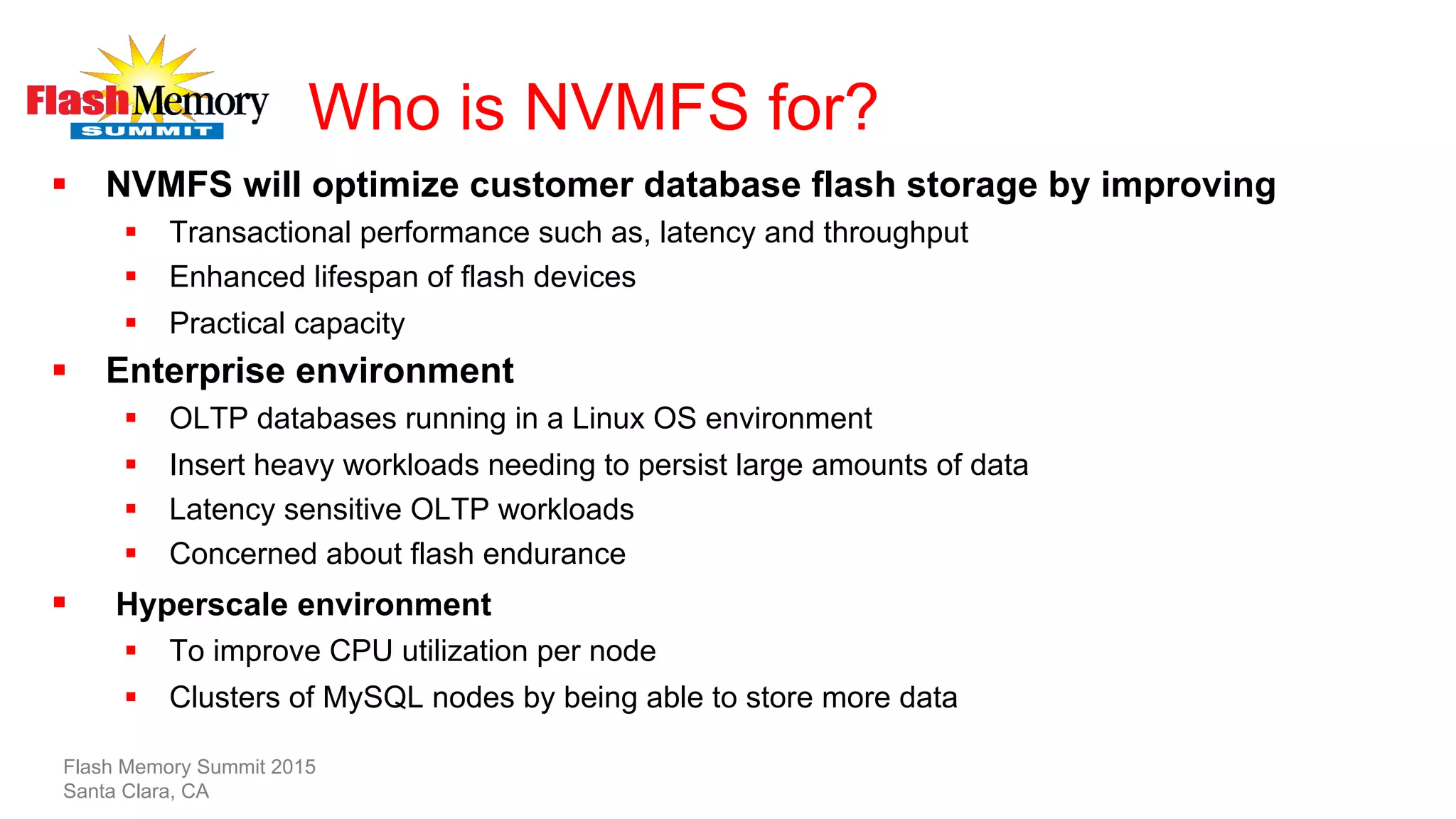

23. Who is NVMFS for?
§ NVMFS will optimize customer database flash storage by improving
§ Transactional performance such as, latency and throughput
§ Enhanced lifespan of flash devices
§ Practical capacity
§ Enterprise environment
§ OLTP databases running in a Linux OS environment
§ Insert heavy workloads needing to persist large amounts of data
§ Latency sensitive OLTP workloads
§ Concerned about flash endurance
§ Hyperscale environment
§ To improve CPU utilization per node
§ Clusters of MySQL nodes by being able to store more data
Flash Memory Summit 2015
Santa Clara, CA

24. Questions?
Flash Memory Summit 2015
Santa Clara, CA 24
Thank
You!
@BigDataFlash
#bigdataflash
ITblog.sandisk.com
hTp://bigdataflash.sandisk.com

25. Backup
Flash Memory Summit 2015
Santa Clara, CA 25

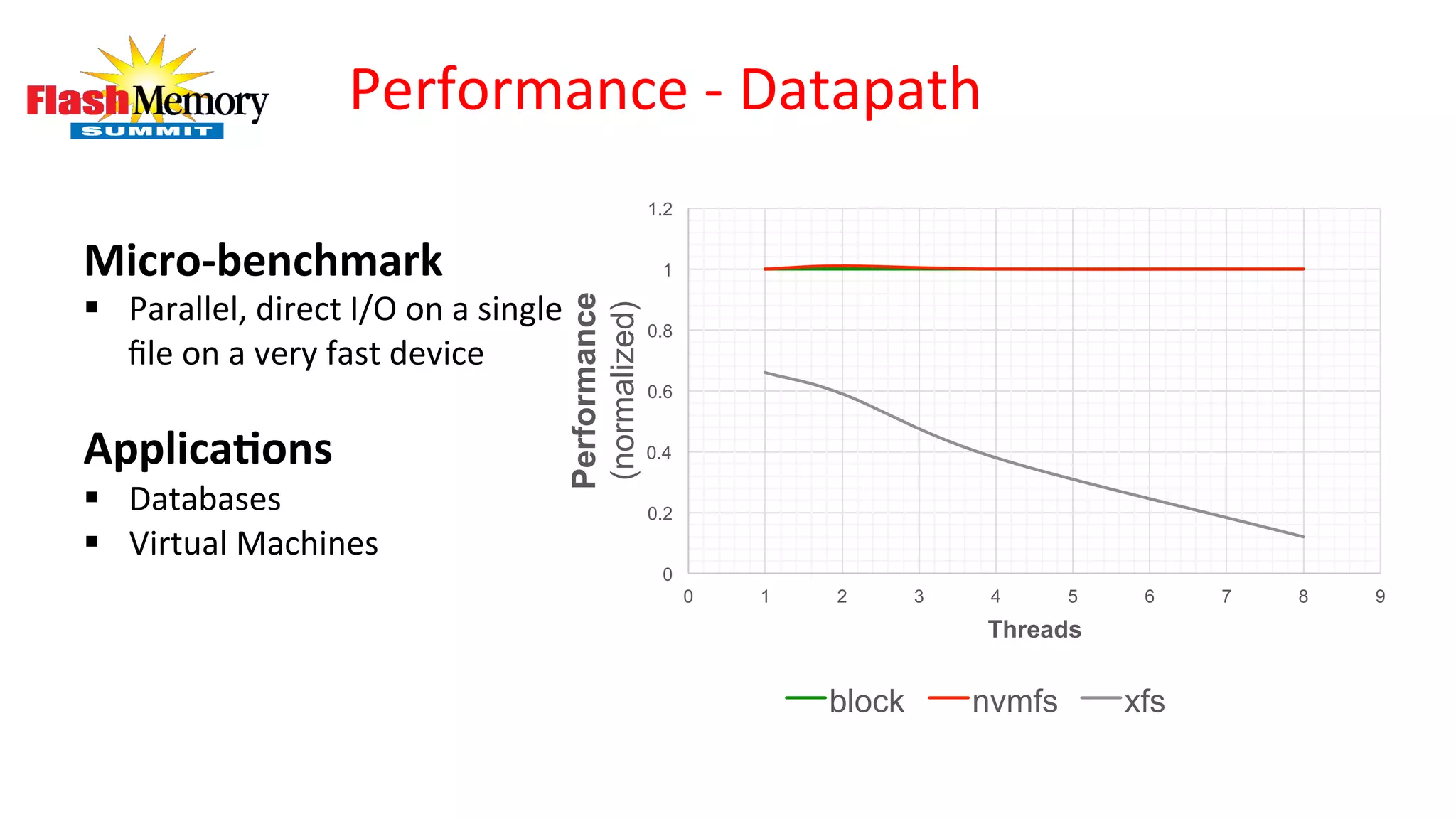

26. Performance
-­‐
Datapath
Micro-­‐benchmark
§ Parallel,
direct
I/O
on
a
single
file
on
a
very
fast
device
ApplicaLons
§ Databases
§ Virtual
Machines
0
0.2
0.4
0.6
0.8
1
1.2
0 1 2 3 4 5 6 7 8 9Performance
(normalized) Threads
block nvmfs xfs

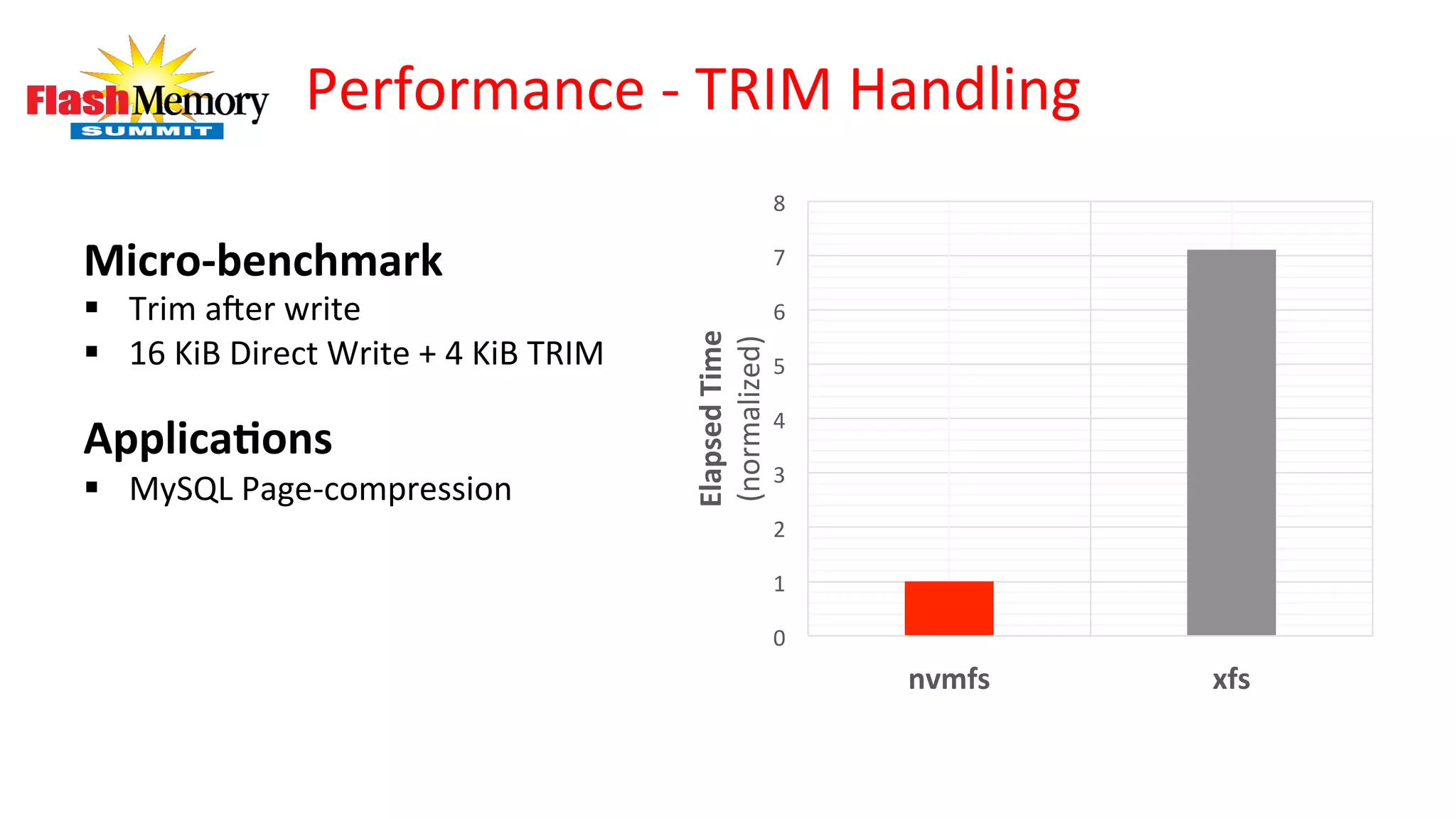

27. 0
1
2
3
4
5
6
7
8
nvmfs
xfs
Elapsed
Time
(normalized)
Performance
-­‐
TRIM
Handling
Micro-­‐benchmark
§ Trim
aher
write
§ 16
KiB
Direct
Write
+
4
KiB
TRIM
ApplicaLons
§ MySQL
Page-­‐compression

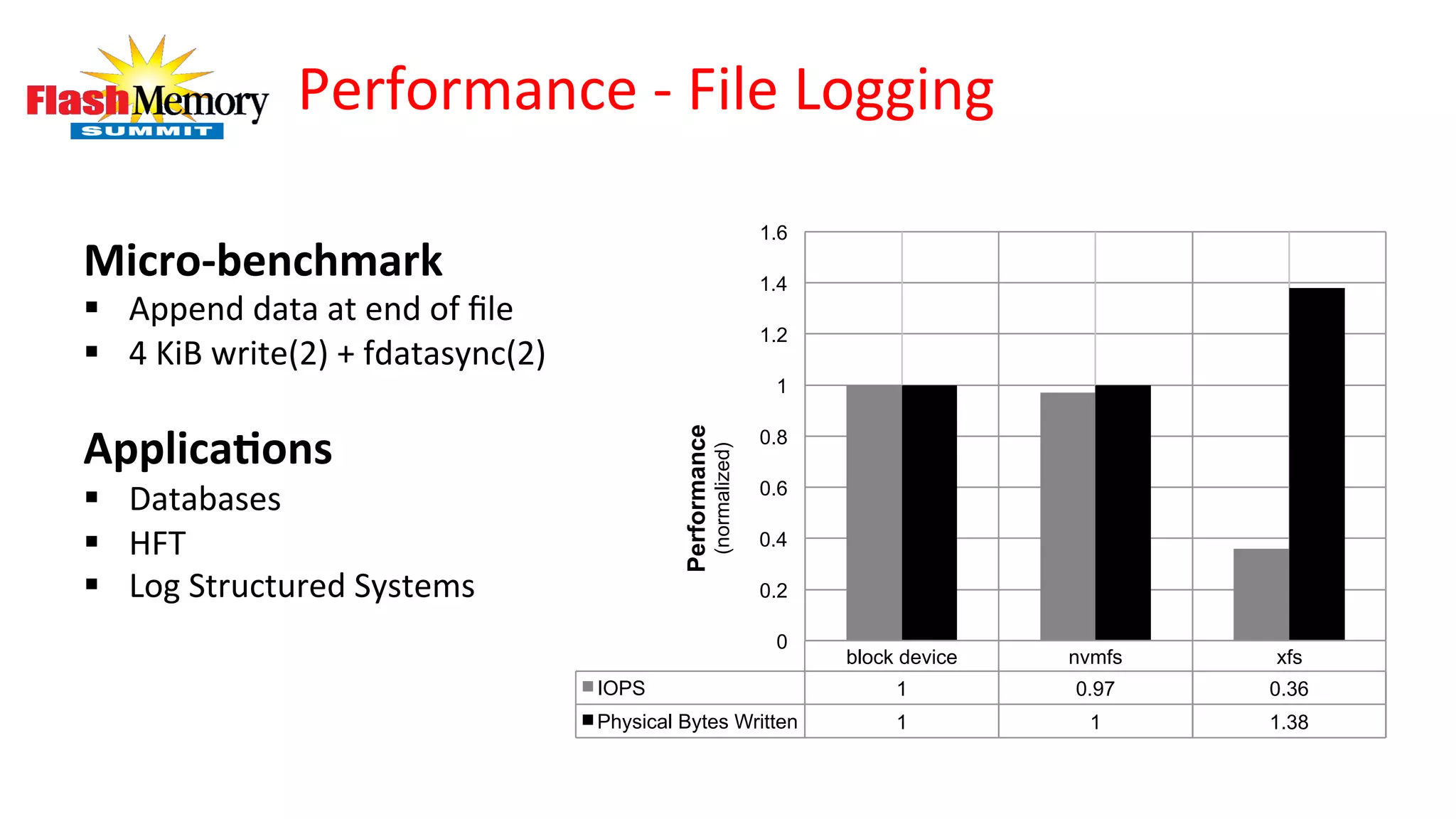

28. Performance
-­‐
File
Logging
block device nvmfs xfs
IOPS 1 0.97 0.36
Physical Bytes Written 1 1 1.38
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
Performance
(normalized)
Micro-­‐benchmark
§ Append
data
at
end
of
file
§ 4
KiB
write(2)
+
fdatasync(2)
ApplicaLons
§ Databases
§ HFT
§ Log
Structured
Systems

29. § Up to 3.2x reduction in Writes to
flash resulting in a longer device
lifetime
§ Utilize flash hardware longer 80.77%
43.03%
24.37%
42.4%
18.75%
7.7%
100%%Update% 50%%Update,%50%%
Lookup%
30%%Update,%70%%
Lookup%
Flash%Writes%(GB)%
(Lower'is'Be+er)'
Baseline%Writes% OpDmized%Writes%
Acceleration for Cassandra
Performance Overview:: Comparison Between Baseline and NVDIMM
Flash Memory Summit 2015
Santa Clara, CA
