- 1. Securing the DataCenter Matt Robertson - Lancope Technical Marketing Engineer David Anderson – Cisco Principal Solution Architect, Data Center Security
- 2.

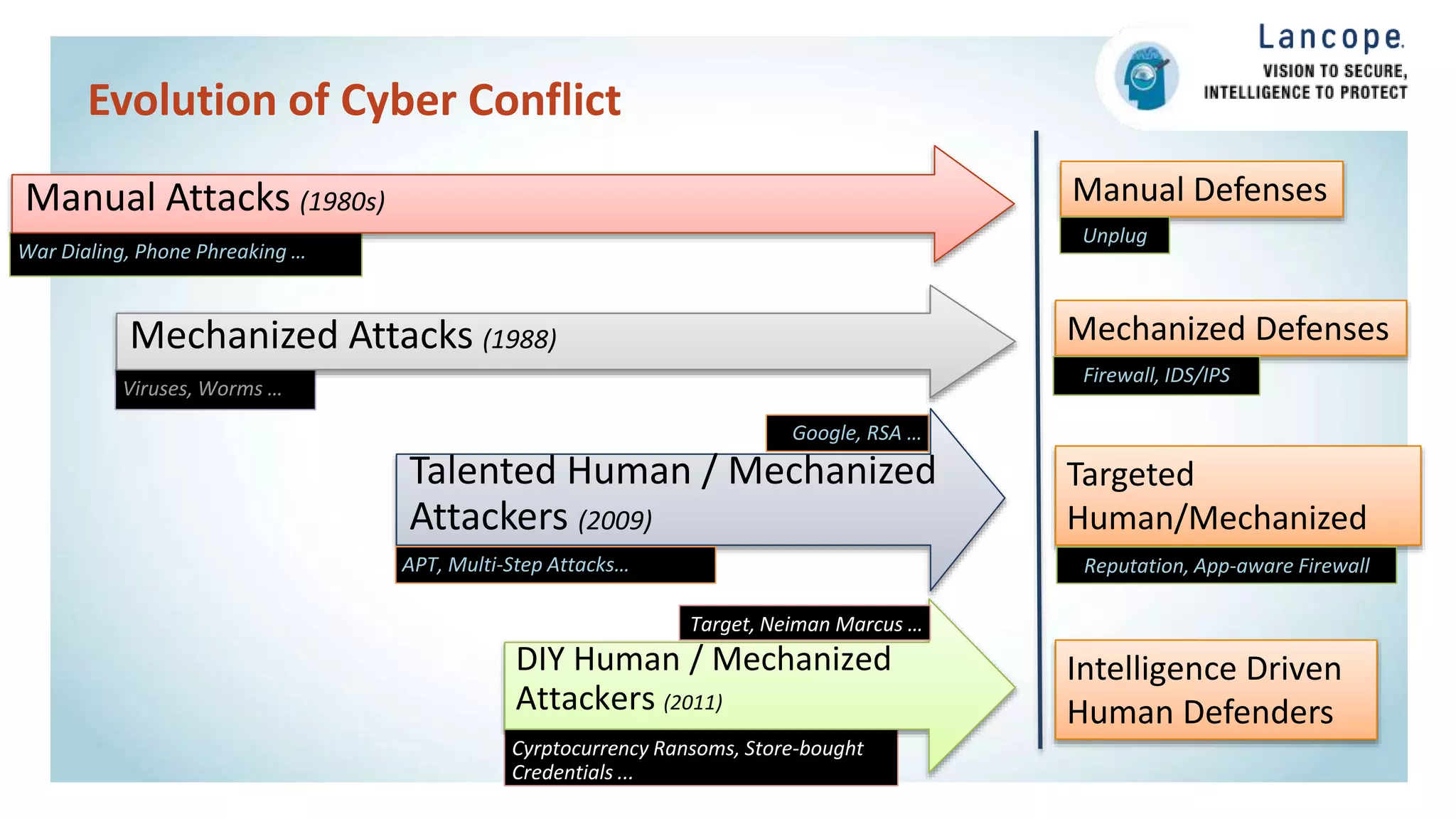

- 3. Evolution of CyberConflict War Dialing, Phone Phreaking … Manual Attacks (1980s) Viruses, Worms … Mechanized Attacks (1988) Google, RSA … Talented Human / Mechanized Attackers (2009) Cyrptocurrency Ransoms, Store-bought Credentials ... DIY Human / Mechanized Attackers (2011) Intelligence Driven Human Defenders Manual Defenses Unplug Mechanized Defenses Firewall, IDS/IPS Targeted Human/Mechanized DefendersReputation, App-aware FirewallAPT, Multi-Step Attacks… Target, Neiman Marcus …

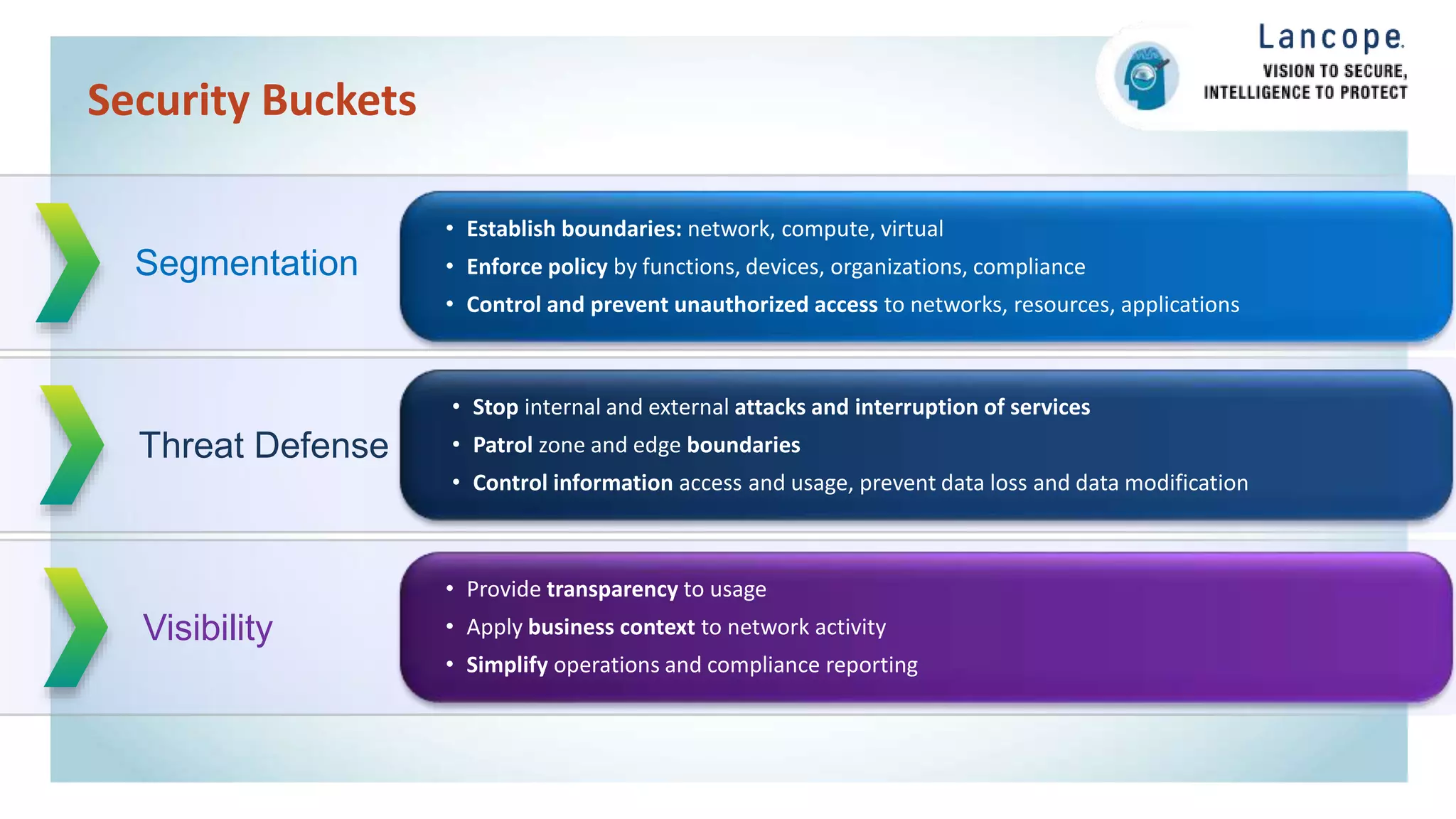

- 4. Security Buckets Segmentation • Establishboundaries: network, compute, virtual • Enforce policy by functions, devices, organizations, compliance • Control and prevent unauthorized access to networks, resources, applications Threat Defense • Stop internal and external attacks and interruption of services • Patrol zone and edge boundaries • Control information access and usage, prevent data loss and data modification Visibility • Provide transparency to usage • Apply business context to network activity • Simplify operations and compliance reporting

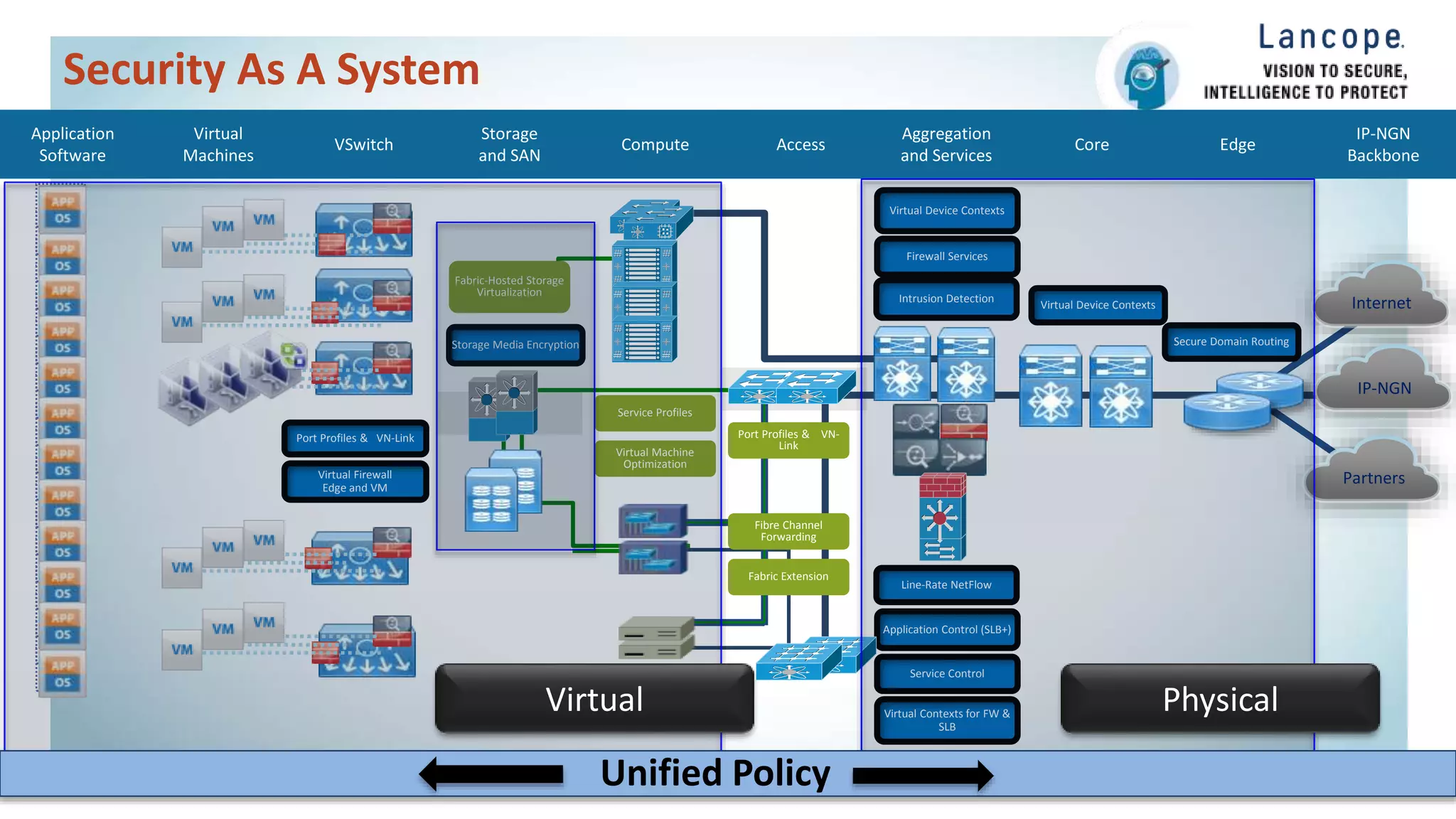

- 5. Internet Partners Application Software Virtual Machines VSwitch Access Aggregation and Services CoreEdge IP-NGN Backbone Storage and SAN Compute IP-NGN Application Control (SLB+) Service Control Firewall Services Virtual Device Contexts Fibre Channel Forwarding Fabric Extension Fabric-Hosted Storage Virtualization Storage Media Encryption Virtual Contexts for FW & SLB Port Profiles & VN- Link Port Profiles & VN-Link Line-Rate NetFlow Virtual Device Contexts Secure Domain Routing Service Profiles Virtual Machine Optimization Virtual Firewall Edge and VM Intrusion Detection PhysicalVirtual Security As A System Unified Policy

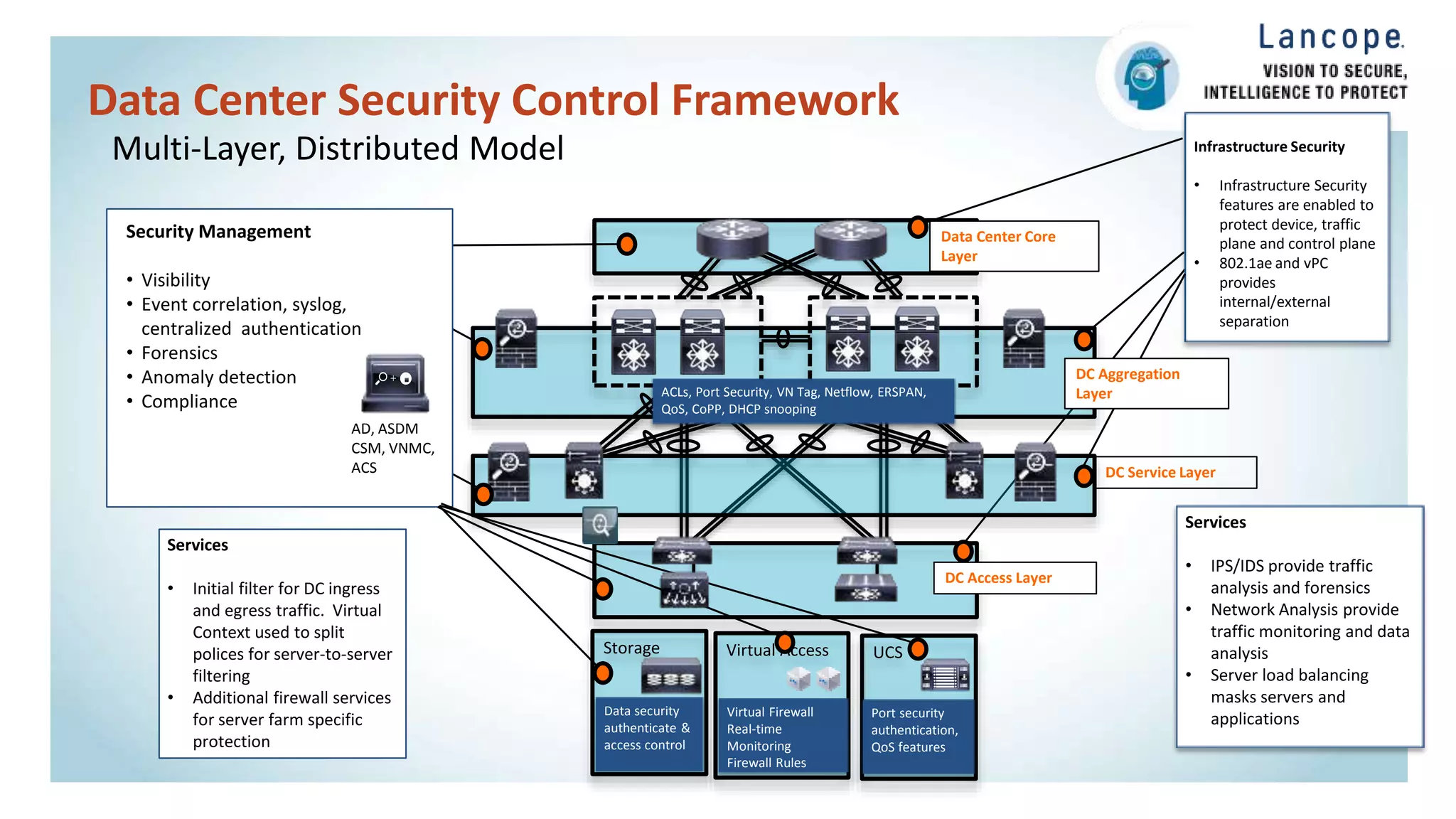

- 6. UCSVirtual AccessStorage Data CenterSecurity Control Framework Multi-Layer, Distributed Model Data Center Core Layer DC Service Layer DC Access Layer Services • Initial filter for DC ingress and egress traffic. Virtual Context used to split polices for server-to-server filtering • Additional firewall services for server farm specific protection Infrastructure Security • Infrastructure Security features are enabled to protect device, traffic plane and control plane • 802.1ae and vPC provides internal/external separation Services • IPS/IDS provide traffic analysis and forensics • Network Analysis provide traffic monitoring and data analysis • Server load balancing masks servers and applicationsData security authenticate & access control Port security authentication, QoS features Virtual Firewall Real-time Monitoring Firewall Rules ACLs, Port Security, VN Tag, Netflow, ERSPAN, QoS, CoPP, DHCP snooping Security Management • Visibility • Event correlation, syslog, centralized authentication • Forensics • Anomaly detection • Compliance AD, ASDM CSM, VNMC, ACS DC Aggregation Layer

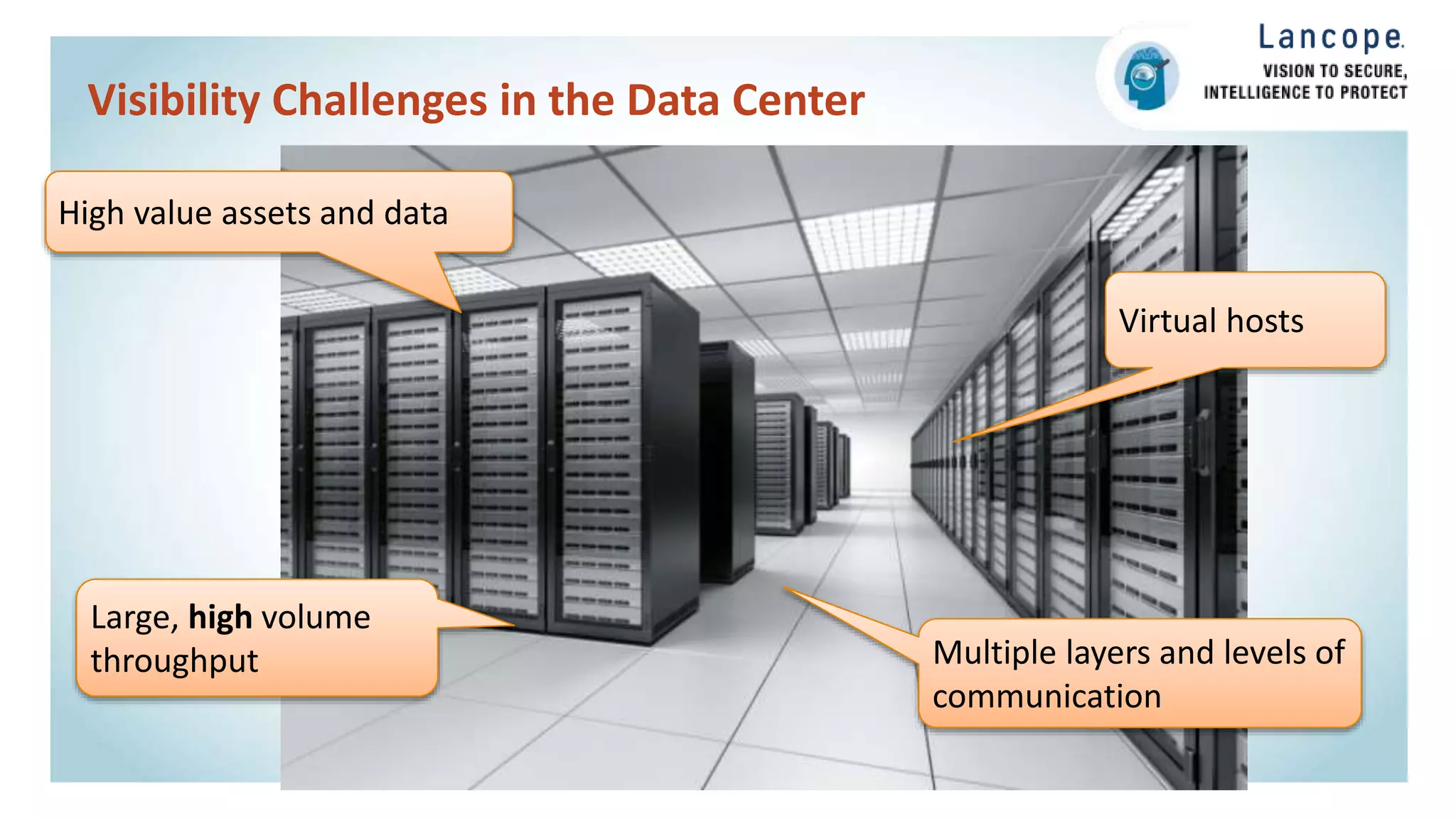

- 7. Visibility Challenges inthe Data Center High value assets and data Large, high volume throughput Multiple layers and levels of communication Virtual hosts

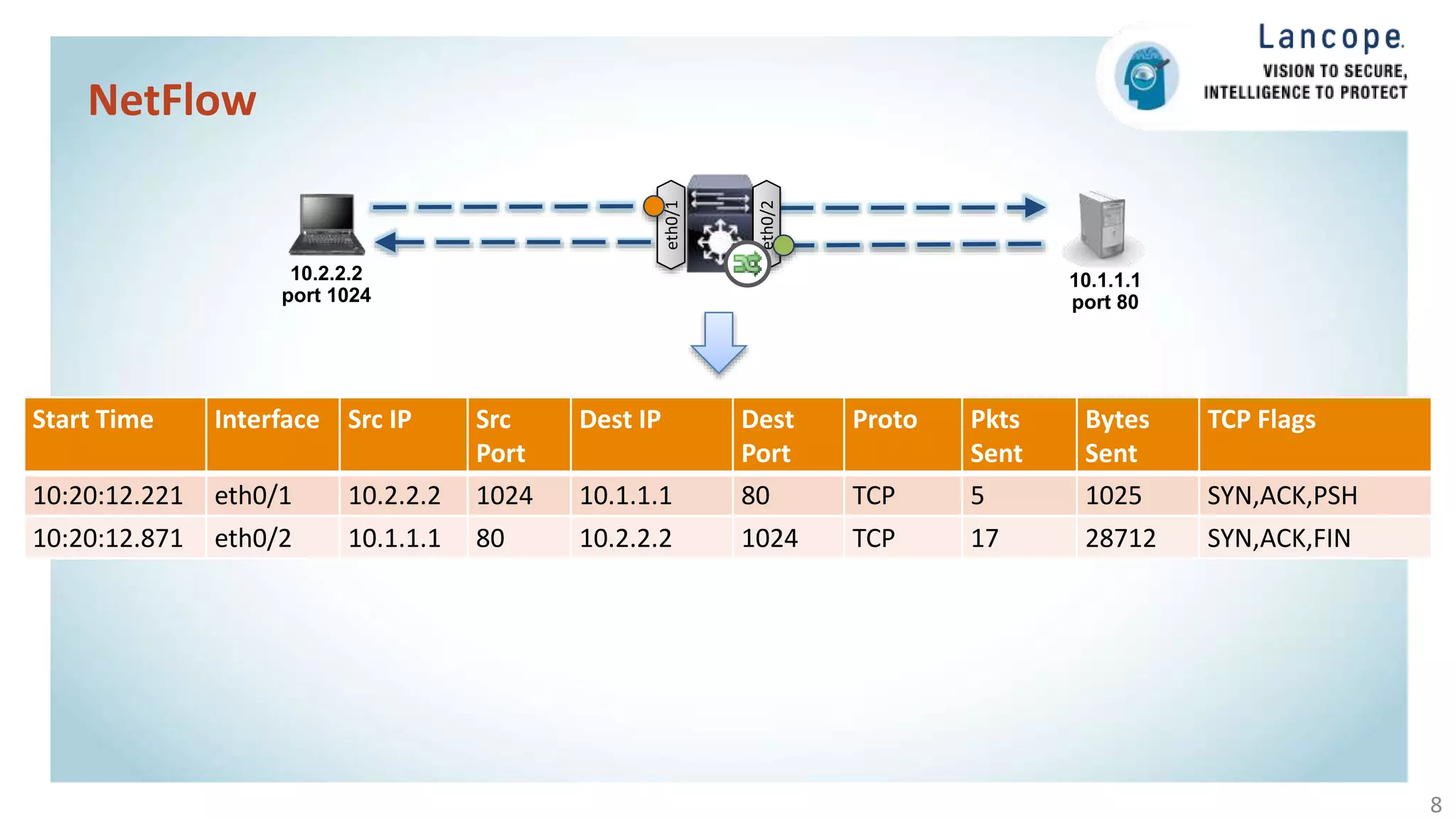

- 8. NetFlow 8 10.2.2.2 port 1024 10.1.1.1 port 80 eth0/1 eth0/2 StartTime Interface Src IP Src Port Dest IP Dest Port Proto Pkts Sent Bytes Sent TCP Flags 10:20:12.221 eth0/1 10.2.2.2 1024 10.1.1.1 80 TCP 5 1025 SYN,ACK,PSH 10:20:12.871 eth0/2 10.1.1.1 80 10.2.2.2 1024 TCP 17 28712 SYN,ACK,FIN Start Time Interface Src IP Src Port Dest IP Dest Port Proto Pkts Sent Bytes Sent TCP Flags 10:20:12.221 eth0/1 10.2.2.2 1024 10.1.1.1 80 TCP 5 1025 SYN,ACK,PSH

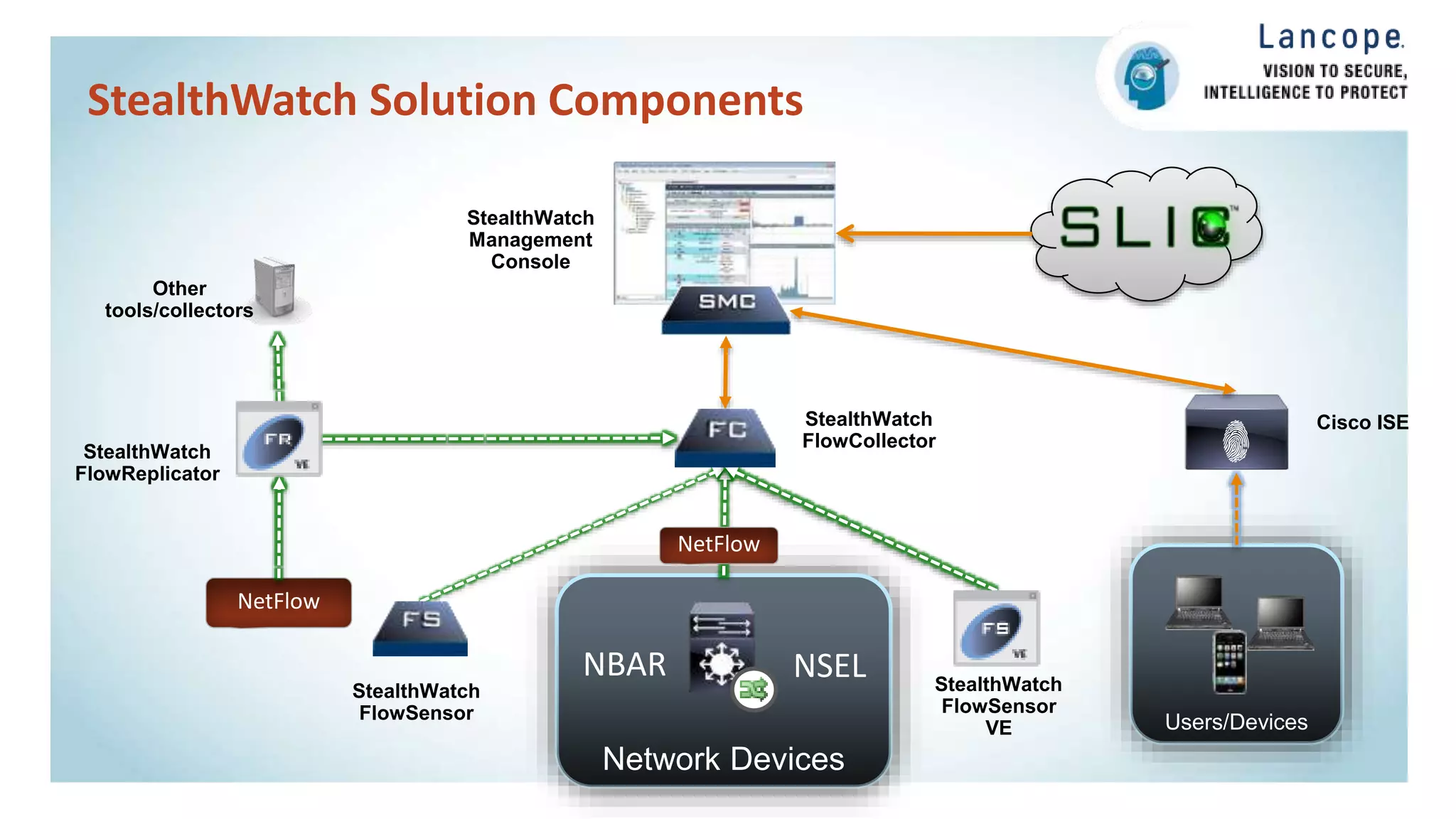

- 9. Network Devices StealthWatch FlowCollector StealthWatch Management Console NetFlow Users/Devices Cisco ISE NBARNSEL StealthWatch Solution Components StealthWatch FlowSensor StealthWatch FlowSensor VE NetFlow StealthWatch FlowReplicator Other tools/collectors

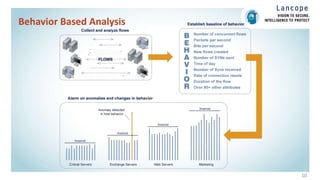

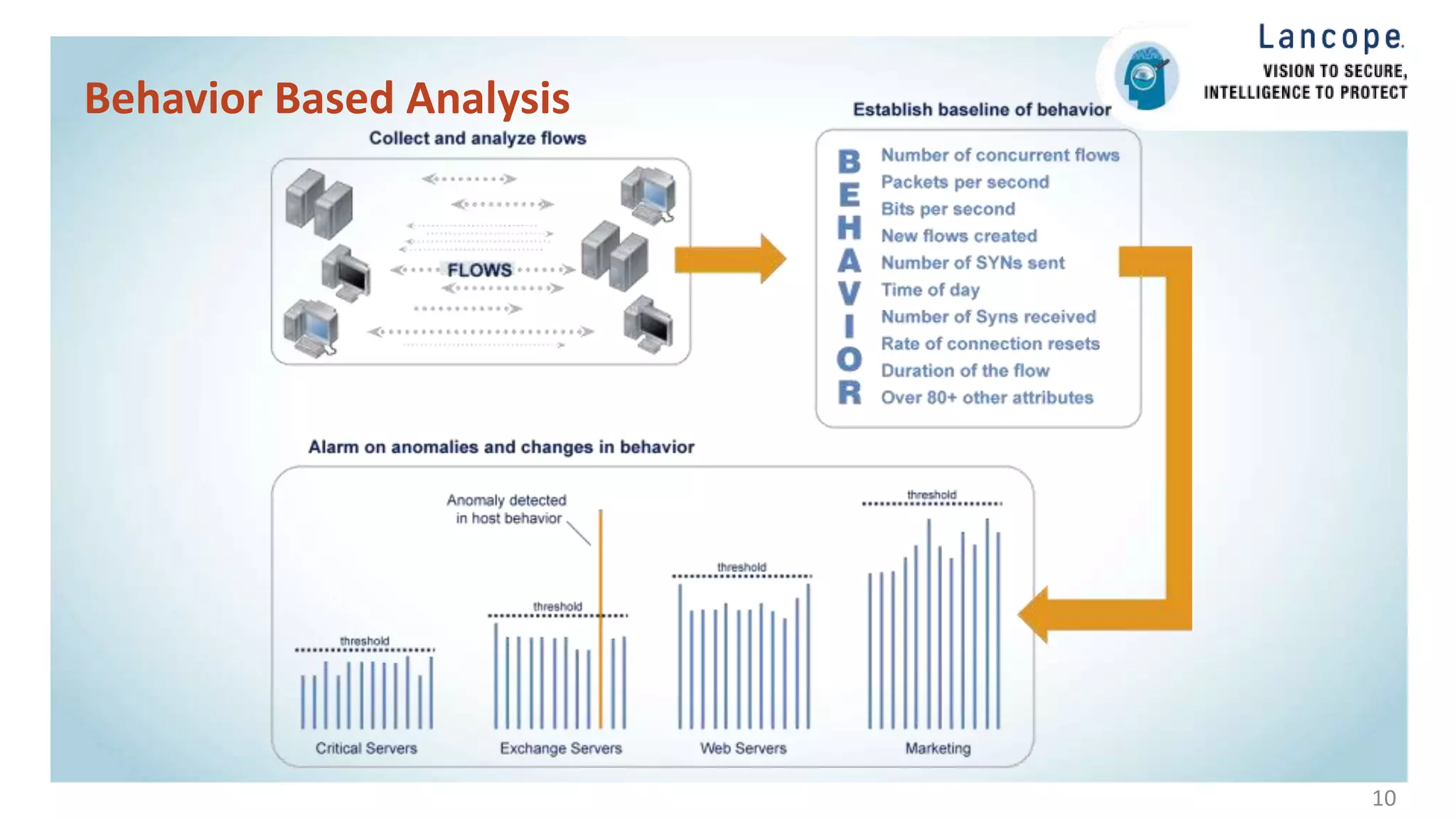

- 10.

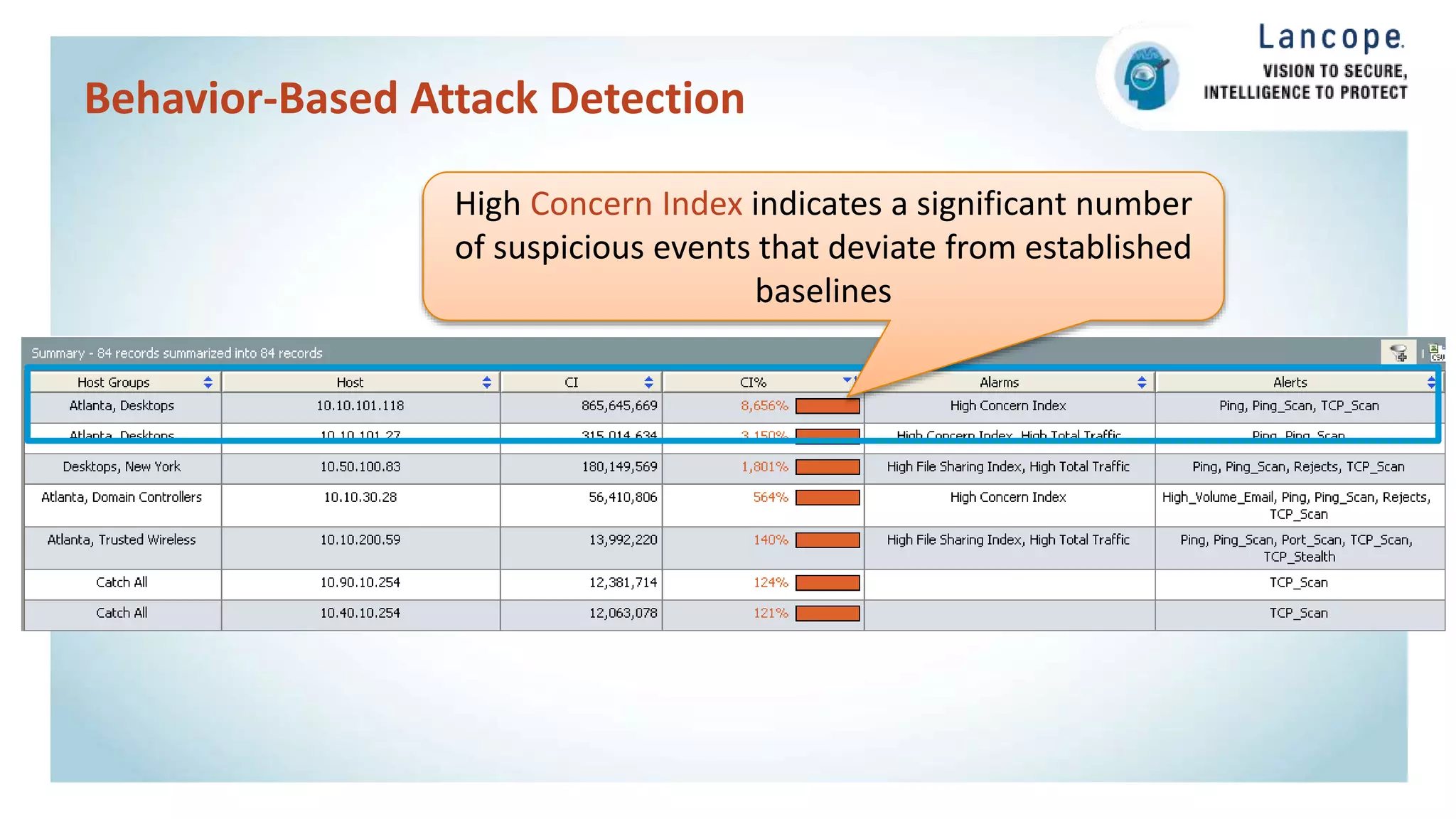

- 11. Behavior-Based Attack Detection HighConcern Index indicates a significant number of suspicious events that deviate from established baselines

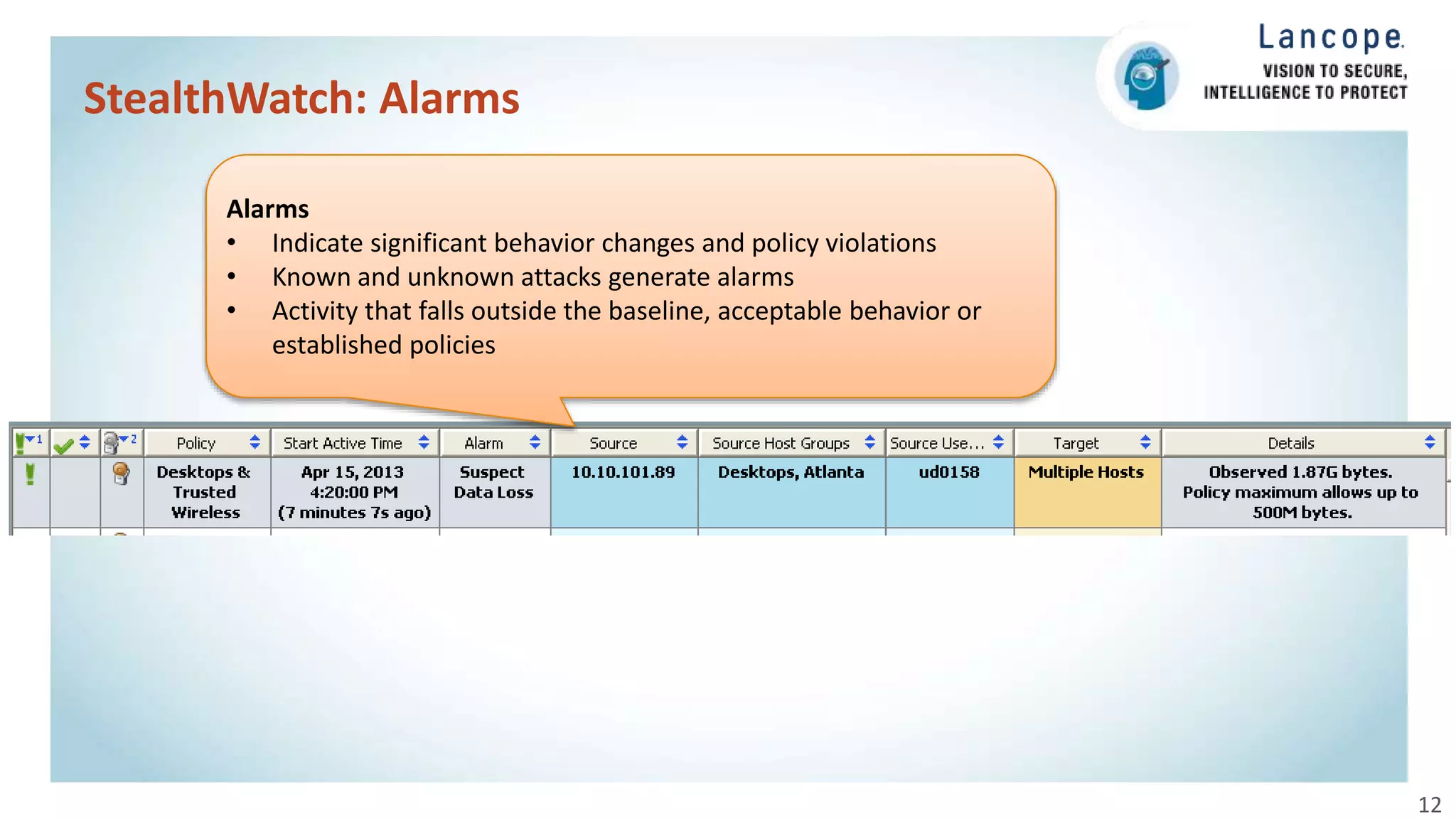

- 12. StealthWatch: Alarms 12 Alarms • Indicatesignificant behavior changes and policy violations • Known and unknown attacks generate alarms • Activity that falls outside the baseline, acceptable behavior or established policies

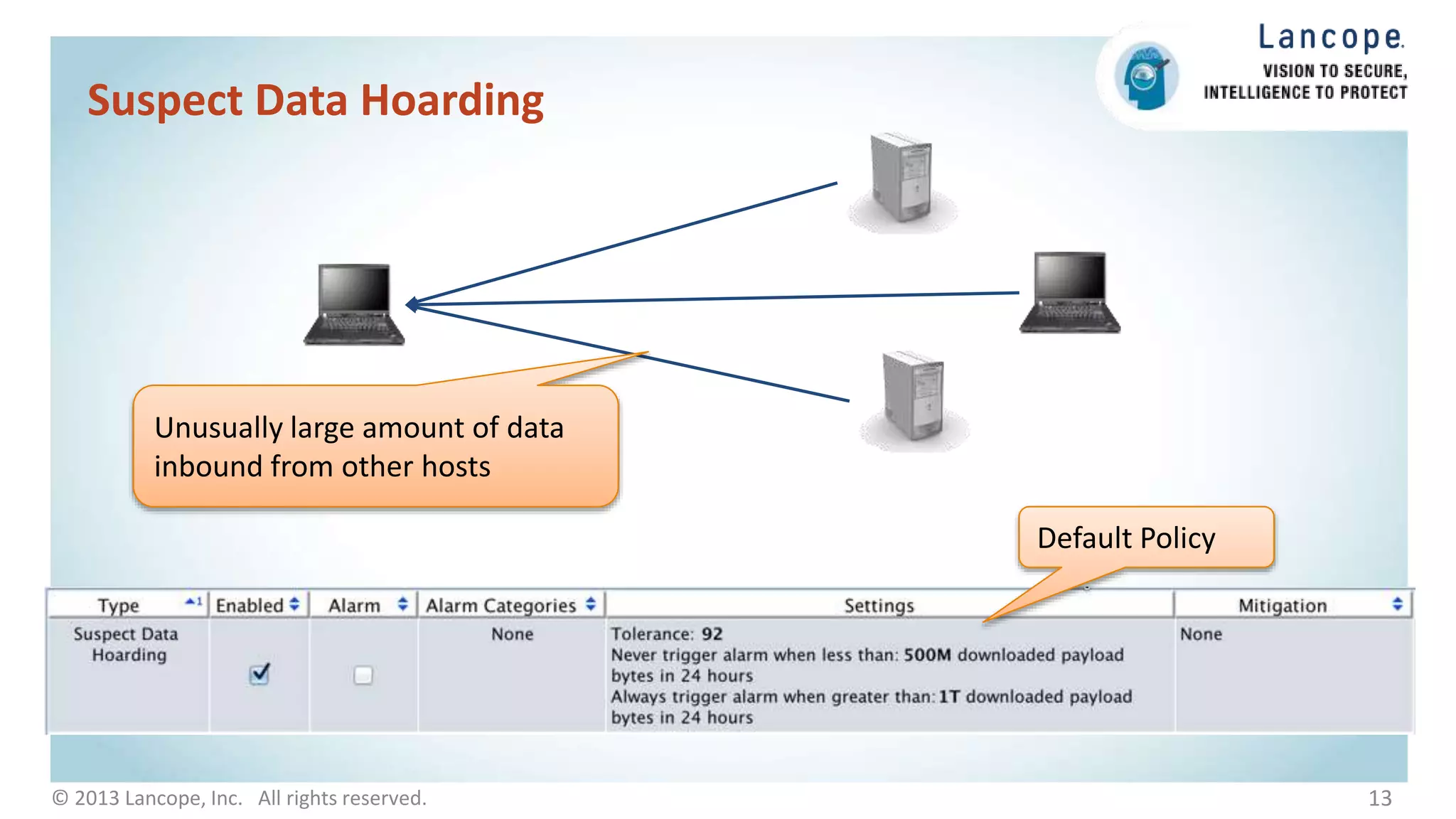

- 13. 13© 2013 Lancope,Inc. All rights reserved. Suspect Data Hoarding Unusually large amount of data inbound from other hosts Default Policy

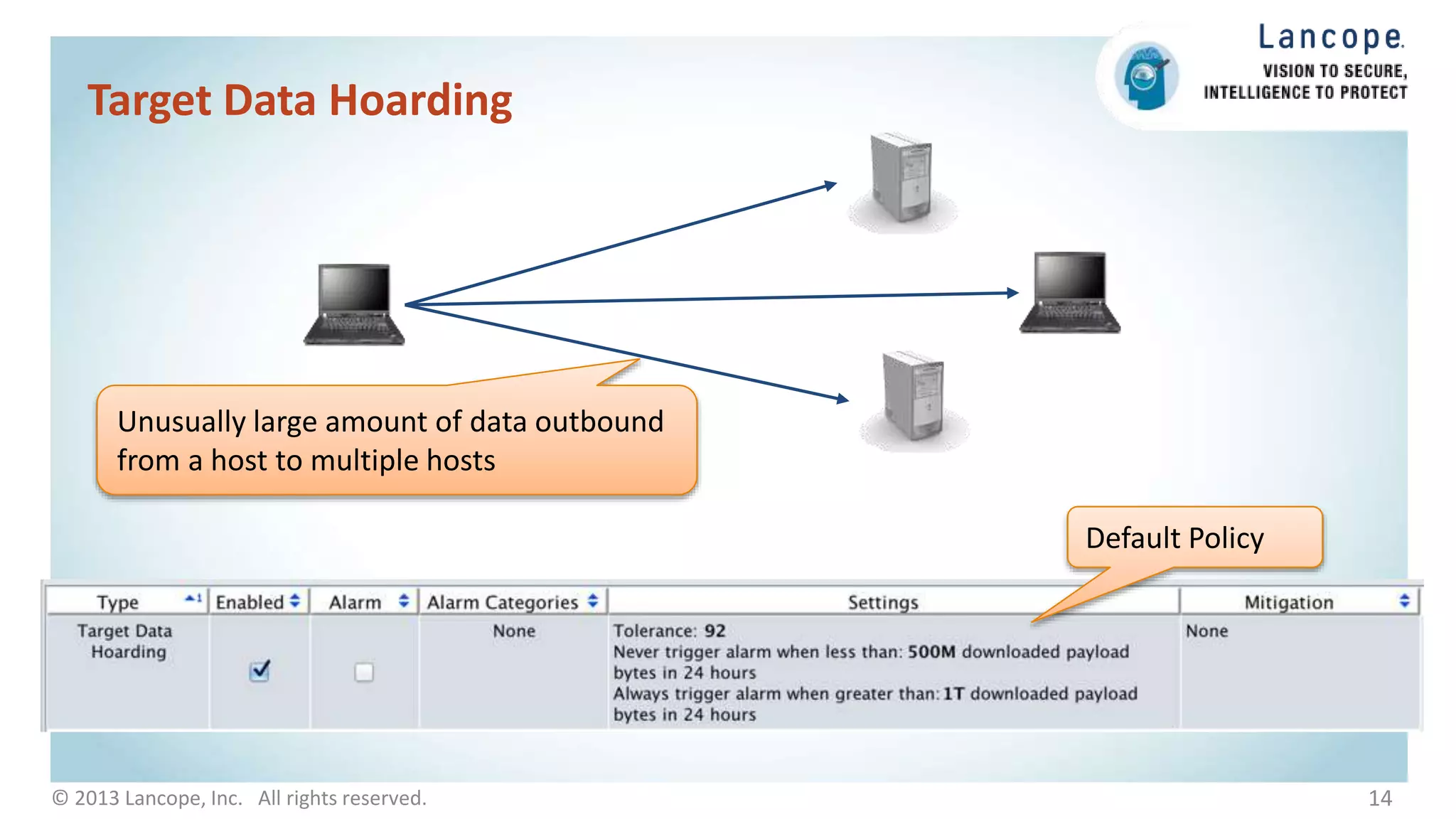

- 14. 14© 2013 Lancope,Inc. All rights reserved. Target Data Hoarding Unusually large amount of data outbound from a host to multiple hosts Default Policy

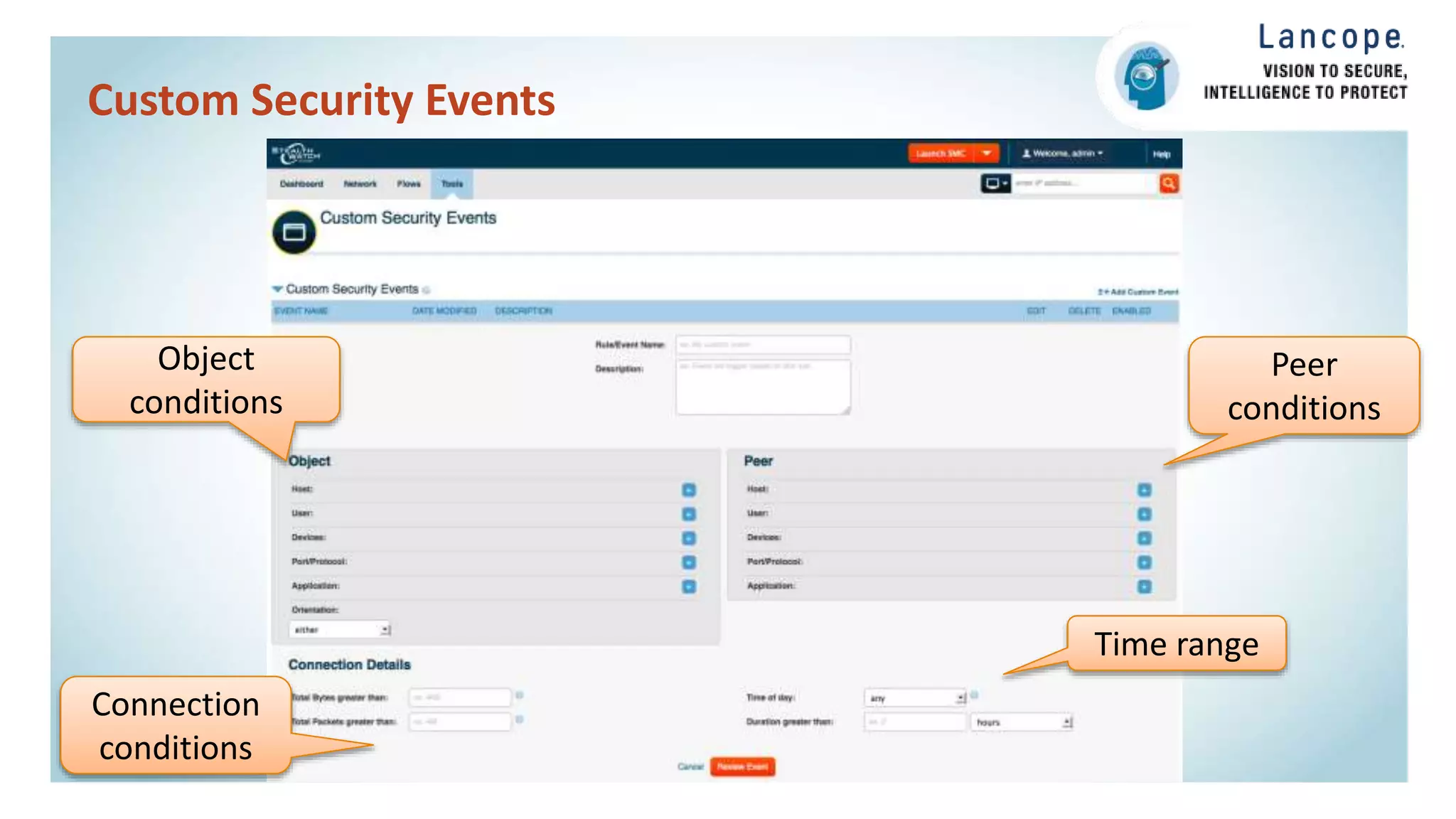

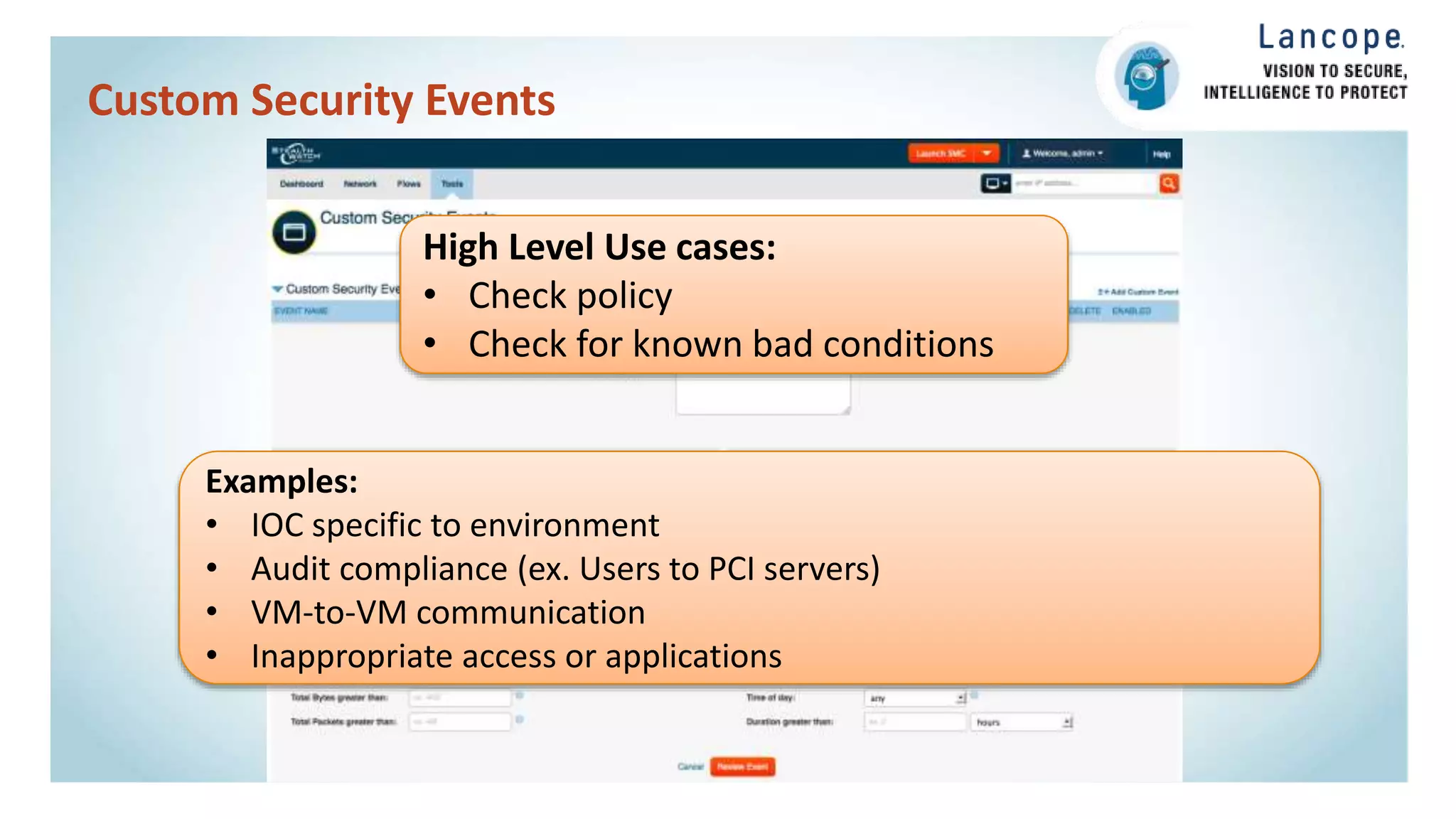

- 15. Custom Security Events Timerange Object conditions Peer conditions Connection conditions

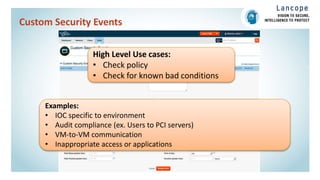

- 16. Custom Security Events HighLevel Use cases: • Check policy • Check for known bad conditions Examples: • IOC specific to environment • Audit compliance (ex. Users to PCI servers) • VM-to-VM communication • Inappropriate access or applications

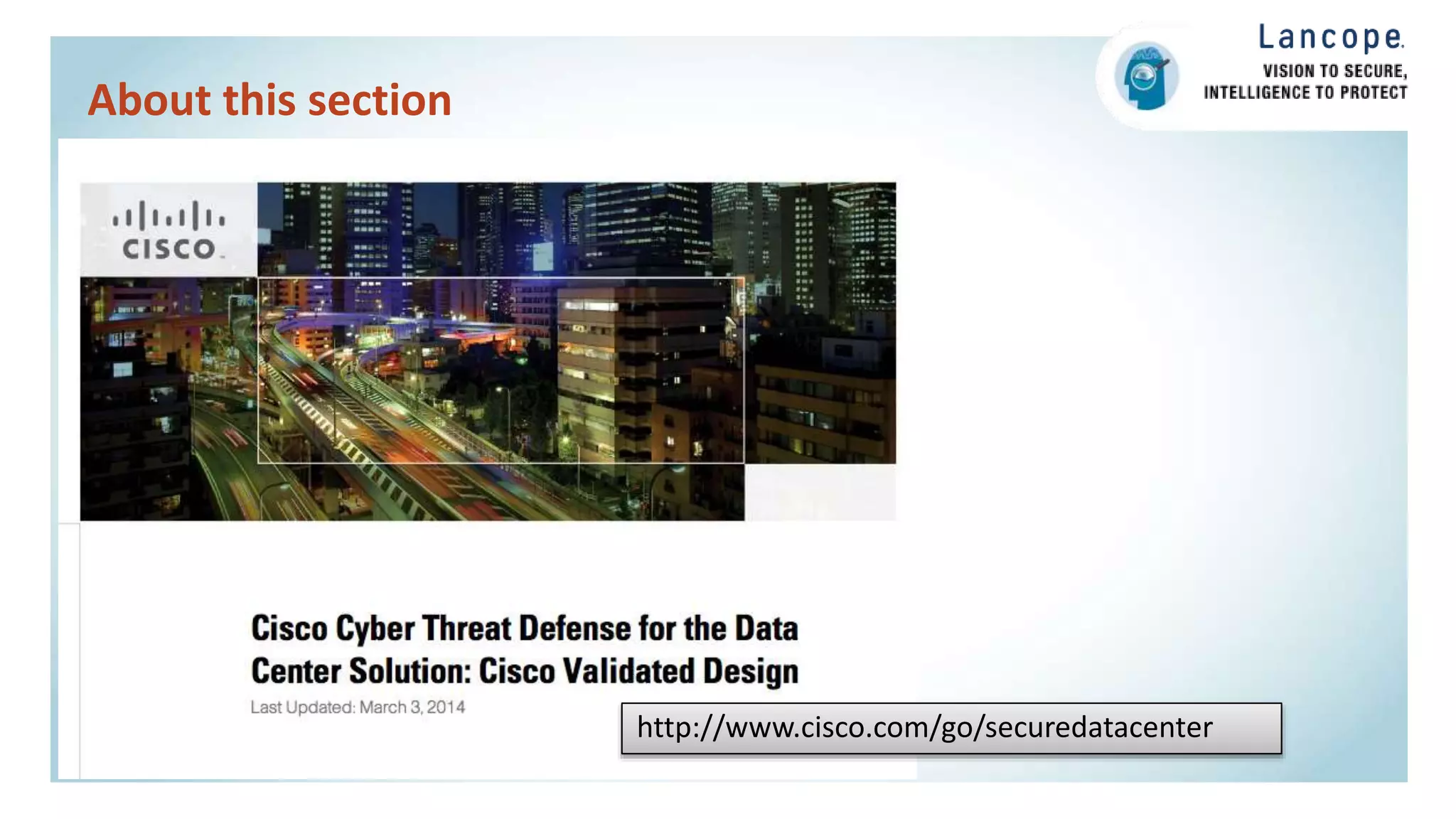

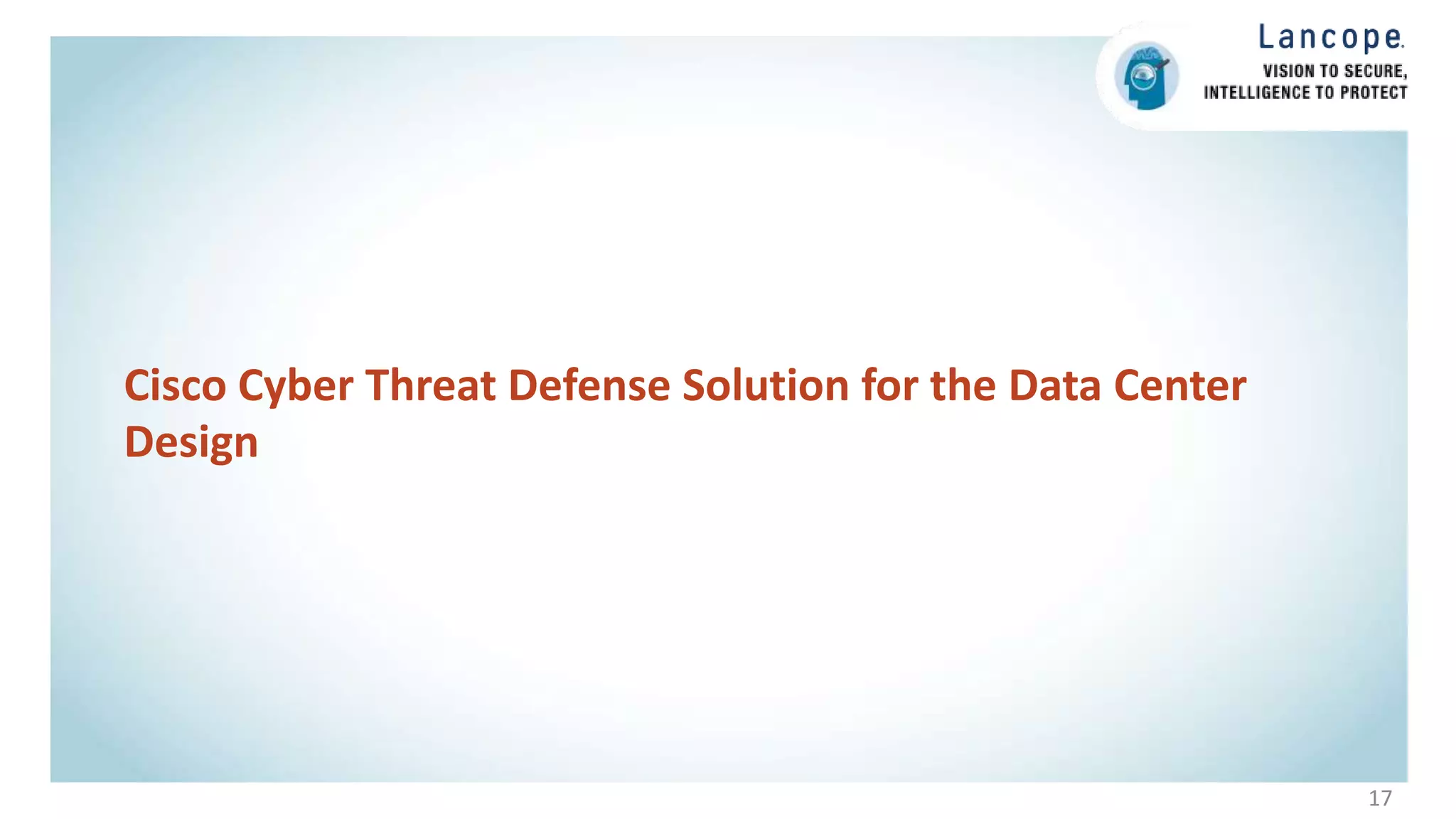

- 17. 17 Cisco Cyber ThreatDefense Solution for the Data Center Design
- 18.

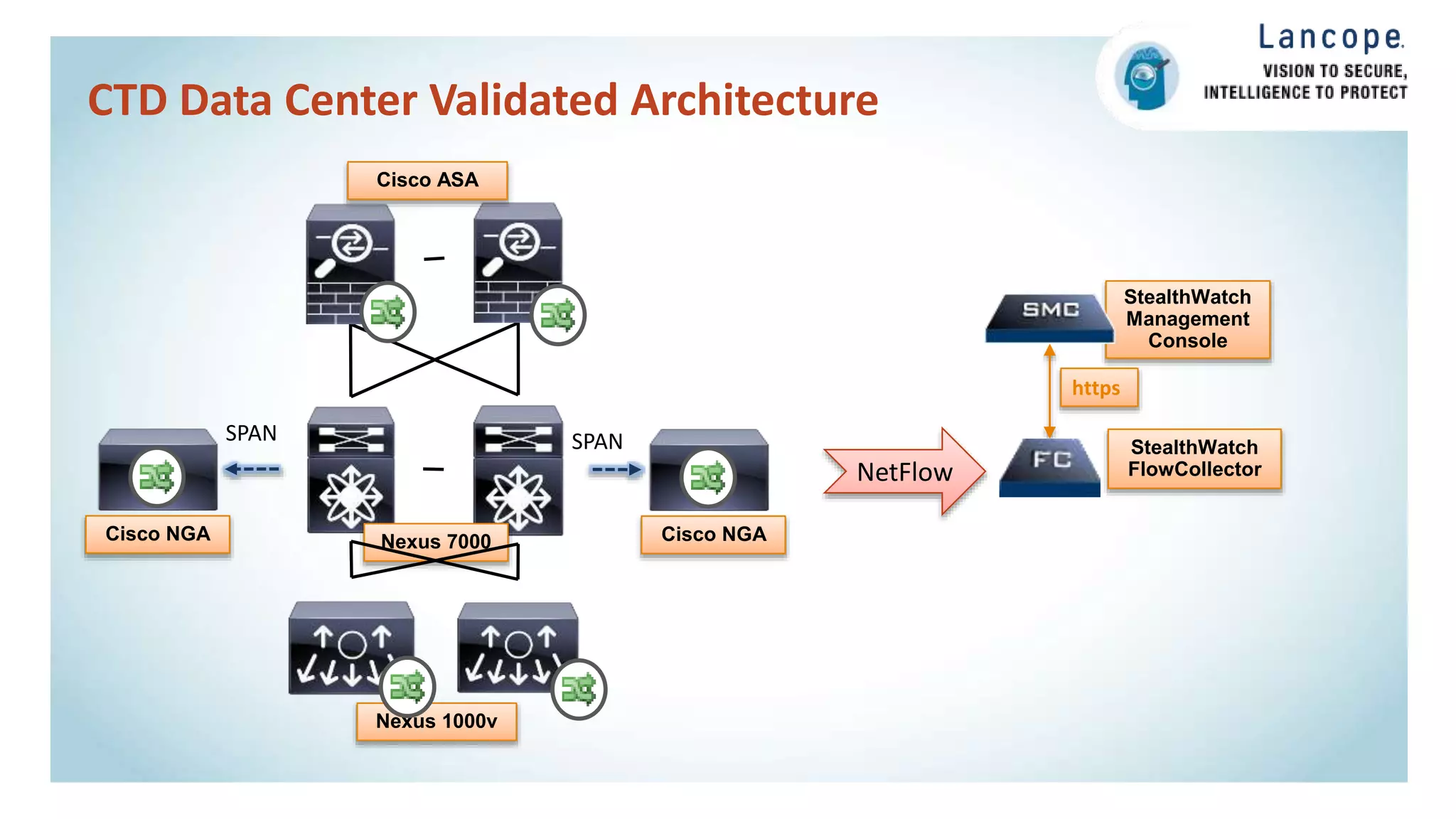

- 19. CTD Data CenterValidated Architecture Nexus 1000v Nexus 7000 StealthWatch FlowCollector StealthWatch Management Console https NetFlow Cisco NGACisco NGA Cisco ASA SPAN SPAN

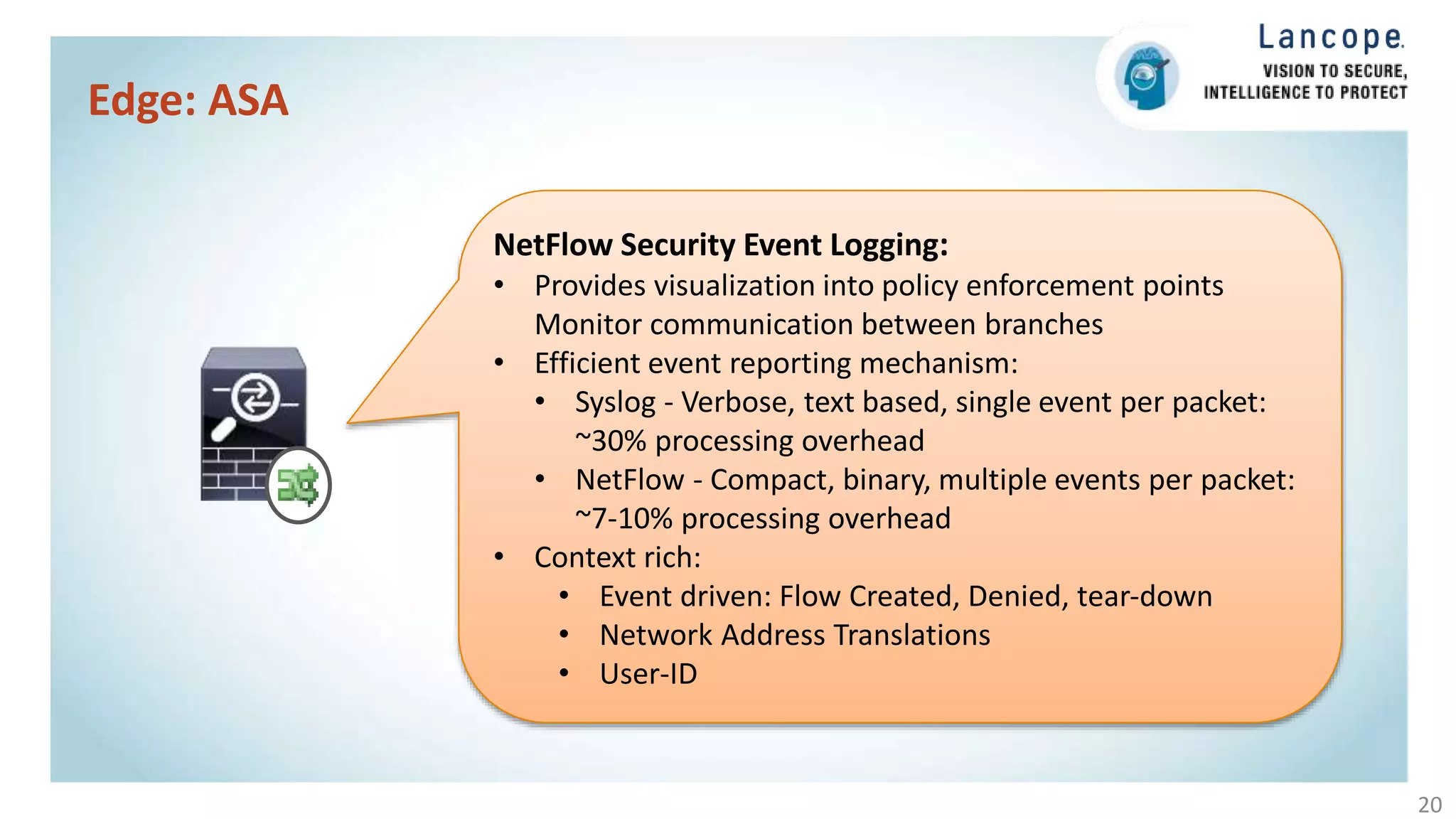

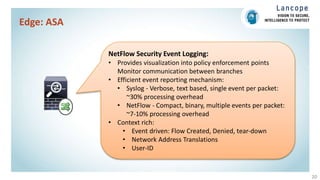

- 20. Edge: ASA 20 NetFlow SecurityEvent Logging: • Provides visualization into policy enforcement points Monitor communication between branches • Efficient event reporting mechanism: • Syslog - Verbose, text based, single event per packet: ~30% processing overhead • NetFlow - Compact, binary, multiple events per packet: ~7-10% processing overhead • Context rich: • Event driven: Flow Created, Denied, tear-down • Network Address Translations • User-ID

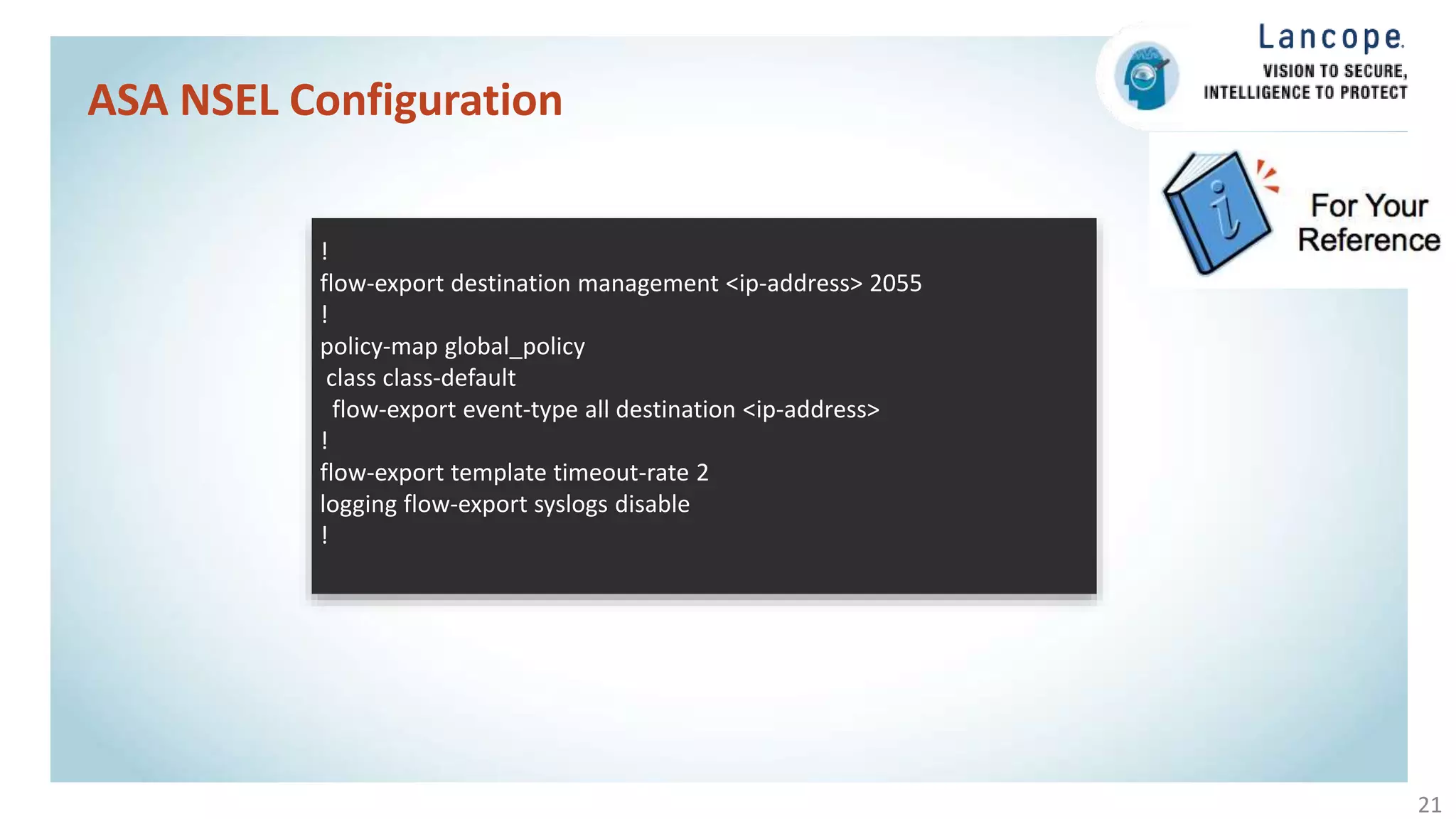

- 21. ASA NSEL Configuration 21 ! flow-exportdestination management <ip-address> 2055 ! policy-map global_policy class class-default flow-export event-type all destination <ip-address> ! flow-export template timeout-rate 2 logging flow-export syslogs disable !

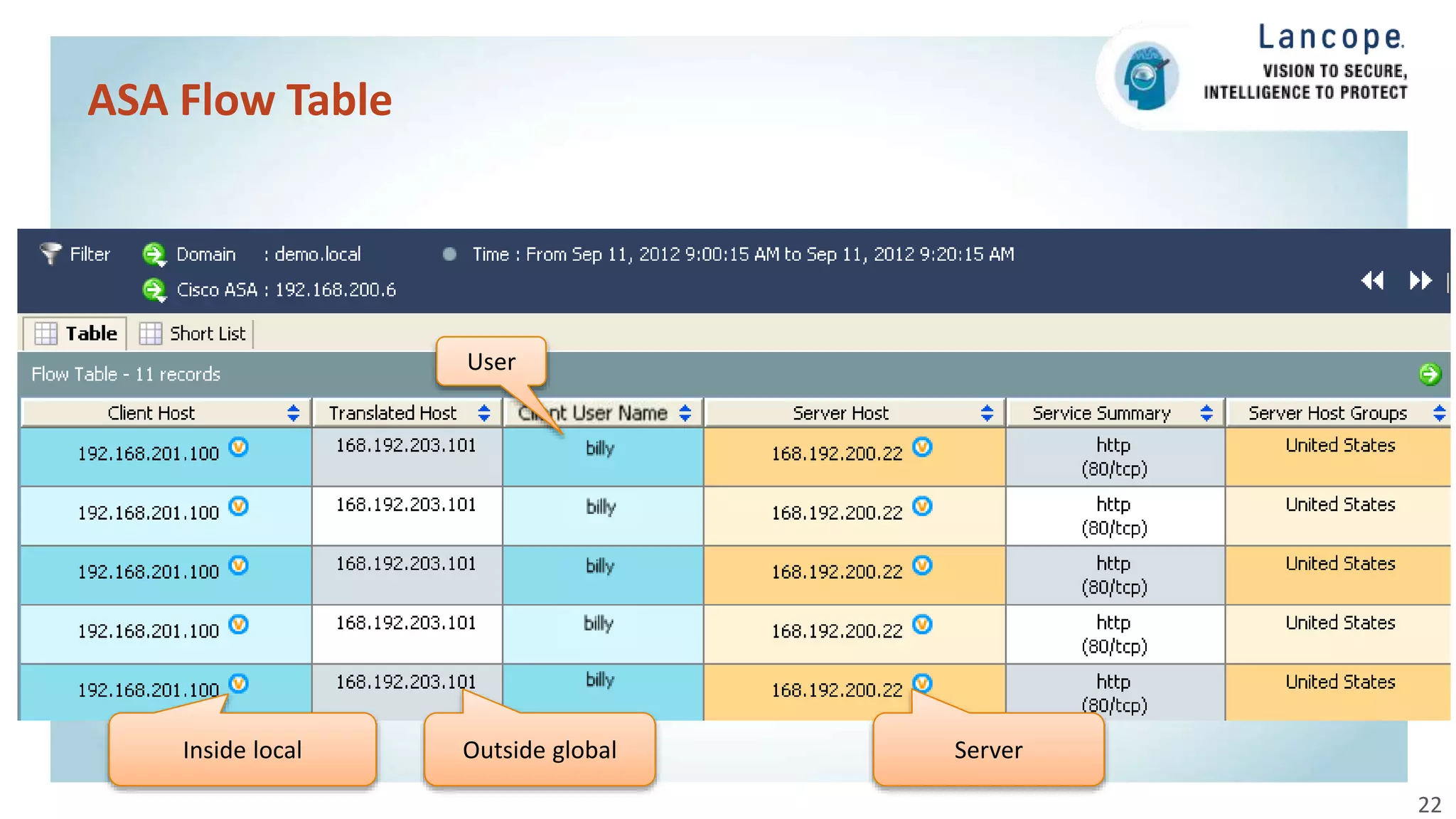

- 22. ASA Flow Table 22 Insidelocal Outside global Server User

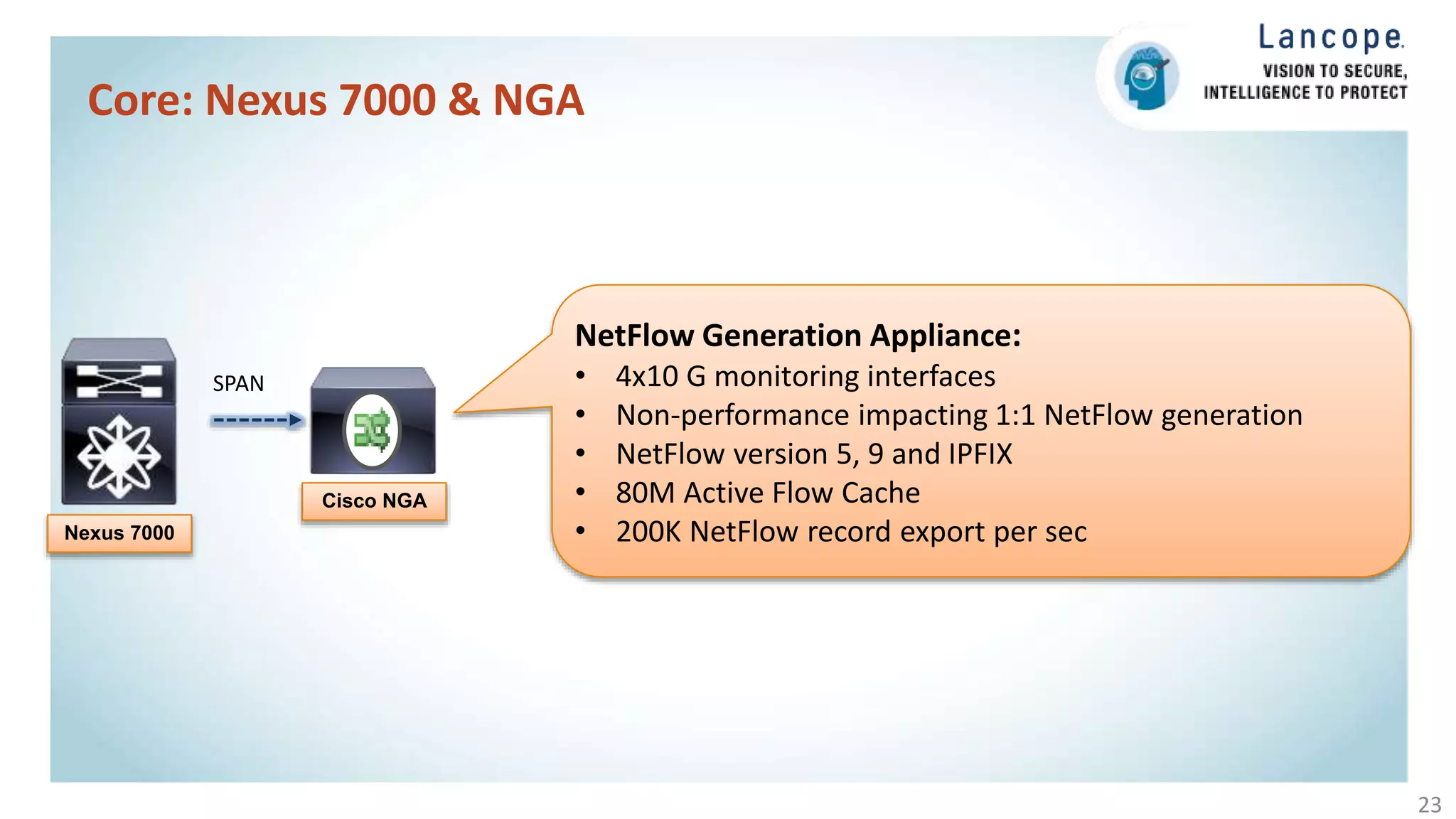

- 23. Core: Nexus 7000& NGA 23 Nexus 7000 Cisco NGA SPAN NetFlow Generation Appliance: • 4x10 G monitoring interfaces • Non-performance impacting 1:1 NetFlow generation • NetFlow version 5, 9 and IPFIX • 80M Active Flow Cache • 200K NetFlow record export per sec

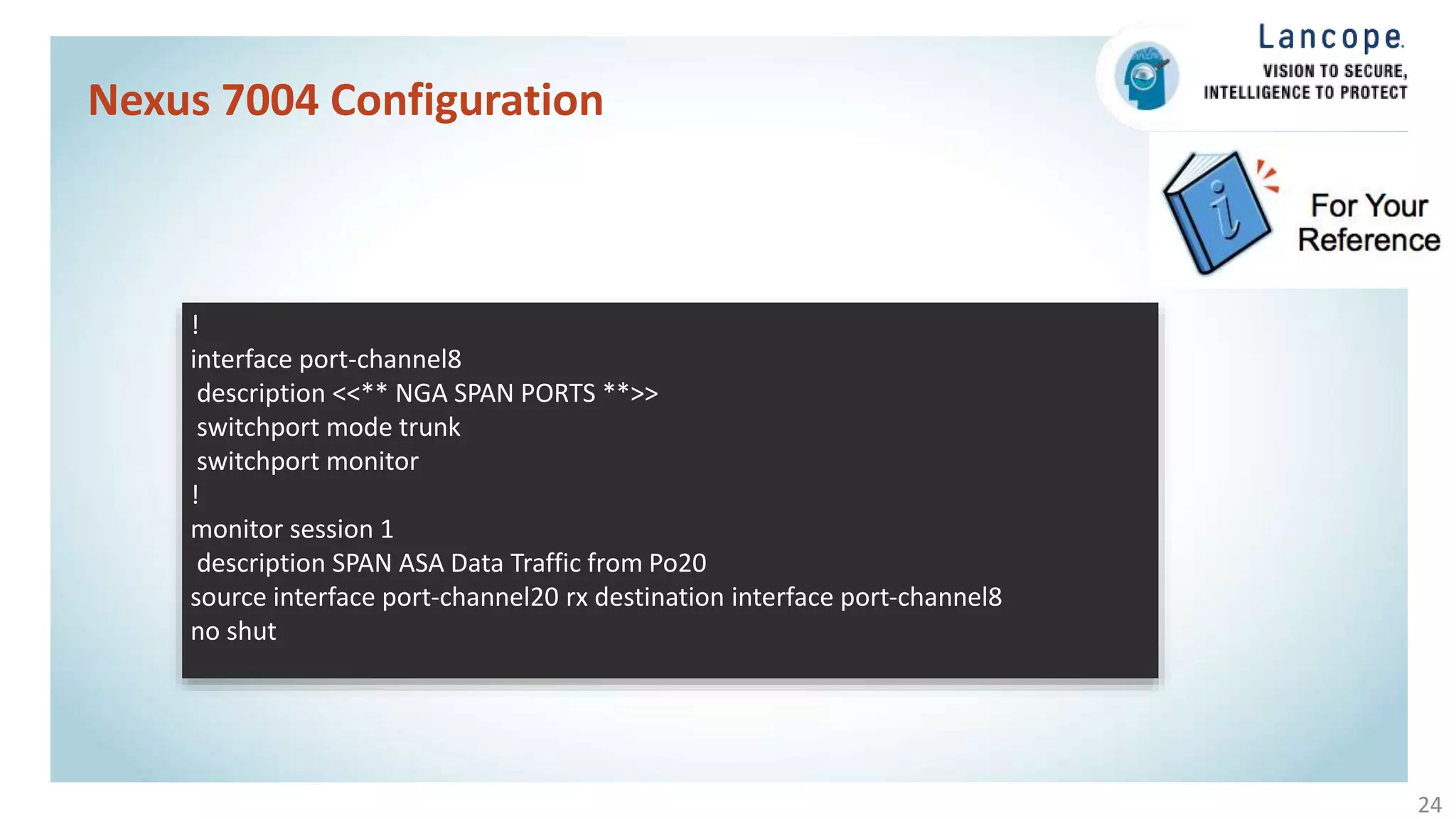

- 24. Nexus 7004 Configuration 24 ! interfaceport-channel8 description <<** NGA SPAN PORTS **>> switchport mode trunk switchport monitor ! monitor session 1 description SPAN ASA Data Traffic from Po20 source interface port-channel20 rx destination interface port-channel8 no shut

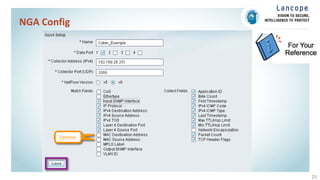

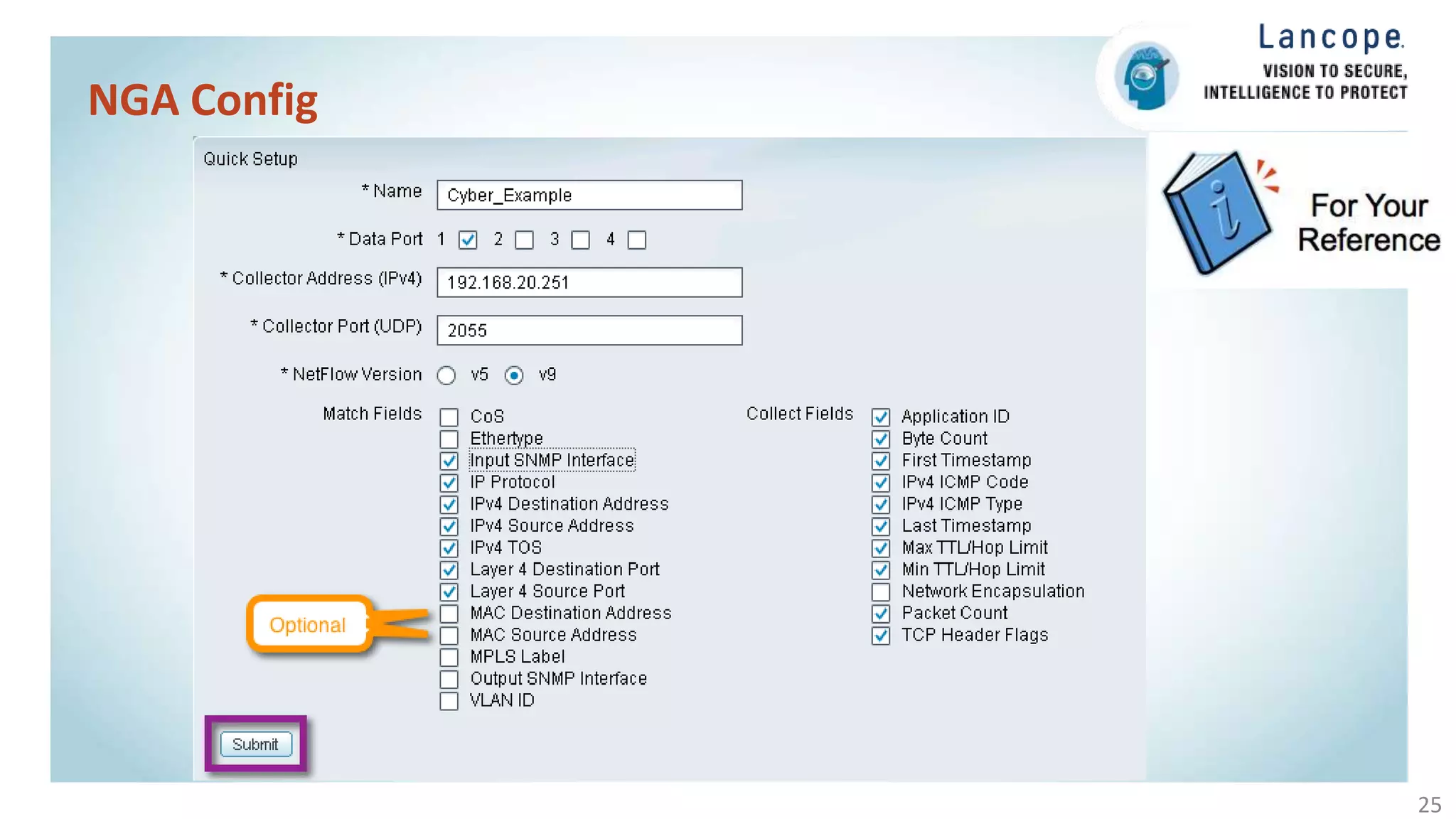

- 25.

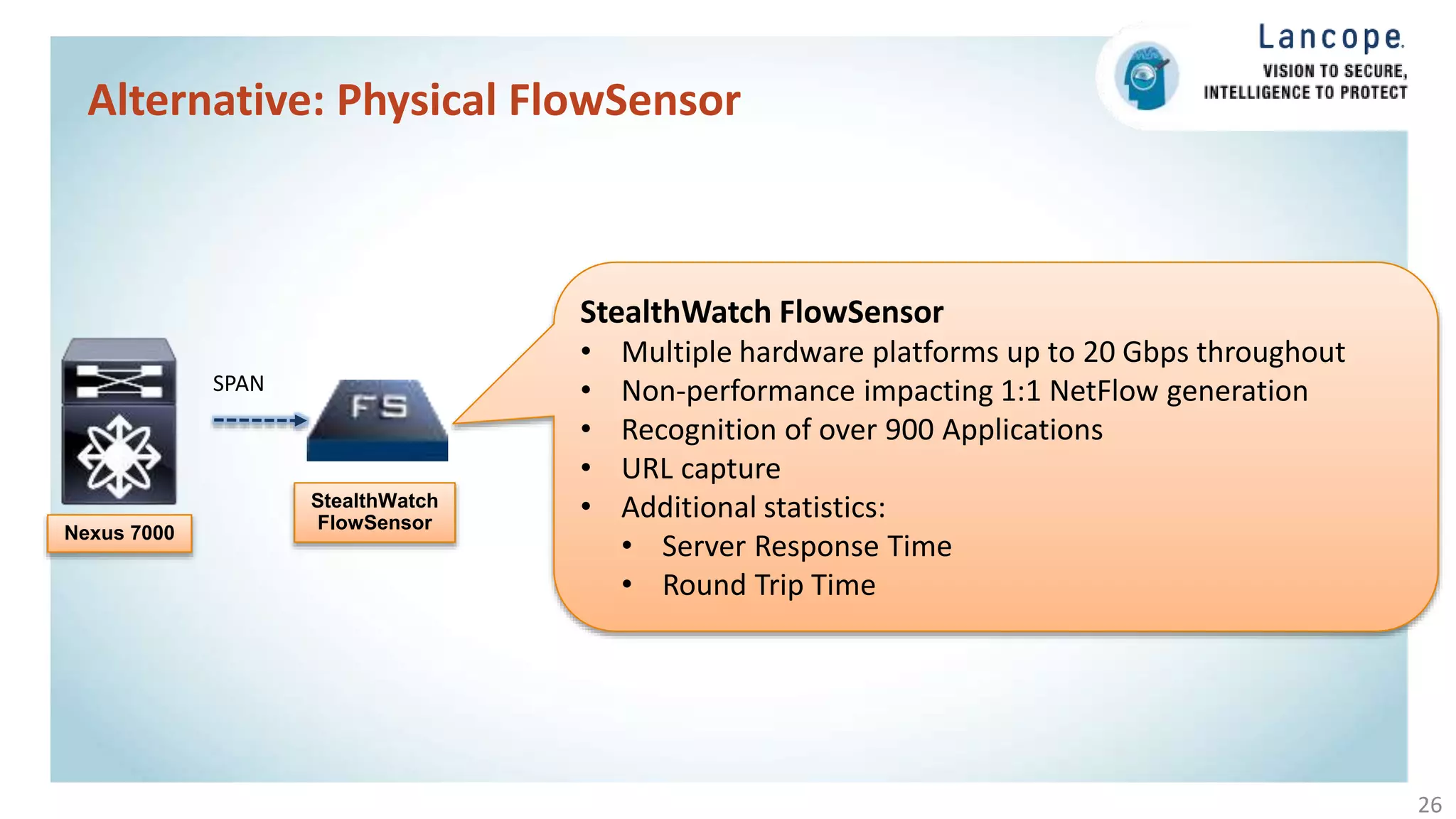

- 26. Alternative: Physical FlowSensor 26 Nexus7000 StealthWatch FlowSensor SPAN StealthWatch FlowSensor • Multiple hardware platforms up to 20 Gbps throughout • Non-performance impacting 1:1 NetFlow generation • Recognition of over 900 Applications • URL capture • Additional statistics: • Server Response Time • Round Trip Time

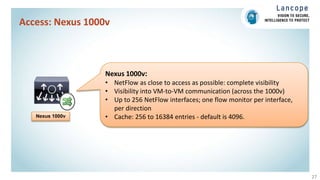

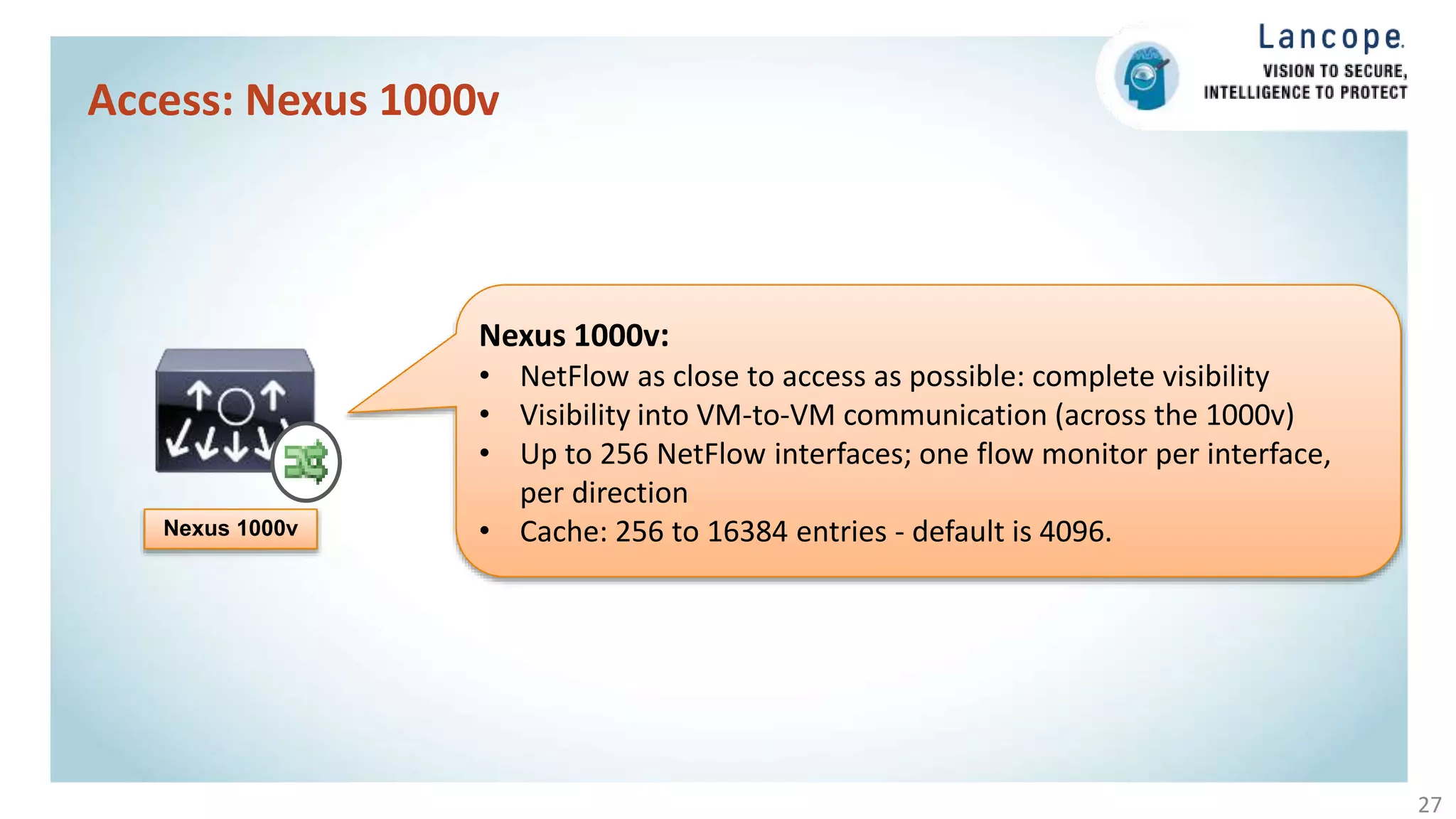

- 27. Access: Nexus 1000v 27 Nexus1000v Nexus 1000v: • NetFlow as close to access as possible: complete visibility • Visibility into VM-to-VM communication (across the 1000v) • Up to 256 NetFlow interfaces; one flow monitor per interface, per direction • Cache: 256 to 16384 entries - default is 4096.

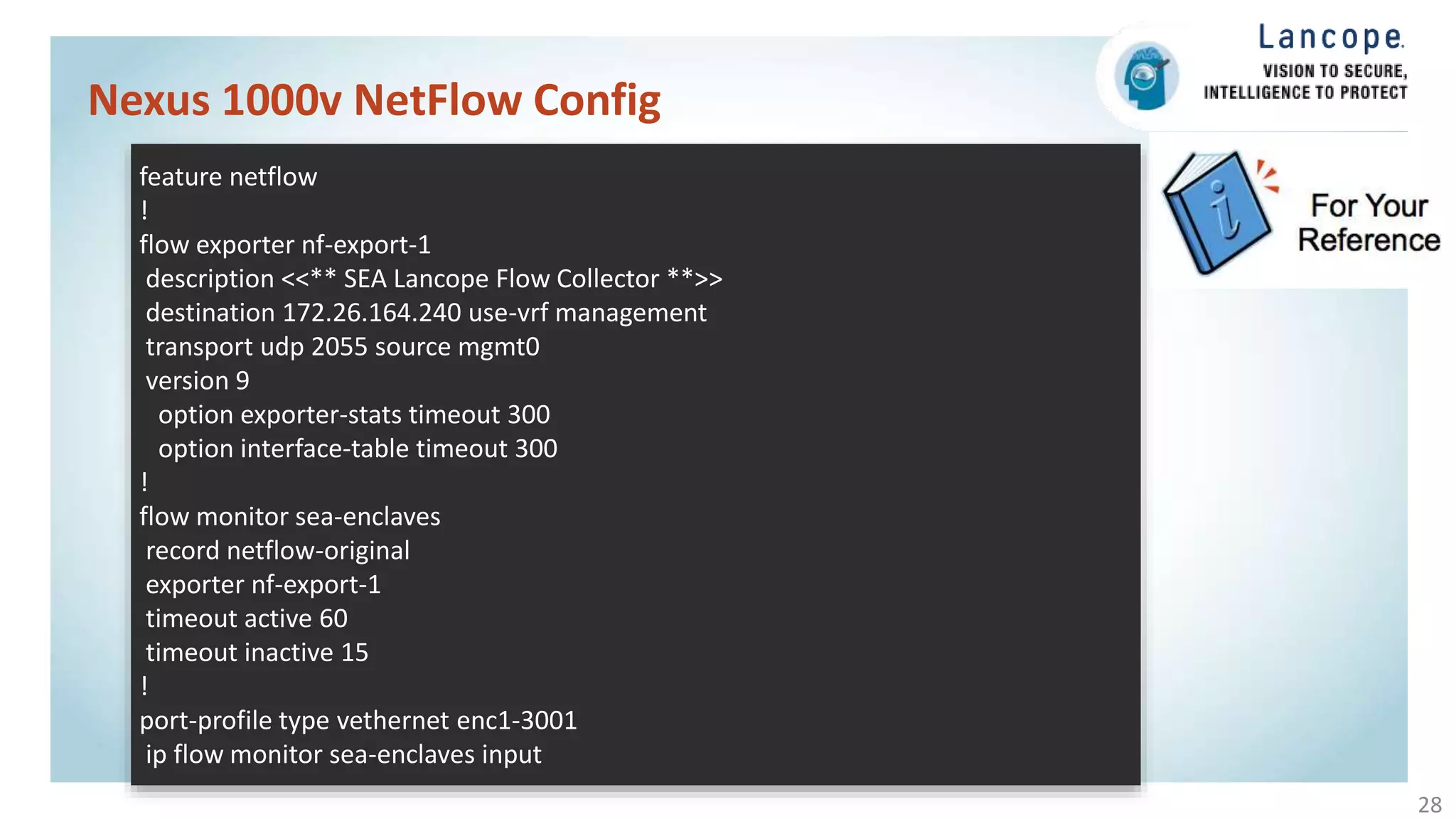

- 28. Nexus 1000v NetFlowConfig 28 feature netflow ! flow exporter nf-export-1 description <<** SEA Lancope Flow Collector **>> destination 172.26.164.240 use-vrf management transport udp 2055 source mgmt0 version 9 option exporter-stats timeout 300 option interface-table timeout 300 ! flow monitor sea-enclaves record netflow-original exporter nf-export-1 timeout active 60 timeout inactive 15 ! port-profile type vethernet enc1-3001 ip flow monitor sea-enclaves input

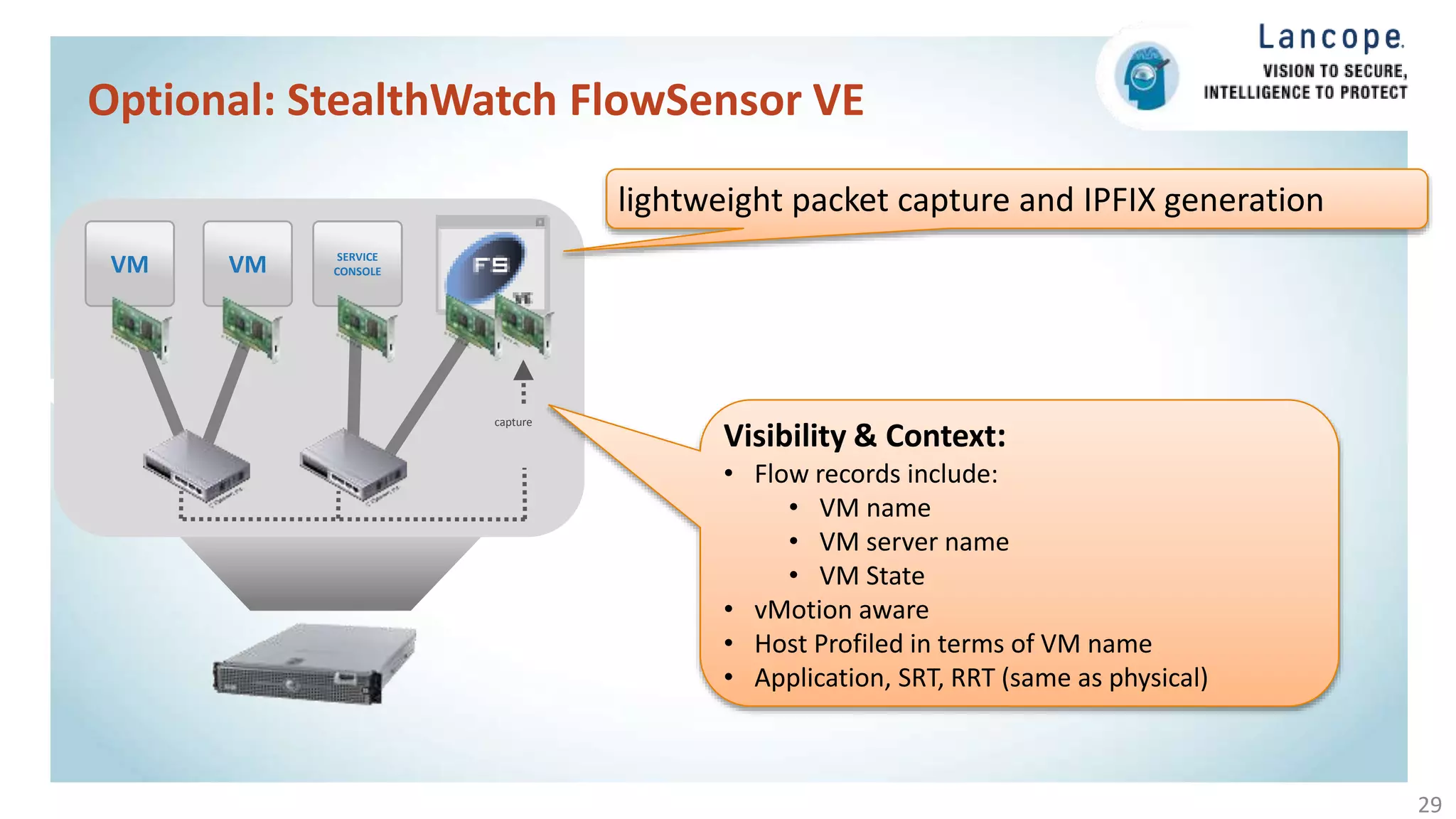

- 29. 29 Optional: StealthWatch FlowSensorVE capture SERVICE CONSOLEVM VM lightweight packet capture and IPFIX generation Visibility & Context: • Flow records include: • VM name • VM server name • VM State • vMotion aware • Host Profiled in terms of VM name • Application, SRT, RRT (same as physical)

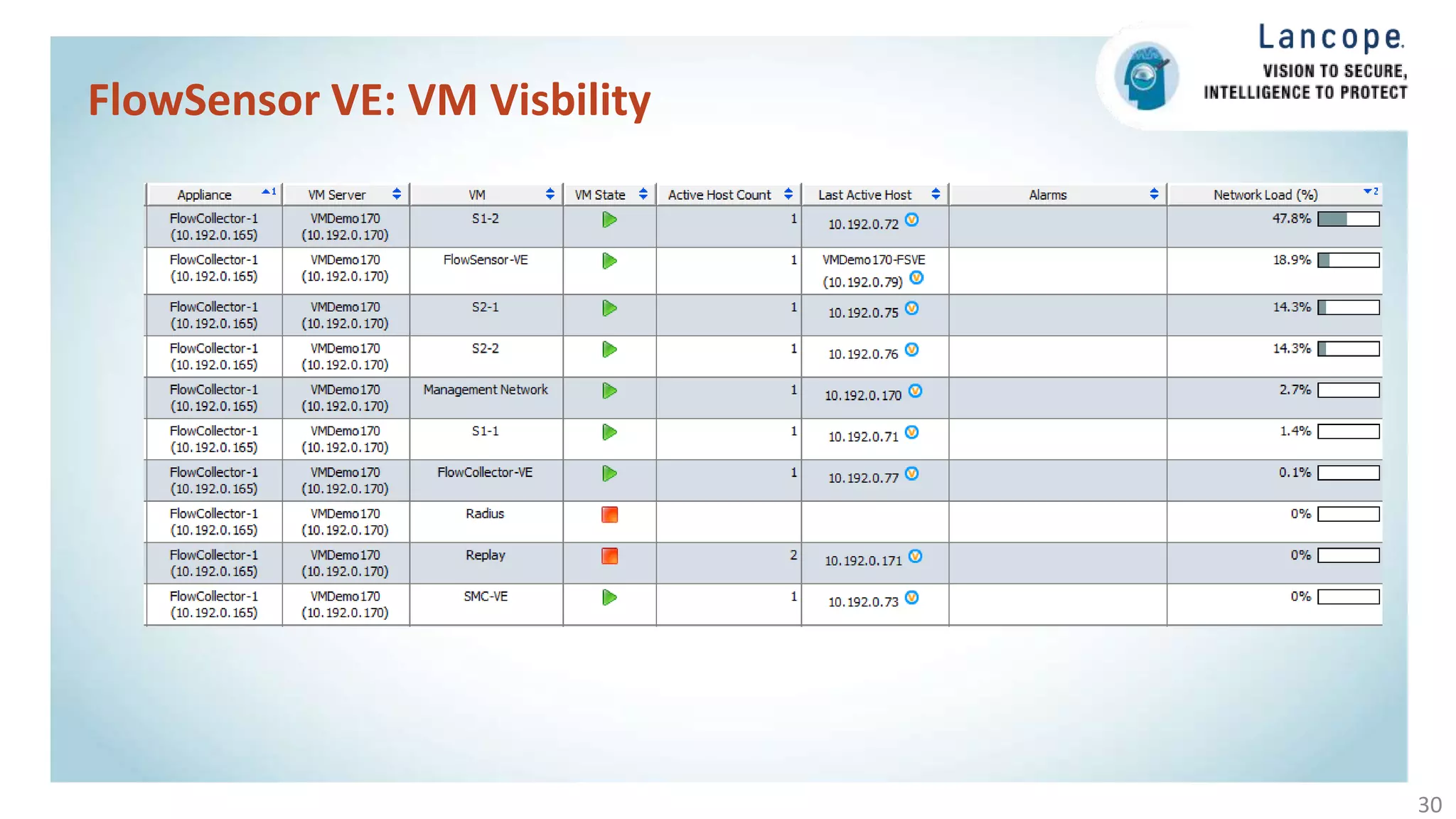

- 30. 30 FlowSensor VE: VMVisbility

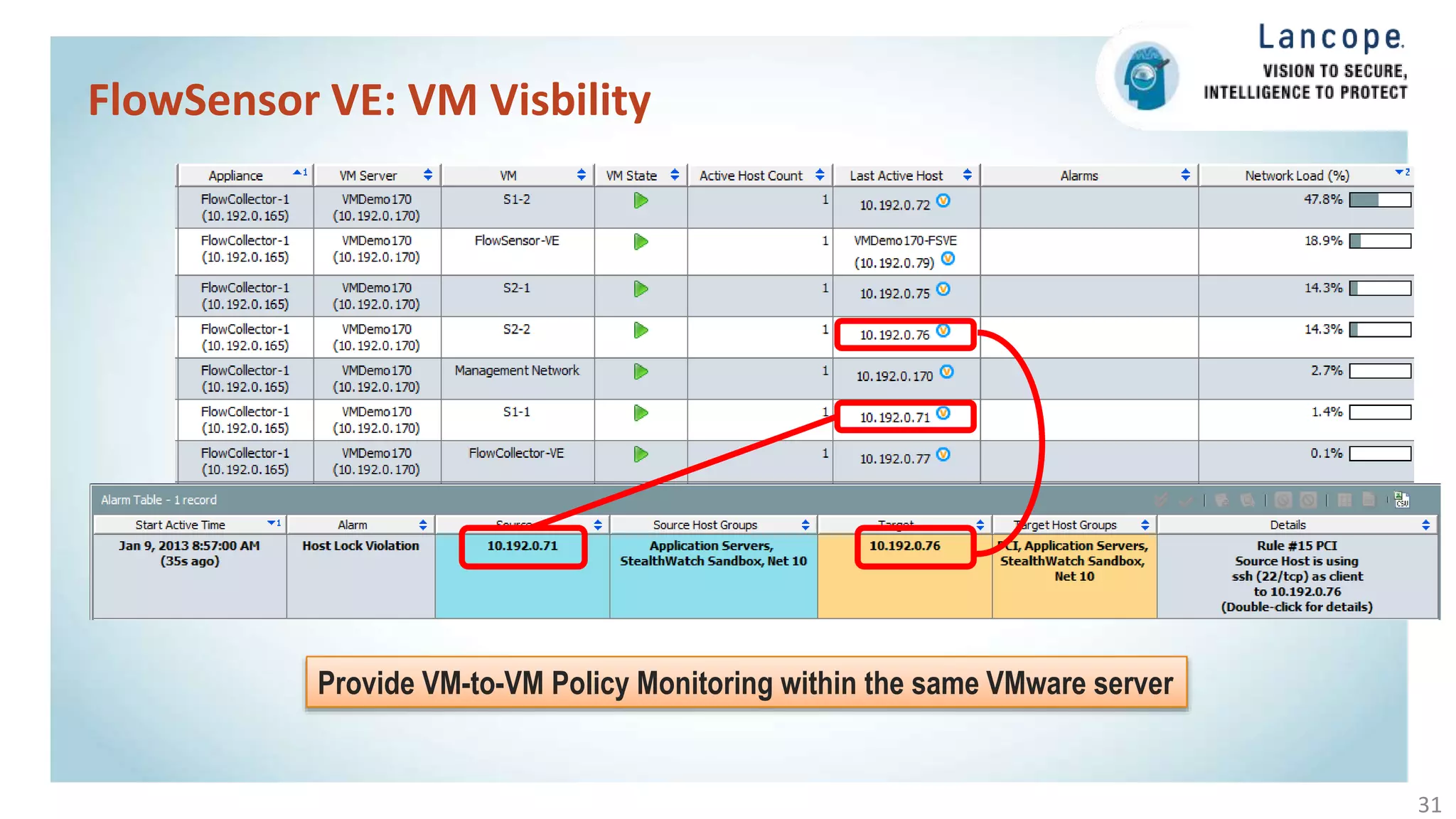

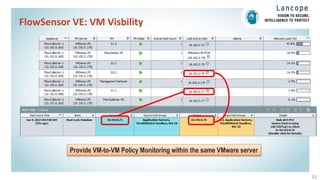

- 31. 31 FlowSensor VE: VMVisbility Provide VM-to-VM Policy Monitoring within the same VMware server

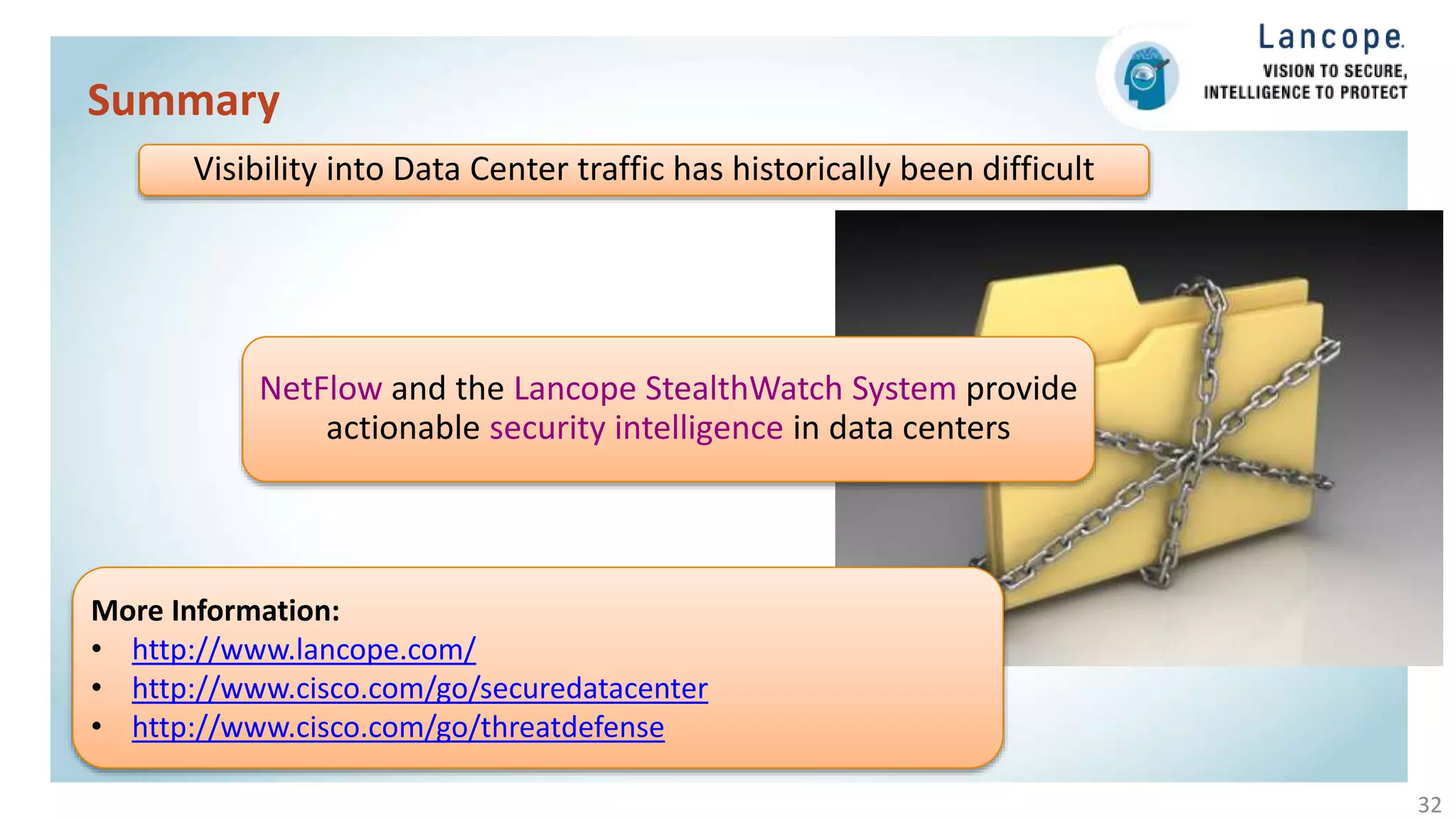

- 32. Summary 32 More Information: • http://www.lancope.com/ •http://www.cisco.com/go/securedatacenter • http://www.cisco.com/go/threatdefense NetFlow and the Lancope StealthWatch System provide actionable security intelligence in data centers Visibility into Data Center traffic has historically been difficult
