The document provides an overview of Palo Alto Networks solutions that secure networks and applications on-premises, in private or public clouds, including next-generation firewalls, Cortex XDR for threat detection and response, Traps endpoint security, and container security solutions. It also describes how VM-Series next-generation firewalls from Palo Alto Networks can be deployed in AWS to provide auto-scaling perimeter security across multiple subnets and availability zones through integration with application and network load balancers as well as auto scaling groups.

1. On-Premise
On-Cloud

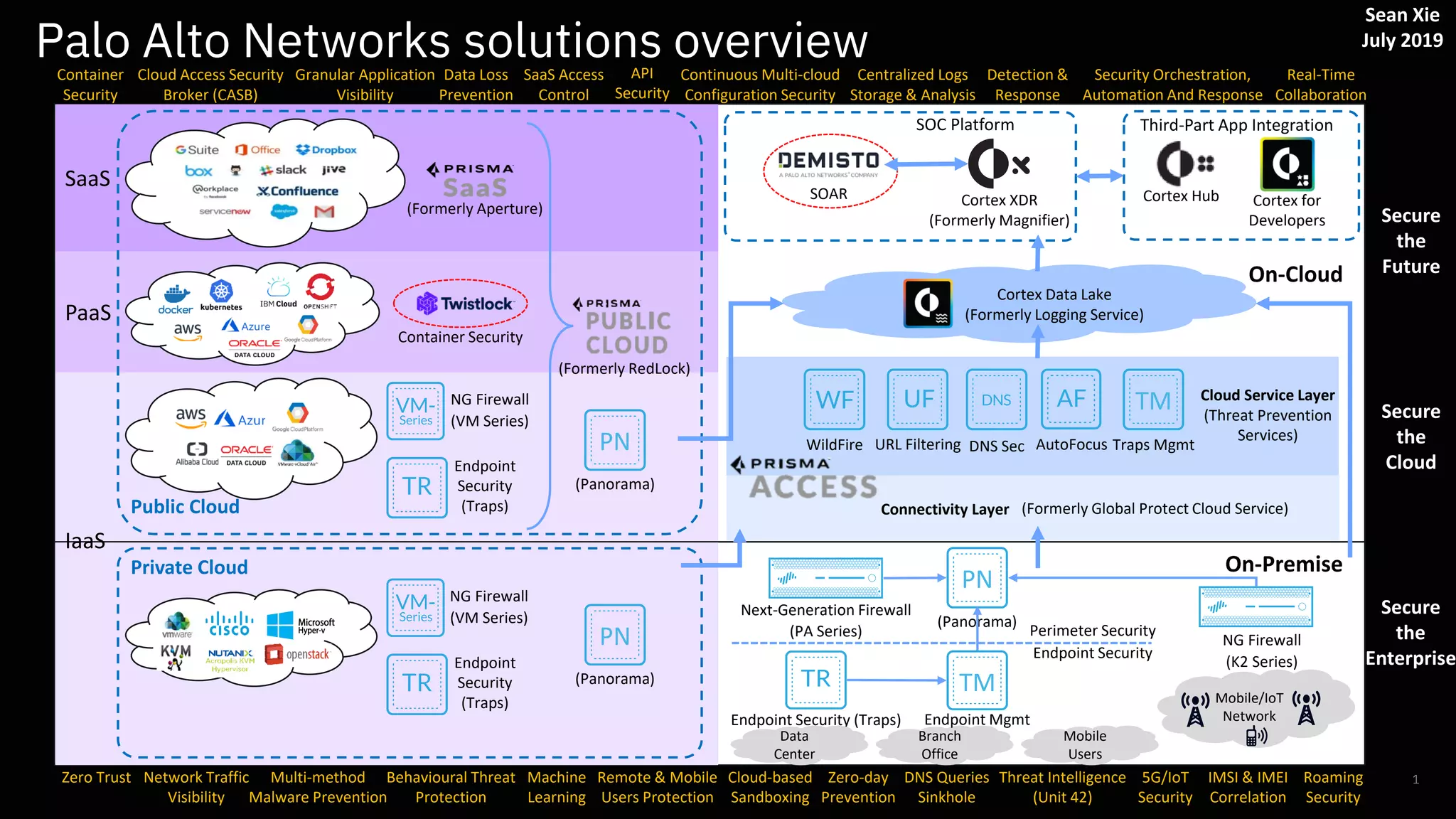

Palo Alto Networks solutions overview
1
Next-Generation Firewall
(PA Series)
SaaS
PaaS
Private Cloud
(Formerly Aperture)
Cortex XDR
(Formerly Magnifier)
Cortex Data Lake
(Formerly Logging Service)
Endpoint Security (Traps)
Public Cloud
PN
(Panorama)
SOAR
IaaS
PN
(Panorama)
NG Firewall
(VM Series)
Cloud Service Layer
(Threat Prevention
Services)
DNS SecURL FilteringWildFire AutoFocus
TM
Traps Mgmt
Container Security
(Formerly RedLock)
Endpoint
Security
(Traps)
NG Firewall
(VM Series)
Endpoint
Security
(Traps)
Cortex Hub Cortex for
Developers
Third-Part App Integration
Mobile/IoT
Network
SOC Platform
NG Firewall
(K2 Series)
Perimeter Security
Endpoint Security
Data
Center
Branch
Office
Mobile
Users
(Formerly Global Protect Cloud Service)Connectivity Layer
PN
(Panorama)
TM
Endpoint Mgmt
Behavioural Threat
Protection
Zero Trust Remote & Mobile
Users Protection
Data Loss
Prevention
Cloud Access Security
Broker (CASB)
Container
Security
SaaS Access
Control
5G/IoT
Security
Centralized Logs
Storage & Analysis
Continuous Multi-cloud
Configuration Security
API
Security
IMSI & IMEI
Correlation
Cloud-based
Sandboxing
Zero-day
Prevention
Threat Intelligence
(Unit 42)
Machine
Learning
Detection &
Response
Real-Time
Collaboration
Security Orchestration,
Automation And Response
Secure
the
Enterprise
Secure
the
Future
Secure
the
Cloud
Multi-method
Malware Prevention
Roaming
Security
Granular Application
Visibility
Network Traffic
Visibility
DNS Queries
Sinkhole
Sean Xie
July 2019

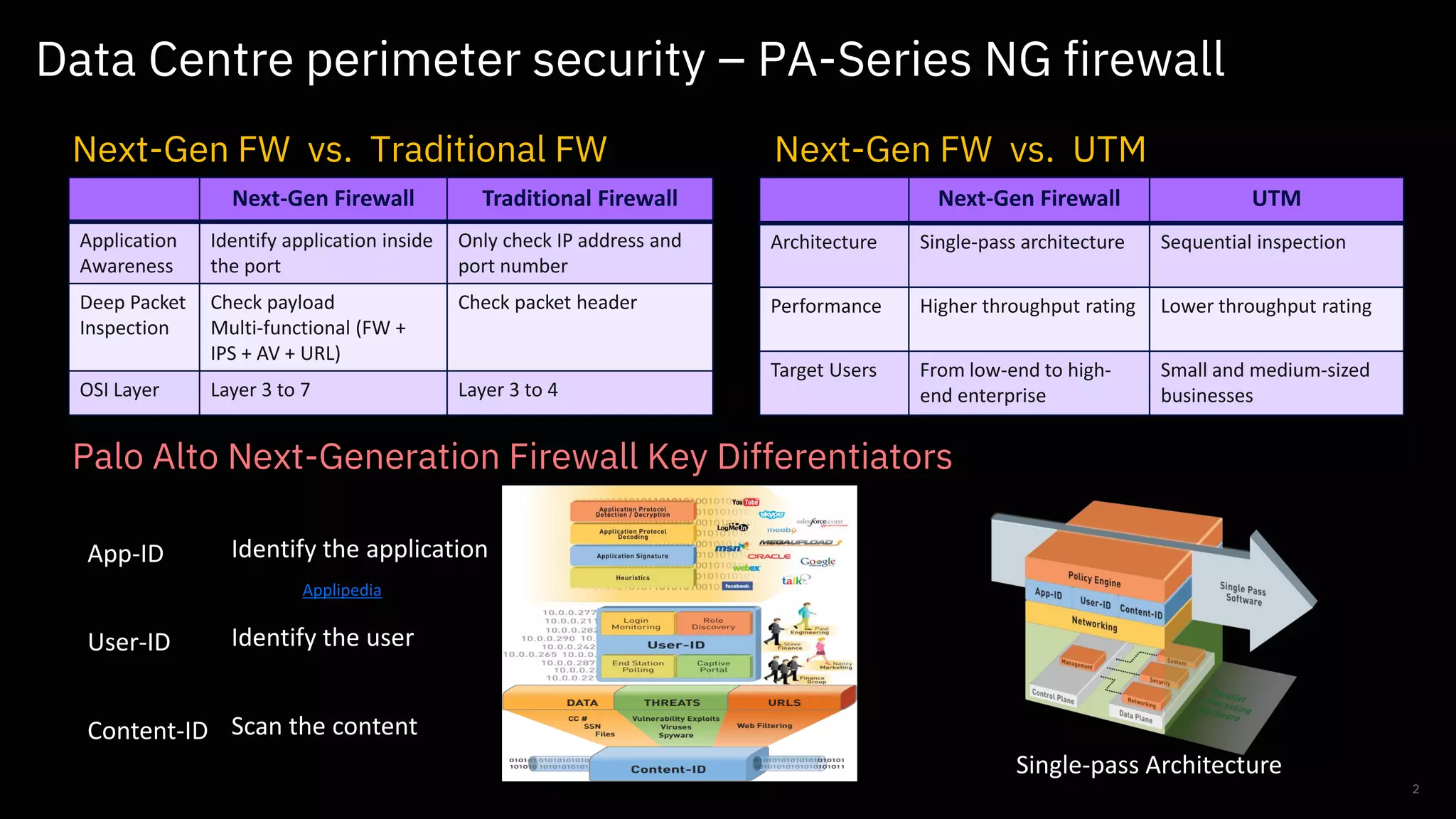

2. Data Centre perimeter security – PA-Series NG firewall
2
Next-Gen FW vs. Traditional FW Next-Gen FW vs. UTM
Next-Gen Firewall Traditional Firewall
Application
Awareness
Identify application inside
the port
Only check IP address and
port number
Deep Packet
Inspection
Check payload
Multi-functional (FW +
IPS + AV + URL)
Check packet header
OSI Layer Layer 3 to 7 Layer 3 to 4
Next-Gen Firewall UTM
Architecture Single-pass architecture Sequential inspection
Performance Higher throughput rating Lower throughput rating
Target Users From low-end to high-
end enterprise
Small and medium-sized
businesses
Palo Alto Next-Generation Firewall Key Differentiators
App-ID
User-ID
Content-ID Scan the content
Identify the user
Identify the application
Single-pass Architecture
Applipedia

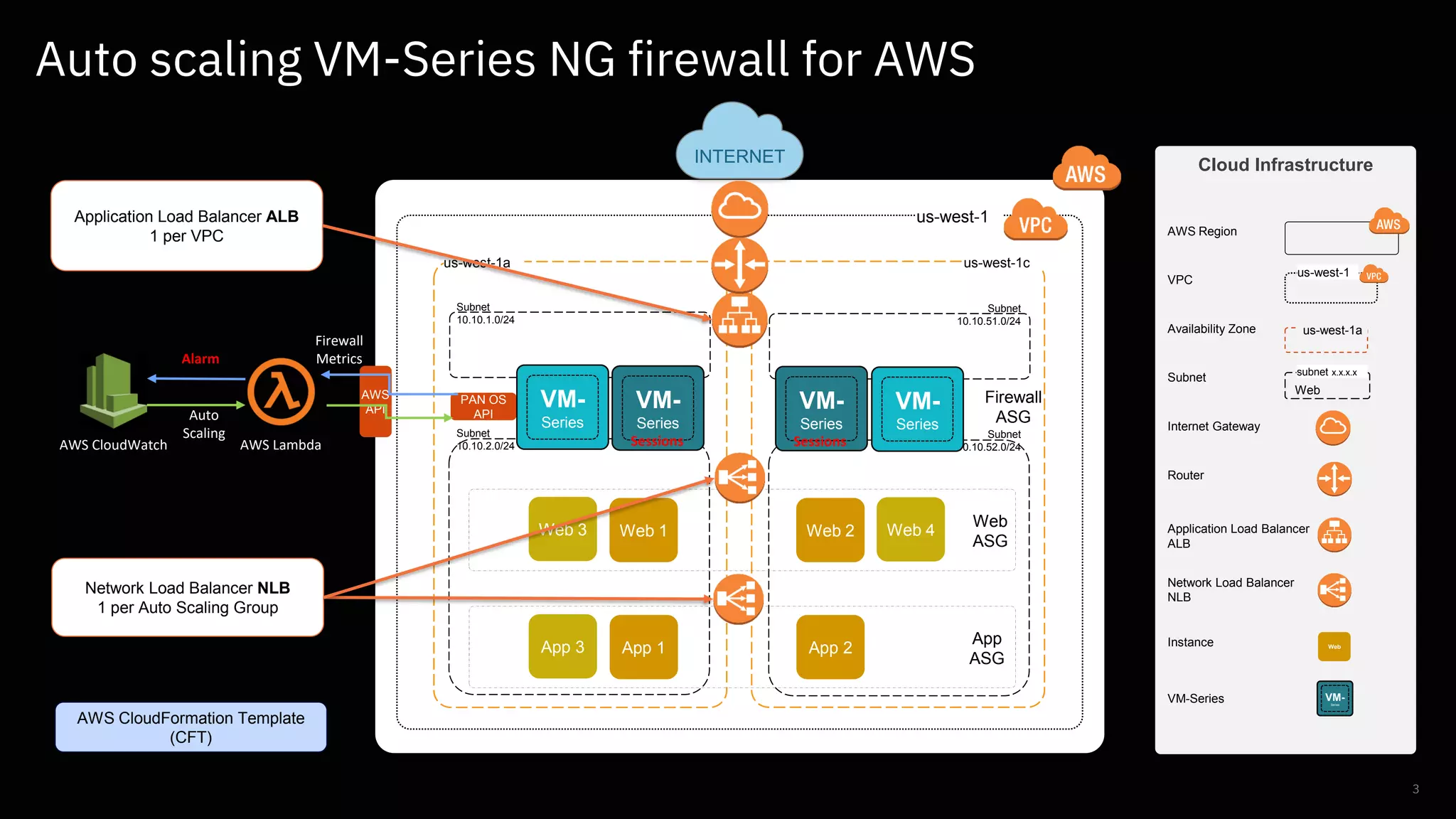

3. Auto scaling VM-Series NG firewall for AWS
3
INTERNET
us-west-1
us-west-1cus-west-1a
Subnet
10.10.51.0/24
Subnet
10.10.52.0/24
Web 2Web 1
Subnet
10.10.1.0/24
Subnet
10.10.2.0/24
Application Load Balancer ALB
1 per VPC
Cloud Infrastructure
Web
us-west-1a
Internet Gateway
Router
Network Load Balancer
NLB
AWS Region
Availability Zone
Subnet
us-west-1
subnet x.x.x.x
VPC
VM-Series
WebInstance
Application Load Balancer
ALB
VM-
Series
App 2App 1
Web
ASG
App
ASG
AWS LambdaAWS CloudWatch
VM-
Series
VM-
Series
Web 3
Network Load Balancer NLB
1 per Auto Scaling Group
Web 4
VM-
Series
Auto
Scaling
PAN OS
API
App 3
Firewall
ASG
VM-
Series
Alarm
Sessions Sessions
AWS CloudFormation Template
(CFT)
AWS
API
Firewall
Metrics
