The slides for my session about Dapr the Distributed Application Runtime in the Code.Digest("Microservices"); meetup. https://www.meetup.com/Code-Digest/events/271747418/

1. Moaid Hathot
Software Architect
Moaid.hathot@outlook.com
@MoaidHathot
https://moaid.codes
https://meetup.com/Code-Digest
Dapr: Distributed Application Runtime

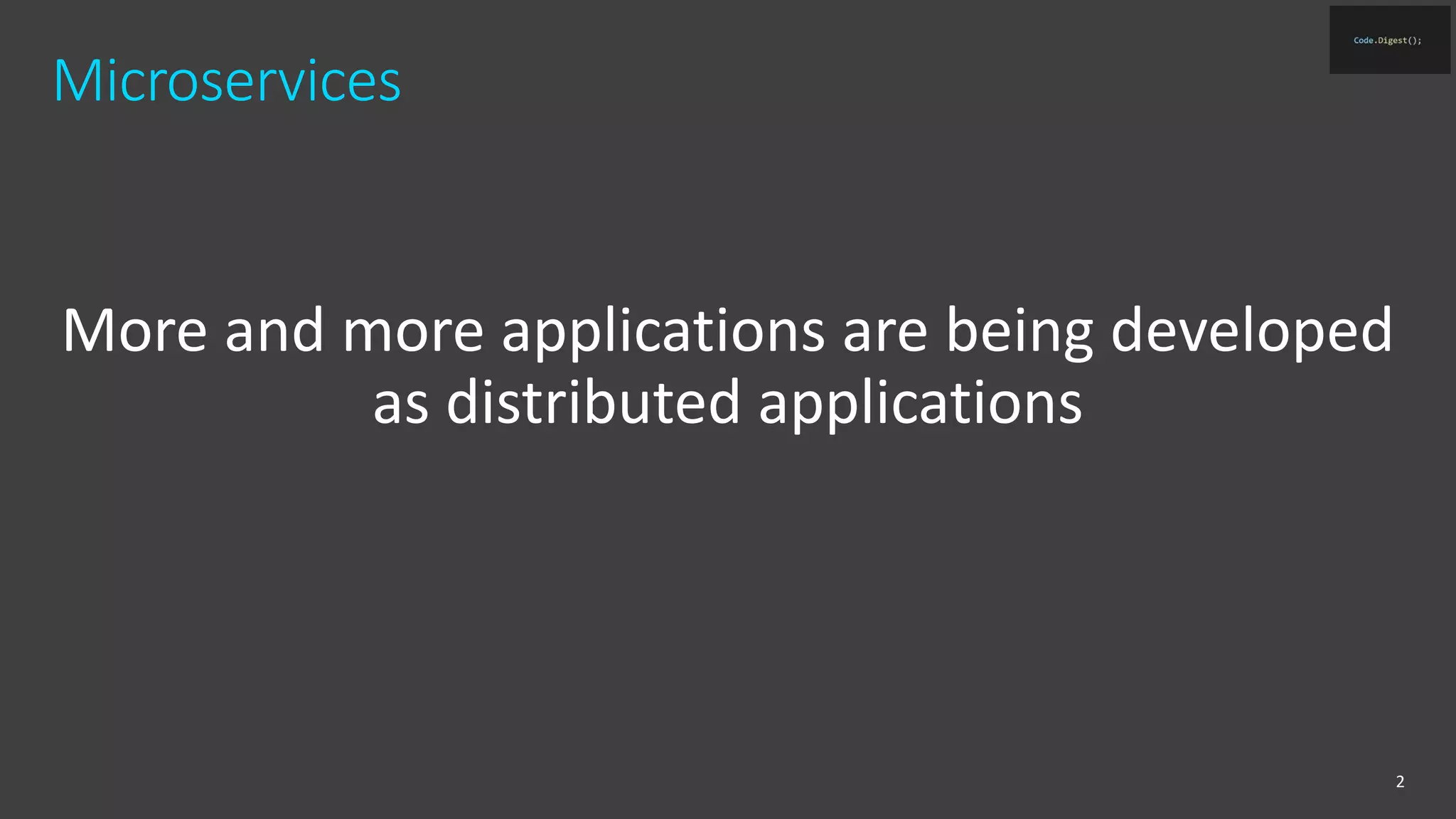

2. Microservices
More and more applications are being developed
as distributed applications
2

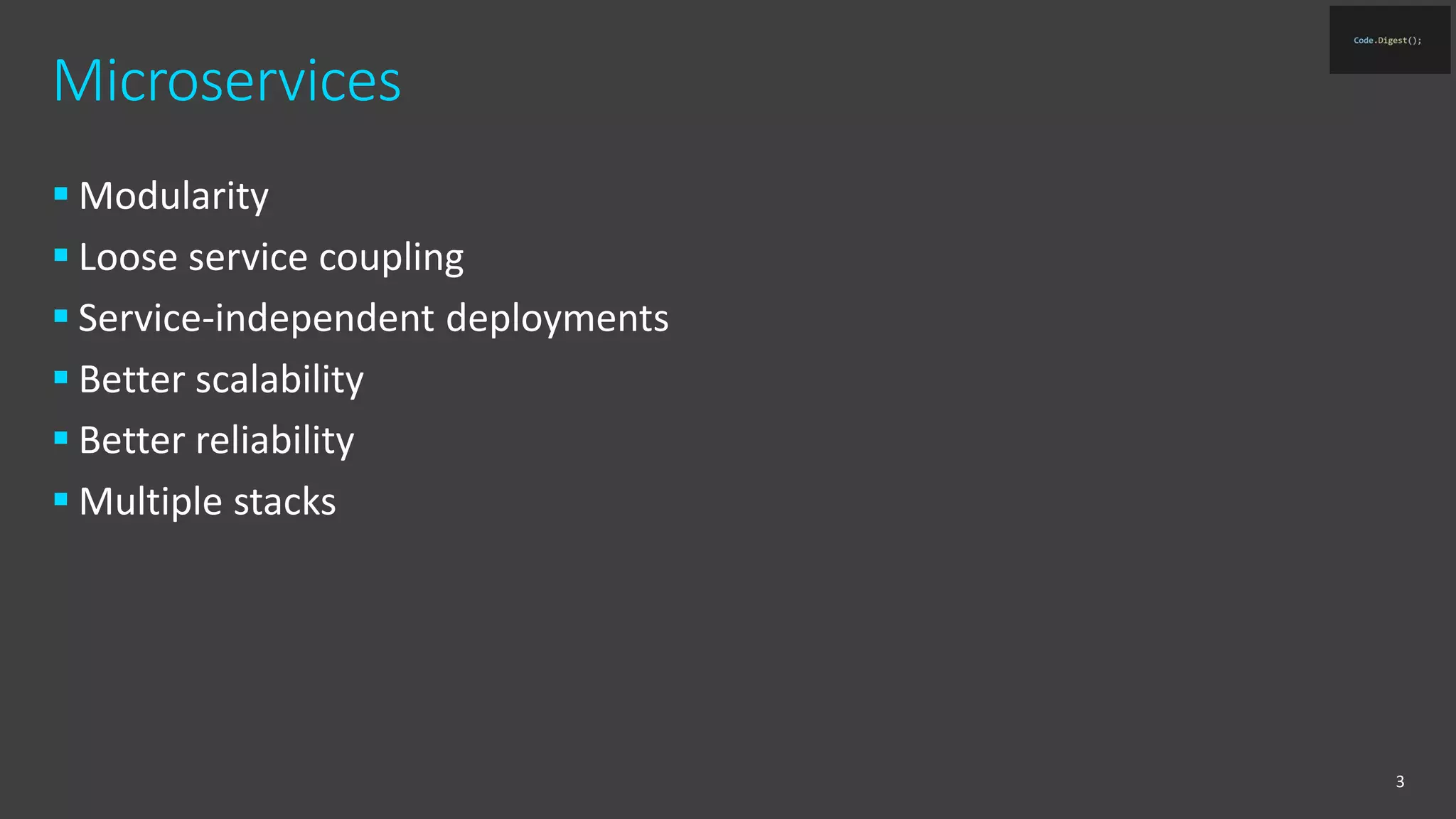

3. Microservices
 Modularity
 Loose service coupling
 Service-independent deployments
 Better scalability
 Better reliability
 Multiple stacks
3

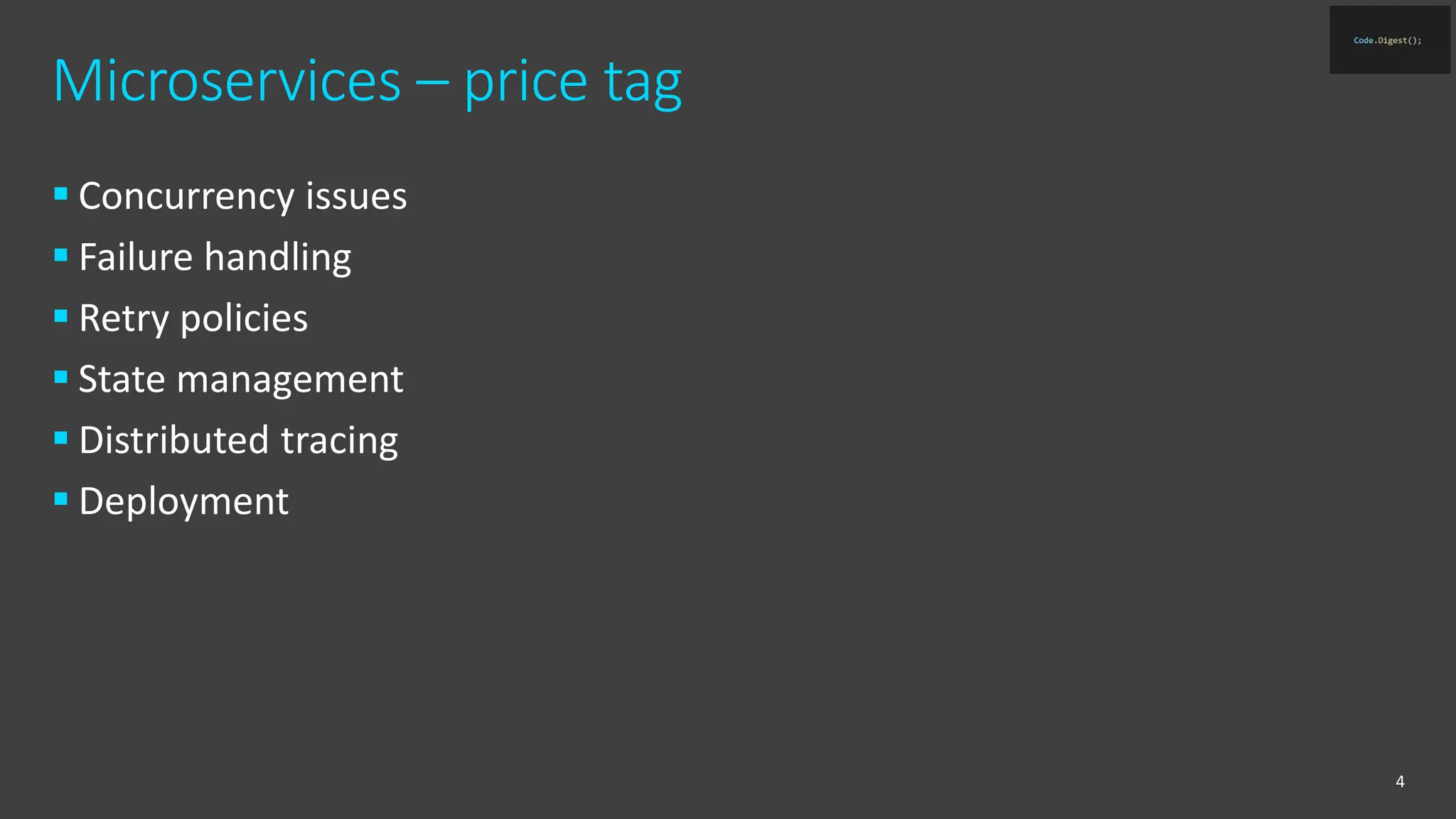

4. Microservices – price tag
 Concurrency issues
 Failure handling
 Retry policies
 State management
 Distributed tracing
 Deployment
4

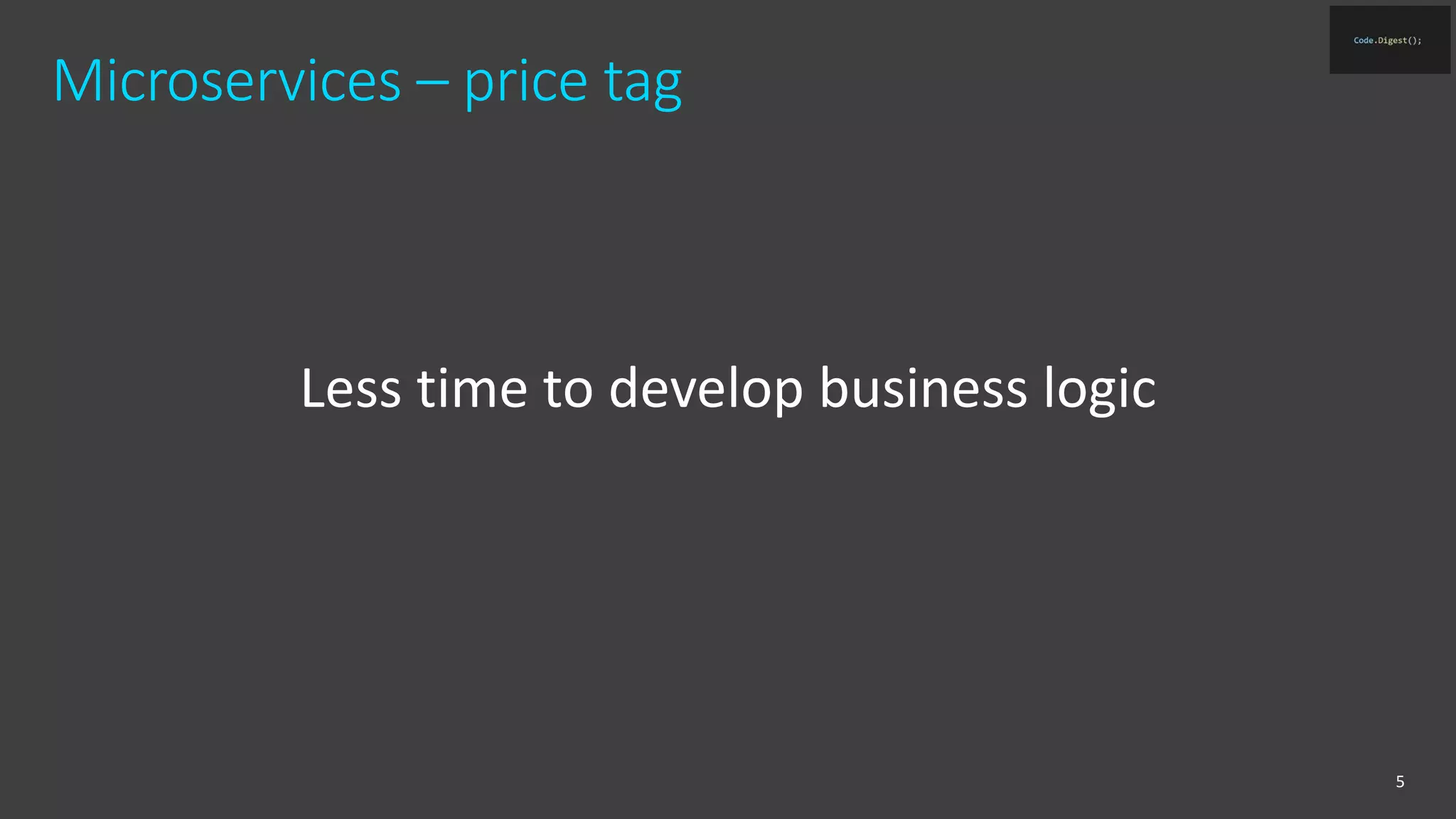

5. Microservices – price tag
Less time to develop business logic
5

6. Microservices – price tag
6

7. About Moaid Hathot
7
Moaid Hathot
 Software Architect & Code Jedi @ CodeValue
 Software Craftsmanship advocate
 Clean Coder
 Co-Founder of Code.Digest();
 OzCode Evangelist

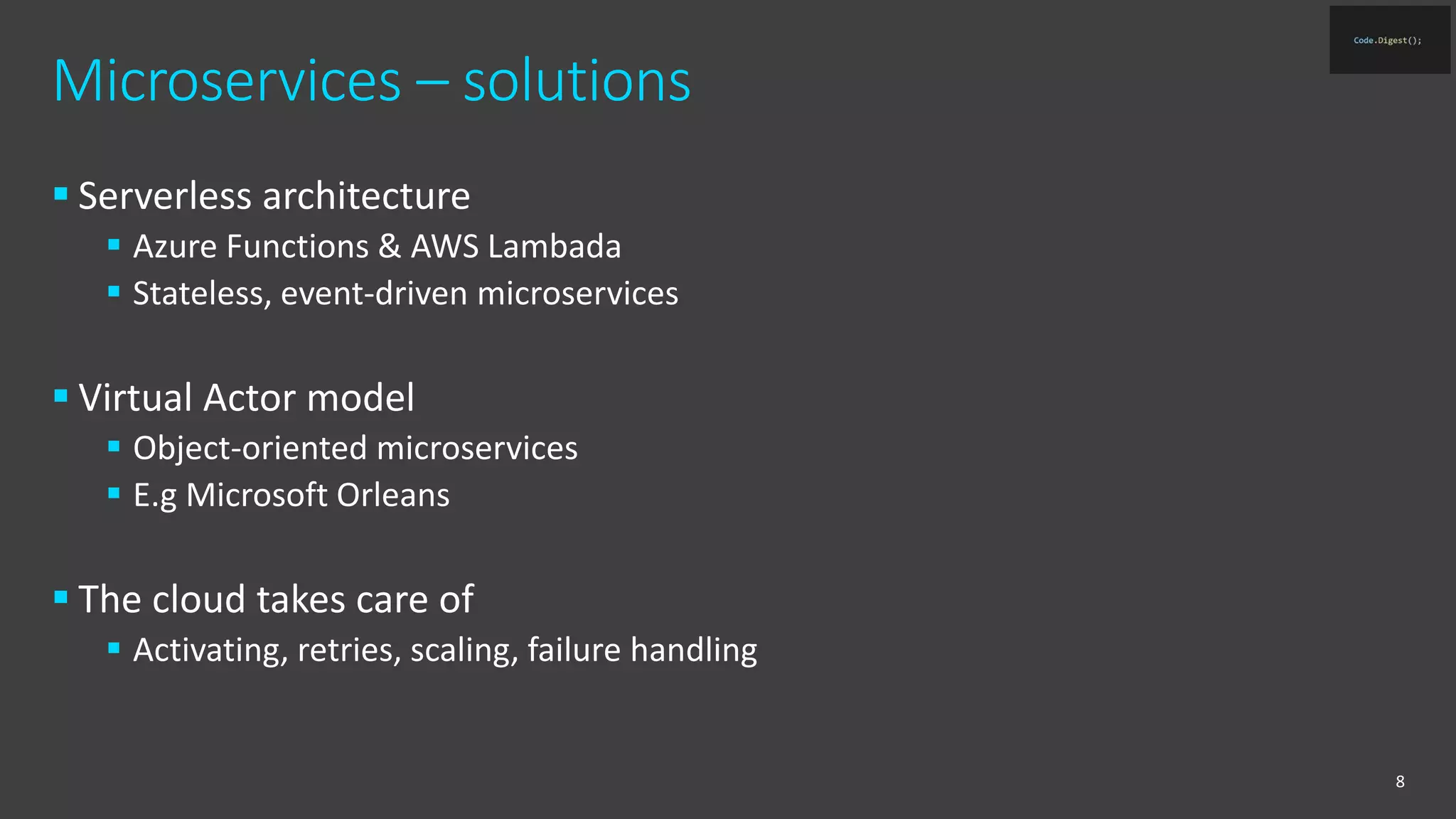

8. Microservices – solutions
 Serverless architecture
 Azure Functions & AWS Lambada
 Stateless, event-driven microservices
 Virtual Actor model
 Object-oriented microservices
 E.g Microsoft Orleans
 The cloud takes care of
 Activating, retries, scaling, failure handling
8

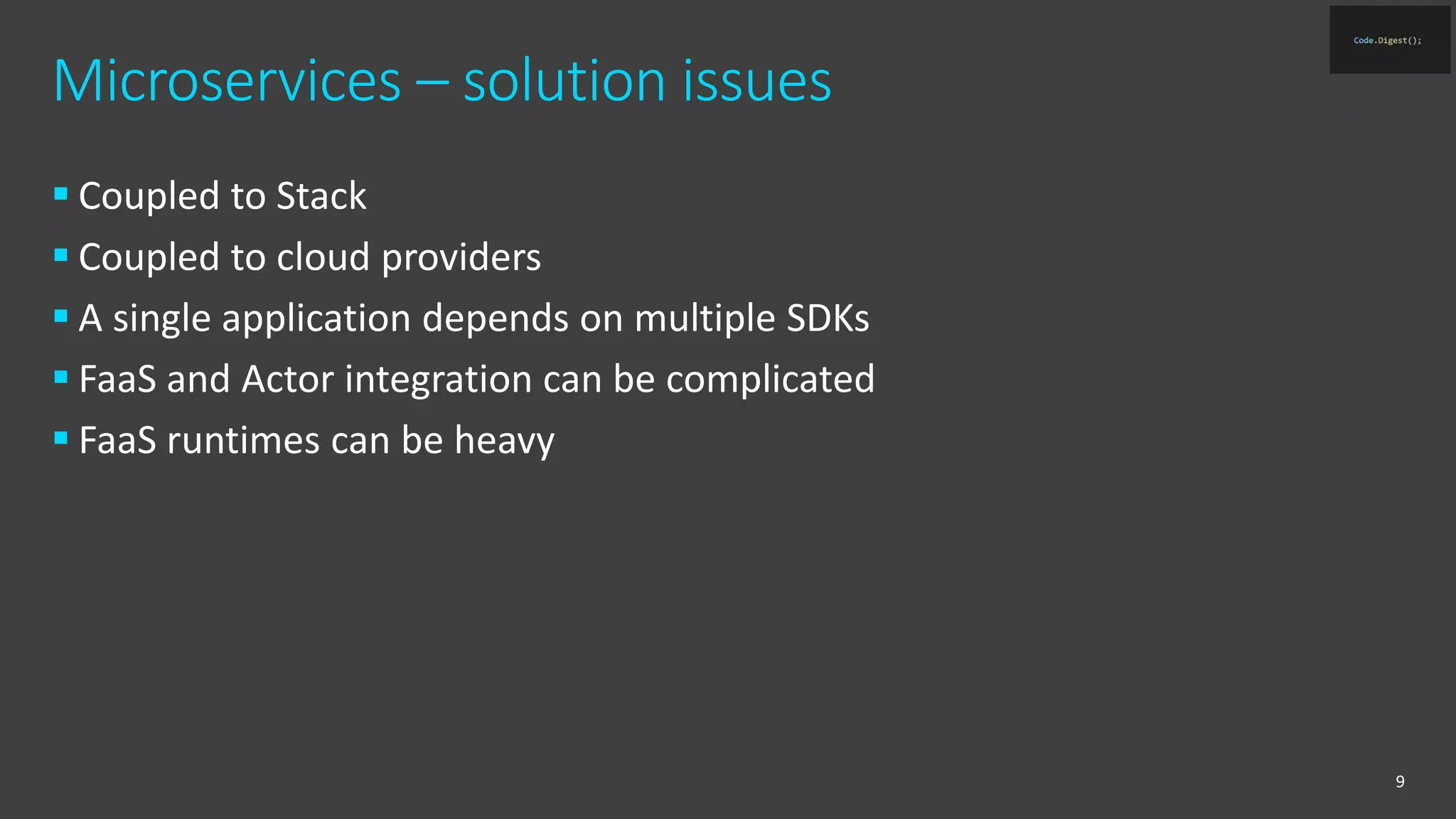

9. Microservices – solution issues
 Coupled to Stack
 Coupled to cloud providers
 A single application depends on multiple SDKs
 FaaS and Actor integration can be complicated
 FaaS runtimes can be heavy
9

10. Dapr
Distributed Application Runtime
10

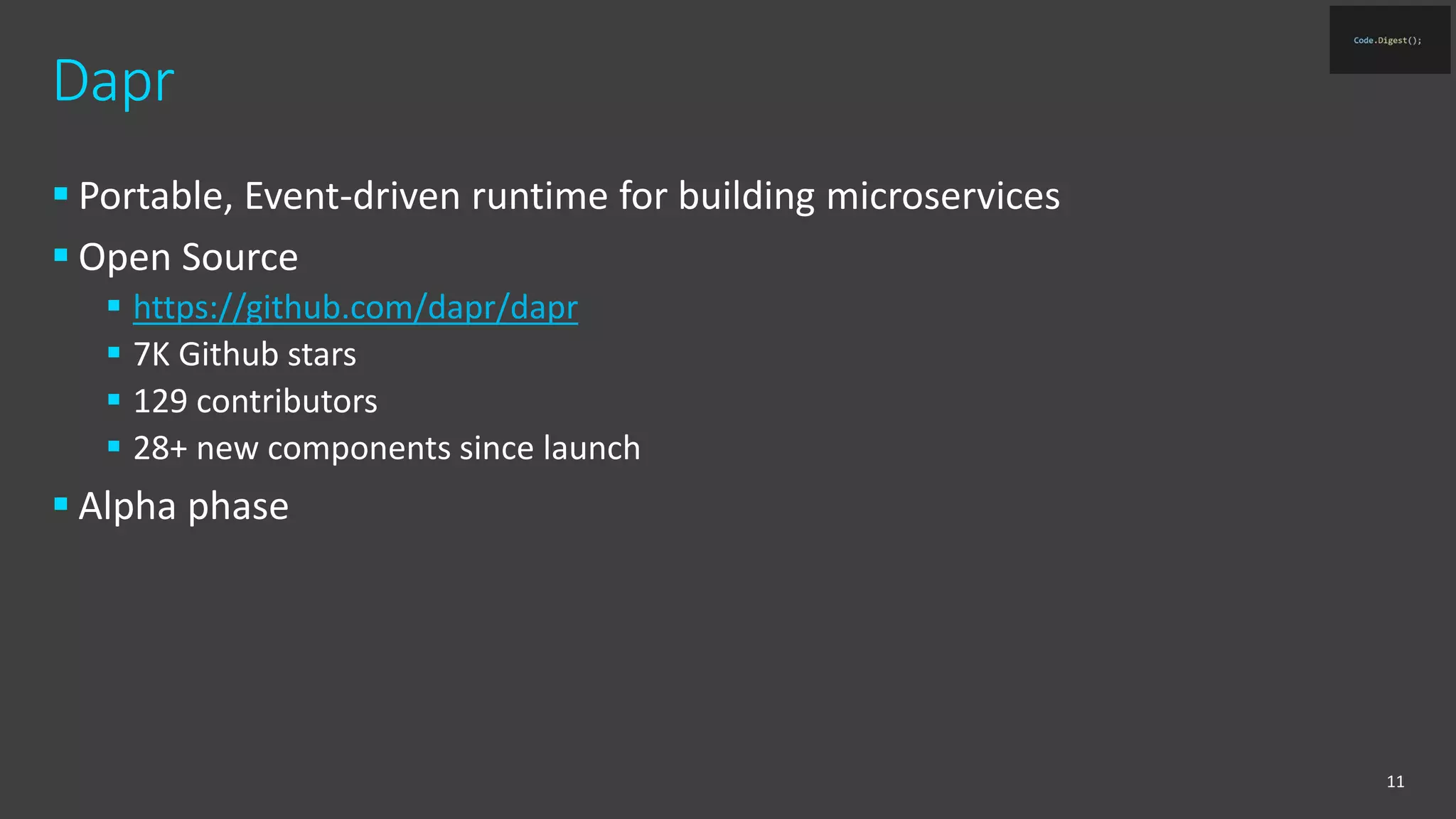

11. Dapr
 Portable, Event-driven runtime for building microservices
 Open Source
 https://github.com/dapr/dapr
 7K Github stars
 129 contributors
 28+ new components since launch
 Alpha phase
11

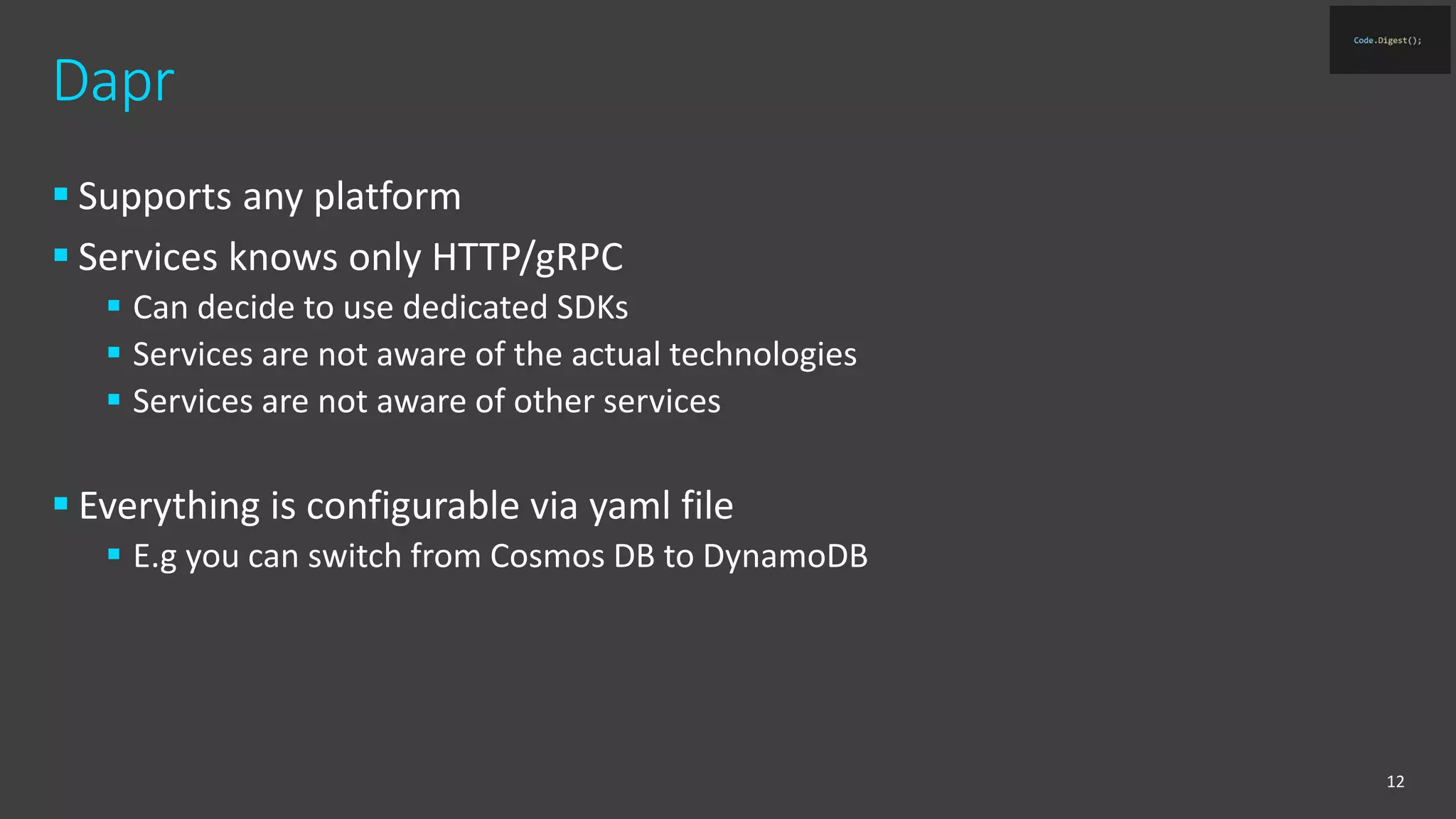

12. Dapr
 Supports any platform
 Services knows only HTTP/gRPC
 Can decide to use dedicated SDKs
 Services are not aware of the actual technologies
 Services are not aware of other services
 Everything is configurable via yaml file
 E.g you can switch from Cosmos DB to DynamoDB
12

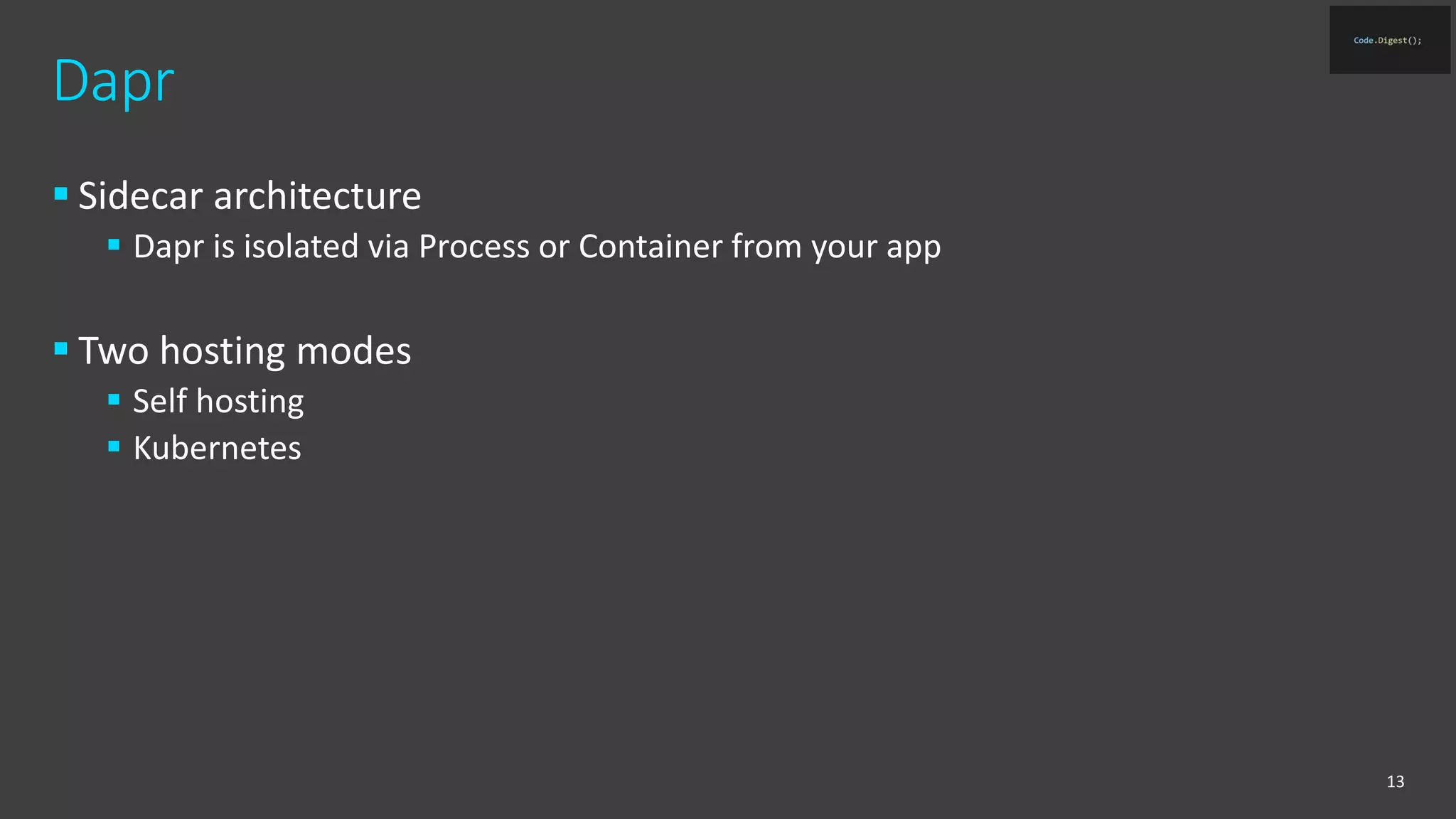

13. Dapr
 Sidecar architecture
 Dapr is isolated via Process or Container from your app
 Two hosting modes
 Self hosting
 Kubernetes
13

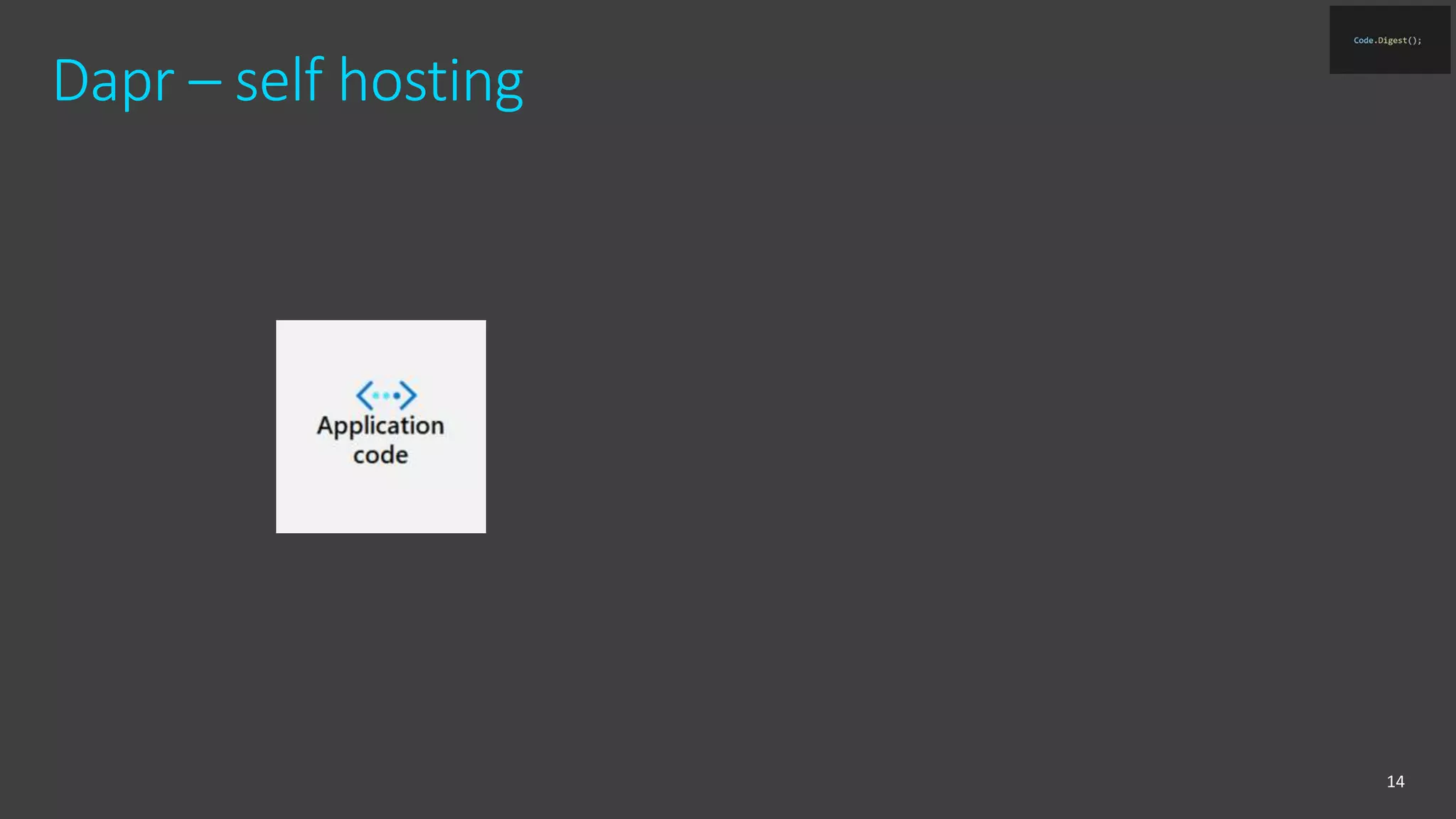

14. Dapr – self hosting
14

15. Dapr – self hosting
15

16. Dapr – self hosting
16
HTTP/gRPC

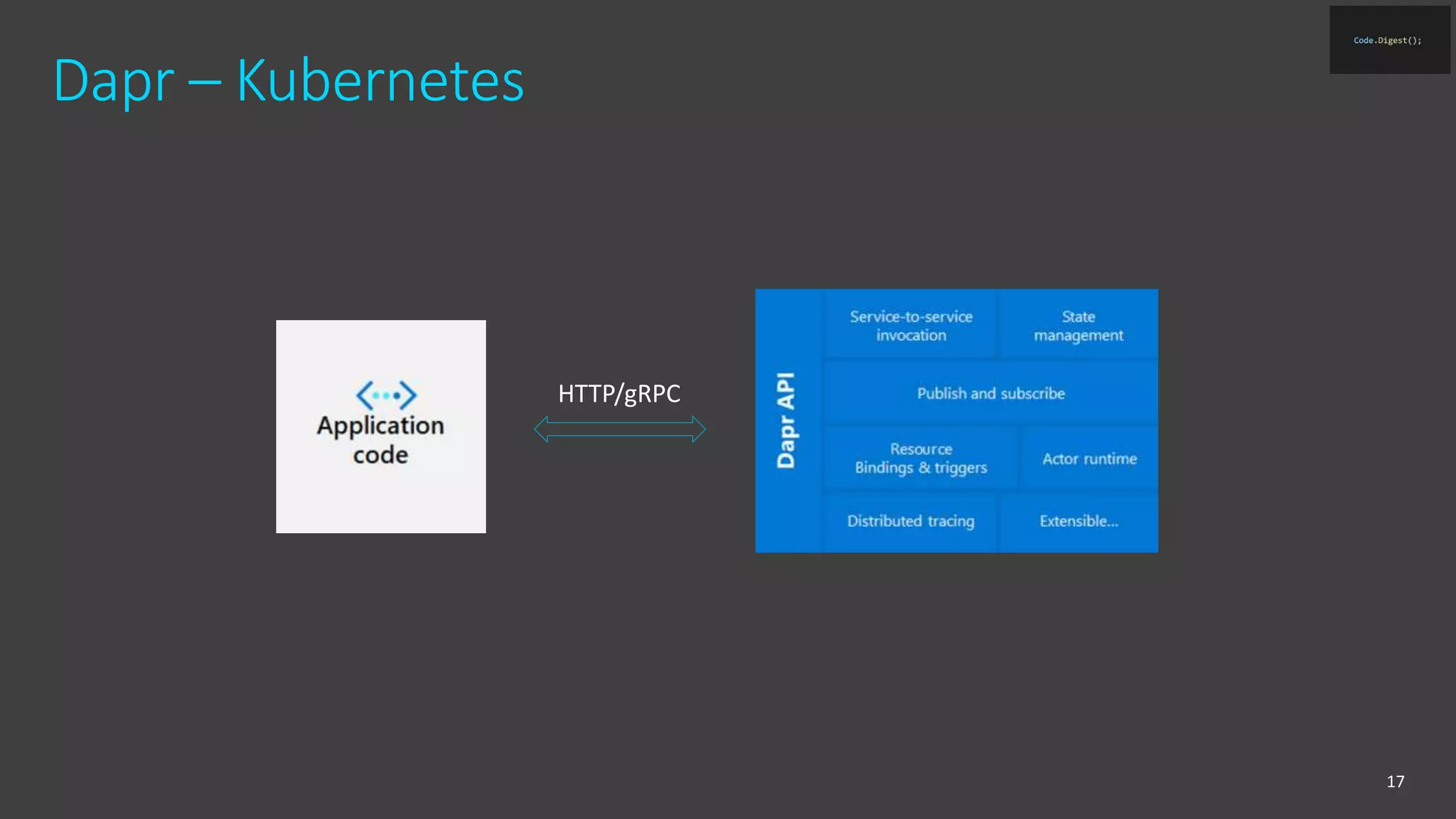

17. Dapr – Kubernetes
17
HTTP/gRPC

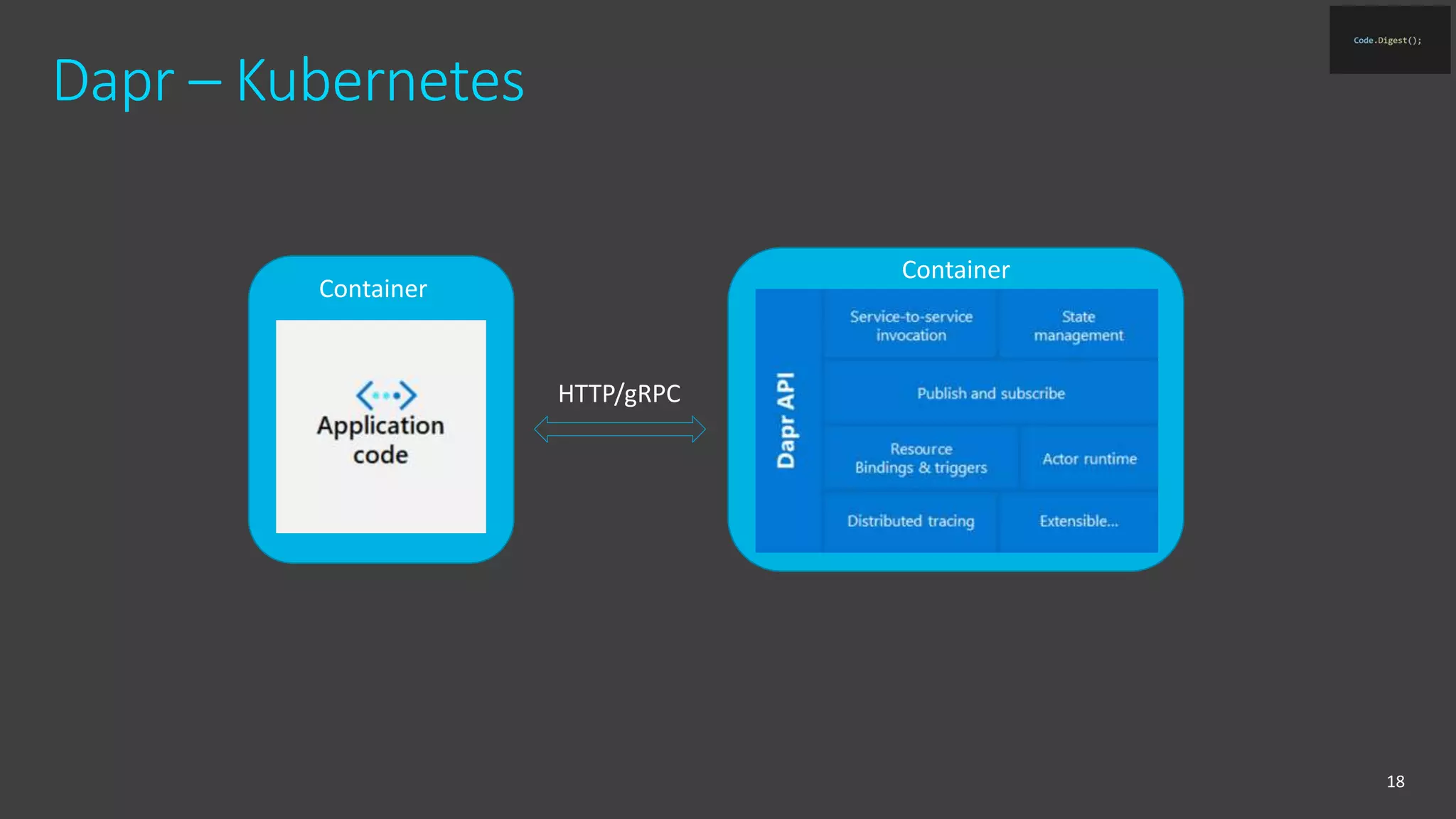

18. Dapr – Kubernetes
18
HTTP/gRPC
Container
Container

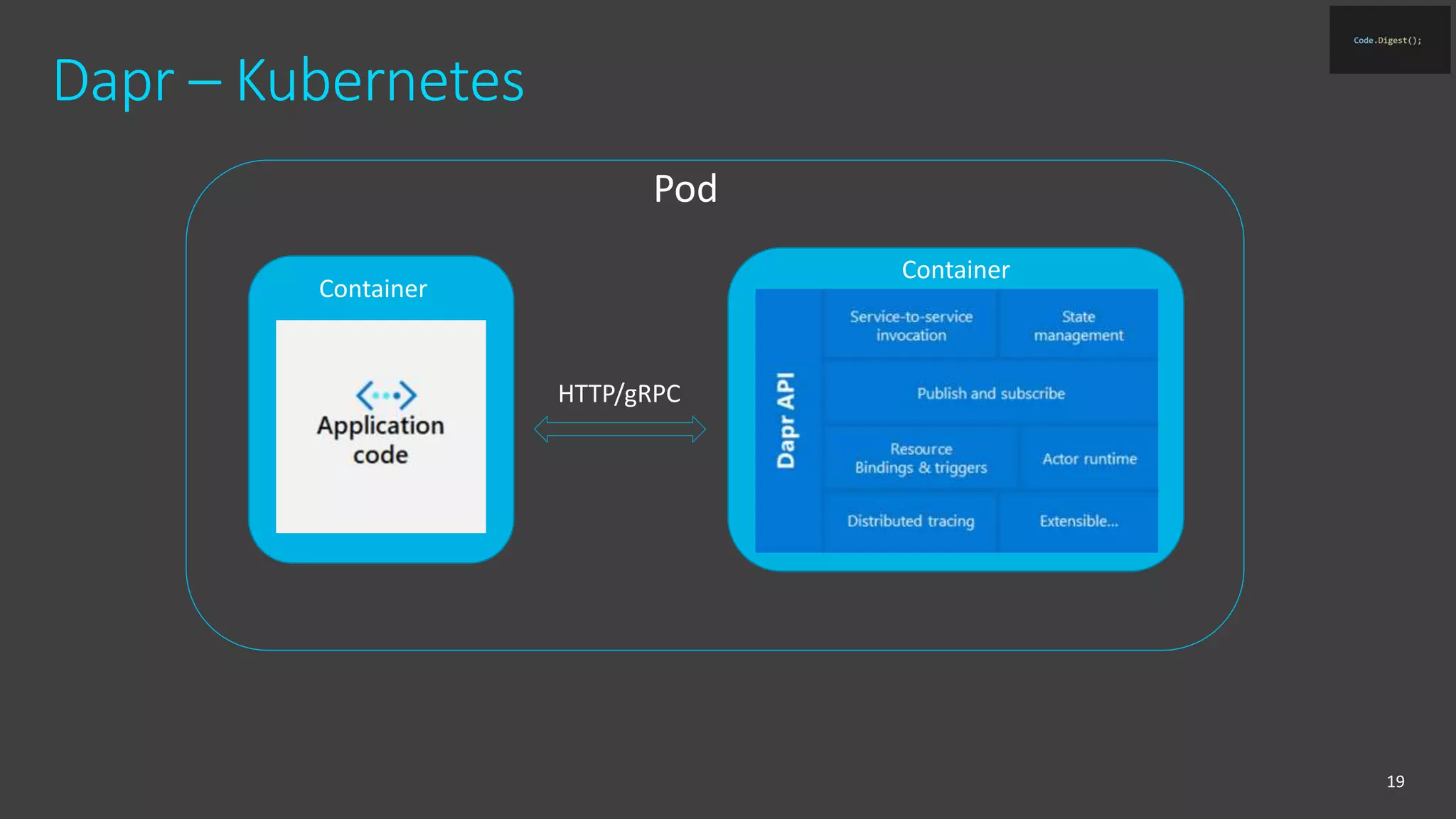

19. Dapr – Kubernetes
19
HTTP/gRPC
Container
Container
Pod

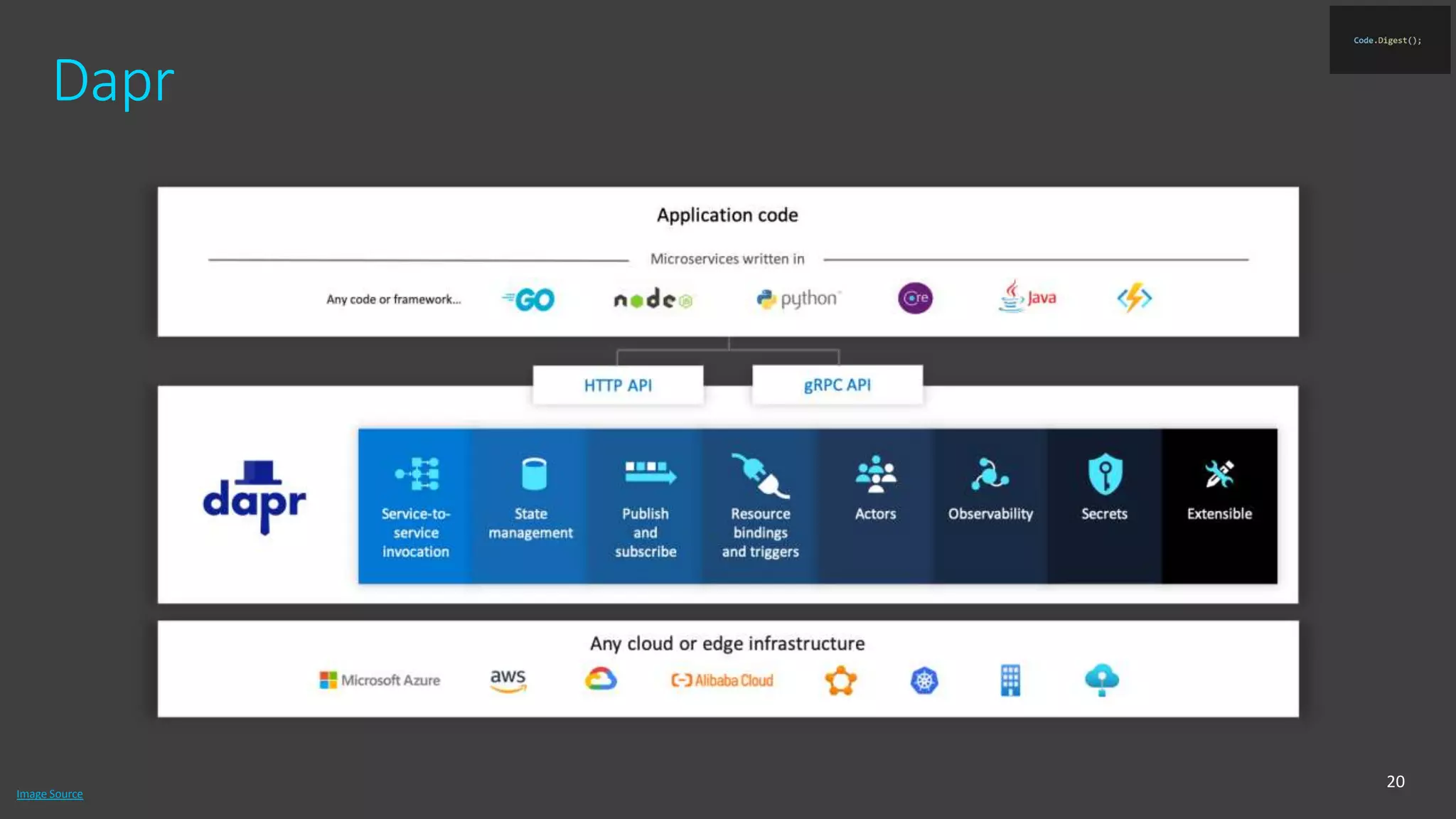

20. Dapr
20
Image Source

21. Dapr – building blocks
21
Image Source

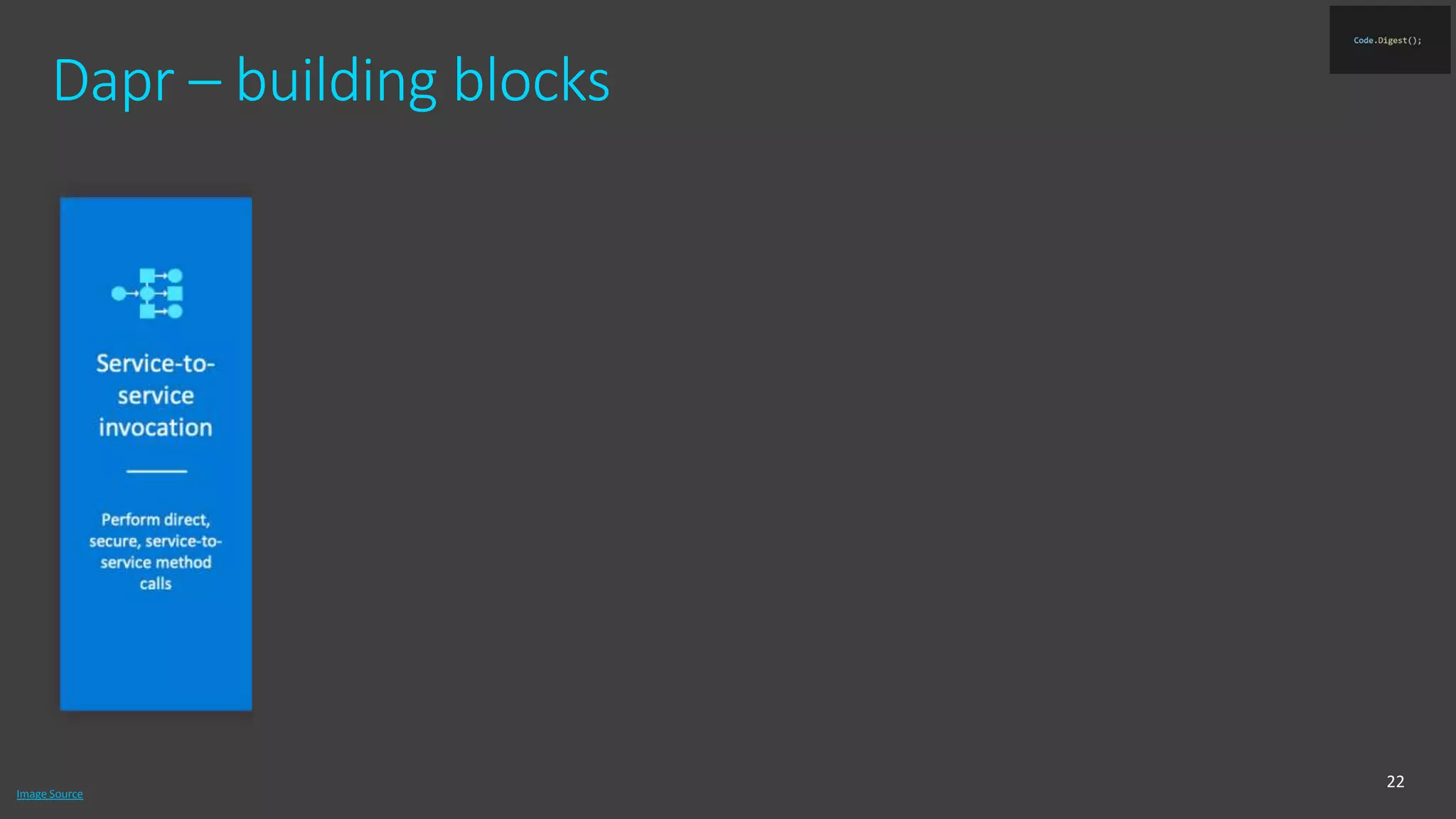

22. Dapr – building blocks
22
Image Source

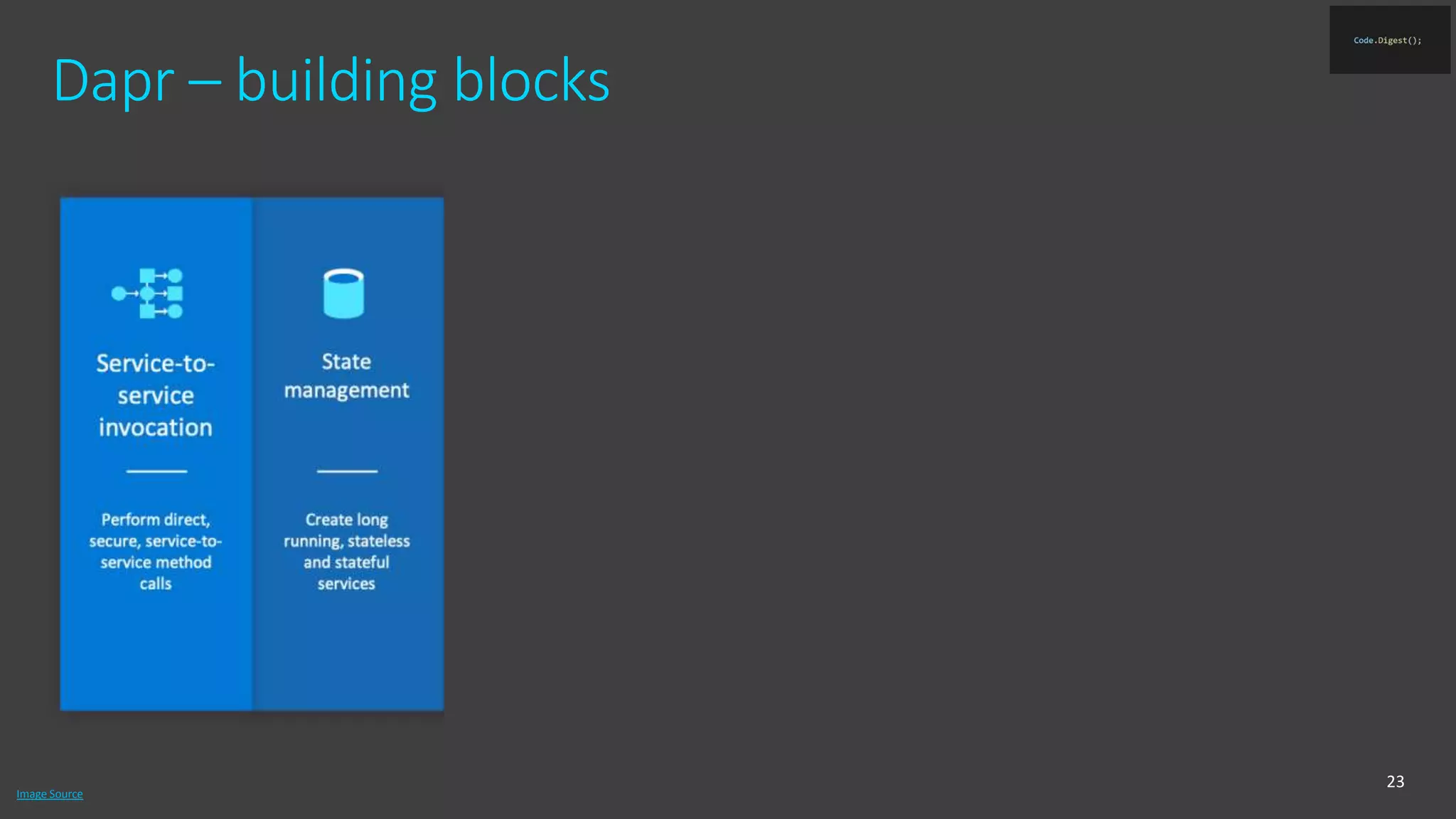

23. Dapr – building blocks
23
Image Source

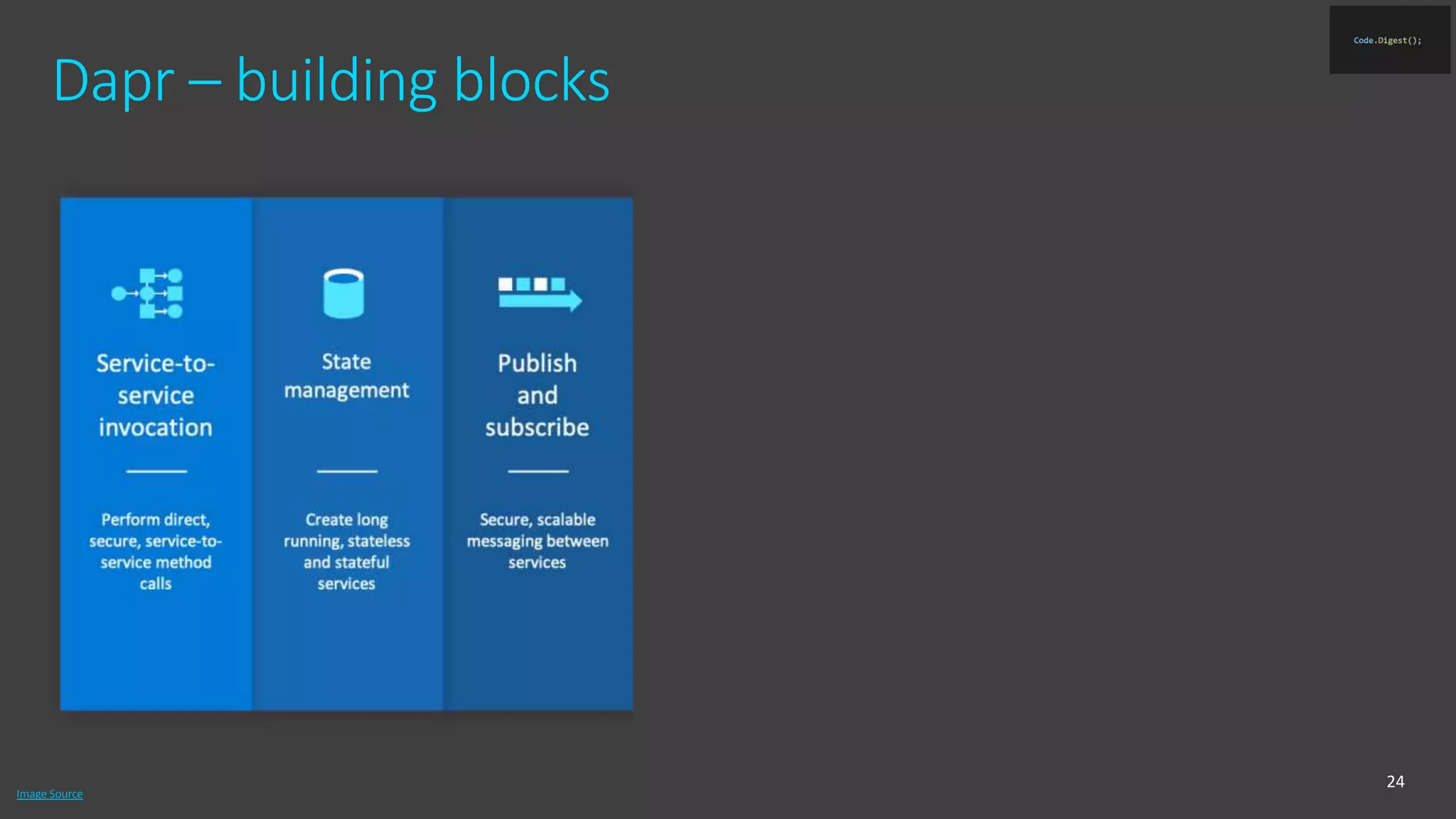

24. Dapr – building blocks
24
Image Source

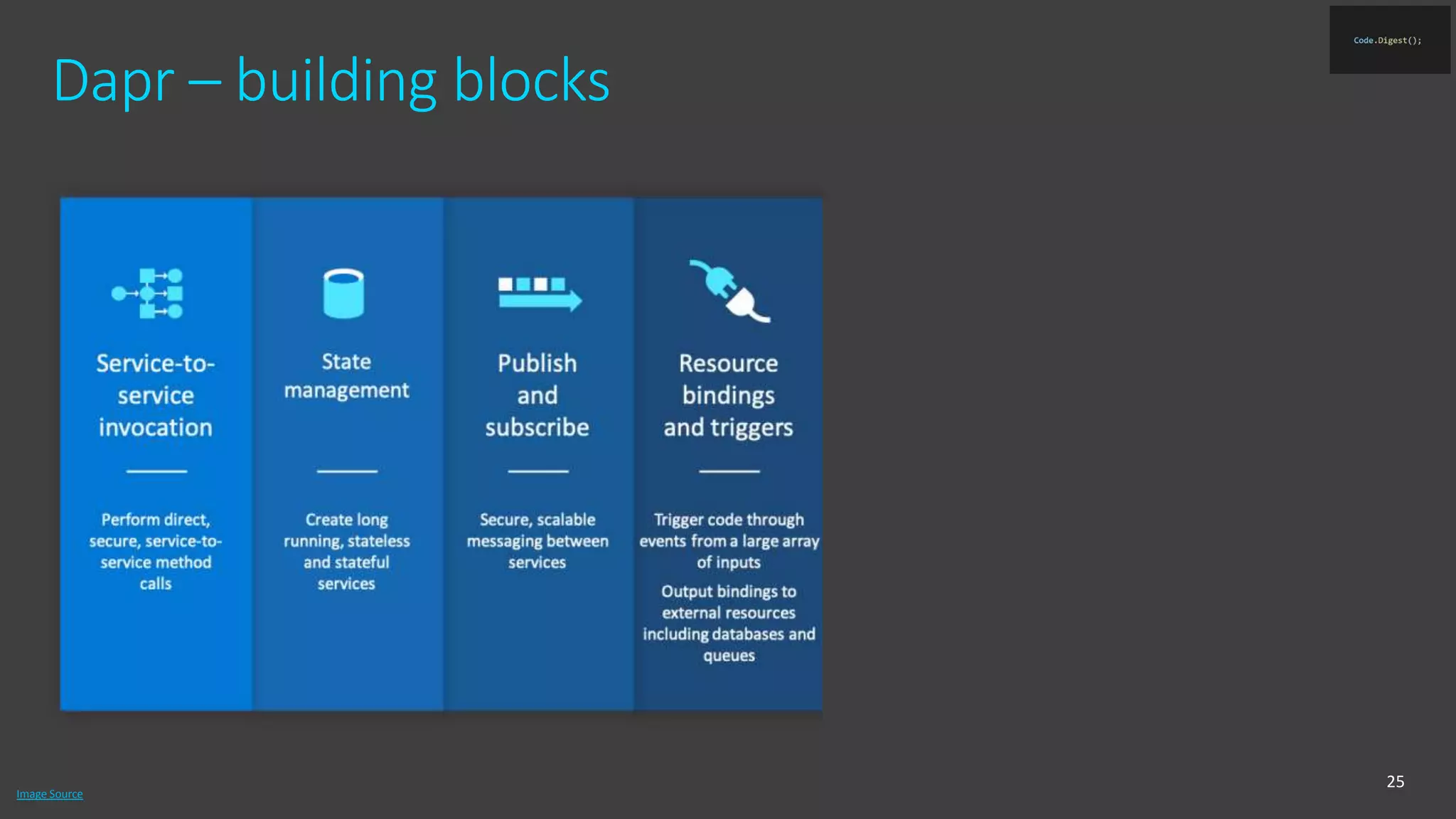

25. Dapr – building blocks
25
Image Source

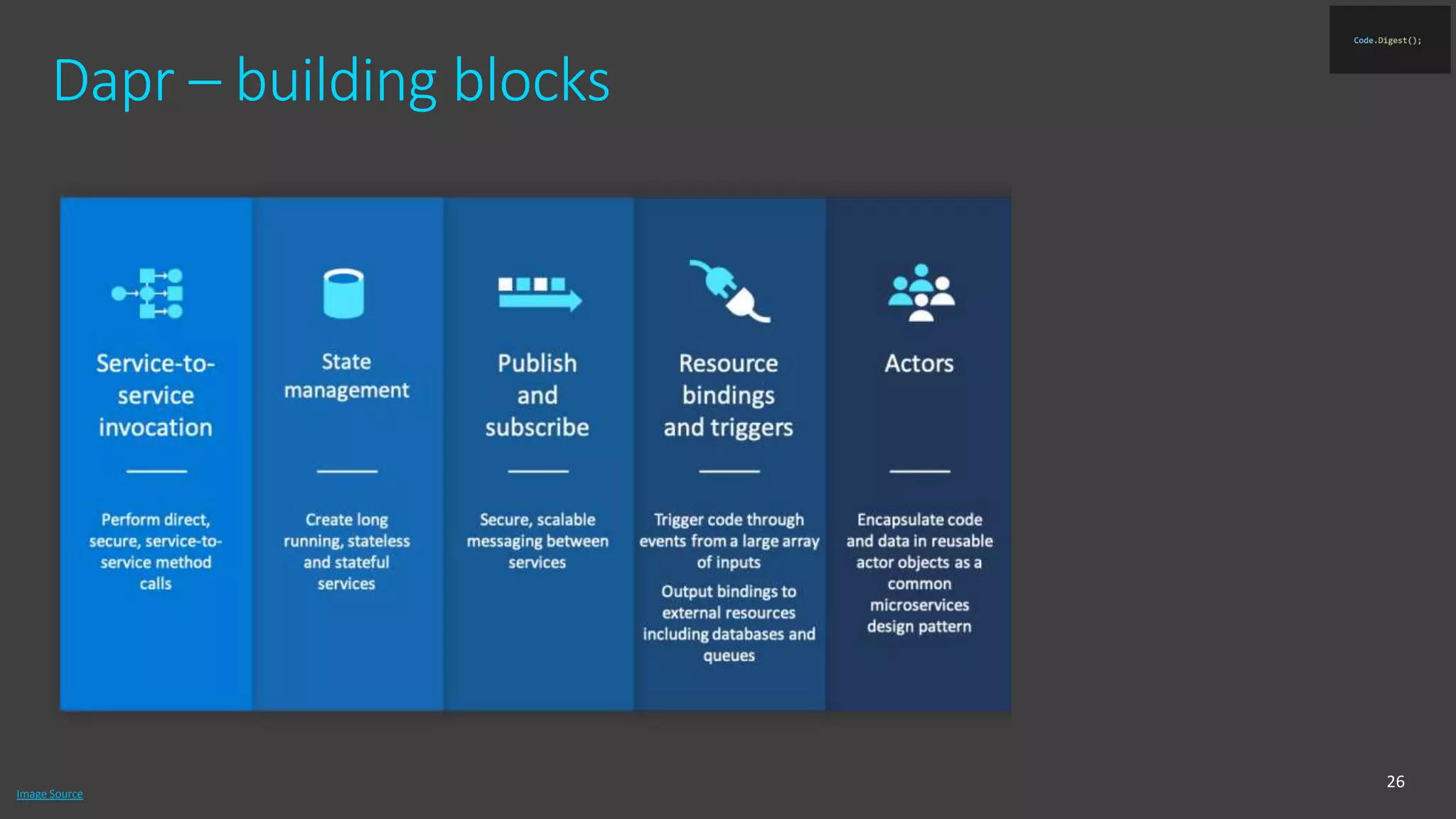

26. Dapr – building blocks
26
Image Source

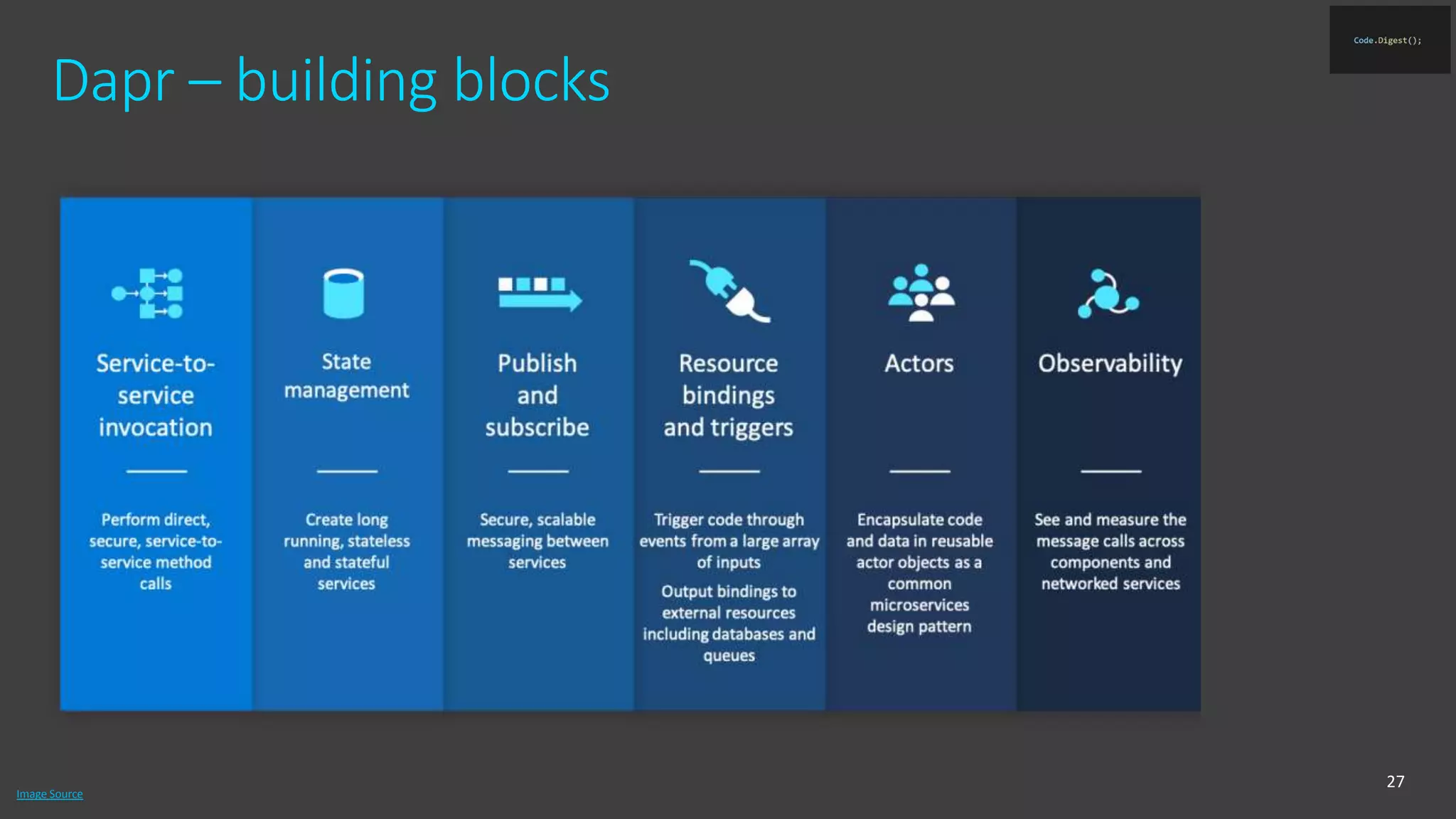

27. Dapr – building blocks
27
Image Source

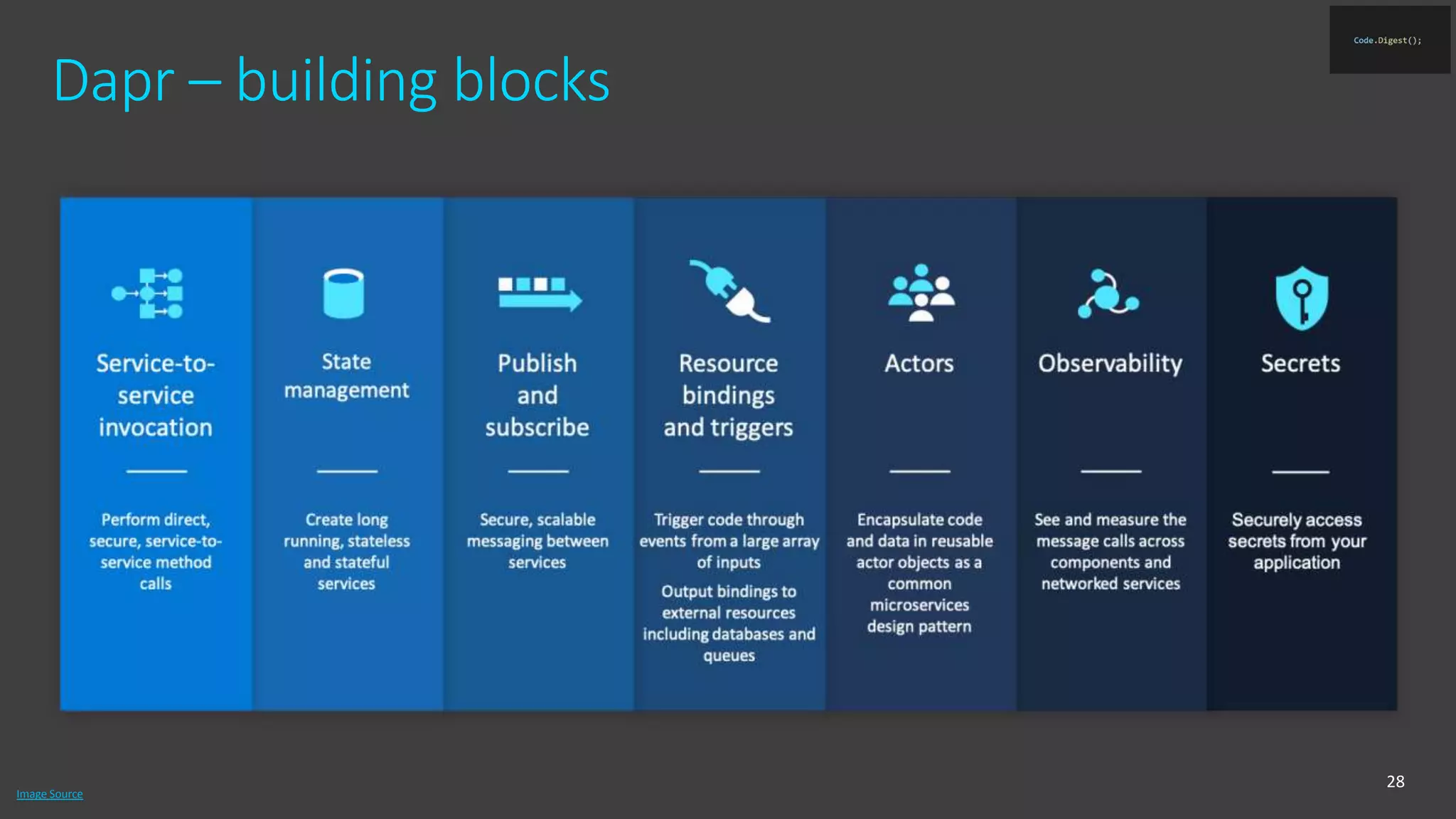

28. Dapr – building blocks
28
Image Source

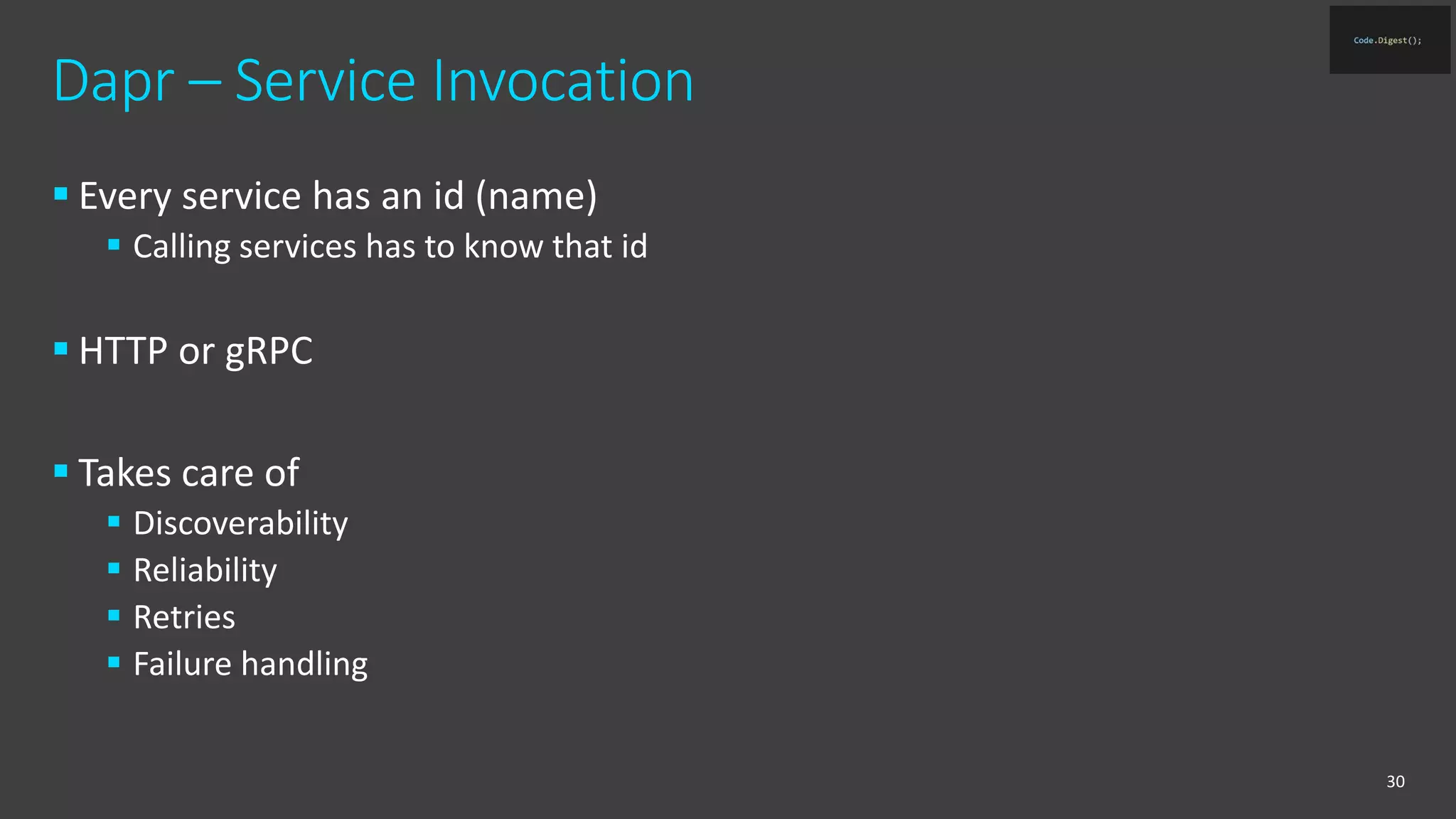

29. Dapr – Service Invocation
 Every service has an id (name)
 Calling services has to know that id
 HTTP or gRPC
 Takes care of
 Discoverability
 Reliability
 Retries
 Failure handling
30

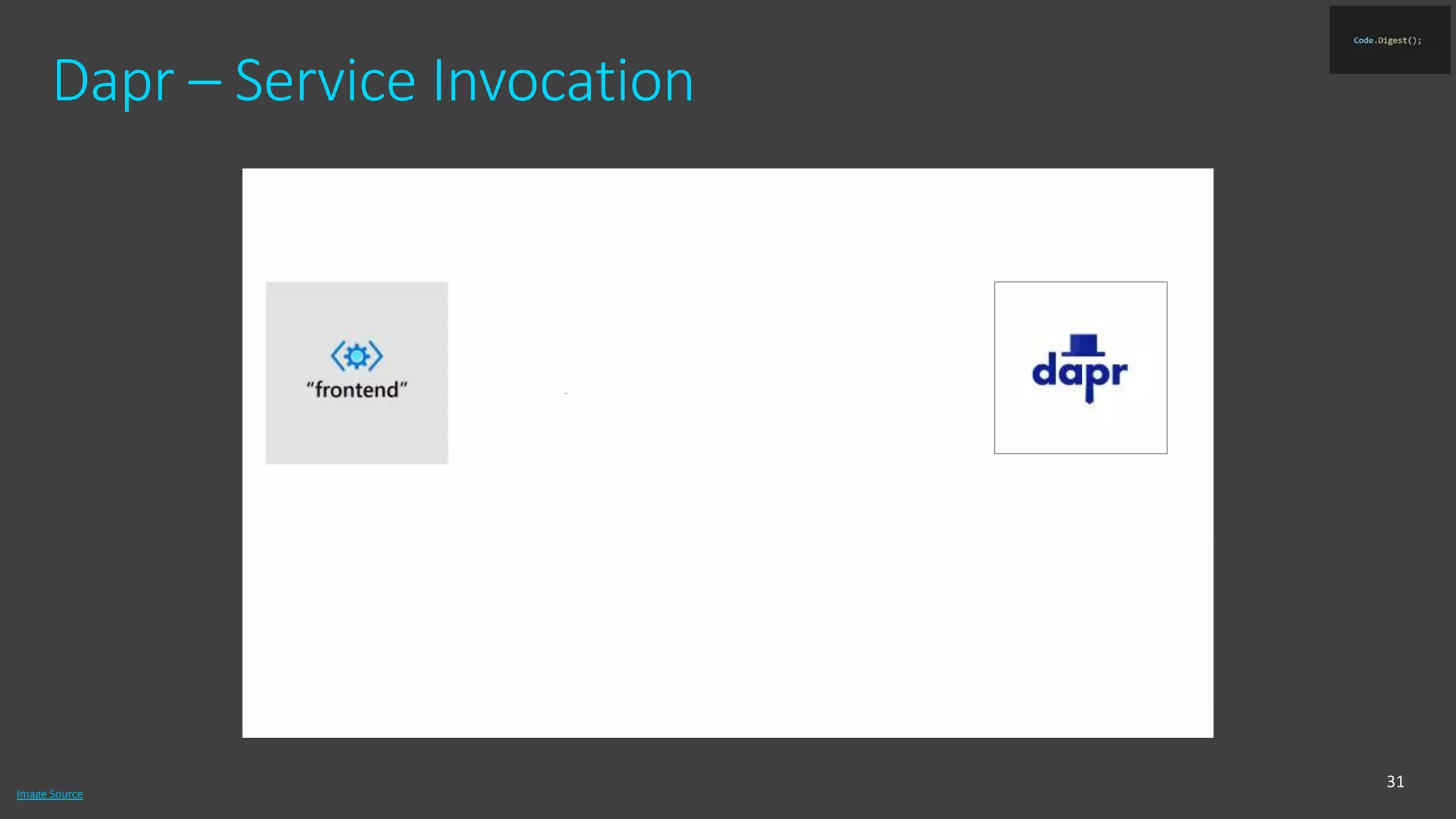

30. Dapr – Service Invocation
31
Image Source

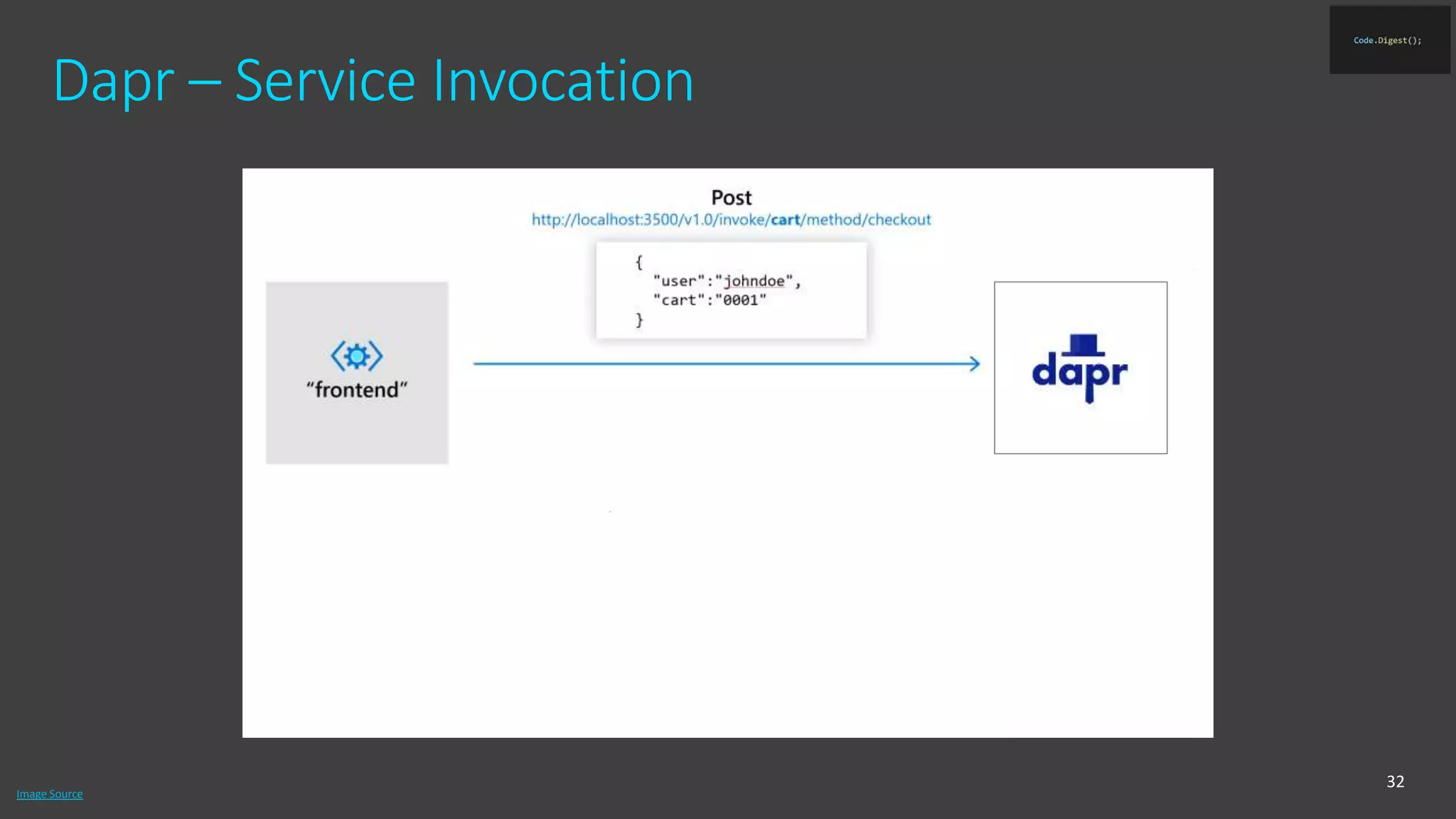

31. Dapr – Service Invocation
32
Image Source

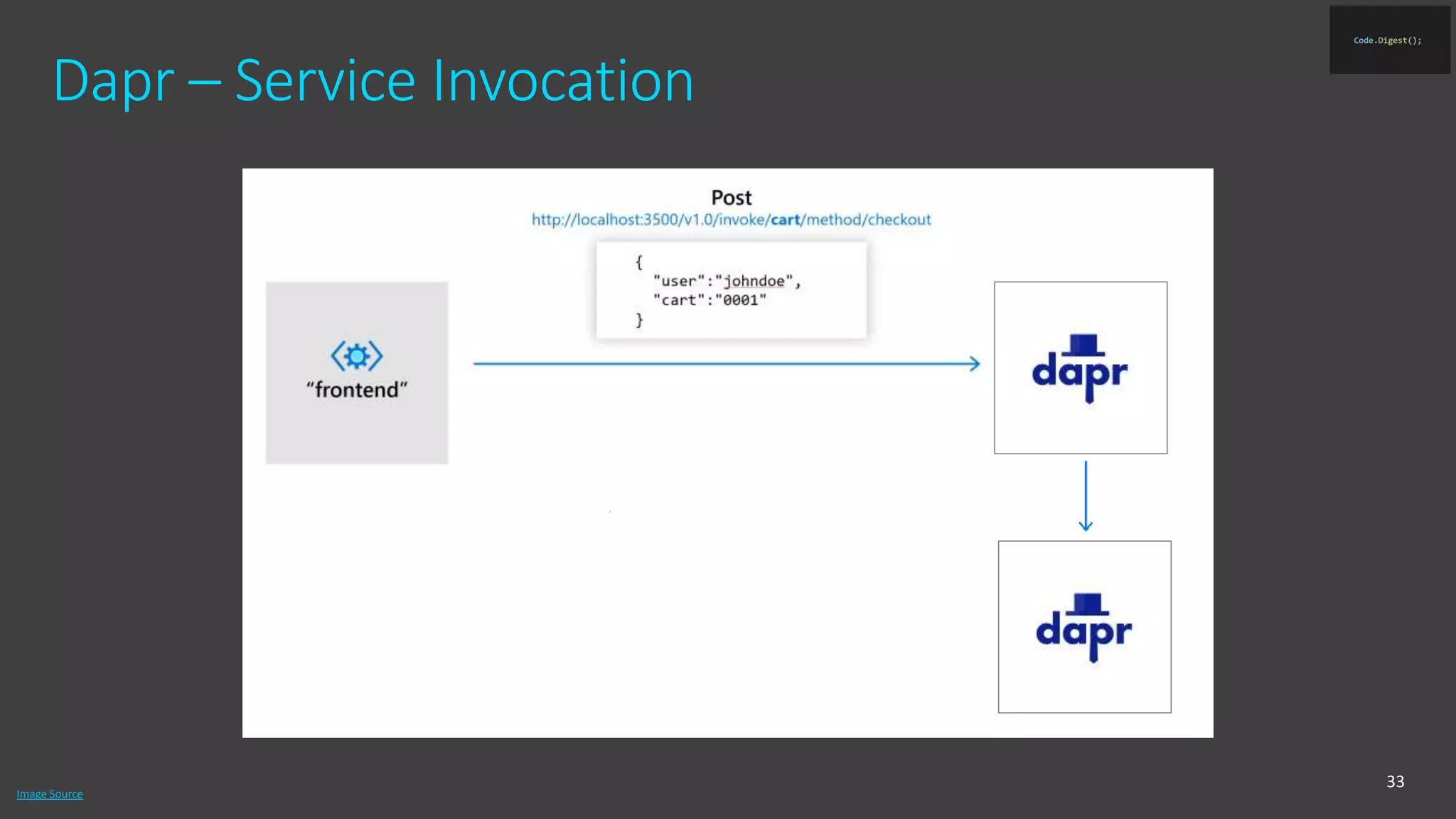

32. Dapr – Service Invocation
33
Image Source

33. Dapr – Service Invocation
34
Image Source

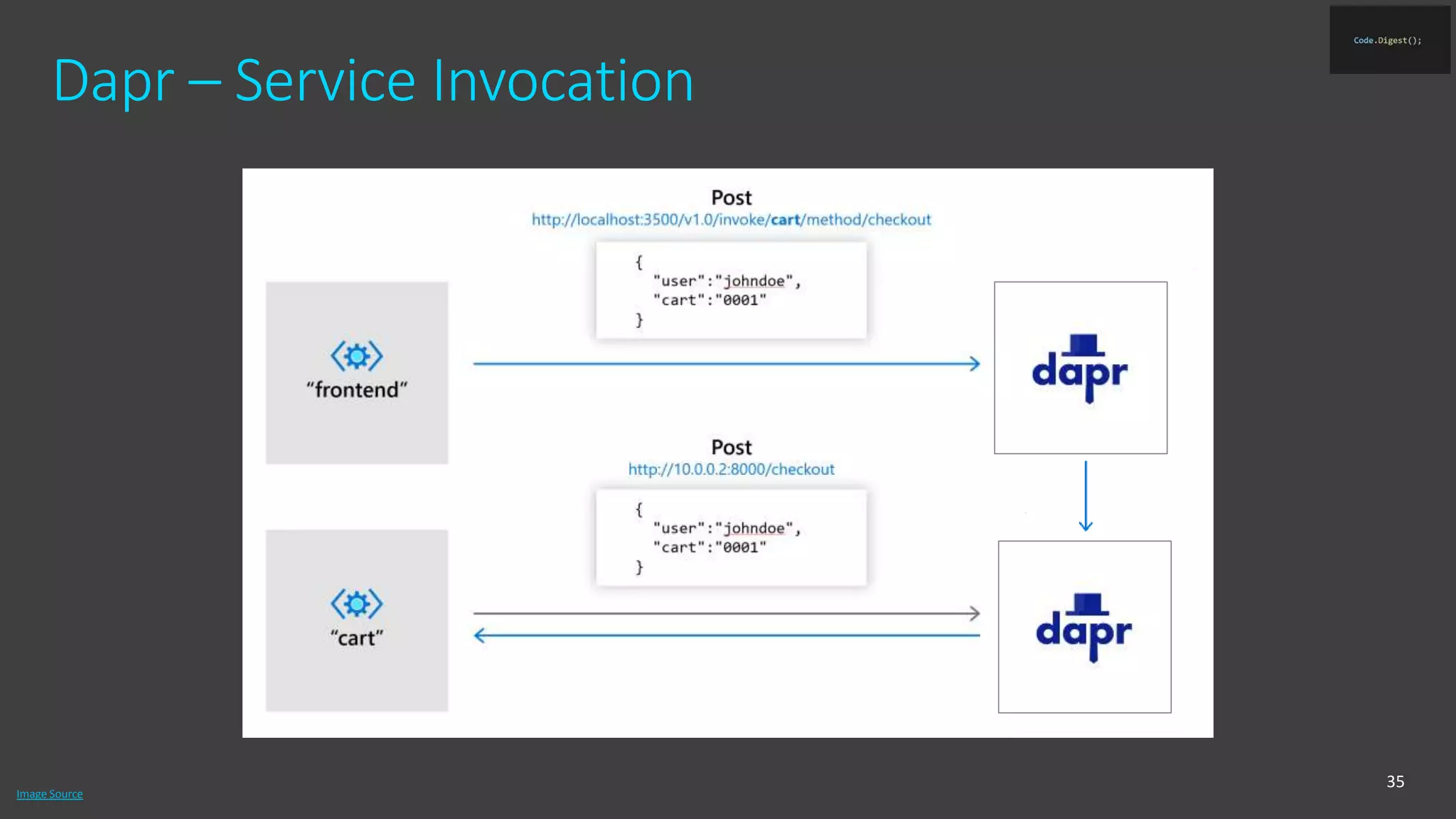

34. Dapr – Service Invocation
35
Image Source

35. Dapr – Service Invocation
36
Image Source

36. Dapr – Service Invocation
37
Image Source

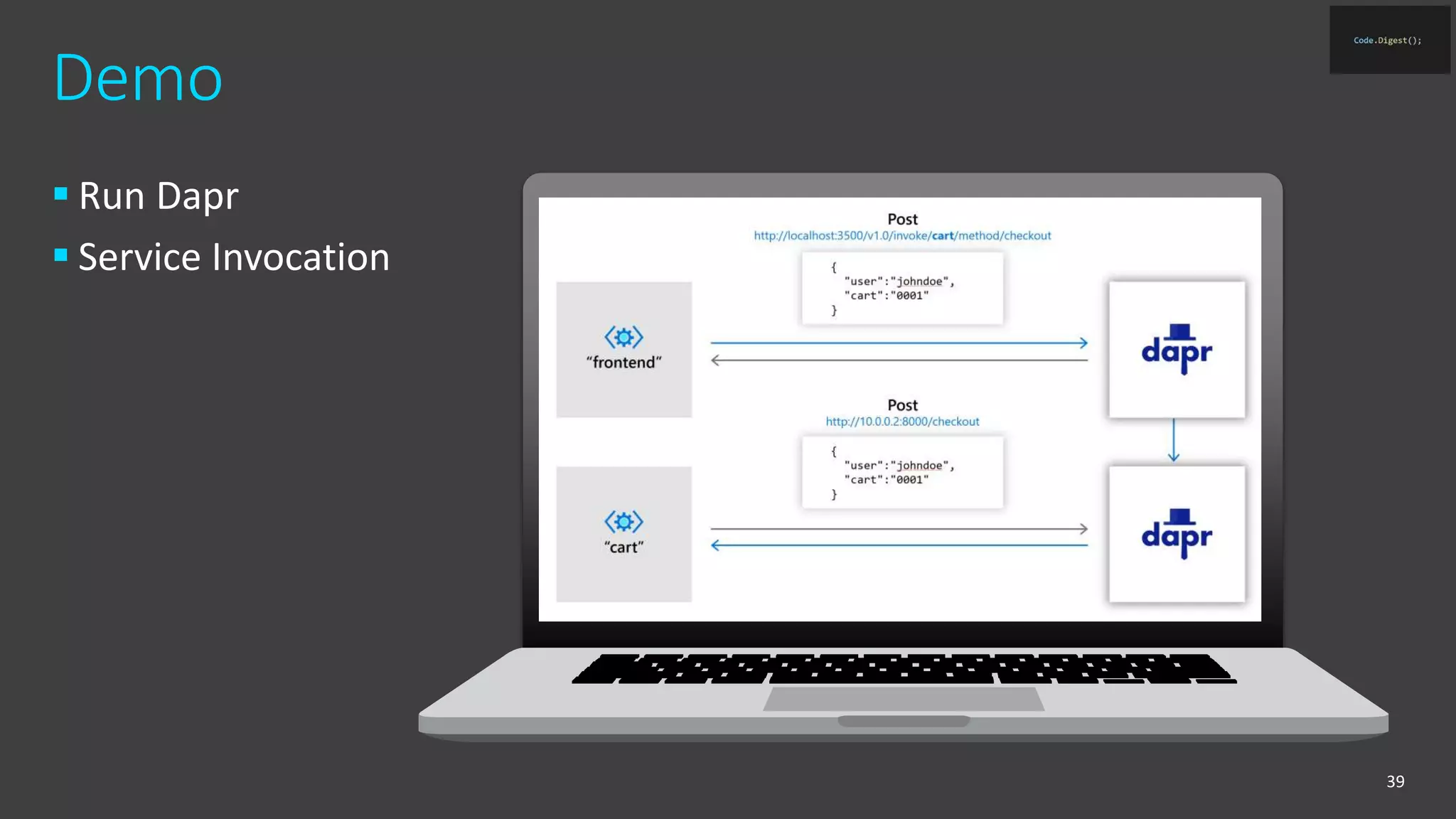

37. Demo
 Run Dapr
 Service Invocation
39

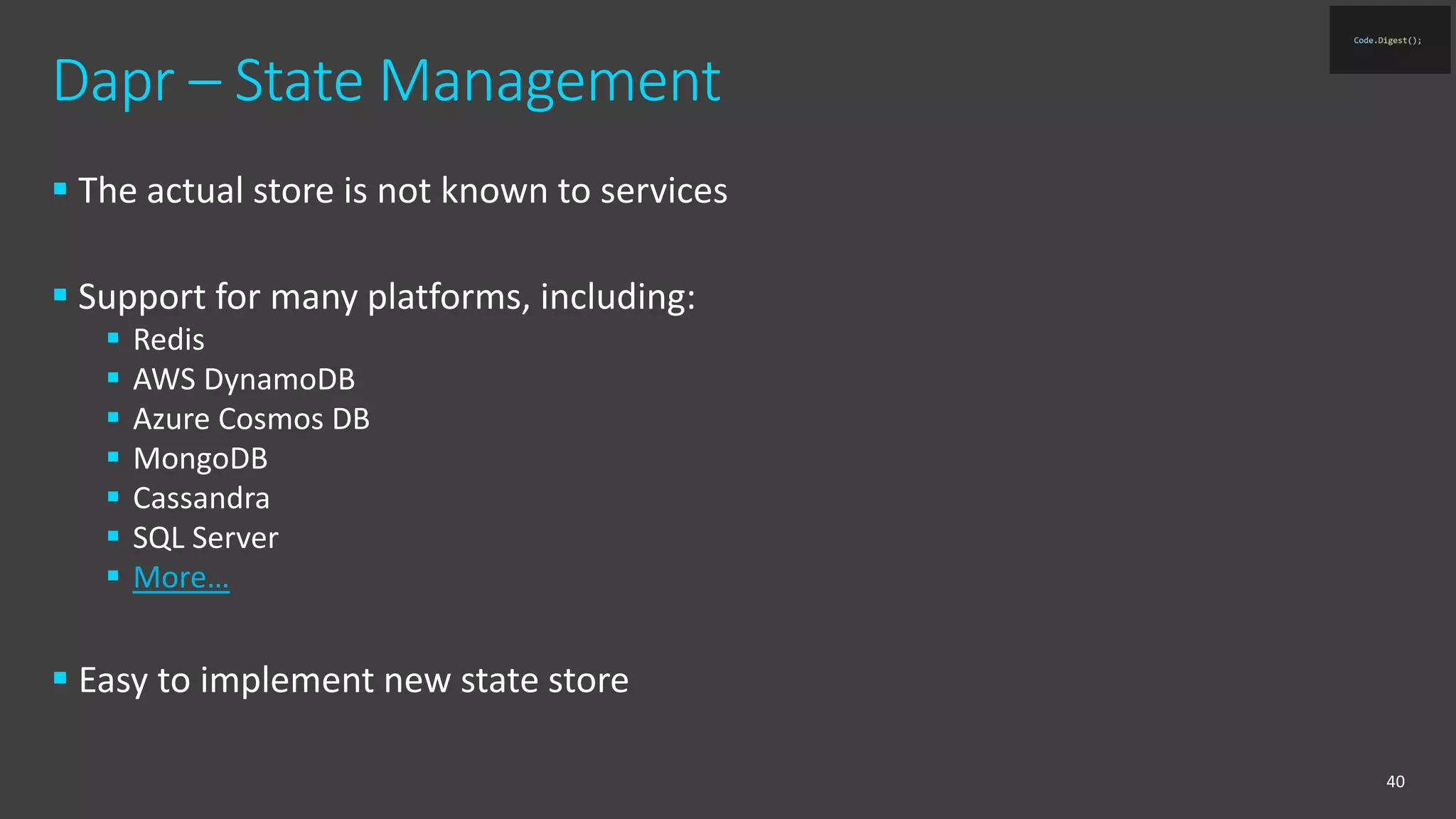

38. Dapr – State Management
 The actual store is not known to services
 Support for many platforms, including:
 Redis
 AWS DynamoDB
 Azure Cosmos DB
 MongoDB
 Cassandra
 SQL Server
 More…
 Easy to implement new state store
40

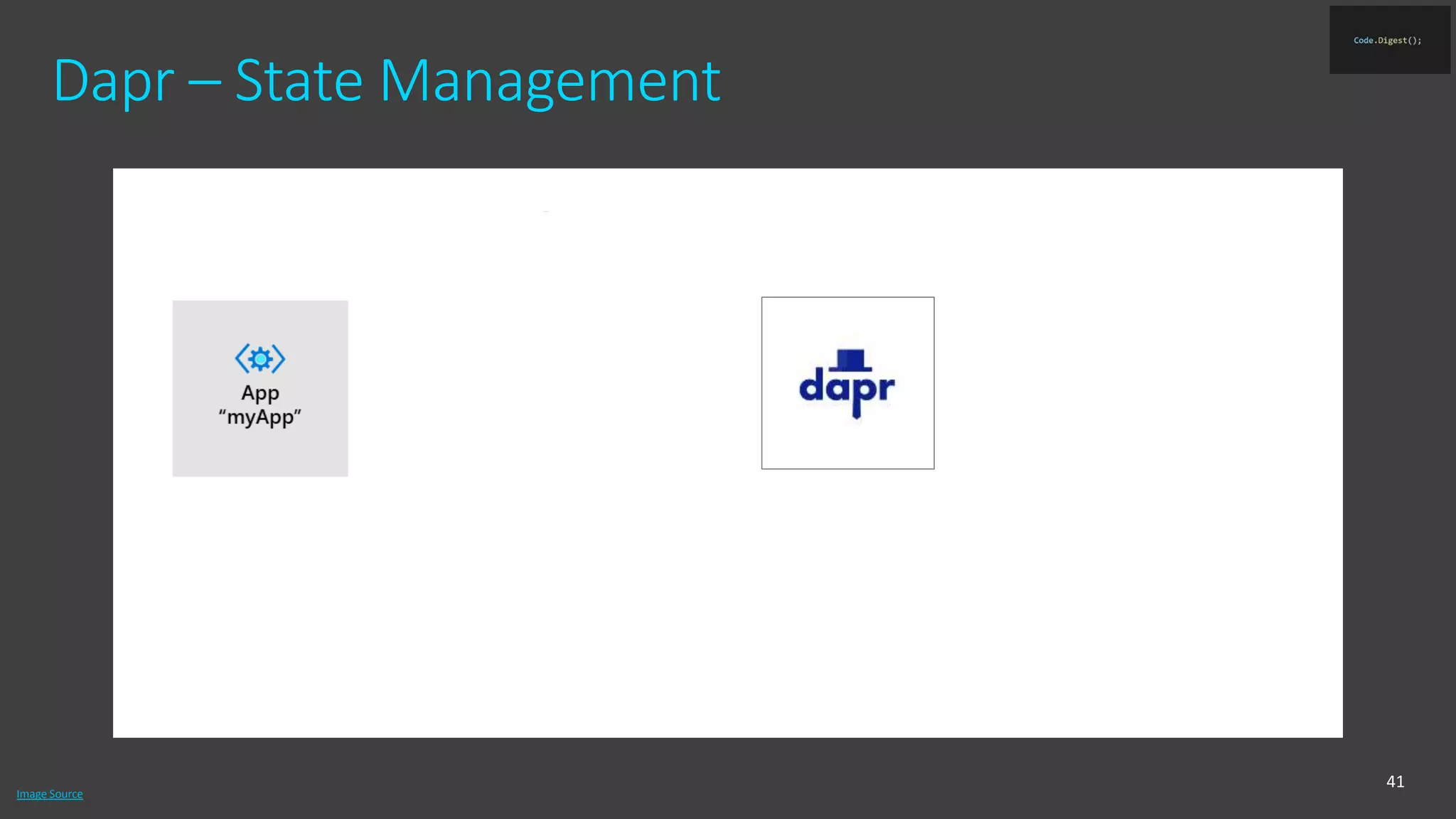

39. Dapr – State Management
41
Image Source

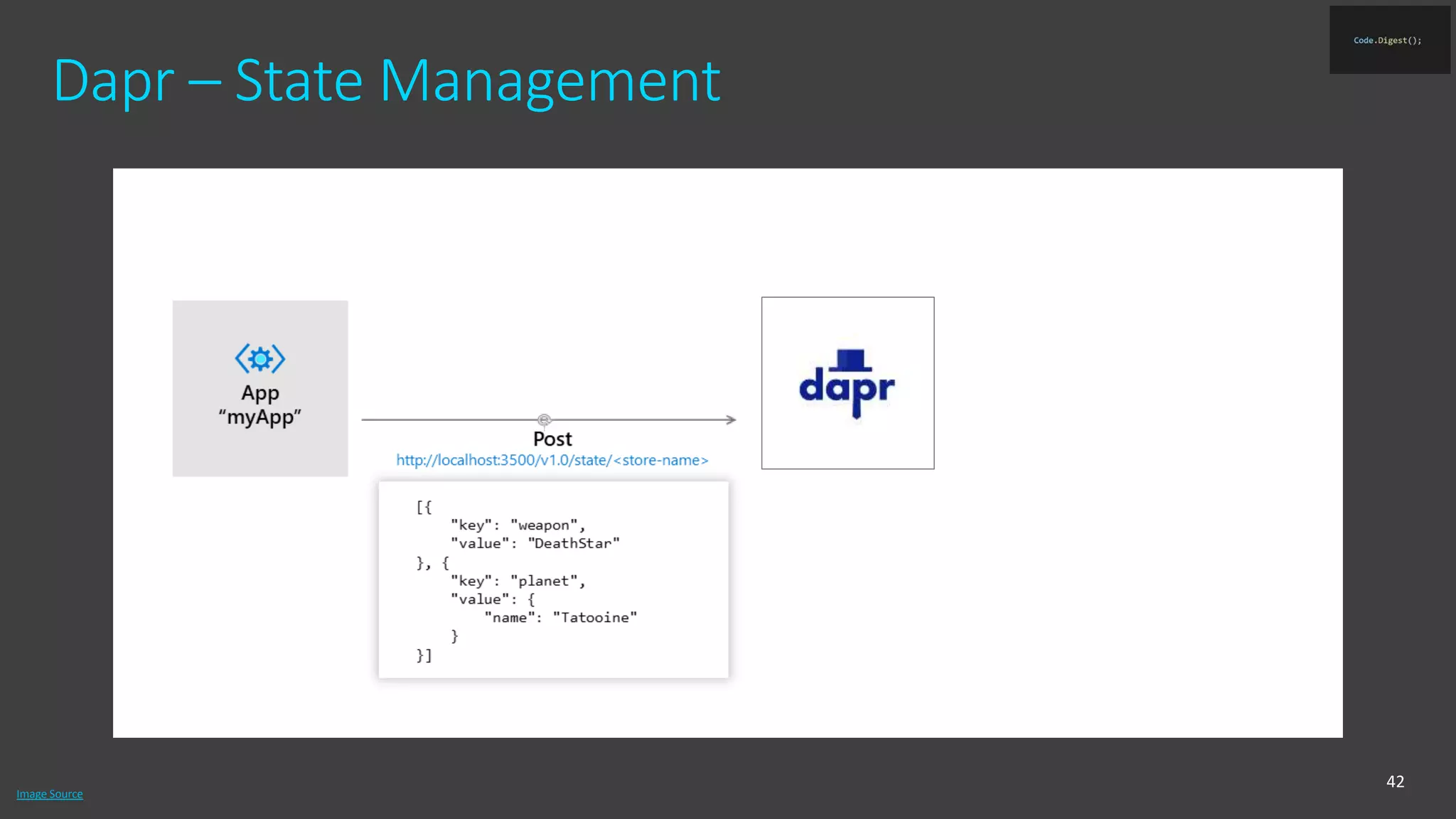

40. Dapr – State Management
42
Image Source

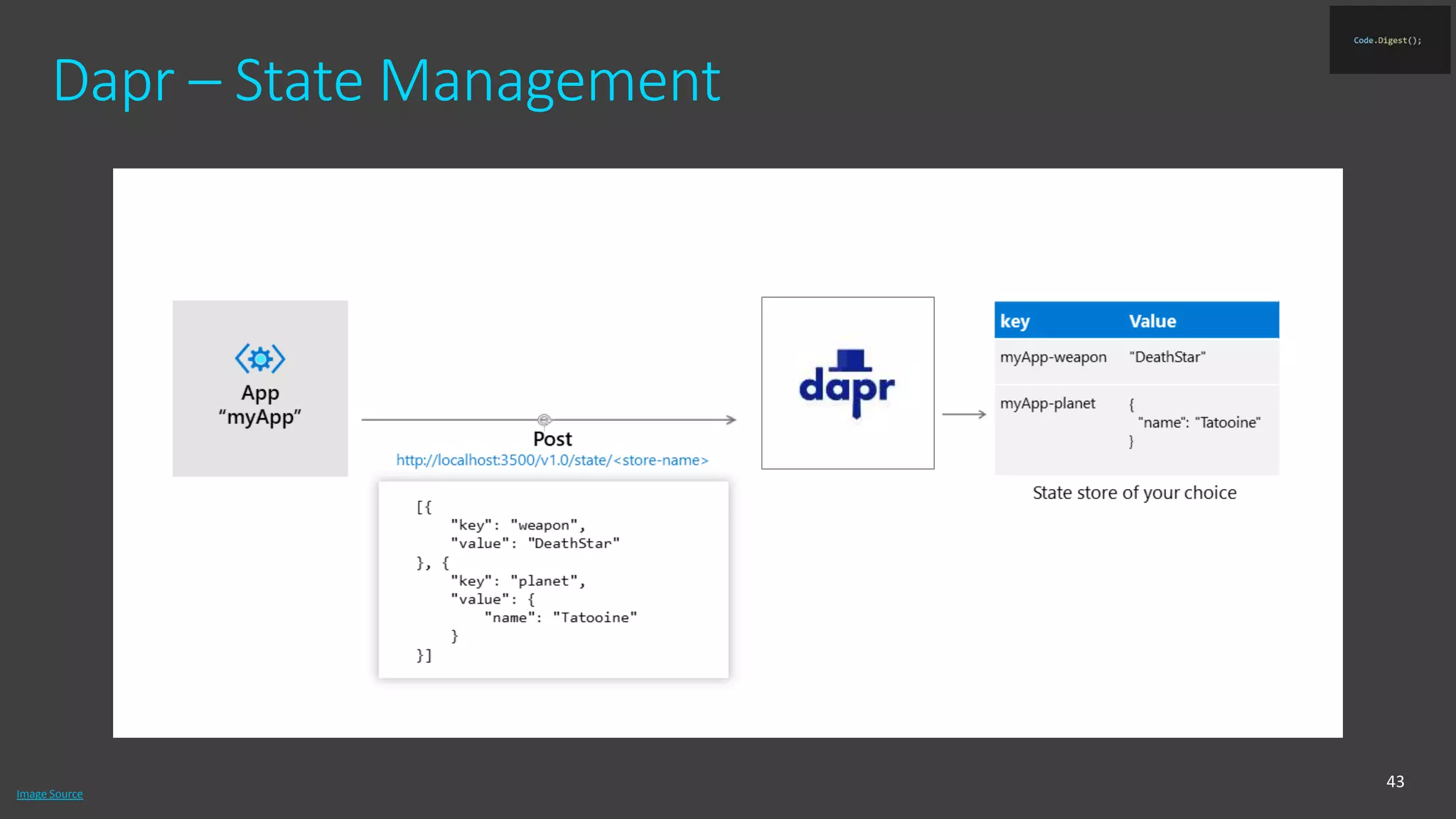

41. Dapr – State Management
43
Image Source

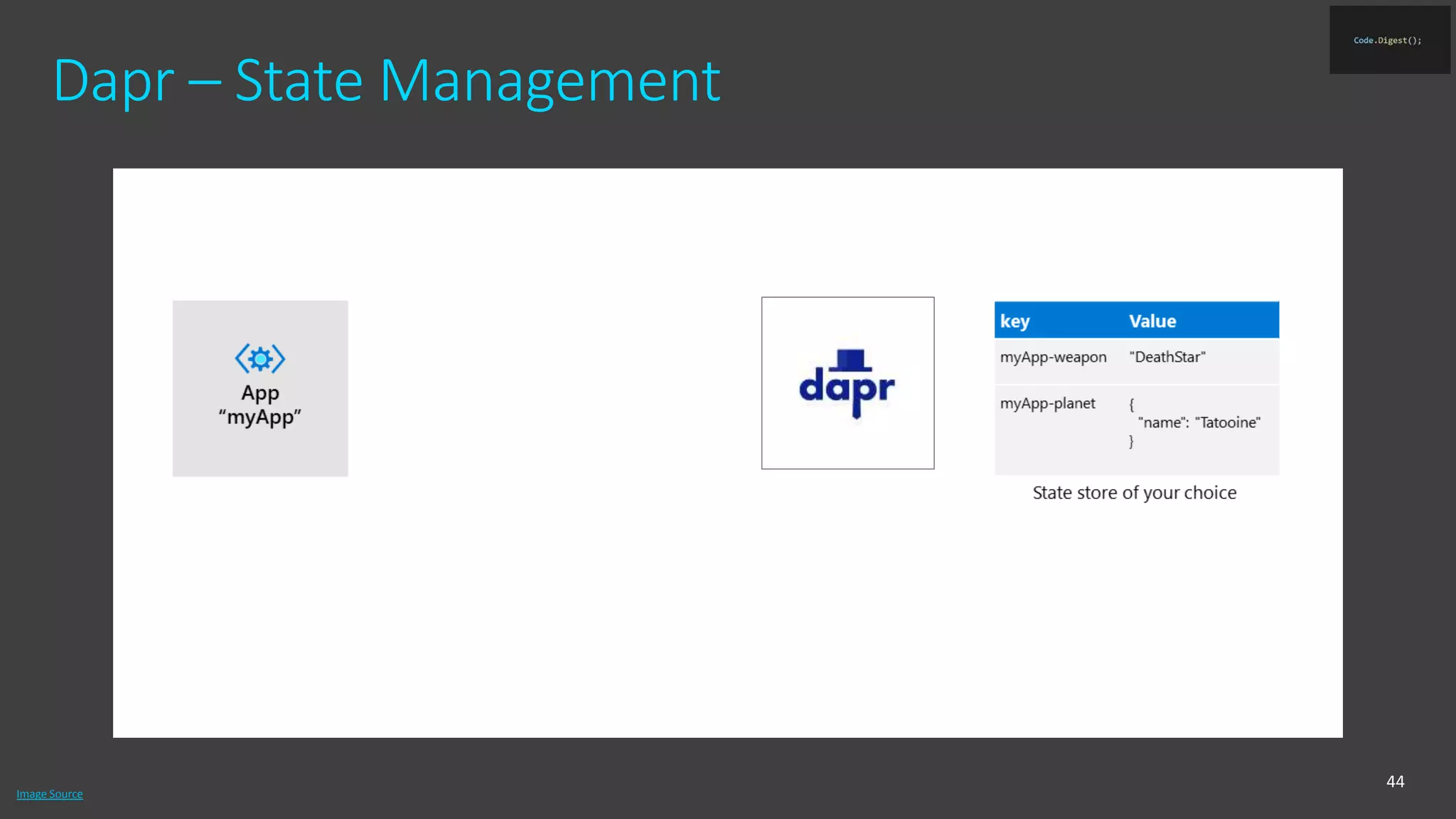

42. Dapr – State Management
44
Image Source

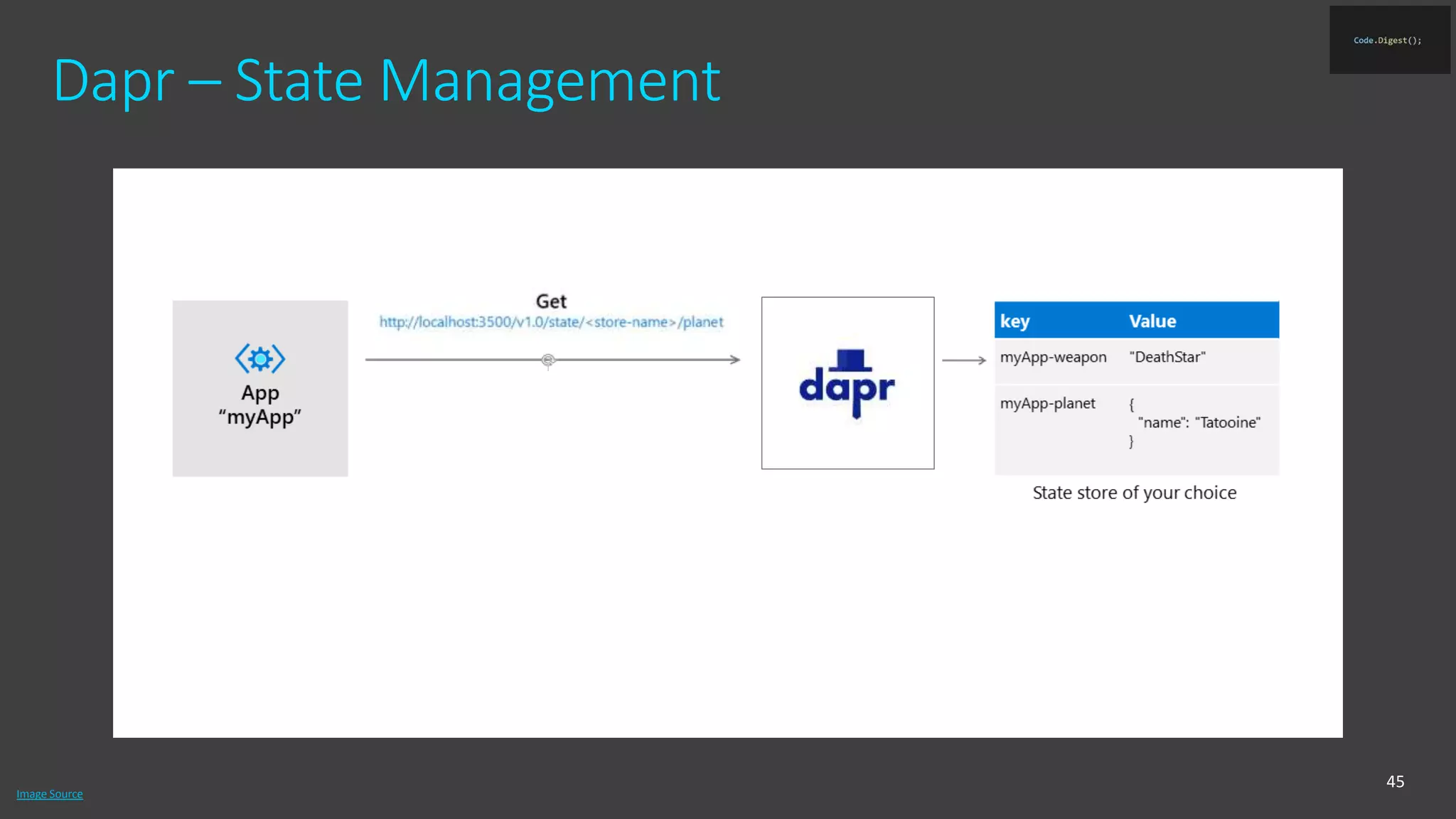

43. Dapr – State Management
45
Image Source

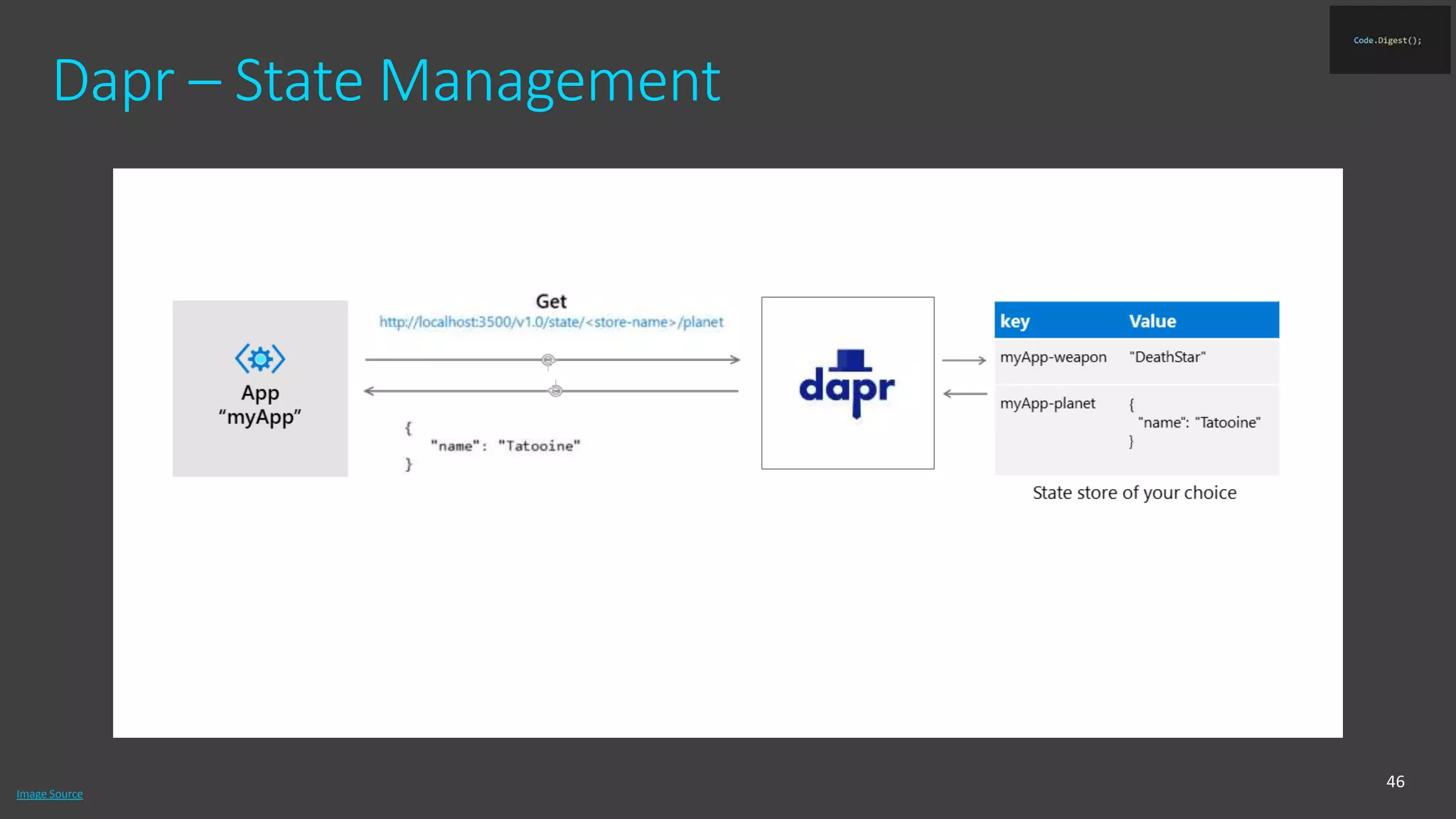

44. Dapr – State Management
46
Image Source

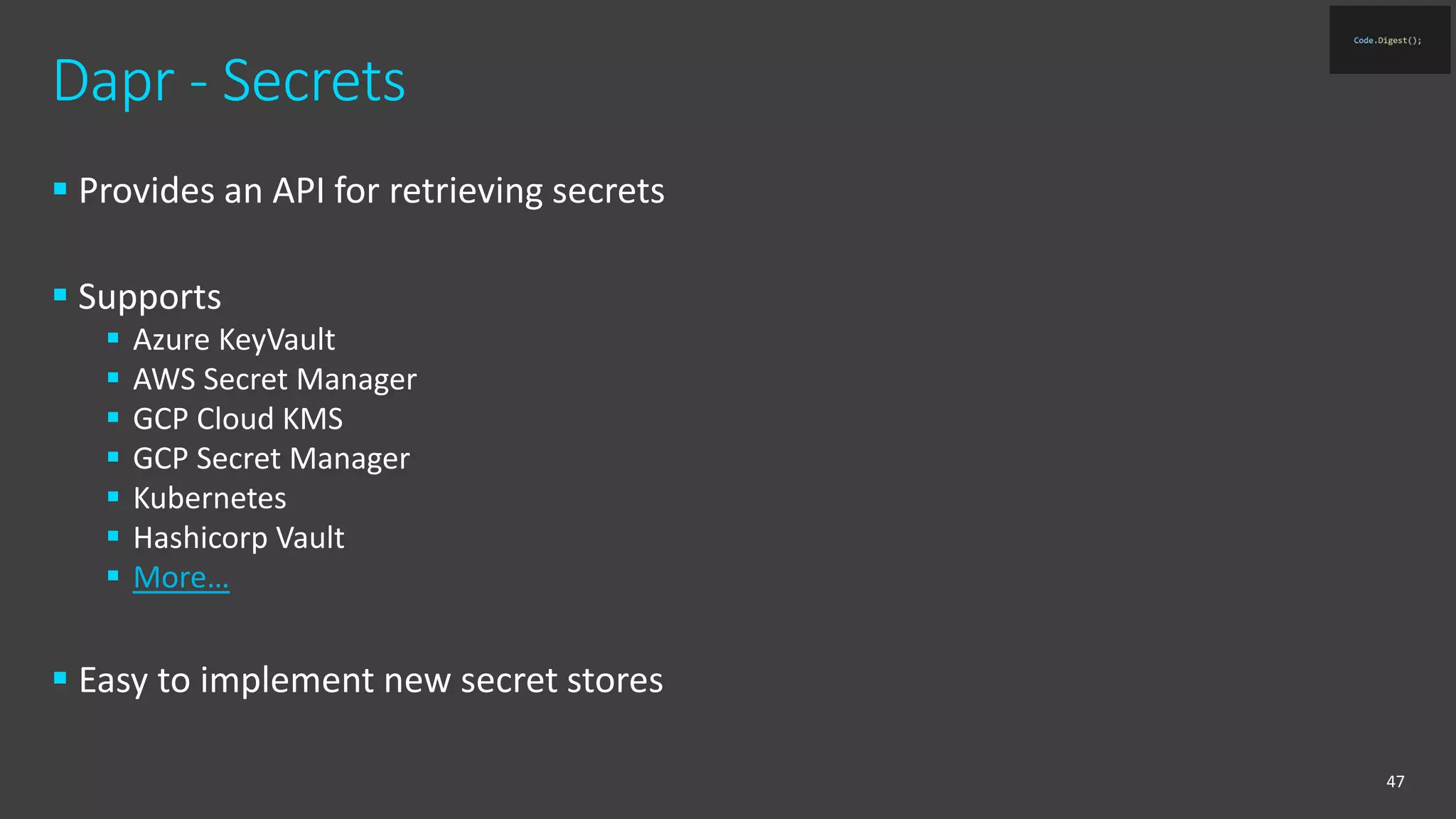

45. Dapr - Secrets
 Provides an API for retrieving secrets
 Supports
 Azure KeyVault
 AWS Secret Manager
 GCP Cloud KMS
 GCP Secret Manager
 Kubernetes
 Hashicorp Vault
 More…
 Easy to implement new secret stores
47

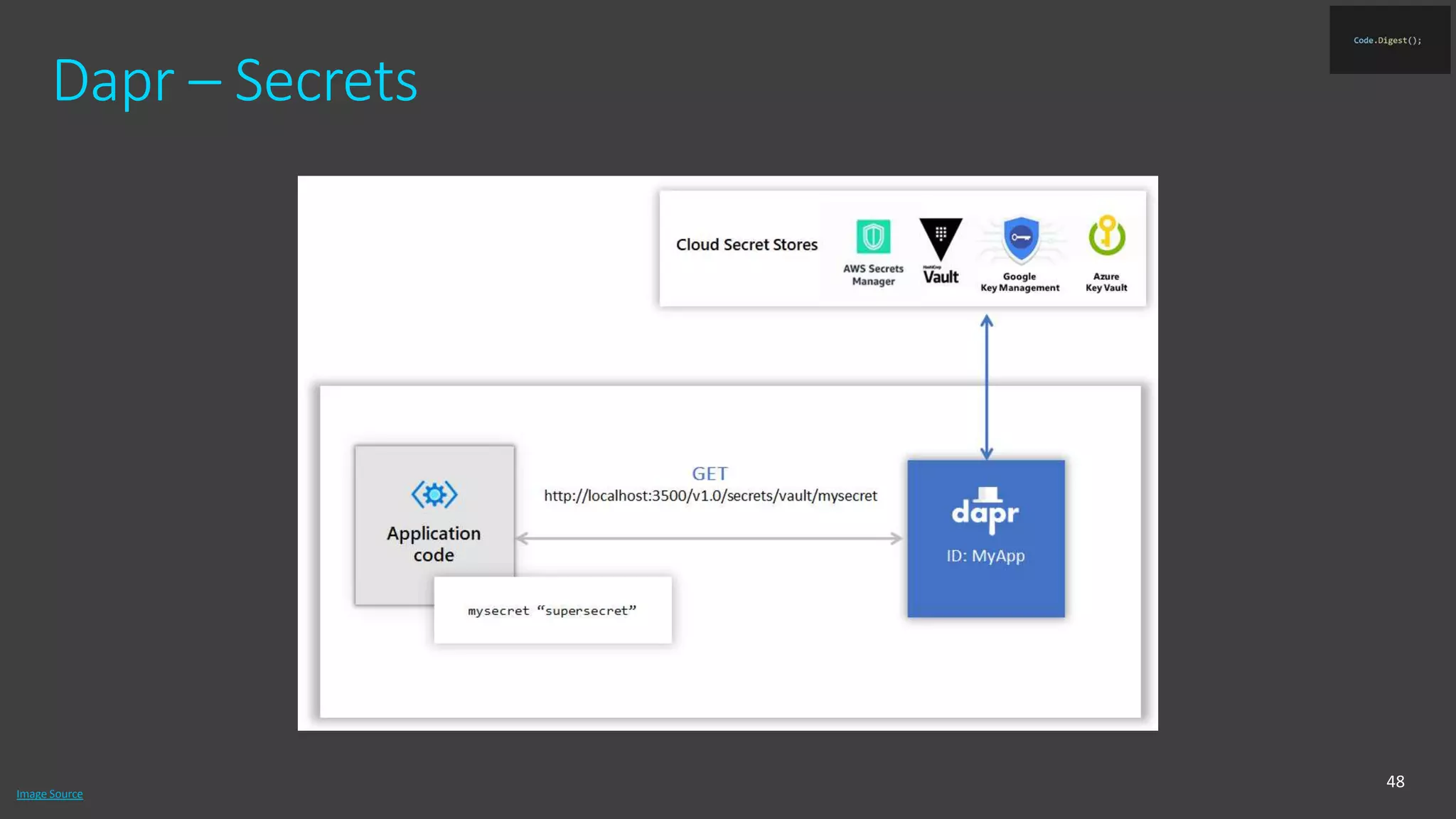

46. Dapr – Secrets
48
Image Source

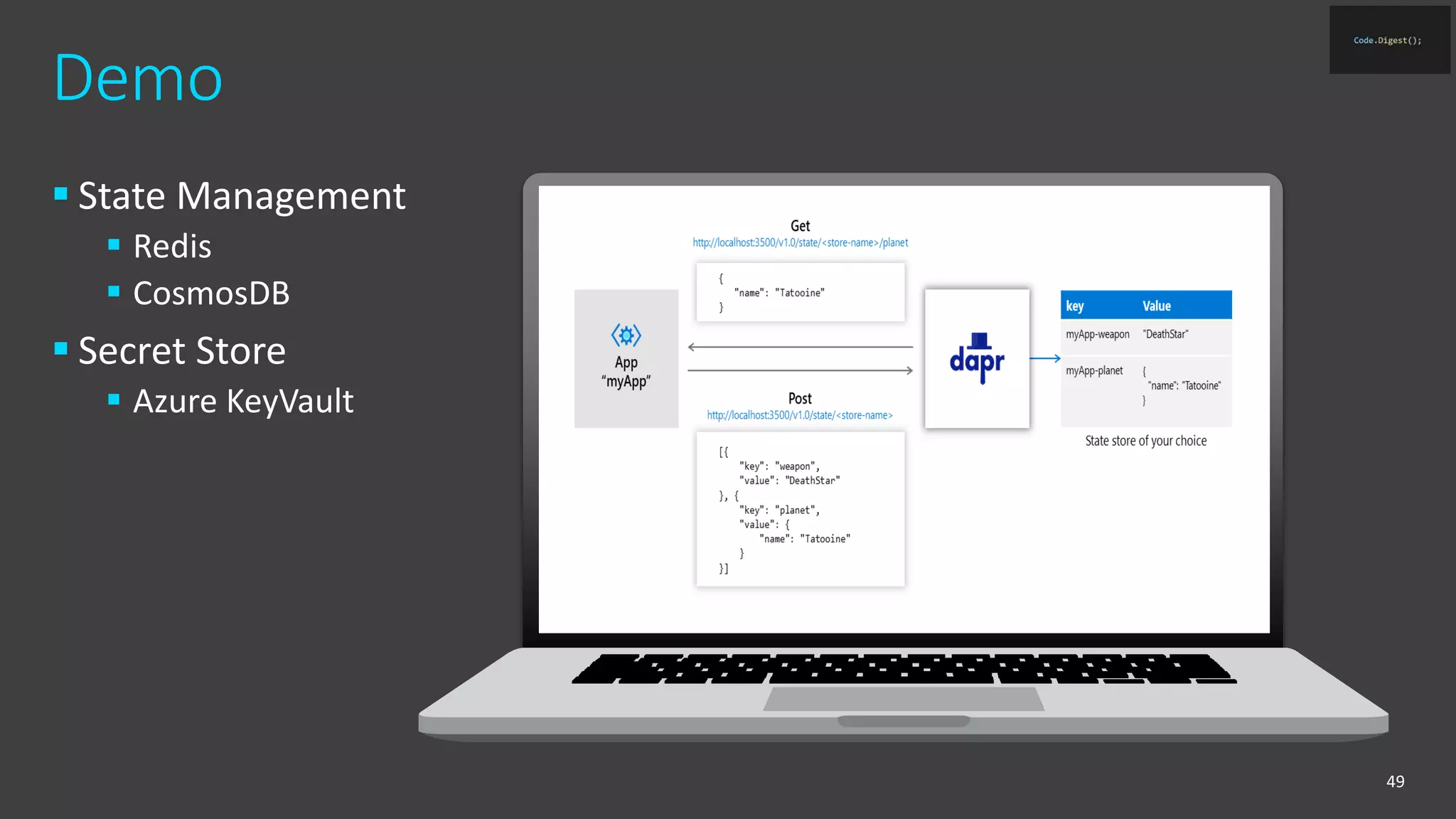

47. Demo
 State Management
 Redis
 CosmosDB
 Secret Store
 Azure KeyVault
49

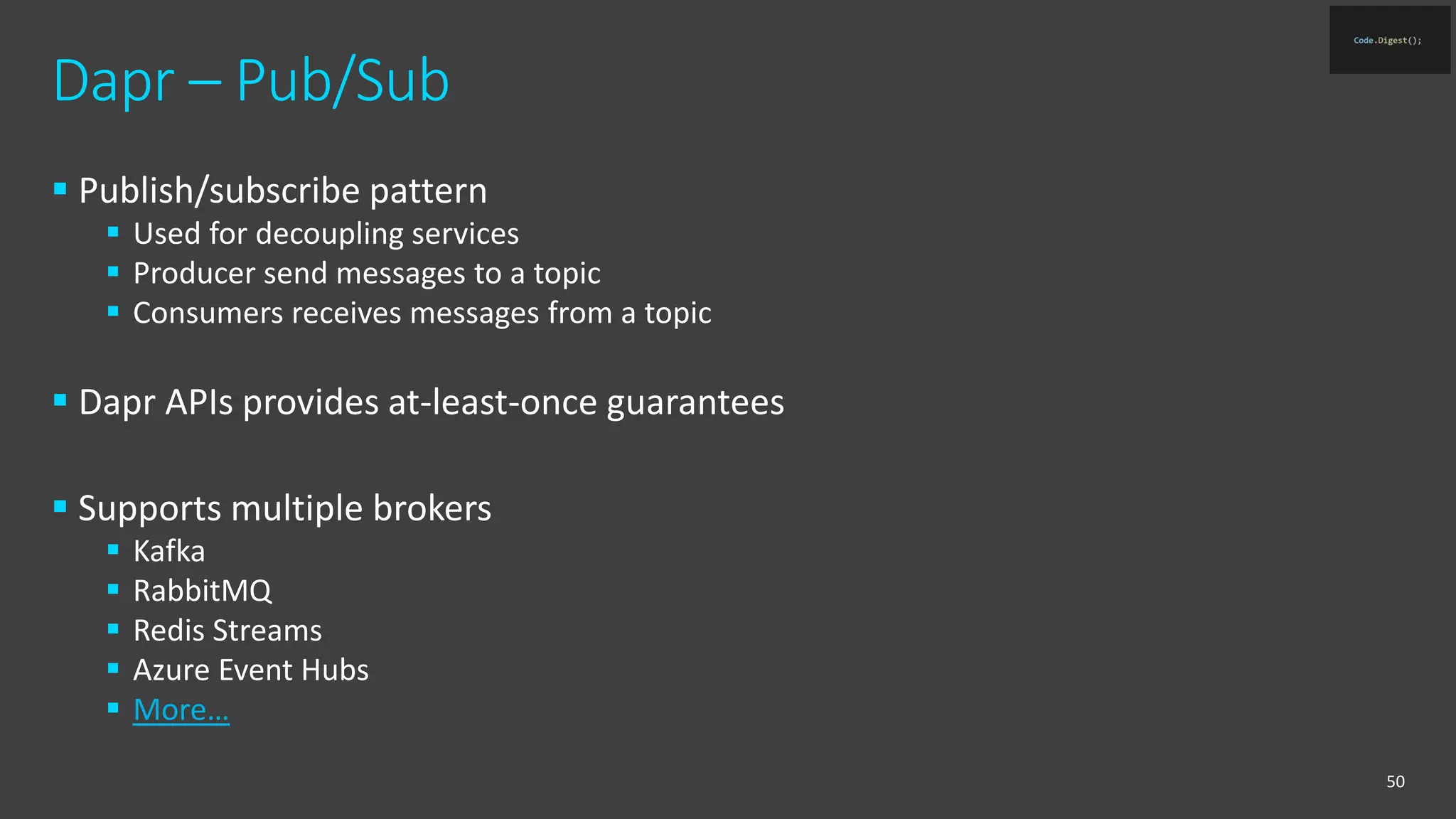

48. Dapr – Pub/Sub
 Publish/subscribe pattern
 Used for decoupling services
 Producer send messages to a topic
 Consumers receives messages from a topic
 Dapr APIs provides at-least-once guarantees
 Supports multiple brokers
 Kafka
 RabbitMQ
 Redis Streams
 Azure Event Hubs
 More…
50

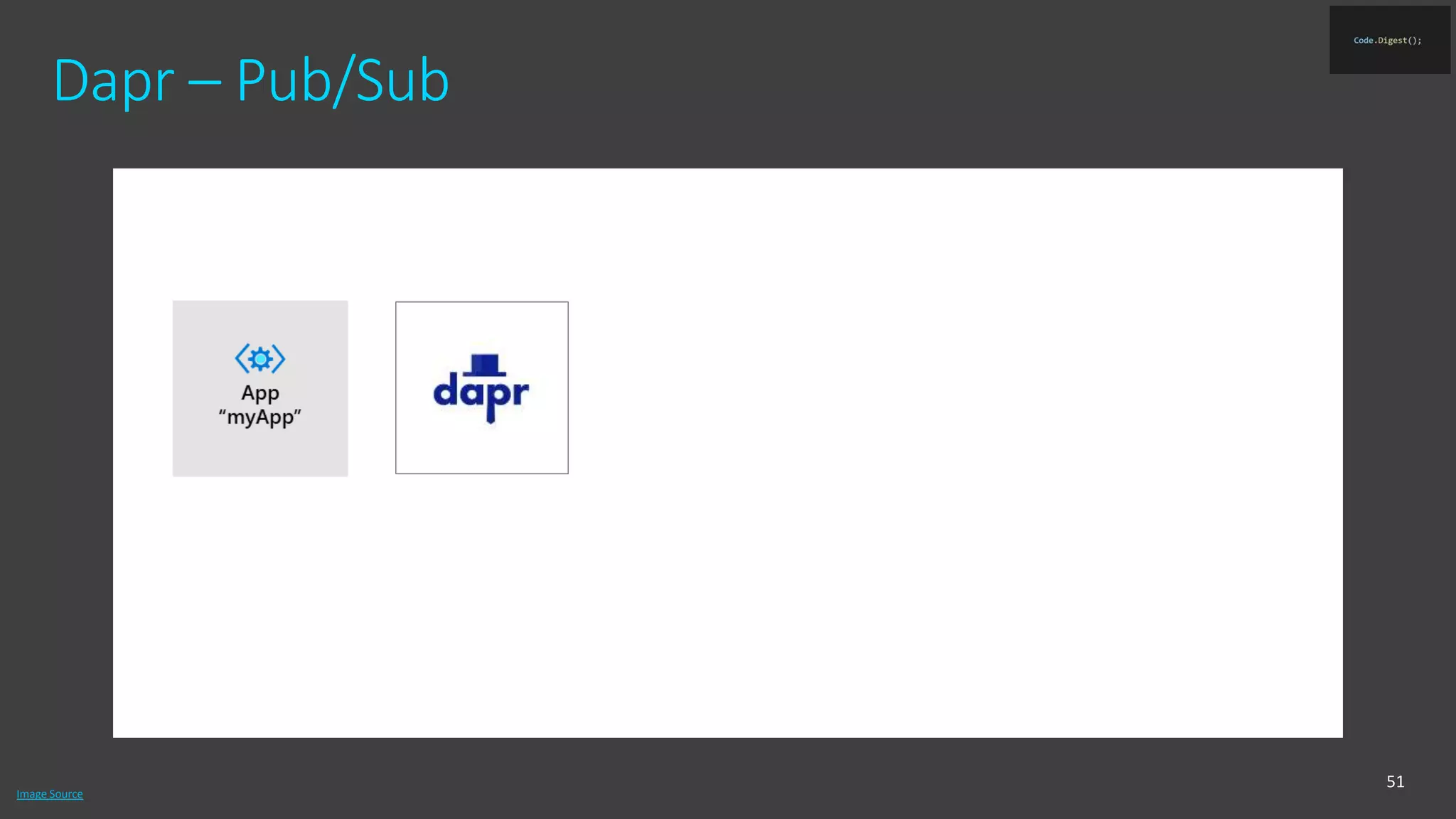

49. Dapr – Pub/Sub
51
Image Source

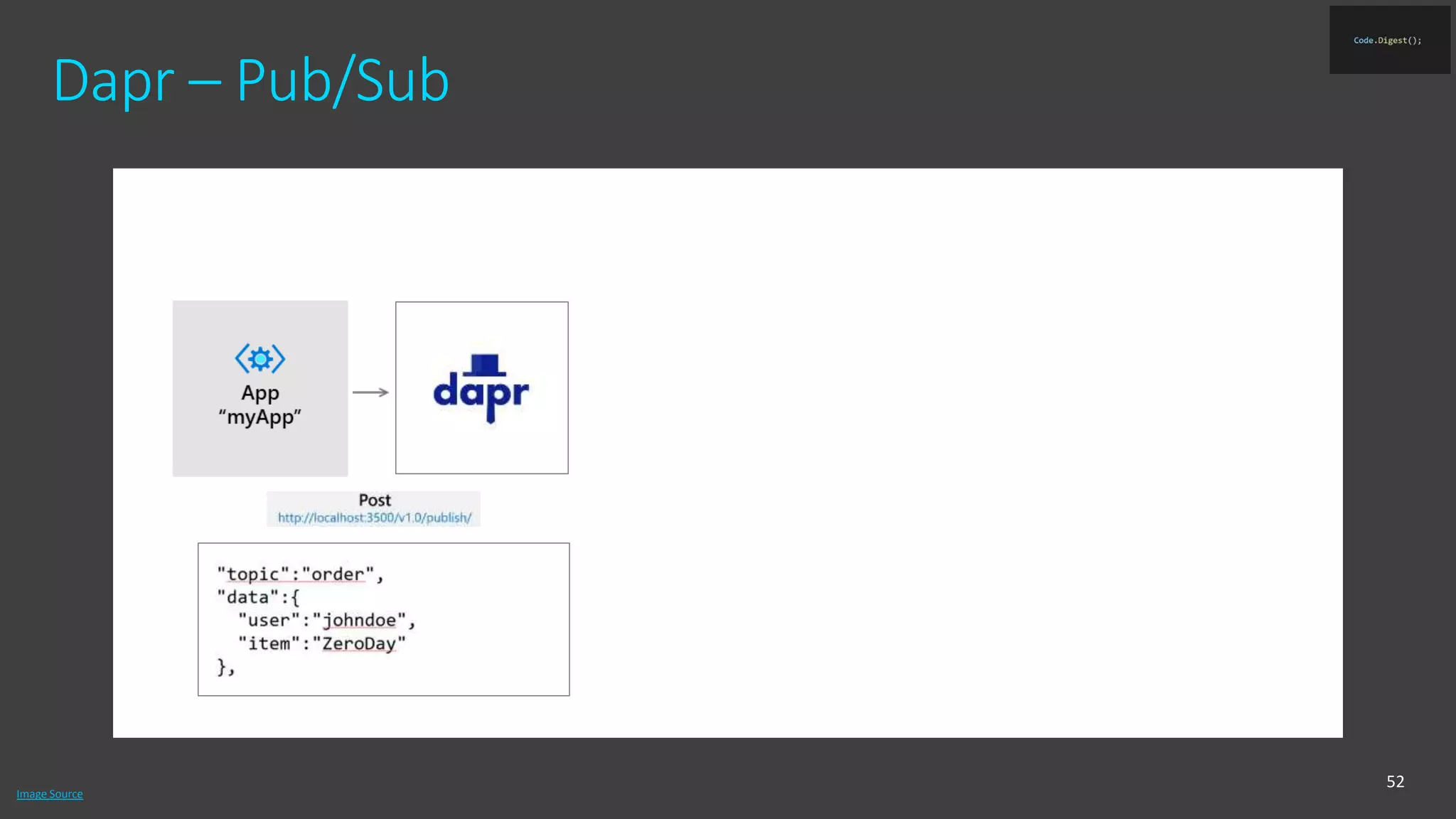

50. Dapr – Pub/Sub
52
Image Source

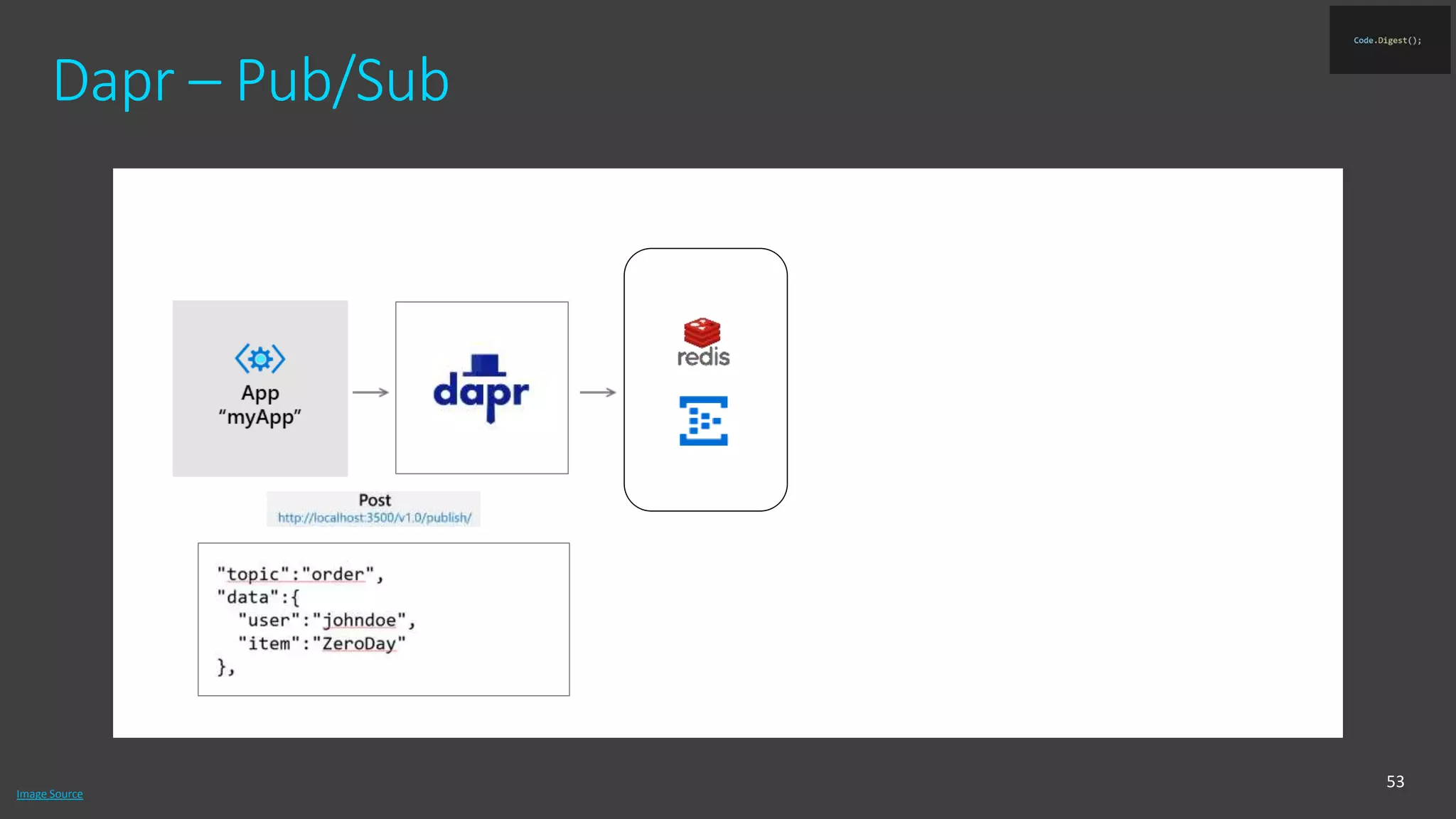

51. Dapr – Pub/Sub
53
Image Source

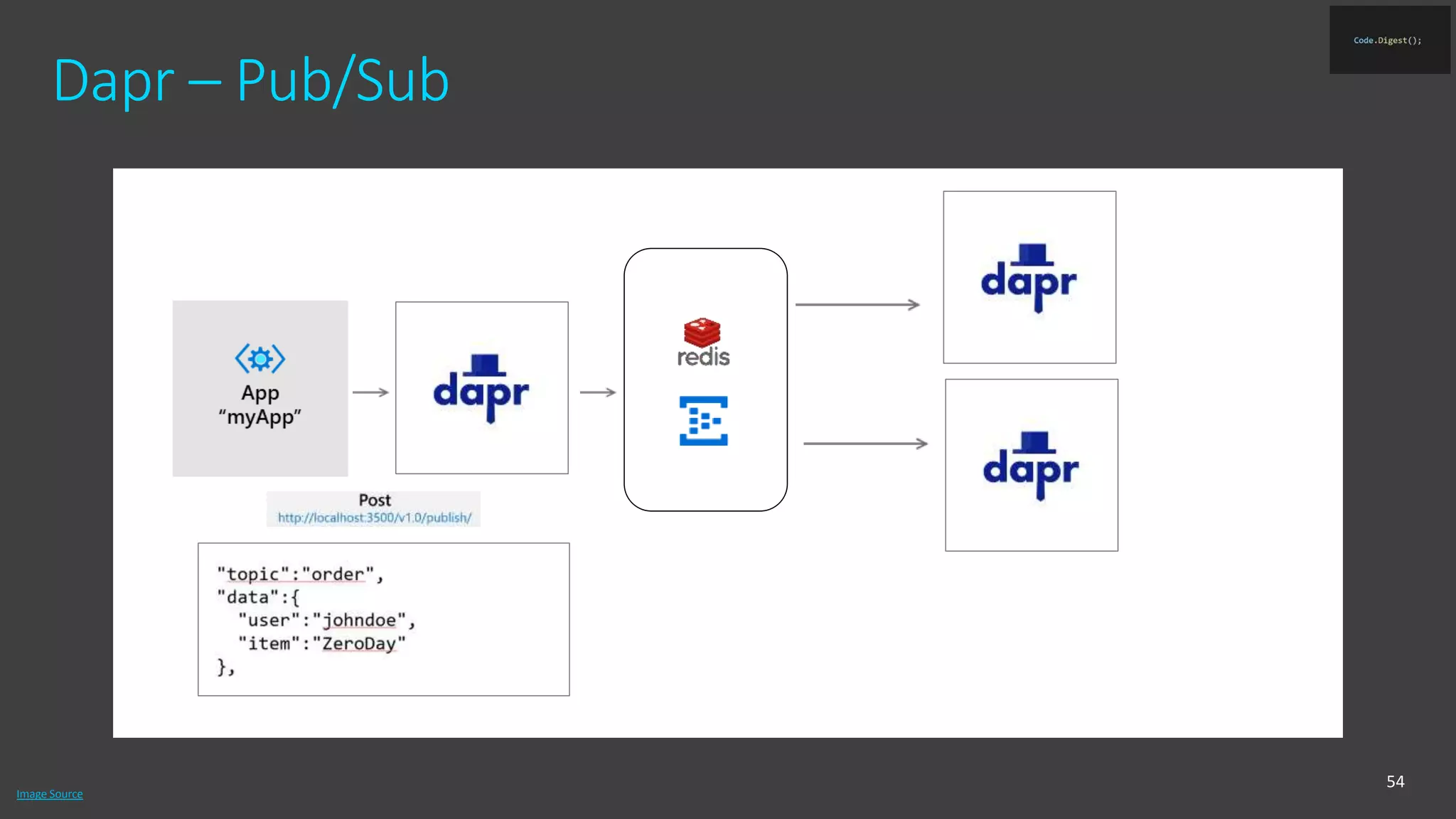

52. Dapr – Pub/Sub
54
Image Source

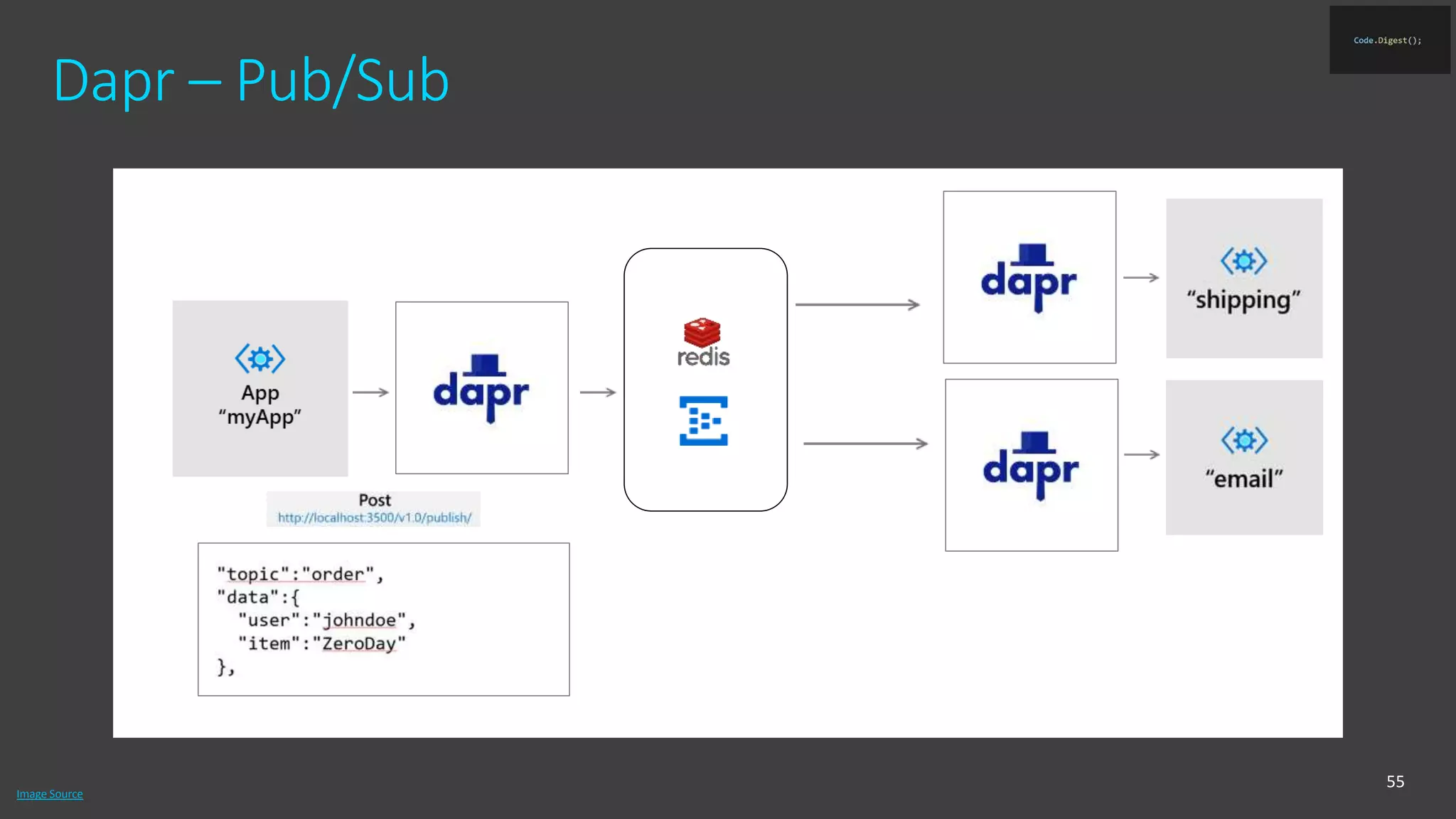

53. Dapr – Pub/Sub
55
Image Source

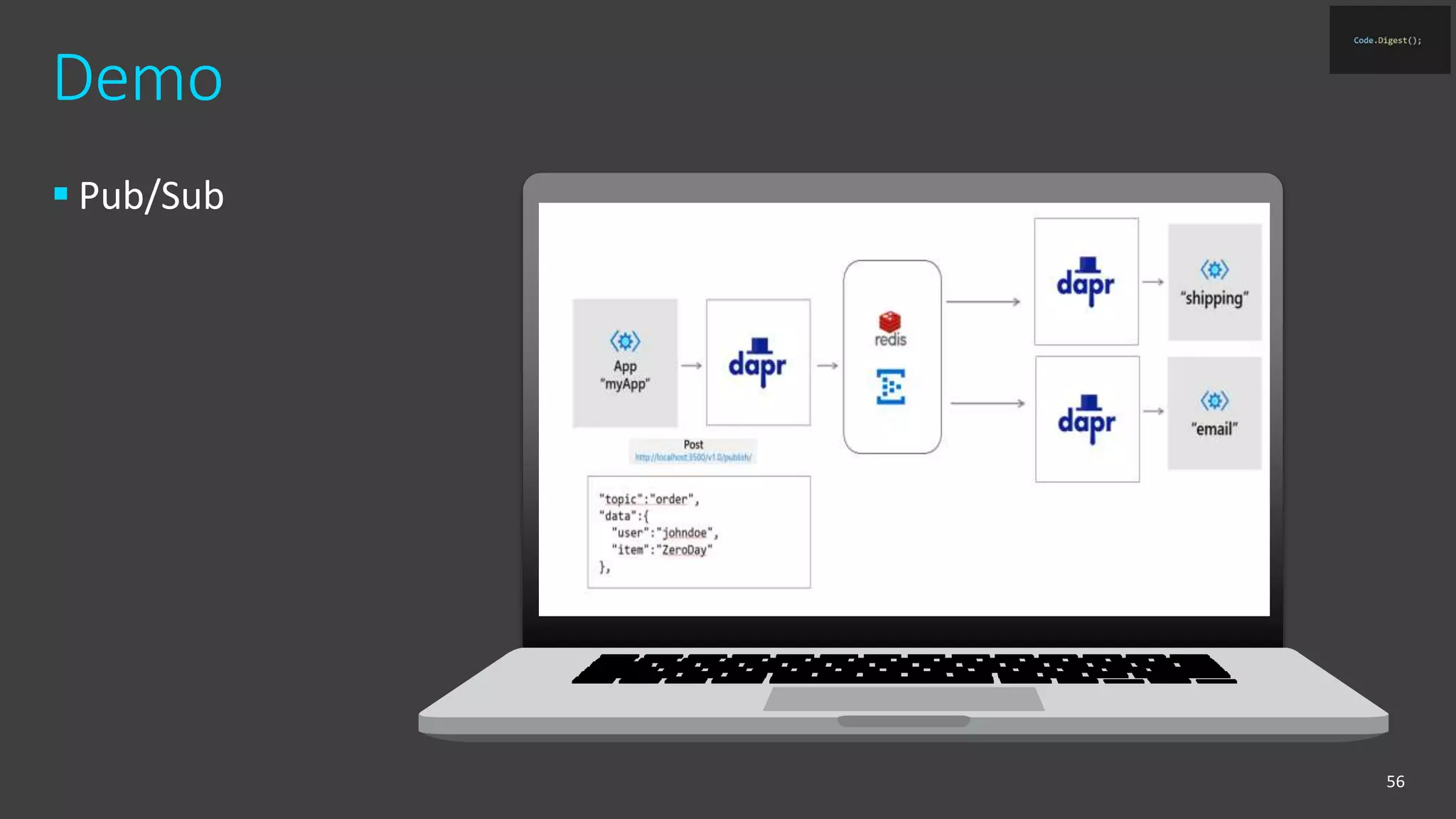

54. Demo
 Pub/Sub
56

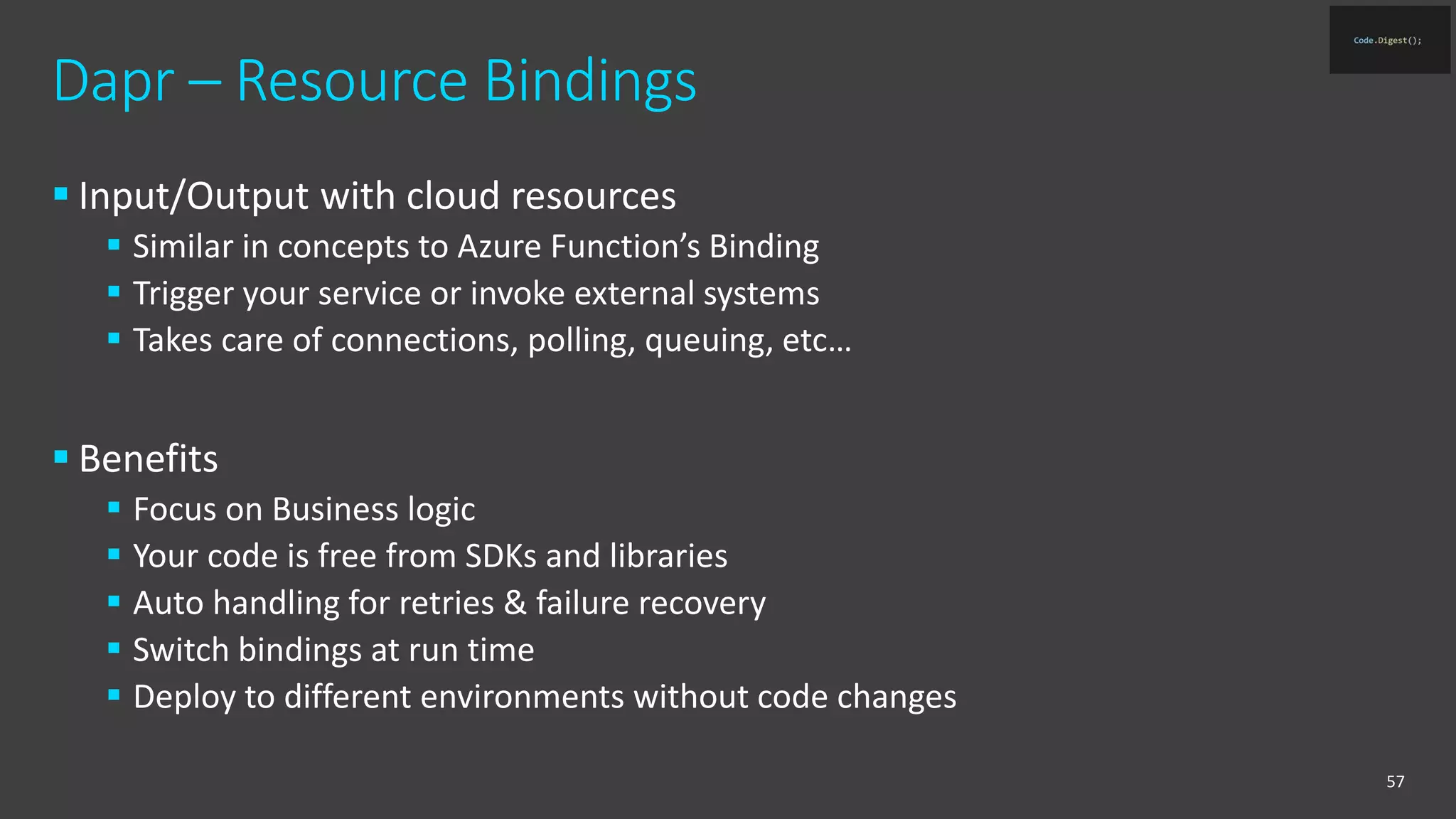

55. Dapr – Resource Bindings
 Input/Output with cloud resources
 Similar in concepts to Azure Function’s Binding
 Trigger your service or invoke external systems
 Takes care of connections, polling, queuing, etc…
 Benefits
 Focus on Business logic
 Your code is free from SDKs and libraries
 Auto handling for retries & failure recovery
 Switch bindings at run time
 Deploy to different environments without code changes
57

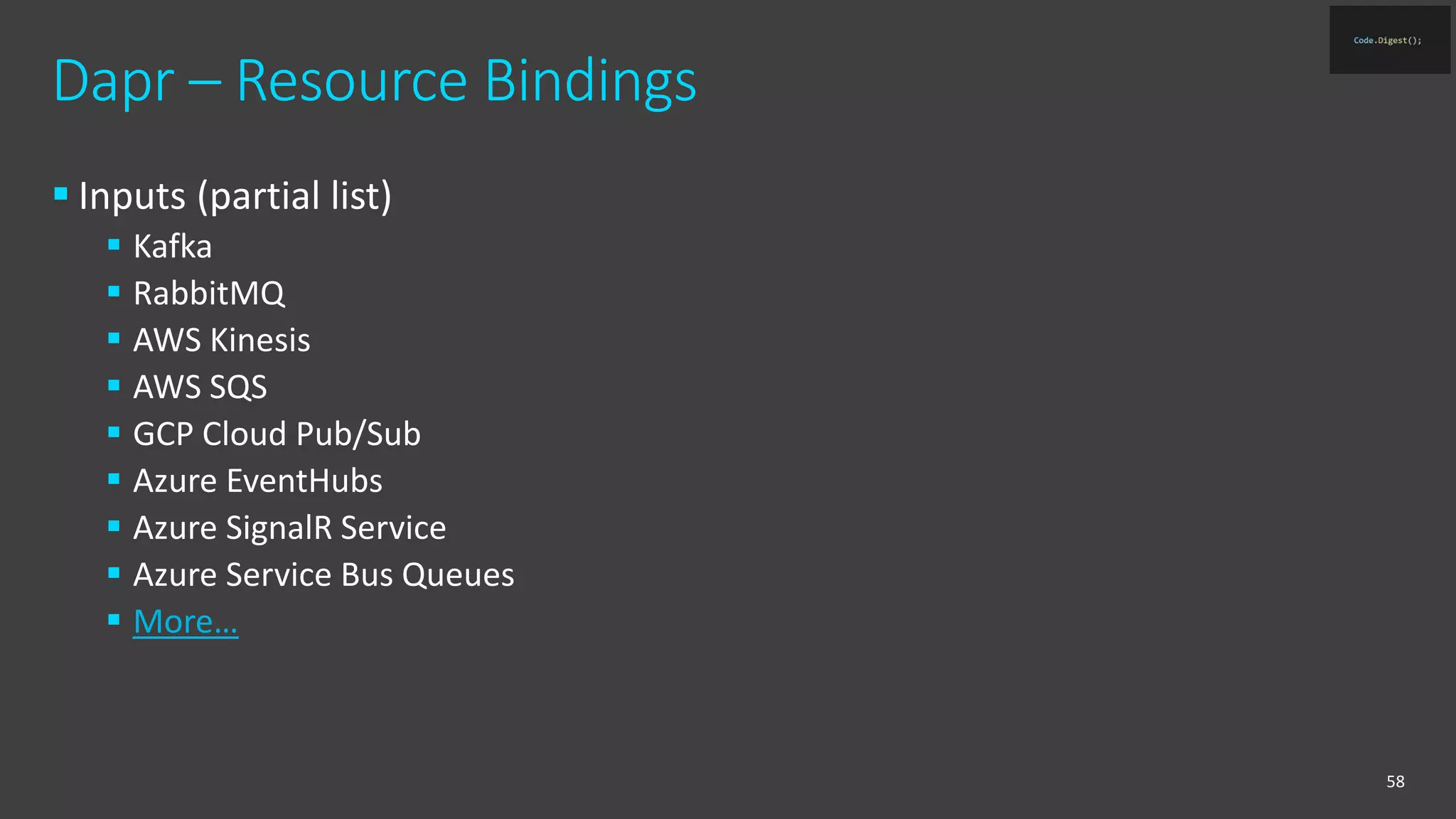

56. Dapr – Resource Bindings
 Inputs (partial list)
 Kafka
 RabbitMQ
 AWS Kinesis
 AWS SQS
 GCP Cloud Pub/Sub
 Azure EventHubs
 Azure SignalR Service
 Azure Service Bus Queues
 More…
58

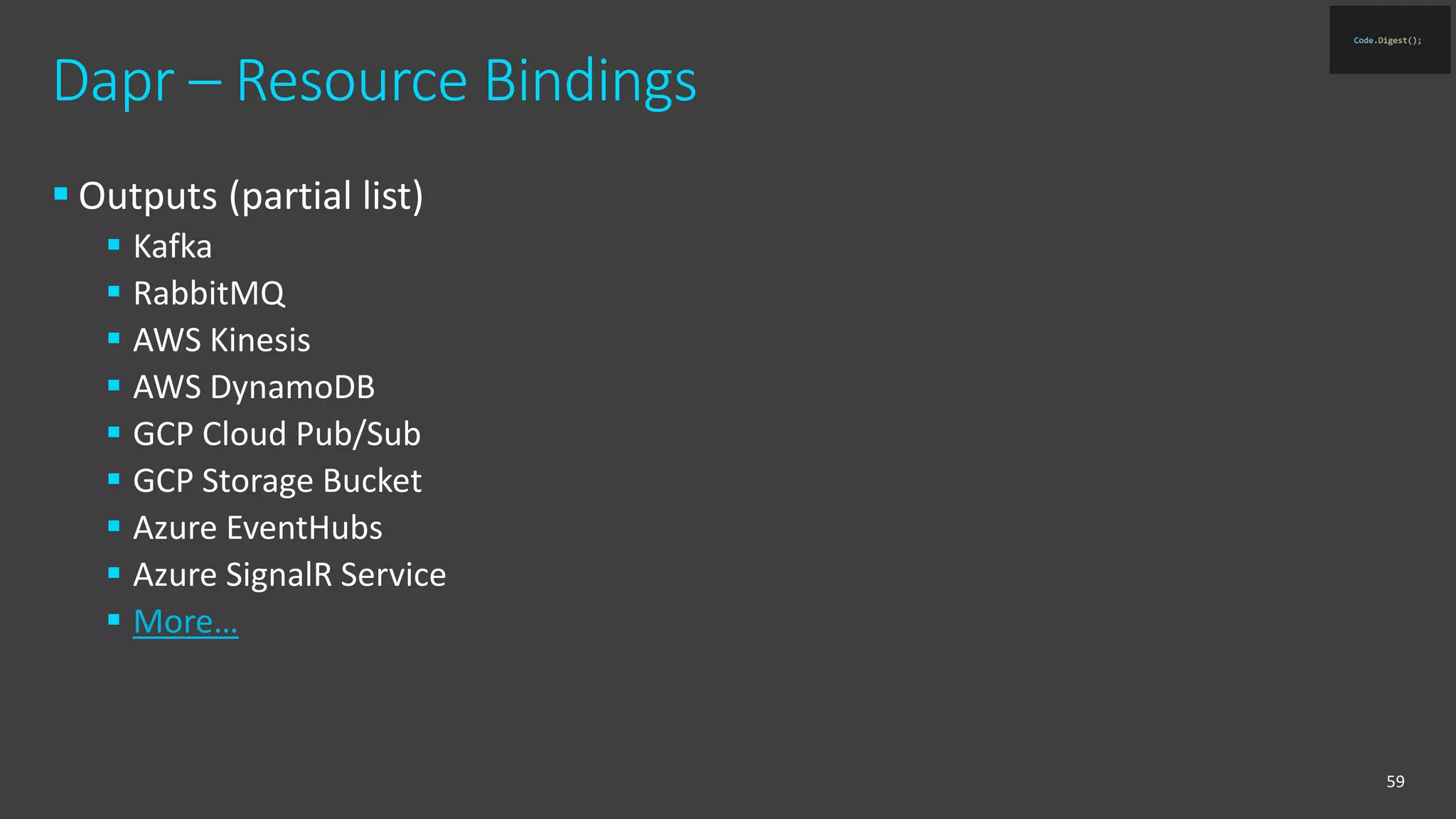

57. Dapr – Resource Bindings
 Outputs (partial list)
 Kafka
 RabbitMQ
 AWS Kinesis
 AWS DynamoDB
 GCP Cloud Pub/Sub
 GCP Storage Bucket
 Azure EventHubs
 Azure SignalR Service
 More…
59

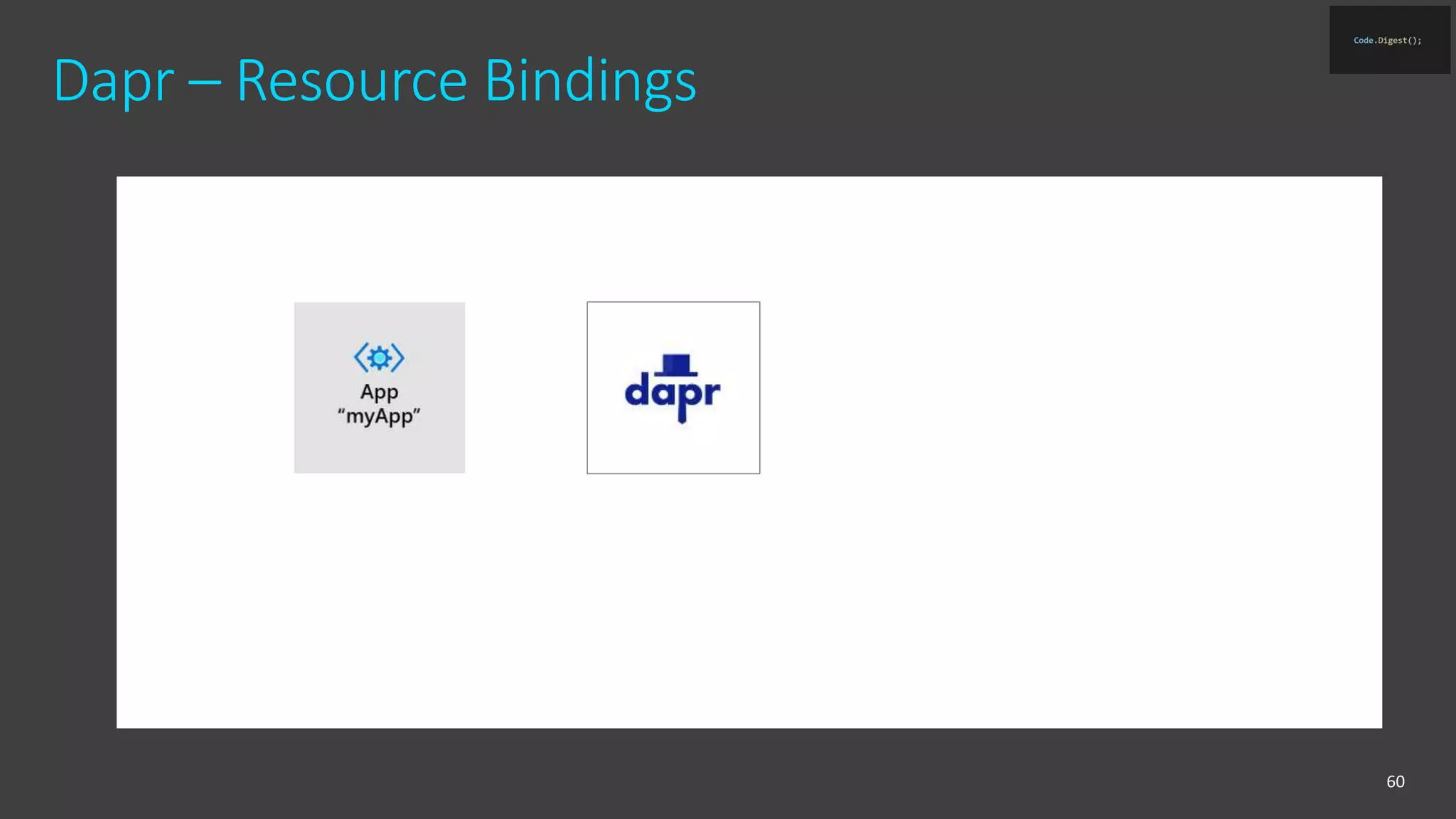

58. Dapr – Resource Bindings
60

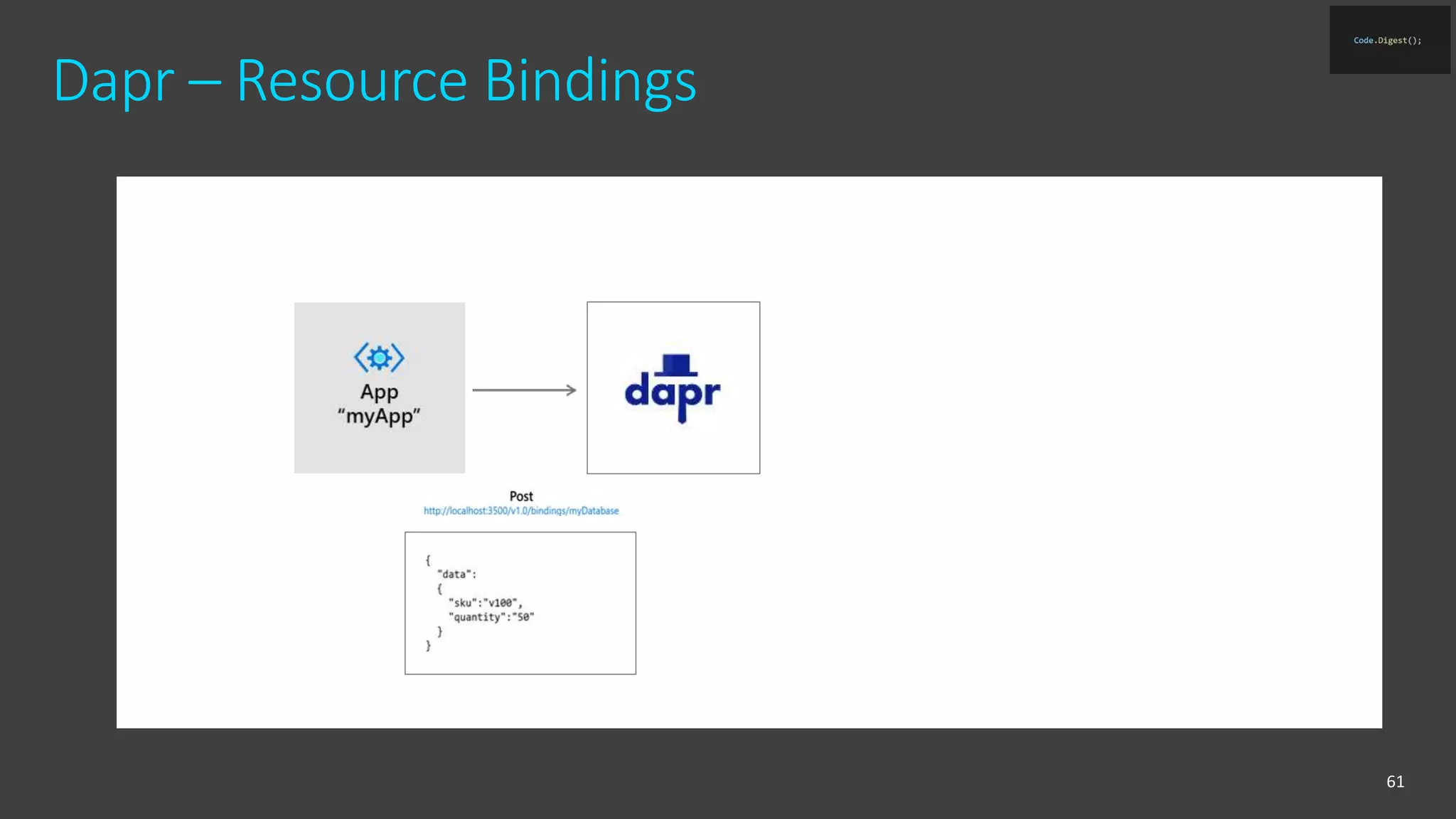

59. Dapr – Resource Bindings
61

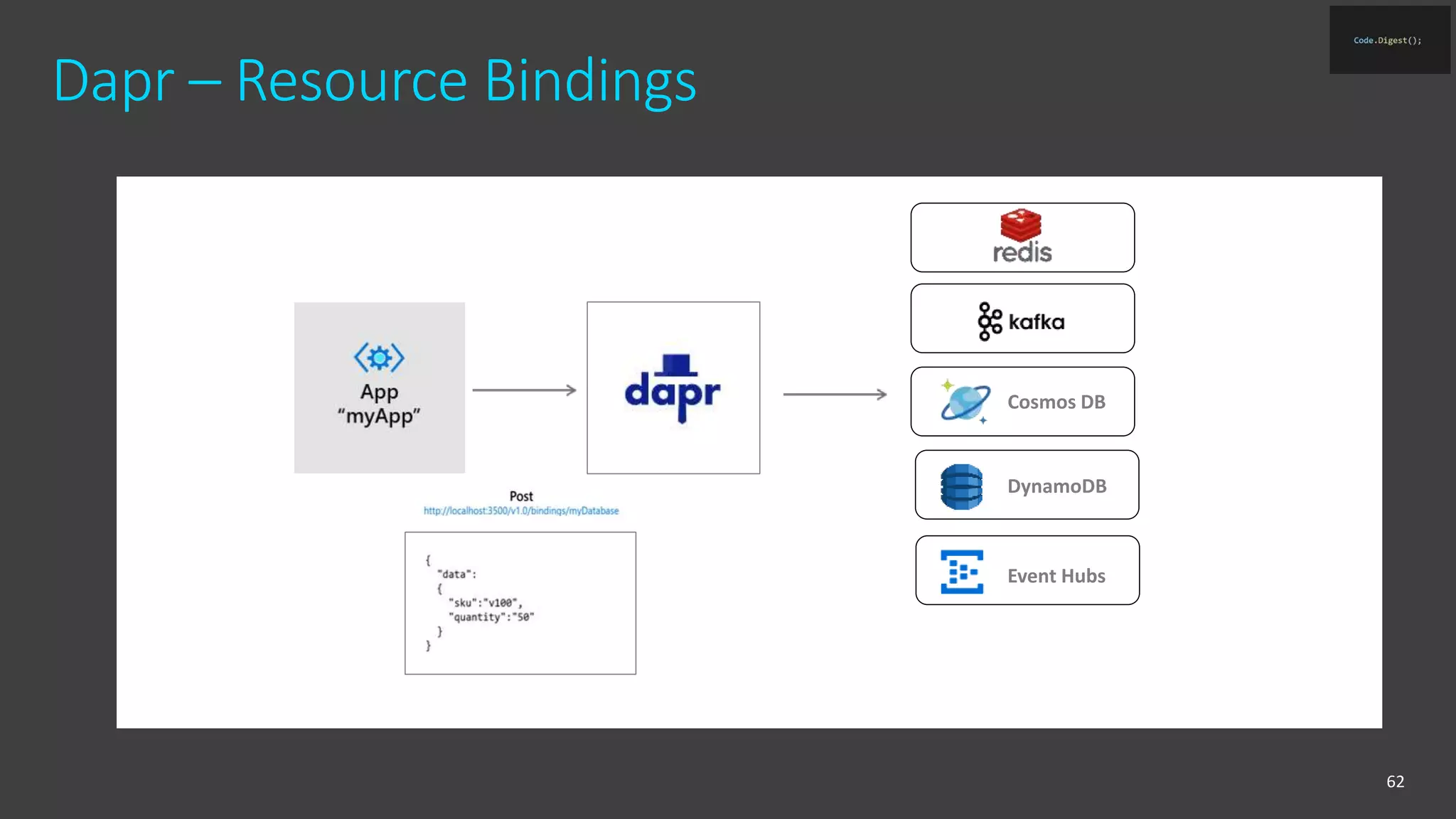

60. Dapr – Resource Bindings
62
Cosmos DB
DynamoDB
Event Hubs

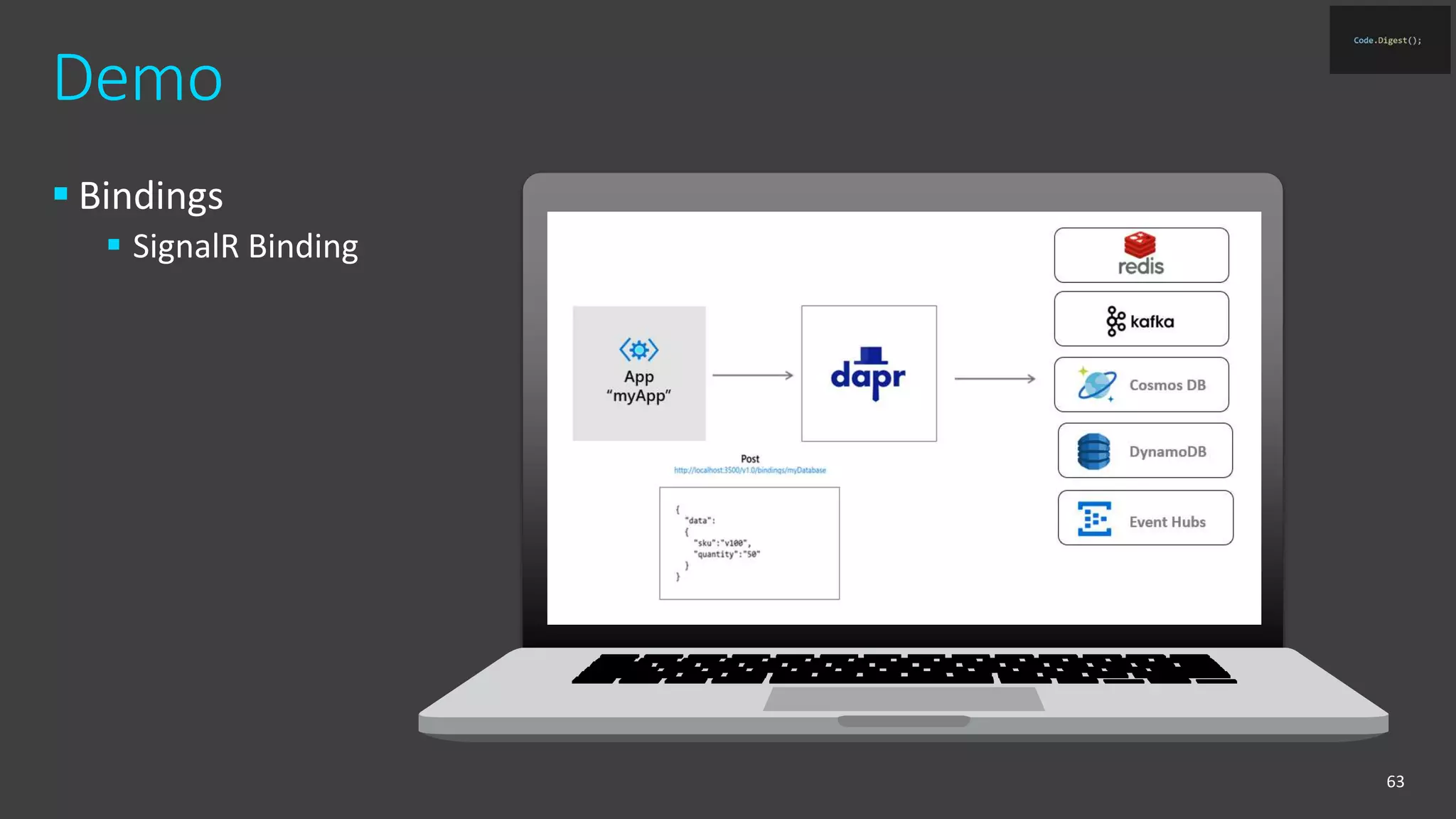

61. Demo
 Bindings
 SignalR Binding
63

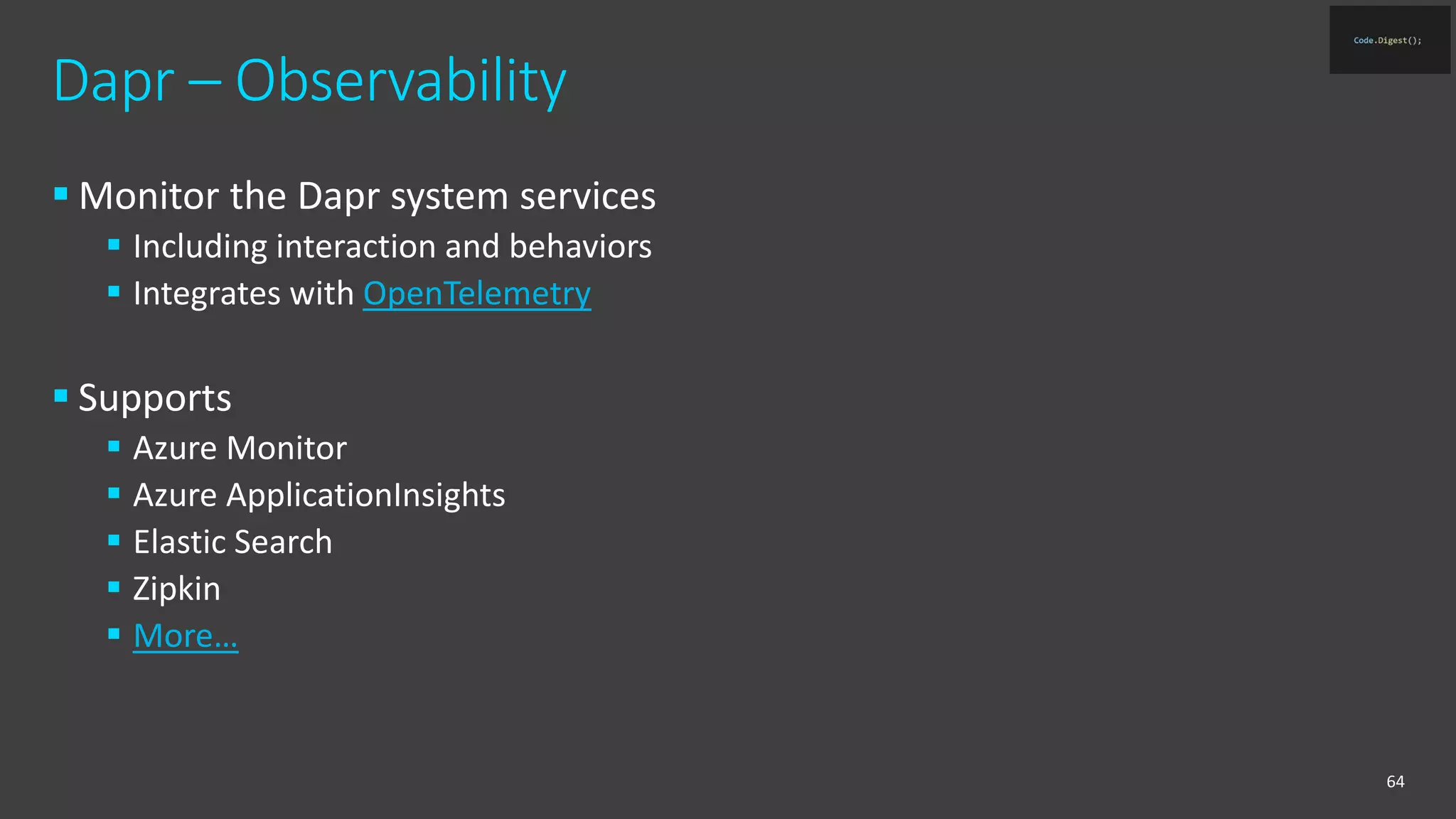

62. Dapr – Observability
 Monitor the Dapr system services
 Including interaction and behaviors
 Integrates with OpenTelemetry
 Supports
 Azure Monitor
 Azure ApplicationInsights
 Elastic Search
 Zipkin
 More…
64

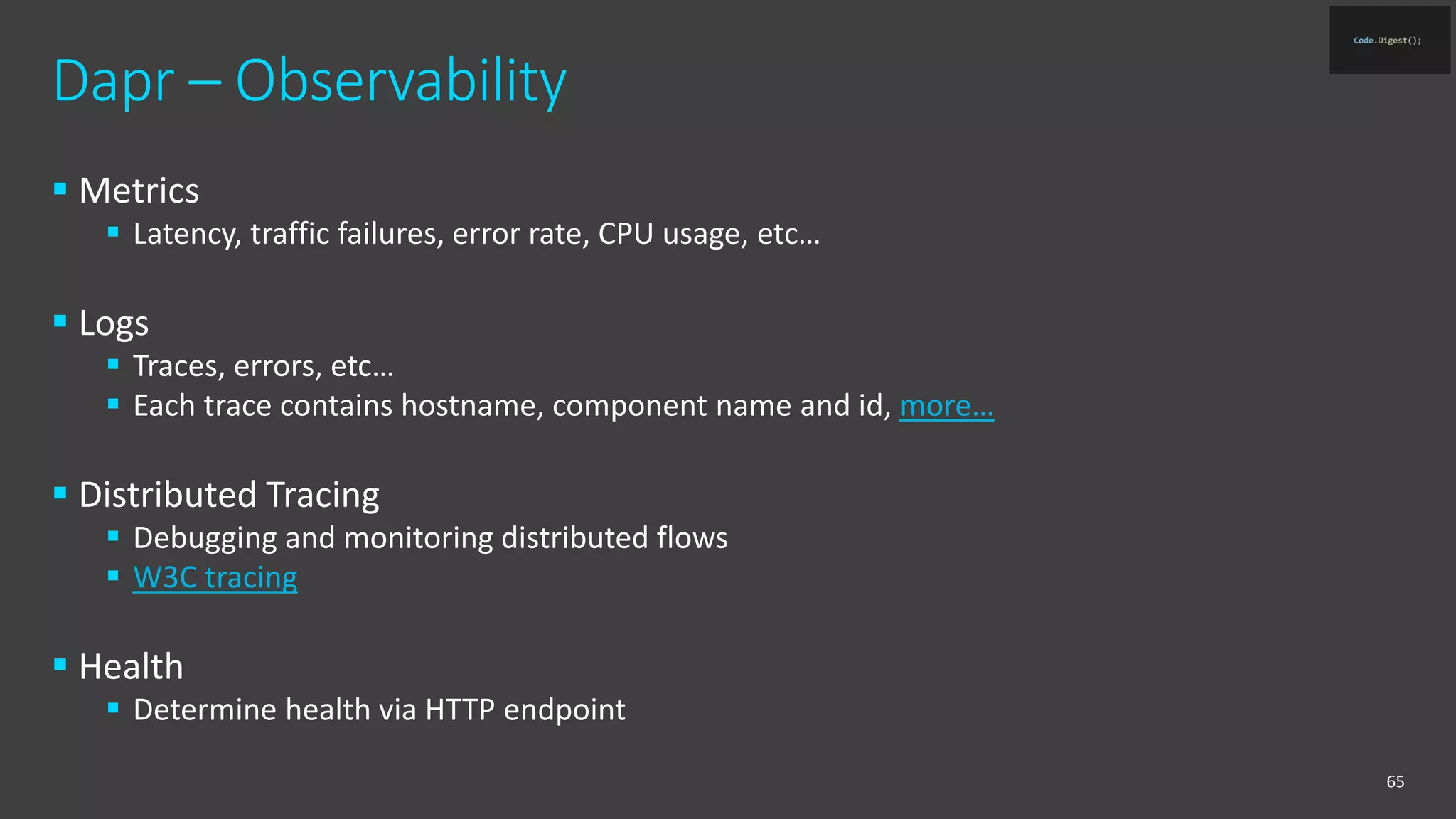

63. Dapr – Observability
 Metrics
 Latency, traffic failures, error rate, CPU usage, etc…
 Logs
 Traces, errors, etc…
 Each trace contains hostname, component name and id, more…
 Distributed Tracing
 Debugging and monitoring distributed flows
 W3C tracing
 Health
 Determine health via HTTP endpoint
65

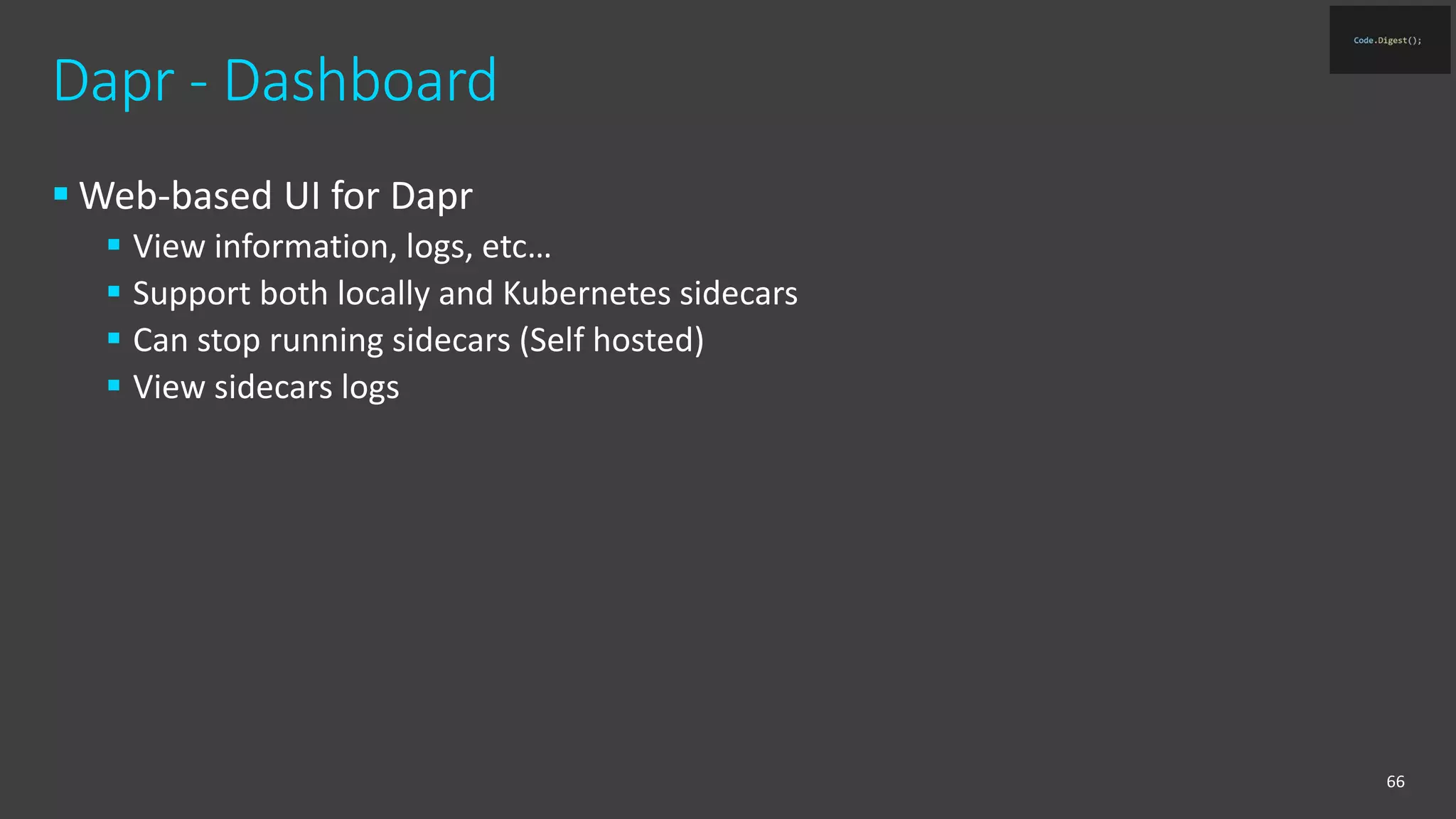

64. Dapr - Dashboard
 Web-based UI for Dapr
 View information, logs, etc…
 Support both locally and Kubernetes sidecars
 Can stop running sidecars (Self hosted)
 View sidecars logs
66

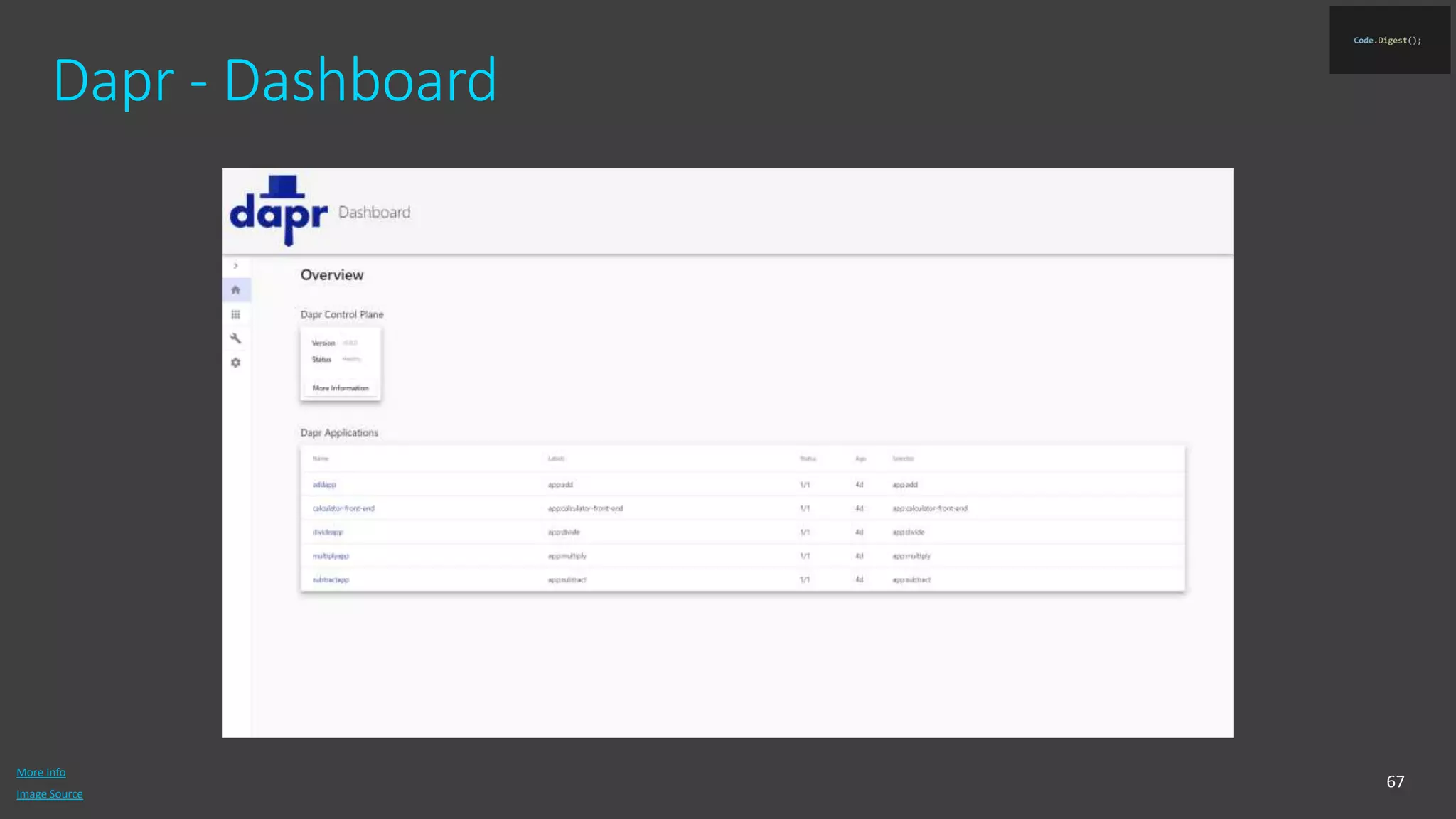

65. Dapr - Dashboard
67
Image Source
More Info

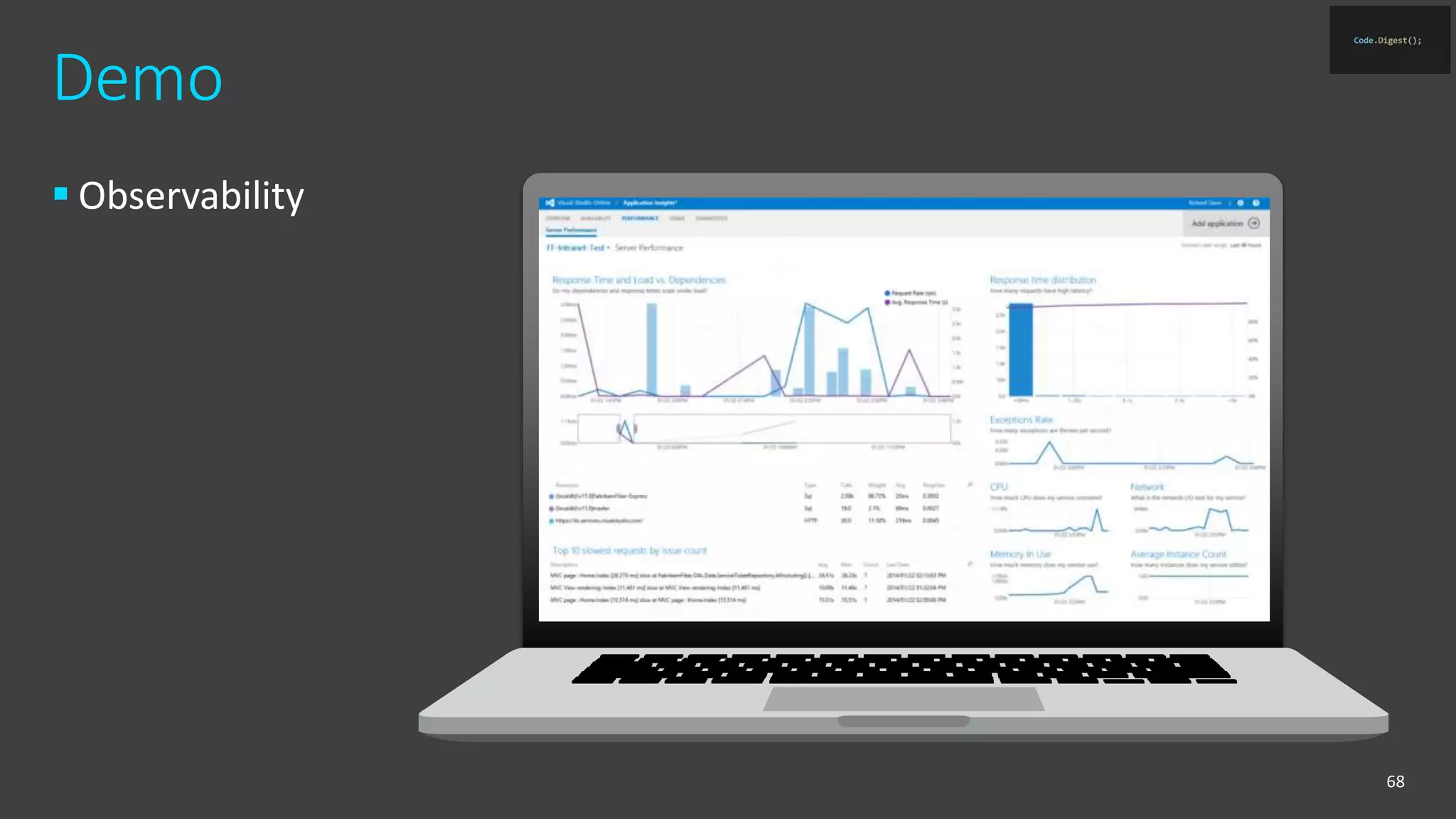

66. Demo
 Observability
68

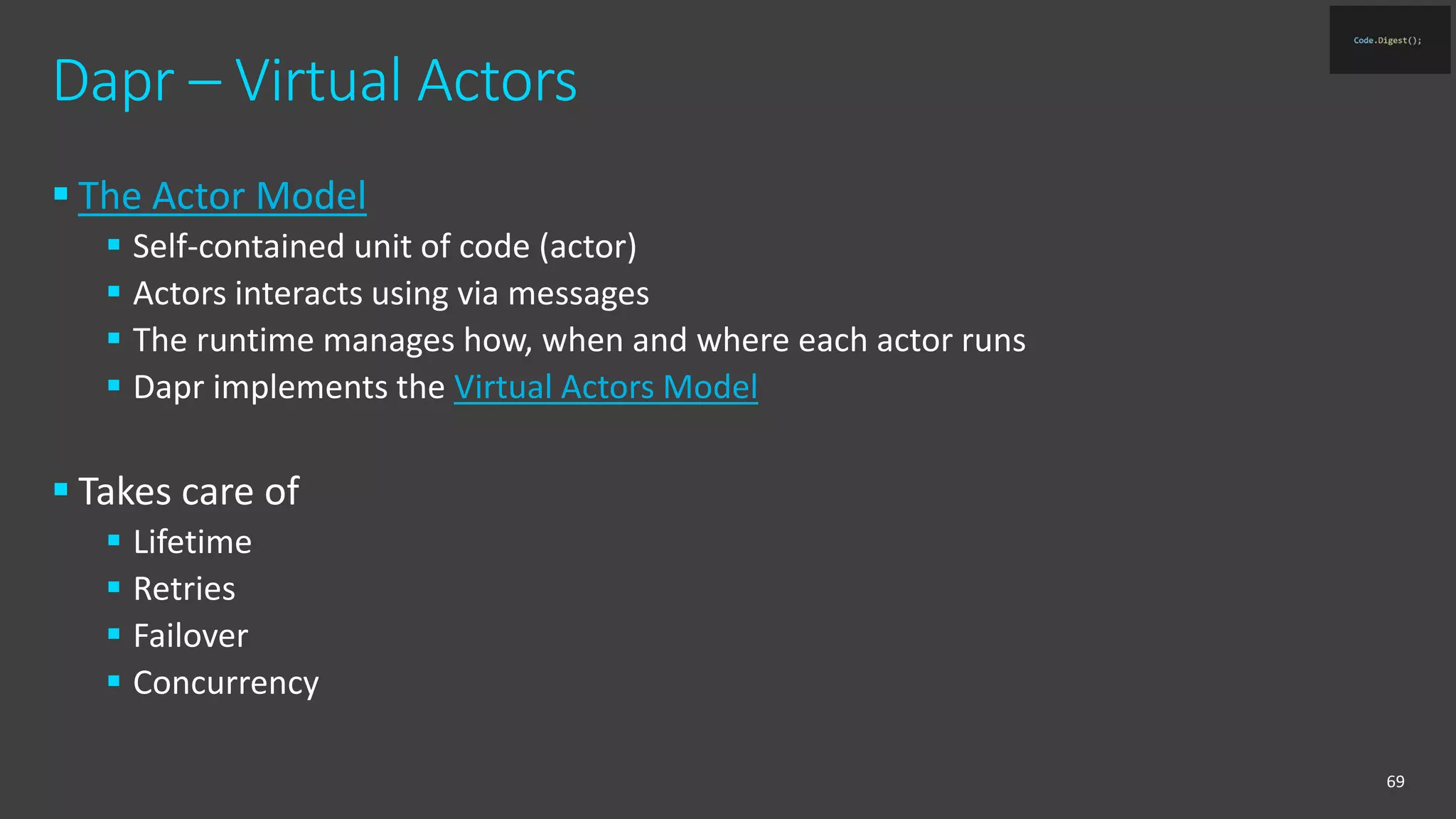

67. Dapr – Virtual Actors
 The Actor Model
 Self-contained unit of code (actor)
 Actors interacts using via messages
 The runtime manages how, when and where each actor runs
 Dapr implements the Virtual Actors Model
 Takes care of
 Lifetime
 Retries
 Failover
 Concurrency
69

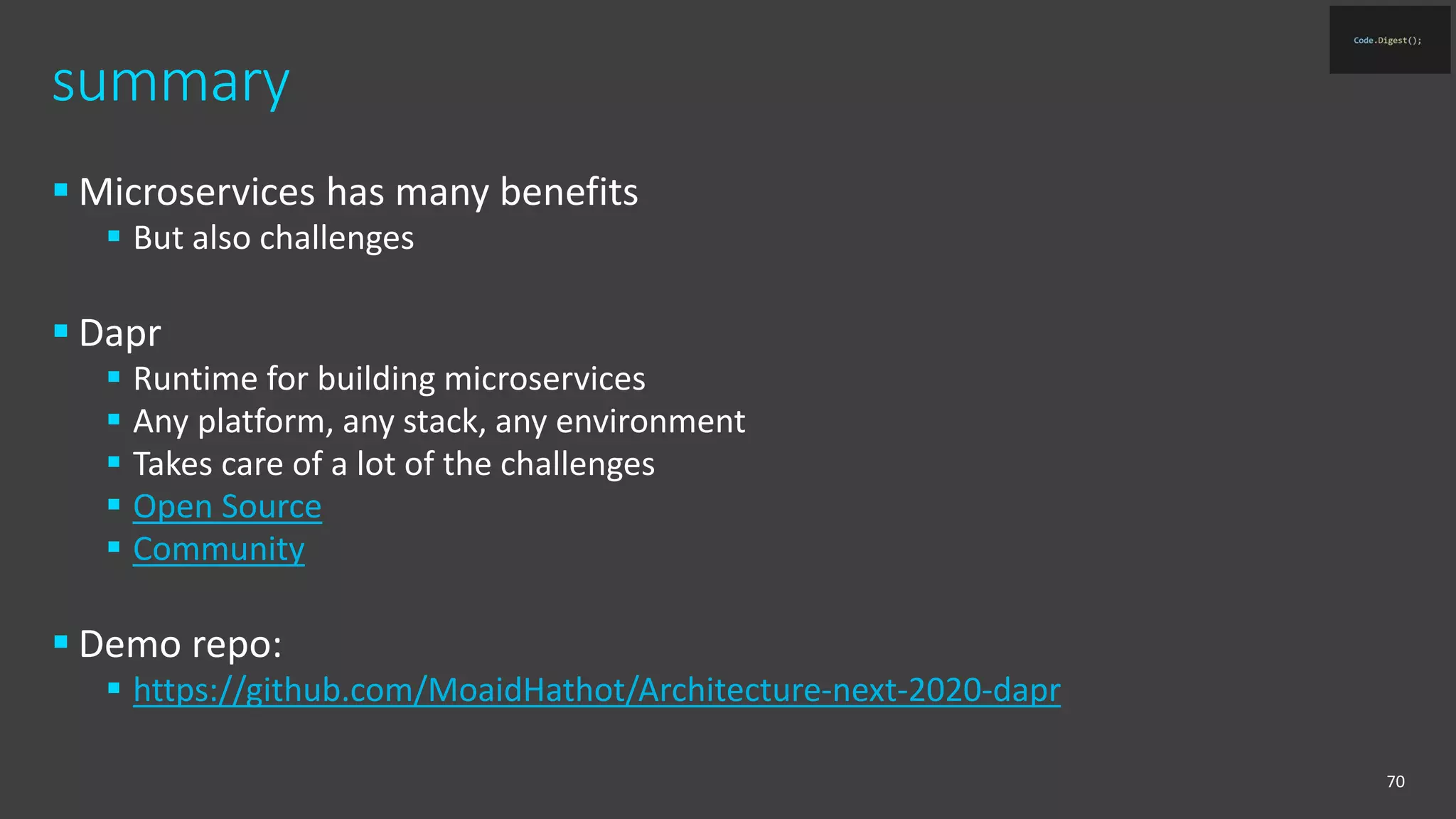

68. summary
 Microservices has many benefits
 But also challenges
 Dapr
 Runtime for building microservices
 Any platform, any stack, any environment
 Takes care of a lot of the challenges
 Open Source
 Community
 Demo repo:
 https://github.com/MoaidHathot/Architecture-next-2020-dapr
70
