Working with JavaBean Properties and Events

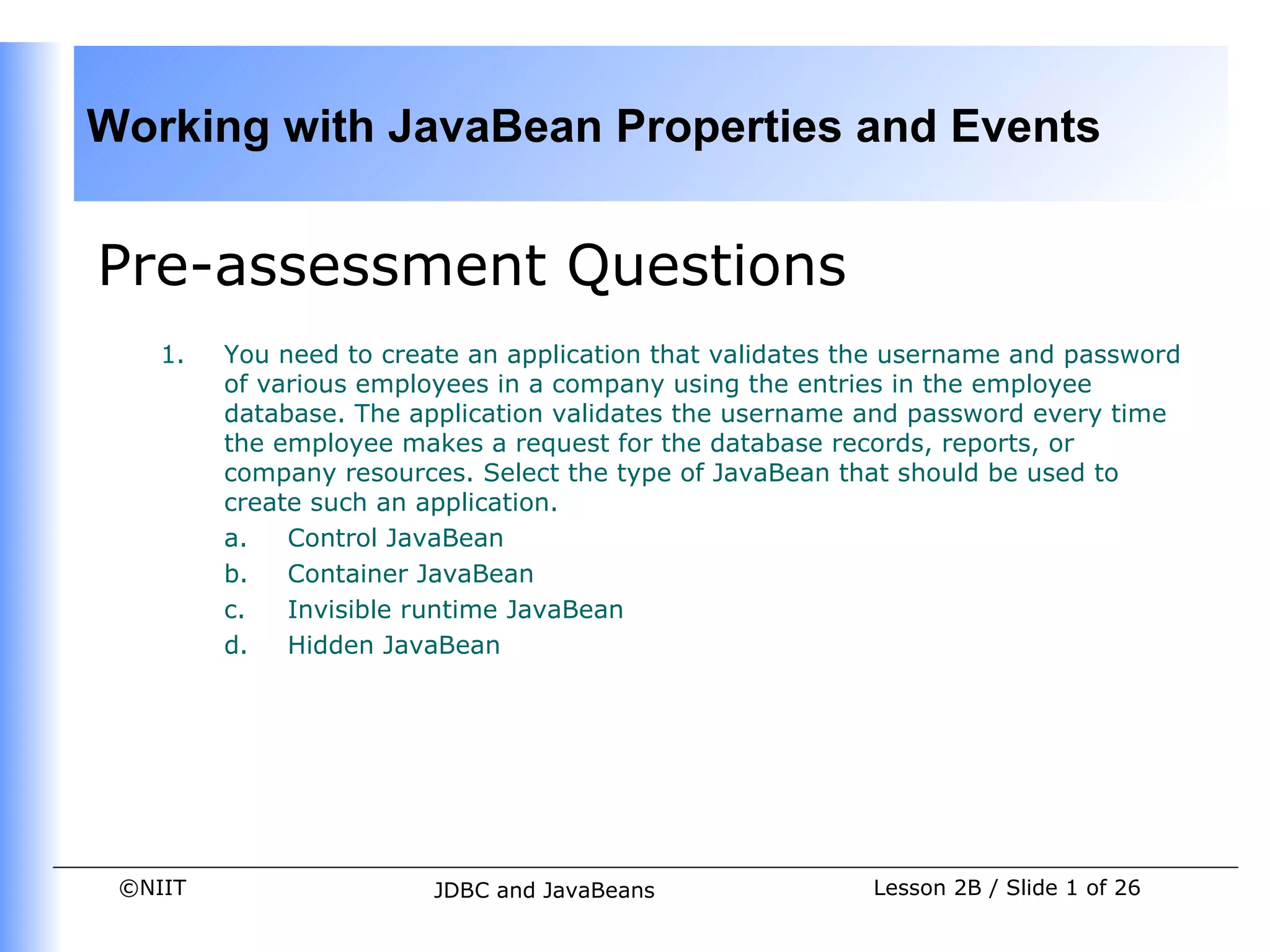

Pre-assessment Questions
1. You need to create an application that validates the username and password
of various employees in a company using the entries in the employee
database. The application validates the username and password every time
the employee makes a request for the database records, reports, or
company resources. Select the type of JavaBean that should be used to
create such an application.
a. Control JavaBean
b. Container JavaBean
c. Invisible runtime JavaBean
d. Hidden JavaBean

©NIIT JDBC and JavaBeans Lesson 2B / Slide 1 of 26

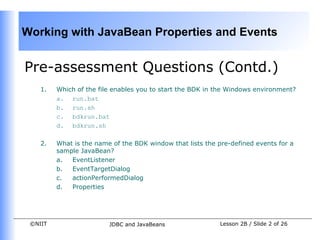

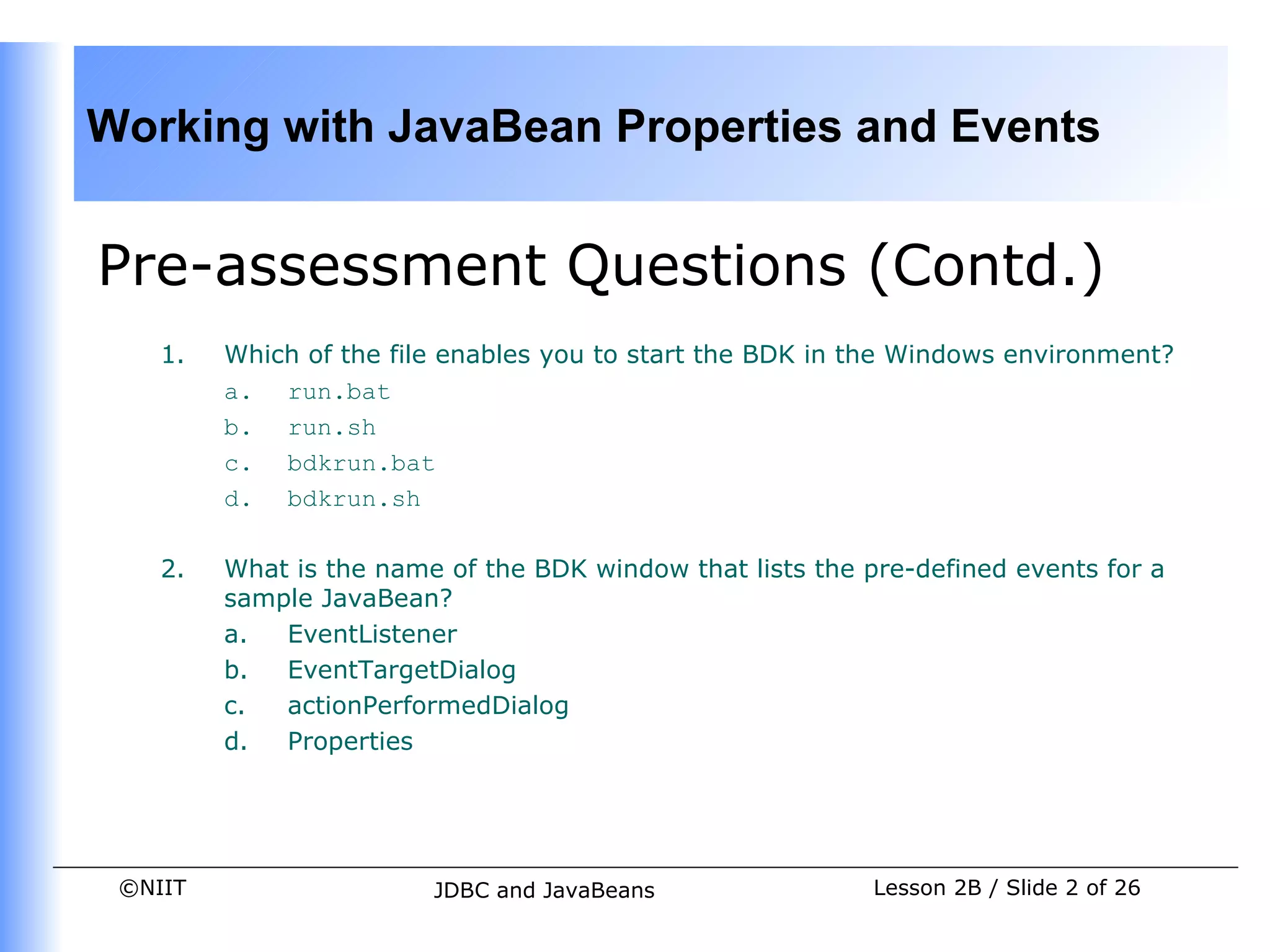

Pre-assessment Questions (Contd.)
1. Which of the file enables you to start the BDK in the Windows environment?
a. run.bat
b. run.sh
c. bdkrun.bat
d. bdkrun.sh

2. What is the name of the BDK window that lists the pre-defined events for a
sample JavaBean?
a. EventListener
b. EventTargetDialog
c. actionPerformedDialog
d. Properties

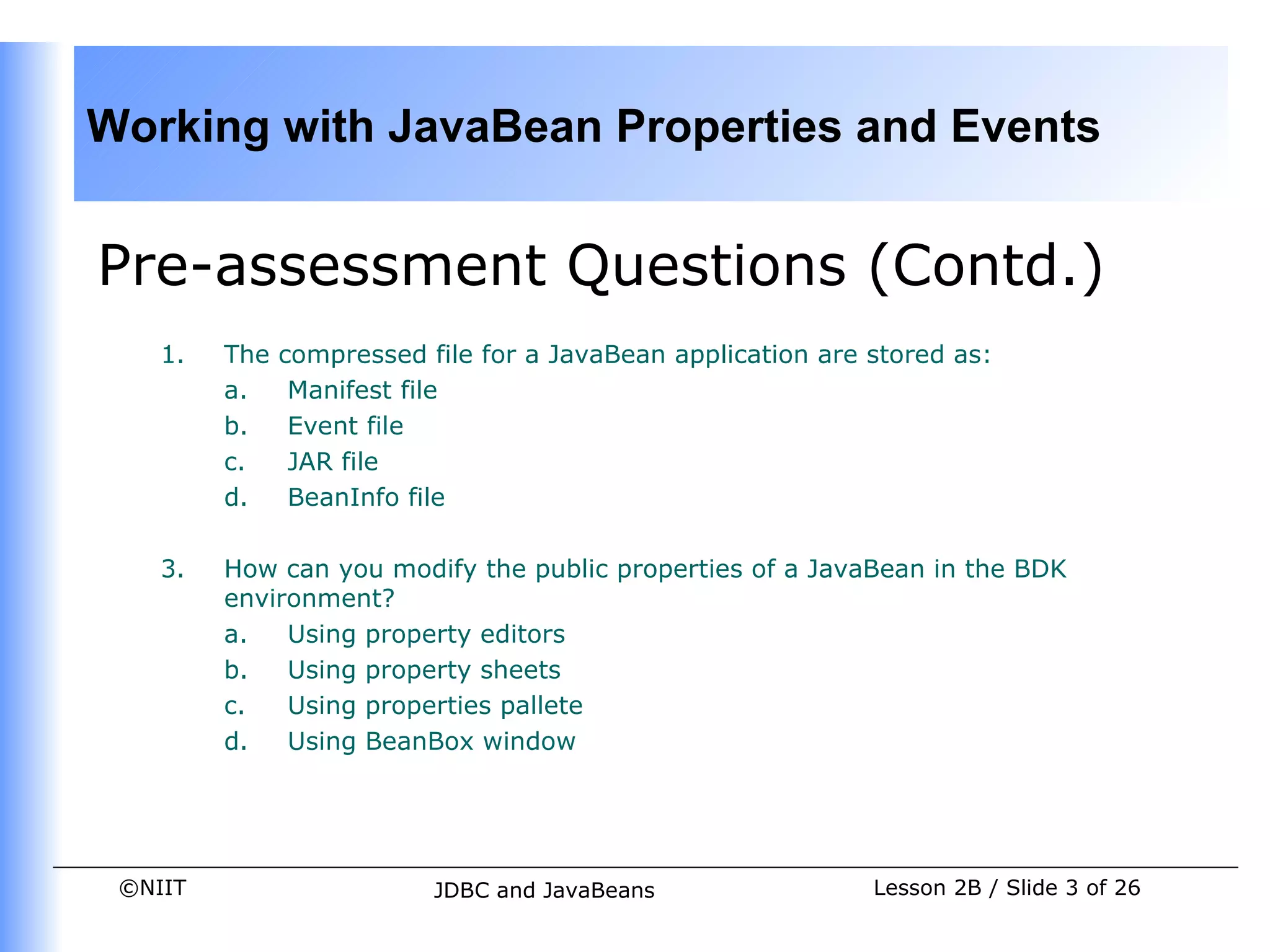

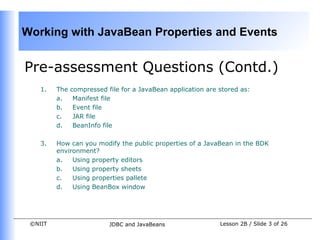

Pre-assessment Questions (Contd.)
1. The compressed file for a JavaBean application are stored as:
a. Manifest file
b. Event file
c. JAR file
d. BeanInfo file

3. How can you modify the public properties of a JavaBean in the BDK
environment?
a. Using property editors
b. Using property sheets
c. Using properties pallete
d. Using BeanBox window

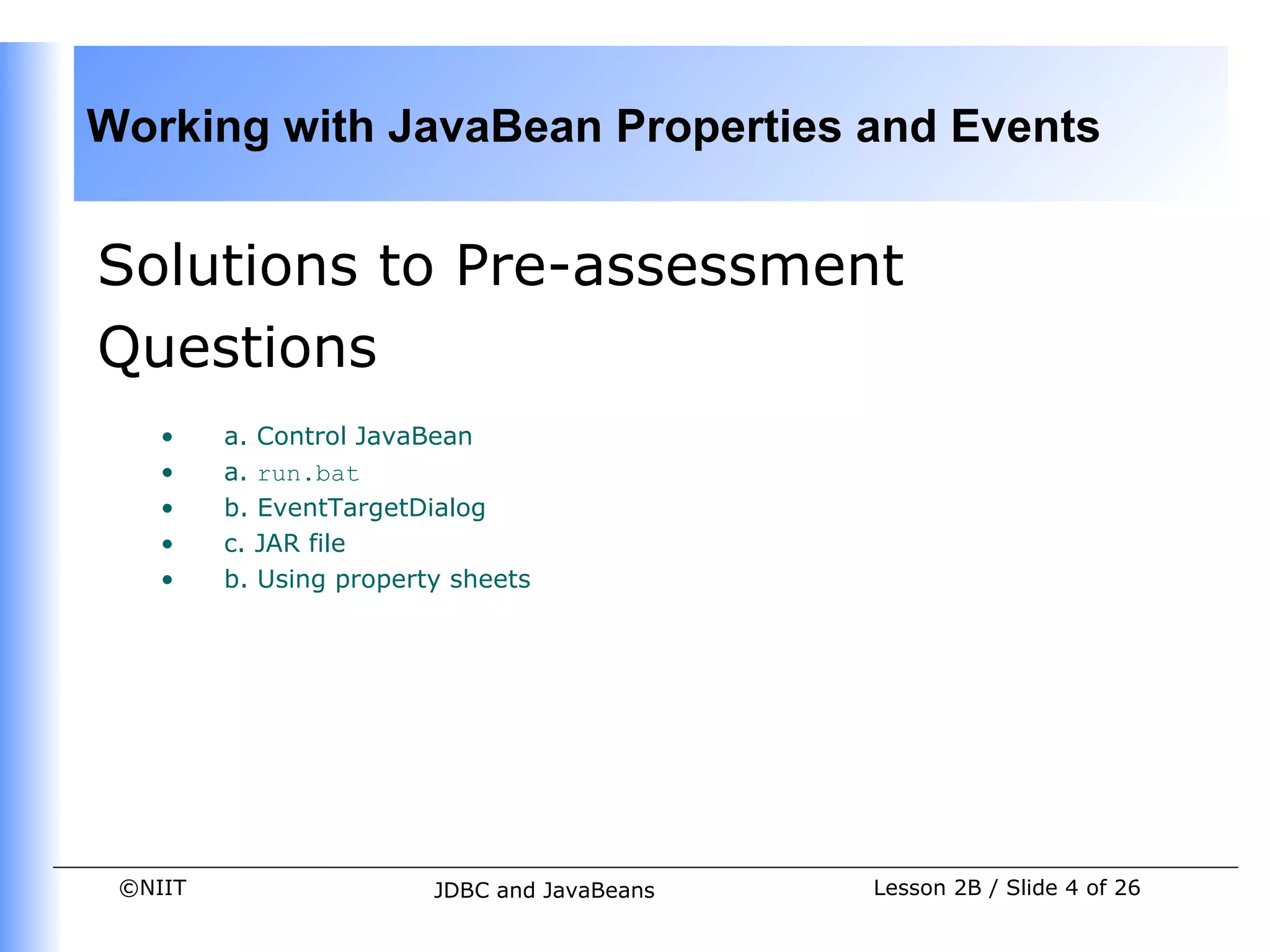

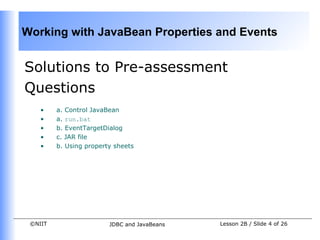

Solutions to Pre-assessment
Questions
• a. Control JavaBean
• a. run.bat
• b. EventTargetDialog
• c. JAR file
• b. Using property sheets

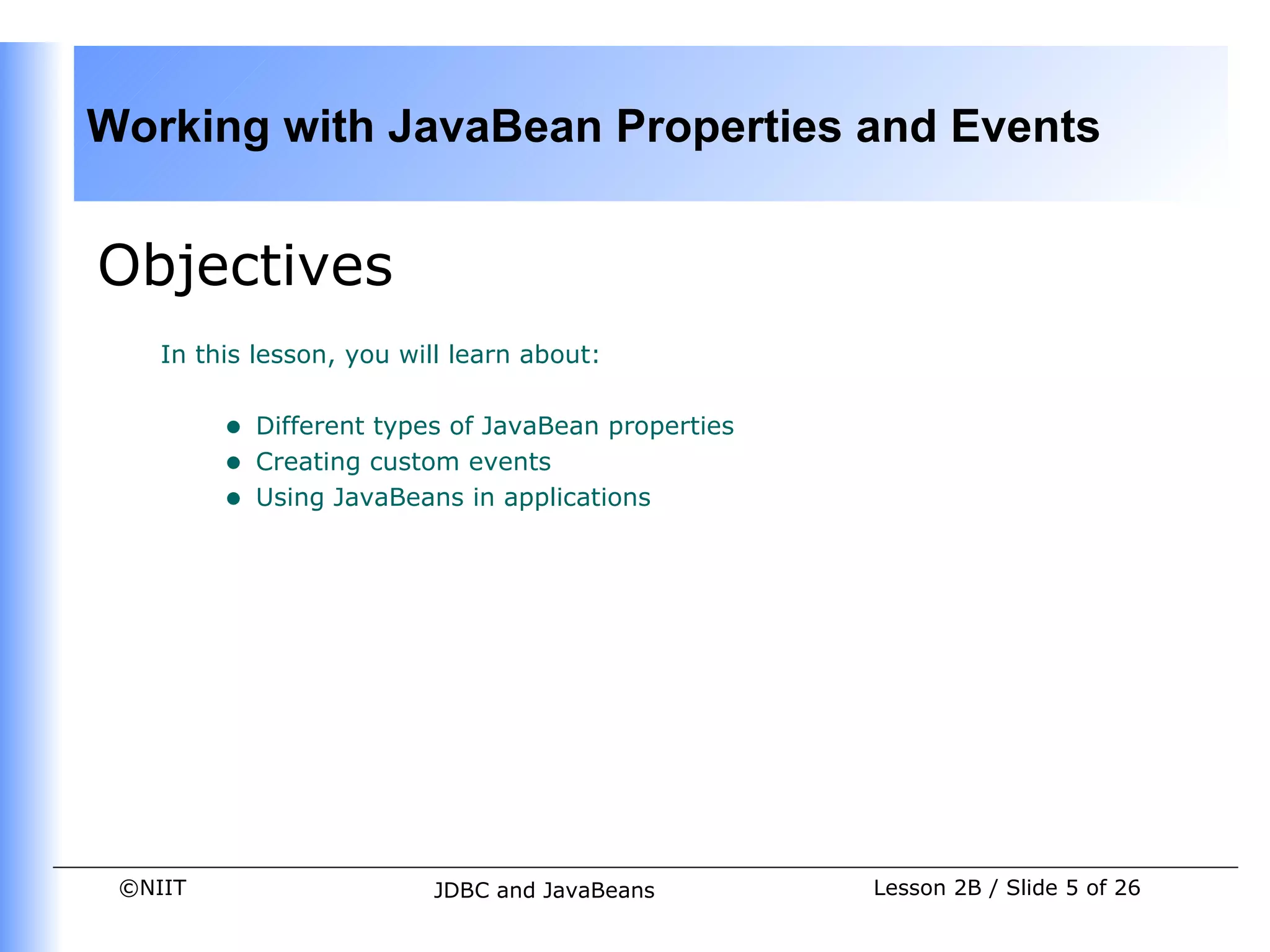

Objectives
In this lesson, you will learn about:

• Different types of JavaBean properties
• Creating custom events
• Using JavaBeans in applications

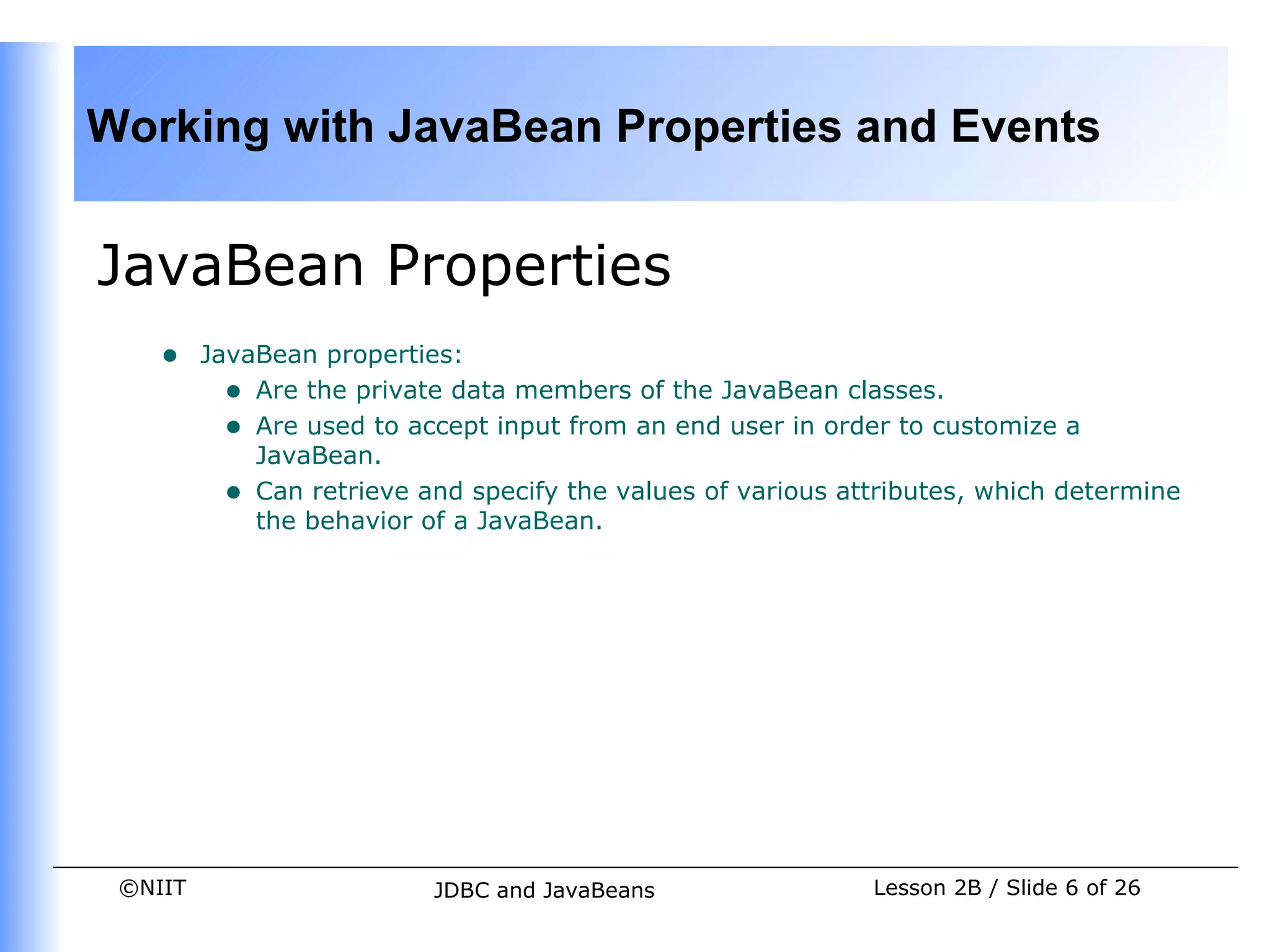

JavaBean Properties
• JavaBean properties:
• Are the private data members of the JavaBean classes.
• Are used to accept input from an end user in order to customize a
JavaBean.
• Can retrieve and specify the values of various attributes, which determine
the behavior of a JavaBean.

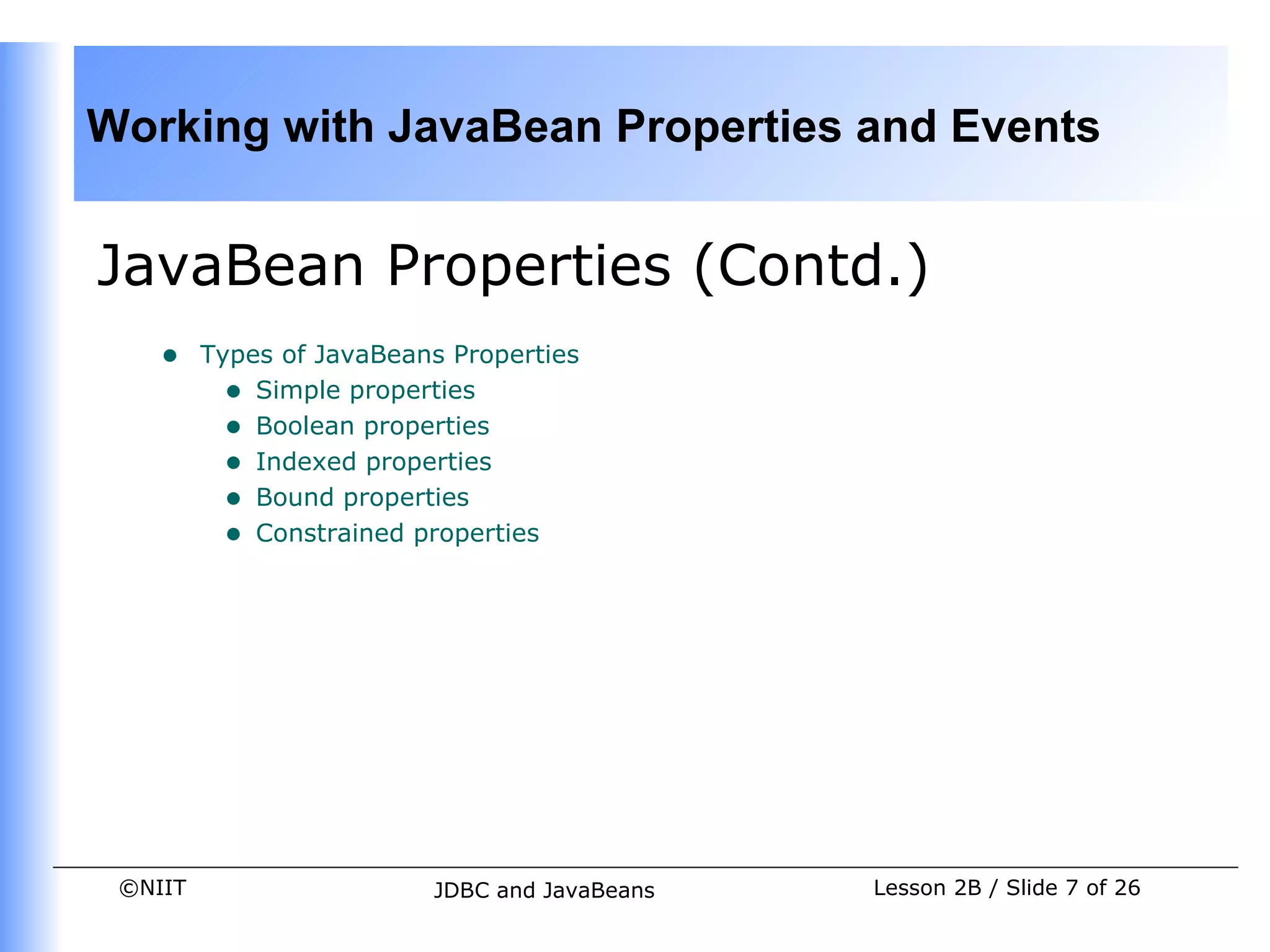

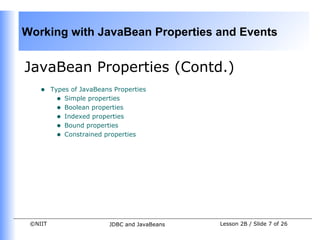

JavaBean Properties (Contd.)
• Types of JavaBeans Properties
• Simple properties
• Boolean properties
• Indexed properties
• Bound properties
• Constrained properties

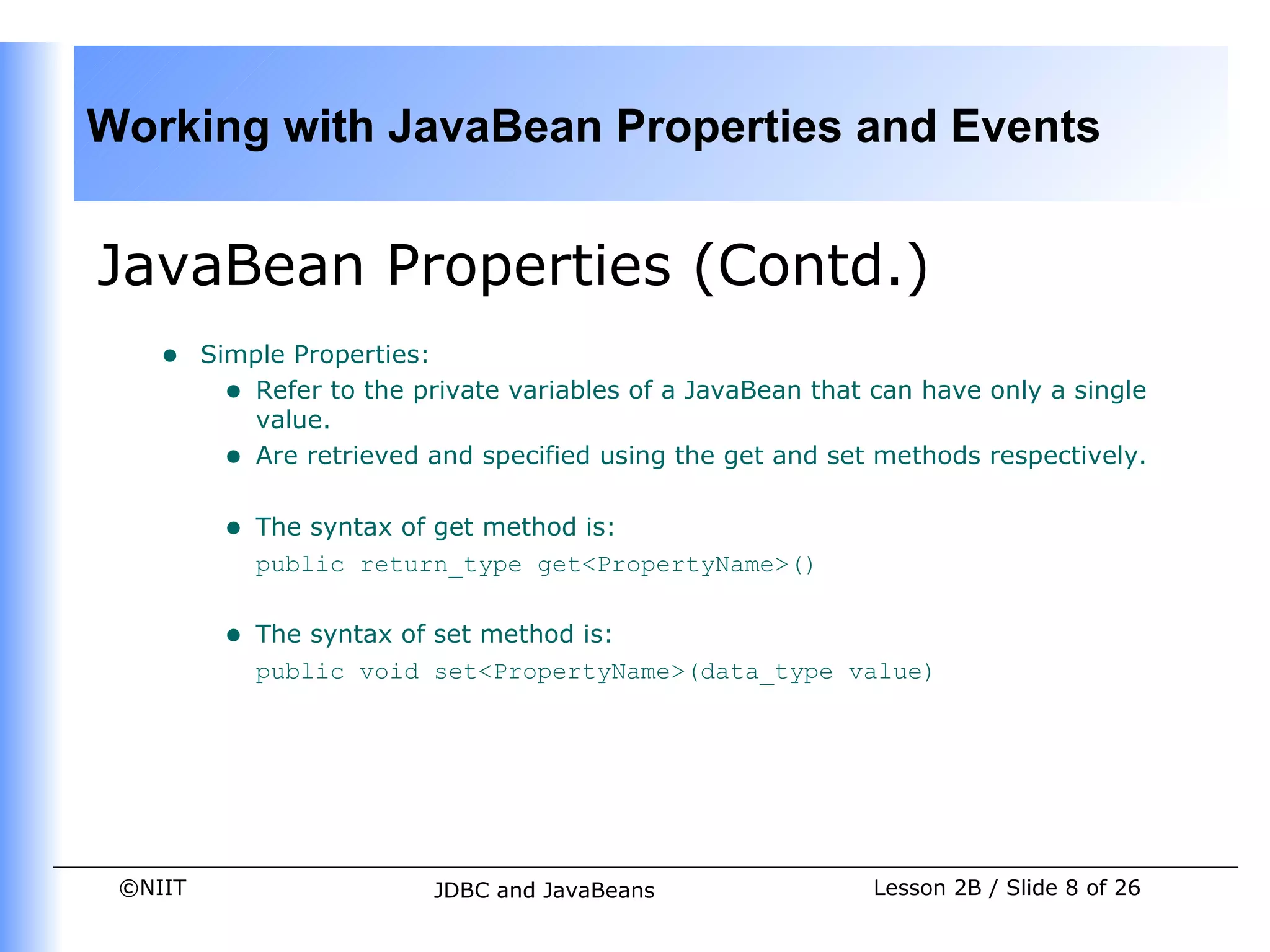

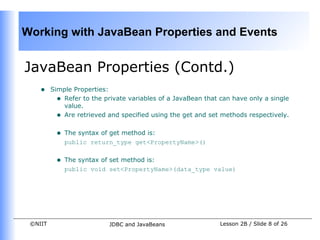

• Simple Properties:
• Refer to the private variables of a JavaBean that can have only a single
value.
• Are retrieved and specified using the get and set methods respectively.

• The syntax of get method is:
public return_type get<PropertyName>()

• The syntax of set method is:
public void set<PropertyName>(data_type value)

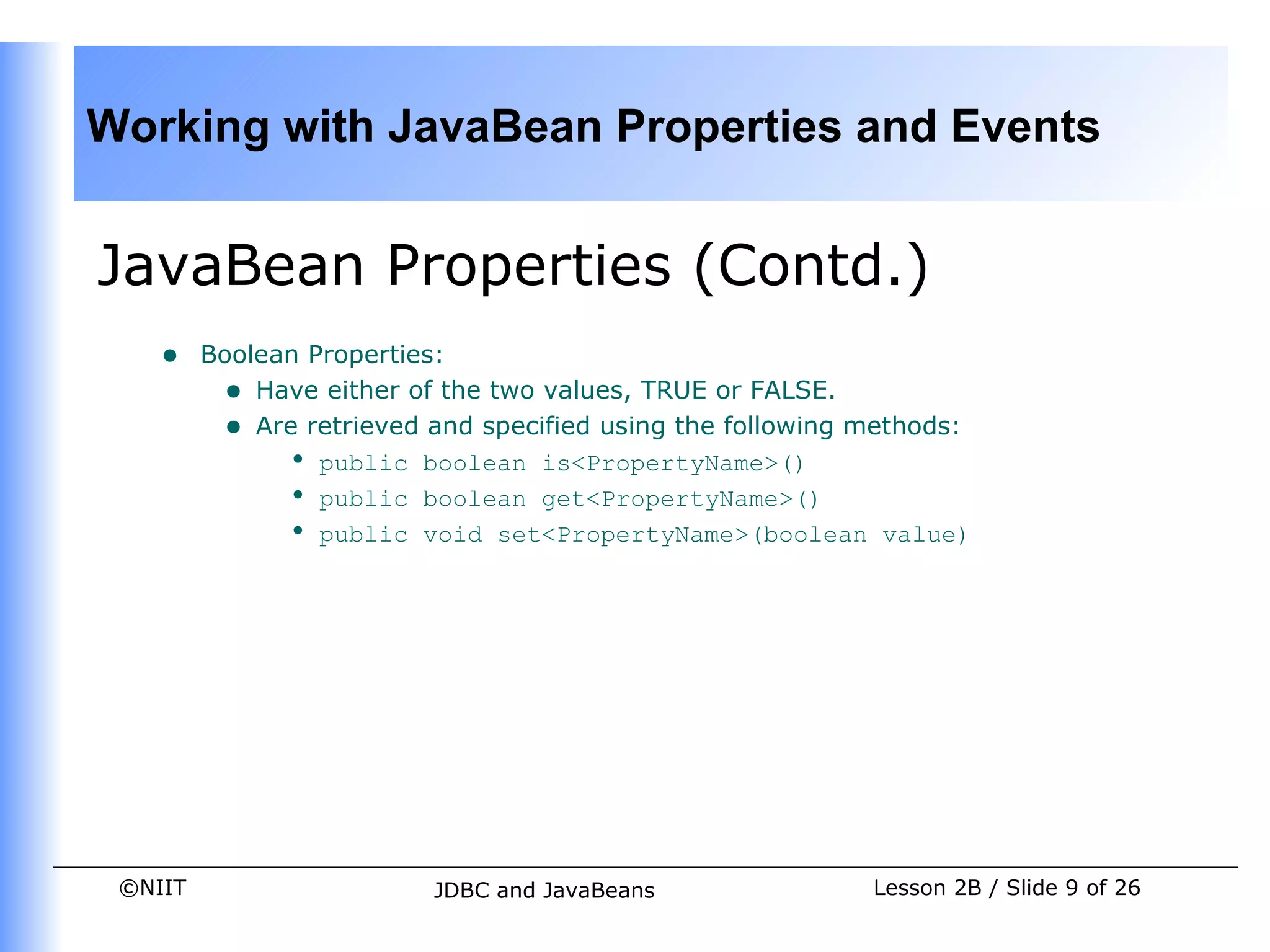

• Boolean Properties:
• Have either of the two values, TRUE or FALSE.
• Are retrieved and specified using the following methods:
• public boolean is<PropertyName>()
• public boolean get<PropertyName>()
• public void set<PropertyName>(boolean value)

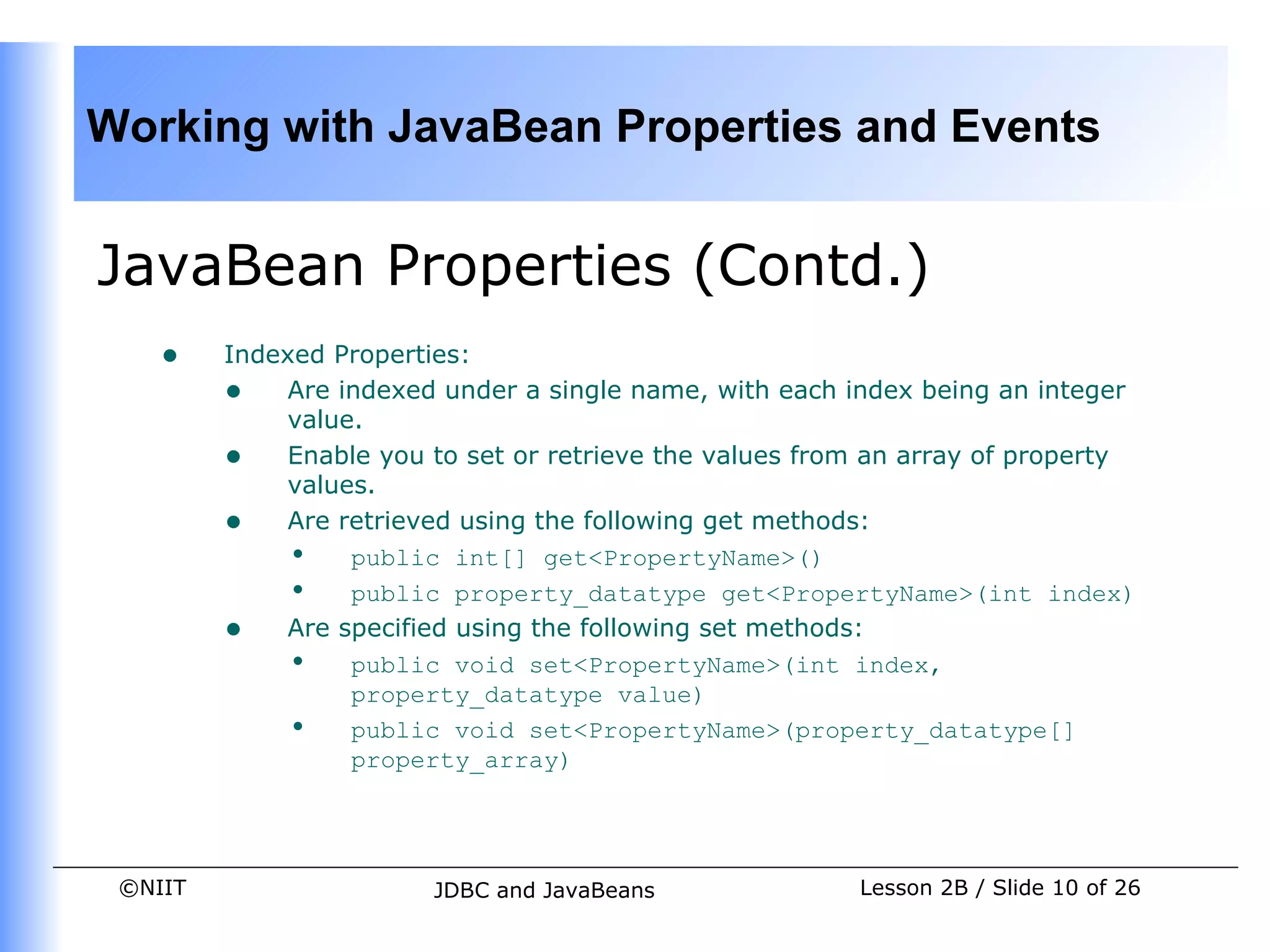

• Indexed Properties:
• Are indexed under a single name, with each index being an integer
value.
• Enable you to set or retrieve the values from an array of property
values.
• Are retrieved using the following get methods:
• public int[] get<PropertyName>()
• public property_datatype get<PropertyName>(int index)
• Are specified using the following set methods:
• public void set<PropertyName>(int index,
property_datatype value)
• public void set<PropertyName>(property_datatype[]
property_array)

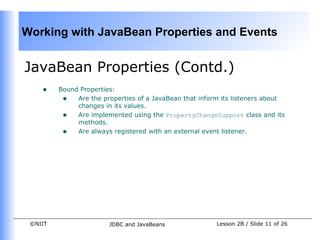

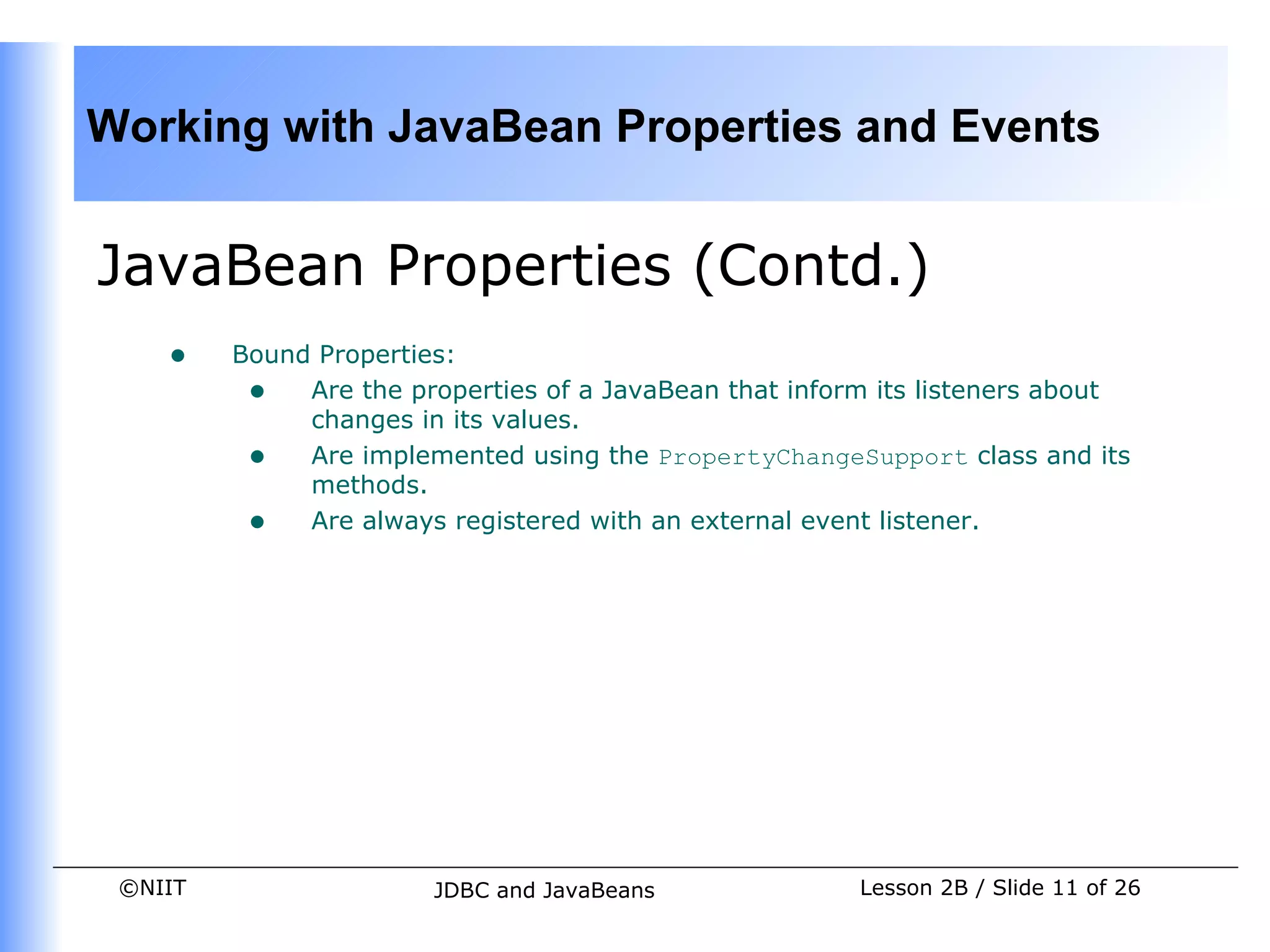

• Bound Properties:
• Are the properties of a JavaBean that inform its listeners about
changes in its values.
• Are implemented using the PropertyChangeSupport class and its
methods.
• Are always registered with an external event listener.

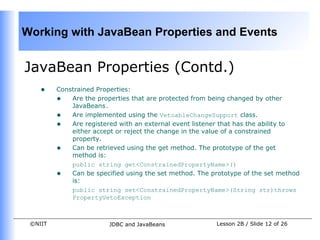

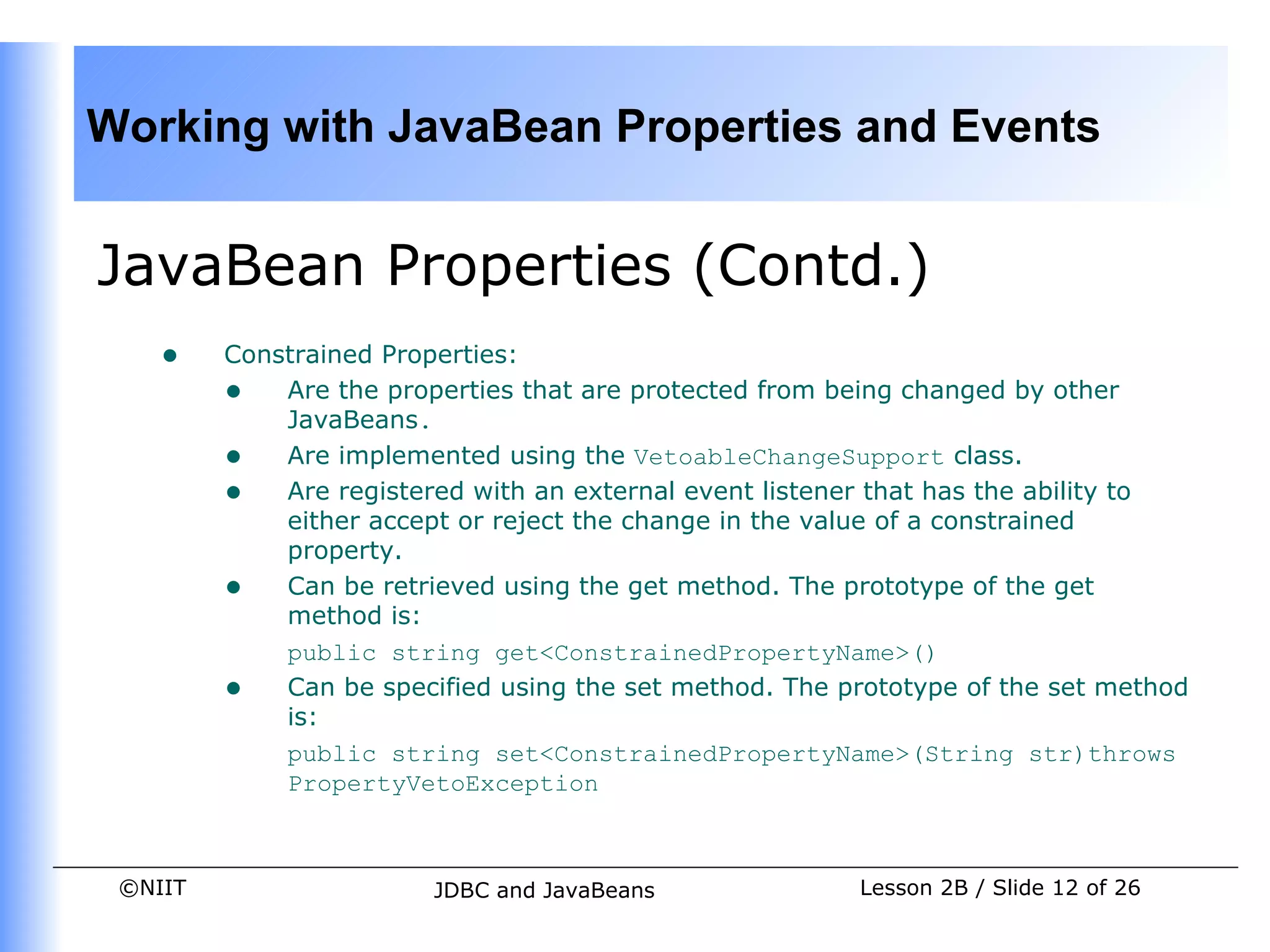

• Constrained Properties:
• Are the properties that are protected from being changed by other
JavaBeans.
• Are implemented using the VetoableChangeSupport class.
• Are registered with an external event listener that has the ability to
either accept or reject the change in the value of a constrained
property.
• Can be retrieved using the get method. The prototype of the get
method is:
public string get<ConstrainedPropertyName>()
• Can be specified using the set method. The prototype of the set method
is:
public string set<ConstrainedPropertyName>(String str)throws
PropertyVetoException

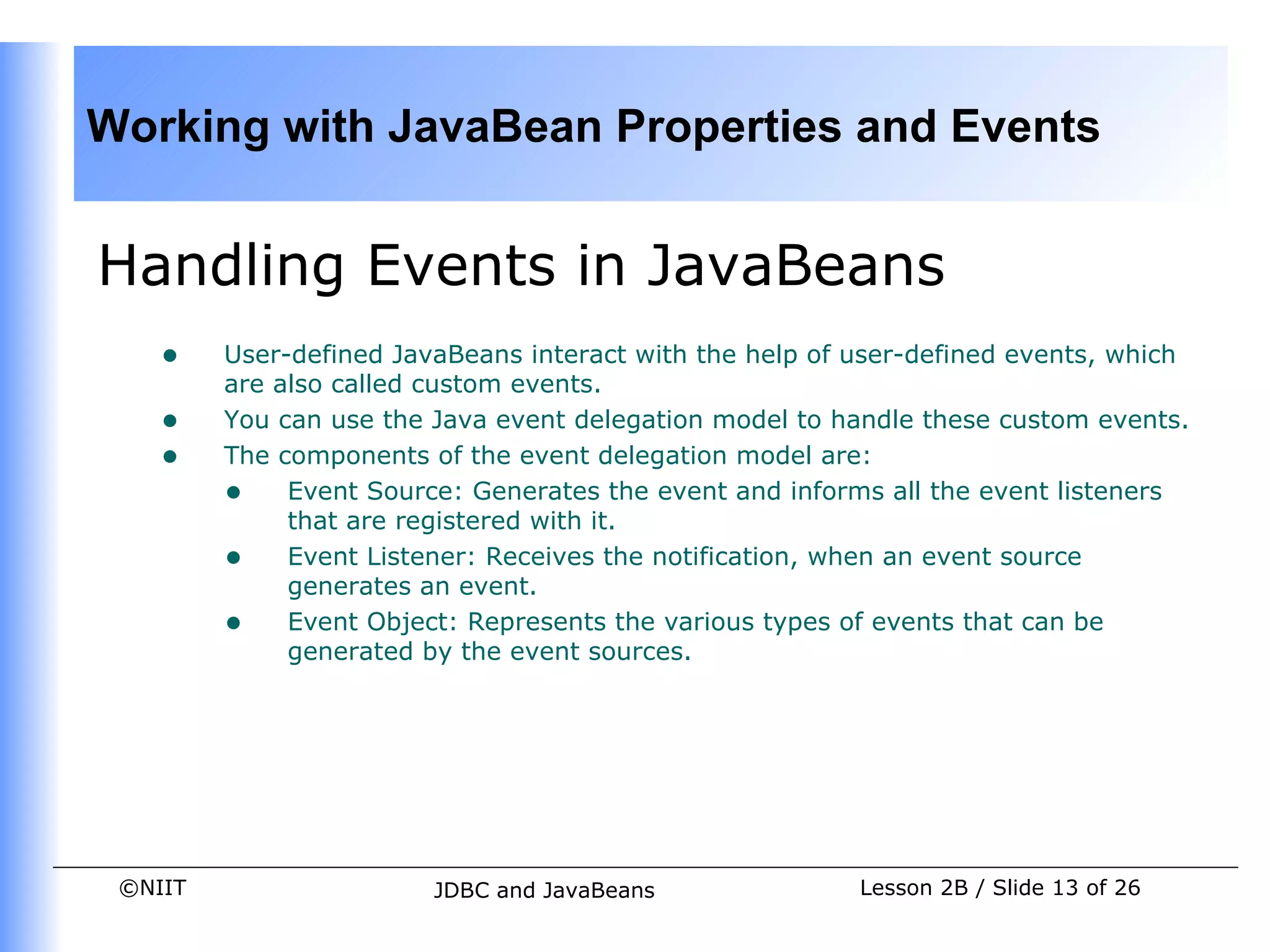

Handling Events in JavaBeans
• User-defined JavaBeans interact with the help of user-defined events, which
are also called custom events.
• You can use the Java event delegation model to handle these custom events.
• The components of the event delegation model are:
• Event Source: Generates the event and informs all the event listeners
that are registered with it.
• Event Listener: Receives the notification, when an event source
generates an event.
• Event Object: Represents the various types of events that can be
generated by the event sources.



(Contd.)

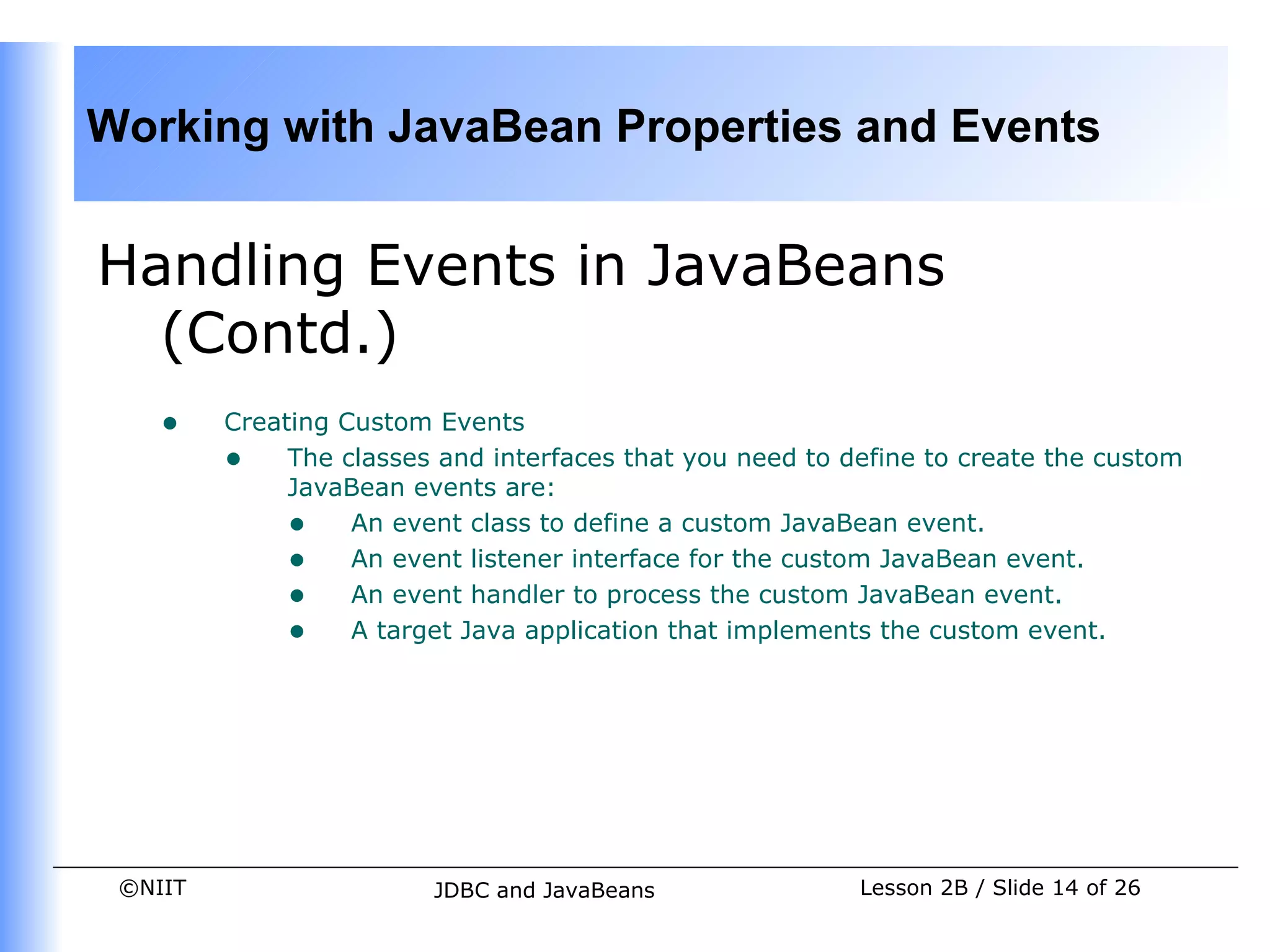

• Creating Custom Events
• The classes and interfaces that you need to define to create the custom
JavaBean events are:
• An event class to define a custom JavaBean event.
• An event listener interface for the custom JavaBean event.
• An event handler to process the custom JavaBean event.
• A target Java application that implements the custom event.

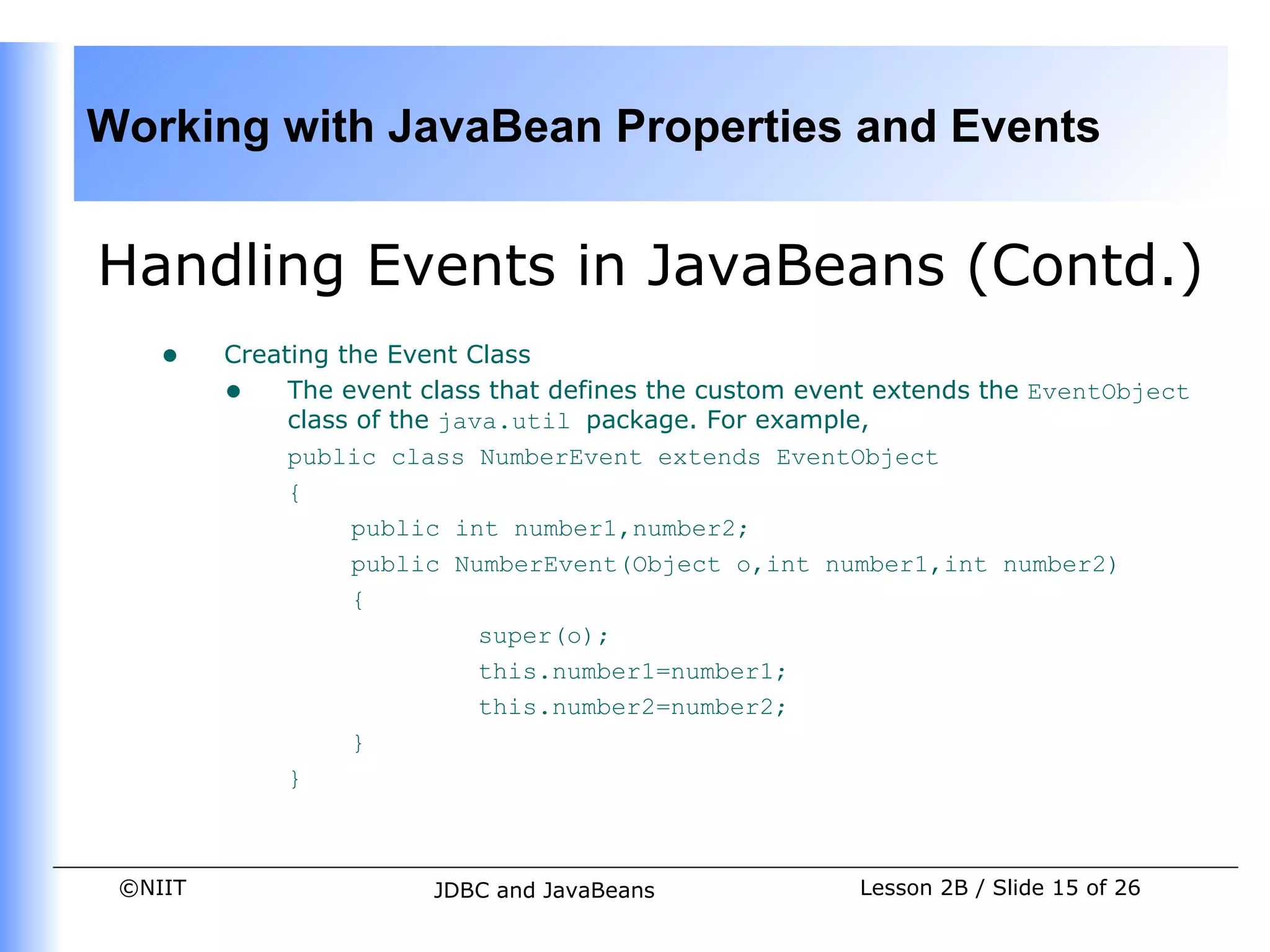

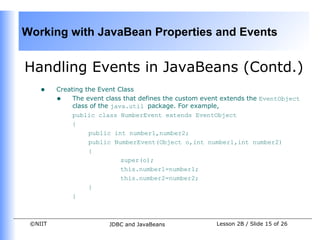

Handling Events in JavaBeans (Contd.)
• Creating the Event Class
• The event class that defines the custom event extends the EventObject
class of the java.util package. For example,
public class NumberEvent extends EventObject
{
public int number1,number2;
public NumberEvent(Object o,int number1,int number2)
{
super(o);
this.number1=number1;
this.number2=number2;
}
}



(Contd.)

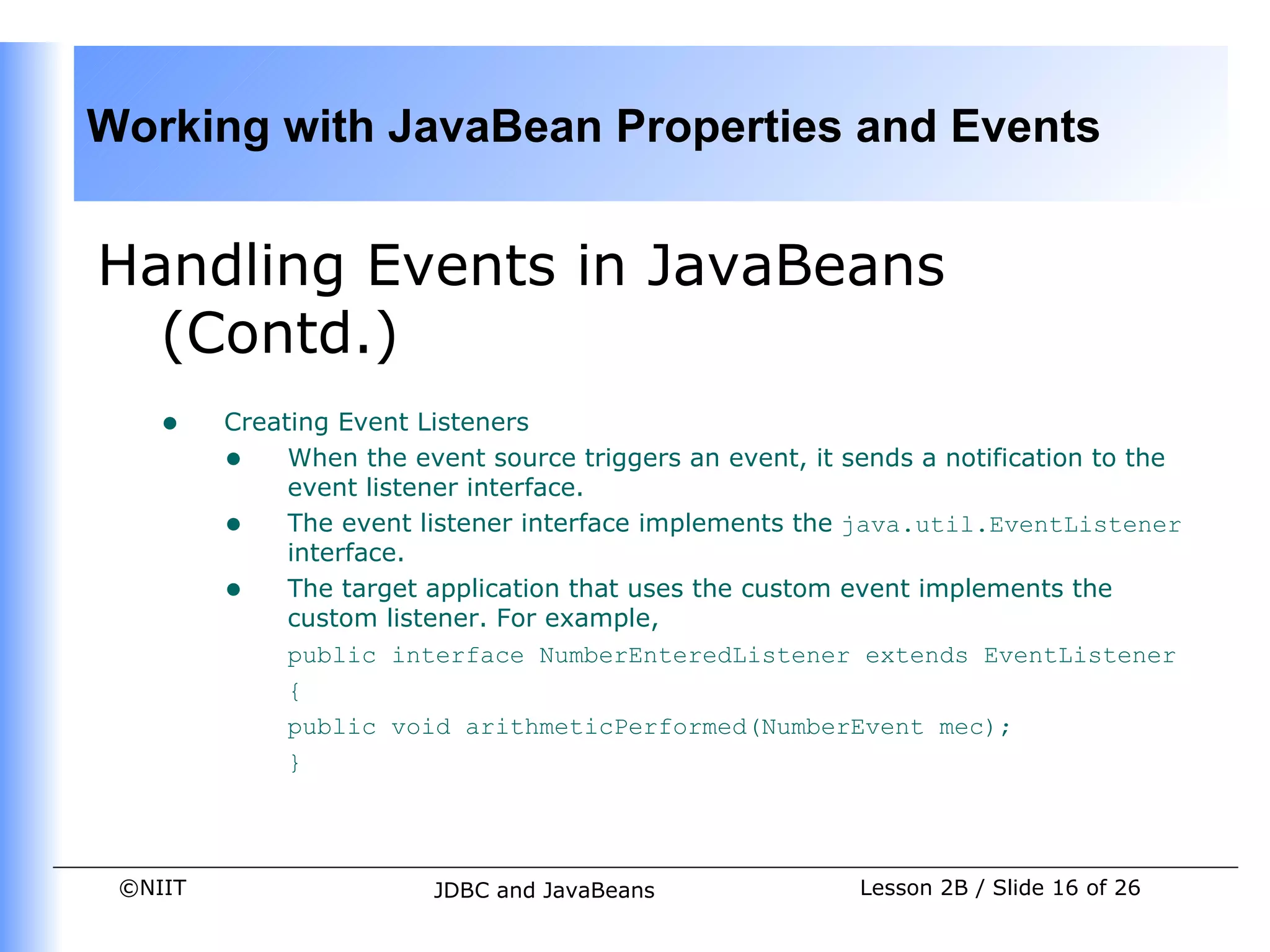

• Creating Event Listeners
• When the event source triggers an event, it sends a notification to the
event listener interface.
• The event listener interface implements the java.util.EventListener
interface.
• The target application that uses the custom event implements the
custom listener. For example,
public interface NumberEnteredListener extends EventListener
{
public void arithmeticPerformed(NumberEvent mec);
}



(Contd.)

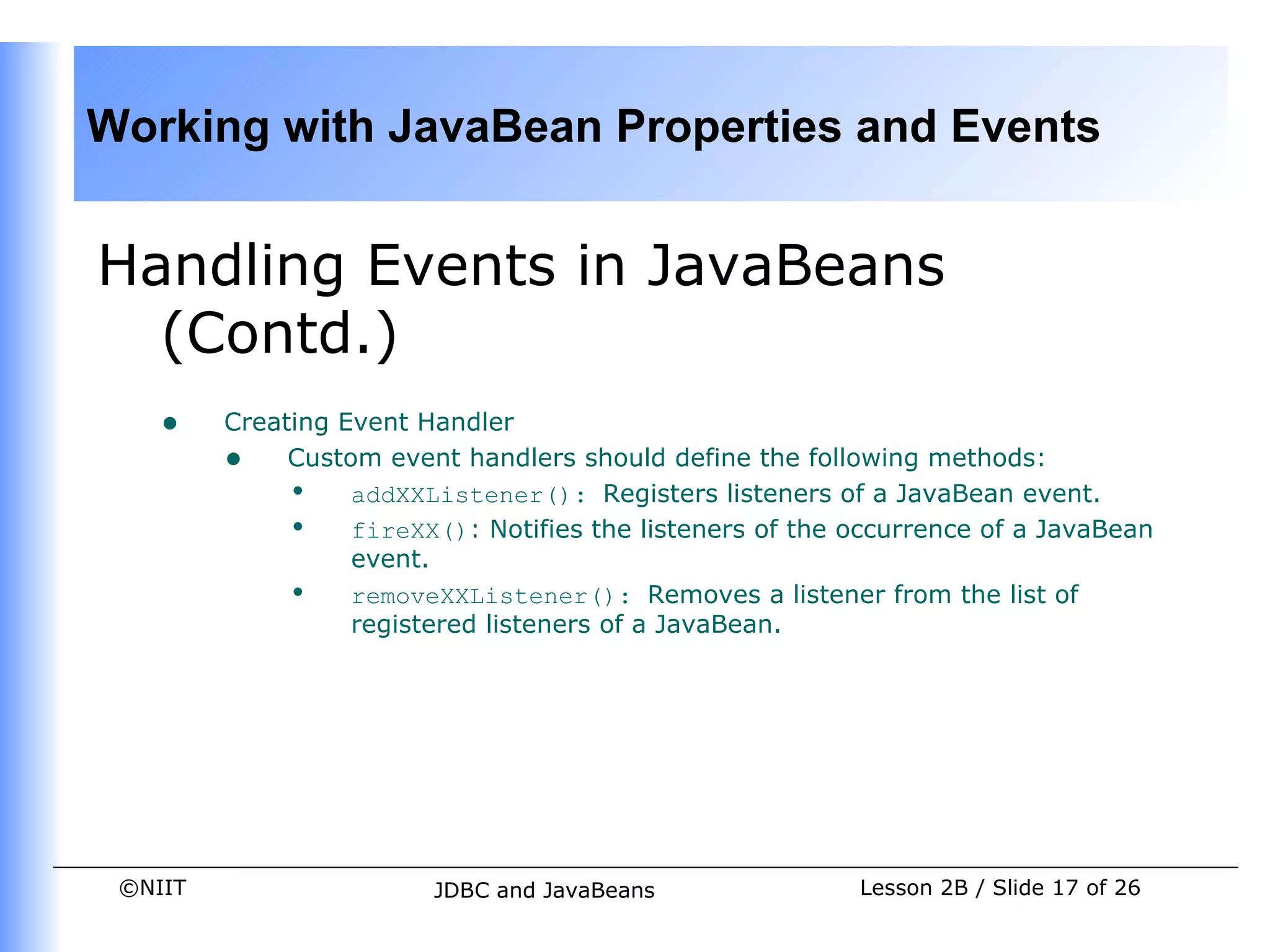

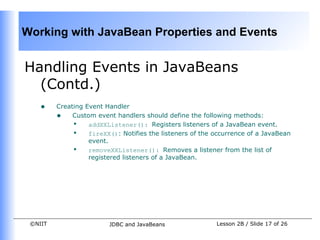

• Creating Event Handler
• Custom event handlers should define the following methods:
• addXXListener(): Registers listeners of a JavaBean event.
• fireXX(): Notifies the listeners of the occurrence of a JavaBean
event.
• removeXXListener(): Removes a listener from the list of
registered listeners of a JavaBean.



(Contd.)

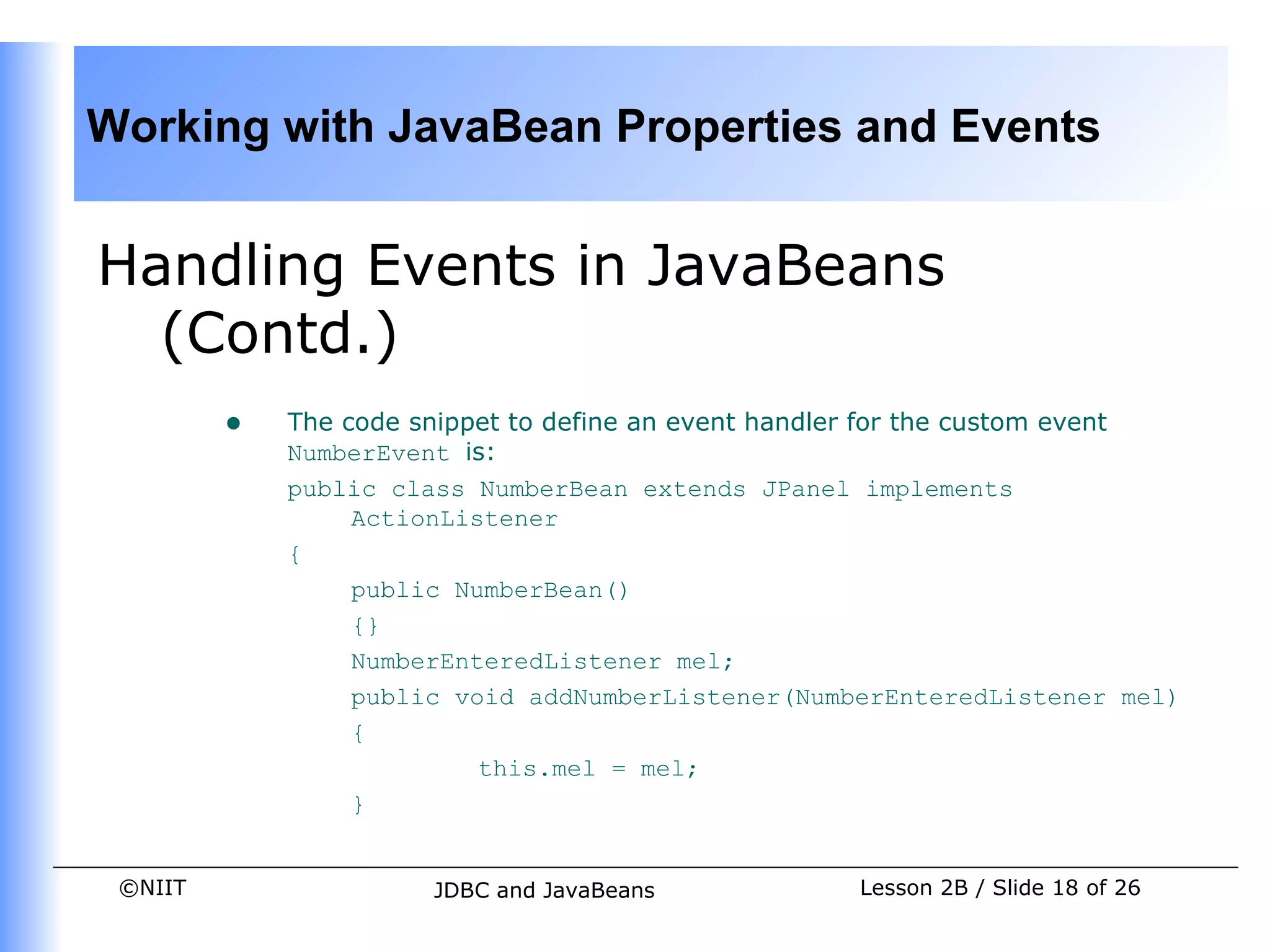

• The code snippet to define an event handler for the custom event
NumberEvent is:
public class NumberBean extends JPanel implements
ActionListener
{
public NumberBean()
{}
NumberEnteredListener mel;
public void addNumberListener(NumberEnteredListener mel)
{
this.mel = mel;
}



(Contd.)

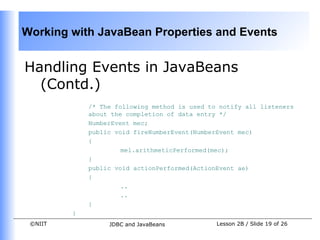

/* The following method is used to notify all listeners
about the completion of data entry */
NumberEvent mec;
public void fireNumberEvent(NumberEvent mec)
{
mel.arithmeticPerformed(mec);
}
public void actionPerformed(ActionEvent ae)
{
..
..
}
}


(Contd.)

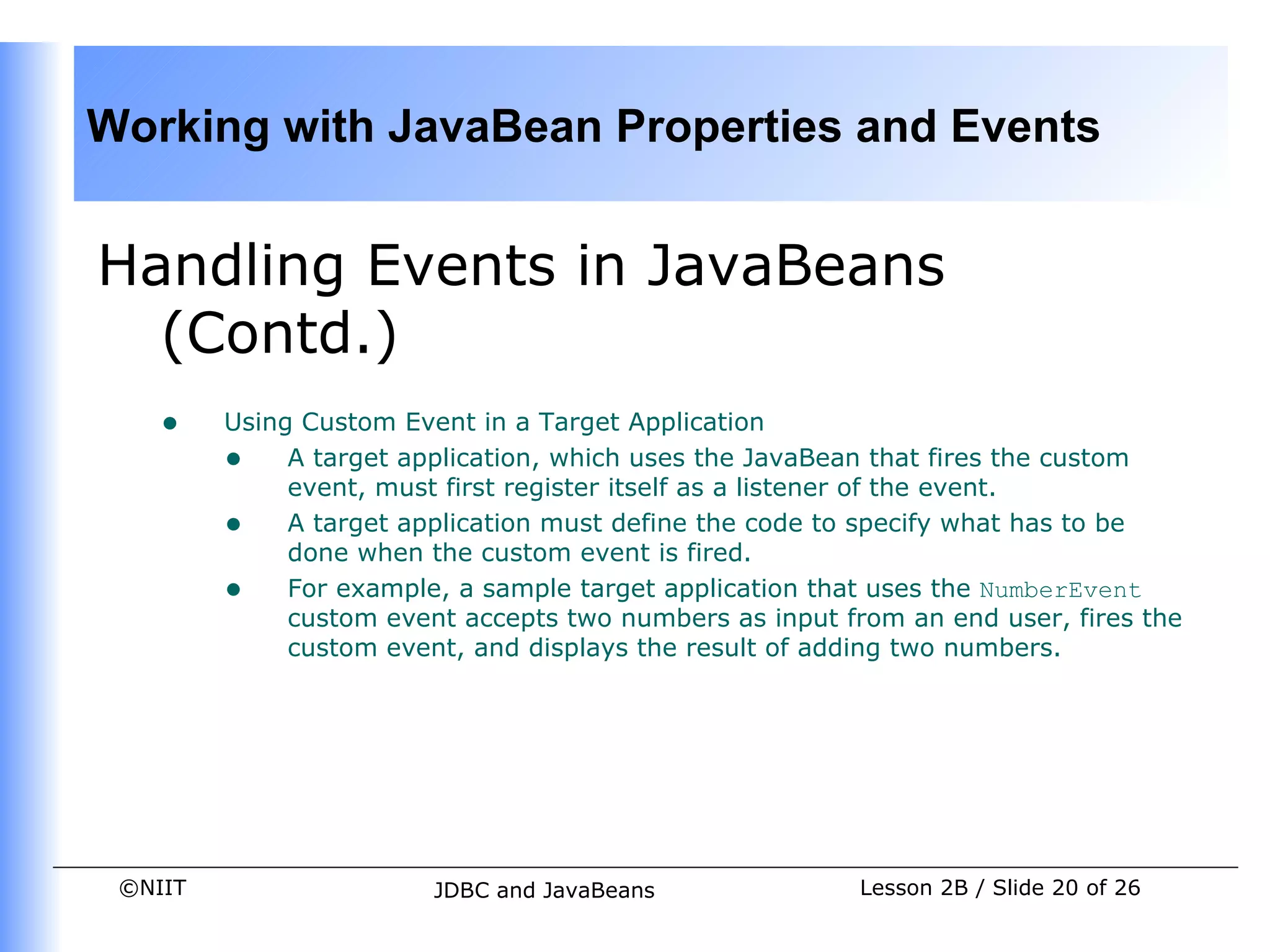

• Using Custom Event in a Target Application
• A target application, which uses the JavaBean that fires the custom
event, must first register itself as a listener of the event.
• A target application must define the code to specify what has to be
done when the custom event is fired.
• For example, a sample target application that uses the NumberEvent
custom event accepts two numbers as input from an end user, fires the
custom event, and displays the result of adding two numbers.

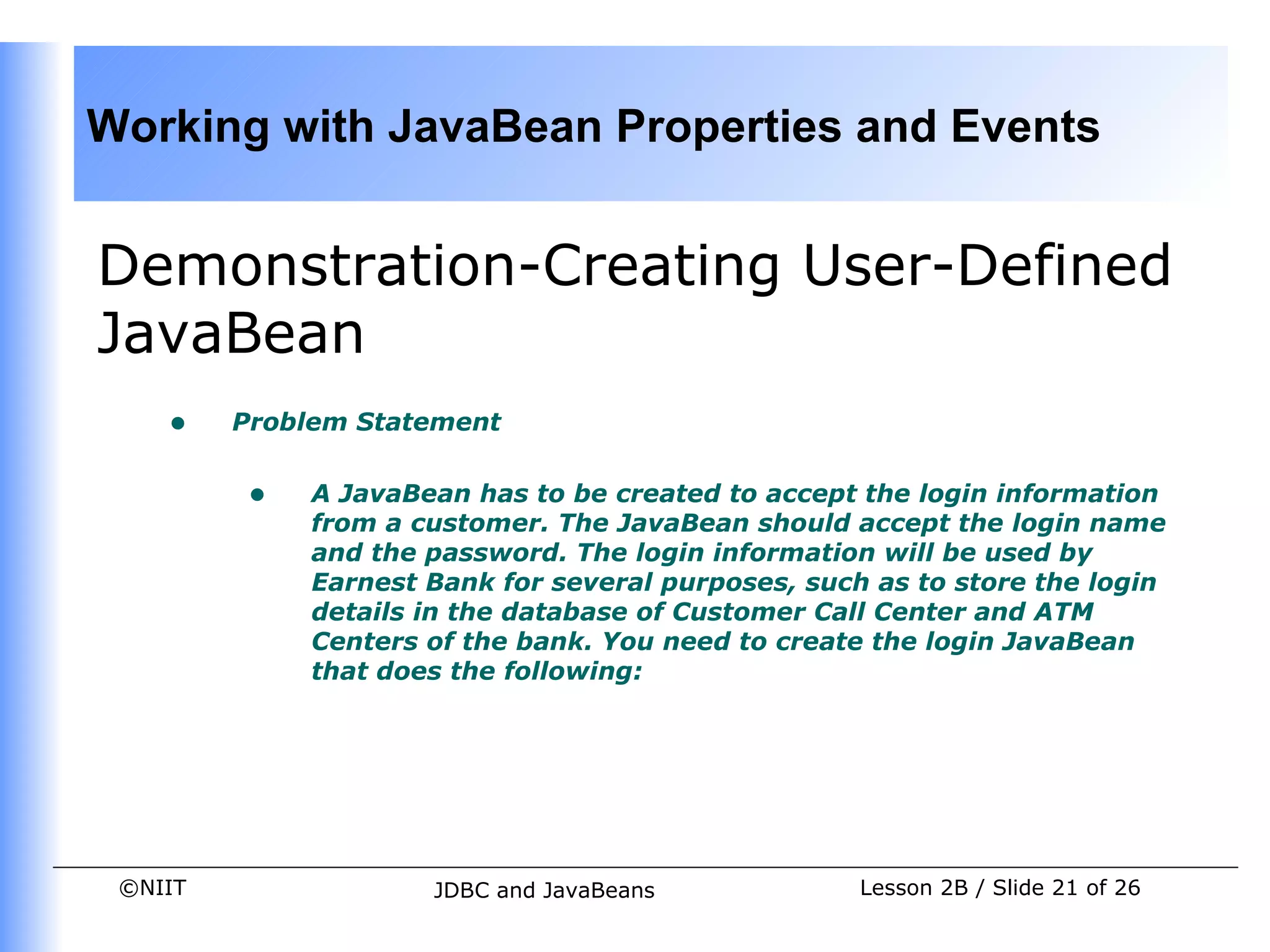

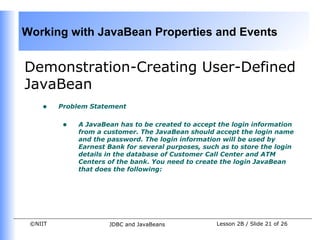

Demonstration-Creating User-Defined
JavaBean
• Problem Statement

• A JavaBean has to be created to accept the login information
from a customer. The JavaBean should accept the login name
and the password. The login information will be used by
Earnest Bank for several purposes, such as to store the login
details in the database of Customer Call Center and ATM
Centers of the bank. You need to create the login JavaBean
that does the following:

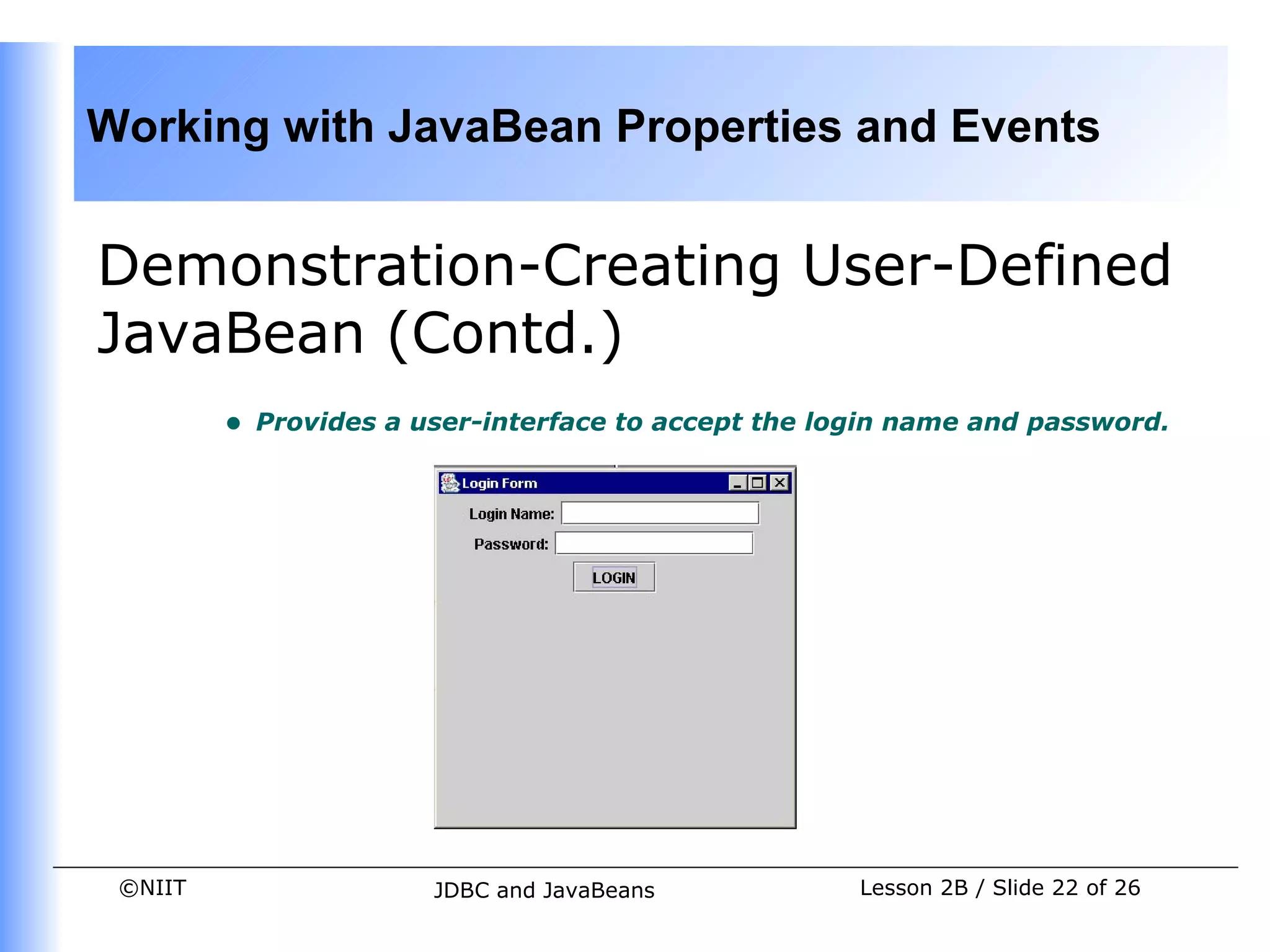

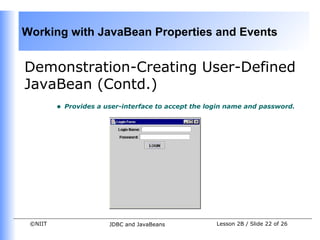

JavaBean (Contd.)
• Provides a user-interface to accept the login name and password.

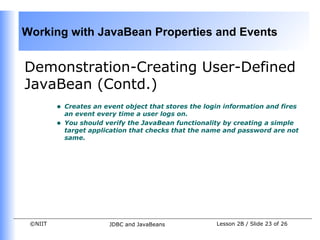

JavaBean (Contd.)

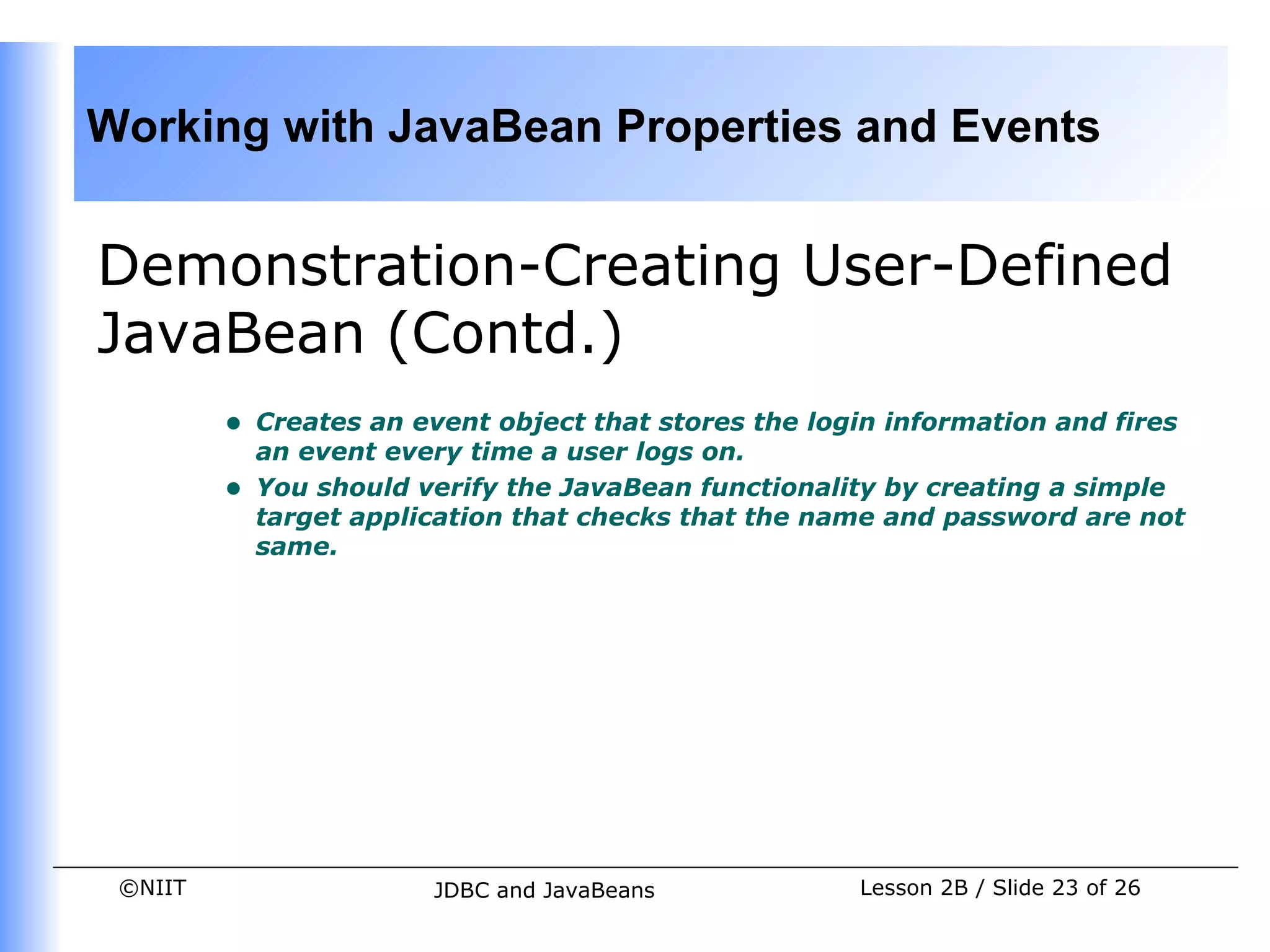

• Creates an event object that stores the login information and fires
an event every time a user logs on.
• You should verify the JavaBean functionality by creating a simple
target application that checks that the name and password are not
same.



JavaBean (Contd.)

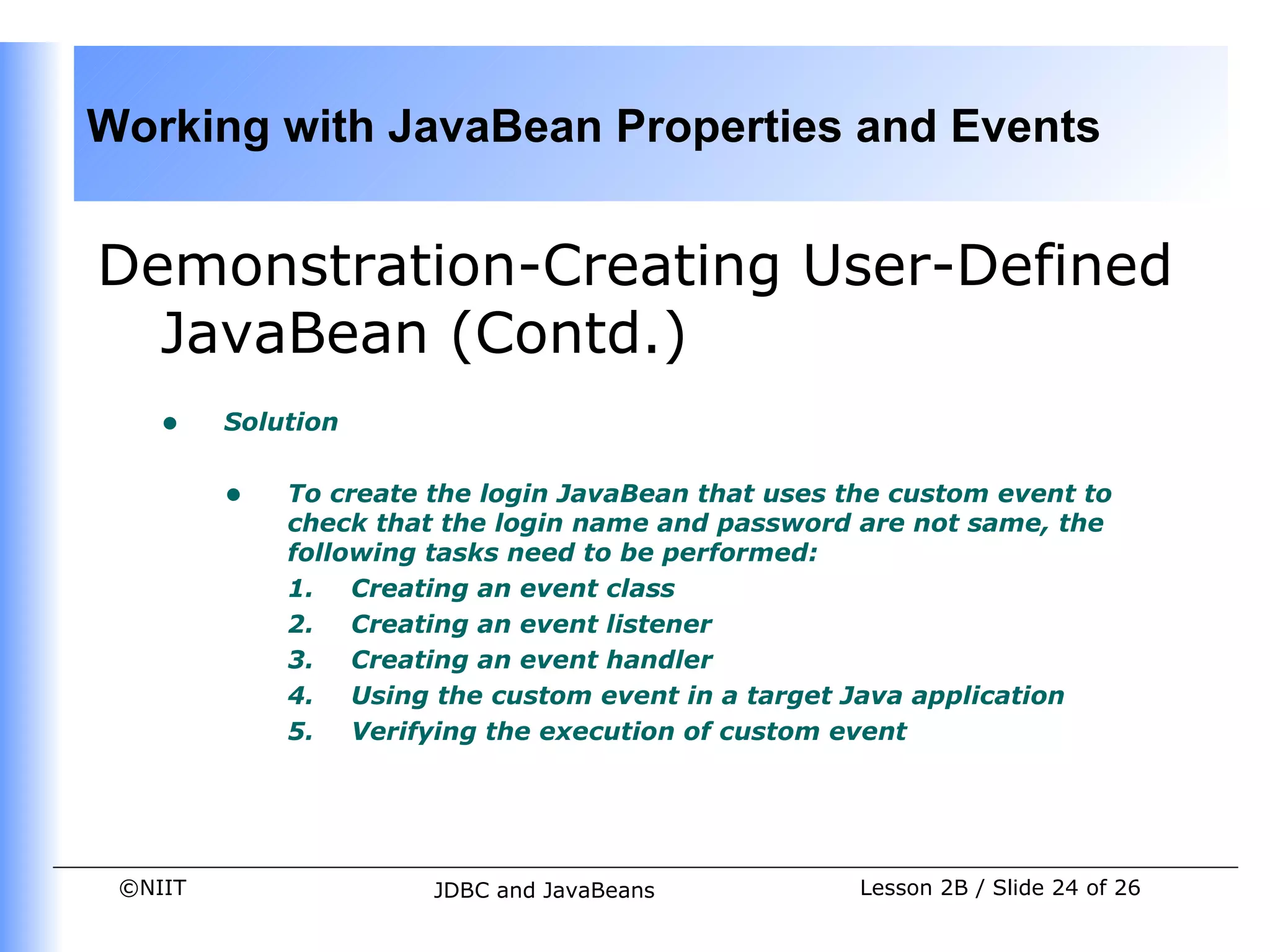

• Solution

• To create the login JavaBean that uses the custom event to
check that the login name and password are not same, the
following tasks need to be performed:
1. Creating an event class
2. Creating an event listener
3. Creating an event handler
4. Using the custom event in a target Java application
5. Verifying the execution of custom event

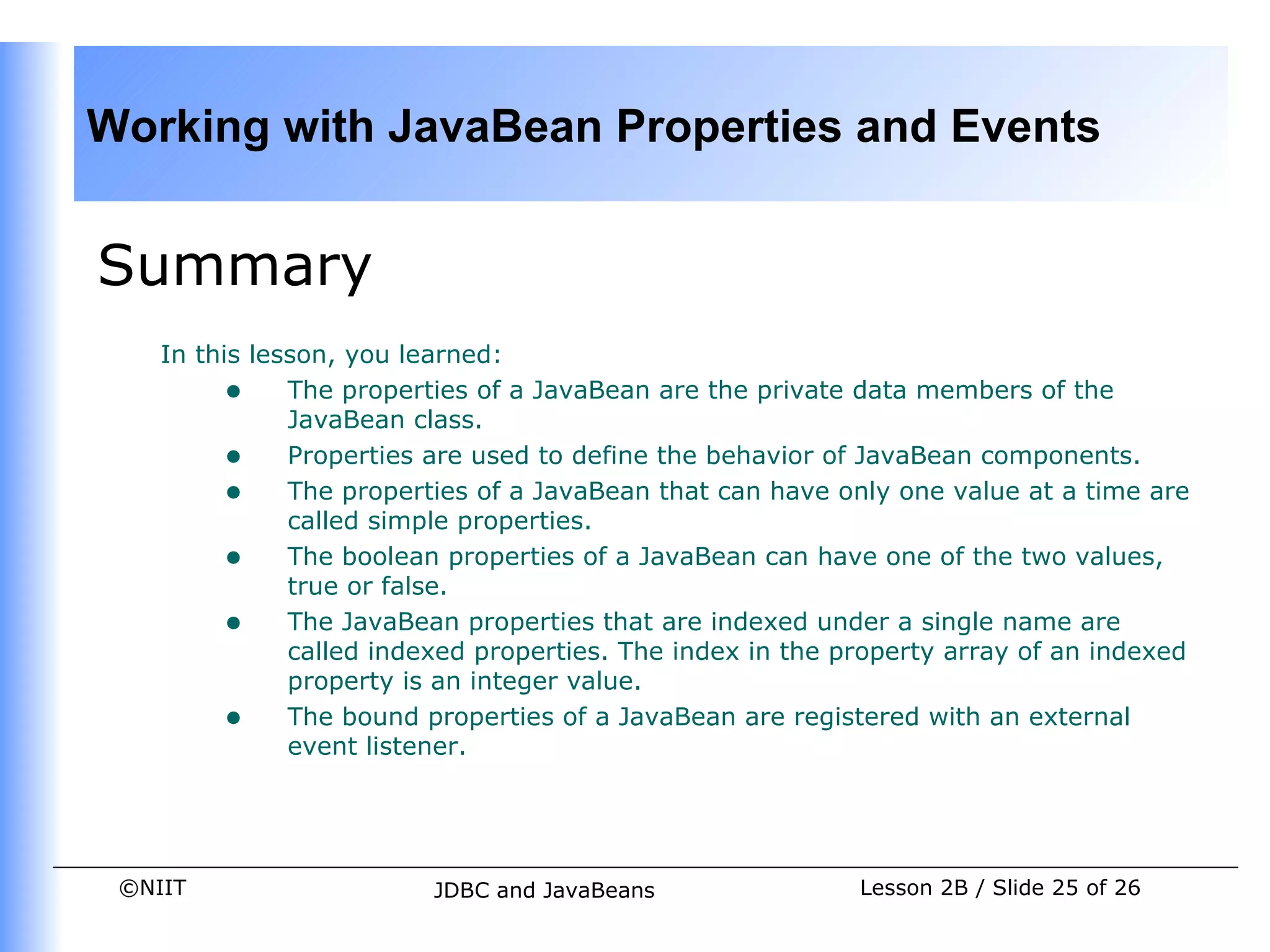

Summary
In this lesson, you learned:
• The properties of a JavaBean are the private data members of the
JavaBean class.
• Properties are used to define the behavior of JavaBean components.
• The properties of a JavaBean that can have only one value at a time are
called simple properties.
• The boolean properties of a JavaBean can have one of the two values,
true or false.
• The JavaBean properties that are indexed under a single name are
called indexed properties. The index in the property array of an indexed
property is an integer value.
• The bound properties of a JavaBean are registered with an external
event listener.

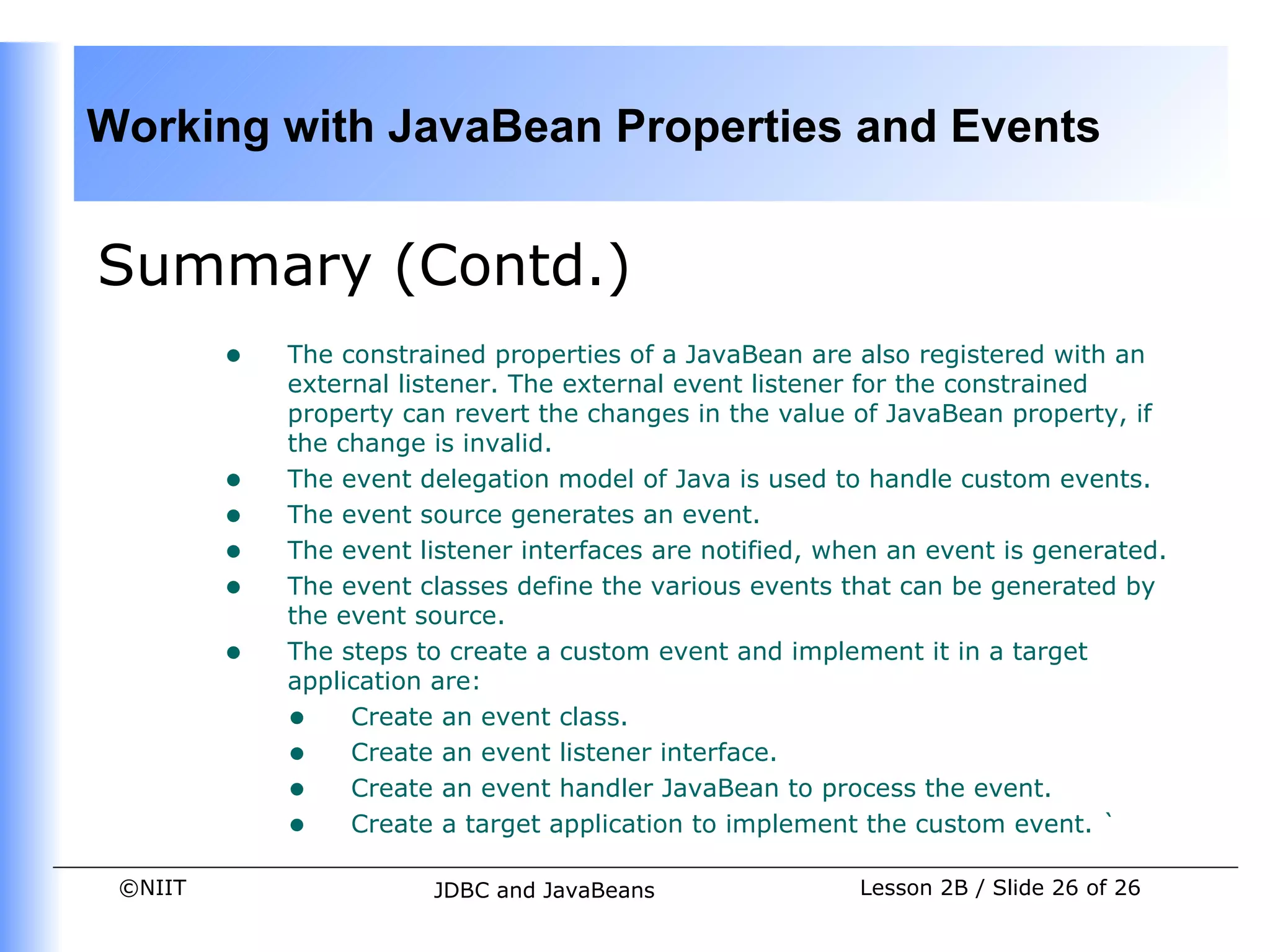

Summary (Contd.)
• The constrained properties of a JavaBean are also registered with an
external listener. The external event listener for the constrained
property can revert the changes in the value of JavaBean property, if
the change is invalid.
• The event delegation model of Java is used to handle custom events.
• The event source generates an event.
• The event listener interfaces are notified, when an event is generated.
• The event classes define the various events that can be generated by
the event source.
• The steps to create a custom event and implement it in a target
application are:
• Create an event class.
• Create an event listener interface.
• Create an event handler JavaBean to process the event.
• Create a target application to implement the custom event. `
