1. Parallel Programming with CUDA
Matthew Guidry
Charles McClendon

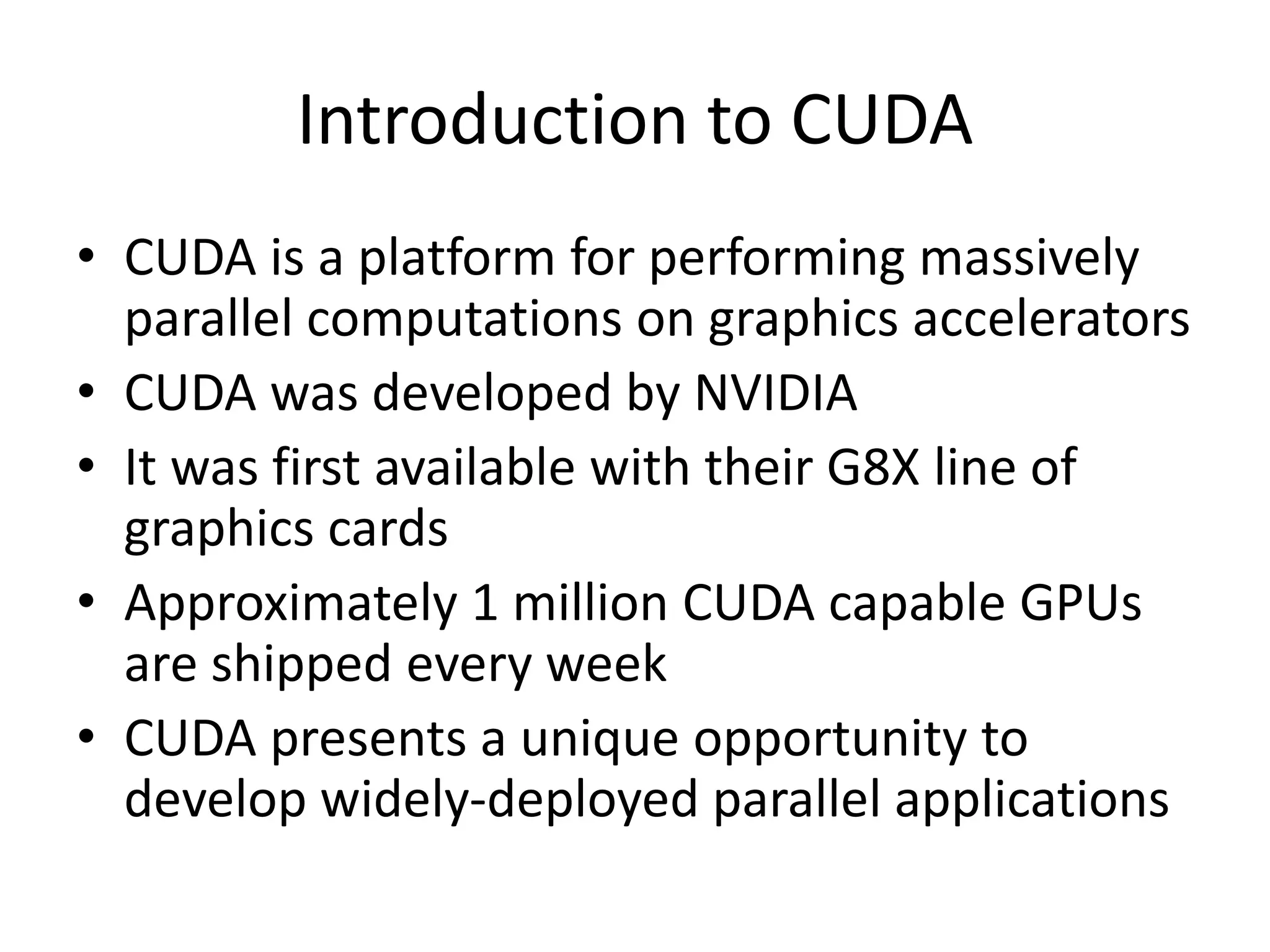

2. Introduction to CUDA
• CUDA is a platform for performing massively
parallel computations on graphics accelerators
• CUDA was developed by NVIDIA
• It was first available with their G8X line of
graphics cards
• Approximately 1 million CUDA capable GPUs
are shipped every week
• CUDA presents a unique opportunity to
develop widely-deployed parallel applications

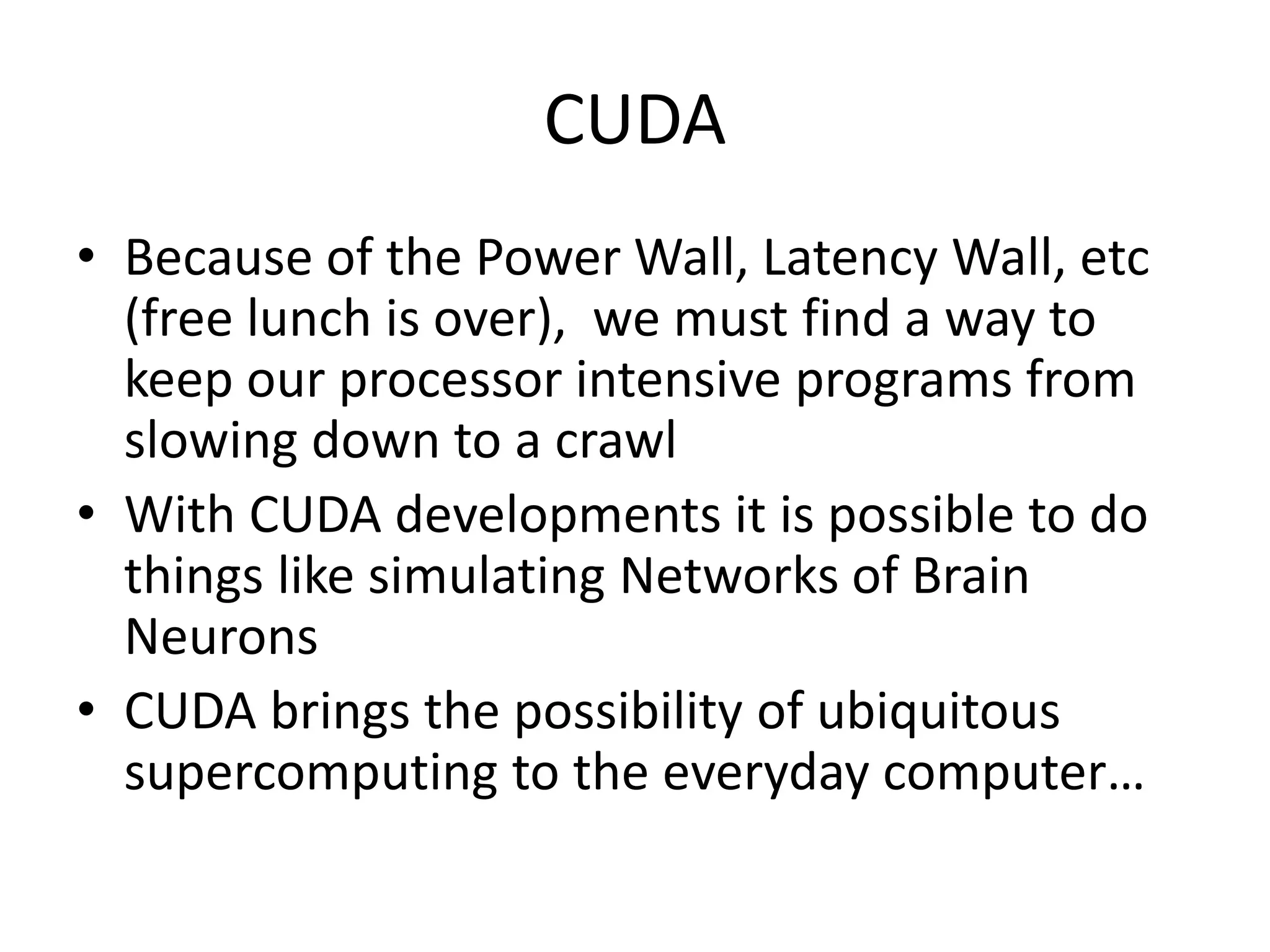

3. CUDA
• Because of the Power Wall, Latency Wall, etc
(free lunch is over), we must find a way to
keep our processor intensive programs from
slowing down to a crawl
• With CUDA developments it is possible to do
things like simulating Networks of Brain
Neurons
• CUDA brings the possibility of ubiquitous
supercomputing to the everyday computer…

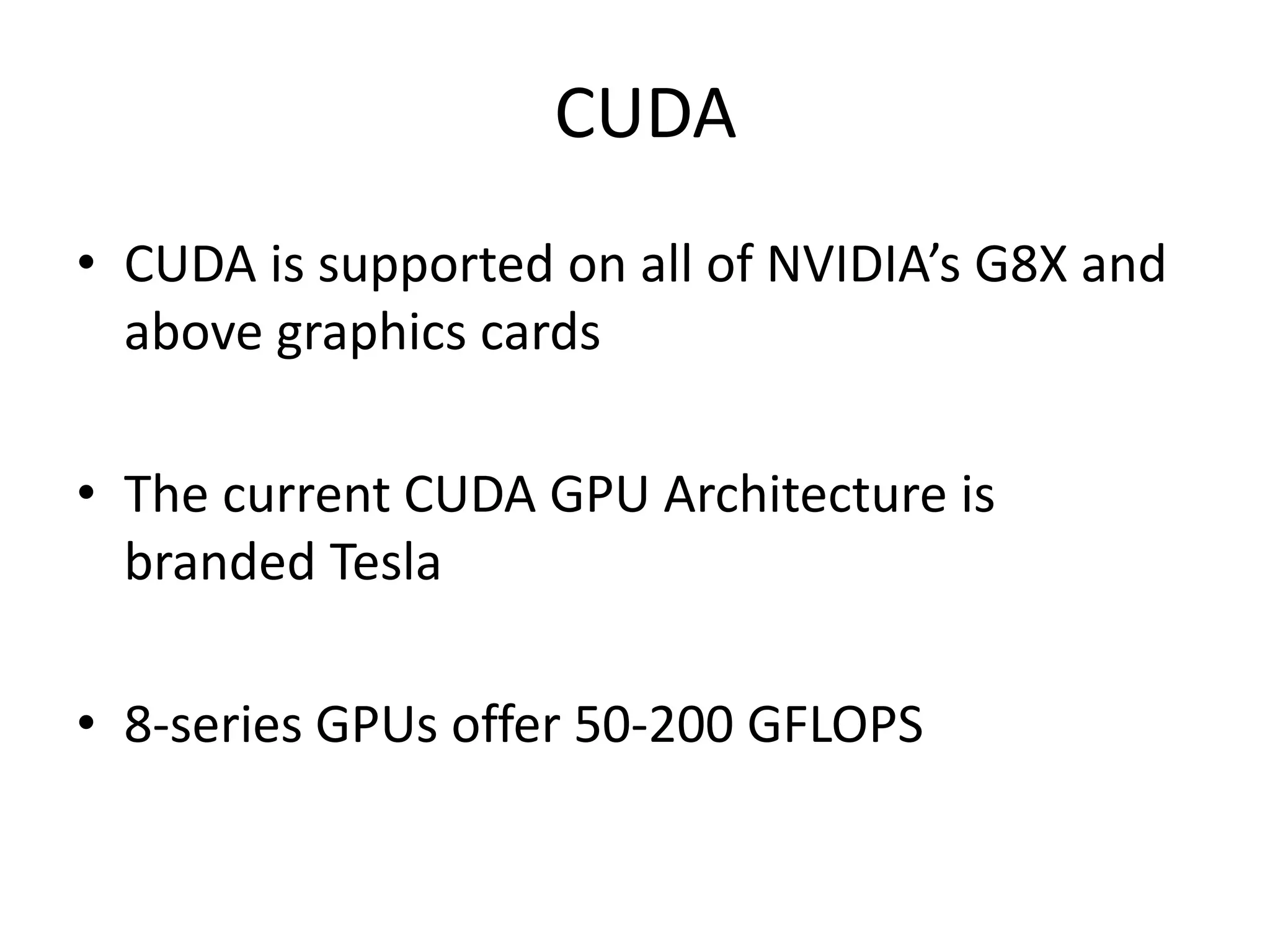

4. CUDA
• CUDA is supported on all of NVIDIA’s G8X and
above graphics cards
• The current CUDA GPU Architecture is
branded Tesla
• 8-series GPUs offer 50-200 GFLOPS

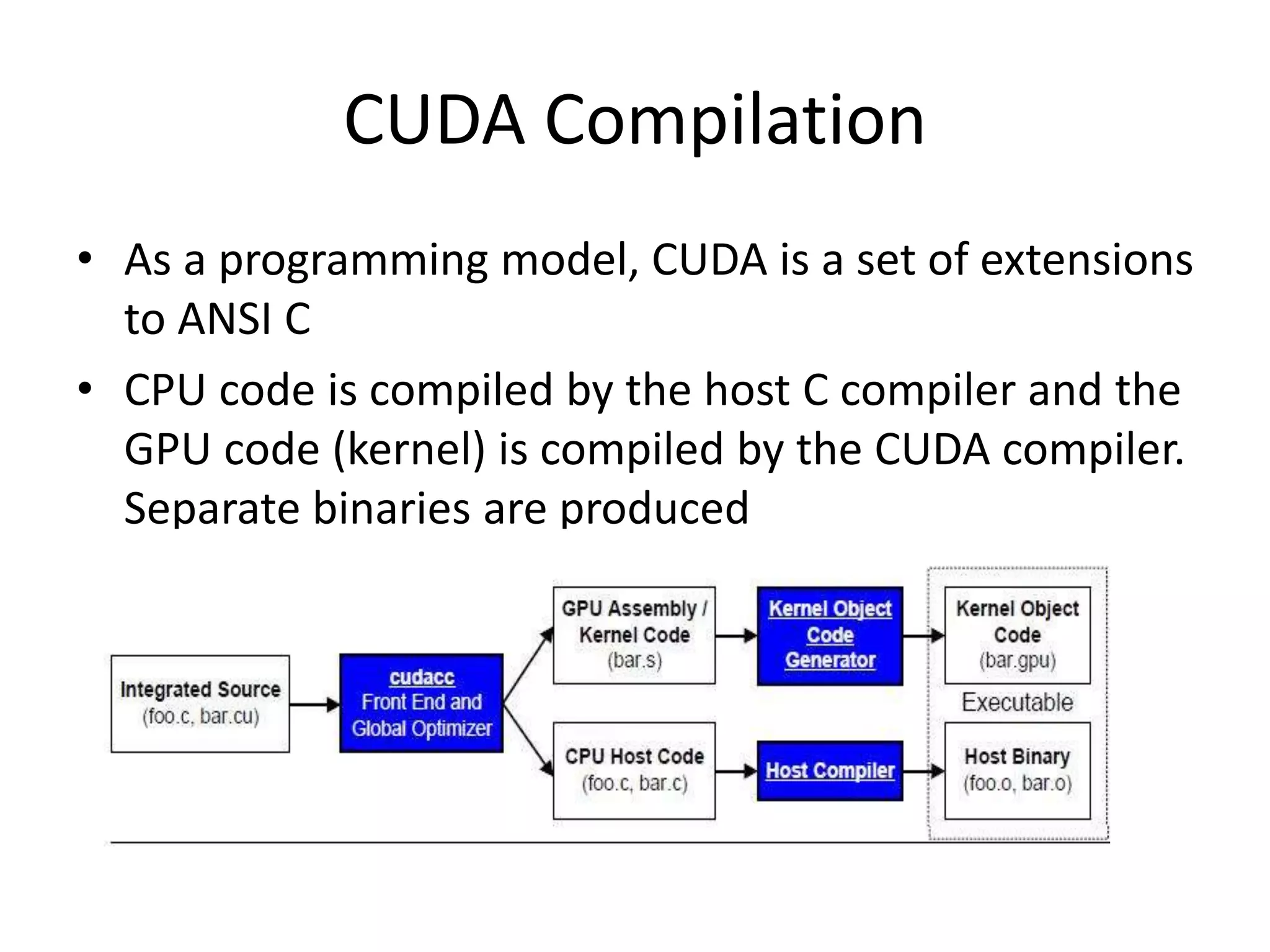

5. CUDA Compilation
• As a programming model, CUDA is a set of extensions
to ANSI C
• CPU code is compiled by the host C compiler and the
GPU code (kernel) is compiled by the CUDA compiler.
Separate binaries are produced

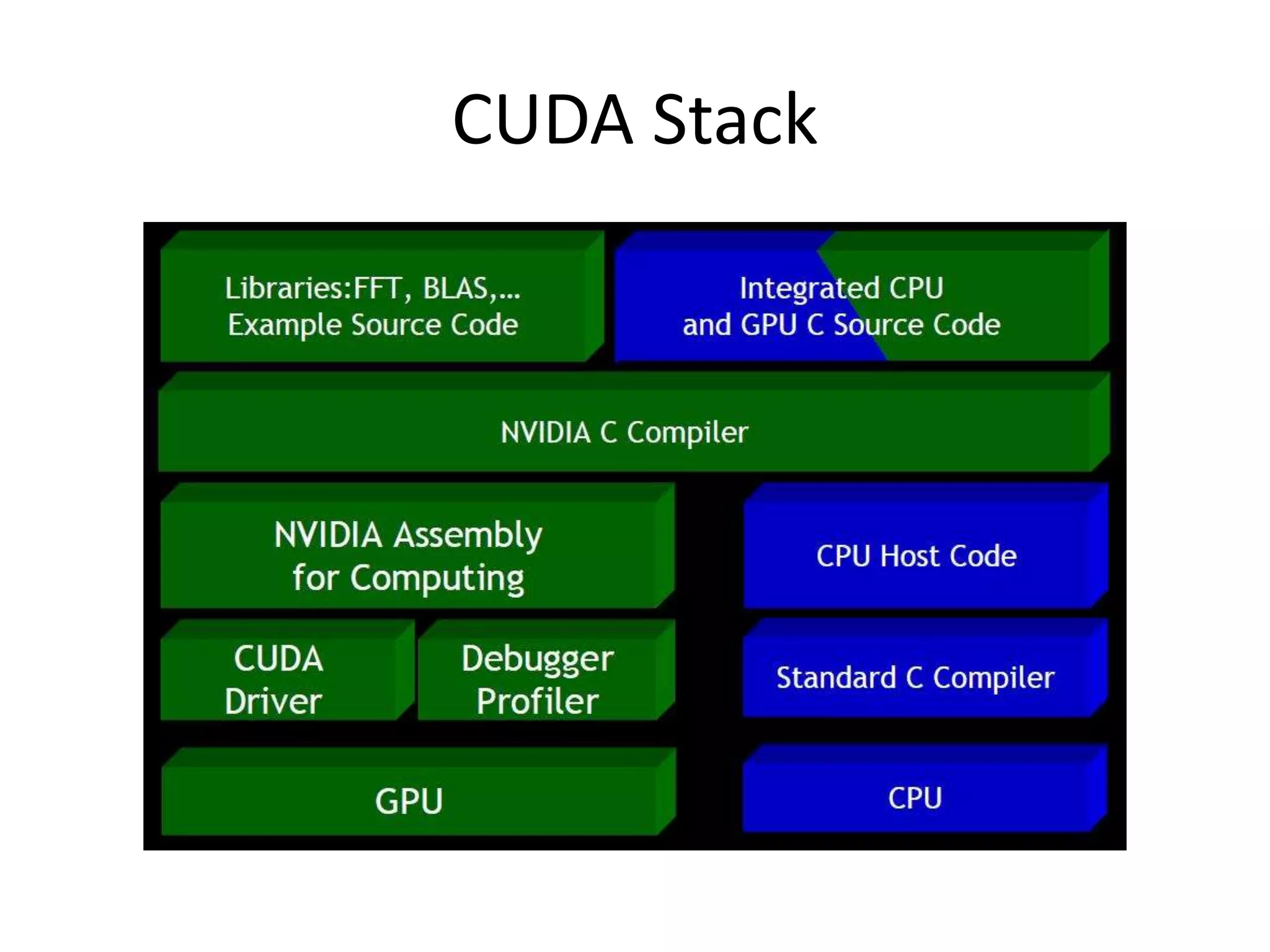

6. CUDA Stack

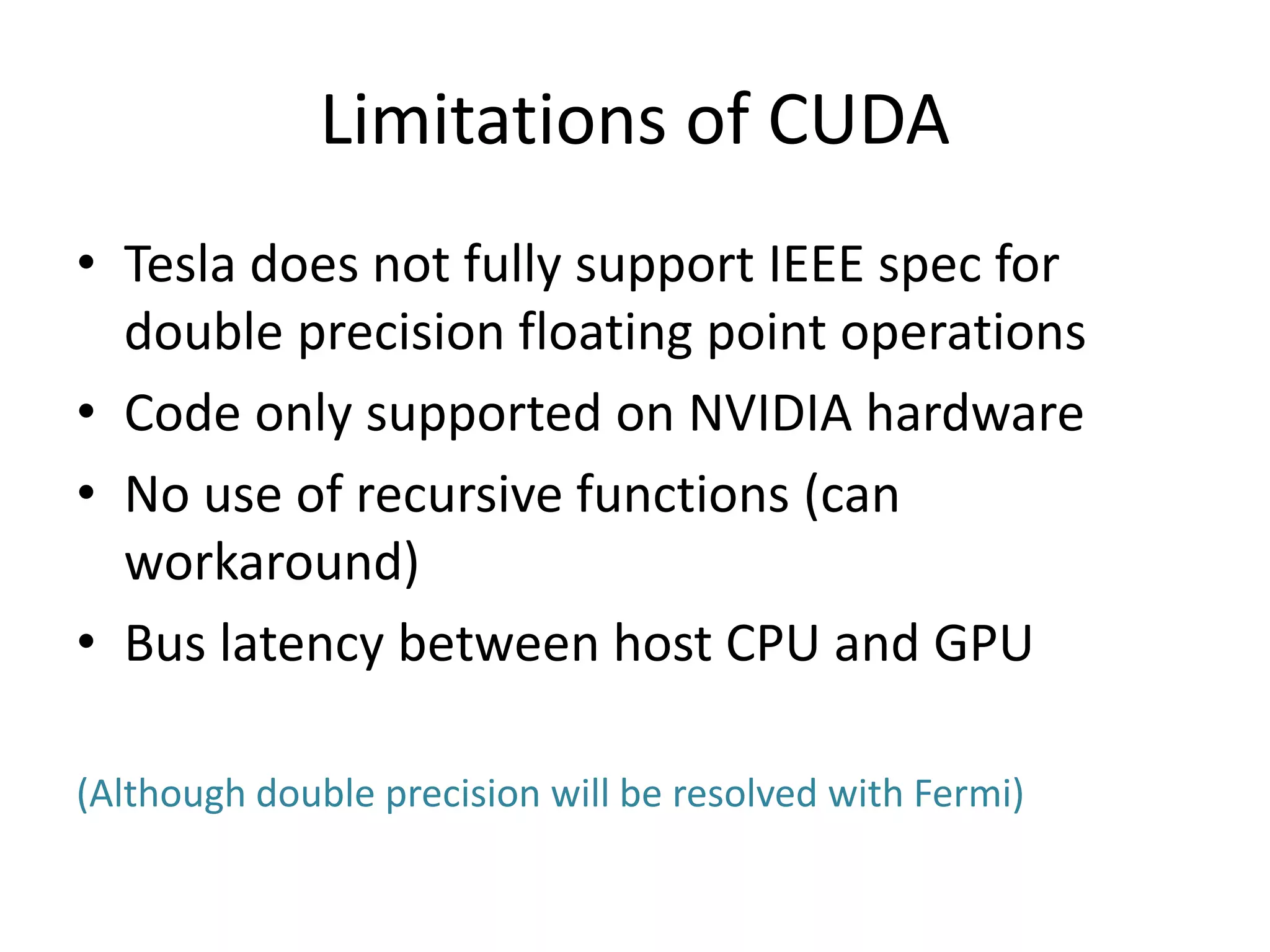

7. Limitations of CUDA
• Tesla does not fully support IEEE spec for
double precision floating point operations
• Code only supported on NVIDIA hardware
• No use of recursive functions (can
workaround)
• Bus latency between host CPU and GPU
(Although double precision will be resolved with Fermi)

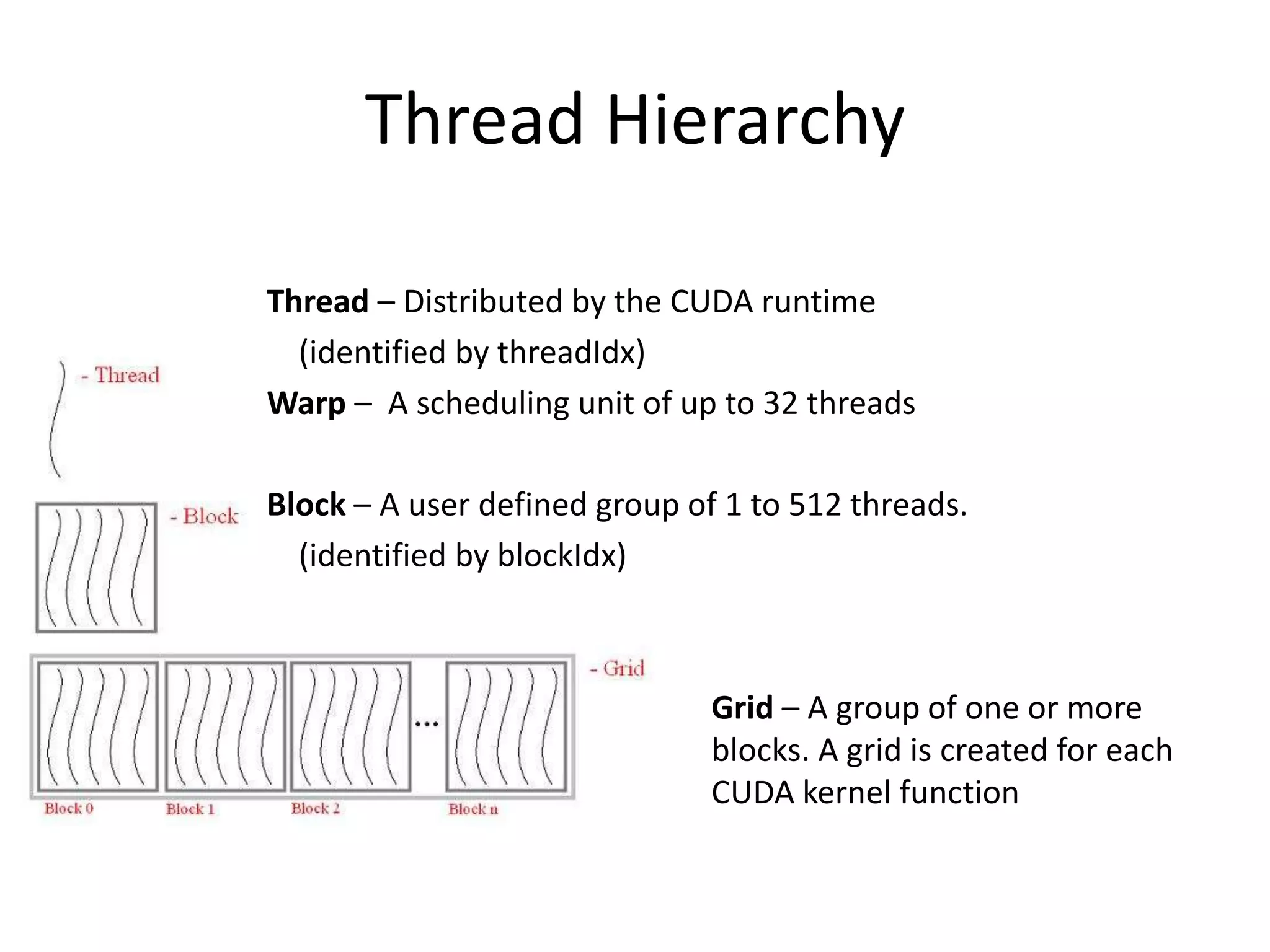

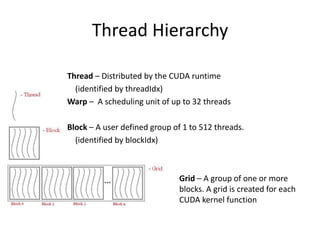

8. Thread Hierarchy
Thread – Distributed by the CUDA runtime
(identified by threadIdx)
Warp – A scheduling unit of up to 32 threads
Block – A user defined group of 1 to 512 threads.
(identified by blockIdx)
Grid – A group of one or more
blocks. A grid is created for each
CUDA kernel function

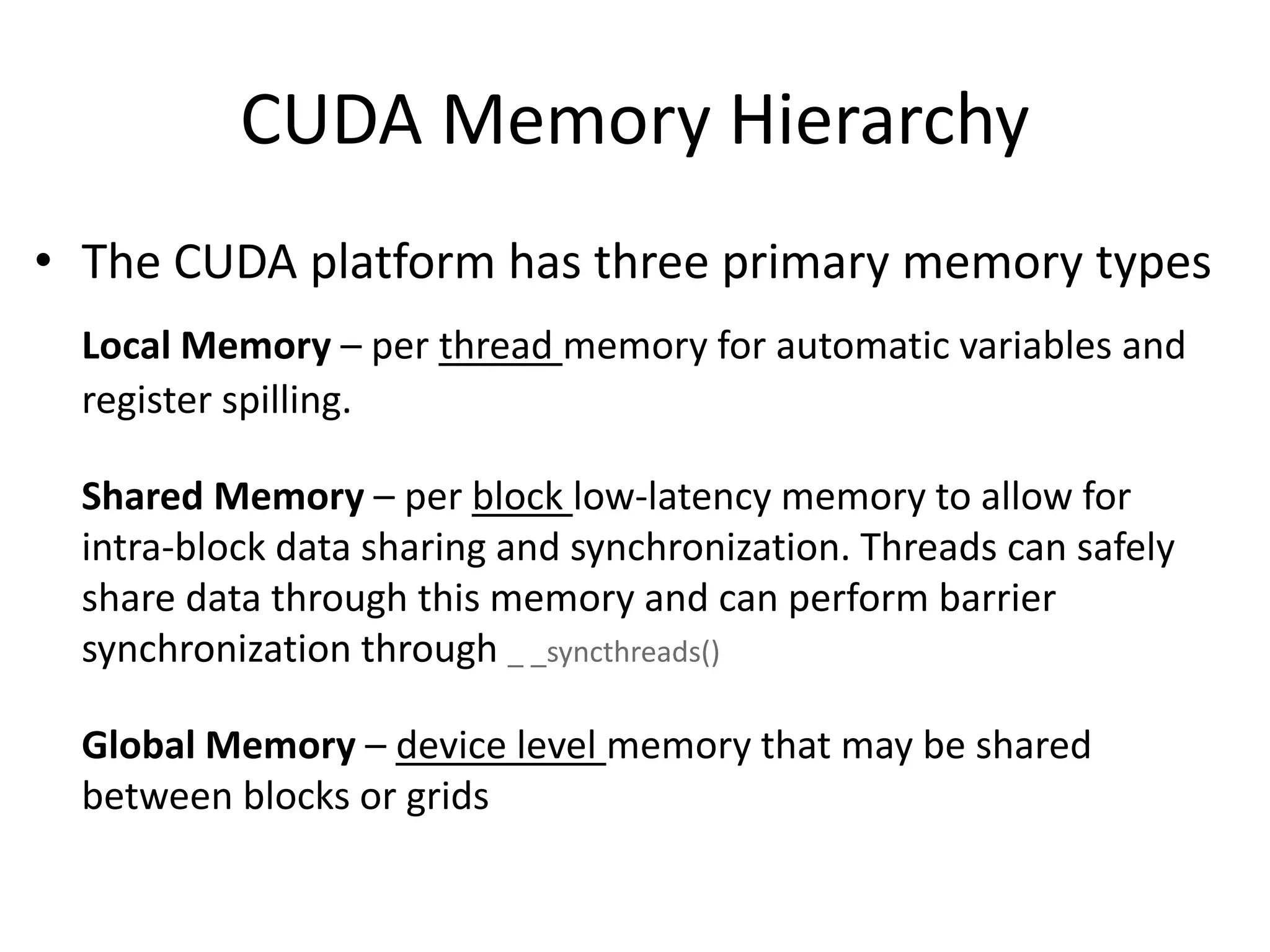

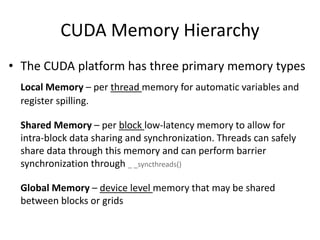

9. CUDA Memory Hierarchy
• The CUDA platform has three primary memory types
Local Memory – per thread memory for automatic variables and
register spilling.
Shared Memory – per block low-latency memory to allow for
intra-block data sharing and synchronization. Threads can safely
share data through this memory and can perform barrier
synchronization through _ _syncthreads()
Global Memory – device level memory that may be shared
between blocks or grids

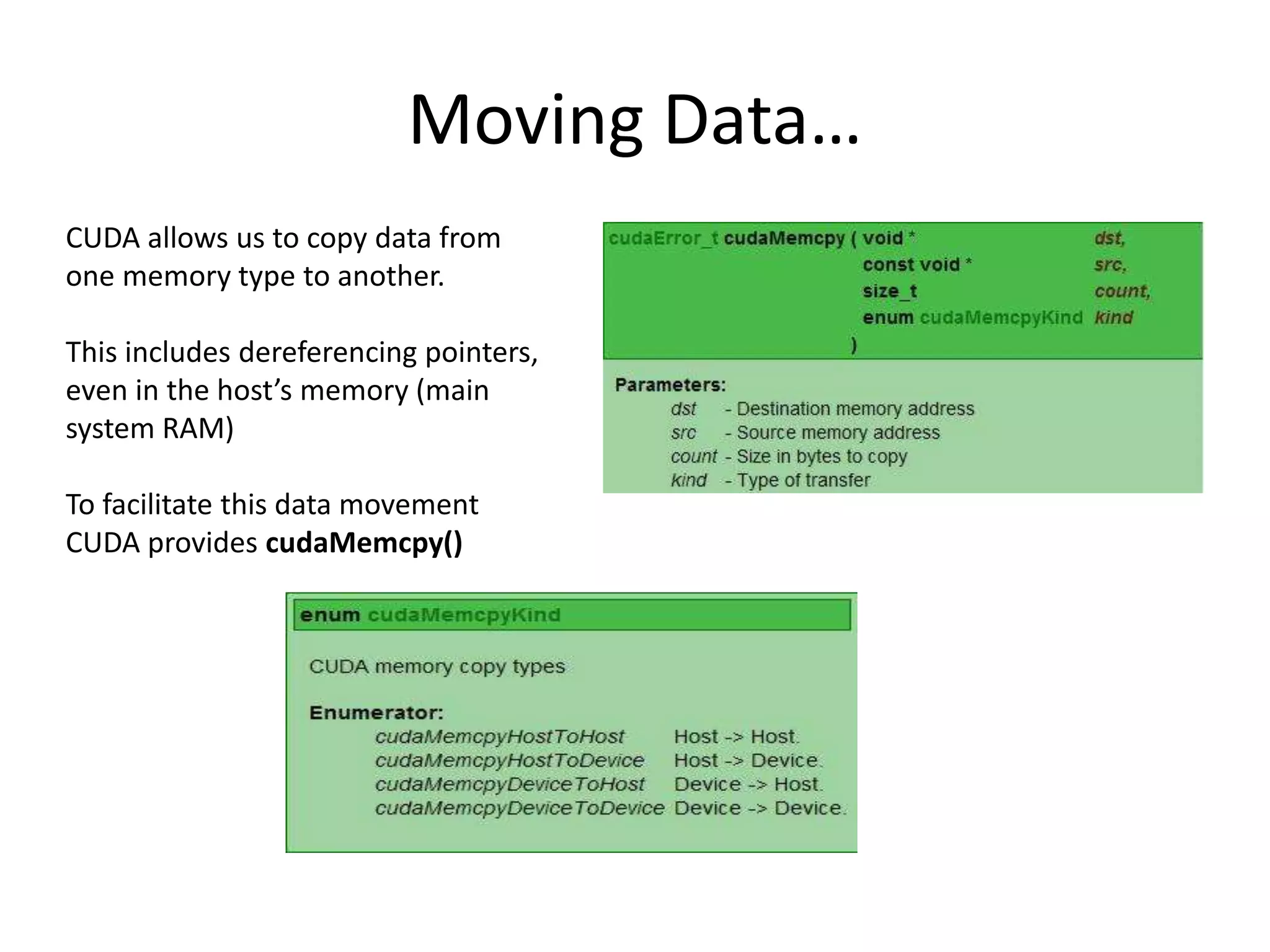

10. Moving Data…
CUDA allows us to copy data from
one memory type to another.
This includes dereferencing pointers,
even in the host’s memory (main
system RAM)
To facilitate this data movement
CUDA provides cudaMemcpy()

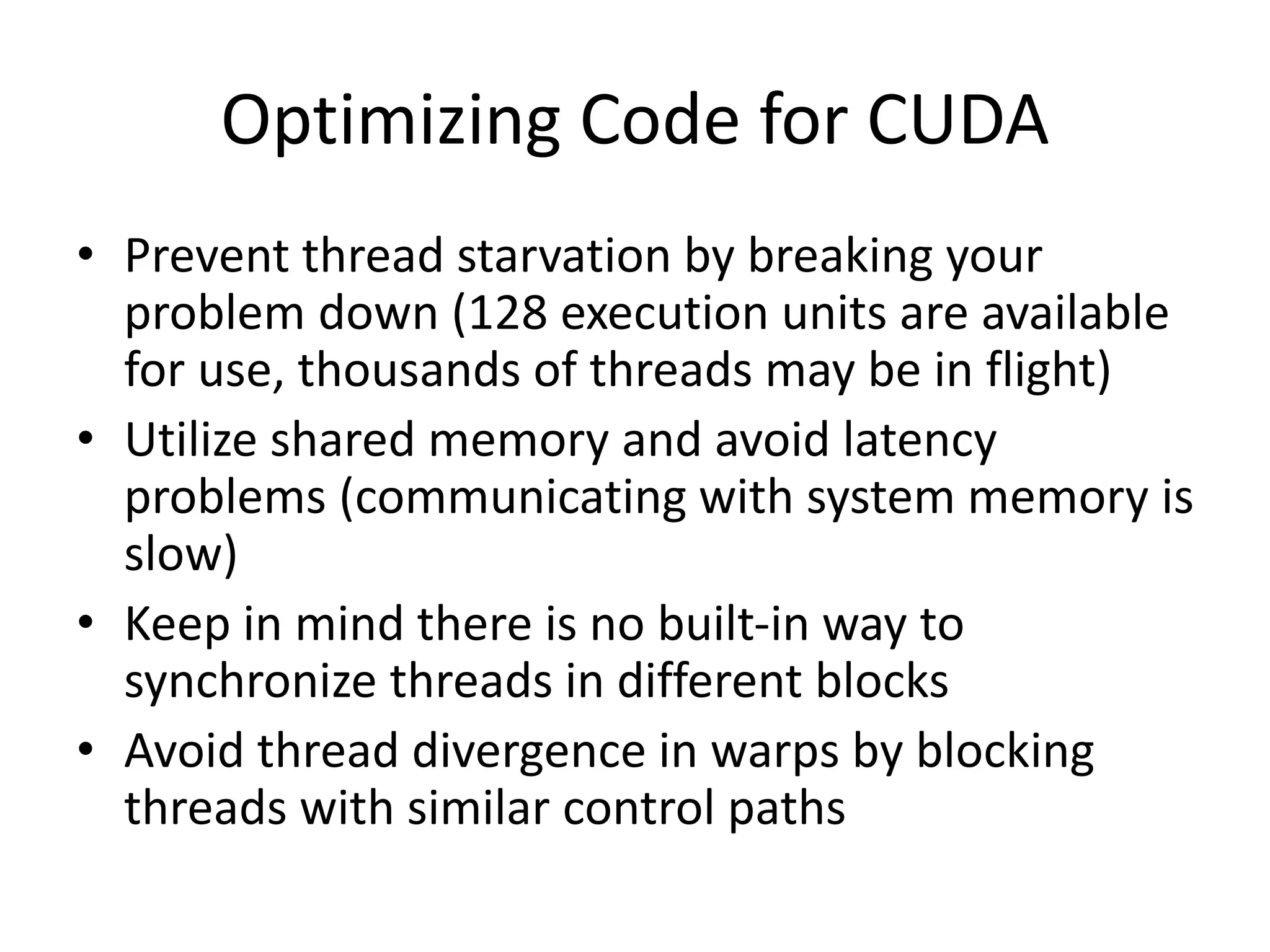

11. Optimizing Code for CUDA
• Prevent thread starvation by breaking your
problem down (128 execution units are available
for use, thousands of threads may be in flight)
• Utilize shared memory and avoid latency
problems (communicating with system memory is
slow)
• Keep in mind there is no built-in way to
synchronize threads in different blocks
• Avoid thread divergence in warps by blocking
threads with similar control paths

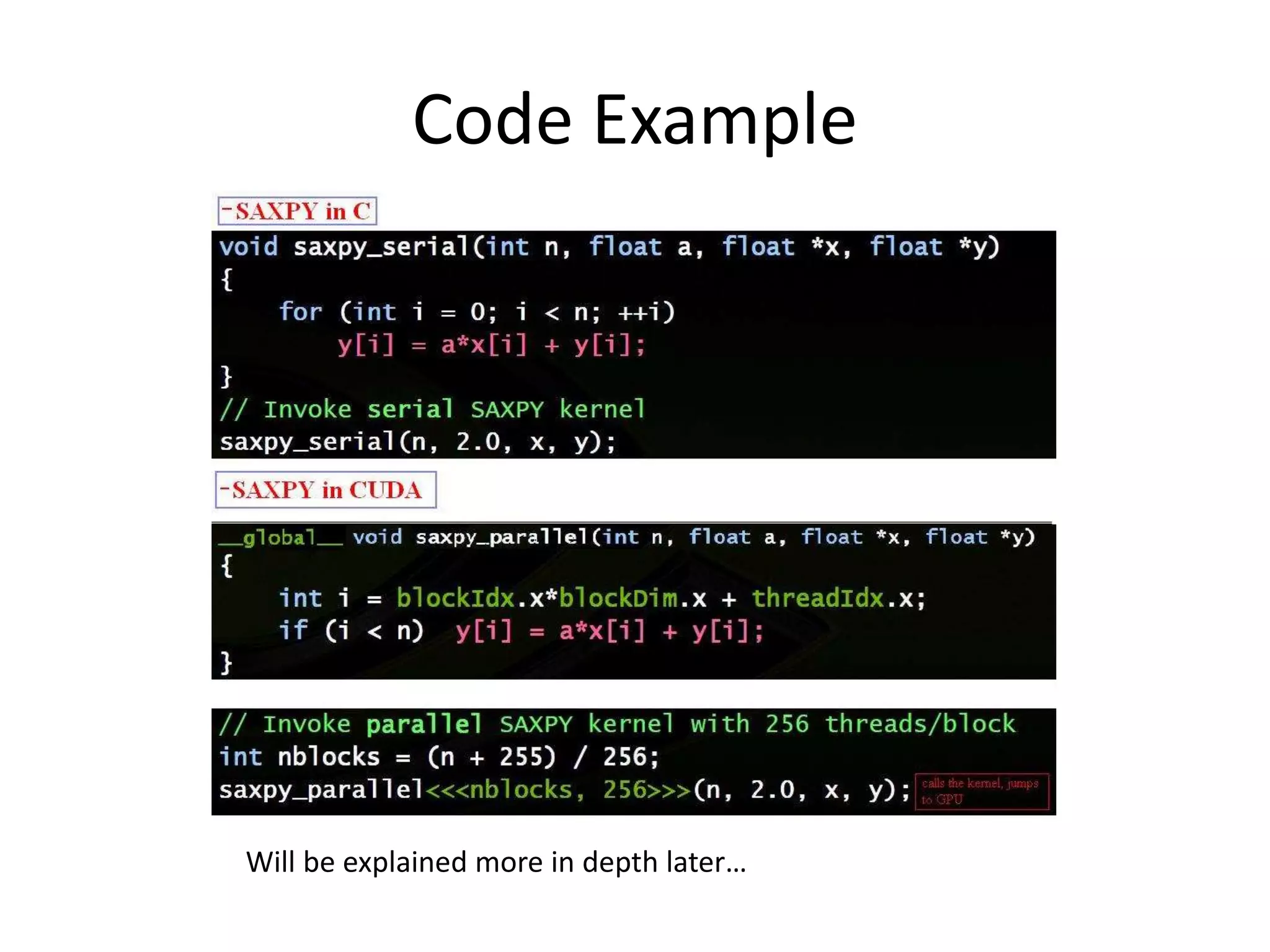

12. Code Example
Will be explained more in depth later…

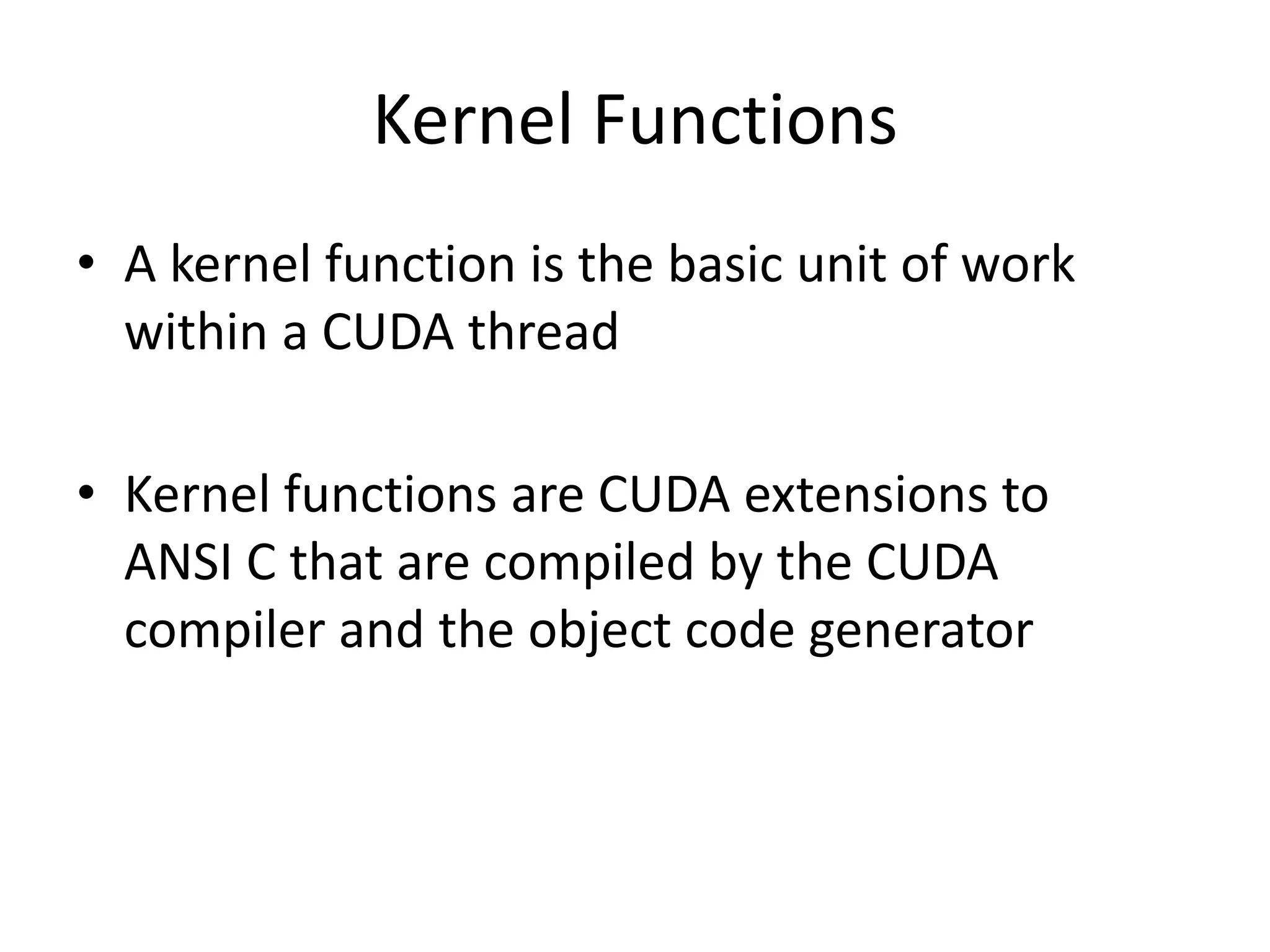

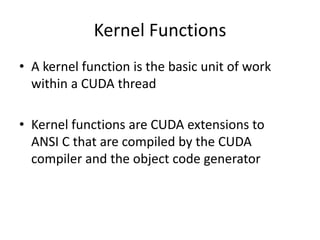

13. Kernel Functions
• A kernel function is the basic unit of work
within a CUDA thread
• Kernel functions are CUDA extensions to
ANSI C that are compiled by the CUDA
compiler and the object code generator

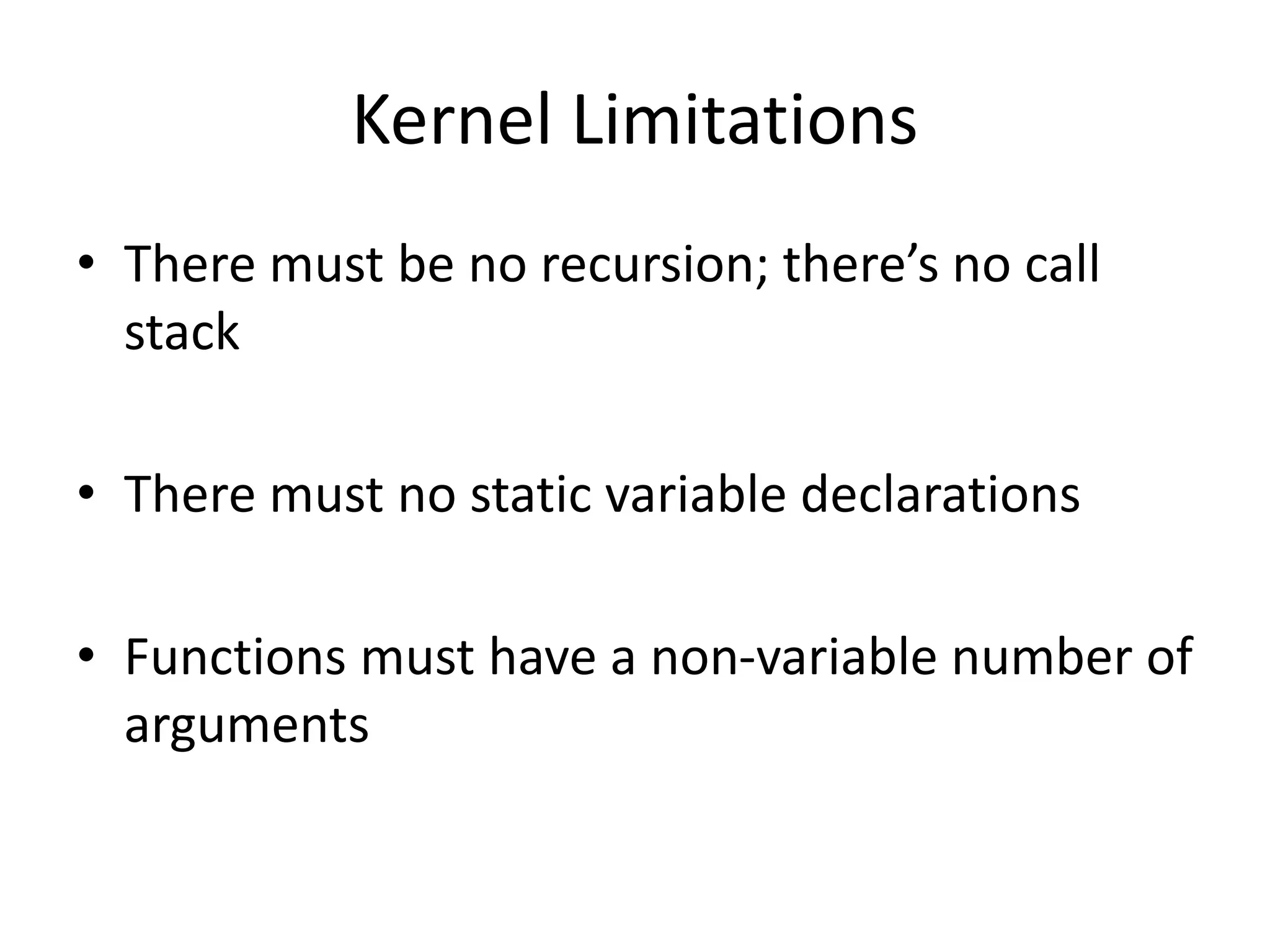

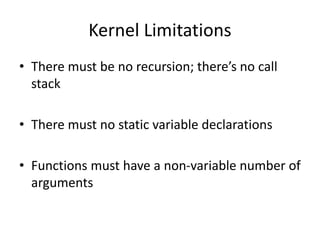

14. Kernel Limitations
• There must be no recursion; there’s no call
stack
• There must no static variable declarations
• Functions must have a non-variable number of
arguments

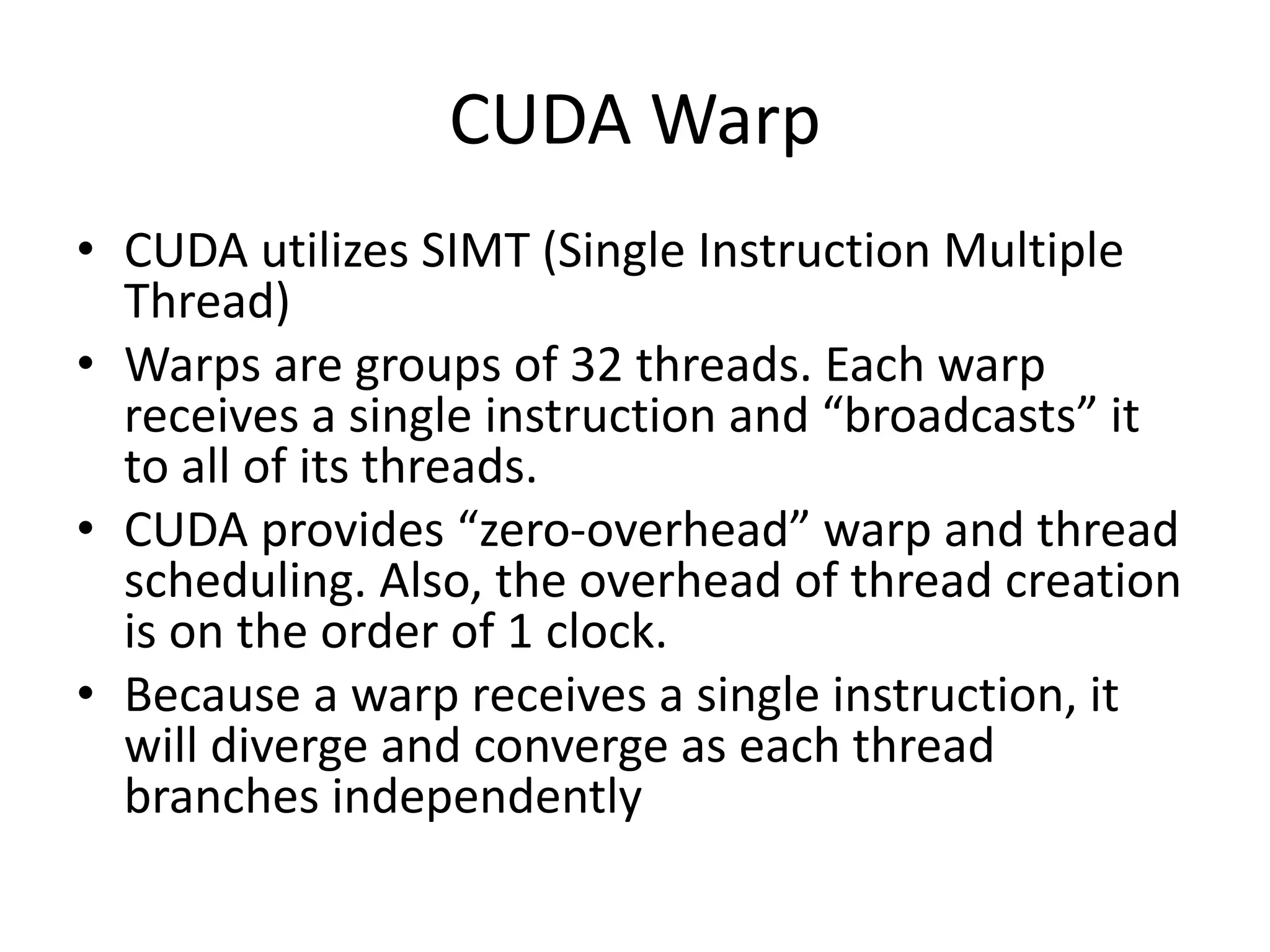

15. CUDA Warp
• CUDA utilizes SIMT (Single Instruction Multiple
Thread)
• Warps are groups of 32 threads. Each warp
receives a single instruction and “broadcasts” it
to all of its threads.
• CUDA provides “zero-overhead” warp and thread
scheduling. Also, the overhead of thread creation
is on the order of 1 clock.
• Because a warp receives a single instruction, it
will diverge and converge as each thread
branches independently

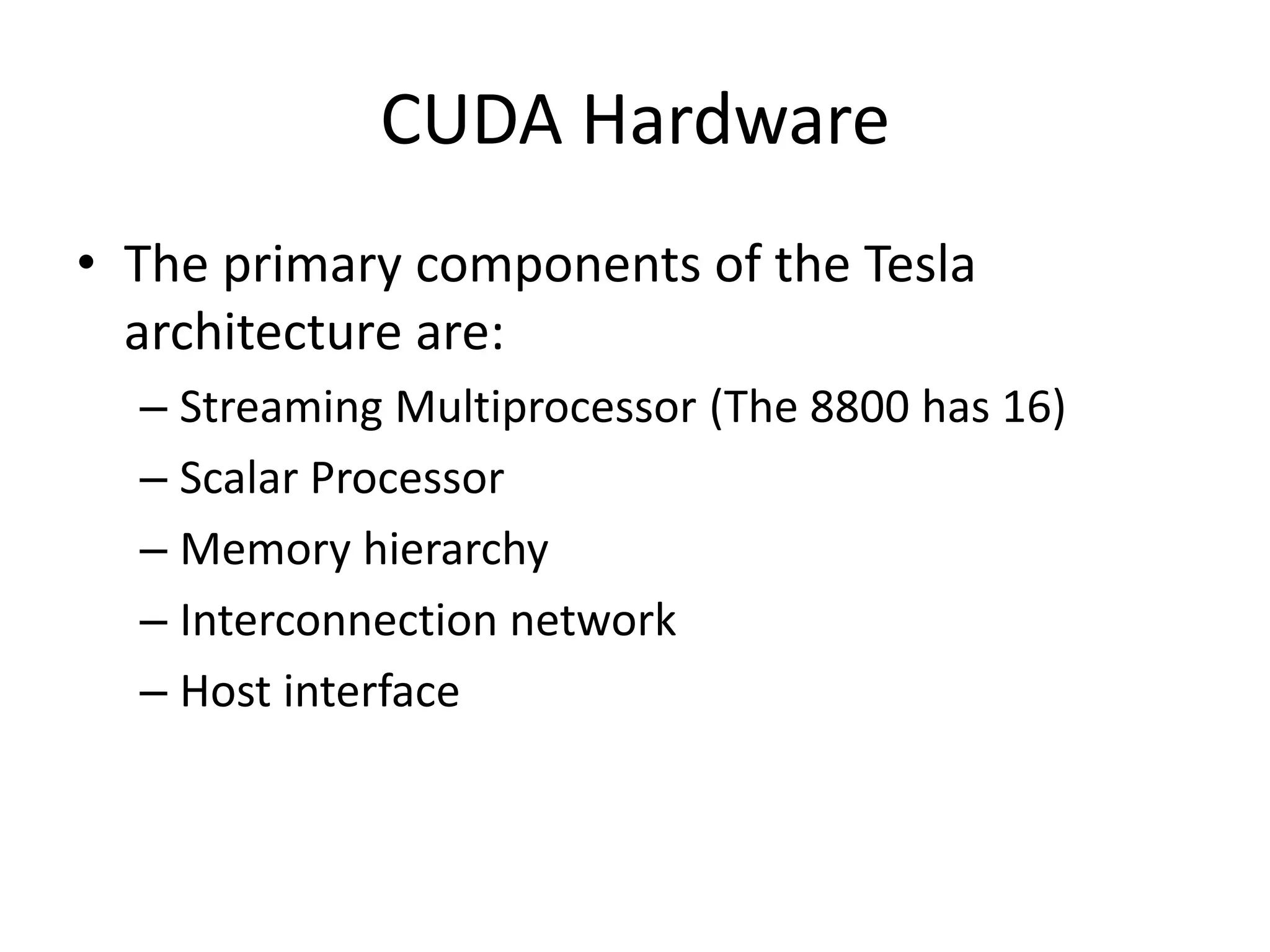

16. CUDA Hardware
• The primary components of the Tesla
architecture are:
– Streaming Multiprocessor (The 8800 has 16)
– Scalar Processor
– Memory hierarchy
– Interconnection network
– Host interface

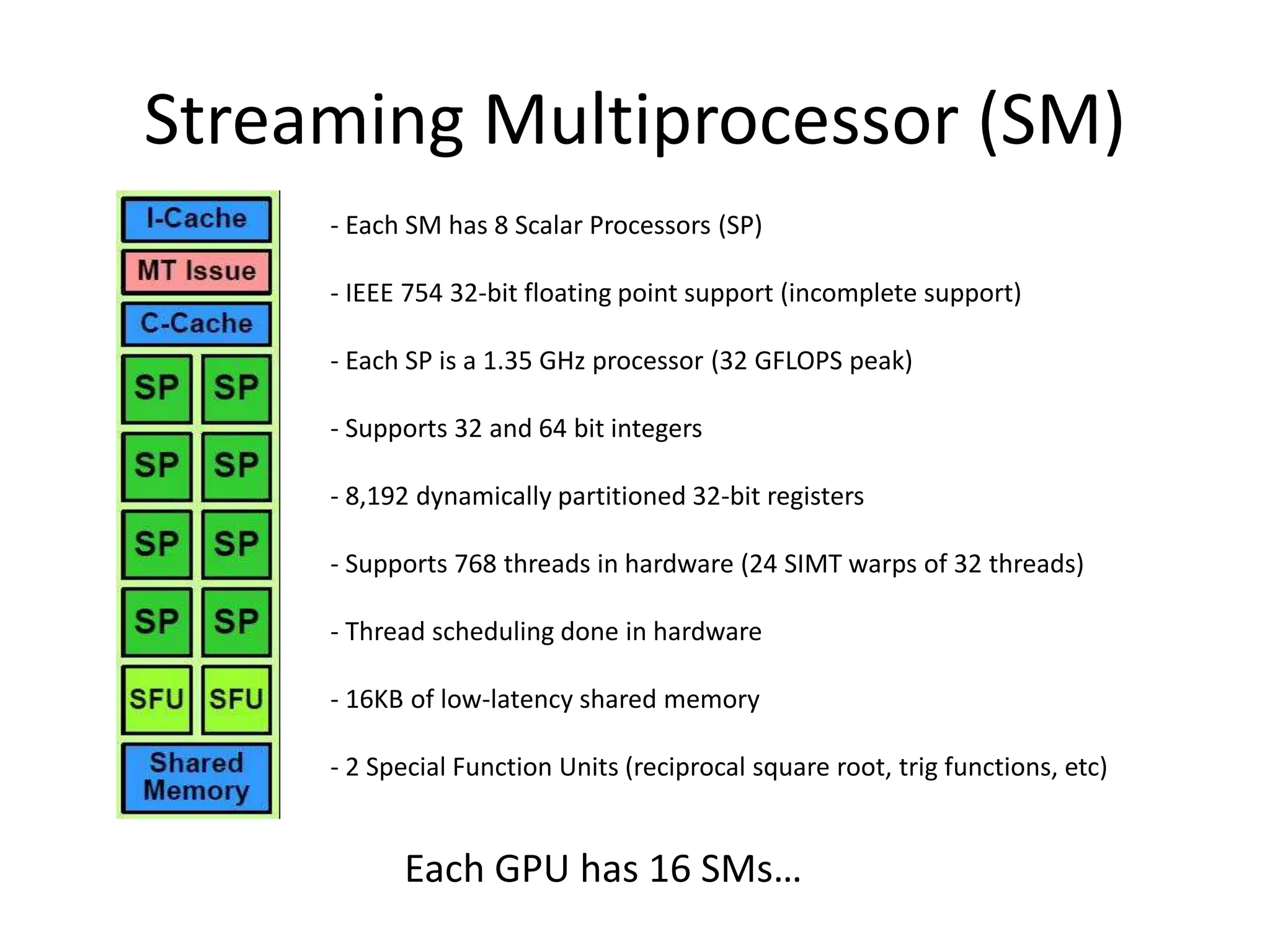

17. Streaming Multiprocessor (SM)
- Each SM has 8 Scalar Processors (SP)
- IEEE 754 32-bit floating point support (incomplete support)
- Each SP is a 1.35 GHz processor (32 GFLOPS peak)
- Supports 32 and 64 bit integers
- 8,192 dynamically partitioned 32-bit registers
- Supports 768 threads in hardware (24 SIMT warps of 32 threads)
- Thread scheduling done in hardware
- 16KB of low-latency shared memory
- 2 Special Function Units (reciprocal square root, trig functions, etc)
Each GPU has 16 SMs…

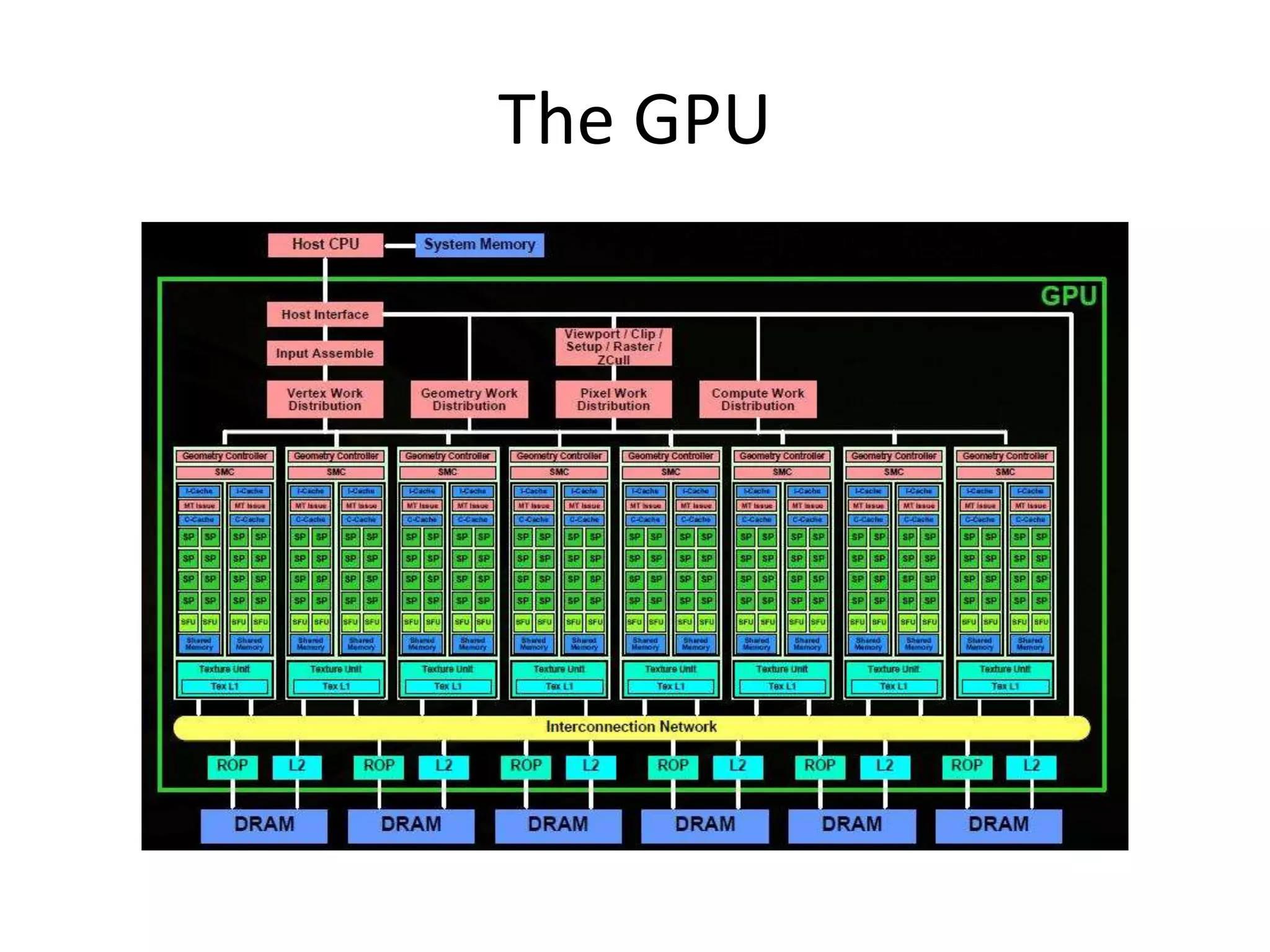

18. The GPU

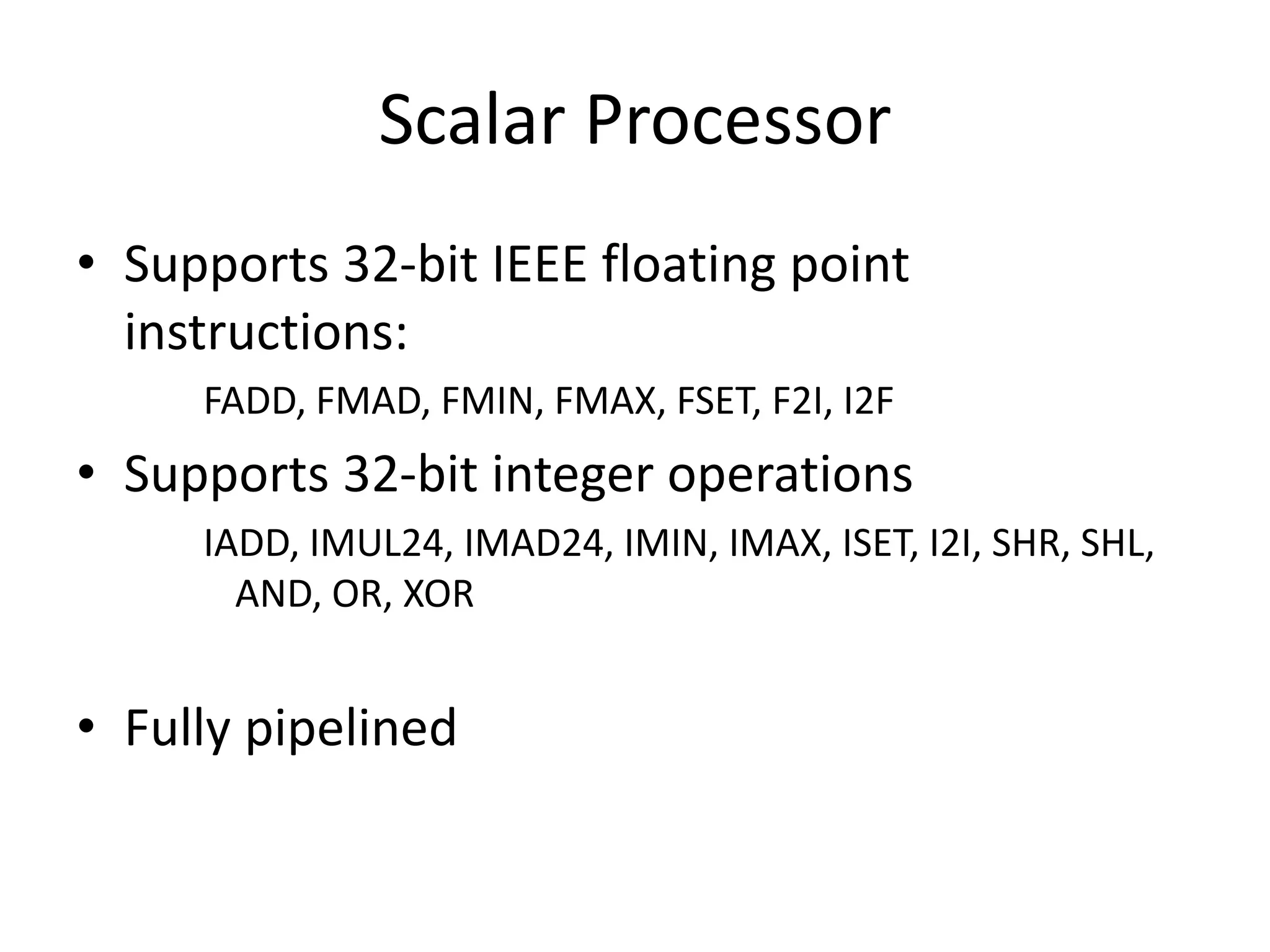

19. Scalar Processor
• Supports 32-bit IEEE floating point
instructions:
FADD, FMAD, FMIN, FMAX, FSET, F2I, I2F
• Supports 32-bit integer operations
IADD, IMUL24, IMAD24, IMIN, IMAX, ISET, I2I, SHR, SHL,
AND, OR, XOR
• Fully pipelined

20. Code Example: Revisited

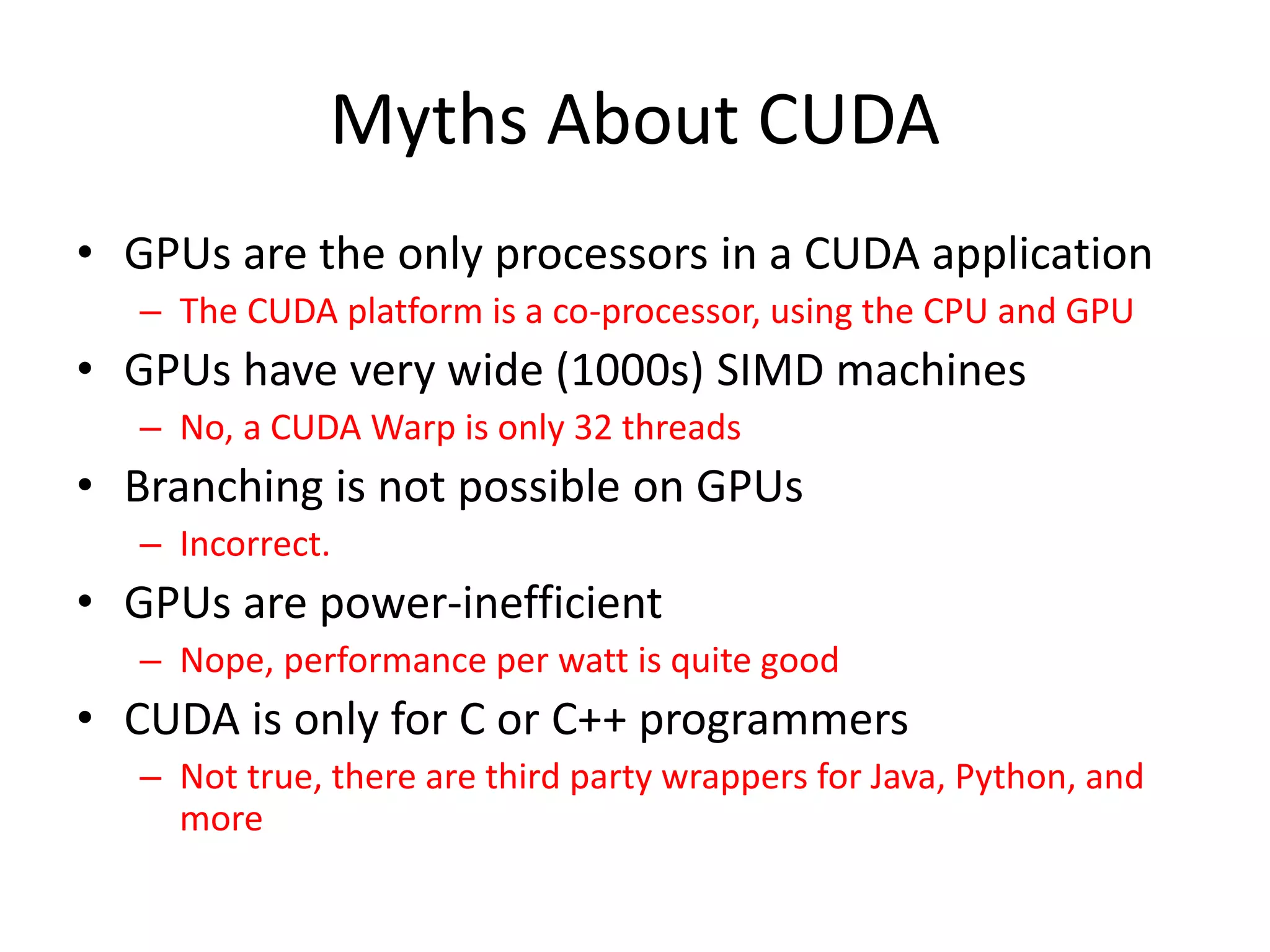

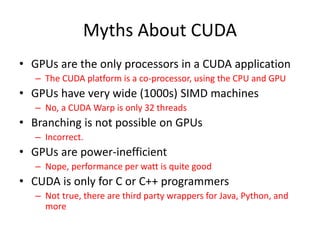

21. Myths About CUDA
• GPUs are the only processors in a CUDA application
– The CUDA platform is a co-processor, using the CPU and GPU
• GPUs have very wide (1000s) SIMD machines
– No, a CUDA Warp is only 32 threads
• Branching is not possible on GPUs
– Incorrect.
• GPUs are power-inefficient
– Nope, performance per watt is quite good
• CUDA is only for C or C++ programmers
– Not true, there are third party wrappers for Java, Python, and
more

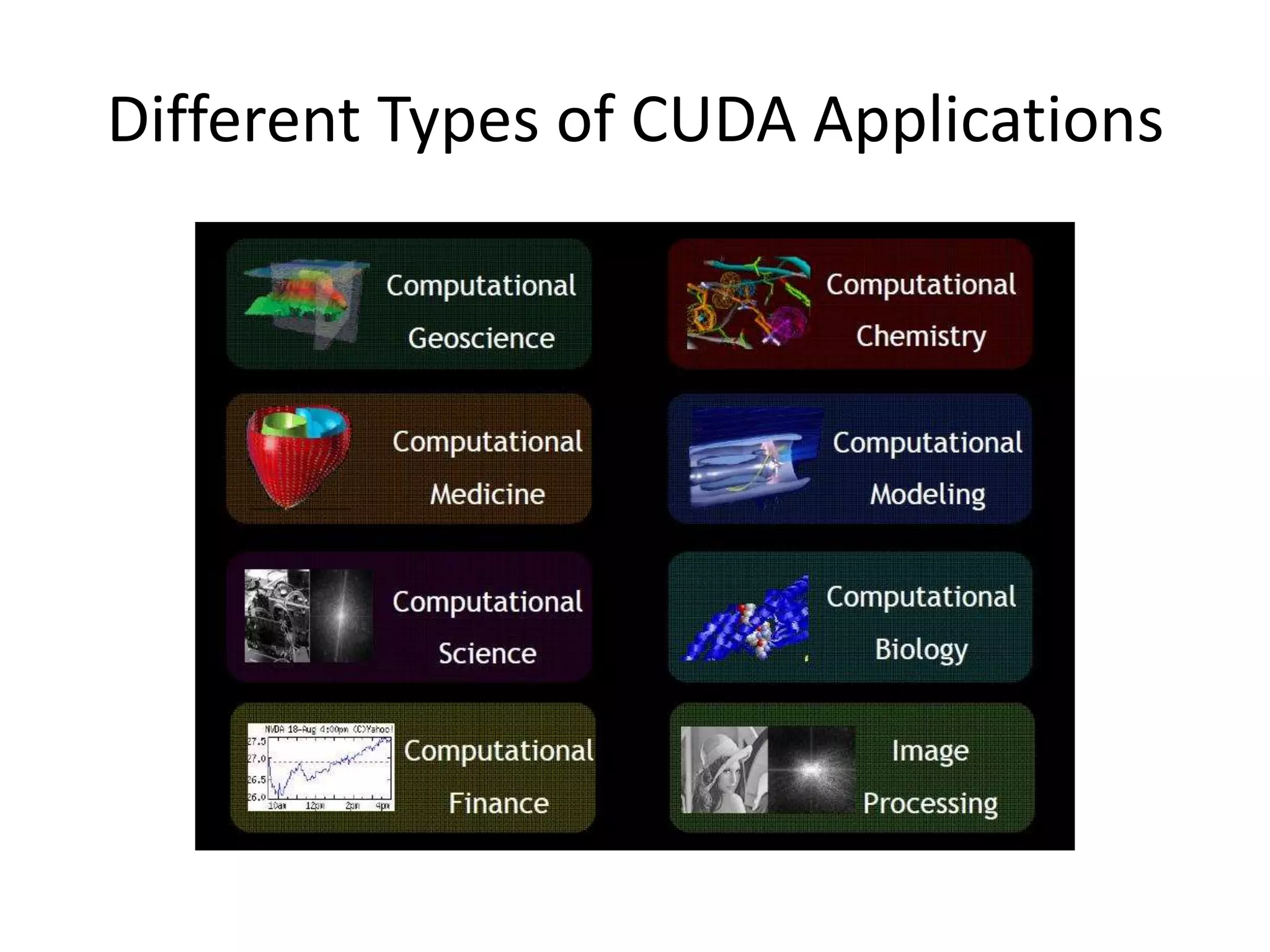

22. Different Types of CUDA Applications

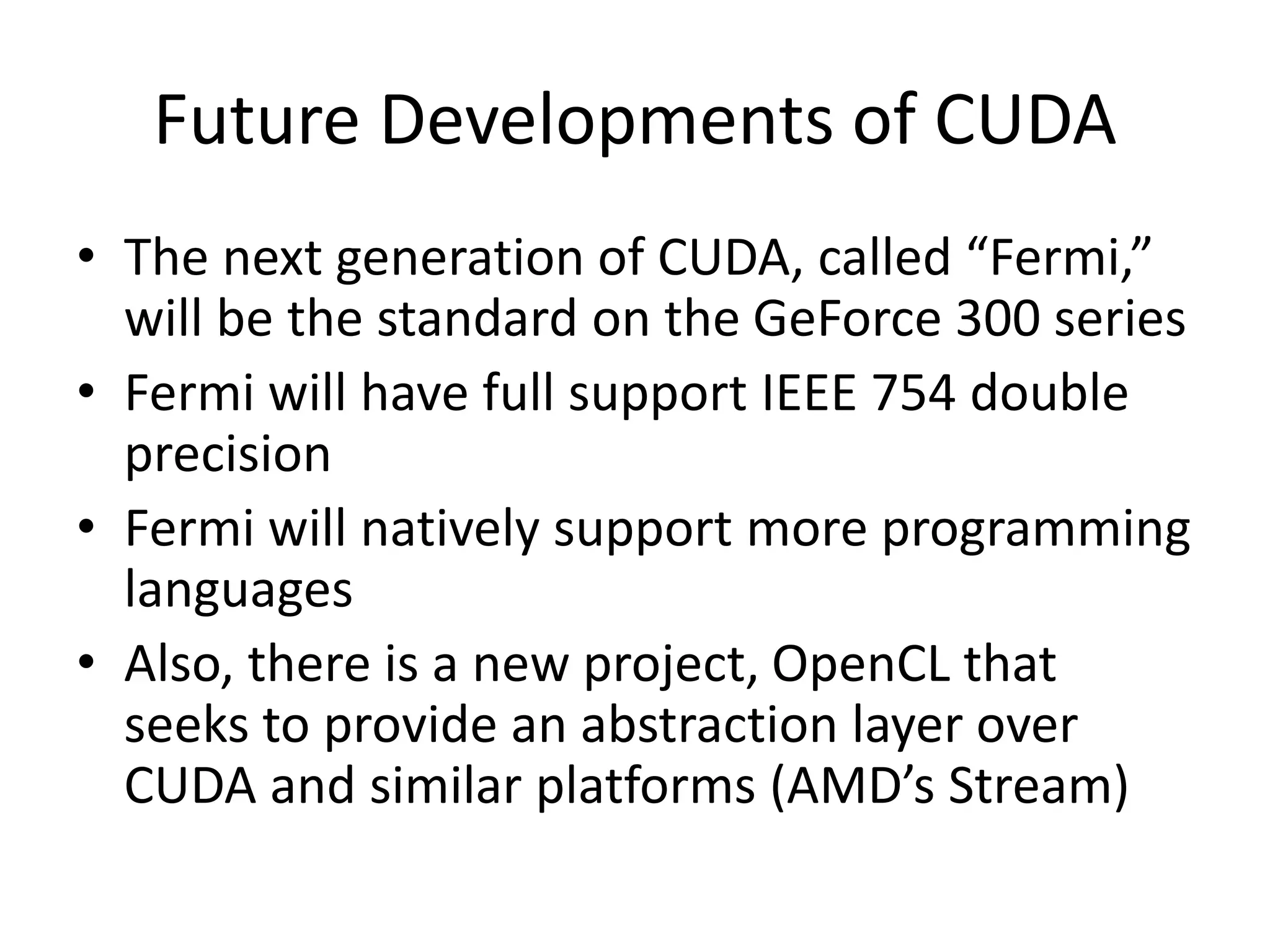

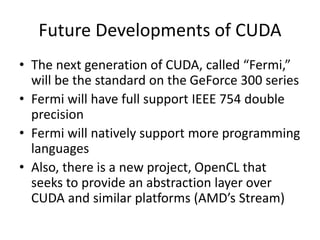

23. Future Developments of CUDA
• The next generation of CUDA, called “Fermi,”
will be the standard on the GeForce 300 series
• Fermi will have full support IEEE 754 double
precision
• Fermi will natively support more programming
languages
• Also, there is a new project, OpenCL that
seeks to provide an abstraction layer over
CUDA and similar platforms (AMD’s Stream)

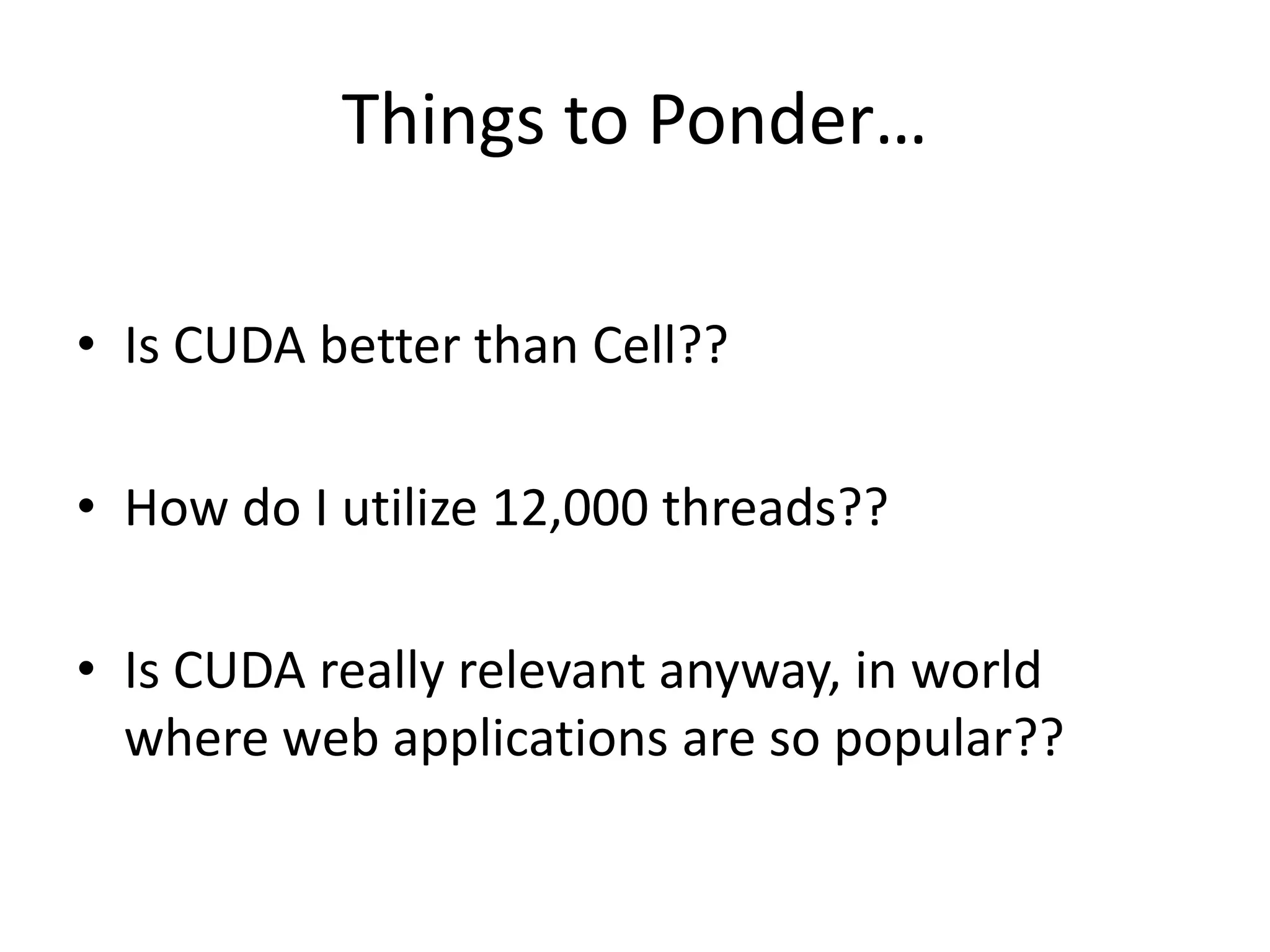

24. Things to Ponder…
• Is CUDA better than Cell??
• How do I utilize 12,000 threads??
• Is CUDA really relevant anyway, in world
where web applications are so popular??

25. “Parallel Programming with CUDA”
By: Matthew Guidry
Charles McClendon
