CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008




                WAS: GEOFRAME
    a system for doing hydrology by computer
R. Rigon, A. Antonello, S. Franceschi, D. Giacomelli, E. Cordano,
    S. Endrizzi, S. Simoni, M., Dall’Amico, C. Tiso, F. Zanotti


                    IS:
            GEOtop: What is next


University of Trento (IT) - HYDROLOGIS
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

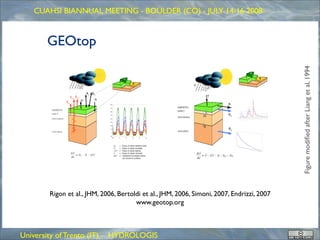

       GEOtop




                                                                                            Figure modified after Liang et al, 1994
        Rigon et al., JHM, 2006, Bertoldi et al., JHM, 2006, Simoni, 2007, Endrizzi, 2007
                                       www.geotop.org



University of Trento (IT) - HYDROLOGIS
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

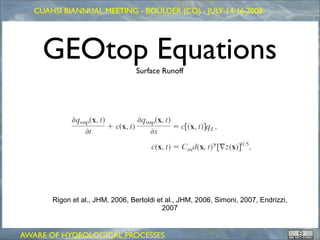

    GEOtop Equations             Surface Runoff




      Rigon et al., JHM, 2006, Bertoldi et al., JHM, 2006, Simoni, 2007, Endrizzi,
                                          2007


AWARE OF HYDROLOGICAL PROCESSES
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

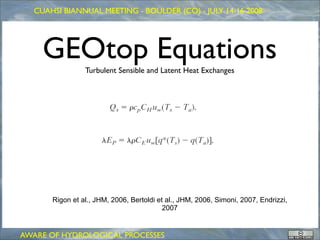

    GEOtop Equations
                Turbulent Sensible and Latent Heat Exchanges




      Rigon et al., JHM, 2006, Bertoldi et al., JHM, 2006, Simoni, 2007, Endrizzi,
                                          2007


AWARE OF HYDROLOGICAL PROCESSES
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

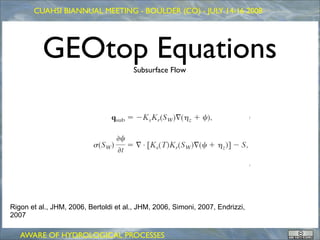

          GEOtop Equations             Subsurface Flow




Rigon et al., JHM, 2006, Bertoldi et al., JHM, 2006, Simoni, 2007, Endrizzi,
2007

   AWARE OF HYDROLOGICAL PROCESSES
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

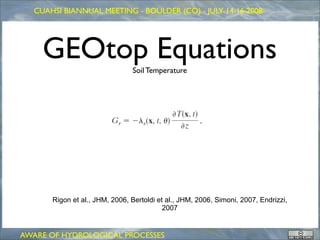

    GEOtop Equations           Soil Temperature




      Rigon et al., JHM, 2006, Bertoldi et al., JHM, 2006, Simoni, 2007, Endrizzi,
                                          2007


AWARE OF HYDROLOGICAL PROCESSES
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

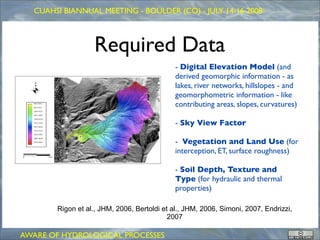

                  Required Data
                                             - Digital Elevation Model (and
                                             derived geomorphic information - as
                                             lakes, river networks, hillslopes - and
                                             geomorphometric information - like
                                             contributing areas, slopes, curvatures)

                                             - Sky View Factor

                                             - Vegetation and Land Use (for
                                             interception, ET, surface roughness)

                                             - Soil Depth, Texture and
                                             Type (for hydraulic and thermal
                                             properties)

       Rigon et al., JHM, 2006, Bertoldi et al., JHM, 2006, Simoni, 2007, Endrizzi,
                                           2007

AWARE OF HYDROLOGICAL PROCESSES
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008



Requires Boundary Conditions




AWARE OF HYDROLOGICAL PROCESSES
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

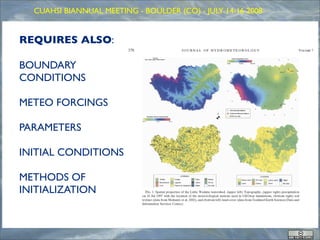

REQUIRES ALSO:

BOUNDARY
CONDITIONS

METEO FORCINGS

PARAMETERS

INITIAL CONDITIONS

METHODS OF
INITIALIZATION
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

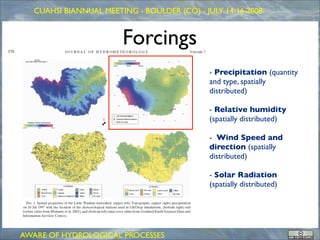

                       Forcings
                                             - Precipitation (quantity
                                             and type, spatially
                                             distributed)

                                             - Relative humidity
                                             (spatially distributed)

                                             - Wind Speed and
                                             direction (spatially
                                             distributed)

                                             - Solar Radiation
                                             (spatially distributed)




AWARE OF HYDROLOGICAL PROCESSES
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008


                   Parameters
                                               - Soil Parameters (e.g.
                                               van Genuchten)

                                               - Surface roughness
                                               (for water celerity)

                                               - Bulk aerodynamic
                                               properties

                                               - Ice and snow
                                               properties

                                               - Atmosphere
                                               radiative properties



AWARE OF HYDROLOGICAL PROCESSES
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008



 Required Initial Conditions
                                        - Soil moisture (profile,
                                        in terms of matric
                                        potential, spatially
                                        distributed)

                                        - Soil temperature
                                        (profile, spatially
                                        distributed)

                                        - Surface water (if
                                        present)

                                        - Snow cover (if present)
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

                            To Sum up
 Equations            Parameters            Data


 Mass, momentum       Equation’s
 and energy           constant. In time!    Forcings and
 conservation.        In space they are     observables
 Chemical             heteorgeneous
 transformations




 Numerics,            Calibration,          Data Assimilation.
 boundary and         derivation from       Data Models.
 initial conditions   proxies               Tools for Analysis.




AWARE OF HYDROLOGICAL PROCESSES
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

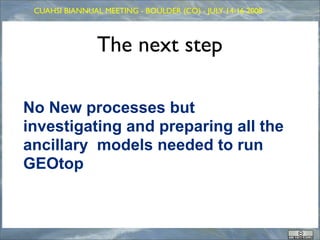

                The next step

No New processes but
investigating and preparing all the
ancillary models needed to run
GEOtop
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

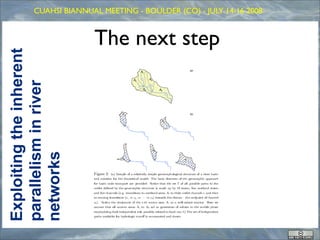

                          The next step
Exploiting the inherent
parallelism in river
networks
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008




                           A STEP BEFORE




University of Trento (IT) - HYDROLOGIS
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

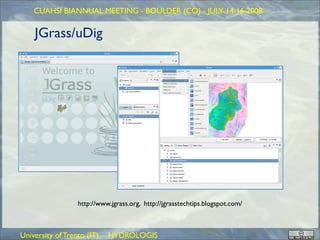

    JGrass/uDig




               http://www.jgrass.org, http://jgrasstechtips.blogspot.com/



University of Trento (IT) - HYDROLOGIS
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008




                          MODELS




                                                              Mademoiselle Rose, ca. 1820. Eugène Delacroix.
IS MODELING SCIENCE ?
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

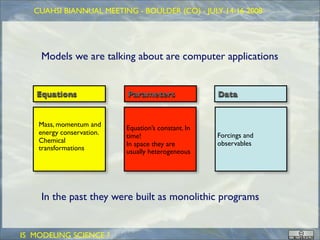

    Models we are talking about are computer applications


   Equations               Parameters                Data


    Mass, momentum and     Equation’s constant. In
    energy conservation.   time!                     Forcings and
    Chemical               In space they are         observables
    transformations        usually heterogeneous




    In the past they were built as monolithic programs


IS MODELING SCIENCE ?
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008


 I - Once a model, design and implemented as a monolithic
software entity, has been deployed, its evolution is totally in
the hands of the original developers. While this is a
good thing for intellectual property rights and in a commercial
environment, this is absolutely a bad thing for science and
the way it is supposed to progress.




                                                                  Robbed from a CCA presentation
IS MODELING SCIENCE ?
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008



II - Independent revisions                  and third-party
contributions are nearly impossible and especially when
the code is not available.
Models falsification (in Popper sense) is usually impossible by
other scientists than the original authors.


III- Thus, model inter-comparison projects give usually
unsatisfying results. Once complex models do not
reproduce data it is usually very difficult to
determine which process or parameterization was
incorrectly implemented.




IS MODELING SCIENCE ?
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

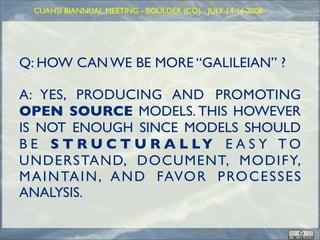

Q: HOW CAN WE BE MORE “GALILEIAN” ?

A: YES, PRODUCING AND PROMOTING
OPEN SOURCE MODELS. THIS HOWEVER
IS NOT ENOUGH SINCE MODELS SHOULD
B E S T R U C T U R A L LY E A S Y T O
UNDERSTAND, DOCUMENT, MODIFY,
M A I N TA I N , A N D FAVO R P RO C E S S E S
ANALYSIS.
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008


MODELLING, FOR WHO ?
Which end user do you have in mind ?




                                                              Baboon, Papius Anubis
SCIENTIST ARE NOT THE ONLY MODELS USERS
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

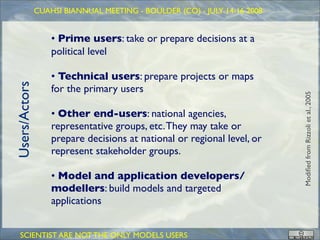

                   • Prime users: take or prepare decisions at a
                   political level

                   • Technical users: prepare projects or maps
Users/Actors



                   for the primary users




                                                                          Modified from Rizzoli et al., 2005
                   • Other end-users: national agencies,
                   representative groups, etc. They may take or
                   prepare decisions at national or regional level, or
                   represent stakeholder groups.

                   • Model and application developers/
                   modellers: build models and targeted
                   applications


   SCIENTIST ARE NOT THE ONLY MODELS USERS
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

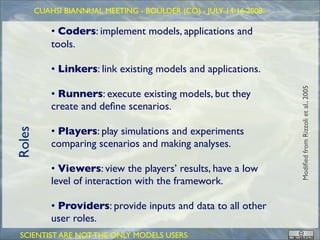

            • Coders: implement models, applications and
            tools.

            • Linkers: link existing models and applications.




                                                                   Modified from Rizzoli et al., 2005
            • Runners: execute existing models, but they
            create and define scenarios.

            • Players: play simulations and experiments
Roles




            comparing scenarios and making analyses.

            • Viewers: view the players’ results, have a low
            level of interaction with the framework.

            • Providers: provide inputs and data to all other
            user roles.
 SCIENTIST ARE NOT THE ONLY MODELS USERS
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

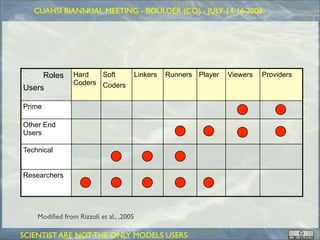

        Roles   Hard   Soft              Linkers   Runners Player   Viewers   Providers
                Coders Coders
Users

Prime

Other End
Users

Technical


Researchers




    Modified from Rizzoli et al., ,2005

SCIENTIST ARE NOT THE ONLY MODELS USERS
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008



Thus there exists a “zoo” of users, each one with different abilities.

Bundling data, algorithms and the graphical user interface of a
model in an application with the old techniques makes the
models very hard to re-use out of its original context.




 AN ECOLOGY OF MODELS
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

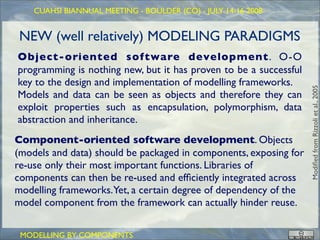

 NEW (well relatively) MODELING PARADIGMS
Object-oriented software development. O-O
programming is nothing new, but it has proven to be a successful
key to the design and implementation of modelling frameworks.




                                                                   Modified from Rizzoli et al., 2005
Models and data can be seen as objects and therefore they can
exploit properties such as encapsulation, polymorphism, data
abstraction and inheritance.
Component-oriented software development. Objects
(models and data) should be packaged in components, exposing for
re-use only their most important functions. Libraries of
components can then be re-used and efficiently integrated across
modelling frameworks.Yet, a certain degree of dependency of the
model component from the framework can actually hinder reuse.


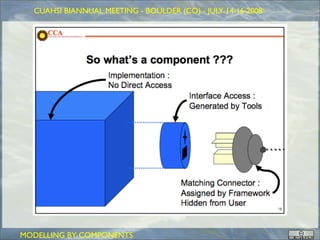

 MODELLING BY COMPONENTS
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008




MODELLING BY COMPONENTS
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

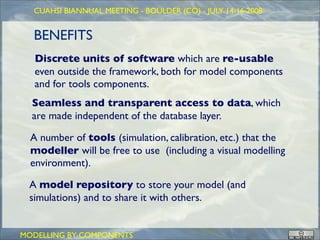

  BENEFITS
   Discrete units of software which are re-usable
   even outside the framework, both for model components
   and for tools components.
  Seamless and transparent access to data, which
  are made independent of the database layer.

  A number of tools (simulation, calibration, etc.) that the
  modeller will be free to use (including a visual modelling
  environment).

 A model repository to store your model (and
 simulations) and to share it with others.


MODELLING BY COMPONENTS
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

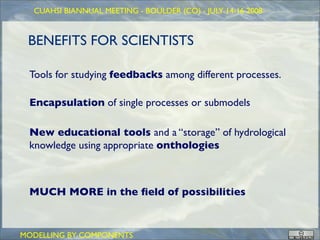

 BENEFITS FOR SCIENTISTS

 Tools for studying feedbacks among different processes.

 Encapsulation of single processes or submodels

 New educational tools and a “storage” of hydrological
 knowledge using appropriate onthologies



 MUCH MORE in the field of possibilities


MODELLING BY COMPONENTS
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

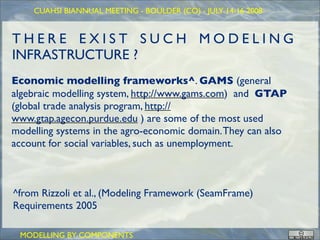

THERE EXIST SUCH MODELING
INFRASTRUCTURE ?
Economic modelling frameworks^. GAMS (general
algebraic modelling system, http://www.gams.com) and GTAP
(global trade analysis program, http://
www.gtap.agecon.purdue.edu ) are some of the most used
modelling systems in the agro-economic domain. They can also
account for social variables, such as unemployment.



^from Rizzoli et al., (Modeling Framework (SeamFrame)
Requirements 2005

 MODELLING BY COMPONENTS
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

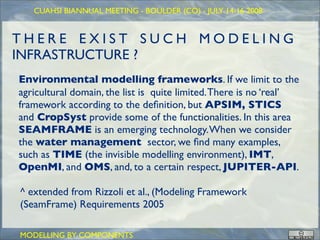

THERE EXIST SUCH MODELING
INFRASTRUCTURE ?
Environmental modelling frameworks. If we limit to the
agricultural domain, the list is quite limited. There is no ‘real’
framework according to the definition, but APSIM, STICS
and CropSyst provide some of the functionalities. In this area
SEAMFRAME is an emerging technology. When we consider
the water management sector, we find many examples,
such as TIME (the invisible modelling environment), IMT,
OpenMI, and OMS, and, to a certain respect, JUPITER-API.

^ extended from Rizzoli et al., (Modeling Framework
(SeamFrame) Requirements 2005

MODELLING BY COMPONENTS
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008


THERE EXIST SUCH MODELING
INFRASTRUCTURE ?

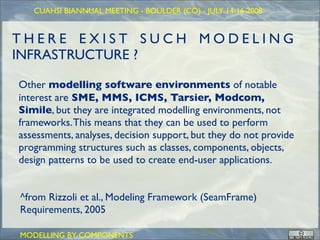

Other modelling software environments of notable
interest are SME, MMS, ICMS, Tarsier, Modcom,
Simile, but they are integrated modelling environments, not
frameworks. This means that they can be used to perform
assessments, analyses, decision support, but they do not provide
programming structures such as classes, components, objects,
design patterns to be used to create end-user applications.


^from Rizzoli et al., Modeling Framework (SeamFrame)
Requirements, 2005

MODELLING BY COMPONENTS
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008


THERE EXIST SUCH MODELING
INFRASTRUCTURE ?

Atmospheric Sciences: Earth Sciences Modeling Framework
(ESMF) (including Earth System Curator)


High Performance Computing: Common Component
Architecture (CCA)




MODELLING BY COMPONENTS
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008

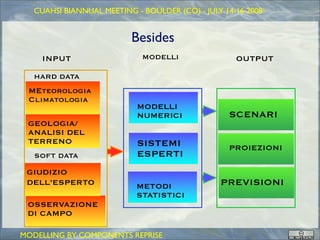

                         Besides
    input                   MODELLI                output
  HARD DATA
 MEteorologia
 Climatologia
                           MODELLI
                           NUMERICI              SCENARI
 GEOLOGIA/
 ANALISI DEL
 TERRENO                   SISTEMI               PROIEZIONI
   SOFT DATA               ESPERTI
 GIUDIZIO
 DELL’ESPERto              METODI              PREVISIONI
                           STATISTICI
 OSSERVAZIONE
 DI CAMPO

MODELLING BY COMPONENTS REPRISE
CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008


                          Models as components
Monitored                                                                     Evapotranspiration
data

Weather                          Surfaces

More Related Content

Viewers also liked

Parma 2016-05-17 - JGrass-NewAGE - Some About The State of Art
Parma 2016-05-17 - JGrass-NewAGE - Some About The State of ArtParma 2016-05-17 - JGrass-NewAGE - Some About The State of Art
Parma 2016-05-17 - JGrass-NewAGE - Some About The State of Art
Riccardo Rigon

JGrass and uDig, chronicles of a lovestory
JGrass and uDig, chronicles of a lovestoryJGrass and uDig, chronicles of a lovestory
JGrass and uDig, chronicles of a lovestory
Andrea Antonello

Cuashi2008revisited
Cuashi2008revisitedCuashi2008revisited
Cuashi2008revisited
Riccardo Rigon

Implementing a travel time model for the Adige River: the case of Jgrass-NewAGE
Implementing a travel time model for the Adige River: the case of Jgrass-NewAGEImplementing a travel time model for the Adige River: the case of Jgrass-NewAGE
Implementing a travel time model for the Adige River: the case of Jgrass-NewAGE
Riccardo Rigon

17 percezione & Realtà
17 percezione & Realtà17 percezione & Realtà
17 percezione & Realtà
Riccardo Rigon

Return period from a stochastic point of view
Return period from a stochastic point of viewReturn period from a stochastic point of view
Return period from a stochastic point of view
Riccardo Rigon

Francesco Serafin Second year admission
Francesco Serafin Second year admissionFrancesco Serafin Second year admission
Francesco Serafin Second year admission
Riccardo Rigon

Rr reflections
Rr reflectionsRr reflections
Rr reflections
Riccardo Rigon

Reservoirology#4 or the representation of PDEs with TC Petri nets
Reservoirology#4 or the representation of PDEs with TC Petri netsReservoirology#4 or the representation of PDEs with TC Petri nets
Reservoirology#4 or the representation of PDEs with TC Petri nets
Riccardo Rigon

6 reservoirs&Graphs
6 reservoirs&Graphs6 reservoirs&Graphs
6 reservoirs&Graphs
Riccardo Rigon

Reservoirs & Graphs
Reservoirs & GraphsReservoirs & Graphs
Reservoirs & Graphs
Riccardo Rigon

GEOtop 2.0 - The snow and freezing soil modelling
GEOtop 2.0 - The snow and freezing soil modellingGEOtop 2.0 - The snow and freezing soil modelling
GEOtop 2.0 - The snow and freezing soil modelling
Riccardo Rigon

Young and old forest impacts on the hydrological cycle
Young and old forest impacts on the hydrological cycleYoung and old forest impacts on the hydrological cycle
Young and old forest impacts on the hydrological cycle
Riccardo Rigon

Come scrivere un CV
Come scrivere un CVCome scrivere un CV
Come scrivere un CV
Riccardo Rigon

P horton machine
P horton machineP horton machine
P horton machine
Riccardo Rigon

Which is the best model ?
Which is the best model ?Which is the best model ?
Which is the best model ?
Riccardo Rigon

Metastatistical Extreme Value distributions
Metastatistical Extreme Value distributionsMetastatistical Extreme Value distributions
Metastatistical Extreme Value distributions
Riccardo Rigon

P j grass-tools
P j grass-toolsP j grass-tools
P j grass-tools
Riccardo Rigon

Trento june2015 slides
Trento june2015 slidesTrento june2015 slides
Trento june2015 slides
Riccardo Rigon

P jgrass-jgrastools
P jgrass-jgrastoolsP jgrass-jgrastools
P jgrass-jgrastools
Riccardo Rigon


Viewers also liked (20)

Parma 2016-05-17 - JGrass-NewAGE - Some About The State of Art
Parma 2016-05-17 - JGrass-NewAGE - Some About The State of ArtParma 2016-05-17 - JGrass-NewAGE - Some About The State of Art
Parma 2016-05-17 - JGrass-NewAGE - Some About The State of Art

JGrass and uDig, chronicles of a lovestory
JGrass and uDig, chronicles of a lovestoryJGrass and uDig, chronicles of a lovestory
JGrass and uDig, chronicles of a lovestory

Cuashi2008revisited
Cuashi2008revisitedCuashi2008revisited
Cuashi2008revisited

Implementing a travel time model for the Adige River: the case of Jgrass-NewAGE
Implementing a travel time model for the Adige River: the case of Jgrass-NewAGEImplementing a travel time model for the Adige River: the case of Jgrass-NewAGE
Implementing a travel time model for the Adige River: the case of Jgrass-NewAGE

17 percezione & Realtà
17 percezione & Realtà17 percezione & Realtà
17 percezione & Realtà

Return period from a stochastic point of view
Return period from a stochastic point of viewReturn period from a stochastic point of view
Return period from a stochastic point of view

Francesco Serafin Second year admission
Francesco Serafin Second year admissionFrancesco Serafin Second year admission
Francesco Serafin Second year admission

Rr reflections
Rr reflectionsRr reflections
Rr reflections

Reservoirology#4 or the representation of PDEs with TC Petri nets
Reservoirology#4 or the representation of PDEs with TC Petri netsReservoirology#4 or the representation of PDEs with TC Petri nets
Reservoirology#4 or the representation of PDEs with TC Petri nets

6 reservoirs&Graphs
6 reservoirs&Graphs6 reservoirs&Graphs
6 reservoirs&Graphs

Reservoirs & Graphs
Reservoirs & GraphsReservoirs & Graphs
Reservoirs & Graphs

GEOtop 2.0 - The snow and freezing soil modelling
GEOtop 2.0 - The snow and freezing soil modellingGEOtop 2.0 - The snow and freezing soil modelling
GEOtop 2.0 - The snow and freezing soil modelling

Young and old forest impacts on the hydrological cycle
Young and old forest impacts on the hydrological cycleYoung and old forest impacts on the hydrological cycle
Young and old forest impacts on the hydrological cycle

Come scrivere un CV
Come scrivere un CVCome scrivere un CV
Come scrivere un CV

P horton machine
P horton machineP horton machine
P horton machine

Which is the best model ?
Which is the best model ?Which is the best model ?
Which is the best model ?

Metastatistical Extreme Value distributions
Metastatistical Extreme Value distributionsMetastatistical Extreme Value distributions
Metastatistical Extreme Value distributions

P j grass-tools
P j grass-toolsP j grass-tools
P j grass-tools

Trento june2015 slides
Trento june2015 slidesTrento june2015 slides
Trento june2015 slides

P jgrass-jgrastools
P jgrass-jgrastoolsP jgrass-jgrastools
P jgrass-jgrastools


Similar to Cuahsi Boulder150708 Remixed Ge Otop Caffe

Global soilmap at_afsis_hengl
Global soilmap at_afsis_henglGlobal soilmap at_afsis_hengl
Global soilmap at_afsis_hengl
Tomislav Hengl

SOIL MOISTURE: A key variable for linking small scale catchment hydrology to ...
SOIL MOISTURE: A key variable for linking small scale catchment hydrology to ...SOIL MOISTURE: A key variable for linking small scale catchment hydrology to ...
SOIL MOISTURE: A key variable for linking small scale catchment hydrology to ...
Luca Brocca

An integrative information aqueduct to close the gaps between global satellit...
An integrative information aqueduct to close the gaps between global satellit...An integrative information aqueduct to close the gaps between global satellit...
An integrative information aqueduct to close the gaps between global satellit...
Salvatore Manfreda

GEOtop Sisef presentation
GEOtop Sisef presentationGEOtop Sisef presentation
GEOtop Sisef presentation
Riccardo Rigon

Introducing GSIF (seminar at Lamont campus)
Introducing GSIF (seminar at Lamont campus)Introducing GSIF (seminar at Lamont campus)
Introducing GSIF (seminar at Lamont campus)
Tomislav Hengl

Padua cathy meeting
Padua cathy meetingPadua cathy meeting
Padua cathy meeting
Riccardo Rigon

Intercomparison
IntercomparisonIntercomparison
Intercomparison
posterVienna

TH4.L10.1: SMOS SMAP SYNERGISMS FOR THE RETRIEVAL OF SOIL MOISTURE
  TH4.L10.1: SMOS SMAP SYNERGISMS FOR THE RETRIEVAL OF SOIL MOISTURE  TH4.L10.1: SMOS SMAP SYNERGISMS FOR THE RETRIEVAL OF SOIL MOISTURE
TH4.L10.1: SMOS SMAP SYNERGISMS FOR THE RETRIEVAL OF SOIL MOISTURE
grssieee

Solar PV - Environmental Due Diligence
Solar PV - Environmental Due DiligenceSolar PV - Environmental Due Diligence
Solar PV - Environmental Due Diligence
dlbelin


Similar to Cuahsi Boulder150708 Remixed Ge Otop Caffe (9)

Global soilmap at_afsis_hengl
Global soilmap at_afsis_henglGlobal soilmap at_afsis_hengl
Global soilmap at_afsis_hengl

SOIL MOISTURE: A key variable for linking small scale catchment hydrology to ...
SOIL MOISTURE: A key variable for linking small scale catchment hydrology to ...SOIL MOISTURE: A key variable for linking small scale catchment hydrology to ...
SOIL MOISTURE: A key variable for linking small scale catchment hydrology to ...

An integrative information aqueduct to close the gaps between global satellit...
An integrative information aqueduct to close the gaps between global satellit...An integrative information aqueduct to close the gaps between global satellit...
An integrative information aqueduct to close the gaps between global satellit...

GEOtop Sisef presentation
GEOtop Sisef presentationGEOtop Sisef presentation
GEOtop Sisef presentation

Introducing GSIF (seminar at Lamont campus)
Introducing GSIF (seminar at Lamont campus)Introducing GSIF (seminar at Lamont campus)
Introducing GSIF (seminar at Lamont campus)

Padua cathy meeting
Padua cathy meetingPadua cathy meeting
Padua cathy meeting

Intercomparison
IntercomparisonIntercomparison
Intercomparison

TH4.L10.1: SMOS SMAP SYNERGISMS FOR THE RETRIEVAL OF SOIL MOISTURE
  TH4.L10.1: SMOS SMAP SYNERGISMS FOR THE RETRIEVAL OF SOIL MOISTURE  TH4.L10.1: SMOS SMAP SYNERGISMS FOR THE RETRIEVAL OF SOIL MOISTURE
TH4.L10.1: SMOS SMAP SYNERGISMS FOR THE RETRIEVAL OF SOIL MOISTURE

Solar PV - Environmental Due Diligence
Solar PV - Environmental Due DiligenceSolar PV - Environmental Due Diligence
Solar PV - Environmental Due Diligence


More from Riccardo Rigon

Models for hazards mapping
Models for hazards mappingModels for hazards mapping
Models for hazards mapping
Riccardo Rigon

A short introduction to some hydrological extreme phenomena
A short introduction to some hydrological extreme phenomenaA short introduction to some hydrological extreme phenomena
A short introduction to some hydrological extreme phenomena
Riccardo Rigon

EvaporAzione
EvaporAzioneEvaporAzione
EvaporAzione
Riccardo Rigon

Francesco Serafin
Francesco Serafin Francesco Serafin
Francesco Serafin
Riccardo Rigon

Meledrio
MeledrioMeledrio
Meledrio
Riccardo Rigon

Lisbon talk for SteepStreams
Lisbon talk  for SteepStreamsLisbon talk  for SteepStreams
Lisbon talk for SteepStreams
Riccardo Rigon

Grids implementation
Grids implementationGrids implementation
Grids implementation
Riccardo Rigon

Grids
GridsGrids
Some photos from the field
Some photos from the fieldSome photos from the field
Some photos from the field
Riccardo Rigon

Virtual water fem 07032017
Virtual water fem 07032017Virtual water fem 07032017
Virtual water fem 07032017
Riccardo Rigon

Dalton Prize Lecture 2017 by Dani Or
Dalton Prize Lecture 2017 by Dani OrDalton Prize Lecture 2017 by Dani Or
Dalton Prize Lecture 2017 by Dani Or
Riccardo Rigon

Projecting Climate Change Impacts on Water Resources in Regions of Complex To...
Projecting Climate Change Impacts on Water Resources in Regions of Complex To...Projecting Climate Change Impacts on Water Resources in Regions of Complex To...
Projecting Climate Change Impacts on Water Resources in Regions of Complex To...
Riccardo Rigon

The modern flood forecasting
The modern flood forecastingThe modern flood forecasting
The modern flood forecasting
Riccardo Rigon

La moderna previsione delle piene
La moderna previsione delle pieneLa moderna previsione delle piene
La moderna previsione delle piene
Riccardo Rigon

Hydrological Extremes and Human societies
Hydrological Extremes and Human societies Hydrological Extremes and Human societies
Hydrological Extremes and Human societies
Riccardo Rigon

The Science of Water Transport and Floods from Theory to Relevant Application...
The Science of Water Transport and Floods from Theory to Relevant Application...The Science of Water Transport and Floods from Theory to Relevant Application...
The Science of Water Transport and Floods from Theory to Relevant Application...
Riccardo Rigon

The Science of Water Transport and Floods from Theory to Relevant Applications
The Science of Water Transport and Floods from Theory to Relevant ApplicationsThe Science of Water Transport and Floods from Theory to Relevant Applications
The Science of Water Transport and Floods from Theory to Relevant Applications
Riccardo Rigon

Climaware at the end
Climaware at the endClimaware at the end
Climaware at the end
Riccardo Rigon

Hymod model for catchments
Hymod model for catchmentsHymod model for catchments
Hymod model for catchments
Riccardo Rigon

Egu2017 pico
Egu2017 picoEgu2017 pico
Egu2017 pico
Riccardo Rigon


More from Riccardo Rigon (20)

Models for hazards mapping
Models for hazards mappingModels for hazards mapping
Models for hazards mapping

A short introduction to some hydrological extreme phenomena
A short introduction to some hydrological extreme phenomenaA short introduction to some hydrological extreme phenomena
A short introduction to some hydrological extreme phenomena

EvaporAzione
EvaporAzioneEvaporAzione
EvaporAzione

Francesco Serafin
Francesco Serafin Francesco Serafin
Francesco Serafin

Meledrio
MeledrioMeledrio
Meledrio

Lisbon talk for SteepStreams
Lisbon talk  for SteepStreamsLisbon talk  for SteepStreams
Lisbon talk for SteepStreams

Grids implementation
Grids implementationGrids implementation
Grids implementation

Grids
GridsGrids
Grids

Some photos from the field
Some photos from the fieldSome photos from the field
Some photos from the field

Virtual water fem 07032017
Virtual water fem 07032017Virtual water fem 07032017
Virtual water fem 07032017

Dalton Prize Lecture 2017 by Dani Or
Dalton Prize Lecture 2017 by Dani OrDalton Prize Lecture 2017 by Dani Or
Dalton Prize Lecture 2017 by Dani Or

Projecting Climate Change Impacts on Water Resources in Regions of Complex To...
Projecting Climate Change Impacts on Water Resources in Regions of Complex To...Projecting Climate Change Impacts on Water Resources in Regions of Complex To...
Projecting Climate Change Impacts on Water Resources in Regions of Complex To...

The modern flood forecasting
The modern flood forecastingThe modern flood forecasting
The modern flood forecasting

La moderna previsione delle piene
La moderna previsione delle pieneLa moderna previsione delle piene
La moderna previsione delle piene

Hydrological Extremes and Human societies
Hydrological Extremes and Human societies Hydrological Extremes and Human societies
Hydrological Extremes and Human societies

The Science of Water Transport and Floods from Theory to Relevant Application...
The Science of Water Transport and Floods from Theory to Relevant Application...The Science of Water Transport and Floods from Theory to Relevant Application...
The Science of Water Transport and Floods from Theory to Relevant Application...

The Science of Water Transport and Floods from Theory to Relevant Applications
The Science of Water Transport and Floods from Theory to Relevant ApplicationsThe Science of Water Transport and Floods from Theory to Relevant Applications
The Science of Water Transport and Floods from Theory to Relevant Applications

Climaware at the end
Climaware at the endClimaware at the end
Climaware at the end

Hymod model for catchments
Hymod model for catchmentsHymod model for catchments
Hymod model for catchments

Egu2017 pico
Egu2017 picoEgu2017 pico
Egu2017 pico


Recently uploaded

formative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.Vformative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.V
DrRavindrakshirsagar1

How to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 WebsiteHow to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 Website
Celine George

DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008
Glenn Rivera

ASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdfASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdf
Scholarhat

How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17
Celine George

JavaScript Interview Questions PDF By ScholarHat
JavaScript Interview  Questions PDF By ScholarHatJavaScript Interview  Questions PDF By ScholarHat
JavaScript Interview Questions PDF By ScholarHat
Scholarhat

Our Guide to the July 2024 USPS® Rate Change
Our Guide to the July 2024 USPS® Rate ChangeOur Guide to the July 2024 USPS® Rate Change
Our Guide to the July 2024 USPS® Rate Change
Postal Advocate Inc.

Imagination in Computer Science Research
Imagination in Computer Science ResearchImagination in Computer Science Research
Imagination in Computer Science Research
Abhik Roychoudhury

Odoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List ScanningOdoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List Scanning
Celine George

What is Rescue Session in Odoo 17 POS - Odoo 17 Slides
What is Rescue Session in Odoo 17 POS - Odoo 17 SlidesWhat is Rescue Session in Odoo 17 POS - Odoo 17 Slides
What is Rescue Session in Odoo 17 POS - Odoo 17 Slides
Celine George

FINAL MATATAG Kindergarten CG 2023 pdf
FINAL MATATAG Kindergarten CG 2023   pdfFINAL MATATAG Kindergarten CG 2023   pdf
FINAL MATATAG Kindergarten CG 2023 pdf
maricelrudela

Introduction to Banking System in India.ppt
Introduction to Banking System in India.pptIntroduction to Banking System in India.ppt
Introduction to Banking System in India.ppt
Dr. S. Bulomine Regi

The Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdfThe Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdf
luzmilaglez334

MVC Interview Questions PDF By ScholarHat
MVC Interview Questions PDF By ScholarHatMVC Interview Questions PDF By ScholarHat
MVC Interview Questions PDF By ScholarHat
Scholarhat

How to Empty a One2Many Field in Odoo 17
How to Empty a One2Many Field in Odoo 17How to Empty a One2Many Field in Odoo 17
How to Empty a One2Many Field in Odoo 17
Celine George

Node JS Interview Question PDF By ScholarHat
Node JS Interview Question PDF By ScholarHatNode JS Interview Question PDF By ScholarHat
Node JS Interview Question PDF By ScholarHat
Scholarhat

How to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 SlidesHow to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 Slides
Celine George

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
Nguyen Thanh Tu Collection

Introduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal UseIntroduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal Use
Excellence Foundation for South Sudan

Allopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation PowerpointAllopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation Powerpoint
Julie Sarpy


Recently uploaded (20)

formative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.Vformative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.V

How to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 WebsiteHow to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 Website

DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008

ASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdfASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdf

How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17

JavaScript Interview Questions PDF By ScholarHat
JavaScript Interview  Questions PDF By ScholarHatJavaScript Interview  Questions PDF By ScholarHat
JavaScript Interview Questions PDF By ScholarHat

Our Guide to the July 2024 USPS® Rate Change
Our Guide to the July 2024 USPS® Rate ChangeOur Guide to the July 2024 USPS® Rate Change
Our Guide to the July 2024 USPS® Rate Change

Imagination in Computer Science Research
Imagination in Computer Science ResearchImagination in Computer Science Research
Imagination in Computer Science Research

Odoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List ScanningOdoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List Scanning

What is Rescue Session in Odoo 17 POS - Odoo 17 Slides
What is Rescue Session in Odoo 17 POS - Odoo 17 SlidesWhat is Rescue Session in Odoo 17 POS - Odoo 17 Slides
What is Rescue Session in Odoo 17 POS - Odoo 17 Slides

FINAL MATATAG Kindergarten CG 2023 pdf
FINAL MATATAG Kindergarten CG 2023   pdfFINAL MATATAG Kindergarten CG 2023   pdf
FINAL MATATAG Kindergarten CG 2023 pdf

Introduction to Banking System in India.ppt
Introduction to Banking System in India.pptIntroduction to Banking System in India.ppt
Introduction to Banking System in India.ppt

The Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdfThe Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdf

MVC Interview Questions PDF By ScholarHat
MVC Interview Questions PDF By ScholarHatMVC Interview Questions PDF By ScholarHat
MVC Interview Questions PDF By ScholarHat

How to Empty a One2Many Field in Odoo 17
How to Empty a One2Many Field in Odoo 17How to Empty a One2Many Field in Odoo 17
How to Empty a One2Many Field in Odoo 17

Node JS Interview Question PDF By ScholarHat
Node JS Interview Question PDF By ScholarHatNode JS Interview Question PDF By ScholarHat
Node JS Interview Question PDF By ScholarHat

How to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 SlidesHow to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 Slides

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...

Introduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal UseIntroduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal Use

Allopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation PowerpointAllopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation Powerpoint


Cuahsi Boulder150708 Remixed Ge Otop Caffe

  • 1. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 WAS: GEOFRAME a system for doing hydrology by computer R. Rigon, A. Antonello, S. Franceschi, D. Giacomelli, E. Cordano, S. Endrizzi, S. Simoni, M., Dall’Amico, C. Tiso, F. Zanotti IS: GEOtop: What is next University of Trento (IT) - HYDROLOGIS
  • 2. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 GEOtop Figure modified after Liang et al, 1994 Rigon et al., JHM, 2006, Bertoldi et al., JHM, 2006, Simoni, 2007, Endrizzi, 2007 www.geotop.org University of Trento (IT) - HYDROLOGIS
  • 3. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 GEOtop Equations Surface Runoff Rigon et al., JHM, 2006, Bertoldi et al., JHM, 2006, Simoni, 2007, Endrizzi, 2007 AWARE OF HYDROLOGICAL PROCESSES
  • 4. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 GEOtop Equations Turbulent Sensible and Latent Heat Exchanges Rigon et al., JHM, 2006, Bertoldi et al., JHM, 2006, Simoni, 2007, Endrizzi, 2007 AWARE OF HYDROLOGICAL PROCESSES
  • 5. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 GEOtop Equations Subsurface Flow Rigon et al., JHM, 2006, Bertoldi et al., JHM, 2006, Simoni, 2007, Endrizzi, 2007 AWARE OF HYDROLOGICAL PROCESSES
  • 6. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 GEOtop Equations Soil Temperature Rigon et al., JHM, 2006, Bertoldi et al., JHM, 2006, Simoni, 2007, Endrizzi, 2007 AWARE OF HYDROLOGICAL PROCESSES
  • 7. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 Required Data - Digital Elevation Model (and derived geomorphic information - as lakes, river networks, hillslopes - and geomorphometric information - like contributing areas, slopes, curvatures) - Sky View Factor - Vegetation and Land Use (for interception, ET, surface roughness) - Soil Depth, Texture and Type (for hydraulic and thermal properties) Rigon et al., JHM, 2006, Bertoldi et al., JHM, 2006, Simoni, 2007, Endrizzi, 2007 AWARE OF HYDROLOGICAL PROCESSES
  • 8. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 Requires Boundary Conditions AWARE OF HYDROLOGICAL PROCESSES
  • 9. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 REQUIRES ALSO: BOUNDARY CONDITIONS METEO FORCINGS PARAMETERS INITIAL CONDITIONS METHODS OF INITIALIZATION
  • 10. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 Forcings - Precipitation (quantity and type, spatially distributed) - Relative humidity (spatially distributed) - Wind Speed and direction (spatially distributed) - Solar Radiation (spatially distributed) AWARE OF HYDROLOGICAL PROCESSES
  • 11. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 Parameters - Soil Parameters (e.g. van Genuchten) - Surface roughness (for water celerity) - Bulk aerodynamic properties - Ice and snow properties - Atmosphere radiative properties AWARE OF HYDROLOGICAL PROCESSES
  • 12. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 Required Initial Conditions - Soil moisture (profile, in terms of matric potential, spatially distributed) - Soil temperature (profile, spatially distributed) - Surface water (if present) - Snow cover (if present)
  • 13. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 To Sum up Equations Parameters Data Mass, momentum Equation’s and energy constant. In time! Forcings and conservation. In space they are observables Chemical heteorgeneous transformations Numerics, Calibration, Data Assimilation. boundary and derivation from Data Models. initial conditions proxies Tools for Analysis. AWARE OF HYDROLOGICAL PROCESSES
  • 14. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 The next step No New processes but investigating and preparing all the ancillary models needed to run GEOtop
  • 15. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 The next step Exploiting the inherent parallelism in river networks
  • 16. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 A STEP BEFORE University of Trento (IT) - HYDROLOGIS
  • 17. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 JGrass/uDig http://www.jgrass.org, http://jgrasstechtips.blogspot.com/ University of Trento (IT) - HYDROLOGIS
  • 18. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 MODELS Mademoiselle Rose, ca. 1820. Eugène Delacroix. IS MODELING SCIENCE ?
  • 19. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 Models we are talking about are computer applications Equations Parameters Data Mass, momentum and Equation’s constant. In energy conservation. time! Forcings and Chemical In space they are observables transformations usually heterogeneous In the past they were built as monolithic programs IS MODELING SCIENCE ?
  • 20. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 I - Once a model, design and implemented as a monolithic software entity, has been deployed, its evolution is totally in the hands of the original developers. While this is a good thing for intellectual property rights and in a commercial environment, this is absolutely a bad thing for science and the way it is supposed to progress. Robbed from a CCA presentation IS MODELING SCIENCE ?
  • 21. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 II - Independent revisions and third-party contributions are nearly impossible and especially when the code is not available. Models falsification (in Popper sense) is usually impossible by other scientists than the original authors. III- Thus, model inter-comparison projects give usually unsatisfying results. Once complex models do not reproduce data it is usually very difficult to determine which process or parameterization was incorrectly implemented. IS MODELING SCIENCE ?
  • 22. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 Q: HOW CAN WE BE MORE “GALILEIAN” ? A: YES, PRODUCING AND PROMOTING OPEN SOURCE MODELS. THIS HOWEVER IS NOT ENOUGH SINCE MODELS SHOULD B E S T R U C T U R A L LY E A S Y T O UNDERSTAND, DOCUMENT, MODIFY, M A I N TA I N , A N D FAVO R P RO C E S S E S ANALYSIS.
  • 23. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 MODELLING, FOR WHO ? Which end user do you have in mind ? Baboon, Papius Anubis SCIENTIST ARE NOT THE ONLY MODELS USERS
  • 24. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 • Prime users: take or prepare decisions at a political level • Technical users: prepare projects or maps Users/Actors for the primary users Modified from Rizzoli et al., 2005 • Other end-users: national agencies, representative groups, etc. They may take or prepare decisions at national or regional level, or represent stakeholder groups. • Model and application developers/ modellers: build models and targeted applications SCIENTIST ARE NOT THE ONLY MODELS USERS
  • 25. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 • Coders: implement models, applications and tools. • Linkers: link existing models and applications. Modified from Rizzoli et al., 2005 • Runners: execute existing models, but they create and define scenarios. • Players: play simulations and experiments Roles comparing scenarios and making analyses. • Viewers: view the players’ results, have a low level of interaction with the framework. • Providers: provide inputs and data to all other user roles. SCIENTIST ARE NOT THE ONLY MODELS USERS
  • 26. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 Roles Hard Soft Linkers Runners Player Viewers Providers Coders Coders Users Prime Other End Users Technical Researchers Modified from Rizzoli et al., ,2005 SCIENTIST ARE NOT THE ONLY MODELS USERS
  • 27. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 Thus there exists a “zoo” of users, each one with different abilities. Bundling data, algorithms and the graphical user interface of a model in an application with the old techniques makes the models very hard to re-use out of its original context. AN ECOLOGY OF MODELS
  • 28. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 NEW (well relatively) MODELING PARADIGMS Object-oriented software development. O-O programming is nothing new, but it has proven to be a successful key to the design and implementation of modelling frameworks. Modified from Rizzoli et al., 2005 Models and data can be seen as objects and therefore they can exploit properties such as encapsulation, polymorphism, data abstraction and inheritance. Component-oriented software development. Objects (models and data) should be packaged in components, exposing for re-use only their most important functions. Libraries of components can then be re-used and efficiently integrated across modelling frameworks.Yet, a certain degree of dependency of the model component from the framework can actually hinder reuse. MODELLING BY COMPONENTS
  • 29. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 MODELLING BY COMPONENTS
  • 30. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 BENEFITS Discrete units of software which are re-usable even outside the framework, both for model components and for tools components. Seamless and transparent access to data, which are made independent of the database layer. A number of tools (simulation, calibration, etc.) that the modeller will be free to use (including a visual modelling environment). A model repository to store your model (and simulations) and to share it with others. MODELLING BY COMPONENTS
  • 31. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 BENEFITS FOR SCIENTISTS Tools for studying feedbacks among different processes. Encapsulation of single processes or submodels New educational tools and a “storage” of hydrological knowledge using appropriate onthologies MUCH MORE in the field of possibilities MODELLING BY COMPONENTS
  • 32. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 THERE EXIST SUCH MODELING INFRASTRUCTURE ? Economic modelling frameworks^. GAMS (general algebraic modelling system, http://www.gams.com) and GTAP (global trade analysis program, http:// www.gtap.agecon.purdue.edu ) are some of the most used modelling systems in the agro-economic domain. They can also account for social variables, such as unemployment. ^from Rizzoli et al., (Modeling Framework (SeamFrame) Requirements 2005 MODELLING BY COMPONENTS
  • 33. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 THERE EXIST SUCH MODELING INFRASTRUCTURE ? Environmental modelling frameworks. If we limit to the agricultural domain, the list is quite limited. There is no ‘real’ framework according to the definition, but APSIM, STICS and CropSyst provide some of the functionalities. In this area SEAMFRAME is an emerging technology. When we consider the water management sector, we find many examples, such as TIME (the invisible modelling environment), IMT, OpenMI, and OMS, and, to a certain respect, JUPITER-API. ^ extended from Rizzoli et al., (Modeling Framework (SeamFrame) Requirements 2005 MODELLING BY COMPONENTS
  • 34. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 THERE EXIST SUCH MODELING INFRASTRUCTURE ? Other modelling software environments of notable interest are SME, MMS, ICMS, Tarsier, Modcom, Simile, but they are integrated modelling environments, not frameworks. This means that they can be used to perform assessments, analyses, decision support, but they do not provide programming structures such as classes, components, objects, design patterns to be used to create end-user applications. ^from Rizzoli et al., Modeling Framework (SeamFrame) Requirements, 2005 MODELLING BY COMPONENTS
  • 35. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 THERE EXIST SUCH MODELING INFRASTRUCTURE ? Atmospheric Sciences: Earth Sciences Modeling Framework (ESMF) (including Earth System Curator) High Performance Computing: Common Component Architecture (CCA) MODELLING BY COMPONENTS
  • 36. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 Besides input MODELLI output HARD DATA MEteorologia Climatologia MODELLI NUMERICI SCENARI GEOLOGIA/ ANALISI DEL TERRENO SISTEMI PROIEZIONI SOFT DATA ESPERTI GIUDIZIO DELL’ESPERto METODI PREVISIONI STATISTICI OSSERVAZIONE DI CAMPO MODELLING BY COMPONENTS REPRISE
  • 37. CUAHSI BIANNUAL MEETING - BOULDER (CO) - JULY 14-16 2008 Models as components Monitored Evapotranspiration data Weather Surfaces
