This document summarizes a stormwater management project in Fairfax Station, Virginia. The project retrofitted an existing stormwater pond to provide improved water quality and additional storage. Work included regrading the pond, excavating micropools, extending riprap, installing a rock weir, replacing a trail, and restoring plantings. Upon completion, the project is estimated to remove over 10 pounds of phosphorus, 2 pounds of nitrogen, and 470 pounds of suspended solids from stormwater each year.

1. CROSSPOINTE SEC. 15 PD 15A (#0775DP) PROJECT
Department of Public Works and Environmental Services
A Fairfax County, VA, publication
Working for You!
Contract Number CN13316004
Project Number SD-000017-002
Task Order No. 22
Springfield District
June 5, 2014

2. CROSSPOINTE SEC. 15 PD 15A (#0775DP)
PROJECT
Capital Facilities/Utilities Design and Construction Division/Transportation and Stormwater Construction Branch

3. CROSSPOINTE SEC. 15 PD 15A (#0775DP) PROJECT
Project Details
Description:
The Crosspointe Sec. 15 PD (#0775DP) project was substantially completed on August 23, 2014. This
is an existing SWM facility and it is located adjacent to the intersection of Cross Chase Court and Cross
Chase Circle in Fairfax Station. The project pond was retrofitted to provide improved water quality
benefits and additional storage. The proposed water quality benefits realized by this project will be
the removal of 10.99 lbs./year of total phosphorus, 2.41 lbs./year of total nitrogen and 472.58
lbs./year of total suspended solids.
Project Overview:
• Re-graded the facility to lengthen the flow path and maximize the pond volume.
• Excavated and constructed three micro-pools at a maximum depth of 18” below the pond bottom.
• Extended class I riprap of the existing two inflow structures to the bottom of the micro pools.
• Installed a rock weir structure in addition to minor grading to the stream channel that outfalls into
Capital Facilities/Utilities Design and Construction Division/Transportation Stormwater Construction Branch
the existing pond.
• Replaced the existing gravel trail and extended it to the location shown on the plan.
• Restored the site with seed mix, trees will be planted at the end of Sept. 2014.
Project Team:
• Stormwater and Planning Division – Charles Smith
• Utilities Design and Construction Division - Yousef Rayyan
• Utilities Design and Construction Division – Joseph Adzovie
• Surveyor - Gregory Harper

4. CROSSPOINTE SEC. 15 PD 15A (#0775DP) PROJECT
Fairfax Station, VA, Tax Map #106-2
Project Site
Capital Facilities/Utilities Design and Construction Division/Transportation Stormwater Construction Branch

5. CROSSPOINTE SEC. 15 PD 15A (#0775DP) PROJECT
PRE-EXISTING CONDITIONS
Capital Facilities/Utilities Design and Construction Division/Transportation Stormwater Construction Branch
AN EXISTING RISER

6. CROSSPOINTE SEC. 15 PD 15A (#0775DP) PROJECT
POST CONSTRUCTION
MICRO-POOL NO.2
MICRO-POOL NO.1
MICRO-POOL NO.3
EXTENDING THE RIP-RAP
TO THE BOTTOM
OF THE MICR-POOL
Capital Facilities/Utilities Design and Construction Division/Transportation Stormwater Construction Branch

7. CROSSPOINTE SEC. 15 PD 15A (#0775DP) PROJECT
PRE-EXISTING CONDITIONS
15” RCP INFLOWS FROM THE
NORTH END OF THE POND
Capital Facilities/Utilities Design and Construction Division/Transportation Stormwater Construction Branch

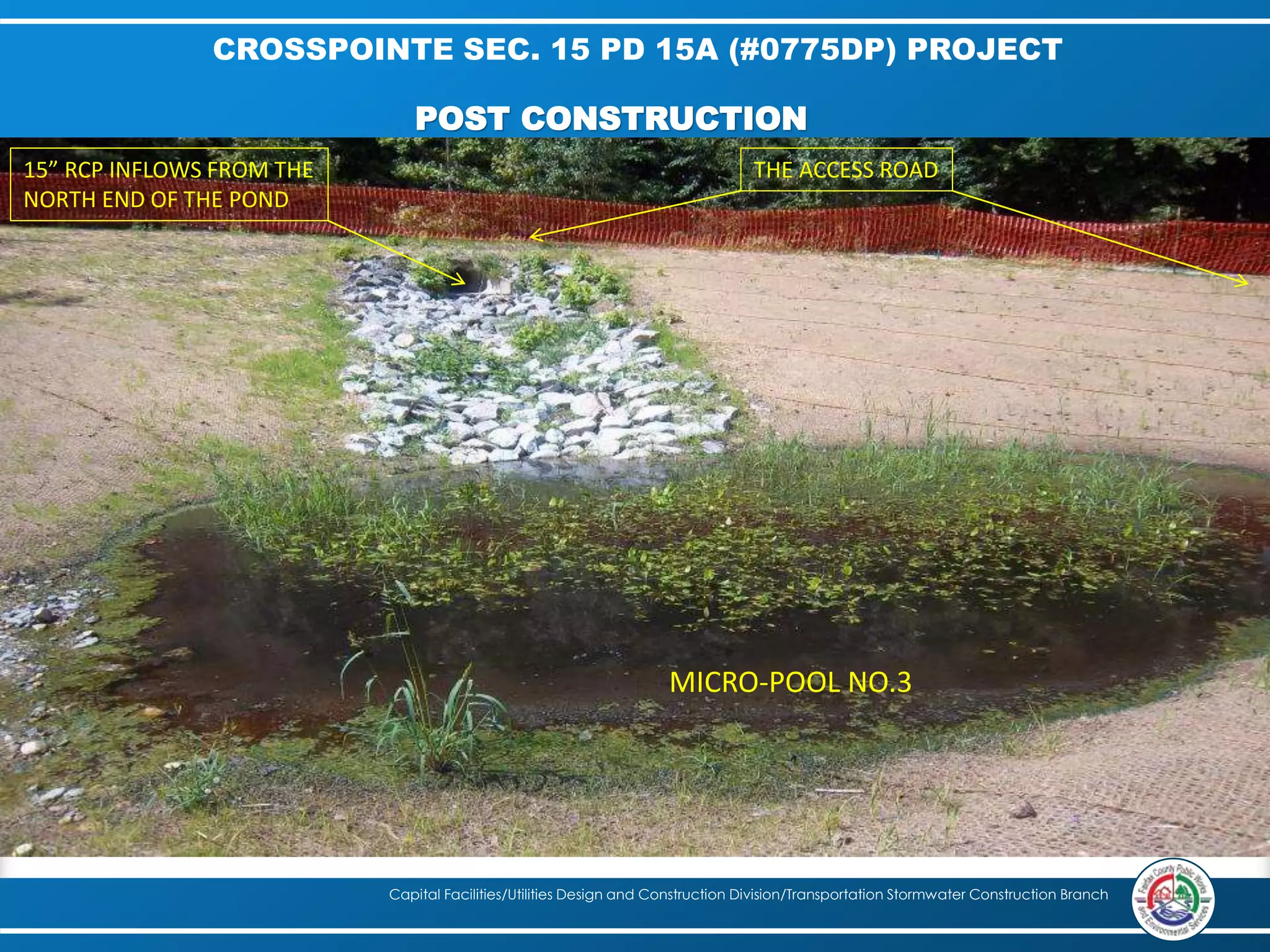

8. CROSSPOINTE SEC. 15 PD 15A (#0775DP) PROJECT
POST CONSTRUCTION
THE ACCESS ROAD
Capital Facilities/Utilities Design and Construction Division/Transportation Stormwater Construction Branch
15” RCP INFLOWS FROM THE
NORTH END OF THE POND
MICRO-POOL NO.3

9. CROSSPOINTE SEC. 15 PD 15A (#0775DP) PROJECT
PRE-EXISTING CONDITIONS OF THE TRAIL
Capital Facilities/Utilities Design and Construction Division/Transportation Stormwater Construction Branch

10. CROSSPOINTE SEC. 15 PD 15A (#0775DP) PROJECT
THE NEW TRAIL AFTER REPLACEMENT
Capital Facilities/Utilities Design and Construction Division/Transportation Stormwater Construction Branch

11. CROSSPOINTE SEC. 15 PD 15A (#0775DP) PROJECT
ROCK WEIR STRUCTURE AND THE IMPROVEMNET OF THE EXISTING CHANNEL
A ROCK WEIR STRUCTURE AND MINOR GRADING
WERE PROPOSED TO IMPROVE THE STREAM
CHANNEL THAT OUTFALLS FROM THE WEST END
INTO THE POND

12. CROSSPOINTE SEC. 15 PD 15A (#0775DP) PROJECT
Before After
Capital Facilities/Utilities Design and Construction Division/Transportation Stormwater Construction Branch
