1. CRIU:
Time and Space Travel Service
for Linux Applications
Kir Kolyshkin
Texas Linux Fest, 14 Jun 2014

2. 2

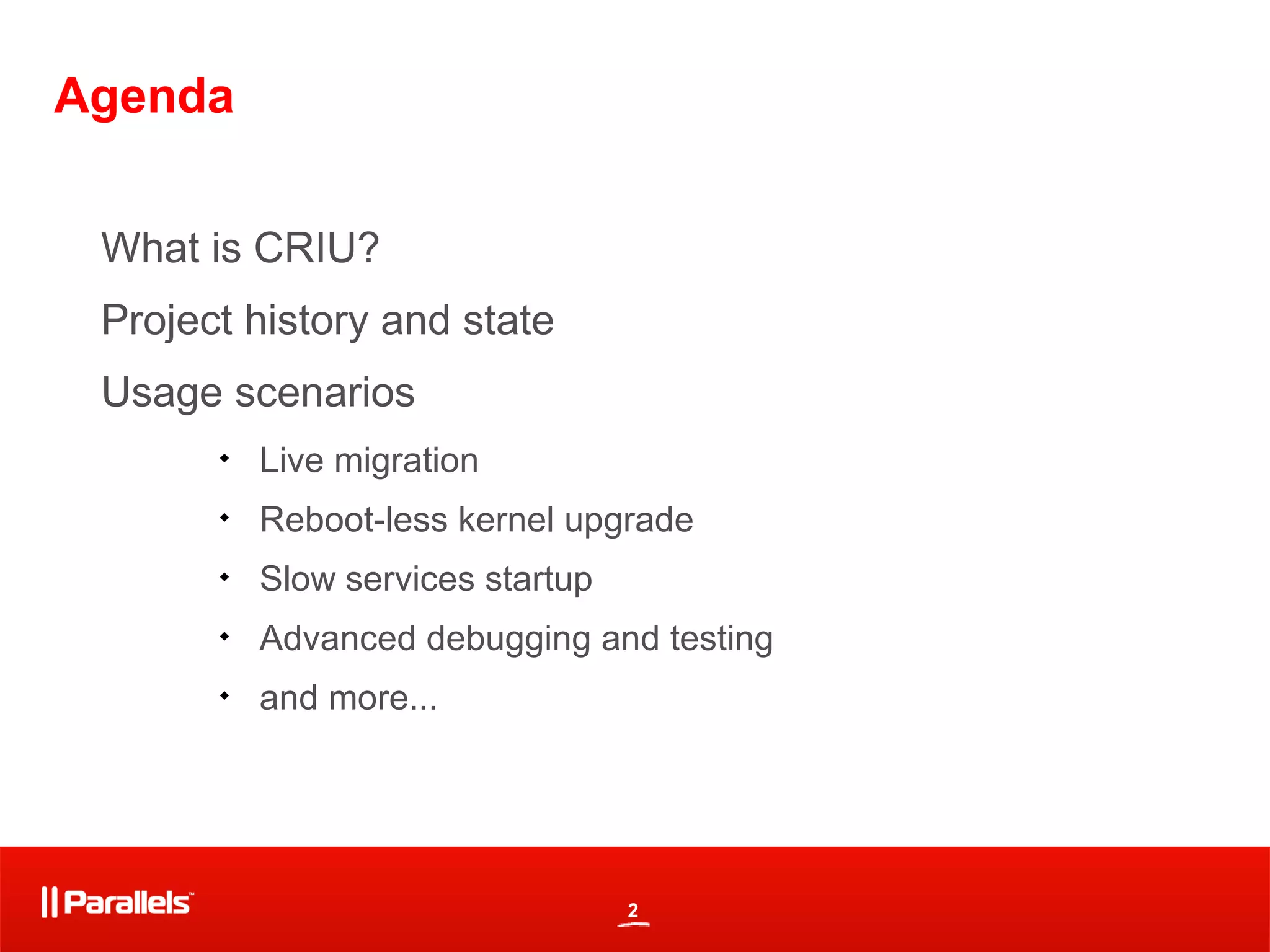

Agenda
What is CRIU?
Project history and state
Usage scenarios

Live migration

Reboot-less kernel upgrade

Slow services startup

Advanced debugging and testing

and more...

3. 3

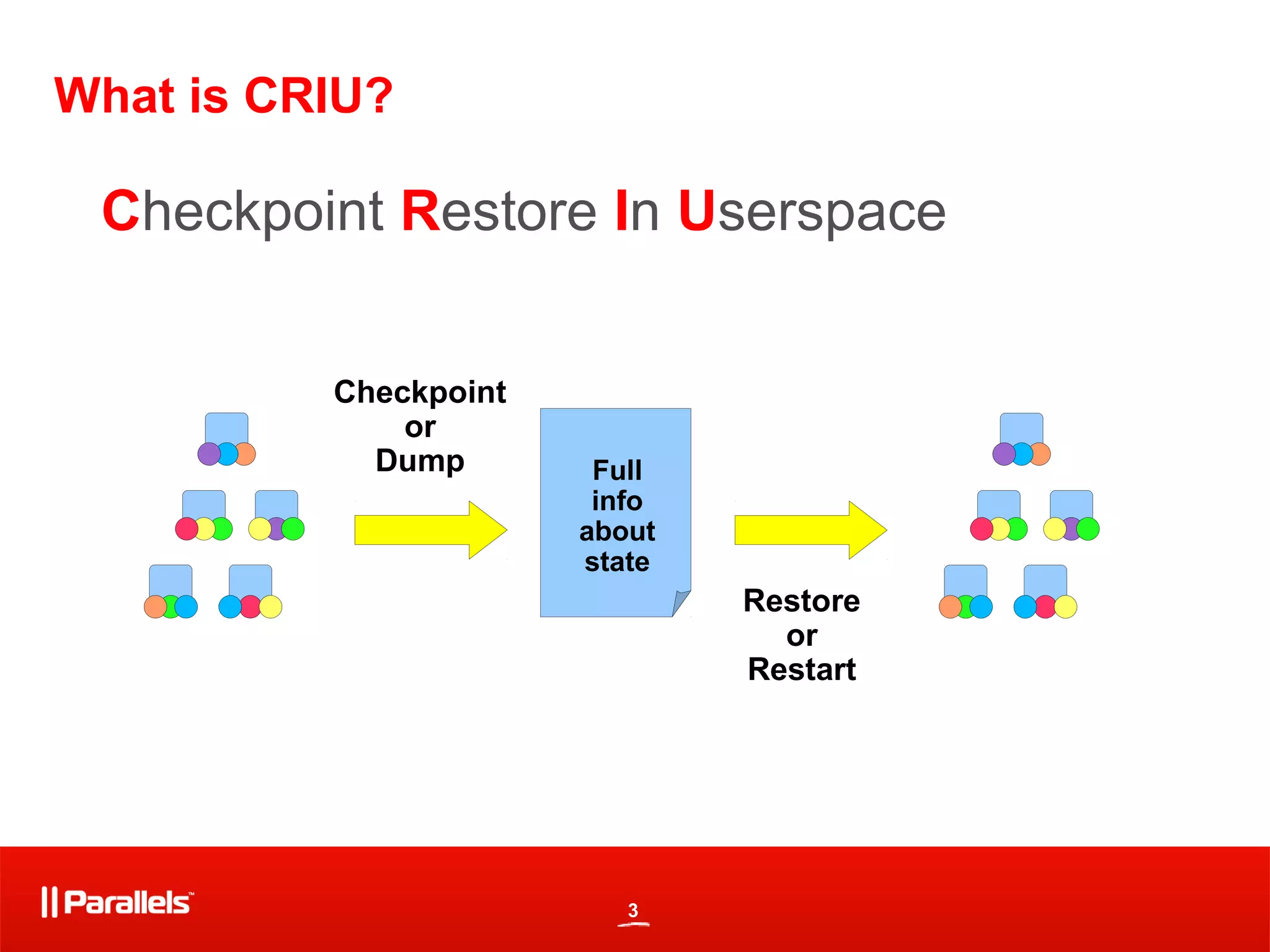

What is CRIU?
Checkpoint Restore In Userspace
Checkpoint
or
Dump
Restore
or
Restart
Full
info
about
state

4. 4

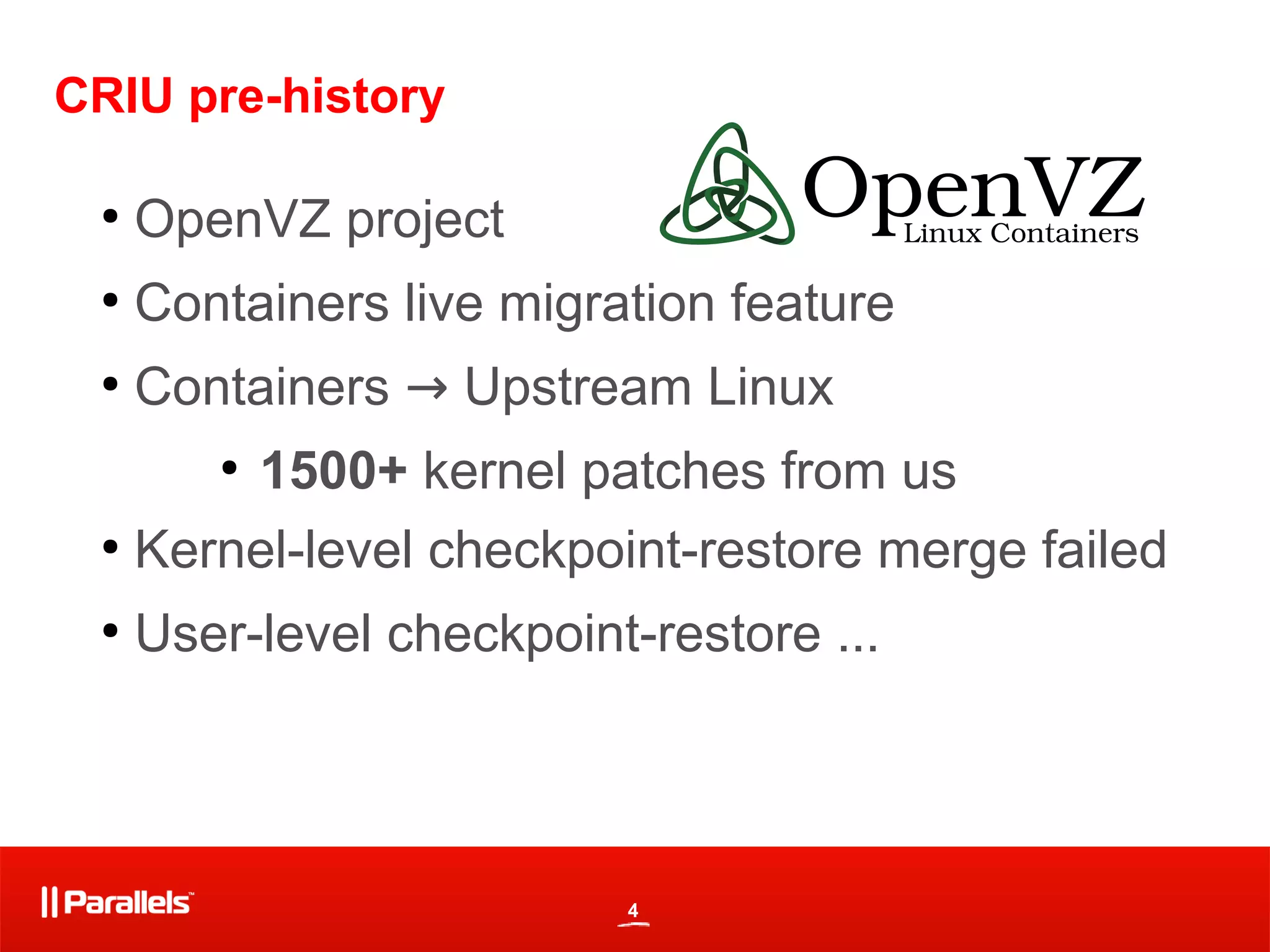

CRIU pre-history
●
OpenVZ project
●
Containers live migration feature
●
Containers → Upstream Linux
●
1500+ kernel patches from us
●
Kernel-level checkpoint-restore merge failed
●
User-level checkpoint-restore ...

5. 5

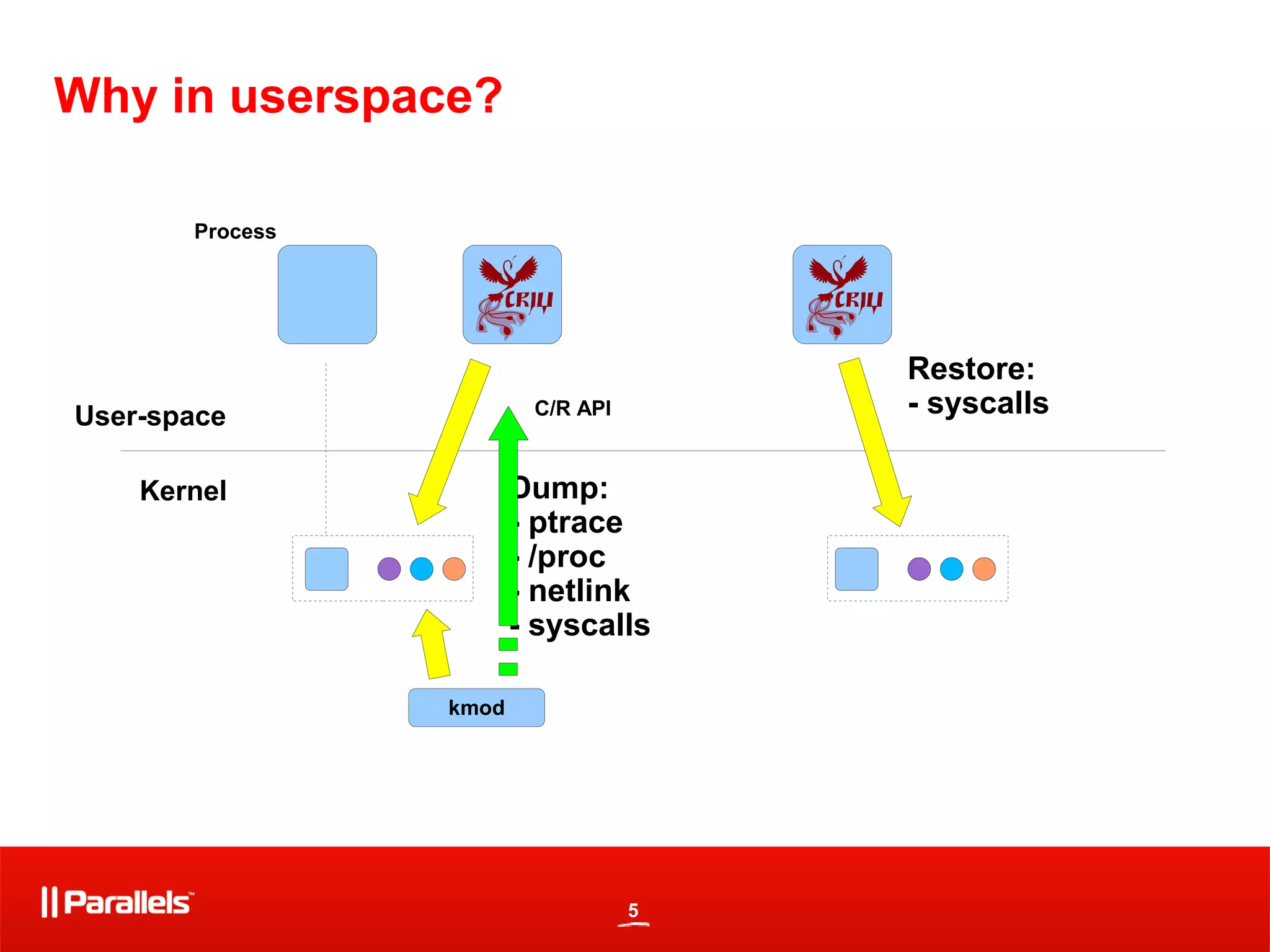

Why in userspace?
Kernel
User-space
Dump:
- ptrace
- /proc
- netlink
- syscalls
Restore:
- syscalls
Process
kmod
C/R API

6. 6

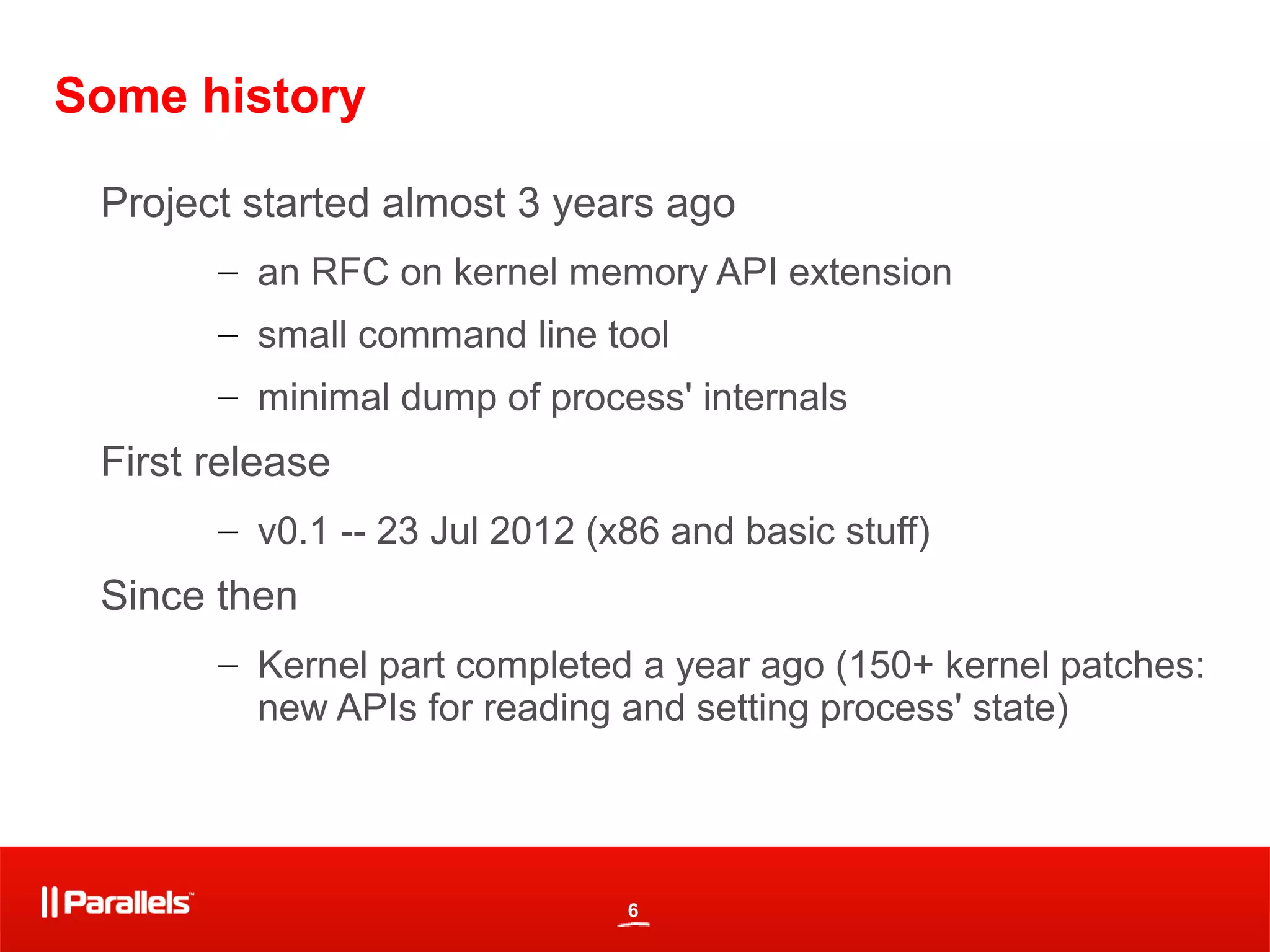

Some history
Project started almost 3 years ago
– an RFC on kernel memory API extension
– small command line tool
– minimal dump of process' internals
First release
– v0.1 -- 23 Jul 2012 (x86 and basic stuff)
Since then
– Kernel part completed a year ago (150+ kernel patches:
new APIs for reading and setting process' state)

7. 7

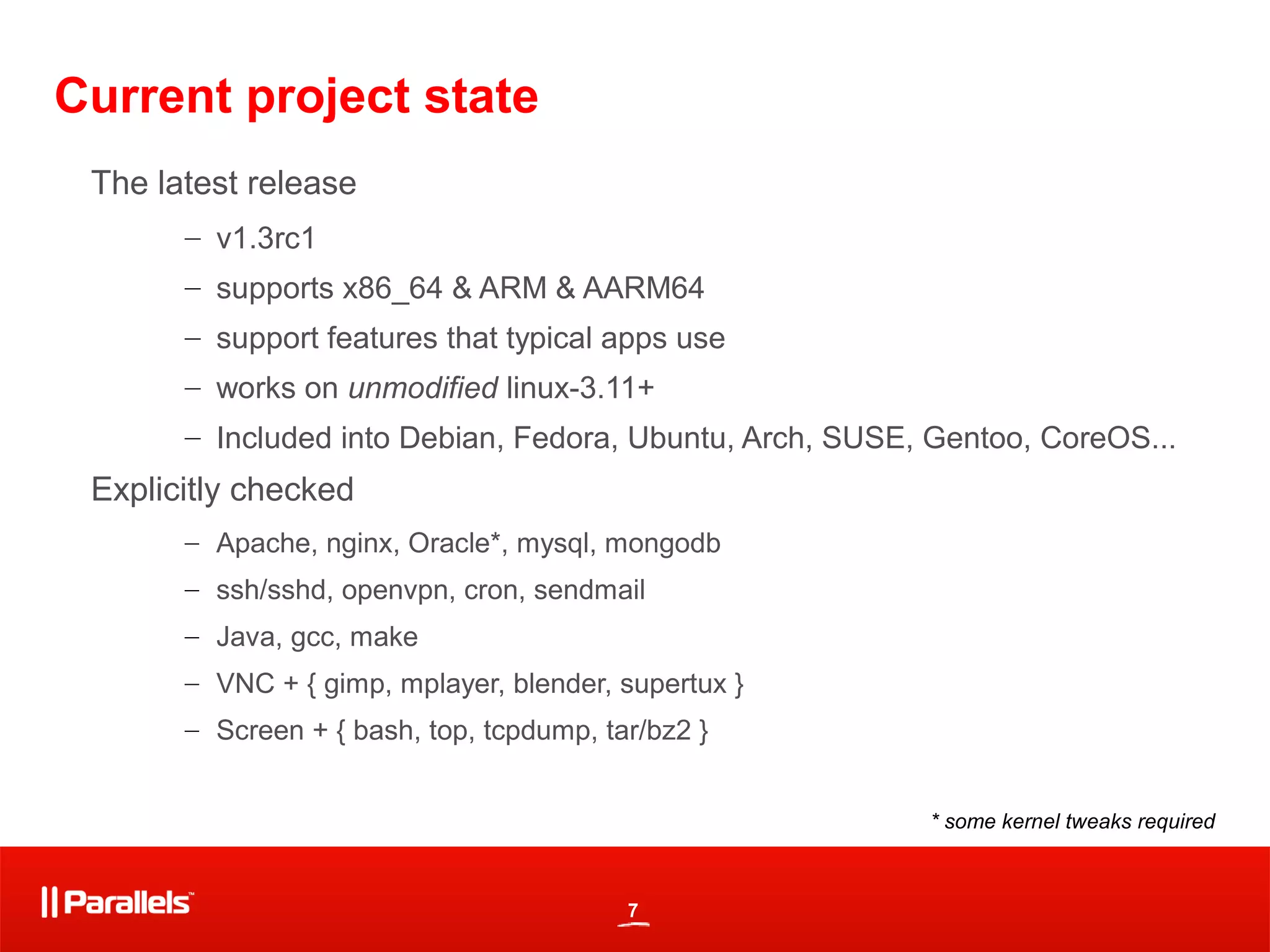

Current project state
The latest release
– v1.3rc1
– supports x86_64 & ARM & AARM64
– support features that typical apps use
– works on unmodified linux-3.11+
– Included into Debian, Fedora, Ubuntu, Arch, SUSE, Gentoo, CoreOS...
Explicitly checked
– Apache, nginx, Oracle*, mysql, mongodb
– ssh/sshd, openvpn, cron, sendmail
– Java, gcc, make
– VNC + { gimp, mplayer, blender, supertux }
– Screen + { bash, top, tcpdump, tar/bz2 }
* some kernel tweaks required

8. 8
Some vitals
- 55K lines of code
- 150+ kernel patches
- contribs from Google, Huawei, Samsung, Canonical

9. 9

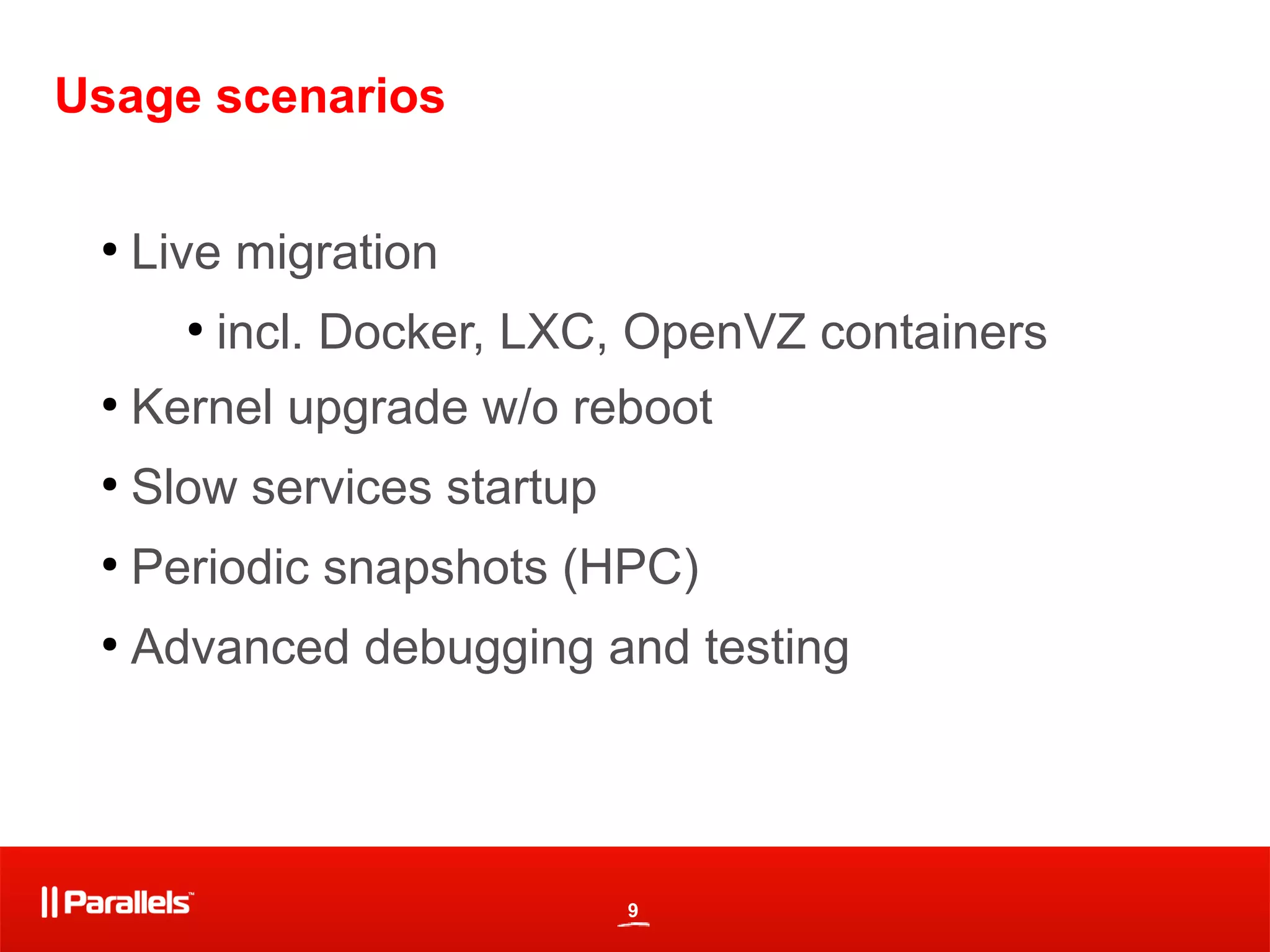

Usage scenarios
●
Live migration
●
incl. Docker, LXC, OpenVZ containers
●
Kernel upgrade w/o reboot
●
Slow services startup
●
Periodic snapshots (HPC)
●
Advanced debugging and testing

10. 10

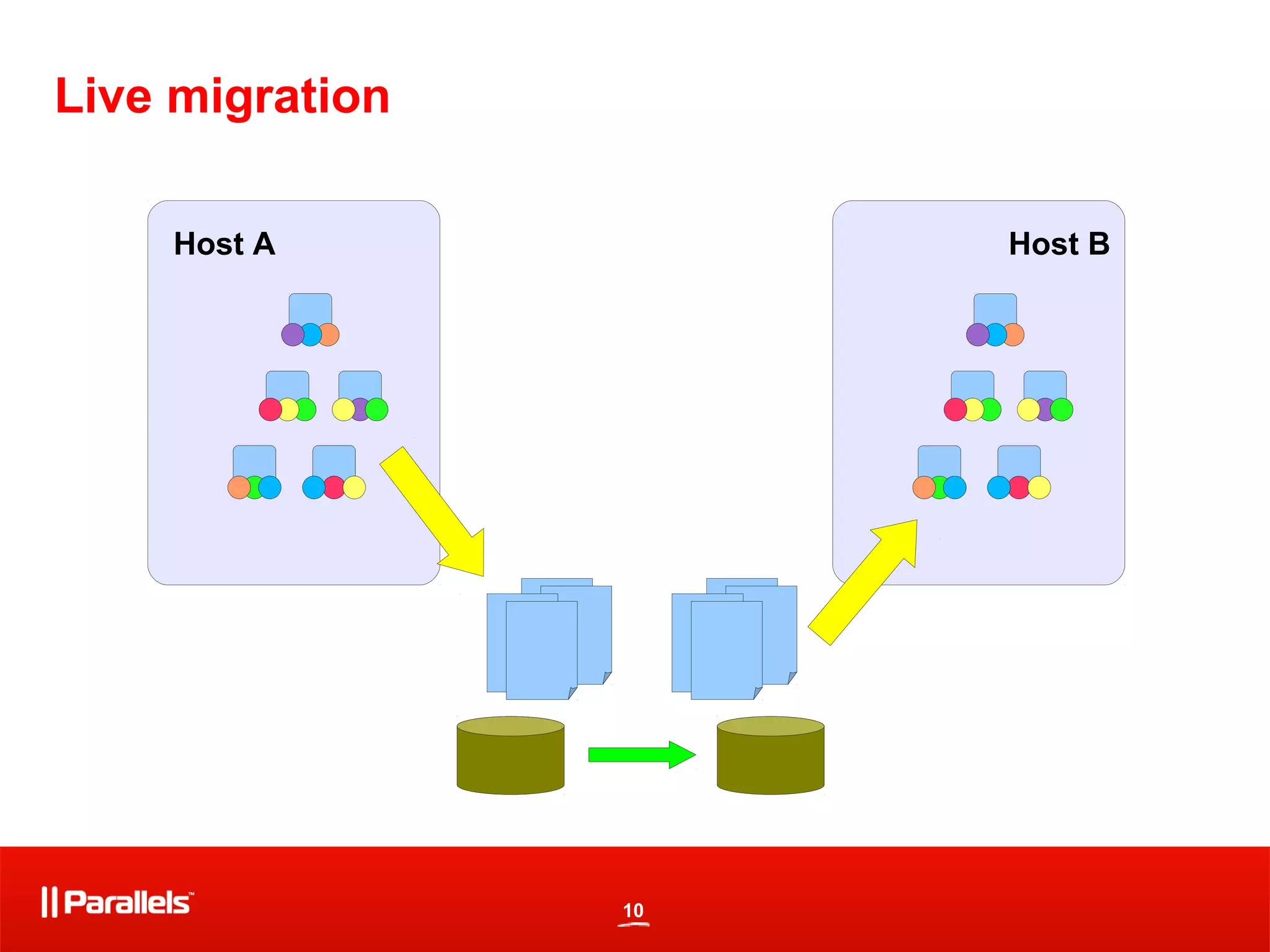

Live migration
Host A Host B

11. 11

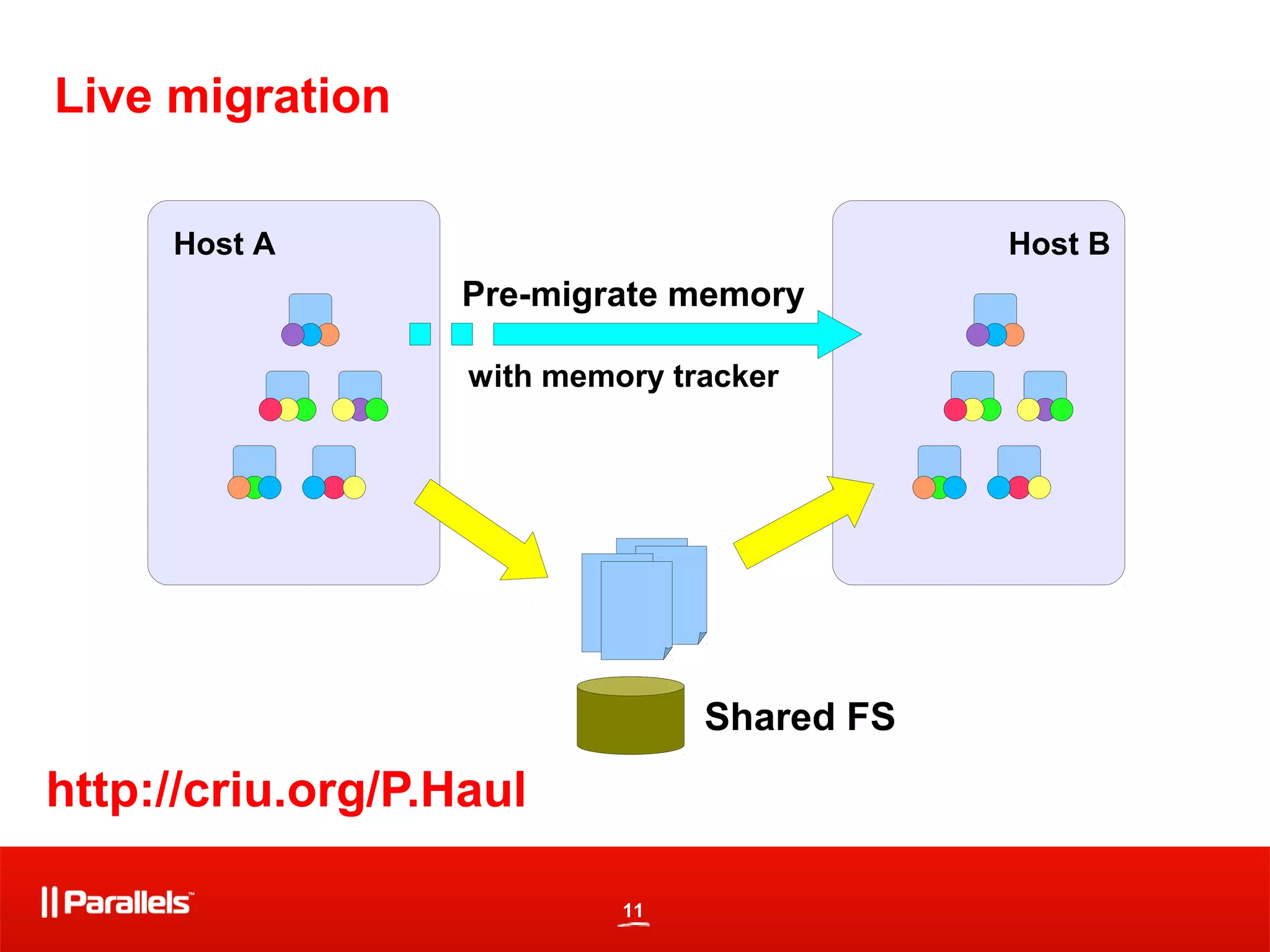

Live migration
Host A Host B
Shared FS
Pre-migrate memory
with memory tracker
http://criu.org/P.Haul

12. 12

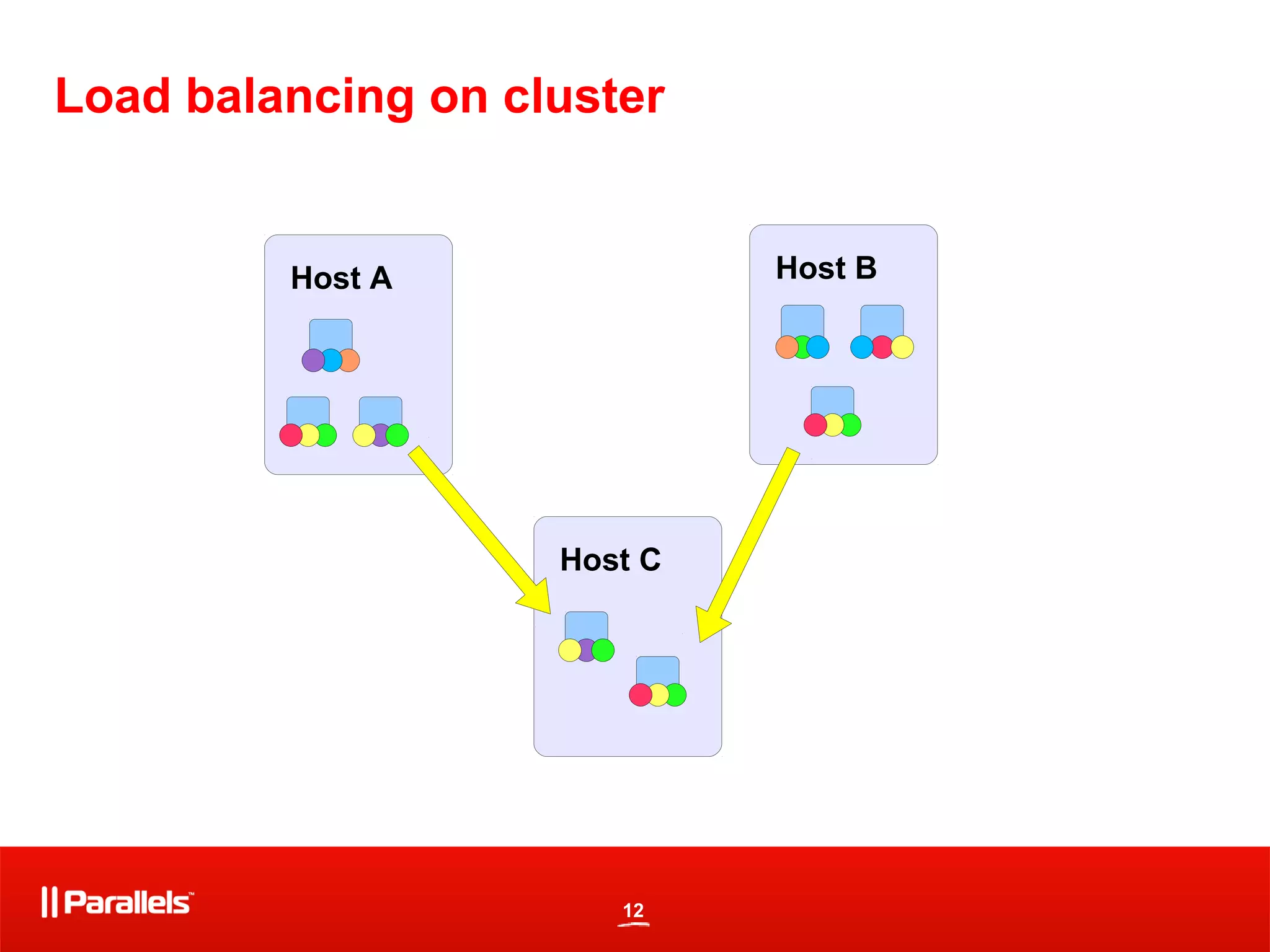

Load balancing on cluster
Host A
Host C
Host B

13. 13

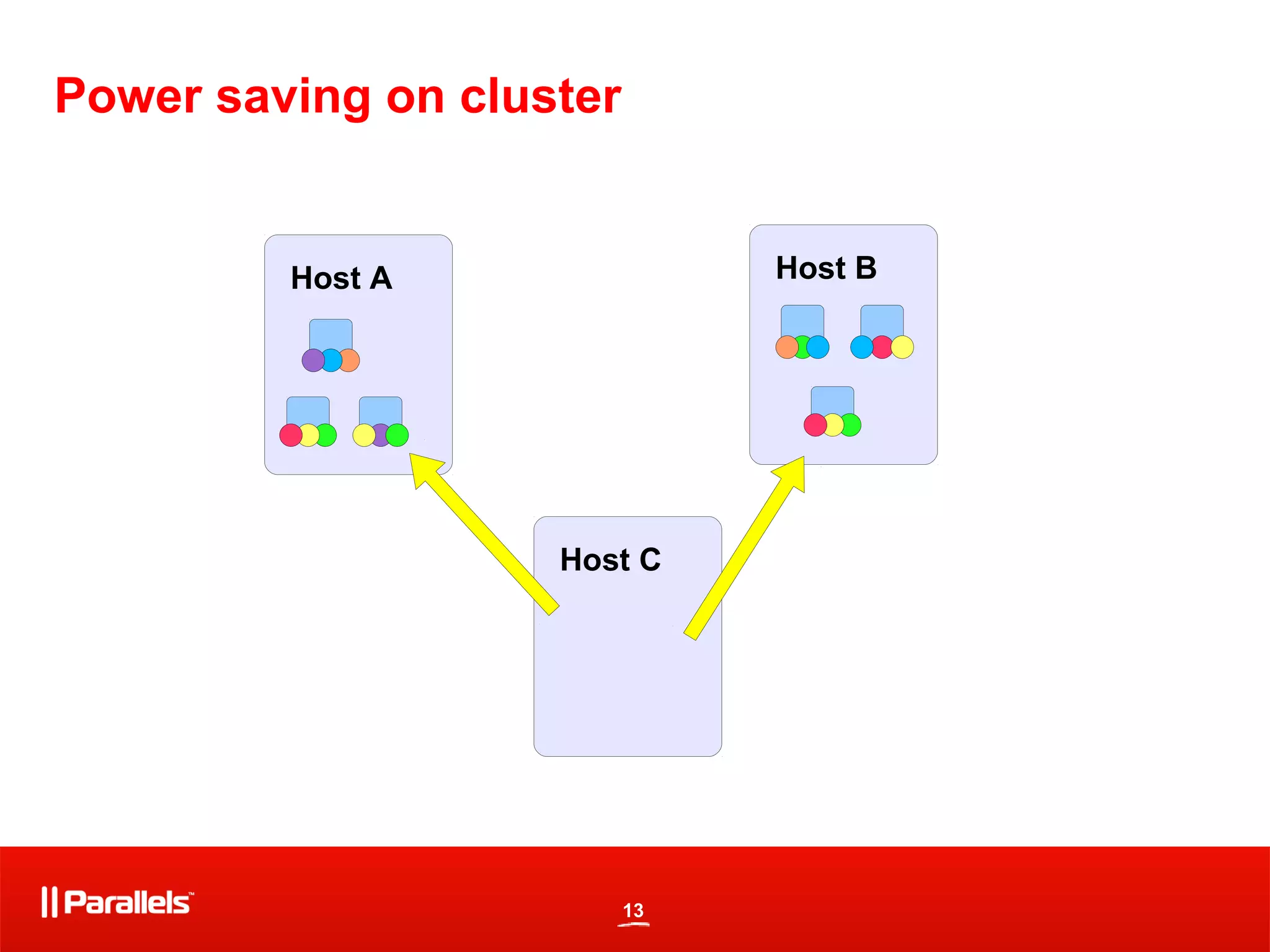

Power saving on cluster
Host A
Host C
Host B

14. 14

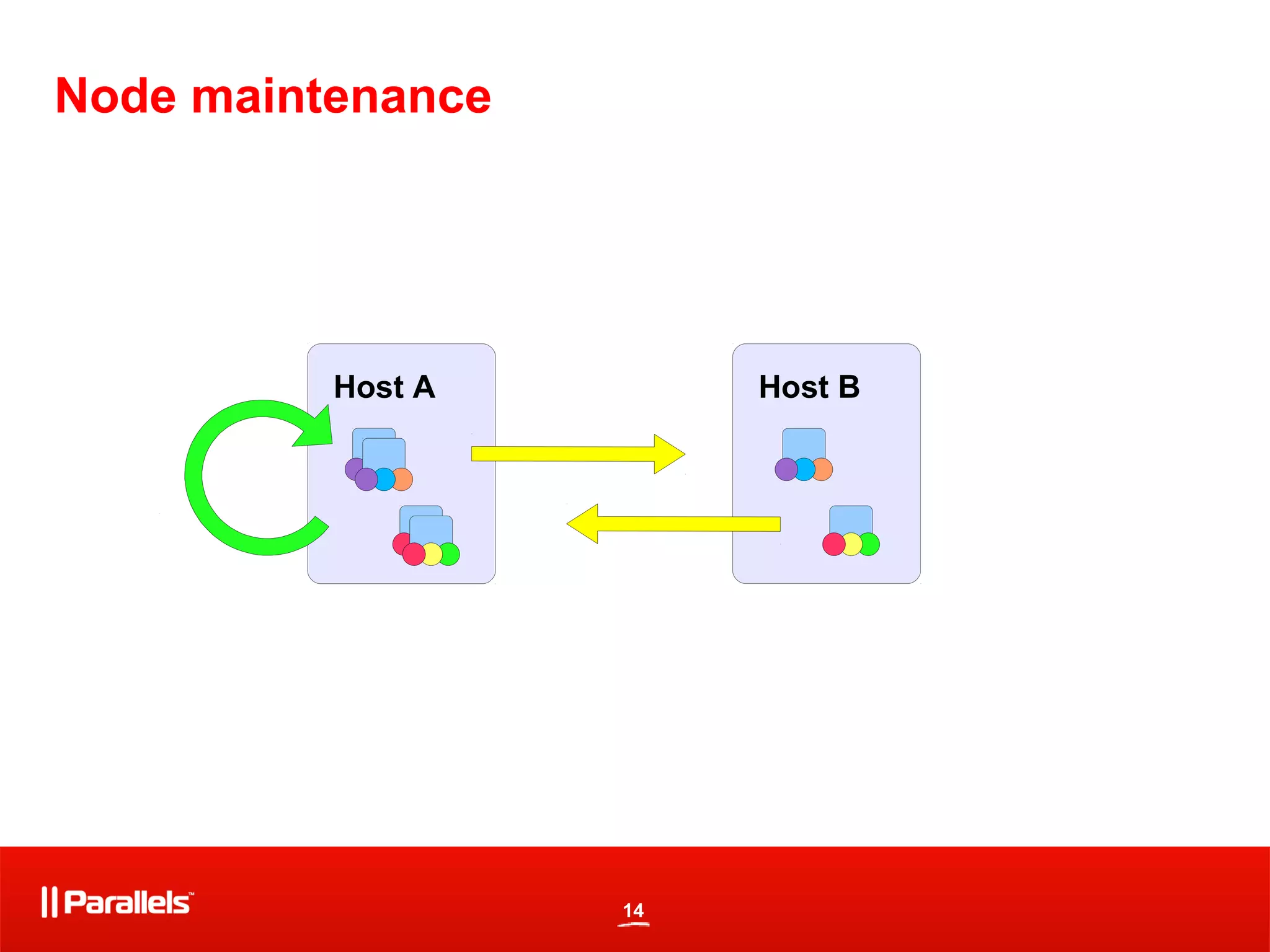

Node maintenance
Host A Host B

15. 15

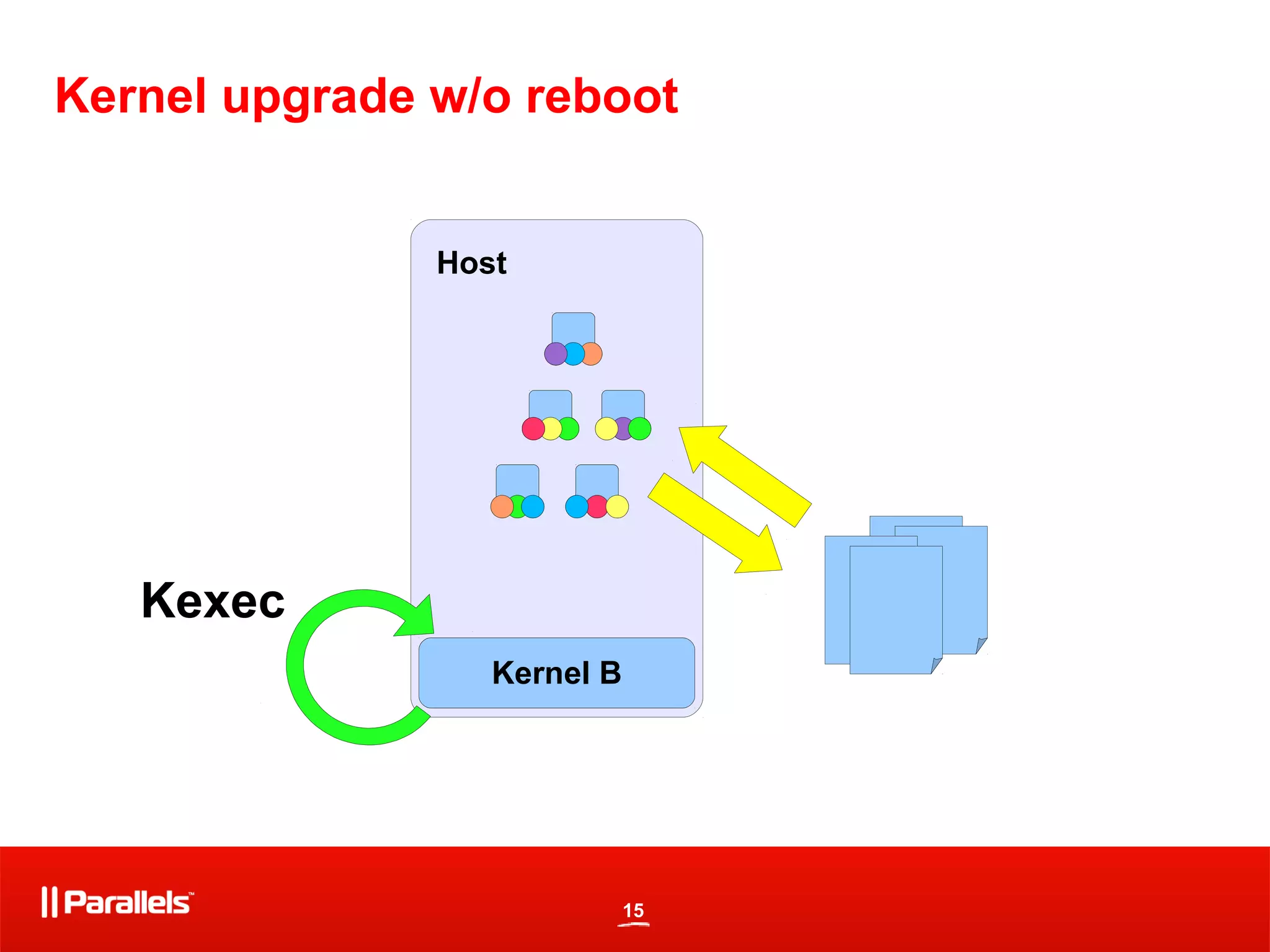

Kernel upgrade w/o reboot
Host
Kernel A
Kexec
Kernel B

16. 16

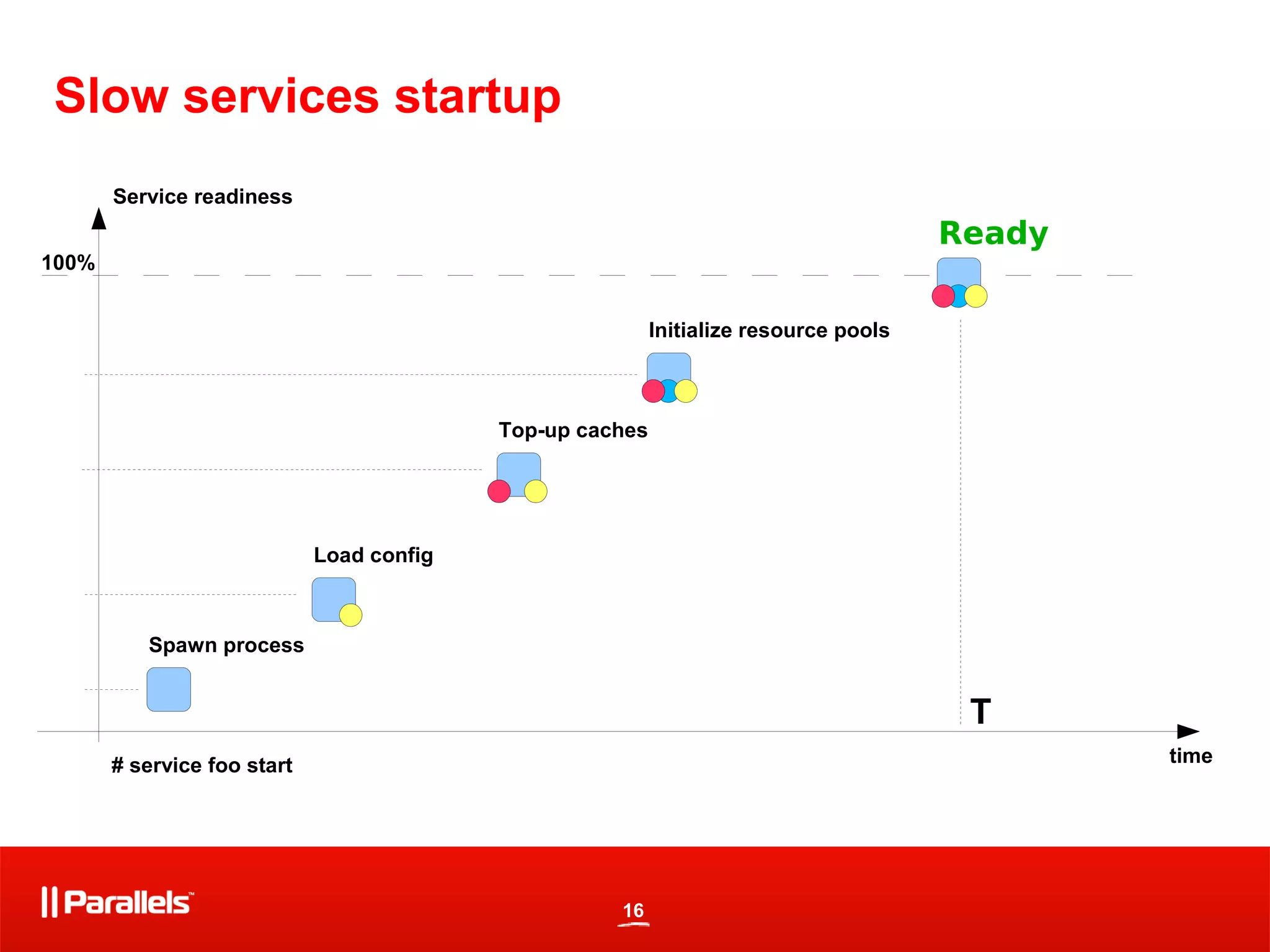

Slow services startup
time# service foo start
Service readiness
Spawn process
Load config
Top-up caches
Initialize resource pools
Ready
T
100%

17. 17

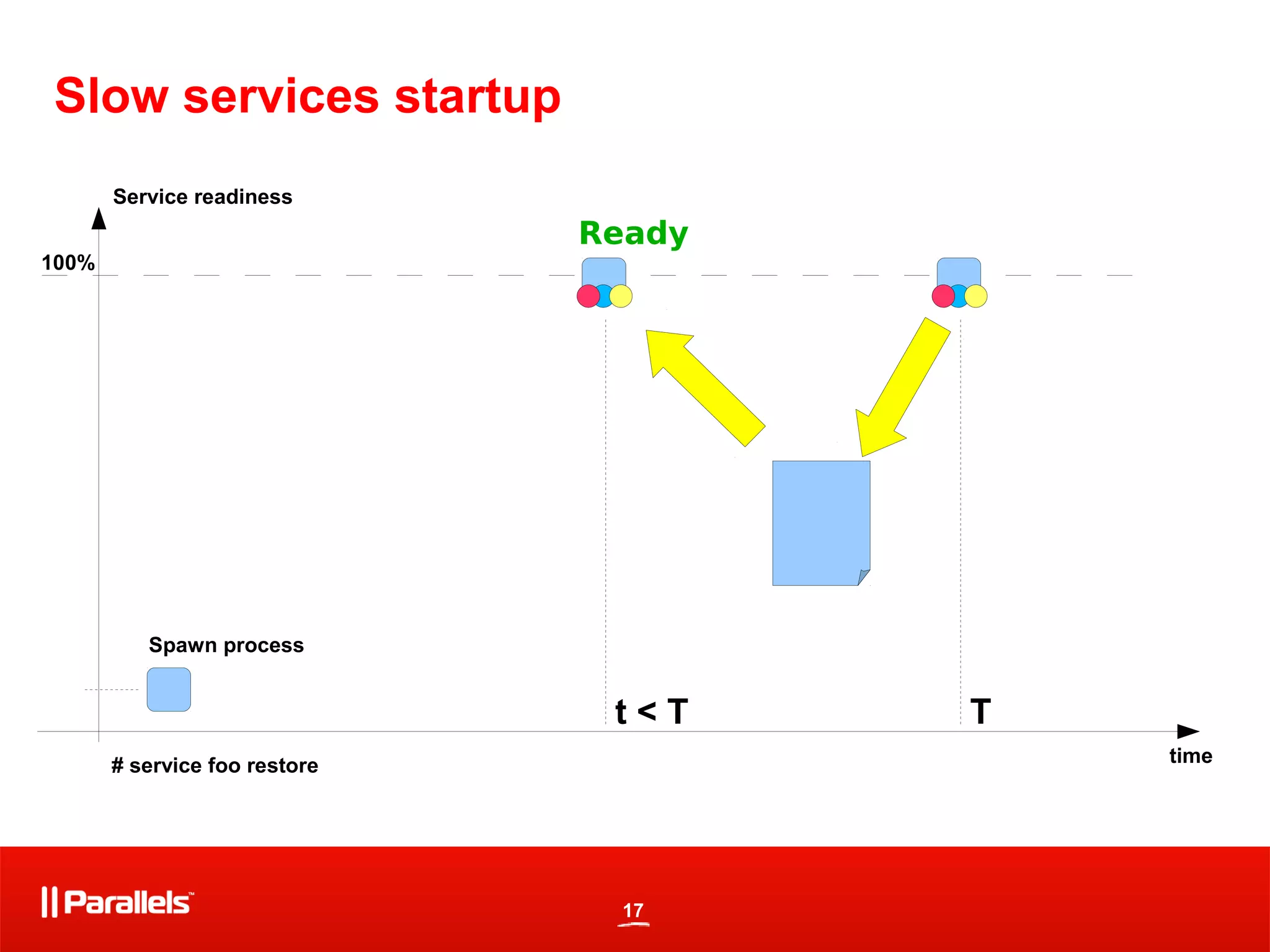

Slow services startup
time
Tt < T
Ready
Spawn process
100%
Service readiness
# service foo restore

18. 18

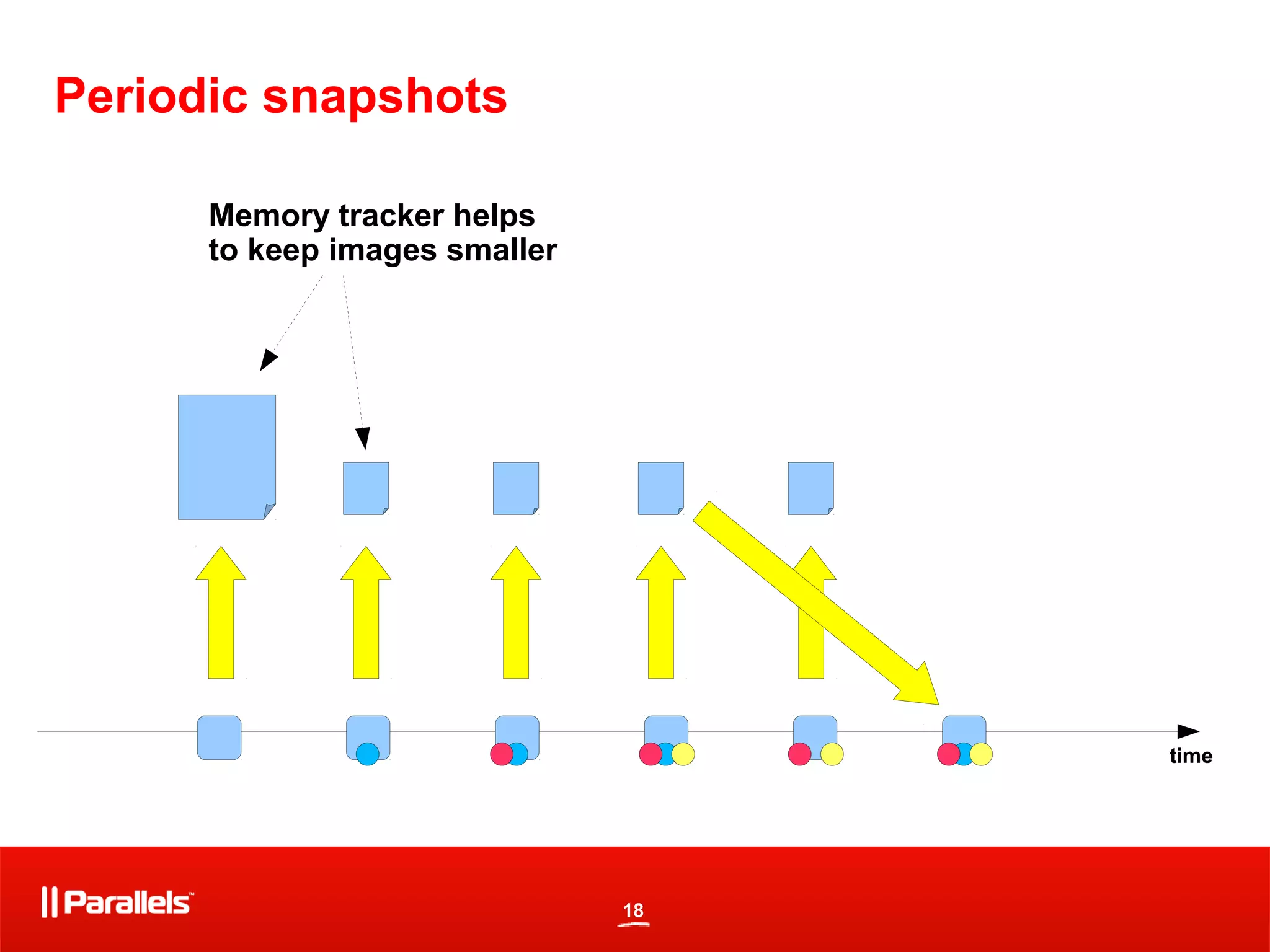

Periodic snapshots
time
Memory tracker helps
to keep images smaller

19. 19

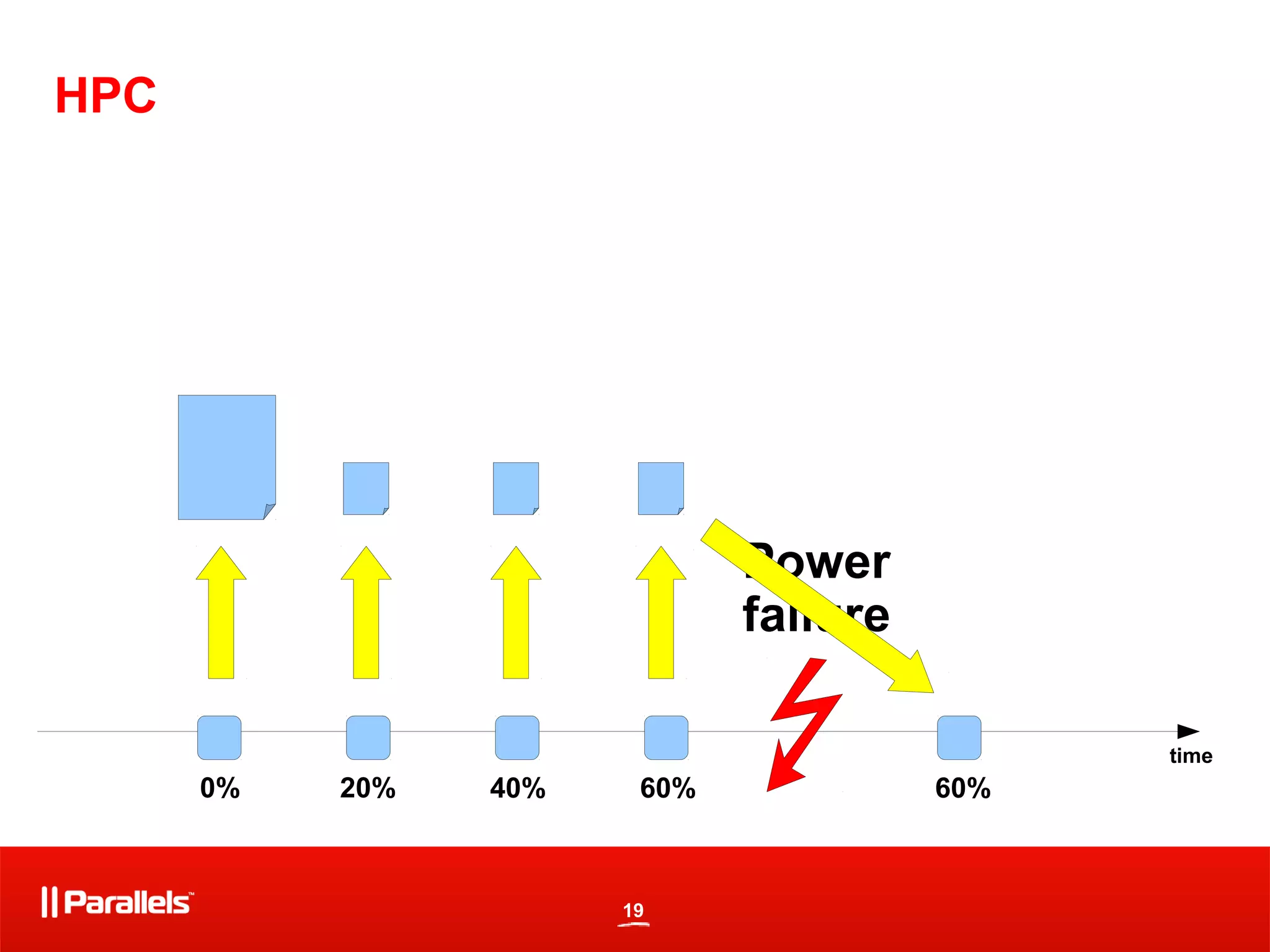

HPC
time
Power
failure
0% 20% 40% 60% 60%

20. 20

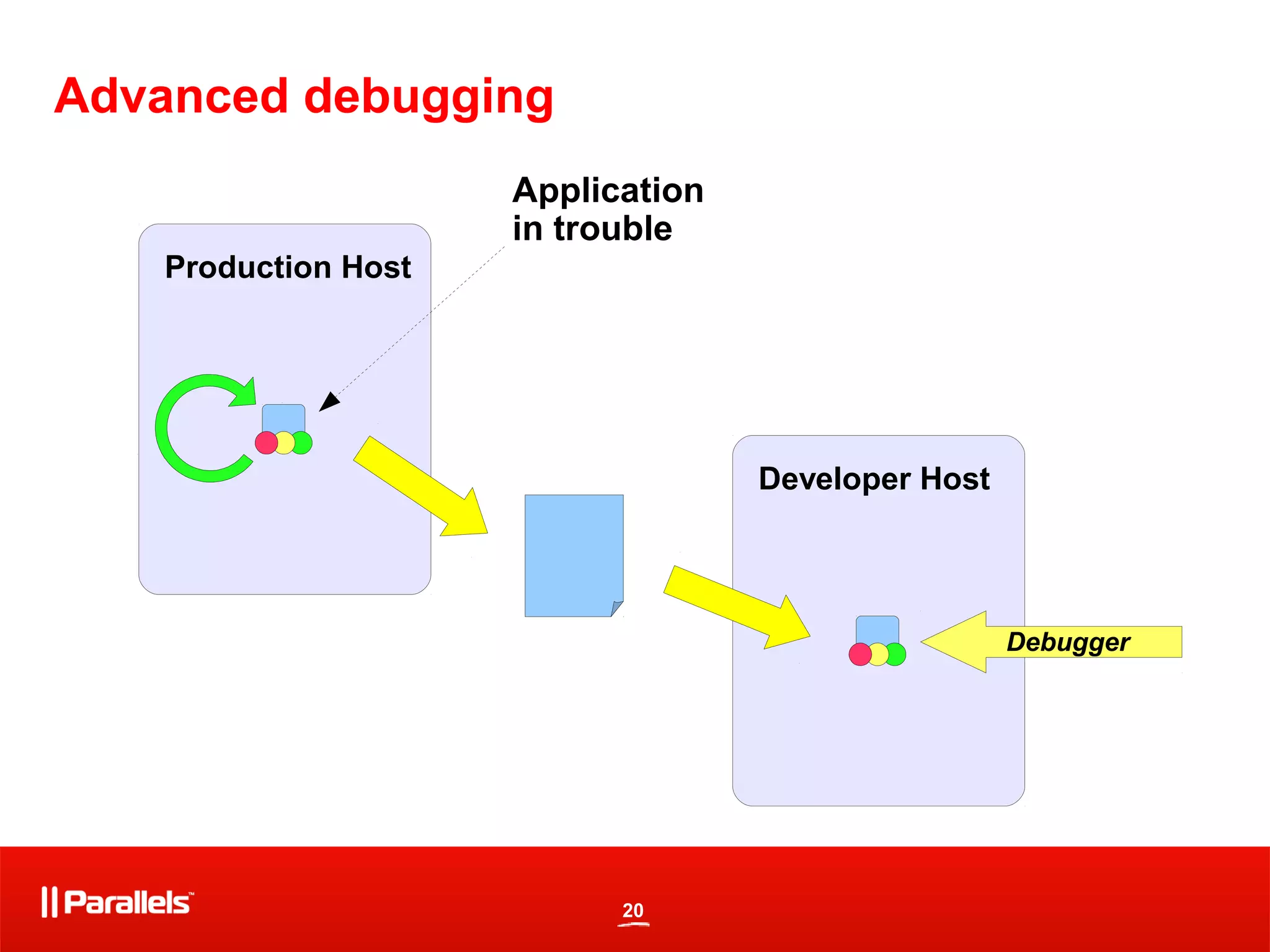

Advanced debugging
Production Host
Application
in trouble
Developer Host
Debugger

21. 21

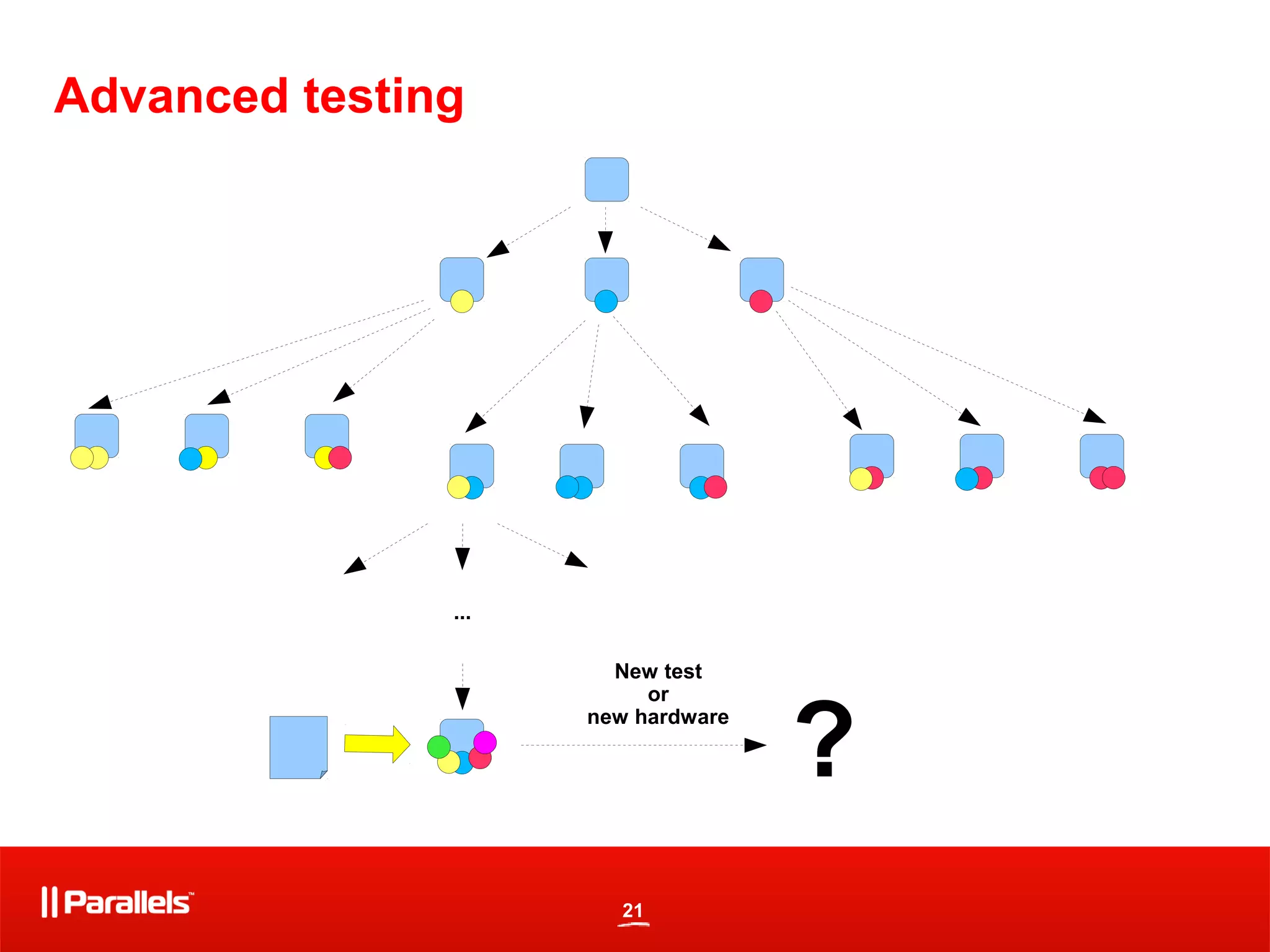

Advanced testing
...
New test
or
new hardware
?

22. 22

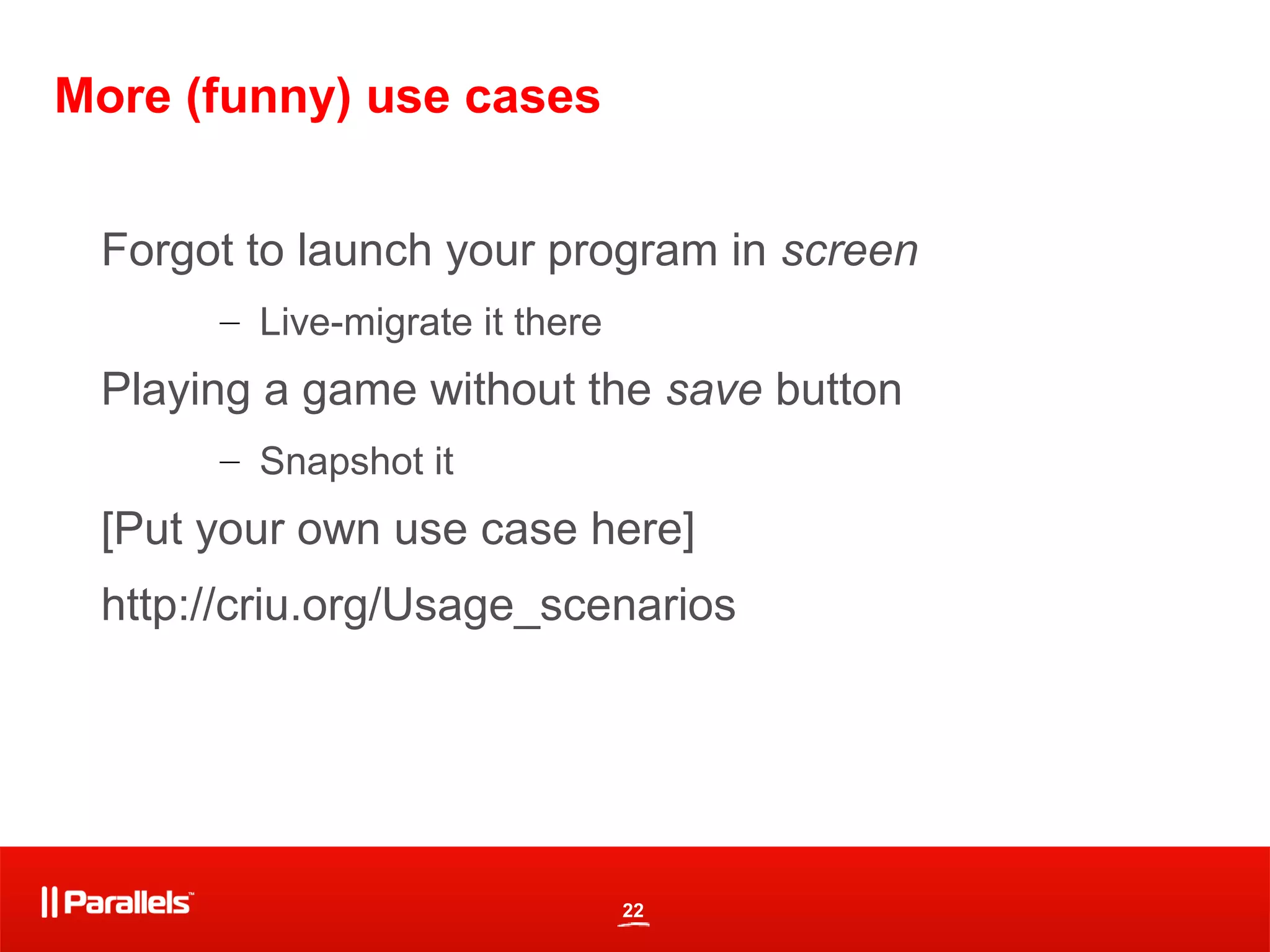

More (funny) use cases
Forgot to launch your program in screen
– Live-migrate it there
Playing a game without the save button
– Snapshot it
[Put your own use case here]
http://criu.org/Usage_scenarios

23. 23

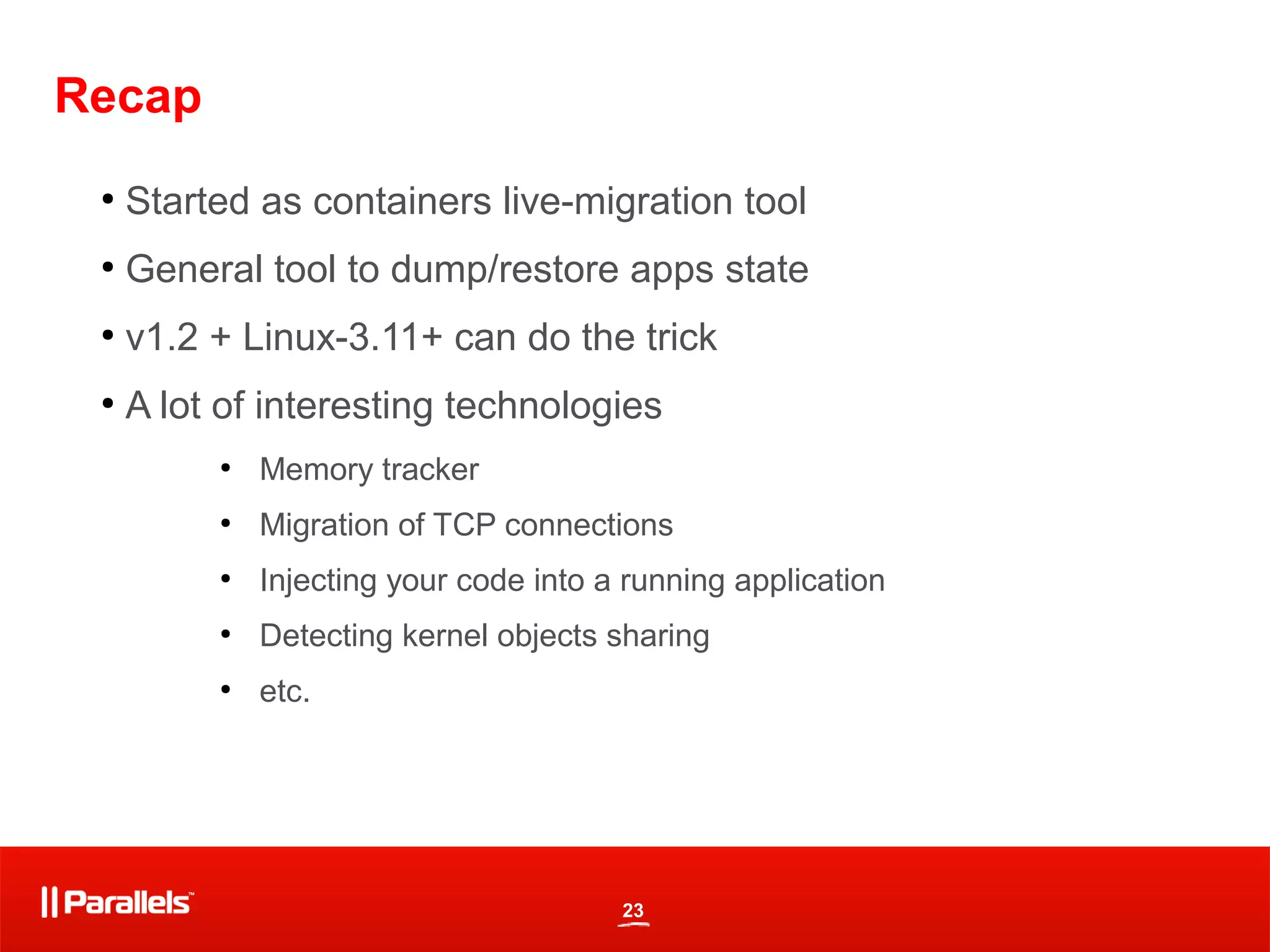

Recap
●
Started as containers live-migration tool
●
General tool to dump/restore apps state
●
v1.2 + Linux-3.11+ can do the trick
●
A lot of interesting technologies
●
Memory tracker
●
Migration of TCP connections
●
Injecting your code into a running application
●
Detecting kernel objects sharing
●
etc.

24. 24

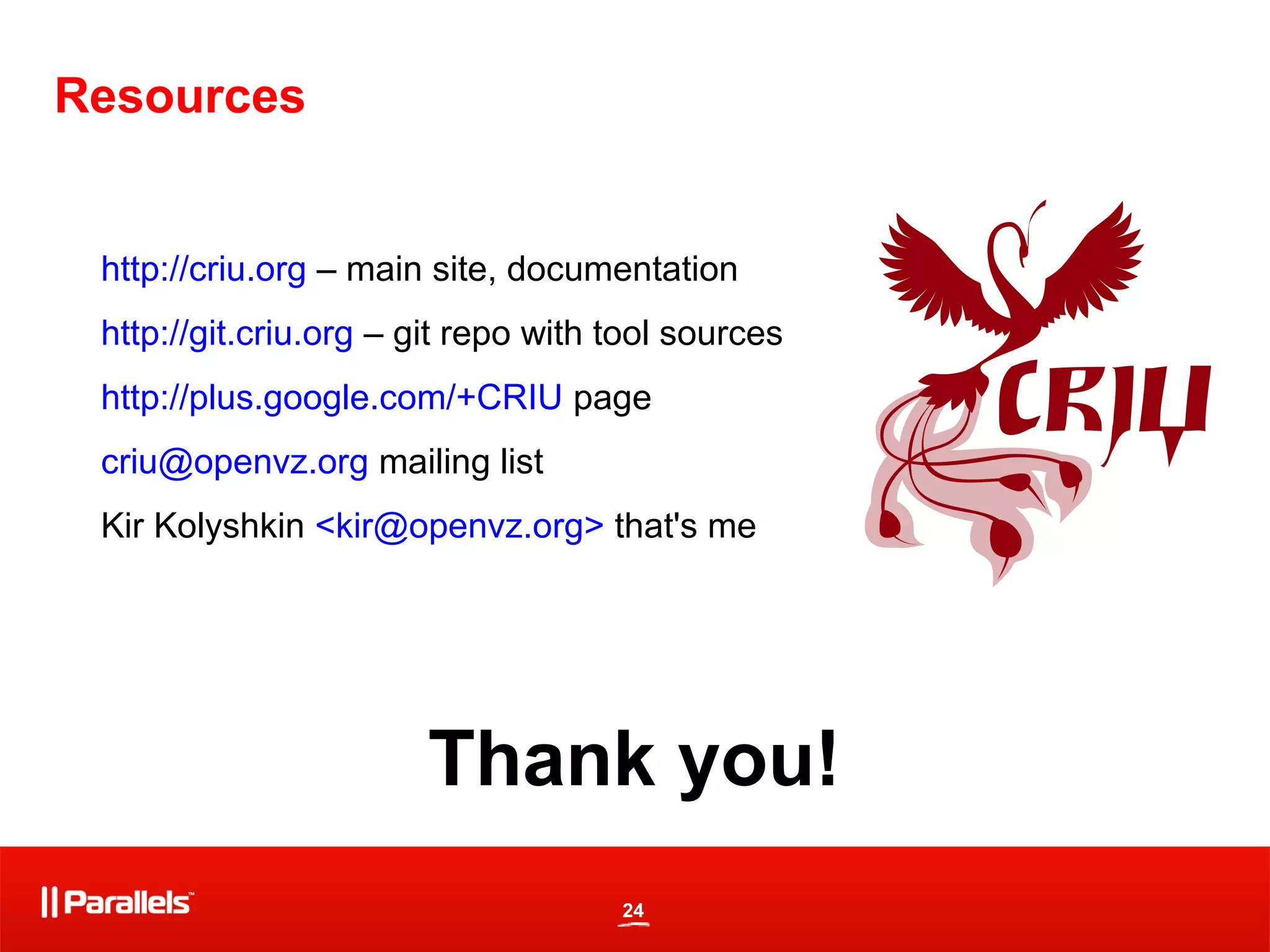

Resources
http://criu.org – main site, documentation
http://git.criu.org – git repo with tool sources
http://plus.google.com/+CRIU page
criu@openvz.org mailing list
Kir Kolyshkin <kir@openvz.org> that's me
Thank you!
