1. Continuous Deployment
GIT to AWS and everything in between.

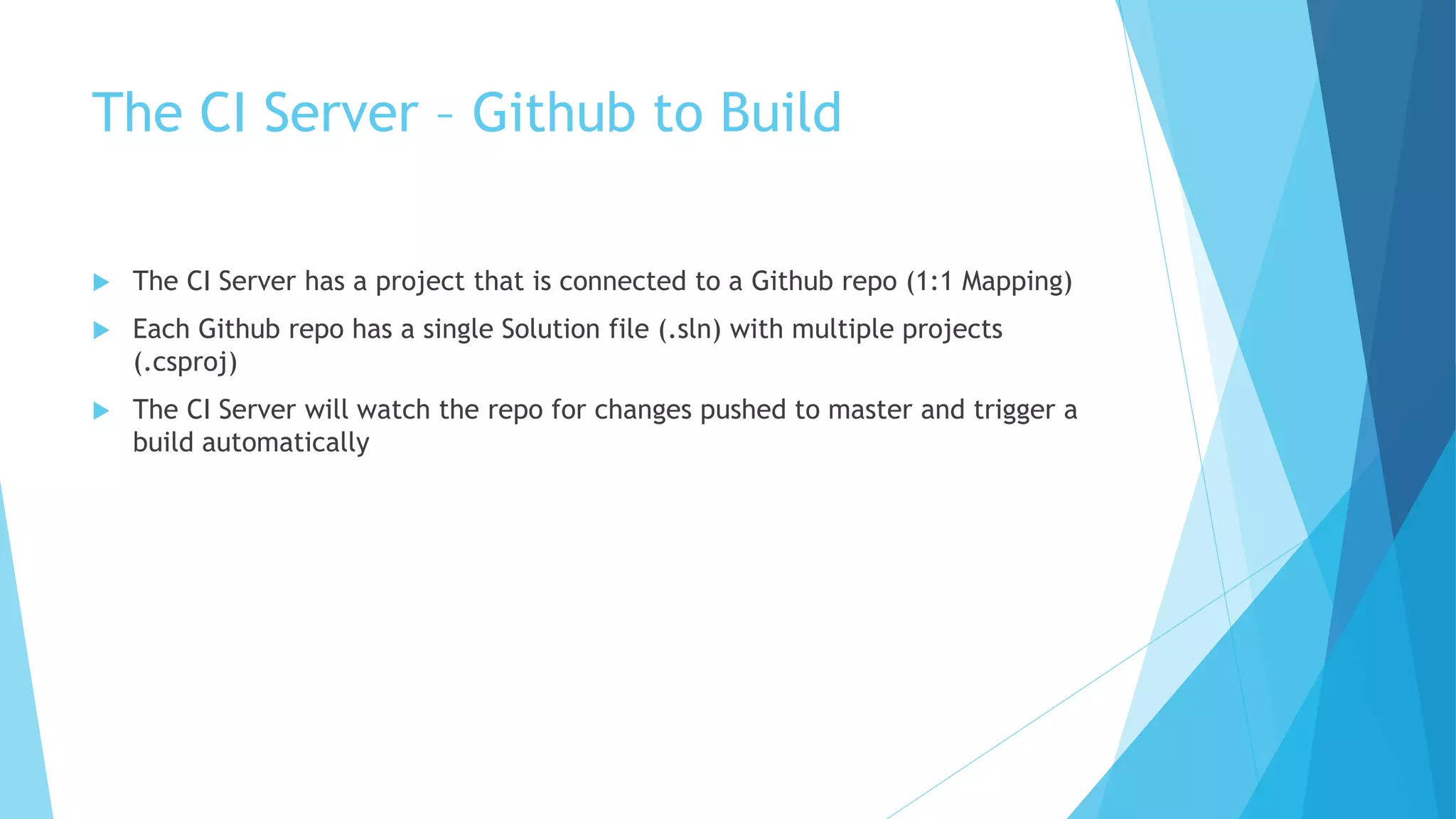

2. The CI Server – Github to Build
 The CI Server has a project that is connected to a Github repo (1:1 Mapping)
 Each Github repo has a single Solution file (.sln) with multiple projects
(.csproj)
 The CI Server will watch the repo for changes pushed to master and trigger a
build automatically

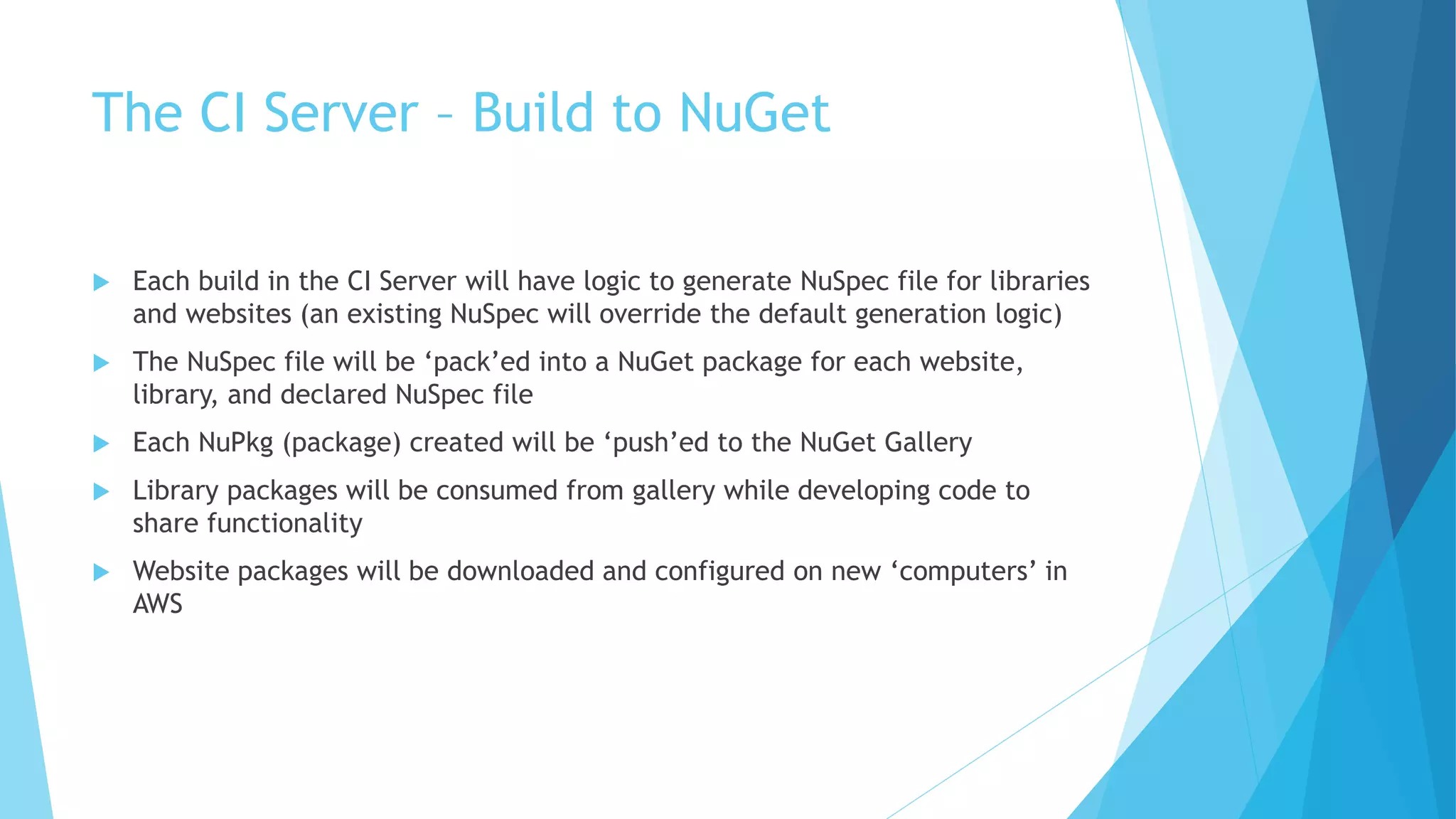

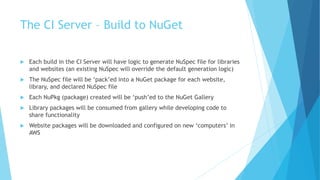

3. The CI Server – Build to NuGet
 Each build in the CI Server will have logic to generate NuSpec file for libraries
and websites (an existing NuSpec will override the default generation logic)
 The NuSpec file will be ‘pack’ed into a NuGet package for each website,
library, and declared NuSpec file
 Each NuPkg (package) created will be ‘push’ed to the NuGet Gallery
 Library packages will be consumed from gallery while developing code to
share functionality
 Website packages will be downloaded and configured on new ‘computers’ in
AWS

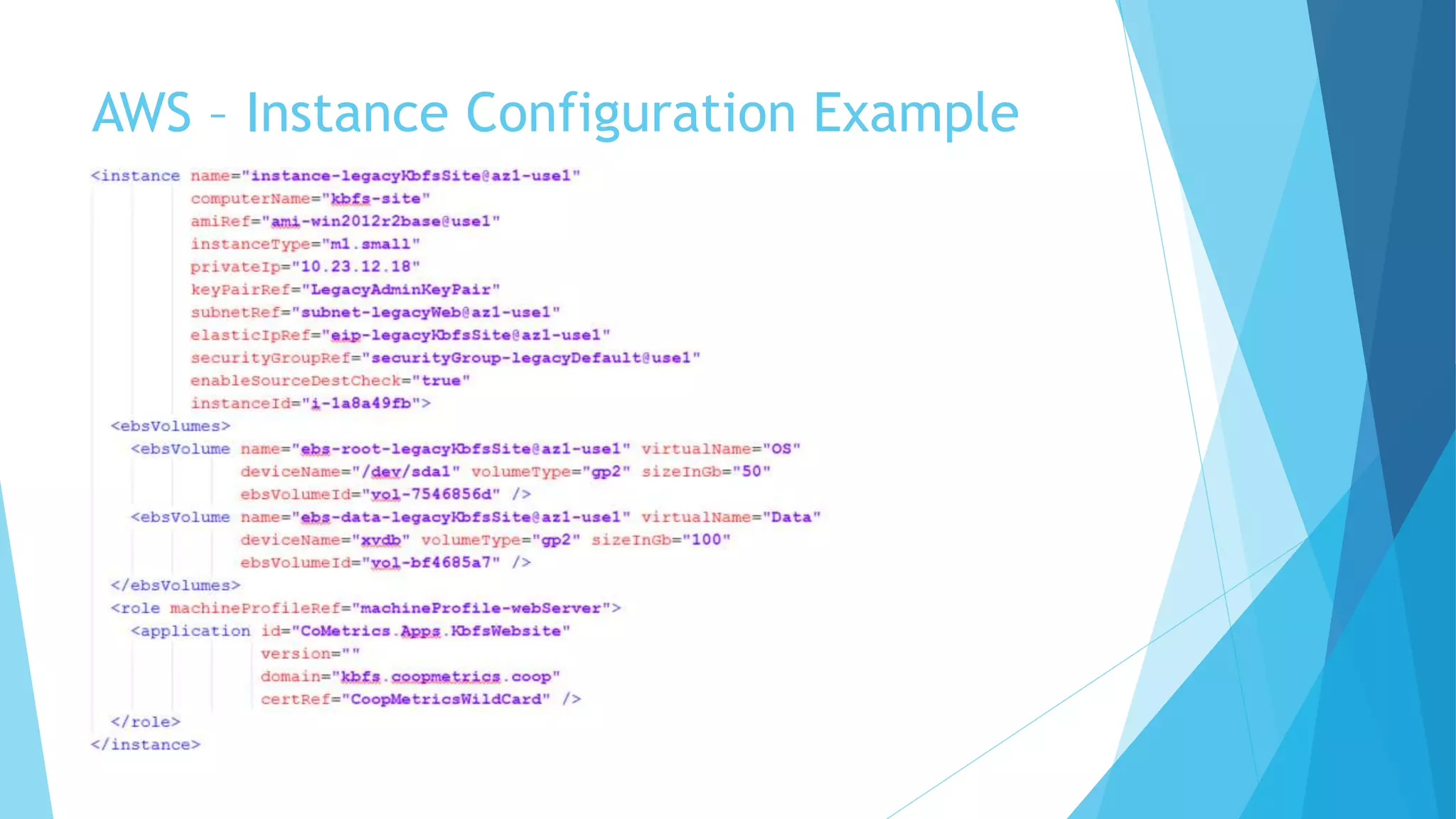

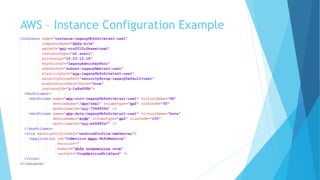

4. AWS – Instance Configuration Example

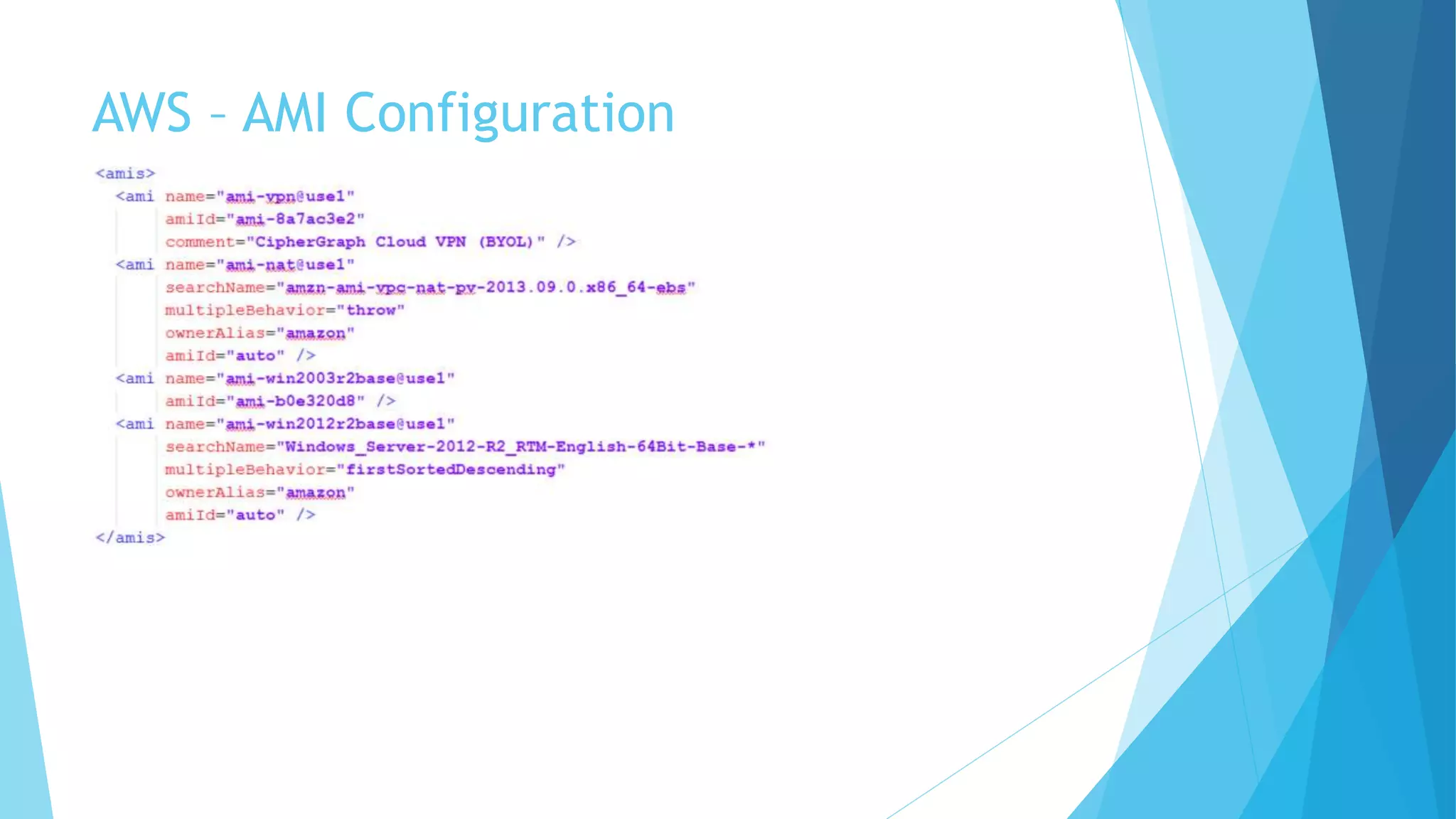

5. AWS – AMI Configuration

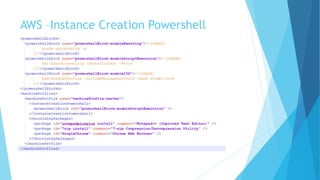

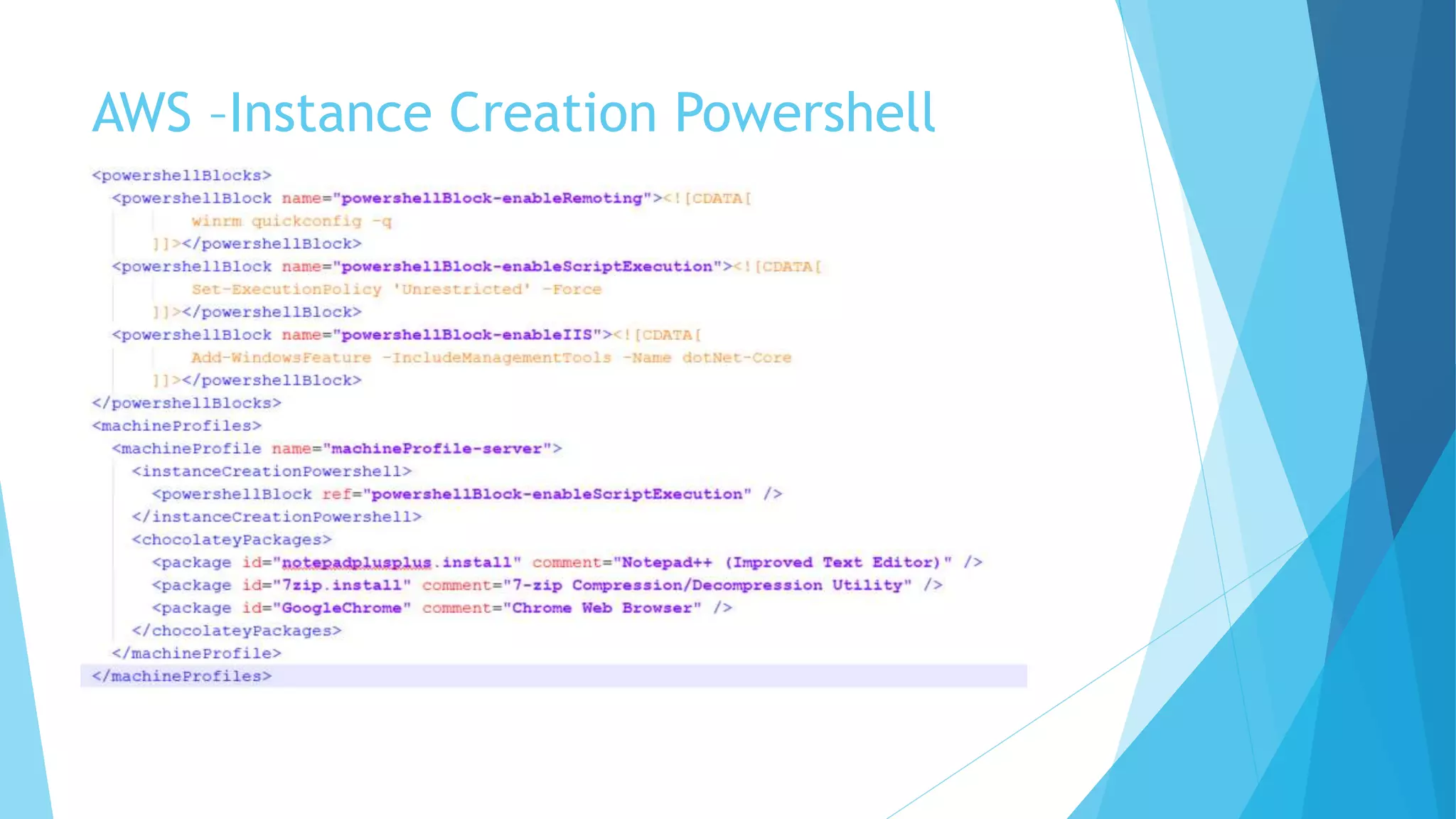

6. AWS –Instance Creation Powershell

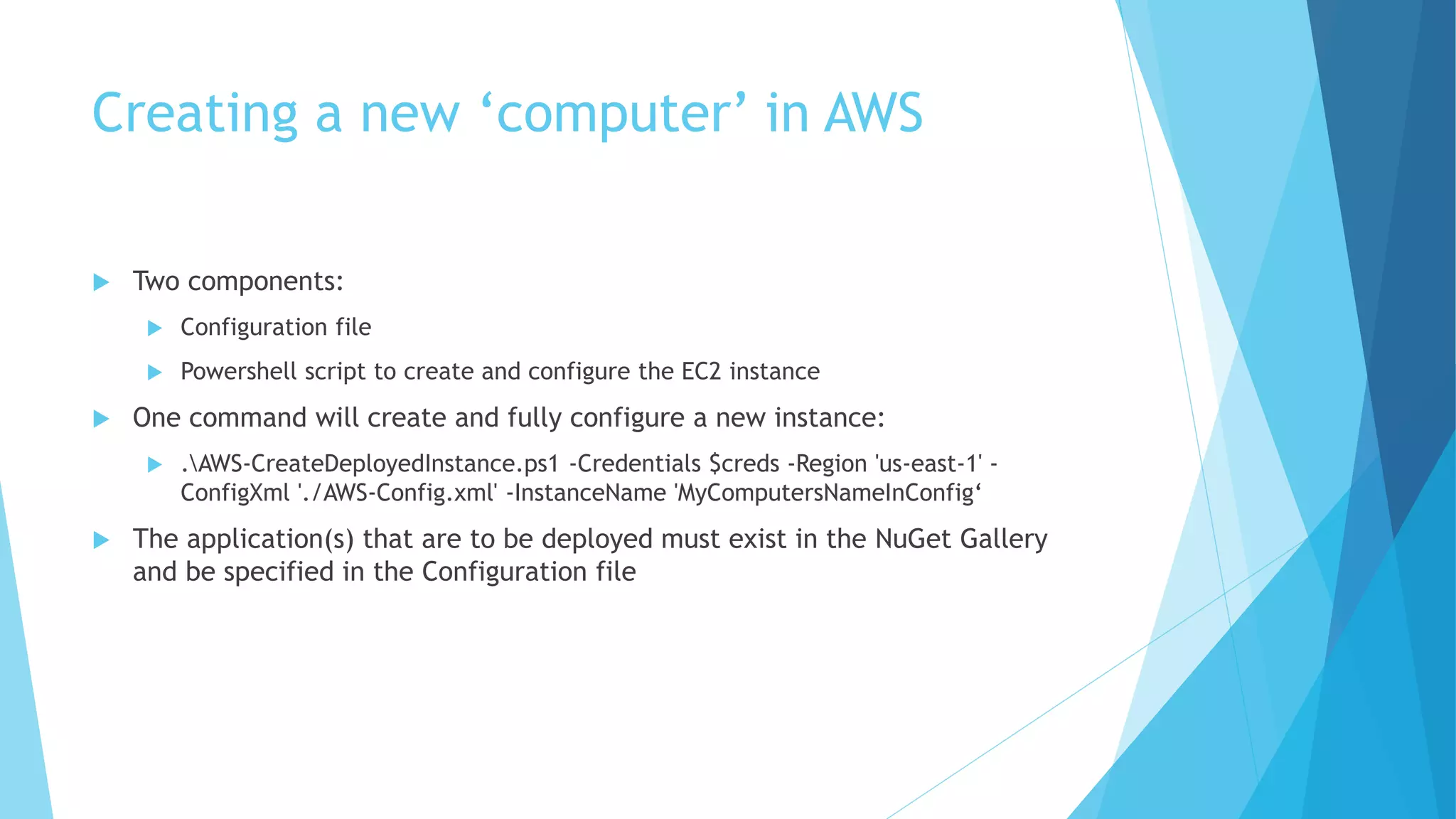

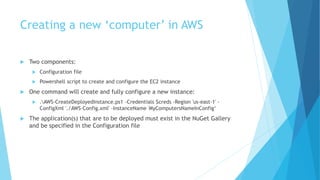

7. Creating a new ‘computer’ in AWS
 Two components:
 Configuration file
 Powershell script to create and configure the EC2 instance
 One command will create and fully configure a new instance:
 .AWS-CreateDeployedInstance.ps1 -Credentials $creds -Region 'us-east-1' -
ConfigXml './AWS-Config.xml' -InstanceName 'MyComputersNameInConfig‘
 The application(s) that are to be deployed must exist in the NuGet Gallery
and be specified in the Configuration file

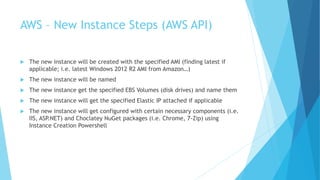

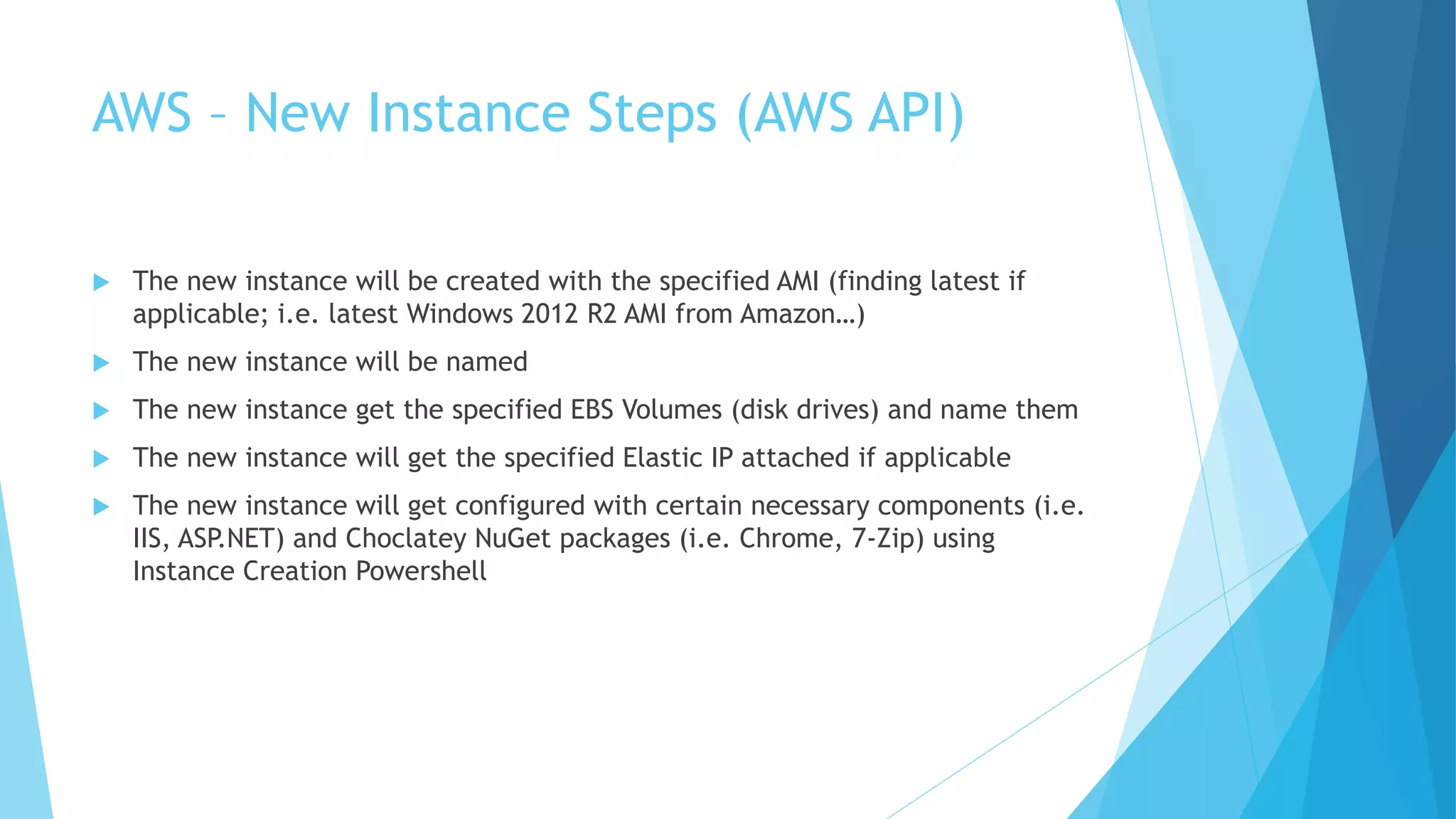

8. AWS – New Instance Steps (AWS API)
 The new instance will be created with the specified AMI (finding latest if
applicable; i.e. latest Windows 2012 R2 AMI from Amazon…)
 The new instance will be named
 The new instance get the specified EBS Volumes (disk drives) and name them
 The new instance will get the specified Elastic IP attached if applicable
 The new instance will get configured with certain necessary components (i.e.
IIS, ASP.NET) and Choclatey NuGet packages (i.e. Chrome, 7-Zip) using
Instance Creation Powershell

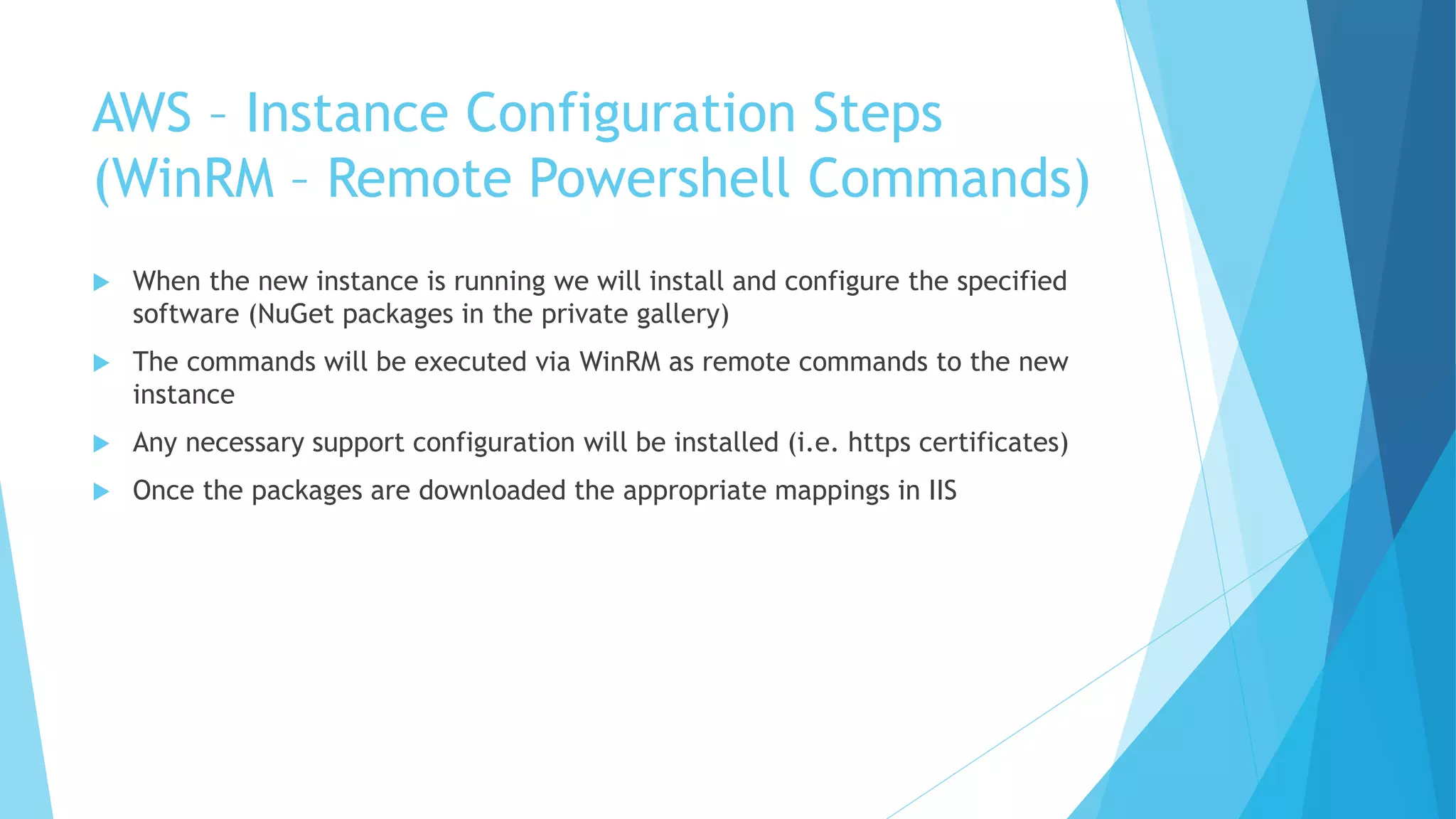

9. AWS – Instance Configuration Steps
(WinRM – Remote Powershell Commands)
 When the new instance is running we will install and configure the specified
software (NuGet packages in the private gallery)
 The commands will be executed via WinRM as remote commands to the new
instance
 Any necessary support configuration will be installed (i.e. https certificates)
 Once the packages are downloaded the appropriate mappings in IIS

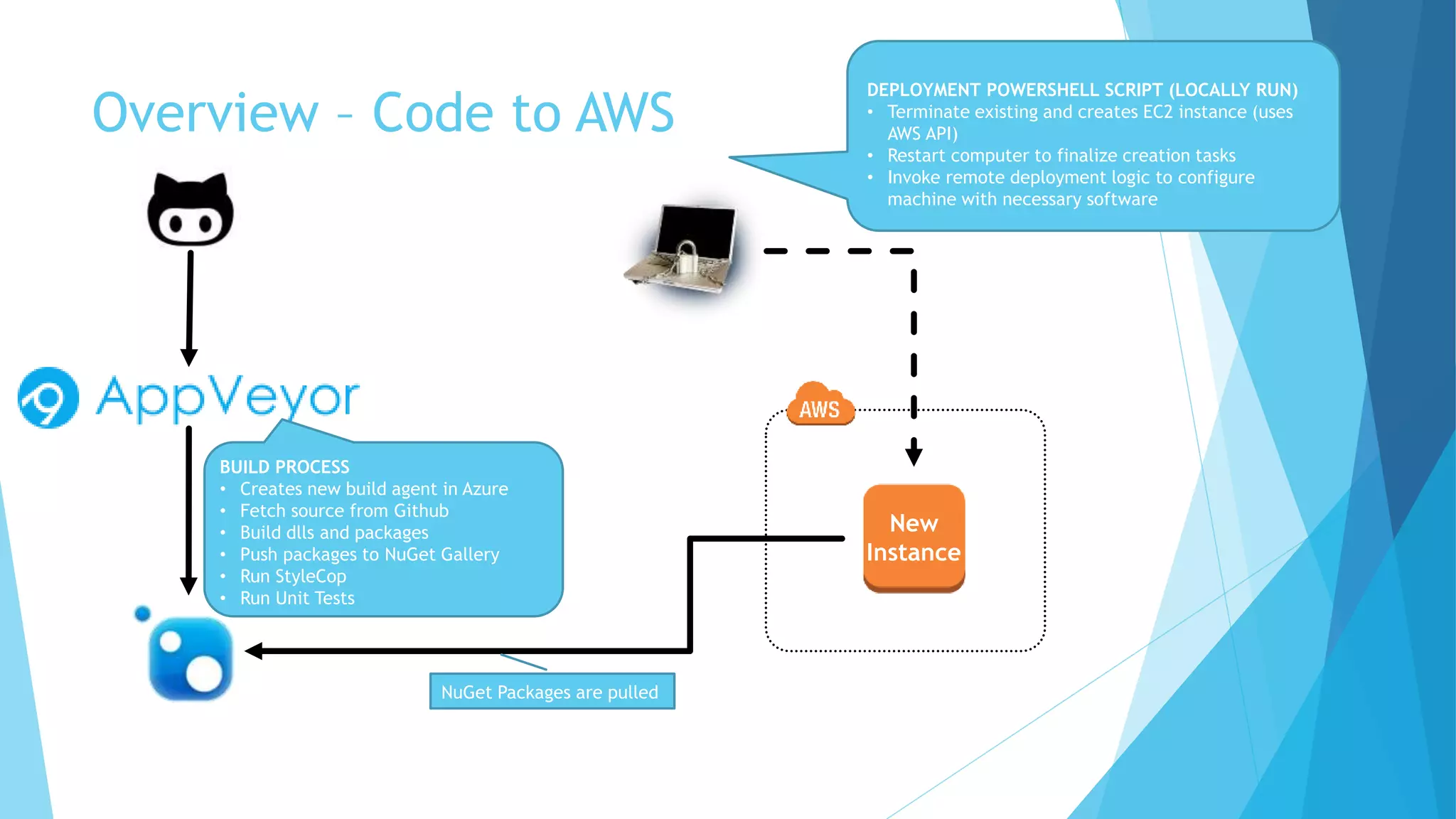

10. Overview – Code to AWS
DEPLOYMENT POWERSHELL SCRIPT (LOCALLY RUN)
• Terminate existing and creates EC2 instance (uses
AWS API)
• Restart computer to finalize creation tasks
• Invoke remote deployment logic to configure
machine with necessary software
New
Instance
BUILD PROCESS
• Creates new build agent in Azure
• Fetch source from Github
• Build dlls and packages
• Push packages to NuGet Gallery
• Run StyleCop
• Run Unit Tests
NuGet Packages are pulled

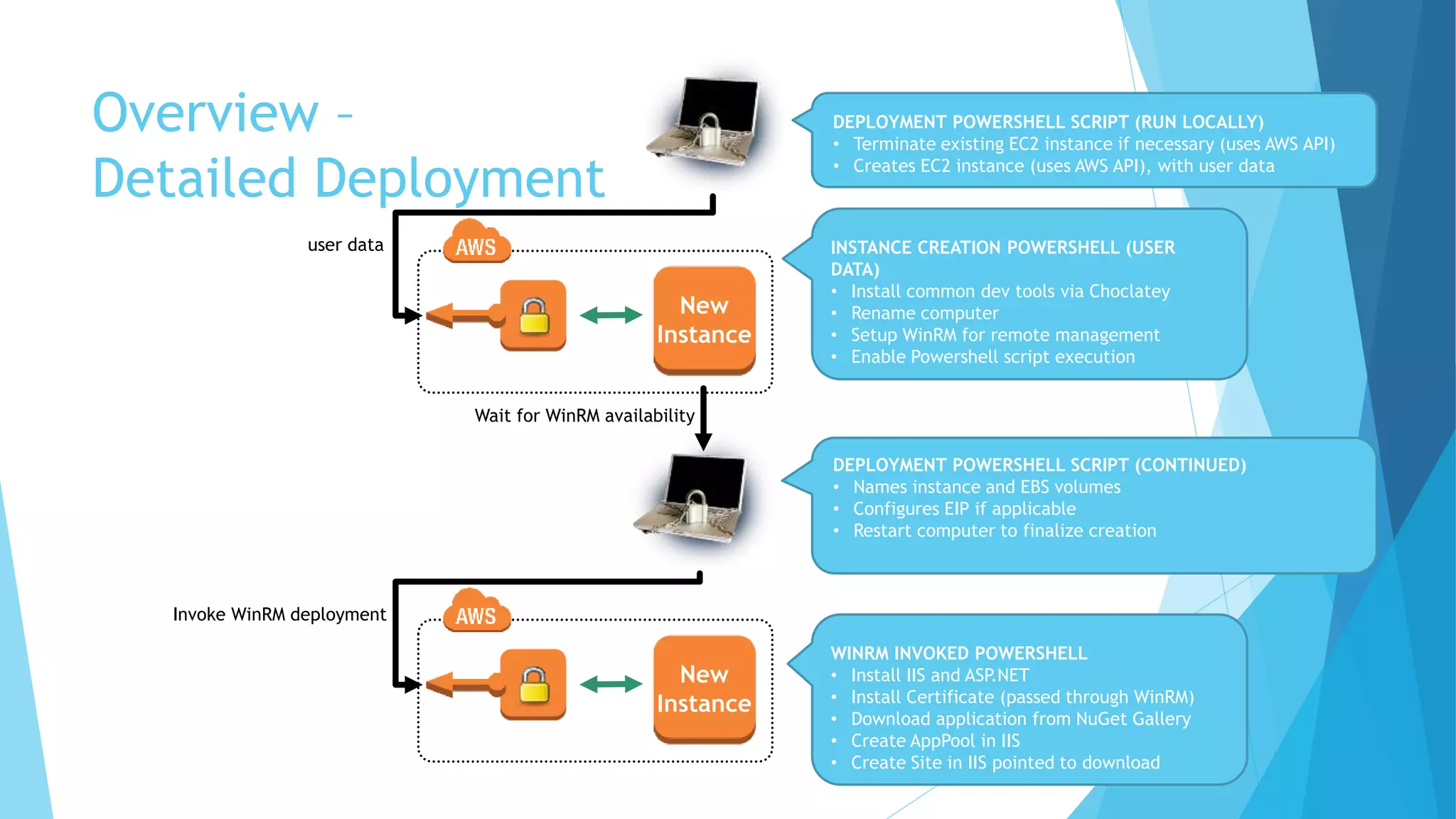

11. Overview –
Detailed Deployment
New
Instance
DEPLOYMENT POWERSHELL SCRIPT (RUN LOCALLY)
• Terminate existing EC2 instance if necessary (uses AWS API)
• Creates EC2 instance (uses AWS API), with user data
INSTANCE CREATION POWERSHELL (USER
DATA)
• Install common dev tools via Choclatey
• Rename computer
• Setup WinRM for remote management
• Enable Powershell script execution
DEPLOYMENT POWERSHELL SCRIPT (CONTINUED)
• Names instance and EBS volumes
• Configures EIP if applicable
• Wait for WinRM availability
• Restart computer to finalize creation
• Wait for WinRM availability
• Invoke remote deployment logic
New
Instance
WINRM INVOKED POWERSHELL
• Install IIS and ASP.NET
• Install Certificate (passed through WinRM)
• Download application from NuGet Gallery
• Create AppPool in IIS
• Create Site in IIS pointed to download
user data
Invoke WinRM deployment
Wait for AWS to recognize instance

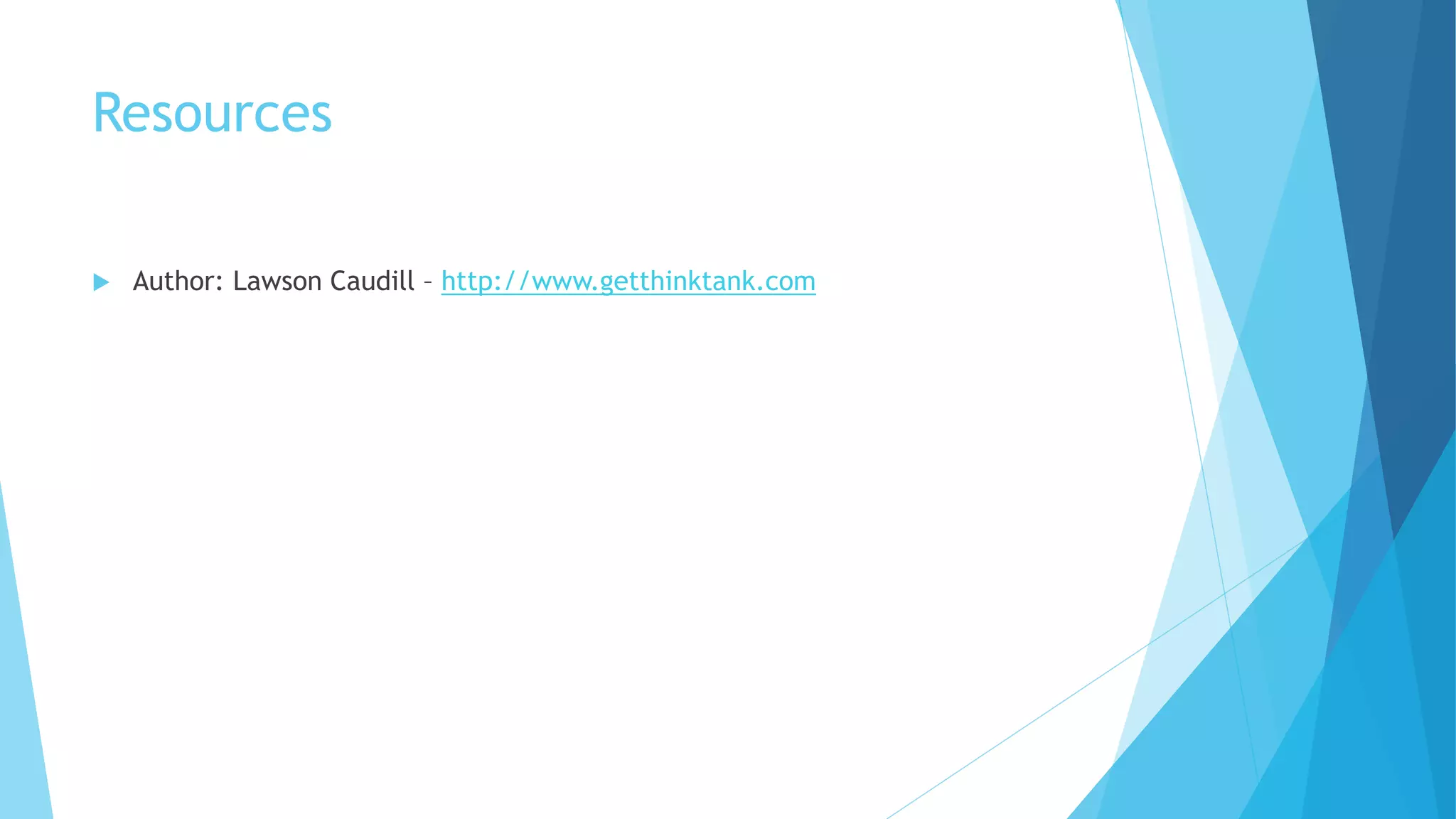

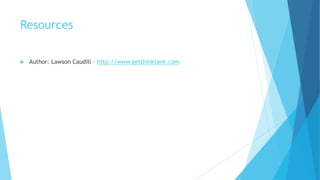

12. Resources
 Author: Lawson Caudill – http://www.getthinktank.com
 Powershell tools available at:
 http://www.naosllc.com
 https://github.com/NaosFramework/
