This presentation covers the following Overview of AWS Developer Tools like AWS CodeCommit, AWS CodeBuild, AWS CodeDeploy and AWS CodePipeline. Implementation of CI CD workflow with a 3 stage CodePipeline; 1. Pull the source code from two different repositories for WebApplication & Infrastructure Code 2. Compile the code, generate artifact and upload to S3 3. Spin up the infrastructure using Cloud Formation Template followed WebApplication Deployment using the Artifact stored in S3. Walkthrough of buildspec and appspec files, Debugging Build & Deployment, Rollback of deployment and how to gauge the metrics to DevOps.

1. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
CHENNAI

2. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
CI CD using AWS Developer Tools
Bhuvaneswari Subramani | 10th Aug 2019

3. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Bhuvaneswari Subramani (Bhuvana)
Director, Engineering Operations, Infor
Currently working on Cloud Computing, DevOps &, Performance QA
https://installjournal.blogspot.com

4. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Agenda
• AWS CI CD Services Overview
• Use case leveraging AWS CI CD Services
• Infrastructure Rollouts + WebApp Deployment
• buildspec, appspec
• Debugging Build & Deployment
• Rollback Deployments
• Metrics to gauge DevOps

5. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
AWS CI CD Services - Overview

6. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

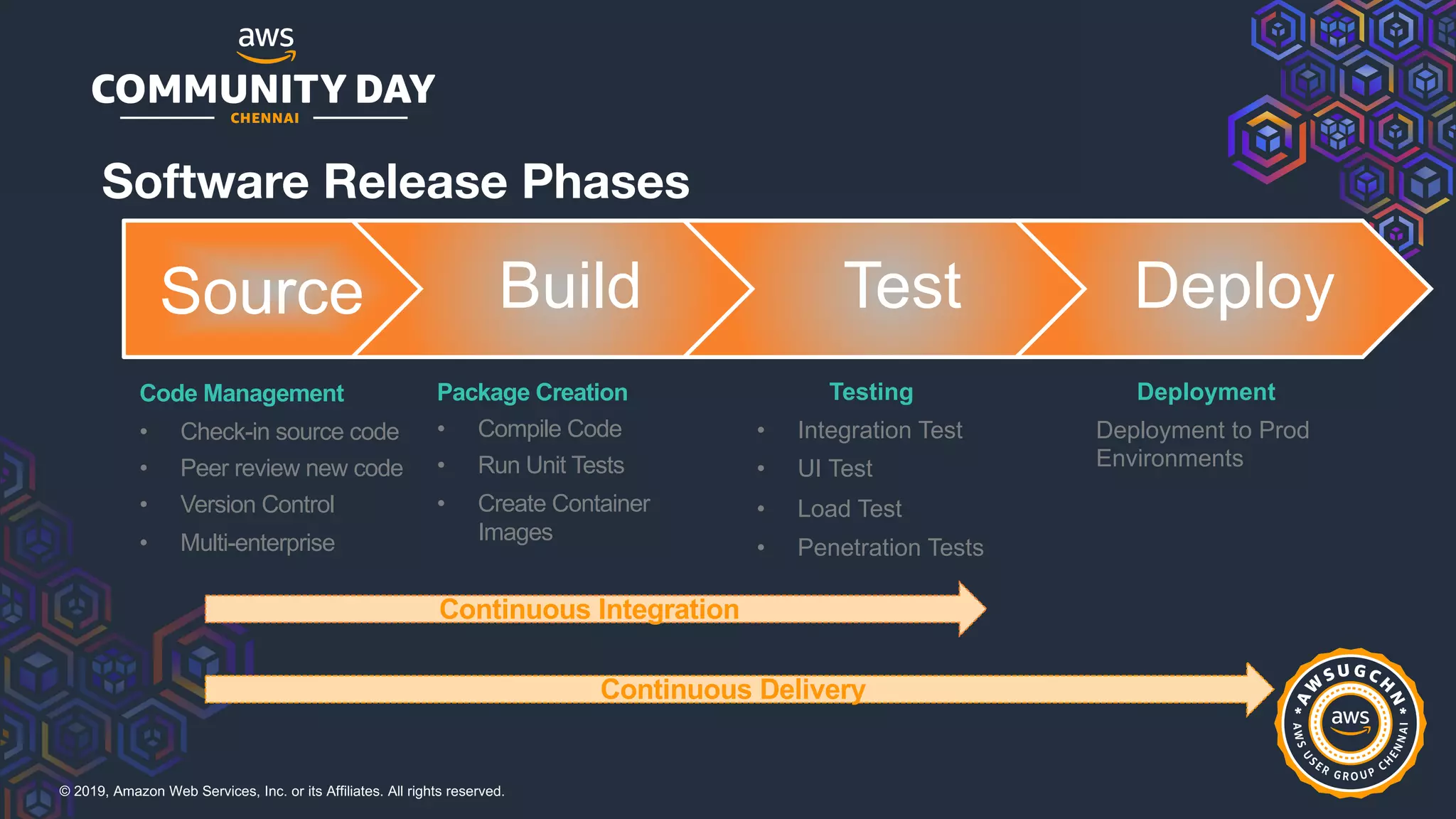

Software Release Phases
Source Build Test Deploy
Testing
• Integration Test
• UI Test
• Load Test
• Penetration Tests
Deployment
Deployment to Prod
Environments
Code Management
• Check-in source code
• Peer review new code
• Version Control
• Multi-enterprise
Package Creation
• Compile Code
• Run Unit Tests
• Create Container
Images
Continuous Integration
Continuous Delivery

7. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

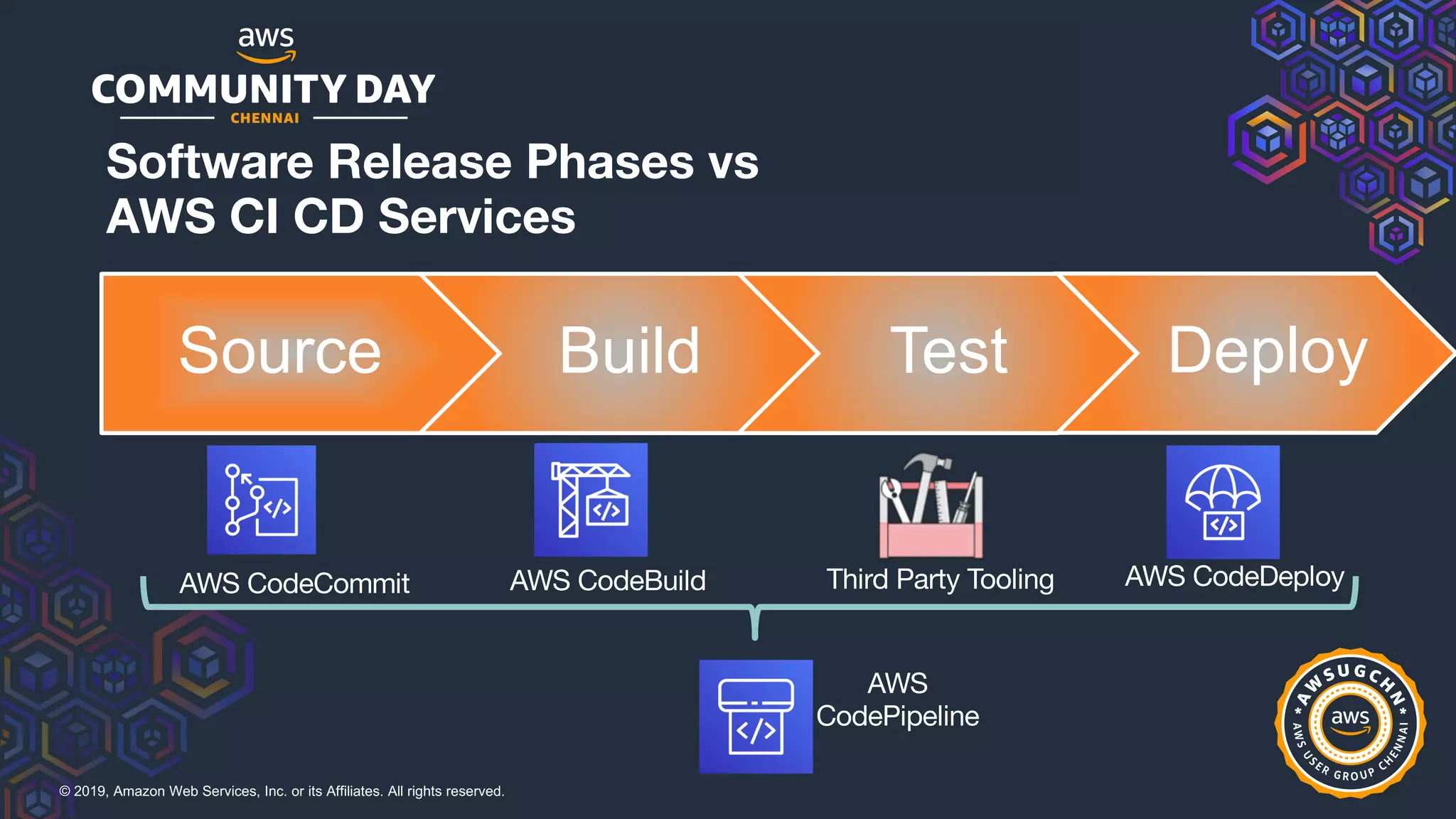

Software Release Phases vs
AWS CI CD Services
Source Build Test Deploy
AWS CodeCommit AWS CodeBuild Third Party Tooling AWS CodeDeploy
AWS
CodePipeline

8. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Plight of Self Managed
Source Control Repo

9. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

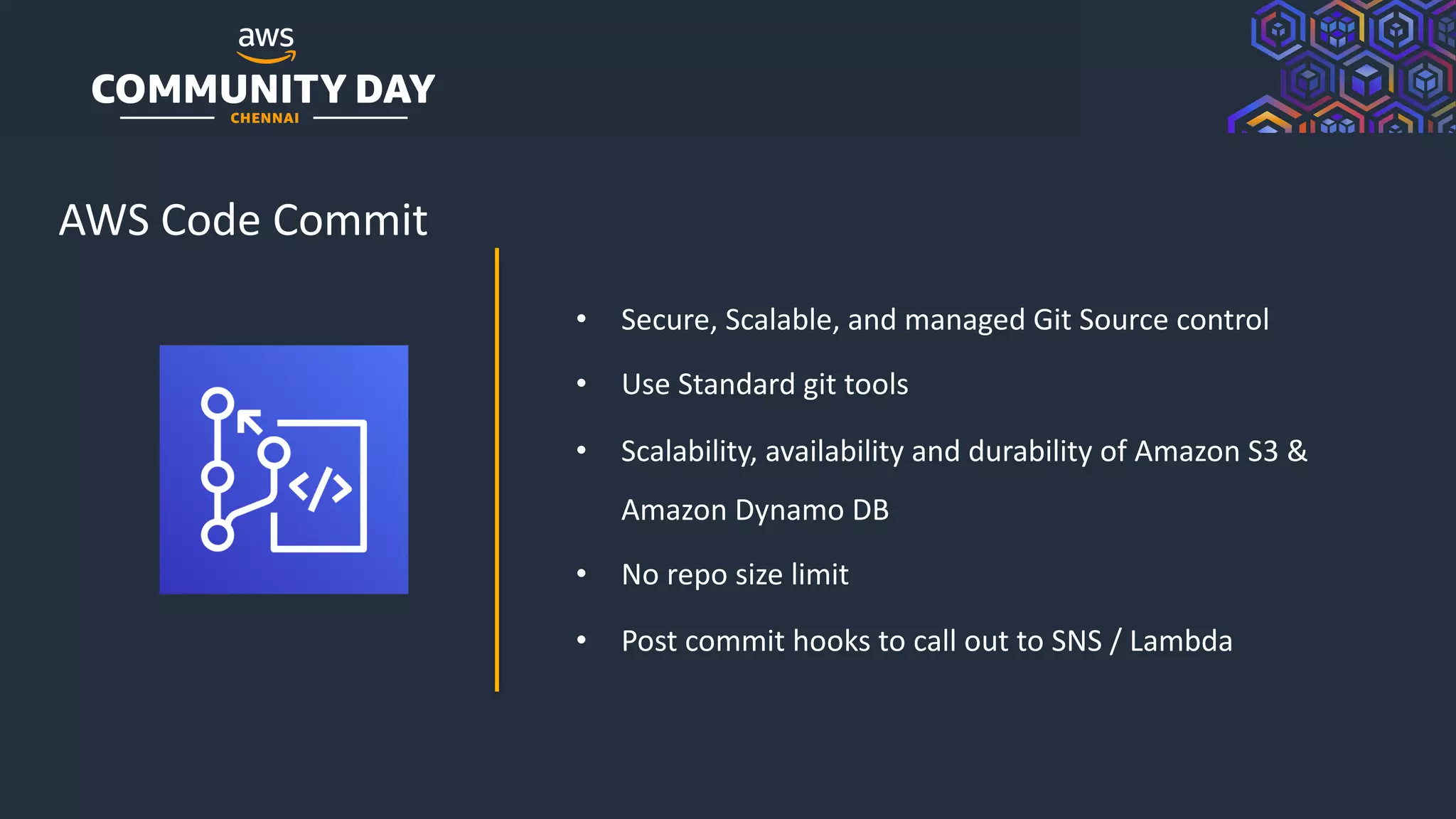

AWS Code Commit
• Secure, Scalable, and managed Git Source control
• Use Standard git tools
• Scalability, availability and durability of Amazon S3 &
Amazon Dynamo DB
• No repo size limit
• Post commit hooks to call out to SNS / Lambda

10. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

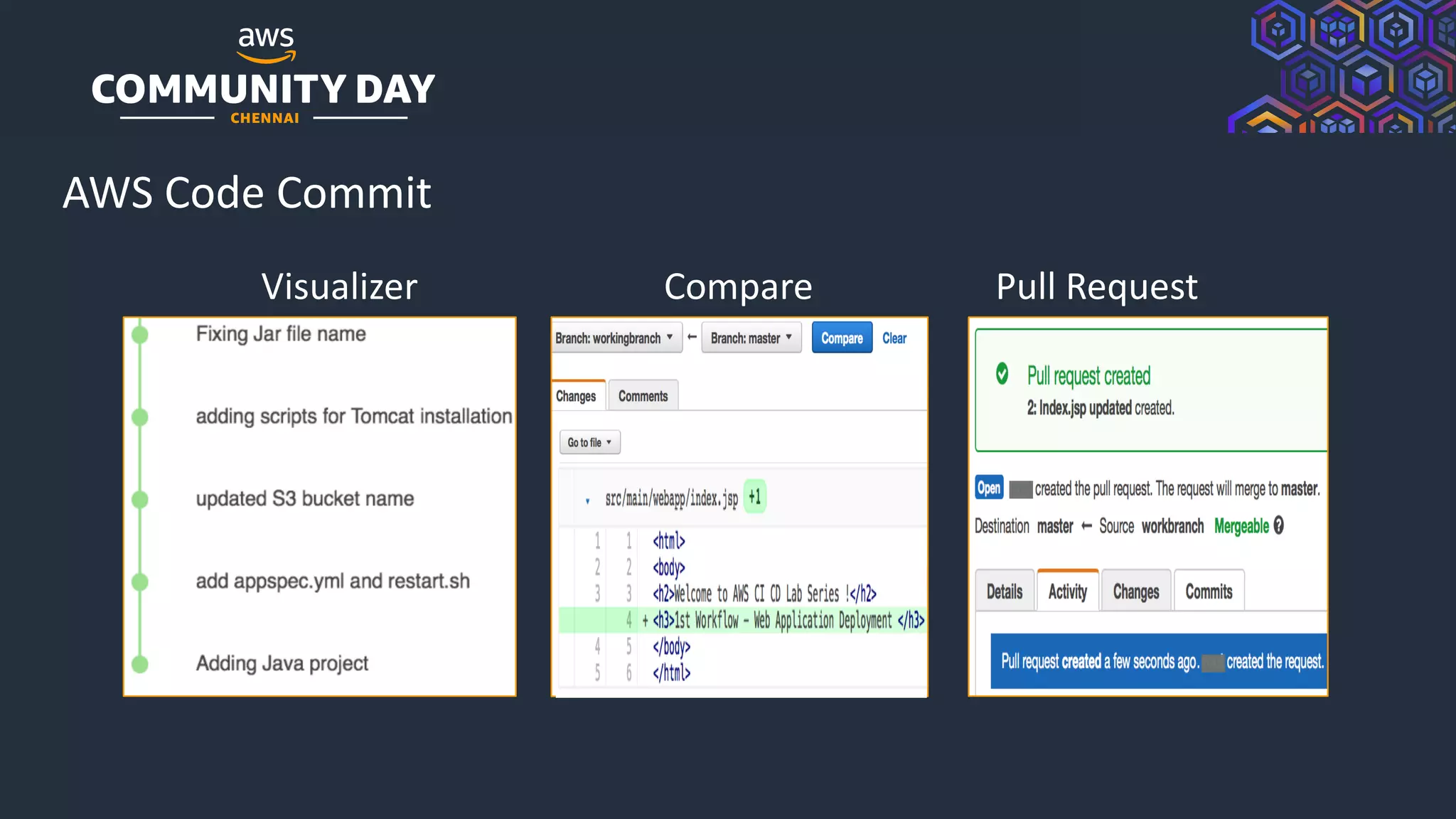

Visualizer Compare Pull Request
AWS Code Commit

11. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
When there is no
CI CD??

12. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

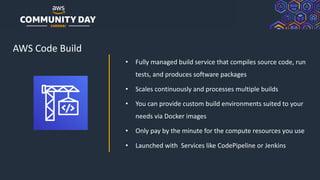

AWS Code Build
• Fully managed build service that compiles source code, run
tests, and produces software packages
• Scales continuously and processes multiple builds
• You can provide custom build environments suited to your
needs via Docker images
• Only pay by the minute for the compute resources you use
• Launched with Services like CodePipeline or Jenkins

13. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

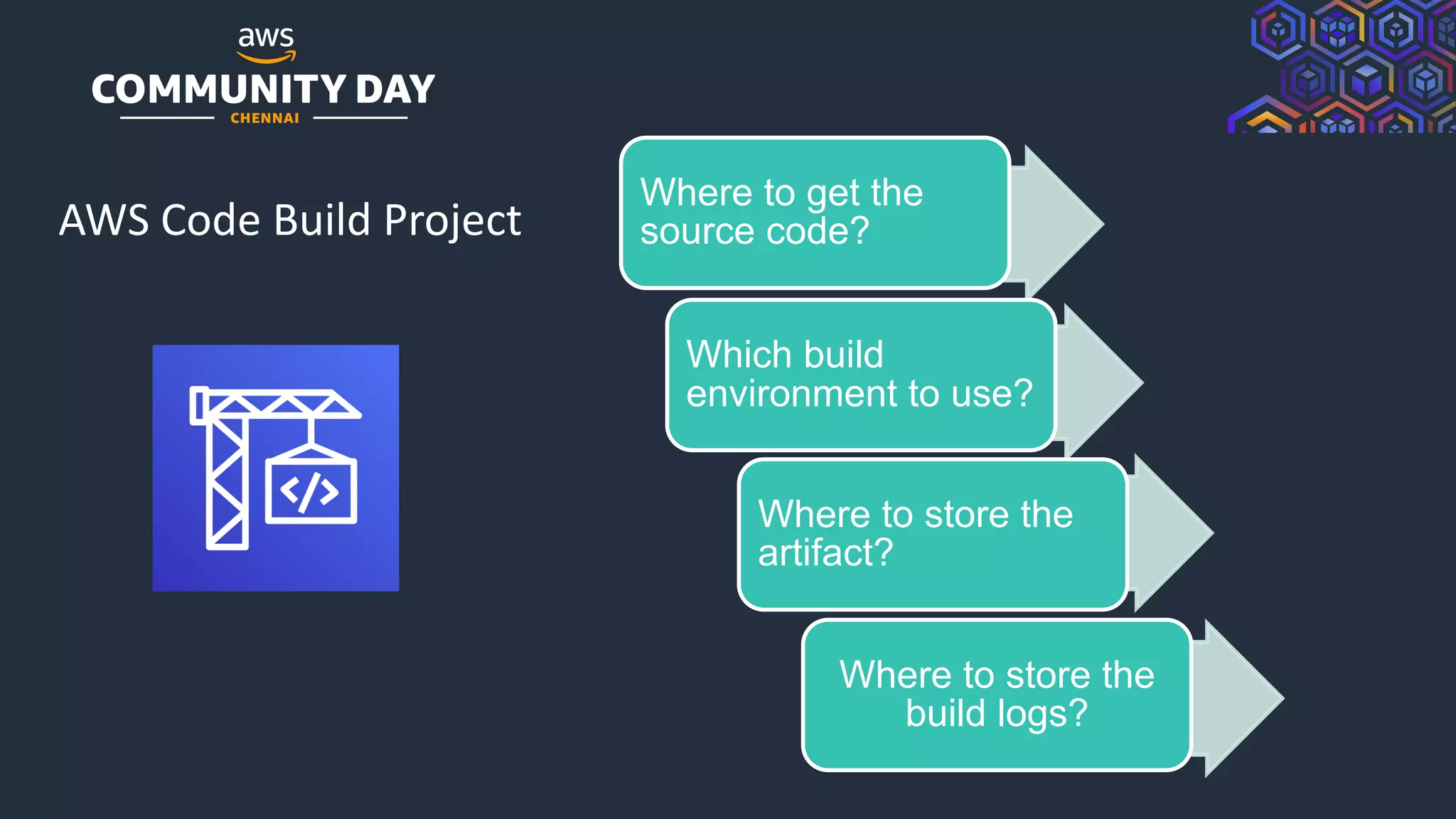

AWS Code Build Project
Where to get the
source code?
Which build
environment to use?
Where to store the
artifact?
Where to store the
build logs?

14. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

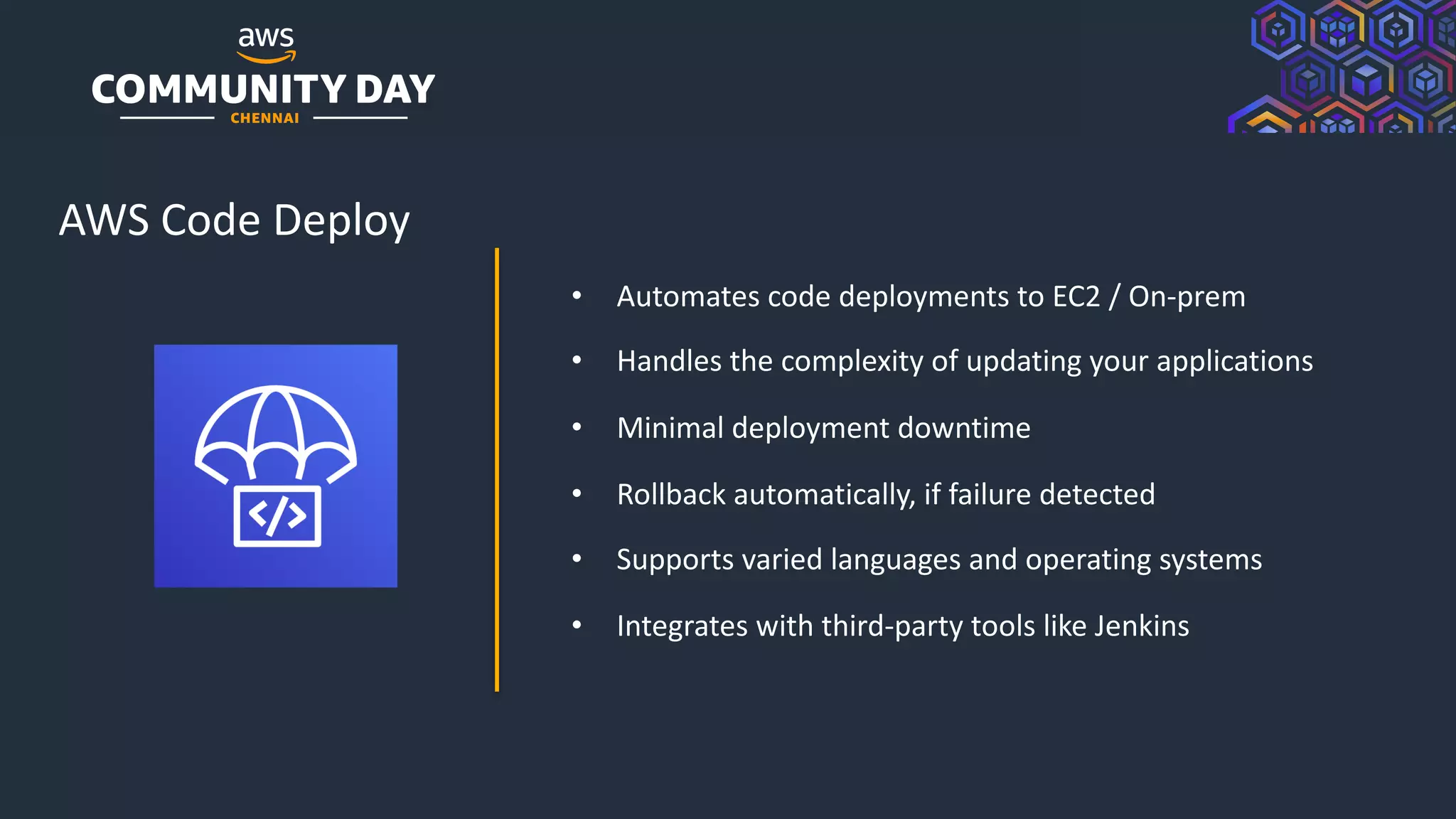

AWS Code Deploy
• Automates code deployments to EC2 / On-prem
• Handles the complexity of updating your applications
• Minimal deployment downtime
• Rollback automatically, if failure detected
• Supports varied languages and operating systems
• Integrates with third-party tools like Jenkins

15. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Revision 1
Application
Revision 2
Revision 3
Revision n
Instance 1
Deployment Group
Instance 2
Instance 3
Instance n
Deployments
Deploy
Config
appspe
c.yml
In-place
deployment

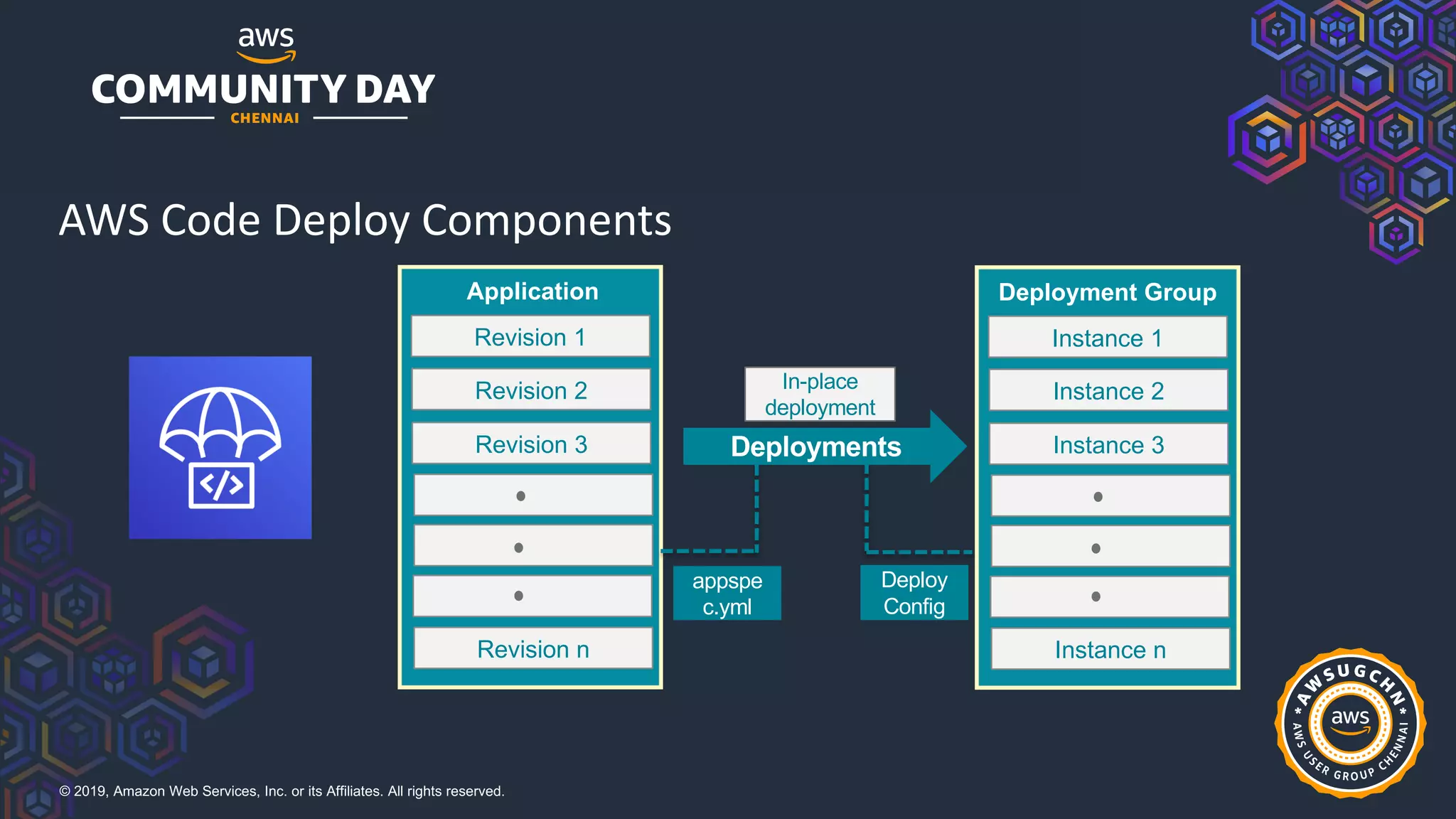

AWS Code Deploy Components

16. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Revision 1
Application
Revision 2
Revision 3
Revision n
Instance 1
Deployment Group
Instance 2
Instance 3
Instance n
Deployments
Deploy
Config
appspe
c.yml
In-place
deployment

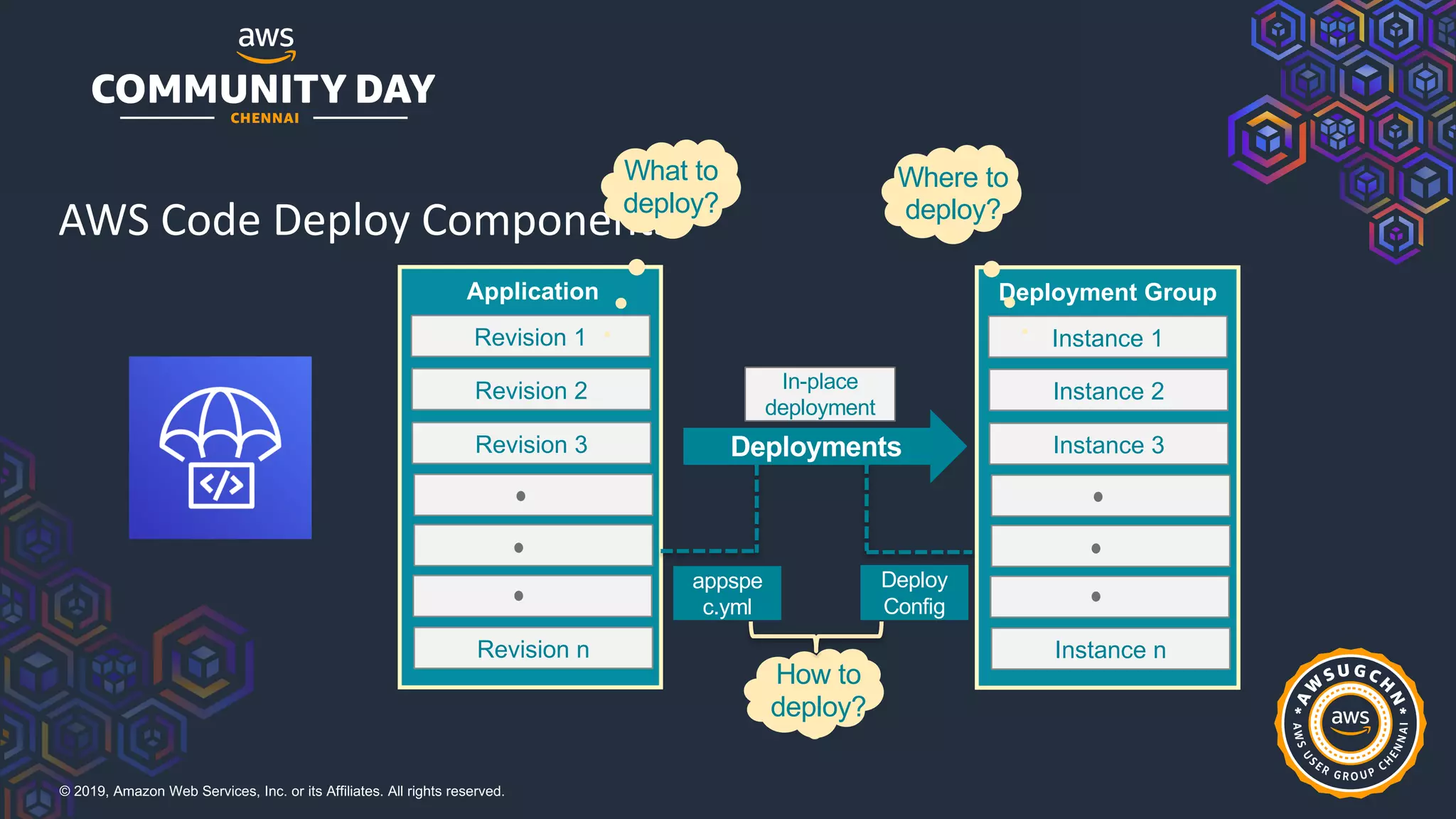

AWS Code Deploy Components
What to
deploy?
Where to
deploy?
How to
deploy?

17. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

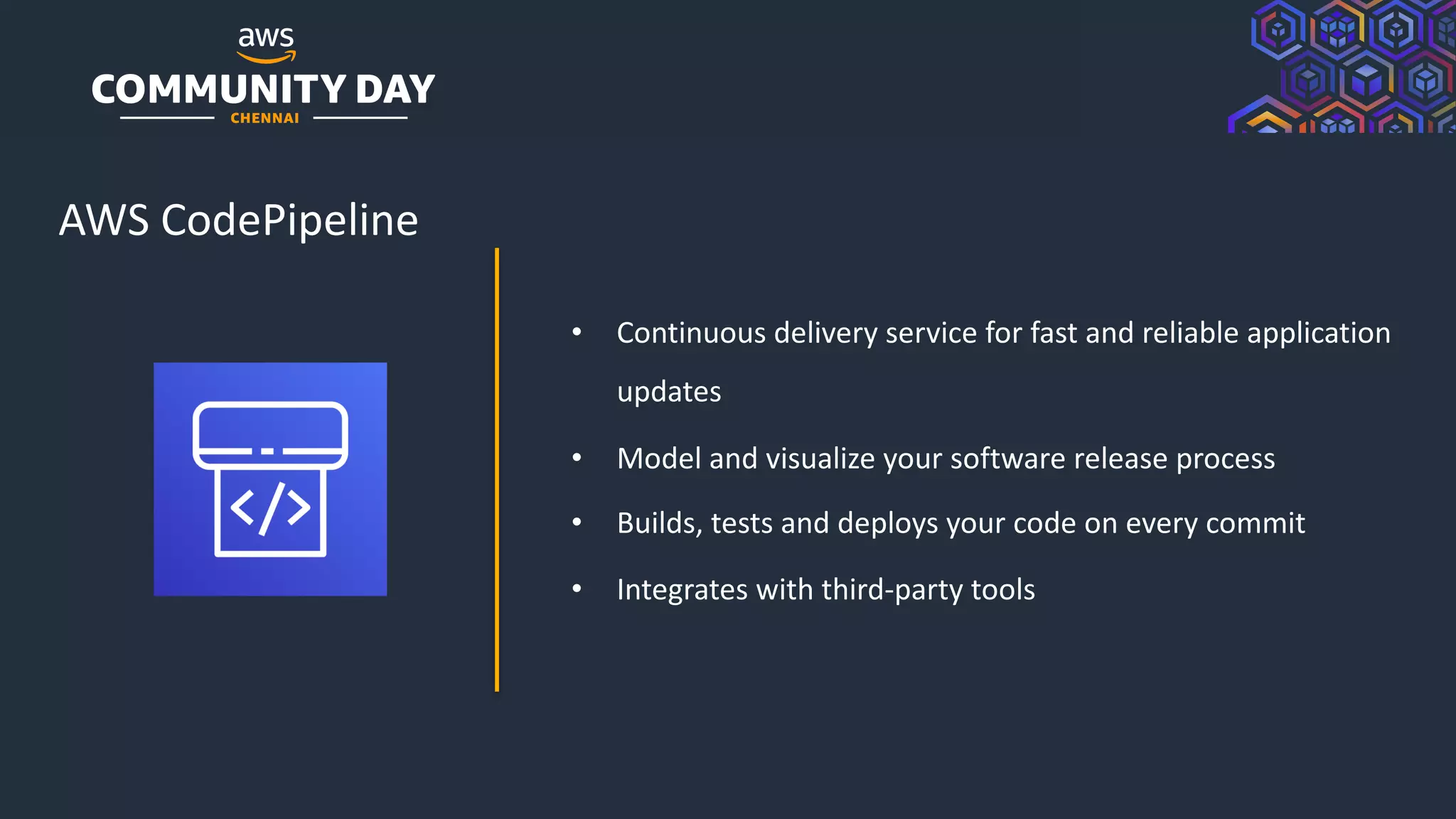

AWS CodePipeline
• Continuous delivery service for fast and reliable application
updates
• Model and visualize your software release process
• Builds, tests and deploys your code on every commit
• Integrates with third-party tools

18. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

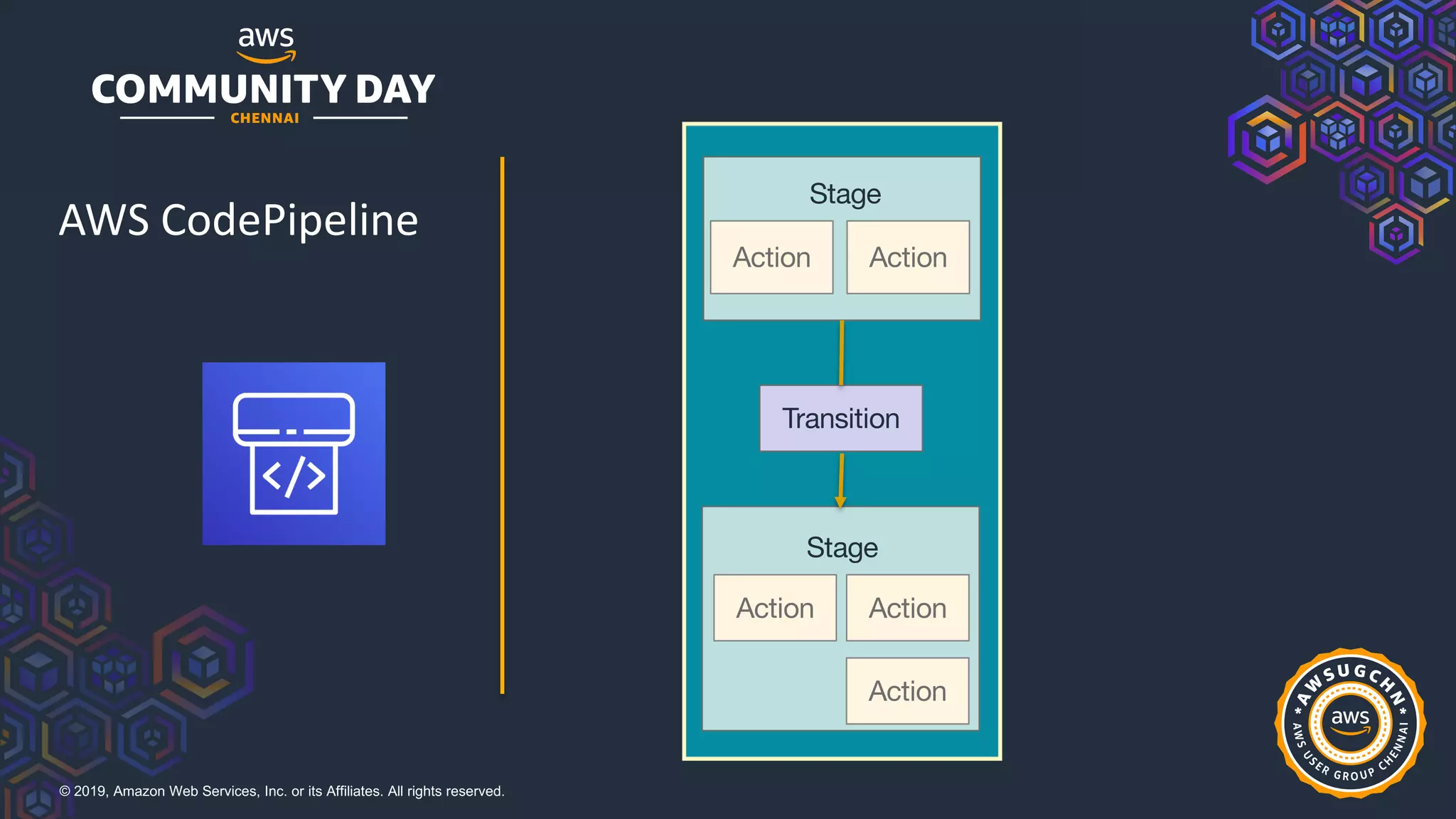

Action Action
Stage
Action Action
Stage
Action
Transition
AWS CodePipeline

19. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

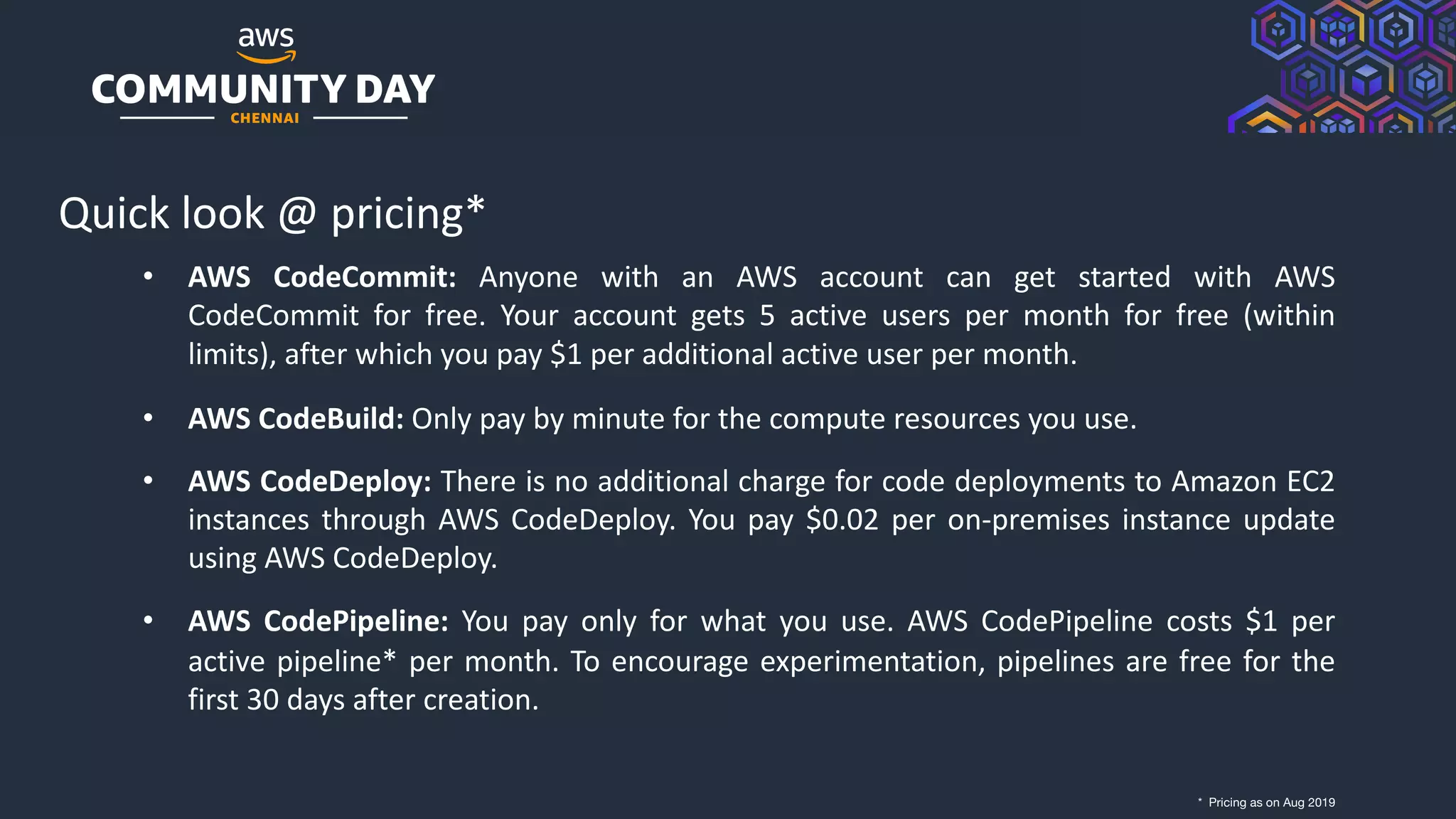

Quick look @ pricing*
• AWS CodeCommit: Anyone with an AWS account can get started with AWS
CodeCommit for free. Your account gets 5 active users per month for free (within
limits), after which you pay $1 per additional active user per month.
• AWS CodeBuild: Only pay by minute for the compute resources you use.
• AWS CodeDeploy: There is no additional charge for code deployments to Amazon EC2
instances through AWS CodeDeploy. You pay $0.02 per on-premises instance update
using AWS CodeDeploy.
• AWS CodePipeline: You pay only for what you use. AWS CodePipeline costs $1 per
active pipeline* per month. To encourage experimentation, pipelines are free for the
first 30 days after creation.
* Pricing as on Aug 2019

20. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Infrastructure Rollouts &
Web Application Deployments
AWS CD CD Workflow

21. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

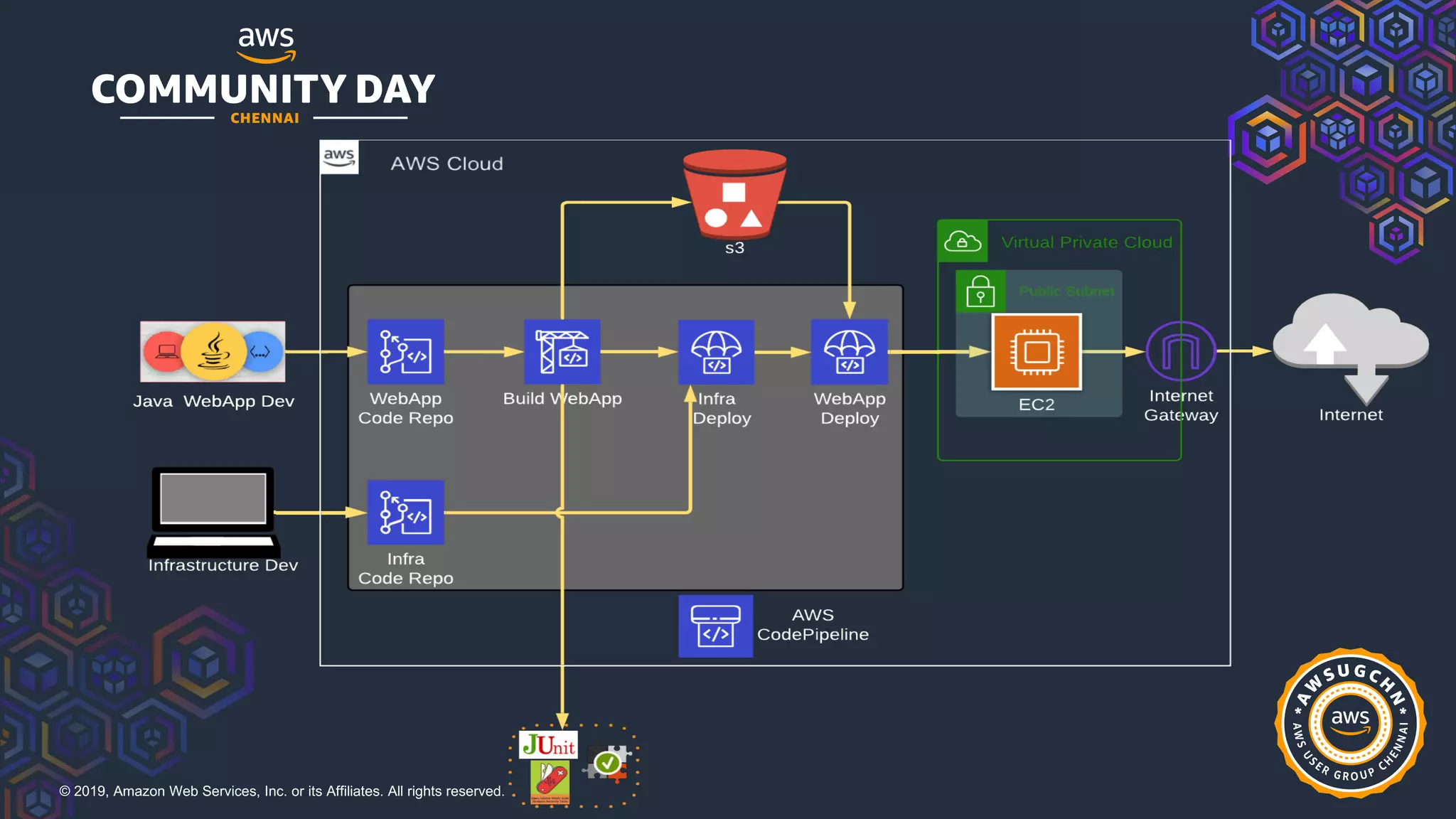

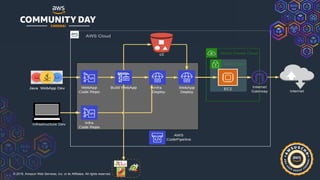

Use Case
• IaC using Cloud Formation Template
• Create an EC2 Instance
• Install CodeDeploy agent through UserData
• Add specific tag `Name = WebApp`
• Deploy Web Application
• Install Tomcat & deploy WebApp through instructions from appspec.yml

22. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

23. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

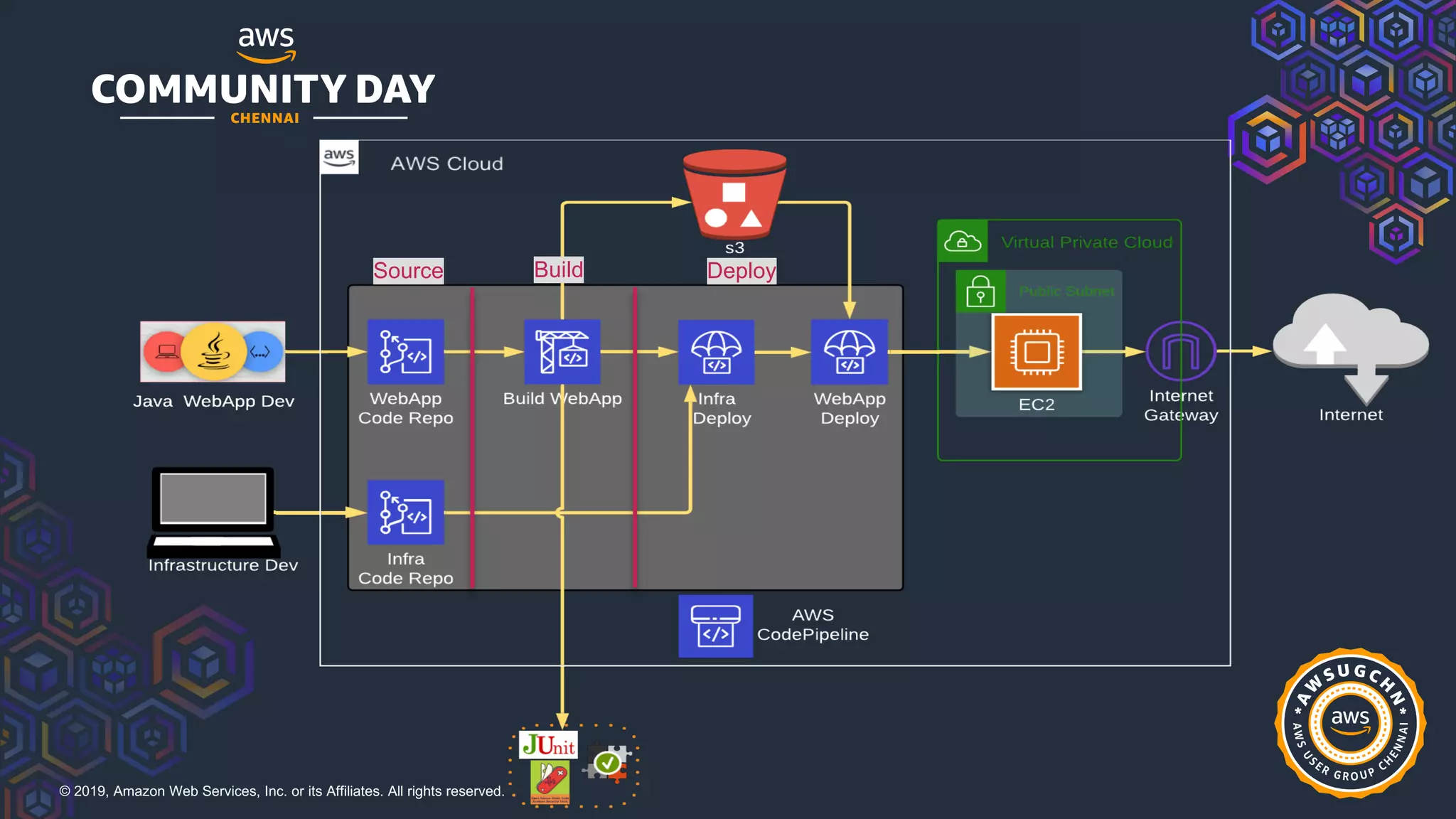

Source Build Deploy

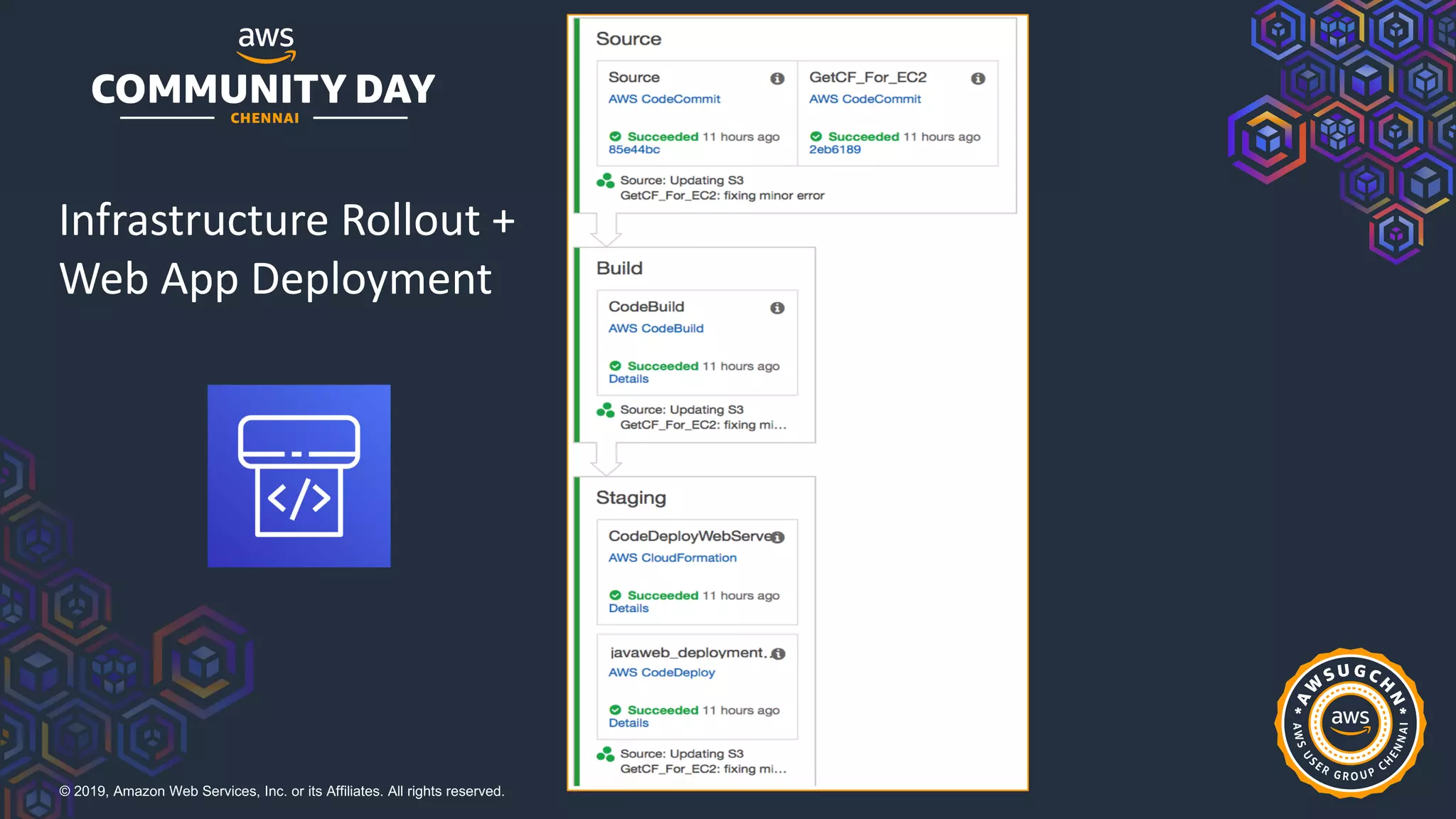

24. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Infrastructure Rollout +
Web App Deployment

25. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
buildspec.yml & appspec.yml files

26. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

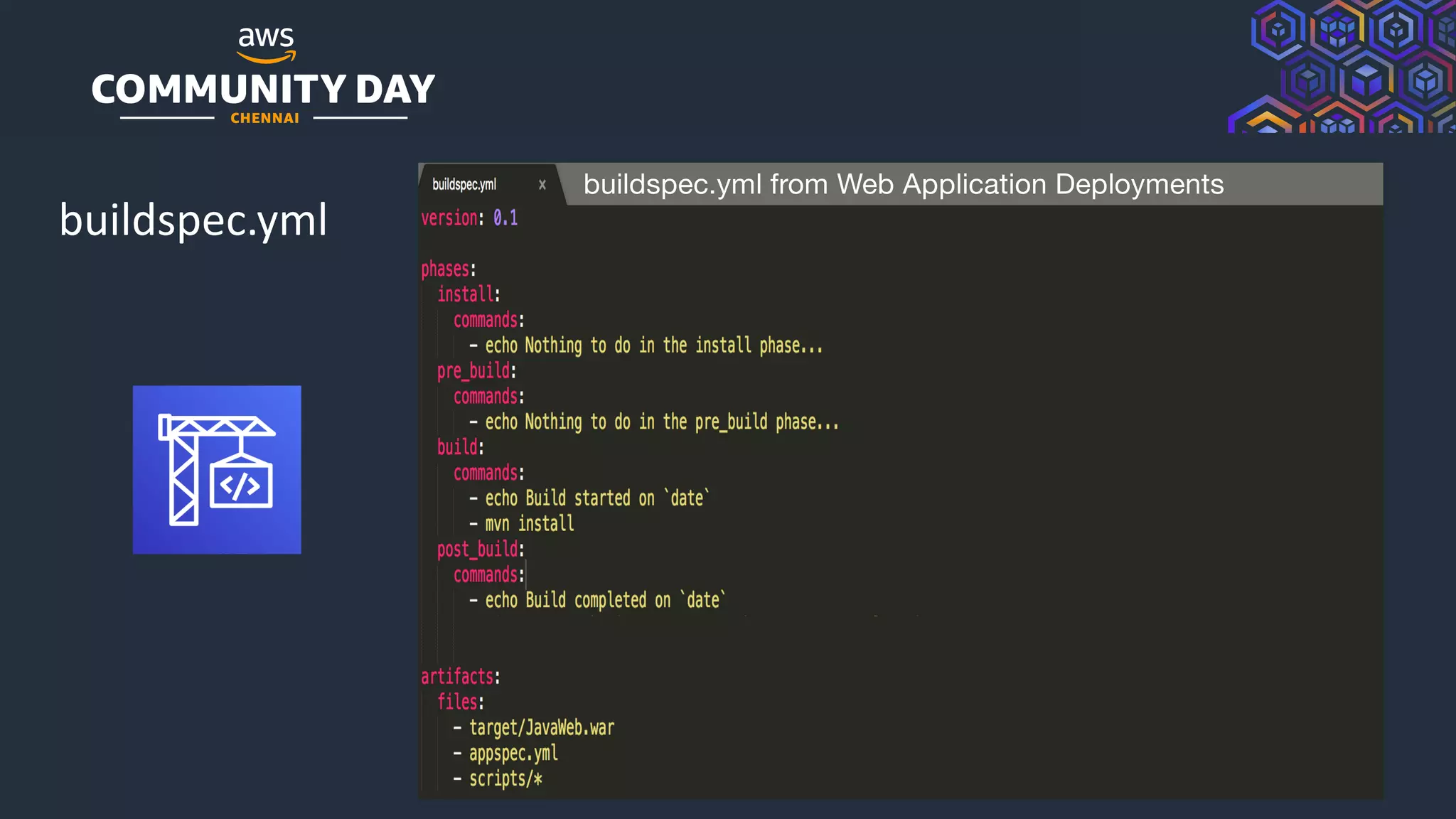

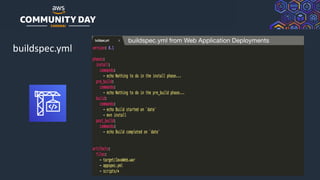

buildspec.yml
buildspec.yml from Web Application Deployments

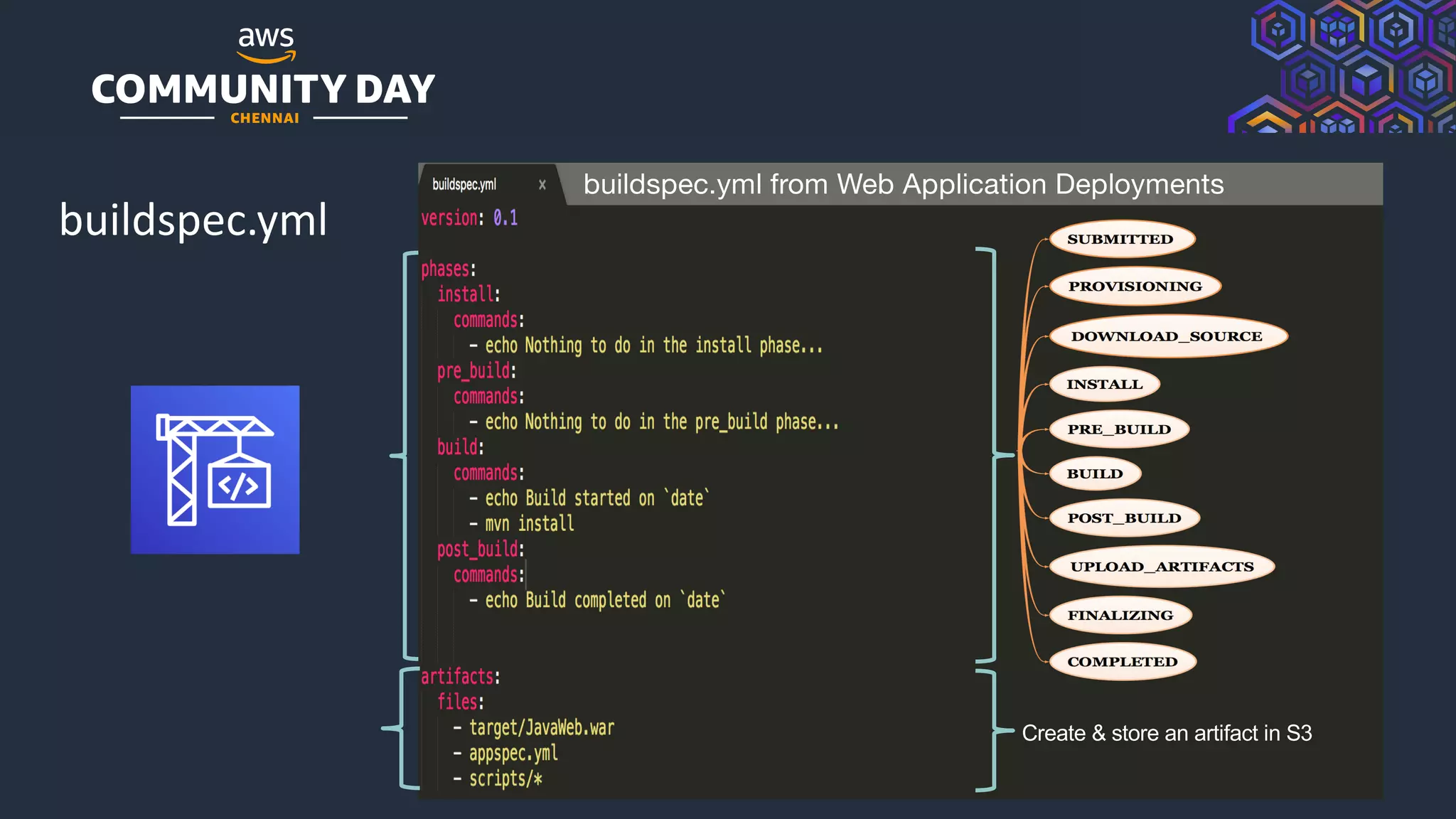

27. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
buildspec.yml from Web Application Deployments
buildspec.yml
Create & store an artifact in S3

28. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

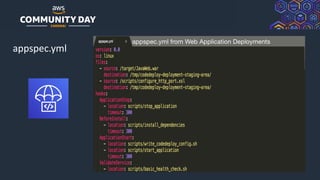

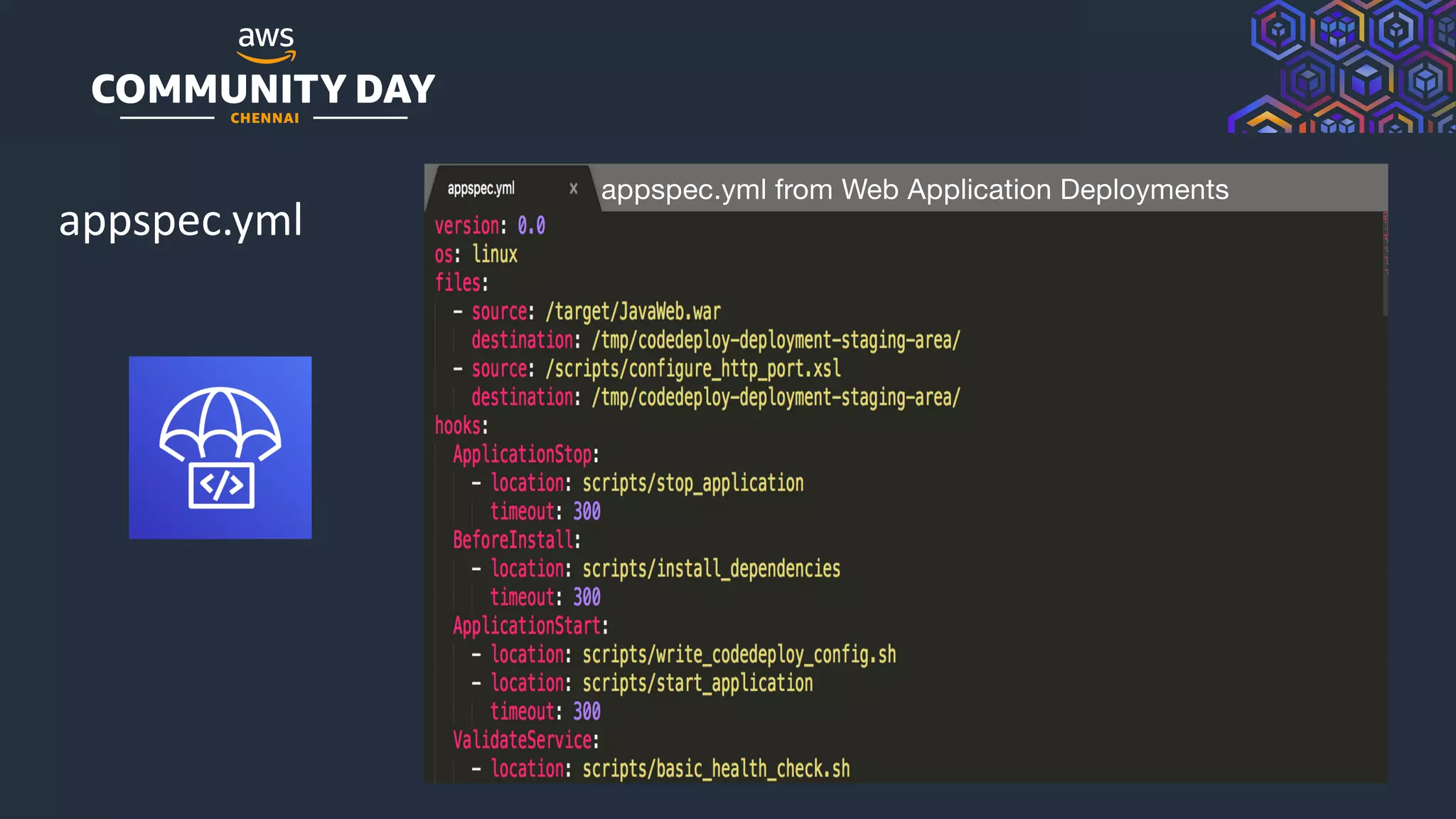

appspec.yml
appspec.yml from Web Application Deployments

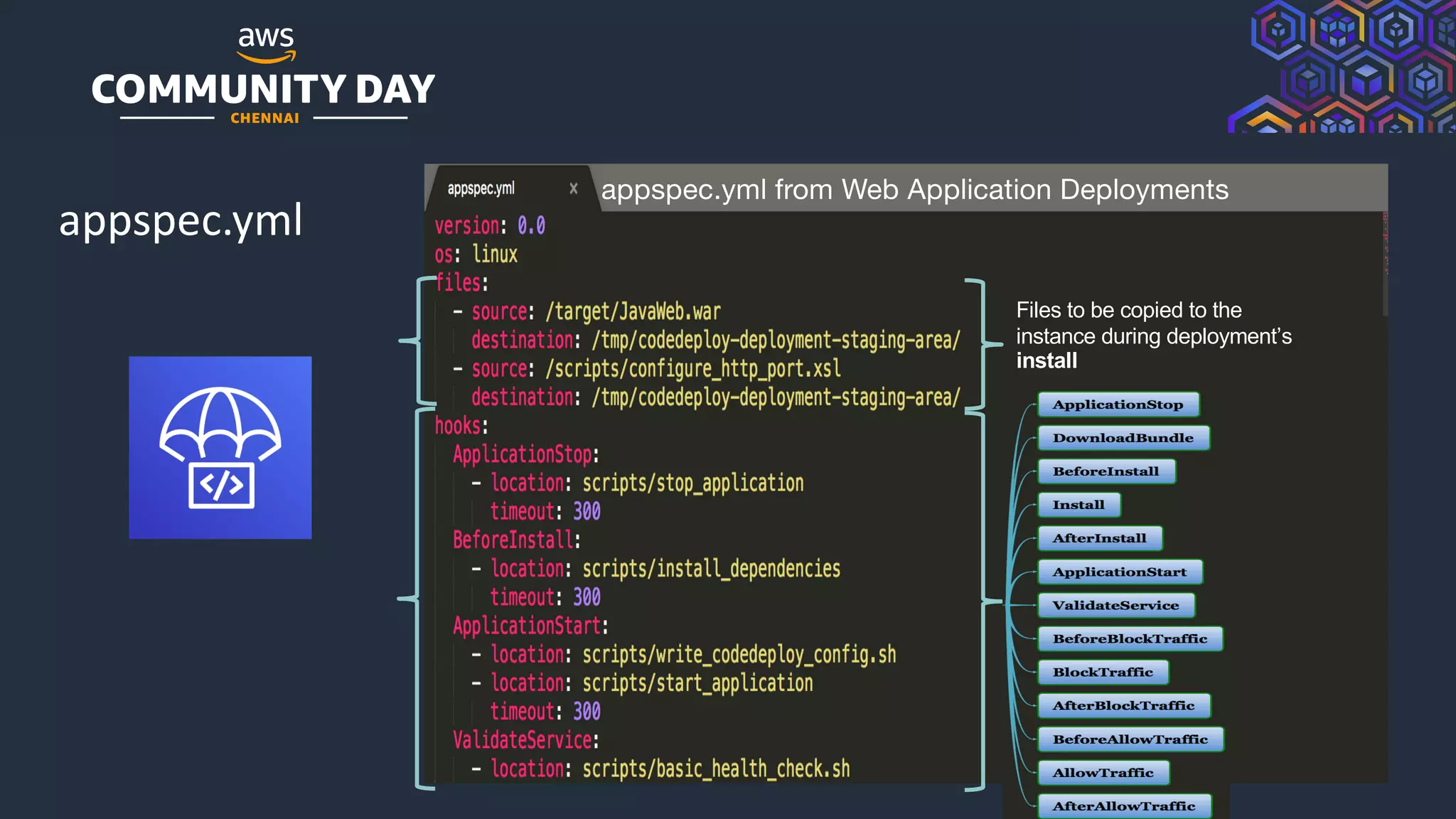

29. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
appspec.yml
appspec.yml from Web Application Deployments
Files to be copied to the
instance during deployment’s
install

30. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Debugging, Rollback & Metrics

31. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

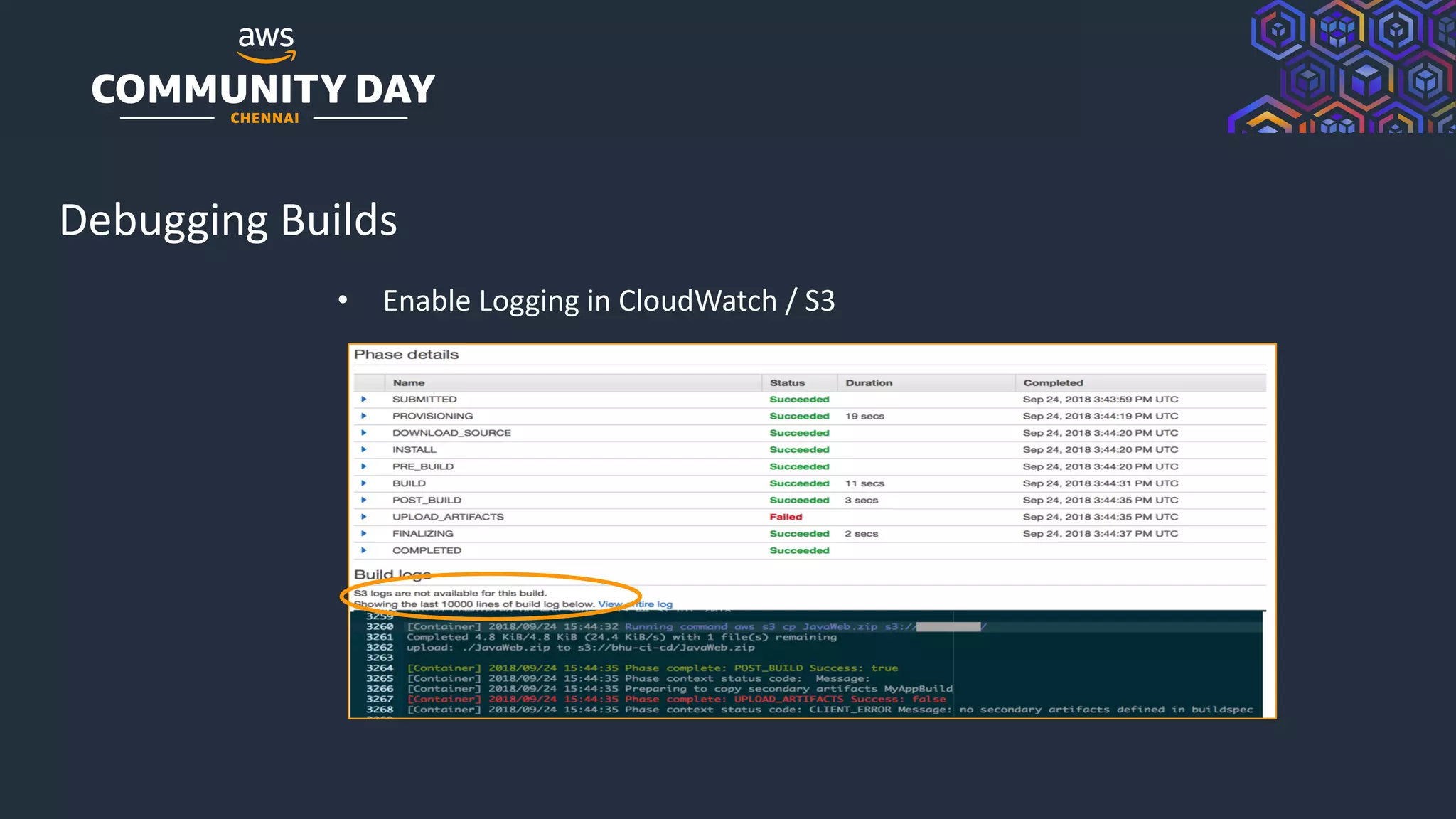

Debugging Builds
• Enable Logging in CloudWatch / S3

32. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Debugging Builds
• Enable Logging in CloudWatch / S3
• Local Build Support for AWS CodeBuild
• Get the AWS CodeBuild docker image file from AWS
Github
• Build the CodeBuild image locally
• Setup CodeBuild local Agent
• Use the local agent to build your project

33. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

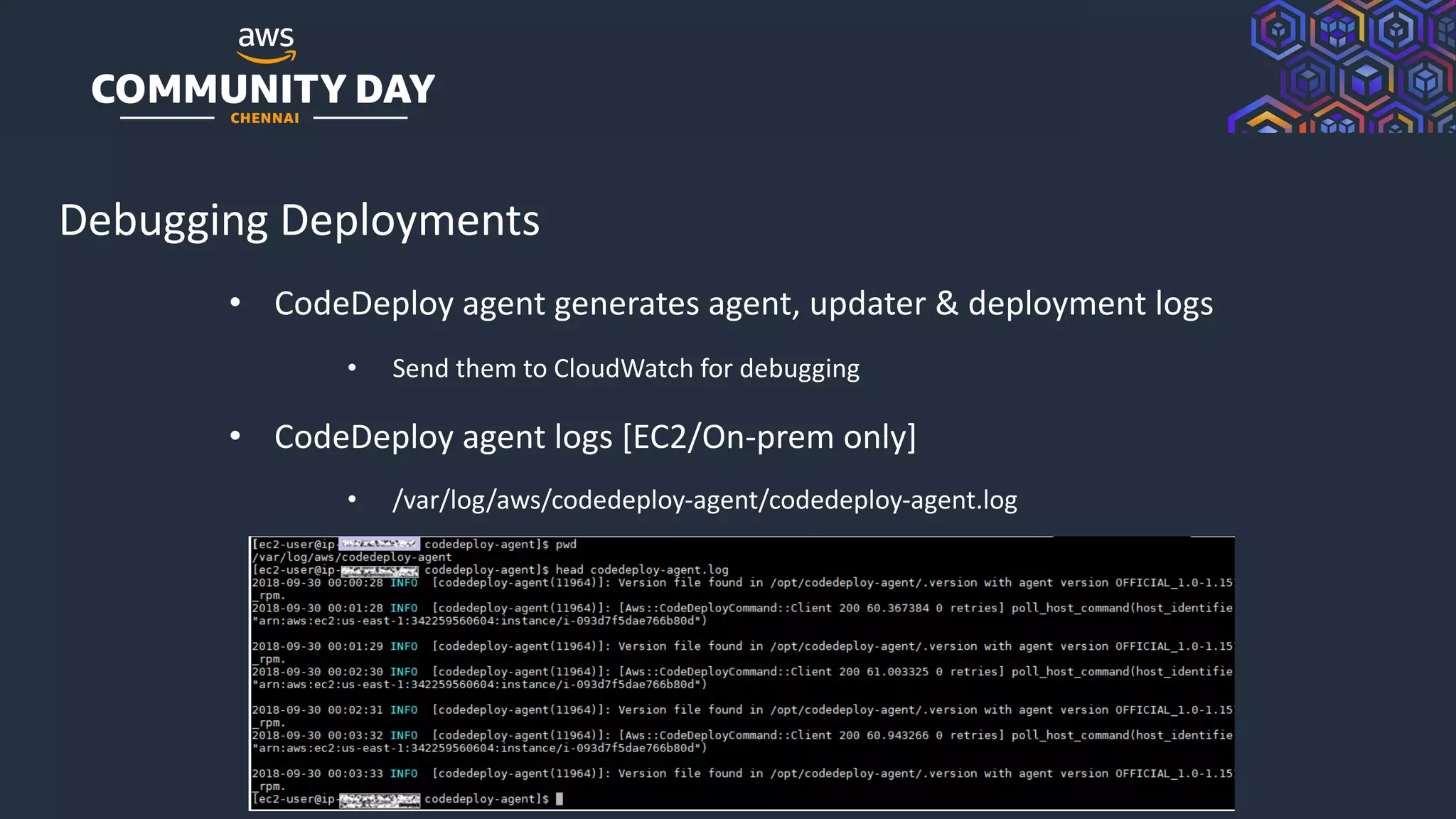

Debugging Deployments
• CodeDeploy agent generates agent, updater & deployment logs
• Send them to CloudWatch for debugging
• CodeDeploy agent logs [EC2/On-prem only]
• /var/log/aws/codedeploy-agent/codedeploy-agent.log

34. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

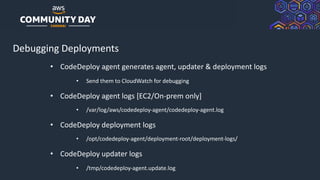

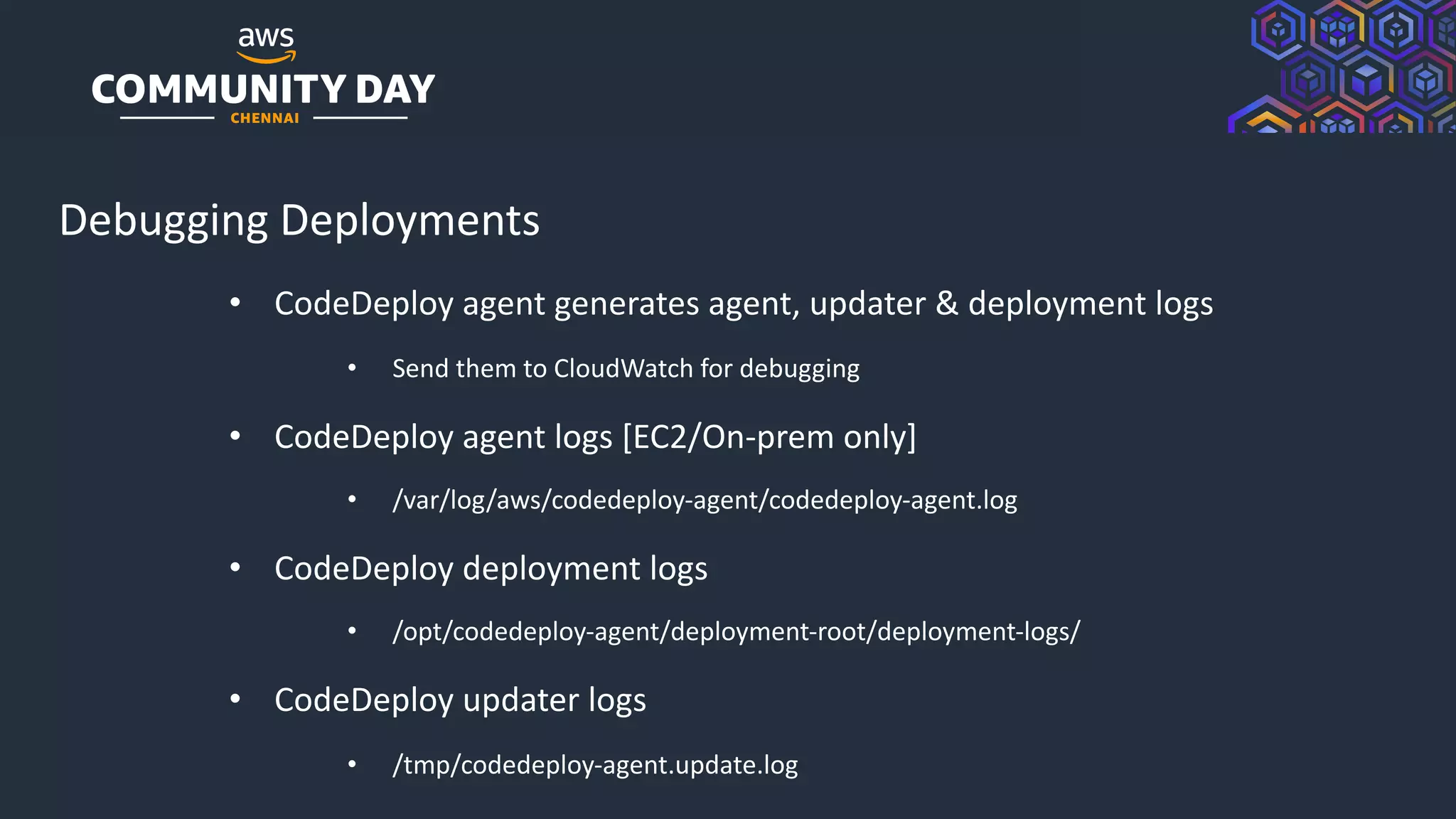

Debugging Deployments
• CodeDeploy agent generates agent, updater & deployment logs
• Send them to CloudWatch for debugging
• CodeDeploy agent logs [EC2/On-prem only]
• /var/log/aws/codedeploy-agent/codedeploy-agent.log
• CodeDeploy deployment logs
• /opt/codedeploy-agent/deployment-root/deployment-logs/
• CodeDeploy updater logs
• /tmp/codedeploy-agent.update.log

35. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

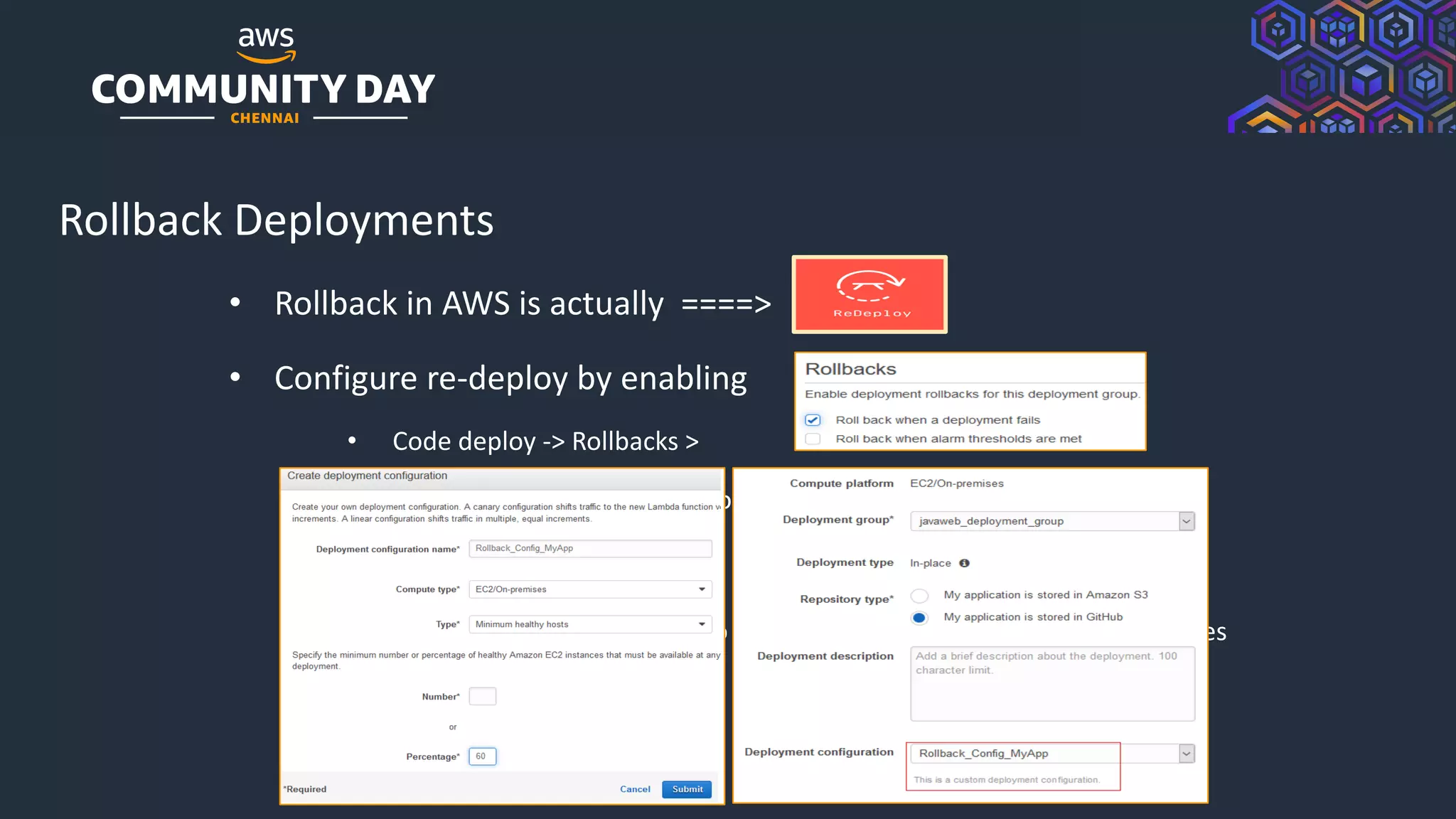

Rollback Deployments
• Rollback in AWS is actually ====>
• Configure re-deploy by enabling
• Code deploy -> Rollbacks >
• Code deploy -> ‘Automatic Rollbacks’
• Deployment Configuration to enable rollback based on healthy instances

36. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

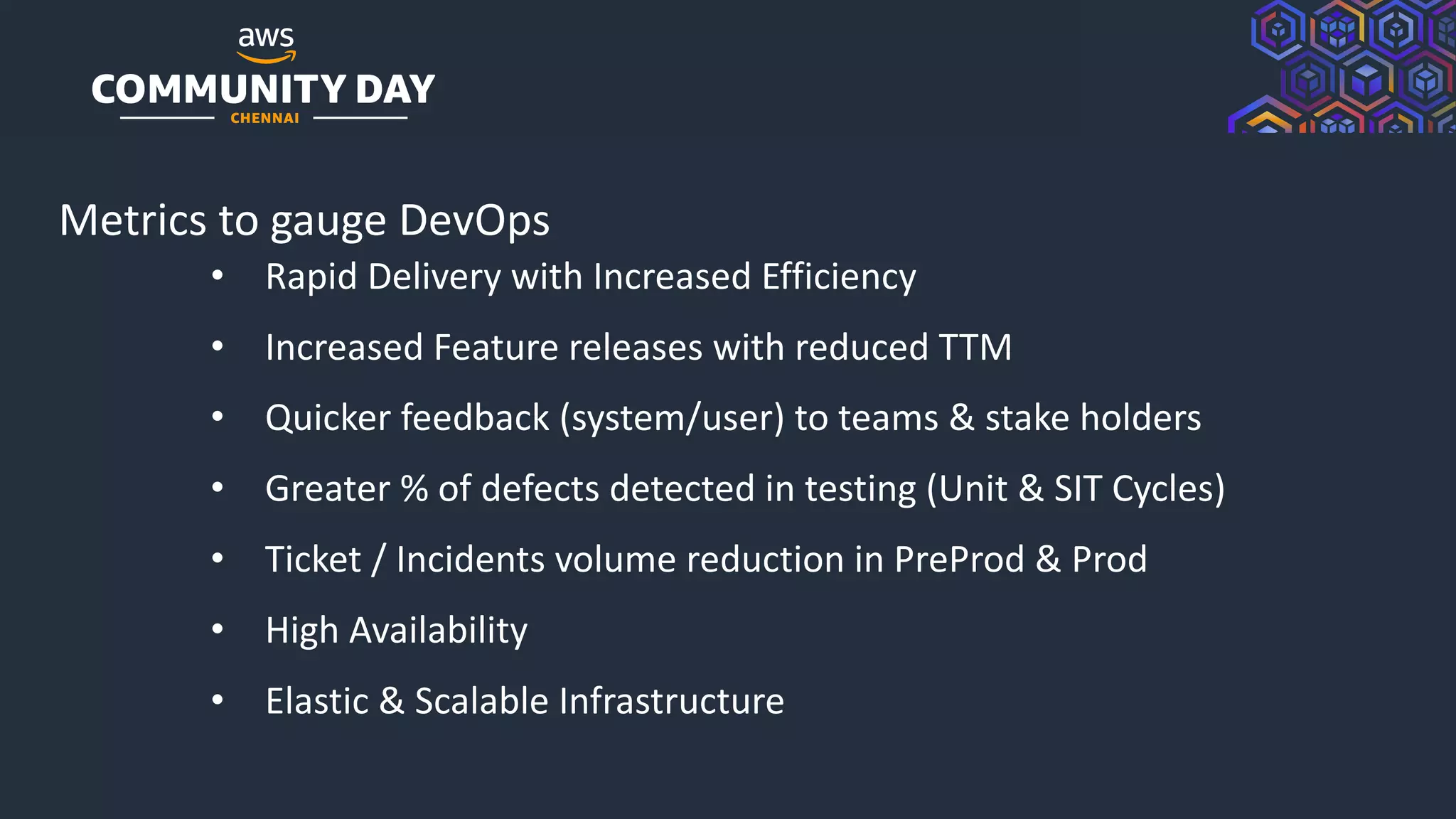

Metrics to gauge DevOps
• Rapid Delivery with Increased Efficiency
• Increased Feature releases with reduced TTM
• Quicker feedback (system/user) to teams & stake holders
• Greater % of defects detected in testing (Unit & SIT Cycles)
• Ticket / Incidents volume reduction in PreProd & Prod
• High Availability
• Elastic & Scalable Infrastructure

37. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
DevOps Journey begins…
https://installjournal.blogspot.com
https://www.linkedin.com/in/bhuvanas/
@installjournal
