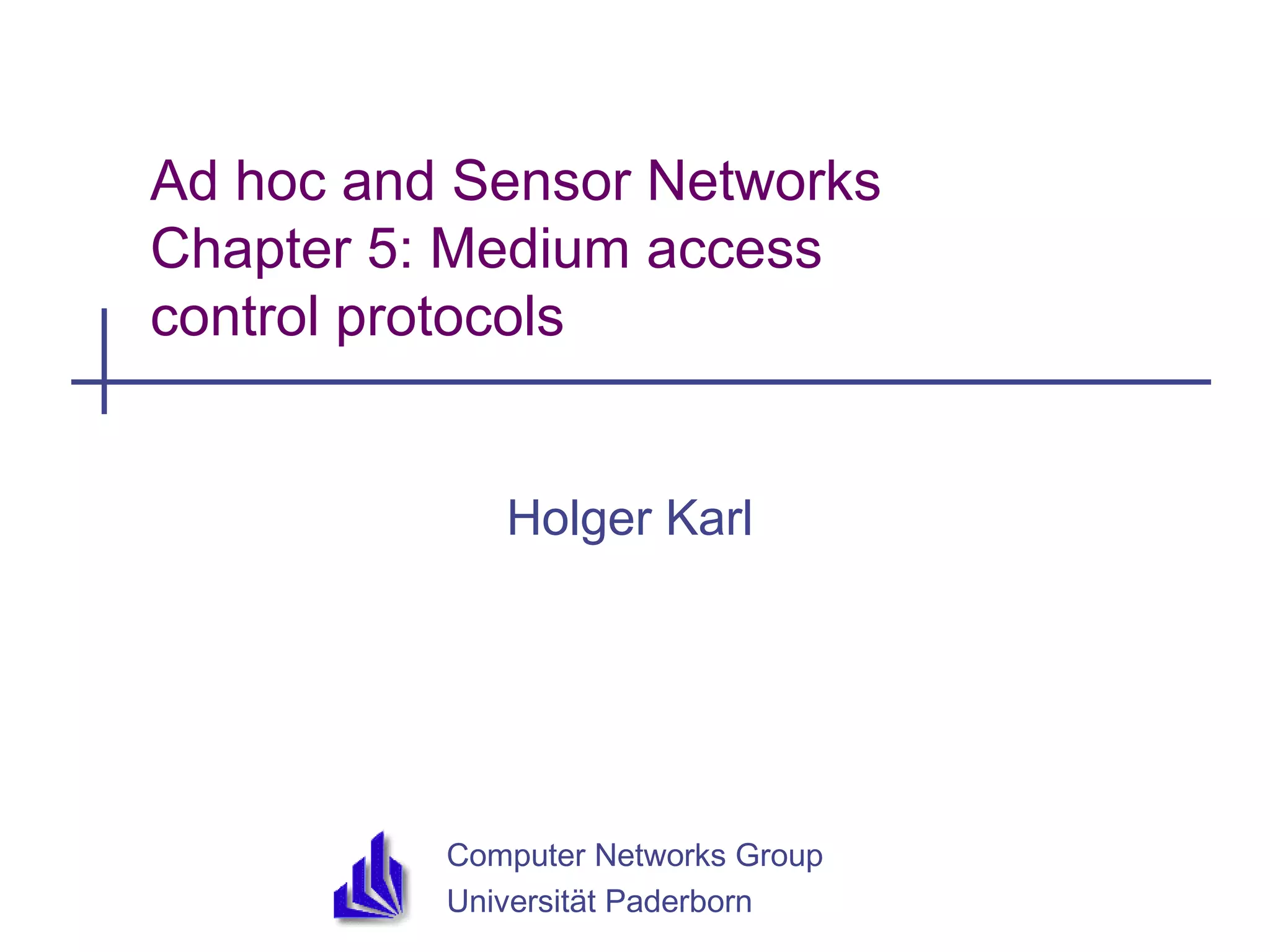

- 1. Computer Networks Group UniversitätPaderborn Ad hoc and Sensor Networks Chapter 5: Medium access control protocols Holger Karl

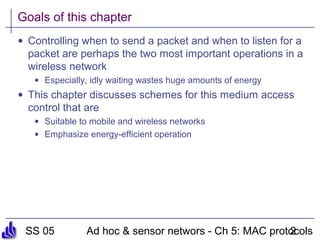

- 2. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols2 Goals of this chapter • Controlling when to send a packet and when to listen for a packet are perhaps the two most important operations in a wireless network • Especially, idly waiting wastes huge amounts of energy • This chapter discusses schemes for this medium access control that are • Suitable to mobile and wireless networks • Emphasize energy-efficient operation

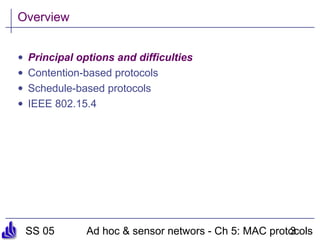

- 3. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols3 Overview • Principal options and difficulties • Contention-based protocols • Schedule-based protocols • IEEE 802.15.4

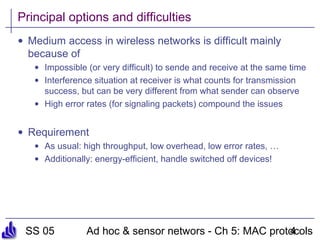

- 4. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols4 Principal options and difficulties • Medium access in wireless networks is difficult mainly because of • Impossible (or very difficult) to sende and receive at the same time • Interference situation at receiver is what counts for transmission success, but can be very different from what sender can observe • High error rates (for signaling packets) compound the issues • Requirement • As usual: high throughput, low overhead, low error rates, … • Additionally: energy-efficient, handle switched off devices!

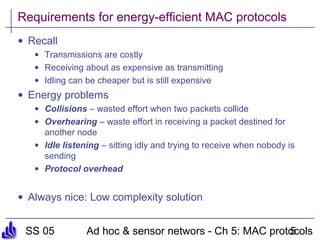

- 5. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols5 Requirements for energy-efficient MAC protocols • Recall • Transmissions are costly • Receiving about as expensive as transmitting • Idling can be cheaper but is still expensive • Energy problems • Collisions – wasted effort when two packets collide • Overhearing – waste effort in receiving a packet destined for another node • Idle listening – sitting idly and trying to receive when nobody is sending • Protocol overhead • Always nice: Low complexity solution

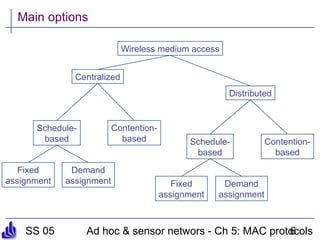

- 6. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols6 Main options Wireless medium access Centralized Distributed Contention- based Schedule- based Fixed assignment Demand assignment Contention- based Schedule- based Fixed assignment Demand assignment
- 7. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols7 Centralized medium access • Idea: Have a central station control when a node may access the medium • Example: Polling, centralized computation of TDMA schedules • Advantage: Simple, quite efficient (e.g., no collisions), burdens the central station • Not directly feasible for non-trivial wireless network sizes • But: Can be quite useful when network is somehow divided into smaller groups • Clusters, in each cluster medium access can be controlled centrally – compare Bluetooth piconets, for example ! Usually, distributed medium access is considered

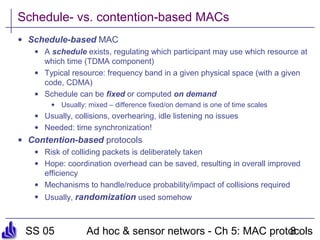

- 8. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols8 Schedule- vs. contention-based MACs • Schedule-based MAC • A schedule exists, regulating which participant may use which resource at which time (TDMA component) • Typical resource: frequency band in a given physical space (with a given code, CDMA) • Schedule can be fixed or computed on demand • Usually: mixed – difference fixed/on demand is one of time scales • Usually, collisions, overhearing, idle listening no issues • Needed: time synchronization! • Contention-based protocols • Risk of colliding packets is deliberately taken • Hope: coordination overhead can be saved, resulting in overall improved efficiency • Mechanisms to handle/reduce probability/impact of collisions required • Usually, randomization used somehow

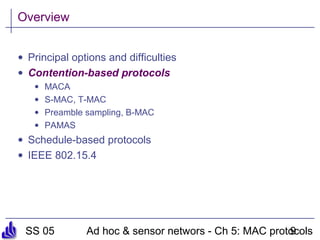

- 9. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols9 Overview • Principal options and difficulties • Contention-based protocols • MACA • S-MAC, T-MAC • Preamble sampling, B-MAC • PAMAS • Schedule-based protocols • IEEE 802.15.4

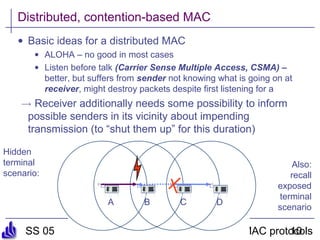

- 10. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols10 A Distributed, contention-based MAC • Basic ideas for a distributed MAC • ALOHA – no good in most cases • Listen before talk (Carrier Sense Multiple Access, CSMA) – better, but suffers from sender not knowing what is going on at receiver, might destroy packets despite first listening for a ! Receiver additionally needs some possibility to inform possible senders in its vicinity about impending transmission (to “shut them up” for this duration) B C D Hidden terminal scenario: Also: recall exposed terminal scenario

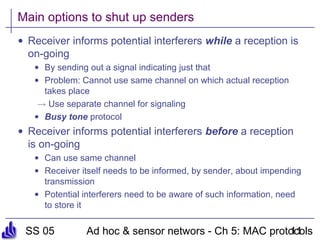

- 11. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols11 Main options to shut up senders • Receiver informs potential interferers while a reception is on-going • By sending out a signal indicating just that • Problem: Cannot use same channel on which actual reception takes place ! Use separate channel for signaling • Busy tone protocol • Receiver informs potential interferers before a reception is on-going • Can use same channel • Receiver itself needs to be informed, by sender, about impending transmission • Potential interferers need to be aware of such information, need to store it

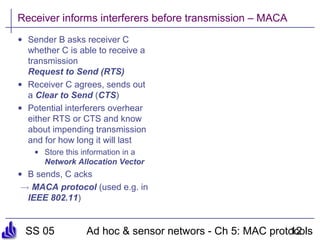

- 12. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols12 Receiver informs interferers before transmission – MACA • Sender B asks receiver C whether C is able to receive a transmission Request to Send (RTS) • Receiver C agrees, sends out a Clear to Send (CTS) • Potential interferers overhear either RTS or CTS and know about impending transmission and for how long it will last • Store this information in a Network Allocation Vector • B sends, C acks ! MACA protocol (used e.g. in IEEE 802.11)

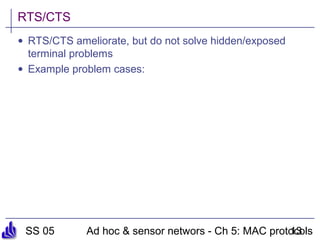

- 13. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols13 RTS/CTS • RTS/CTS ameliorate, but do not solve hidden/exposed terminal problems • Example problem cases:

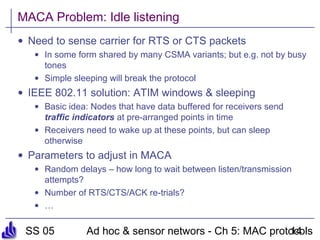

- 14. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols14 MACA Problem: Idle listening • Need to sense carrier for RTS or CTS packets • In some form shared by many CSMA variants; but e.g. not by busy tones • Simple sleeping will break the protocol • IEEE 802.11 solution: ATIM windows & sleeping • Basic idea: Nodes that have data buffered for receivers send traffic indicators at pre-arranged points in time • Receivers need to wake up at these points, but can sleep otherwise • Parameters to adjust in MACA • Random delays – how long to wait between listen/transmission attempts? • Number of RTS/CTS/ACK re-trials? • …

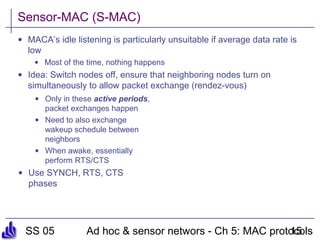

- 15. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols15 Sensor-MAC (S-MAC) • MACA’s idle listening is particularly unsuitable if average data rate is low • Most of the time, nothing happens • Idea: Switch nodes off, ensure that neighboring nodes turn on simultaneously to allow packet exchange (rendez-vous) • Only in these active periods, packet exchanges happen • Need to also exchange wakeup schedule between neighbors • When awake, essentially perform RTS/CTS • Use SYNCH, RTS, CTS phases

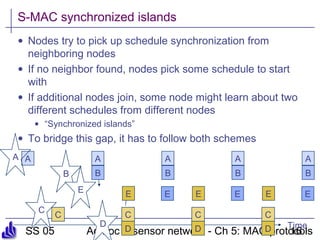

- 16. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols16 S-MAC synchronized islands • Nodes try to pick up schedule synchronization from neighboring nodes • If no neighbor found, nodes pick some schedule to start with • If additional nodes join, some node might learn about two different schedules from different nodes • “Synchronized islands” • To bridge this gap, it has to follow both schemes Time A A A A C C C C A B B B B D D D A C B D E E E EE E E

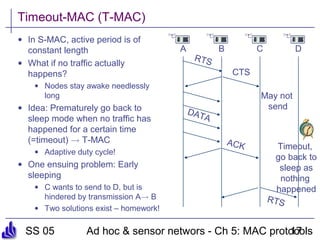

- 17. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols17 Timeout-MAC (T-MAC) • In S-MAC, active period is of constant length • What if no traffic actually happens? • Nodes stay awake needlessly long • Idea: Prematurely go back to sleep mode when no traffic has happened for a certain time (=timeout) ! T-MAC • Adaptive duty cycle! • One ensuing problem: Early sleeping • C wants to send to D, but is hindered by transmission A! B • Two solutions exist – homework! A B C D RTS CTS DATA May not send Timeout, go back to sleep as nothing happened ACK RTS

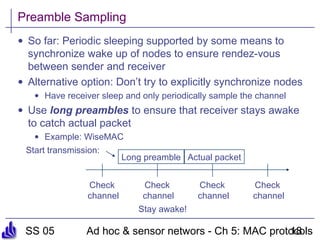

- 18. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols18 Preamble Sampling • So far: Periodic sleeping supported by some means to synchronize wake up of nodes to ensure rendez-vous between sender and receiver • Alternative option: Don’t try to explicitly synchronize nodes • Have receiver sleep and only periodically sample the channel • Use long preambles to ensure that receiver stays awake to catch actual packet • Example: WiseMAC Check channel Check channel Check channel Check channel Start transmission: Long preamble Actual packet Stay awake!

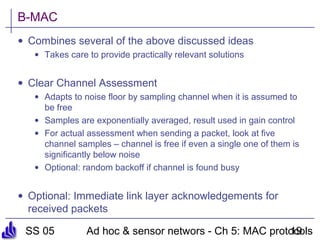

- 19. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols19 B-MAC • Combines several of the above discussed ideas • Takes care to provide practically relevant solutions • Clear Channel Assessment • Adapts to noise floor by sampling channel when it is assumed to be free • Samples are exponentially averaged, result used in gain control • For actual assessment when sending a packet, look at five channel samples – channel is free if even a single one of them is significantly below noise • Optional: random backoff if channel is found busy • Optional: Immediate link layer acknowledgements for received packets

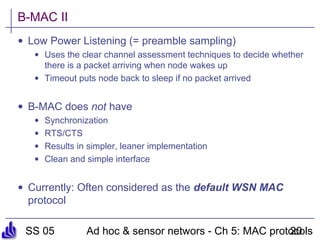

- 20. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols20 B-MAC II • Low Power Listening (= preamble sampling) • Uses the clear channel assessment techniques to decide whether there is a packet arriving when node wakes up • Timeout puts node back to sleep if no packet arrived • B-MAC does not have • Synchronization • RTS/CTS • Results in simpler, leaner implementation • Clean and simple interface • Currently: Often considered as the default WSN MAC protocol

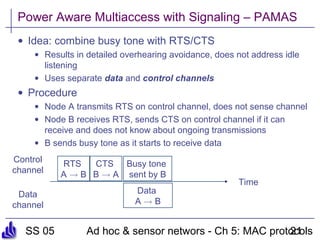

- 21. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols21 Power Aware Multiaccess with Signaling – PAMAS • Idea: combine busy tone with RTS/CTS • Results in detailed overhearing avoidance, does not address idle listening • Uses separate data and control channels • Procedure • Node A transmits RTS on control channel, does not sense channel • Node B receives RTS, sends CTS on control channel if it can receive and does not know about ongoing transmissions • B sends busy tone as it starts to receive data Time Control channel Data channel RTS A ! B CTS B ! A Data A ! B Busy tone sent by B

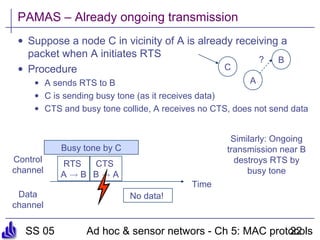

- 22. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols22 PAMAS – Already ongoing transmission • Suppose a node C in vicinity of A is already receiving a packet when A initiates RTS • Procedure • A sends RTS to B • C is sending busy tone (as it receives data) • CTS and busy tone collide, A receives no CTS, does not send data A B C ? Time Control channel Data channel RTS A ! B CTS B ! A No data! Busy tone by C Similarly: Ongoing transmission near B destroys RTS by busy tone

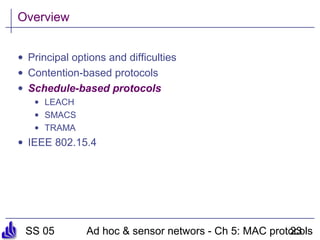

- 23. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols23 Overview • Principal options and difficulties • Contention-based protocols • Schedule-based protocols • LEACH • SMACS • TRAMA • IEEE 802.15.4

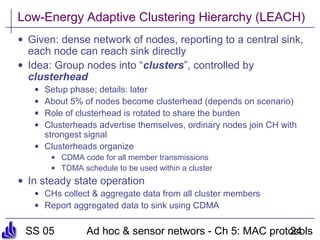

- 24. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols24 Low-Energy Adaptive Clustering Hierarchy (LEACH) • Given: dense network of nodes, reporting to a central sink, each node can reach sink directly • Idea: Group nodes into “clusters”, controlled by clusterhead • Setup phase; details: later • About 5% of nodes become clusterhead (depends on scenario) • Role of clusterhead is rotated to share the burden • Clusterheads advertise themselves, ordinary nodes join CH with strongest signal • Clusterheads organize • CDMA code for all member transmissions • TDMA schedule to be used within a cluster • In steady state operation • CHs collect & aggregate data from all cluster members • Report aggregated data to sink using CDMA
- 25. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols25 LEACH rounds

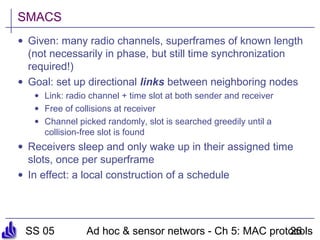

- 26. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols26 SMACS • Given: many radio channels, superframes of known length (not necessarily in phase, but still time synchronization required!) • Goal: set up directional links between neighboring nodes • Link: radio channel + time slot at both sender and receiver • Free of collisions at receiver • Channel picked randomly, slot is searched greedily until a collision-free slot is found • Receivers sleep and only wake up in their assigned time slots, once per superframe • In effect: a local construction of a schedule

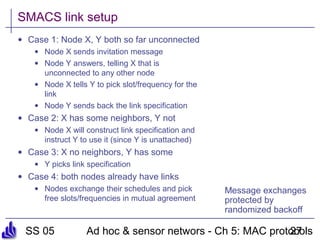

- 27. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols27 SMACS link setup • Case 1: Node X, Y both so far unconnected • Node X sends invitation message • Node Y answers, telling X that is unconnected to any other node • Node X tells Y to pick slot/frequency for the link • Node Y sends back the link specification • Case 2: X has some neighbors, Y not • Node X will construct link specification and instruct Y to use it (since Y is unattached) • Case 3: X no neighbors, Y has some • Y picks link specification • Case 4: both nodes already have links • Nodes exchange their schedules and pick free slots/frequencies in mutual agreement Message exchanges protected by randomized backoff

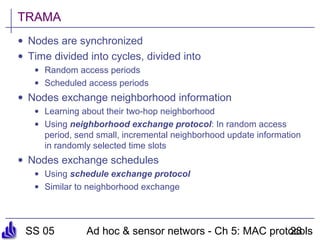

- 28. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols28 TRAMA • Nodes are synchronized • Time divided into cycles, divided into • Random access periods • Scheduled access periods • Nodes exchange neighborhood information • Learning about their two-hop neighborhood • Using neighborhood exchange protocol: In random access period, send small, incremental neighborhood update information in randomly selected time slots • Nodes exchange schedules • Using schedule exchange protocol • Similar to neighborhood exchange

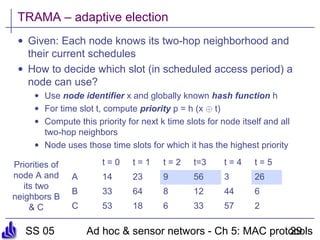

- 29. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols29 TRAMA – adaptive election • Given: Each node knows its two-hop neighborhood and their current schedules • How to decide which slot (in scheduled access period) a node can use? • Use node identifier x and globally known hash function h • For time slot t, compute priority p = h (x © t) • Compute this priority for next k time slots for node itself and all two-hop neighbors • Node uses those time slots for which it has the highest priority t = 0 t = 1 t = 2 t=3 t = 4 t = 5 A 14 23 9 56 3 26 B 33 64 8 12 44 6 C 53 18 6 33 57 2 Priorities of node A and its two neighbors B & C

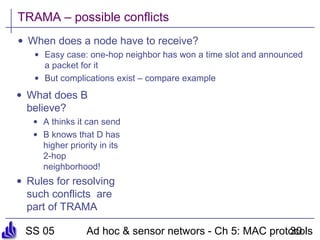

- 30. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols30 TRAMA – possible conflicts • When does a node have to receive? • Easy case: one-hop neighbor has won a time slot and announced a packet for it • But complications exist – compare example • What does B believe? • A thinks it can send • B knows that D has higher priority in its 2-hop neighborhood! • Rules for resolving such conflicts are part of TRAMA

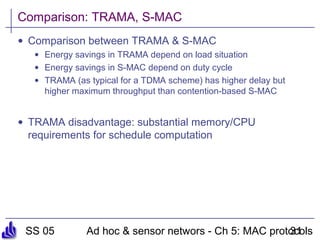

- 31. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols31 Comparison: TRAMA, S-MAC • Comparison between TRAMA & S-MAC • Energy savings in TRAMA depend on load situation • Energy savings in S-MAC depend on duty cycle • TRAMA (as typical for a TDMA scheme) has higher delay but higher maximum throughput than contention-based S-MAC • TRAMA disadvantage: substantial memory/CPU requirements for schedule computation

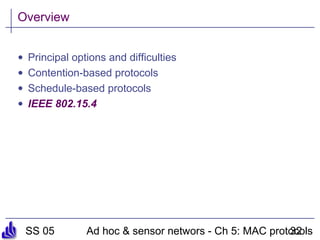

- 32. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols32 Overview • Principal options and difficulties • Contention-based protocols • Schedule-based protocols • IEEE 802.15.4

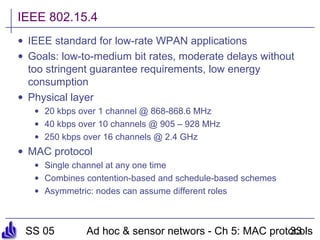

- 33. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols33 IEEE 802.15.4 • IEEE standard for low-rate WPAN applications • Goals: low-to-medium bit rates, moderate delays without too stringent guarantee requirements, low energy consumption • Physical layer • 20 kbps over 1 channel @ 868-868.6 MHz • 40 kbps over 10 channels @ 905 – 928 MHz • 250 kbps over 16 channels @ 2.4 GHz • MAC protocol • Single channel at any one time • Combines contention-based and schedule-based schemes • Asymmetric: nodes can assume different roles

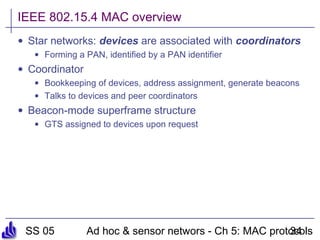

- 34. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols34 IEEE 802.15.4 MAC overview • Star networks: devices are associated with coordinators • Forming a PAN, identified by a PAN identifier • Coordinator • Bookkeeping of devices, address assignment, generate beacons • Talks to devices and peer coordinators • Beacon-mode superframe structure • GTS assigned to devices upon request

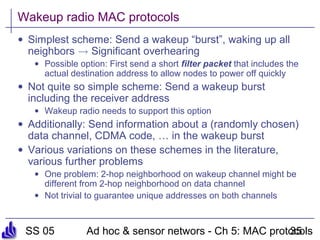

- 35. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols35 Wakeup radio MAC protocols • Simplest scheme: Send a wakeup “burst”, waking up all neighbors ! Significant overhearing • Possible option: First send a short filter packet that includes the actual destination address to allow nodes to power off quickly • Not quite so simple scheme: Send a wakeup burst including the receiver address • Wakeup radio needs to support this option • Additionally: Send information about a (randomly chosen) data channel, CDMA code, … in the wakeup burst • Various variations on these schemes in the literature, various further problems • One problem: 2-hop neighborhood on wakeup channel might be different from 2-hop neighborhood on data channel • Not trivial to guarantee unique addresses on both channels

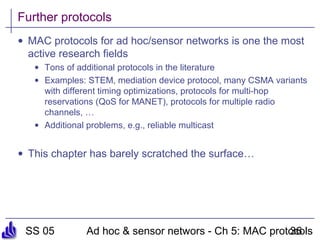

- 36. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols36 Further protocols • MAC protocols for ad hoc/sensor networks is one the most active research fields • Tons of additional protocols in the literature • Examples: STEM, mediation device protocol, many CSMA variants with different timing optimizations, protocols for multi-hop reservations (QoS for MANET), protocols for multiple radio channels, … • Additional problems, e.g., reliable multicast • This chapter has barely scratched the surface…

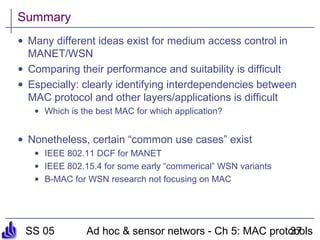

- 37. SS 05 Adhoc & sensor networs - Ch 5: MAC protocols37 Summary • Many different ideas exist for medium access control in MANET/WSN • Comparing their performance and suitability is difficult • Especially: clearly identifying interdependencies between MAC protocol and other layers/applications is difficult • Which is the best MAC for which application? • Nonetheless, certain “common use cases” exist • IEEE 802.11 DCF for MANET • IEEE 802.15.4 for some early “commerical” WSN variants • B-MAC for WSN research not focusing on MAC
