Tika is a toolkit for extracting metadata and text from various document formats. It allows developers to parse documents and extract metadata and text content in 3 main steps. Tika shields systems like Alfresco from needing to integrate many individual parsing components. Alfresco uses Tika to index content from various formats by passing file streams through Tika's parsers rather than using multiple custom transformers.

1. Content analysis for ECM with Apache Tika Paolo Mottadelli -

2. [email_address]

3. ON BOARD!

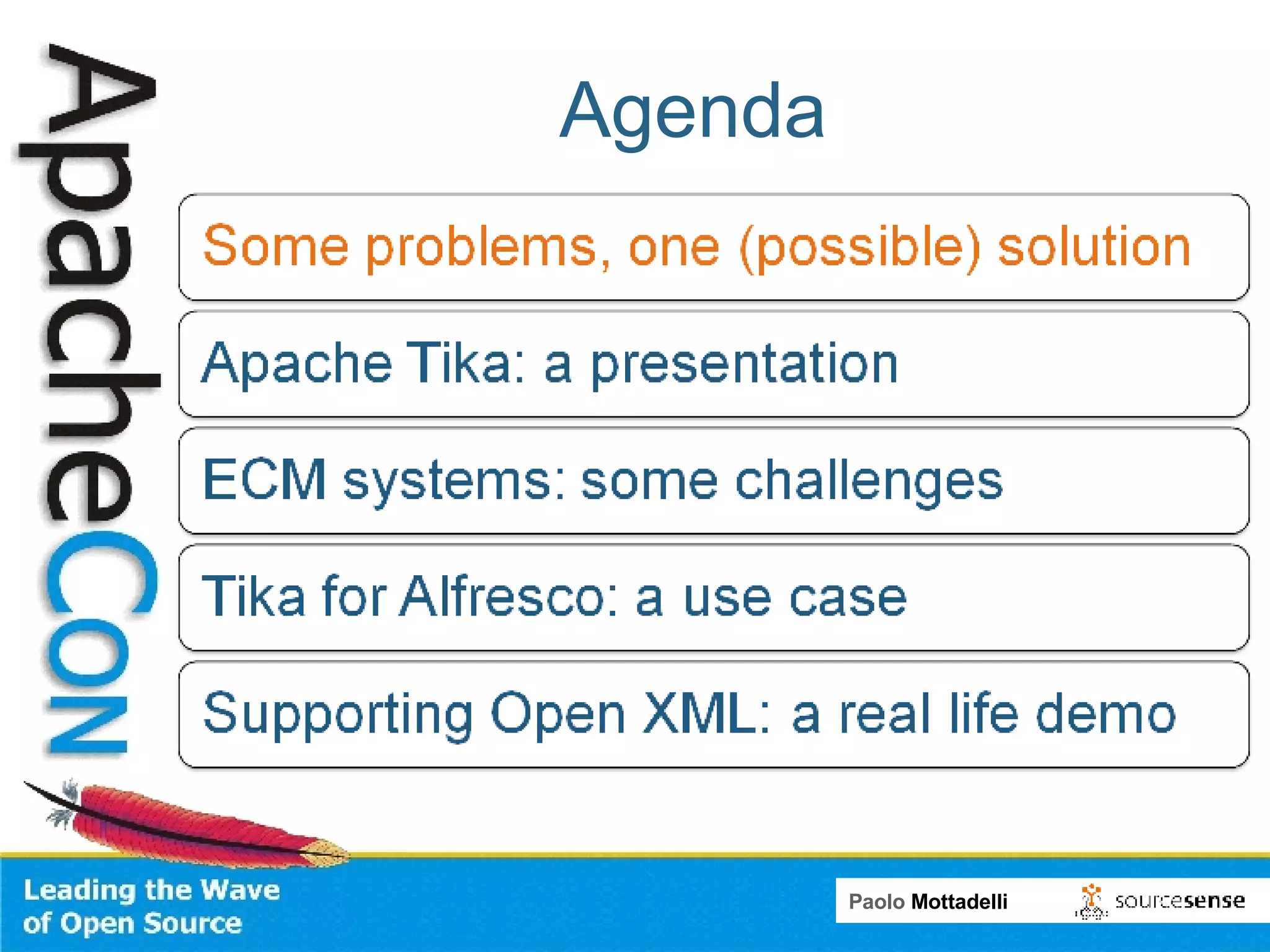

4. Agenda

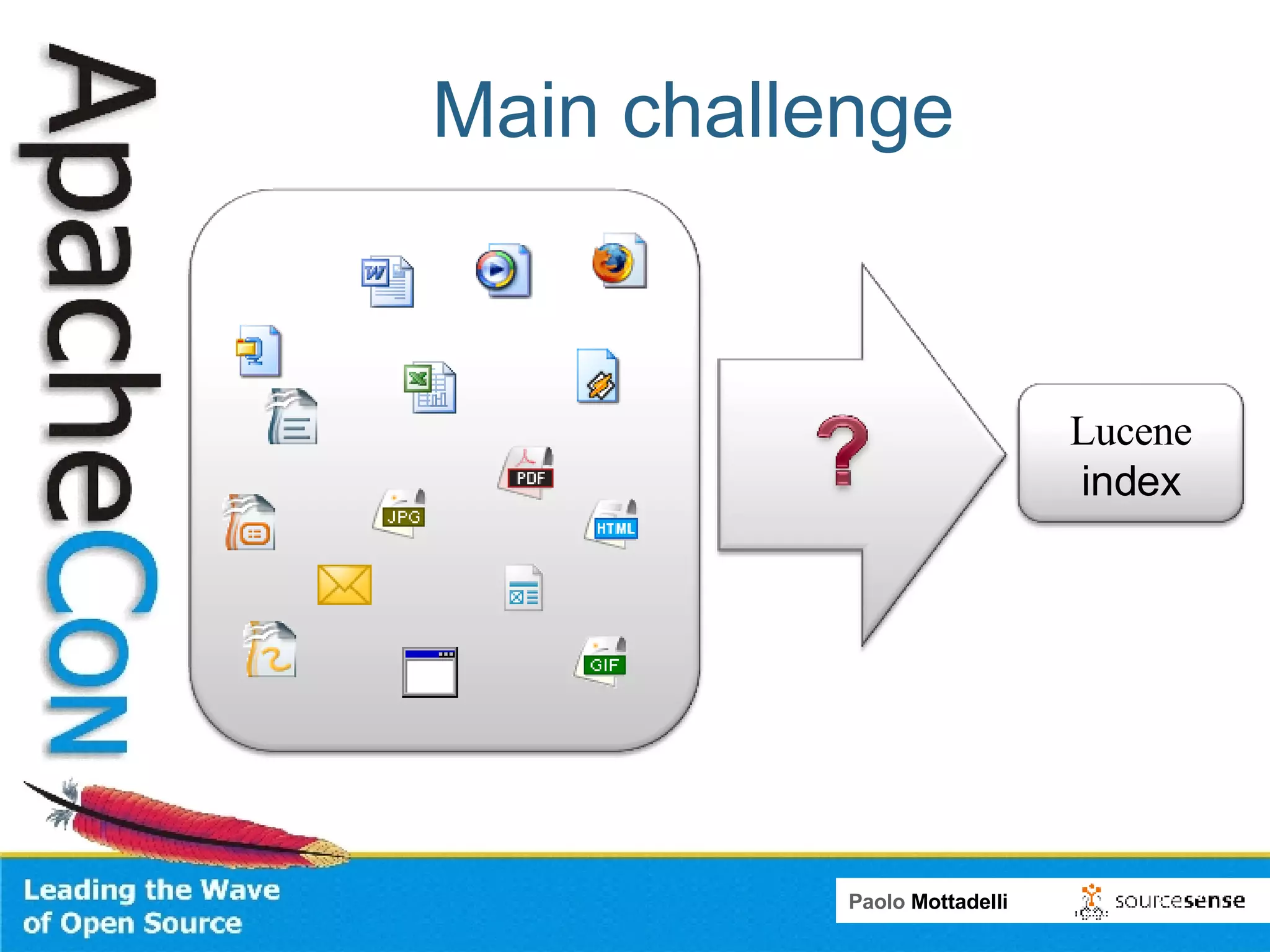

5. Main challenge Lucene index

6. Other challenges

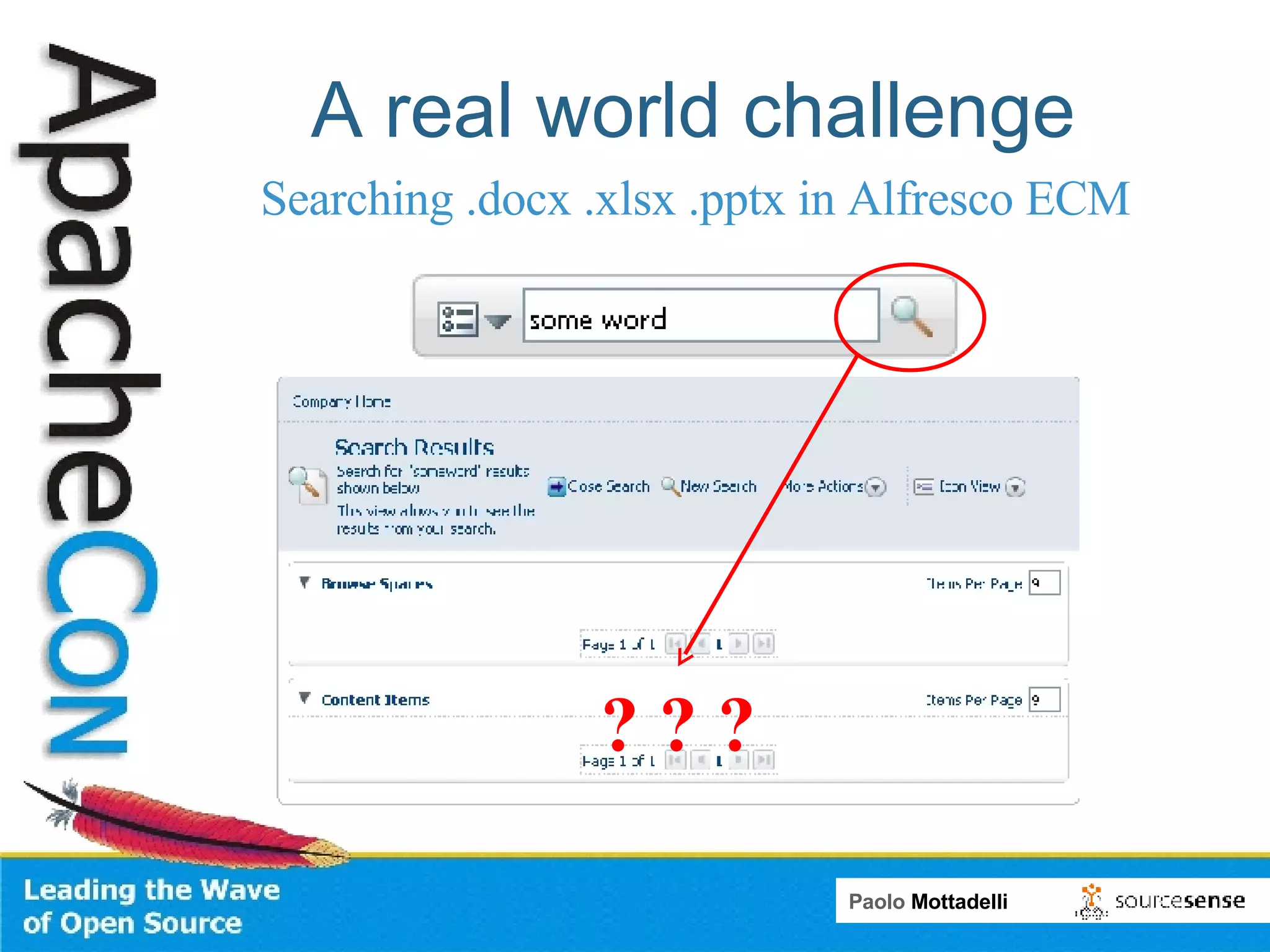

7. A real world challenge ? ? ? Searching .docx .xlsx .pptx in Alfresco ECM

8. Agenda

9. What is Tika? Another Indian Lucene project? No.

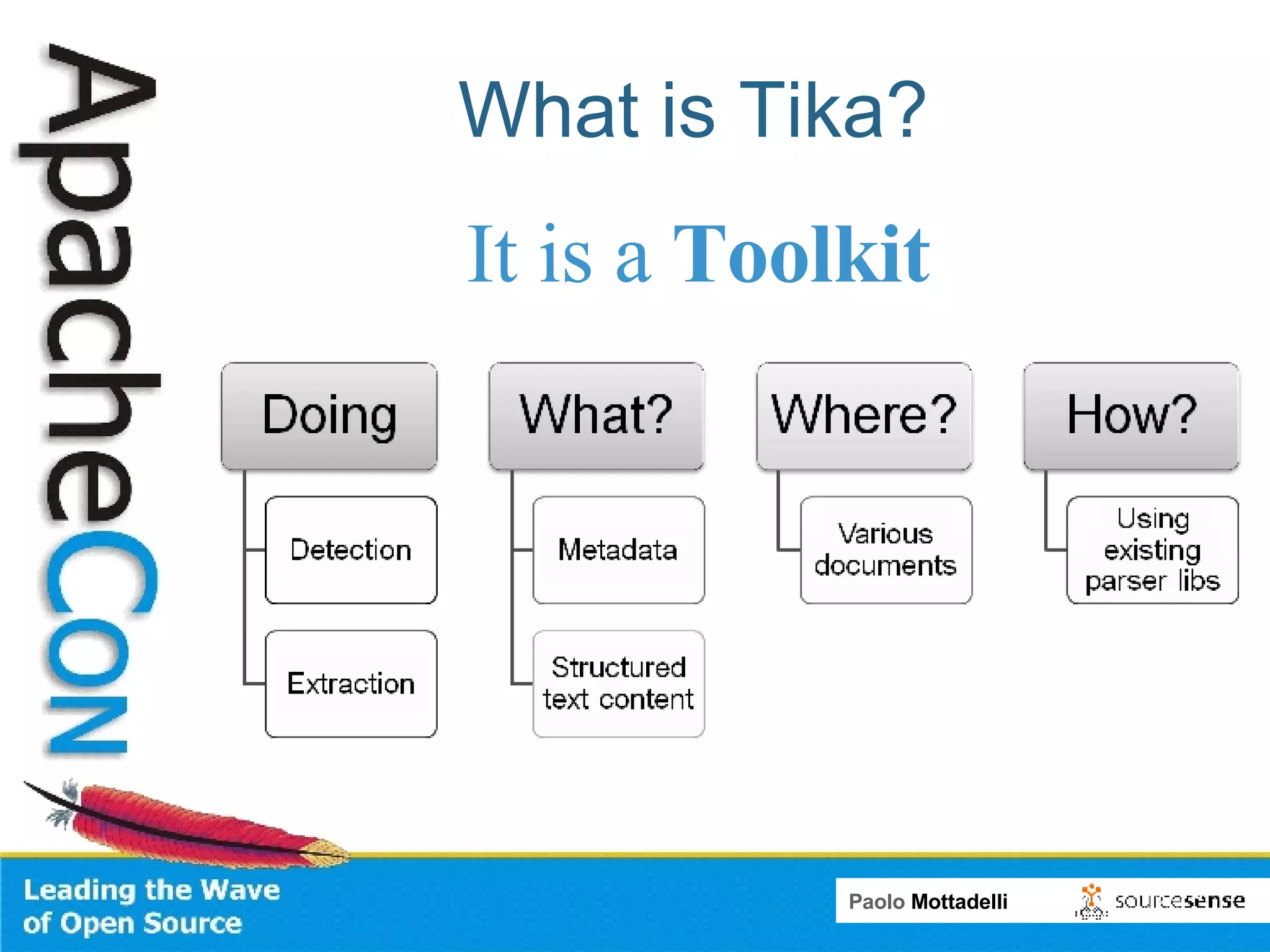

10. What is Tika? It is a Toolkit

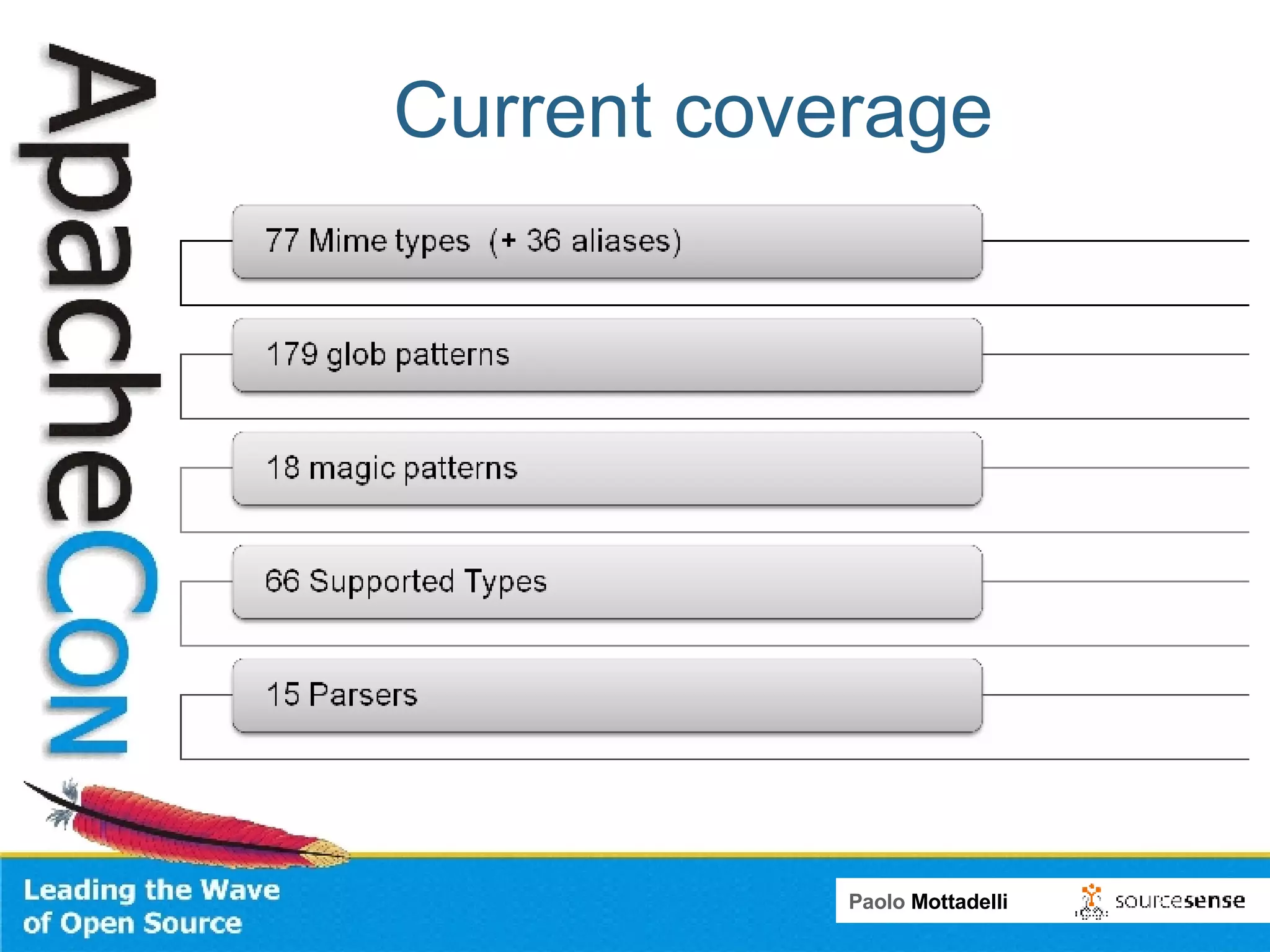

11. Current coverage

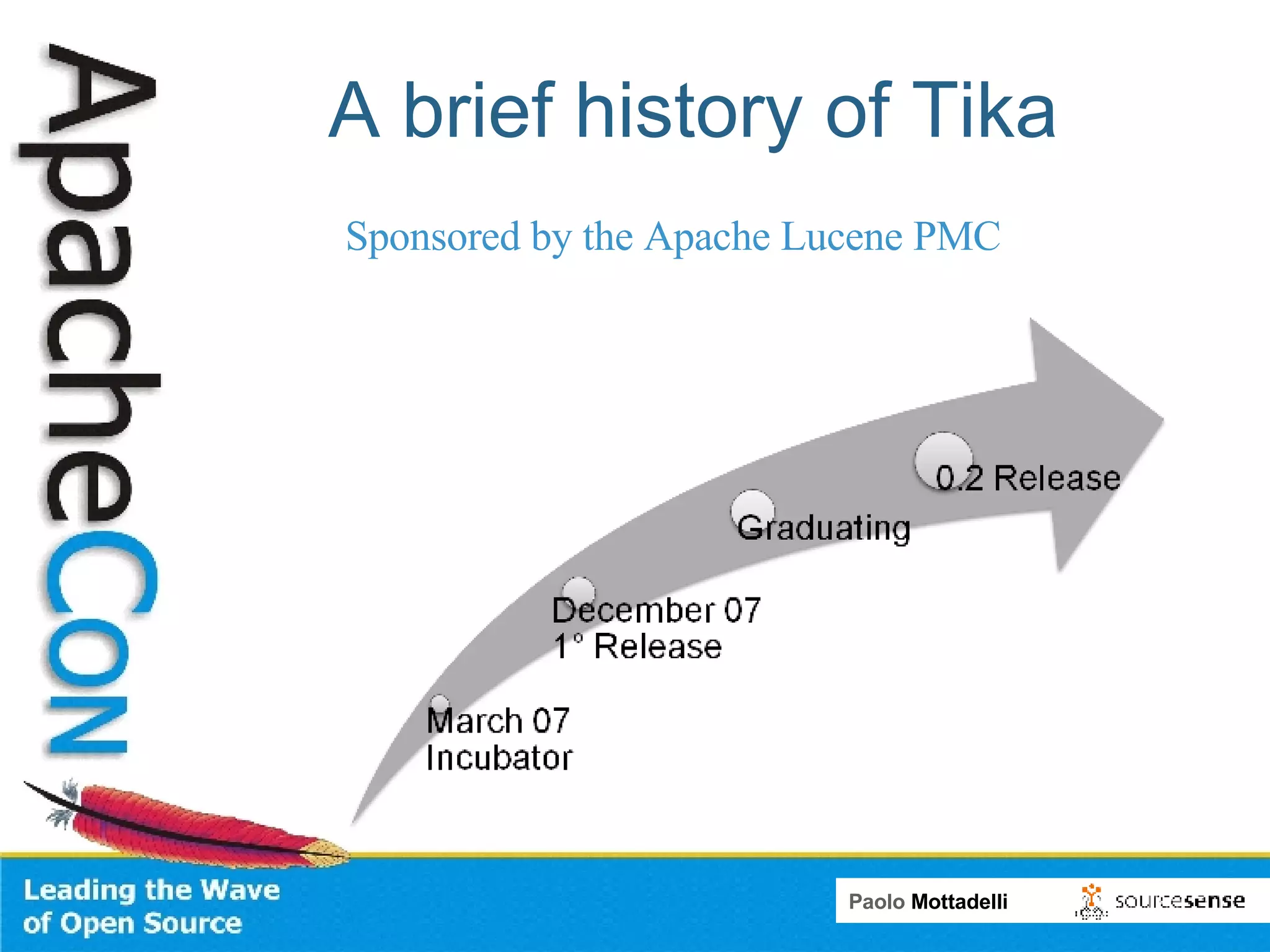

12. A brief history of Tika Sponsored by the Apache Lucene PMC

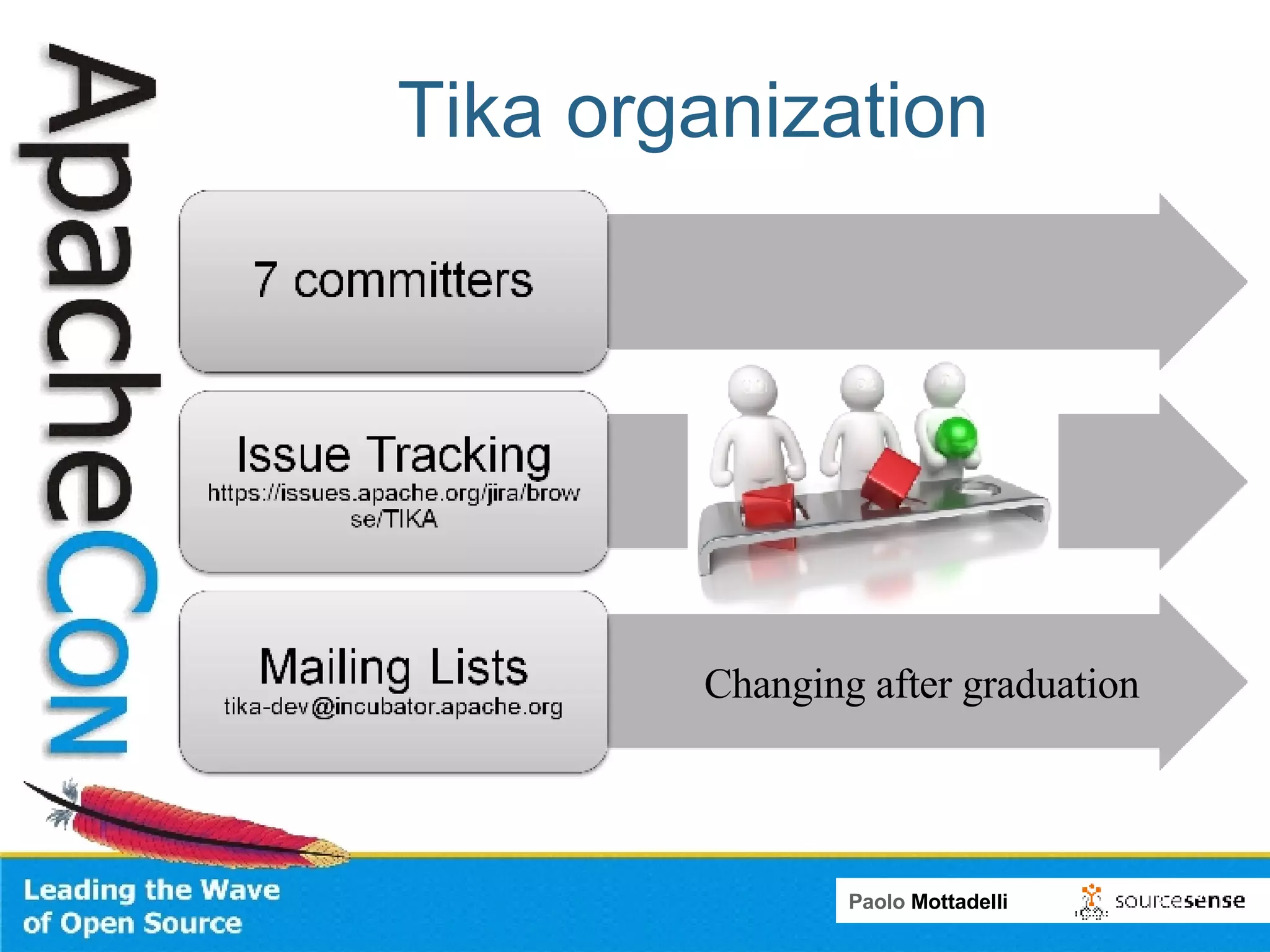

13. Tika organization Changing after graduation

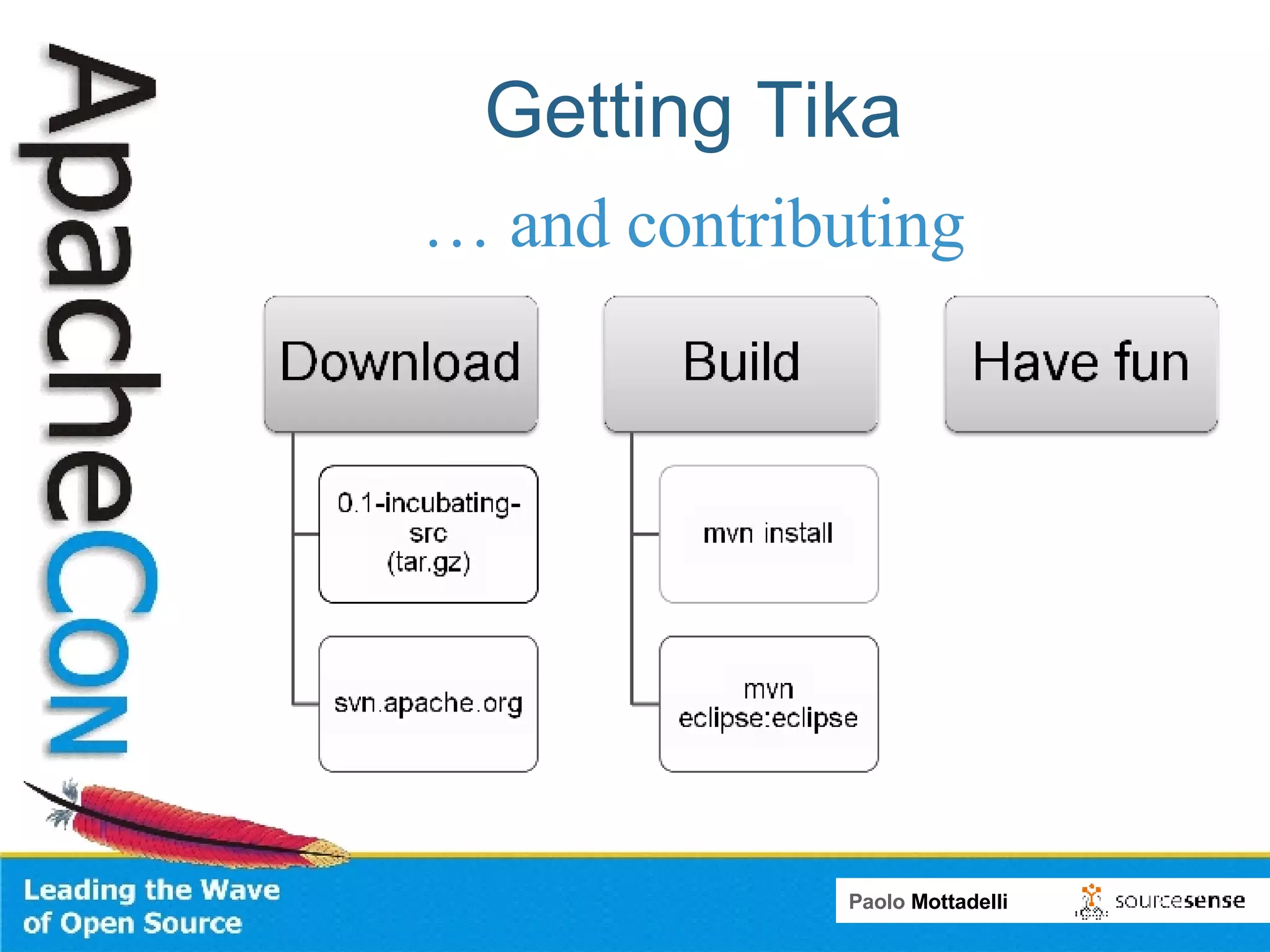

14. Getting Tika … and contributing

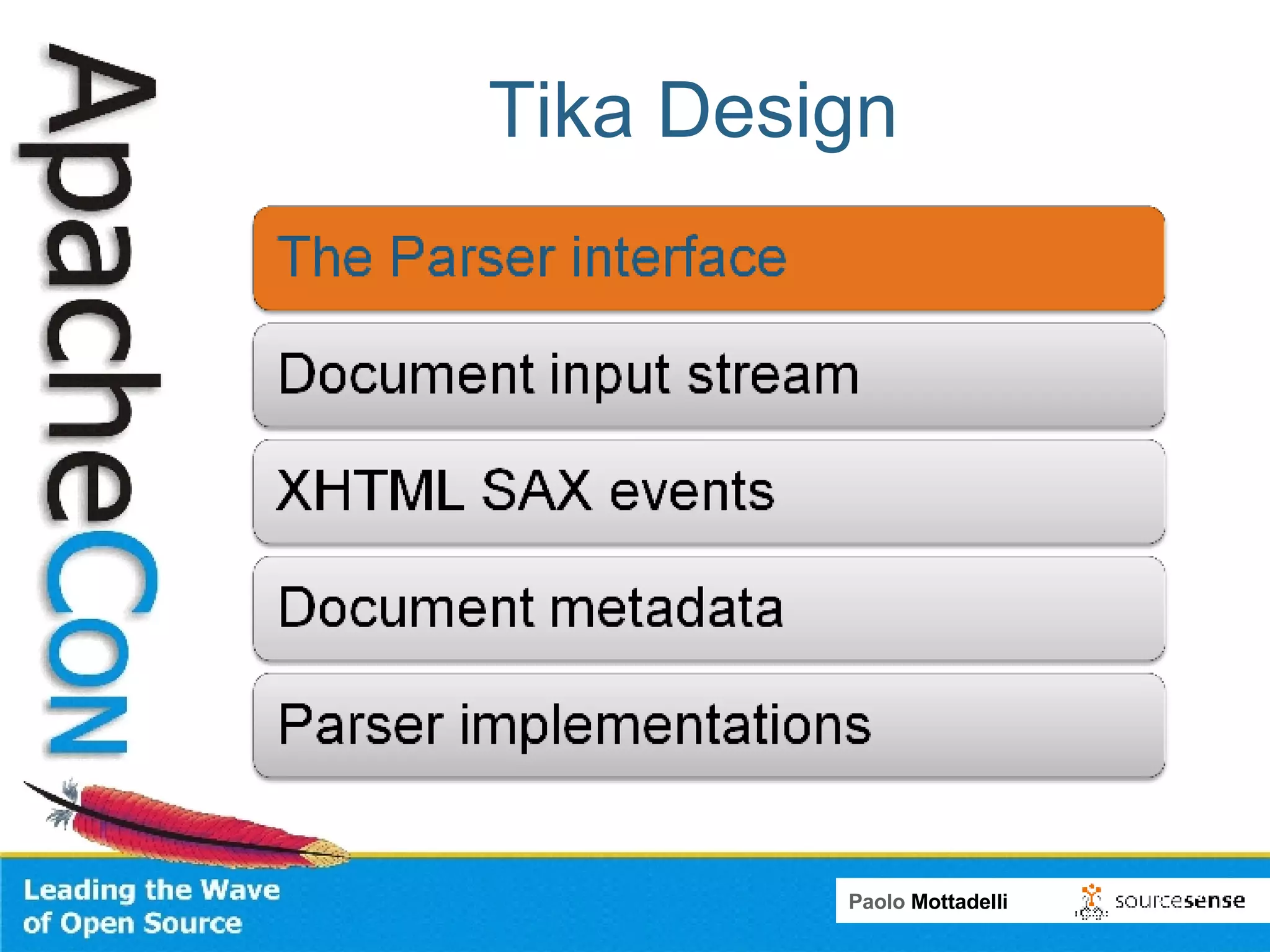

15. Tika Design

17. Tika Design

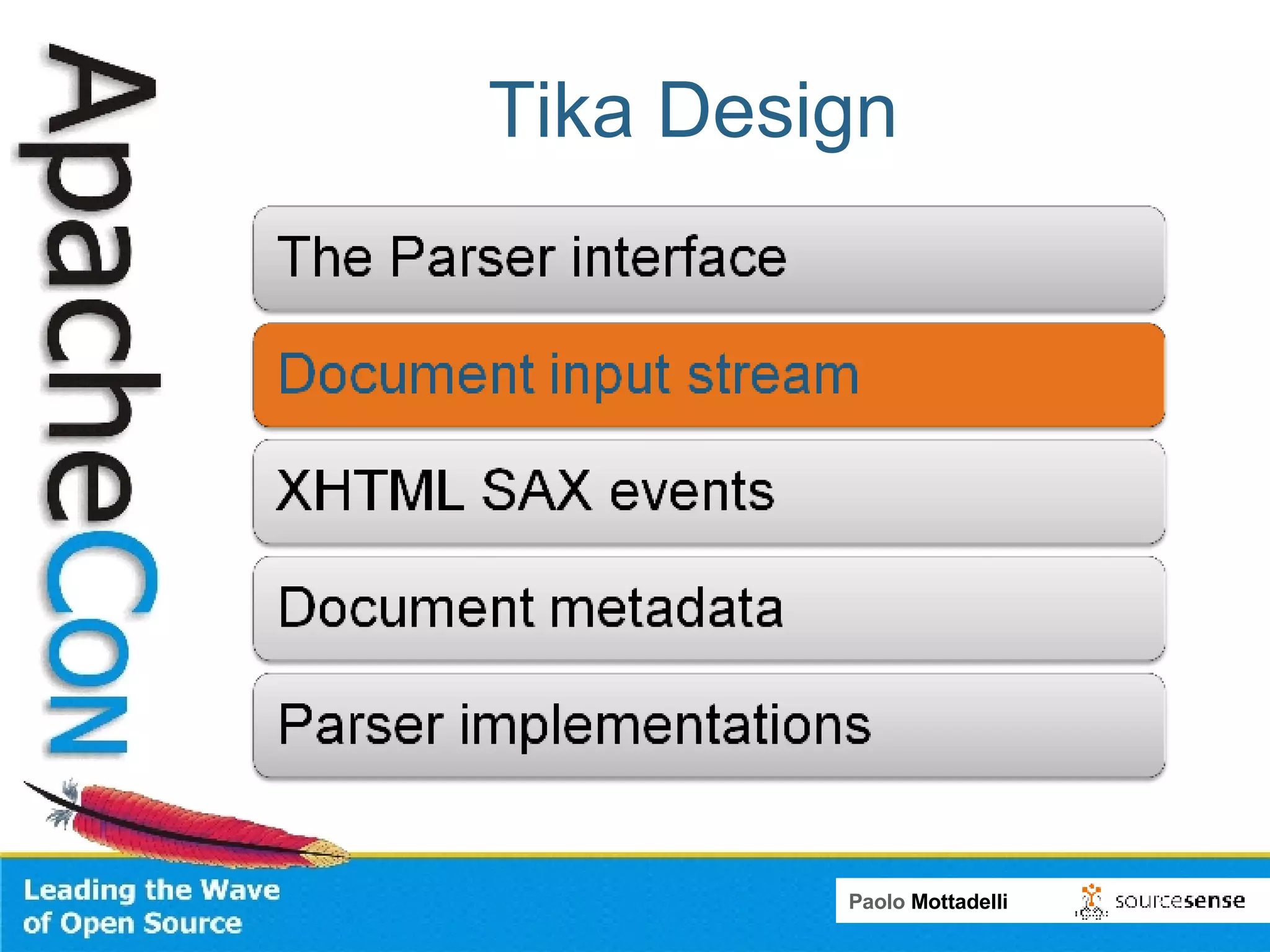

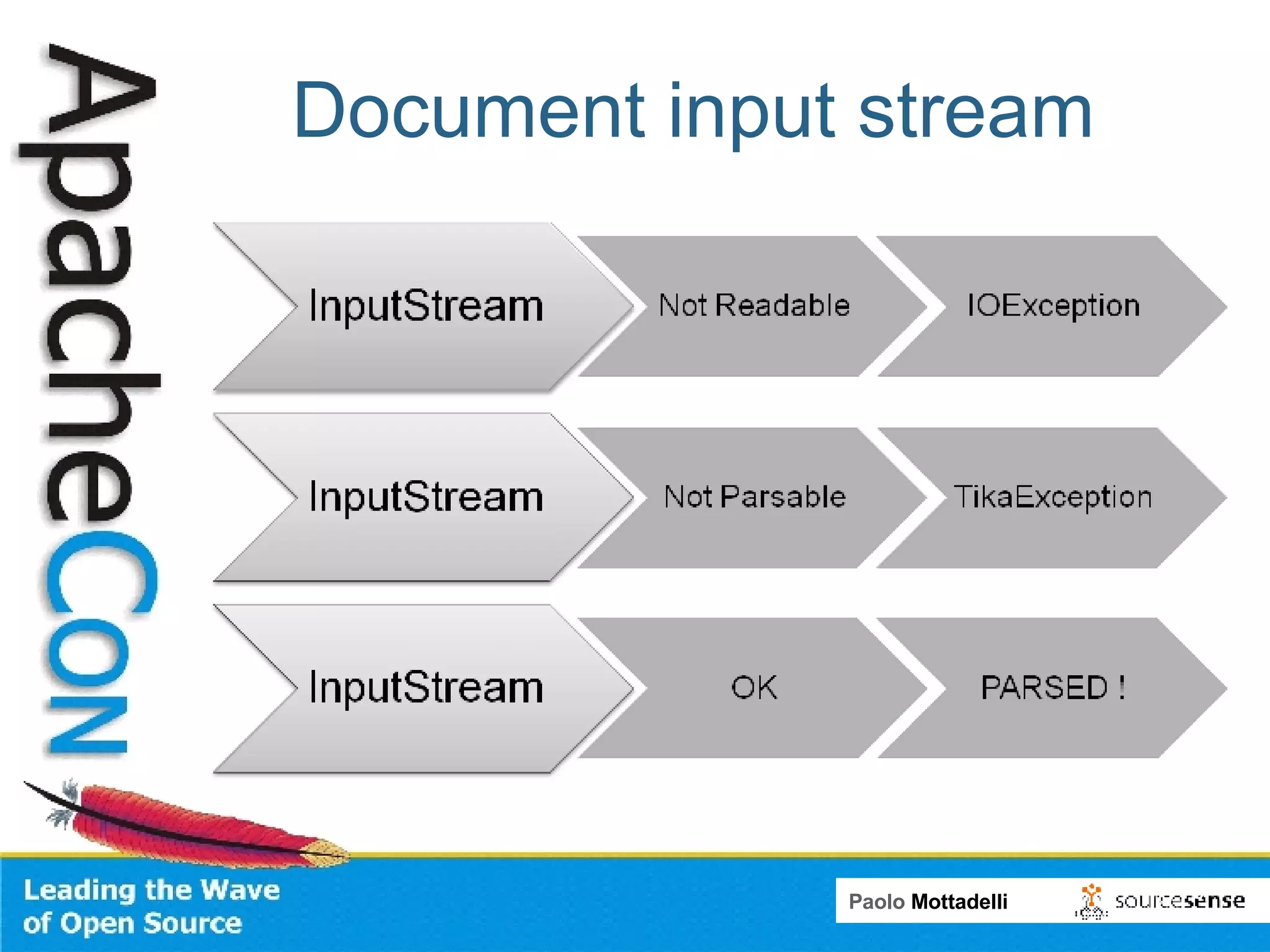

18. Document input stream

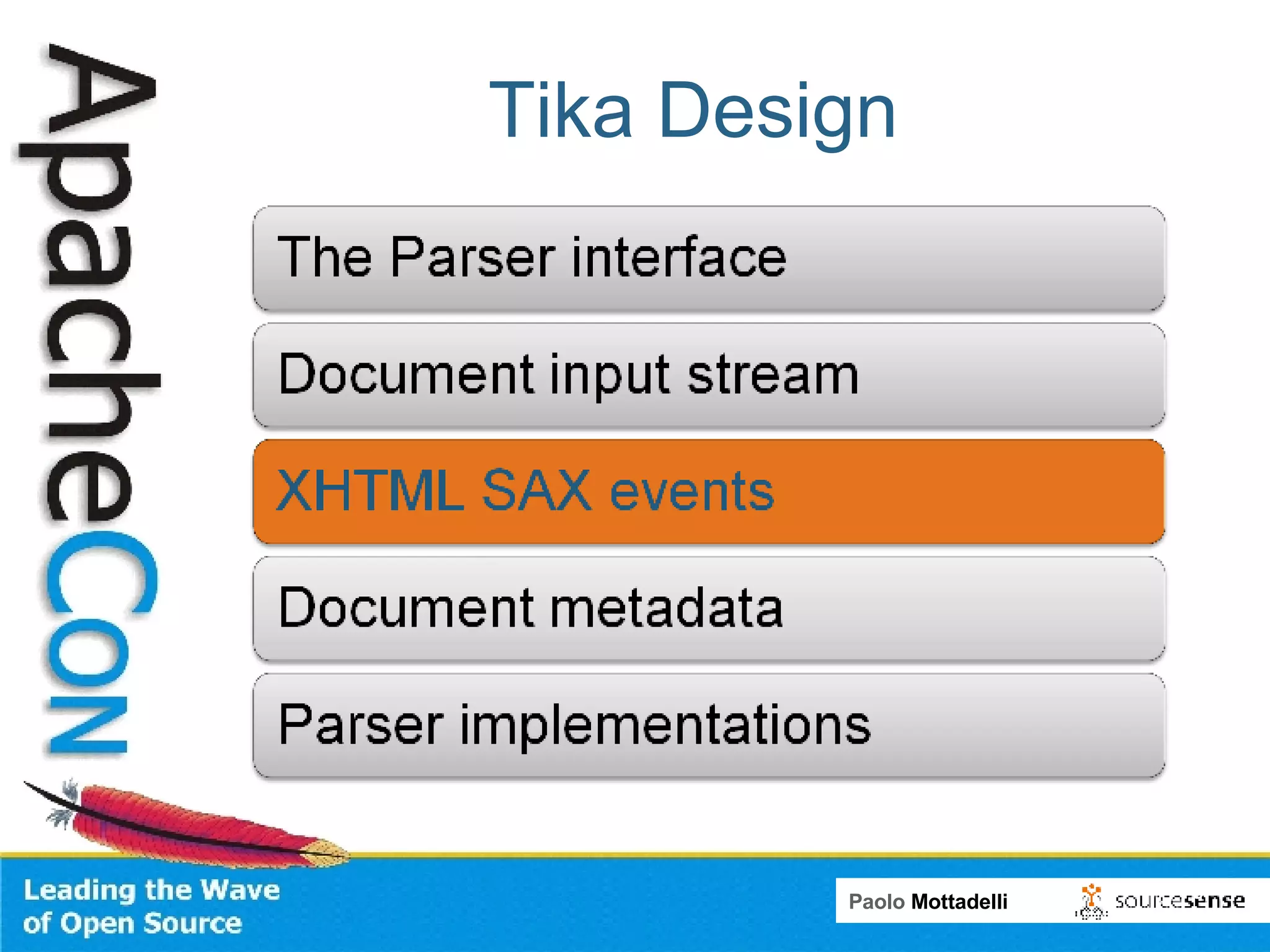

19. Tika Design

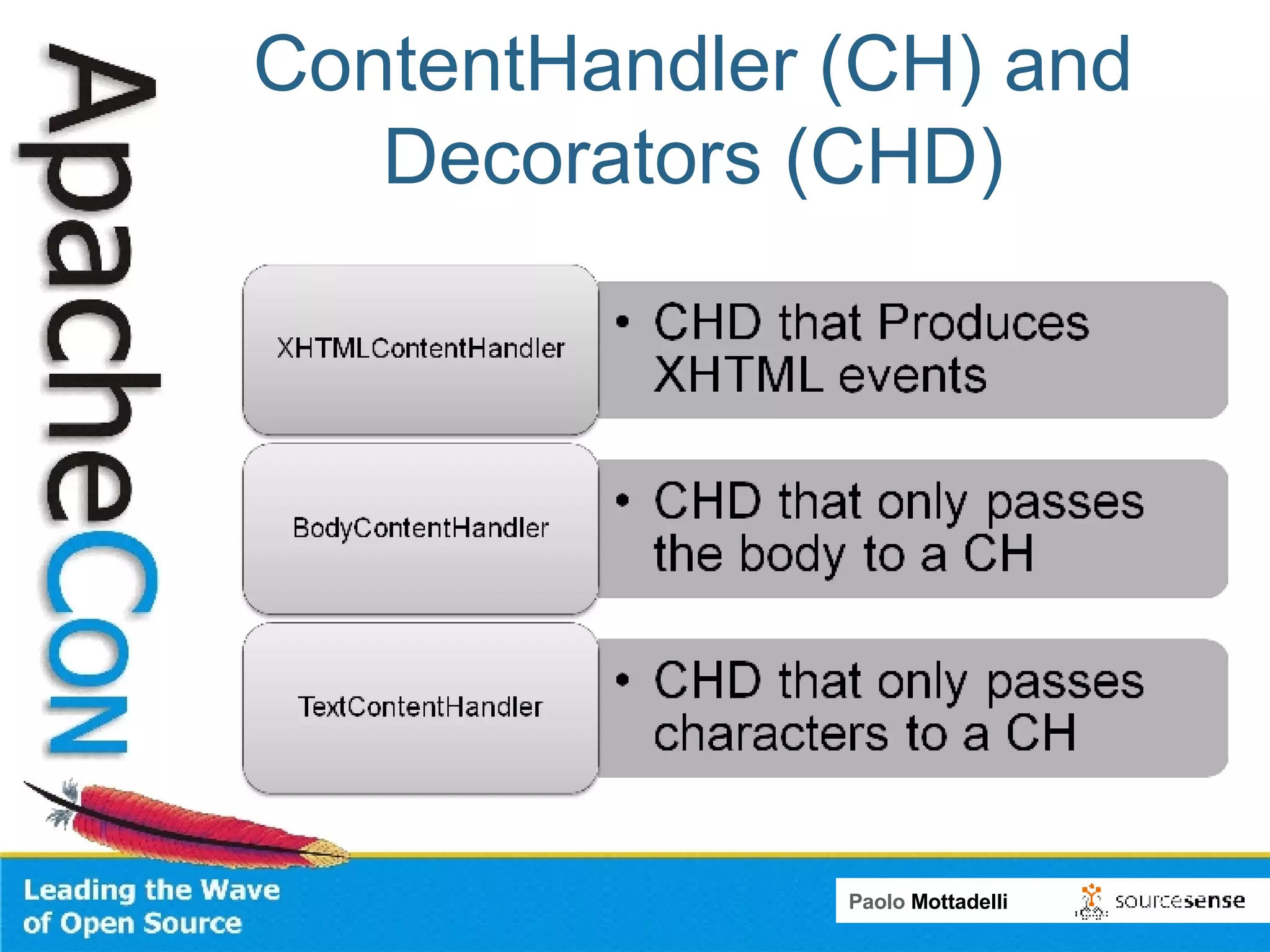

22. ContentHandler (CH) and Decorators (CHD)

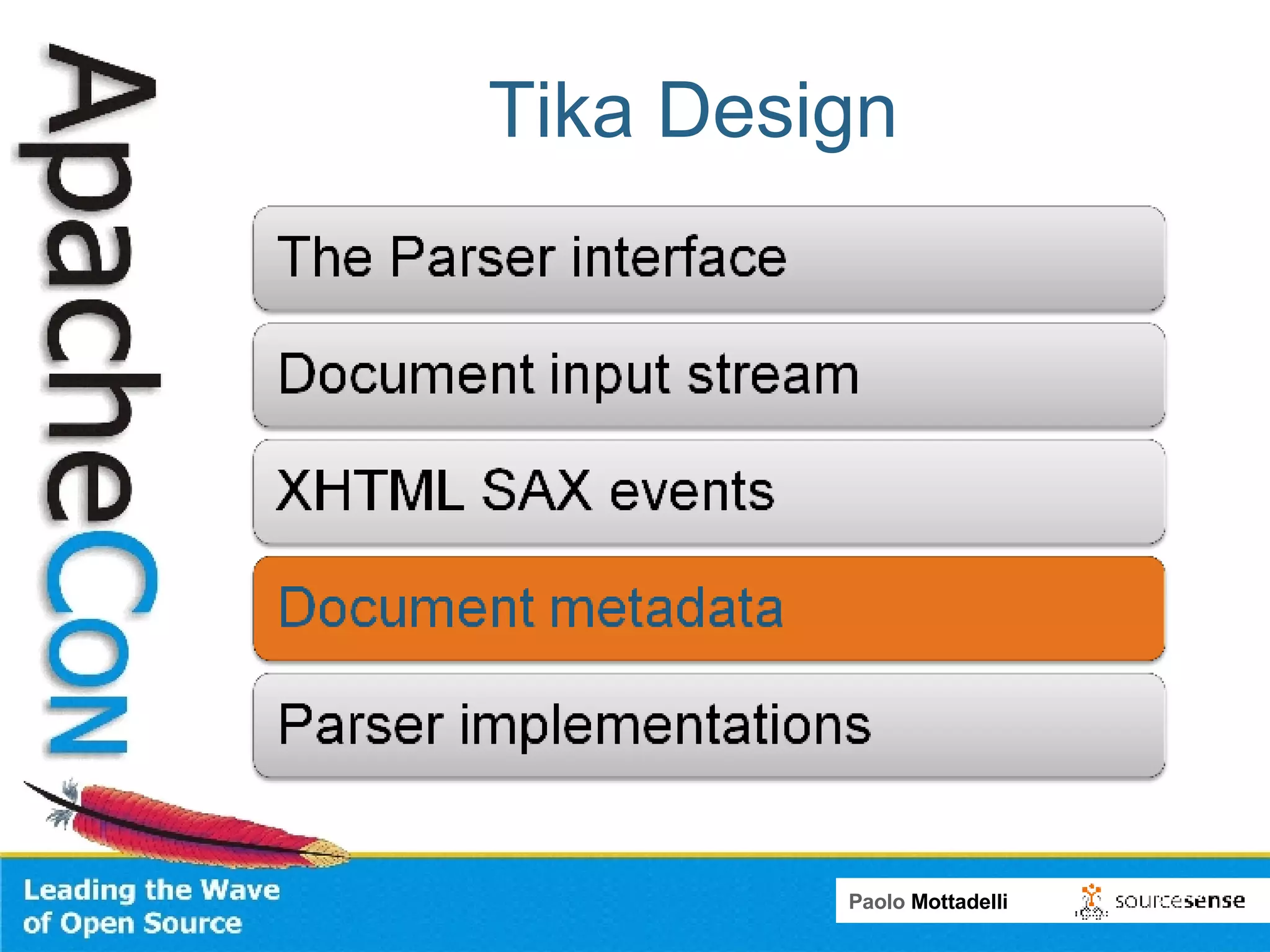

23. Tika Design

24. Document metadata

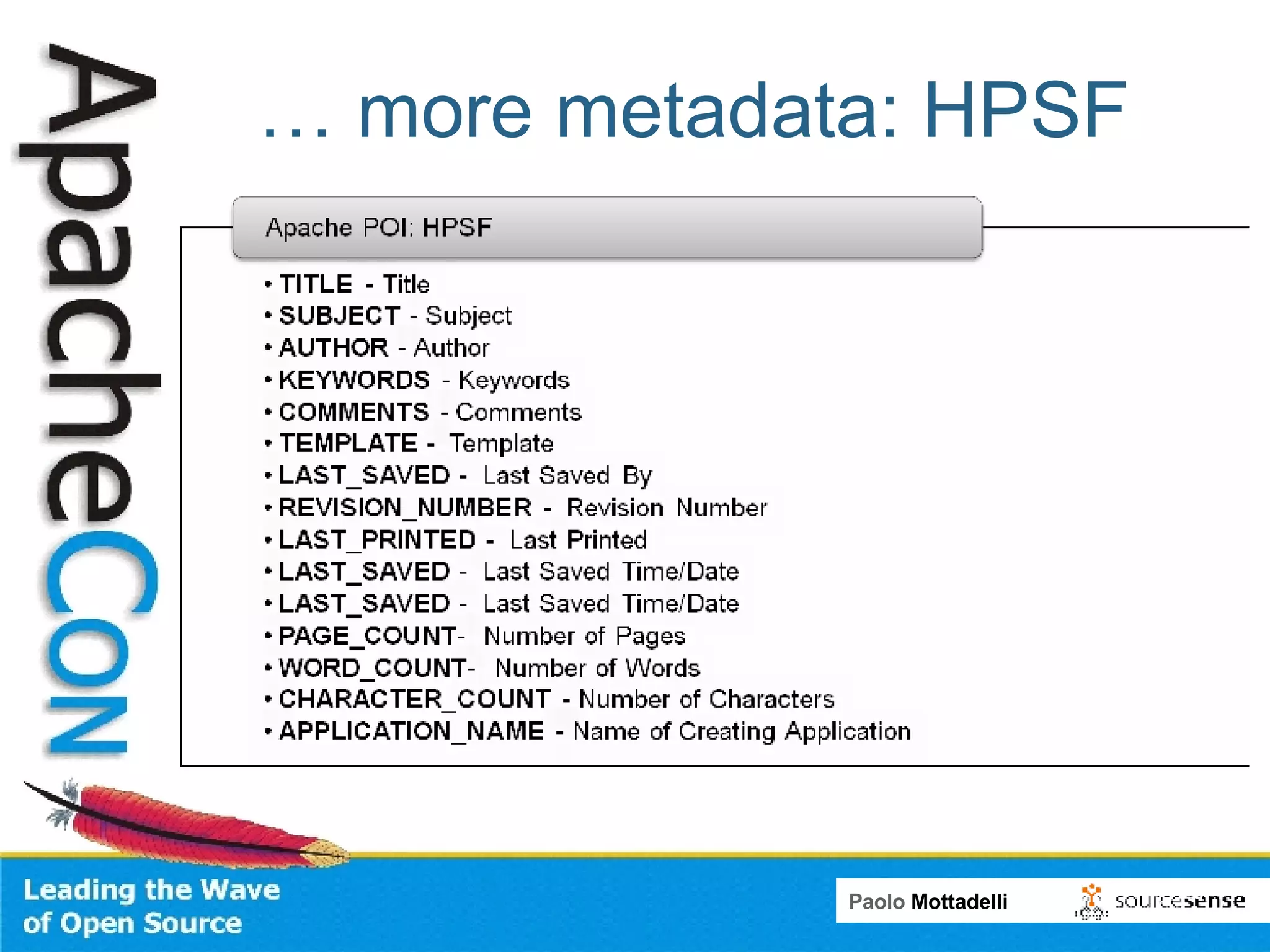

25. … more metadata: HPSF

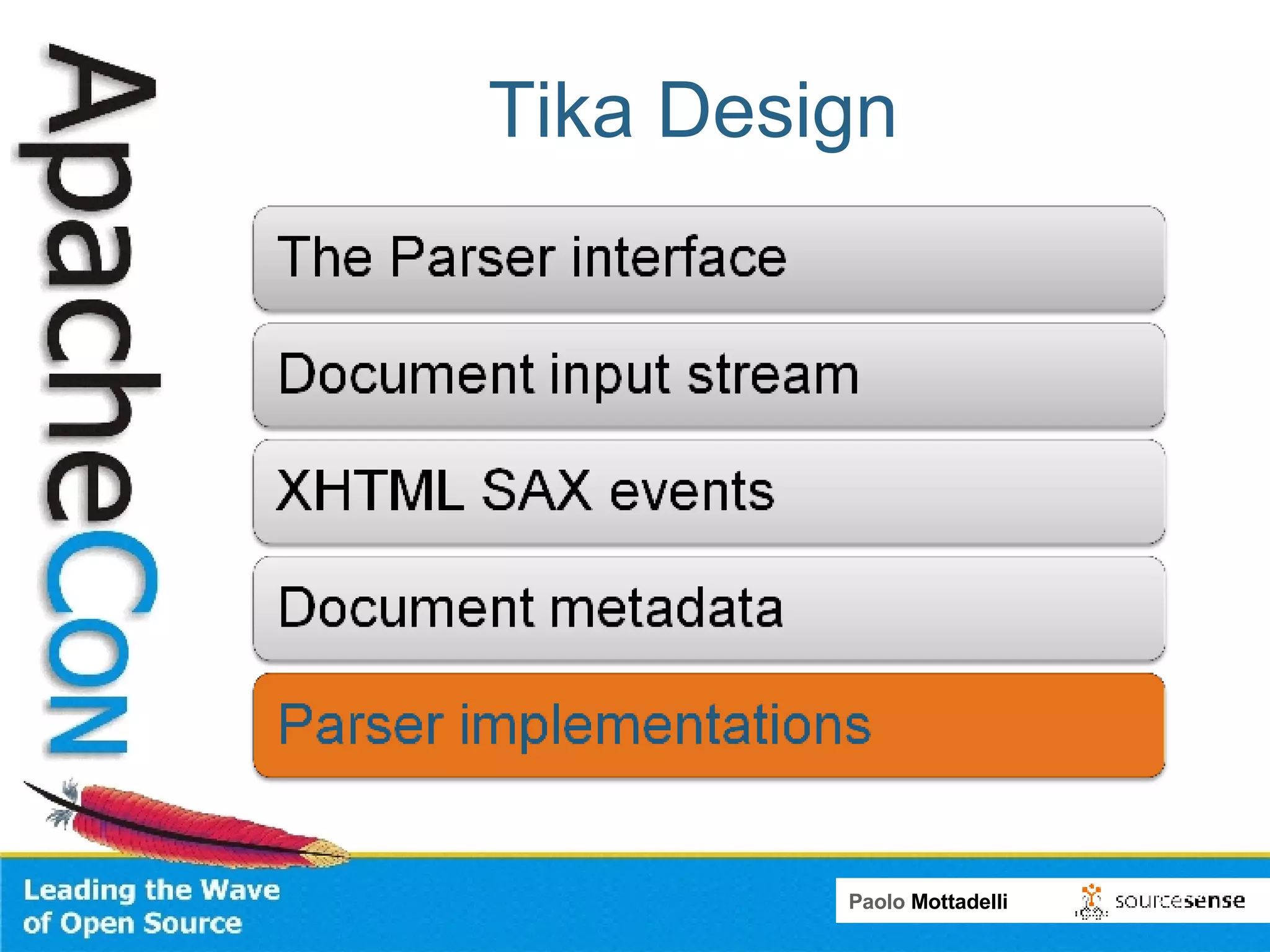

26. Tika Design

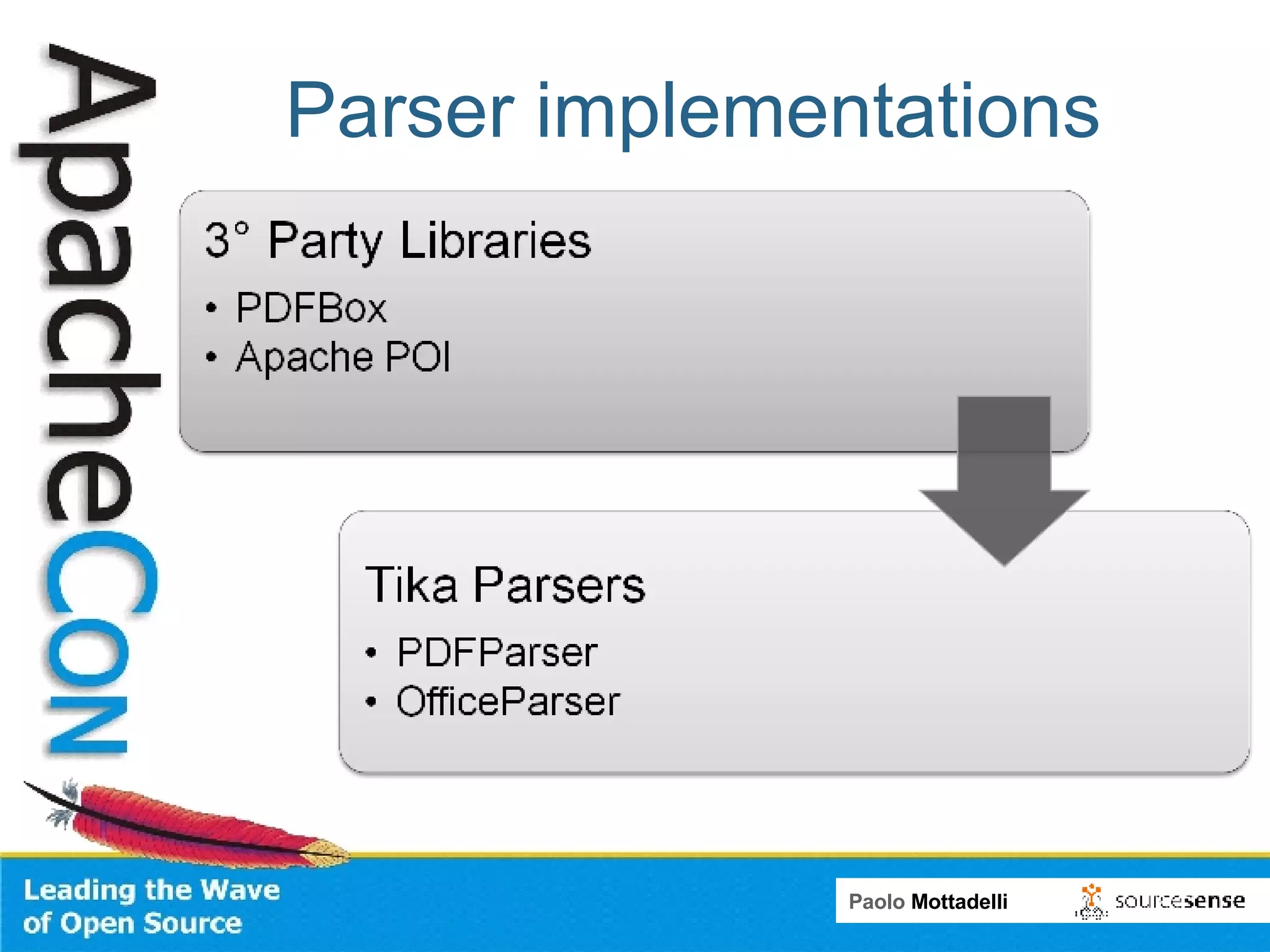

27. Parser implementations

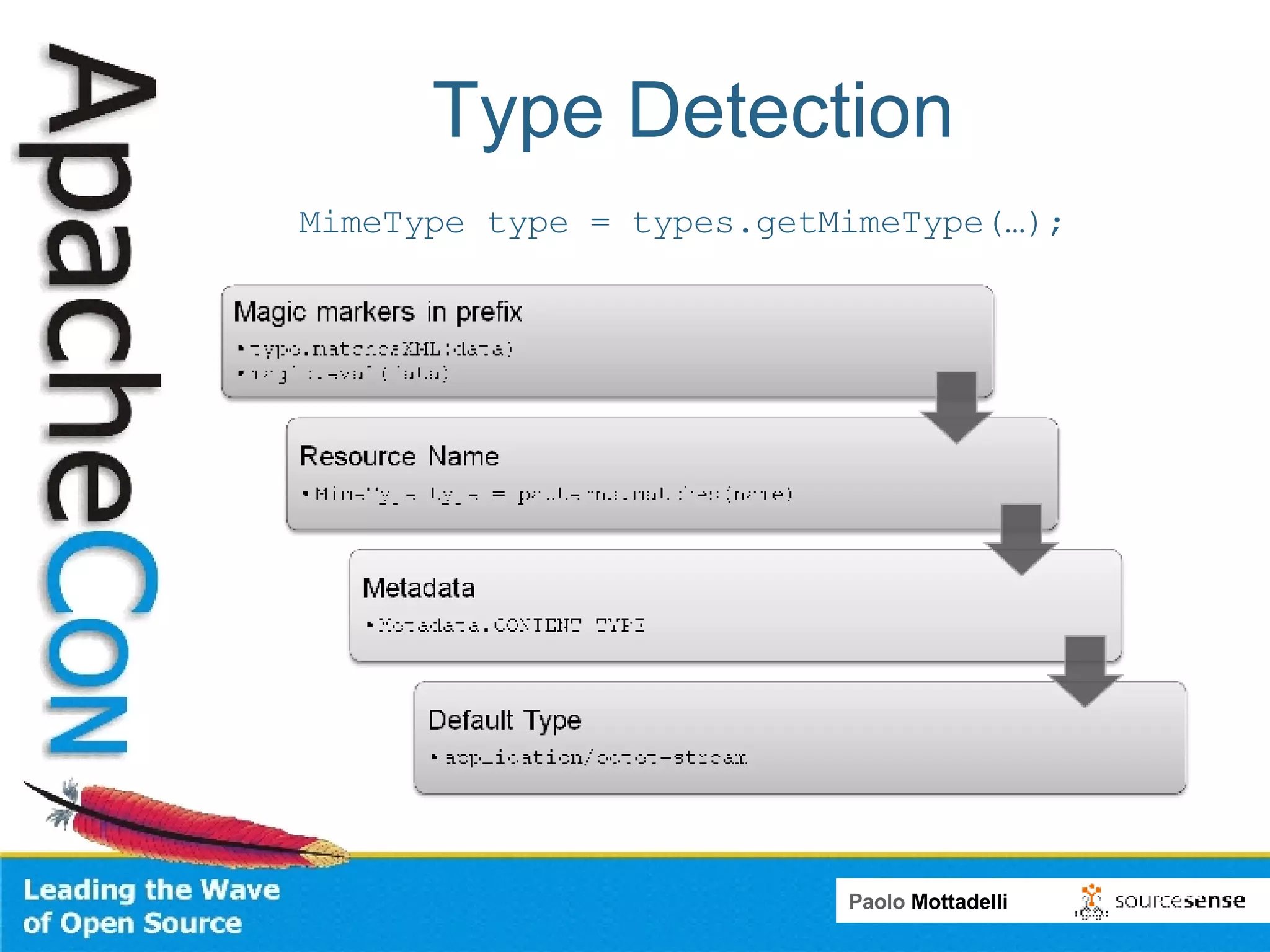

29. Type Detection MimeType type = types.getMimeType(…);

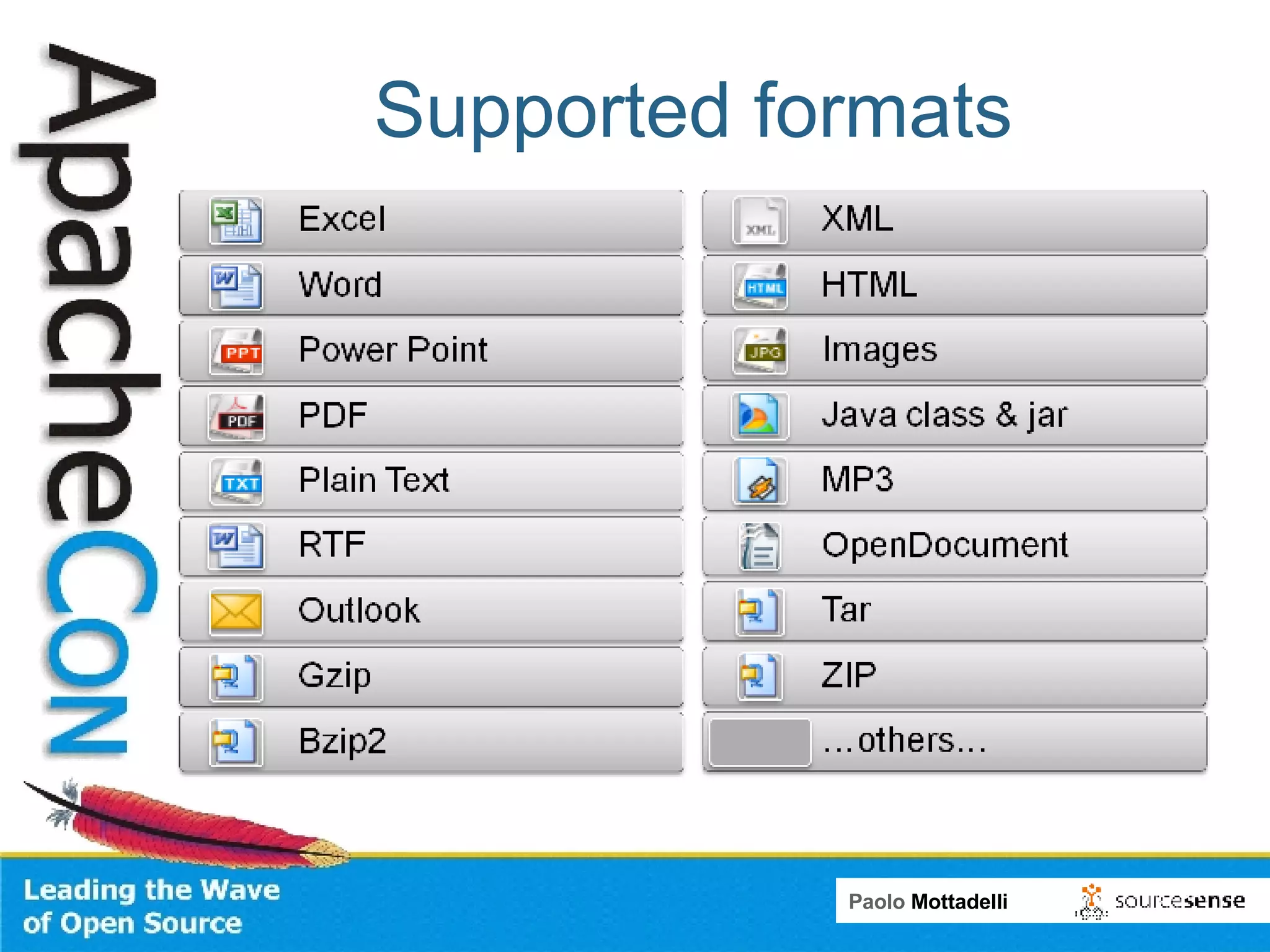

31. Supported formats

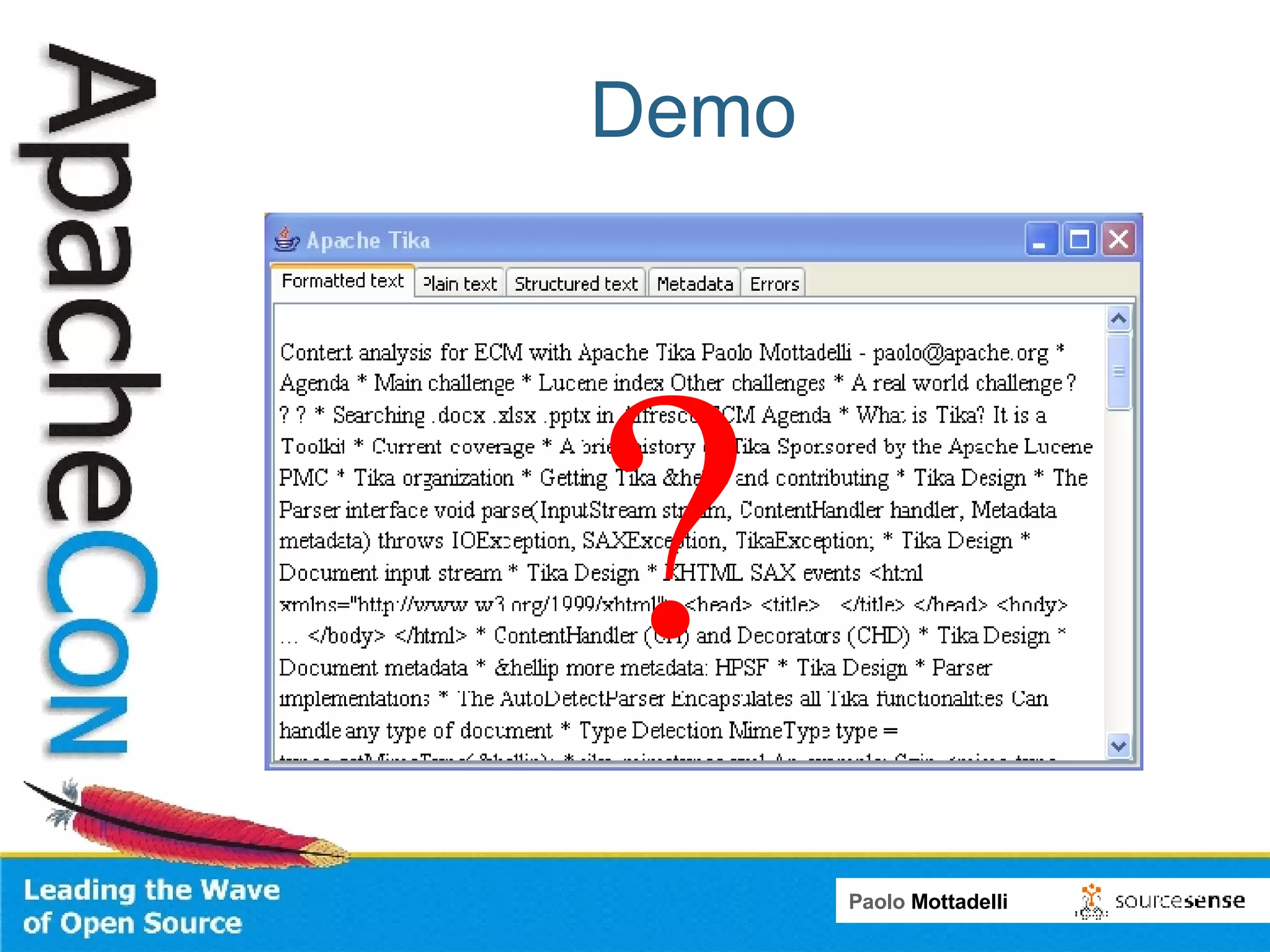

33. Demo ?

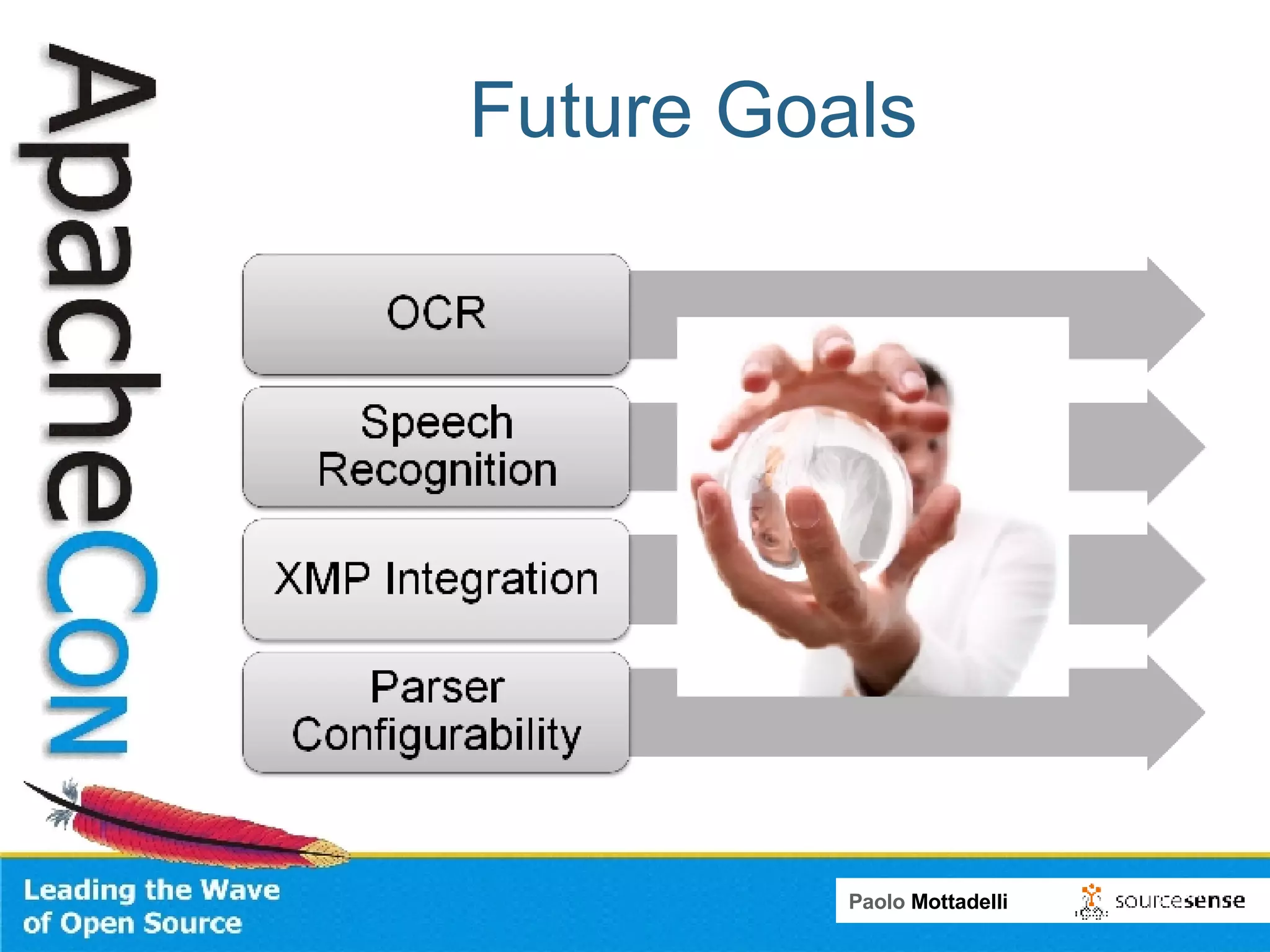

34. Future Goals

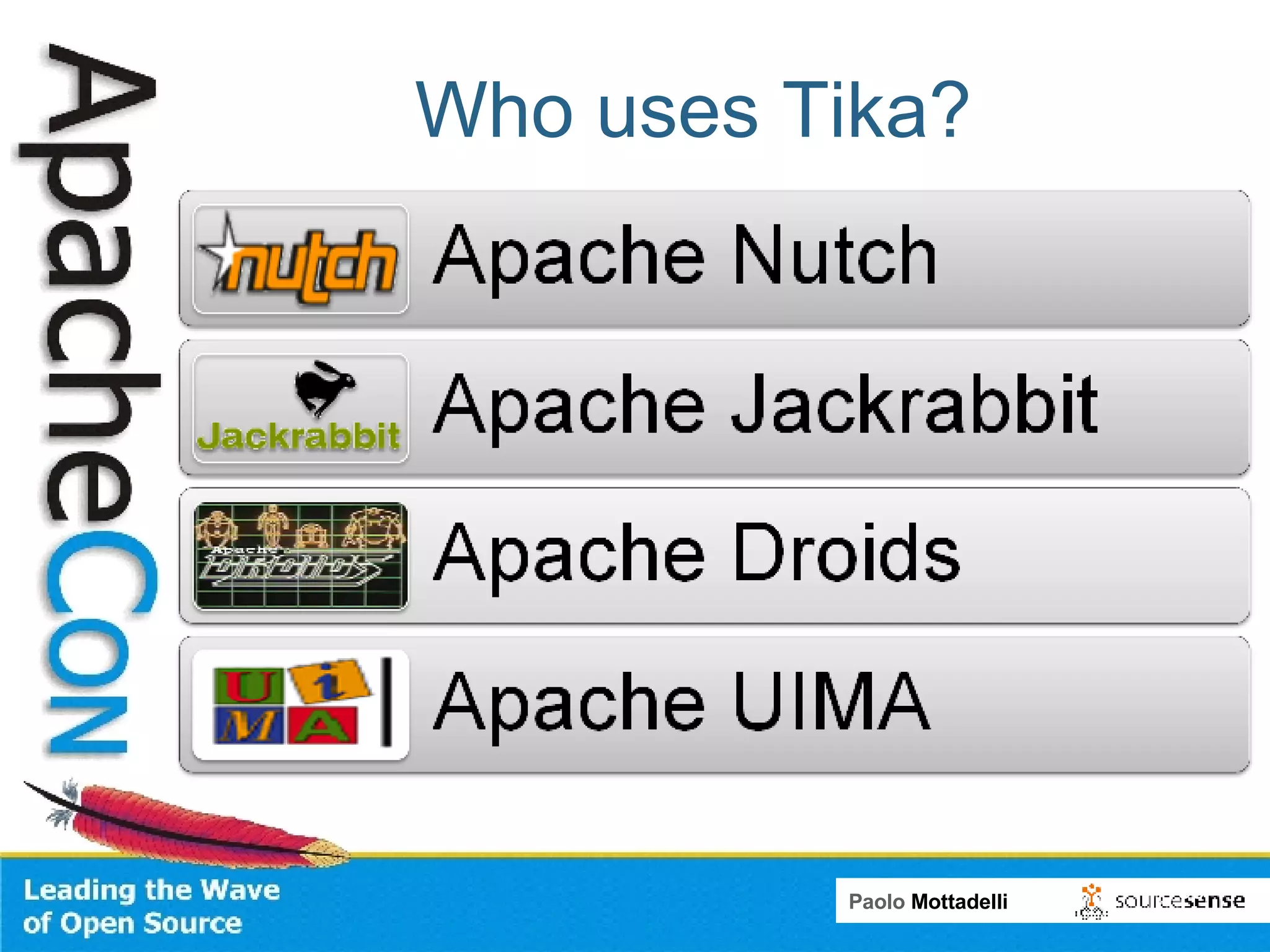

35. Who uses Tika?

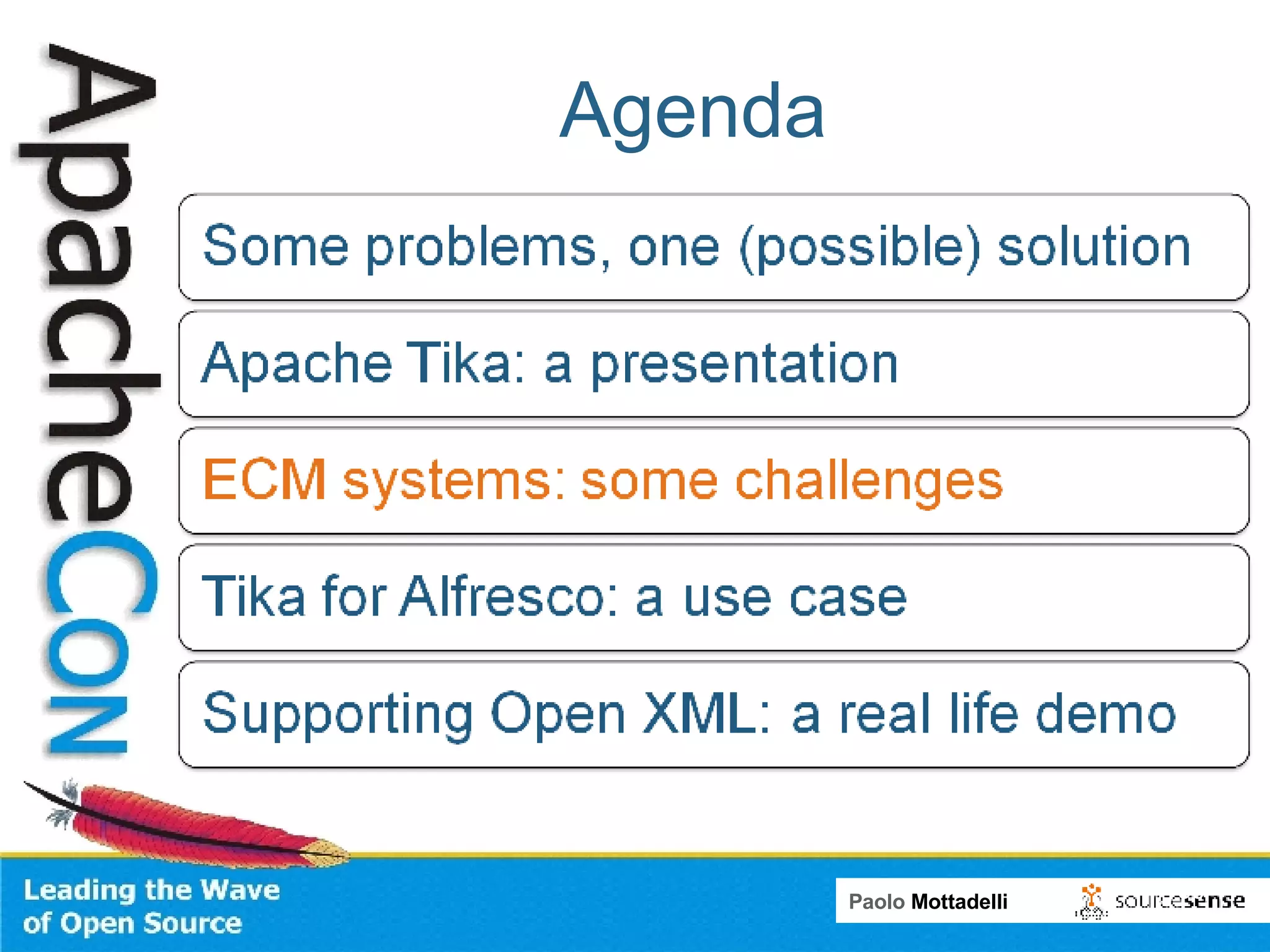

36. Agenda

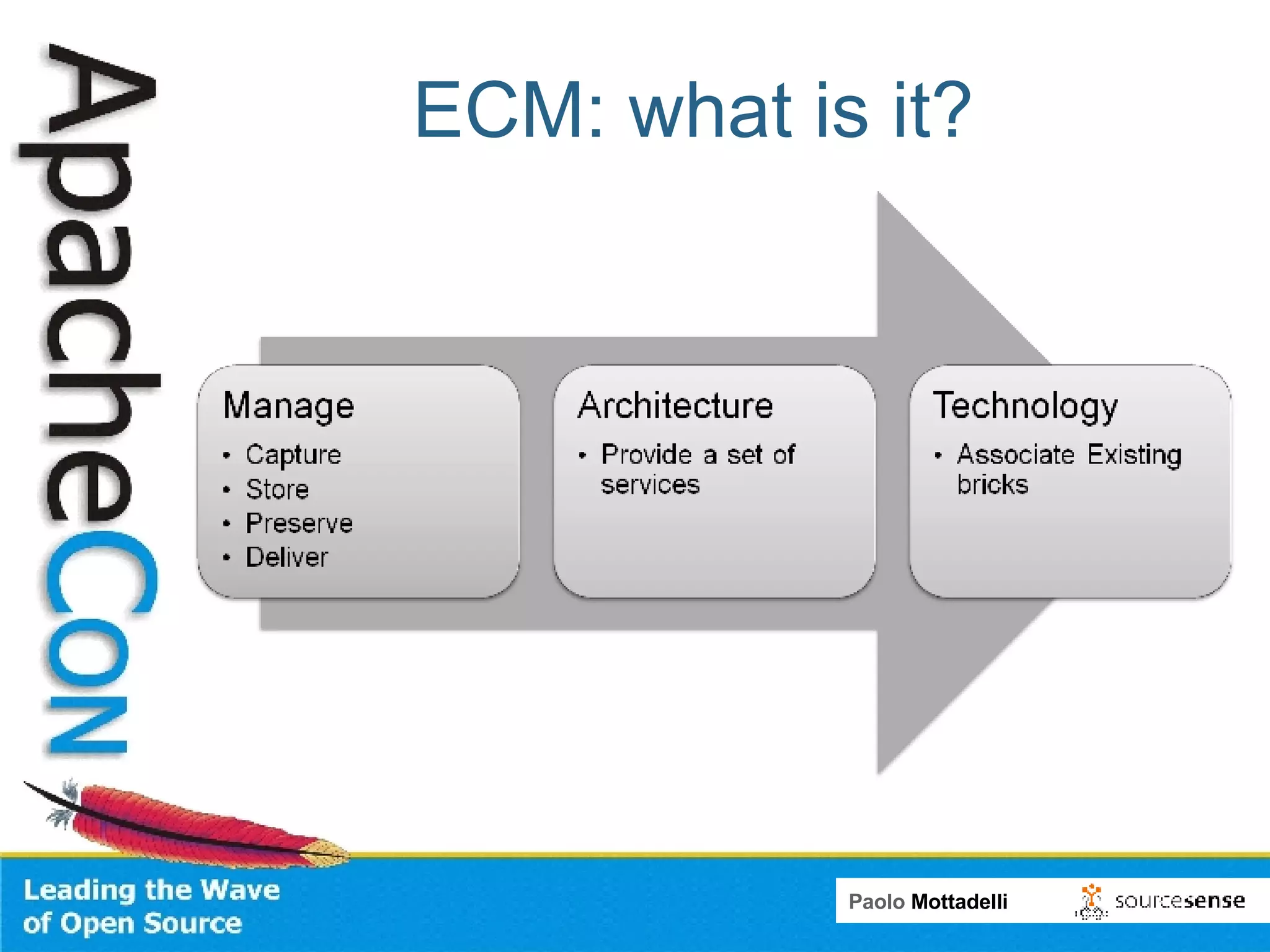

37. ECM: what is it?

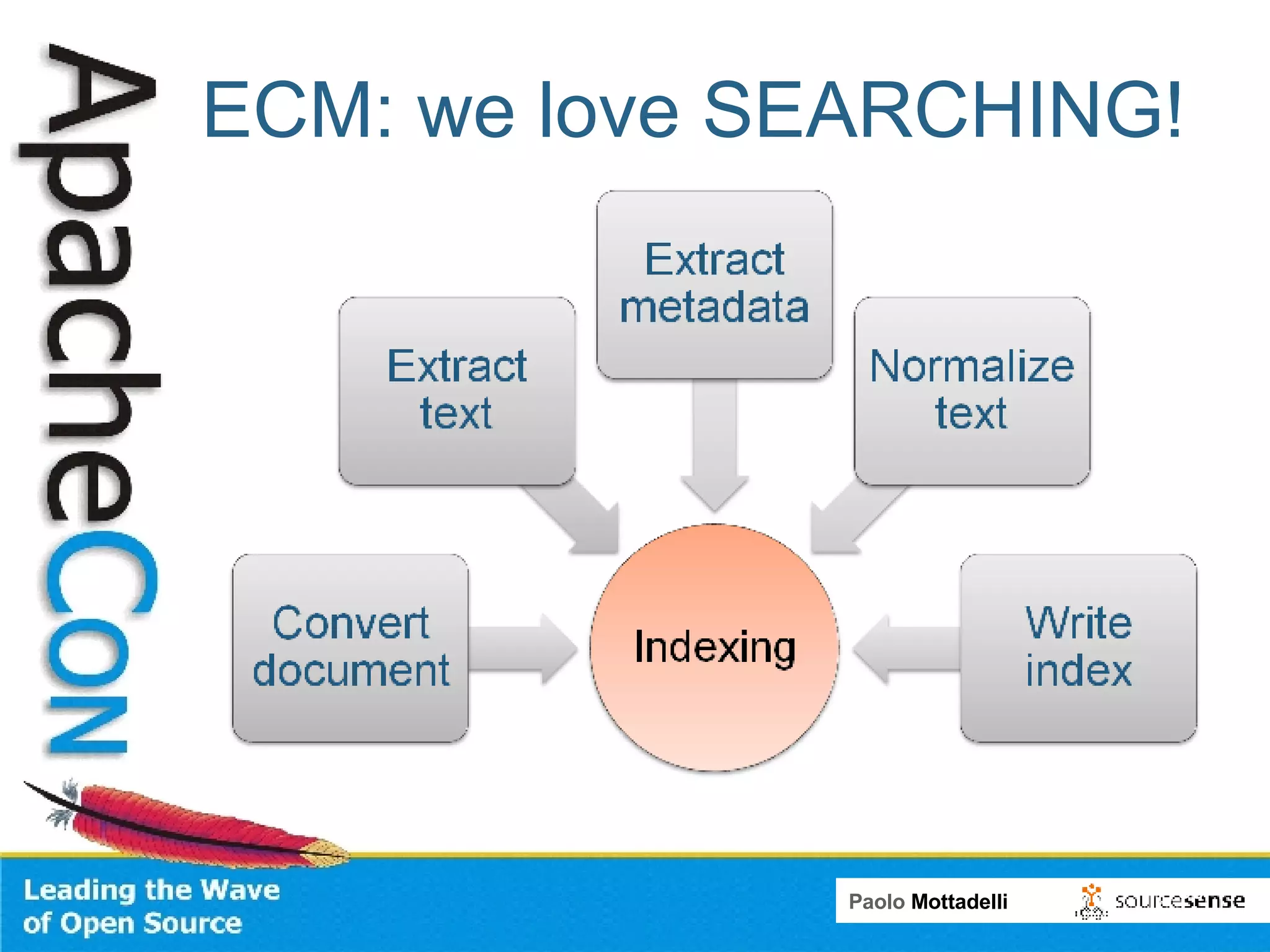

39. ECM: we love SEARCHING!

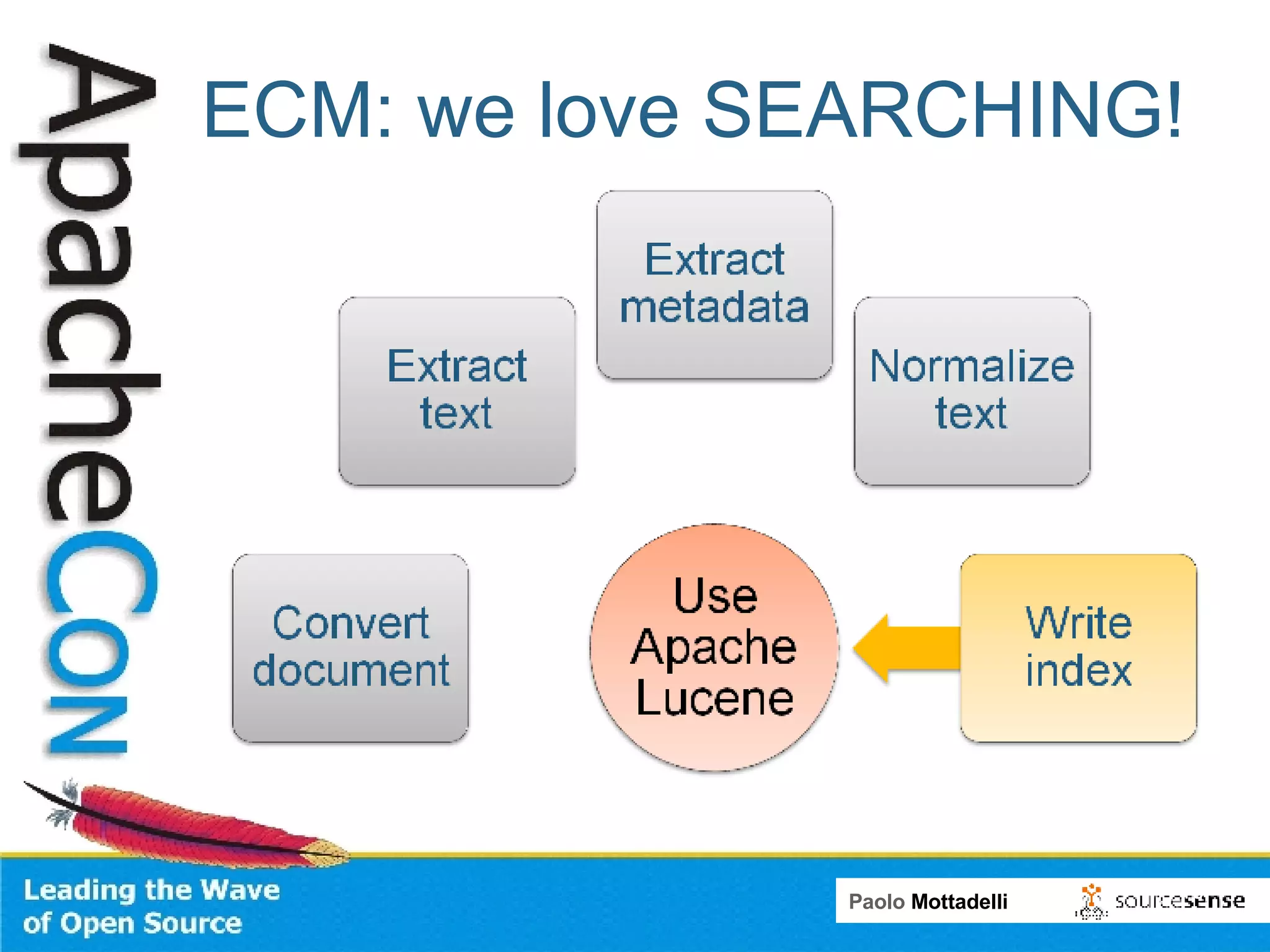

40. ECM: we love SEARCHING!

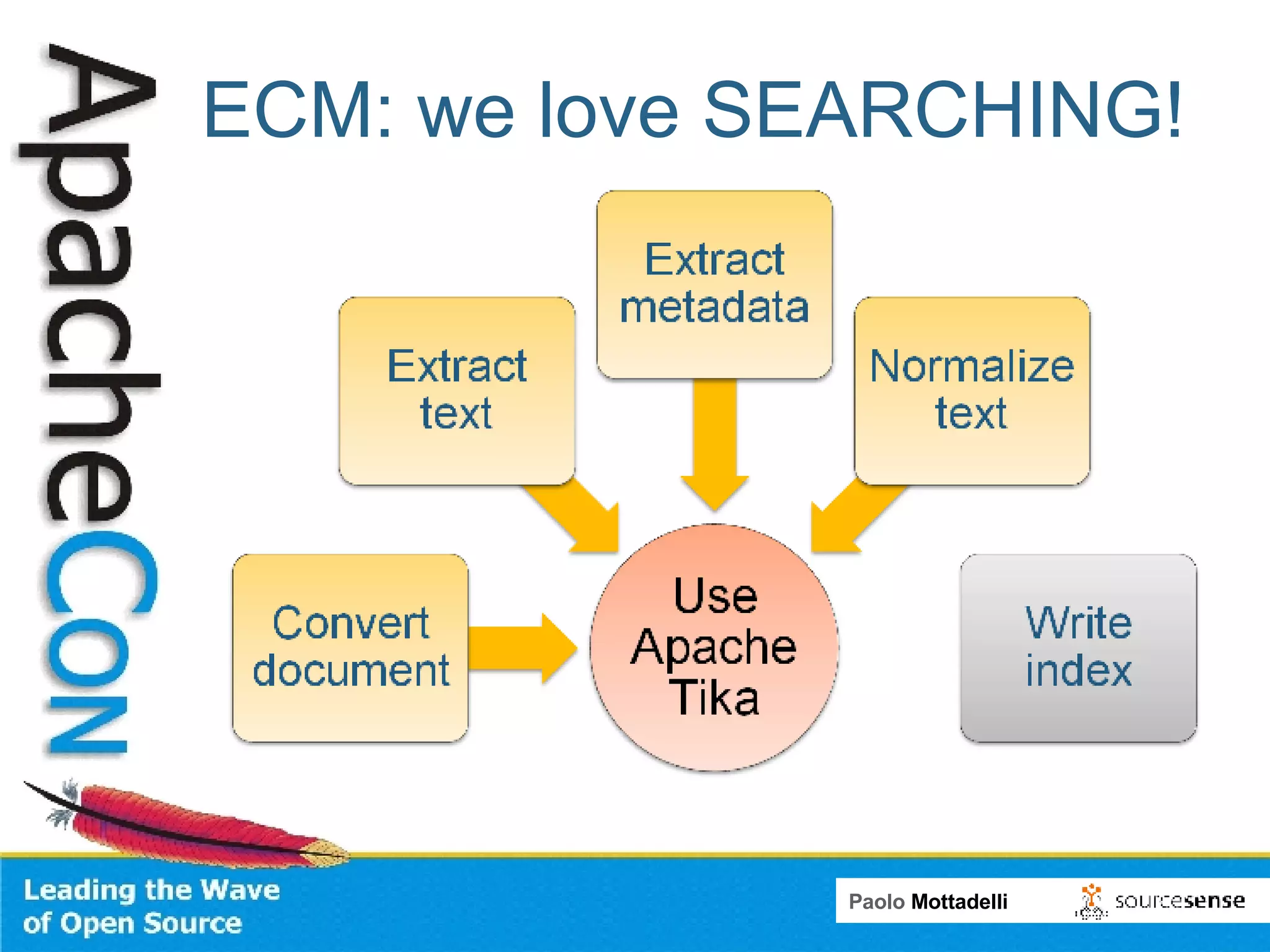

41. ECM: we love SEARCHING!

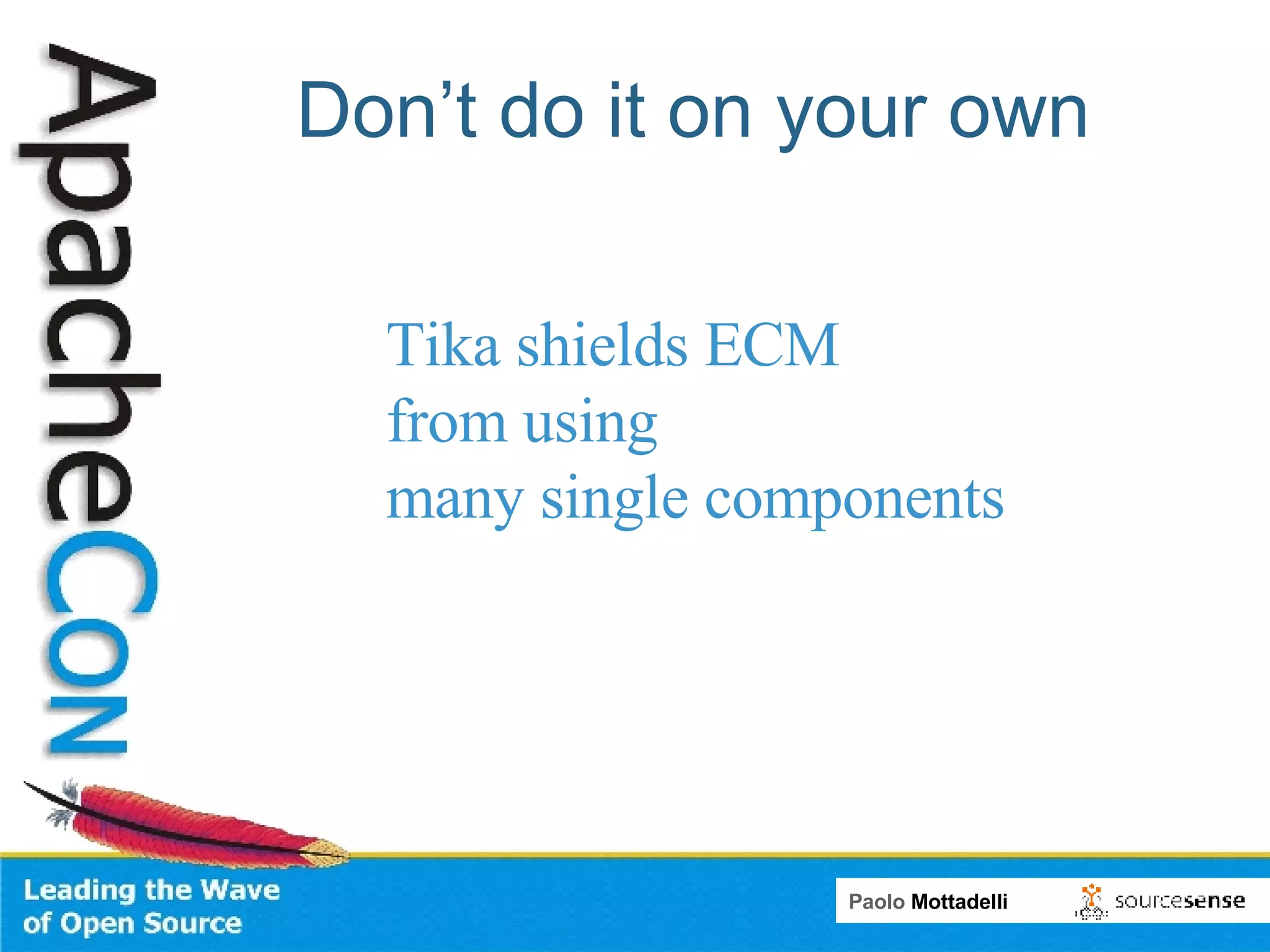

42. Don’t do it on your own Tika shields ECM from using many single components

43. Agenda

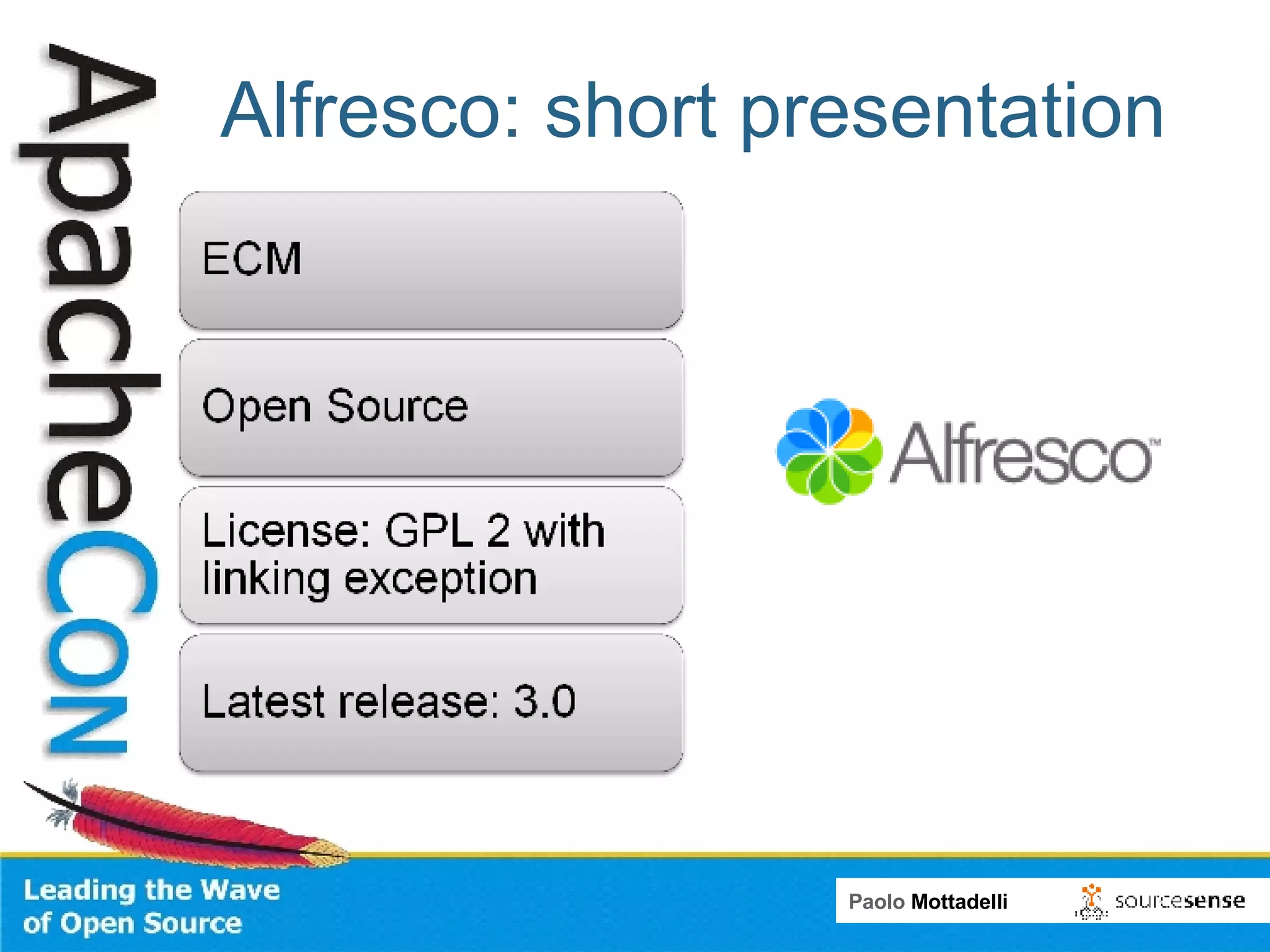

44. Alfresco: short presentation

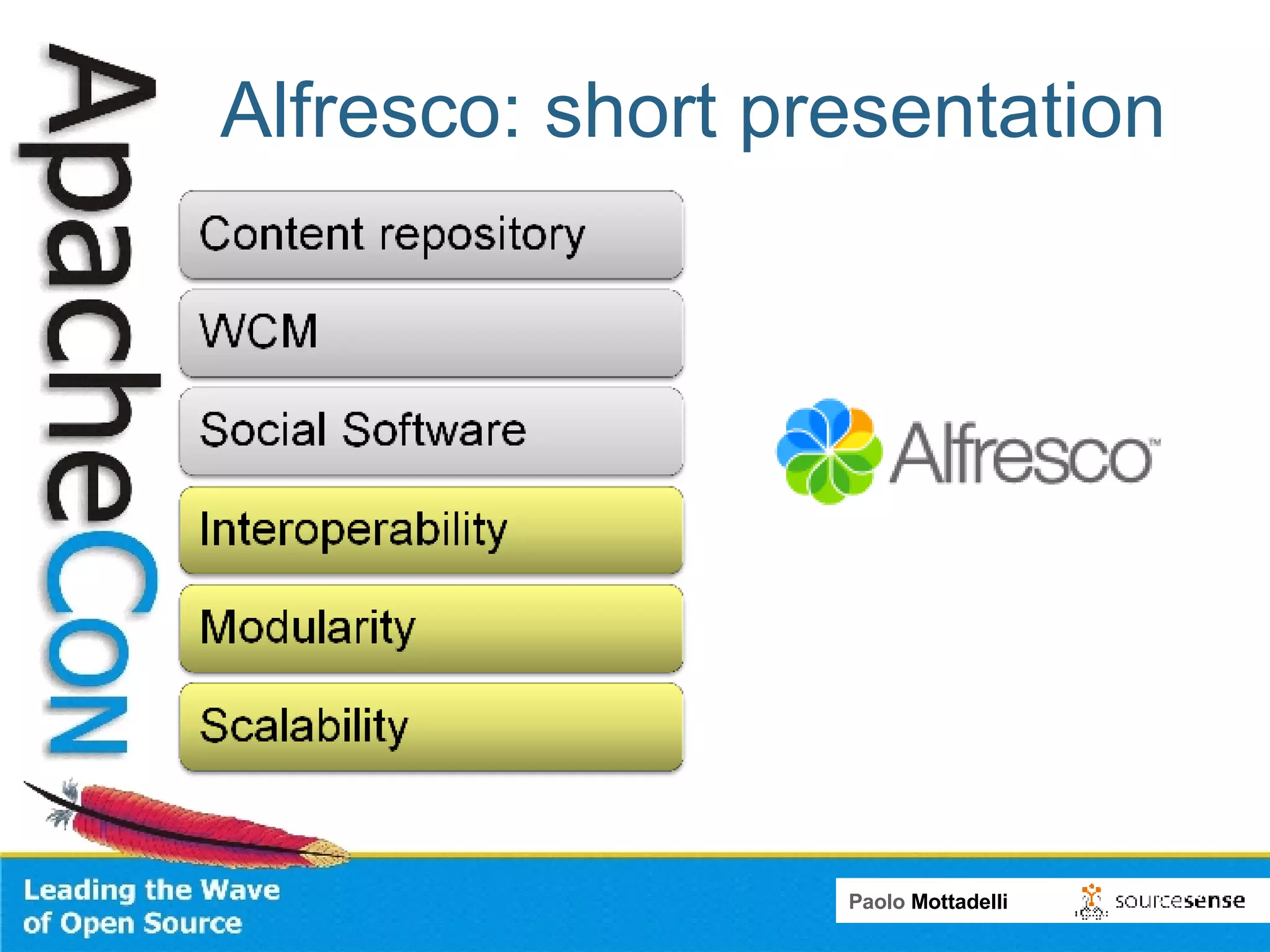

45. Alfresco: short presentation

46. Who uses Alfresco?

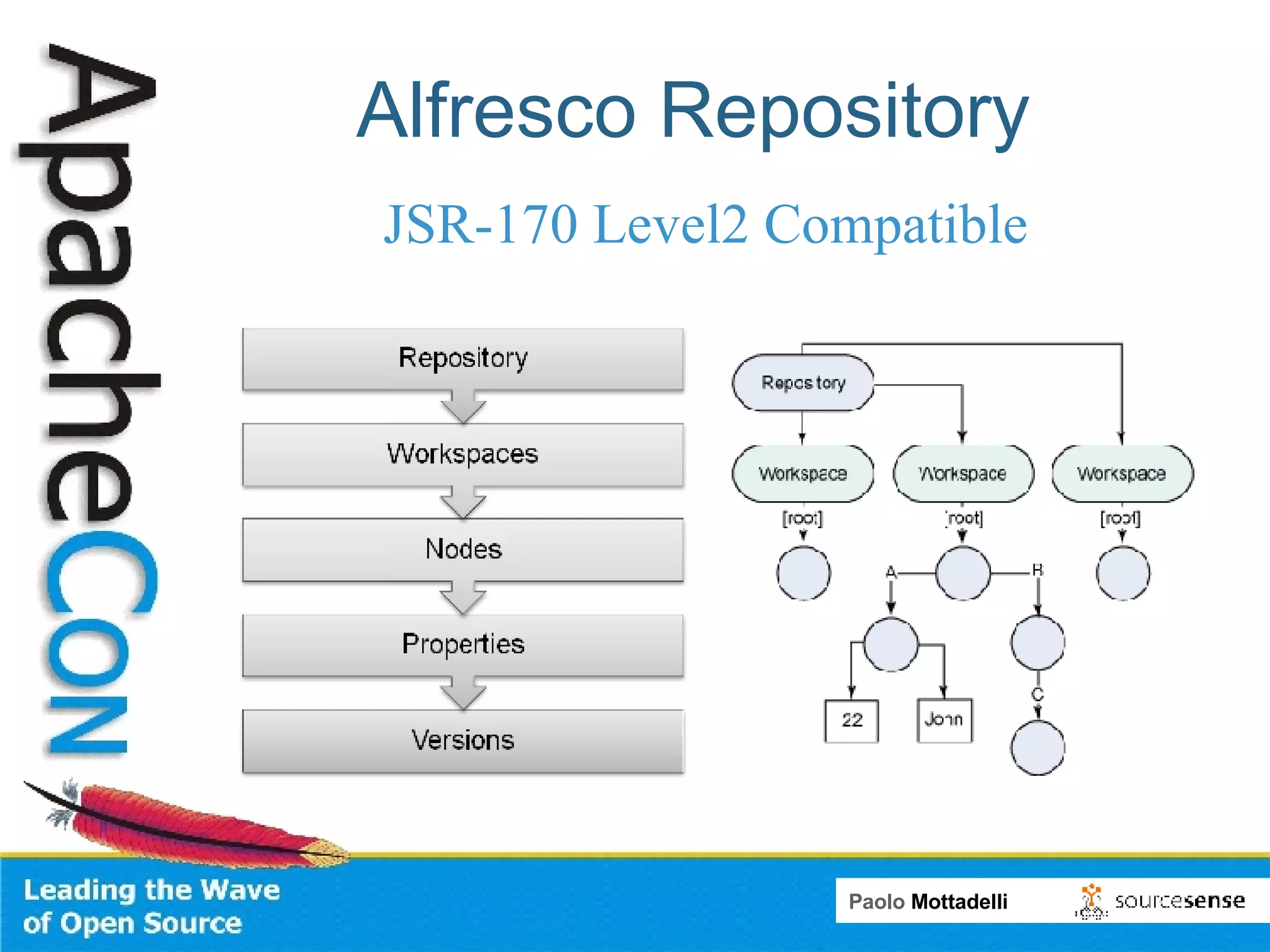

47. Alfresco Repository JSR-170 Level2 Compatible

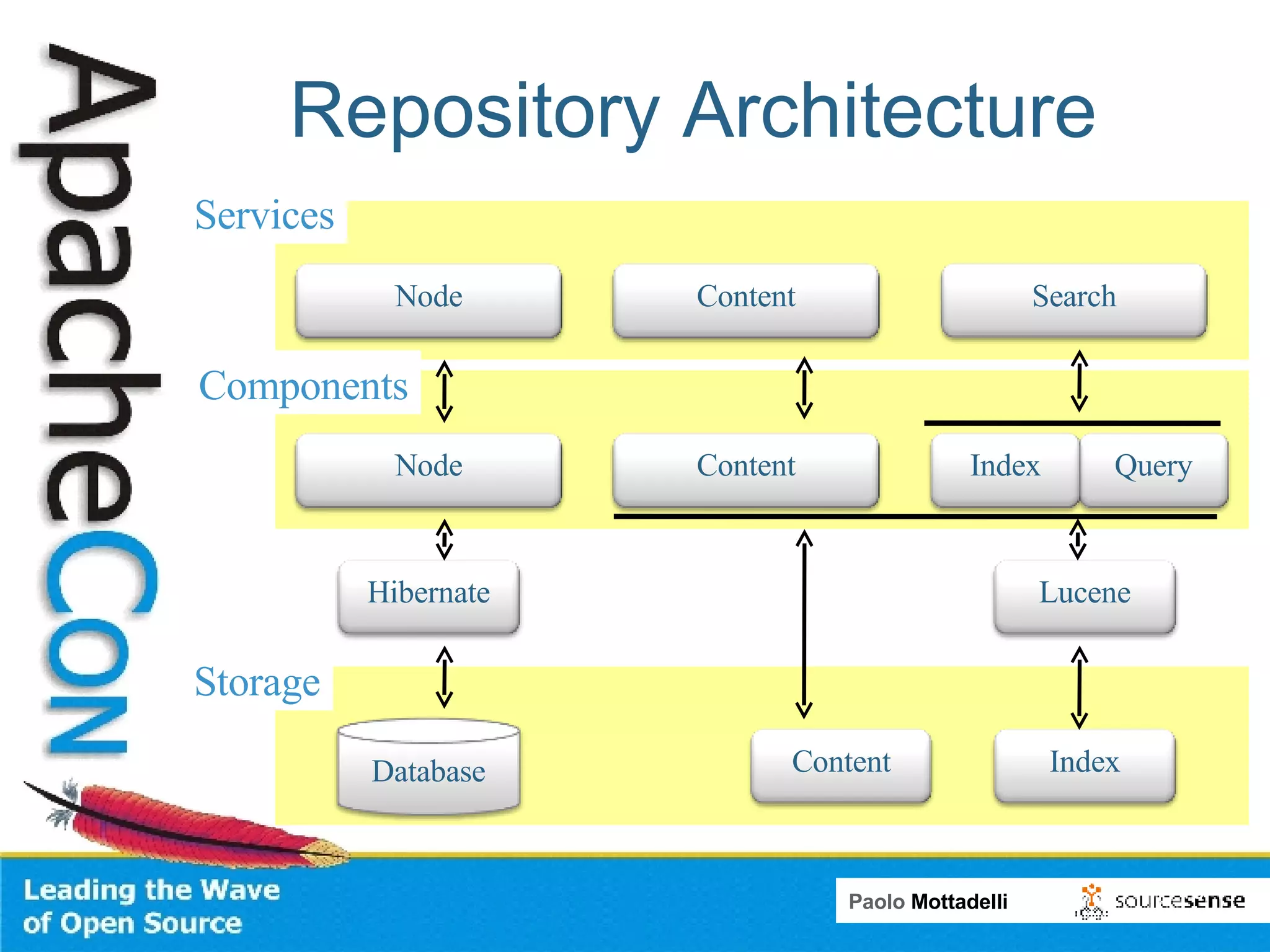

48. Repository Architecture Services Components Storage Hibernate Content Lucene Content Index Database Search Node Node Content Query Index

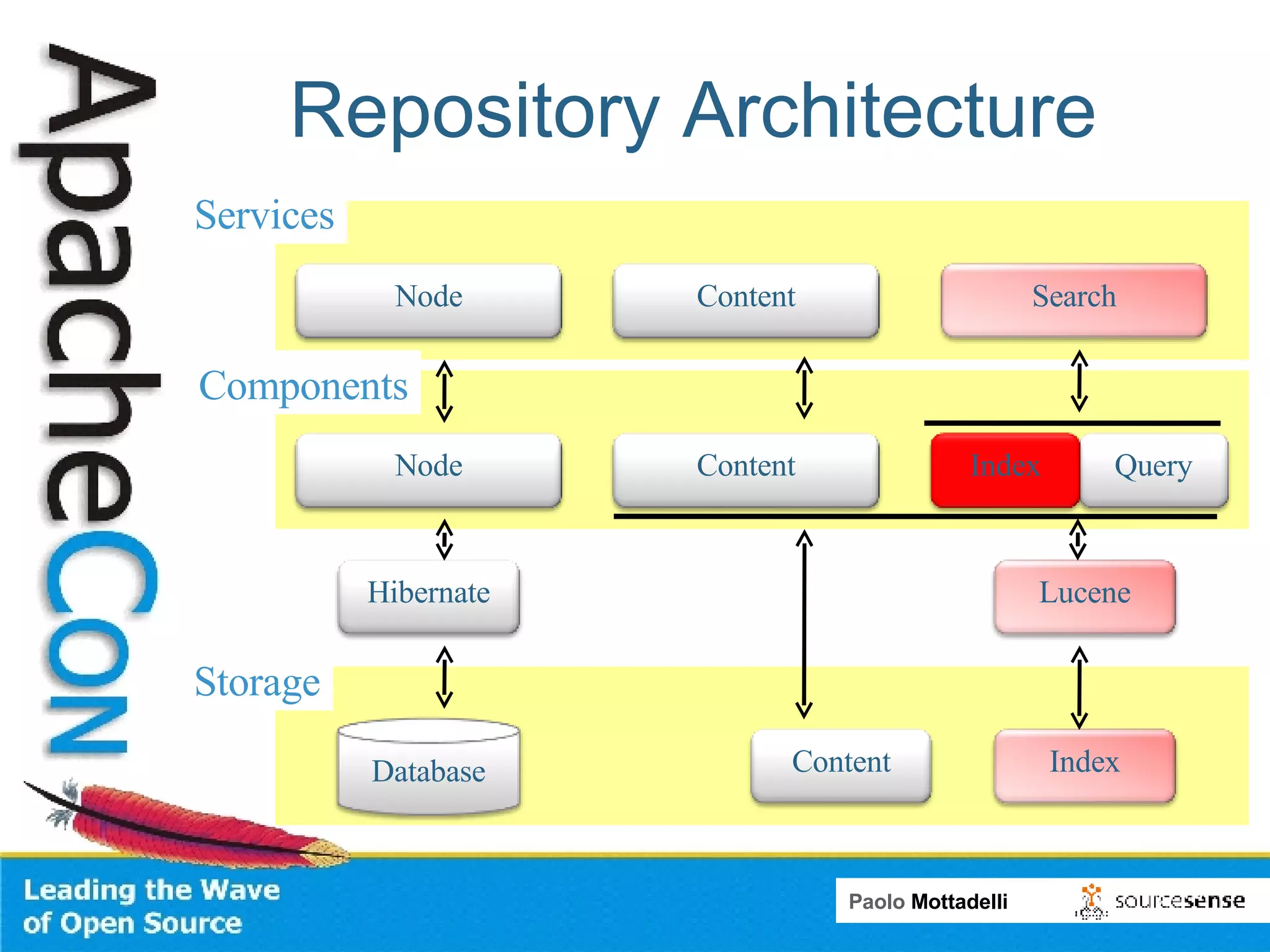

49. Repository Architecture Services Components Storage Hibernate Content Lucene Content Index Database Search Node Node Content Query Index

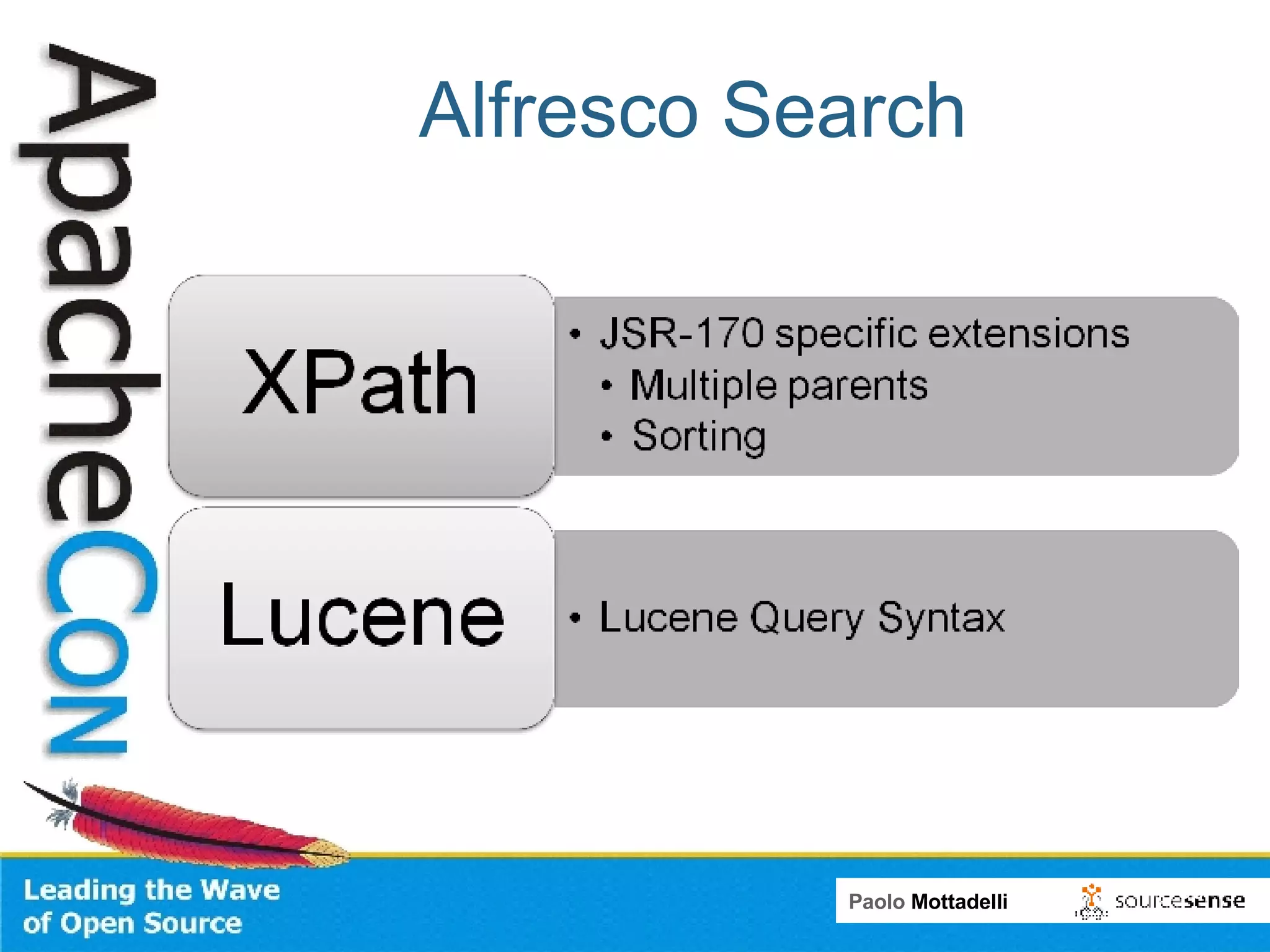

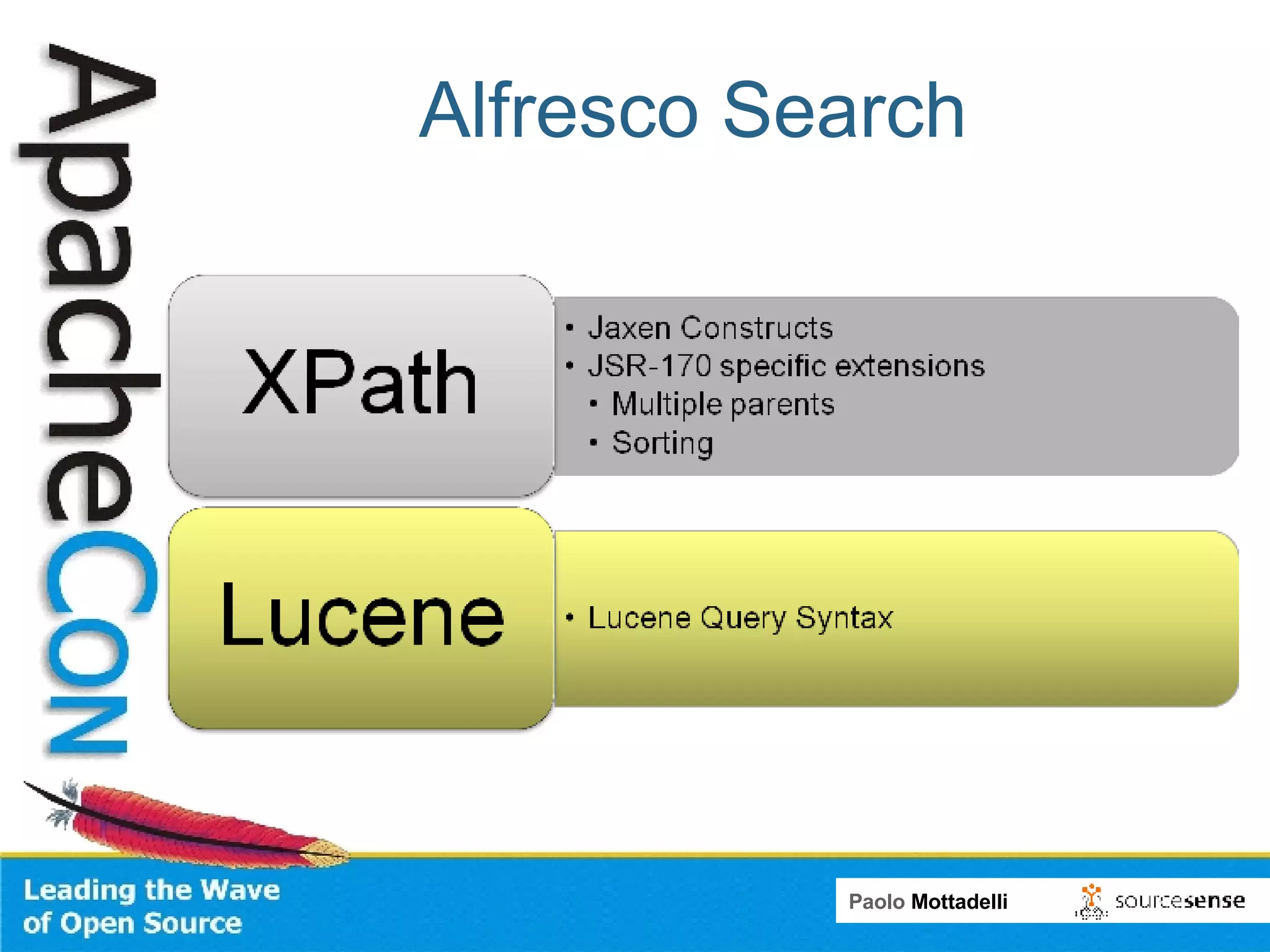

50. Alfresco Search

51. Alfresco Search

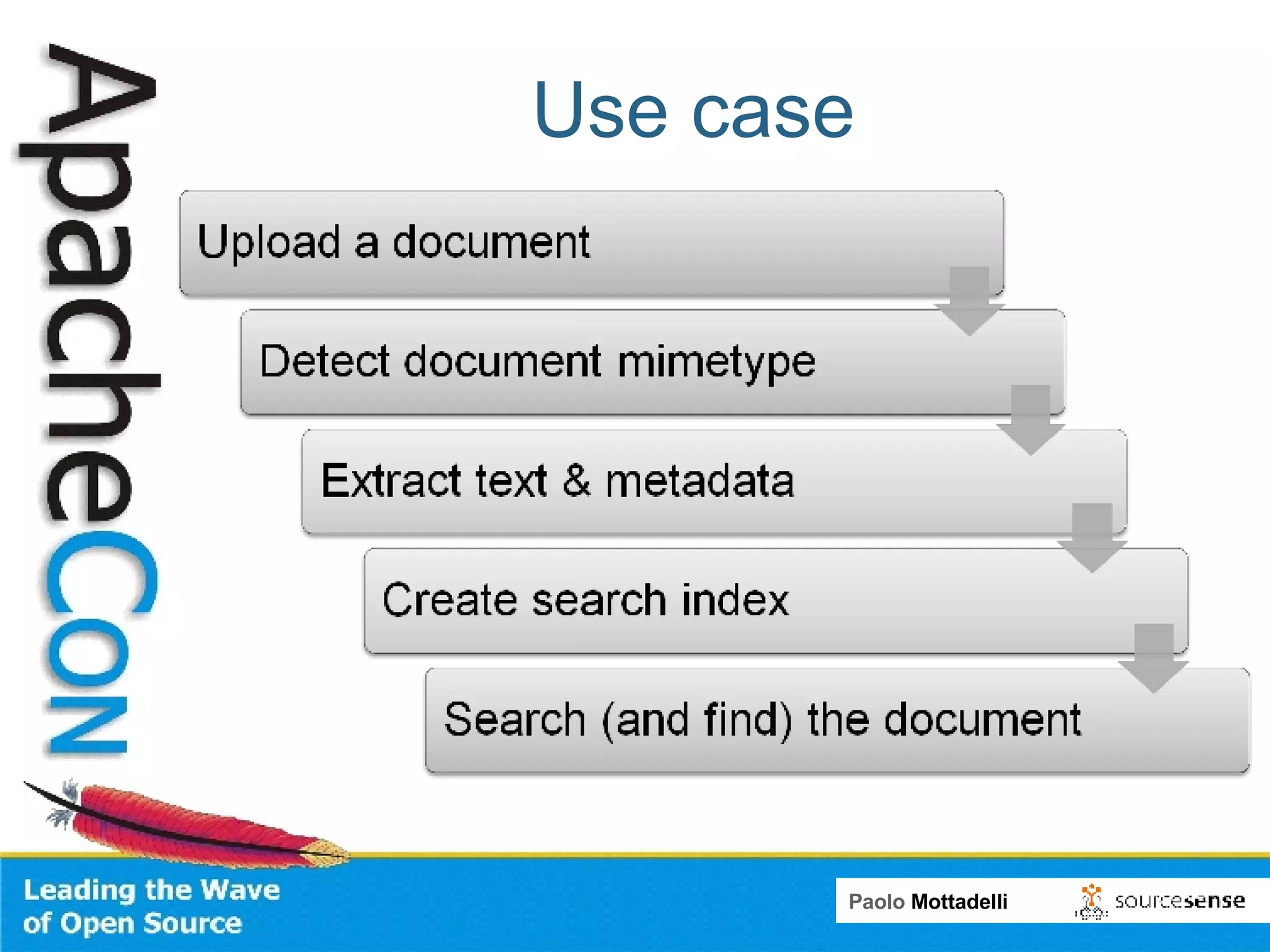

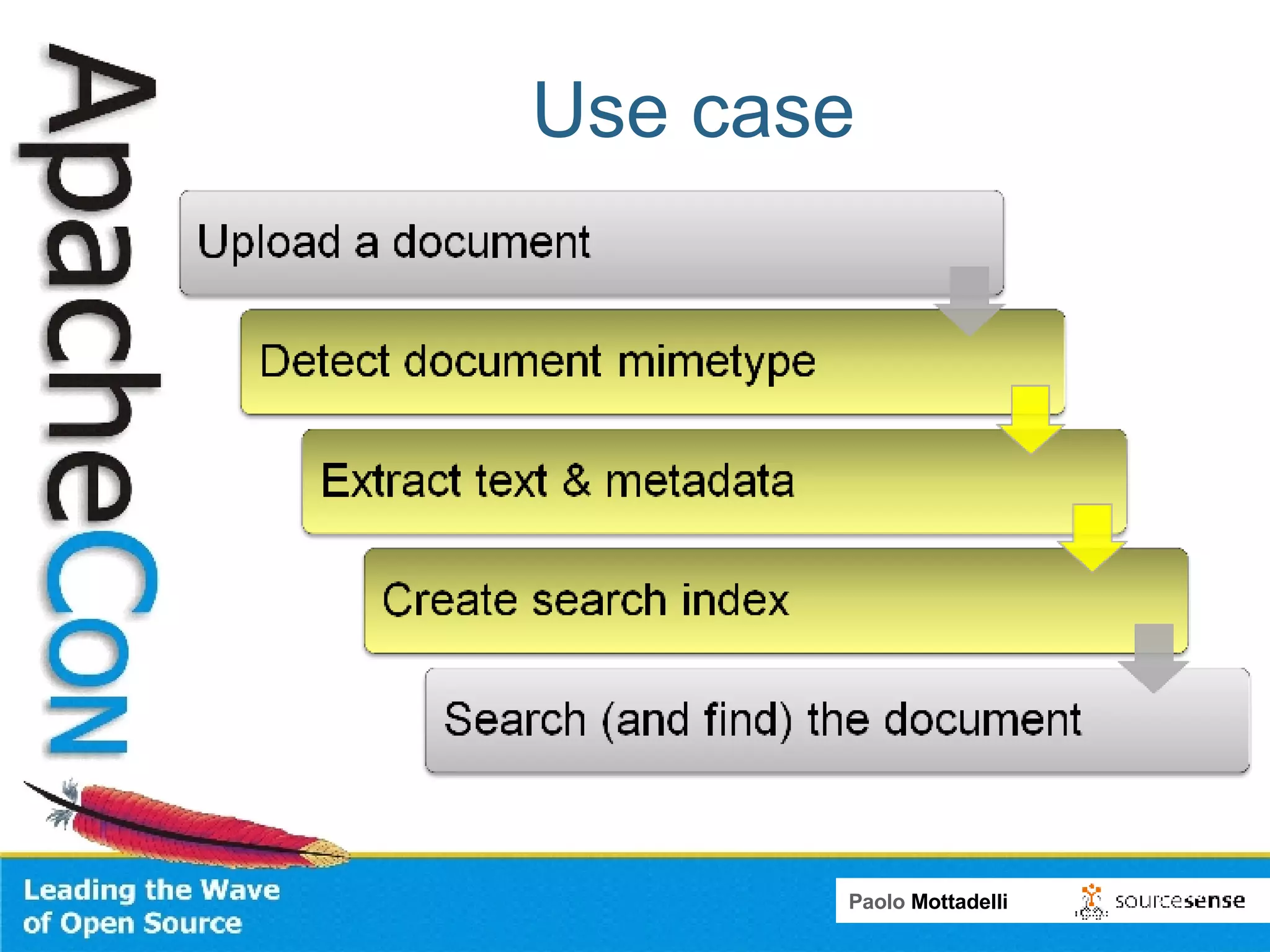

52. Use case

53. Use case

54. Without Tika:

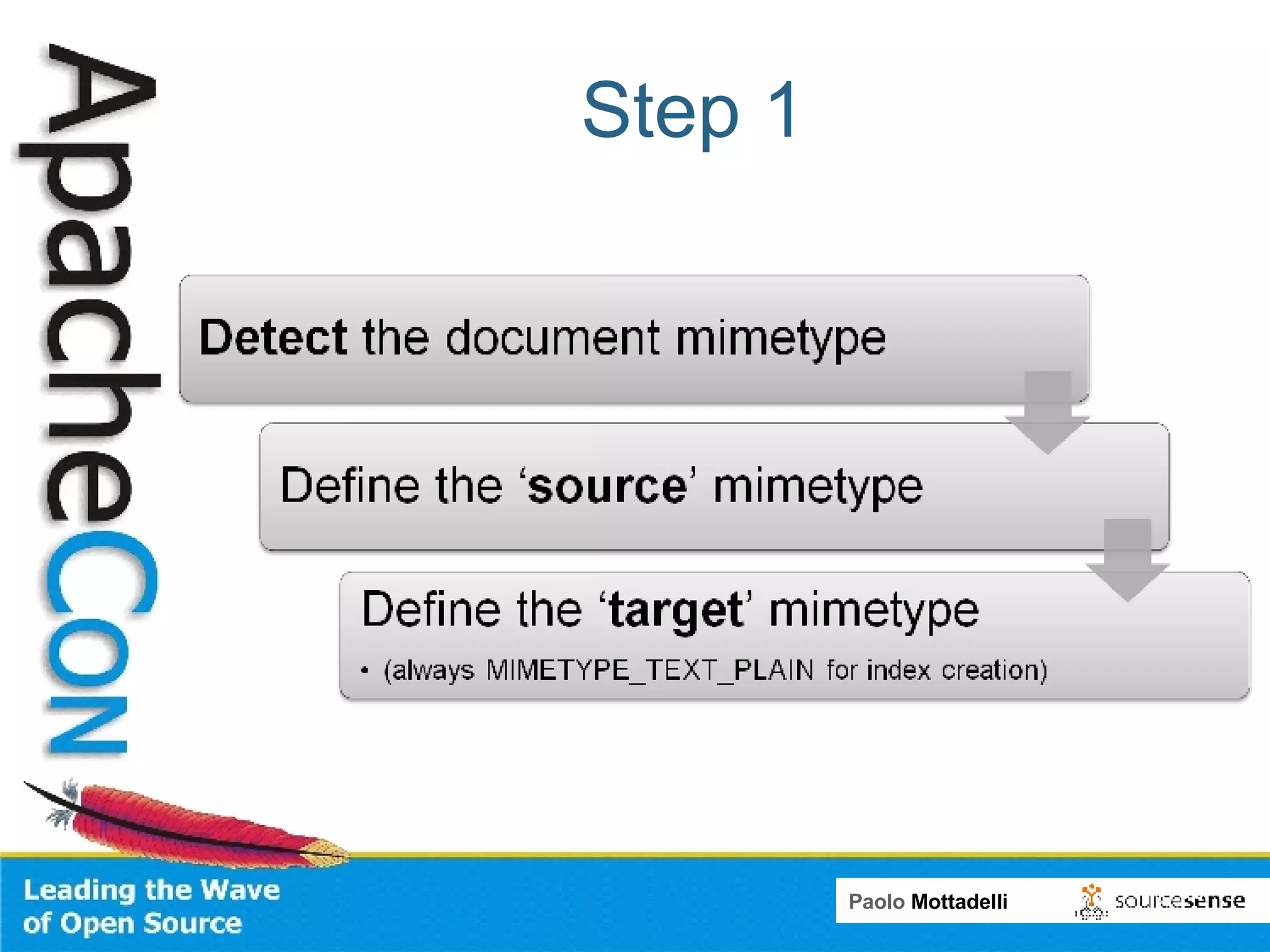

55. Step 1

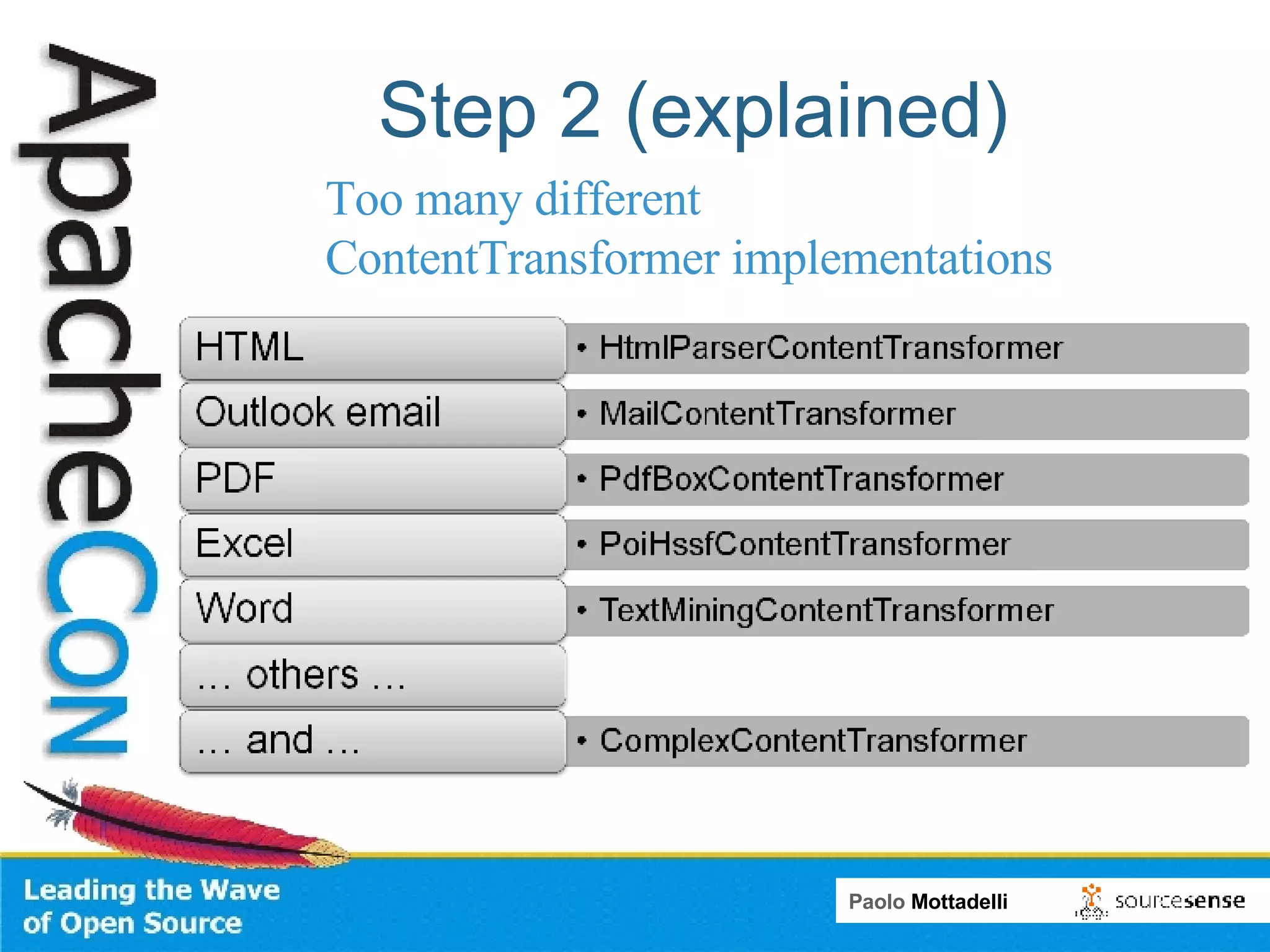

57. Step 2 (explained) Too many different ContentTransformer implementations

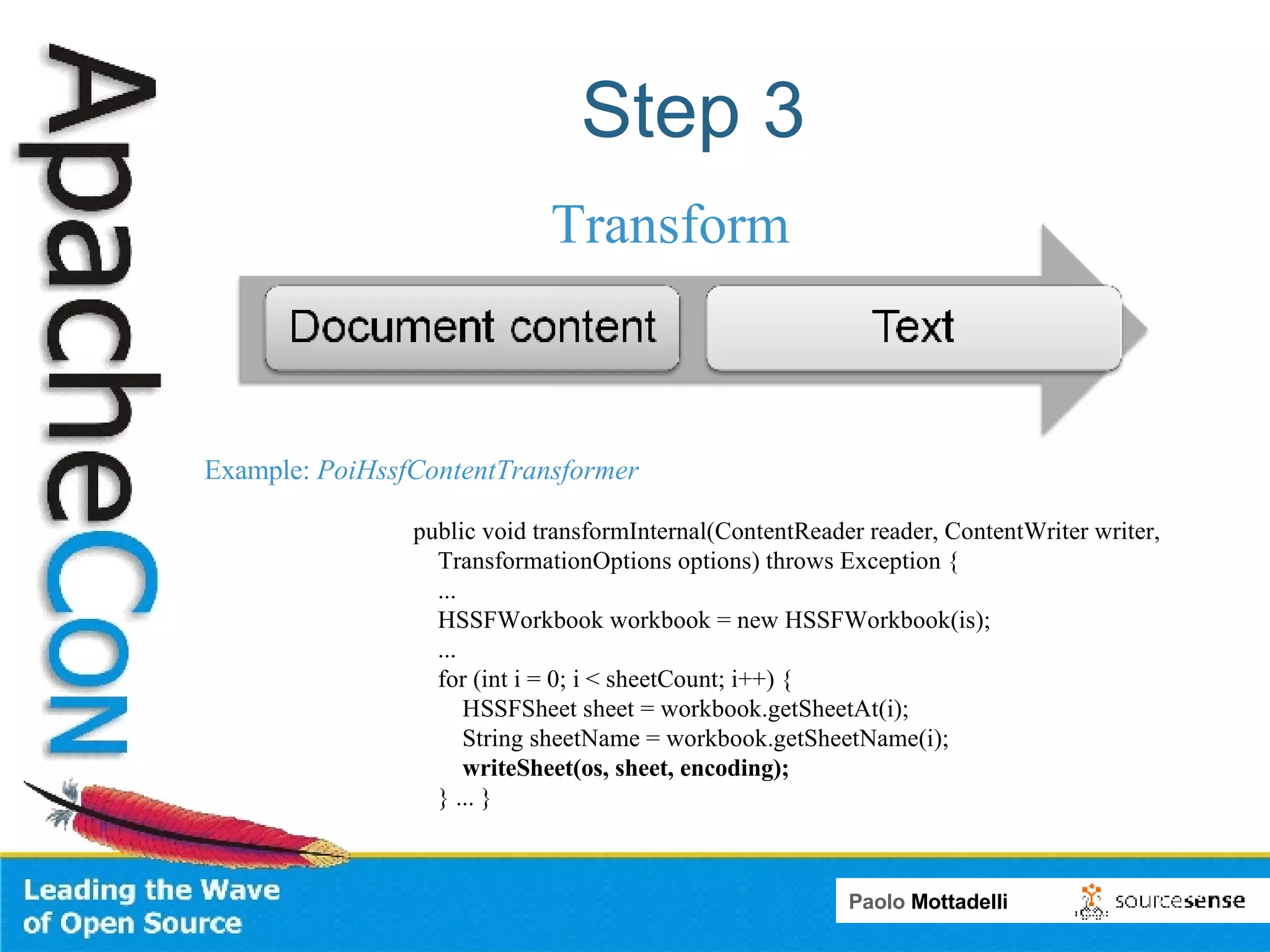

58. Step 3 Transform public void transformInternal(ContentReader reader, ContentWriter writer, TransformationOptions options) throws Exception { ... HSSFWorkbook workbook = new HSSFWorkbook(is); ... for (int i = 0; i < sheetCount; i++) { HSSFSheet sheet = workbook.getSheetAt(i); String sheetName = workbook.getSheetName(i); writeSheet(os, sheet, encoding); } ... } Example: PoiHssfContentTransformer

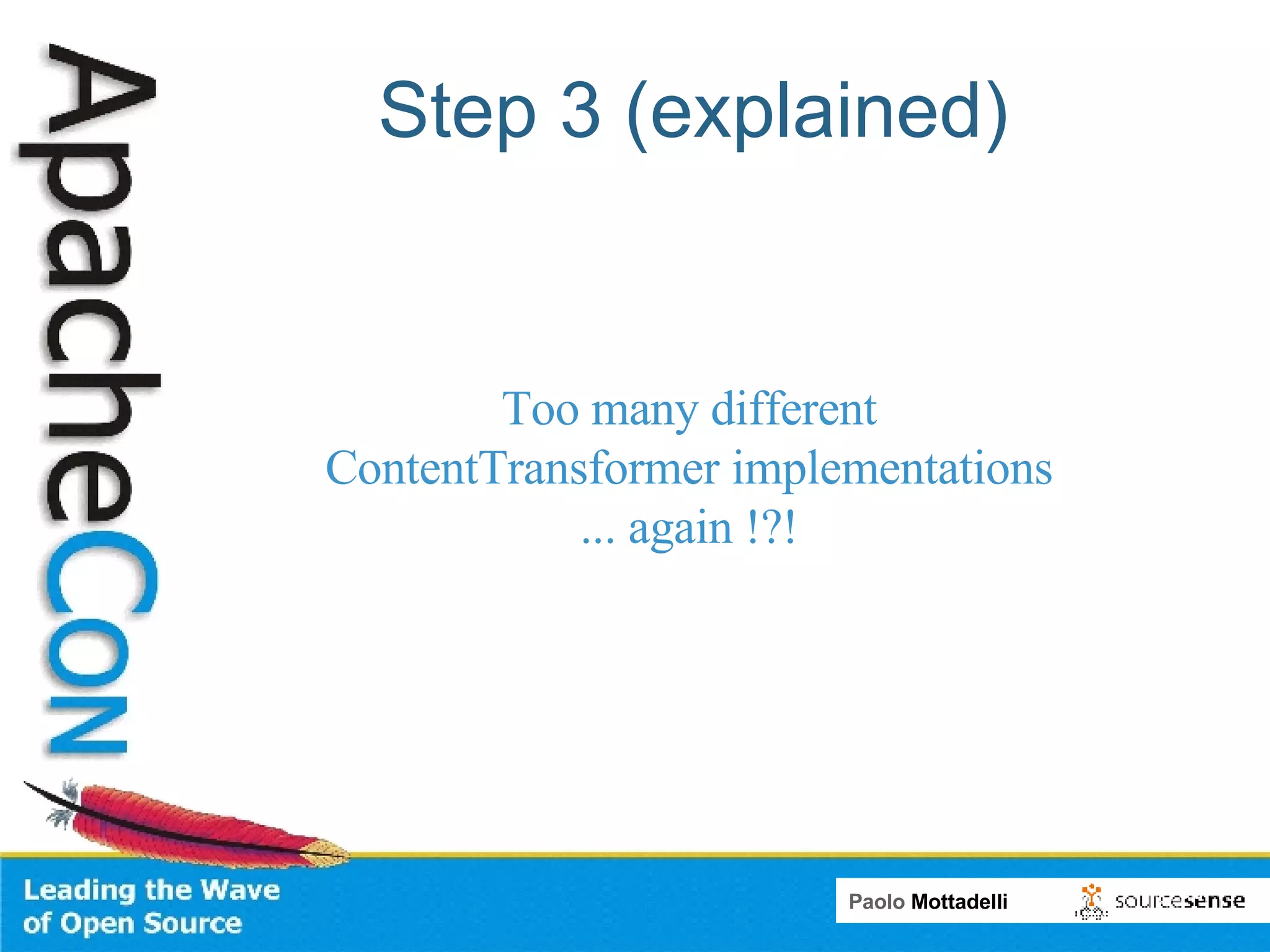

59. Step 3 (explained) Too many different ContentTransformer implementations ... again !?!

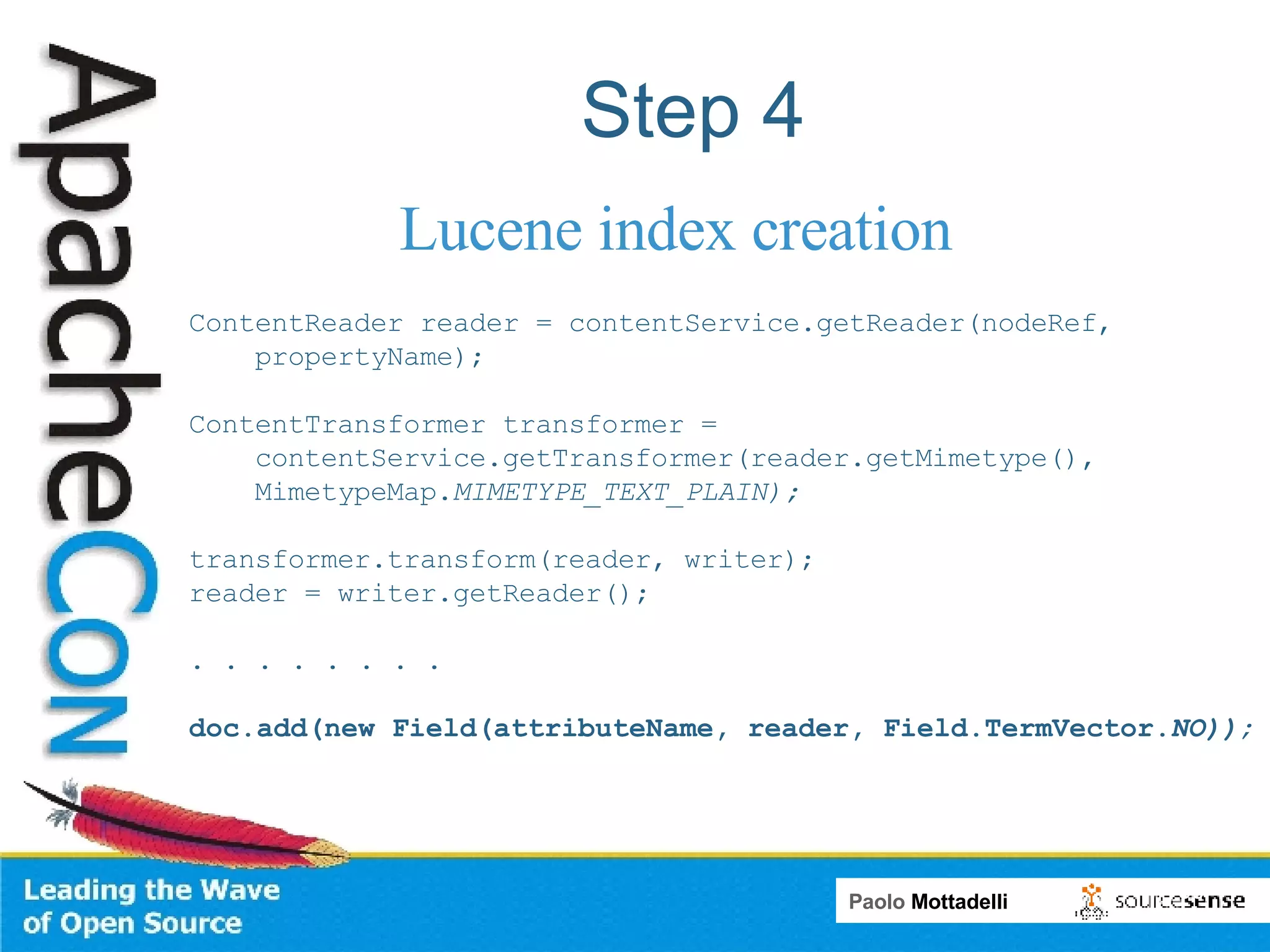

60. Step 4 Lucene index creation ContentReader reader = contentService.getReader(nodeRef, propertyName); ContentTransformer transformer = contentService.getTransformer(reader.getMimetype(), MimetypeMap. MIMETYPE_TEXT_PLAIN); transformer.transform(reader, writer); reader = writer.getReader(); . . . . . . . . doc.add(new Field(attributeName, reader, Field.TermVector. NO));

61. Let’s do it using Tika

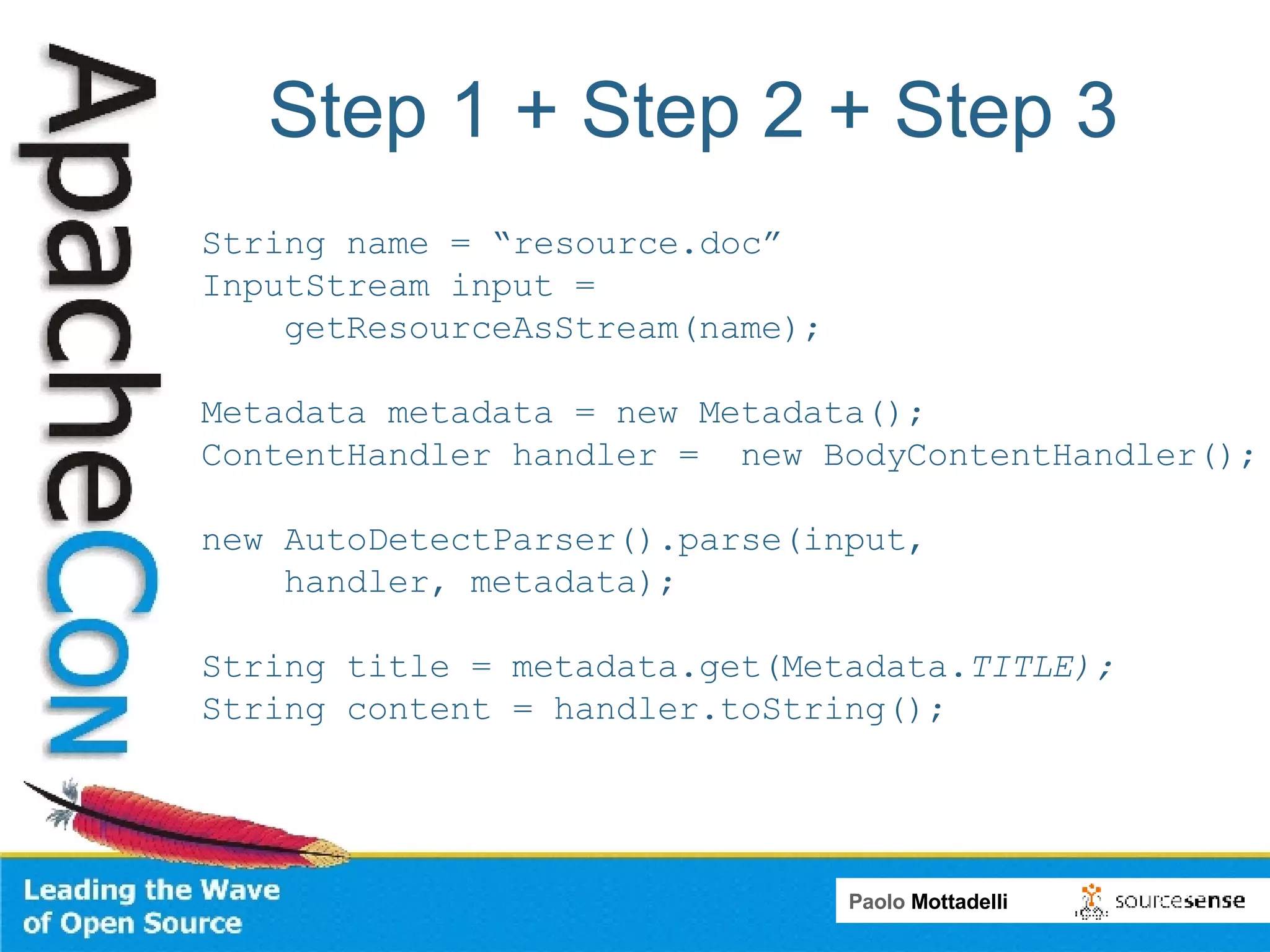

62. Step 1 + Step 2 + Step 3 String name = “resource.doc” InputStream input = getResourceAsStream(name); Metadata metadata = new Metadata(); ContentHandler handler = new BodyContentHandler(); new AutoDetectParser().parse(input, handler, metadata); String title = metadata.get(Metadata. TITLE); String content = handler.toString();

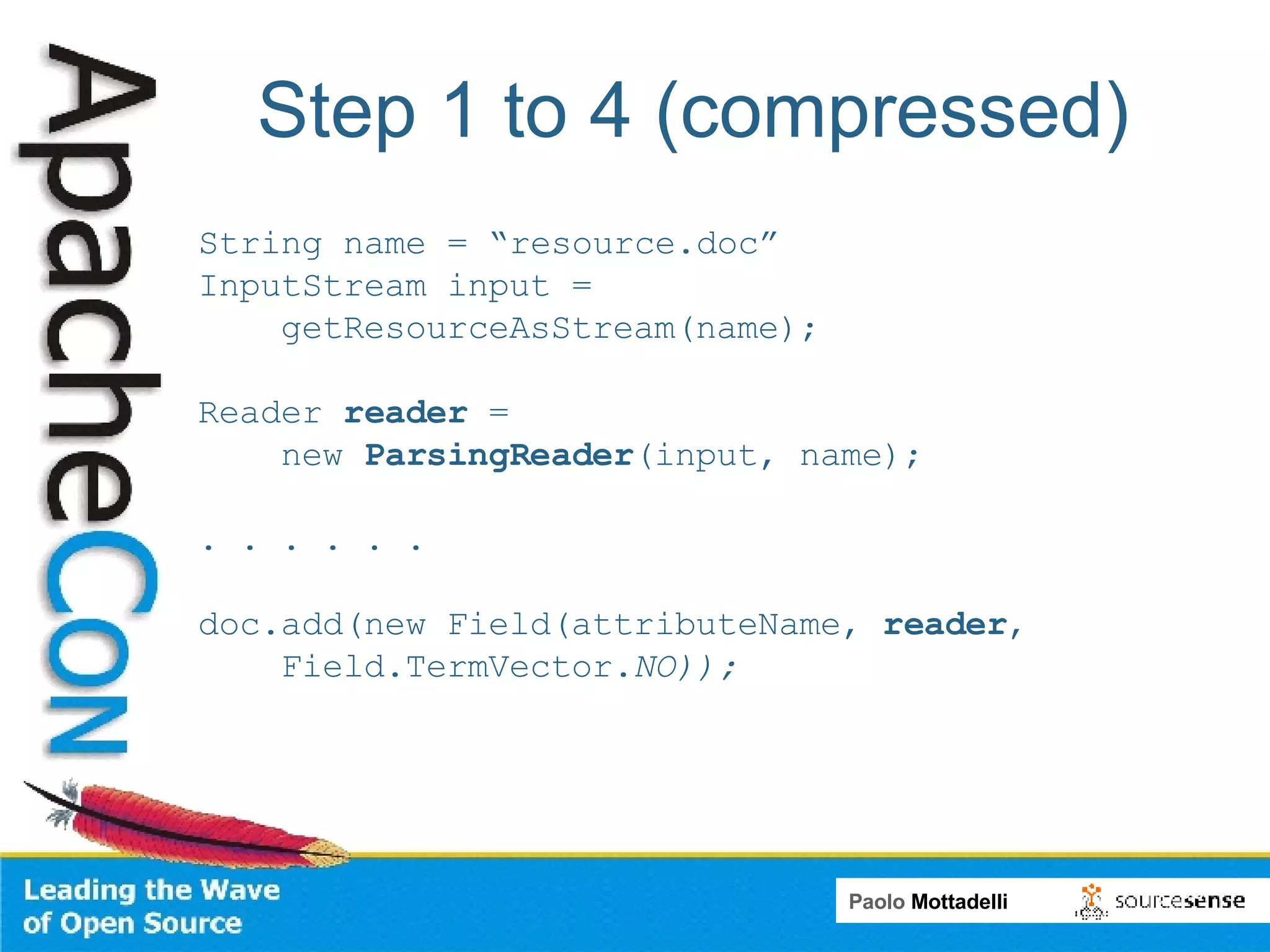

63. Step 1 to 4 (compressed) String name = “resource.doc” InputStream input = getResourceAsStream(name); Reader reader = new ParsingReader (input, name); . . . . . . doc.add(new Field(attributeName, reader , Field.TermVector. NO));

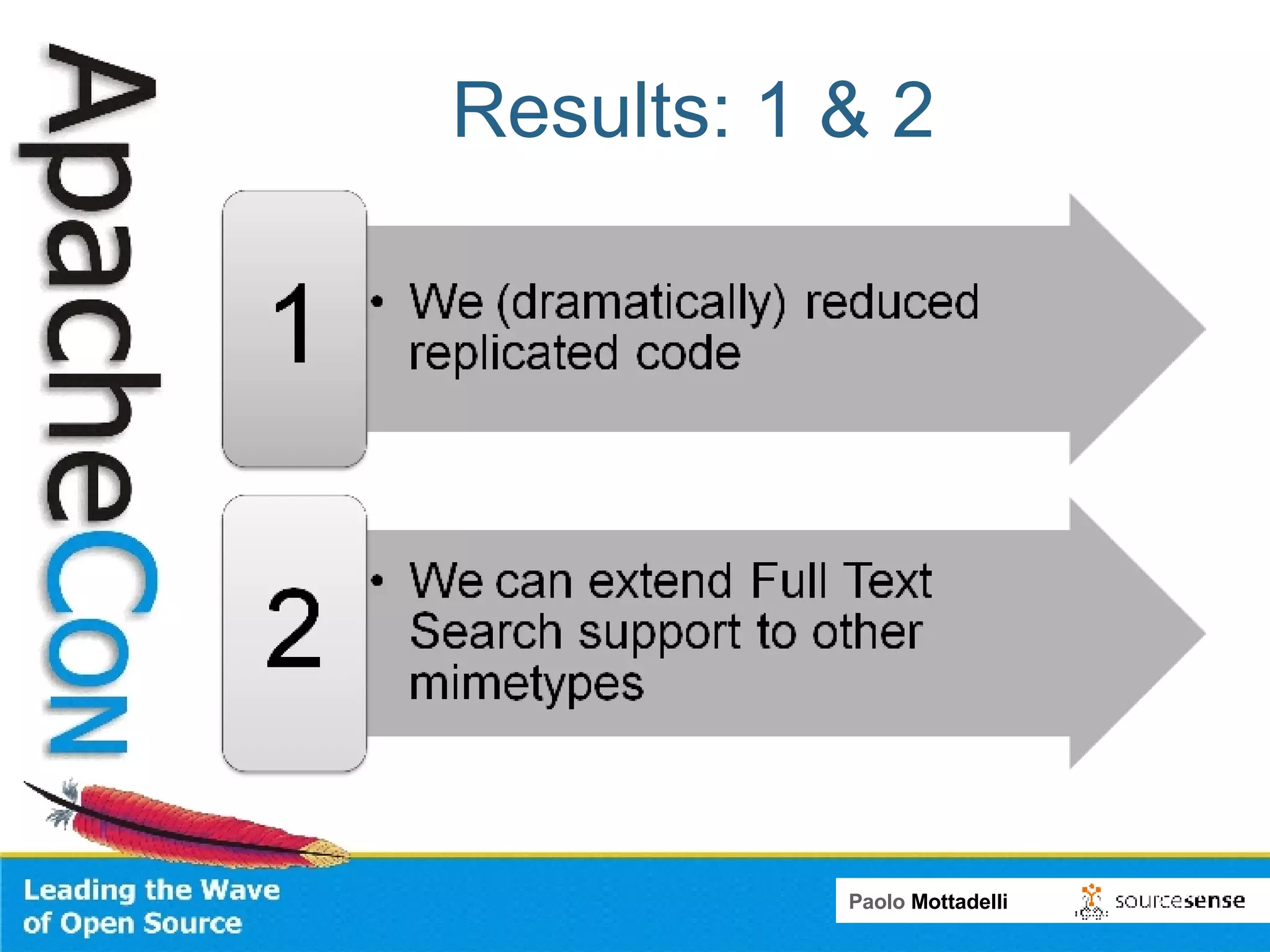

64. Results: 1 & 2

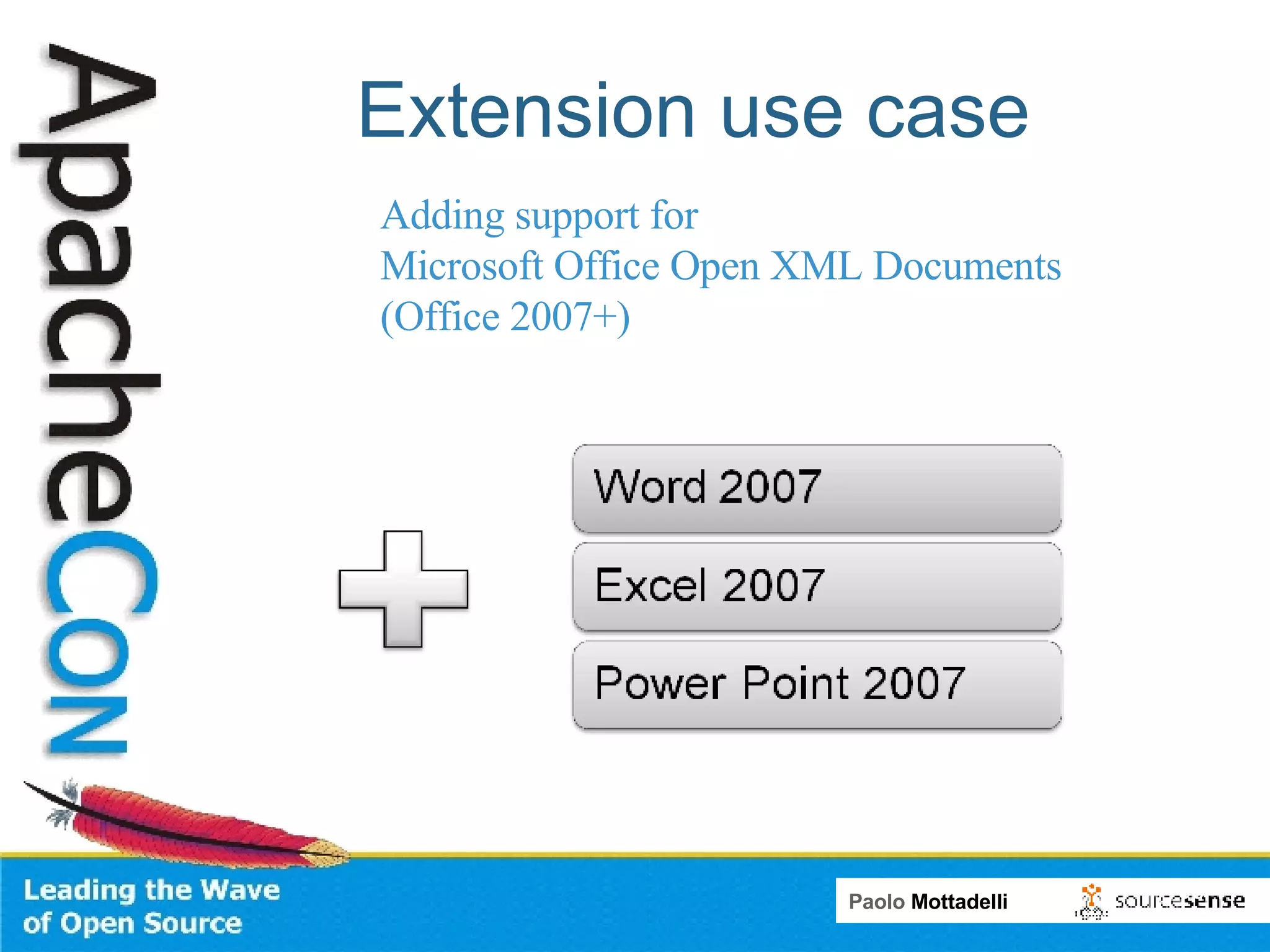

65. Extension use case Adding support for Microsoft Office Open XML Documents (Office 2007+)

66. Apache POI Apache POI provides Text Extraction support for Office OpenXML formats and An advanced coverage of SpreadsheetML specification (WordprocessingML & PresentationML to come)

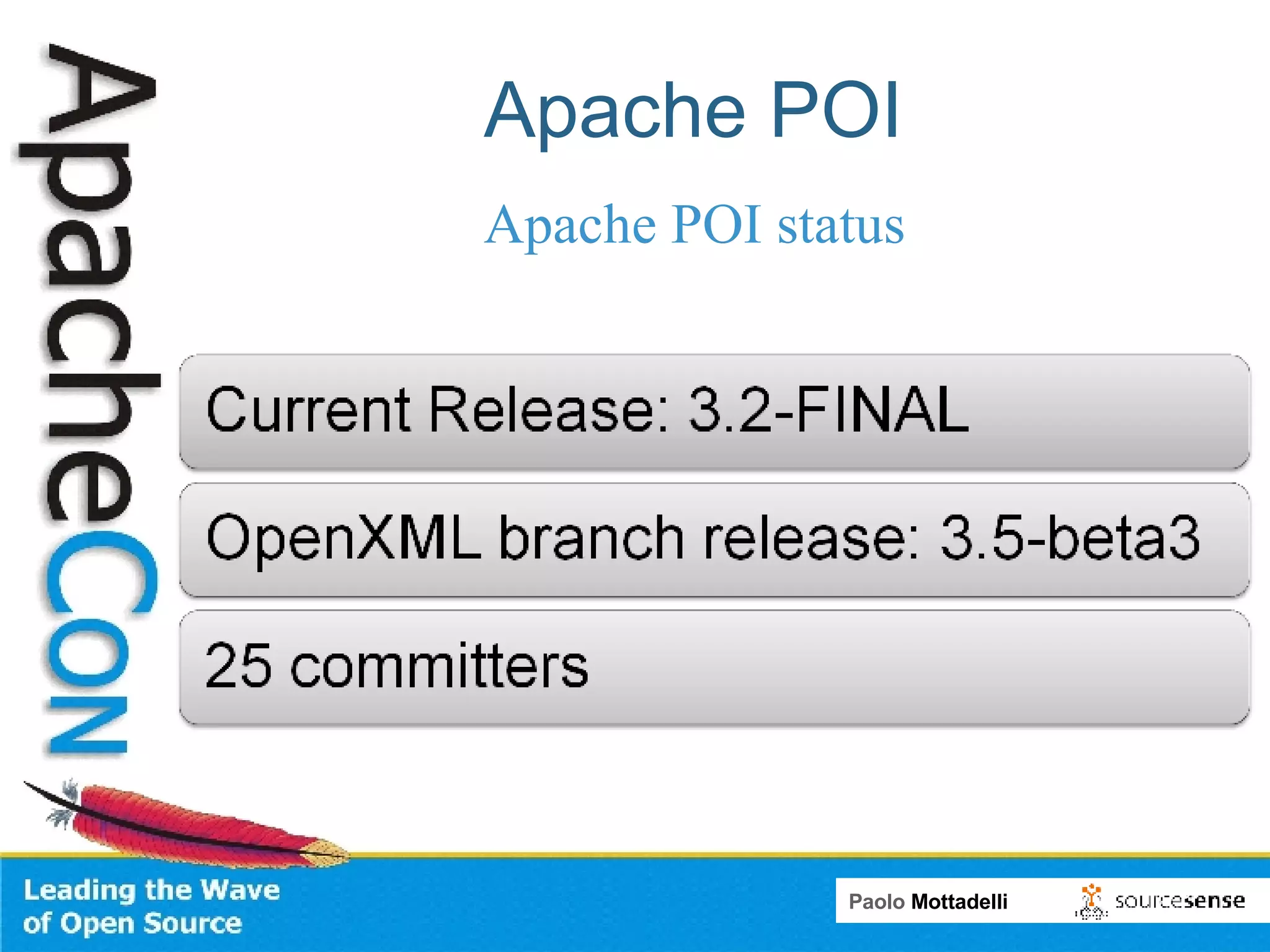

67. Apache POI Apache POI status

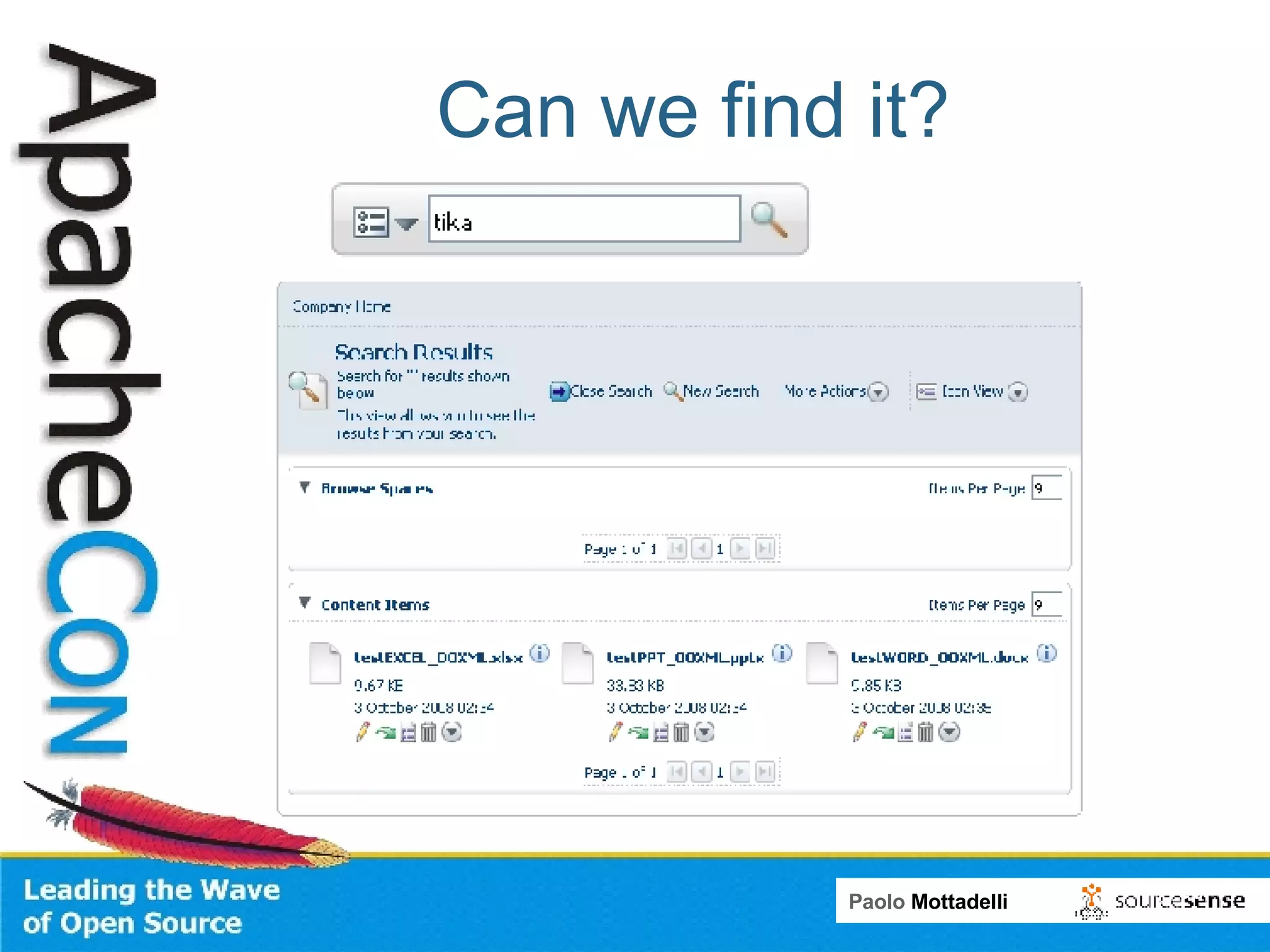

69. Can we find it?

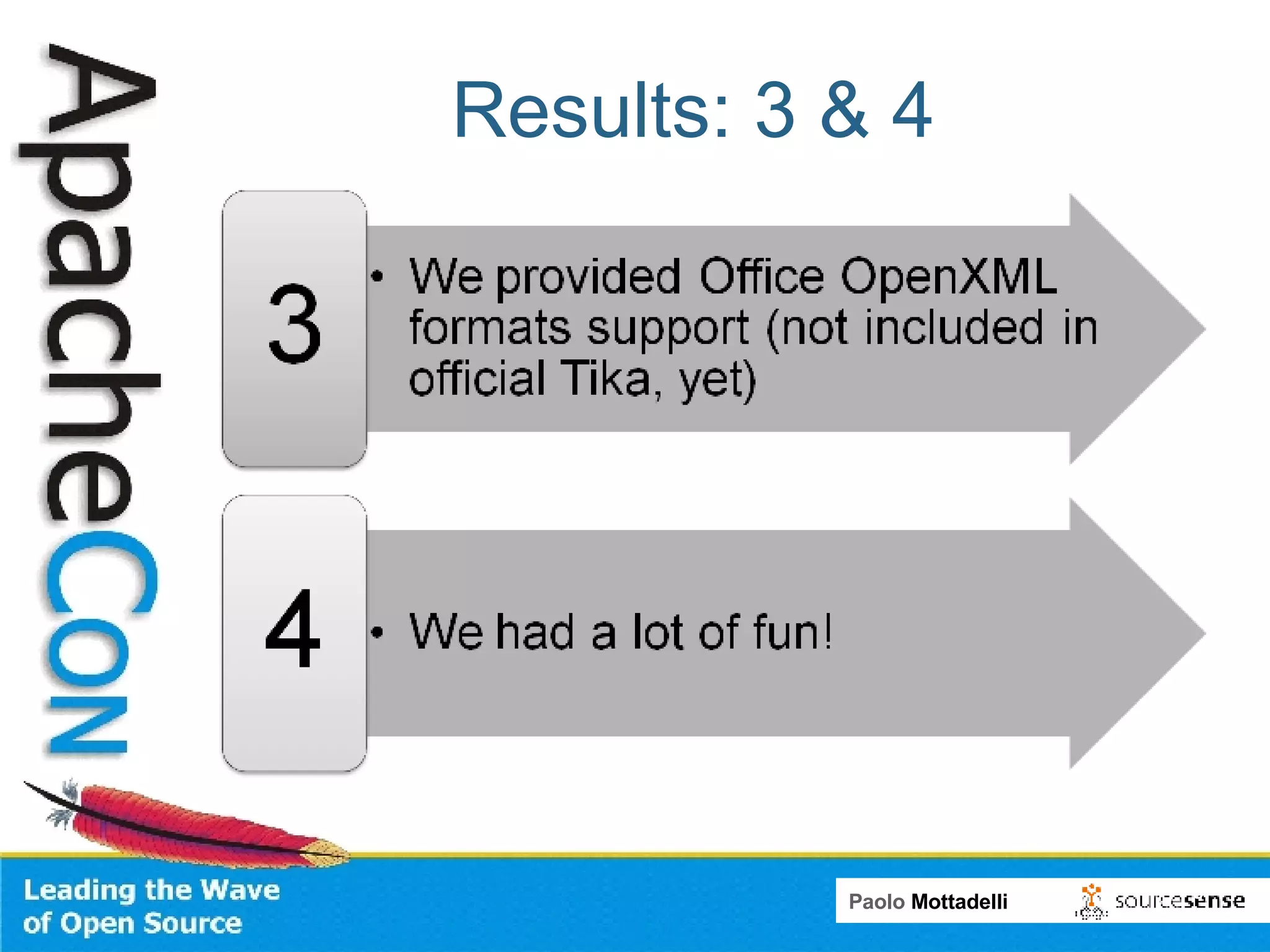

70. Results: 3 & 4

71. Q & A [email_address]
