This document discusses Microsoft technologies for on-premise, hybrid, and cloud architectures including System Center, Azure, Office 365, and Windows Server. It highlights capabilities for identity management, virtualization, applications, mobility, and infrastructure management across diverse environments. Key benefits outlined include enabling users to work productively from any location while maintaining security and compliance.

1. #SCSM, #Orchestrator
Nathan Lasnoski Steve Buchanan

3. O365, Azure, On-Premise or Hybrid Architecture
Business ProductivityModern Datacenter Infrastructure
Azure &
O365
Exchange &
Lync + Voice
Private &
Public Cloud
Windows
Server &
Virtual
Identity, AD,
DirectAccess,
UAG
System
Center 2012
ITSM / ITIL
Migrations &
Integrations
Desktop
Imaging &
Win upgrade
Portals, Intranets, Business
Critical, Doc Imaging, Workflow…
(SharePoint)
Sales, Marketing, Dashboards,
Account Management, Etc.
(Dynamics CRM)
Business Apps
Application
Development
(.NET, Azure, TFS)
Messaging,
Conference,
Presence, Video,
Voice (Lync)
Office
Technology Solutions That Fulfill Business Strategies
Partner of the Year Winner:
- 2012 & 2011 Midwest
- 2012 Central
- 2012 Global SharePoint Content Management
- 2012 Central Partnering to Succeed
- 2010 Central Marketing Excellence
Wisconsin Illinois Minnesota Indiana

5. #SCSM, #Orchestrator

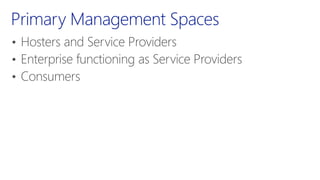

8. R2w/ Service Provider Foundation
Future
Services
Service
Bus
SQLVMs
Web
Sites
Service
Plans
Users Provider
Portal
Consumer
Self-Service
Portal
Web Sites
Apps
Database
VMs
Service ProviderCustomer
Self Service Portal
Moves On-Premises
Common Mgt.
Experience
Workload Portability
Cloud-Enabled Services
Move On-Premises
Consistent Dev.
Experience
Other
Services
CDN.
Media,, etc.
Caching
Service
Bus
SQL
VM
Role
Web
Sites
Worker
Role
Web Sites
Apps
Database
VMs
Subscriber
Self-Service
Portal
Windows Azure
Cloud OS Consistent Experiences

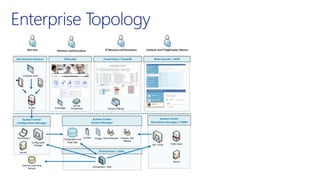

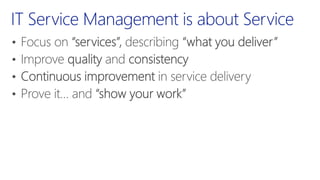

18. #SCSM, #Orchestrator

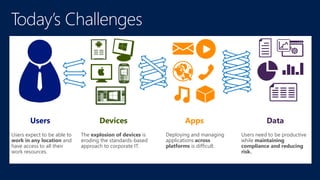

20. Deploying and managing
applications across
platforms is difficult.
Apps Data
Users need to be productive
while maintaining
compliance and reducing
risk.
Users expect to be able to
work in any location and
have access to all their
work resources.
Users
The explosion of devices is
eroding the standards-based
approach to corporate IT.
Devices

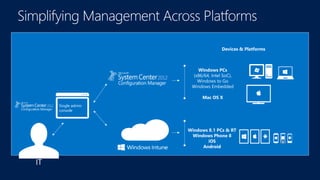

21. Devices & Platforms
Single admin
console

22. iOS Android
On premise
Exchange Active Sync based
management
Cloud Infrastructure
Single pane of glass
Settings
Management
Device Wipe
 
 
More settings
Detailed compliance
Through EAS and MDM
Pull Software
Distribution  
Push Software
Distribution
Selective Wipe



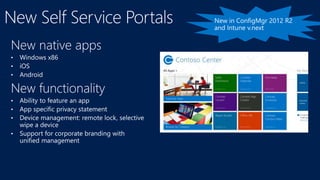

24. •
•
•
•
•
•
•
•

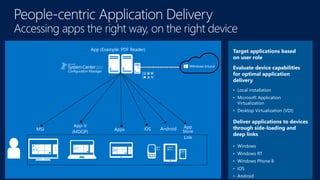

Accessing apps the right way, on the right device
MSI iOS
App-V
(MDOP)
Appx
App
Store
Link
Start Start
Start
Android
App (Example: PDF Reader)

26. Version 4 (x86/x64)
Version 5 (x86/x64)
Version 6 (x86/x64)
Red Hat
Enterprise
Linux
OS Support Model
Version 9 (SPARC)
Version 10 (SPARC/x86)Solaris
Version 9 (x86)
Version 10 SP1 (x86/x64)
Version 11 (x86/x64)
SUSE Linux
SeEnterprise
rver

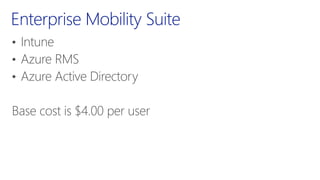

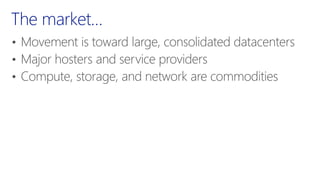

34. Service Provider
Pay as you go (OpEx)
Pay only for what you use
Shared capacity & infra
Scalable, elastic
Up front costs (CapEx)
Pay to operate it (OpEx)

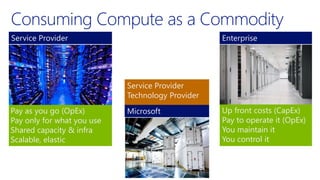

You maintain it
You control it
Produce Yourself

35. EnterpriseService Provider
MicrosoftPay as you go (OpEx)
Pay only for what you use
Shared capacity & infra
Scalable, elastic
Up front costs (CapEx)
Pay to operate it (OpEx)
You maintain it
You control it
Service Provider
Technology Provider

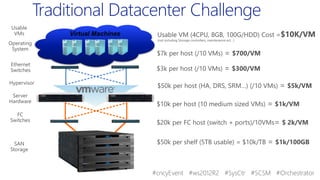

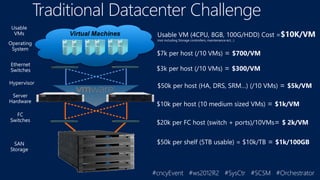

38. Virtual Machines

41. ©2012 Microsoft Corporation. All rights reserved.

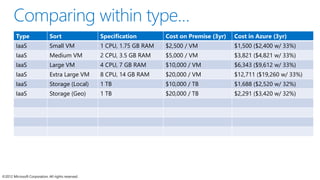

Type Sort Specification Cost on Premise (3yr) Cost in Azure (3yr)
IaaS Small VM 1 CPU, 1.75 GB RAM $2,500 / VM $1,500 ($2,400 w/ 33%)
IaaS Medium VM 2 CPU, 3.5 GB RAM $5,000 / VM $3,821 ($4,821 w/ 33%)
IaaS Large VM 4 CPU, 7 GB RAM $10,000 / VM $6,343 ($9,612 w/ 33%)
IaaS Extra Large VM 8 CPU, 14 GB RAM $20,000 / VM $12,711 ($19,260 w/ 33%)
IaaS Storage (Local) 1 TB $10,000 / TB $1,688 ($2,520 w/ 32%)
IaaS Storage (Geo) 1 TB $20,000 / TB $2,291 ($3,420 w/ 32%)

42. ©2012 Microsoft Corporation. All rights reserved.
Each Persistent Data Disk Can be up to 1 TB
VM Size CPU Cores Memory # Data Disks IOPS
Extra Small Shared 768 MB 1 500
Small 1 1.75 GB 2 2 x 500
Medium 2 3.5 GB 4 4 x 500
Large 4 7 GB 8 8 x 500
Extra Large 8 14 GB 16 16 x 500
A6 4 28 GB 8 8 x 500
A7 8 56 GB 16 16 x 500

44. Virtual Machines

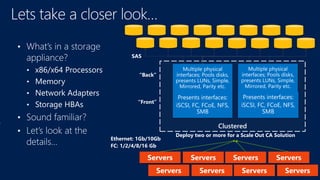

46. Clustered

47. Clustered

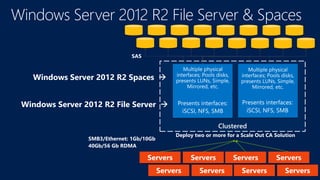

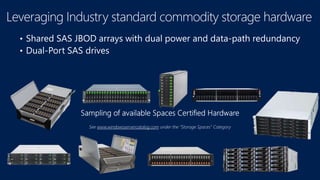

48. See www.windowsservercatalog.com under the “Storage Spaces” Category

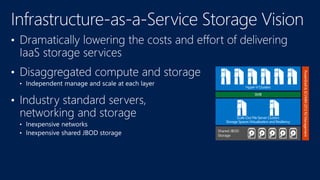

49. Scale-Out File Server Clusters
Storage Spaces Virtualization and Resiliency
Hyper-V Clusters
SMB
Shared JBOD
Storage
PowerShell&SCVMM2012R2Management

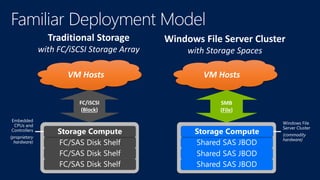

51. Traditional Storage
with FC/iSCSI Storage Array
Windows File Server Cluster
with Storage Spaces
VM HostsVM Hosts
FC/iSCSI
(Block)
SMB
(File)

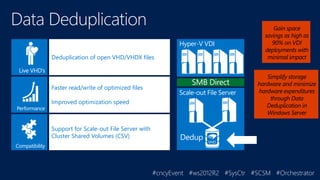

52. Simplify storage
hardware and minimize
hardware expenditures
through Data
Deduplication in
Windows Server
Gain space
savings as high as
90% on VDI
deployments with
minimal impact
Performance
Faster read/write of optimized files
Improved optimization speed
Live VHD’s
Deduplication of open VHD/VHDX files
Scale-out File Server
SMB Direct
Hyper-V VDI
VHD
Dedup
Compatibility
Support for Scale-out File Server with
Cluster Shared Volumes (CSV)

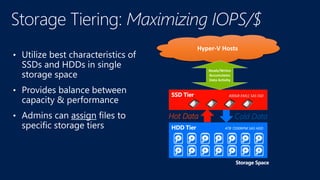

53. Hyper-V Hosts
Cold DataHot Data
Reads/Writes
Accumulates
Data Activity

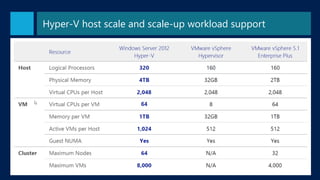

55. Hyper-V host scale and scale-up workload support
58

56. Fail

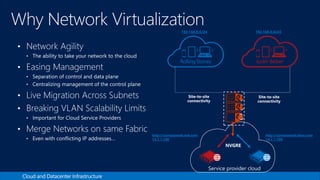

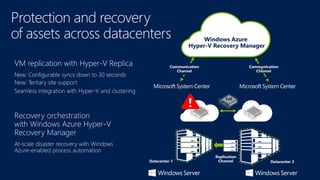

59. http://contosoweb.red.com http://contosoweb.blue.com

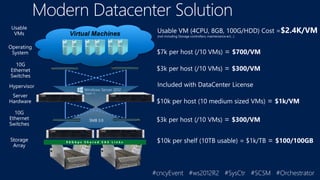

61. Virtual Machines

63. #SCSM, #Orchestrator

65. UI Enhancements
See the desktop only

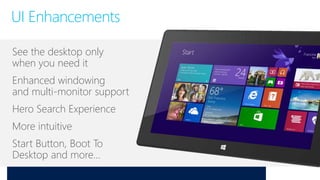

when you need it
Enhanced windowing
and multi-monitor support
Hero Search Experience
More intuitive
Start Button, Boot To
Desktop and more…

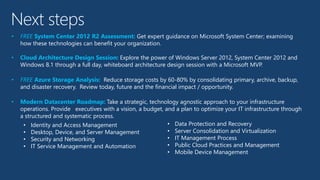

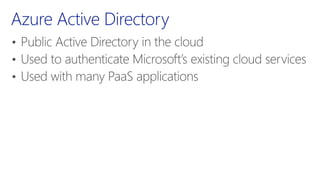

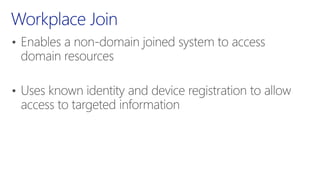

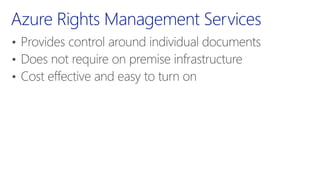

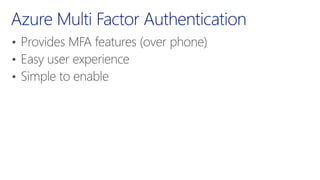

78. Next steps
• FREE System Center 2012 R2 Assessment: Get expert guidance on Microsoft System Center; examining
how these technologies can benefit your organization.
• Cloud Architecture Design Session: Explore the power of Windows Server 2012, System Center 2012 and
Windows 8.1 through a full day, whiteboard architecture design session with a Microsoft MVP.
• FREE Azure Storage Analysis: Reduce storage costs by 60-80% by consolidating primary, archive, backup,
and disaster recovery. Review today, future and the financial impact / opportunity.
• Modern Datacenter Roadmap: Take a strategic, technology agnostic approach to your infrastructure
operations. Provide executives with a vision, a budget, and a plan to optimize your IT infrastructure through
a structured and systematic process.
• Identity and Access Management
• Desktop, Device, and Server Management
• Security and Networking
• IT Service Management and Automation
• Data Protection and Recovery
• Server Consolidation and Virtualization
• IT Management Process
• Public Cloud Practices and Management
• Mobile Device Management

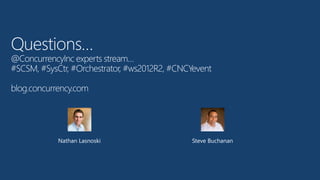

79. Nathan Lasnoski Steve Buchanan
